UNIT IV
TREES
By
Dr. V. NAGARAJAN
Department of Electronics Engineering

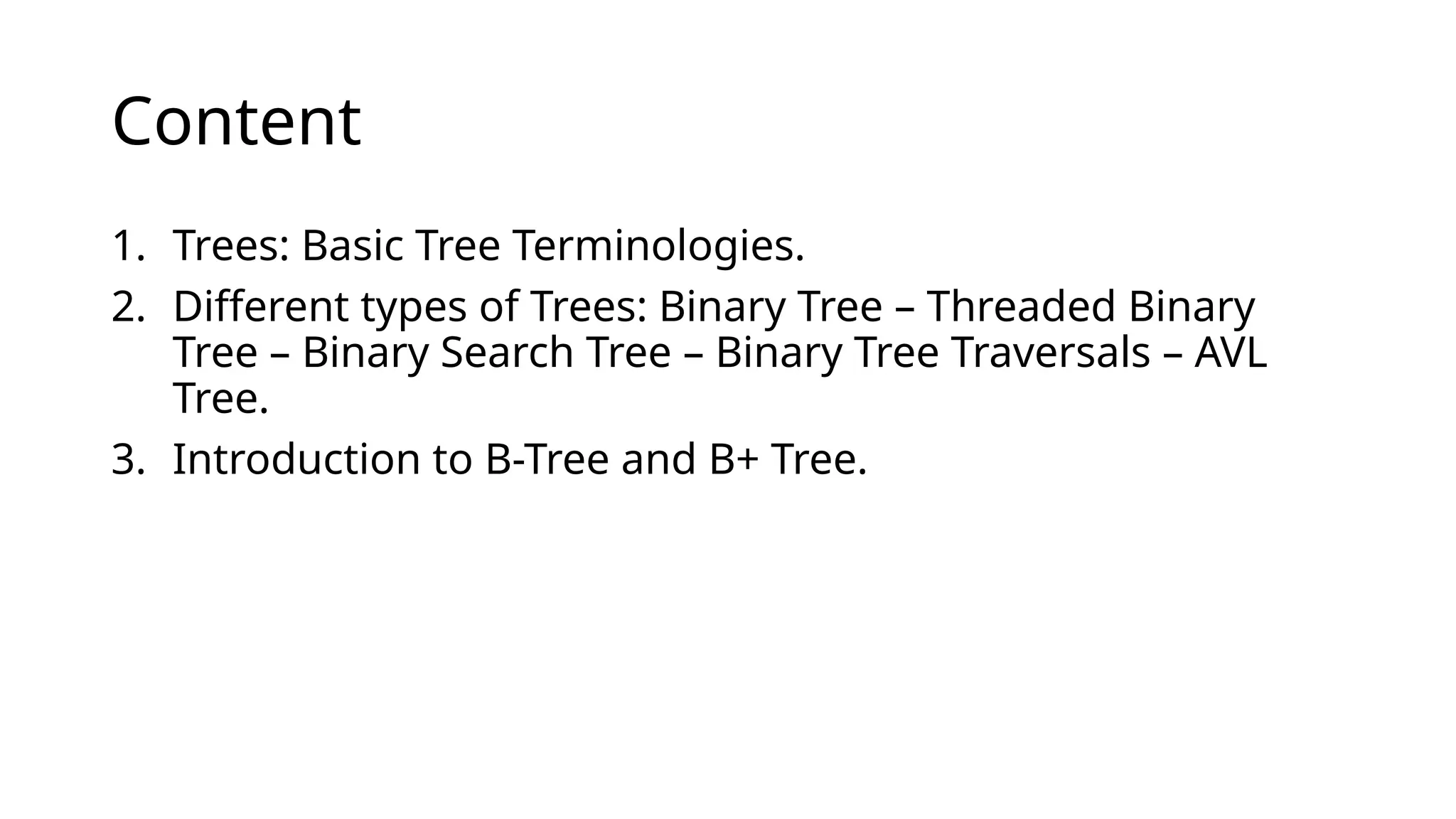

Content
1. Trees: Basic Tree Terminologies.
2. Different types of Trees: Binary Tree – Threaded Binary
Tree – Binary Search Tree – Binary Tree Traversals – AVL
Tree.
3. Introduction to B-Tree and B+ Tree.

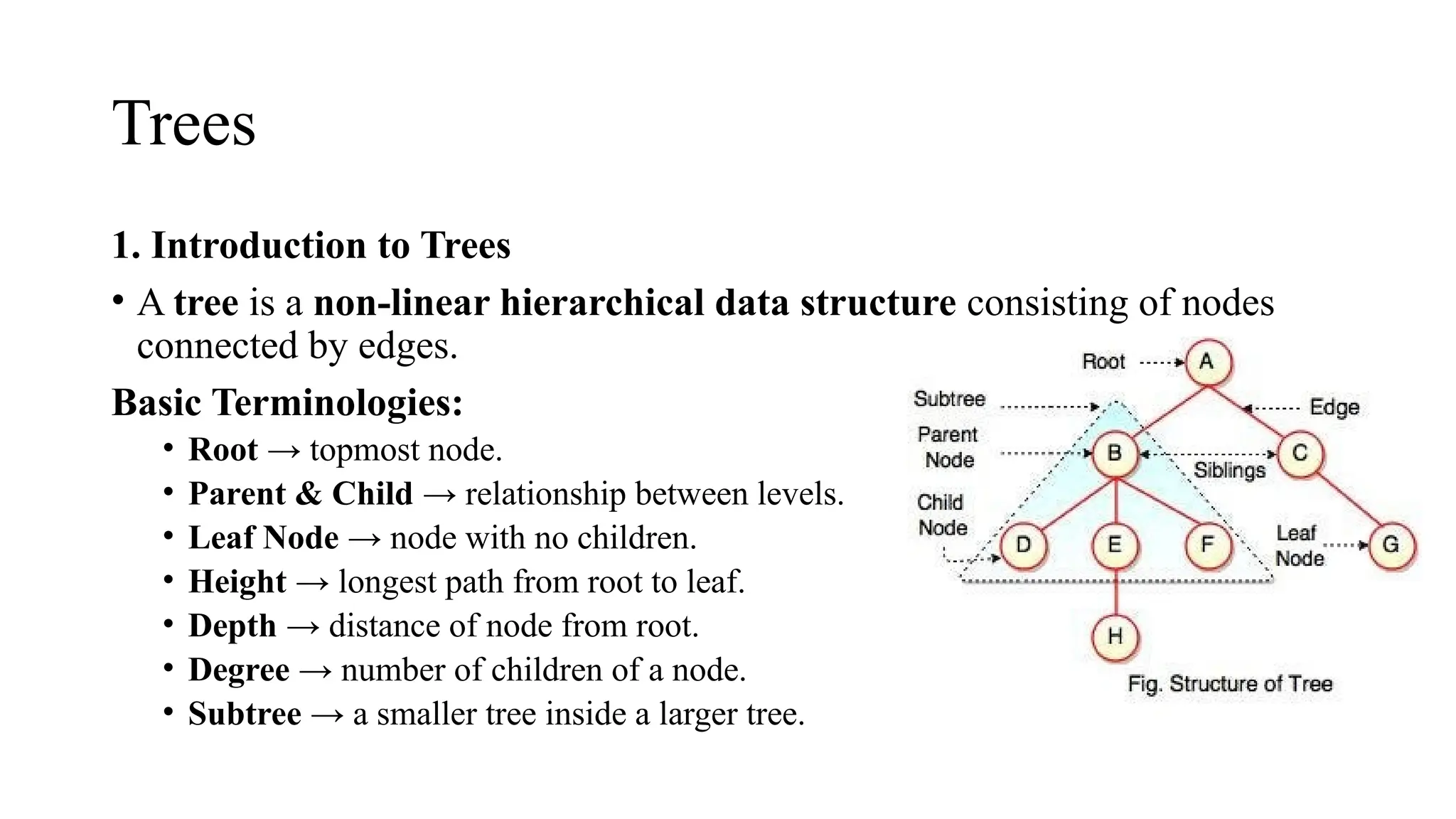

Trees
1. Introduction to Trees
• A tree is a non-linear hierarchical data structure consisting of nodes
connected by edges.

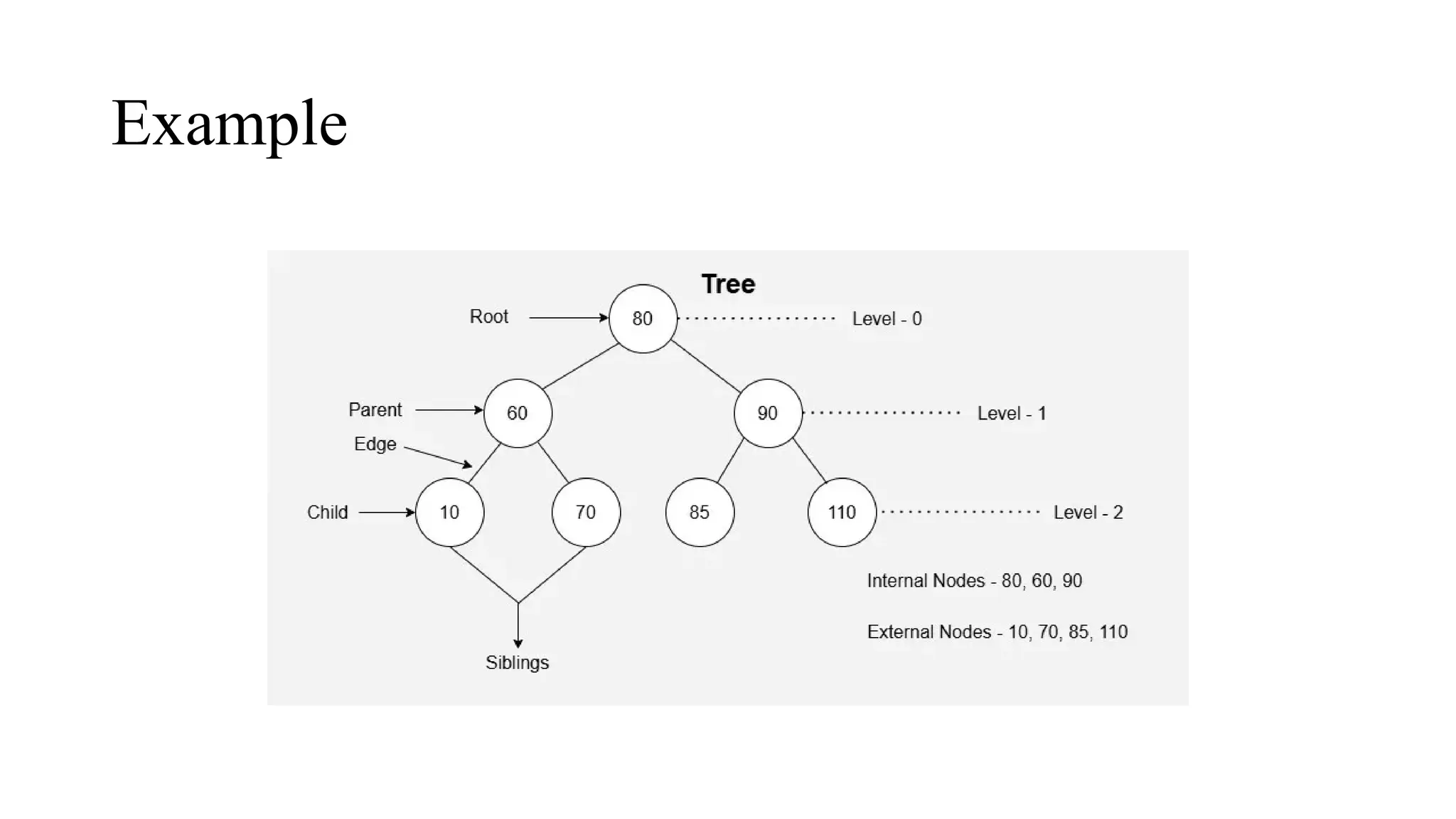

Basic Terminologies:
• Root → topmost node.
• Parent & Child → relationship between levels.
• Leaf Node → node with no children.
• Height → longest path from root to leaf.
• Depth → distance of node from root.
• Degree → number of children of a node.
• Subtree → a smaller tree inside a larger tree.

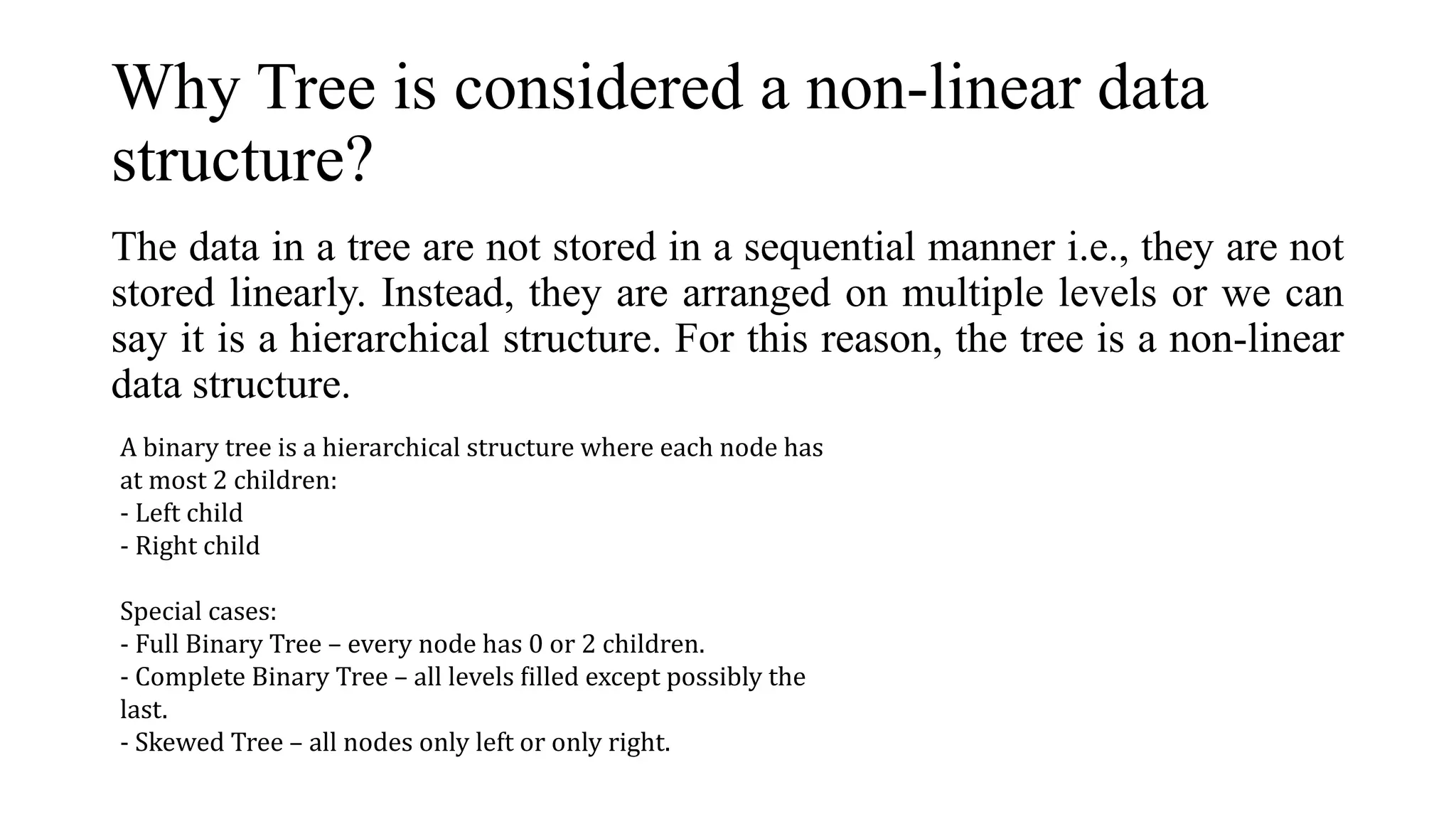

Why Tree is considered a non-linear data
structure?
The data in a tree are not stored in a sequential manner i.e., they are not
stored linearly. Instead, they are arranged on multiple levels or we can
say it is a hierarchical structure. For this reason, the tree is a non-linear
data structure.
A binary tree is a hierarchical structure where each node has
at most 2 children:
- Left child
- Right child
Special cases:
- Full Binary Tree – every node has 0 or 2 children.
- Complete Binary Tree – all levels filled except possibly the
last.
- Skewed Tree – all nodes only left or only right.

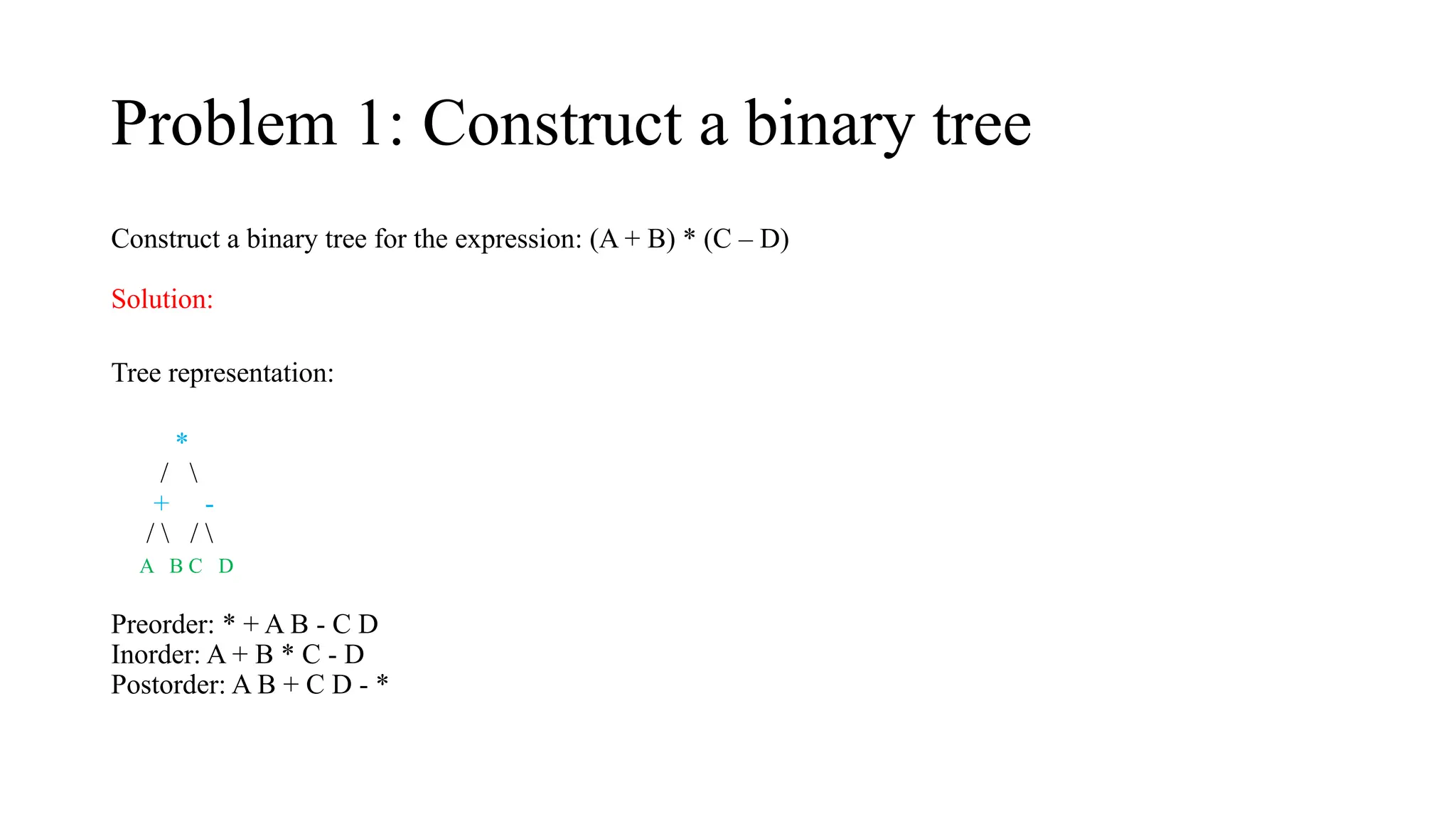

Problem 1: Construct a binary tree
Construct a binary tree for the expression: (A + B) * (C – D)
Solution:
Tree representation:
*
/
+ -
/ /
A B C D
Preorder: * + A B - C D
Inorder: A + B * C - D
Postorder: A B + C D - *

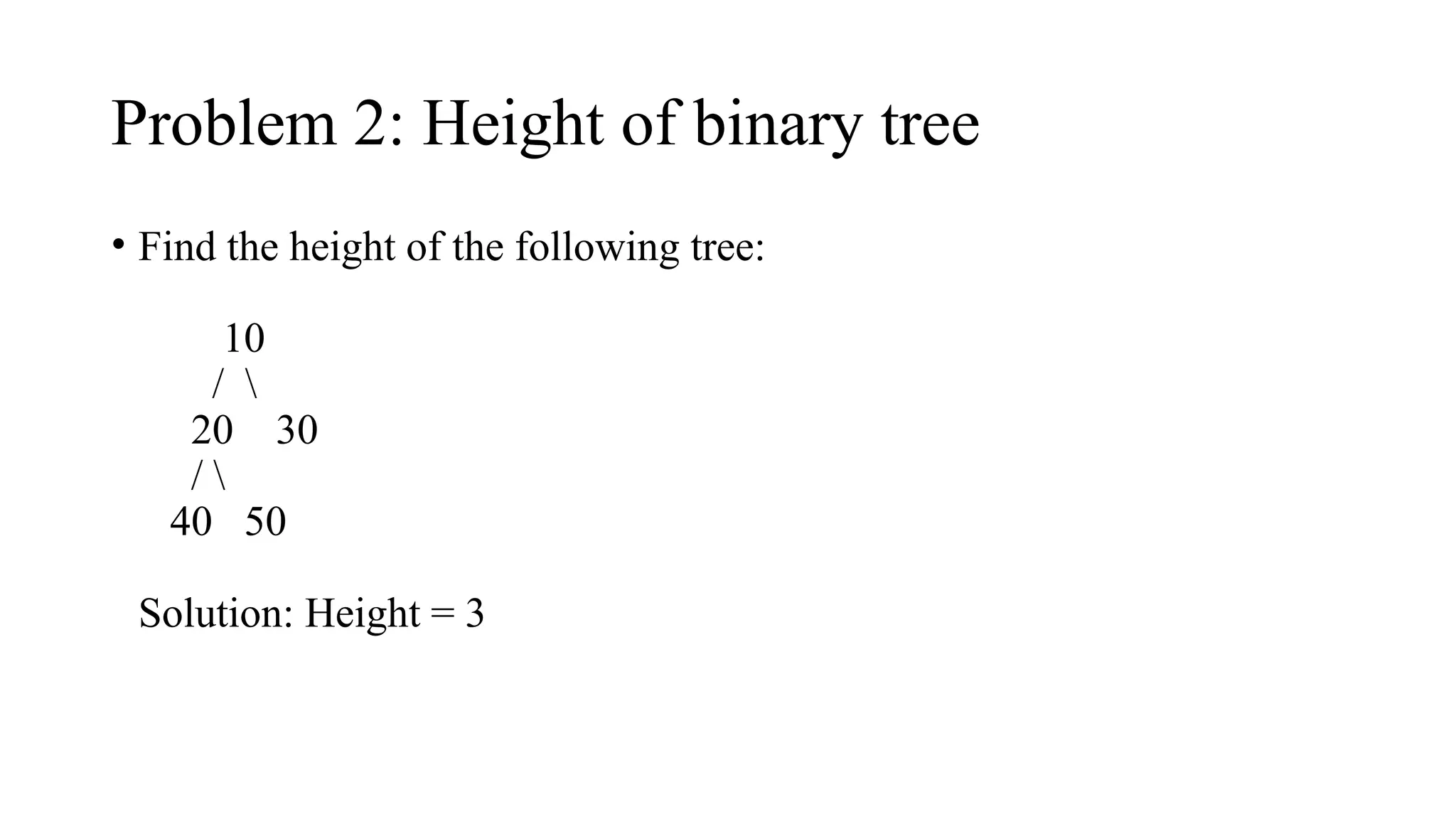

Problem 2: Height of binary tree
• Find the height of the following tree:
10
/
20 30
/
40 50
Solution: Height = 3

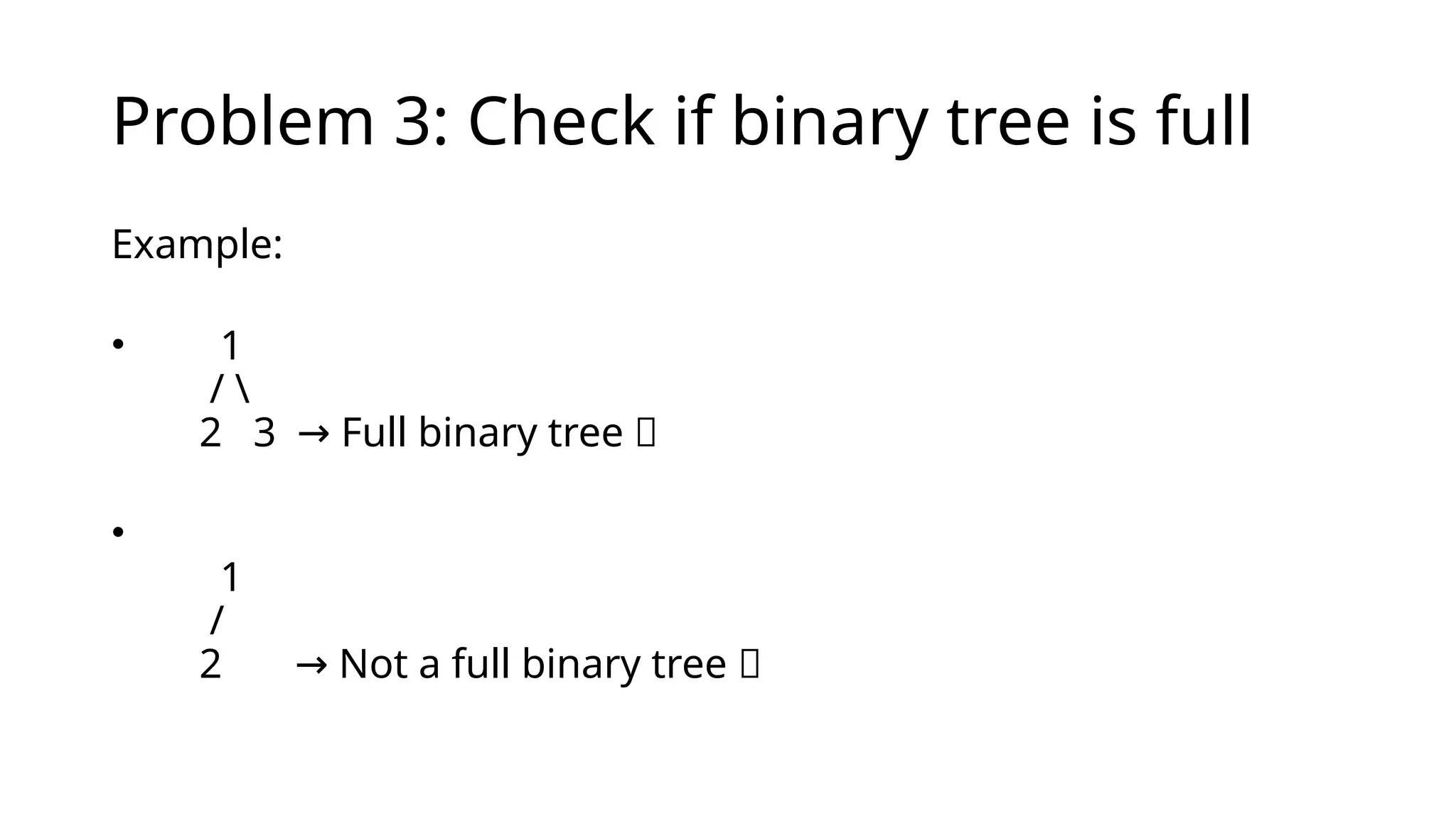

Problem 3: Check if binary tree is full
Example:
• 1
/
2 3 Full binary tree ✅
→
•
1
/
2 Not a full binary tree ❌
→

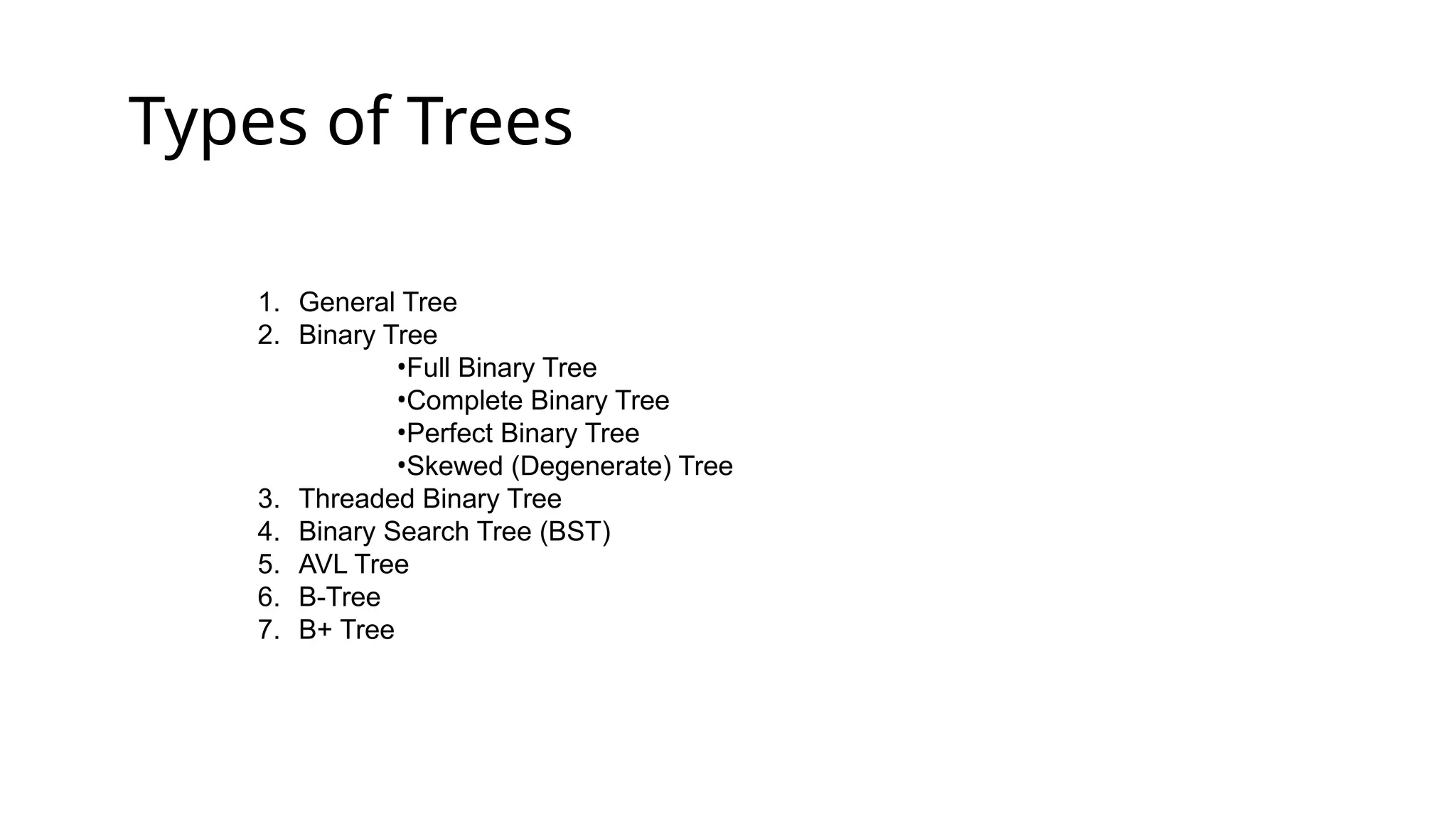

Types of Trees
1. General Tree
2. Binary Tree
•Full Binary Tree
•Complete Binary Tree
•Perfect Binary Tree
•Skewed (Degenerate) Tree
3. Threaded Binary Tree
4. Binary Search Tree (BST)
5. AVL Tree
6. B-Tree
7. B+ Tree

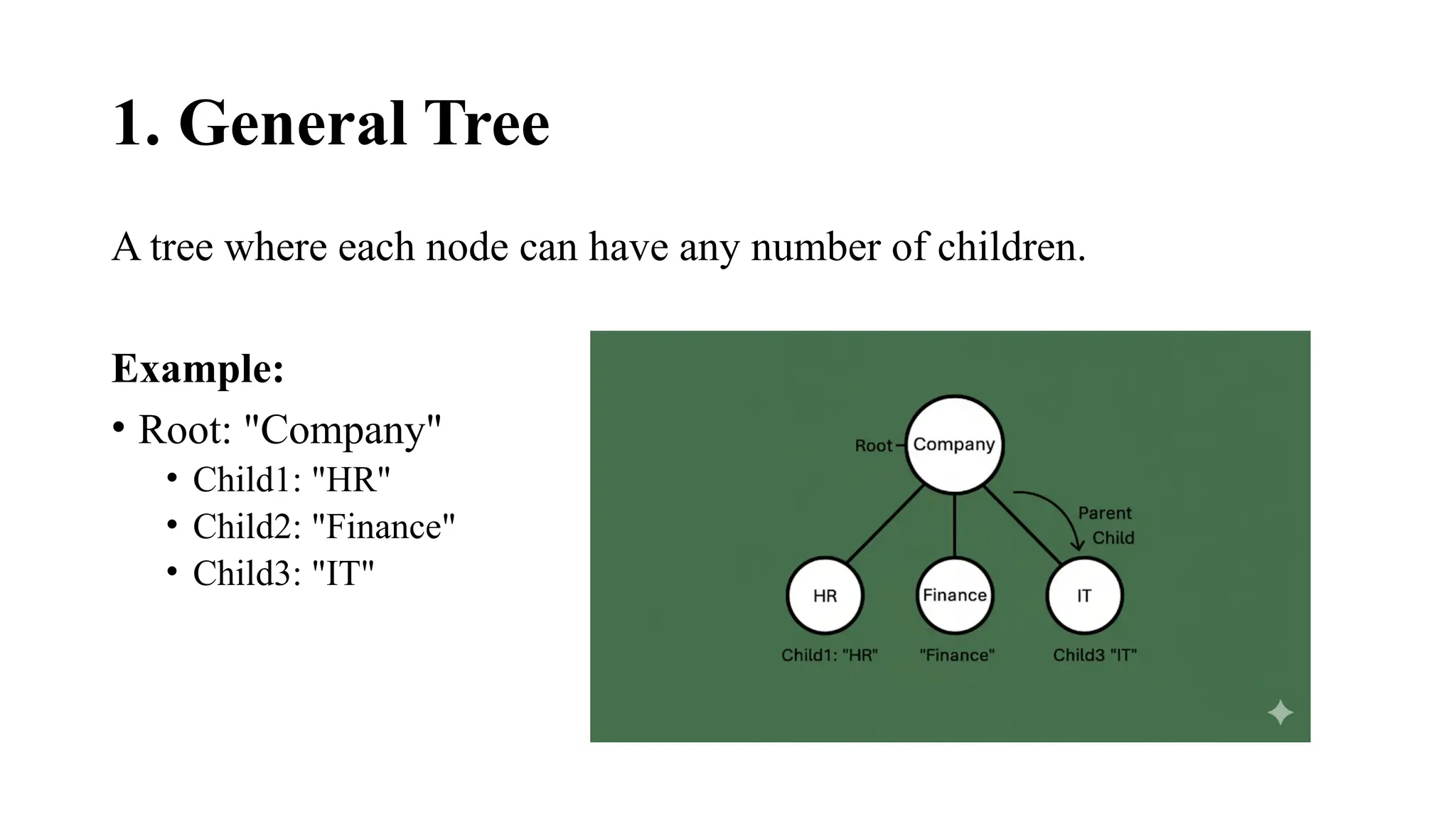

1. General Tree
A tree where each node can have any number of children.
Example:
• Root: "Company"
• Child1: "HR"
• Child2: "Finance"
• Child3: "IT"

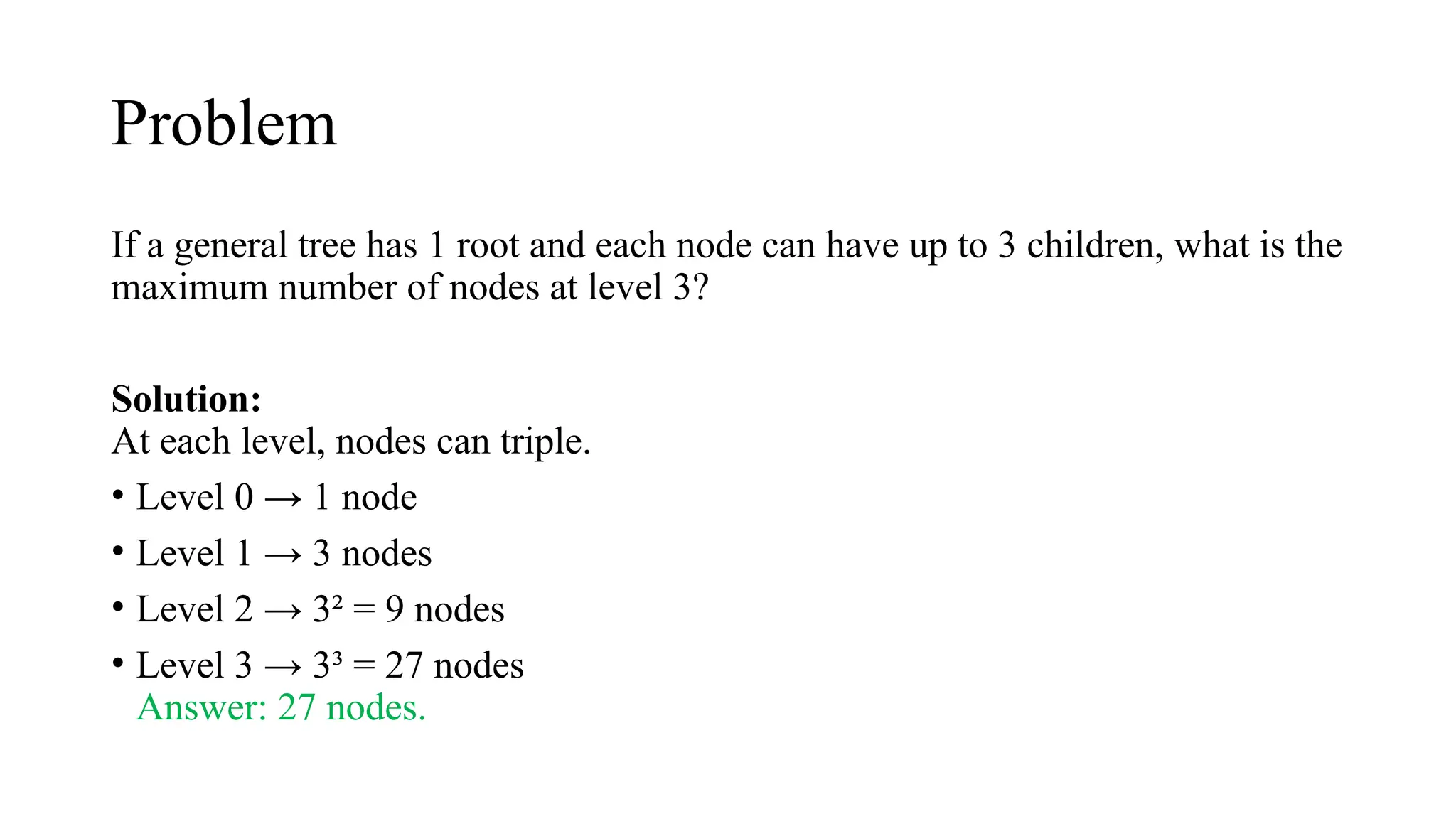

Problem
If a general tree has 1 root and each node can have up to 3 children, what is the
maximum number of nodes at level 3?
Solution:
At each level, nodes can triple.
• Level 0 → 1 node
• Level 1 → 3 nodes
• Level 2 → 3² = 9 nodes
• Level 3 → 3³ = 27 nodes
Answer: 27 nodes.

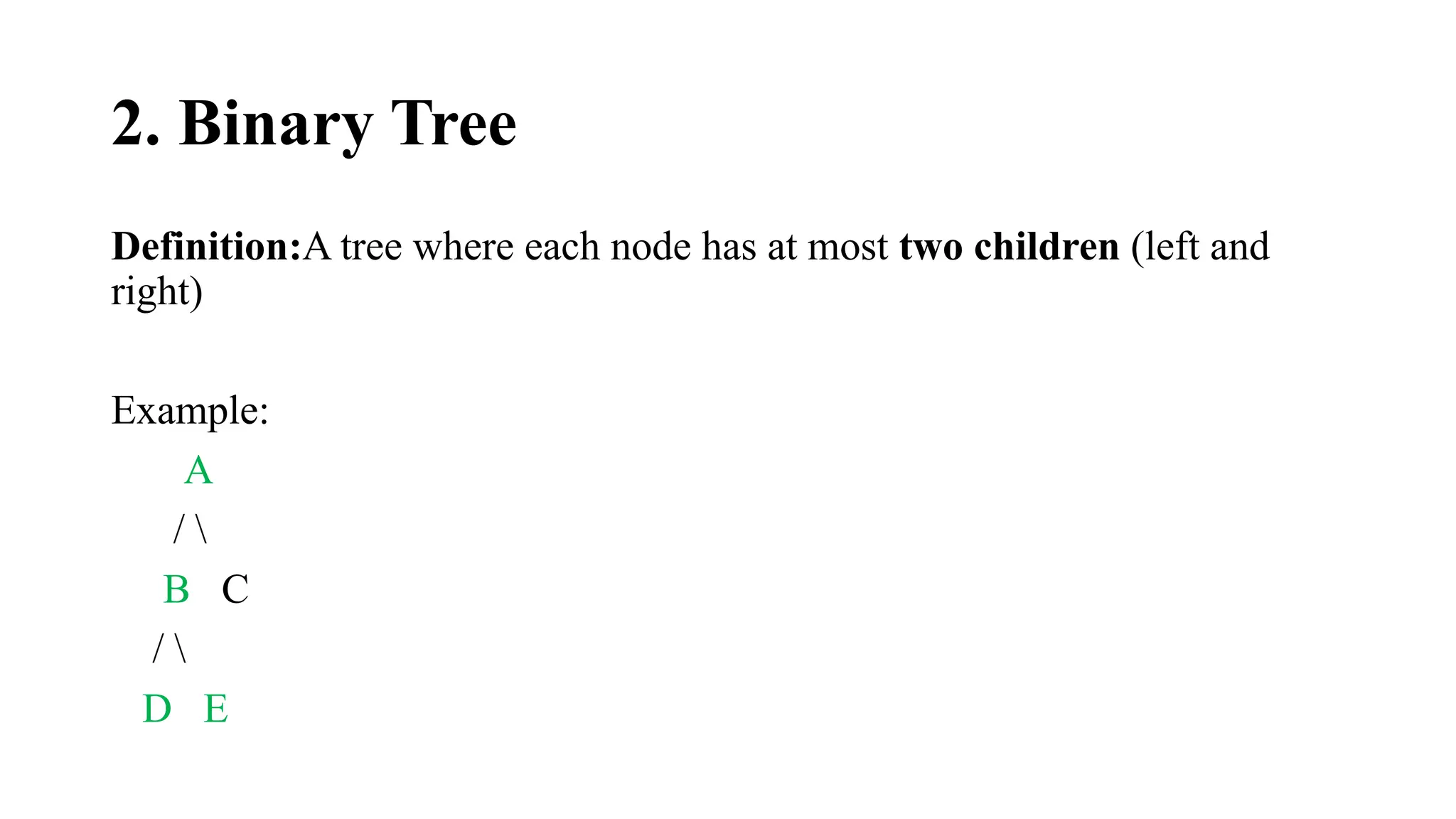

2. Binary Tree
Definition:A tree where each node has at most two children (left and
right)
Example:
A
/
B C
/
D E

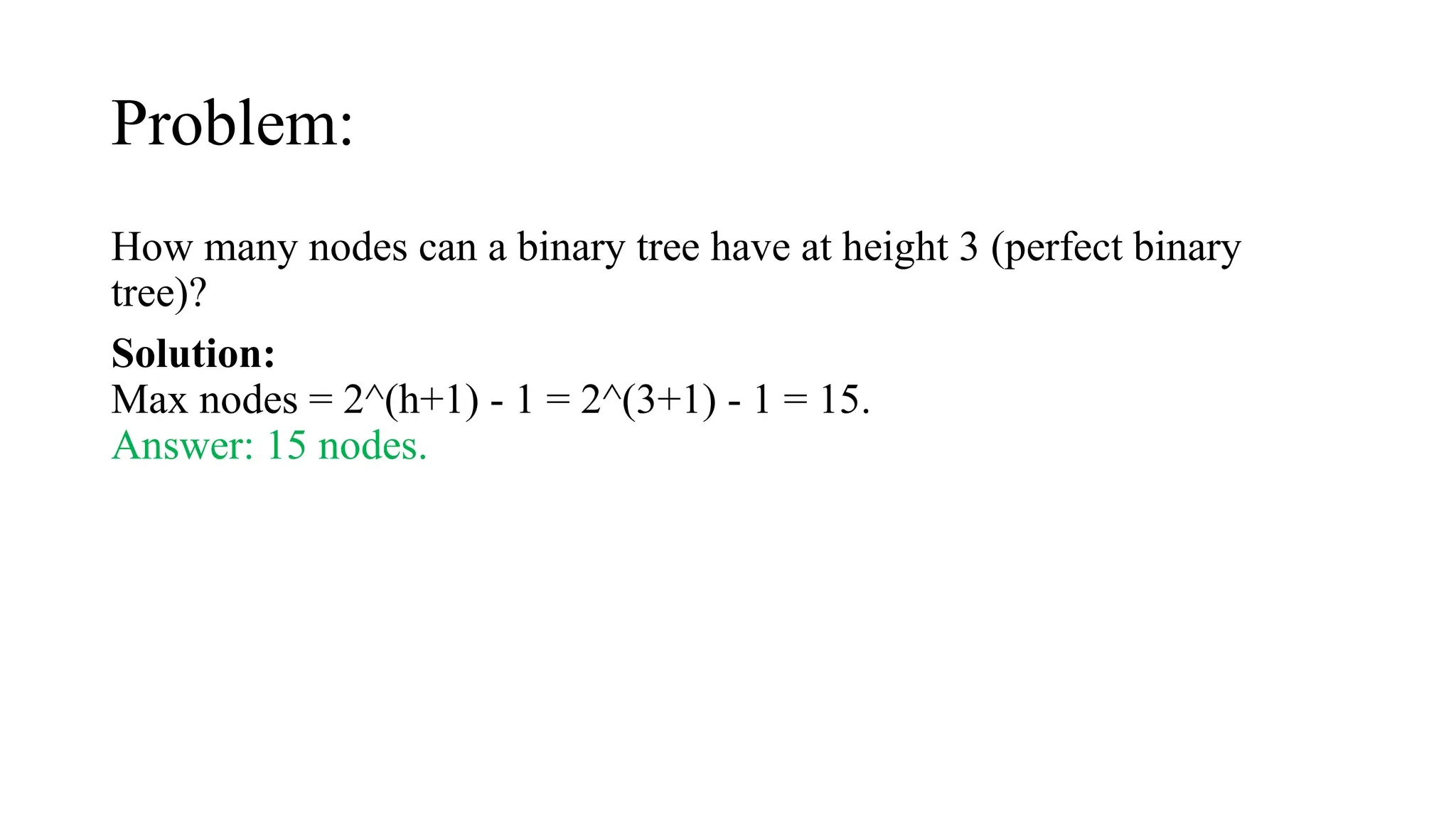

Problem:
How many nodes can a binary tree have at height 3 (perfect binary
tree)?
Solution:
Max nodes = 2^(h+1) - 1 = 2^(3+1) - 1 = 15.
Answer: 15 nodes.

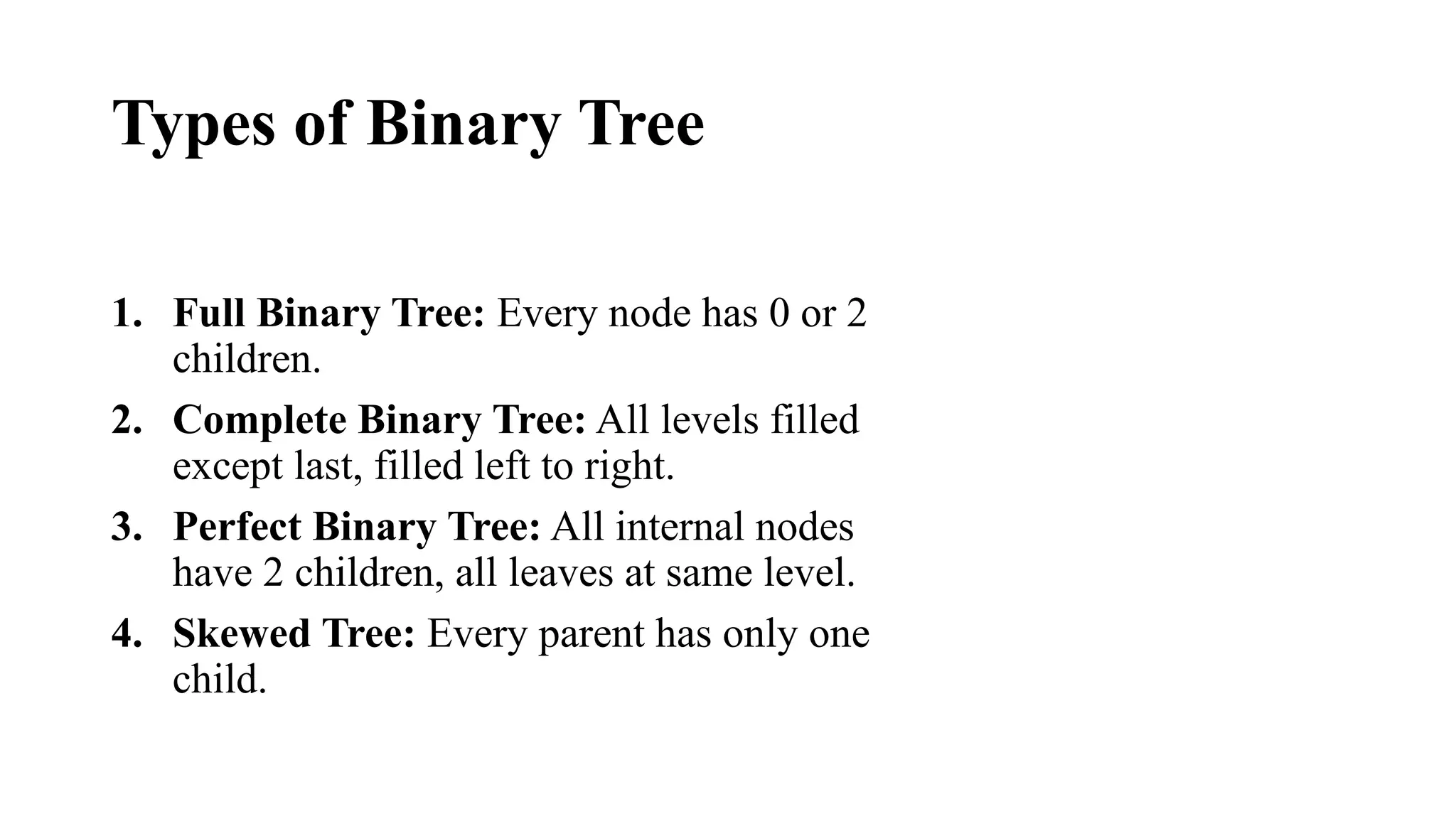

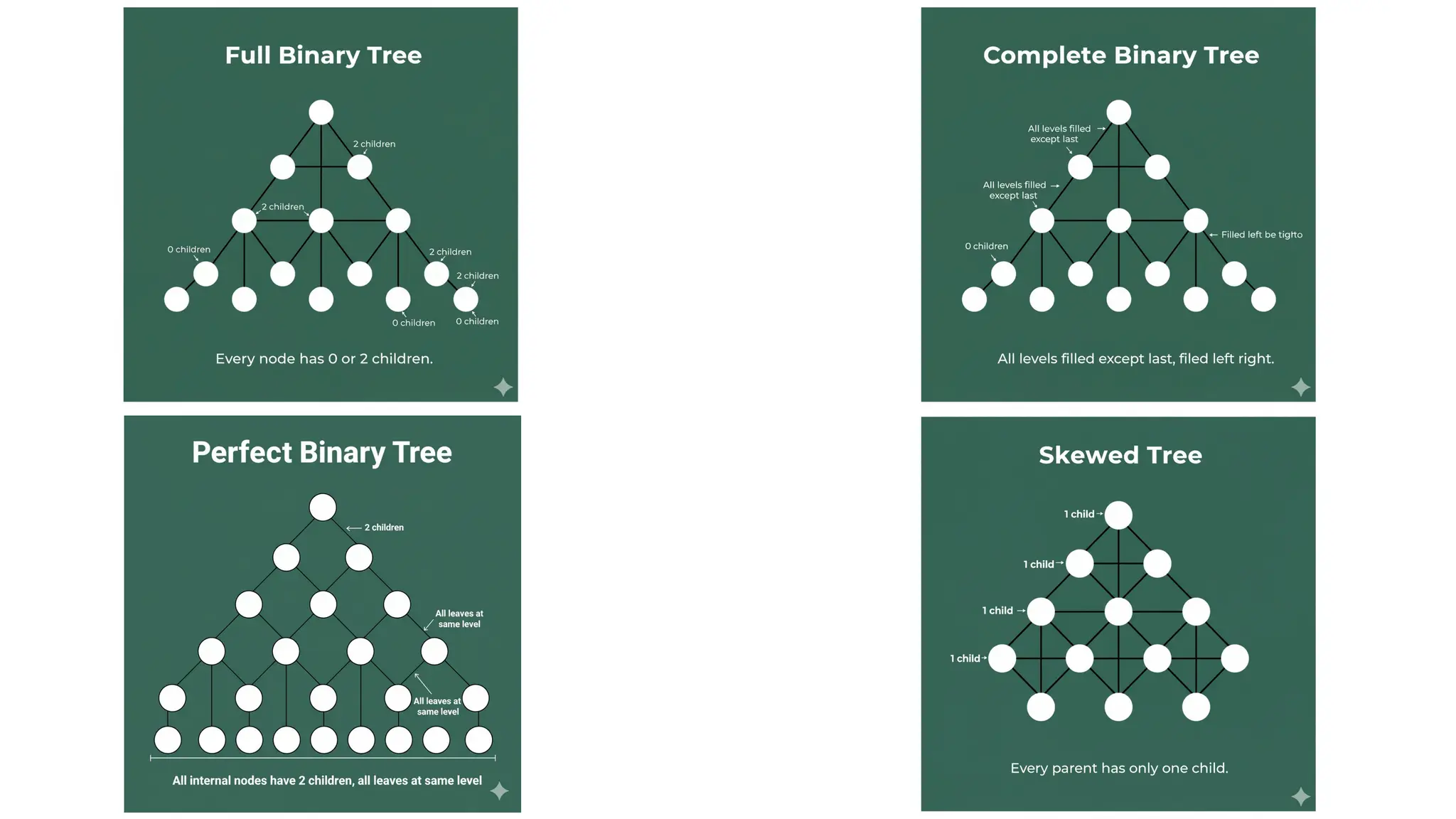

Types of Binary Tree
1. Full Binary Tree: Every node has 0 or 2
children.
2. Complete Binary Tree: All levels filled
except last, filled left to right.
3. Perfect Binary Tree: All internal nodes
have 2 children, all leaves at same level.
4. Skewed Tree: Every parent has only one
child.

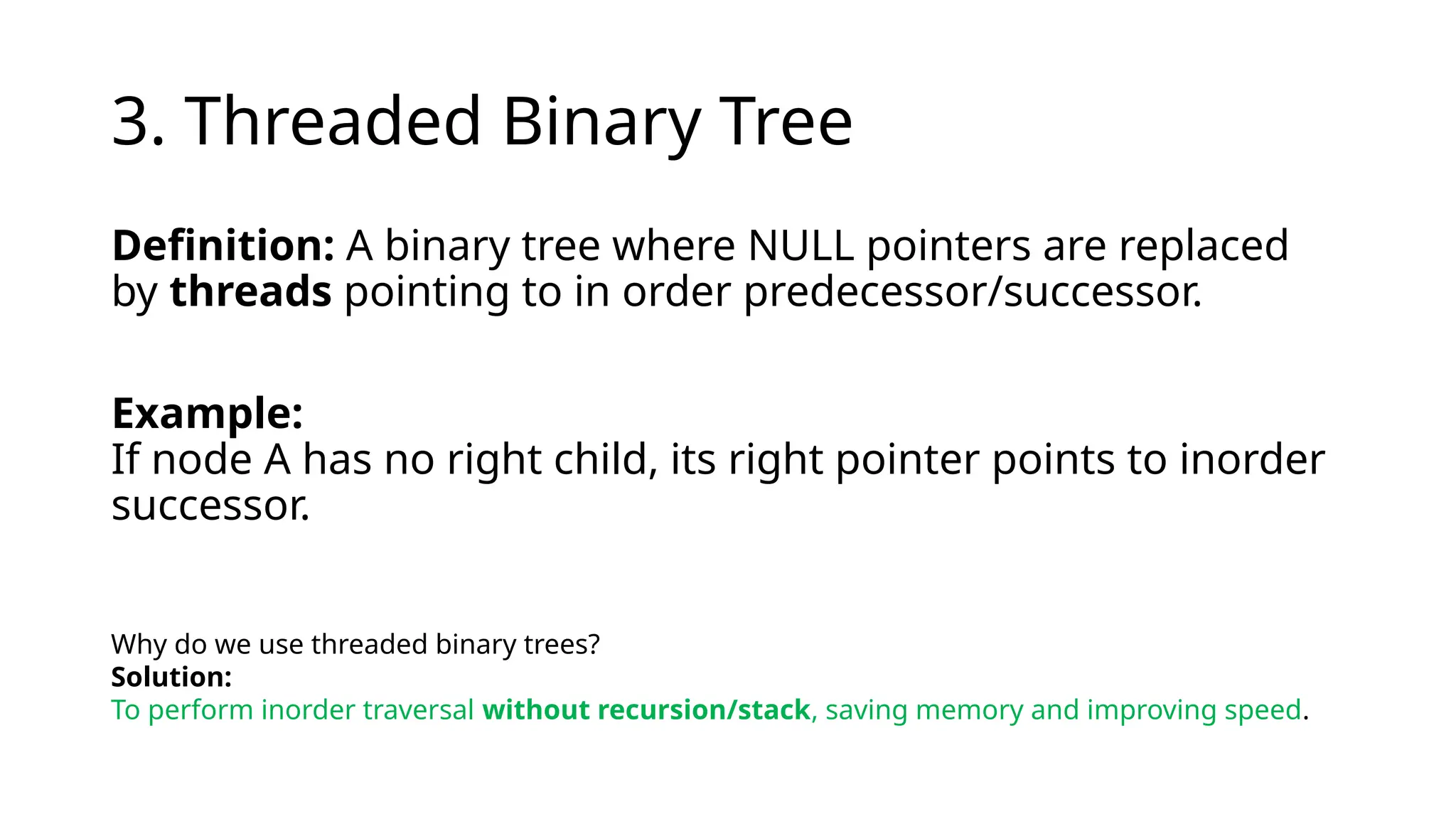

3. Threaded Binary Tree
Definition: A binary tree where NULL pointers are replaced
by threads pointing to in order predecessor/successor.
Example:
If node A has no right child, its right pointer points to inorder
successor.
Why do we use threaded binary trees?
Solution:
To perform inorder traversal without recursion/stack, saving memory and improving speed.

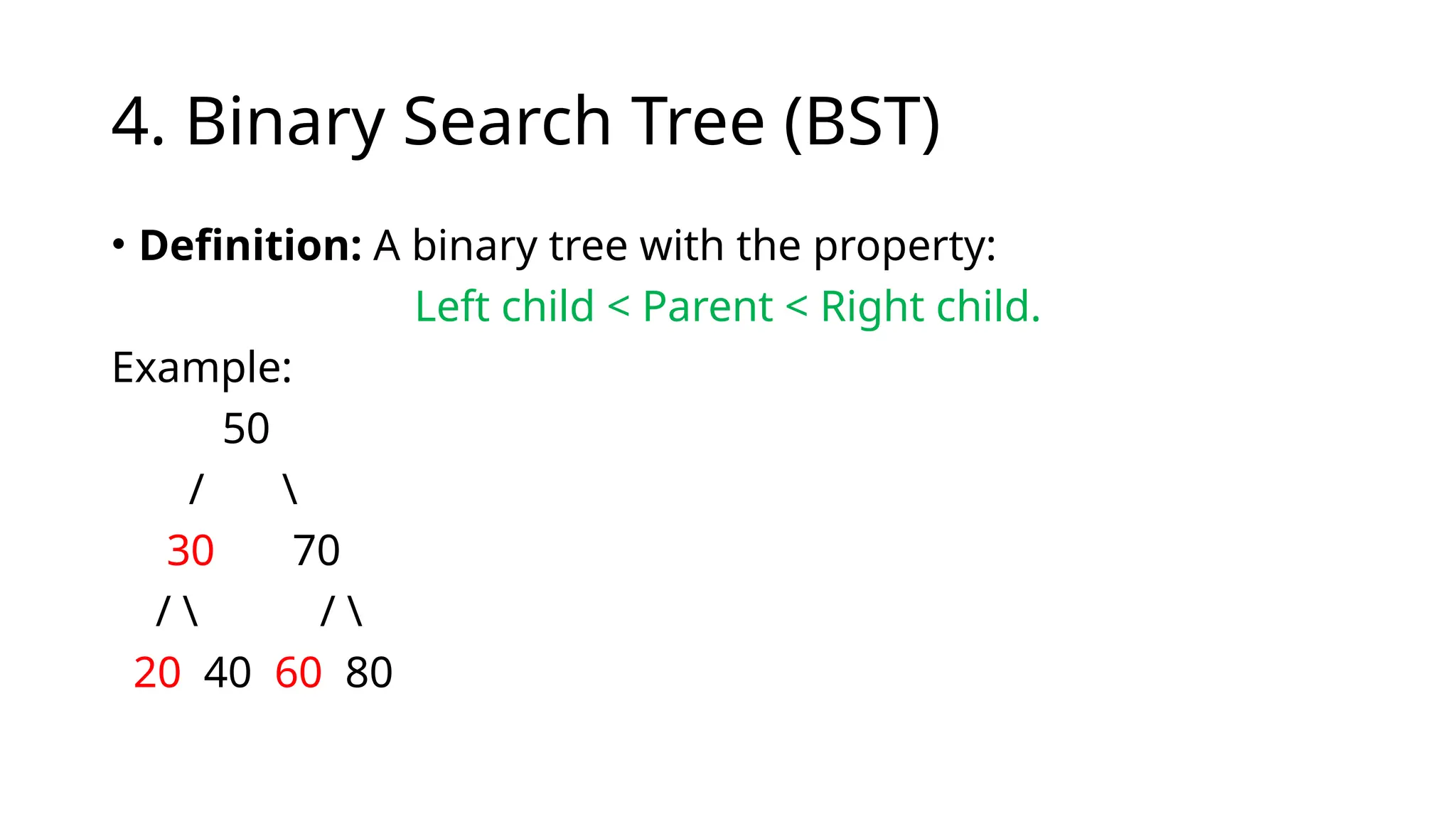

4. Binary Search Tree (BST)
• Definition: A binary tree with the property:
Left child < Parent < Right child.
Example:
50
/
30 70
/ /
20 40 60 80

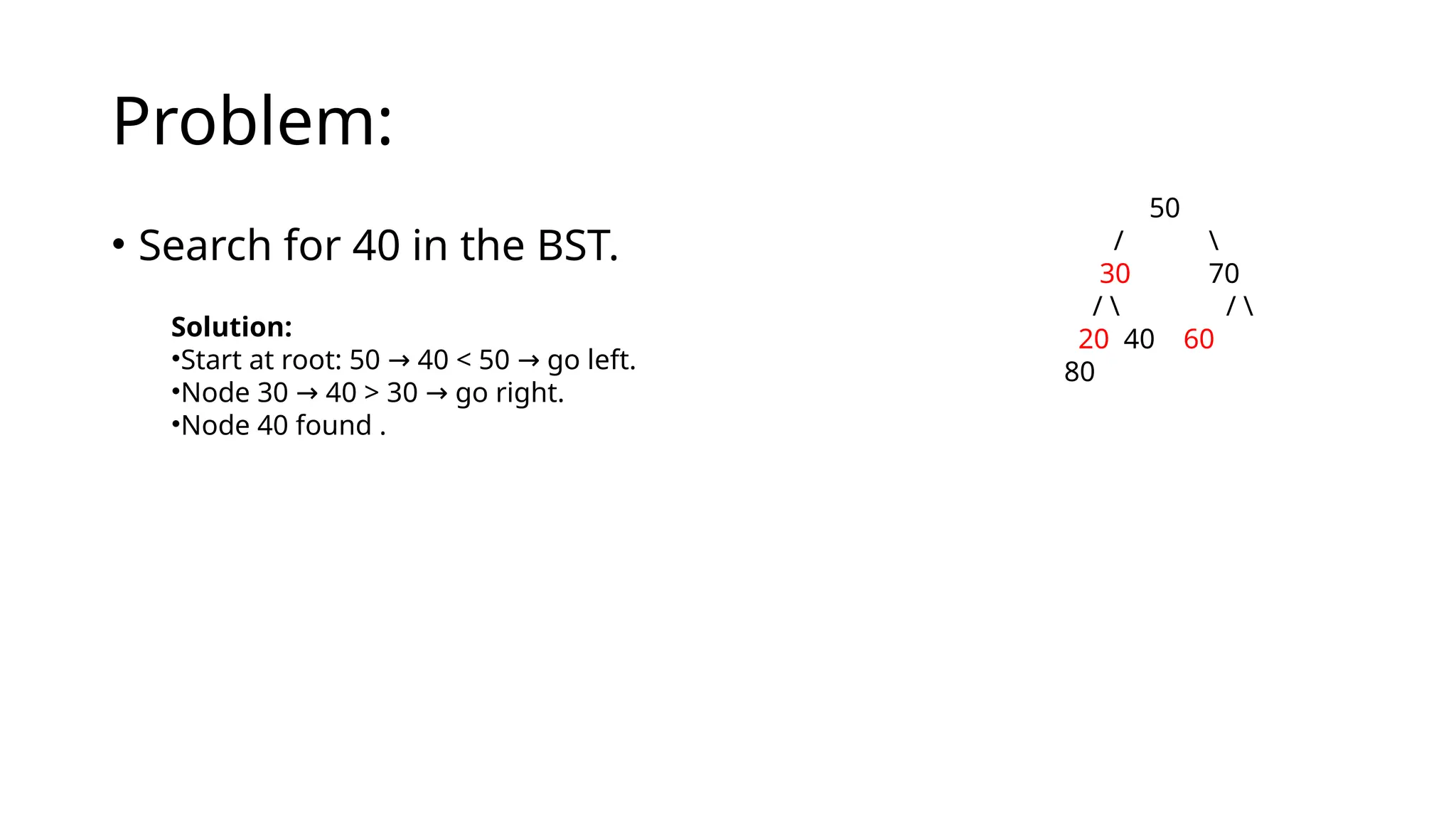

Problem:
• Search for 40 in the BST.
50
/
30 70
/ /
20 40 60
80
Solution:
•Start at root: 50 40 < 50 go left.
→ →
•Node 30 40 > 30 go right.
→ →
•Node 40 found .

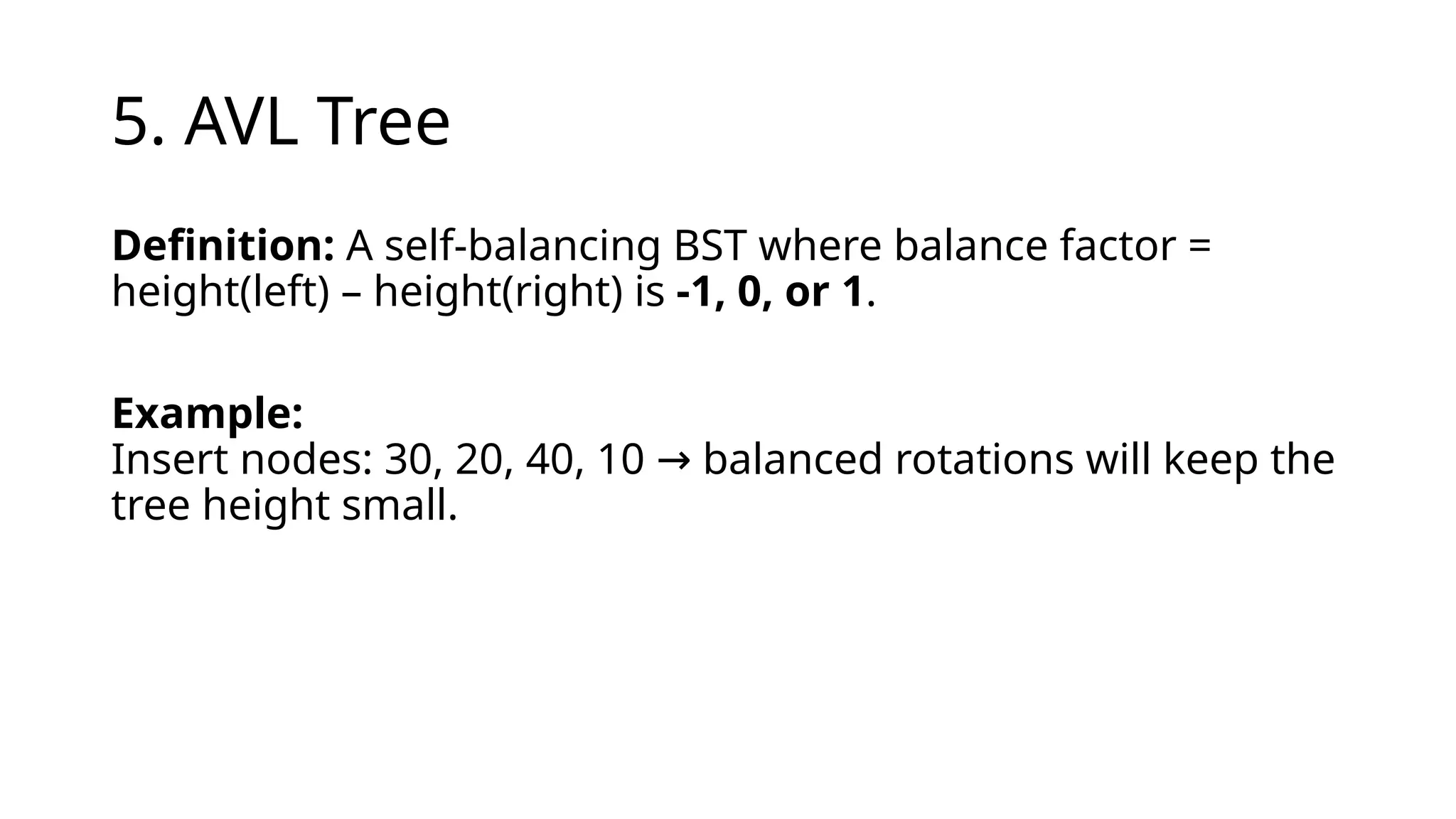

5. AVL Tree
Definition: A self-balancing BST where balance factor =
height(left) – height(right) is -1, 0, or 1.
Example:
Insert nodes: 30, 20, 40, 10 balanced rotations will keep the
→
tree height small.

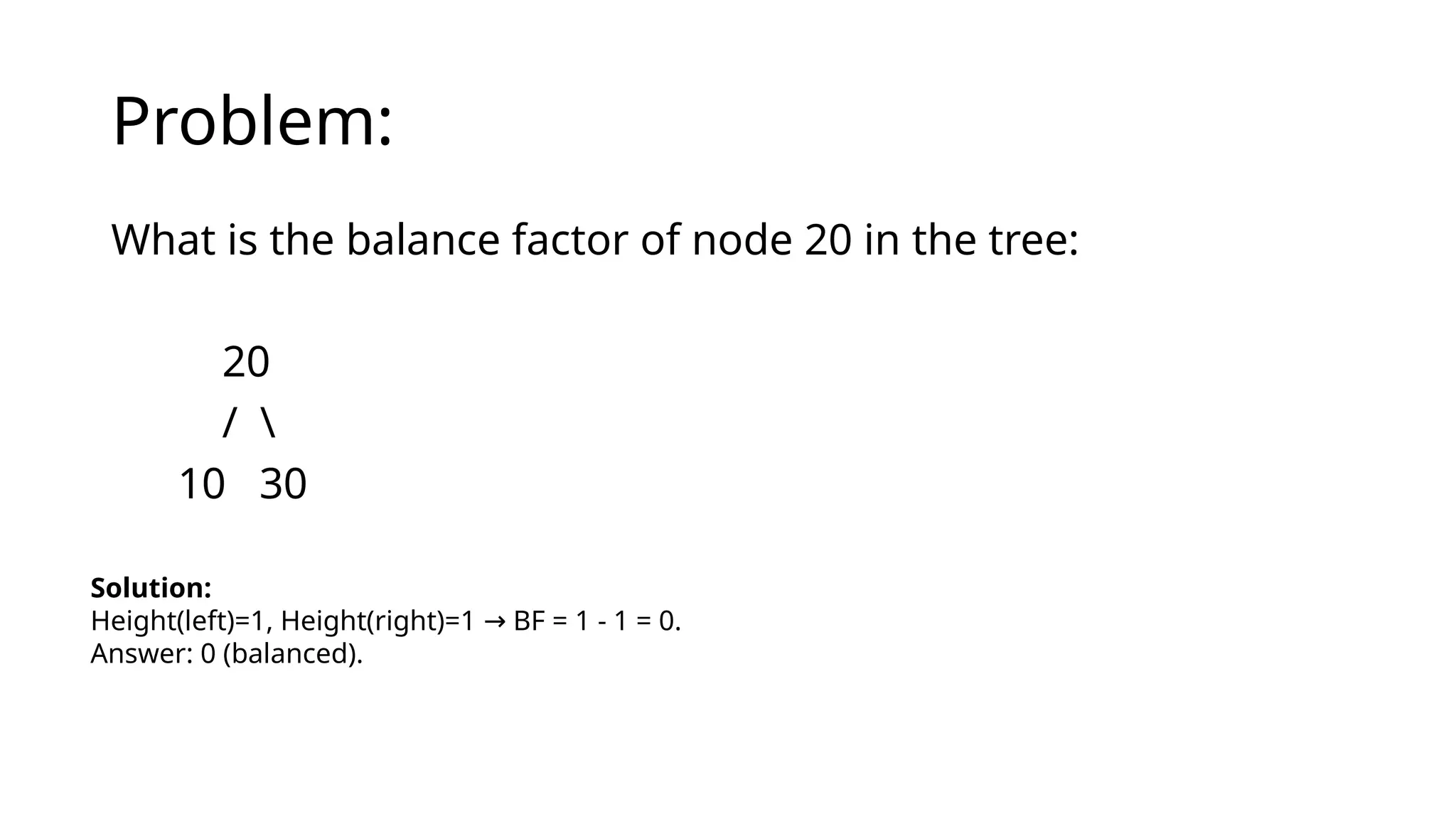

Problem:
What is the balance factor of node 20 in the tree:
20
/
10 30
Solution:
Height(left)=1, Height(right)=1 BF = 1 - 1 = 0.
→
Answer: 0 (balanced).

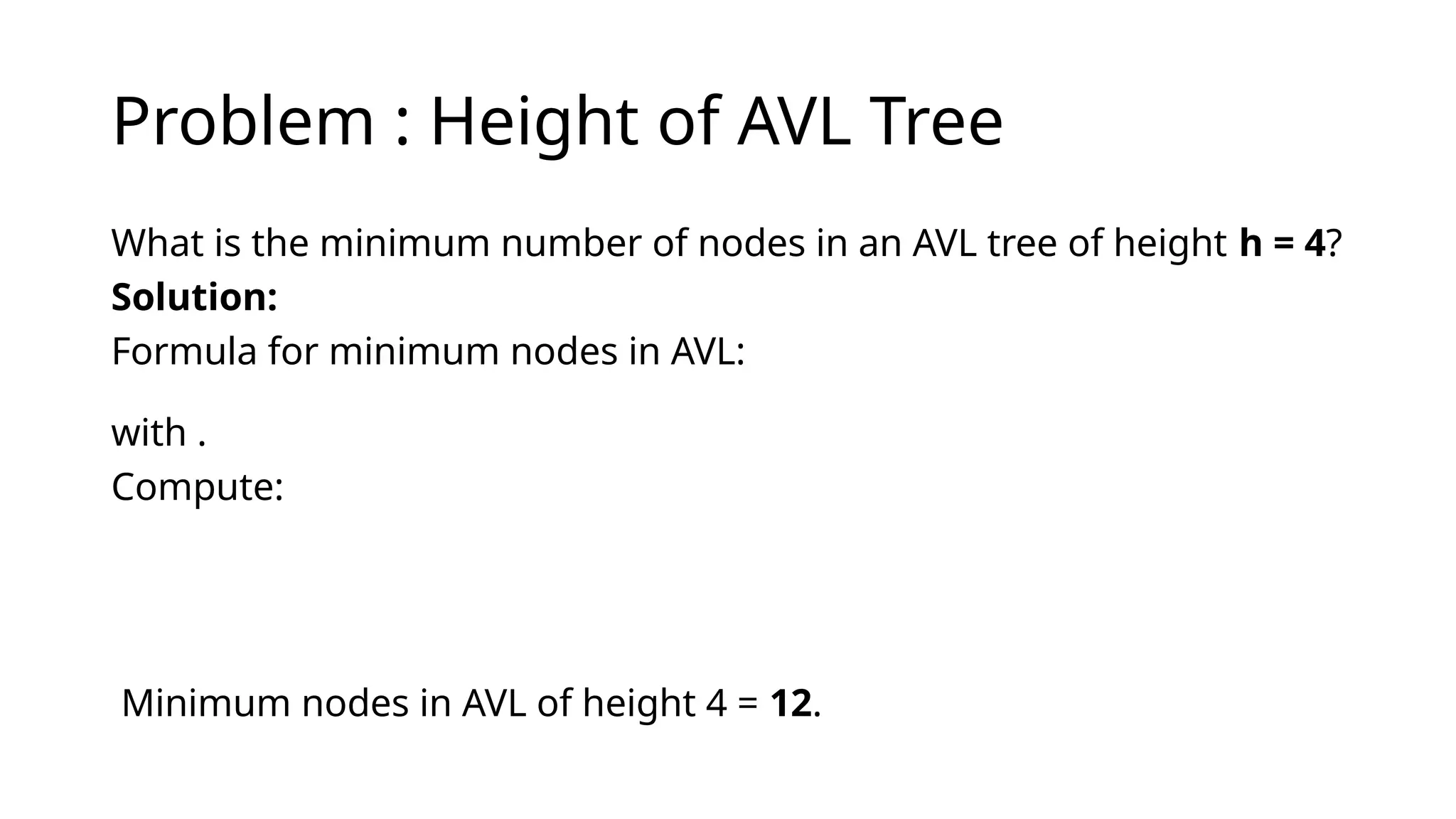

Problem : Height of AVL Tree
What is the minimum number of nodes in an AVL tree of height h = 4?
Solution:
Formula for minimum nodes in AVL:
with .
Compute:
Minimum nodes in AVL of height 4 = 12.

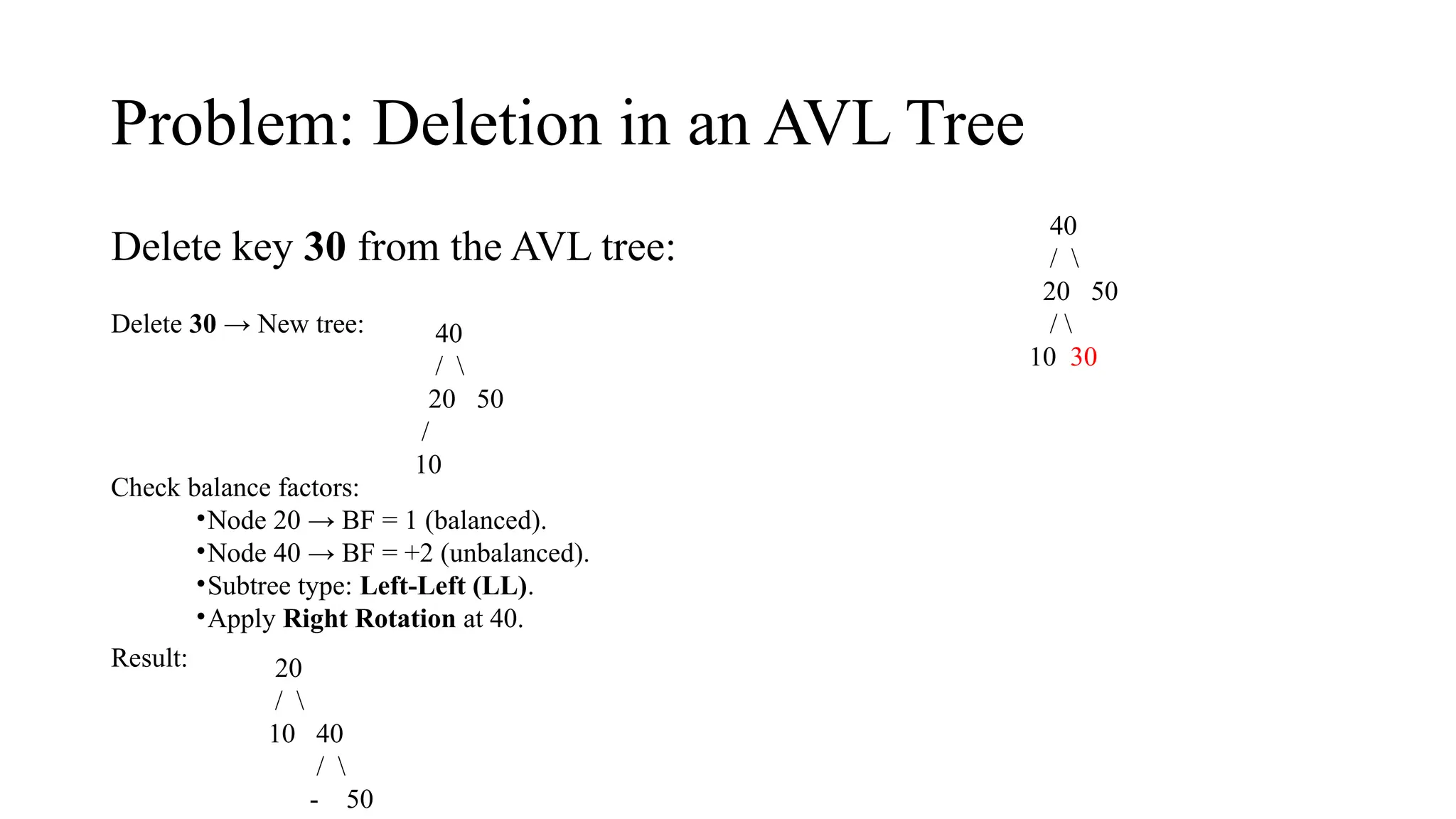

Problem: Deletion in an AVL Tree
Delete key 30 from the AVL tree:
40
/
20 50
/
10 30
Delete 30 → New tree: 40
/
20 50
/
10
Check balance factors:
•Node 20 → BF = 1 (balanced).
•Node 40 → BF = +2 (unbalanced).
•Subtree type: Left-Left (LL).
•Apply Right Rotation at 40.
Result: 20
/
10 40
/
- 50

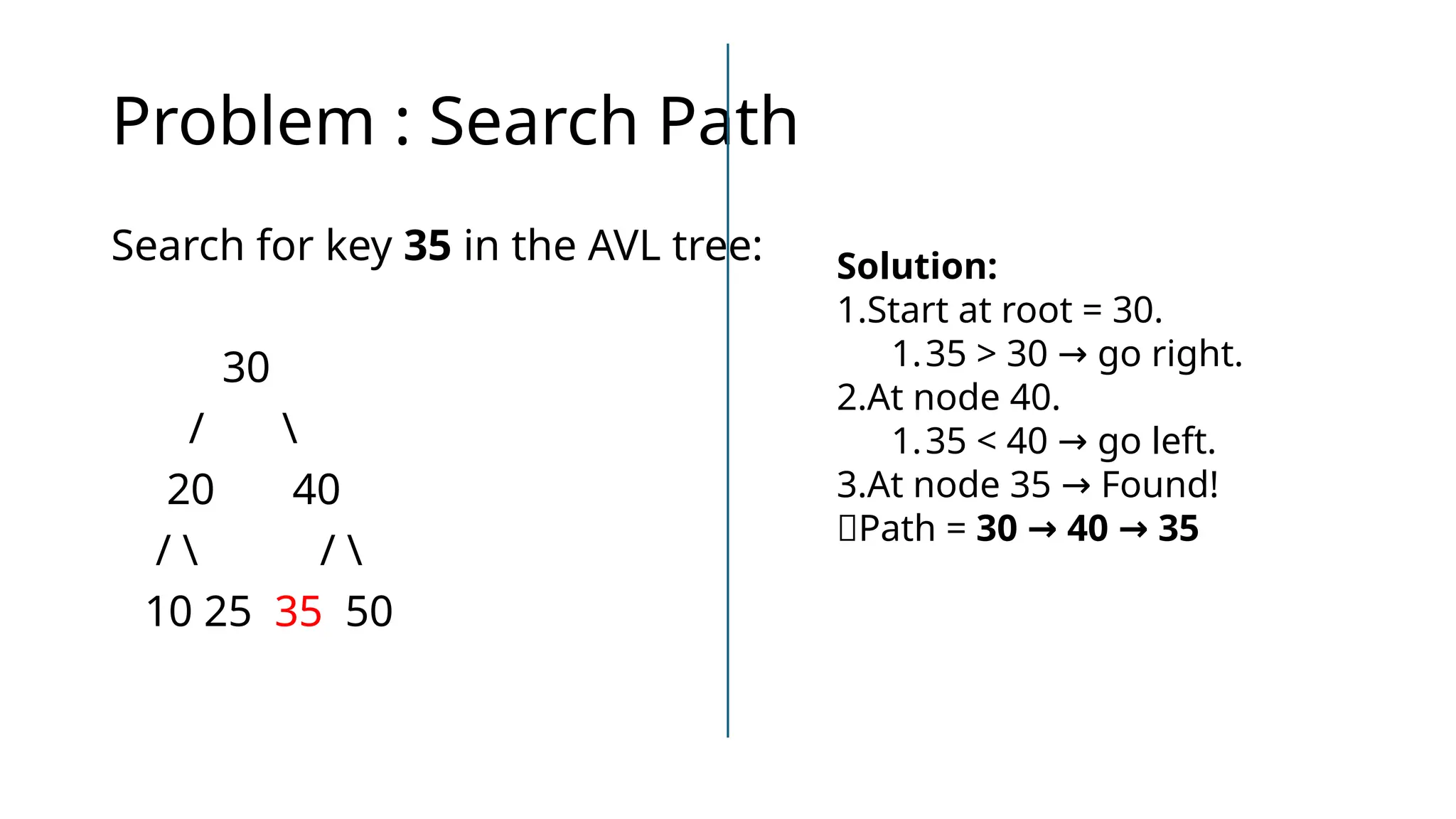

Problem : Search Path
Search for key 35 in the AVL tree:
30
/
20 40
/ /
10 25 35 50
Solution:
1.Start at root = 30.
1.35 > 30 go right.
→
2.At node 40.
1.35 < 40 go left.
→
3.At node 35 Found!
→
✅Path = 30 40 35
→ →

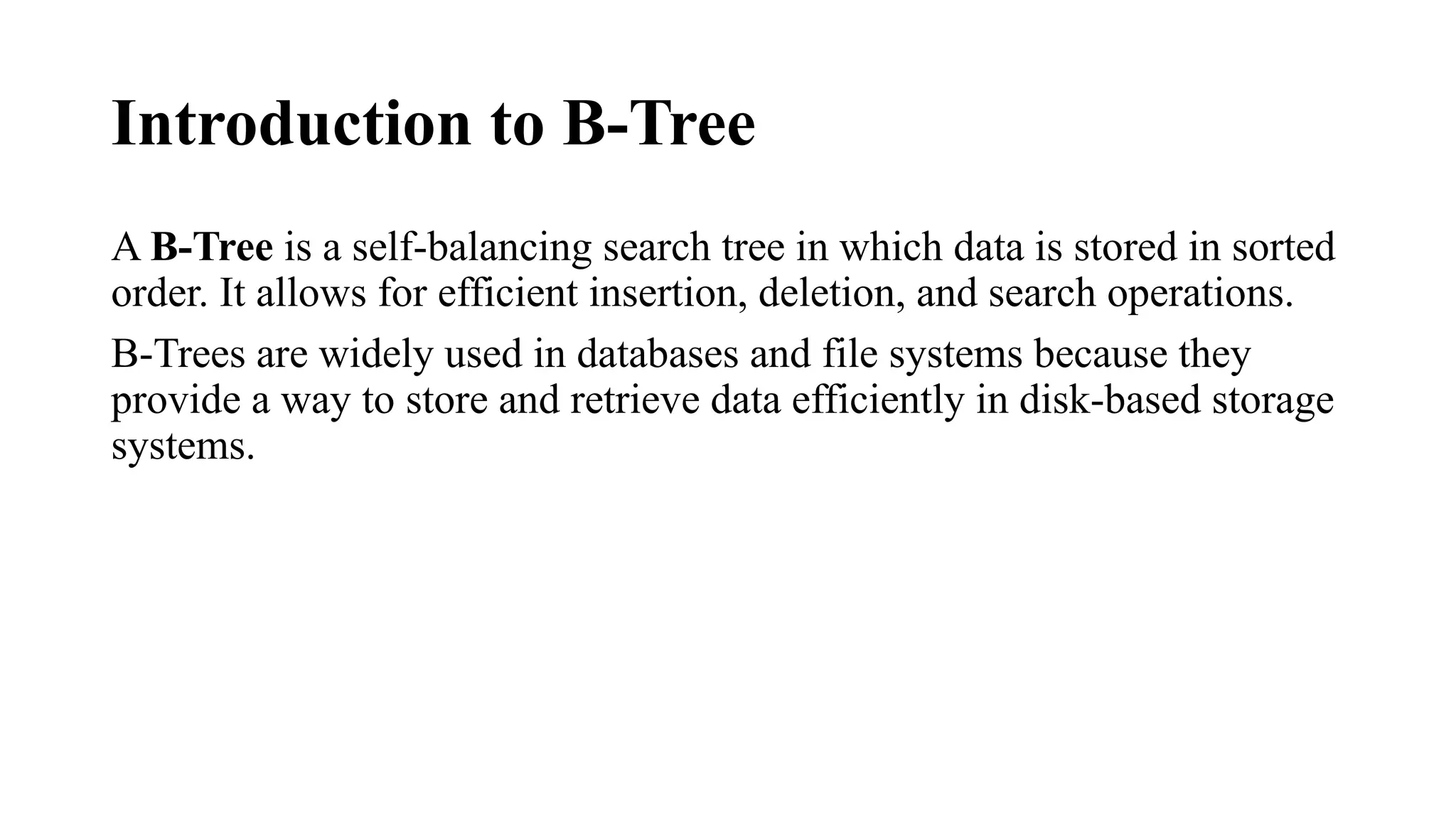

Introduction to B-Tree
A B-Tree is a self-balancing search tree in which data is stored in sorted
order. It allows for efficient insertion, deletion, and search operations.
B-Trees are widely used in databases and file systems because they
provide a way to store and retrieve data efficiently in disk-based storage
systems.

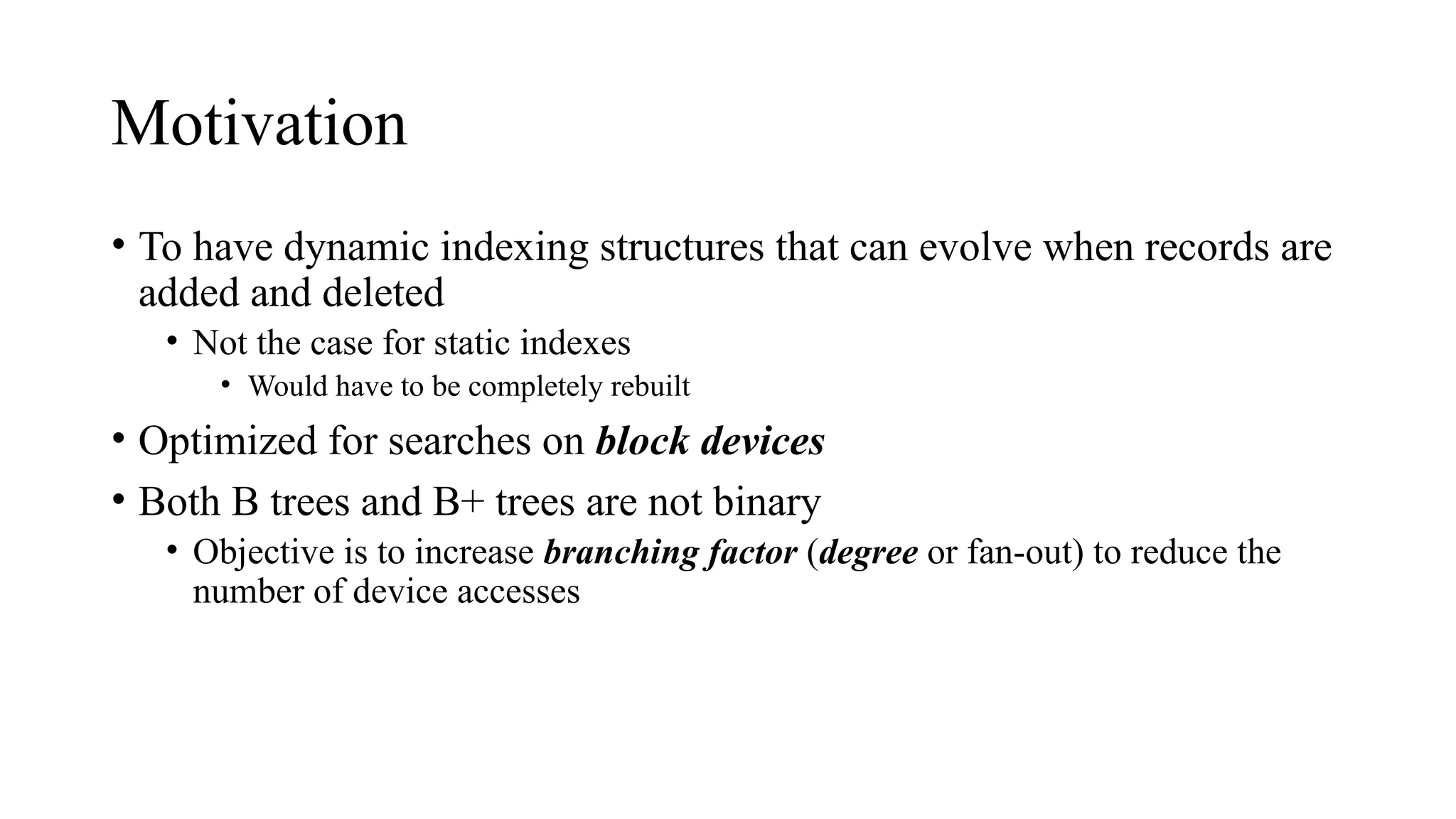

Motivation
• To have dynamic indexing structures that can evolve when records are
added and deleted
• Not the case for static indexes
• Would have to be completely rebuilt
• Optimized for searches on block devices
• Both B trees and B+ trees are not binary
• Objective is to increase branching factor (degree or fan-out) to reduce the
number of device accesses

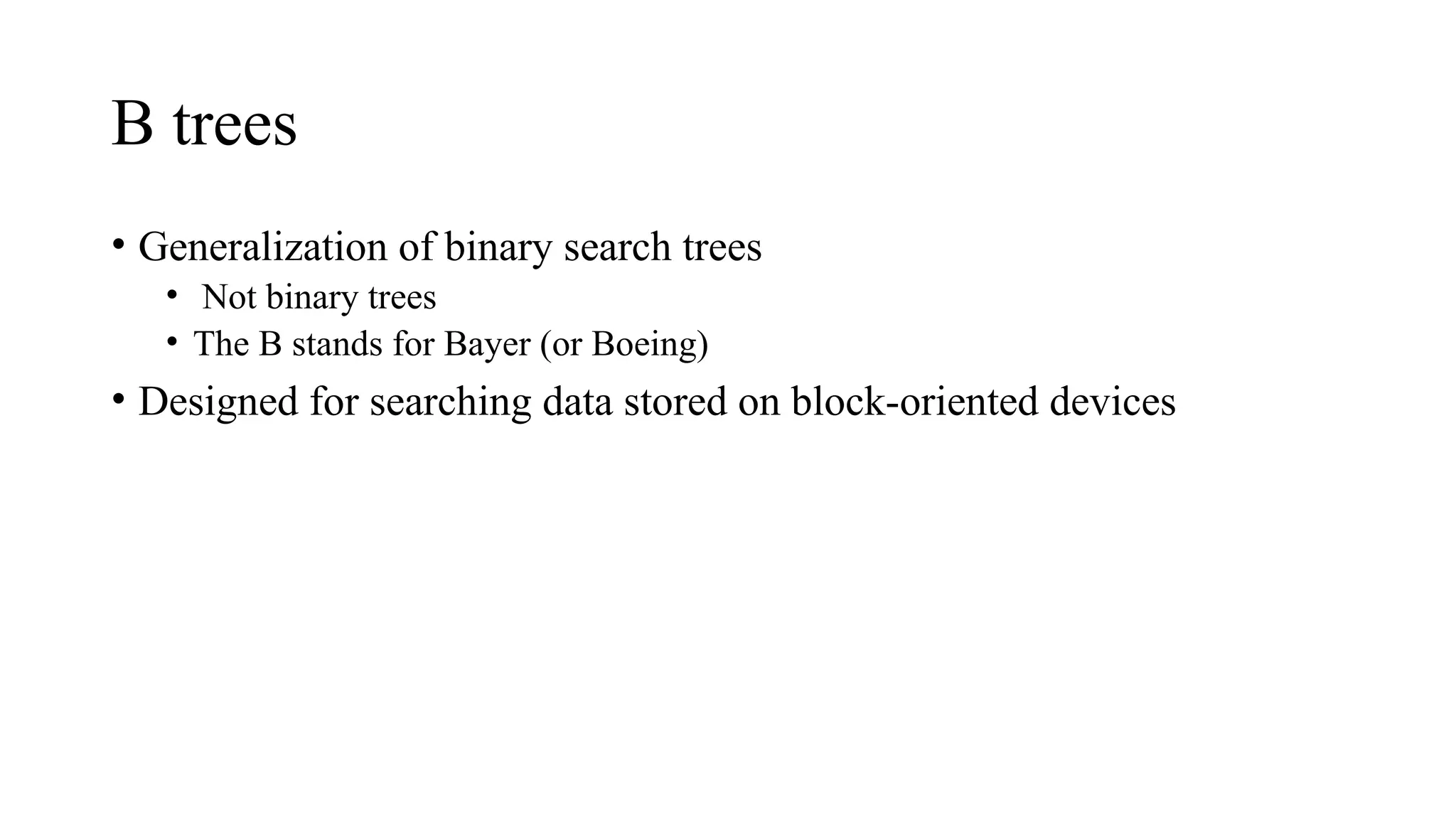

B trees
• Generalization of binary search trees
• Not binary trees
• The B stands for Bayer (or Boeing)
• Designed for searching data stored on block-oriented devices

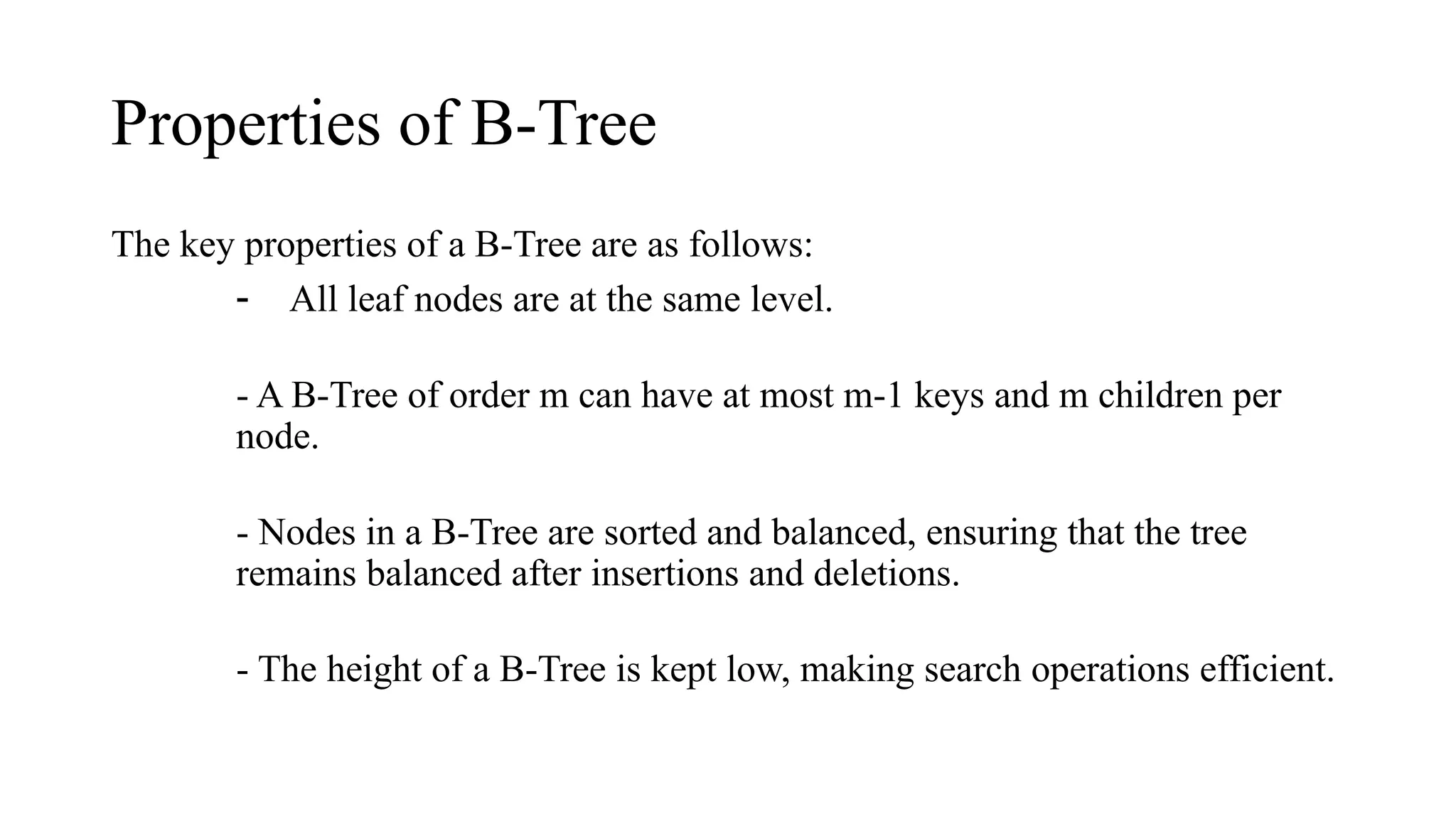

Properties of B-Tree
The key properties of a B-Tree are as follows:
- All leaf nodes are at the same level.
- A B-Tree of order m can have at most m-1 keys and m children per
node.
- Nodes in a B-Tree are sorted and balanced, ensuring that the tree
remains balanced after insertions and deletions.
- The height of a B-Tree is kept low, making search operations efficient.

Binary vs. higher-order tree
• Binary trees:
• Designed for in-memory searches
• Try to minimize the number of memory accesses
• Higher-order trees:
• Designed for searching data on block devices
• Try to minimize the number of device accesses
• Searching within a block is cheap!

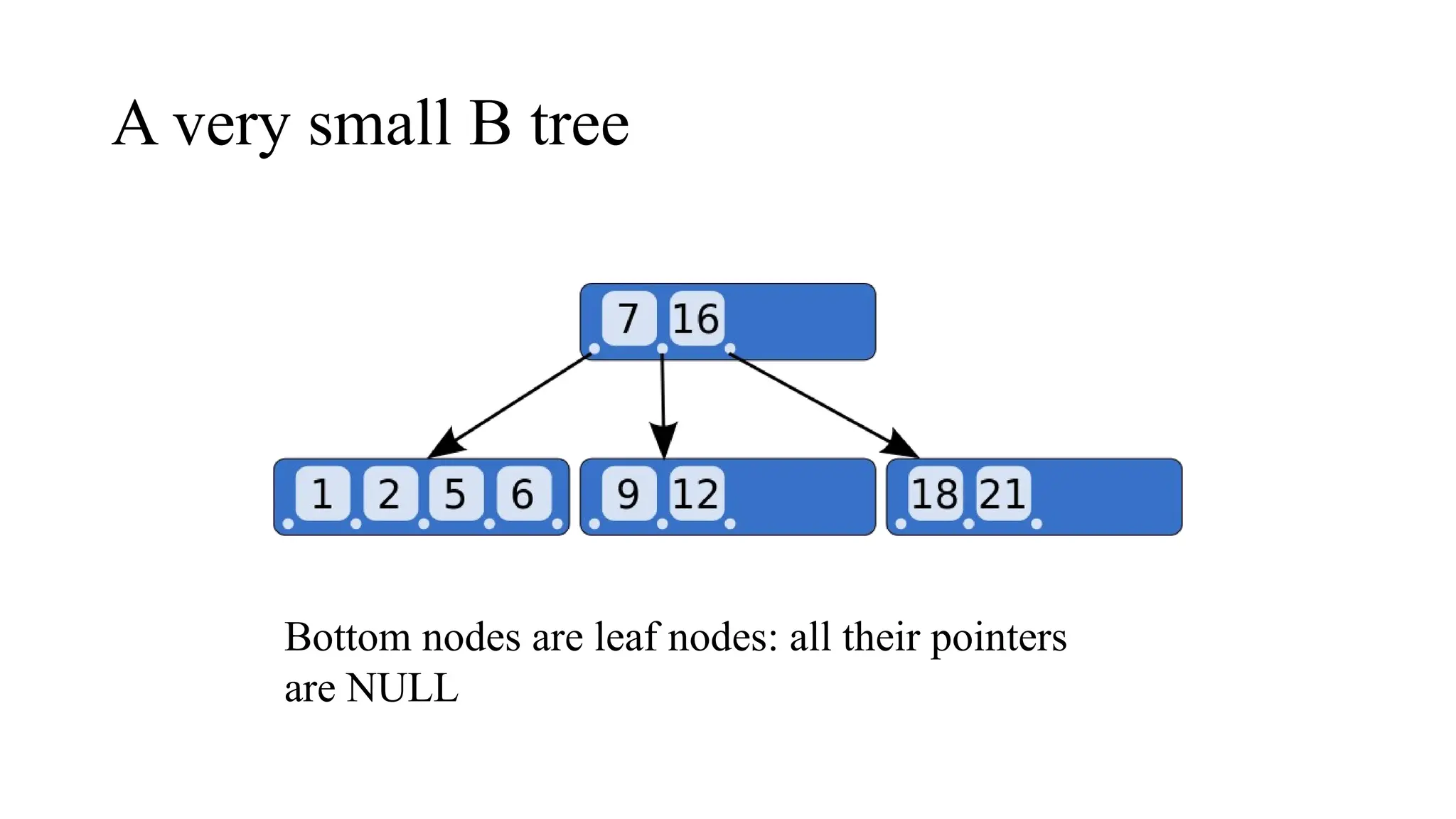

A very small B tree
Bottom nodes are leaf nodes: all their pointers
are NULL

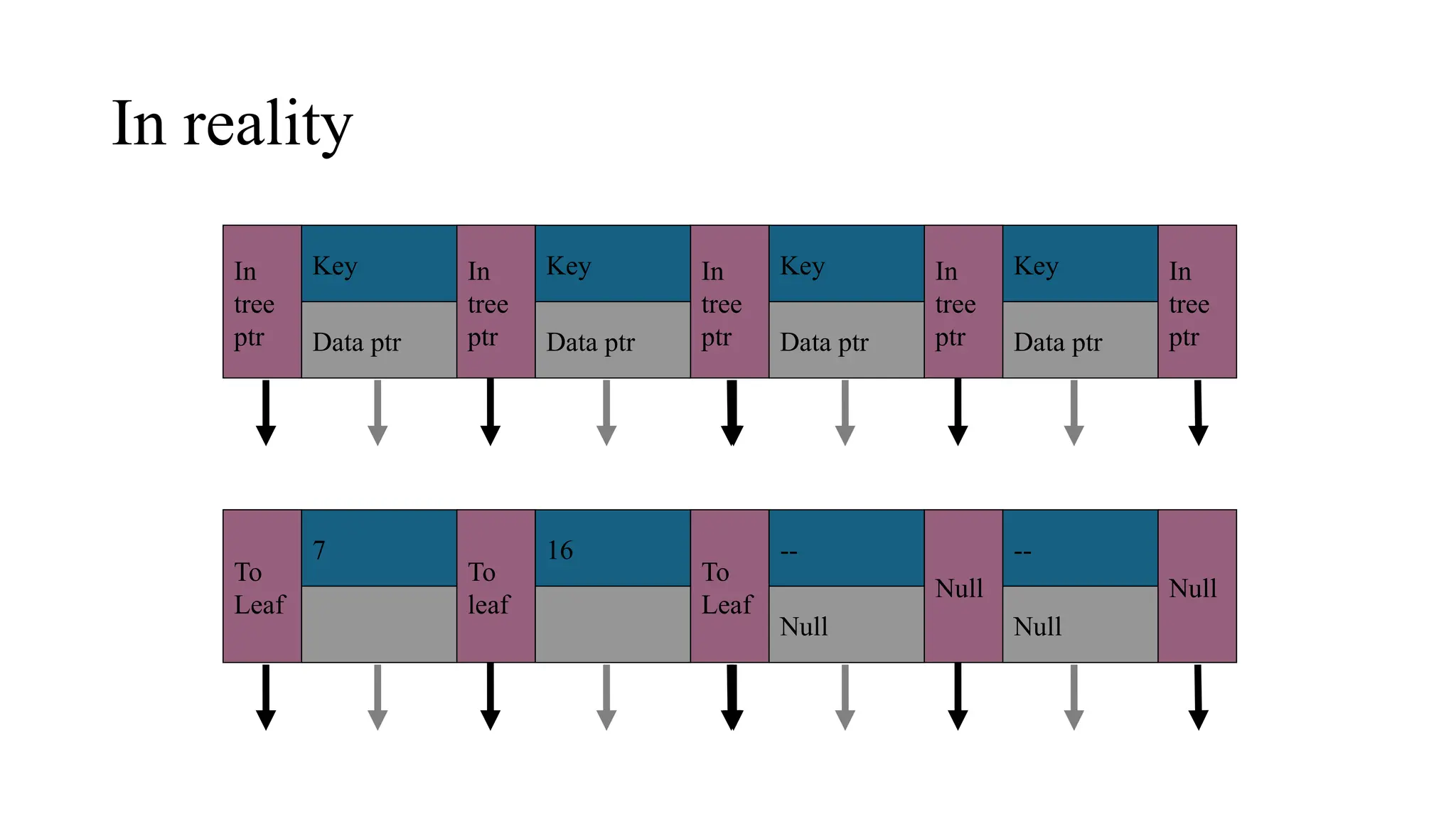

In reality
In
tree
ptr
Key
Data ptr
In
tree
ptr
Key
Data ptr
In
tree
ptr
Key
Data ptr
In
tree
ptr
Key
Data ptr
In
tree
ptr
To
Leaf
7
To
leaf
16
To
Leaf
--
Null
Null
--
Null
Null

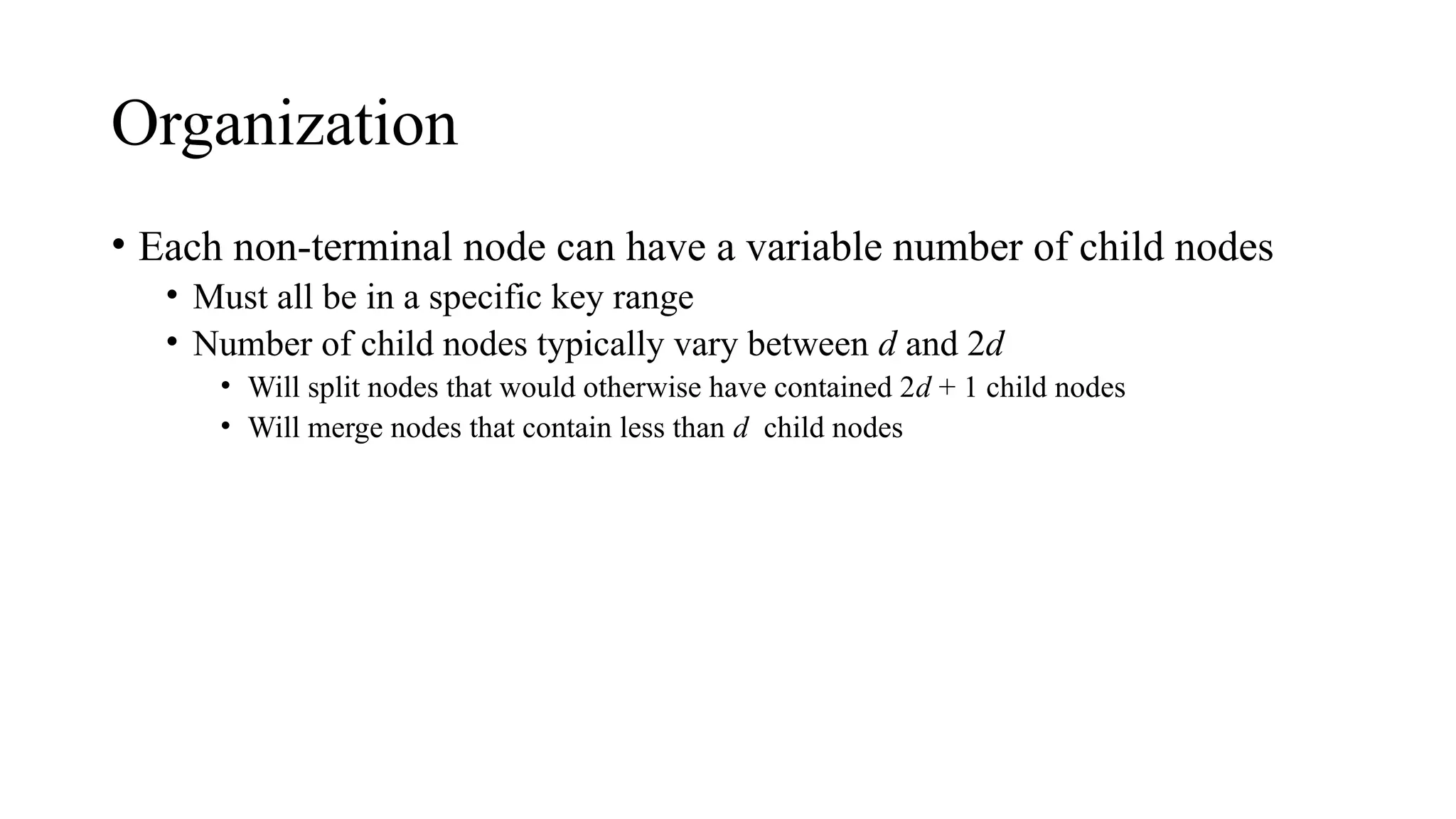

Organization
• Each non-terminal node can have a variable number of child nodes
• Must all be in a specific key range
• Number of child nodes typically vary between d and 2d
• Will split nodes that would otherwise have contained 2d + 1 child nodes
• Will merge nodes that contain less than d child nodes

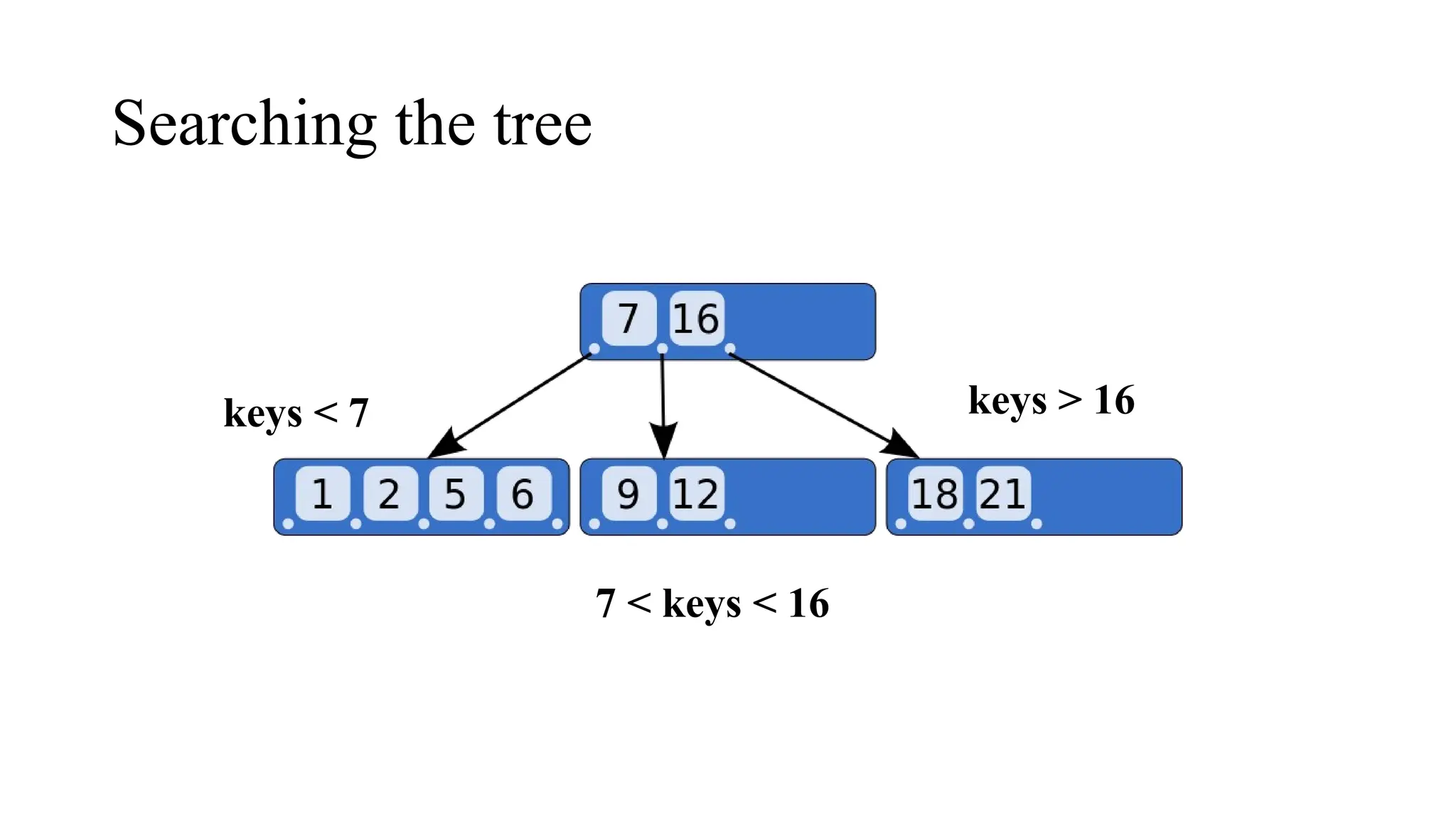

Searching the tree
keys < 7 keys > 16
7 < keys < 16

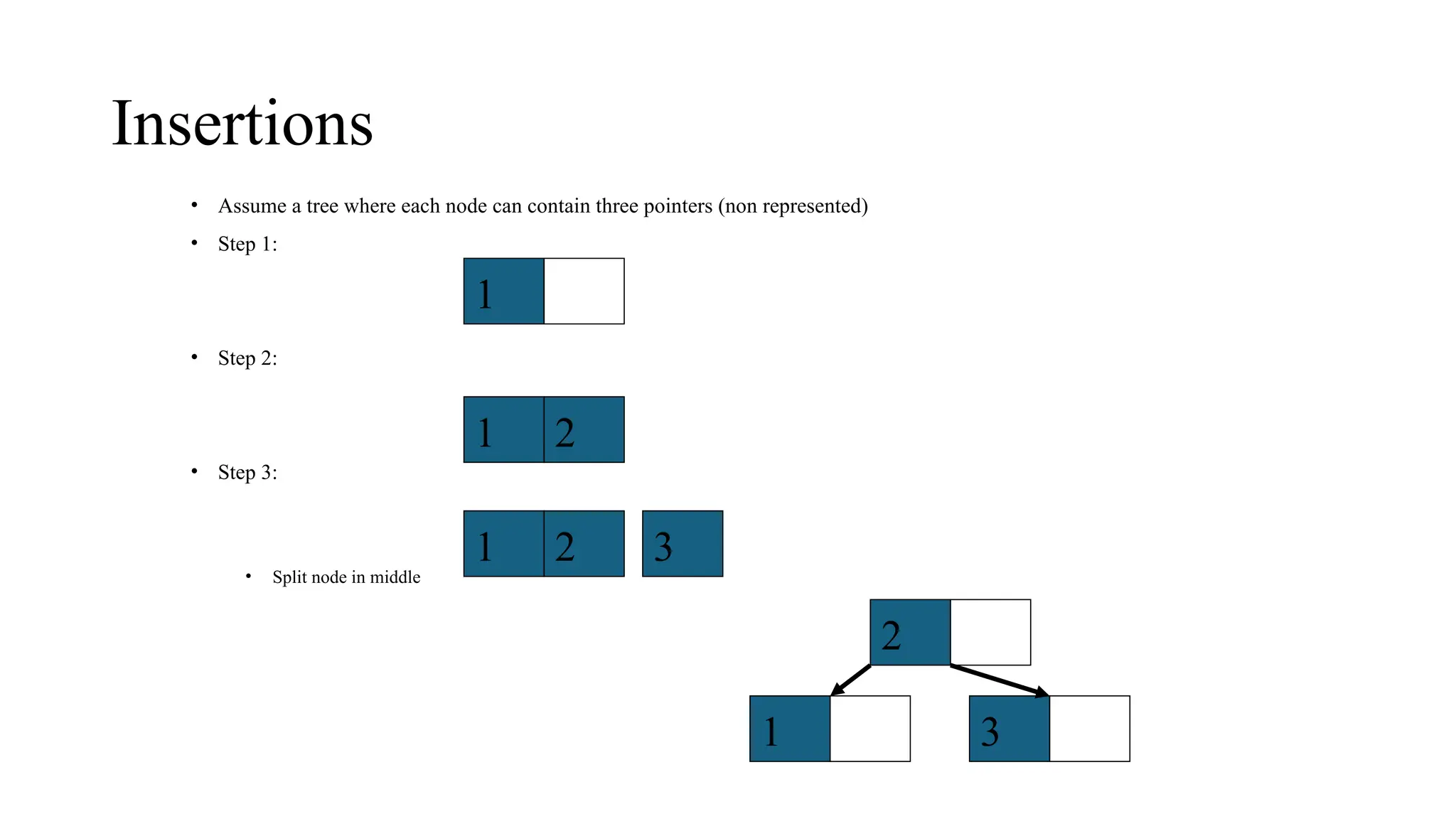

Insertions
• Assume a tree where each node can contain three pointers (non represented)
• Step 1:
• Step 2:
• Step 3:
• Split node in middle
1
1 2
1 2 3
2
1 3

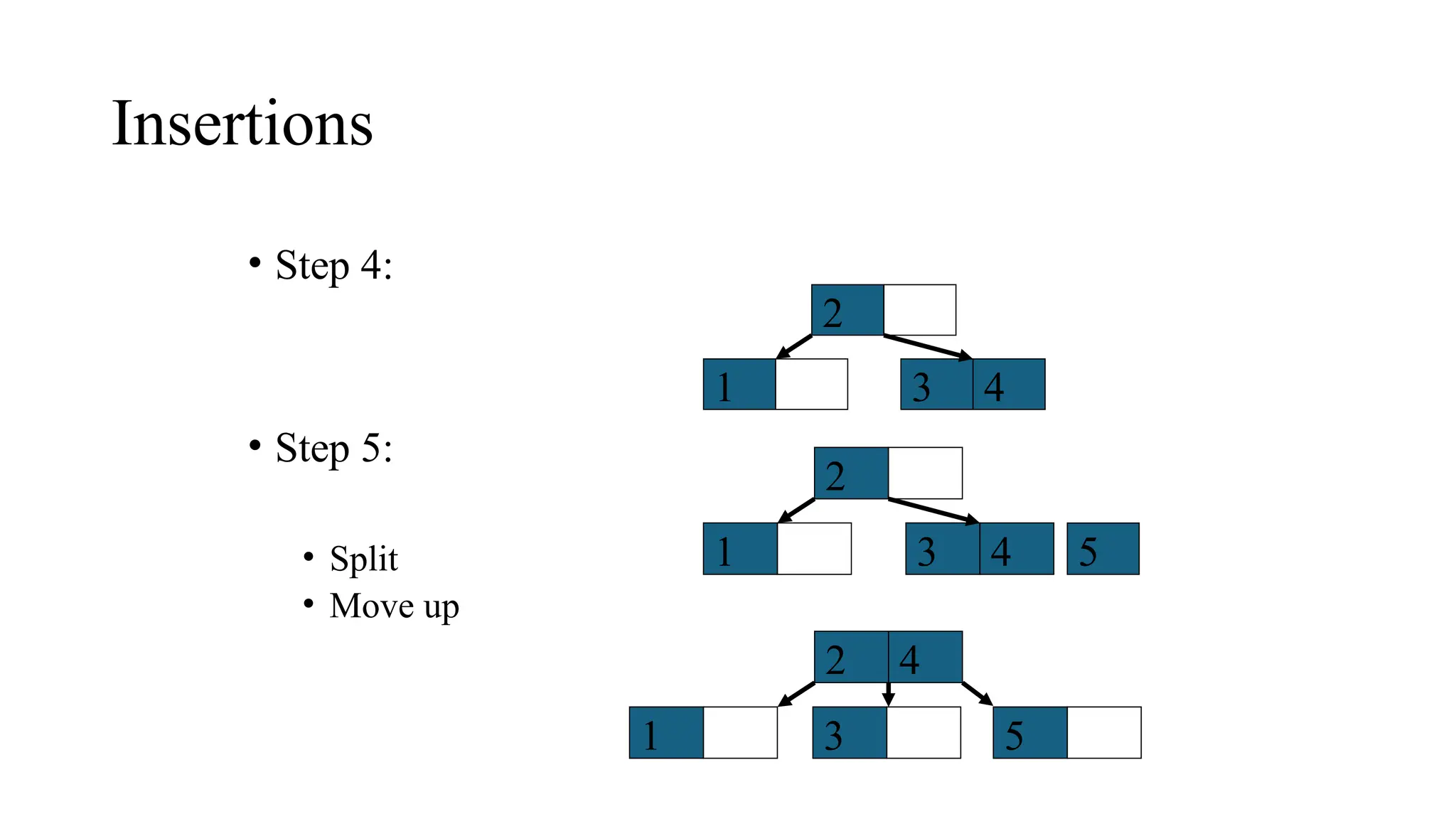

Insertions
• Step 4:
• Step 5:
• Split
• Move up
5
3
2
1 4
3
2
1 4
4
2
1 3 5

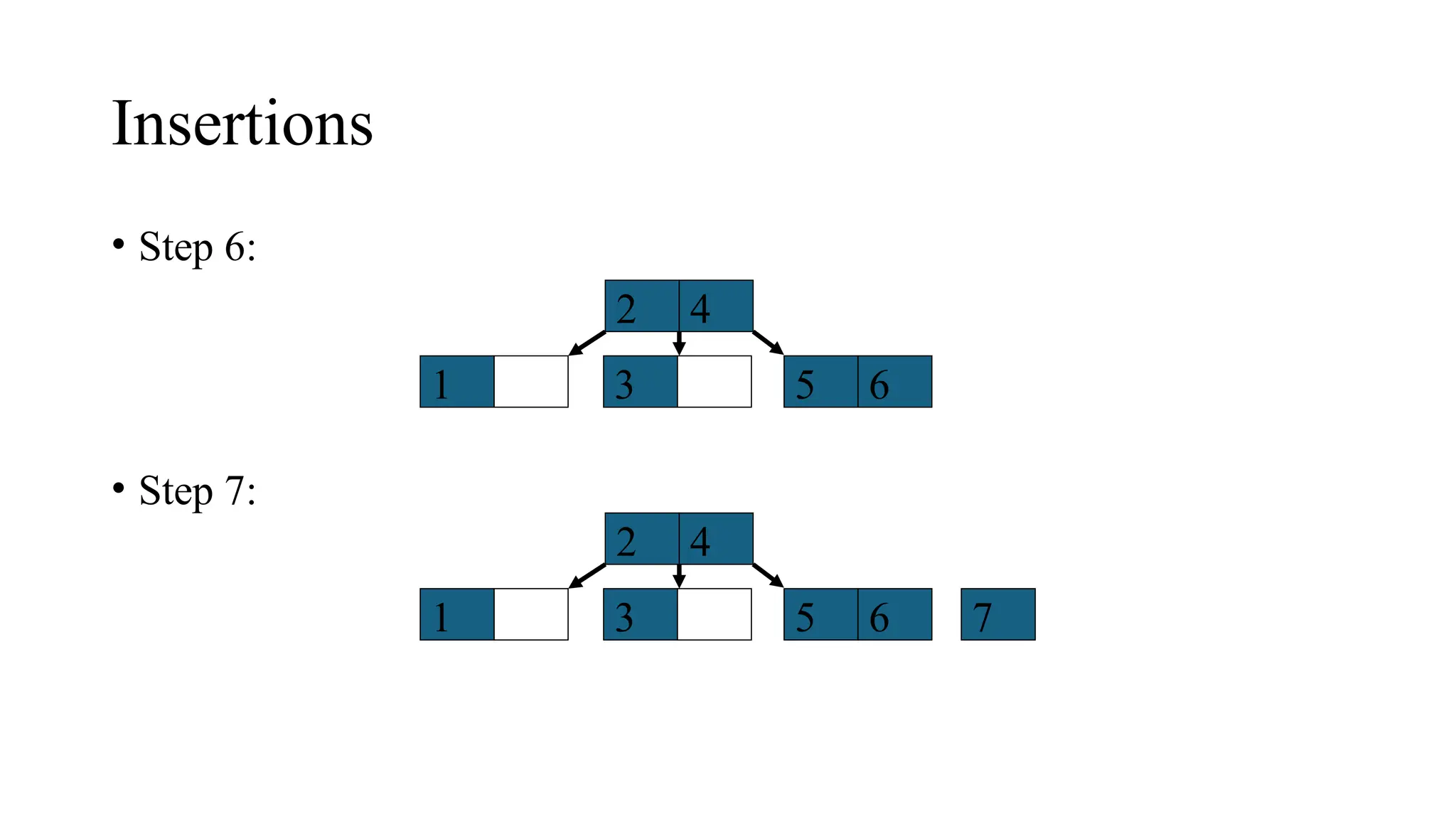

Insertions
• Step 6:
• Step 7:
4
2
1 3 5 6
4
2
1 3 5 6 7

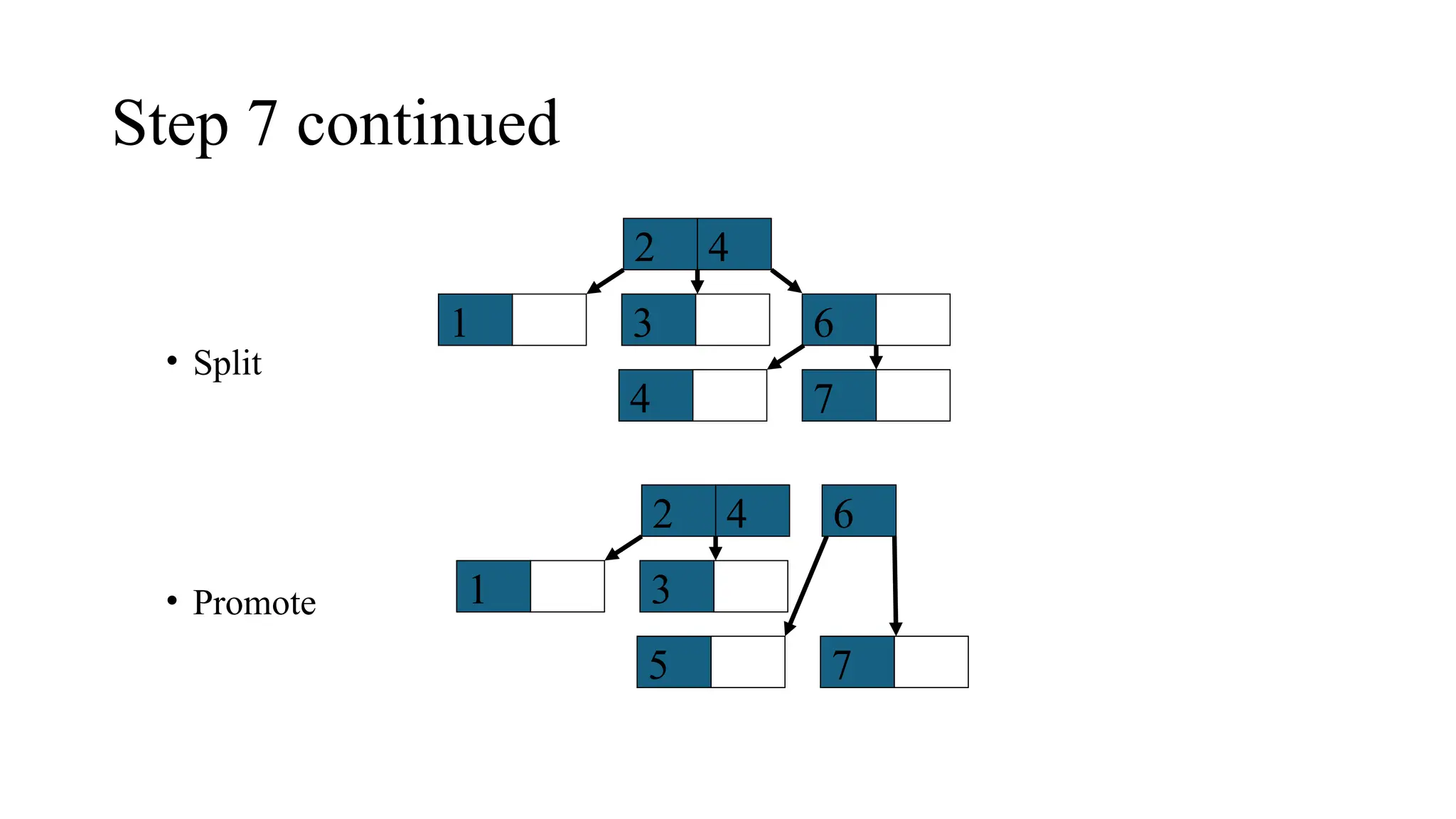

Step 7 continued
4
2
1 3 6
4 7
4
2
1 3
6
5 7
• Split
• Promote

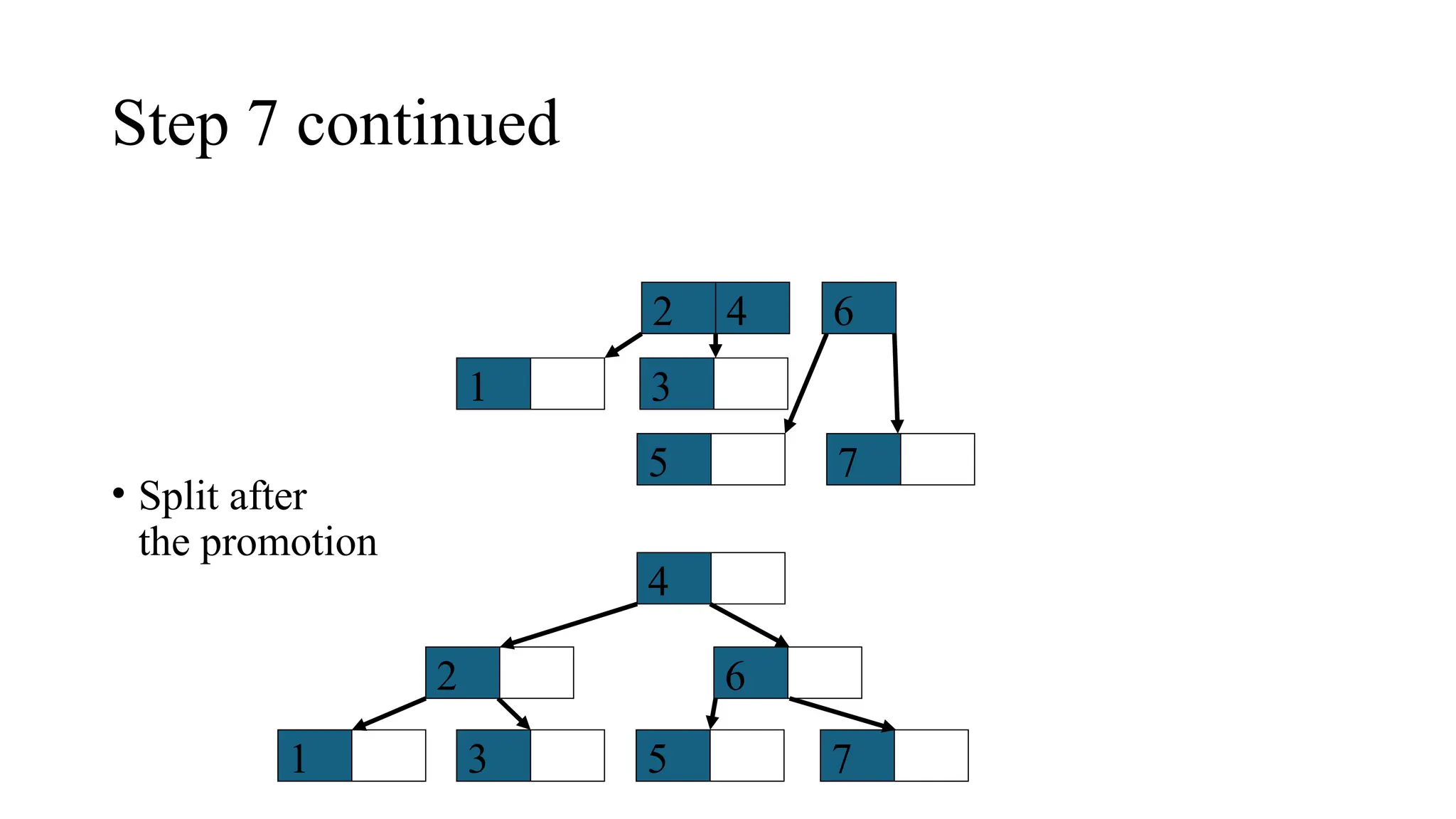

Step 7 continued
• Split after
the promotion
4
2
1 3
6
5 7
4
2
1 3
6
5 7

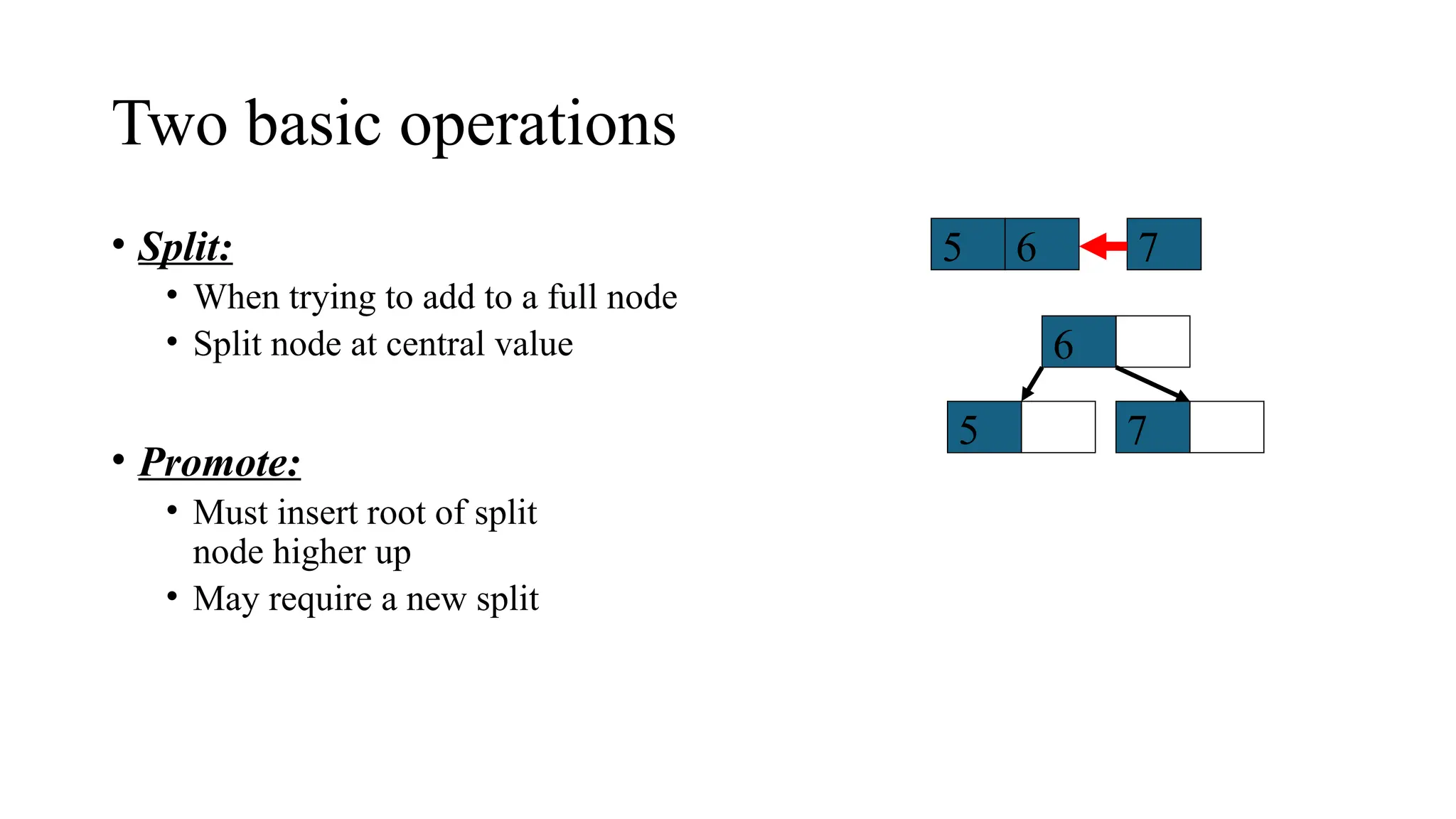

Two basic operations
• Split:
• When trying to add to a full node
• Split node at central value
• Promote:
• Must insert root of split
node higher up
• May require a new split
7
5
6
6
5 7

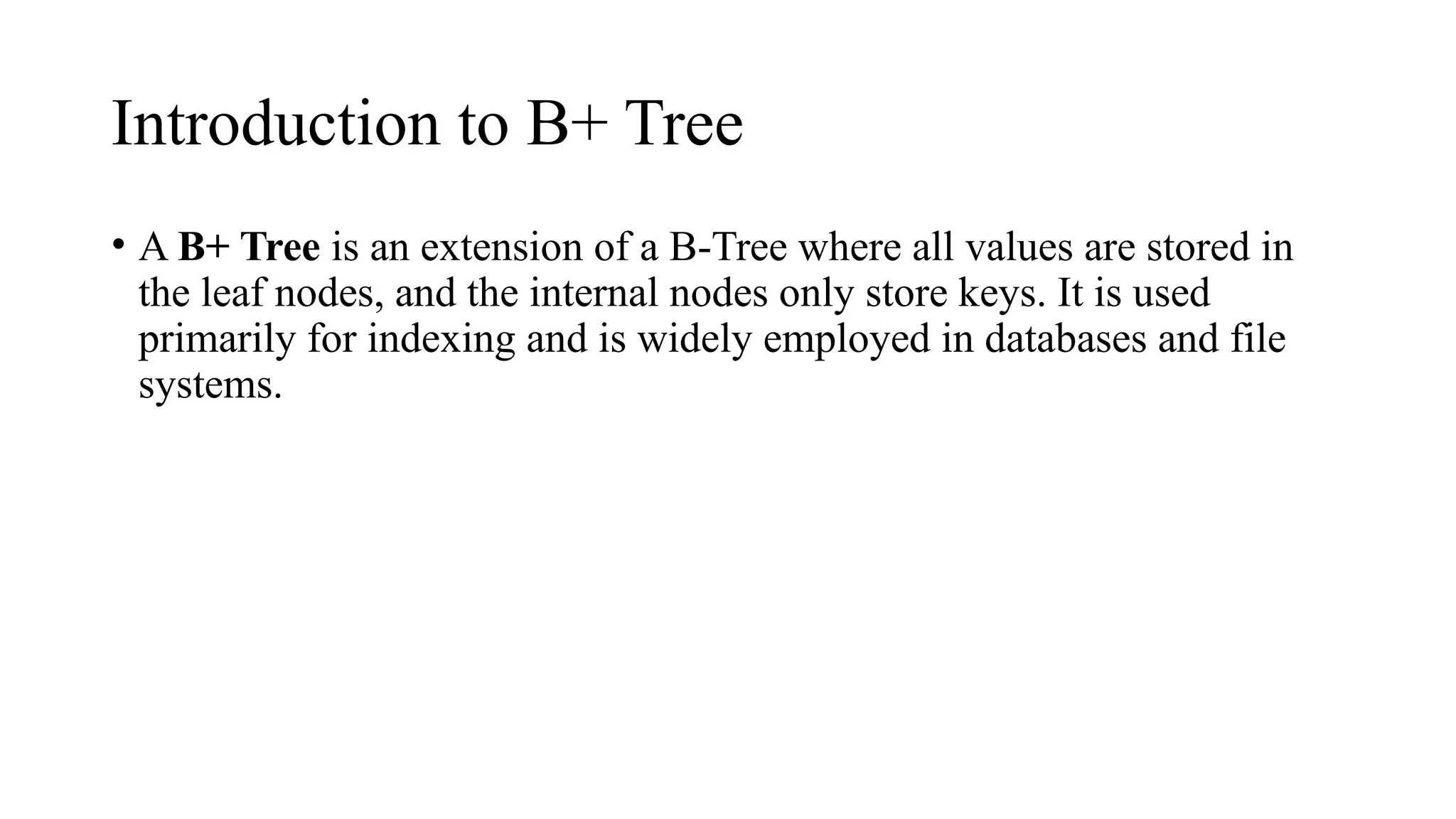

Introduction to B+ Tree
• A B+ Tree is an extension of a B-Tree where all values are stored in
the leaf nodes, and the internal nodes only store keys. It is used
primarily for indexing and is widely employed in databases and file
systems.

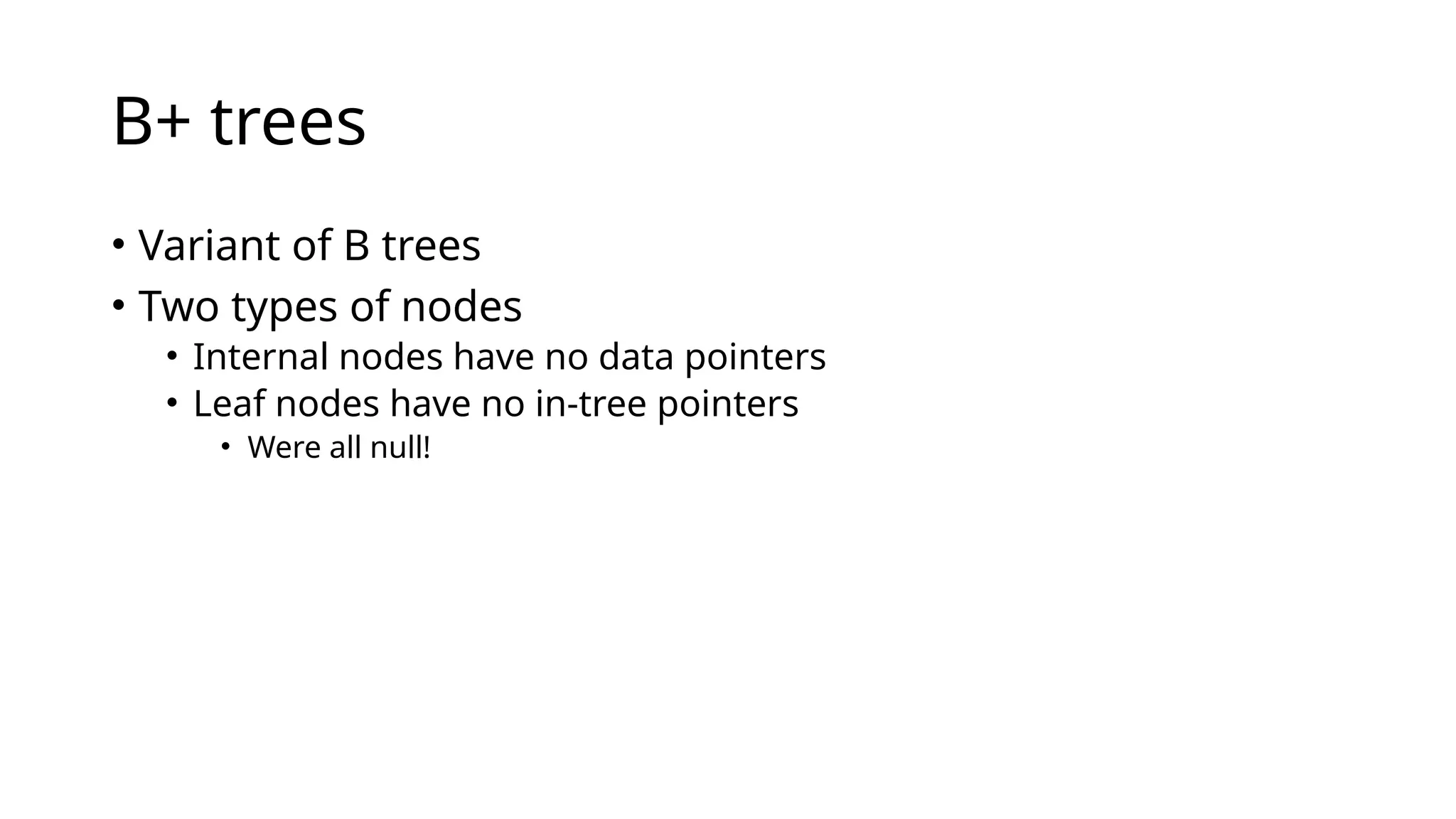

B+ trees
• Variant of B trees
• Two types of nodes
• Internal nodes have no data pointers
• Leaf nodes have no in-tree pointers
• Were all null!

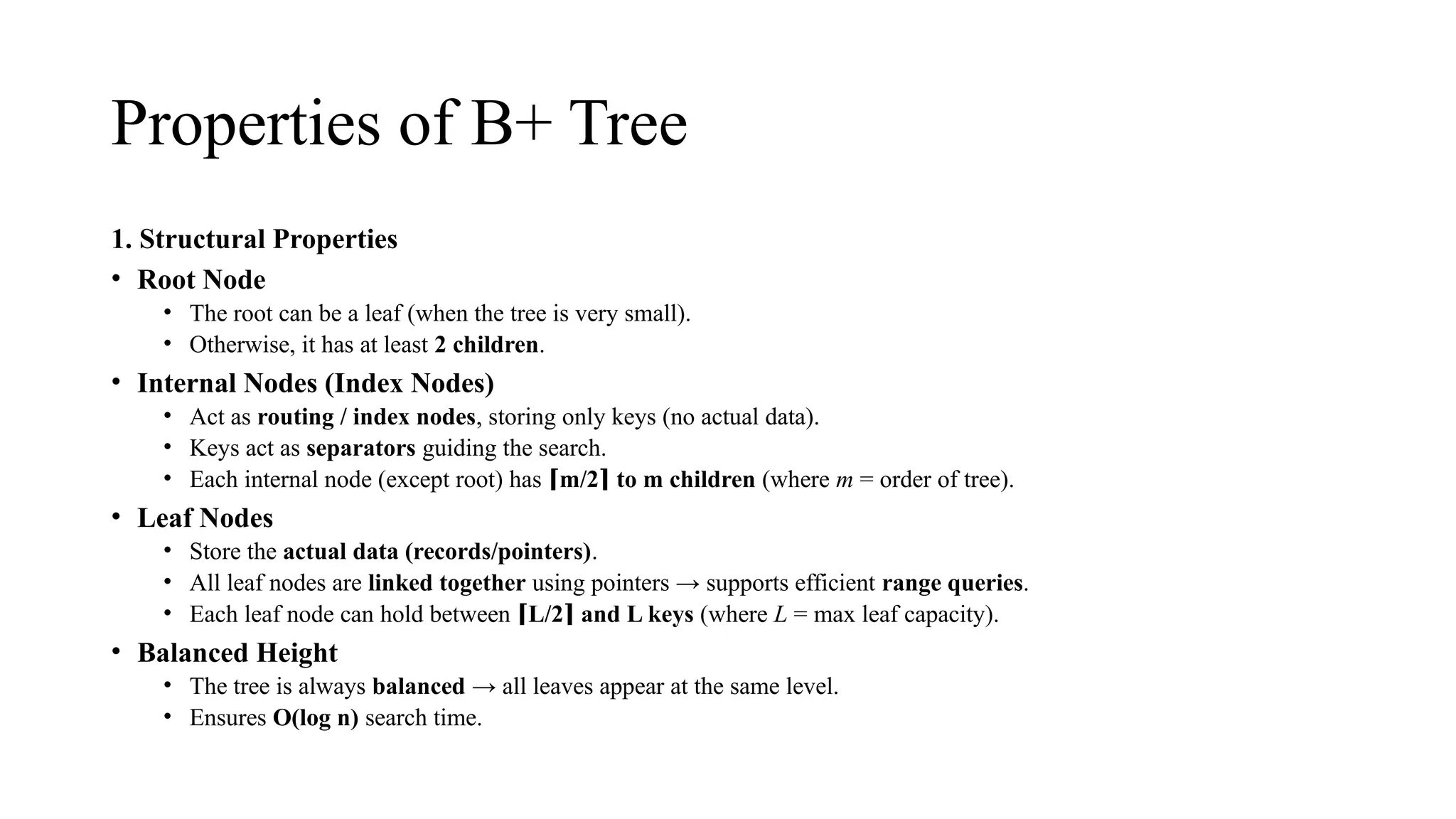

Properties of B+ Tree
1. Structural Properties
• Root Node
• The root can be a leaf (when the tree is very small).
• Otherwise, it has at least 2 children.
• Internal Nodes (Index Nodes)
• Act as routing / index nodes, storing only keys (no actual data).
• Keys act as separators guiding the search.
• Each internal node (except root) has m/2 to m children
⌈ ⌉ (where m = order of tree).
• Leaf Nodes
• Store the actual data (records/pointers).
• All leaf nodes are linked together using pointers → supports efficient range queries.
• Each leaf node can hold between L/2 and L keys
⌈ ⌉ (where L = max leaf capacity).
• Balanced Height
• The tree is always balanced → all leaves appear at the same level.
• Ensures O(log n) search time.

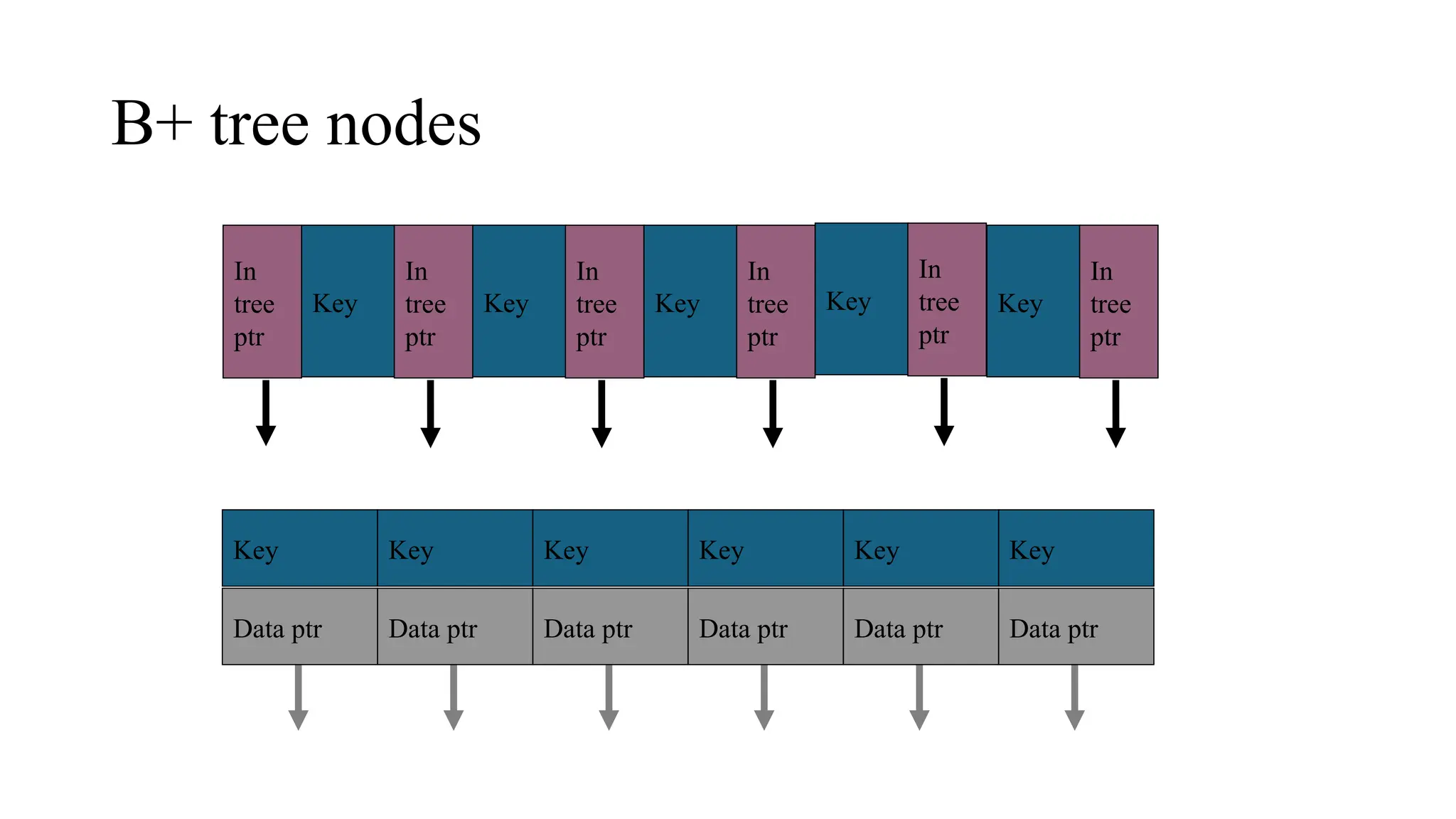

B+ tree nodes
In
tree
ptr
Key
In
tree
ptr
Key
In
tree
ptr
Key
In
tree
ptr
Key
In
tree
ptr
Key
In
tree
ptr
Key
Data ptr
Key
Data ptr
Key
Data ptr
Key
Data ptr
Key
Data ptr
Key
Data ptr

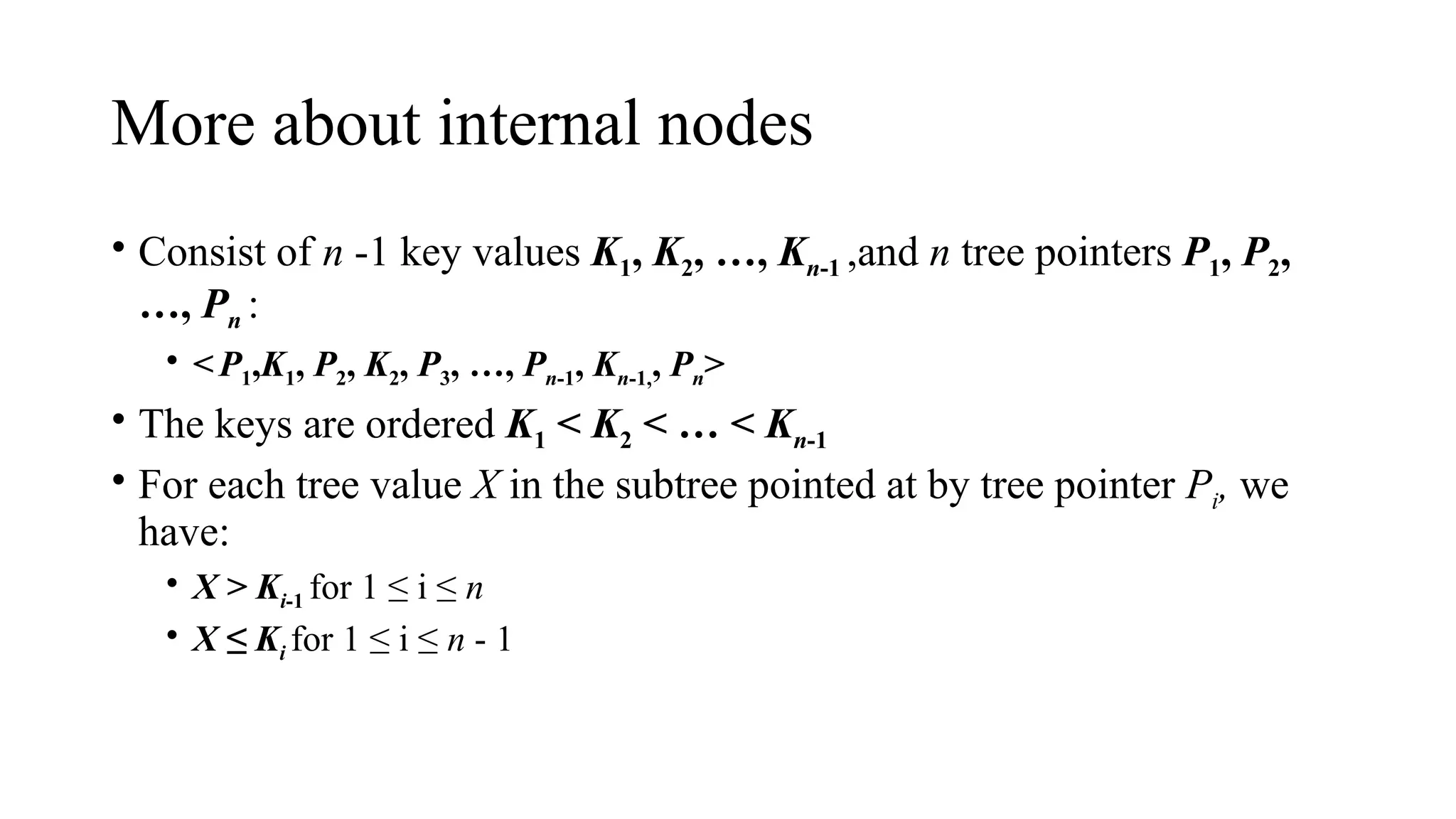

More about internal nodes
• Consist of n -1 key values K1, K2, …, Kn-1 ,and n tree pointers P1, P2,
…, Pn :
• <P1,K1, P2, K2, P3, …, Pn-1, Kn-1,, Pn>
• The keys are ordered K1 < K2 < … < Kn-1
• For each tree value X in the subtree pointed at by tree pointer Pi, we
have:
• X > Ki-1 for 1 ≤ i ≤ n
• X ≤ Ki for 1 ≤ i ≤ n - 1

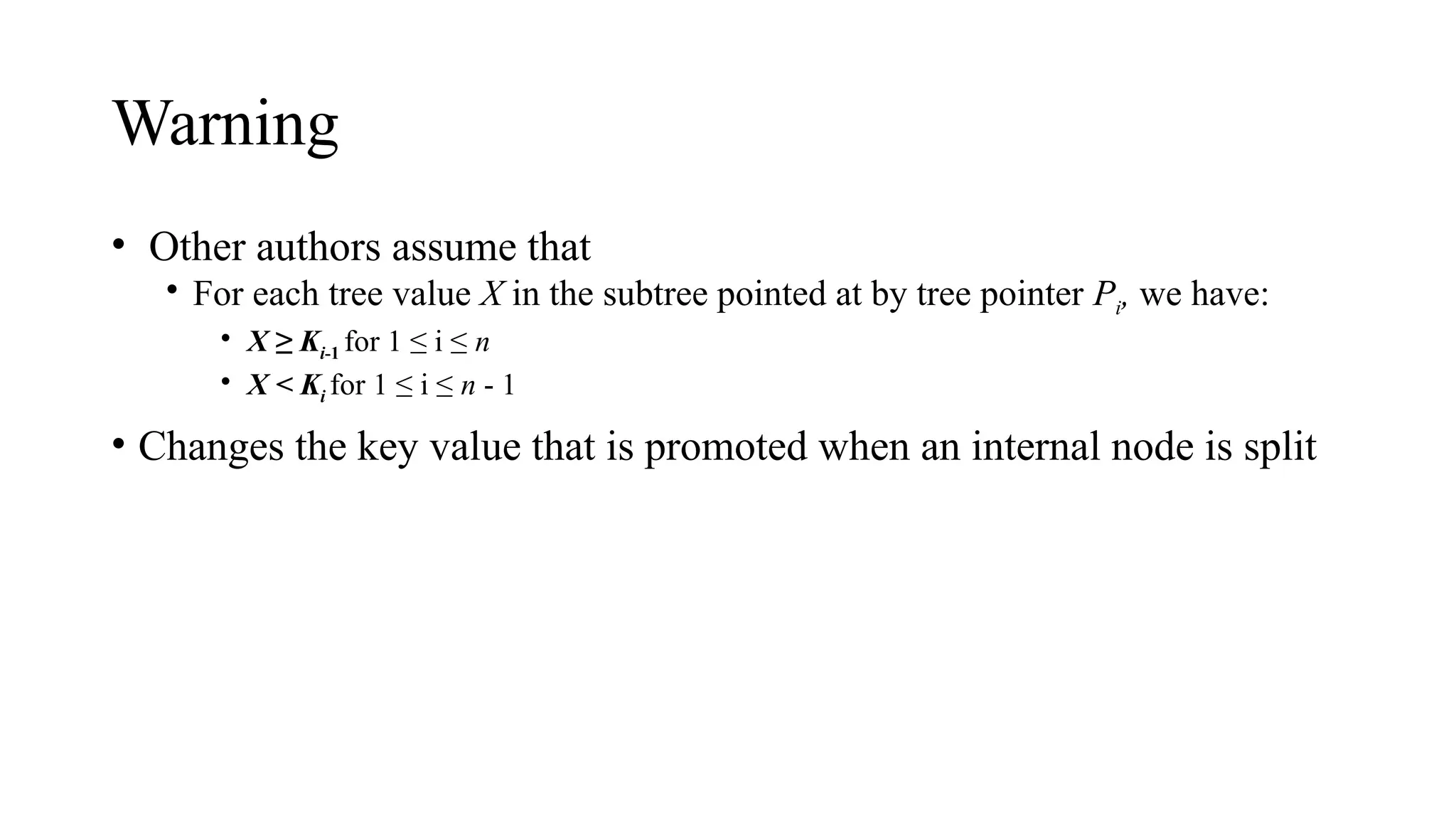

Warning
• Other authors assume that
• For each tree value X in the subtree pointed at by tree pointer Pi, we have:
• X ≥ Ki-1 for 1 ≤ i ≤ n
• X < Ki for 1 ≤ i ≤ n - 1
• Changes the key value that is promoted when an internal node is split

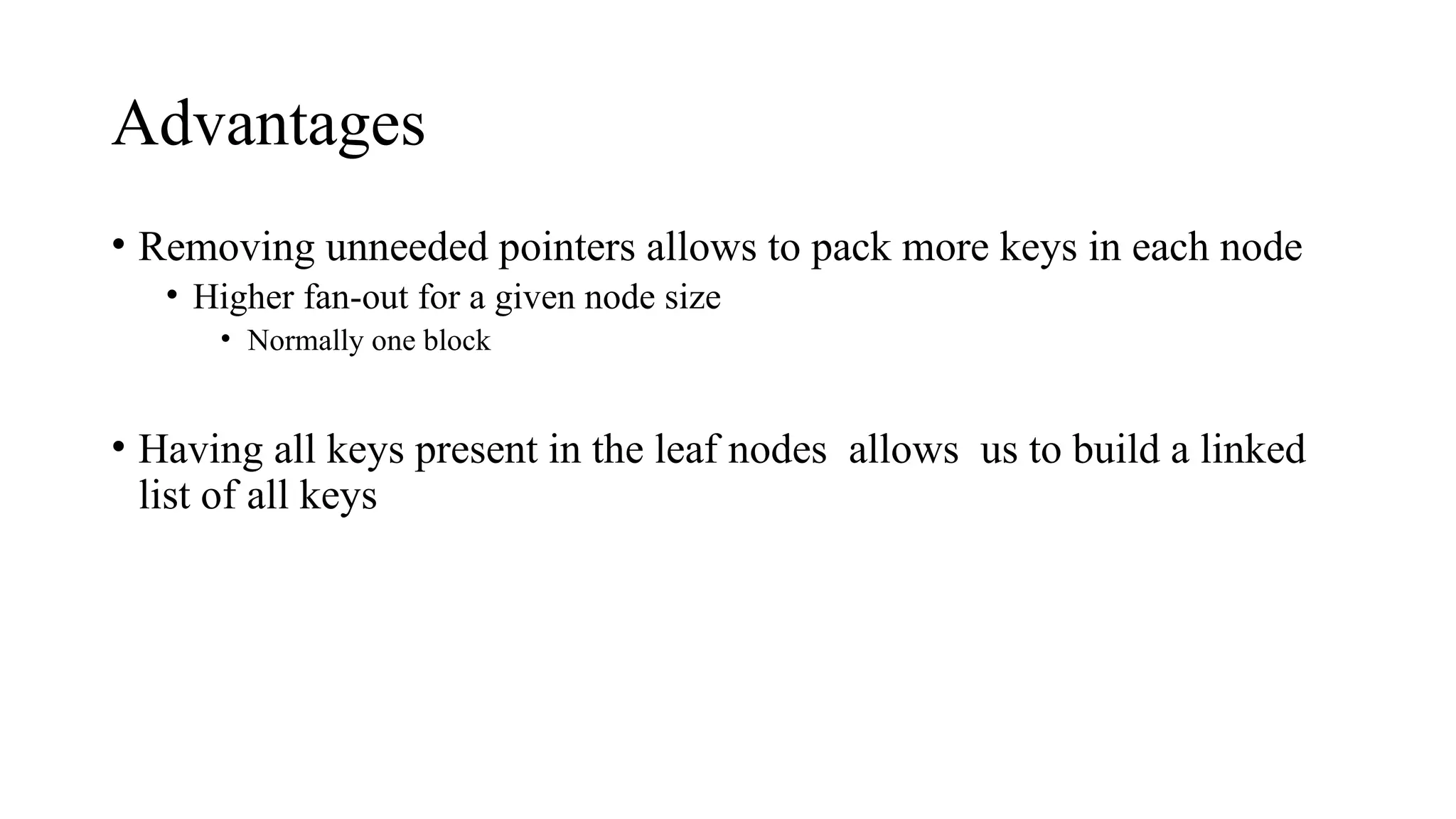

Advantages
• Removing unneeded pointers allows to pack more keys in each node
• Higher fan-out for a given node size
• Normally one block
• Having all keys present in the leaf nodes allows us to build a linked
list of all keys

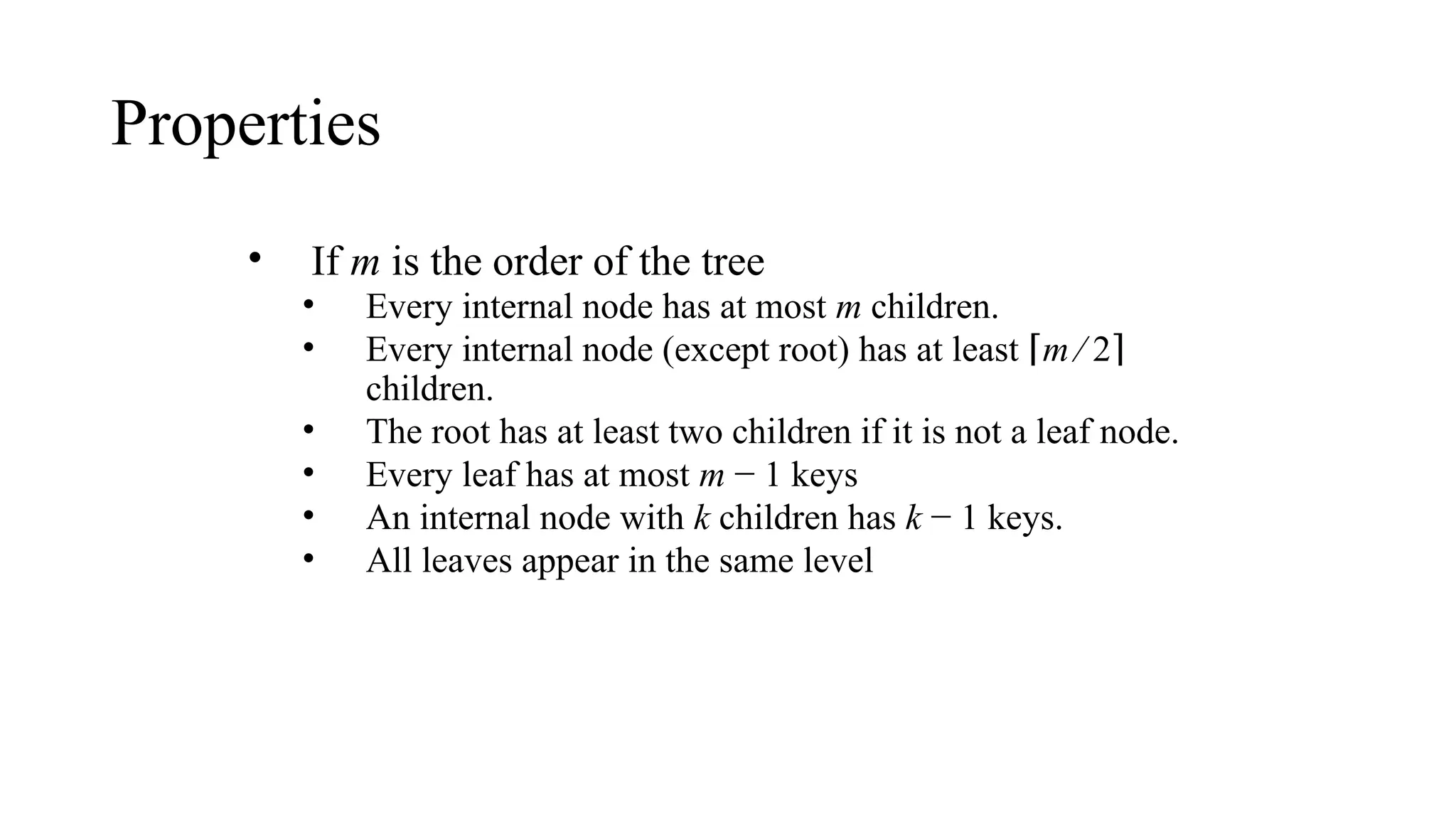

Properties
• If m is the order of the tree
• Every internal node has at most m children.
• Every internal node (except root) has at least ⌈m ⁄ 2⌉
children.
• The root has at least two children if it is not a leaf node.
• Every leaf has at most m − 1 keys
• An internal node with k children has k − 1 keys.
• All leaves appear in the same level

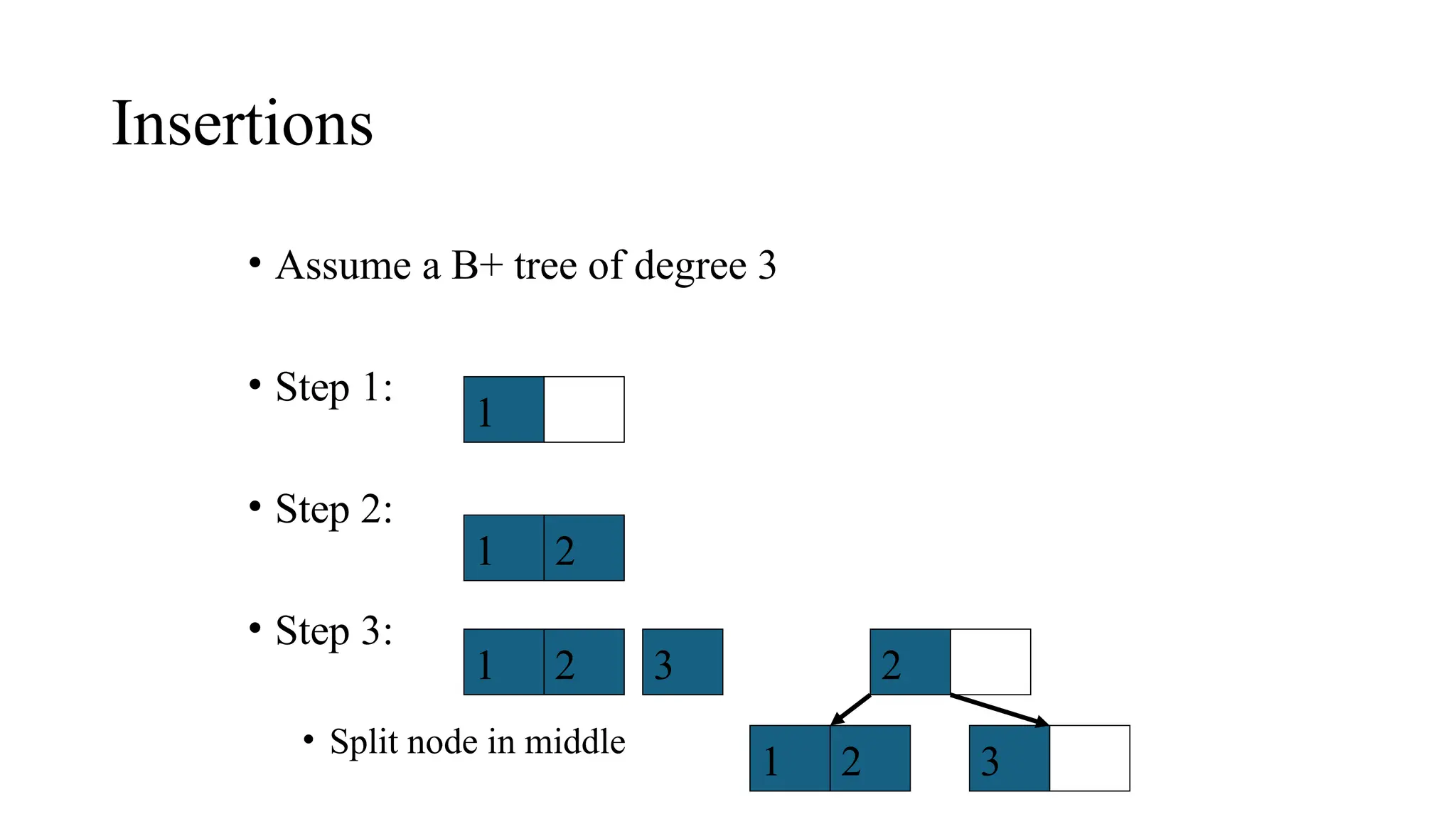

Insertions
• Assume a B+ tree of degree 3
• Step 1:
• Step 2:
• Step 3:
• Split node in middle
1
1 2
1 2 3 2
1 2 3

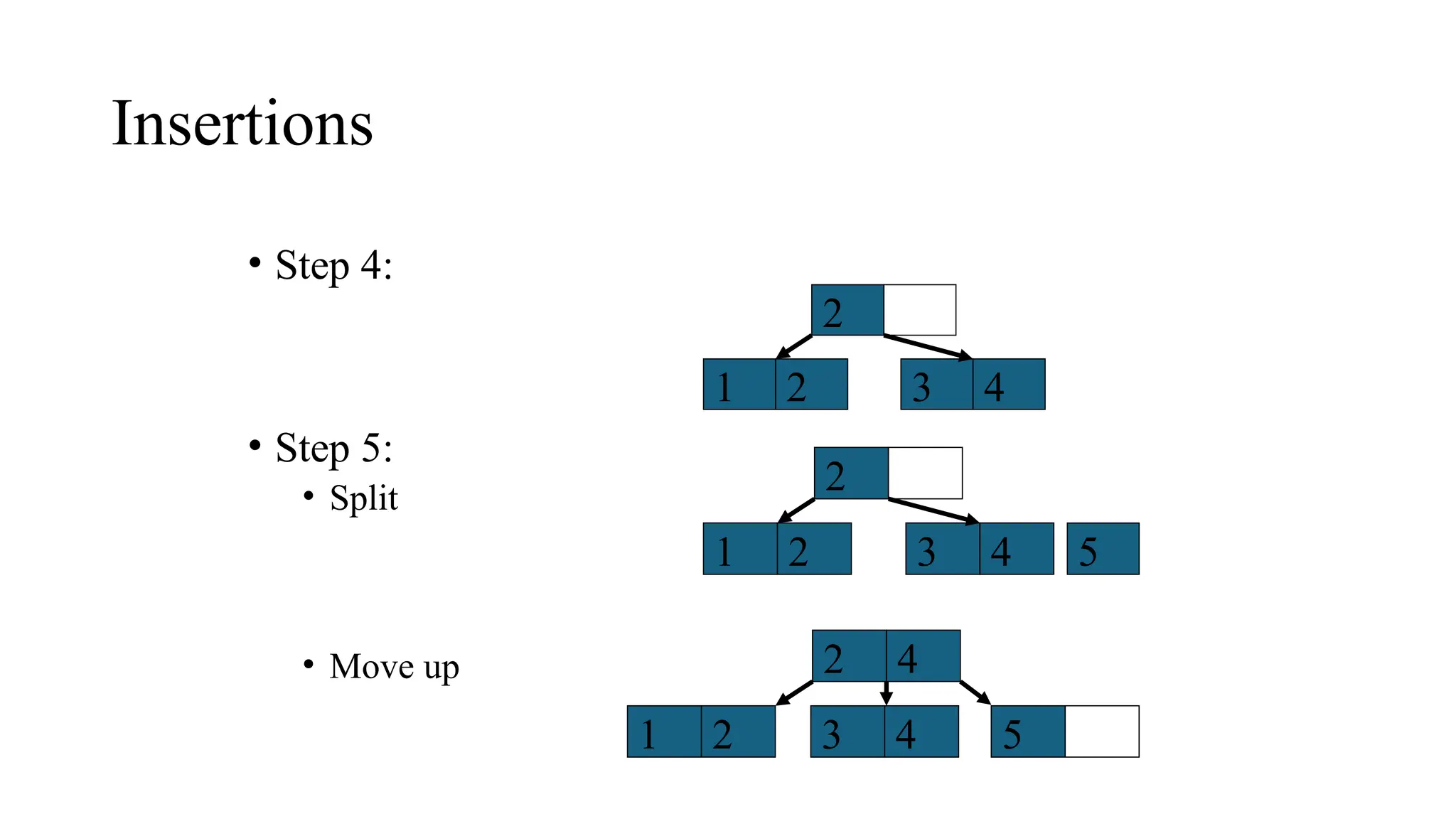

Insertions
• Step 4:
• Step 5:
• Split
• Move up
5
3
2
1 2 4
3
2
1 2 4
4
2
1 2 3 4 5

Insertions

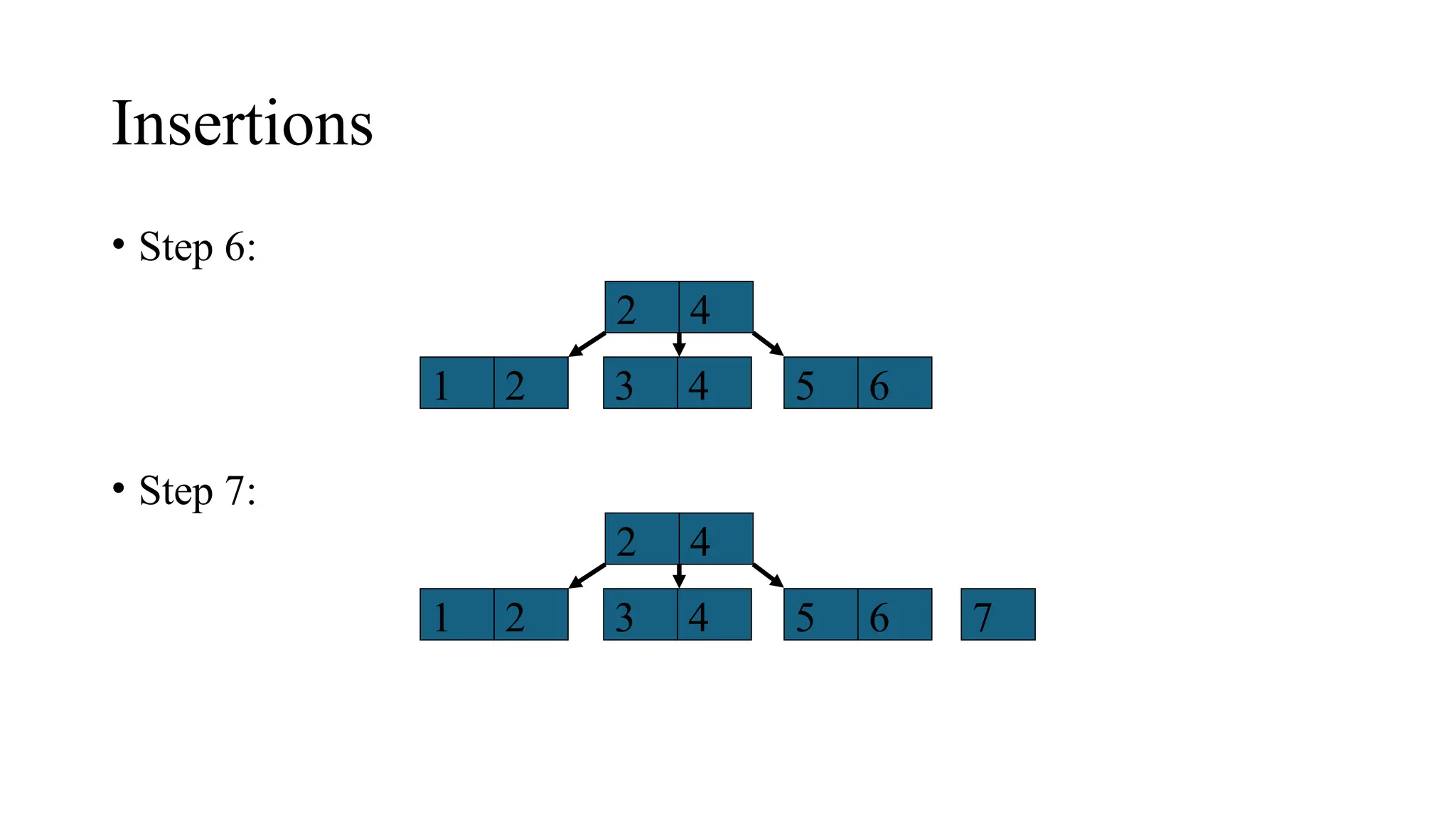

• Step 6:
• Step 7:
4
2
1 2 3 4 5 6
4
2
1 2 3 4 5 6 7

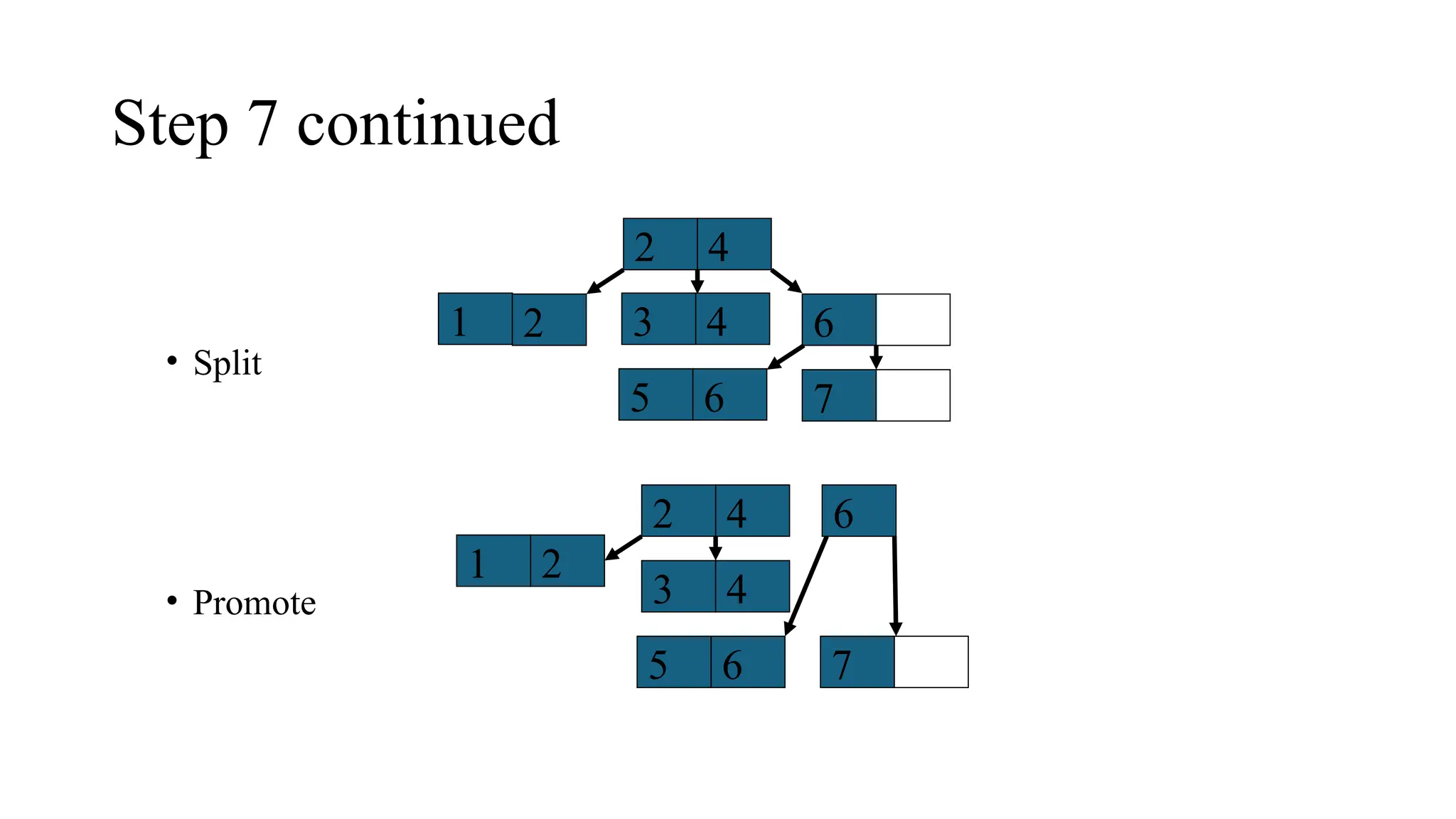

Step 7 continued
4
2
1 2 3 4 6
5 6 7
4
2
1 2
3 4
6
5 6 7
• Split
• Promote

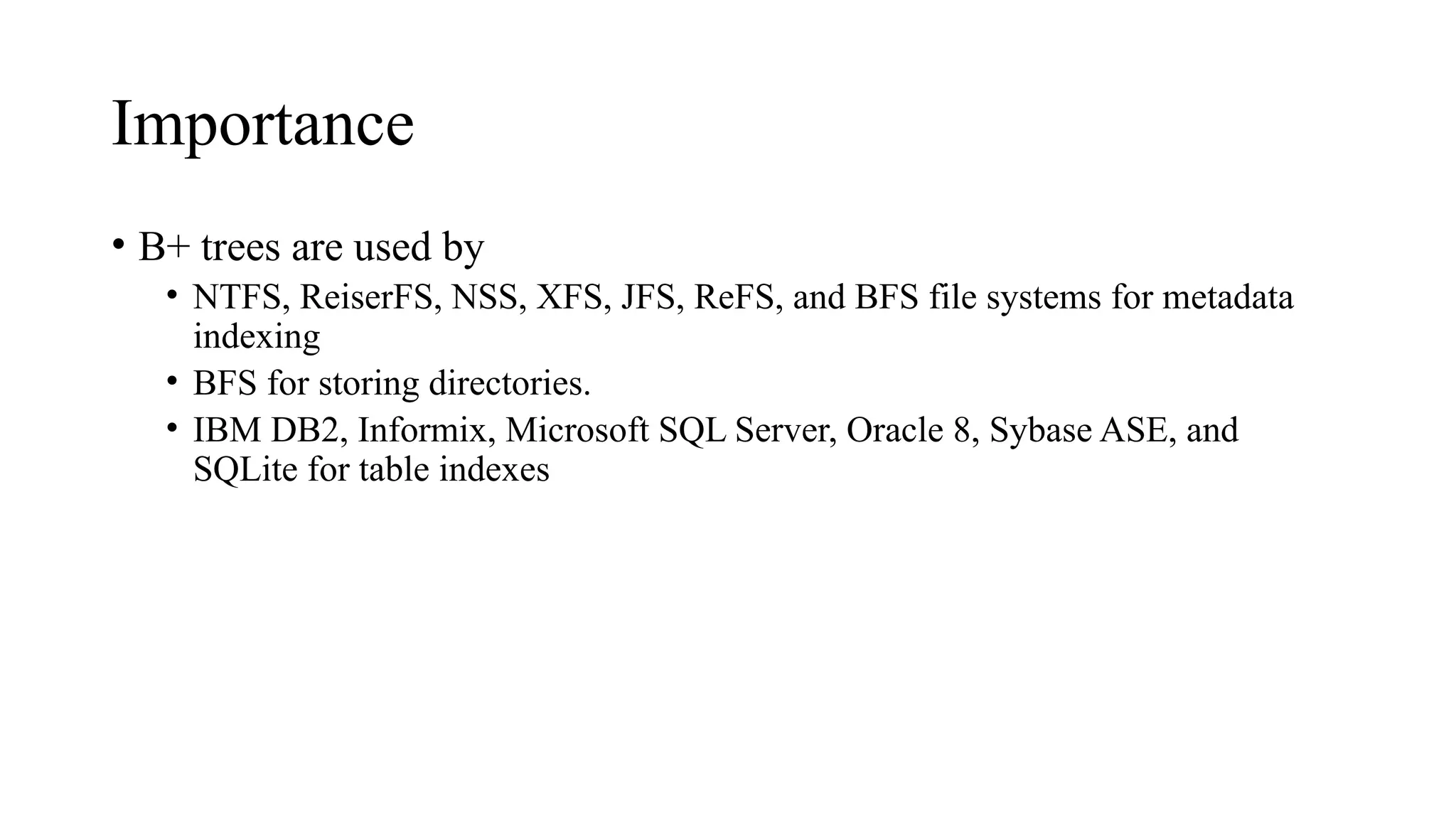

Importance
• B+ trees are used by
• NTFS, ReiserFS, NSS, XFS, JFS, ReFS, and BFS file systems for metadata
indexing
• BFS for storing directories.
• IBM DB2, Informix, Microsoft SQL Server, Oracle 8, Sybase ASE, and
SQLite for table indexes

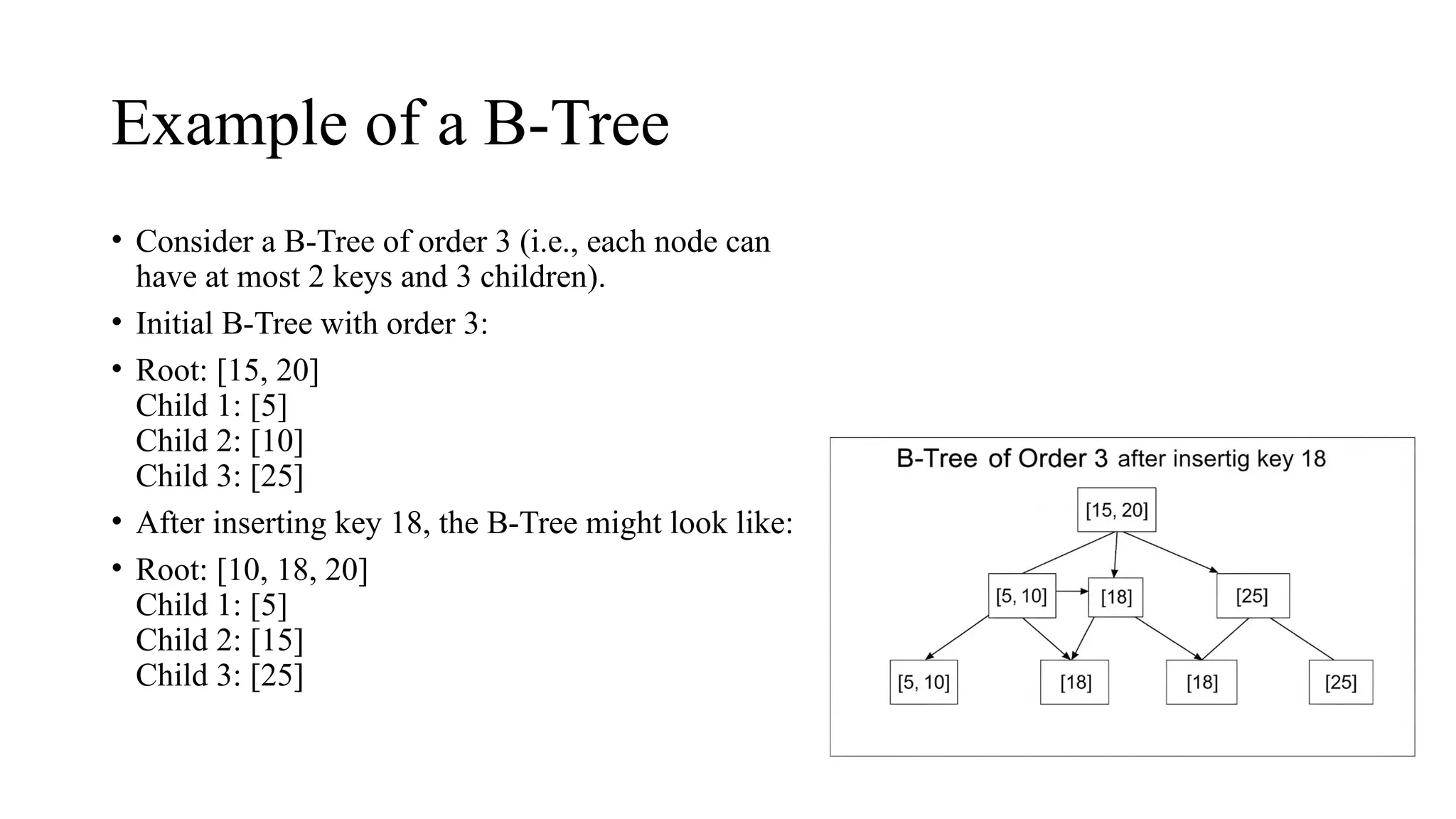

Example of a B-Tree
• Consider a B-Tree of order 3 (i.e., each node can
have at most 2 keys and 3 children).
• Initial B-Tree with order 3:
• Root: [15, 20]
Child 1: [5]
Child 2: [10]
Child 3: [25]
• After inserting key 18, the B-Tree might look like:
• Root: [10, 18, 20]
Child 1: [5]
Child 2: [15]
Child 3: [25]

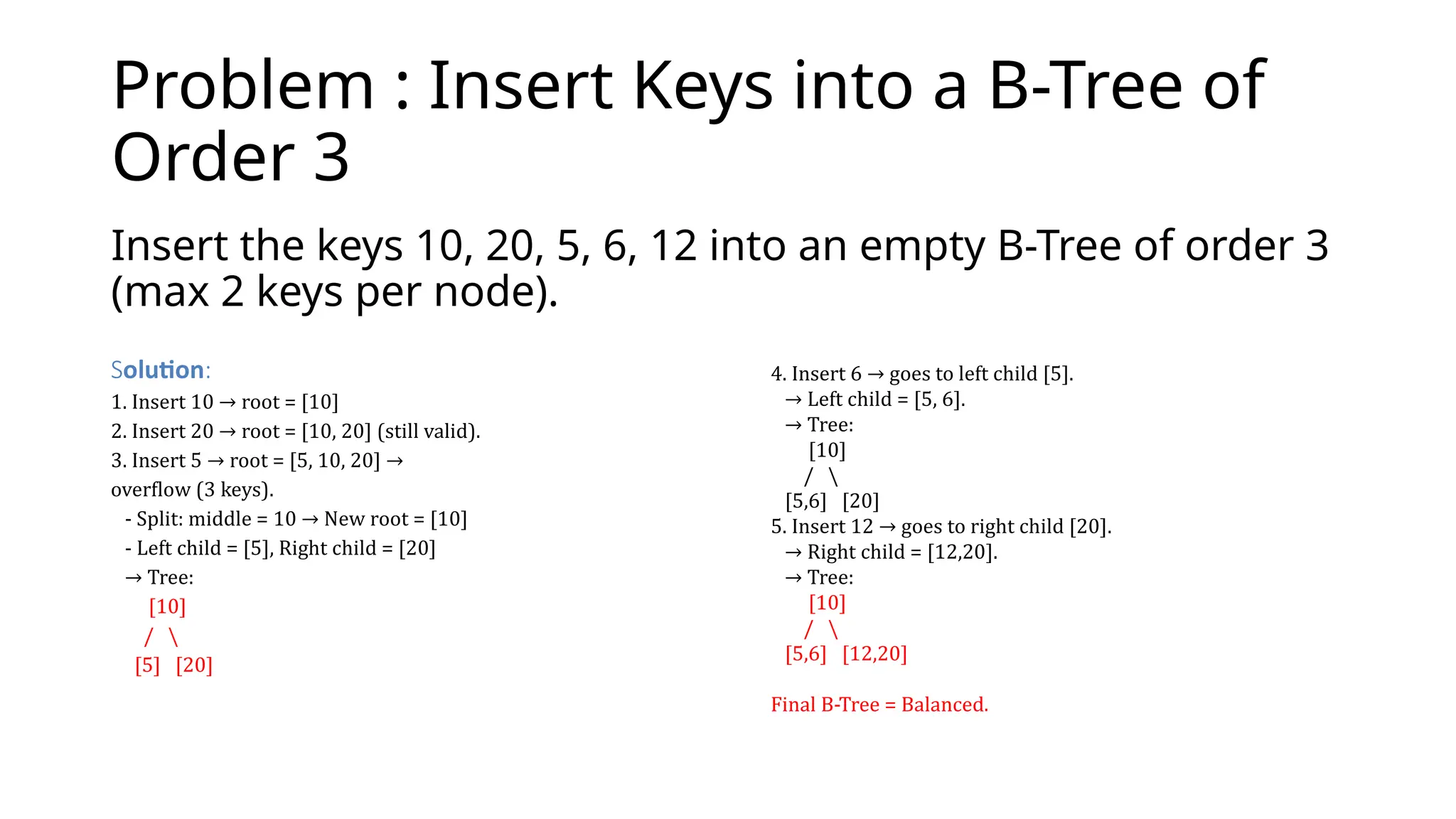

Problem : Insert Keys into a B-Tree of
Order 3
Insert the keys 10, 20, 5, 6, 12 into an empty B-Tree of order 3
(max 2 keys per node).
olution
S :
1. Insert 10 → root = [10]
2. Insert 20 → root = [10, 20] (still valid).
3. Insert 5 → root = [5, 10, 20] →
overflow (3 keys).
- Split: middle = 10 → New root = [10]
- Left child = [5], Right child = [20]
→ Tree:
[10]
/
[5] [20]
4. Insert 6 → goes to left child [5].
→ Left child = [5, 6].
→ Tree:
[10]
/
[5,6] [20]
5. Insert 12 → goes to right child [20].
→ Right child = [12,20].
→ Tree:
[10]
/
[5,6] [12,20]
Final B-Tree = Balanced.

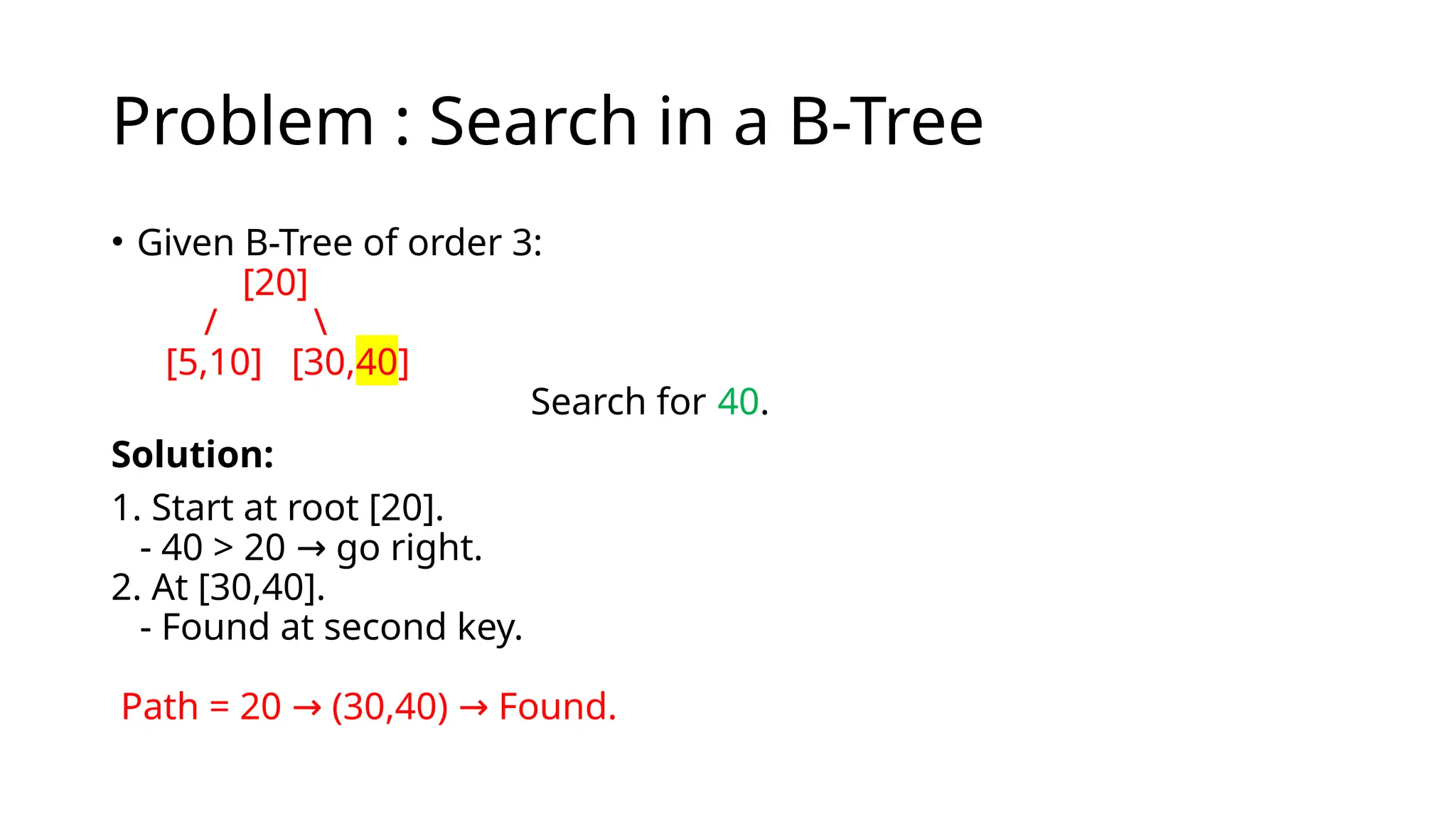

Problem : Search in a B-Tree
• Given B-Tree of order 3:
[20]
/
[5,10] [30,40]
Search for 40.
Solution:
1. Start at root [20].
- 40 > 20 go right.
→
2. At [30,40].
- Found at second key.
Path = 20 (30,40) Found.
→ →

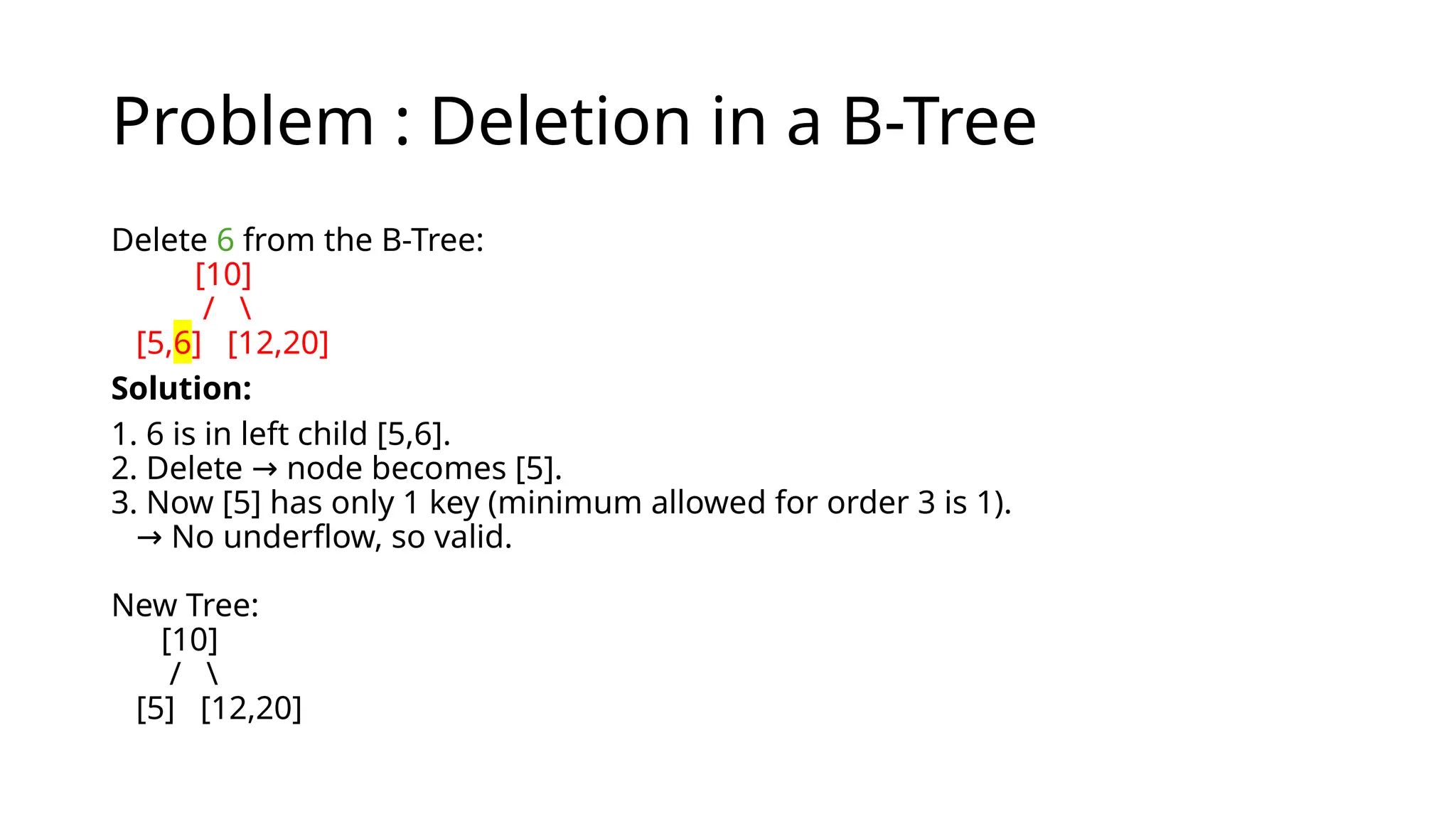

Problem : Deletion in a B-Tree
Delete 6 from the B-Tree:
[10]
/
[5,6] [12,20]
Solution:
1. 6 is in left child [5,6].
2. Delete node becomes [5].
→
3. Now [5] has only 1 key (minimum allowed for order 3 is 1).
No underflow, so valid.
→
New Tree:
[10]
/
[5] [12,20]

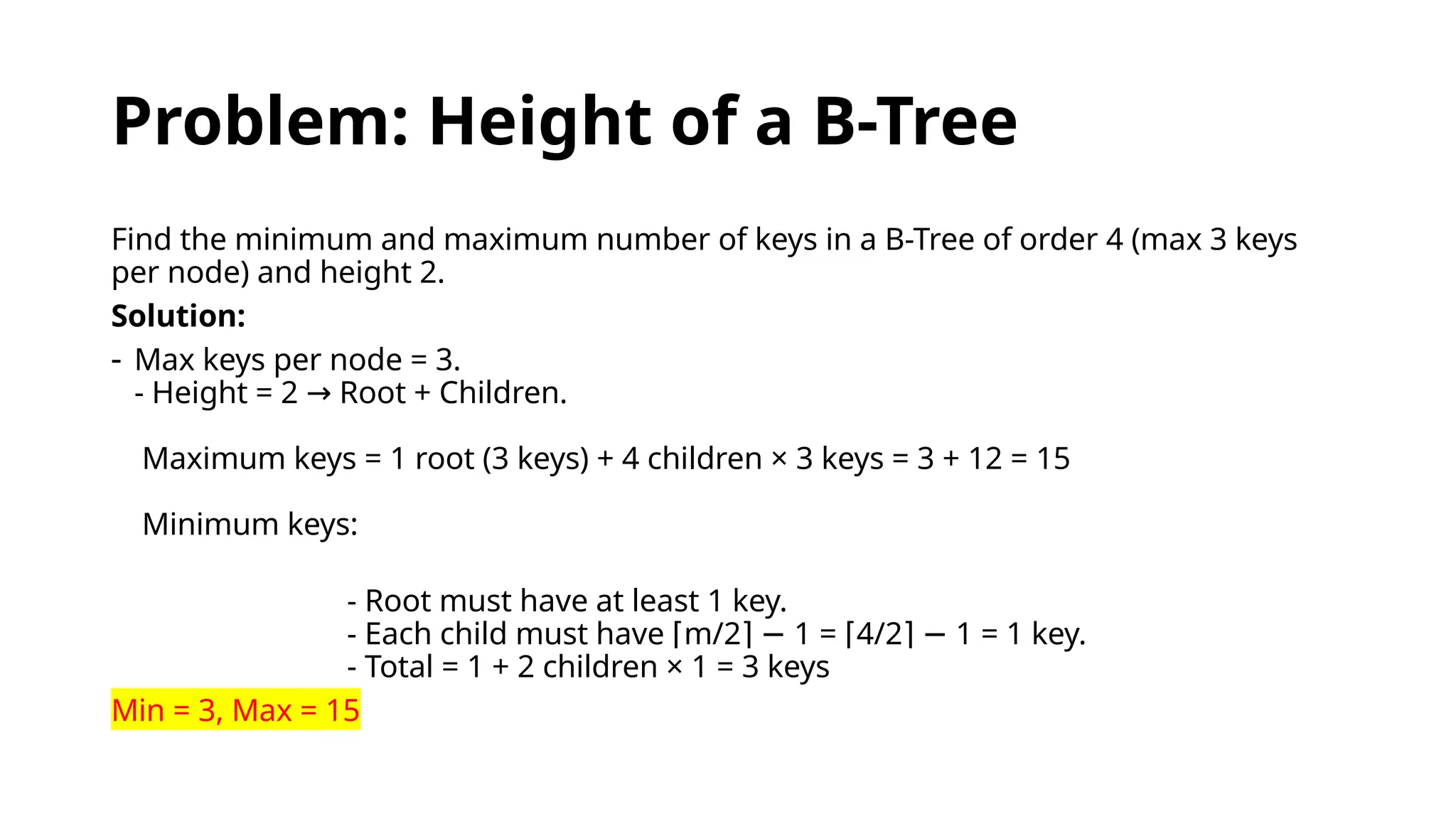

Problem: Height of a B-Tree
Find the minimum and maximum number of keys in a B-Tree of order 4 (max 3 keys
per node) and height 2.
Solution:
- Max keys per node = 3.
- Height = 2 Root + Children.
→
Maximum keys = 1 root (3 keys) + 4 children × 3 keys = 3 + 12 = 15
Minimum keys:
- Root must have at least 1 key.
- Each child must have m/2 1 = 4/2 1 = 1 key.
⌈ ⌉ − ⌈ ⌉ −
- Total = 1 + 2 children × 1 = 3 keys
Min = 3, Max = 15

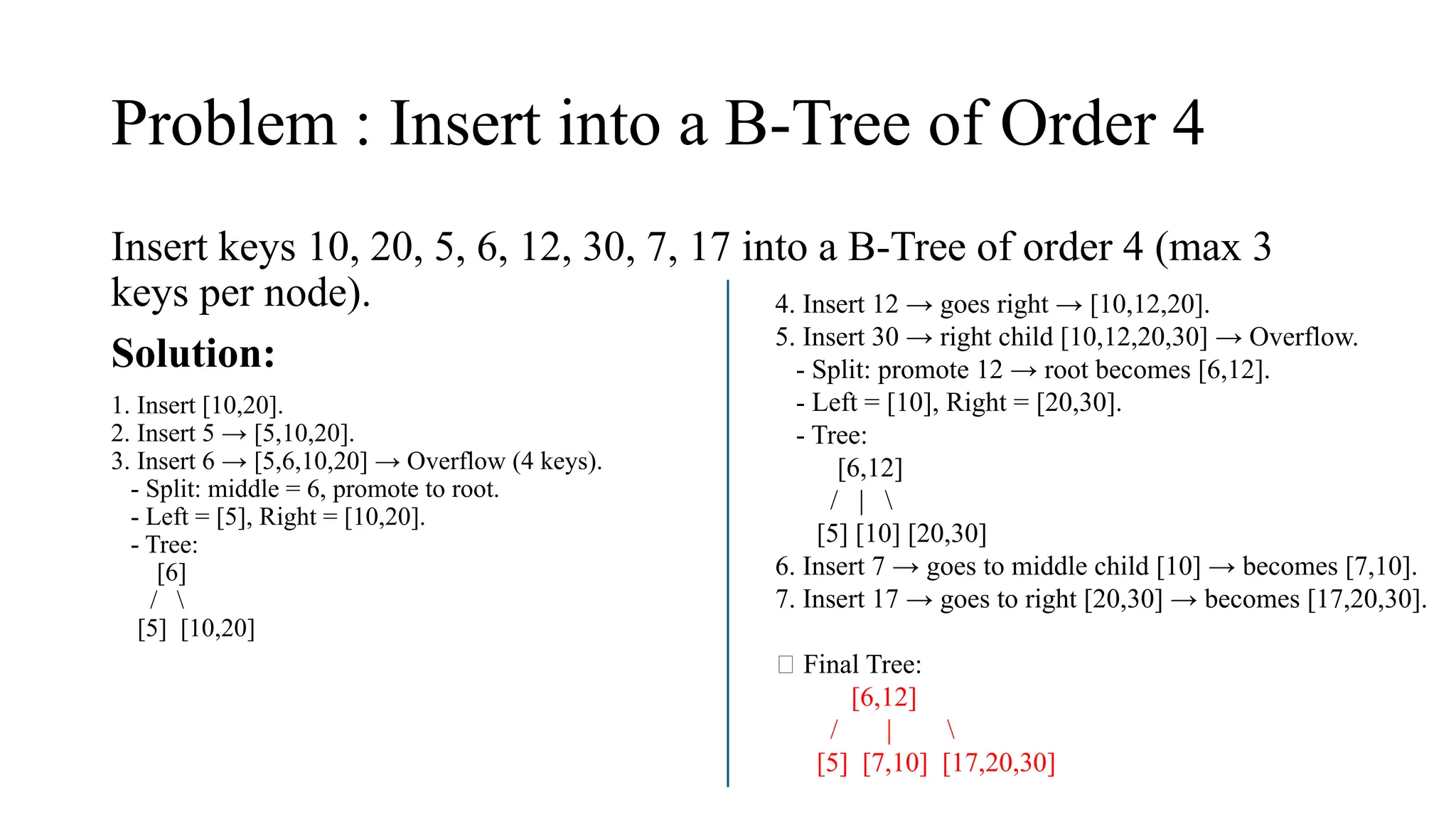

Problem : Insert into a B-Tree of Order 4
Insert keys 10, 20, 5, 6, 12, 30, 7, 17 into a B-Tree of order 4 (max 3
keys per node).
Solution:
1. Insert [10,20].
2. Insert 5 → [5,10,20].
3. Insert 6 → [5,6,10,20] → Overflow (4 keys).
- Split: middle = 6, promote to root.
- Left = [5], Right = [10,20].
- Tree:
[6]
/
[5] [10,20]
4. Insert 12 → goes right → [10,12,20].
5. Insert 30 → right child [10,12,20,30] → Overflow.
- Split: promote 12 → root becomes [6,12].
- Left = [10], Right = [20,30].
- Tree:
[6,12]
/ |
[5] [10] [20,30]
6. Insert 7 → goes to middle child [10] → becomes [7,10].
7. Insert 17 → goes to right [20,30] → becomes [17,20,30].
✅ Final Tree:
[6,12]
/ |
[5] [7,10] [17,20,30]

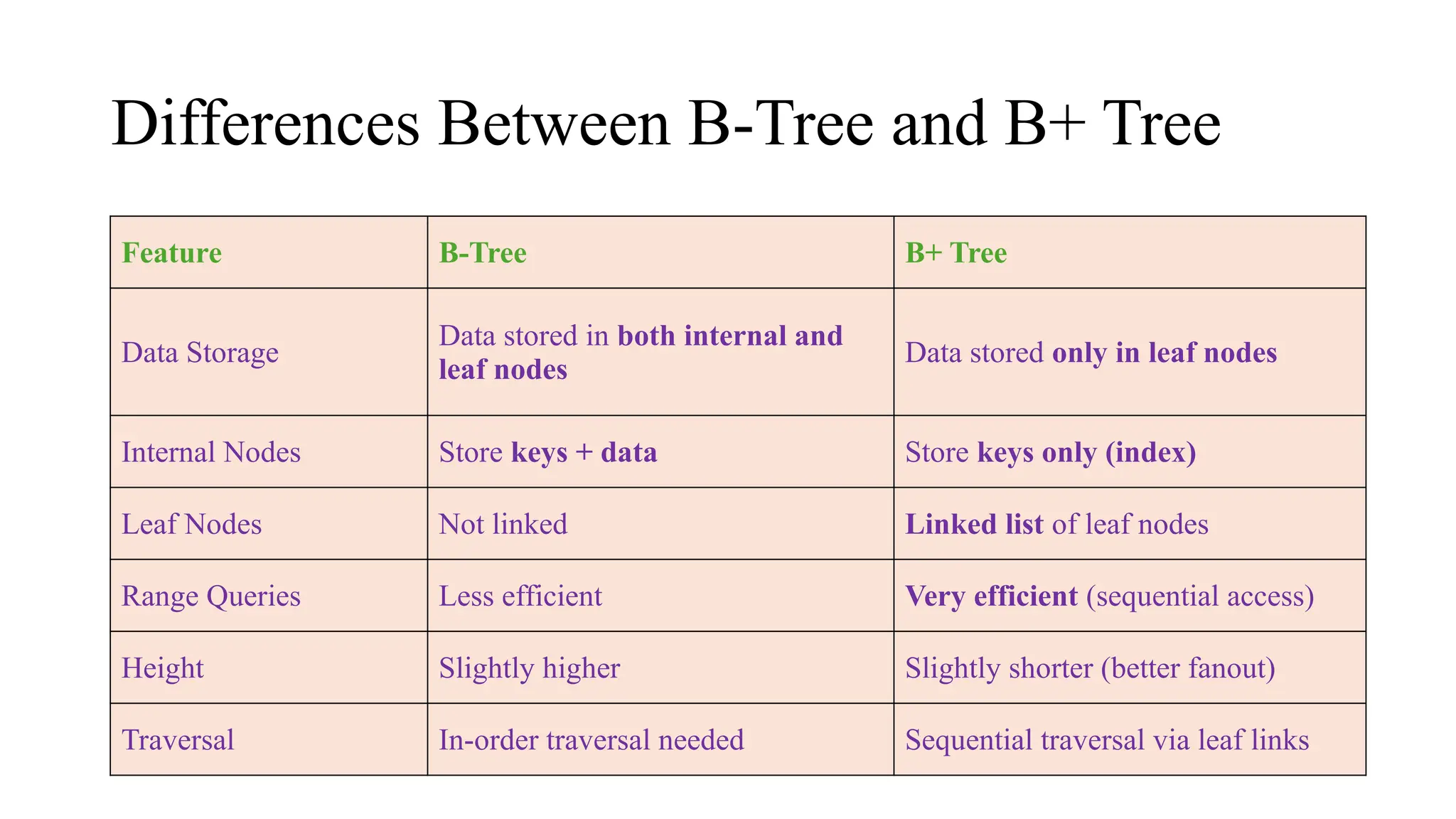

Differences Between B-Tree and B+ Tree
Feature B-Tree B+ Tree
Data Storage
Data stored in both internal and
leaf nodes
Data stored only in leaf nodes
Internal Nodes Store keys + data Store keys only (index)
Leaf Nodes Not linked Linked list of leaf nodes
Range Queries Less efficient Very efficient (sequential access)
Height Slightly higher Slightly shorter (better fanout)
Traversal In-order traversal needed Sequential traversal via leaf links

The conditional PDF P(r|sm) or any monotonic function of it is usually called the likelihood function.

More Related Content

Similar to The conditional PDF P(r|sm) or any monotonic function of it is usually called the likelihood function.

More from sedhupathivishnu2

Recently uploaded

The conditional PDF P(r|sm) or any monotonic function of it is usually called the likelihood function.
