Supermicro High Performance Enterprise Hadoop Infrastructure
- 1.
- 2. Supermicro © 2009 Cloudera Ready - Infrastructure for Hadoop SuperBlade® GPU Solutions Storage Universal I/O Twin Architecture Double-Sided Datacenter Optimized www.supermicro.com/hadoop

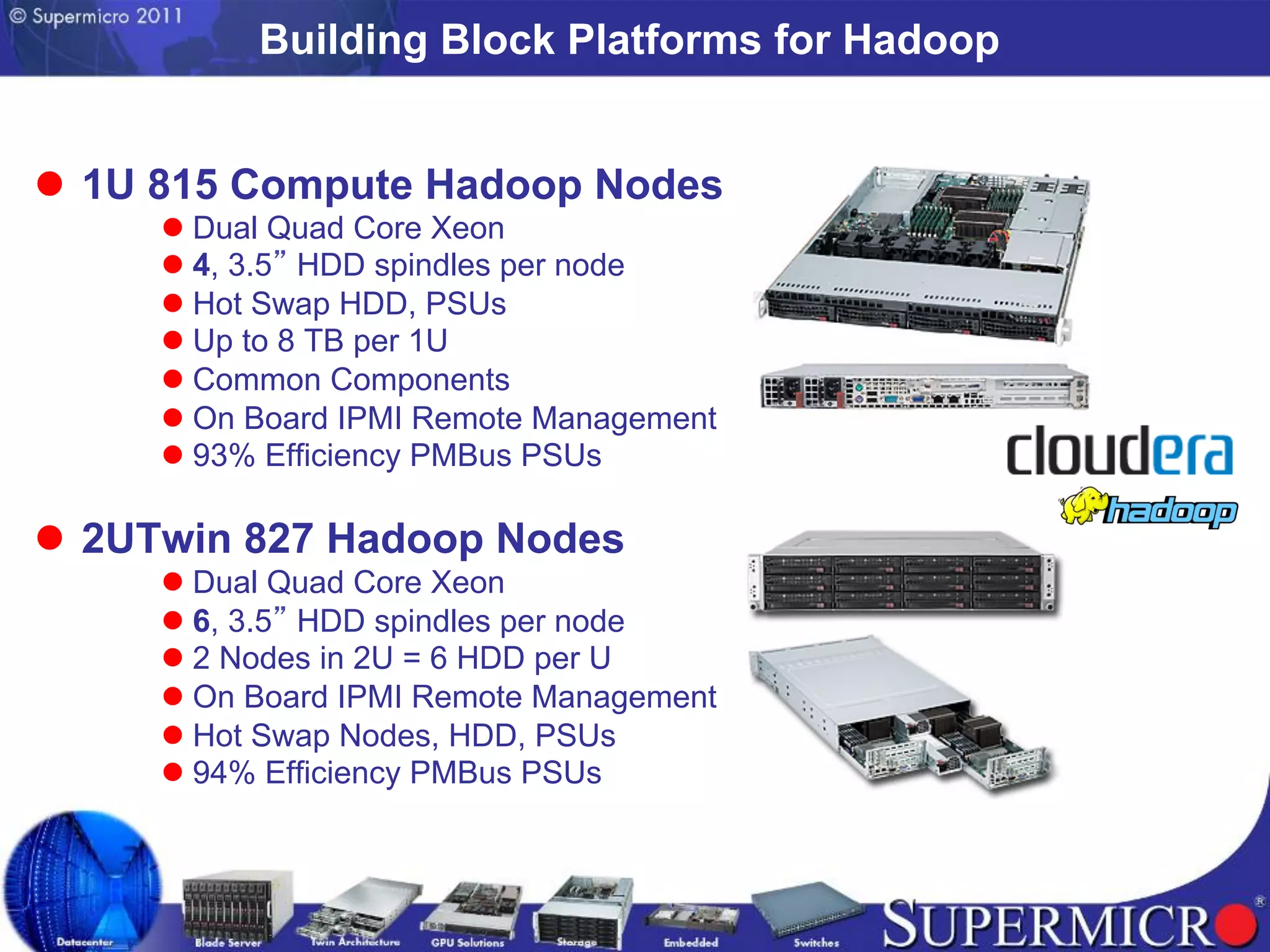

- 3. Building Block Platformsfor Hadoop l 1U 815 Compute Hadoop Nodes l Dual Quad Core Xeon l 4, 3.5 HDD spindles per node l Hot Swap HDD, PSUs l Up to 8 TB per 1U l Common Components l On Board IPMI Remote Management l 93% Efficiency PMBus PSUs l 2UTwin 827 Hadoop Nodes l Dual Quad Core Xeon l 6, 3.5 HDD spindles per node l 2 Nodes in 2U = 6 HDD per U l On Board IPMI Remote Management l Hot Swap Nodes, HDD, PSUs l 94% Efficiency PMBus PSUs

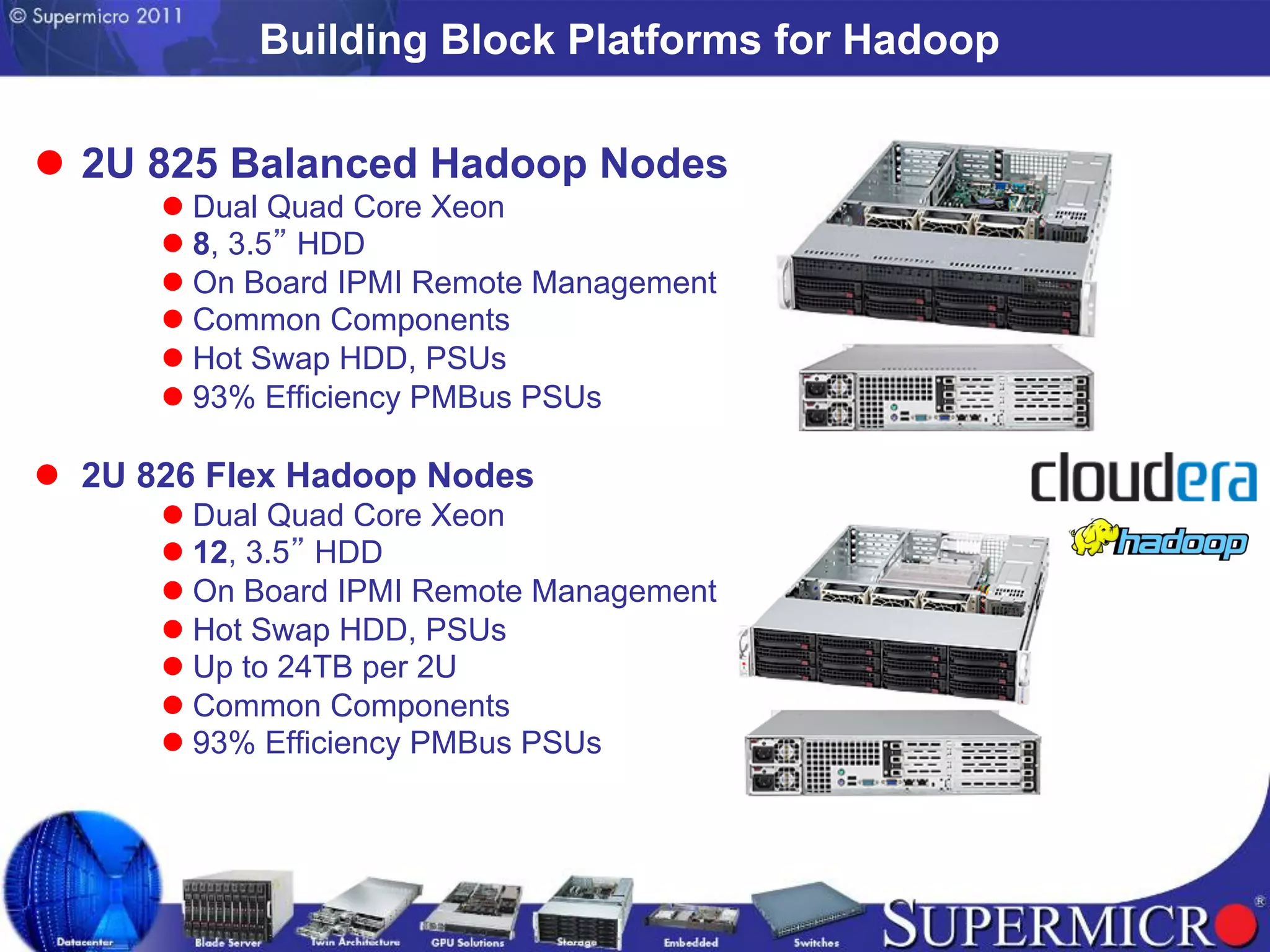

- 4. Building Block Platformsfor Hadoop l 2U 825 Balanced Hadoop Nodes l Dual Quad Core Xeon l 8, 3.5 HDD l On Board IPMI Remote Management l Common Components l Hot Swap HDD, PSUs l 93% Efficiency PMBus PSUs l 2U 826 Flex Hadoop Nodes l Dual Quad Core Xeon l 12, 3.5 HDD l On Board IPMI Remote Management l Hot Swap HDD, PSUs l Up to 24TB per 2U l Common Components l 93% Efficiency PMBus PSUs

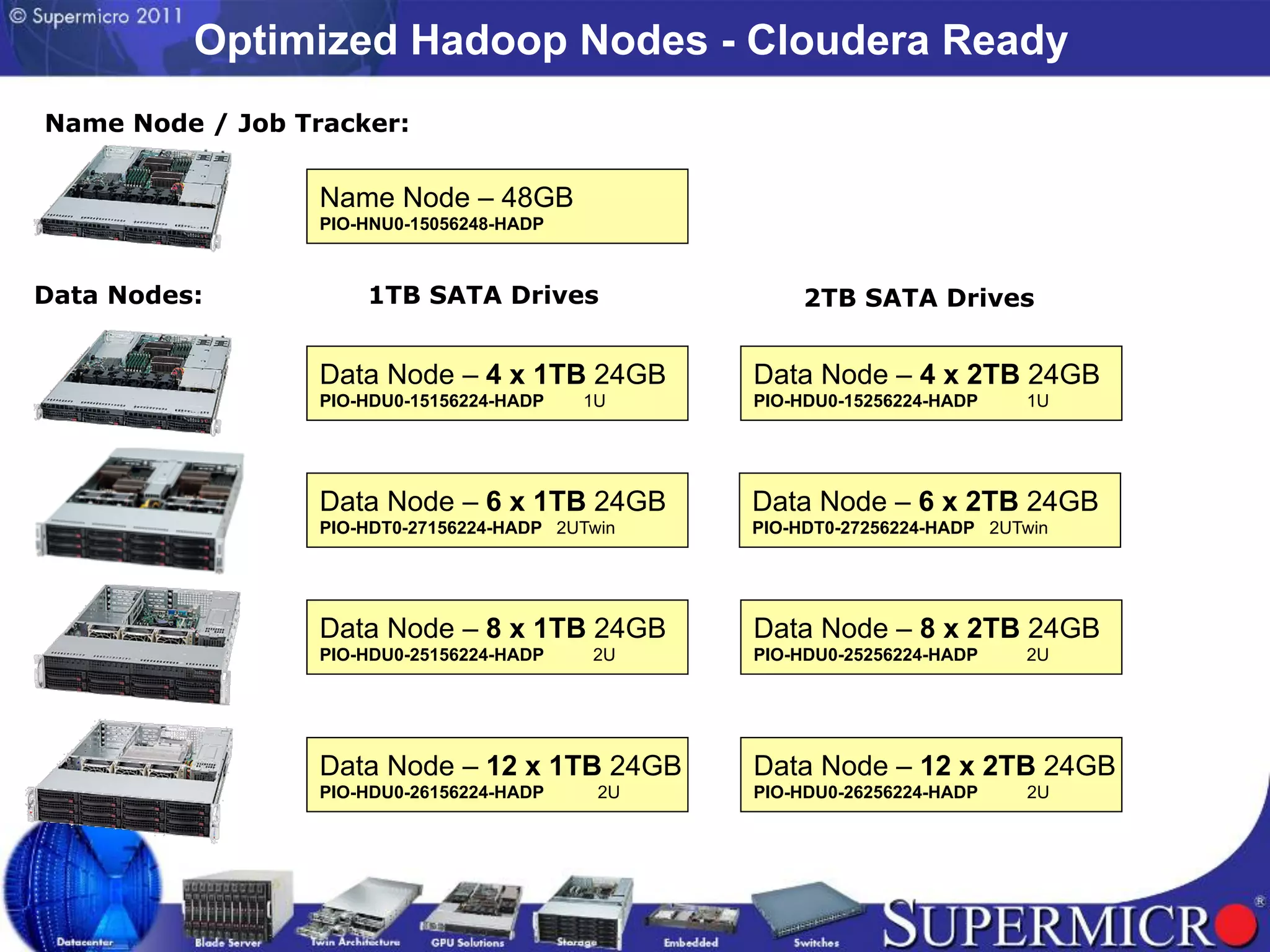

- 5. Optimized Hadoop Nodes- Cloudera Ready Name Node / Job Tracker: Name Node – 48GB PIO-HNU0-15056248-HADP Data Nodes: 1TB SATA Drives 2TB SATA Drives Data Node – 4 x 1TB 24GB Data Node – 4 x 2TB 24GB PIO-HDU0-15156224-HADP 1U PIO-HDU0-15256224-HADP 1U Data Node – 6 x 1TB 24GB Data Node – 6 x 2TB 24GB PIO-HDT0-27156224-HADP 2UTwin PIO-HDT0-27256224-HADP 2UTwin Data Node – 8 x 1TB 24GB Data Node – 8 x 2TB 24GB PIO-HDU0-25156224-HADP 2U PIO-HDU0-25256224-HADP 2U Data Node – 12 x 1TB 24GB Data Node – 12 x 2TB 24GB PIO-HDU0-26156224-HADP 2U PIO-HDU0-26256224-HADP 2U

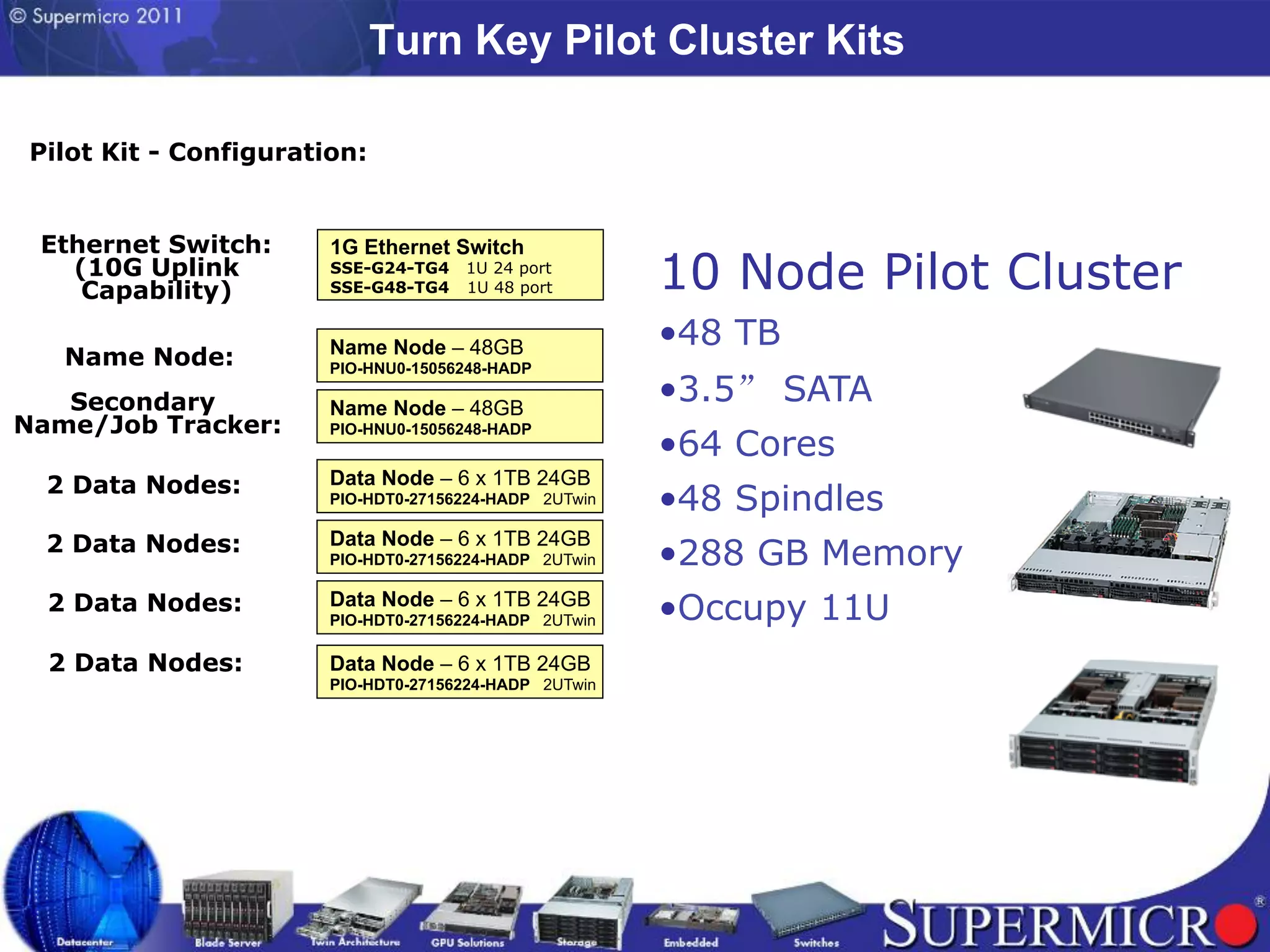

- 6. Turn Key PilotCluster Kits Pilot Kit - Configuration: Ethernet Switch: 1G Ethernet Switch (10G Uplink Capability) SSE-G24-TG4 SSE-G48-TG4 1U 24 port 1U 48 port 10 Node Pilot Cluster Name Node – 48GB • 48 TB Name Node: PIO-HNU0-15056248-HADP Secondary Name Node – 48GB • 3.5 SATA Name/Job Tracker: PIO-HNU0-15056248-HADP • 64 Cores 2 Data Nodes: Data Node – 6 x 1TB 24GB PIO-HDT0-27156224-HADP 2UTwin • 48 Spindles 2 Data Nodes: Data Node – 6 x 1TB 24GB PIO-HDT0-27156224-HADP 2UTwin • 288 GB Memory 2 Data Nodes: Data Node – 6 x 1TB 24GB PIO-HDT0-27156224-HADP 2UTwin • Occupy 11U 2 Data Nodes: Data Node – 6 x 1TB 24GB PIO-HDT0-27156224-HADP 2UTwin

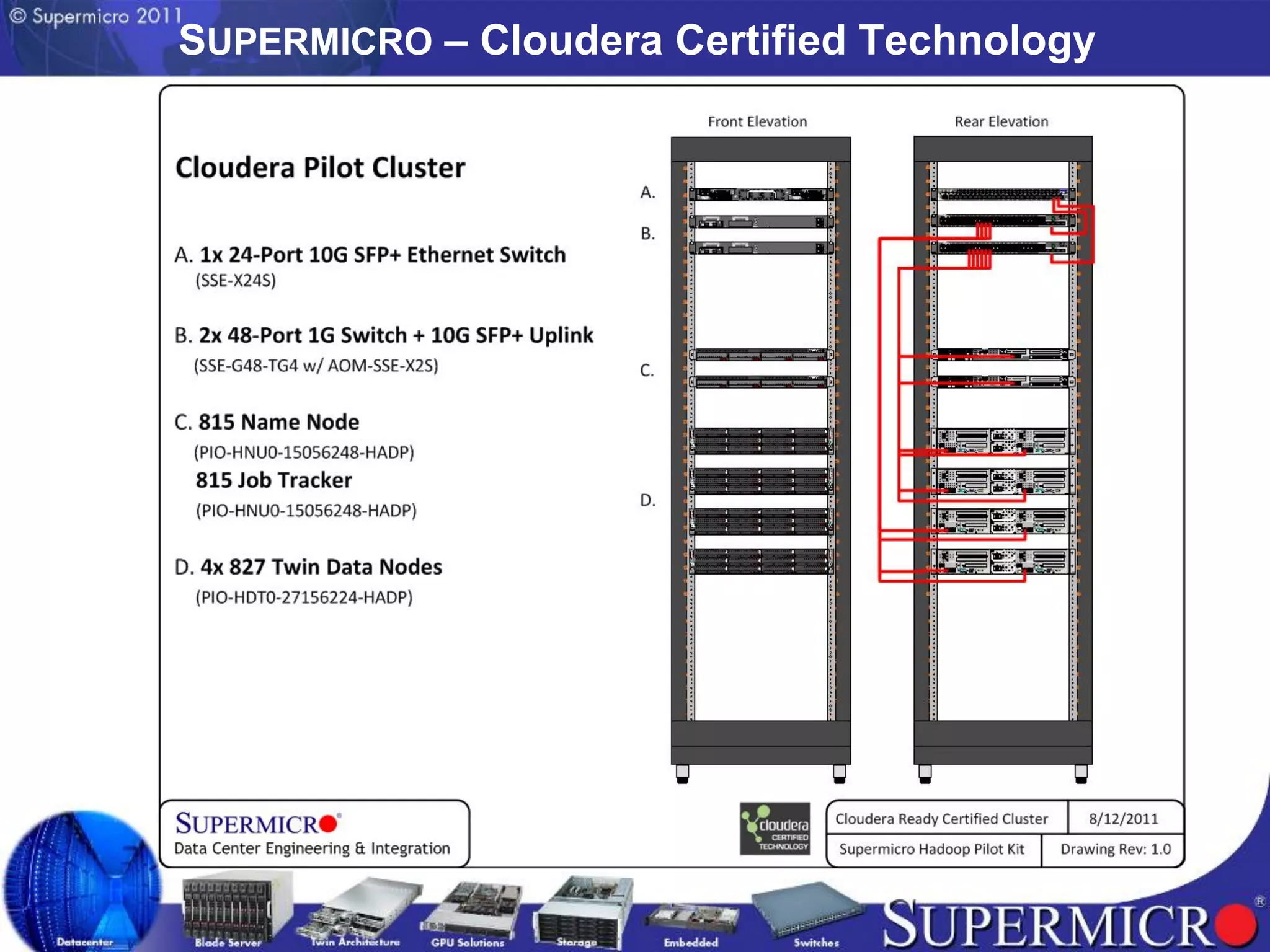

- 7. SUPERMICRO – ClouderaCertified Technology

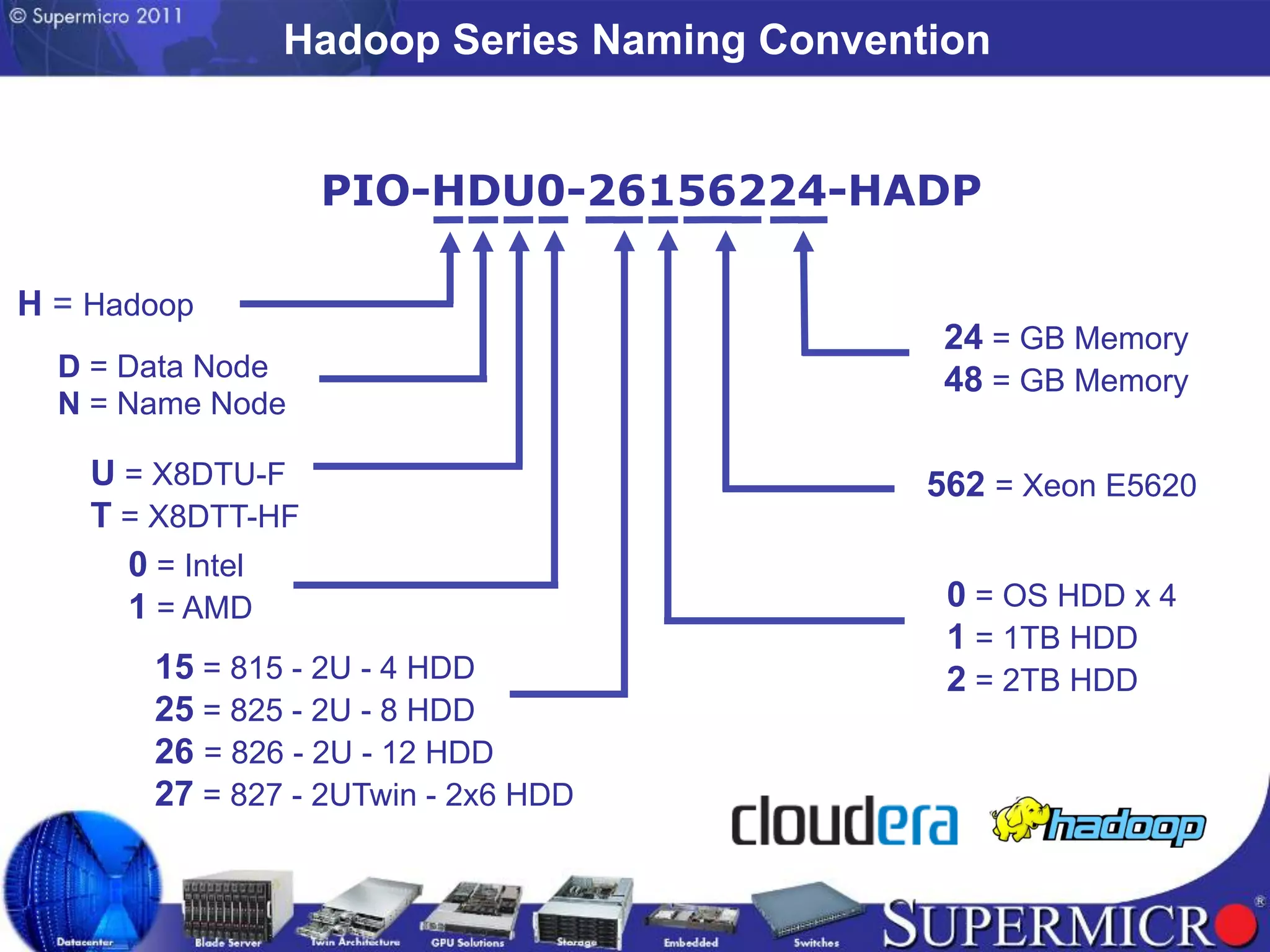

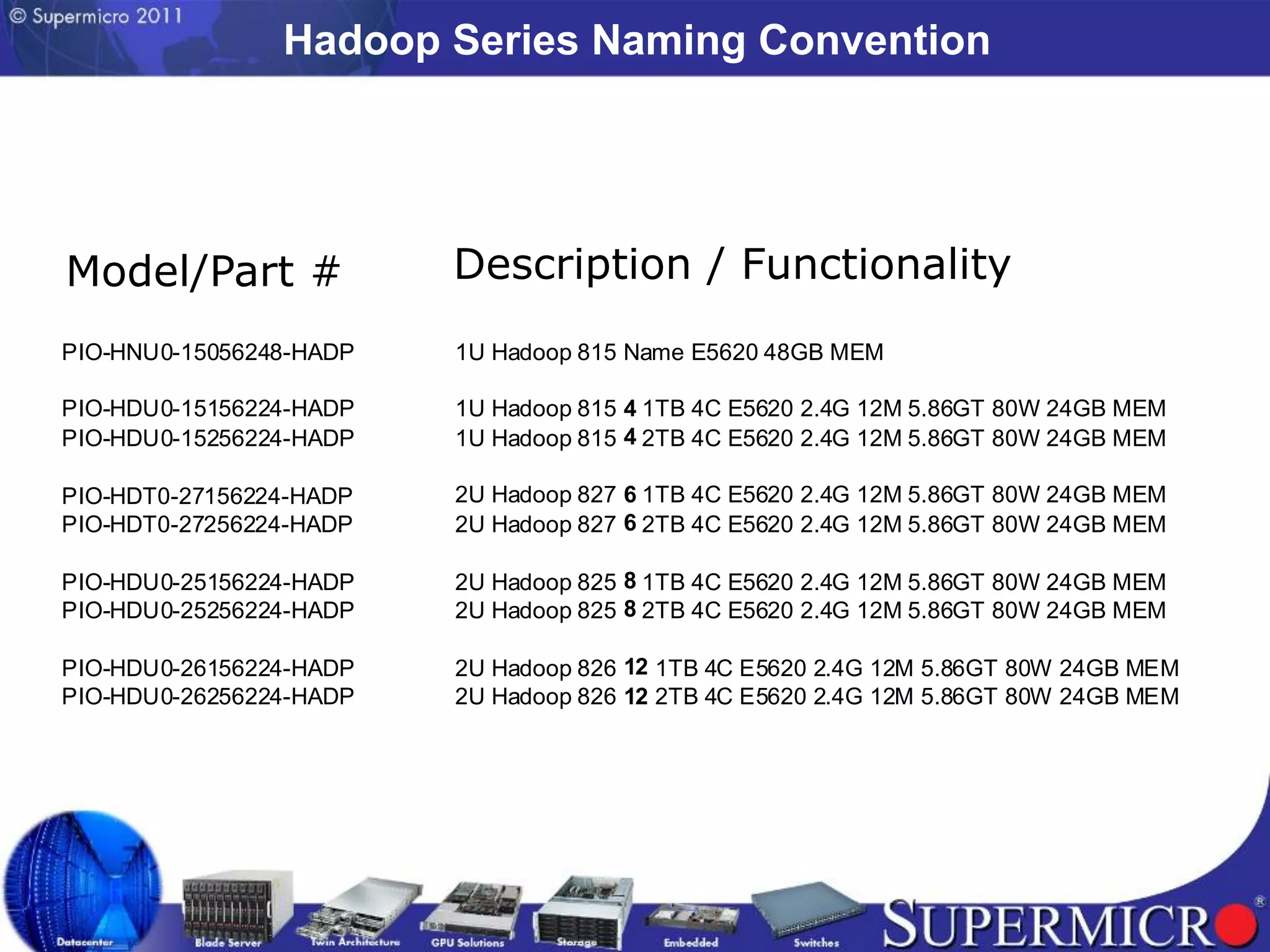

- 8. Hadoop Series NamingConvention PIO-HDU0-26156224-HADP H = Hadoop 24 = GB Memory D = Data Node 48 = GB Memory N = Name Node U = X8DTU-F 562 = Xeon E5620 T = X8DTT-HF 0 = Intel 1 = AMD 0 = OS HDD x 4 1 = 1TB HDD 15 = 815 - 2U - 4 HDD 2 = 2TB HDD 25 = 825 - 2U - 8 HDD 26 = 826 - 2U - 12 HDD 27 = 827 - 2UTwin - 2x6 HDD
- 9. Hadoop Series NamingConvention Model/Part # Description / Functionality PIO-HNU0-15056248-HADP 1U Hadoop 815 Name E5620 48GB MEM PIO-HDU0-15156224-HADP 1U Hadoop 815 4 1TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDU0-15256224-HADP 1U Hadoop 815 4 2TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDT0-27156224-HADP 2U Hadoop 827 6 1TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDT0-27256224-HADP 2U Hadoop 827 6 2TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDU0-25156224-HADP 2U Hadoop 825 8 1TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDU0-25256224-HADP 2U Hadoop 825 8 2TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDU0-26156224-HADP 2U Hadoop 826 12 1TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM PIO-HDU0-26256224-HADP 2U Hadoop 826 12 2TB 4C E5620 2.4G 12M 5.86GT 80W 24GB MEM

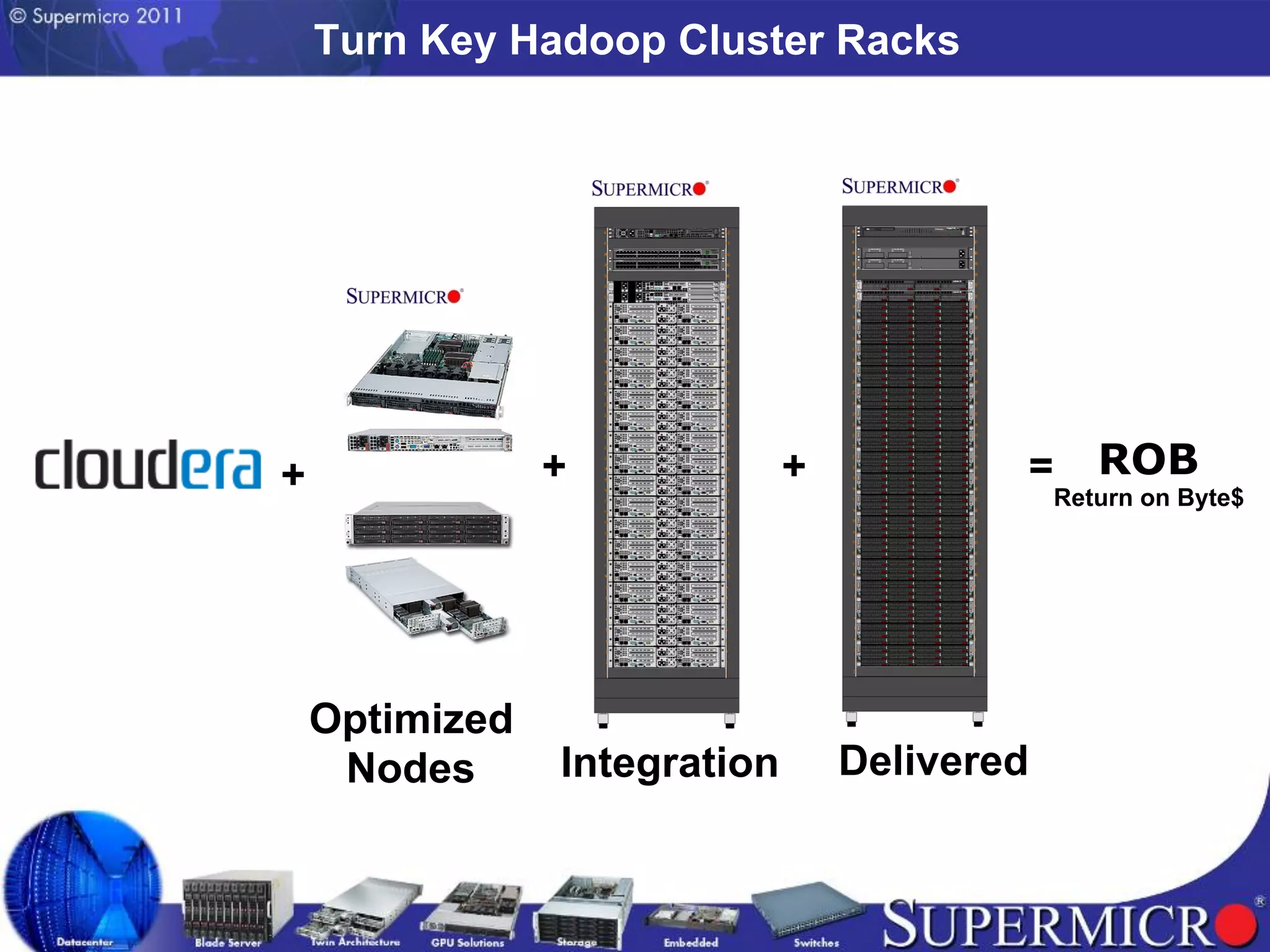

- 10. Turn Key HadoopCluster Racks + + + = ROB Return on Byte$ Optimized Nodes Integration Delivered

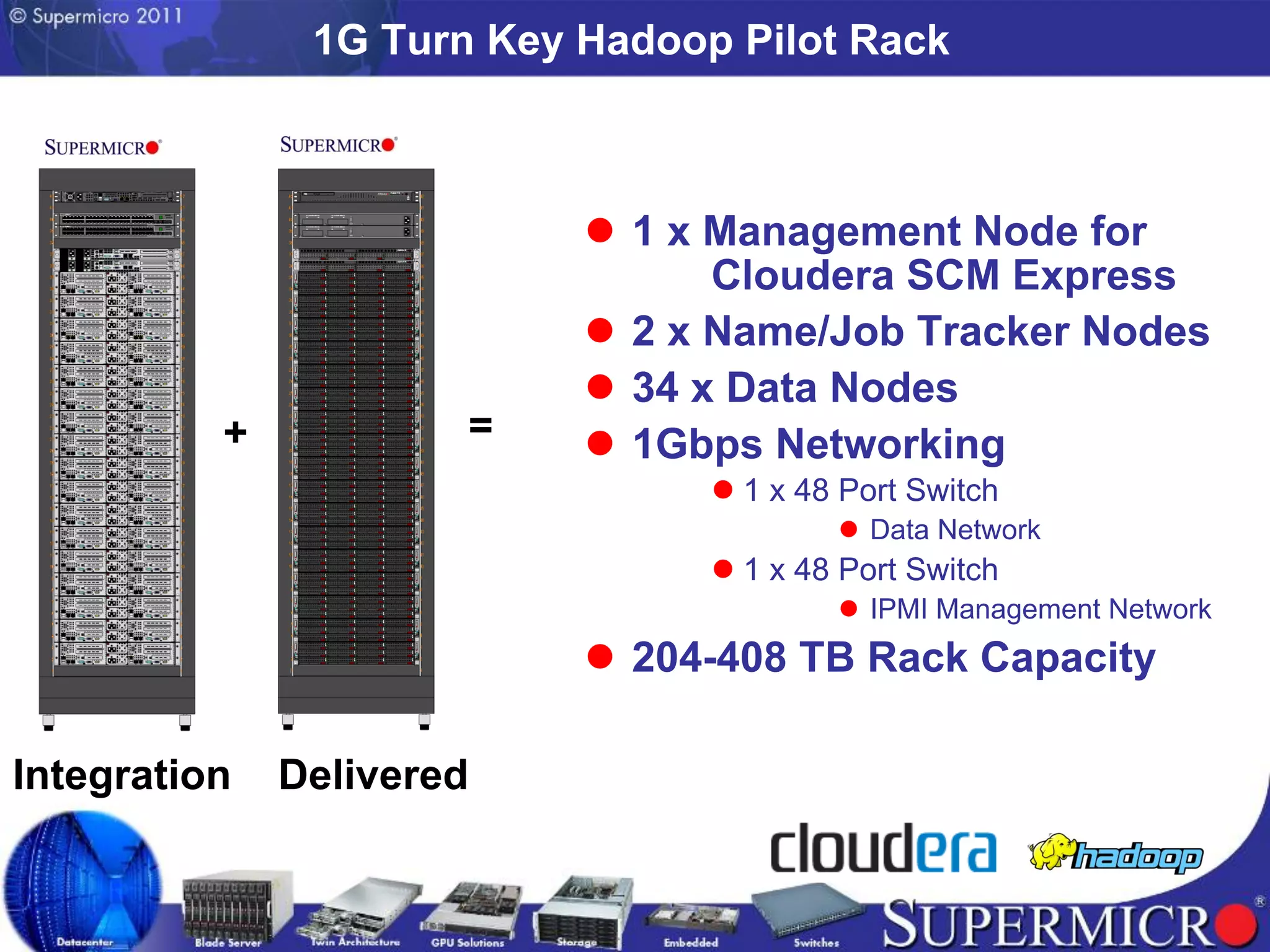

- 11. 1G Turn KeyHadoop Pilot Rack l 1 x Management Node for Cloudera SCM Express l 2 x Name/Job Tracker Nodes l 34 x Data Nodes + = l 1Gbps Networking l 1 x 48 Port Switch l Data Network l 1 x 48 Port Switch l IPMI Management Network l 204-408 TB Rack Capacity Integration Delivered

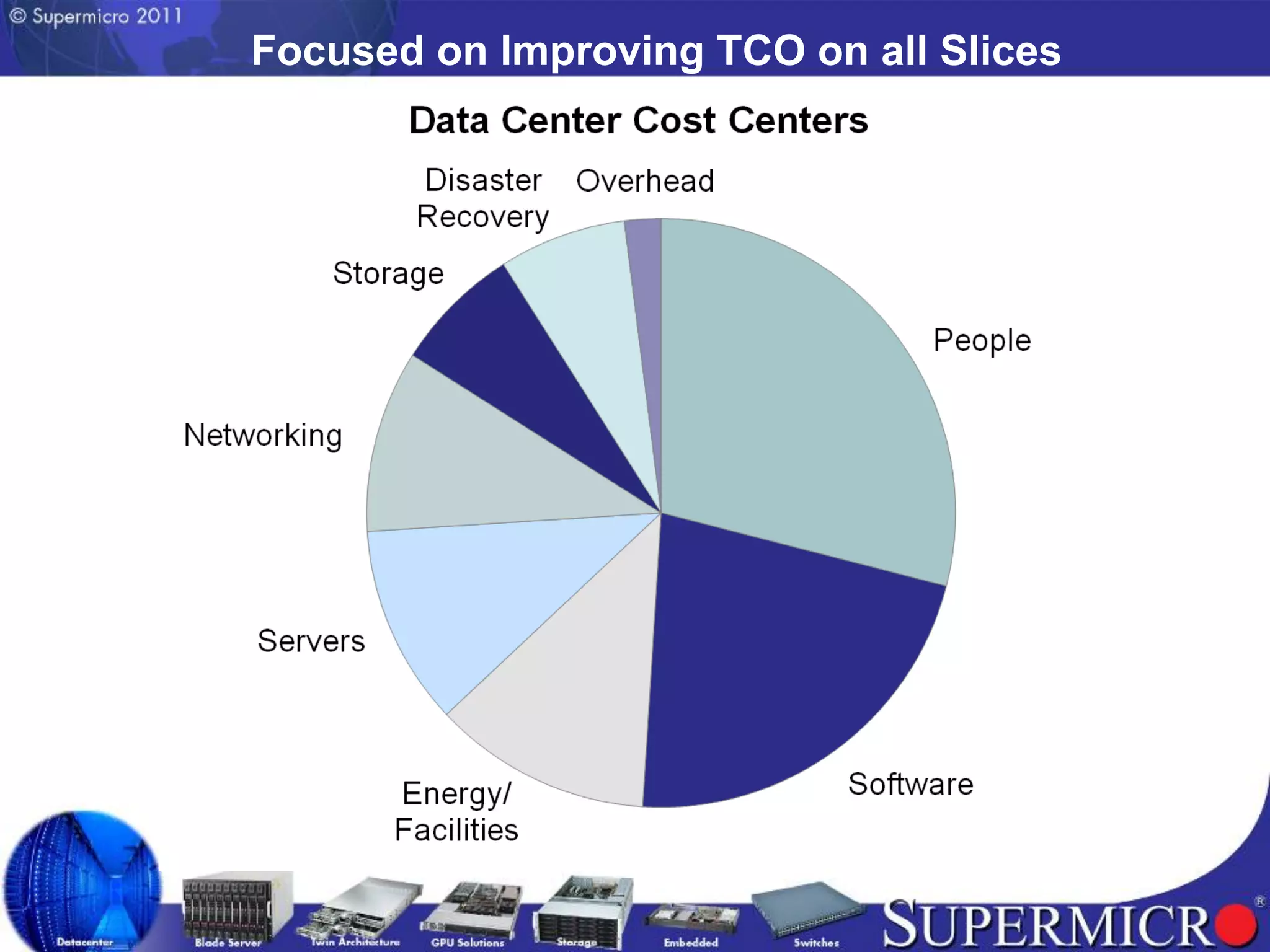

- 12. Focused on ImprovingTCO on all Slices
