Uploaded byStreamNative
Simplify Pulsar Functions Development with SQL - Pulsar Summit SF 2022
The document discusses the Pulsar Functions and Function Mesh presented at the Pulsar Summit in San Francisco on August 18, 2022, highlighting their development, benefits, and use cases such as ETL jobs and real-time processing. It emphasizes a new SQL abstraction for simplifying Pulsar function pipelines, detailing its components and REST API functionalities for easier development and management. Future work is envisioned to include more syntax support and built-in aggregation operations.
More Related Content
Similar to Simplify Pulsar Functions Development with SQL - Pulsar Summit SF 2022
Simplify Pulsar Functions Development with SQL - Pulsar Summit SF 2022
- 1. Pulsar Summit San Francisco HotelNikko August 18 2022 Ecosystem Simplify Pulsar Functions Development with SQL Neng Lu Platform Engineering Lead • StreamNative
- 2. Neng Lu isthe platform engineering lead of compute at StreamNative. He drives the development of Pulsar Functions, Serverless Computing and ecosystem integration. He is also a committer of Apache Pulsar. Neng Lu Platform Engineering Lead StreamNative Rui Fu is a senior software engineer at StreamNative and a committer of Apache Pulsar. He actively contributes to Pulsar Functions, Function Mesh and Serverless Computing Rui Fu Senior Software Engineer StreamNative
- 3.

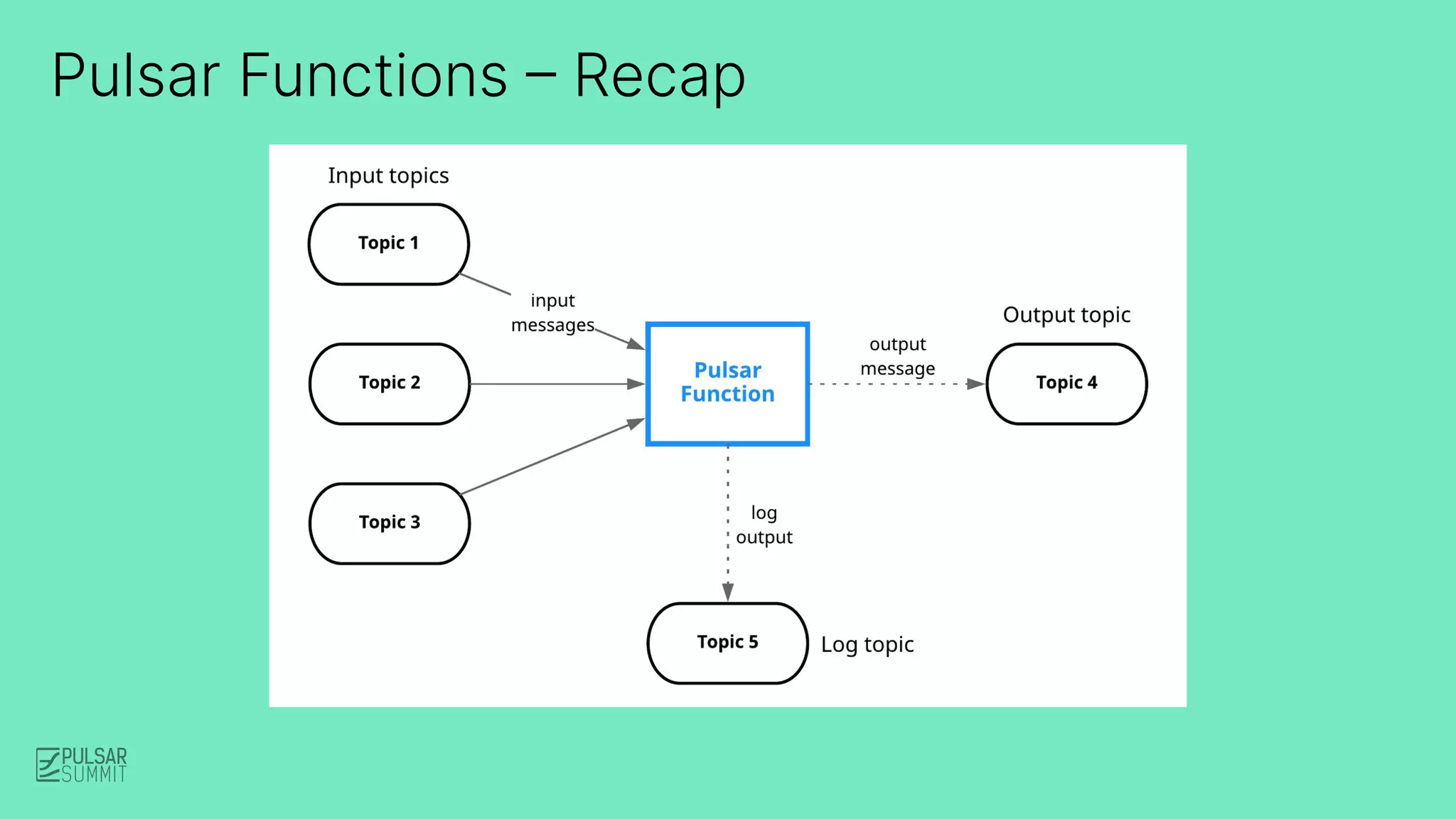

- 4. Pulsar Functions –Recap

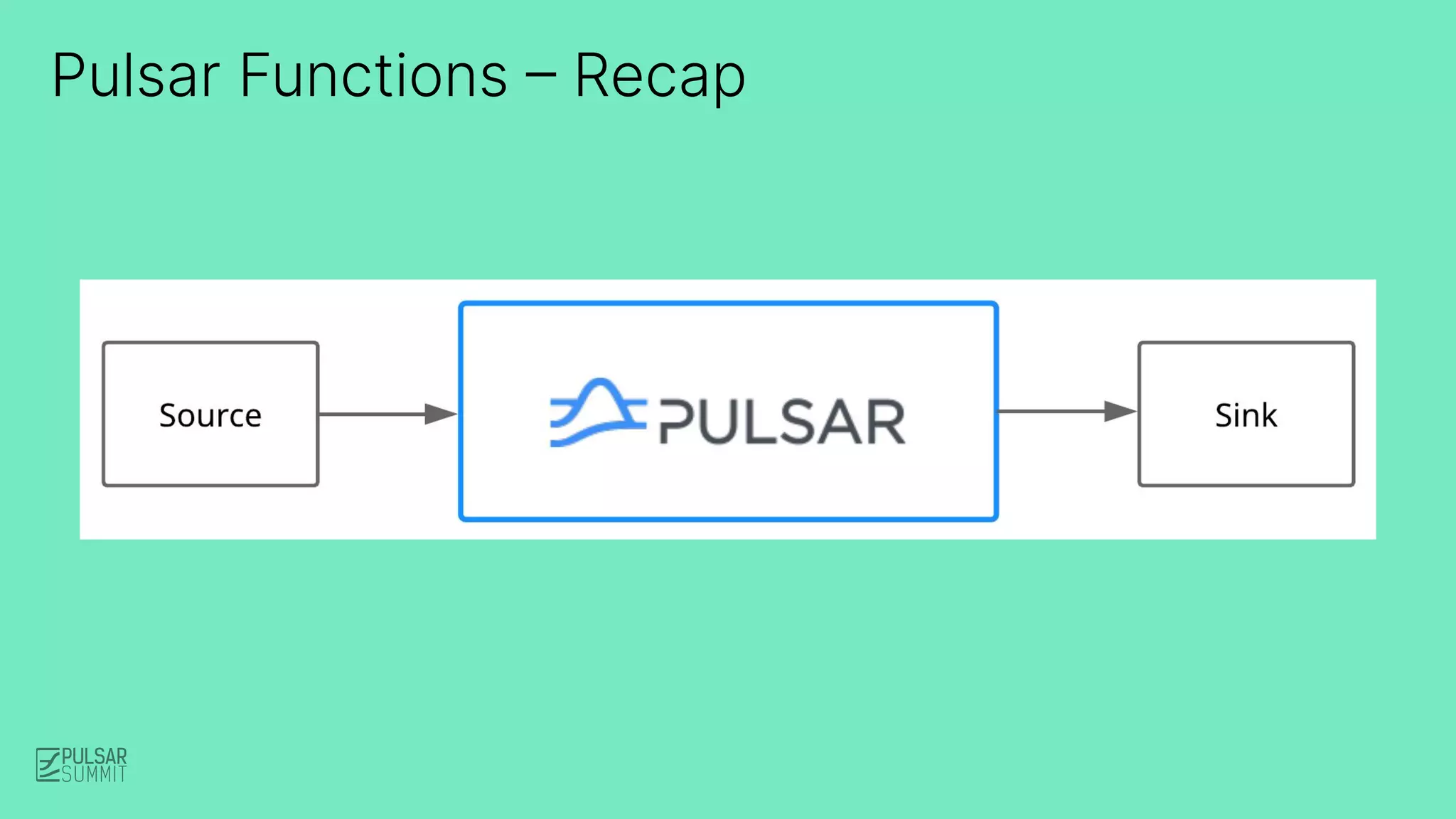

- 5. Pulsar Functions –Recap

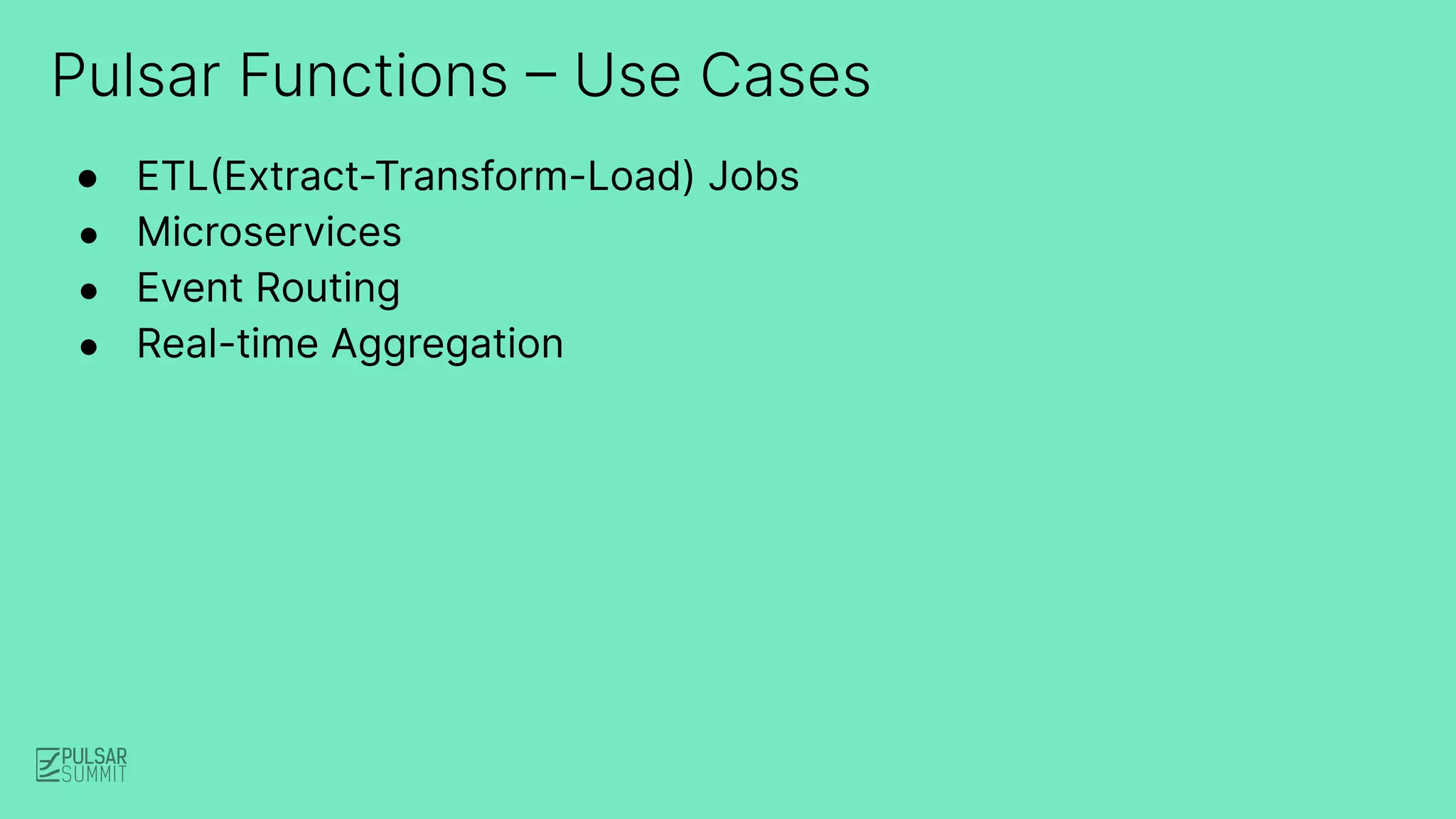

- 6. Pulsar Functions –Use Cases ● ETL(Extract-Transform-Load) Jobs ● Microservices ● Event Routing ● Real-time Aggregation

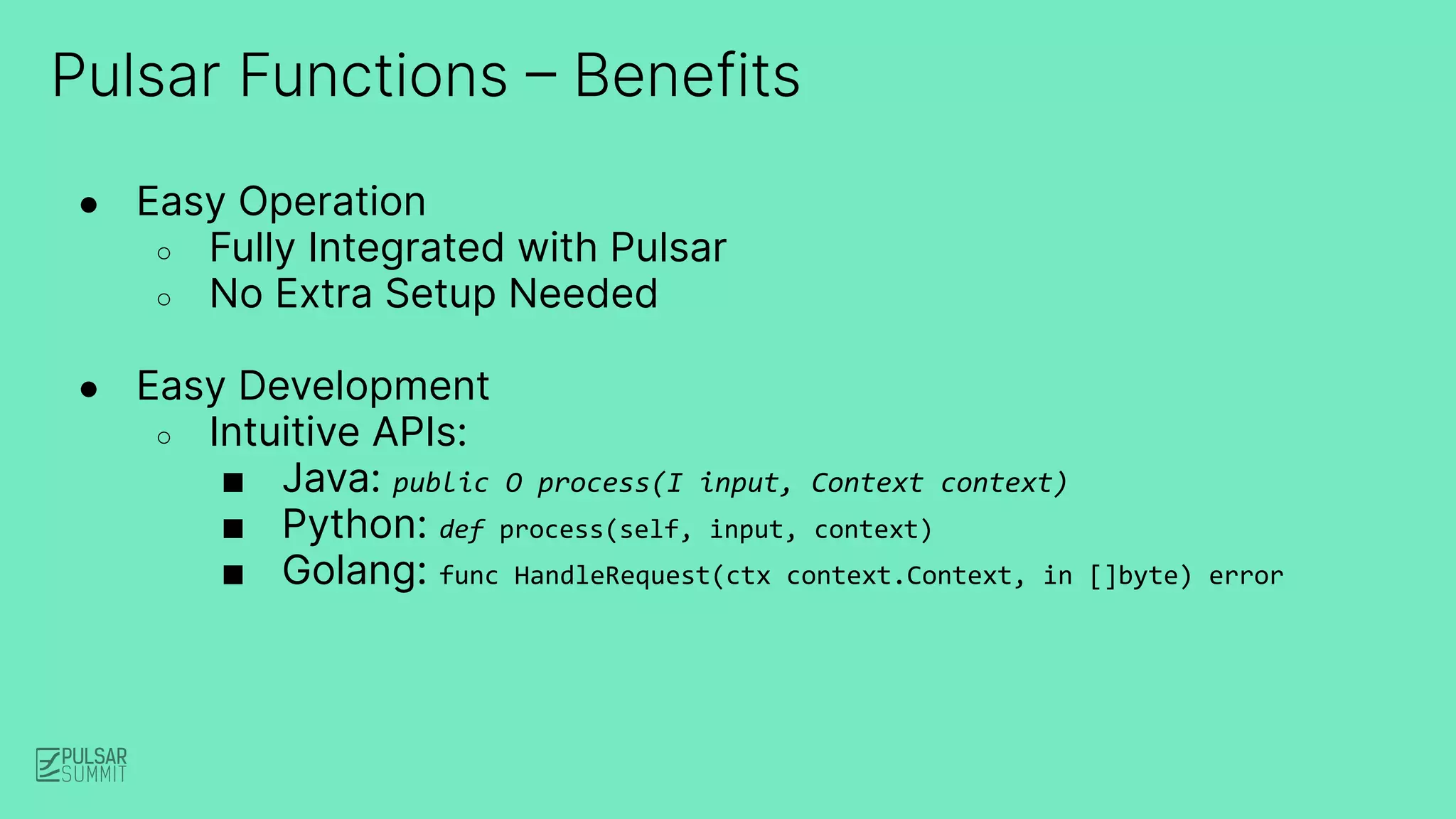

- 7. ● Easy Operation ○Fully Integrated with Pulsar ○ No Extra Setup Needed ● Easy Development ○ Intuitive APIs: ■ Java: public O process(I input, Context context) ■ Python: def process(self, input, context) ■ Golang: func HandleRequest(ctx context.Context, in []byte) error Pulsar Functions – Benefits
- 8.

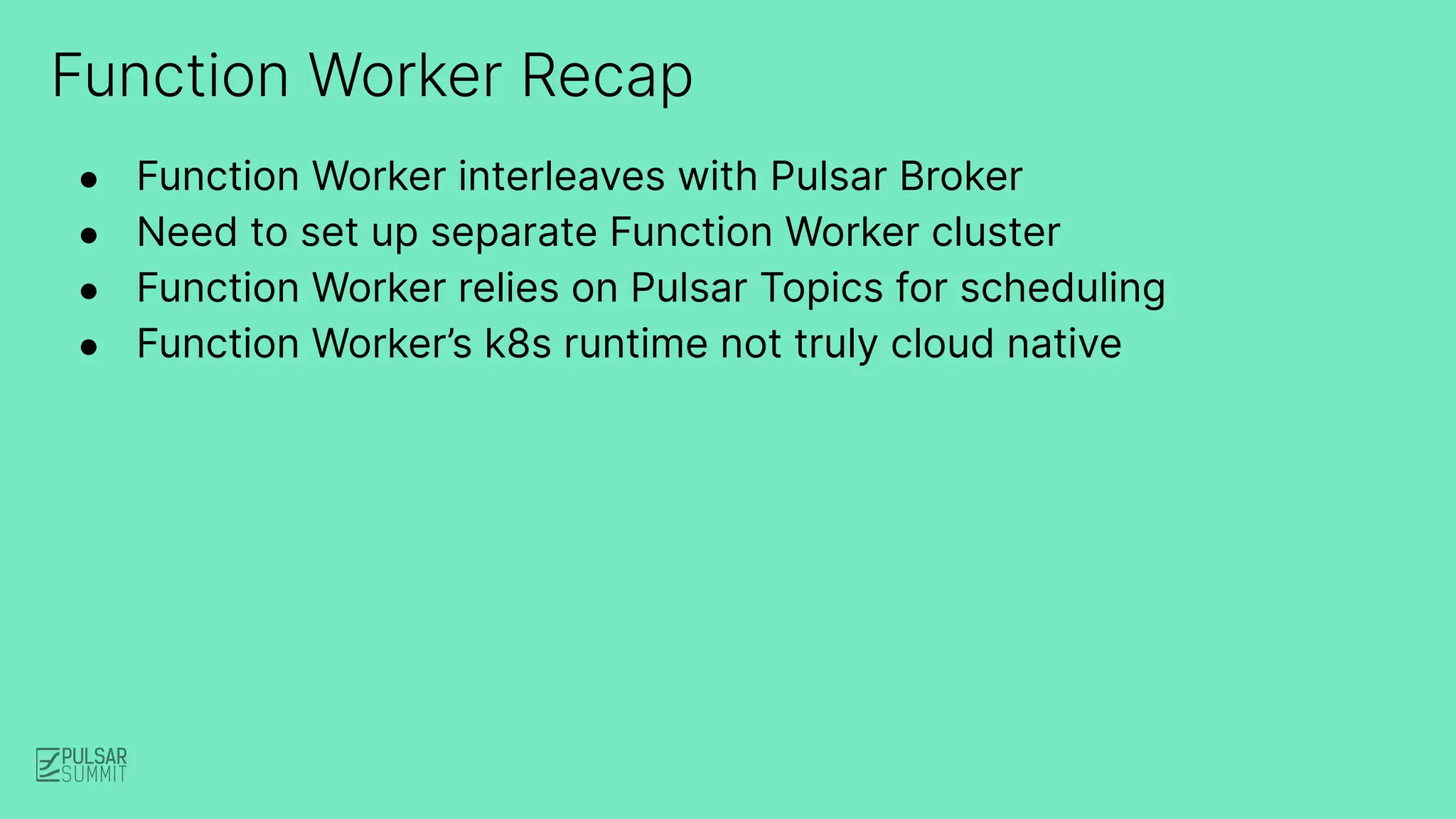

- 9. Function Worker Recap ●Function Worker interleaves with Pulsar Broker ● Need to set up separate Function Worker cluster ● Function Worker relies on Pulsar Topics for scheduling ● Function Worker’s k8s runtime not truly cloud native
- 10.

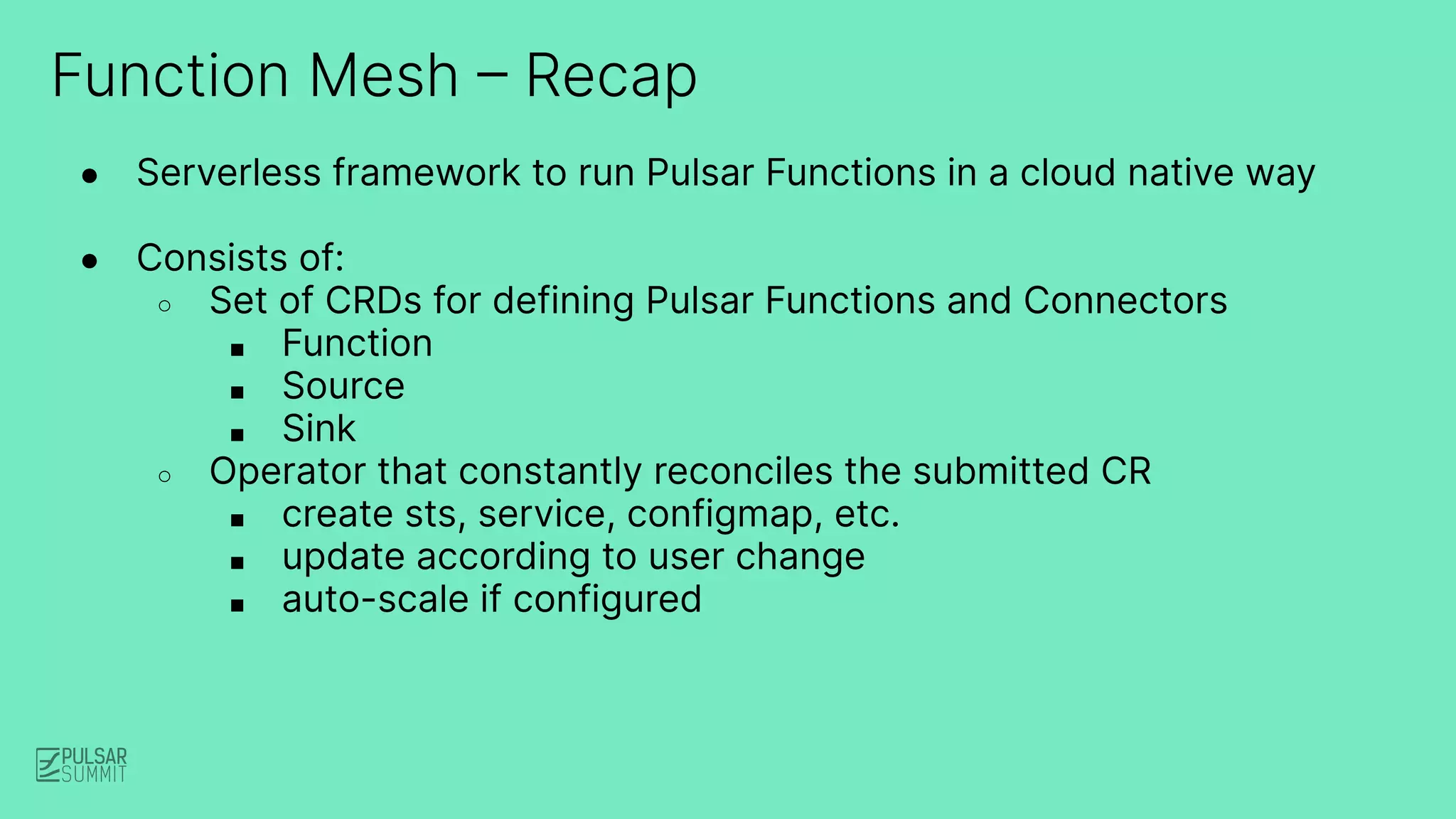

- 11. Function Mesh –Recap ● Serverless framework to run Pulsar Functions in a cloud native way ● Consists of: ○ Set of CRDs for defining Pulsar Functions and Connectors ■ Function ■ Source ■ Sink ○ Operator that constantly reconciles the submitted CR ■ create sts, service, configmap, etc. ■ update according to user change ■ auto-scale if configured

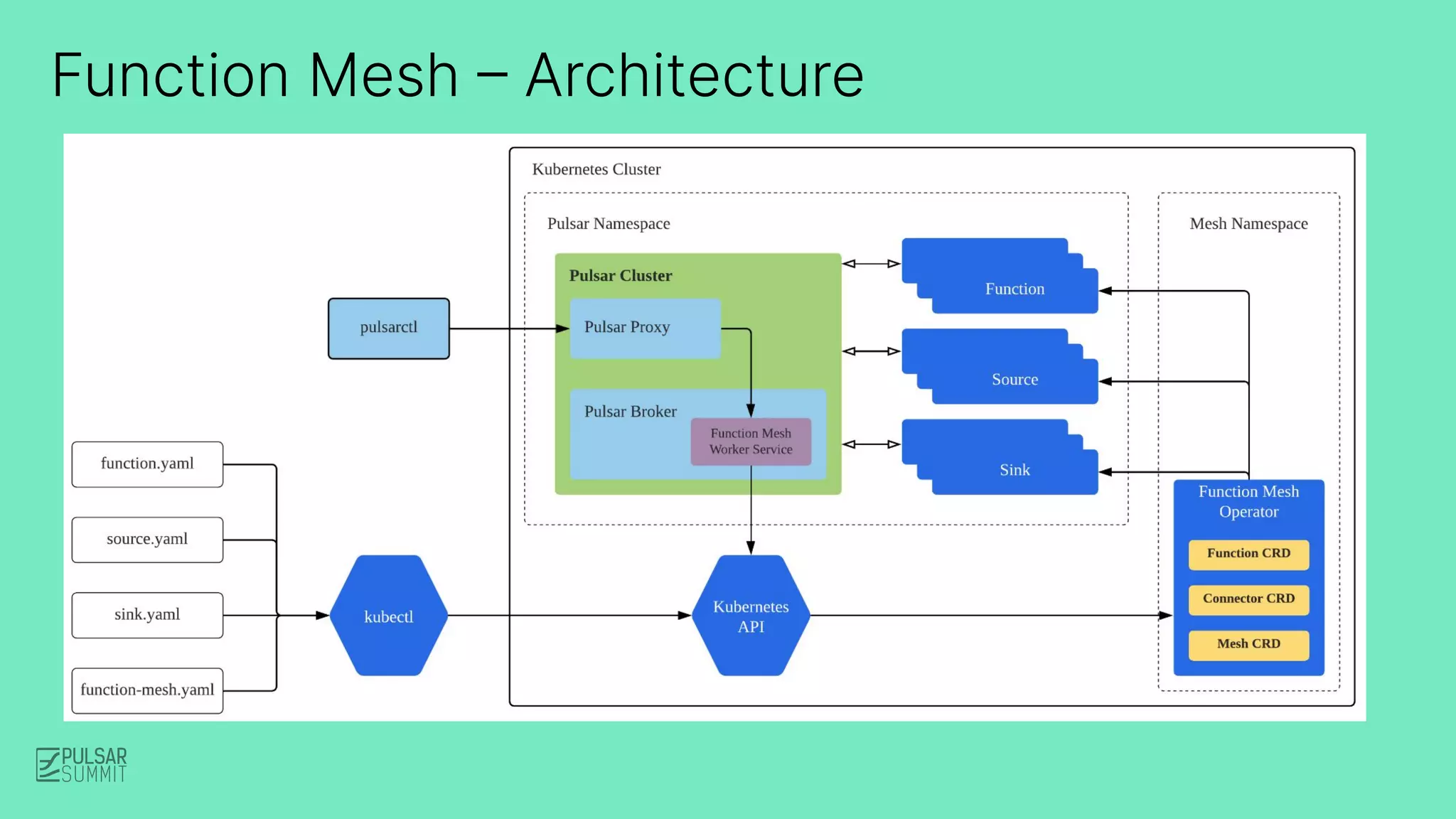

- 12. Function Mesh –Architecture

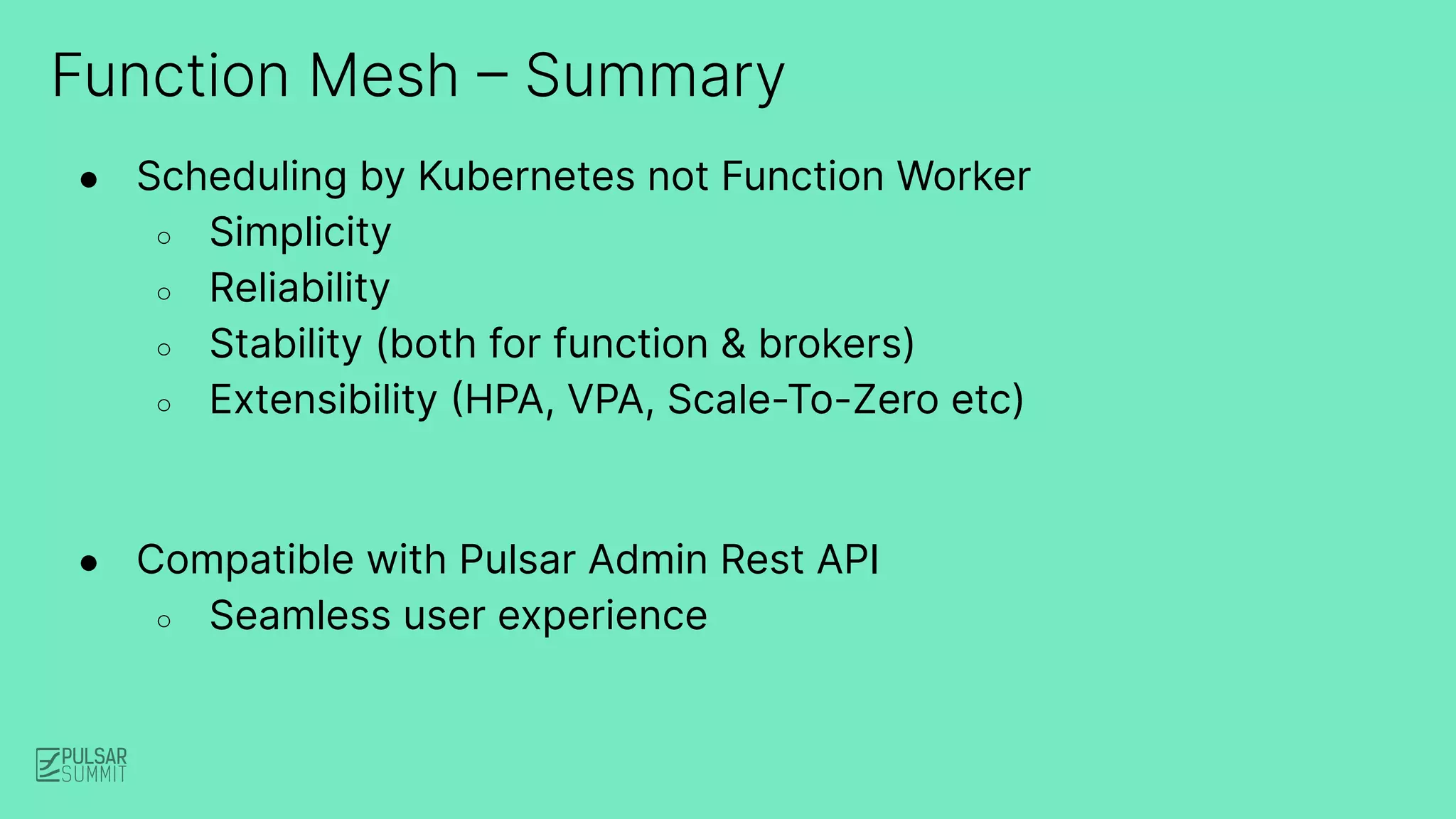

- 13. Function Mesh –Summary ● Scheduling by Kubernetes not Function Worker ○ Simplicity ○ Reliability ○ Stability (both for function & brokers) ○ Extensibility (HPA, VPA, Scale-To-Zero etc) ● Compatible with Pulsar Admin Rest API ○ Seamless user experience
- 14.

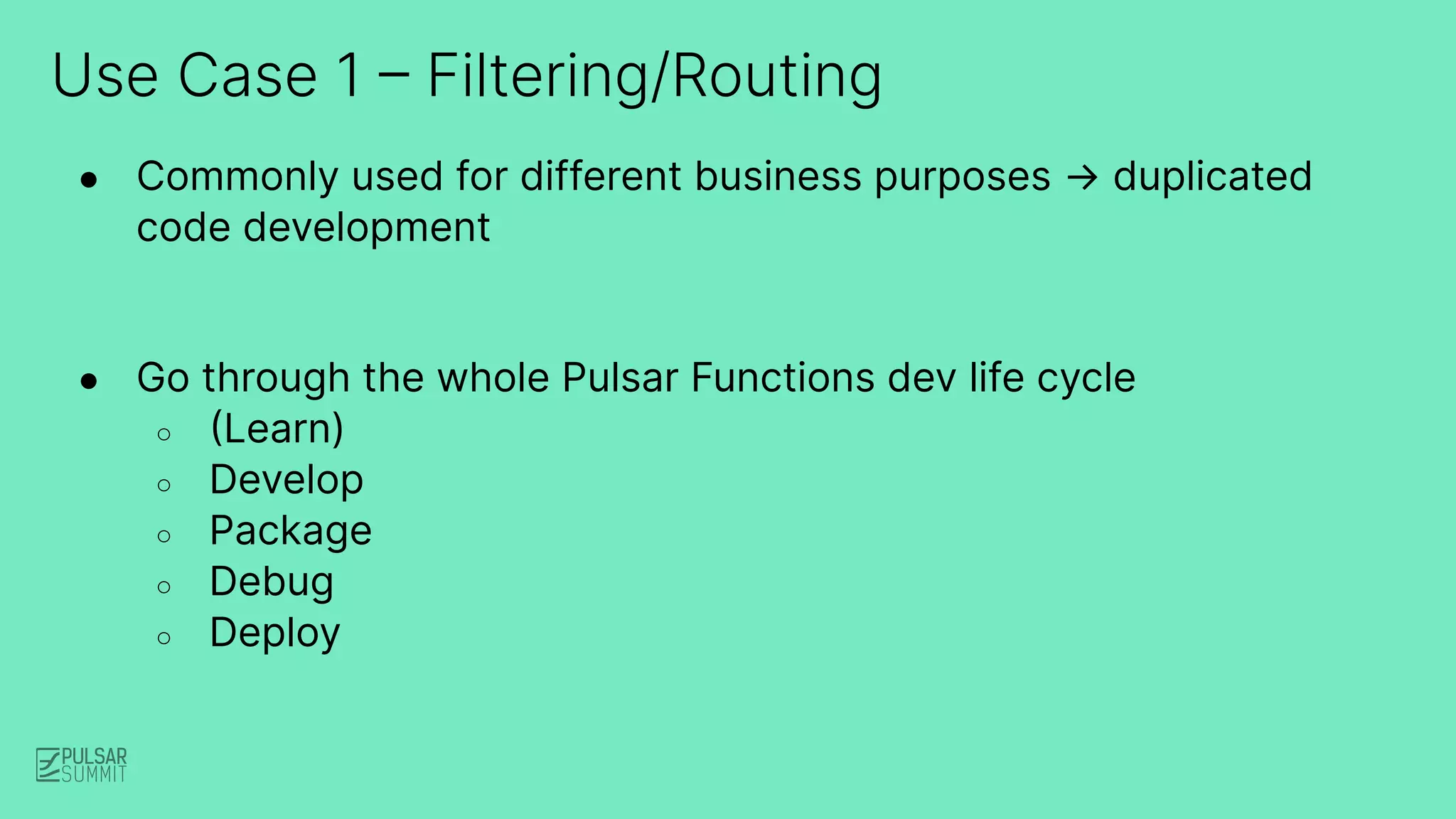

- 15. Use Case 1– Filtering/Routing ● Commonly used for different business purposes → duplicated code development ● Go through the whole Pulsar Functions dev life cycle ○ (Learn) ○ Develop ○ Package ○ Debug ○ Deploy

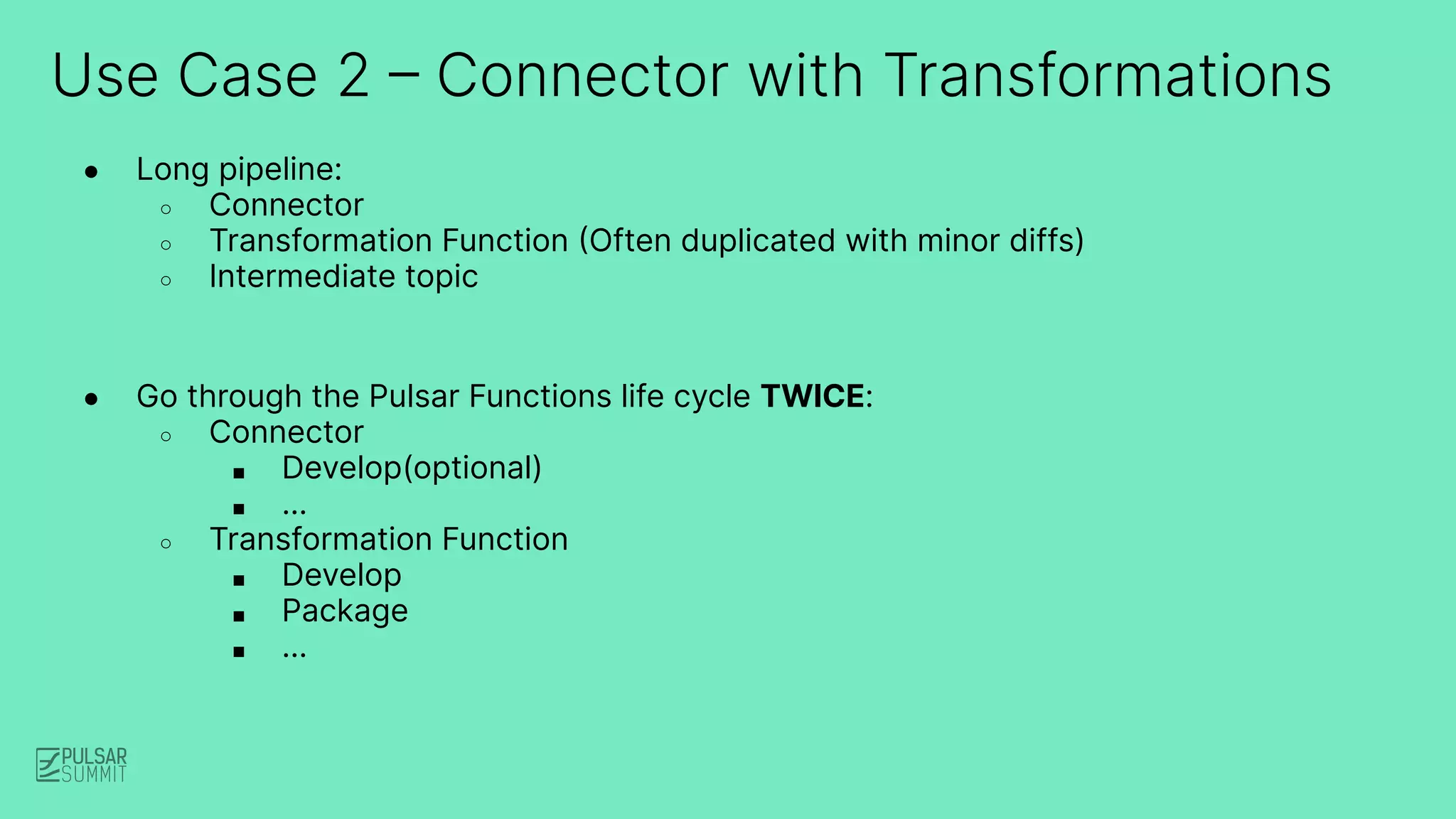

- 16. Use Case 2– Connector with Transformations ● Long pipeline: ○ Connector ○ Transformation Function (Often duplicated with minor diffs) ○ Intermediate topic ● Go through the Pulsar Functions life cycle TWICE: ○ Connector ■ Develop(optional) ■ … ○ Transformation Function ■ Develop ■ Package ■ …
- 17.
- 18. SELECT * FROMStreamNative

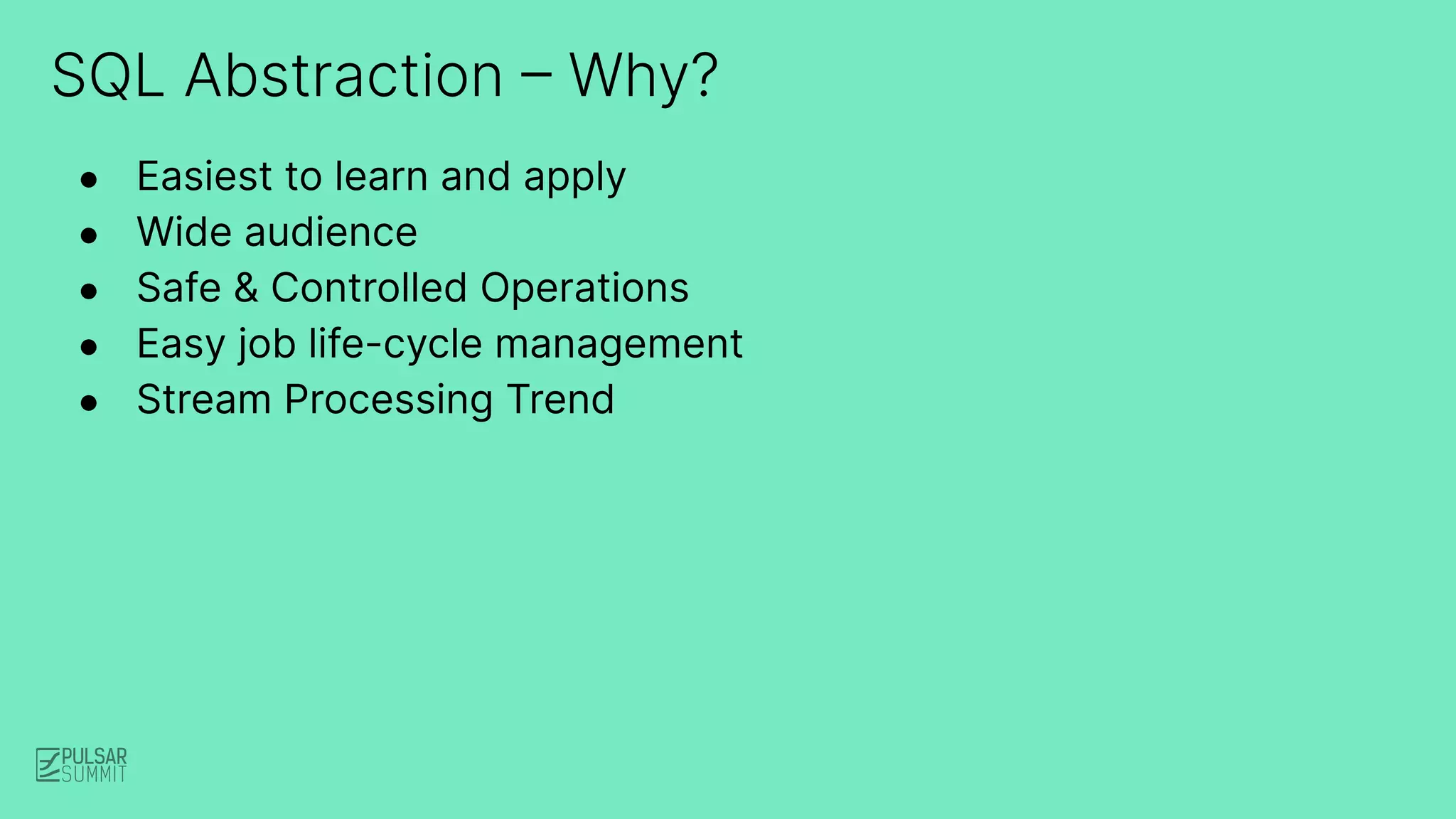

- 19. SQL Abstraction –Why? ● Easiest to learn and apply ● Wide audience ● Safe & Controlled Operations ● Easy job life-cycle management ● Stream Processing Trend

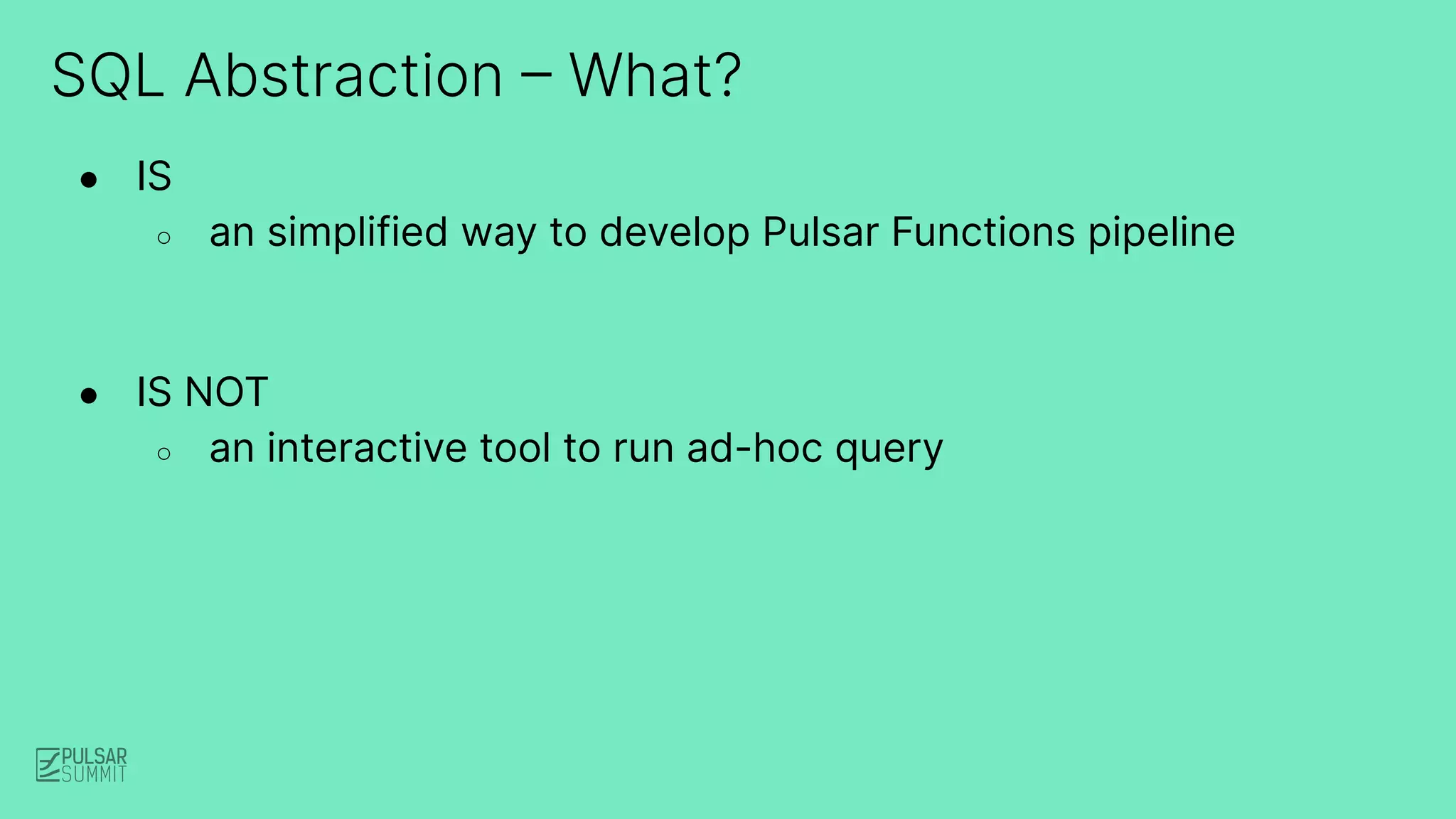

- 20. SQL Abstraction –What? ● IS ○ an simplified way to develop Pulsar Functions pipeline ● IS NOT ○ an interactive tool to run ad-hoc query

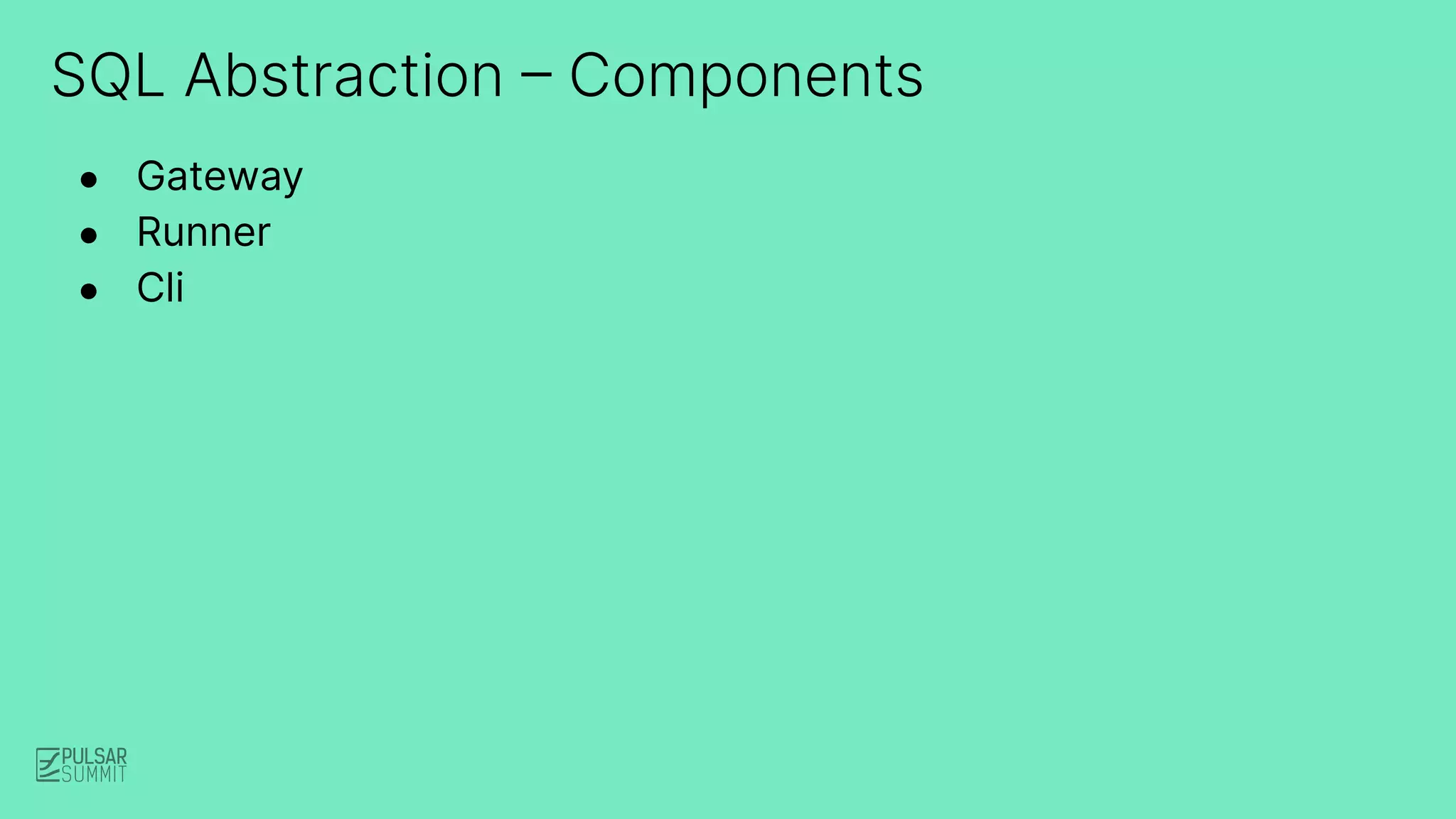

- 21. SQL Abstraction –Components ● Gateway ● Runner ● Cli

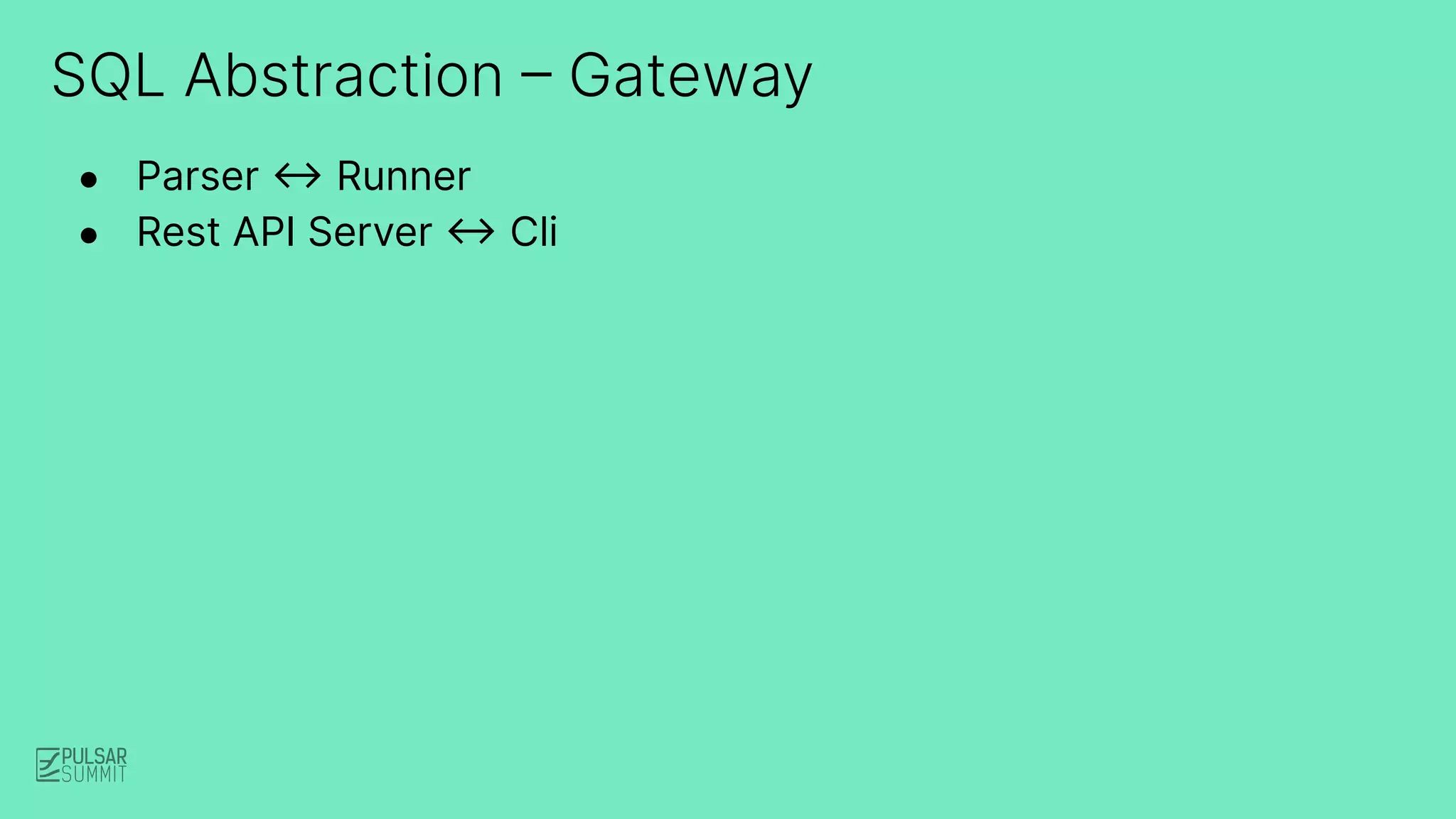

- 22. SQL Abstraction –Gateway ● Parser <-> Runner ● Rest API Server <-> Cli

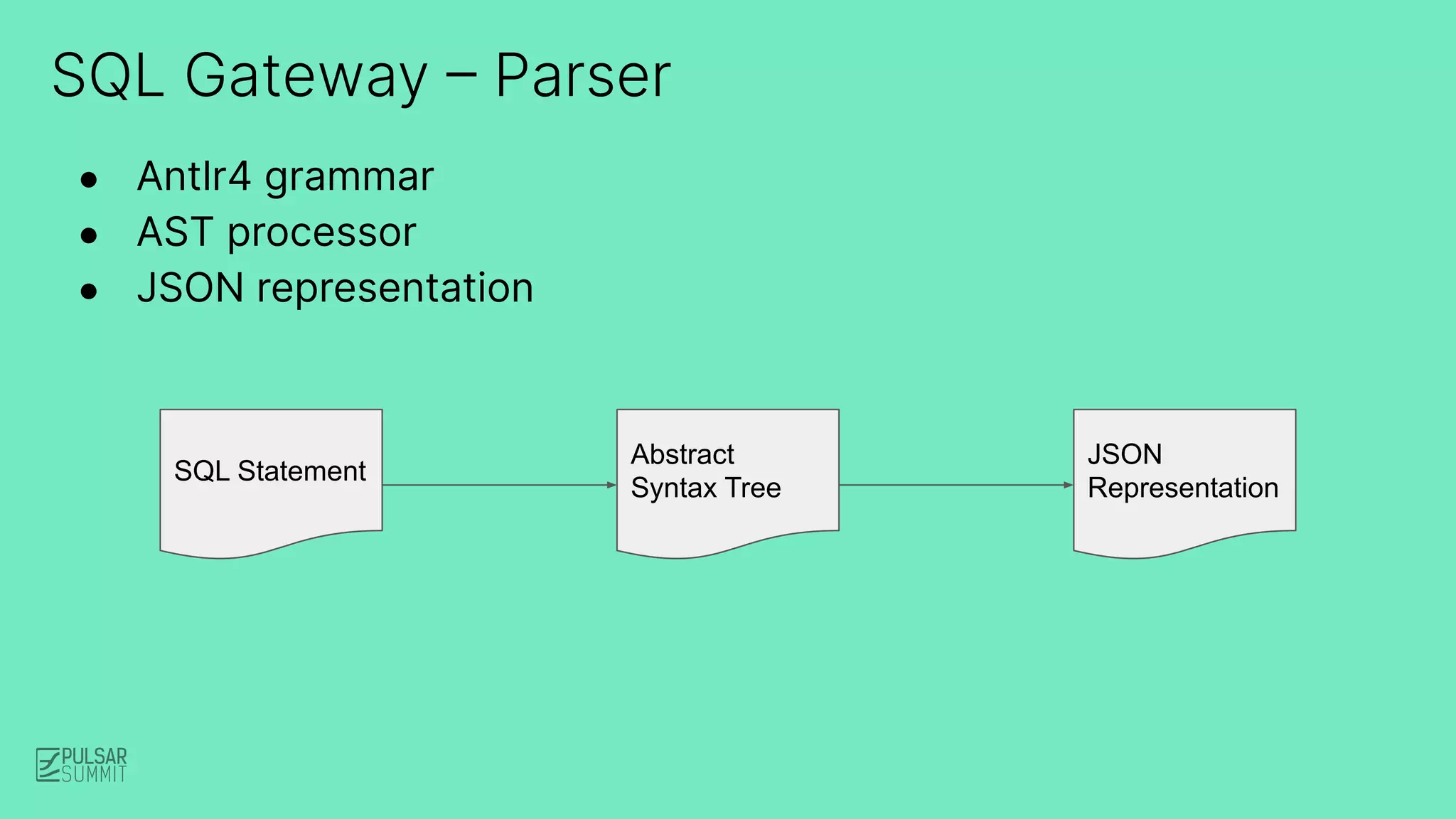

- 23. SQL Gateway –Parser ● Antlr4 grammar ● AST processor ● JSON representation SQL Statement Abstract Syntax Tree JSON Representation
- 24.

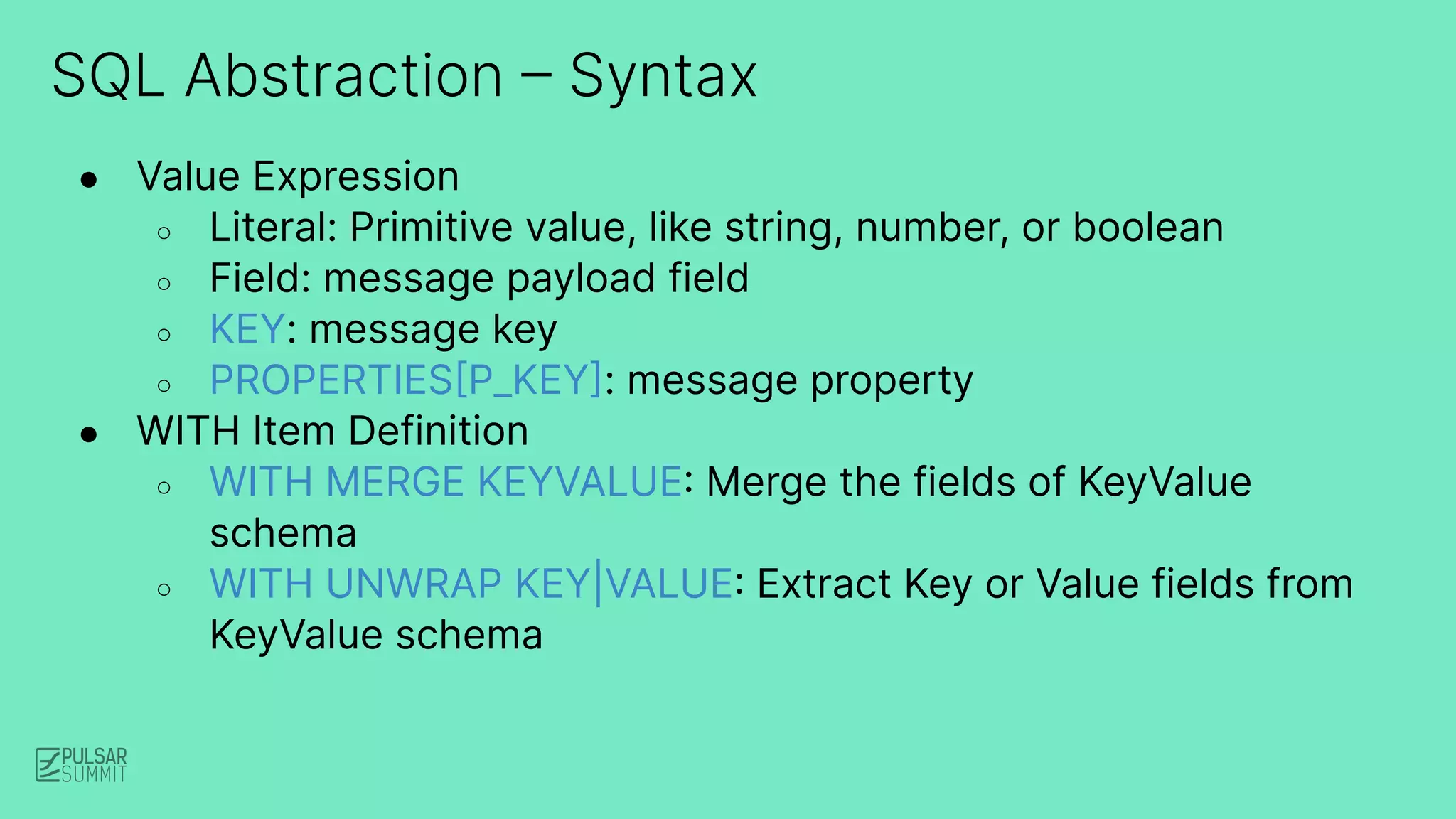

- 25. SQL Abstraction –Syntax ● Value Expression ○ Literal: Primitive value, like string, number, or boolean ○ Field: message payload field ○ KEY: message key ○ PROPERTIES[P_KEY]: message property ● WITH Item Definition ○ WITH MERGE KEYVALUE: Merge the fields of KeyValue schema ○ WITH UNWRAP KEY|VALUE: Extract Key or Value fields from KeyValue schema
- 26.
- 27.

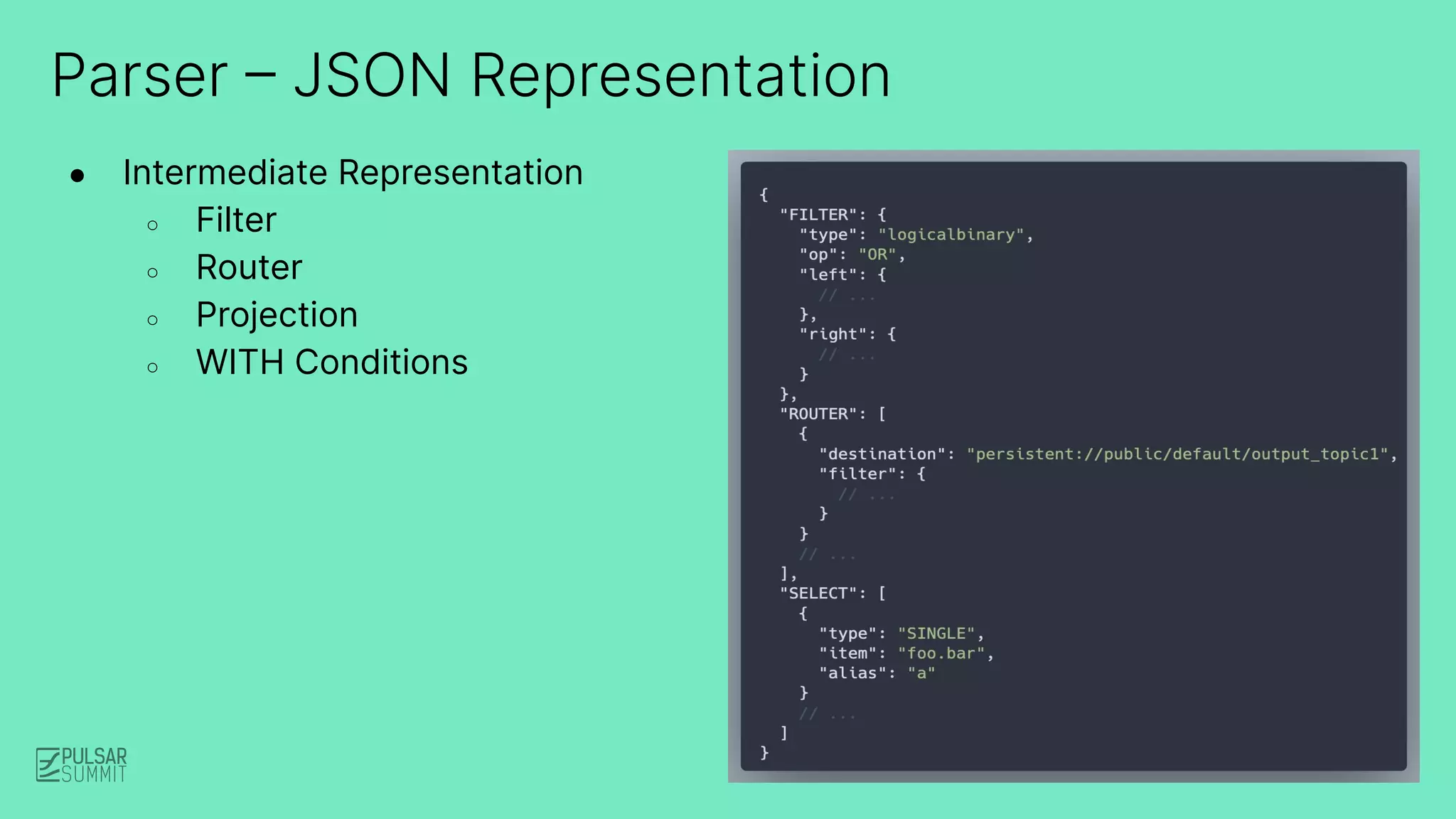

- 28. Parser – JSONRepresentation ● Intermediate Representation ○ Filter ○ Router ○ Projection ○ WITH Conditions

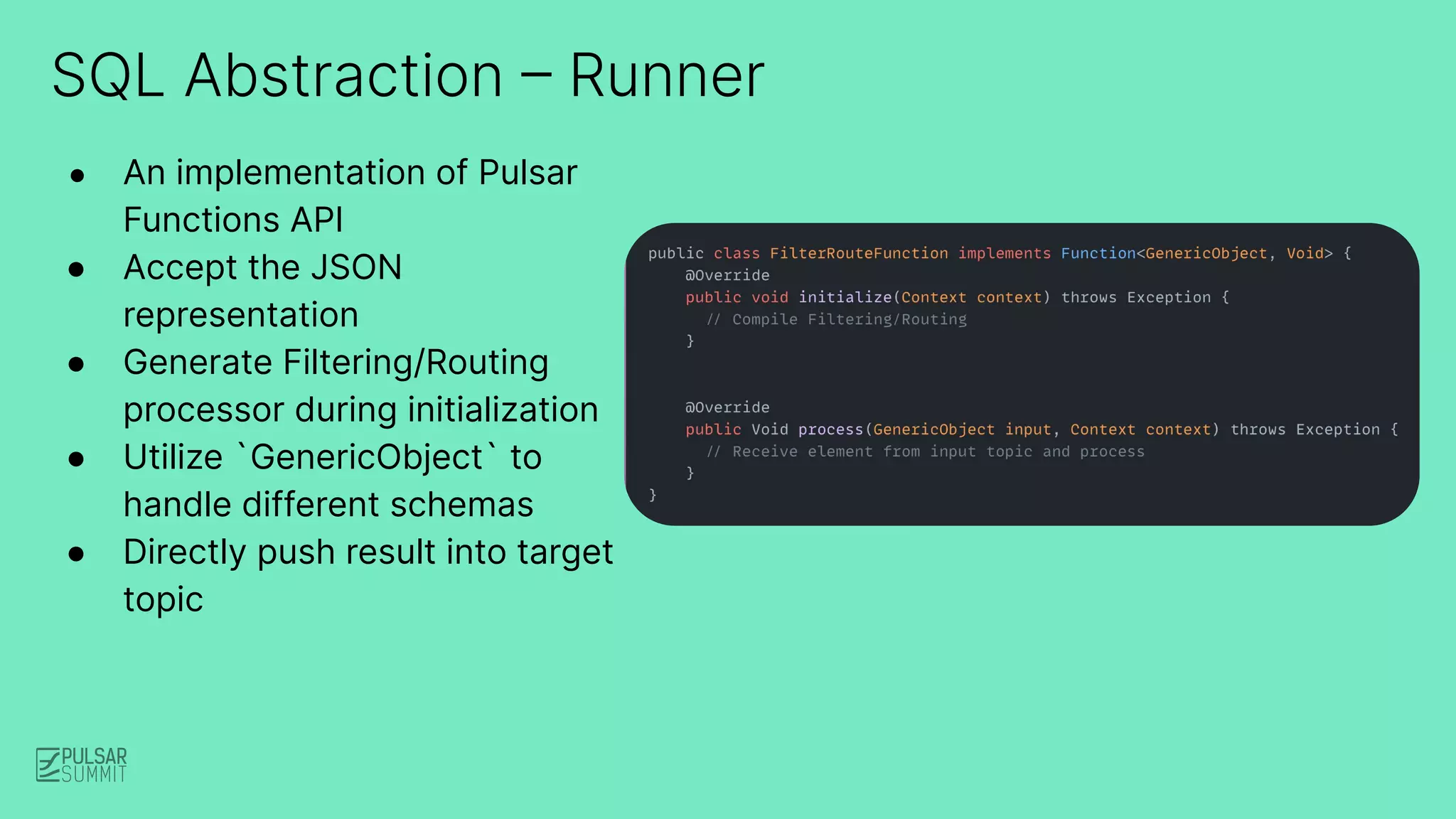

- 29. SQL Abstraction –Runner ● An implementation of Pulsar Functions API ● Accept the JSON representation ● Generate Filtering/Routing processor during initialization ● Utilize `GenericObject` to handle different schemas ● Directly push result into target topic

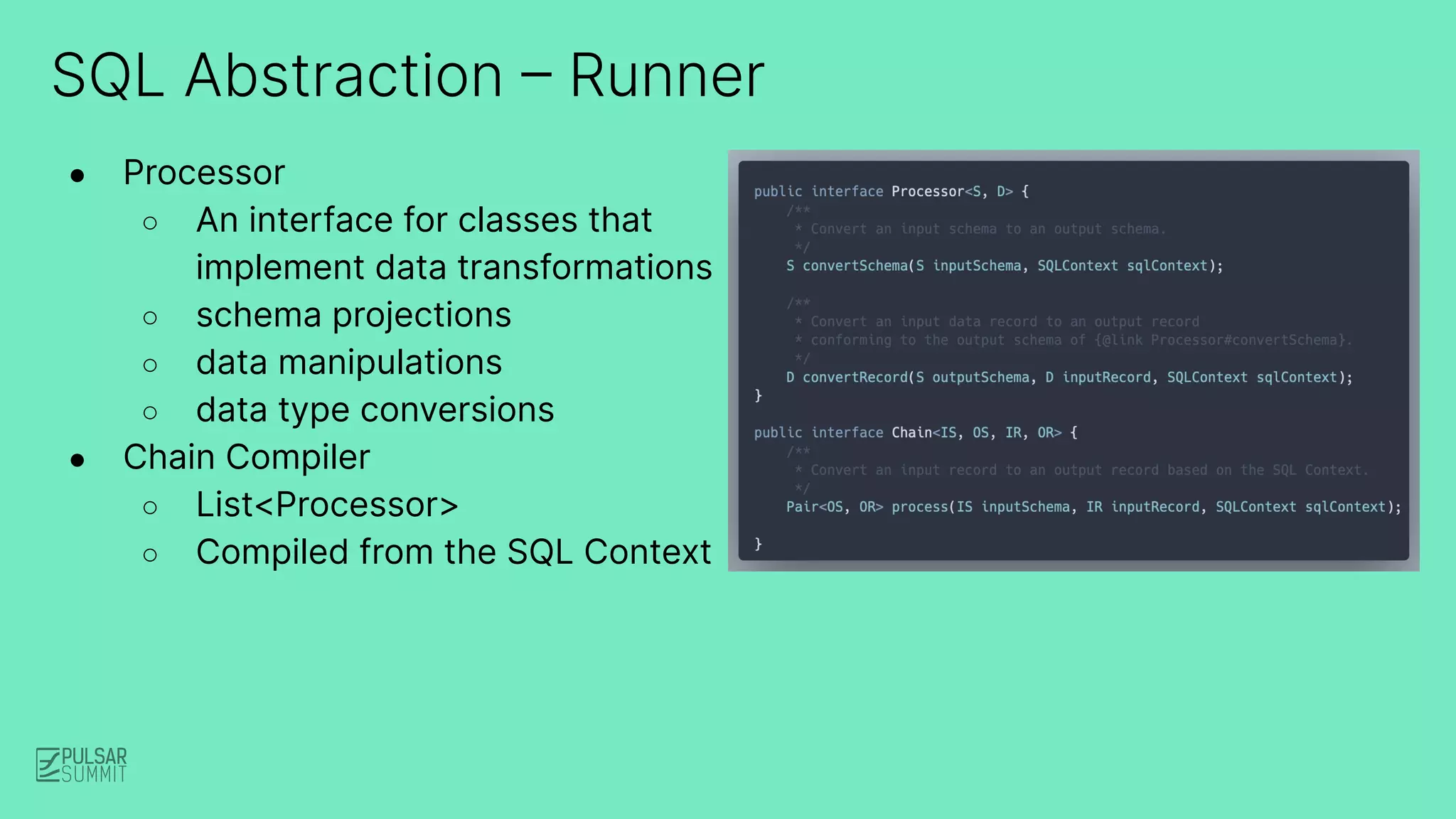

- 30. SQL Abstraction –Runner ● Processor ○ An interface for classes that implement data transformations ○ schema projections ○ data manipulations ○ data type conversions ● Chain Compiler ○ List<Processor> ○ Compiled from the SQL Context

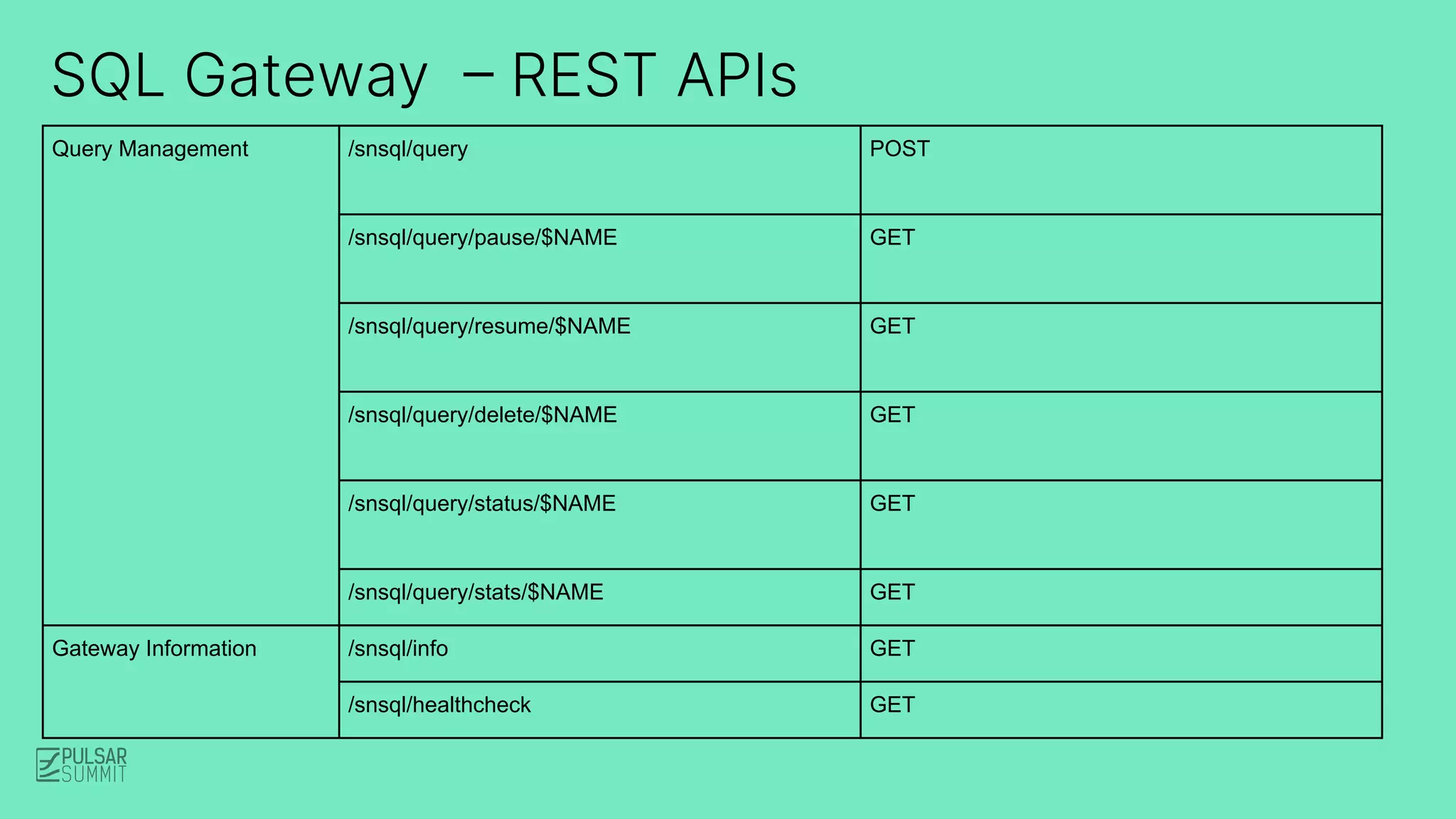

- 31. SQL Gateway –REST APIs Query Management /snsql/query POST /snsql/query/pause/$NAME GET /snsql/query/resume/$NAME GET /snsql/query/delete/$NAME GET /snsql/query/status/$NAME GET /snsql/query/stats/$NAME GET Gateway Information /snsql/info GET /snsql/healthcheck GET

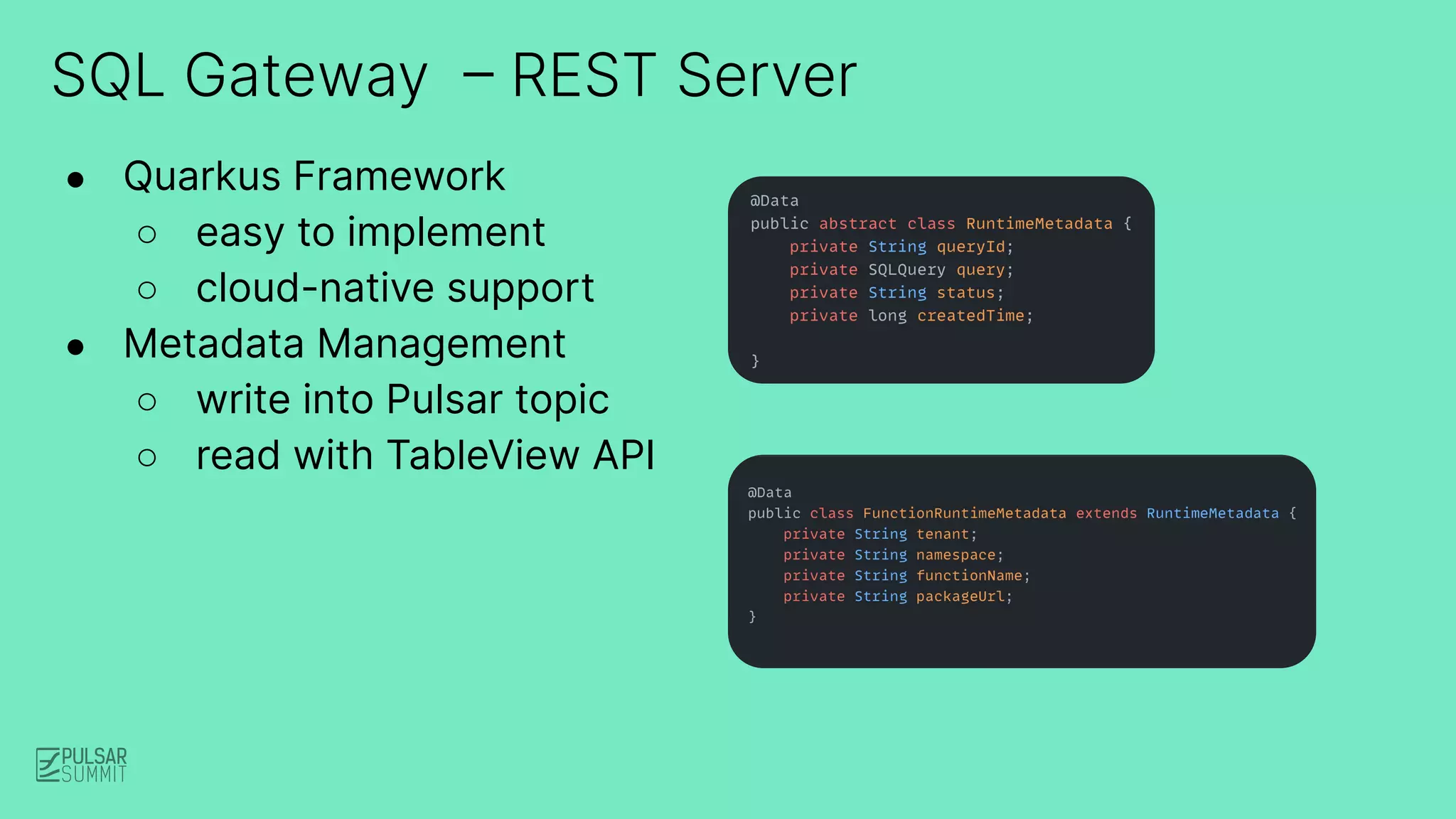

- 32. SQL Gateway –REST Server ● Quarkus Framework ○ easy to implement ○ cloud-native support ● Metadata Management ○ write into Pulsar topic ○ read with TableView API

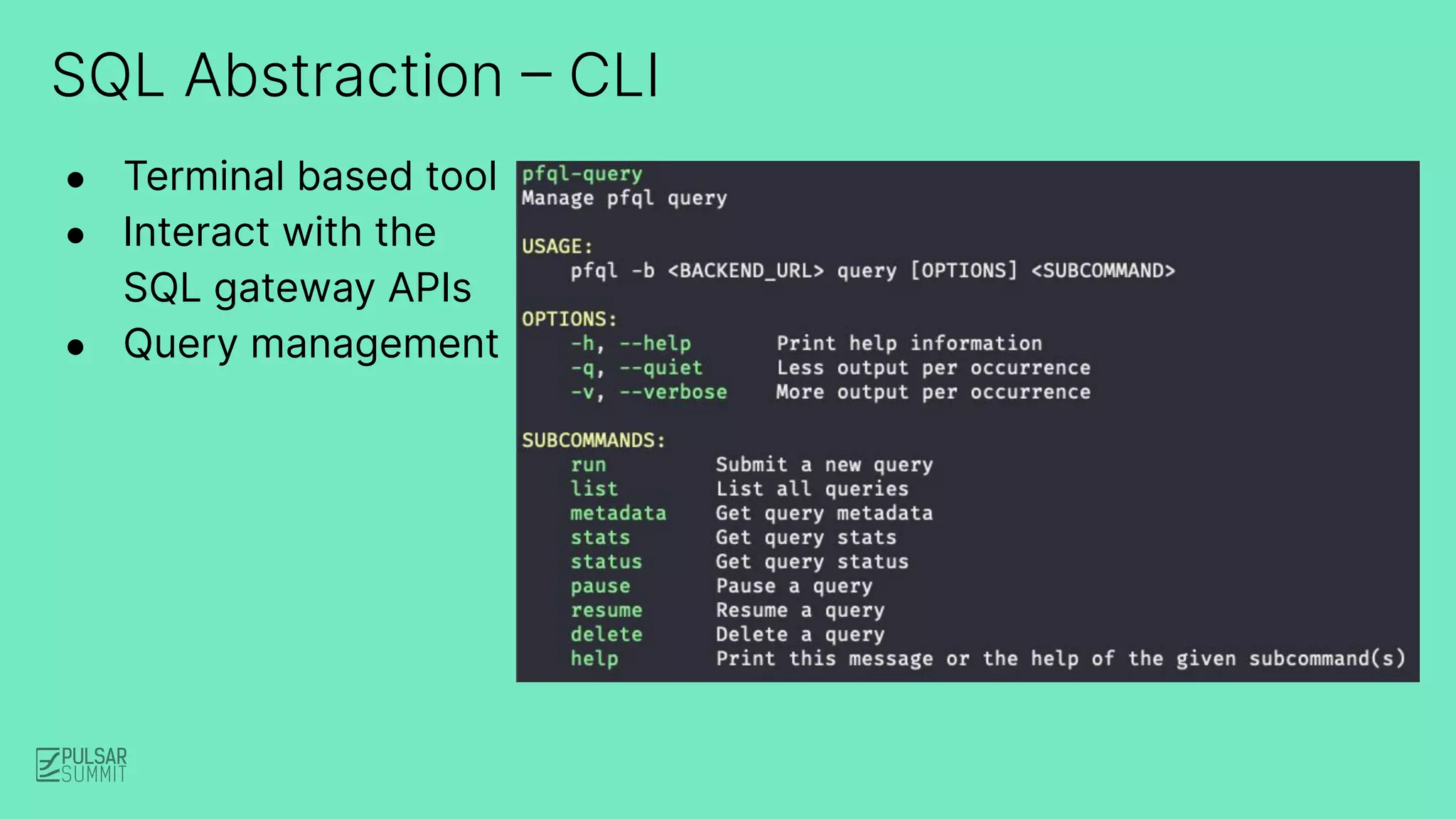

- 33. SQL Abstraction –CLI ● Terminal based tool ● Interact with the SQL gateway APIs ● Query management

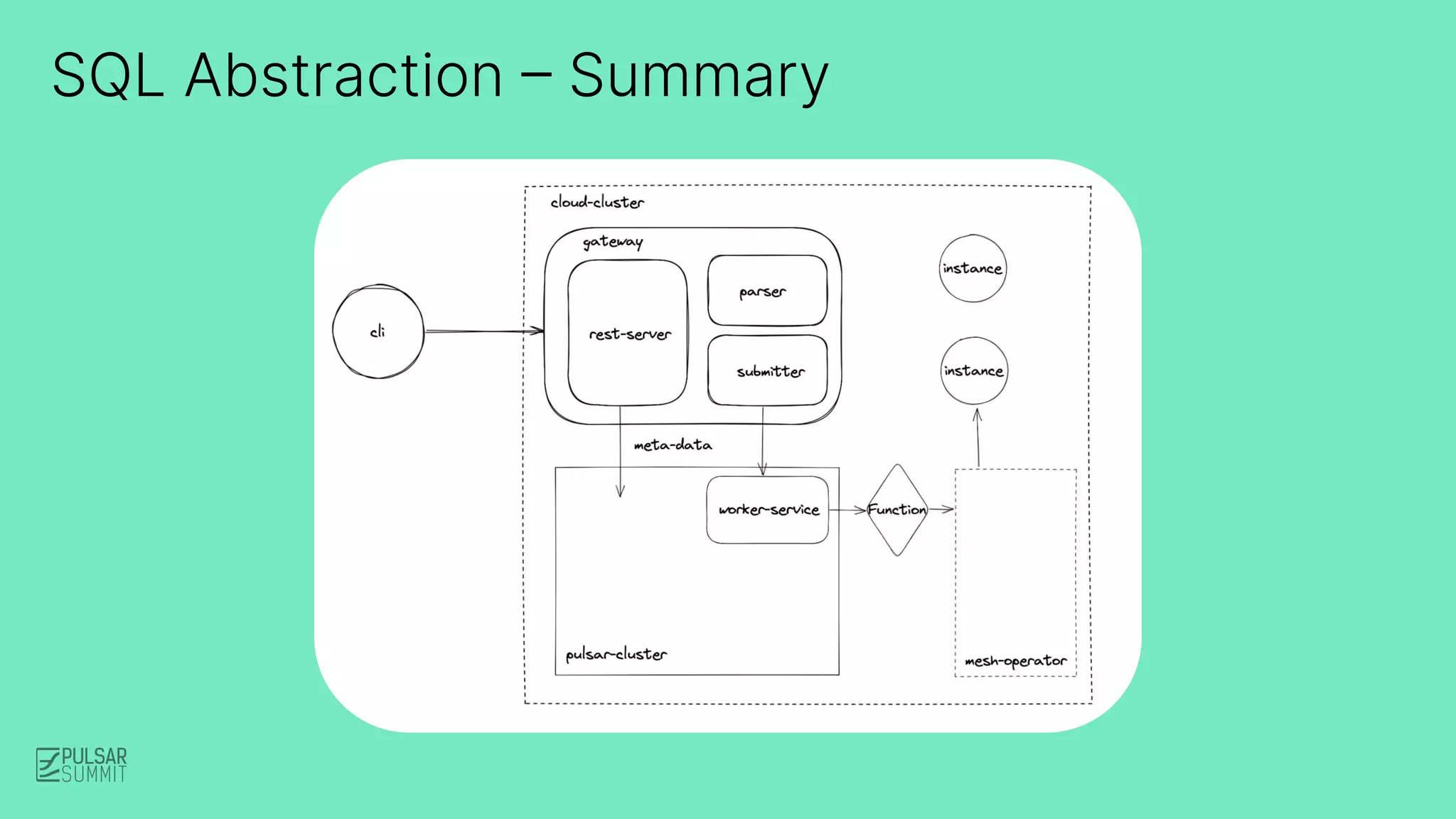

- 34. SQL Abstraction –Summary
- 35.

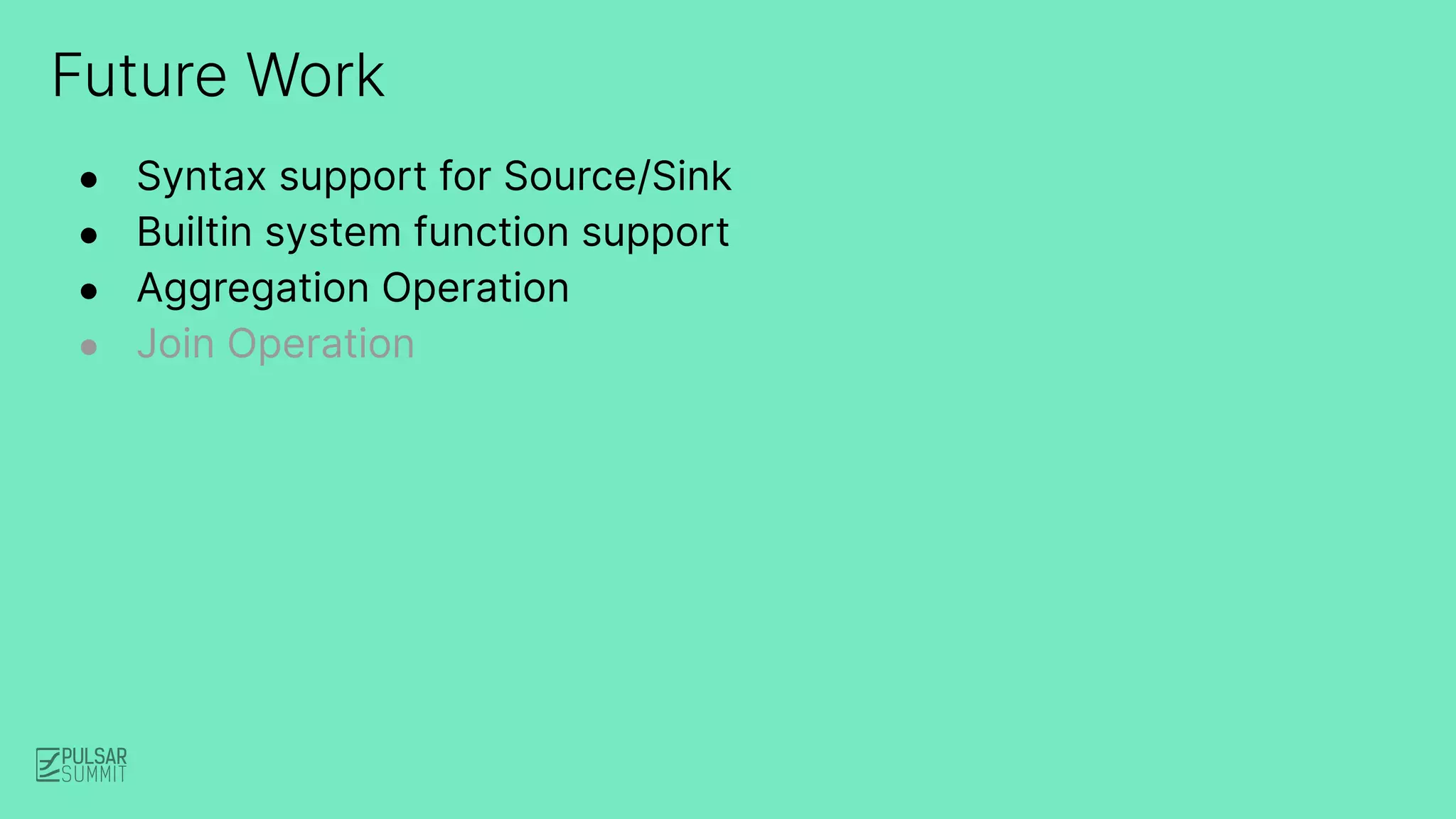

- 37. Future Work ● Syntaxsupport for Source/Sink ● Builtin system function support ● Aggregation Operation ● Join Operation

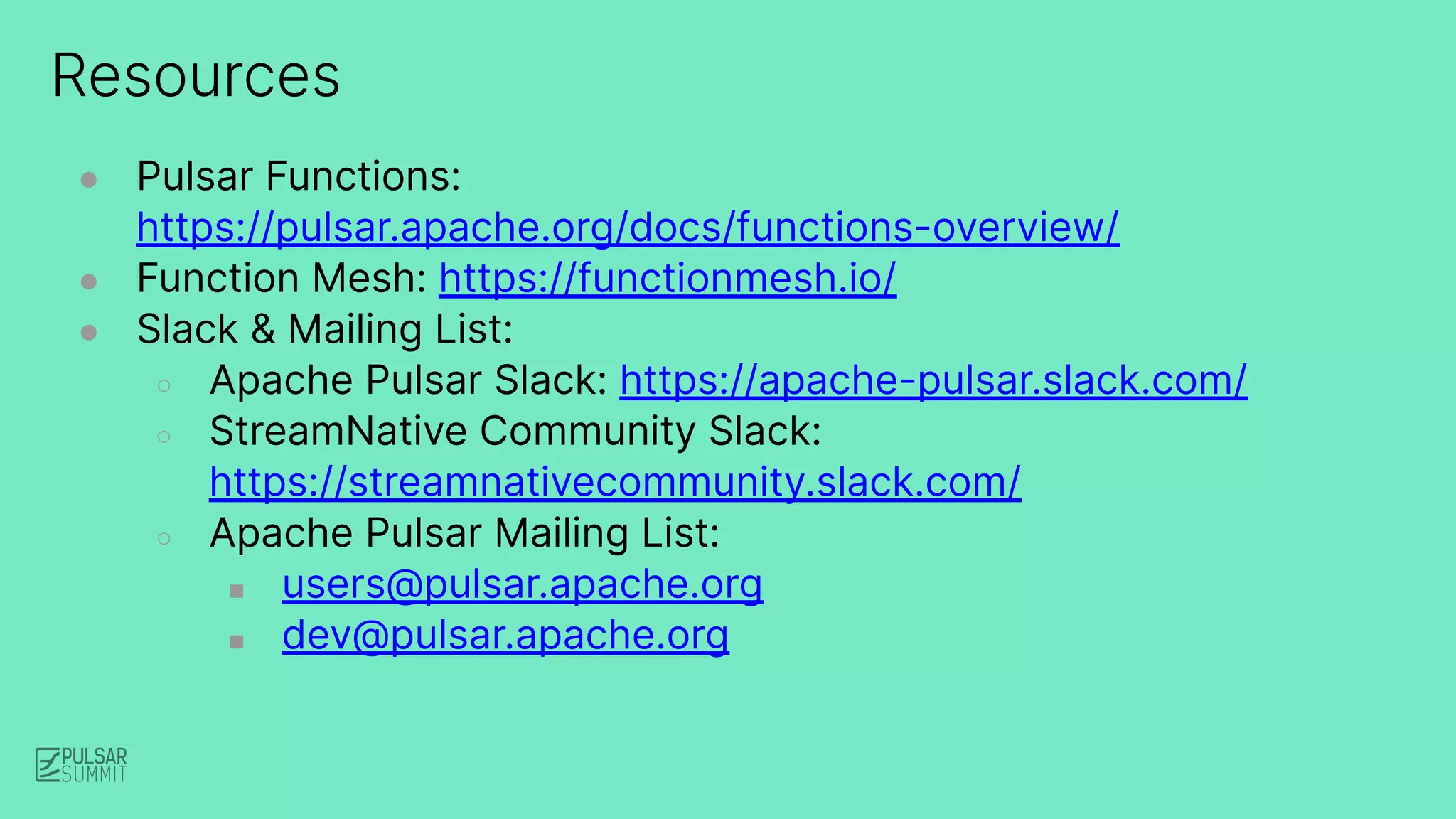

- 38. Resources ● Pulsar Functions: https://pulsar.apache.org/docs/functions-overview/ ●Function Mesh: https://functionmesh.io/ ● Slack & Mailing List: ○ Apache Pulsar Slack: https://apache-pulsar.slack.com/ ○ StreamNative Community Slack: https://streamnativecommunity.slack.com/ ○ Apache Pulsar Mailing List: ■ users@pulsar.apache.org ■ dev@pulsar.apache.org
- 39. Neng Lu Thank you! nlu@streamnative.io PulsarSummit San Francisco Hotel Nikko August 18 2022 rfu@streamnative.io Rui Fu @nlu90 @freeznet rfu nlu
