Uploaded byTimothy Spann
FLiP Into Trino
StreamNative offers a cloud-native event streaming platform built on Apache Pulsar that facilitates real-time data access via various protocols. The document details various features of Apache Pulsar including messaging capabilities, subscriptions, and integrations with other systems like Trino for querying data. It also discusses use cases for IoT data ingestion and application development, highlighting the versatility and scalability of the platform.
More Related Content
FLiP Into Trino
- 1. FLiP Into Trino TimSpann | Developer Advocate David Kjerrumgaard | Developer Advocate
- 2. streamnative.io Founded by theoriginal developers of Apache Pulsar and Apache BookKeeper, StreamNative builds a cloud-native event streaming platform that enables enterprises to easily access data as real-time event streams.
- 3.
- 4. streamnative.io Tim Spann, DeveloperAdvocate DZone Zone Leader and Big Data MVB Data DJay
- 5. ● Apache Flink ●Apache Pulsar ● StreamNative's Flink Connector for Pulsar ● Apache NiFi ● Trino FLiP(N) into Trino Stack
- 6.
- 7. streamnative.io Apache is anopen source, cloud-native distributed messaging and streaming platform.

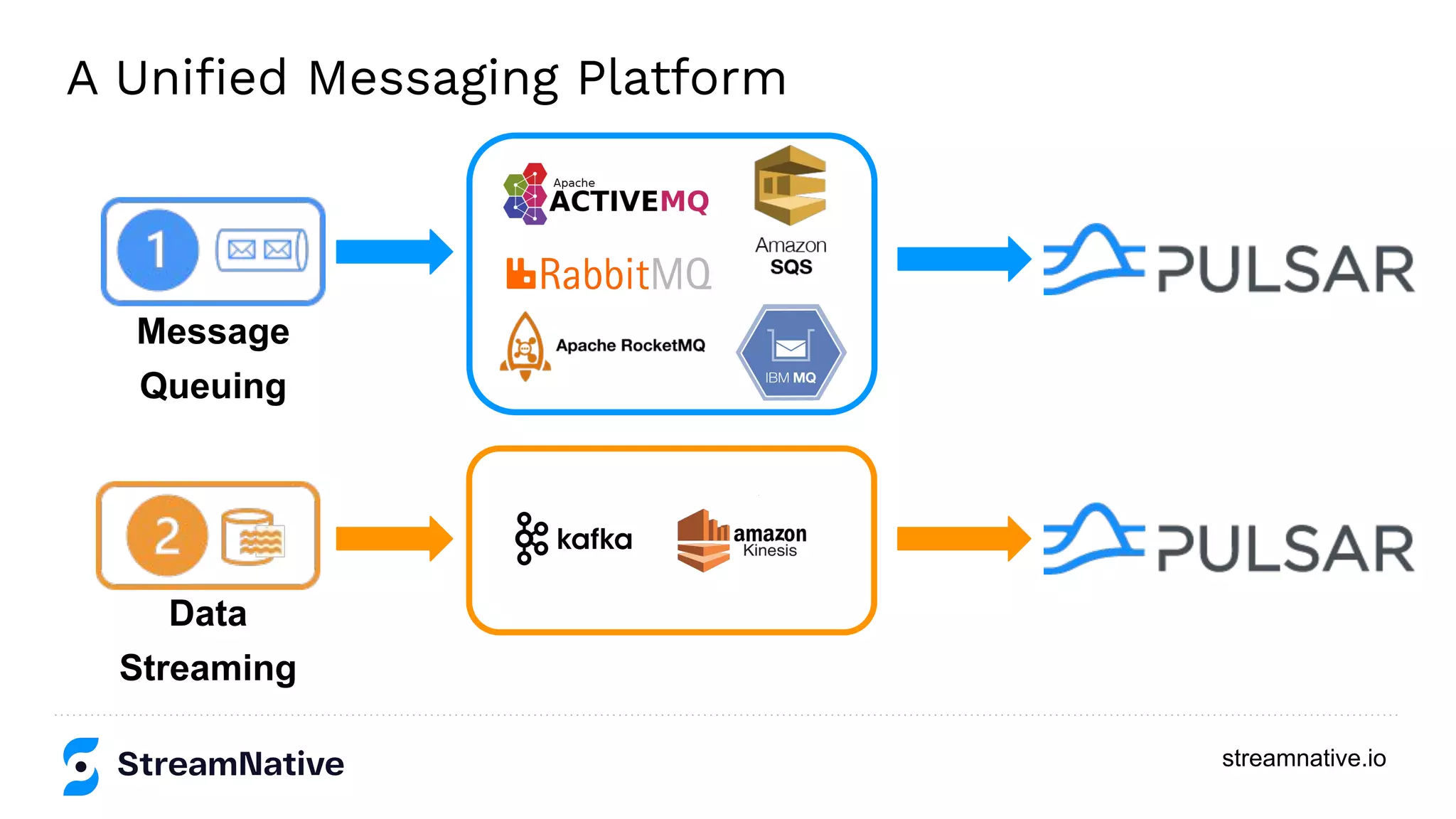

- 8. streamnative.io A Unified MessagingPlatform Message Queuing Data Streaming

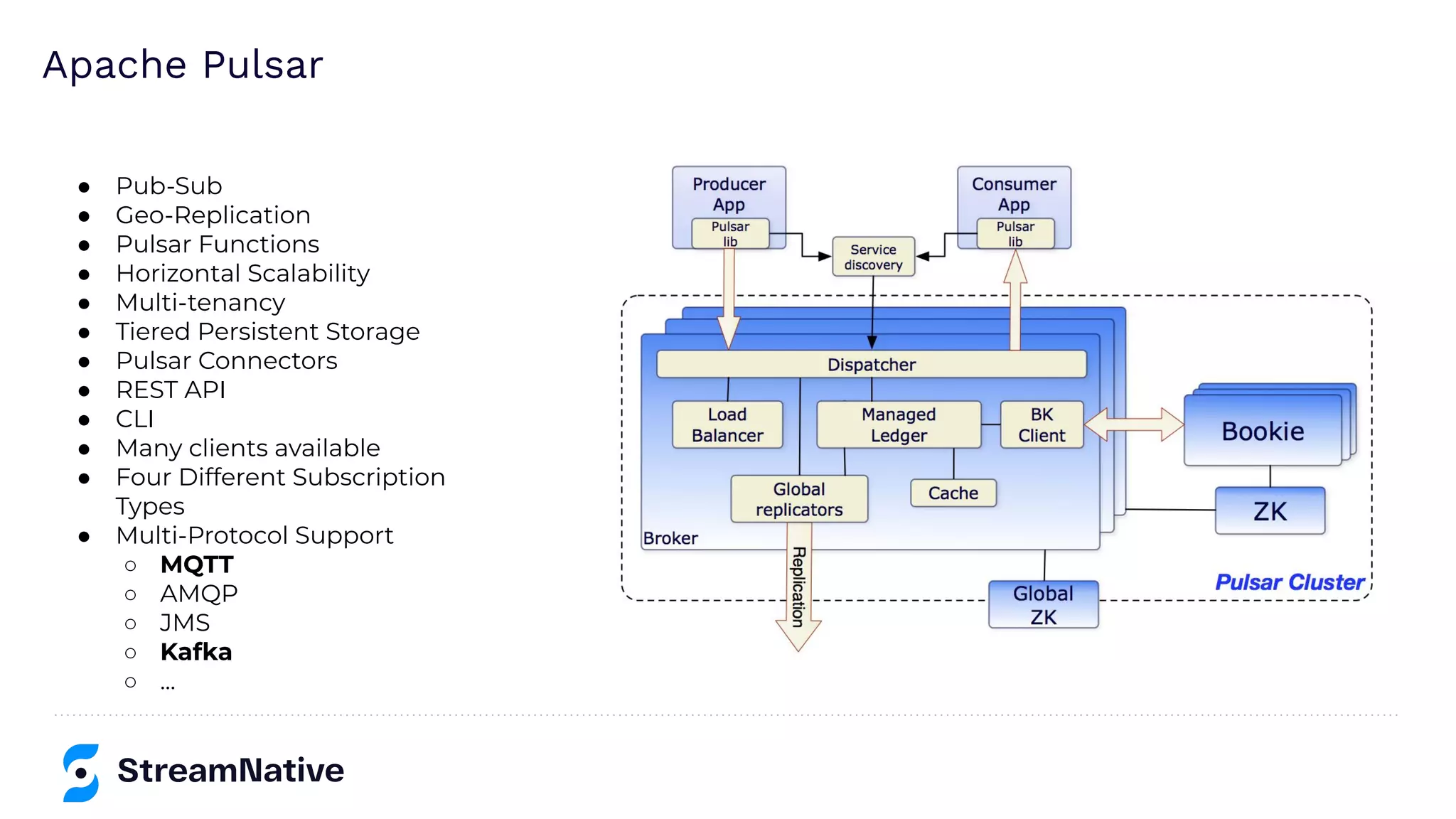

- 9. Apache Pulsar ● Pub-Sub ●Geo-Replication ● Pulsar Functions ● Horizontal Scalability ● Multi-tenancy ● Tiered Persistent Storage ● Pulsar Connectors ● REST API ● CLI ● Many clients available ● Four Different Subscription Types ● Multi-Protocol Support ○ MQTT ○ AMQP ○ JMS ○ Kafka ○ ...

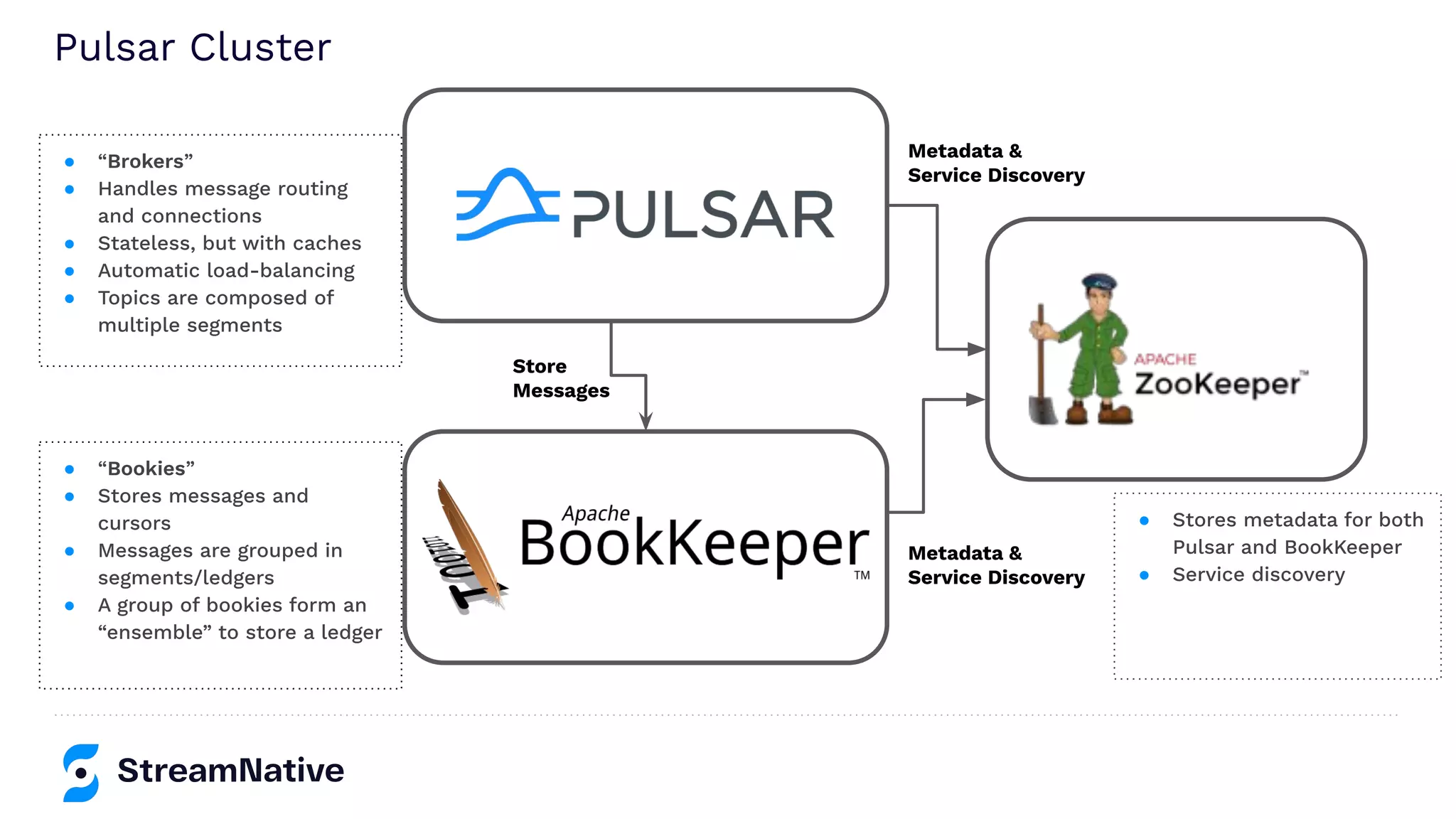

- 10. ● “Bookies” ● Storesmessages and cursors ● Messages are grouped in segments/ledgers ● A group of bookies form an “ensemble” to store a ledger ● “Brokers” ● Handles message routing and connections ● Stateless, but with caches ● Automatic load-balancing ● Topics are composed of multiple segments ● Stores metadata for both Pulsar and BookKeeper ● Service discovery Store Messages Metadata & Service Discovery Metadata & Service Discovery Pulsar Cluster

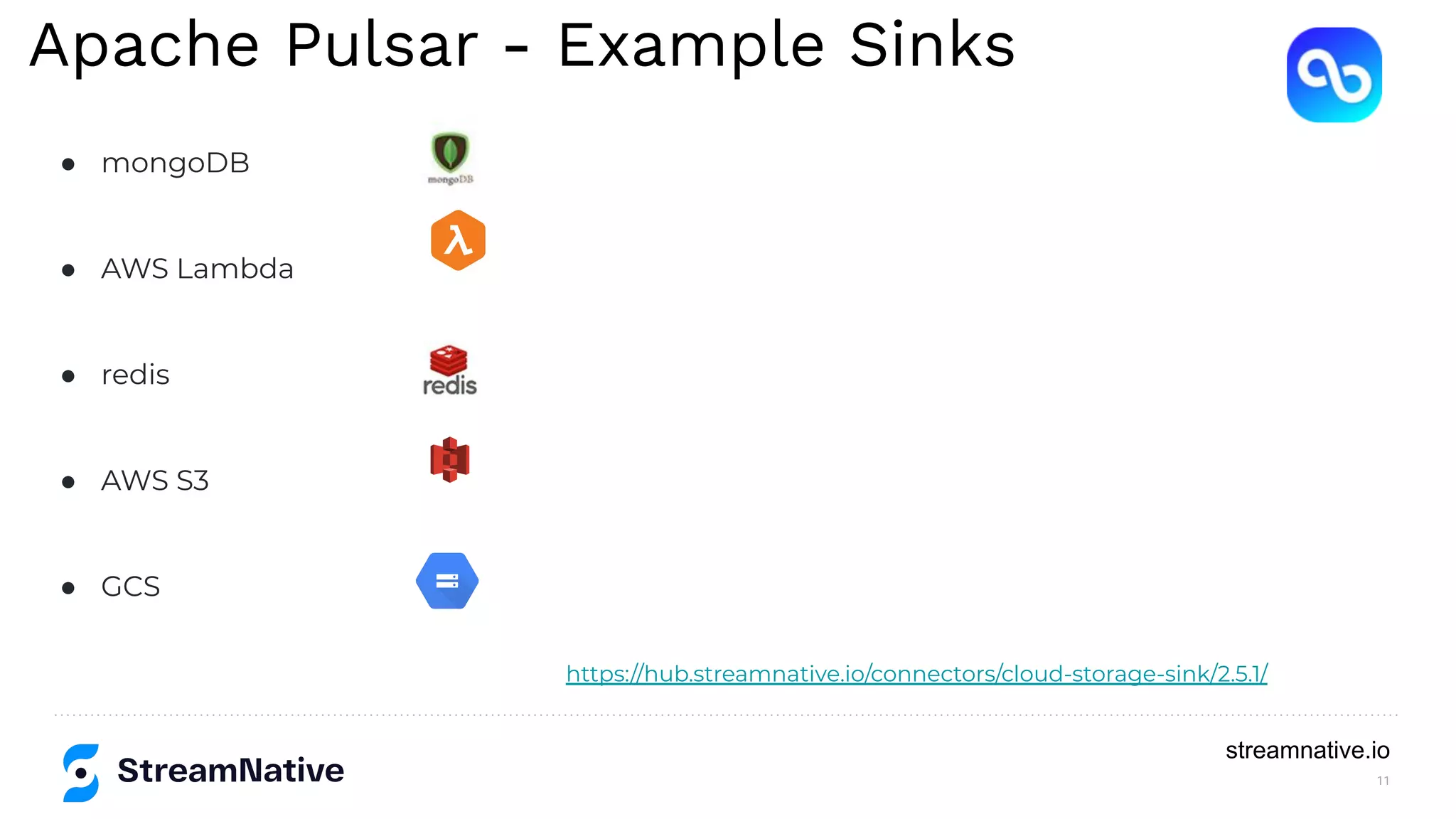

- 11. 11 streamnative.io Apache Pulsar -Example Sinks https://hub.streamnative.io/connectors/cloud-storage-sink/2.5.1/ ● mongoDB ● AWS Lambda ● redis ● AWS S3 ● GCS

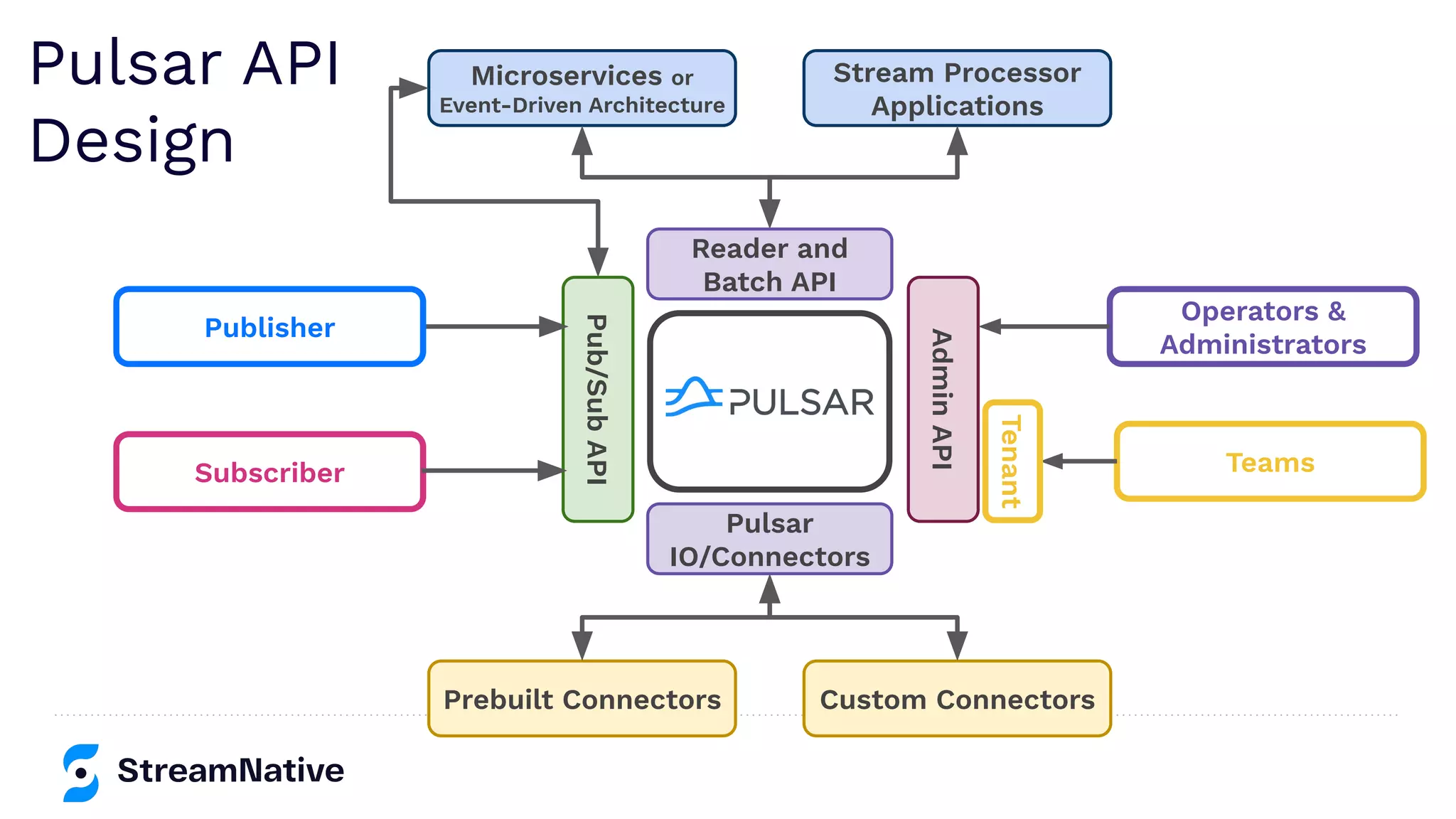

- 12. Reader and Batch API Pulsar IO/Connectors StreamProcessor Applications Prebuilt Connectors Custom Connectors Microservices or Event-Driven Architecture Pub/Sub API Publisher Subscriber Admin API Operators & Administrators Teams Tenant Pulsar API Design

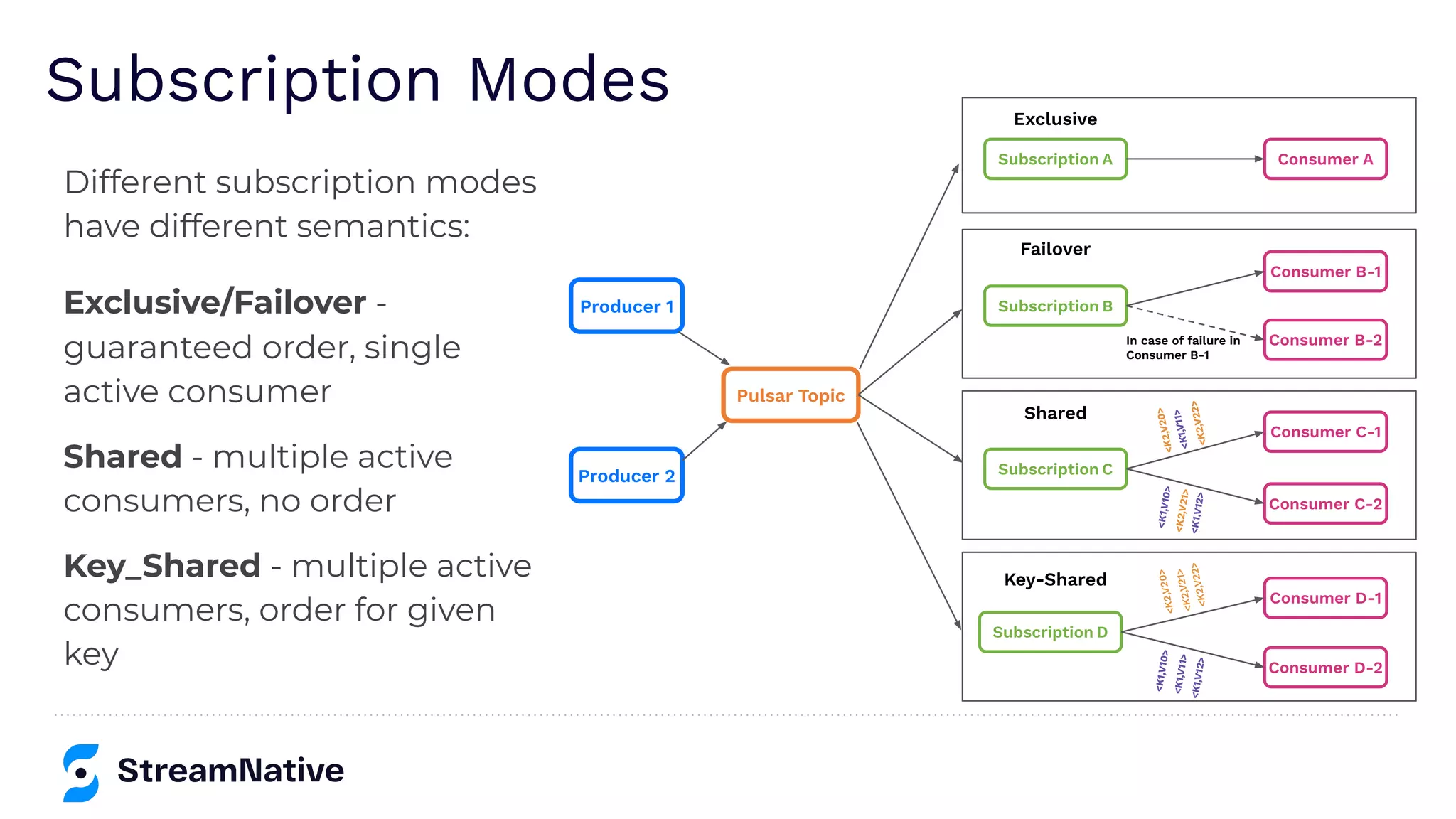

- 13. Subscription Modes Different subscriptionmodes have different semantics: Exclusive/Failover - guaranteed order, single active consumer Shared - multiple active consumers, no order Key_Shared - multiple active consumers, order for given key Producer 1 Producer 2 Pulsar Topic Subscription D Consumer D-1 Consumer D-2 Key-Shared < K 1, V 10 > < K 1, V 11 > < K 1, V 12 > < K 2 ,V 2 0 > < K 2 ,V 2 1> < K 2 ,V 2 2 > Subscription C Consumer C-1 Consumer C-2 Shared < K 1, V 10 > < K 2, V 21 > < K 1, V 12 > < K 2 ,V 2 0 > < K 1, V 11 > < K 2 ,V 2 2 > Subscription A Consumer A Exclusive Subscription B Consumer B-1 Consumer B-2 In case of failure in Consumer B-1 Failover

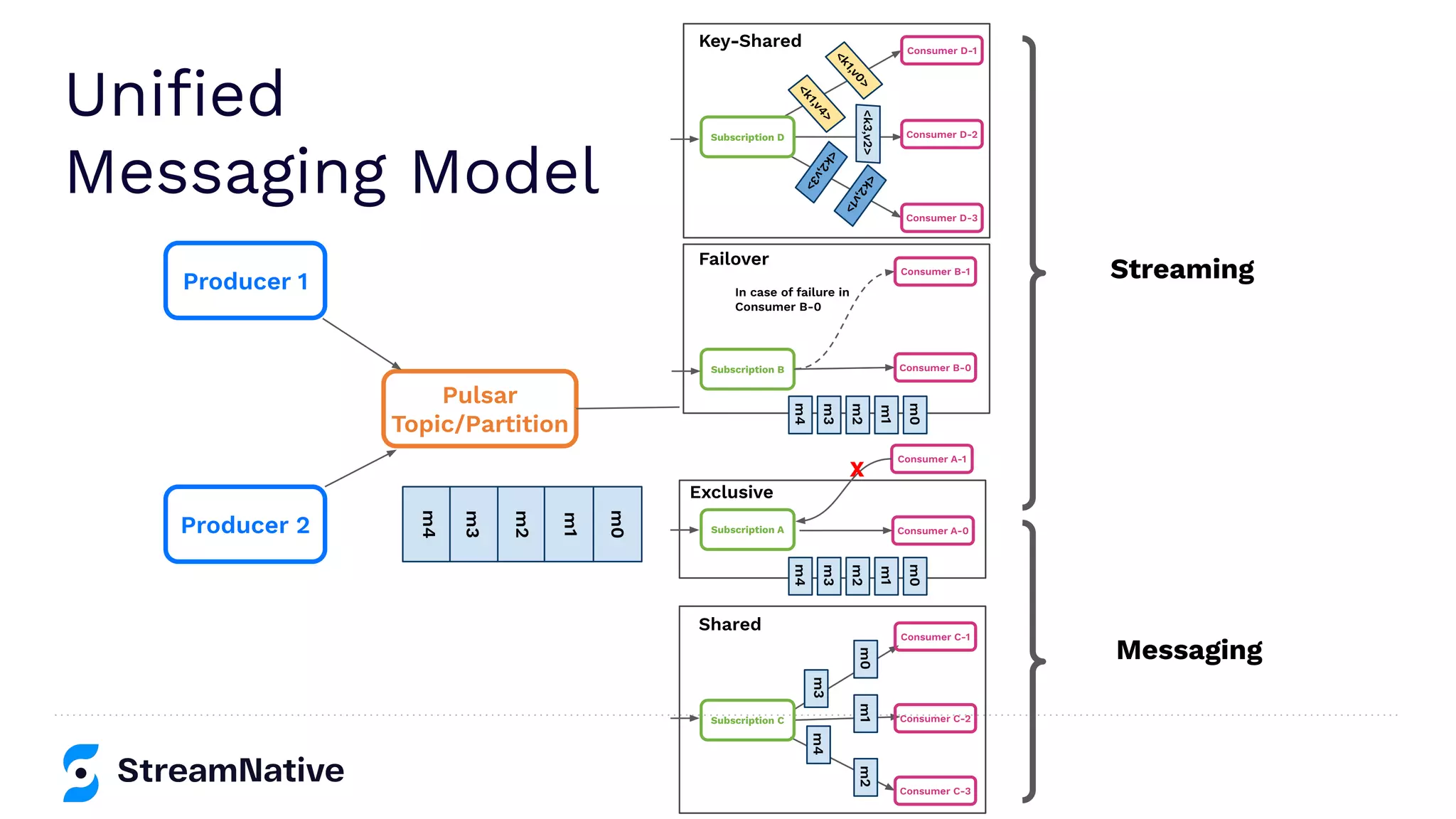

- 14. Unified Messaging Model Streaming Messaging Producer 1 Producer2 Pulsar Topic/Partition m0 m1 m2 m3 m4 Consumer D-1 Consumer D-2 Consumer D-3 Subscription D < k 2 , v 1 > < k 2 , v 3 > <k3,v2> < k 1 , v 0 > < k 1 , v 4 > Key-Shared Consumer C-1 Consumer C-2 Consumer C-3 Subscription C m1 m2 m3 m4 m0 Shared Failover Consumer B-1 Consumer B-0 Subscription B m1 m2 m3 m4 m0 In case of failure in Consumer B-0 Consumer A-1 Consumer A-0 Subscription A m1 m2 m3 m4 m0 Exclusive X
- 15.

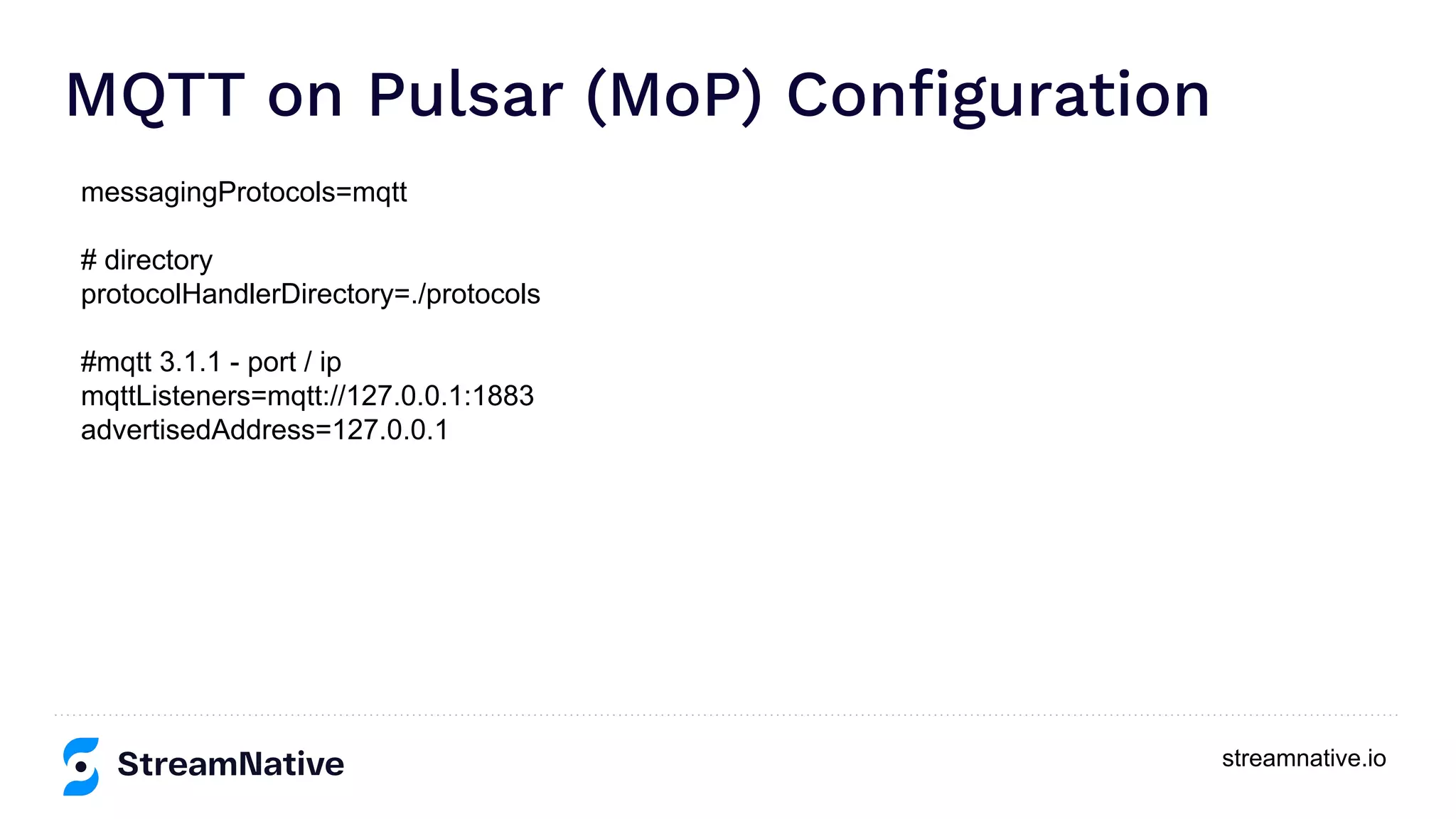

- 16. streamnative.io MQTT on Pulsar(MoP) Configuration messagingProtocols=mqtt # directory protocolHandlerDirectory=./protocols #mqtt 3.1.1 - port / ip mqttListeners=mqtt://127.0.0.1:1883 advertisedAddress=127.0.0.1

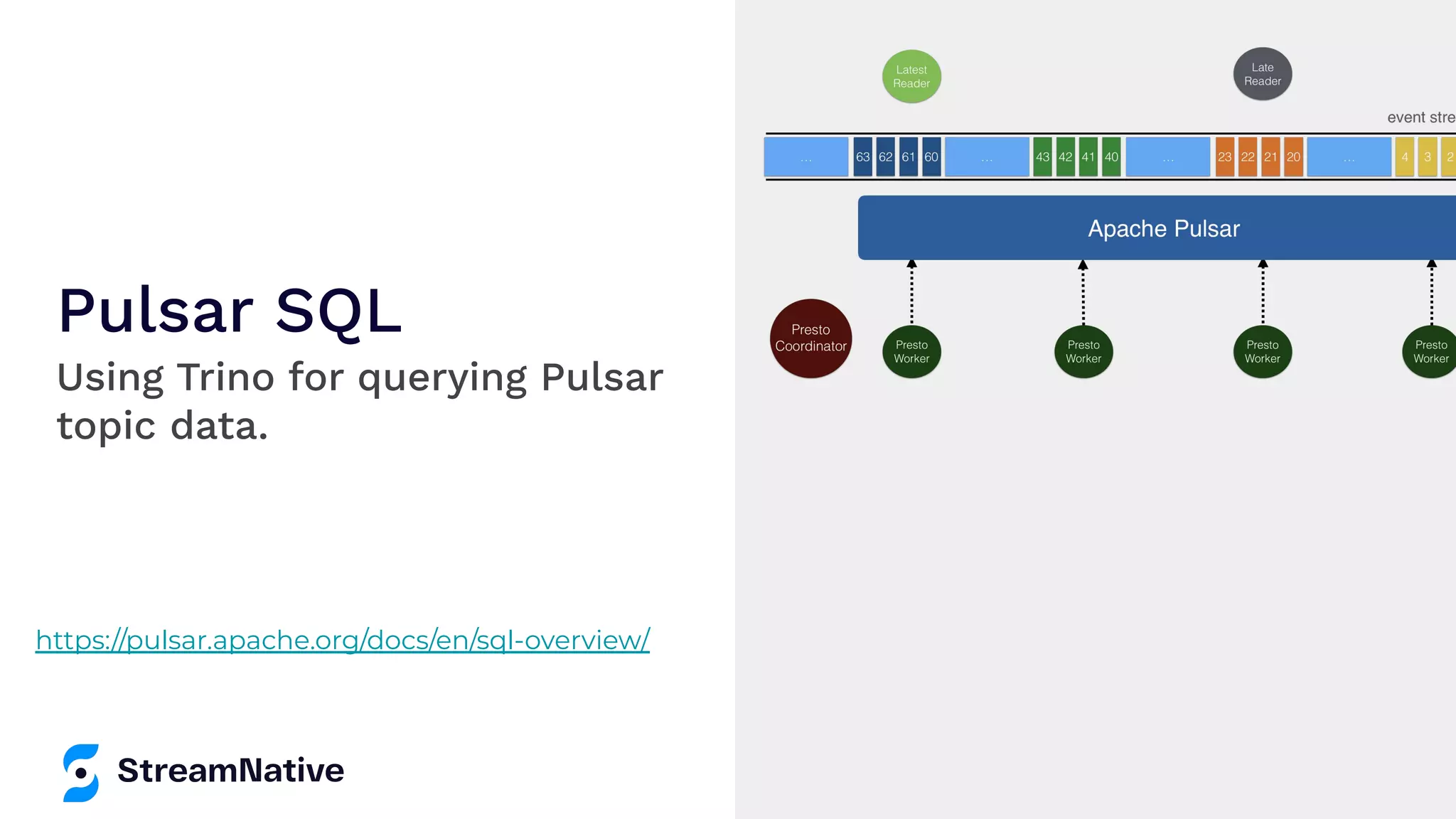

- 17. Pulsar SQL Using Trinofor querying Pulsar topic data. https://pulsar.apache.org/docs/en/sql-overview/

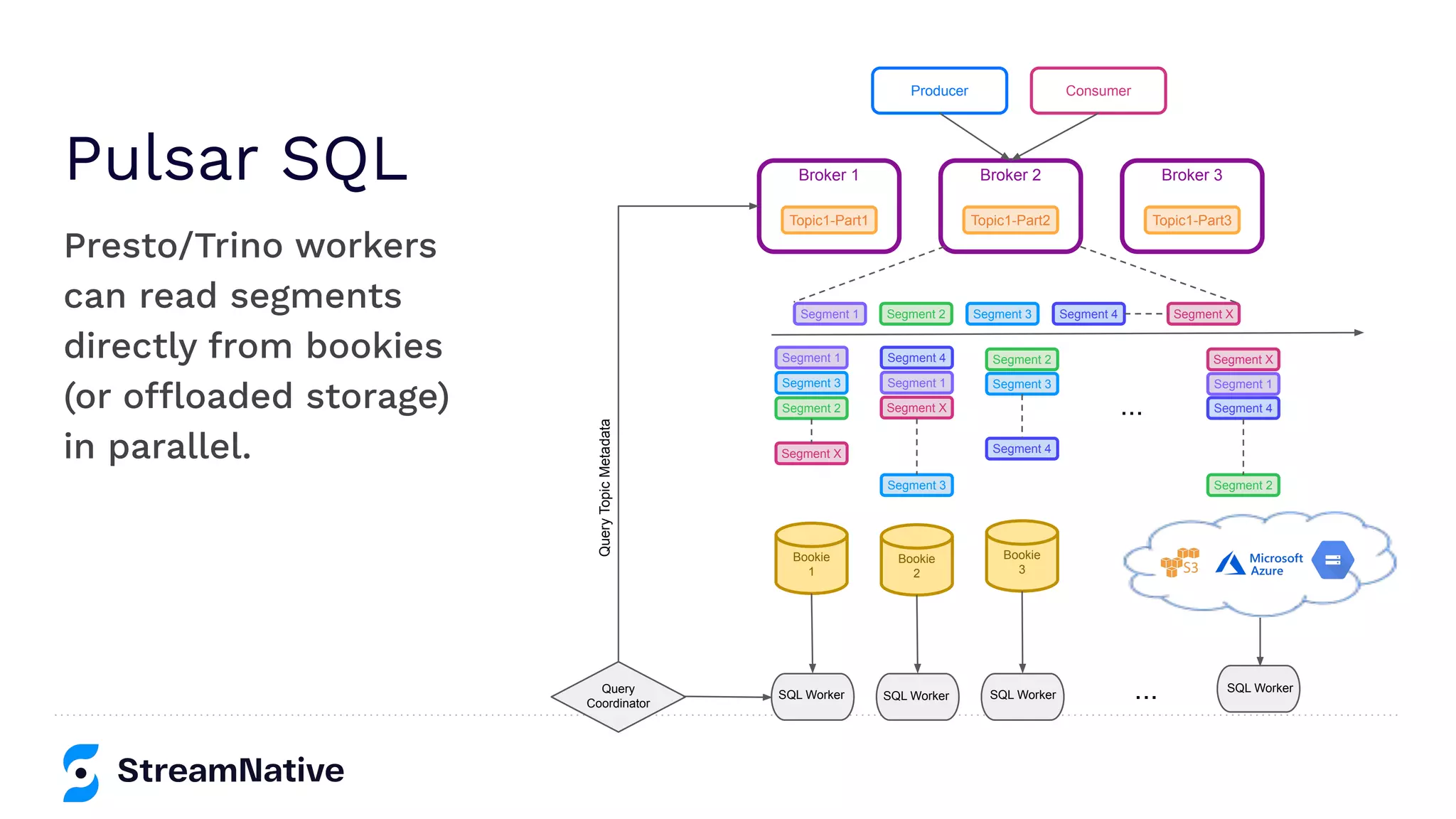

- 18. Pulsar SQL Presto/Trino workers canread segments directly from bookies (or offloaded storage) in parallel. Bookie 1 Segment 1 Producer Consumer Broker 1 Topic1-Part1 Broker 2 Topic1-Part2 Broker 3 Topic1-Part3 Segment 2 Segment 3 Segment 4 Segment X Segment 1 Segment 1 Segment 1 Segment 3 Segment 3 Segment 3 Segment 2 Segment 2 Segment 2 Segment 4 Segment 4 Segment 4 Segment X Segment X Segment X Bookie 2 Bookie 3 Query Coordinator ... ... SQL Worker SQL Worker SQL Worker SQL Worker Query Topic Metadata
- 19.

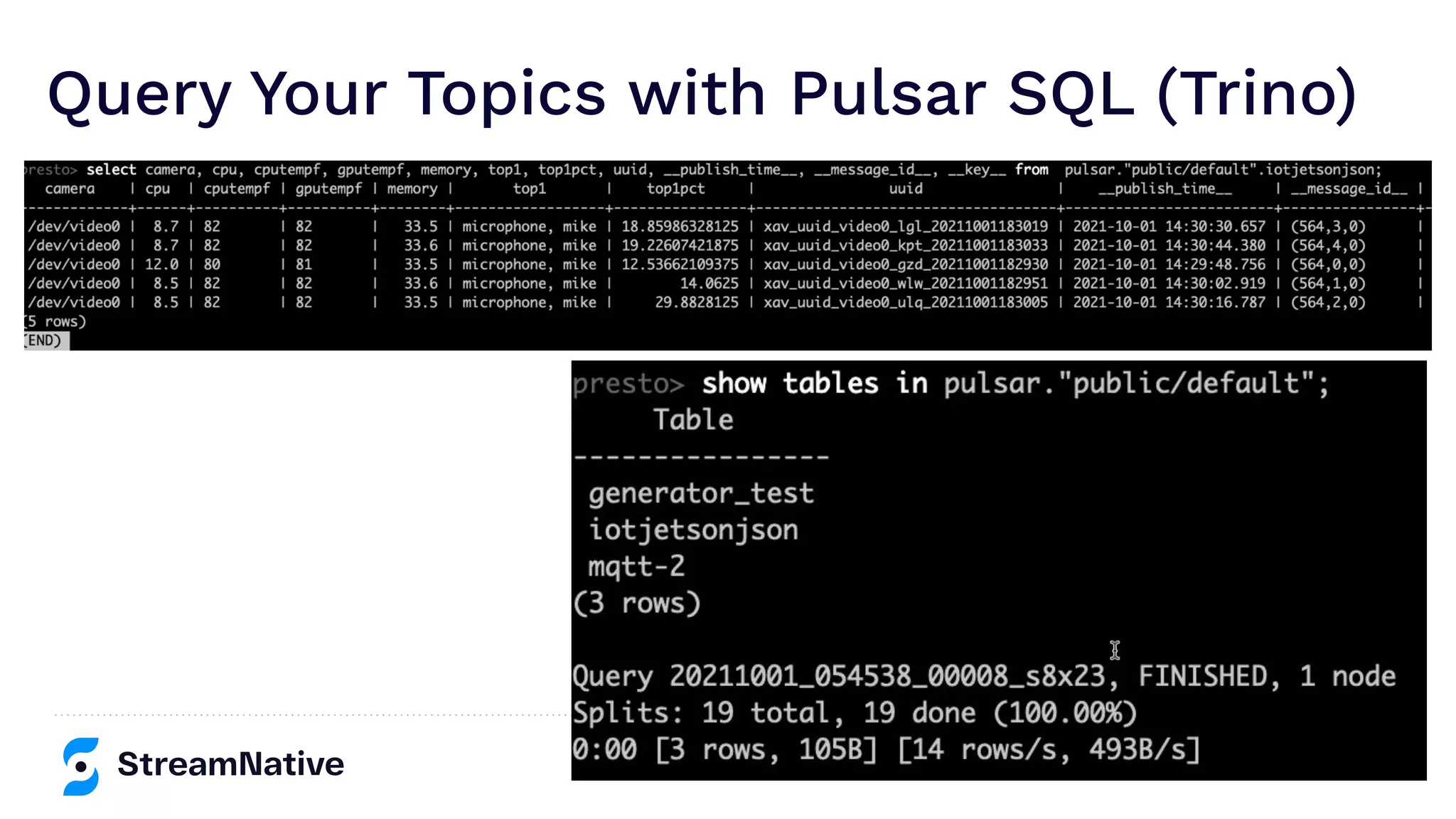

- 20. streamnative.io Query Your Topicswith Pulsar SQL (Trino)

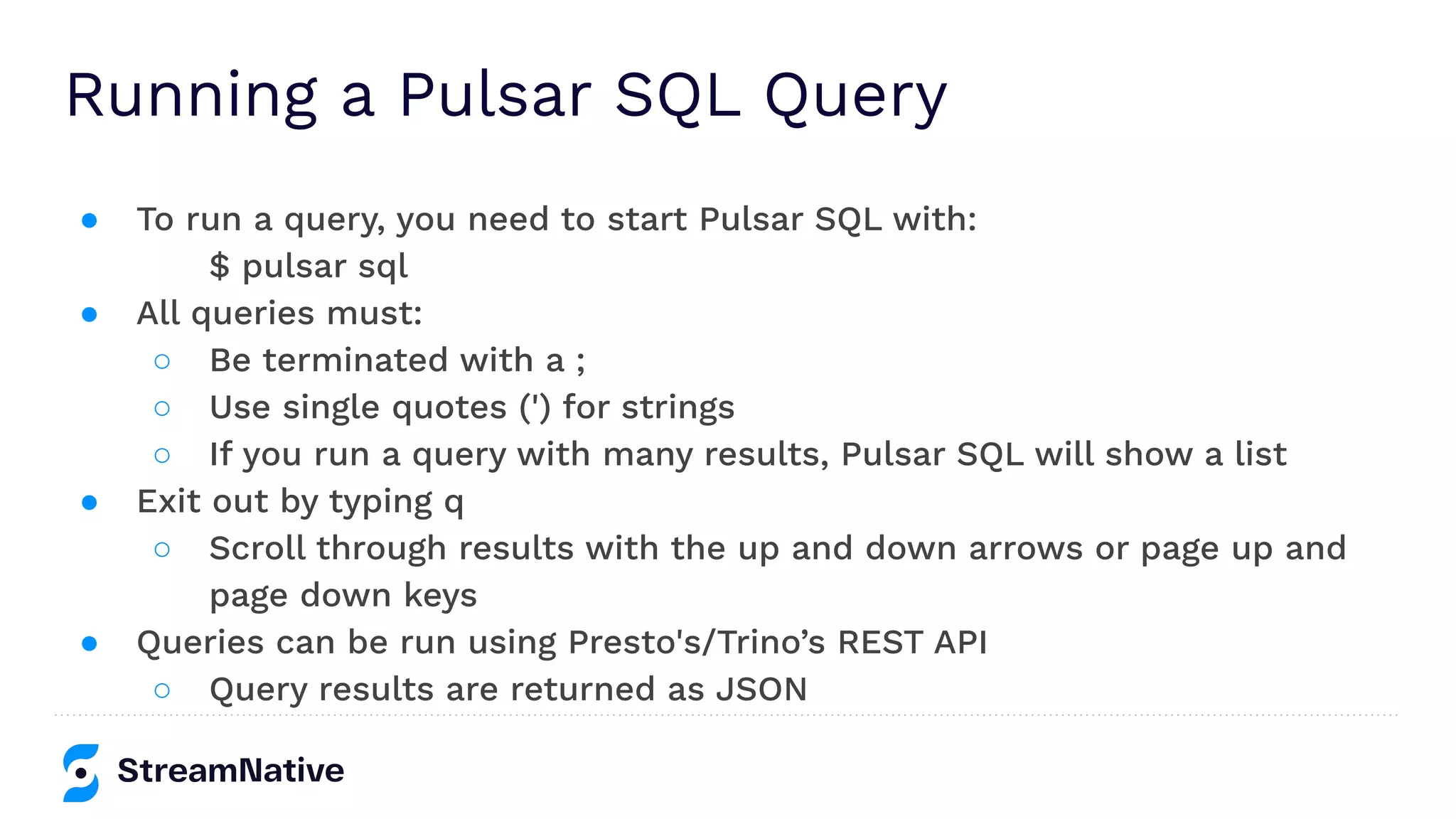

- 21. Running a PulsarSQL Query ● To run a query, you need to start Pulsar SQL with: $ pulsar sql ● All queries must: ○ Be terminated with a ; ○ Use single quotes (') for strings ○ If you run a query with many results, Pulsar SQL will show a list ● Exit out by typing q ○ Scroll through results with the up and down arrows or page up and page down keys ● Queries can be run using Presto's/Trino’s REST API ○ Query results are returned as JSON

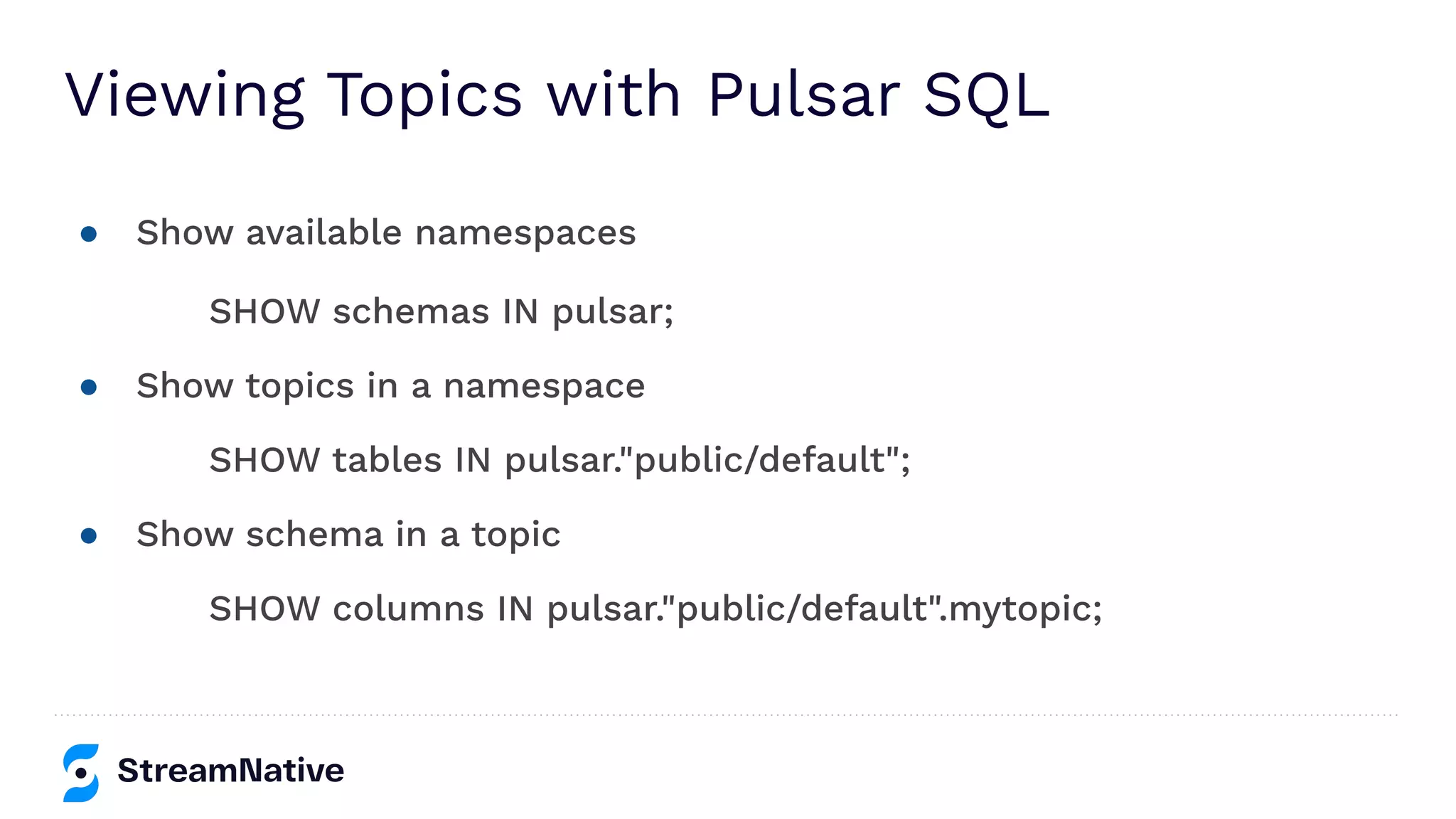

- 22. Viewing Topics withPulsar SQL ● Show available namespaces SHOW schemas IN pulsar; ● Show topics in a namespace SHOW tables IN pulsar."public/default"; ● Show schema in a topic SHOW columns IN pulsar."public/default".mytopic;

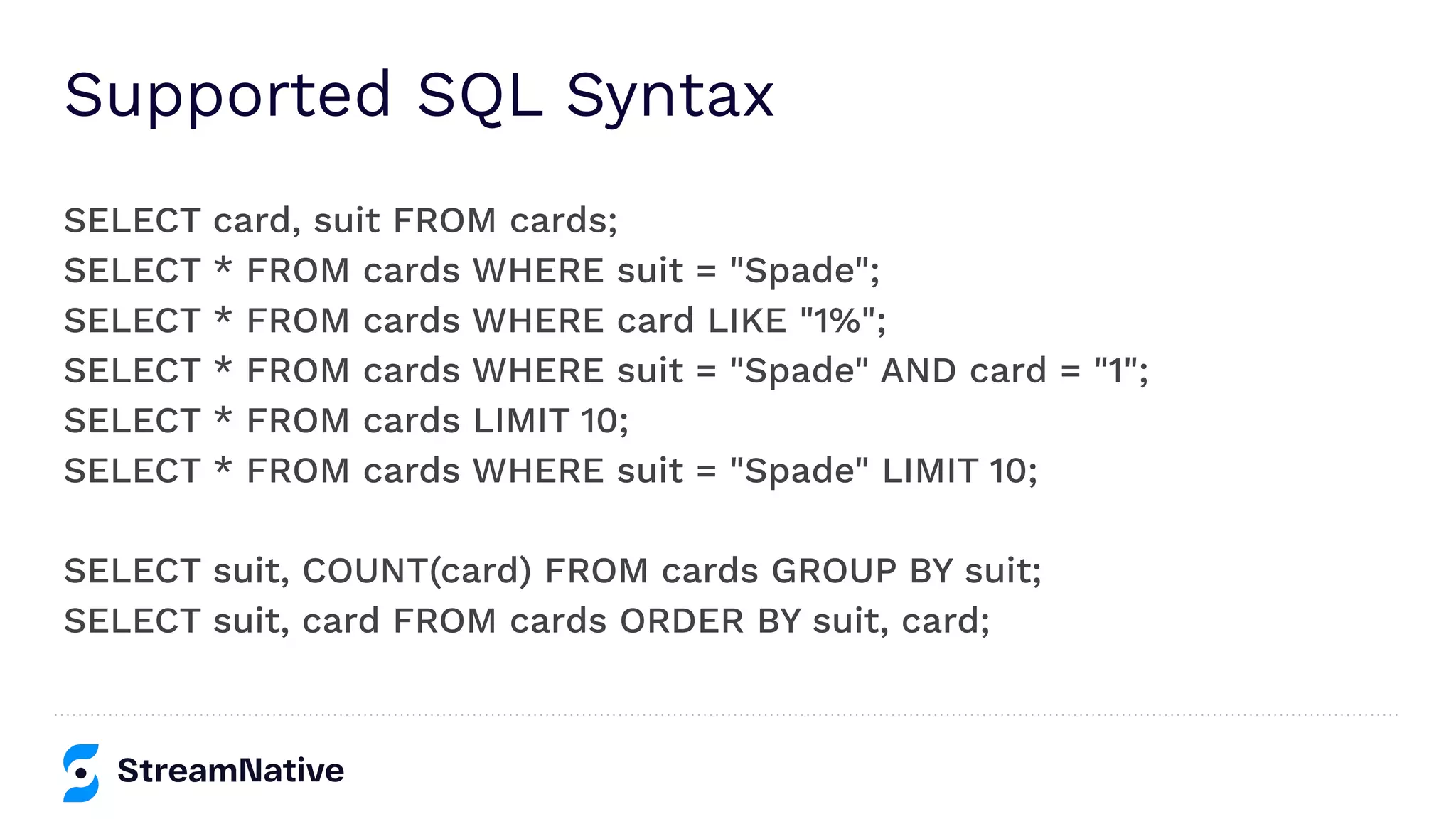

- 23. Supported SQL Syntax SELECTcard, suit FROM cards; SELECT * FROM cards WHERE suit = "Spade"; SELECT * FROM cards WHERE card LIKE "1%"; SELECT * FROM cards WHERE suit = "Spade" AND card = "1"; SELECT * FROM cards LIMIT 10; SELECT * FROM cards WHERE suit = "Spade" LIMIT 10; SELECT suit, COUNT(card) FROM cards GROUP BY suit; SELECT suit, card FROM cards ORDER BY suit, card;

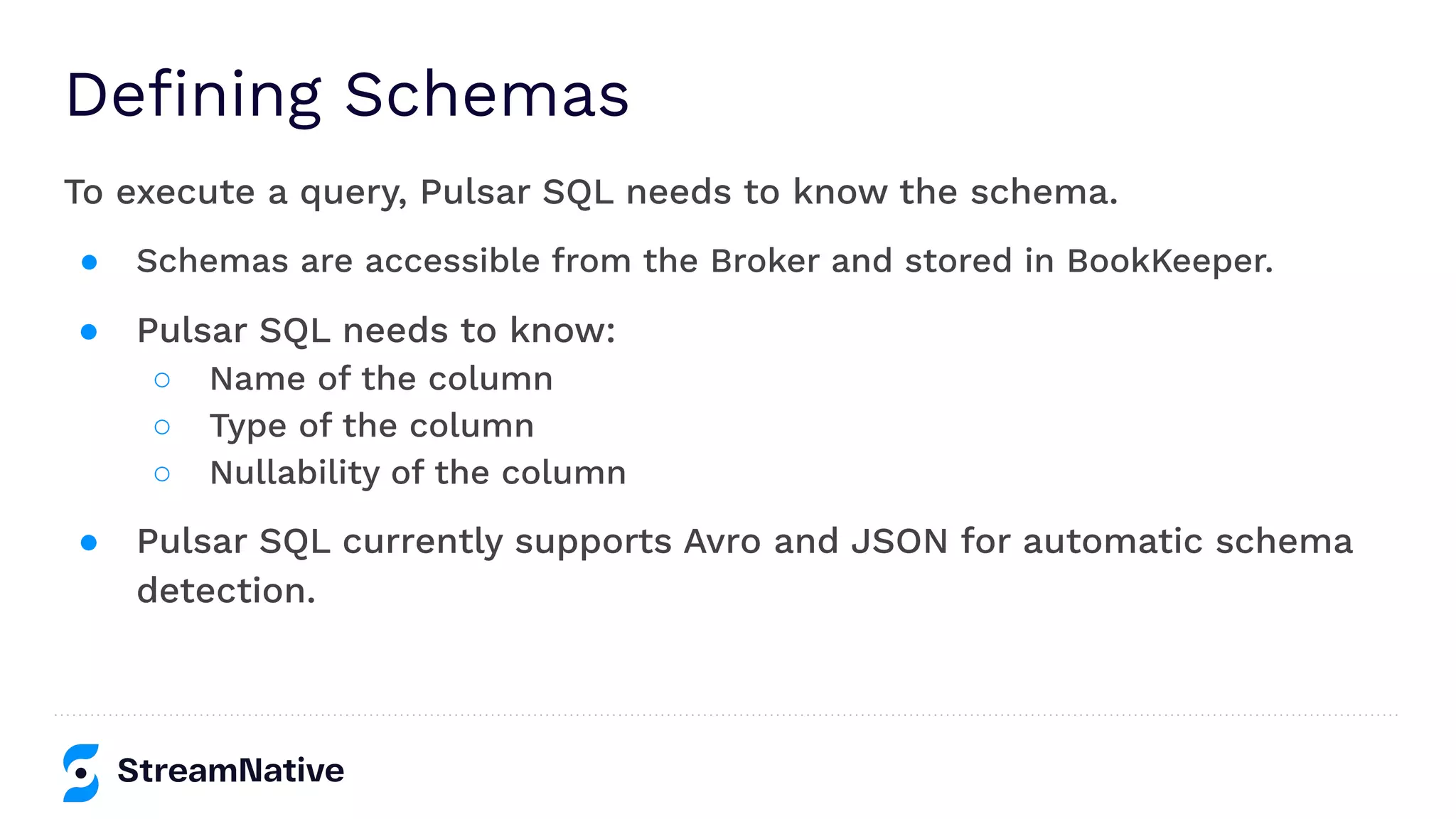

- 24. Defining Schemas To executea query, Pulsar SQL needs to know the schema. ● Schemas are accessible from the Broker and stored in BookKeeper. ● Pulsar SQL needs to know: ○ Name of the column ○ Type of the column ○ Nullability of the column ● Pulsar SQL currently supports Avro and JSON for automatic schema detection.

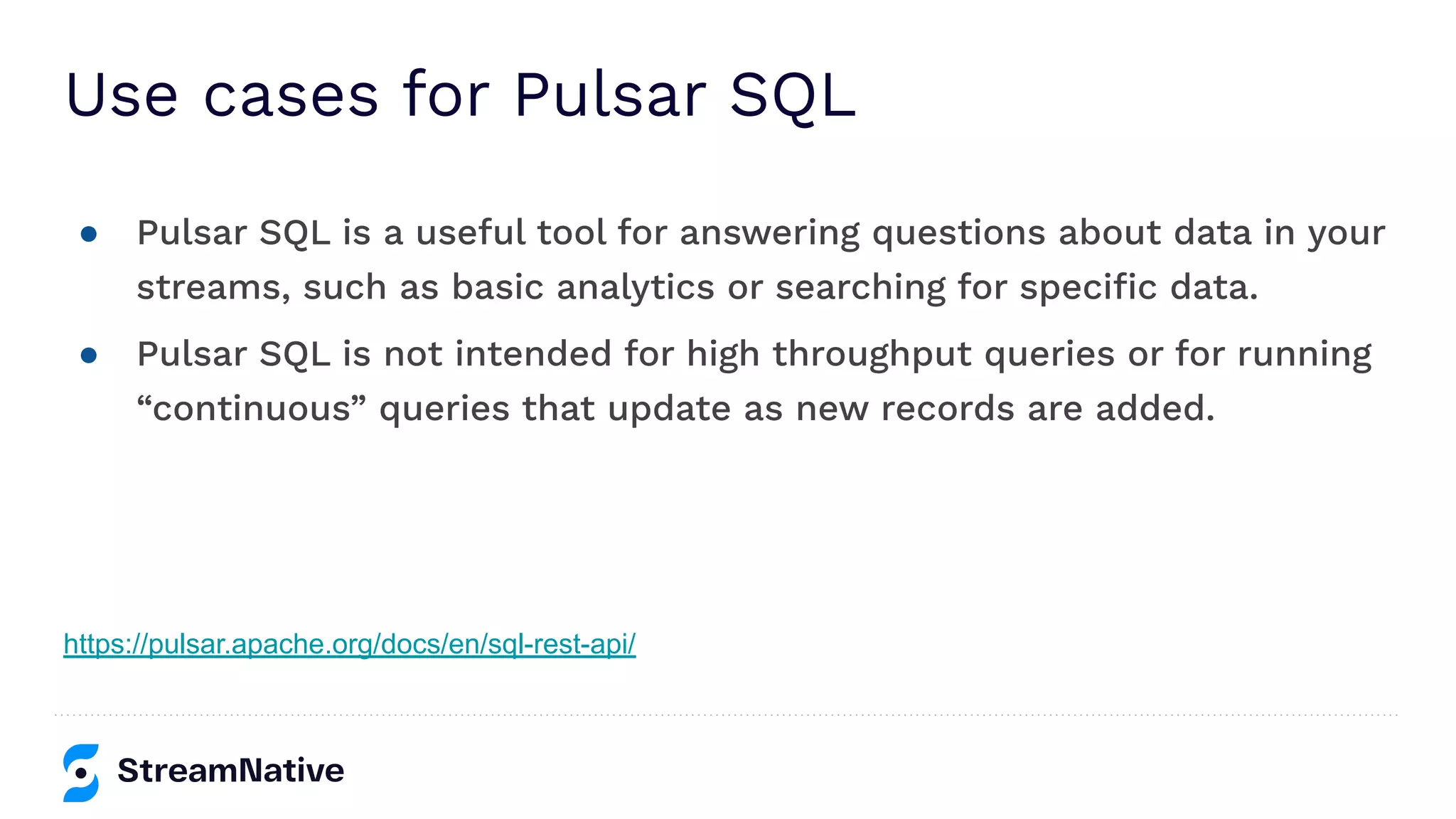

- 25. Use cases forPulsar SQL ● Pulsar SQL is a useful tool for answering questions about data in your streams, such as basic analytics or searching for specific data. ● Pulsar SQL is not intended for high throughput queries or for running “continuous” queries that update as new records are added. https://pulsar.apache.org/docs/en/sql-rest-api/
- 26.

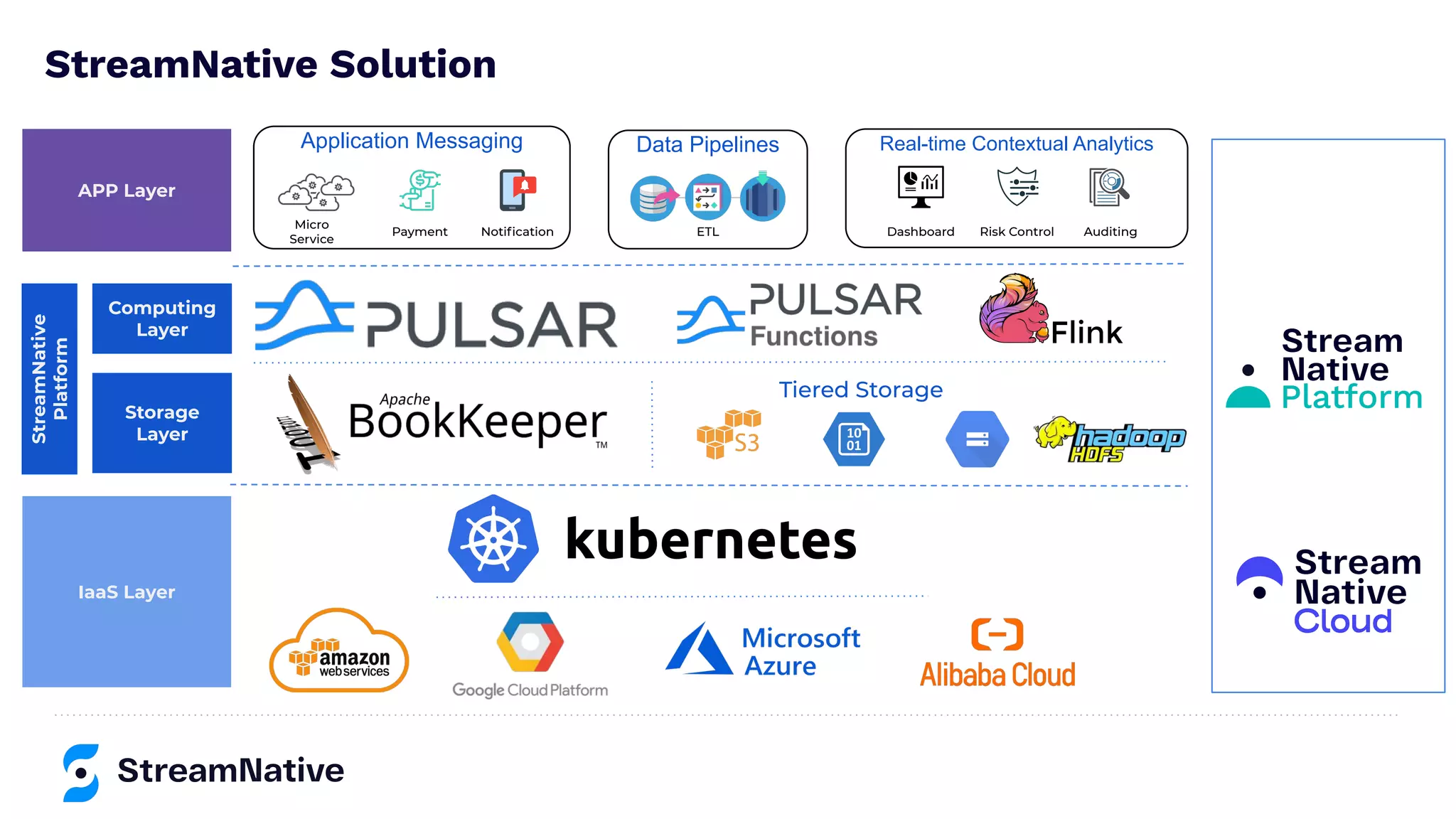

- 27. StreamNative Solution Application MessagingData Pipelines Real-time Contextual Analytics Tiered Storage APP Layer Computing Layer Storage Layer StreamNative Platform IaaS Layer Micro Service Notification Dashboard Risk Control Auditing Payment ETL
- 28. A cloud-native, real-time messagingand streaming platform to support multi-cloud and hybrid cloud strategies. Powered by Pulsar Built for Containers Flink SQL Cloud Native
- 30.

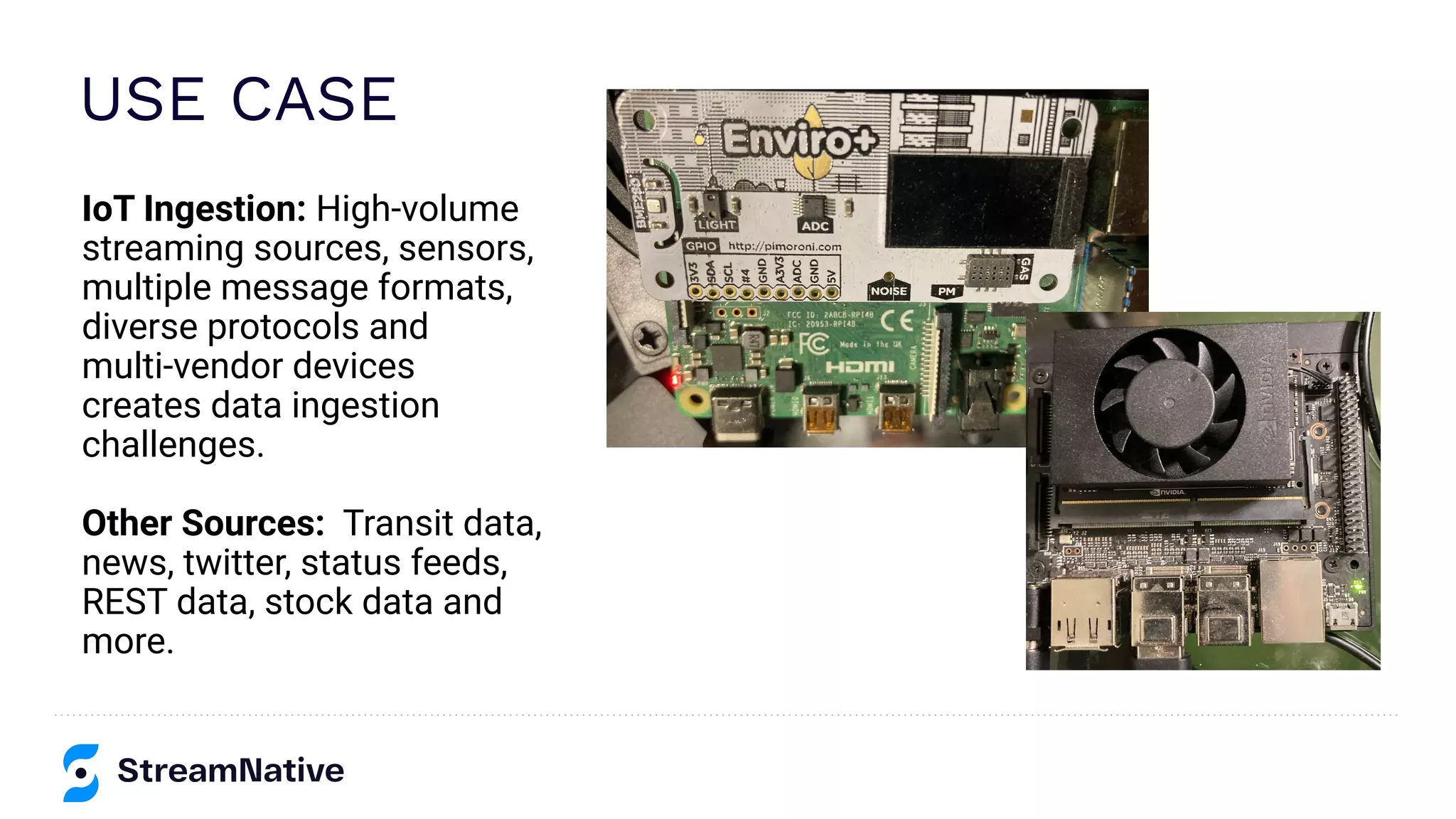

- 31. USE CASE IoT Ingestion: High-volume streamingsources, sensors, multiple message formats, diverse protocols and multi-vendor devices creates data ingestion challenges. Other Sources: Transit data, news, twitter, status feeds, REST data, stock data and more.

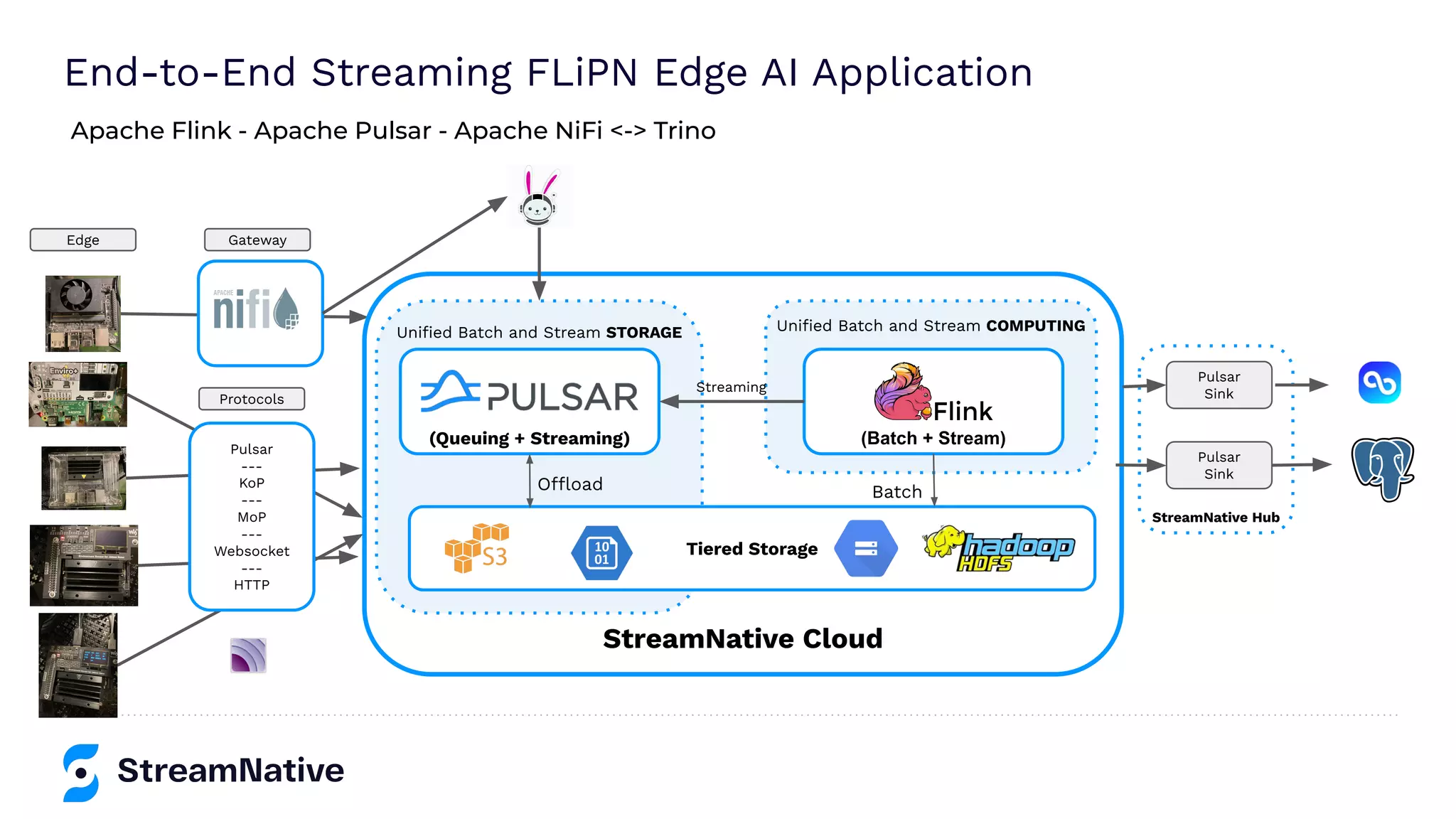

- 32. StreamNative Hub StreamNative Cloud UnifiedBatch and Stream COMPUTING Batch (Batch + Stream) Unified Batch and Stream STORAGE Offload (Queuing + Streaming) End-to-End Streaming FLiPN Edge AI Application Apache Flink - Apache Pulsar - Apache NiFi <-> Trino Tiered Storage Pulsar --- KoP --- MoP --- Websocket --- HTTP Pulsar Sink Pulsar Sink Streaming Edge Gateway Protocols
- 33.
- 34.

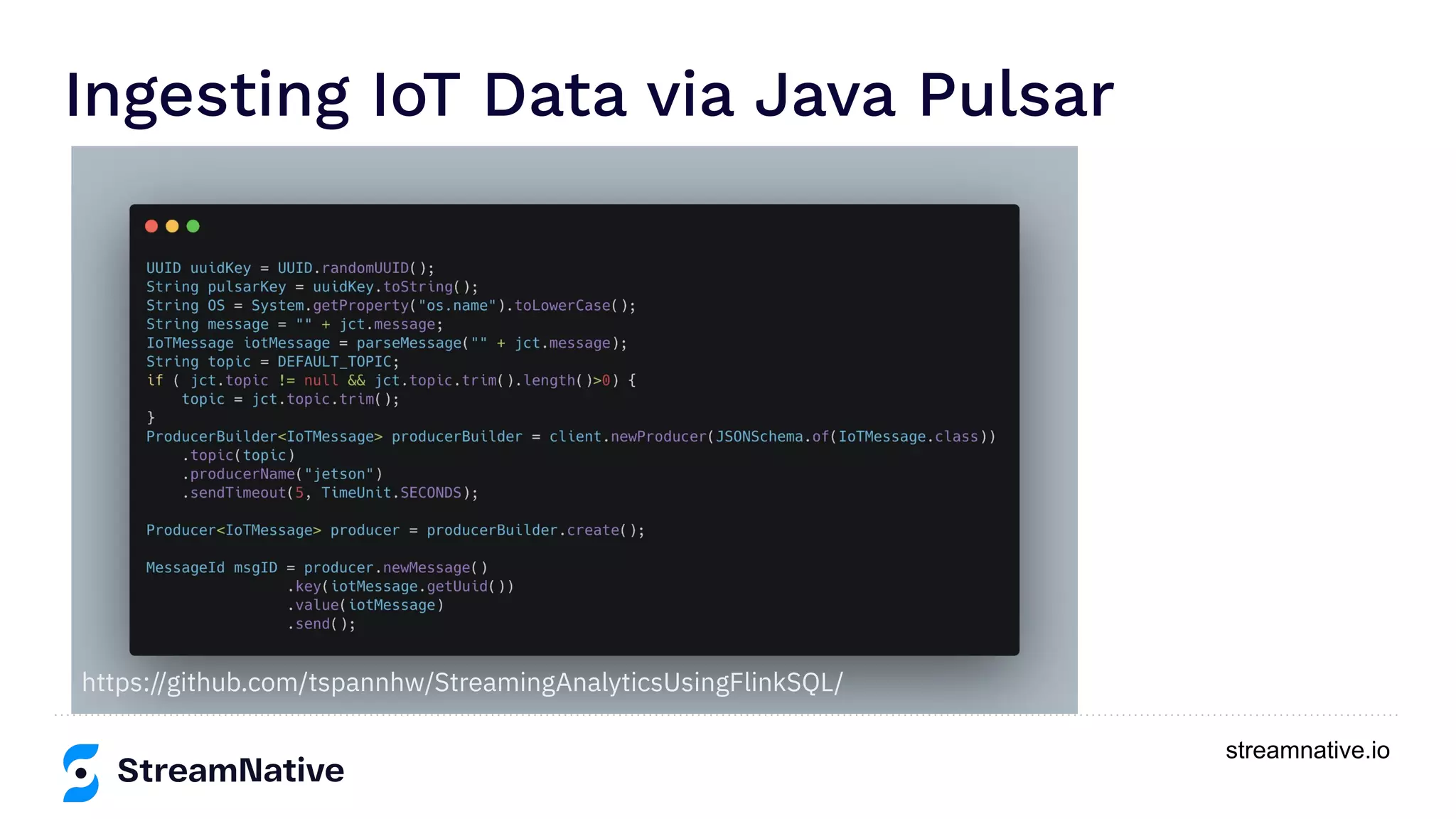

- 35. streamnative.io Ingesting IoT Datavia Java Pulsar https://github.com/tspannhw/StreamingAnalyticsUsingFlinkSQL/

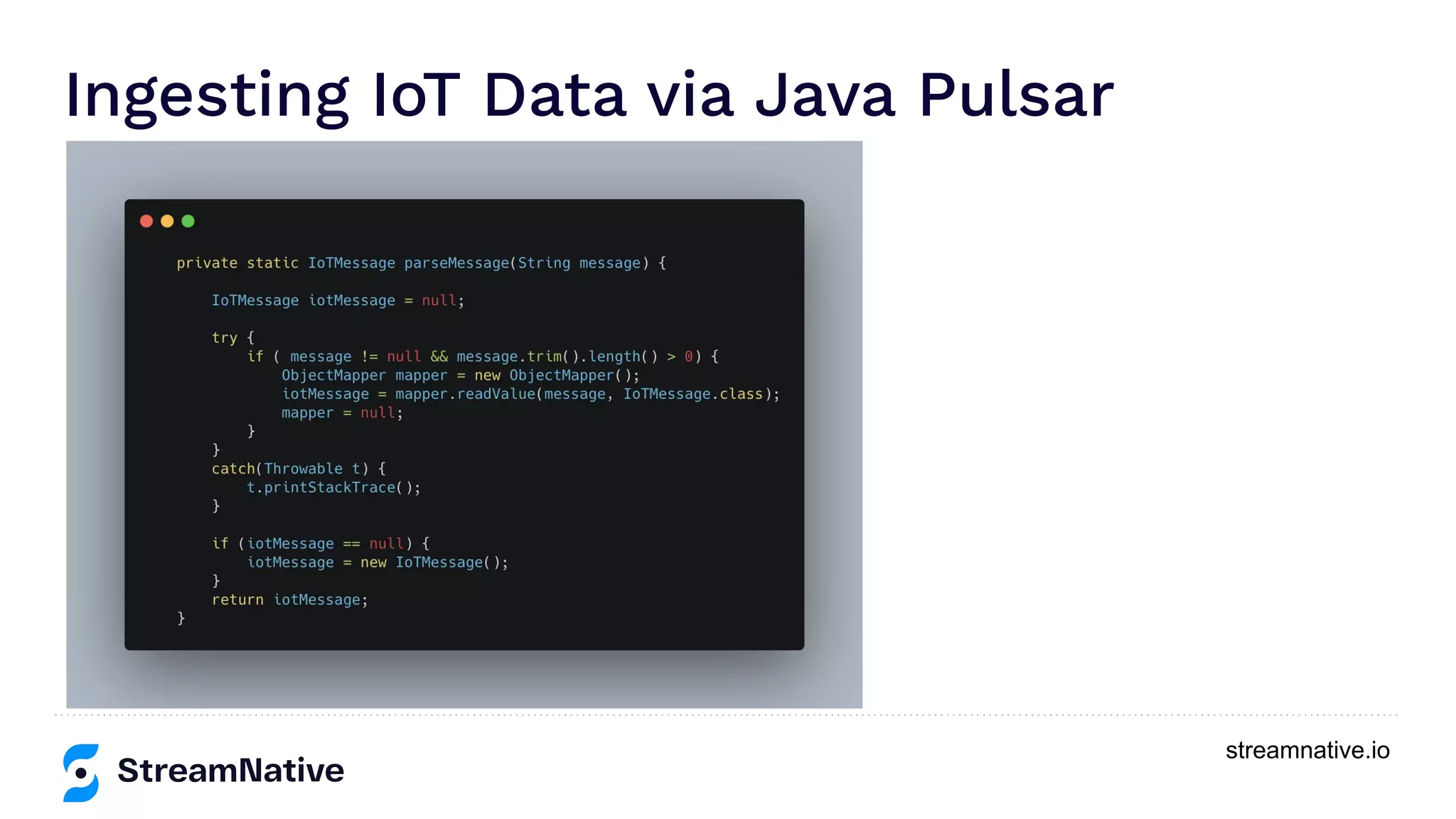

- 36. streamnative.io Ingesting IoT Datavia Java Pulsar

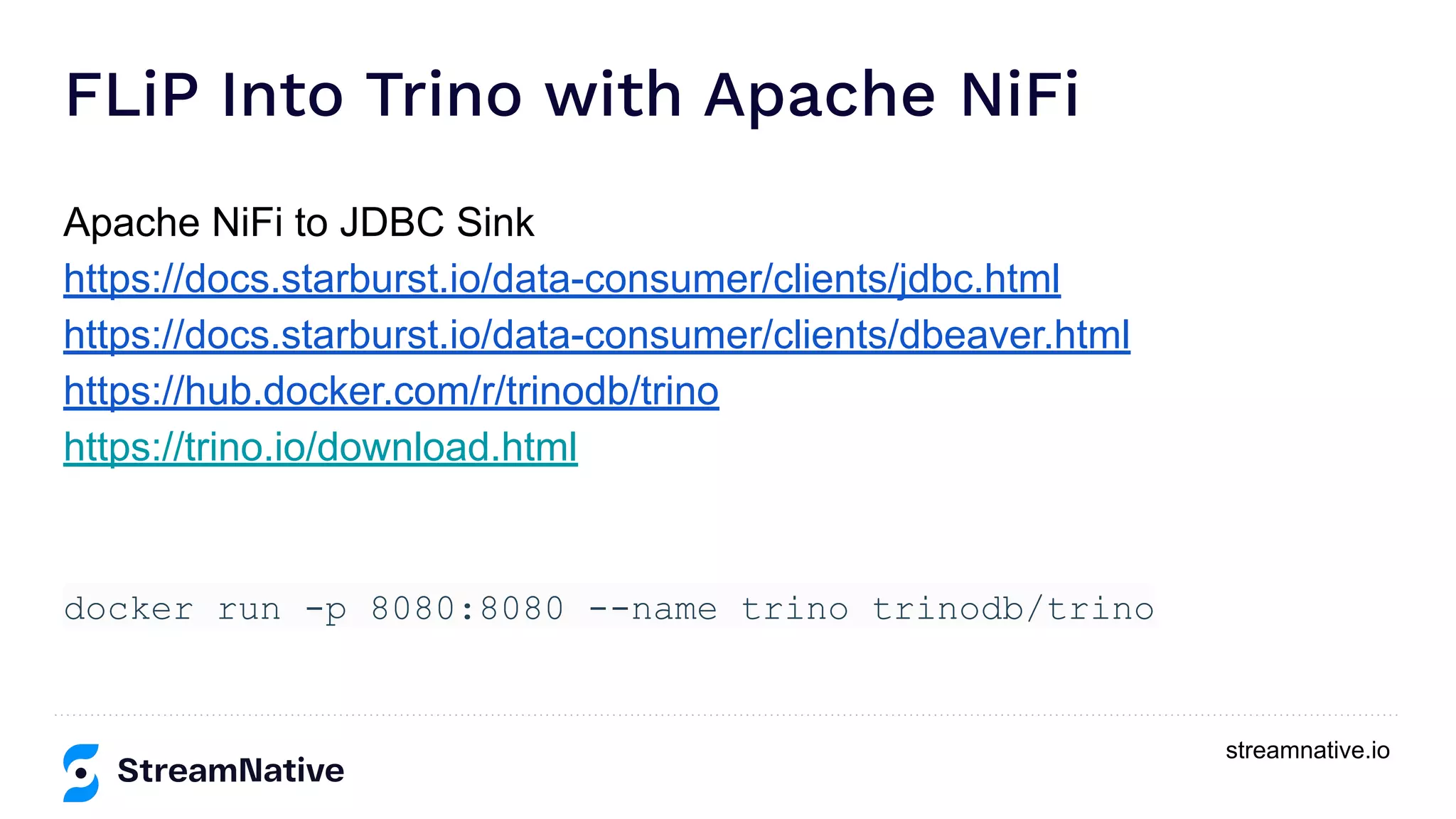

- 37. streamnative.io FLiP Into Trinowith Apache NiFi Apache NiFi to JDBC Sink https://docs.starburst.io/data-consumer/clients/jdbc.html https://docs.starburst.io/data-consumer/clients/dbeaver.html https://hub.docker.com/r/trinodb/trino https://trino.io/download.html docker run -p 8080:8080 --name trino trinodb/trino

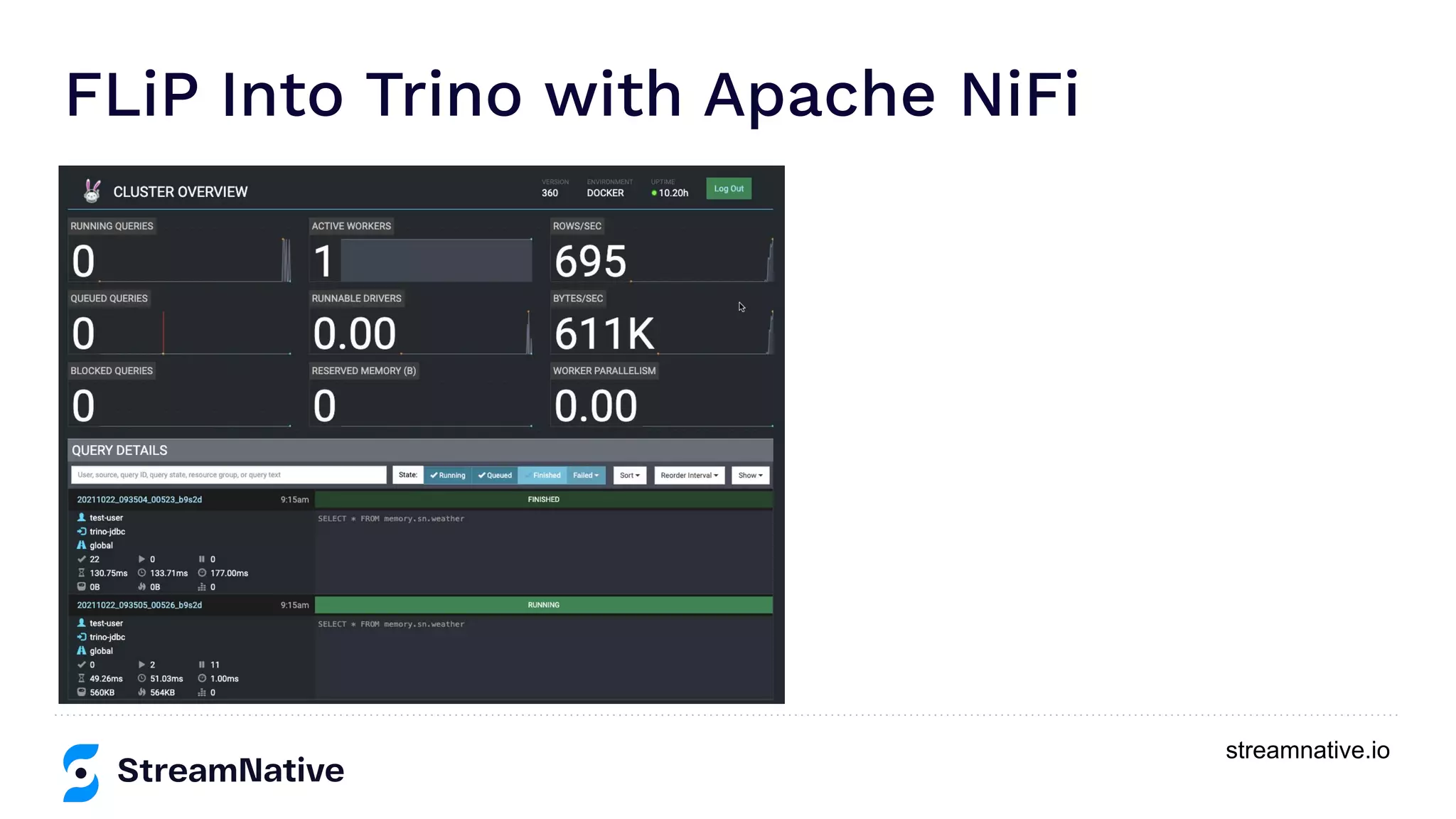

- 38. streamnative.io FLiP Into Trinowith Apache NiFi

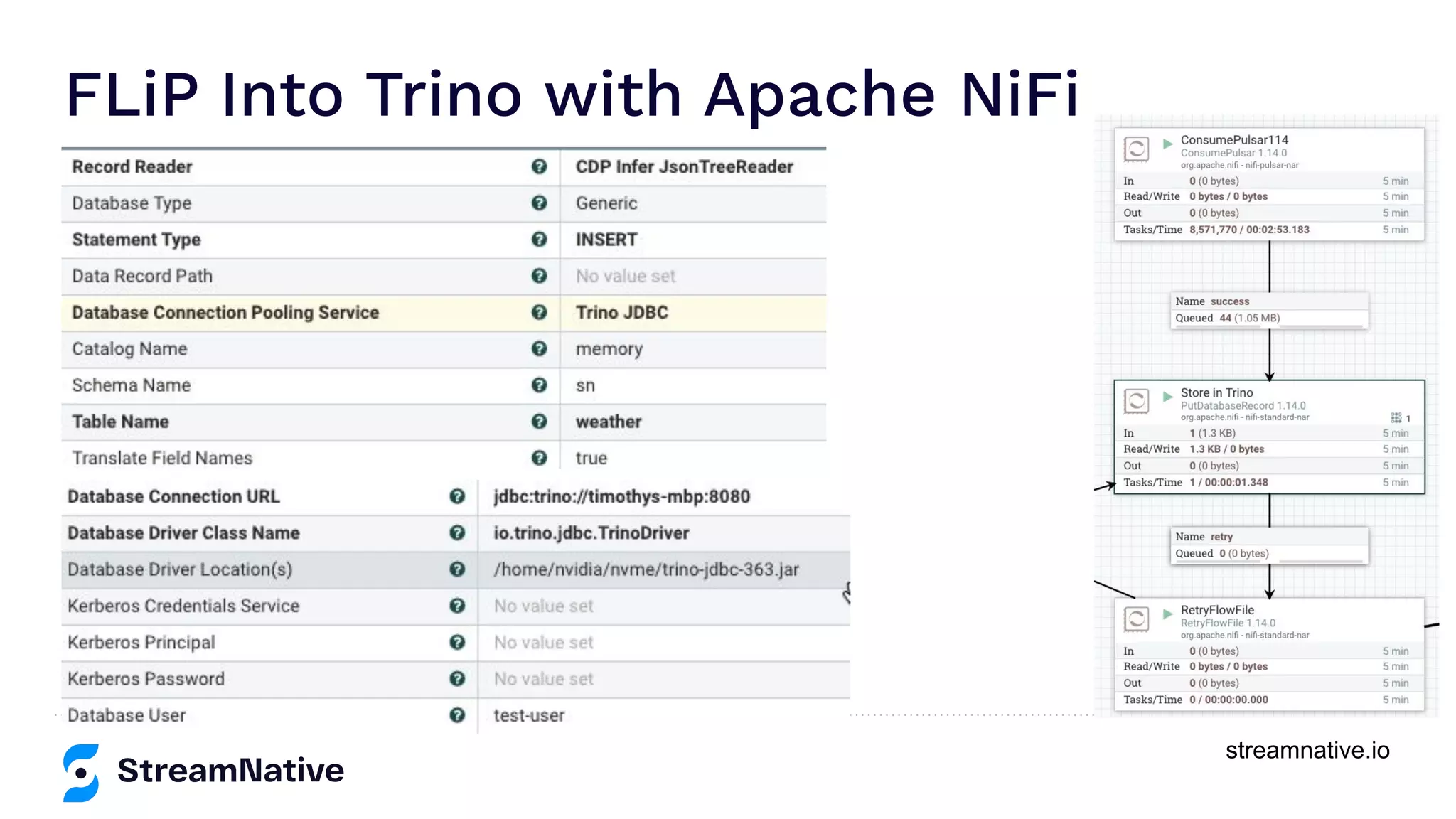

- 39. streamnative.io FLiP Into Trinowith Apache NiFi

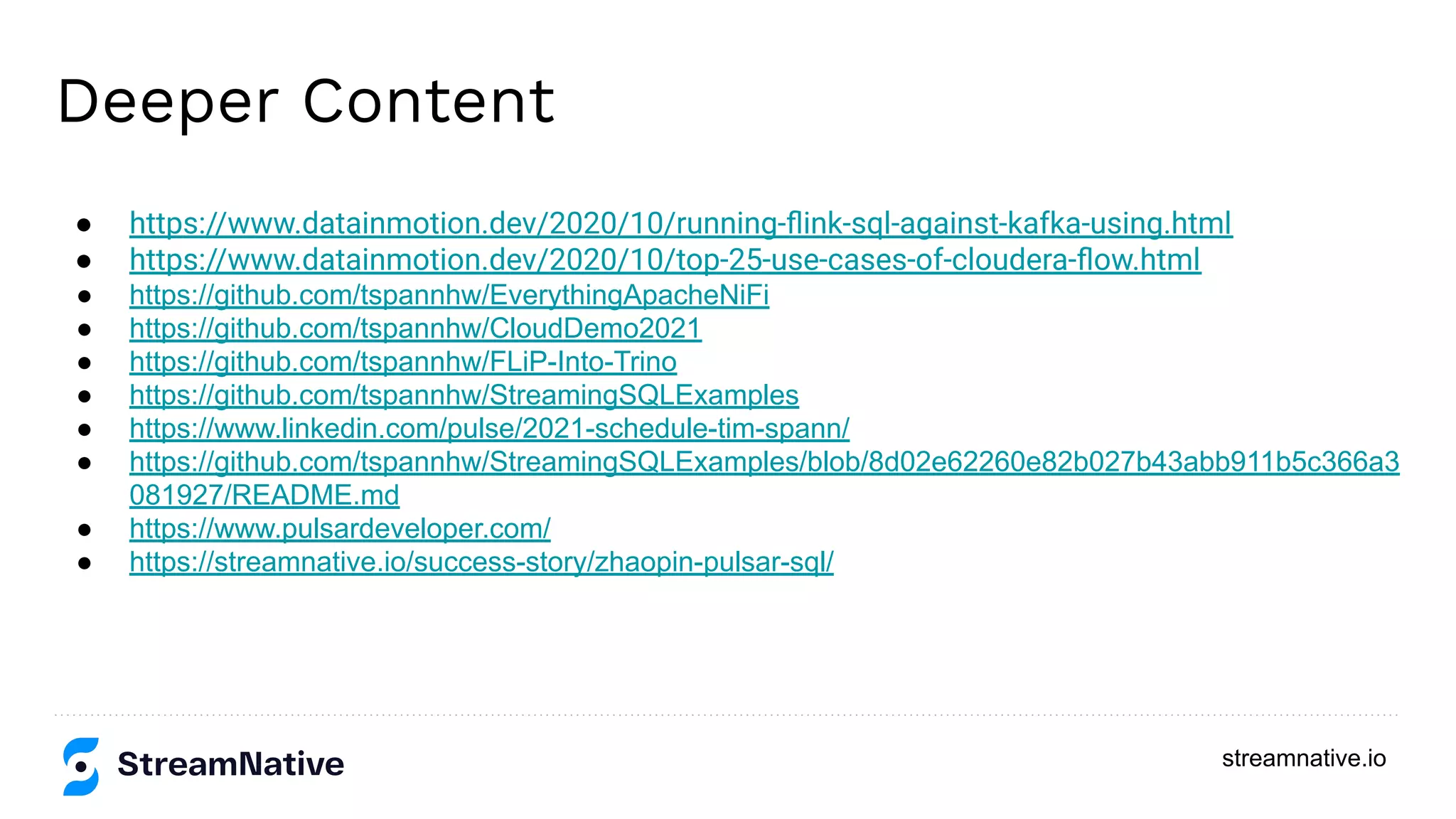

- 40. streamnative.io Deeper Content ● https://www.datainmotion.dev/2020/10/running-flink-sql-against-kafka-using.html ●https://www.datainmotion.dev/2020/10/top-25-use-cases-of-cloudera-flow.html ● https://github.com/tspannhw/EverythingApacheNiFi ● https://github.com/tspannhw/CloudDemo2021 ● https://github.com/tspannhw/FLiP-Into-Trino ● https://github.com/tspannhw/StreamingSQLExamples ● https://www.linkedin.com/pulse/2021-schedule-tim-spann/ ● https://github.com/tspannhw/StreamingSQLExamples/blob/8d02e62260e82b027b43abb911b5c366a3 081927/README.md ● https://www.pulsardeveloper.com/ ● https://streamnative.io/success-story/zhaopin-pulsar-sql/
- 41. Let’s Keep in Touch! TimSpann Developer Advocate @PassDev https://www.linkedin.com/in/timothyspann https://github.com/tspannhw
- 42. Connect with the Community &Stay Up-To-Date ● Join the Pulsar Slack channel - Apache-Pulsar.slack.com ● Follow @streamnativeio and @apache_pulsar on Twitter ● Subscribe to Monthly Pulsar Newsletter for major news, events, project updates, and resources in the Pulsar community
- 43. streamnative.io Pulsar Summit Asia November20-21, 2021 Contact us at partners@pulsar-summit.org to become a sponsor or partner
- 44. streamnative.io Interested In LearningMore? Flink SQL Cookbook The Github Source for Flink SQL Demo The GitHub Source for Demo Manning's Apache Pulsar in Action O’Reilly Book [10/21] Trino Summit Resources Free eBooks Upcoming Events
- 45.
