Uploaded byChiradeep Vittal
SDN in Apache CloudStack (ApacheCon NA 2013)
This document discusses software defined networking (SDN) in Apache CloudStack. It provides an introduction to CloudStack and infrastructure as a service (IaaS), defines SDN, and explains why SDN is well-suited for IaaS environments. It outlines CloudStack's network model and extensible networking capabilities, and describes SDN integrations in CloudStack and its native SDN approach.
More Related Content
Similar to SDN in Apache CloudStack (ApacheCon NA 2013)
SDN in Apache CloudStack (ApacheCon NA 2013)
- 1. So#ware Defined Networking in Apache CloudStack Chiradeep Vi:al CloudStack Commi:er @chiradeep Feb 27 2013
- 2. Agenda • IntroducEon to CloudStack and IAAS • What is SDN • Why SDN and IAAS? • CloudStack’s Network Model • Extensible Networking in CloudStack • SDN integraEons in CloudStack • CloudStack’s naEve SDN approach • Future
- 3. Apache CloudStack • History! • Incubating in the Apache Software Foundation since April 2012! • Open Source since May Build your cloud the way 2010! the world’s most successful clouds are built! • In production since 2009! • Tons of deployments, including large-scale commercial ones!

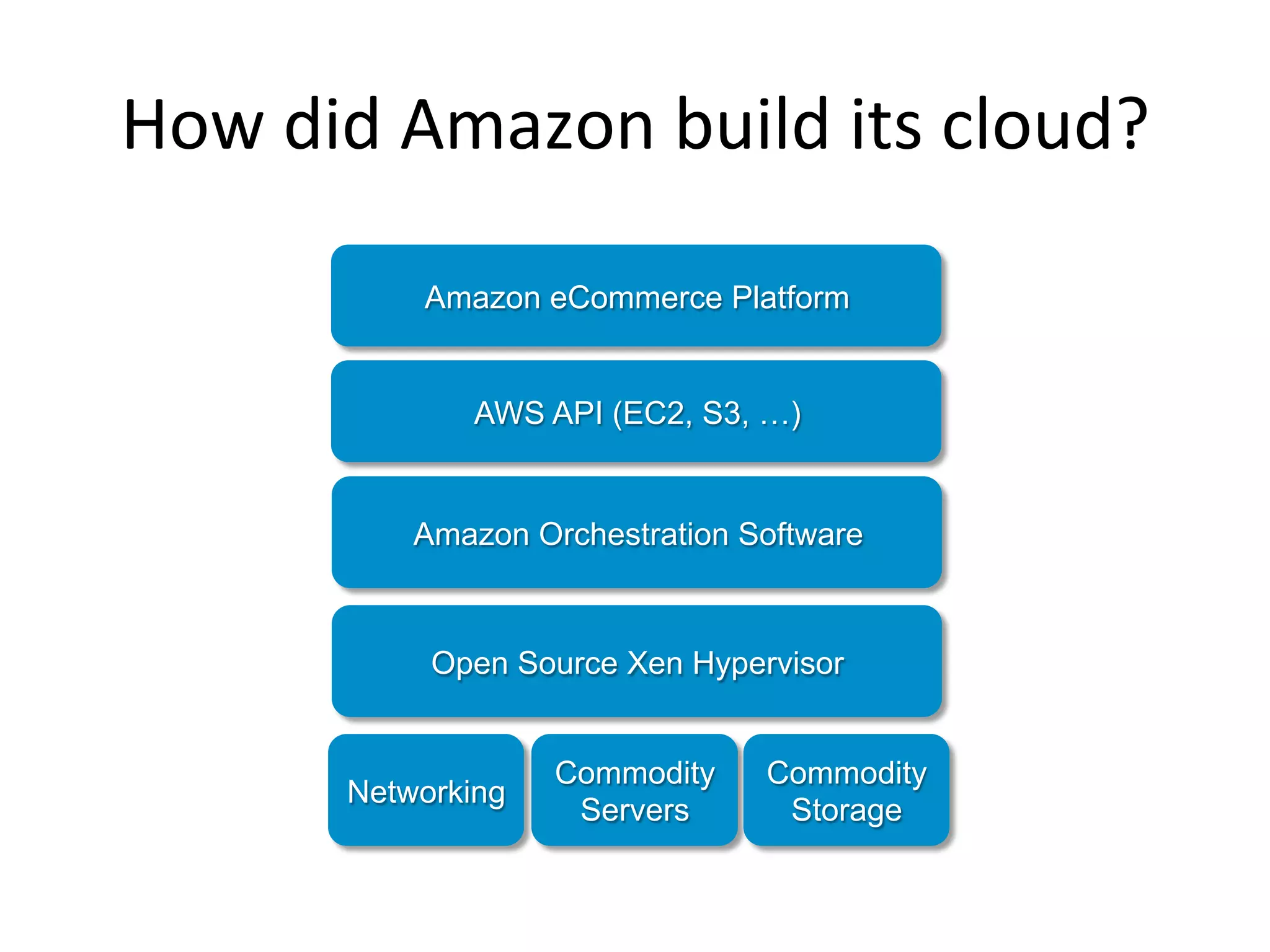

- 4. How did Amazon build its cloud? Amazon eCommerce Platform AWS API (EC2, S3, …) Amazon Orchestration Software Open Source Xen Hypervisor Commodity Commodity Networking Servers Storage

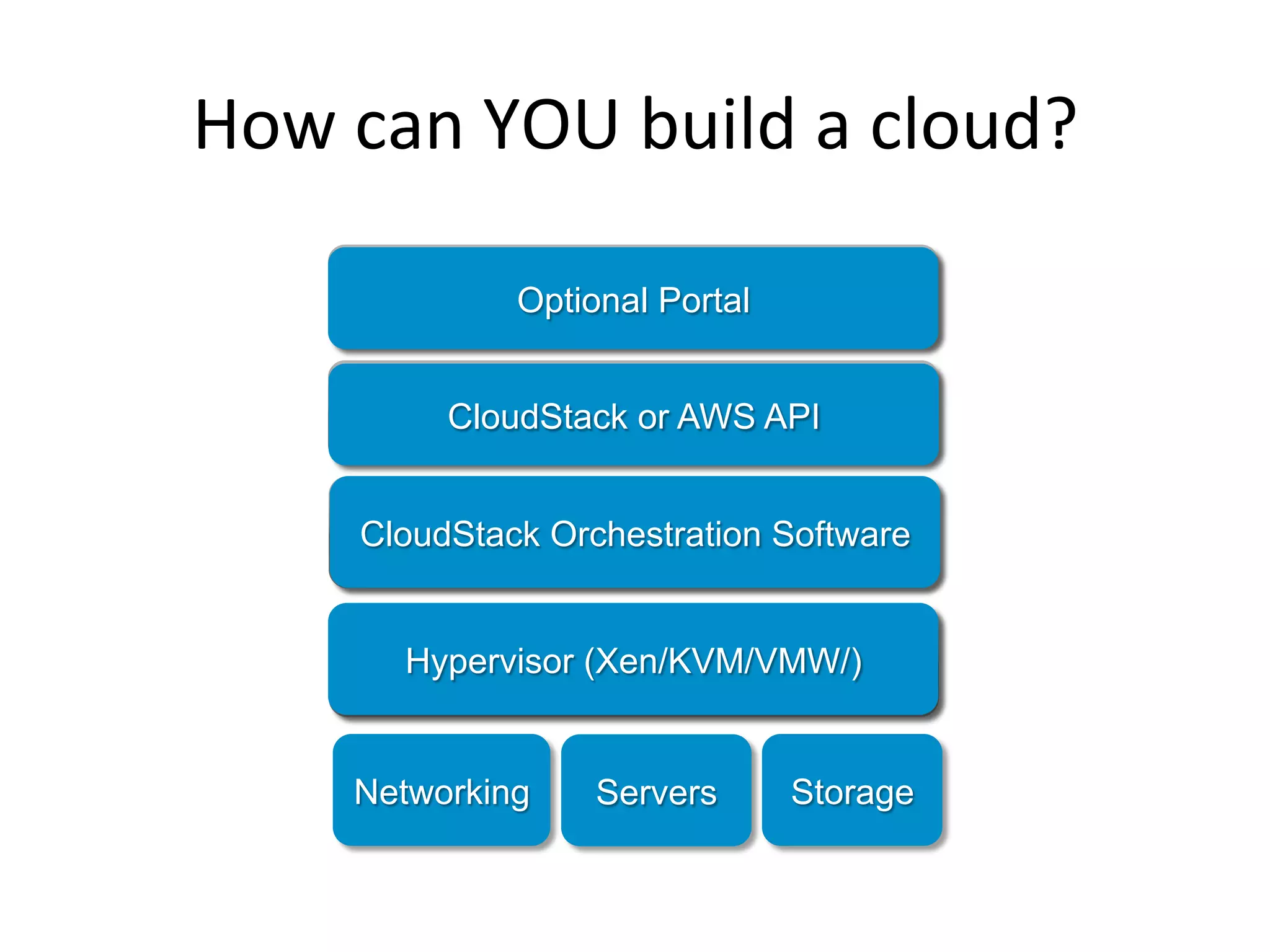

- 5. How can YOU build a cloud? Amazon eCommerce Platform Optional Portal AWS API (EC2, S3, …) CloudStack or AWS API CloudStack Orchestration Software Amazon Orchestration Software Hypervisor (Xen/KVM/VMW/) Open Source Xen Hypervisor Networking Servers Storage

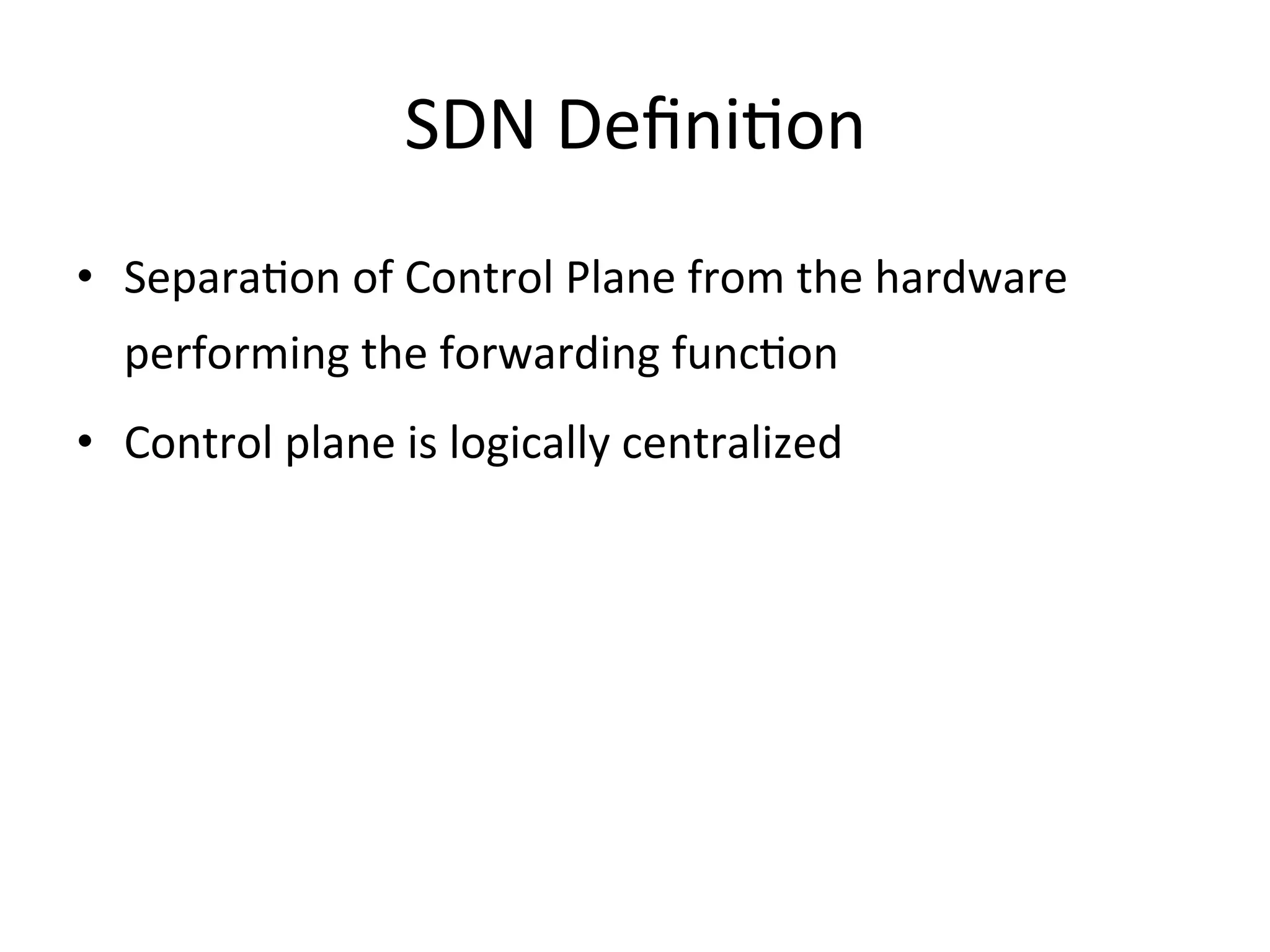

- 6. SDN DefiniEon • SeparaEon of Control Plane from the hardware performing the forwarding funcEon • Control plane is logically centralized

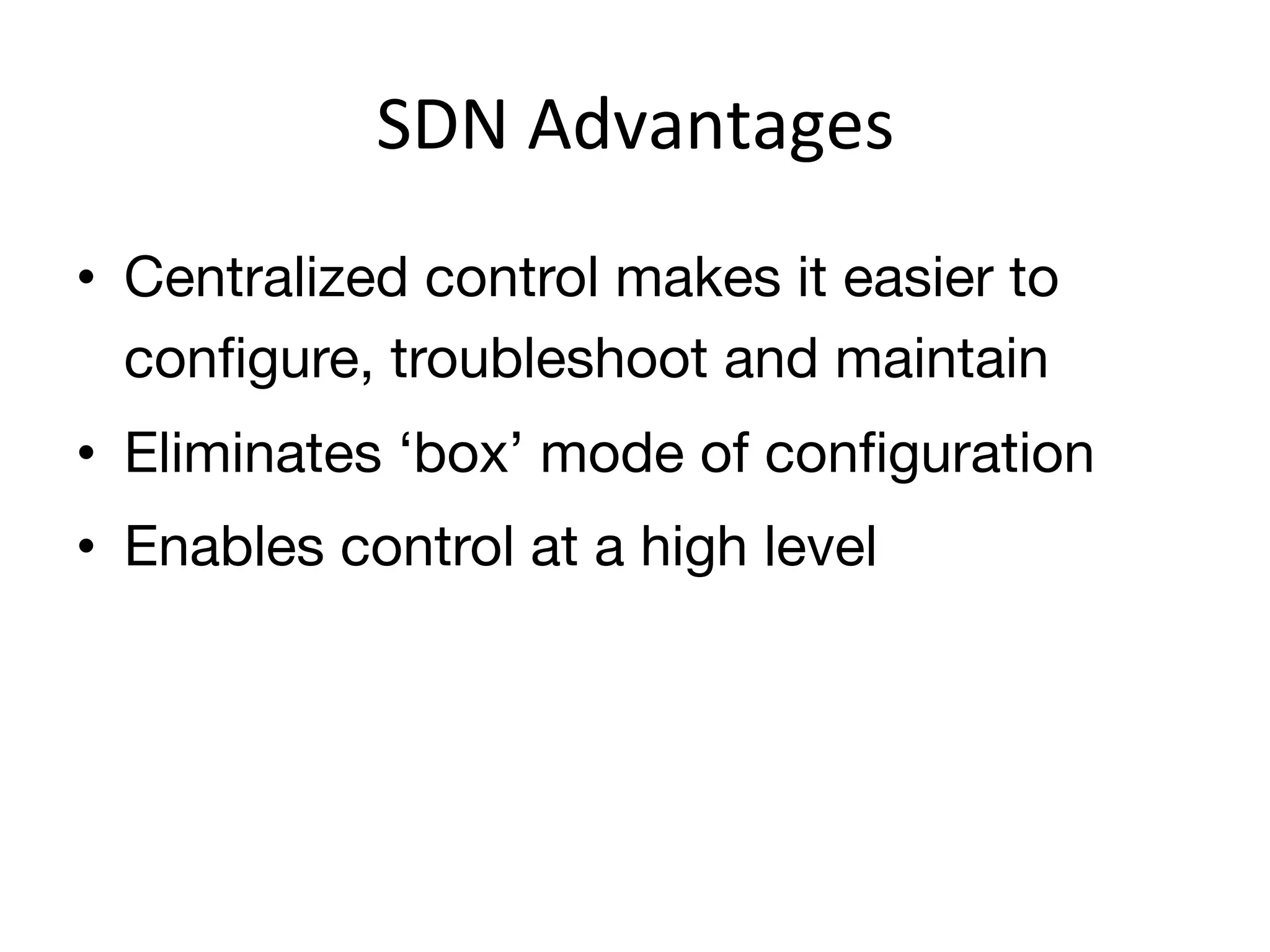

- 7. SDN Advantages • Centralized control makes it easier to configure, troubleshoot and maintain • Eliminates ‘box’ mode of configuration • Enables control at a high level

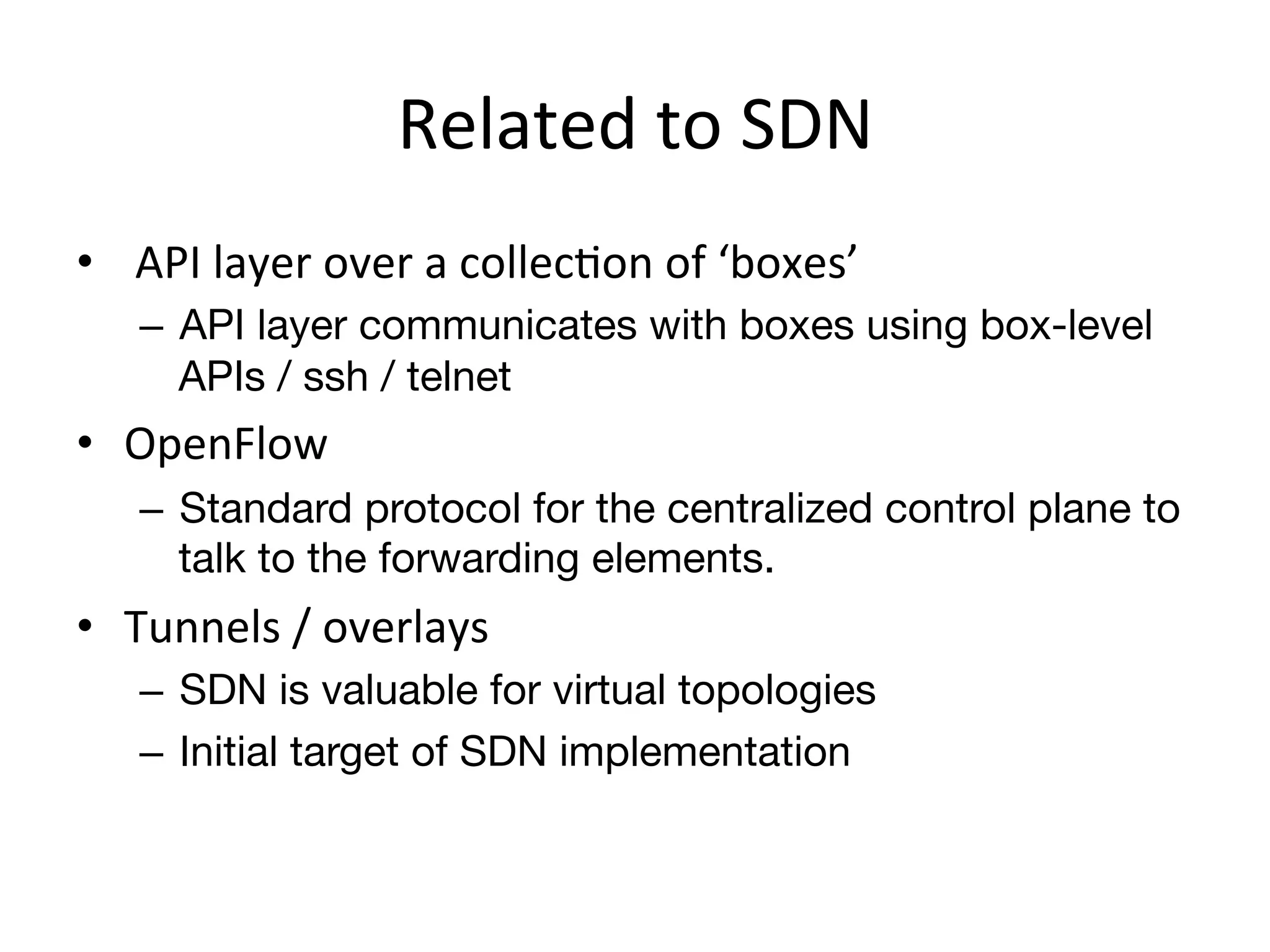

- 8. Related to SDN • API layer over a collecEon of ‘boxes’ – API layer communicates with boxes using box-level APIs / ssh / telnet • OpenFlow – Standard protocol for the centralized control plane to talk to the forwarding elements. • Tunnels / overlays – SDN is valuable for virtual topologies – Initial target of SDN implementation

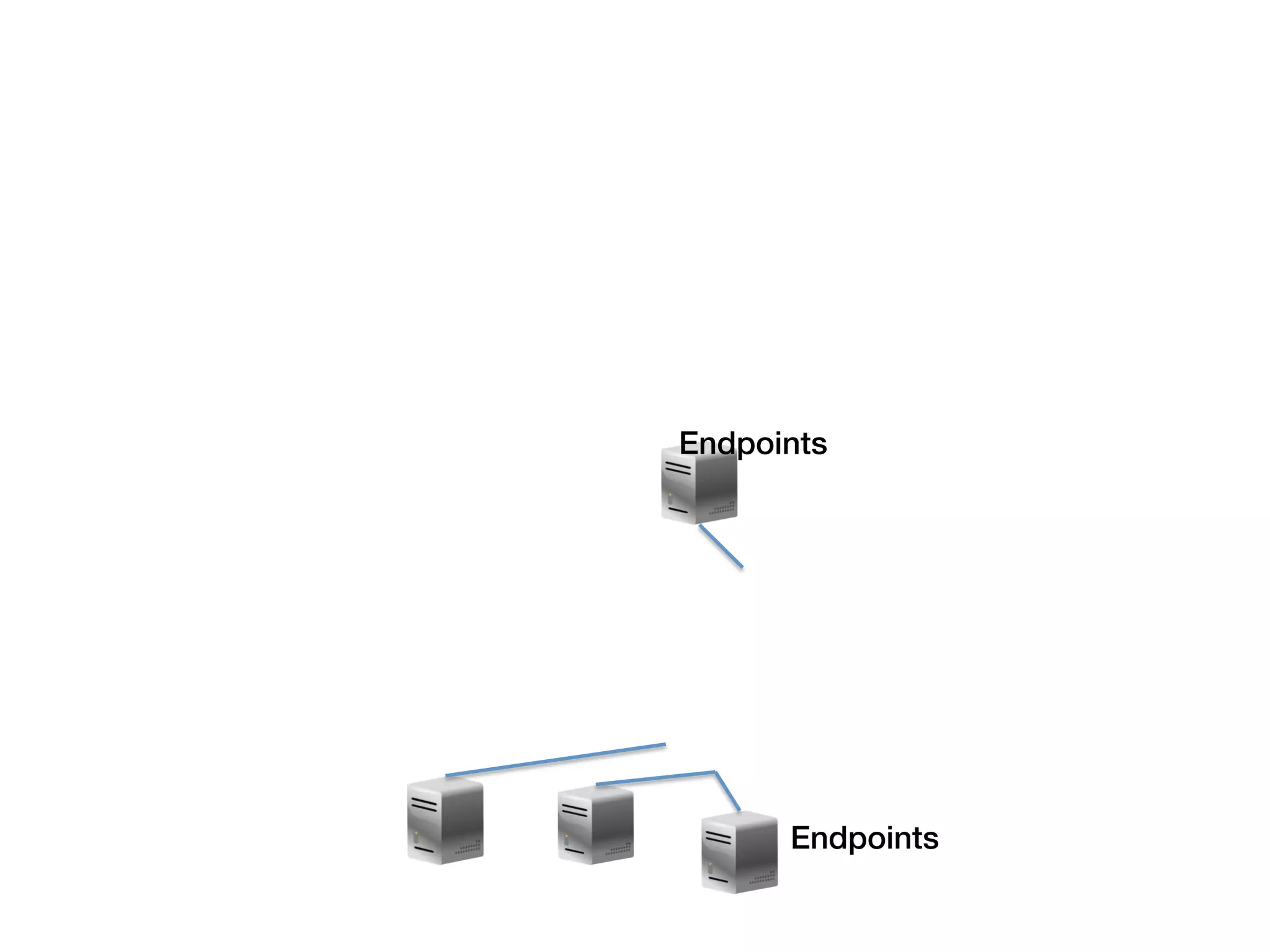

- 9. Endpoints! Endpoints!
- 10.

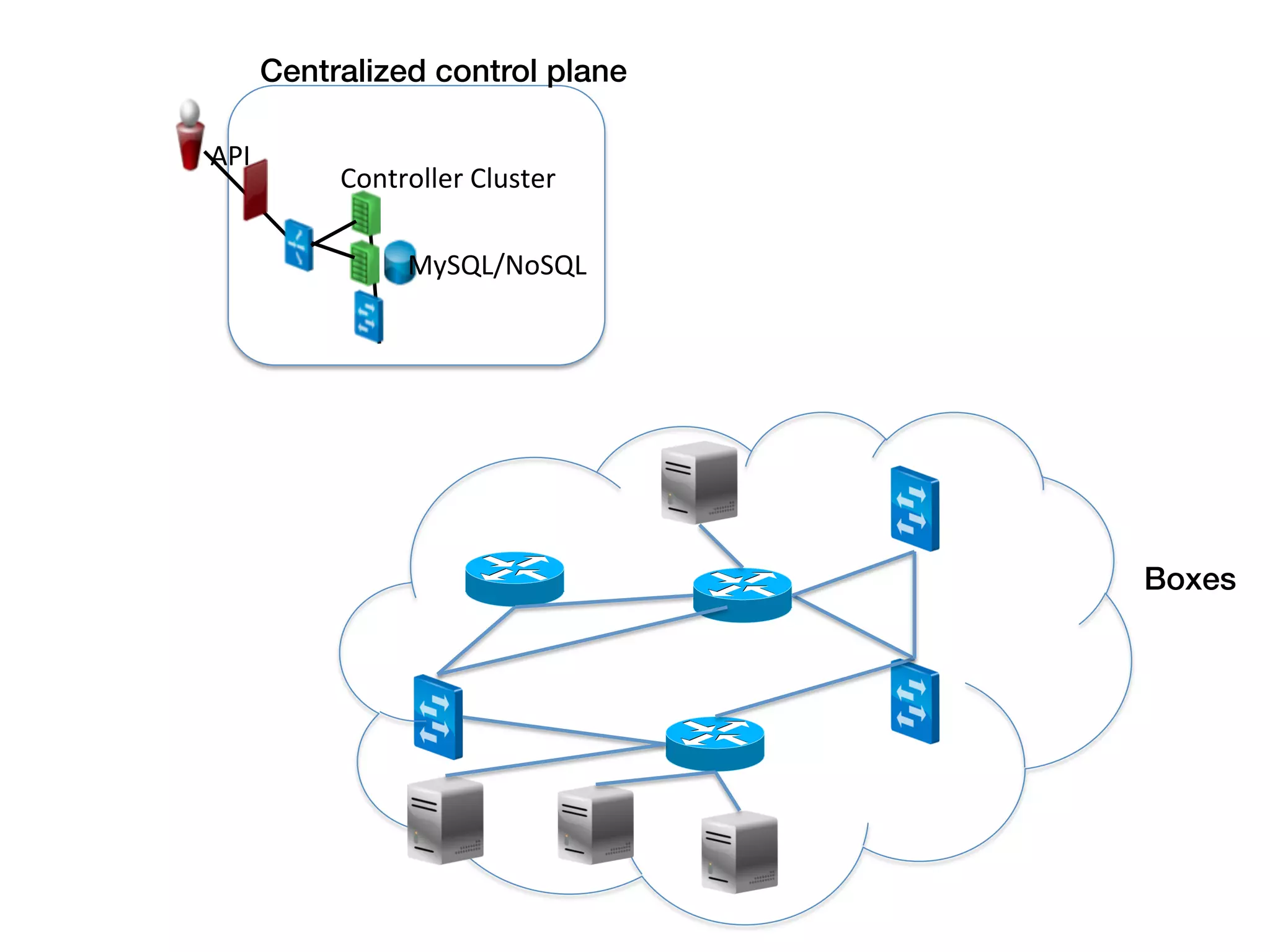

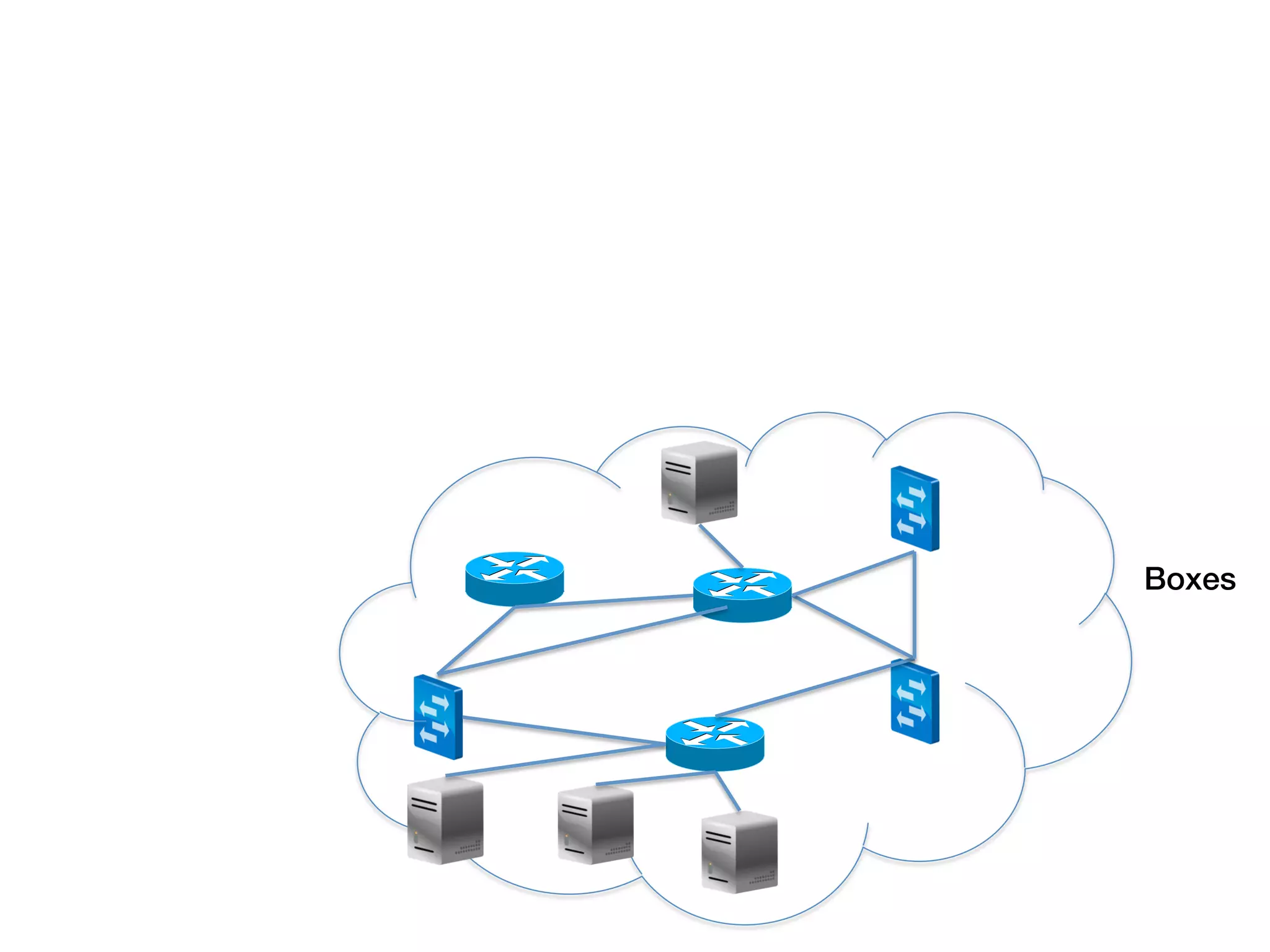

- 11. Centralized control plane! API Controller Cluster MySQL/NoSQL Boxes!

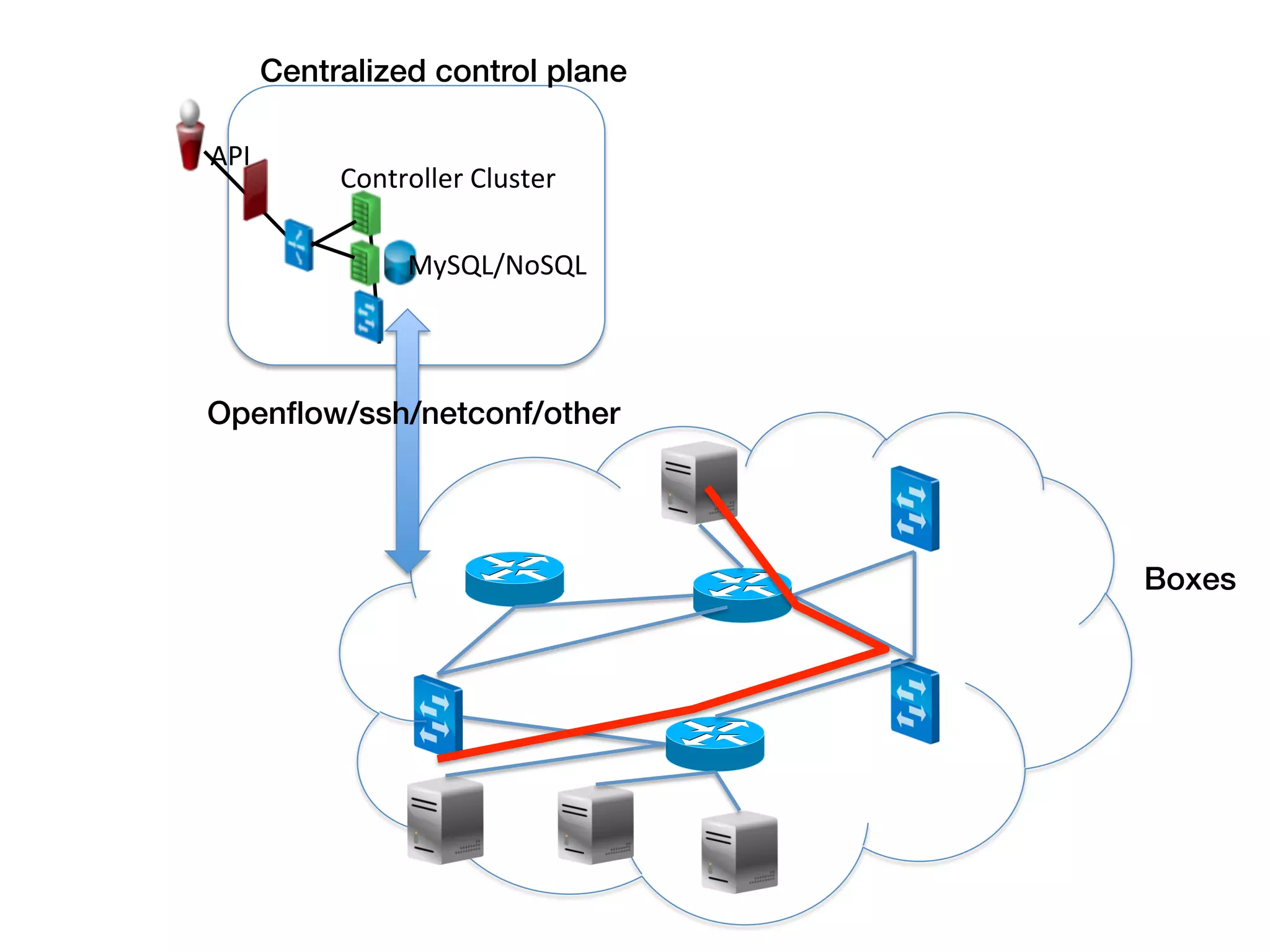

- 12. Centralized control plane! API Controller Cluster MySQL/NoSQL Openflow/ssh/netconf/other! Boxes!
- 13. Centralized control plane! API Controller Cluster MySQL/NoSQL Openflow/ssh/netconf/other! Boxes!

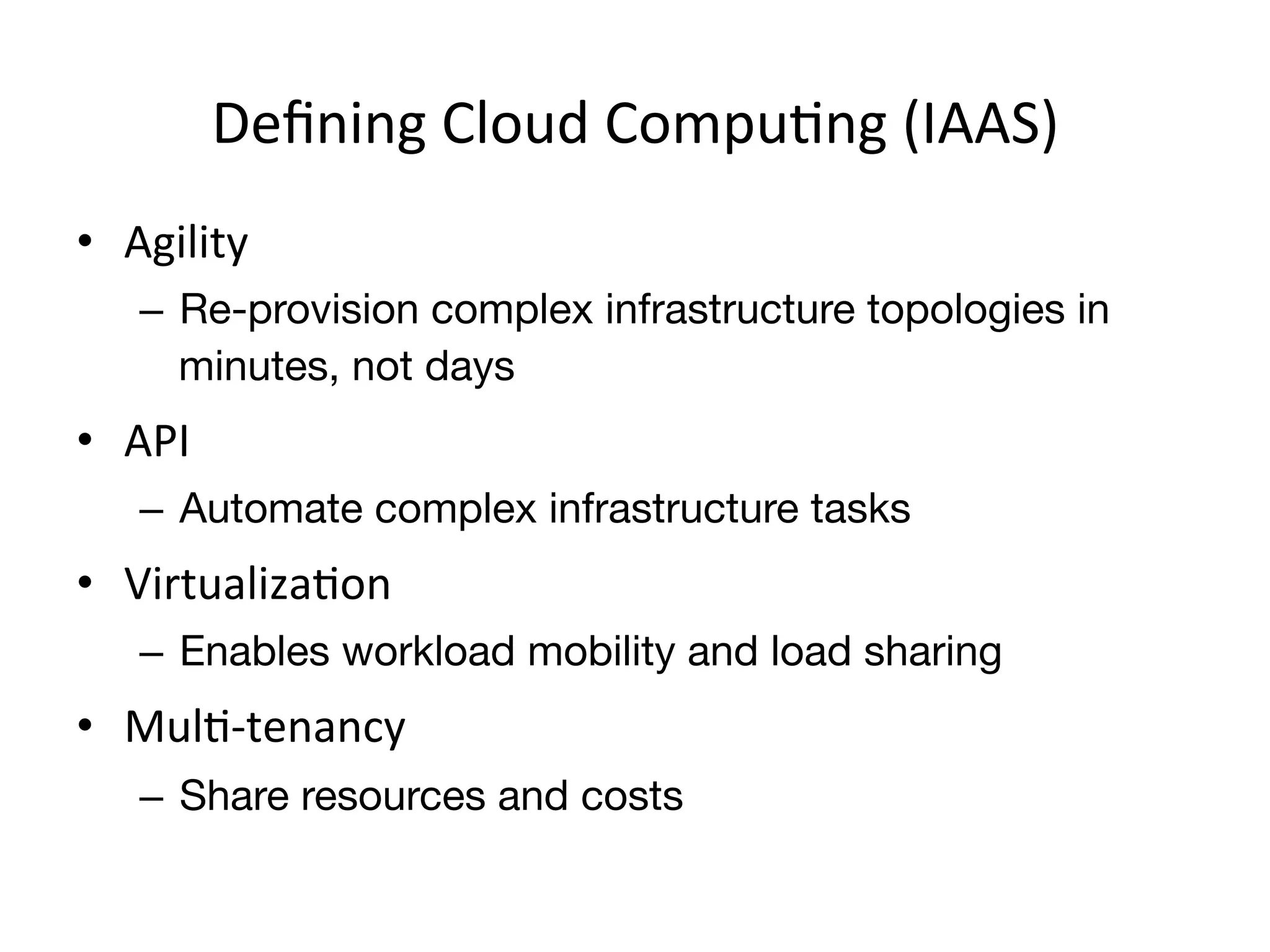

- 14. Defining Cloud CompuEng (IAAS) • Agility – Re-provision complex infrastructure topologies in minutes, not days • API – Automate complex infrastructure tasks • VirtualizaEon – Enables workload mobility and load sharing • MulE-‐tenancy – Share resources and costs

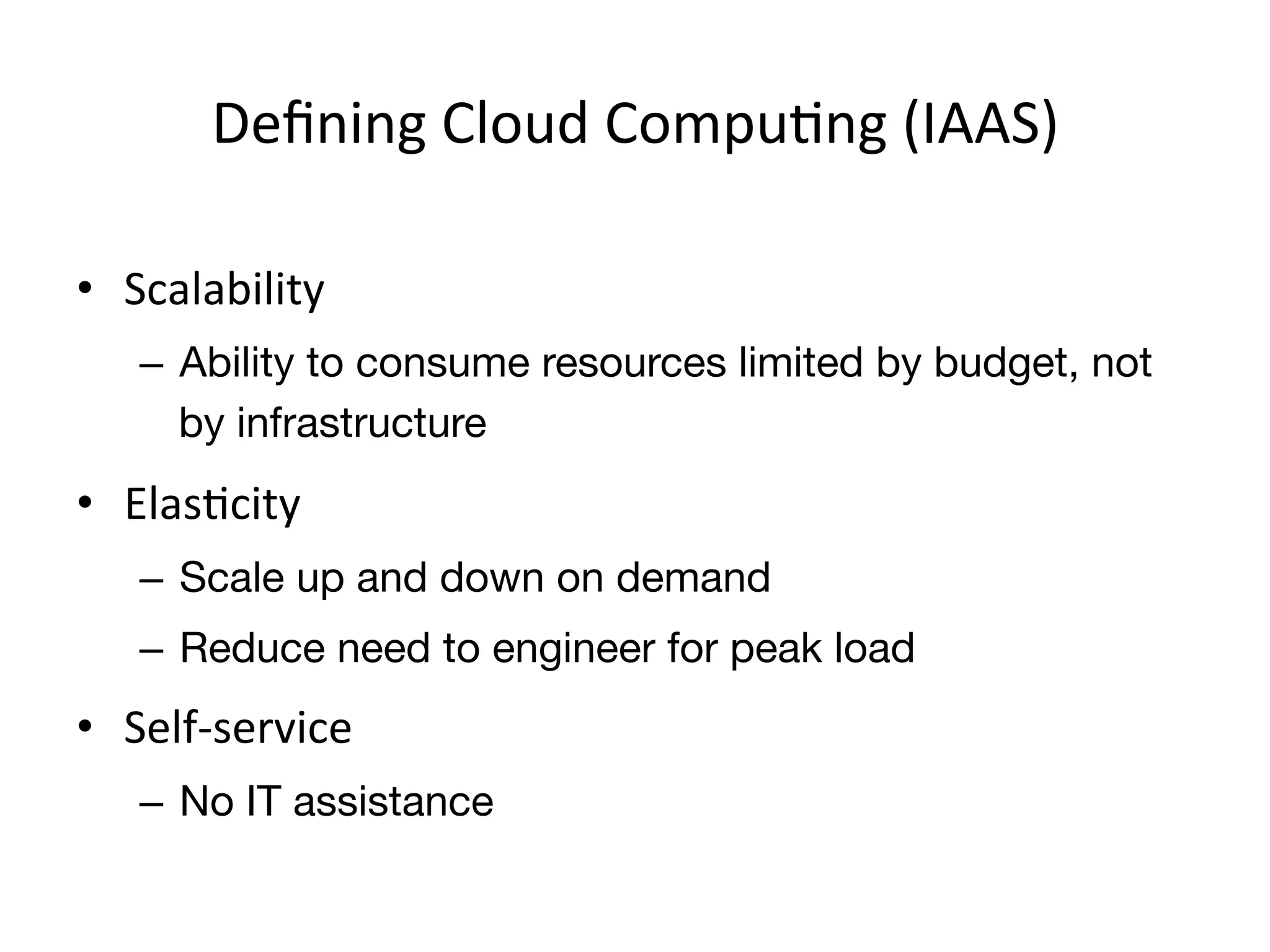

- 15. Defining Cloud CompuEng (IAAS) • Scalability – Ability to consume resources limited by budget, not by infrastructure • ElasEcity – Scale up and down on demand – Reduce need to engineer for peak load • Self-‐service – No IT assistance

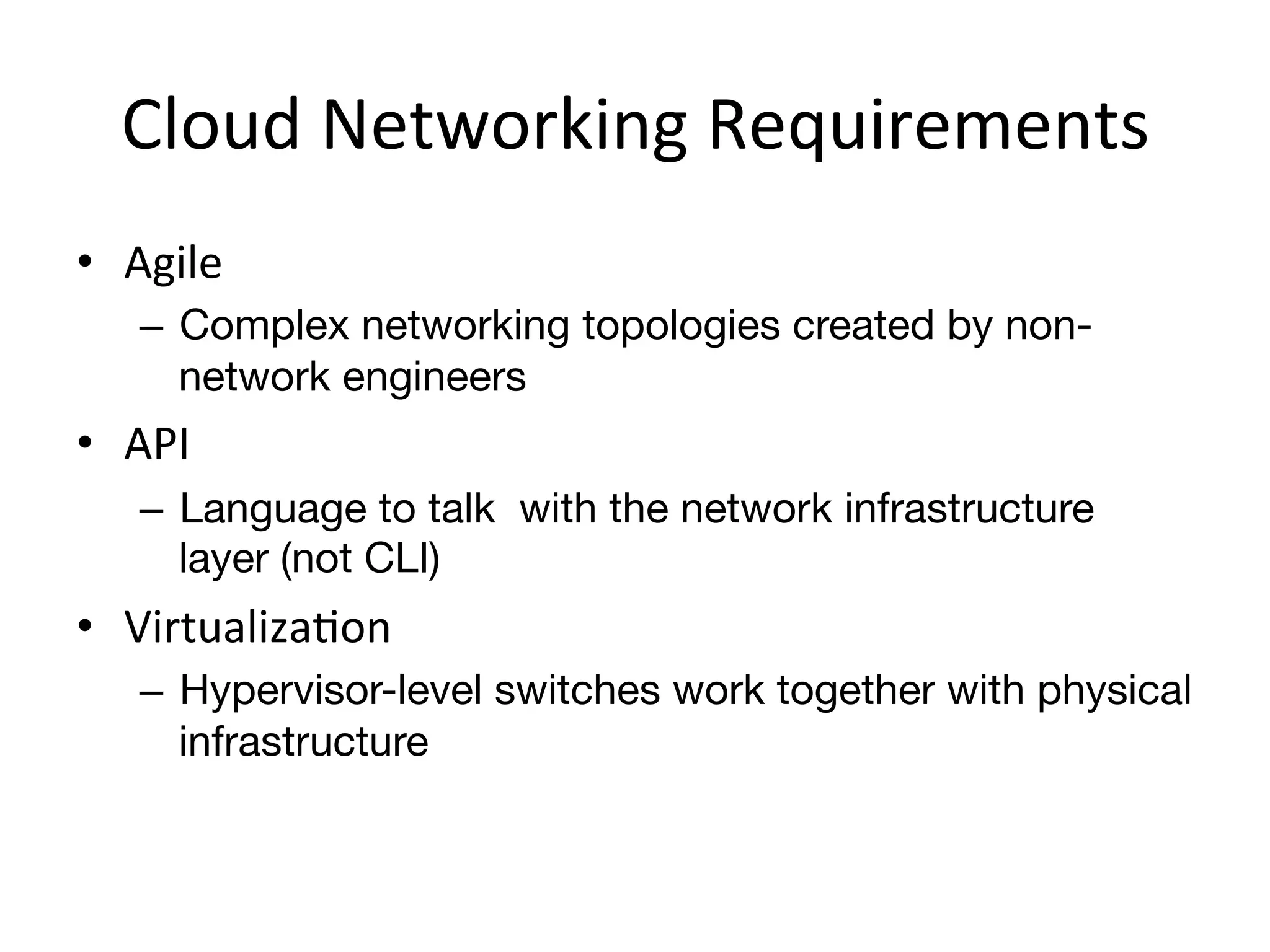

- 16. Cloud Networking Requirements • Agile – Complex networking topologies created by non- network engineers • API – Language to talk with the network infrastructure layer (not CLI) • VirtualizaEon – Hypervisor-level switches work together with physical infrastructure

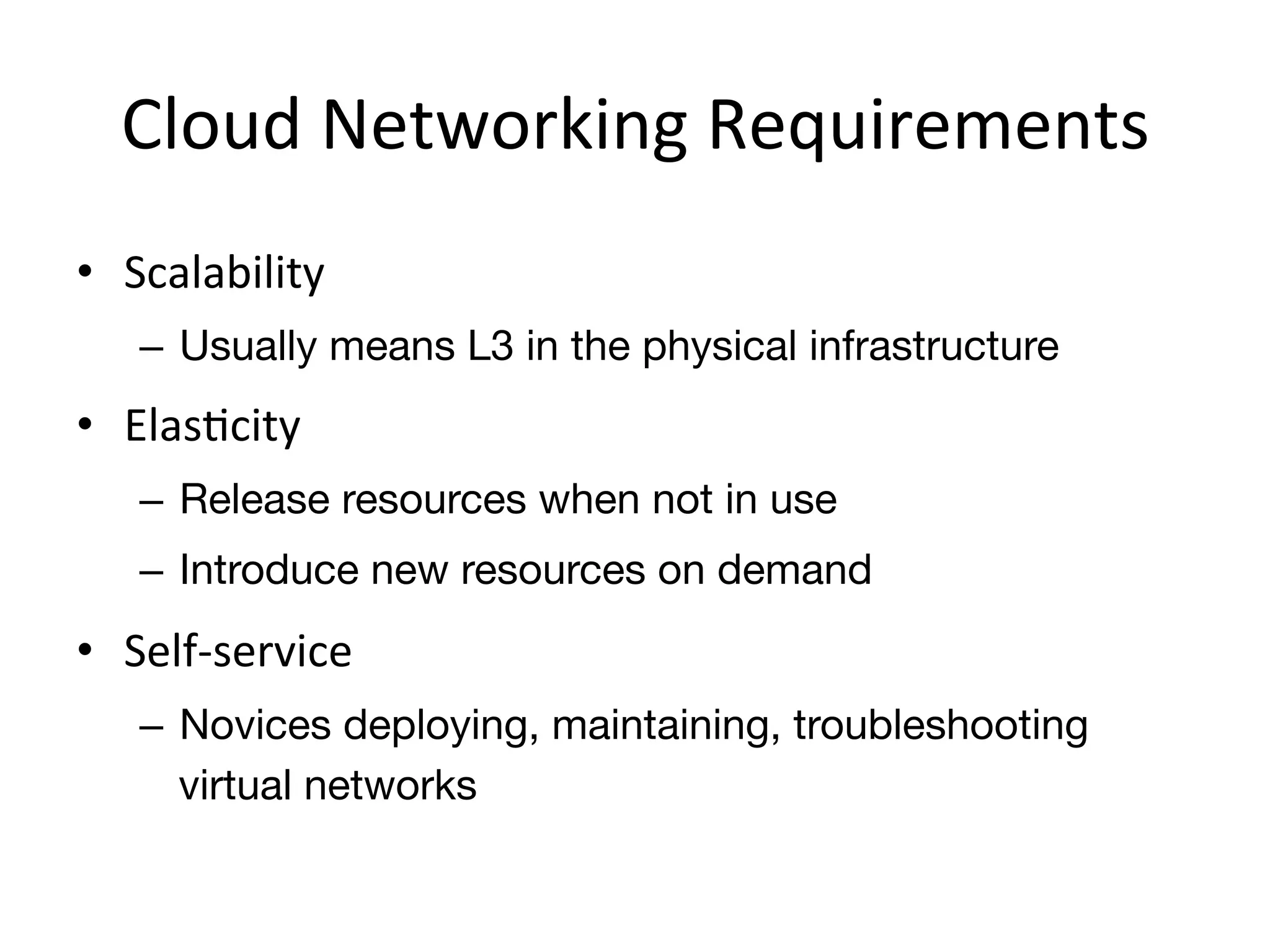

- 17. Cloud Networking Requirements • Scalability – Usually means L3 in the physical infrastructure • ElasEcity – Release resources when not in use – Introduce new resources on demand • Self-‐service – Novices deploying, maintaining, troubleshooting virtual networks

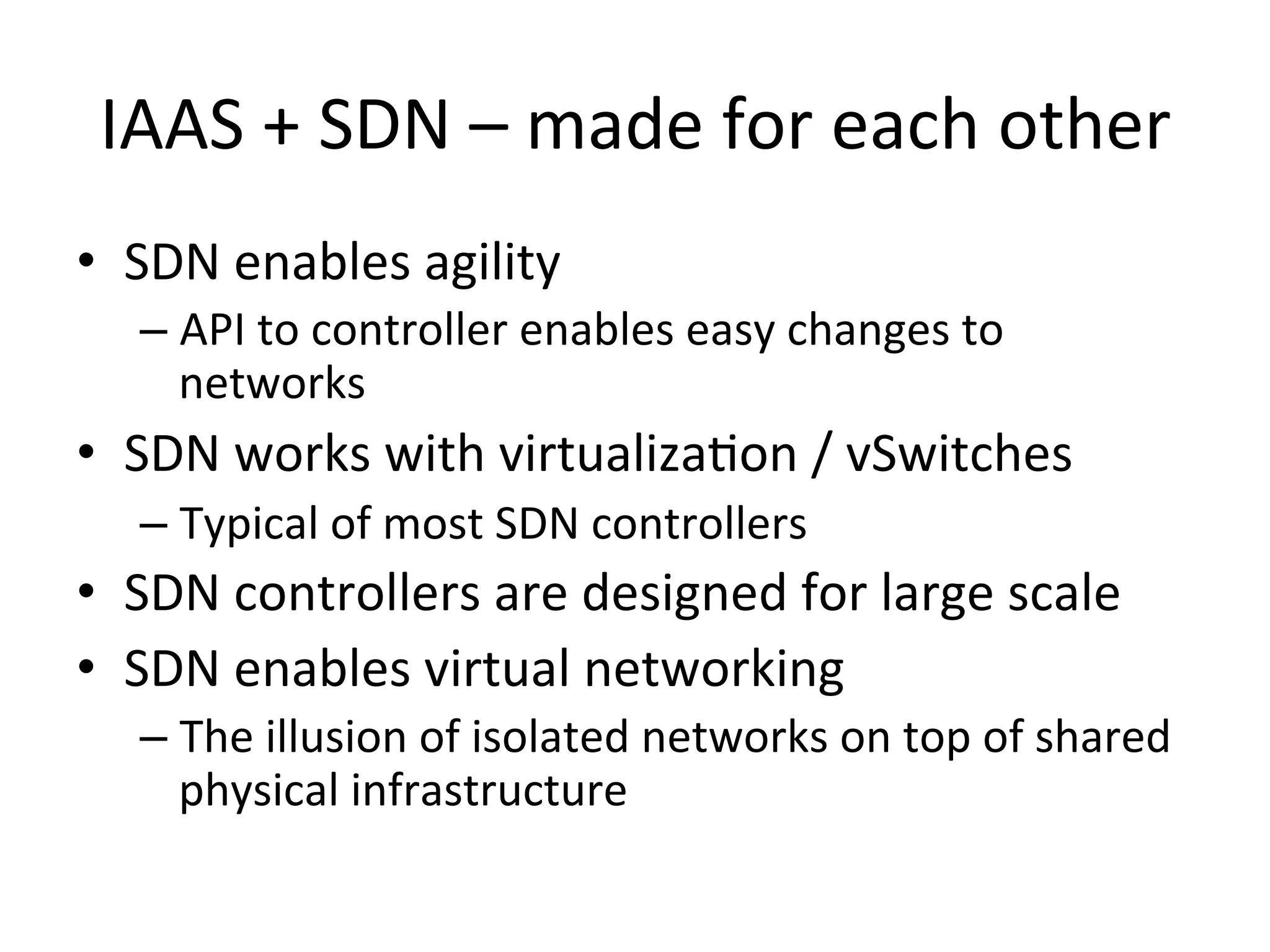

- 18. IAAS + SDN – made for each other • SDN enables agility – API to controller enables easy changes to networks • SDN works with virtualizaEon / vSwitches – Typical of most SDN controllers • SDN controllers are designed for large scale • SDN enables virtual networking – The illusion of isolated networks on top of shared physical infrastructure

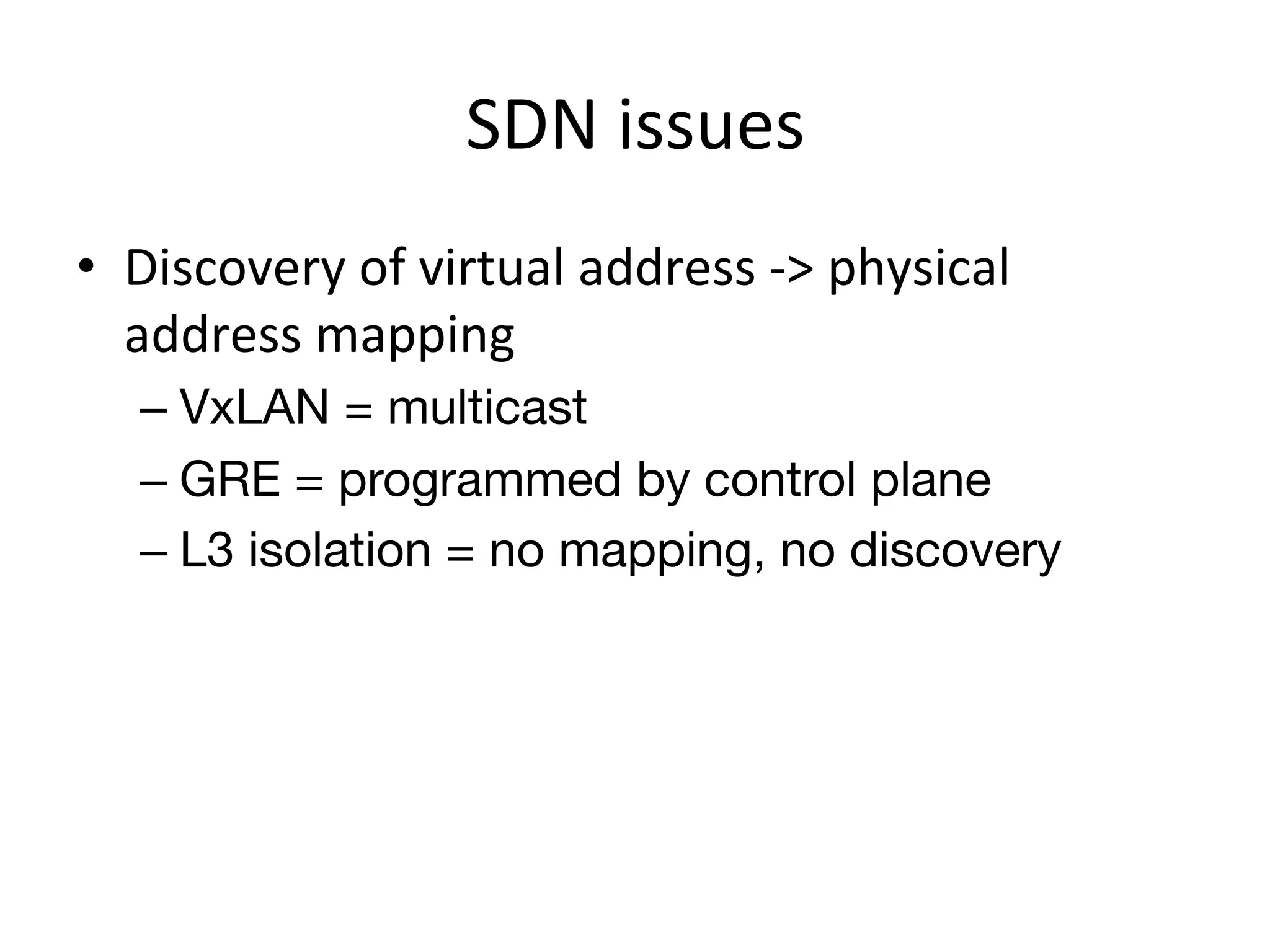

- 19. SDN issues • Discovery of virtual address -‐> physical address mapping – VxLAN = multicast – GRE = programmed by control plane – L3 isolation = no mapping, no discovery

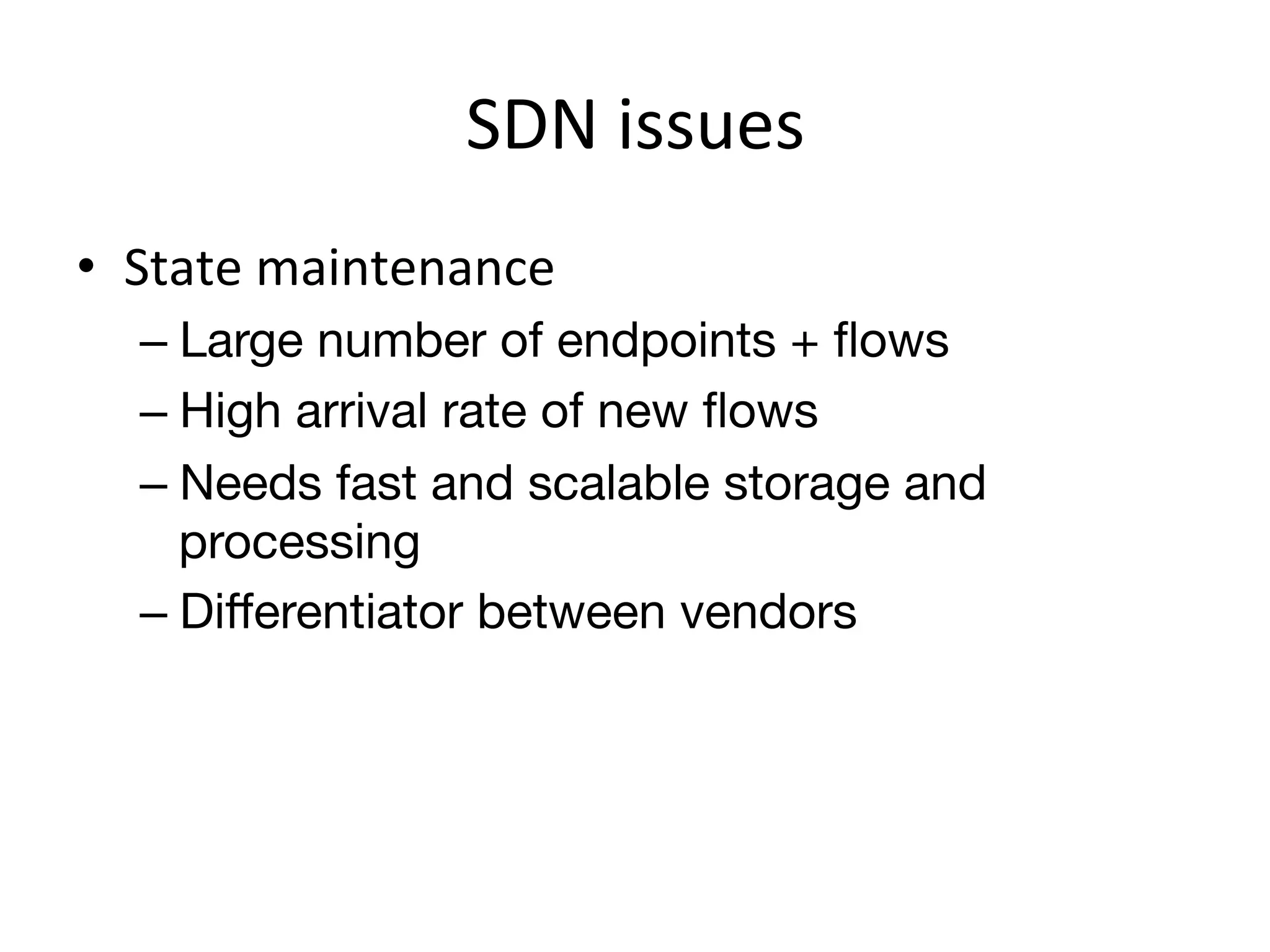

- 20. SDN issues • State maintenance – Large number of endpoints + flows – High arrival rate of new flows – Needs fast and scalable storage and processing – Differentiator between vendors

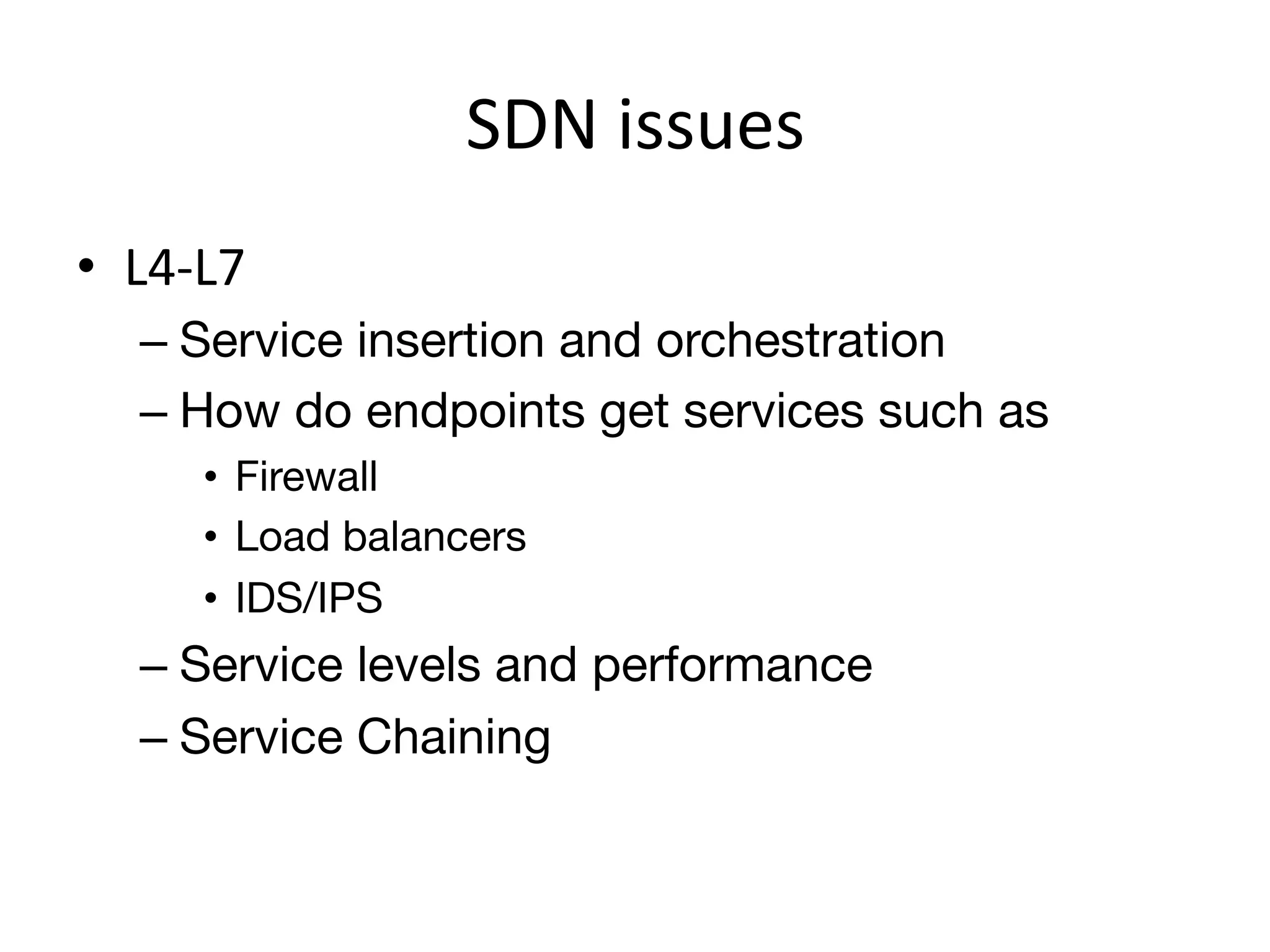

- 21. SDN issues • L4-‐L7 – Service insertion and orchestration – How do endpoints get services such as • Firewall • Load balancers • IDS/IPS – Service levels and performance – Service Chaining

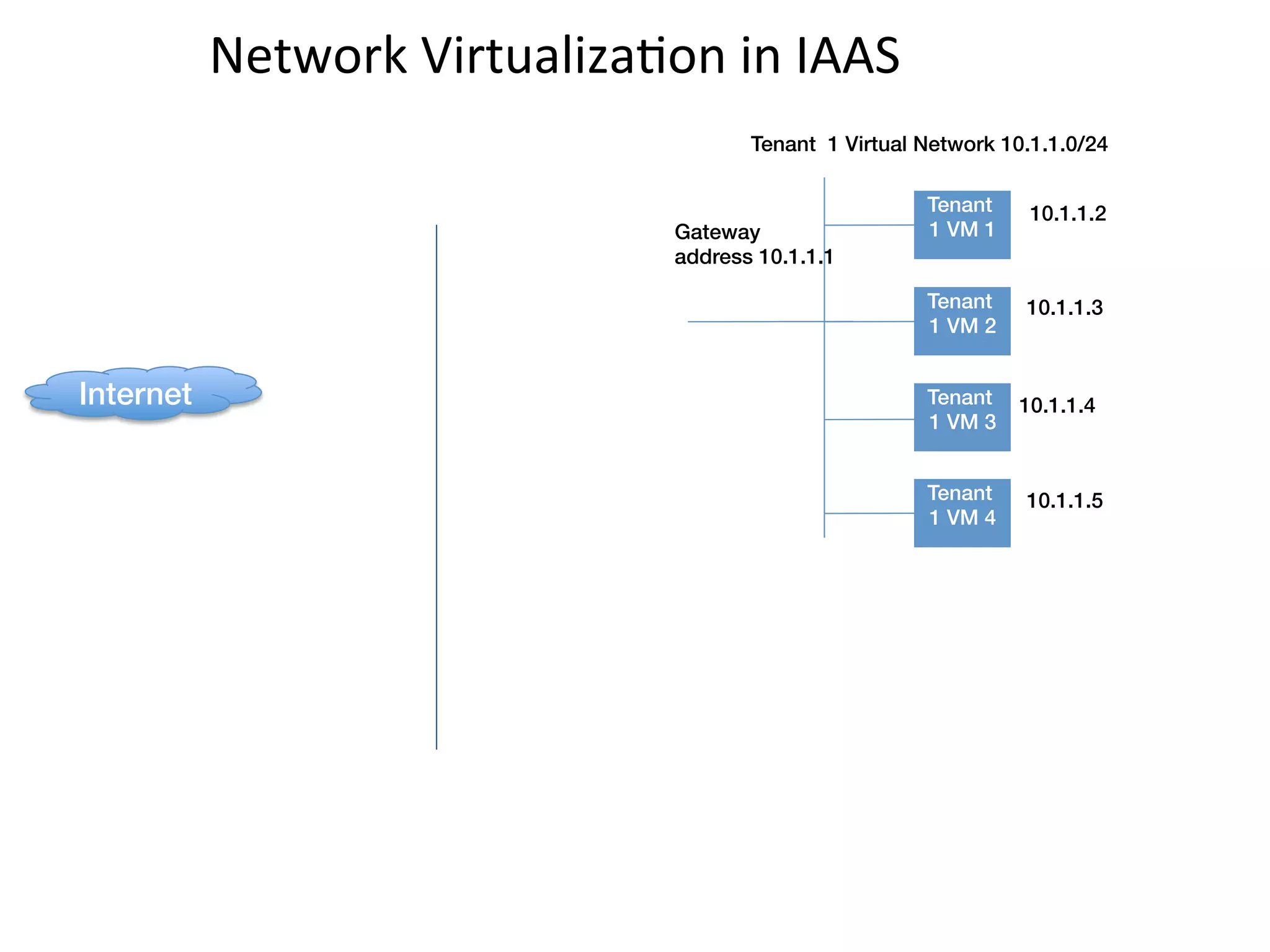

- 22. Network VirtualizaEon in IAAS Tenant 1 Virtual Network 10.1.1.0/24 ! Tenant 10.1.1.2 Gateway 1 VM 1 address 10.1.1.1 ! Tenant 10.1.1.3 1 VM 2 Internet! ! Tenant 10.1.1.4 1 VM 3 ! Tenant 10.1.1.5 1 VM 4

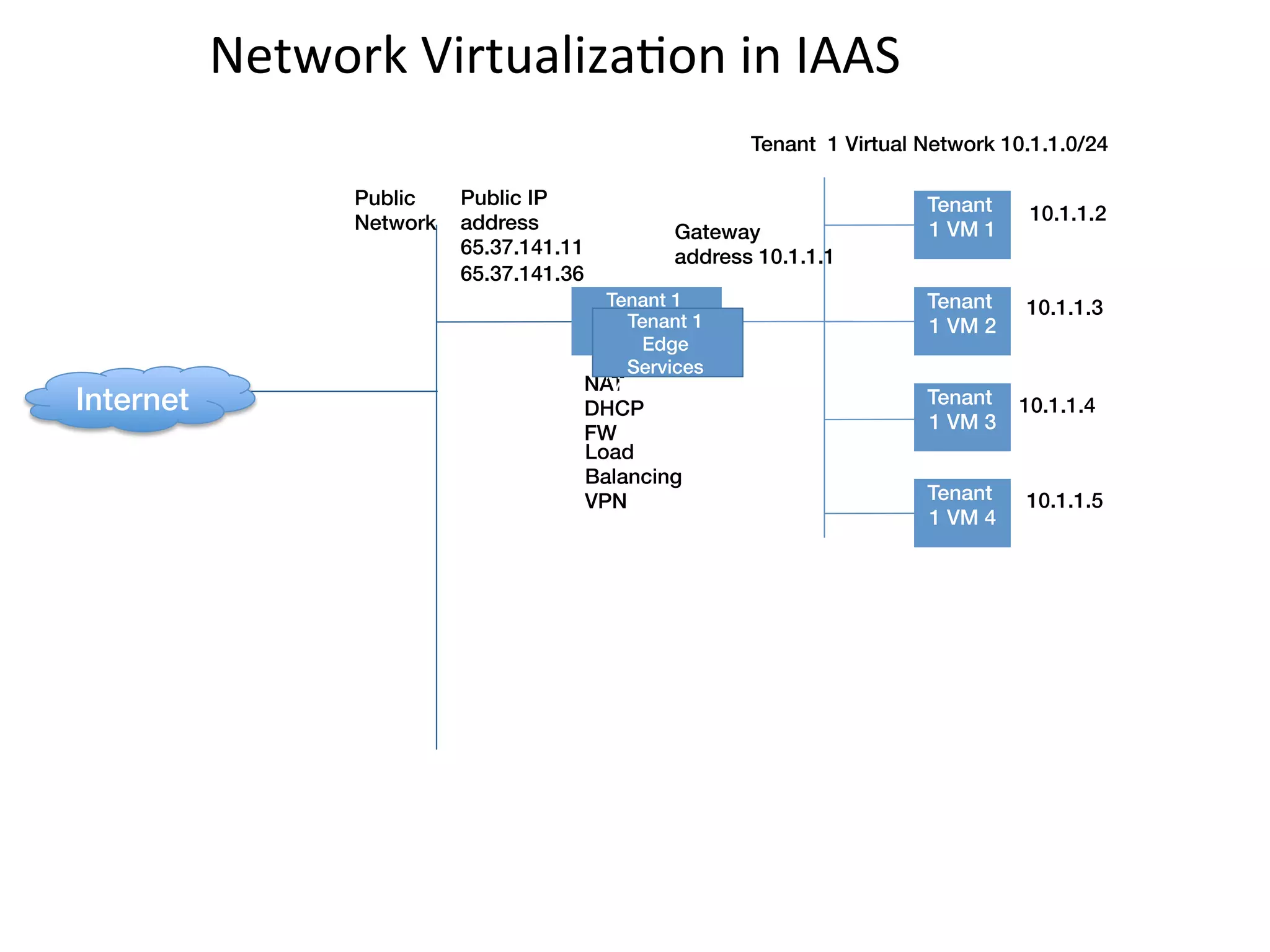

- 23. Network VirtualizaEon in IAAS Tenant 1 Virtual Network 10.1.1.0/24 Public Public IP ! Tenant 10.1.1.2 Network address Gateway 1 VM 1 65.37.141.11! address 10.1.1.1 65.37.141.36 ! Tenant 1 ! Tenant 10.1.1.3 Edge 1 VM 2 Services Internet! ! Appliance(s) NAT! ! Tenant 10.1.1.4 DHCP! 1 VM 3 FW ! Tenant 10.1.1.5 1 VM 4
- 24. Network VirtualizaEon in IAAS Tenant 1 Virtual Network 10.1.1.0/24 Public Public IP ! Tenant 10.1.1.2 Network address Gateway 1 VM 1 65.37.141.11! address 10.1.1.1 65.37.141.36 ! Tenant 1 ! Tenant 10.1.1.3 Edge 1 ! Tenant 1 VM 2 Edge Services Services Appliance(s) NAT! ! ! Appliance(s) Internet! ! Tenant 10.1.1.4 DHCP! 1 VM 3 FW Load Balancing! ! VPN Tenant 10.1.1.5 1 VM 4
- 25. Network VirtualizaEon in IAAS Tenant 1 Virtual Network 10.1.1.0/24 Public Public IP ! Tenant 10.1.1.2 Network address Gateway 1 VM 1 65.37.141.11! address 10.1.1.1 65.37.141.36 ! Tenant 1 ! Tenant 10.1.1.3 Edge 1 ! Tenant 1 VM 2 Edge Services Services Appliance(s) NAT! ! ! Internet! Appliance(s) ! Tenant 10.1.1.4 DHCP! 1 VM 3 FW Load Balancing! ! Tenant 10.1.1.5 1 VM 4 Tenant 2 Virtual Network 10.1.1.0/24 Public IP address 65.37.141.24! Gateway address Tenant 2 VM 1 ! 10.1.1.2 65.37.141.80 10.1.1.1 ! Tenant 2 ! Tenant 10.1.1.3 Edge 2 VM 2 ! Services Appliance VPN! NAT! DHCP Tenant 2 VM 3 ! 10.1.1.4
- 26. CloudStack Network Model Tenant 1 Virtual Network 10.1.1.0/24 Public Public IP Tenant Network address 10.1.1.2 ! Gateway 1 VM 65.37.141.11! address 1 65.37.141.36 10.1.1.1 Tenant 1 ! Tenant 10.1.1.3 Edge 1 ! Tenant ! 1 VM Edge Services Services Appliance(s) NAT! Appliance(s) ! ! 2 Tenant 10.1.1.4 DHCP! ! 1 VM FW Load 3 Balancing! Tenant 10.1.1.5 ! 1 VM 4 Tenant 2 Virtual Network Public IP 10.1.1.0/24 address Gateway Tenant 10.1.1.2 • Map virtual networks 2 o physical t VM 65.37.141.24! 65.37.141.80 address infrastructure 10.1.1.1 1 ! • Edge 2 ! and provision network services in Tenant Define Tenant 10.1.1.3 ! 2 VM virtual networks ! Services 2 Appliance VPN! • Manage elasEcity and scale o10.1.1.4 NAT! Tenant f network DHCservices P 2 VM 3 !

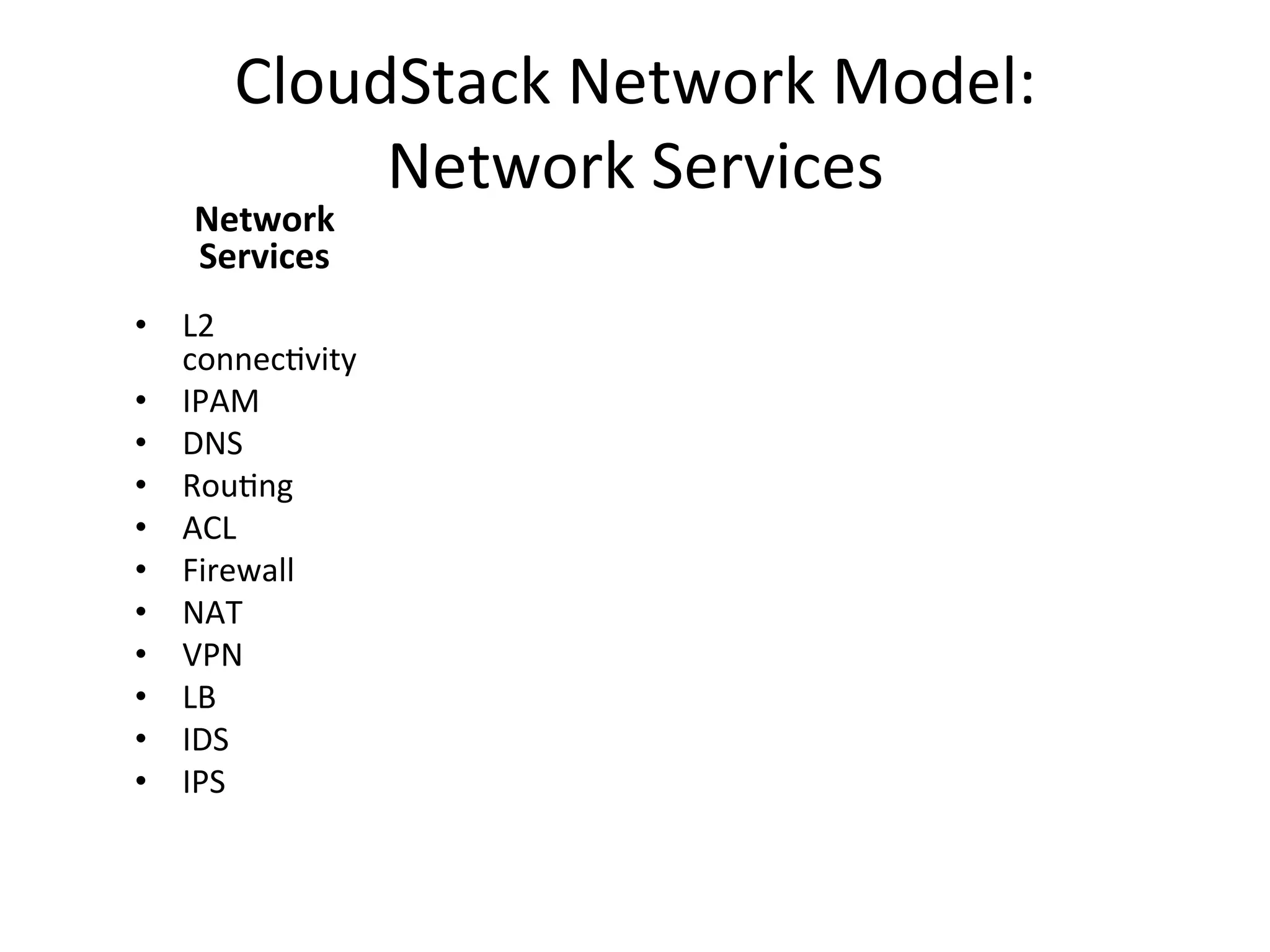

- 27. CloudStack Network Model: Network Services Network Services • L2 connecEvity • IPAM • DNS • RouEng • ACL • Firewall • NAT • VPN • LB • IDS • IPS

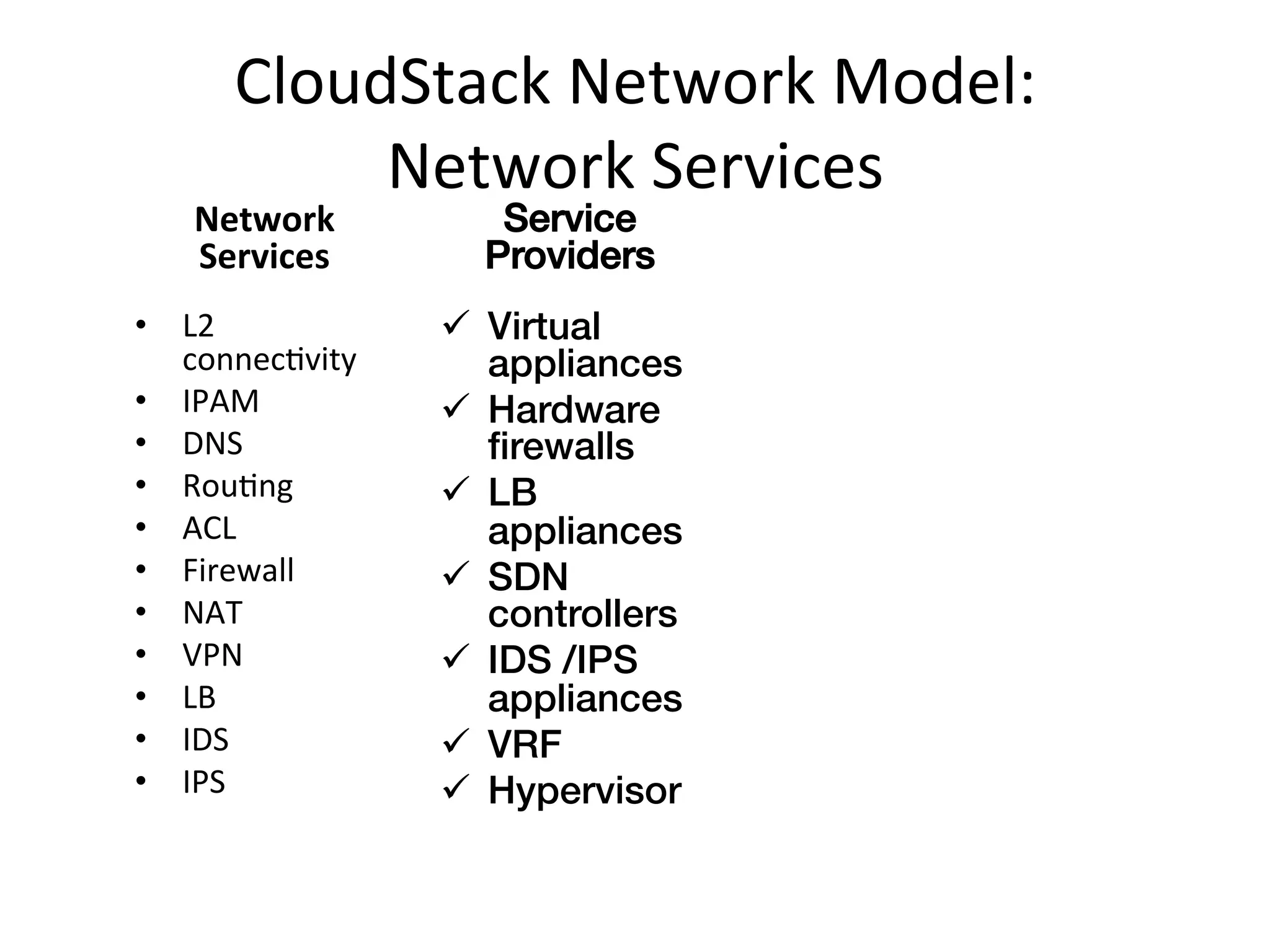

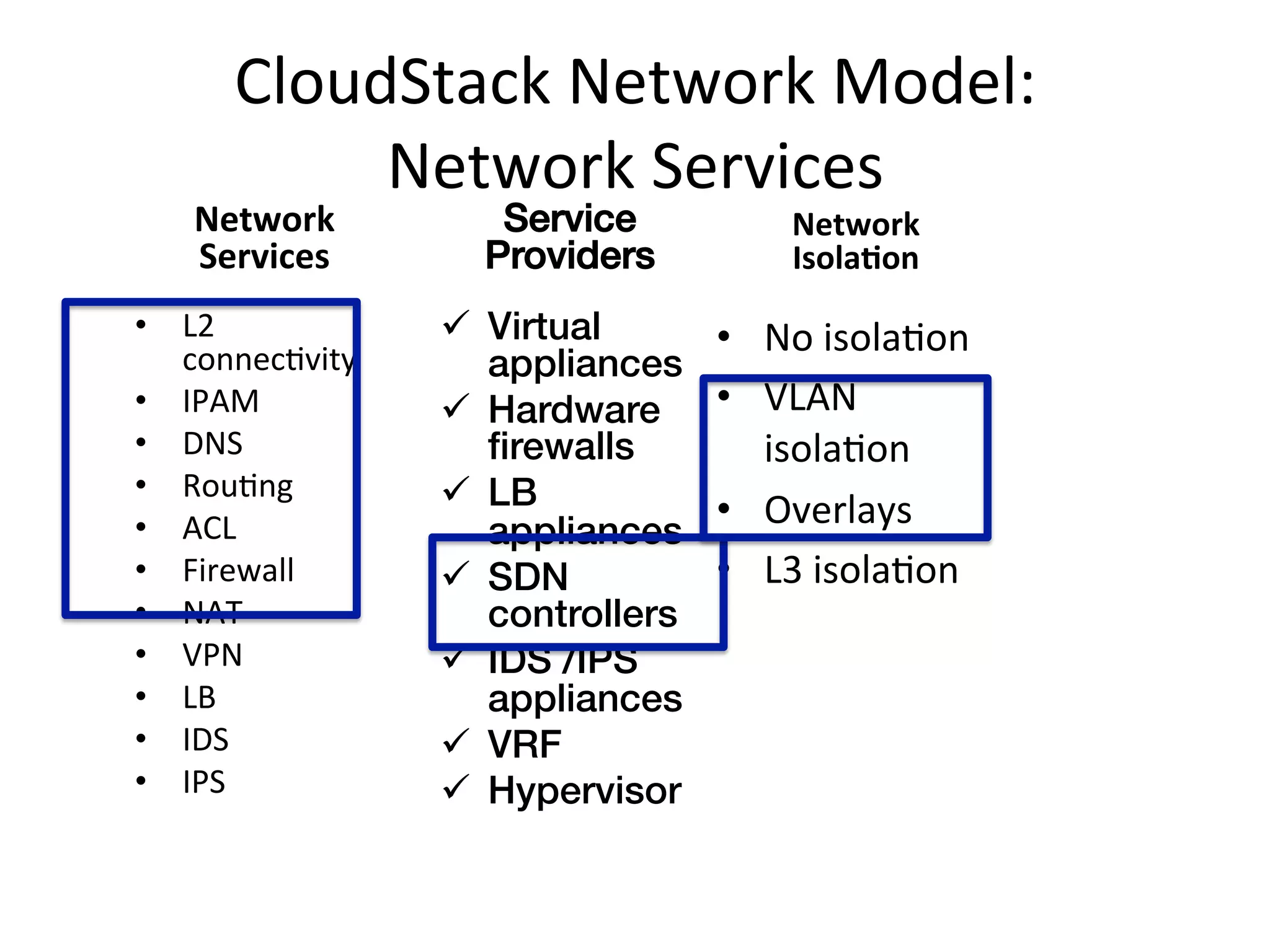

- 28. CloudStack Network Model: Network Services Network Service Services Providers! • L2 ü Virtual connecEvity appliances! • IPAM ü Hardware • DNS firewalls! • RouEng ü LB • ACL appliances! • Firewall ü SDN • NAT controllers! • VPN ü IDS /IPS • LB appliances! • IDS ü VRF! • IPS ü Hypervisor!
- 29. CloudStack Network Model: Network Services Network Service Network Services Providers! Isola7on • L2 ü Virtual • No isolaEon connecEvity appliances! • IPAM ü Hardware • VLAN • DNS firewalls! isolaEon • RouEng ü LB • ACL appliances! • Overlays • Firewall ü SDN • L3 isolaEon • NAT controllers! • VPN ü IDS /IPS • LB appliances! • IDS ü VRF! • IPS ü Hypervisor!

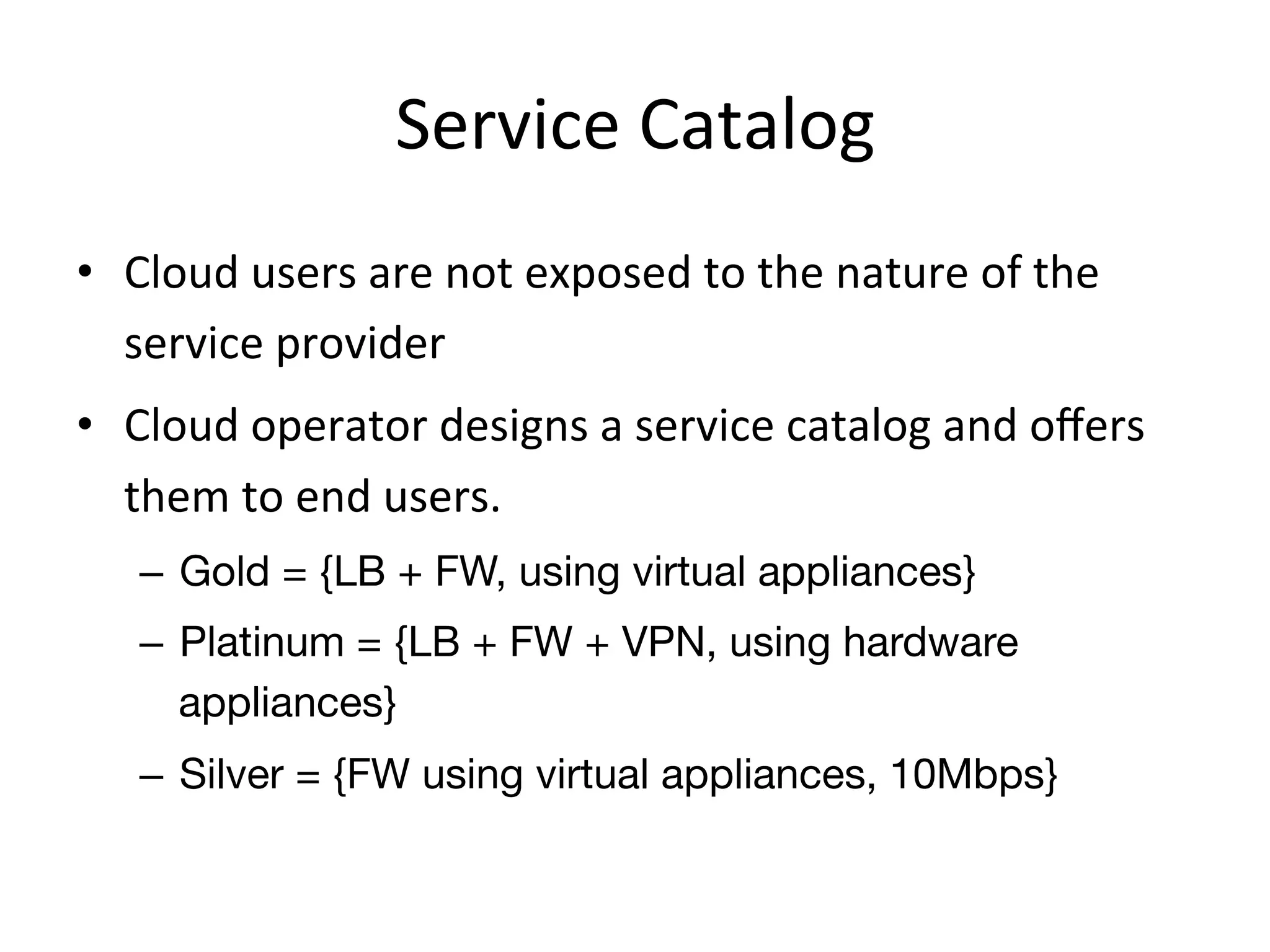

- 30. Service Catalog • Cloud users are not exposed to the nature of the service provider • Cloud operator designs a service catalog and offers them to end users. – Gold = {LB + FW, using virtual appliances} – Platinum = {LB + FW + VPN, using hardware appliances} – Silver = {FW using virtual appliances, 10Mbps}

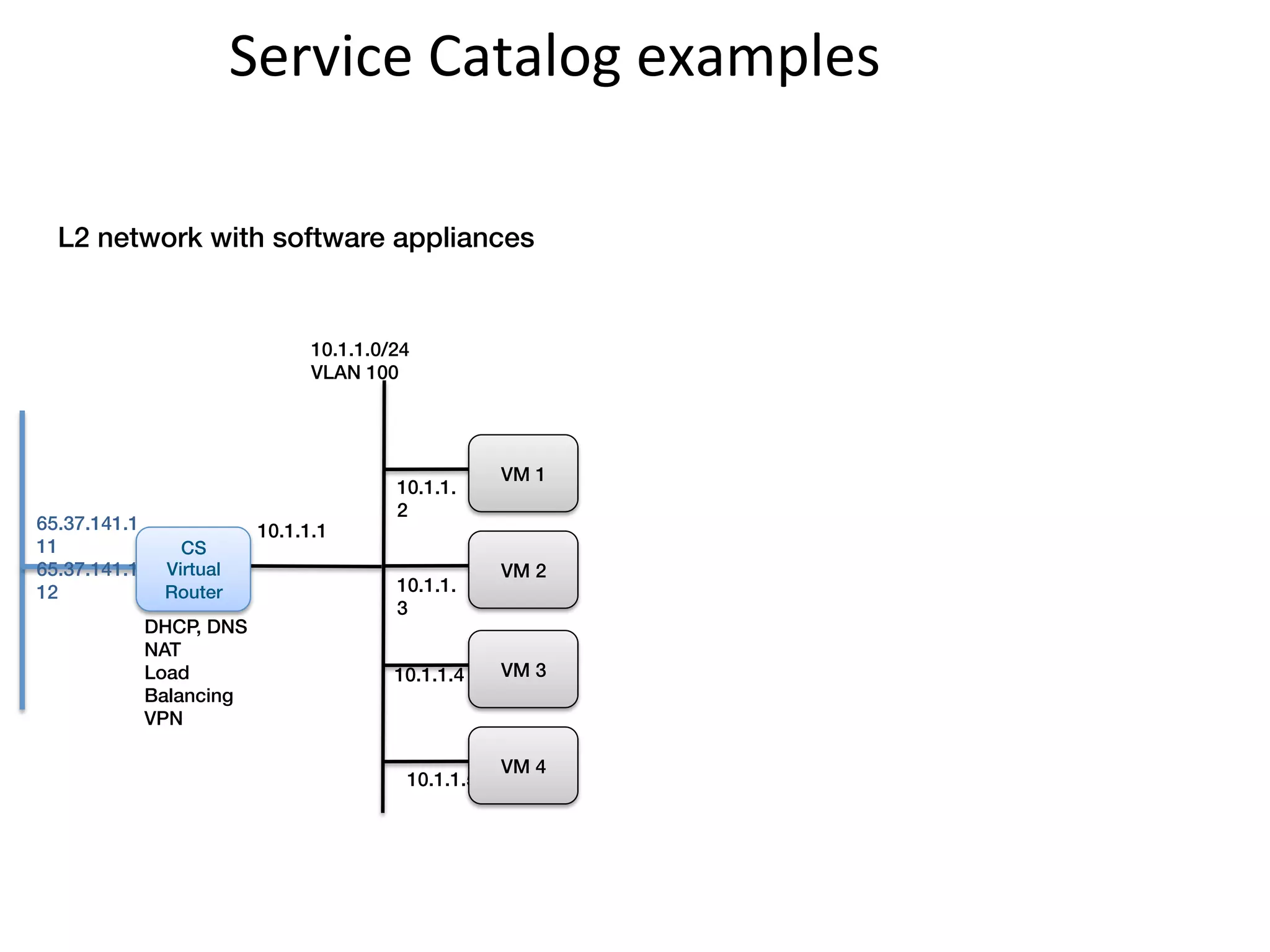

- 31. Service Catalog examples L2 network with software appliances! 10.1.1.0/24! VLAN 100 VM 1! 10.1.1. 2 65.37.141.1 10.1.1.1 11! CS! 65.37.141.1 Virtual VM 2! 12 Router! 10.1.1. 3 DHCP, DNS! NAT! Load 10.1.1.4 VM 3! Balancing! VPN VM 4! 10.1.1.5

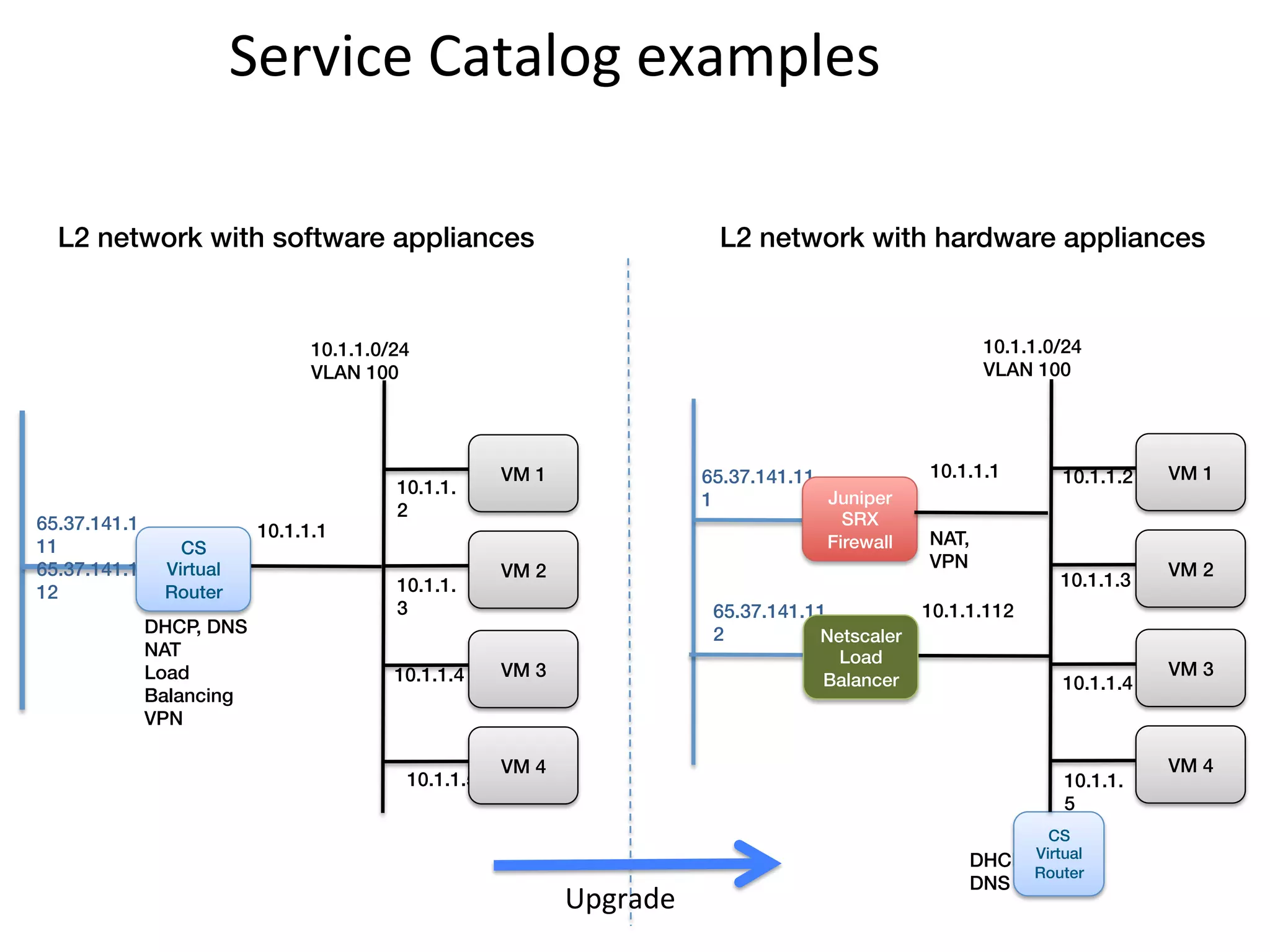

- 32. Service Catalog examples L2 network with software appliances! L2 network with hardware appliances! 10.1.1.0/24! 10.1.1.0/24! VLAN 100 VLAN 100 VM 1! 65.37.141.11 10.1.1.1 10.1.1.2 VM 1! 10.1.1. 1 Juniper 2 SRX! 65.37.141.1 10.1.1.1 11! CS! Firewall! NAT, 65.37.141.1 Virtual VM 2! VPN! VM 2! 10.1.1. 10.1.1.3 12 Router! 3 65.37.141.11 10.1.1.112 DHCP, DNS! 2 Netscaler! NAT! Load Load 10.1.1.4 VM 3! VM 3! Balancer! 10.1.1.4 Balancing! VPN VM 4! VM 4! 10.1.1.5 10.1.1. 5 CS! DHCP, Virtual Router! DNS! Upgrade

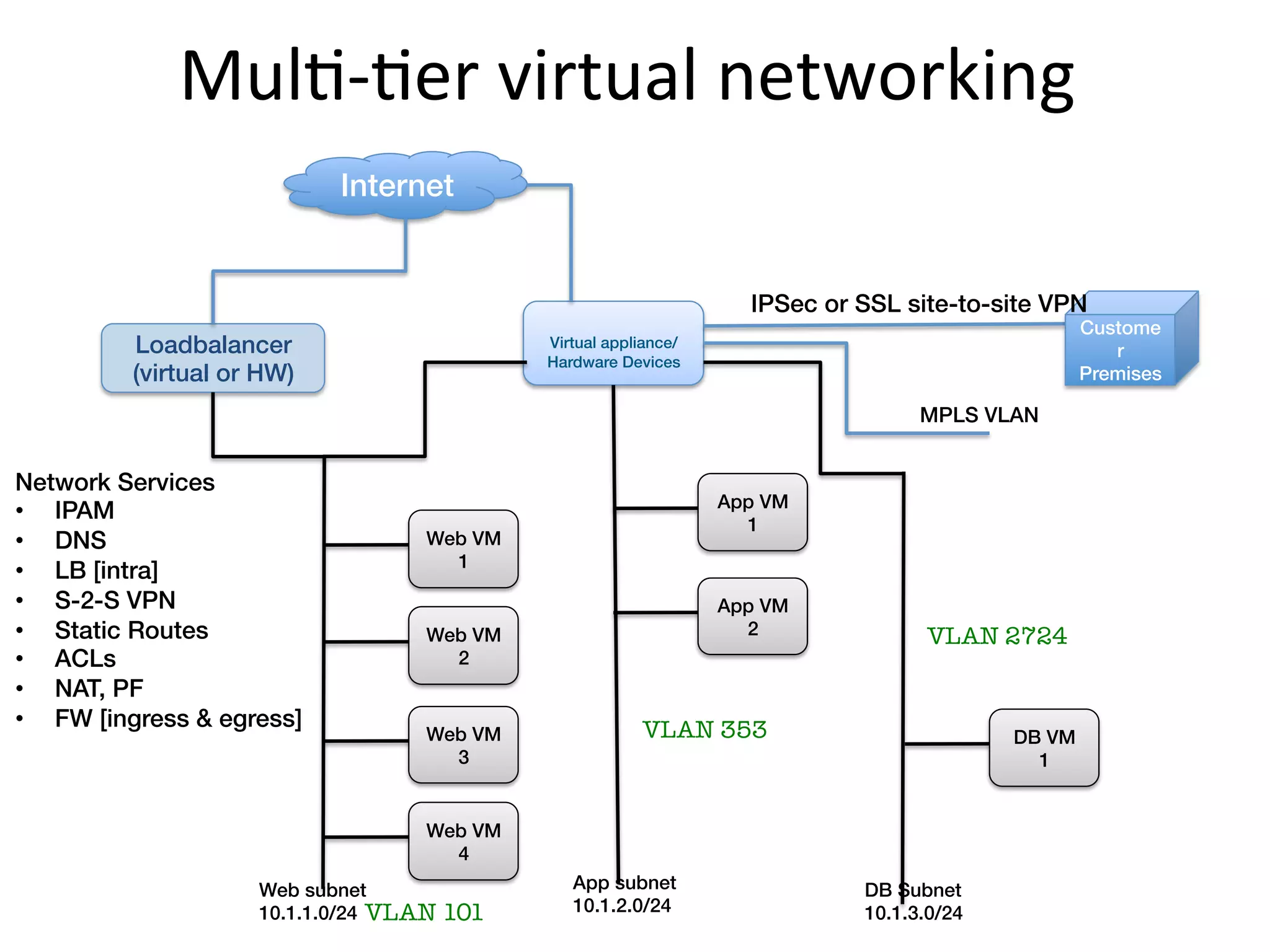

- 33. MulE-‐Eer virtual networking Internet! IPSec or SSL site-to-site VPN! ! Custome Loadbalancer Virtual appliance/! r! Hardware Devices! (virtual or HW)! Premises! MPLS VLAN! Network Services! App VM • IPAM! 1! • DNS! Web VM 1! • LB [intra]! • S-2-S VPN! App VM • Static Routes! Web VM 2! VLAN 2724 • ACLs! 2! • NAT, PF! • FW [ingress & egress]! VLAN 353 Web VM DB VM 3! 1! Web VM 4! Web subnet ! App subnet DB Subnet! 10.1.1.0/24! VLAN 101 10.1.2.0/24! 10.1.3.0/24!

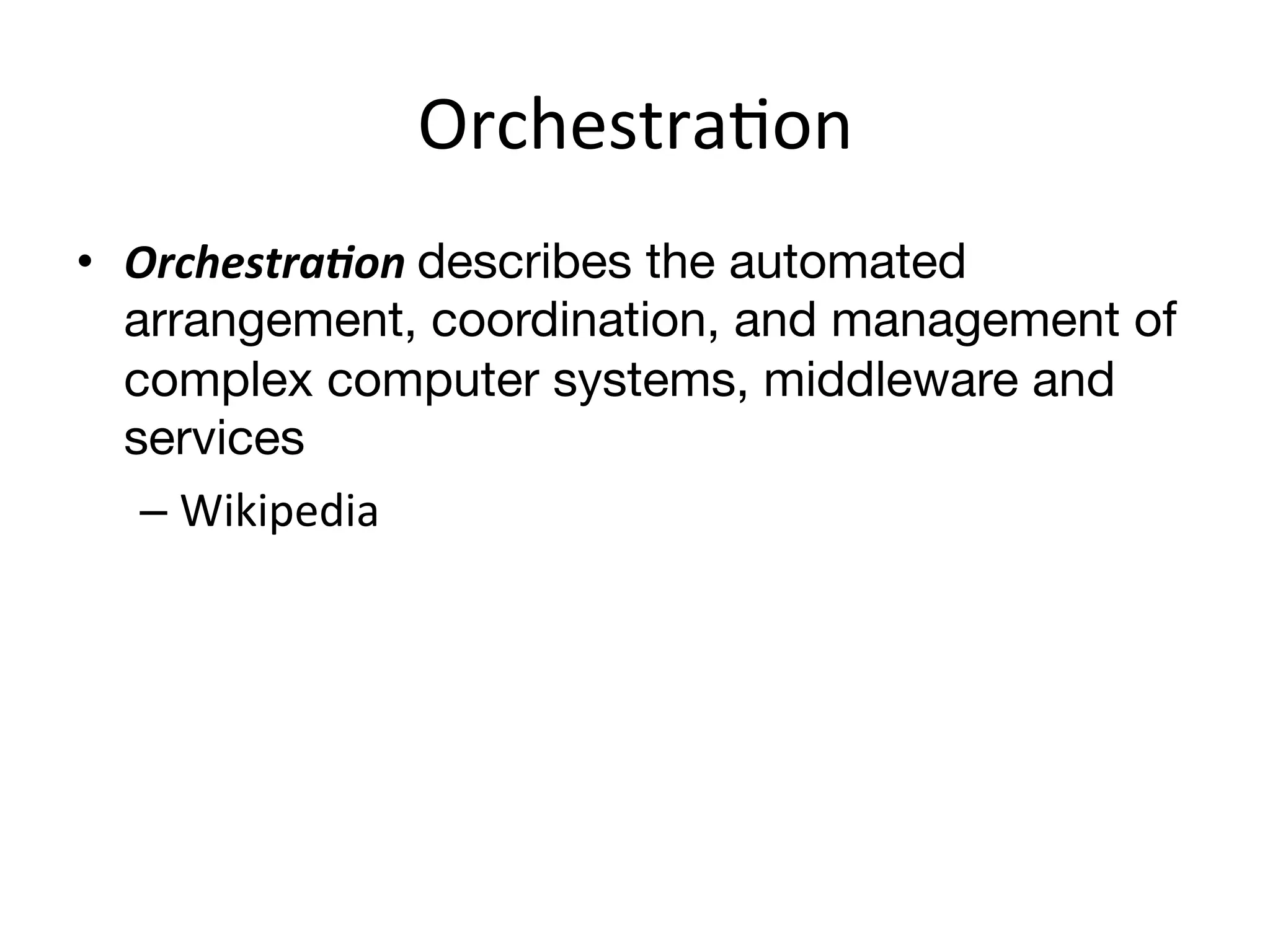

- 34. OrchestraEon • Orchestra)on describes the automated arrangement, coordination, and management of complex computer systems, middleware and services – Wikipedia

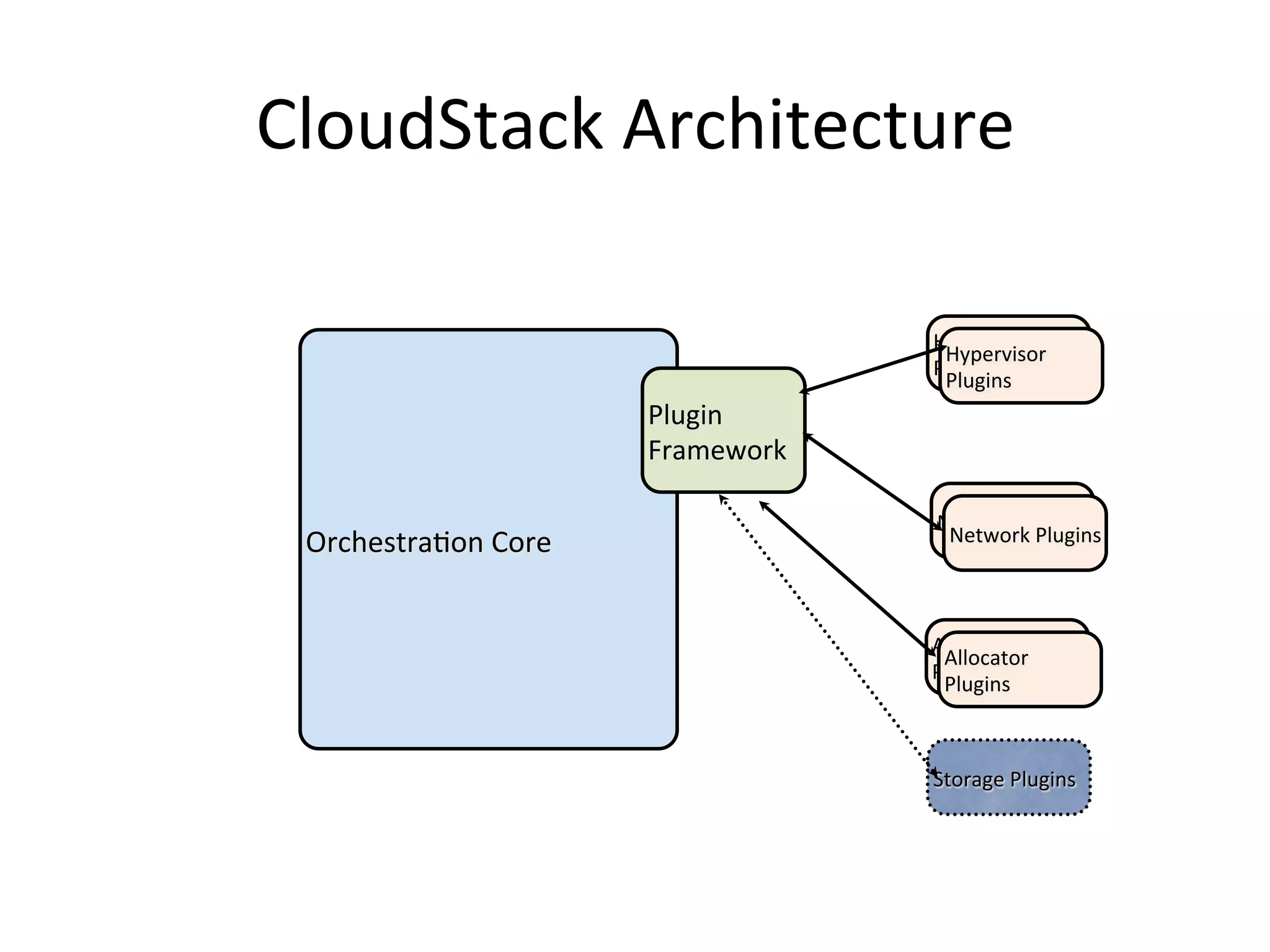

- 35. CloudStack Architecture Hypervisor Hypervisor Plugins Plugins Plugin Framework Network Plugins OrchestraEon Core Network Plugins Allocator Allocator Plugins Plugins Storage Plugins

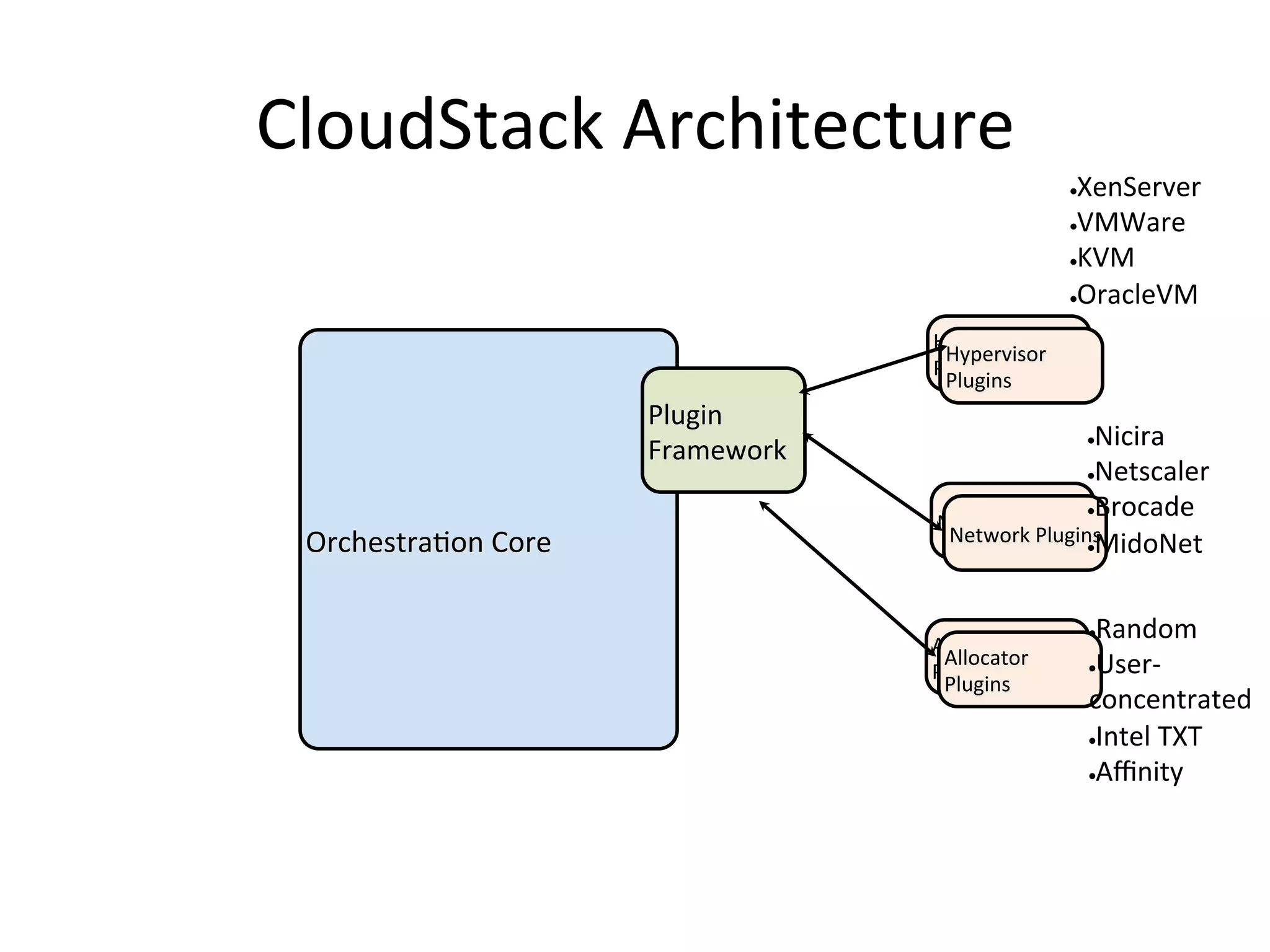

- 36. CloudStack Architecture • XenServer • VMWare • KVM • OracleVM Hypervisor Hypervisor Plugins Plugins Plugin Framework Nicira • • Netscaler • Brocade Network Plugins OrchestraEon Core Network Plugins idoNet • M Allocator • Random Allocator • User-‐ Plugins Plugins concentrated • Intel TXT • Affinity

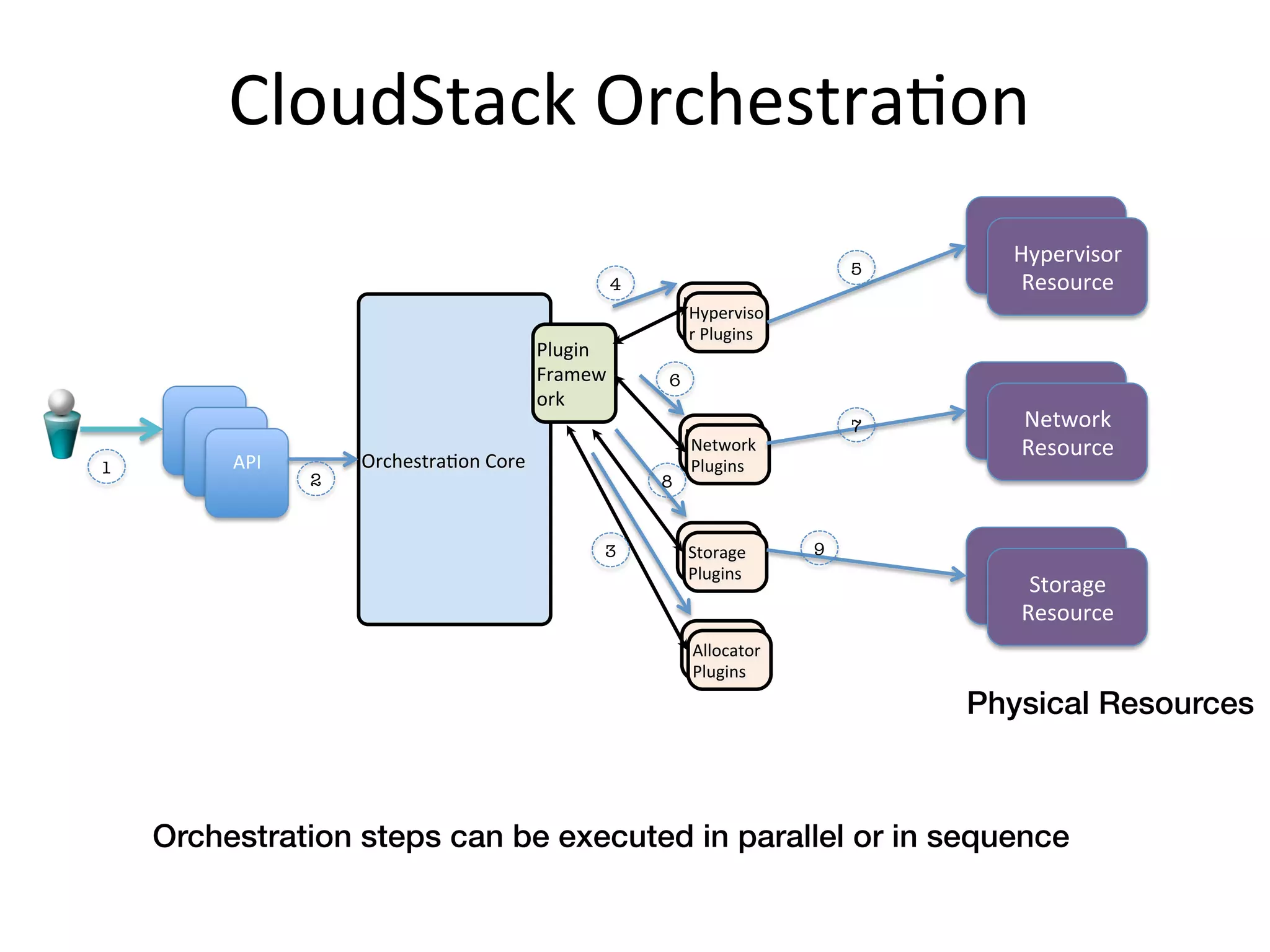

- 37. CloudStack OrchestraEon Hypervisor Hypervisor Resource 5 4 Resource Hyperviso Hyperviso r Plugins r Plugins Plugin Framew 6 ork Network API 7 Network Resource Network API Network Resource OrchestraEon Core Plugins 1 API Plugins 2 8 Allocator 9 3 Storage Plugins Plugins Storage Storage Resource Resource Allocator Allocator Plugins Plugins Physical Resources ! Orchestration steps can be executed in parallel or in sequence!

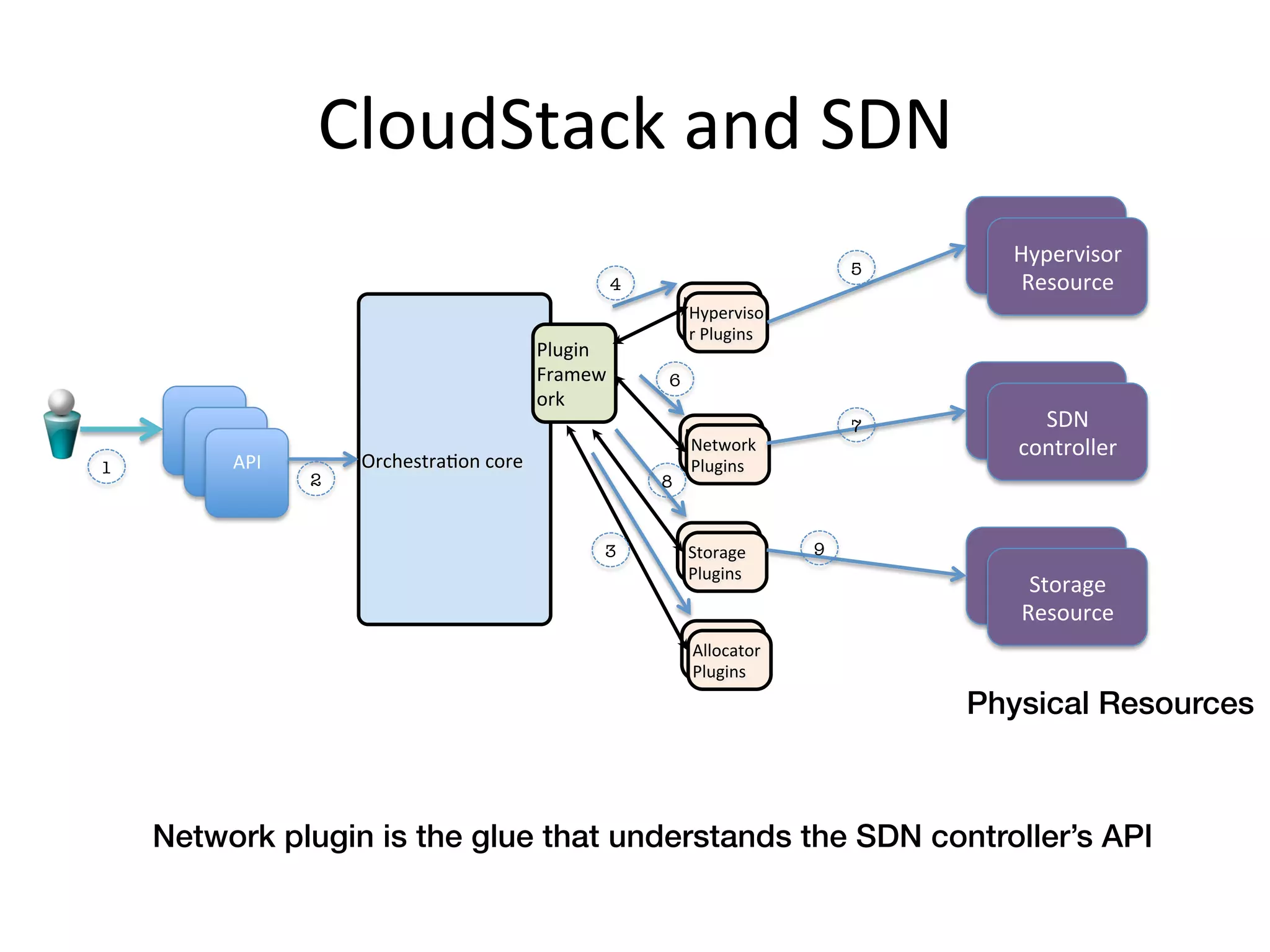

- 38. CloudStack and SDN Hypervisor Hypervisor Resource 5 4 Resource Hyperviso Hyperviso r Plugins r Plugins Plugin Framew 6 ork Network API 7 SDN Resource Network API Network controller OrchestraEon core Plugins 1 API Plugins 2 8 Allocator 9 3 Storage Plugins Plugins Storage Storage Resource Resource Allocator Allocator Plugins Plugins Physical Resources ! Network plugin is the glue that understands the SDN controller’s API!

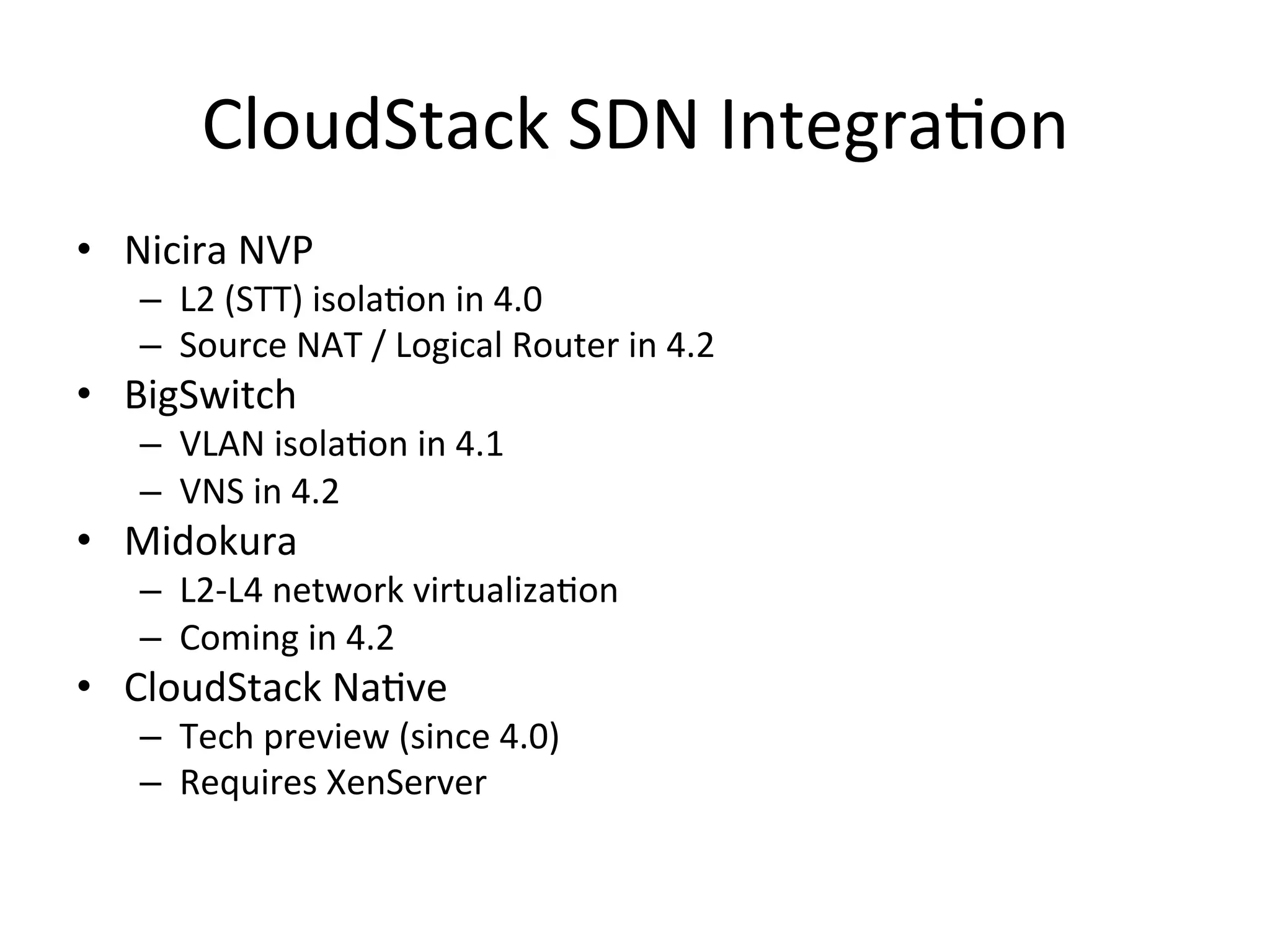

- 39. CloudStack SDN IntegraEon • Nicira NVP – L2 (STT) isolaEon in 4.0 – Source NAT / Logical Router in 4.2 • BigSwitch – VLAN isolaEon in 4.1 – VNS in 4.2 • Midokura – L2-‐L4 network virtualizaEon – Coming in 4.2 • CloudStack NaEve – Tech preview (since 4.0) – Requires XenServer

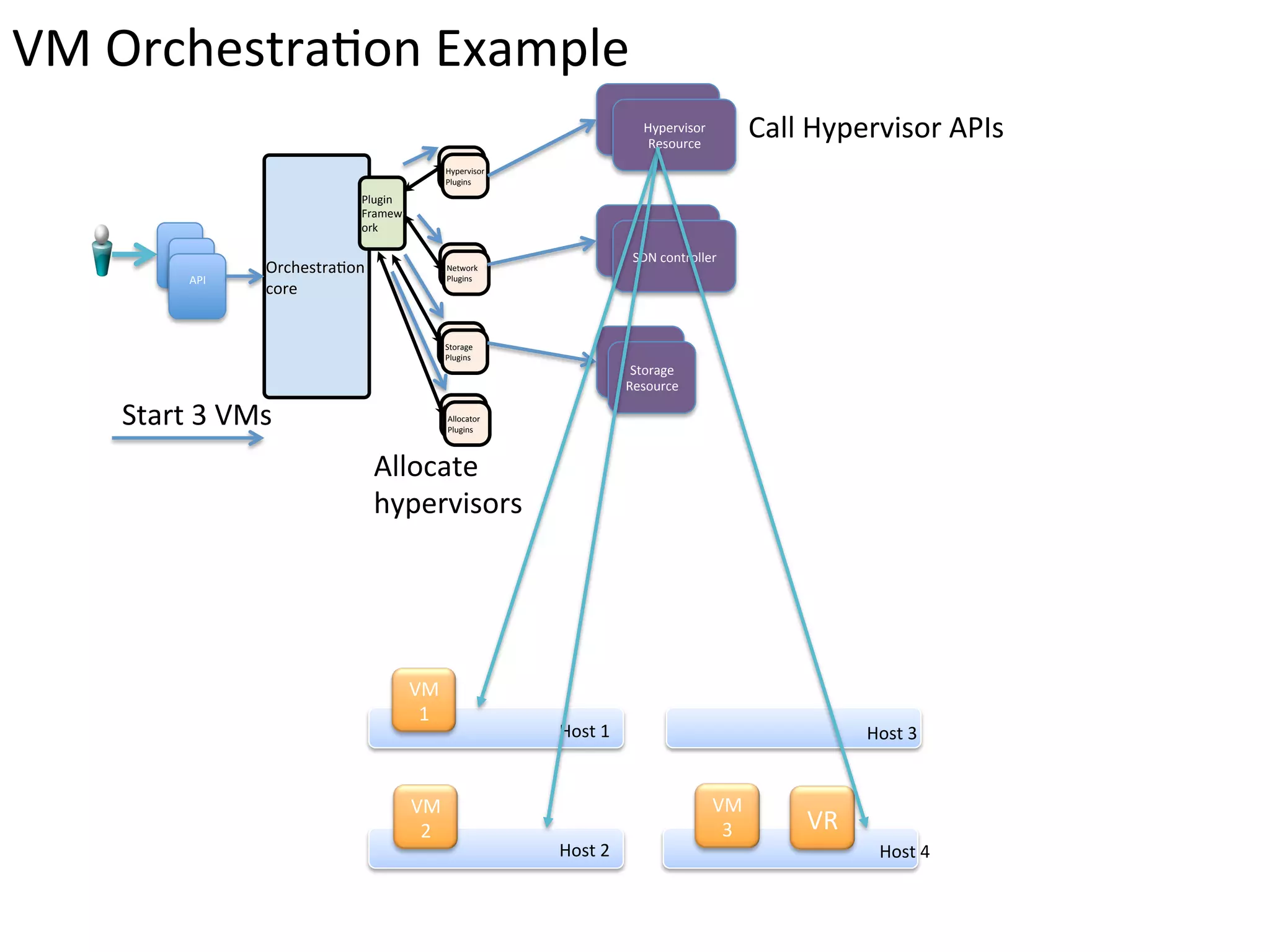

- 40. VM OrchestraEon Example Hypervisor Hypervisor Resource Resource Call Hypervisor APIs Hypervisor Hypervisor Plugins Plugins Plugin Framew ork Network AP I AP Resource Network SDN controller I OrchestraEon Network Plugins API Plugins core Allocator Storage Plugins Plugins Storage Storage Resource Resource Start 3 VMs Allocator Allocator Plugins Plugins Allocate hypervisors VM 1 Host 1 Host 3 VM VM 2 3 VR Host 2 Host 4

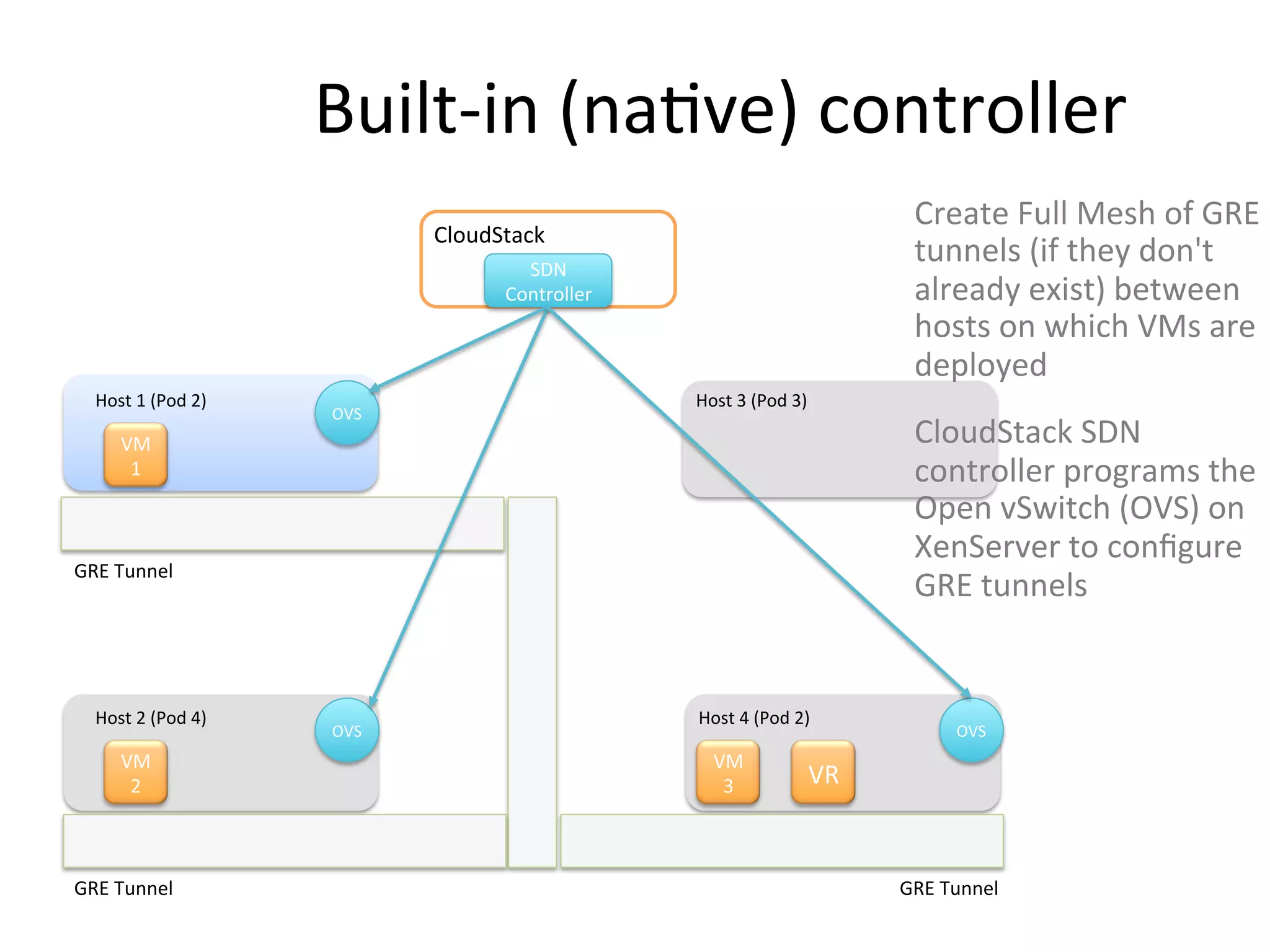

- 41. Built-‐in (naEve) controller Create Full Mesh of GRE CloudStack SDN tunnels (if they don't Controller already exist) between hosts on which VMs are deployed Host 1 (Pod 2) Host 3 (Pod 3) OVS VM CloudStack SDN 1 controller programs the Open vSwitch (OVS) on XenServer to configure GRE Tunnel GRE tunnels Host 2 (Pod 4) Host 4 (Pod 2) OVS OVS VM VM 2 3 VR GRE Tunnel GRE Tunnel

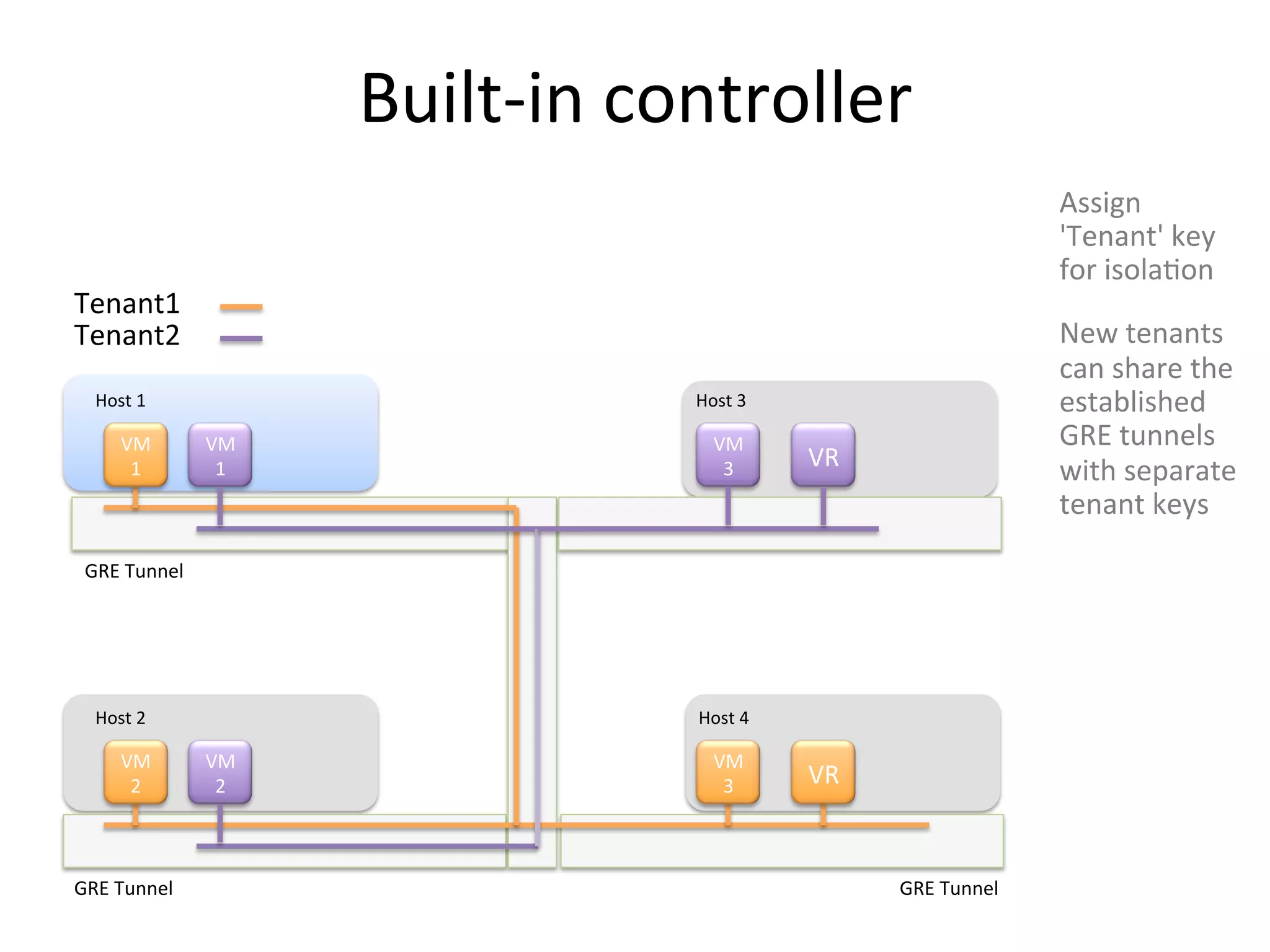

- 42. Built-‐in controller Assign 'Tenant' key for isolaEon Tenant1 Tenant2 New tenants can share the Host 1 Host 3 established VM VM VM GRE tunnels VR 1 1 3 with separate tenant keys GRE Tunnel Host 2 Host 4 VM VM VM 2 2 3 VR GRE Tunnel GRE Tunnel

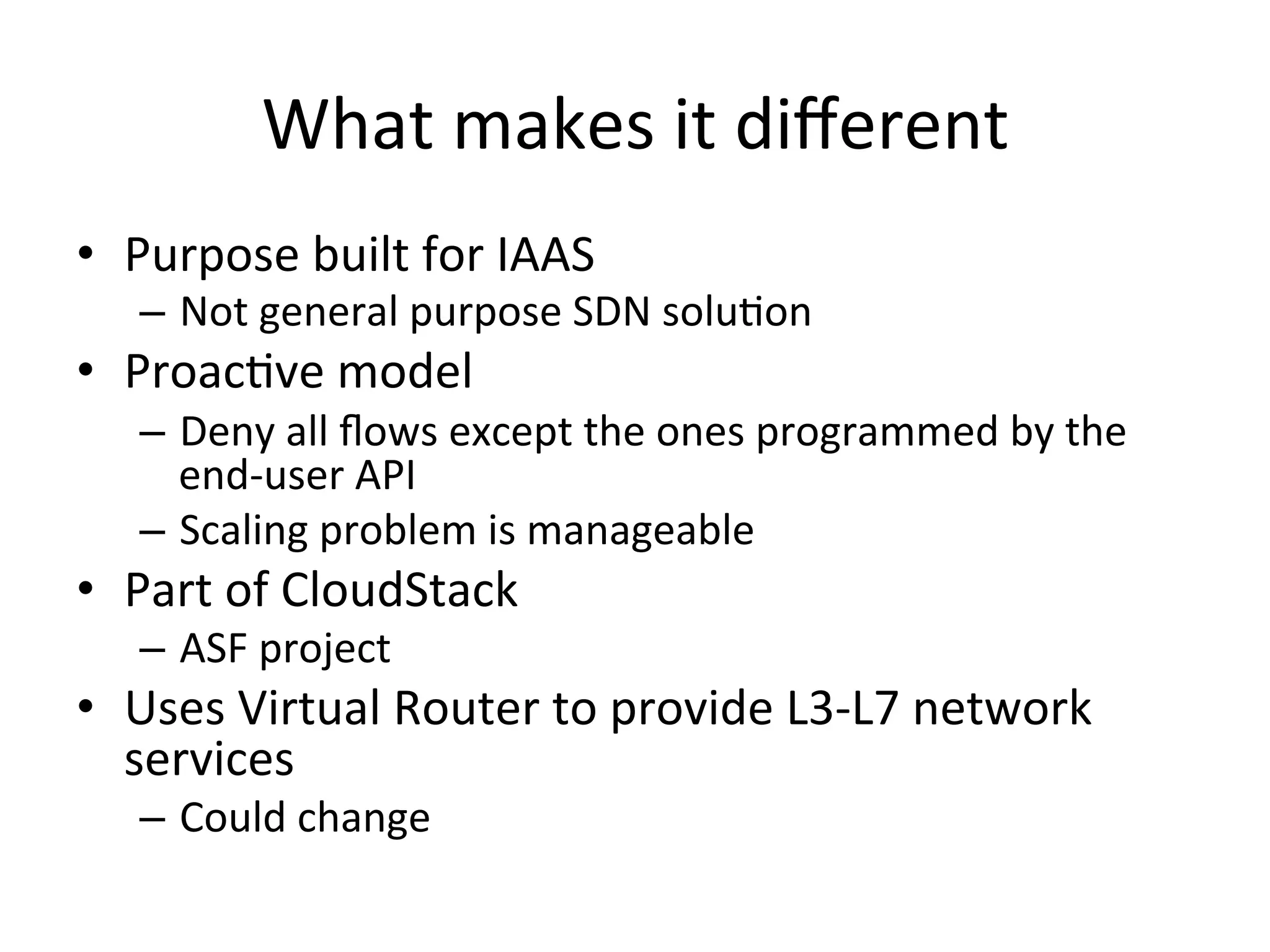

- 43. What makes it different • Purpose built for IAAS – Not general purpose SDN soluEon • ProacEve model – Deny all flows except the ones programmed by the end-‐user API – Scaling problem is manageable • Part of CloudStack – ASF project • Uses Virtual Router to provide L3-‐L7 network services – Could change

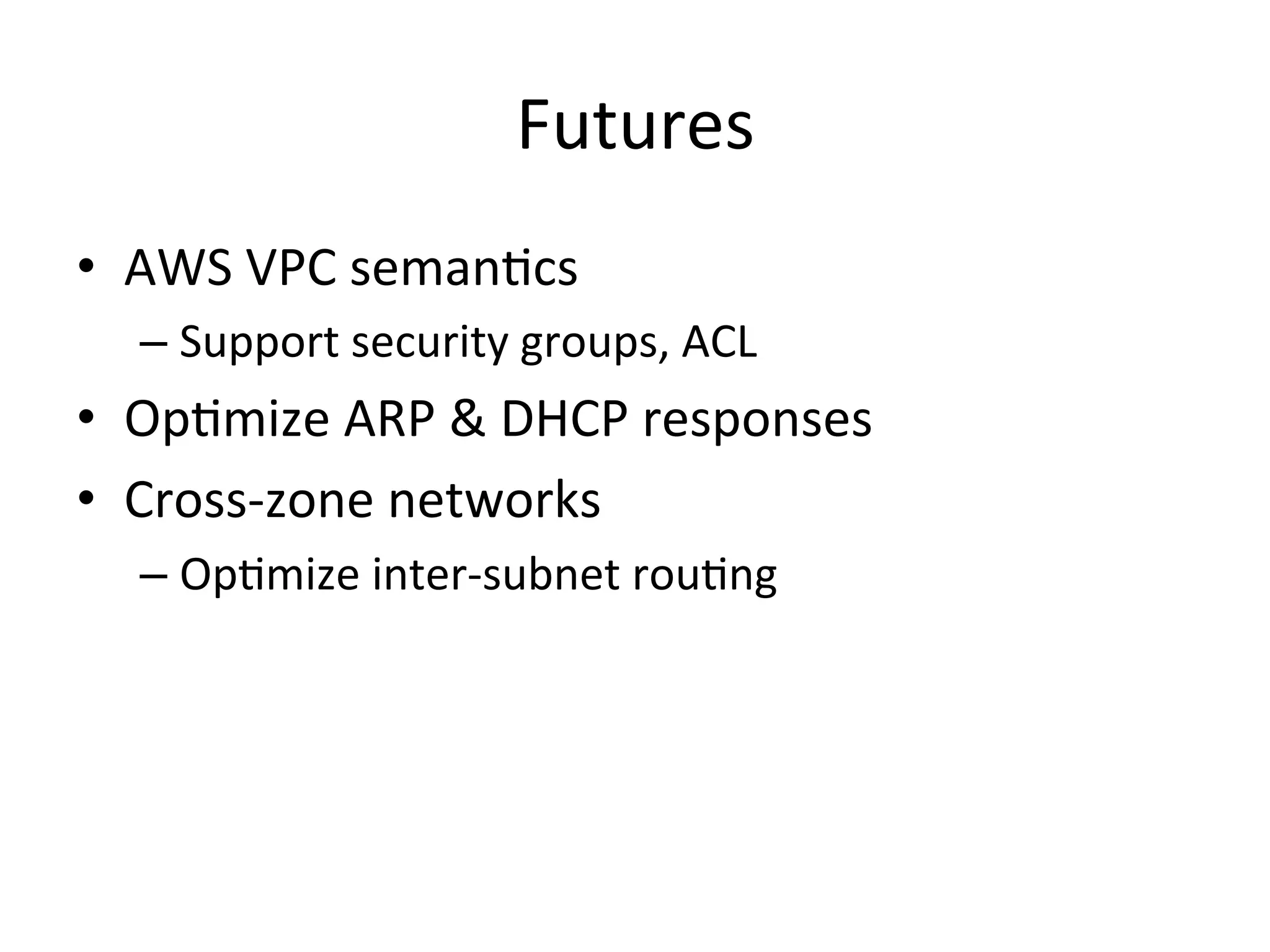

- 44. Futures • AWS VPC semanEcs – Support security groups, ACL • OpEmize ARP & DHCP responses • Cross-‐zone networks – OpEmize inter-‐subnet rouEng
