REST for SQL Developers
This document summarizes how to build a RESTful API for an employee database. It shows SQL queries for common CRUD operations and their RESTful API equivalents. Some key points covered include: - Using GET to retrieve all or a single employee, POST to create a new employee, PUT to replace an employee, and DELETE to remove an employee - Including parameters like limit, offset for pagination, fields for partial responses, and q for searching - Best practices like assigning IDs on the server rather than client, and using POST instead of PUT for partial updates
More Related Content
Similar to REST for SQL Developers
REST for SQL Developers
- 1. REST for SQLDevelopers without (too many) words Greg Brail @gbrail CTO, Apigee
- 2. The Employees Table Field Type Description id integer (auto-increment, Employee ID (auto-increment primary key) column) name varchar Employee Name address1 varchar First line of address address2 varchar Second line of address city varchar Employee City state varchar Employee State postal varchar Employee ZIP code country varchar Employee country salaryband integer Salary band salary decimal Salary, in dollars

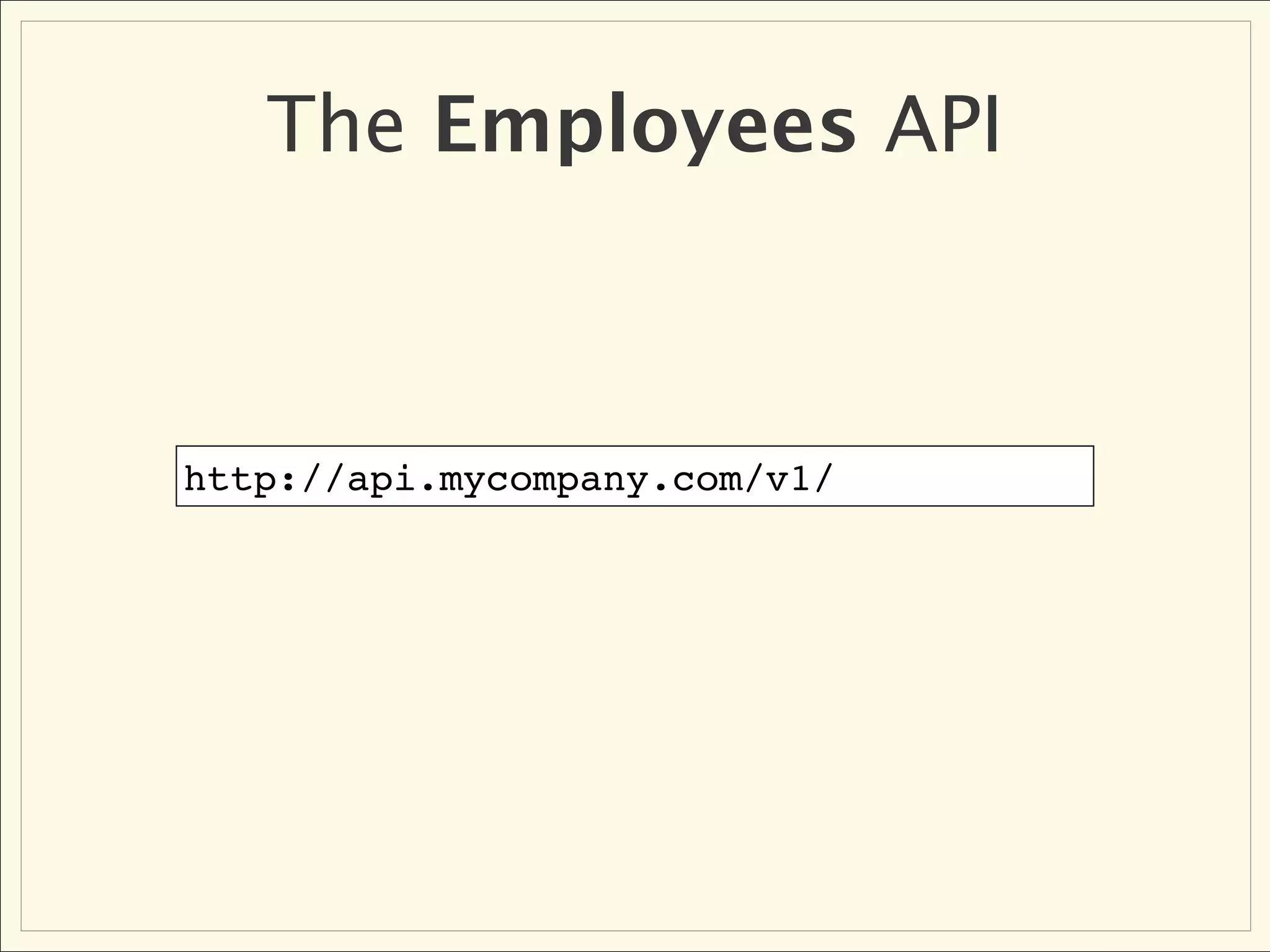

- 3.

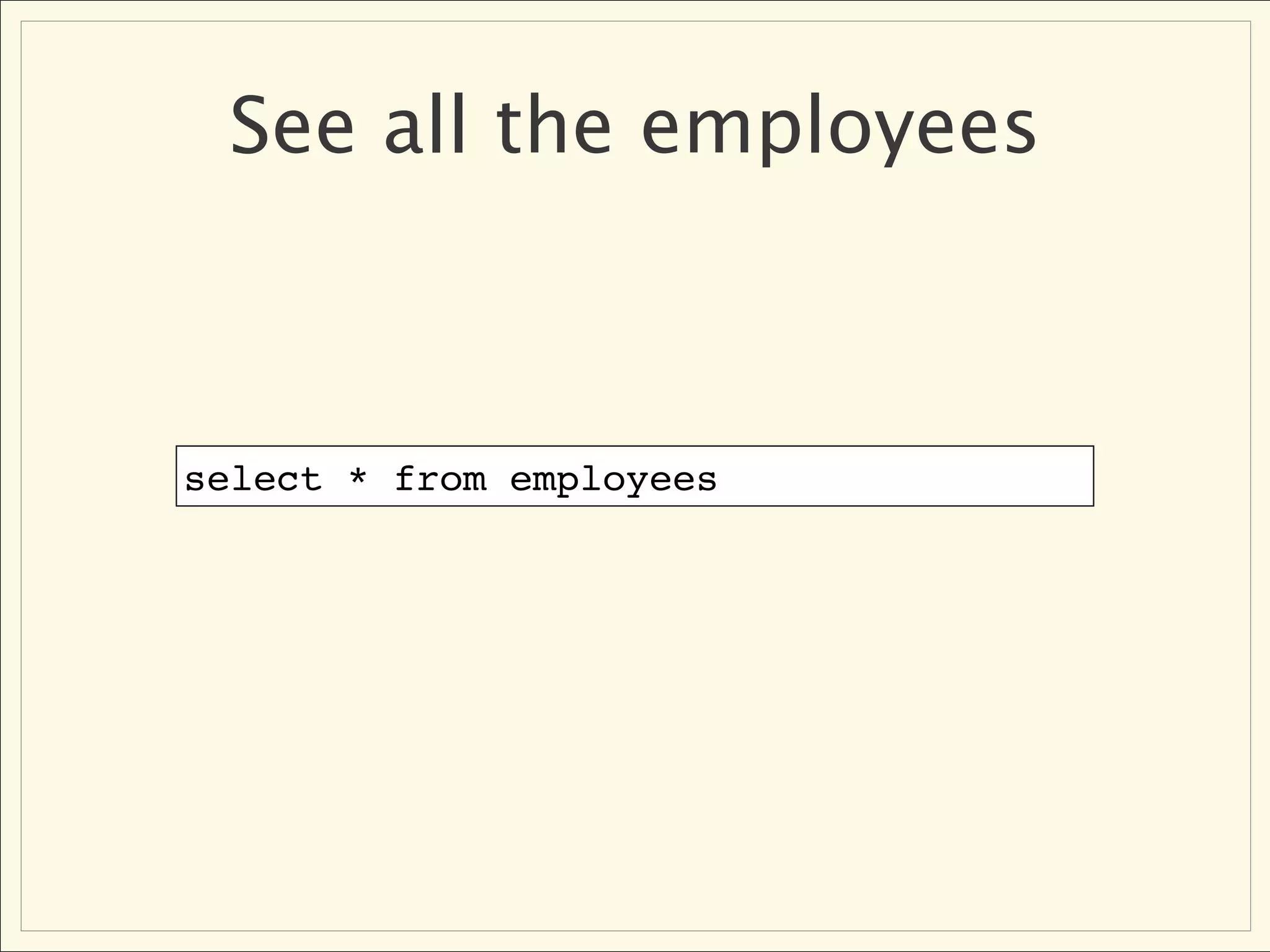

- 4. See all theemployees select * from employees

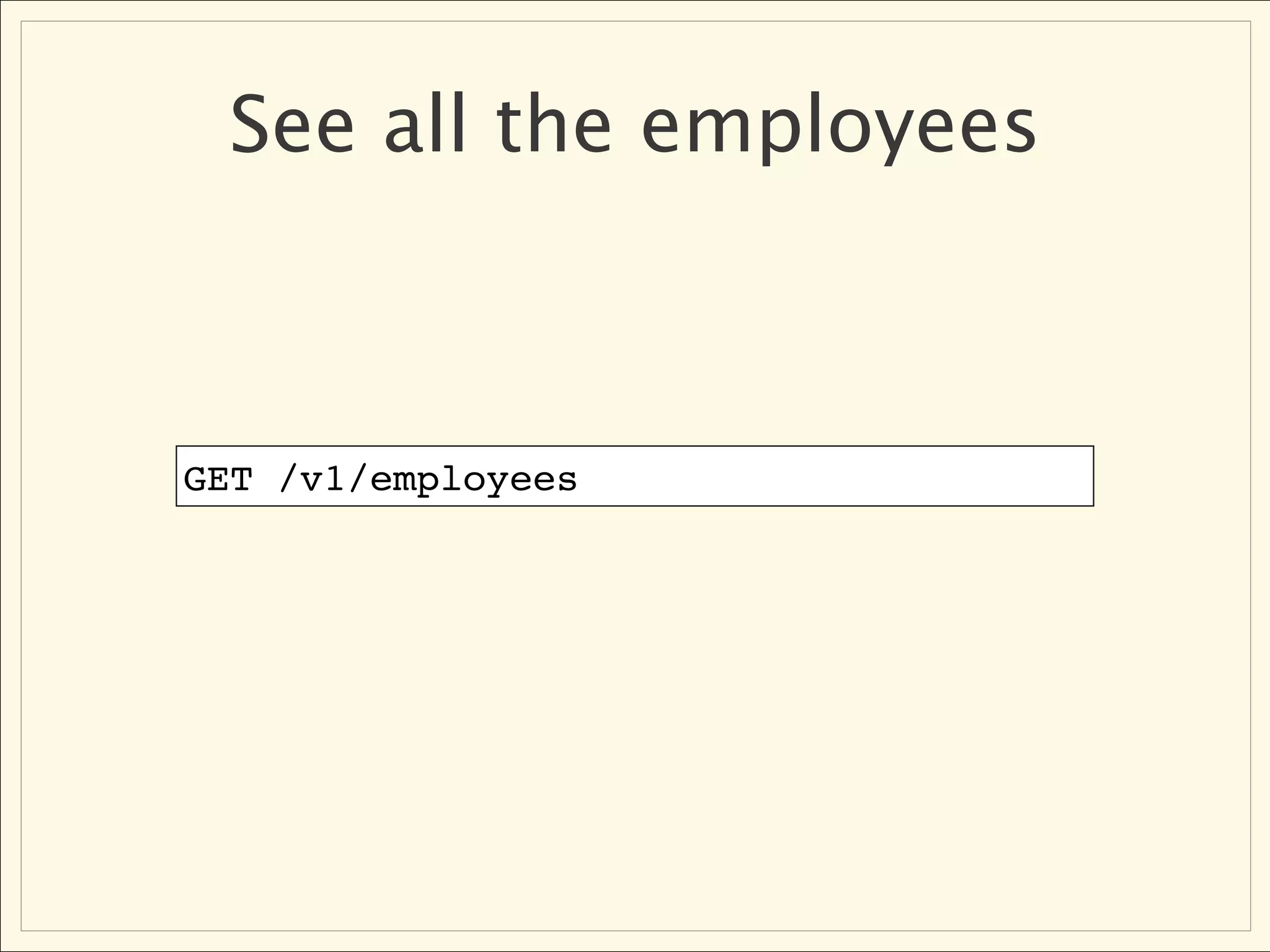

- 5. See all theemployees GET /v1/employees

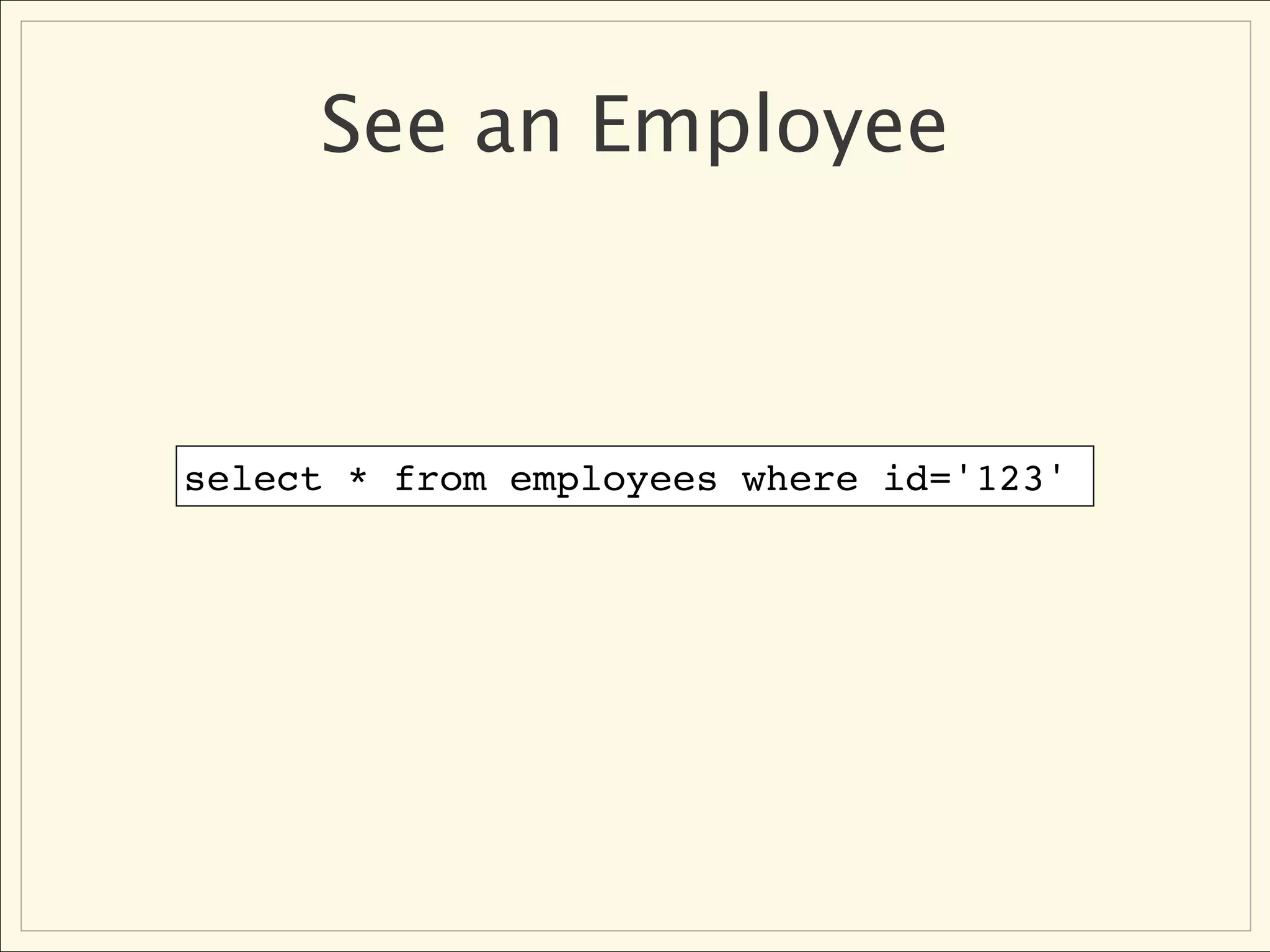

- 6. See an Employee select* from employees where id='123'

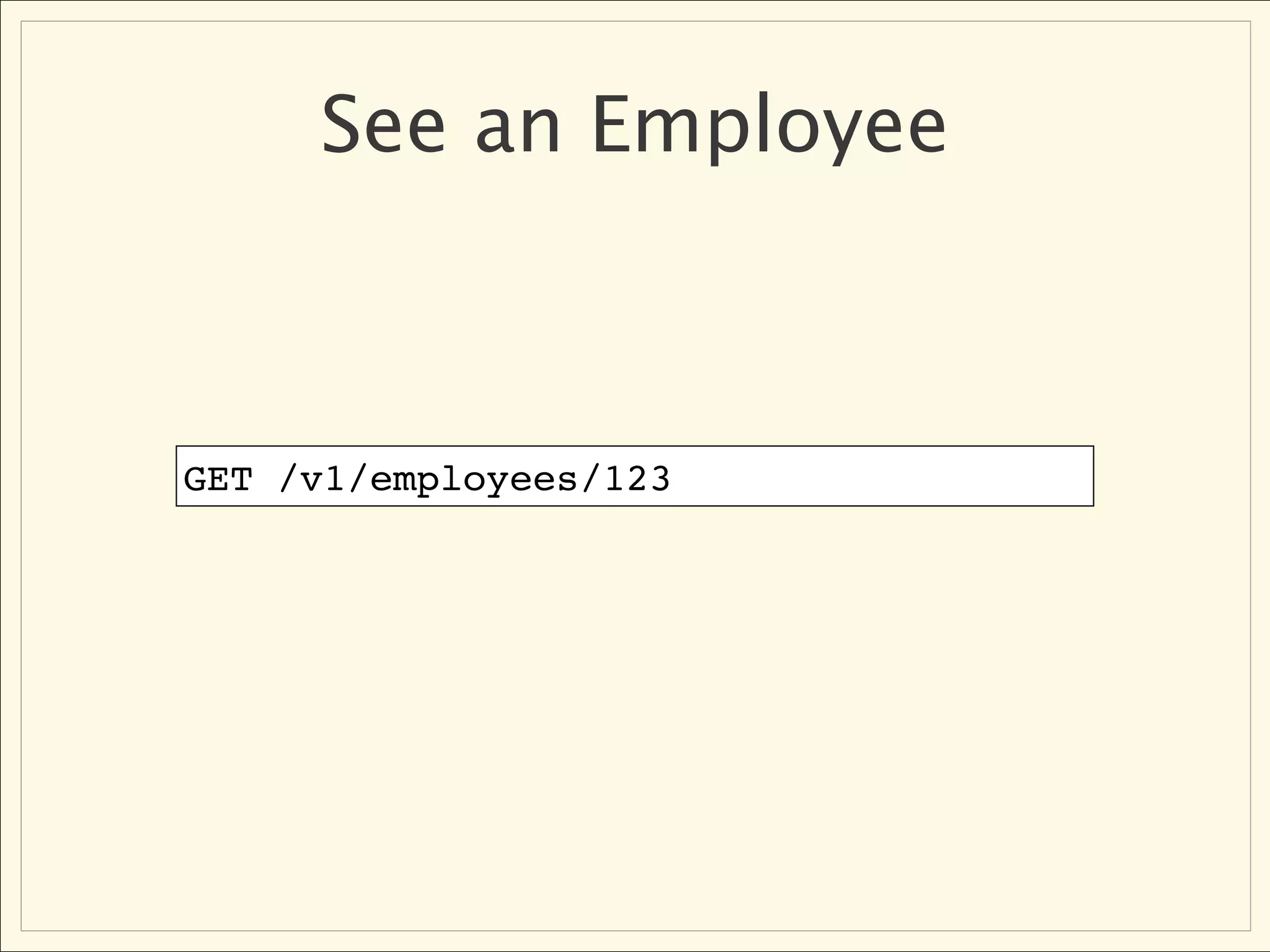

- 7. See an Employee GET/v1/employees/123

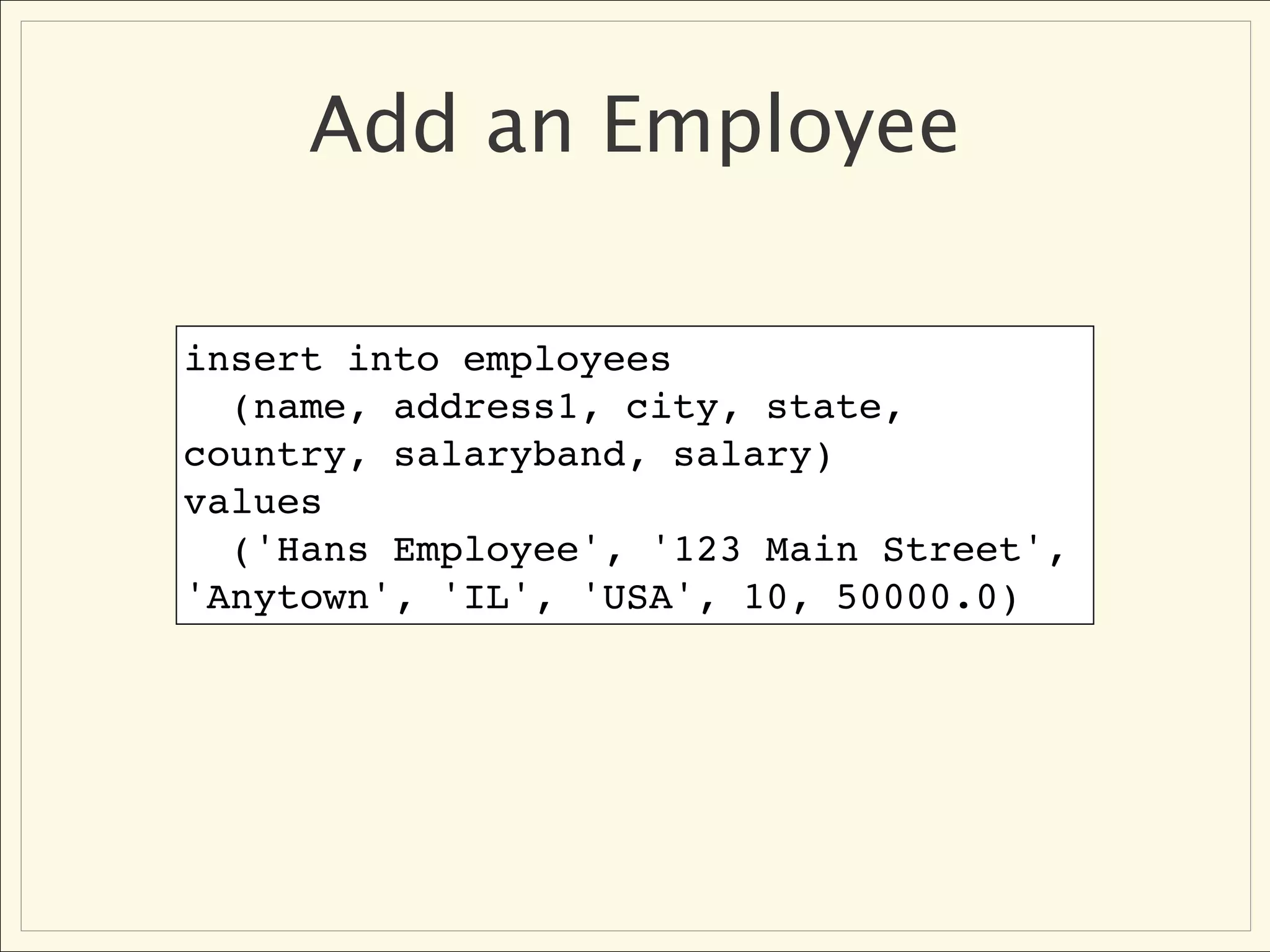

- 8. Add an Employee insertinto employees (name, address1, city, state, country, salaryband, salary) values ('Hans Employee', '123 Main Street', 'Anytown', 'IL', 'USA', 10, 50000.0)

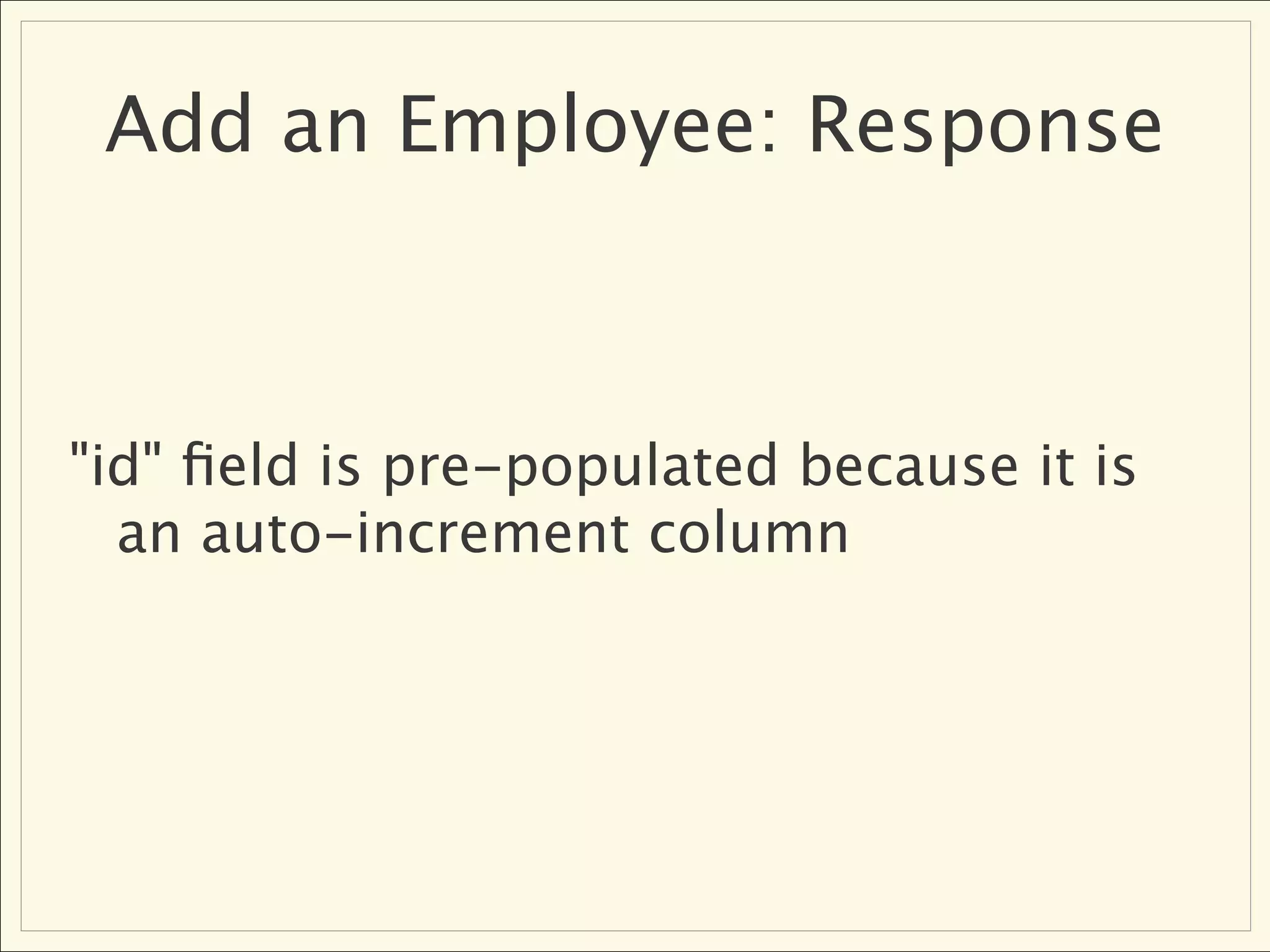

- 9. Add an Employee:Response "id" field is pre-populated because it is an auto-increment column

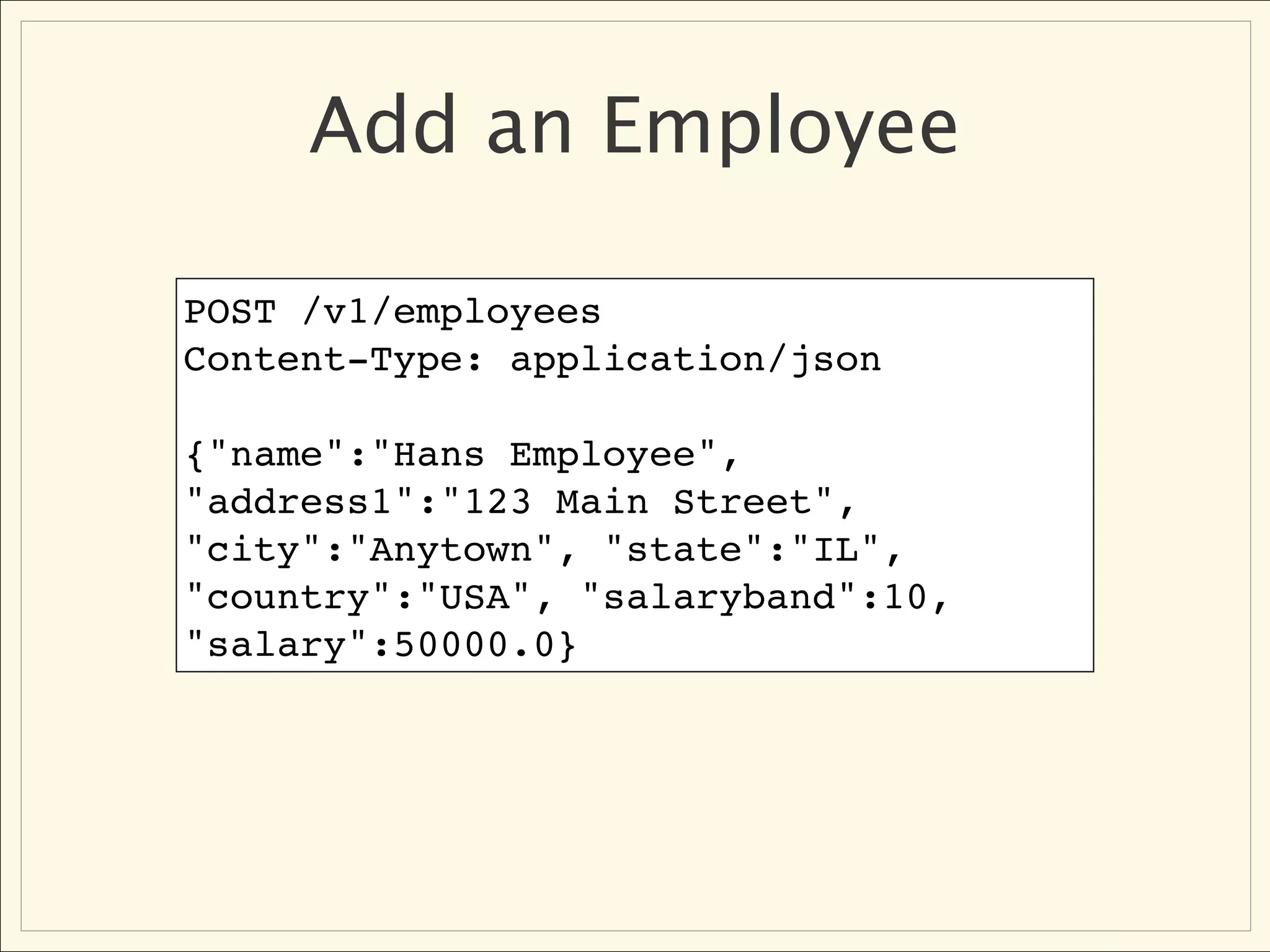

- 10. Add an Employee POST/v1/employees Content-Type: application/json {"name":"Hans Employee", "address1":"123 Main Street", "city":"Anytown", "state":"IL", "country":"USA", "salaryband":10, "salary":50000.0}

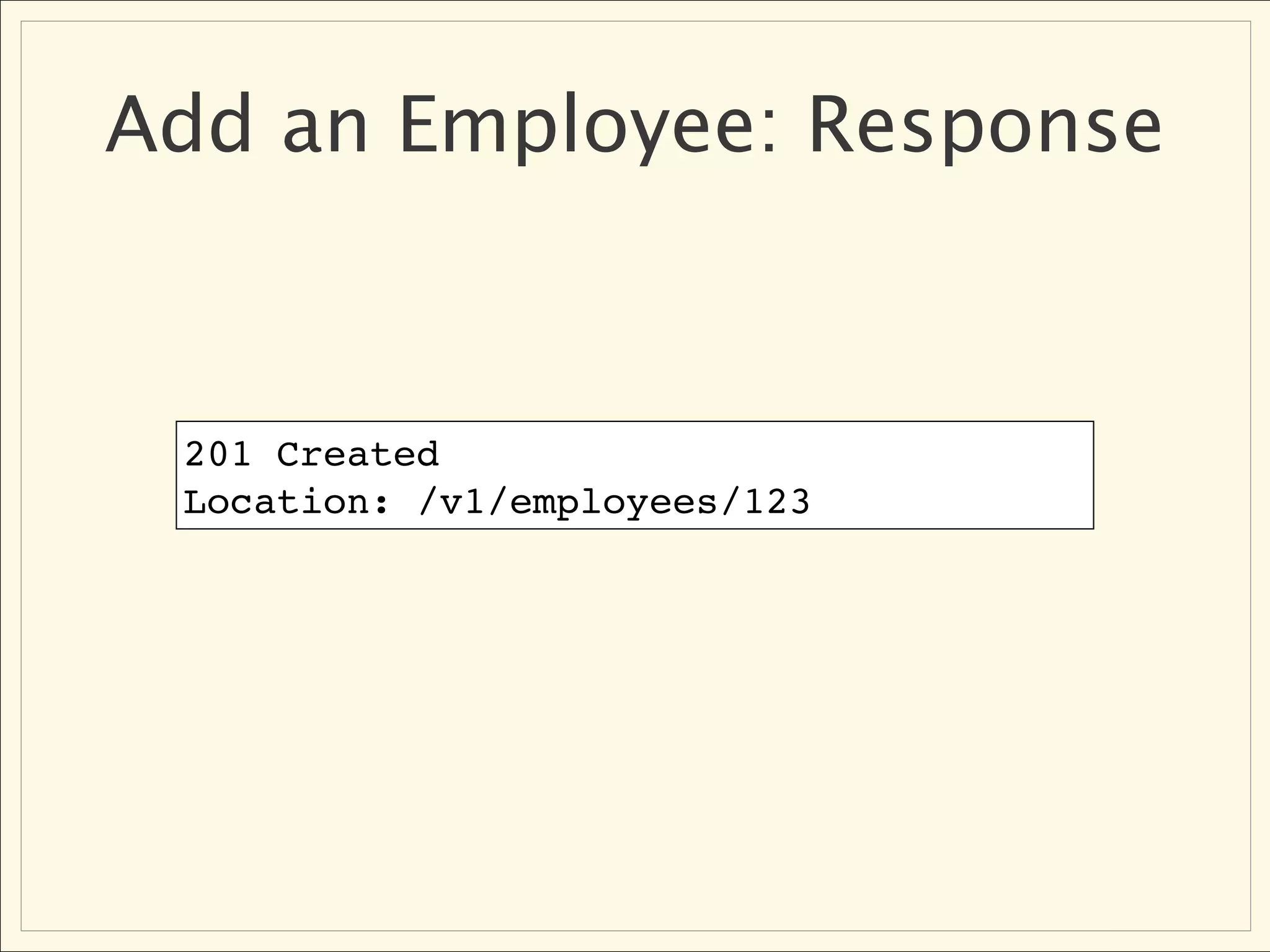

- 11. Add an Employee:Response 201 Created Location: /v1/employees/123

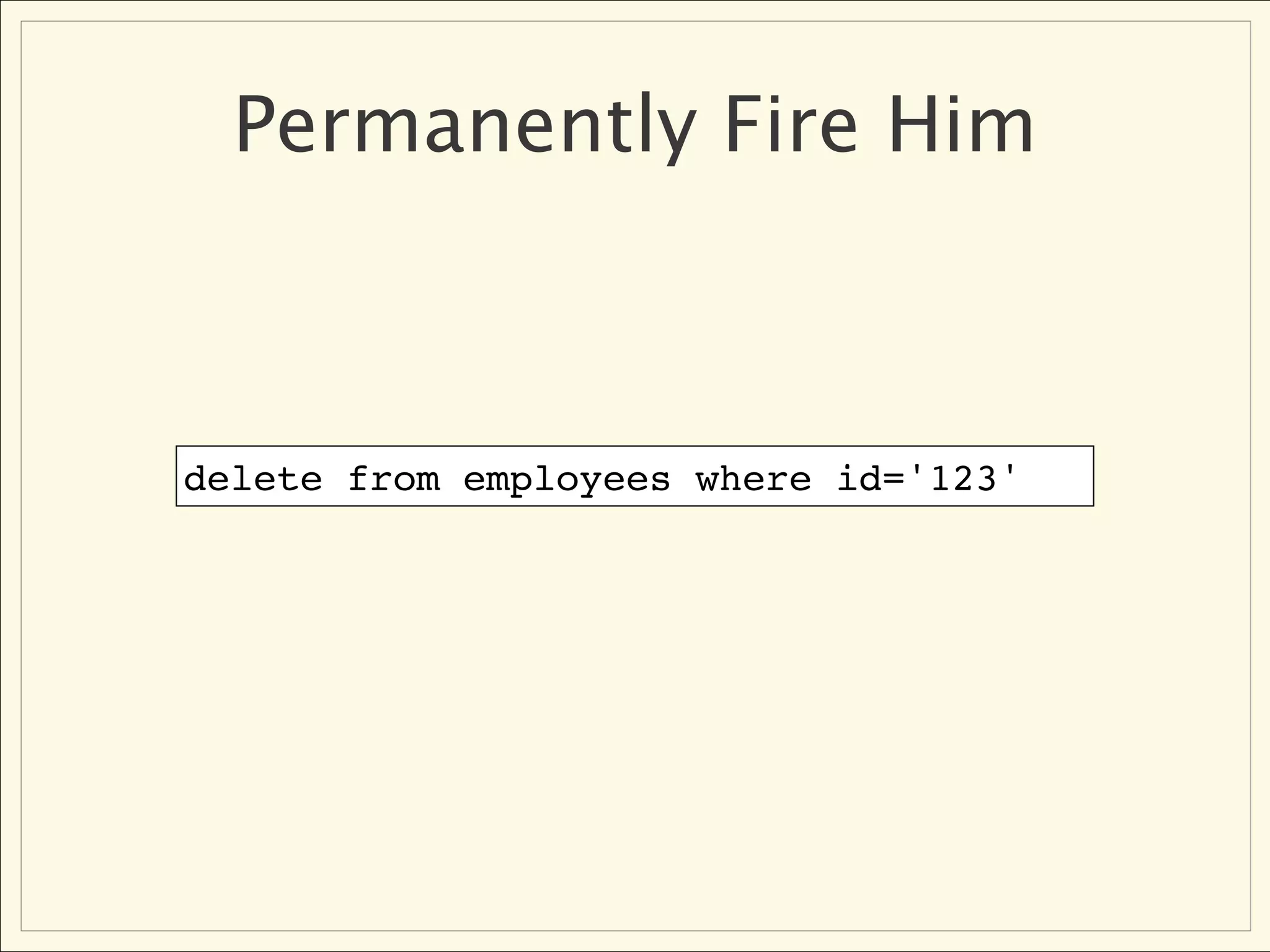

- 12. Permanently Fire Him deletefrom employees where id='123'

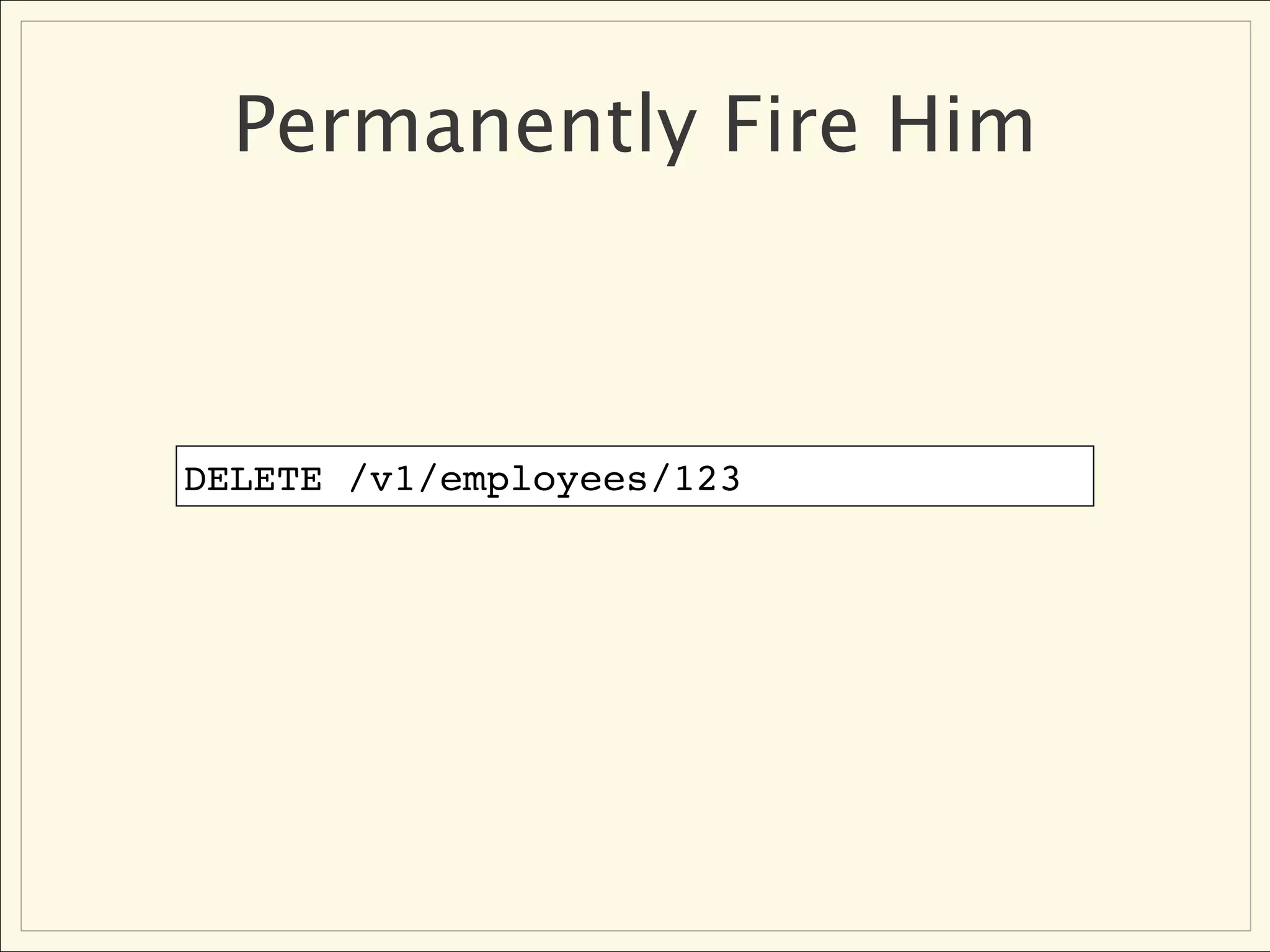

- 13. Permanently Fire Him DELETE/v1/employees/123

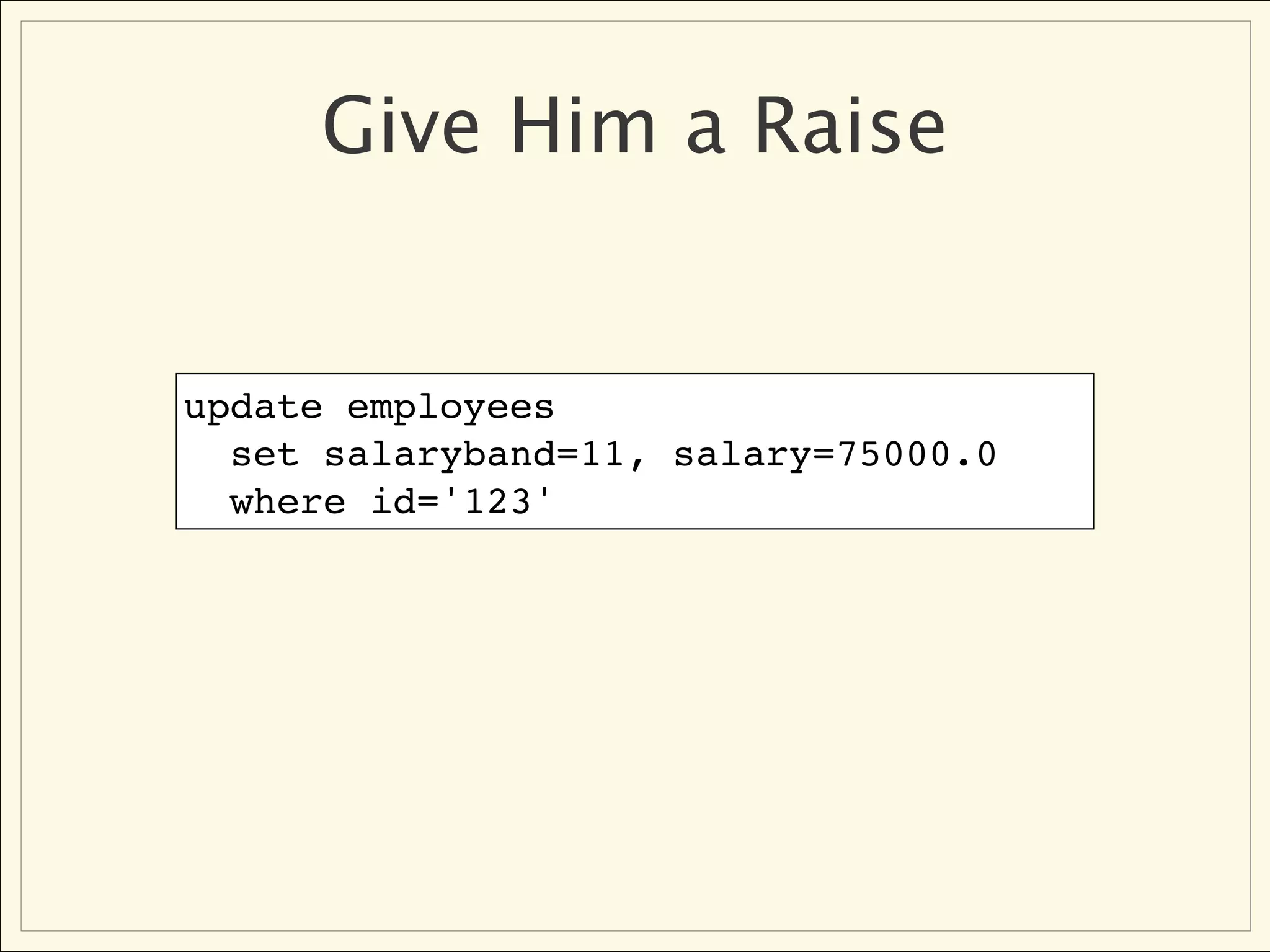

- 14. Give Him aRaise update employees set salaryband=11, salary=75000.0 where id='123'

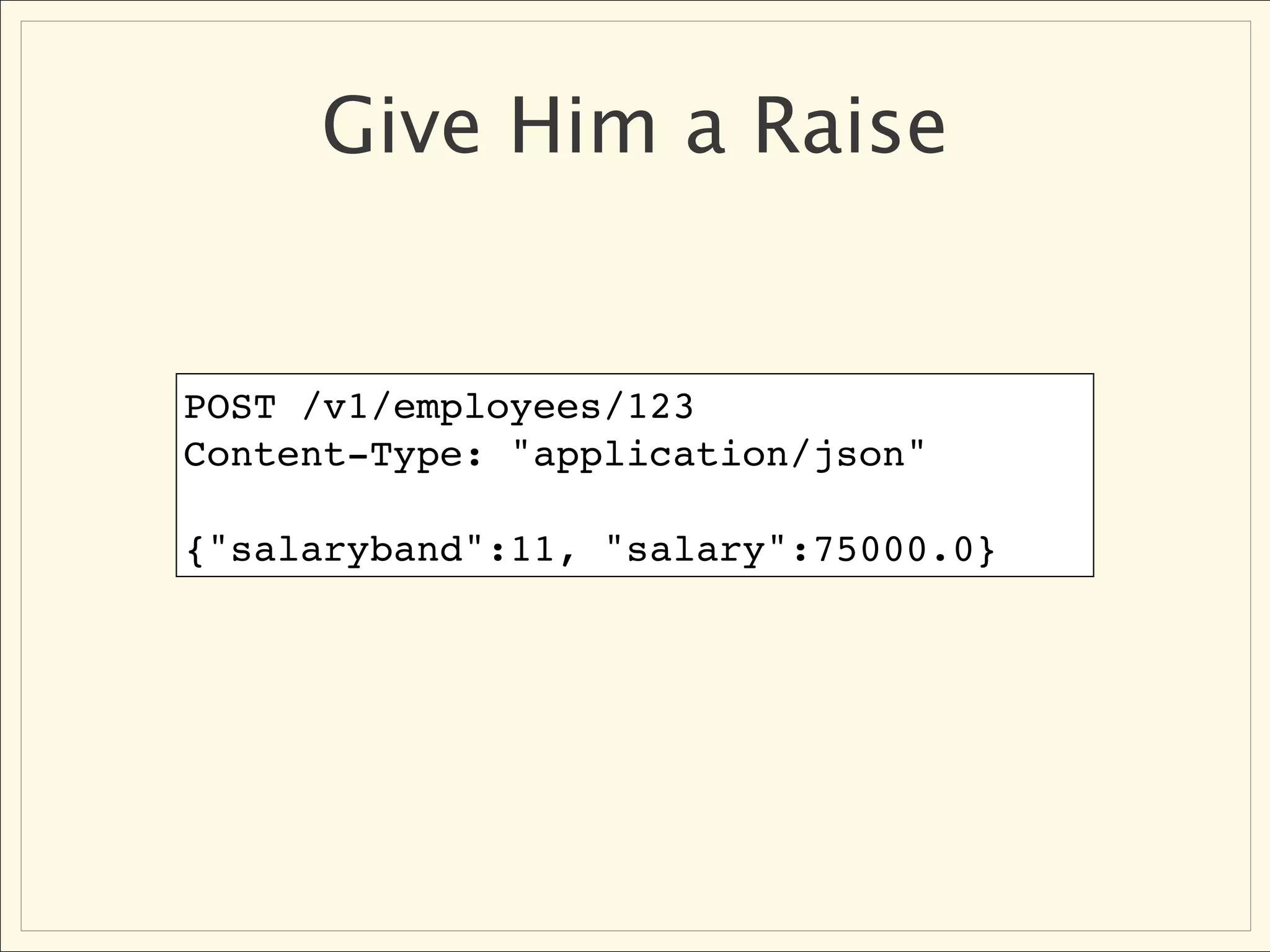

- 15. Give Him aRaise POST /v1/employees/123 Content-Type: "application/json" {"salaryband":11, "salary":75000.0}

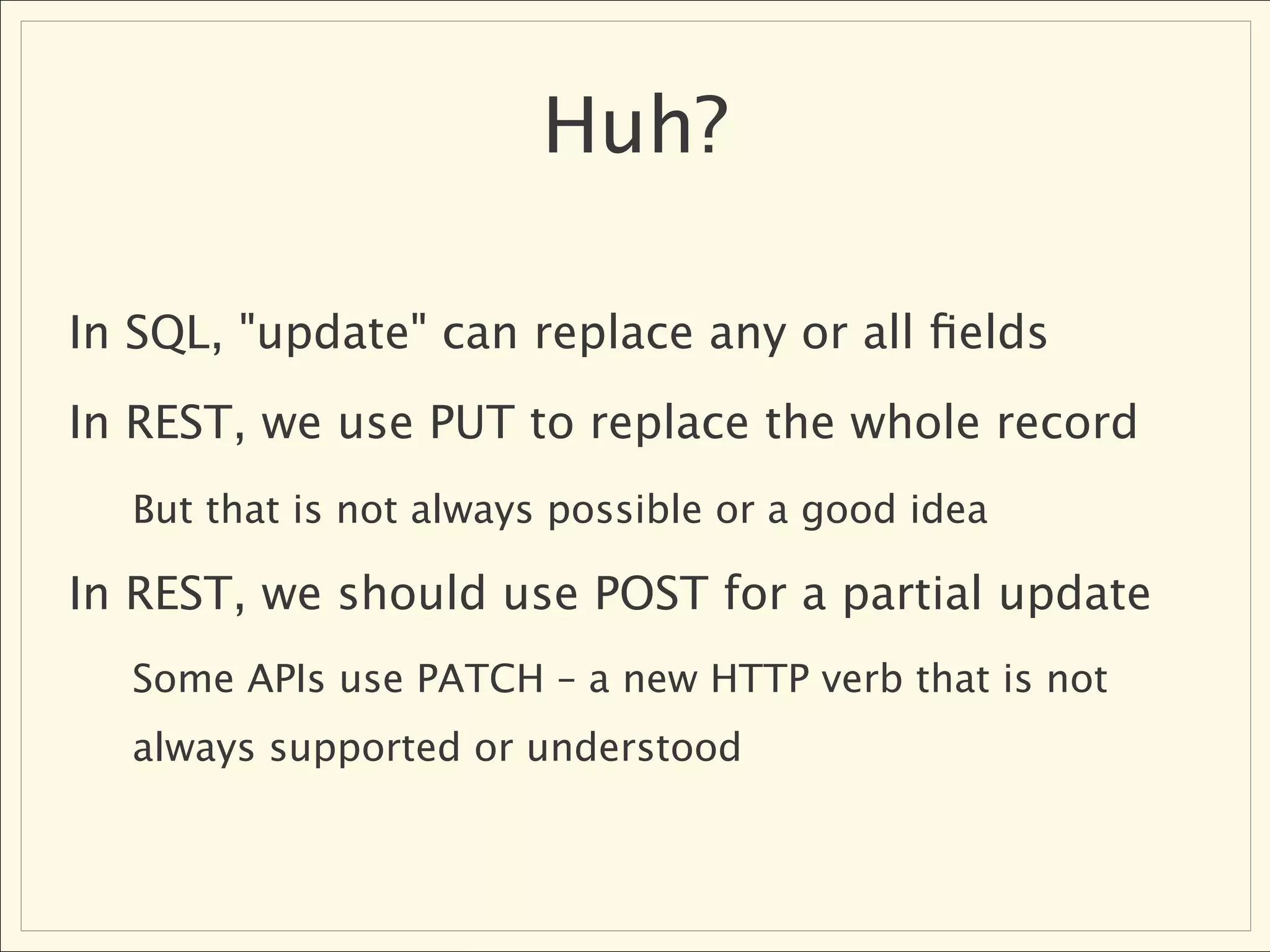

- 16. Huh? In SQL, "update"can replace any or all fields In REST, we use PUT to replace the whole record But that is not always possible or a good idea In REST, we should use POST for a partial update Some APIs use PATCH – a new HTTP verb that is not always supported or understood

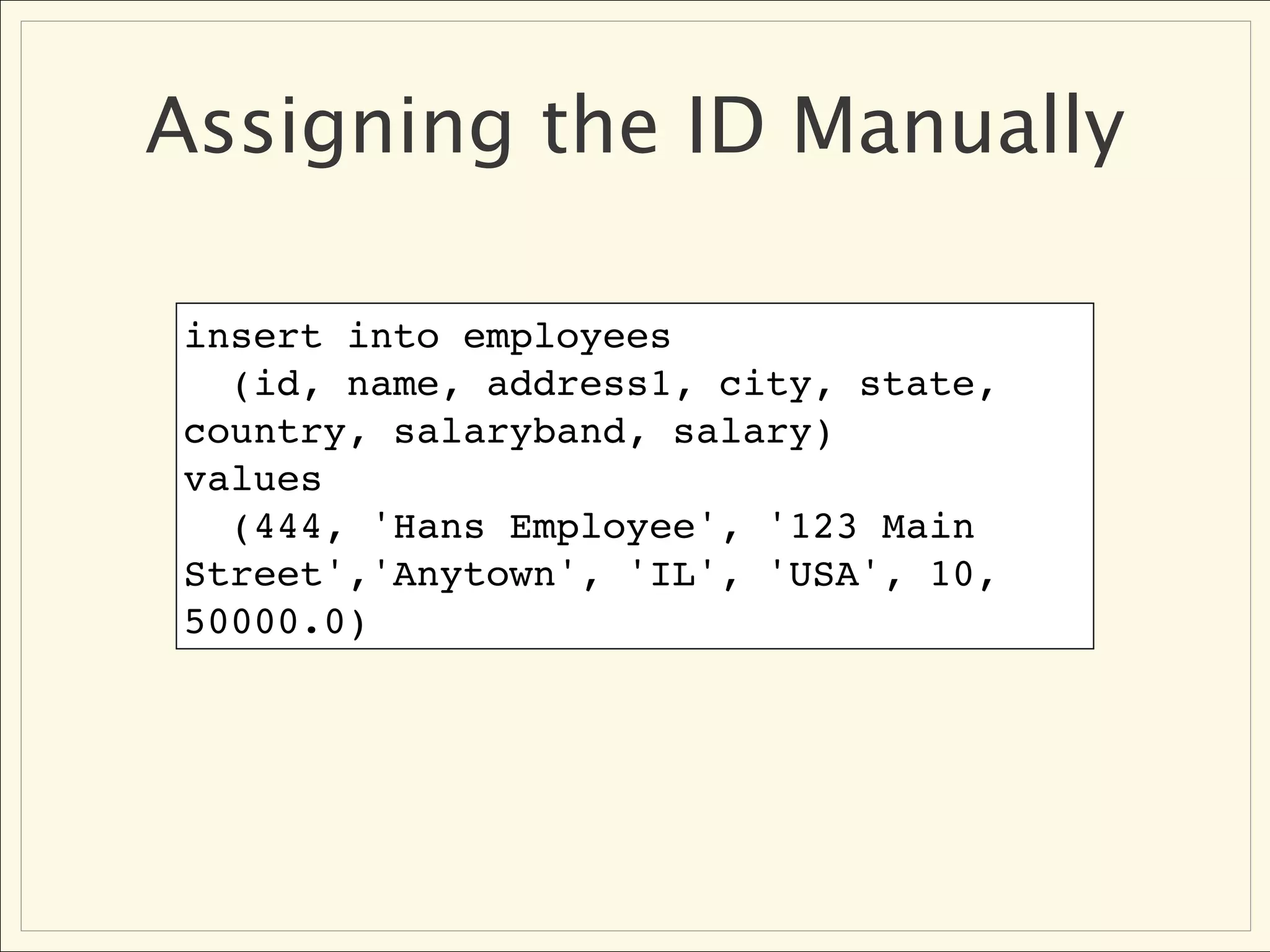

- 17. Assigning the IDManually insert into employees (id, name, address1, city, state, country, salaryband, salary) values (444, 'Hans Employee', '123 Main Street','Anytown', 'IL', 'USA', 10, 50000.0)

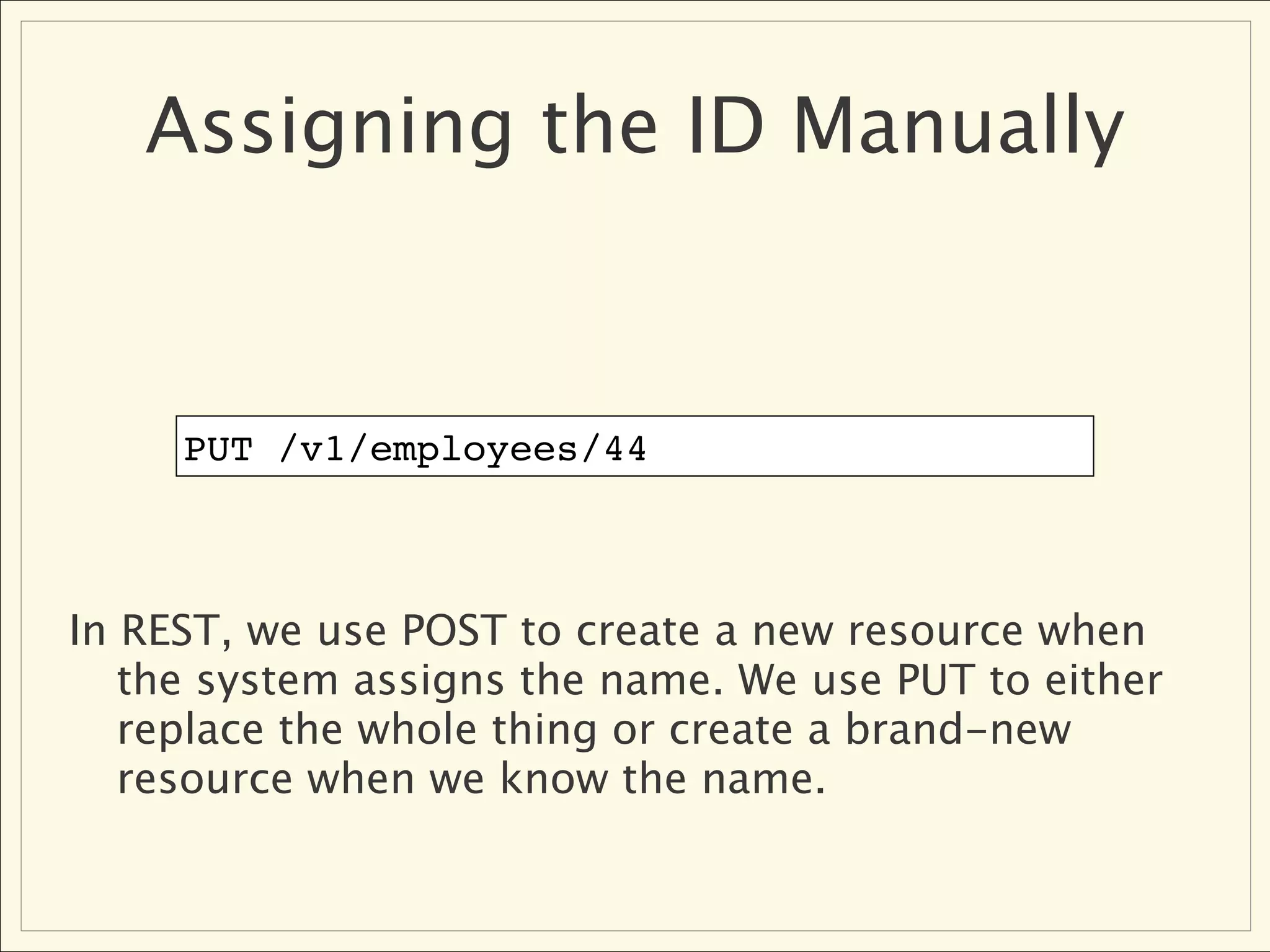

- 18. Assigning the IDManually PUT /v1/employees/44 In REST, we use POST to create a new resource when the system assigns the name. We use PUT to either replace the whole thing or create a brand-new resource when we know the name.

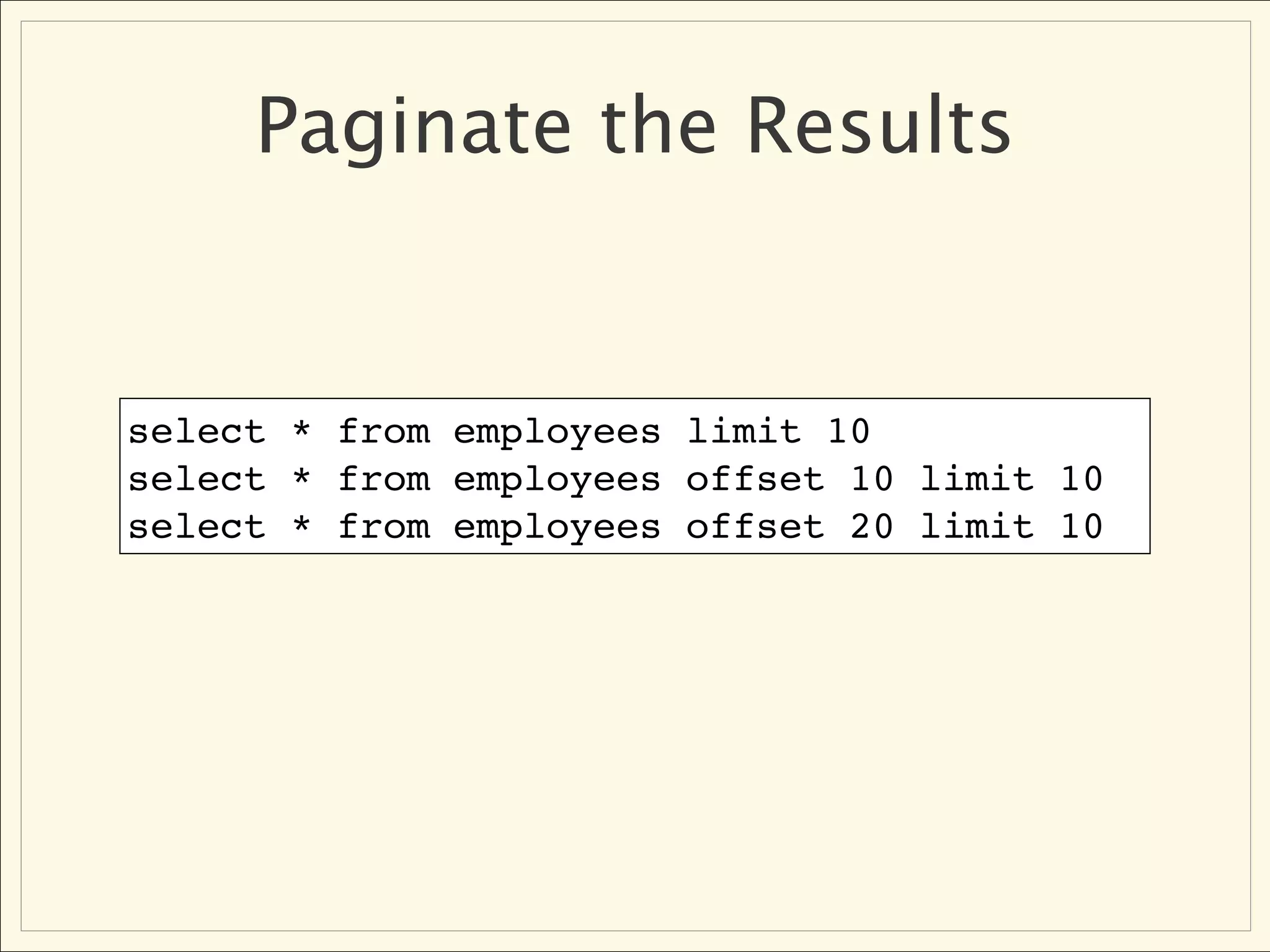

- 19. Paginate the Results select* from employees limit 10 select * from employees offset 10 limit 10 select * from employees offset 20 limit 10

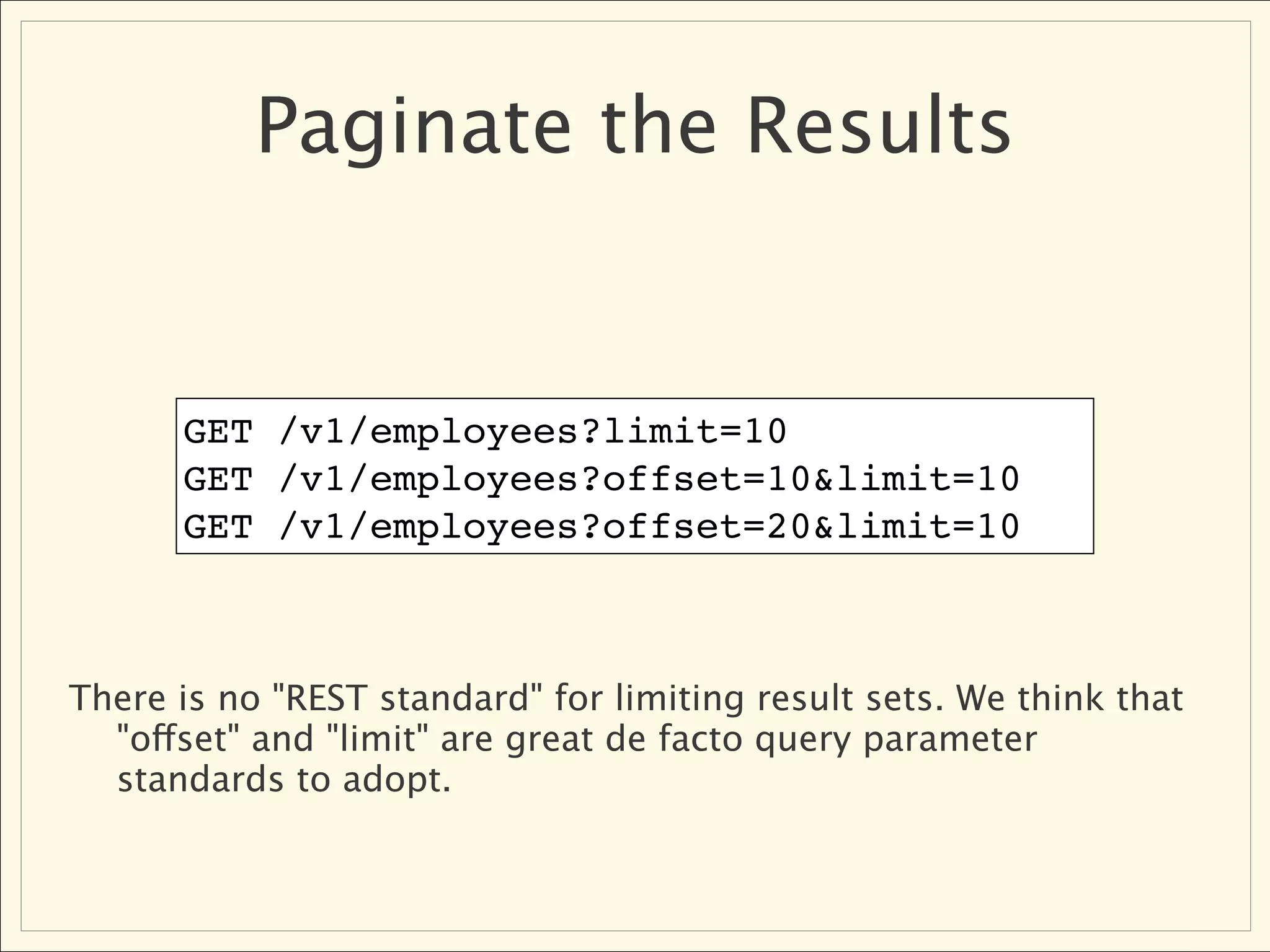

- 20. Paginate the Results GET /v1/employees?limit=10 GET /v1/employees?offset=10&limit=10 GET /v1/employees?offset=20&limit=10 There is no "REST standard" for limiting result sets. We think that "offset" and "limit" are great de facto query parameter standards to adopt.

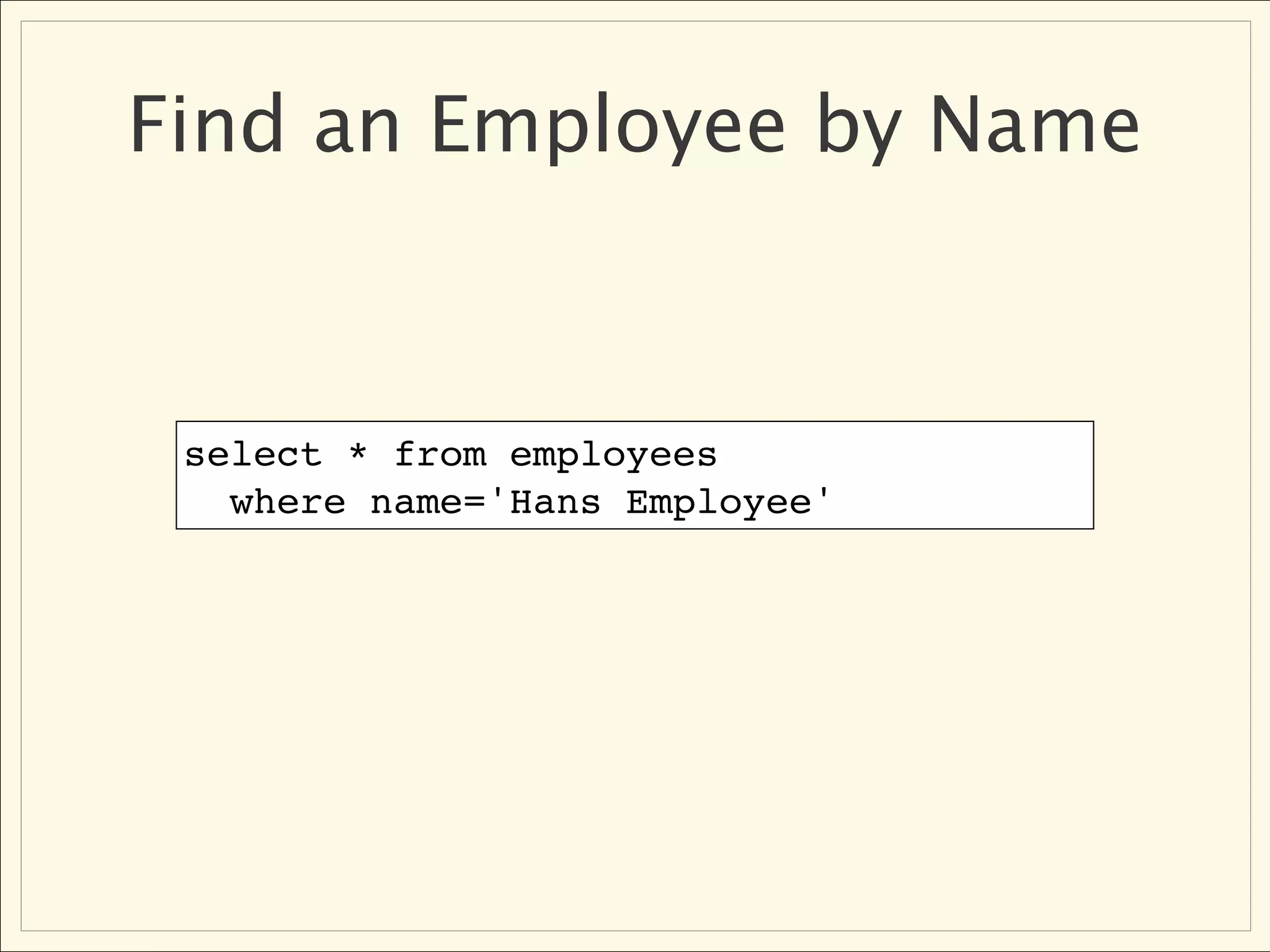

- 21. Find an Employeeby Name select * from employees where name='Hans Employee'

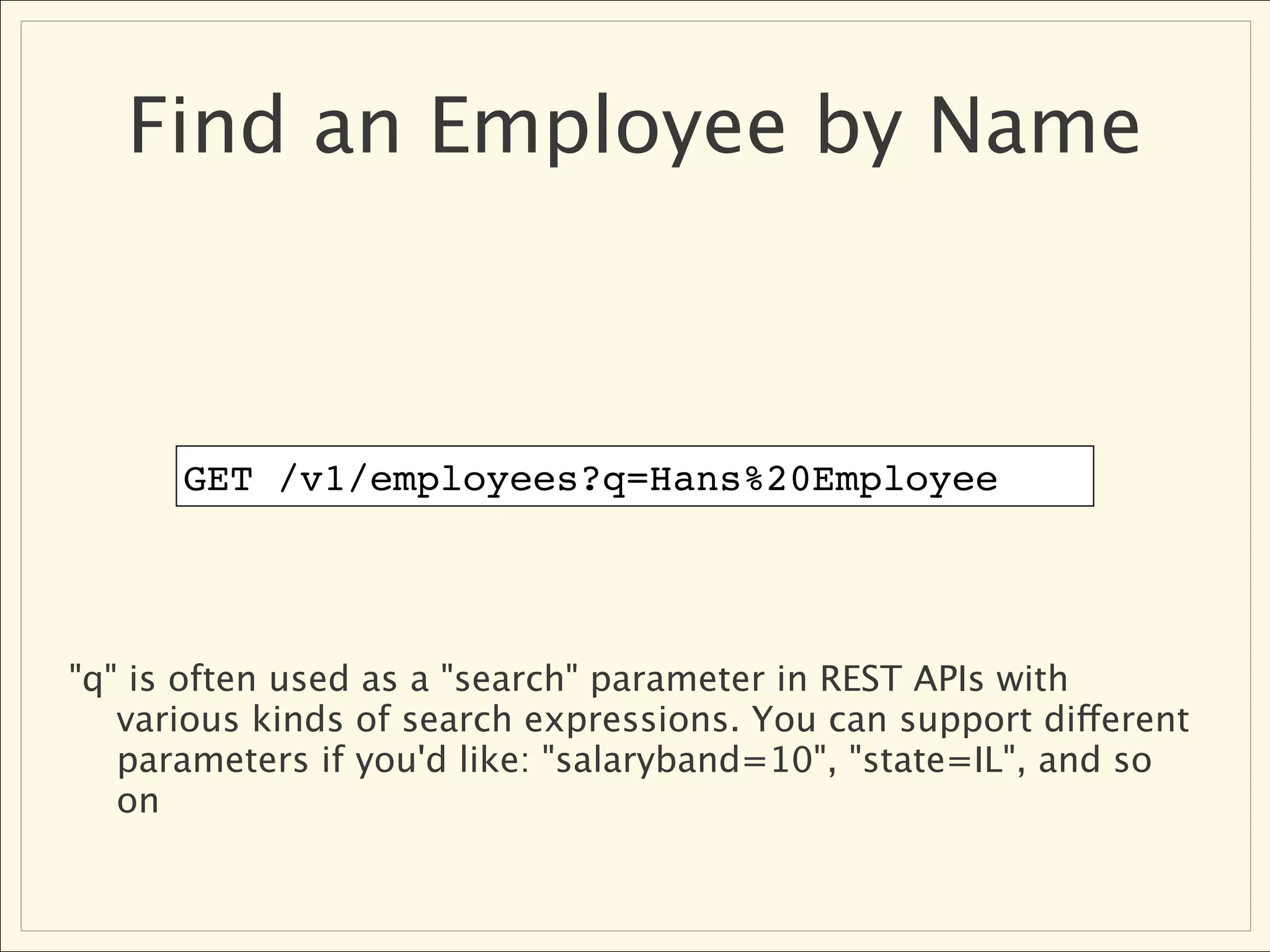

- 22. Find an Employeeby Name GET /v1/employees?q=Hans%20Employee "q" is often used as a "search" parameter in REST APIs with various kinds of search expressions. You can support different parameters if you'd like: "salaryband=10", "state=IL", and so on

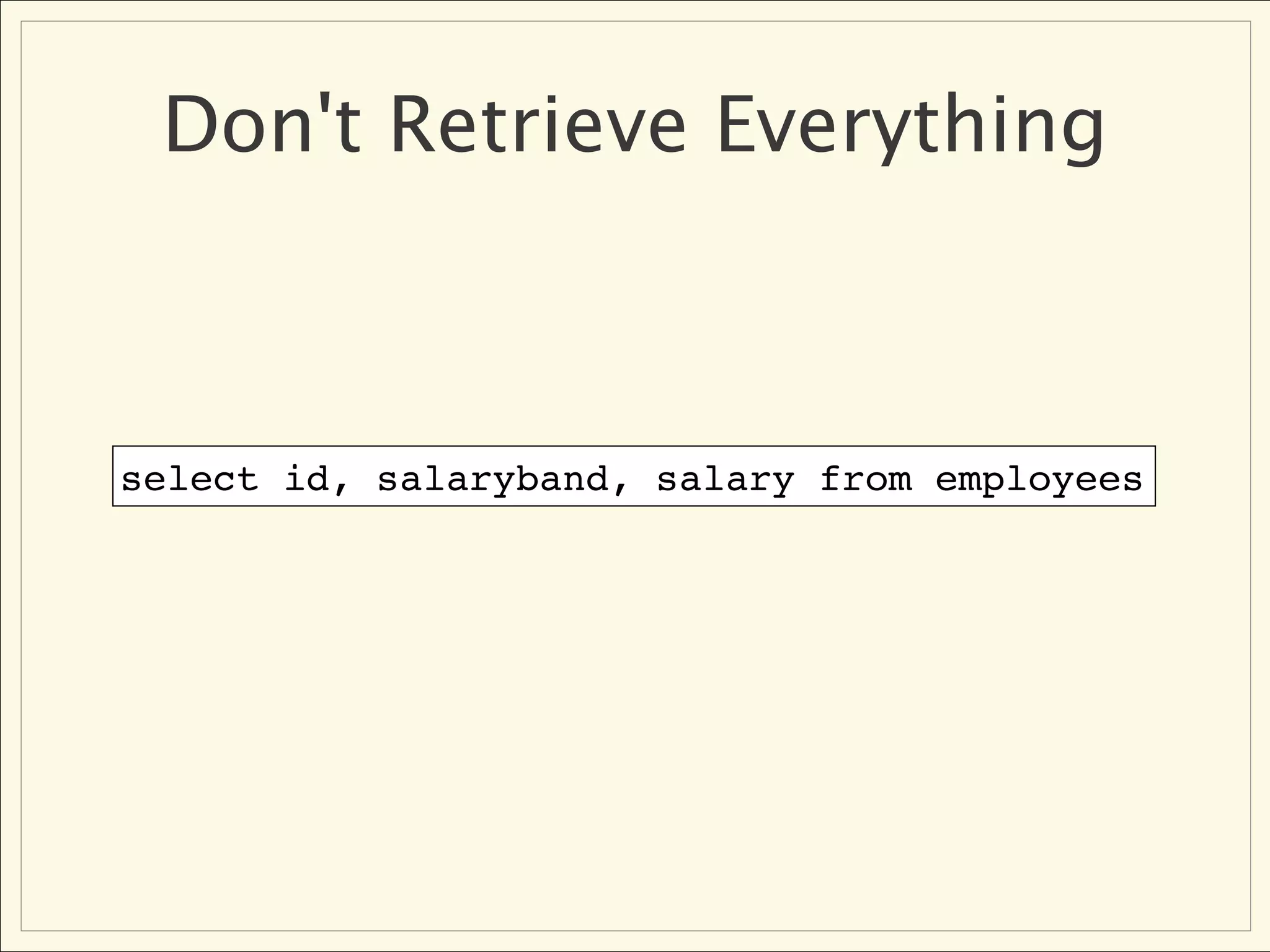

- 23. Don't Retrieve Everything selectid, salaryband, salary from employees

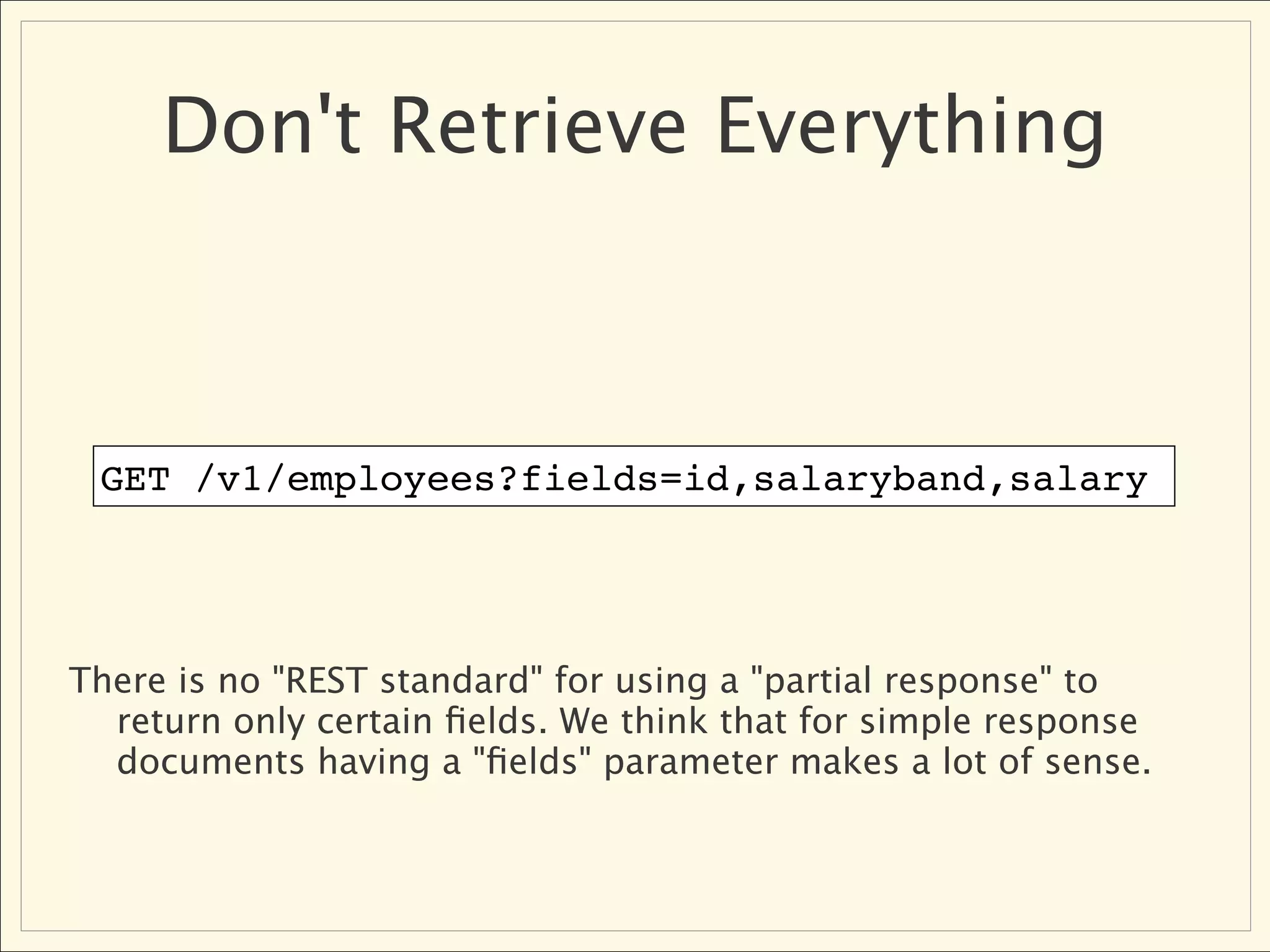

- 24. Don't Retrieve Everything GET /v1/employees?fields=id,salaryband,salary There is no "REST standard" for using a "partial response" to return only certain fields. We think that for simple response documents having a "fields" parameter makes a lot of sense.

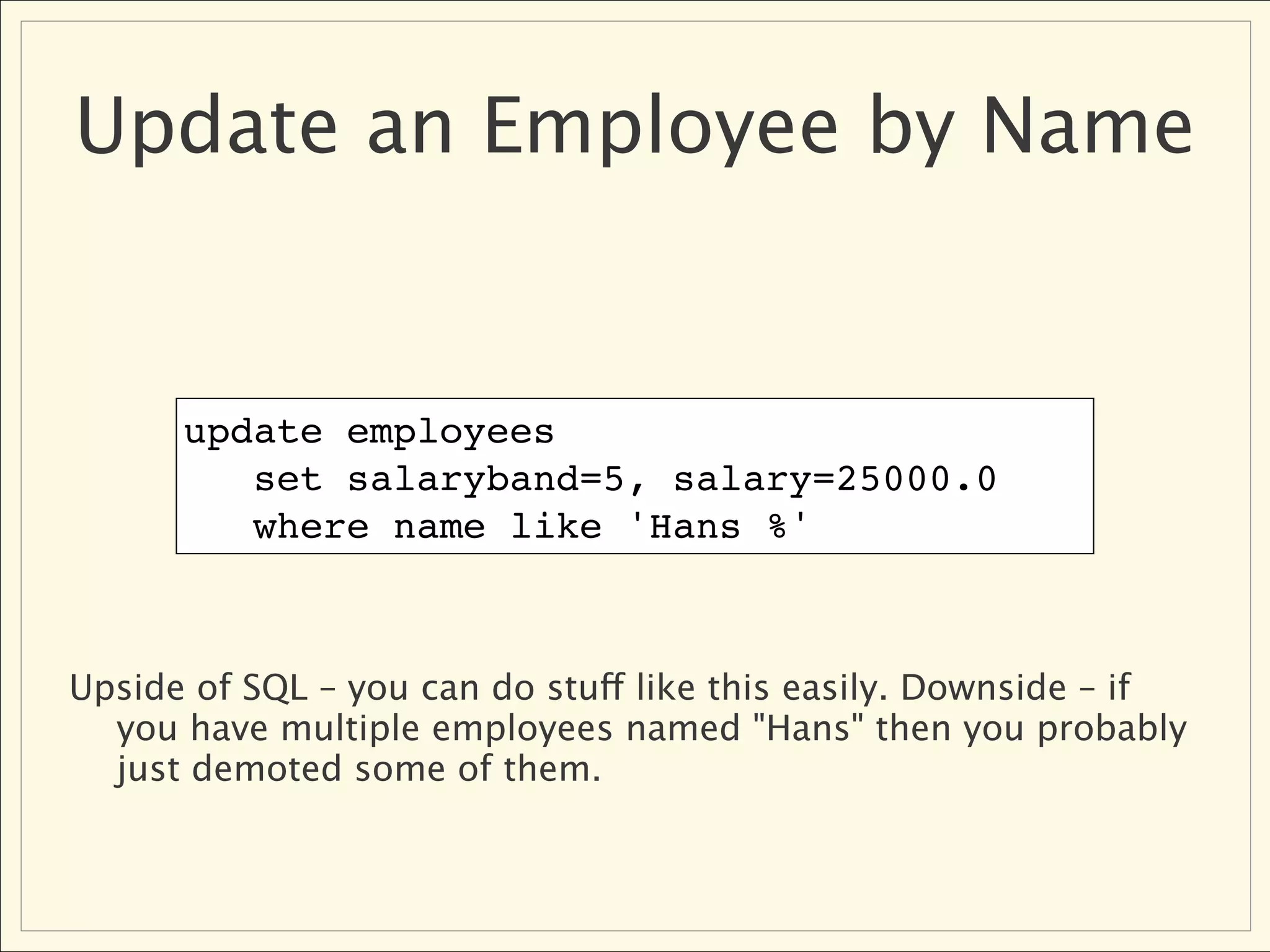

- 25. Update an Employeeby Name update employees set salaryband=5, salary=25000.0 where name like 'Hans %' Upside of SQL – you can do stuff like this easily. Downside – if you have multiple employees named "Hans" then you probably just demoted some of them.

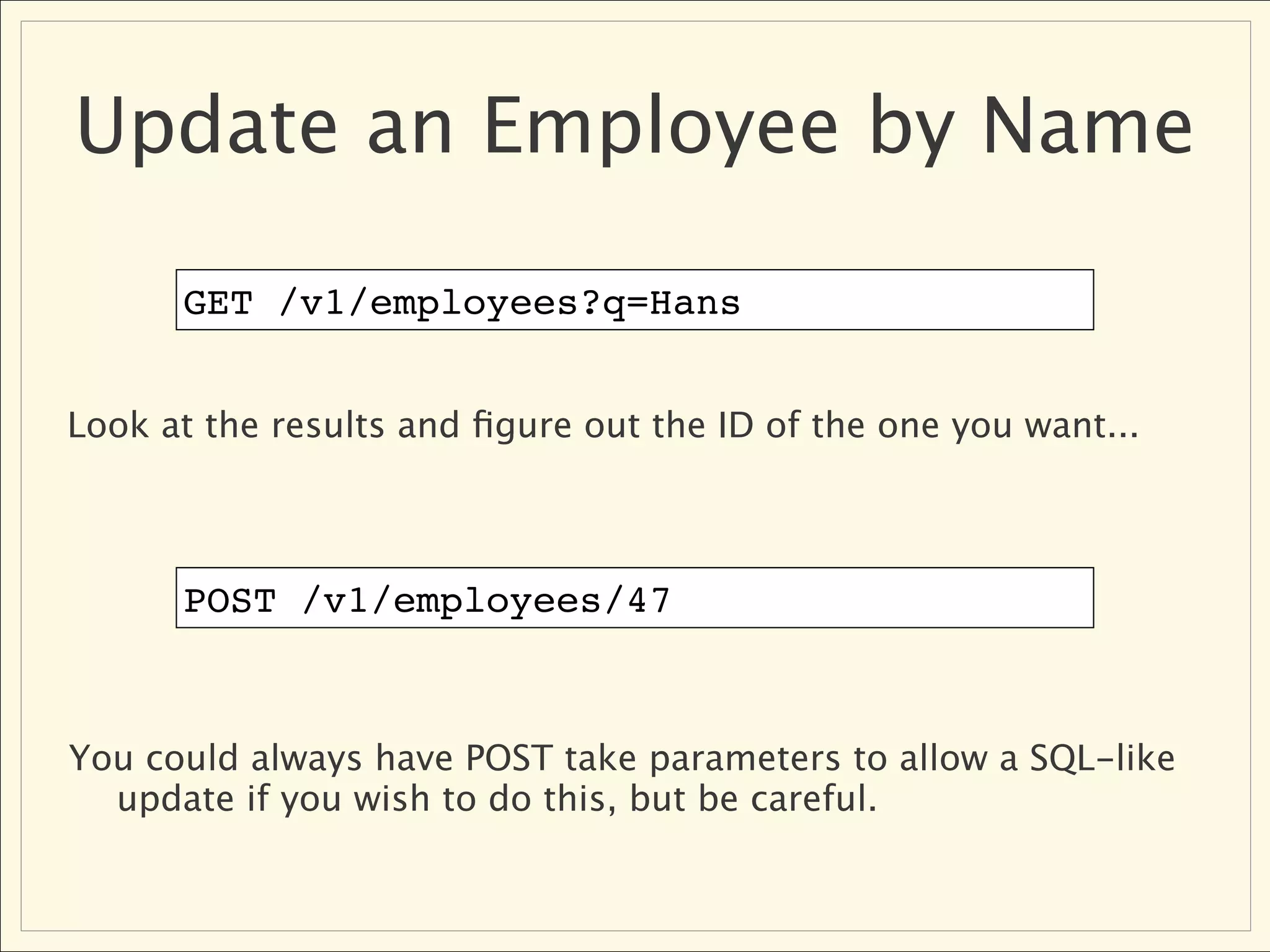

- 26. Update an Employeeby Name GET /v1/employees?q=Hans Look at the results and figure out the ID of the one you want... POST /v1/employees/47 You could always have POST take parameters to allow a SQL-like update if you wish to do this, but be careful.
- 27.
