Software Processes
Presented by:
Muhammad Sufian
1
Software Processes
Start With The Name Of Allah.

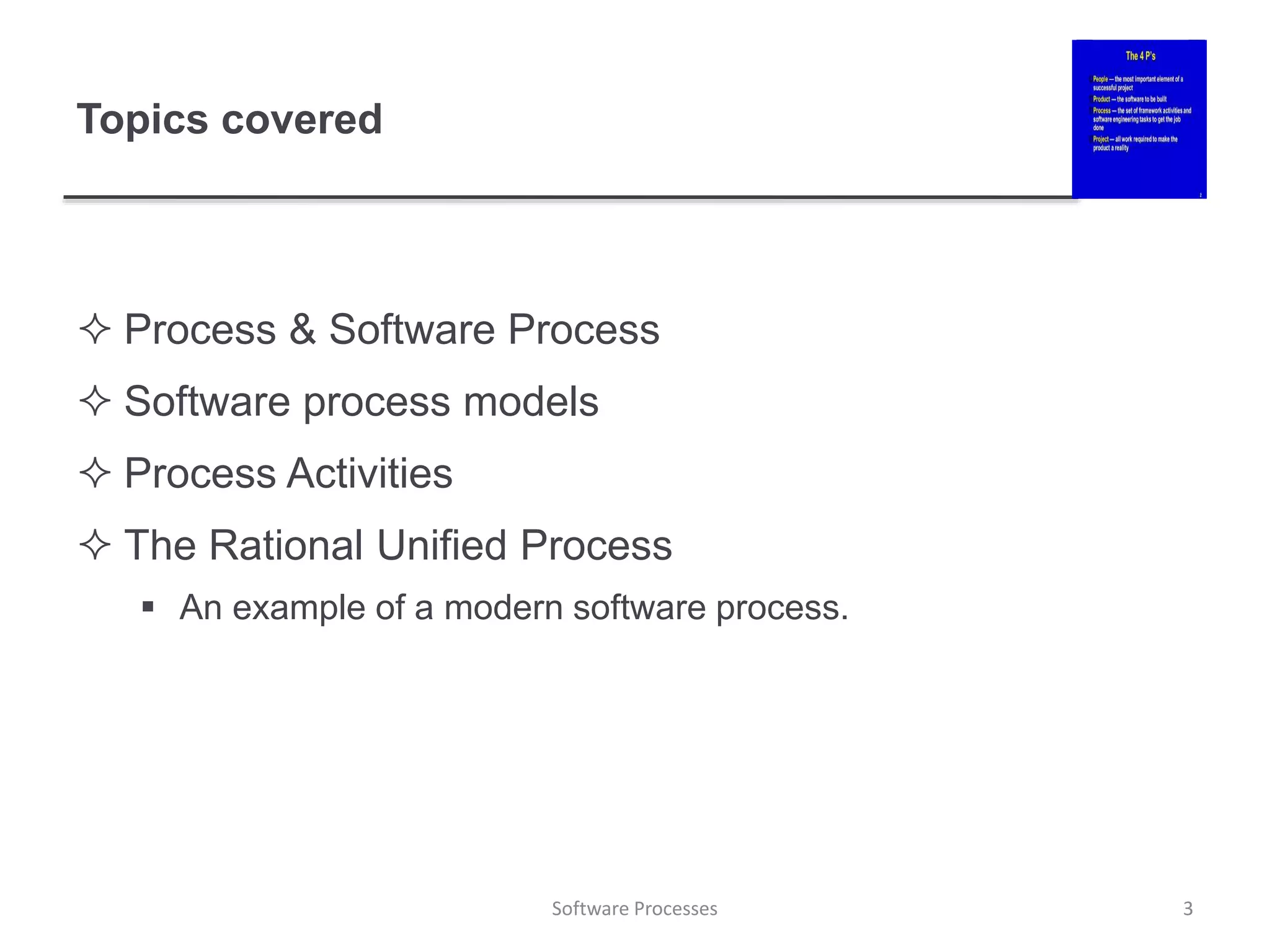

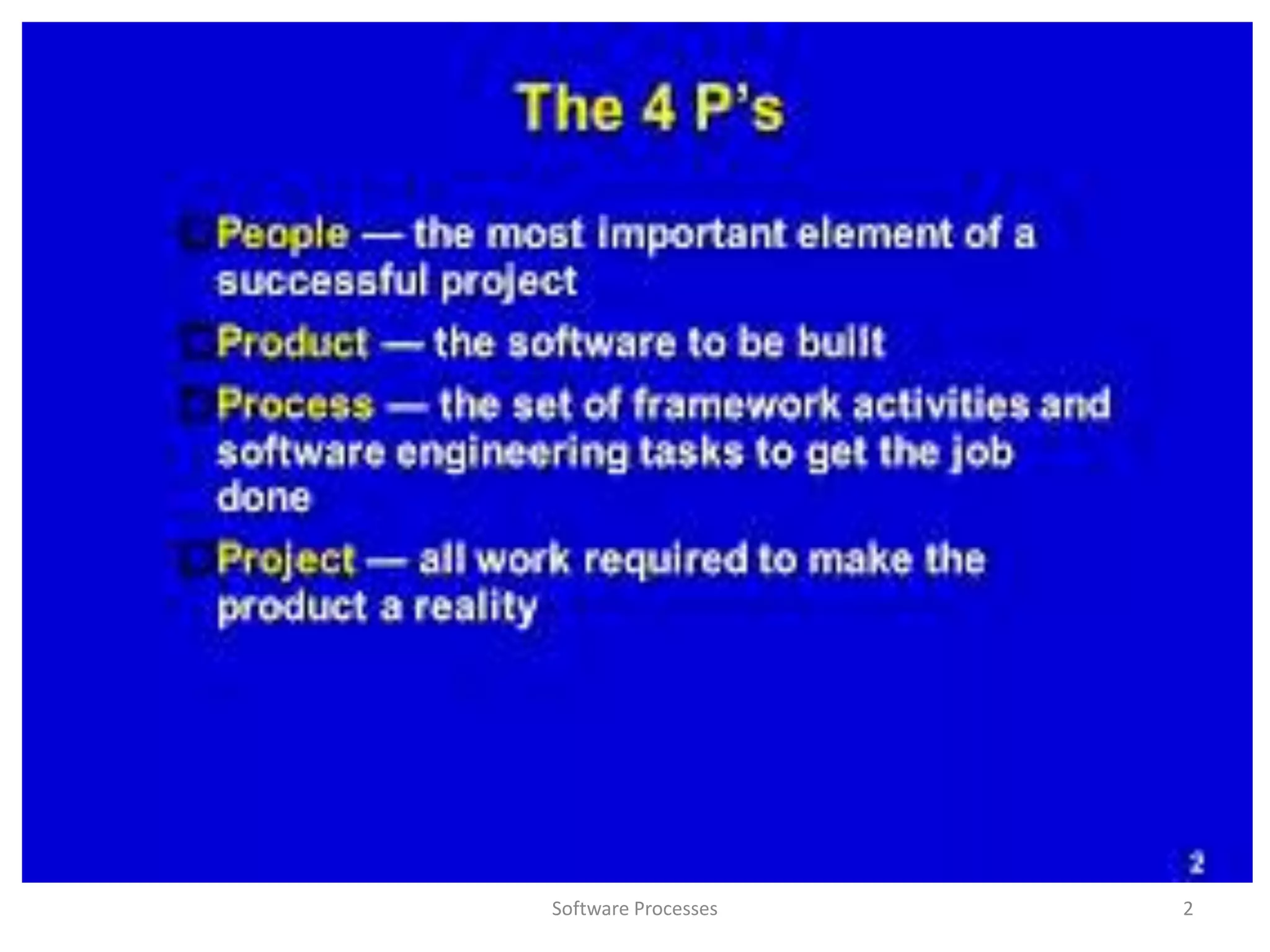

Topics covered
 Process & Software Process
 Software process models
 Process Activities
 The Rational Unified Process
 An example of a modern software process.
3
Software Processes

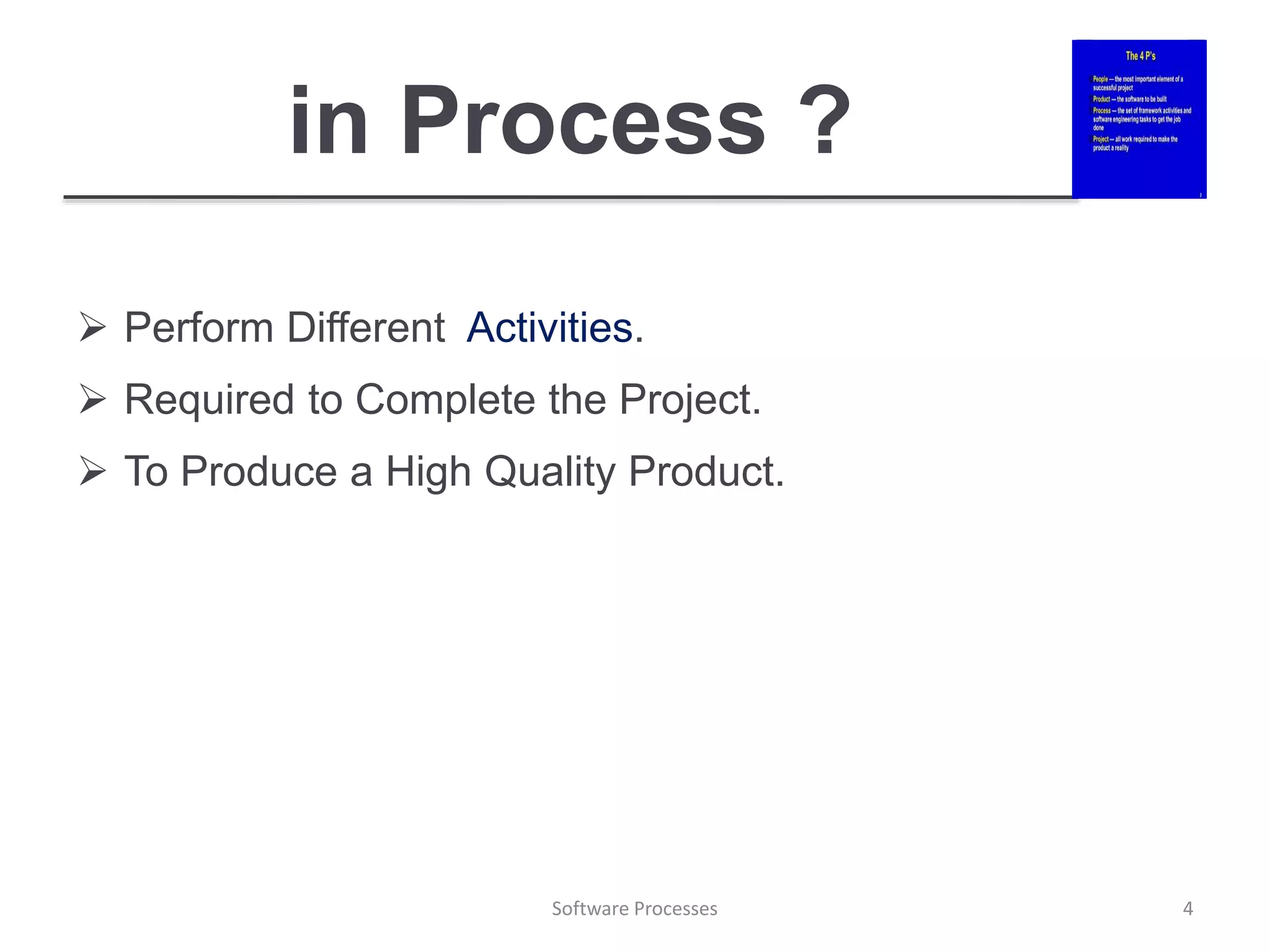

in Process ?
 Perform Different Activities.
 Required to Complete the Project.
 To Produce a High Quality Product.
Software Processes 4

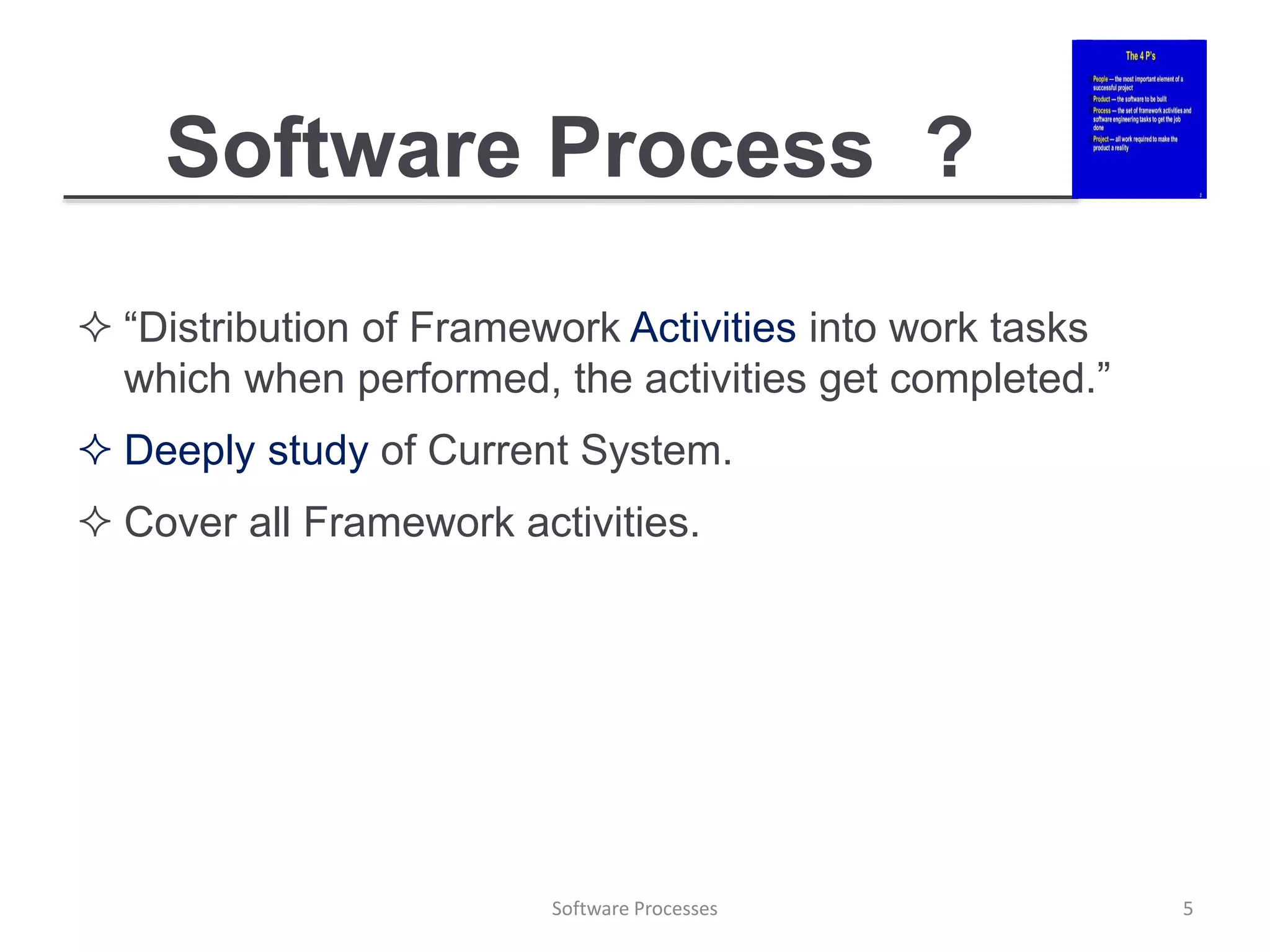

Software Process ?
 “Distribution of Framework Activities into work tasks
which when performed, the activities get completed.”
 Deeply study of Current System.
 Cover all Framework activities.

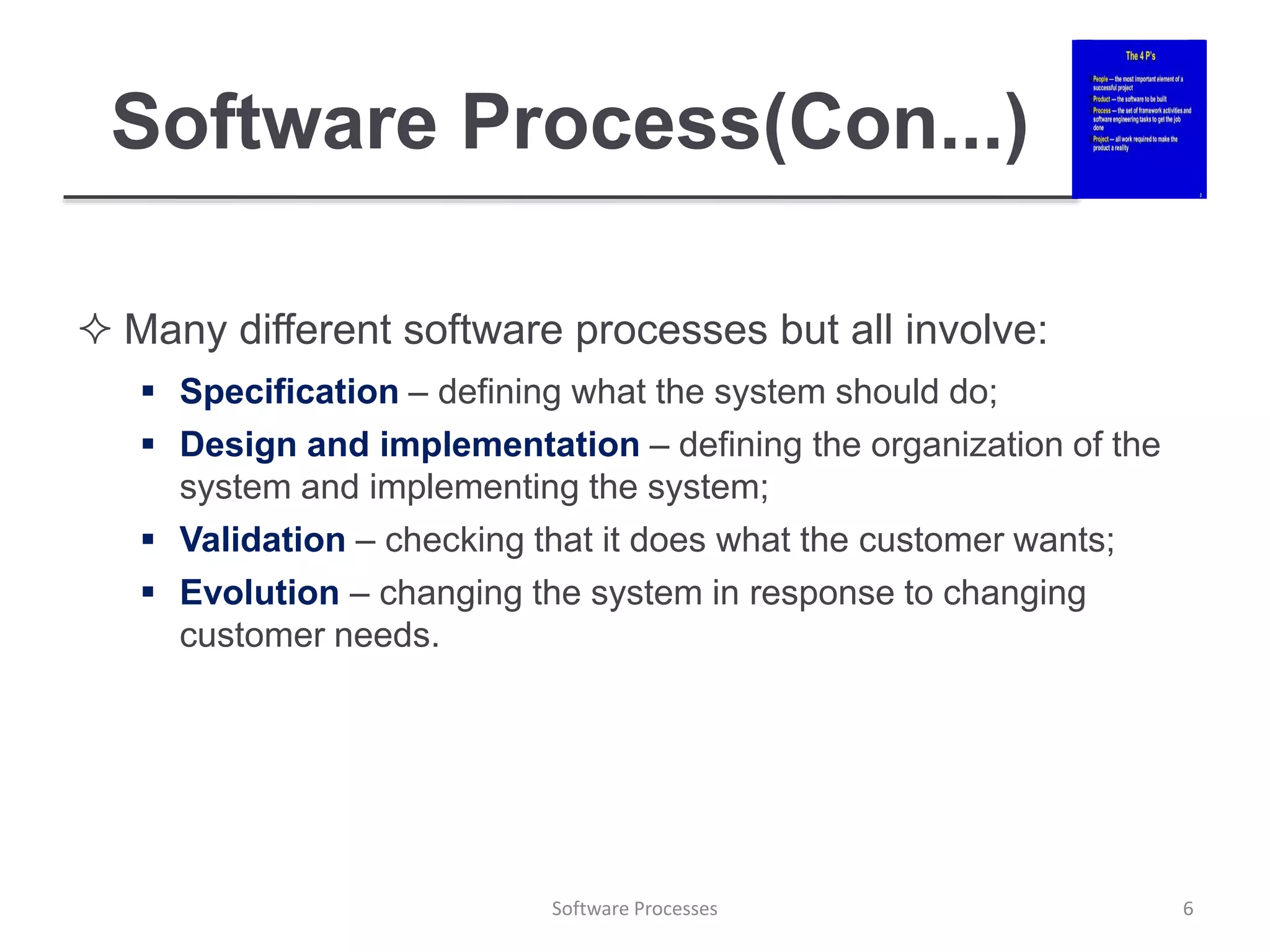

Software Process(Con...)
 Many different software processes but all involve:
 Specification – defining what the system should do;
 Design and implementation – defining the organization of the
system and implementing the system;
 Validation – checking that it does what the customer wants;
 Evolution – changing the system in response to changing
customer needs.
6
Software Processes

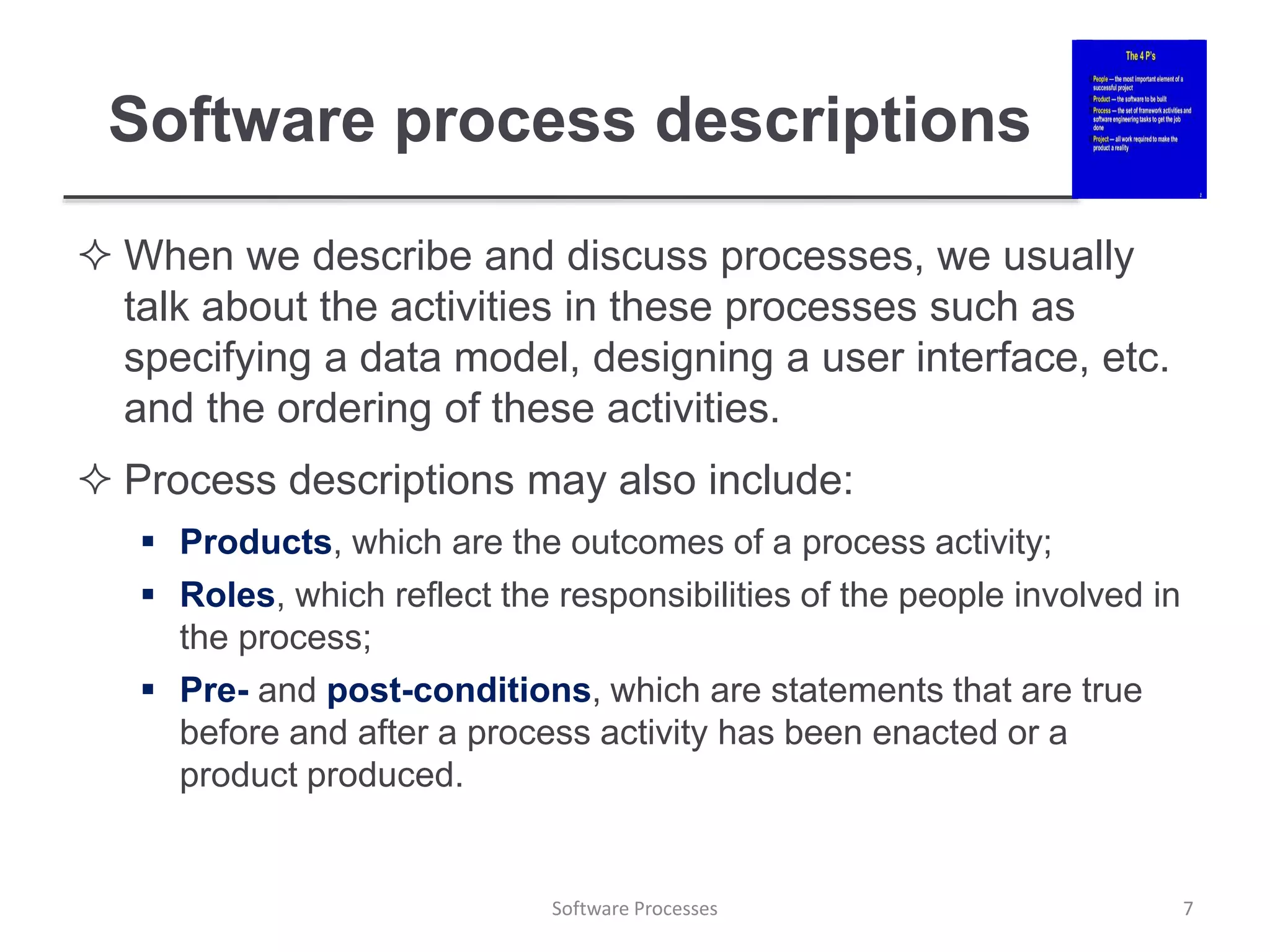

Software process descriptions
 When we describe and discuss processes, we usually
talk about the activities in these processes such as
specifying a data model, designing a user interface, etc.
and the ordering of these activities.
 Process descriptions may also include:
 Products, which are the outcomes of a process activity;
 Roles, which reflect the responsibilities of the people involved in
the process;
 Pre- and post-conditions, which are statements that are true
before and after a process activity has been enacted or a
product produced.
7
Software Processes

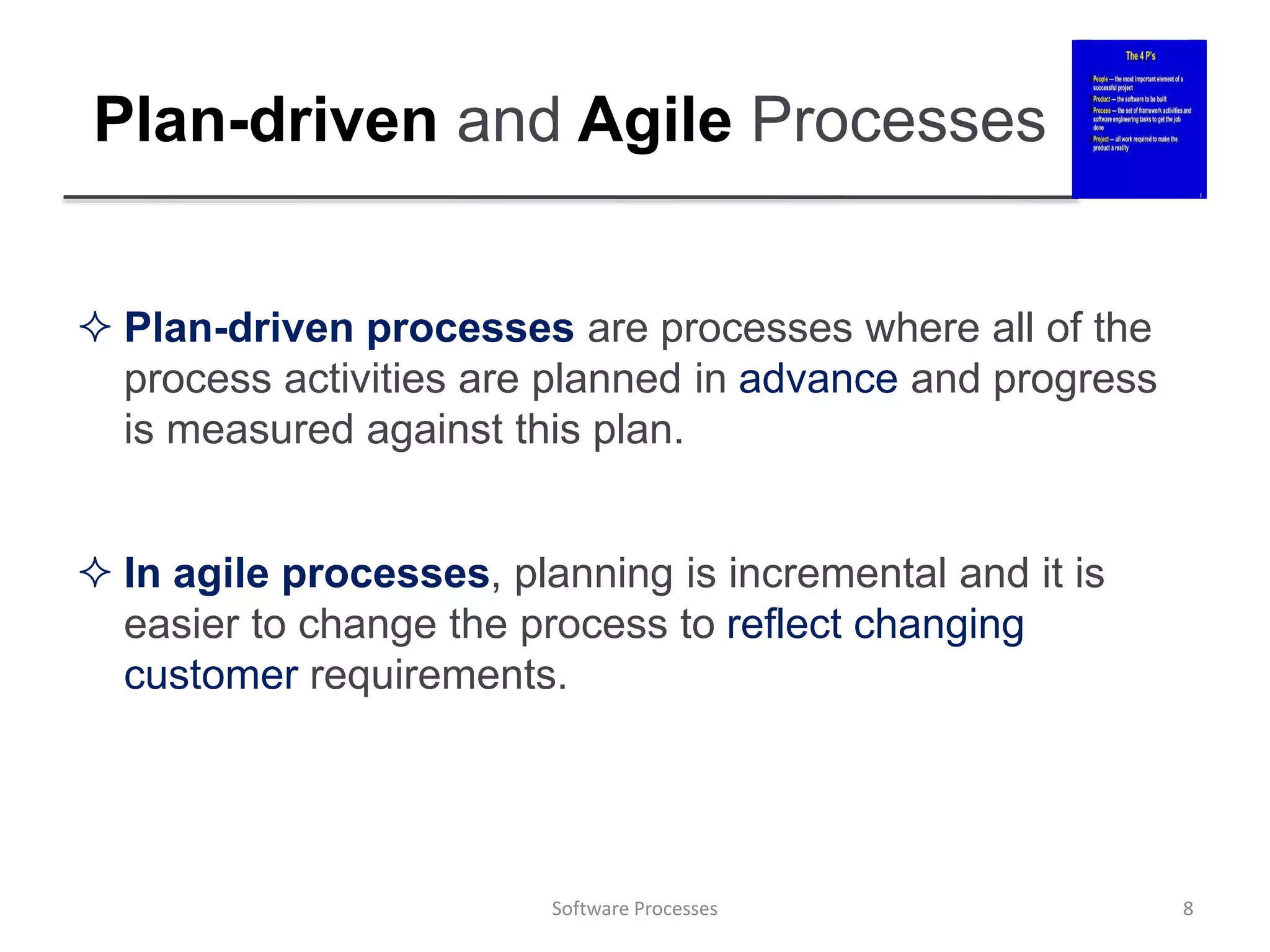

Plan-driven and Agile Processes
 Plan-driven processes are processes where all of the
process activities are planned in advance and progress
is measured against this plan.
 In agile processes, planning is incremental and it is
easier to change the process to reflect changing
customer requirements.
8
Software Processes

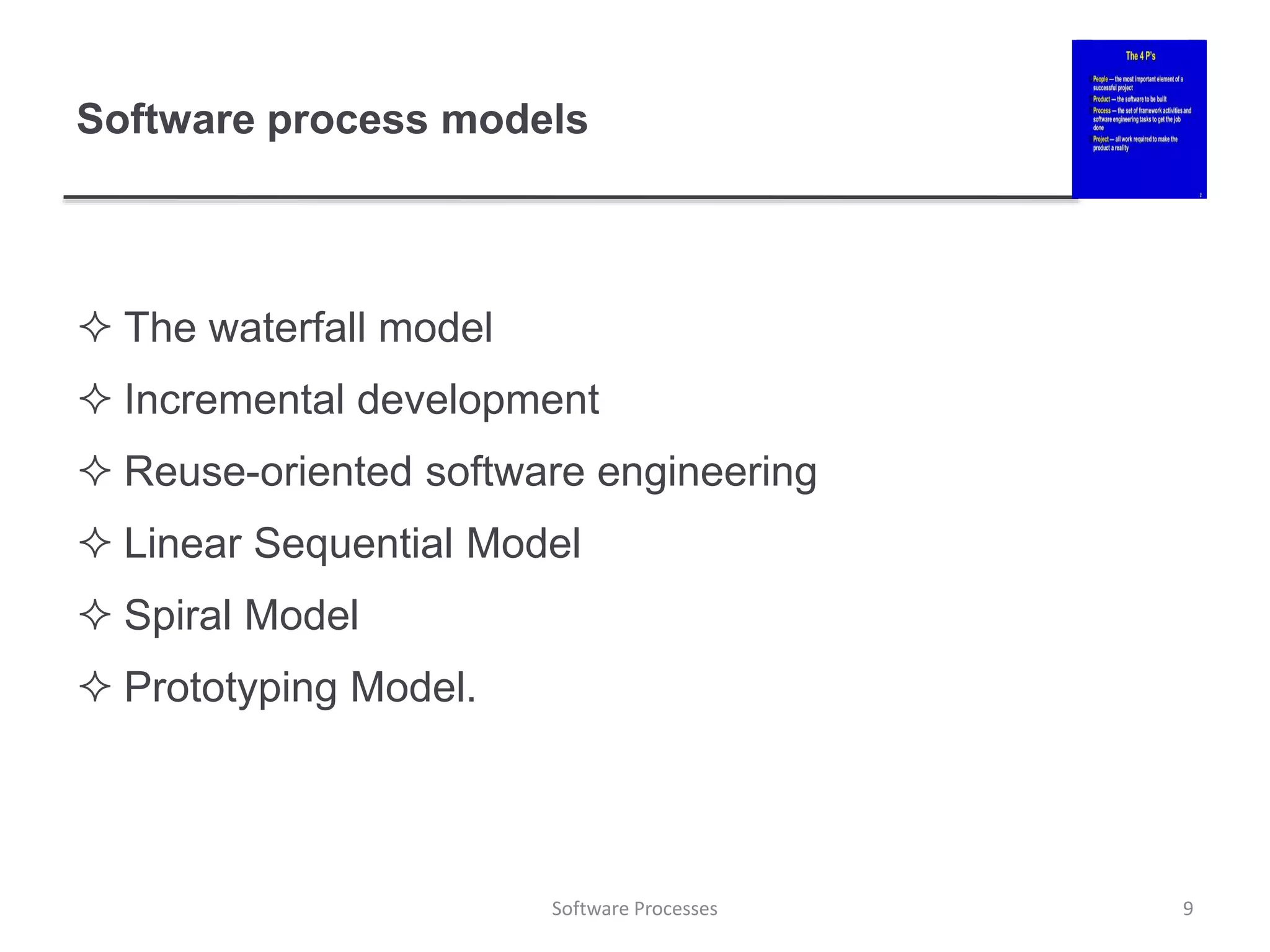

Software process models
 The waterfall model
 Incremental development
 Reuse-oriented software engineering
 Linear Sequential Model
 Spiral Model
 Prototyping Model.
9
Software Processes

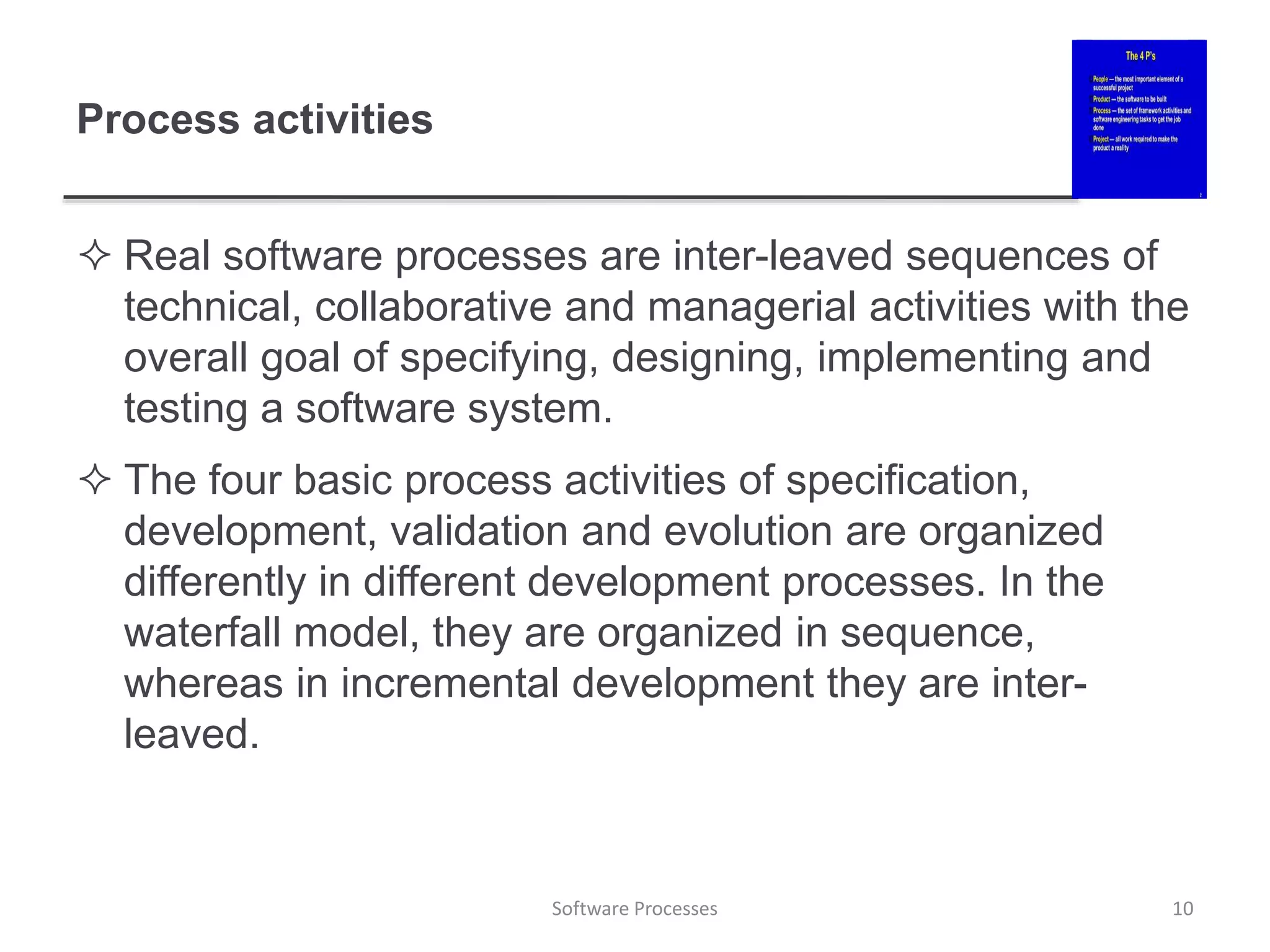

Process activities
 Real software processes are inter-leaved sequences of
technical, collaborative and managerial activities with the
overall goal of specifying, designing, implementing and
testing a software system.
 The four basic process activities of specification,
development, validation and evolution are organized
differently in different development processes. In the
waterfall model, they are organized in sequence,
whereas in incremental development they are inter-
leaved.
10
Software Processes

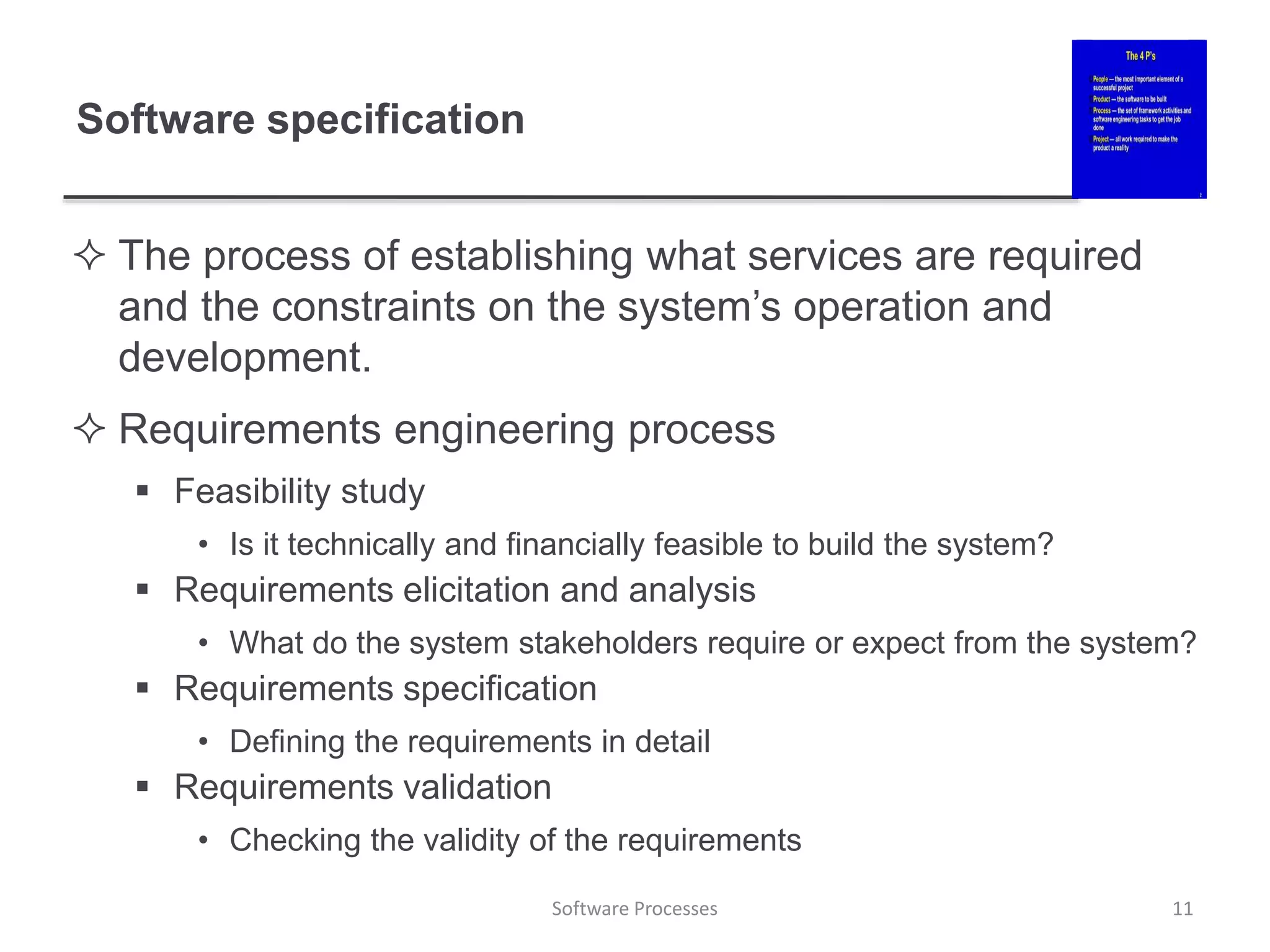

Software specification
 The process of establishing what services are required
and the constraints on the system’s operation and
development.
 Requirements engineering process
 Feasibility study
• Is it technically and financially feasible to build the system?
 Requirements elicitation and analysis
• What do the system stakeholders require or expect from the system?
 Requirements specification
• Defining the requirements in detail
 Requirements validation
• Checking the validity of the requirements
11
Software Processes

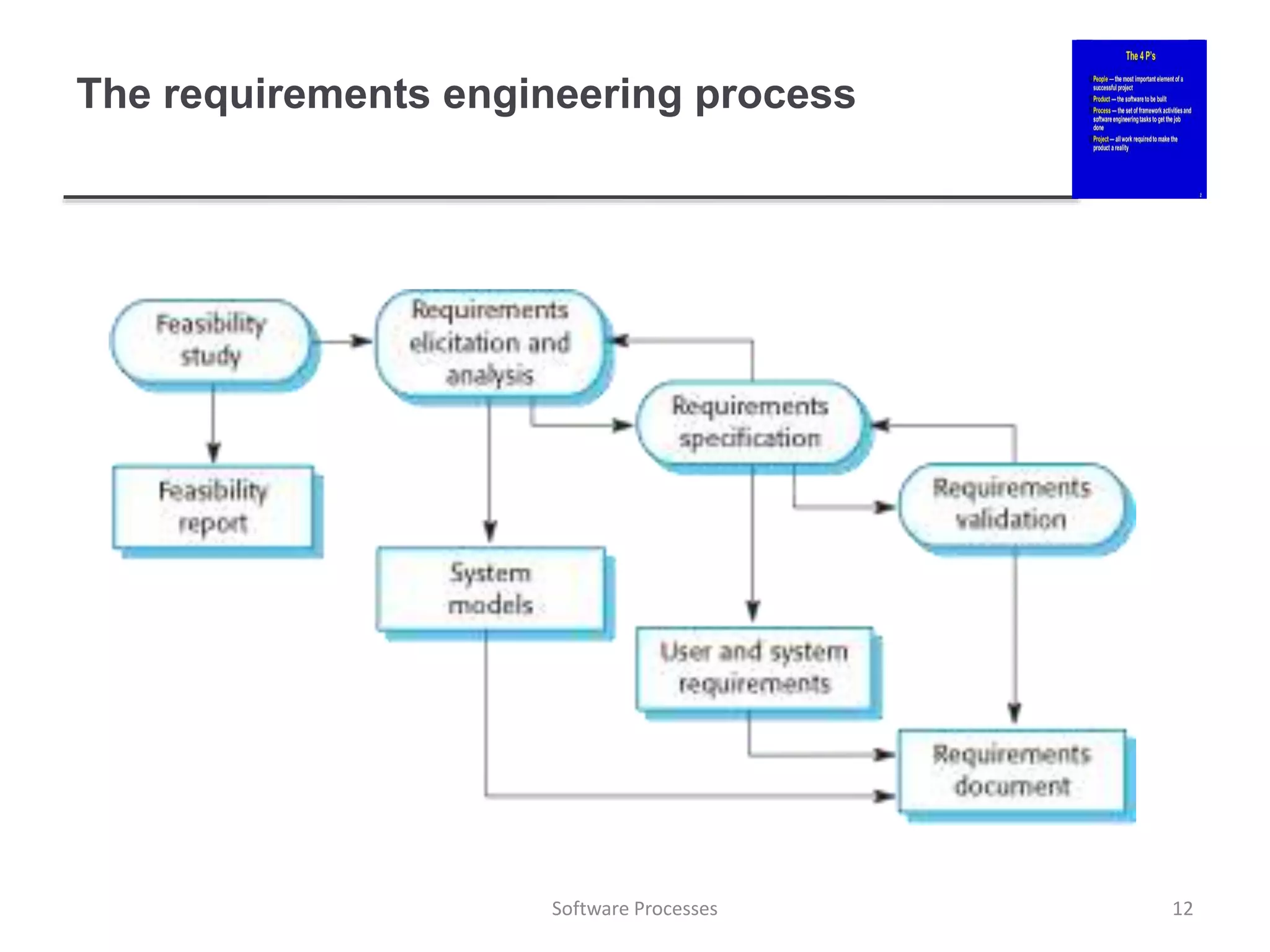

The requirements engineering process
12
Software Processes

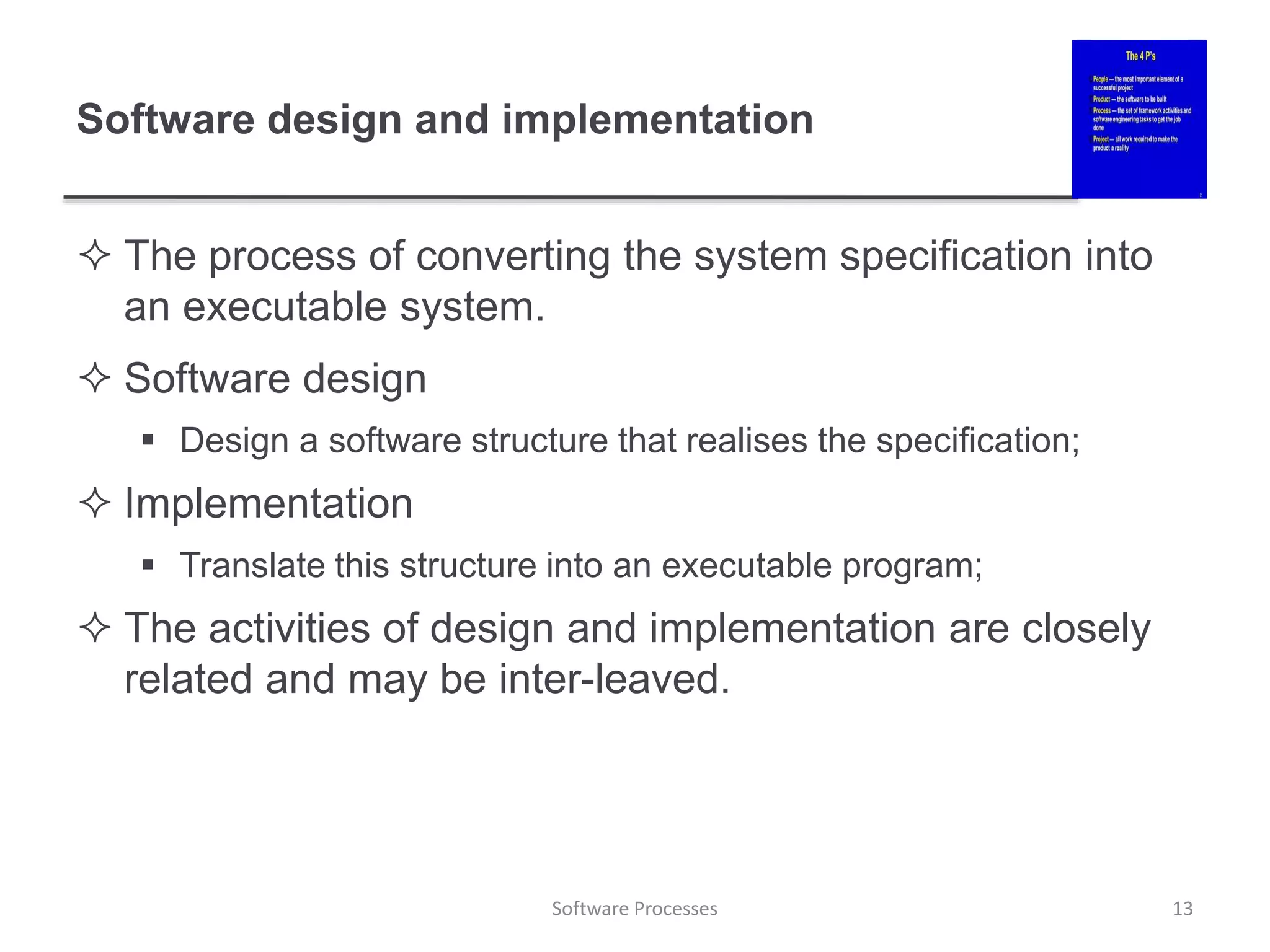

Software design and implementation
 The process of converting the system specification into
an executable system.
 Software design
 Design a software structure that realises the specification;
 Implementation
 Translate this structure into an executable program;
 The activities of design and implementation are closely
related and may be inter-leaved.
13
Software Processes

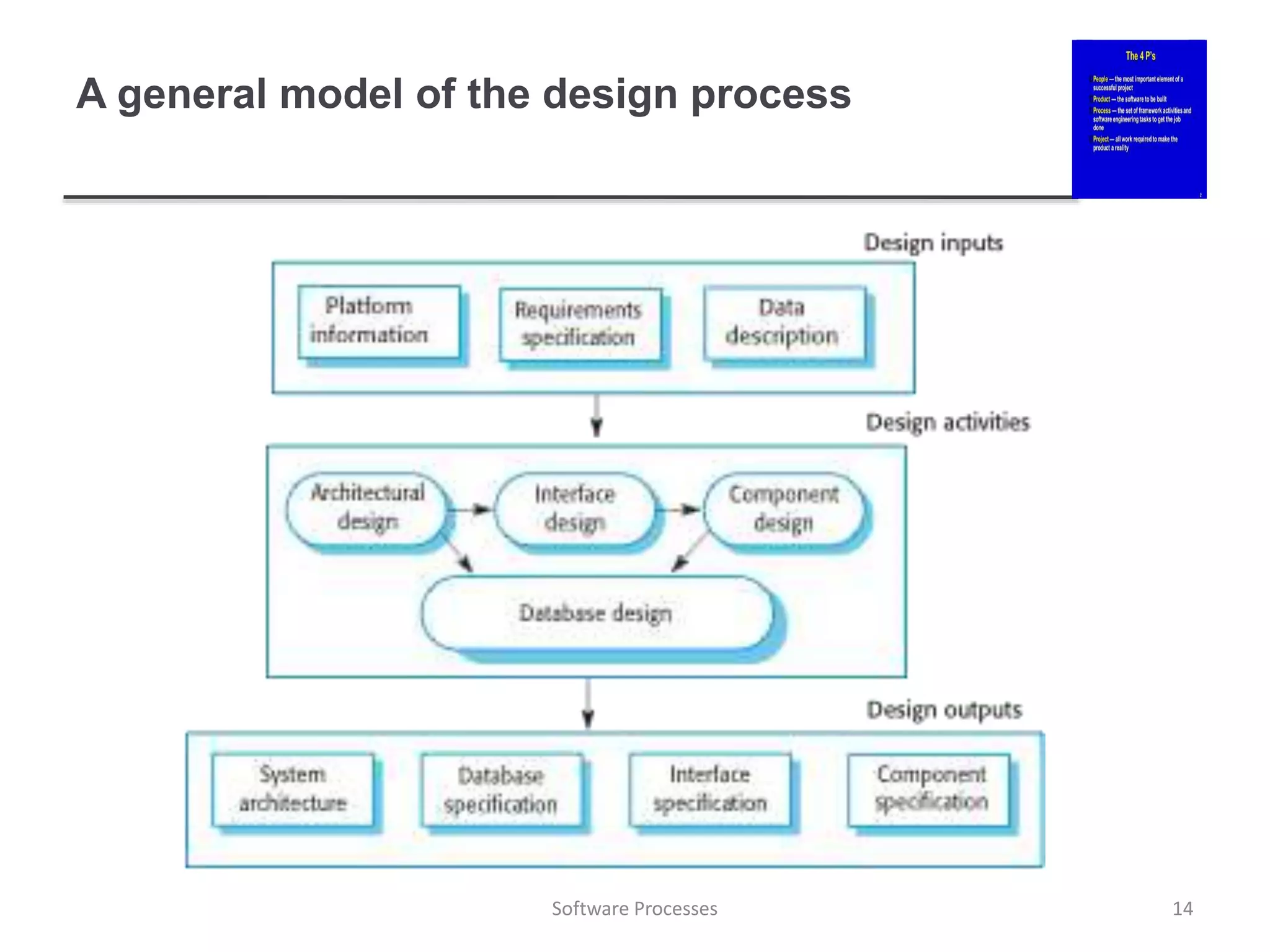

A general model of the design process
14
Software Processes

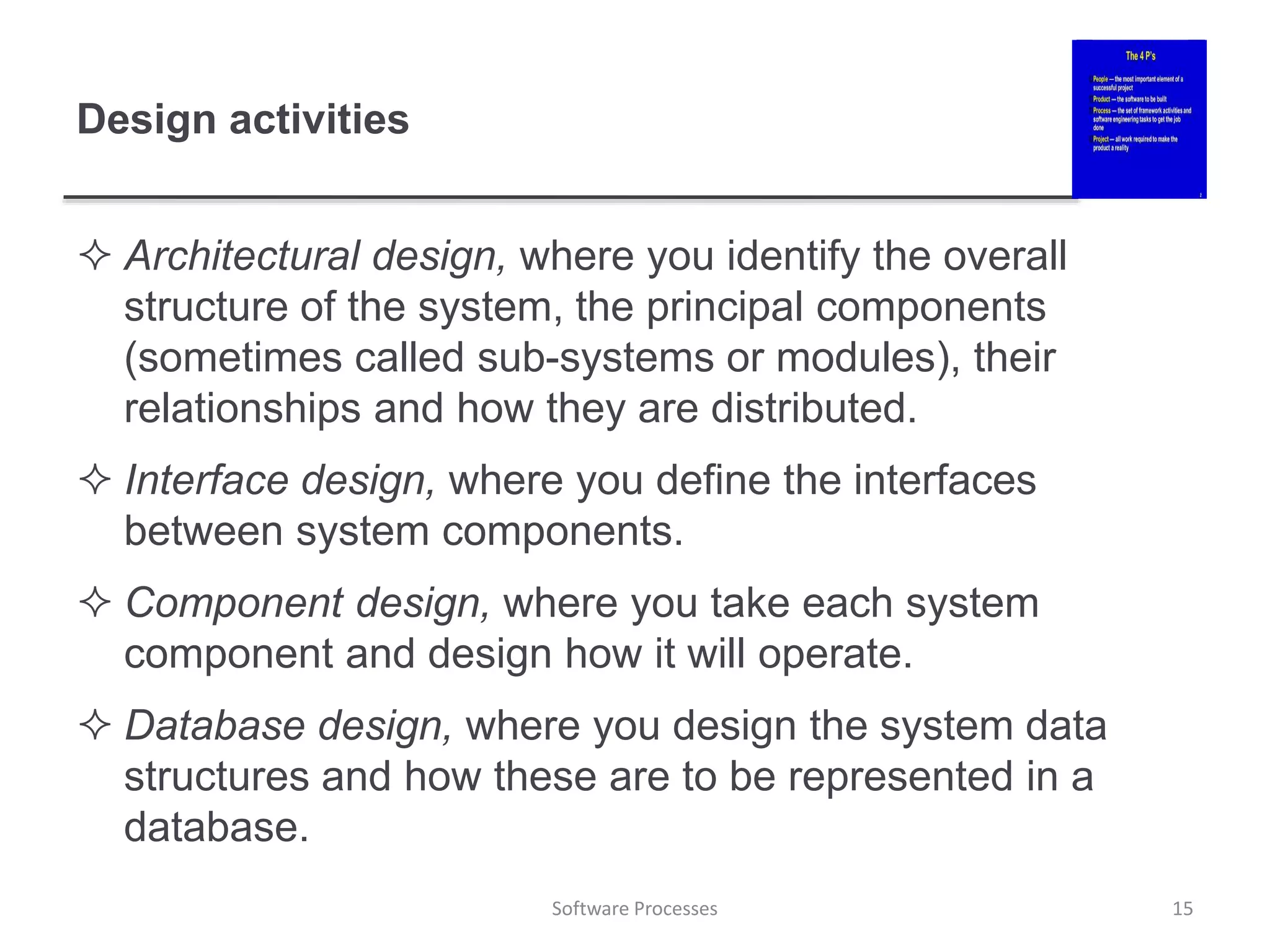

Design activities
 Architectural design, where you identify the overall
structure of the system, the principal components
(sometimes called sub-systems or modules), their
relationships and how they are distributed.
 Interface design, where you define the interfaces
between system components.
 Component design, where you take each system
component and design how it will operate.
 Database design, where you design the system data
structures and how these are to be represented in a
database.
15
Software Processes

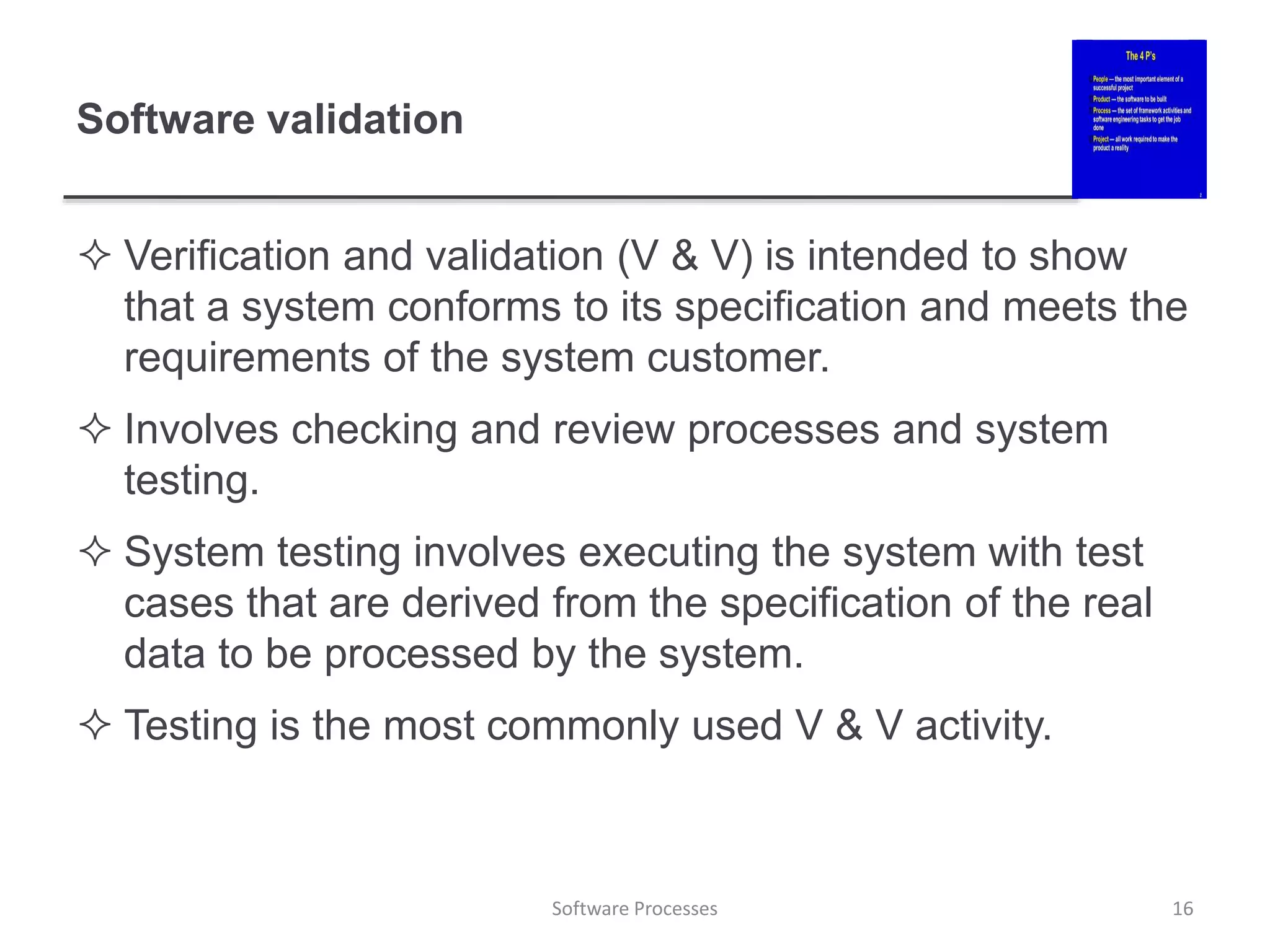

Software validation
 Verification and validation (V & V) is intended to show
that a system conforms to its specification and meets the
requirements of the system customer.
 Involves checking and review processes and system
testing.
 System testing involves executing the system with test
cases that are derived from the specification of the real
data to be processed by the system.
 Testing is the most commonly used V & V activity.
16
Software Processes

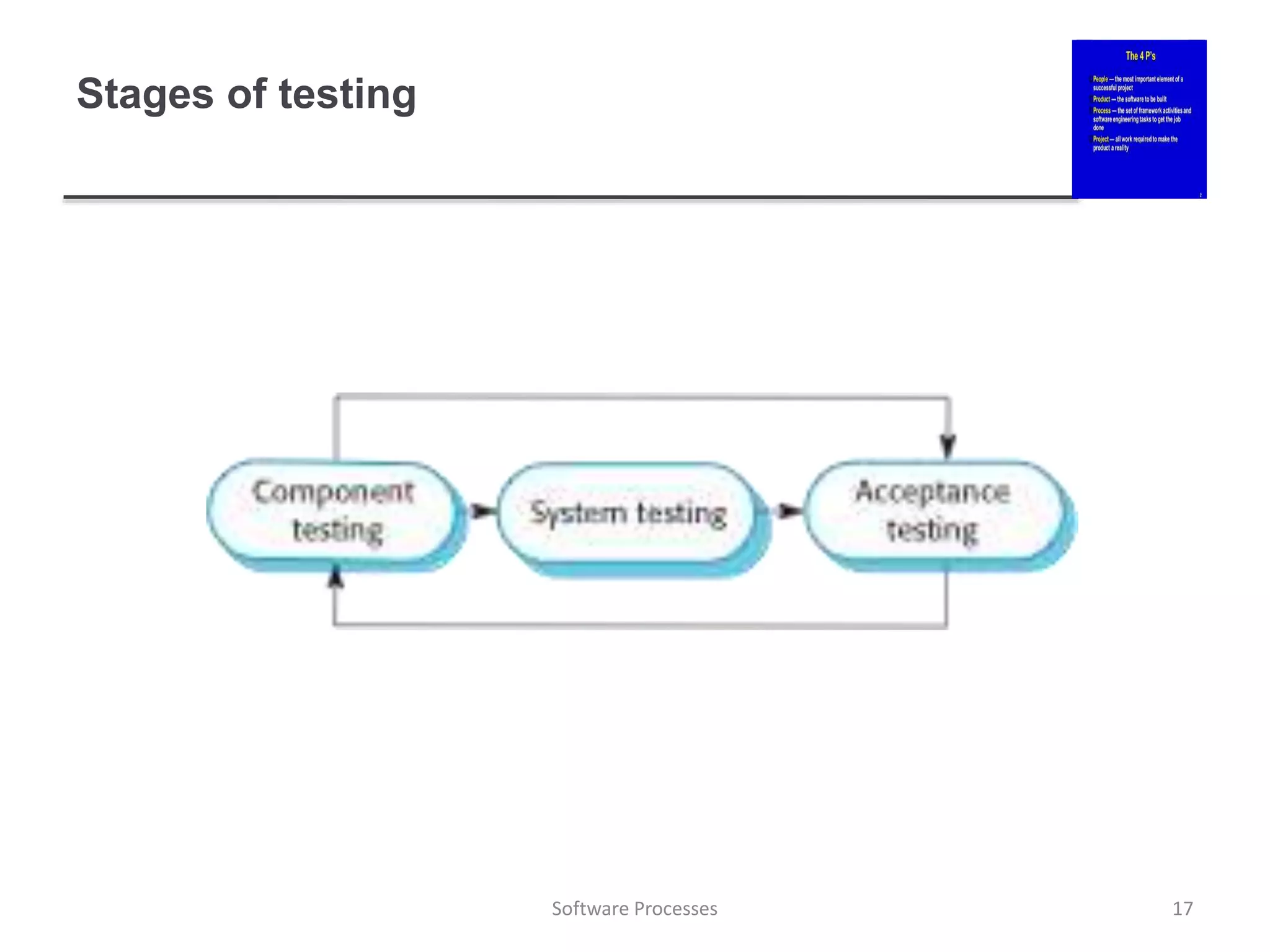

Stages of testing
17
Software Processes

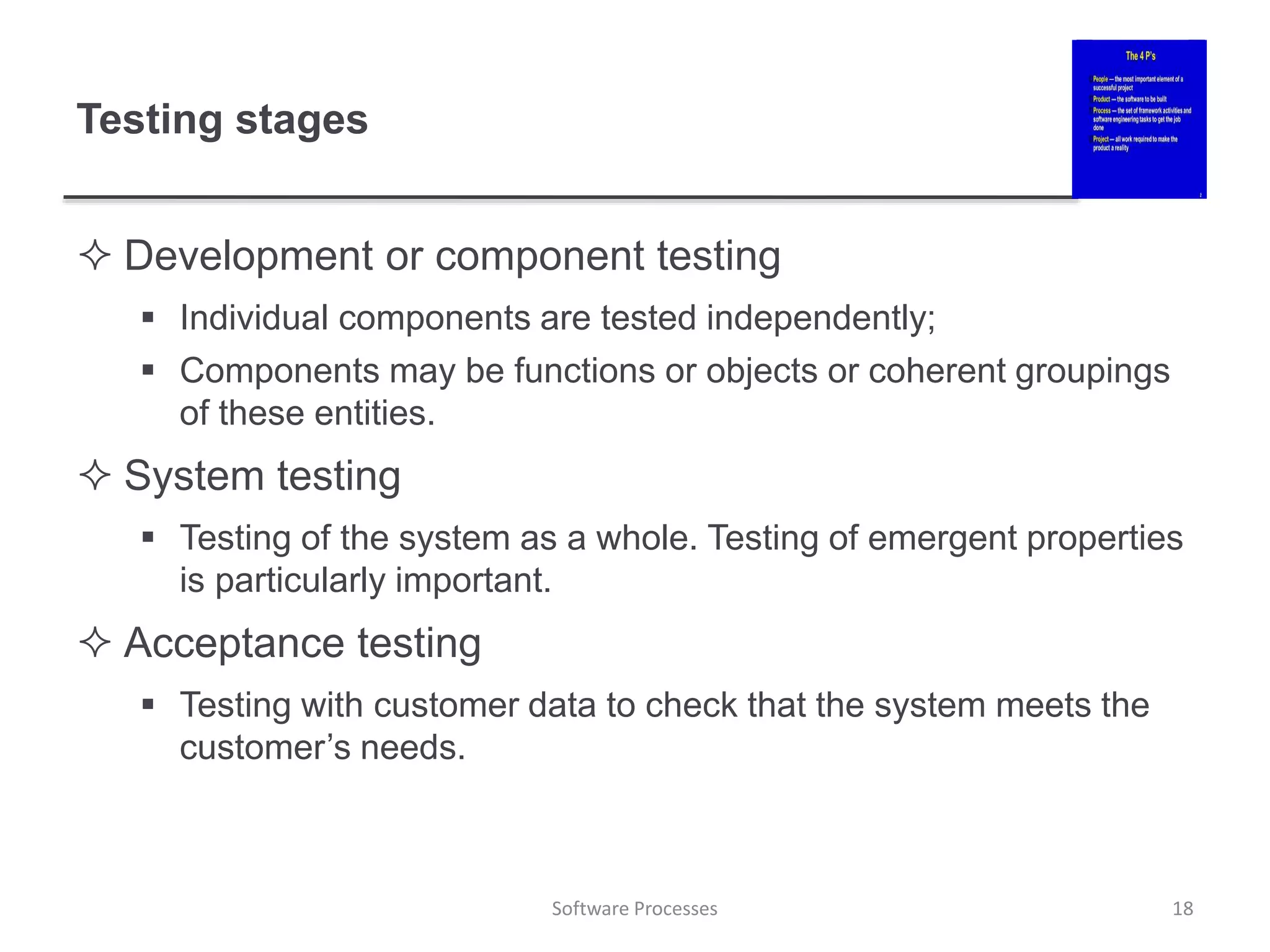

Testing stages
 Development or component testing
 Individual components are tested independently;
 Components may be functions or objects or coherent groupings
of these entities.
 System testing
 Testing of the system as a whole. Testing of emergent properties
is particularly important.
 Acceptance testing
 Testing with customer data to check that the system meets the
customer’s needs.
18
Software Processes

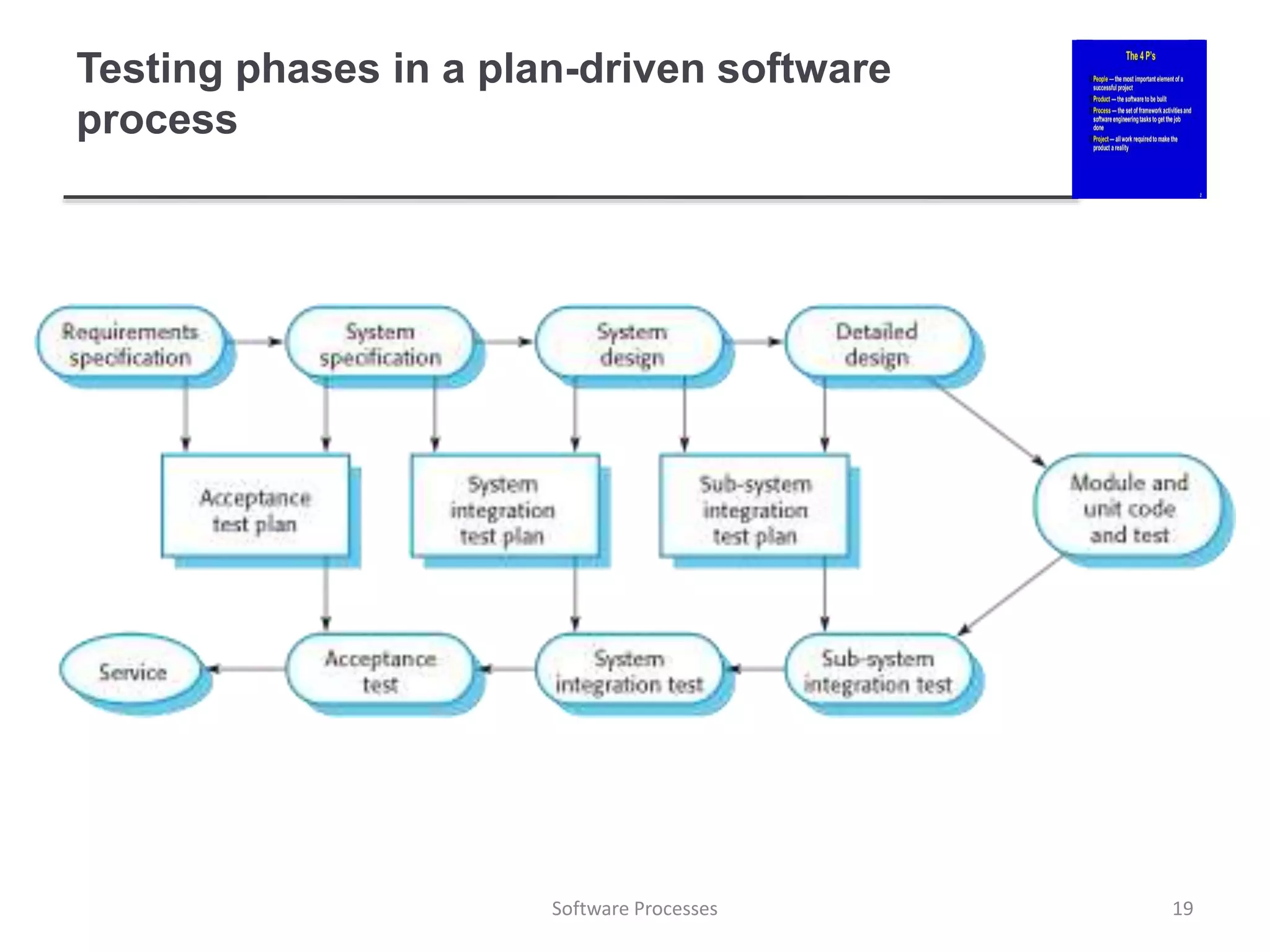

Testing phases in a plan-driven software
process
19
Software Processes

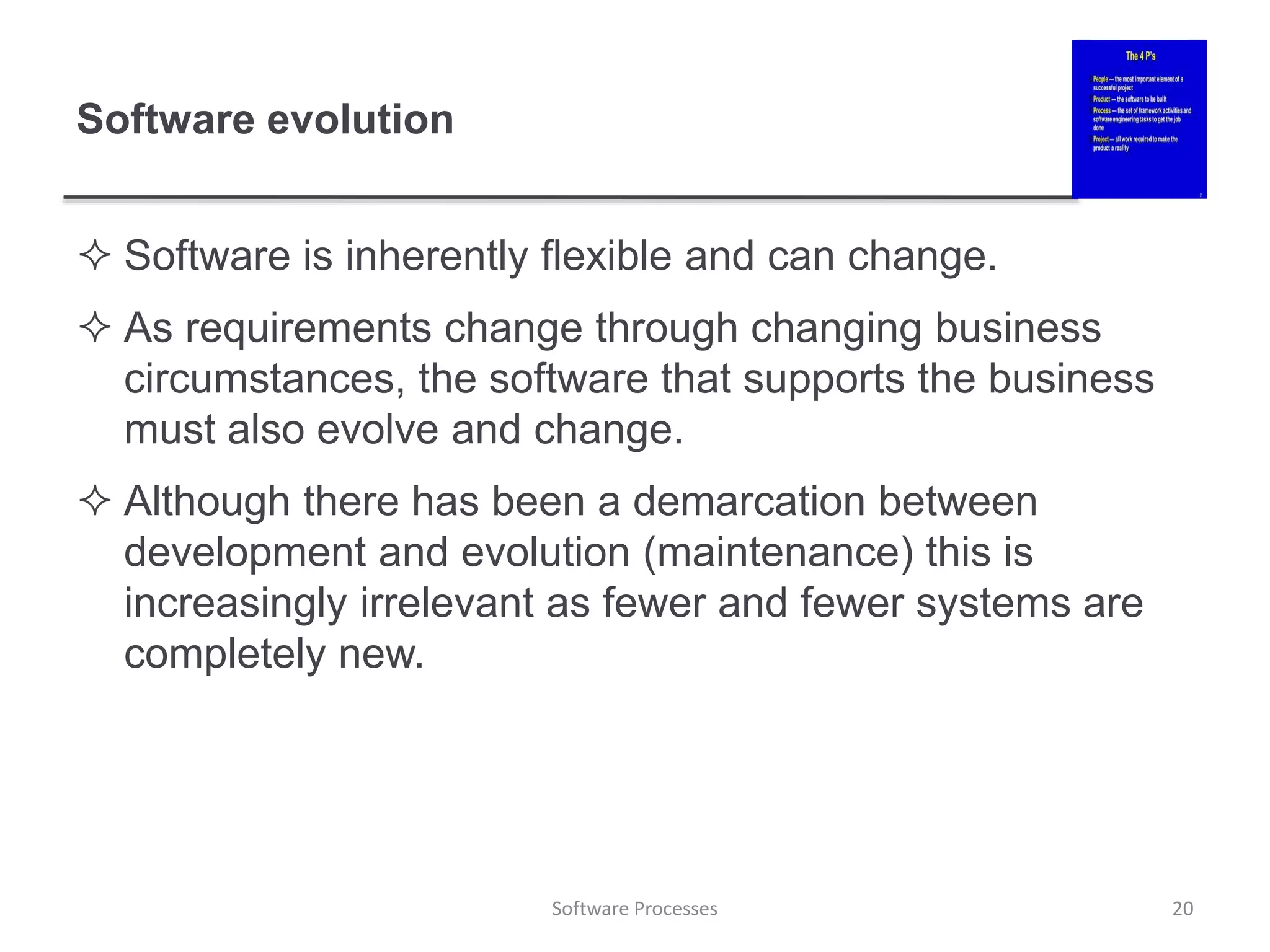

Software evolution
 Software is inherently flexible and can change.
 As requirements change through changing business
circumstances, the software that supports the business
must also evolve and change.
 Although there has been a demarcation between
development and evolution (maintenance) this is
increasingly irrelevant as fewer and fewer systems are
completely new.
20
Software Processes

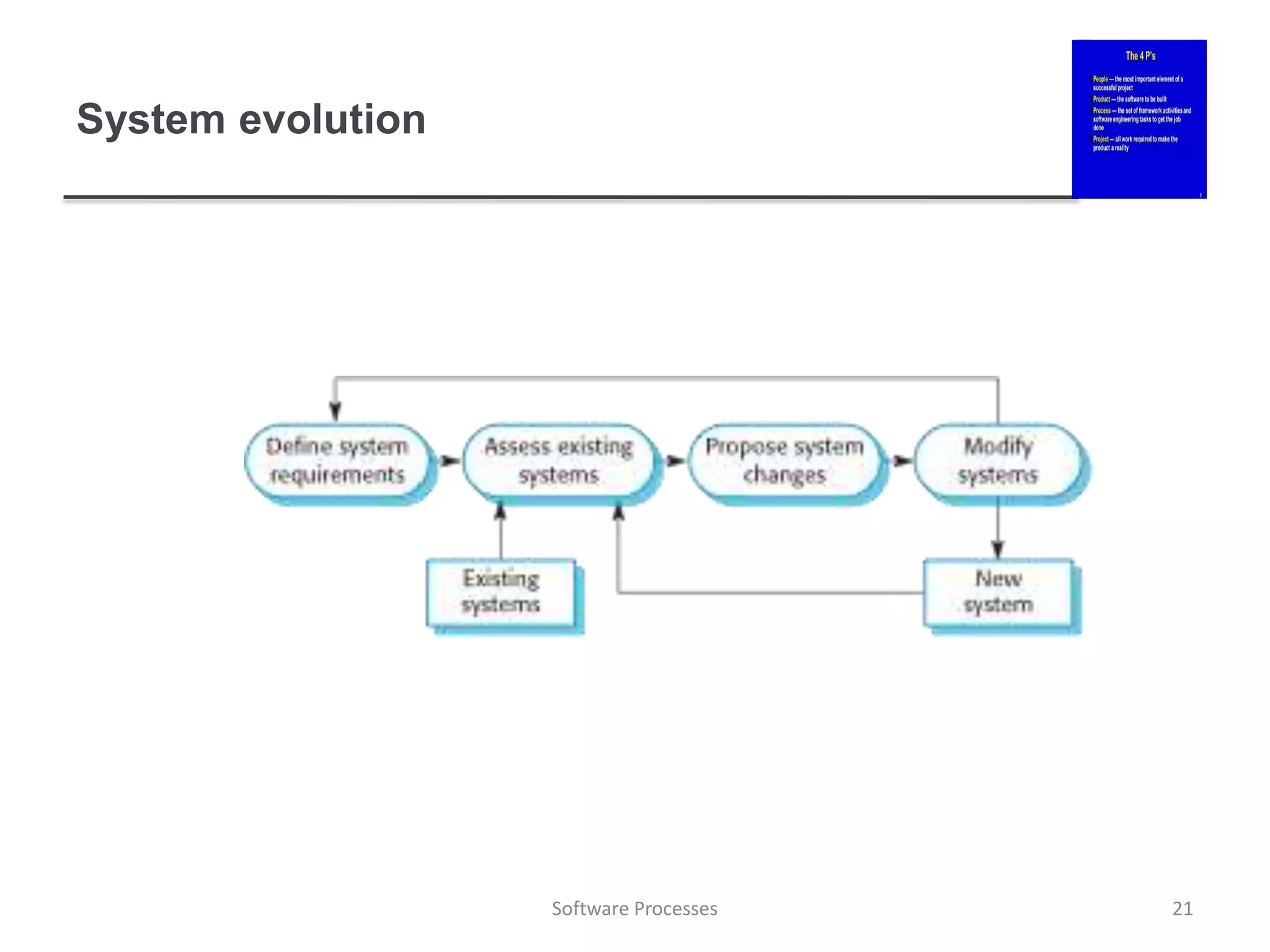

System evolution
21
Software Processes

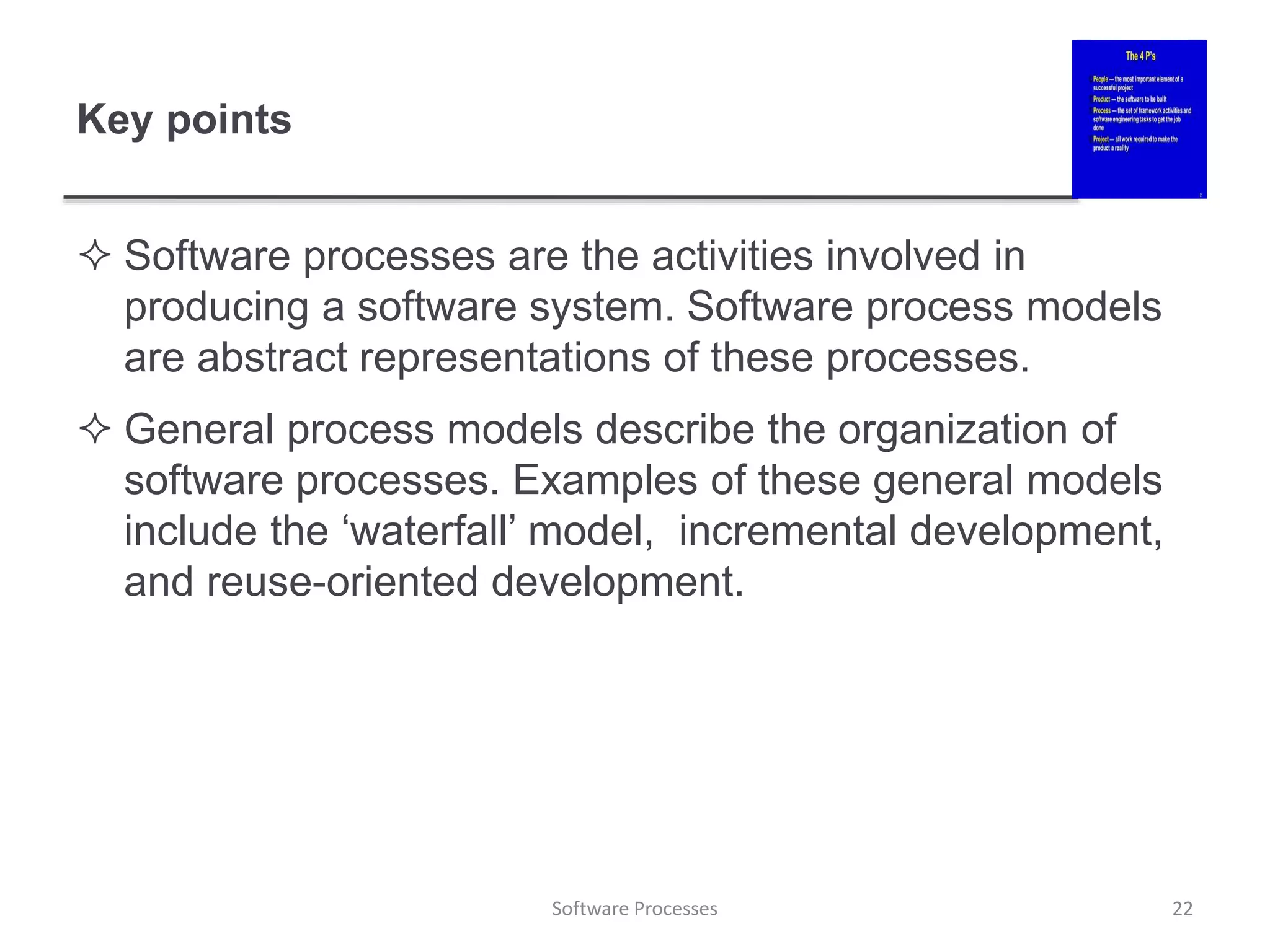

Key points
 Software processes are the activities involved in
producing a software system. Software process models
are abstract representations of these processes.
 General process models describe the organization of
software processes. Examples of these general models
include the ‘waterfall’ model, incremental development,
and reuse-oriented development.
22
Software Processes

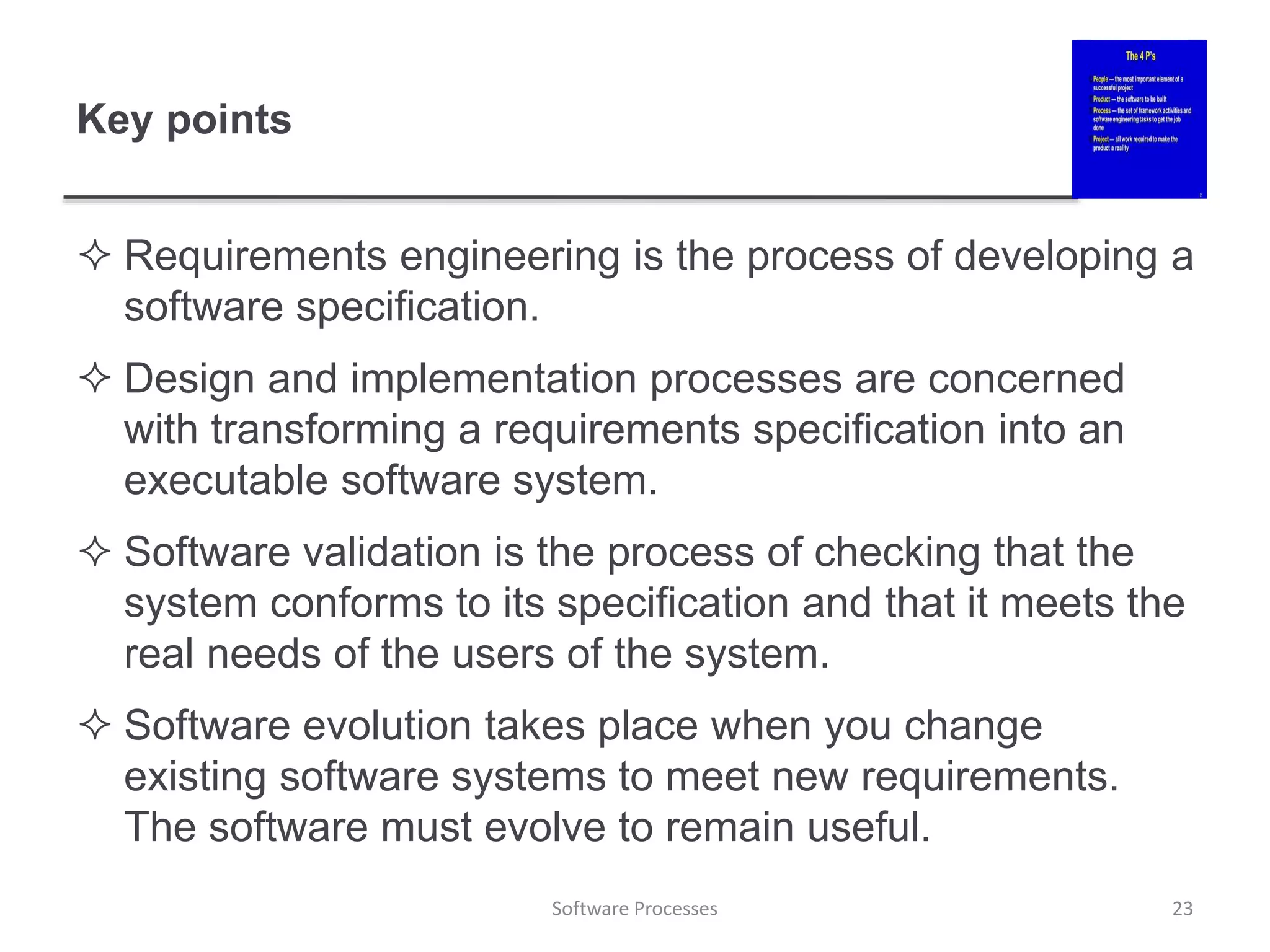

Key points
 Requirements engineering is the process of developing a
software specification.
 Design and implementation processes are concerned
with transforming a requirements specification into an
executable software system.
 Software validation is the process of checking that the
system conforms to its specification and that it meets the
real needs of the users of the system.
 Software evolution takes place when you change
existing software systems to meet new requirements.
The software must evolve to remain useful.
23
Software Processes

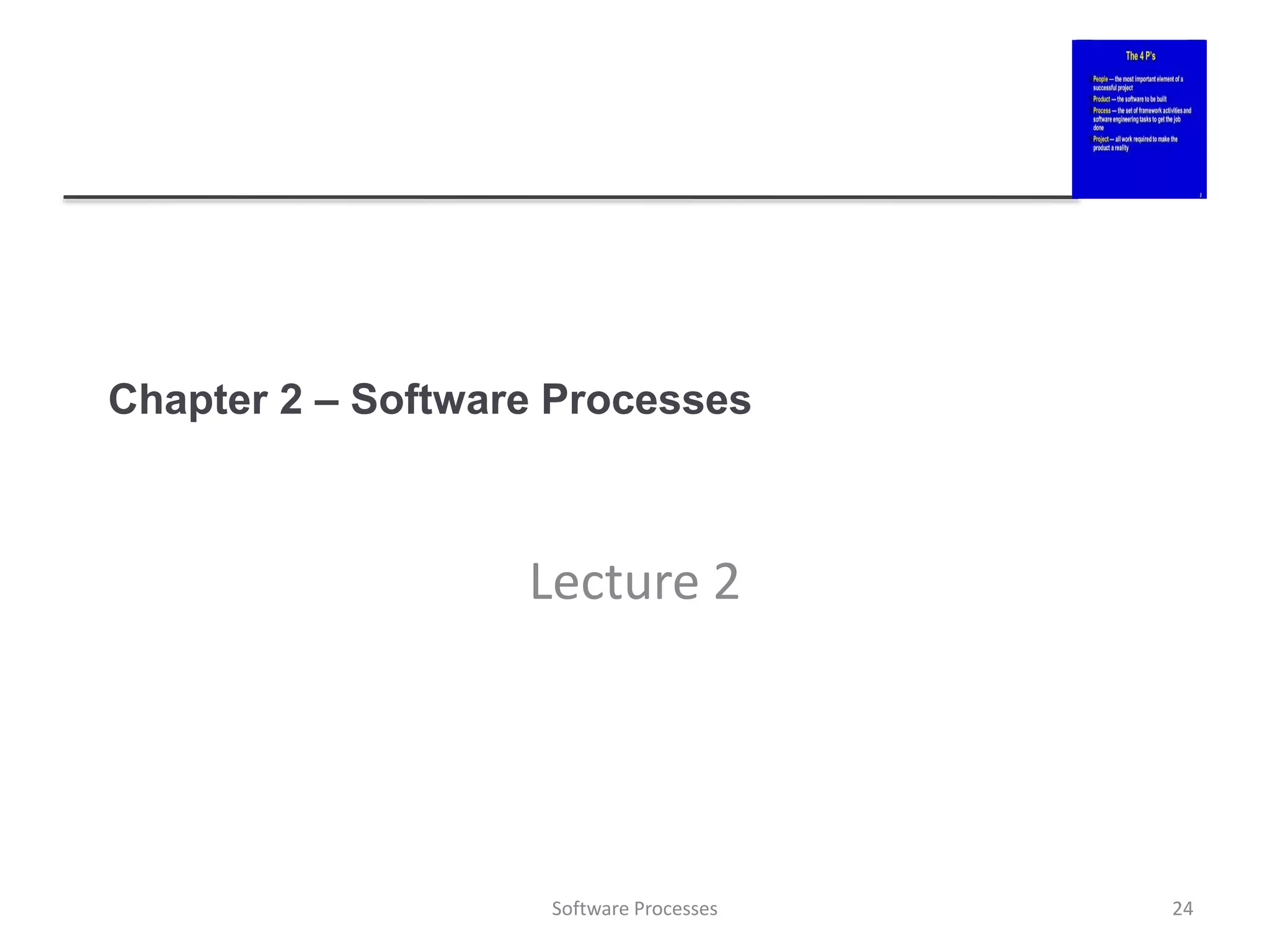

Chapter 2 – Software Processes
Lecture 2
24
Software Processes

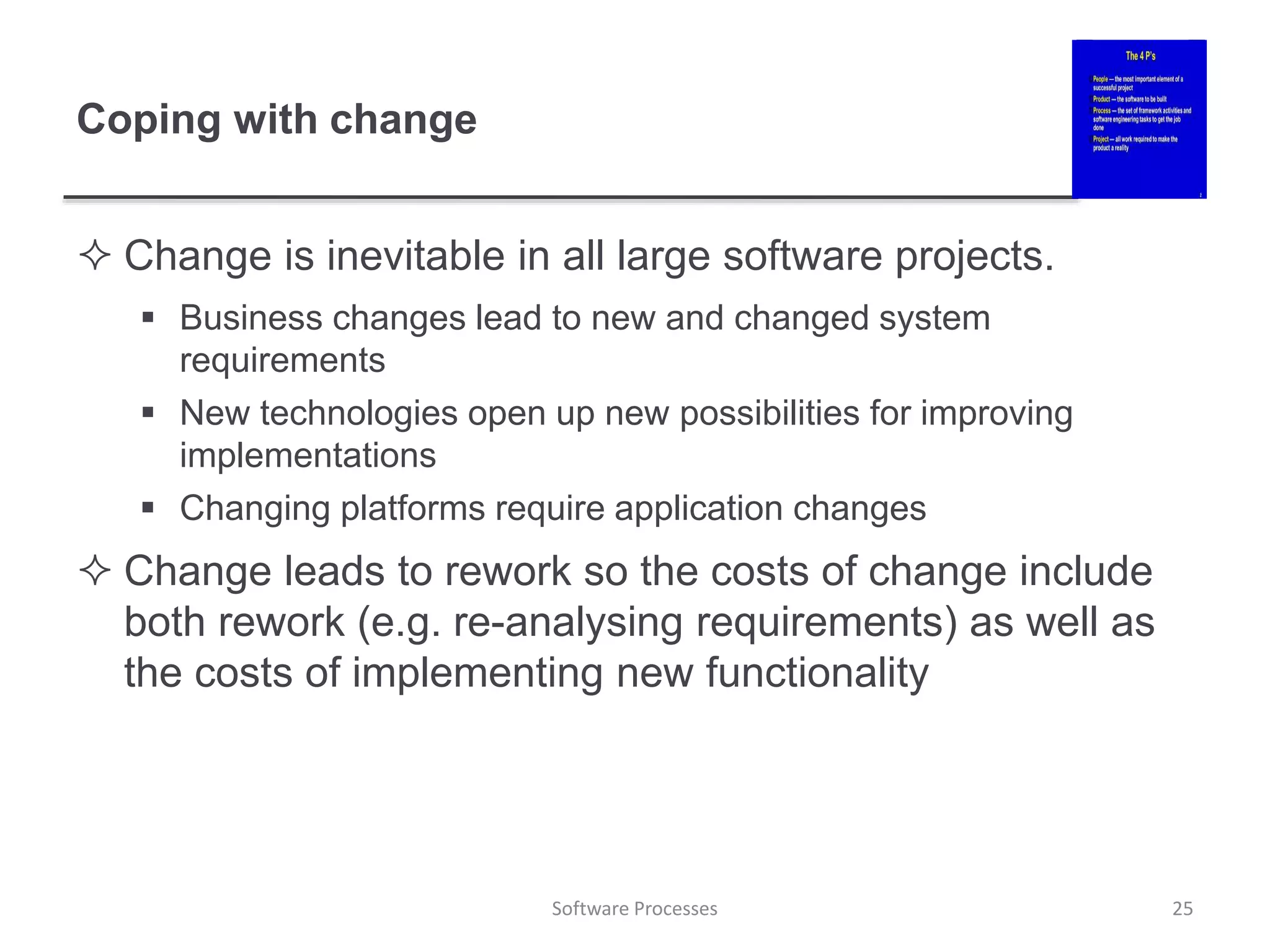

Coping with change
 Change is inevitable in all large software projects.
 Business changes lead to new and changed system
requirements
 New technologies open up new possibilities for improving
implementations
 Changing platforms require application changes
 Change leads to rework so the costs of change include
both rework (e.g. re-analysing requirements) as well as
the costs of implementing new functionality
25
Software Processes

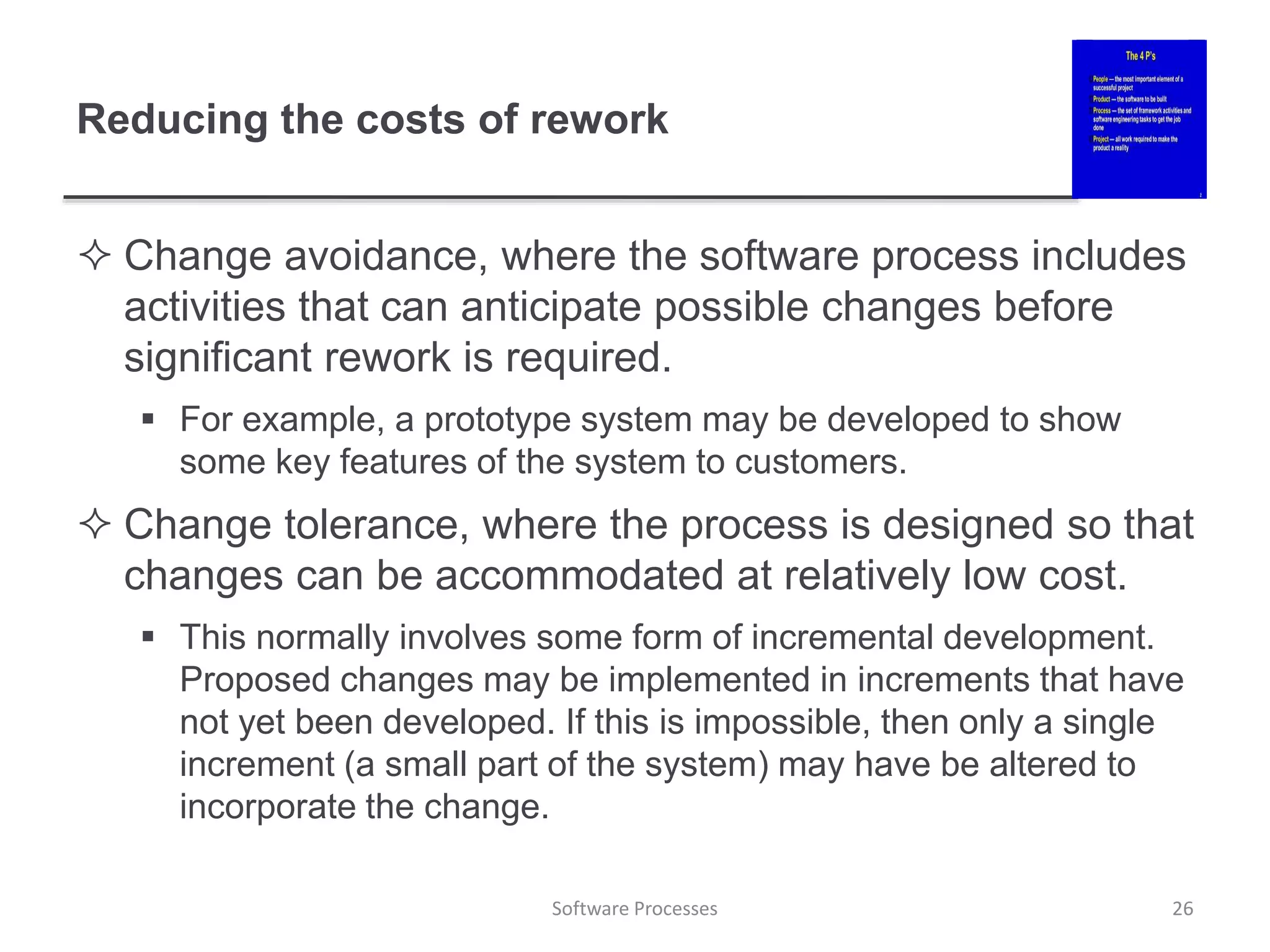

Reducing the costs of rework
 Change avoidance, where the software process includes
activities that can anticipate possible changes before
significant rework is required.
 For example, a prototype system may be developed to show
some key features of the system to customers.
 Change tolerance, where the process is designed so that
changes can be accommodated at relatively low cost.
 This normally involves some form of incremental development.
Proposed changes may be implemented in increments that have
not yet been developed. If this is impossible, then only a single
increment (a small part of the system) may have be altered to
incorporate the change.
26
Software Processes

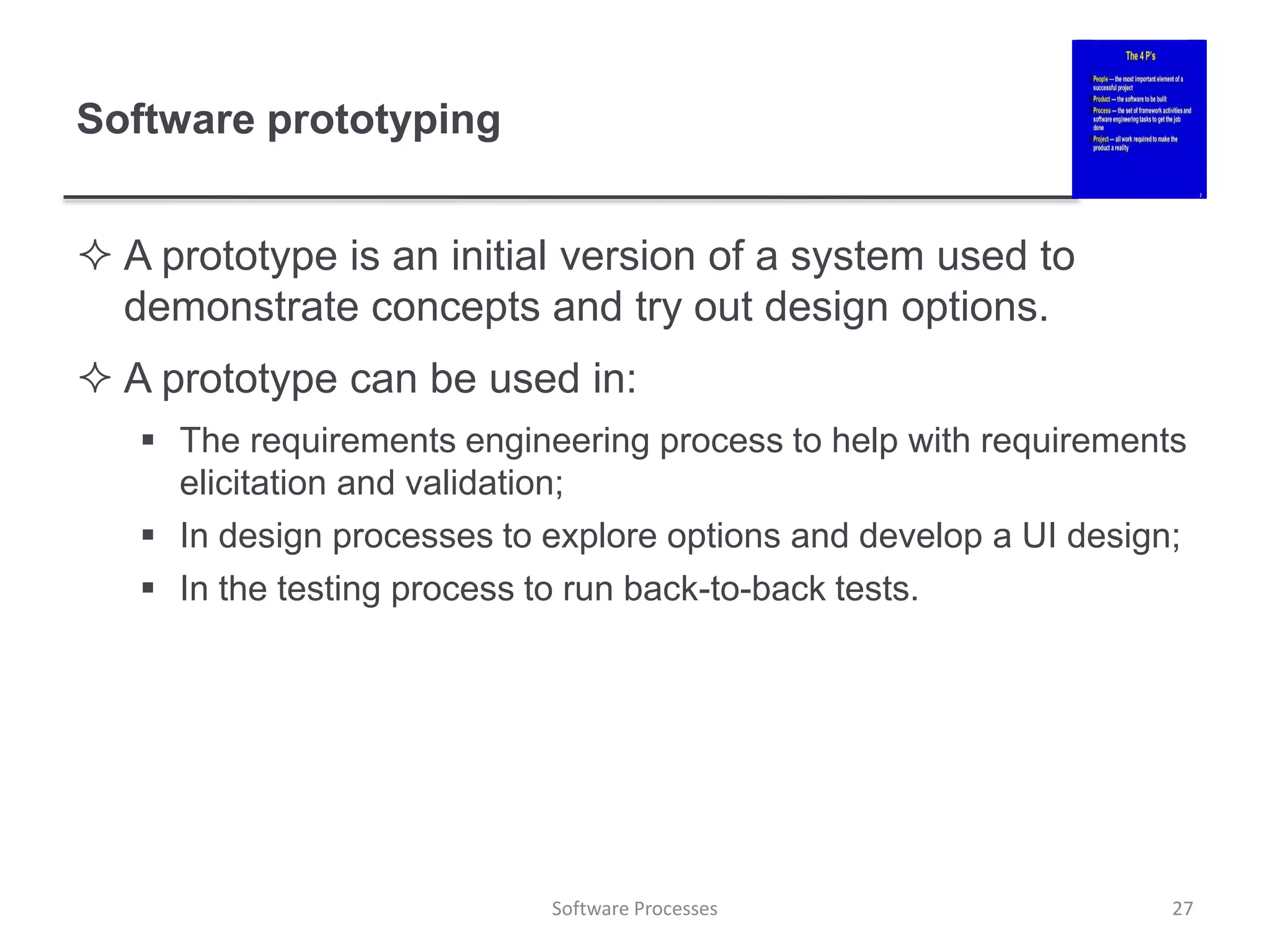

Software prototyping
 A prototype is an initial version of a system used to
demonstrate concepts and try out design options.
 A prototype can be used in:
 The requirements engineering process to help with requirements
elicitation and validation;
 In design processes to explore options and develop a UI design;
 In the testing process to run back-to-back tests.
27
Software Processes

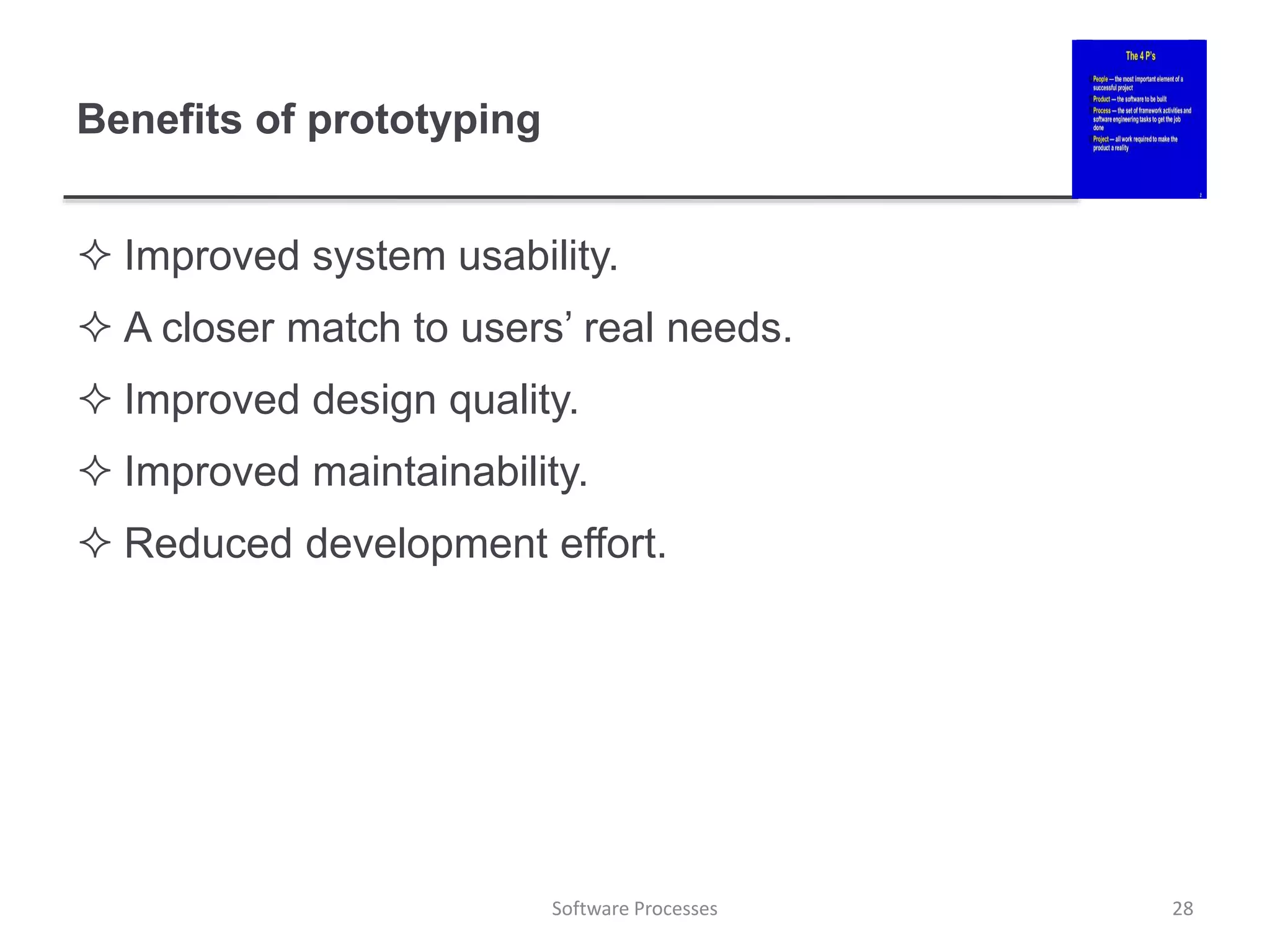

Benefits of prototyping
 Improved system usability.
 A closer match to users’ real needs.
 Improved design quality.
 Improved maintainability.
 Reduced development effort.
28
Software Processes

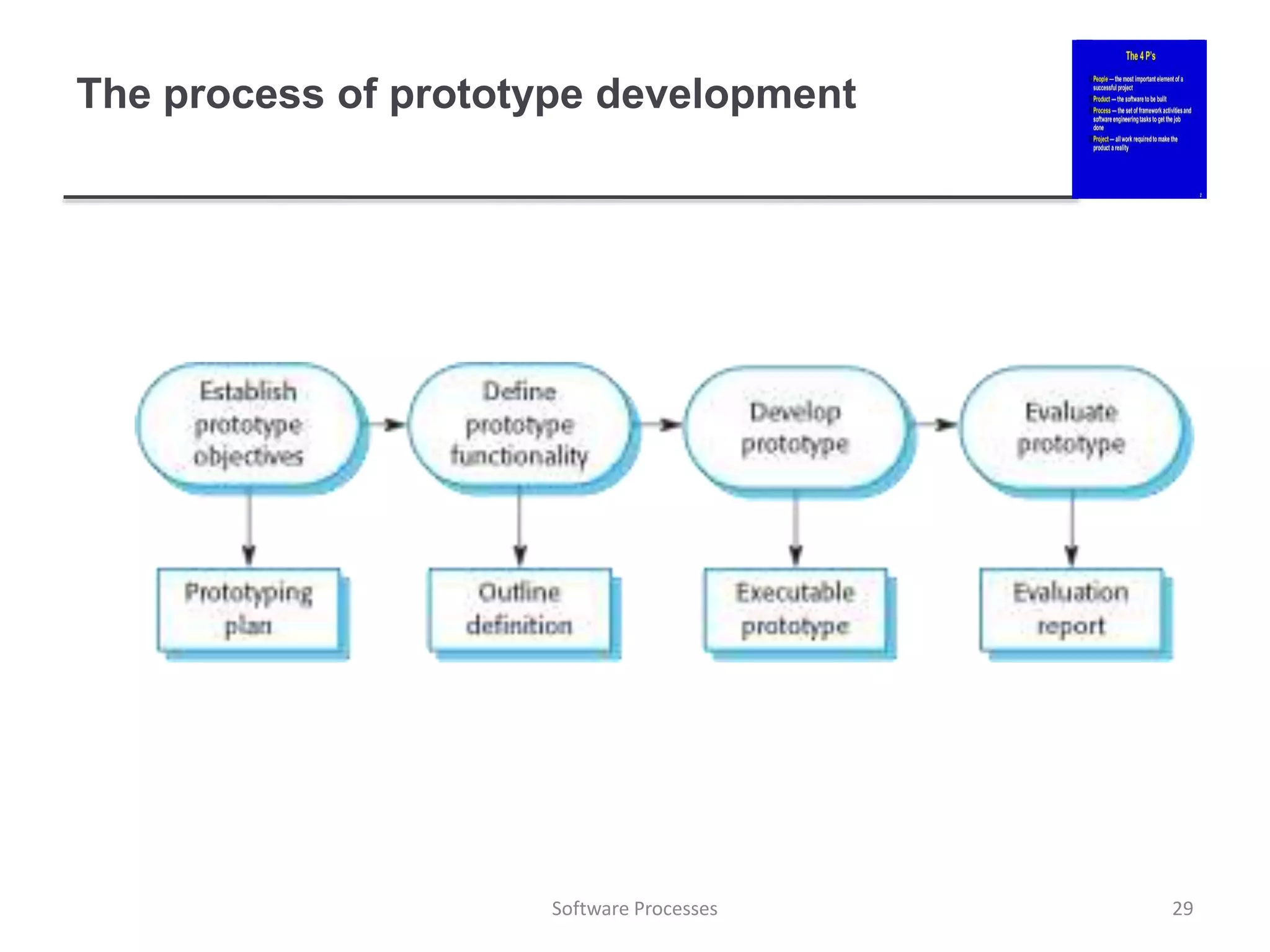

The process of prototype development
29
Software Processes

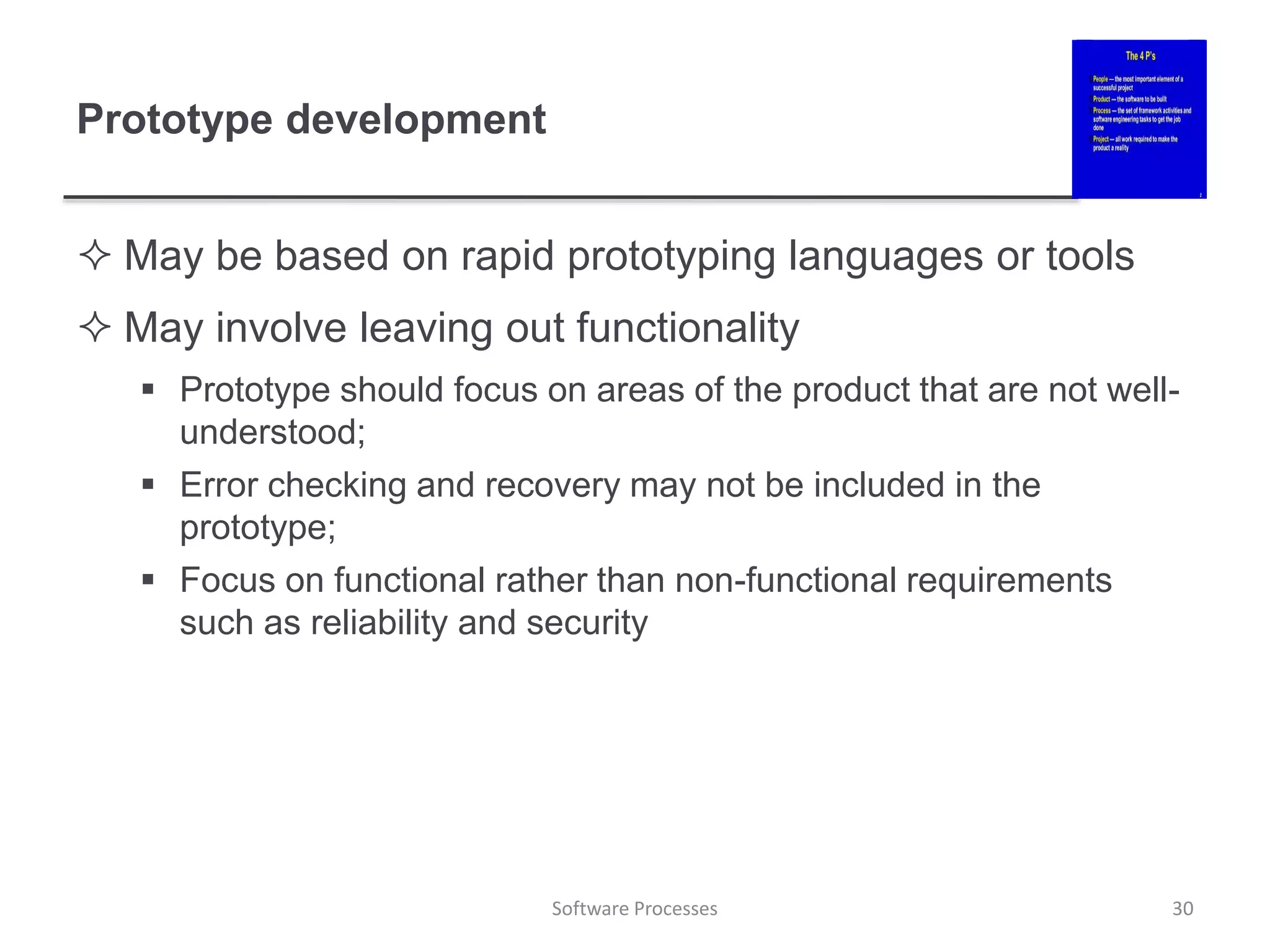

Prototype development
 May be based on rapid prototyping languages or tools
 May involve leaving out functionality
 Prototype should focus on areas of the product that are not well-
understood;
 Error checking and recovery may not be included in the
prototype;
 Focus on functional rather than non-functional requirements
such as reliability and security

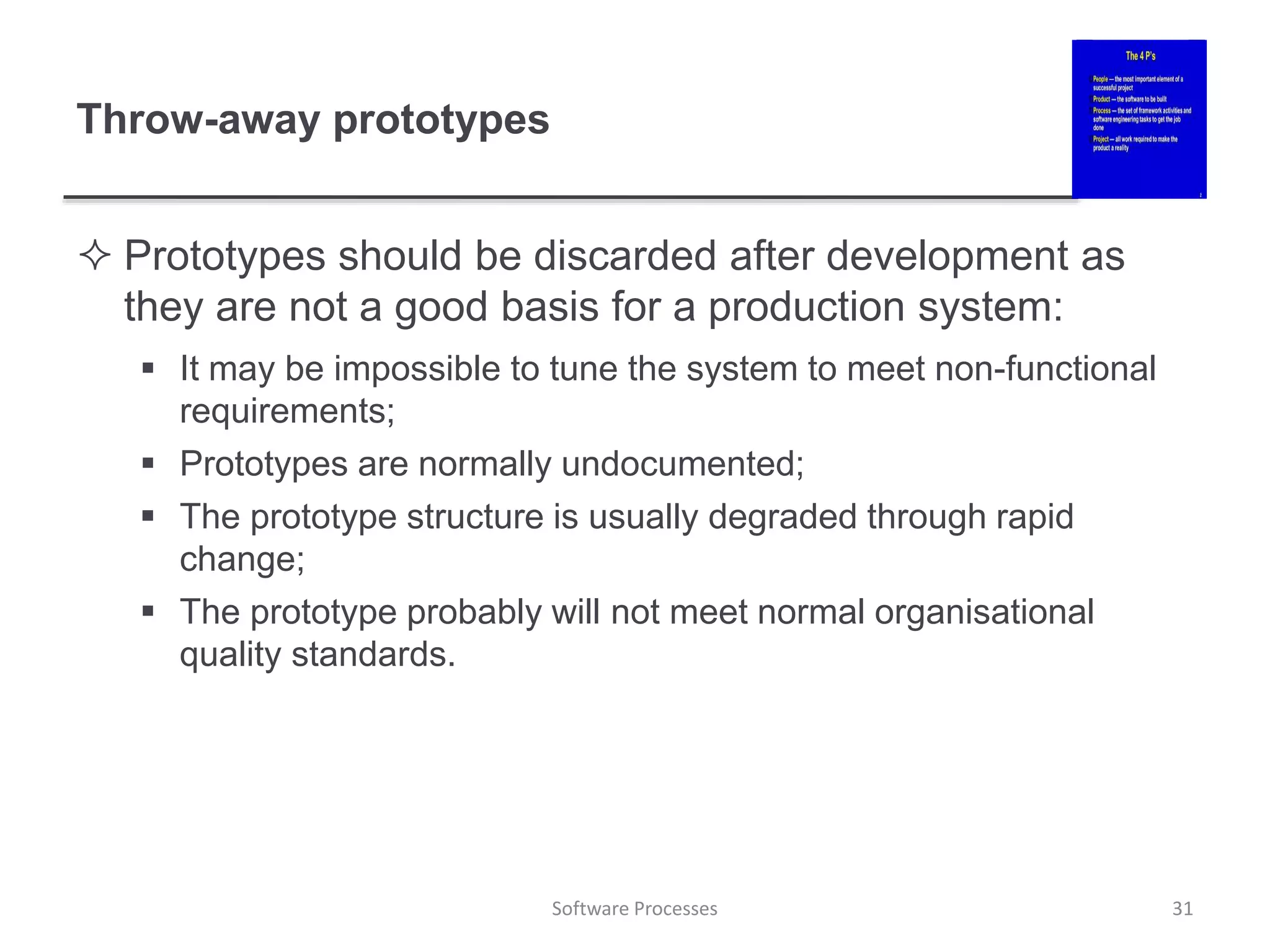

Throw-away prototypes
 Prototypes should be discarded after development as
they are not a good basis for a production system:
 It may be impossible to tune the system to meet non-functional
requirements;
 Prototypes are normally undocumented;
 The prototype structure is usually degraded through rapid
change;
 The prototype probably will not meet normal organisational
quality standards.
31
Software Processes

Incremental delivery
 Rather than deliver the system as a single delivery, the
development and delivery is broken down into
increments with each increment delivering part of the
required functionality.
 User requirements are prioritised and the highest priority
requirements are included in early increments.
 Once the development of an increment is started, the
requirements are frozen though requirements for later
increments can continue to evolve.
32
Software Processes

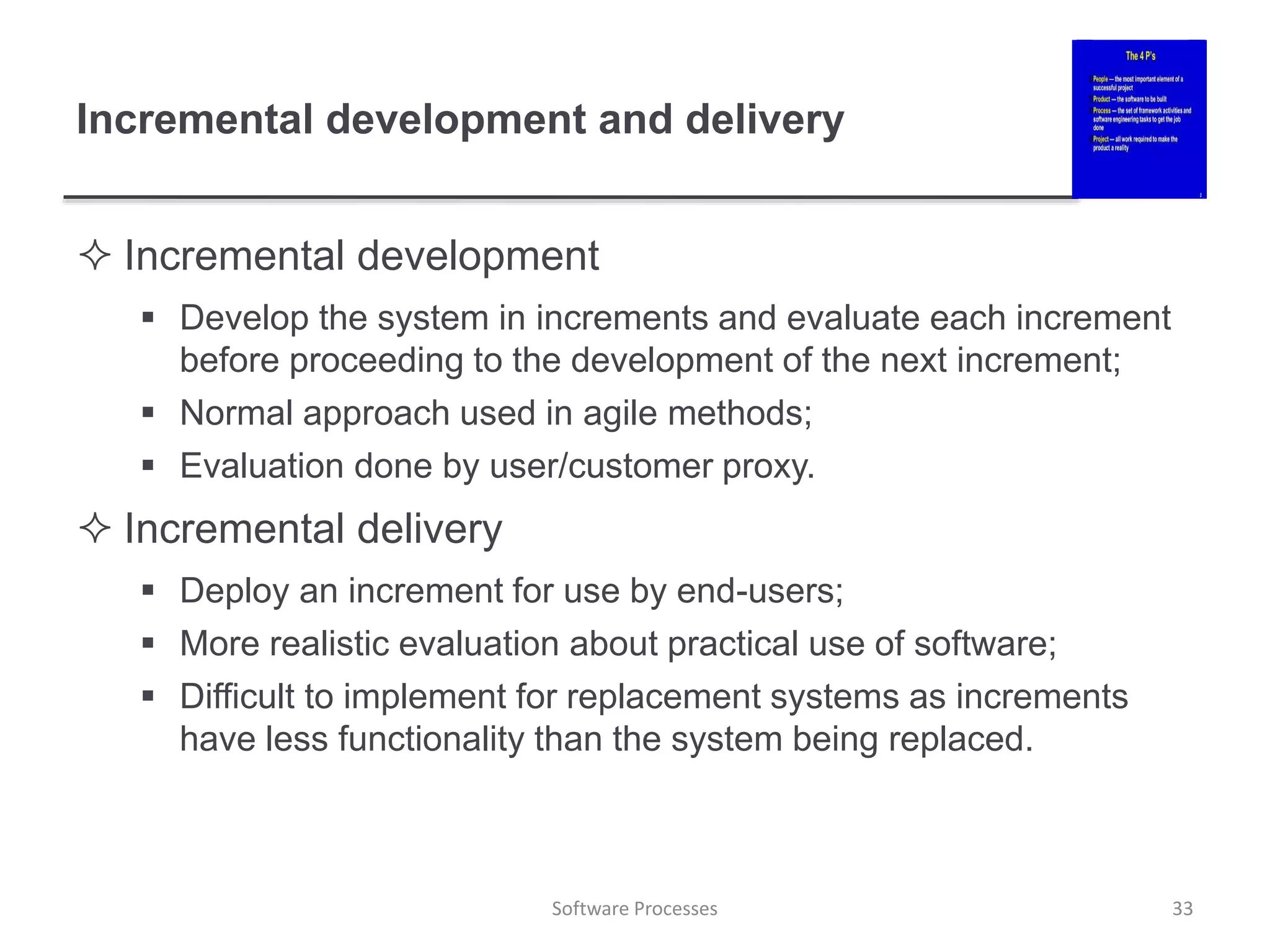

Incremental development and delivery
 Incremental development
 Develop the system in increments and evaluate each increment
before proceeding to the development of the next increment;
 Normal approach used in agile methods;
 Evaluation done by user/customer proxy.
 Incremental delivery
 Deploy an increment for use by end-users;
 More realistic evaluation about practical use of software;
 Difficult to implement for replacement systems as increments
have less functionality than the system being replaced.

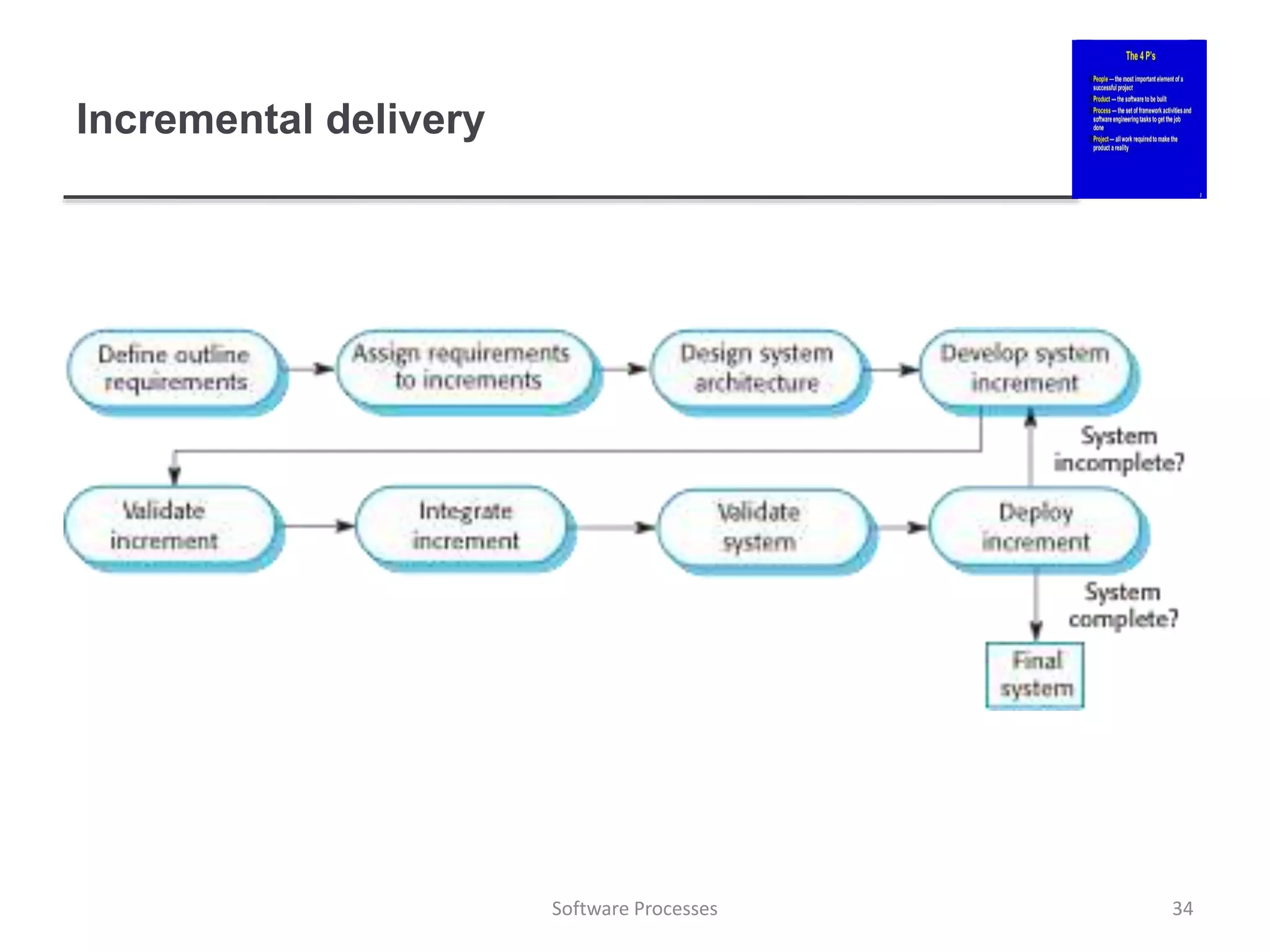

Incremental delivery
34
Software Processes

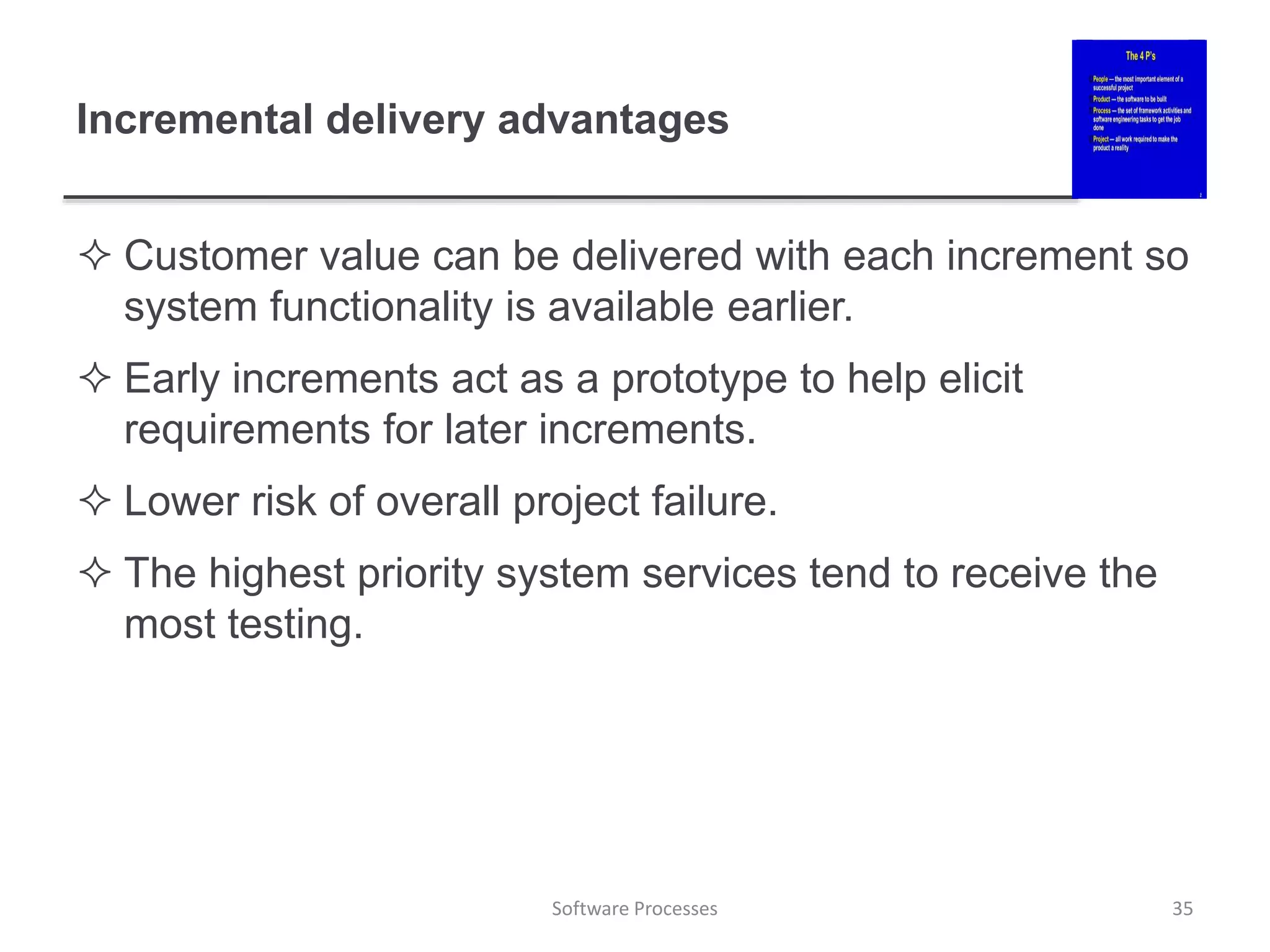

Incremental delivery advantages
 Customer value can be delivered with each increment so
system functionality is available earlier.
 Early increments act as a prototype to help elicit
requirements for later increments.
 Lower risk of overall project failure.
 The highest priority system services tend to receive the
most testing.
35
Software Processes

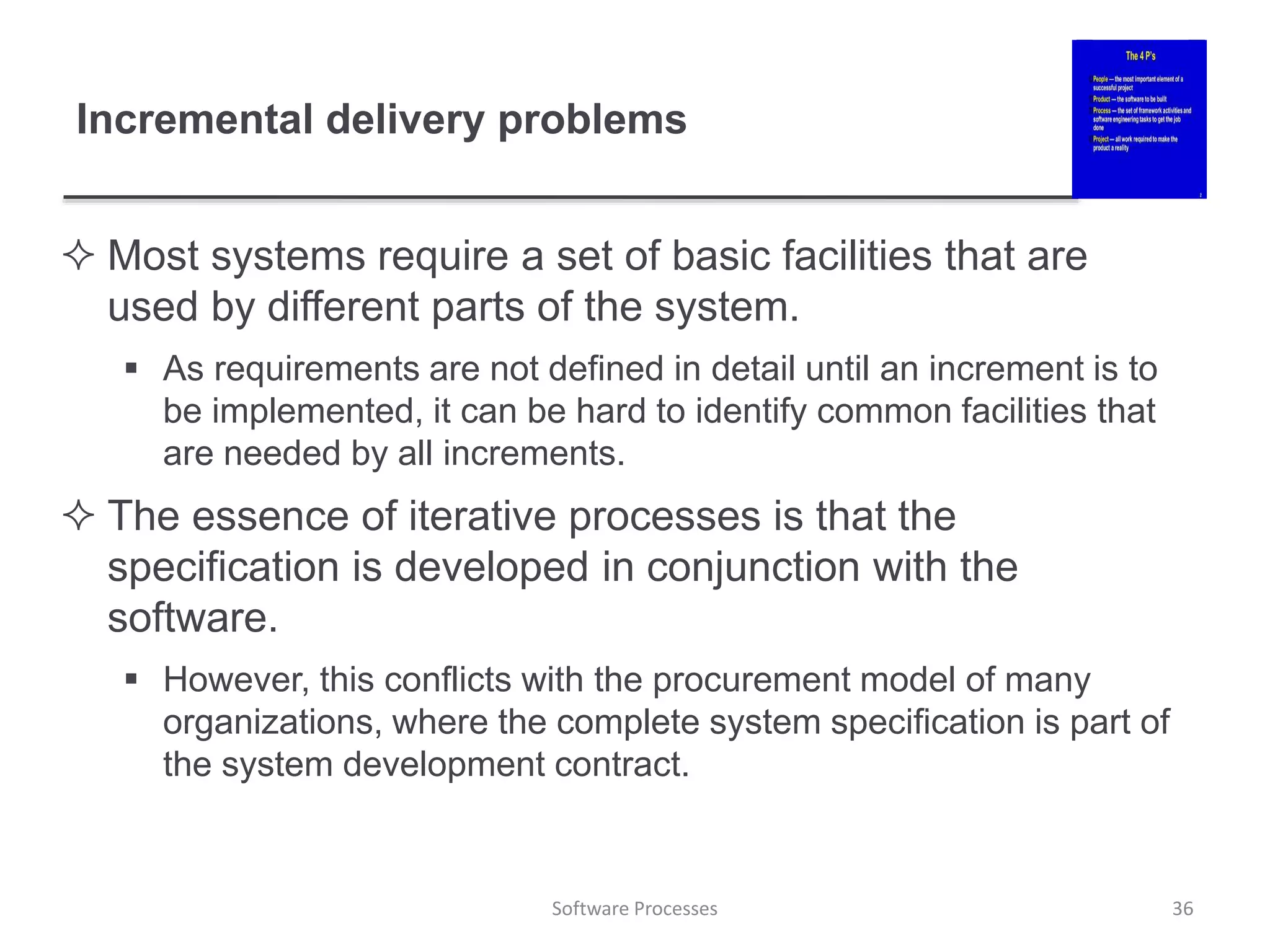

Incremental delivery problems
 Most systems require a set of basic facilities that are
used by different parts of the system.
 As requirements are not defined in detail until an increment is to
be implemented, it can be hard to identify common facilities that
are needed by all increments.
 The essence of iterative processes is that the
specification is developed in conjunction with the
software.
 However, this conflicts with the procurement model of many
organizations, where the complete system specification is part of
the system development contract.
36
Software Processes

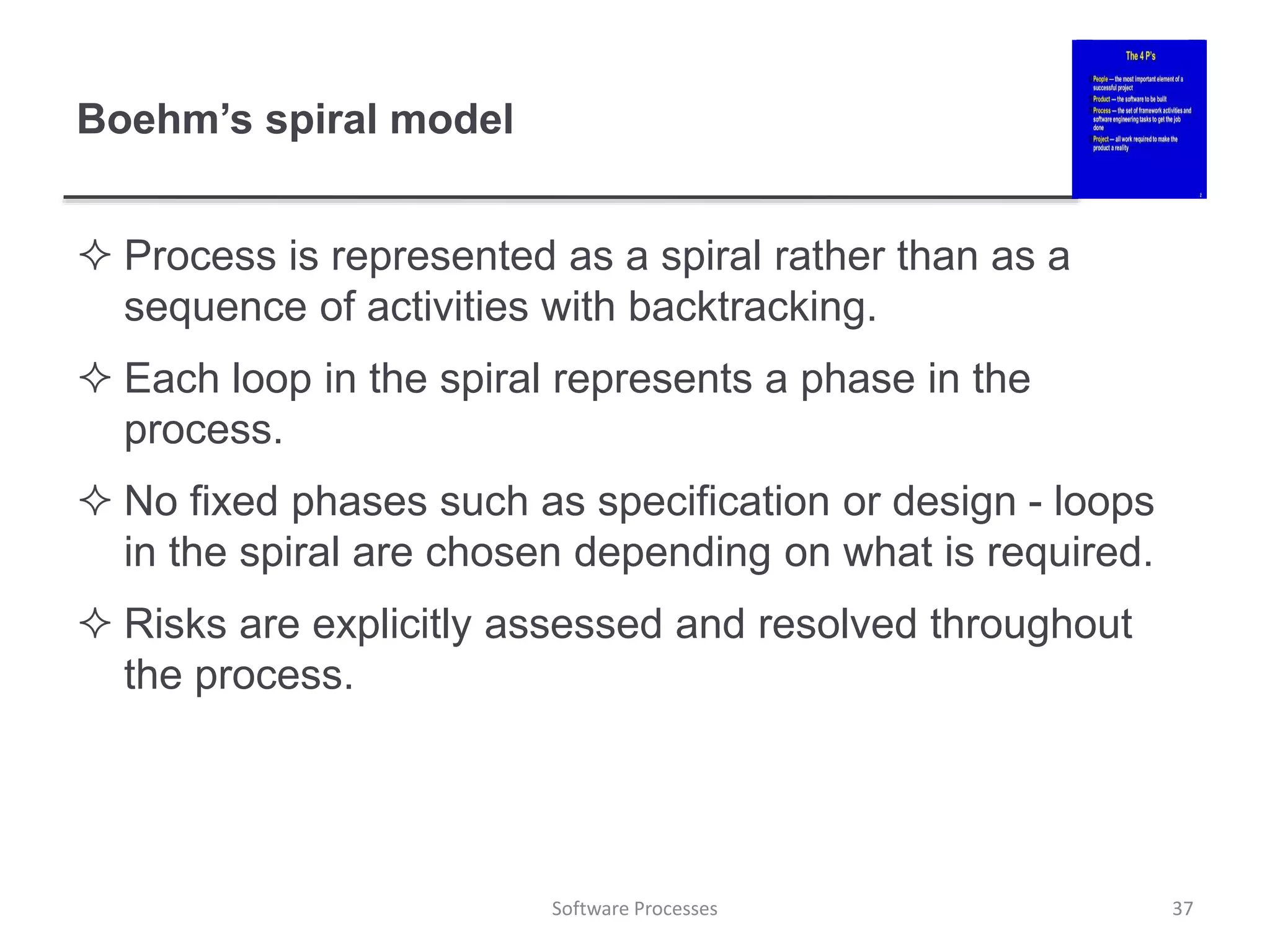

Boehm’s spiral model
 Process is represented as a spiral rather than as a
sequence of activities with backtracking.
 Each loop in the spiral represents a phase in the
process.
 No fixed phases such as specification or design - loops
in the spiral are chosen depending on what is required.
 Risks are explicitly assessed and resolved throughout
the process.
37
Software Processes

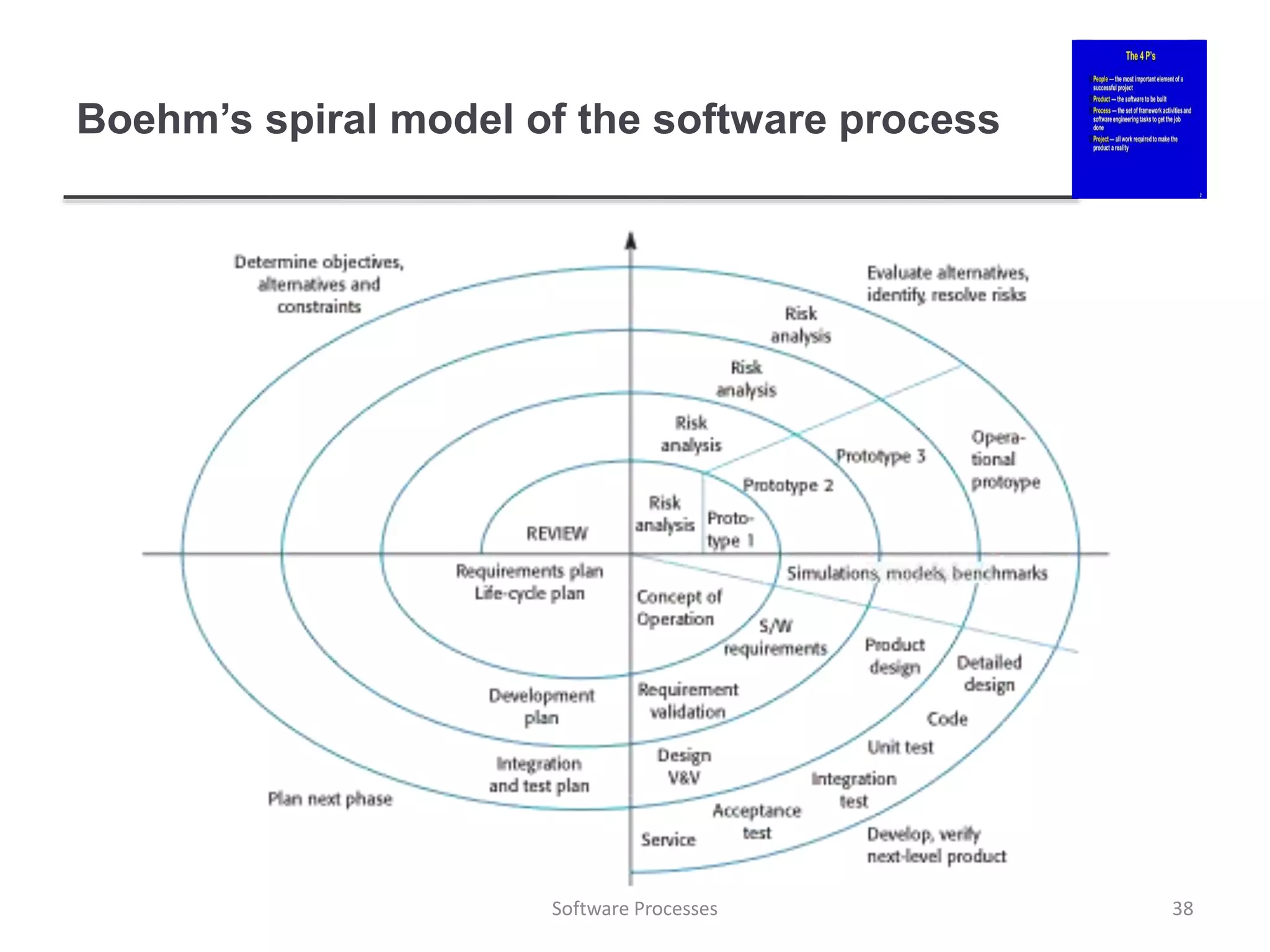

Boehm’s spiral model of the software process
38
Software Processes

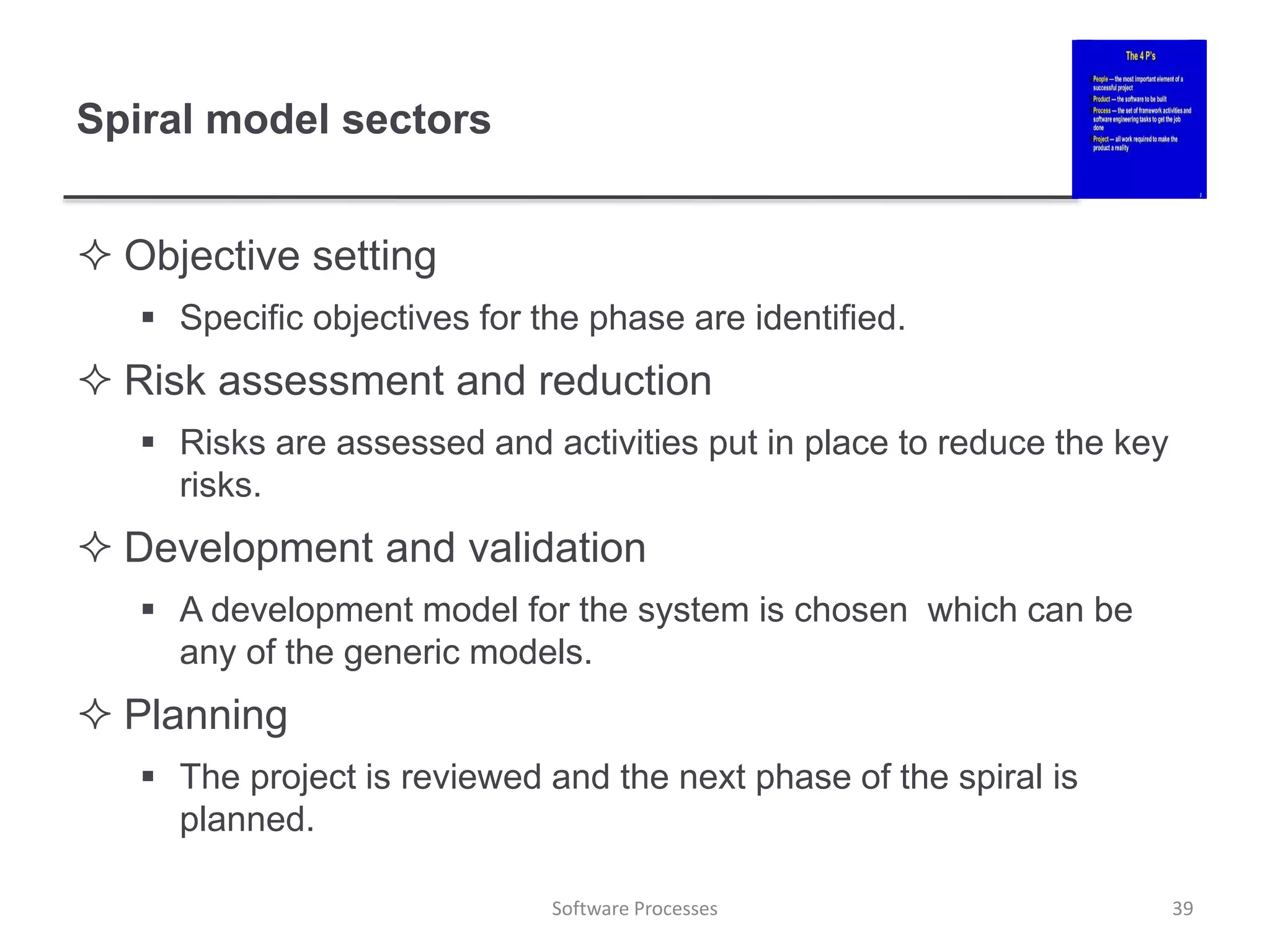

Spiral model sectors
 Objective setting
 Specific objectives for the phase are identified.
 Risk assessment and reduction
 Risks are assessed and activities put in place to reduce the key
risks.
 Development and validation
 A development model for the system is chosen which can be
any of the generic models.
 Planning
 The project is reviewed and the next phase of the spiral is
planned.
39
Software Processes

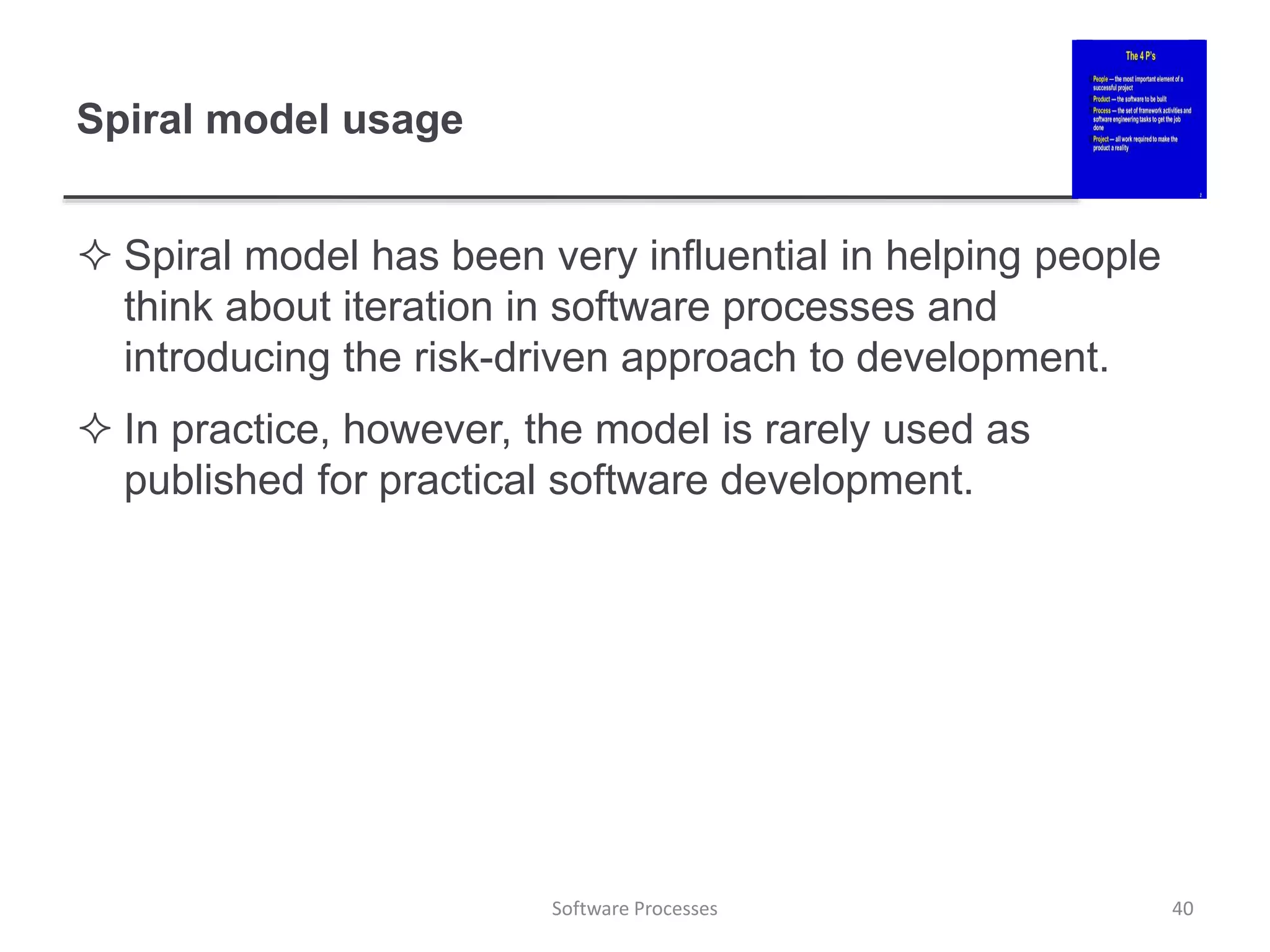

Spiral model usage
 Spiral model has been very influential in helping people
think about iteration in software processes and
introducing the risk-driven approach to development.
 In practice, however, the model is rarely used as
published for practical software development.

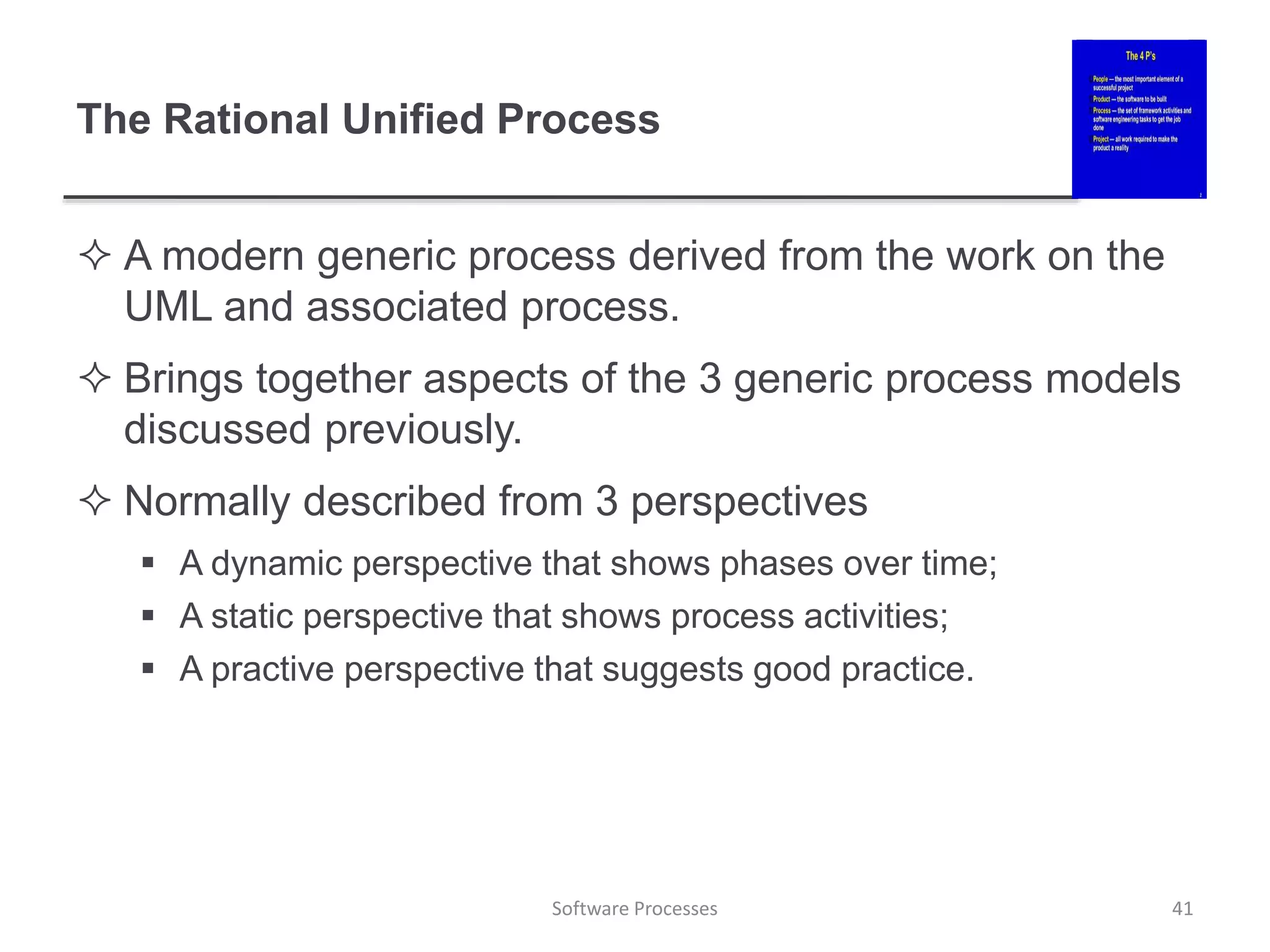

The Rational Unified Process
 A modern generic process derived from the work on the
UML and associated process.
 Brings together aspects of the 3 generic process models
discussed previously.
 Normally described from 3 perspectives
 A dynamic perspective that shows phases over time;
 A static perspective that shows process activities;
 A practive perspective that suggests good practice.
41
Software Processes

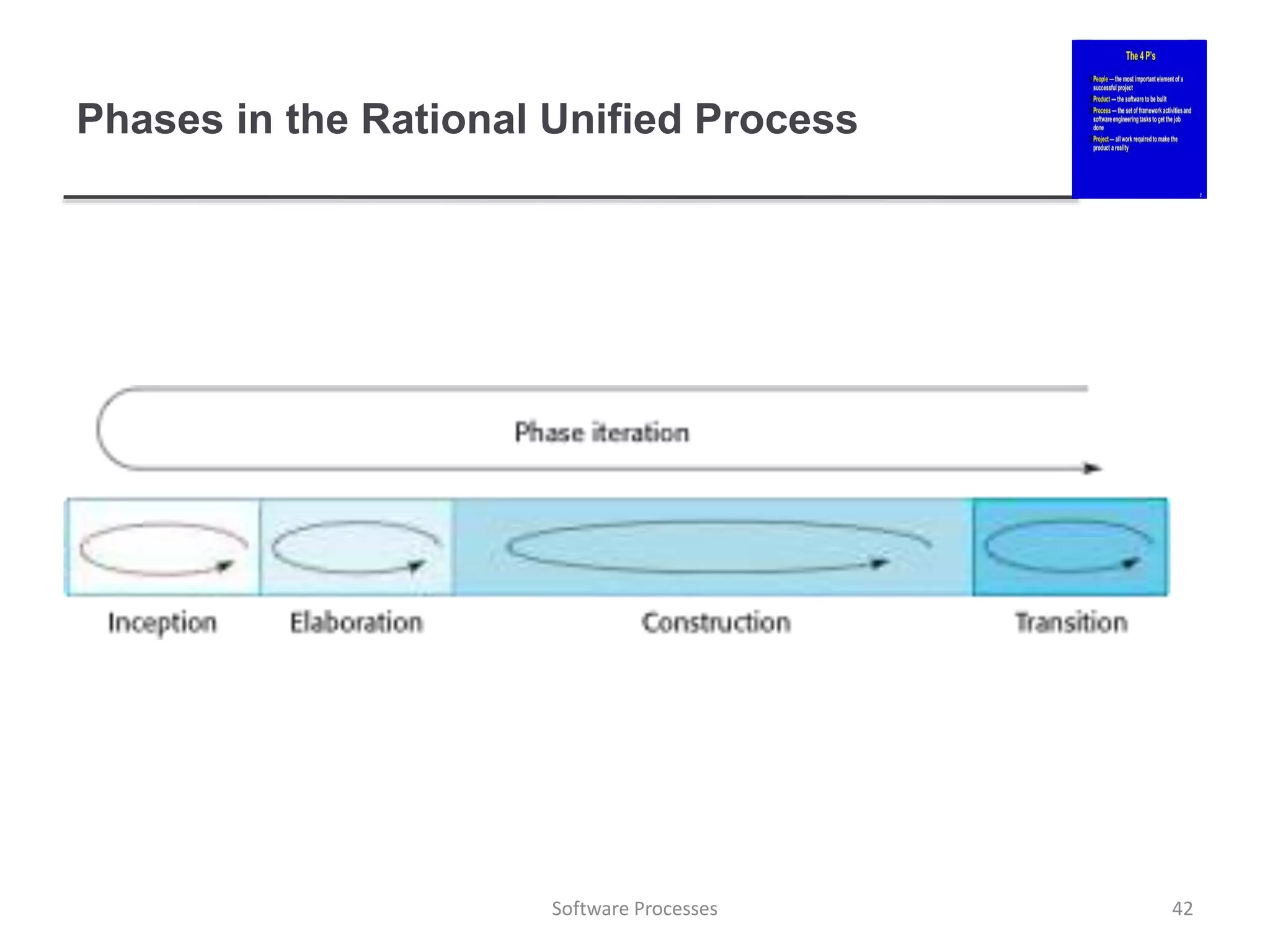

Phases in the Rational Unified Process
42
Software Processes

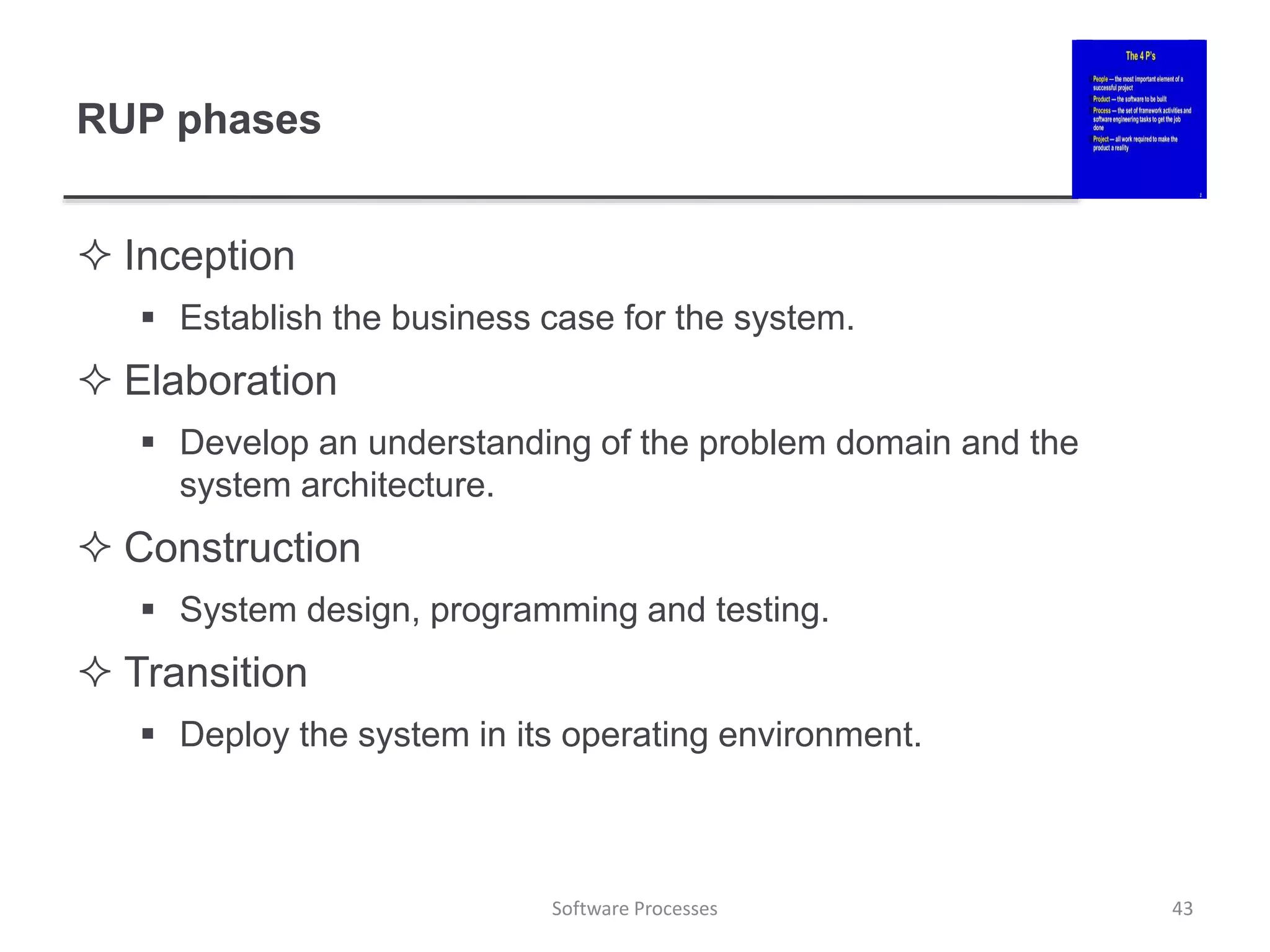

RUP phases
 Inception
 Establish the business case for the system.
 Elaboration
 Develop an understanding of the problem domain and the
system architecture.
 Construction
 System design, programming and testing.
 Transition
 Deploy the system in its operating environment.
43
Software Processes

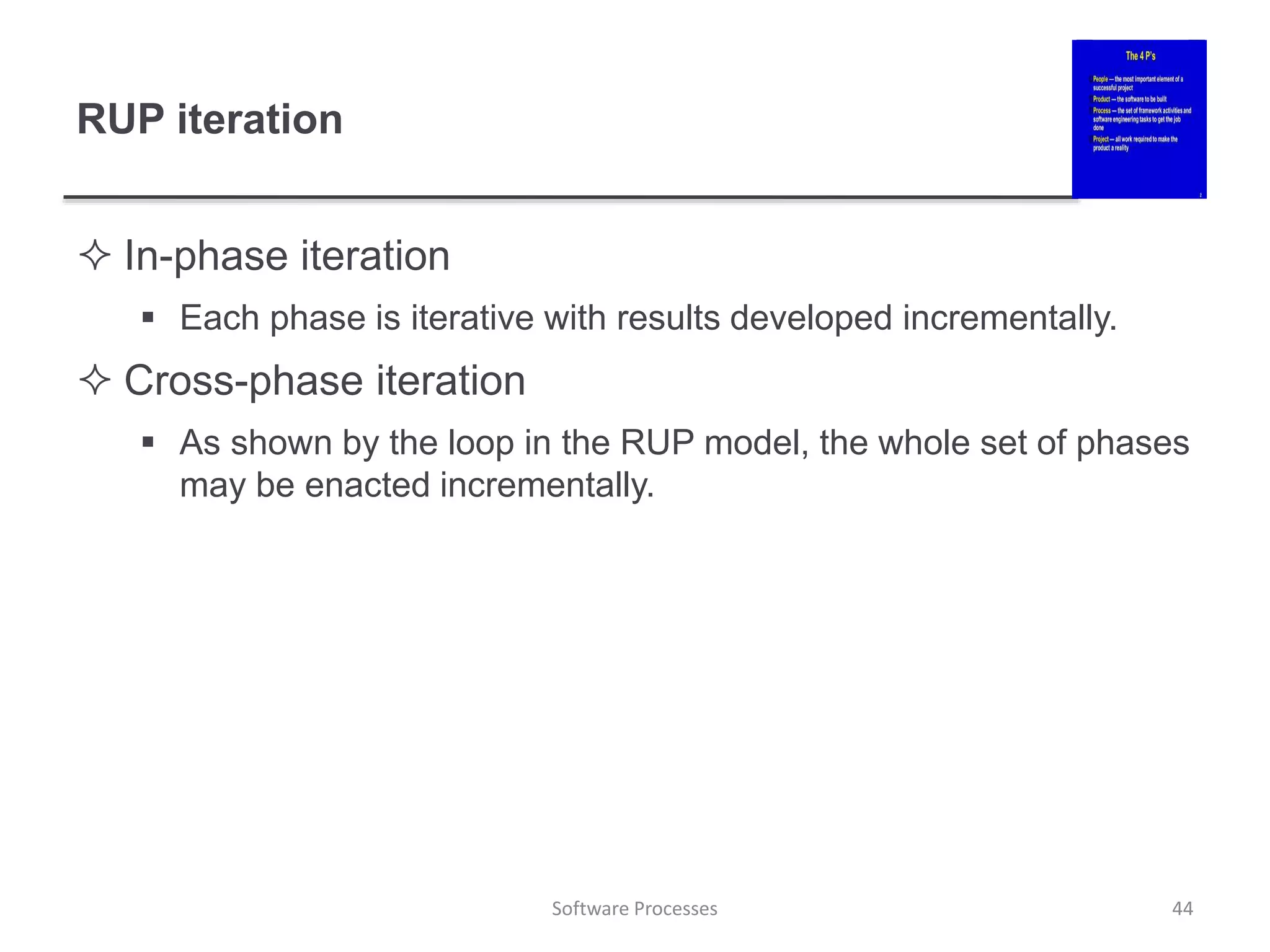

RUP iteration
 In-phase iteration
 Each phase is iterative with results developed incrementally.
 Cross-phase iteration
 As shown by the loop in the RUP model, the whole set of phases
may be enacted incrementally.

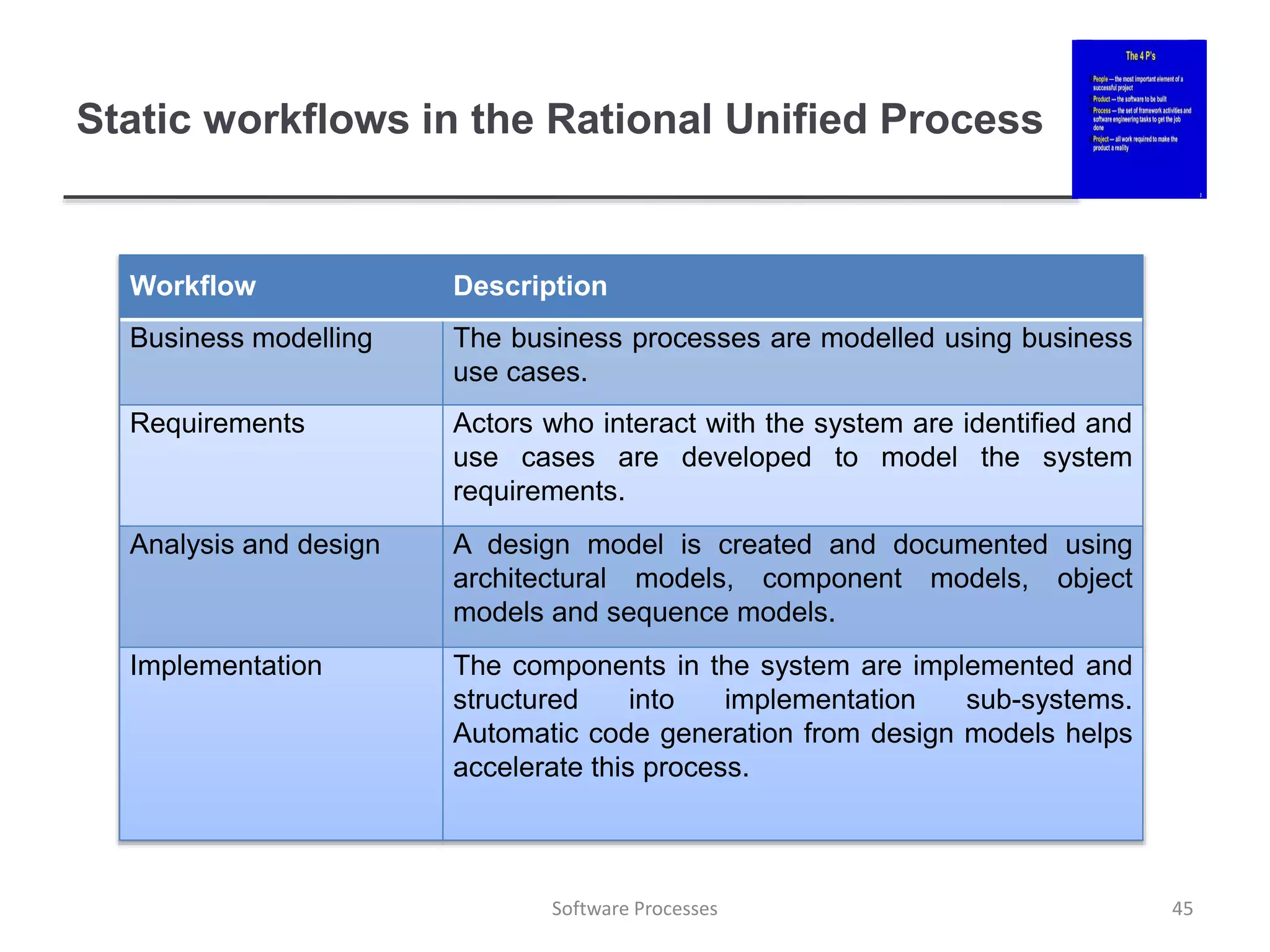

Static workflows in the Rational Unified Process
Workflow Description
Business modelling The business processes are modelled using business
use cases.
Requirements Actors who interact with the system are identified and
use cases are developed to model the system
requirements.
Analysis and design A design model is created and documented using
architectural models, component models, object
models and sequence models.
Implementation The components in the system are implemented and
structured into implementation sub-systems.
Automatic code generation from design models helps
accelerate this process.
45
Software Processes

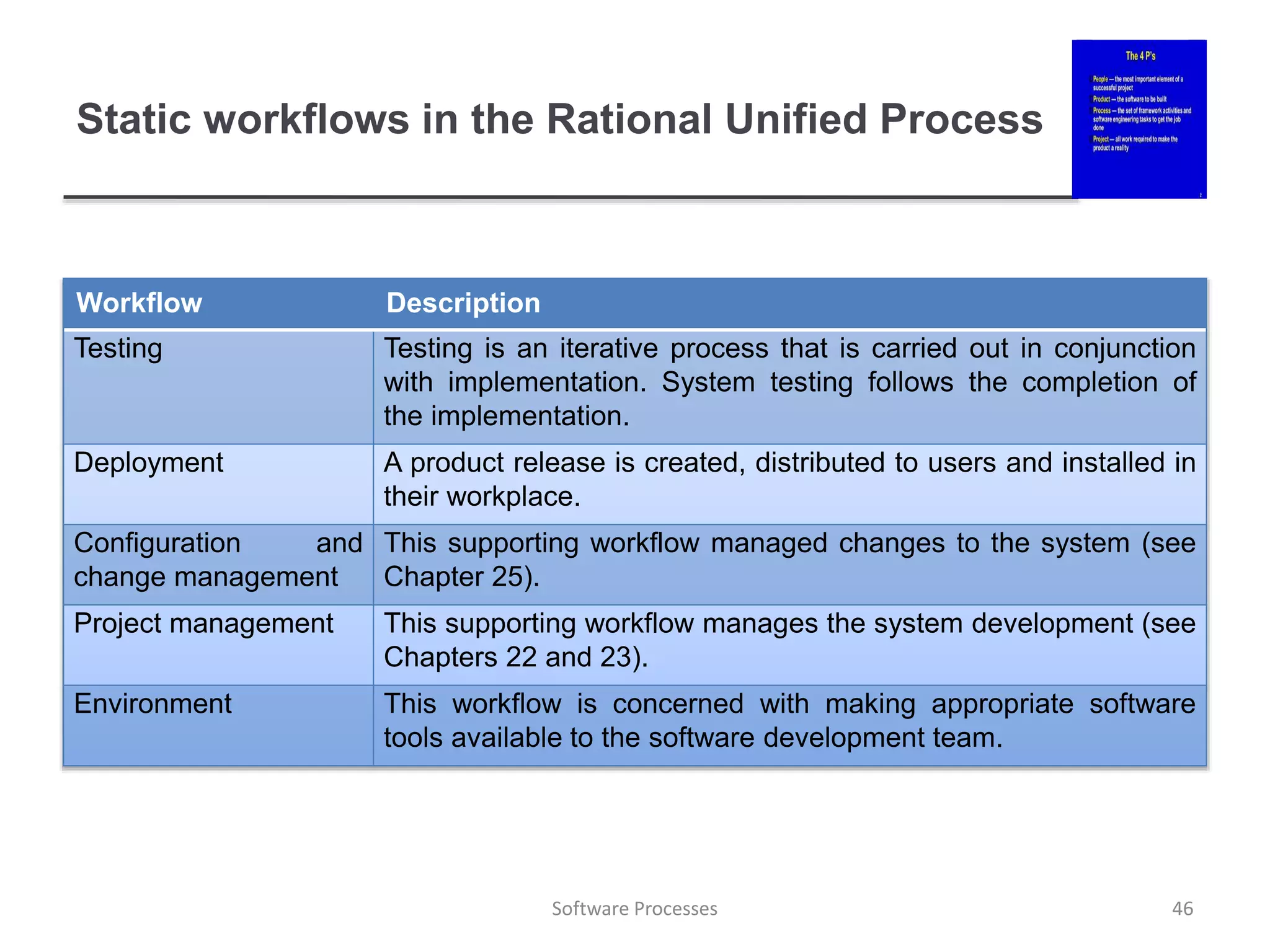

Static workflows in the Rational Unified Process
Workflow Description
Testing Testing is an iterative process that is carried out in conjunction
with implementation. System testing follows the completion of
the implementation.
Deployment A product release is created, distributed to users and installed in
their workplace.
Configuration and
change management
This supporting workflow managed changes to the system (see
Chapter 25).
Project management This supporting workflow manages the system development (see
Chapters 22 and 23).
Environment This workflow is concerned with making appropriate software
tools available to the software development team.
46
Software Processes

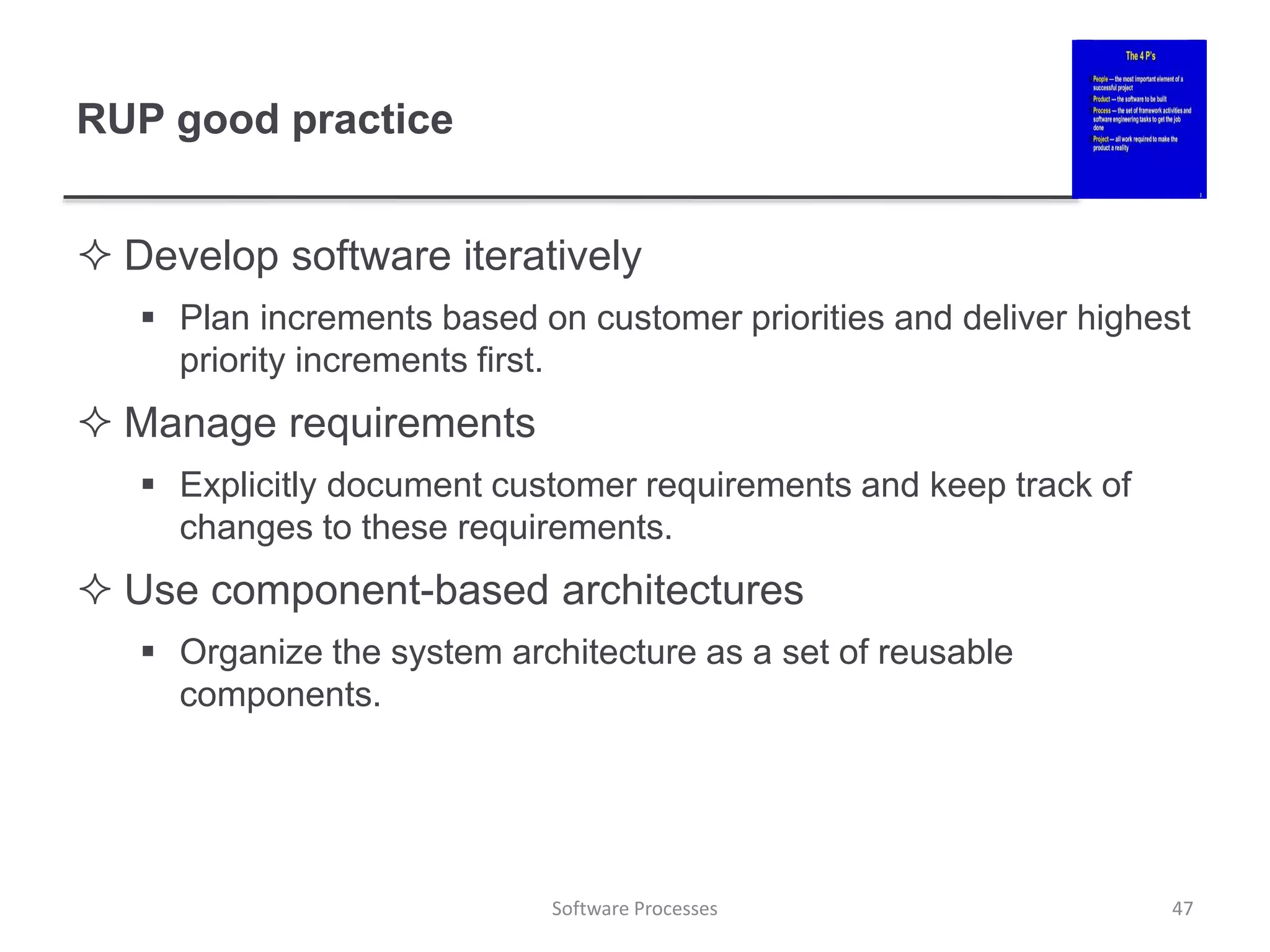

RUP good practice
 Develop software iteratively
 Plan increments based on customer priorities and deliver highest
priority increments first.
 Manage requirements
 Explicitly document customer requirements and keep track of
changes to these requirements.
 Use component-based architectures
 Organize the system architecture as a set of reusable
components.
47
Software Processes

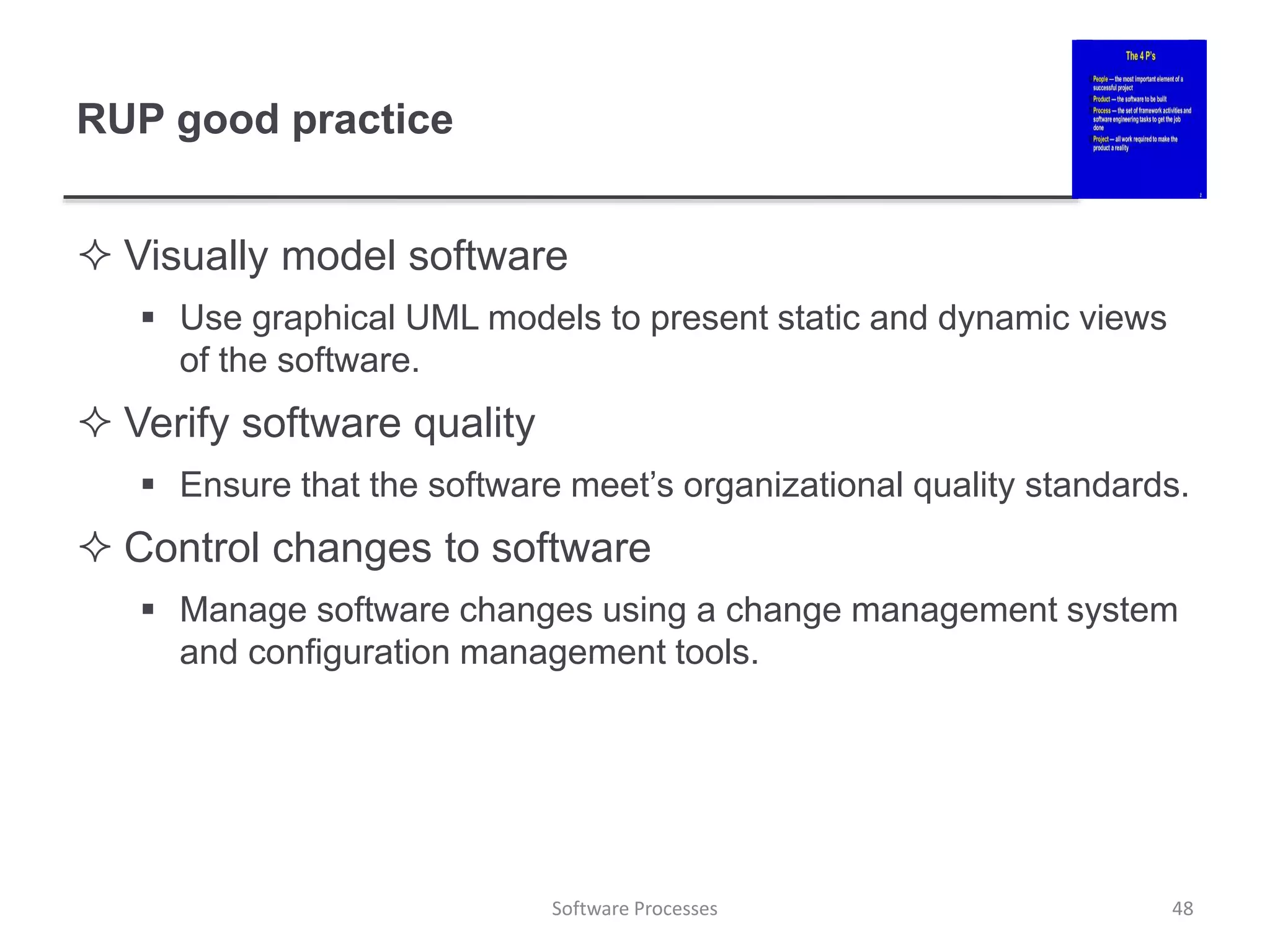

RUP good practice
 Visually model software
 Use graphical UML models to present static and dynamic views
of the software.
 Verify software quality
 Ensure that the software meet’s organizational quality standards.
 Control changes to software
 Manage software changes using a change management system
and configuration management tools.

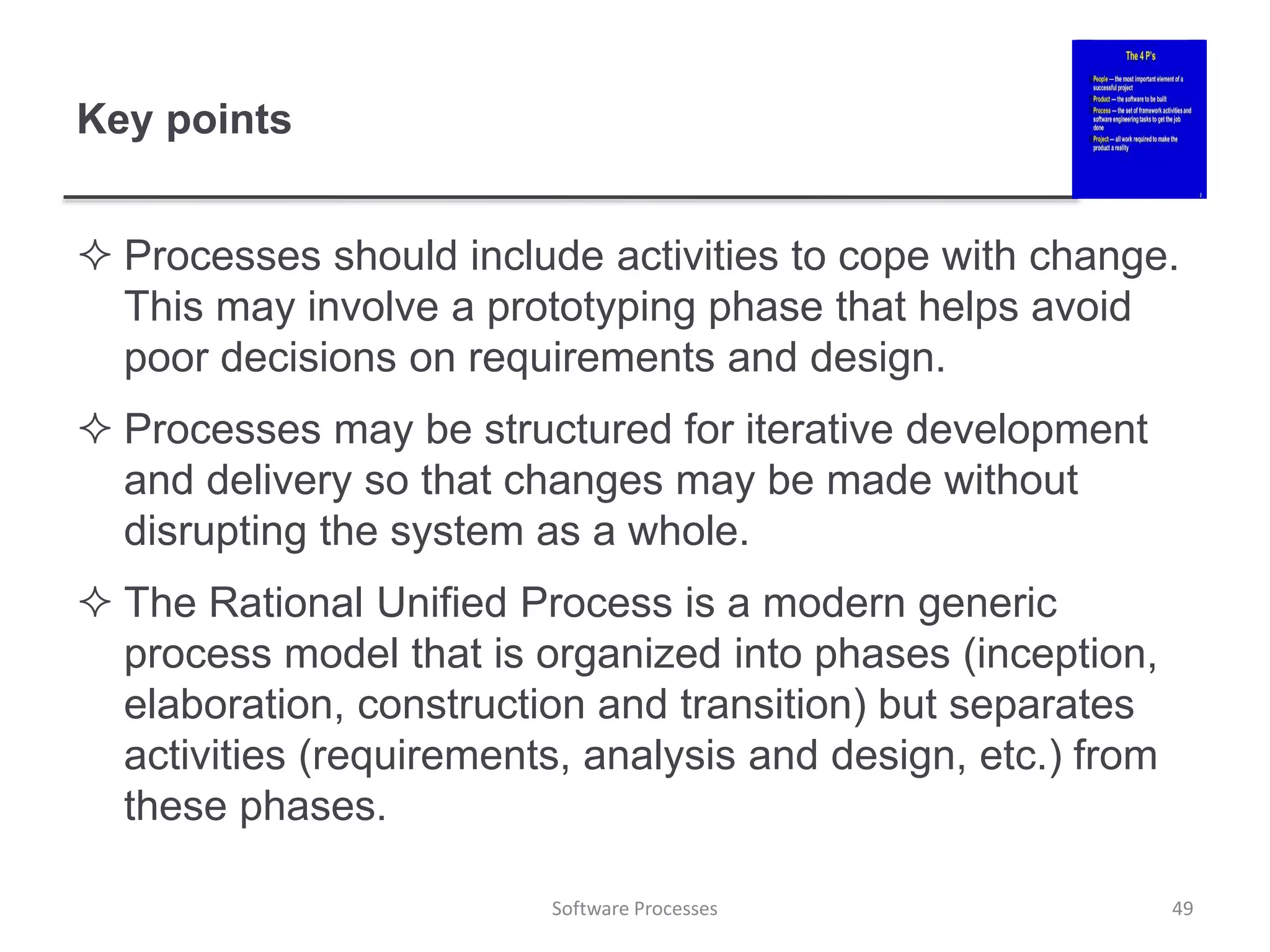

Key points
 Processes should include activities to cope with change.
This may involve a prototyping phase that helps avoid
poor decisions on requirements and design.
 Processes may be structured for iterative development
and delivery so that changes may be made without
disrupting the system as a whole.
 The Rational Unified Process is a modern generic
process model that is organized into phases (inception,
elaboration, construction and transition) but separates
activities (requirements, analysis and design, etc.) from
these phases.
49
Software Processes

Process in Software Engineering/4'ps in Software Engineerin

More Related Content

What's hot

Similar to Process in Software Engineering/4'ps in Software Engineerin

Recently uploaded

Process in Software Engineering/4'ps in Software Engineerin
