Practical Use of a NoSQL
The document discusses NoSQL databases, particularly focusing on Redis and Cloudant, as alternatives to traditional RDBMS. It highlights the advantages of NoSQL in scalability, availability, and handling specific use-cases like caching, queuing, and geospatial queries. Additionally, it provides an overview of Cloudant's capabilities, including JSON storage, replication, and various query methods suitable for large datasets and operational data.
More Related Content
Similar to Practical Use of a NoSQL
Practical Use of a NoSQL
- 1. NoSQL use-cases youcan use today Practical NoSQL Glynn Bird Developer Advocate, IBM Cloud Data Services glynn.bird@uk.ibm.com @glynn_bird

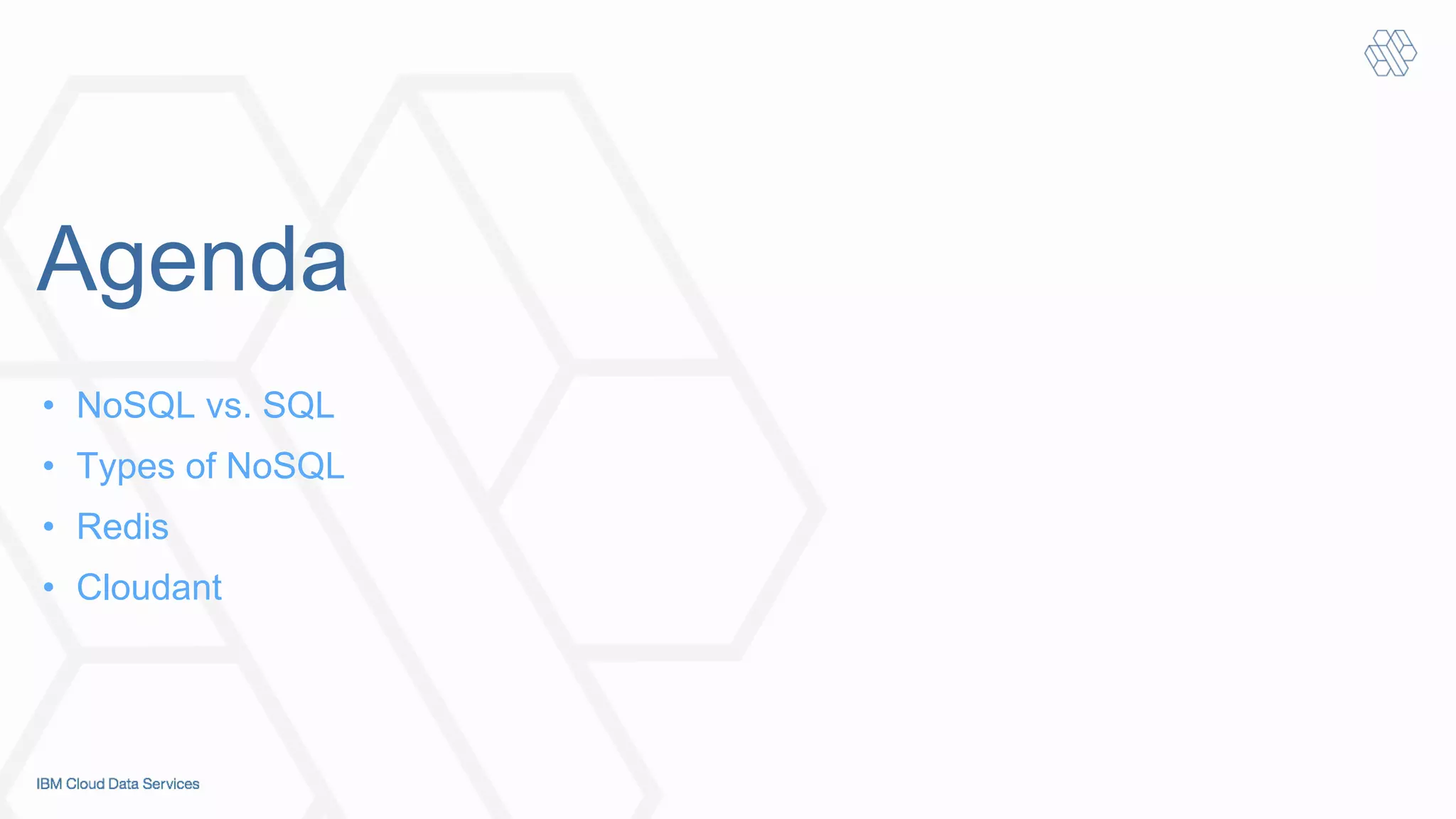

- 2. Agenda • NoSQL vs.SQL • Types of NoSQL • Redis • Cloudant
- 3.

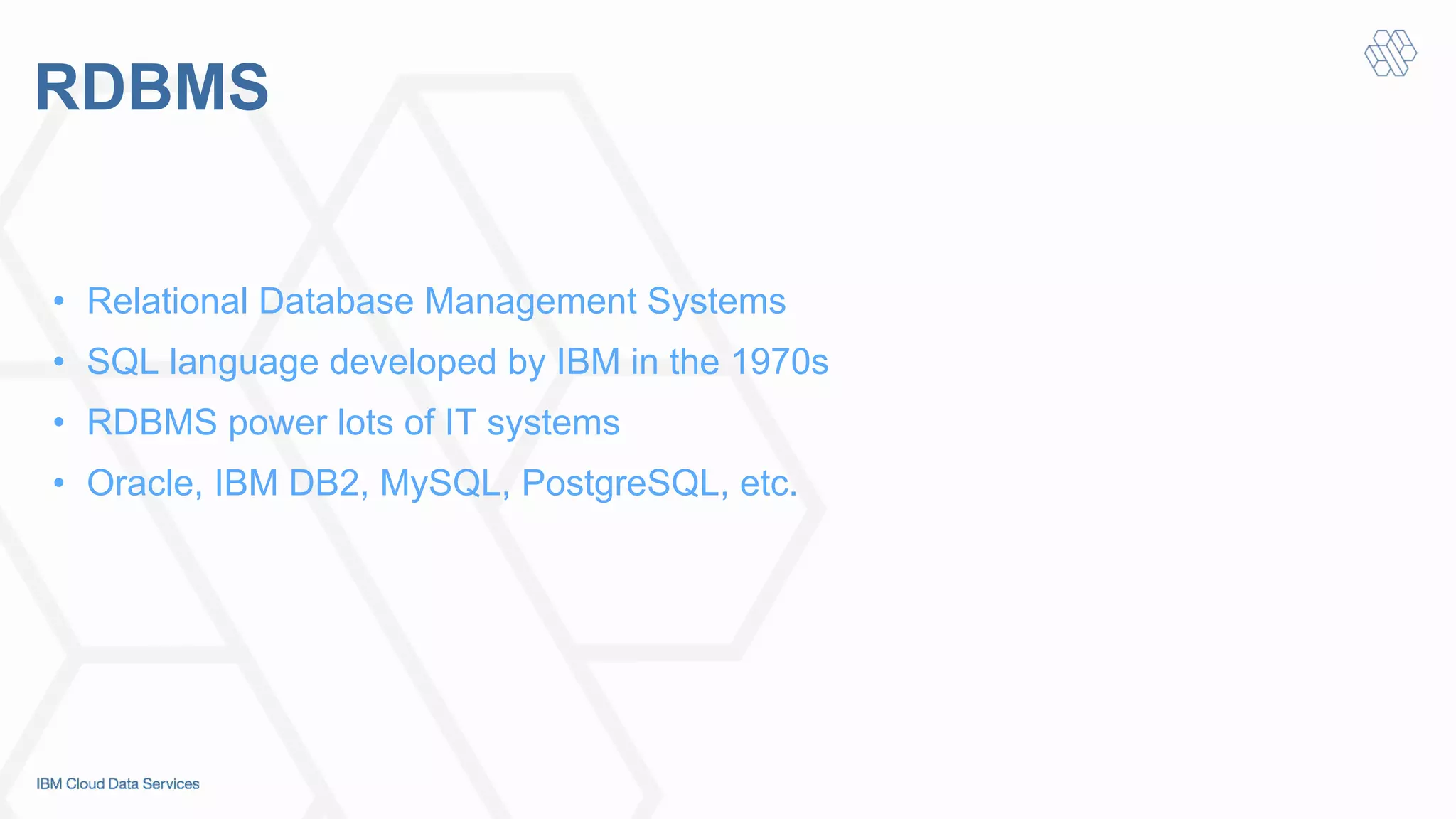

- 4. RDBMS • Relational DatabaseManagement Systems • SQL language developed by IBM in the 1970s • RDBMS power lots of IT systems • Oracle, IBM DB2, MySQL, PostgreSQL, etc.

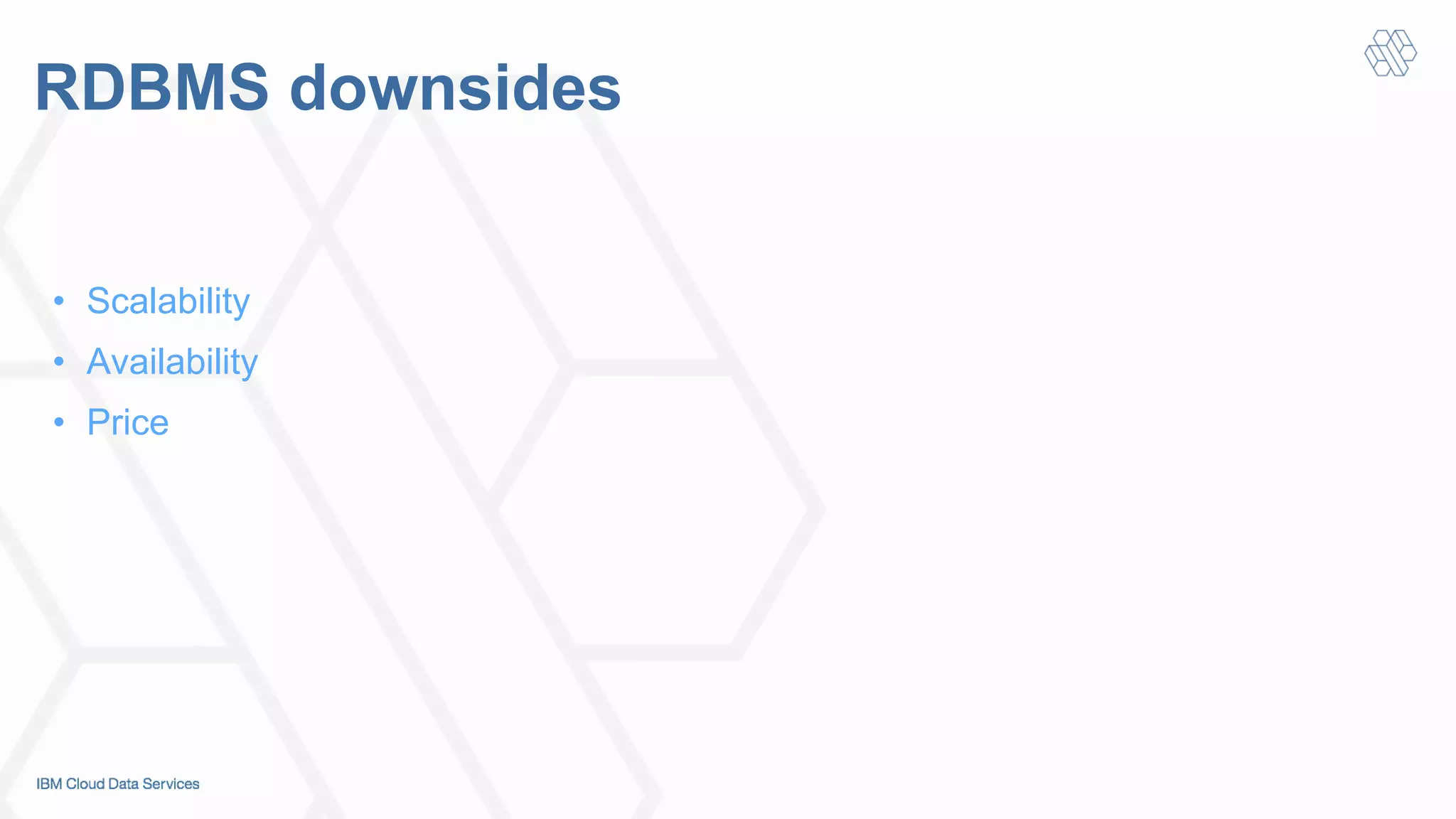

- 5. RDBMS downsides • Scalability • Availability • Price

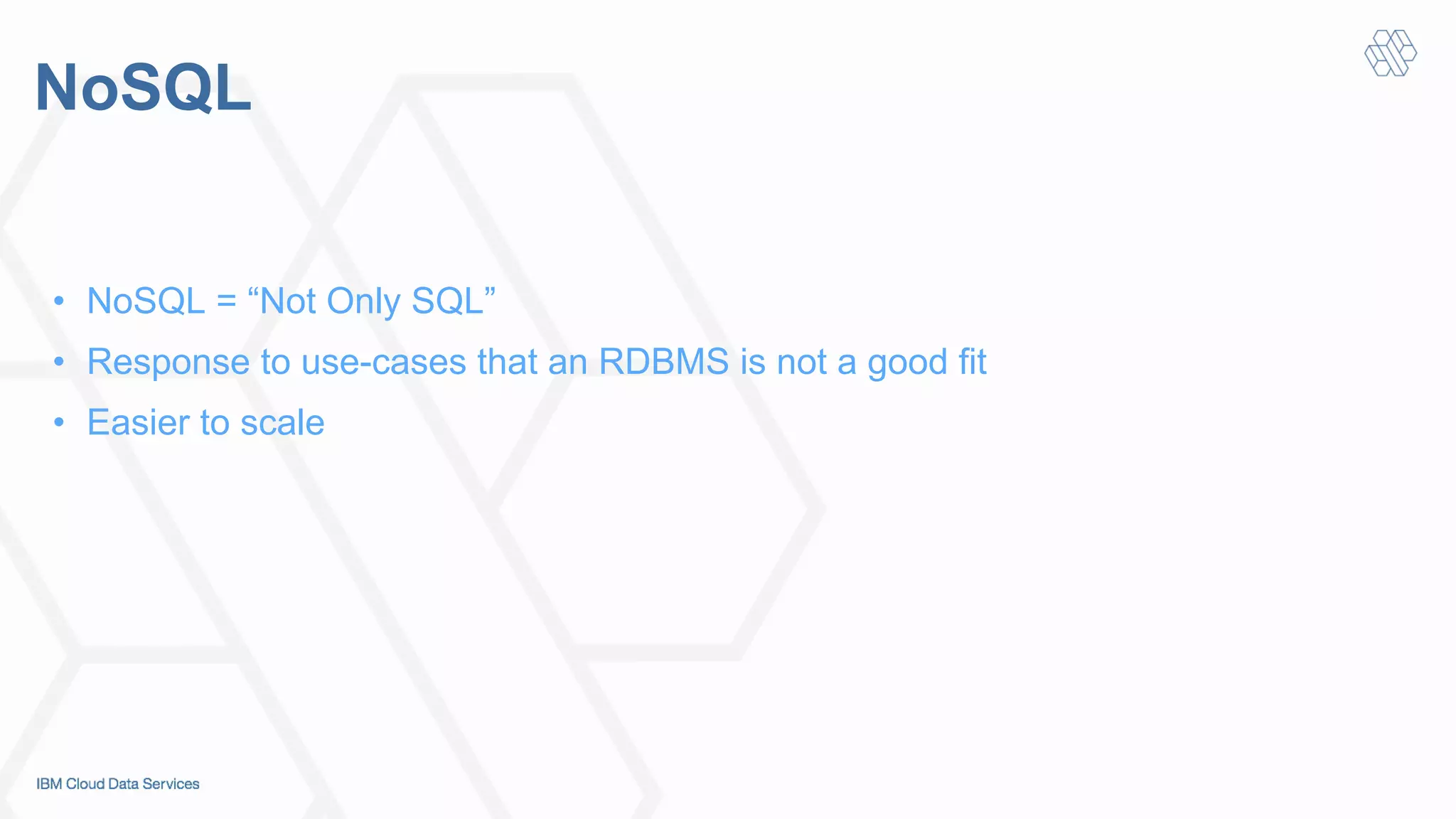

- 6. NoSQL • NoSQL =“Not Only SQL” • Response to use-cases that an RDBMS is not a good fit • Easier to scale
- 7.
- 8.

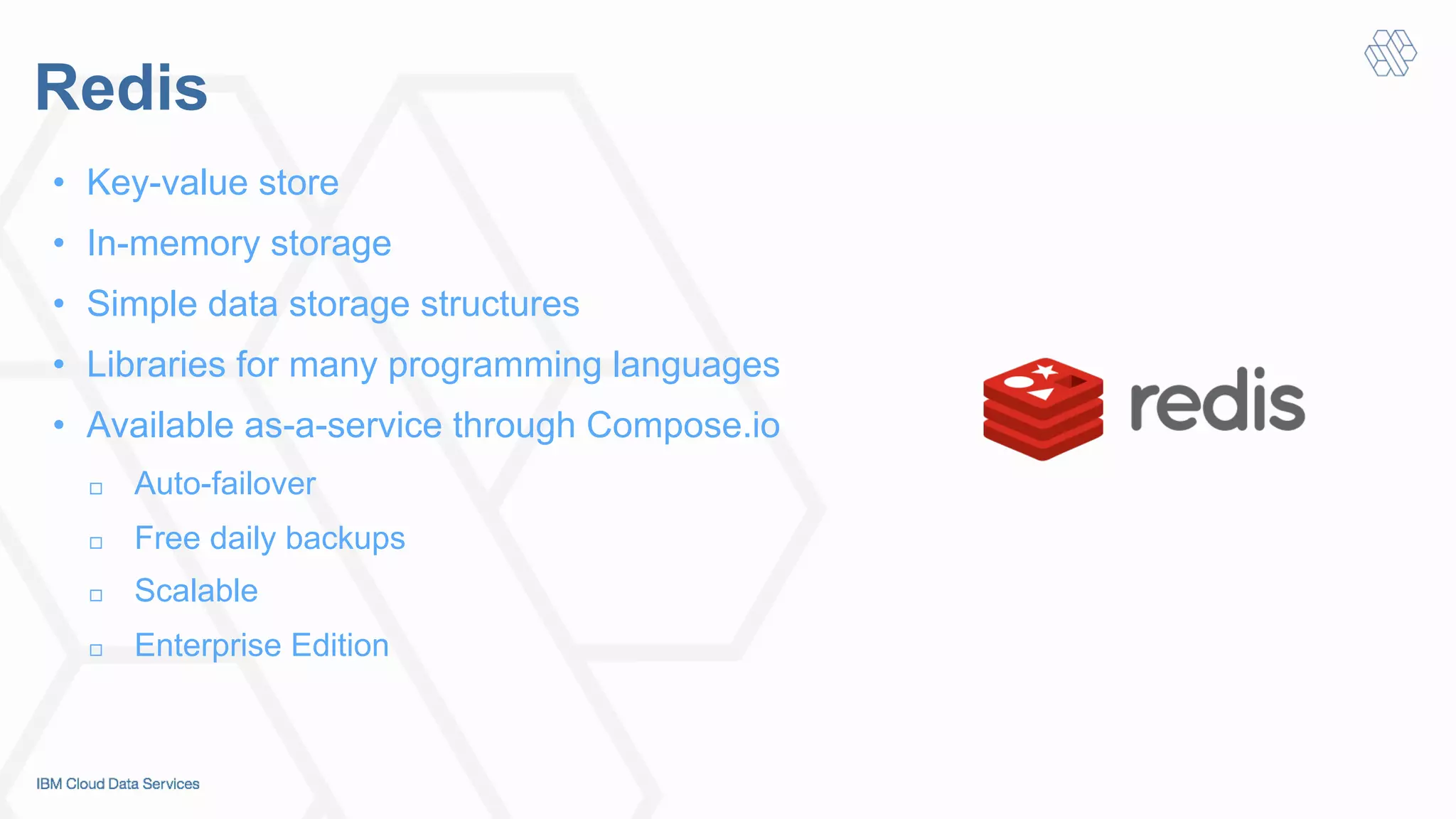

- 9. Redis • Key-value store • In-memory storage • Simple data storage structures • Libraries for many programming languages • Available as-a-service through Compose.io ! Auto-failover ! Free daily backups ! Scalable ! Enterprise Edition
- 10.
- 11.

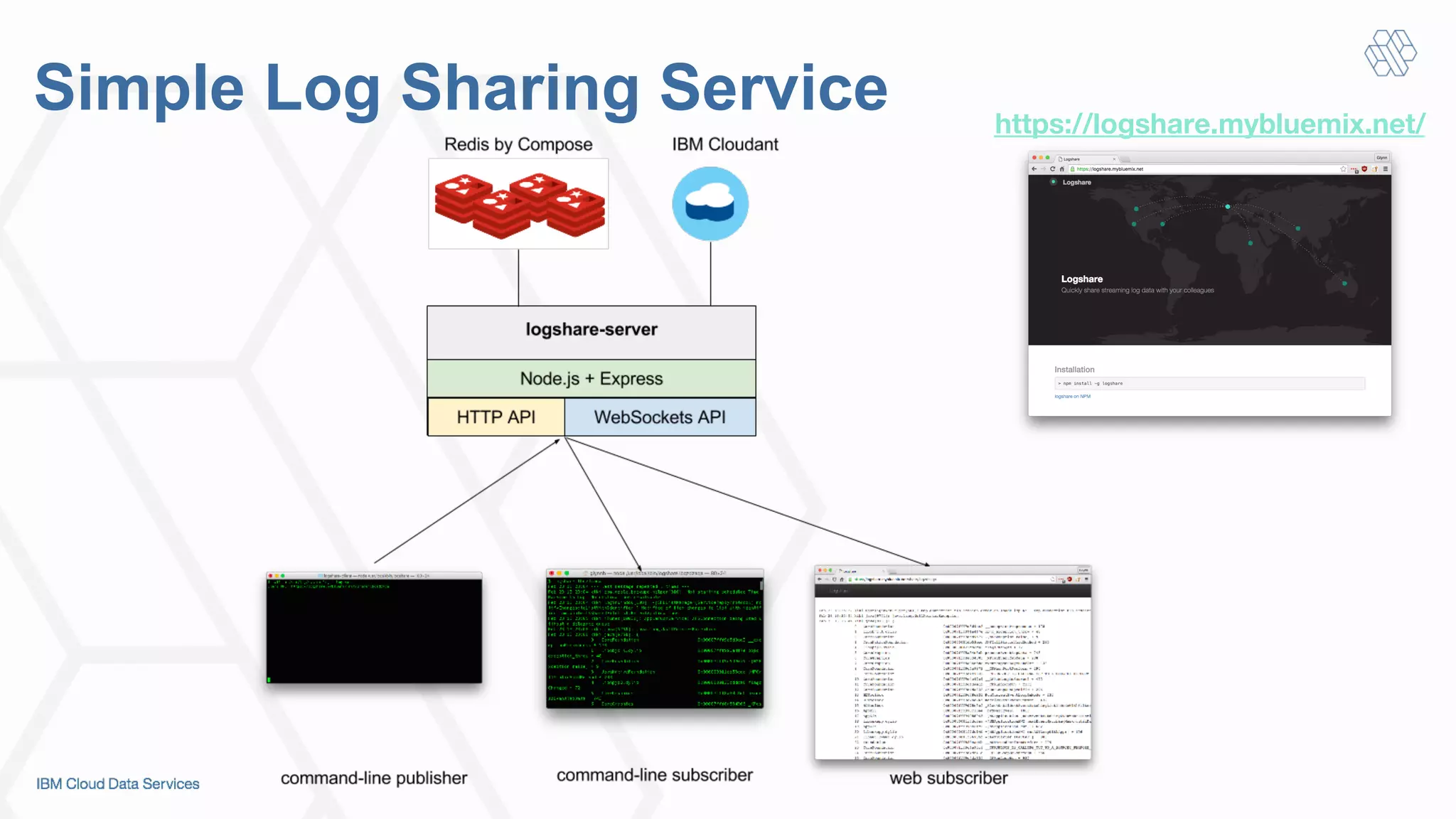

- 12. Simple Log SharingService https://logshare.mybluemix.net/ !

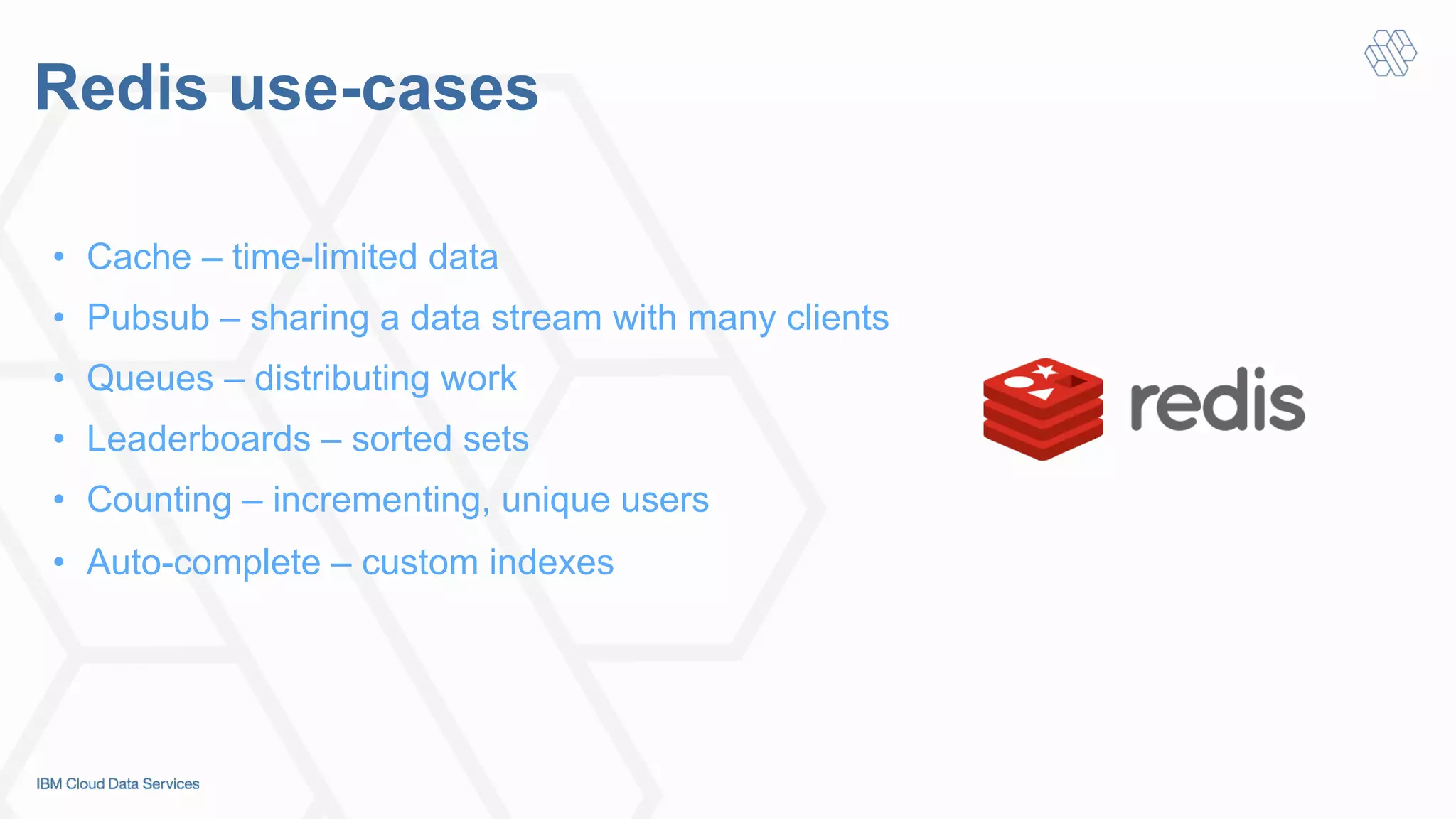

- 13. Redis use-cases • Cache– time-limited data • Pubsub – sharing a data stream with many clients • Queues – distributing work • Leaderboards – sorted sets • Counting – incrementing, unique users • Auto-complete – custom indexes
- 14.

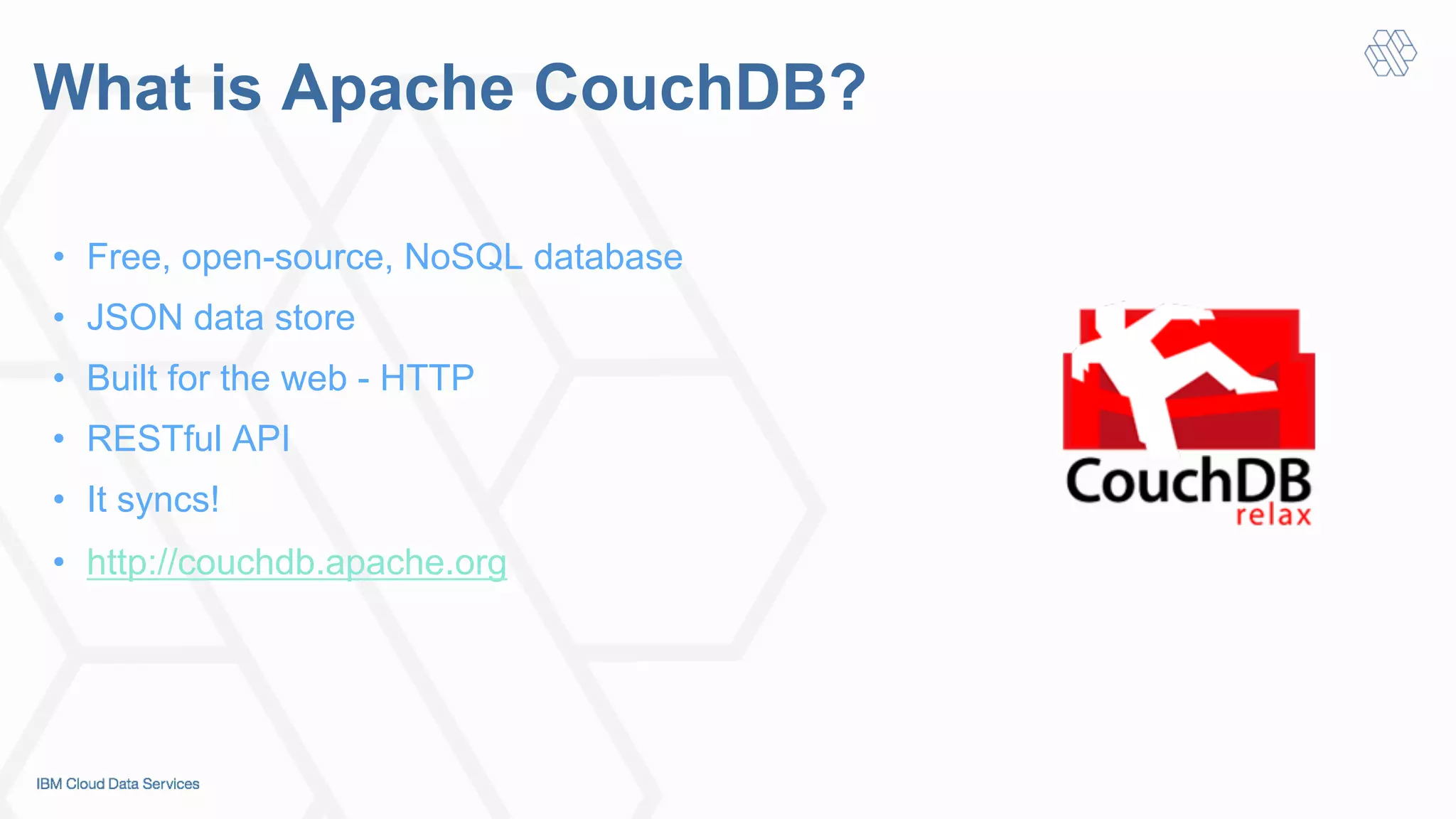

- 15. What is ApacheCouchDB? • Free, open-source, NoSQL database • JSON data store • Built for the web - HTTP • RESTful API • It syncs! • http://couchdb.apache.org

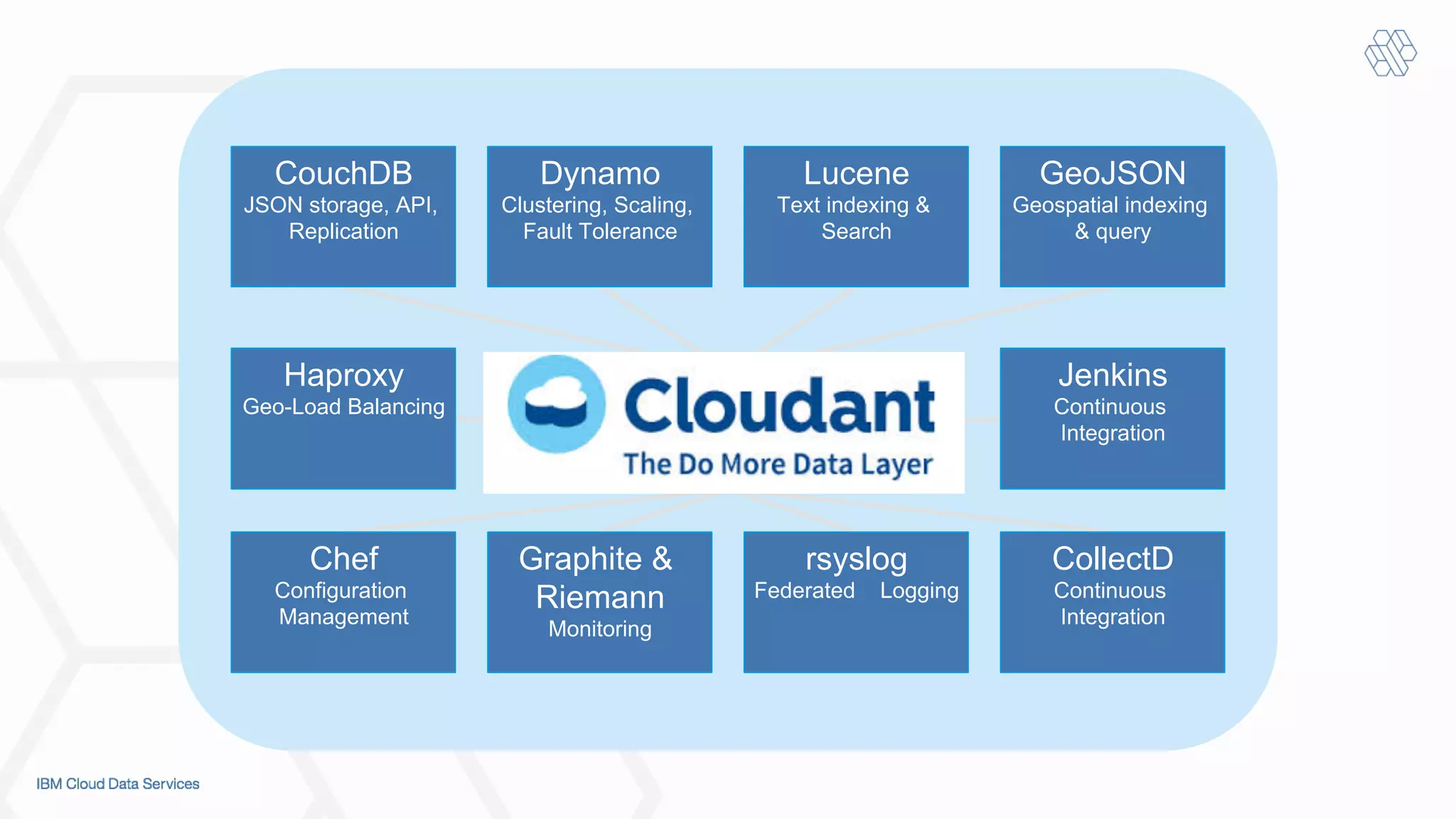

- 16. Graphite & Riemann Monitoring Chef Configuration Management rsyslog Federated Logging CollectD Continuous Integration CouchDB JSONstorage, API, Replication Dynamo Clustering, Scaling, Fault Tolerance Lucene Text indexing & Search Haproxy Geo-Load Balancing GeoJSON Geospatial indexing & query Jenkins Continuous Integration

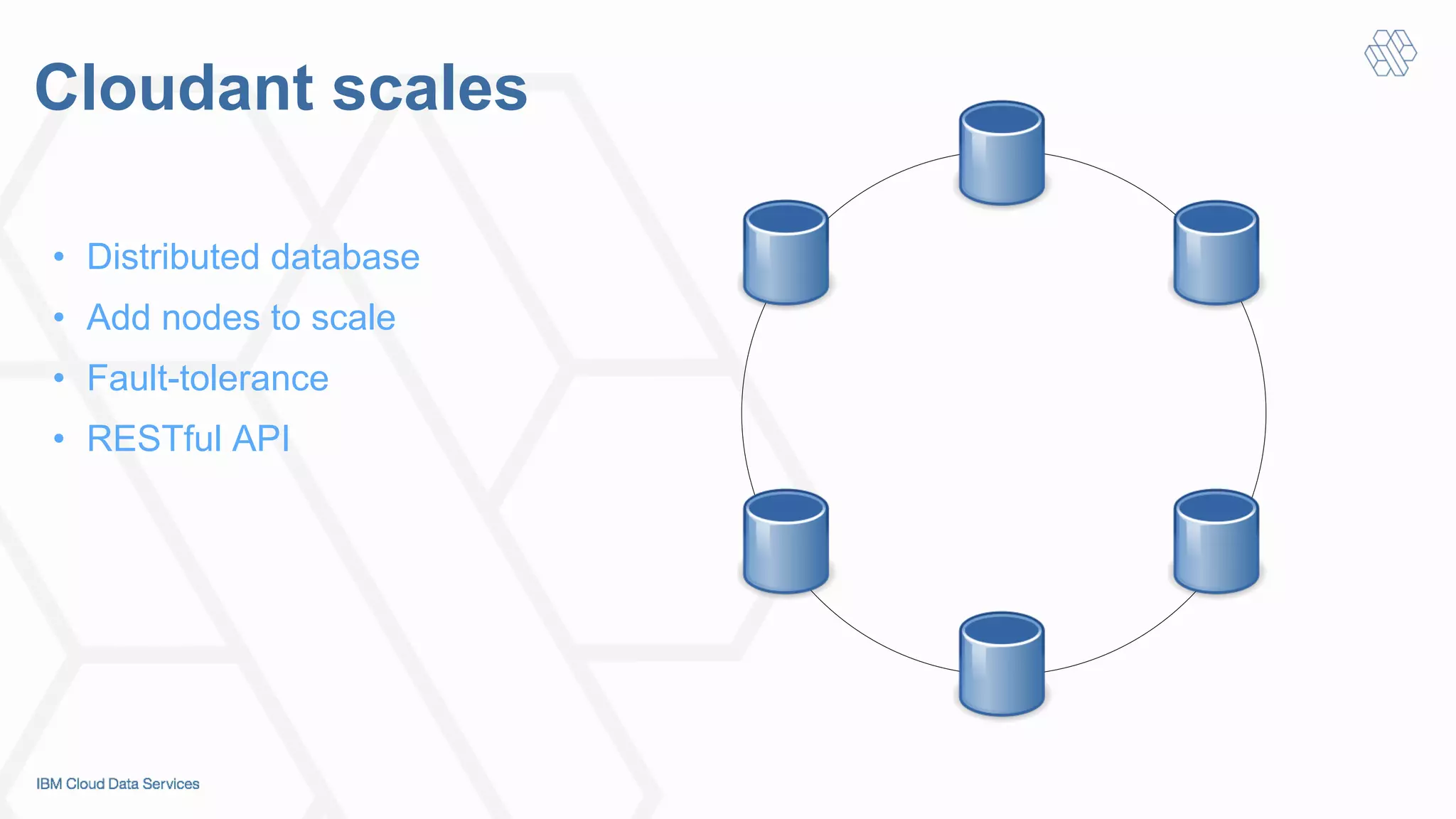

- 17. Cloudant scales • Distributeddatabase • Add nodes to scale • Fault-tolerance • RESTful API

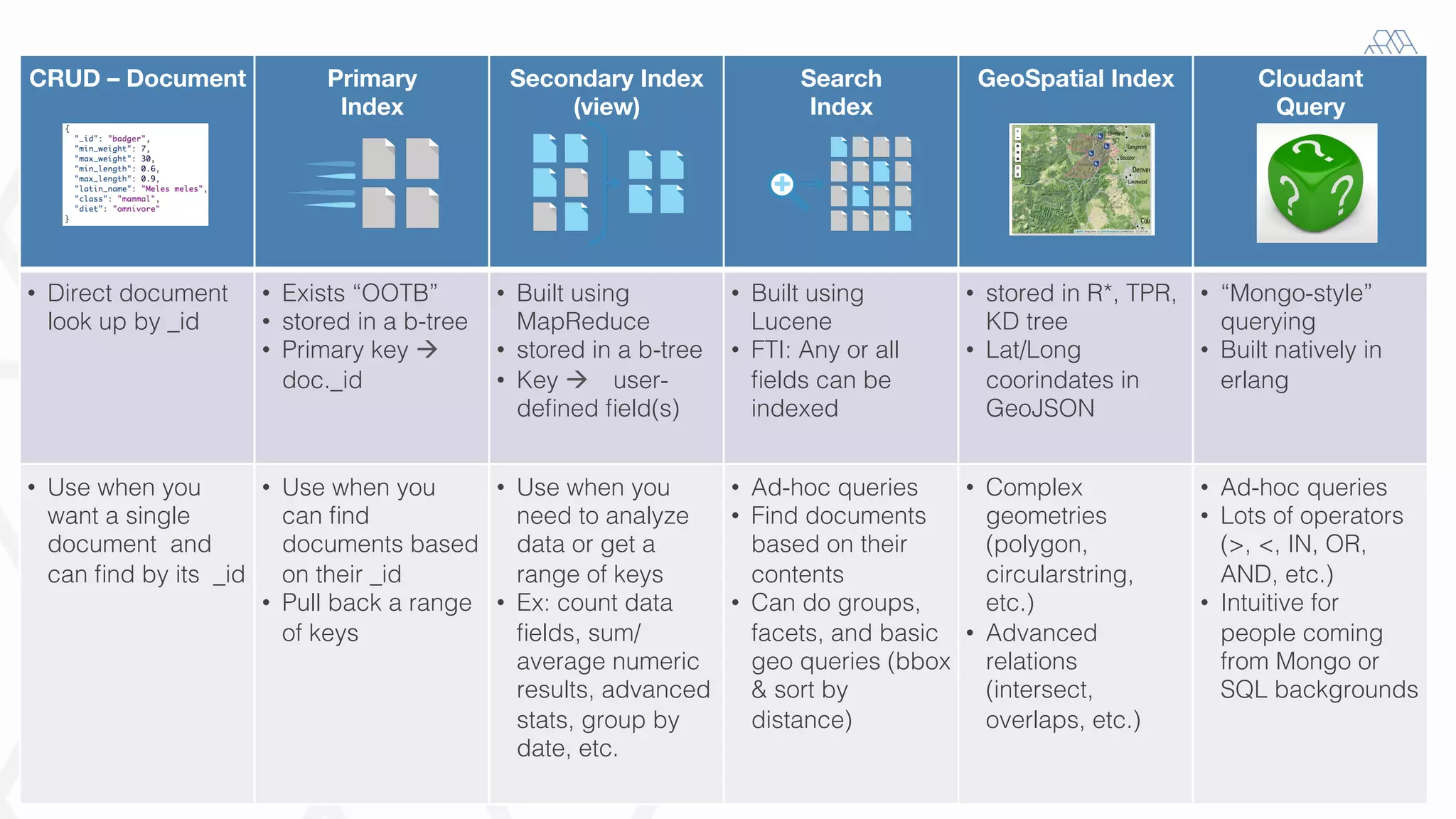

- 18. 18! CRUD – Document Primary Index Secondary Index (view) Search Index GeoSpatial Index Cloudant Query • Direct document look up by _id! • Exists “OOTB”! • stored in a b-tree! • Primary key " doc._id! • Built using MapReduce! • stored in a b-tree! • Key " user- defined field(s)! • Built using Lucene! • FTI: Any or all fields can be indexed! • stored in R*, TPR, KD tree! • Lat/Long coorindates in GeoJSON! • “Mongo-style” querying! • Built natively in erlang! • Use when you want a single document and can find by its _id! • Use when you can find documents based on their _id! • Pull back a range of keys! • Use when you need to analyze data or get a range of keys! • Ex: count data fields, sum/ average numeric results, advanced stats, group by date, etc.! • Ad-hoc queries! • Find documents based on their contents! • Can do groups, facets, and basic geo queries (bbox & sort by distance)! • Complex geometries (polygon, circularstring, etc.) ! • Advanced relations (intersect, overlaps, etc.)! • Ad-hoc queries! • Lots of operators (>, <, IN, OR, AND, etc.)! • Intuitive for people coming from Mongo or SQL backgrounds!
- 19.

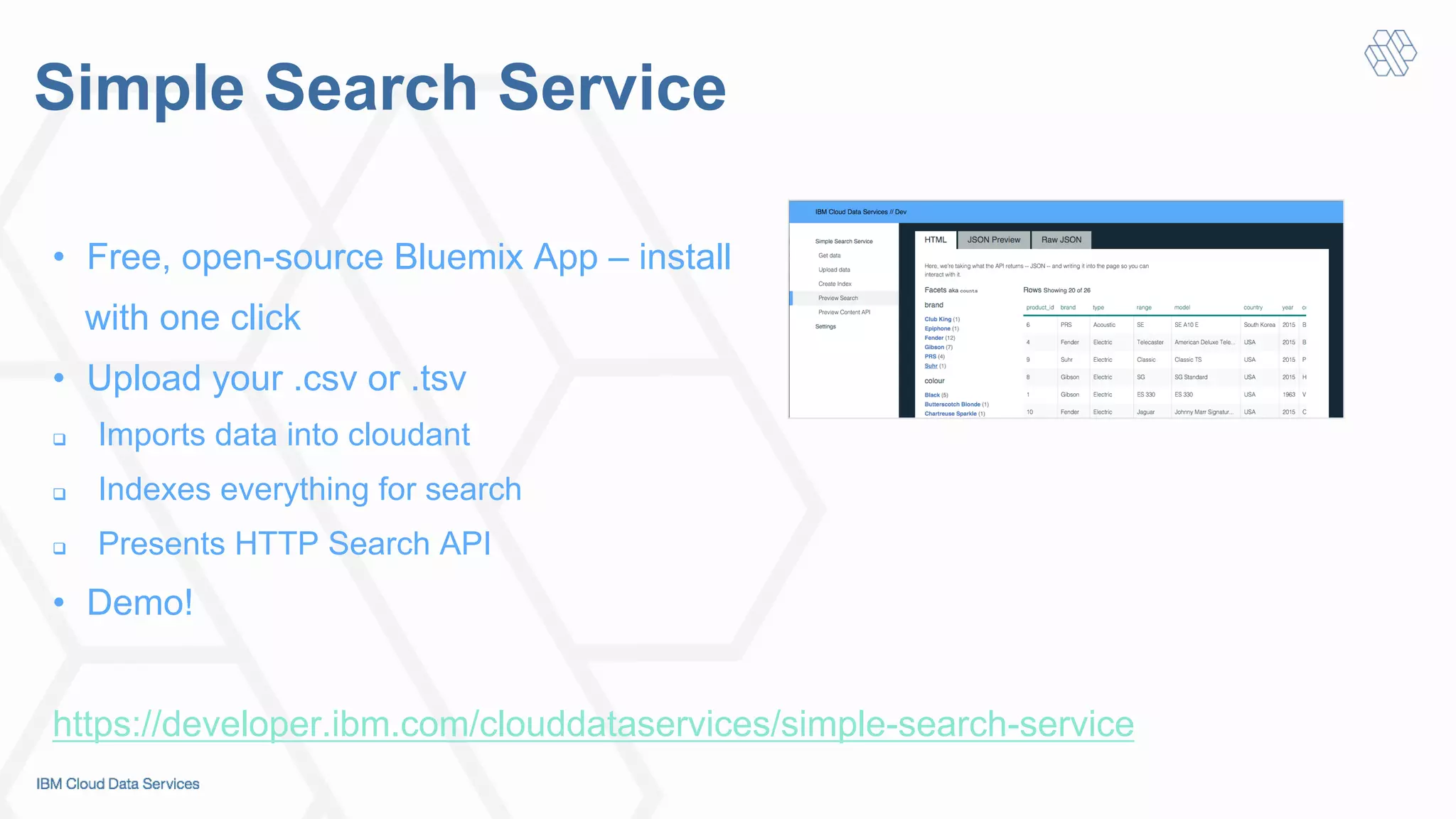

- 20. Simple Search Service • Free, open-source Bluemix App – install with one click • Upload your .csv or .tsv # Imports data into cloudant # Indexes everything for search # Presents HTTP Search API • Demo! https://developer.ibm.com/clouddataservices/simple-search-service

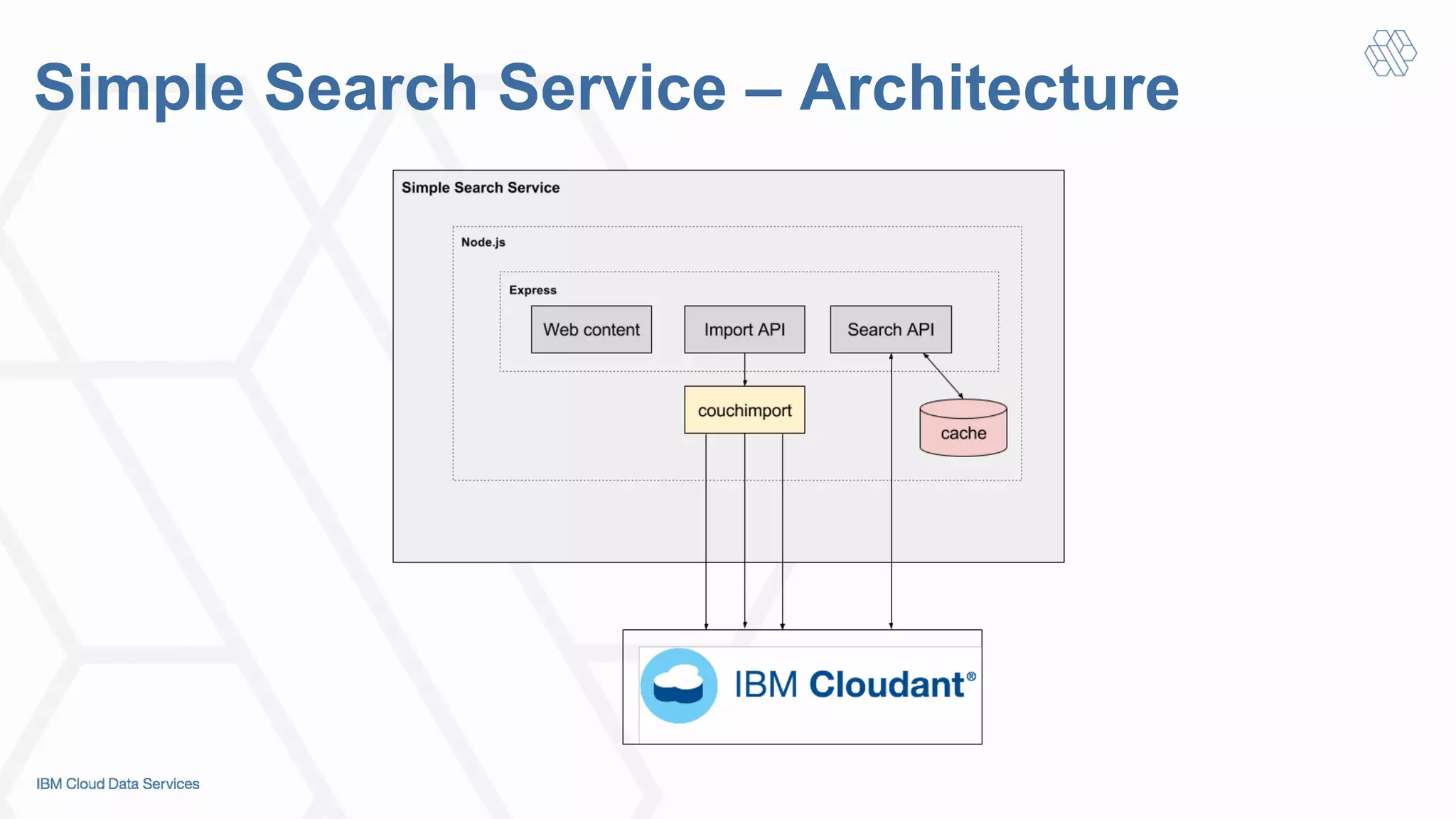

- 21. Simple Search Service– Architecture

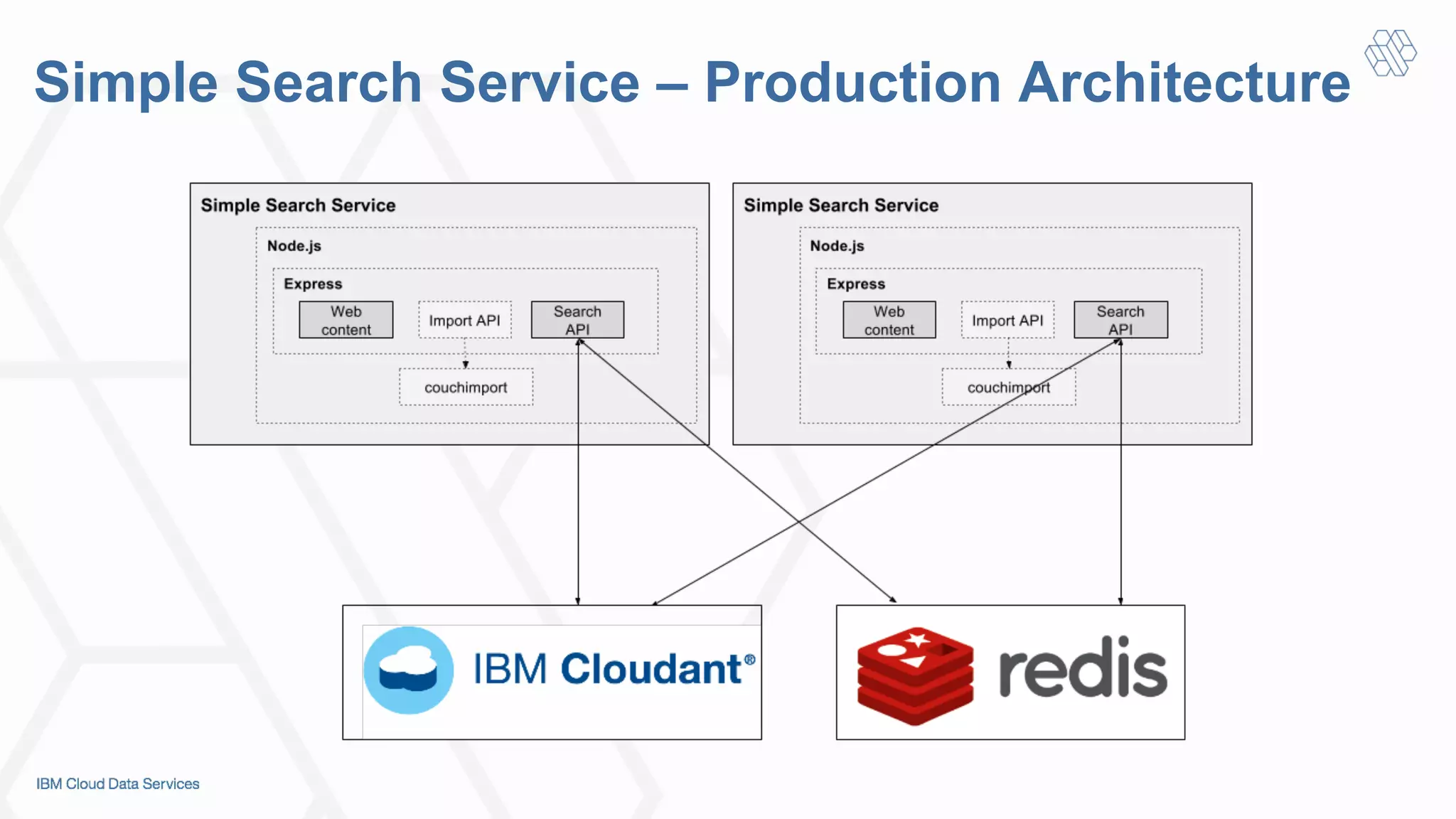

- 22. Simple Search Service– Production Architecture
- 23.

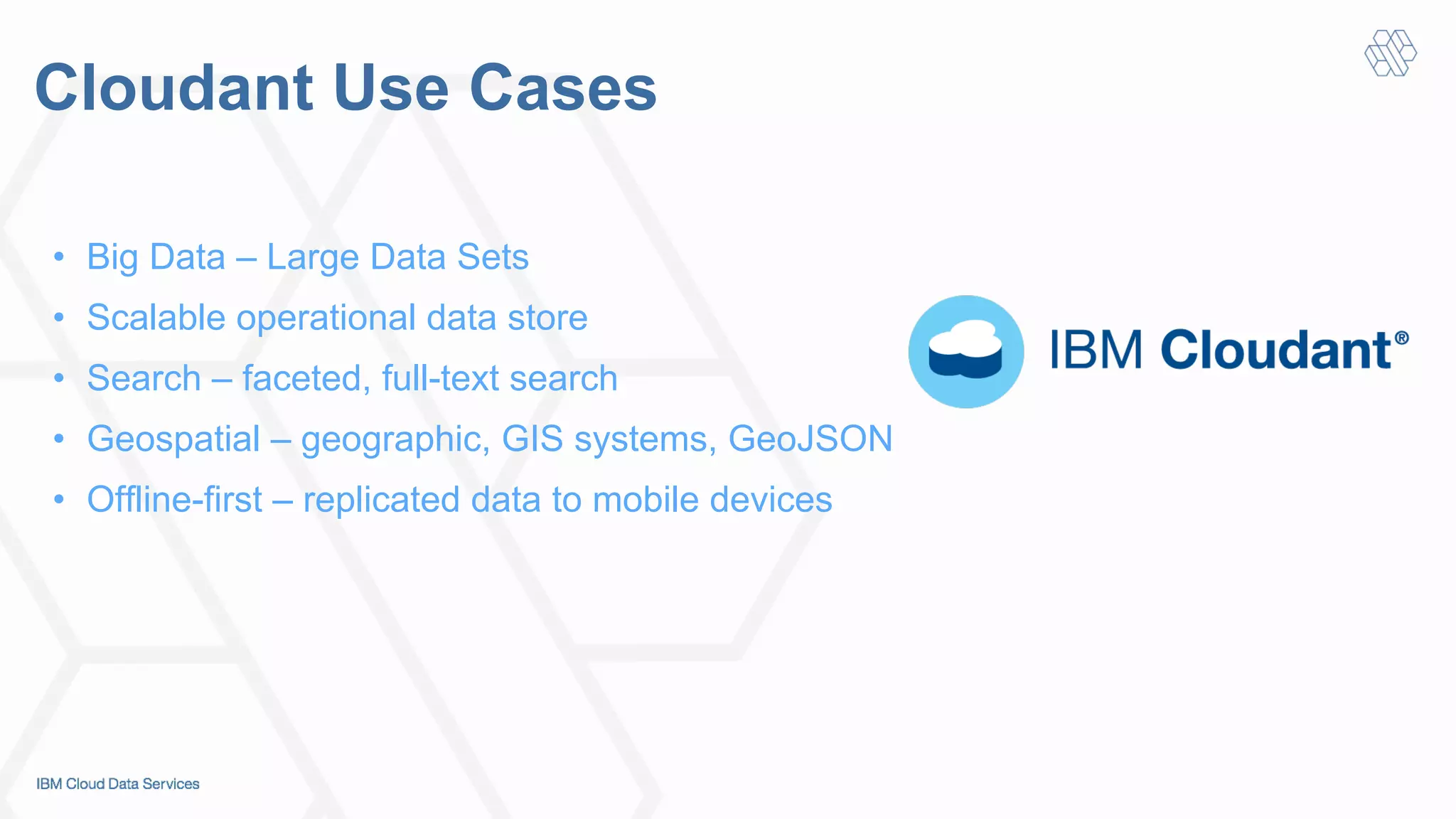

- 24. Cloudant Use Cases • Big Data – Large Data Sets • Scalable operational data store • Search – faceted, full-text search • Geospatial – geographic, GIS systems, GeoJSON • Offline-first – replicated data to mobile devices
- 25. Developer Advocate Glynn.Bird@uk.ibm.com developer.ibm.com/ clouddataservices/ Thanks! Glynn Bird Twitter:@glynn_bird www.glynnbird.com !
