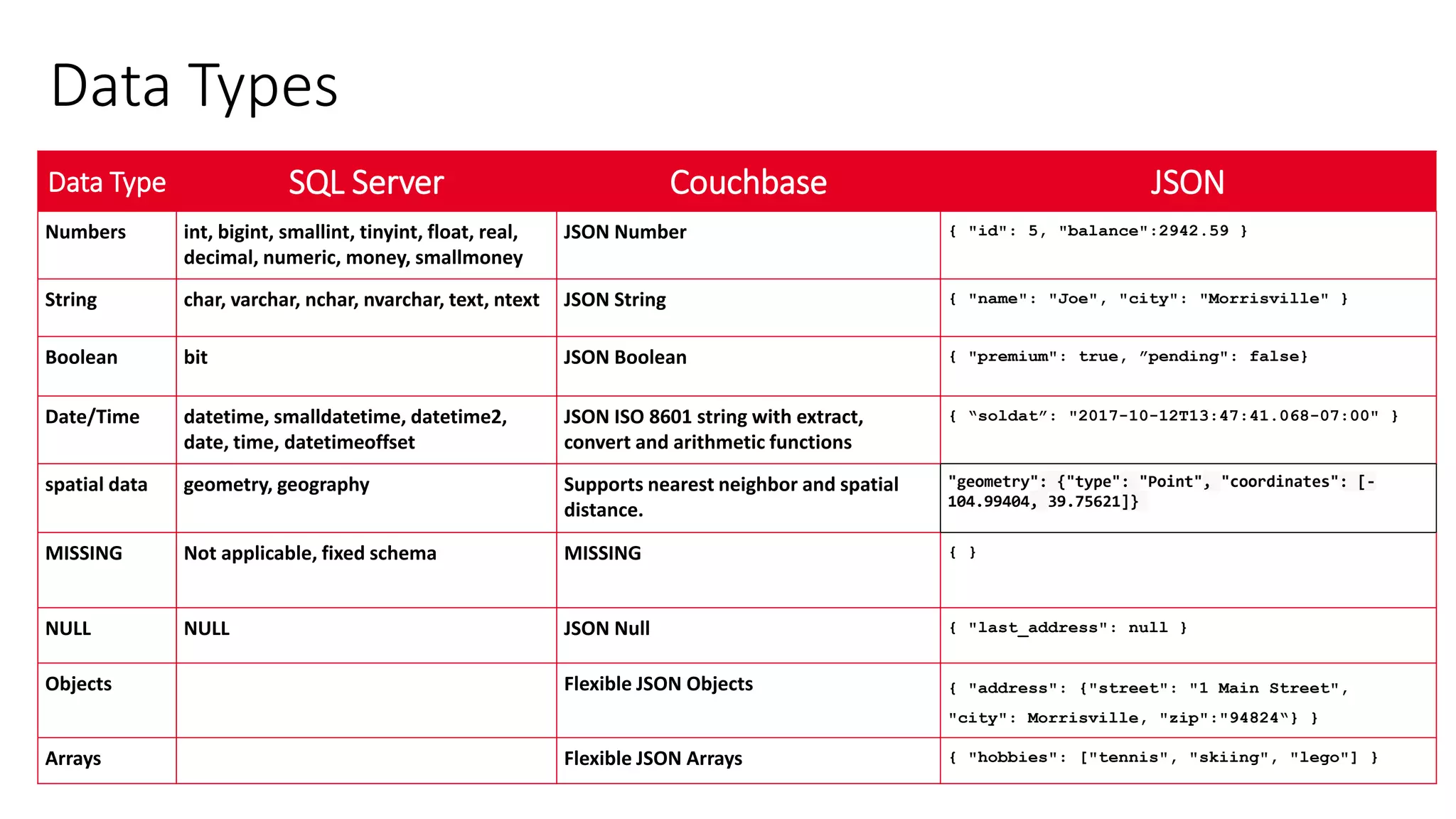

![Data Types
Data Type SQL Server Couchbase JSON
Numbers int, bigint, smallint, tinyint, float, real,
decimal, numeric, money, smallmoney
JSON Number { "id": 5, "balance":2942.59 }
String char, varchar, nchar, nvarchar, text, ntext JSON String { "name": "Joe", "city": "Morrisville" }
Boolean bit JSON Boolean { "premium": true, ”pending": false}
Date/Time datetime, smalldatetime, datetime2,
date, time, datetimeoffset
JSON ISO 8601 string with extract,
convert and arithmetic functions
{ “soldat”: "2017-10-12T13:47:41.068-07:00" }
spatial data geometry, geography Supports nearest neighbor and spatial
distance.
"geometry": {"type": "Point", "coordinates": [-
104.99404, 39.75621]}
MISSING Not applicable, fixed schema MISSING { }
NULL NULL JSON Null { "last_address": null }
Objects Flexible JSON Objects { "address": {"street": "1 Main Street",
"city": Morrisville, "zip":"94824“} }
Arrays Flexible JSON Arrays { "hobbies": ["tennis", "skiing", "lego"] }](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-50-2048.jpg)

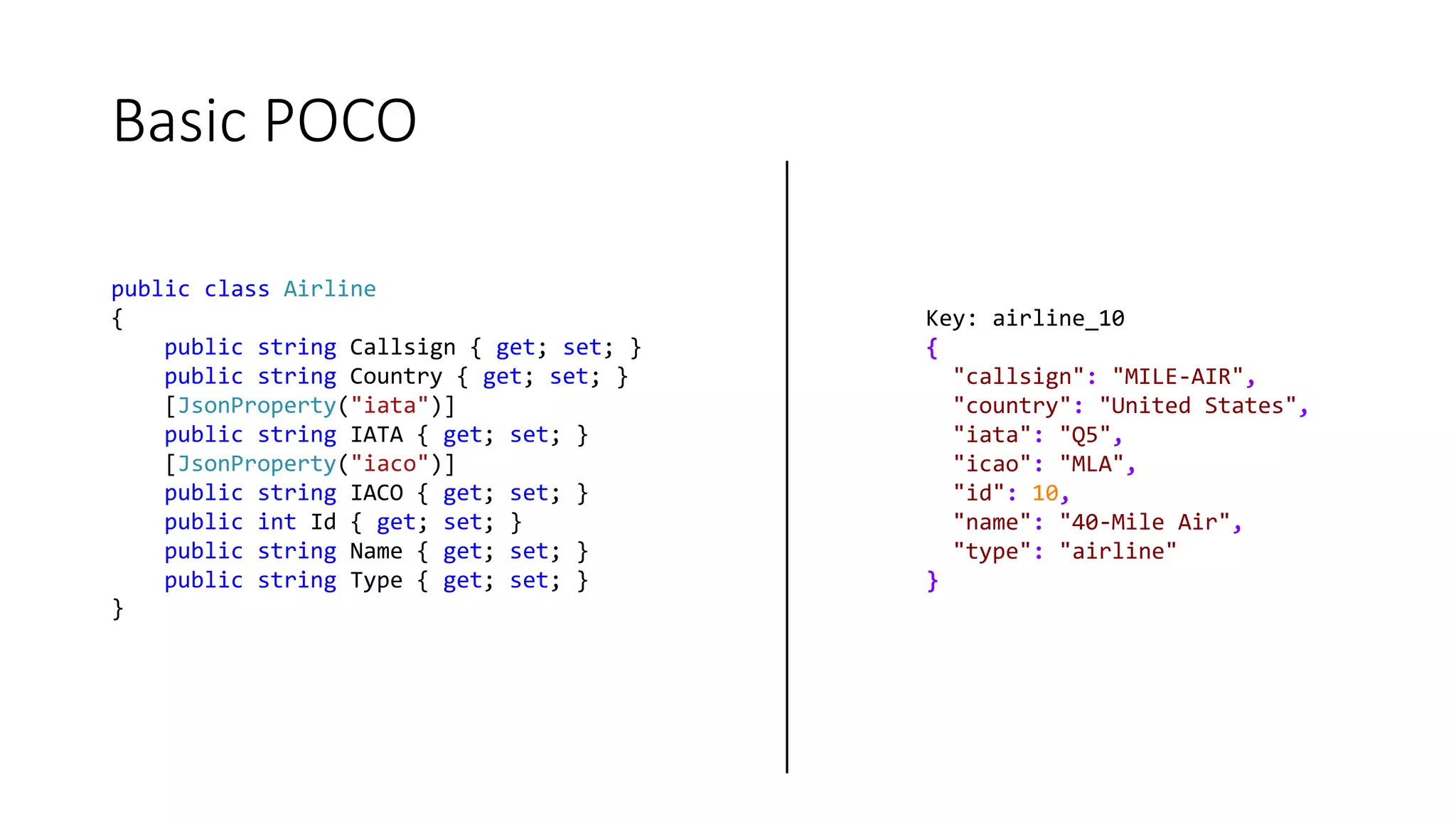

![Basic POCO
public class Airline
{
public string Callsign { get; set; }
public string Country { get; set; }
[JsonProperty("iata")]
public string IATA { get; set; }
[JsonProperty("iaco")]
public string IACO { get; set; }
public int Id { get; set; }
public string Name { get; set; }
public string Type { get; set; }
}
Key: airline_10
{
"callsign": "MILE-AIR",
"country": "United States",
"iata": "Q5",
"icao": "MLA",
"id": 10,
"name": "40-Mile Air",
"type": "airline"
}](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-59-2048.jpg)

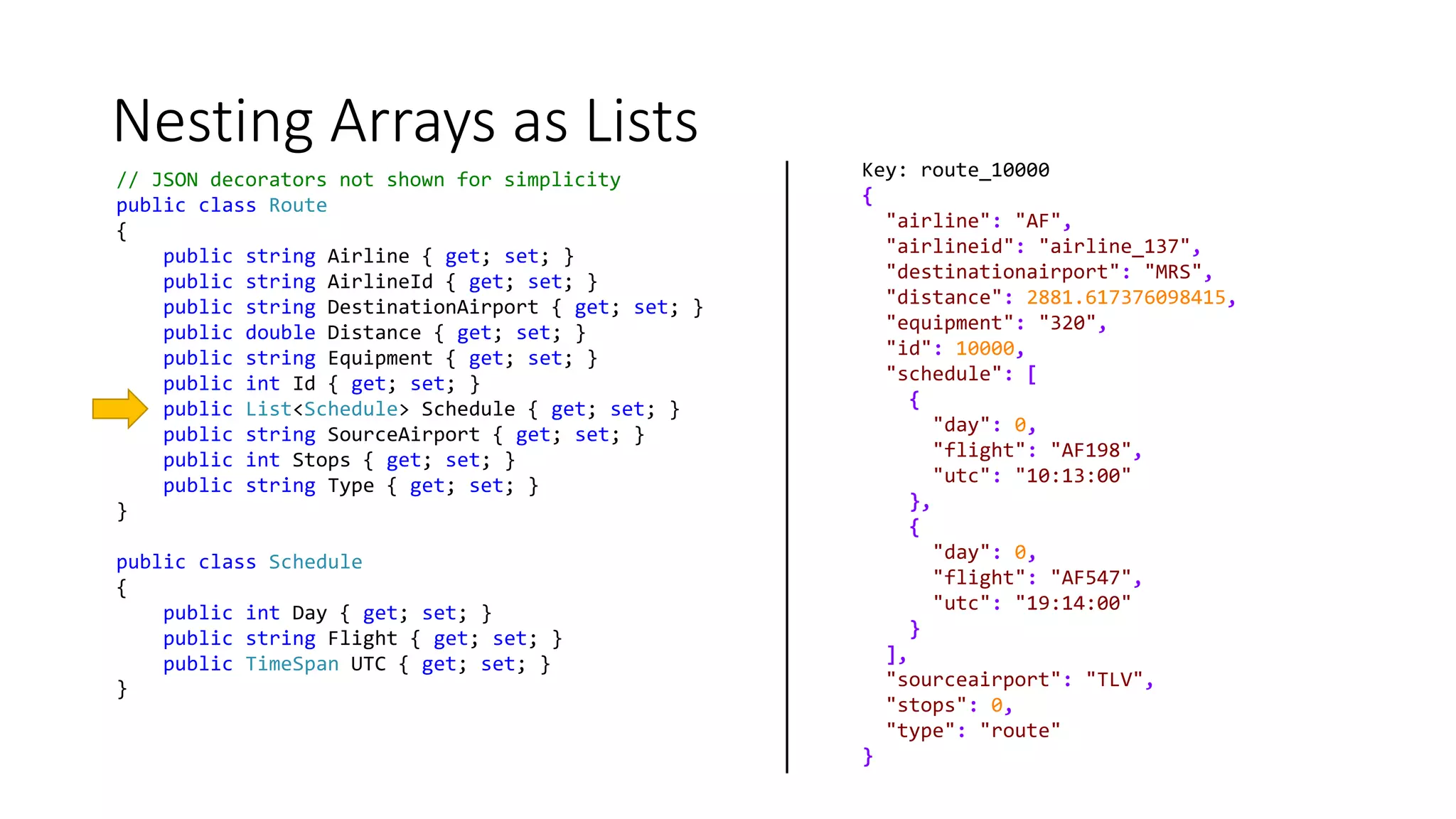

![Nesting Arrays as Lists
Key: route_10000
{
"airline": "AF",
"airlineid": "airline_137",
"destinationairport": "MRS",
"distance": 2881.617376098415,
"equipment": "320",
"id": 10000,
"schedule": [
{
"day": 0,
"flight": "AF198",
"utc": "10:13:00"
},
{
"day": 0,
"flight": "AF547",
"utc": "19:14:00"
}
],
"sourceairport": "TLV",
"stops": 0,
"type": "route"
}
// JSON decorators not shown for simplicity
public class Route
{
public string Airline { get; set; }
public string AirlineId { get; set; }
public string DestinationAirport { get; set; }
public double Distance { get; set; }
public string Equipment { get; set; }
public int Id { get; set; }
public List<Schedule> Schedule { get; set; }
public string SourceAirport { get; set; }
public int Stops { get; set; }
public string Type { get; set; }
}
public class Schedule
{
public int Day { get; set; }
public string Flight { get; set; }
public TimeSpan UTC { get; set; }
}](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-61-2048.jpg)

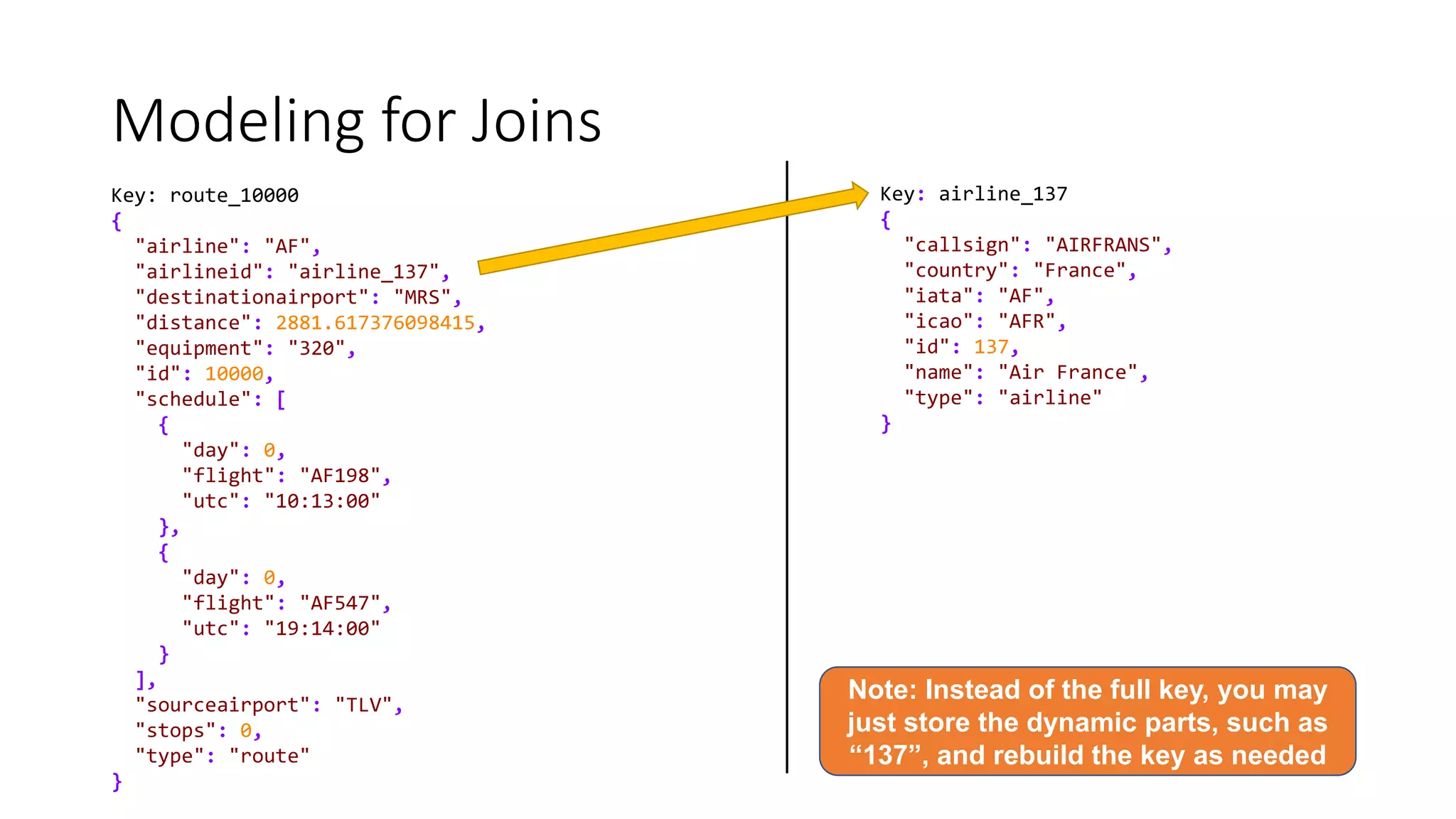

![Modeling for Joins
Key: route_10000
{
"airline": "AF",
"airlineid": "airline_137",
"destinationairport": "MRS",
"distance": 2881.617376098415,
"equipment": "320",
"id": 10000,
"schedule": [
{
"day": 0,
"flight": "AF198",
"utc": "10:13:00"
},
{
"day": 0,
"flight": "AF547",
"utc": "19:14:00"
}
],
"sourceairport": "TLV",
"stops": 0,
"type": "route"
}
Key: airline_137
{
"callsign": "AIRFRANS",
"country": "France",
"iata": "AF",
"icao": "AFR",
"id": 137,
"name": "Air France",
"type": "airline"
}
Note: Instead of the full key, you may
just store the dynamic parts, such as
“137”, and rebuild the key as needed](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-62-2048.jpg)

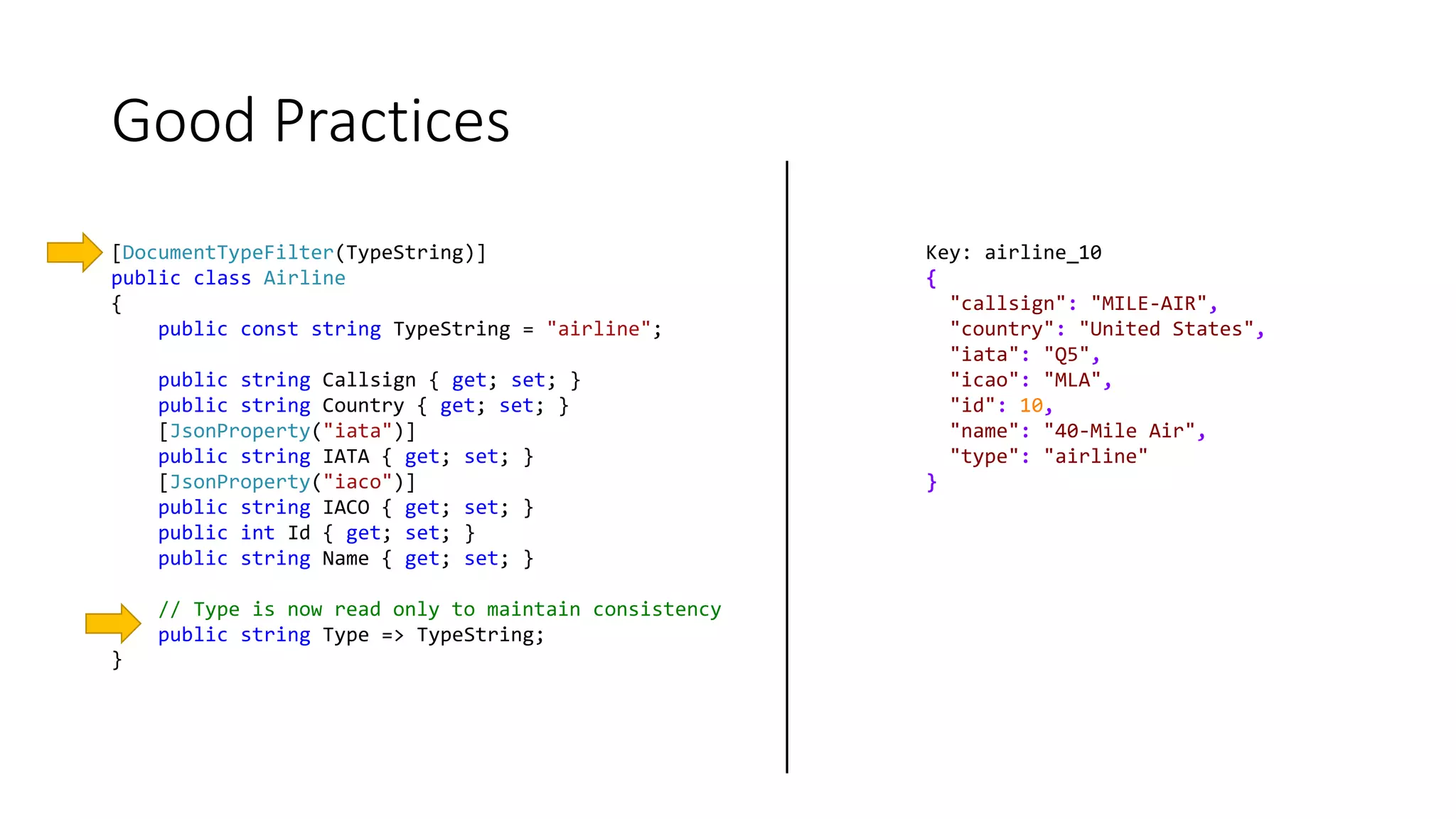

![Good Practices
[DocumentTypeFilter(TypeString)]
public class Airline
{
public const string TypeString = "airline";
public string Callsign { get; set; }
public string Country { get; set; }
[JsonProperty("iata")]
public string IATA { get; set; }
[JsonProperty("iaco")]
public string IACO { get; set; }
public int Id { get; set; }
public string Name { get; set; }
// Type is now read only to maintain consistency
public string Type => TypeString;
}
Key: airline_10
{
"callsign": "MILE-AIR",
"country": "United States",
"iata": "Q5",
"icao": "MLA",
"id": 10,
"name": "40-Mile Air",
"type": "airline"
}](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-63-2048.jpg)

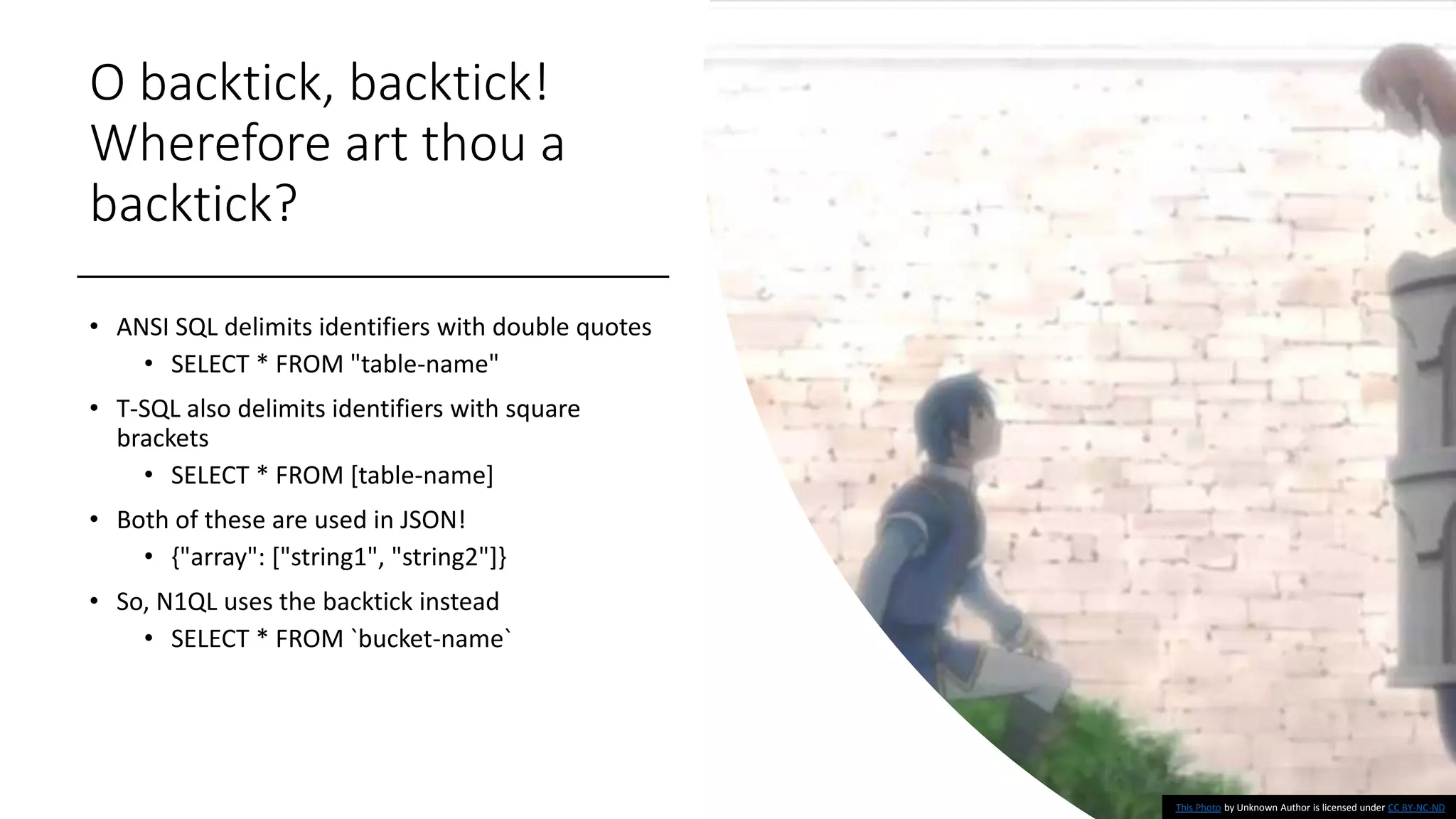

![O backtick, backtick!
Wherefore art thou a
backtick?
• ANSI SQL delimits identifiers with double quotes
• SELECT * FROM "table-name"
• T-SQL also delimits identifiers with square
brackets
• SELECT * FROM [table-name]
• Both of these are used in JSON!
• {"array": ["string1", "string2"]}
• So, N1QL uses the backtick instead
• SELECT * FROM `bucket-name`
This Photo by Unknown Author is licensed under CC BY-NC-ND](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-67-2048.jpg)

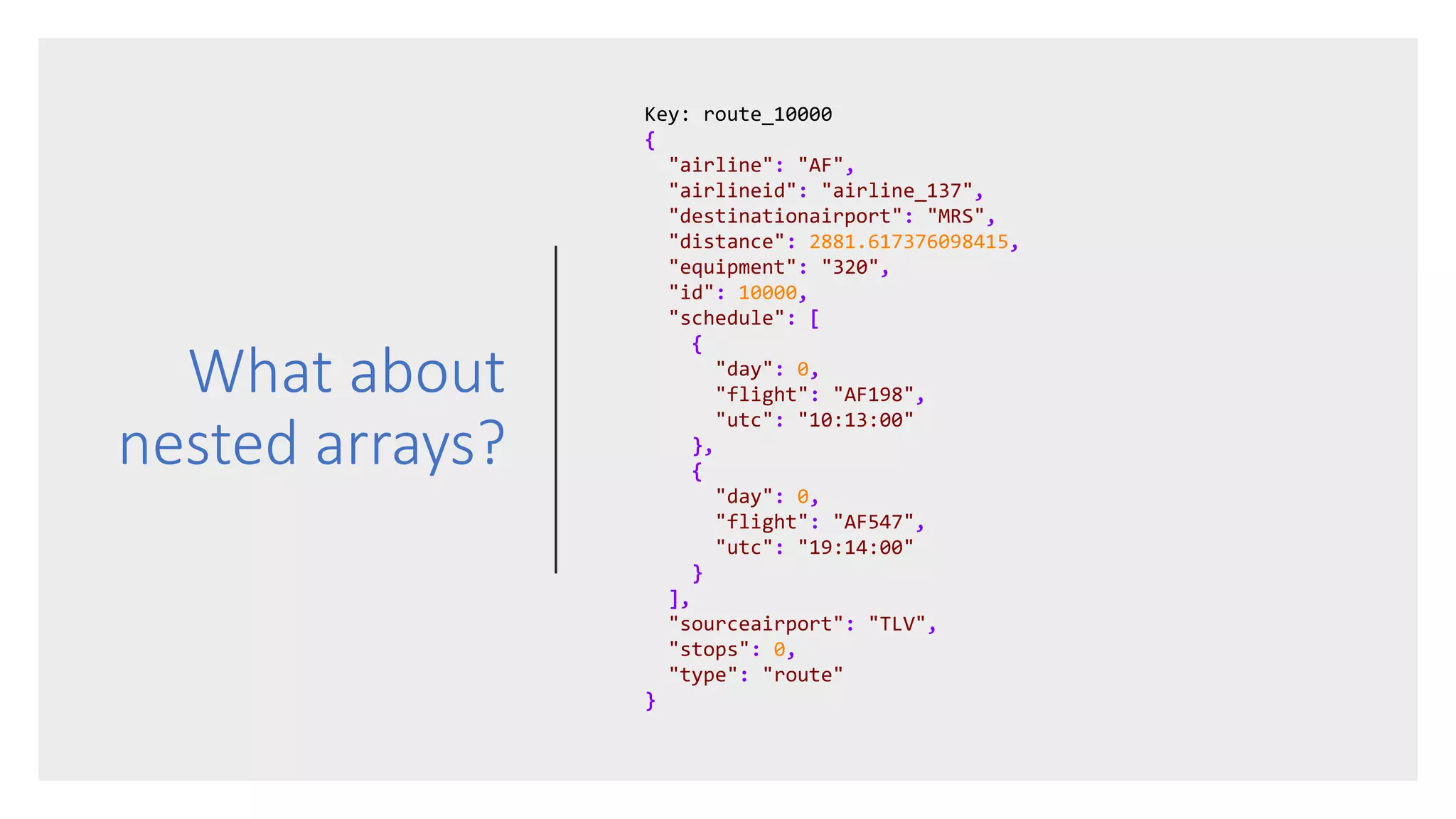

![What about
nested arrays?
Key: route_10000
{
"airline": "AF",
"airlineid": "airline_137",
"destinationairport": "MRS",
"distance": 2881.617376098415,
"equipment": "320",
"id": 10000,
"schedule": [
{
"day": 0,
"flight": "AF198",
"utc": "10:13:00"
},
{
"day": 0,
"flight": "AF547",
"utc": "19:14:00"
}
],
"sourceairport": "TLV",
"stops": 0,
"type": "route"
}](https://image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-70-2048.jpg)
![Data Types
Data Type SQL Server Couchbase JSON
Numbers int, bigint, smallint, tinyint, float, real,
decimal, numeric, money, smallmoney
JSON Number { "id": 5, "balance":2942.59 }
String char, varchar, nchar, nvarchar, text, ntext JSON String { "name": "Joe", "city": "Morrisville" }
Boolean bit JSON Boolean { "premium": true, ”pending": false}
Date/Time datetime, smalldatetime, datetime2,
date, time, datetimeoffset
JSON ISO 8601 string with extract,
convert and arithmetic functions
{ “soldat”: "2017-10-12T13:47:41.068-07:00" }
spatial data geometry, geography Supports nearest neighbor and spatial
distance.
"geometry": {"type": "Point", "coordinates": [-
104.99404, 39.75621]}
MISSING Not applicable, fixed schema MISSING { }
NULL NULL JSON Null { "last_address": null }
Objects Flexible JSON Objects { "address": {"street": "1 Main Street",
"city": Morrisville, "zip":"94824“} }
Arrays Flexible JSON Arrays { "hobbies": ["tennis", "skiing", "lego"] }](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-50-2048.jpg)
![Basic POCO
public class Airline
{
public string Callsign { get; set; }
public string Country { get; set; }
[JsonProperty("iata")]
public string IATA { get; set; }
[JsonProperty("iaco")]
public string IACO { get; set; }
public int Id { get; set; }
public string Name { get; set; }
public string Type { get; set; }
}
Key: airline_10
{
"callsign": "MILE-AIR",
"country": "United States",
"iata": "Q5",
"icao": "MLA",
"id": 10,
"name": "40-Mile Air",
"type": "airline"
}](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-59-2048.jpg)
![Nesting Arrays as Lists
Key: route_10000
{
"airline": "AF",
"airlineid": "airline_137",
"destinationairport": "MRS",
"distance": 2881.617376098415,
"equipment": "320",
"id": 10000,
"schedule": [
{
"day": 0,
"flight": "AF198",
"utc": "10:13:00"
},
{
"day": 0,
"flight": "AF547",
"utc": "19:14:00"
}
],
"sourceairport": "TLV",
"stops": 0,
"type": "route"
}
// JSON decorators not shown for simplicity
public class Route
{
public string Airline { get; set; }
public string AirlineId { get; set; }
public string DestinationAirport { get; set; }
public double Distance { get; set; }
public string Equipment { get; set; }
public int Id { get; set; }
public List<Schedule> Schedule { get; set; }
public string SourceAirport { get; set; }
public int Stops { get; set; }
public string Type { get; set; }
}
public class Schedule
{
public int Day { get; set; }
public string Flight { get; set; }
public TimeSpan UTC { get; set; }
}](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-61-2048.jpg)
![Modeling for Joins
Key: route_10000
{
"airline": "AF",
"airlineid": "airline_137",
"destinationairport": "MRS",
"distance": 2881.617376098415,
"equipment": "320",
"id": 10000,
"schedule": [
{
"day": 0,
"flight": "AF198",
"utc": "10:13:00"
},
{
"day": 0,
"flight": "AF547",
"utc": "19:14:00"
}
],
"sourceairport": "TLV",
"stops": 0,
"type": "route"
}
Key: airline_137
{
"callsign": "AIRFRANS",
"country": "France",
"iata": "AF",
"icao": "AFR",
"id": 137,
"name": "Air France",
"type": "airline"
}
Note: Instead of the full key, you may
just store the dynamic parts, such as
“137”, and rebuild the key as needed](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-62-2048.jpg)
![Good Practices
[DocumentTypeFilter(TypeString)]
public class Airline
{
public const string TypeString = "airline";
public string Callsign { get; set; }
public string Country { get; set; }
[JsonProperty("iata")]
public string IATA { get; set; }
[JsonProperty("iaco")]
public string IACO { get; set; }
public int Id { get; set; }
public string Name { get; set; }
// Type is now read only to maintain consistency
public string Type => TypeString;
}
Key: airline_10
{
"callsign": "MILE-AIR",
"country": "United States",
"iata": "Q5",
"icao": "MLA",
"id": 10,
"name": "40-Mile Air",
"type": "airline"
}](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-63-2048.jpg)
![O backtick, backtick!
Wherefore art thou a
backtick?
• ANSI SQL delimits identifiers with double quotes
• SELECT * FROM "table-name"
• T-SQL also delimits identifiers with square
brackets
• SELECT * FROM [table-name]
• Both of these are used in JSON!
• {"array": ["string1", "string2"]}
• So, N1QL uses the backtick instead
• SELECT * FROM `bucket-name`
This Photo by Unknown Author is licensed under CC BY-NC-ND](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-67-2048.jpg)
![What about
nested arrays?
Key: route_10000
{
"airline": "AF",
"airlineid": "airline_137",
"destinationairport": "MRS",
"distance": 2881.617376098415,
"equipment": "320",
"id": 10000,
"schedule": [
{
"day": 0,
"flight": "AF198",
"utc": "10:13:00"
},
{
"day": 0,
"flight": "AF547",
"utc": "19:14:00"
}
],
"sourceairport": "TLV",
"stops": 0,
"type": "route"
}](https://crownmelresort.com/image.slidesharecdn.com/nosqlforsqlserverdevelopersusingcouchbase-180308034834/75/NoSQL-for-SQL-Server-Developers-using-Couchbase-70-2048.jpg)
Uploaded byBrant Burnett
NoSQL for SQL Server Developers using Couchbase
This document provides an overview of NoSQL for SQL Server developers using Couchbase. It introduces Brant Burnett, the presenter, and his credentials working with Couchbase. The content will compare SQL and NoSQL concepts like databases, data types, queries and indexing. It will also provide a live demo of an ASP.NET Core microservice querying and indexing Couchbase. Finally, the presenter will take questions from the audience.
More Related Content
![Java script nirvana in netbeans [con5679]](https://cdn.slidesharecdn.com/ss_thumbnails/javascriptnirvanainnetbeanscon5679-160927041807-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to NoSQL for SQL Server Developers using Couchbase
NoSQL for SQL Server Developers using Couchbase
- 1. NoSQL for SQL Serverdevelopers using Couchbase TriNUG Data SIG 3/7/2018
- 2. Who is thisguy? • Brant Burnett - @btburnett3 • Systems Architect at CenterEdge Software • .NET since 1.0, SQL Server since 7.0 • MCSD, MCDBA • Experience from desktop apps to large scale cloud services
- 3. NoSQL Credentials • Couchbaseuser since 2012 (v1.8) • Couchbase Expert • Open source contributions: • Couchbase .NET SDK • Couchbase.Extensions for .NET Core • Couchbase LINQ provider (Linq2Couchbase) • CouchbaseFakeIt • couchbase-index-manager
- 4. Content Attributions • Matthew Groves DeveloperAdvocate at Couchbase @mgroves on Twitter • Raju Suravarjjala Couchbase R&D • Keshav Murthy Couchbase R&D

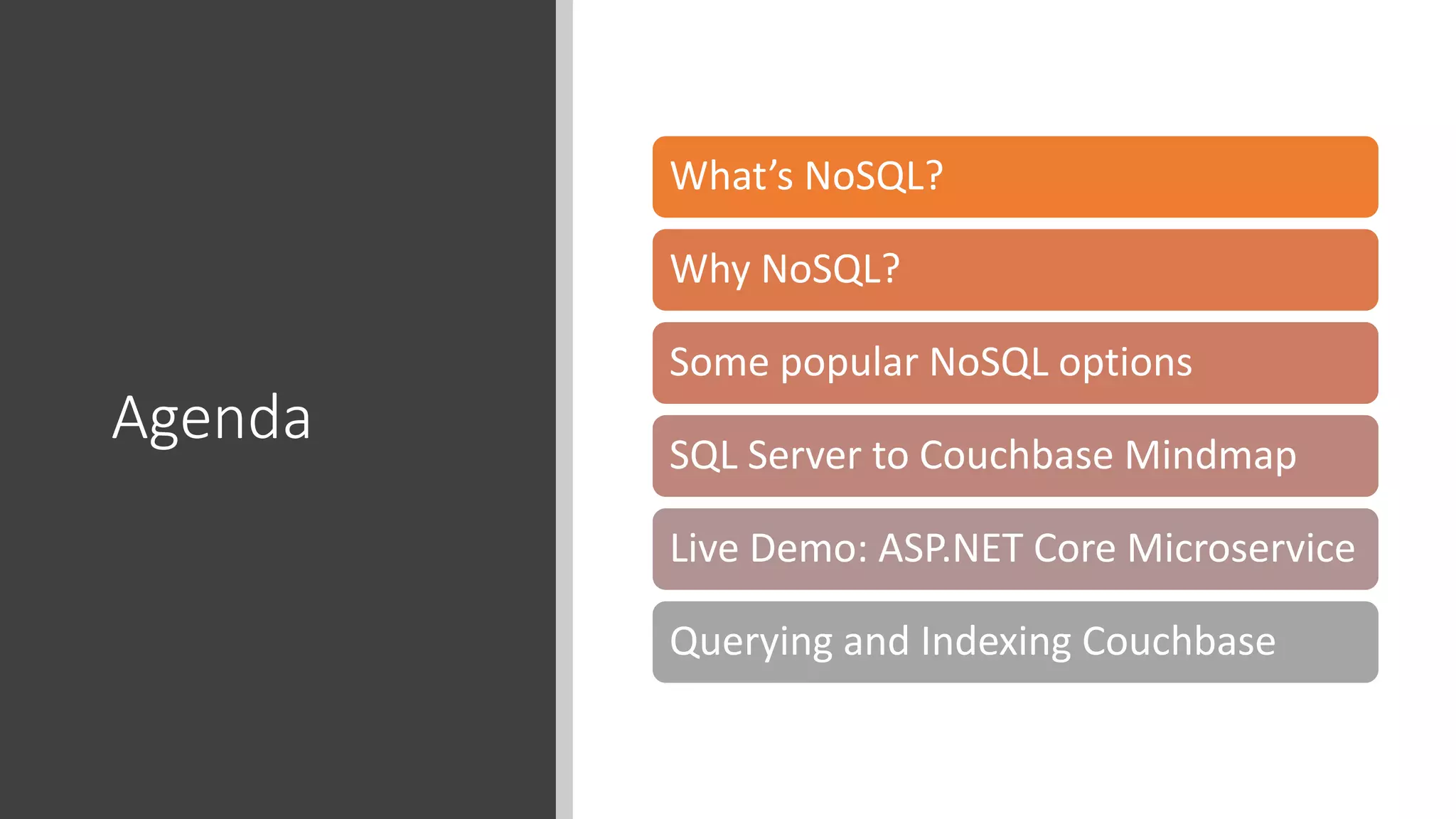

- 5. Agenda What’s NoSQL? Why NoSQL? Somepopular NoSQL options SQL Server to Couchbase Mindmap Live Demo: ASP.NET Core Microservice Querying and Indexing Couchbase
- 6. Let’s get some questions… first??? ThisPhoto by Unknown Author is licensed under CC BY-NC-ND

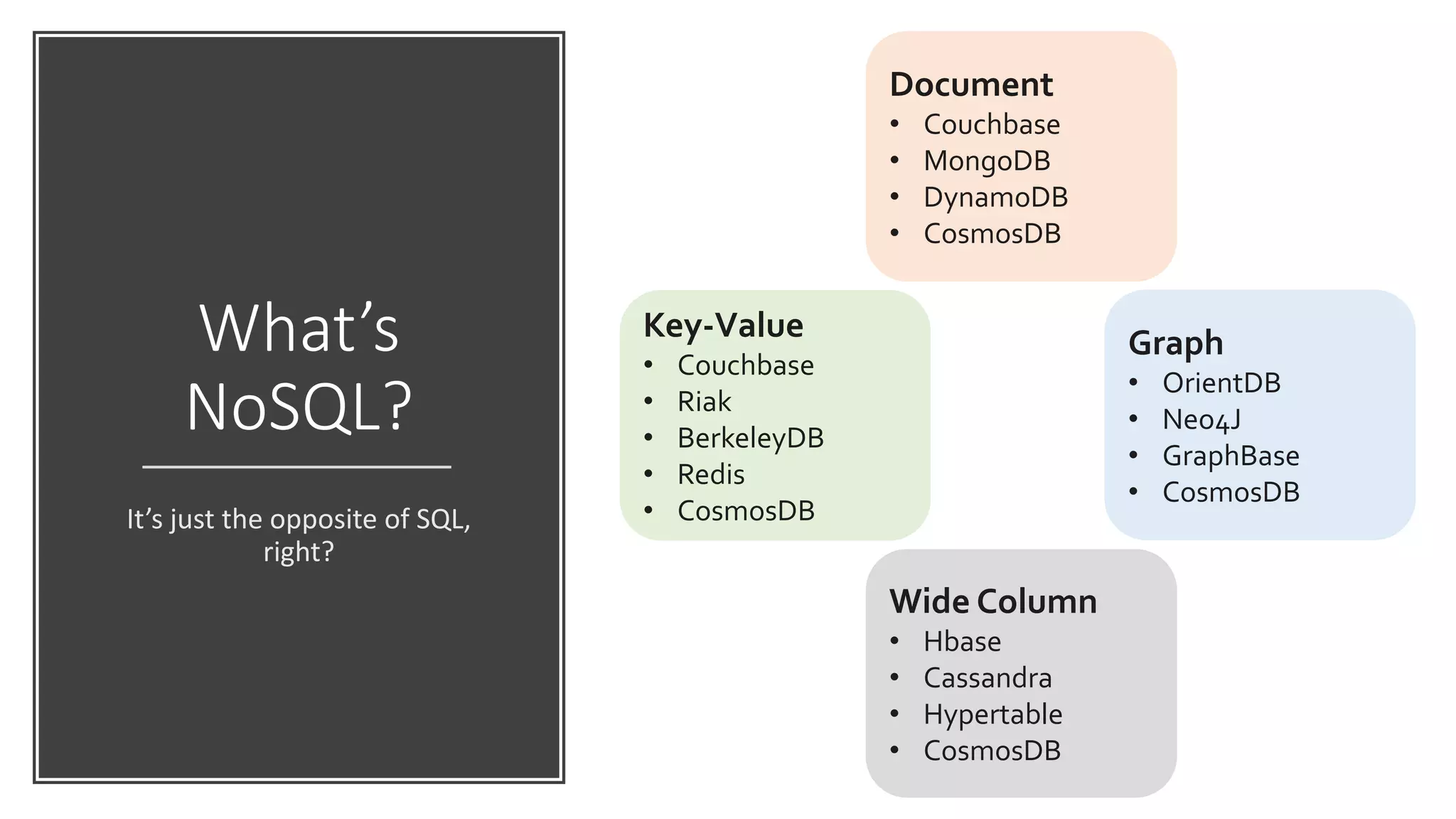

- 7. What’s NoSQL? It’s just theopposite of SQL, right? Document • Couchbase • MongoDB • DynamoDB • CosmosDB Graph • OrientDB • Neo4J • GraphBase • CosmosDB Key-Value • Couchbase • Riak • BerkeleyDB • Redis • CosmosDB Wide Column • Hbase • Cassandra • Hypertable • CosmosDB

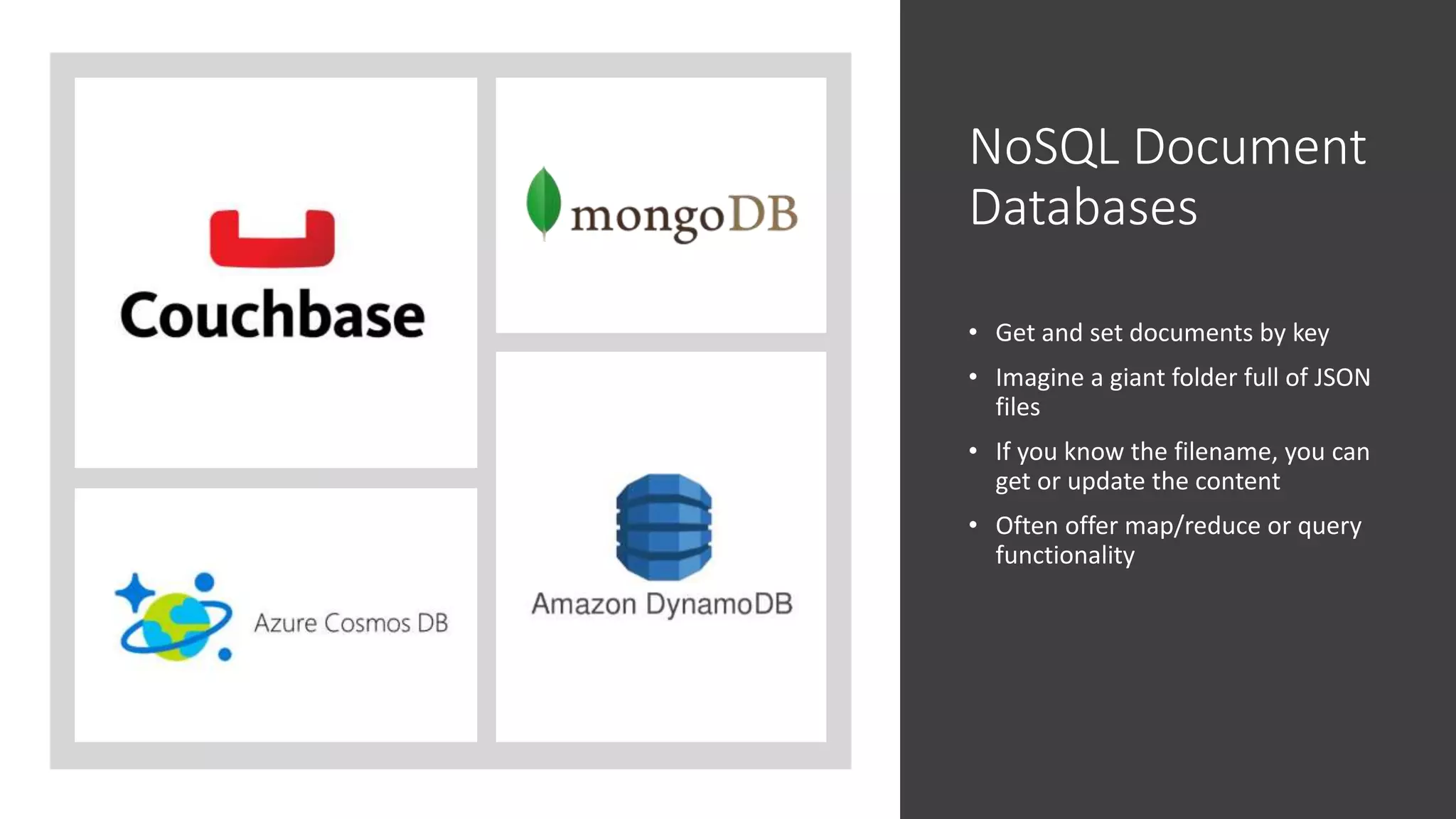

- 8. NoSQL Document Databases • Getand set documents by key • Imagine a giant folder full of JSON files • If you know the filename, you can get or update the content • Often offer map/reduce or query functionality
- 9. Why NoSQL? SQL Servercan do it all, right?

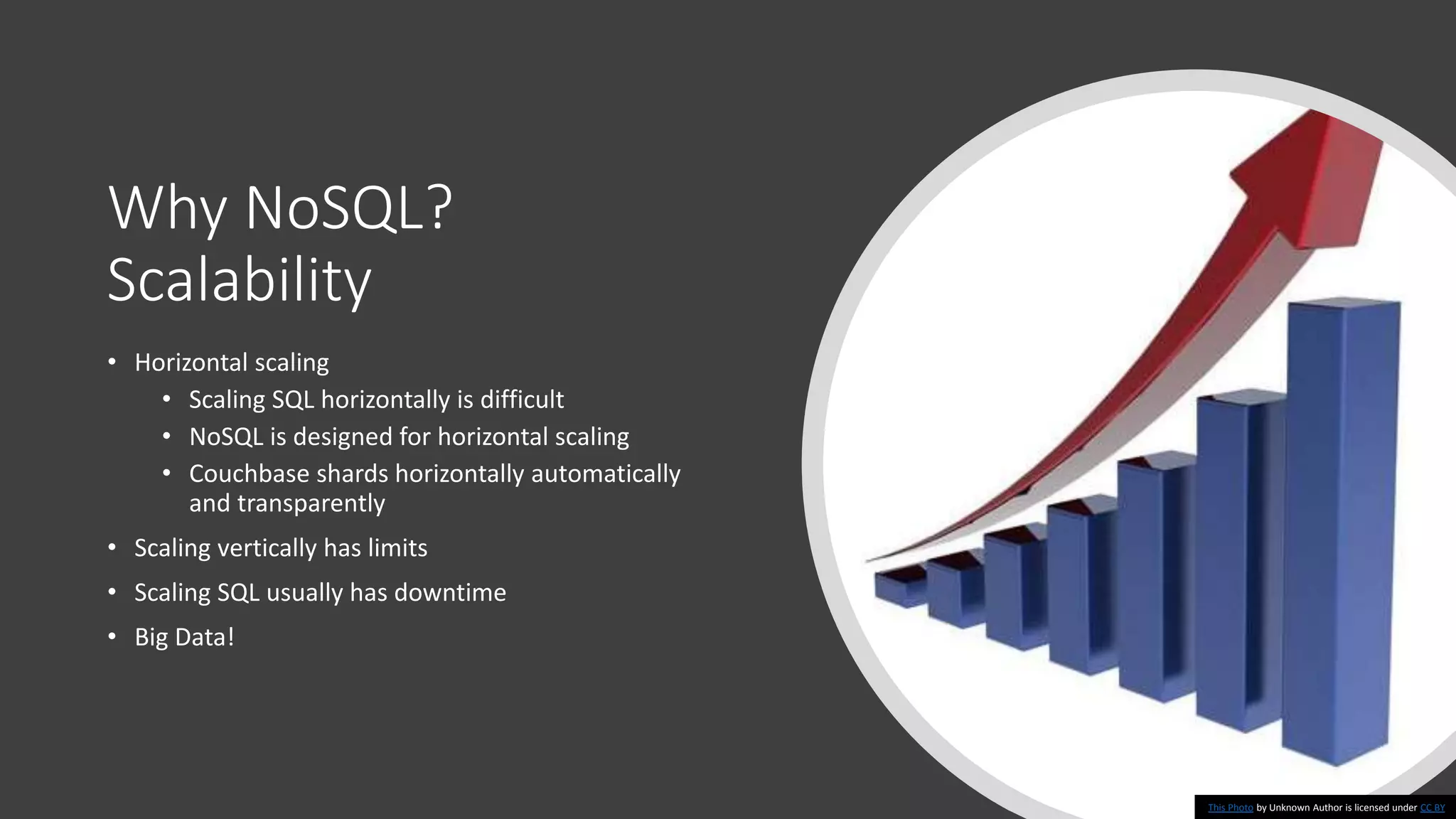

- 10. Why NoSQL? Scalability • Horizontalscaling • Scaling SQL horizontally is difficult • NoSQL is designed for horizontal scaling • Couchbase shards horizontally automatically and transparently • Scaling vertically has limits • Scaling SQL usually has downtime • Big Data! This Photo by Unknown Author is licensed under CC BY
- 11. Why NoSQL? Availability • Multi-nodedesign protects against failure • COUCH = Cluster of Unreliable Commodity Hardware • Zero down time upgrades • Zero down time scaling
- 12. Why NoSQL? Performance • Designedfor very high throughput • Multi-node architecture shares the load • Can be more cost effective than read- replicas • Couchbase has a memory-first architecture • No more separate memory cache!
- 13. Why NoSQL? Agility •Most NoSQL systems are “schema-less” • Schema changes can slow the team • Schema changes can cause downtime for SQL • Updating large tables can lock the whole table until complete • Many modern architectures don’t really need database-enforced schema anymore This Photo by Unknown Author is licensed under CC BY-SA

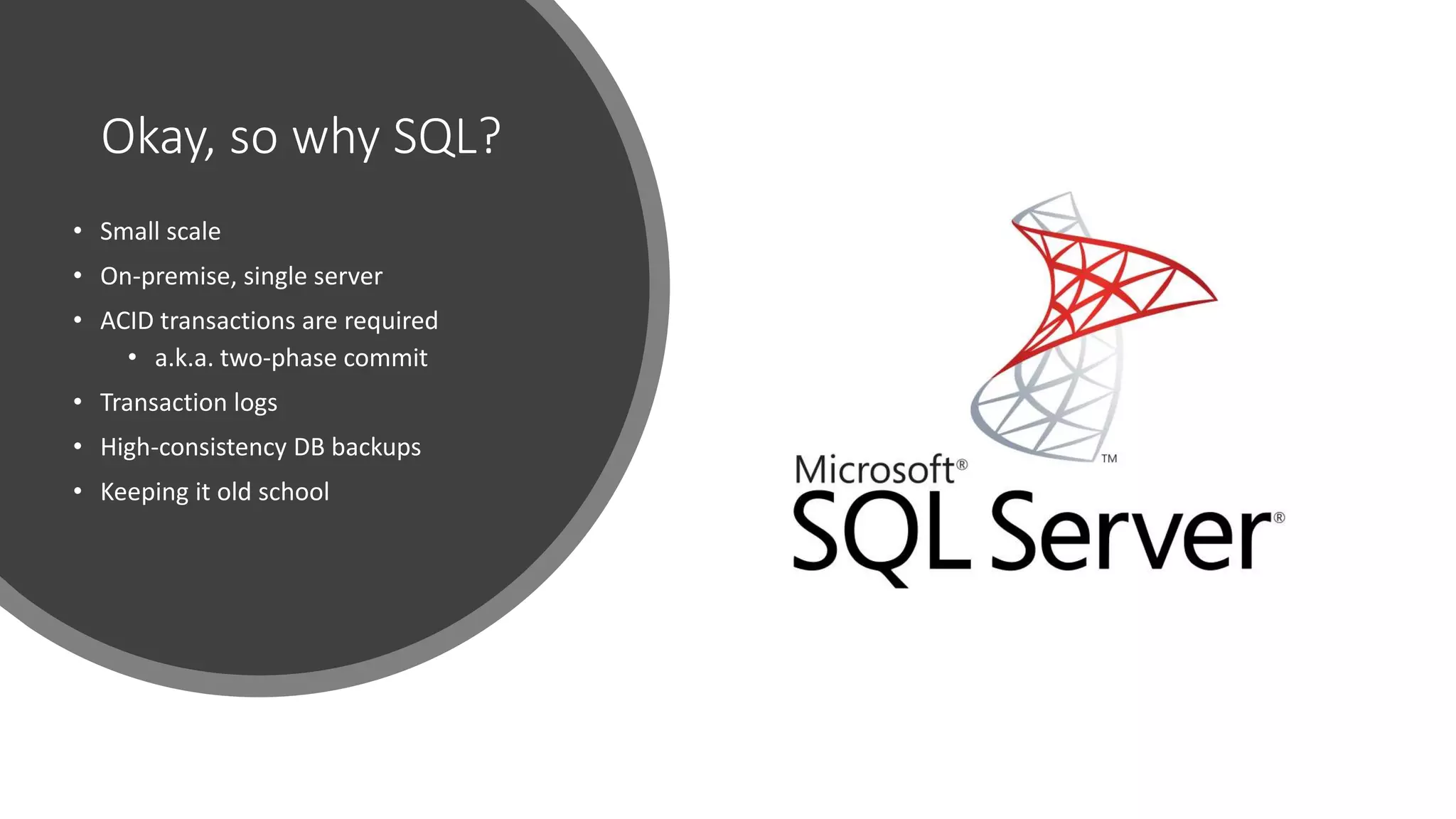

- 14. Okay, so whySQL? • Small scale • On-premise, single server • ACID transactions are required • a.k.a. two-phase commit • Transaction logs • High-consistency DB backups • Keeping it old school
- 15. Which NoSQL system isright for me? I prefer Couchbase, but here’s some (hopefully) unbiased info
- 16. Popular NoSQL Choices Selection criteria: •Document database • Runs on Microsoft / Microsoft-friendly • Popular – db-engines.com
- 17. Disclaimer • I amprimarily a Couchbase user • Please let me know if I’ve made any mistakes • Most of the information here comes from Matthew Groves (@mgroves) This Guy

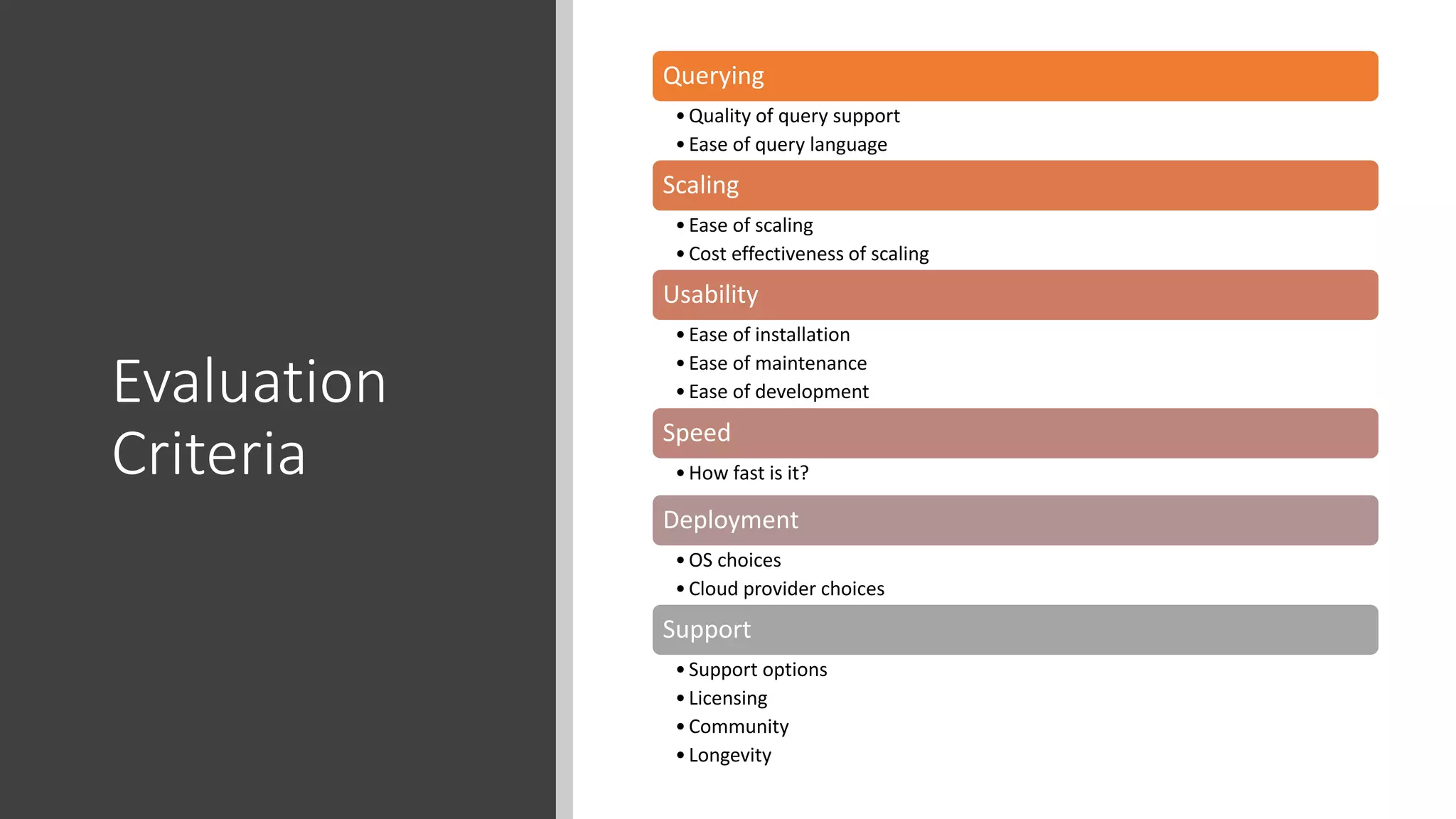

- 18. Evaluation Criteria Querying •Quality of querysupport •Ease of query language Scaling •Ease of scaling •Cost effectiveness of scaling Usability •Ease of installation •Ease of maintenance •Ease of development Speed •How fast is it? Deployment •OS choices •Cloud provider choices Support •Support options •Licensing •Community •Longevity
- 19. Querying • Proprietary JSON-basedquery • Text search • .NET and .NET Core SDK • LINQ provider in .NET This Photo by Unknown Author is licensed under CC BY-SA
- 20. Scaling • Multiple nodetypes • Sharding options • Master-slave / Primary-secondary

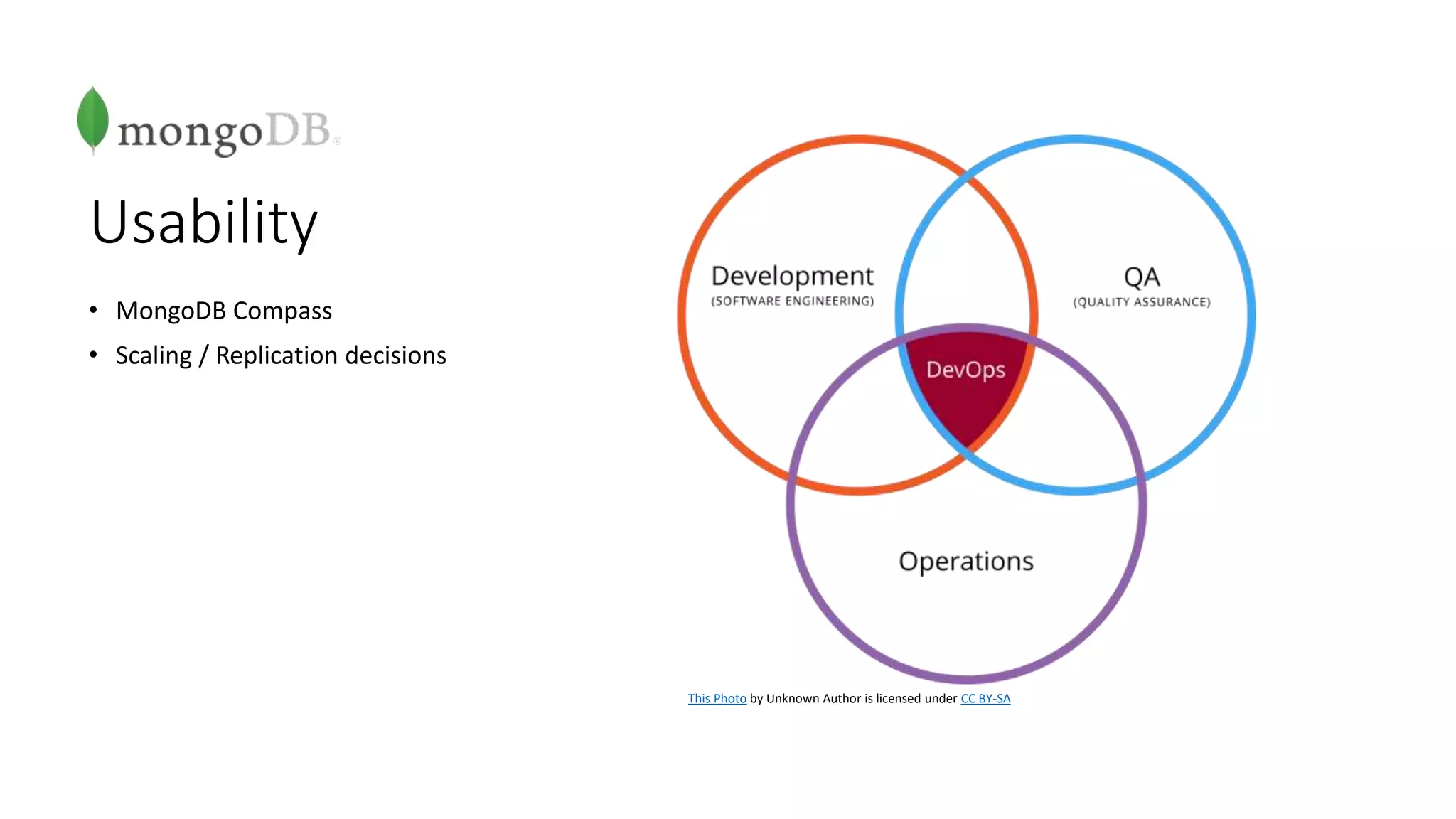

- 21. Usability • MongoDB Compass •Scaling / Replication decisions This Photo by Unknown Author is licensed under CC BY-SA
- 22. Speed • Indexing forqueries • In-memory options
- 23. Deployment • Windows • MacOS •Linux • Azure • AWS • Docker This Photo by Unknown Author is licensed under CC BY-SA

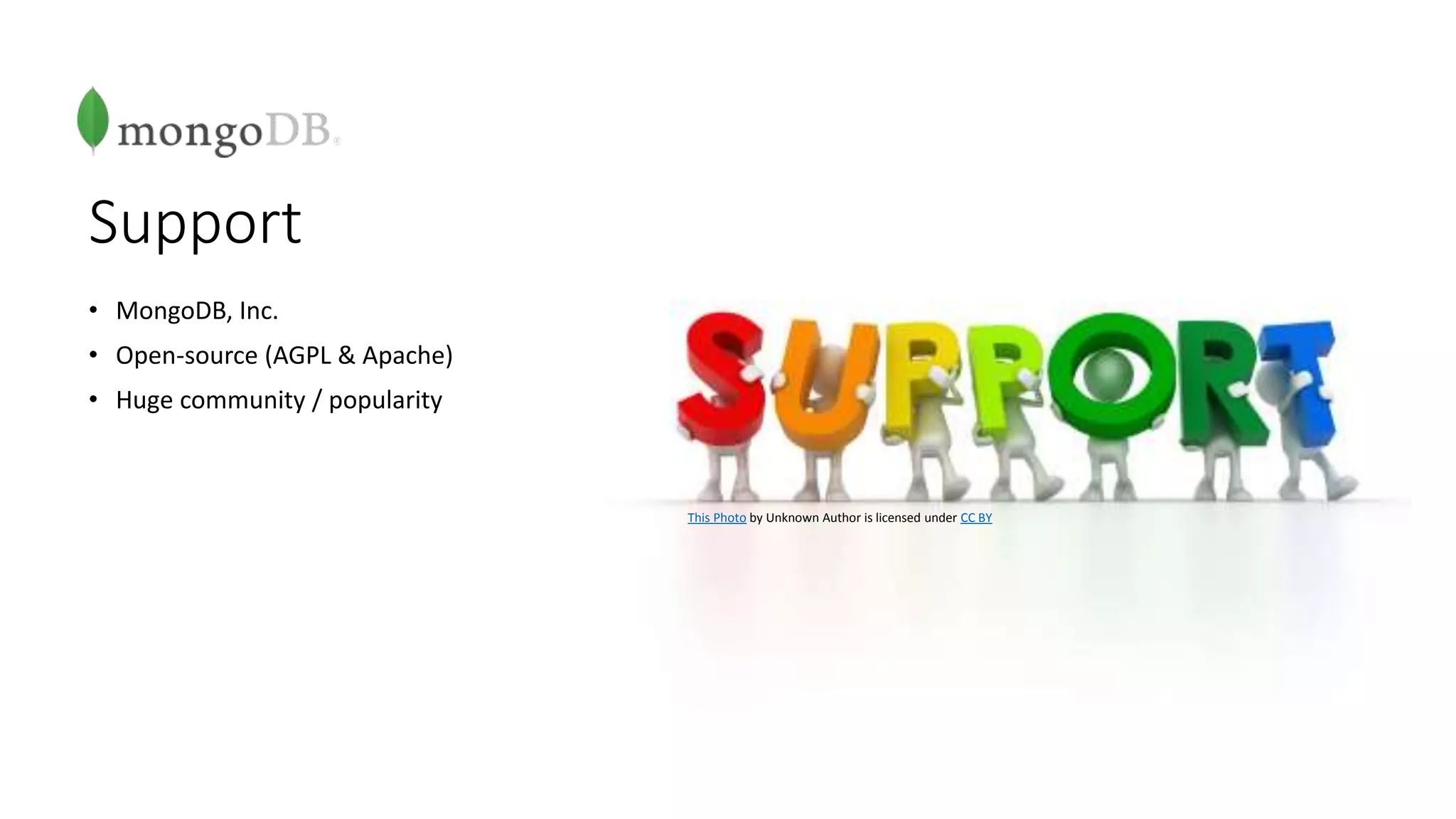

- 24. Support • MongoDB, Inc. •Open-source (AGPL & Apache) • Huge community / popularity This Photo by Unknown Author is licensed under CC BY
- 25. Querying • N1QL (SQLfor JSON) • MapReduce • Full Text Search (FTS) • .NET and .NET Core SDK • Linq2Couchbase This Photo by Unknown Author is licensed under CC BY-SA

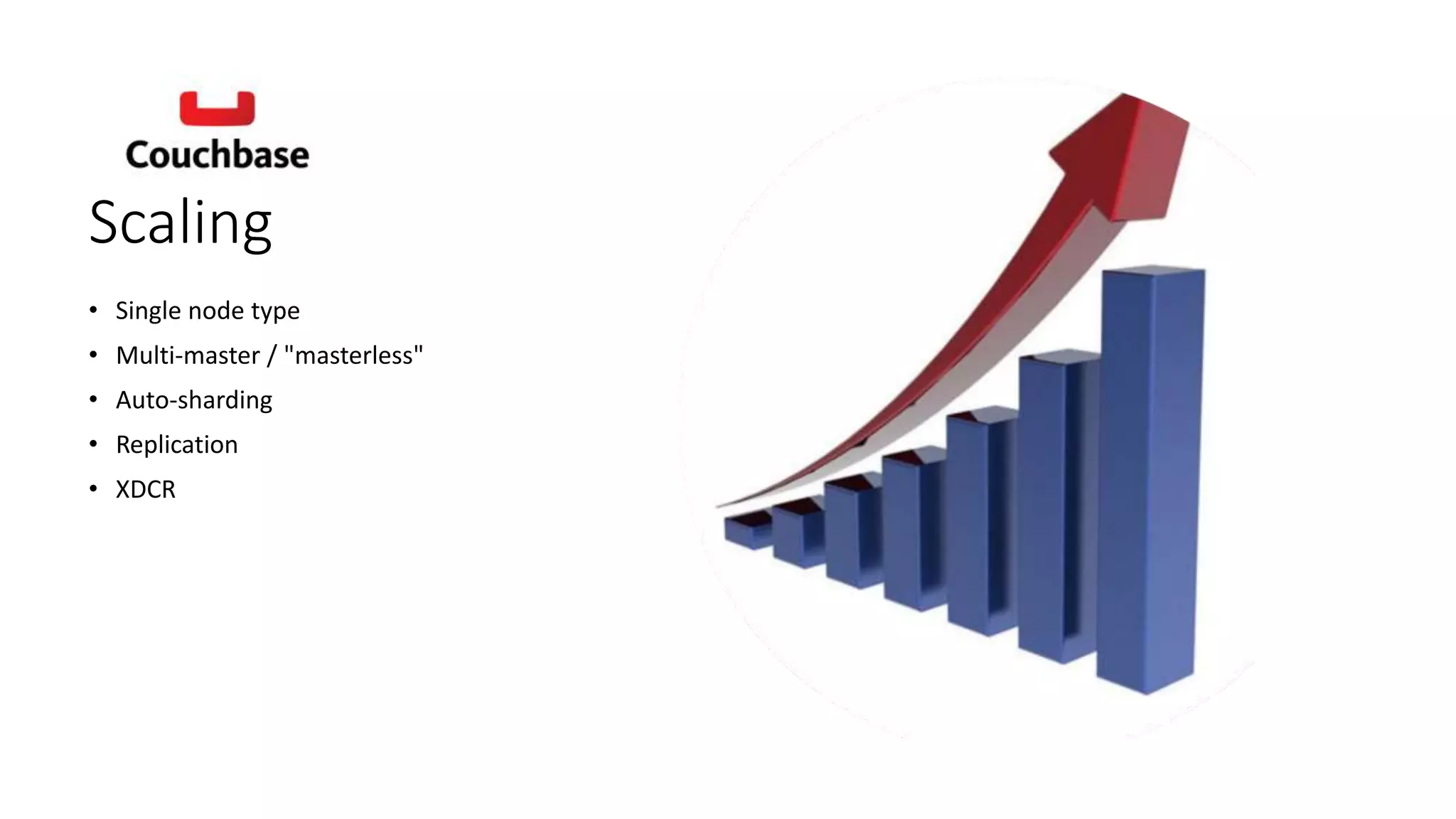

- 26. Scaling • Single nodetype • Multi-master / "masterless" • Auto-sharding • Replication • XDCR

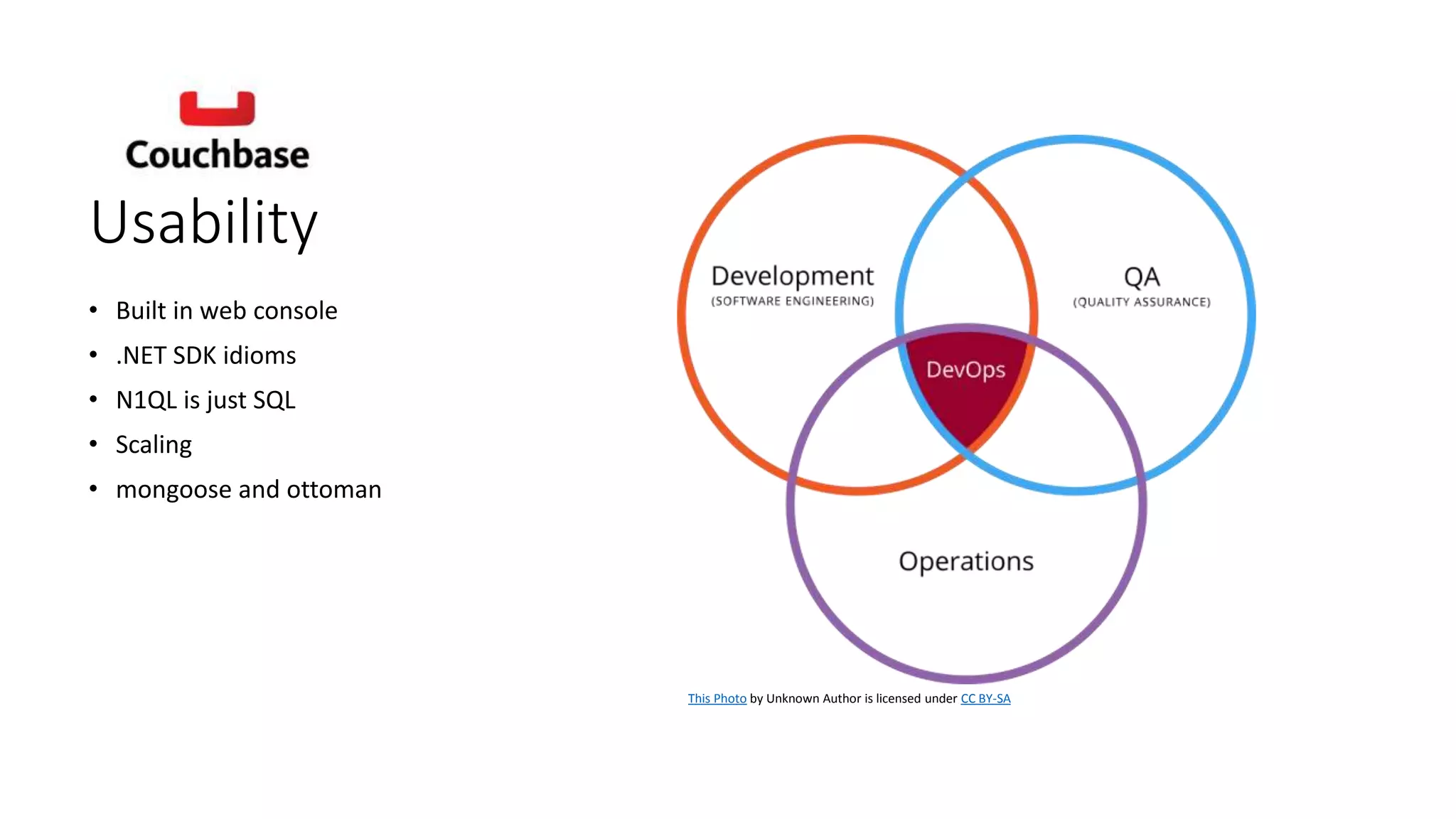

- 27. Usability • Built inweb console • .NET SDK idioms • N1QL is just SQL • Scaling • mongoose and ottoman This Photo by Unknown Author is licensed under CC BY-SA
- 28. Speed • Memory-first architecture •Indexing for N1QL • YCSB benchmarks • Memory-optimized indexes
- 29. Deployment • Windows • MacOS •Linux • Azure • AWS • Docker This Photo by Unknown Author is licensed under CC BY-SA
- 30. Support • Couchbase, Inc. •Open-source (Apache 2) • Active community This Photo by Unknown Author is licensed under CC BY
- 31. Querying • REST focused •MapReduce views • Mango query language (2.x) This Photo by Unknown Author is licensed under CC BY-SA
- 32. Scaling • Single nodetype • Multi-master • HAProxy • Sharding configuration • Replication

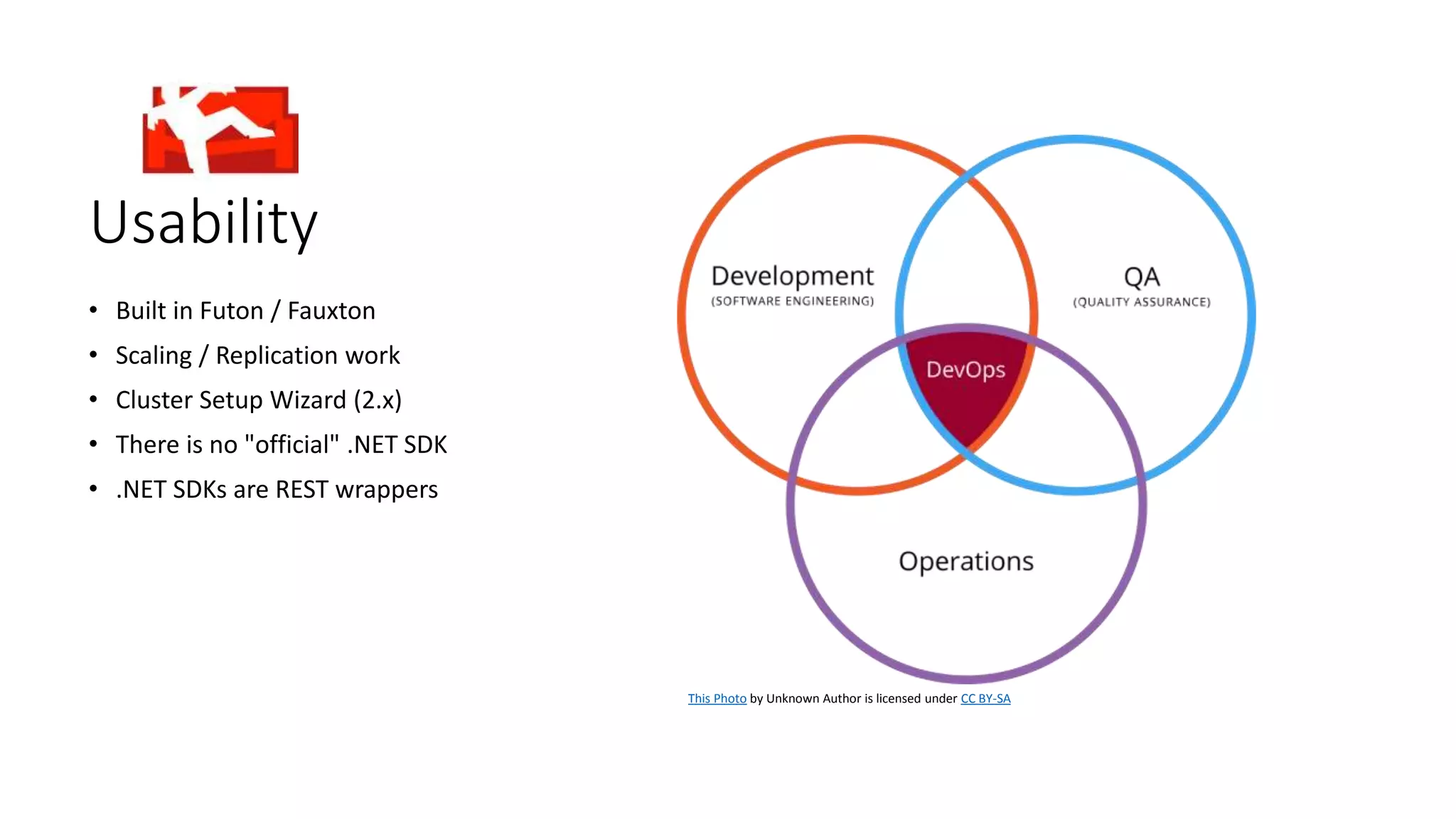

- 33. Usability • Built inFuton / Fauxton • Scaling / Replication work • Cluster Setup Wizard (2.x) • There is no "official" .NET SDK • .NET SDKs are REST wrappers This Photo by Unknown Author is licensed under CC BY-SA
- 34. Speed • Indexing forMango queries • MapReduce • Caching is external
- 35. Deployment • Windows • MacOS •Linux • Azure • AWS • Docker This Photo by Unknown Author is licensed under CC BY-SA

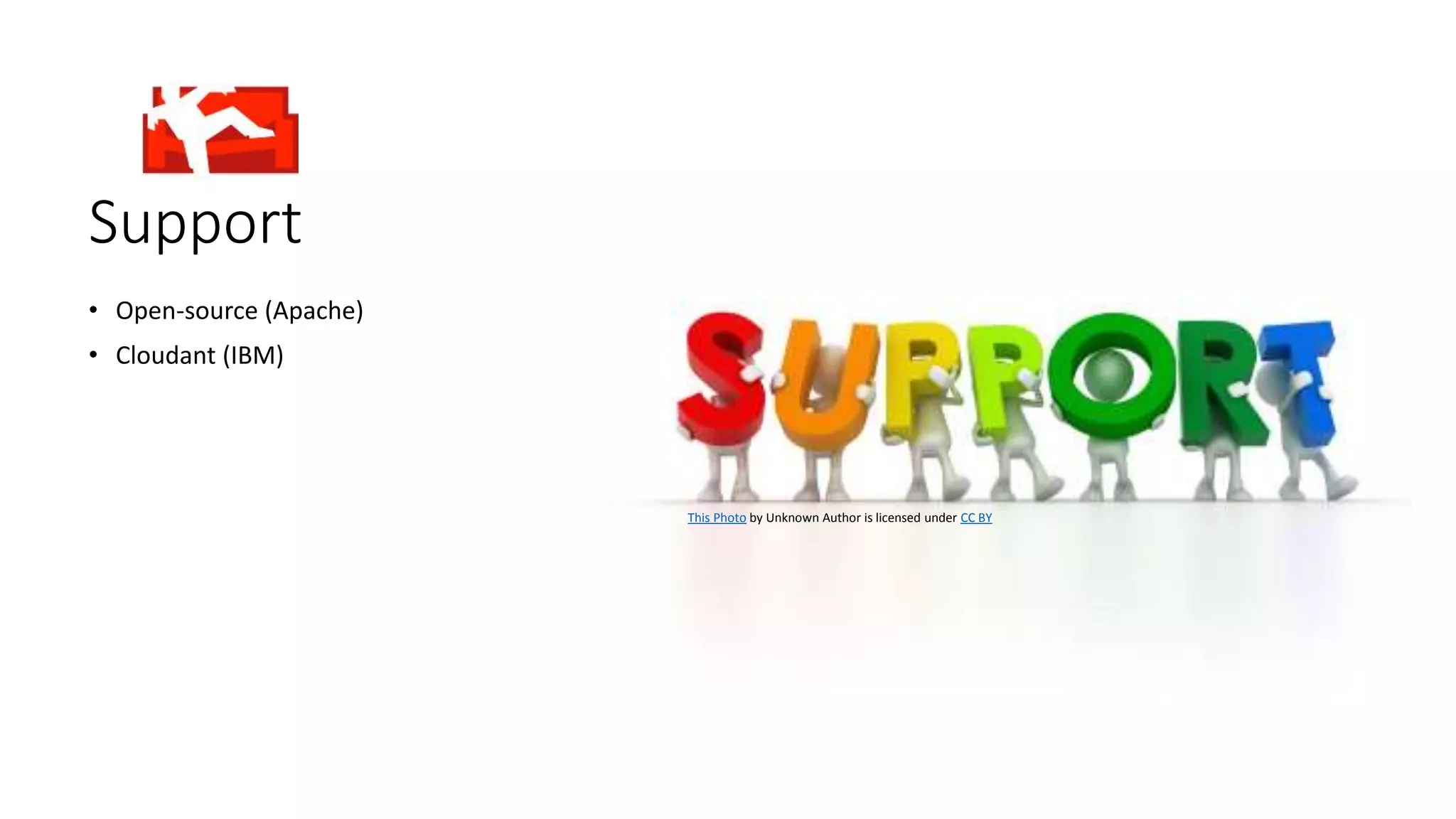

- 36. Support • Open-source (Apache) •Cloudant (IBM) This Photo by Unknown Author is licensed under CC BY
- 37. Querying • SQL (limited) •Stored Procedures (JS) • Triggers (JS) • UDFs (JS) • .NET and .NET Core SDK This Photo by Unknown Author is licensed under CC BY-SA
- 38. Scaling • Handled byAzure • Geographic distribution / affinity • Consistency options • Guaranteed zero data loss during failovers

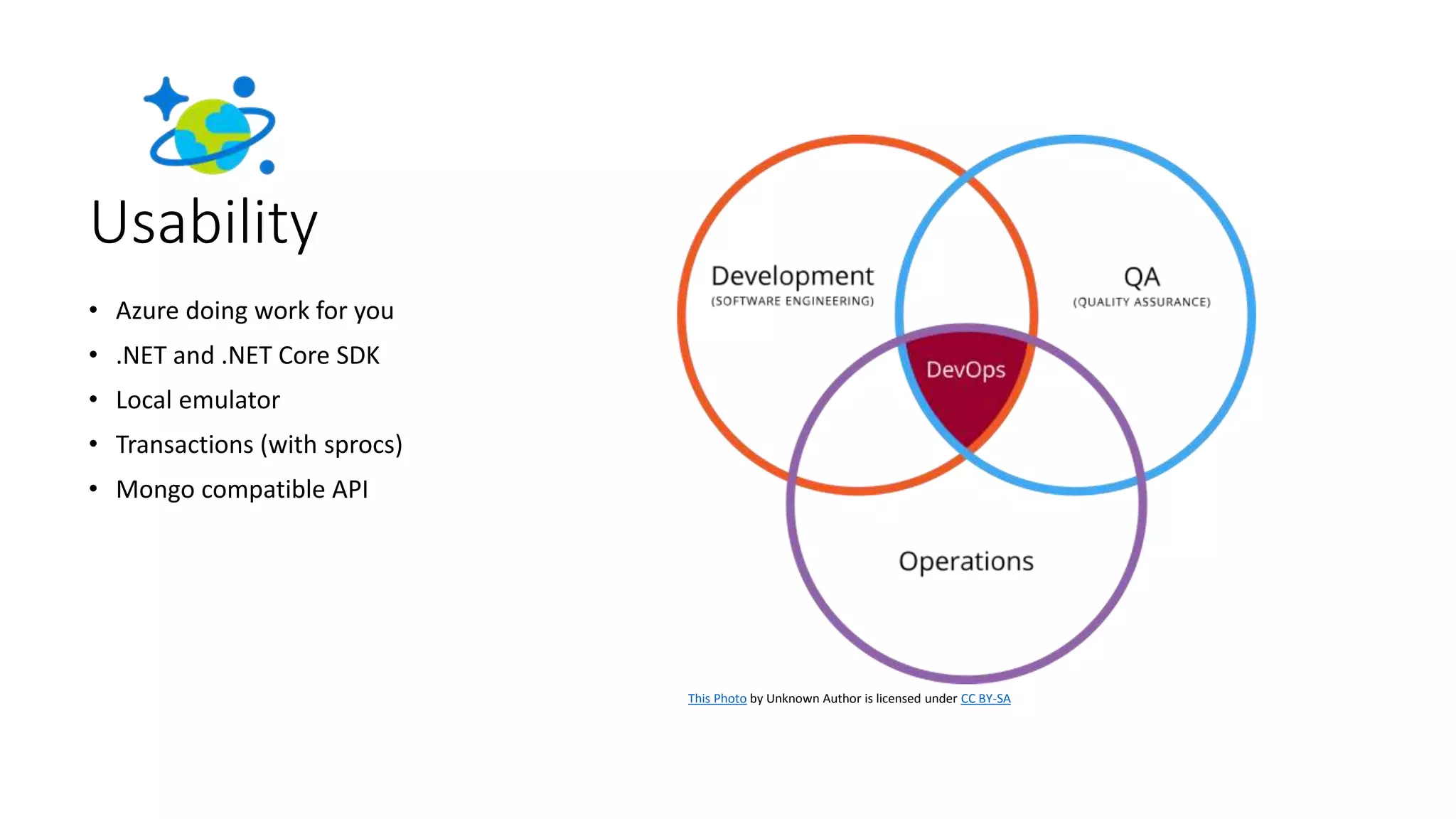

- 39. Usability • Azure doingwork for you • .NET and .NET Core SDK • Local emulator • Transactions (with sprocs) • Mongo compatible API This Photo by Unknown Author is licensed under CC BY-SA
- 40. Speed • Guaranteed ~10mslatency reads • Guaranteed ~15ms latency writes
- 41. Deployment • Windows (emulator) •Azure This Photo by Unknown Author is licensed under CC BY-SA
- 42. Support • Microsoft • Popularityis increasing, so more community growth should be expected This Photo by Unknown Author is licensed under CC BY
- 43. So which doI choose? This Photo by Unknown Author is licensed under CC BY-NC-ND

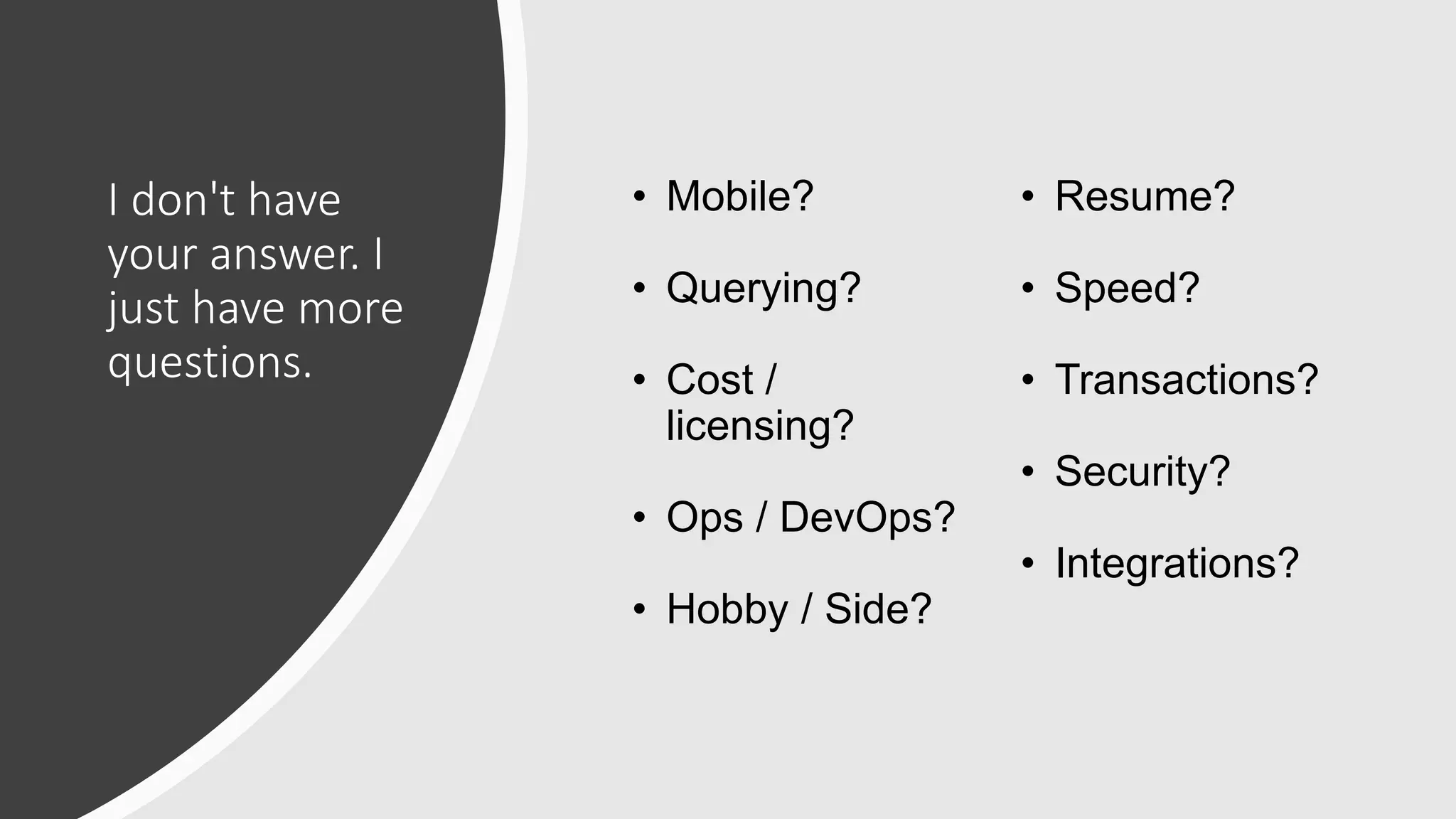

- 44. I don't have youranswer. I just have more questions. • Mobile? • Querying? • Cost / licensing? • Ops / DevOps? • Hobby / Side? • Resume? • Speed? • Transactions? • Security? • Integrations?
- 45. SQL Server to CouchbaseMindmap

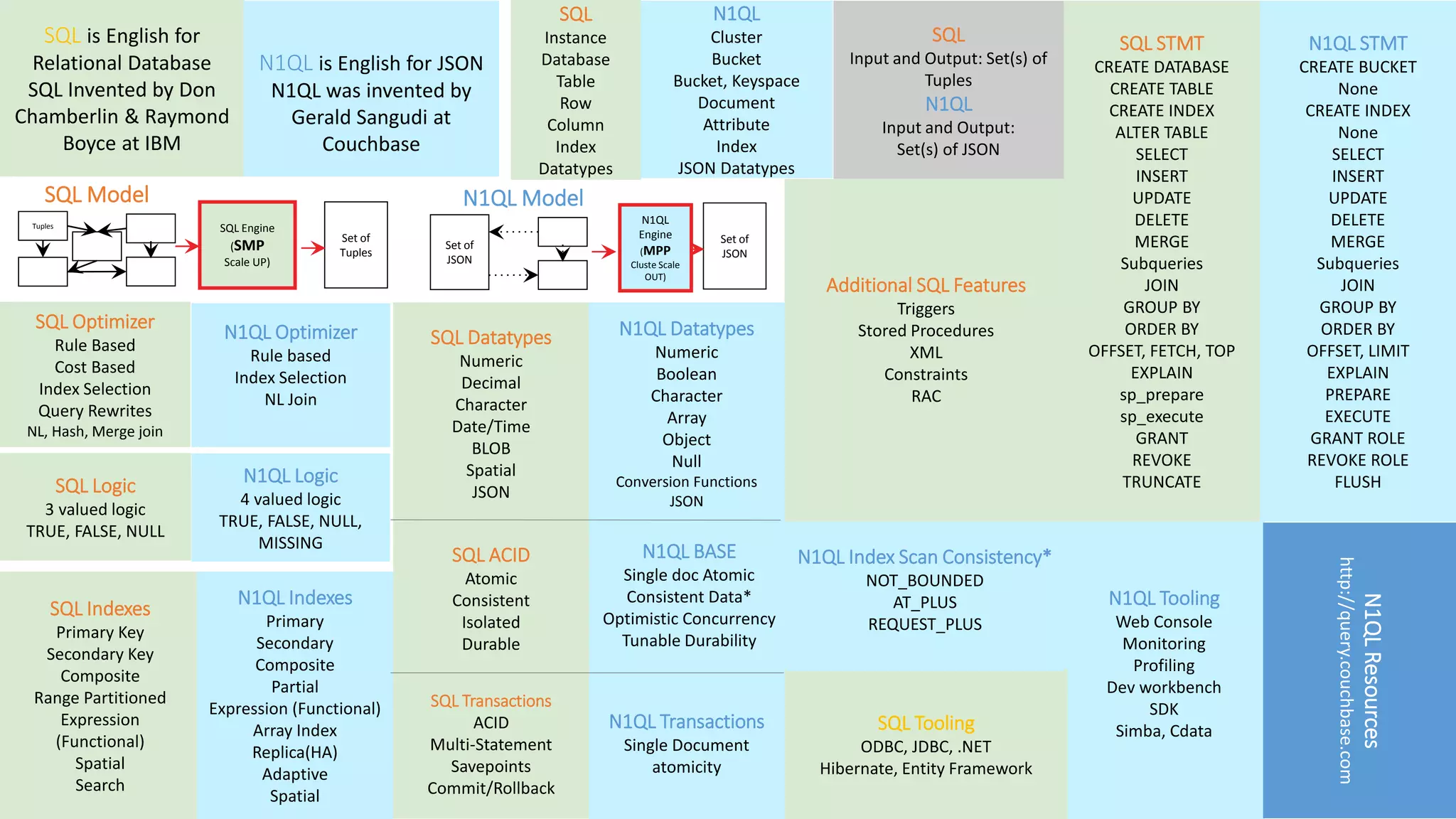

- 46. SQL is Englishfor Relational Database SQL Invented by Don Chamberlin & Raymond Boyce at IBM N1QL is English for JSON N1QL was invented by Gerald Sangudi at Couchbase SQL Instance Database Table Row Column Index Datatypes N1QL Cluster Bucket Bucket, Keyspace Document Attribute Index JSON Datatypes SQL Input and Output: Set(s) of Tuples N1QL Input and Output: Set(s) of JSON N1QL STMT CREATE BUCKET None CREATE INDEX None SELECT INSERT UPDATE DELETE MERGE Subqueries JOIN GROUP BY ORDER BY OFFSET, LIMIT EXPLAIN PREPARE EXECUTE GRANT ROLE REVOKE ROLE FLUSH Tuples SQL Model Set of JSON N1QL Model Set of Tuples Set of JSON N1QL Tooling Web Console Monitoring Profiling Dev workbench SDK Simba, CdataSQL Tooling ODBC, JDBC, .NET Hibernate, Entity Framework N1QLResources http://query.couchbase.com SQL Indexes Primary Key Secondary Key Composite Range Partitioned Expression (Functional) Spatial Search N1QL Indexes Primary Secondary Composite Partial Expression (Functional) Array Index Replica(HA) Adaptive Spatial SQL Logic 3 valued logic TRUE, FALSE, NULL N1QL Logic 4 valued logic TRUE, FALSE, NULL, MISSING SQL Transactions ACID Multi-Statement Savepoints Commit/Rollback N1QL Transactions Single Document atomicity SQL Datatypes Numeric Decimal Character Date/Time BLOB Spatial JSON N1QL Datatypes Numeric Boolean Character Array Object Null Conversion Functions JSON SQL Optimizer Rule Based Cost Based Index Selection Query Rewrites NL, Hash, Merge join N1QL Optimizer Rule based Index Selection NL Join SQL ACID Atomic Consistent Isolated Durable N1QL BASE Single doc Atomic Consistent Data* Optimistic Concurrency Tunable Durability N1QL Index Scan Consistency* NOT_BOUNDED AT_PLUS REQUEST_PLUS SQL Engine (SMP Scale UP) N1QL Engine (MPP Cluste Scale OUT) Additional SQL Features Triggers Stored Procedures XML Constraints RAC SQL STMT CREATE DATABASE CREATE TABLE CREATE INDEX ALTER TABLE SELECT INSERT UPDATE DELETE MERGE Subqueries JOIN GROUP BY ORDER BY OFFSET, FETCH, TOP EXPLAIN sp_prepare sp_execute GRANT REVOKE TRUNCATE

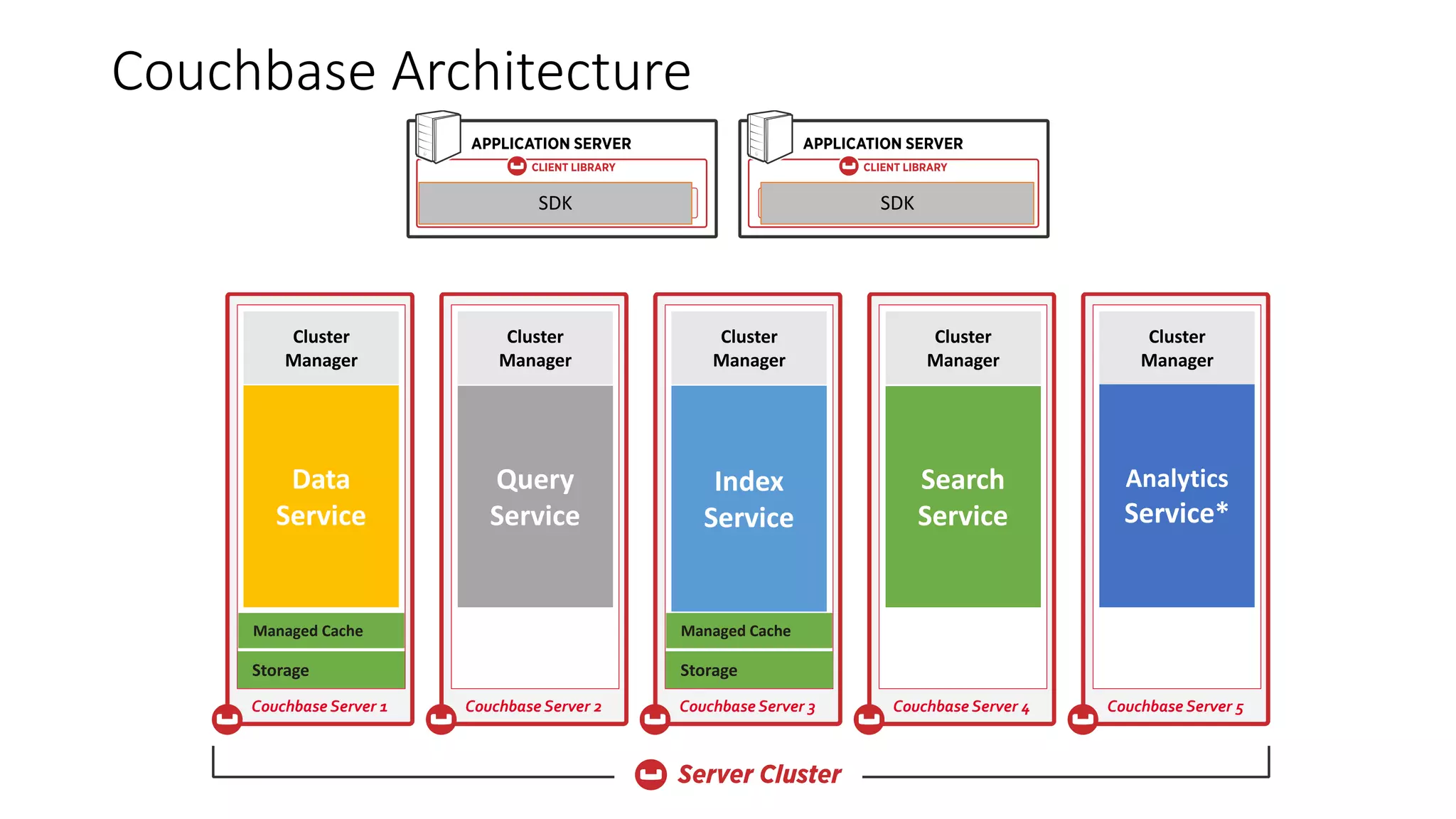

- 47. Couchbase Architecture STORAGE Couchbase Server1 SHARD 7 SHARD 9 SHARD 5 SHARDSHARDSHARD Managed Cache Cluster ManagerCluster Manager Managed Cache Storage Data Service STORAGE Couchbase Server 2 Managed Cache Cluster ManagerCluster Manager Query Service STORAGE Couchbase Server 3 SHARD 7 SHARD 9 SHARD 5 SHARDSHARDSHARD Managed Cache Cluster ManagerCluster Manager Index Service STORAGE Couchbase Server 4 SHARD 7 SHARD 9 SHARD 5 SHARDSHARDSHARD Managed Cache Cluster ManagerCluster Manager Search Service STORAGE Couchbase Server 5 SHARD 7 SHARD 9 SHARD 5 SHARDSHARDSHARD Managed Cache Cluster ManagerCluster Manager Analytics Service* Managed Cache Storage SDK SDK

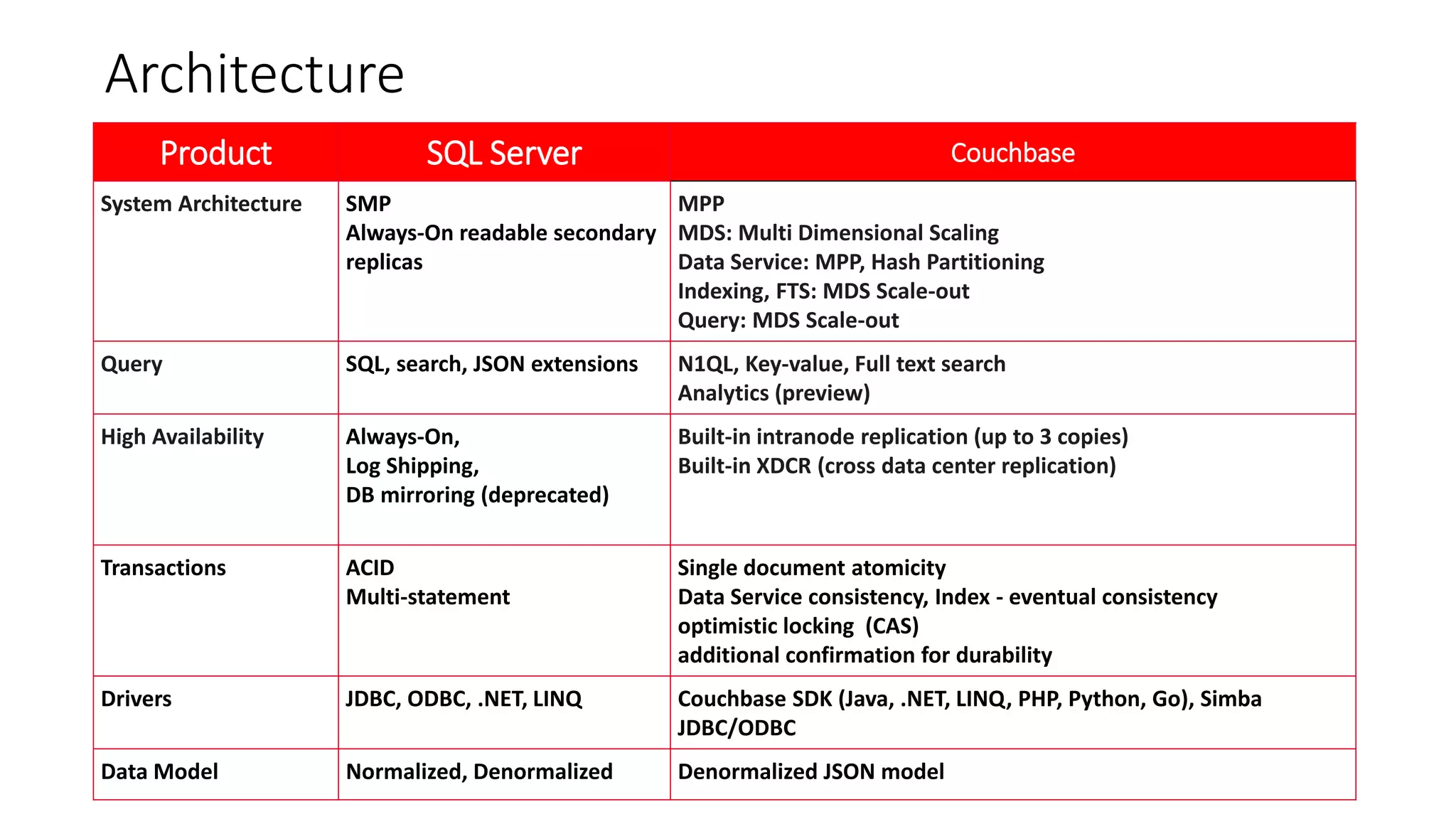

- 48. Architecture Product SQL ServerCouchbase System Architecture SMP Always-On readable secondary replicas MPP MDS: Multi Dimensional Scaling Data Service: MPP, Hash Partitioning Indexing, FTS: MDS Scale-out Query: MDS Scale-out Query SQL, search, JSON extensions N1QL, Key-value, Full text search Analytics (preview) High Availability Always-On, Log Shipping, DB mirroring (deprecated) Built-in intranode replication (up to 3 copies) Built-in XDCR (cross data center replication) Transactions ACID Multi-statement Single document atomicity Data Service consistency, Index - eventual consistency optimistic locking (CAS) additional confirmation for durability Drivers JDBC, ODBC, .NET, LINQ Couchbase SDK (Java, .NET, LINQ, PHP, Python, Go), Simba JDBC/ODBC Data Model Normalized, Denormalized Denormalized JSON model

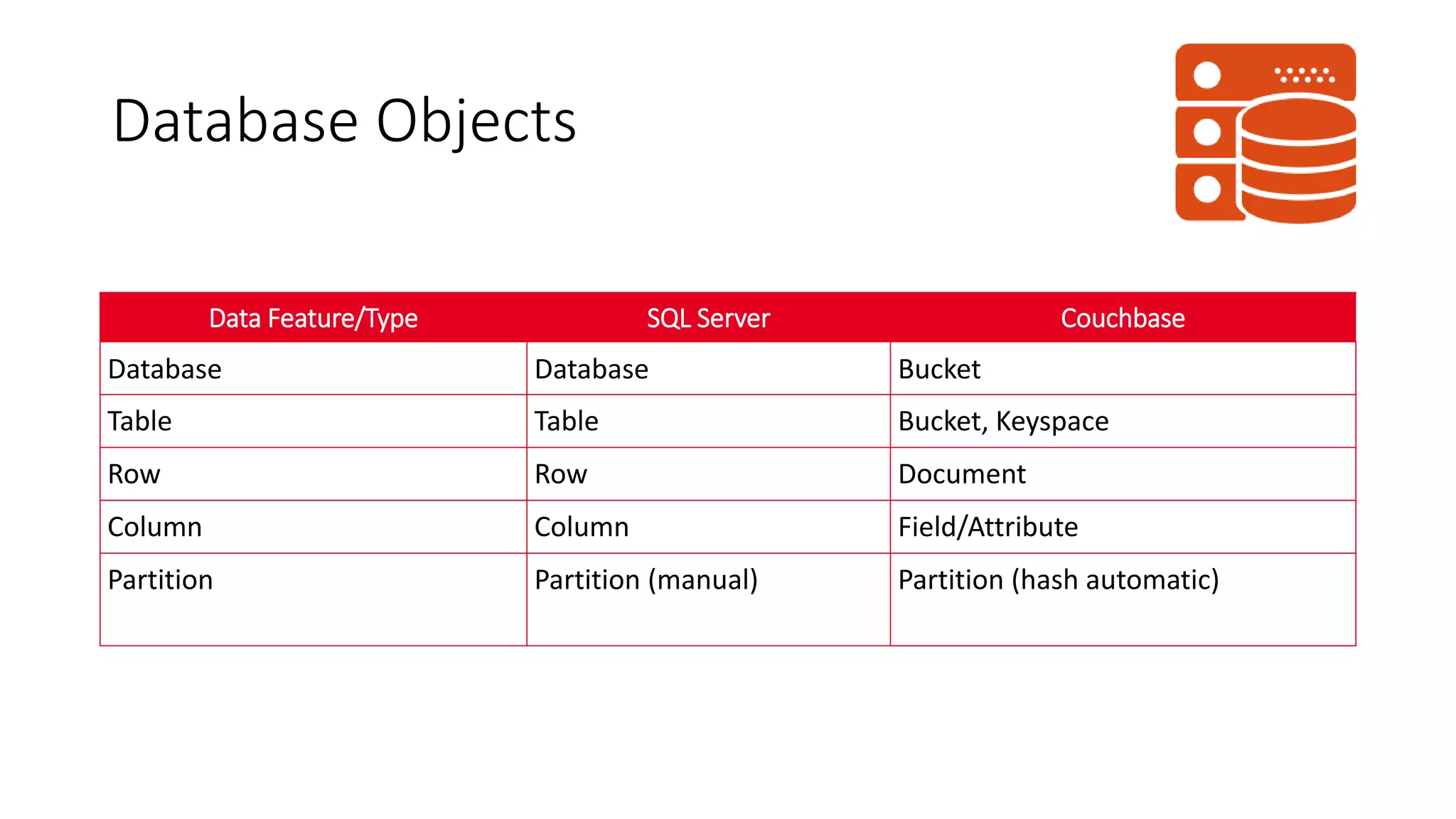

- 49. Database Objects Data Feature/TypeSQL Server Couchbase Database Database Bucket Table Table Bucket, Keyspace Row Row Document Column Column Field/Attribute Partition Partition (manual) Partition (hash automatic)
- 50. Data Types Data TypeSQL Server Couchbase JSON Numbers int, bigint, smallint, tinyint, float, real, decimal, numeric, money, smallmoney JSON Number { "id": 5, "balance":2942.59 } String char, varchar, nchar, nvarchar, text, ntext JSON String { "name": "Joe", "city": "Morrisville" } Boolean bit JSON Boolean { "premium": true, ”pending": false} Date/Time datetime, smalldatetime, datetime2, date, time, datetimeoffset JSON ISO 8601 string with extract, convert and arithmetic functions { “soldat”: "2017-10-12T13:47:41.068-07:00" } spatial data geometry, geography Supports nearest neighbor and spatial distance. "geometry": {"type": "Point", "coordinates": [- 104.99404, 39.75621]} MISSING Not applicable, fixed schema MISSING { } NULL NULL JSON Null { "last_address": null } Objects Flexible JSON Objects { "address": {"street": "1 Main Street", "city": Morrisville, "zip":"94824“} } Arrays Flexible JSON Arrays { "hobbies": ["tennis", "skiing", "lego"] }
- 51. Understanding MISSING Couchbase MISSING Value ofa field absent in the JSON document or literal. {“name”: ”joe”} Everything but the field “name” is missing from the document. IS MISSING Returns true if the document does not have status field FROM CUSTOMER WHERE status IS MISSING; IS NOT MISSING Returns true if the document has status field (even if null) FROM CUSTOMER WHERE status IS NOT MISSING; MISSING vs NULL MISSING is a known missing quantity NULL is a known UNKNOWN. Valid JSON: {“status”: null} MISSING value Simply make the field of any type disappear by setting it to MISSING UPDATE CUSTOMER SET status = MISSING WHERE cxid = “xyz232”

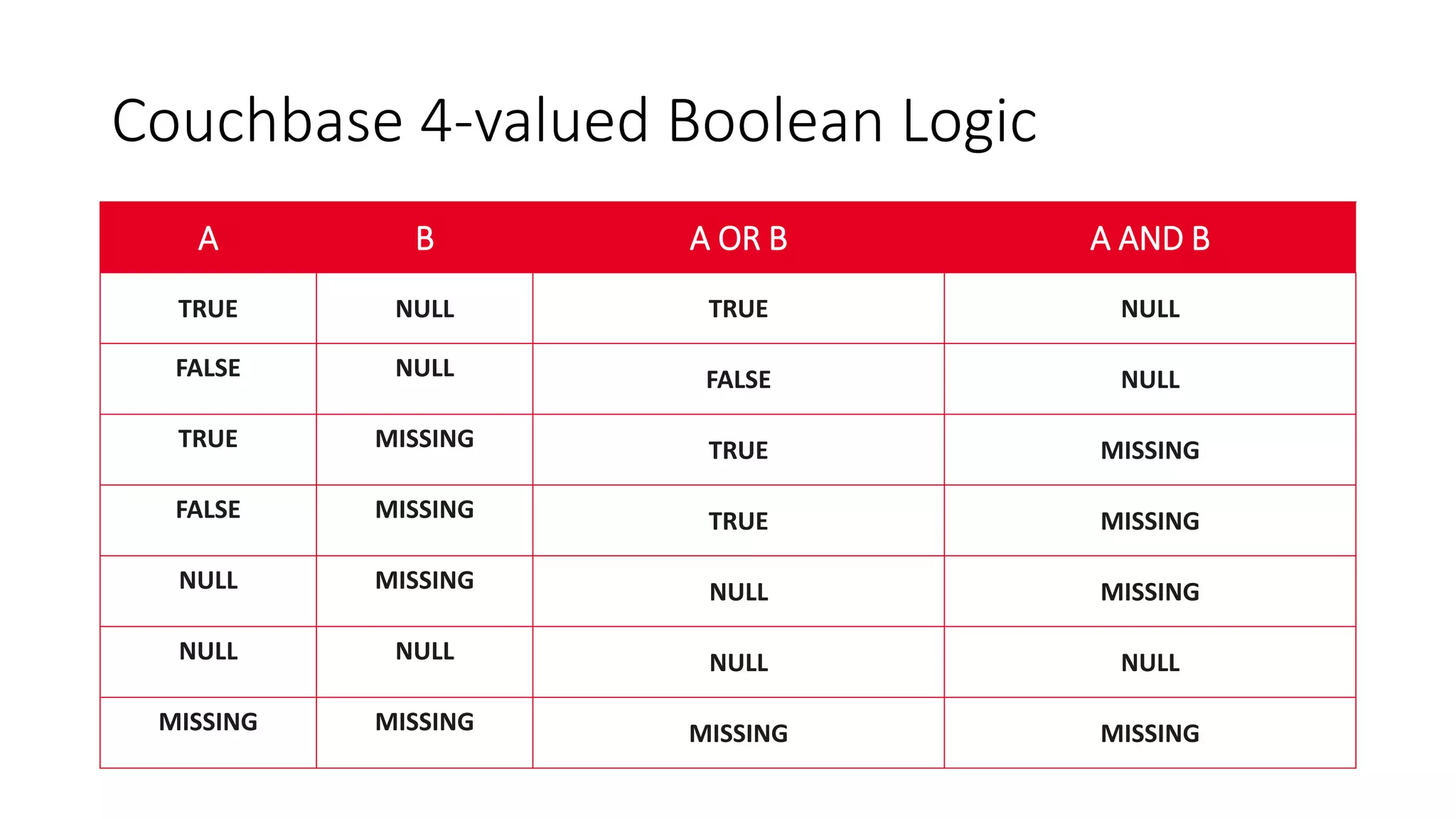

- 52. Couchbase 4-valued BooleanLogic A B A OR B A AND B TRUE NULL TRUE NULL FALSE NULL FALSE NULL TRUE MISSING TRUE MISSING FALSE MISSING TRUE MISSING NULL MISSING NULL MISSING NULL NULL NULL NULL MISSING MISSING MISSING MISSING

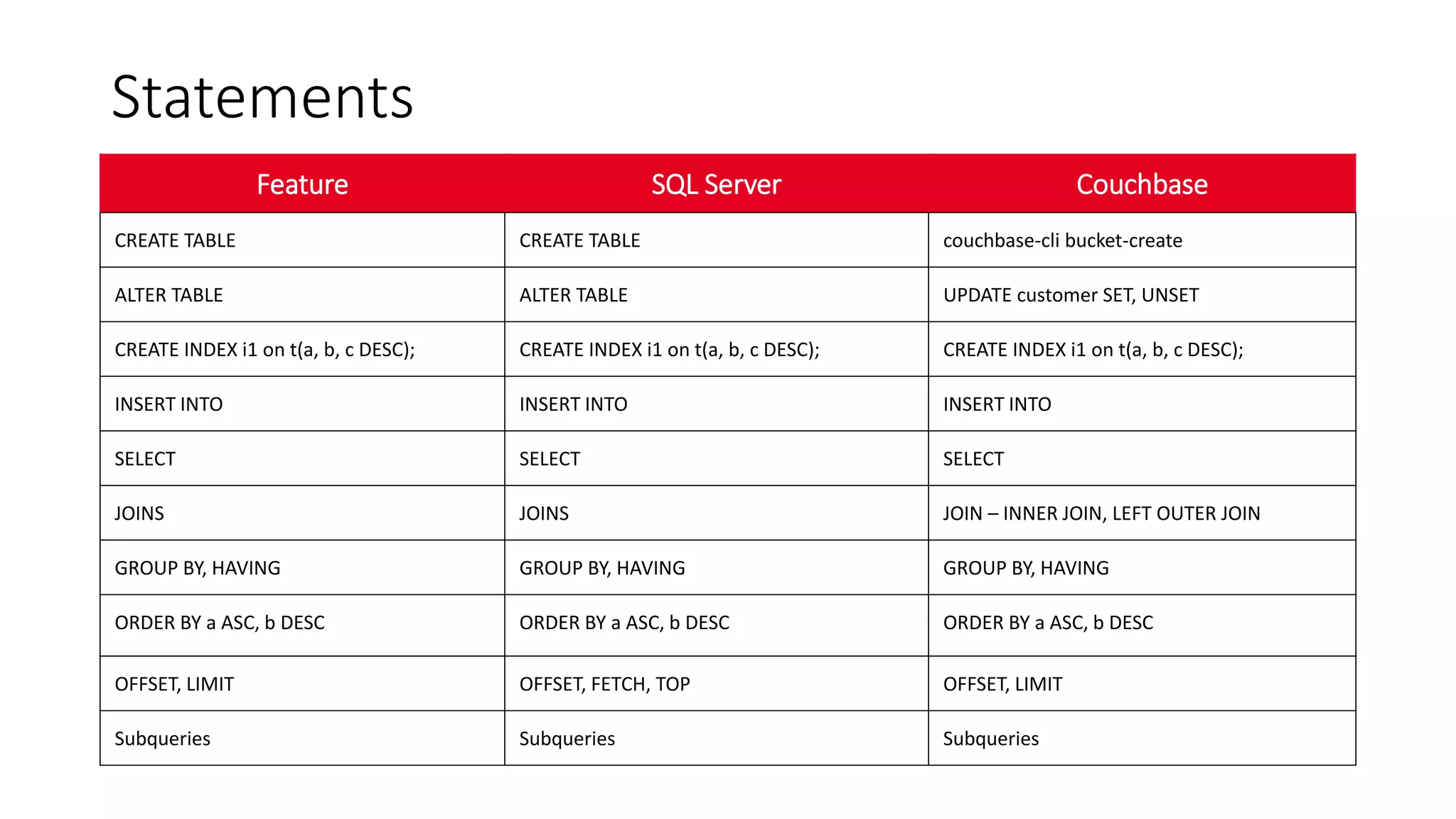

- 53. Statements Feature SQL ServerCouchbase CREATE TABLE CREATE TABLE couchbase-cli bucket-create ALTER TABLE ALTER TABLE UPDATE customer SET, UNSET CREATE INDEX i1 on t(a, b, c DESC); CREATE INDEX i1 on t(a, b, c DESC); CREATE INDEX i1 on t(a, b, c DESC); INSERT INTO INSERT INTO INSERT INTO SELECT SELECT SELECT JOINS JOINS JOIN – INNER JOIN, LEFT OUTER JOIN GROUP BY, HAVING GROUP BY, HAVING GROUP BY, HAVING ORDER BY a ASC, b DESC ORDER BY a ASC, b DESC ORDER BY a ASC, b DESC OFFSET, LIMIT OFFSET, FETCH, TOP OFFSET, LIMIT Subqueries Subqueries Subqueries

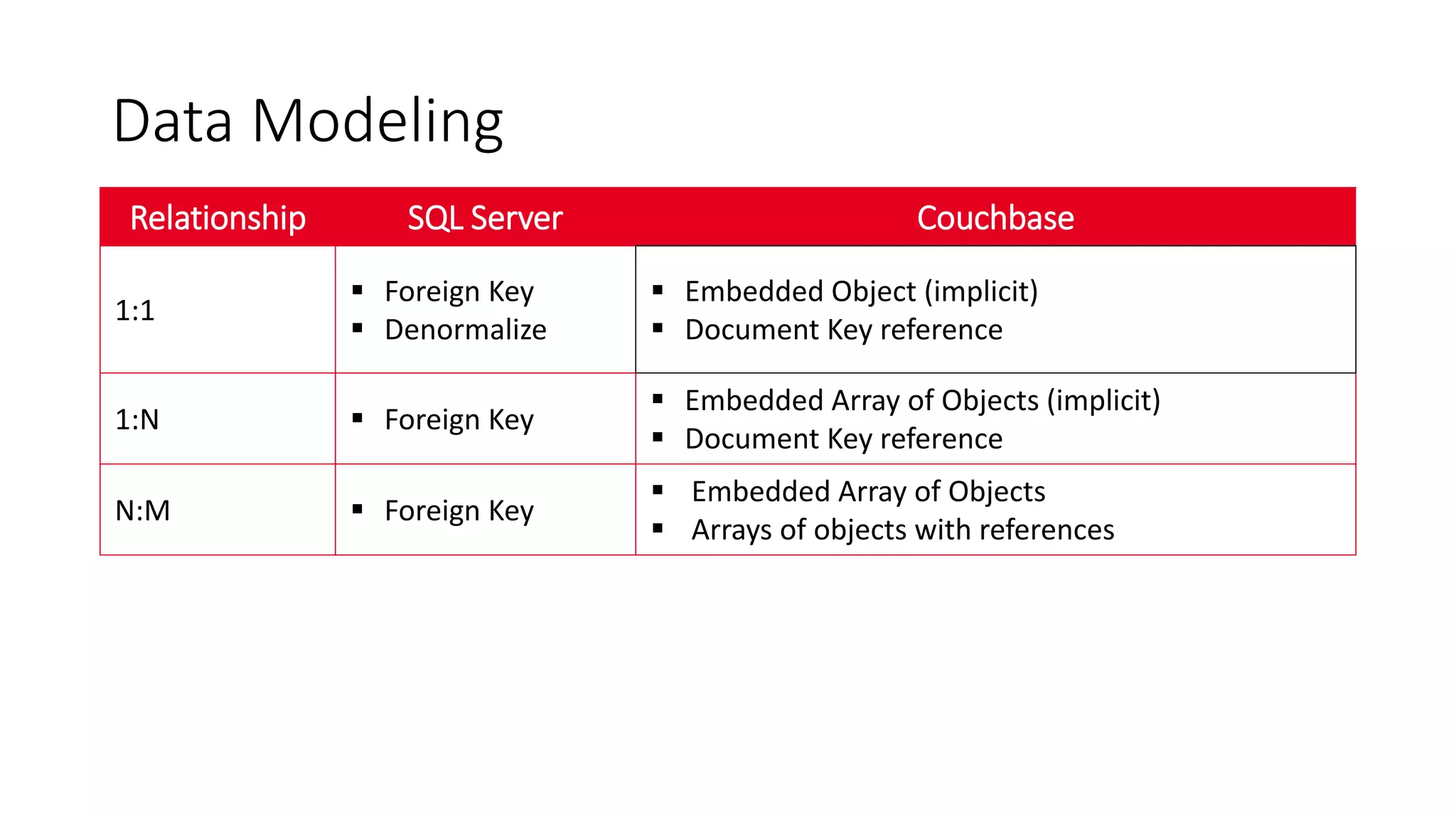

- 54. Data Modeling Relationship SQLServer Couchbase 1:1 Foreign Key Denormalize Embedded Object (implicit) Document Key reference 1:N Foreign Key Embedded Array of Objects (implicit) Document Key reference N:M Foreign Key Embedded Array of Objects Arrays of objects with references

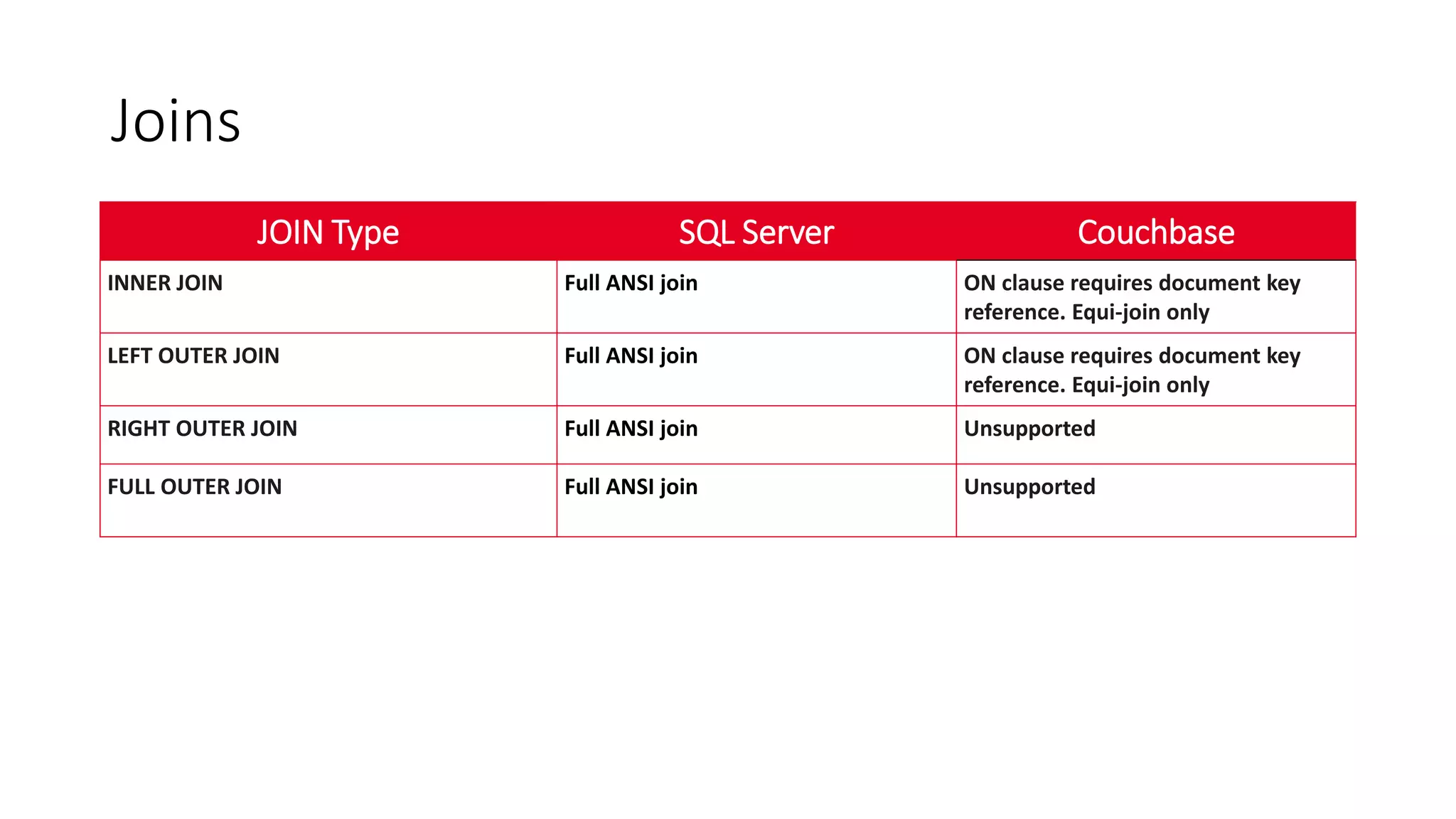

- 55. Joins JOIN Type SQLServer Couchbase INNER JOIN Full ANSI join ON clause requires document key reference. Equi-join only LEFT OUTER JOIN Full ANSI join ON clause requires document key reference. Equi-join only RIGHT OUTER JOIN Full ANSI join Unsupported FULL OUTER JOIN Full ANSI join Unsupported

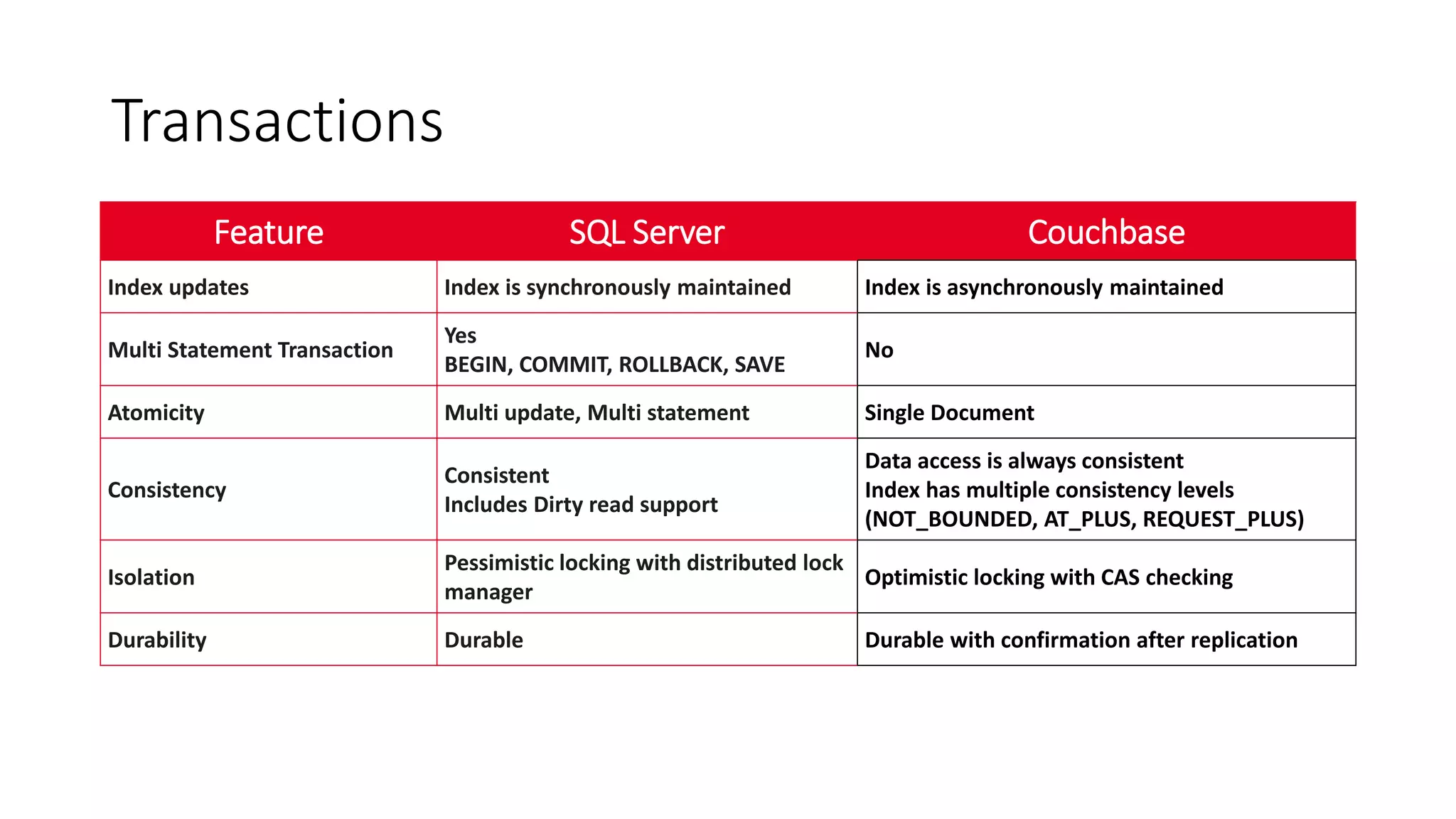

- 56. Transactions Feature SQL ServerCouchbase Index updates Index is synchronously maintained Index is asynchronously maintained Multi Statement Transaction Yes BEGIN, COMMIT, ROLLBACK, SAVE No Atomicity Multi update, Multi statement Single Document Consistency Consistent Includes Dirty read support Data access is always consistent Index has multiple consistency levels (NOT_BOUNDED, AT_PLUS, REQUEST_PLUS) Isolation Pessimistic locking with distributed lock manager Optimistic locking with CAS checking Durability Durable Durable with confirmation after replication
- 57. Do you reallyneed transactions? • Oftentimes, you don’t • Good design can usually reduce the need • If you’re using a microservice architecture, distributed transactions have major downsides • Bye-bye high availability • Difficult • Consider eventual consistency using saga patterns This Photo by Unknown Author is licensed under CC BY-SA
- 58.
- 59. Basic POCO public classAirline { public string Callsign { get; set; } public string Country { get; set; } [JsonProperty("iata")] public string IATA { get; set; } [JsonProperty("iaco")] public string IACO { get; set; } public int Id { get; set; } public string Name { get; set; } public string Type { get; set; } } Key: airline_10 { "callsign": "MILE-AIR", "country": "United States", "iata": "Q5", "icao": "MLA", "id": 10, "name": "40-Mile Air", "type": "airline" }

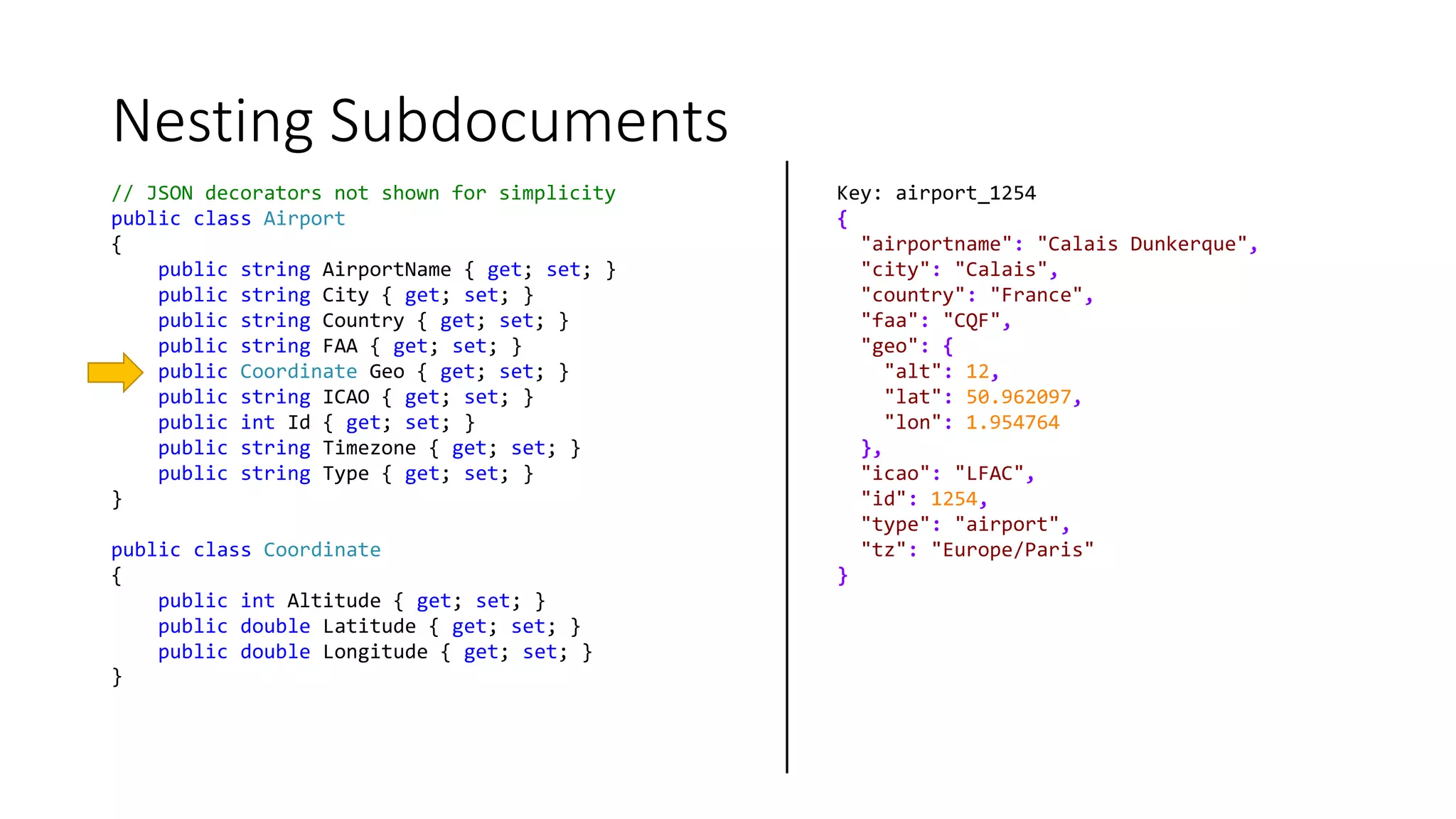

- 60. Nesting Subdocuments Key: airport_1254 { "airportname":"Calais Dunkerque", "city": "Calais", "country": "France", "faa": "CQF", "geo": { "alt": 12, "lat": 50.962097, "lon": 1.954764 }, "icao": "LFAC", "id": 1254, "type": "airport", "tz": "Europe/Paris" } // JSON decorators not shown for simplicity public class Airport { public string AirportName { get; set; } public string City { get; set; } public string Country { get; set; } public string FAA { get; set; } public Coordinate Geo { get; set; } public string ICAO { get; set; } public int Id { get; set; } public string Timezone { get; set; } public string Type { get; set; } } public class Coordinate { public int Altitude { get; set; } public double Latitude { get; set; } public double Longitude { get; set; } }
- 61. Nesting Arrays asLists Key: route_10000 { "airline": "AF", "airlineid": "airline_137", "destinationairport": "MRS", "distance": 2881.617376098415, "equipment": "320", "id": 10000, "schedule": [ { "day": 0, "flight": "AF198", "utc": "10:13:00" }, { "day": 0, "flight": "AF547", "utc": "19:14:00" } ], "sourceairport": "TLV", "stops": 0, "type": "route" } // JSON decorators not shown for simplicity public class Route { public string Airline { get; set; } public string AirlineId { get; set; } public string DestinationAirport { get; set; } public double Distance { get; set; } public string Equipment { get; set; } public int Id { get; set; } public List<Schedule> Schedule { get; set; } public string SourceAirport { get; set; } public int Stops { get; set; } public string Type { get; set; } } public class Schedule { public int Day { get; set; } public string Flight { get; set; } public TimeSpan UTC { get; set; } }
- 62. Modeling for Joins Key:route_10000 { "airline": "AF", "airlineid": "airline_137", "destinationairport": "MRS", "distance": 2881.617376098415, "equipment": "320", "id": 10000, "schedule": [ { "day": 0, "flight": "AF198", "utc": "10:13:00" }, { "day": 0, "flight": "AF547", "utc": "19:14:00" } ], "sourceairport": "TLV", "stops": 0, "type": "route" } Key: airline_137 { "callsign": "AIRFRANS", "country": "France", "iata": "AF", "icao": "AFR", "id": 137, "name": "Air France", "type": "airline" } Note: Instead of the full key, you may just store the dynamic parts, such as “137”, and rebuild the key as needed
- 63. Good Practices [DocumentTypeFilter(TypeString)] public classAirline { public const string TypeString = "airline"; public string Callsign { get; set; } public string Country { get; set; } [JsonProperty("iata")] public string IATA { get; set; } [JsonProperty("iaco")] public string IACO { get; set; } public int Id { get; set; } public string Name { get; set; } // Type is now read only to maintain consistency public string Type => TypeString; } Key: airline_10 { "callsign": "MILE-AIR", "country": "United States", "iata": "Q5", "icao": "MLA", "id": 10, "name": "40-Mile Air", "type": "airline" }

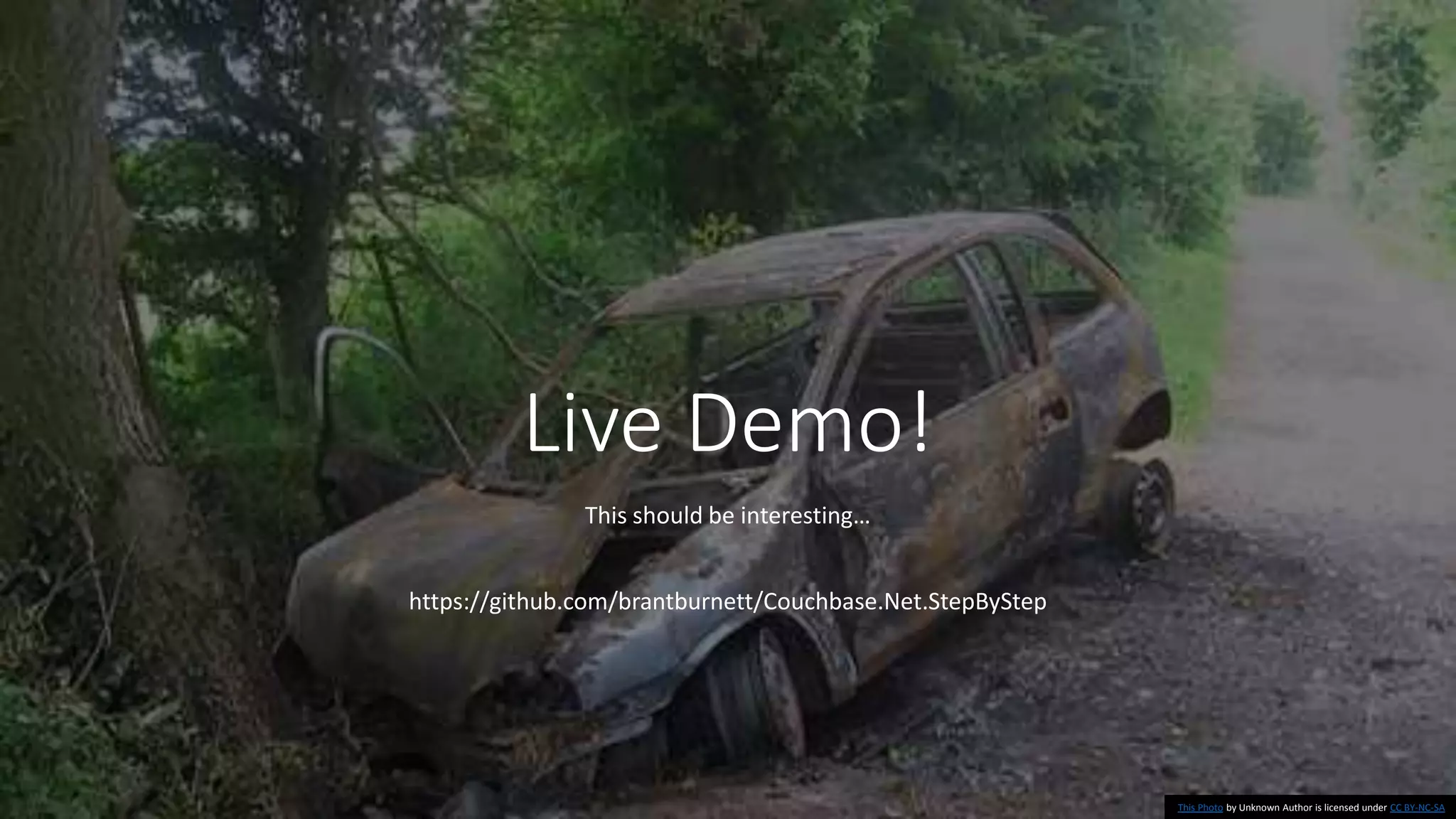

- 64. Live Demo! This shouldbe interesting… https://github.com/brantburnett/Couchbase.Net.StepByStep This Photo by Unknown Author is licensed under CC BY-NC-SA
- 65. Querying Couchbase UsingN1QL (Pronounced “nickel”)

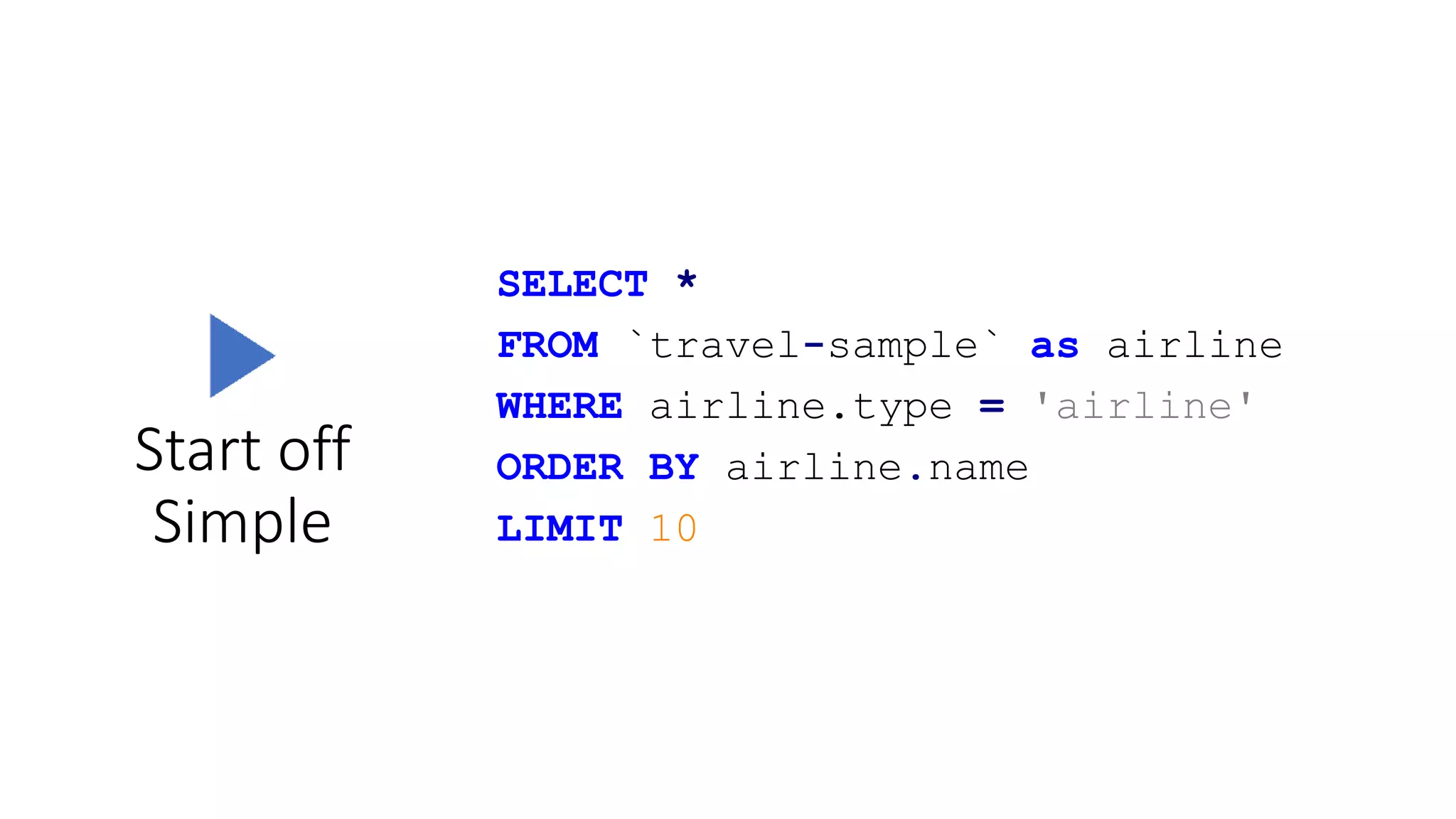

- 66. Start off Simple SELECT * FROM`travel-sample` as airline WHERE airline.type = 'airline' ORDER BY airline.name LIMIT 10
- 67. O backtick, backtick! Whereforeart thou a backtick? • ANSI SQL delimits identifiers with double quotes • SELECT * FROM "table-name" • T-SQL also delimits identifiers with square brackets • SELECT * FROM [table-name] • Both of these are used in JSON! • {"array": ["string1", "string2"]} • So, N1QL uses the backtick instead • SELECT * FROM `bucket-name` This Photo by Unknown Author is licensed under CC BY-NC-ND

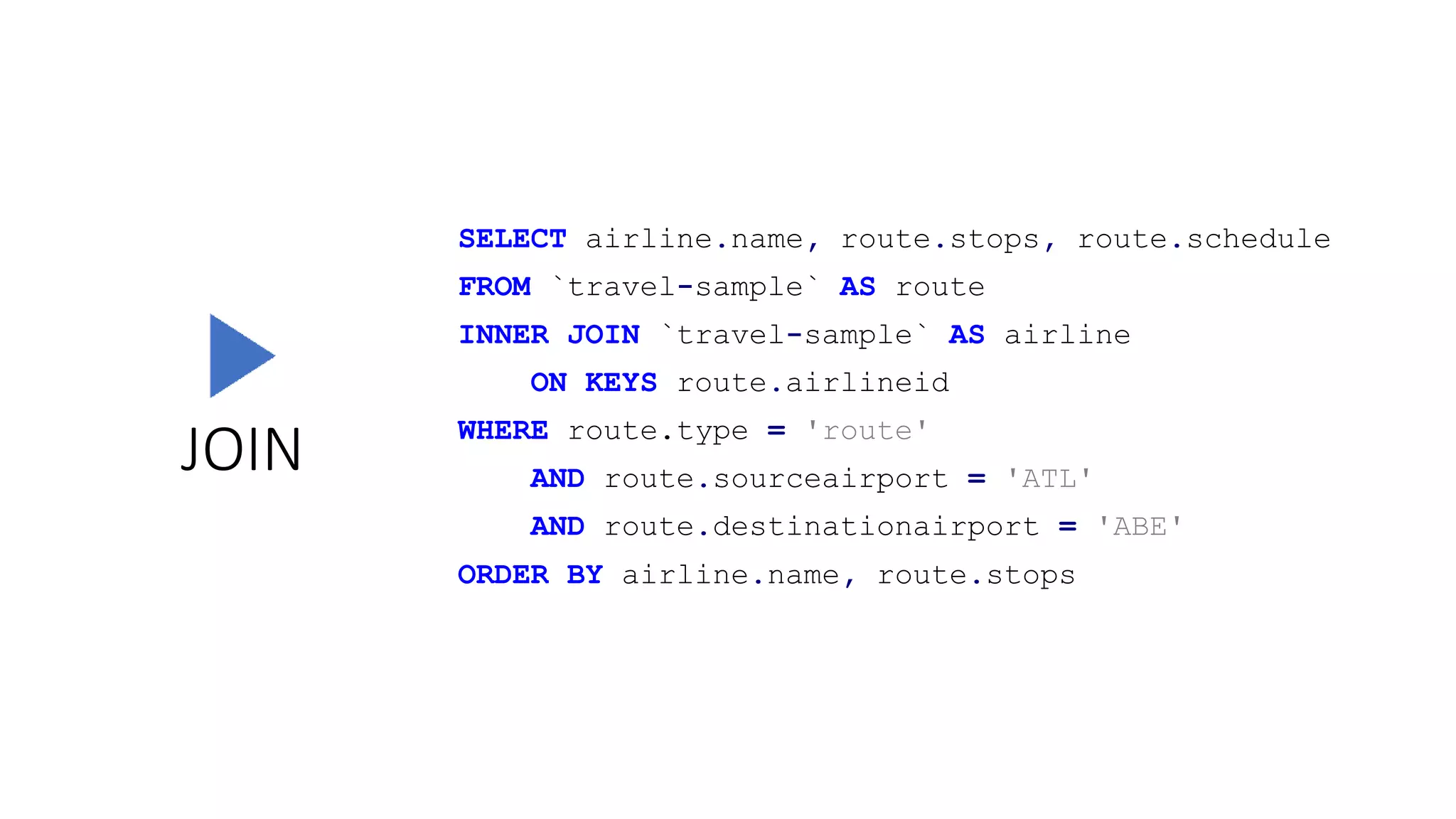

- 68. JOIN SELECT airline.name, route.stops,route.schedule FROM `travel-sample` AS route INNER JOIN `travel-sample` AS airline ON KEYS route.airlineid WHERE route.type = 'route' AND route.sourceairport = 'ATL' AND route.destinationairport = 'ABE' ORDER BY airline.name, route.stops

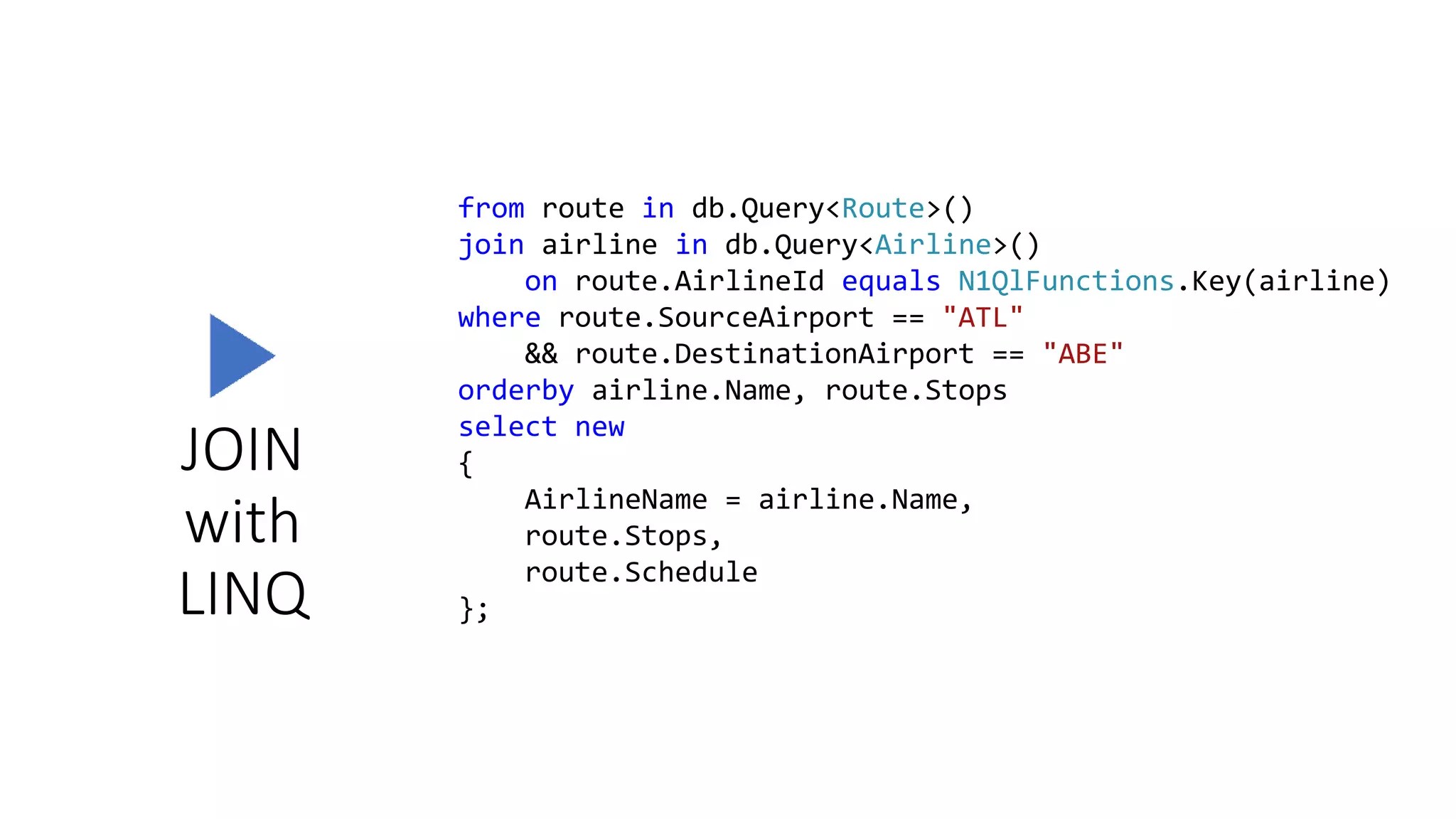

- 69. JOIN with LINQ from route indb.Query<Route>() join airline in db.Query<Airline>() on route.AirlineId equals N1QlFunctions.Key(airline) where route.SourceAirport == "ATL" && route.DestinationAirport == "ABE" orderby airline.Name, route.Stops select new { AirlineName = airline.Name, route.Stops, route.Schedule };
- 70. What about nested arrays? Key:route_10000 { "airline": "AF", "airlineid": "airline_137", "destinationairport": "MRS", "distance": 2881.617376098415, "equipment": "320", "id": 10000, "schedule": [ { "day": 0, "flight": "AF198", "utc": "10:13:00" }, { "day": 0, "flight": "AF547", "utc": "19:14:00" } ], "sourceairport": "TLV", "stops": 0, "type": "route" }

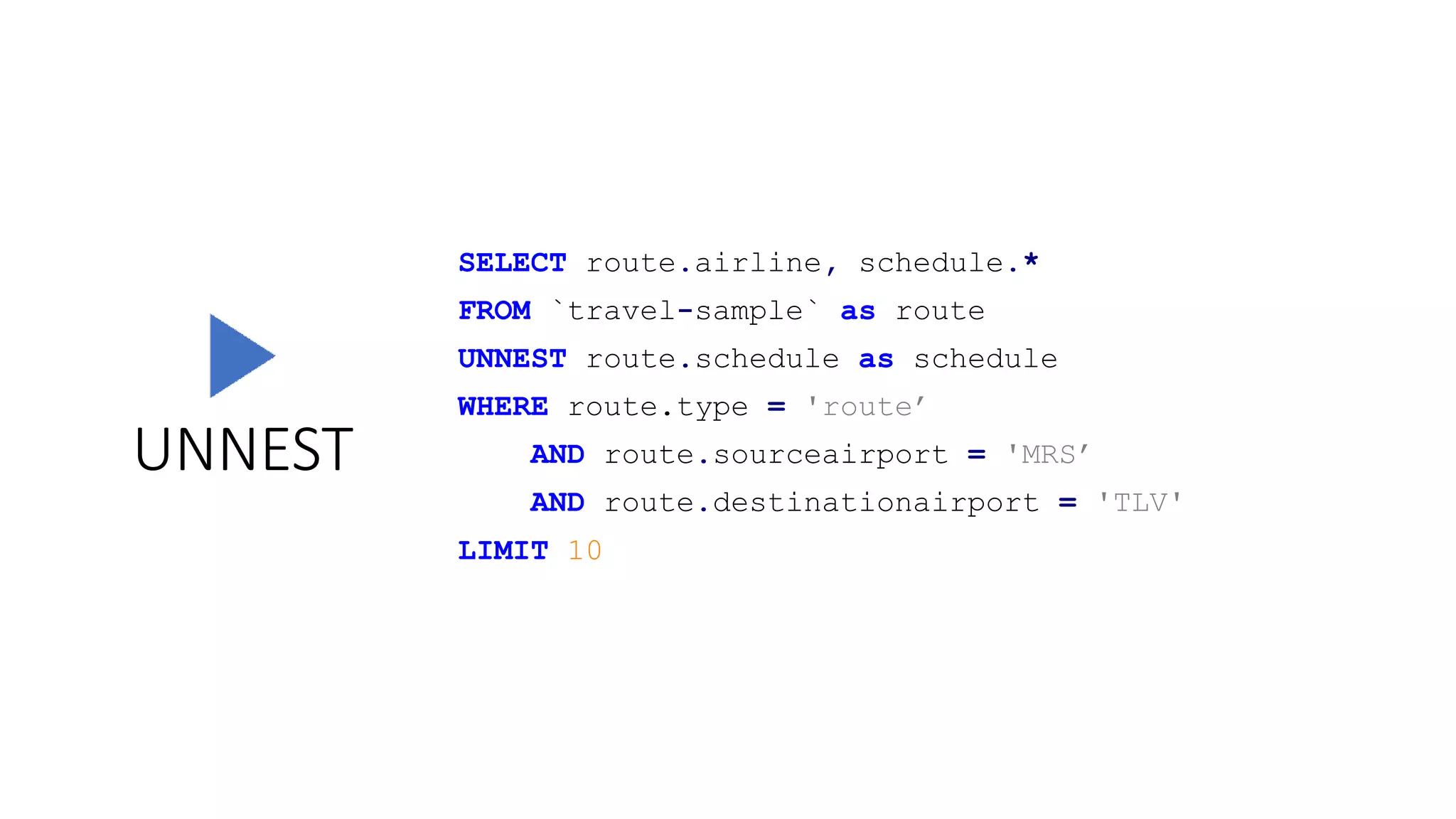

- 71. UNNEST SELECT route.airline, schedule.* FROM`travel-sample` as route UNNEST route.schedule as schedule WHERE route.type = 'route’ AND route.sourceairport = 'MRS’ AND route.destinationairport = 'TLV' LIMIT 10

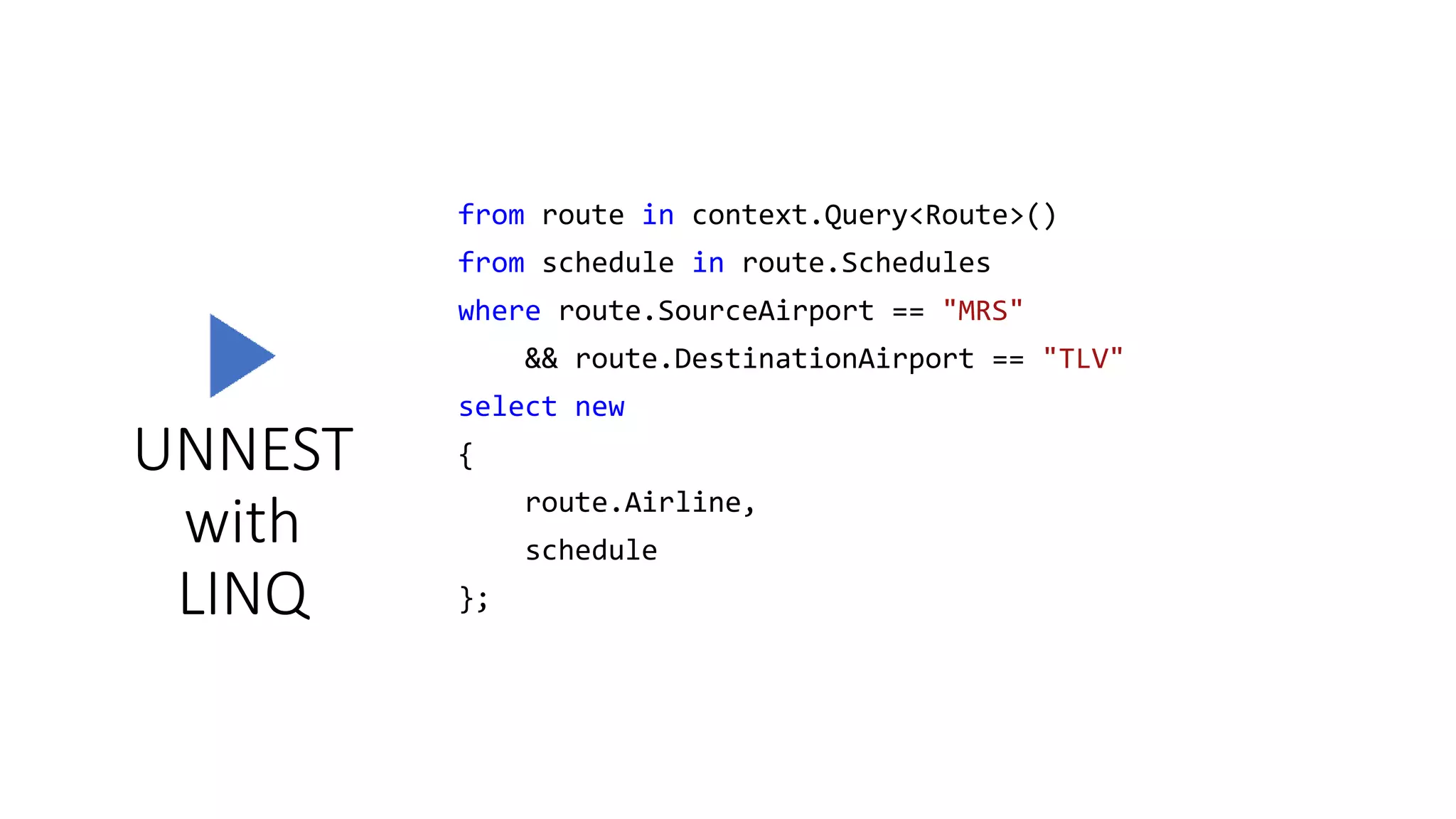

- 72. UNNEST with LINQ from route incontext.Query<Route>() from schedule in route.Schedules where route.SourceAirport == "MRS" && route.DestinationAirport == "TLV" select new { route.Airline, schedule };

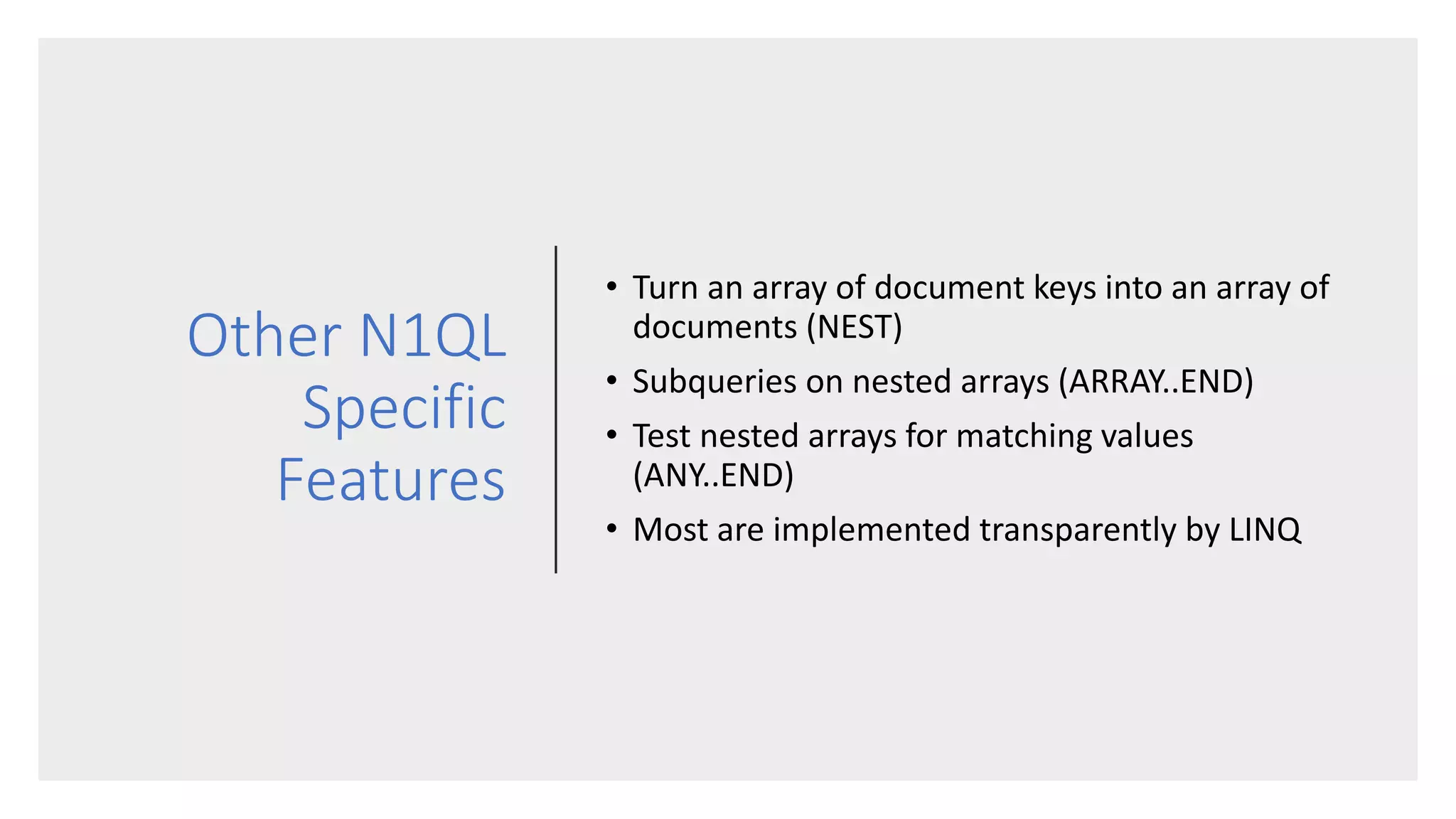

- 73. Other N1QL Specific Features • Turnan array of document keys into an array of documents (NEST) • Subqueries on nested arrays (ARRAY..END) • Test nested arrays for matching values (ANY..END) • Most are implemented transparently by LINQ
- 74.

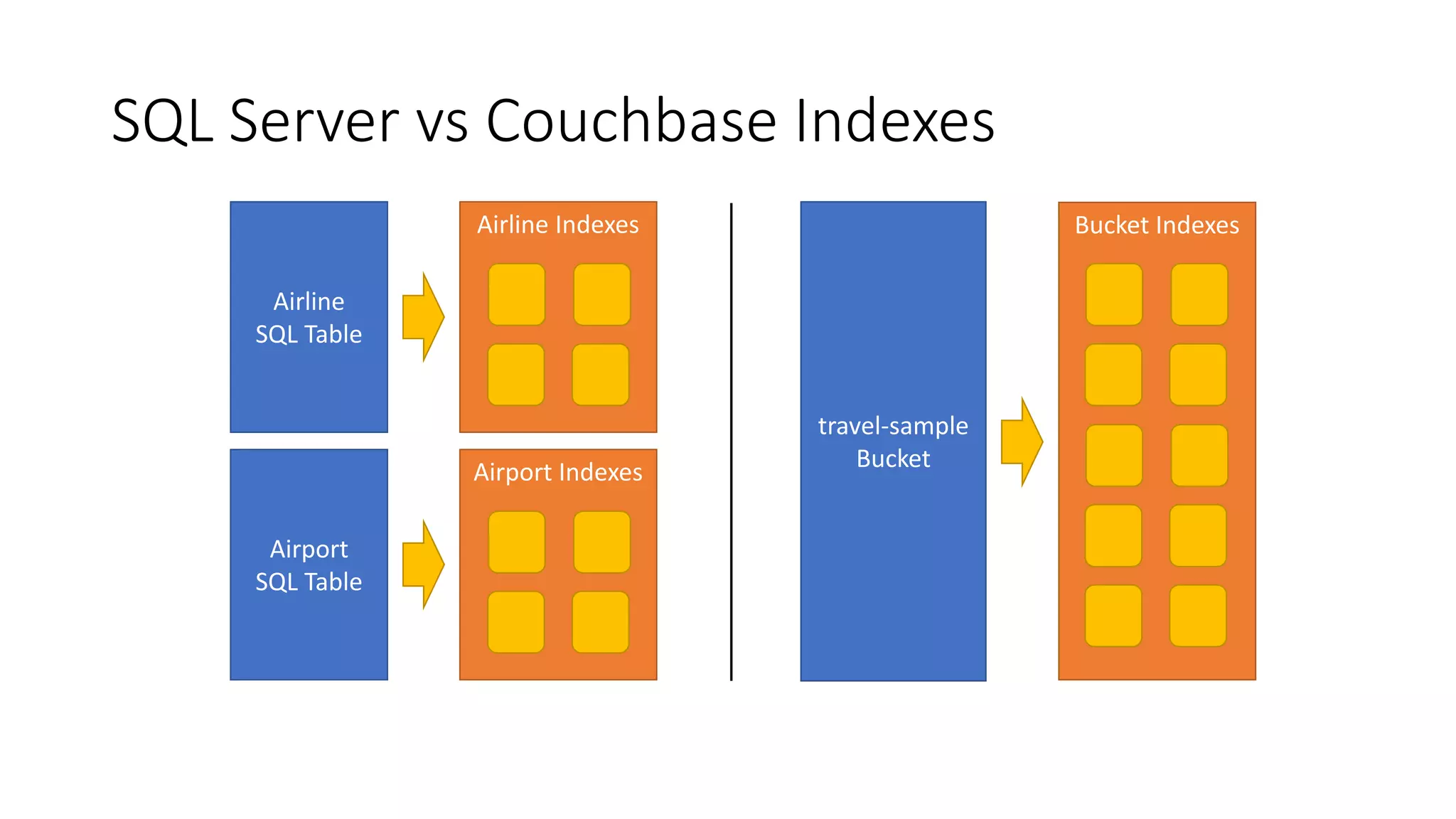

- 75. SQL Server vsCouchbase Indexes Airline SQL Table Airport SQL Table travel-sample Bucket Airline Indexes Airport Indexes Bucket Indexes

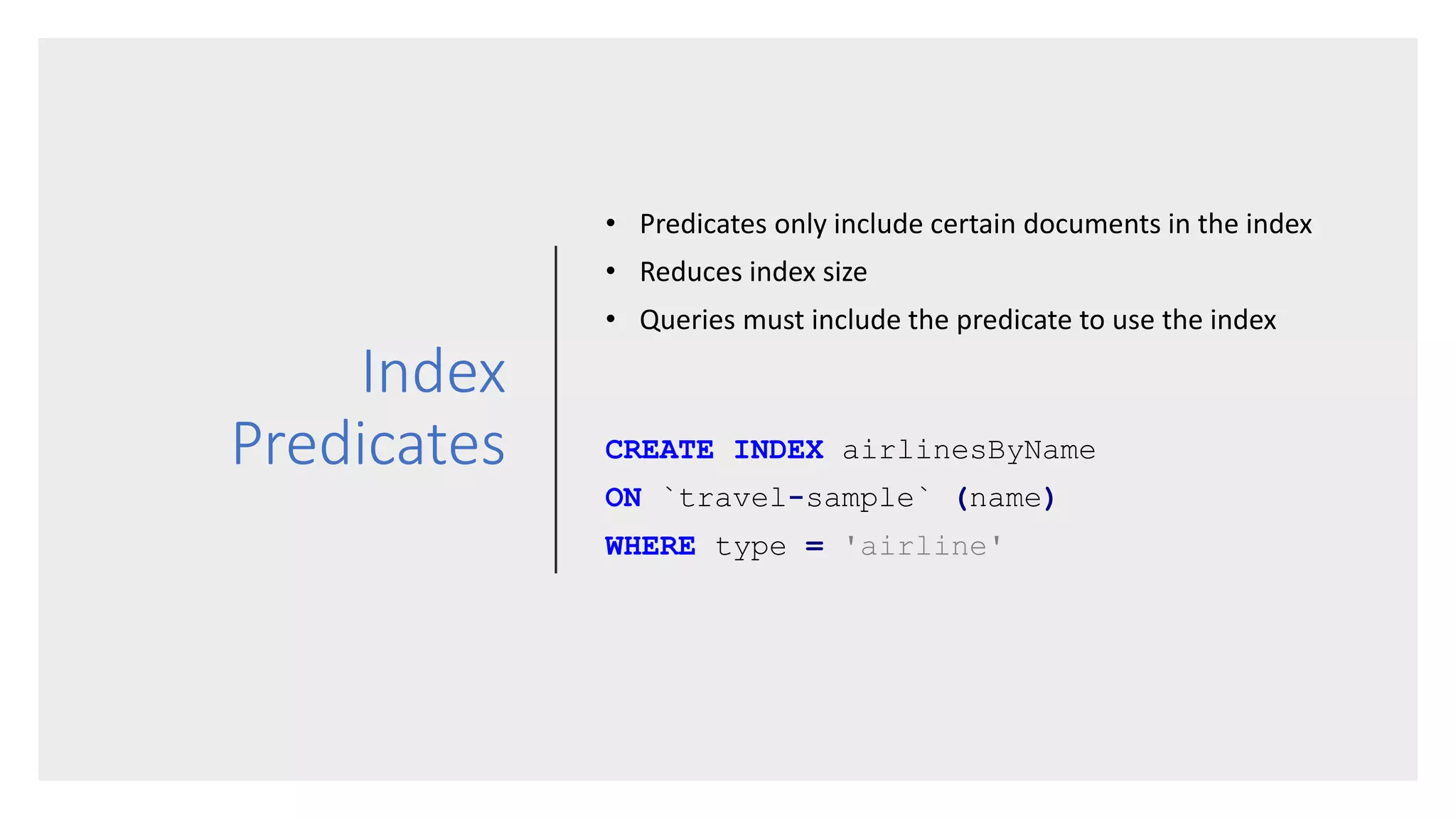

- 76. Index Predicates • Predicates onlyinclude certain documents in the index • Reduces index size • Queries must include the predicate to use the index CREATE INDEX airlinesByName ON `travel-sample` (name) WHERE type = 'airline'

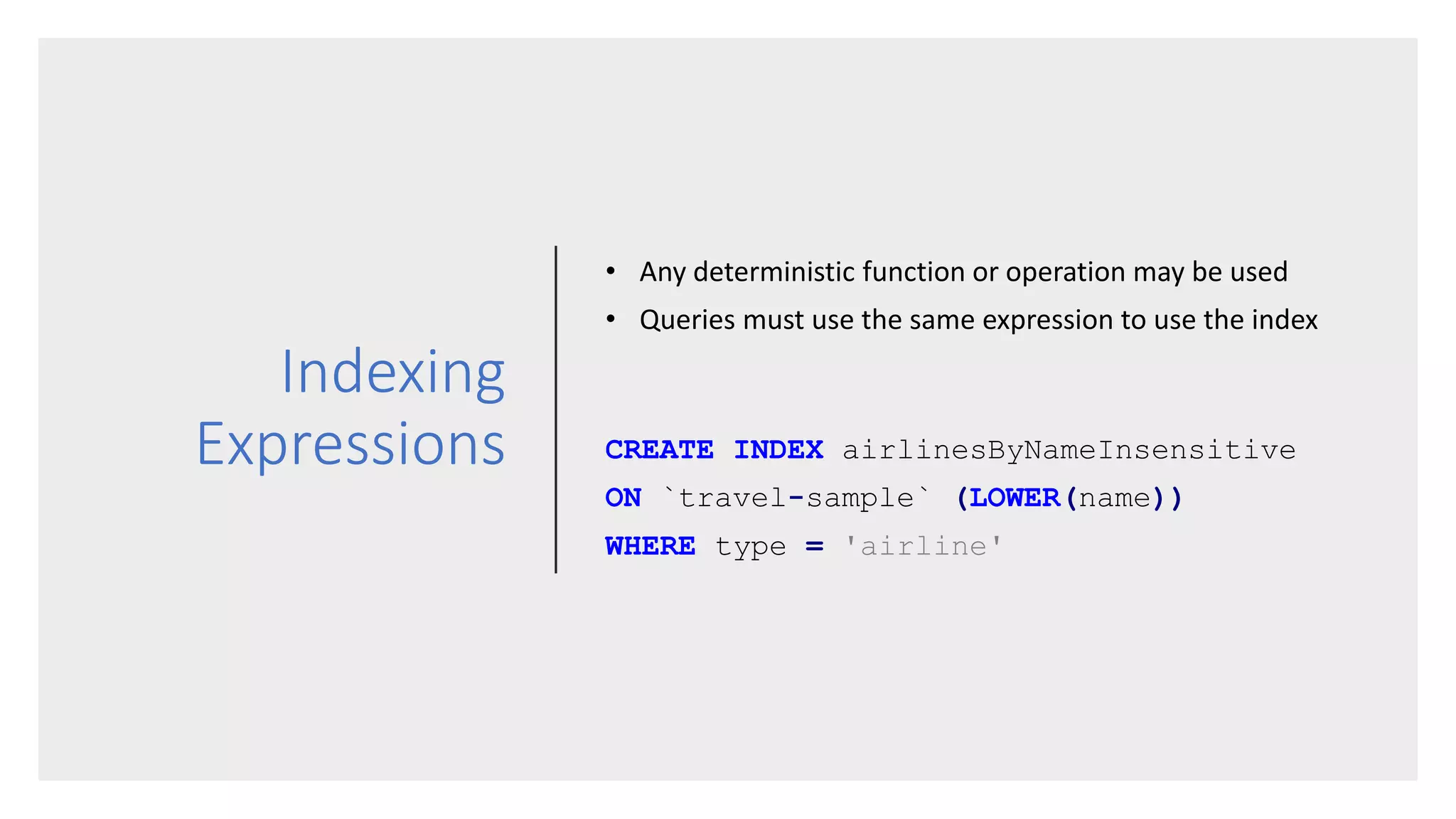

- 77. Indexing Expressions • Any deterministicfunction or operation may be used • Queries must use the same expression to use the index CREATE INDEX airlinesByNameInsensitive ON `travel-sample` (LOWER(name)) WHERE type = 'airline'

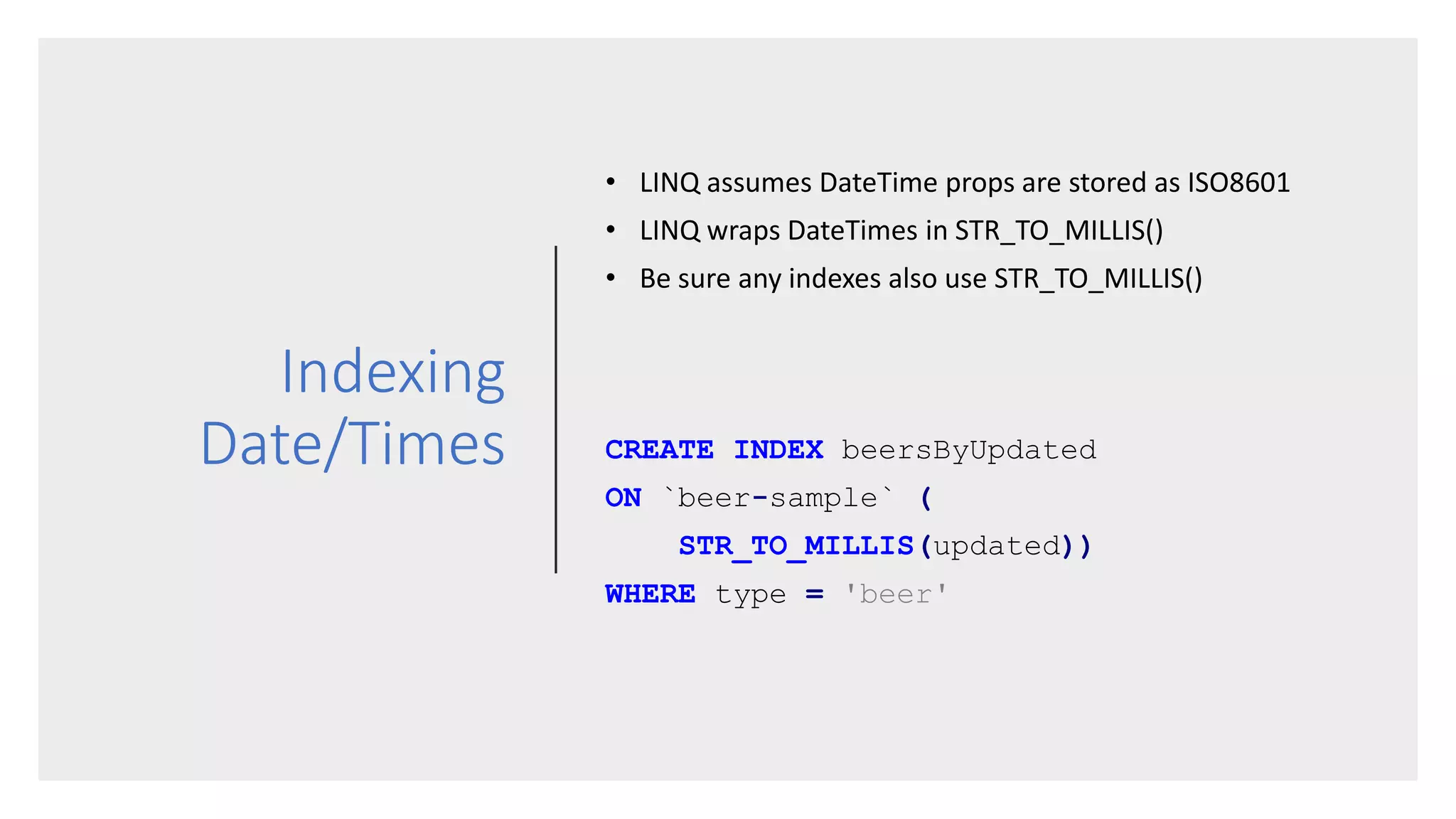

- 78. Indexing Date/Times • LINQ assumesDateTime props are stored as ISO8601 • LINQ wraps DateTimes in STR_TO_MILLIS() • Be sure any indexes also use STR_TO_MILLIS() CREATE INDEX beersByUpdated ON `beer-sample` ( STR_TO_MILLIS(updated)) WHERE type = 'beer'

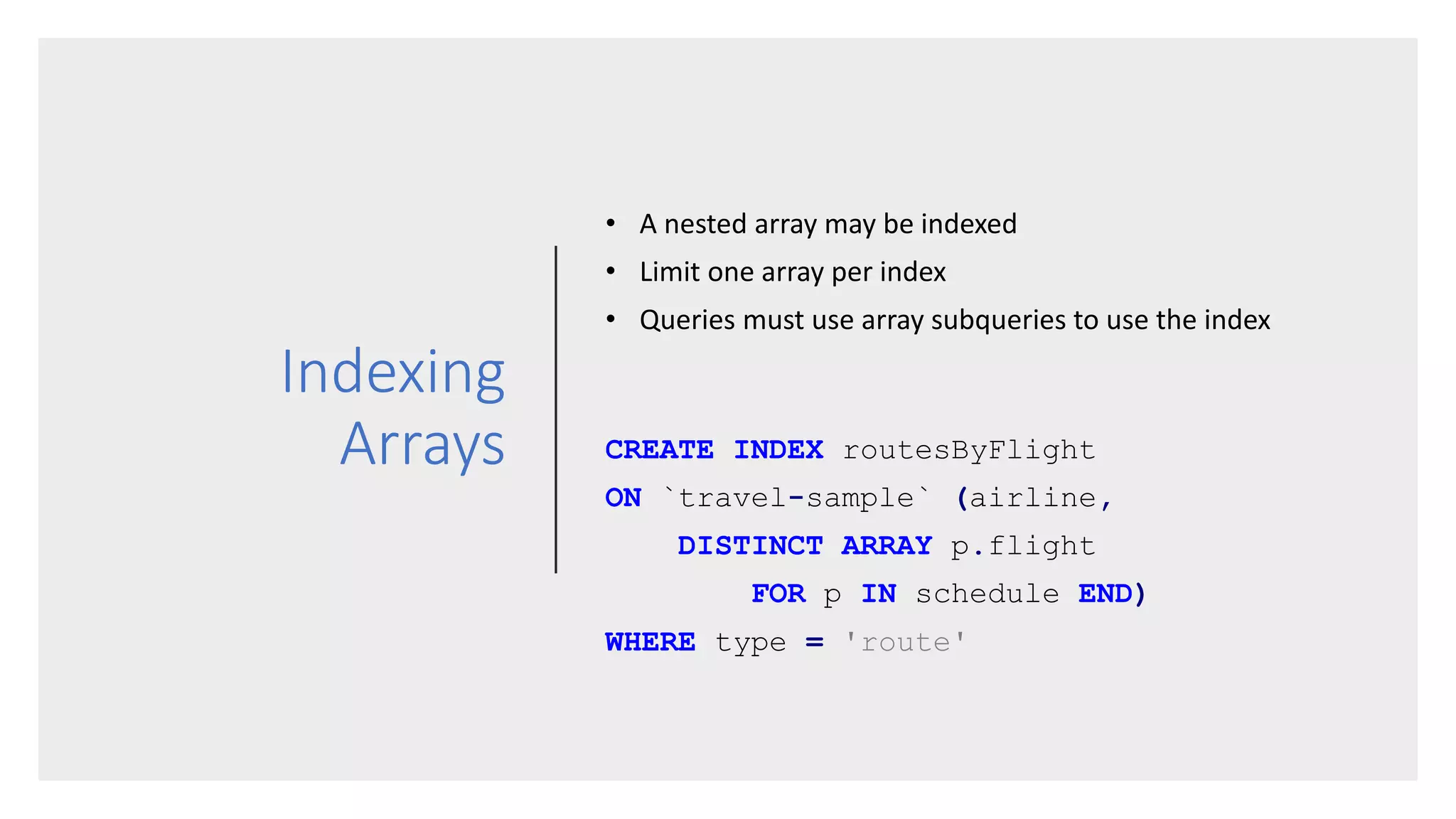

- 79. Indexing Arrays • A nestedarray may be indexed • Limit one array per index • Queries must use array subqueries to use the index CREATE INDEX routesByFlight ON `travel-sample` (airline, DISTINCT ARRAY p.flight FOR p IN schedule END) WHERE type = 'route'

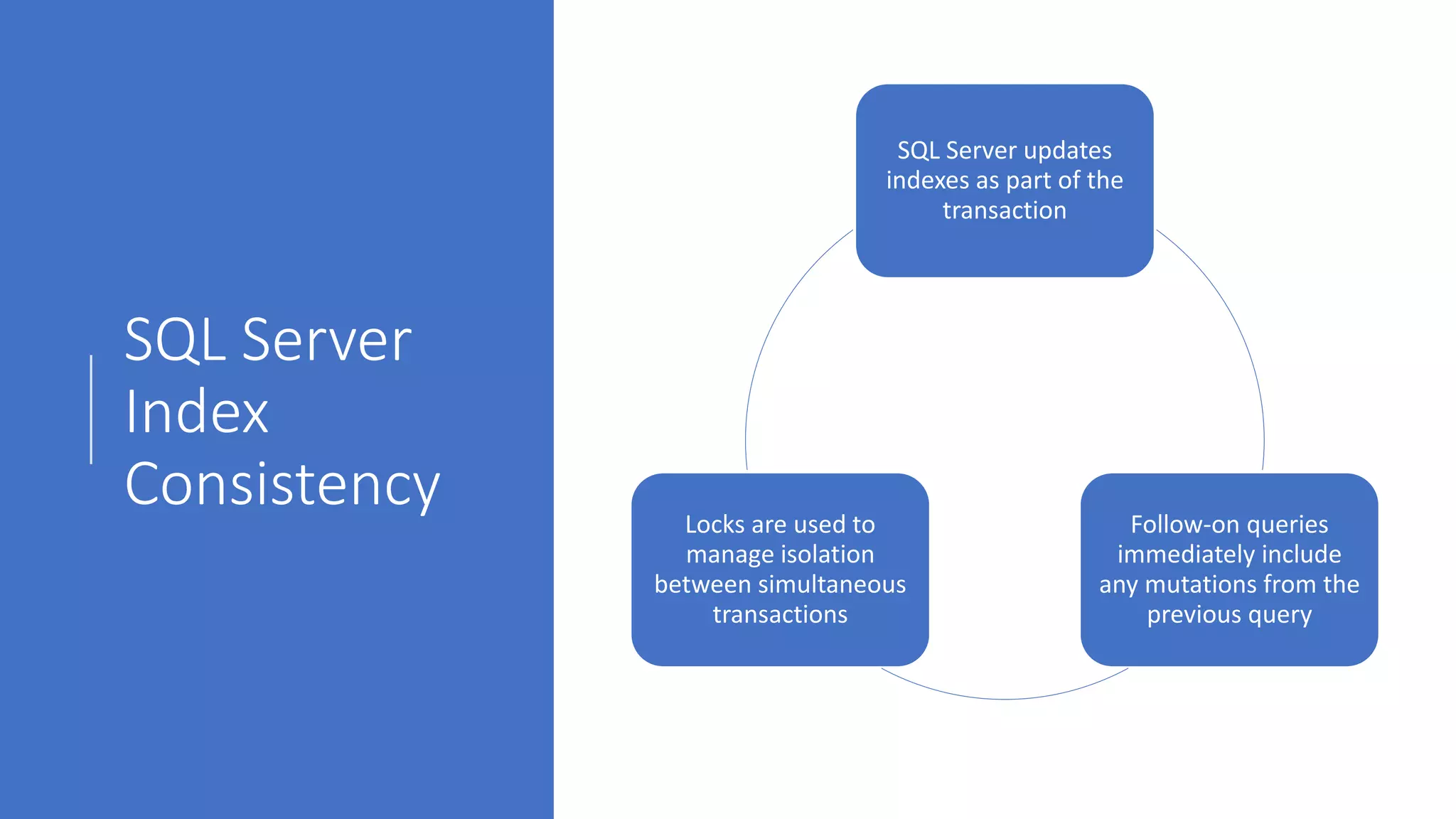

- 80. SQL Server Index Consistency SQL Serverupdates indexes as part of the transaction Follow-on queries immediately include any mutations from the previous query Locks are used to manage isolation between simultaneous transactions

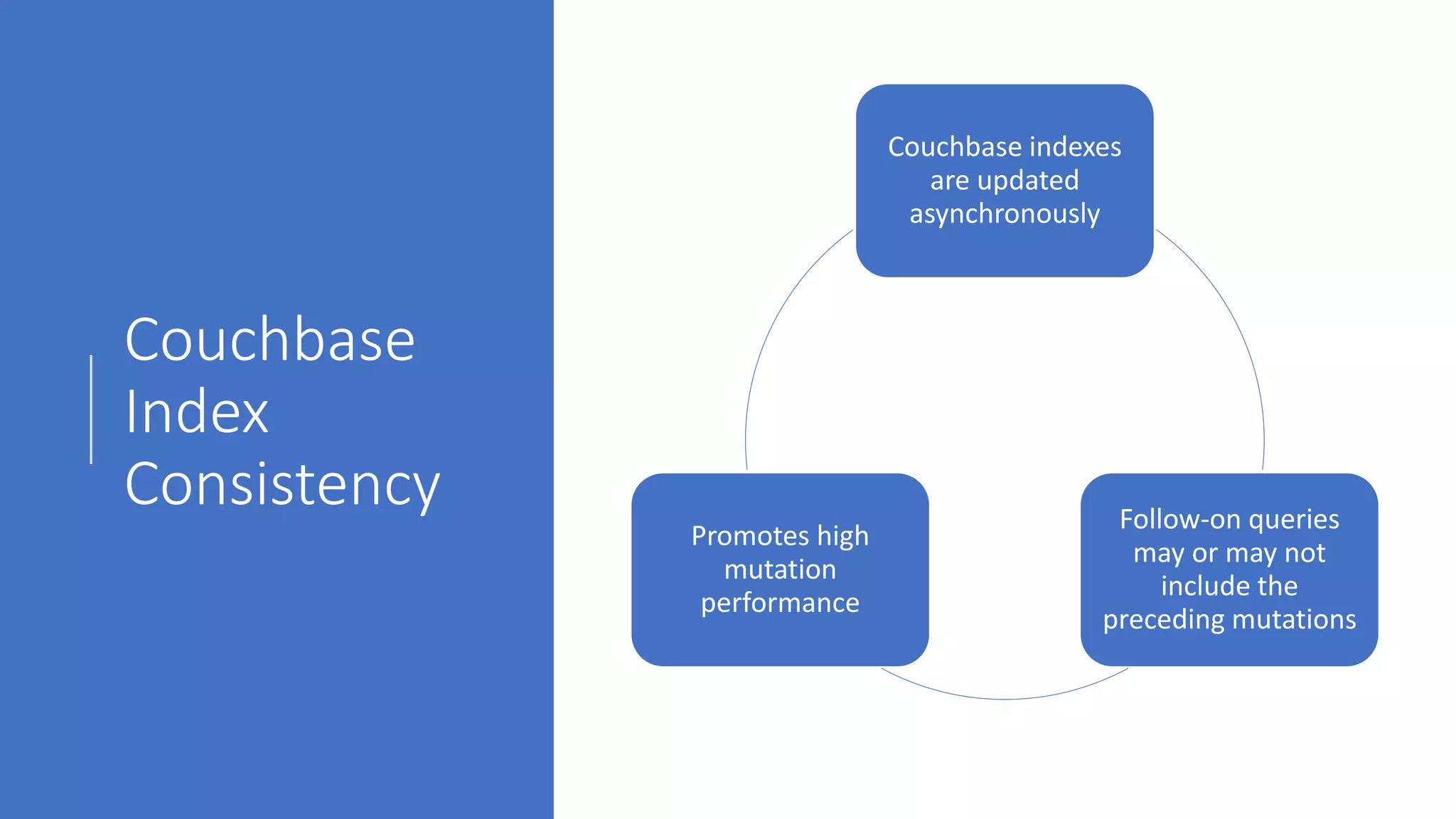

- 81. Couchbase Index Consistency Couchbase indexes are updated asynchronously Follow-onqueries may or may not include the preceding mutations Promotes high mutation performance

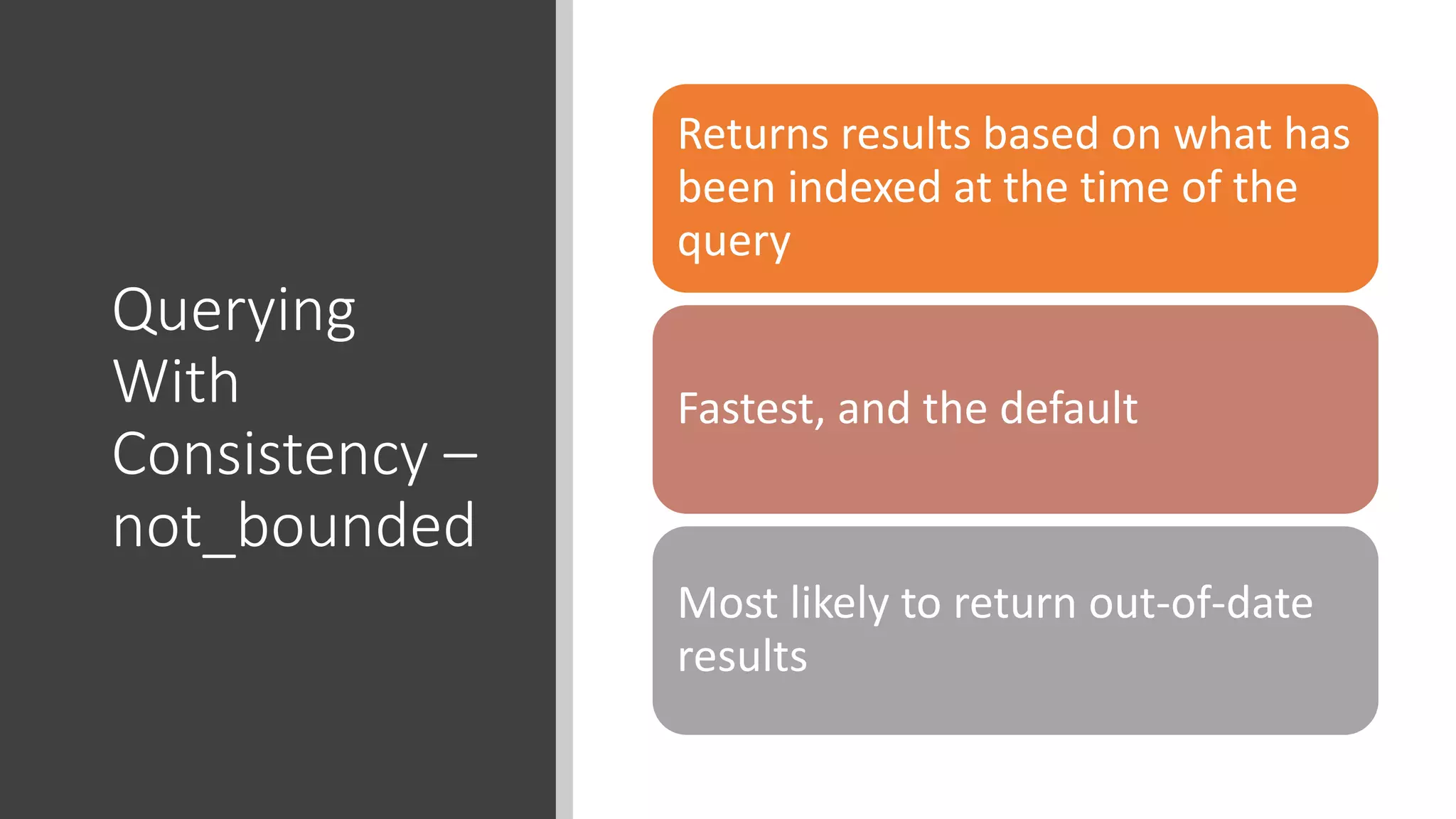

- 82. Querying With Consistency – not_bounded Returns resultsbased on what has been indexed at the time of the query Fastest, and the default Most likely to return out-of-date results

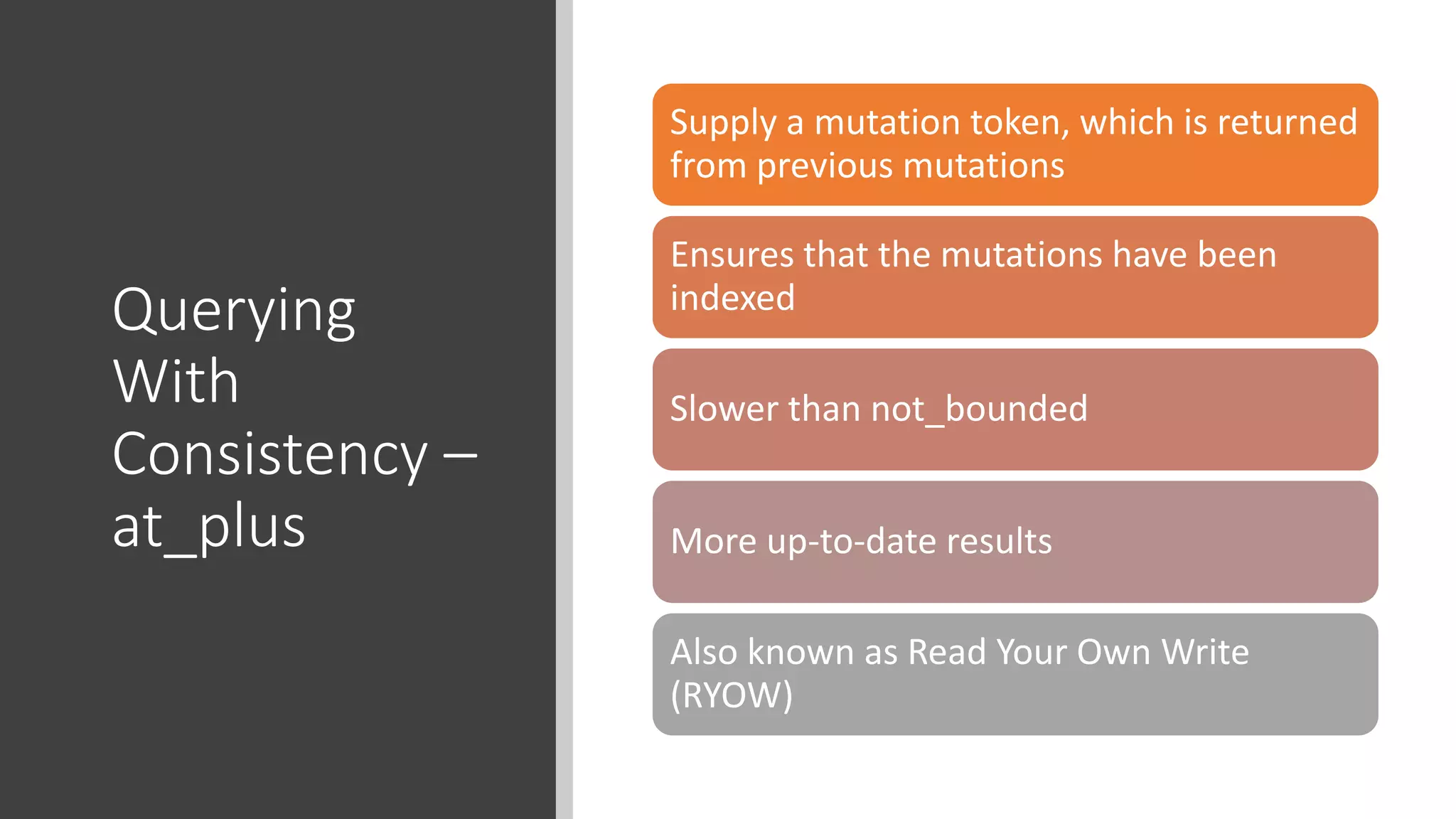

- 83. Querying With Consistency – at_plus Supply amutation token, which is returned from previous mutations Ensures that the mutations have been indexed Slower than not_bounded More up-to-date results Also known as Read Your Own Write (RYOW)

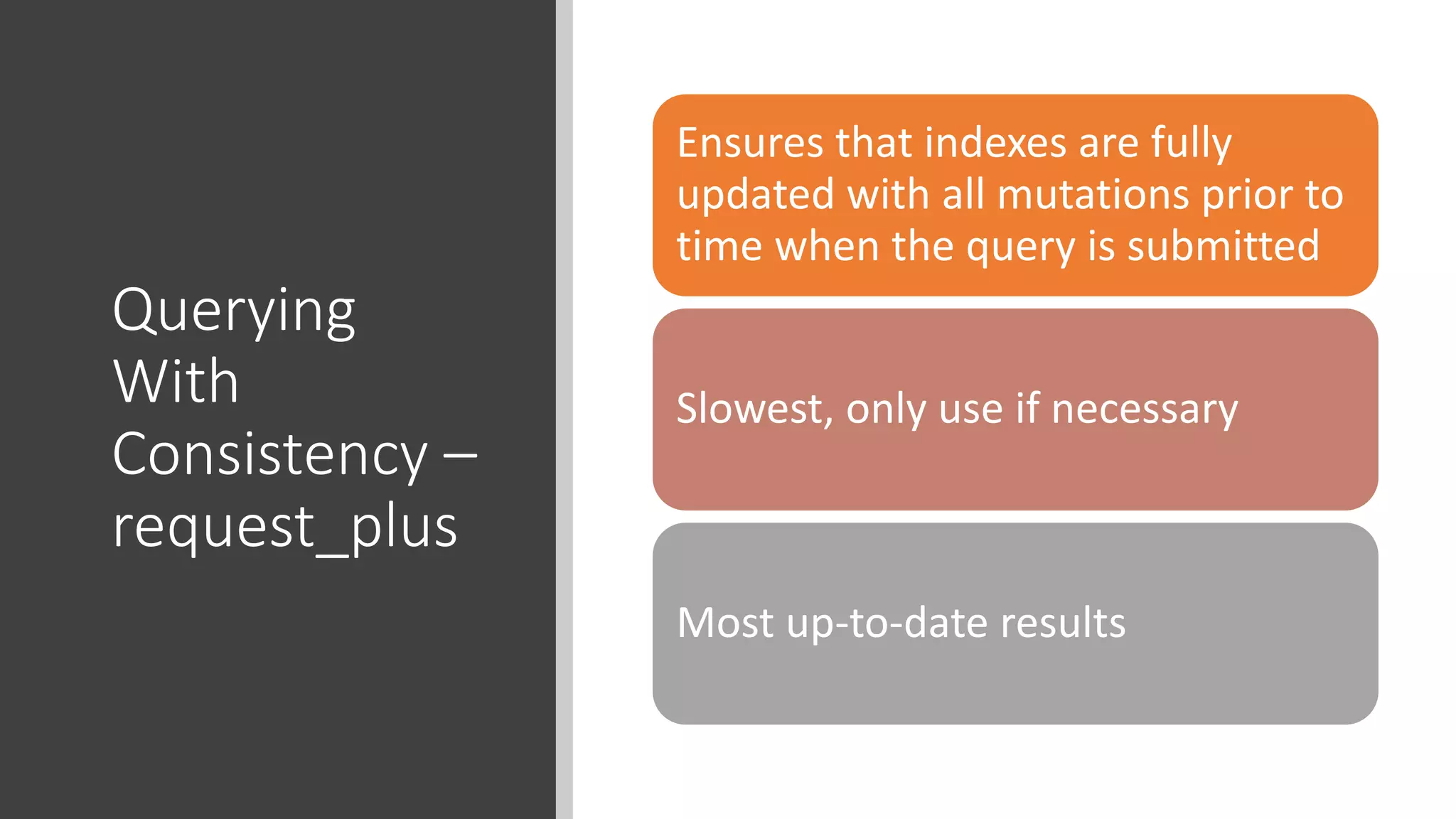

- 84. Querying With Consistency – request_plus Ensures thatindexes are fully updated with all mutations prior to time when the query is submitted Slowest, only use if necessary Most up-to-date results
- 85.
- 86. Questions, Take Two This Photoby Unknown Author is licensed under CC BY-NC-ND
- 87.
Editor's Notes
- #7 What are some of the questions you have that you’d like to see answered in this presentation? Who is a SQL Server user? Who has used NoSQL? Couchbase? MongoDB?
- #8 Key-Value = Have a key, set a value Document = Similar to key value, but with more complex data documents for each key, and often include querying capabilities Wide Column = Very large rows and columns but no relationships Graph = Store relationships between objects, easy to answer questions like “who like bananas and wears hoodies?”
- #11 Why design a service on SQL today that you think will need NoSQL scale next year?
- #12 CouchDB is not Couchbase, two completely different systems (though they are both NoSQL document databases)
- #13 Read replicas only help scale out read load, not read and write
- #14 Schema-less is something of a misnomer, it’s really just schema that’s not enforced at the database level Database schema is more of a throwback to the days when multiple applications were reading and writing from the same database, so it was more difficult to maintain consistency
- #15 Transactional backups = backup that always captures state between ACID transactions
- #17 MongoDB - #1 Couchbase - #3 CouchDB - #4 Azure CosmosDB - #5 Notable exclusions: Amazon DynamoDB #2 – Limited to AWS (though it can be used from .NET) Cassandra, Redis – Not document DBs RavenDB – Has been very popular for .NET historically, but is currently #69 on db-engines.com
- #20 Query syntax is limited in terms of joins, unions, etc Text search is present, but it's limited compared to elasticsearch, etc .NET SDK follows .NET idioms pretty well, there's a bit of weirdness having to convert objects to BsonDocuments, but it's not that bad LINQ provider built into Mongo .NET SDK, but limited due to the underlying query capabilities EF Core Provider???
- #21 Scaling is possible, you set up multiple types of nodes, configure sharding Replication is a master/slave setup, meaning that a single member of the cluster is the master and is the only one allowed to modify data And that includes between data centers
- #22 Compass = GUI Decision fatigue Insecure by default: anonymous admin access
- #23 Indexing is important for querying Mongo has an in-memory option and an on-disk option So that's a basic tradeoff you can make
- #24 Windows / Mac / Linux AWS / Azure / Google support (it is VMs) Docker DBaaS – lot of managed partners like Mongolab, MongoSoup, etc MongoDB Atlas is mongo's own managed DBaaS
- #25 Licensing! It's AGPL, and some enterprises don't like that. In fact, they list it as a possible weakness/threat in their S-1
- #26 I really like N1QL, it’s incredibly easy to learn for a SQL user I already know how to write SQL, so I can apply that a nosql database Linq2Couchbase is a linq provider that generates N1QL (it's not officially supported yet)
- #27 Multi-master
- #28 Security: with 4.x it was *mostly* secure by default You need to setup a password, but you can create buckets without passwords With 5.x it is completely secure by default Mongoose and ottoman allow switch from MongoDB to Couchbase in NodeJS
- #29 Explain memcached and couchdb
- #30 Windows / Mac / Linux AWS / Azure / Google support (it is VMs) Docker no DBaaS, managed database (yet)
- #31 Gitter.im and forums
- #32 Mongo-inspired query syntax, based on Cloudant Query this is in version 2.x though MapReduce which is great for performance, but it is javascript and doesn't accommodate adhoc queries Mango is "mongo inspired" I don't know if it's mongo compatible or meant to be mongo compatible
- #33 You can setup a cluster relatively easy But you need to run a proxy in front of it, like HAProxy (couchdb recommends) Sharding you need to configure the number of shards per database Replication and conflict management is something that couchdb is good at When removing a node from a cluster you have to make sure to move shards away So there is some manual work involved in managing scale
- #34 Futon is web console in 1.x Fauxton is web console in 2.x Insecure by default: anonymous admin access
- #35 CouchDb's design assumes that caching will be handled by the operating system, by the browser, by a proxy you setup Not by couchdb itself
- #36 Windows / Mac / Linux AWS / Azure / Google support (VMs) Docker (there isn't an official 2.x on docker hub yet) DBaaS – Cloudant
- #37 Cloudant is compatible Couchbase Lite and Sync Gateway are "compatible" with couchdb (version 2 of Couchbase Lite will probably change that) But interop between them is not supported
- #38 There is a SQL language for CosmosDB but it is very limited No intra-document joins, no GROUP BY, no insert/update/delete Cosmos has sprocs, triggers, udfs, but you have to write them in ECMAScript 2015 (JavaScript)
- #39 Azure handles the scaling for you You set request units per second or per minute and cosmos db will scale to handle that Cosmosdb has 5 consistency options, so you can explicitly trade off between strong consistency and eventual consistency, "guarantee" is Microsoft's wording
- #41 "guarantee" is Microsoft's wording
- #42 This is azure only You can run the emulator on windows, the emulator is not meant for production But I'm sure some joker is going to try it The emulator is also available in docker so hypothetically you could deploy that anywhere
- #43 Microsoft support only, of course This is not open source (which used to be implied with Microsoft, but I feel like I have to say that now)
- #45 Mobile? look at Couchbase, Sync Gateway, Couchbase Mobile, and maybe CouchDb Querying? Look at Couchbase, CosmosDb Cost? Mongo, CouchDb, Couchbase CE Ops/DevOps proficient? Mongo, CouchDb Ops/DevOps deficient? CosmosDb, Couchbase, MongoDb Atlas Hobby? Mongo, CouchDb, Couchbase Resume? Go with the popular one. Speed? All pretty good Transactions? SQL Security? Be careful with Mongo, CouchDb, not because they are insecure, but because they are insecure by default Integrations? This is huge. Databases generally don't just sit behind one app. They need to integrate with other software. Maybe stick to relational, unless a connector exists.
- #47 Point out Don Chamberlin consults with Couchbase now
- #48 Multiple services can be placed on the same node (required for Community Edition) Single dev node, up to lots and lots of nodes (definitely clusters of 70-80 nodes, I’ve heard rumors of over 200 nodes)
- #49 SMP: symmetric multiprocessing, scale up vertically MPP: massively parallel processing XDCR and MDS = Enterprise only Note: Always-On is EXPENSIVE ODBC = Only for integrations with apps that require flat data
- #51 Date/times are sometimes also stored as Unix timestamps instead of ISO8601
- #52 Also note IS VALUED and IS NOT VALUED
- #54 Note similarities!!!
- #60 Note camel casing Note use of JsonProperty to give more precise names
- #63 Key doesn’t need to be stored in it’s complete form To save space, you just need enough data to recreate the key in your query Storing the whole key is usually simpler
- #64 You can create custom DocumentFilter attributes to filter in other ways They can also be applied programmatically instead of declaratively
- #66 Non-first normal form query language
- #67 Note how incredibly similar to an ANSI SQL query this is Difference from T-SQL is primarily LIMIT instead of TOP
- #69 Note the ON KEYS clause, which identifies what document keys on the left to select This clause can be built using an expression from attributes in the route, if needed
- #73 Second from statement is equivalent to .SelectMany() functional syntax
- #77 Filtering on the “type” attribute makes an index more like a SQL table index
- #78 This index is a case insensitive version of the previous index
- #79 Using STR_TO_MILLIS accounts for time zone offsets in ISO 8601, which simple string comparisons does not
- #80 This index allows you to find routes that contain a specific flight number, even though the flight number is nested within an array
