- 1. 1 PRACTICALENTERPRISE SECURITY ARCHITECTURE DR. RAJESHP. DEO JULY 2016

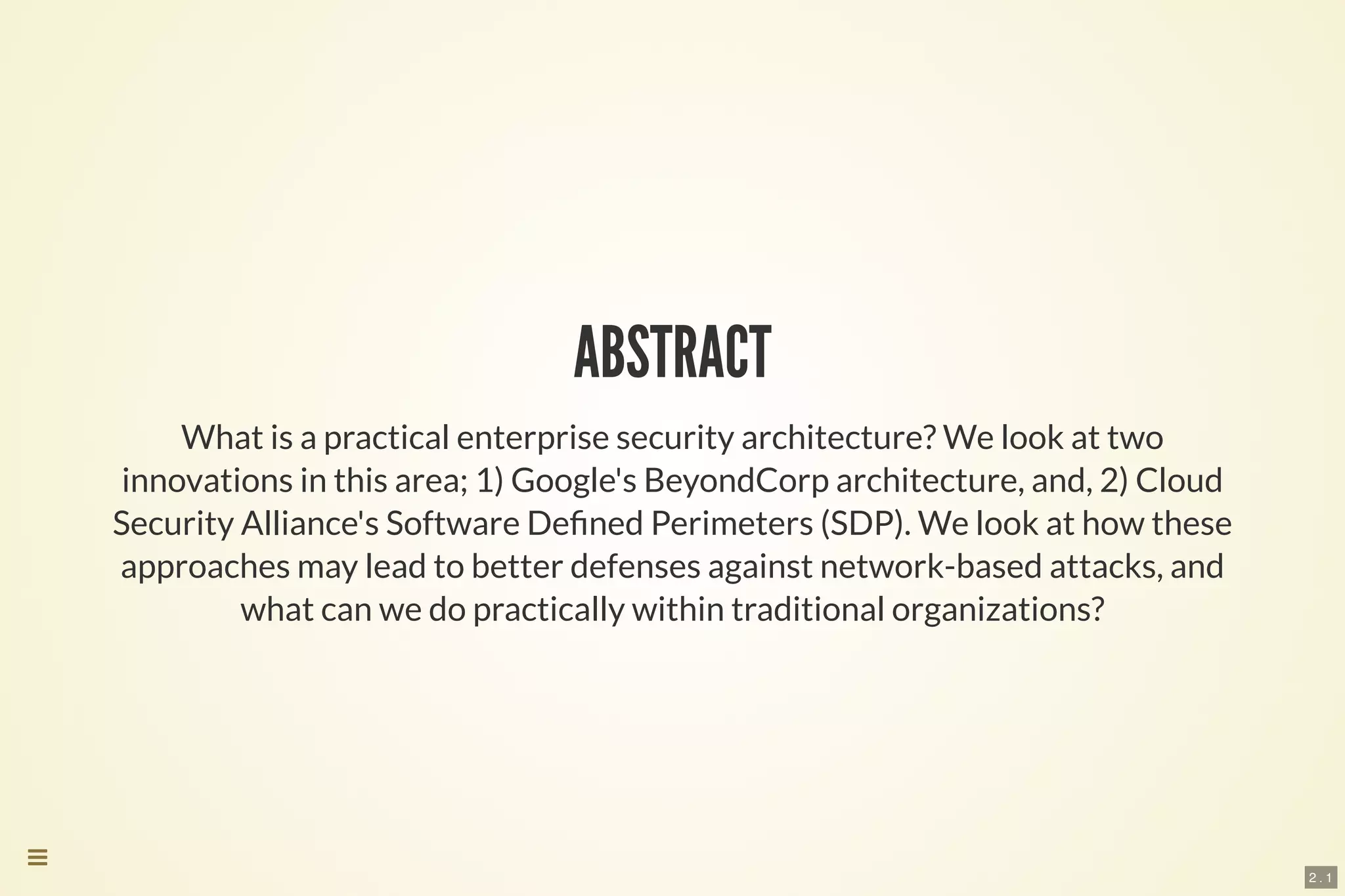

- 2. 2 . 1 ABSTRACT Whatis a practical enterprise security architecture? We look at two innovations in this area; 1) Google's BeyondCorp architecture, and, 2) Cloud Security Alliance's Software De ned Perimeters (SDP). We look at how these approaches may lead to better defenses against network-based attacks, and what can we do practically within traditional organizations?

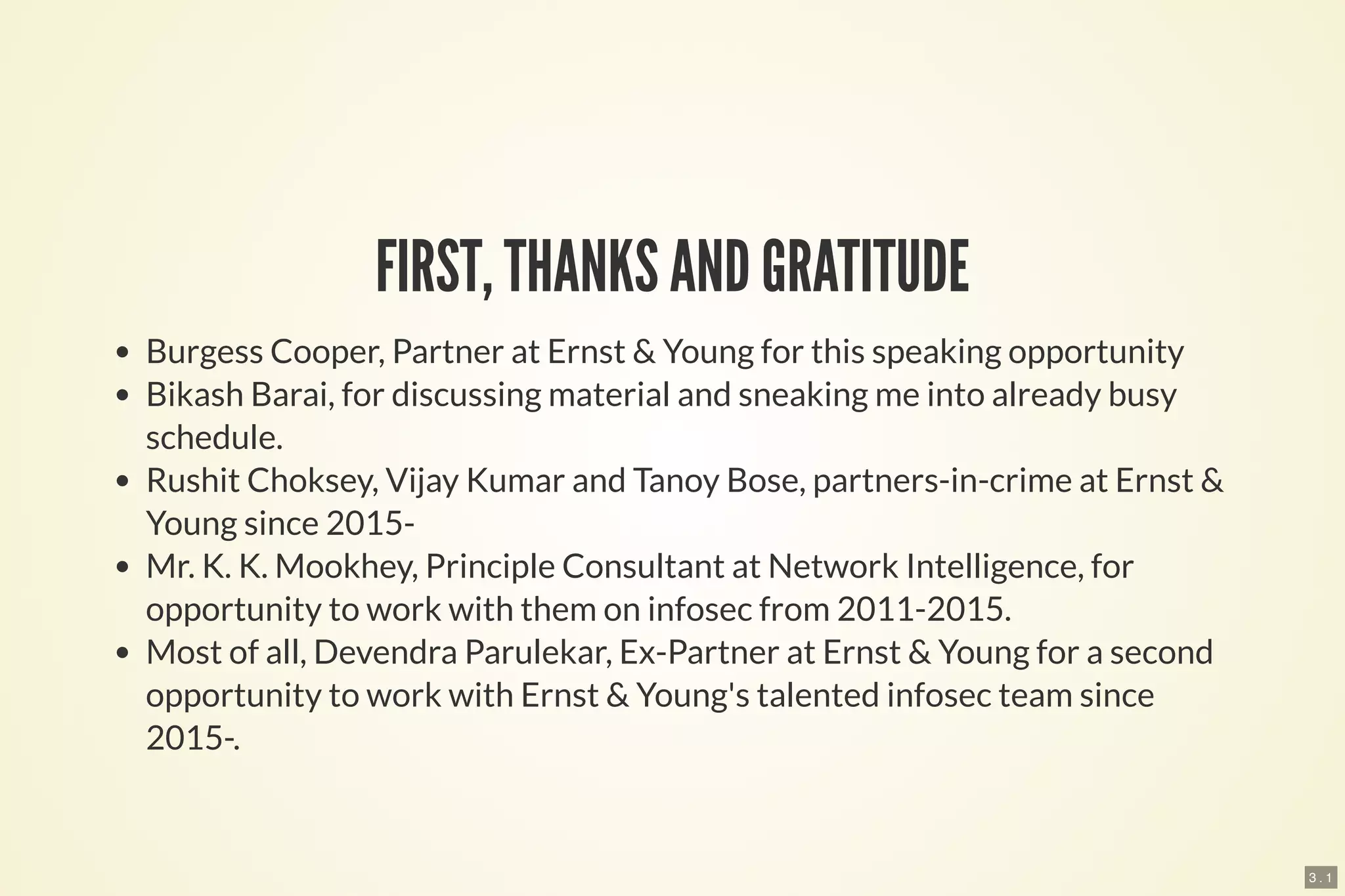

- 3. 3 . 1 FIRST,THANKS AND GRATITUDE Burgess Cooper, Partner at Ernst & Young for this speaking opportunity Bikash Barai, for discussing material and sneaking me into already busy schedule. Rushit Choksey, Vijay Kumar and Tanoy Bose, partners-in-crime at Ernst & Young since 2015- Mr. K. K. Mookhey, Principle Consultant at Network Intelligence, for opportunity to work with them on infosec from 2011-2015. Most of all, Devendra Parulekar, Ex-Partner at Ernst & Young for a second opportunity to work with Ernst & Young's talented infosec team since 2015-.

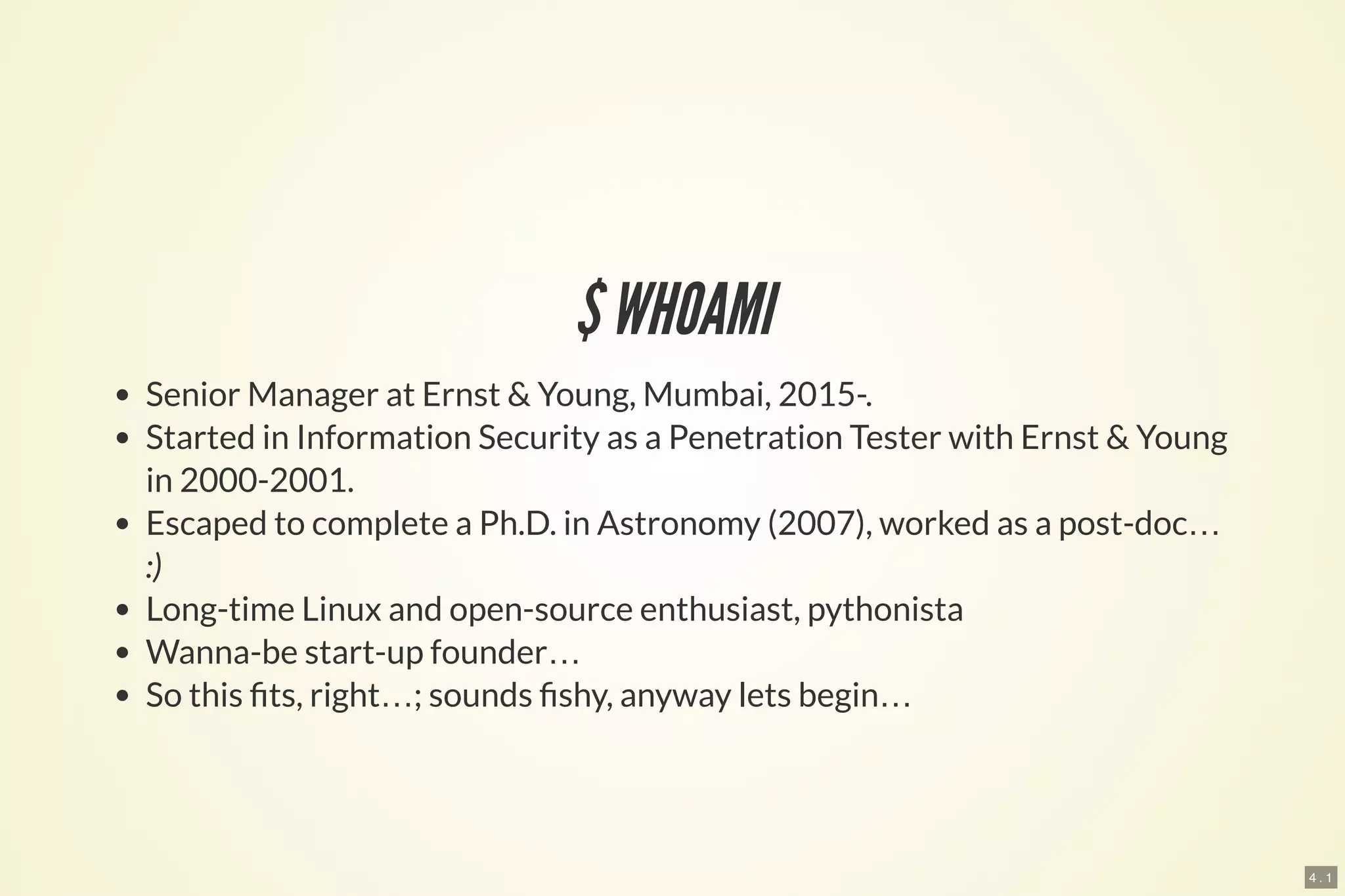

- 4. 4 . 1 $WHOAMI SeniorManager at Ernst & Young, Mumbai, 2015-. Started in Information Security as a Penetration Tester with Ernst & Young in 2000-2001. Escaped to complete a Ph.D. in Astronomy (2007), worked as a post-doc… :) Long-time Linux and open-source enthusiast, pythonista Wanna-be start-up founder… So this ts, right…; sounds shy, anyway lets begin…
- 5. 5 . 1 OBLIGATORYMEME AND RULE 1 IN SECURITY ARCHITECTURES There are levels of survival we are prepared to accept.
- 6. 6 . 1 WHATIS ENTERPRISE SECURITY ARCHITECTURE? Enterprise a project or undertaking, especially a bold or complex one; a business or company; entrepreneurial economic activity. Security a state of being free from danger or threat; a thing pledged as a guarantee of an undertaking to be forefeited in case of default. Architecture the complex or carefully designed structure; the art or practice of designing and constructing; the conceptual structure and logical organization of a computer or computer-based system. ESA A carefully designed structure to mitigate danger or threat to a business and facilitate economic activity.
- 7. 6 . 2 Enterprisearchitectures are business focused Aligned with business objectives Aligned with technology objectives of the business Advise and guidance for strategic leaders Standardization and process models for operational leaders Did I mention Business Attributes? Oh Boy! Enterprise architects explain business risk to technology leaders. Enterprise architects explain technology risk to business leaders. Enterprise security architect makes sure security is not an after thought.

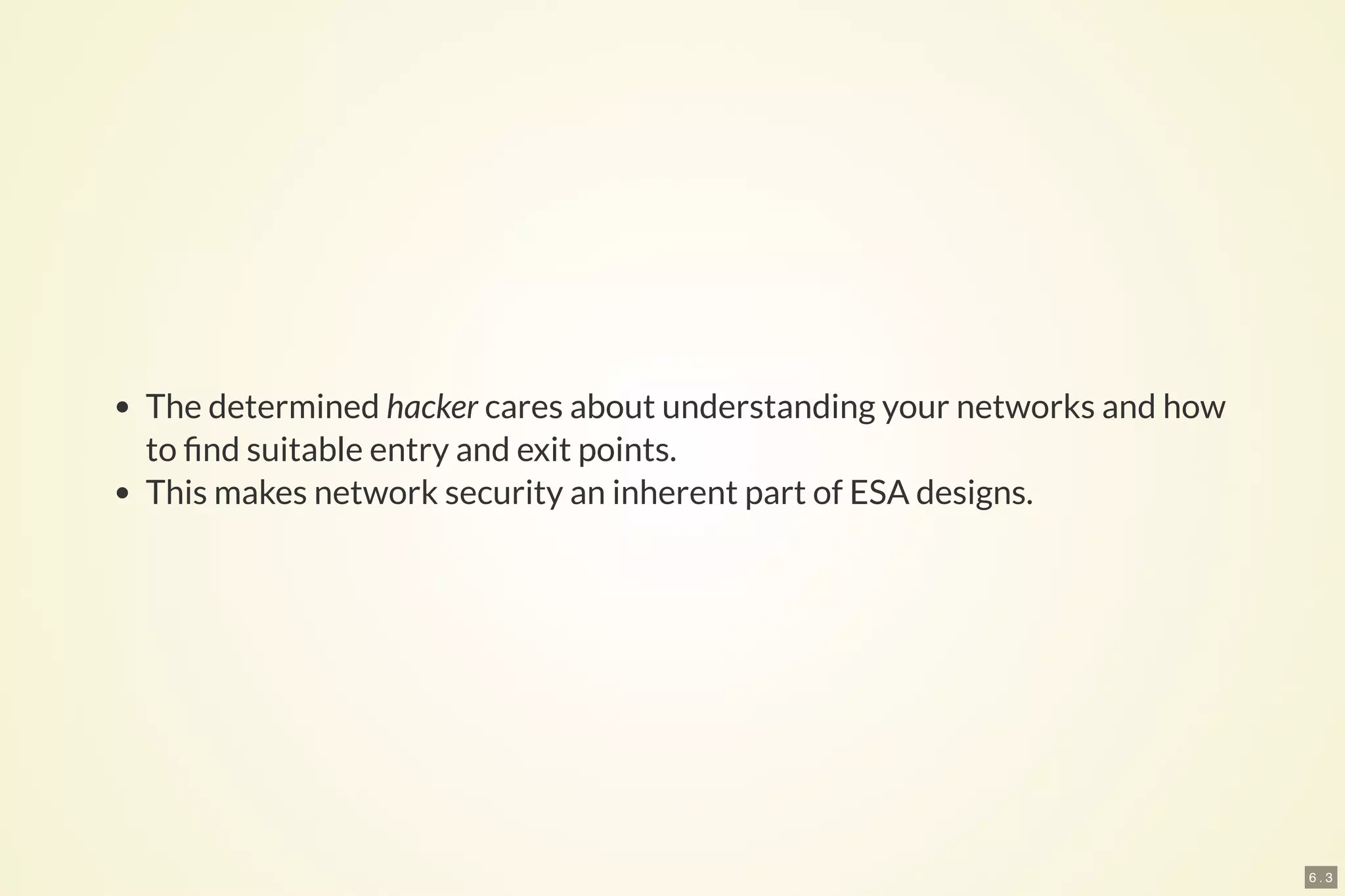

- 8. 6 . 3 Thedetermined hacker cares about understanding your networks and how to nd suitable entry and exit points. This makes network security an inherent part of ESA designs.

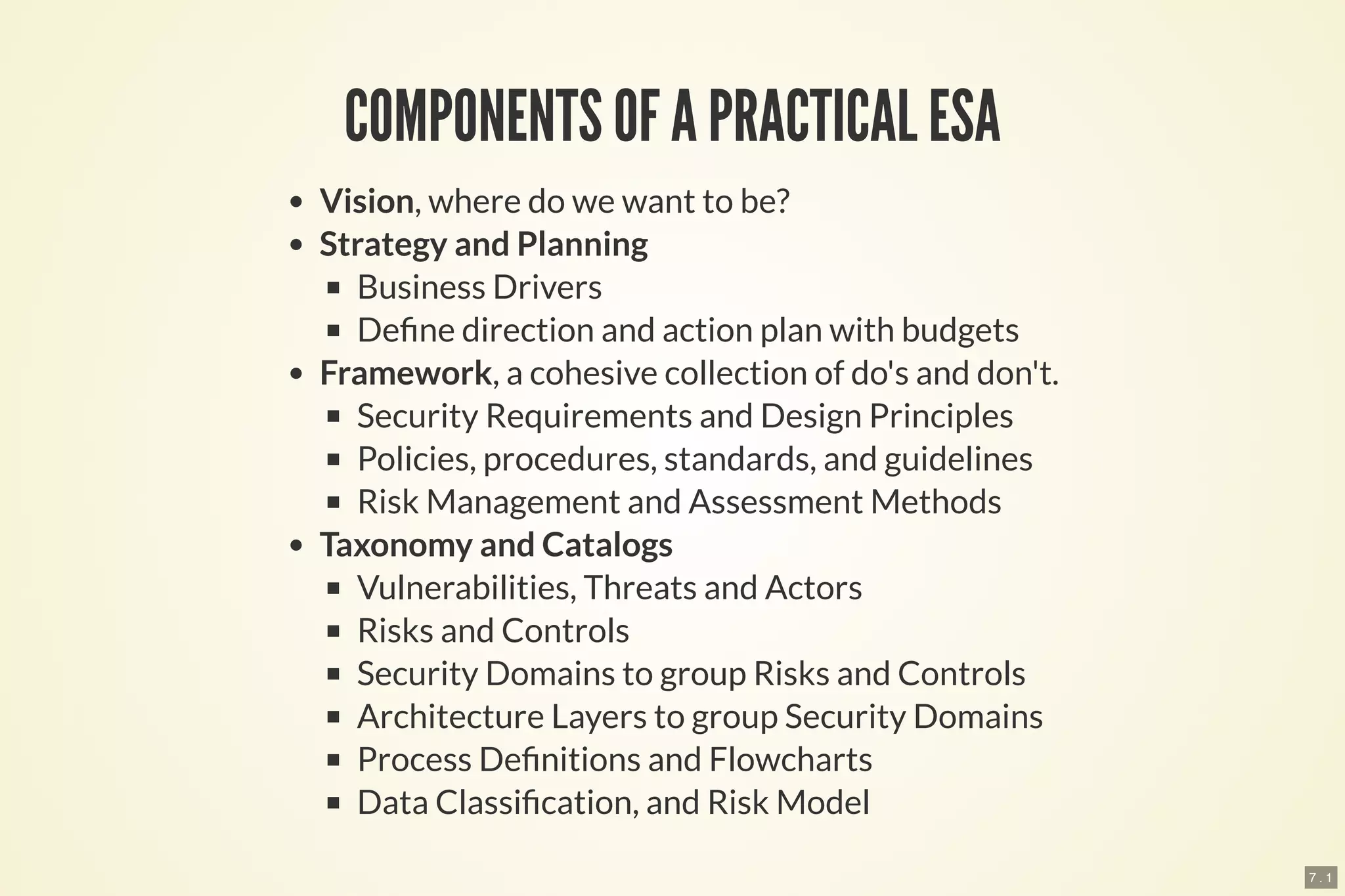

- 9. 7 . 1 COMPONENTSOF A PRACTICAL ESA Vision, where do we want to be? Strategy and Planning Business Drivers De ne direction and action plan with budgets Framework, a cohesive collection of do's and don't. Security Requirements and Design Principles Policies, procedures, standards, and guidelines Risk Management and Assessment Methods Taxonomy and Catalogs Vulnerabilities, Threats and Actors Risks and Controls Security Domains to group Risks and Controls Architecture Layers to group Security Domains Process De nitions and Flowcharts Data Classi cation, and Risk Model

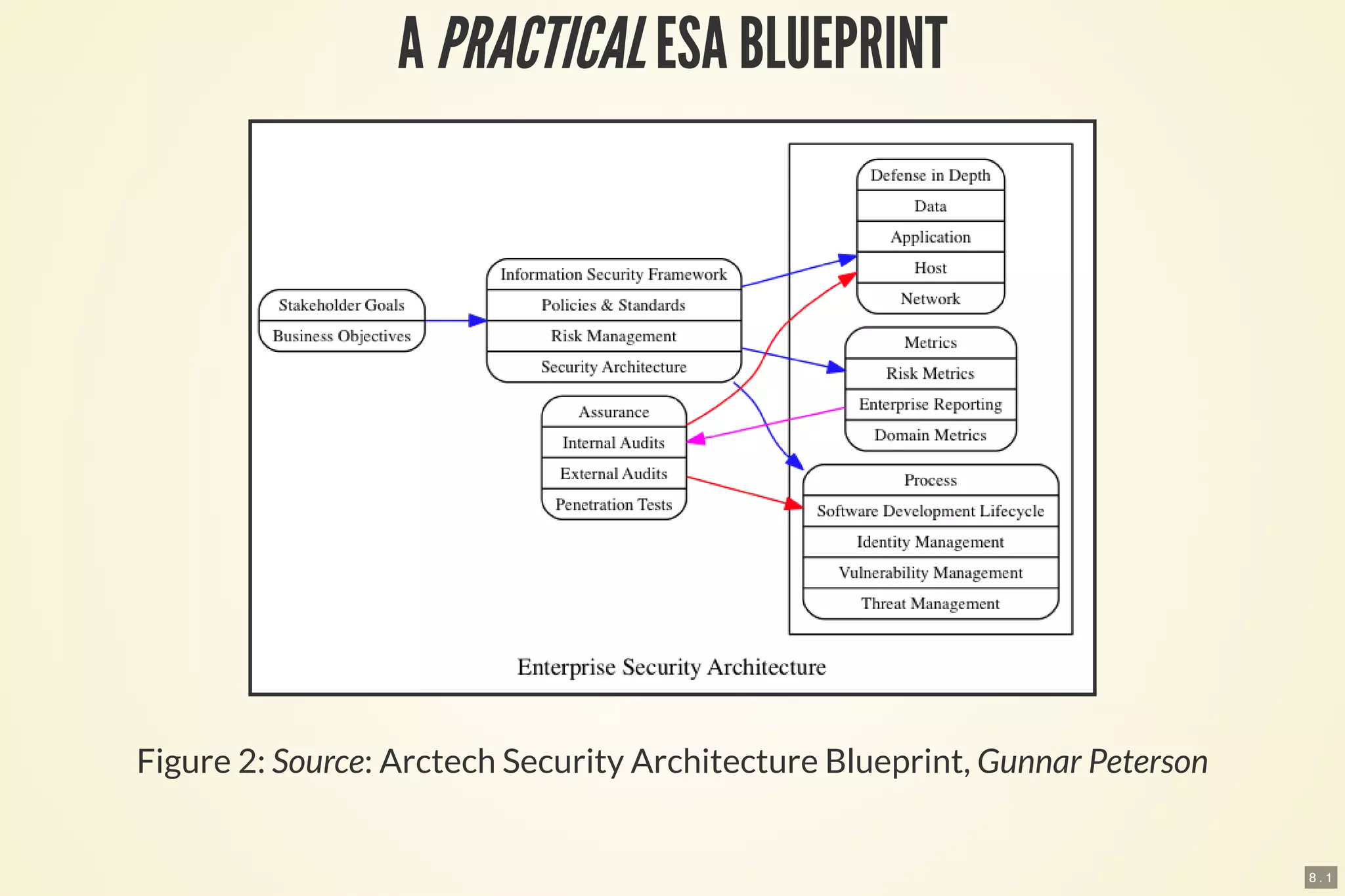

- 10. 8 . 1 APRACTICALESA BLUEPRINT Figure 2: Source: Arctech Security Architecture Blueprint, Gunnar Peterson

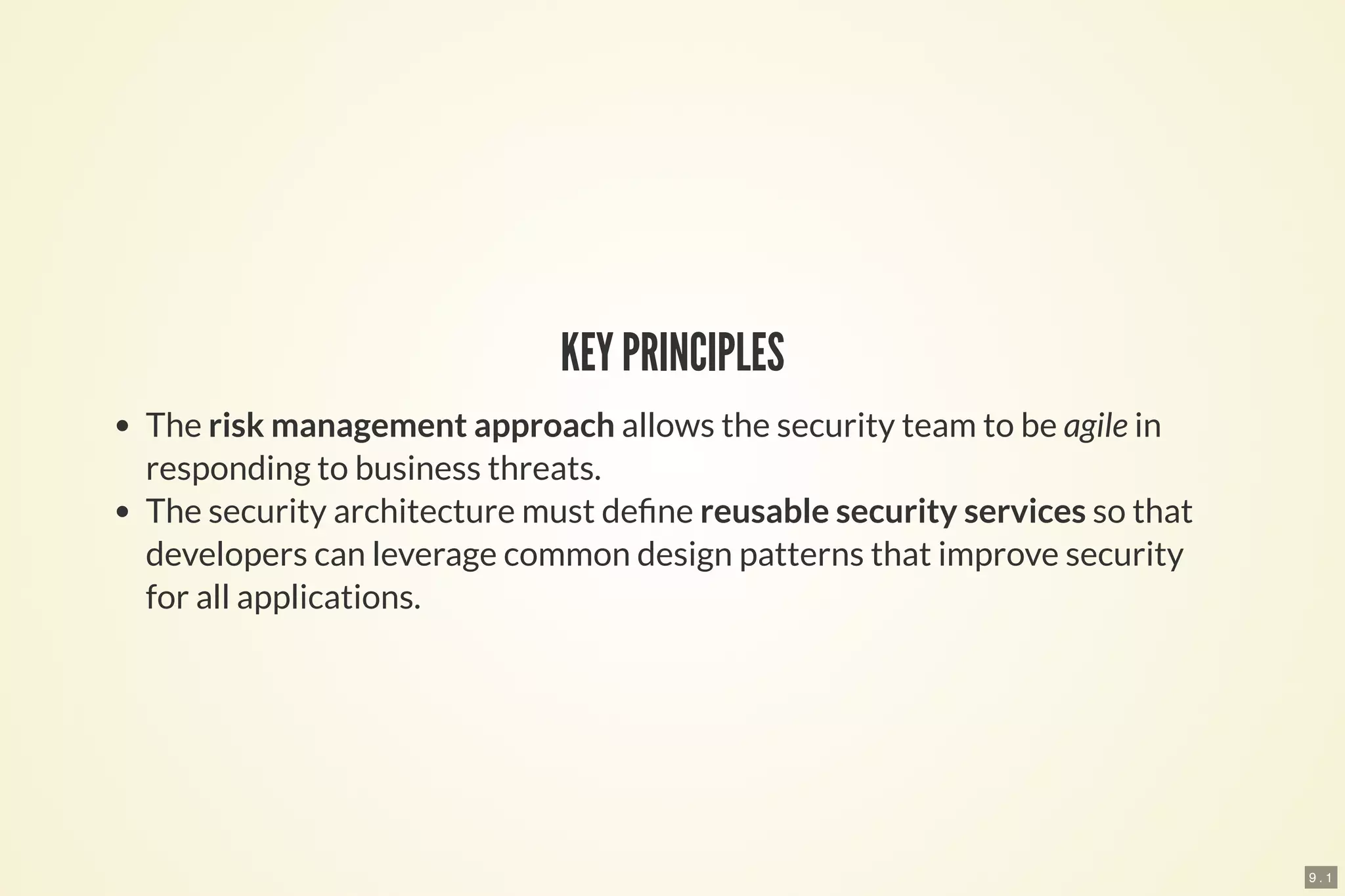

- 11. 9 . 1 KEYPRINCIPLES The risk management approach allows the security team to be agile in responding to business threats. The security architecture must de ne reusable security services so that developers can leverage common design patterns that improve security for all applications.

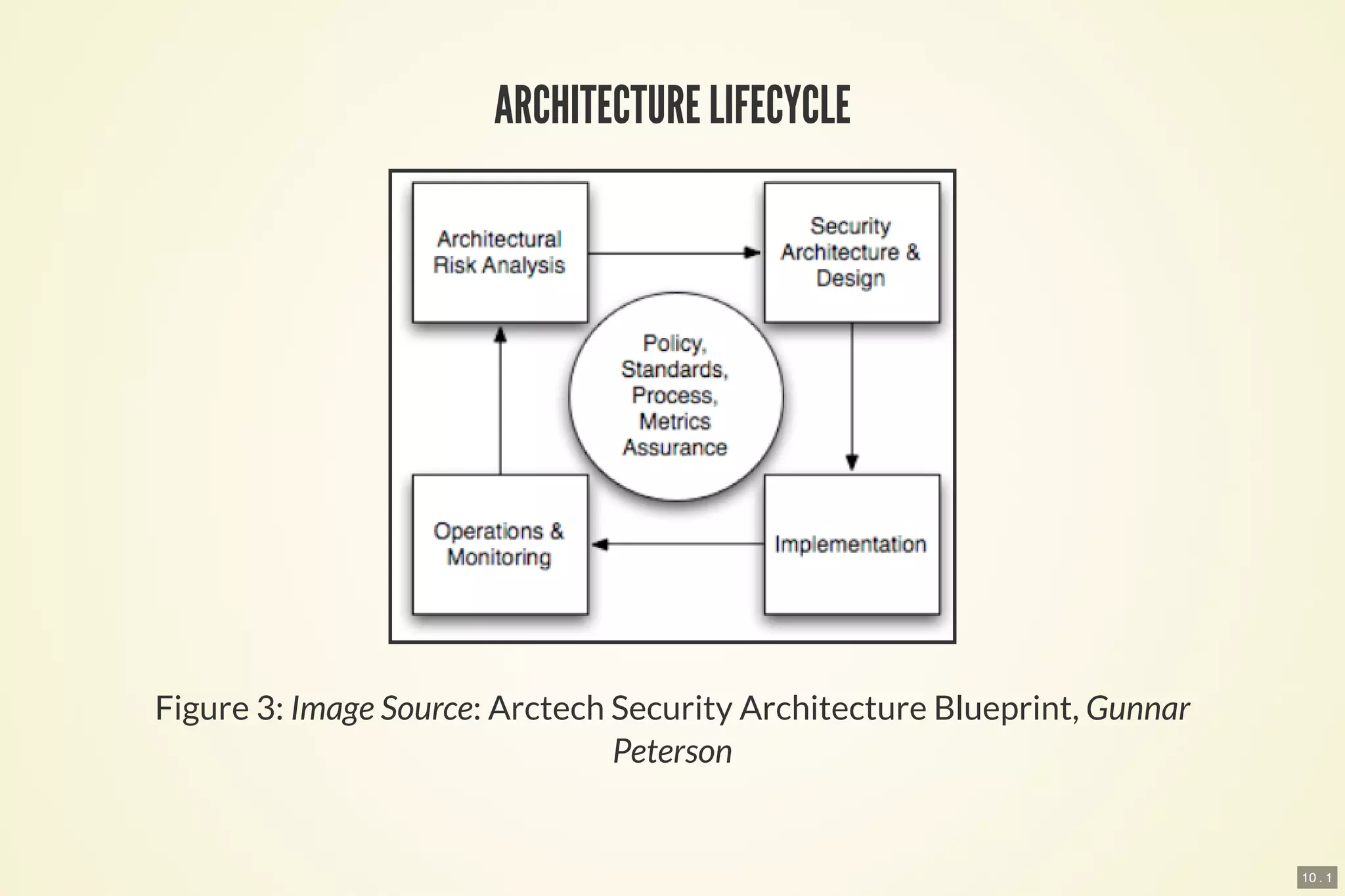

- 12. 10 . 1 ARCHITECTURELIFECYCLE Figure 3: Image Source: Arctech Security Architecture Blueprint, Gunnar Peterson

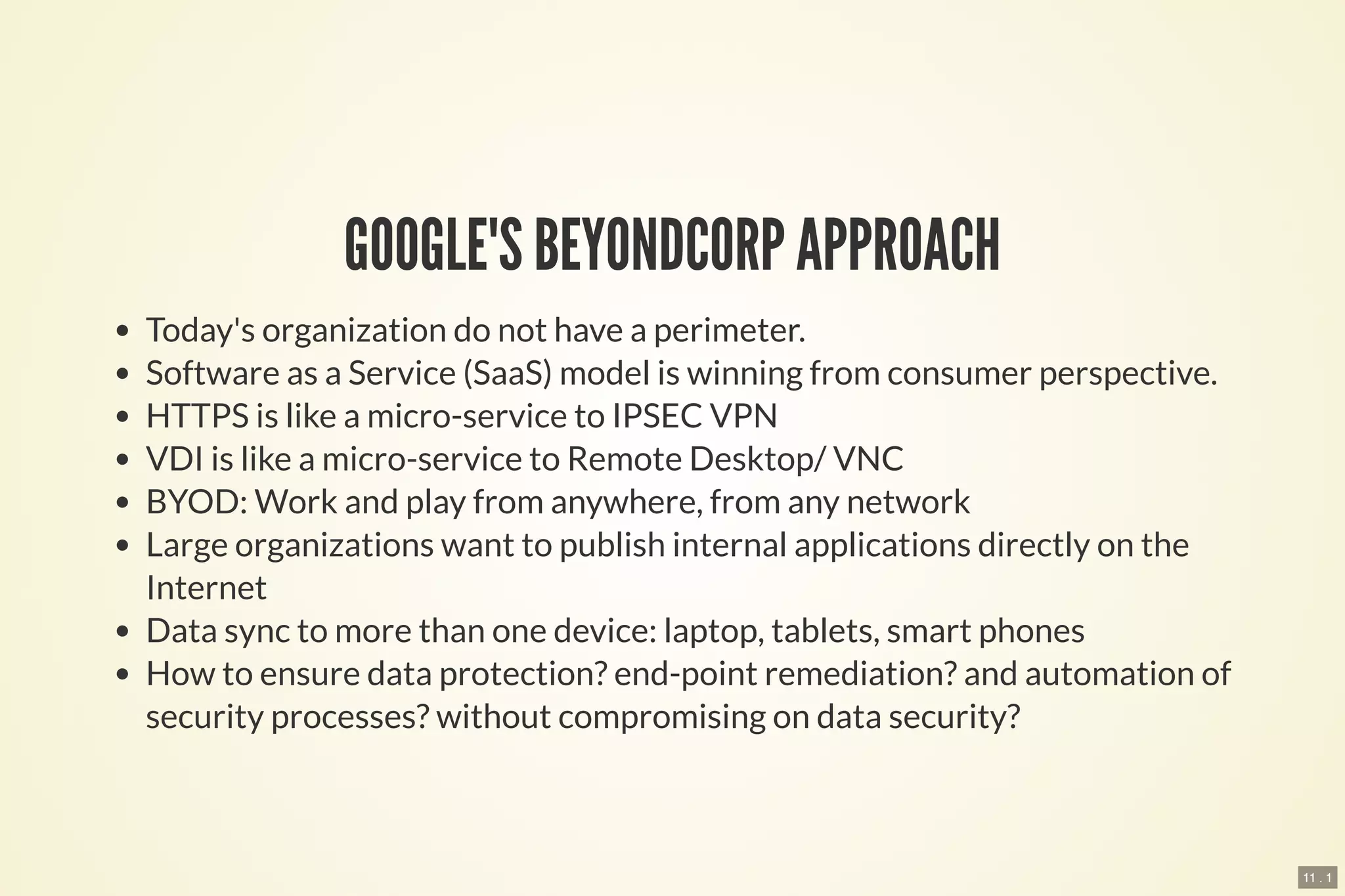

- 13. 11 . 1 GOOGLE'SBEYONDCORP APPROACH Today's organization do not have a perimeter. Software as a Service (SaaS) model is winning from consumer perspective. HTTPS is like a micro-service to IPSEC VPN VDI is like a micro-service to Remote Desktop/ VNC BYOD: Work and play from anywhere, from any network Large organizations want to publish internal applications directly on the Internet Data sync to more than one device: laptop, tablets, smart phones How to ensure data protection? end-point remediation? and automation of security processes? without compromising on data security?

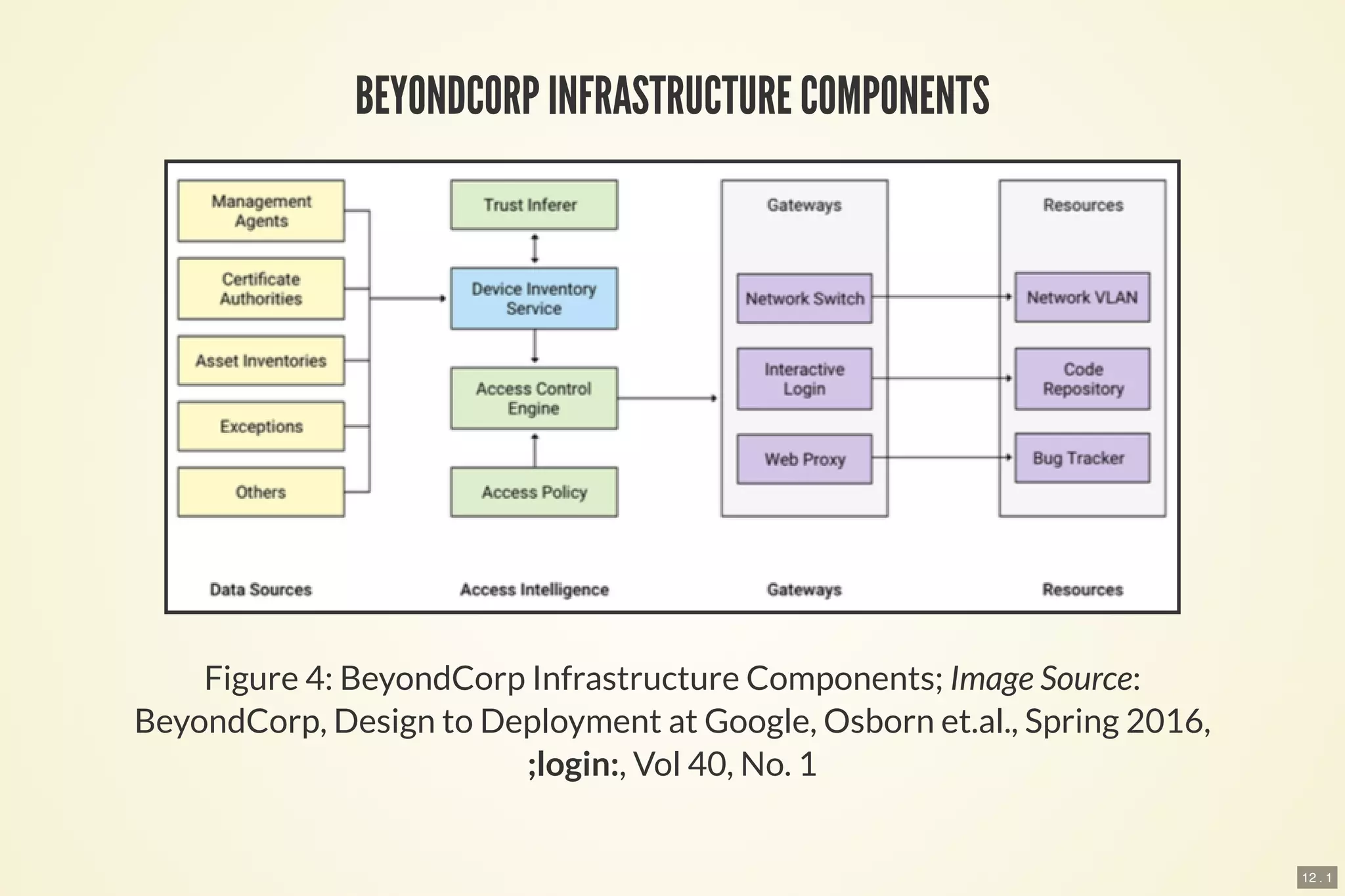

- 14. 12 . 1 BEYONDCORPINFRASTRUCTURE COMPONENTS Figure 4: BeyondCorp Infrastructure Components; Image Source: BeyondCorp, Design to Deployment at Google, Osborn et.al., Spring 2016, ;login:, Vol 40, No. 1

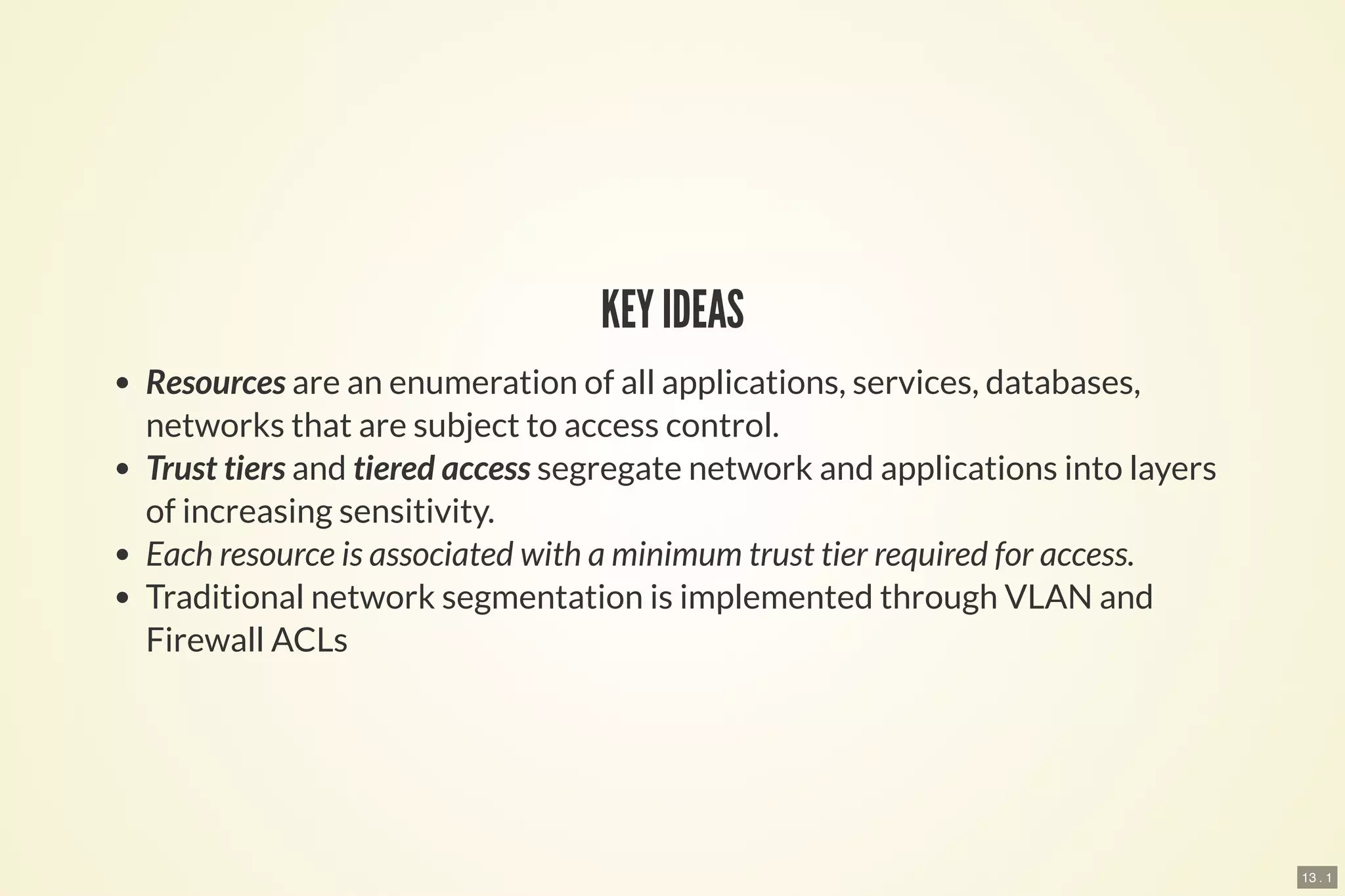

- 15. 13 . 1 KEYIDEAS Resources are an enumeration of all applications, services, databases, networks that are subject to access control. Trust tiers and tiered access segregate network and applications into layers of increasing sensitivity. Each resource is associated with a minimum trust tier required for access. Traditional network segmentation is implemented through VLAN and Firewall ACLs

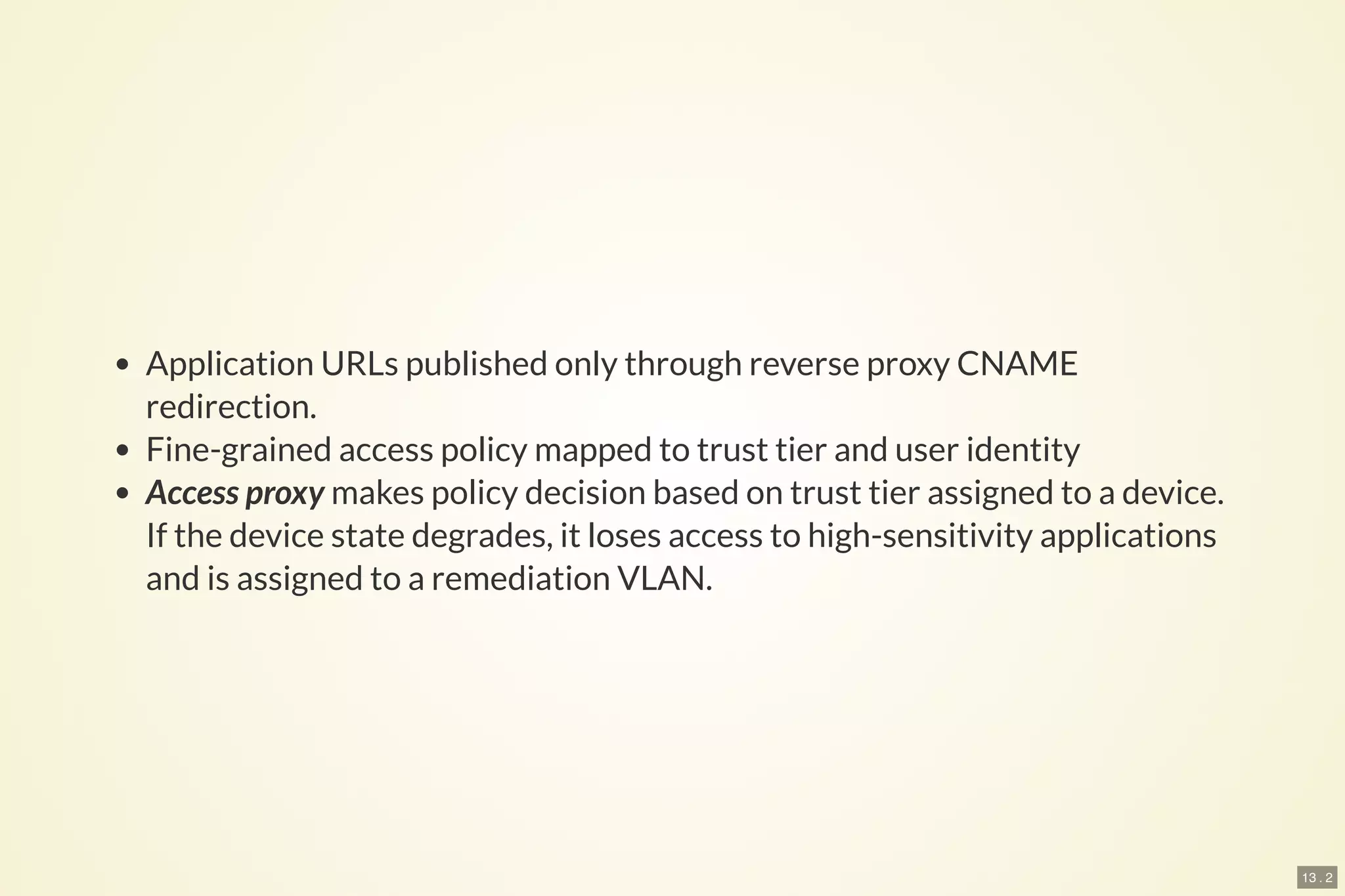

- 16. 13 . 2 ApplicationURLs published only through reverse proxy CNAME redirection. Fine-grained access policy mapped to trust tier and user identity Access proxy makes policy decision based on trust tier assigned to a device. If the device state degrades, it loses access to high-sensitivity applications and is assigned to a remediation VLAN.

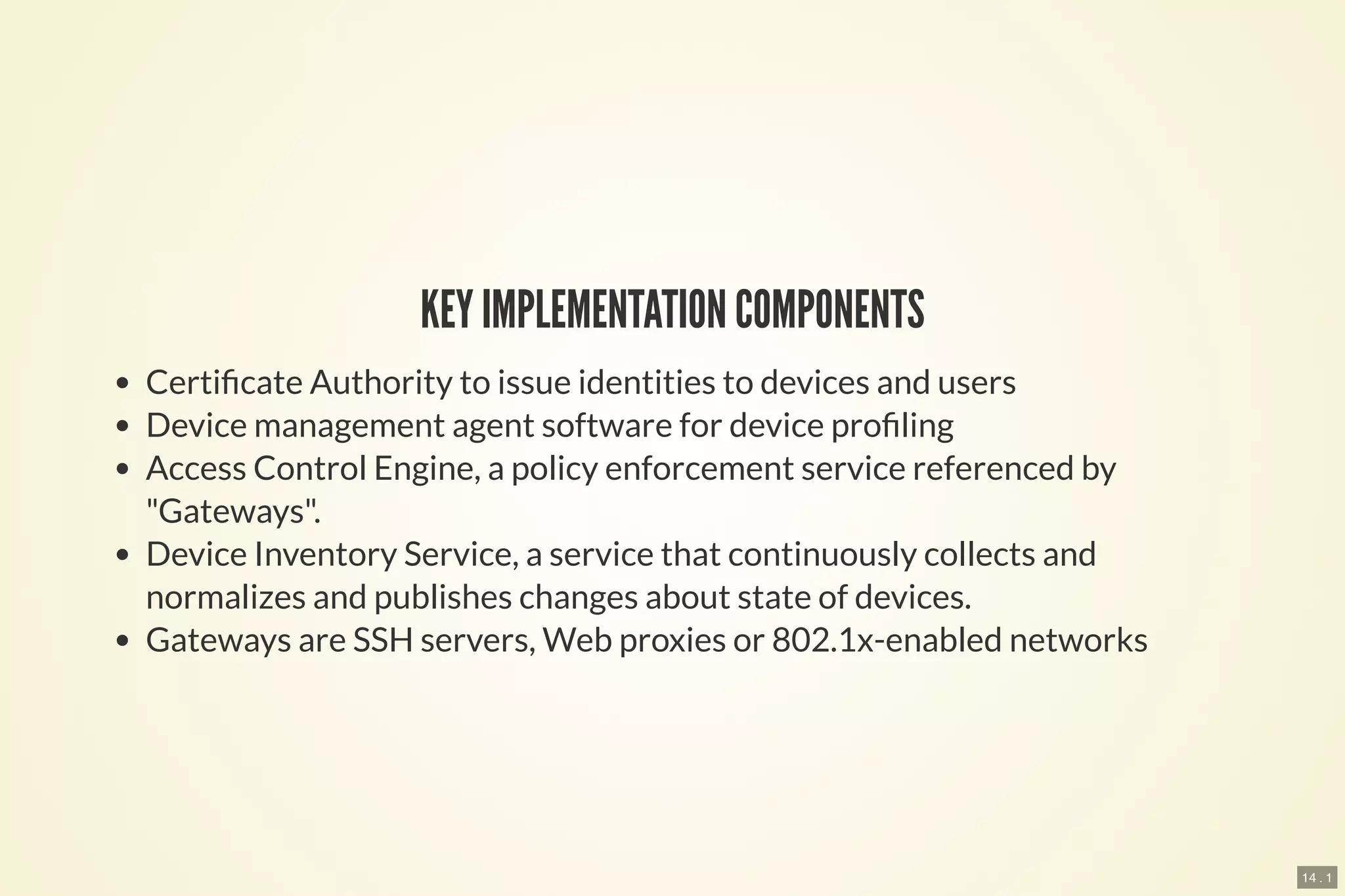

- 17. 14 . 1 KEYIMPLEMENTATION COMPONENTS Certi cate Authority to issue identities to devices and users Device management agent software for device pro ling Access Control Engine, a policy enforcement service referenced by "Gateways". Device Inventory Service, a service that continuously collects and normalizes and publishes changes about state of devices. Gateways are SSH servers, Web proxies or 802.1x-enabled networks

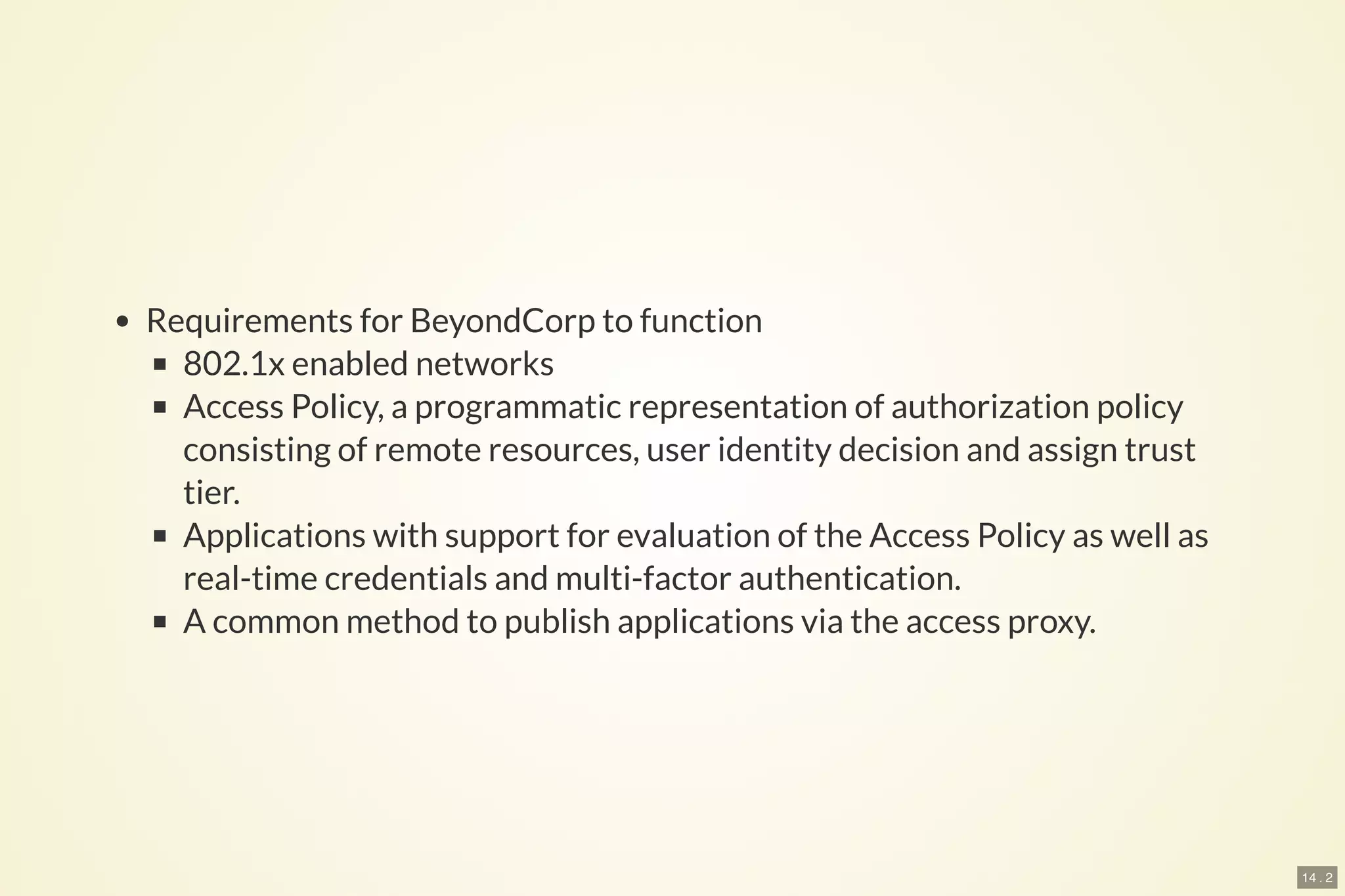

- 18. 14 . 2 Requirementsfor BeyondCorp to function 802.1x enabled networks Access Policy, a programmatic representation of authorization policy consisting of remote resources, user identity decision and assign trust tier. Applications with support for evaluation of the Access Policy as well as real-time credentials and multi-factor authentication. A common method to publish applications via the access proxy.

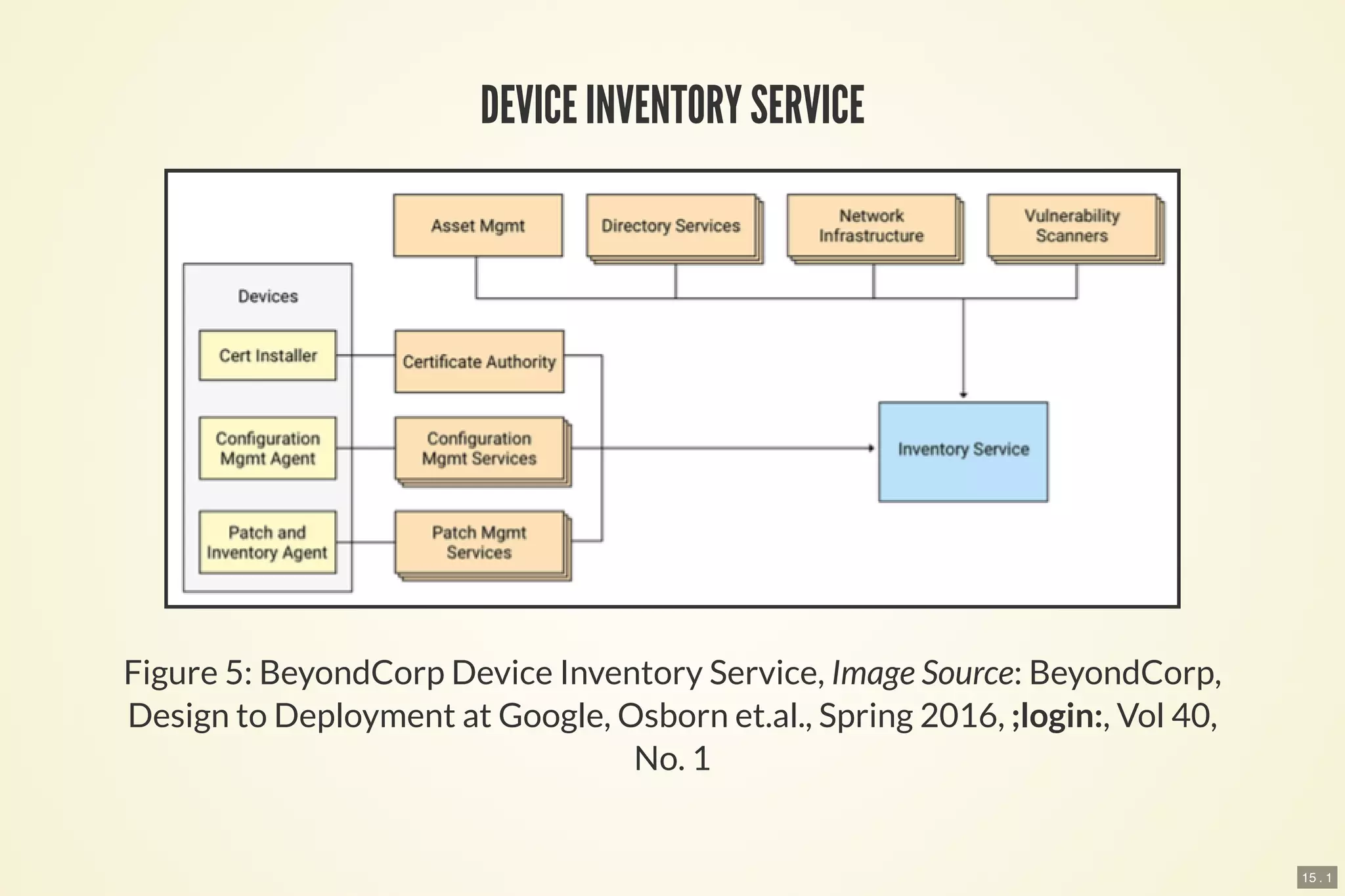

- 19. 15 . 1 DEVICEINVENTORY SERVICE Figure 5: BeyondCorp Device Inventory Service, Image Source: BeyondCorp, Design to Deployment at Google, Osborn et.al., Spring 2016, ;login:, Vol 40, No. 1

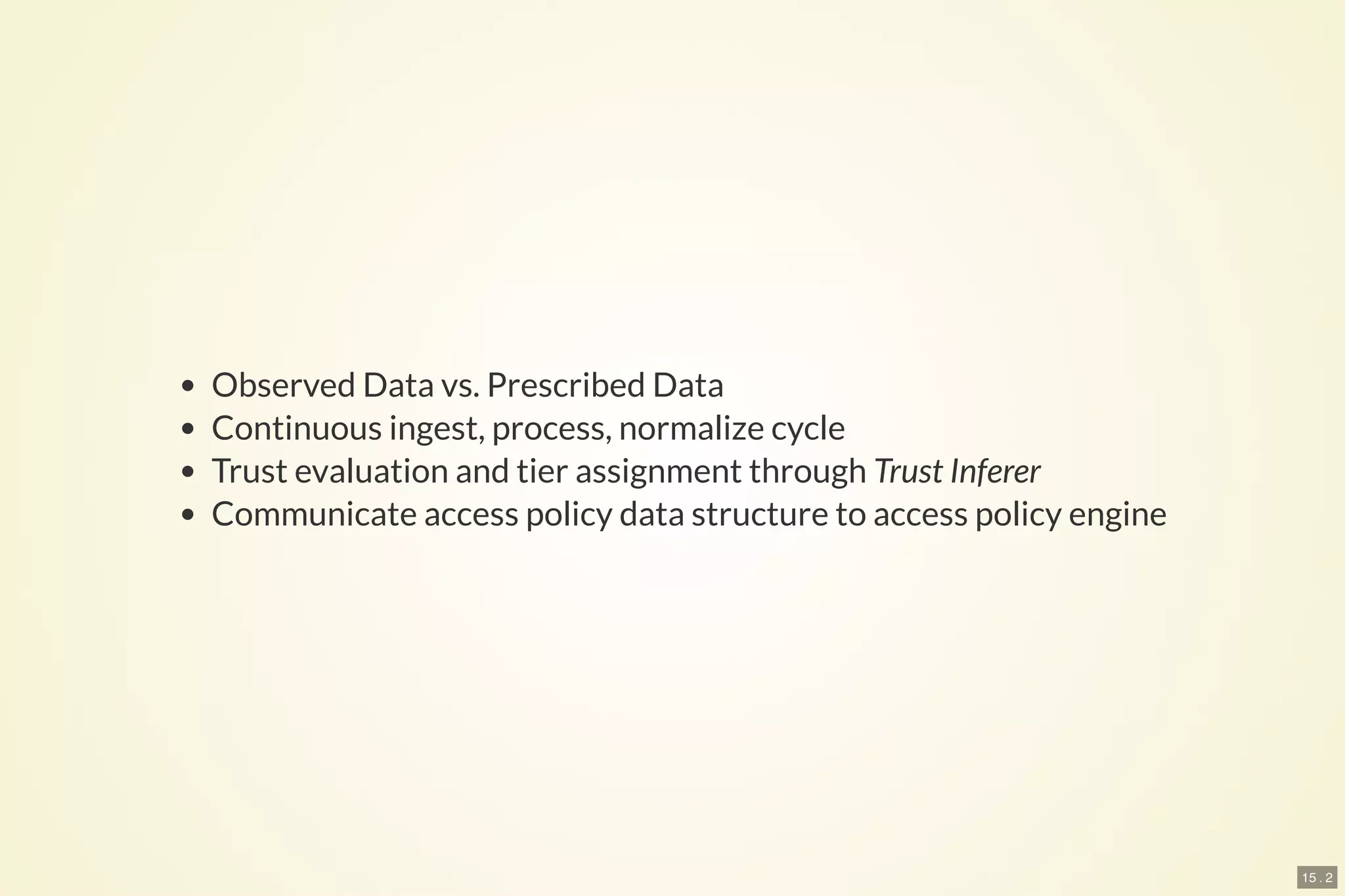

- 20. 15 . 2 ObservedData vs. Prescribed Data Continuous ingest, process, normalize cycle Trust evaluation and tier assignment through Trust Inferer Communicate access policy data structure to access policy engine

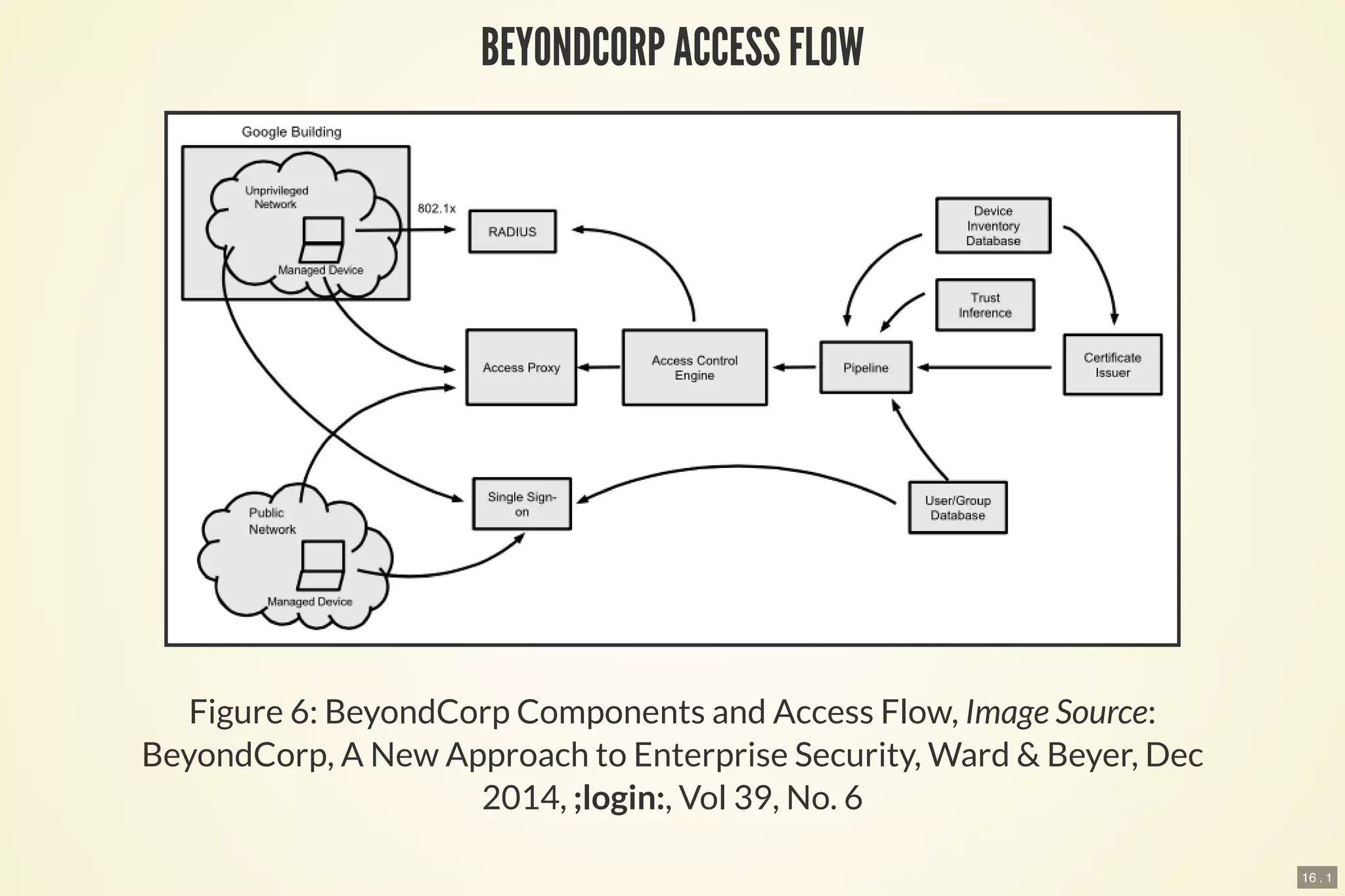

- 21. 16 . 1 BEYONDCORPACCESS FLOW Figure 6: BeyondCorp Components and Access Flow, Image Source: BeyondCorp, A New Approach to Enterprise Security, Ward & Beyer, Dec 2014, ;login:, Vol 39, No. 6

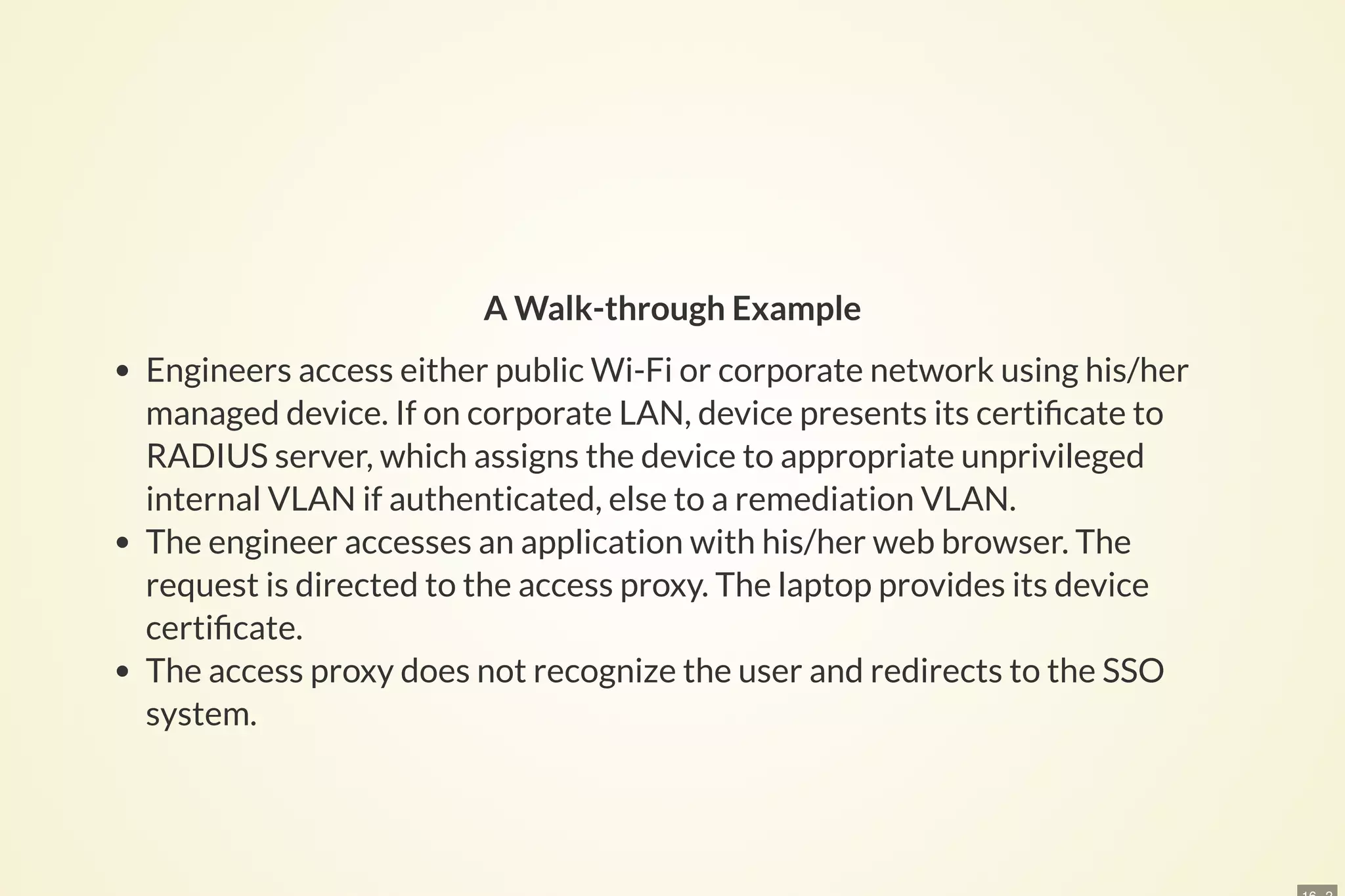

- 22. A Walk-through Example Engineersaccess either public Wi-Fi or corporate network using his/her managed device. If on corporate LAN, device presents its certi cate to RADIUS server, which assigns the device to appropriate unprivileged internal VLAN if authenticated, else to a remediation VLAN. The engineer accesses an application with his/her web browser. The request is directed to the access proxy. The laptop provides its device certi cate. The access proxy does not recognize the user and redirects to the SSO system.

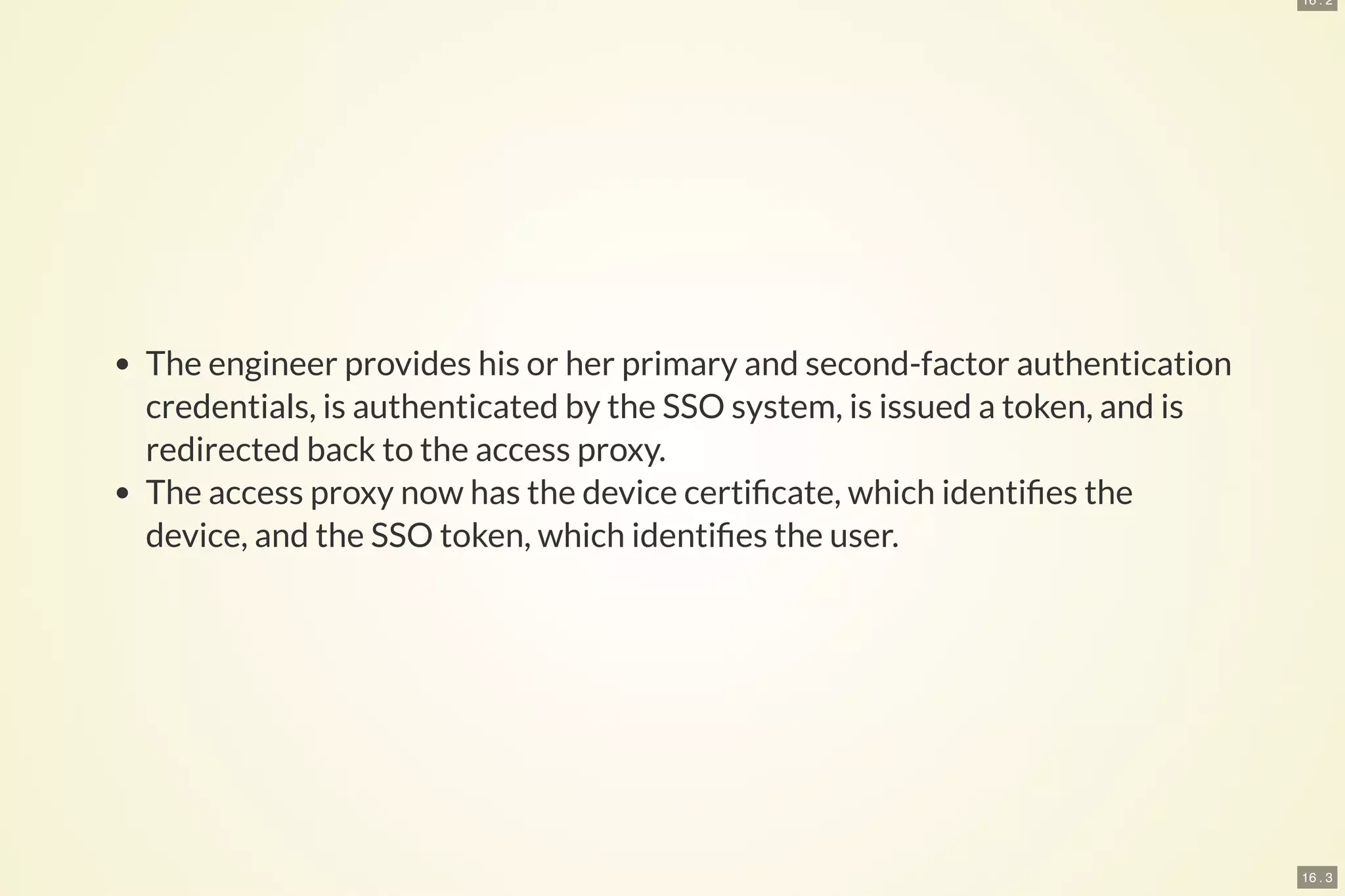

- 23. 16 . 2 16. 3 The engineer provides his or her primary and second-factor authentication credentials, is authenticated by the SSO system, is issued a token, and is redirected back to the access proxy. The access proxy now has the device certi cate, which identi es the device, and the SSO token, which identi es the user.

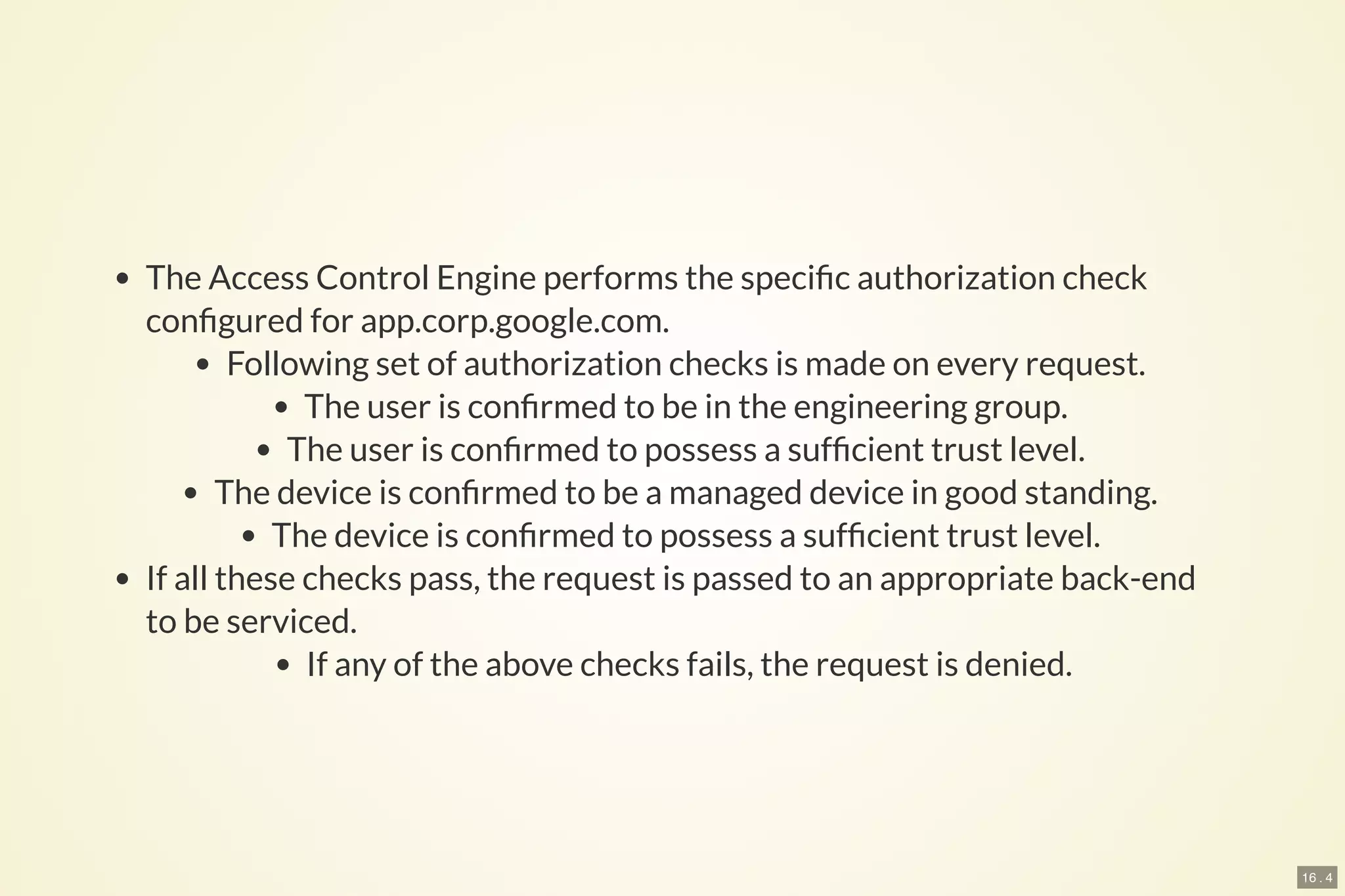

- 24. 16 . 4 TheAccess Control Engine performs the speci c authorization check con gured for app.corp.google.com. Following set of authorization checks is made on every request. The user is con rmed to be in the engineering group. The user is con rmed to possess a suf cient trust level. The device is con rmed to be a managed device in good standing. The device is con rmed to possess a suf cient trust level. If all these checks pass, the request is passed to an appropriate back-end to be serviced. If any of the above checks fails, the request is denied.

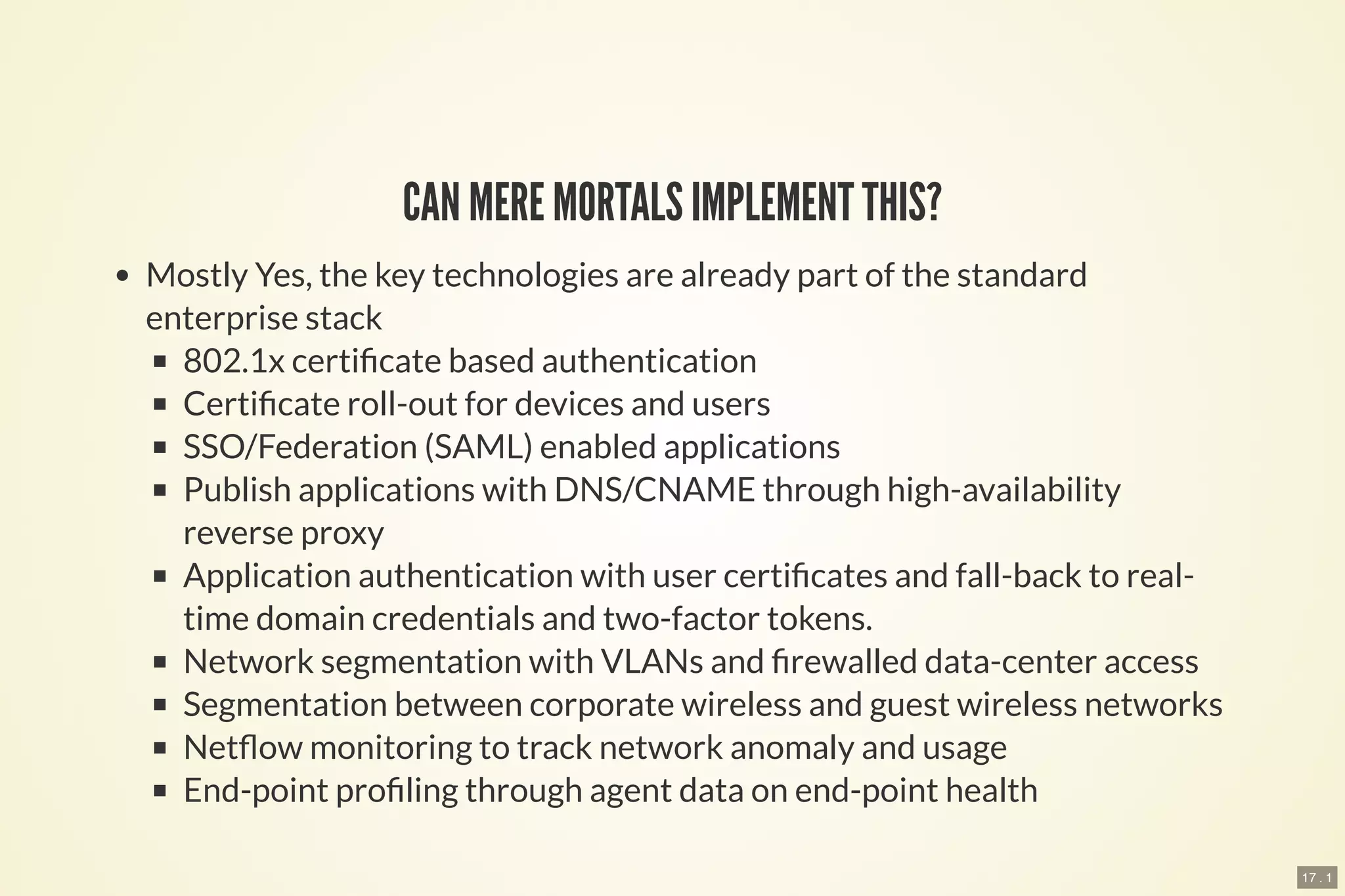

- 25. 17 . 1 CANMERE MORTALS IMPLEMENT THIS? Mostly Yes, the key technologies are already part of the standard enterprise stack 802.1x certi cate based authentication Certi cate roll-out for devices and users SSO/Federation (SAML) enabled applications Publish applications with DNS/CNAME through high-availability reverse proxy Application authentication with user certi cates and fall-back to real- time domain credentials and two-factor tokens. Network segmentation with VLANs and rewalled data-center access Segmentation between corporate wireless and guest wireless networks Net ow monitoring to track network anomaly and usage End-point pro ling through agent data on end-point health

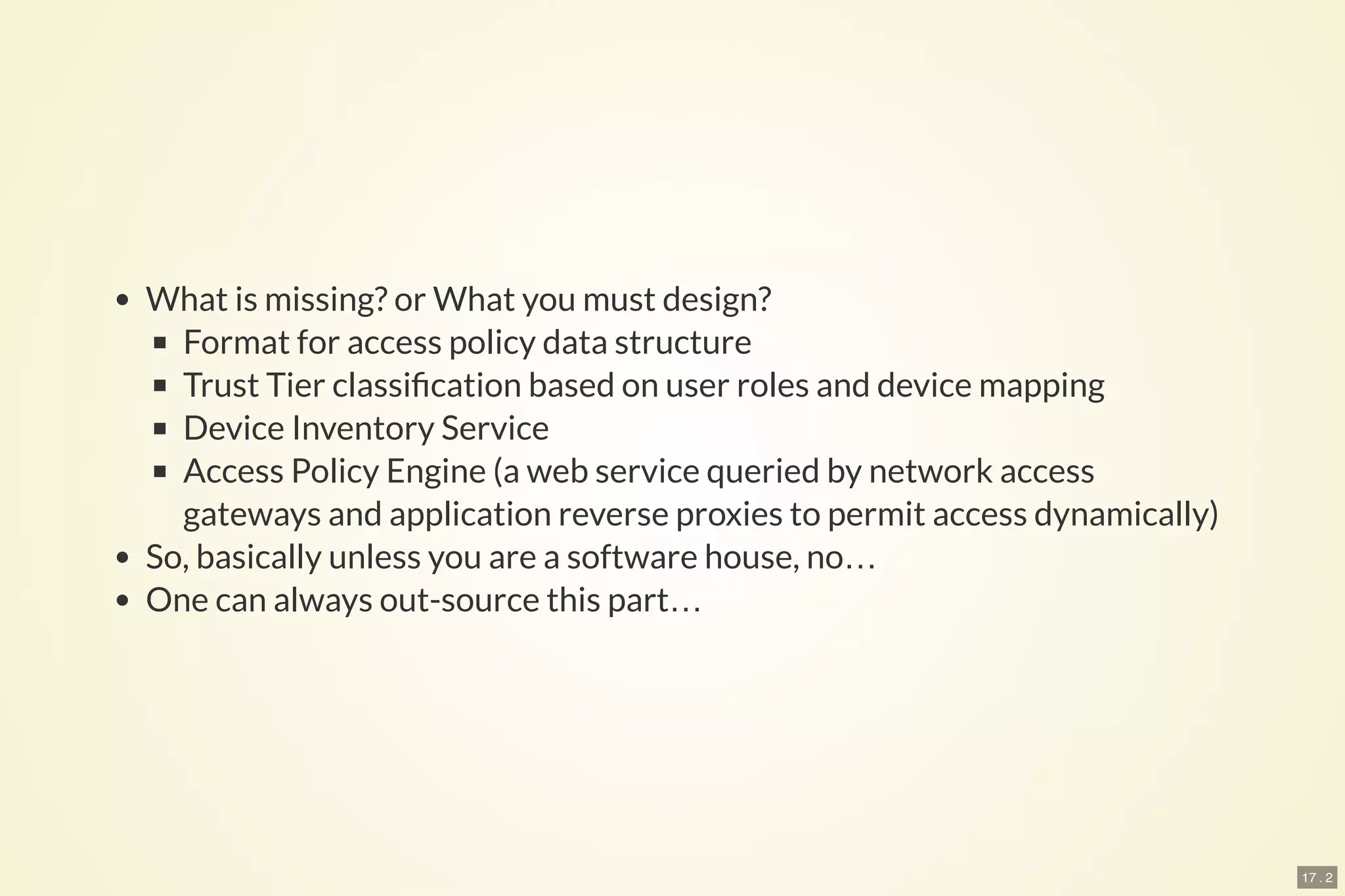

- 26. 17 . 2 Whatis missing? or What you must design? Format for access policy data structure Trust Tier classi cation based on user roles and device mapping Device Inventory Service Access Policy Engine (a web service queried by network access gateways and application reverse proxies to permit access dynamically) So, basically unless you are a software house, no… One can always out-source this part…

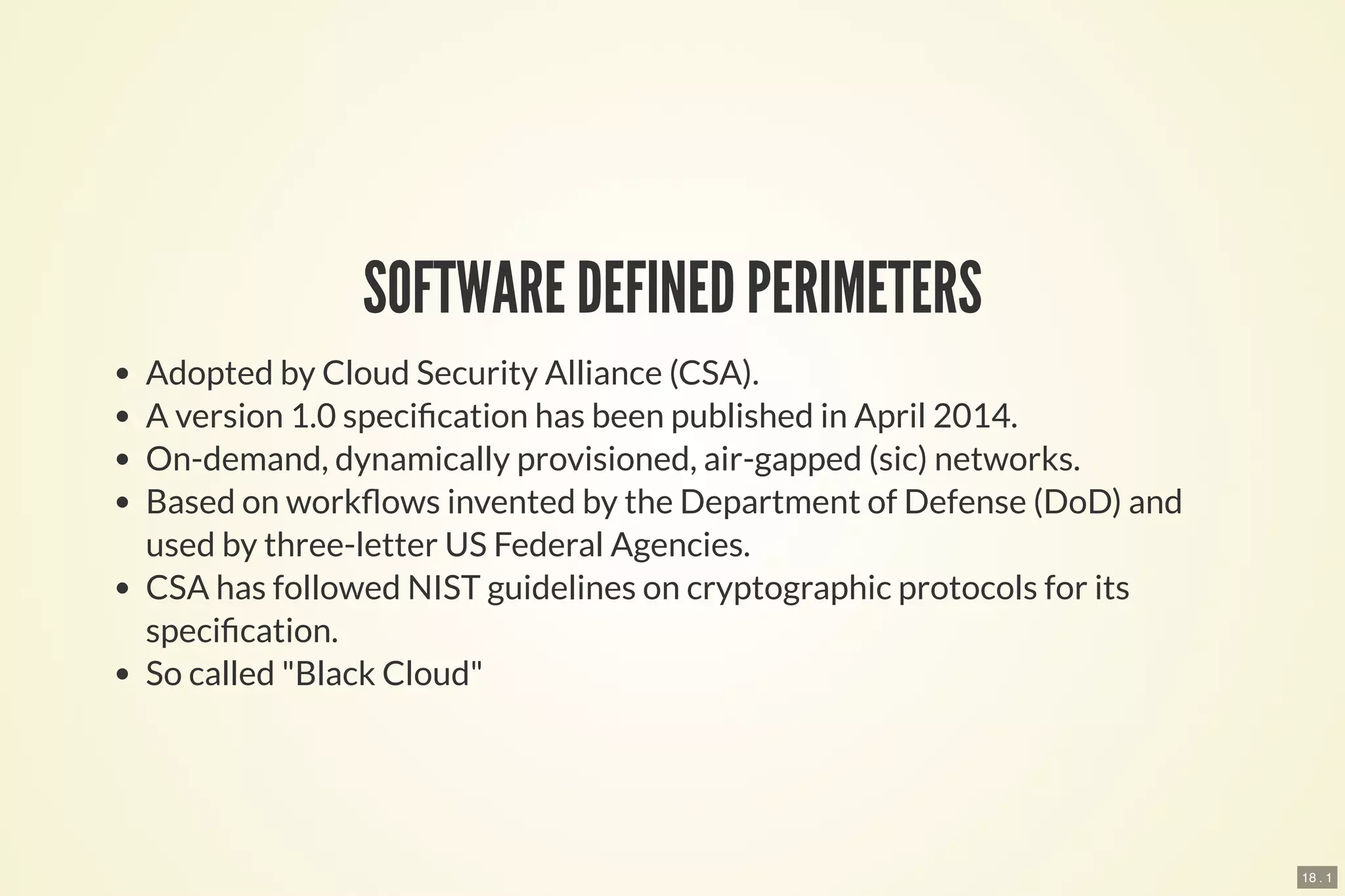

- 27. 18 . 1 SOFTWAREDEFINED PERIMETERS Adopted by Cloud Security Alliance (CSA). A version 1.0 speci cation has been published in April 2014. On-demand, dynamically provisioned, air-gapped (sic) networks. Based on work ows invented by the Department of Defense (DoD) and used by three-letter US Federal Agencies. CSA has followed NIST guidelines on cryptographic protocols for its speci cation. So called "Black Cloud"

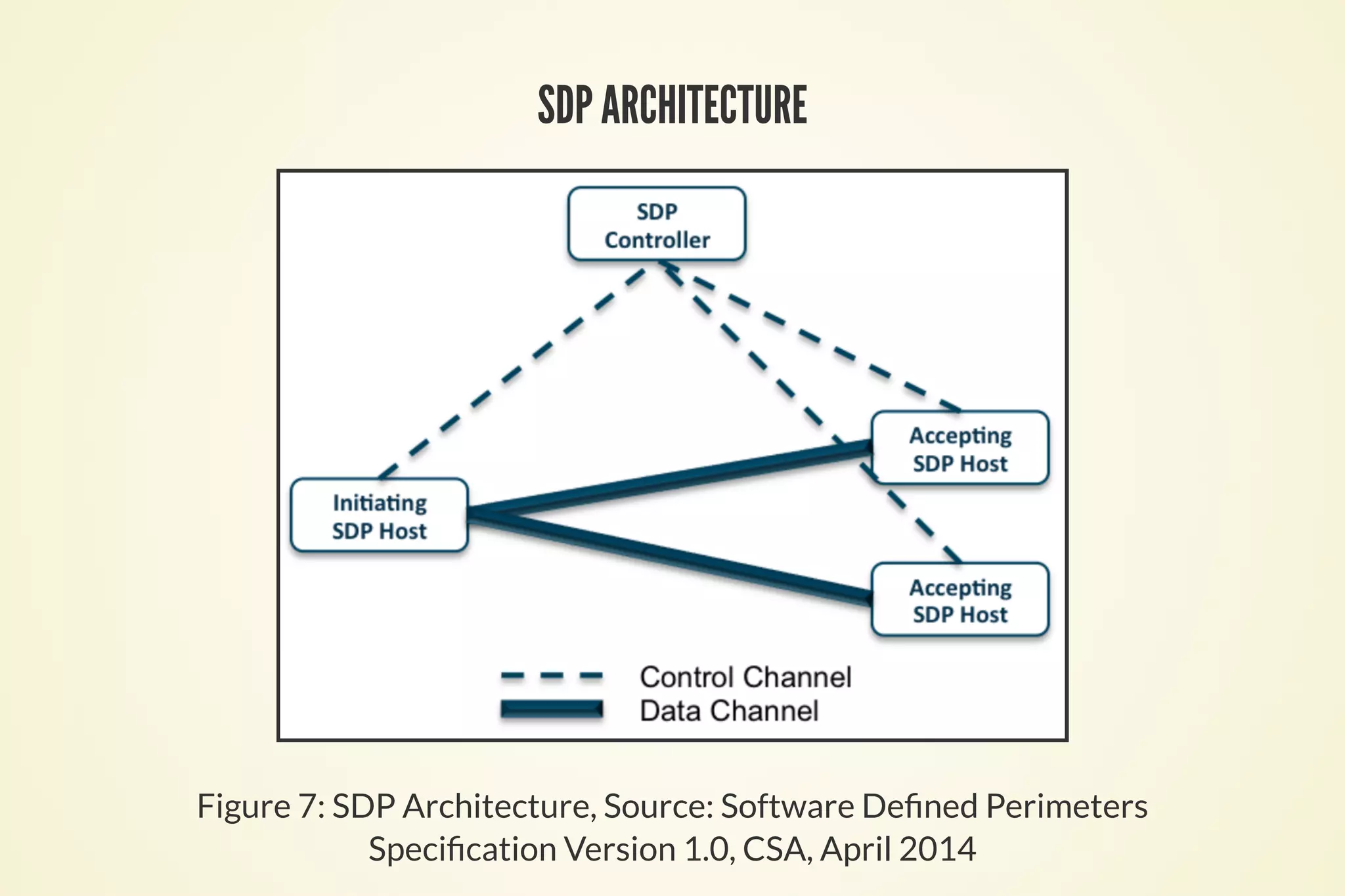

- 28. SDP ARCHITECTURE Figure 7:SDP Architecture, Source: Software De ned Perimeters Speci cation Version 1.0, CSA, April 2014
- 29. 19 . 120. 1 SDP ARCHITECTURE CONTROLS Figure 8: SDP Architecture with Controls, Source: Software De ned Perimeter - Hackathon Paper, CSA, April 2014

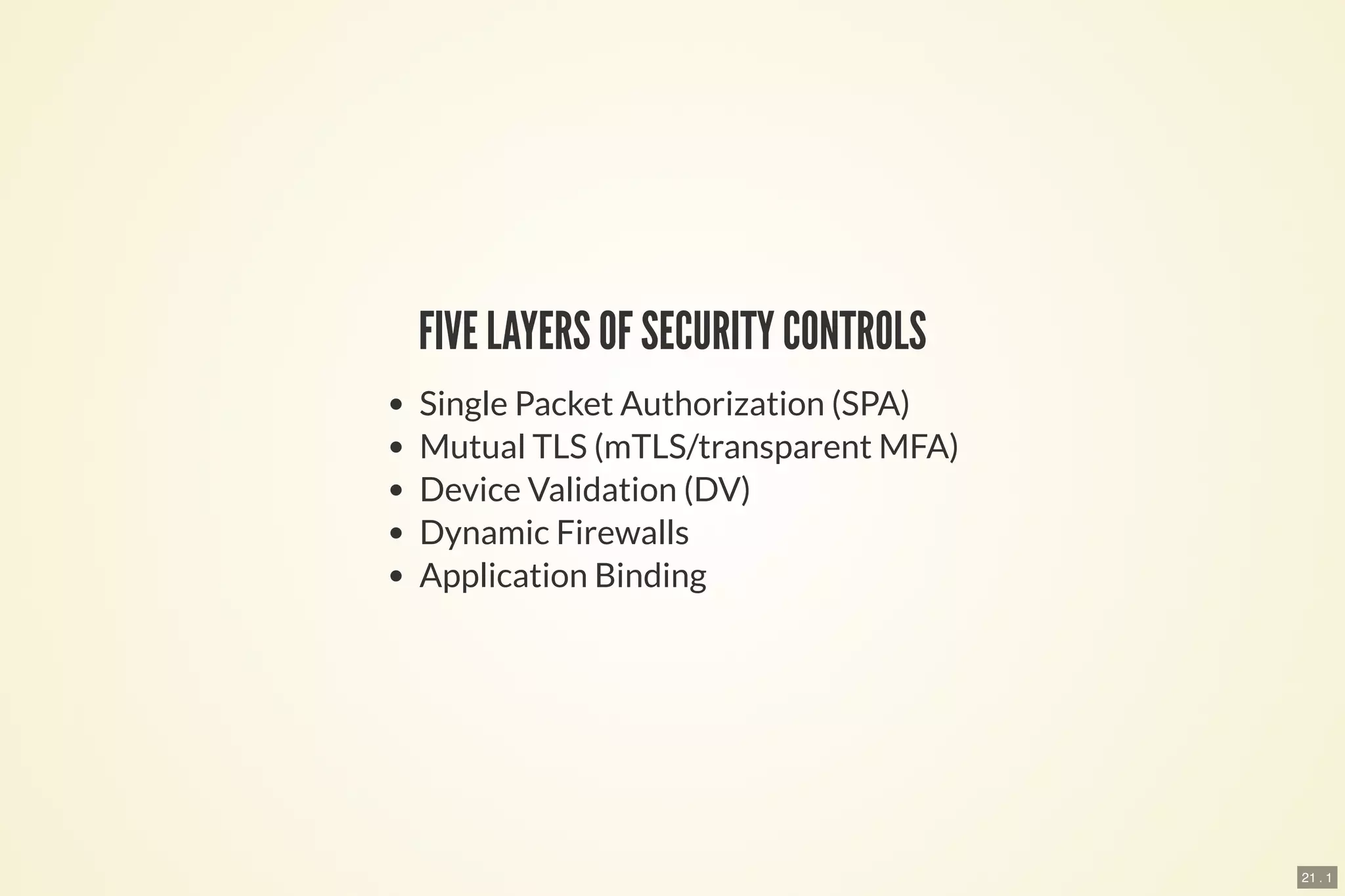

- 30. 21 . 1 FIVELAYERS OF SECURITY CONTROLS Single Packet Authorization (SPA) Mutual TLS (mTLS/transparent MFA) Device Validation (DV) Dynamic Firewalls Application Binding

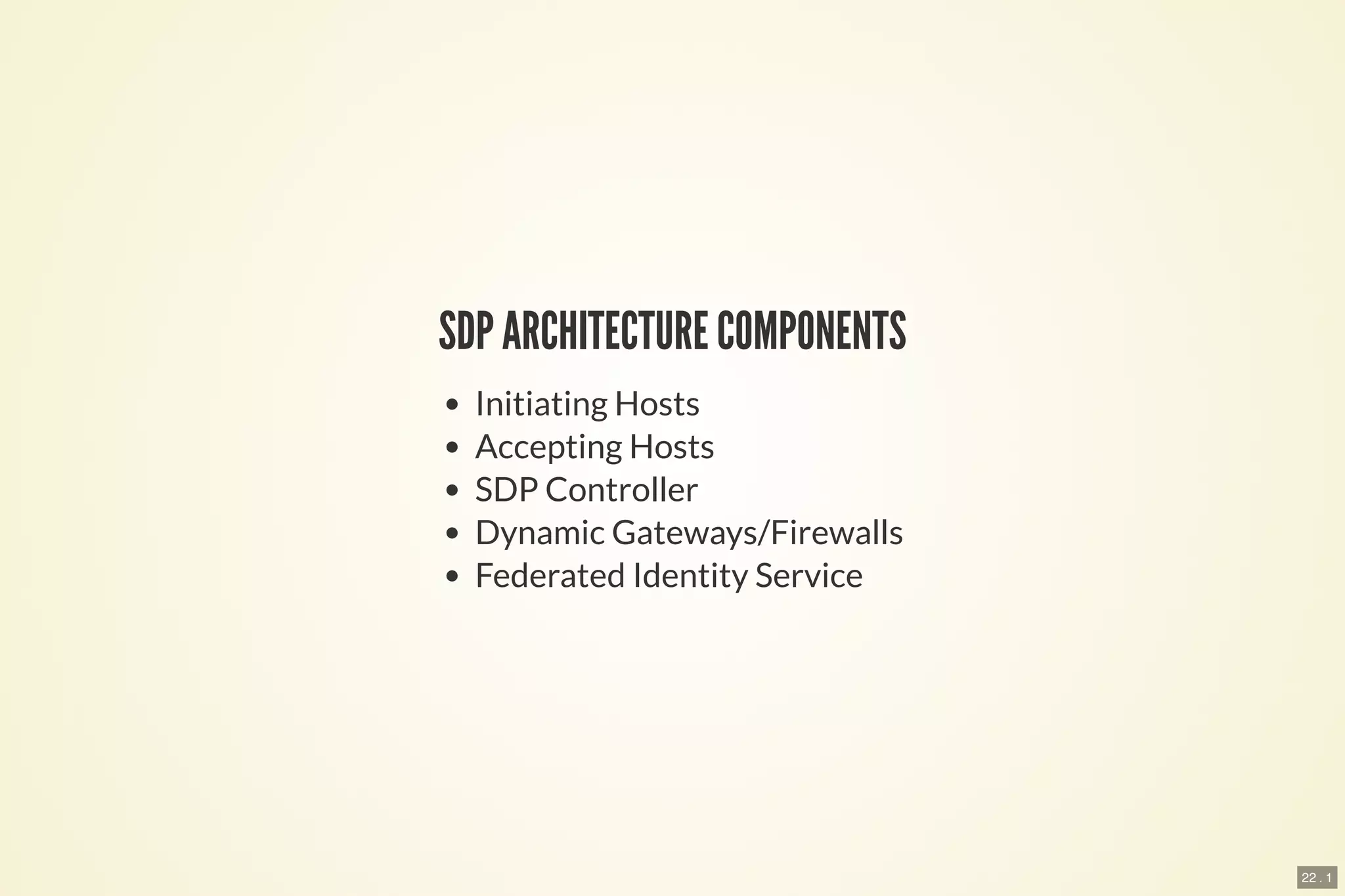

- 31. 22 . 1 SDPARCHITECTURE COMPONENTS Initiating Hosts Accepting Hosts SDP Controller Dynamic Gateways/Firewalls Federated Identity Service

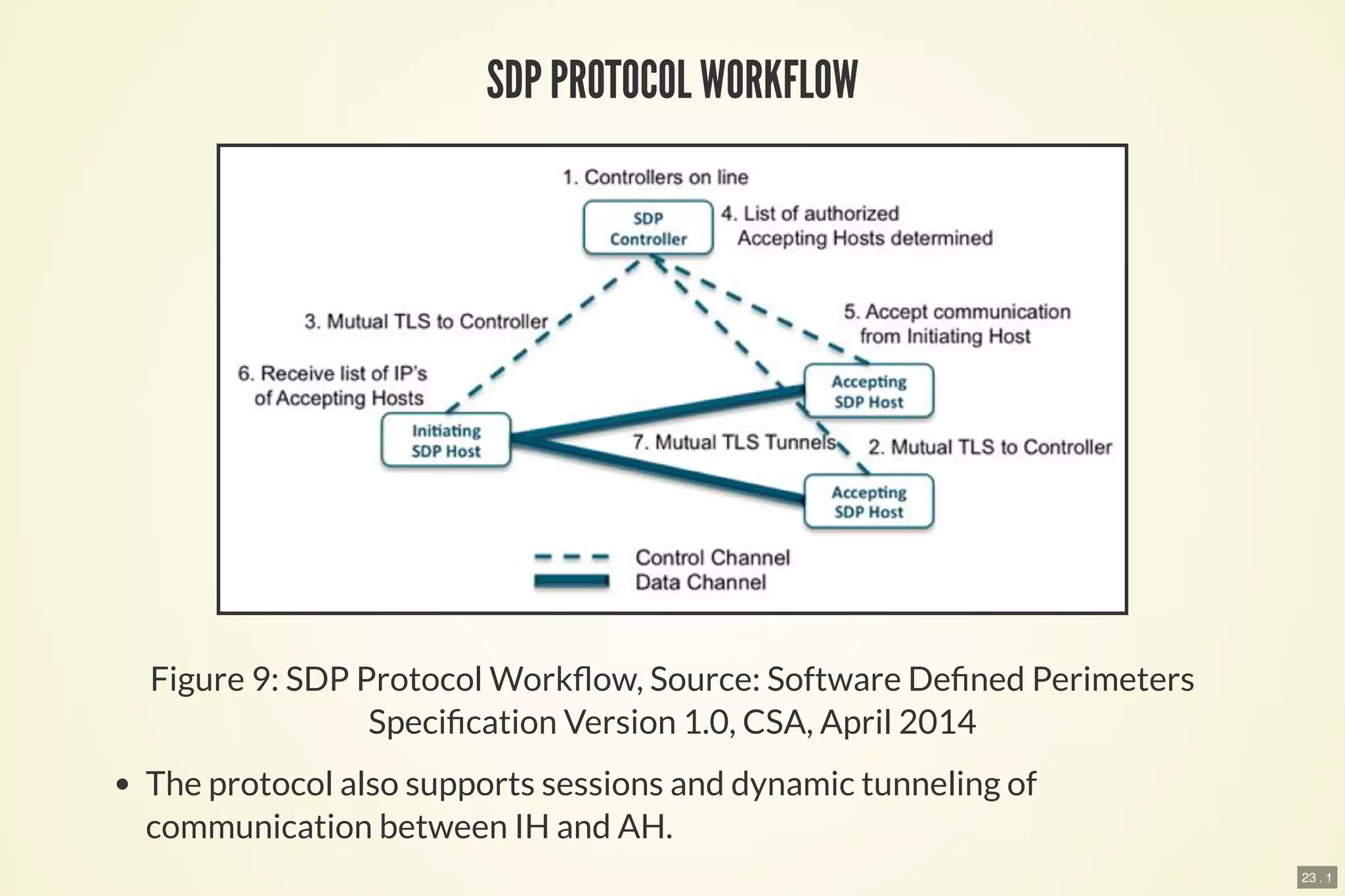

- 32. 23 . 1 SDPPROTOCOL WORKFLOW Figure 9: SDP Protocol Work ow, Source: Software De ned Perimeters Speci cation Version 1.0, CSA, April 2014 The protocol also supports sessions and dynamic tunneling of communication between IH and AH.

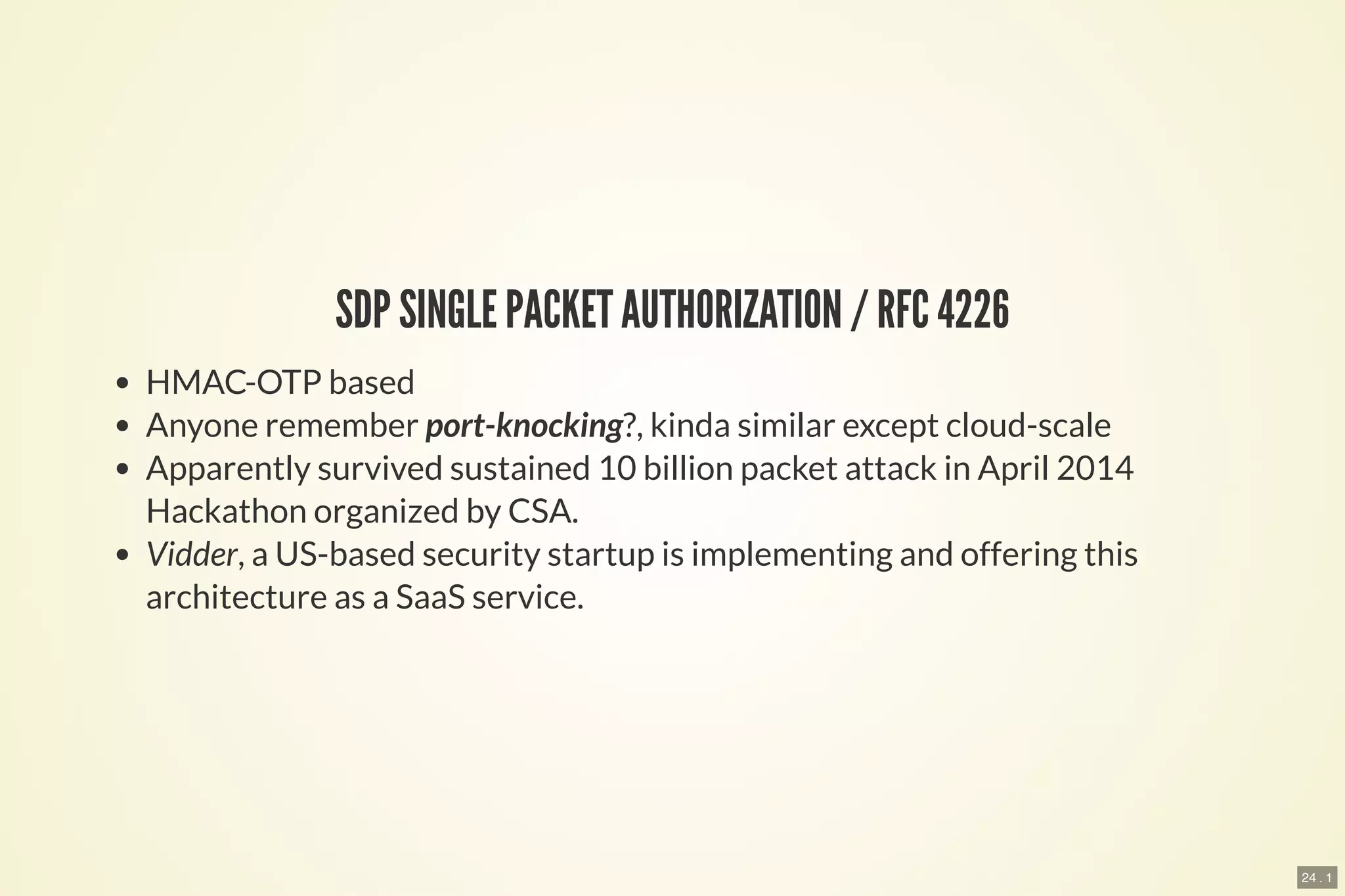

- 33. 24 . 1 SDPSINGLE PACKET AUTHORIZATION / RFC 4226 HMAC-OTP based Anyone remember port-knocking?, kinda similar except cloud-scale Apparently survived sustained 10 billion packet attack in April 2014 Hackathon organized by CSA. Vidder, a US-based security startup is implementing and offering this architecture as a SaaS service.

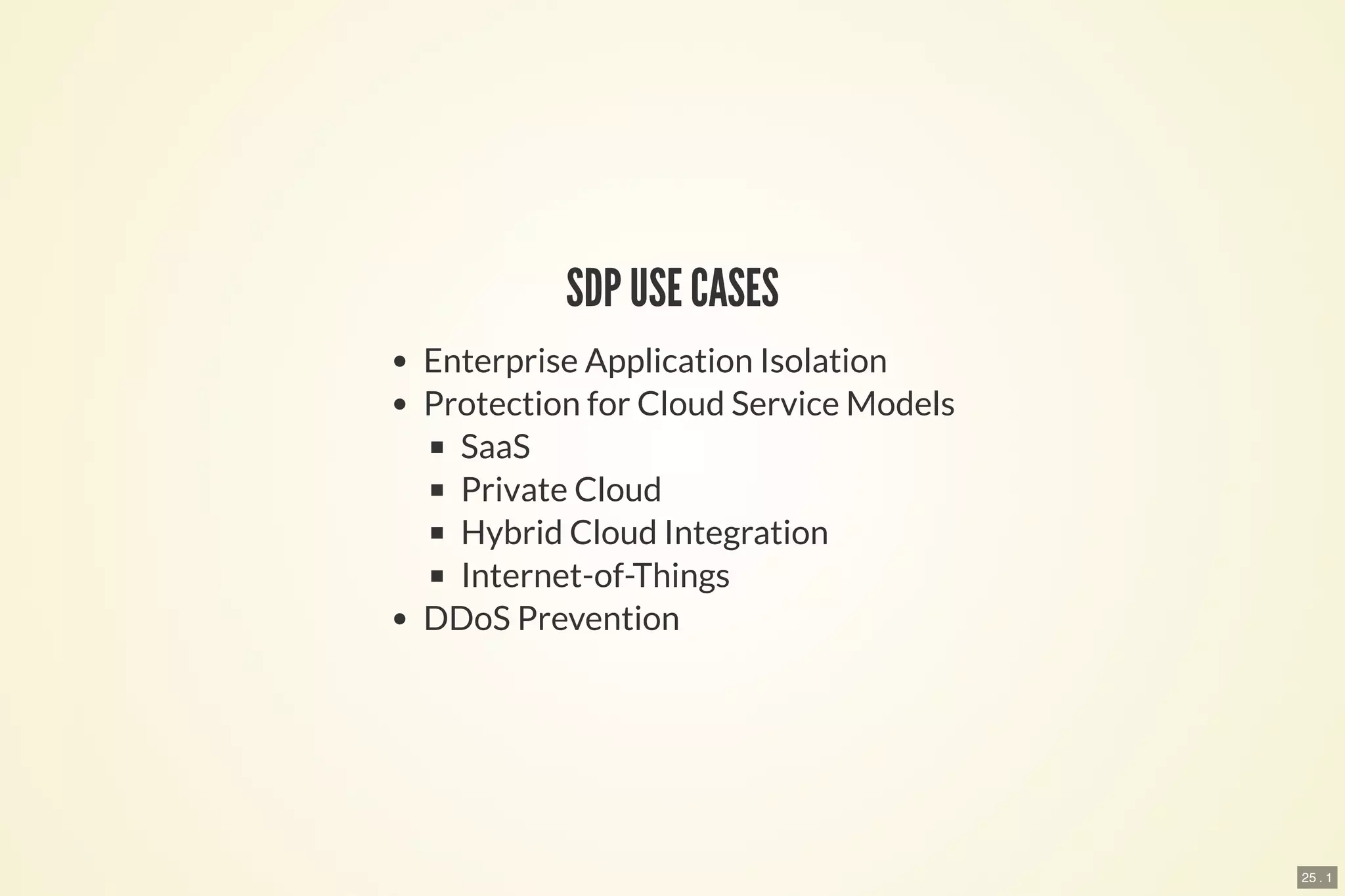

- 34. 25 . 1 SDPUSE CASES Enterprise Application Isolation Protection for Cloud Service Models SaaS Private Cloud Hybrid Cloud Integration Internet-of-Things DDoS Prevention
- 35. 26 . 1 OBLIGATORYMEME 2 Figure 10: Wait did you just say DDoS?, I can stop bullets?!

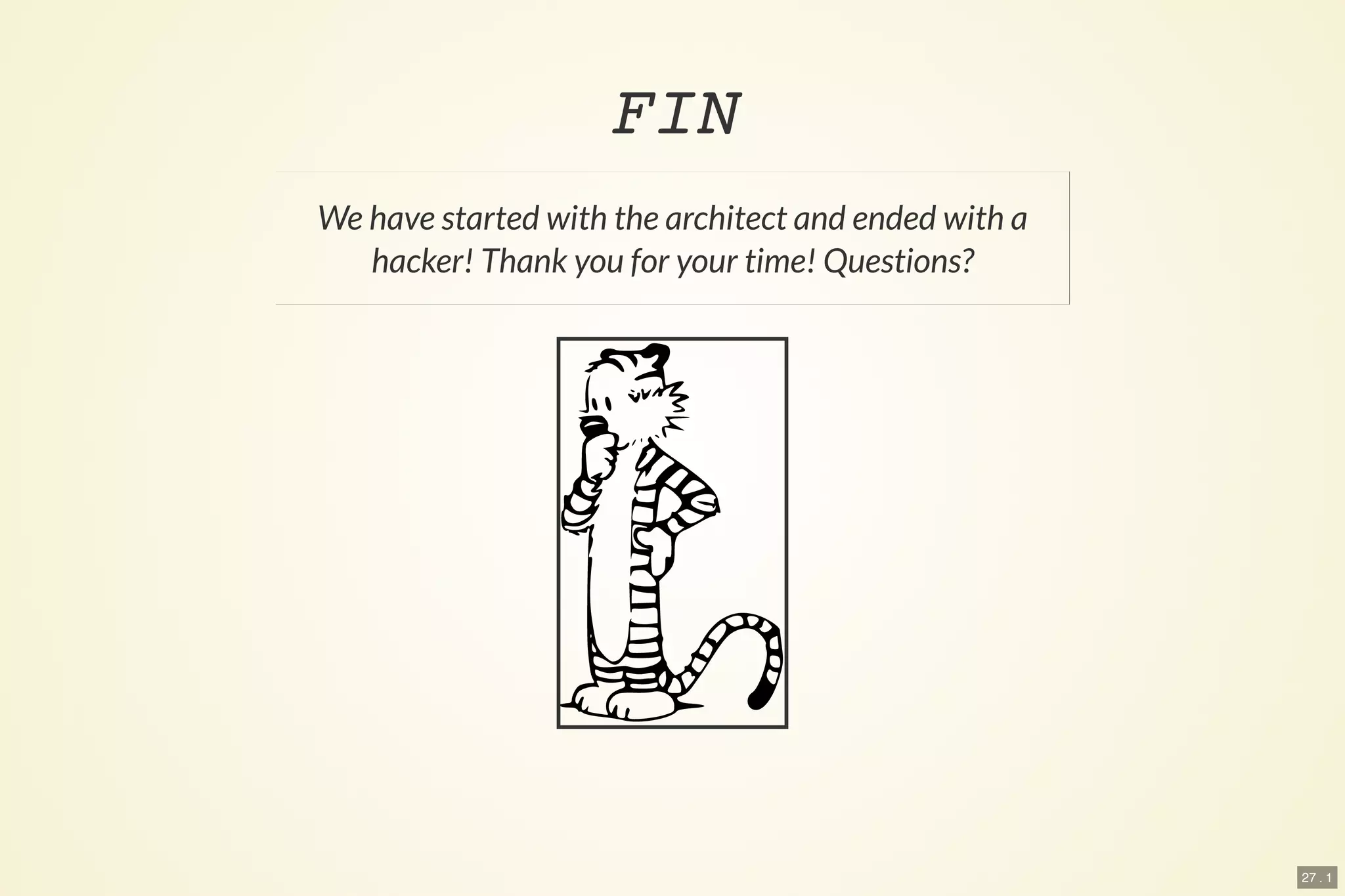

- 36. 27 . 1 FIN Wehave started with the architect and ended with a hacker! Thank you for your time! Questions?

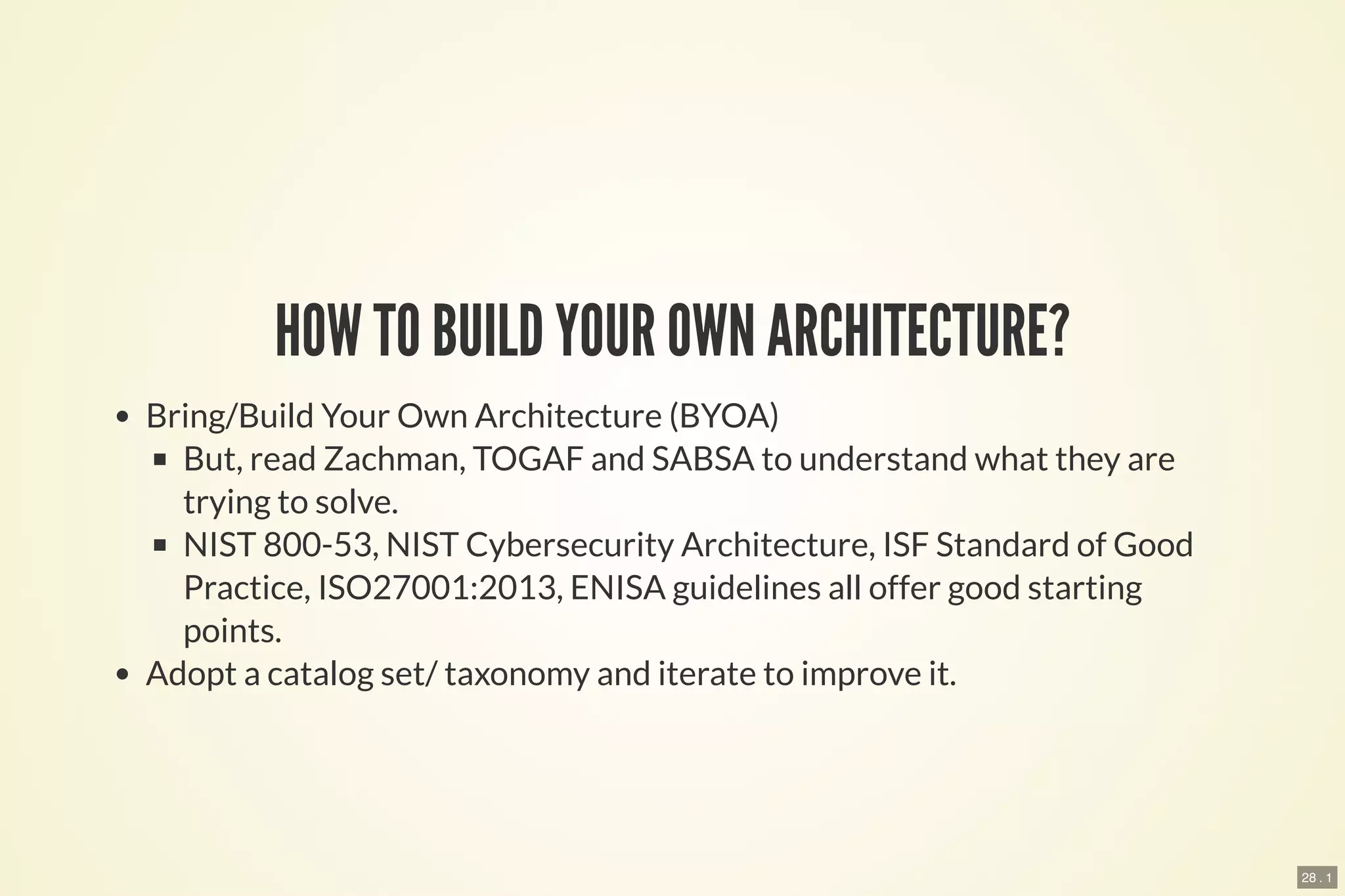

- 37. 28 . 1 HOWTO BUILD YOUR OWN ARCHITECTURE? Bring/Build Your Own Architecture (BYOA) But, read Zachman, TOGAF and SABSA to understand what they are trying to solve. NIST 800-53, NIST Cybersecurity Architecture, ISF Standard of Good Practice, ISO27001:2013, ENISA guidelines all offer good starting points. Adopt a catalog set/ taxonomy and iterate to improve it.

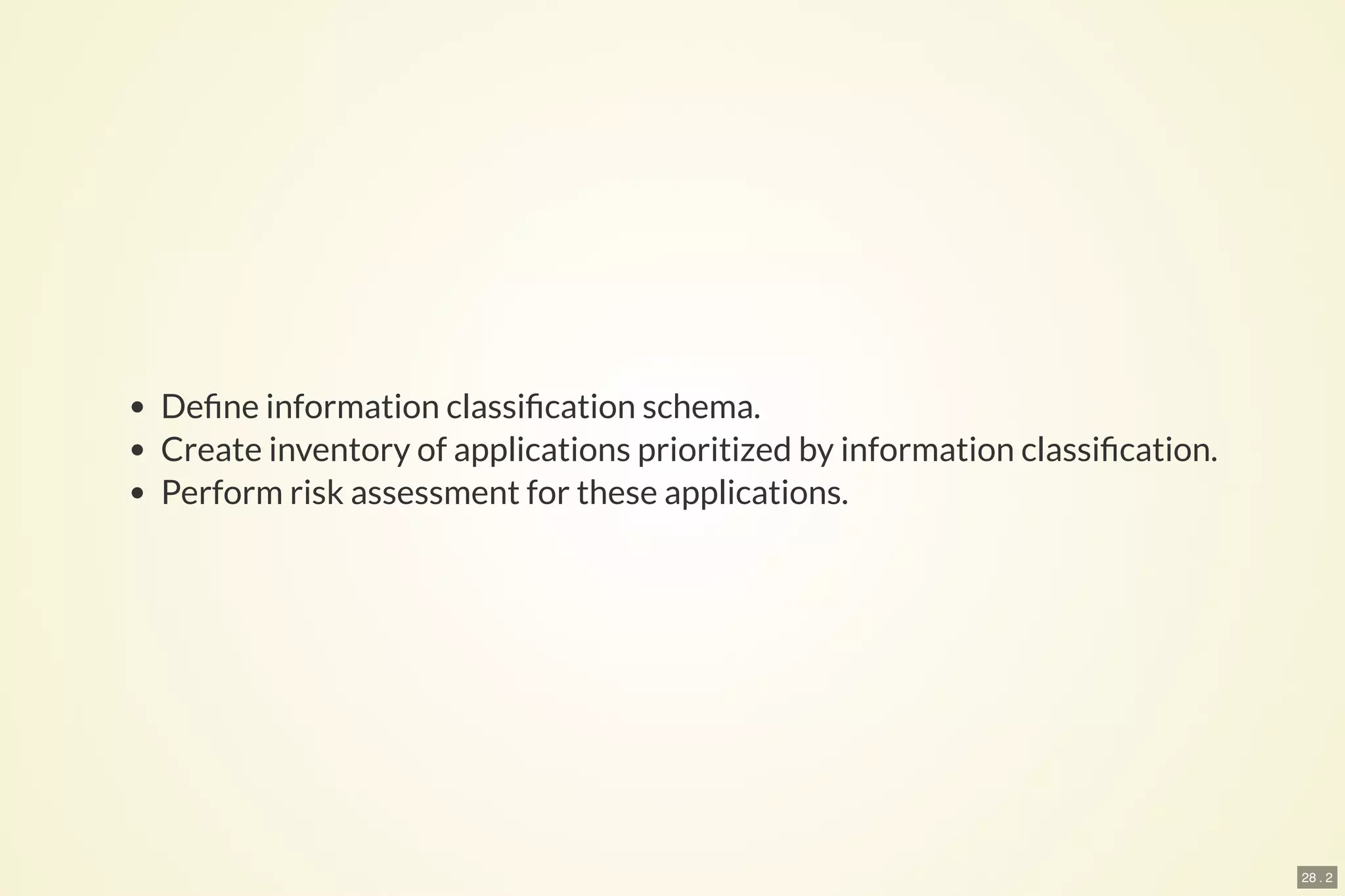

- 38. 28 . 2 Dene information classi cation schema. Create inventory of applications prioritized by information classi cation. Perform risk assessment for these applications.

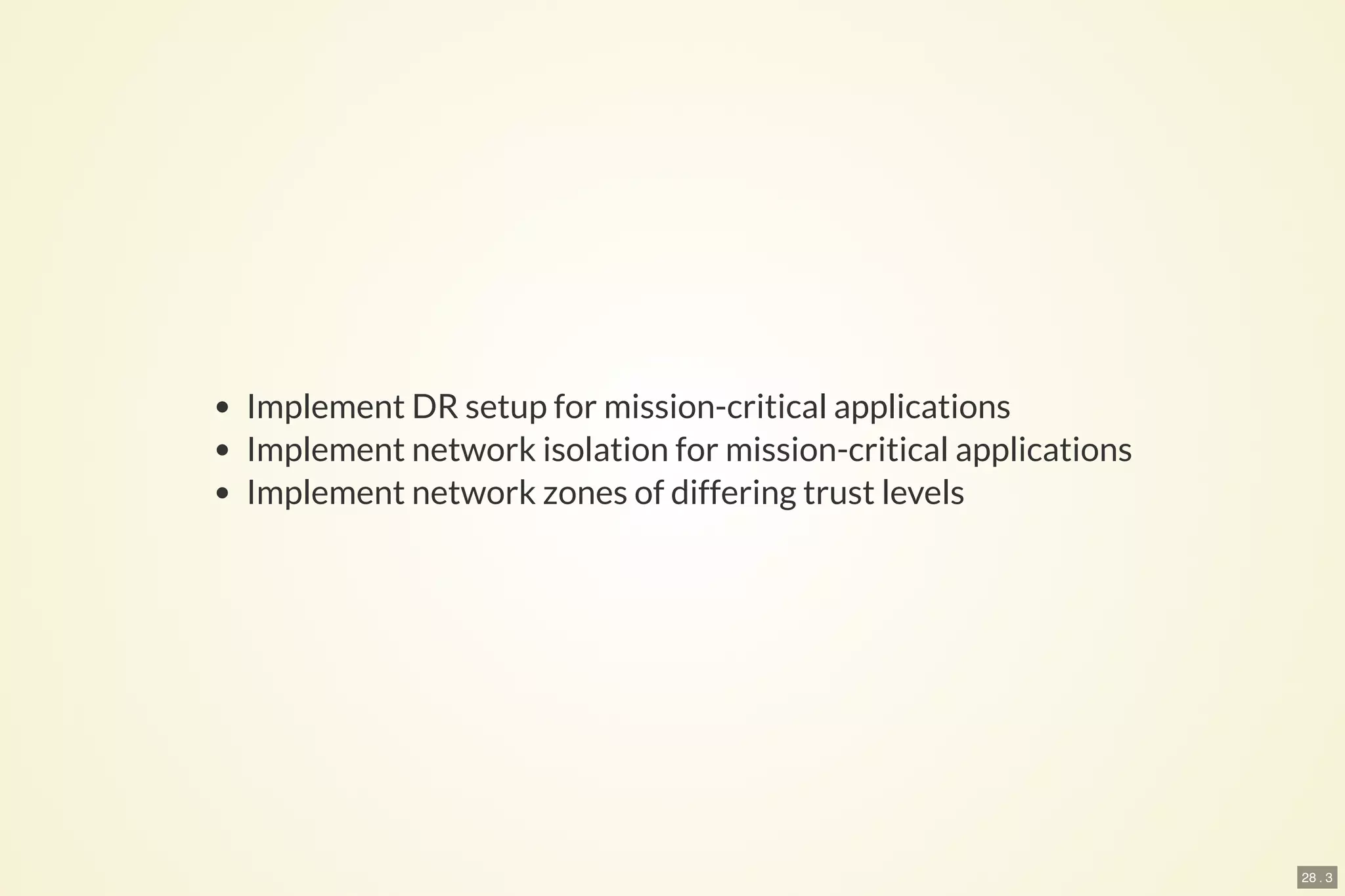

- 39. 28 . 3 ImplementDR setup for mission-critical applications Implement network isolation for mission-critical applications Implement network zones of differing trust levels

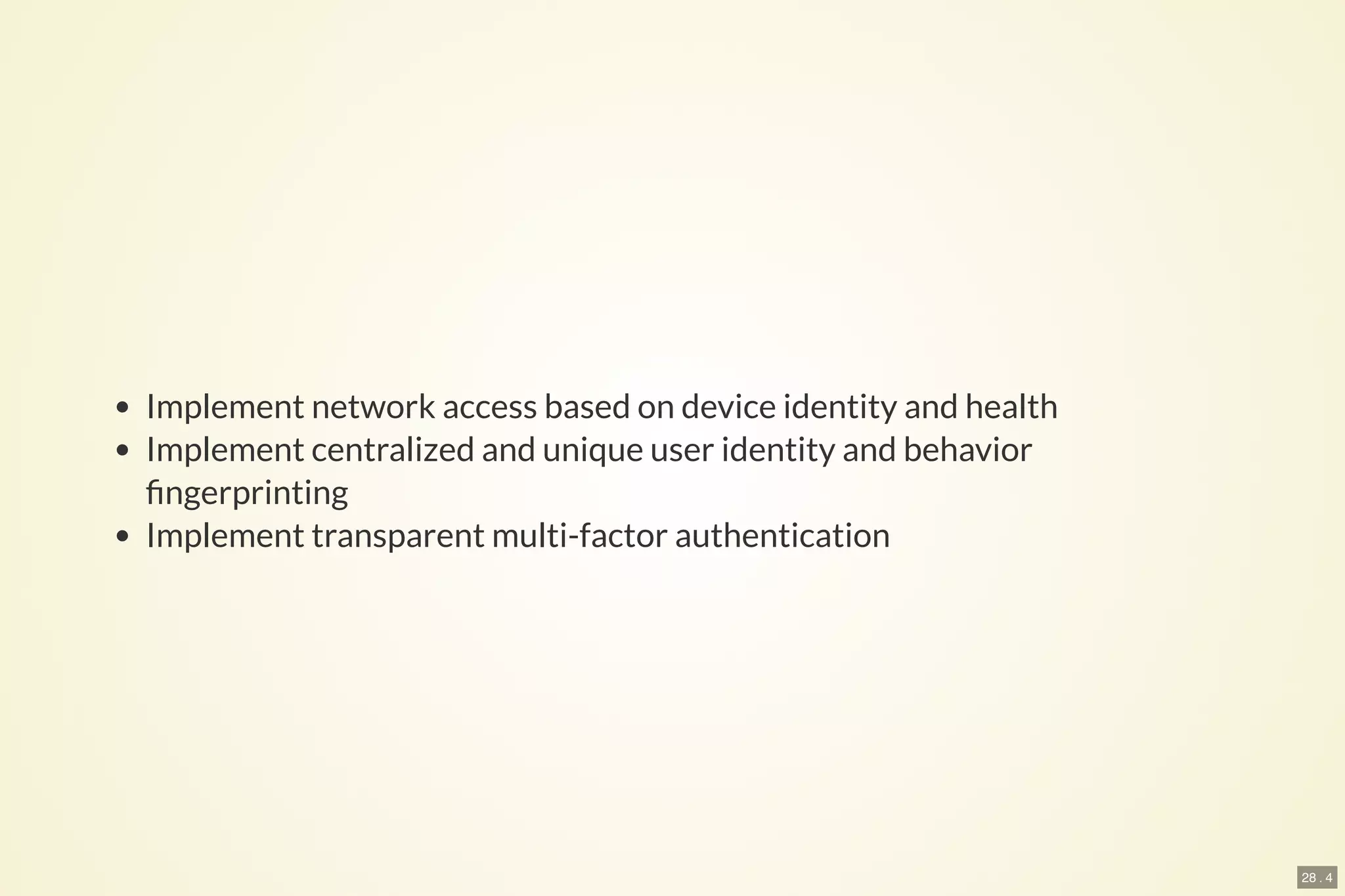

- 40. 28 . 4 Implementnetwork access based on device identity and health Implement centralized and unique user identity and behavior ngerprinting Implement transparent multi-factor authentication

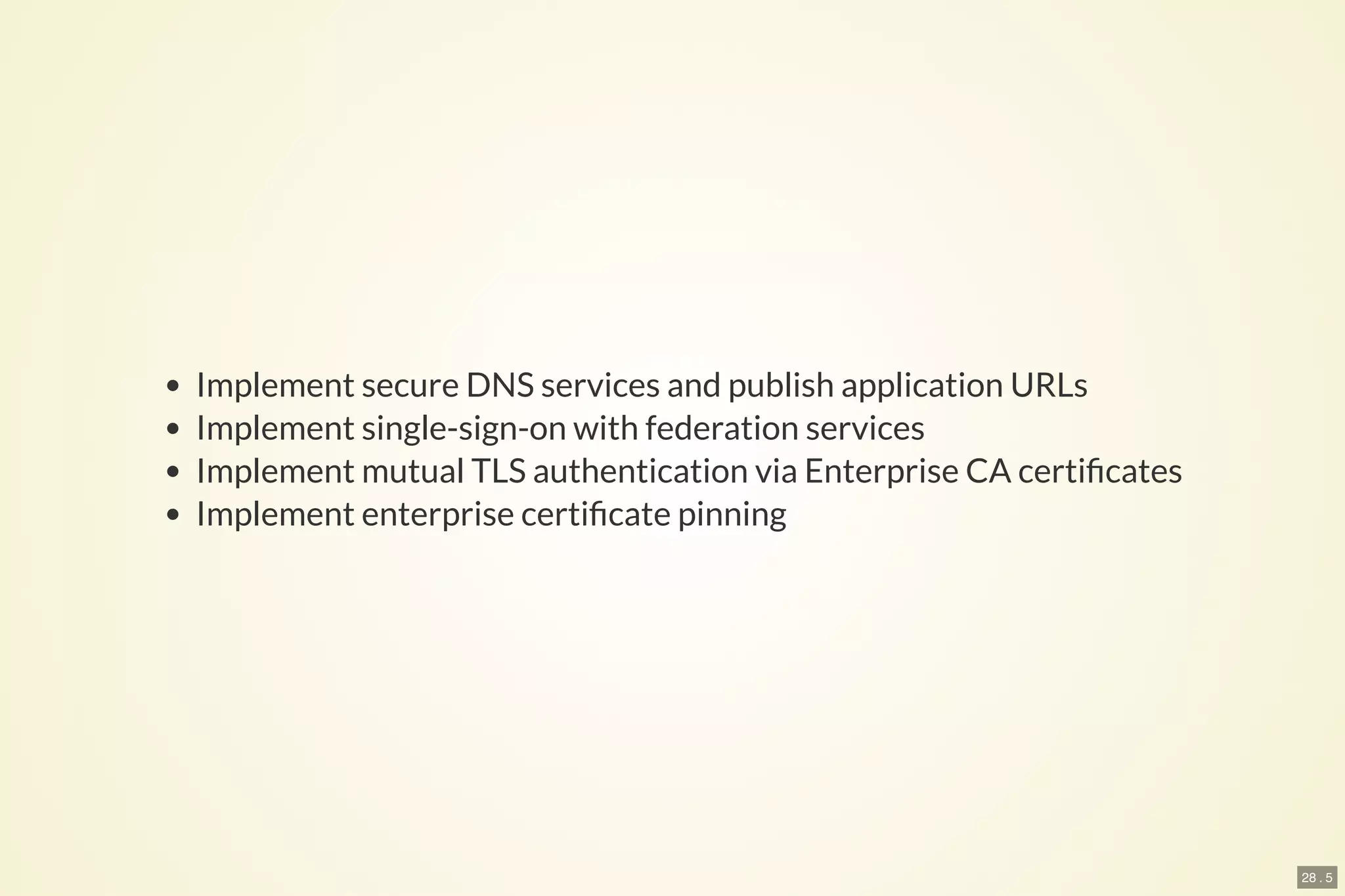

- 41. 28 . 5 Implementsecure DNS services and publish application URLs Implement single-sign-on with federation services Implement mutual TLS authentication via Enterprise CA certi cates Implement enterprise certi cate pinning

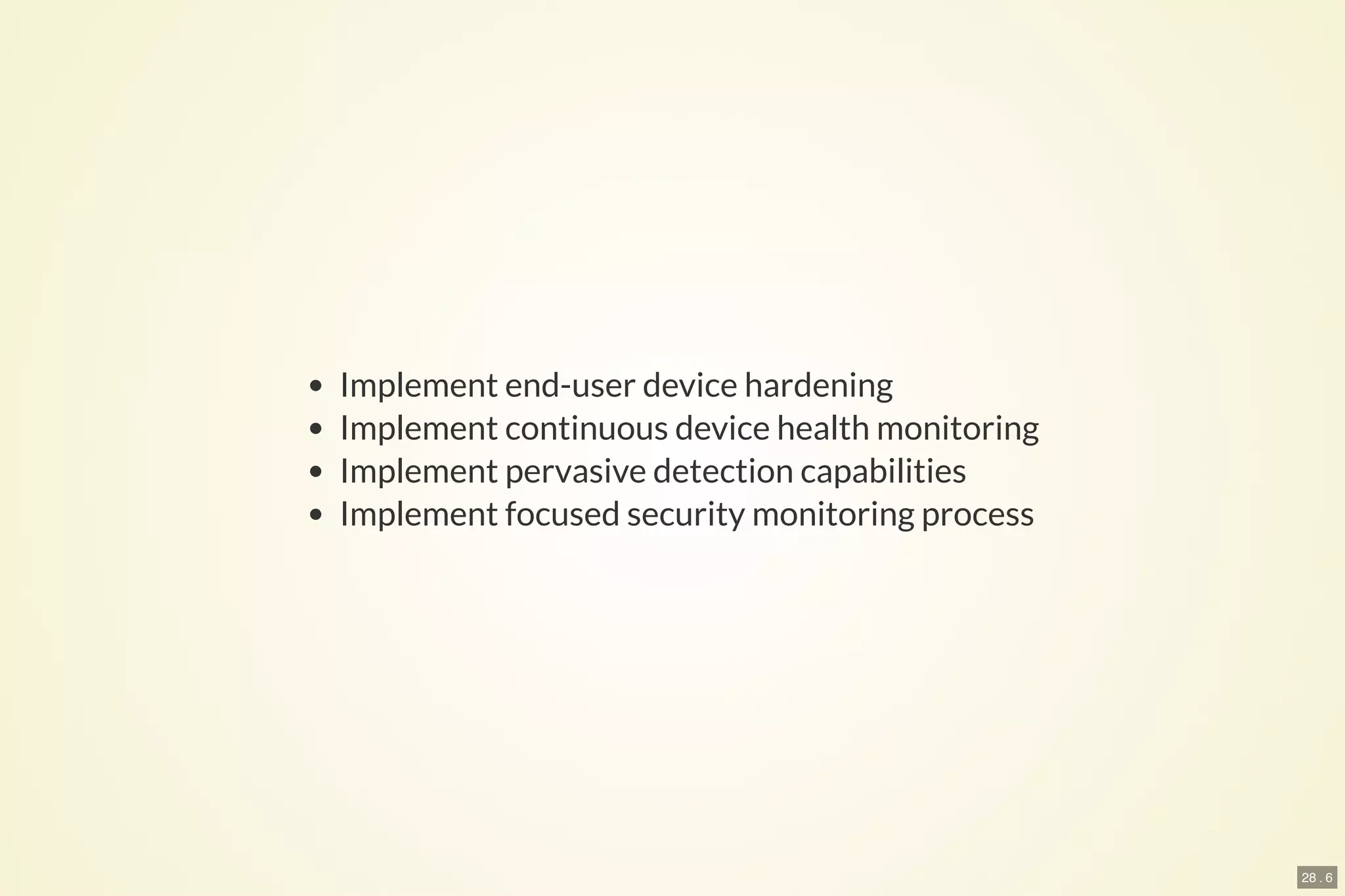

- 42. 28 . 6 Implementend-user device hardening Implement continuous device health monitoring Implement pervasive detection capabilities Implement focused security monitoring process

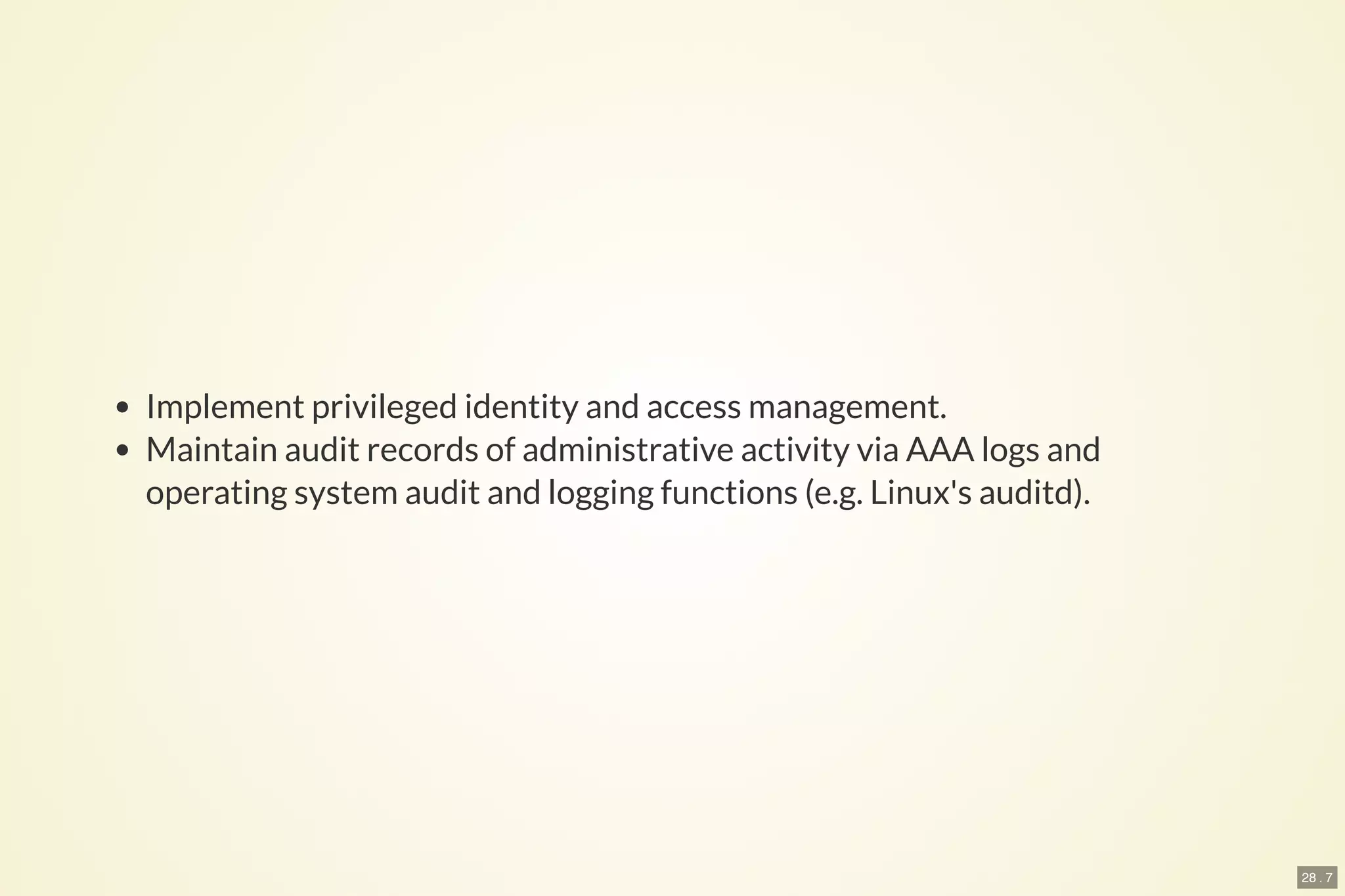

- 43. 28 . 7 Implementprivileged identity and access management. Maintain audit records of administrative activity via AAA logs and operating system audit and logging functions (e.g. Linux's auditd).

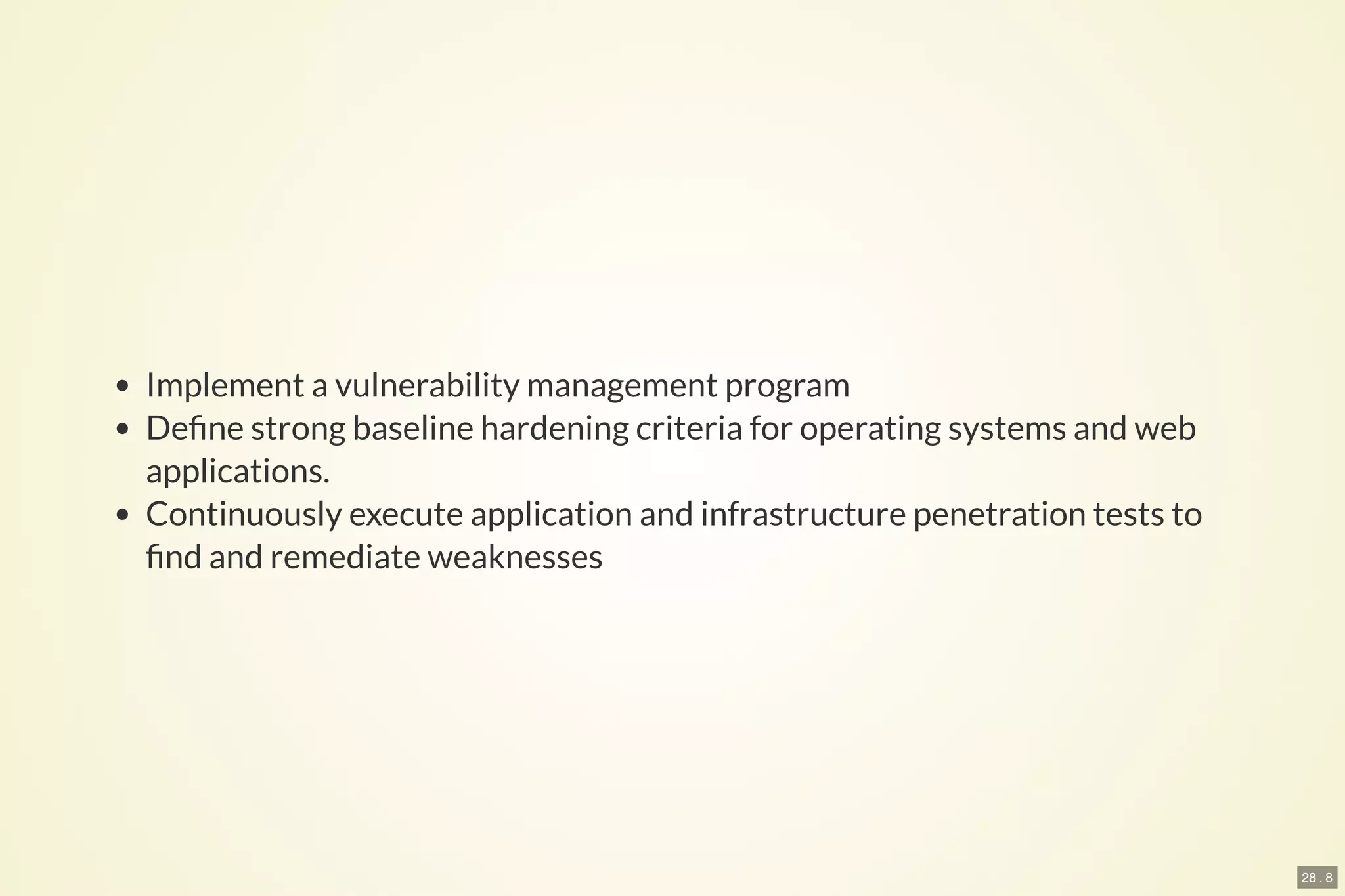

- 44. 28 . 8 Implementa vulnerability management program De ne strong baseline hardening criteria for operating systems and web applications. Continuously execute application and infrastructure penetration tests to nd and remediate weaknesses

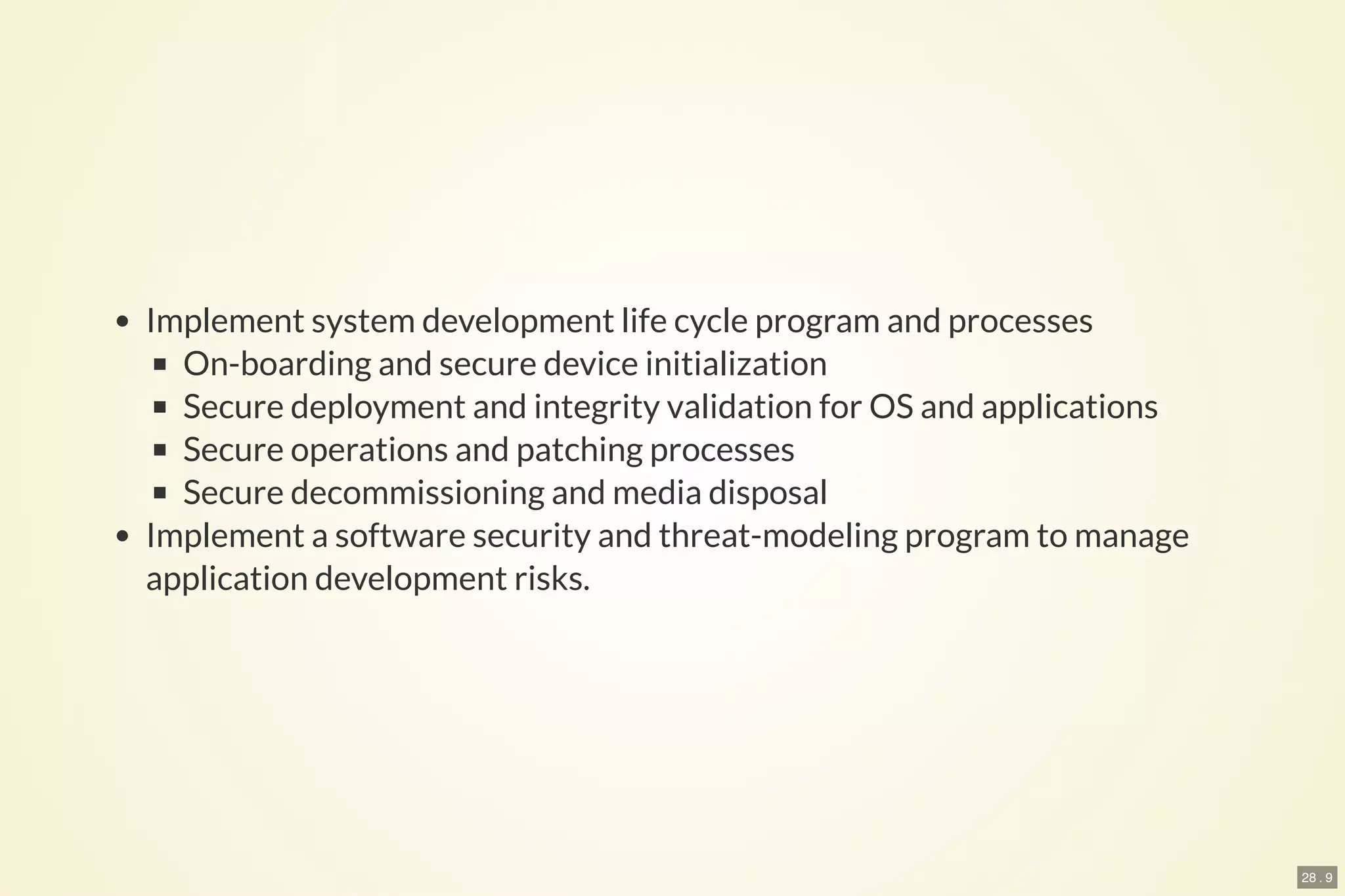

- 45. 28 . 9 Implementsystem development life cycle program and processes On-boarding and secure device initialization Secure deployment and integrity validation for OS and applications Secure operations and patching processes Secure decommissioning and media disposal Implement a software security and threat-modeling program to manage application development risks.

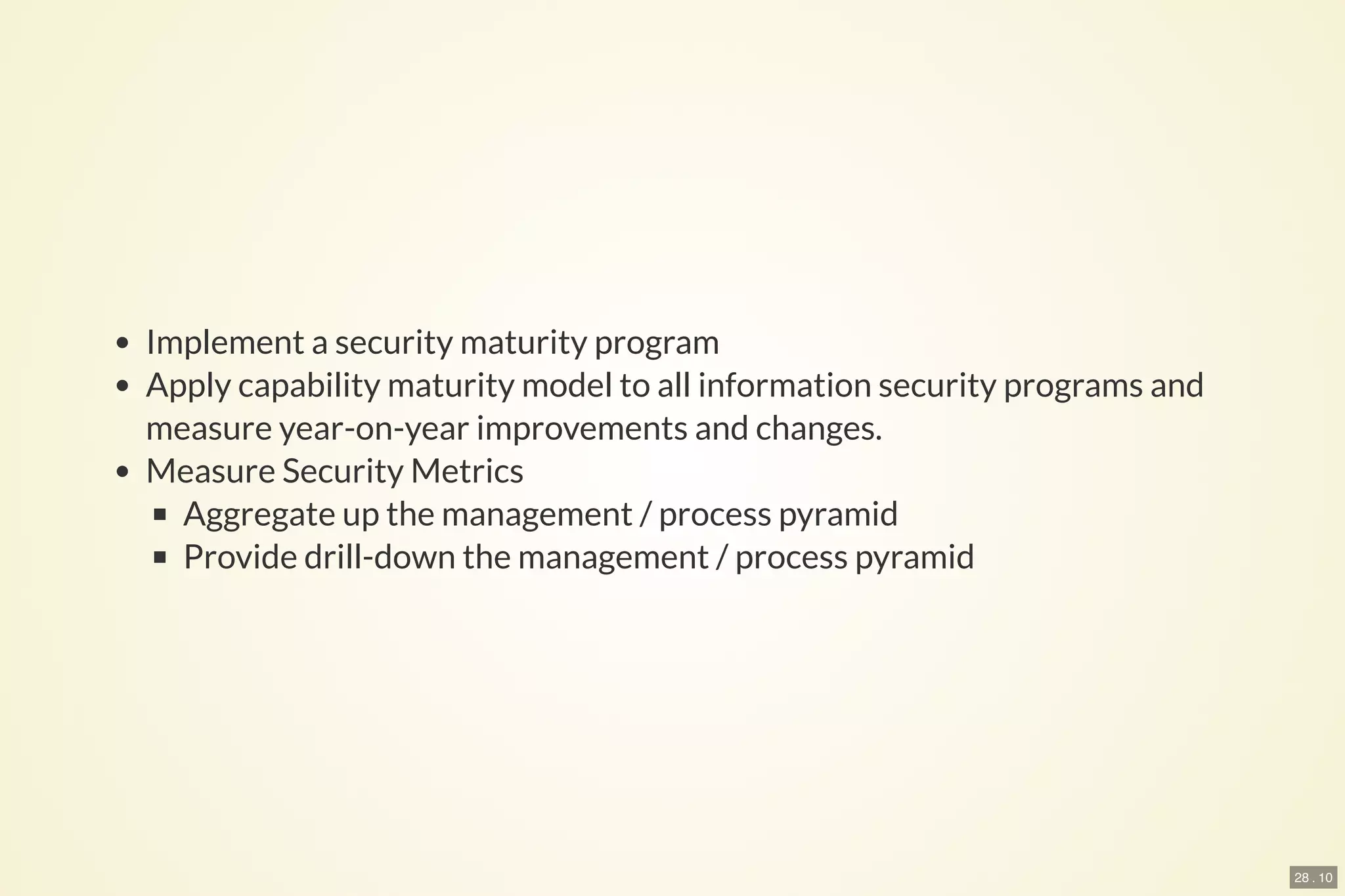

- 46. 28 . 10 Implementa security maturity program Apply capability maturity model to all information security programs and measure year-on-year improvements and changes. Measure Security Metrics Aggregate up the management / process pyramid Provide drill-down the management / process pyramid

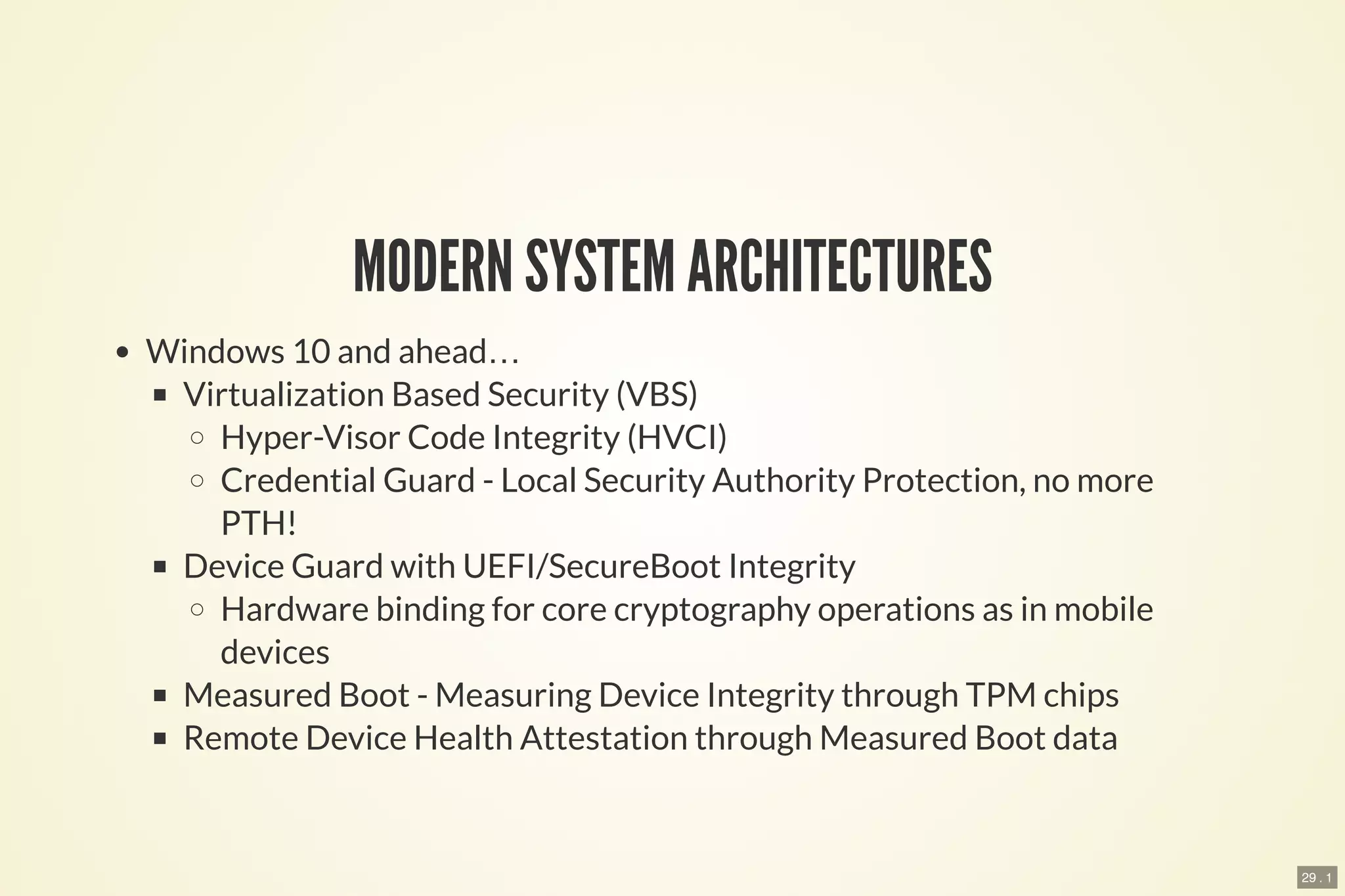

- 47. 29 . 1 MODERNSYSTEM ARCHITECTURES Windows 10 and ahead… Virtualization Based Security (VBS) Hyper-Visor Code Integrity (HVCI) Credential Guard - Local Security Authority Protection, no more PTH! Device Guard with UEFI/SecureBoot Integrity Hardware binding for core cryptography operations as in mobile devices Measured Boot - Measuring Device Integrity through TPM chips Remote Device Health Attestation through Measured Boot data

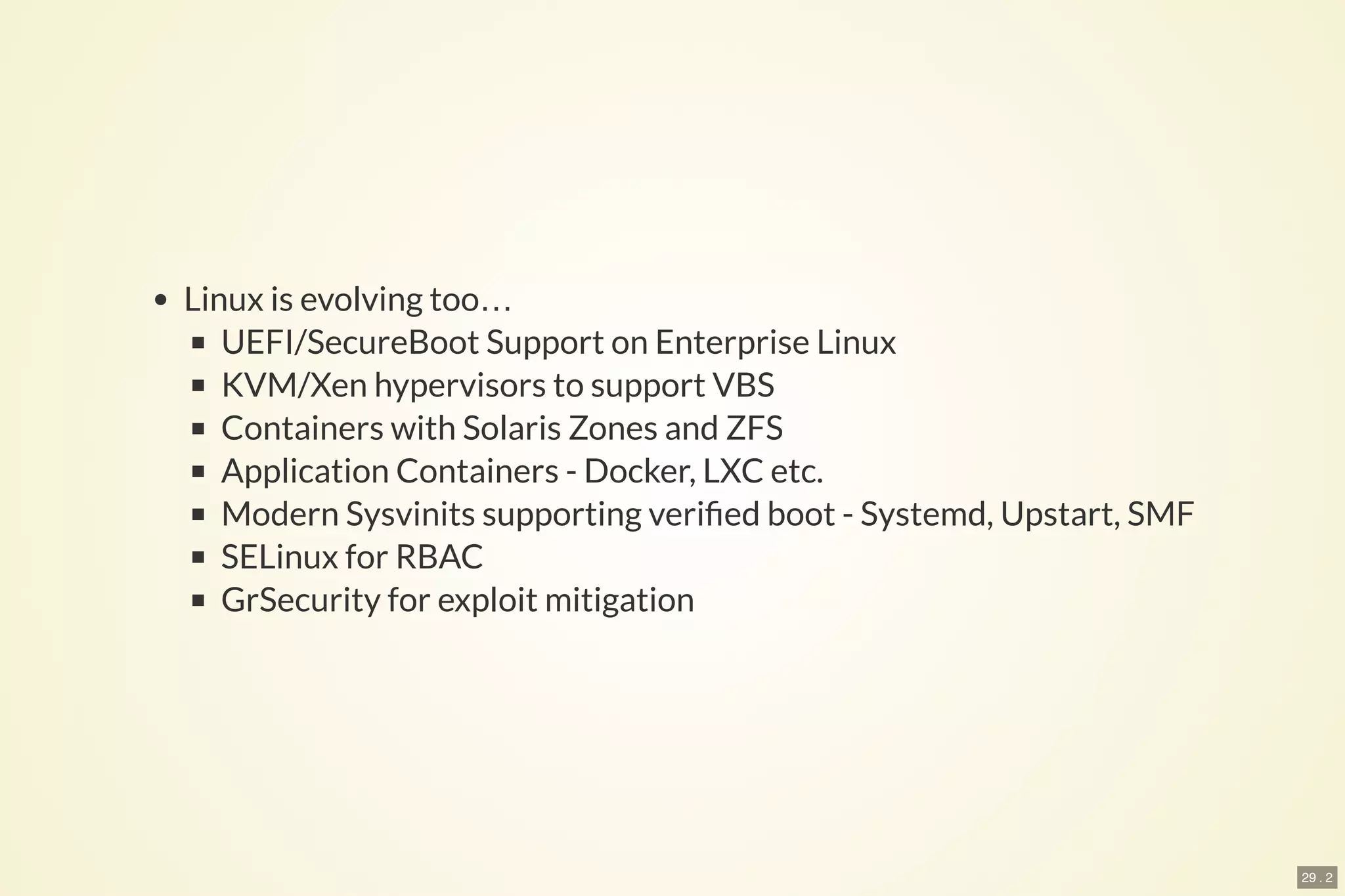

- 48. 29 . 2 Linuxis evolving too… UEFI/SecureBoot Support on Enterprise Linux KVM/Xen hypervisors to support VBS Containers with Solaris Zones and ZFS Application Containers - Docker, LXC etc. Modern Sysvinits supporting veri ed boot - Systemd, Upstart, SMF SELinux for RBAC GrSecurity for exploit mitigation
