PlantUML

PlantUML

• 1.
  PlantUML 2014-7, LeoLiang
• 2.

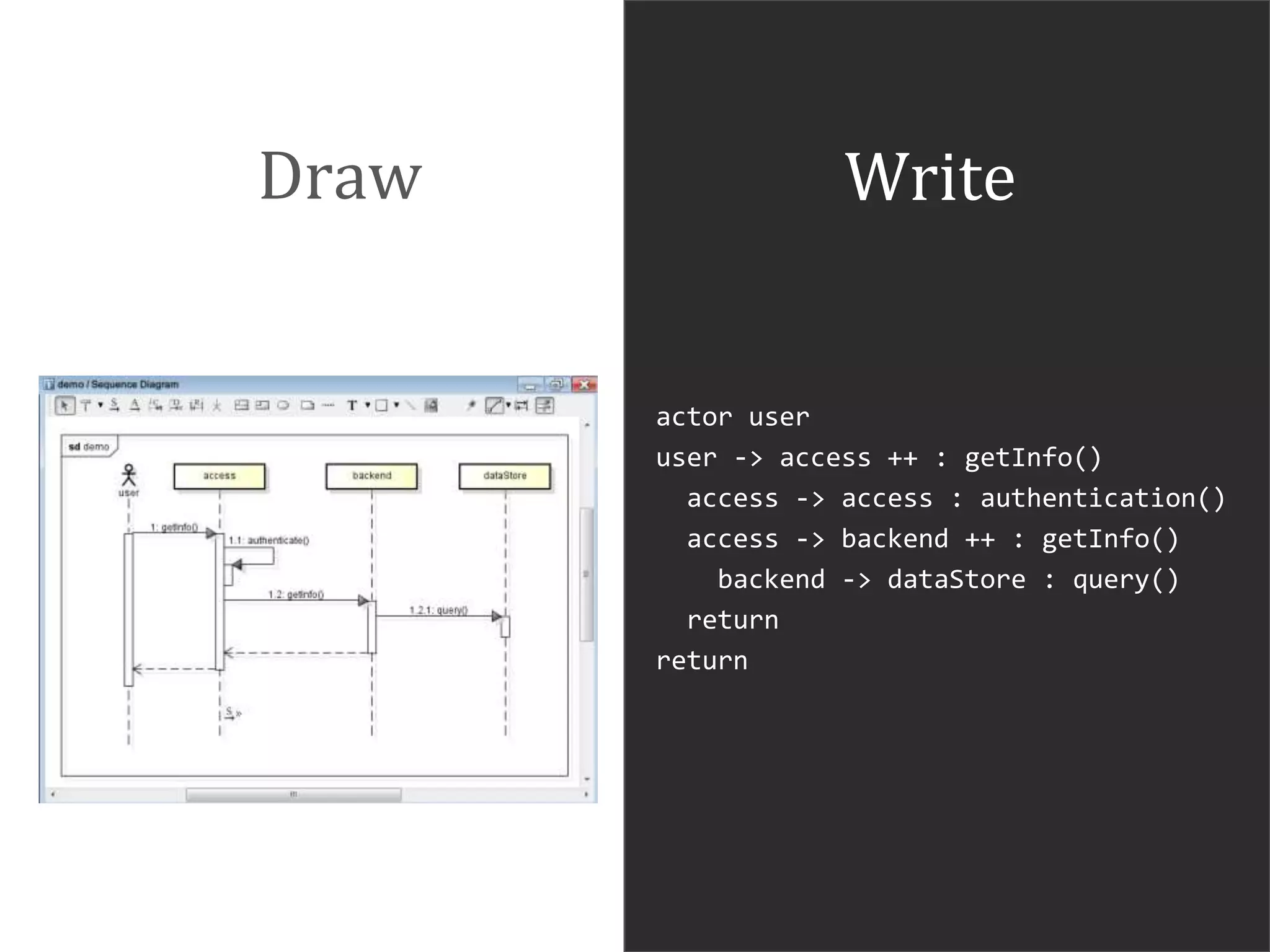

  Draw Write actoruser user -> access ++ : getInfo() access -> access : authentication() access -> backend ++ : getInfo() backend -> dataStore : query() return return
• 3.

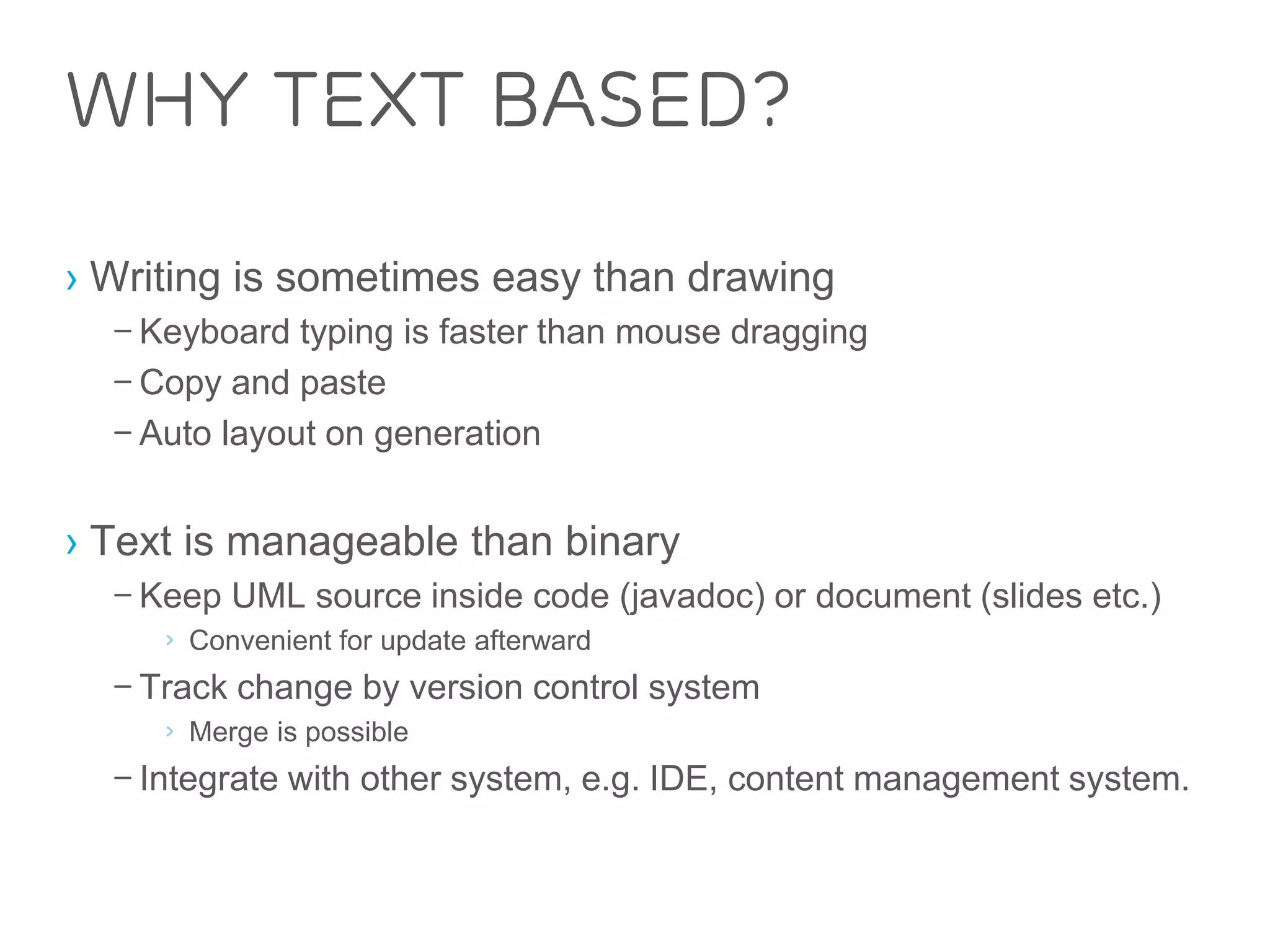

  Why Text Based? › Writing is sometimes easy than drawing – Keyboard typing is faster than mouse dragging – Copy and paste – Auto layout on generation › Text is manageable than binary – Keep UML source inside code (javadoc) or document (slides etc.) › Convenient for update afterward – Track change by version control system › Merge is possible – Integrate with other system, e.g. IDE, content management system.
• 4.

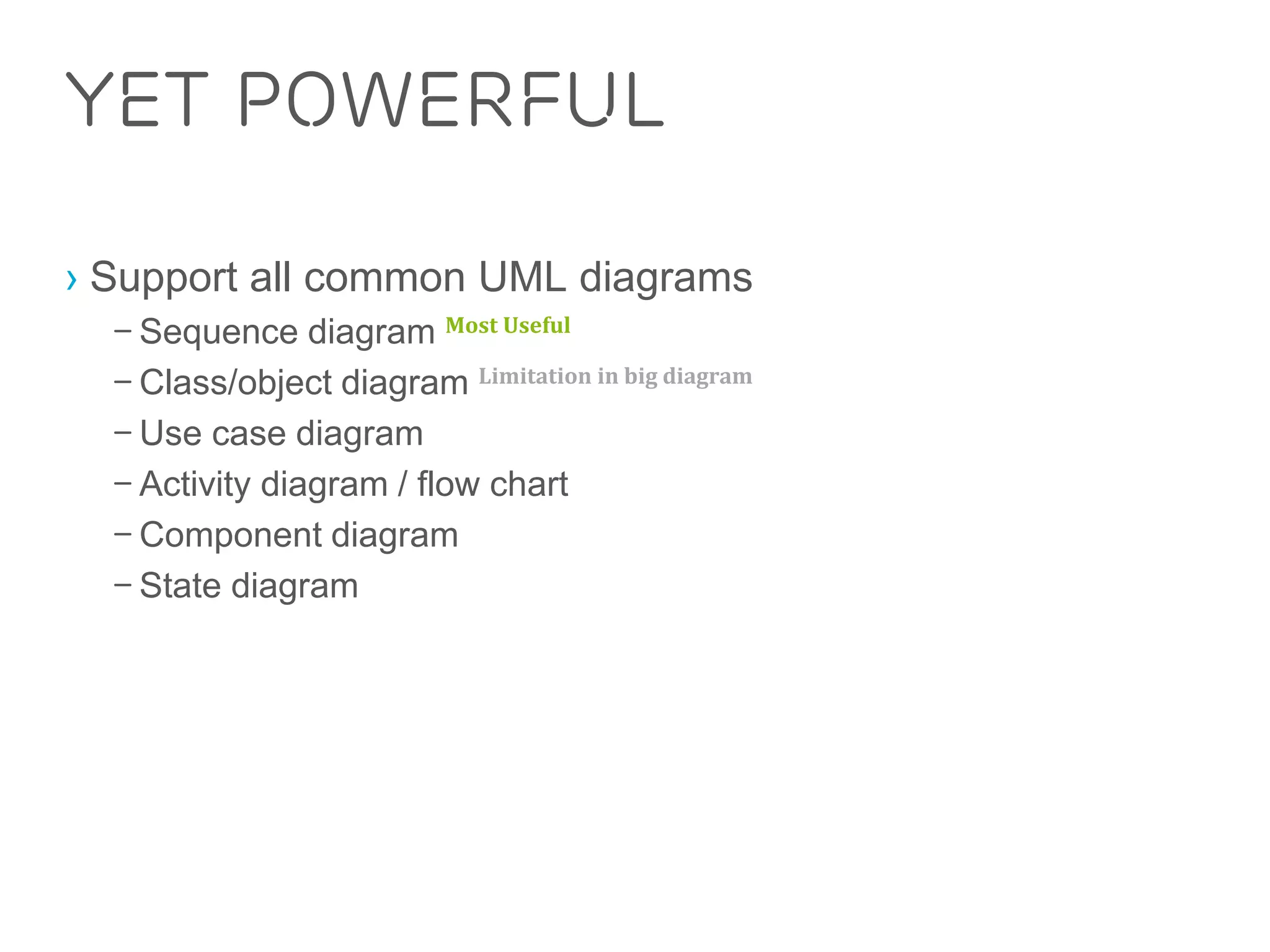

  Yet Powerful ›Support all common UML diagrams – Sequence diagram Most Useful – Class/object diagram Limitation in big diagram – Use case diagram – Activity diagram / flow chart – Component diagram – State diagram
• 5.

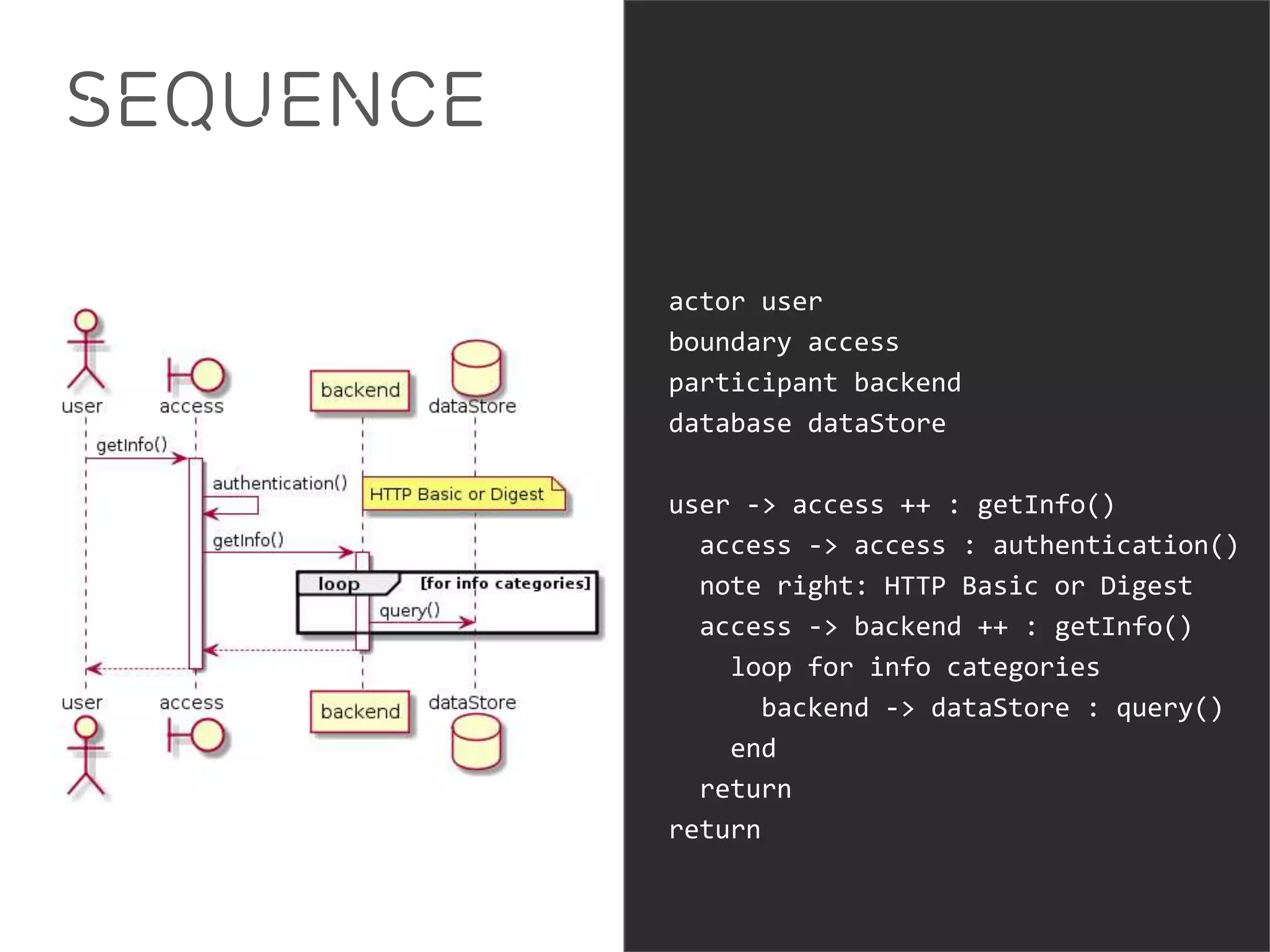

  Sequence actor user boundary access participant backend database dataStore user -> access ++ : getInfo() access -> access : authentication() note right: HTTP Basic or Digest access -> backend ++ : getInfo() loop for info categories backend -> dataStore : query() end return return
• 6.

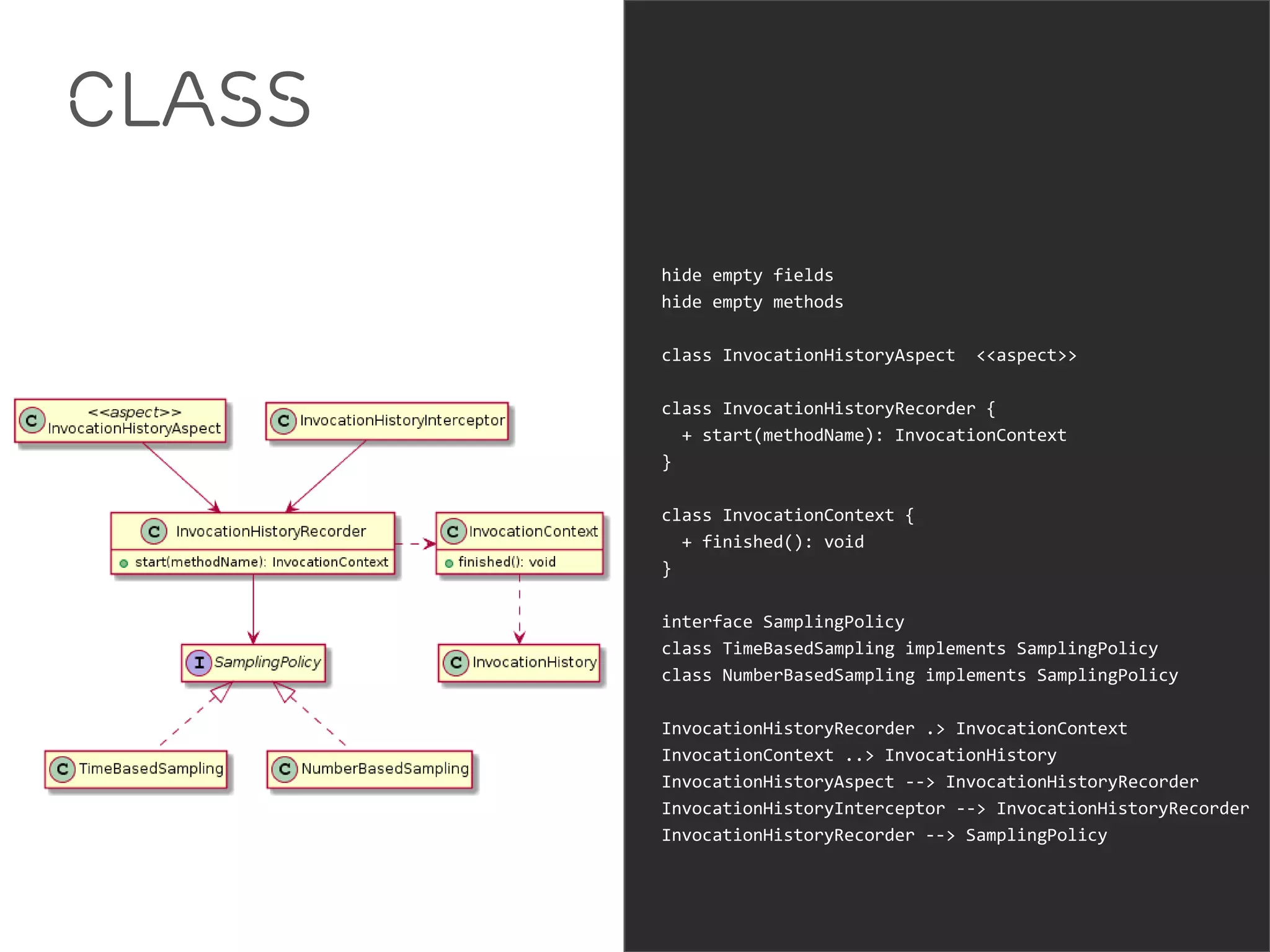

  Class hide emptyfields hide empty methods class InvocationHistoryAspect <<aspect>> class InvocationHistoryRecorder { + start(methodName): InvocationContext } class InvocationContext { + finished(): void } interface SamplingPolicy class TimeBasedSampling implements SamplingPolicy class NumberBasedSampling implements SamplingPolicy InvocationHistoryRecorder .> InvocationContext InvocationContext ..> InvocationHistory InvocationHistoryAspect --> InvocationHistoryRecorder InvocationHistoryInterceptor --> InvocationHistoryRecorder InvocationHistoryRecorder --> SamplingPolicy
• 7.

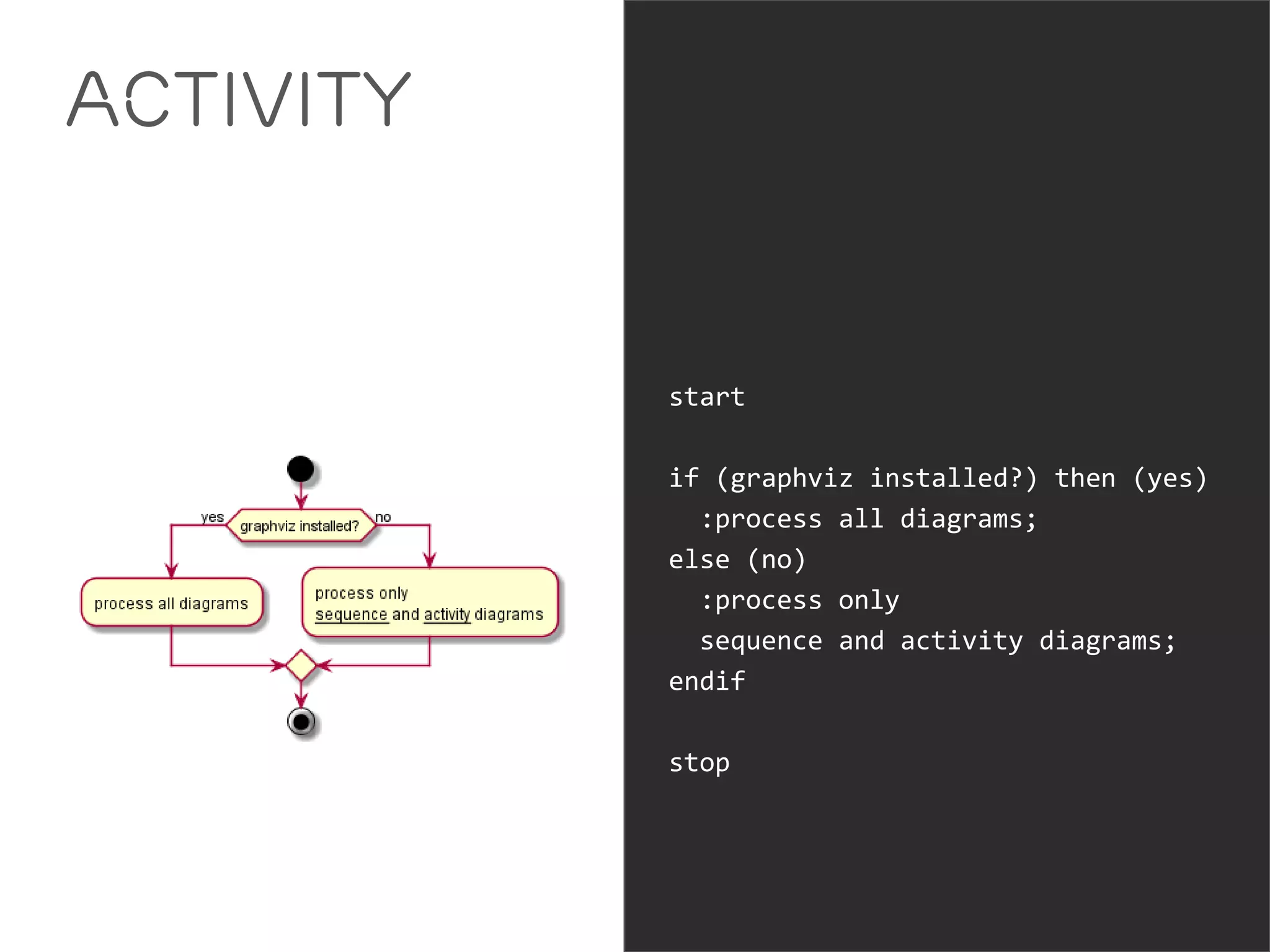

  Activity start if(graphviz installed?) then (yes) :process all diagrams; else (no) :process only sequence and activity diagrams; endif stop
• 8.

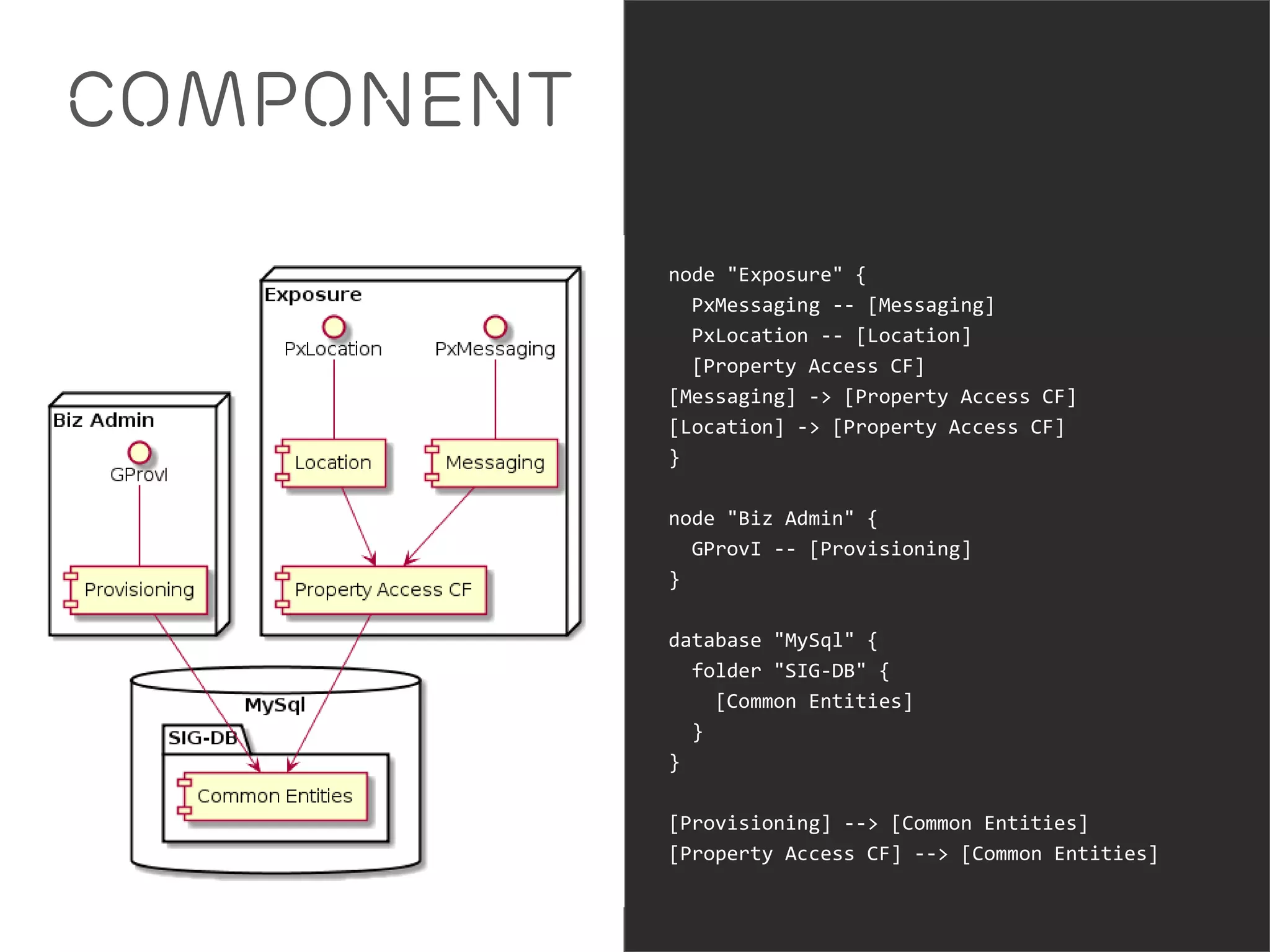

  Component node "Exposure"{ PxMessaging -- [Messaging] PxLocation -- [Location] [Property Access CF] [Messaging] -> [Property Access CF] [Location] -> [Property Access CF] } node "Biz Admin" { GProvI -- [Provisioning] } database "MySql" { folder "SIG-DB" { [Common Entities] } } [Provisioning] --> [Common Entities] [Property Access CF] --> [Common Entities]
• 9.

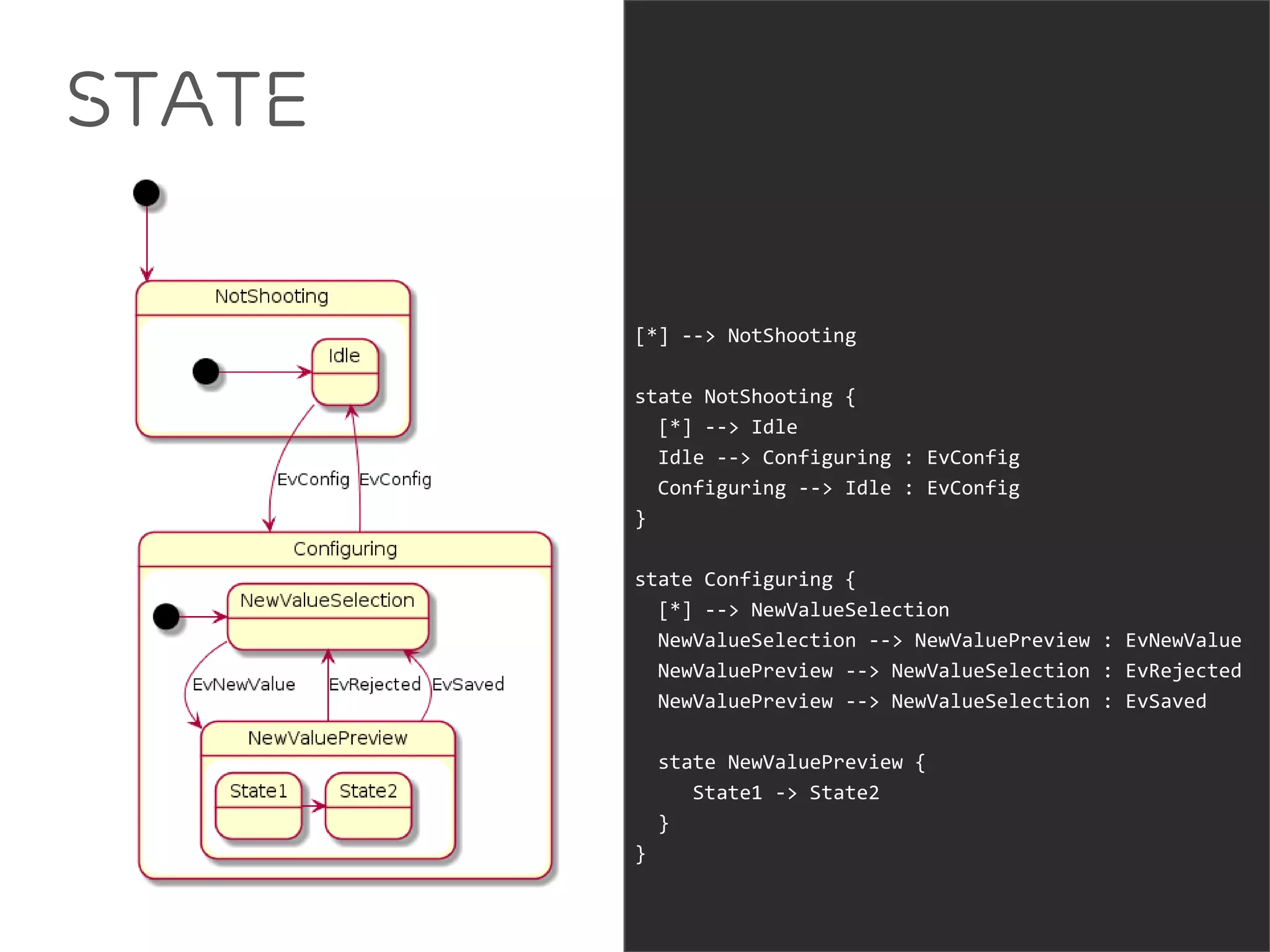

  State [*] -->NotShooting state NotShooting { [*] --> Idle Idle --> Configuring : EvConfig Configuring --> Idle : EvConfig } state Configuring { [*] --> NewValueSelection NewValueSelection --> NewValuePreview : EvNewValue NewValuePreview --> NewValueSelection : EvRejected NewValuePreview --> NewValueSelection : EvSaved state NewValuePreview { State1 -> State2 } }
• 10.

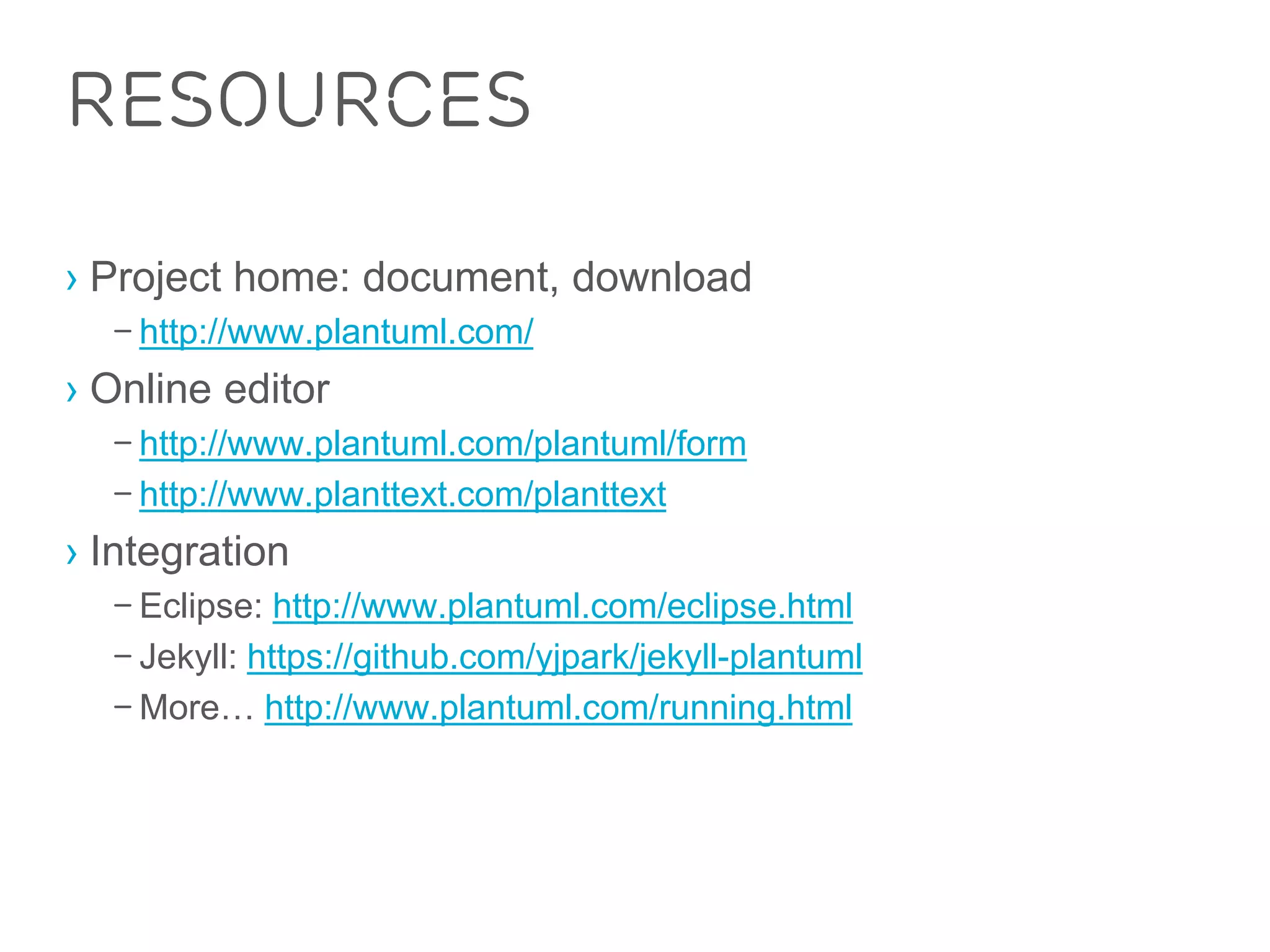

  Resources › Projecthome: document, download – http://www.plantuml.com/ › Online editor – http://www.plantuml.com/plantuml/form – http://www.planttext.com/planttext › Integration – Eclipse: http://www.plantuml.com/eclipse.html – Jekyll: https://github.com/yjpark/jekyll-plantuml – More… http://www.plantuml.com/running.html
