Cs 1023 lec 10 uml (week 3)

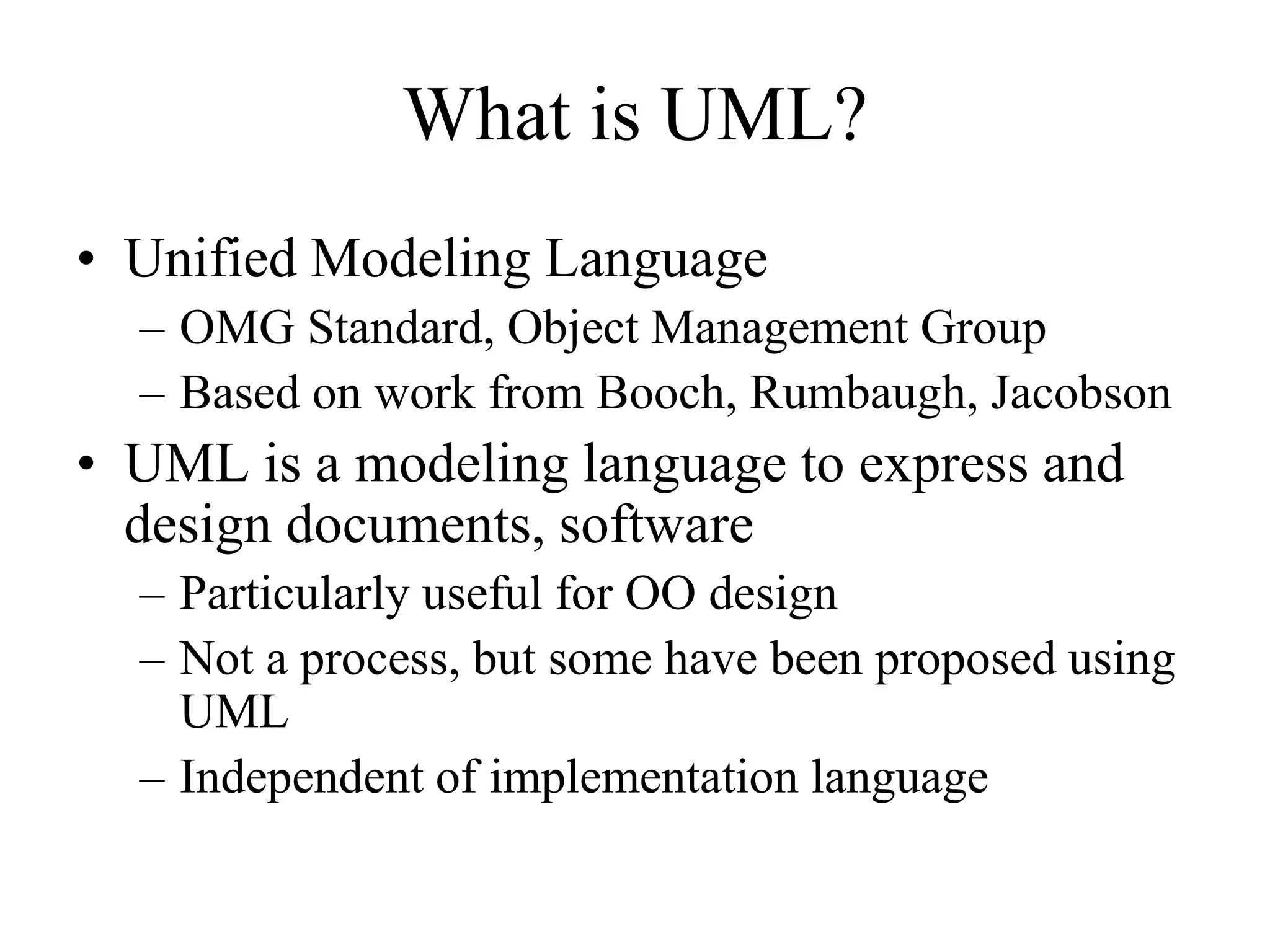

What is UML?
• Unified Modeling Language
– OMG Standard, Object Management Group
– Based on work from Booch, Rumbaugh, Jacobson
• UML is a modeling language to express and
design documents, software
– Particularly useful for OO design
– Not a process, but some have been proposed using
UML
– Independent of implementation language

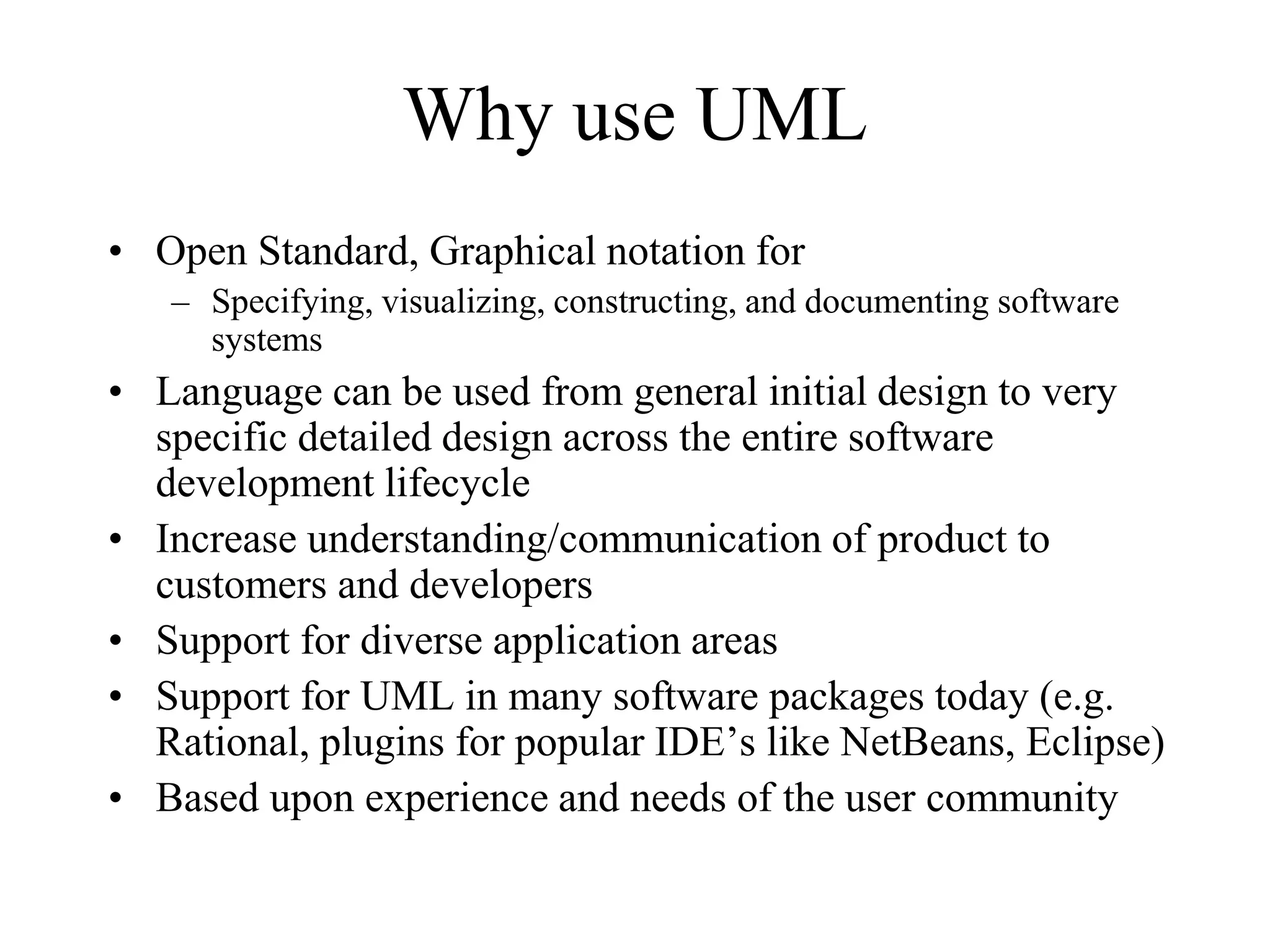

Why use UML
• Open Standard, Graphical notation for
– Specifying, visualizing, constructing, and documenting software
systems
• Language can be used from general initial design to very
specific detailed design across the entire software
development lifecycle
• Increase understanding/communication of product to
customers and developers
• Support for diverse application areas
• Support for UML in many software packages today (e.g.
Rational, plugins for popular IDE’s like NetBeans, Eclipse)
• Based upon experience and needs of the user community

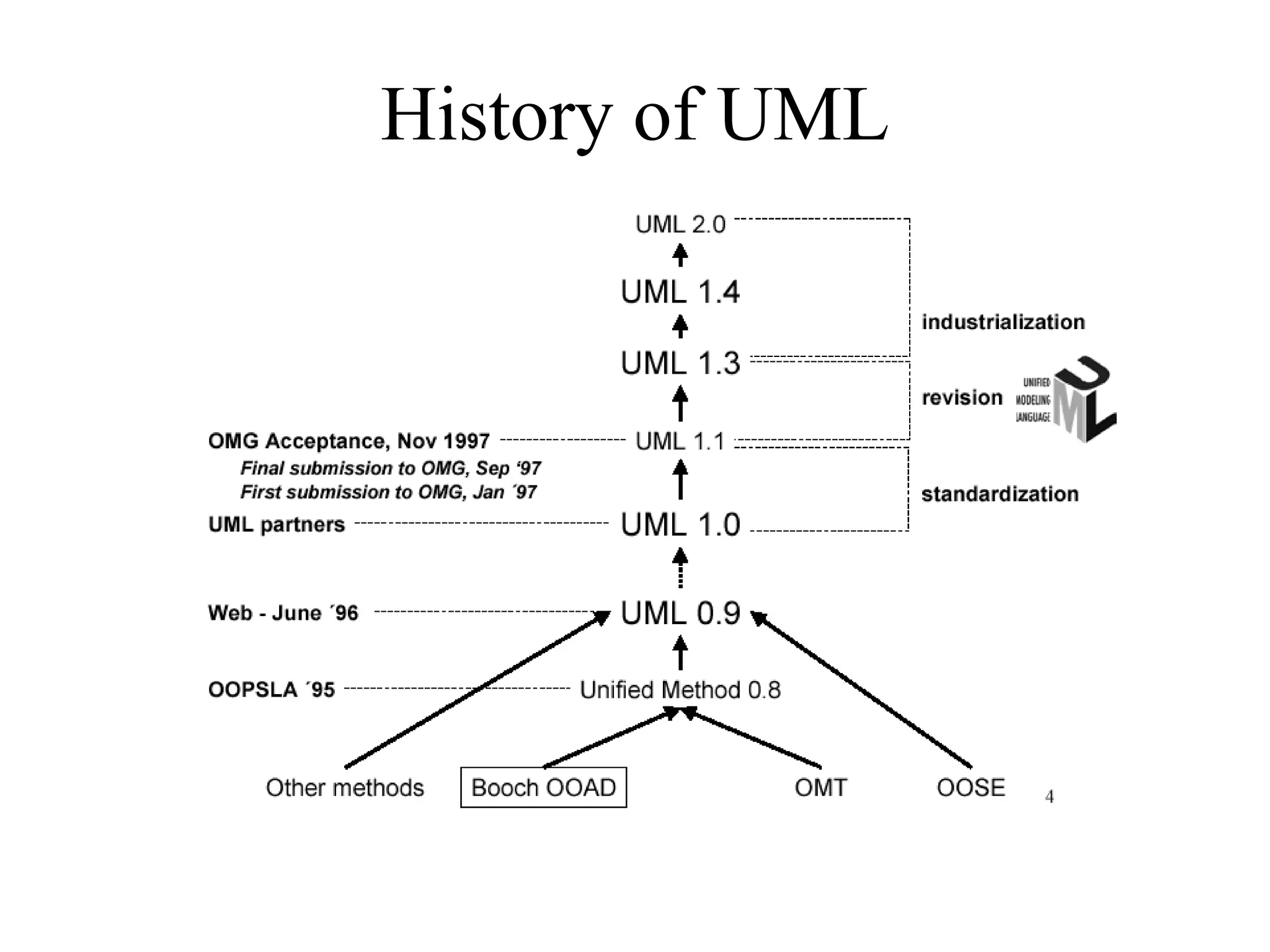

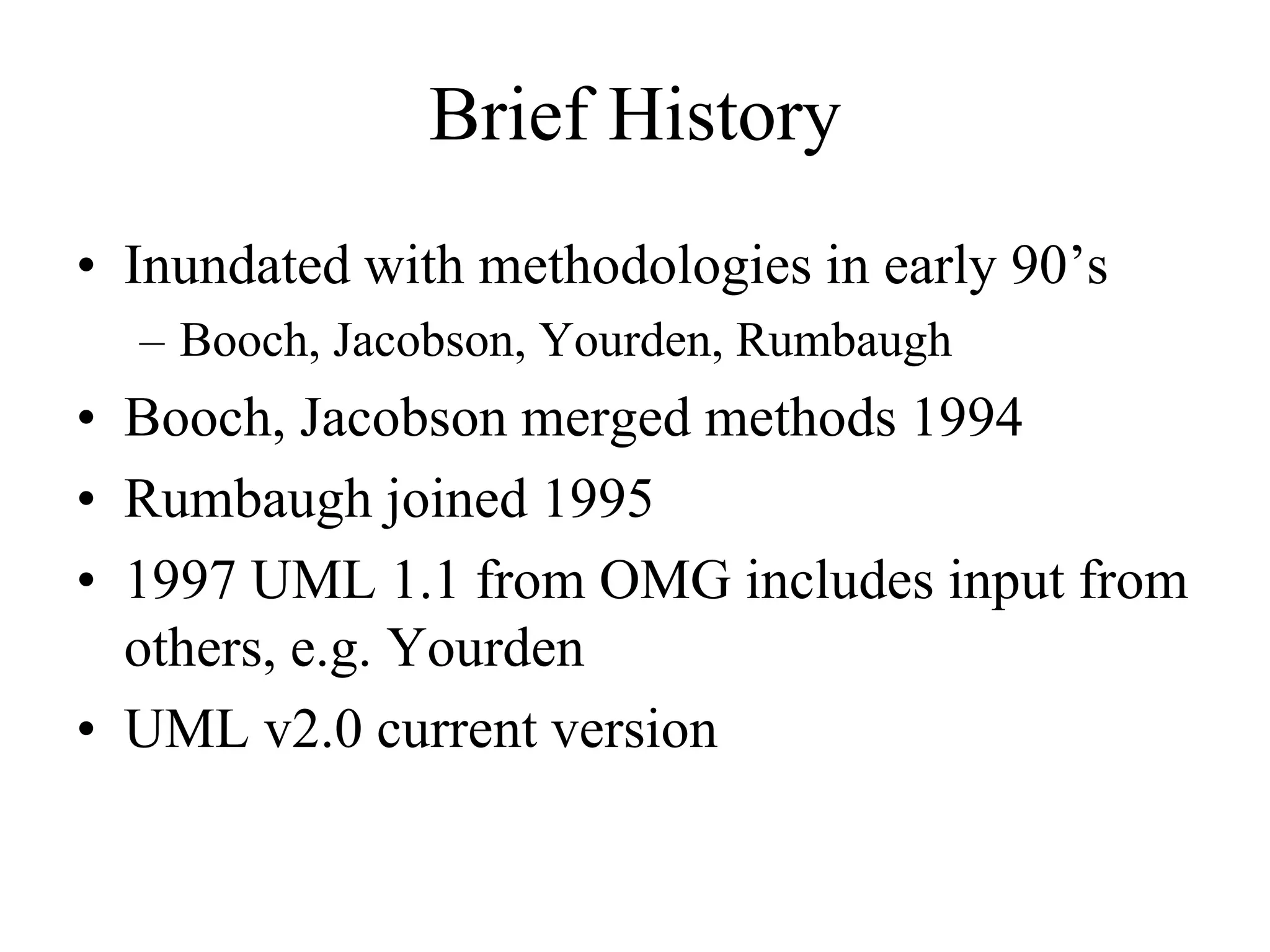

Brief History
• Inundated with methodologies in early 90’s
– Booch, Jacobson, Yourden, Rumbaugh
• Booch, Jacobson merged methods 1994
• Rumbaugh joined 1995
• 1997 UML 1.1 from OMG includes input from
others, e.g. Yourden
• UML v2.0 current version

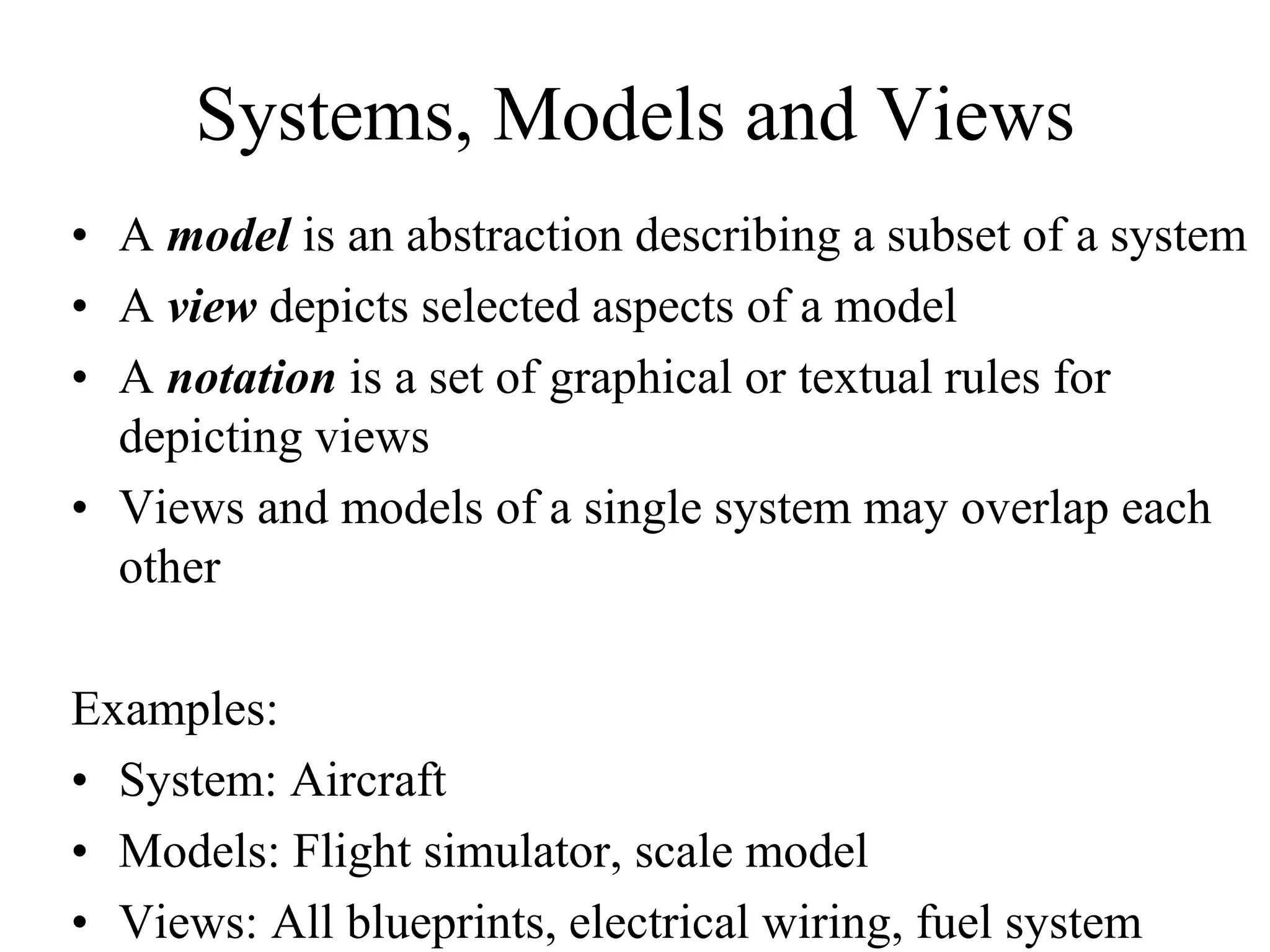

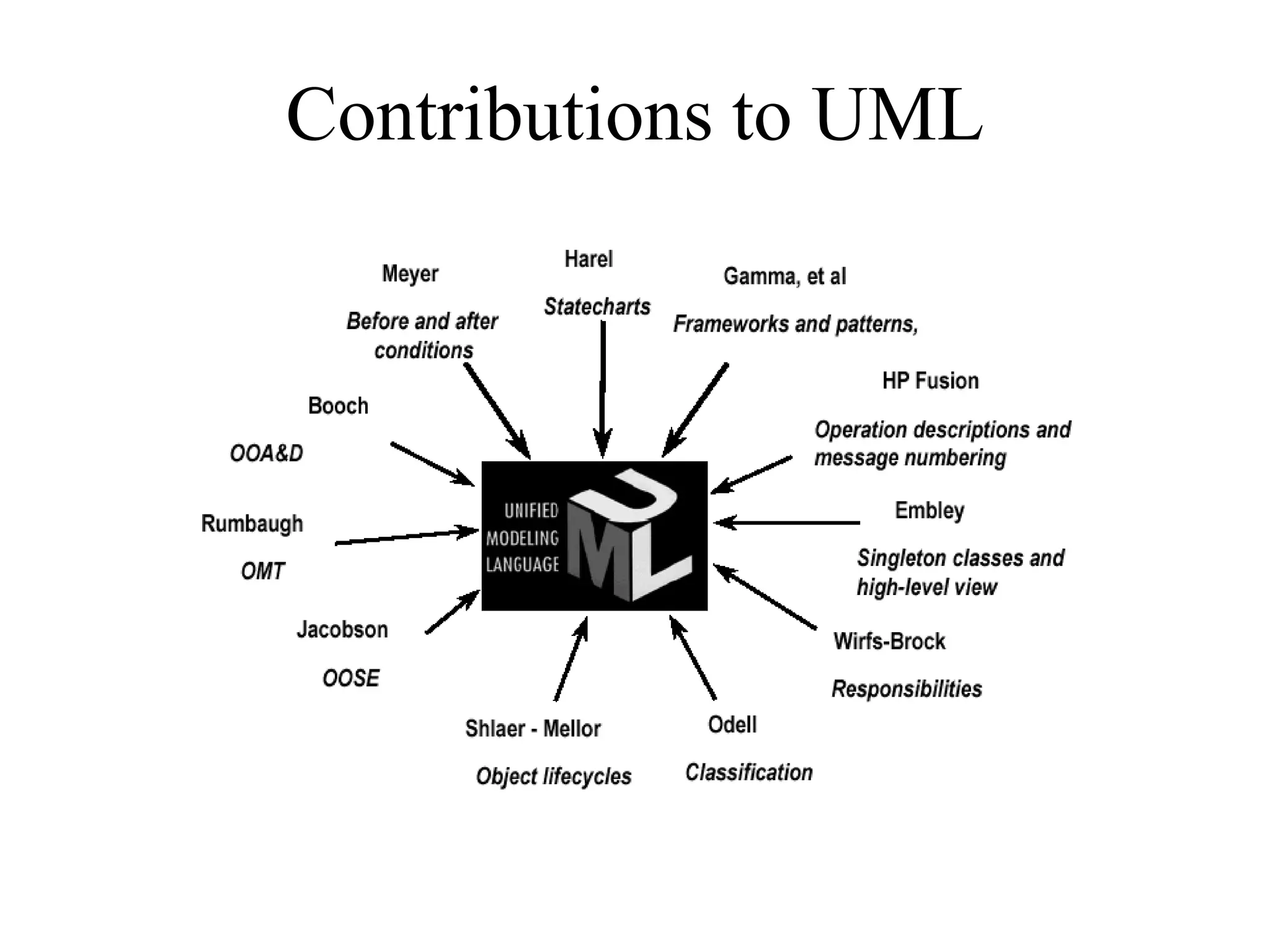

Systems, Models and Views
• A model is an abstraction describing a subset of a system
• A view depicts selected aspects of a model
• A notation is a set of graphical or textual rules for
depicting views
• Views and models of a single system may overlap each
other
Examples:
• System: Aircraft
• Models: Flight simulator, scale model
• Views: All blueprints, electrical wiring, fuel system

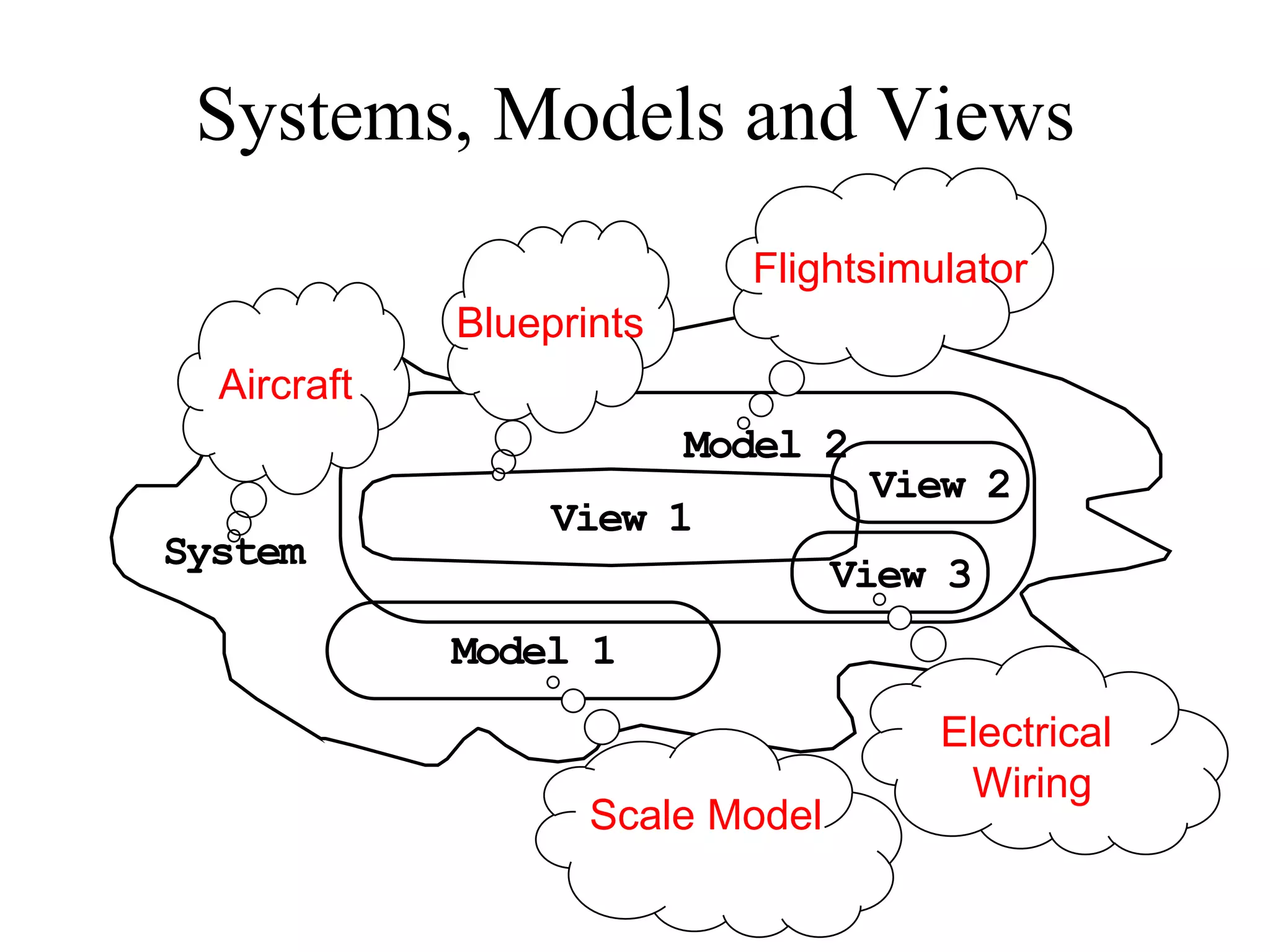

Systems, Models and Views
System
View 1
Model 2
View 2
View 3
Model 1
Aircraft
Flightsimulator
Scale Model
Blueprints
Electrical
Wiring

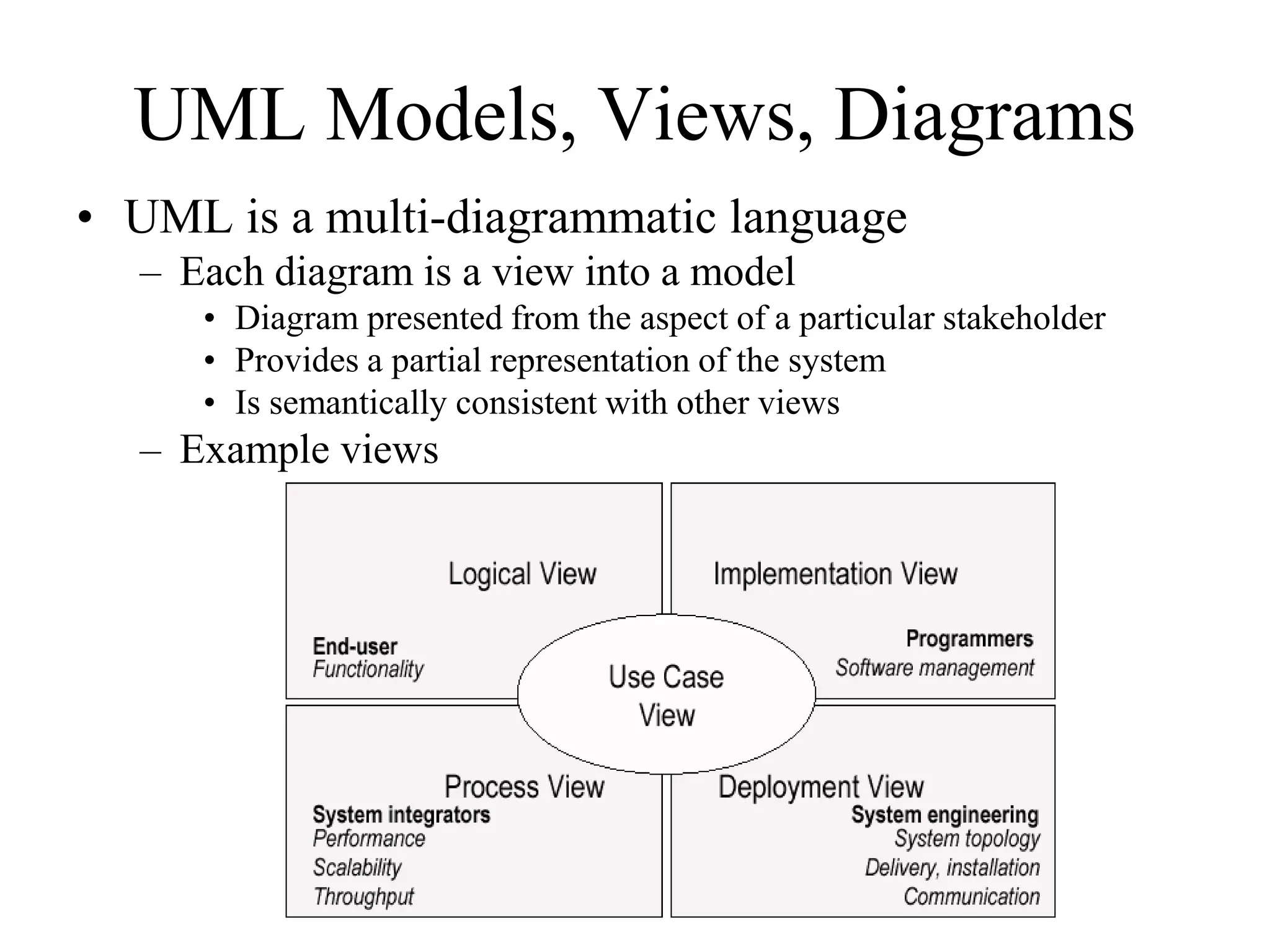

UML Models, Views, Diagrams
• UML is a multi-diagrammatic language
– Each diagram is a view into a model
• Diagram presented from the aspect of a particular stakeholder
• Provides a partial representation of the system
• Is semantically consistent with other views
– Example views

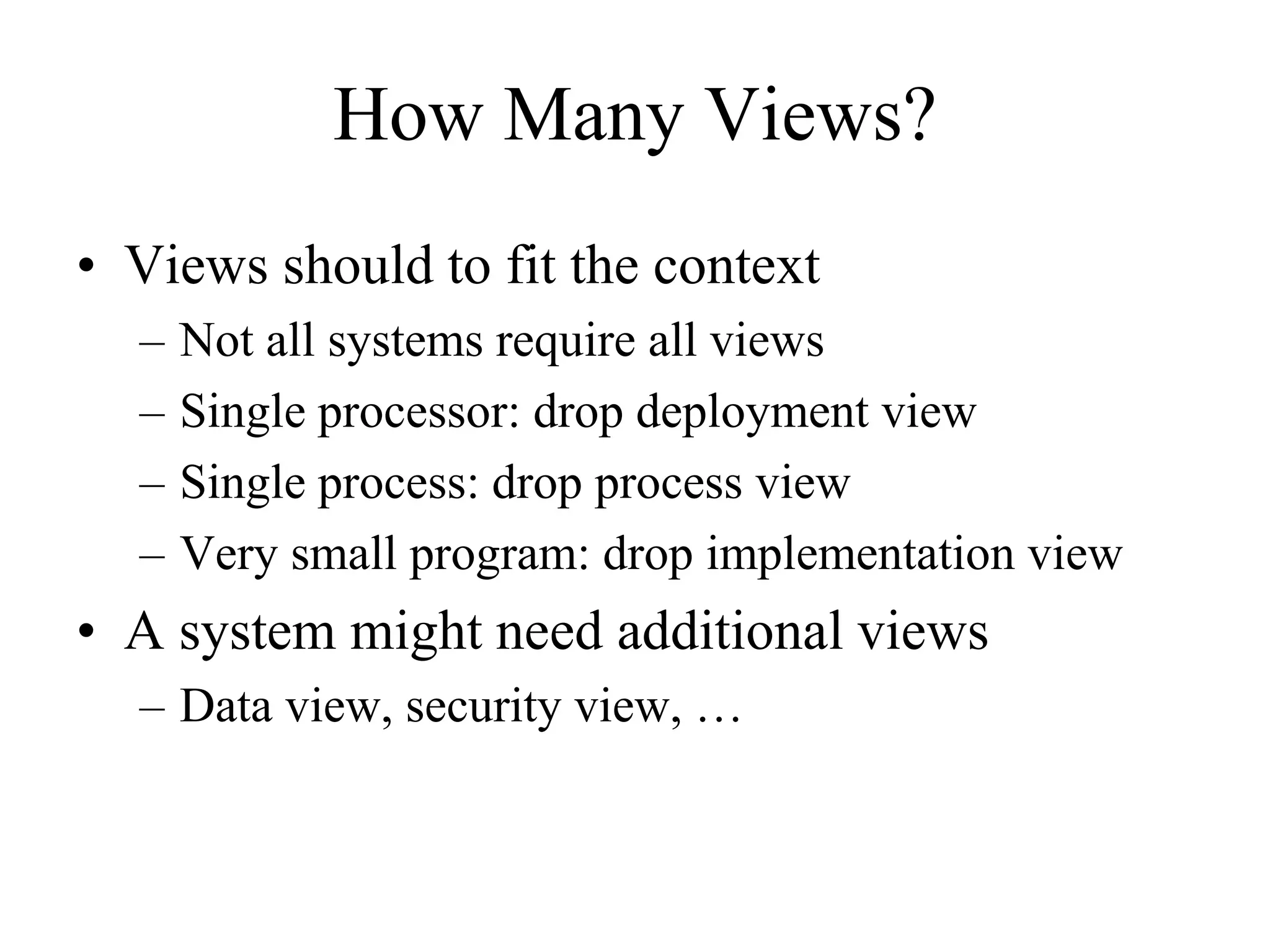

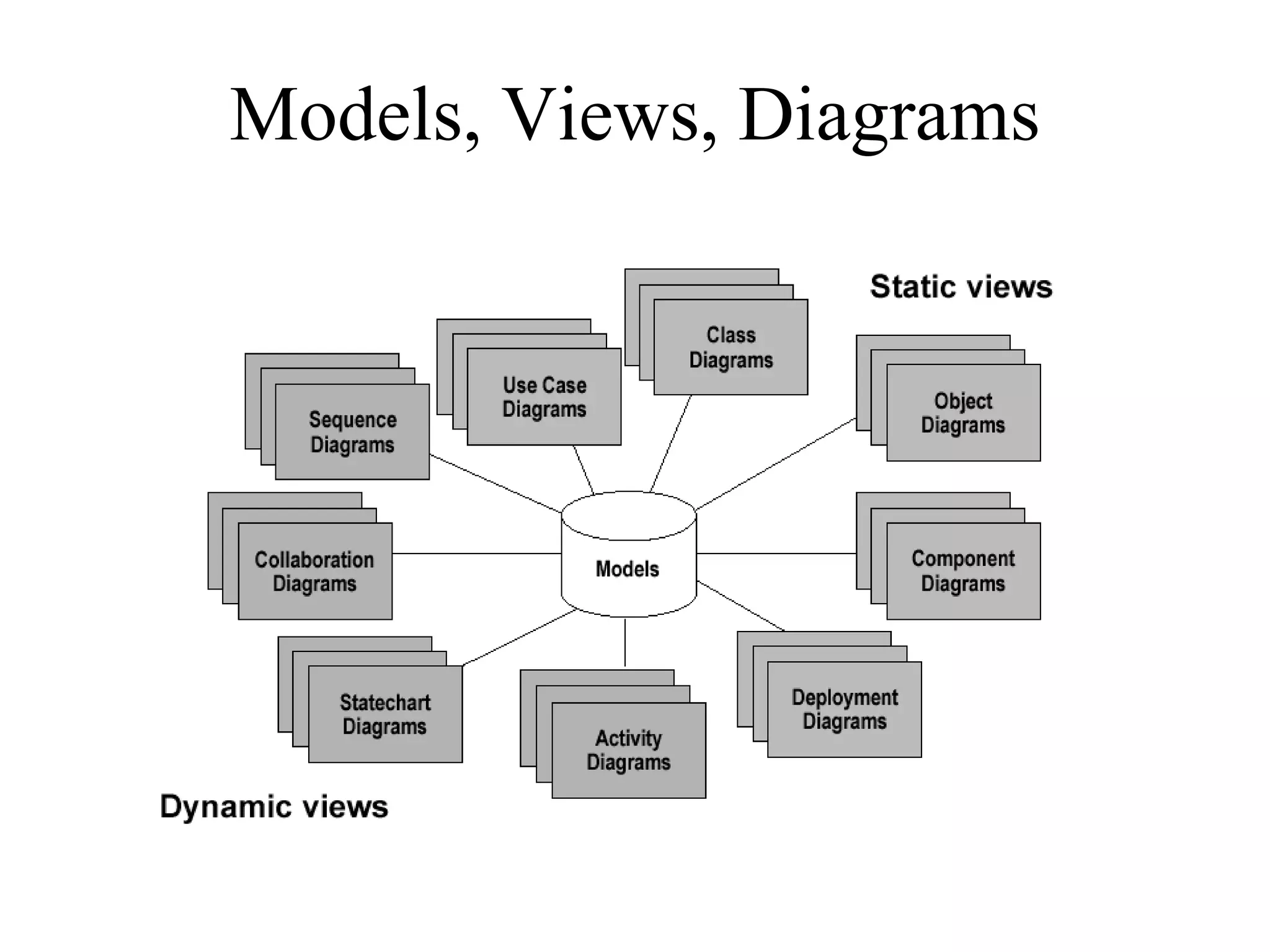

How Many Views?
• Views should to fit the context
– Not all systems require all views
– Single processor: drop deployment view
– Single process: drop process view
– Very small program: drop implementation view
• A system might need additional views
– Data view, security view, …

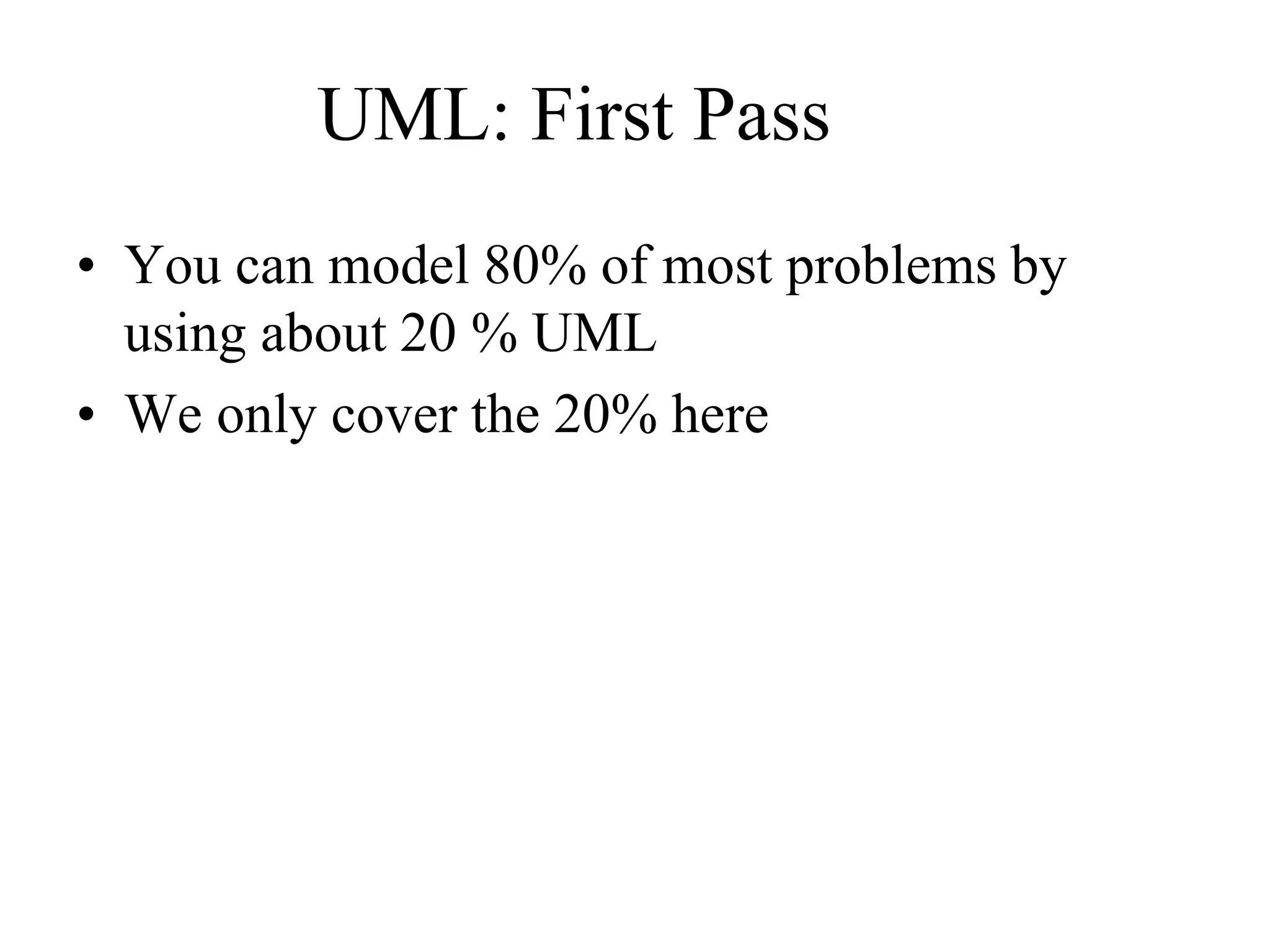

UML: First Pass
• You can model 80% of most problems by
using about 20 % UML
• We only cover the 20% here

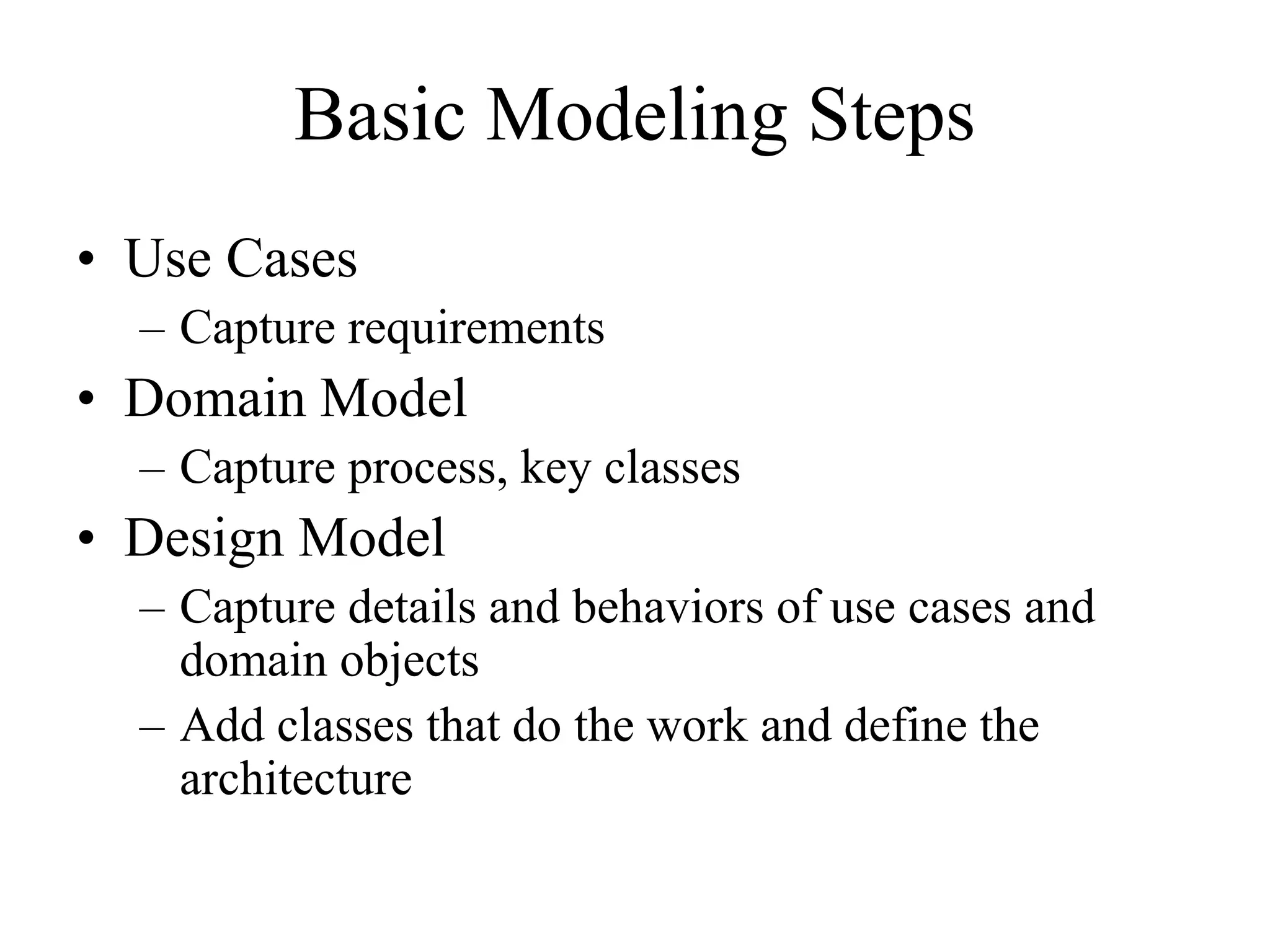

Basic Modeling Steps
• Use Cases
– Capture requirements
• Domain Model
– Capture process, key classes
• Design Model
– Capture details and behaviors of use cases and
domain objects
– Add classes that do the work and define the
architecture

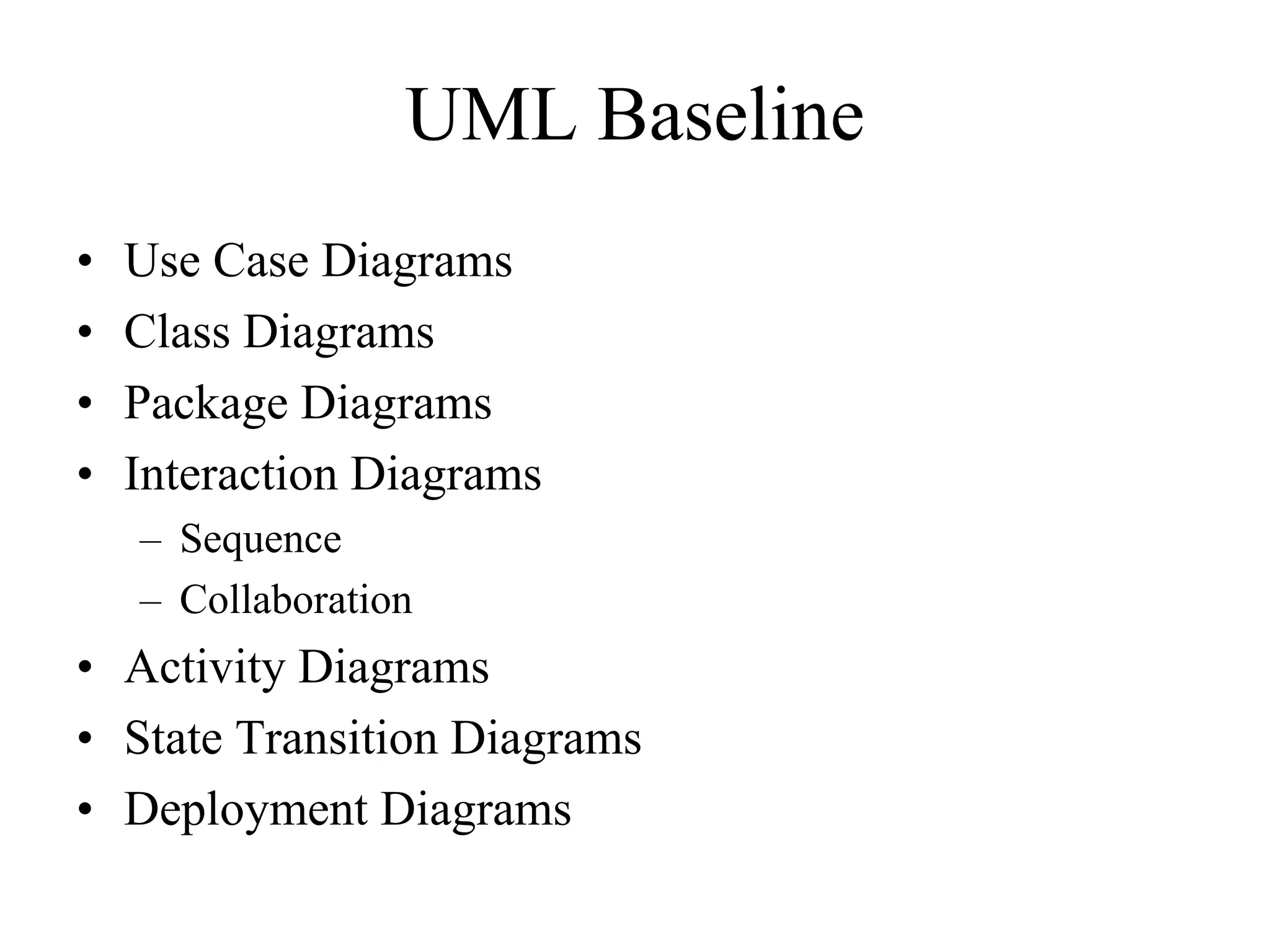

UML Baseline
• Use Case Diagrams
• Class Diagrams
• Package Diagrams
• Interaction Diagrams
– Sequence

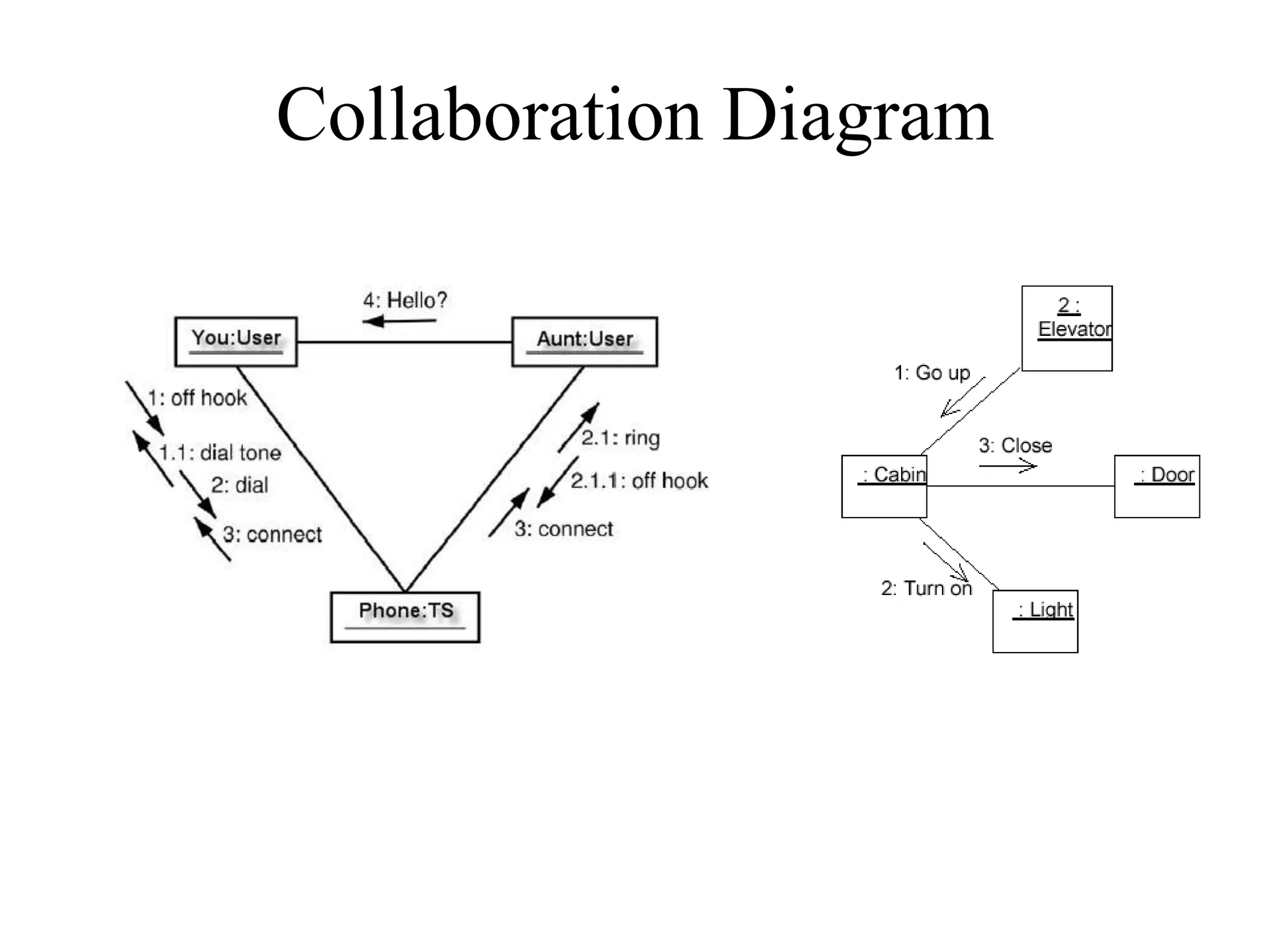

– Collaboration

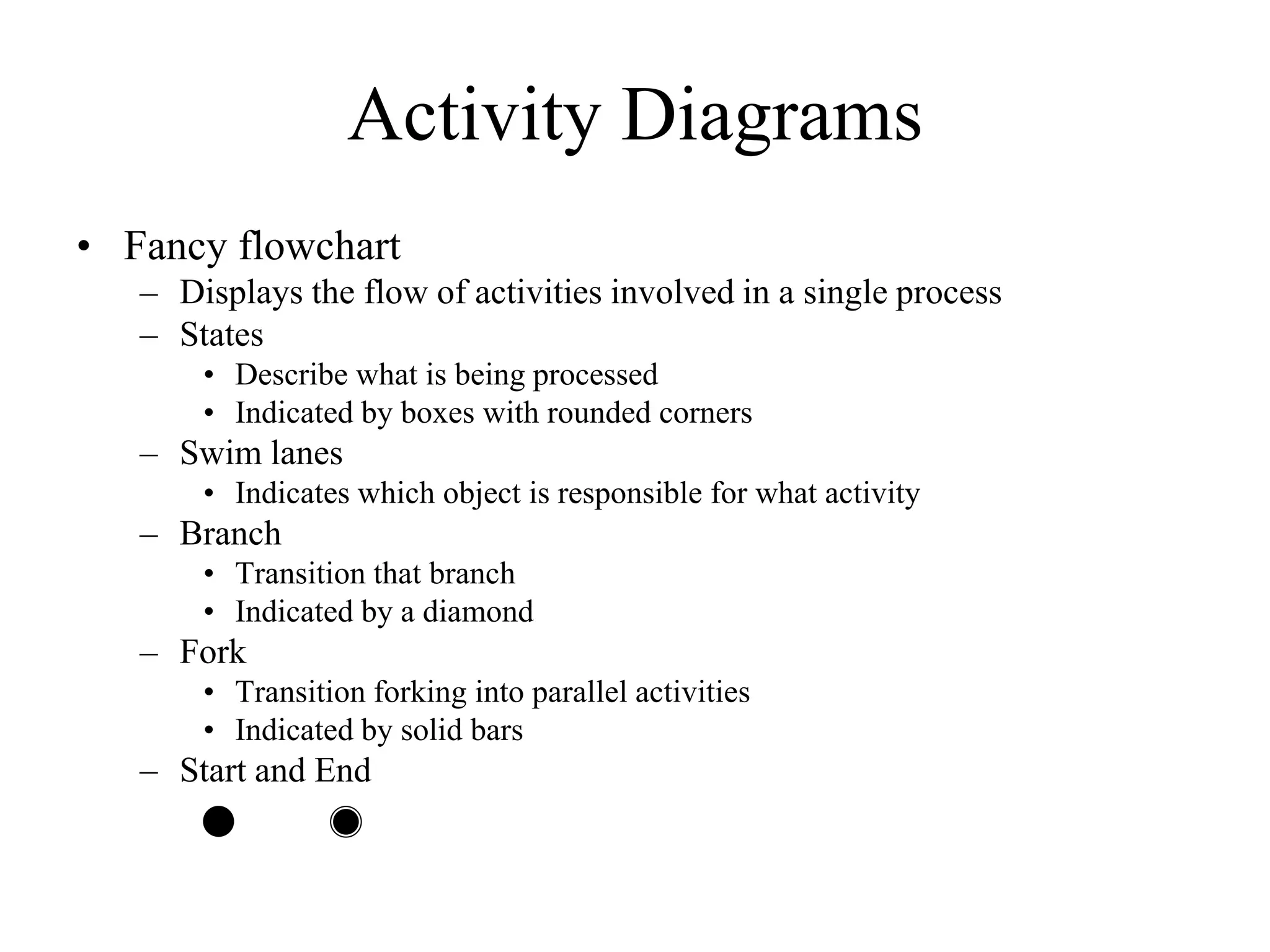

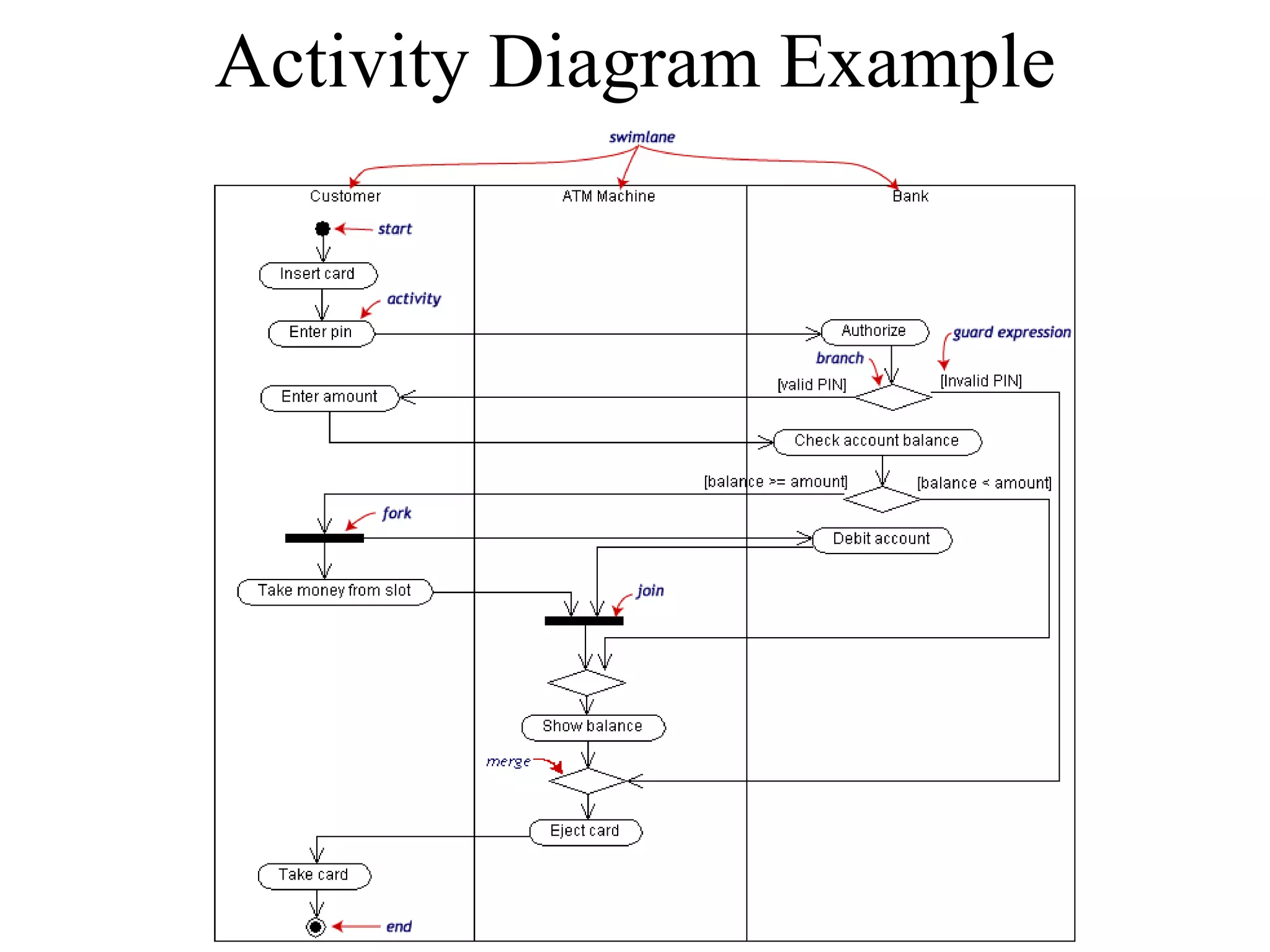

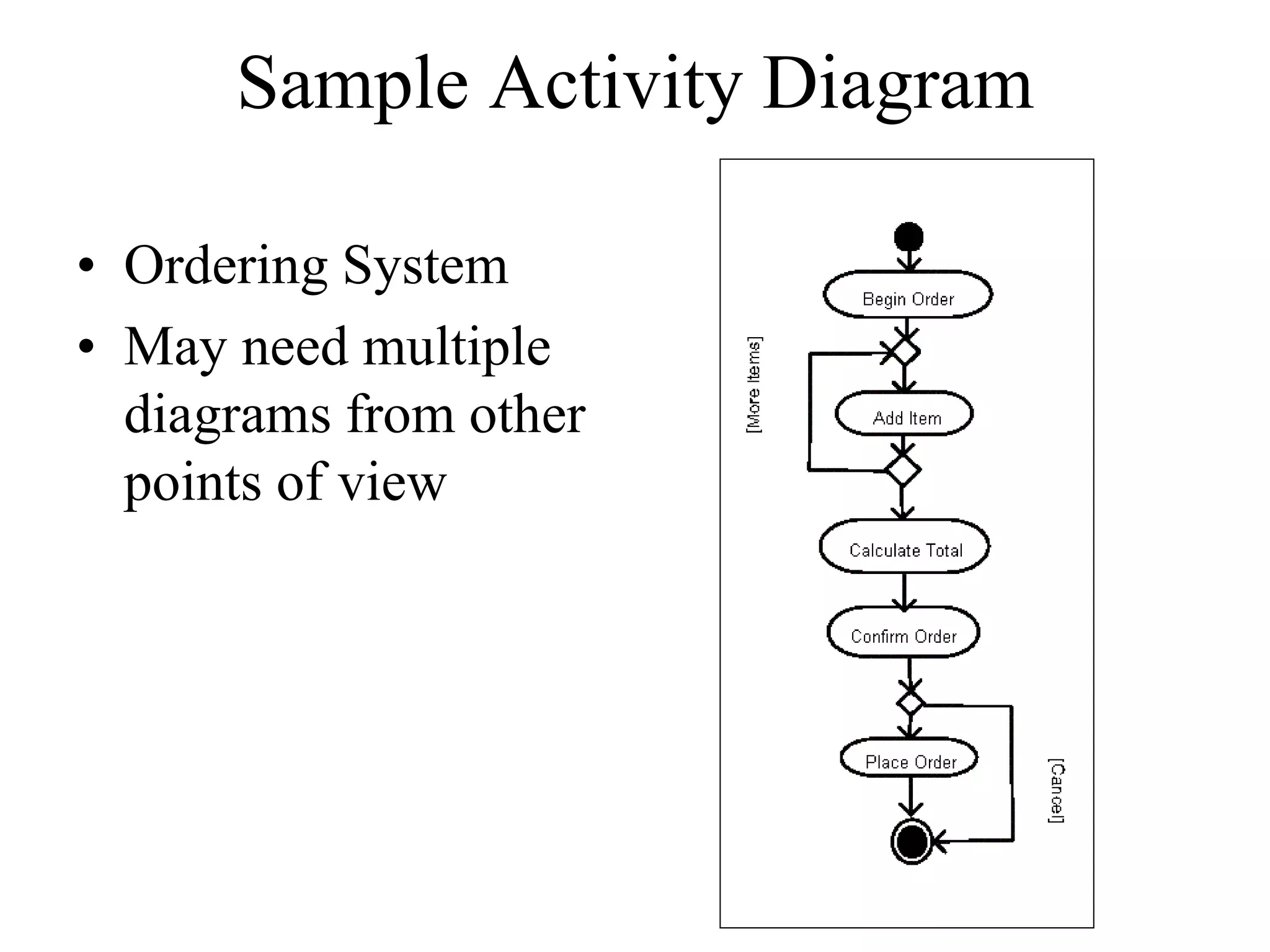

• Activity Diagrams

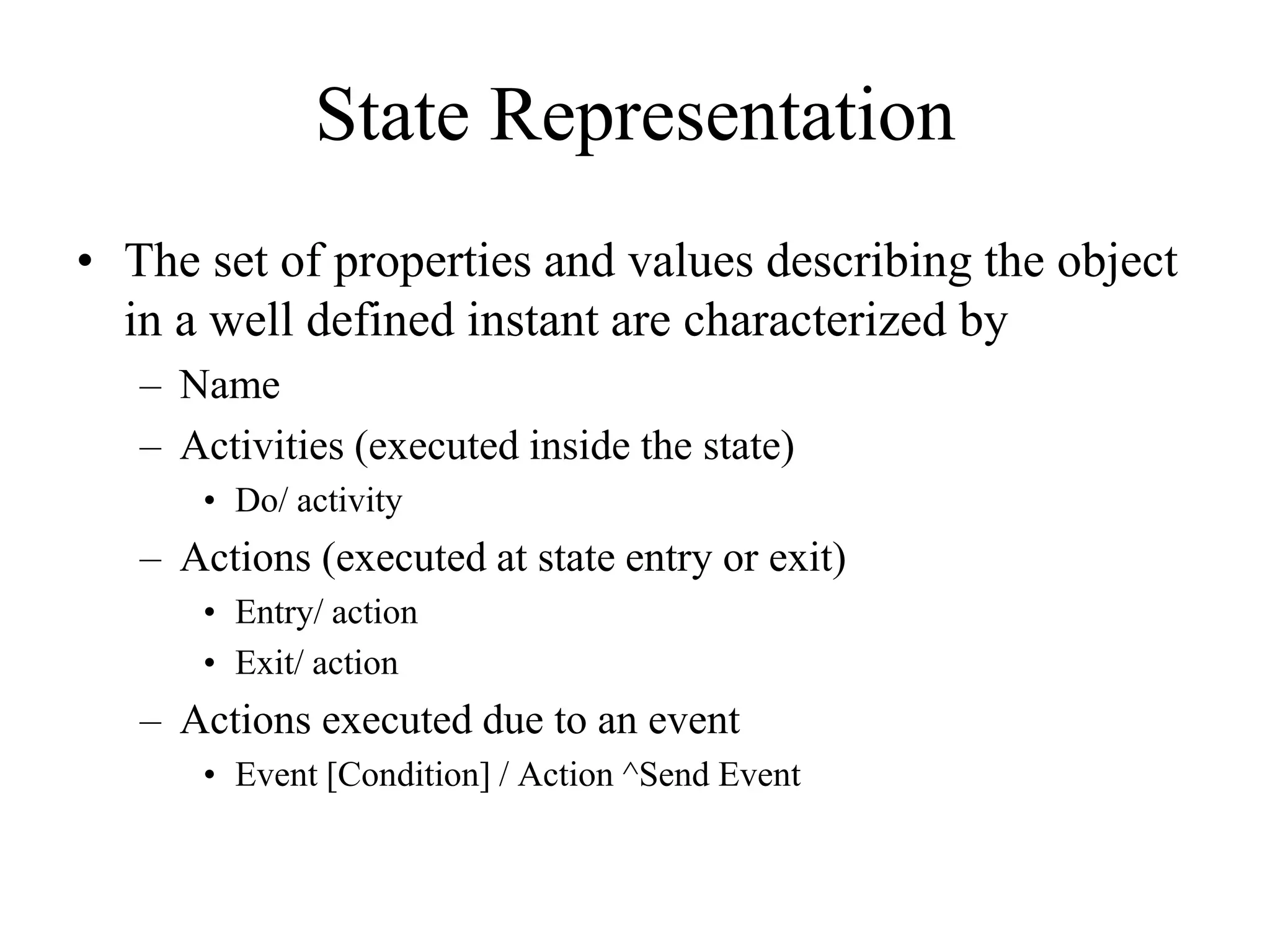

• State Transition Diagrams
• Deployment Diagrams

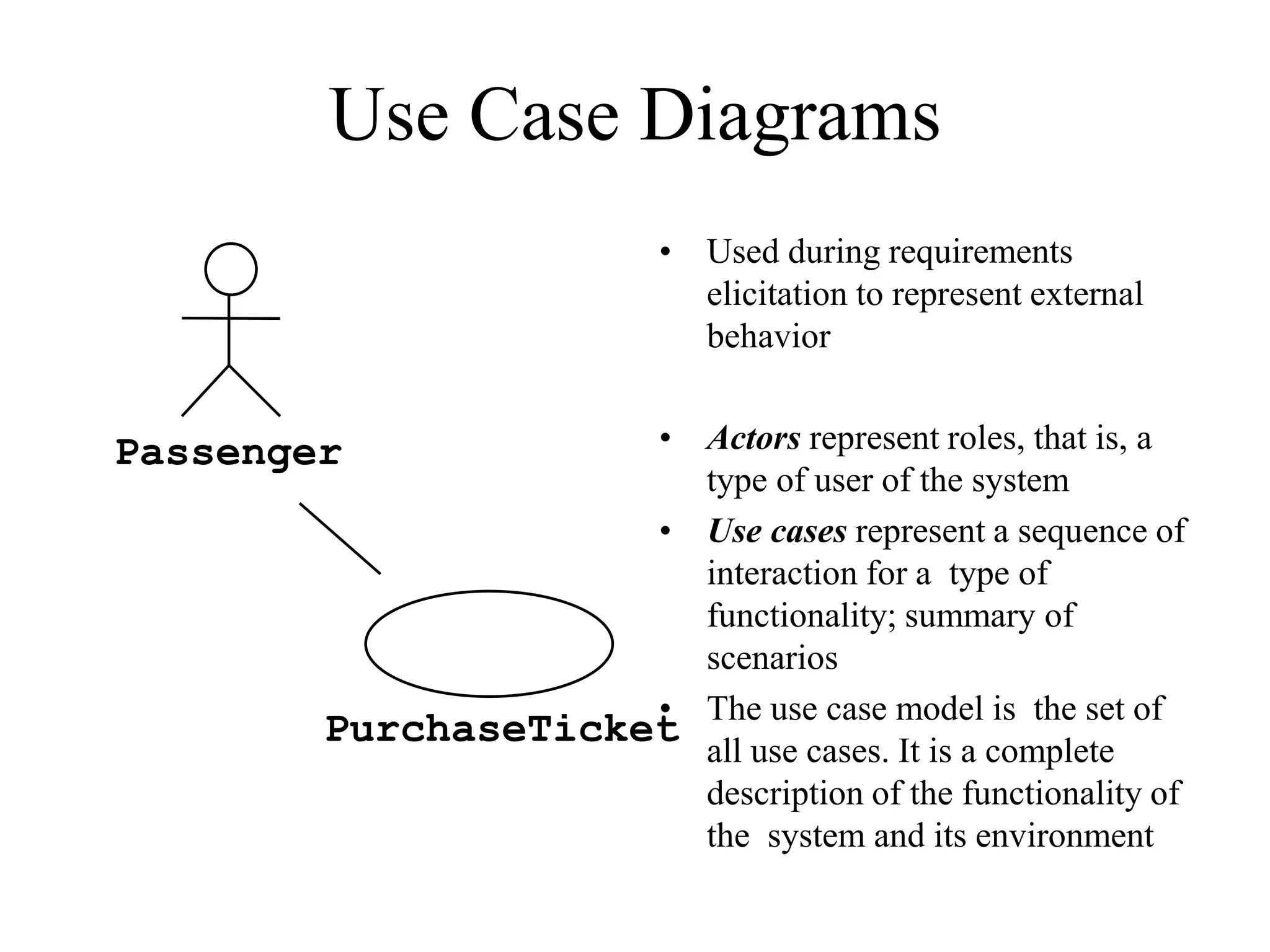

Use Case Diagrams
• Used during requirements
elicitation to represent external
behavior
• Actors represent roles, that is, a
type of user of the system
• Use cases represent a sequence of
interaction for a type of
functionality; summary of
scenarios
• The use case model is the set of
all use cases. It is a complete
description of the functionality of
the system and its environment
Passenger
PurchaseTicket

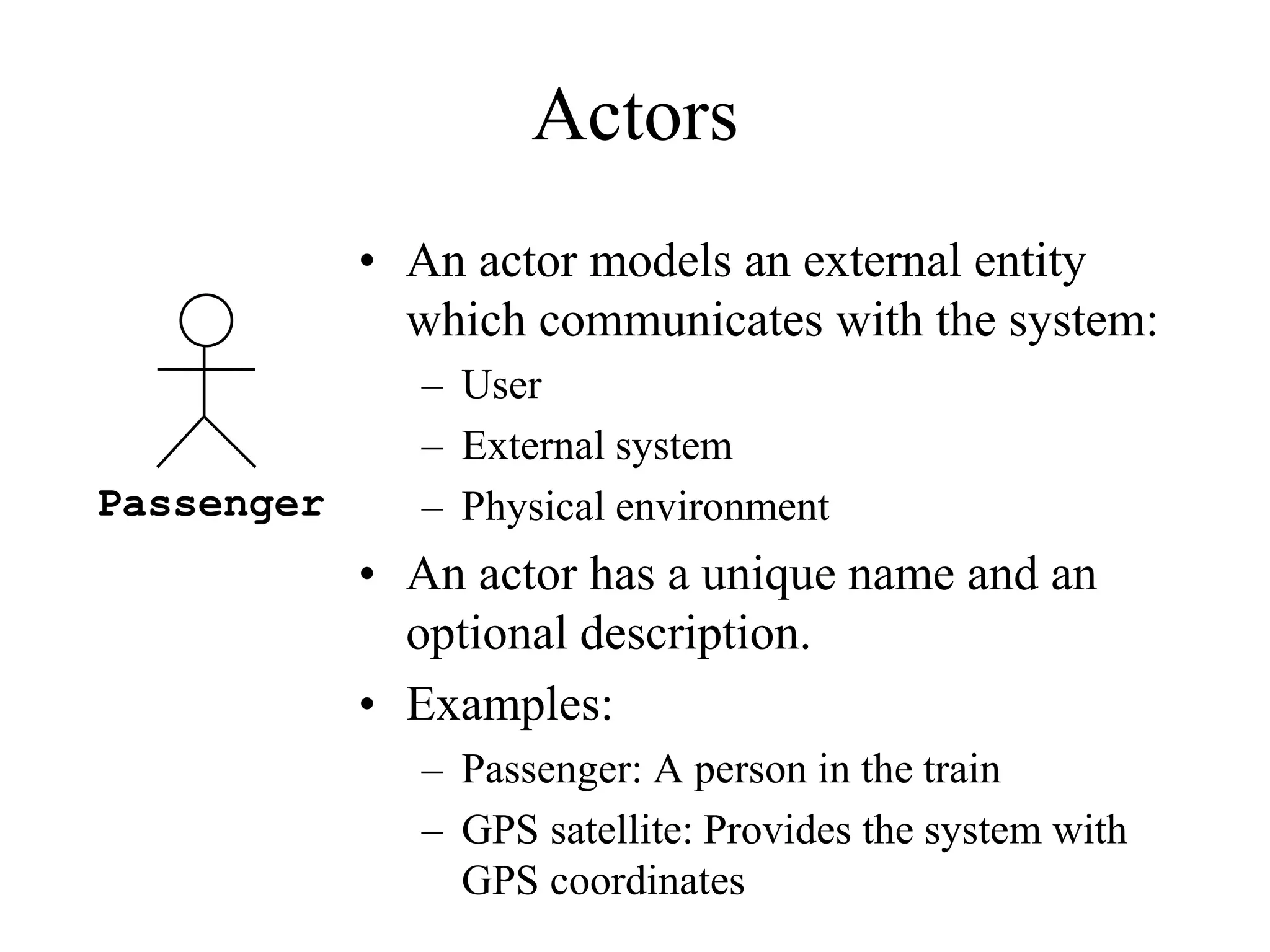

Actors
• An actor models an external entity
which communicates with the system:
– User
– External system
– Physical environment
• An actor has a unique name and an
optional description.
• Examples:
– Passenger: A person in the train
– GPS satellite: Provides the system with
GPS coordinates
Passenger

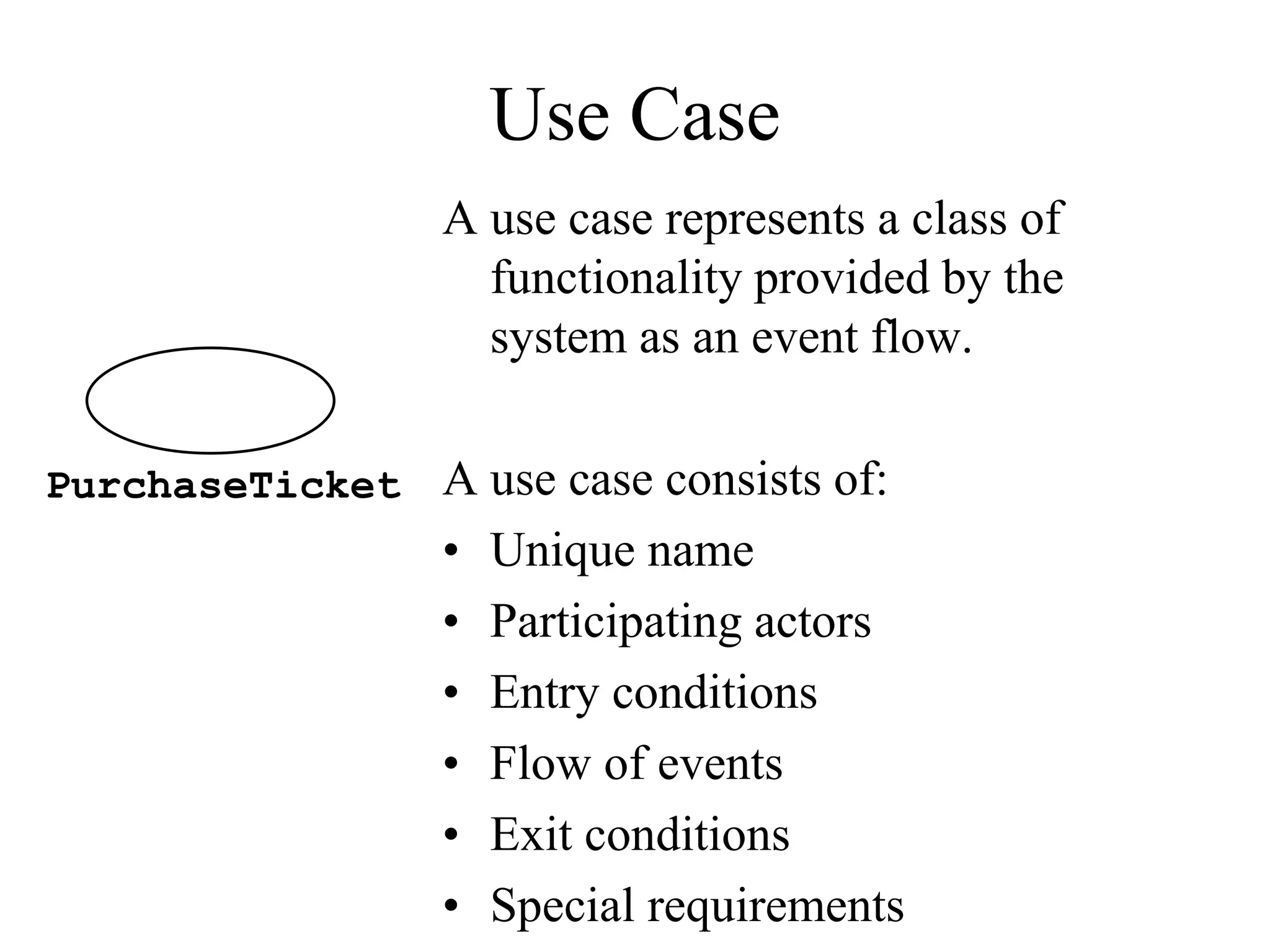

Use Case
A use case represents a class of
functionality provided by the
system as an event flow.
A use case consists of:
• Unique name
• Participating actors
• Entry conditions
• Flow of events
• Exit conditions
• Special requirements
PurchaseTicket

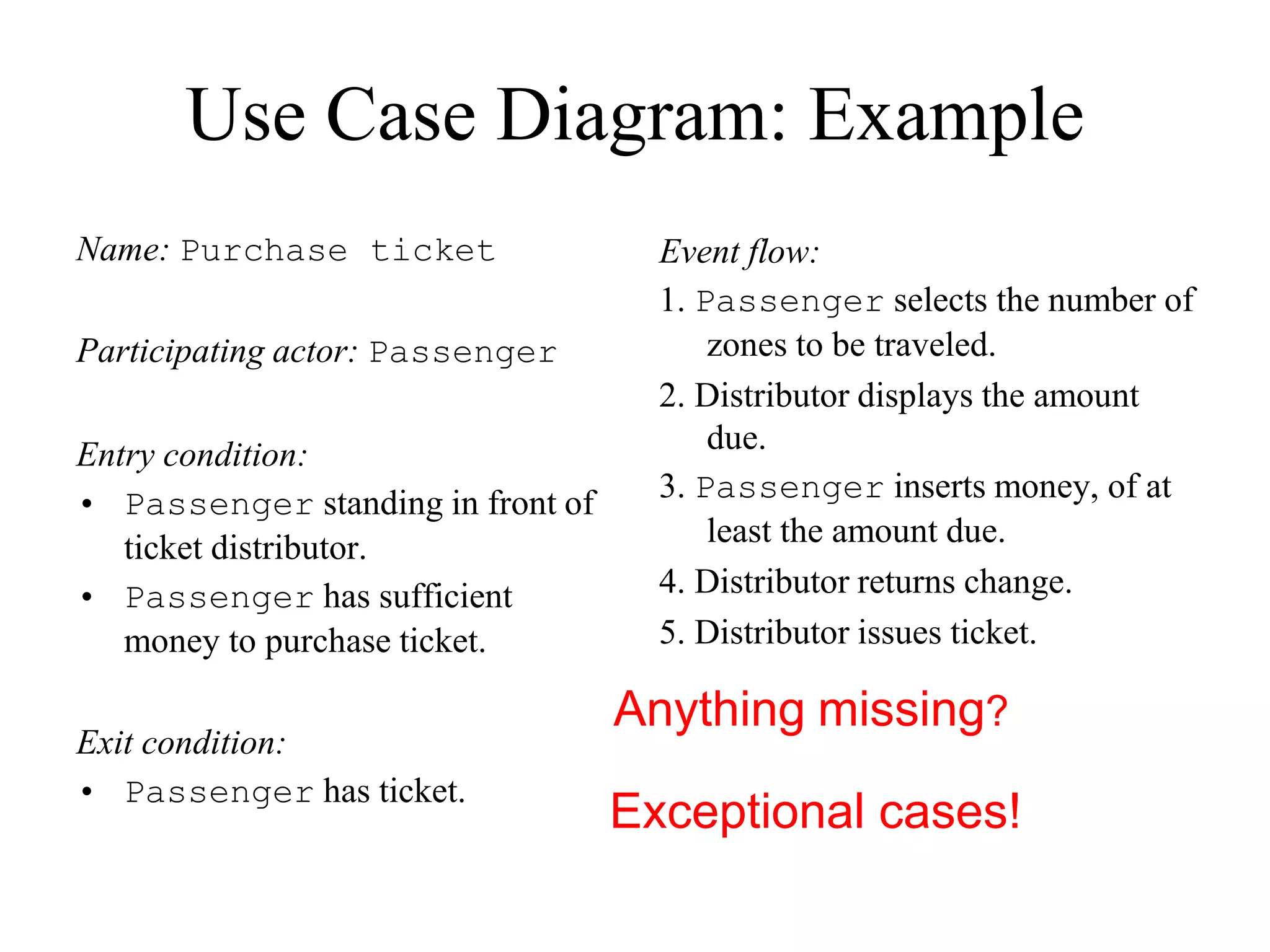

Use Case Diagram: Example
Name: Purchase ticket
Participating actor: Passenger
Entry condition:
• Passenger standing in front of
ticket distributor.
• Passenger has sufficient
money to purchase ticket.
Exit condition:
• Passenger has ticket.
Event flow:
1. Passenger selects the number of
zones to be traveled.
2. Distributor displays the amount
due.
3. Passenger inserts money, of at
least the amount due.
4. Distributor returns change.
5. Distributor issues ticket.
Anything missing?
Exceptional cases!

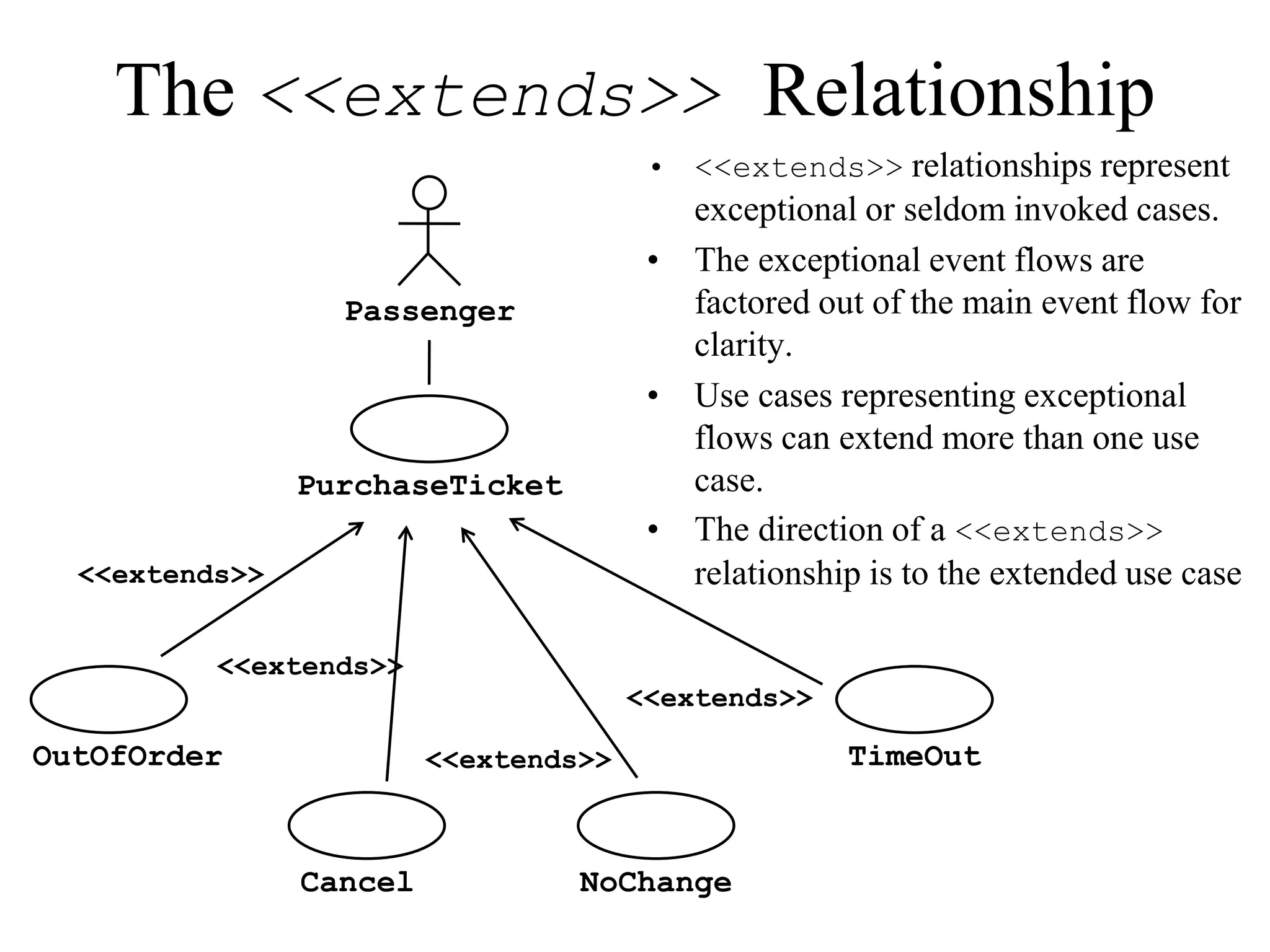

The <<extends>> Relationship
• <<extends>> relationships represent
exceptional or seldom invoked cases.
• The exceptional event flows are
factored out of the main event flow for
clarity.
• Use cases representing exceptional
flows can extend more than one use
case.
• The direction of a <<extends>>
relationship is to the extended use case
Passenger
PurchaseTicket
TimeOut
<<extends>>
NoChange
<<extends>>OutOfOrder
<<extends>>
Cancel
<<extends>>

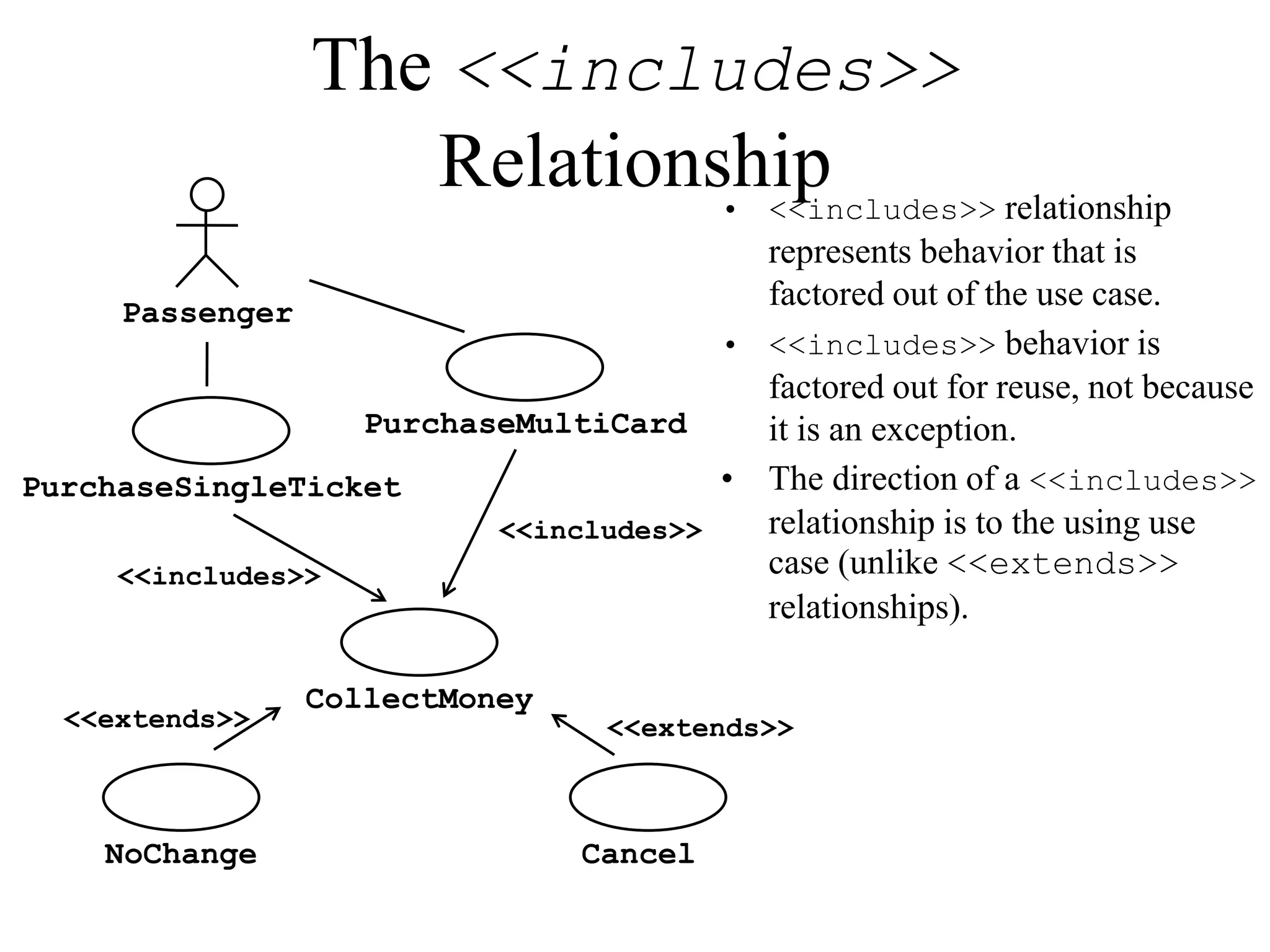

The <<includes>>
Relationship• <<includes>> relationship
represents behavior that is
factored out of the use case.
• <<includes>> behavior is
factored out for reuse, not because
it is an exception.
• The direction of a <<includes>>
relationship is to the using use
case (unlike <<extends>>
relationships).
Passenger
PurchaseSingleTicket
PurchaseMultiCard
NoChange
<<extends>>
Cancel
<<extends>>
<<includes>>
CollectMoney
<<includes>>

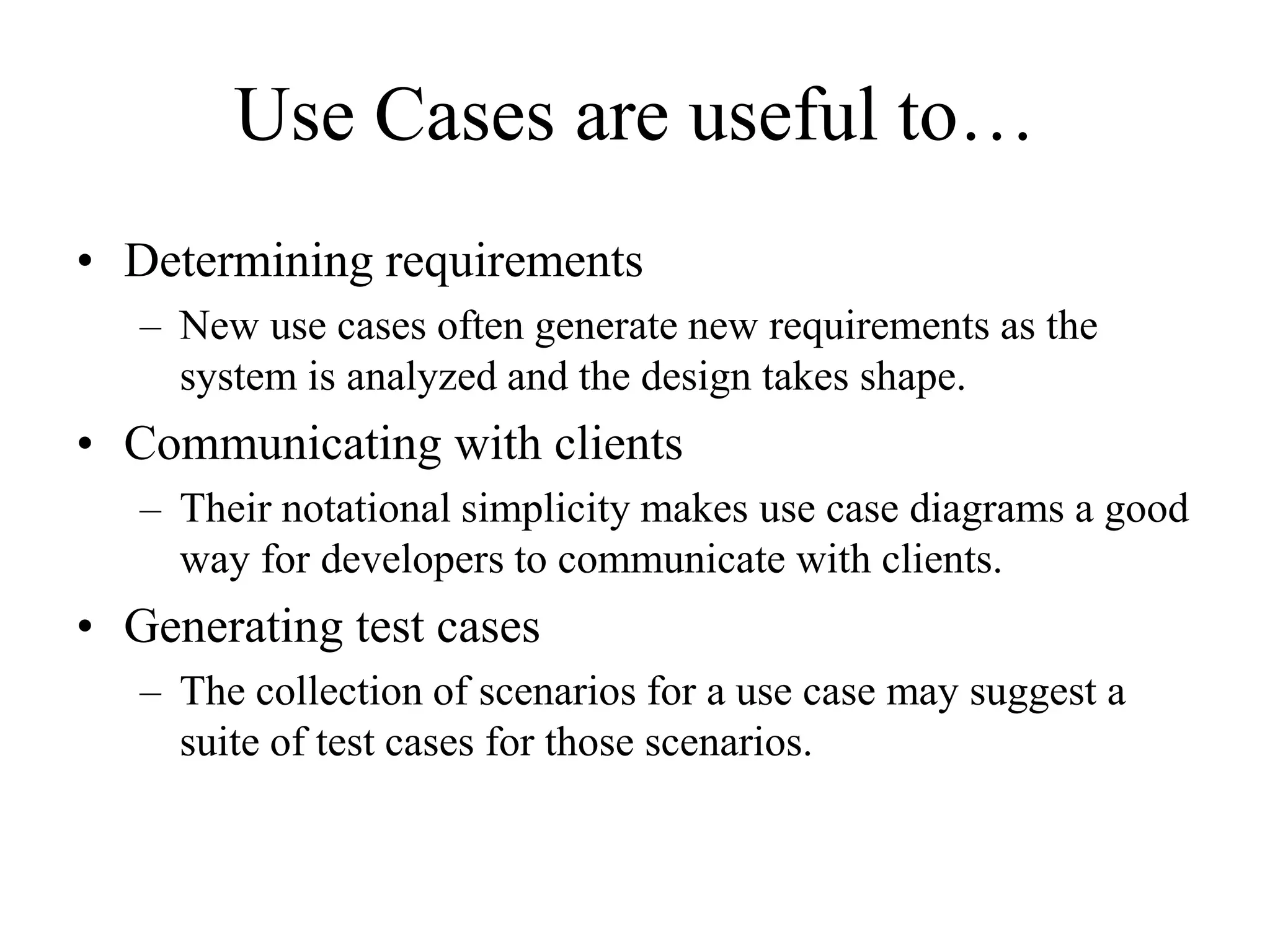

Use Cases are useful to…
• Determining requirements
– New use cases often generate new requirements as the
system is analyzed and the design takes shape.
• Communicating with clients
– Their notational simplicity makes use case diagrams a good
way for developers to communicate with clients.
• Generating test cases
– The collection of scenarios for a use case may suggest a
suite of test cases for those scenarios.

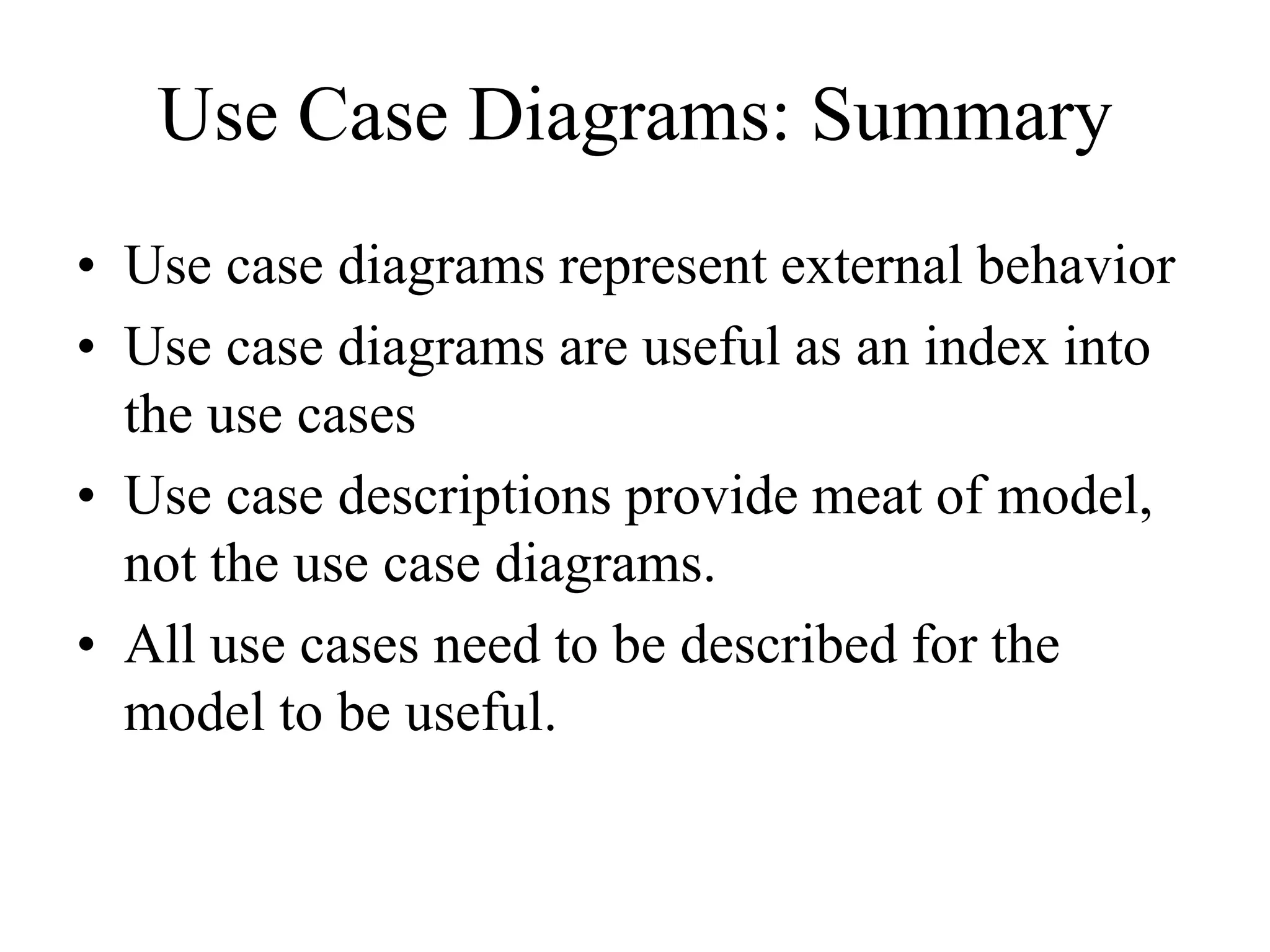

Use Case Diagrams: Summary
• Use case diagrams represent external behavior
• Use case diagrams are useful as an index into
the use cases
• Use case descriptions provide meat of model,
not the use case diagrams.
• All use cases need to be described for the
model to be useful.

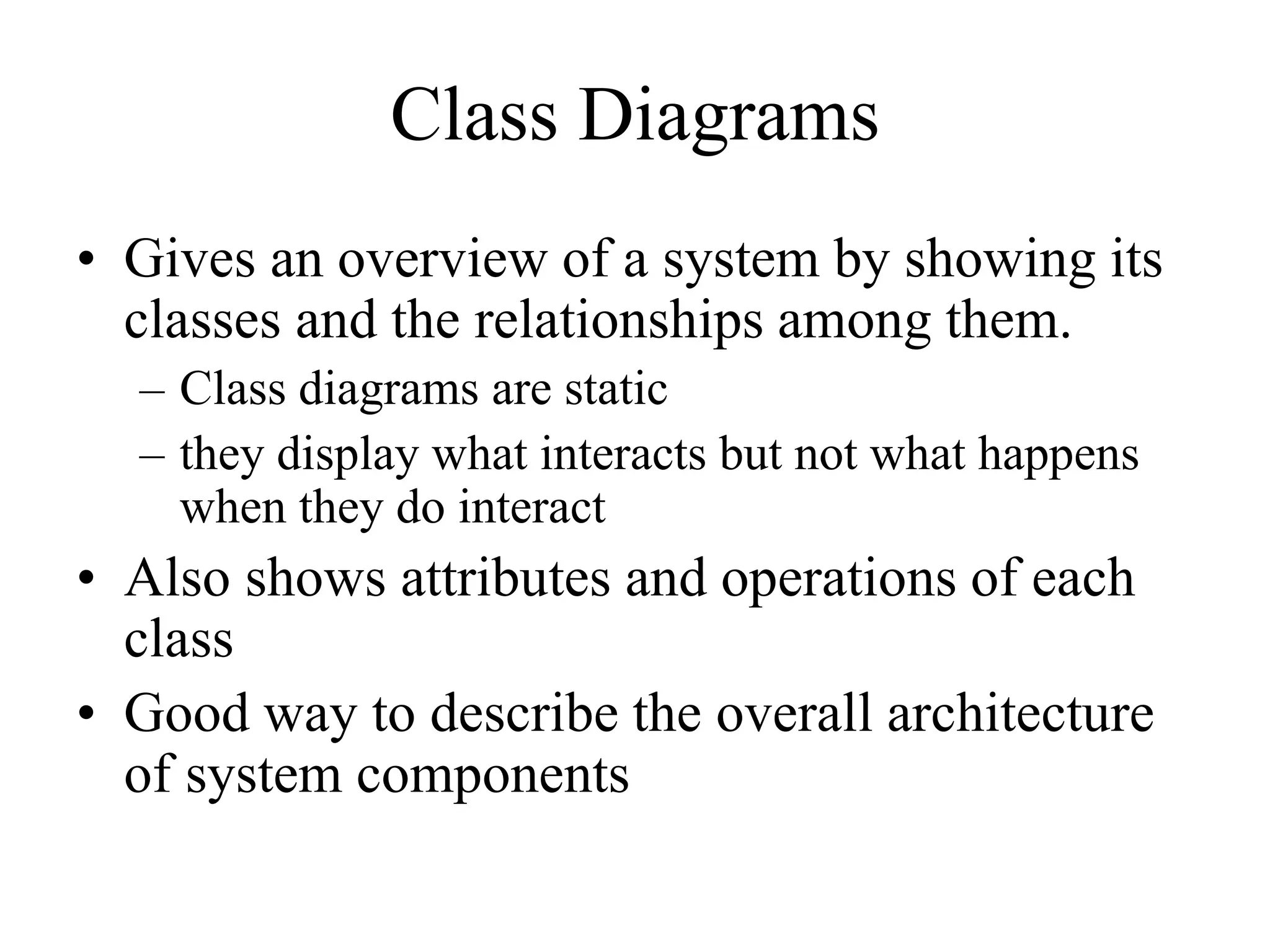

Class Diagrams
• Gives an overview of a system by showing its
classes and the relationships among them.
– Class diagrams are static
– they display what interacts but not what happens
when they do interact
• Also shows attributes and operations of each
class
• Good way to describe the overall architecture
of system components

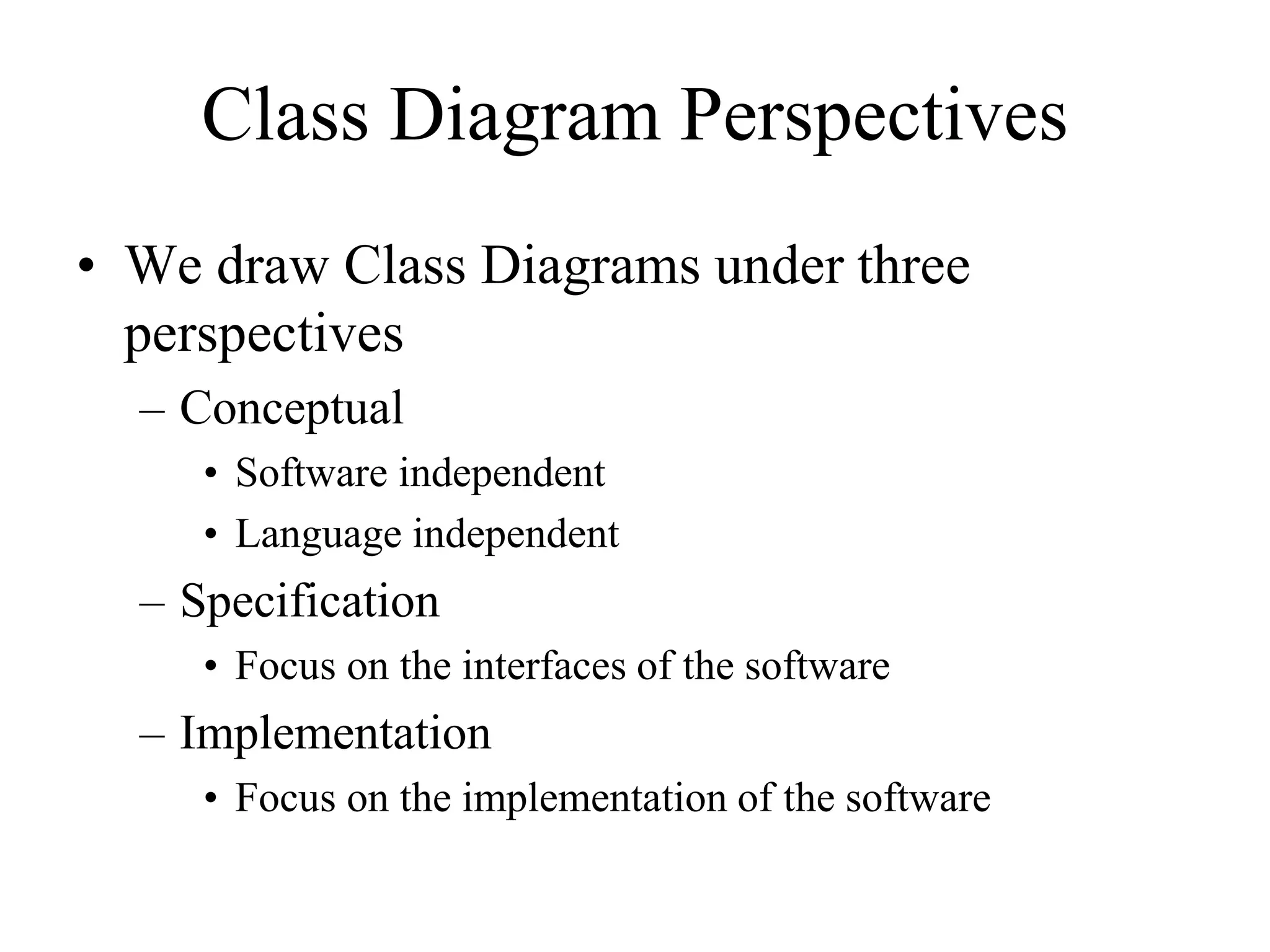

Class Diagram Perspectives
• We draw Class Diagrams under three
perspectives
– Conceptual
• Software independent
• Language independent
– Specification
• Focus on the interfaces of the software
– Implementation
• Focus on the implementation of the software

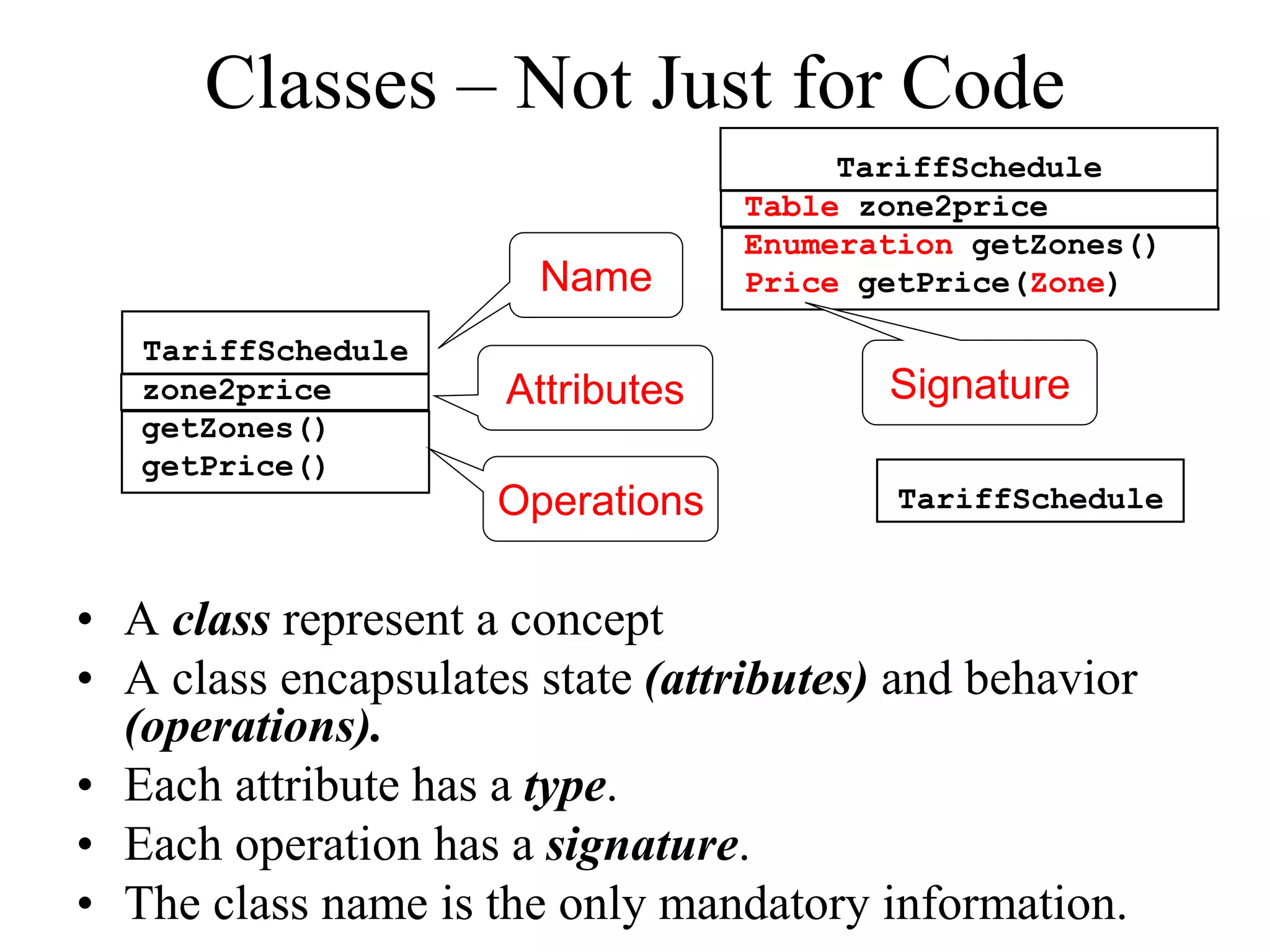

Classes – Not Just for Code
• A class represent a concept
• A class encapsulates state (attributes) and behavior
(operations).
• Each attribute has a type.
• Each operation has a signature.
• The class name is the only mandatory information.
zone2price
getZones()
getPrice()
TariffSchedule
Table zone2price
Enumeration getZones()
Price getPrice(Zone)
TariffSchedule
Name
Attributes
Operations
Signature
TariffSchedule

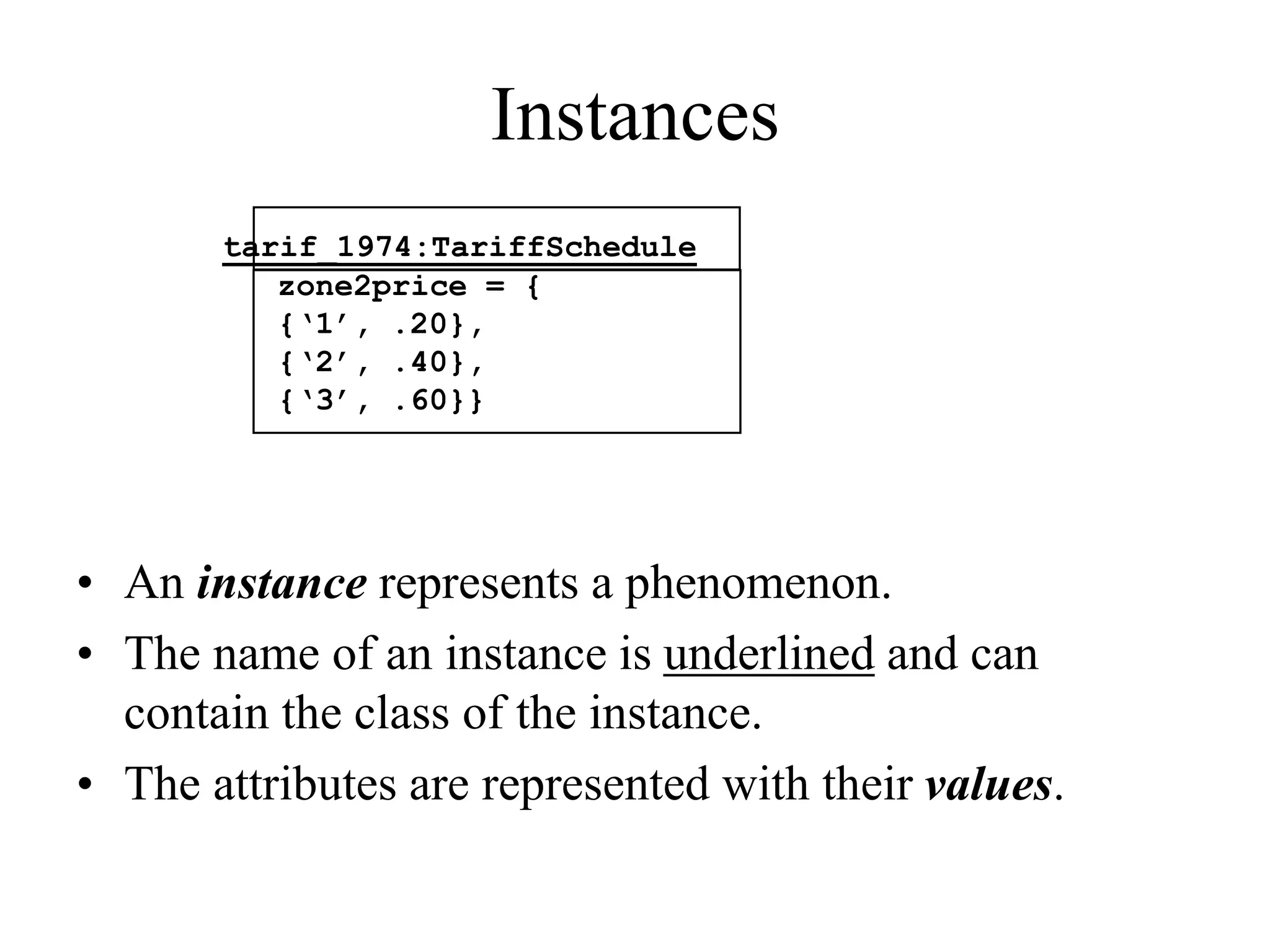

Instances
• An instance represents a phenomenon.
• The name of an instance is underlined and can
contain the class of the instance.
• The attributes are represented with their values.
zone2price = {
{‘1’, .20},
{‘2’, .40},
{‘3’, .60}}
tarif_1974:TariffSchedule

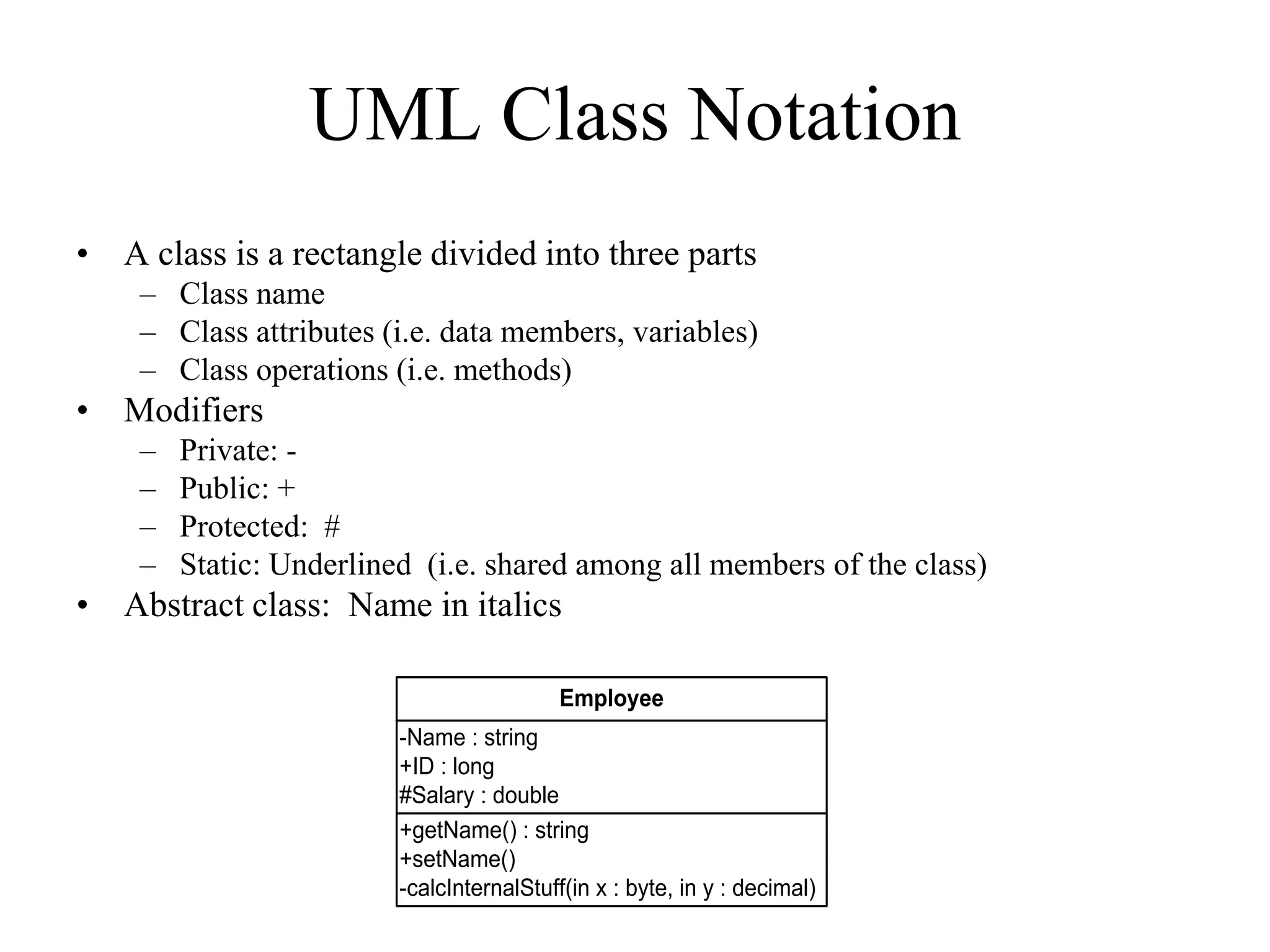

UML Class Notation
• A class is a rectangle divided into three parts
– Class name
– Class attributes (i.e. data members, variables)
– Class operations (i.e. methods)
• Modifiers
– Private: -
– Public: +
– Protected: #
– Static: Underlined (i.e. shared among all members of the class)
• Abstract class: Name in italics
+getName() : string
+setName()
-calcInternalStuff(in x : byte, in y : decimal)
-Name : string
+ID : long
#Salary : double
Employee

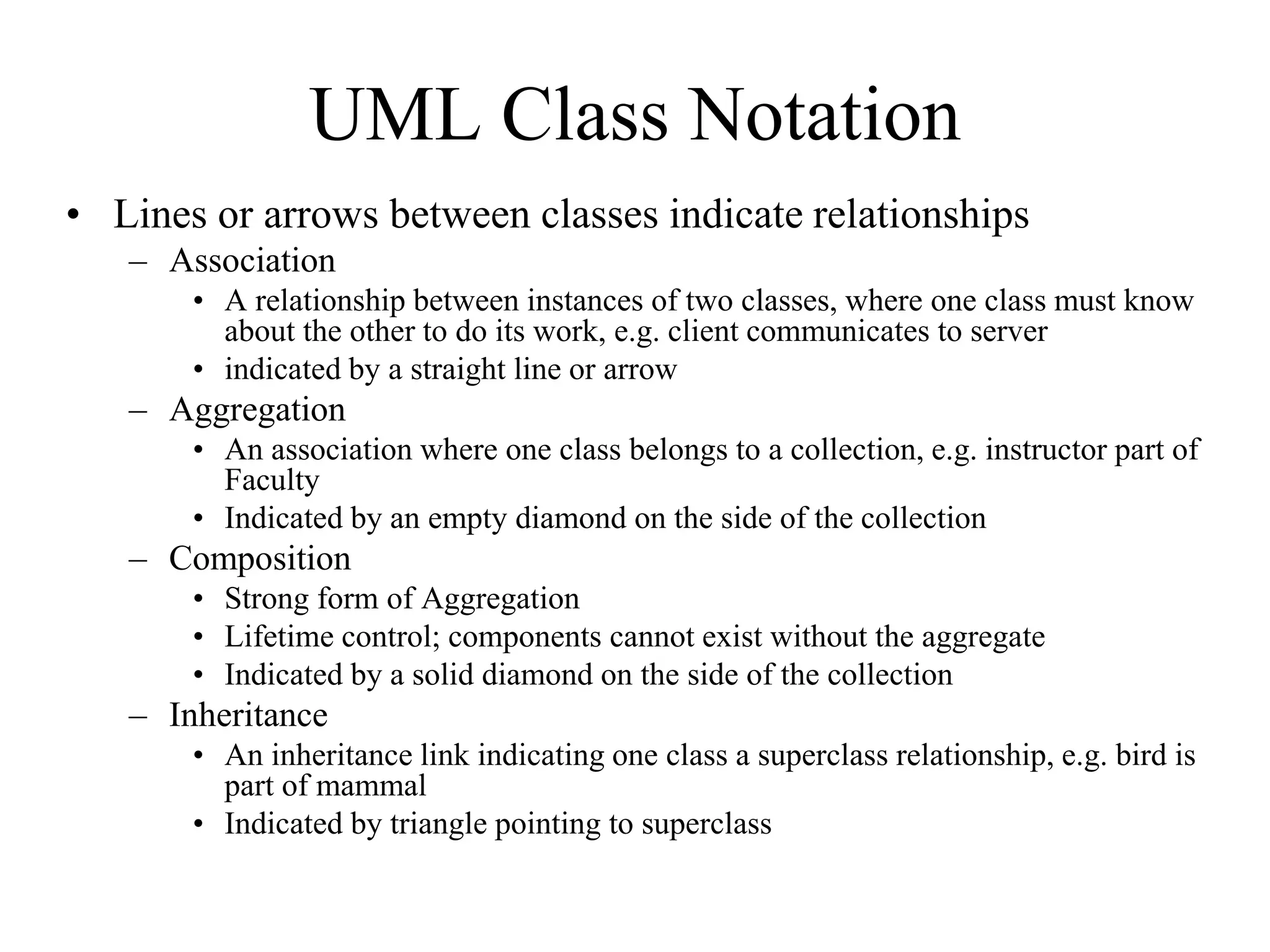

UML Class Notation
• Lines or arrows between classes indicate relationships
– Association
• A relationship between instances of two classes, where one class must know
about the other to do its work, e.g. client communicates to server
• indicated by a straight line or arrow
– Aggregation
• An association where one class belongs to a collection, e.g. instructor part of
Faculty
• Indicated by an empty diamond on the side of the collection
– Composition
• Strong form of Aggregation
• Lifetime control; components cannot exist without the aggregate
• Indicated by a solid diamond on the side of the collection
– Inheritance
• An inheritance link indicating one class a superclass relationship, e.g. bird is
part of mammal
• Indicated by triangle pointing to superclass

Binary Association
myB.service(); myA.doSomething();
Binary Association: Both entities “Know About” each other
Optionally, may create an Associate Class

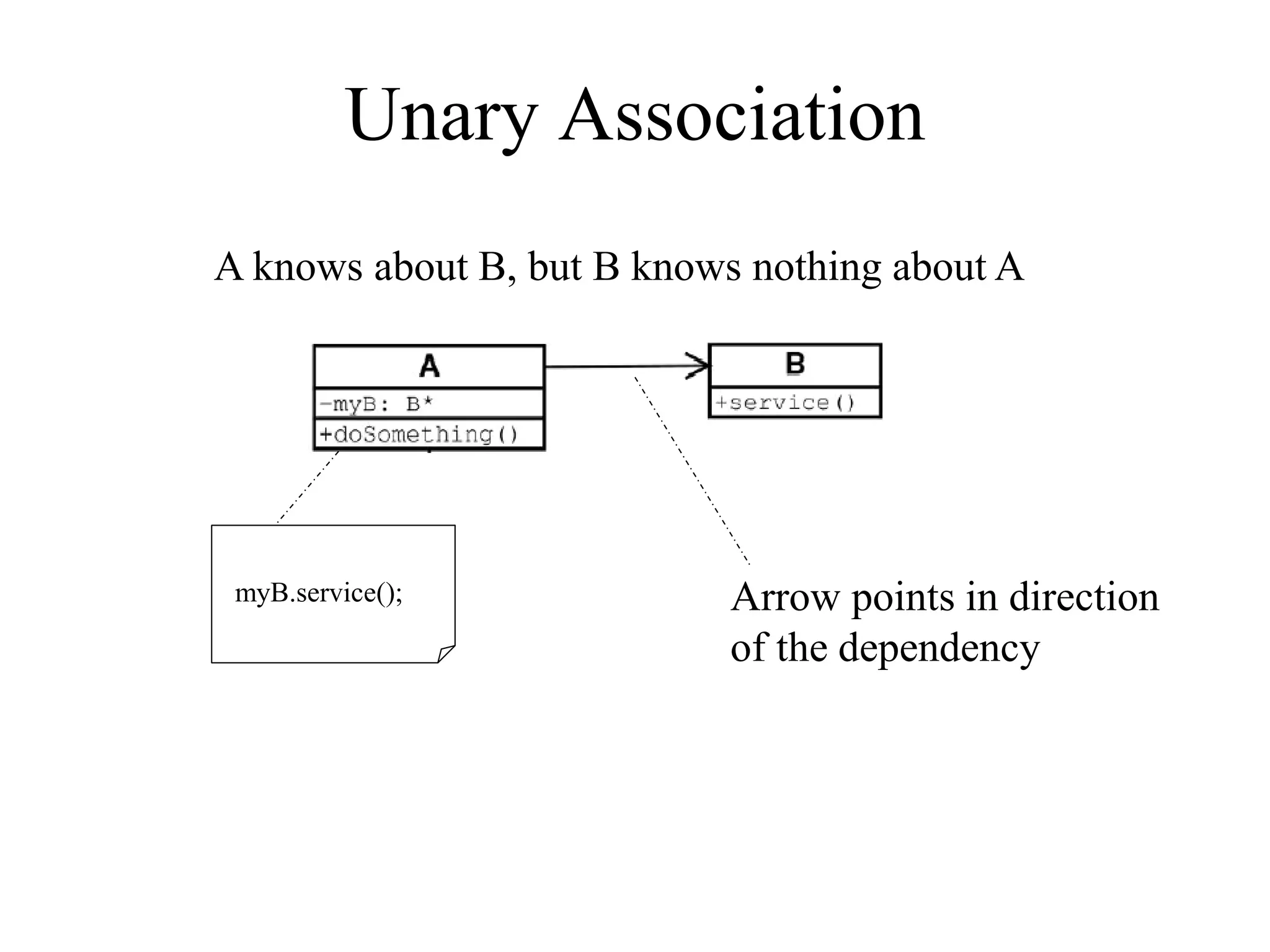

Unary Association
A knows about B, but B knows nothing about A
Arrow points in direction
of the dependency
myB.service();

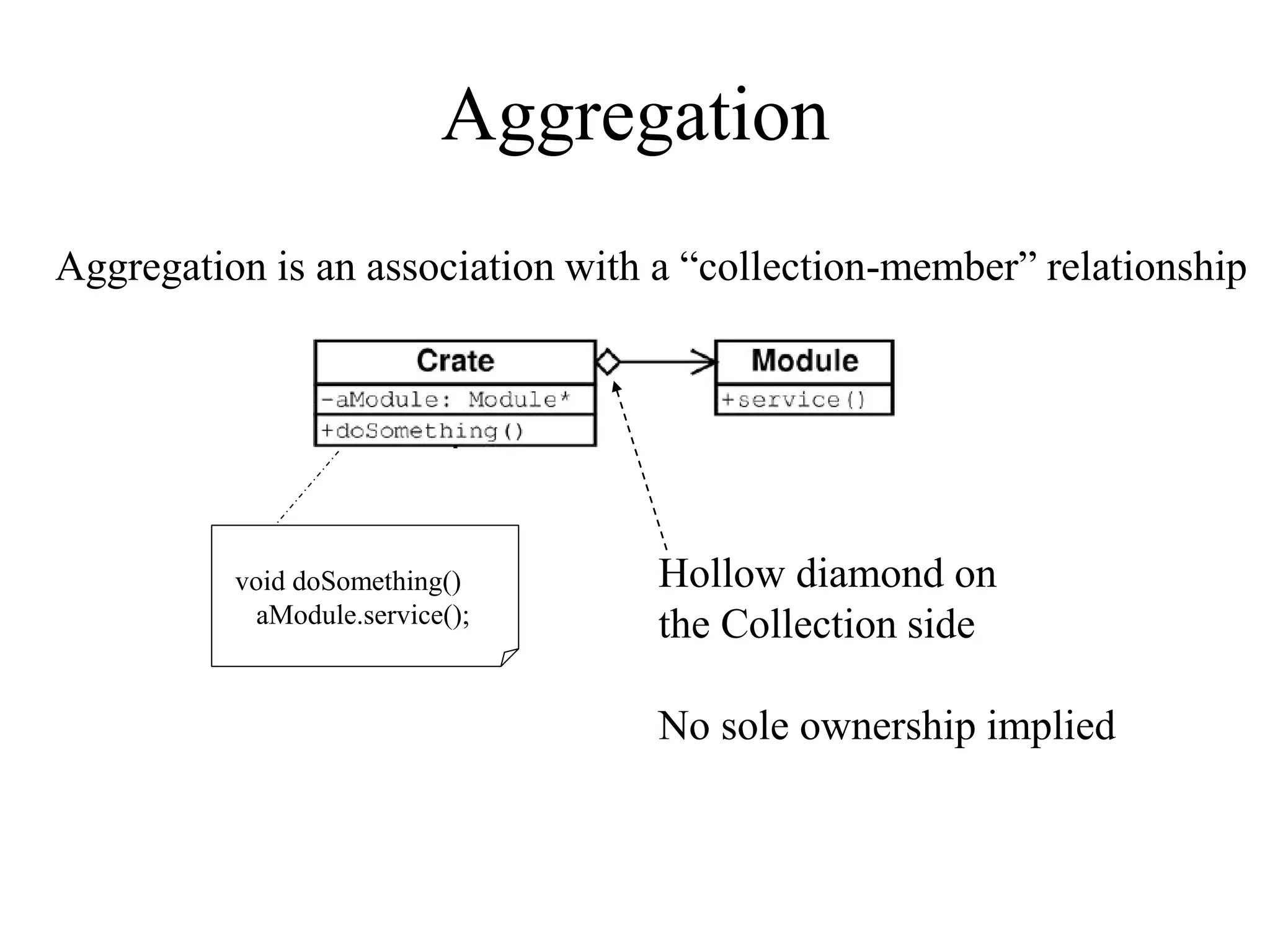

Aggregation
Aggregation is an association with a “collection-member” relationship
void doSomething()
aModule.service();
Hollow diamond on
the Collection side
No sole ownership implied

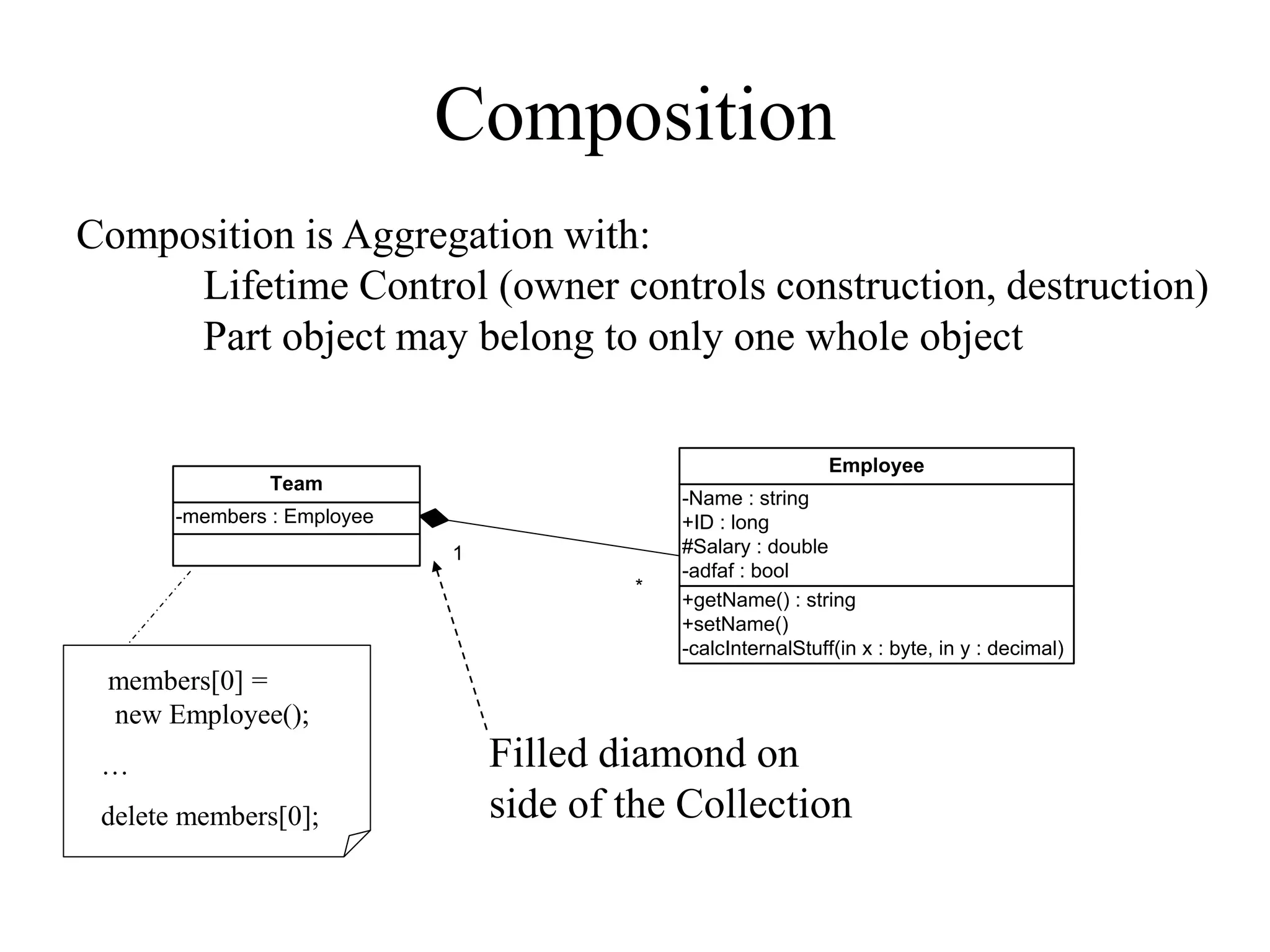

Composition
+getName() : string
+setName()
-Name : string
+ID : long
#Salary : double
-adfaf : bool
Employee
-members : Employee
Team
1
*
Composition is Aggregation with:
Lifetime Control (owner controls construction, destruction)
Part object may belong to only one whole object
Filled diamond on
side of the Collection
members[0] =
new Employee();
…
delete members[0];

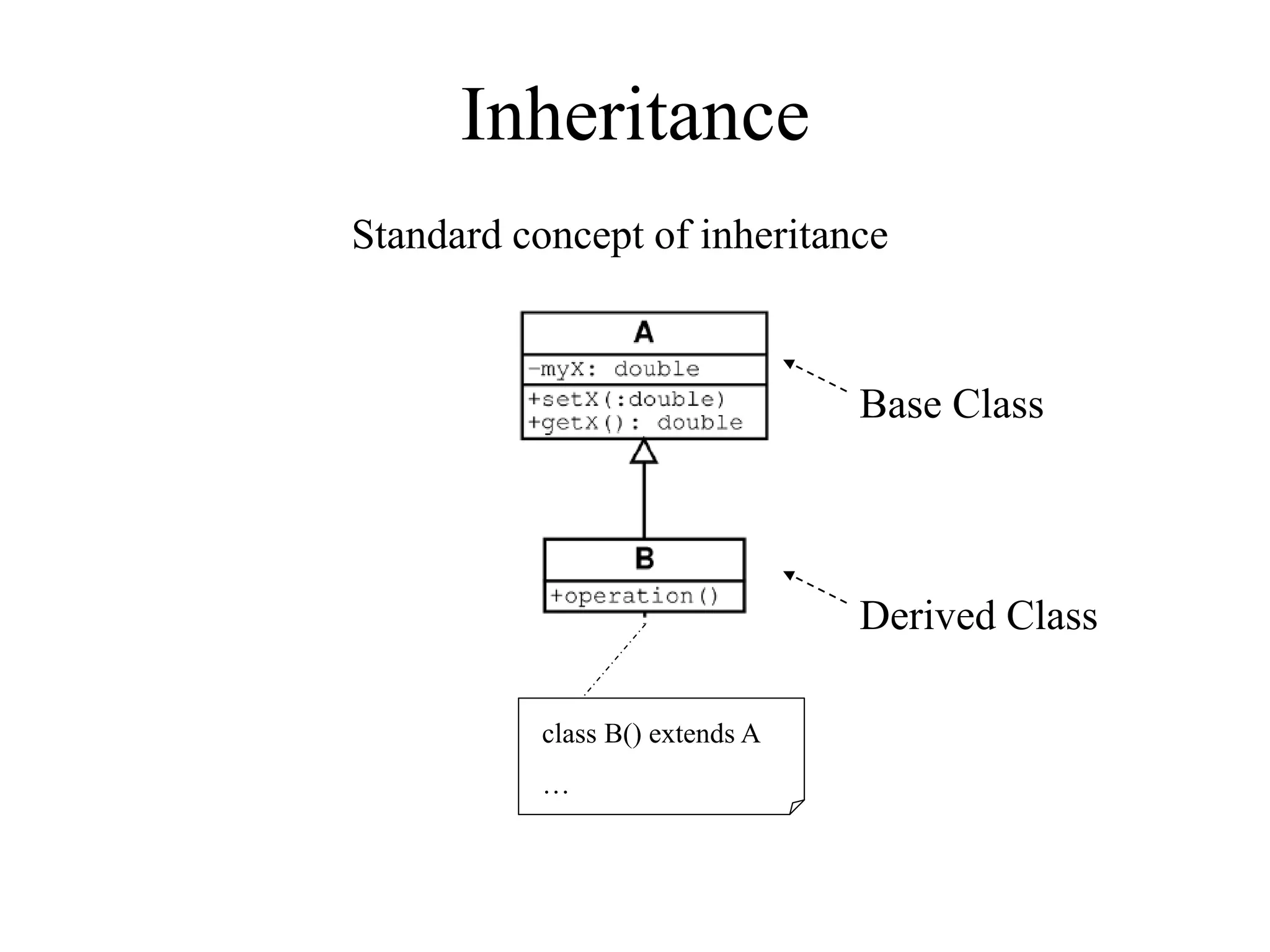

Inheritance
Standard concept of inheritance
class B() extends A
…
Base Class
Derived Class

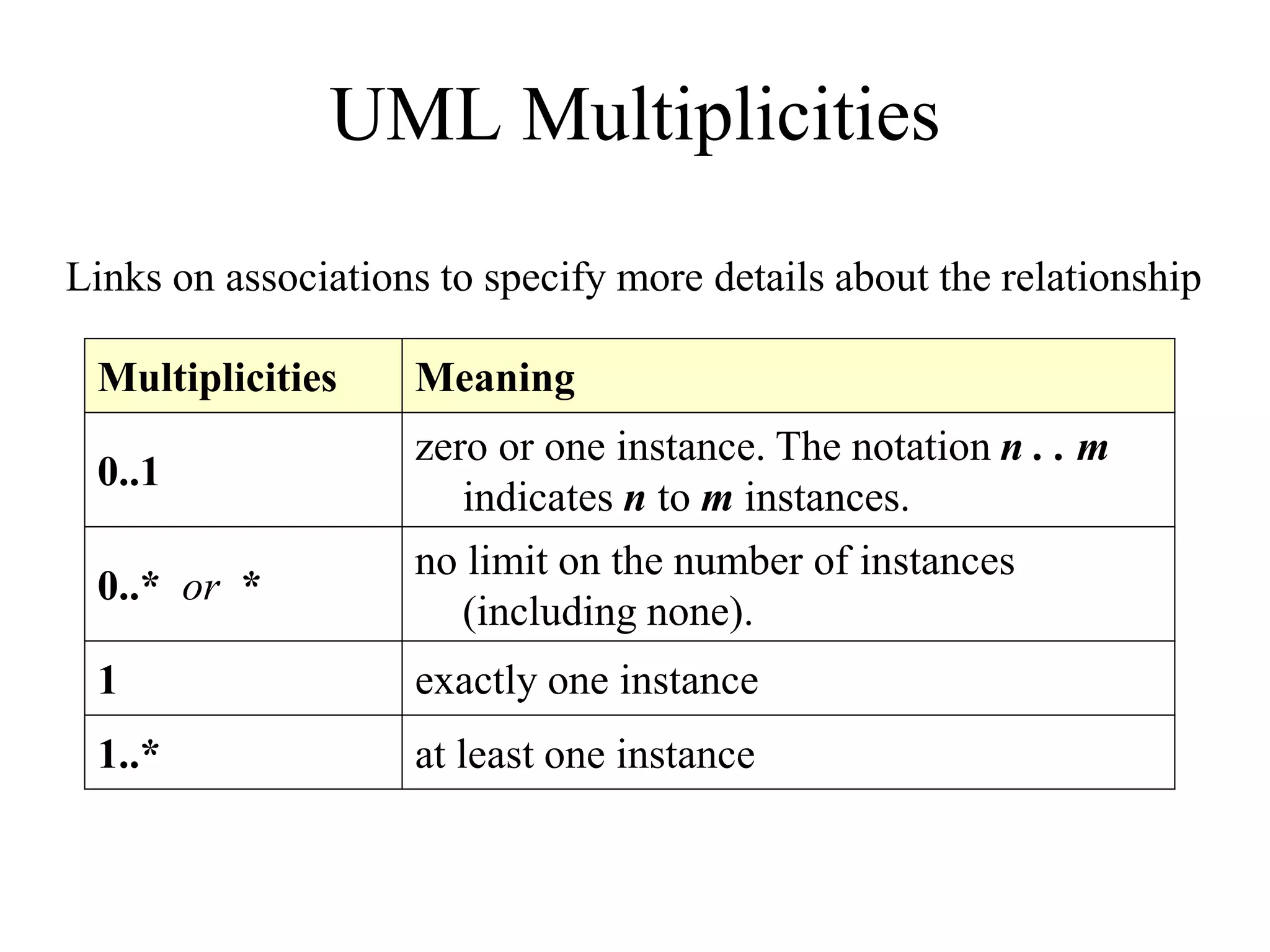

UML Multiplicities
Multiplicities Meaning
0..1
zero or one instance. The notation n . . m
indicates n to m instances.
0..* or *
no limit on the number of instances
(including none).
1 exactly one instance
1..* at least one instance
Links on associations to specify more details about the relationship

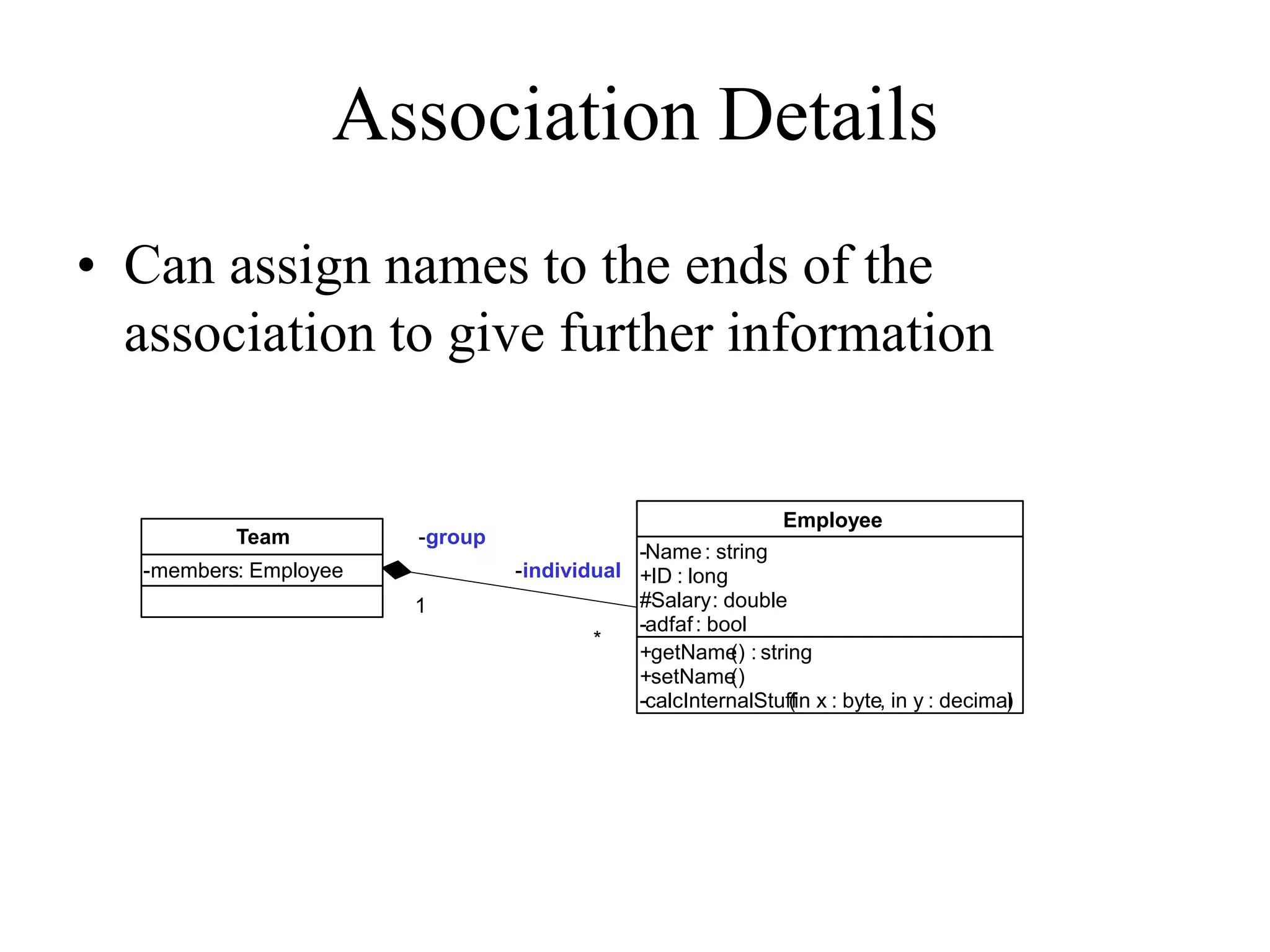

Association Details
• Can assign names to the ends of the
association to give further information
+getName() : string
+setName()
-Name: string
+ID : long
#Salary: double
-adfaf: bool
Employee
-members: Employee
Team -group
1
-individual
*

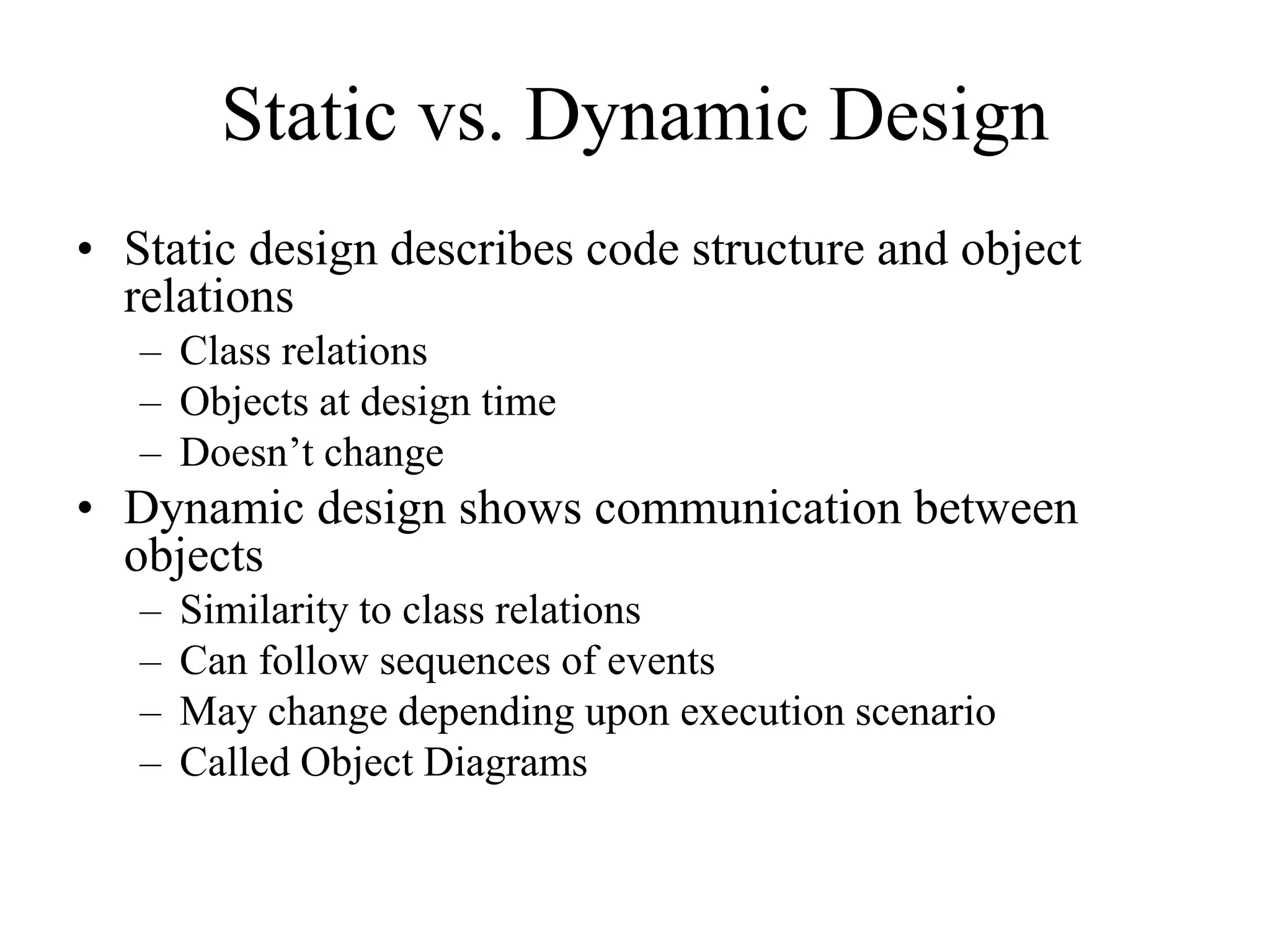

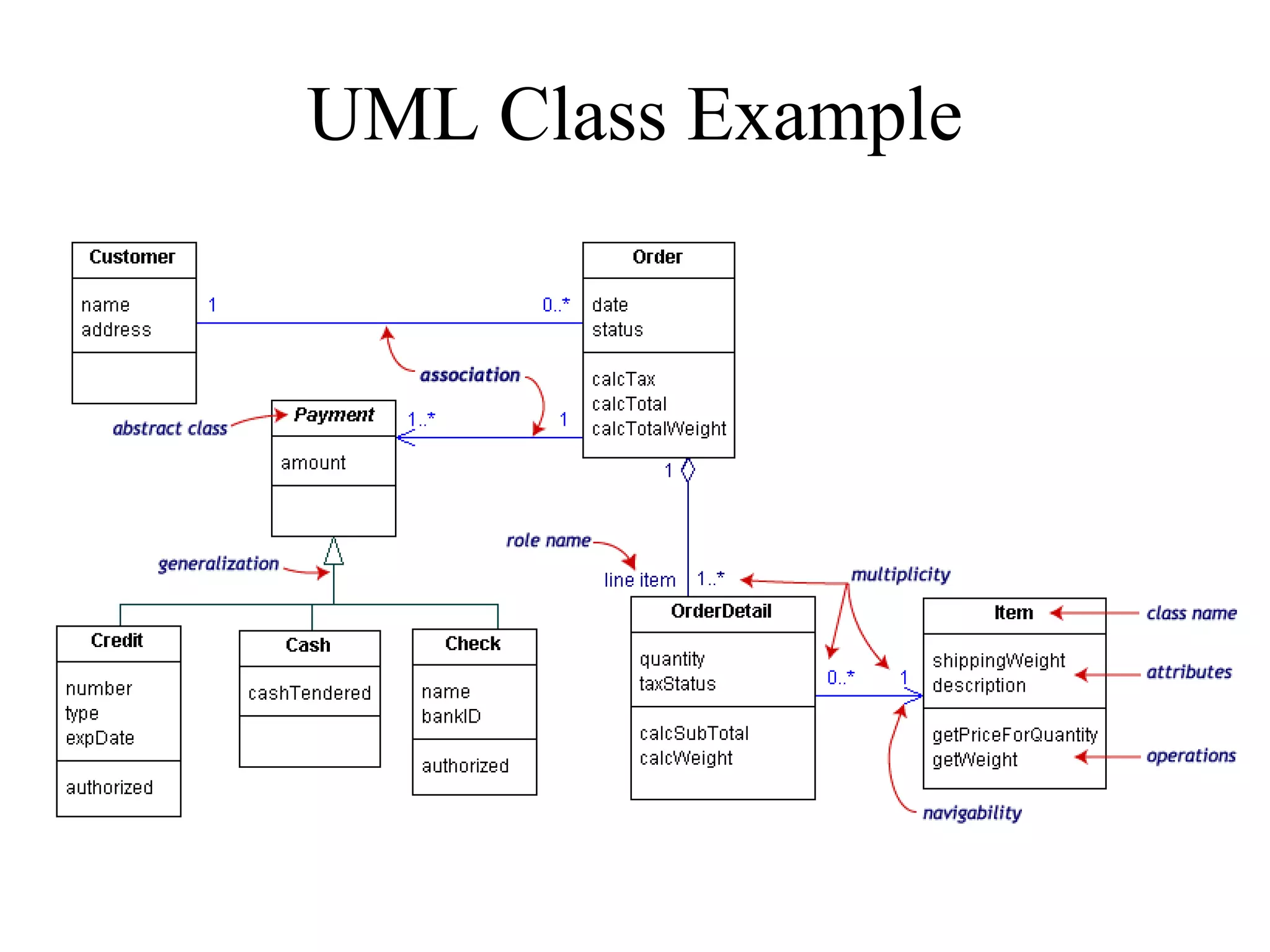

Static vs. Dynamic Design
• Static design describes code structure and object
relations
– Class relations
– Objects at design time
– Doesn’t change
• Dynamic design shows communication between
objects
– Similarity to class relations
– Can follow sequences of events
– May change depending upon execution scenario
– Called Object Diagrams

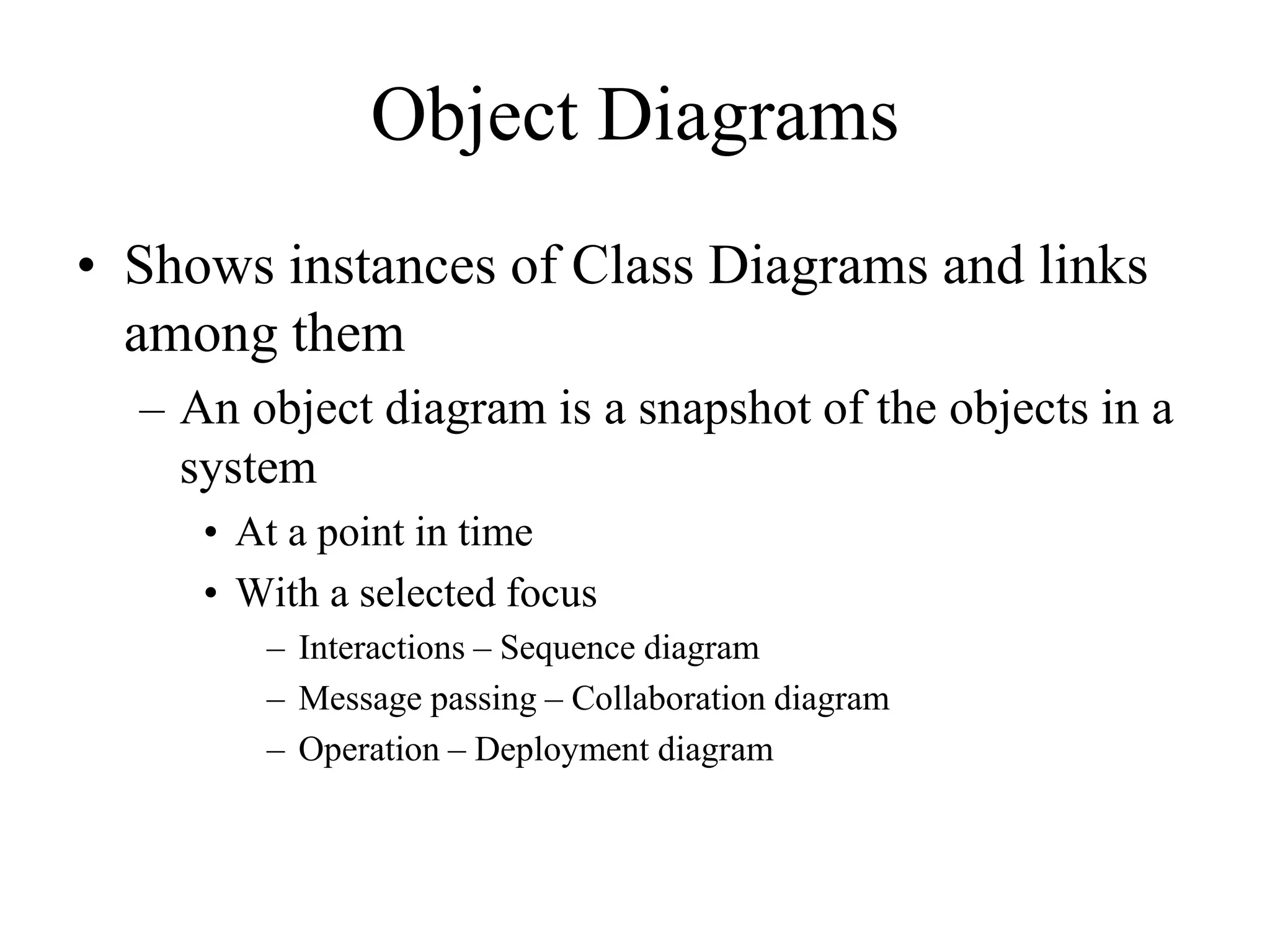

Object Diagrams
• Shows instances of Class Diagrams and links
among them
– An object diagram is a snapshot of the objects in a
system
• At a point in time
• With a selected focus
– Interactions – Sequence diagram
– Message passing – Collaboration diagram
– Operation – Deployment diagram

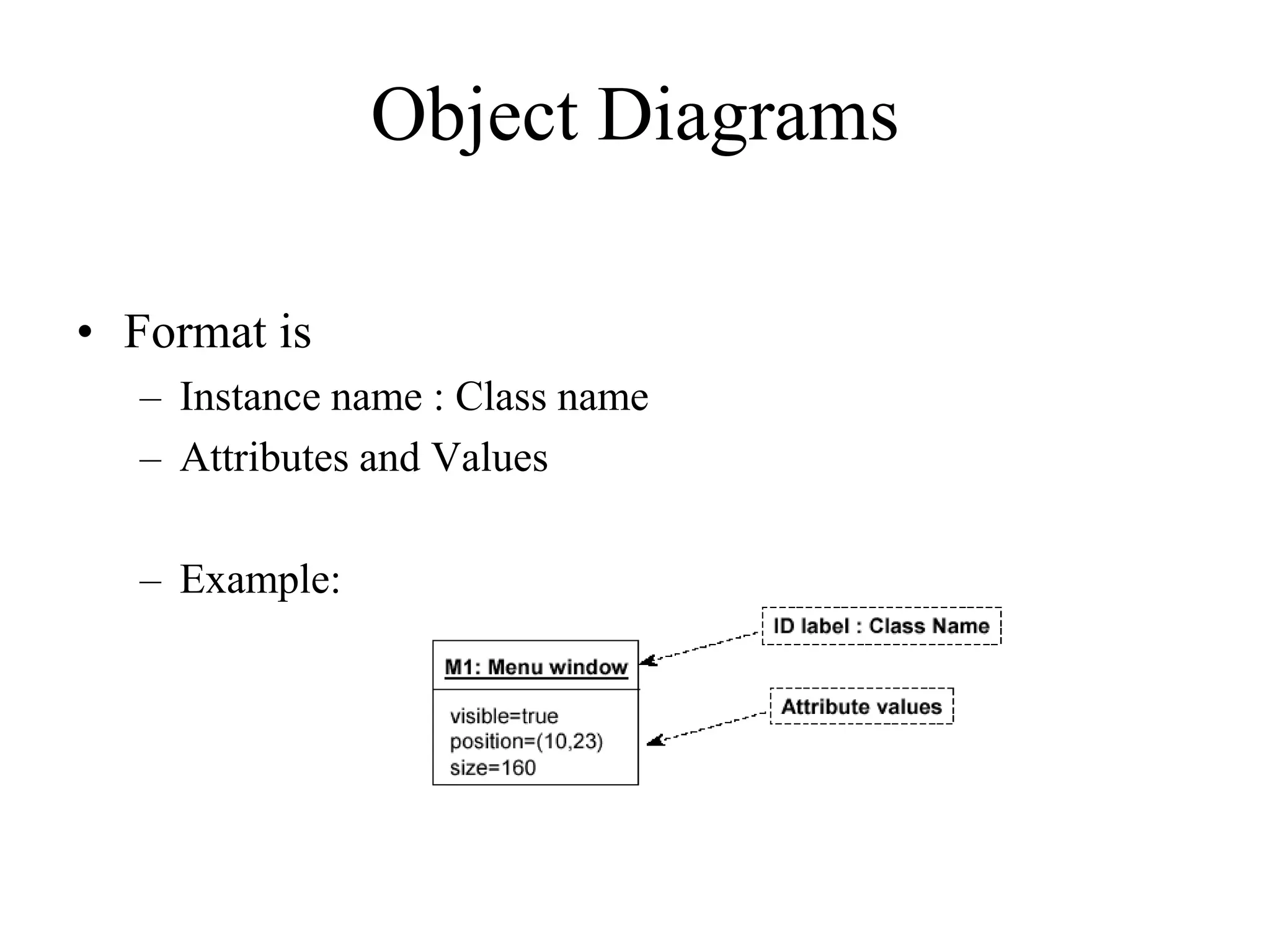

Object Diagrams
• Format is
– Instance name : Class name
– Attributes and Values
– Example:

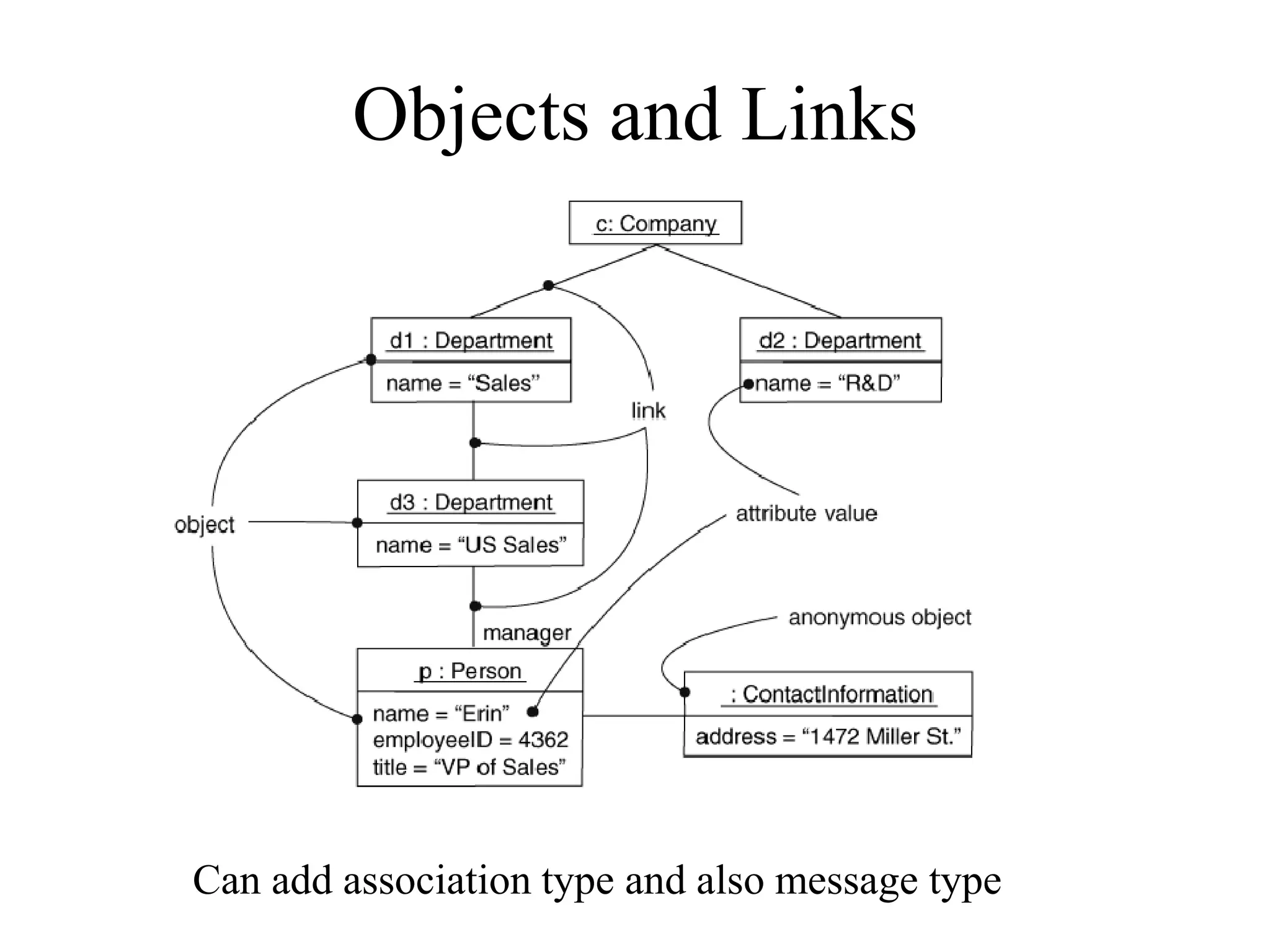

Objects and Links
Can add association type and also message type

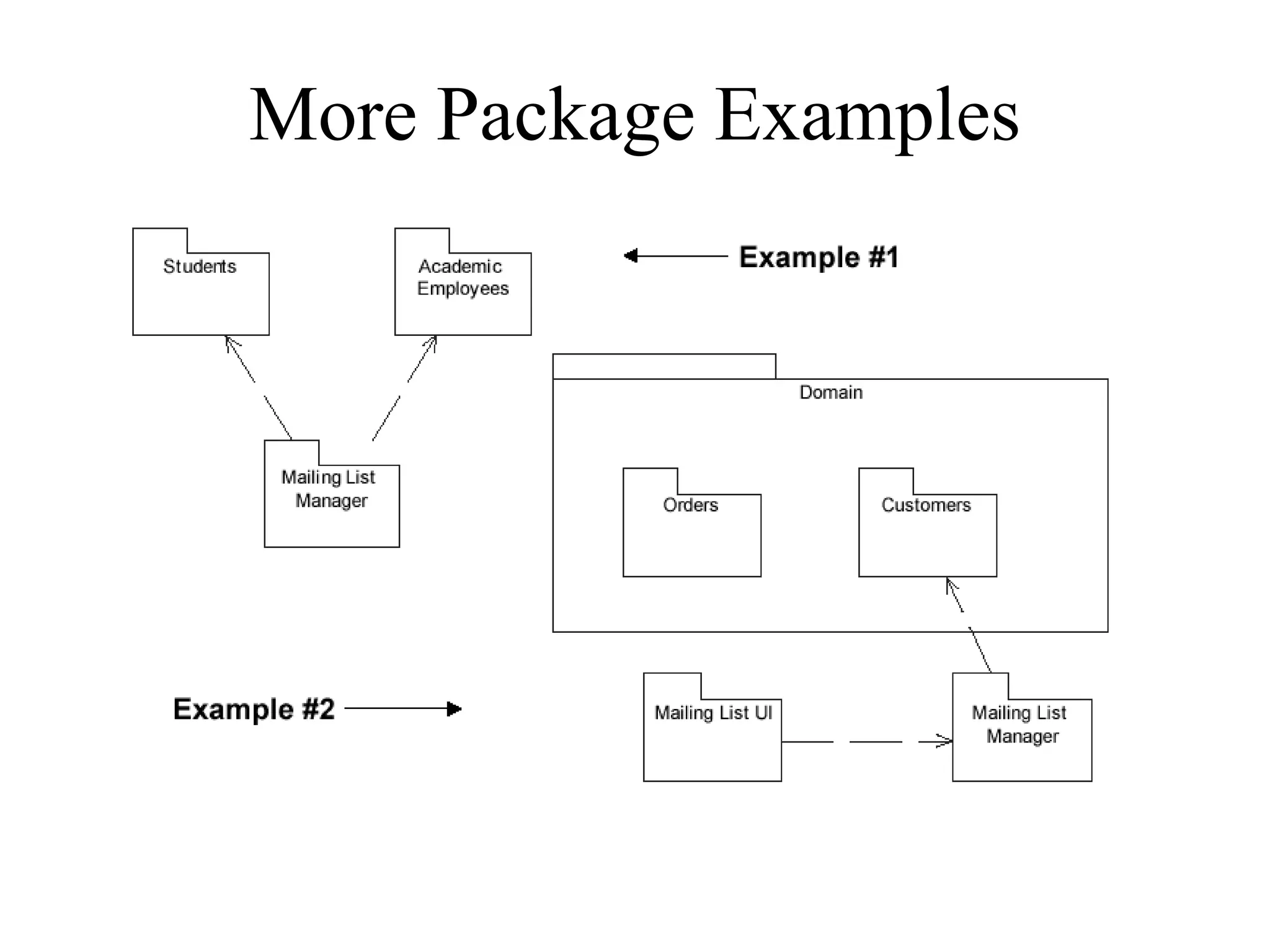

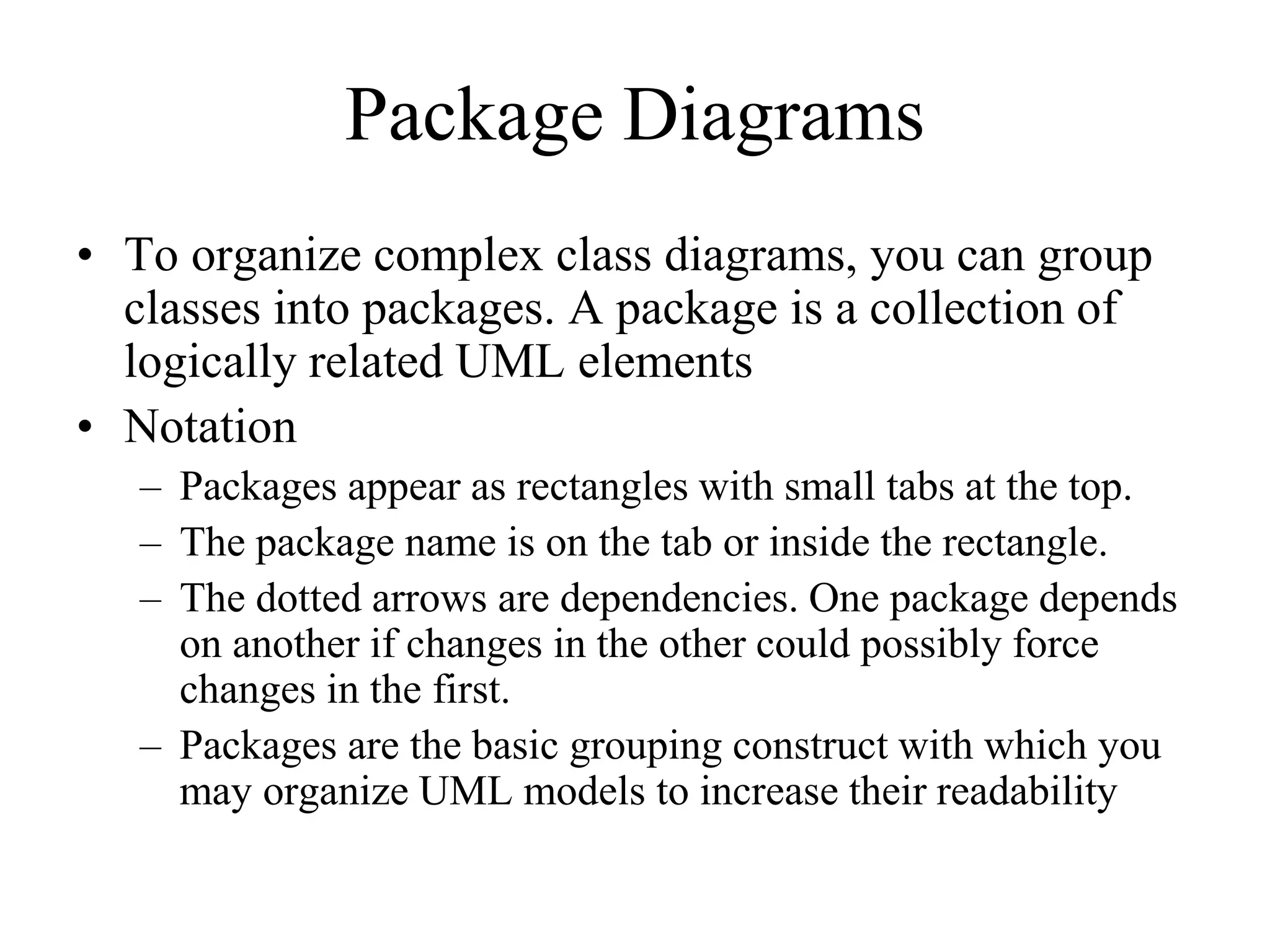

Package Diagrams
• To organize complex class diagrams, you can group
classes into packages. A package is a collection of
logically related UML elements
• Notation
– Packages appear as rectangles with small tabs at the top.
– The package name is on the tab or inside the rectangle.
– The dotted arrows are dependencies. One package depends
on another if changes in the other could possibly force
changes in the first.
– Packages are the basic grouping construct with which you
may organize UML models to increase their readability

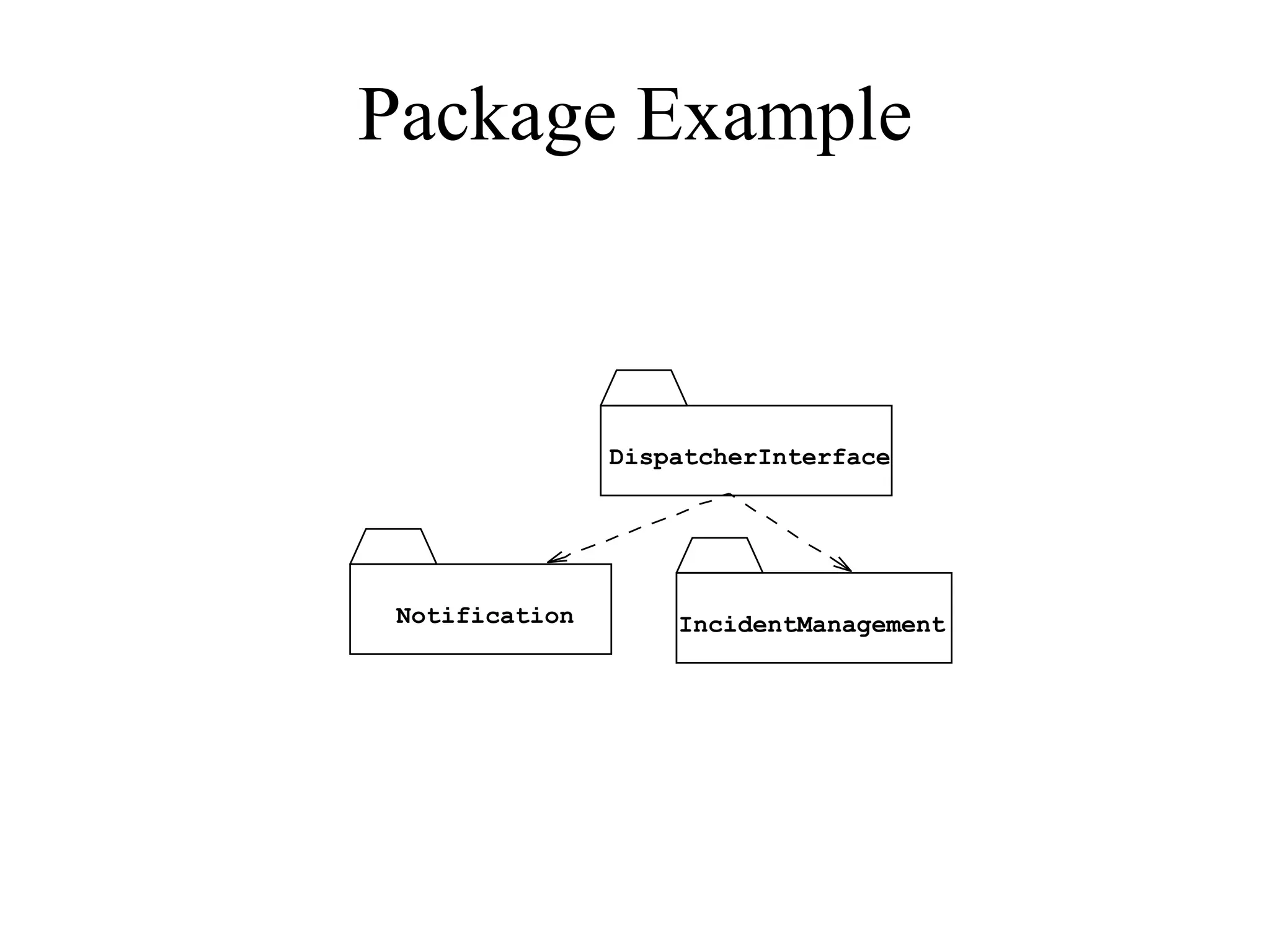

Package Example
DispatcherInterface
Notification IncidentManagement

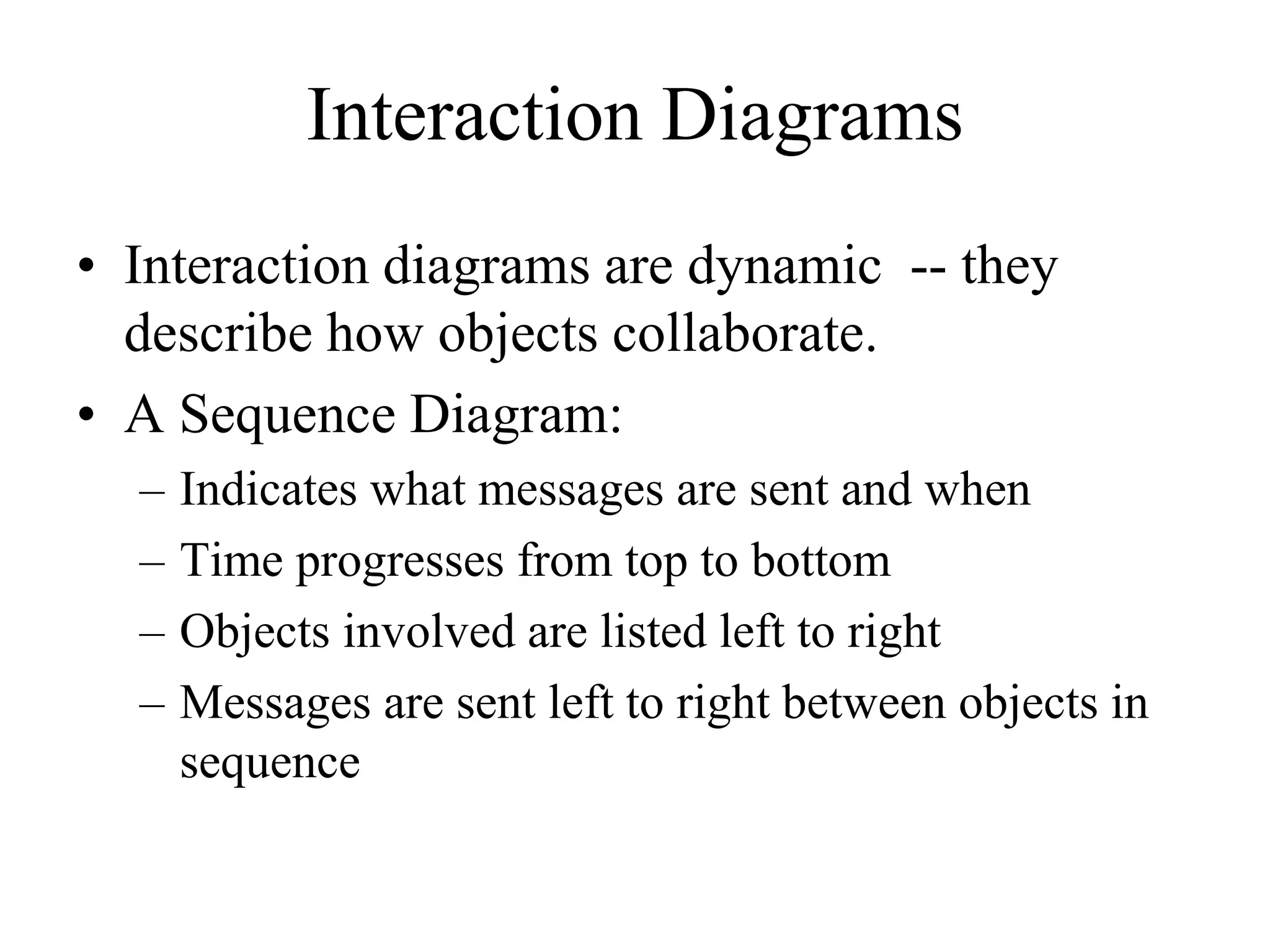

Interaction Diagrams
• Interaction diagrams are dynamic -- they
describe how objects collaborate.
• A Sequence Diagram:
– Indicates what messages are sent and when
– Time progresses from top to bottom
– Objects involved are listed left to right
– Messages are sent left to right between objects in
sequence

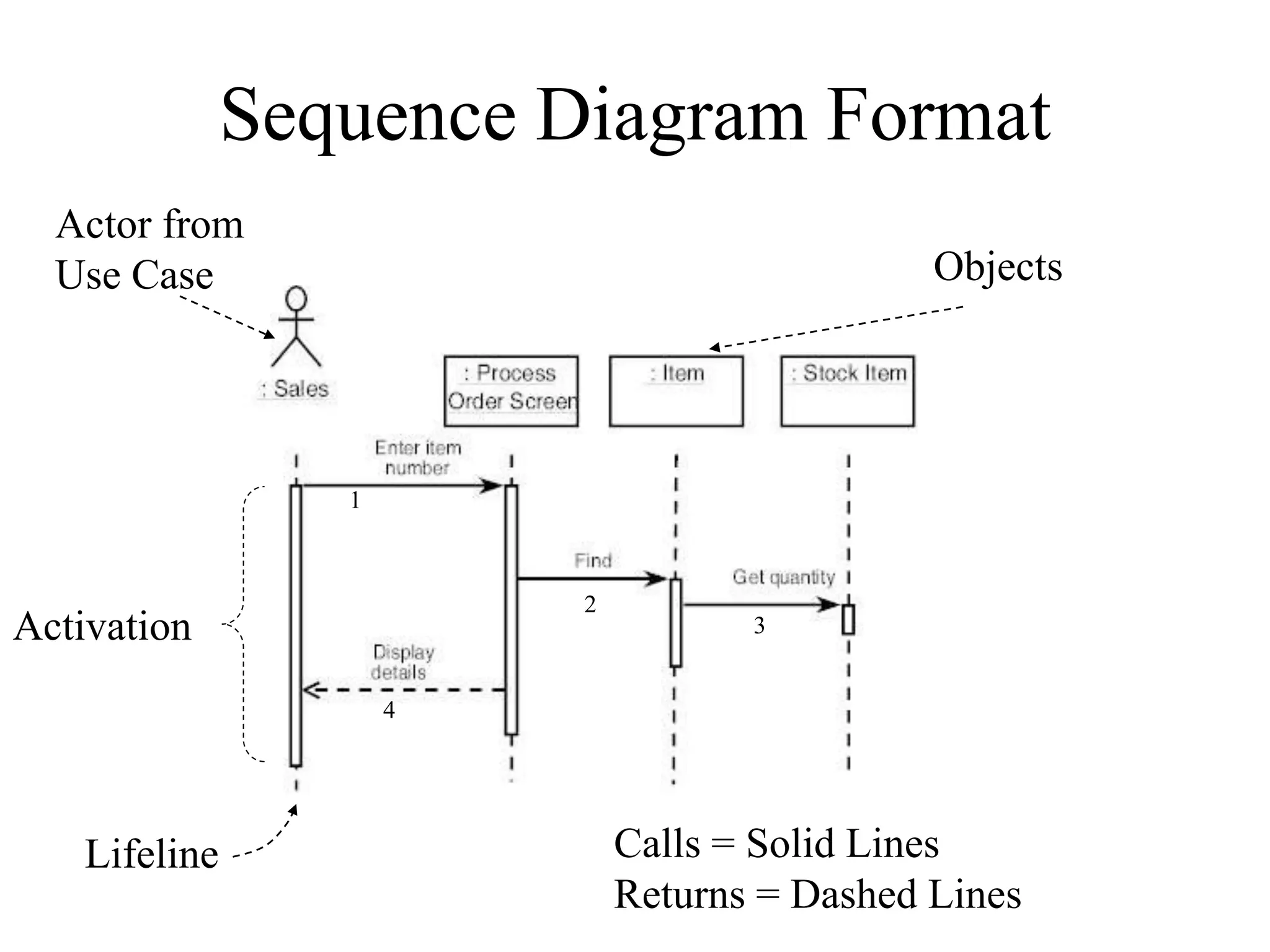

Sequence Diagram Format
Actor from
Use Case Objects
1
2
3
4
Lifeline Calls = Solid Lines
Returns = Dashed Lines
Activation

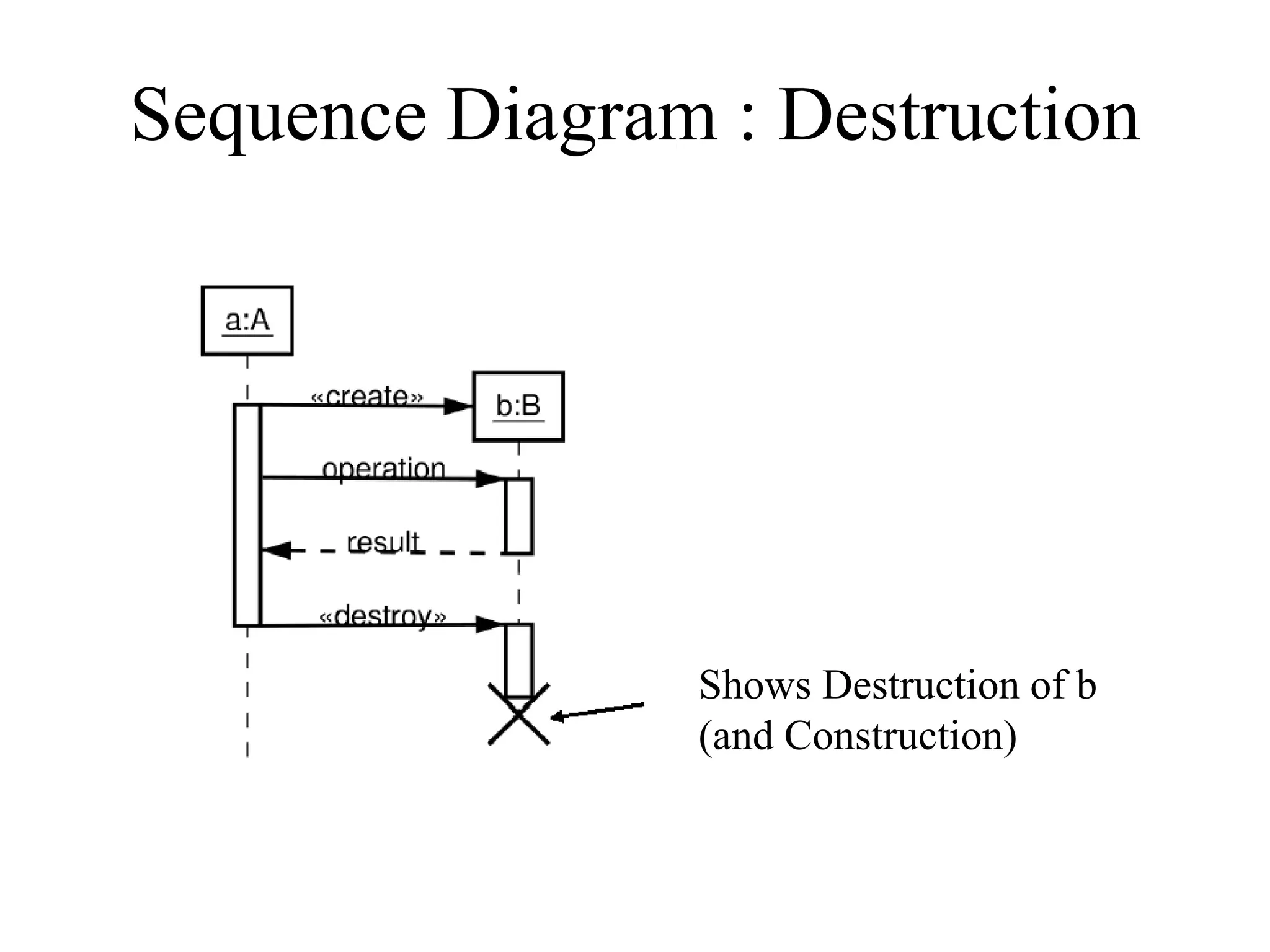

Sequence Diagram : Destruction
Shows Destruction of b
(and Construction)

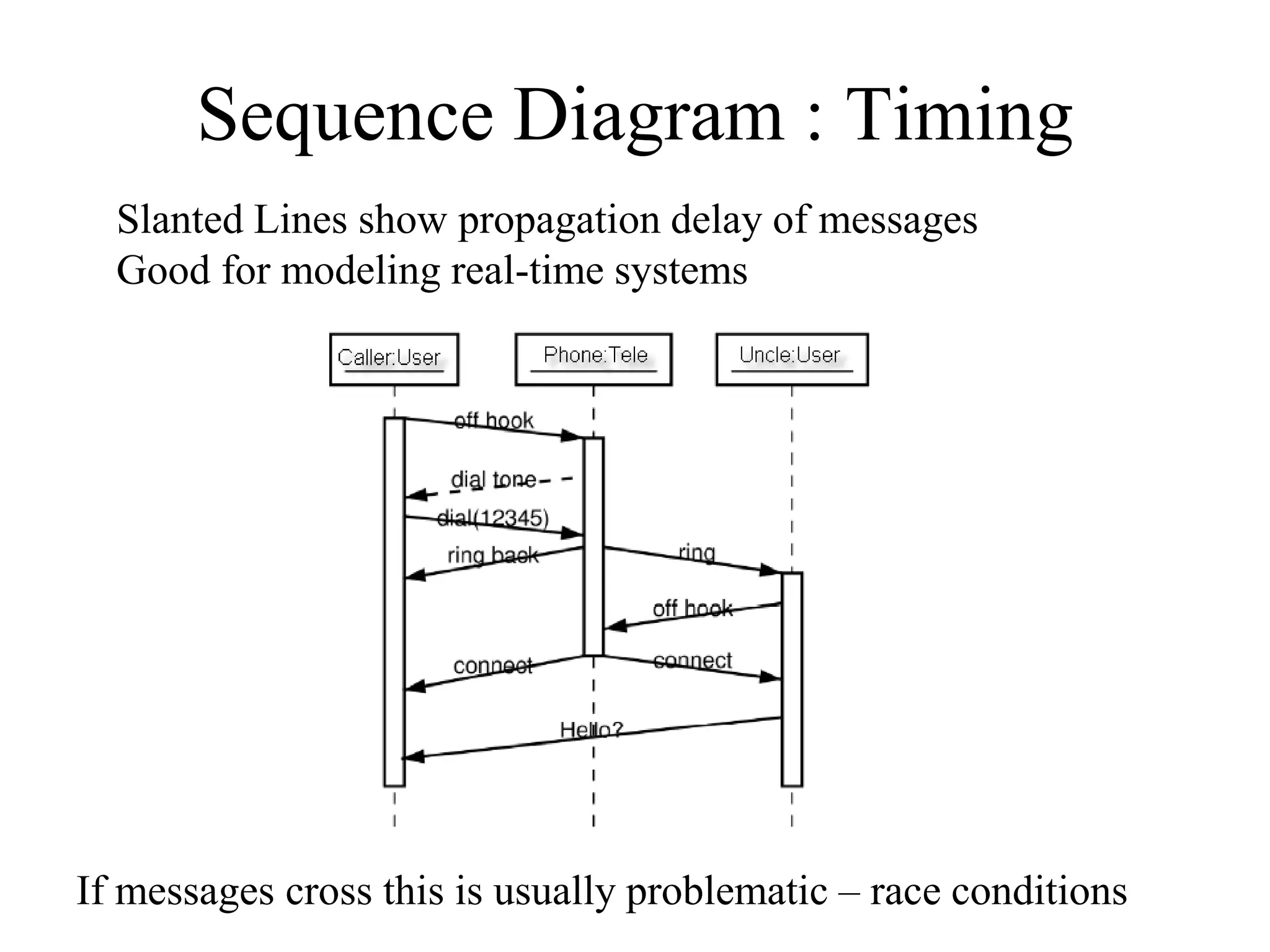

Sequence Diagram : Timing
Slanted Lines show propagation delay of messages
Good for modeling real-time systems
If messages cross this is usually problematic – race conditions

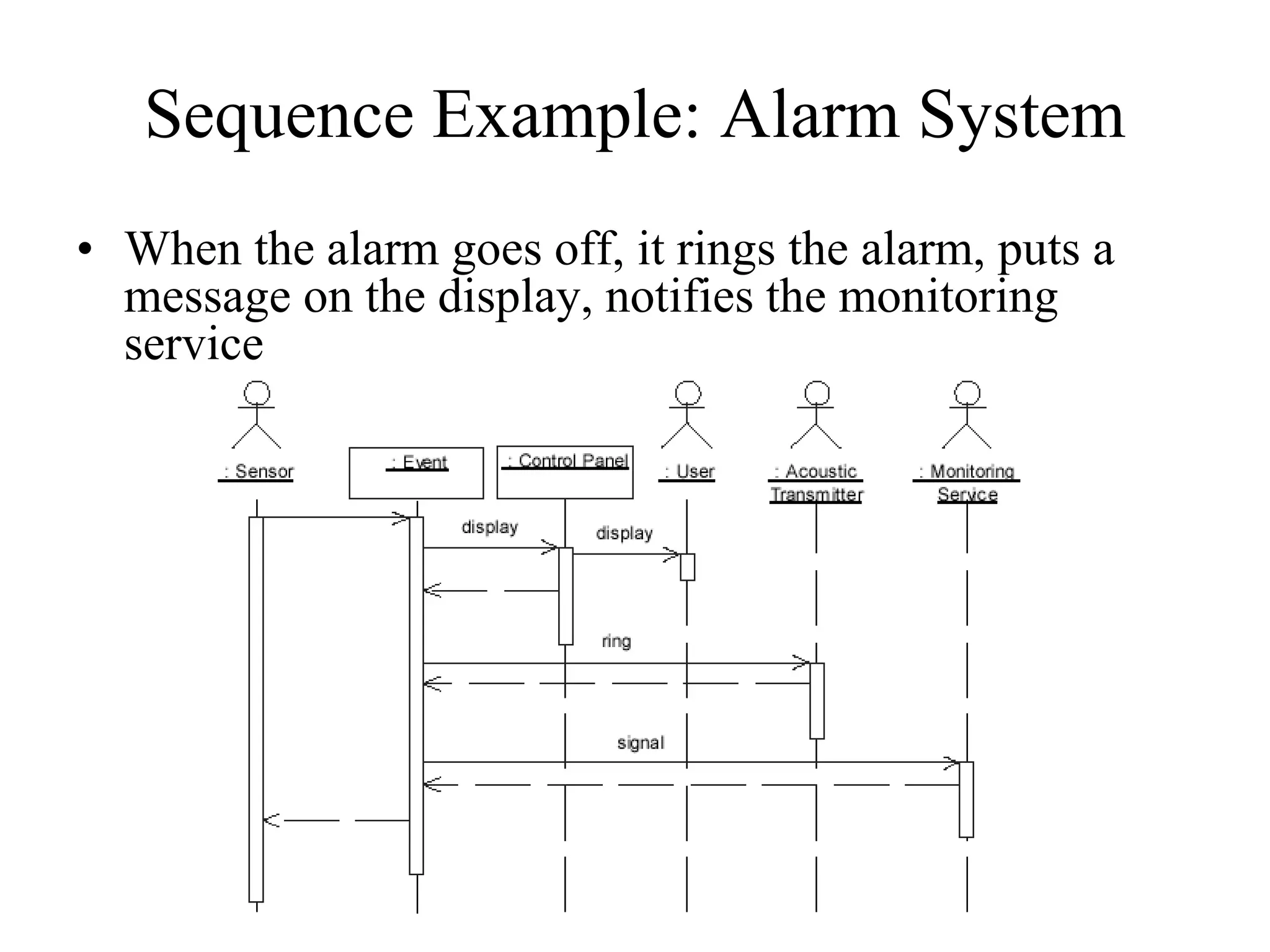

Sequence Example: Alarm System
• When the alarm goes off, it rings the alarm, puts a
message on the display, notifies the monitoring
service

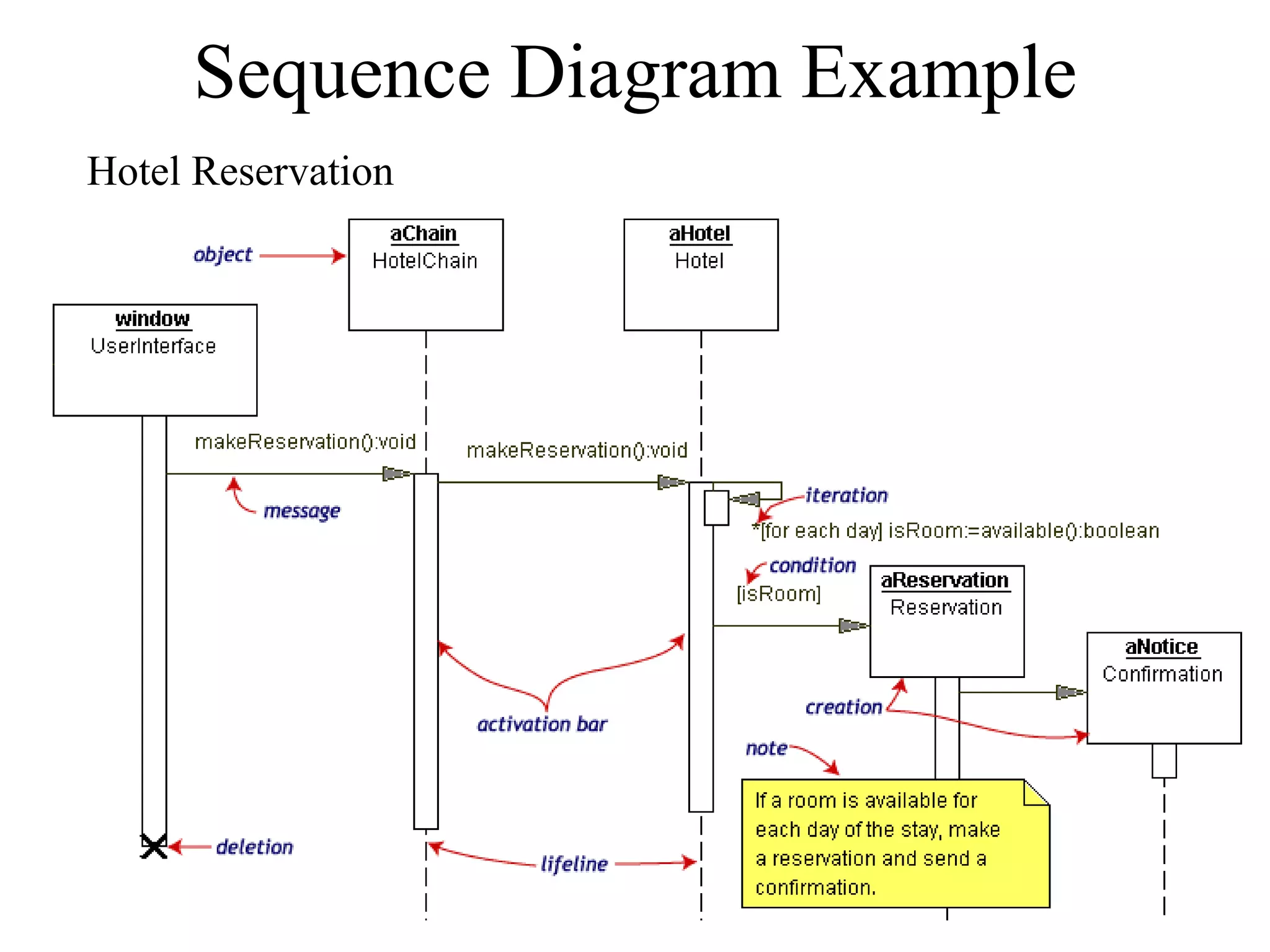

Sequence Diagram Example
Hotel Reservation

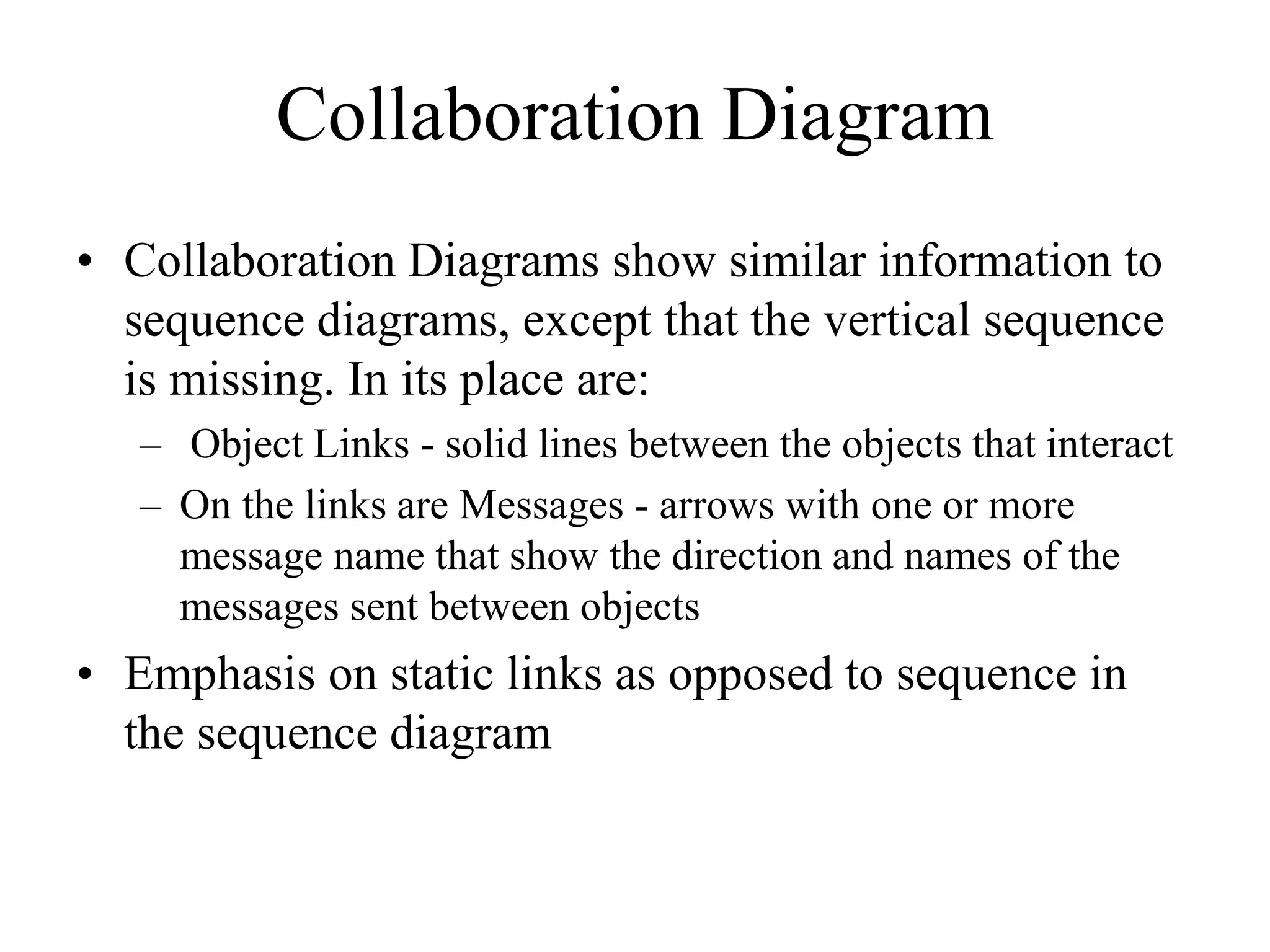

Collaboration Diagram
• Collaboration Diagrams show similar information to
sequence diagrams, except that the vertical sequence
is missing. In its place are:
– Object Links - solid lines between the objects that interact
– On the links are Messages - arrows with one or more
message name that show the direction and names of the
messages sent between objects
• Emphasis on static links as opposed to sequence in
the sequence diagram

Activity Diagrams
• Fancy flowchart
– Displays the flow of activities involved in a single process
– States
• Describe what is being processed
• Indicated by boxes with rounded corners
– Swim lanes
• Indicates which object is responsible for what activity
– Branch
• Transition that branch
• Indicated by a diamond
– Fork
• Transition forking into parallel activities
• Indicated by solid bars
– Start and End

Sample Activity Diagram
• Ordering System
• May need multiple
diagrams from other
points of view

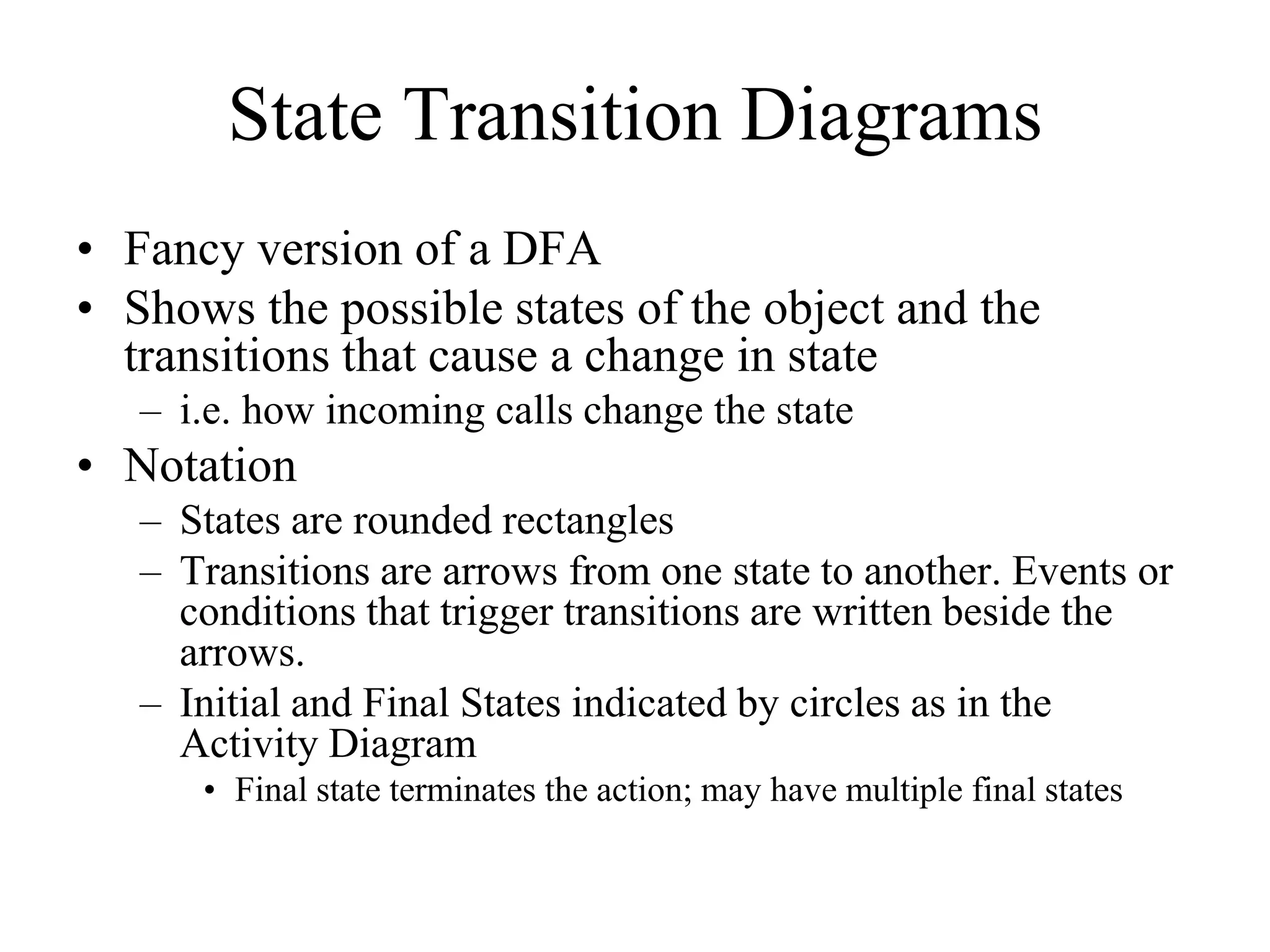

State Transition Diagrams
• Fancy version of a DFA
• Shows the possible states of the object and the
transitions that cause a change in state
– i.e. how incoming calls change the state
• Notation
– States are rounded rectangles
– Transitions are arrows from one state to another. Events or
conditions that trigger transitions are written beside the
arrows.
– Initial and Final States indicated by circles as in the
Activity Diagram
• Final state terminates the action; may have multiple final states

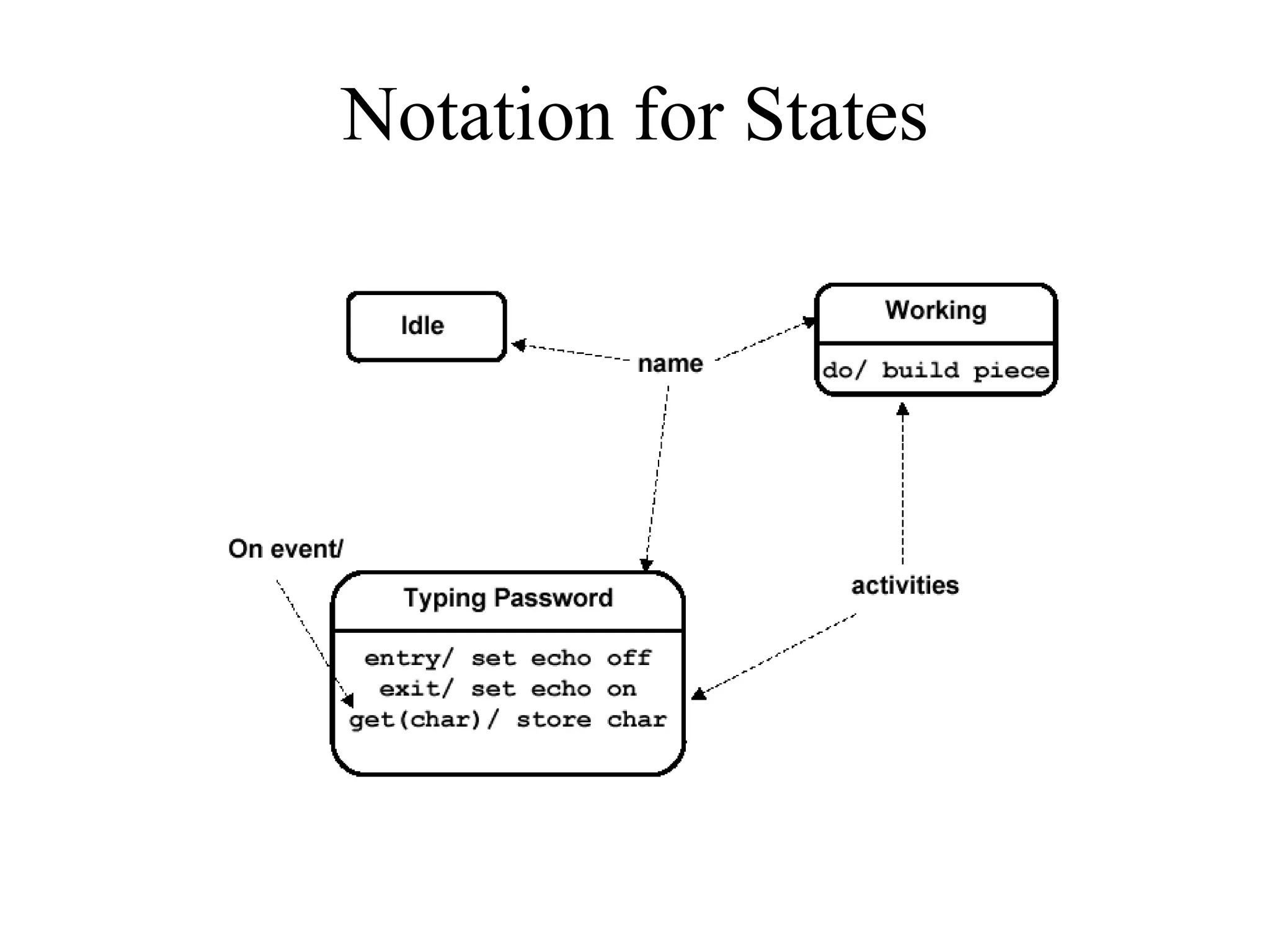

State Representation
• The set of properties and values describing the object
in a well defined instant are characterized by
– Name
– Activities (executed inside the state)
• Do/ activity
– Actions (executed at state entry or exit)
• Entry/ action
• Exit/ action
– Actions executed due to an event
• Event [Condition] / Action ^Send Event

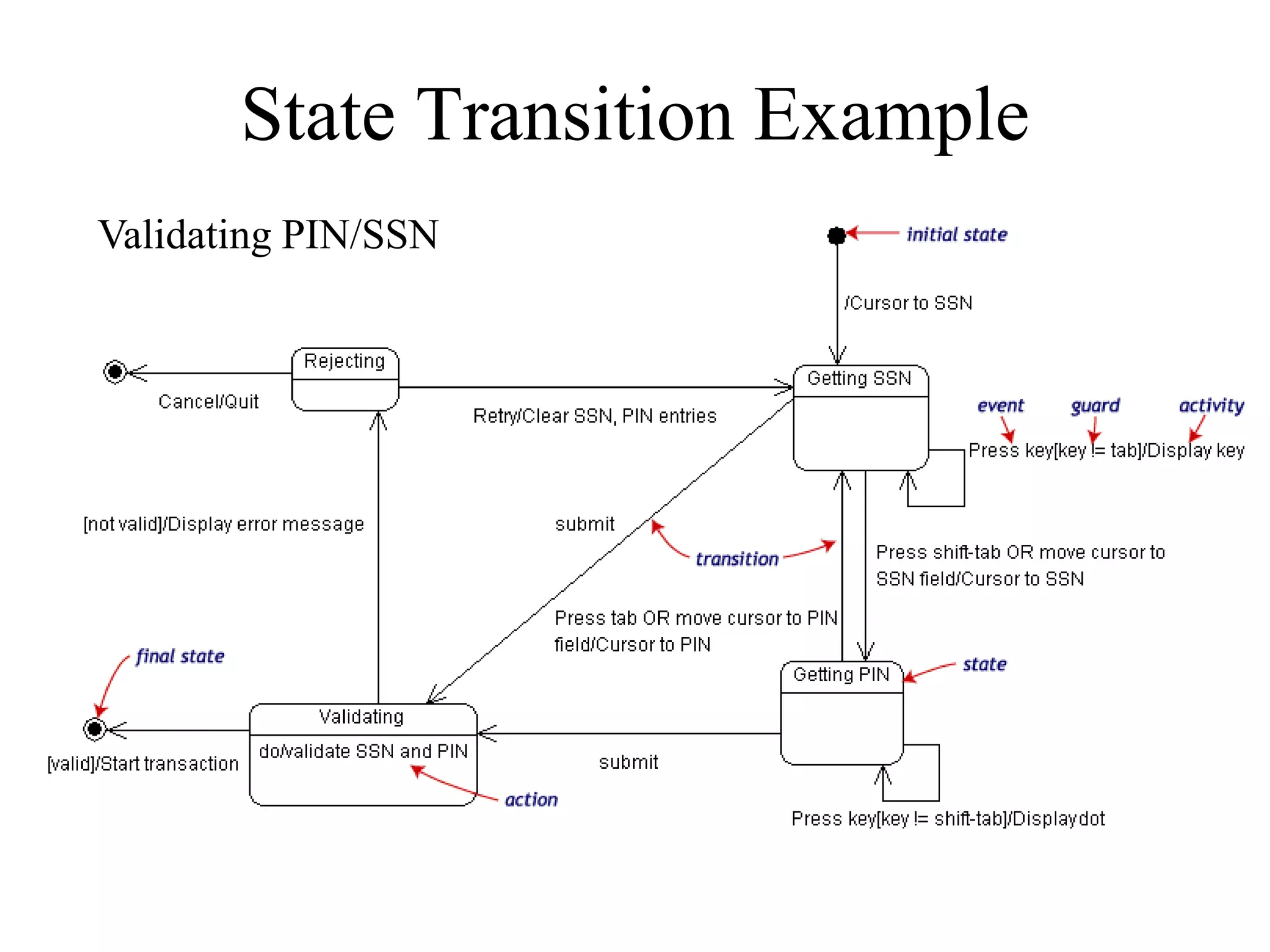

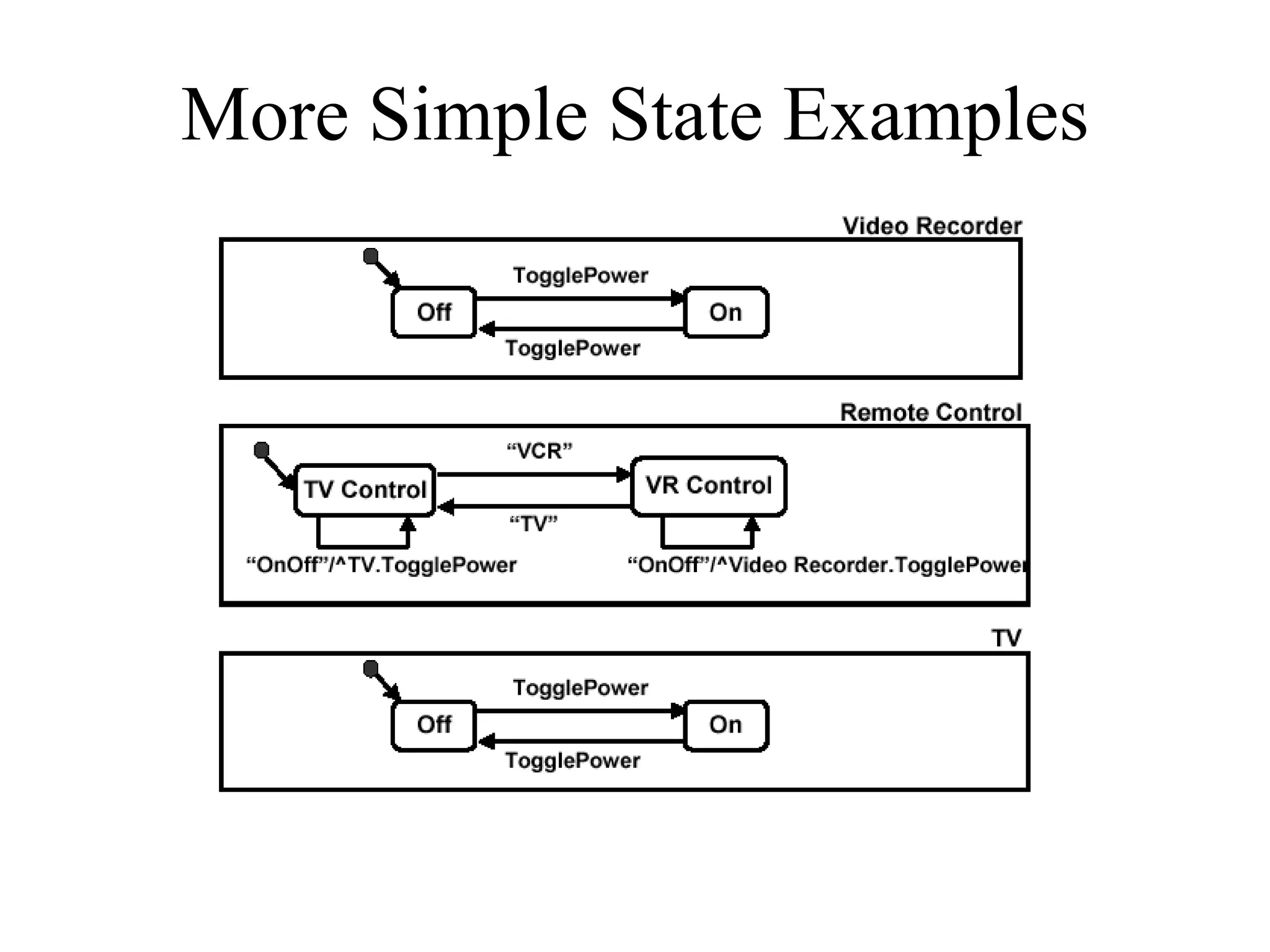

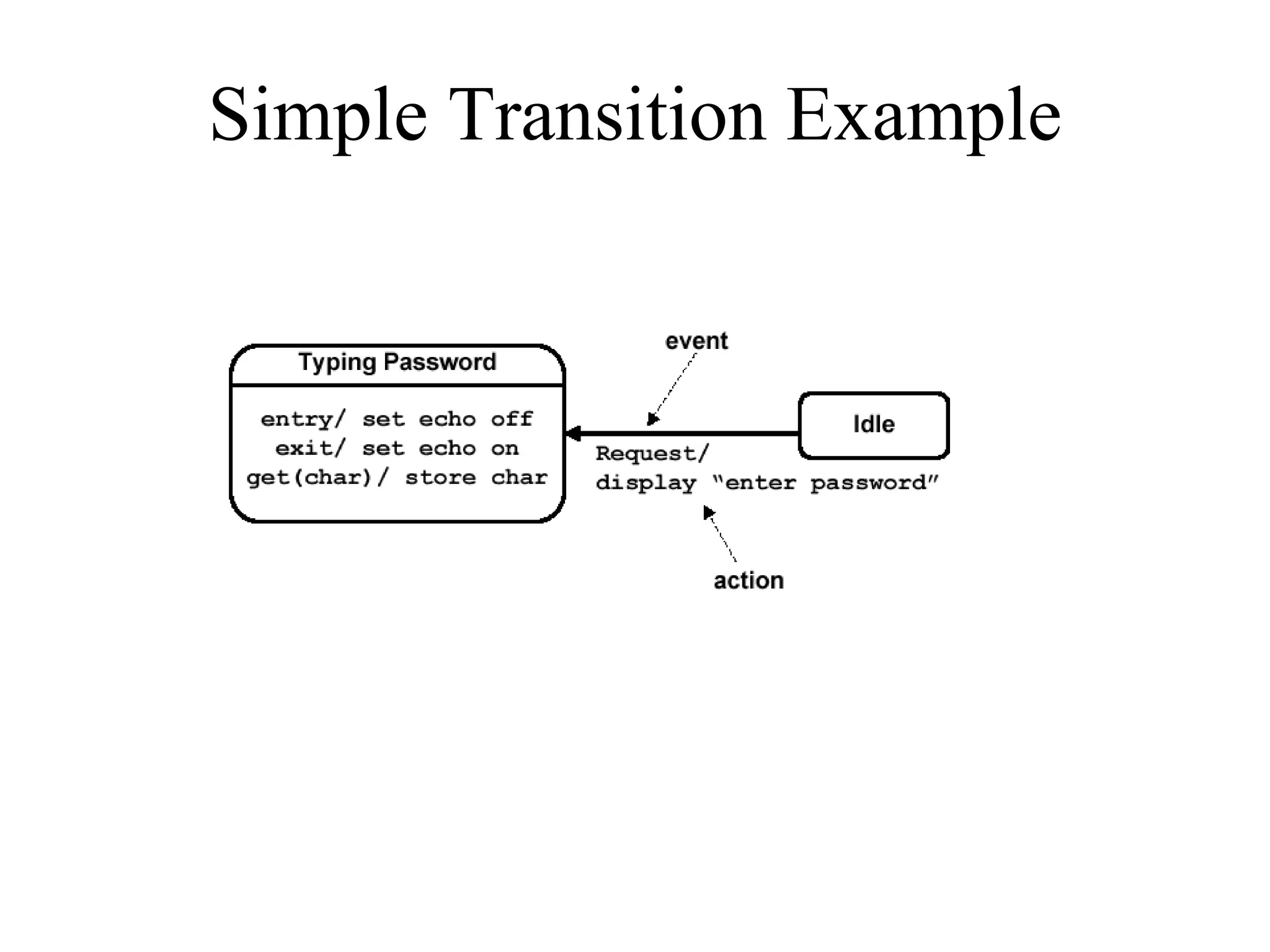

State Transition Example
Validating PIN/SSN

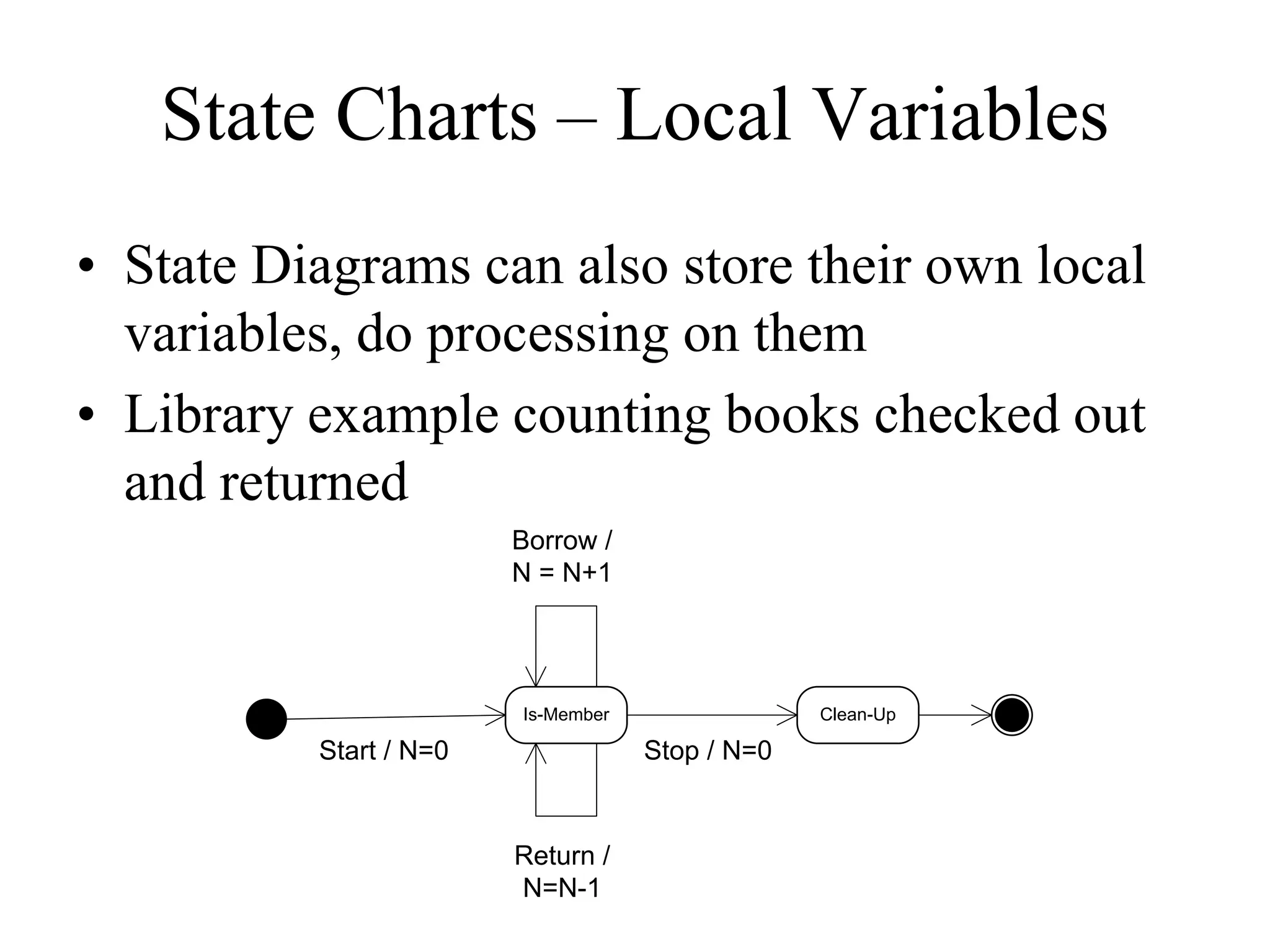

State Charts – Local Variables
• State Diagrams can also store their own local
variables, do processing on them
• Library example counting books checked out
and returned
Is-Member
Start / N=0
Return /
N=N-1
Borrow /
N = N+1
Clean-Up
Stop / N=0

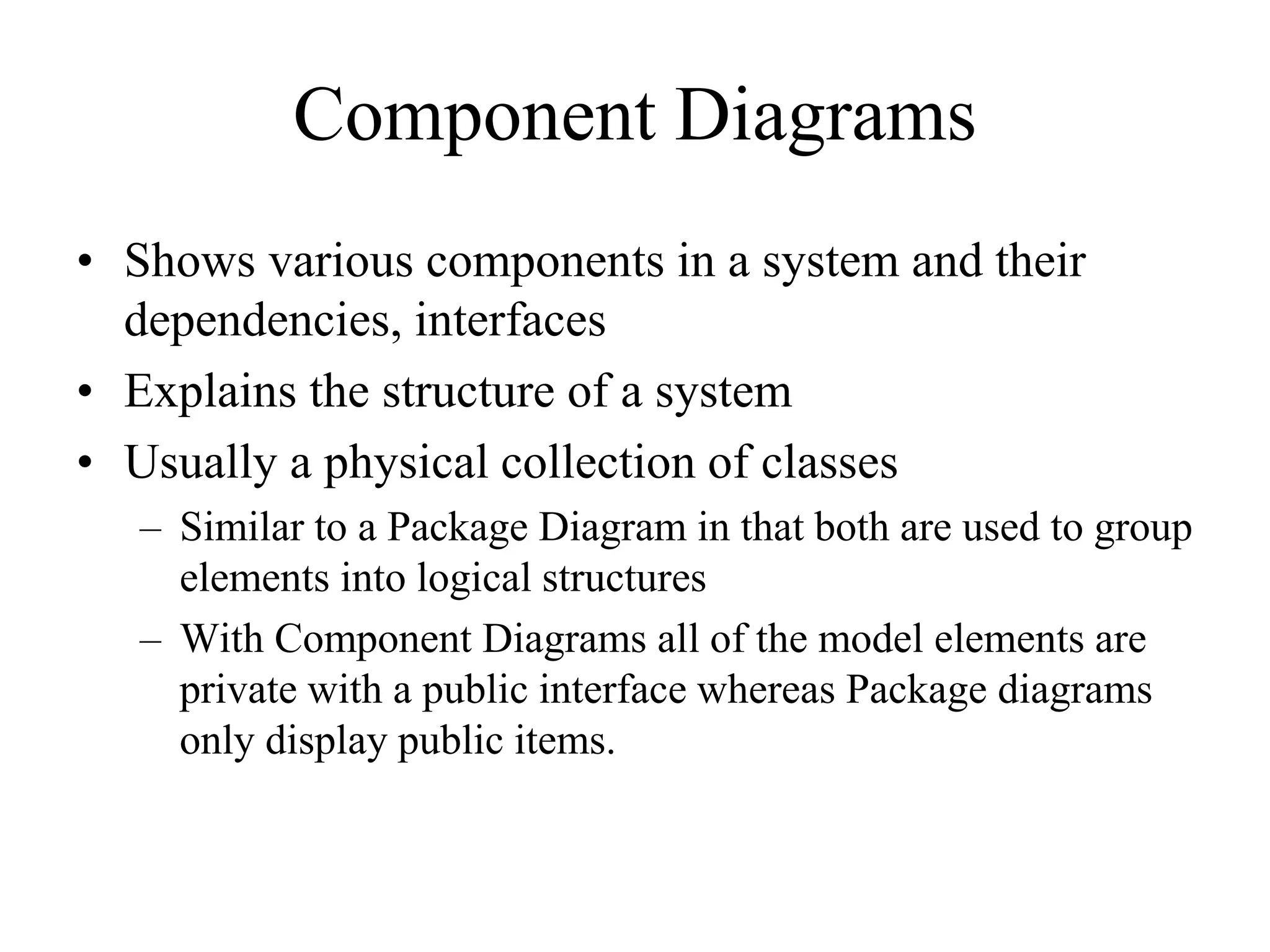

Component Diagrams
• Shows various components in a system and their
dependencies, interfaces
• Explains the structure of a system
• Usually a physical collection of classes
– Similar to a Package Diagram in that both are used to group
elements into logical structures
– With Component Diagrams all of the model elements are
private with a public interface whereas Package diagrams
only display public items.

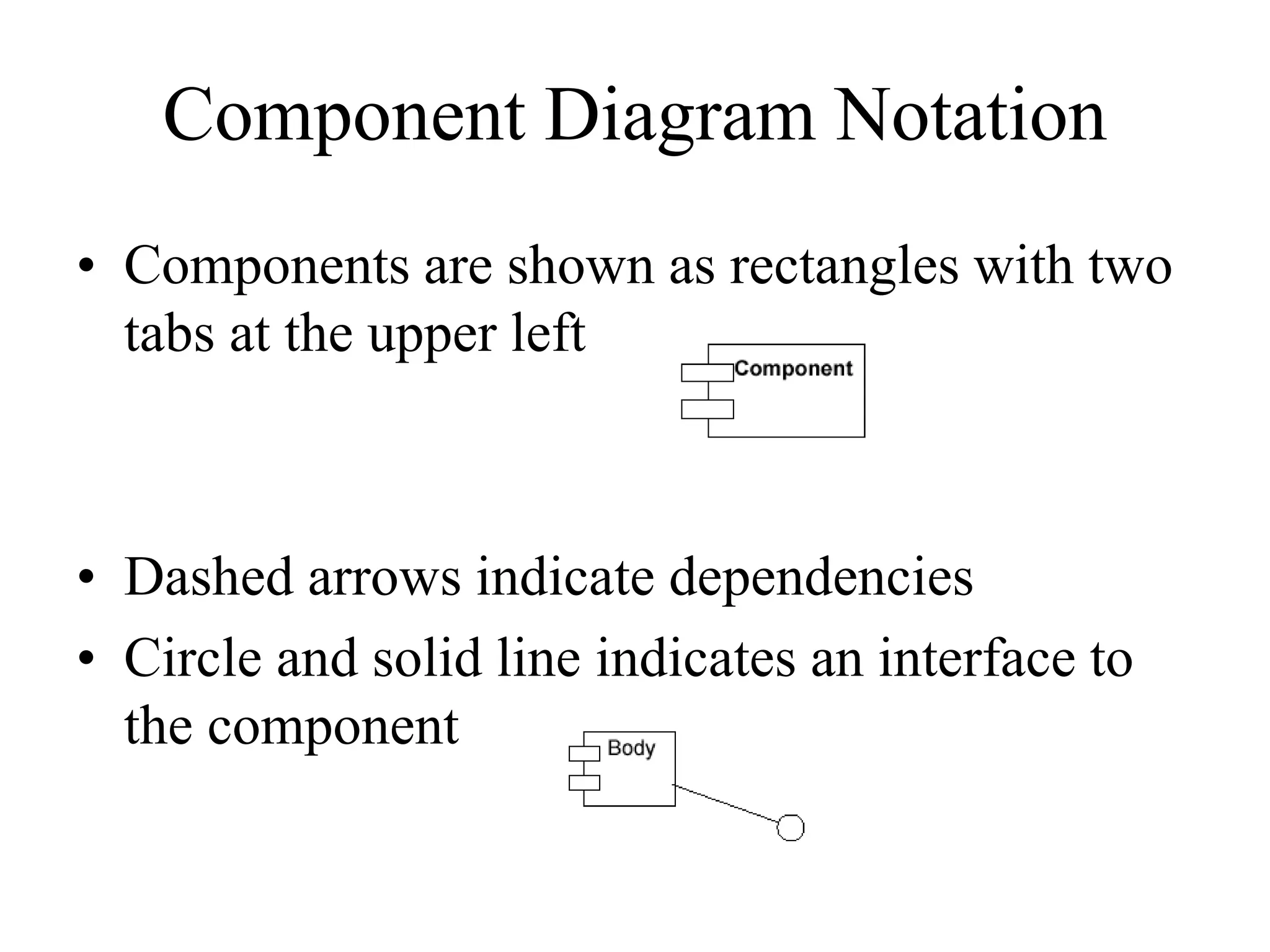

Component Diagram Notation
• Components are shown as rectangles with two
tabs at the upper left
• Dashed arrows indicate dependencies
• Circle and solid line indicates an interface to
the component

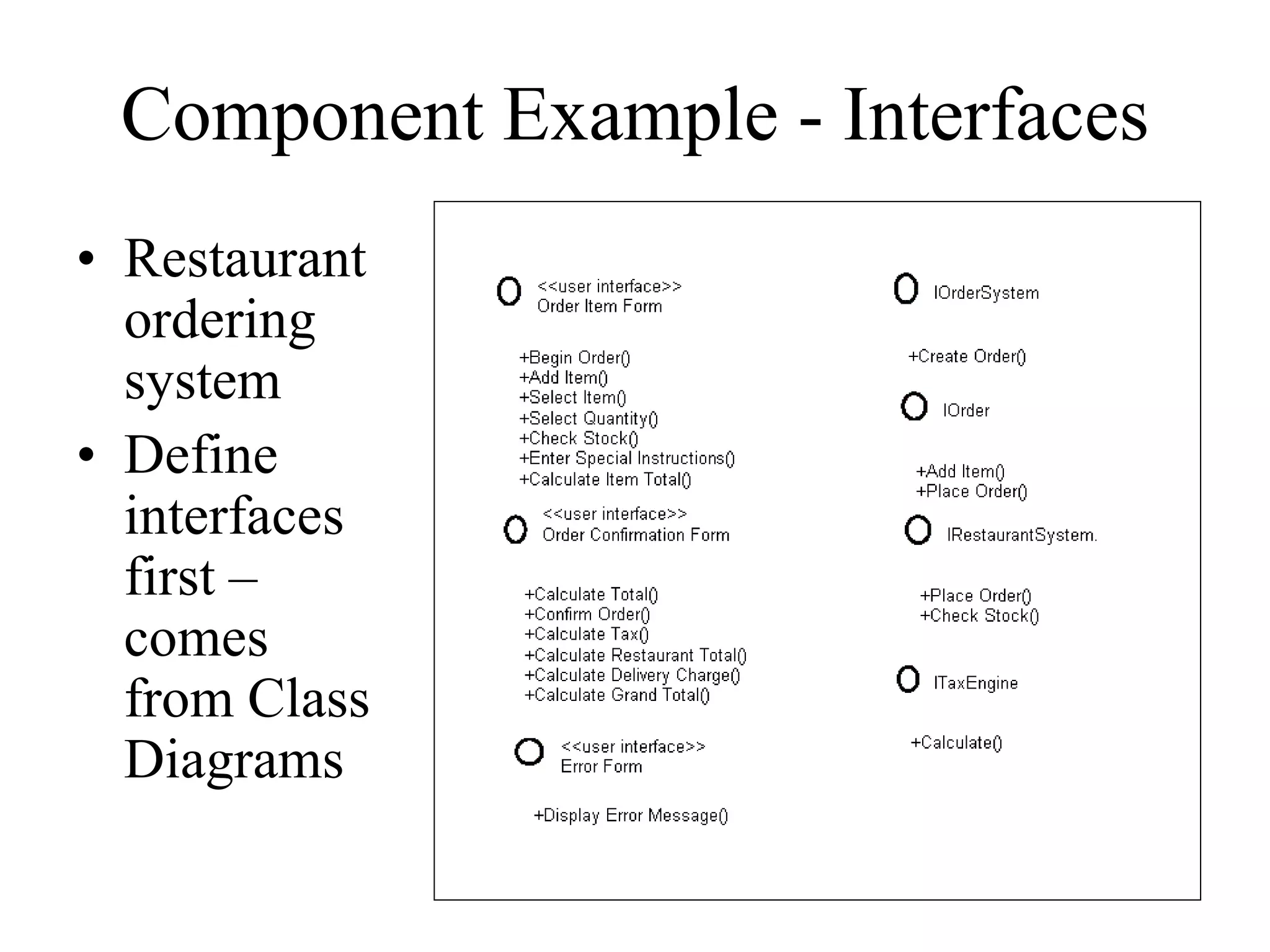

Component Example - Interfaces
• Restaurant
ordering
system
• Define
interfaces
first –
comes
from Class
Diagrams

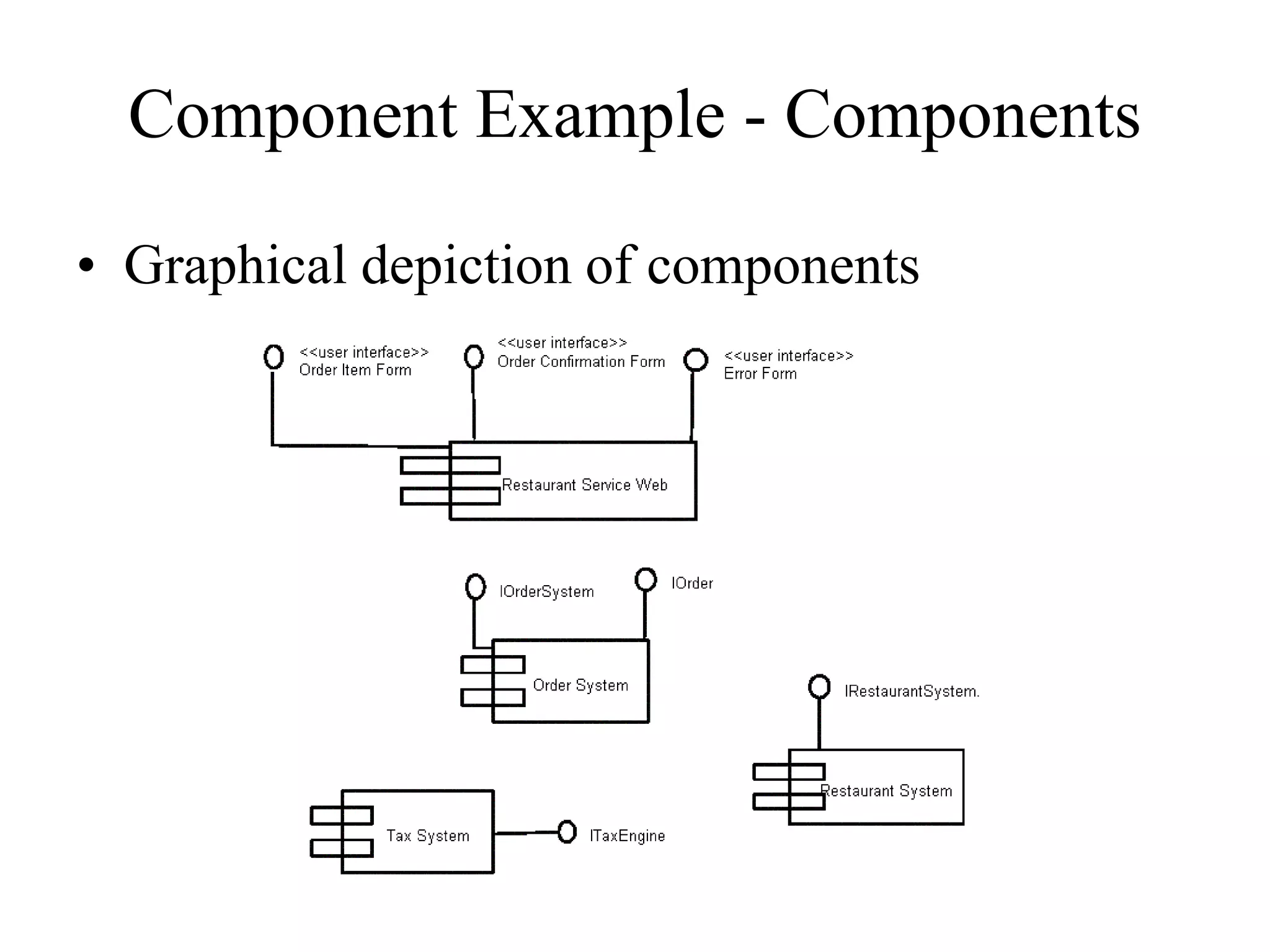

Component Example - Components
• Graphical depiction of components

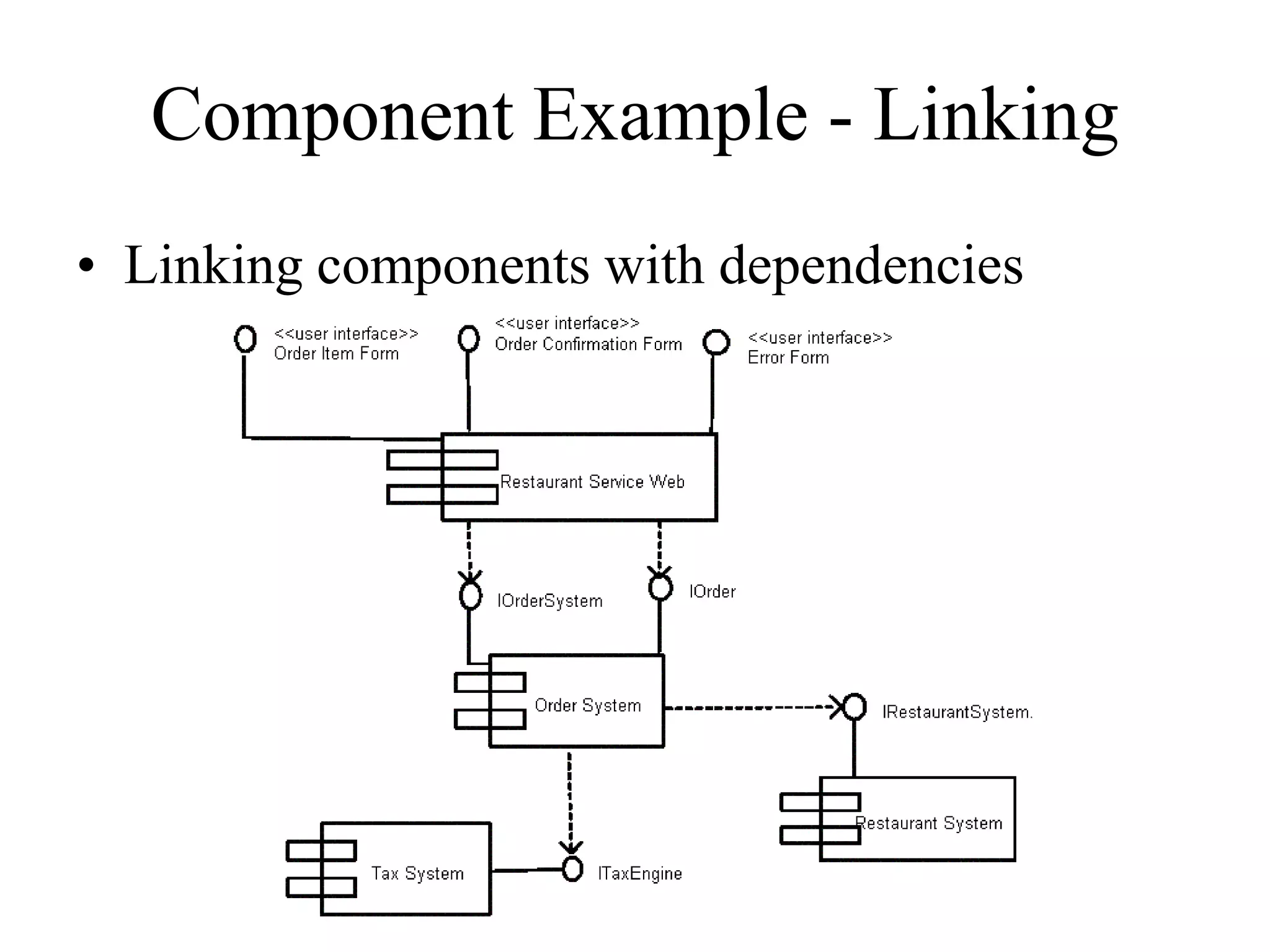

Component Example - Linking
• Linking components with dependencies

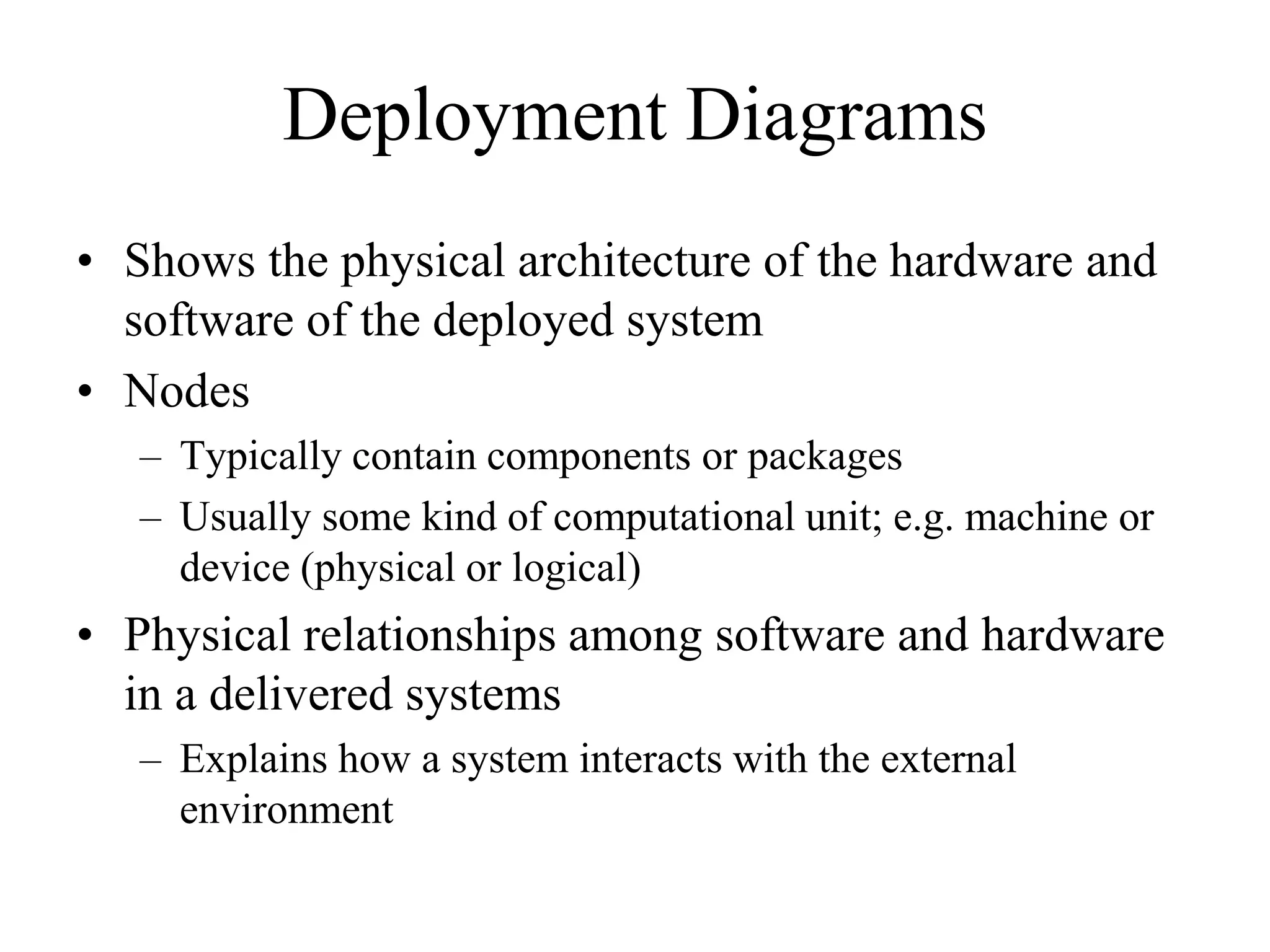

Deployment Diagrams
• Shows the physical architecture of the hardware and
software of the deployed system
• Nodes
– Typically contain components or packages
– Usually some kind of computational unit; e.g. machine or
device (physical or logical)
• Physical relationships among software and hardware
in a delivered systems
– Explains how a system interacts with the external
environment

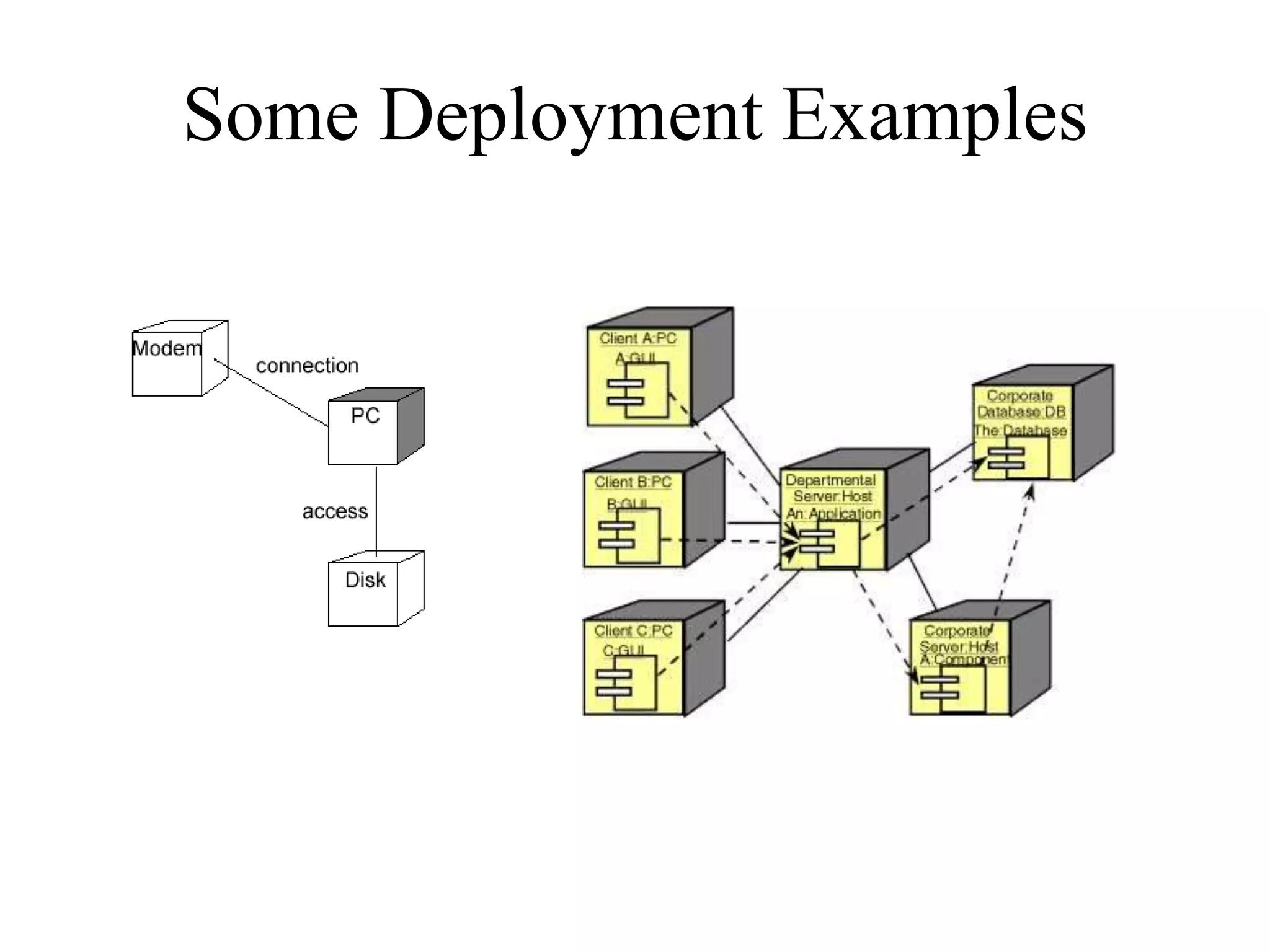

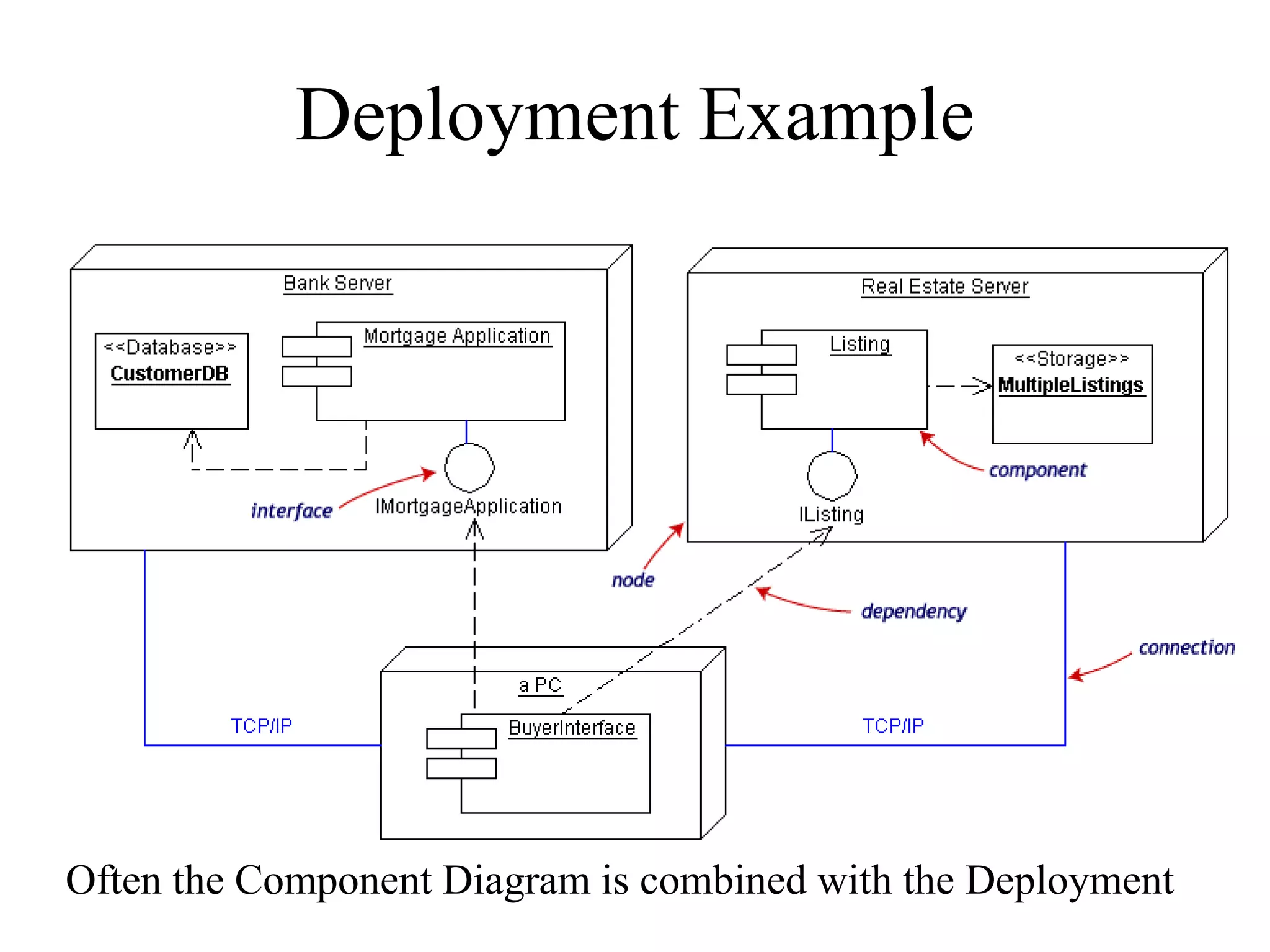

Deployment Example
Often the Component Diagram is combined with the Deployment

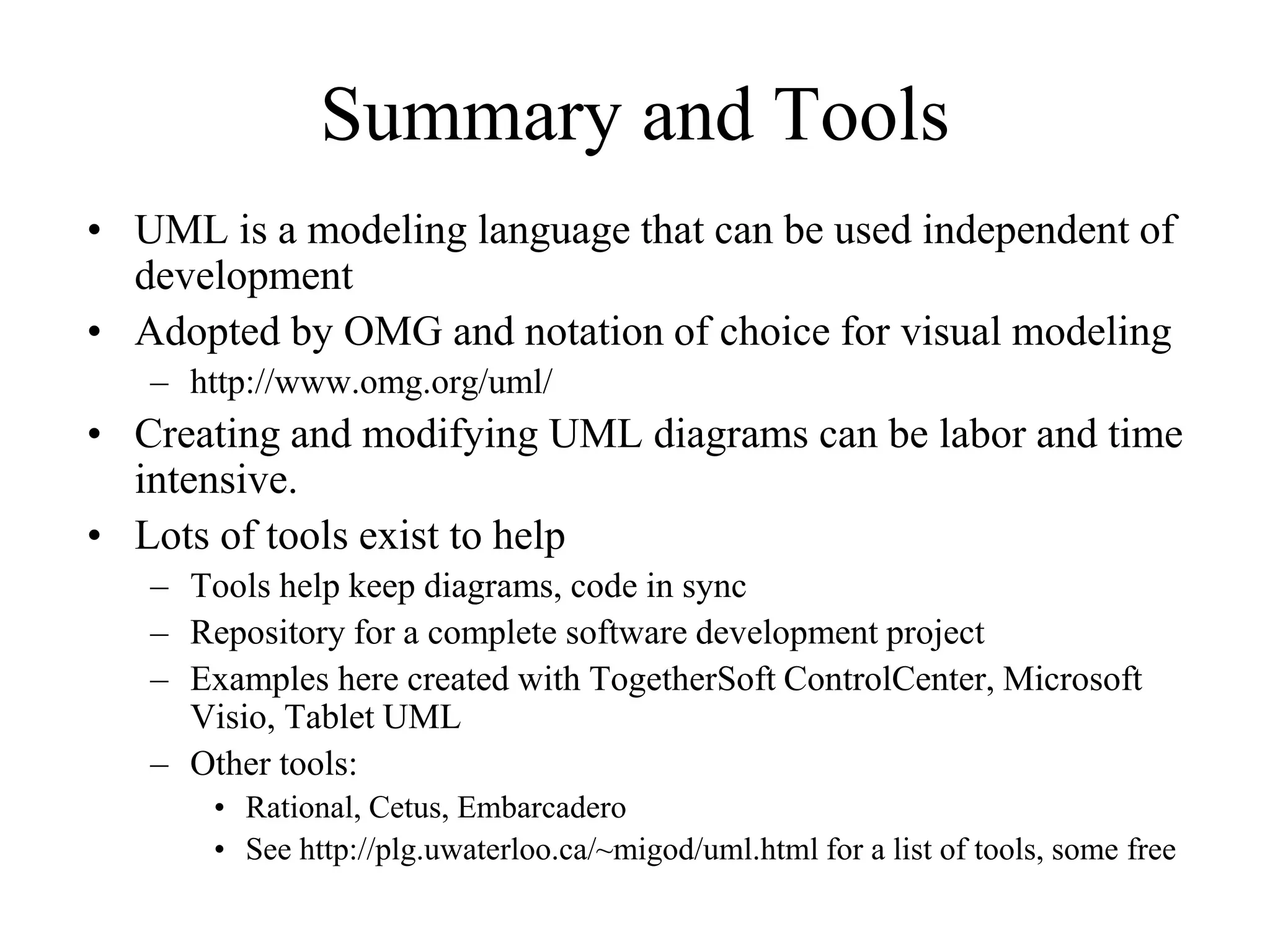

Summary and Tools
• UML is a modeling language that can be used independent of
development
• Adopted by OMG and notation of choice for visual modeling
– http://www.omg.org/uml/
• Creating and modifying UML diagrams can be labor and time
intensive.
• Lots of tools exist to help
– Tools help keep diagrams, code in sync
– Repository for a complete software development project
– Examples here created with TogetherSoft ControlCenter, Microsoft
Visio, Tablet UML
– Other tools:
• Rational, Cetus, Embarcadero
• See http://plg.uwaterloo.ca/~migod/uml.html for a list of tools, some free

Cs 1023 lec 10 uml (week 3)

More Related Content

What's hot

Similar to Cs 1023 lec 10 uml (week 3)

More from stanbridge

Recently uploaded

Cs 1023 lec 10 uml (week 3)
