O'Reilly/Nginx 2016: "Continuous Delivery with Containers: The Trials and Tribulations"
The document discusses the importance of continuous delivery (CD) for containerized applications, emphasizing that container images should serve as the single source of truth in the pipeline. It highlights lessons learned, such as the need for architectural review, the role of metadata in images, and the significance of mechanical sympathy when working with containers. Overall, it stresses the need to adapt traditional CD practices to modern technologies while ensuring developers are operationally aware.
More Related Content
Similar to O'Reilly/Nginx 2016: "Continuous Delivery with Containers: The Trials and Tribulations"
O'Reilly/Nginx 2016: "Continuous Delivery with Containers: The Trials and Tribulations"
- 1. Continuous Delivery forContainerized Applications: The Trials and Tribulations Daniel Bryant @danielbryantuk
- 2. Setting the scene… •Continuous delivery is a large topic • Focusing on the process and tooling • No live coding today • Mini-book contains more details • “Building a CD pipeline” by Adrian and Kevin 15/12/2016 @danielbryantuk

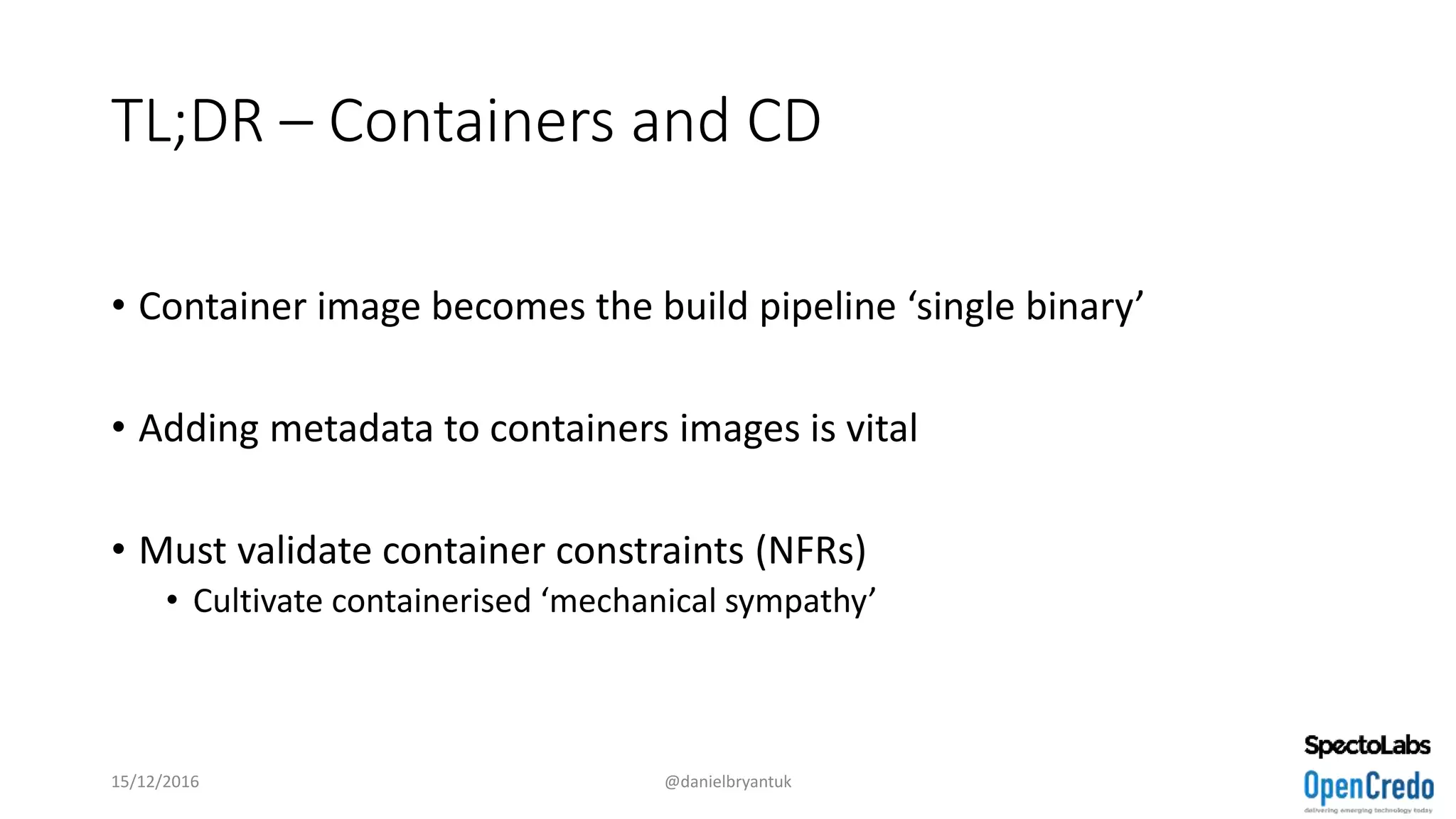

- 3. TL;DR – Containersand CD • Container image becomes the build pipeline ‘single binary’ • Adding metadata to containers images is vital • Must validate container constraints (NFRs) • Cultivate containerised ‘mechanical sympathy’ 15/12/2016 @danielbryantuk
- 4. @danielbryantuk • Chief Scientistat OpenCredo, CTO at SpectoLabs • Agile, architecture, CI/CD, DevOps • Java, Go, JS, microservices, cloud, containers • Leading change through the application of technology and teams 15/12/2016 @danielbryantuk
- 5.

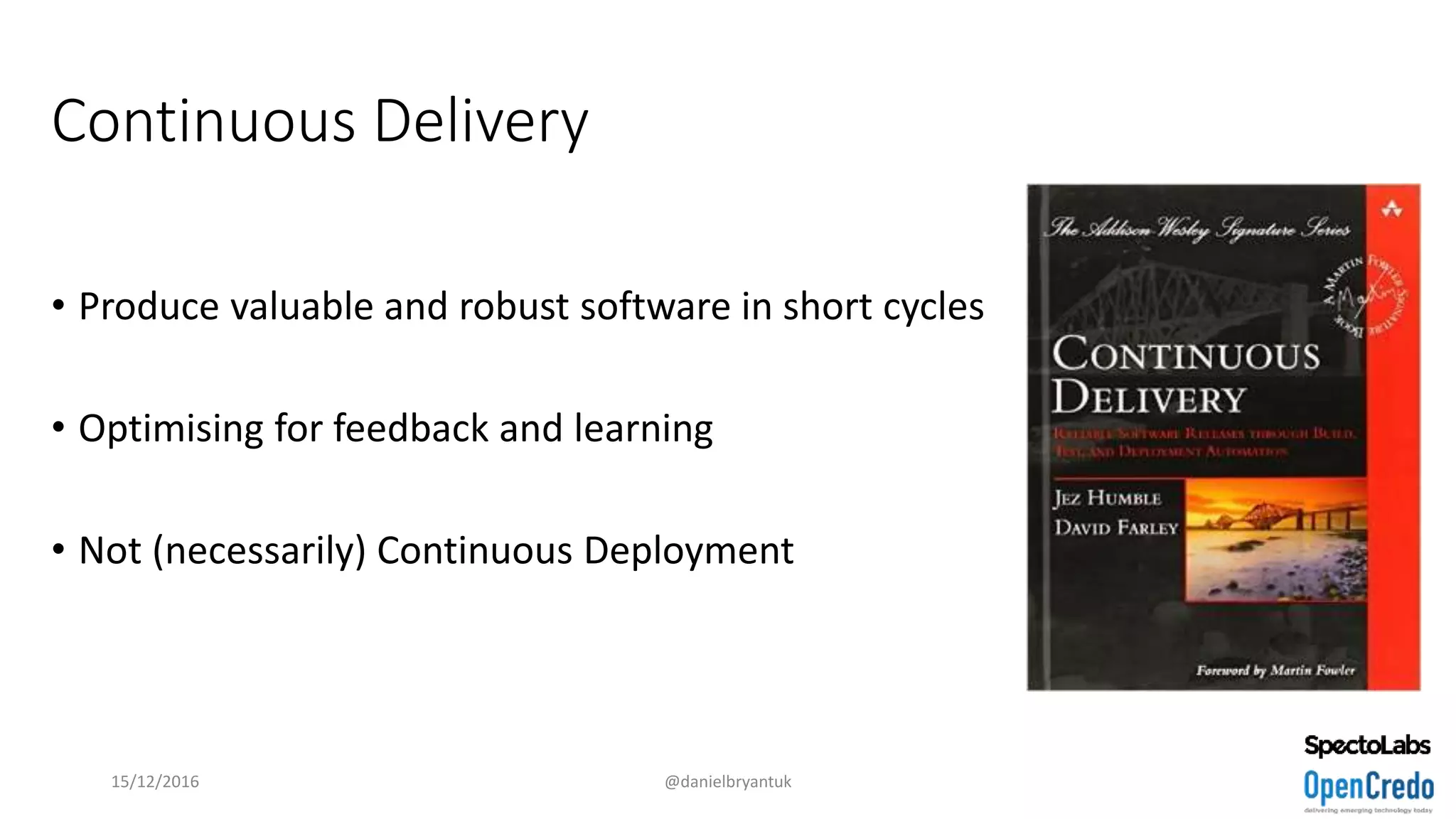

- 6. Continuous Delivery • Producevaluable and robust software in short cycles • Optimising for feedback and learning • Not (necessarily) Continuous Deployment 15/12/2016 @danielbryantuk
- 7. Creation of abuild pipeline is mandatory for continuous delivery 15/12/2016 @danielbryantuk
- 8.

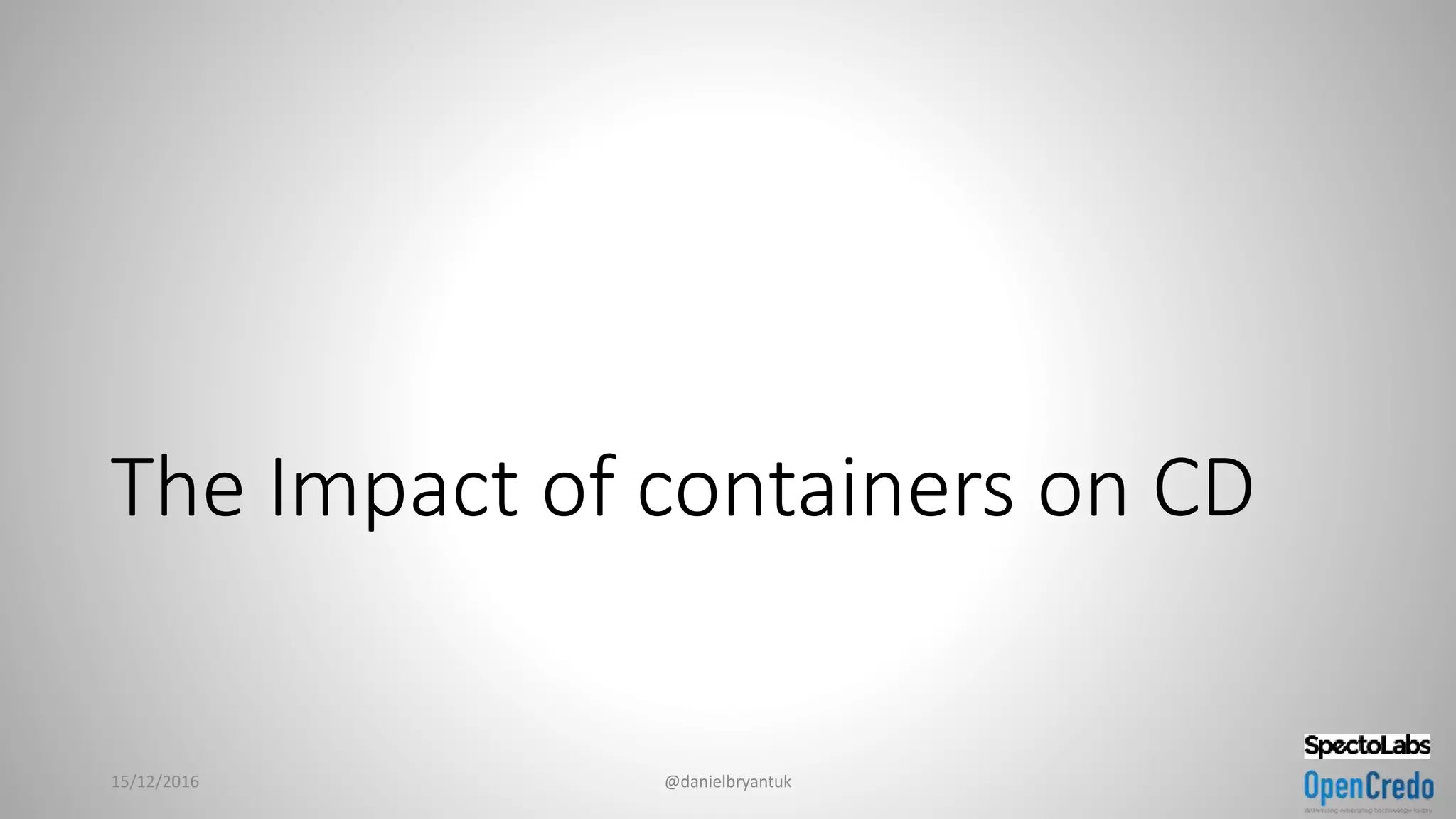

- 9. The Impact ofcontainers on CD 15/12/2016 @danielbryantuk

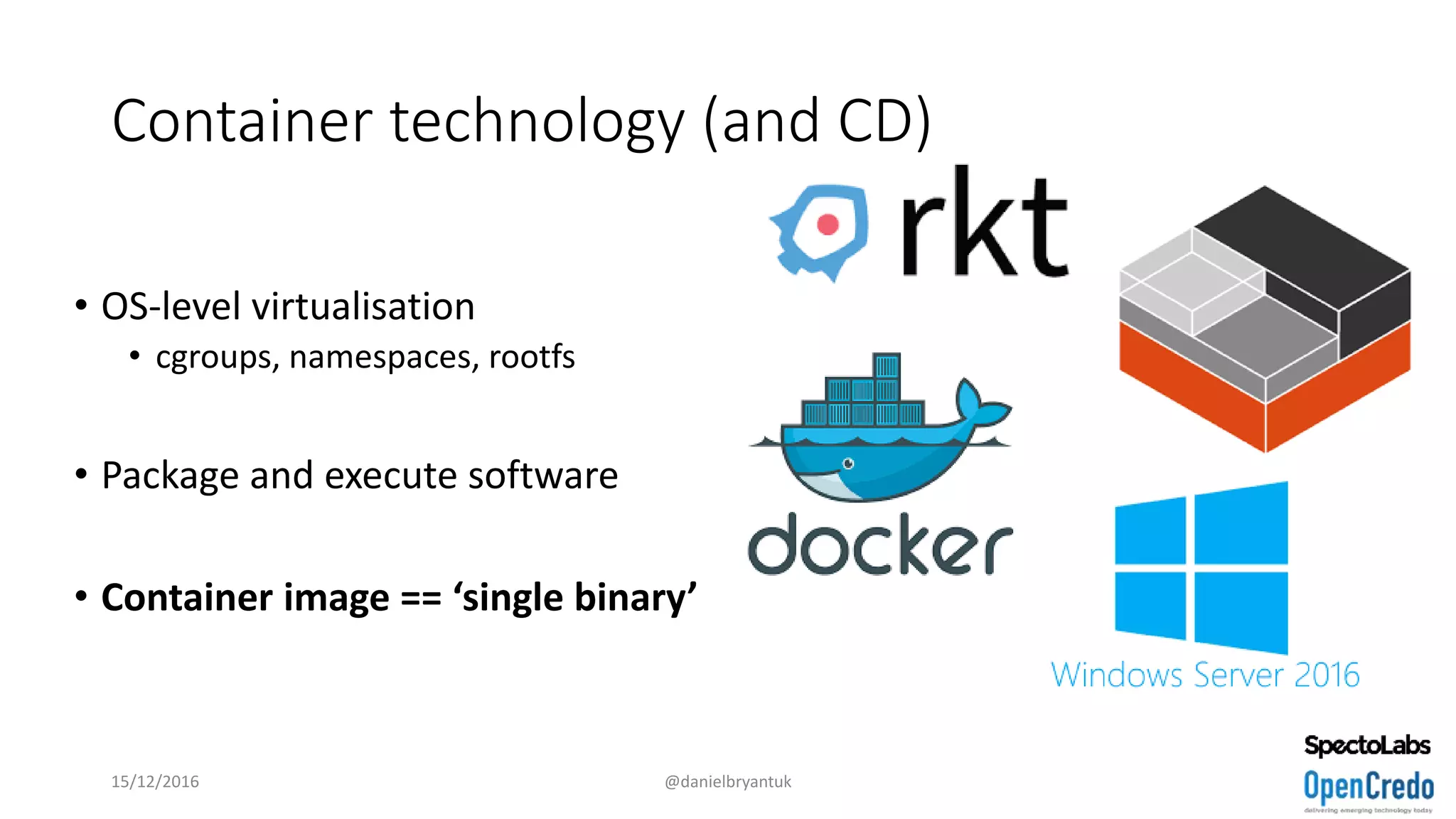

- 10. Container technology (andCD) • OS-level virtualisation • cgroups, namespaces, rootfs • Package and execute software • Container image == ‘single binary’ 15/12/2016 @danielbryantuk
- 11.
- 12.
- 13. Creating a pipelinefor containers 15/12/2016 @danielbryantuk
- 14.

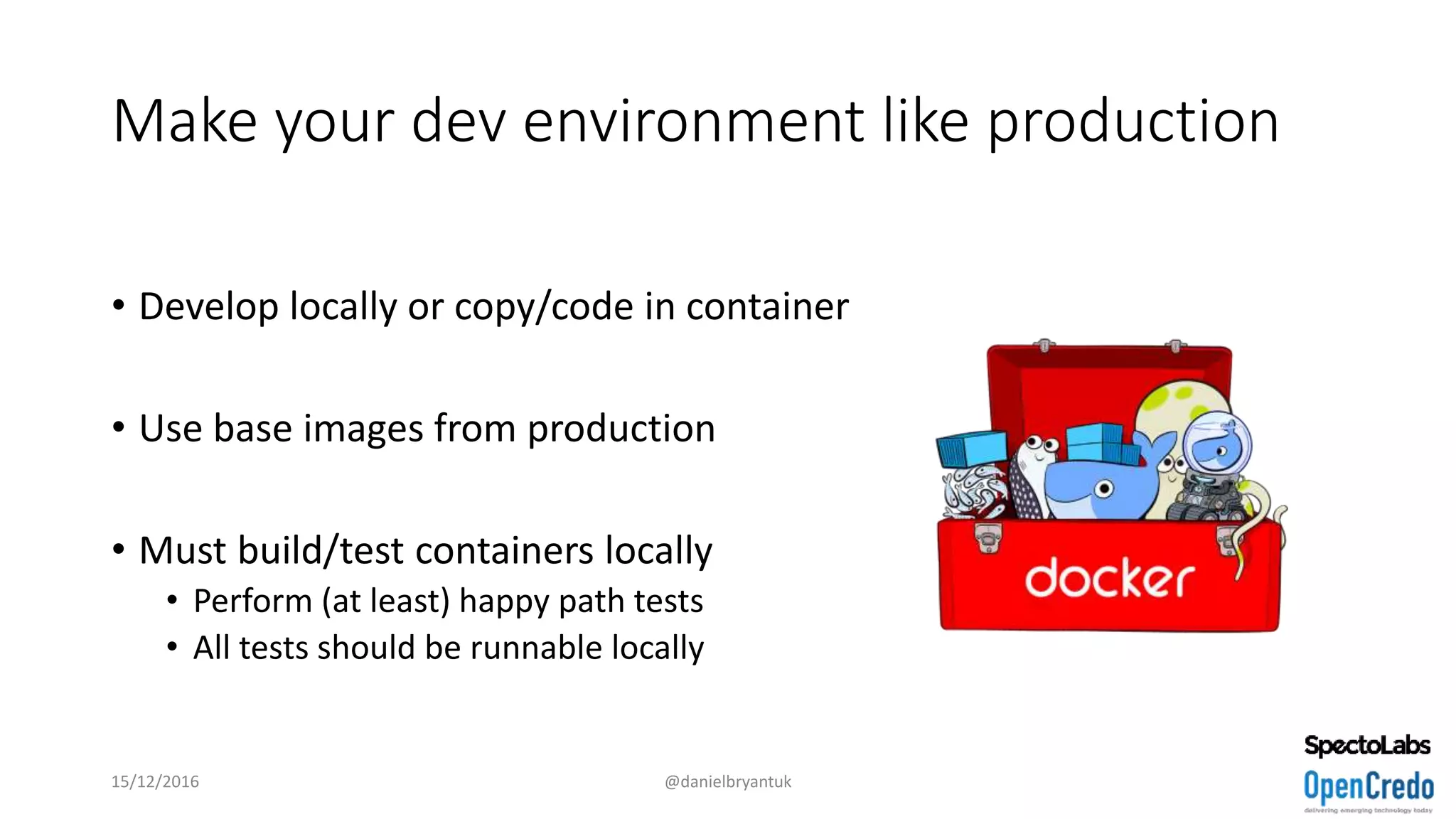

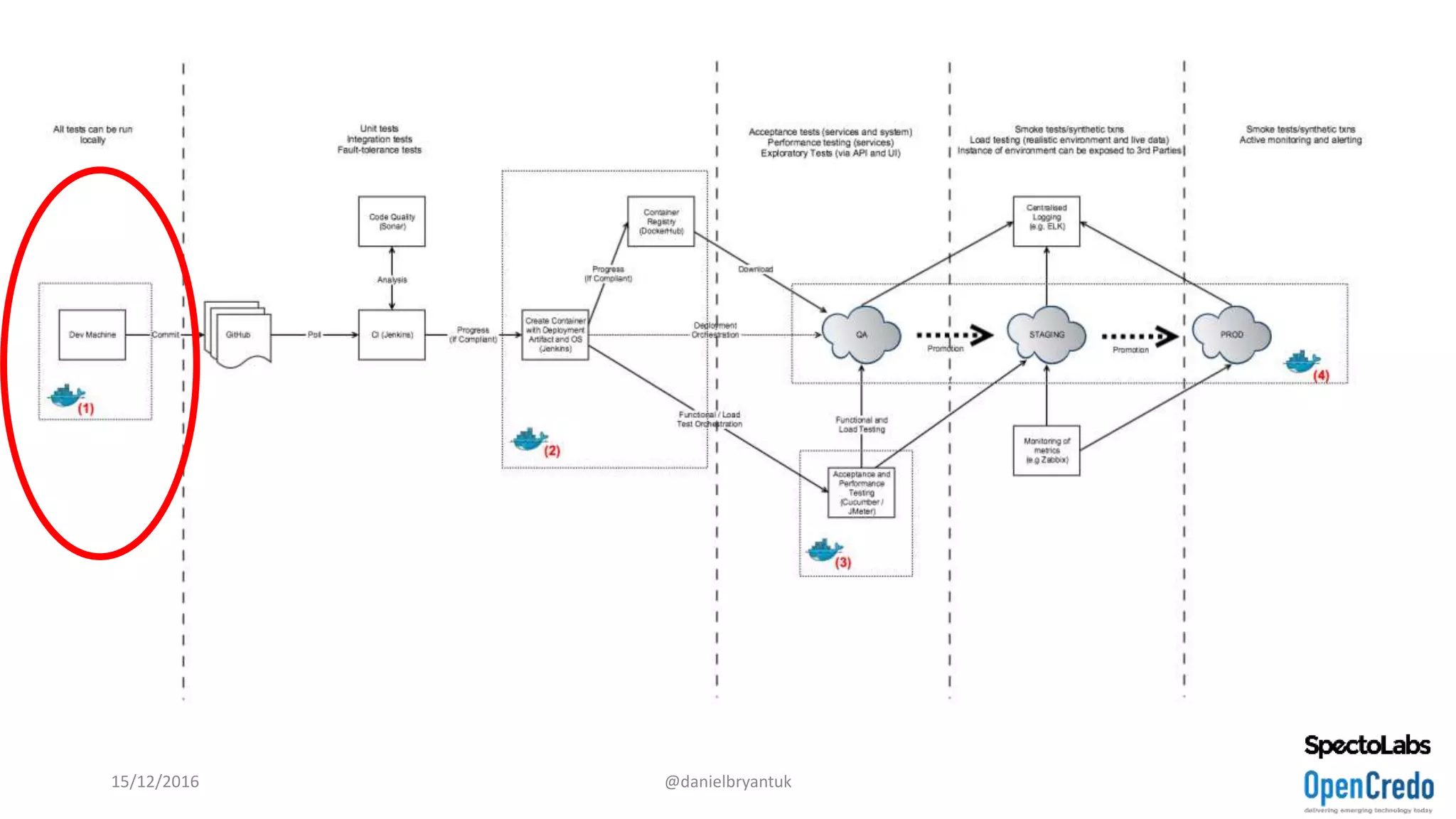

- 15. Make your devenvironment like production • Develop locally or copy/code in container • Use base images from production • Must build/test containers locally • Perform (at least) happy path tests • All tests should be runnable locally 15/12/2016 @danielbryantuk

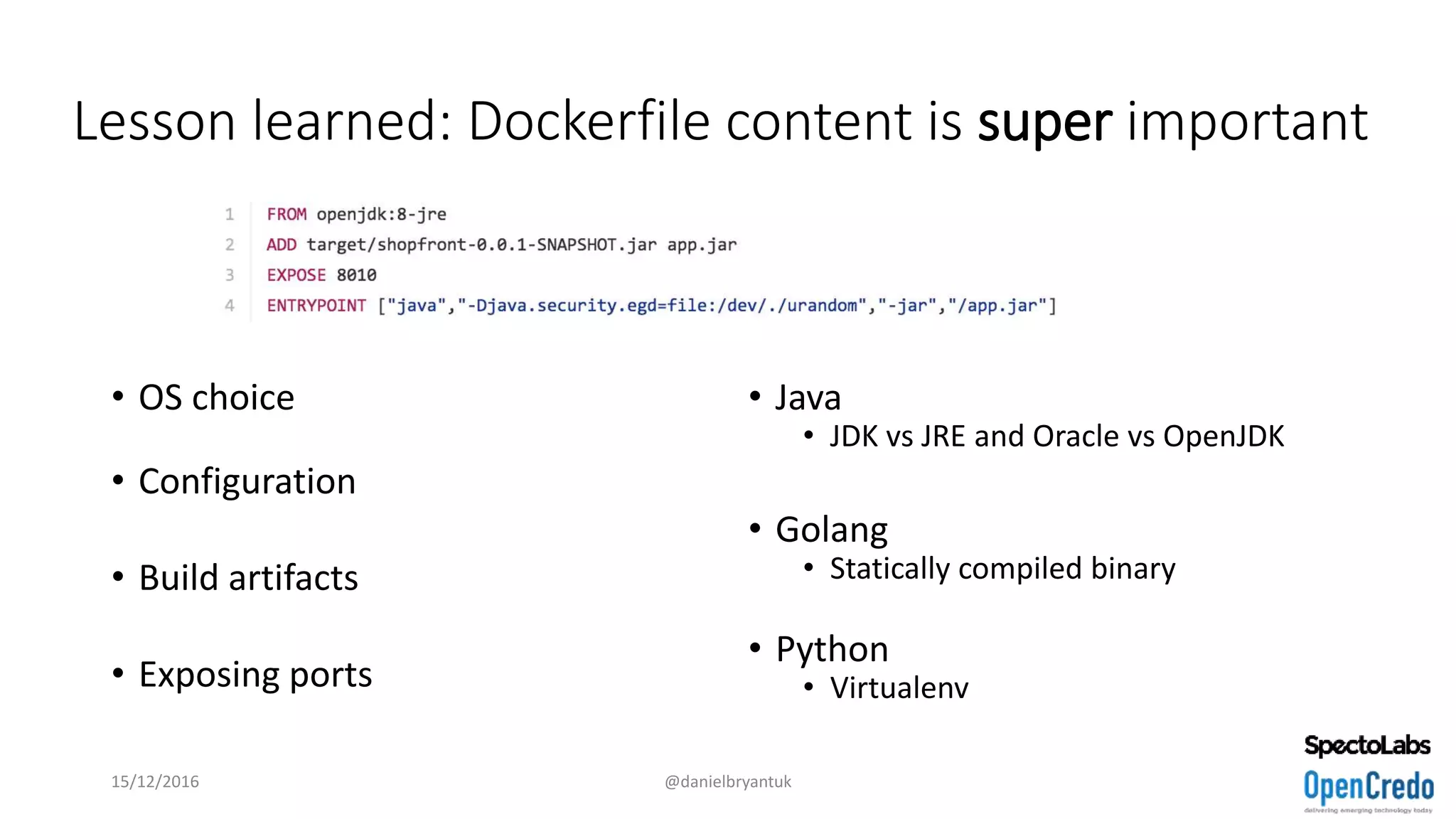

- 16. Lesson learned: Dockerfilecontent is super important • OS choice • Configuration • Build artifacts • Exposing ports • Java • JDK vs JRE and Oracle vs OpenJDK • Golang • Statically compiled binary • Python • Virtualenv 15/12/2016 @danielbryantuk
- 17. Please talk tothe sysadmin people: Their operational knowledge is invaluable 15/12/2016 @danielbryantuk

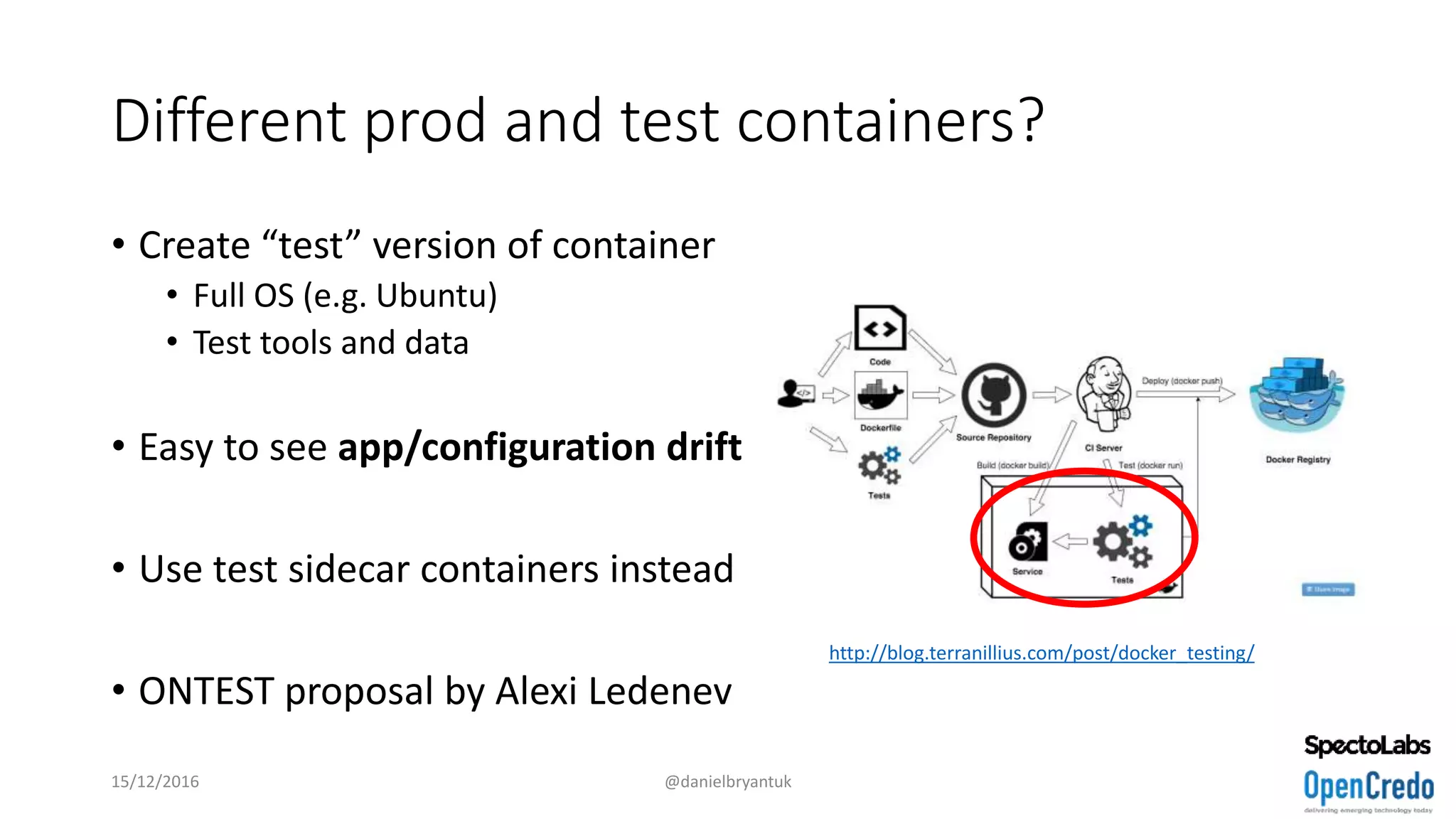

- 18. Different prod andtest containers? • Create “test” version of container • Full OS (e.g. Ubuntu) • Test tools and data • Easy to see app/configuration drift • Use test sidecar containers instead • ONTEST proposal by Alexi Ledenev 15/12/2016 @danielbryantuk http://blog.terranillius.com/post/docker_testing/
- 19.

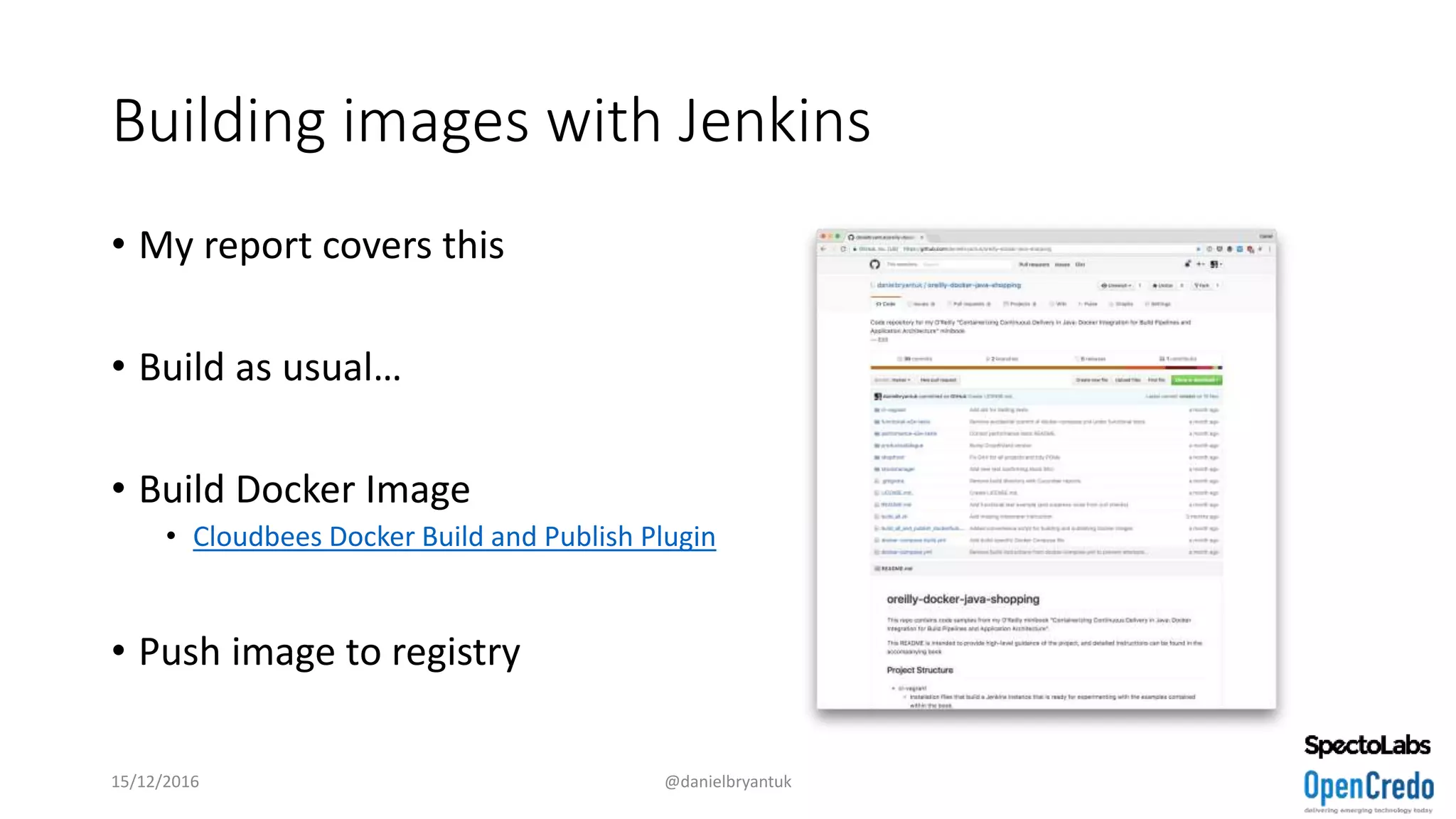

- 20. Building images withJenkins • My report covers this • Build as usual… • Build Docker Image • Cloudbees Docker Build and Publish Plugin • Push image to registry 15/12/2016 @danielbryantuk

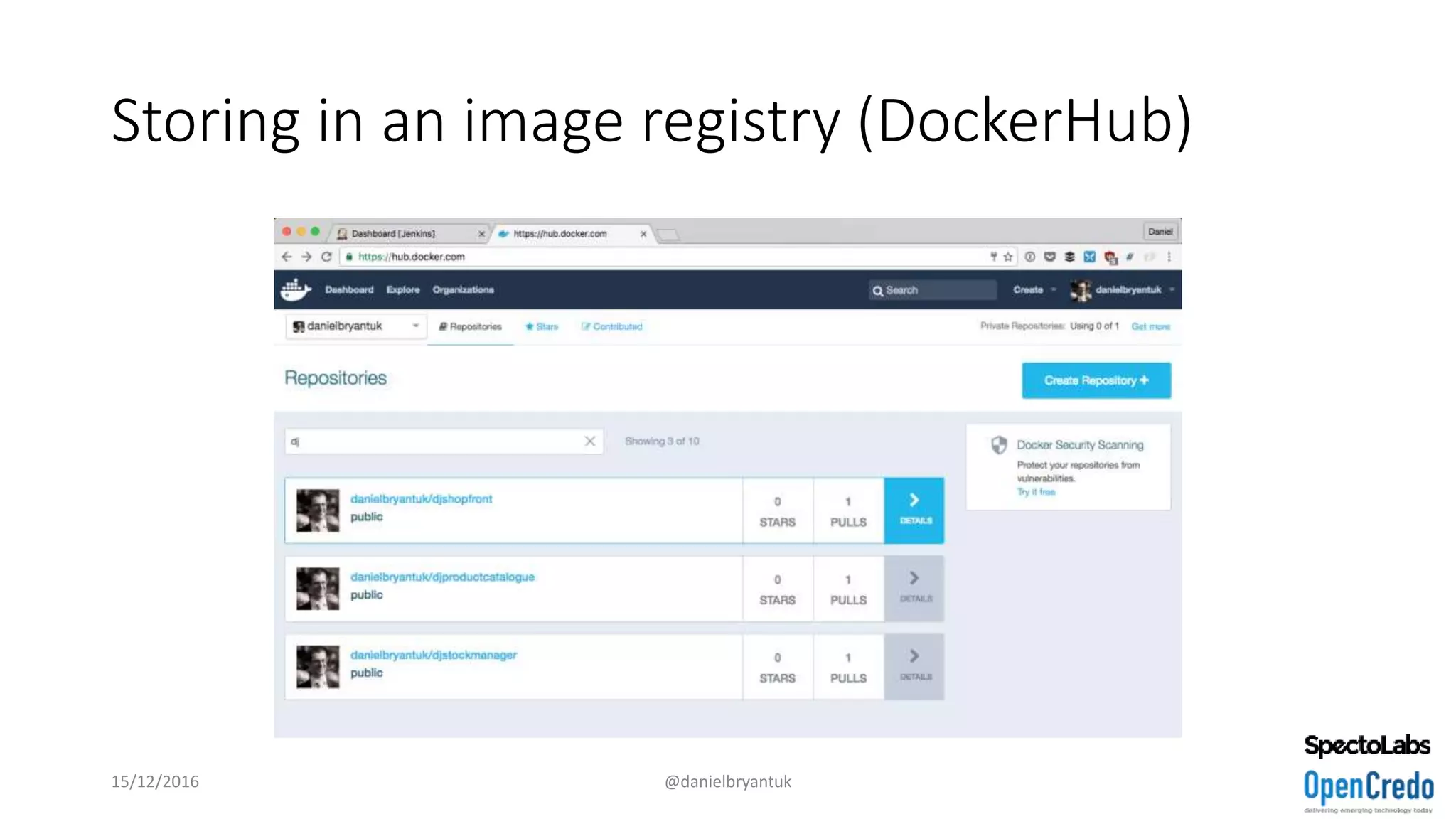

- 21. Storing in animage registry (DockerHub) 15/12/2016 @danielbryantuk

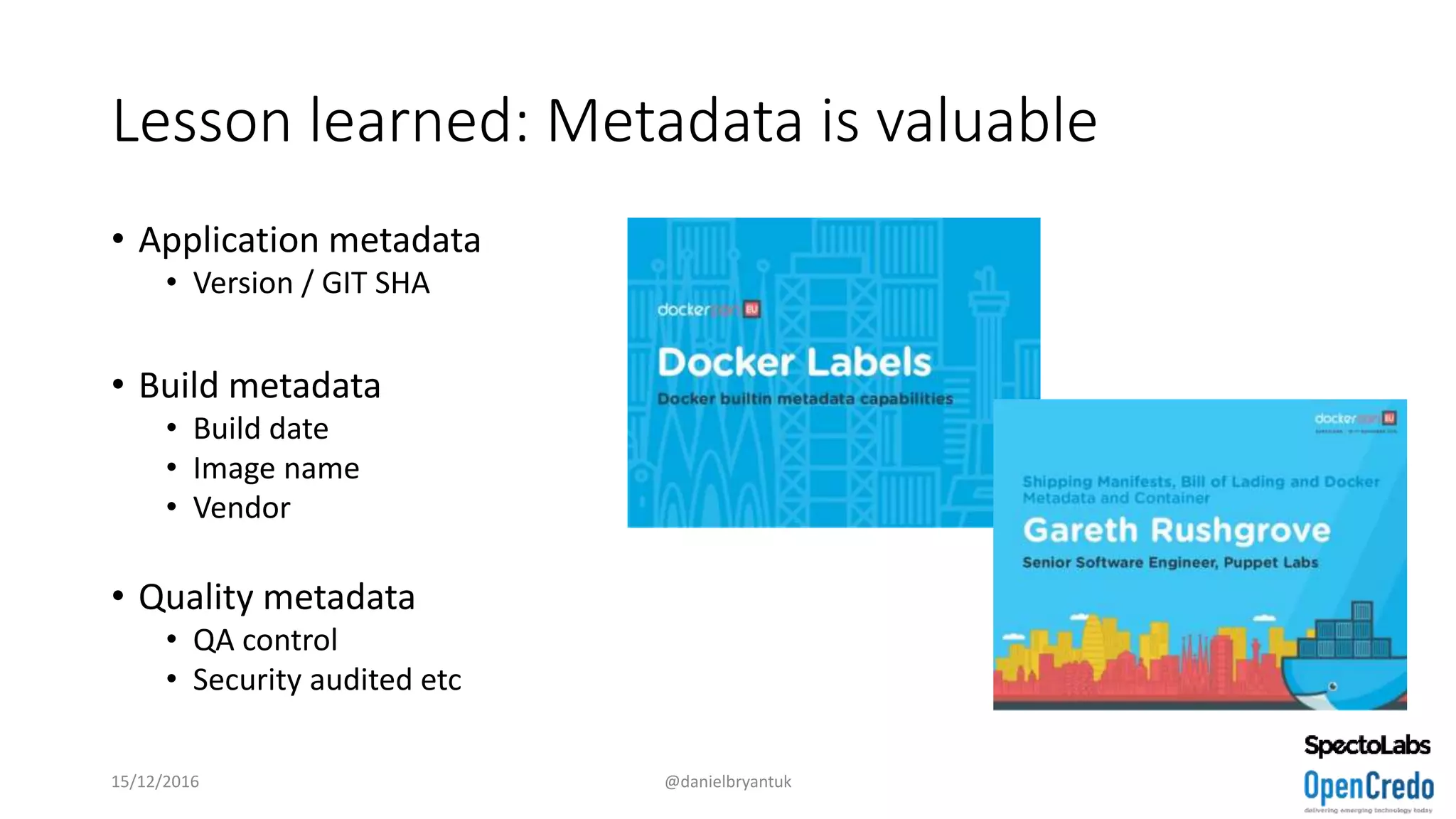

- 22. Lesson learned: Metadatais valuable • Application metadata • Version / GIT SHA • Build metadata • Build date • Image name • Vendor • Quality metadata • QA control • Security audited etc 15/12/2016 @danielbryantuk

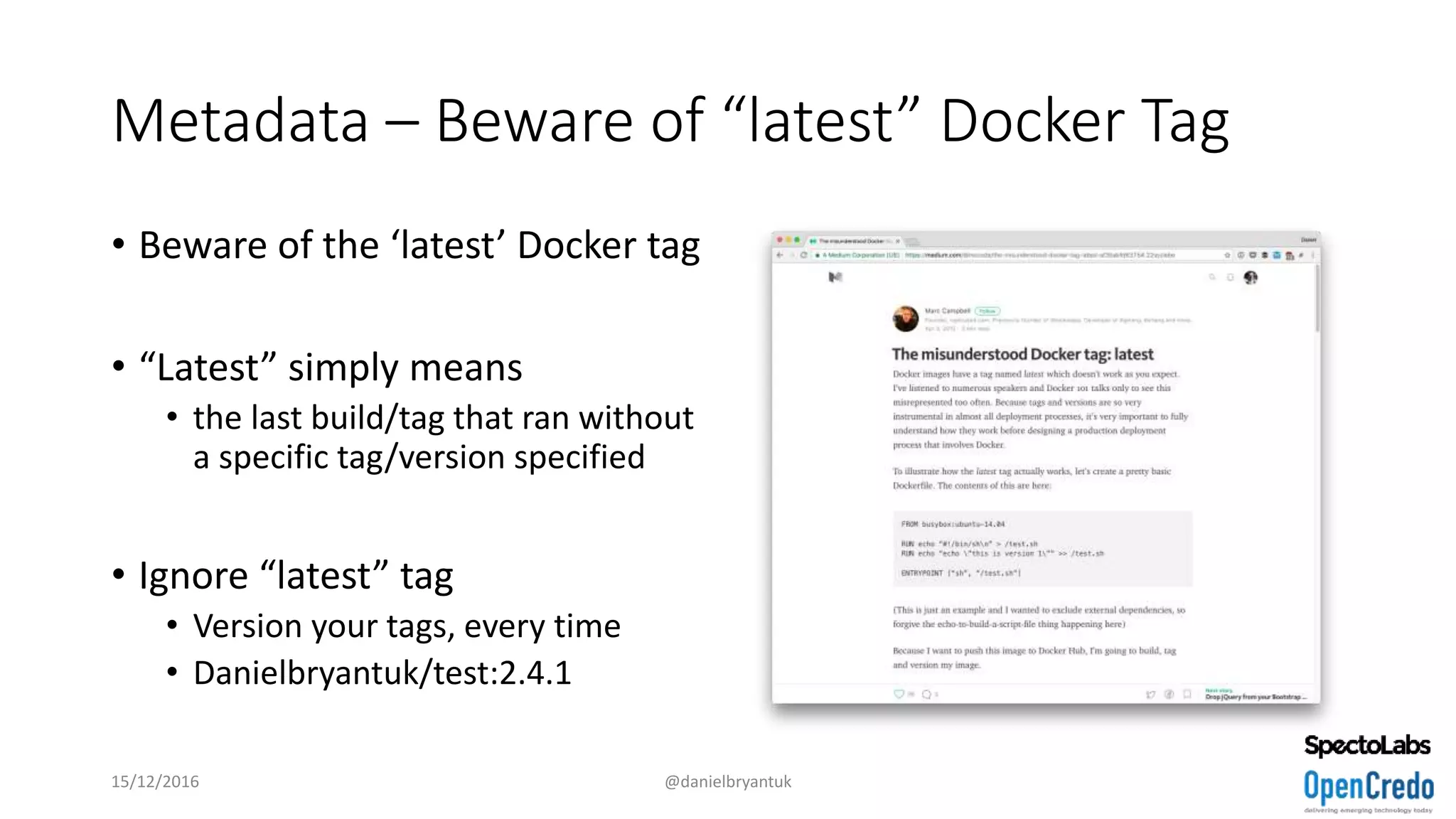

- 23. Metadata – Bewareof “latest” Docker Tag • Beware of the ‘latest’ Docker tag • “Latest” simply means • the last build/tag that ran without a specific tag/version specified • Ignore “latest” tag • Version your tags, every time • Danielbryantuk/test:2.4.1 15/12/2016 @danielbryantuk

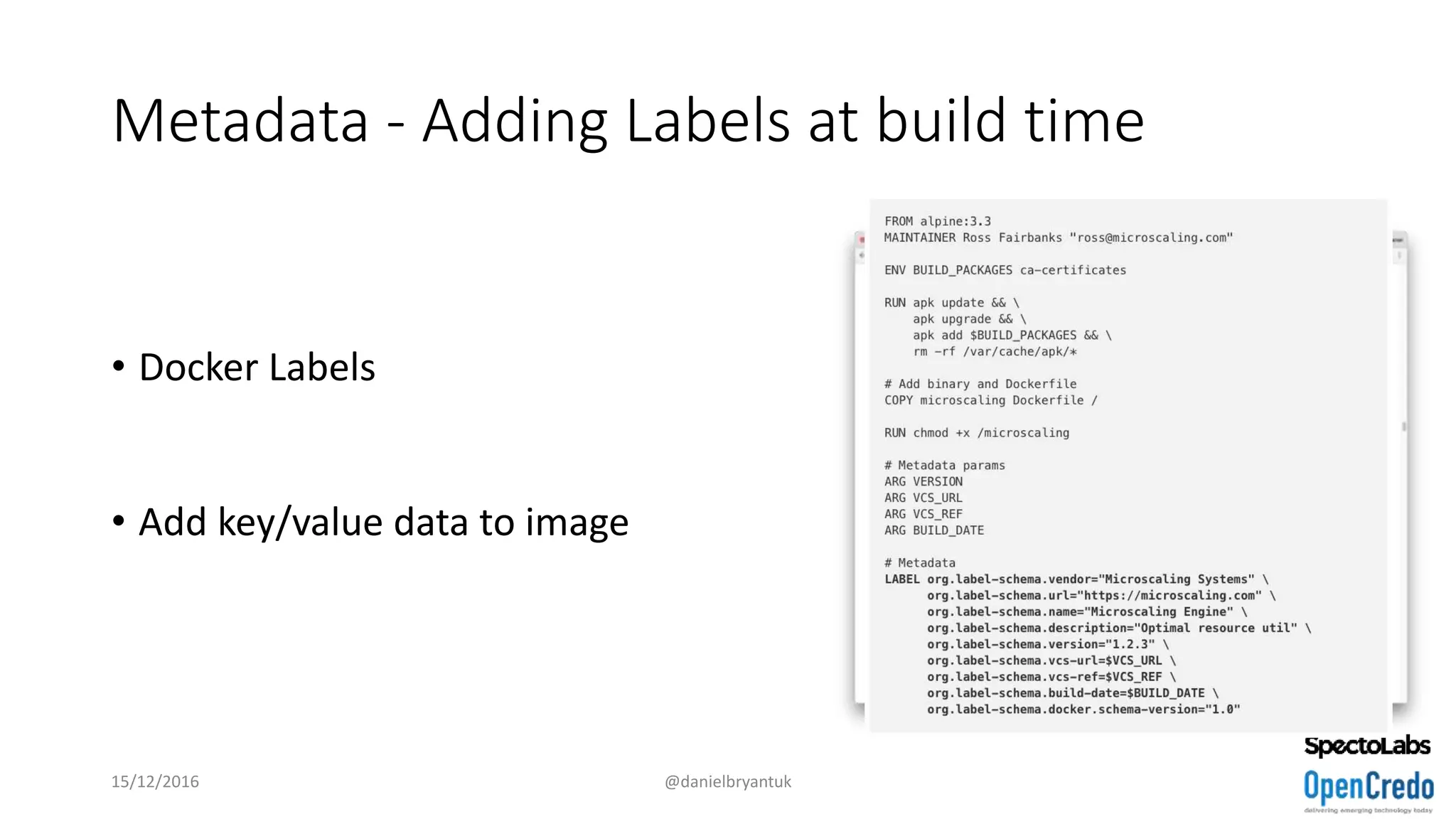

- 24. Metadata - AddingLabels at build time • Docker Labels • Add key/value data to image 15/12/2016 @danielbryantuk

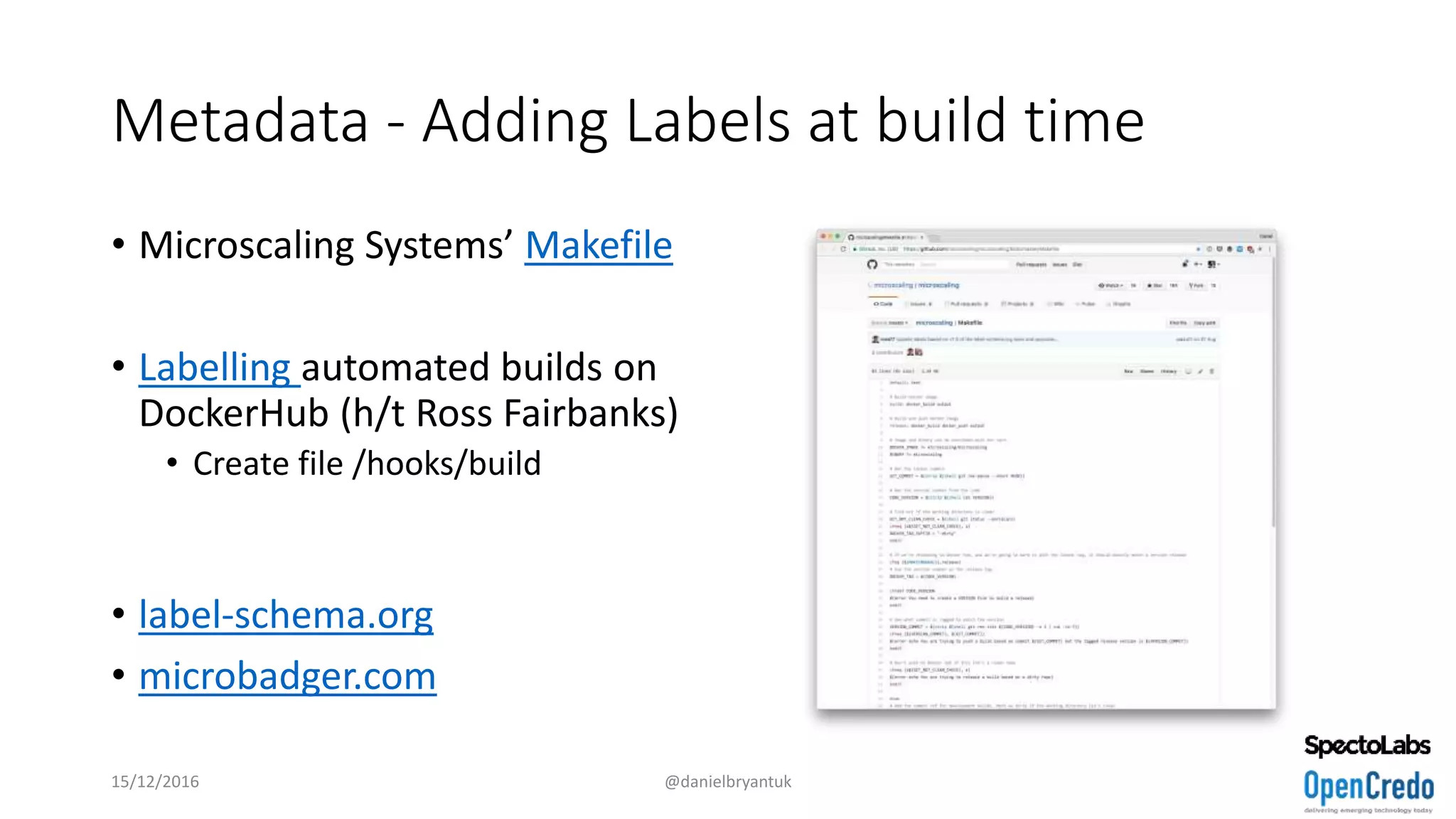

- 25. Metadata - AddingLabels at build time • Microscaling Systems’ Makefile • Labelling automated builds on DockerHub (h/t Ross Fairbanks) • Create file /hooks/build • label-schema.org • microbadger.com 15/12/2016 @danielbryantuk

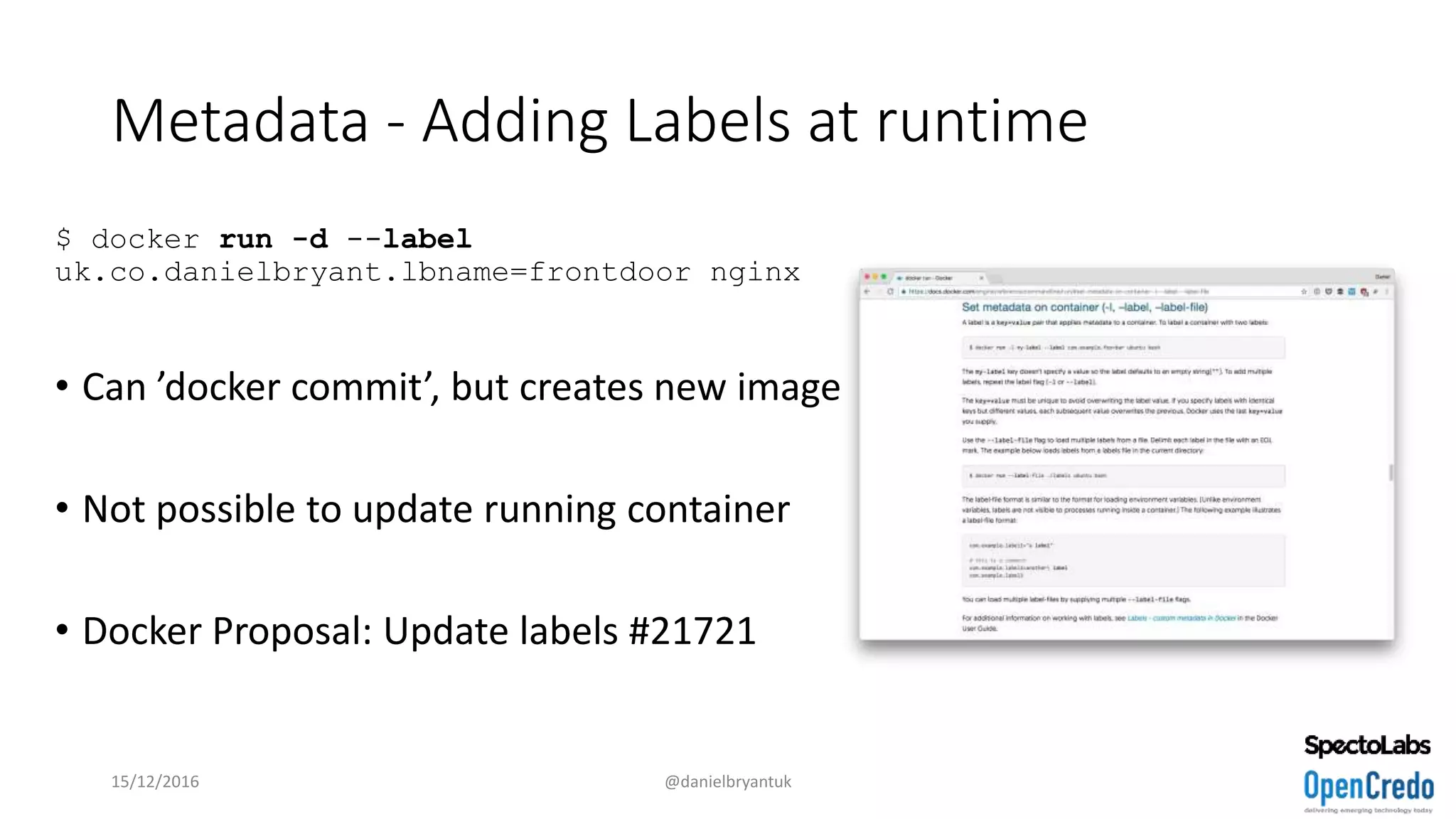

- 26. Metadata - AddingLabels at runtime 15/12/2016 @danielbryantuk $ docker run -d --label uk.co.danielbryant.lbname=frontdoor nginx • Can ’docker commit’, but creates new image • Not possible to update running container • Docker Proposal: Update labels #21721
- 27.
- 28.

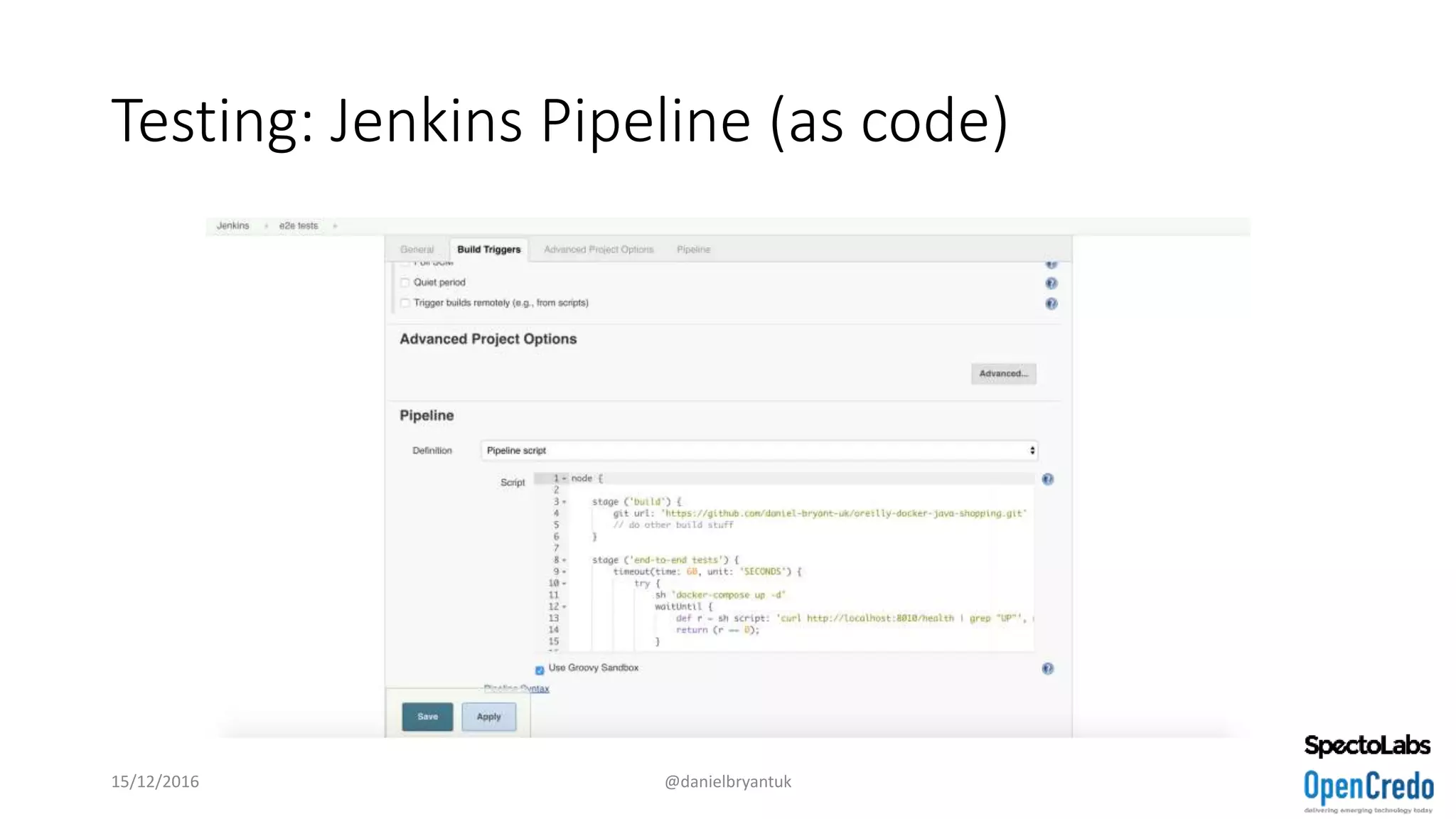

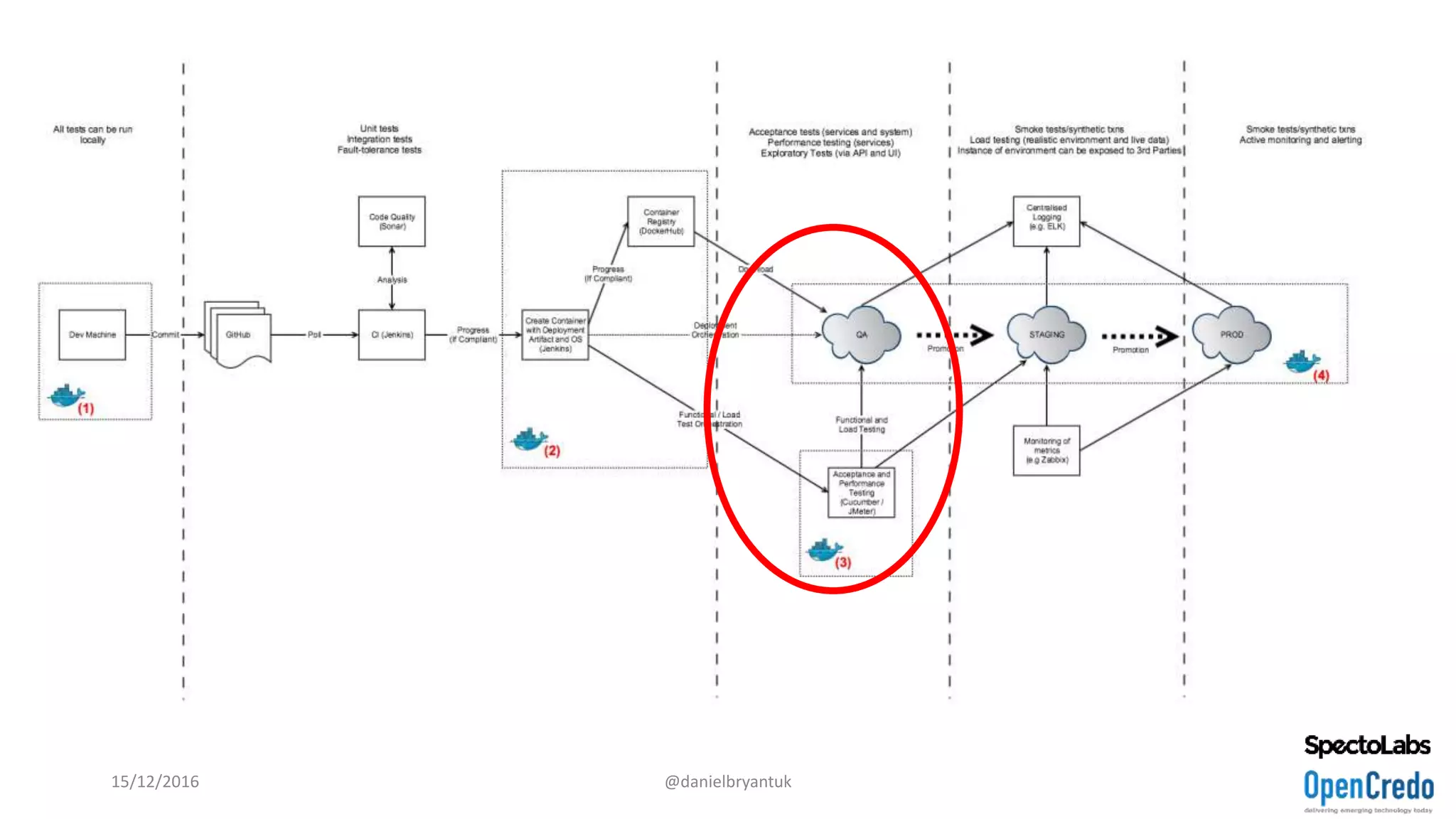

- 29. Testing: Jenkins Pipeline(as code) 15/12/2016 @danielbryantuk

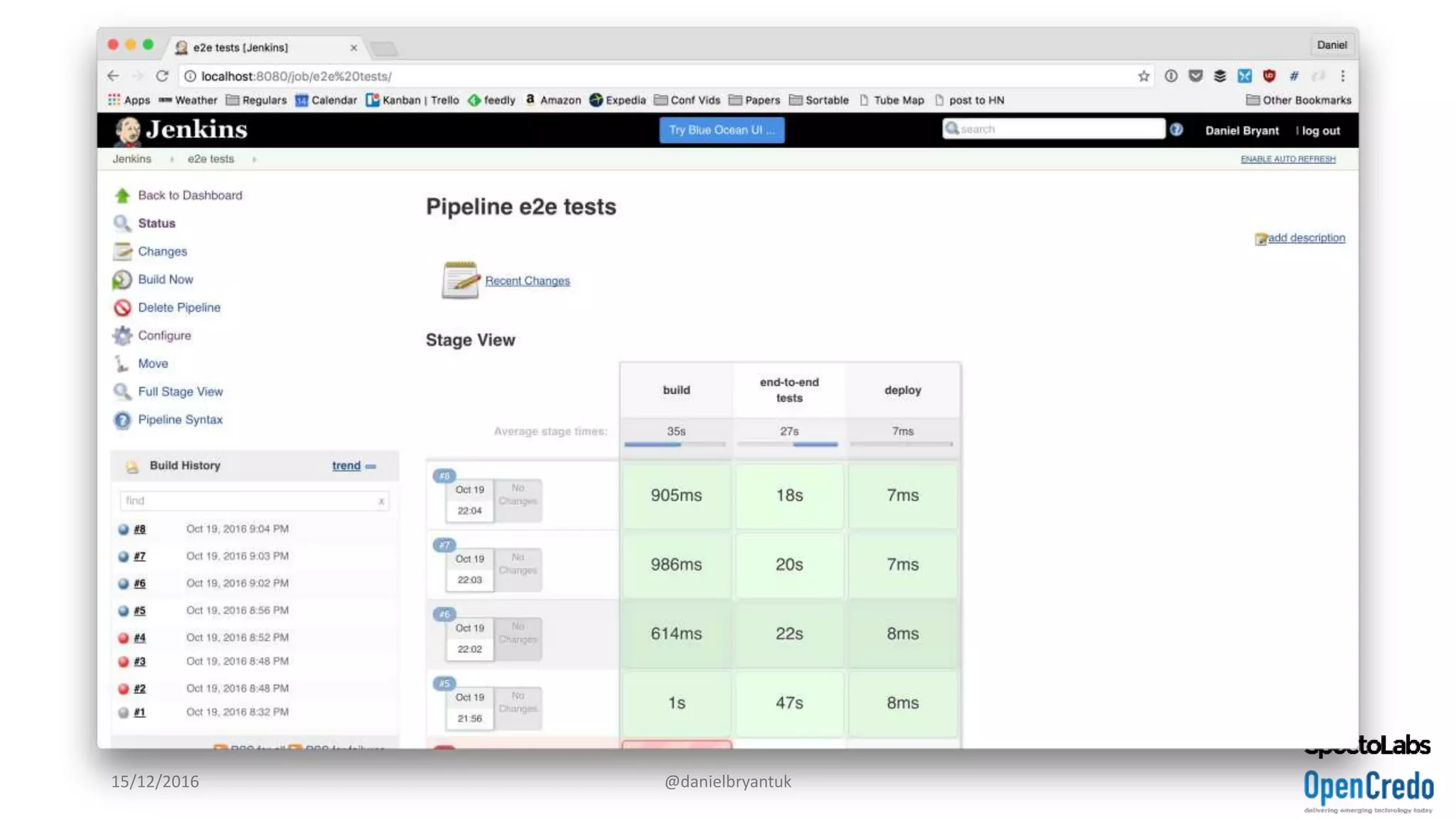

- 30.

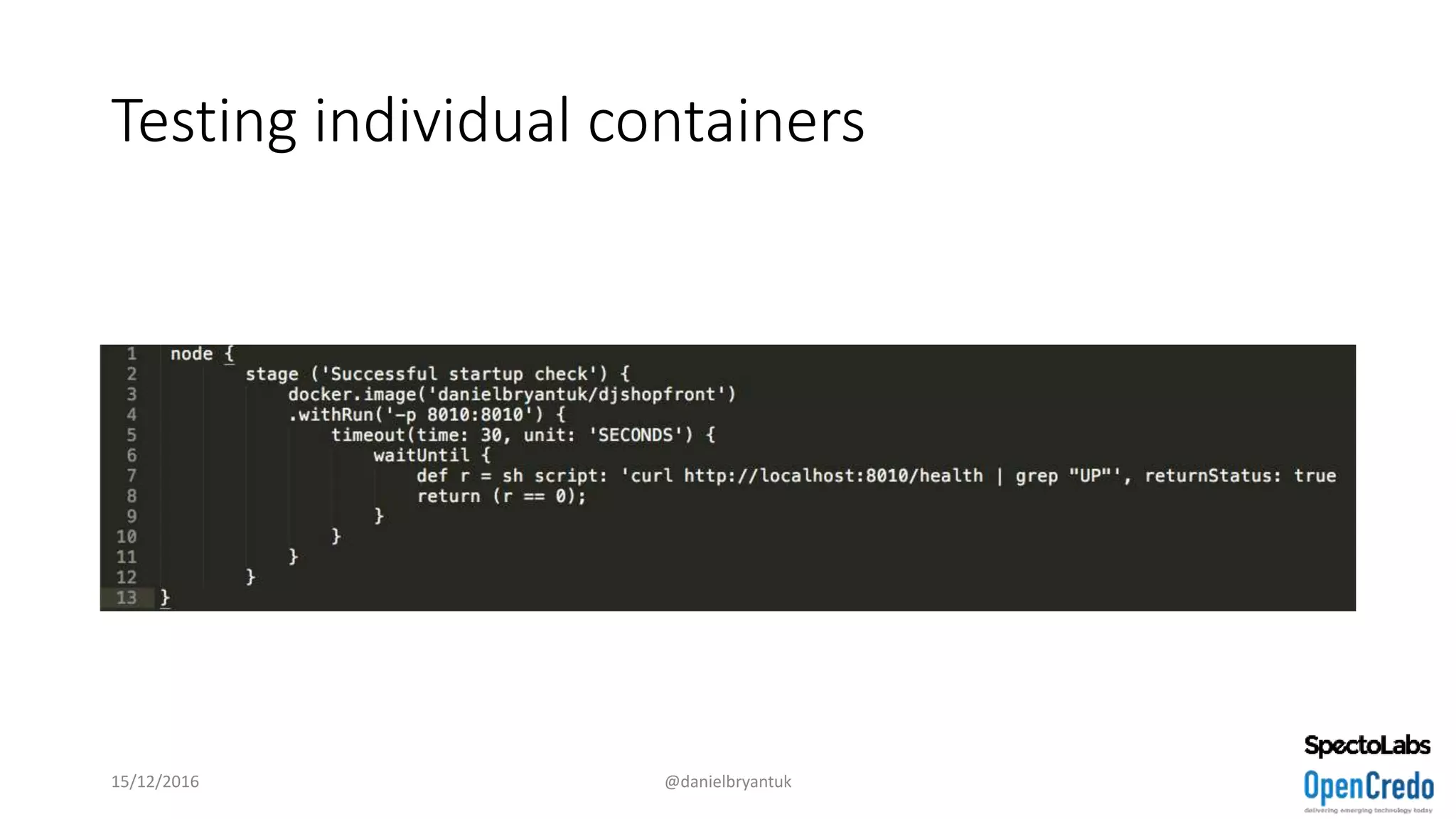

- 31. Testing individual containers 15/12/2016@danielbryantuk
- 32.

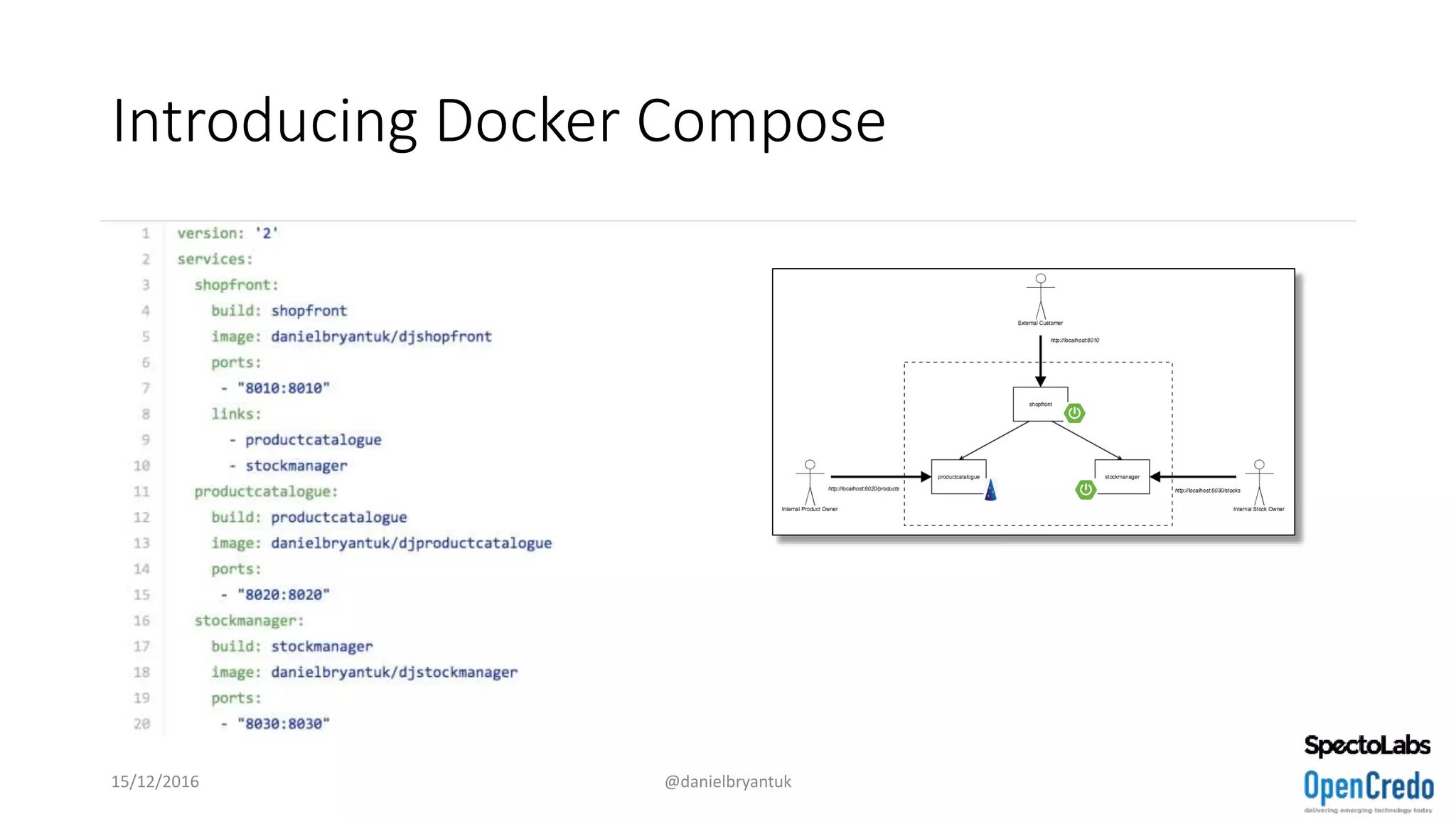

- 33. Introducing Docker Compose 15/12/2016@danielbryantuk

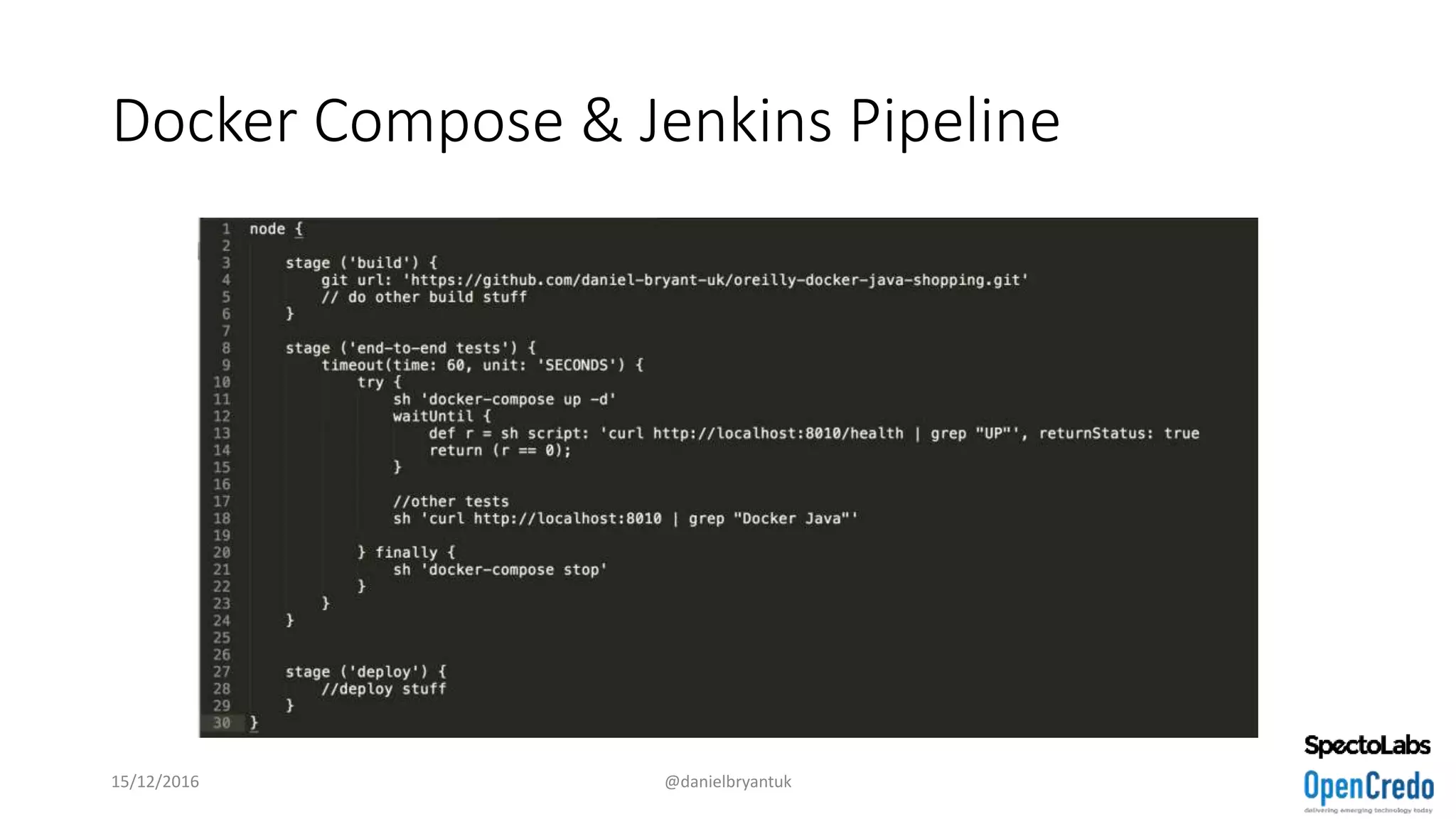

- 34. Docker Compose &Jenkins Pipeline 15/12/2016 @danielbryantuk

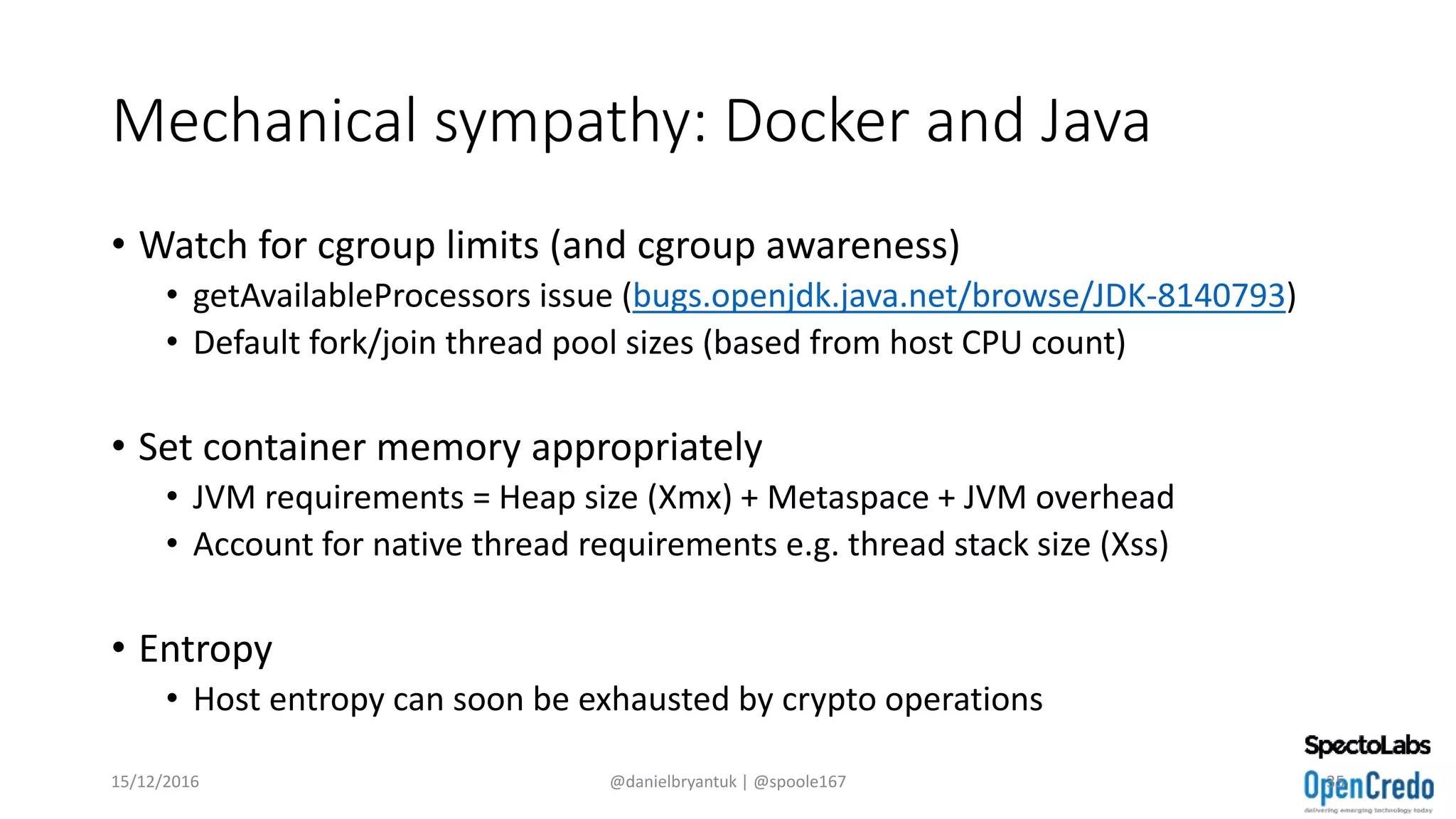

- 35. Mechanical sympathy: Dockerand Java • Watch for cgroup limits (and cgroup awareness) • getAvailableProcessors issue (bugs.openjdk.java.net/browse/JDK-8140793) • Default fork/join thread pool sizes (based from host CPU count) • Set container memory appropriately • JVM requirements = Heap size (Xmx) + Metaspace + JVM overhead • Account for native thread requirements e.g. thread stack size (Xss) • Entropy • Host entropy can soon be exhausted by crypto operations 15/12/2016 @danielbryantuk | @spoole167 35

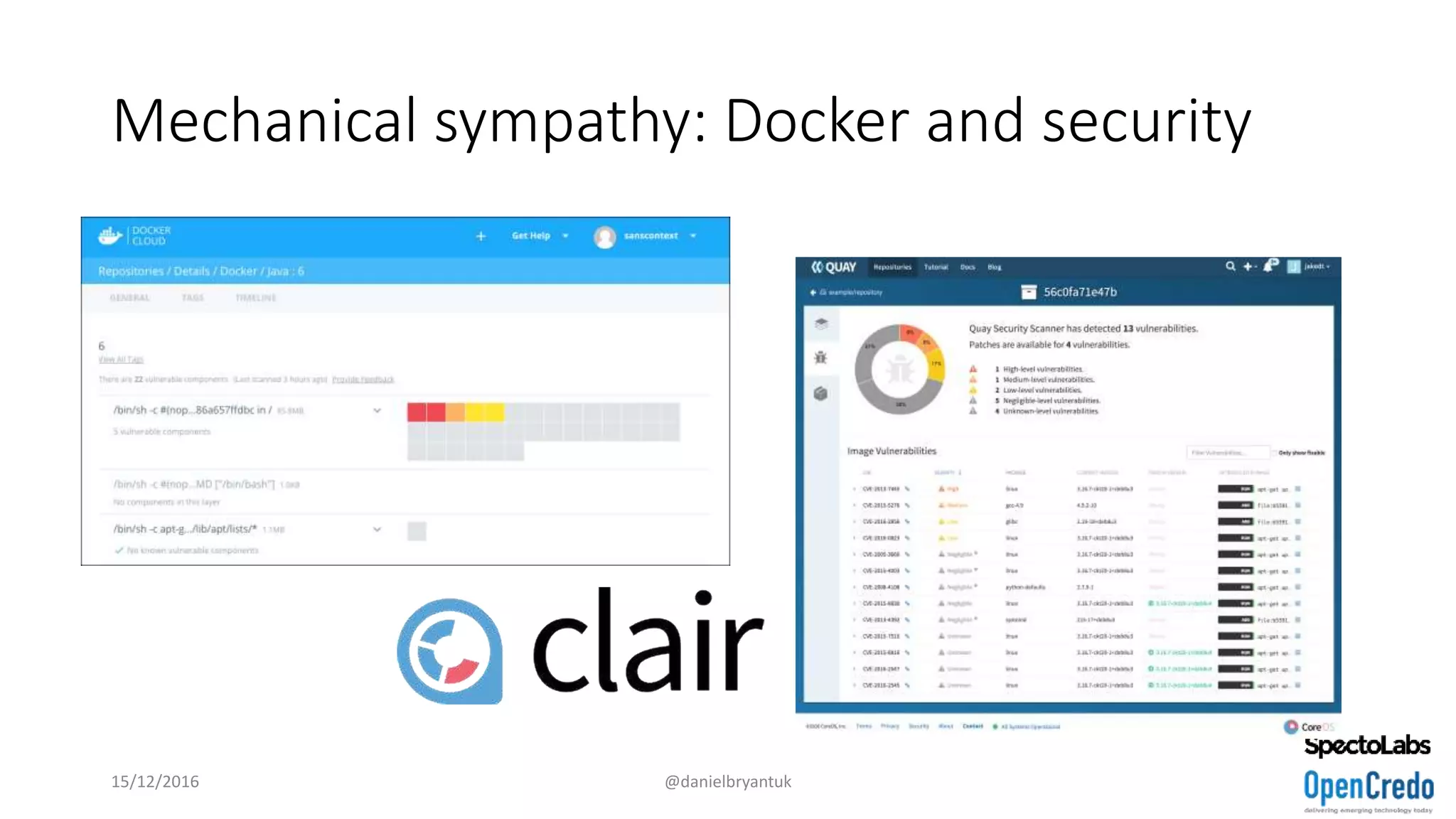

- 36. Mechanical sympathy: Dockerand security 15/12/2016 @danielbryantuk

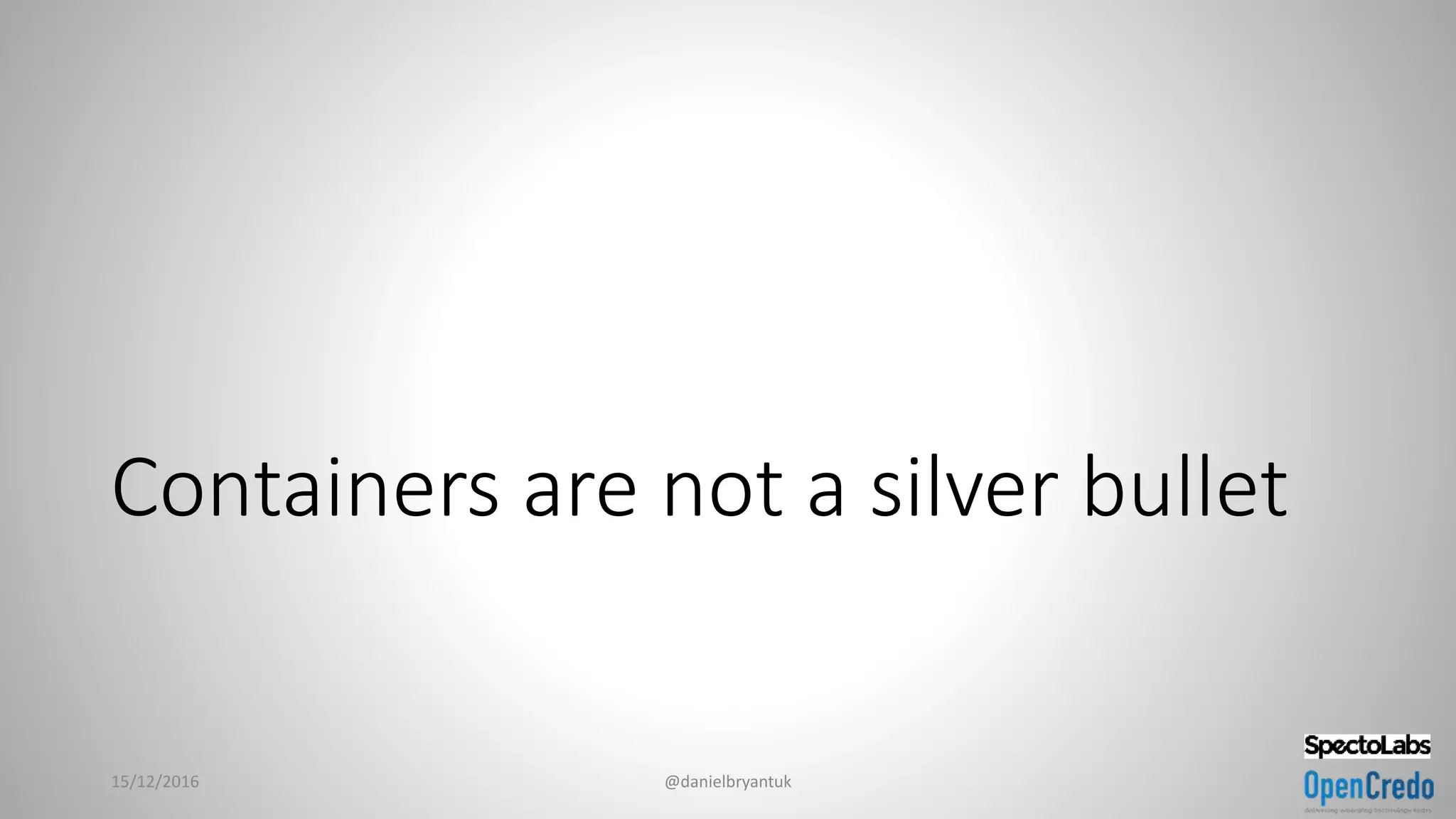

- 37. Containers are nota silver bullet 15/12/2016 @danielbryantuk
- 38. Containers: Expectations versusreality 15/12/2016 @danielbryantuk “DevOps”

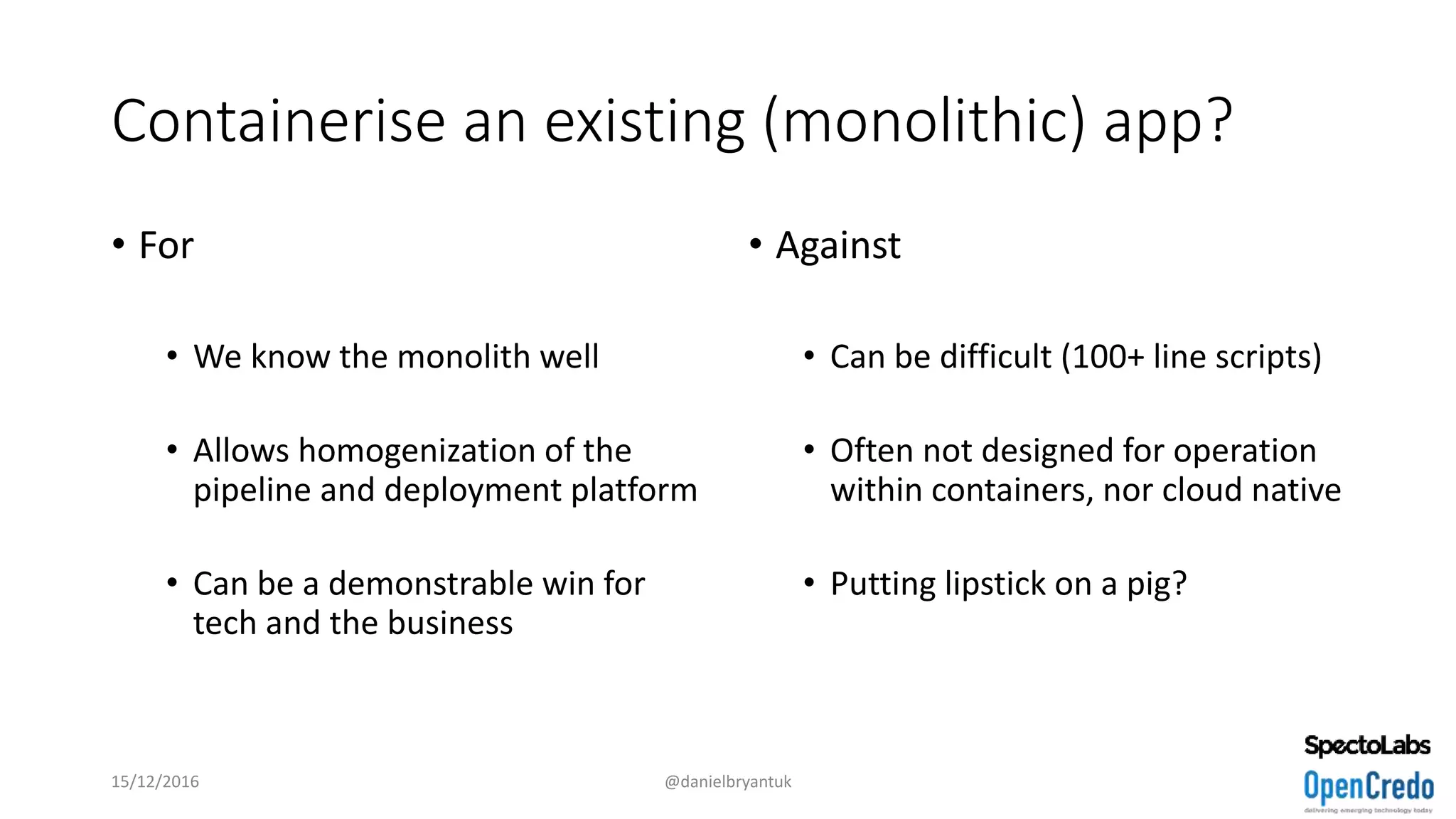

- 39. Containerise an existing(monolithic) app? • For • We know the monolith well • Allows homogenization of the pipeline and deployment platform • Can be a demonstrable win for tech and the business • Against • Can be difficult (100+ line scripts) • Often not designed for operation within containers, nor cloud native • Putting lipstick on a pig? 15/12/2016 @danielbryantuk
- 40. Whatever you decide… pushit through the pipeline ASAP! 15/12/2016 @danielbryantuk

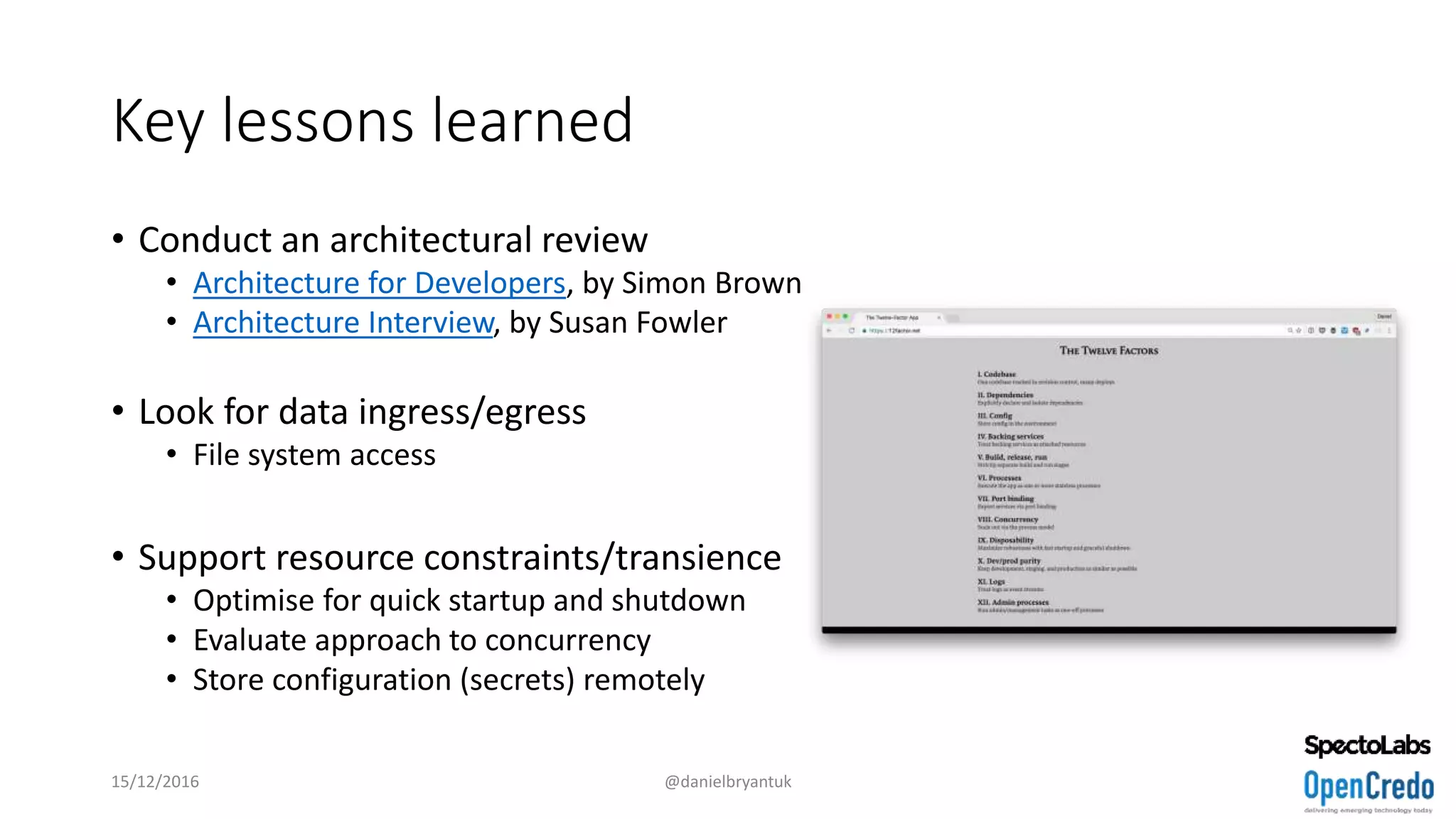

- 41. Key lessons learned •Conduct an architectural review • Architecture for Developers, by Simon Brown • Architecture Interview, by Susan Fowler • Look for data ingress/egress • File system access • Support resource constraints/transience • Optimise for quick startup and shutdown • Evaluate approach to concurrency • Store configuration (secrets) remotely 15/12/2016 @danielbryantuk

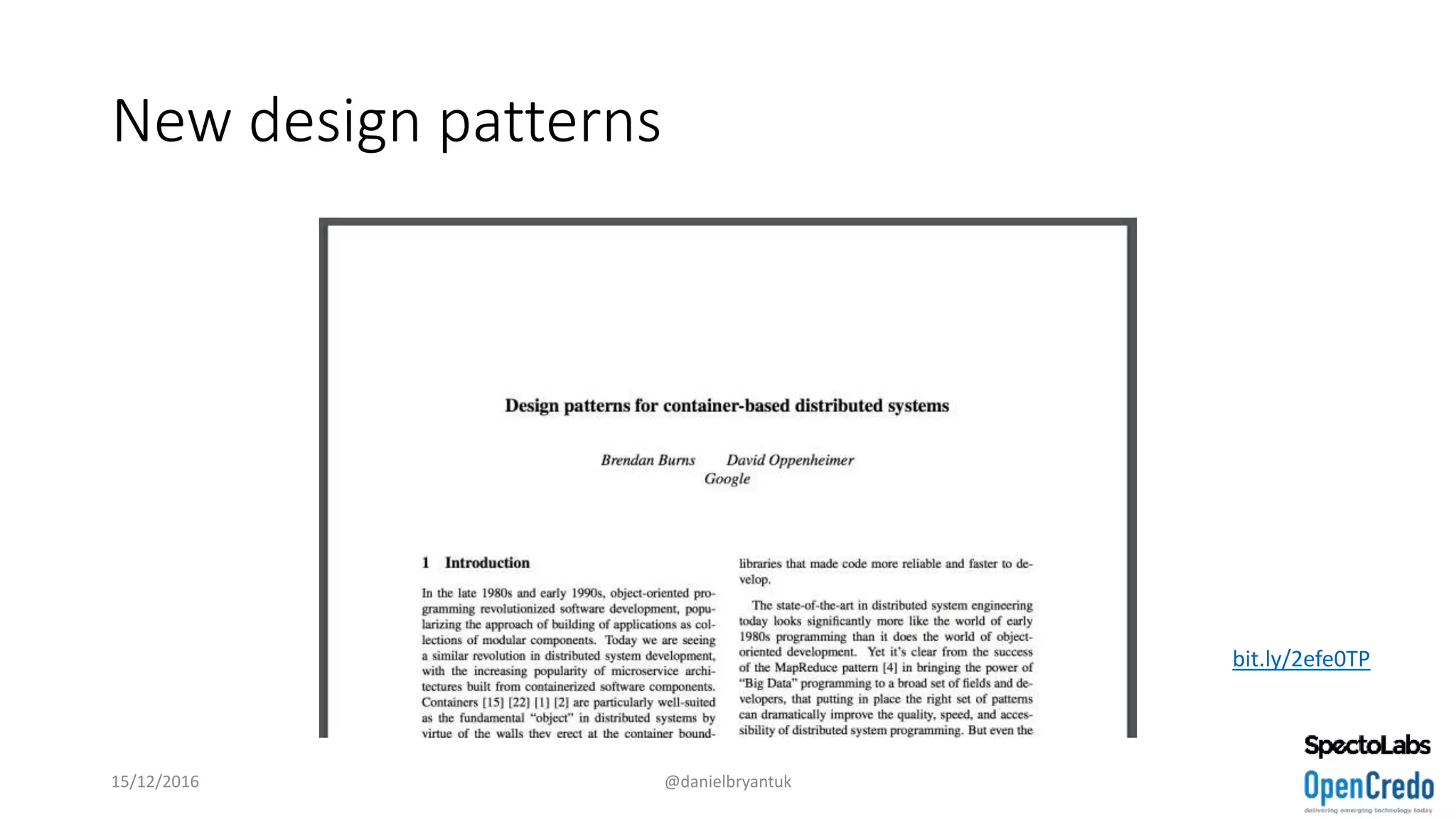

- 42. New design patterns 15/12/2016@danielbryantuk bit.ly/2efe0TP

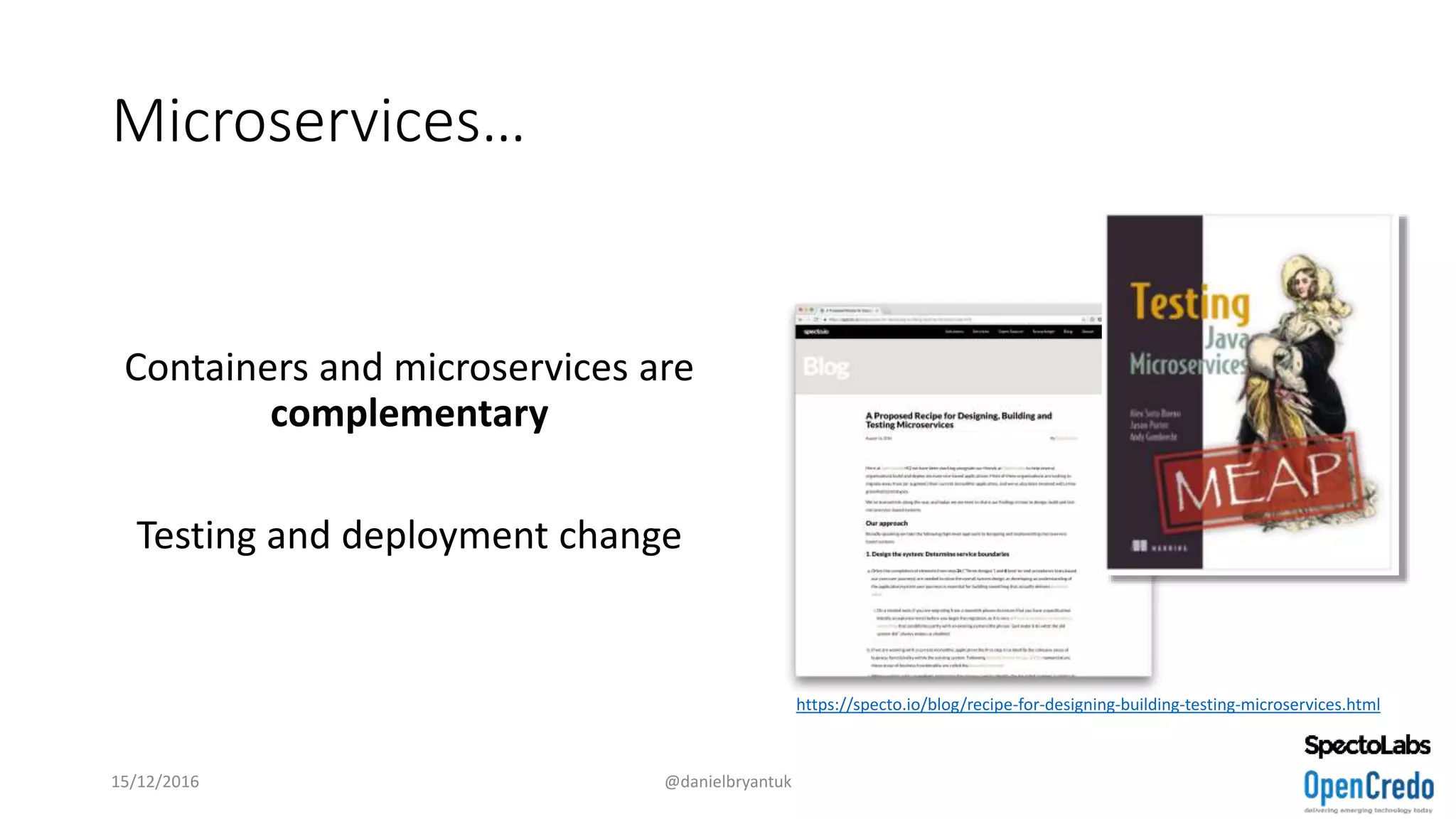

- 43. Microservices… Containers and microservicesare complementary Testing and deployment change 15/12/2016 @danielbryantuk https://specto.io/blog/recipe-for-designing-building-testing-microservices.html
- 44.
- 45.
- 46.

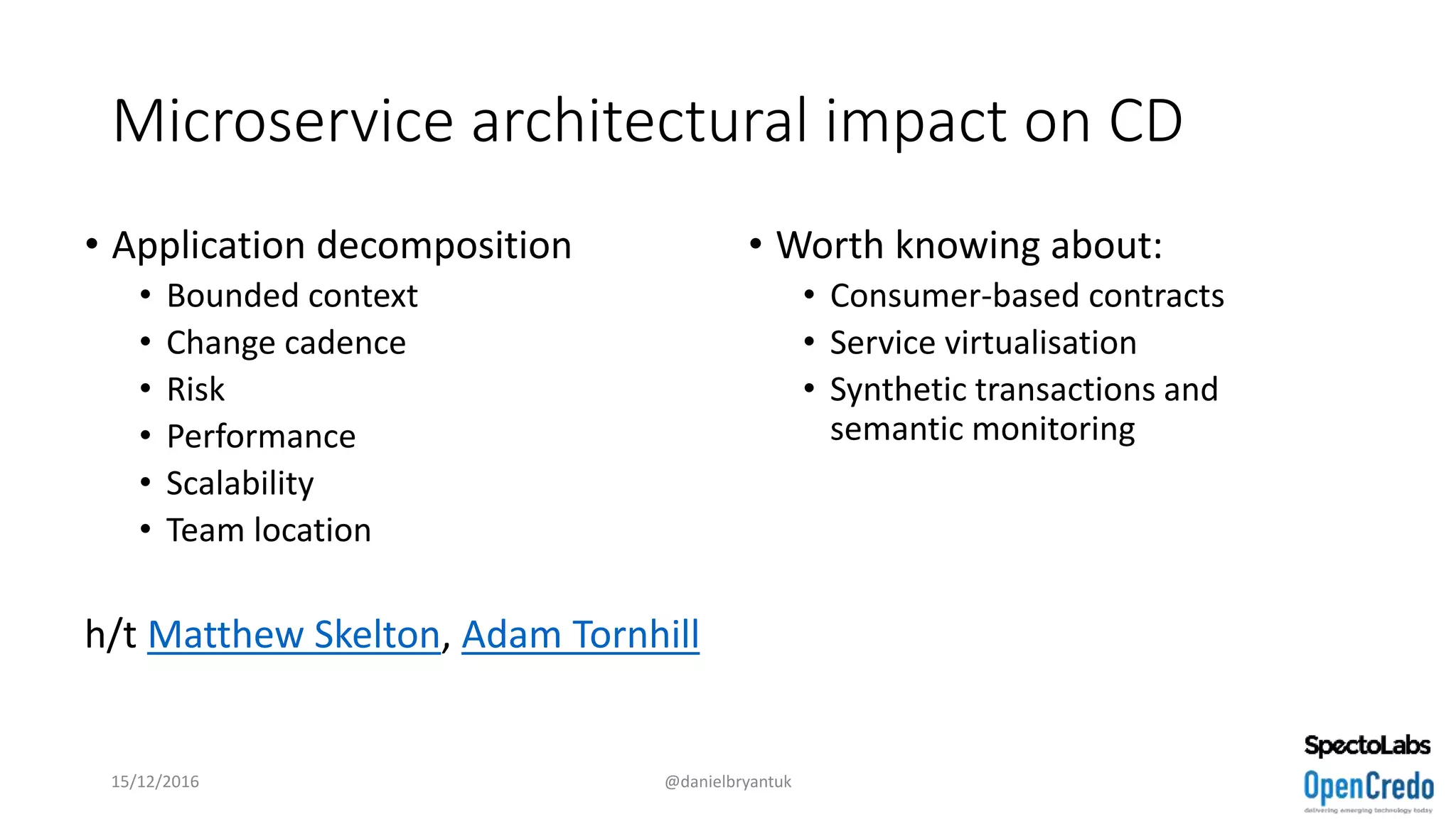

- 47. Microservice architectural impacton CD • Application decomposition • Bounded context • Change cadence • Risk • Performance • Scalability • Team location h/t Matthew Skelton, Adam Tornhill • Worth knowing about: • Consumer-based contracts • Service virtualisation • Synthetic transactions and semantic monitoring 15/12/2016 @danielbryantuk
- 48. Using containers doesnot obviate the need for good architectural practices 15/12/2016 @danielbryantuk
- 49.
- 50.

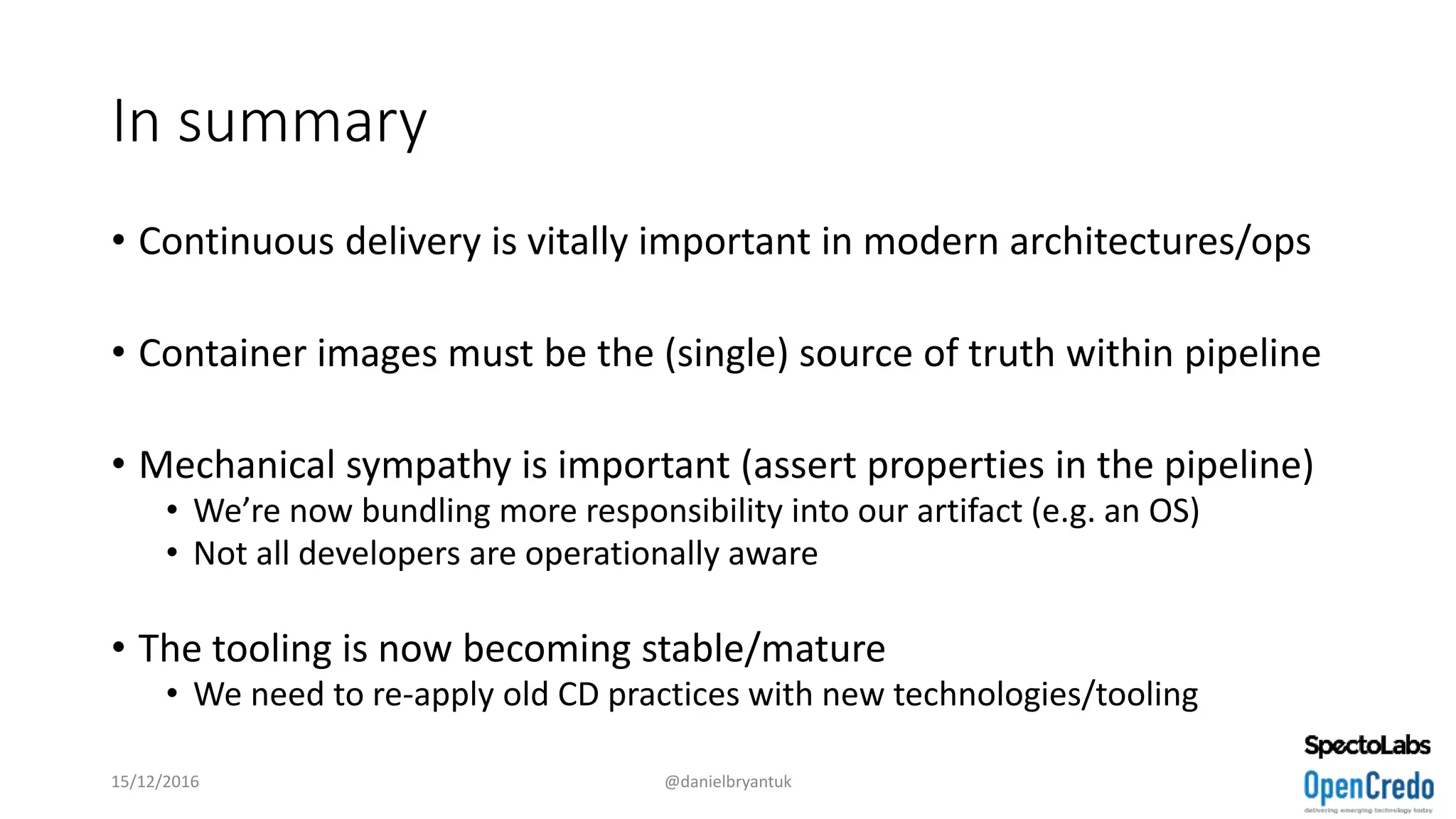

- 51. In summary • Continuousdelivery is vitally important in modern architectures/ops • Container images must be the (single) source of truth within pipeline • Mechanical sympathy is important (assert properties in the pipeline) • We’re now bundling more responsibility into our artifact (e.g. an OS) • Not all developers are operationally aware • The tooling is now becoming stable/mature • We need to re-apply old CD practices with new technologies/tooling 15/12/2016 @danielbryantuk
- 52.
- 53. Thanks for listening •Any questions? • Feel free to contact me • @danielbryantuk • daniel.bryant@opencredo.com 15/12/2016 @danielbryantuk
