Modelling the User Interface

Modelling the
User Interface

Pedro J. Molina, PhD.
Software Engineer
Capgemini Spain | Valencia
pjmolina@gmail.com
http://pjmolina.com/metalevel

Contents
 UI: Art or Science?
 Domains
 Modelling UIs
 The Abstractions of an UI
 Code Generation for UIs

2

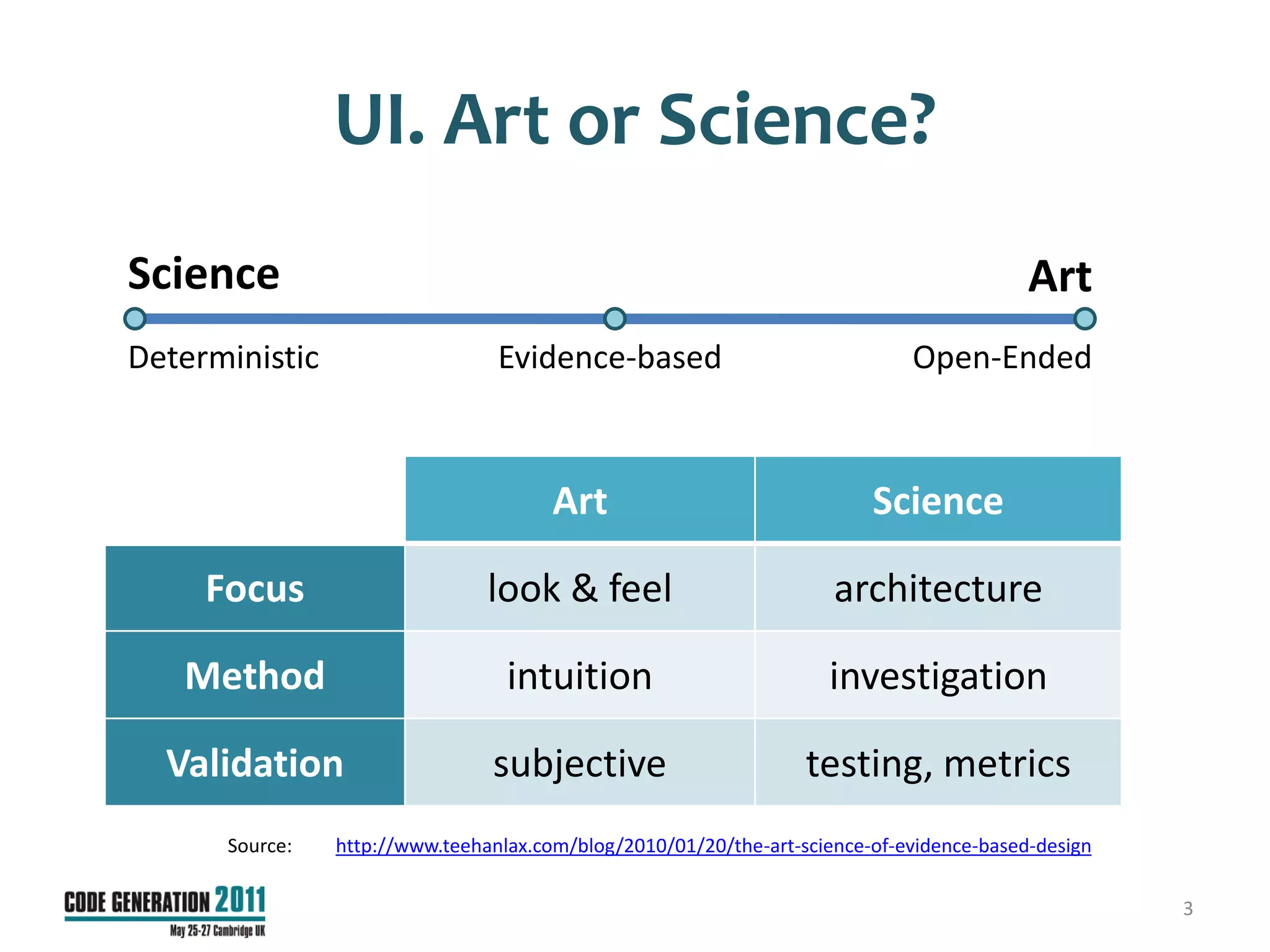

UI. Art or Science?
Science Art
Deterministic Evidence-based Open-Ended

Art Science

Focus look & feel architecture

Method intuition investigation

Validation subjective testing, metrics
Source: http://www.teehanlax.com/blog/2010/01/20/the-art-science-of-evidence-based-design

3

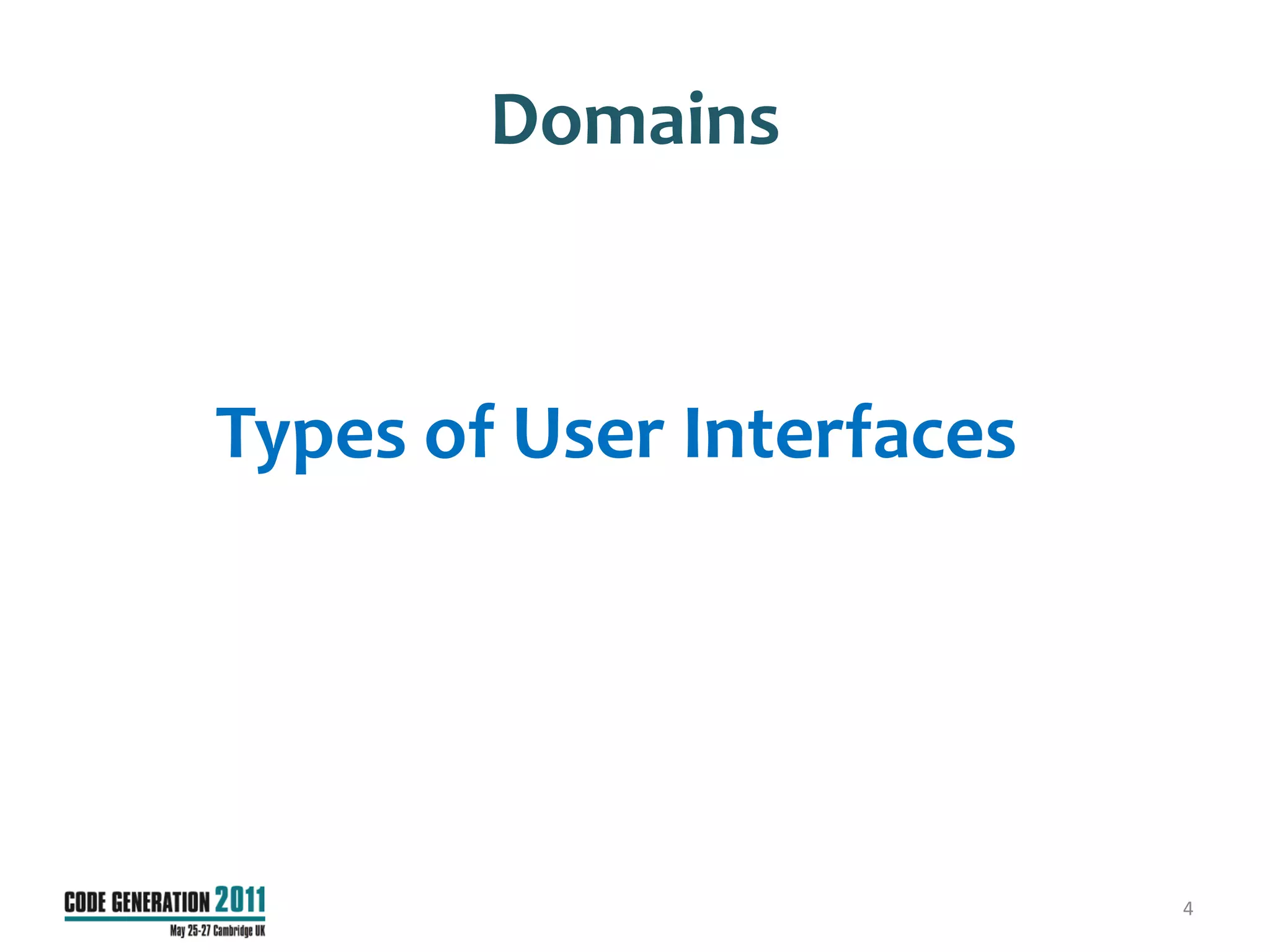

Domains

Types of User Interfaces

4

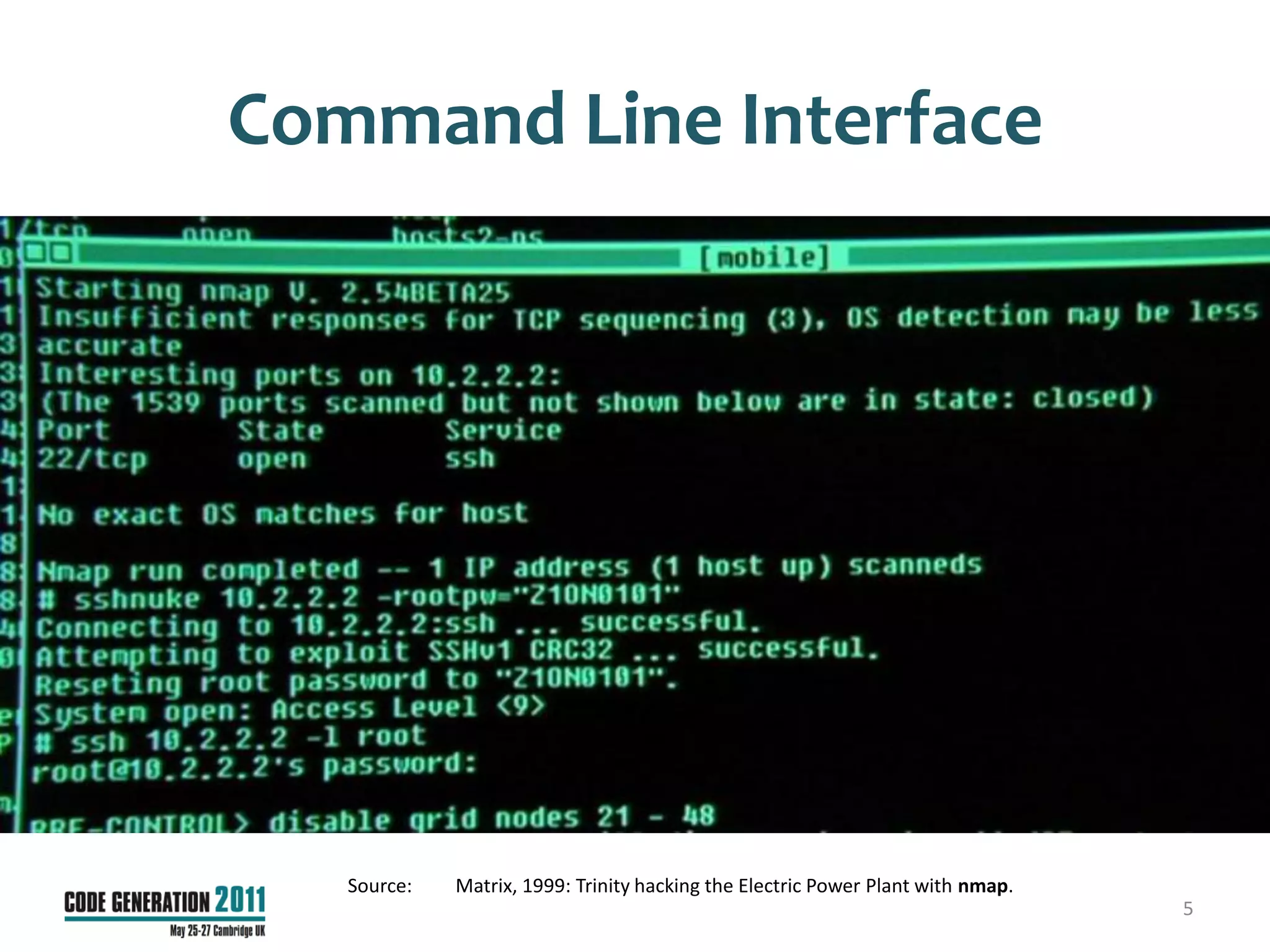

Command Line Interface

Source: Matrix, 1999: Trinity hacking the Electric Power Plant with nmap.
5

Games: joystick, motion

6

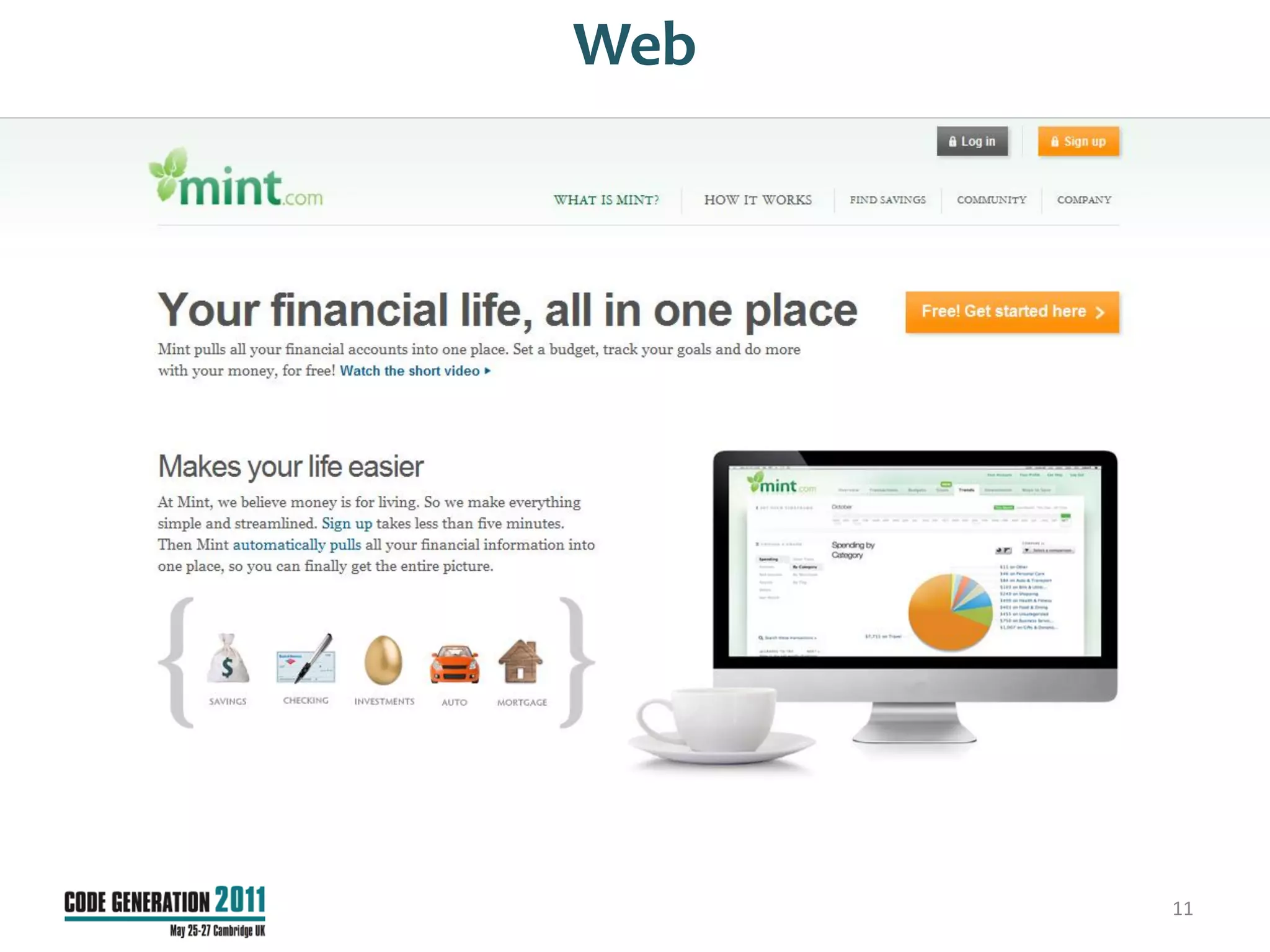

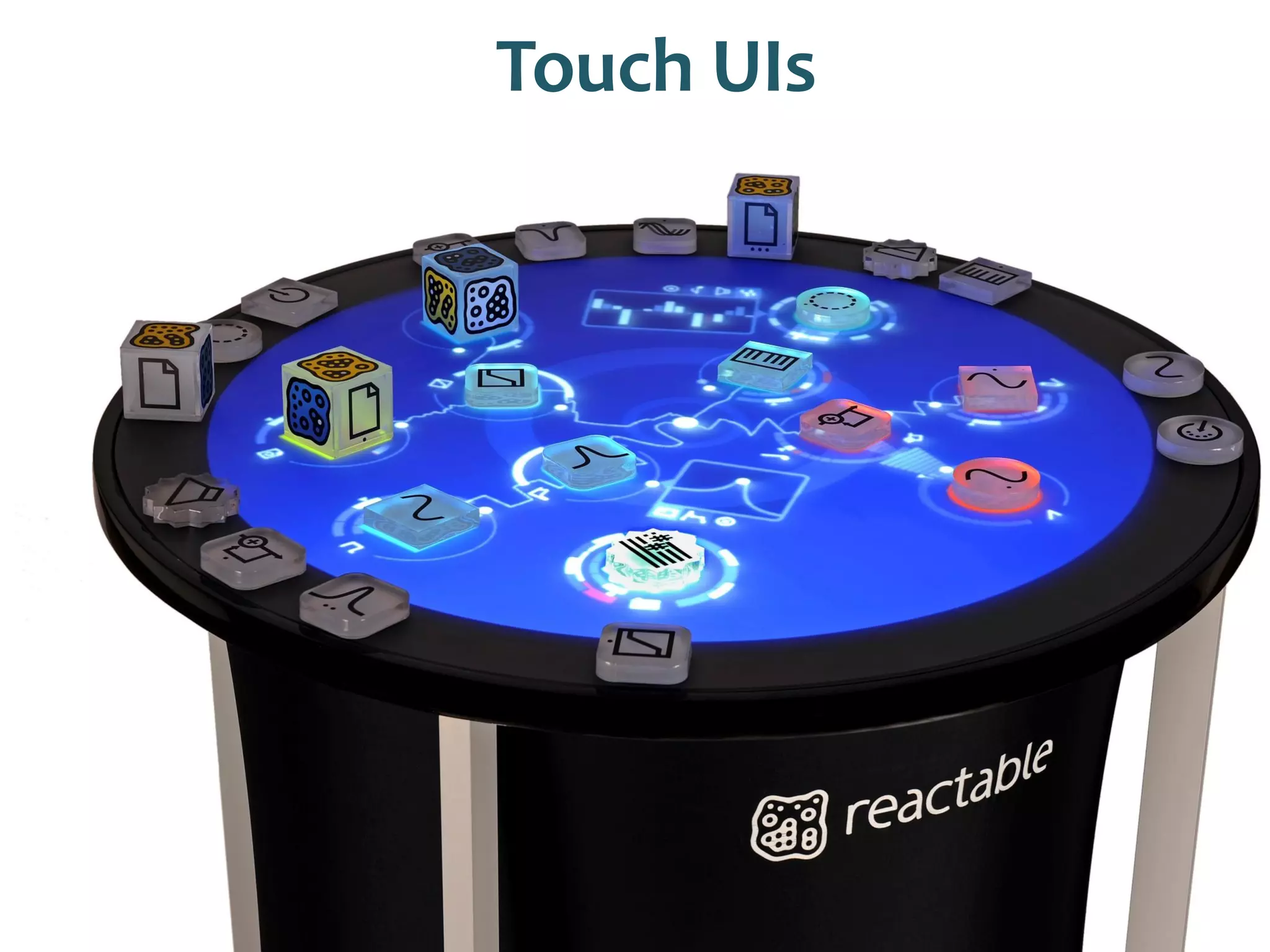

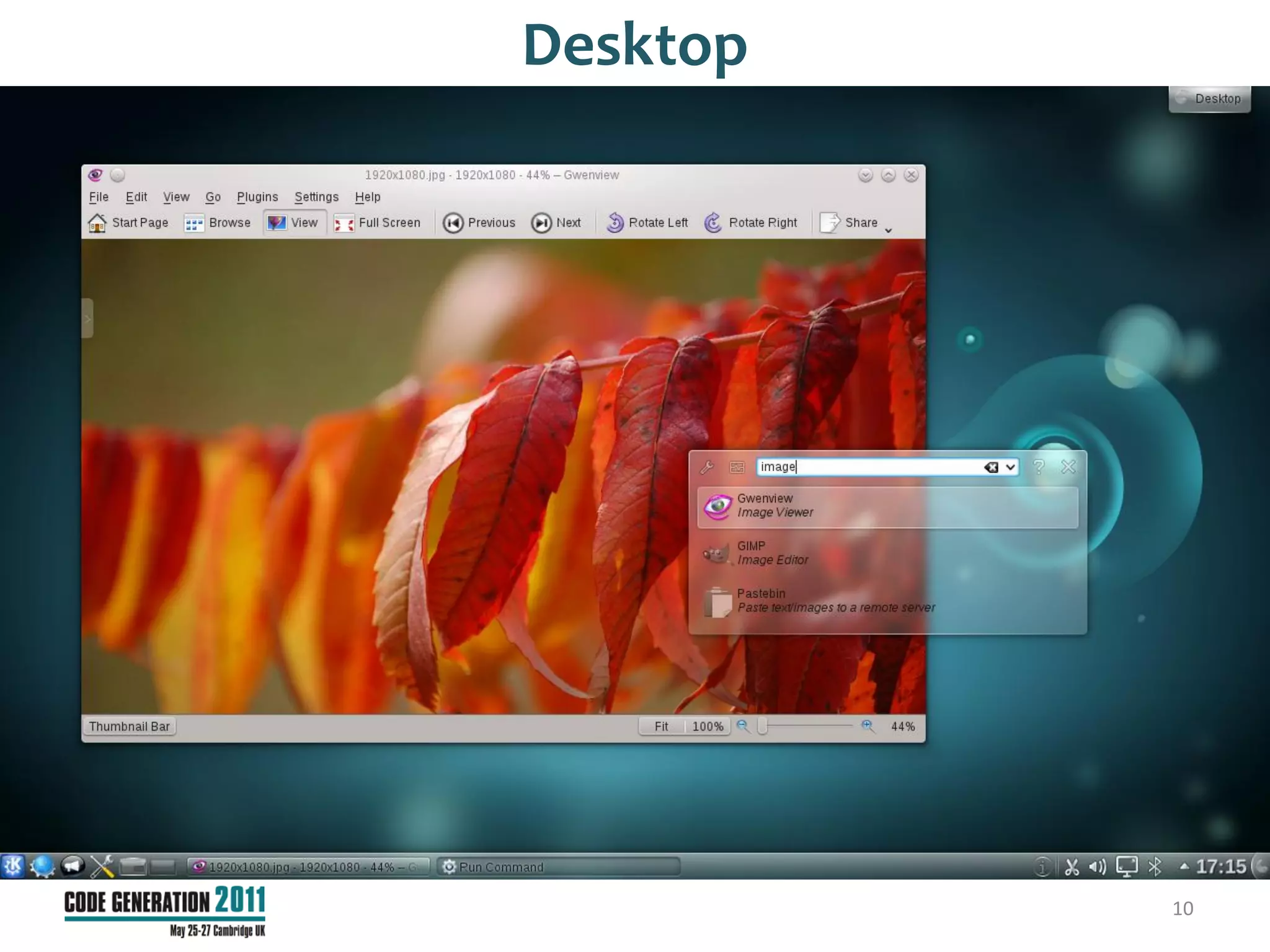

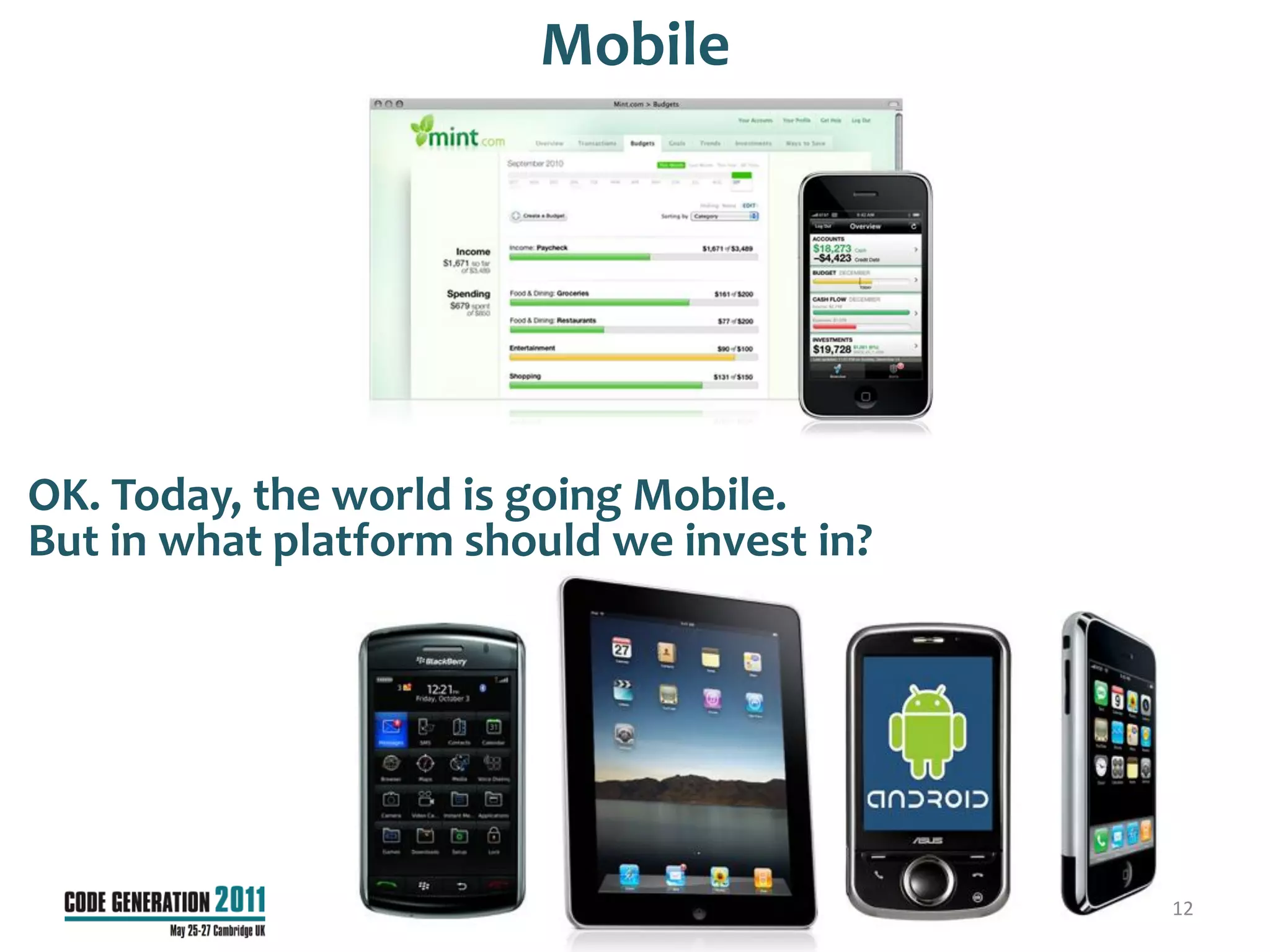

Mobile

OK. Today, the world is going Mobile.
But in what platform should we invest in?

12

Future UIs: Internet TV is comming

13

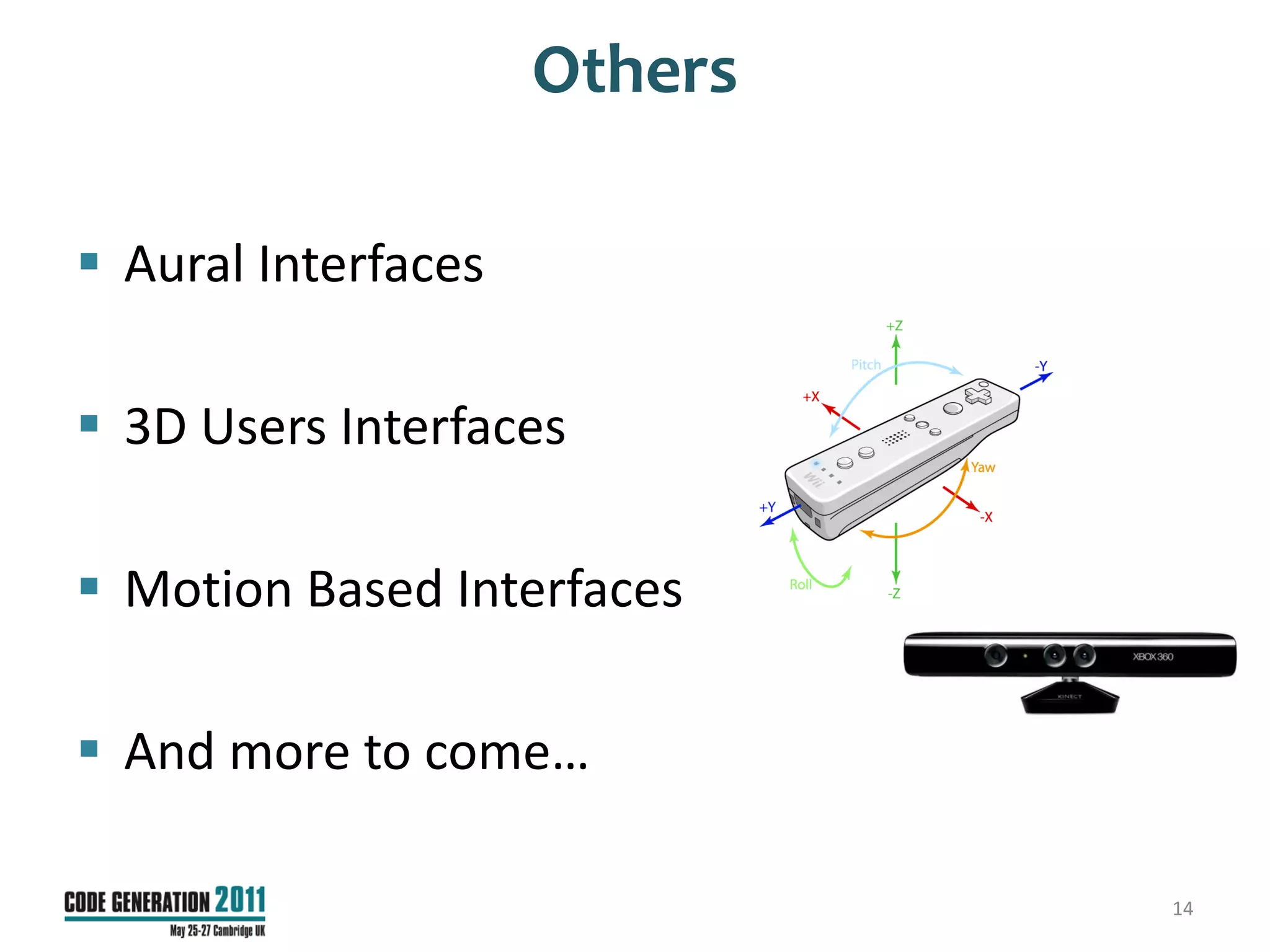

Others

 Aural Interfaces

 3D Users Interfaces

 Motion Based Interfaces

 And more to come…

14

Future UIs: Internet Fridge?

15

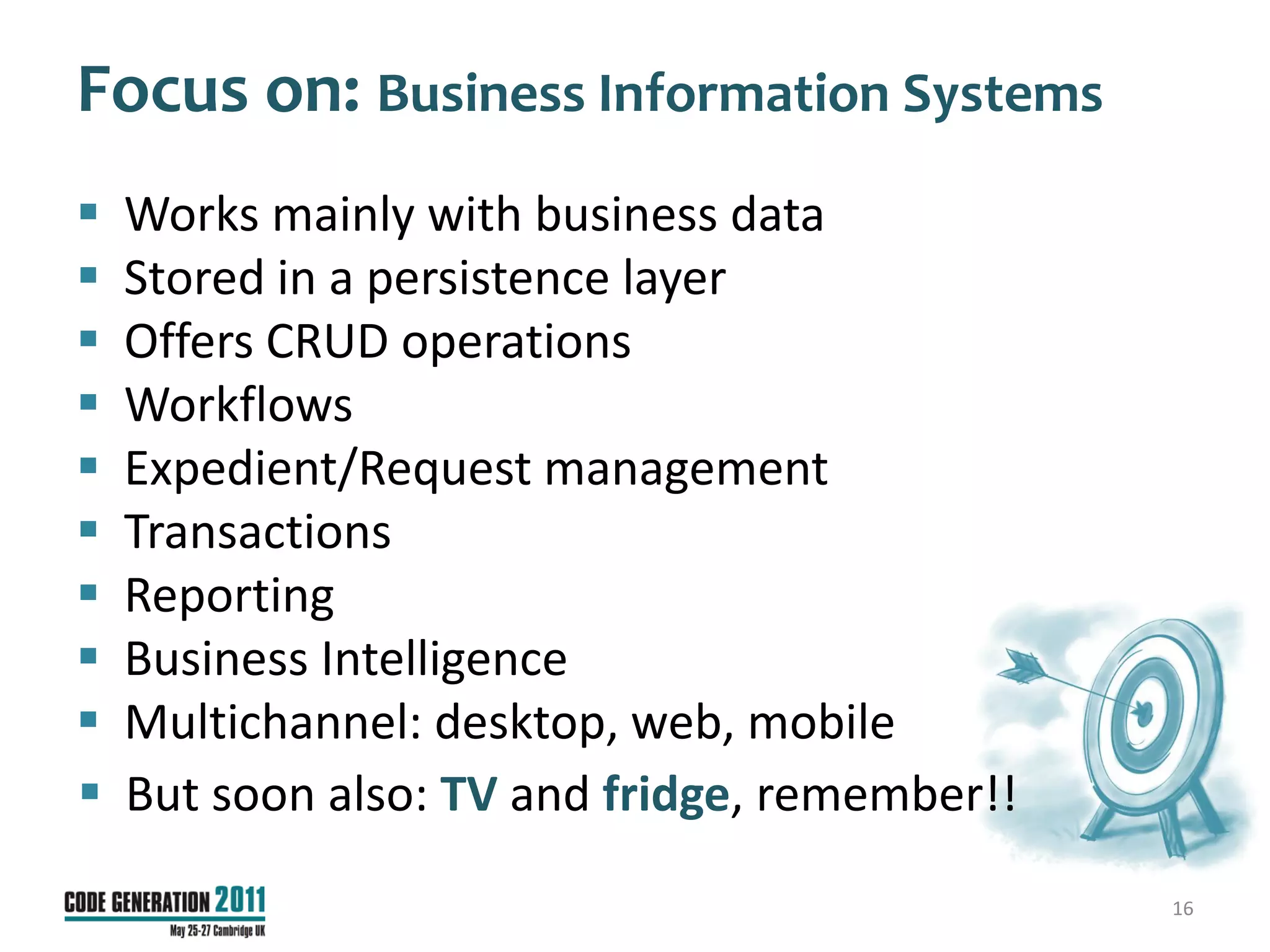

Focus on: Business Information Systems
 Works mainly with business data
 Stored in a persistence layer
 Offers CRUD operations
 Workflows
 Expedient/Request management
 Transactions
 Reporting
 Business Intelligence
 Multichannel: desktop, web, mobile
 But soon also: TV and fridge, remember!!
16

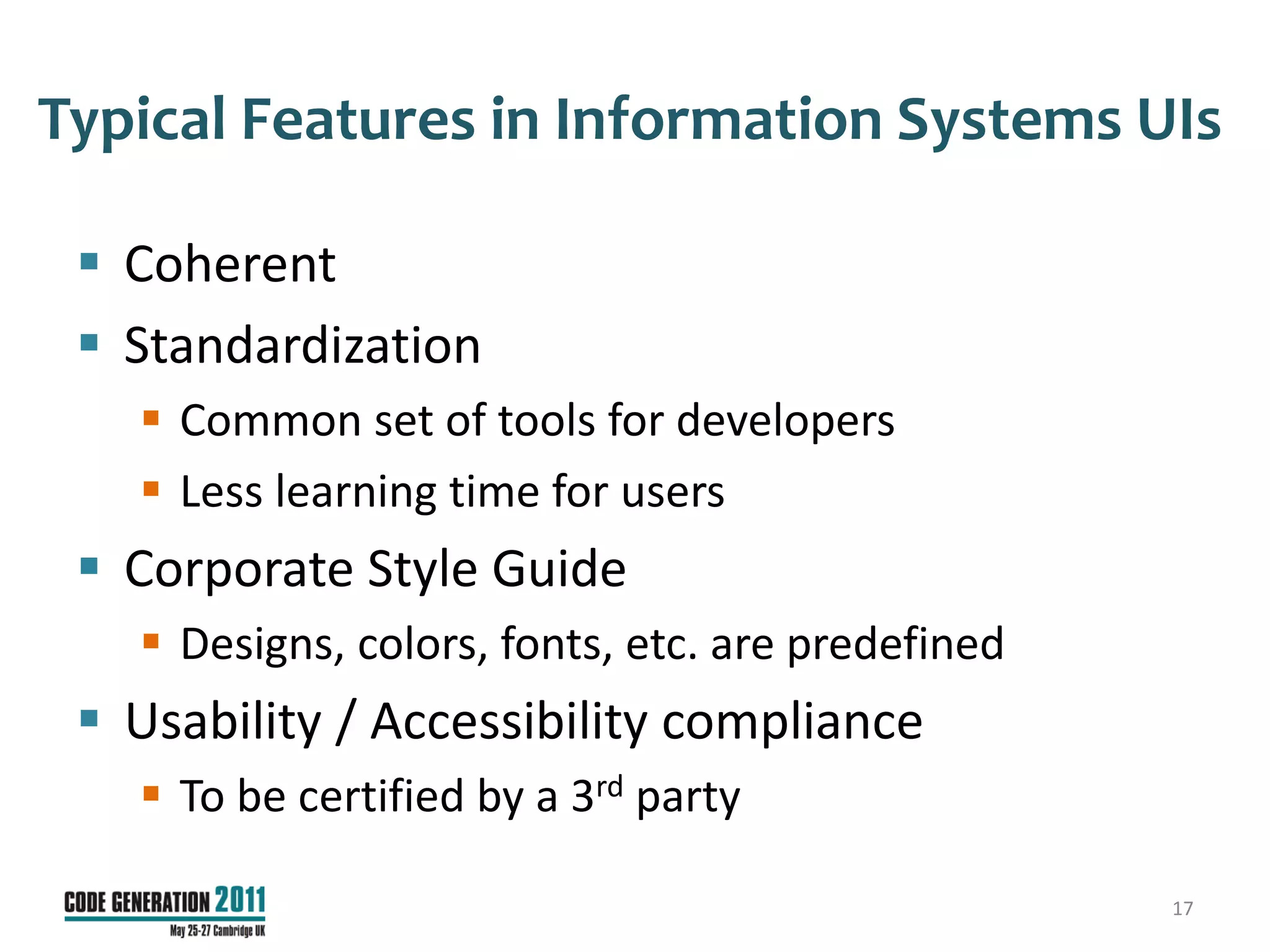

Typical Features in Information Systems UIs

 Coherent
 Standardization
 Common set of tools for developers
 Less learning time for users
 Corporate Style Guide
 Designs, colors, fonts, etc. are predefined
 Usability / Accessibility compliance
 To be certified by a 3rd party

17

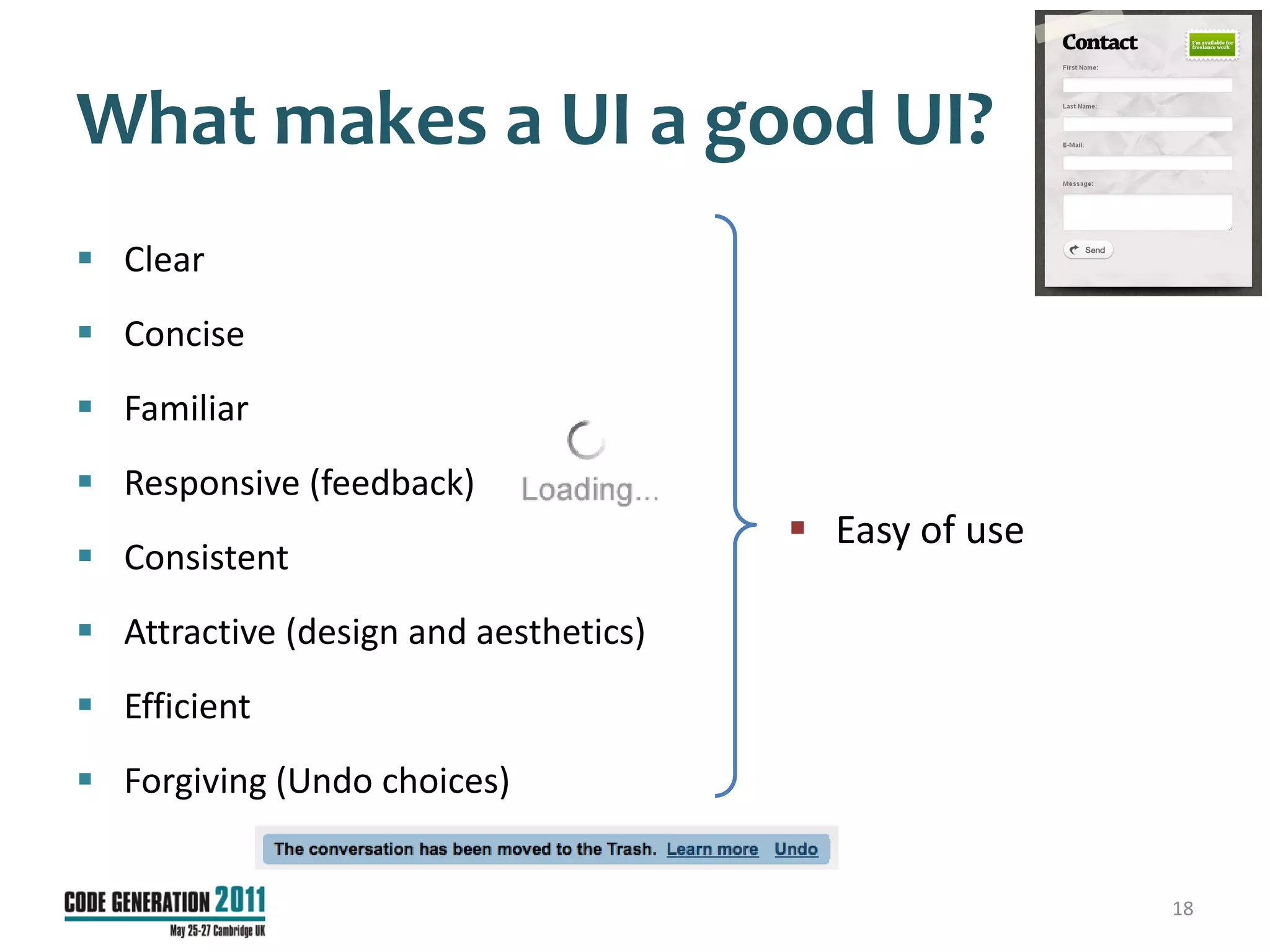

What makes a UI a good UI?
 Clear
 Concise
 Familiar
 Responsive (feedback)
 Easy of use
 Consistent
 Attractive (design and aesthetics)
 Efficient
 Forgiving (Undo choices)

18

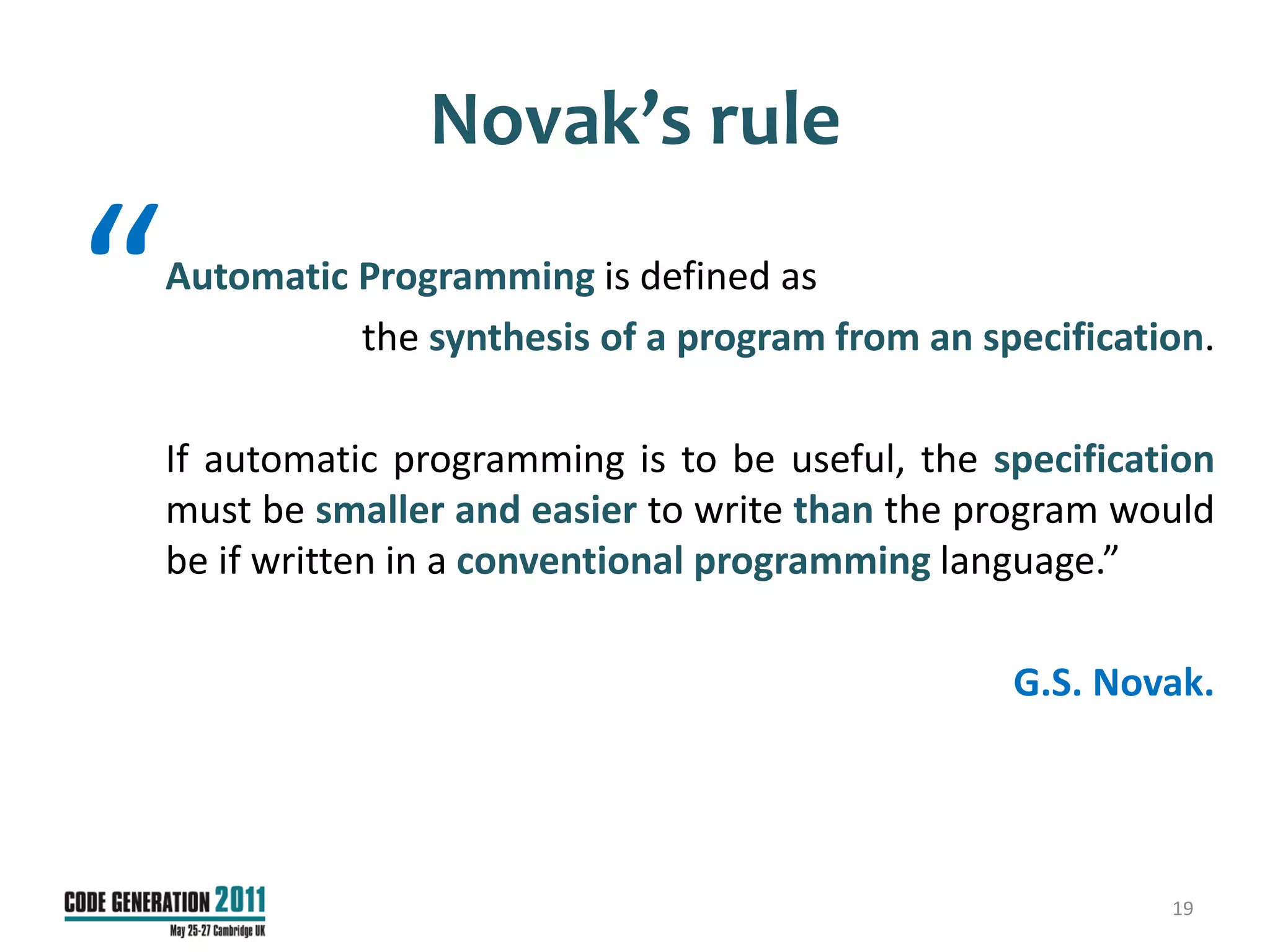

Novak’s rule

“ Automatic Programming is defined as
the synthesis of a program from an specification.

If automatic programming is to be useful, the specification
must be smaller and easier to write than the program would
be if written in a conventional programming language.”

G.S. Novak.

19

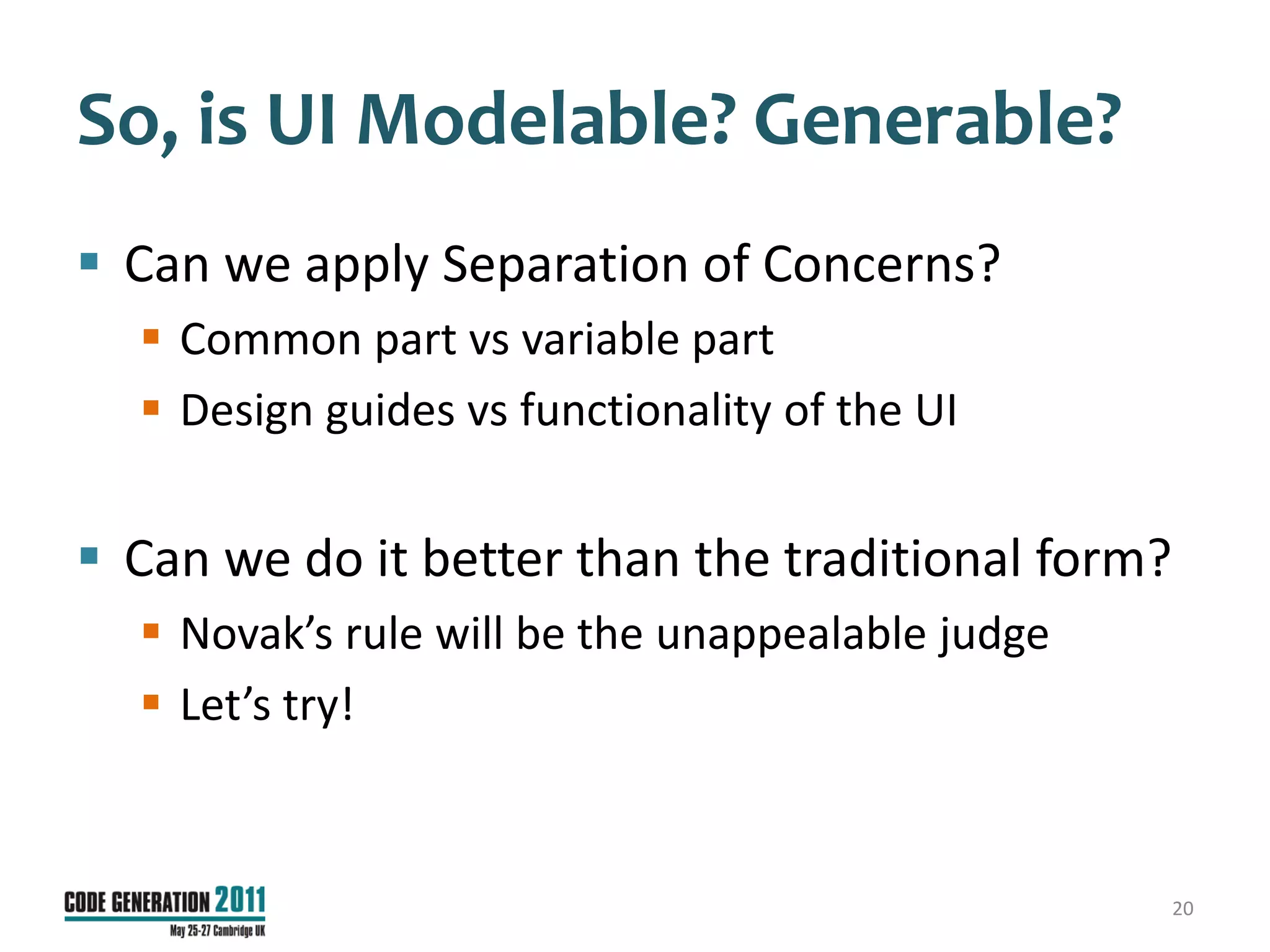

So, is UI Modelable? Generable?
 Can we apply Separation of Concerns?
 Common part vs variable part
 Design guides vs functionality of the UI

 Can we do it better than the traditional form?
 Novak’s rule will be the unappealable judge
 Let’s try!

20

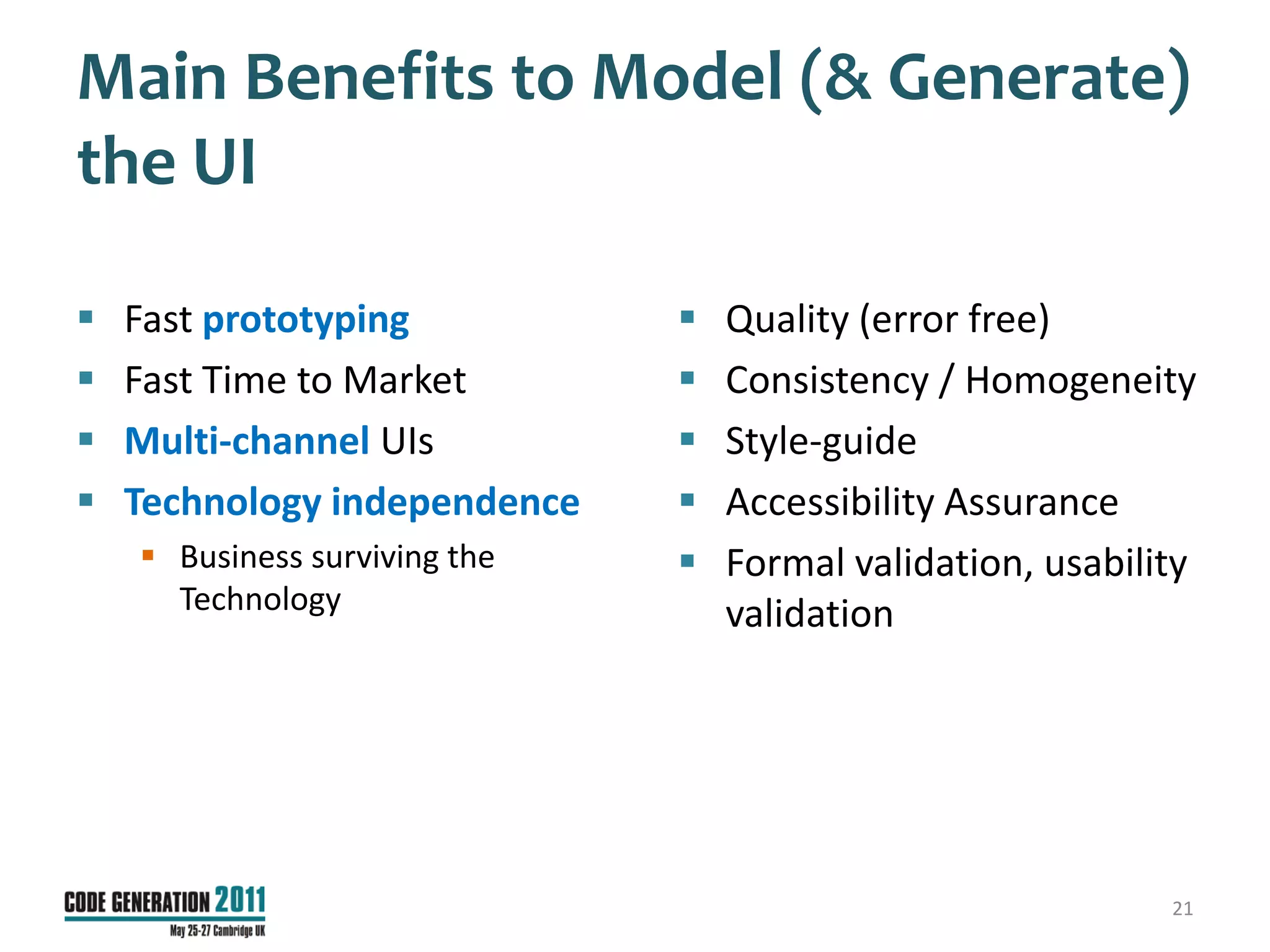

Main Benefits to Model (& Generate)
the UI

 Fast prototyping  Quality (error free)
 Fast Time to Market  Consistency / Homogeneity
 Multi-channel UIs  Style-guide
 Technology independence  Accessibility Assurance
 Business surviving the  Formal validation, usability
Technology validation

21

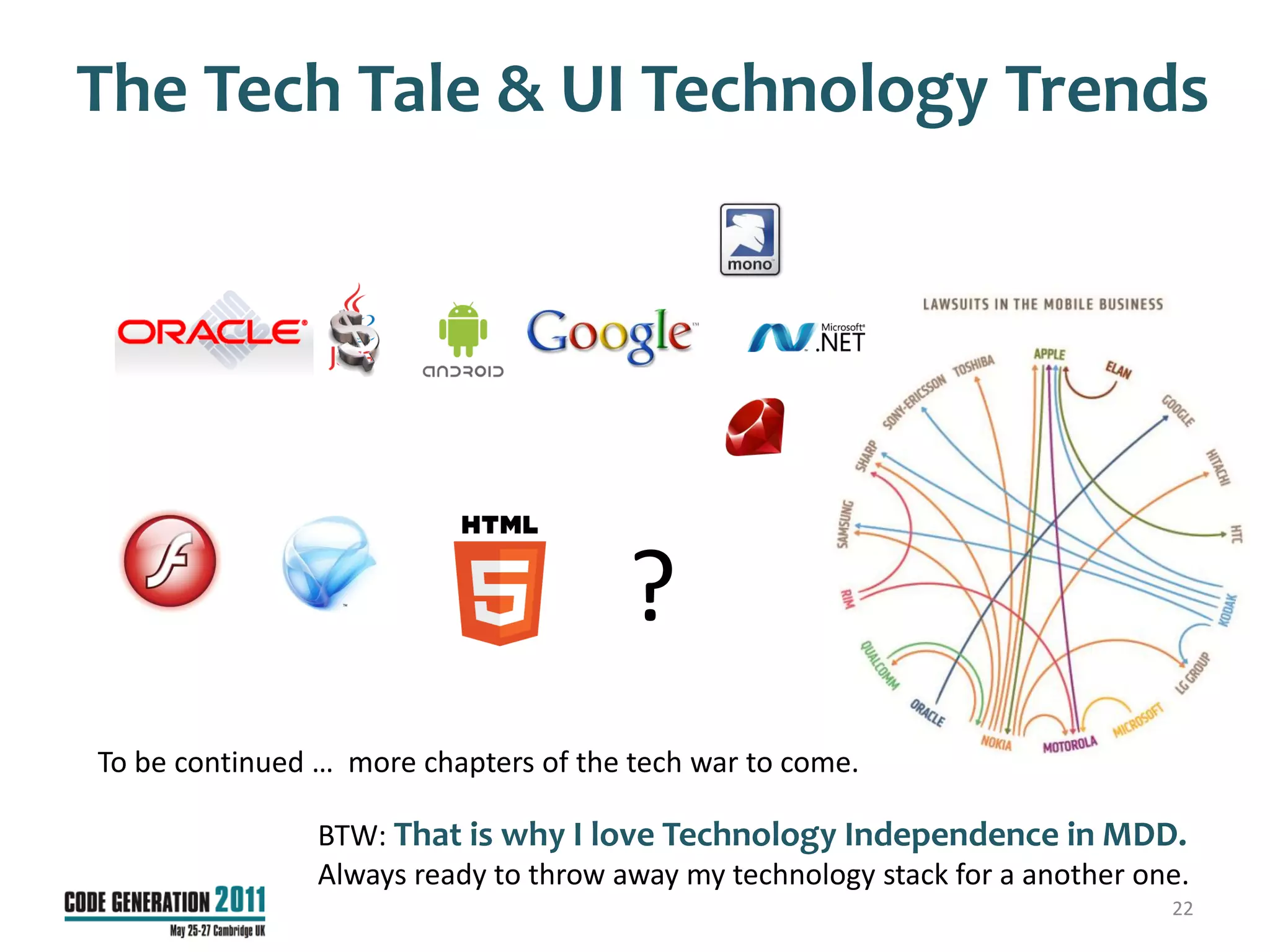

The Tech Tale & UI Technology Trends

?
To be continued … more chapters of the tech war to come.

BTW: That is why I love Technology Independence in MDD.
Always ready to throw away my technology stack for a another one.
22

Modelling the UI

23

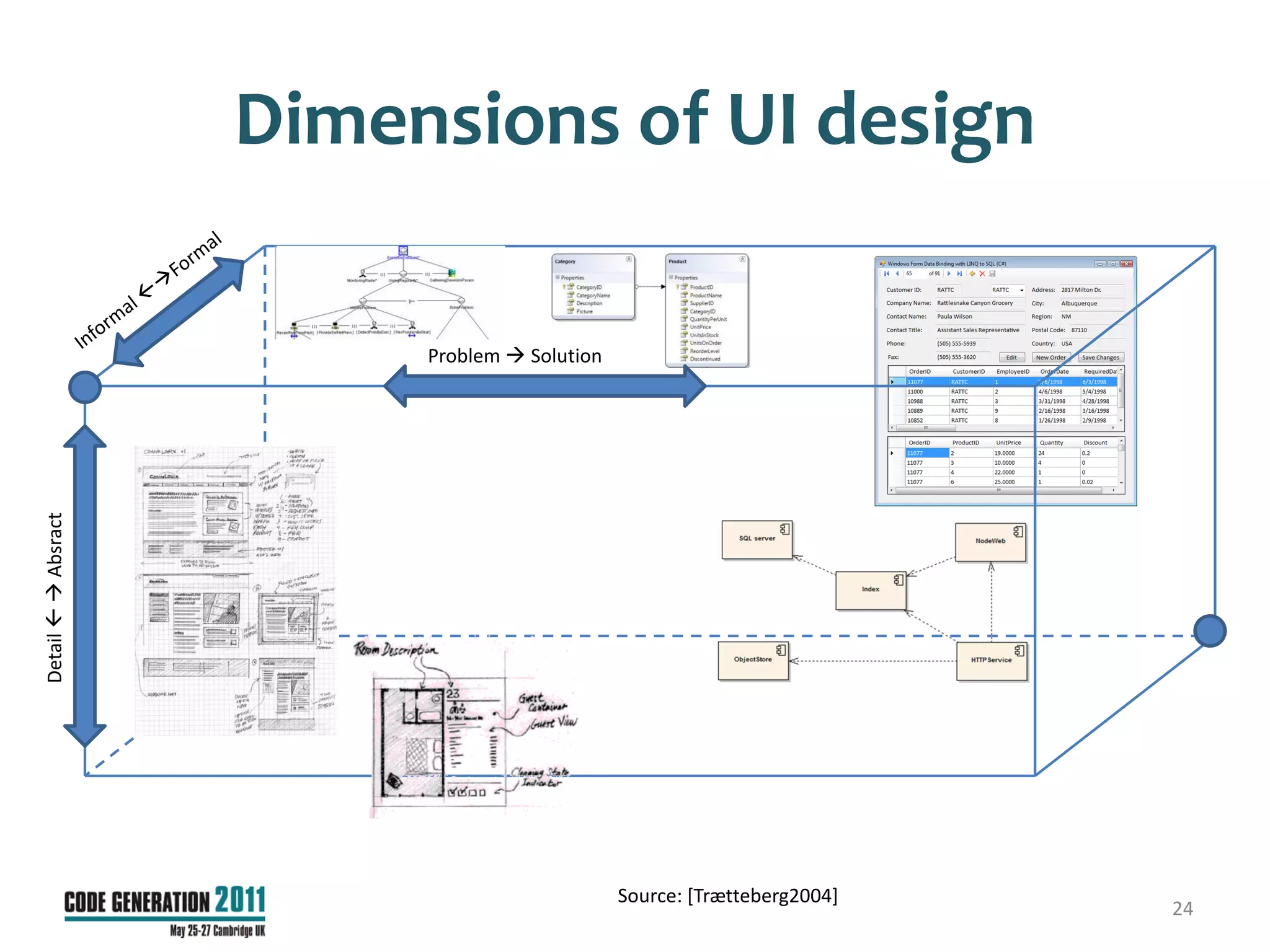

Dimensions of UI design

Problem  Solution
Detail   Absract

Source: [Trætteberg2004]
24

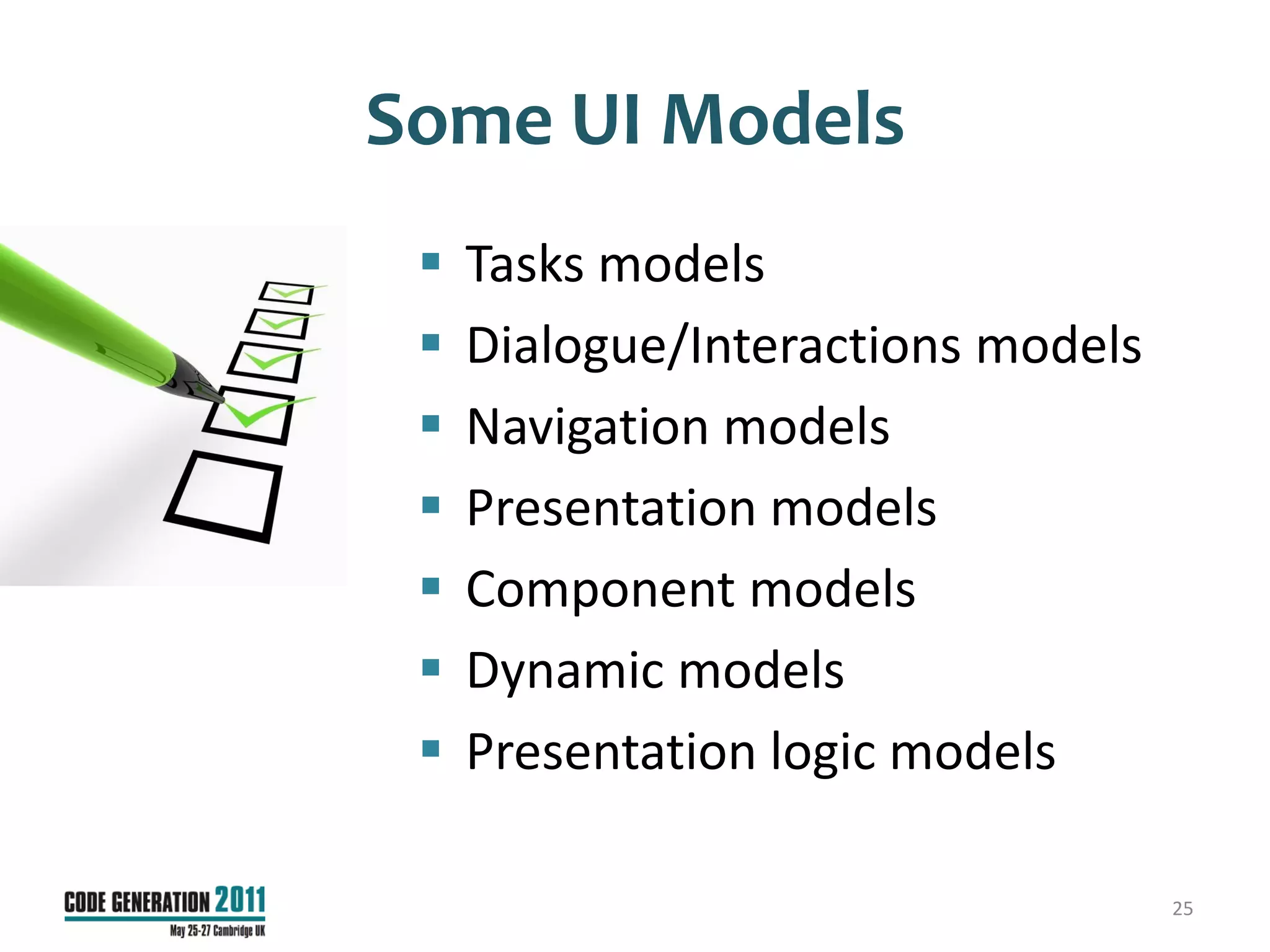

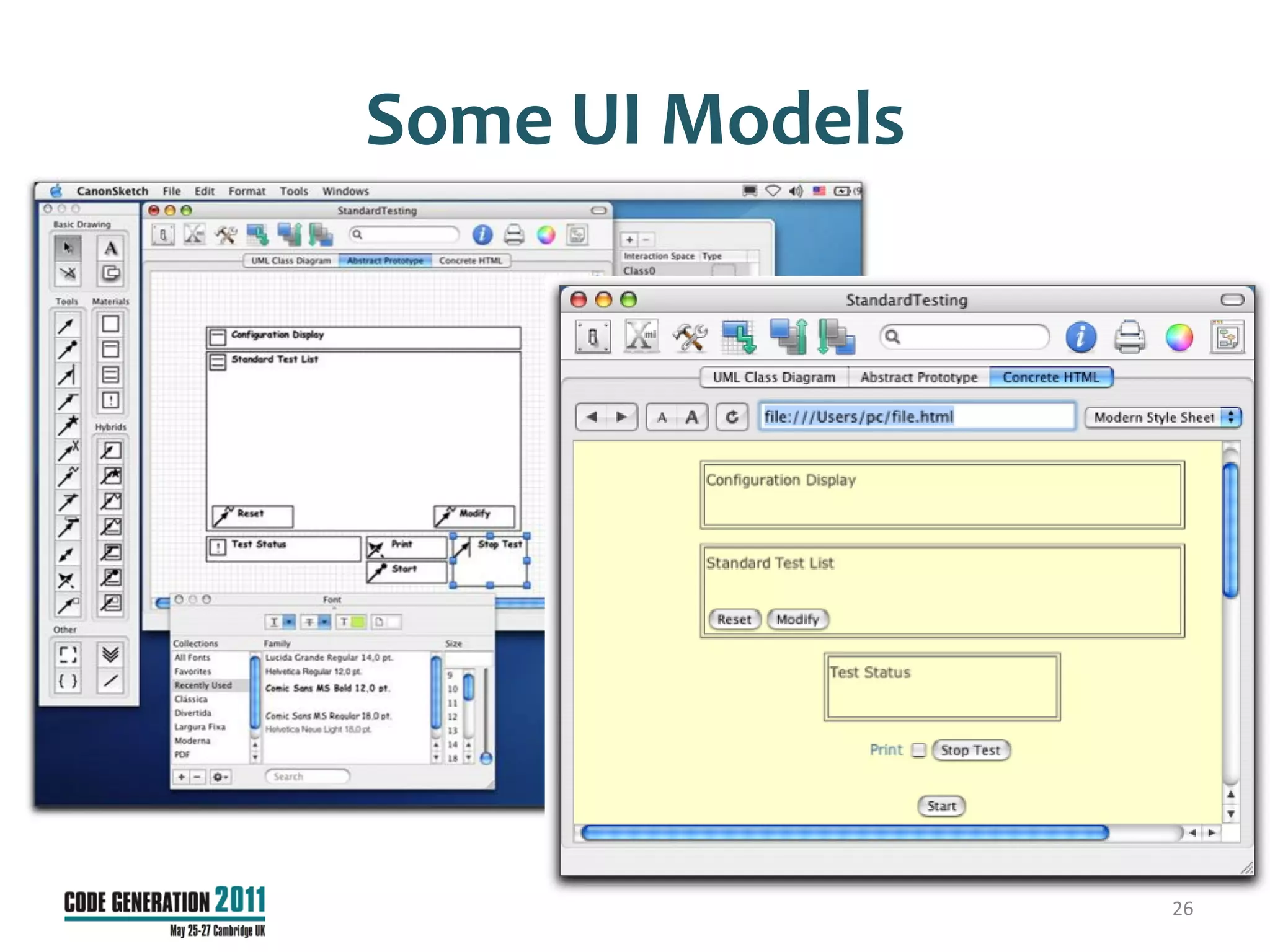

Some UI Models
 Tasks models
 Dialogue/Interactions models
 Navigation models
 Presentation models
 Component models
 Dynamic models
 Presentation logic models

25

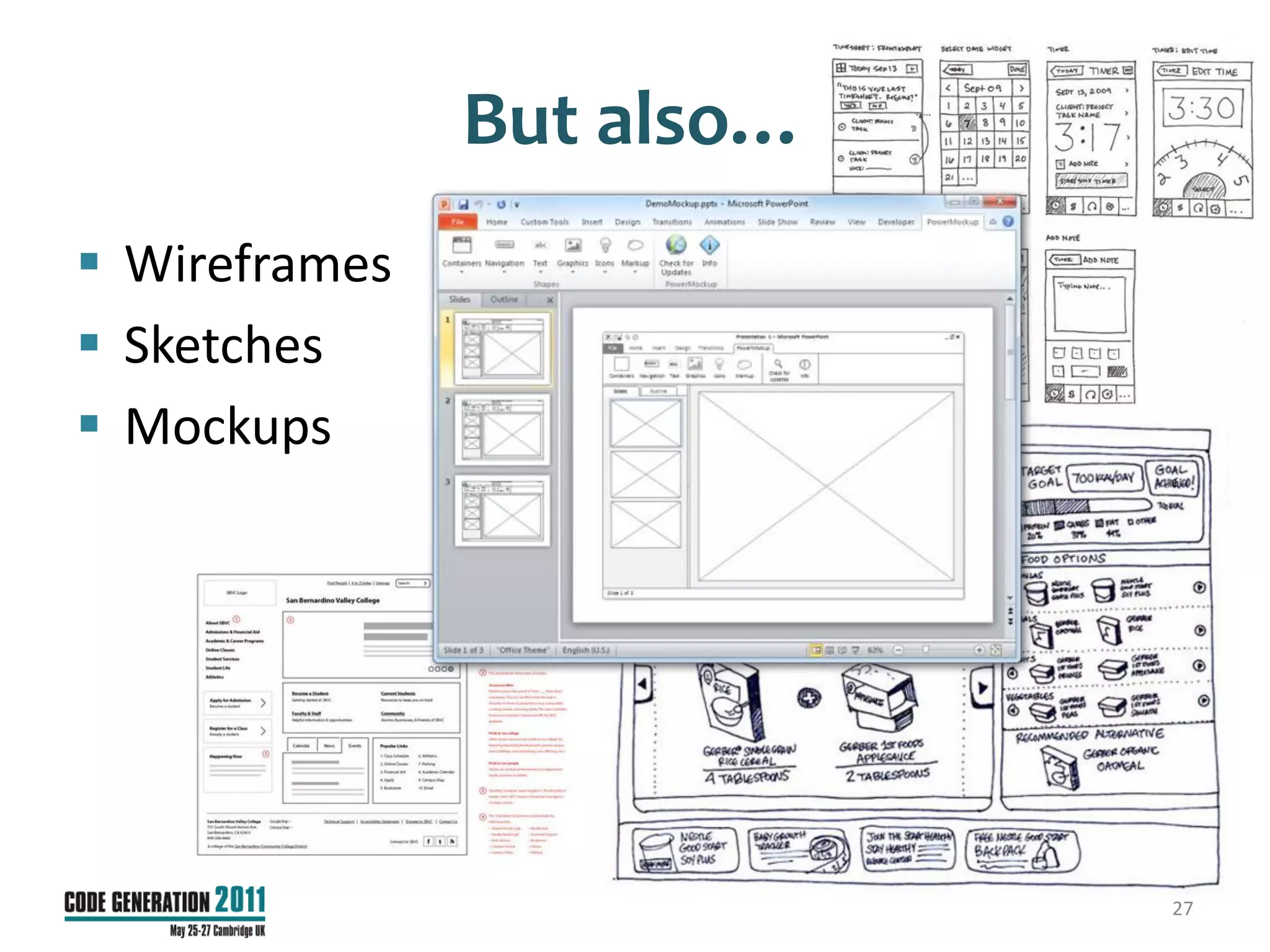

But also…
 Wireframes
 Sketches
 Mockups

27

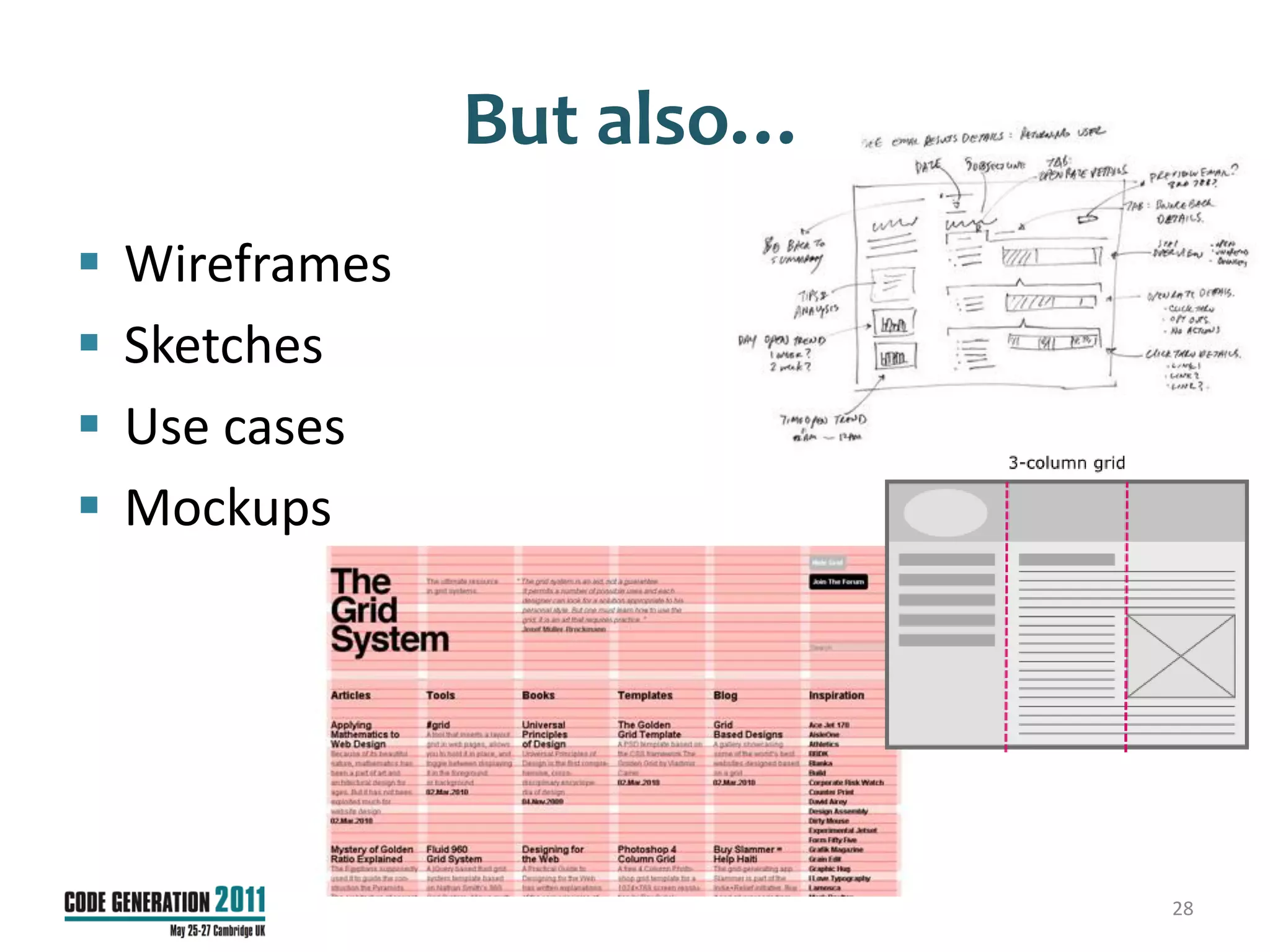

But also…
 Wireframes
 Sketches
 Use cases
 Mockups

28

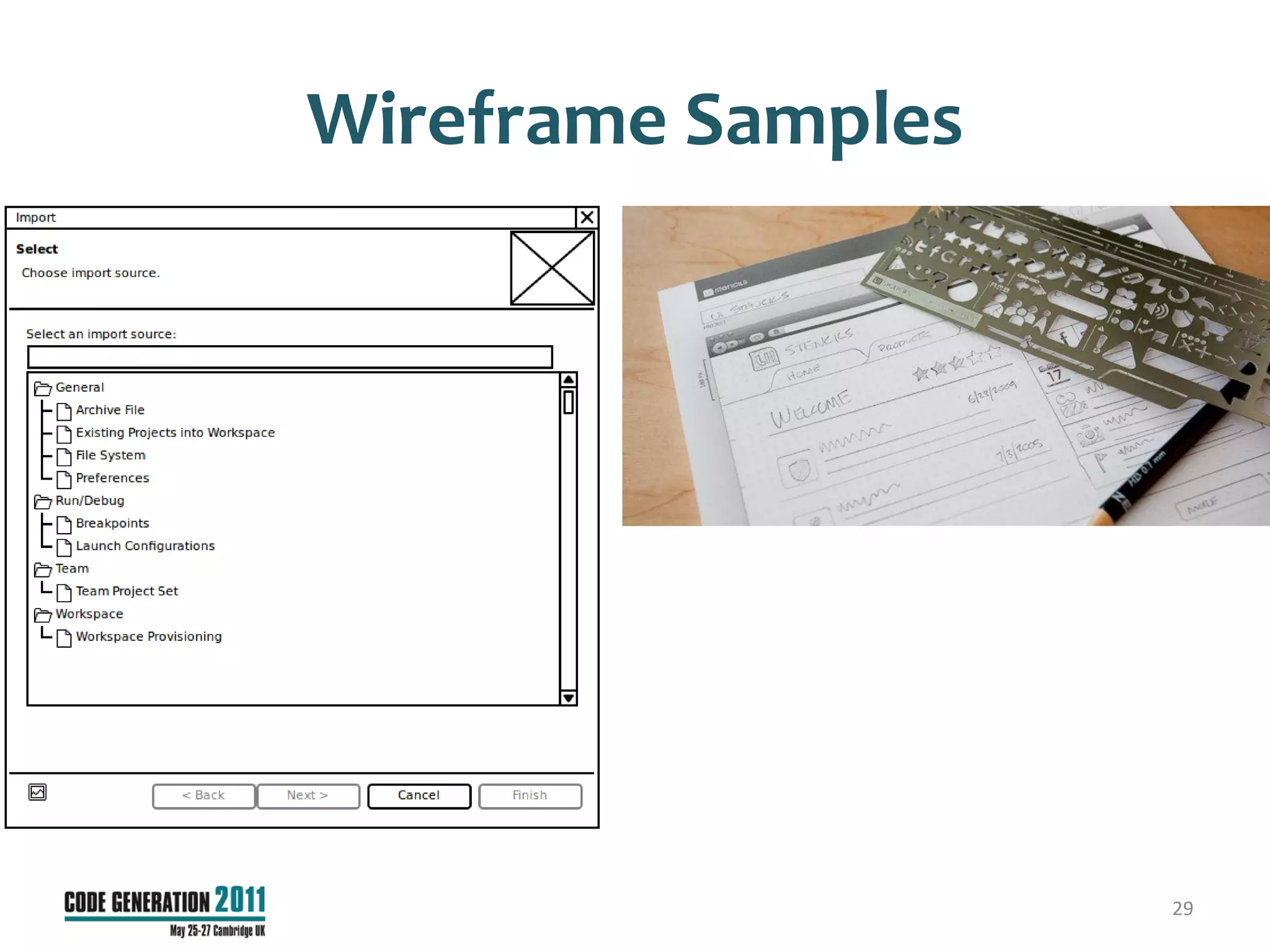

Wireframe Samples

29

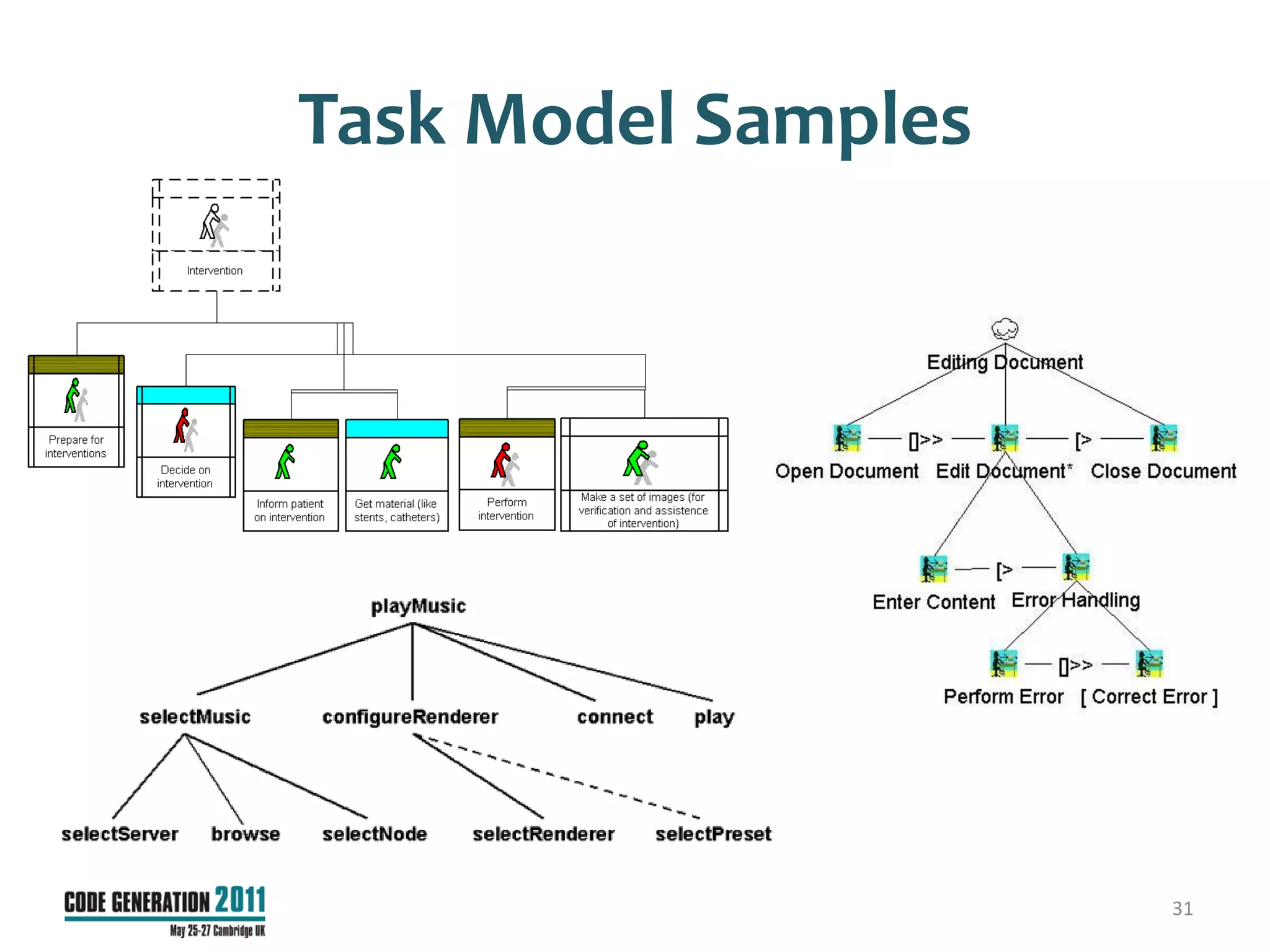

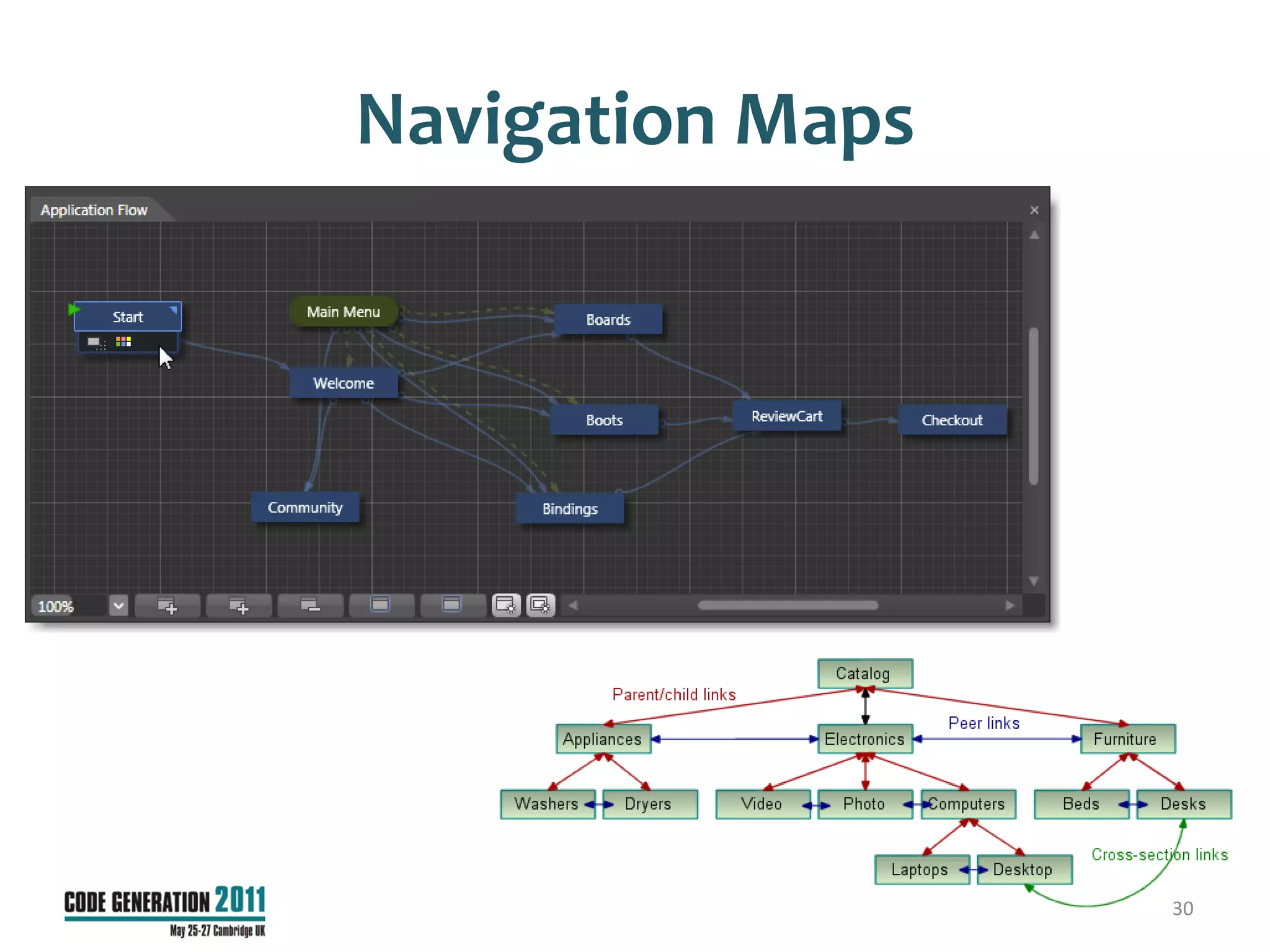

Task Model Samples

31

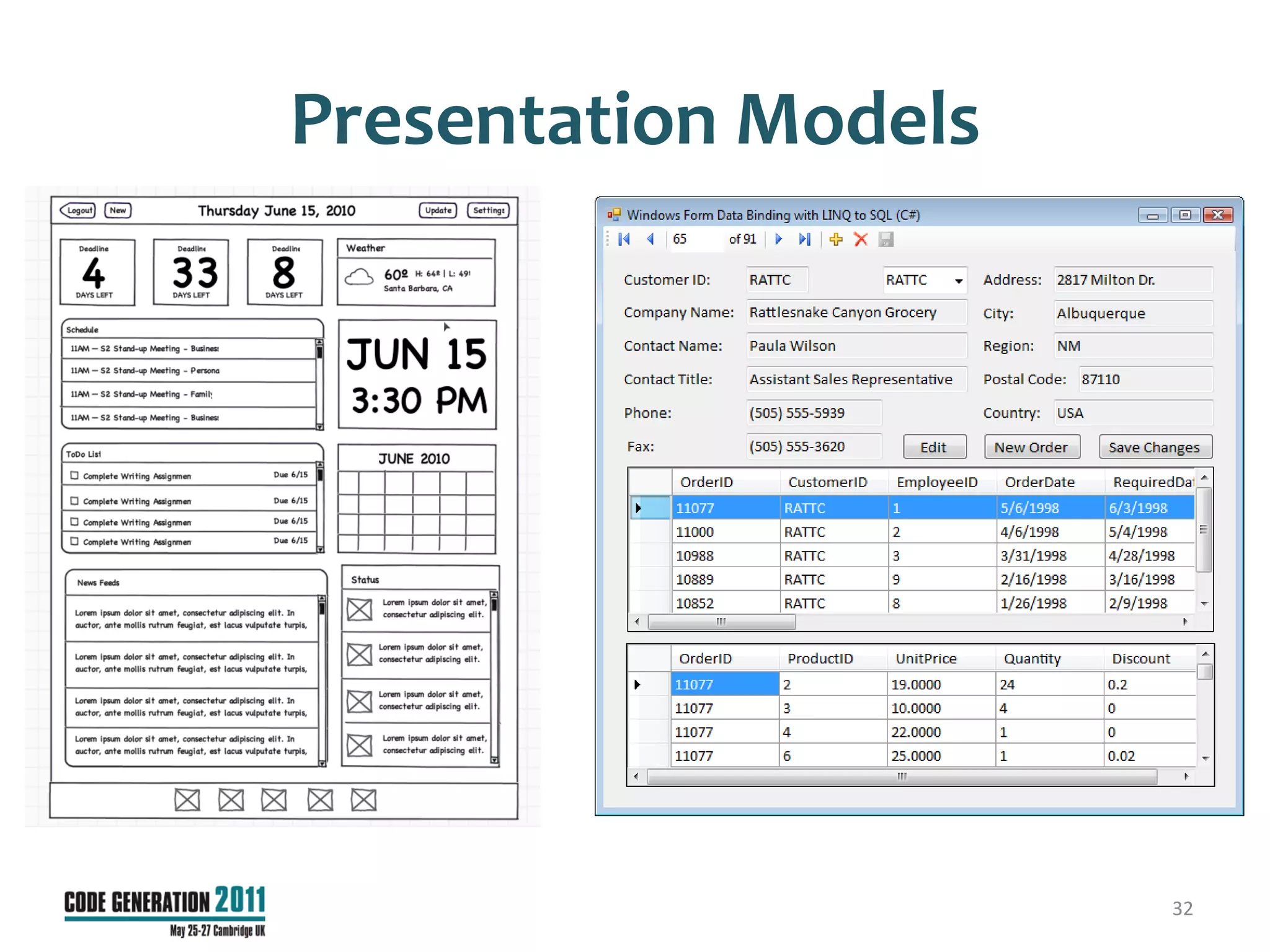

Presentation Models

32

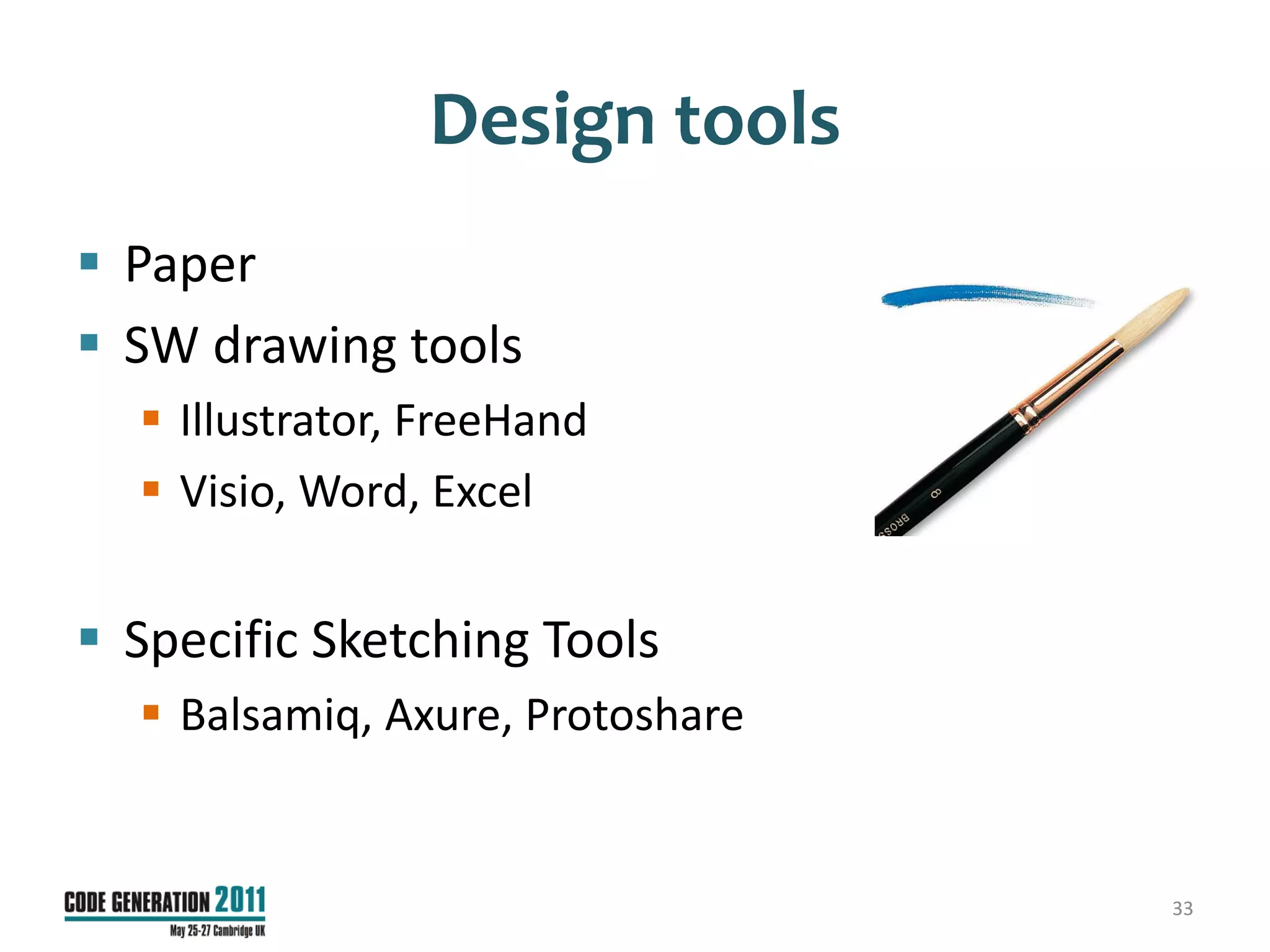

Design tools
 Paper
 SW drawing tools
 Illustrator, FreeHand
 Visio, Word, Excel

 Specific Sketching Tools
 Balsamiq, Axure, Protoshare

33

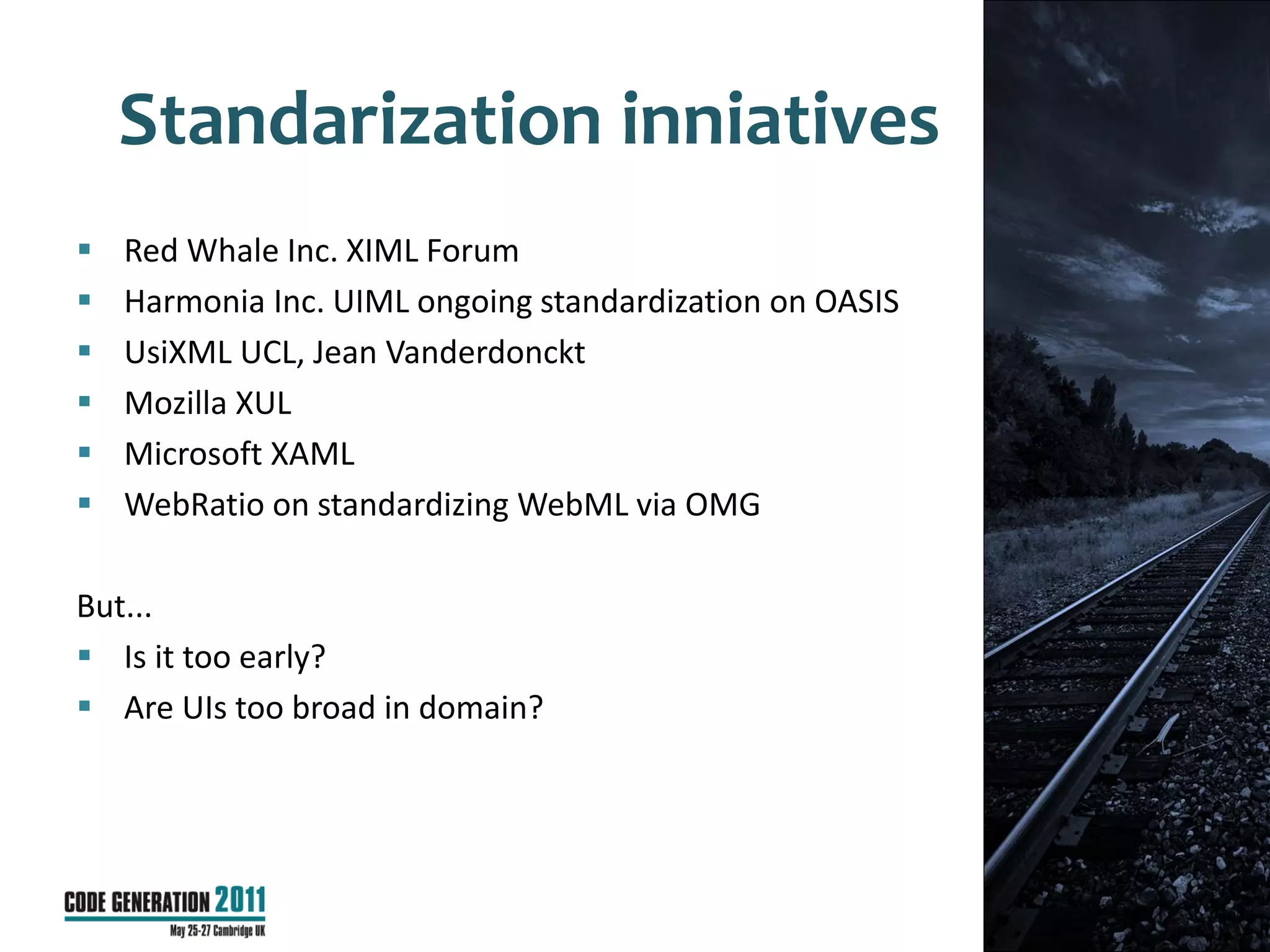

Standarization inniatives
 Red Whale Inc. XIML Forum
 Harmonia Inc. UIML ongoing standardization on OASIS
 UsiXML UCL, Jean Vanderdonckt
 Mozilla XUL
 Microsoft XAML
 WebRatio on standardizing WebML via OMG

But...
 Is it too early?
 Are UIs too broad in domain?

34

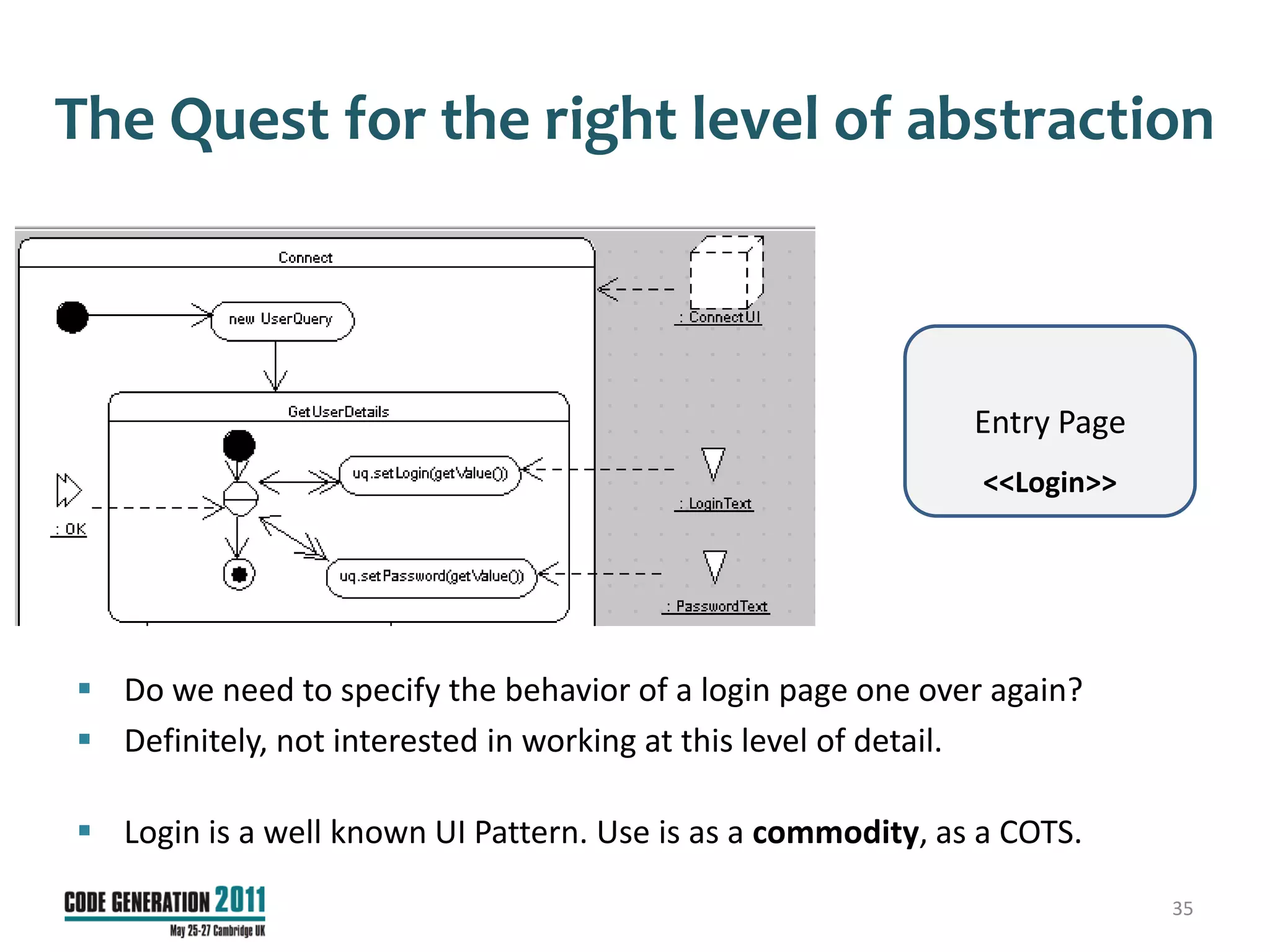

The Quest for the right level of abstraction

Entry Page
<<Login>>

 Do we need to specify the behavior of a login page one over again?
 Definitely, not interested in working at this level of detail.

 Login is a well known UI Pattern. Use is as a commodity, as a COTS.

35

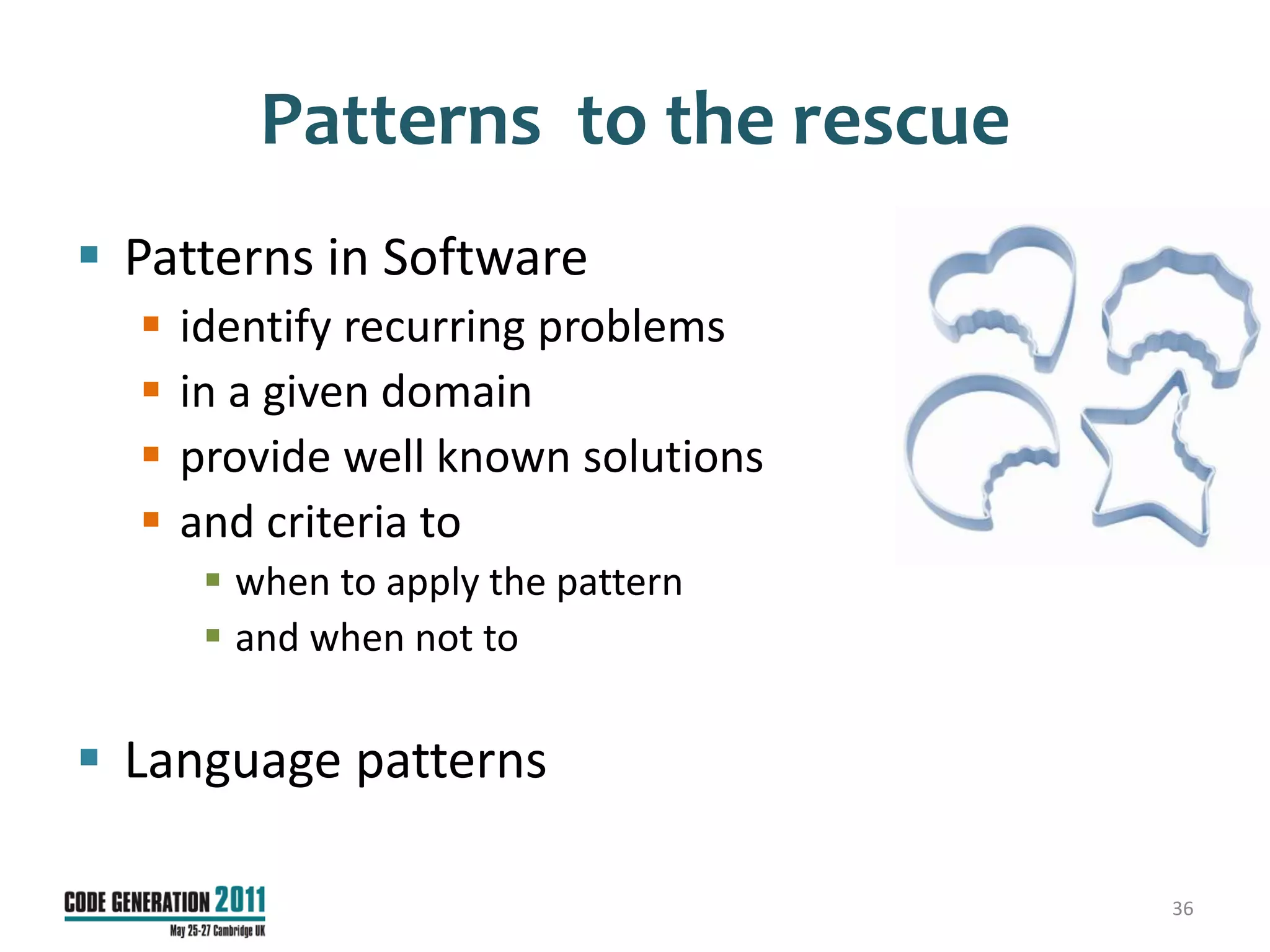

Patterns to the rescue
 Patterns in Software
 identify recurring problems
 in a given domain
 provide well known solutions
 and criteria to
 when to apply the pattern
 and when not to

 Language patterns

36

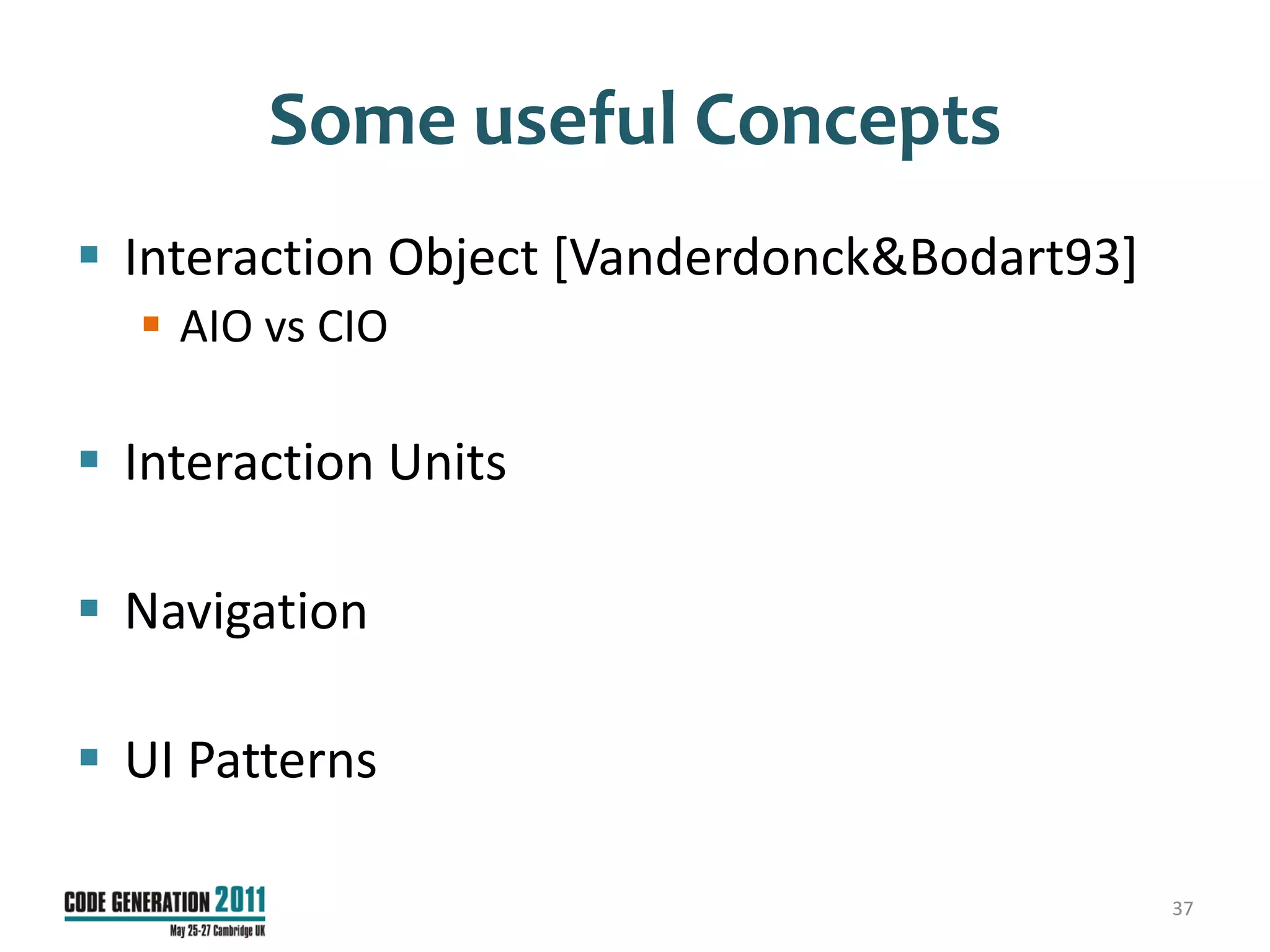

Some useful Concepts
 Interaction Object [Vanderdonck&Bodart93]
 AIO vs CIO

 Interaction Units

 Navigation

 UI Patterns

37

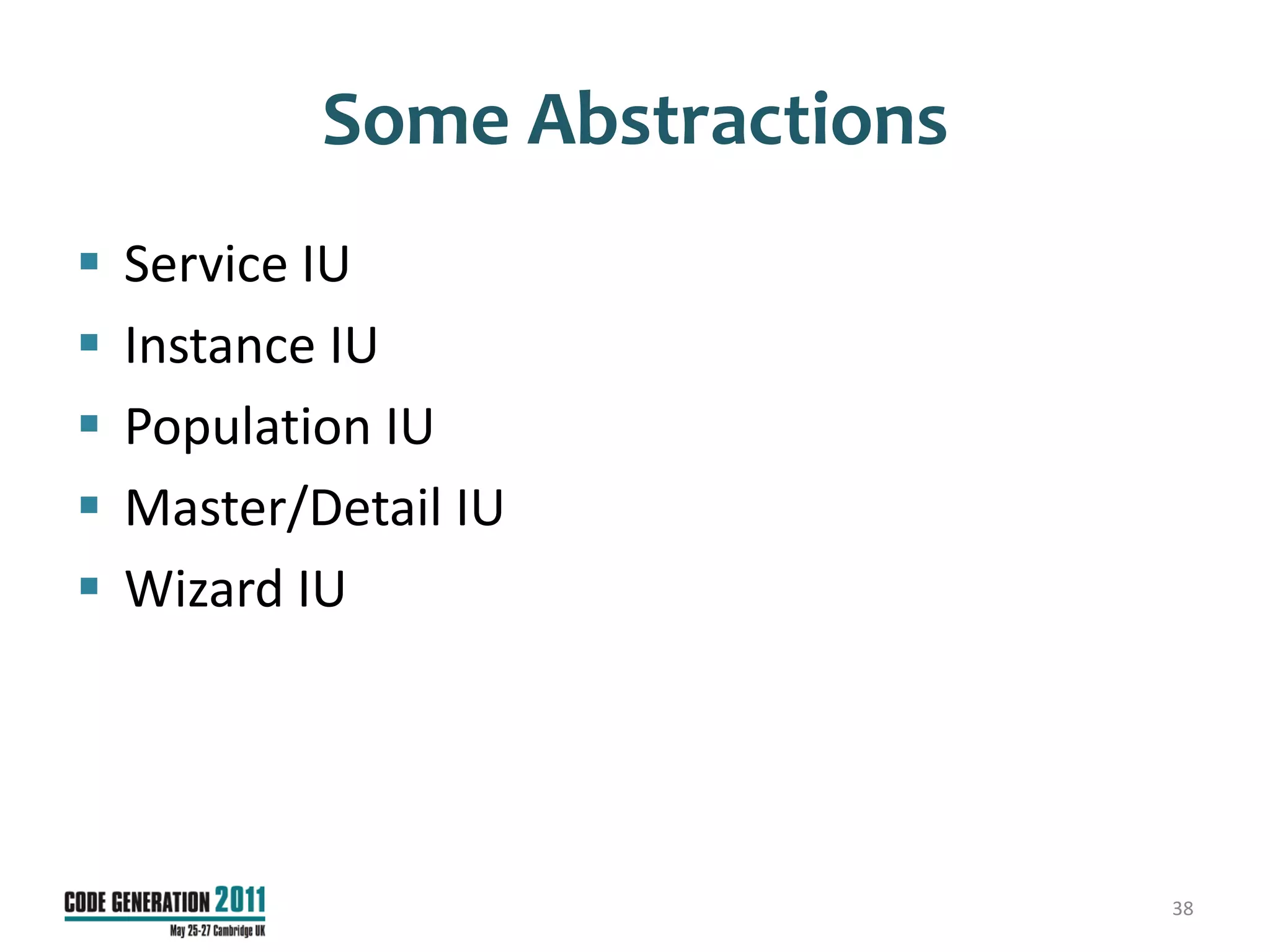

Some Abstractions
 Service IU
 Instance IU
 Population IU
 Master/Detail IU
 Wizard IU

38

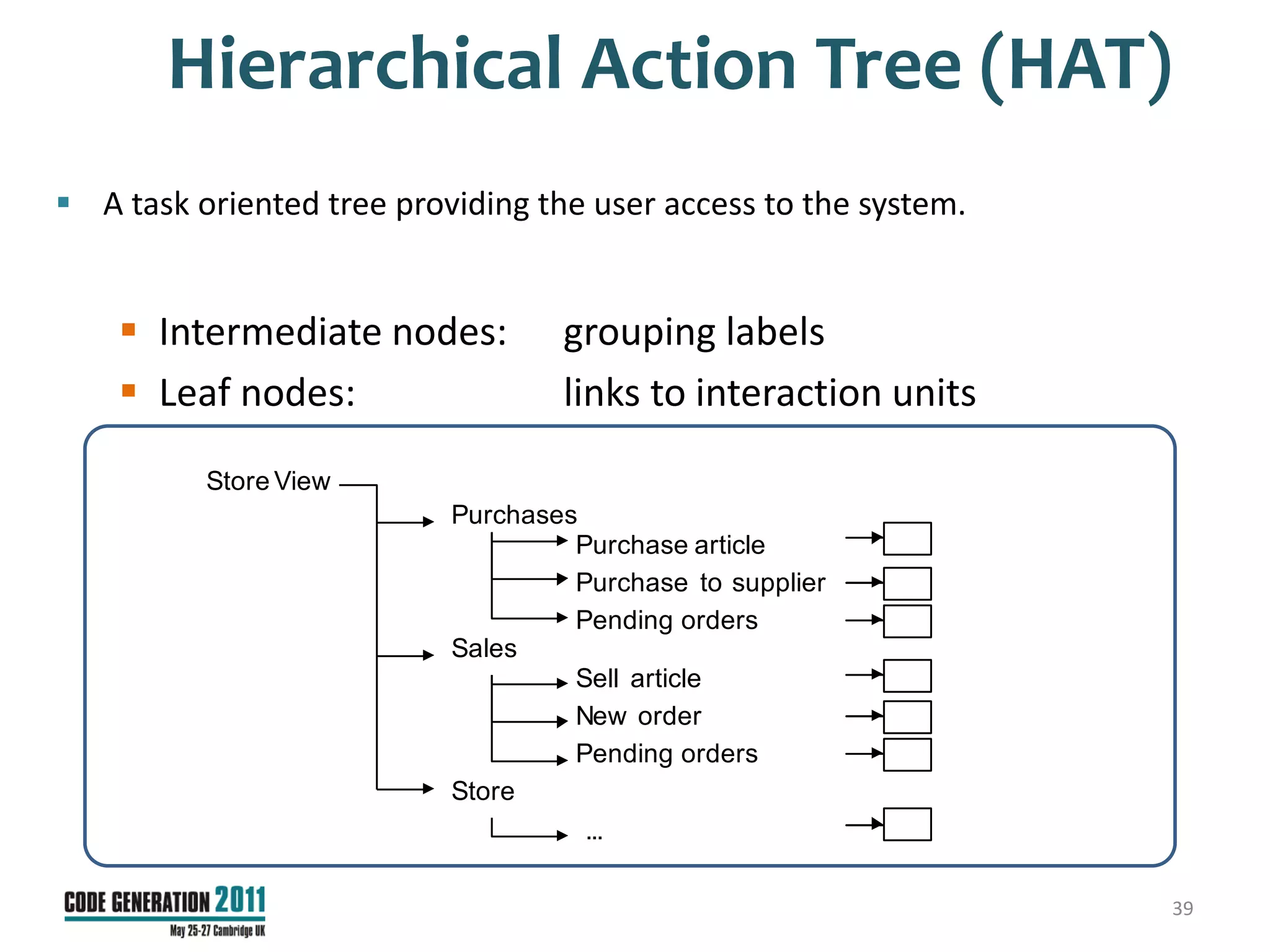

Hierarchical Action Tree (HAT)
 A task oriented tree providing the user access to the system.

 Intermediate nodes: grouping labels
 Leaf nodes: links to interaction units
Store View
Purchases
Purchase article
Purchase to supplier
Pending orders
Sales
Sell article
New order
Pending orders
Store
...

39

Interaction Unit

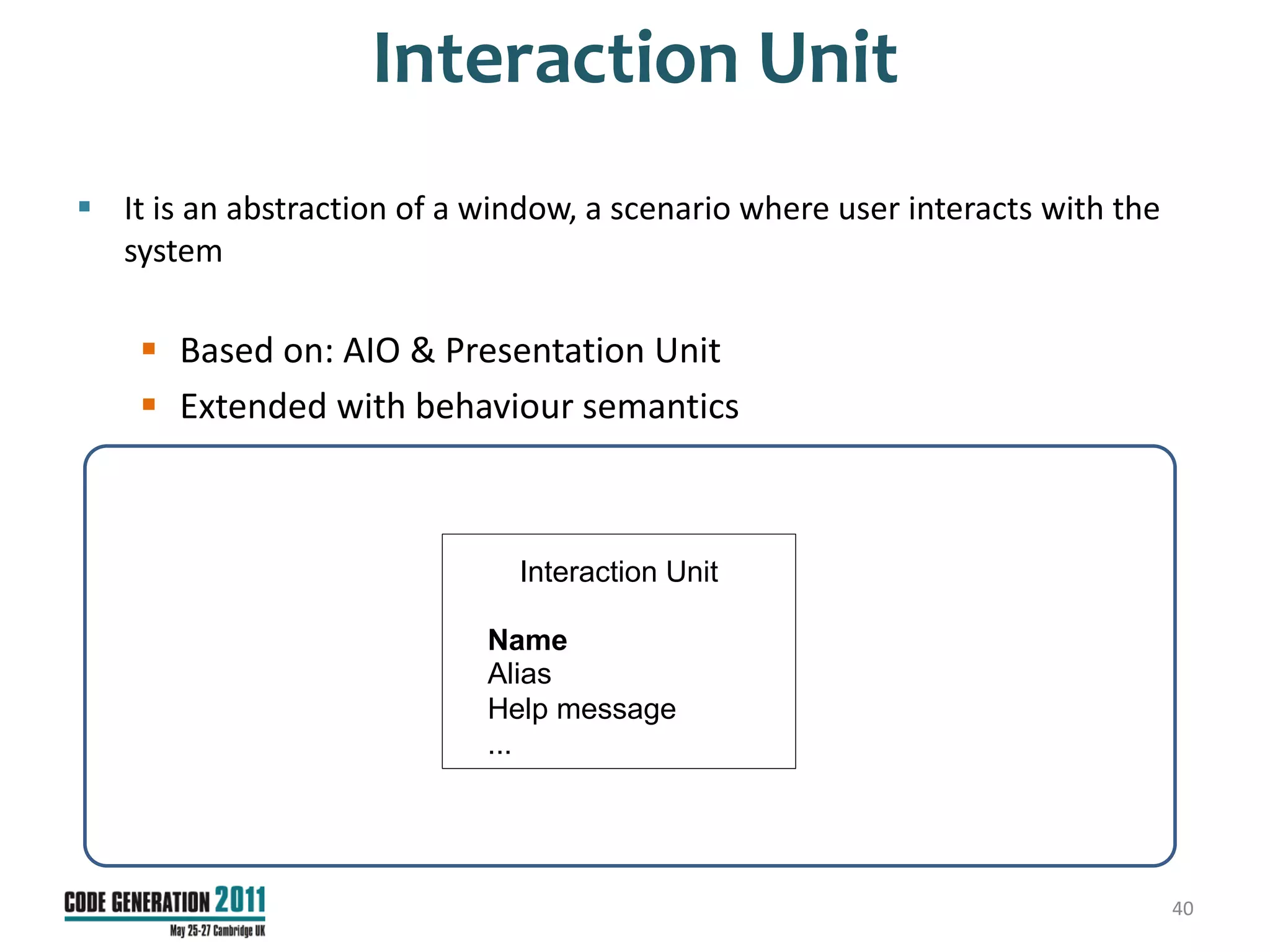

 It is an abstraction of a window, a scenario where user interacts with the
system

 Based on: AIO & Presentation Unit
 Extended with behaviour semantics

Interaction Unit

Name
Alias
Help message
...

40

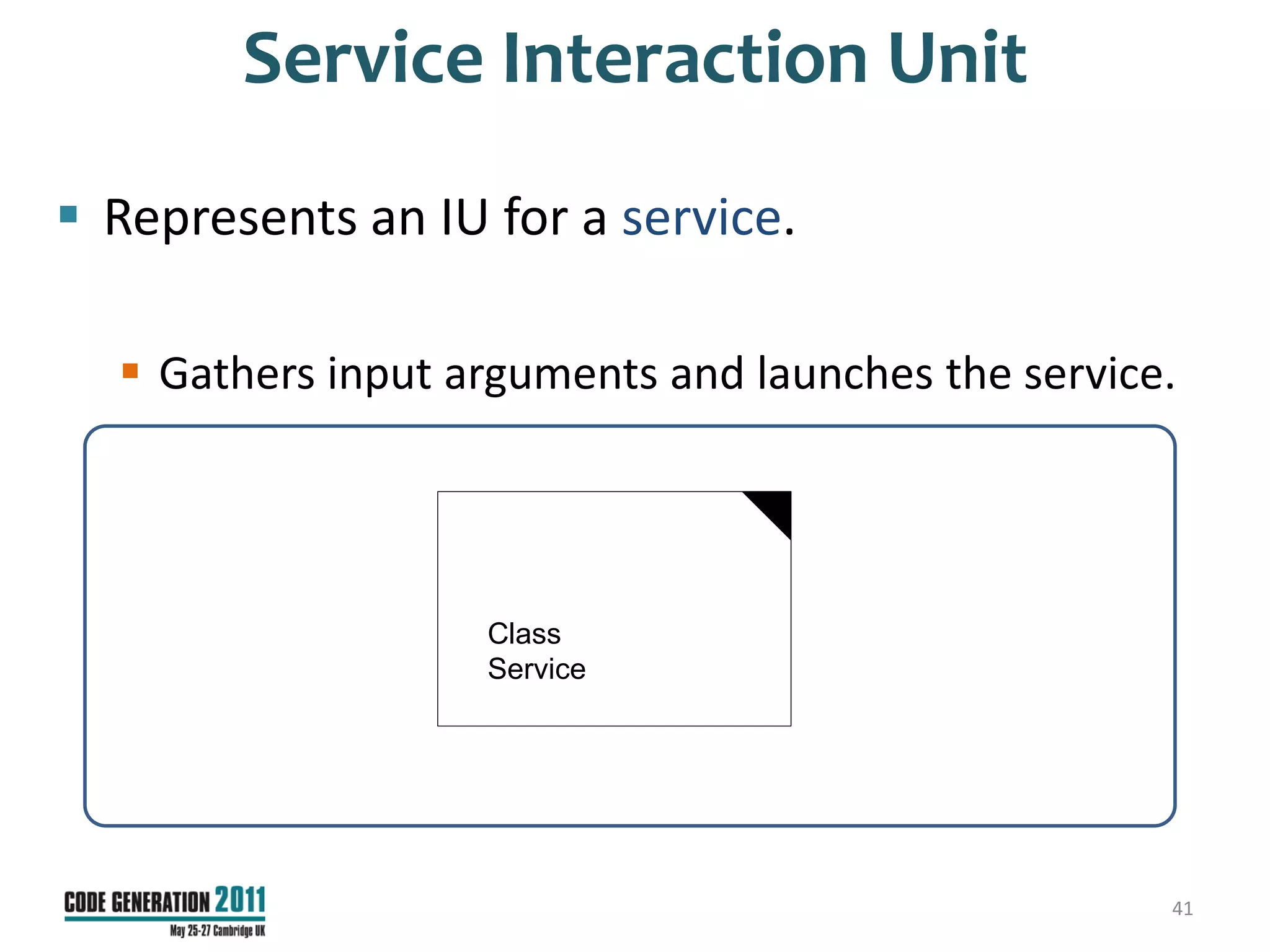

Service Interaction Unit
 Represents an IU for a service.

 Gathers input arguments and launches the service.

Class
Service

41

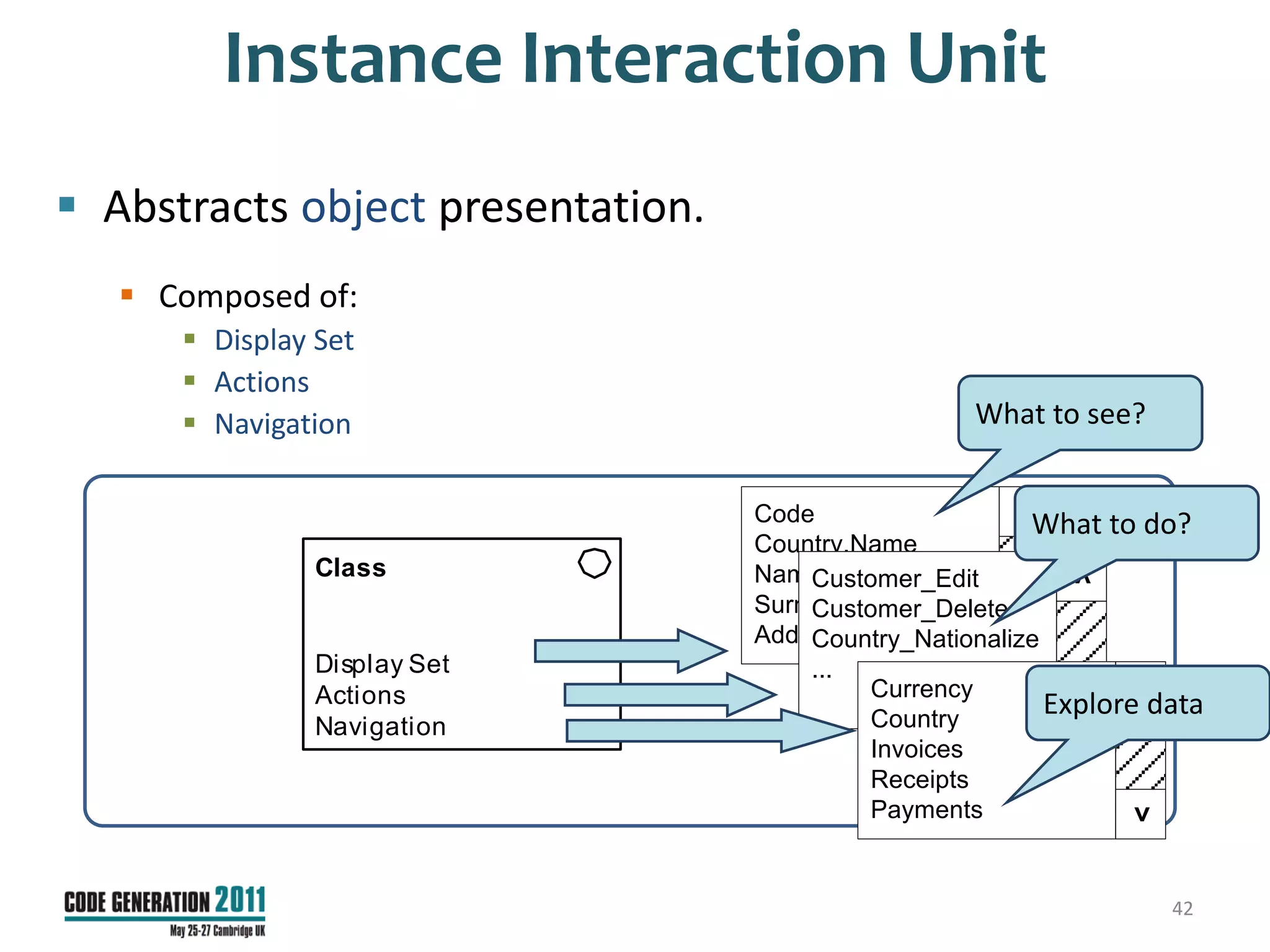

Instance Interaction Unit
 Abstracts object presentation.
 Composed of:
 Display Set
 Actions
 Navigation What to see?

<
Code What to do?
Country.Name
Class Name

<
Customer_Edit
Surname
Customer_Delete
Address.Street
Country_Nationalize

>
Display Set ...

<
Actions Currency
Explore data

>
Navigation Country
Invoices
Receipts
Payments

>
42

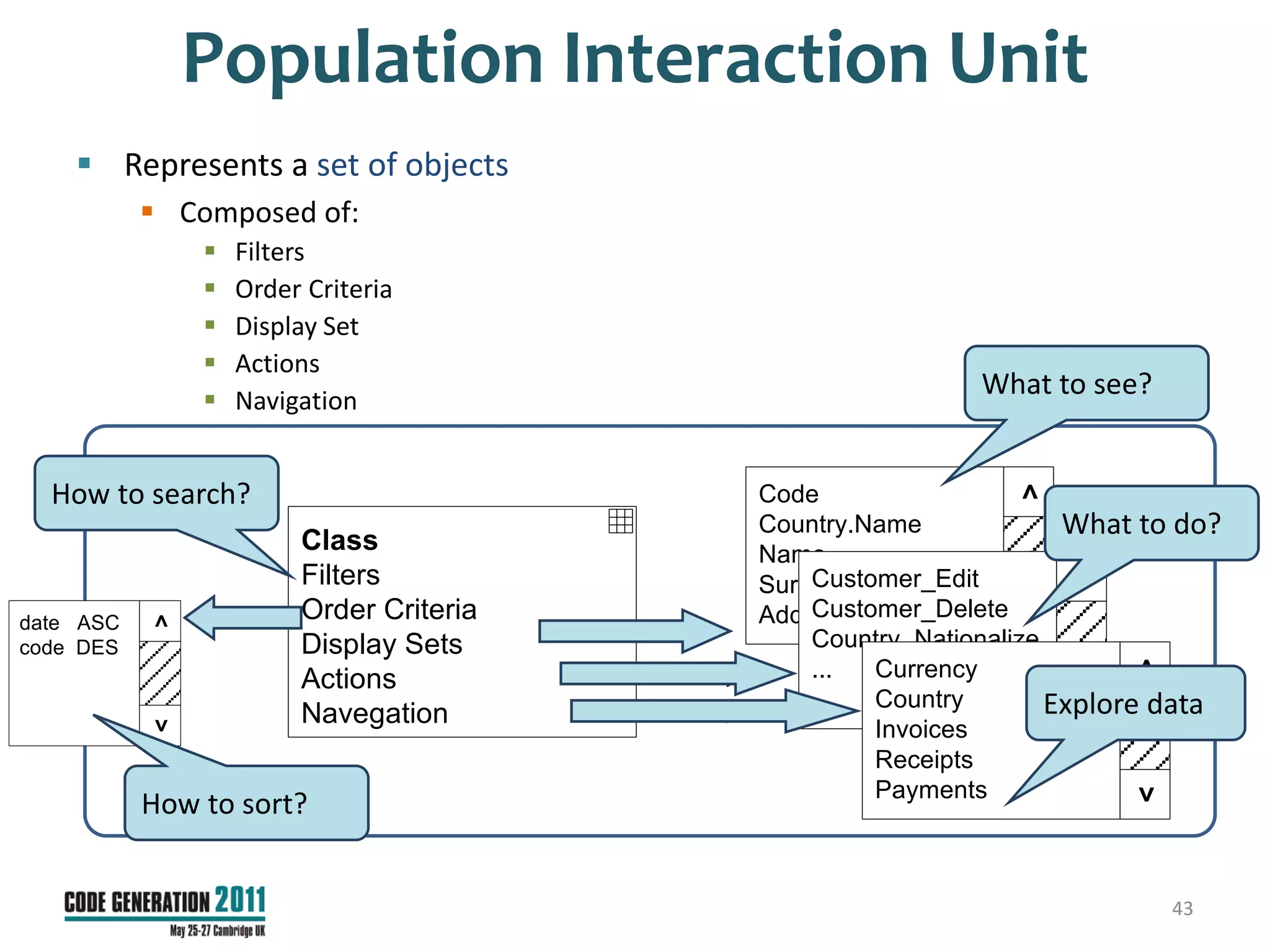

Population Interaction Unit
 Represents a set of objects
 Composed of:
 Filters
 Order Criteria
 Display Set
 Actions
 Navigation
What to see?

How to search?

<
Code
Country.Name What to do?
Class Name
Filters

<
Customer_Edit
Surname
Order Criteria Customer_Delete
Address.Street

>
<

date ASC
code DES Display Sets Country_Nationalize

<
Actions ... Currency
Country Explore data

>
Navegation
>

Invoices
Receipts
Payments

>
How to sort?

43

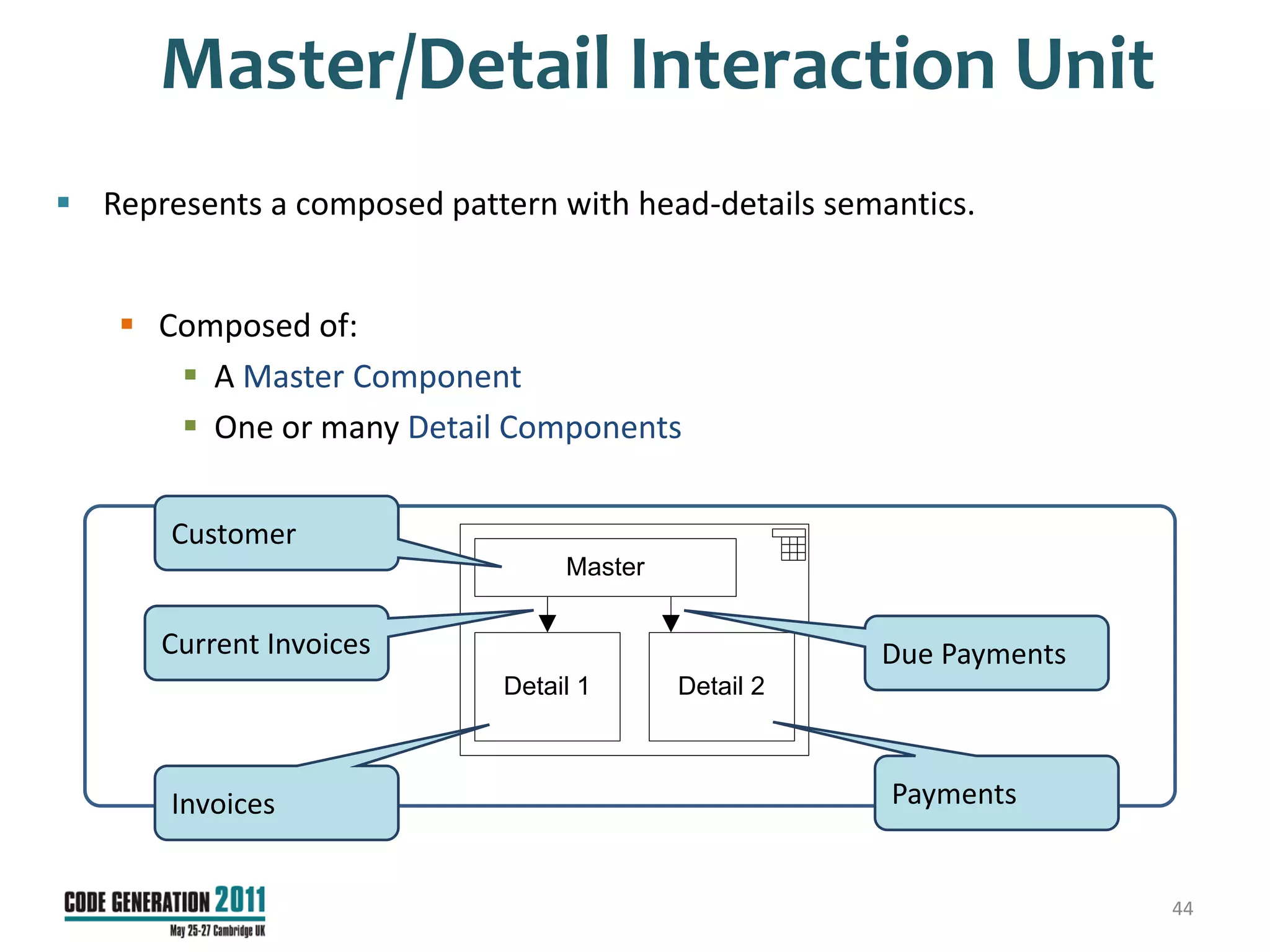

Master/Detail Interaction Unit
 Represents a composed pattern with head-details semantics.

 Composed of:
 A Master Component
 One or many Detail Components

Customer
Master

Current Invoices Due Payments
Detail 1 Detail 2

Invoices Payments

44

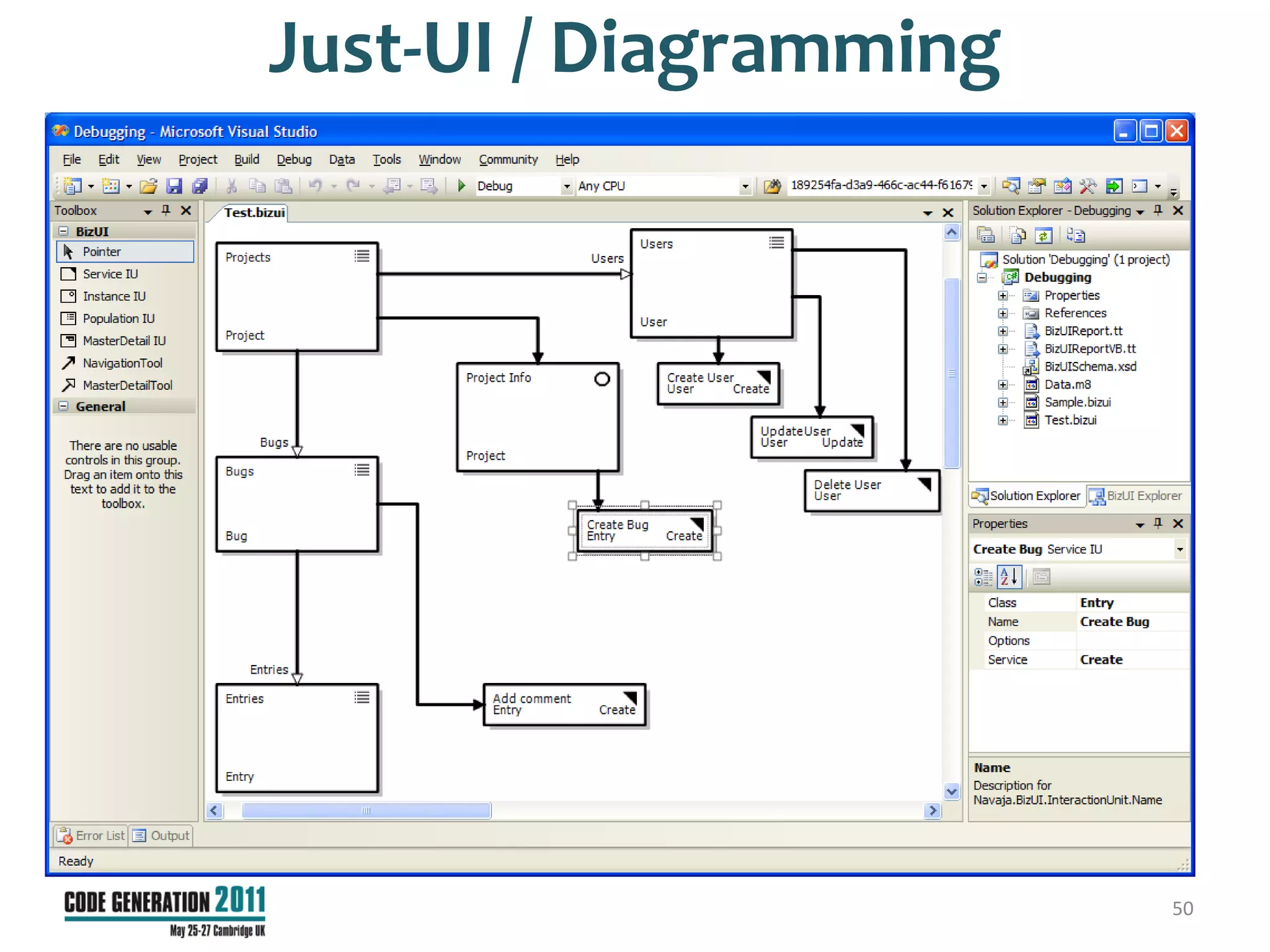

Just-UI / Diagramming

Population_Class2 MasterDetail1 ServiceNew
Instance1

Alias2 Alias3 Alias4
Alias1

(a) Instance IU (b) Population IU (c) Master/Detail IU (d) Service IU

(e) Navigational Link

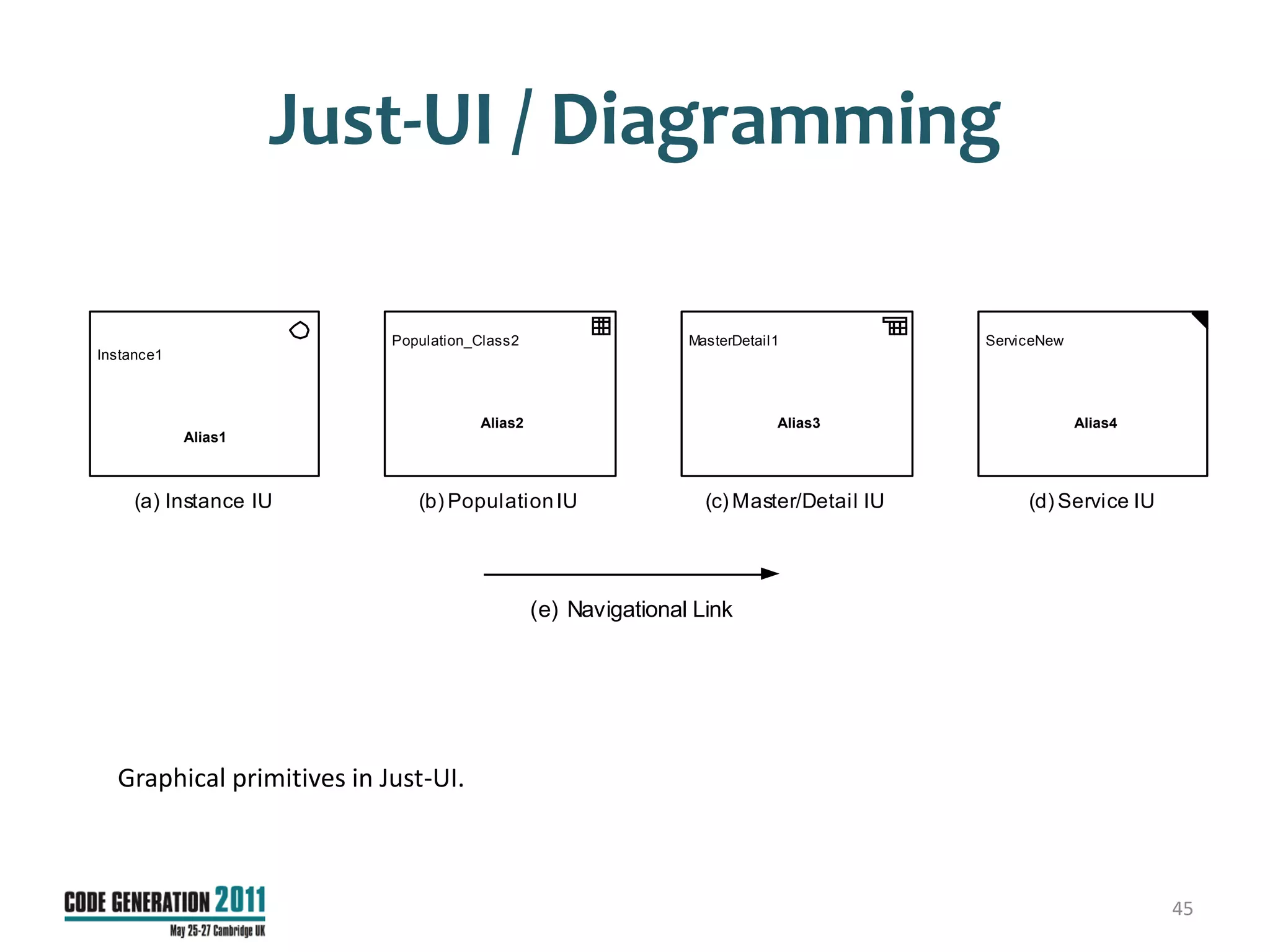

Graphical primitives in Just-UI.

45

S_Rent

MD_Contract-Vehicle
Rent Vehicle

Current Contract-Vehicle S_Return

Return Vehicle

S_Change_Address

P_Vehicle P_OldContracts
I_User
Change Address

Vehicle Fleet Old Contracts S_Delete_User
User

Delete User

S_Create_Fare

Create Fare

S_Change_Fare
I_Fare

Change Fare
Fare
S_Delete_Fare

Delete Fare

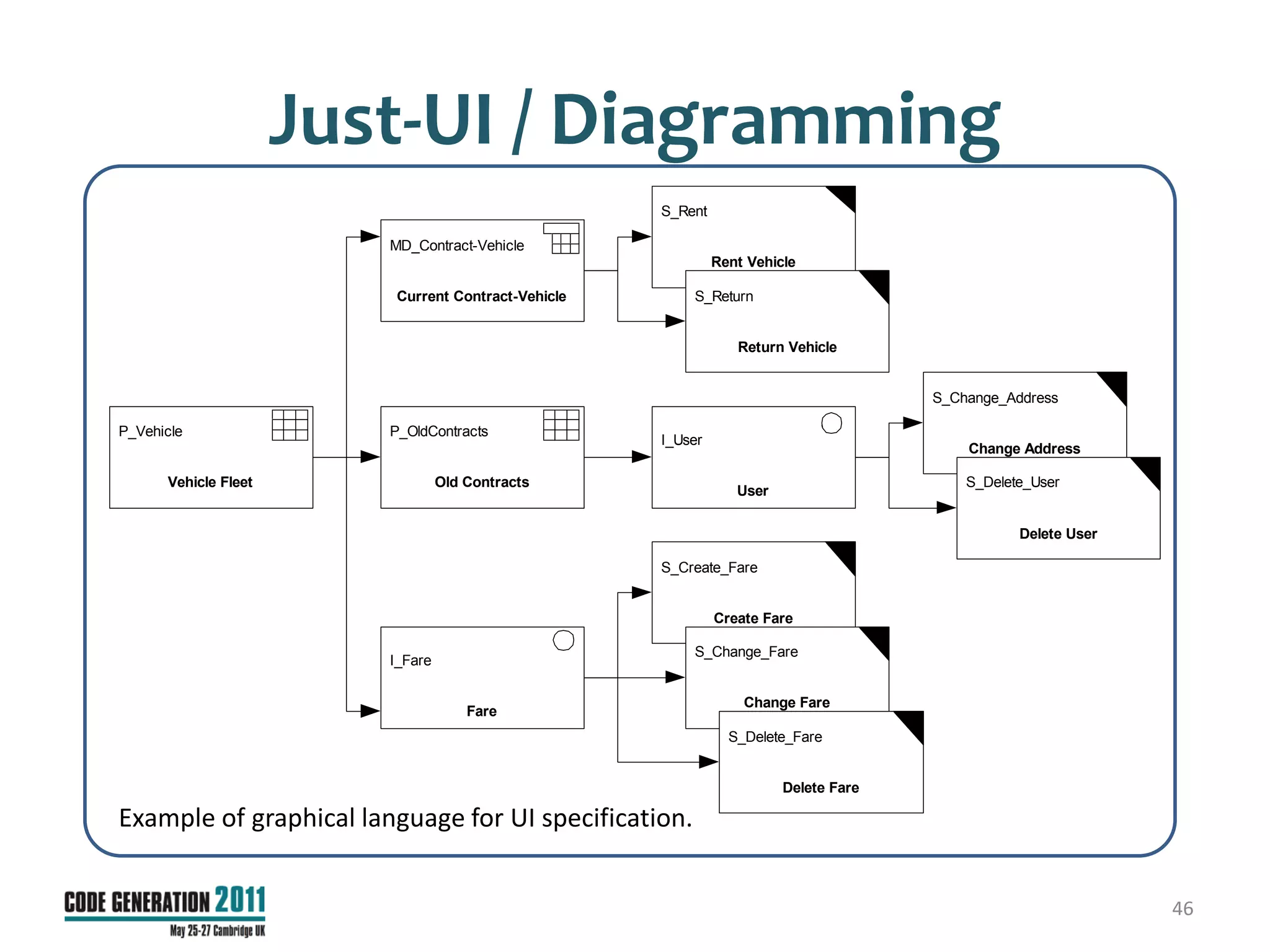

Example of graphical language for UI specification.

46

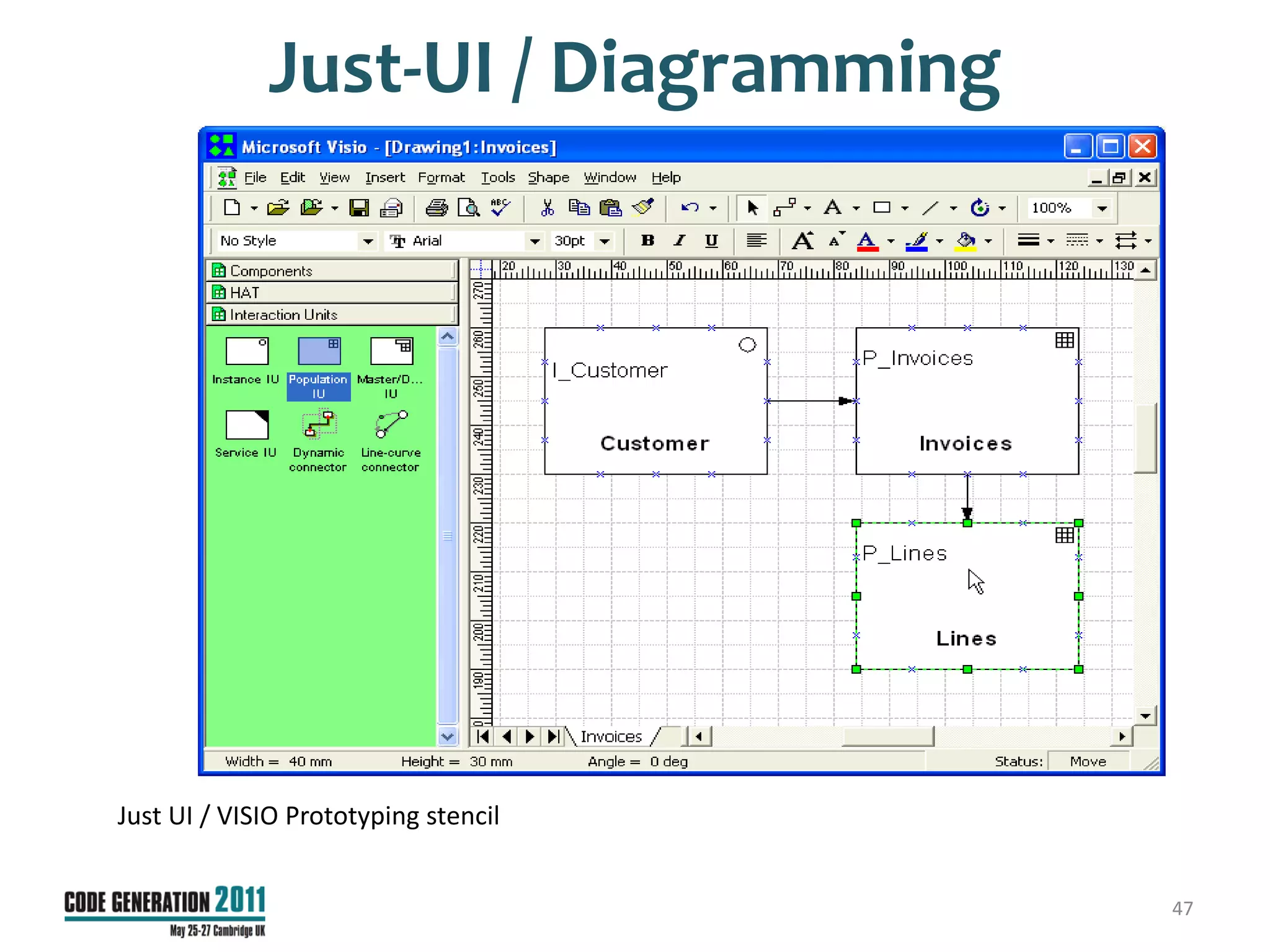

Just UI / VISIO Prototyping stencil

47

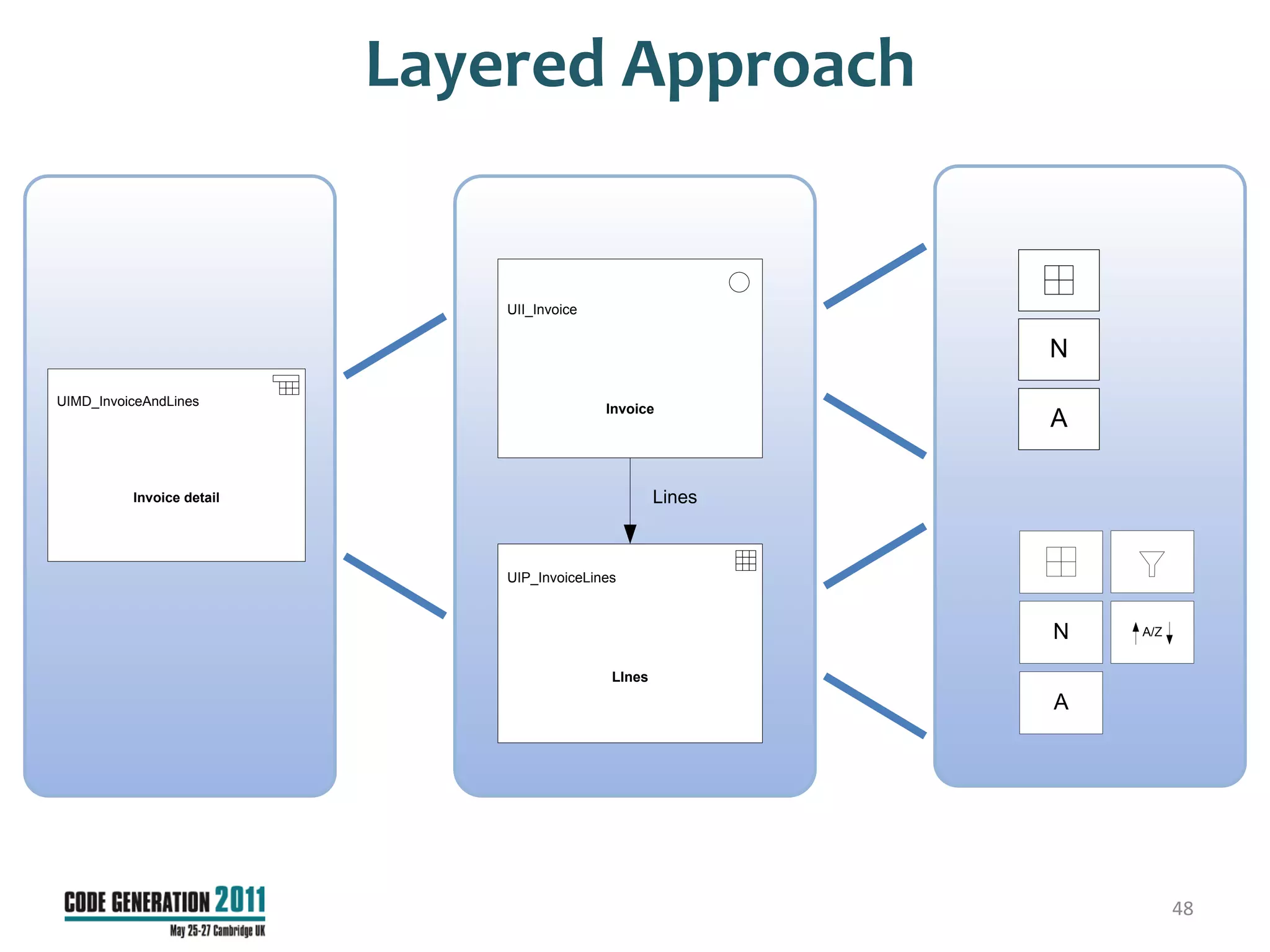

Layered Approach

UII_Invoice

N
UIMD_InvoiceAndLines
Invoice
A

Invoice detail Lines

UIP_InvoiceLines

N A/Z

LInes
A

48


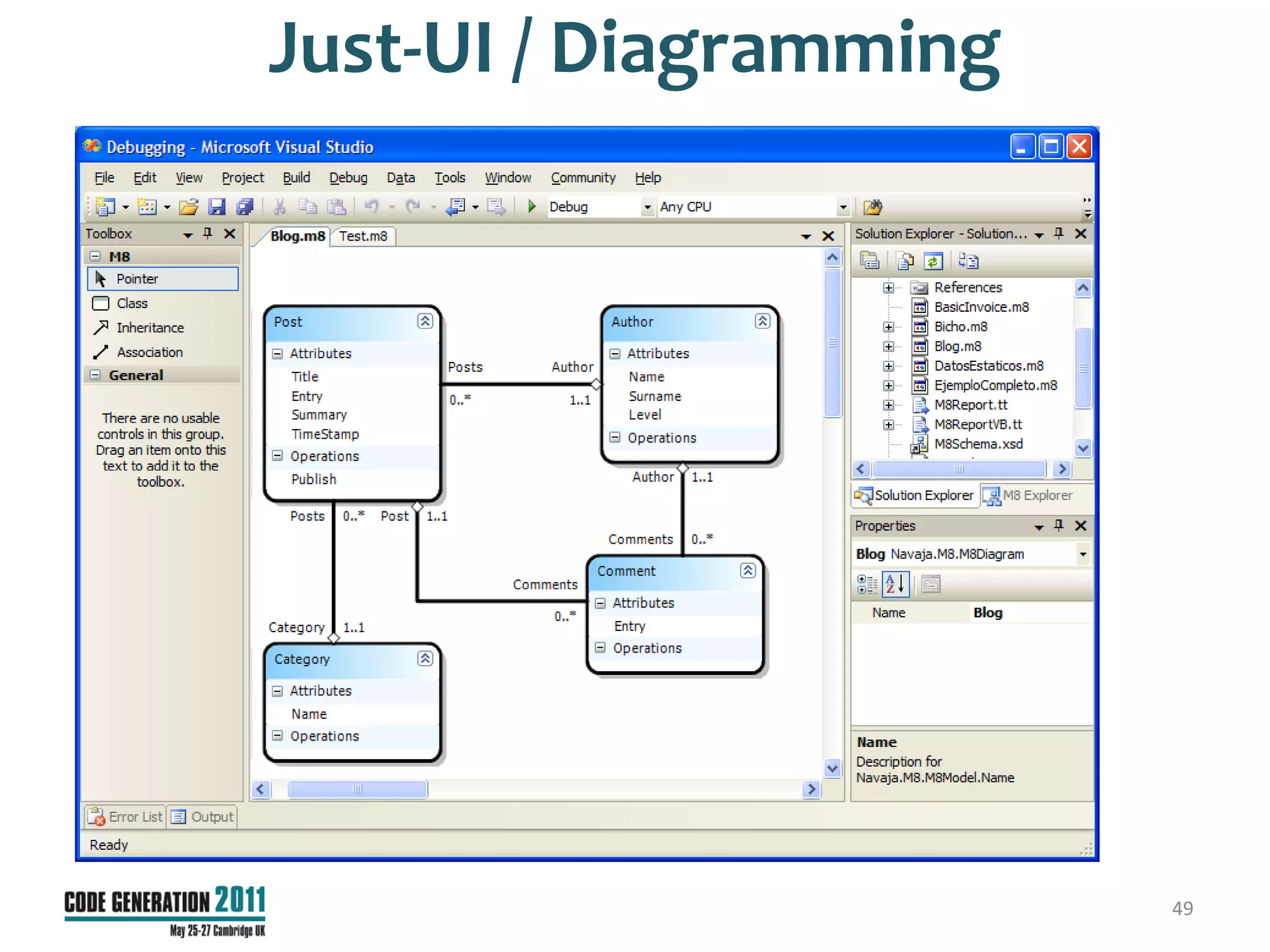

49


50

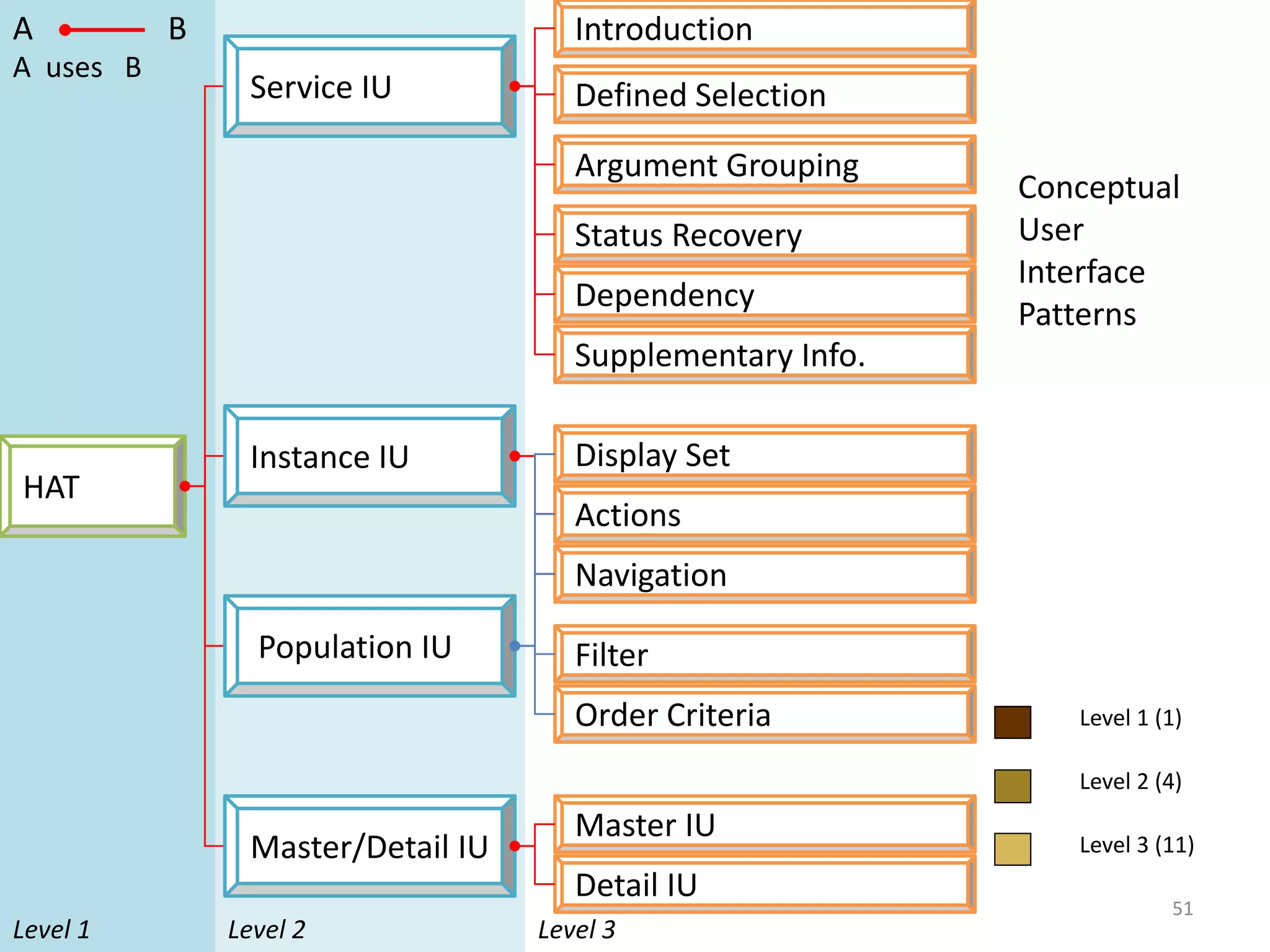

A B Introduction
A uses B
Service IU Defined Selection
Argument Grouping
Conceptual
Status Recovery User
Interface
Dependency
Patterns
Supplementary Info.

Instance IU Display Set
HAT
Actions
Navigation

Population IU Filter
Order Criteria Level 1 (1)

Level 2 (4)
Master IU
Master/Detail IU Level 3 (11)
Detail IU
51
Level 1 Level 2 Level 3

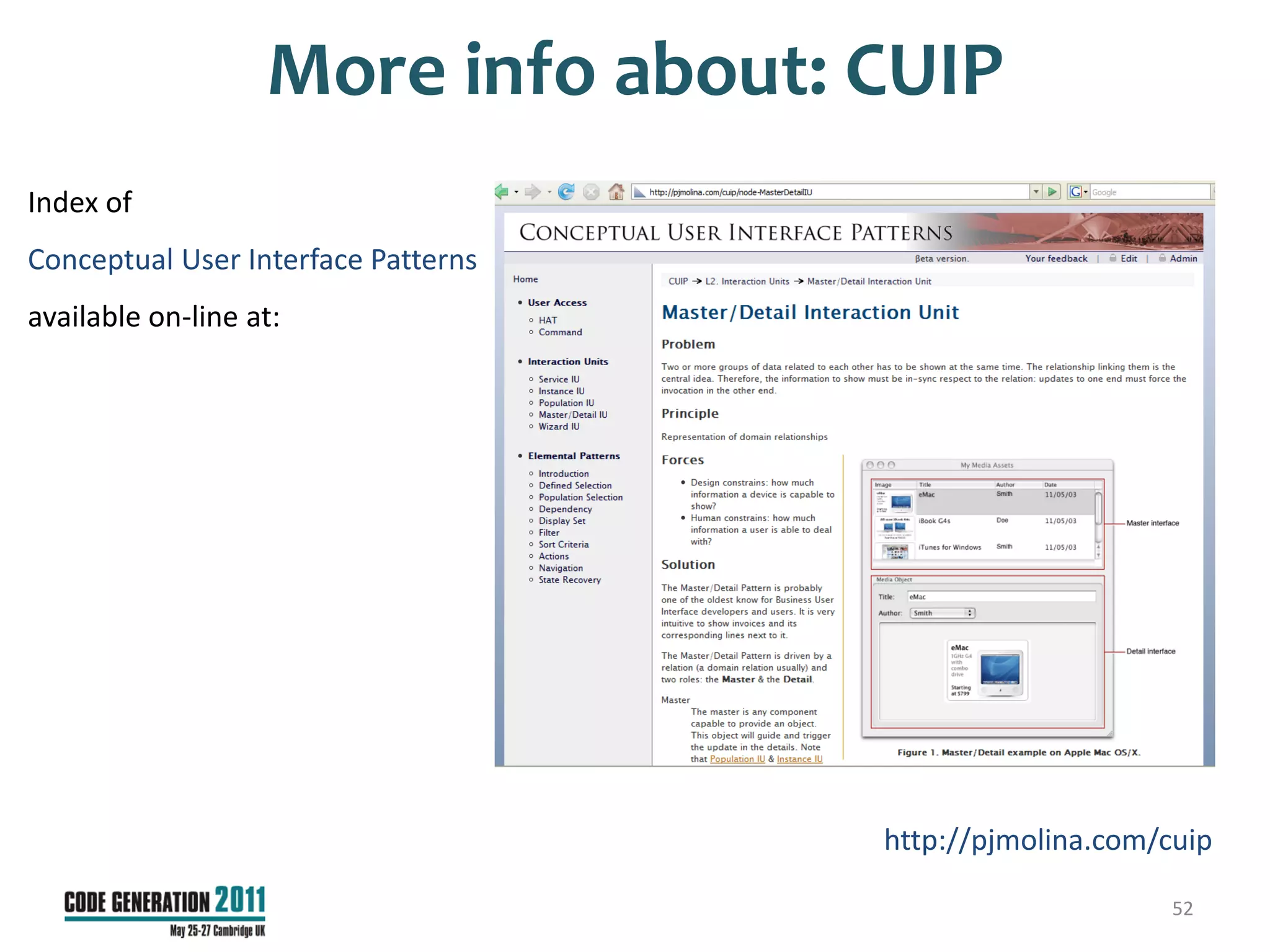

More info about: CUIP
Index of
Conceptual User Interface Patterns
available on-line at:

http://pjmolina.com/cuip

52

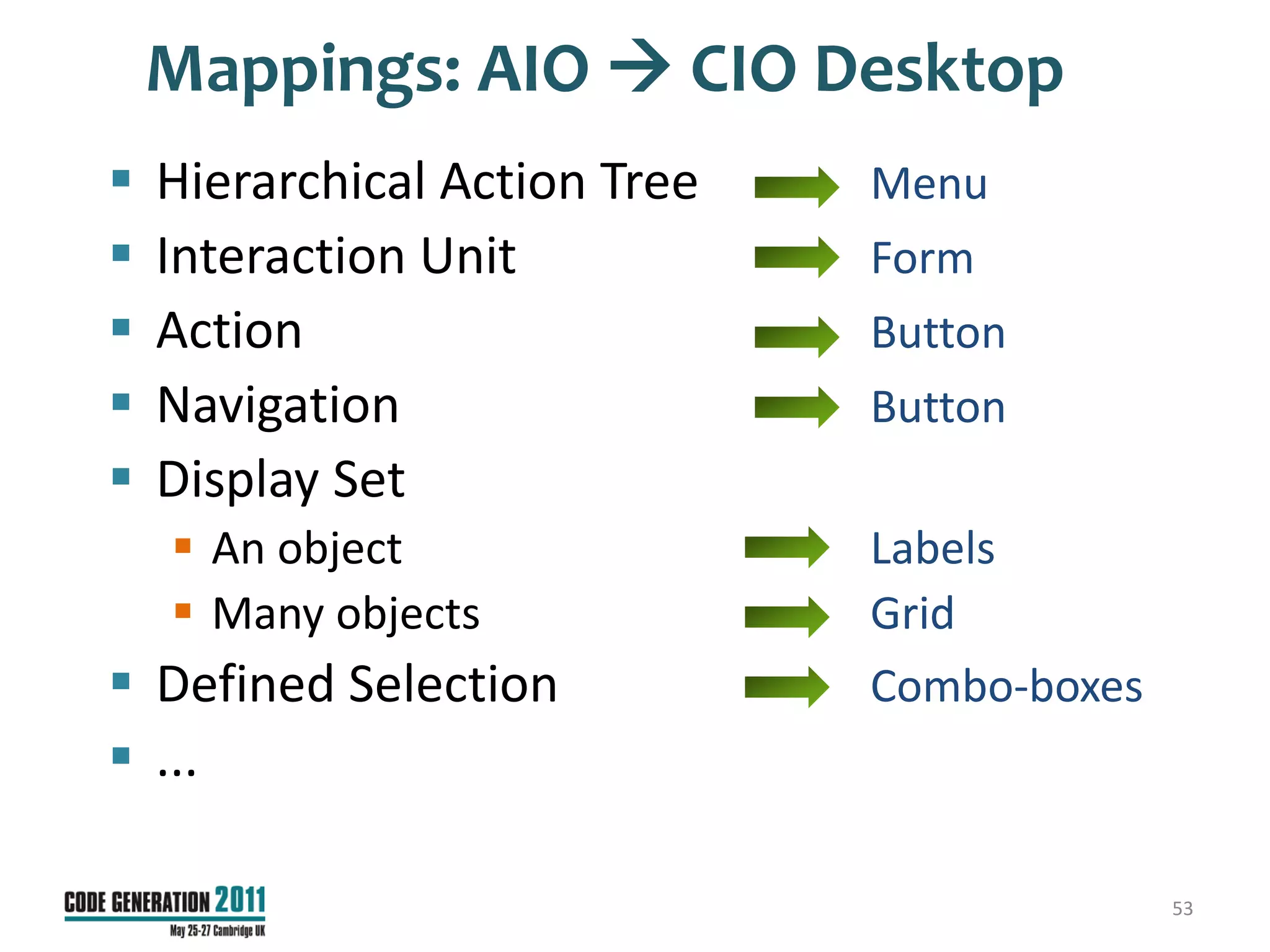

Mappings: AIO  CIO Desktop
 Hierarchical Action Tree Menu
 Interaction Unit Form
 Action Button
 Navigation Button
 Display Set
 An object Labels
 Many objects Grid
 Defined Selection Combo-boxes
 ...

53

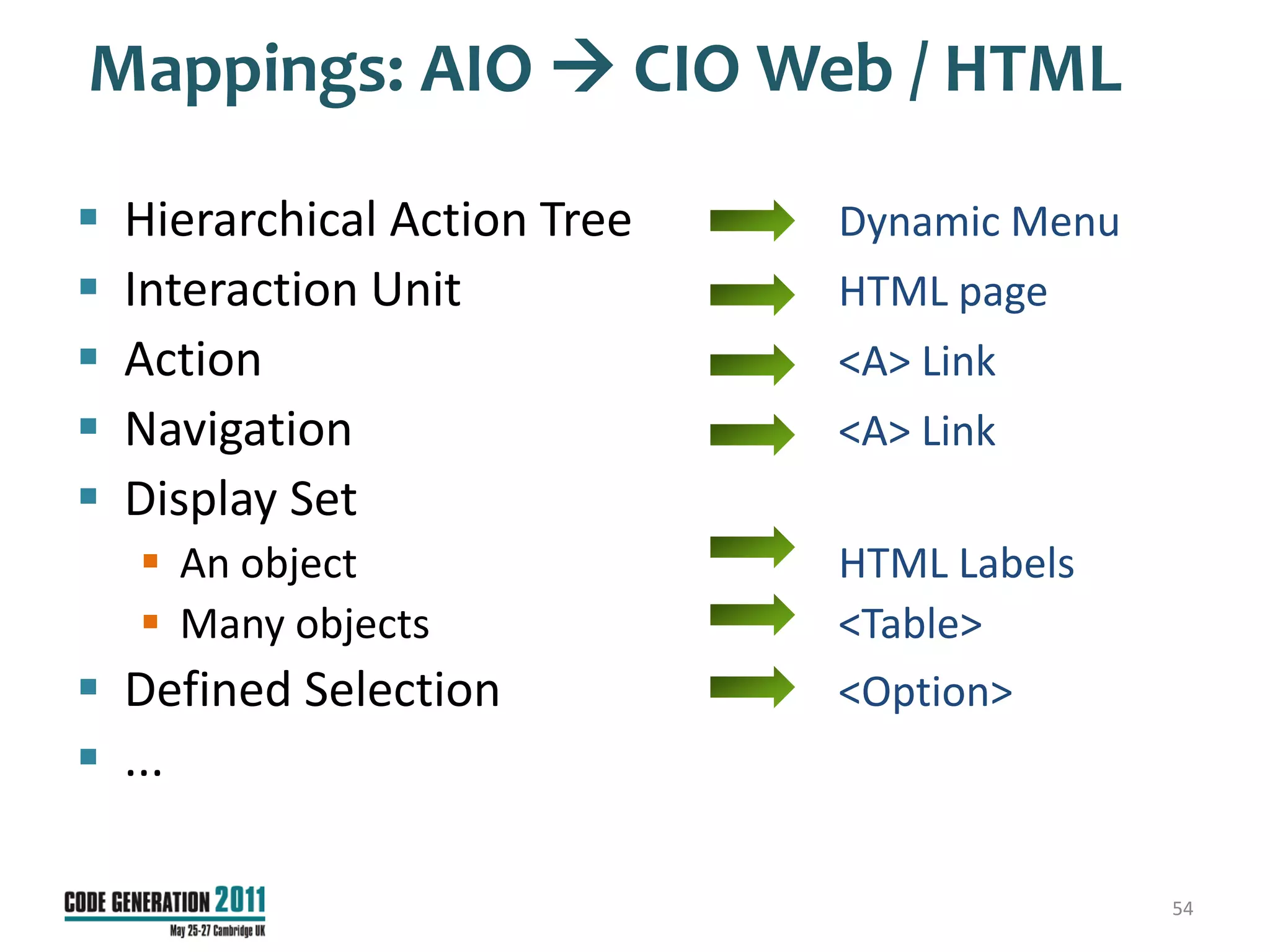

Mappings: AIO  CIO Web / HTML

 Hierarchical Action Tree Dynamic Menu
 Interaction Unit HTML page
 Action <A> Link
 Navigation <A> Link
 Display Set
 An object HTML Labels
 Many objects <Table>
 Defined Selection <Option>
 ...

54

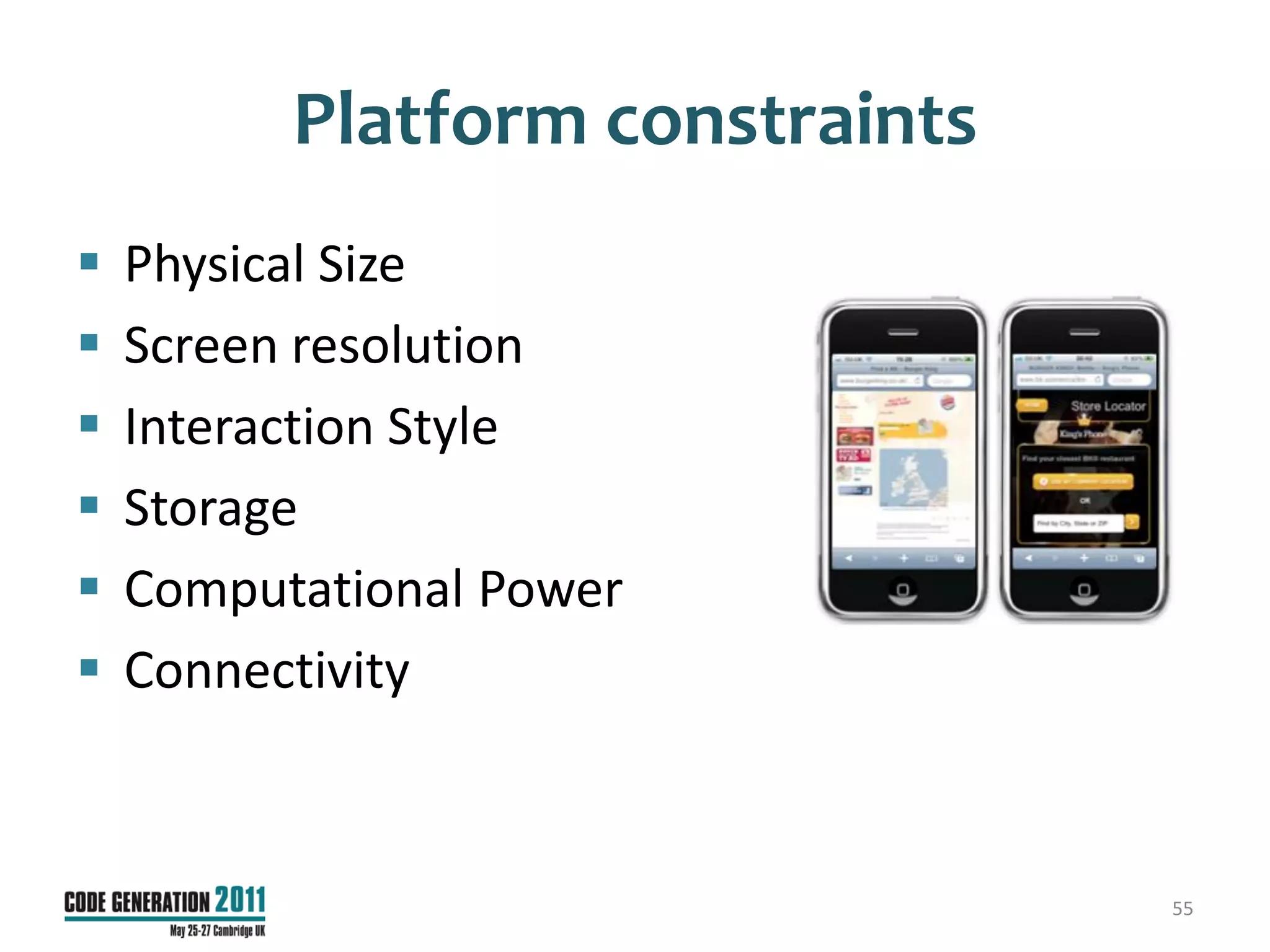

Platform constraints
 Physical Size
 Screen resolution
 Interaction Style
 Storage
 Computational Power
 Connectivity

55

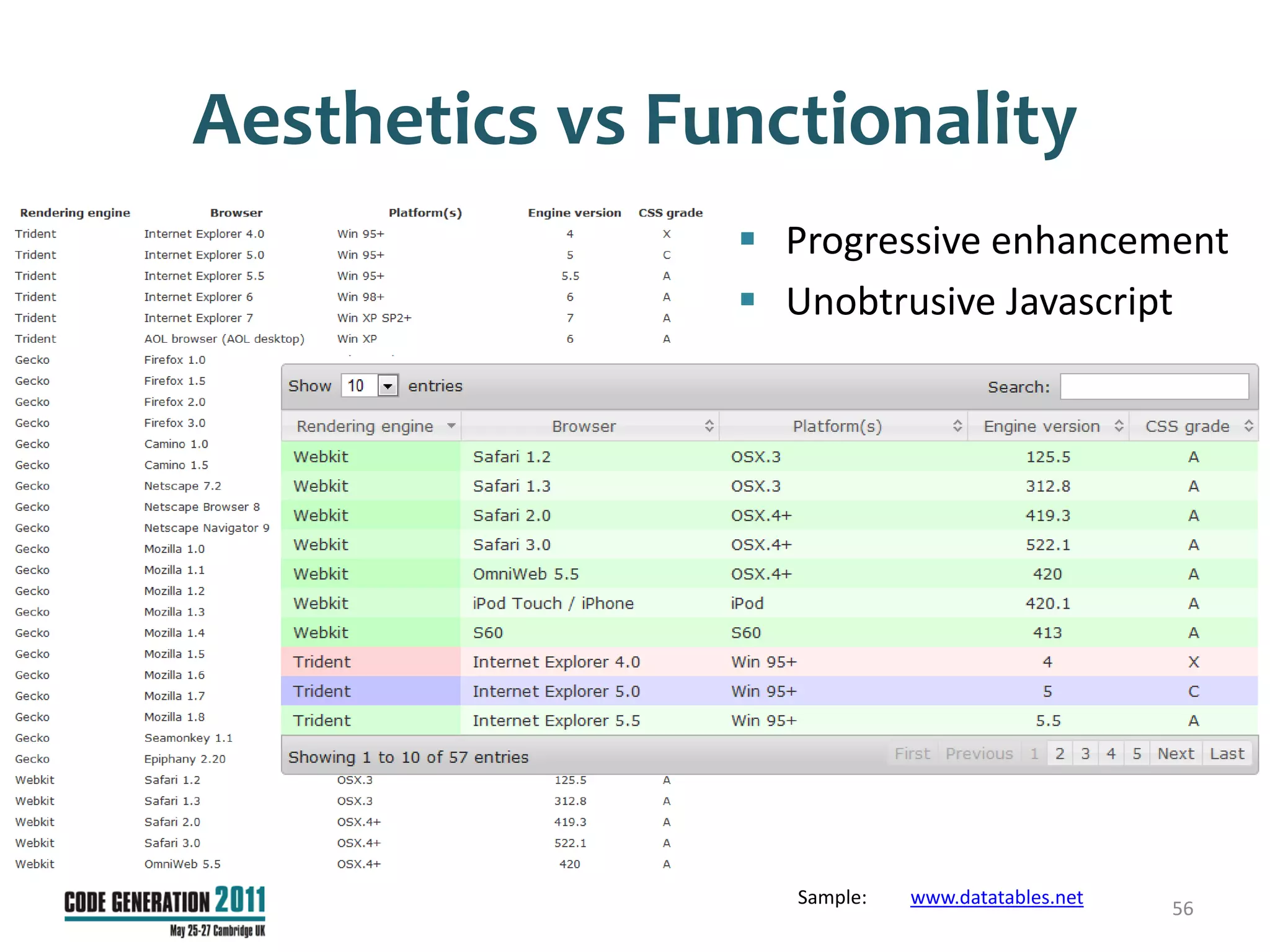

Aesthetics vs Functionality
 Progressive enhancement
 Unobtrusive Javascript

Sample: www.datatables.net
56

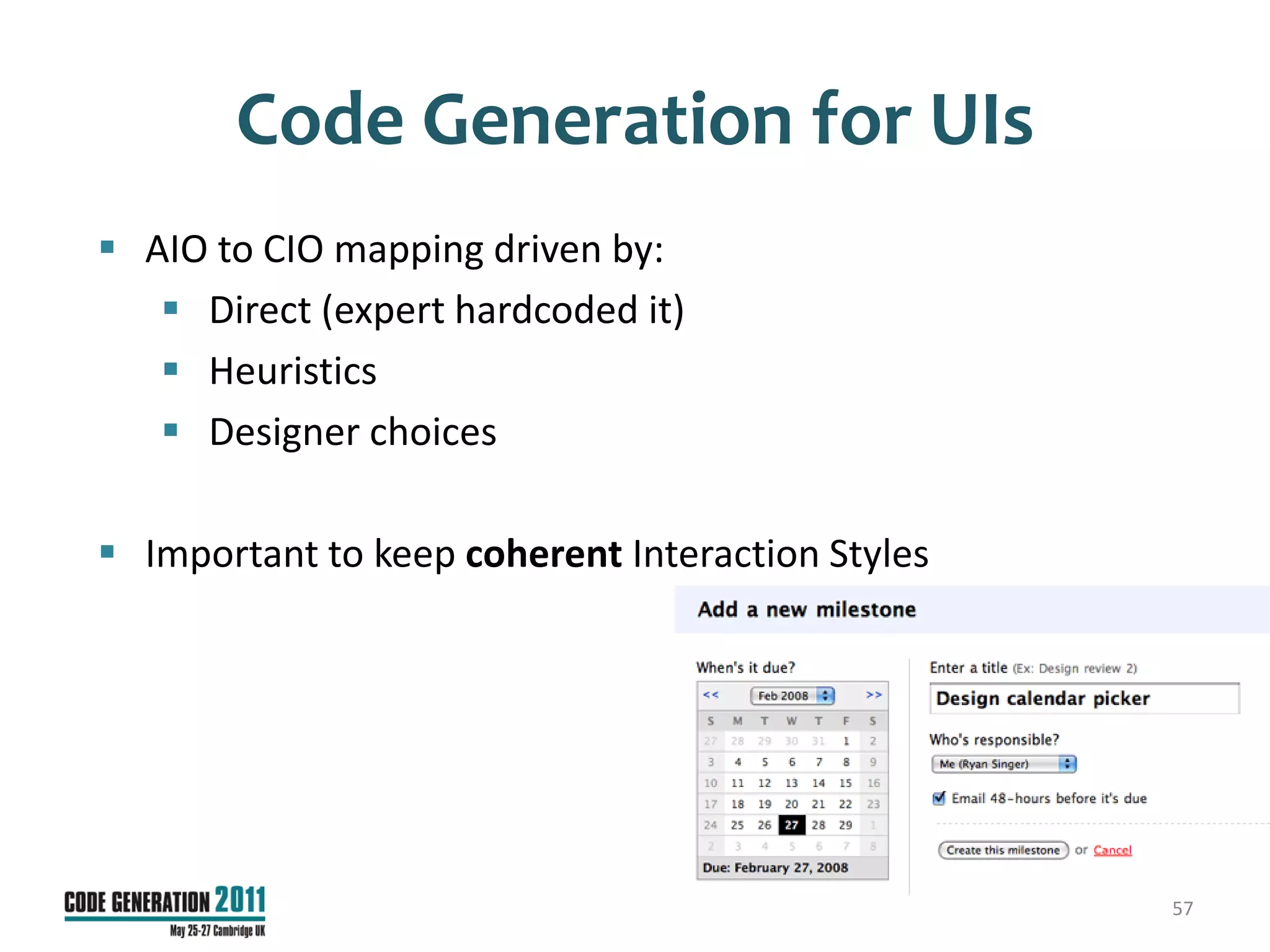

Code Generation for UIs
 AIO to CIO mapping driven by:
 Direct (expert hardcoded it)
 Heuristics
 Designer choices

 Important to keep coherent Interaction Styles

57

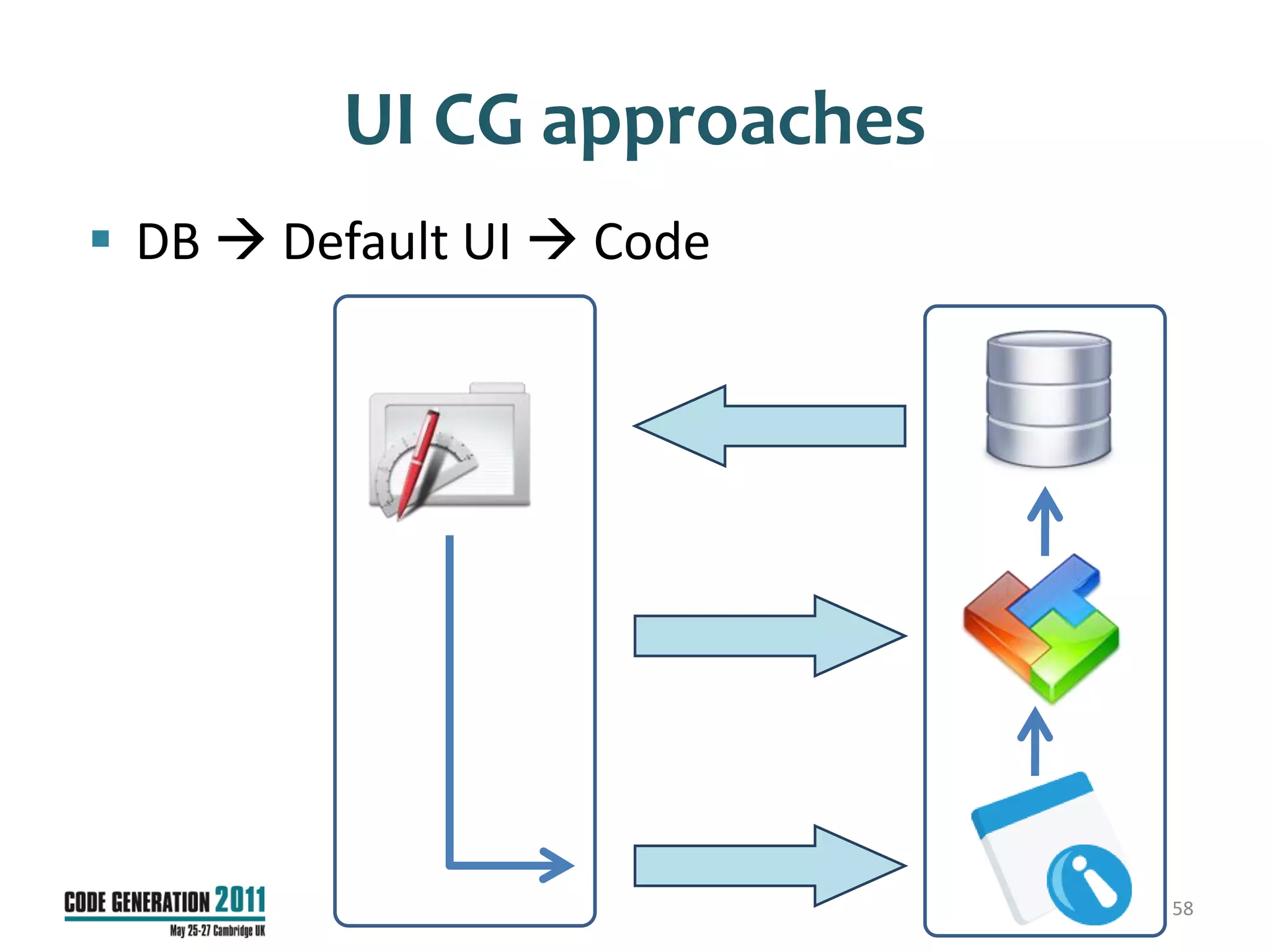

UI CG approaches
 DB  Default UI  Code

58

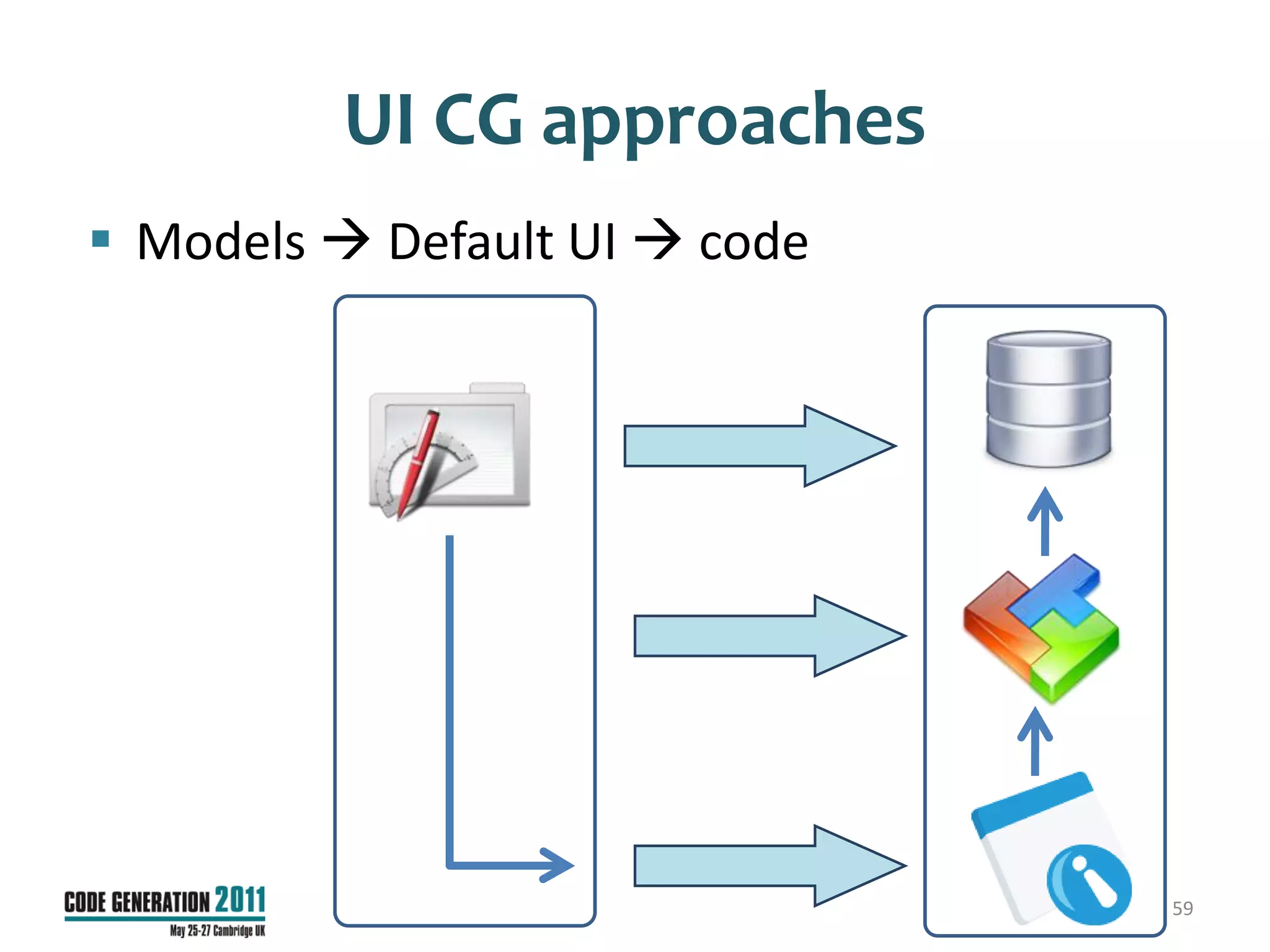

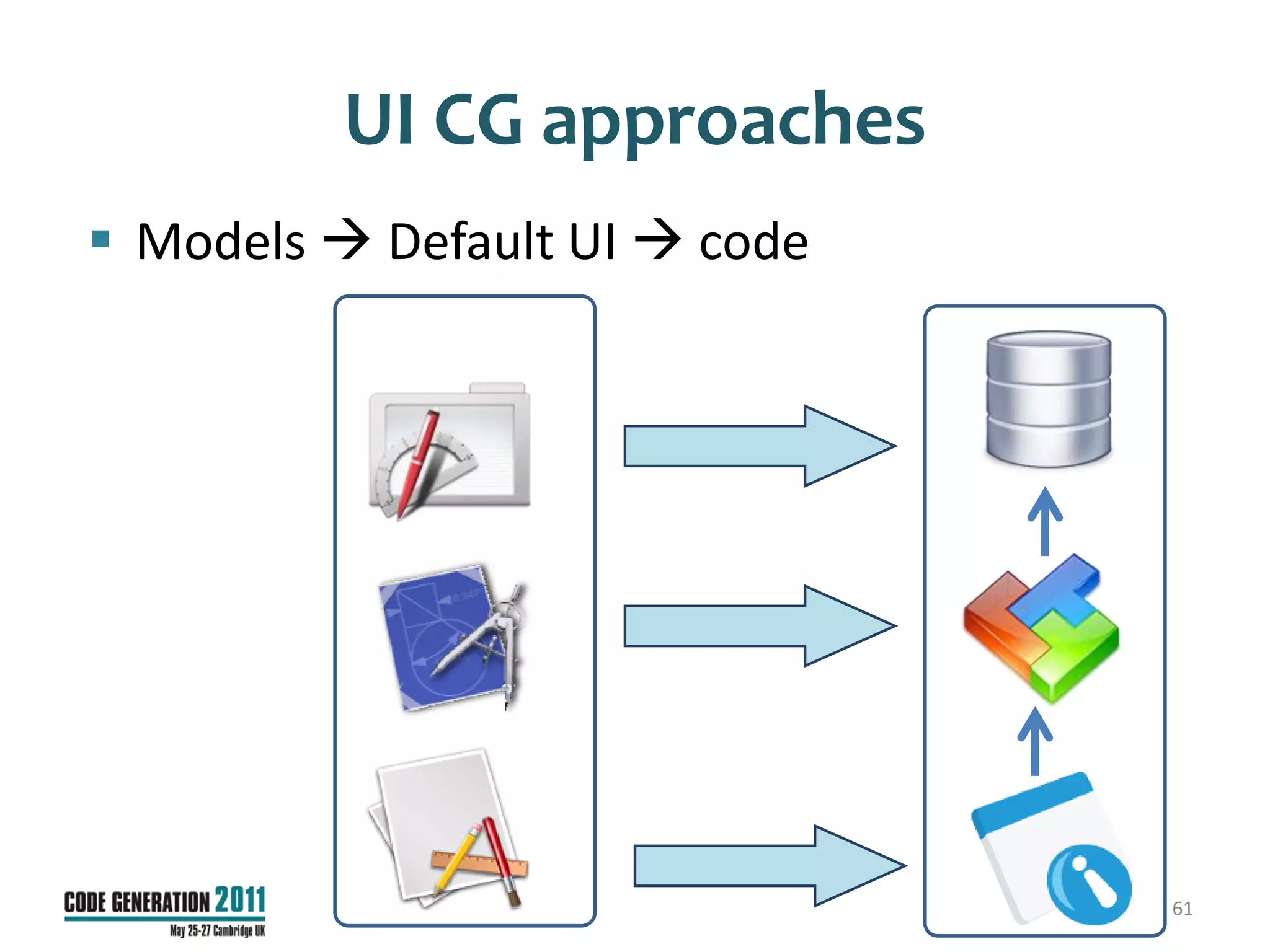

UI CG approaches
 Models  Default UI  code

59

Demo: Essential & Io

60

UI CG approaches
 Models  Default UI  code

61

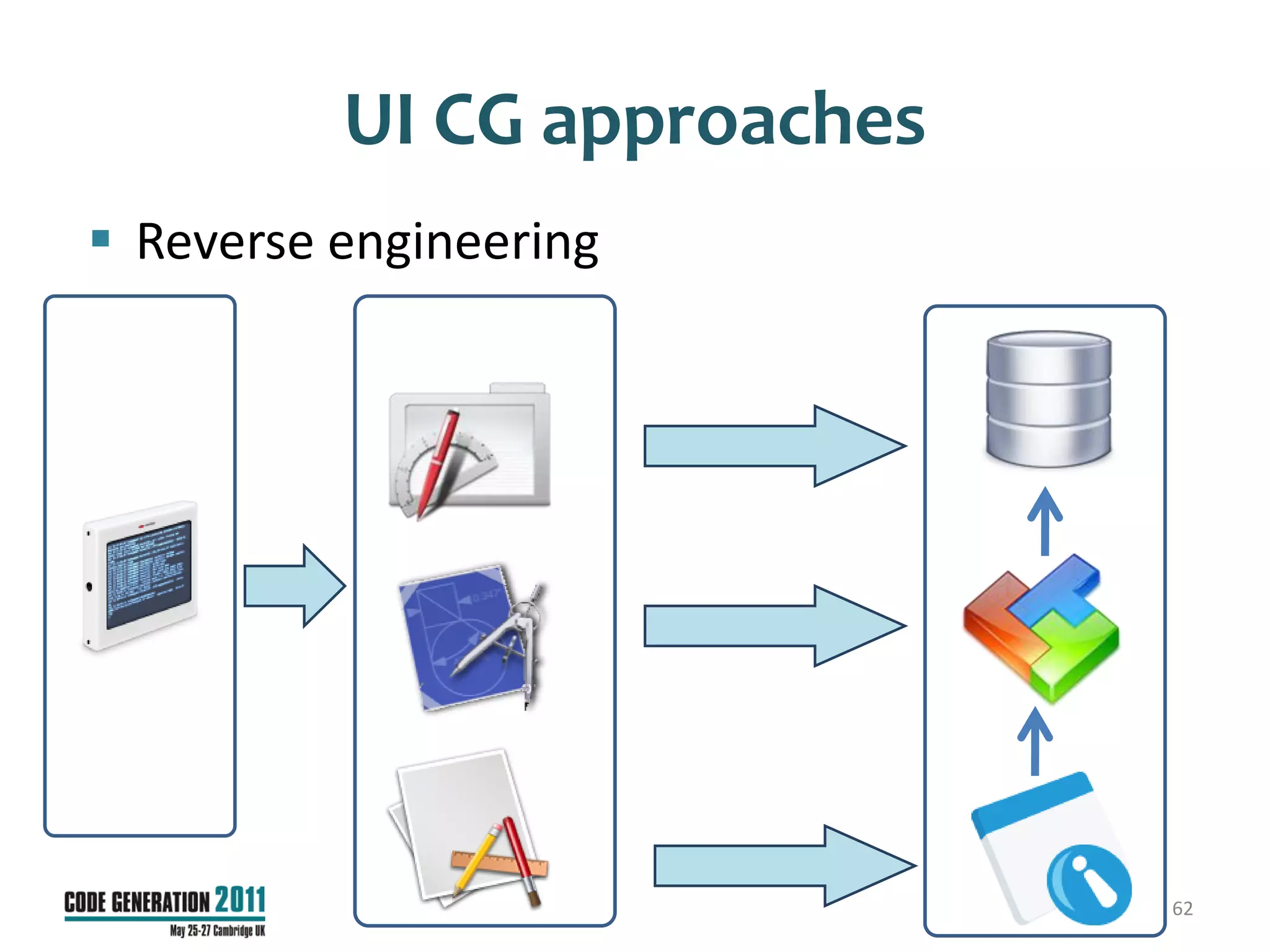

UI CG approaches
 Reverse engineering

62

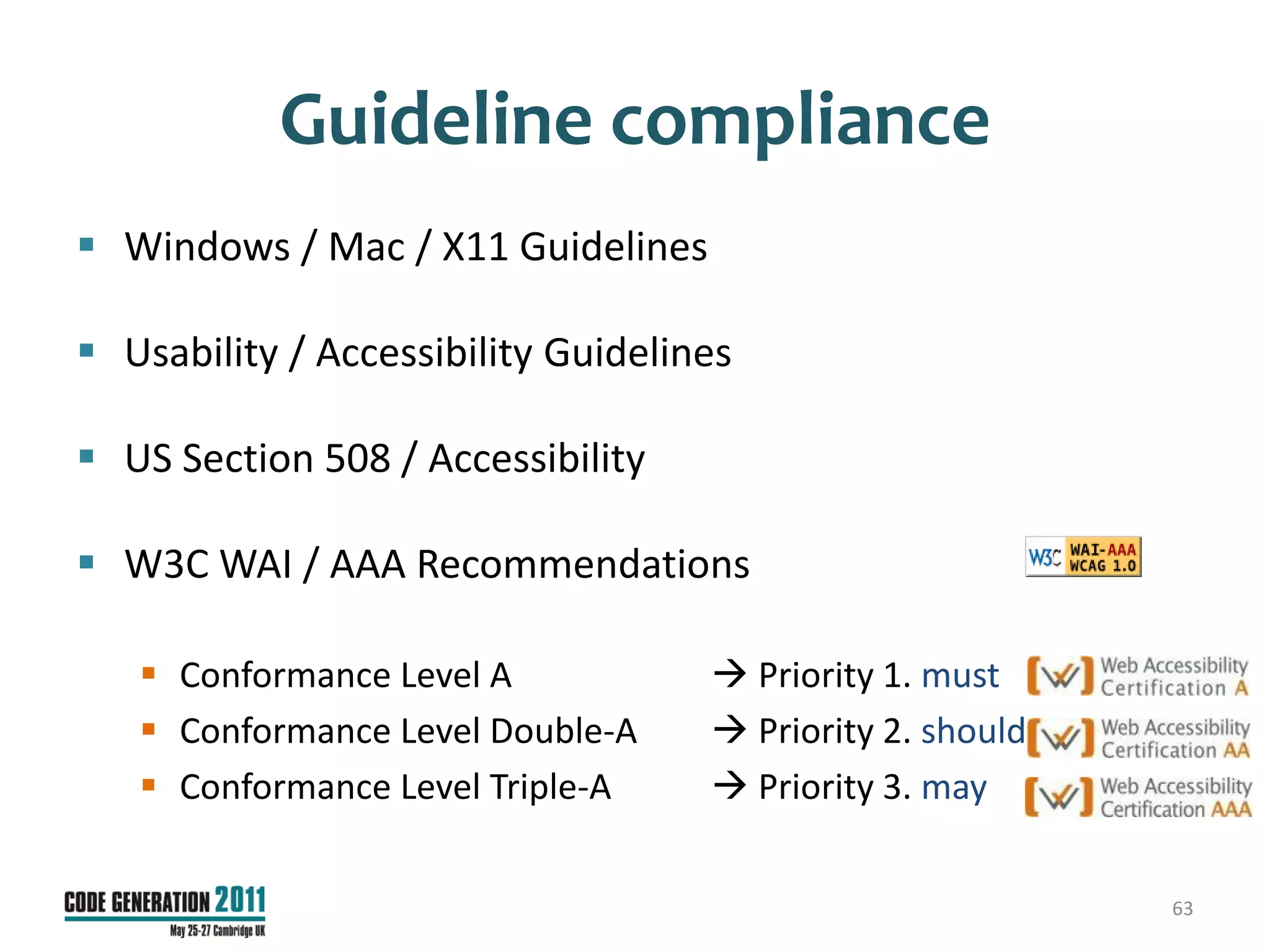

Guideline compliance
 Windows / Mac / X11 Guidelines

 Usability / Accessibility Guidelines

 US Section 508 / Accessibility

 W3C WAI / AAA Recommendations

 Conformance Level A  Priority 1. must
 Conformance Level Double-A  Priority 2. should
 Conformance Level Triple-A  Priority 3. may

63

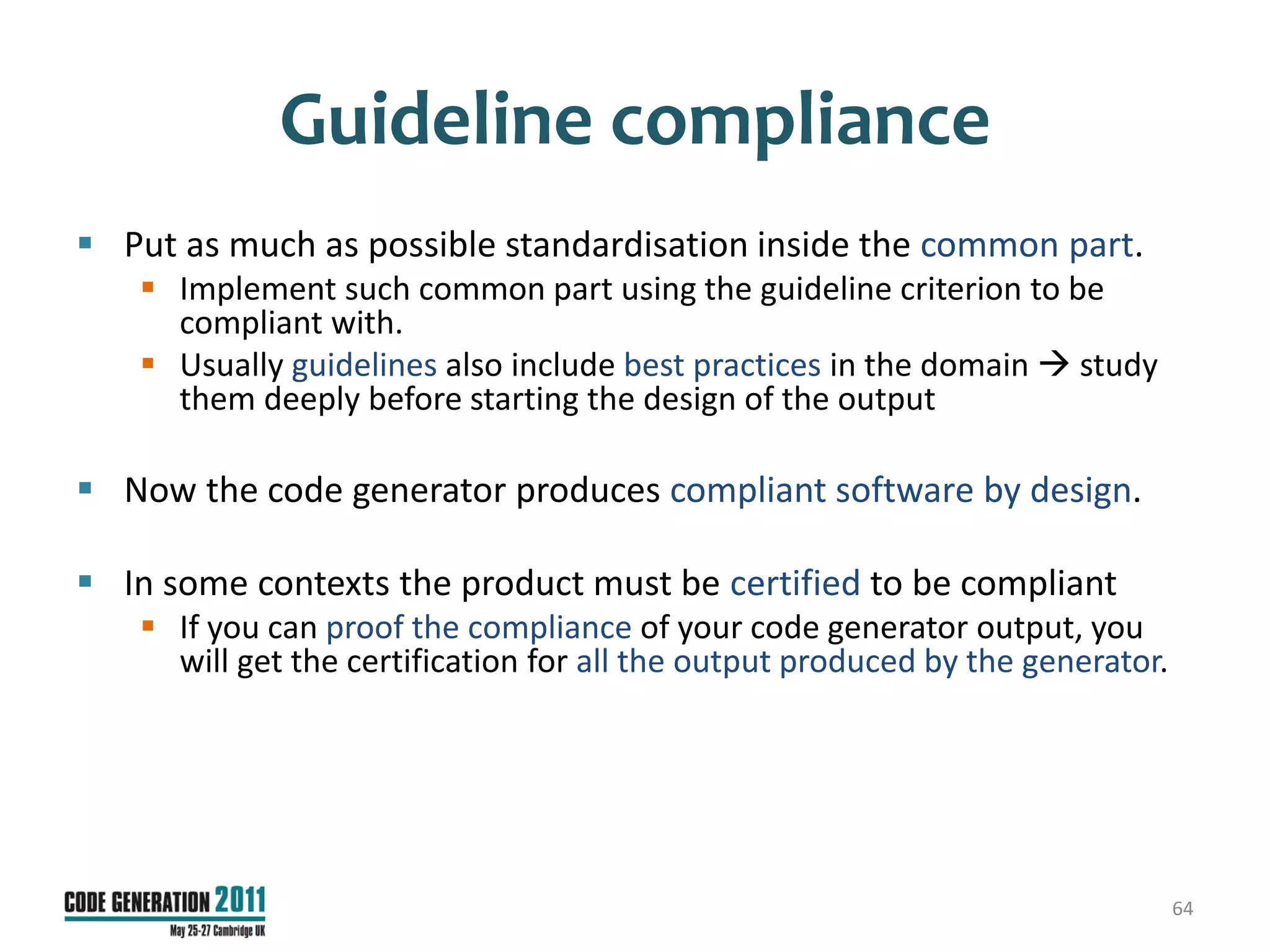

Guideline compliance
 Put as much as possible standardisation inside the common part.
 Implement such common part using the guideline criterion to be
compliant with.
 Usually guidelines also include best practices in the domain  study
them deeply before starting the design of the output

 Now the code generator produces compliant software by design.

 In some contexts the product must be certified to be compliant
 If you can proof the compliance of your code generator output, you
will get the certification for all the output produced by the generator.

64

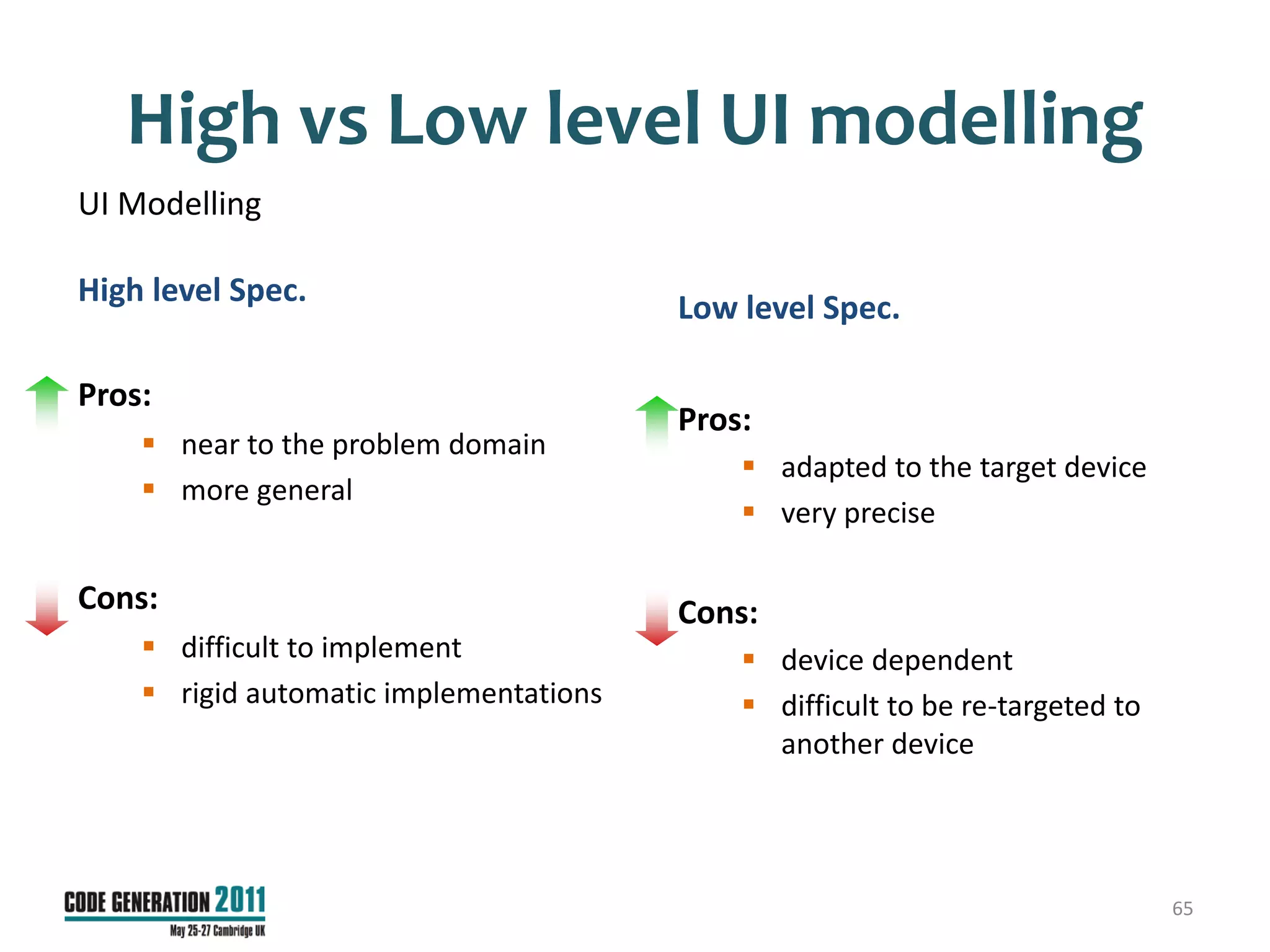

High vs Low level UI modelling
UI Modelling

High level Spec.
Low level Spec.

Pros:
Pros:
 near to the problem domain
 adapted to the target device
 more general
 very precise

Cons: Cons:
 difficult to implement  device dependent
 rigid automatic implementations  difficult to be re-targeted to
another device

65

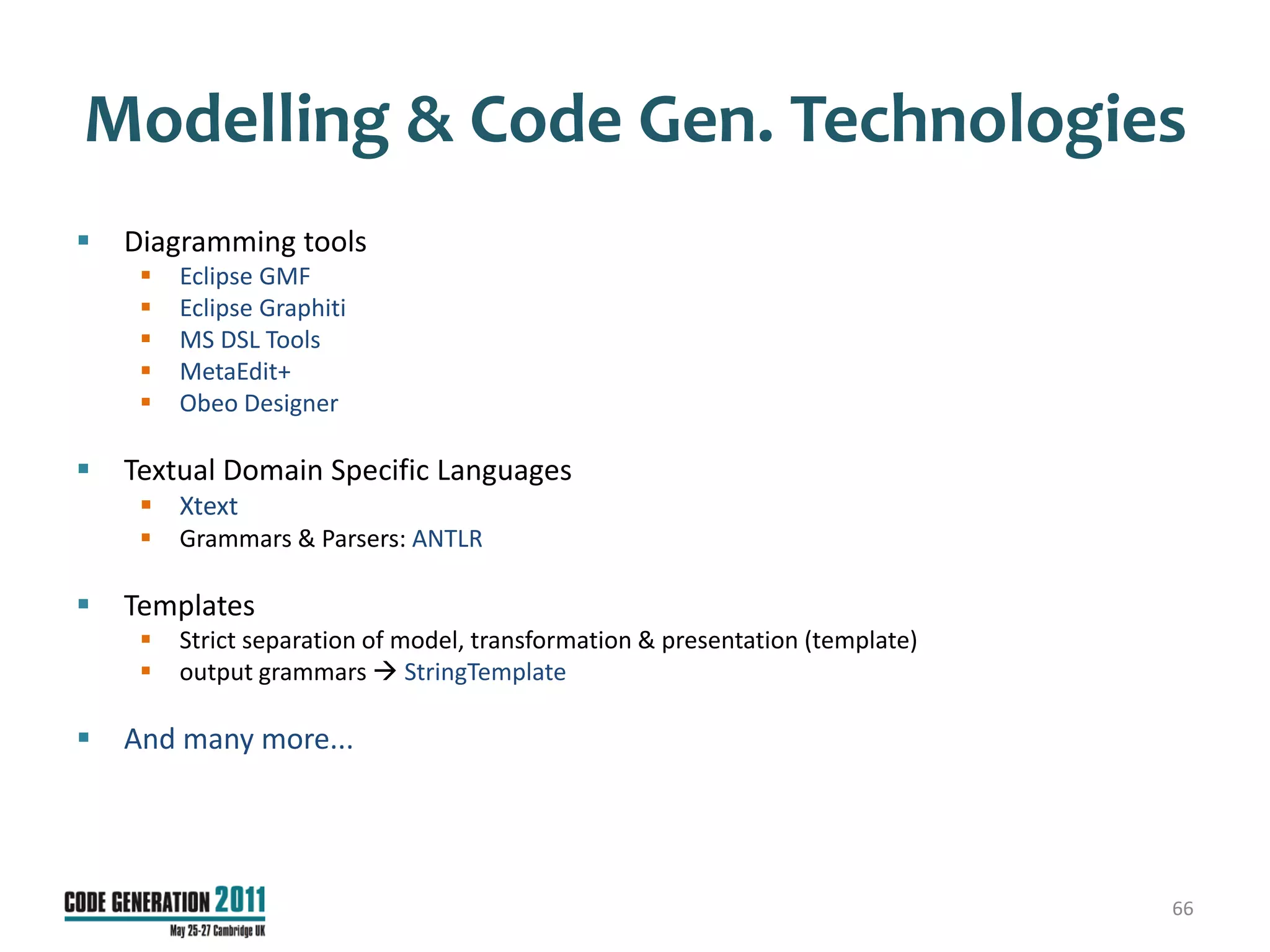

Modelling & Code Gen. Technologies
 Diagramming tools
 Eclipse GMF
 Eclipse Graphiti
 MS DSL Tools
 MetaEdit+
 Obeo Designer

 Textual Domain Specific Languages
 Xtext
 Grammars & Parsers: ANTLR

 Templates
 Strict separation of model, transformation & presentation (template)
 output grammars  StringTemplate

 And many more...

66

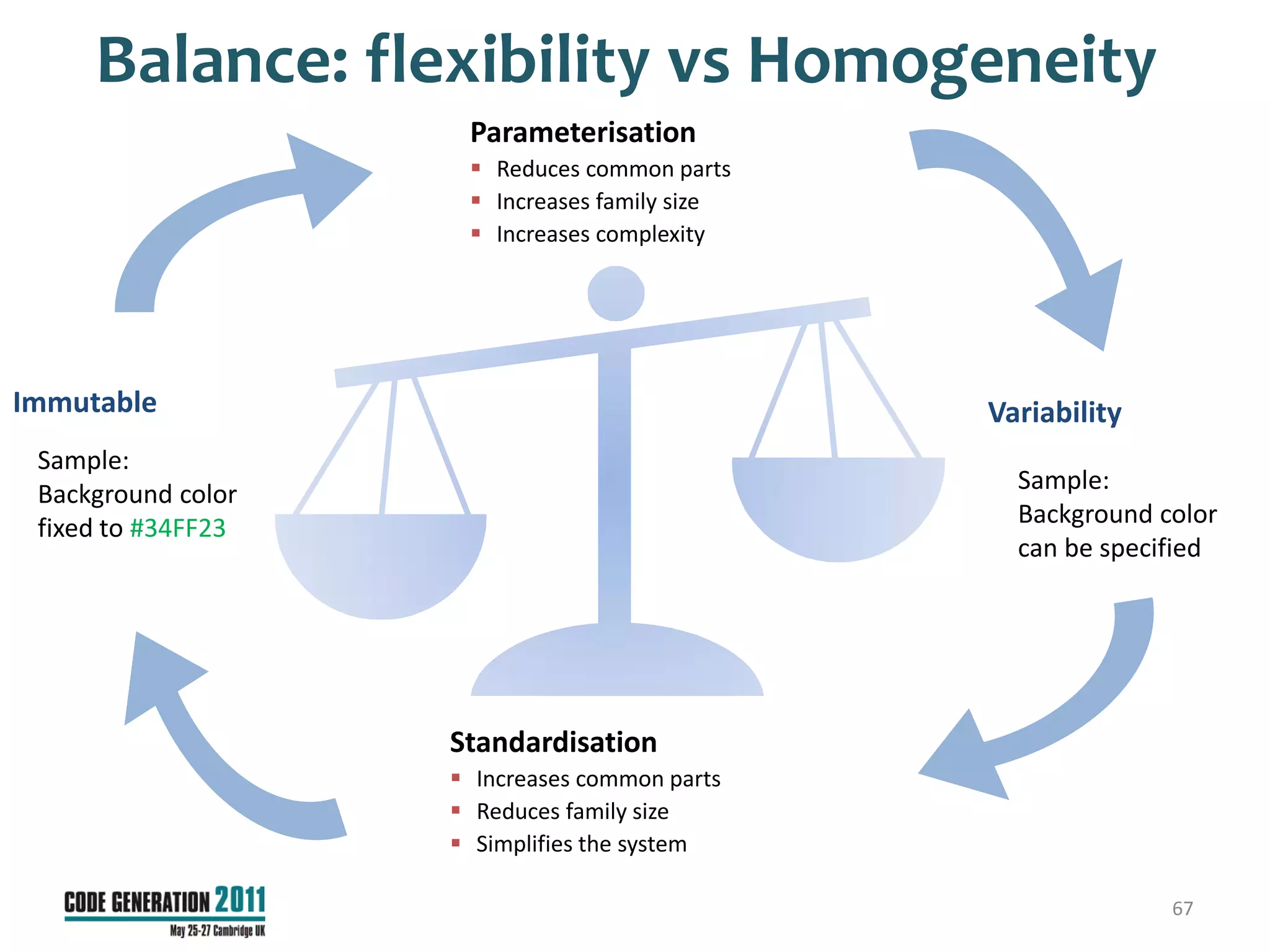

Balance: flexibility vs Homogeneity
Parameterisation
 Reduces common parts
 Increases family size
 Increases complexity

Immutable Variability
Sample:
Background color Sample:
fixed to #34FF23 Background color
can be specified

Standardisation
 Increases common parts
 Reduces family size
 Simplifies the system

67

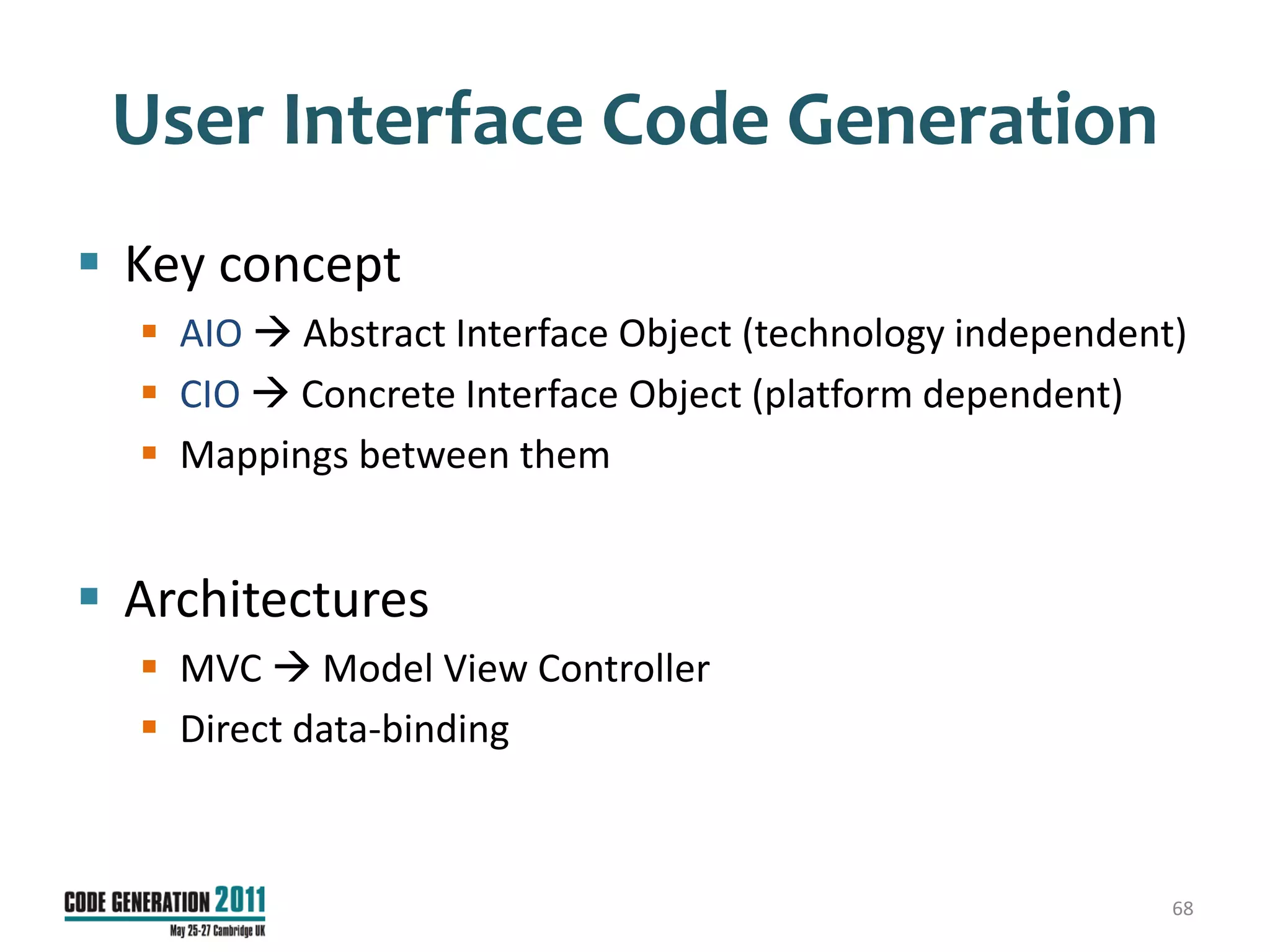

User Interface Code Generation
 Key concept
 AIO  Abstract Interface Object (technology independent)
 CIO  Concrete Interface Object (platform dependent)
 Mappings between them

 Architectures
 MVC  Model View Controller
 Direct data-binding

68

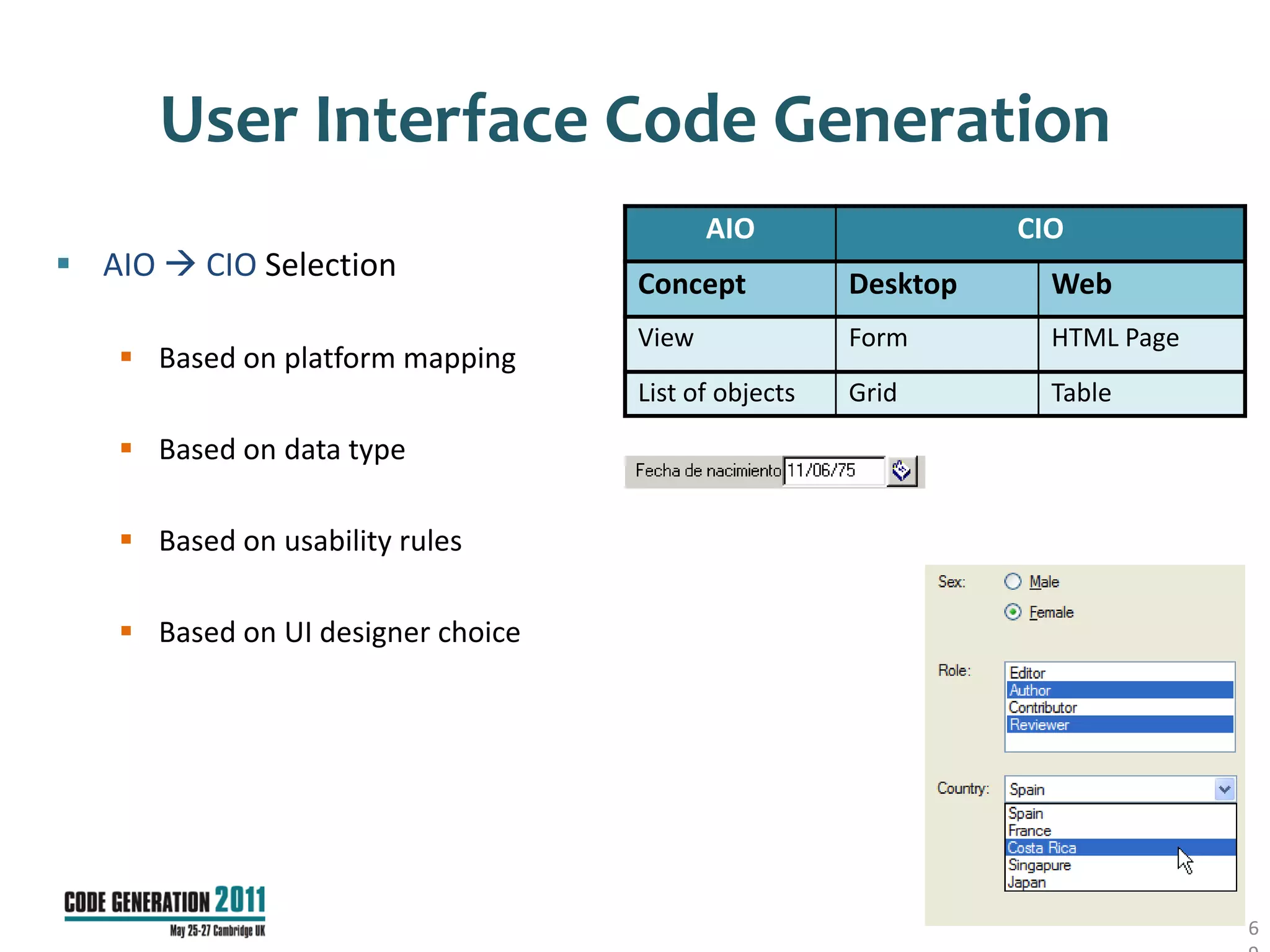

AIO CIO
 AIO  CIO Selection
Concept Desktop Web
View Form HTML Page
 Based on platform mapping
List of objects Grid Table

 Based on data type

 Based on usability rules

 Based on UI designer choice

6

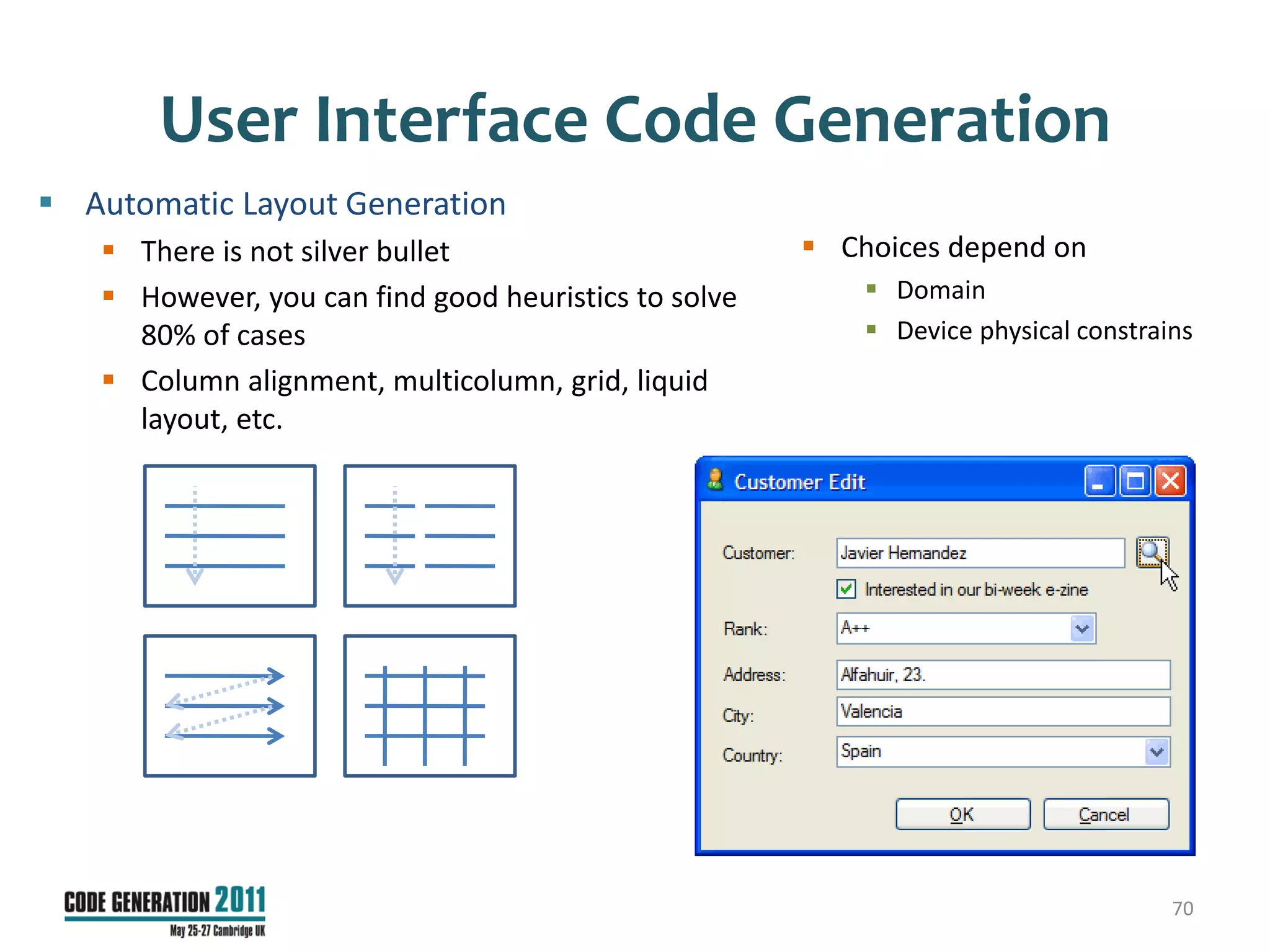

 Automatic Layout Generation
 There is not silver bullet  Choices depend on
 However, you can find good heuristics to solve  Domain
80% of cases  Device physical constrains
 Column alignment, multicolumn, grid, liquid
layout, etc.

70

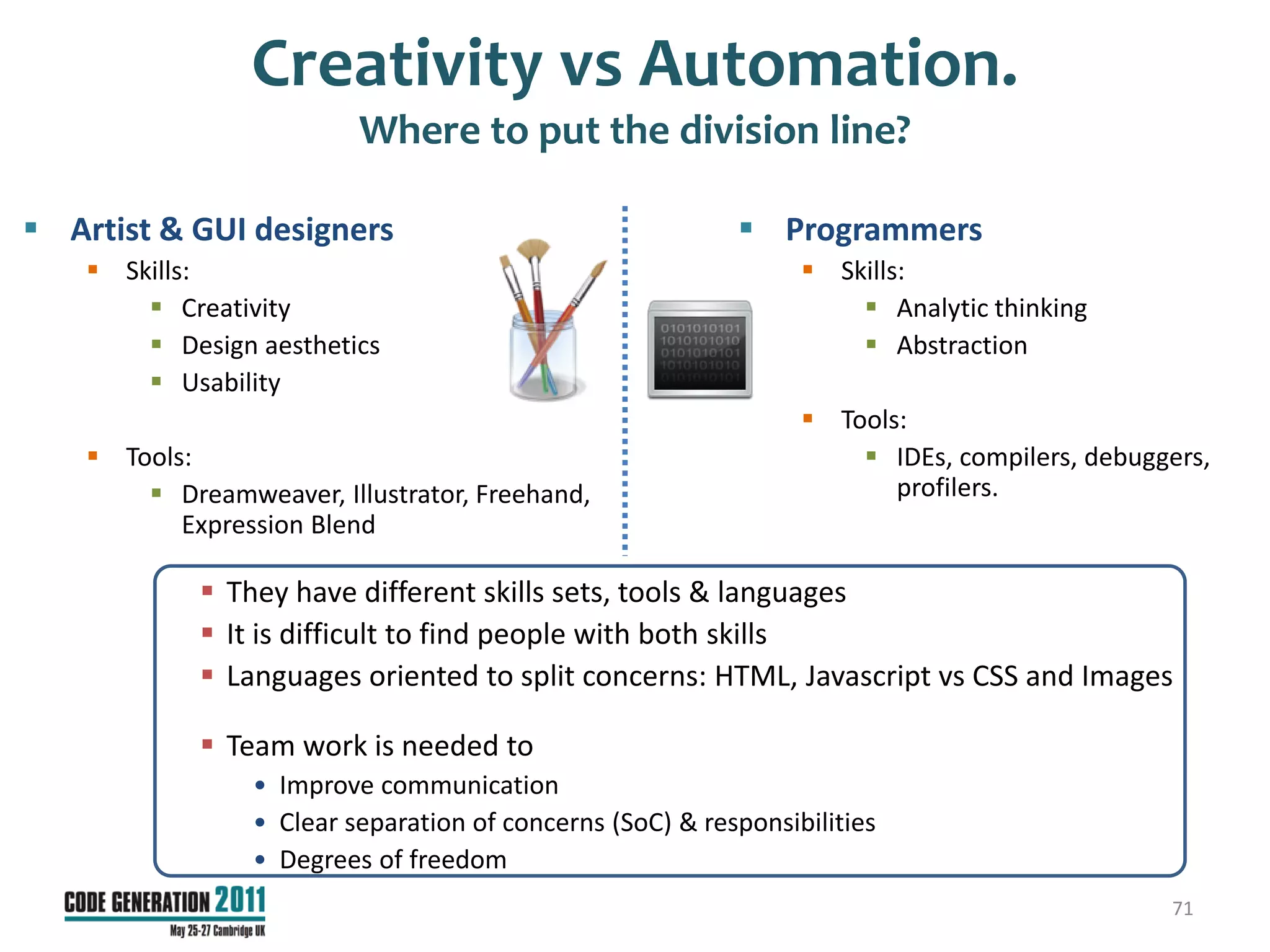

Creativity vs Automation.
Where to put the division line?

 Artist & GUI designers  Programmers
 Skills:  Skills:
 Creativity  Analytic thinking
 Design aesthetics  Abstraction
 Usability
 Tools:
 Tools:  IDEs, compilers, debuggers,
 Dreamweaver, Illustrator, Freehand, profilers.
Expression Blend

 They have different skills sets, tools & languages
 It is difficult to find people with both skills
 Languages oriented to split concerns: HTML, Javascript vs CSS and Images

 Team work is needed to
• Improve communication
• Clear separation of concerns (SoC) & responsibilities
• Degrees of freedom
71

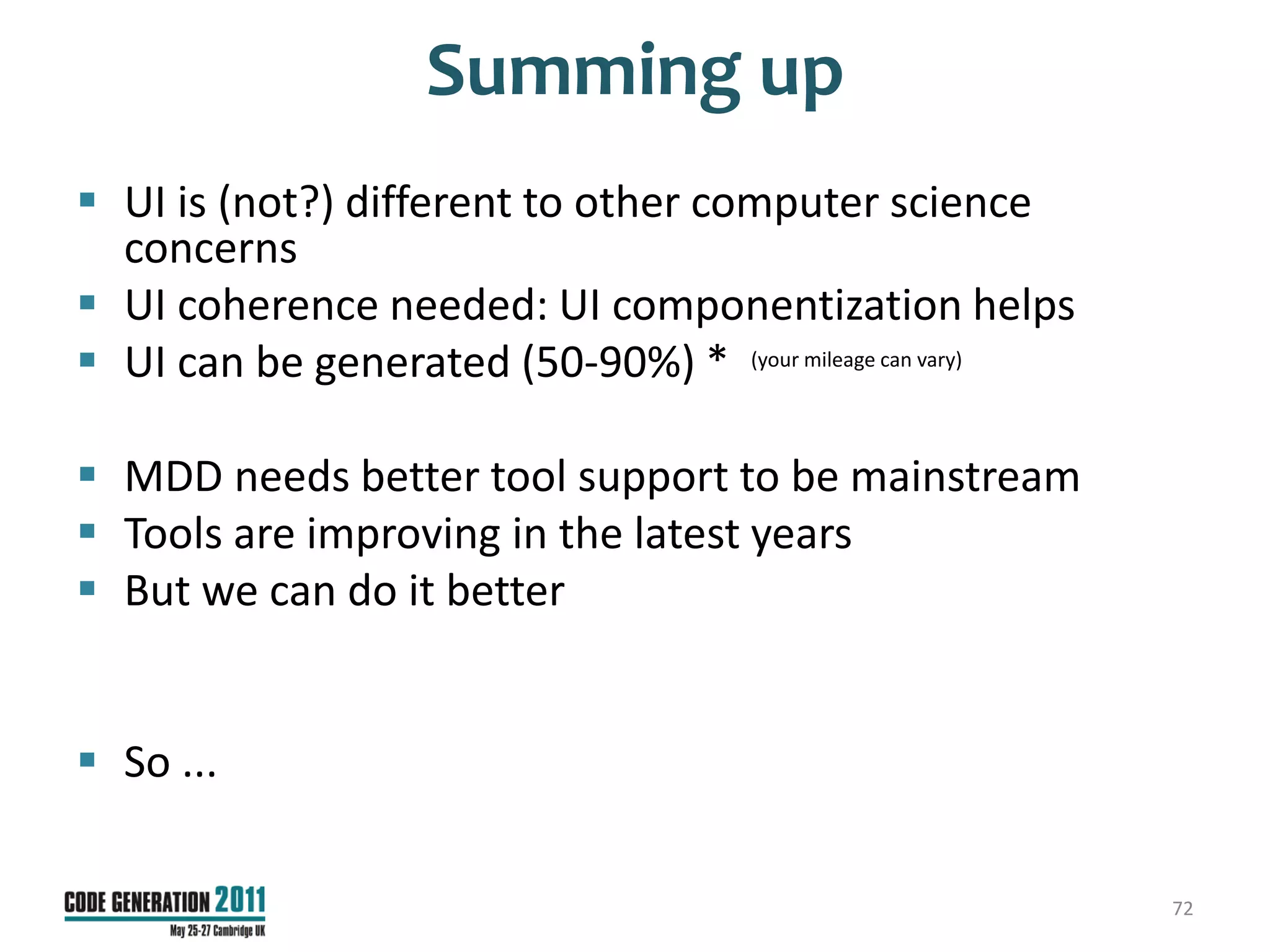

Summing up
 UI is (not?) different to other computer science
concerns
 UI coherence needed: UI componentization helps
 UI can be generated (50-90%) * (your mileage can vary)

 MDD needs better tool support to be mainstream
 Tools are improving in the latest years
 But we can do it better

 So ...

72

Thank you!

Questions?
@pmolinam

Modelling the User Interface

More Related Content

What's hot

Similar to Modelling the User Interface

More from Pedro J. Molina

Recently uploaded

In this document

Modelling the User Interface
