Kubernetes Networking with Cilium - Deep Dive
- 1. Kubernetes Networking withCilium Deep Dive Michal Rostecki Software Engineer mrostecki@suse.de mrostecki@opensuse.org
- 2.

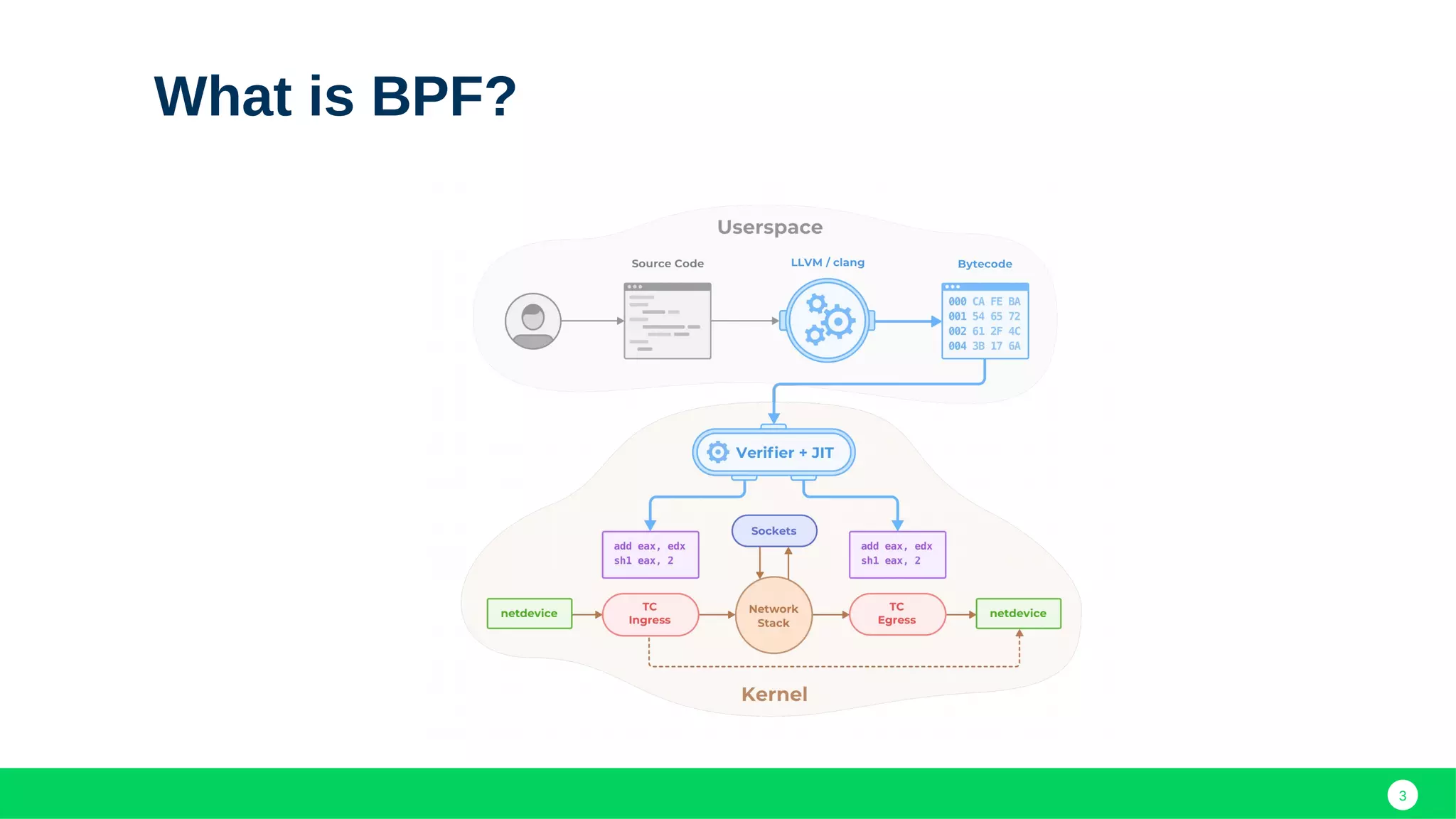

- 3.
- 4. 4 Linux network hasmany abstraction layers Application Layer System Call Interface Sockets Protocols TCP UDP Traffic Shaping sk_buff Network drivers

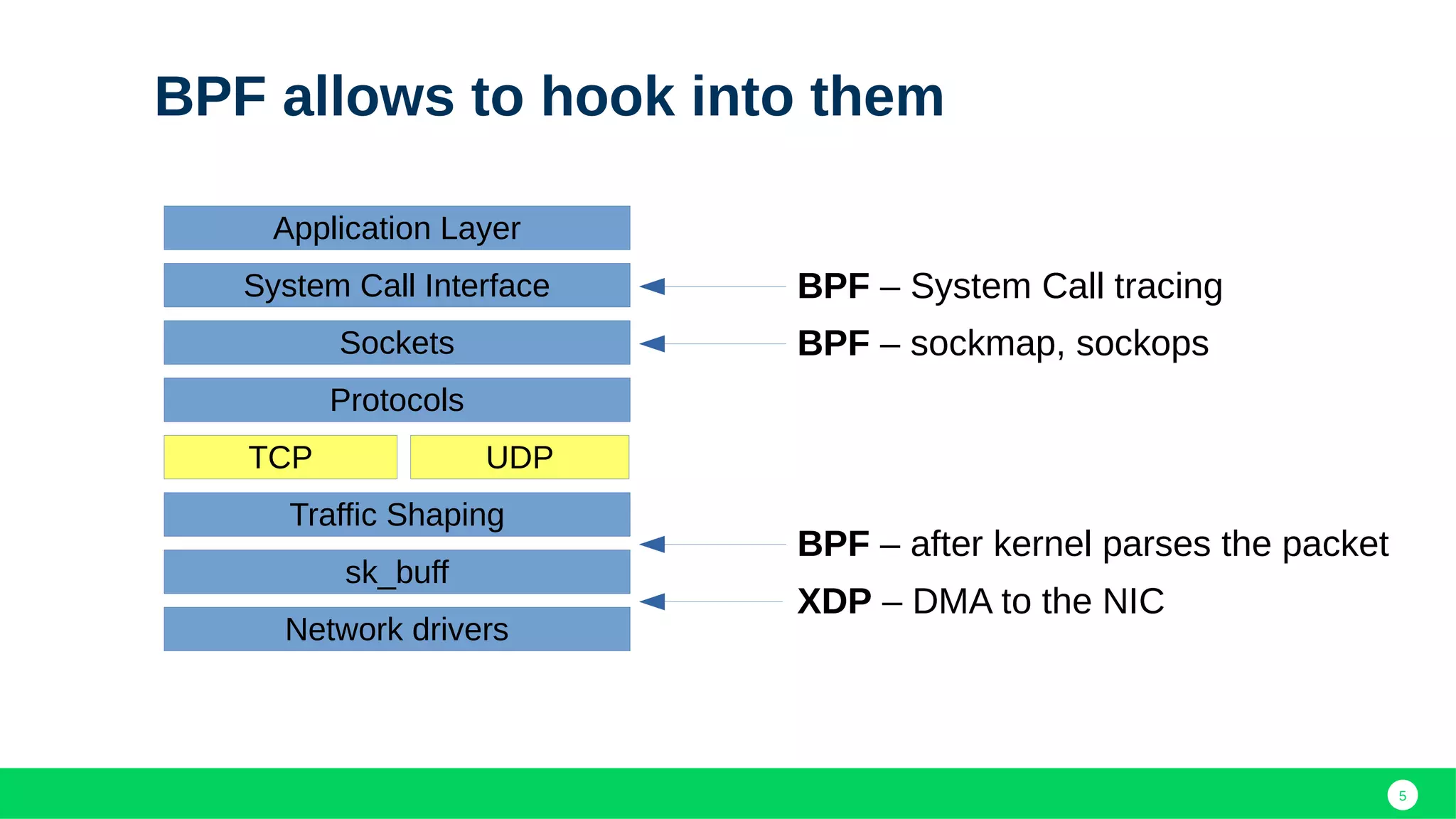

- 5. 5 BPF allows tohook into them Application Layer System Call Interface Sockets Protocols TCP UDP Traffic Shaping sk_buff Network drivers XDP – DMA to the NIC BPF – after kernel parses the packet BPF – System Call tracing BPF – sockmap, sockops

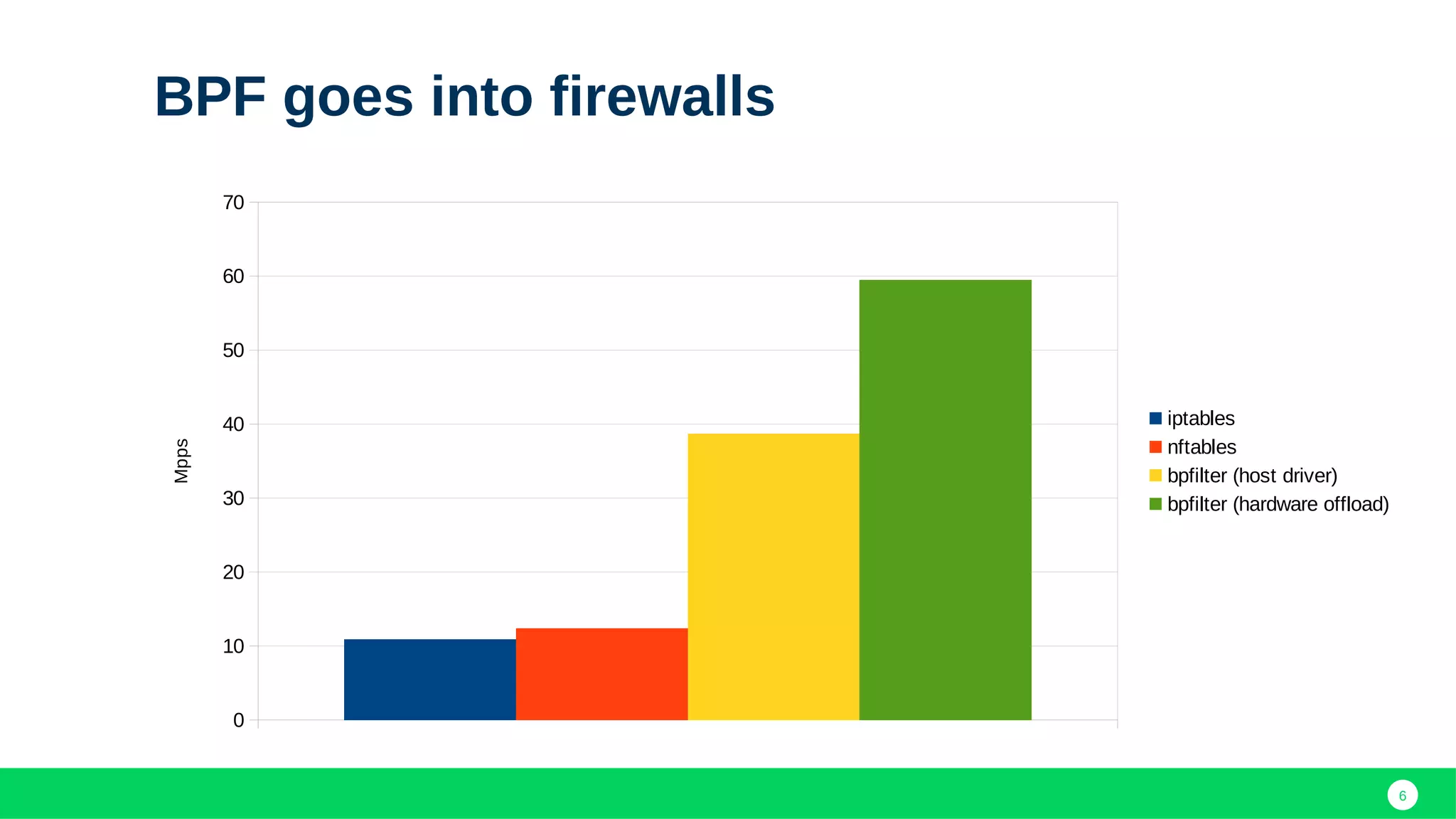

- 6. 6 BPF goes intofirewalls 0 10 20 30 40 50 60 70 iptables nftables bpfilter (host driver) bpfilter (hardware offload) Mpps
- 7. 7 BPF goes into... ● Loadbalancers - katran ● perf ● systemd ● Suricata ● Open vSwitch - AF_XDP ● And many many others
- 8.

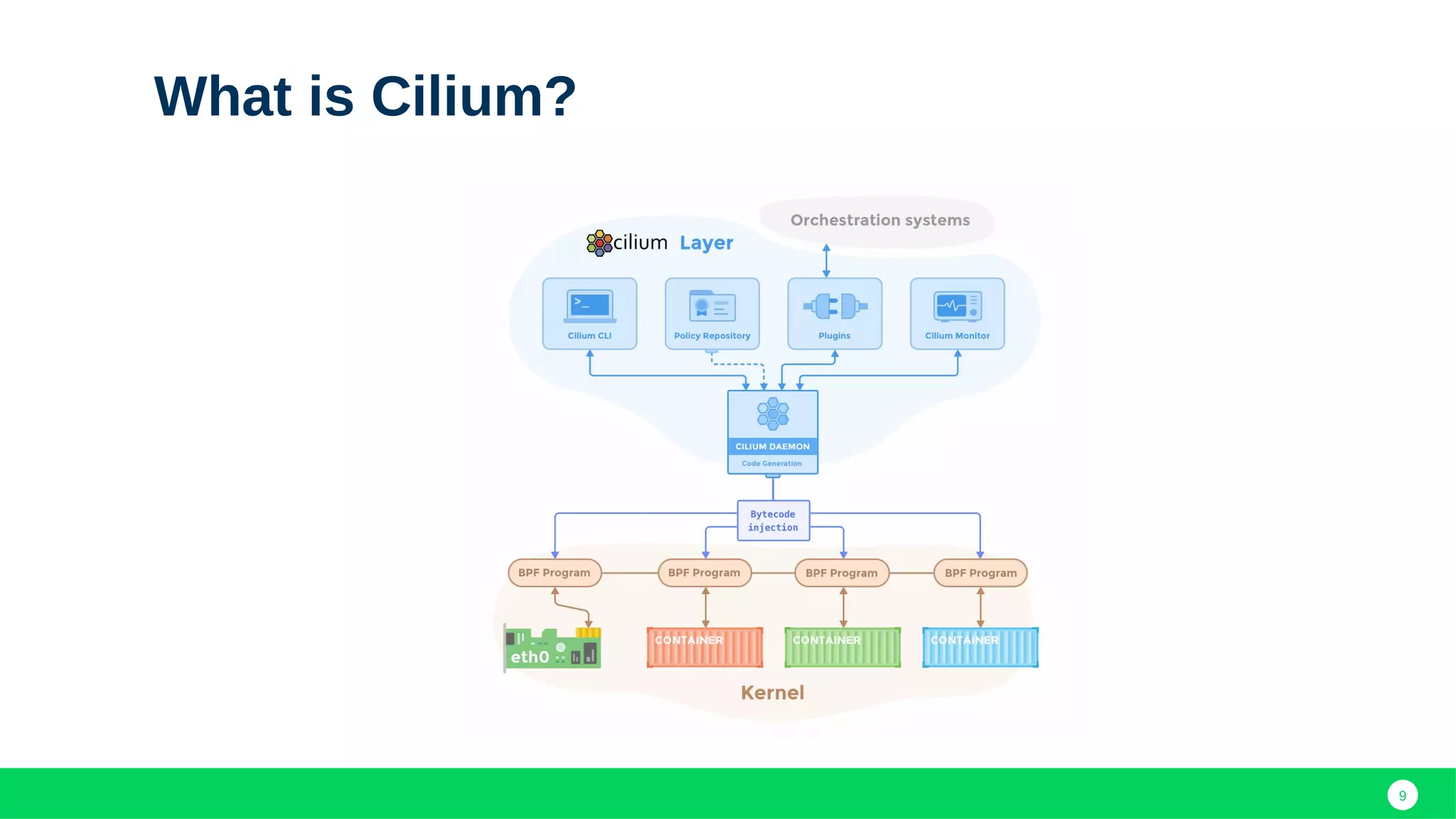

- 9.

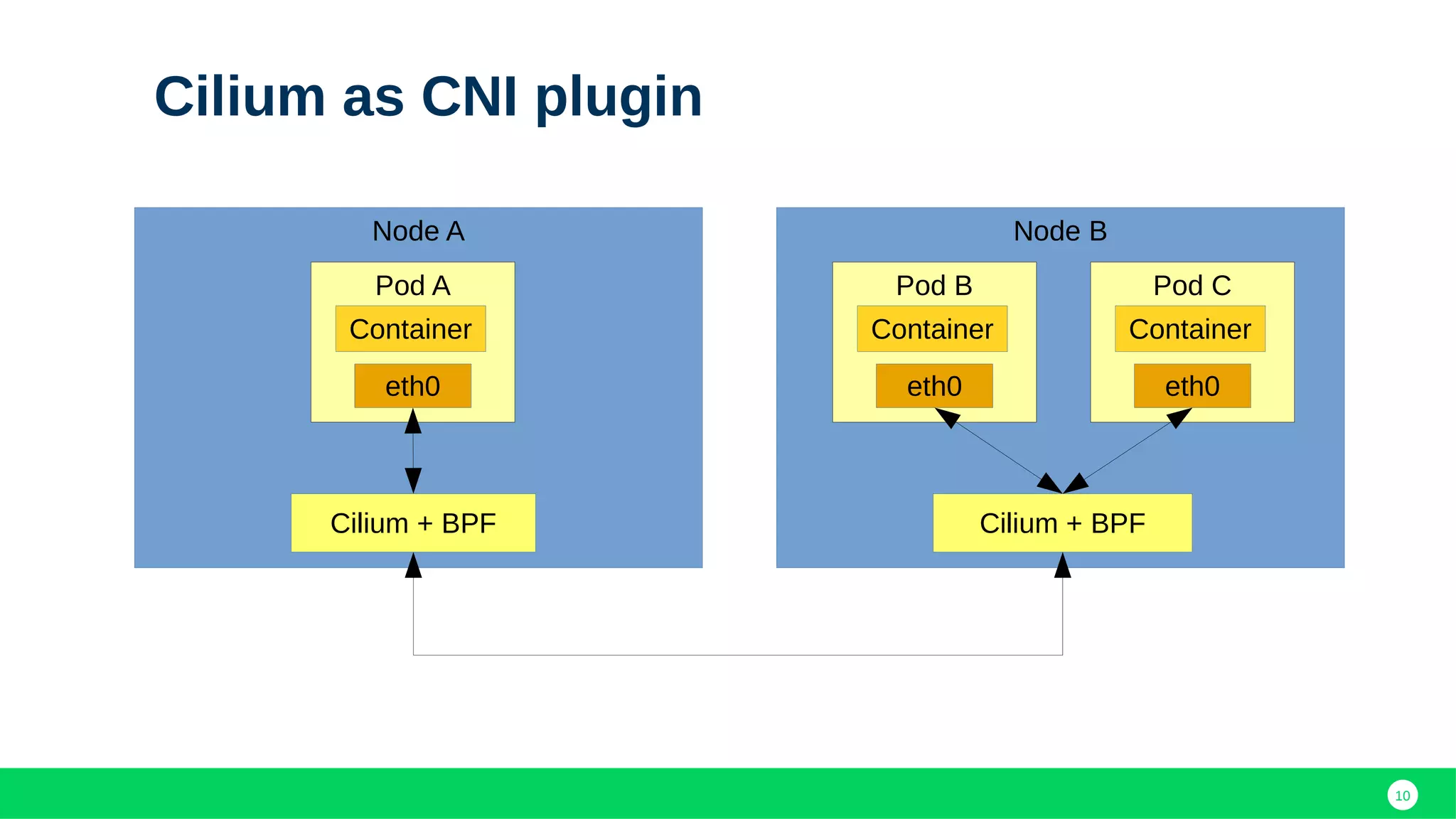

- 10. 10 Cilium as CNIplugin Node A Pod A Cilium + BPF Node B Cilium + BPF Container eth0 Pod B Container eth0 Pod C Container eth0

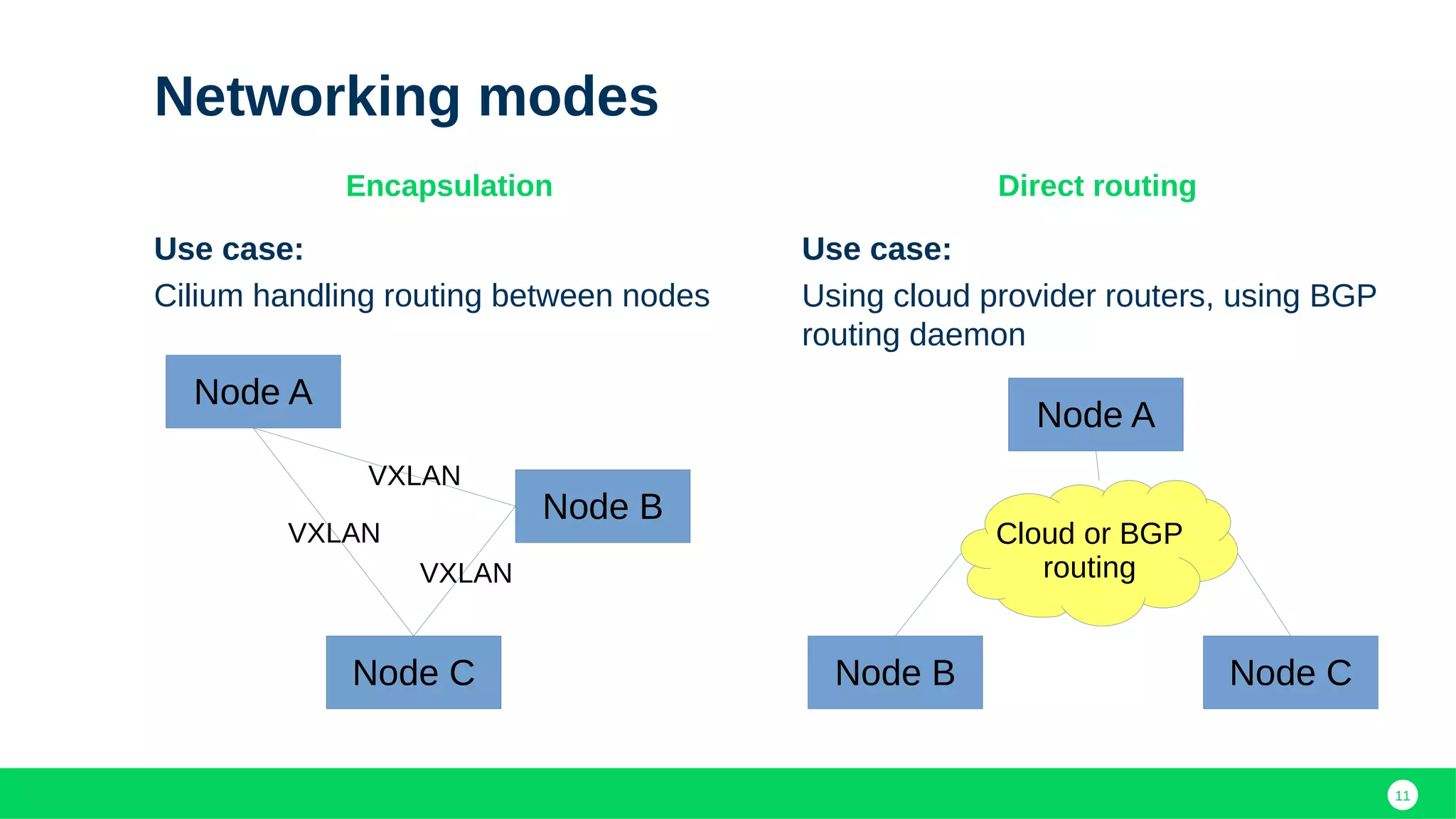

- 11. 11 Networking modes Use case: Ciliumhandling routing between nodes Encapsulation Use case: Using cloud provider routers, using BGP routing daemon Direct routing Node A Node B Node C VXLAN VXLAN VXLAN Node A Node B Node C Cloud or BGP routing

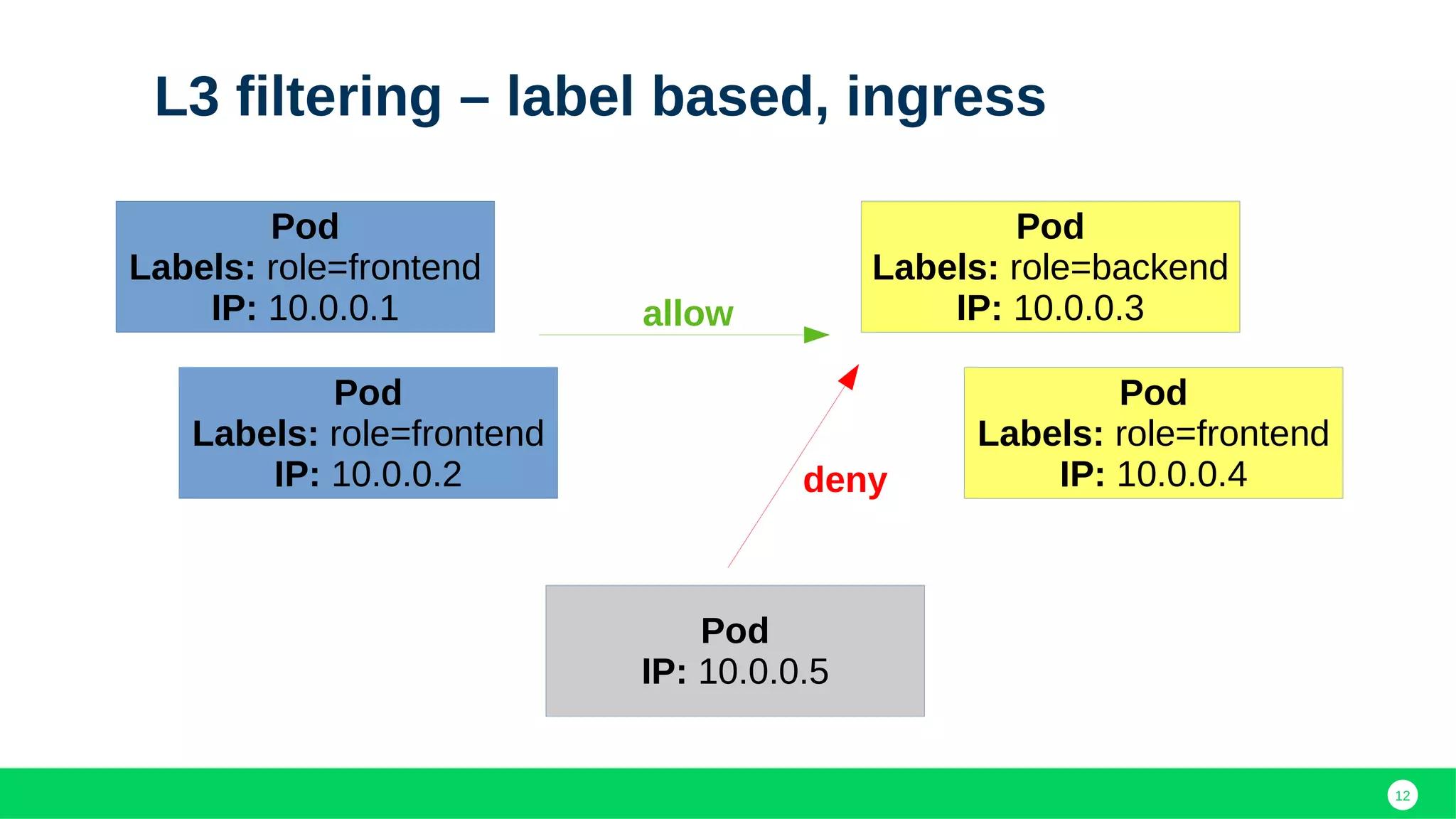

- 12. 12 L3 filtering –label based, ingress Pod Labels: role=frontend IP: 10.0.0.1 Pod Labels: role=frontend IP: 10.0.0.2 Pod IP: 10.0.0.5 Pod Labels: role=backend IP: 10.0.0.3 Pod Labels: role=frontend IP: 10.0.0.4 allow deny

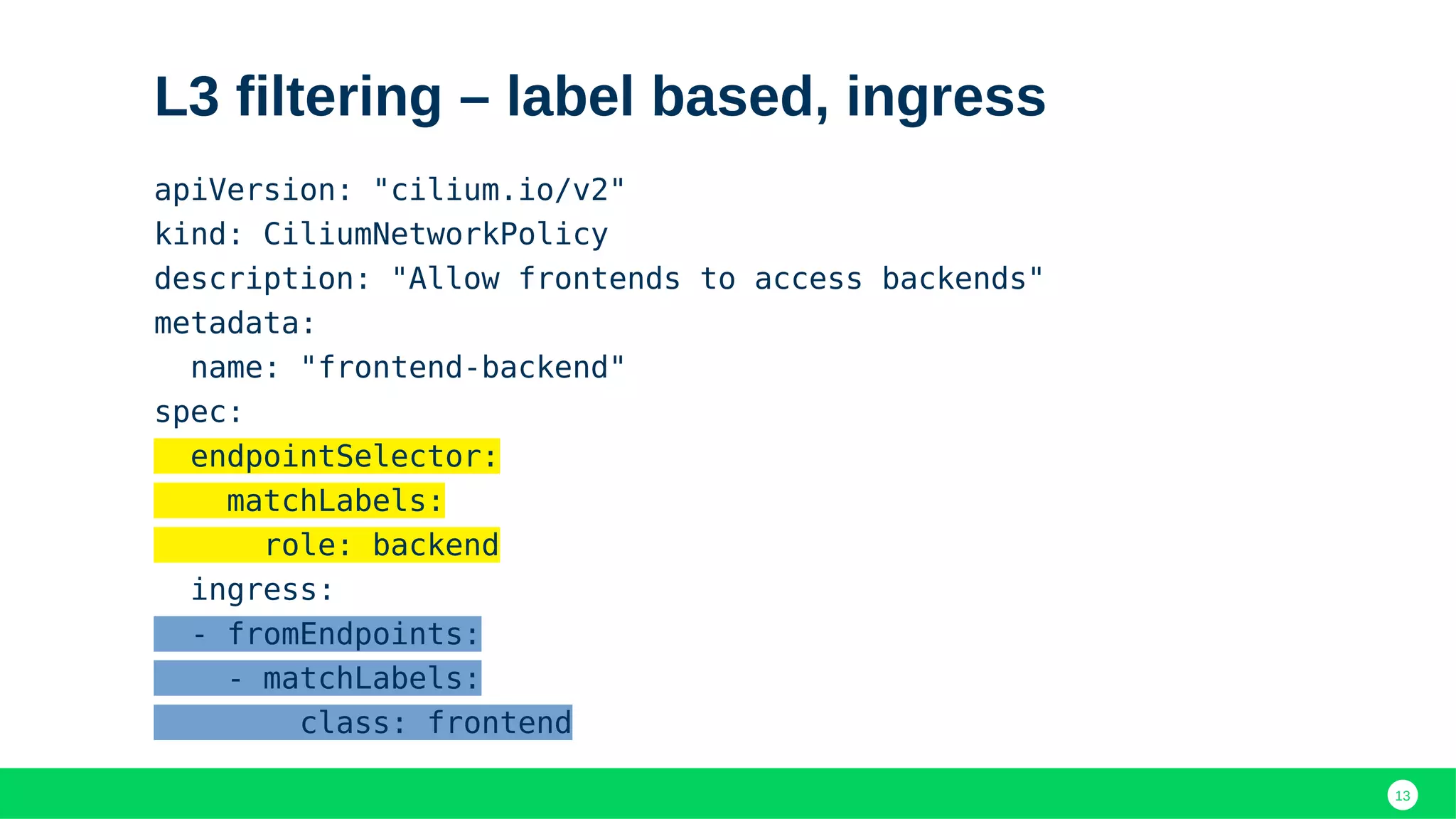

- 13. 13 L3 filtering –label based, ingress apiVersion: "cilium.io/v2" kind: CiliumNetworkPolicy description: "Allow frontends to access backends" metadata: name: "frontend-backend" spec: endpointSelector: matchLabels: role: backend ingress: - fromEndpoints: - matchLabels: class: frontend

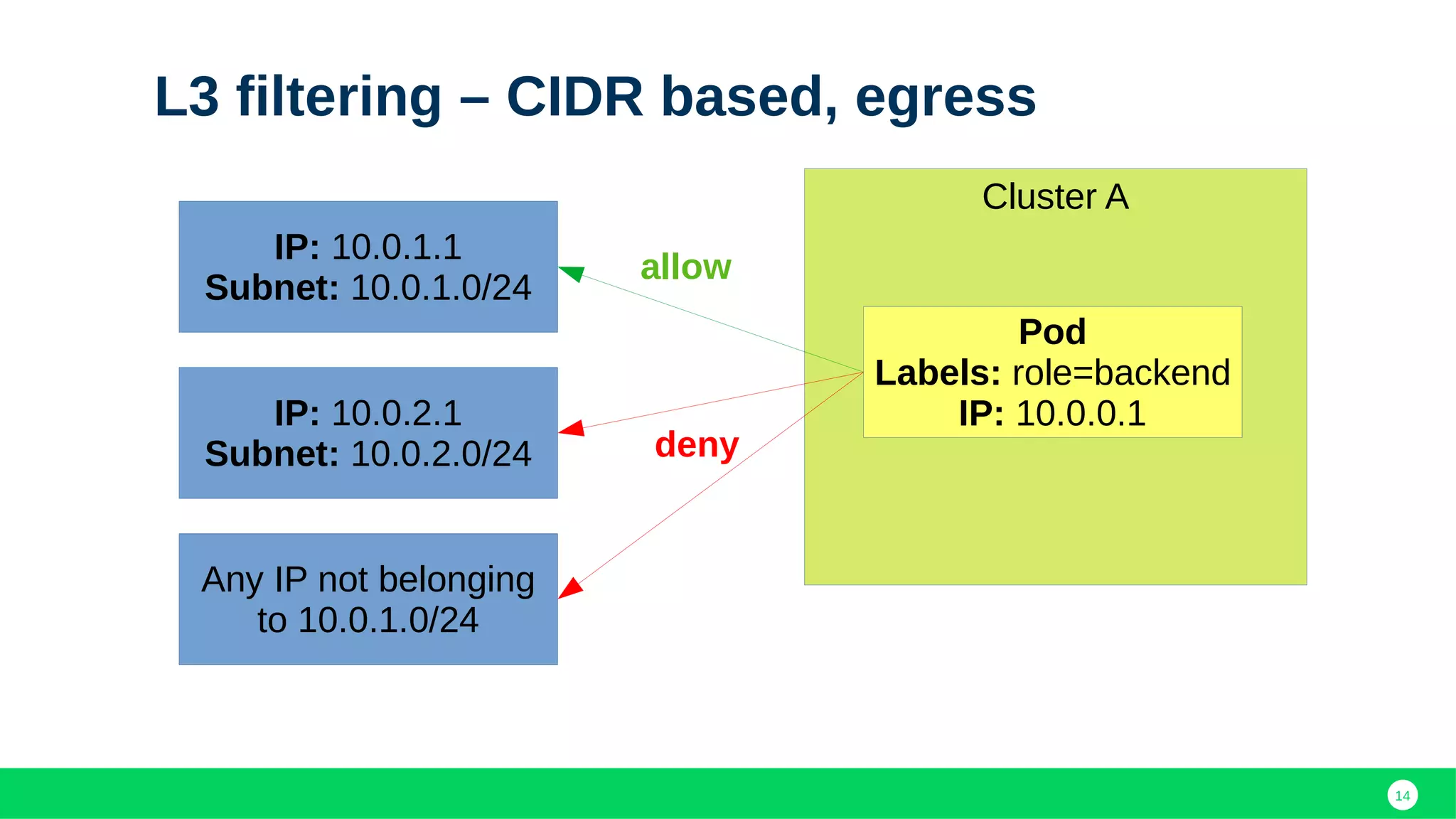

- 14. 14 L3 filtering –CIDR based, egress IP: 10.0.1.1 Subnet: 10.0.1.0/24 IP: 10.0.2.1 Subnet: 10.0.2.0/24 allow deny Cluster A Pod Labels: role=backend IP: 10.0.0.1 Any IP not belonging to 10.0.1.0/24

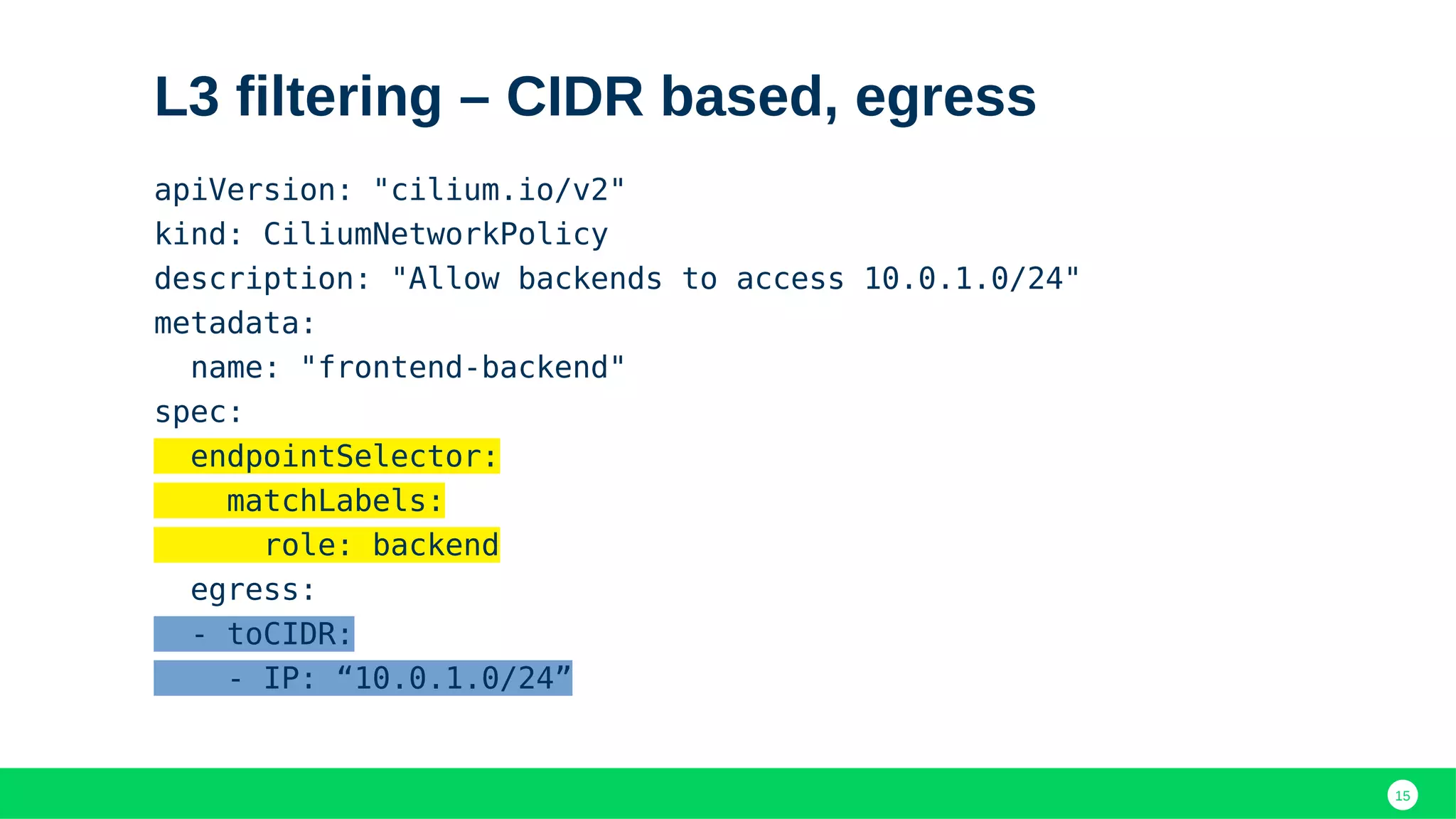

- 15. 15 L3 filtering –CIDR based, egress apiVersion: "cilium.io/v2" kind: CiliumNetworkPolicy description: "Allow backends to access 10.0.1.0/24" metadata: name: "frontend-backend" spec: endpointSelector: matchLabels: role: backend egress: - toCIDR: - IP: “10.0.1.0/24”

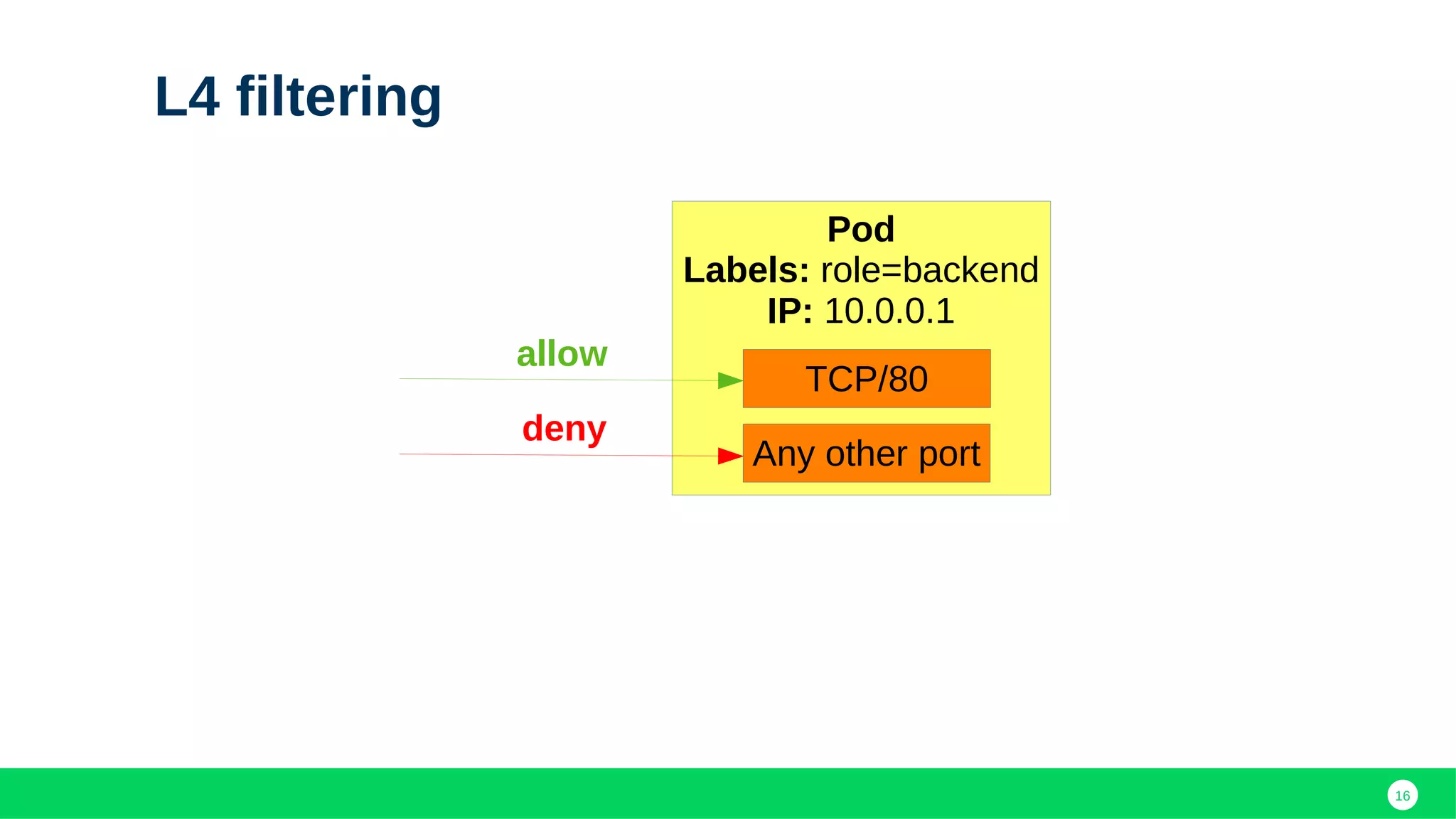

- 16. 16 L4 filtering Pod Labels: role=backend IP:10.0.0.1 allow deny TCP/80 Any other port

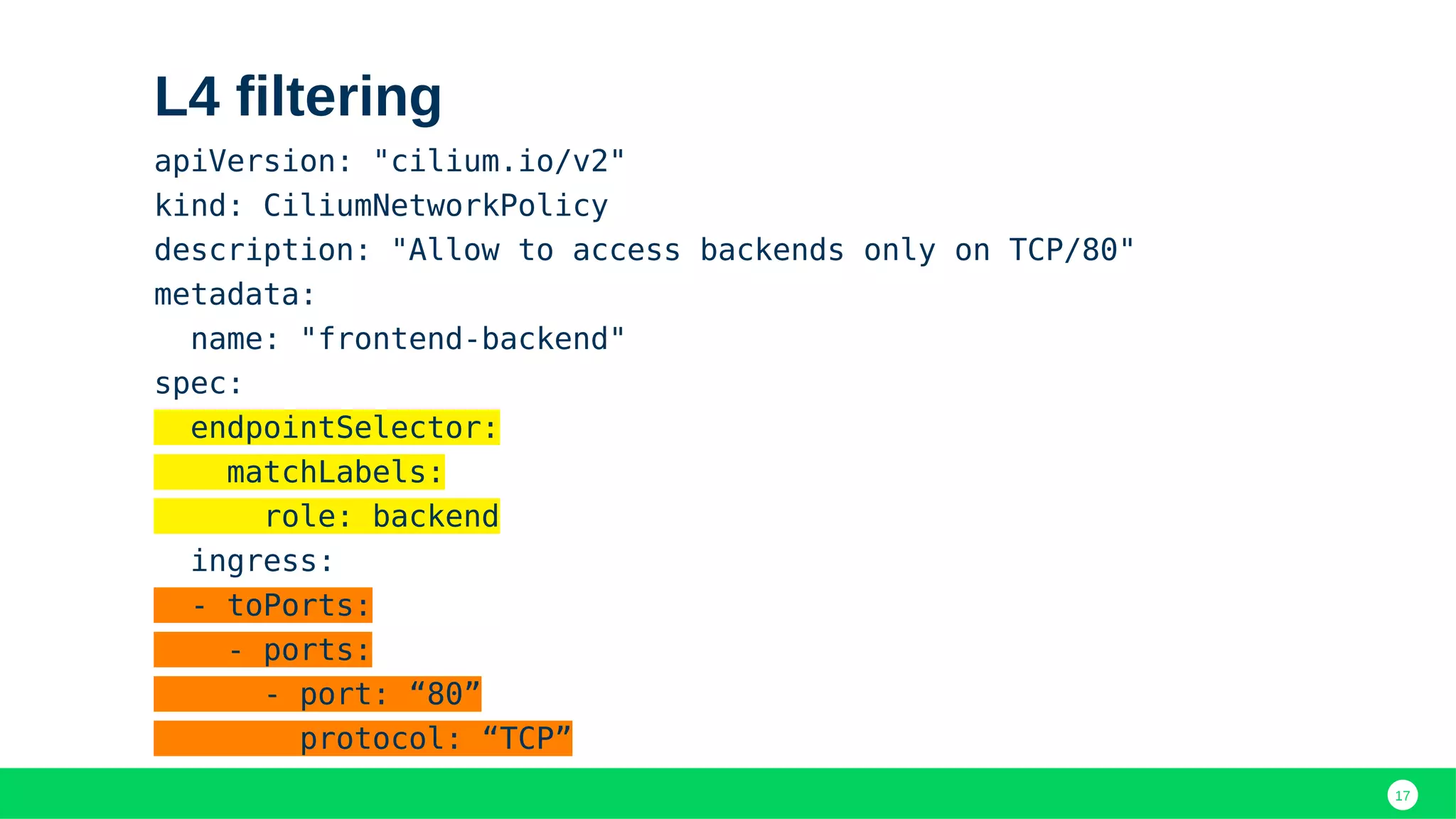

- 17. 17 L4 filtering apiVersion: "cilium.io/v2" kind:CiliumNetworkPolicy description: "Allow to access backends only on TCP/80" metadata: name: "frontend-backend" spec: endpointSelector: matchLabels: role: backend ingress: - toPorts: - ports: - port: “80” protocol: “TCP”

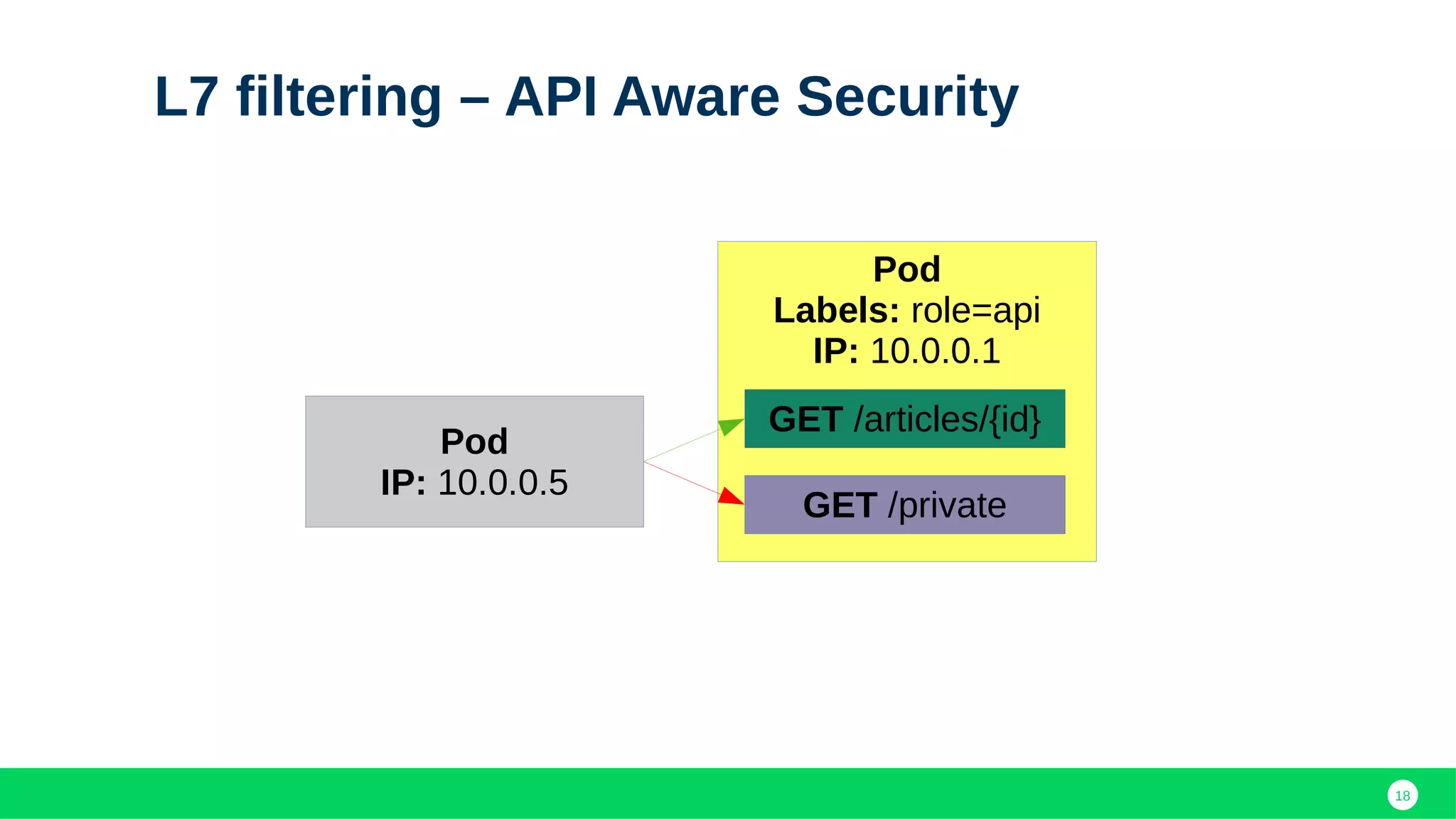

- 18. 18 L7 filtering –API Aware Security Pod Labels: role=api IP: 10.0.0.1 GET /articles/{id} GET /private Pod IP: 10.0.0.5

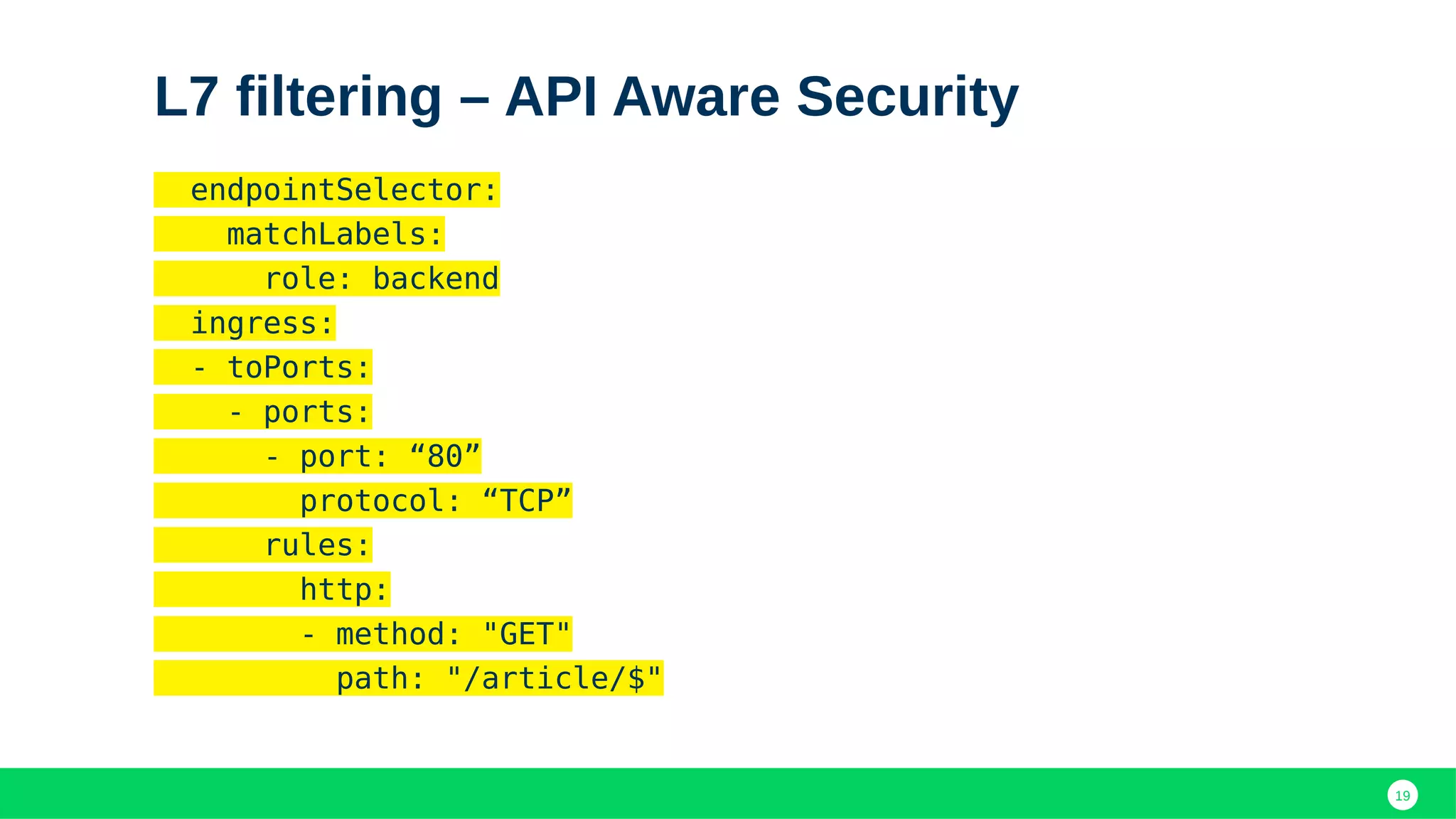

- 19. 19 L7 filtering –API Aware Security endpointSelector: matchLabels: role: backend ingress: - toPorts: - ports: - port: “80” protocol: “TCP” rules: http: - method: "GET" path: "/article/$"

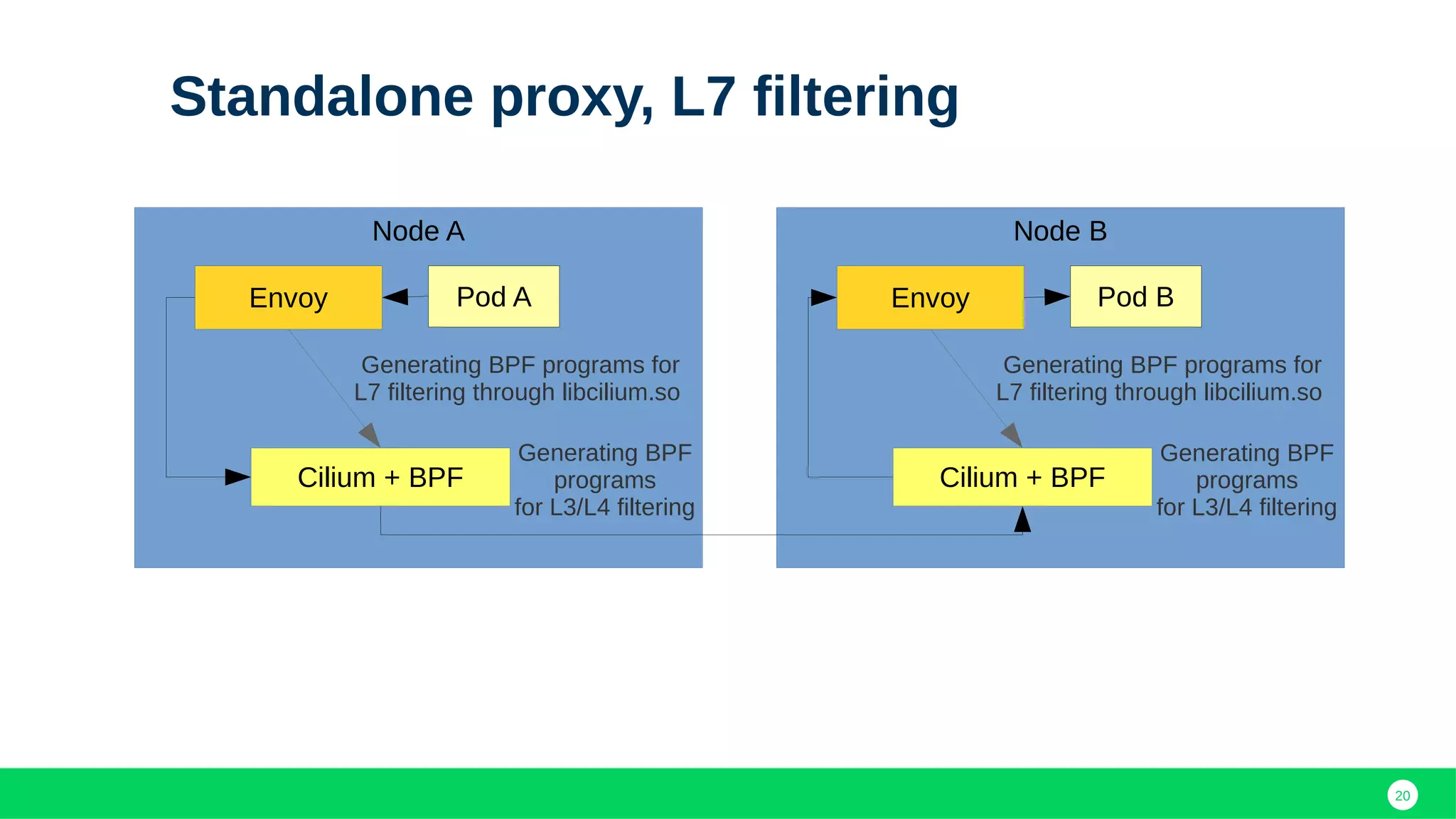

- 20. 20 Standalone proxy, L7filtering Node A Pod A Cilium + BPF Envoy Generating BPF programs for L7 filtering through libcilium.so Node B Pod B Cilium + BPF Envoy Generating BPF programs for L7 filtering through libcilium.so Generating BPF programs for L3/L4 filtering Generating BPF programs for L3/L4 filtering
- 21.

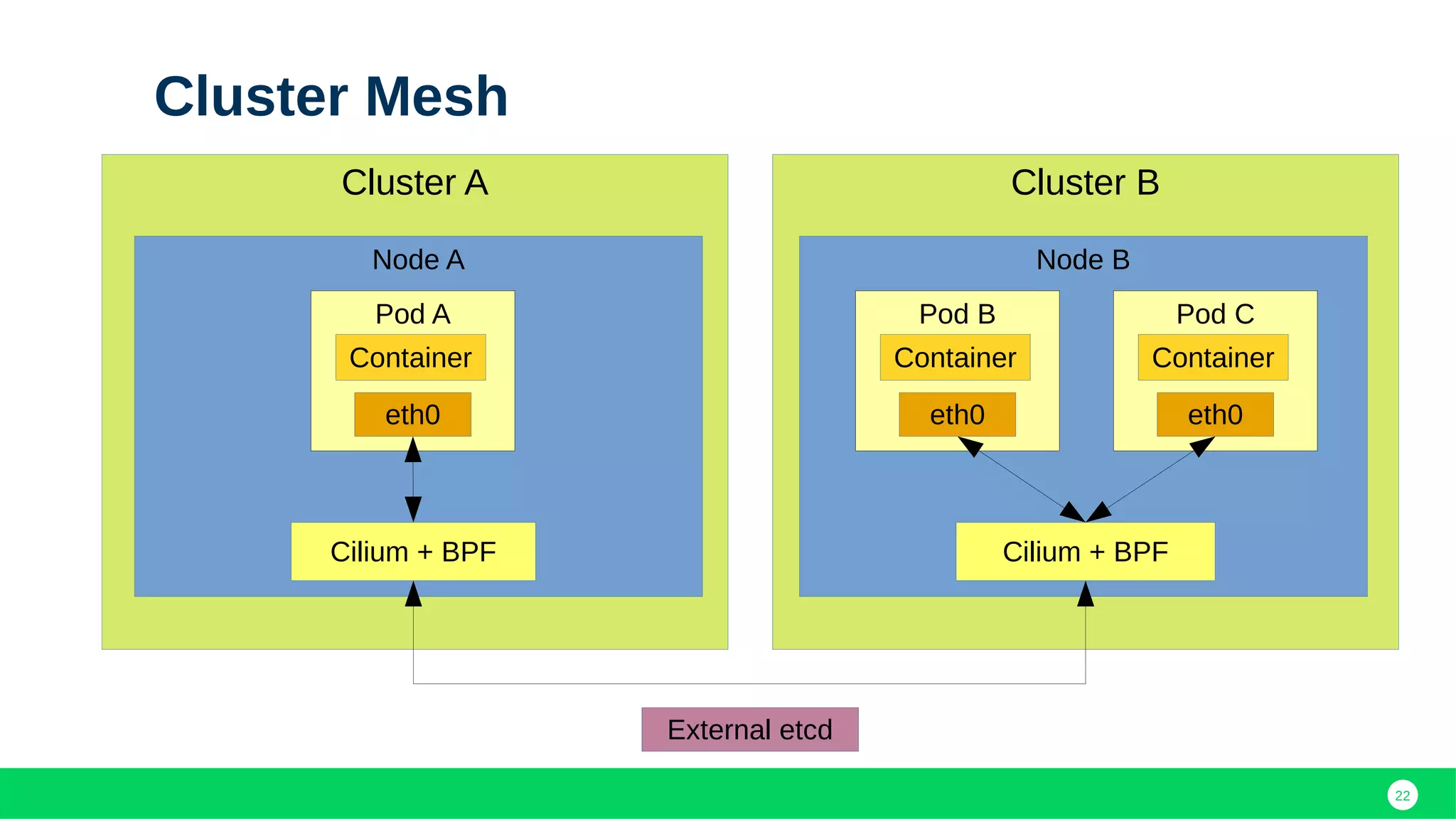

- 22. 22 Cluster Mesh Cluster ACluster B Node A Pod A Cilium + BPF Node B Cilium + BPF Container eth0 Pod B Container eth0 Pod C Container eth0 External etcd

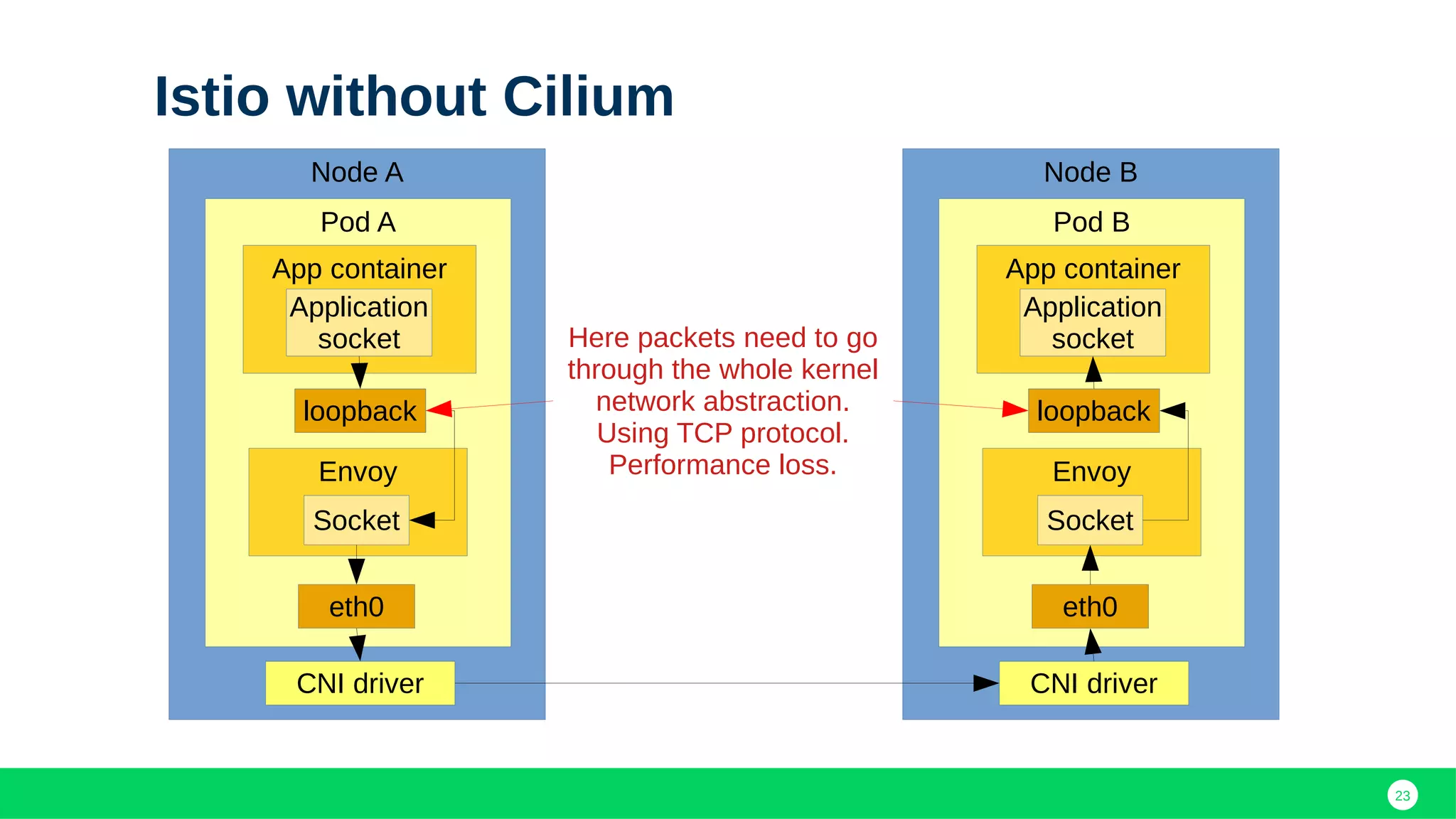

- 23. 23 Istio without Cilium NodeA Pod A App container Application socket Envoy Socket eth0 loopback CNI driver Node B Pod B App container Application socket Envoy Socket eth0 loopback CNI driver Here packets need to go through the whole kernel network abstraction. Using TCP protocol. Performance loss.

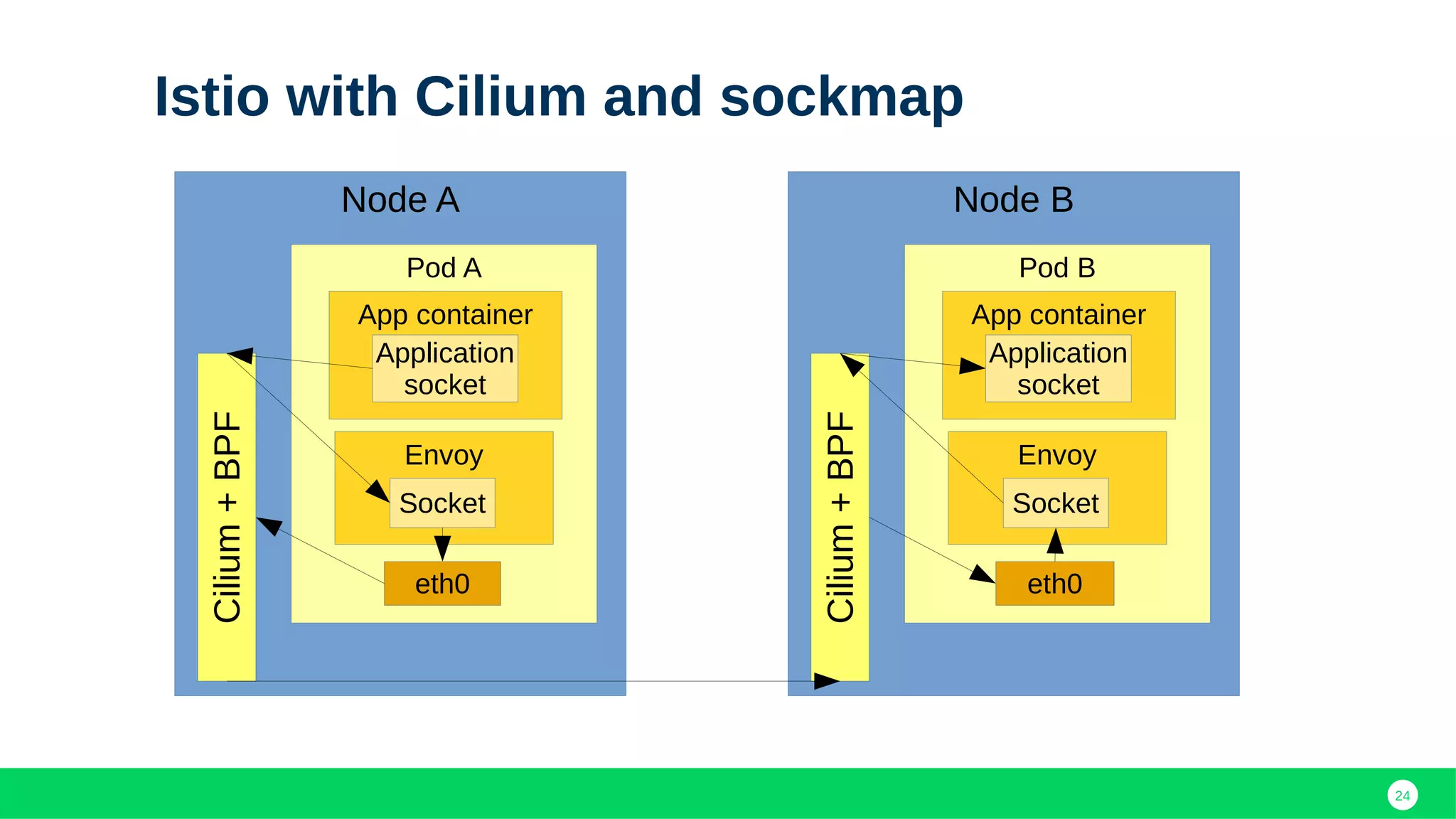

- 24. 24 Istio with Ciliumand sockmap Node A Pod A App container Application socket Cilium+BPF Envoy Socket eth0 Node B Pod B App container Application socket Cilium+BPF Envoy Socket eth0

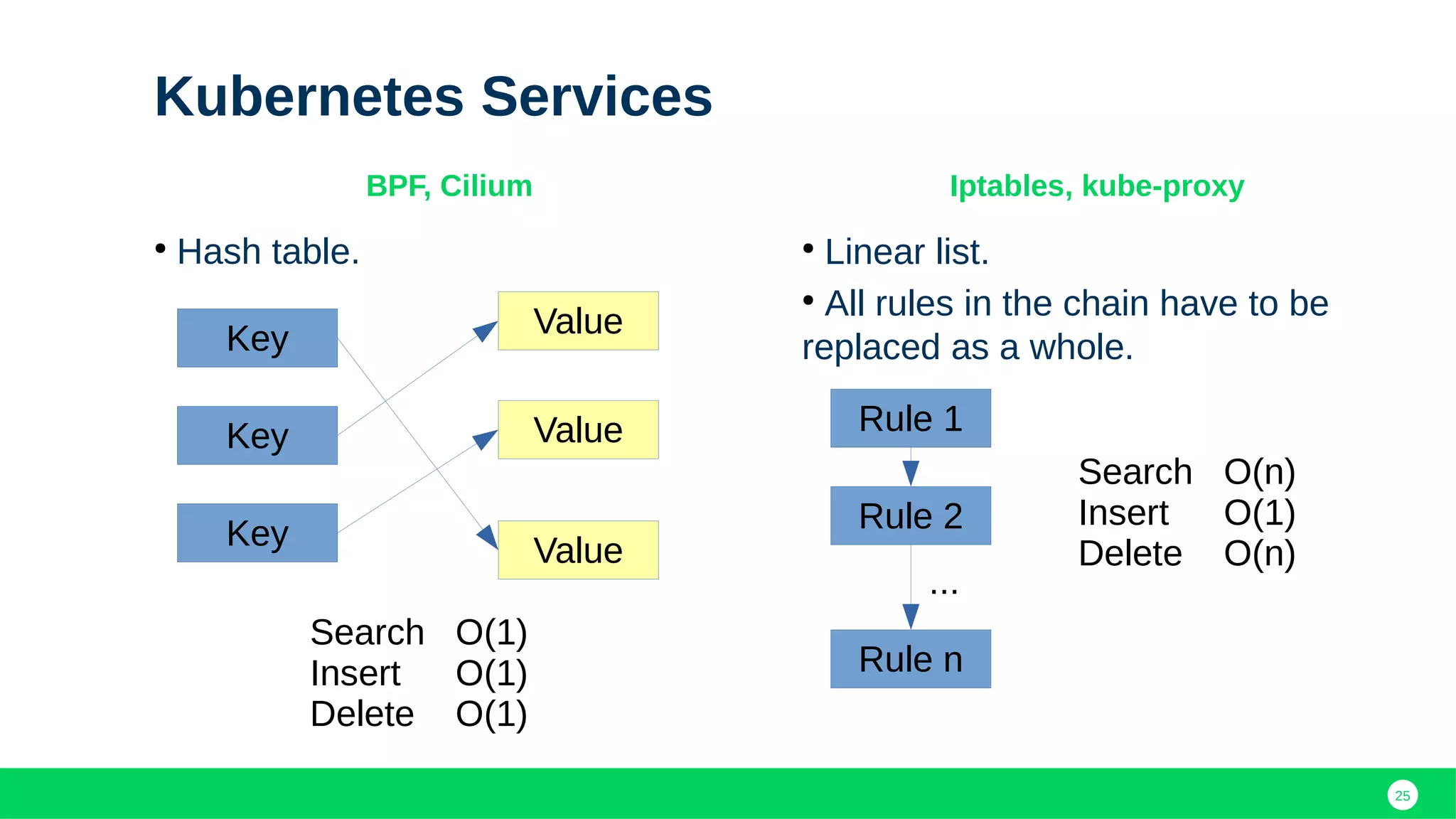

- 25. 25 Kubernetes Services ● Hash table. BPF,Cilium ● Linear list. ● All rules in the chain have to be replaced as a whole. Iptables, kube-proxy Key Key Key Value Value Value Rule 1 Rule 2 Rule n ... Search O(1) Insert O(1) Delete O(1) Search O(n) Insert O(1) Delete O(n)

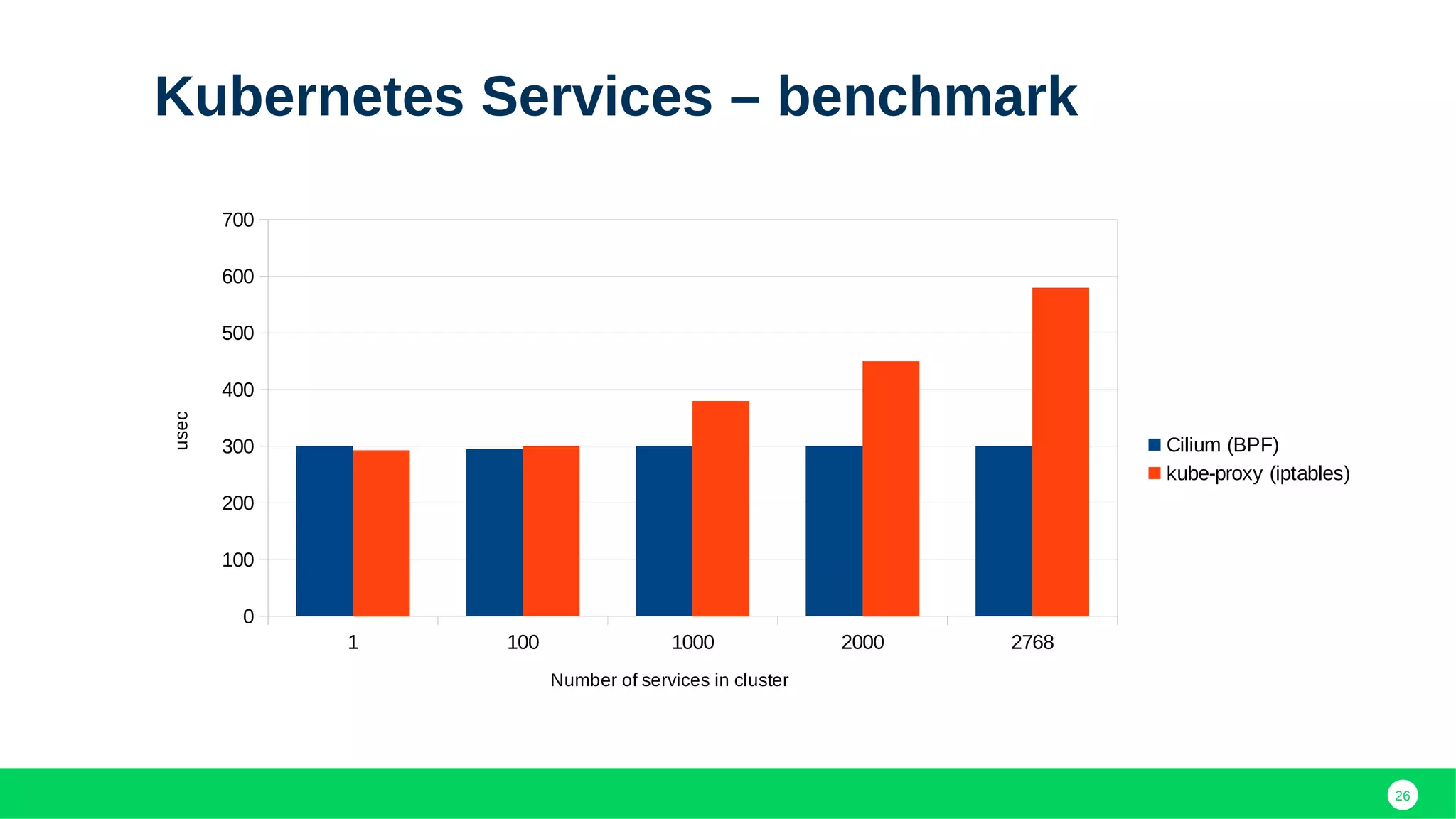

- 26. 26 Kubernetes Services –benchmark 1 100 1000 2000 2768 0 100 200 300 400 500 600 700 Cilium (BPF) kube-proxy (iptables) Number of services in cluster usec

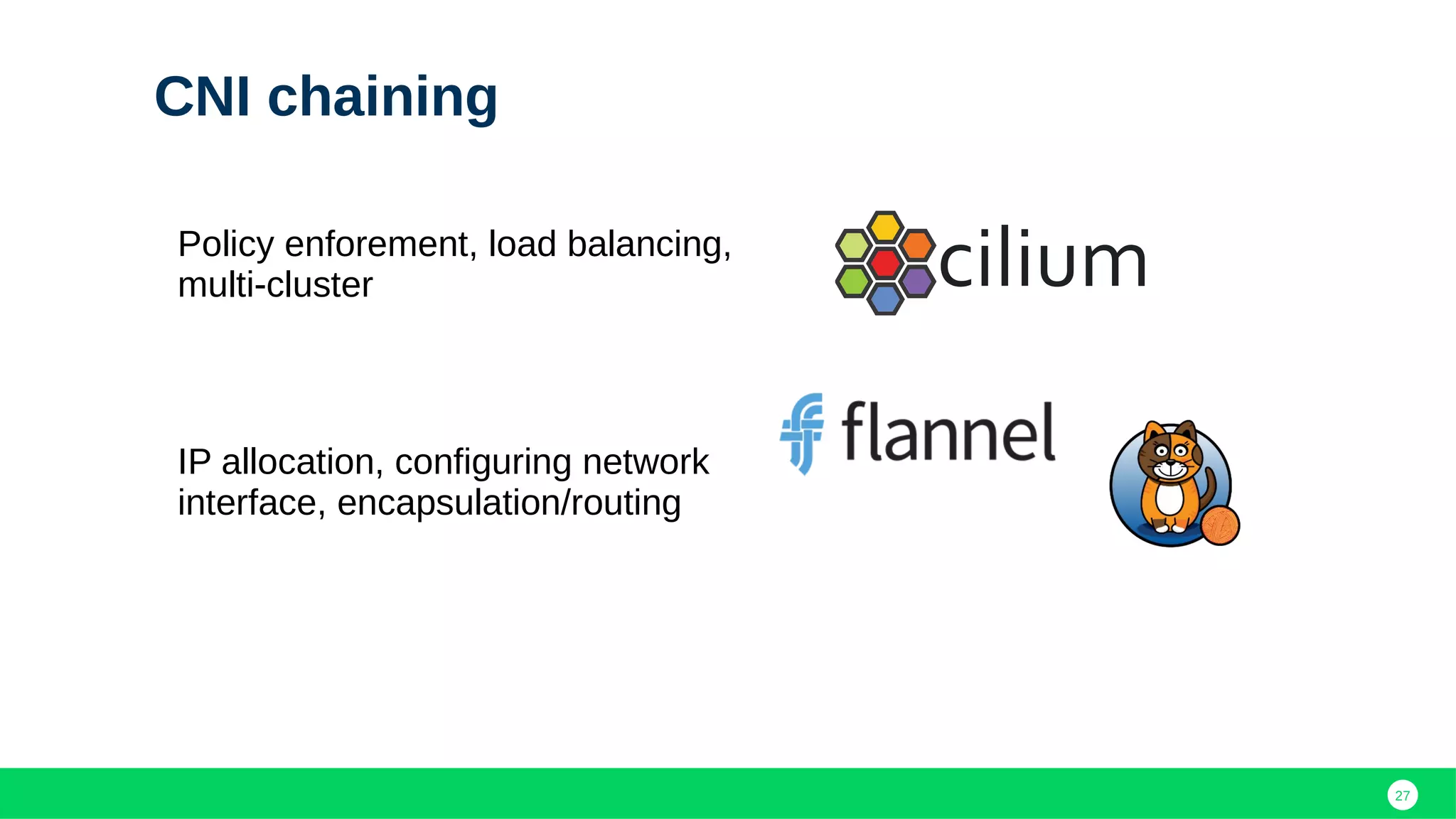

- 27. 27 CNI chaining Policy enforement,load balancing, multi-cluster IP allocation, configuring network interface, encapsulation/routing

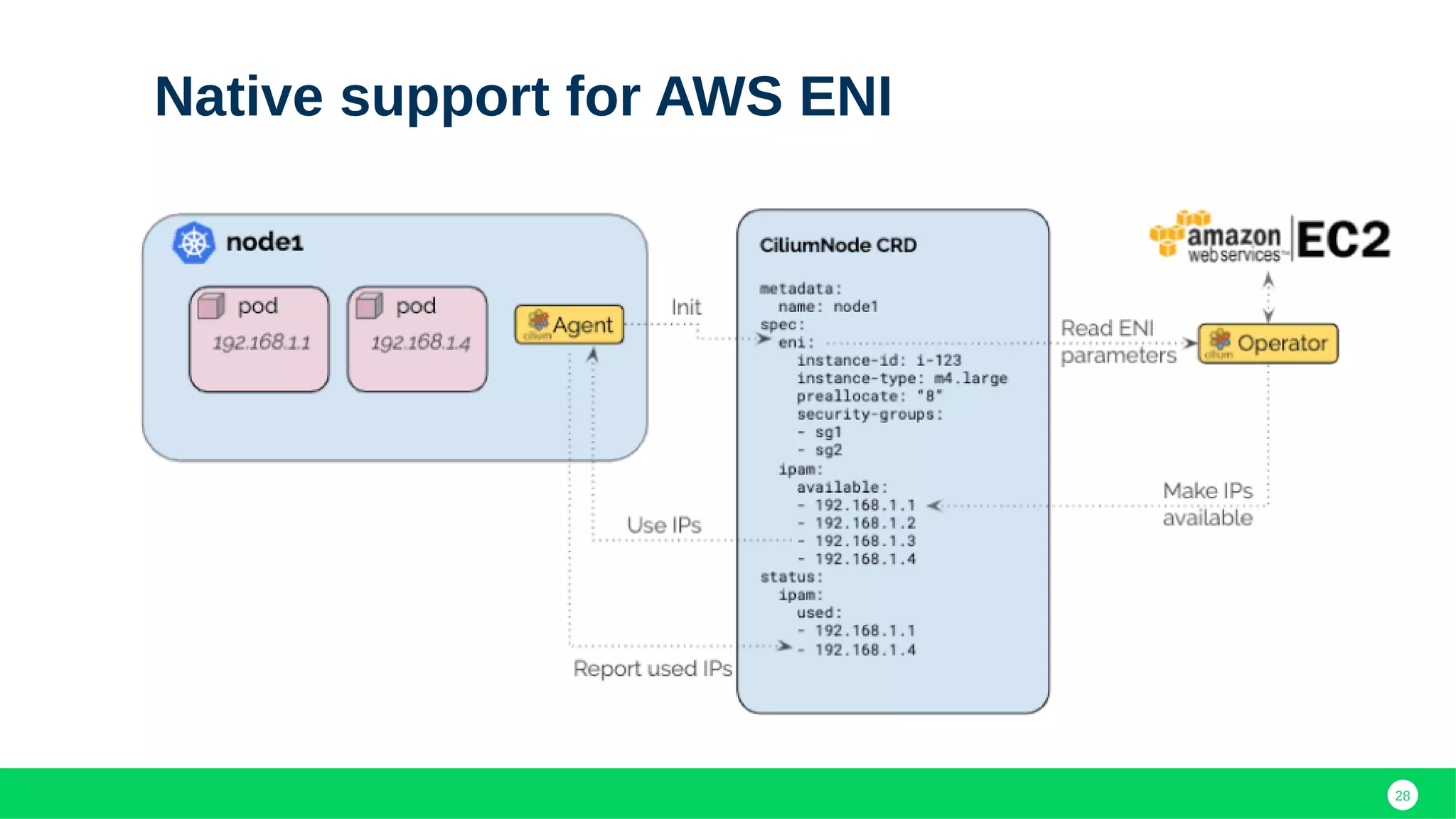

- 28. 28 Native support forAWS ENI
- 29.

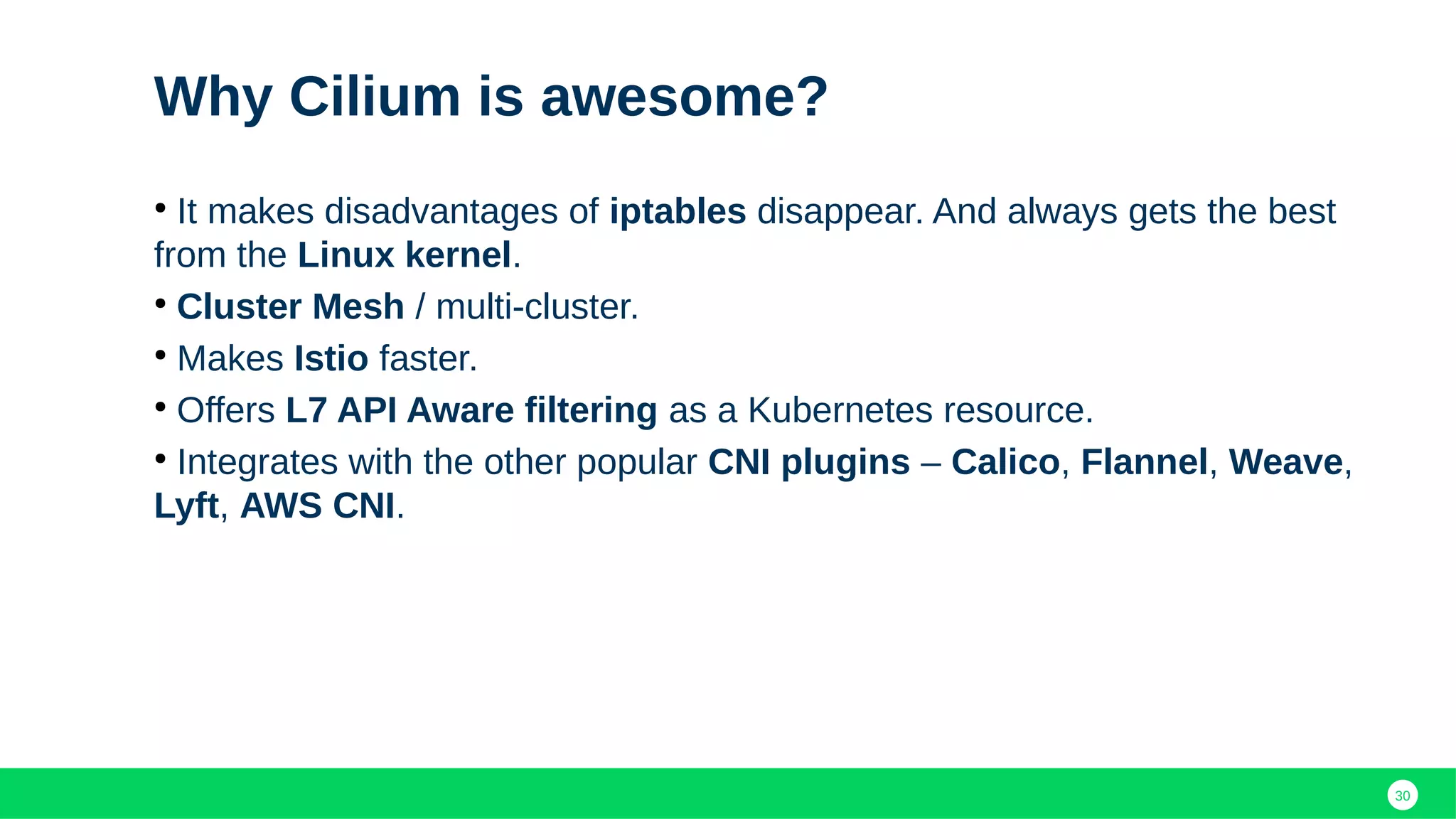

- 30. 30 Why Cilium isawesome? ● It makes disadvantages of iptables disappear. And always gets the best from the Linux kernel. ● Cluster Mesh / multi-cluster. ● Makes Istio faster. ● Offers L7 API Aware filtering as a Kubernetes resource. ● Integrates with the other popular CNI plugins – Calico, Flannel, Weave, Lyft, AWS CNI.
