Introduction to Modern Software Architecture

This document provides an overview of modern software architecture models and concepts. It begins with an introduction to software architecture and definitions. It then discusses the Kruchten 5+1 view model for describing architecture using multiple views. Additional topics covered include the OCTO matrix approach, example architecture diagrams for a sample application called RIA Organizer, and modern architectures like big data, microservices and serverless computing.

Embed presentation

1 © Jerome Kehrli @ niceideas.ch Introduction to Modern Software Architecture

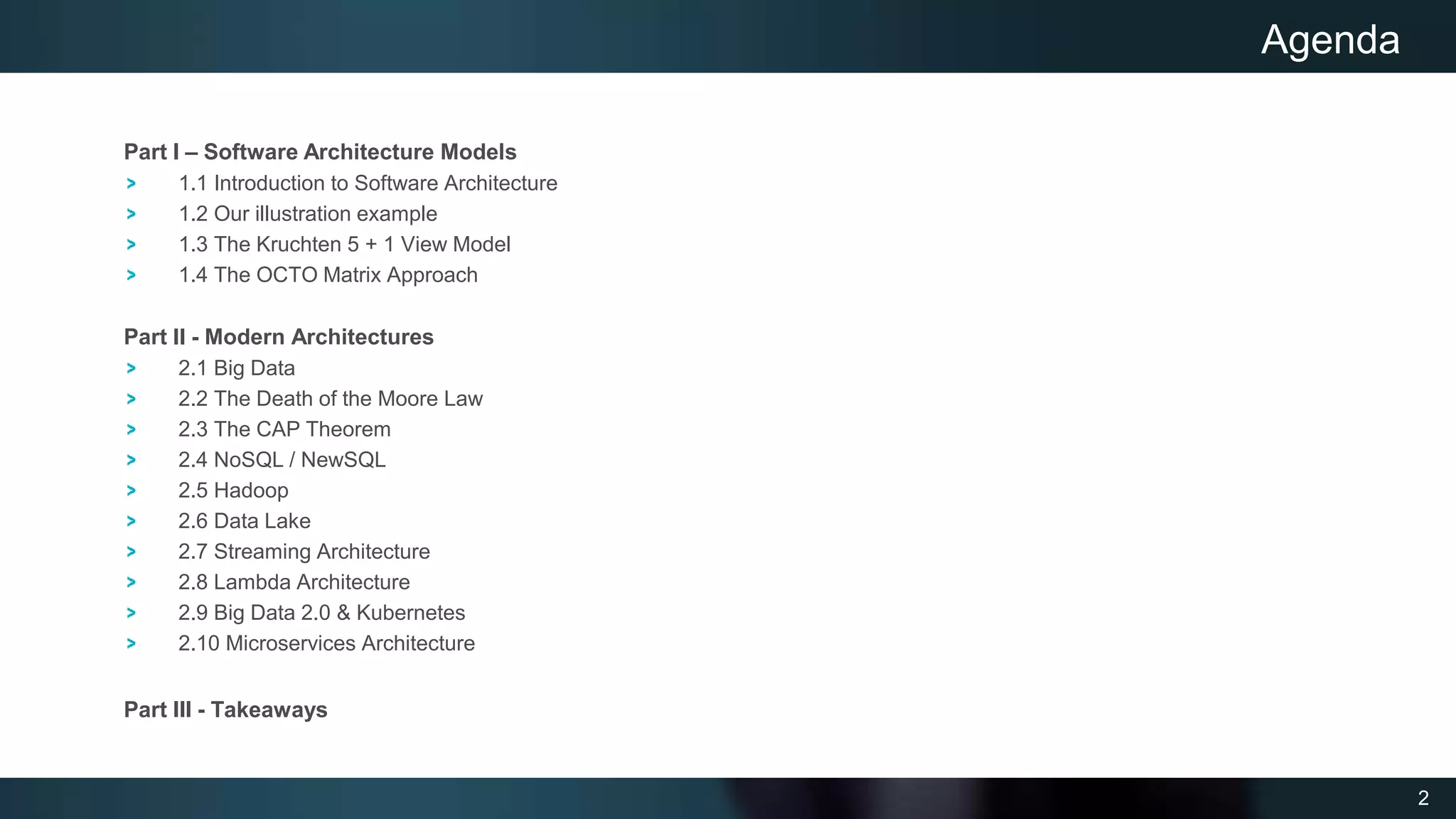

2 Part I – Software Architecture Models 1.1 Introduction to Software Architecture 1.2 Our illustration example 1.3 The Kruchten 5 + 1 View Model 1.4 The OCTO Matrix Approach Part II - Modern Architectures 2.1 Big Data 2.2 The Death of the Moore Law 2.3 The CAP Theorem 2.4 NoSQL / NewSQL 2.5 Hadoop 2.6 Data Lake 2.7 Streaming Architecture 2.8 Lambda Architecture 2.9 Big Data 2.0 & Kubernetes 2.10 Microservices Architecture Part III - Takeaways Agenda
3 1.1 Introduction to Software Architecture

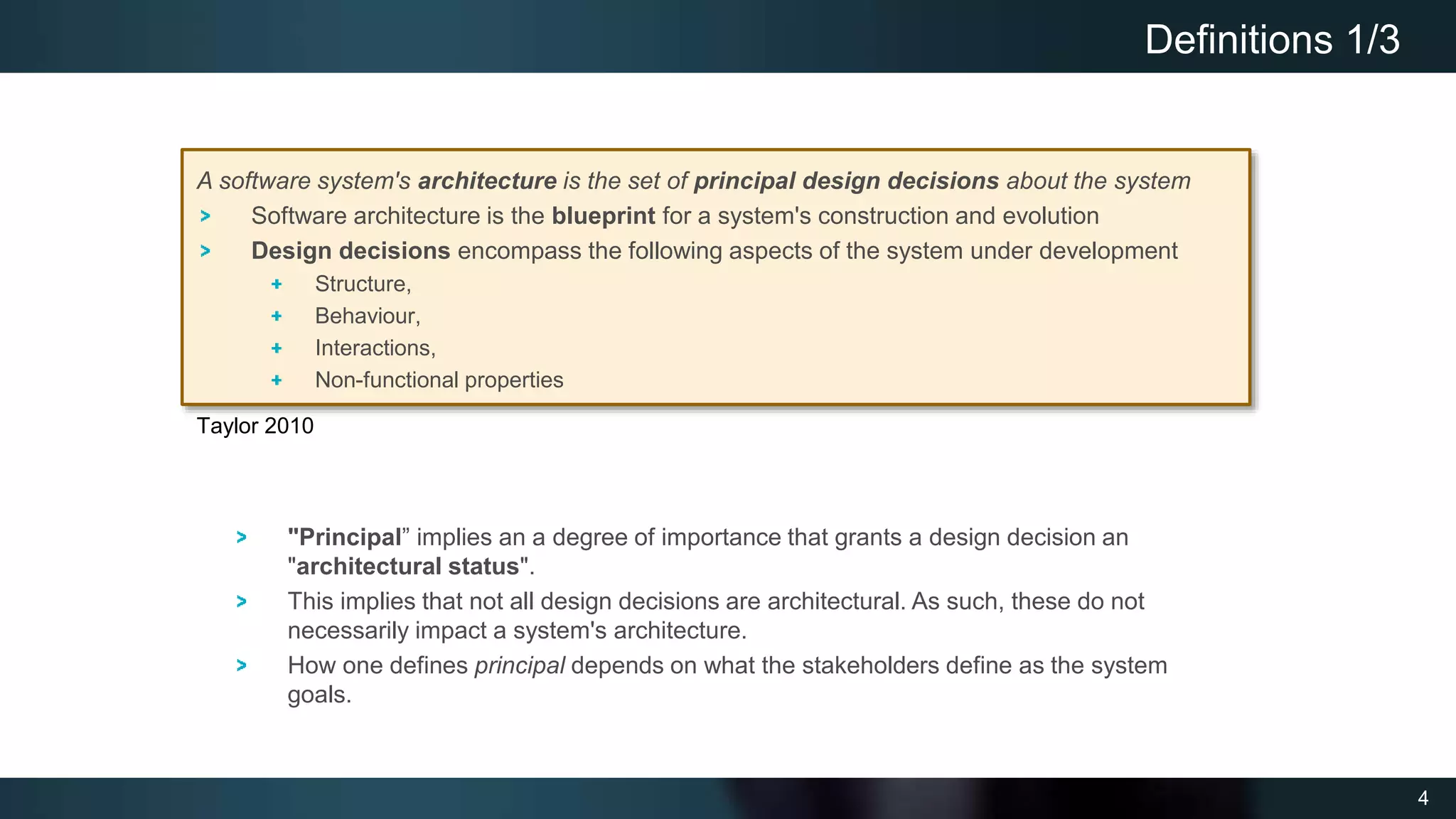

4 Definitions 1/3 A software system's architecture is the set of principal design decisions about the system Software architecture is the blueprint for a system's construction and evolution Design decisions encompass the following aspects of the system under development Structure, Behaviour, Interactions, Non-functional properties Taylor 2010 "Principal” implies an a degree of importance that grants a design decision an "architectural status". This implies that not all design decisions are architectural. As such, these do not necessarily impact a system's architecture. How one defines principal depends on what the stakeholders define as the system goals.

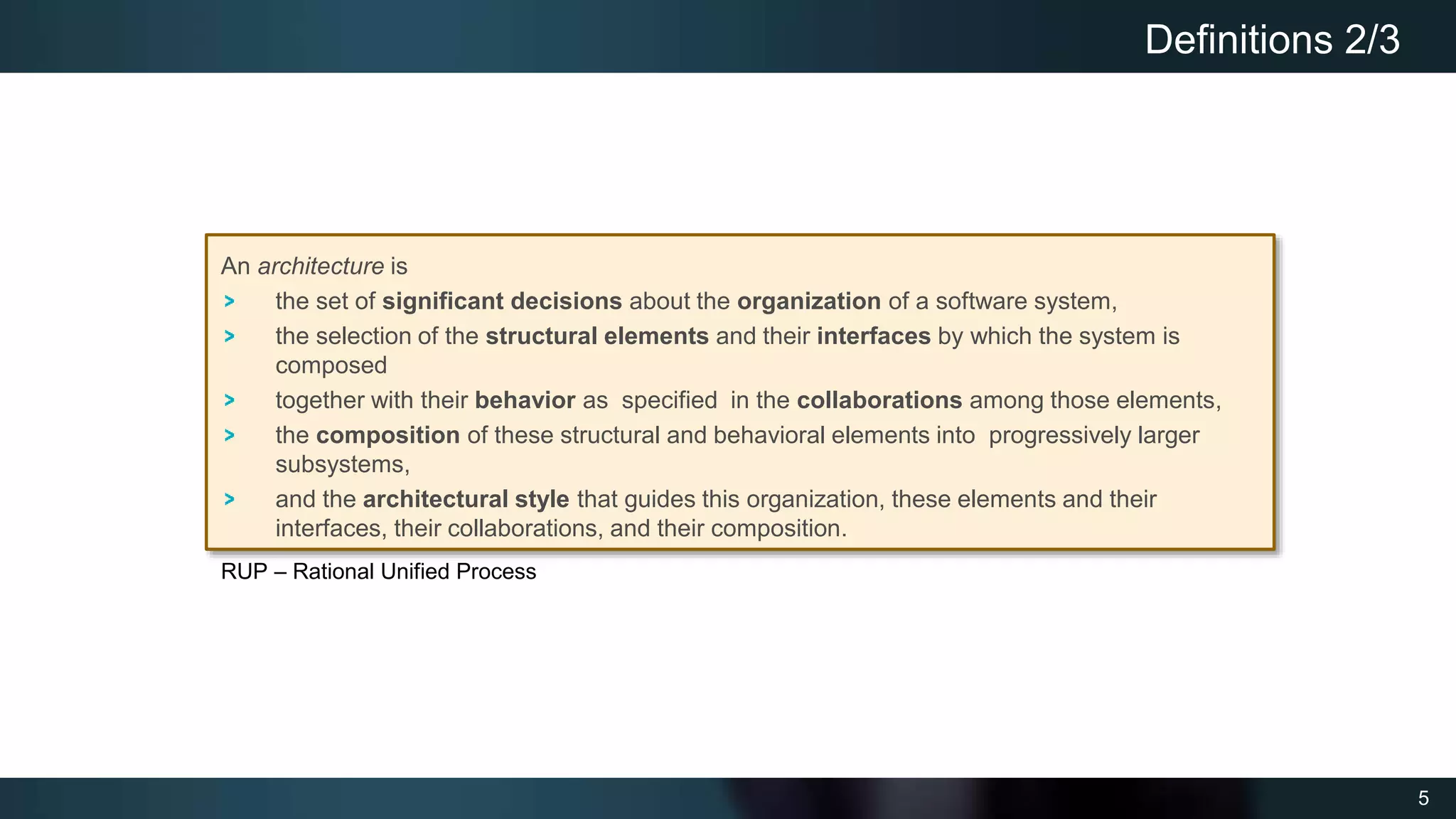

5 Definitions 2/3 An architecture is the set of significant decisions about the organization of a software system, the selection of the structural elements and their interfaces by which the system is composed together with their behavior as specified in the collaborations among those elements, the composition of these structural and behavioral elements into progressively larger subsystems, and the architectural style that guides this organization, these elements and their interfaces, their collaborations, and their composition. RUP – Rational Unified Process

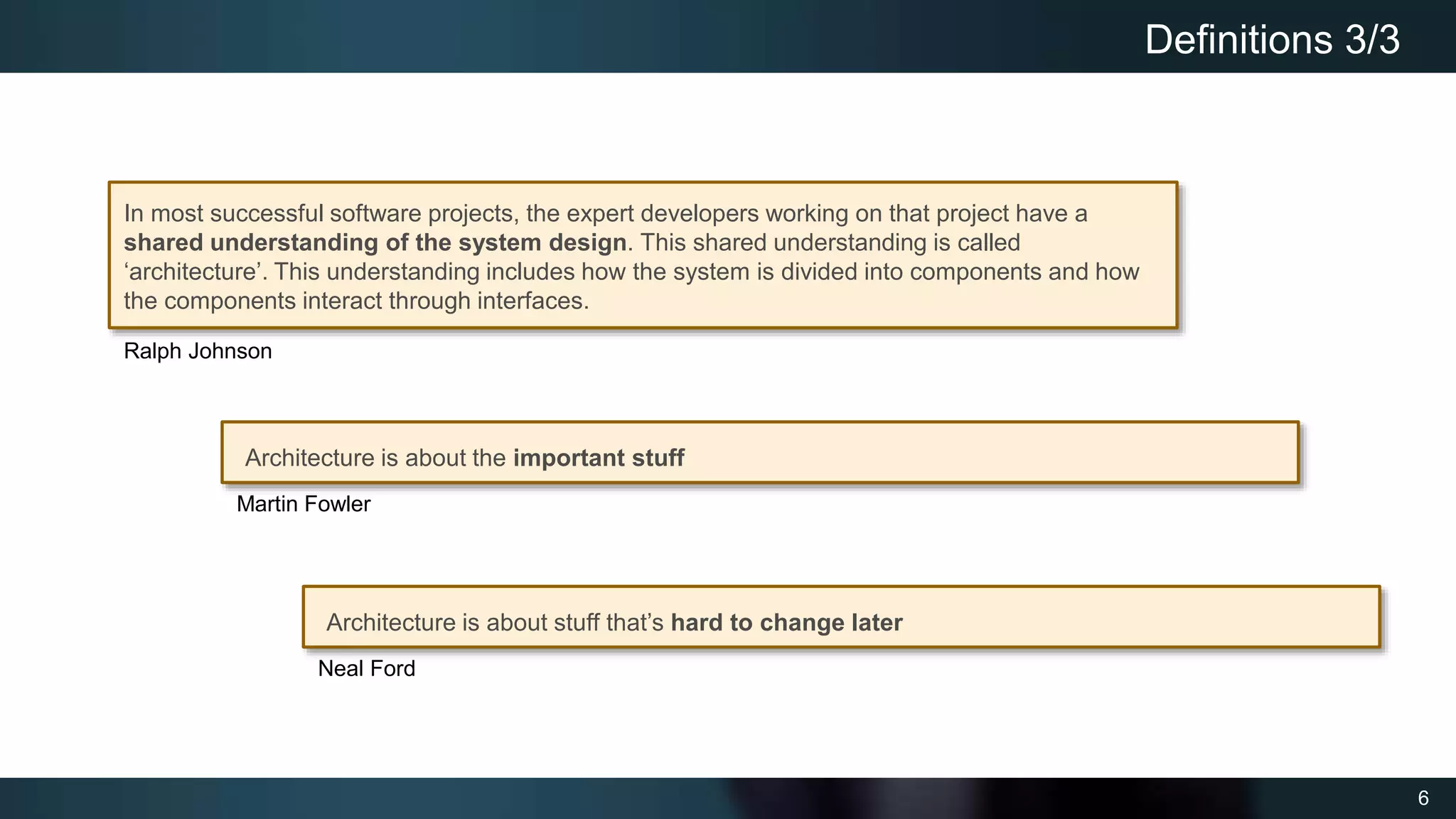

6 Definitions 3/3 In most successful software projects, the expert developers working on that project have a shared understanding of the system design. This shared understanding is called ‘architecture’. This understanding includes how the system is divided into components and how the components interact through interfaces. Architecture is about stuff that’s hard to change later Ralph Johnson Neal Ford Architecture is about the important stuff Martin Fowler

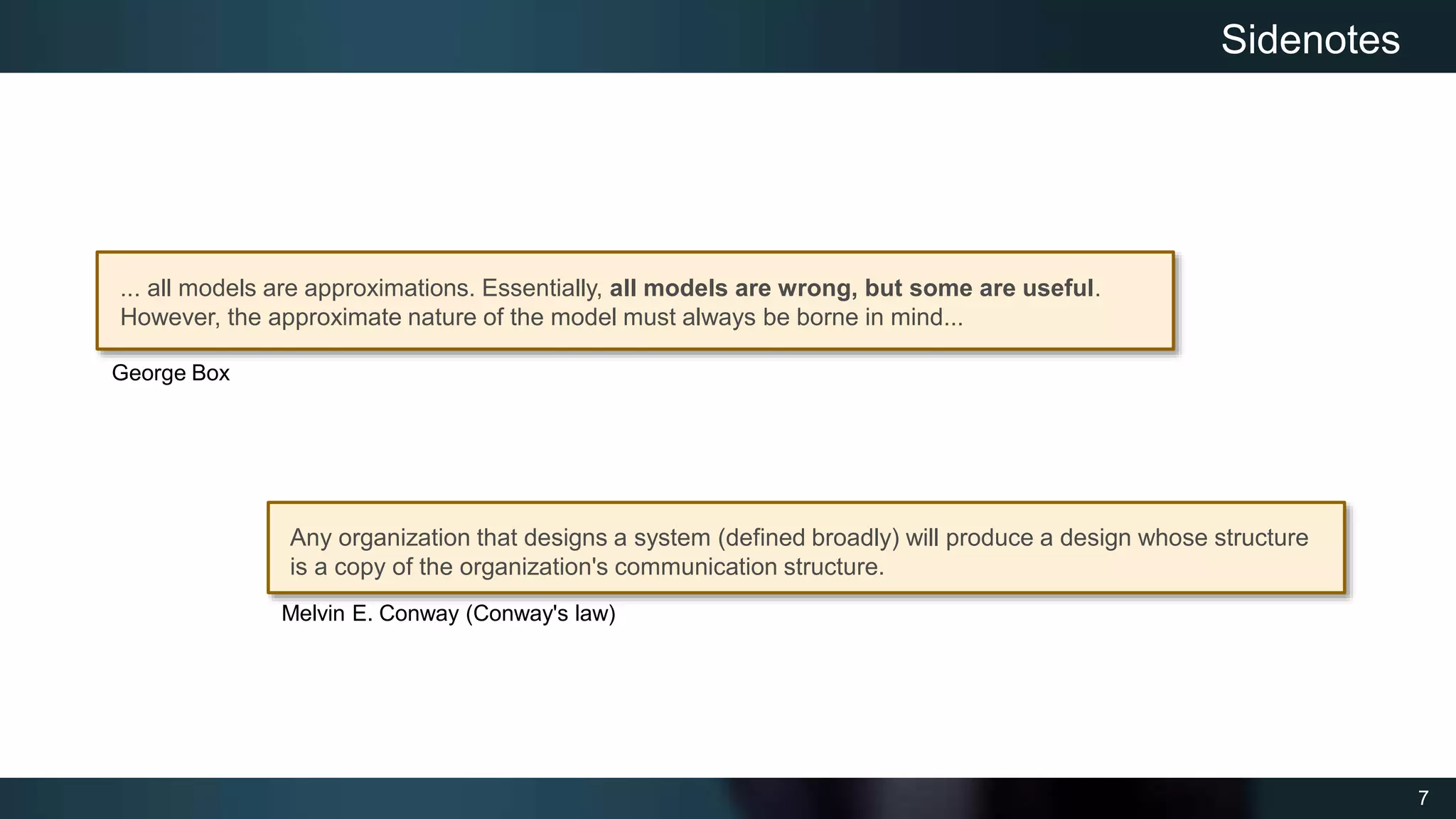

7 Sidenotes Any organization that designs a system (defined broadly) will produce a design whose structure is a copy of the organization's communication structure. Melvin E. Conway (Conway's law) ... all models are approximations. Essentially, all models are wrong, but some are useful. However, the approximate nature of the model must always be borne in mind... George Box

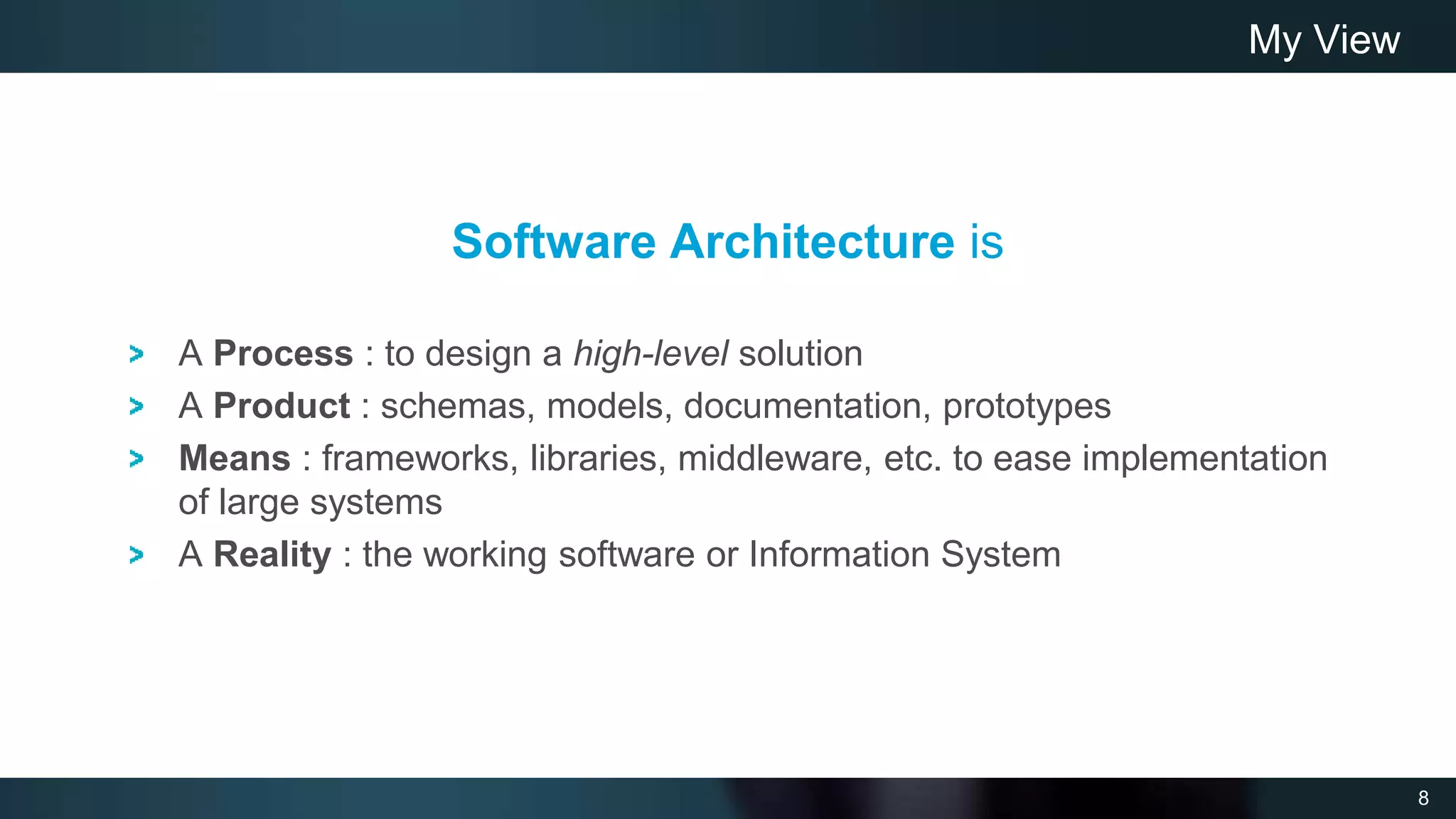

8 Software Architecture is A Process : to design a high-level solution A Product : schemas, models, documentation, prototypes Means : frameworks, libraries, middleware, etc. to ease implementation of large systems A Reality : the working software or Information System My View

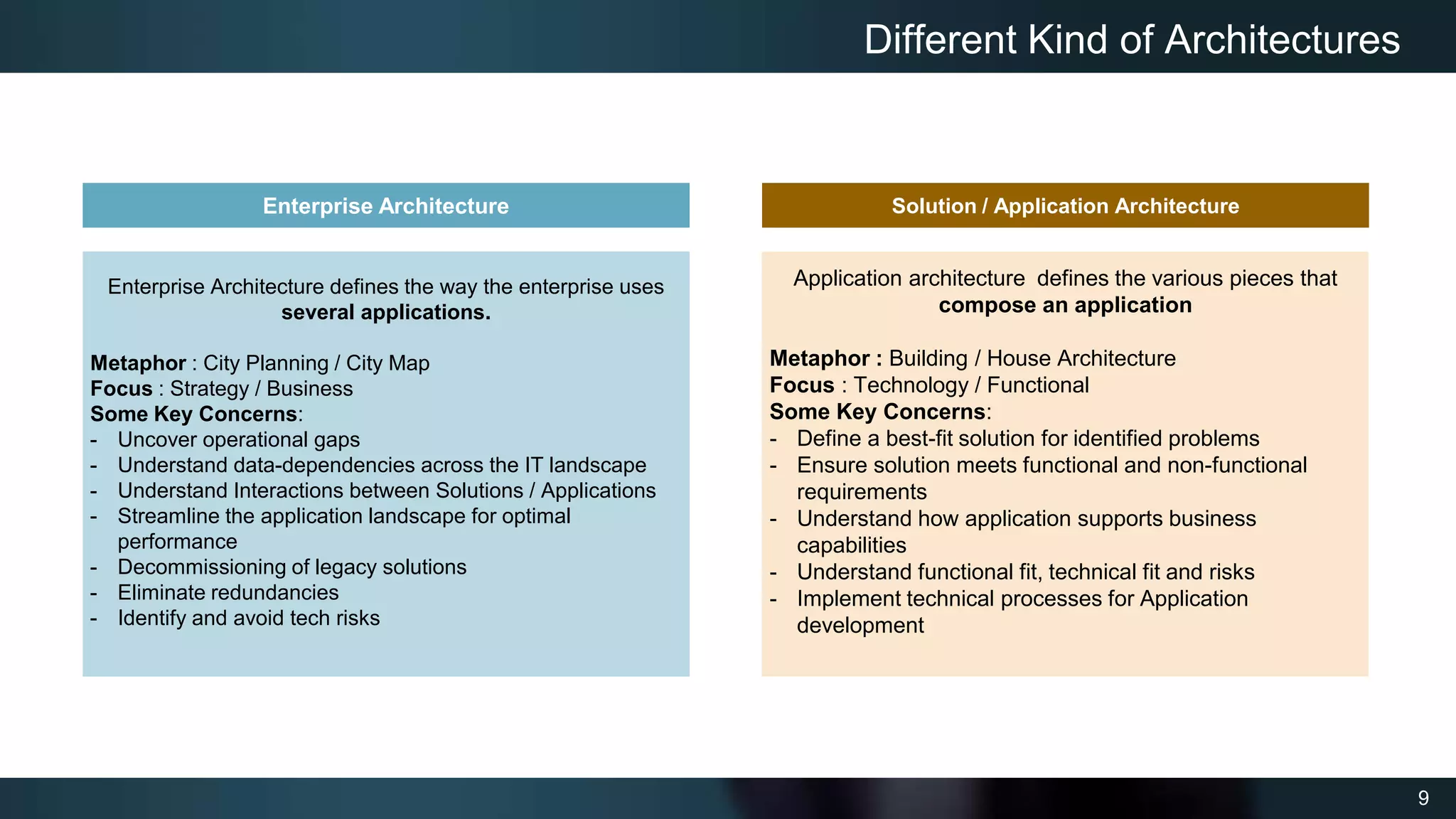

9 Different Kind of Architectures Enterprise Architecture Solution / Application Architecture Enterprise Architecture defines the way the enterprise uses several applications. Metaphor : City Planning / City Map Focus : Strategy / Business Some Key Concerns: - Uncover operational gaps - Understand data-dependencies across the IT landscape - Understand Interactions between Solutions / Applications - Streamline the application landscape for optimal performance - Decommissioning of legacy solutions - Eliminate redundancies - Identify and avoid tech risks Application architecture defines the various pieces that compose an application Metaphor : Building / House Architecture Focus : Technology / Functional Some Key Concerns: - Define a best-fit solution for identified problems - Ensure solution meets functional and non-functional requirements - Understand how application supports business capabilities - Understand functional fit, technical fit and risks - Implement technical processes for Application development

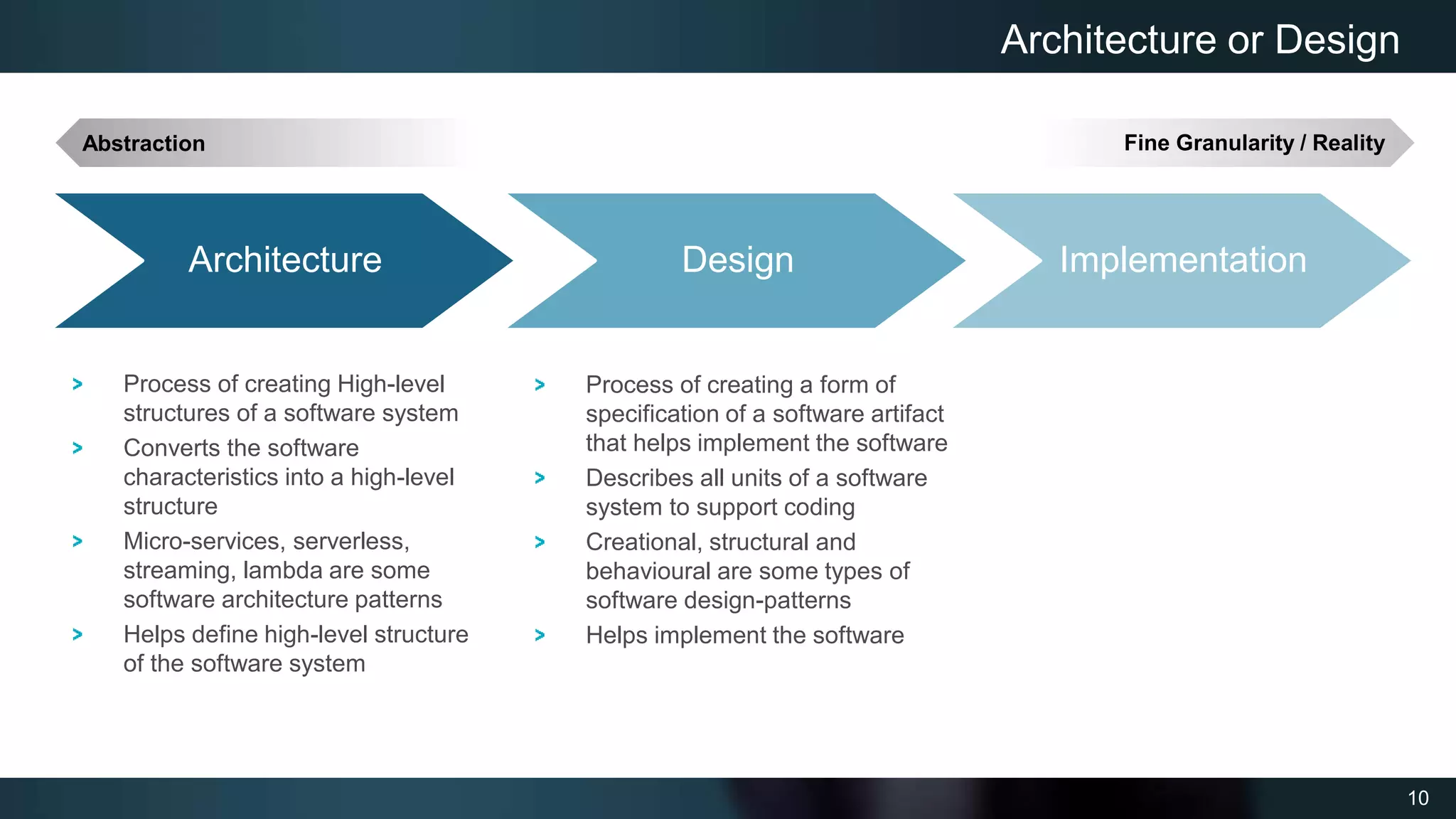

10 Architecture or Design Architecture Design Implementation Abstraction Fine Granularity / Reality Process of creating High-level structures of a software system Converts the software characteristics into a high-level structure Micro-services, serverless, streaming, lambda are some software architecture patterns Helps define high-level structure of the software system Process of creating a form of specification of a software artifact that helps implement the software Describes all units of a software system to support coding Creational, structural and behavioural are some types of software design-patterns Helps implement the software
11 2 different visions of architecture
12 1.2 Our illustration example

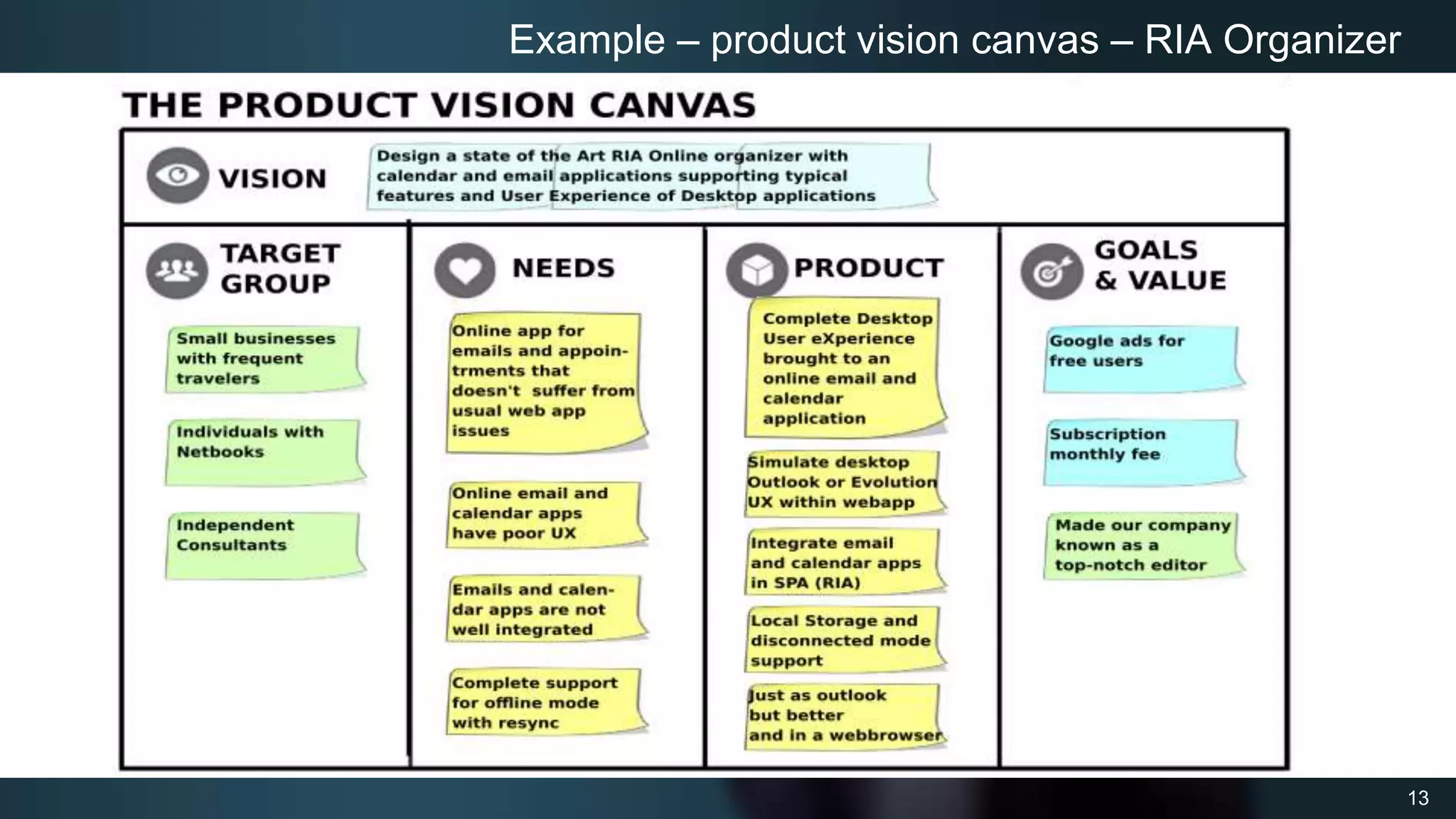

13 Example – product vision canvas – RIA Organizer

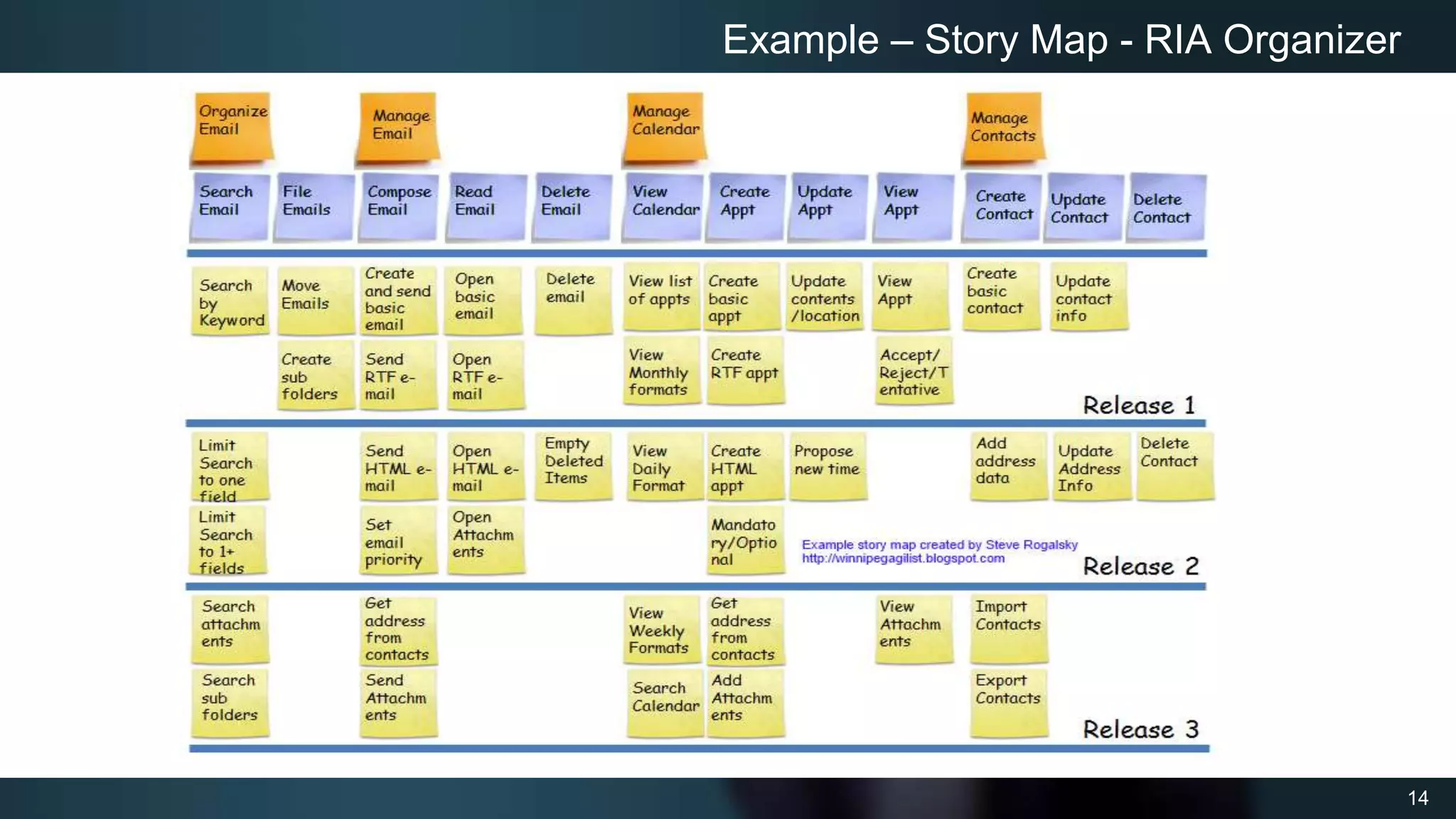

14 Example – Story Map - RIA Organizer
15 1.3 The Kruchten 5 + 1 View Model

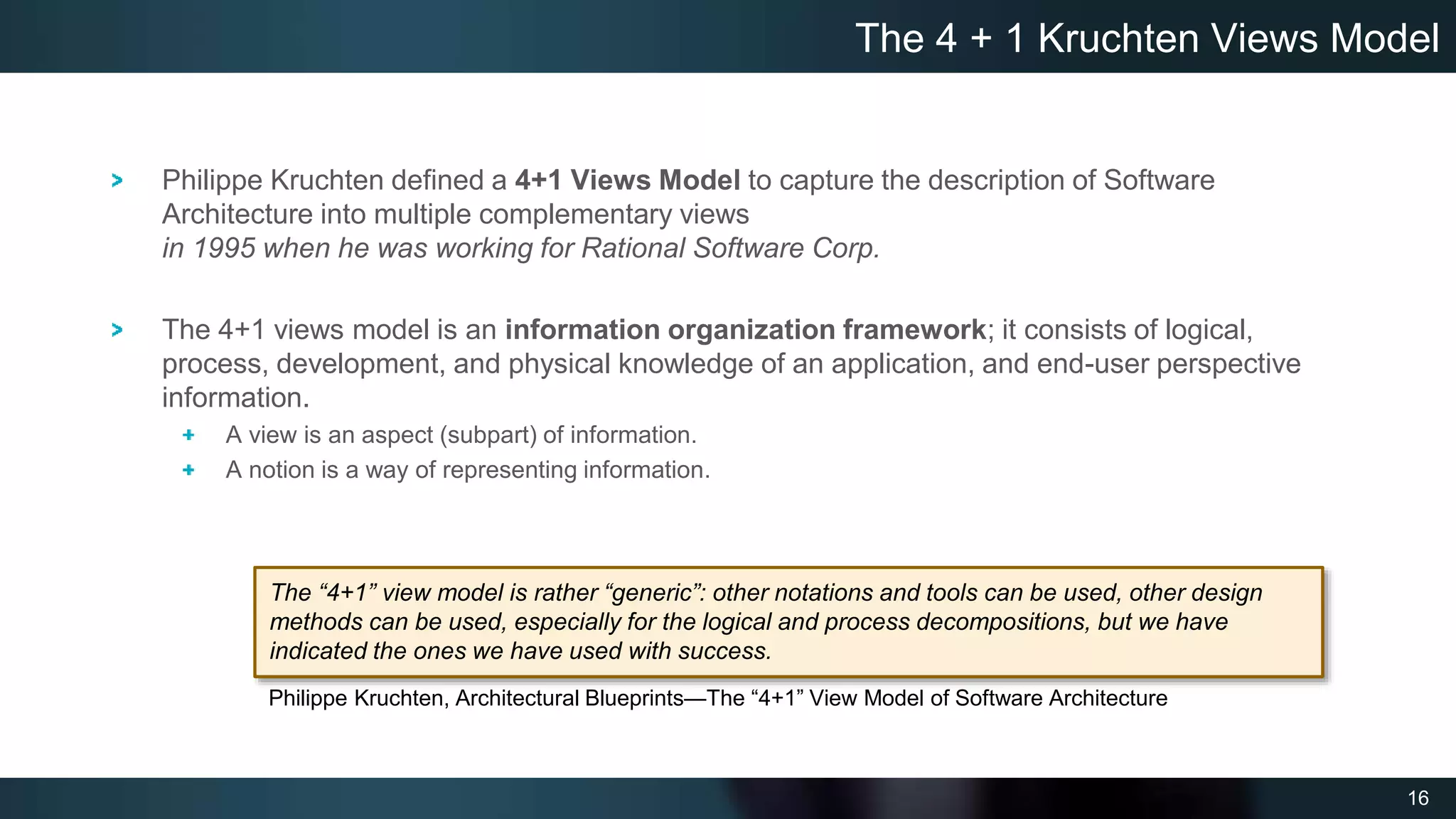

16 Philippe Kruchten defined a 4+1 Views Model to capture the description of Software Architecture into multiple complementary views in 1995 when he was working for Rational Software Corp. The 4+1 views model is an information organization framework; it consists of logical, process, development, and physical knowledge of an application, and end-user perspective information. A view is an aspect (subpart) of information. A notion is a way of representing information. The 4 + 1 Kruchten Views Model Philippe Kruchten, Architectural Blueprints—The “4+1” View Model of Software Architecture The “4+1” view model is rather “generic”: other notations and tools can be used, other design methods can be used, especially for the logical and process decompositions, but we have indicated the ones we have used with success.

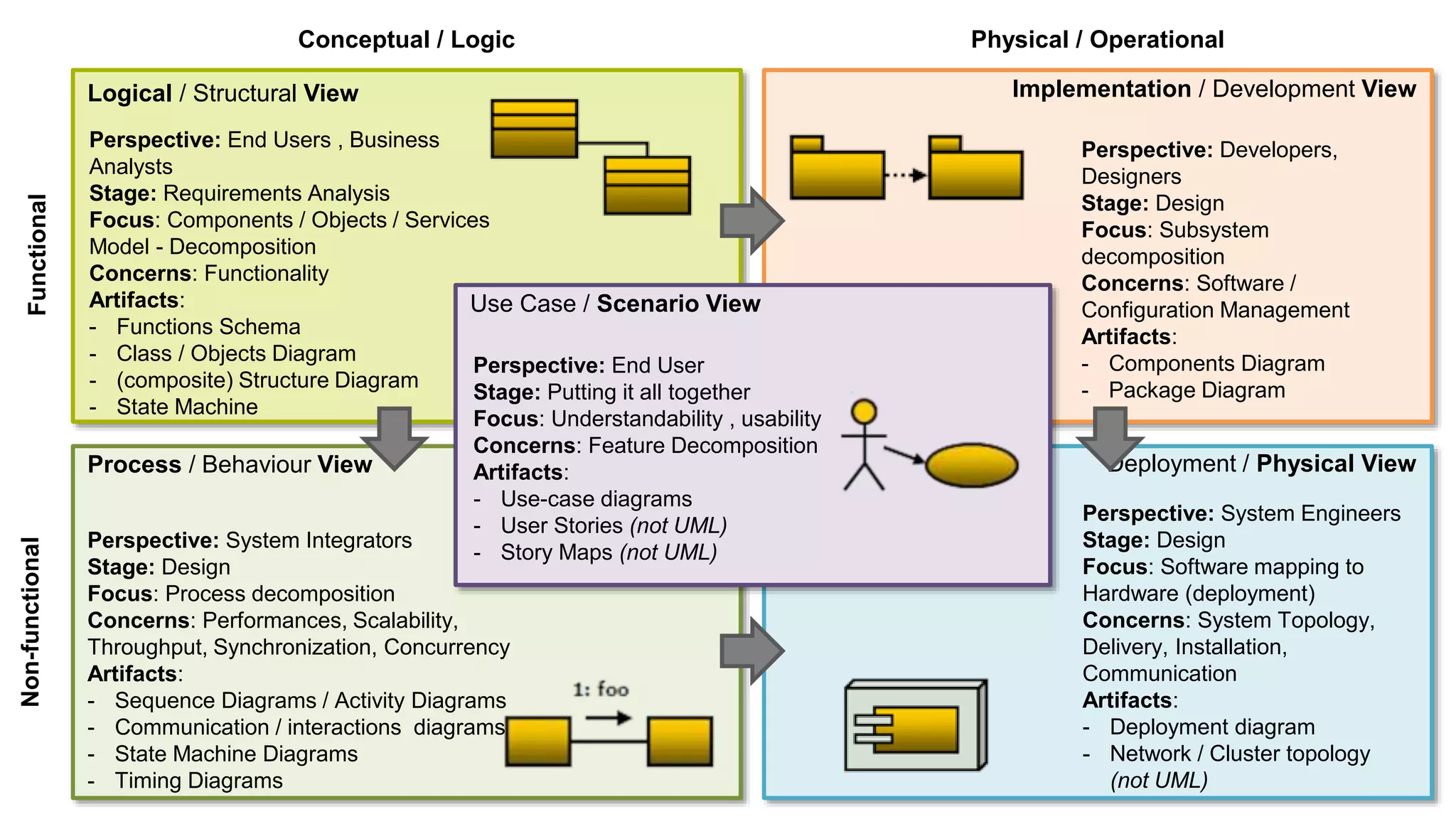

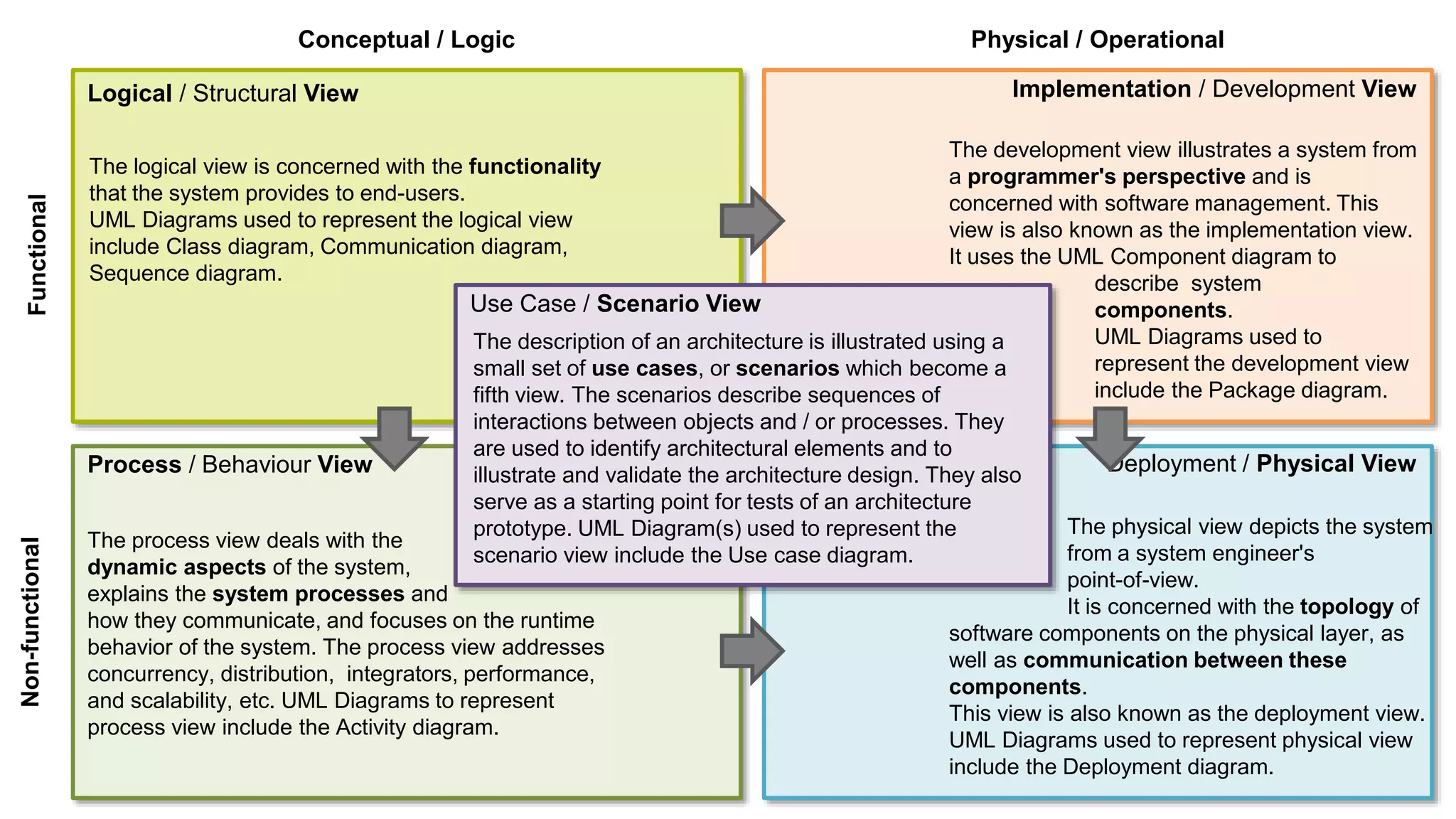

Conceptual / Logic Physical / Operational Non-functional Functional Logical / Structural View Implementation / Development View Process / Behaviour View Deployment / Physical View The logical view is concerned with the functionality that the system provides to end-users. UML Diagrams used to represent the logical view include Class diagram, Communication diagram, Sequence diagram. The development view illustrates a system from a programmer's perspective and is concerned with software management. This view is also known as the implementation view. It uses the UML Component diagram to describe system components. UML Diagrams used to represent the development view include the Package diagram. The process view deals with the dynamic aspects of the system, explains the system processes and how they communicate, and focuses on the runtime behavior of the system. The process view addresses concurrency, distribution, integrators, performance, and scalability, etc. UML Diagrams to represent process view include the Activity diagram. The physical view depicts the system from a system engineer's point-of-view. It is concerned with the topology of software components on the physical layer, as well as communication between these components. This view is also known as the deployment view. UML Diagrams used to represent physical view include the Deployment diagram. Use Case / Scenario View The description of an architecture is illustrated using a small set of use cases, or scenarios which become a fifth view. The scenarios describe sequences of interactions between objects and / or processes. They are used to identify architectural elements and to illustrate and validate the architecture design. They also serve as a starting point for tests of an architecture prototype. UML Diagram(s) used to represent the scenario view include the Use case diagram.
Conceptual / Logic Physical / Operational Non-functional Functional Process / Behaviour View Perspective: System Integrators Stage: Design Focus: Process decomposition Concerns: Performances, Scalability, Throughput, Synchronization, Concurrency Artifacts: - Sequence Diagrams / Activity Diagrams - Communication / interactions diagrams - State Machine Diagrams - Timing Diagrams Logical / Structural View Perspective: End Users , Business Analysts Stage: Requirements Analysis Focus: Components / Objects / Services Model - Decomposition Concerns: Functionality Artifacts: - Functions Schema - Class / Objects Diagram - (composite) Structure Diagram - State Machine Implementation / Development View Perspective: Developers, Designers Stage: Design Focus: Subsystem decomposition Concerns: Software / Configuration Management Artifacts: - Components Diagram - Package Diagram Deployment / Physical View Perspective: System Engineers Stage: Design Focus: Software mapping to Hardware (deployment) Concerns: System Topology, Delivery, Installation, Communication Artifacts: - Deployment diagram - Network / Cluster topology (not UML) Use Case / Scenario View Perspective: End User Stage: Putting it all together Focus: Understandability , usability Concerns: Feature Decomposition Artifacts: - Use-case diagrams - User Stories (not UML) - Story Maps (not UML)

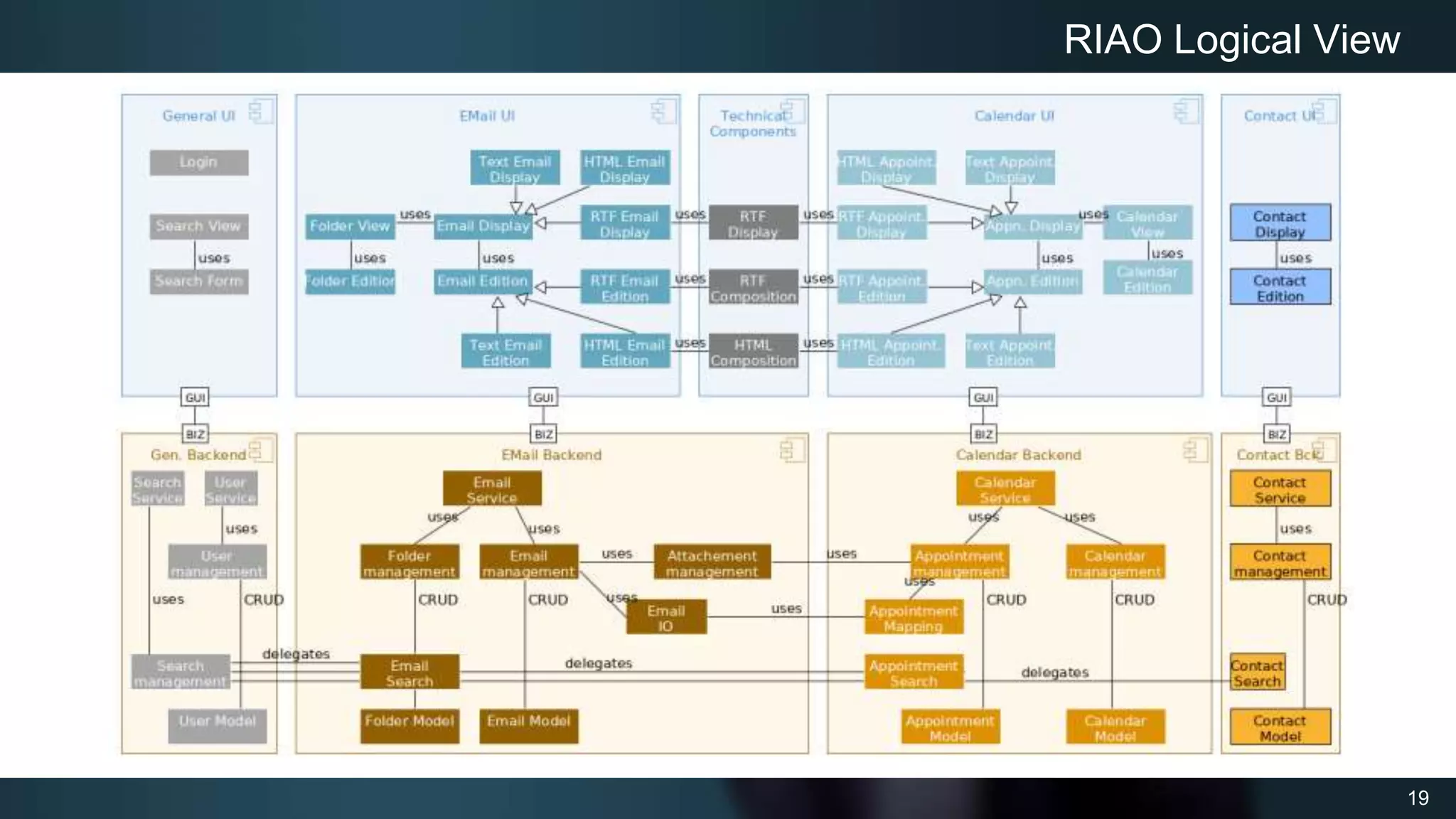

19 RIAO Logical View

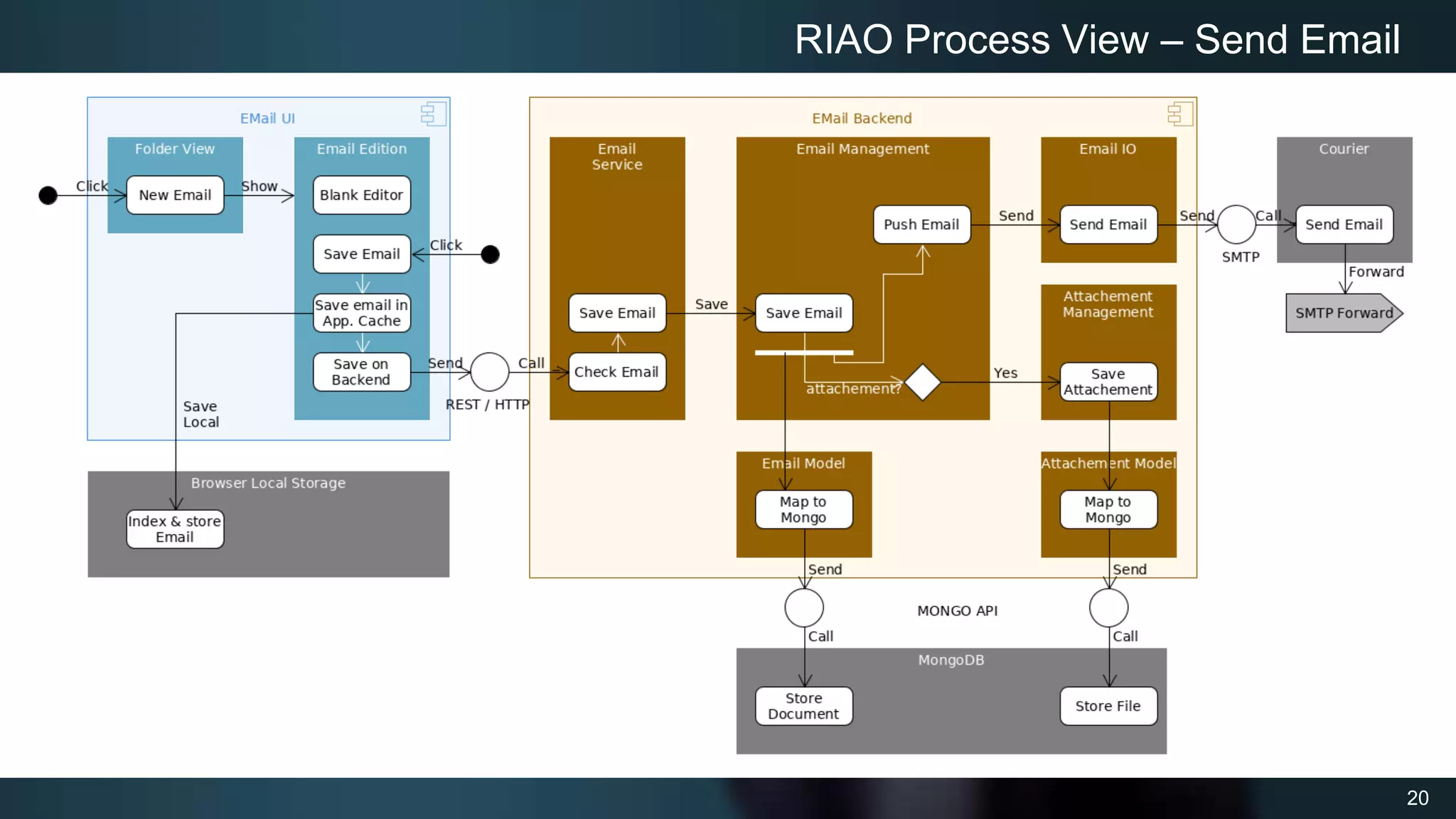

20 RIAO Process View – Send Email

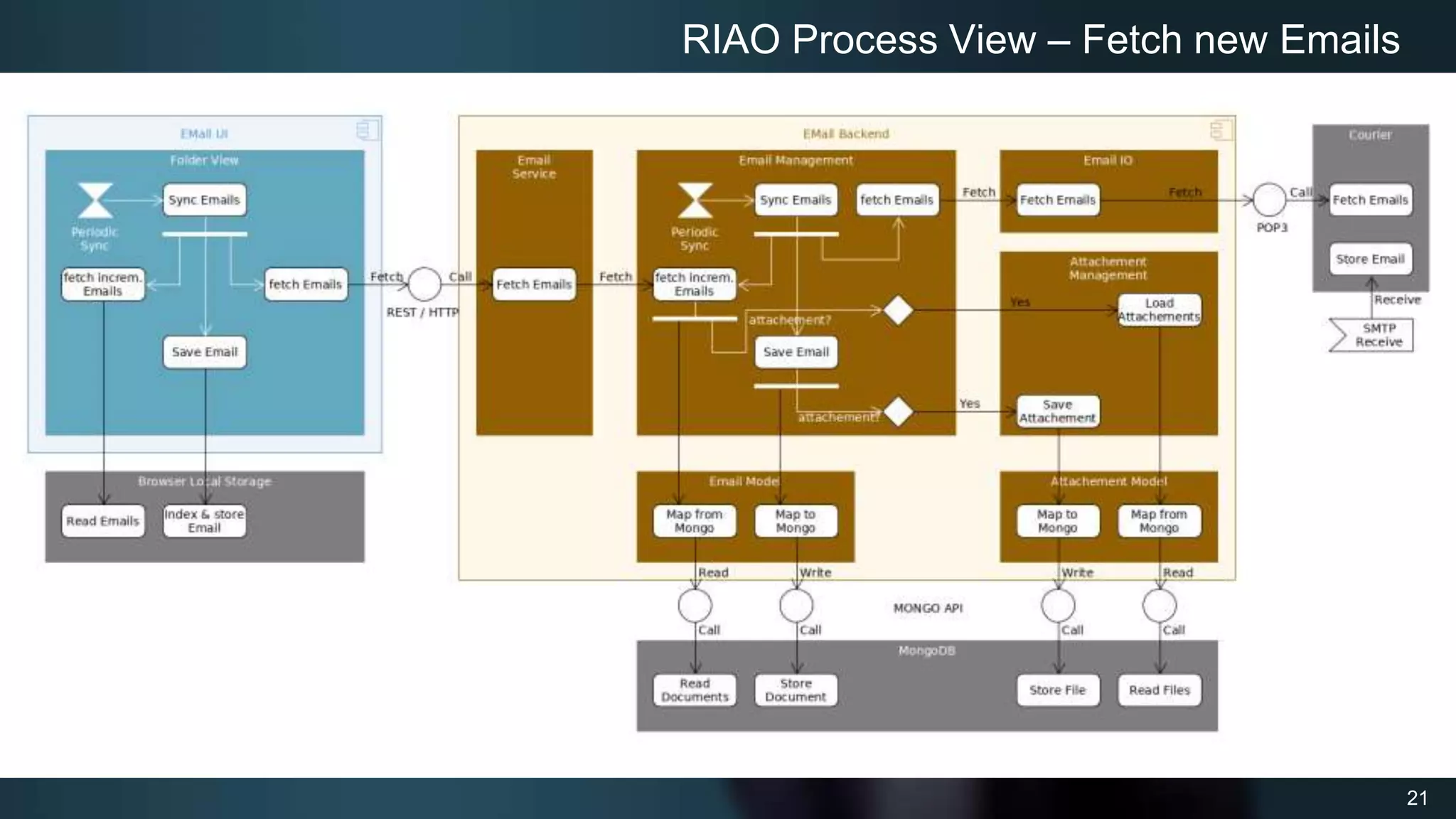

21 RIAO Process View – Fetch new Emails

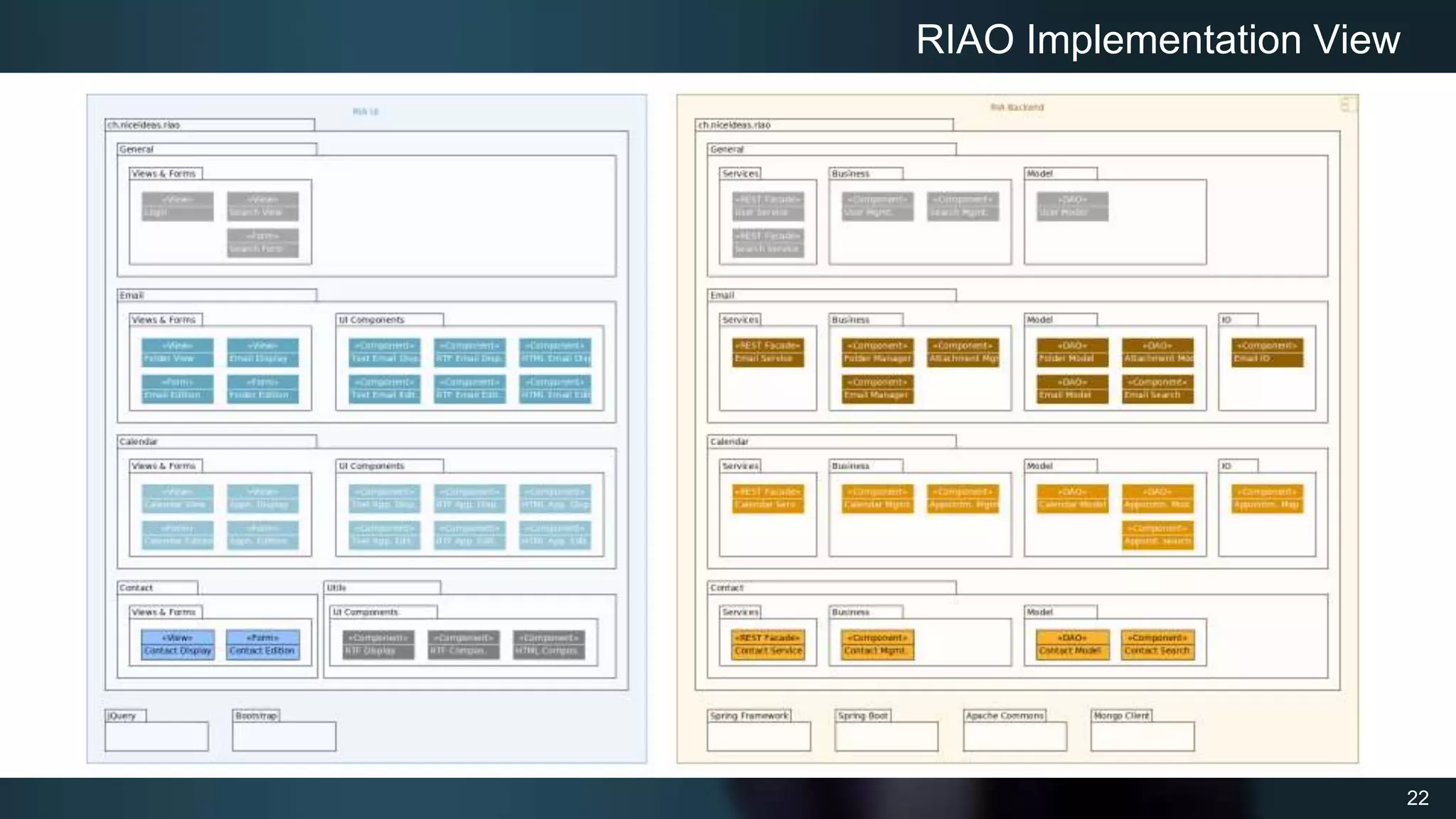

22 RIAO Implementation View

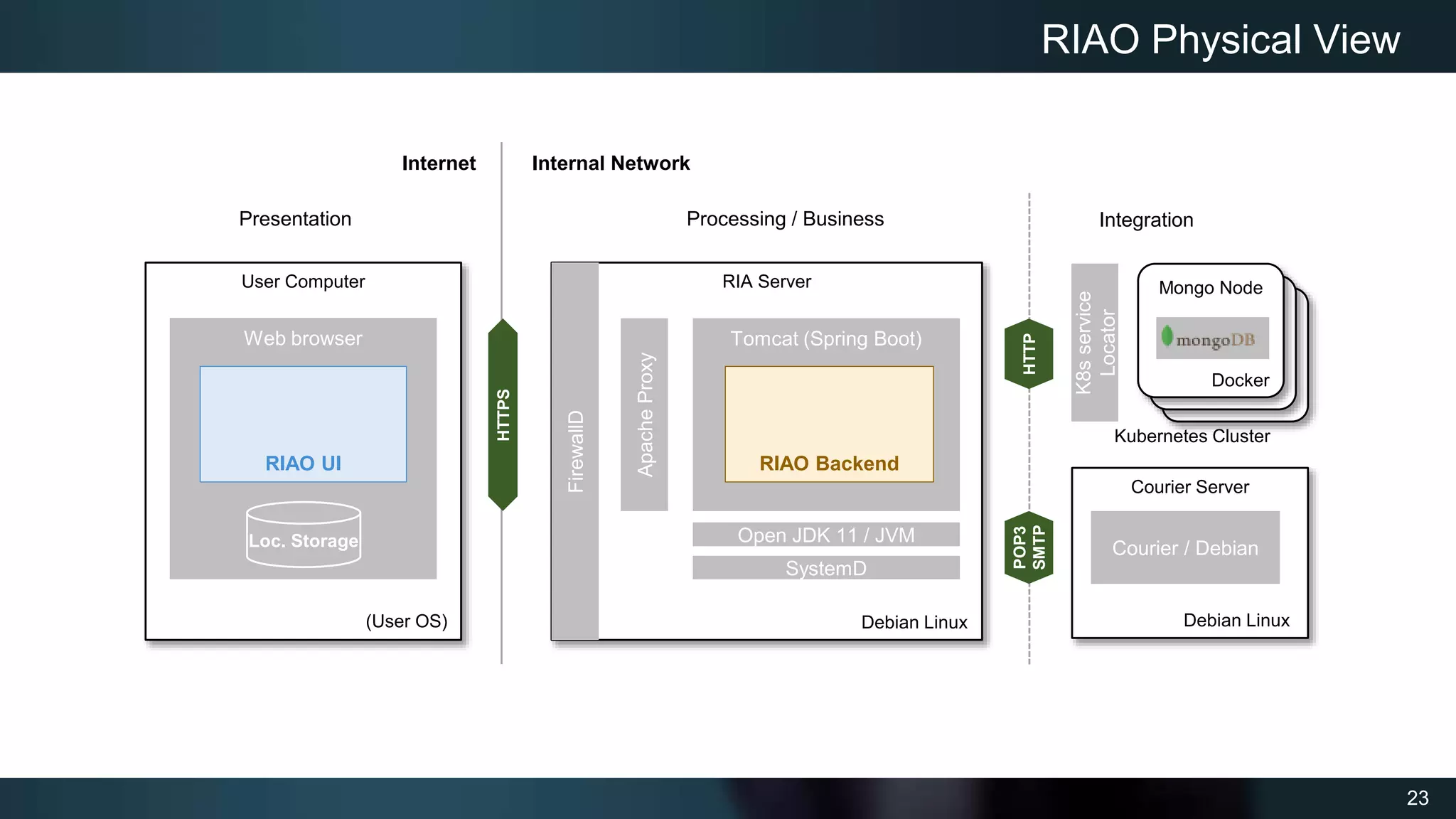

23 User Computer RIA Server Tomcat (Spring Boot) RIAO Physical View Apache Proxy Web browser RIAO UI RIAO Backend HTTPS Courier Server Courier / Debian POP3 SMTP HTTP (User OS) Debian Linux MongoDB Node MongoDB Node Mongo Node Docker Debian Linux Integration Processing / Business Presentation FirewallD Open JDK 11 / JVM Loc. Storage Internet Internal Network SystemD Kubernetes Cluster K8s service Locator
24 1.4 The OCTO Matrix Approach

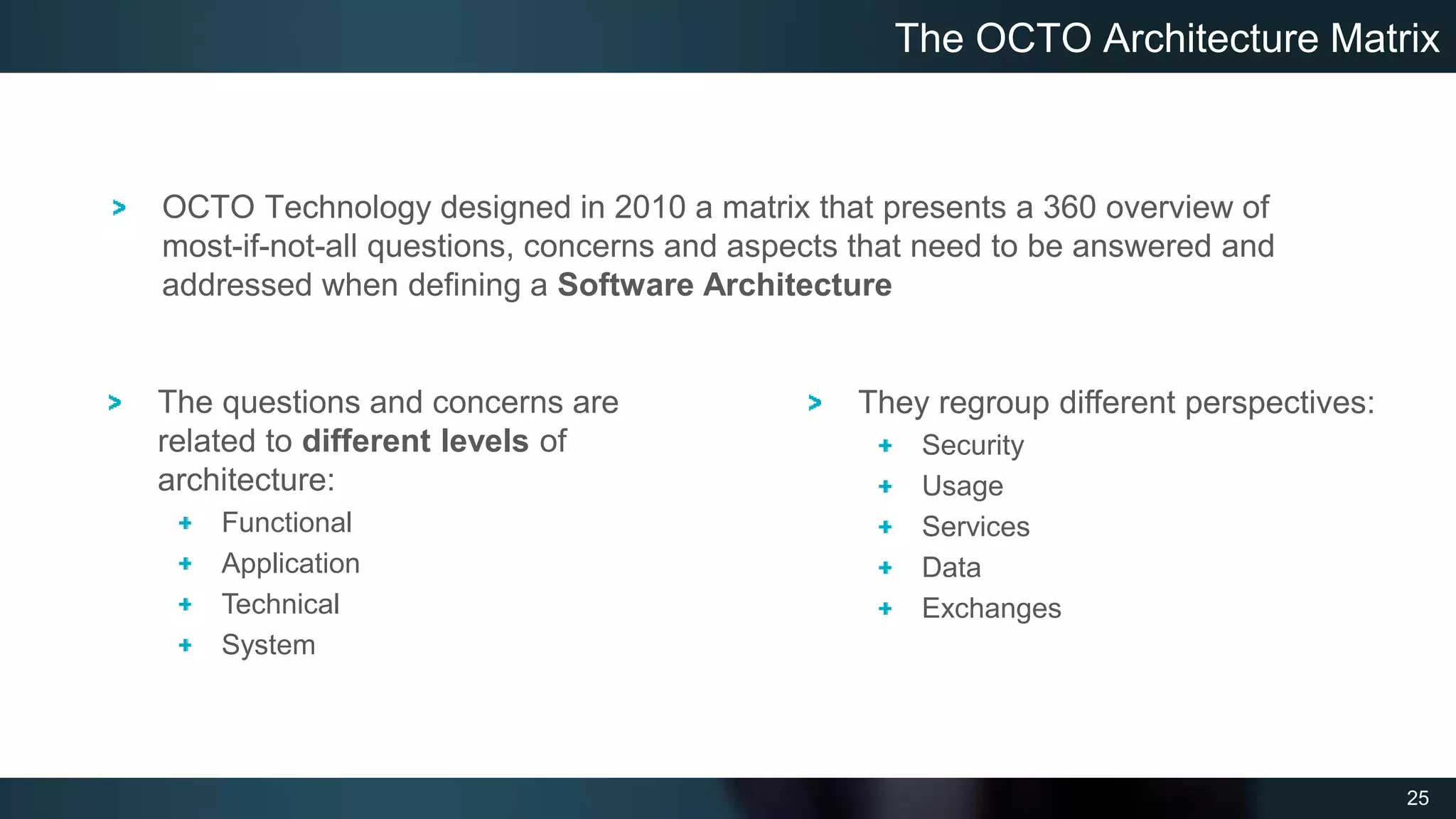

25 OCTO Technology designed in 2010 a matrix that presents a 360 overview of most-if-not-all questions, concerns and aspects that need to be answered and addressed when defining a Software Architecture The OCTO Architecture Matrix The questions and concerns are related to different levels of architecture: Functional Application Technical System They regroup different perspectives: Security Usage Services Data Exchanges

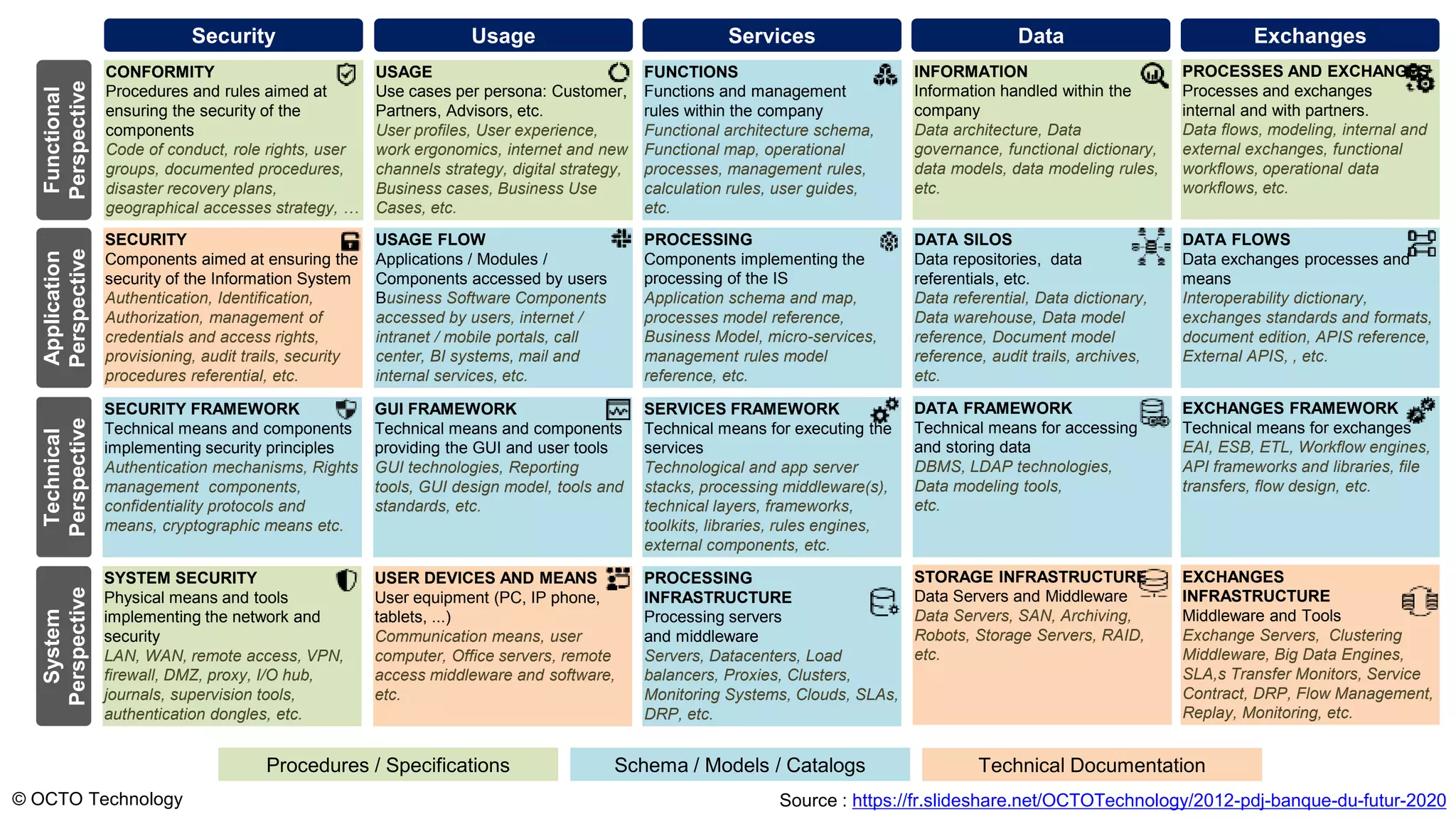

Security Usage Services Data Exchanges Procedures / Specifications Schema / Models / Catalogs Technical Documentation Functional Perspective CONFORMITY Procedures and rules aimed at ensuring the security of the components Code of conduct, role rights, user groups, documented procedures, disaster recovery plans, geographical accesses strategy, … USAGE Use cases per persona: Customer, Partners, Advisors, etc. User profiles, User experience, work ergonomics, internet and new channels strategy, digital strategy, Business cases, Business Use Cases, etc. FUNCTIONS Functions and management rules within the company Functional architecture schema, Functional map, operational processes, management rules, calculation rules, user guides, etc. INFORMATION Information handled within the company Data architecture, Data governance, functional dictionary, data models, data modeling rules, etc. PROCESSES AND EXCHANGES Processes and exchanges internal and with partners. Data flows, modeling, internal and external exchanges, functional workflows, operational data workflows, etc. Application Perspective SECURITY Components aimed at ensuring the security of the Information System Authentication, Identification, Authorization, management of credentials and access rights, provisioning, audit trails, security procedures referential, etc. USAGE FLOW Applications / Modules / Components accessed by users Business Software Components accessed by users, internet / intranet / mobile portals, call center, BI systems, mail and internal services, etc. PROCESSING Components implementing the processing of the IS Application schema and map, processes model reference, Business Model, micro-services, management rules model reference, etc. DATA SILOS Data repositories, data referentials, etc. Data referential, Data dictionary, Data warehouse, Data model reference, Document model reference, audit trails, archives, etc. DATA FLOWS Data exchanges processes and means Interoperability dictionary, exchanges standards and formats, document edition, APIS reference, External APIS, , etc. SECURITY FRAMEWORK Technical means and components implementing security principles Authentication mechanisms, Rights management components, confidentiality protocols and means, cryptographic means etc. Technical Perspective GUI FRAMEWORK Technical means and components providing the GUI and user tools GUI technologies, Reporting tools, GUI design model, tools and standards, etc. SERVICES FRAMEWORK Technical means for executing the services Technological and app server stacks, processing middleware(s), technical layers, frameworks, toolkits, libraries, rules engines, external components, etc. DATA FRAMEWORK Technical means for accessing and storing data DBMS, LDAP technologies, Data modeling tools, etc. EXCHANGES FRAMEWORK Technical means for exchanges EAI, ESB, ETL, Workflow engines, API frameworks and libraries, file transfers, flow design, etc. System Perspective SYSTEM SECURITY Physical means and tools implementing the network and security LAN, WAN, remote access, VPN, firewall, DMZ, proxy, I/O hub, journals, supervision tools, authentication dongles, etc. USER DEVICES AND MEANS User equipment (PC, IP phone, tablets, ...) Communication means, user computer, Office servers, remote access middleware and software, etc. PROCESSING INFRASTRUCTURE Processing servers and middleware Servers, Datacenters, Load balancers, Proxies, Clusters, Monitoring Systems, Clouds, SLAs, DRP, etc. STORAGE INFRASTRUCTURE Data Servers and Middleware Data Servers, SAN, Archiving, Robots, Storage Servers, RAID, etc. EXCHANGES INFRASTRUCTURE Middleware and Tools Exchange Servers, Clustering Middleware, Big Data Engines, SLA,s Transfer Monitors, Service Contract, DRP, Flow Management, Replay, Monitoring, etc. Source : https://fr.slideshare.net/OCTOTechnology/2012-pdj-banque-du-futur-2020 © OCTO Technology

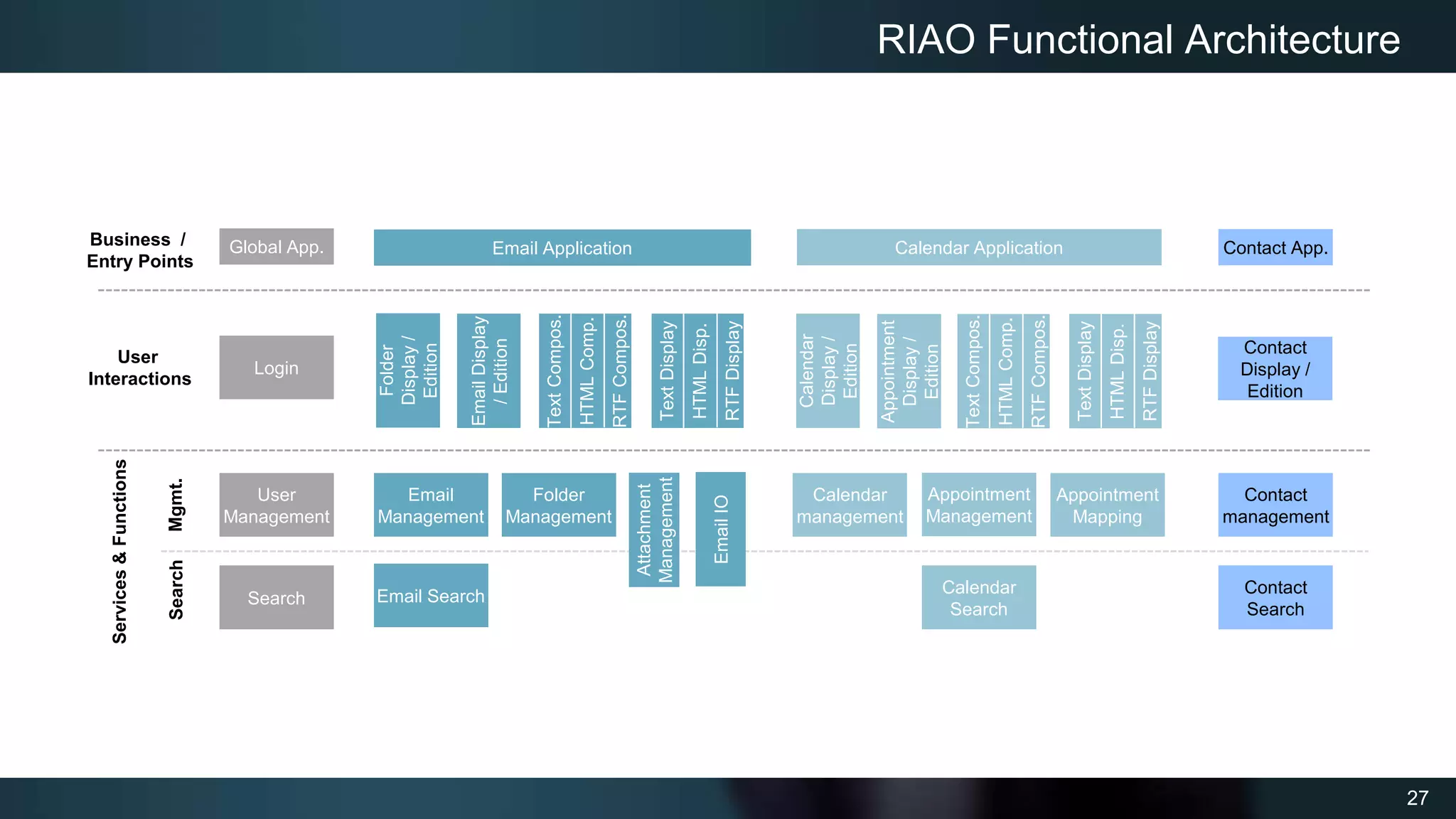

27 RIAO Functional Architecture Email Management Contact management Email Search Search Email Display / Edition Folder Management Global App. Email Application Appointment Display / Edition Calendar Display / Edition Calendar Application Folder Display / Edition Contact Display / Edition Calendar management Appointment Management Contact Search Calendar Search Contact App. Login User Management Appointment Mapping Business / Entry Points User Interactions Services & Functions Mgmt. Search Text Compos. HTML Comp. RTF Compos. Text Display HTML Disp. RTF Display Text Compos. HTML Comp. RTF Compos. Text Display HTML Disp. RTF Display Attachment Management Email IO

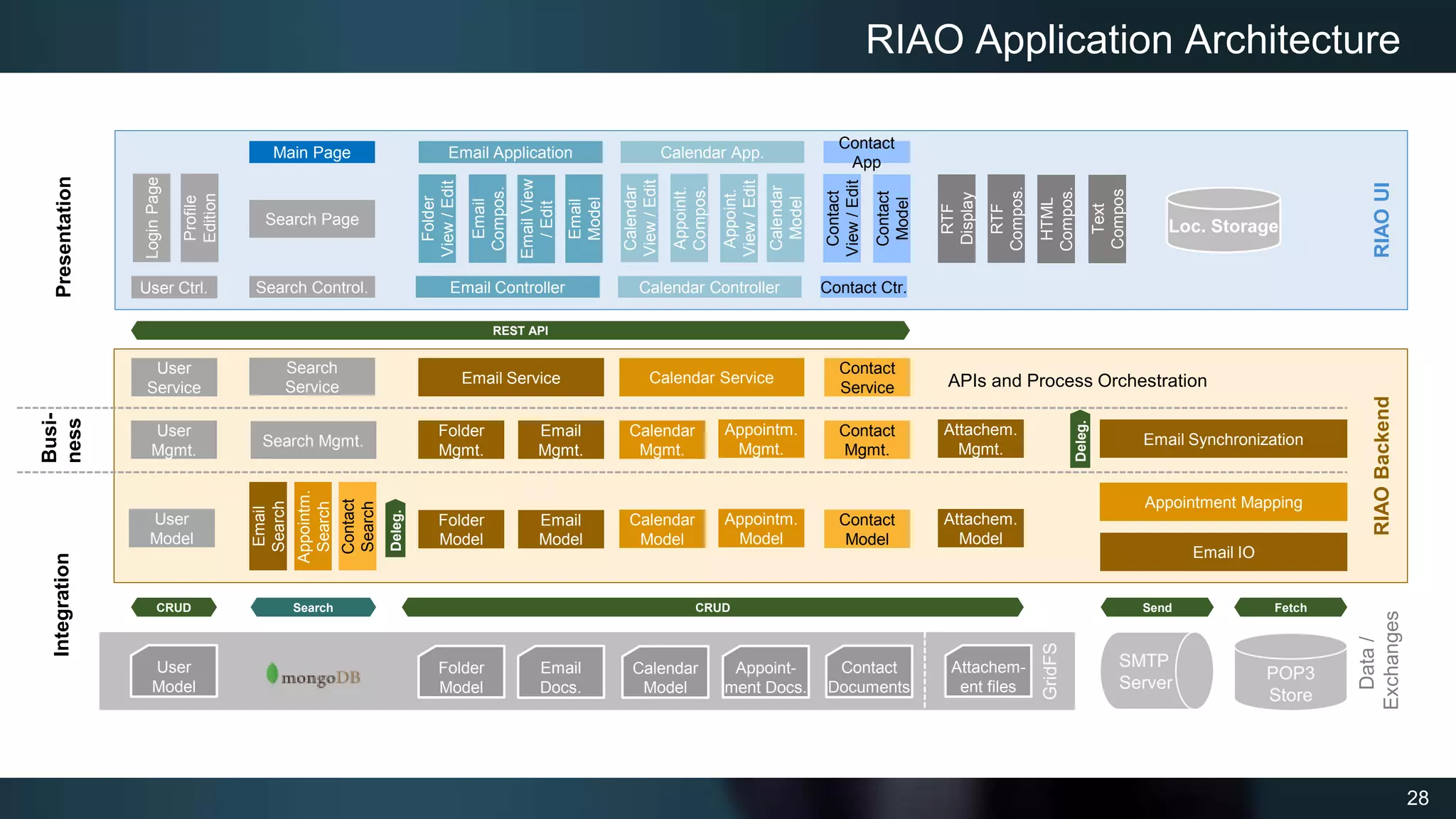

28 GridFS Folder Model Email Docs. Attachem- ent files Appoint- ment Docs. Calendar Model Contact Documents User Model SMTP Server POP3 Store RIAO Backend RIAO UI RIAO Application Architecture Search Email IO Appointment Mapping User Model Folder Model Email Model Calendar Model Appointm. Model Contact Model Attachem. Model Appointm. Search Email Search Contact Search Search Mgmt. User Mgmt. Folder Mgmt. Email Mgmt. Calendar Mgmt. Appointm. Mgmt. Contact Mgmt. Attachem. Mgmt. Email Synchronization Deleg. Search Service User Service Email Service Calendar Service Contact Service Login Page Profile Edition Folder View / Edit Email Compos. Email View / Edit Calendar View / Edit Appoinlt. Compos. Appoint. View / Edit Contact View / Edit Contact Model CRUD Fetch Send Search Page REST API Data / Exchanges Integration Busi- ness Presentation APIs and Process Orchestration CRUD RTF Display RTF Compos. HTML Compos. Deleg. Email Application Calendar App. Contact App Text Compos Email Model Calendar Model Email Controller Calendar Controller Contact Ctr. Search Control. User Ctrl. Loc. Storage Main Page

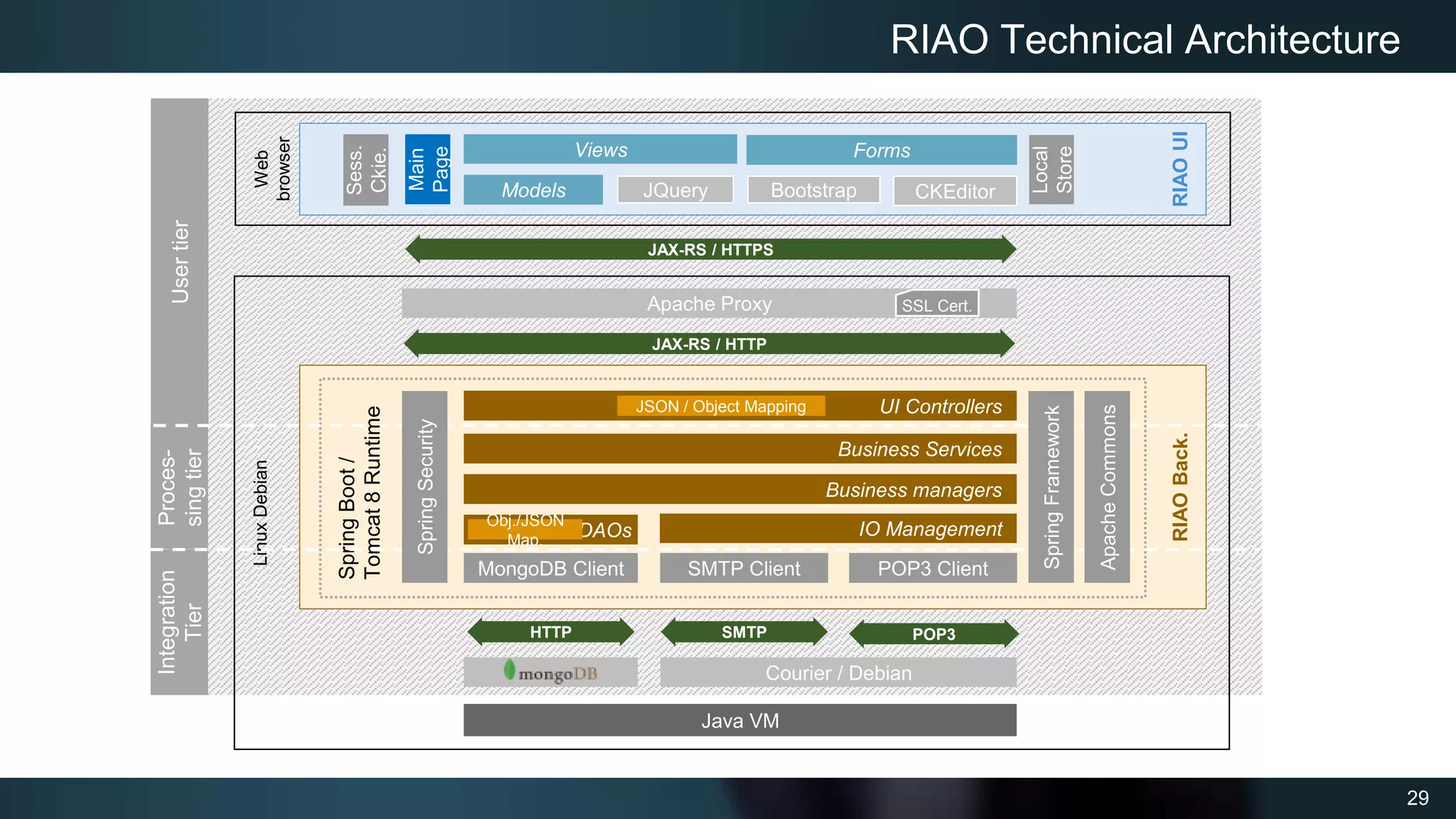

29 User tier Proces- sing tier Integration Tier Web browser RIAO UI RIAO Back. RIAO Technical Architecture HTTP UI Controllers JAX-RS / HTTPS Java VM Apache Proxy Business managers MongoDB Client Views JQuery CKEditor Bootstrap Business Services DAOs SMTP Client POP3 Client Courier / Debian IO Management SMTP POP3 Spring Boot / Tomcat 8 Runtime Forms Models Linux Debian Spring Security Spring Framework Apache Commons SSL Cert. Local Store Sess. Ckie. JAX-RS / HTTP Main Page Obj./JSON Map. JSON / Object Mapping

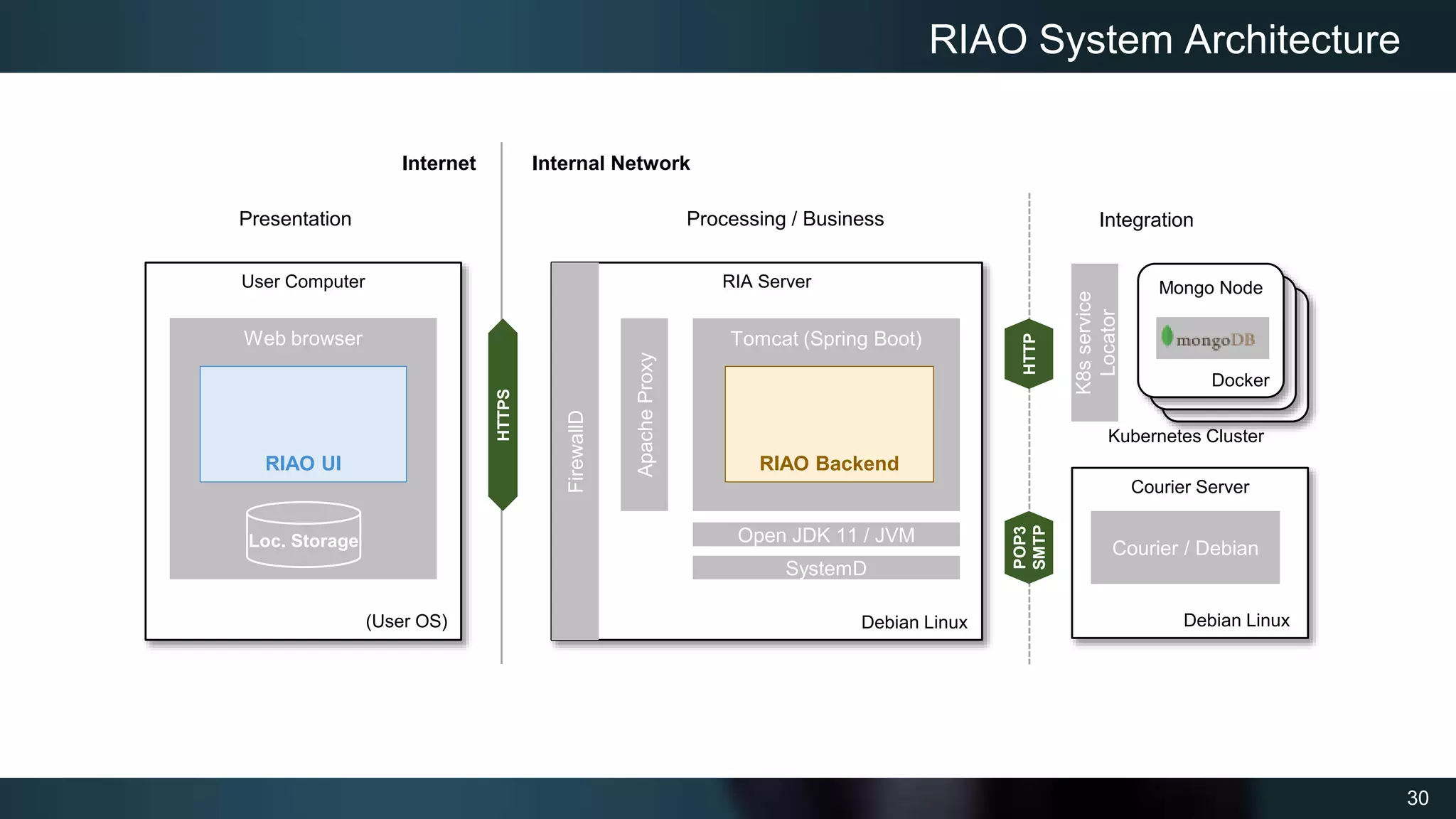

30 User Computer RIA Server Tomcat (Spring Boot) RIAO System Architecture Apache Proxy Web browser RIAO UI RIAO Backend HTTPS Courier Server Courier / Debian POP3 SMTP HTTP (User OS) Debian Linux MongoDB Node MongoDB Node Mongo Node Docker Debian Linux Integration Processing / Business Presentation FirewallD Open JDK 11 / JVM Loc. Storage Internet Internal Network SystemD Kubernetes Cluster K8s service Locator
31 2.1 Big Data

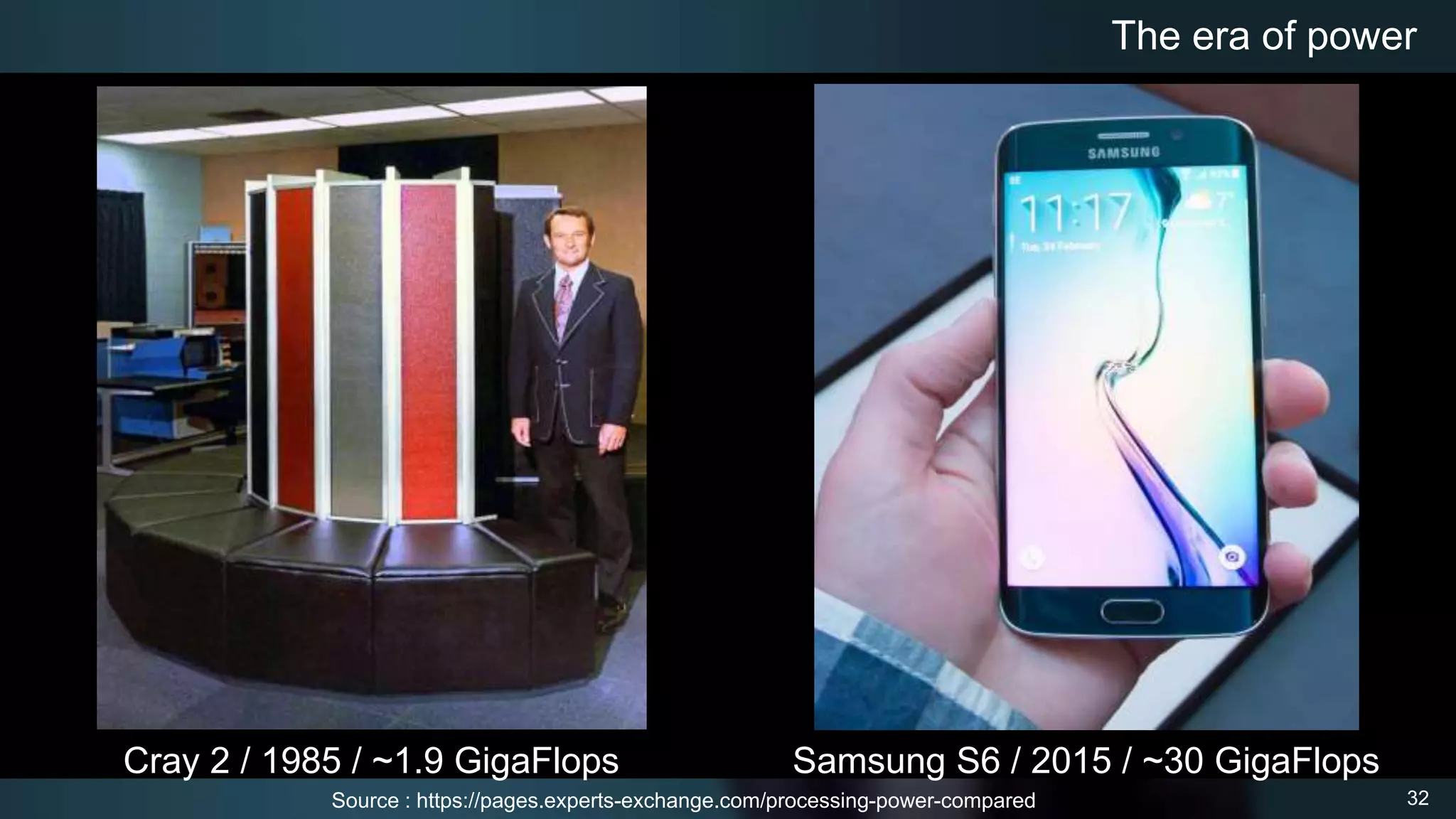

32 The era of power Cray 2 / 1985 / ~1.9 GigaFlops Samsung S6 / 2015 / ~30 GigaFlops Source : https://pages.experts-exchange.com/processing-power-compared
33 Origins of Big Data : the web giants !

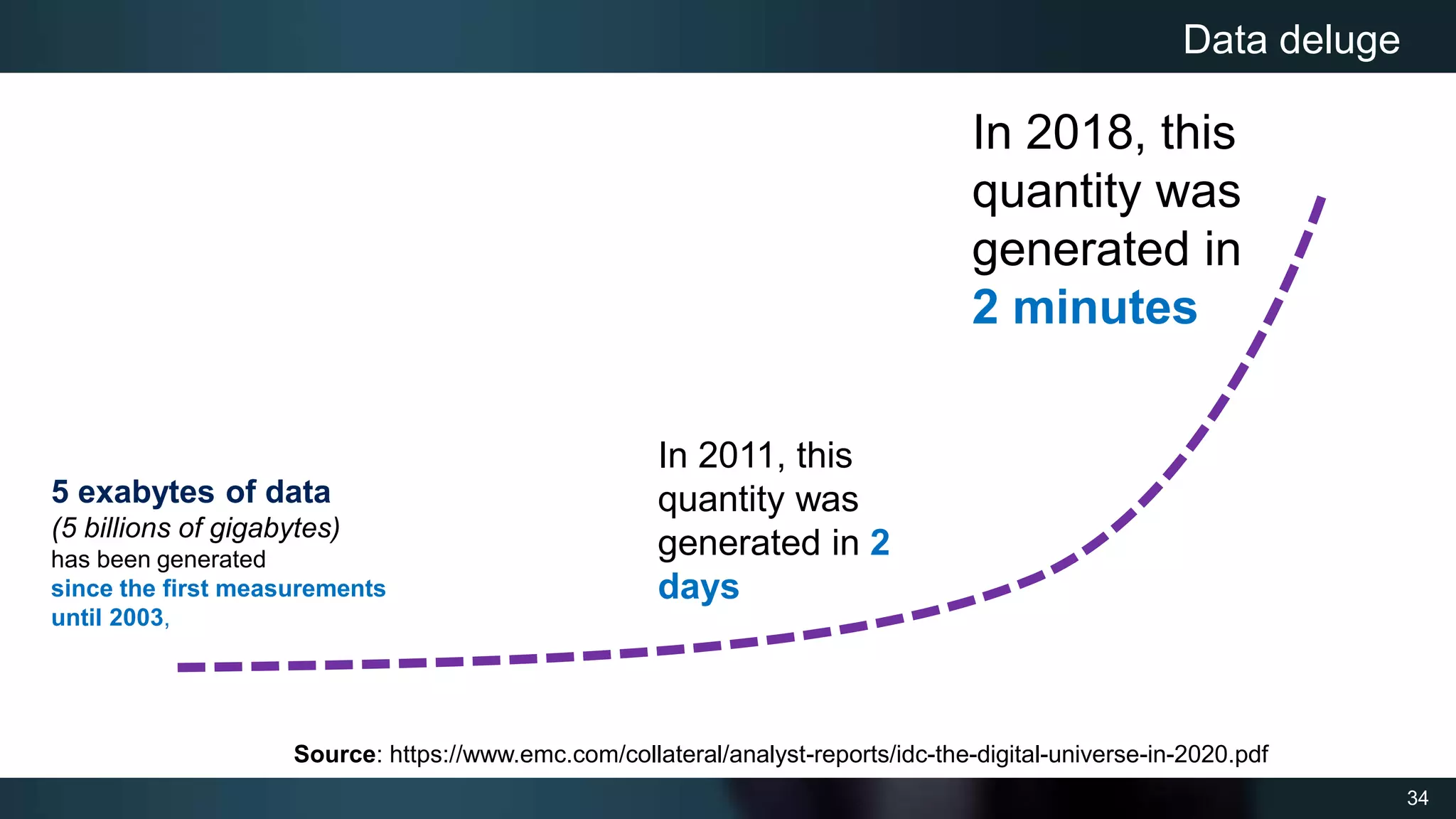

34 Data deluge 5 exabytes of data (5 billions of gigabytes) has been generated since the first measurements until 2003, In 2011, this quantity was generated in 2 days In 2018, this quantity was generated in 2 minutes Source: https://www.emc.com/collateral/analyst-reports/idc-the-digital-universe-in-2020.pdf

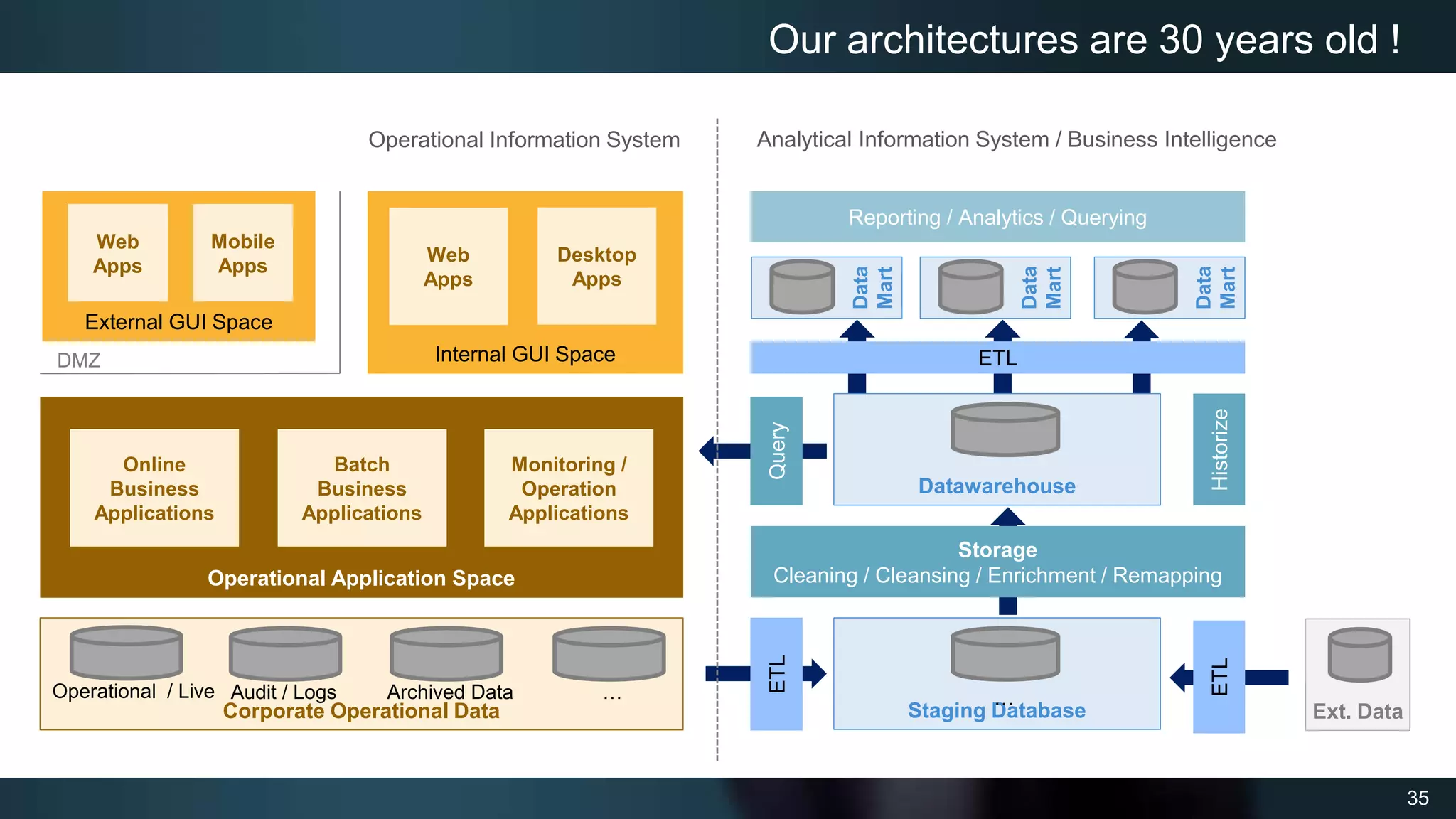

35 Our architectures are 30 years old ! Corporate Operational Data Internal GUI Space Operational / Live Audit / Logs Archived Data … Ext. Data Staging Database … ETL ETL Datawarehouse Storage Cleaning / Cleansing / Enrichment / Remapping Historize Query ETL Reporting / Analytics / Querying Data Mart Data Mart Data Mart Operational Application Space Online Business Applications Batch Business Applications Monitoring / Operation Applications External GUI Space DMZ Web Apps Desktop Apps Web Apps Mobile Apps Operational Information System Analytical Information System / Business Intelligence
36 2.2 The death of the Moore Law

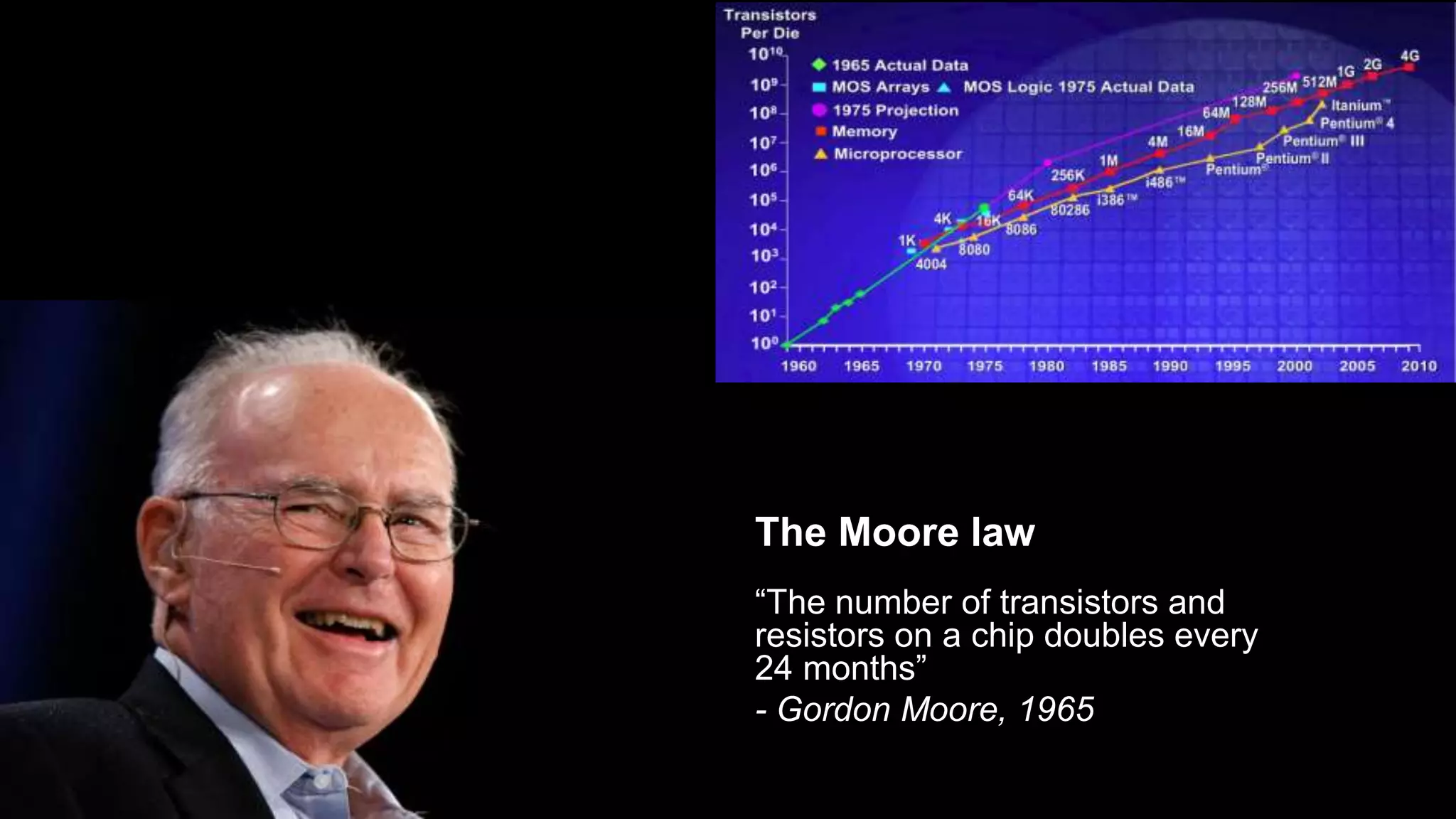

37 The Moore law “The number of transistors and resistors on a chip doubles every 24 months” - Gordon Moore, 1965

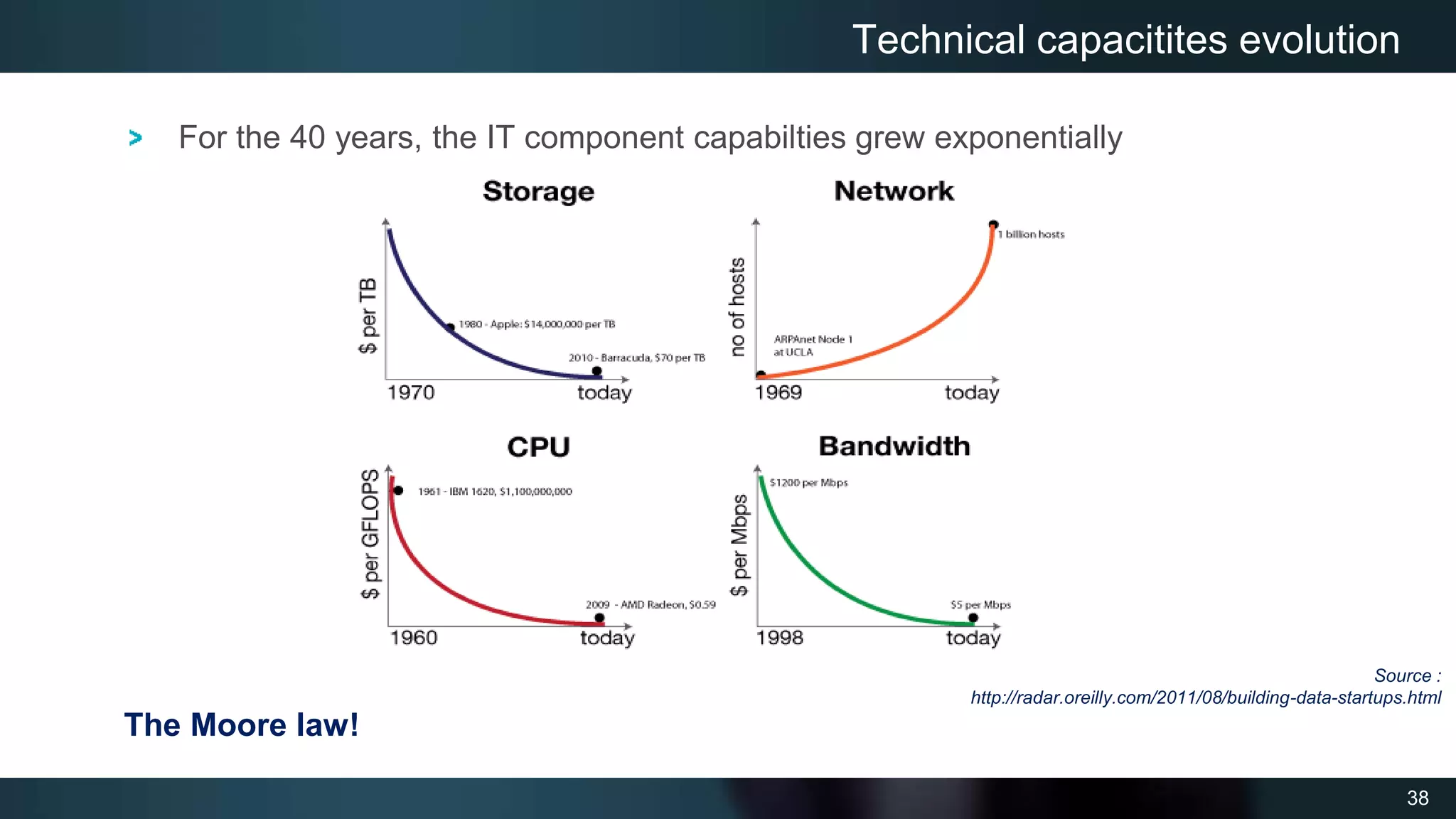

38 Technical capacitites evolution For the 40 years, the IT component capabilties grew exponentially The Moore law! Source : http://radar.oreilly.com/2011/08/building-data-startups.html

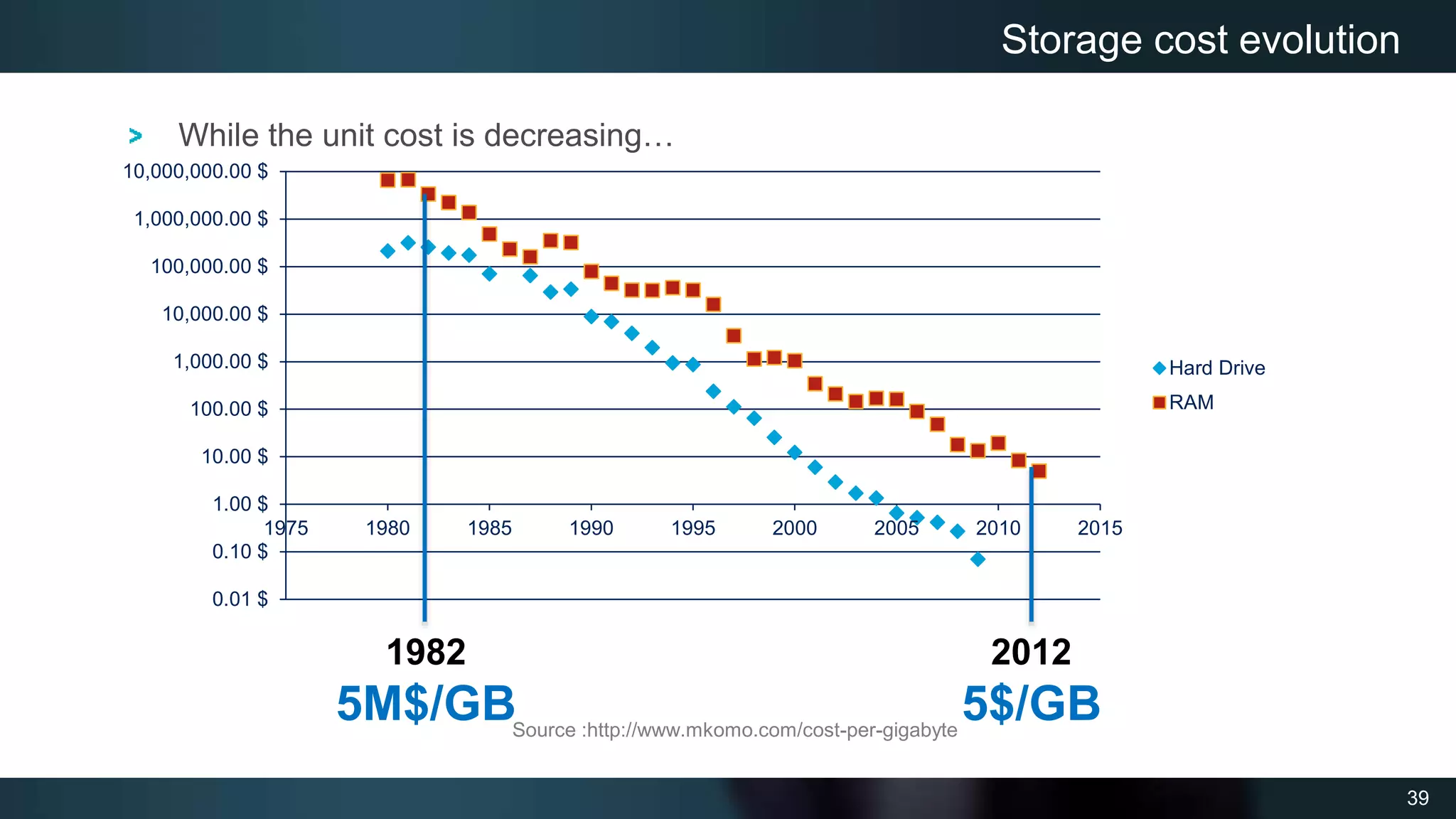

39 Storage cost evolution While the unit cost is decreasing… 0.01 $ 0.10 $ 1.00 $ 10.00 $ 100.00 $ 1,000.00 $ 10,000.00 $ 100,000.00 $ 1,000,000.00 $ 10,000,000.00 $ 1975 1980 1985 1990 1995 2000 2005 2010 2015 Hard Drive RAM Source :http://www.mkomo.com/cost-per-gigabyte 2012 5$/GB 1982 5M$/GB
40

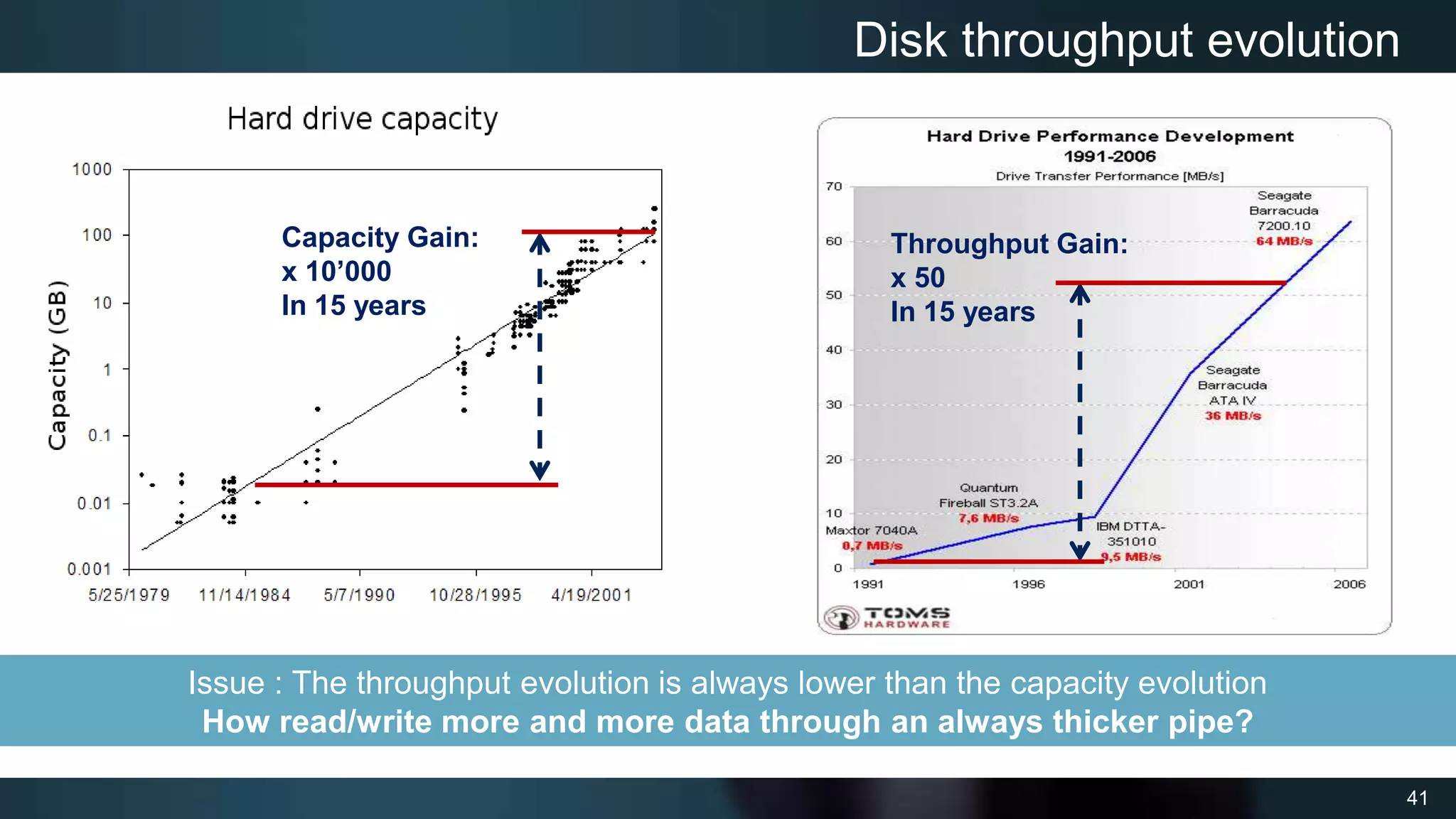

41 Disk throughput evolution Issue : The throughput evolution is always lower than the capacity evolution How read/write more and more data through an always thicker pipe? Gain : x100 000 Capacity Gain: x 10’000 In 15 years Throughput Gain: x 50 In 15 years

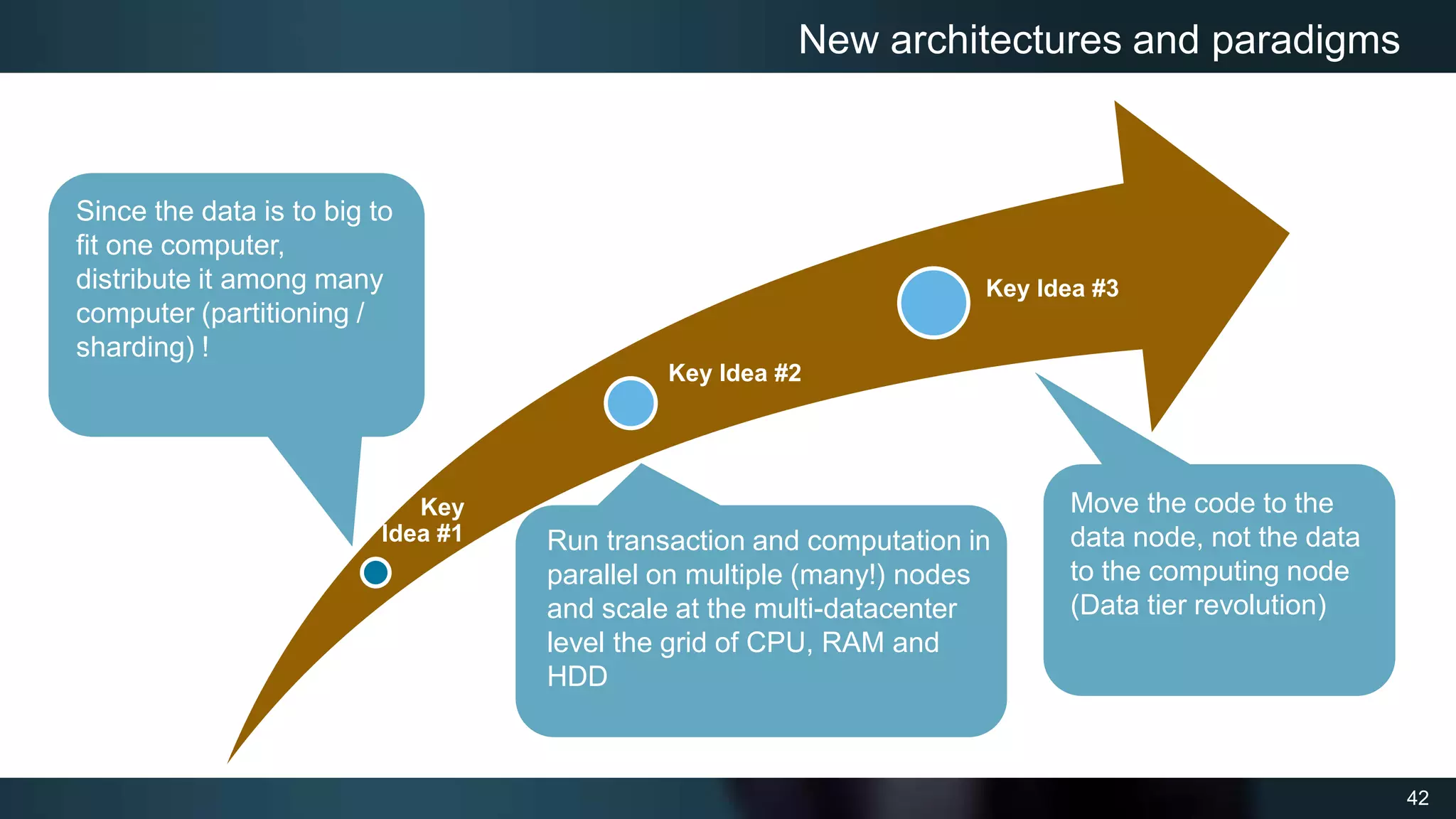

42 New architectures and paradigms Key Idea #1 Key Idea #2 Key Idea #3 Since the data is to big to fit one computer, distribute it among many computer (partitioning / sharding) ! Run transaction and computation in parallel on multiple (many!) nodes and scale at the multi-datacenter level the grid of CPU, RAM and HDD Move the code to the data node, not the data to the computing node (Data tier revolution)
43 2.3 The CAP Theorem

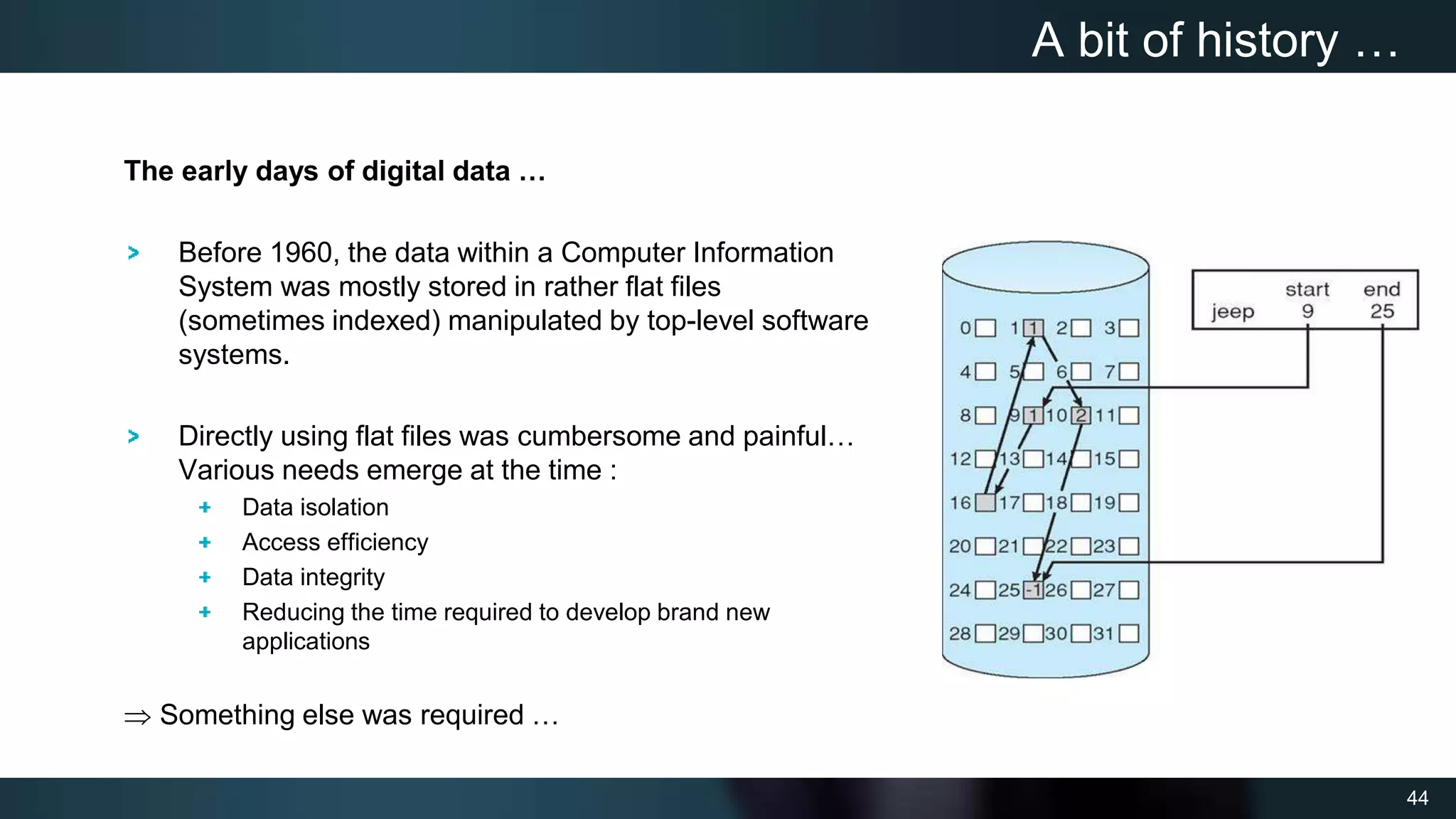

44 The early days of digital data … Before 1960, the data within a Computer Information System was mostly stored in rather flat files (sometimes indexed) manipulated by top-level software systems. Directly using flat files was cumbersome and painful… Various needs emerge at the time : Data isolation Access efficiency Data integrity Reducing the time required to develop brand new applications  Something else was required … A bit of history …

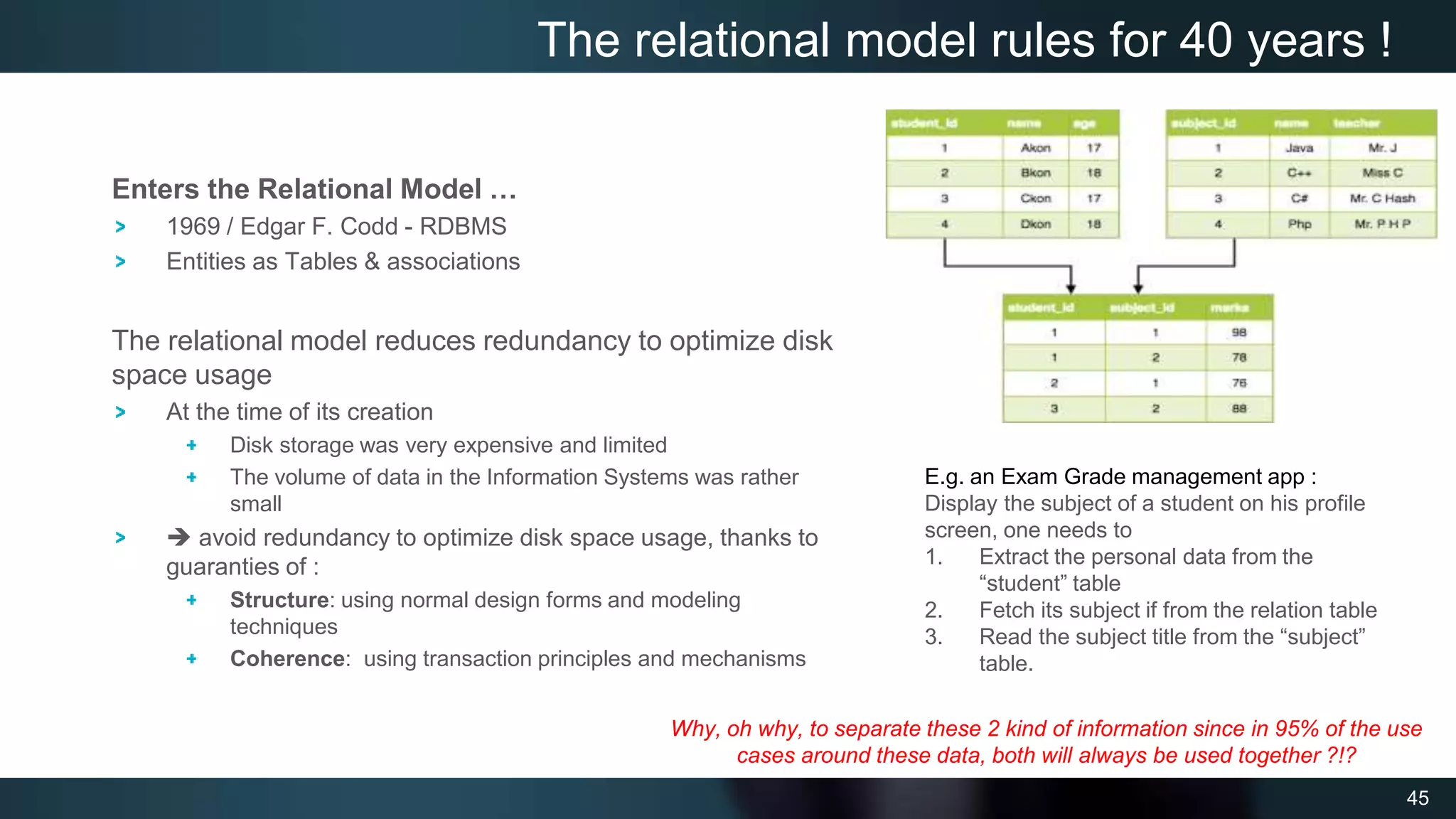

45 The relational model rules for 40 years ! E.g. an Exam Grade management app : Display the subject of a student on his profile screen, one needs to 1. Extract the personal data from the “student” table 2. Fetch its subject if from the relation table 3. Read the subject title from the “subject” table. Enters the Relational Model … 1969 / Edgar F. Codd - RDBMS Entities as Tables & associations The relational model reduces redundancy to optimize disk space usage At the time of its creation Disk storage was very expensive and limited The volume of data in the Information Systems was rather small  avoid redundancy to optimize disk space usage, thanks to guaranties of : Structure: using normal design forms and modeling techniques Coherence: using transaction principles and mechanisms Why, oh why, to separate these 2 kind of information since in 95% of the use cases around these data, both will always be used together ?!?

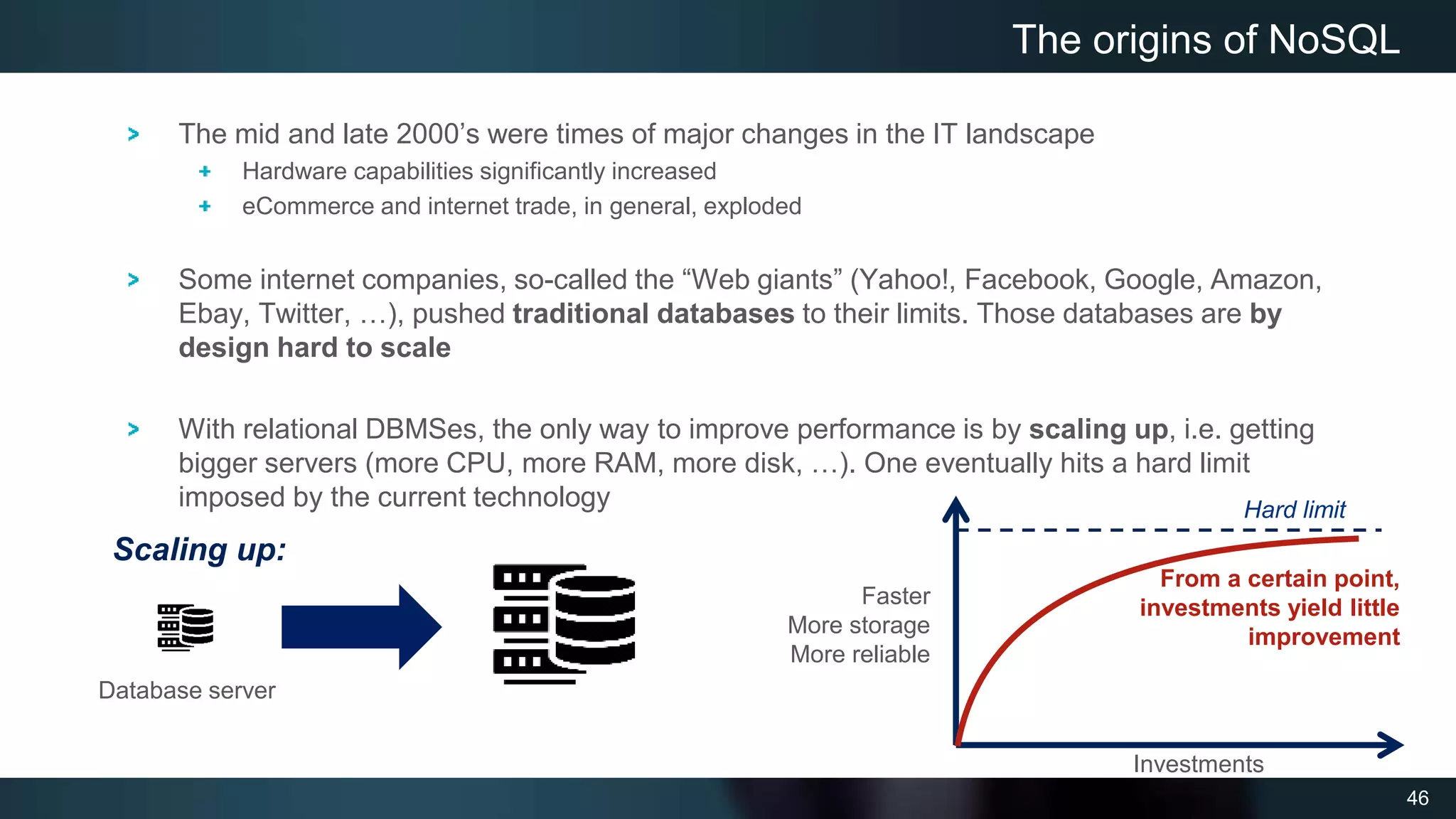

46 The mid and late 2000’s were times of major changes in the IT landscape Hardware capabilities significantly increased eCommerce and internet trade, in general, exploded Some internet companies, so-called the “Web giants” (Yahoo!, Facebook, Google, Amazon, Ebay, Twitter, …), pushed traditional databases to their limits. Those databases are by design hard to scale With relational DBMSes, the only way to improve performance is by scaling up, i.e. getting bigger servers (more CPU, more RAM, more disk, …). One eventually hits a hard limit imposed by the current technology The origins of NoSQL Faster More storage More reliable Investments Hard limit From a certain point, investments yield little improvement Database server Scaling up:

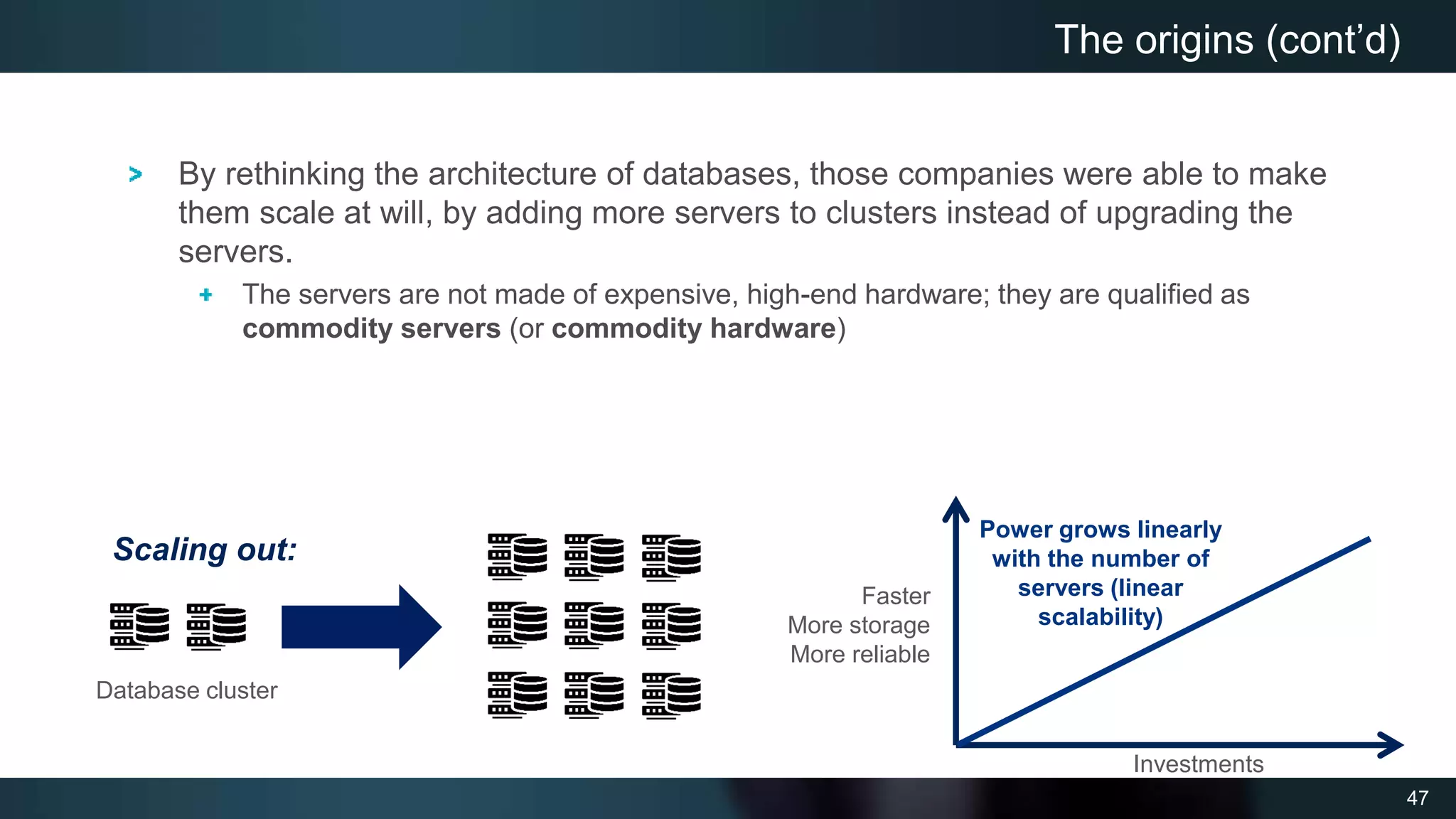

47 By rethinking the architecture of databases, those companies were able to make them scale at will, by adding more servers to clusters instead of upgrading the servers. The servers are not made of expensive, high-end hardware; they are qualified as commodity servers (or commodity hardware) The origins (cont’d) Faster More storage More reliable Investments Power grows linearly with the number of servers (linear scalability) Scaling out: Database cluster

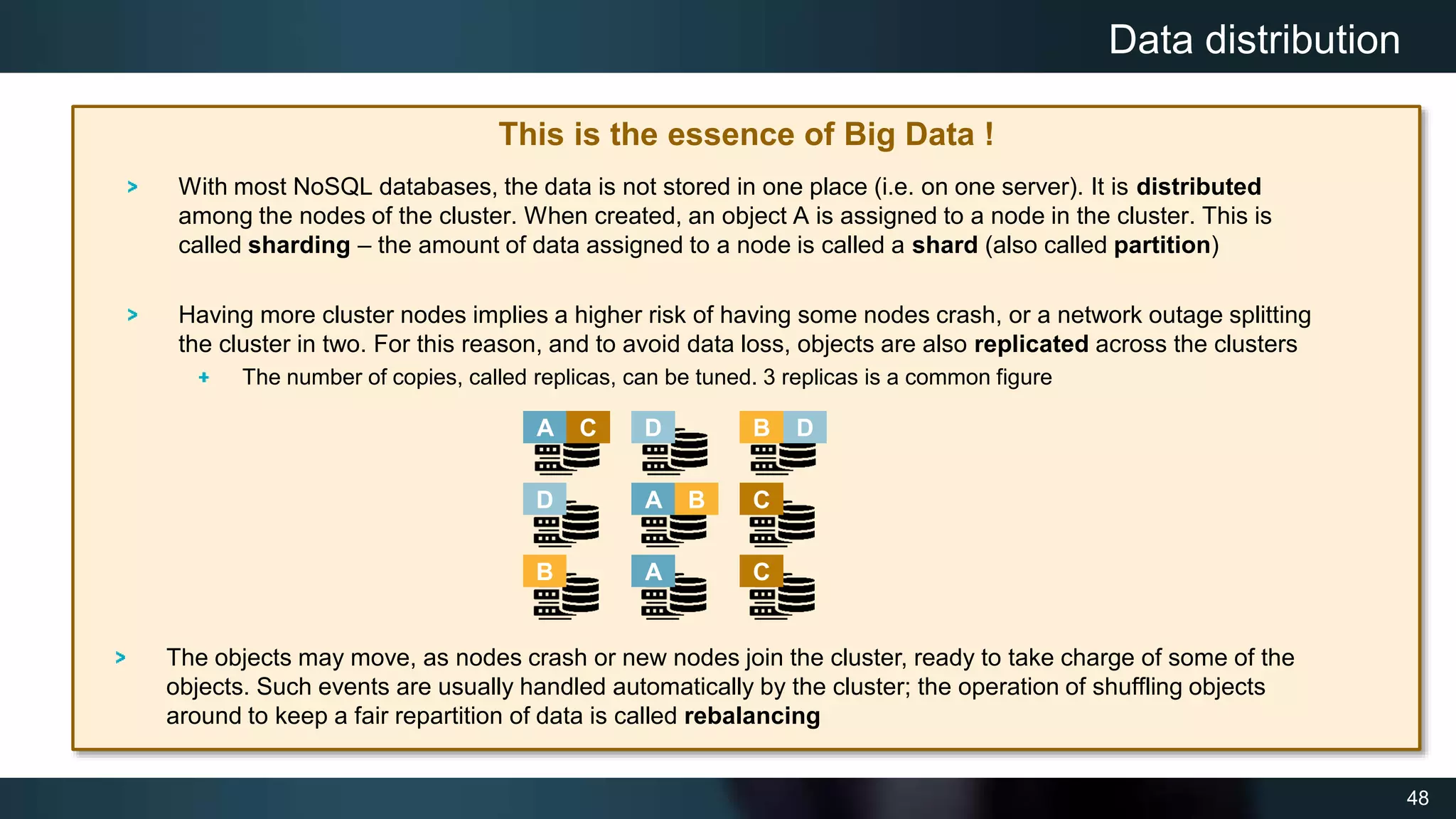

48 This is the essence of Big Data ! With most NoSQL databases, the data is not stored in one place (i.e. on one server). It is distributed among the nodes of the cluster. When created, an object A is assigned to a node in the cluster. This is called sharding – the amount of data assigned to a node is called a shard (also called partition) Having more cluster nodes implies a higher risk of having some nodes crash, or a network outage splitting the cluster in two. For this reason, and to avoid data loss, objects are also replicated across the clusters The number of copies, called replicas, can be tuned. 3 replicas is a common figure Data distribution A B C D A A B B C C D D The objects may move, as nodes crash or new nodes join the cluster, ready to take charge of some of the objects. Such events are usually handled automatically by the cluster; the operation of shuffling objects around to keep a fair repartition of data is called rebalancing

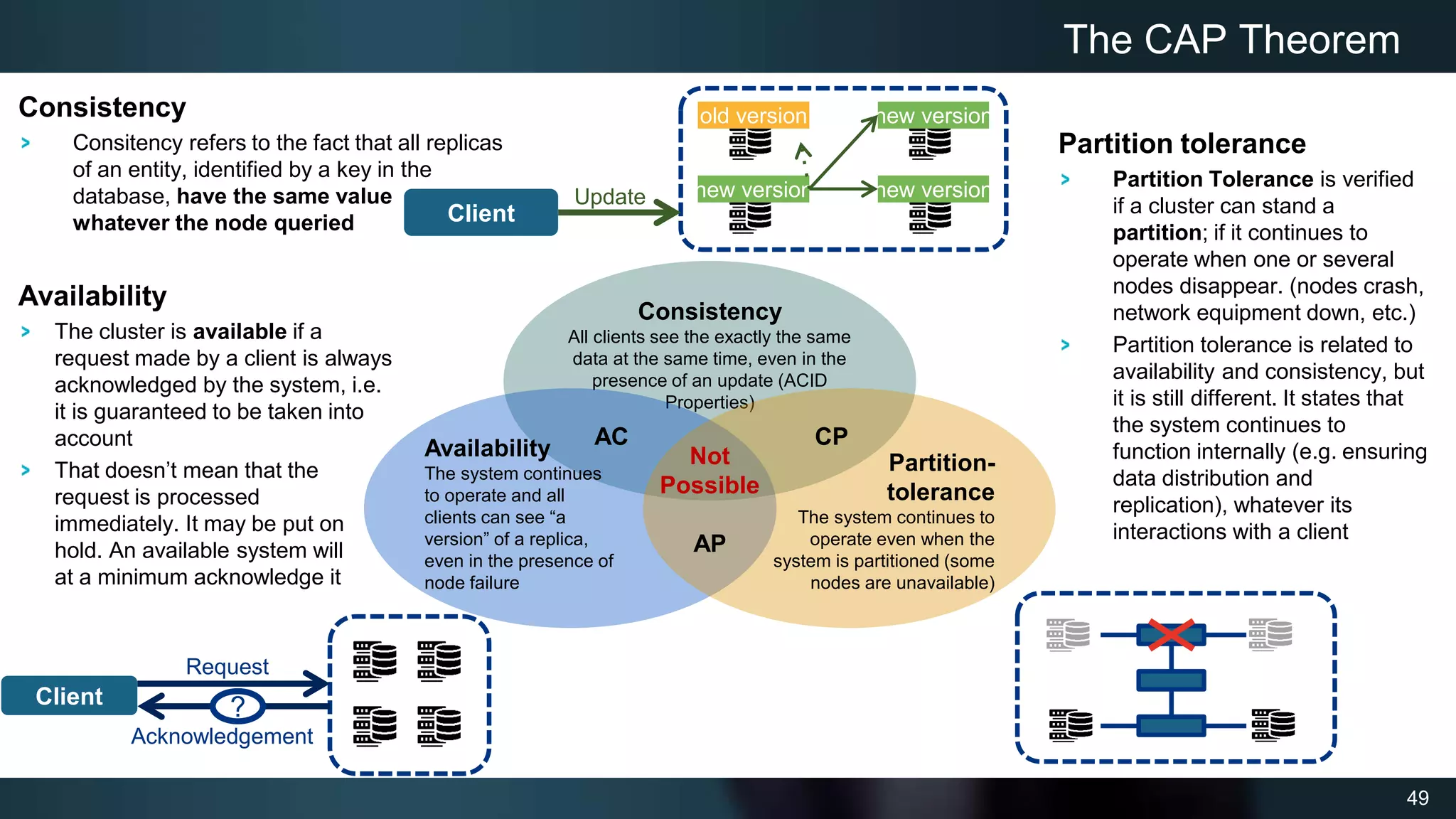

49 The CAP Theorem Consistency All clients see the exactly the same data at the same time, even in the presence of an update (ACID Properties) Availability The system continues to operate and all clients can see “a version” of a replica, even in the presence of node failure Partition- tolerance The system continues to operate even when the system is partitioned (some nodes are unavailable) AC CP AP Not Possible Availability The cluster is available if a request made by a client is always acknowledged by the system, i.e. it is guaranteed to be taken into account That doesn’t mean that the request is processed immediately. It may be put on hold. An available system will at a minimum acknowledge it Client Request Acknowledgement ? Partition tolerance Partition Tolerance is verified if a cluster can stand a partition; if it continues to operate when one or several nodes disappear. (nodes crash, network equipment down, etc.) Partition tolerance is related to availability and consistency, but it is still different. It states that the system continues to function internally (e.g. ensuring data distribution and replication), whatever its interactions with a client Consistency Consitency refers to the fact that all replicas of an entity, identified by a key in the database, have the same value whatever the node queried old version new version new version new version Client Update

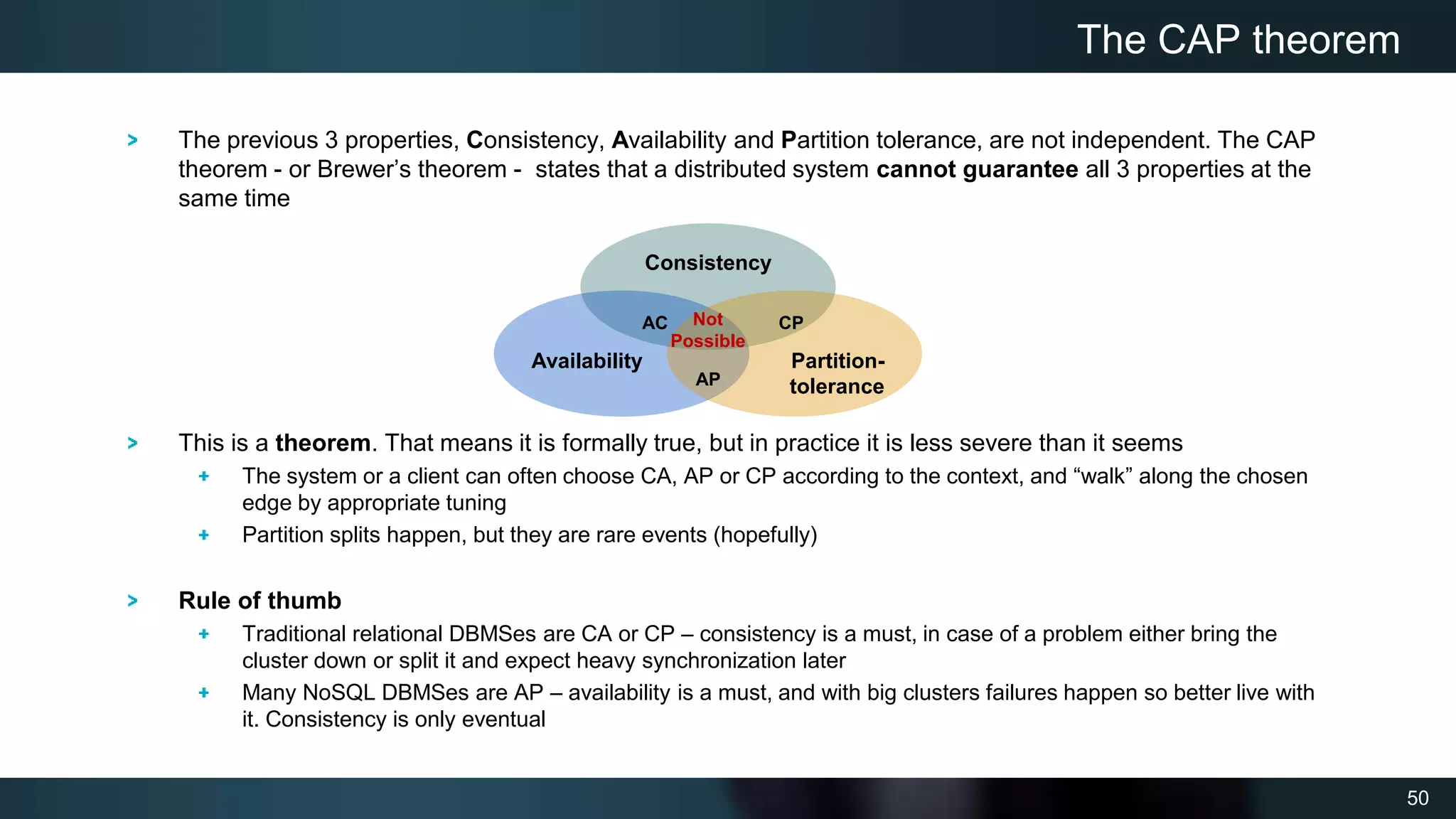

50 The previous 3 properties, Consistency, Availability and Partition tolerance, are not independent. The CAP theorem - or Brewer’s theorem - states that a distributed system cannot guarantee all 3 properties at the same time This is a theorem. That means it is formally true, but in practice it is less severe than it seems The system or a client can often choose CA, AP or CP according to the context, and “walk” along the chosen edge by appropriate tuning Partition splits happen, but they are rare events (hopefully) Rule of thumb Traditional relational DBMSes are CA or CP – consistency is a must, in case of a problem either bring the cluster down or split it and expect heavy synchronization later Many NoSQL DBMSes are AP – availability is a must, and with big clusters failures happen so better live with it. Consistency is only eventual The CAP theorem Consistency Availability Partition- tolerance AC CP AP Not Possible

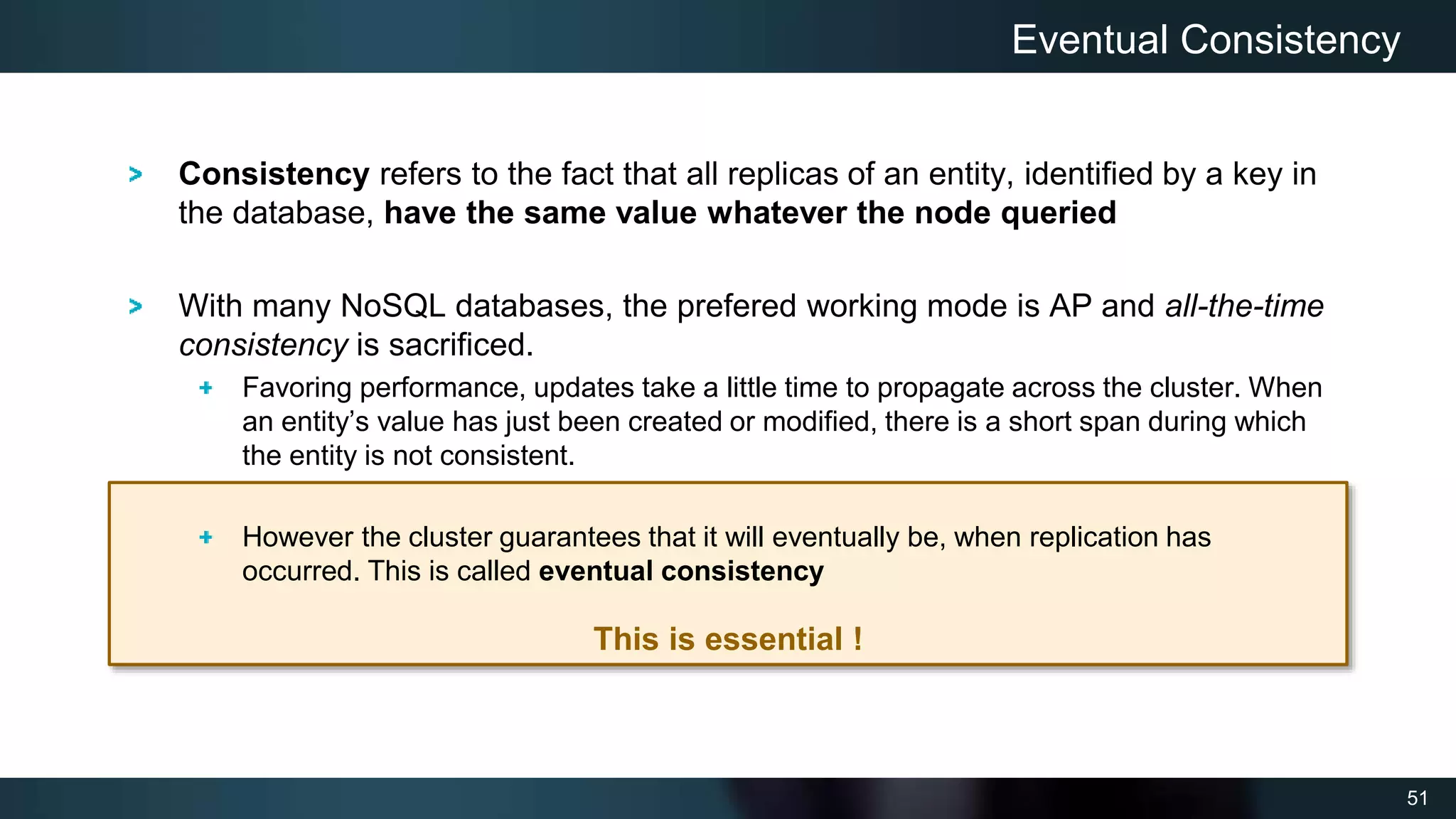

51 This is essential ! Consistency refers to the fact that all replicas of an entity, identified by a key in the database, have the same value whatever the node queried With many NoSQL databases, the prefered working mode is AP and all-the-time consistency is sacrificed. Favoring performance, updates take a little time to propagate across the cluster. When an entity’s value has just been created or modified, there is a short span during which the entity is not consistent. However the cluster guarantees that it will eventually be, when replication has occurred. This is called eventual consistency Eventual Consistency
52 2.4 NoSQL / NewSQL

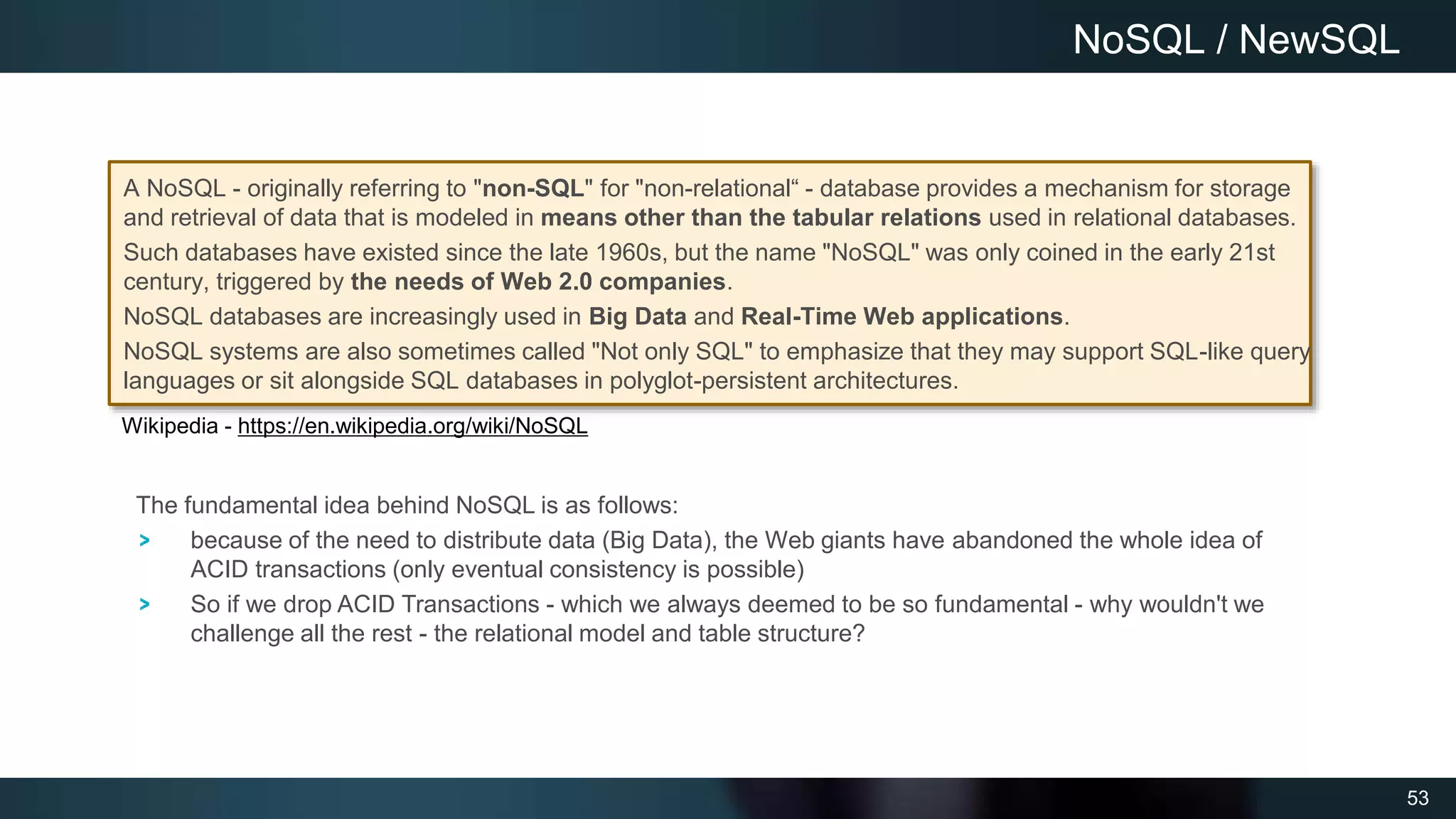

53 A NoSQL - originally referring to "non-SQL" for "non-relational“ - database provides a mechanism for storage and retrieval of data that is modeled in means other than the tabular relations used in relational databases. Such databases have existed since the late 1960s, but the name "NoSQL" was only coined in the early 21st century, triggered by the needs of Web 2.0 companies. NoSQL databases are increasingly used in Big Data and Real-Time Web applications. NoSQL systems are also sometimes called "Not only SQL" to emphasize that they may support SQL-like query languages or sit alongside SQL databases in polyglot-persistent architectures. NoSQL / NewSQL The fundamental idea behind NoSQL is as follows: because of the need to distribute data (Big Data), the Web giants have abandoned the whole idea of ACID transactions (only eventual consistency is possible) So if we drop ACID Transactions - which we always deemed to be so fundamental - why wouldn't we challenge all the rest - the relational model and table structure? Wikipedia - https://en.wikipedia.org/wiki/NoSQL

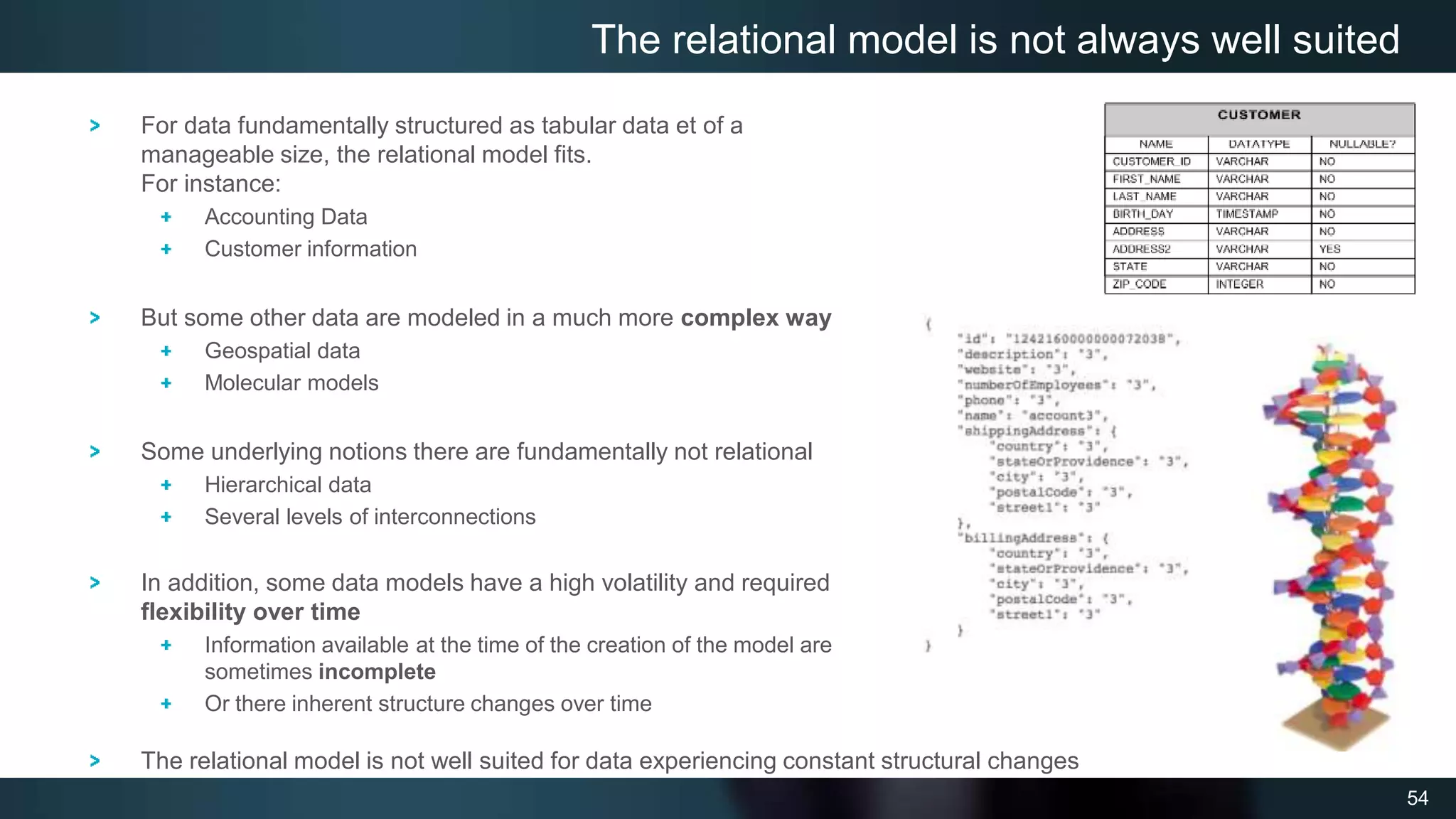

54 For data fundamentally structured as tabular data et of a manageable size, the relational model fits. For instance: Accounting Data Customer information But some other data are modeled in a much more complex way Geospatial data Molecular models Some underlying notions there are fundamentally not relational Hierarchical data Several levels of interconnections In addition, some data models have a high volatility and required flexibility over time Information available at the time of the creation of the model are sometimes incomplete Or there inherent structure changes over time The relational model is not well suited for data experiencing constant structural changes The relational model is not always well suited

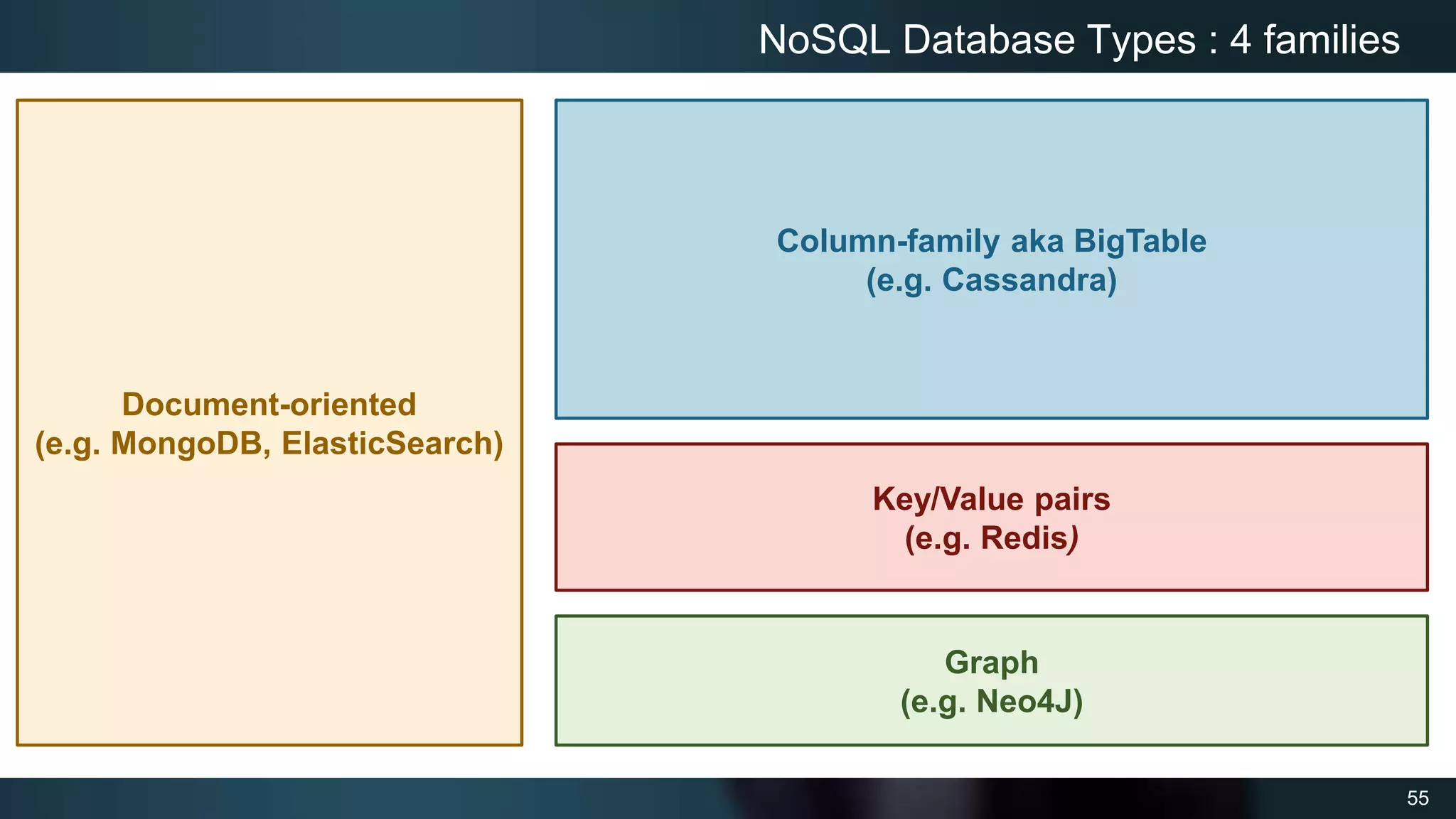

55 NoSQL Database Types : 4 families Document-oriented (e.g. MongoDB, ElasticSearch) Key/Value pairs (e.g. Redis) Graph (e.g. Neo4J) Column-family aka BigTable (e.g. Cassandra)

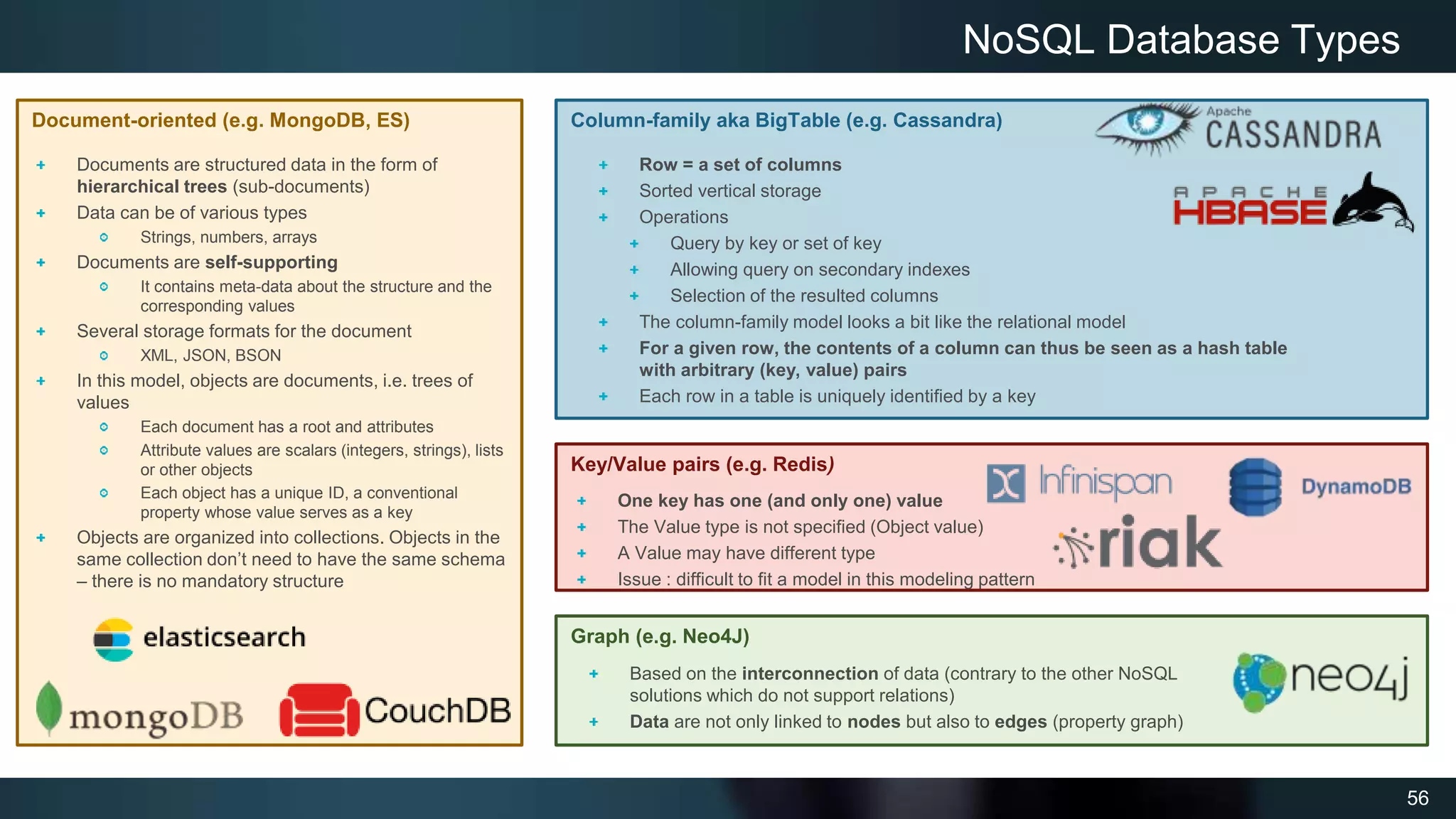

56 NoSQL Database Types Document-oriented (e.g. MongoDB, ES) Key/Value pairs (e.g. Redis) Graph (e.g. Neo4J) Column-family aka BigTable (e.g. Cassandra) One key has one (and only one) value The Value type is not specified (Object value) A Value may have different type Issue : difficult to fit a model in this modeling pattern Row = a set of columns Sorted vertical storage Operations Query by key or set of key Allowing query on secondary indexes Selection of the resulted columns The column-family model looks a bit like the relational model For a given row, the contents of a column can thus be seen as a hash table with arbitrary (key, value) pairs Each row in a table is uniquely identified by a key Documents are structured data in the form of hierarchical trees (sub-documents) Data can be of various types Strings, numbers, arrays Documents are self-supporting It contains meta-data about the structure and the corresponding values Several storage formats for the document XML, JSON, BSON In this model, objects are documents, i.e. trees of values Each document has a root and attributes Attribute values are scalars (integers, strings), lists or other objects Each object has a unique ID, a conventional property whose value serves as a key Objects are organized into collections. Objects in the same collection don’t need to have the same schema – there is no mandatory structure Based on the interconnection of data (contrary to the other NoSQL solutions which do not support relations) Data are not only linked to nodes but also to edges (property graph)

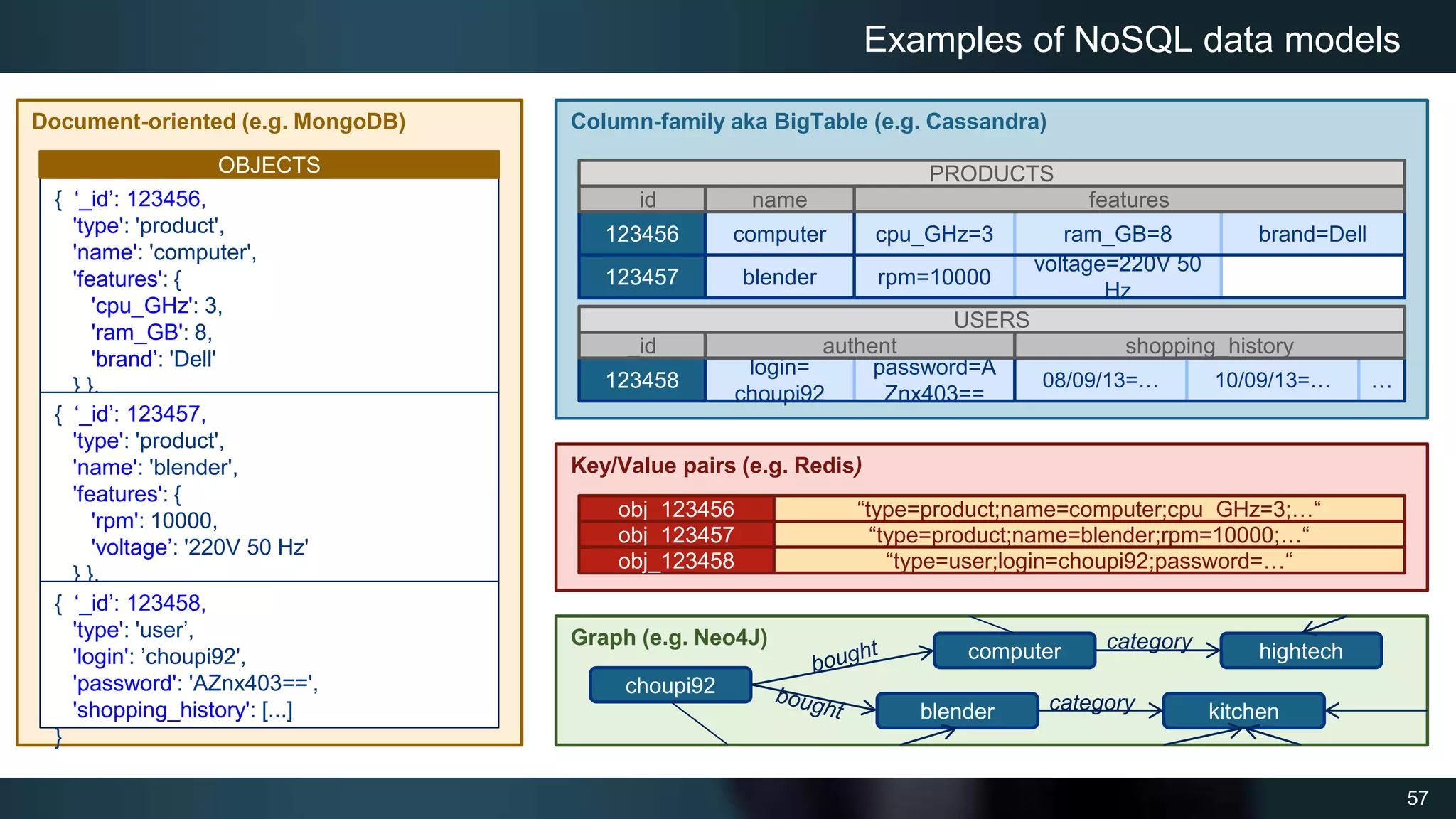

57 Examples of NoSQL data models Document-oriented (e.g. MongoDB) { ‘_id’: 123456, 'type': 'product', 'name': 'computer', 'features': { 'cpu_GHz': 3, 'ram_GB': 8, 'brand’: 'Dell' } }, } { ‘_id’: 123457, 'type': 'product', 'name': 'blender', 'features': { 'rpm': 10000, 'voltage’: '220V 50 Hz' } }, } { ‘_id’: 123458, 'type': 'user’, 'login': ’choupi92', 'password': 'AZnx403==', 'shopping_history': [...] } OBJECTS Key/Value pairs (e.g. Redis) obj_123456 “type=product;name=computer;cpu_GHz=3;…“ obj_123457 “type=product;name=blender;rpm=10000;…“ obj_123458 “type=user;login=choupi92;password=…“ Graph (e.g. Neo4J) choupi92 computer blender hightech kitchen category category Column-family aka BigTable (e.g. Cassandra) 123456 123457 computer blender cpu_GHz=3 ram_GB=8 rpm=10000 brand=Dell voltage=220V 50 Hz name _id PRODUCTS features 123458 login= choupi92 password=A Znx403== 08/09/13=… 10/09/13=… _id … USERS authent shopping_history

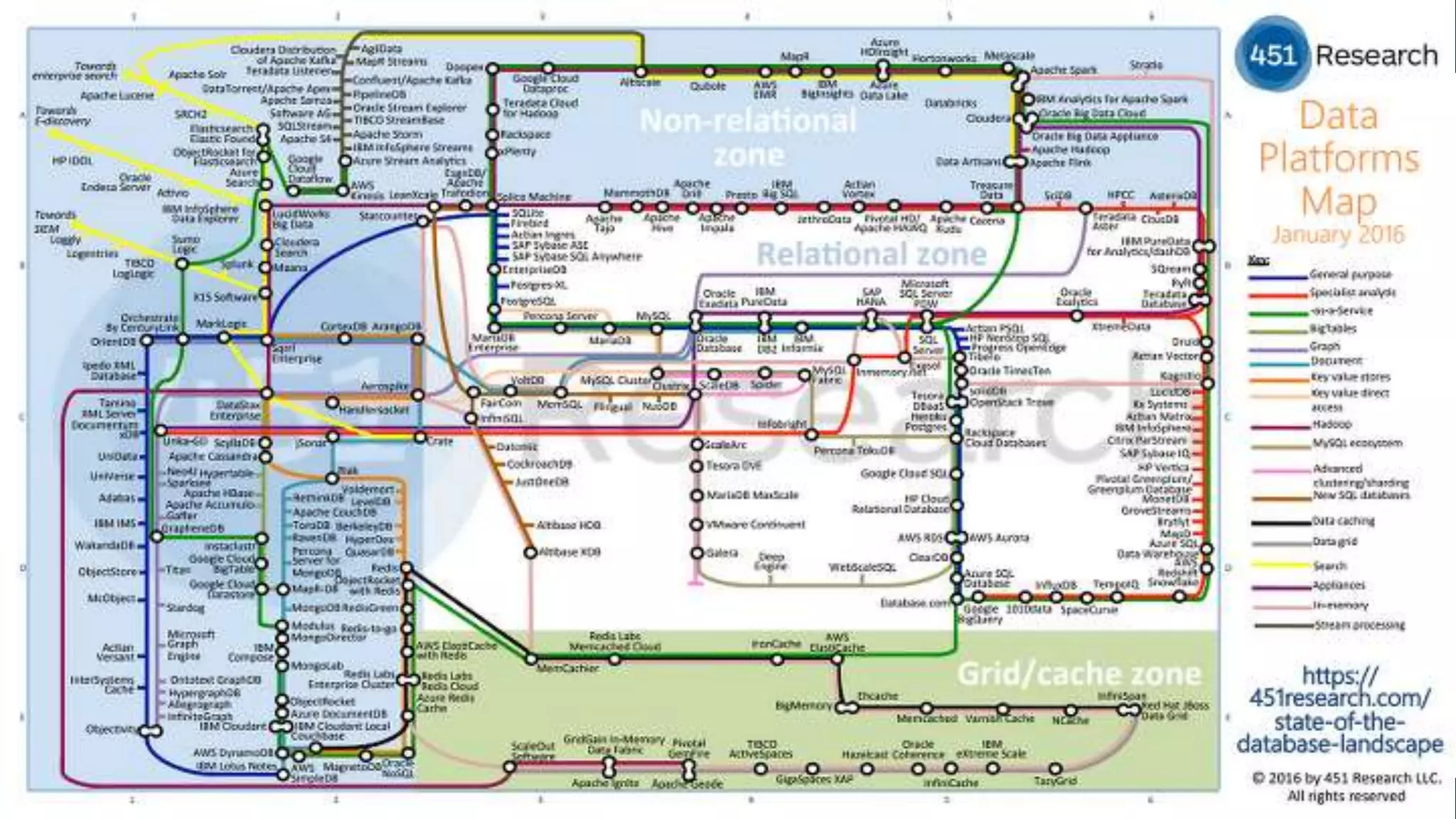

58

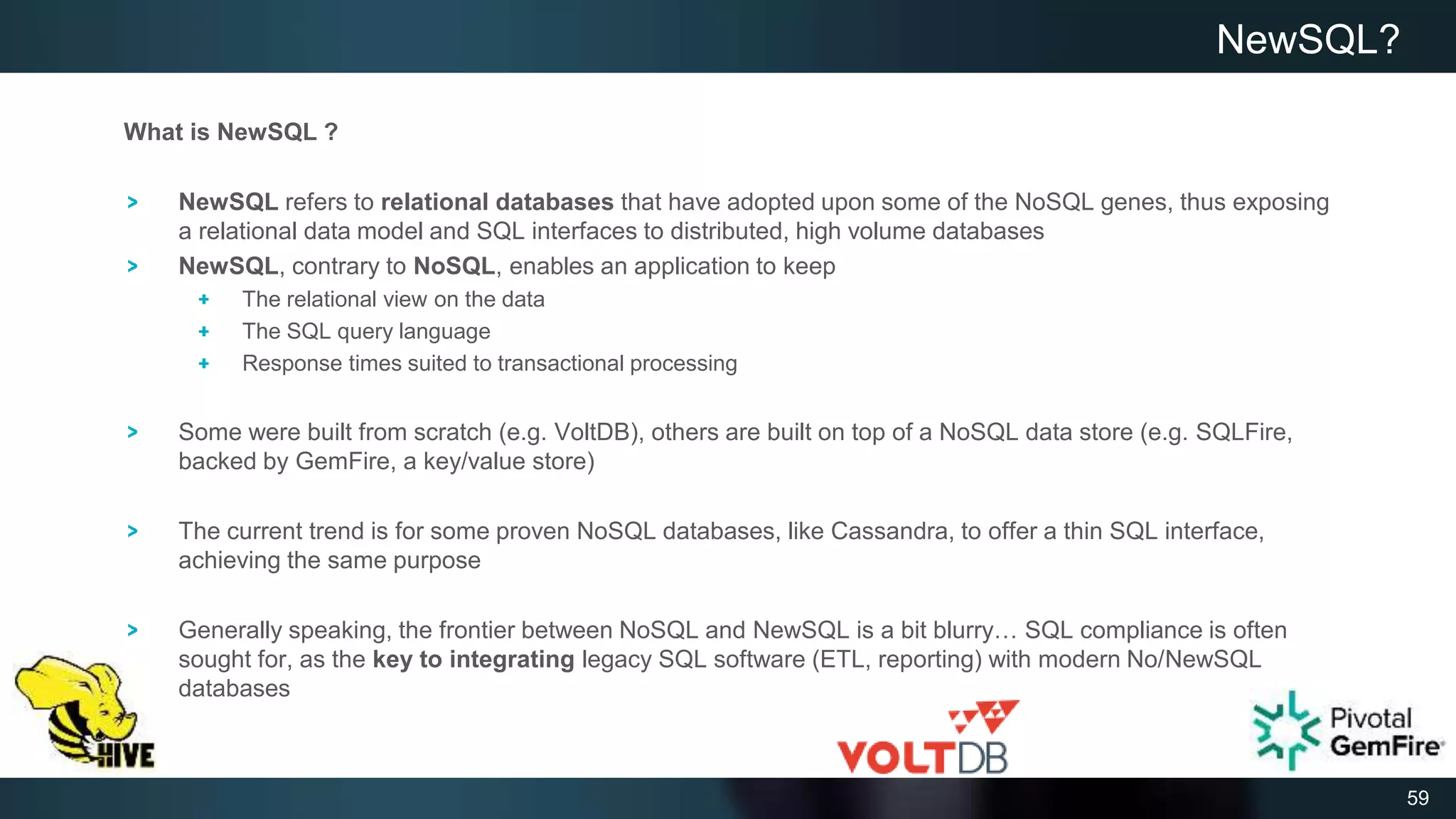

59 What is NewSQL ? NewSQL refers to relational databases that have adopted upon some of the NoSQL genes, thus exposing a relational data model and SQL interfaces to distributed, high volume databases NewSQL, contrary to NoSQL, enables an application to keep The relational view on the data The SQL query language Response times suited to transactional processing Some were built from scratch (e.g. VoltDB), others are built on top of a NoSQL data store (e.g. SQLFire, backed by GemFire, a key/value store) The current trend is for some proven NoSQL databases, like Cassandra, to offer a thin SQL interface, achieving the same purpose Generally speaking, the frontier between NoSQL and NewSQL is a bit blurry… SQL compliance is often sought for, as the key to integrating legacy SQL software (ETL, reporting) with modern No/NewSQL databases NewSQL?
60 2.5 Hadoop

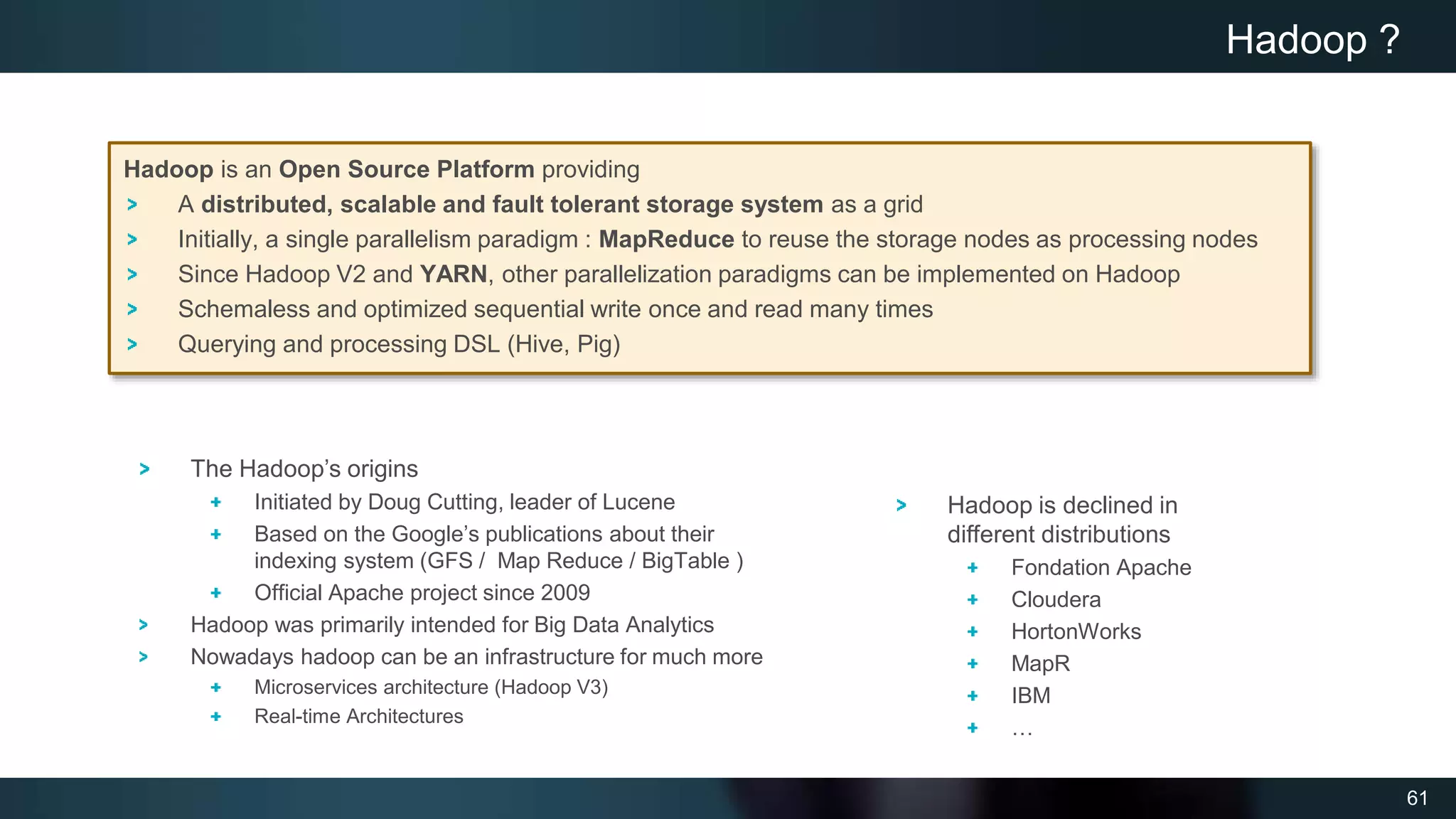

61 Hadoop is an Open Source Platform providing A distributed, scalable and fault tolerant storage system as a grid Initially, a single parallelism paradigm : MapReduce to reuse the storage nodes as processing nodes Since Hadoop V2 and YARN, other parallelization paradigms can be implemented on Hadoop Schemaless and optimized sequential write once and read many times Querying and processing DSL (Hive, Pig) Hadoop ? Hadoop is declined in different distributions Fondation Apache Cloudera HortonWorks MapR IBM … The Hadoop’s origins Initiated by Doug Cutting, leader of Lucene Based on the Google’s publications about their indexing system (GFS / Map Reduce / BigTable ) Official Apache project since 2009 Hadoop was primarily intended for Big Data Analytics Nowadays hadoop can be an infrastructure for much more Microservices architecture (Hadoop V3) Real-time Architectures

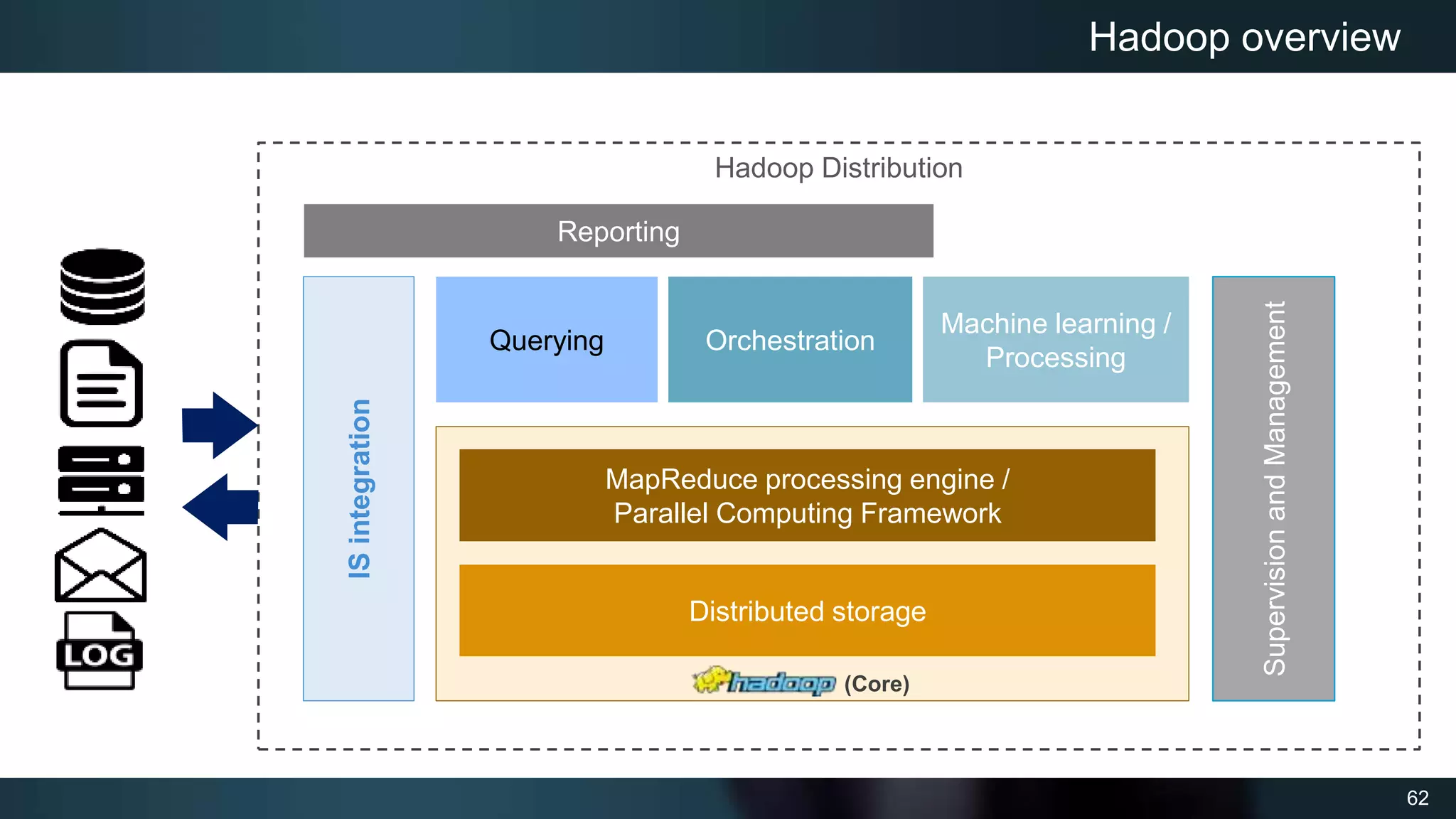

62 Hadoop Distribution Hadoop overview Distributed storage MapReduce processing engine / Parallel Computing Framework Querying Orchestration Machine learning / Processing IS integration Supervision and Management Reporting (Core)

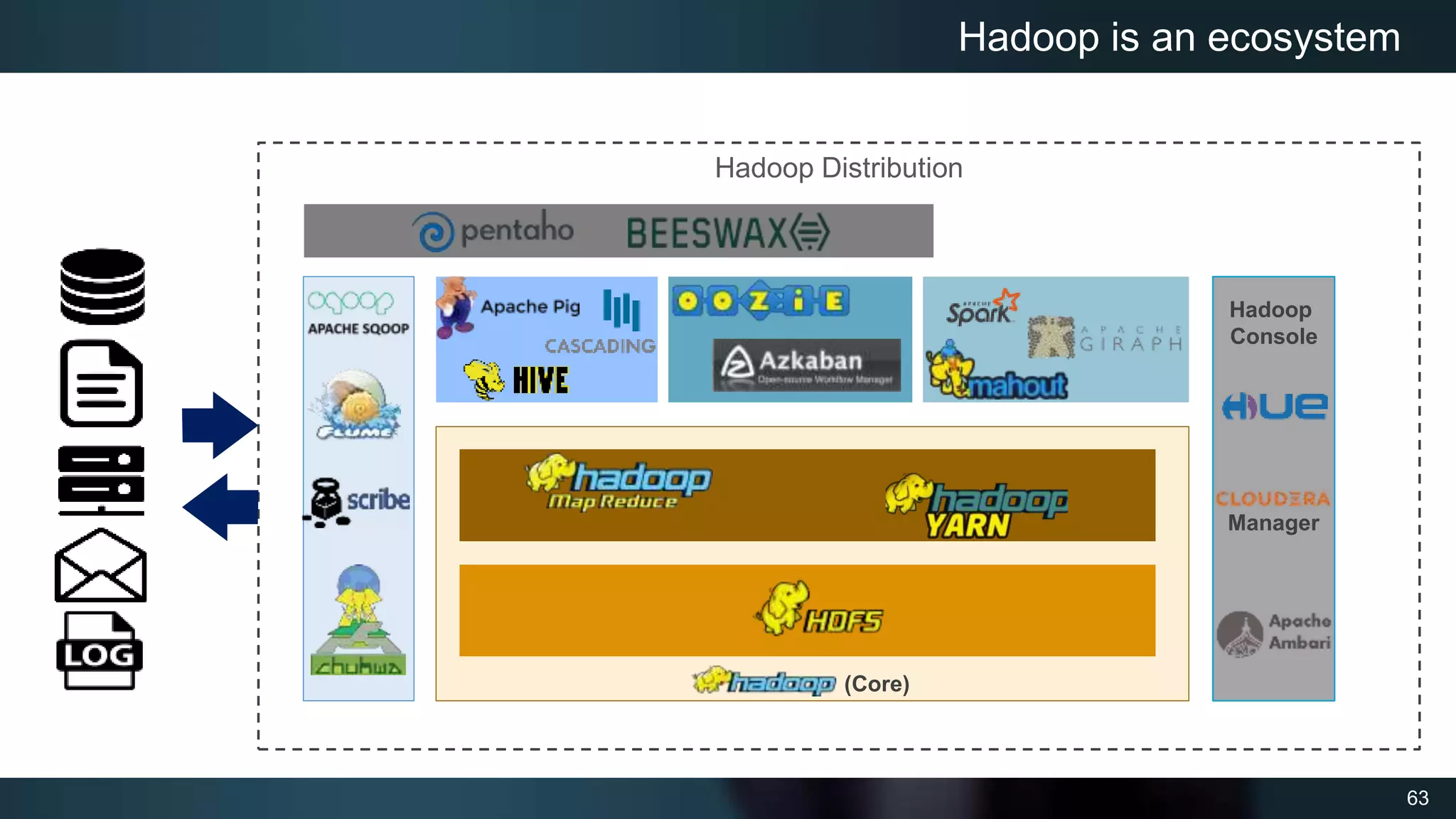

63 Hadoop Distribution Hadoop is an ecosystem Hadoop Console Manager (Core)

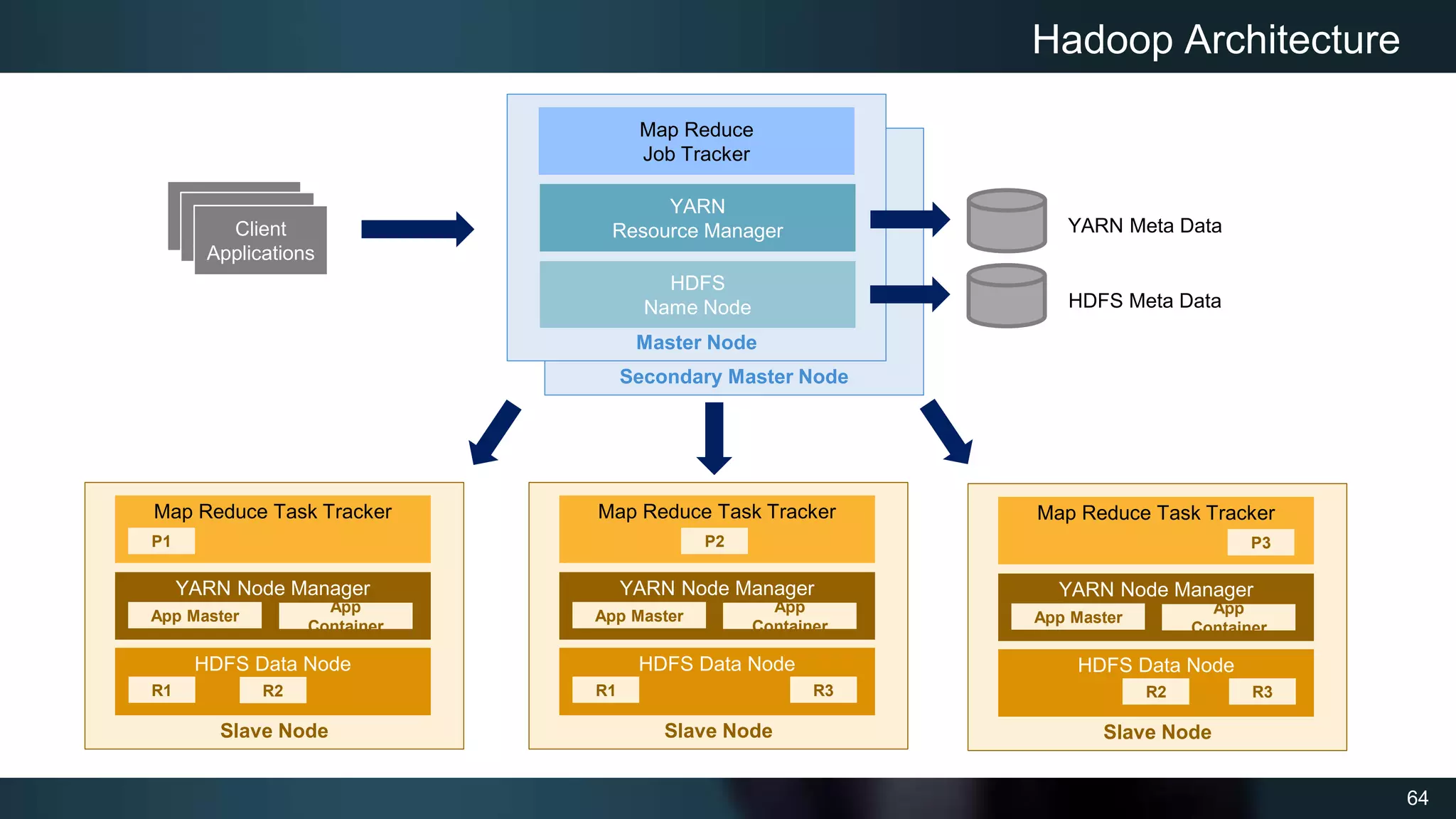

64 Hadoop Architecture Client Applications Client Applications Client Applications Slave Node HDFS Data Node Map Reduce Task Tracker YARN Node Manager App Master App Container R1 R2 P1 Secondary Master Node Master Node YARN Resource Manager HDFS Name Node Map Reduce Job Tracker HDFS Meta Data YARN Meta Data Slave Node HDFS Data Node Map Reduce Task Tracker YARN Node Manager App Master App Container R1 R3 P2 Slave Node HDFS Data Node Map Reduce Task Tracker YARN Node Manager App Master App Container R2 R3 P3
65 2.6 Data Lake

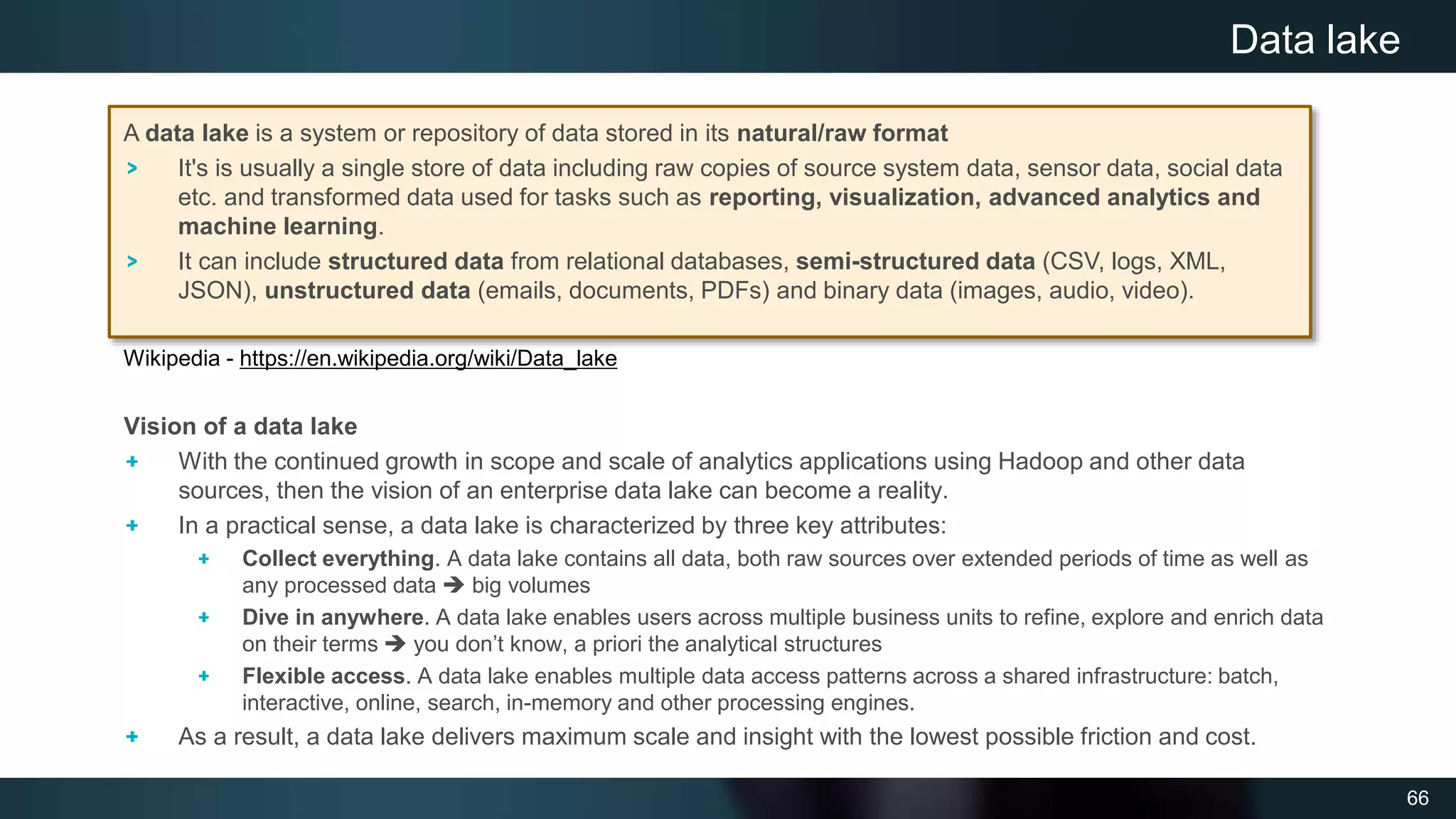

66 Vision of a data lake With the continued growth in scope and scale of analytics applications using Hadoop and other data sources, then the vision of an enterprise data lake can become a reality. In a practical sense, a data lake is characterized by three key attributes: Collect everything. A data lake contains all data, both raw sources over extended periods of time as well as any processed data  big volumes Dive in anywhere. A data lake enables users across multiple business units to refine, explore and enrich data on their terms  you don’t know, a priori the analytical structures Flexible access. A data lake enables multiple data access patterns across a shared infrastructure: batch, interactive, online, search, in-memory and other processing engines. As a result, a data lake delivers maximum scale and insight with the lowest possible friction and cost. Data lake A data lake is a system or repository of data stored in its natural/raw format It's is usually a single store of data including raw copies of source system data, sensor data, social data etc. and transformed data used for tasks such as reporting, visualization, advanced analytics and machine learning. It can include structured data from relational databases, semi-structured data (CSV, logs, XML, JSON), unstructured data (emails, documents, PDFs) and binary data (images, audio, video). Wikipedia - https://en.wikipedia.org/wiki/Data_lake

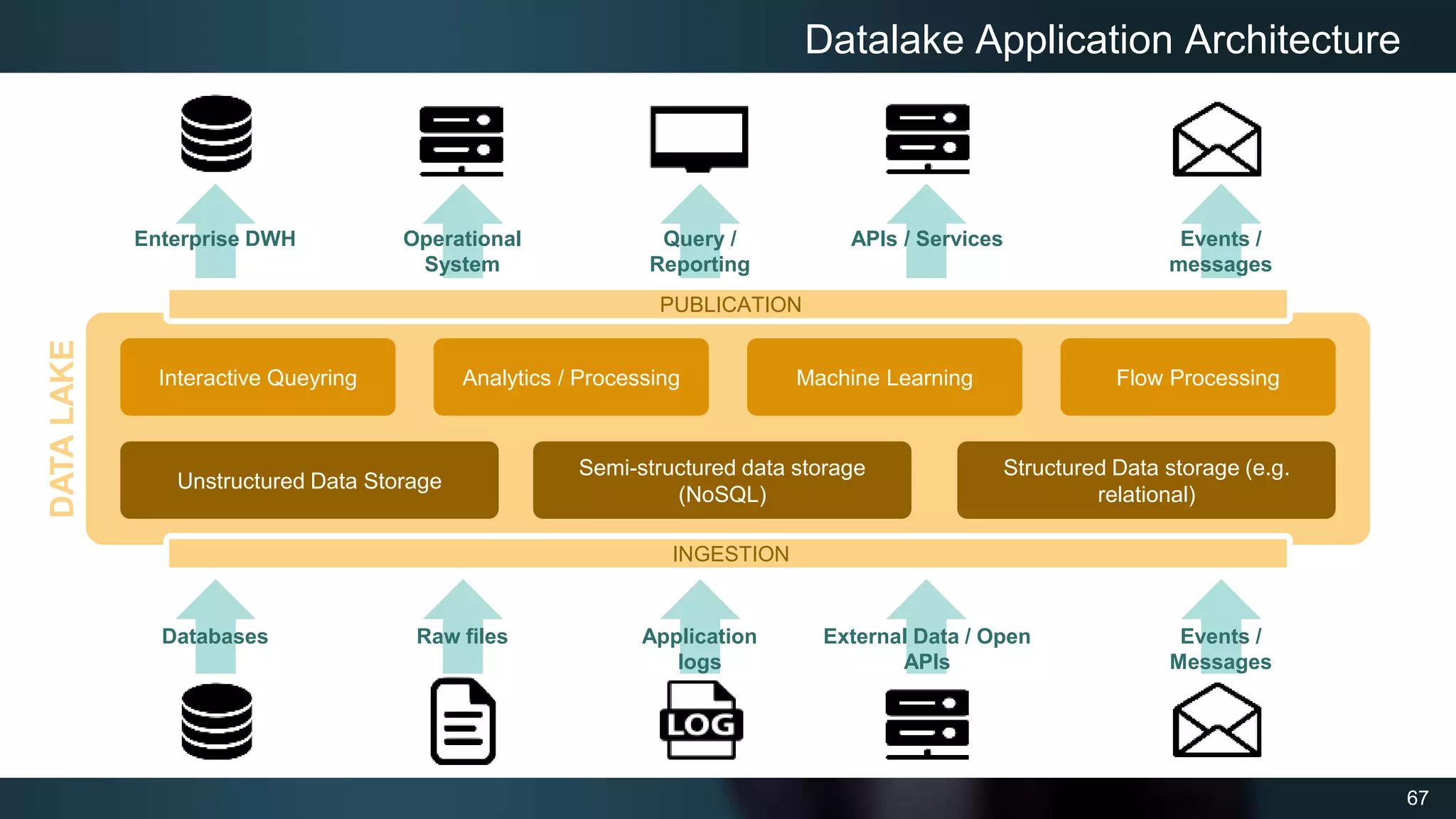

67 Datalake Application Architecture Unstructured Data Storage Semi-structured data storage (NoSQL) Structured Data storage (e.g. relational) Interactive Queyring Analytics / Processing Flow Processing Machine Learning Databases Raw files Application logs External Data / Open APIs Events / Messages Enterprise DWH Operational System Query / Reporting APIs / Services Events / messages DATA LAKE INGESTION PUBLICATION
68 2.7 Streaming Architecture

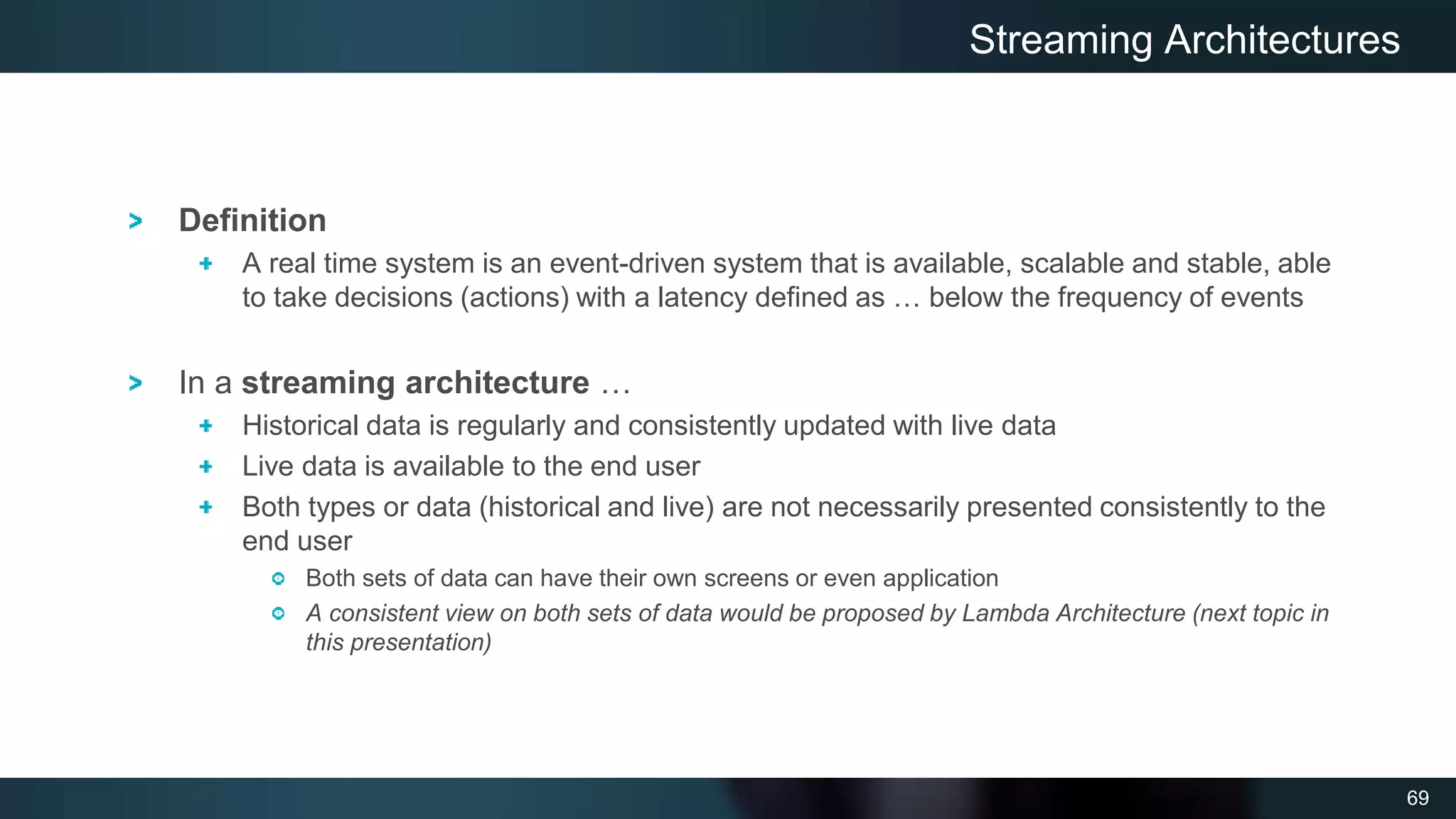

69 Definition A real time system is an event-driven system that is available, scalable and stable, able to take decisions (actions) with a latency defined as … below the frequency of events In a streaming architecture … Historical data is regularly and consistently updated with live data Live data is available to the end user Both types or data (historical and live) are not necessarily presented consistently to the end user Both sets of data can have their own screens or even application A consistent view on both sets of data would be proposed by Lambda Architecture (next topic in this presentation) Streaming Architectures

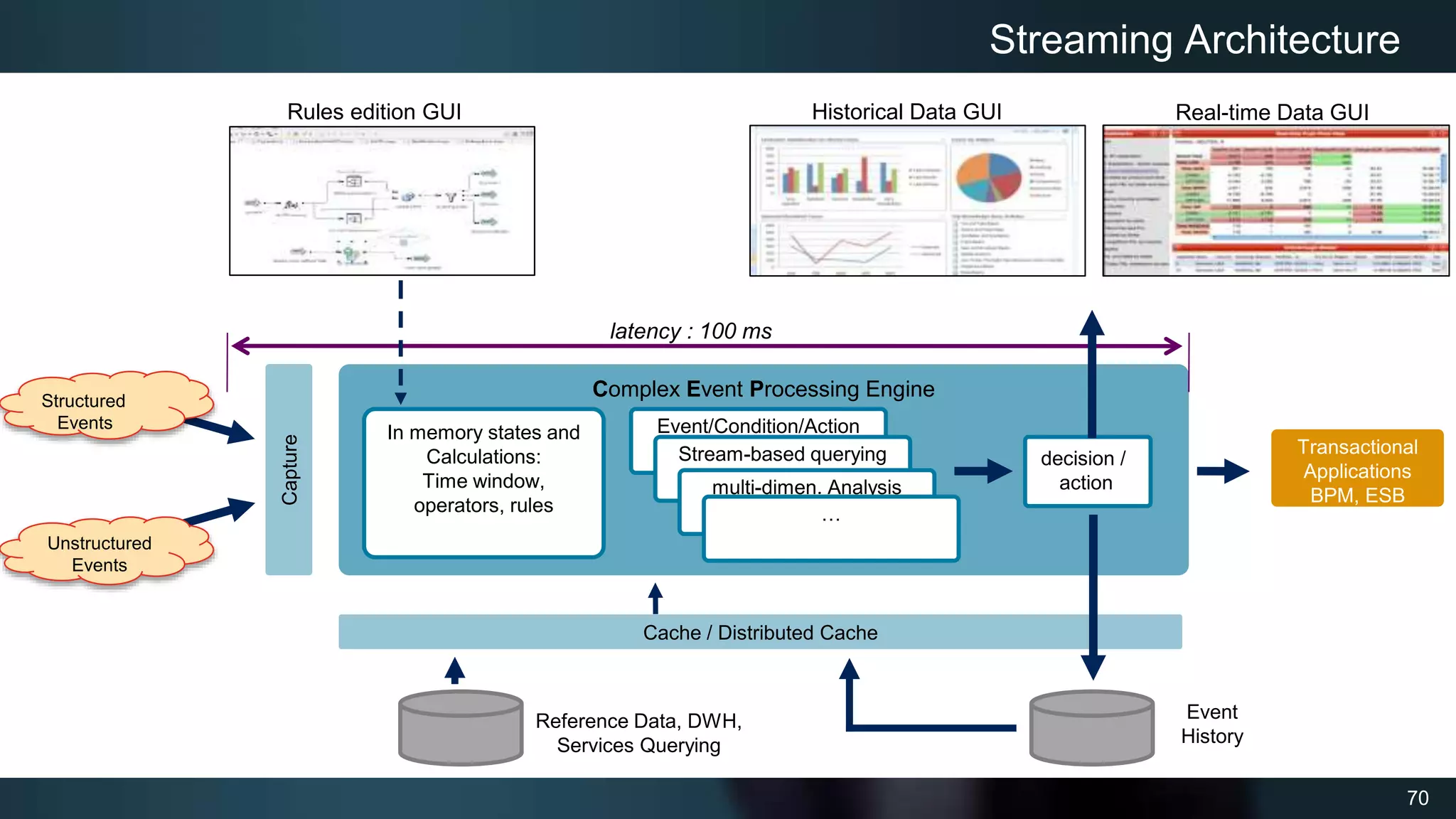

70 Complex Event Processing Engine decision / action Transactional Applications BPM, ESB Capture Streaming Architecture In memory states and Calculations: Time window, operators, rules Rules edition GUI Cache / Distributed Cache latency : 100 ms Event/Condition/Action Stream-based querying multi-dimen. Analysis … Real-time Data GUI Historical Data GUI Structured Events Unstructured Events Reference Data, DWH, Services Querying Event History

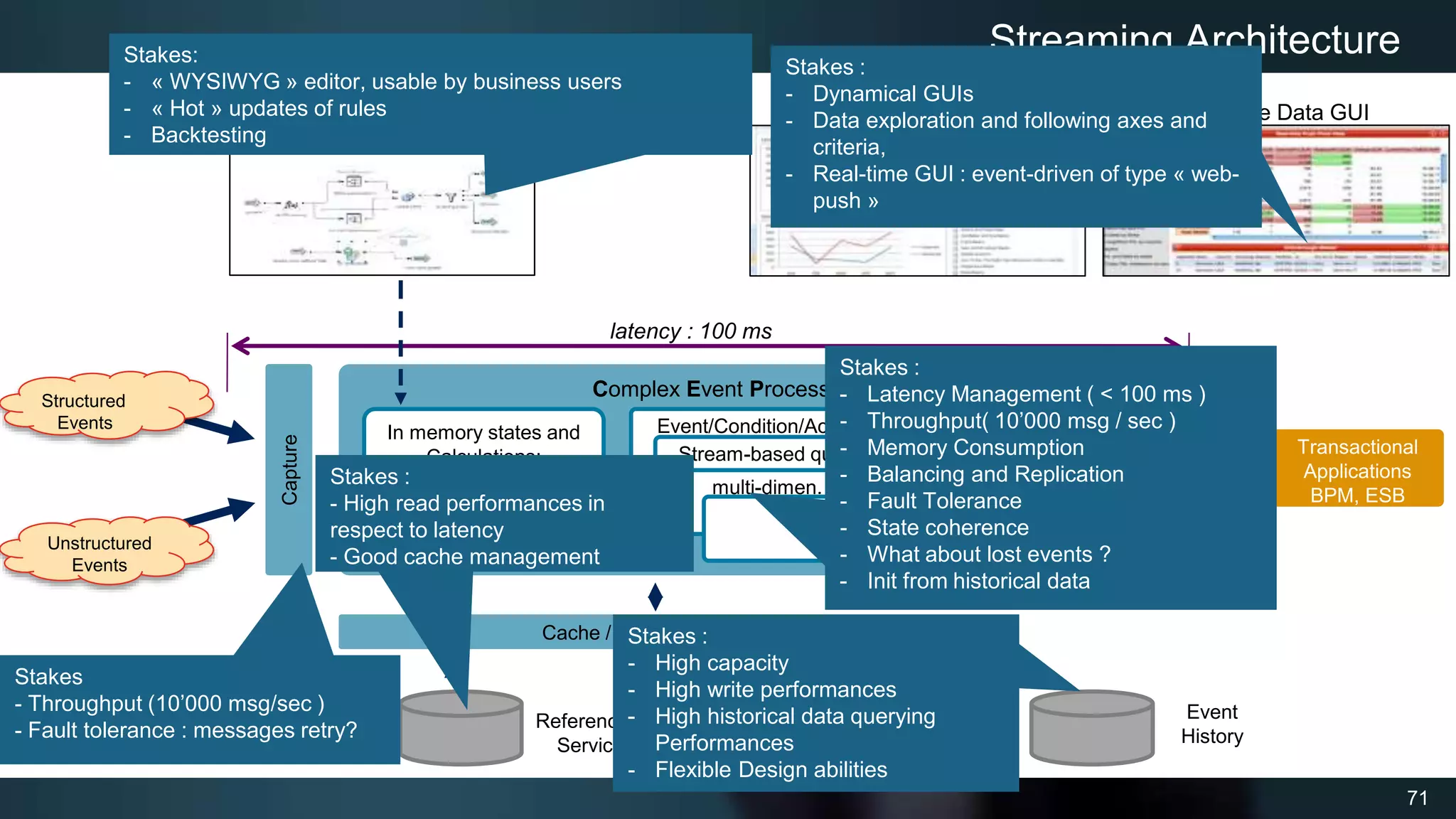

71 Complex Event Processing Engine decision / action Transactional Applications BPM, ESB Capture Streaming Architecture In memory states and Calculations: Time window, operators, rules Rules edition GUI Cache / Distributed Cache latency : 100 ms Event/Condition/Action Stream-based querying multi-dimen. Analysis … Real-time Data GUI Historical Data GUI Structured Events Unstructured Events Reference Data, DWH, Services Querying Event History Stakes : - Latency Management ( < 100 ms ) - Throughput( 10’000 msg / sec ) - Memory Consumption - Balancing and Replication - Fault Tolerance - State coherence - What about lost events ? - Init from historical data Stakes : - Dynamical GUIs - Data exploration and following axes and criteria, - Real-time GUI : event-driven of type « web- push » Stakes : - High read performances in respect to latency - Good cache management Stakes : - High capacity - High write performances - High historical data querying Performances - Flexible Design abilities Stakes: - « WYSIWYG » editor, usable by business users - « Hot » updates of rules - Backtesting Stakes - Throughput (10’000 msg/sec ) - Fault tolerance : messages retry?
72 2.8 Lambda Architecture

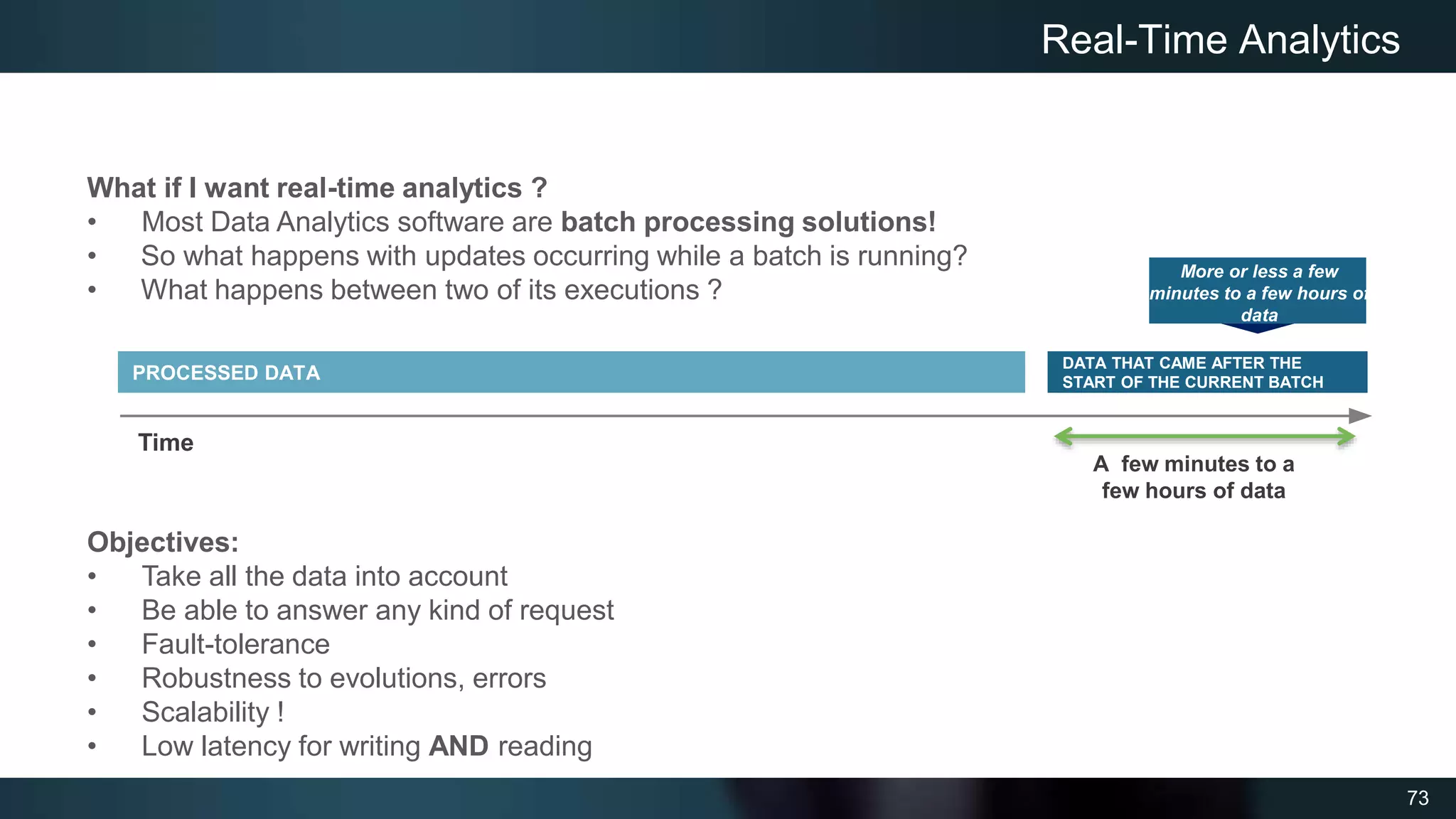

73 Real-Time Analytics What if I want real-time analytics ? • Most Data Analytics software are batch processing solutions! • So what happens with updates occurring while a batch is running? • What happens between two of its executions ? Objectives: • Take all the data into account • Be able to answer any kind of request • Fault-tolerance • Robustness to evolutions, errors • Scalability ! • Low latency for writing AND reading PROCESSED DATA DATA THAT CAME AFTER THE START OF THE CURRENT BATCH Time More or less a few minutes to a few hours of data A few minutes to a few hours of data

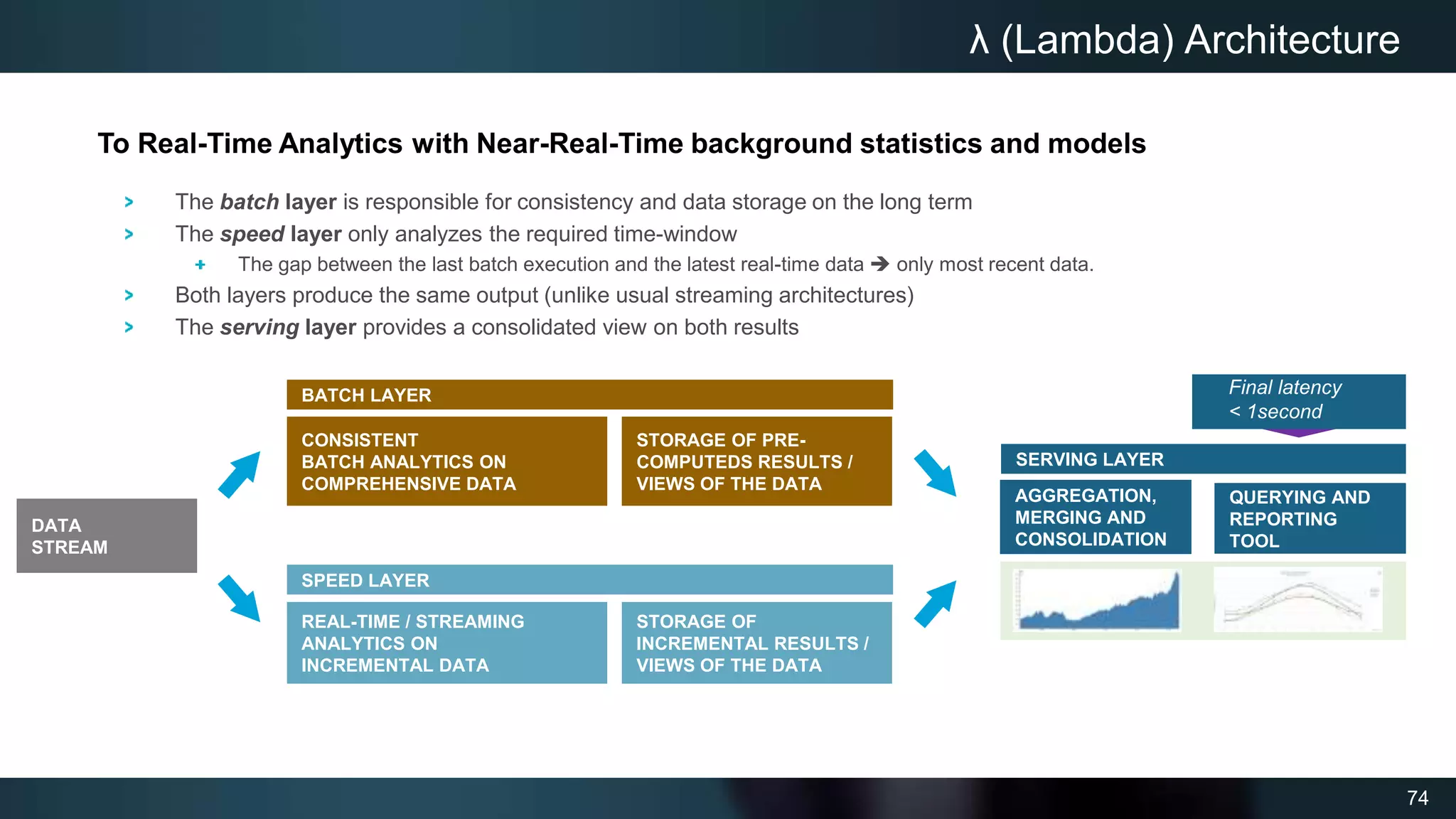

74 λ (Lambda) Architecture CONSISTENT BATCH ANALYTICS ON COMPREHENSIVE DATA REAL-TIME / STREAMING ANALYTICS ON INCREMENTAL DATA DATA STREAM STORAGE OF PRE- COMPUTEDS RESULTS / VIEWS OF THE DATA STORAGE OF INCREMENTAL RESULTS / VIEWS OF THE DATA To Real-Time Analytics with Near-Real-Time background statistics and models SPEED LAYER BATCH LAYER Final latency < 1second QUERYING AND REPORTING TOOL AGGREGATION, MERGING AND CONSOLIDATION SERVING LAYER The batch layer is responsible for consistency and data storage on the long term The speed layer only analyzes the required time-window The gap between the last batch execution and the latest real-time data  only most recent data. Both layers produce the same output (unlike usual streaming architectures) The serving layer provides a consolidated view on both results

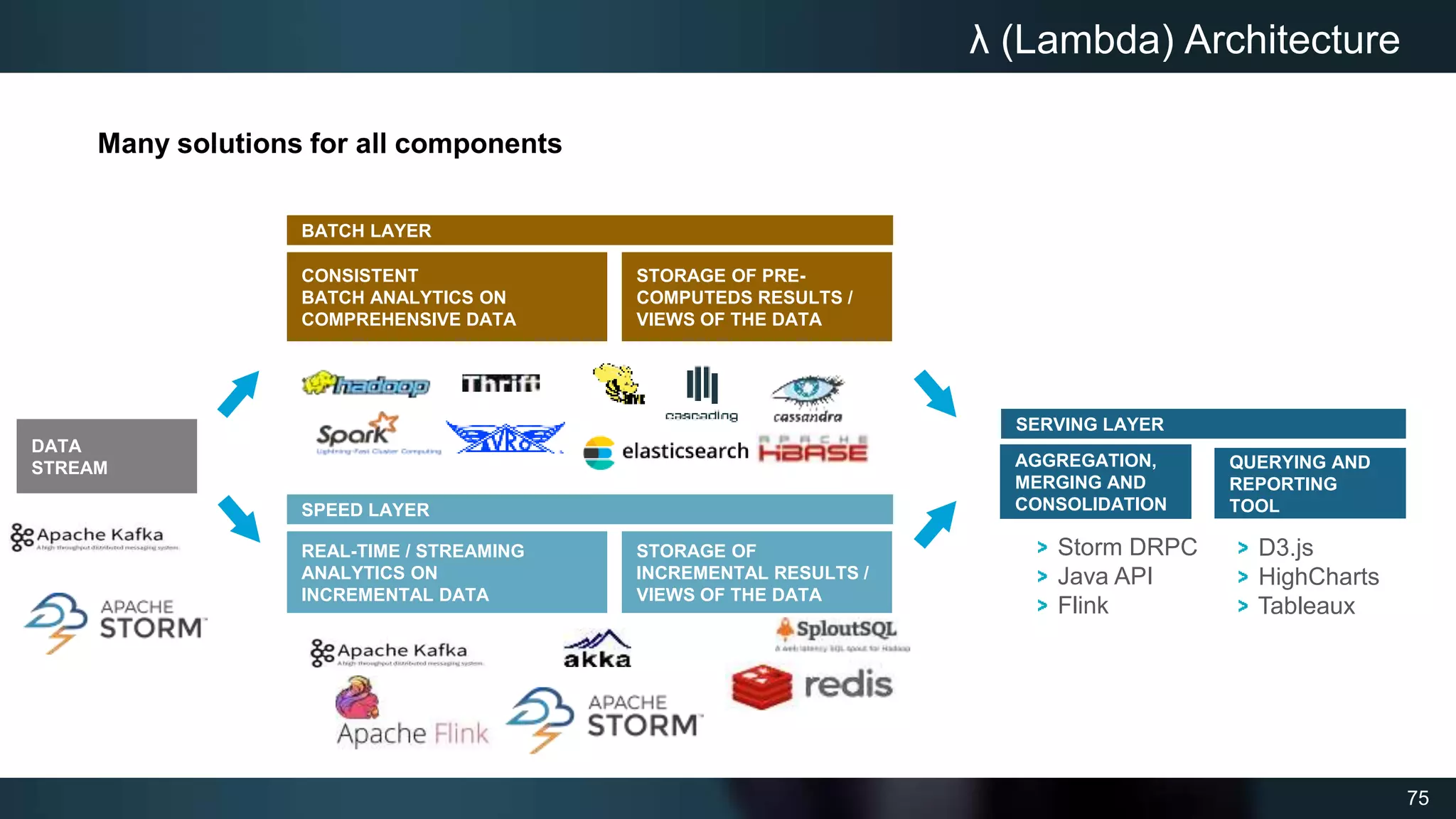

75 λ (Lambda) Architecture CONSISTENT BATCH ANALYTICS ON COMPREHENSIVE DATA REAL-TIME / STREAMING ANALYTICS ON INCREMENTAL DATA DATA STREAM STORAGE OF PRE- COMPUTEDS RESULTS / VIEWS OF THE DATA STORAGE OF INCREMENTAL RESULTS / VIEWS OF THE DATA Many solutions for all components SPEED LAYER BATCH LAYER QUERYING AND REPORTING TOOL AGGREGATION, MERGING AND CONSOLIDATION SERVING LAYER D3.js HighCharts Tableaux Storm DRPC Java API Flink

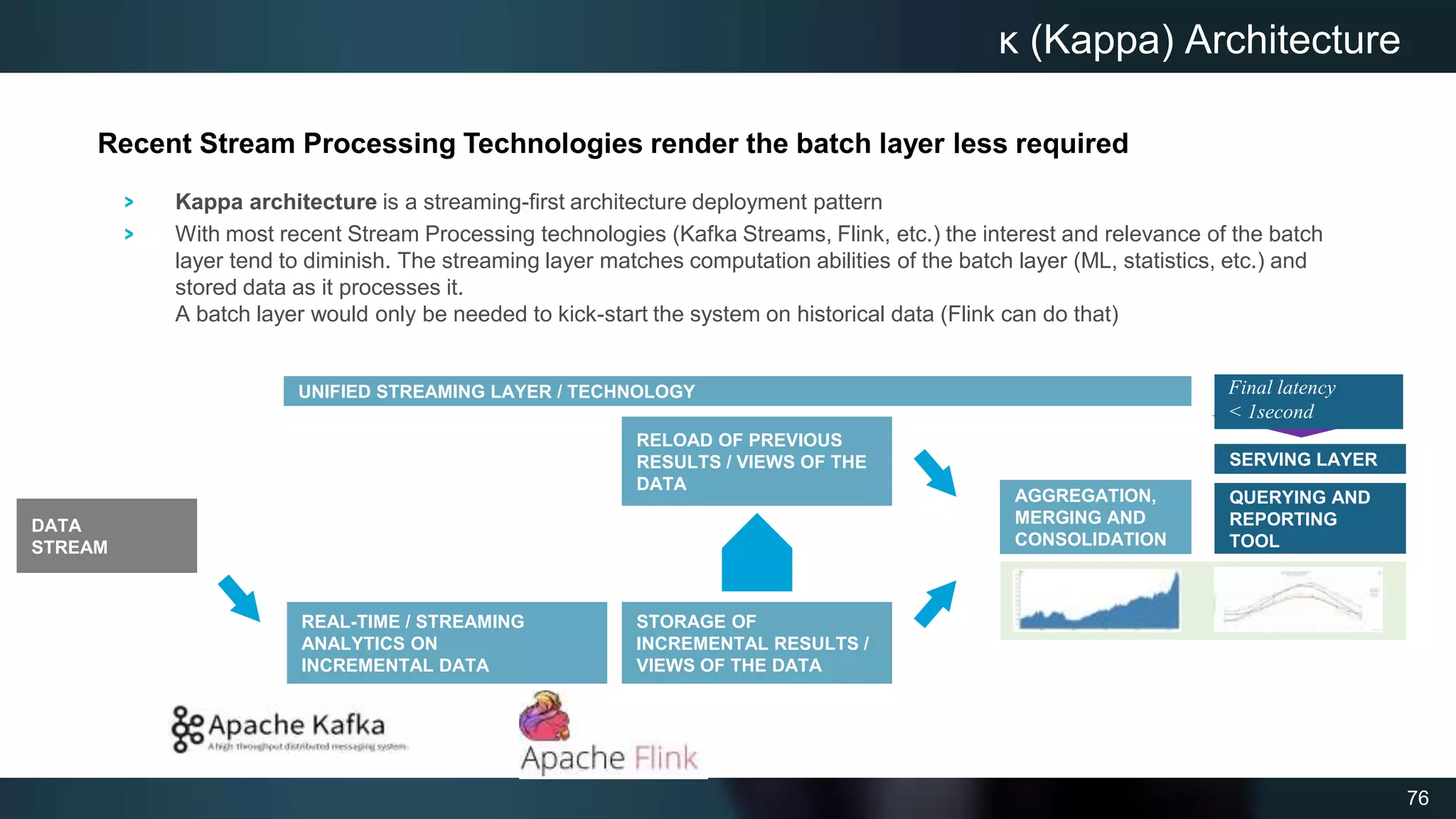

76 κ (Kappa) Architecture REAL-TIME / STREAMING ANALYTICS ON INCREMENTAL DATA DATA STREAM RELOAD OF PREVIOUS RESULTS / VIEWS OF THE DATA STORAGE OF INCREMENTAL RESULTS / VIEWS OF THE DATA Recent Stream Processing Technologies render the batch layer less required UNIFIED STREAMING LAYER / TECHNOLOGY Final latency < 1second QUERYING AND REPORTING TOOL AGGREGATION, MERGING AND CONSOLIDATION SERVING LAYER Kappa architecture is a streaming-first architecture deployment pattern With most recent Stream Processing technologies (Kafka Streams, Flink, etc.) the interest and relevance of the batch layer tend to diminish. The streaming layer matches computation abilities of the batch layer (ML, statistics, etc.) and stored data as it processes it. A batch layer would only be needed to kick-start the system on historical data (Flink can do that)
77 2.9 Big Data 2.0 & Kubernetes

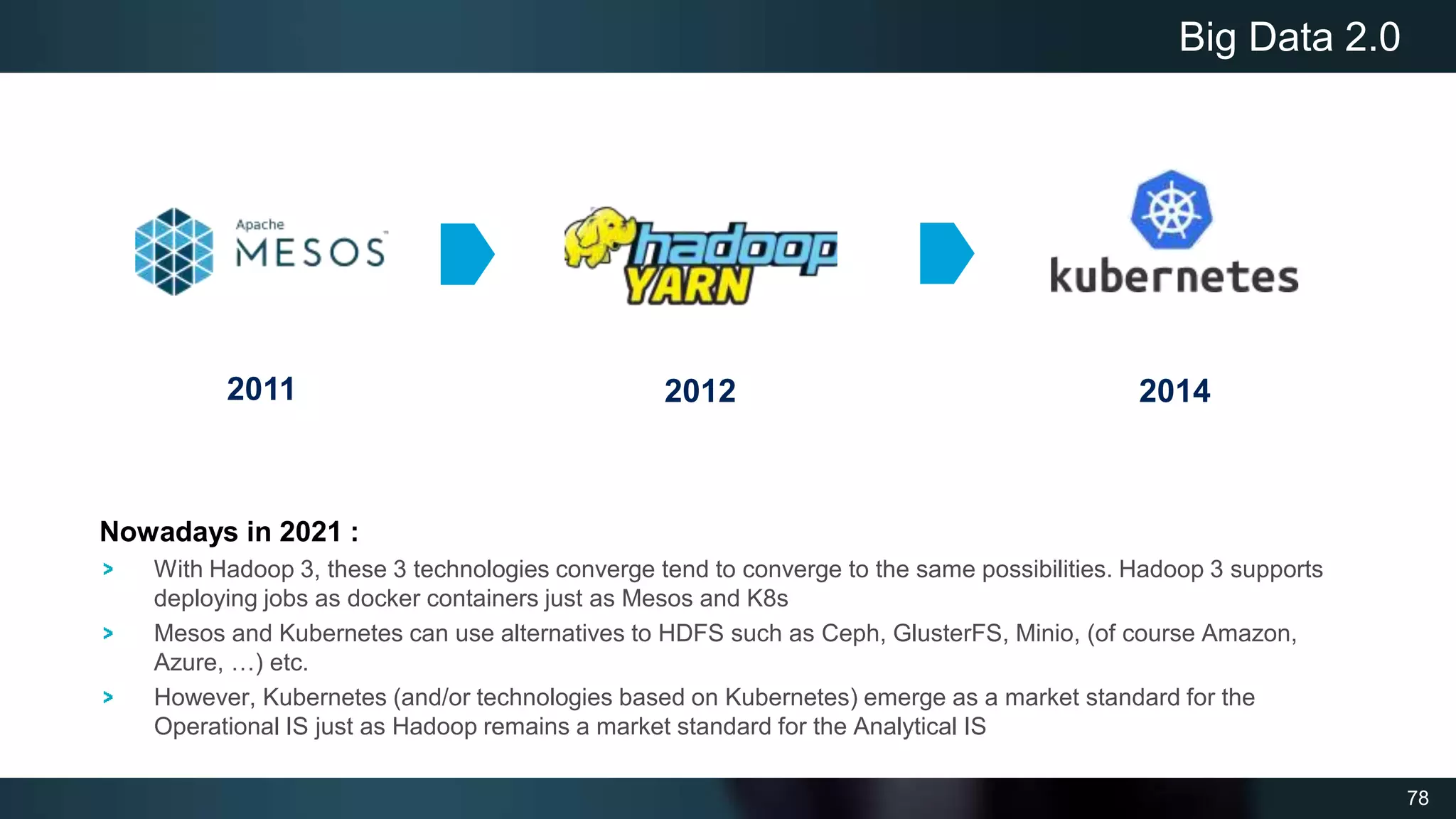

78 Big Data 2.0 2012 2011 2014 Nowadays in 2021 : With Hadoop 3, these 3 technologies converge tend to converge to the same possibilities. Hadoop 3 supports deploying jobs as docker containers just as Mesos and K8s Mesos and Kubernetes can use alternatives to HDFS such as Ceph, GlusterFS, Minio, (of course Amazon, Azure, …) etc. However, Kubernetes (and/or technologies based on Kubernetes) emerge as a market standard for the Operational IS just as Hadoop remains a market standard for the Analytical IS

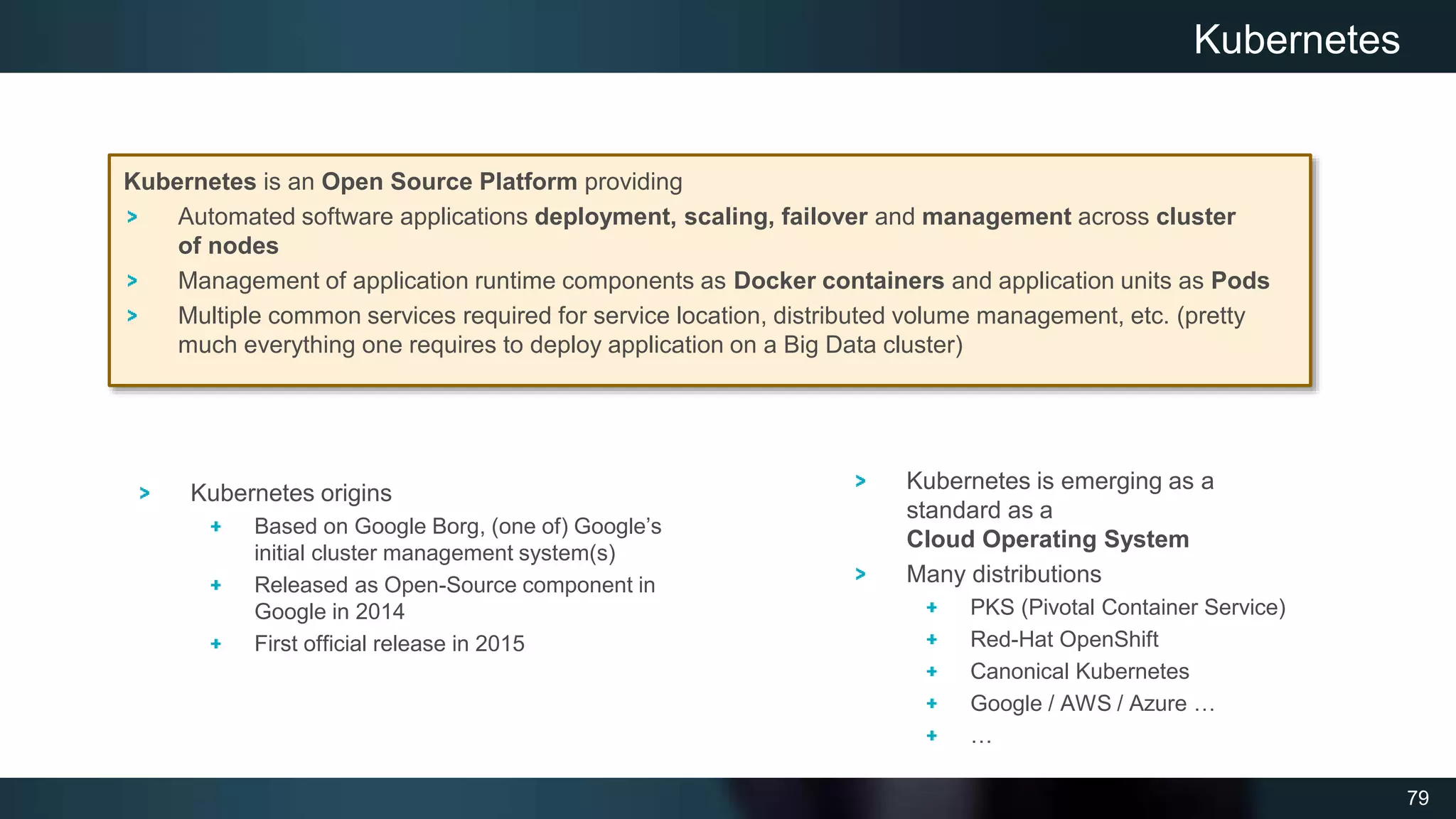

79 Kubernetes is an Open Source Platform providing Automated software applications deployment, scaling, failover and management across cluster of nodes Management of application runtime components as Docker containers and application units as Pods Multiple common services required for service location, distributed volume management, etc. (pretty much everything one requires to deploy application on a Big Data cluster) Kubernetes Kubernetes is emerging as a standard as a Cloud Operating System Many distributions PKS (Pivotal Container Service) Red-Hat OpenShift Canonical Kubernetes Google / AWS / Azure … … Kubernetes origins Based on Google Borg, (one of) Google’s initial cluster management system(s) Released as Open-Source component in Google in 2014 First official release in 2015

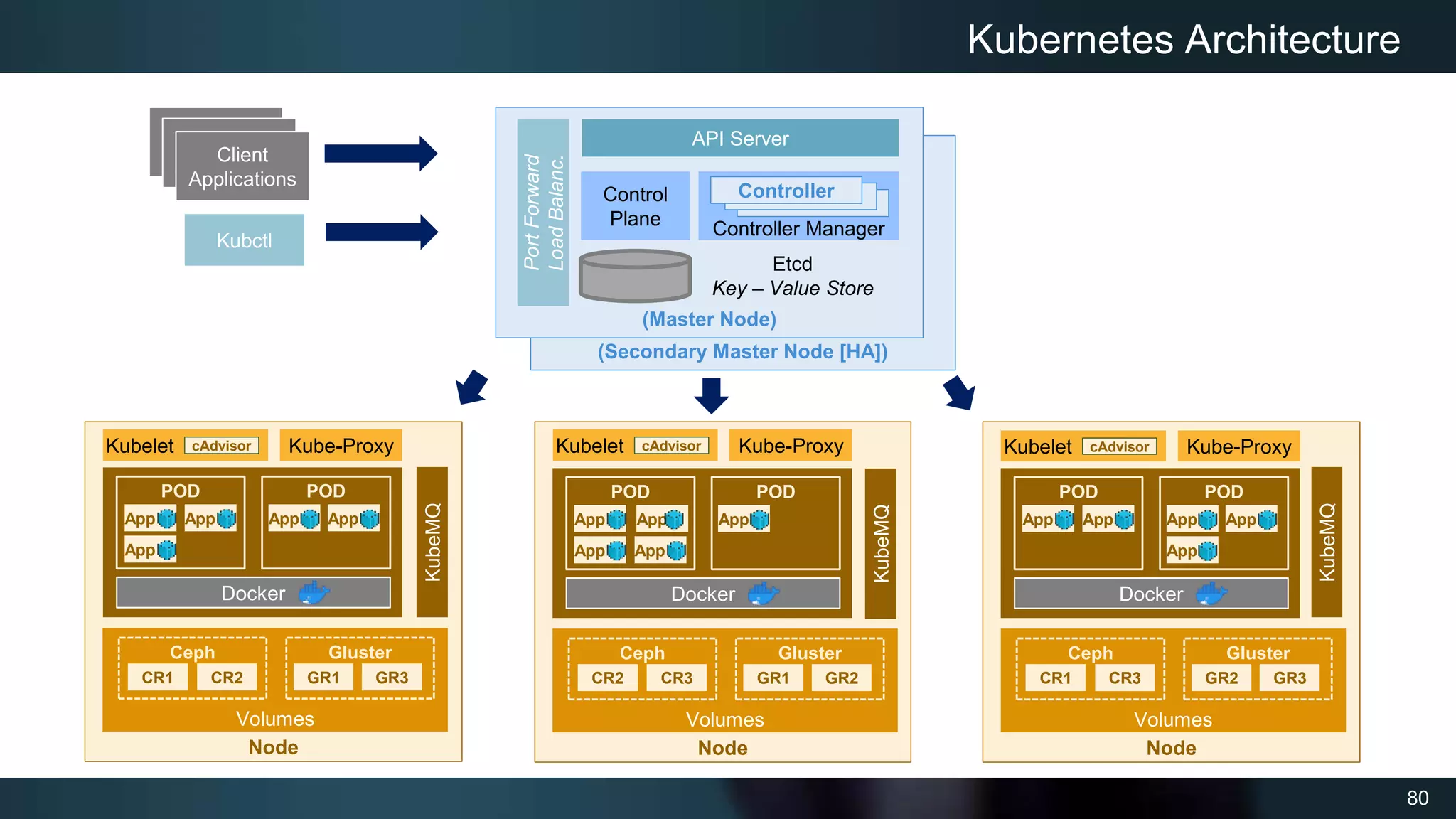

80 Kubernetes Architecture Client Applications Client Applications Client Applications (Secondary Master Node [HA]) (Master Node) API Server Control Plane Etcd Key – Value Store Controller Manager Kubctl Port Forward Load Balanc. Controller Node Kubelet App App App App App POD POD Volumes CR1 CR2 GR1 GR3 Ceph Gluster Kube-Proxy Docker Node App App App App App POD POD Volumes CR2 CR3 GR1 GR2 Ceph Gluster Docker Node App App App App App POD POD Volumes CR1 CR3 GR2 GR3 Ceph Gluster Docker cAdvisor Kubelet Kube-Proxy cAdvisor Kubelet Kube-Proxy cAdvisor KubeMQ KubeMQ KubeMQ
81 2.10 Microservices Architecture

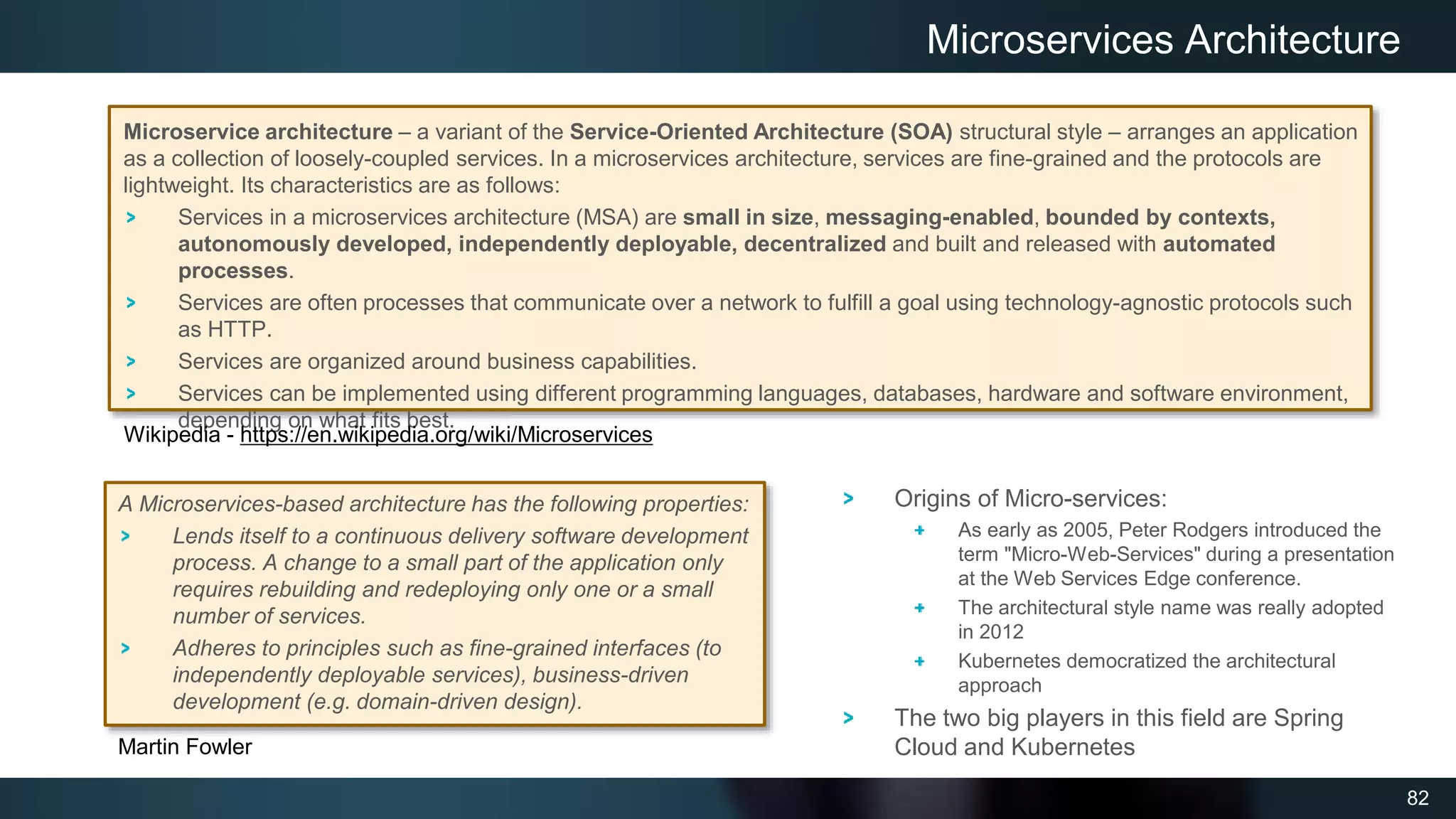

82 Microservice architecture – a variant of the Service-Oriented Architecture (SOA) structural style – arranges an application as a collection of loosely-coupled services. In a microservices architecture, services are fine-grained and the protocols are lightweight. Its characteristics are as follows: Services in a microservices architecture (MSA) are small in size, messaging-enabled, bounded by contexts, autonomously developed, independently deployable, decentralized and built and released with automated processes. Services are often processes that communicate over a network to fulfill a goal using technology-agnostic protocols such as HTTP. Services are organized around business capabilities. Services can be implemented using different programming languages, databases, hardware and software environment, depending on what fits best. Microservices Architecture Origins of Micro-services: As early as 2005, Peter Rodgers introduced the term "Micro-Web-Services" during a presentation at the Web Services Edge conference. The architectural style name was really adopted in 2012 Kubernetes democratized the architectural approach The two big players in this field are Spring Cloud and Kubernetes A Microservices-based architecture has the following properties: Lends itself to a continuous delivery software development process. A change to a small part of the application only requires rebuilding and redeploying only one or a small number of services. Adheres to principles such as fine-grained interfaces (to independently deployable services), business-driven development (e.g. domain-driven design). Wikipedia - https://en.wikipedia.org/wiki/Microservices Martin Fowler

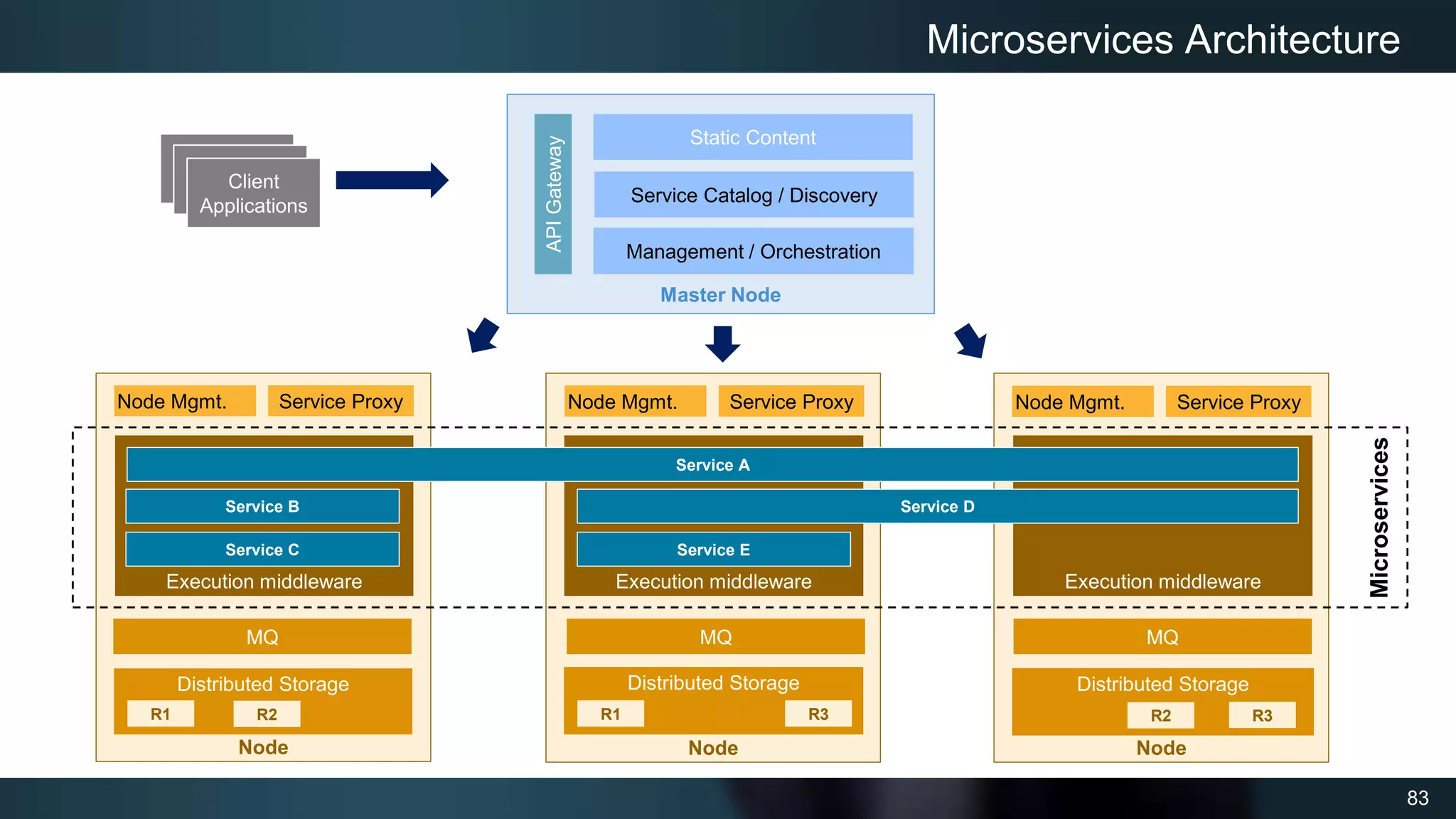

83 Microservices Architecture Client Applications Client Applications Client Applications Master Node API Gateway Service Catalog / Discovery Management / Orchestration Node Node Mgmt. Execution middleware Service Proxy Node Node Distributed Storage R1 R2 Distributed Storage R1 R3 Distributed Storage R2 R3 Execution middleware Execution middleware Service B Service C Service A Service D Service E Microservices Node Mgmt. Service Proxy Node Mgmt. Service Proxy MQ MQ MQ Static Content

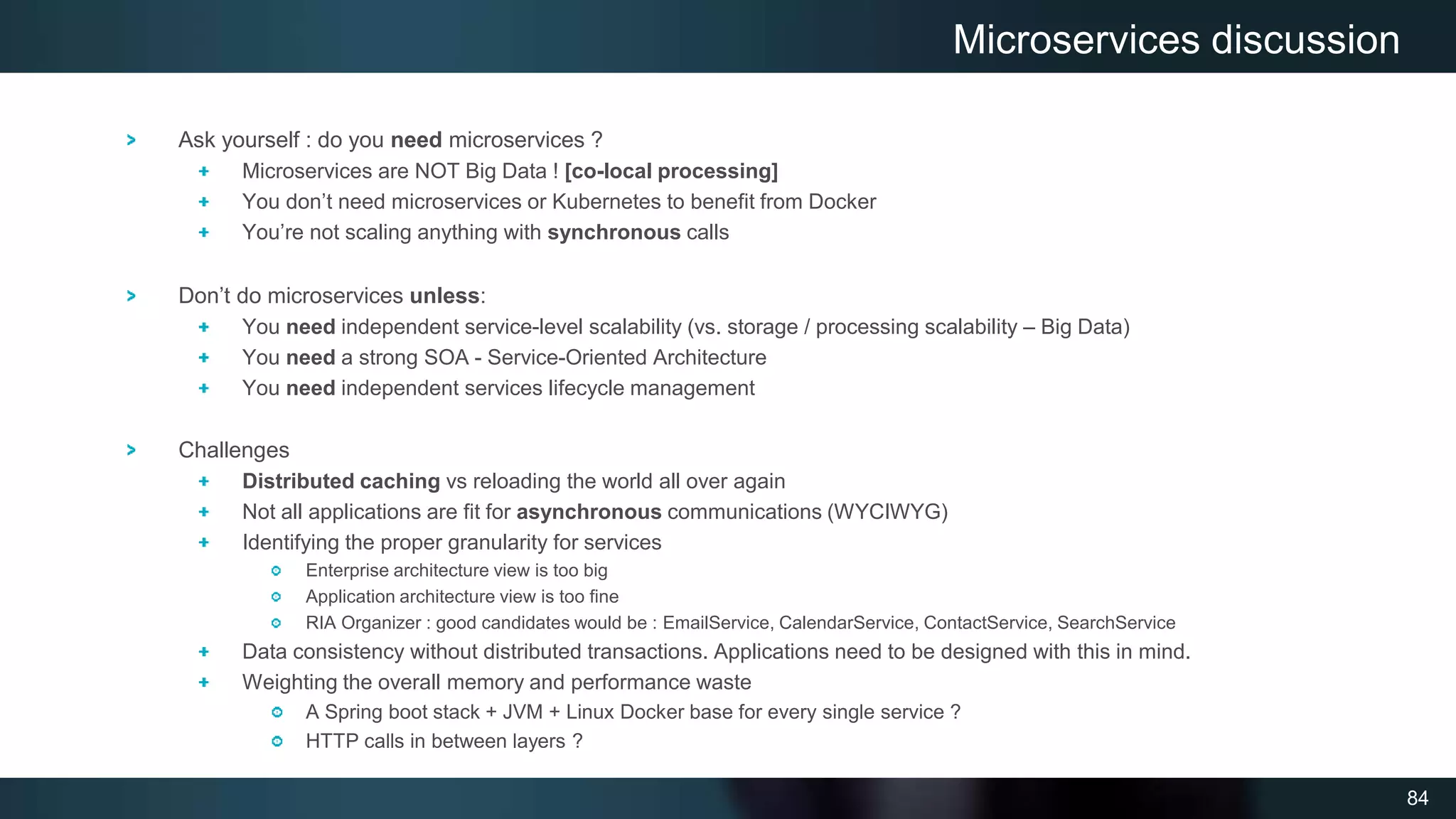

84 Ask yourself : do you need microservices ? Microservices are NOT Big Data ! [co-local processing] You don’t need microservices or Kubernetes to benefit from Docker You’re not scaling anything with synchronous calls Don’t do microservices unless: You need independent service-level scalability (vs. storage / processing scalability – Big Data) You need a strong SOA - Service-Oriented Architecture You need independent services lifecycle management Challenges Distributed caching vs reloading the world all over again Not all applications are fit for asynchronous communications (WYCIWYG) Identifying the proper granularity for services Enterprise architecture view is too big Application architecture view is too fine RIA Organizer : good candidates would be : EmailService, CalendarService, ContactService, SearchService Data consistency without distributed transactions. Applications need to be designed with this in mind. Weighting the overall memory and performance waste A Spring boot stack + JVM + Linux Docker base for every single service ? HTTP calls in between layers ? Microservices discussion
85 3. Takeaways

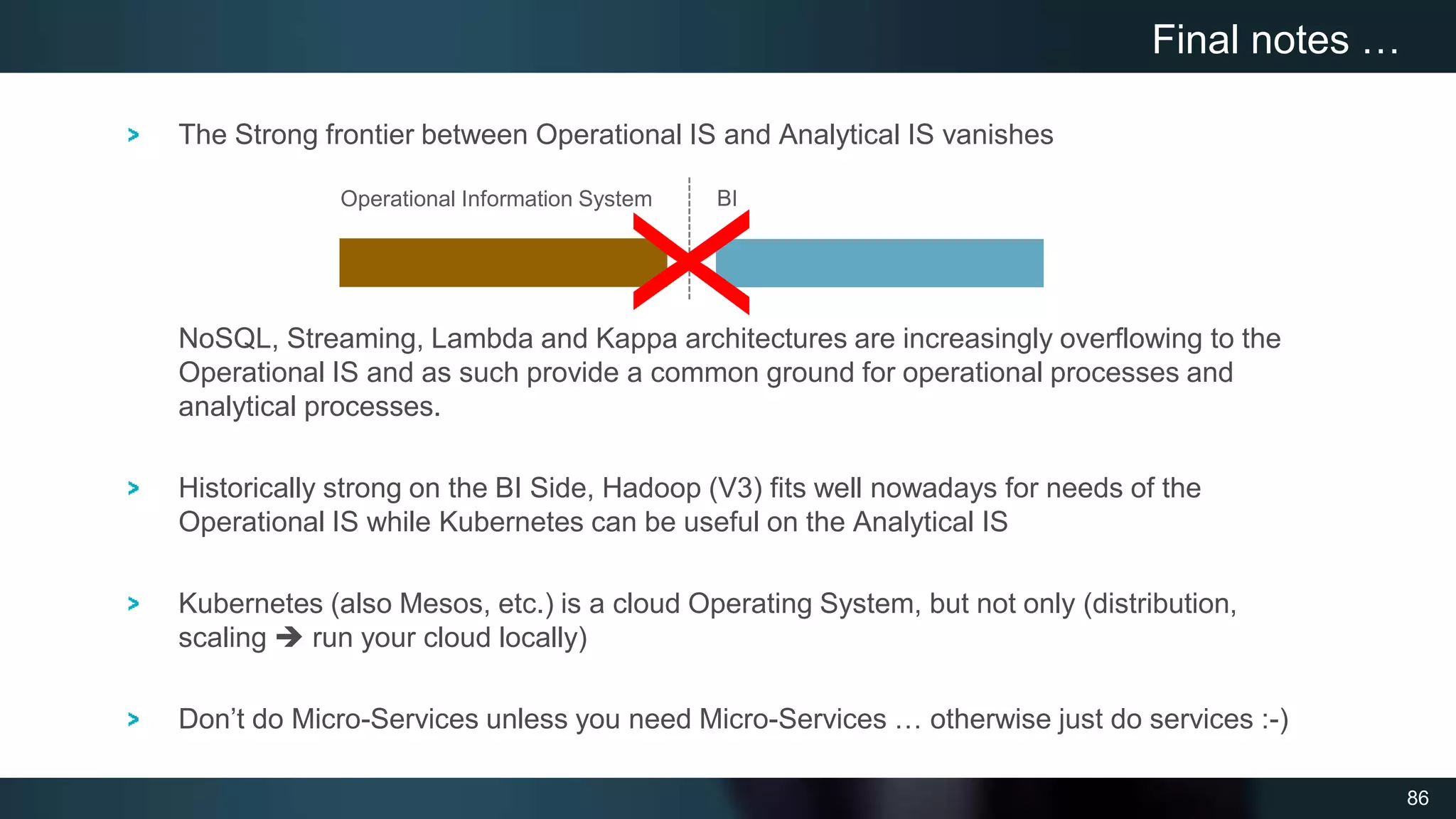

86 The Strong frontier between Operational IS and Analytical IS vanishes NoSQL, Streaming, Lambda and Kappa architectures are increasingly overflowing to the Operational IS and as such provide a common ground for operational processes and analytical processes. Historically strong on the BI Side, Hadoop (V3) fits well nowadays for needs of the Operational IS while Kubernetes can be useful on the Analytical IS Kubernetes (also Mesos, etc.) is a cloud Operating System, but not only (distribution, scaling  run your cloud locally) Don’t do Micro-Services unless you need Micro-Services … otherwise just do services :-) Final notes … Operational Information System BI X
87 Thanks for listening
