www.ktn-uk.org @KTNUK Finding valuable partners - Project consortium building - Supply Chain Knowledge - Driving new connections - Articulating challenges - Finding creative solutions Awareness and dissemination - Public and private finance - Advice – project scope - Advice – proposal mentoring - Project follow-up Promoting Industry needs - Informing policy makers - Informing strategy - Communicating trends and market drivers Intelligence on trends and markets - Business Planning support - Success stories / raising profile Navigating the innovation support landscape - Promoting coherent strategy and approach - Engaging wider stakeholders - Curation of innovation resources Connecting SupportingNavigatingInfluencing Funding What we do - Growth Through Innovation

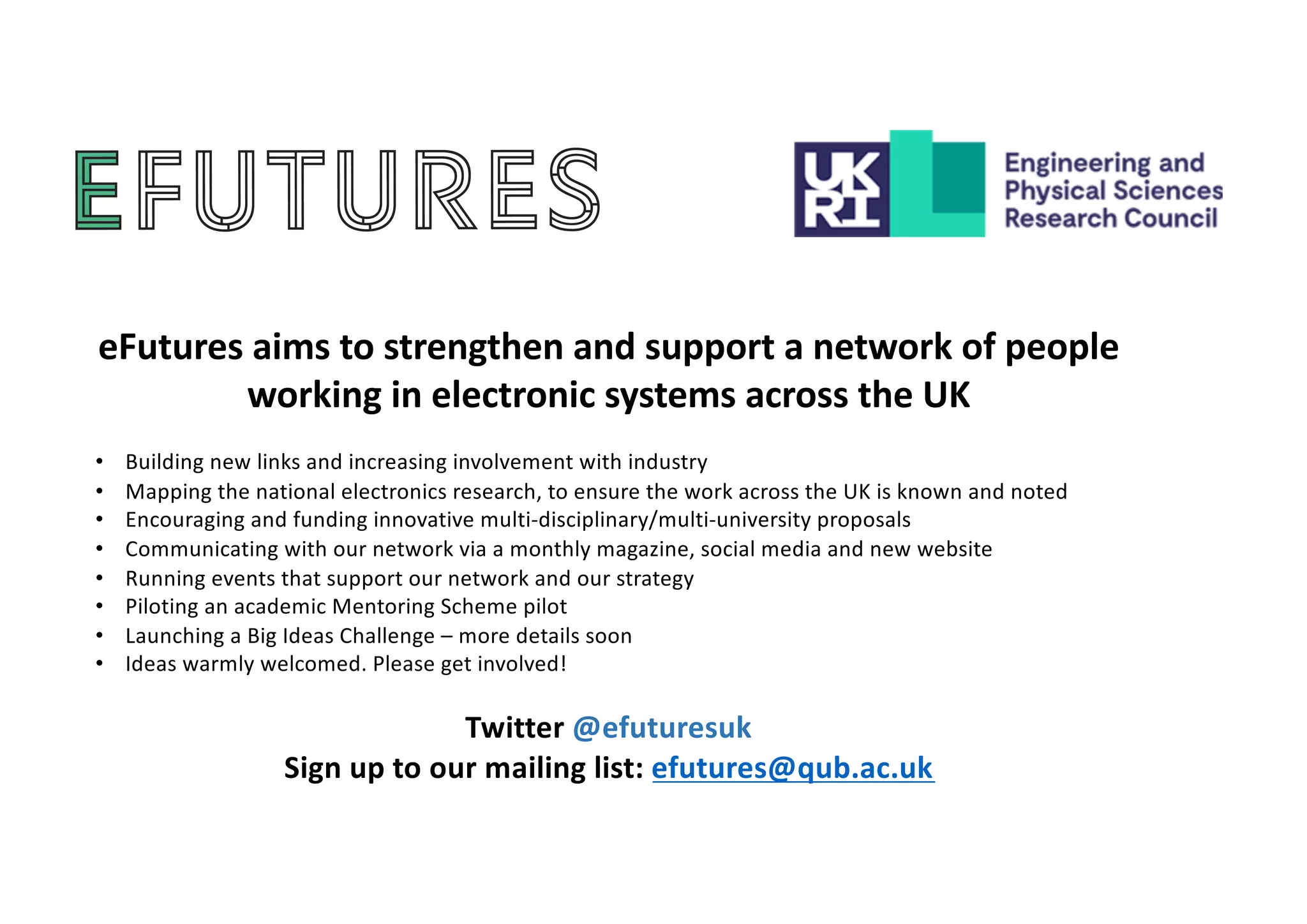

eFutures aims to strengthen and support a network of people working in electronic systems across the UK • Building new links and increasing involvement with industry • Mapping the national electronics research, to ensure the work across the UK is known and noted • Encouraging and funding innovative multi-disciplinary/multi-university proposals • Communicating with our network via a monthly magazine, social media and new website • Running events that support our network and our strategy • Piloting an academic Mentoring Scheme pilot • Launching a Big Ideas Challenge – more details soon • Ideas warmly welcomed. Please get involved! Twitter @efuturesuk Sign up to our mailing list: efutures@qub.ac.uk

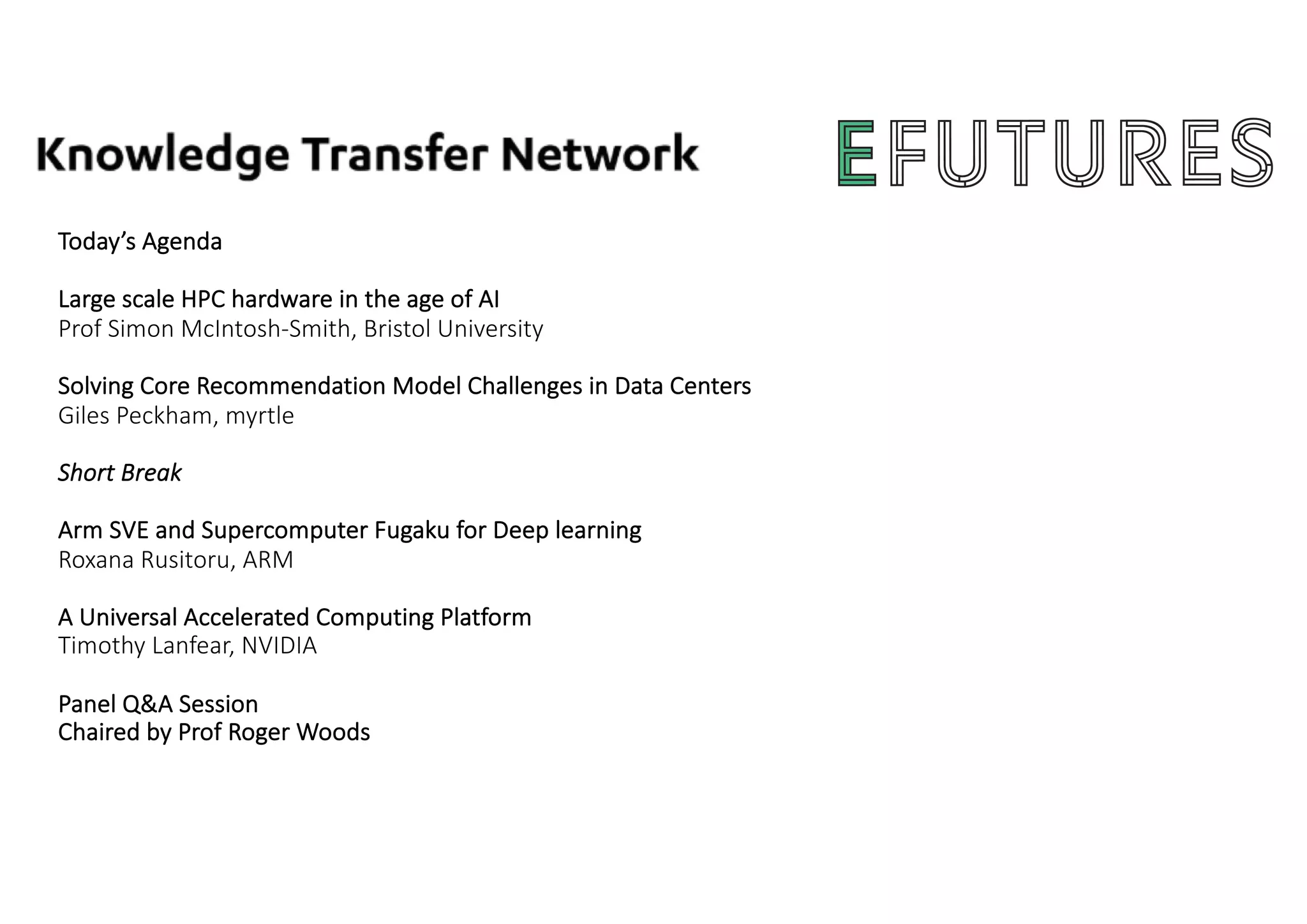

Today’s Agenda Large scale HPC hardware in the age of AI Prof Simon McIntosh-Smith, Bristol University Solving Core Recommendation Model Challenges in Data Centers Giles Peckham, myrtle Short Break Arm SVE and Supercomputer Fugaku for Deep learning Roxana Rusitoru, ARM A Universal Accelerated Computing Platform Timothy Lanfear, NVIDIA Panel Q&A Session Chaired by Prof Roger Woods
Large scale HPC hardware in the age of AI Prof. Simon McIntosh-Smith Head of the HPC research group University of Bristol, UK Twitter: @simonmcs Email: simonm@cs.bris.ac.uk http://uob-hpc.github.io
AI is a primary goal for next-generation supercomputers The coming generation of Exascale systems will include a diverse range of architectures at massive scale, all of which are targeting AI: • Fugaku: Fujitsu A64FX Arm CPUs • Perlmutter: AMD EYPC CPUs and NVIDIA GPUs • Frontier: AMD EPYC CPUs and Radeon GPUs • Aurora: Intel Xeon CPUs and Xe GPUs • El Capitan: AMD EPYC CPUs and Radeon GPUs http://uob-hpc.github.io The Next Platform, Jan 13th 2020: “HPC in 2020: compute engine diversity gets real” https://www.nextplatform.com/2020/01/13/hpc-in-2020-compute-engine-diversity-gets-real/ June 22, 2020 1 Overview The Fugaku compute system was designed and built by Fujitsu and RIKEN. Fugaku 富岳, is another name for Mount Fuji, created by combining the first character of 富士, Fuji, and 岳, mountain. The system is installed at the RIKEN Center for Computational Science (R-CCS) in Kobe, Japan. RIKEN is a large scientific research institute in Japan with about 3,000 scientists in seven campuses across Japan. Development for Fugaku hardware started in 2014 as the successor to the K computer. The K Computer mainly focused on basic science and simulations and modernized the Japanese supercomputer to be massively parallel. The Fugaku system is designed to have a continuum of applications ranging from basic science to Society 5.0, an initiative to create a new social scheme and economic model by fully incorporating the technological innovations of the fourth industrial revolution. The relation to the Mount Fuji image is to have a broad base of applications and capacity for simulation, data science, and AI— with academic, industry, and cloud startups—along with a high peak performance on large-scale applications. Figure 1. Fugaku System as installed in RIKEN R-CCS The Fugaku system is built on the A64FX ARM v8.2-A, which uses Scalable Vector Extension (SVE) instructions and a 512-bit implementation. The Fugaku system adds the following Fujitsu extensions: hardware barrier, sector cache, prefetch, and the 48/52 core CPU. It is optimized for high-performance computing (HPC) with an extremely high bandwidth 3D stacked memory, 4x 8 GB HBM with 1024 GB/s, on-die Tofu-D network BW (~400 Gbps), high SVE FLOP/s (3.072 TFLOP/s), and various AI support (FP16, INT8, etc.). The A64FX processor provides for general purpose Linux, Windows, and other cloud systems. Simply put, Fugaku is the largest and fastest supercomputer built to date. Below is further breakdown of the hardware. • Caches: o L1D/core: 64 KB, 4way, 256 GB/s (load), 128 GB/s (store) o L2/CMG: 8 MB, 16 way o L2/node: 4 TB/s (load), 2 TB/s (store) o L2/core: 128 GB/s (load), 64 GB/s (store) • 158,976 nodes

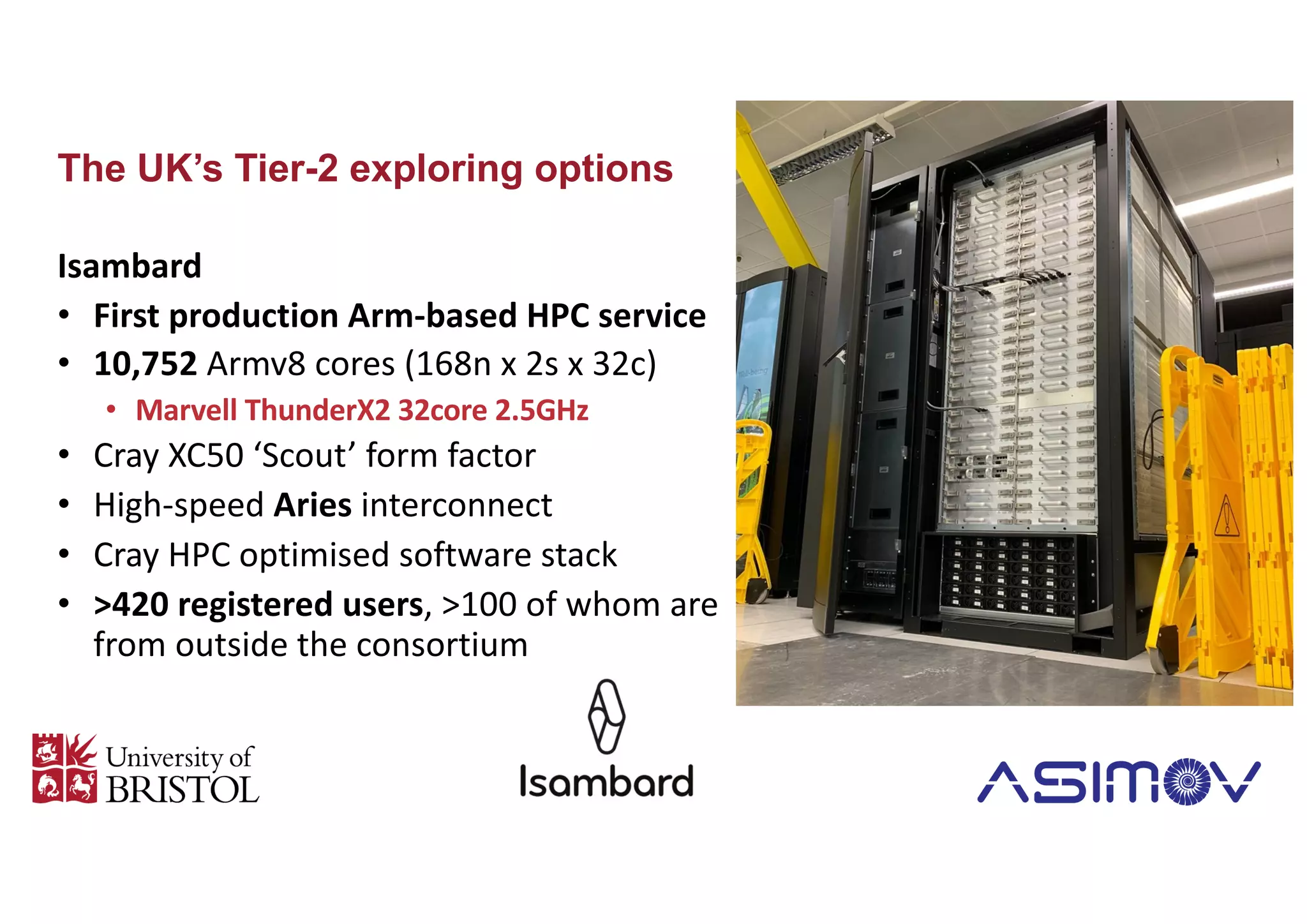

The UK’s Tier-2 exploring options Isambard • First production Arm-based HPC service • 10,752 Armv8 cores (168n x 2s x 32c) • Marvell ThunderX2 32core 2.5GHz • Cray XC50 ‘Scout’ form factor • High-speed Aries interconnect • Cray HPC optimised software stack • >420 registered users, >100 of whom are from outside the consortium

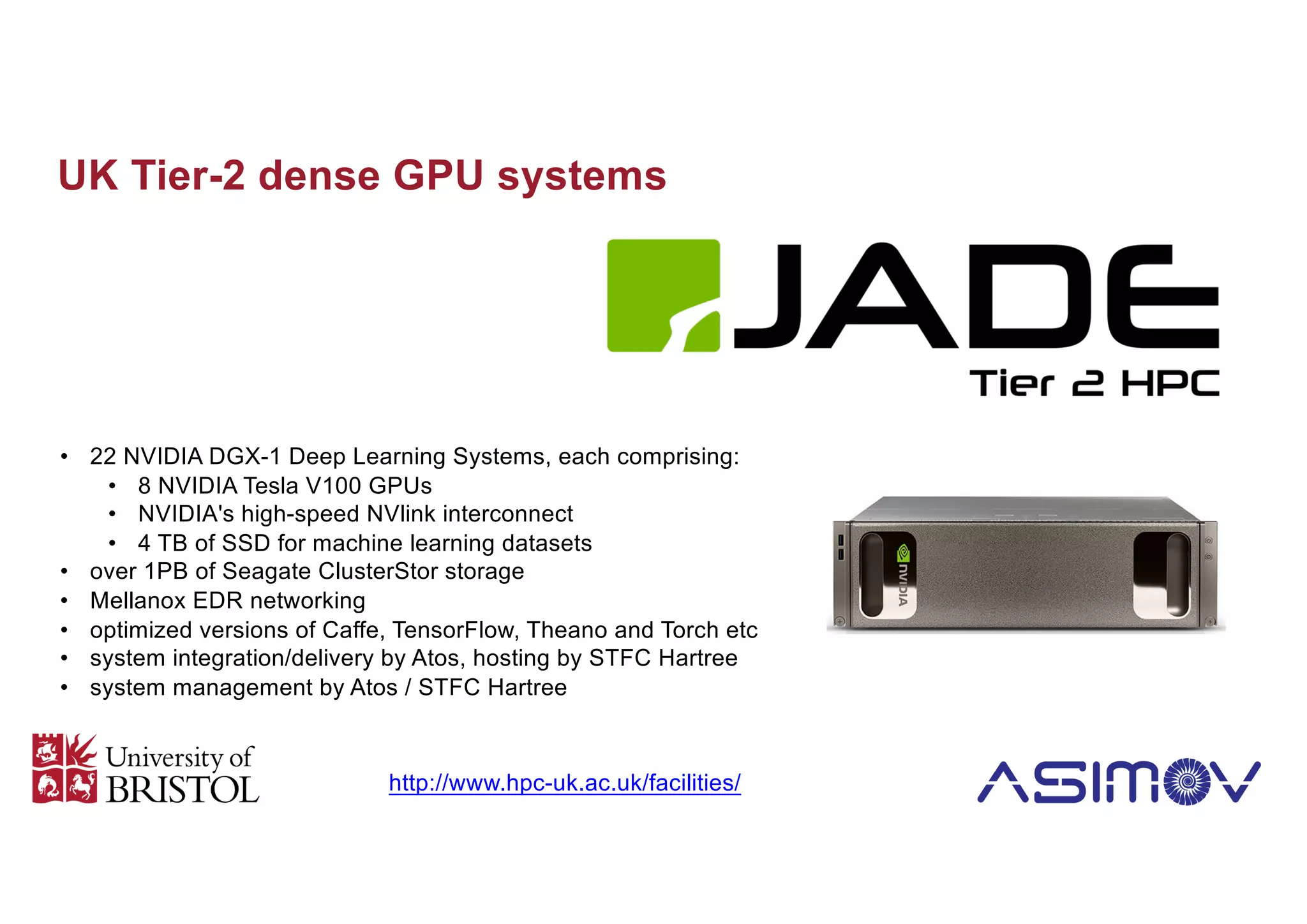

UK Tier-2 dense GPU systems http://uob-hpc.github.io • 22 NVIDIA DGX-1 Deep Learning Systems, each comprising: • 8 NVIDIA Tesla V100 GPUs • NVIDIA's high-speed NVlink interconnect • 4 TB of SSD for machine learning datasets • over 1PB of Seagate ClusterStor storage • Mellanox EDR networking • optimized versions of Caffe, TensorFlow, Theano and Torch etc • system integration/delivery by Atos, hosting by STFC Hartree • system management by Atos / STFC Hartree http://www.hpc-uk.ac.uk/facilities/

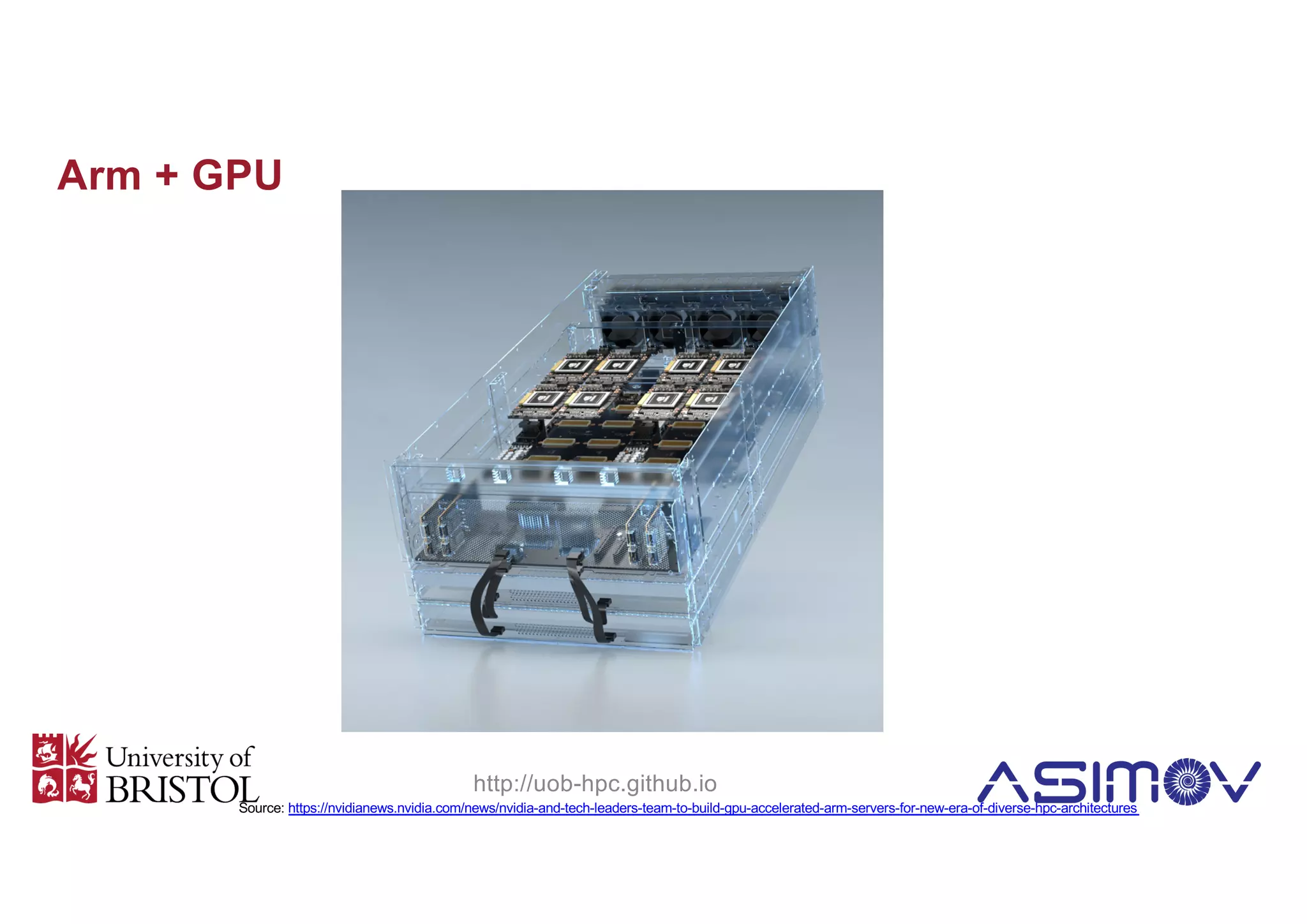

Arm + GPU http://uob-hpc.github.io Source: https://nvidianews.nvidia.com/news/nvidia-and-tech-leaders-team-to-build-gpu-accelerated-arm-servers-for-new-era-of-diverse-hpc-architectures
Emerging architectures for AI / MP http://uob-hpc.github.io Google’s Tensorflow Processing Unit (TPU), GraphCore, Intel’s Nervana

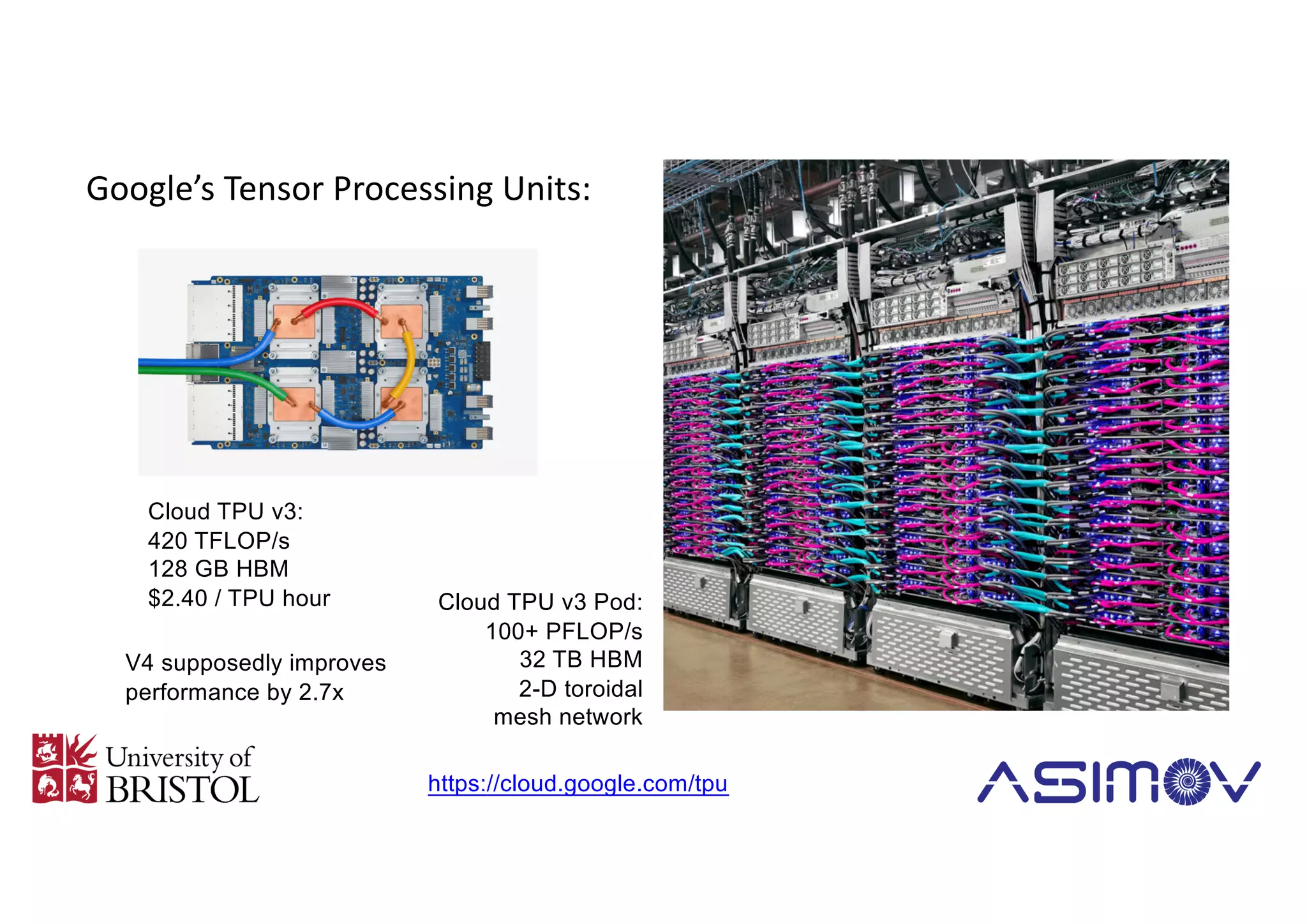

Google’s Tensor Processing Units: http://uob-hpc.github.iohttps://cloud.google.com/tpu Cloud TPU v3: 420 TFLOP/s 128 GB HBM $2.40 / TPU hour Cloud TPU v3 Pod: 100+ PFLOP/s 32 TB HBM 2-D toroidal mesh network V4 supposedly improves performance by 2.7x

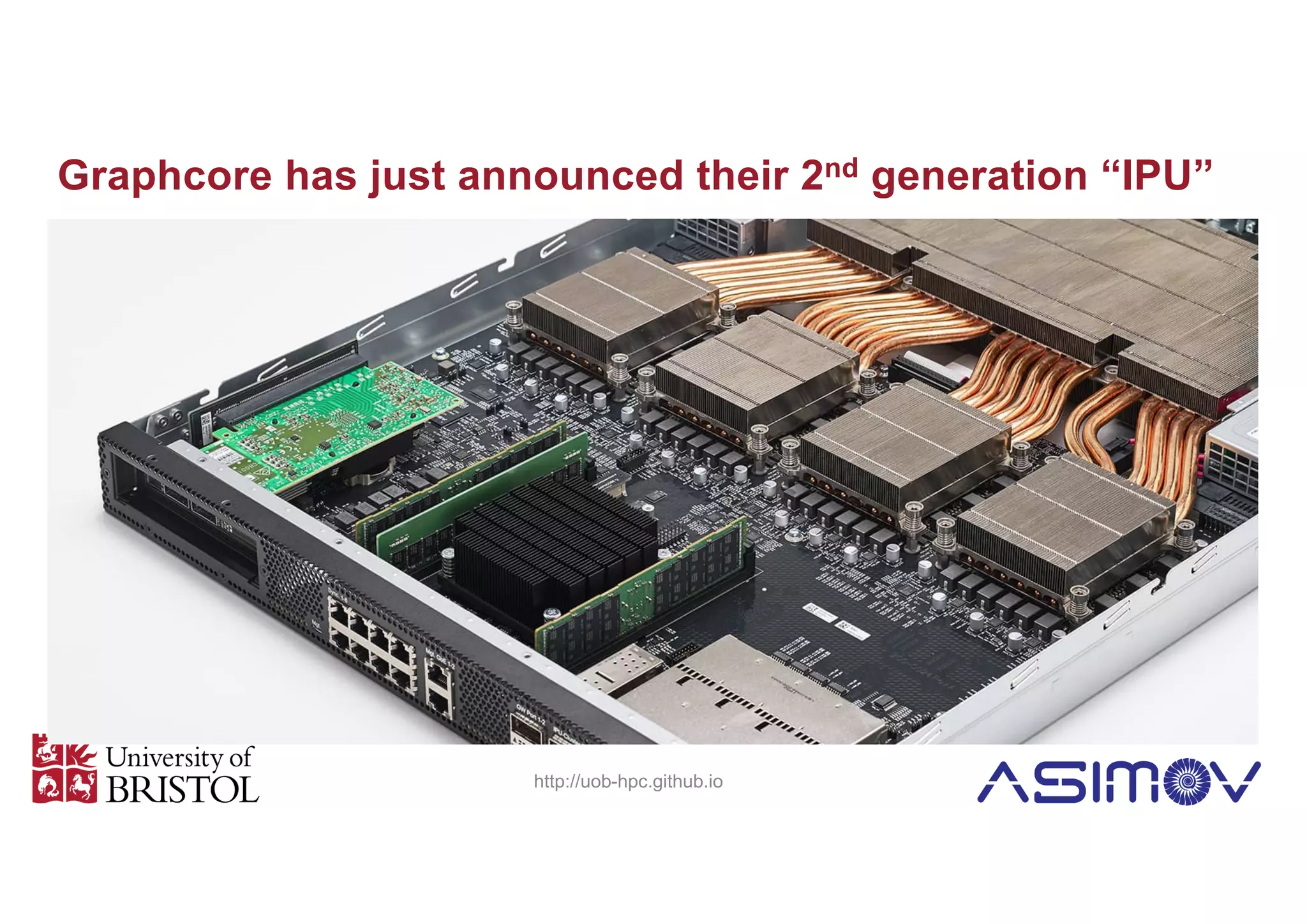

Graphcore has just announced their 2nd generation “IPU” http://uob-hpc.github.io

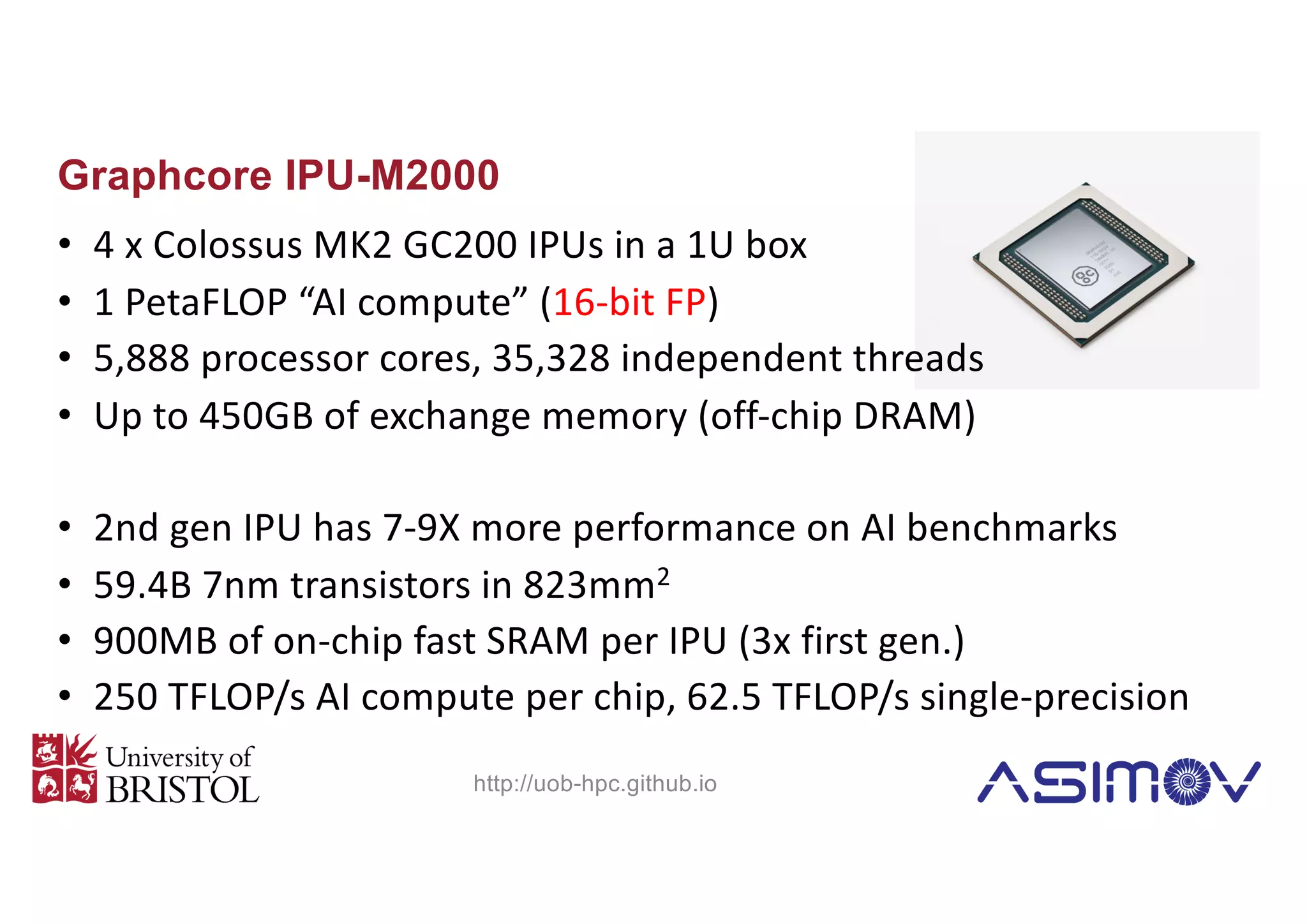

Graphcore IPU-M2000 • 4 x Colossus MK2 GC200 IPUs in a 1U box • 1 PetaFLOP “AI compute” (16-bit FP) • 5,888 processor cores, 35,328 independent threads • Up to 450GB of exchange memory (off-chip DRAM) • 2nd gen IPU has 7-9X more performance on AI benchmarks • 59.4B 7nm transistors in 823mm2 • 900MB of on-chip fast SRAM per IPU (3x first gen.) • 250 TFLOP/s AI compute per chip, 62.5 TFLOP/s single-precision http://uob-hpc.github.io

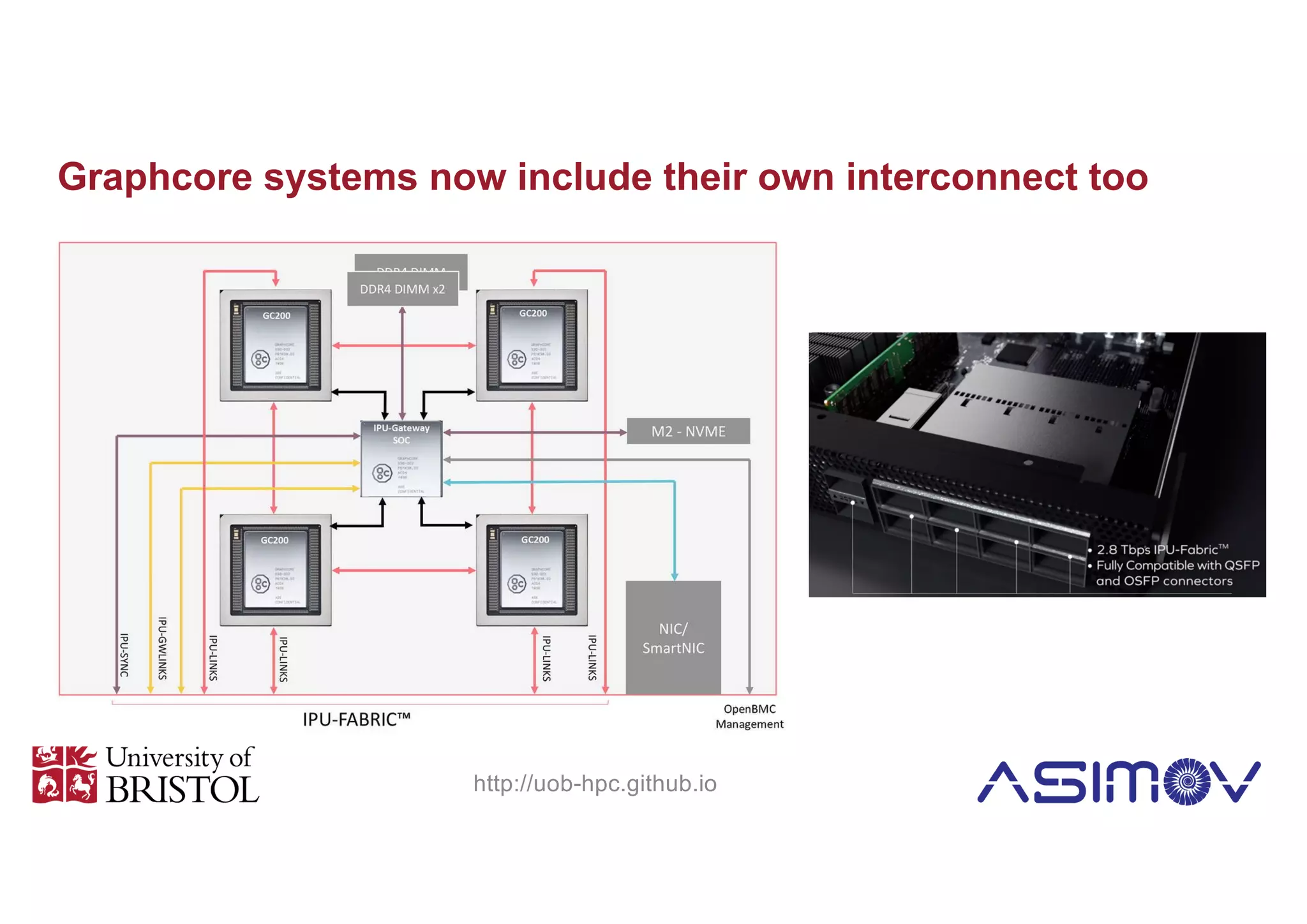

Graphcore systems now include their own interconnect too http://uob-hpc.github.io

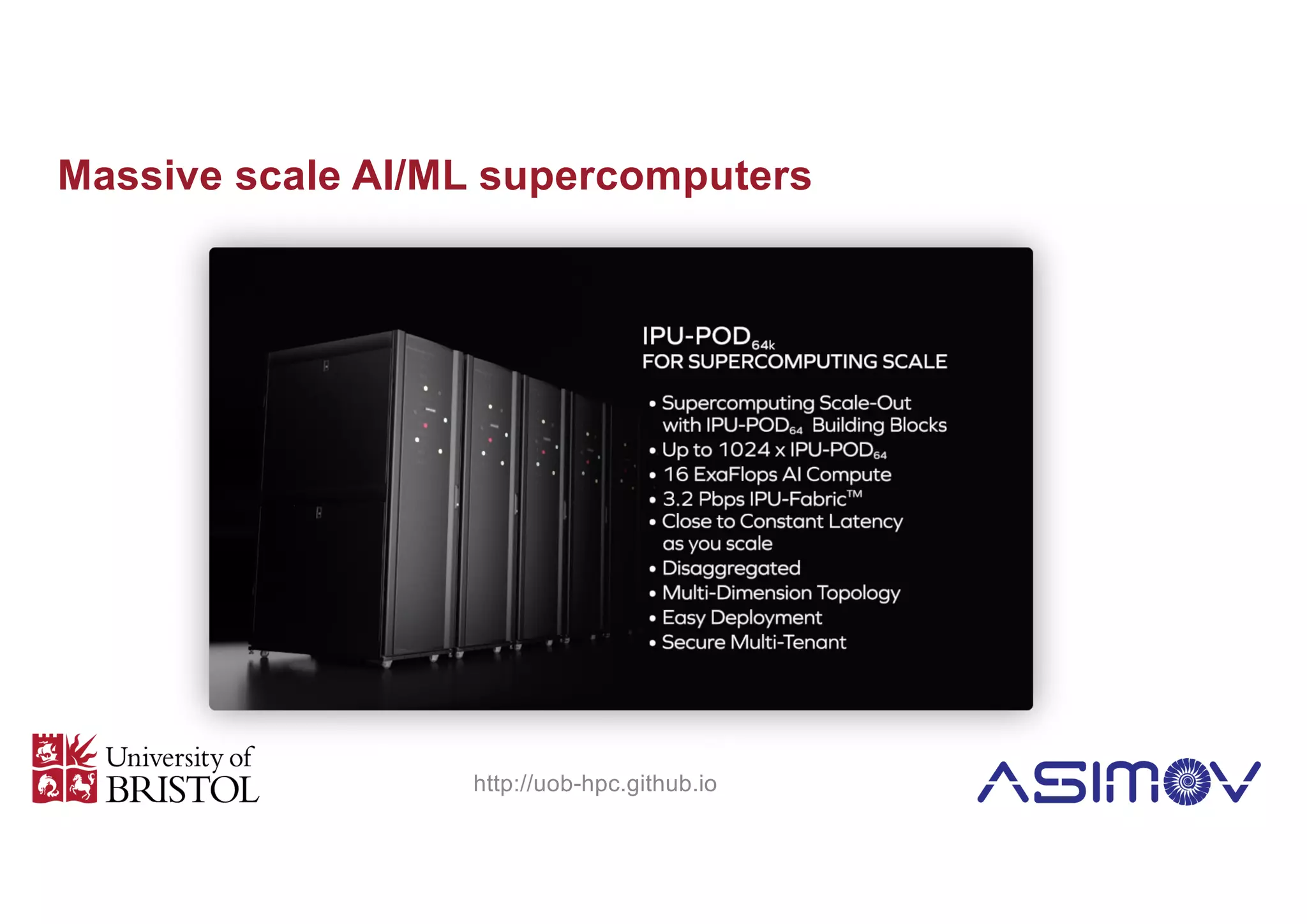

Massive scale AI/ML supercomputers http://uob-hpc.github.io

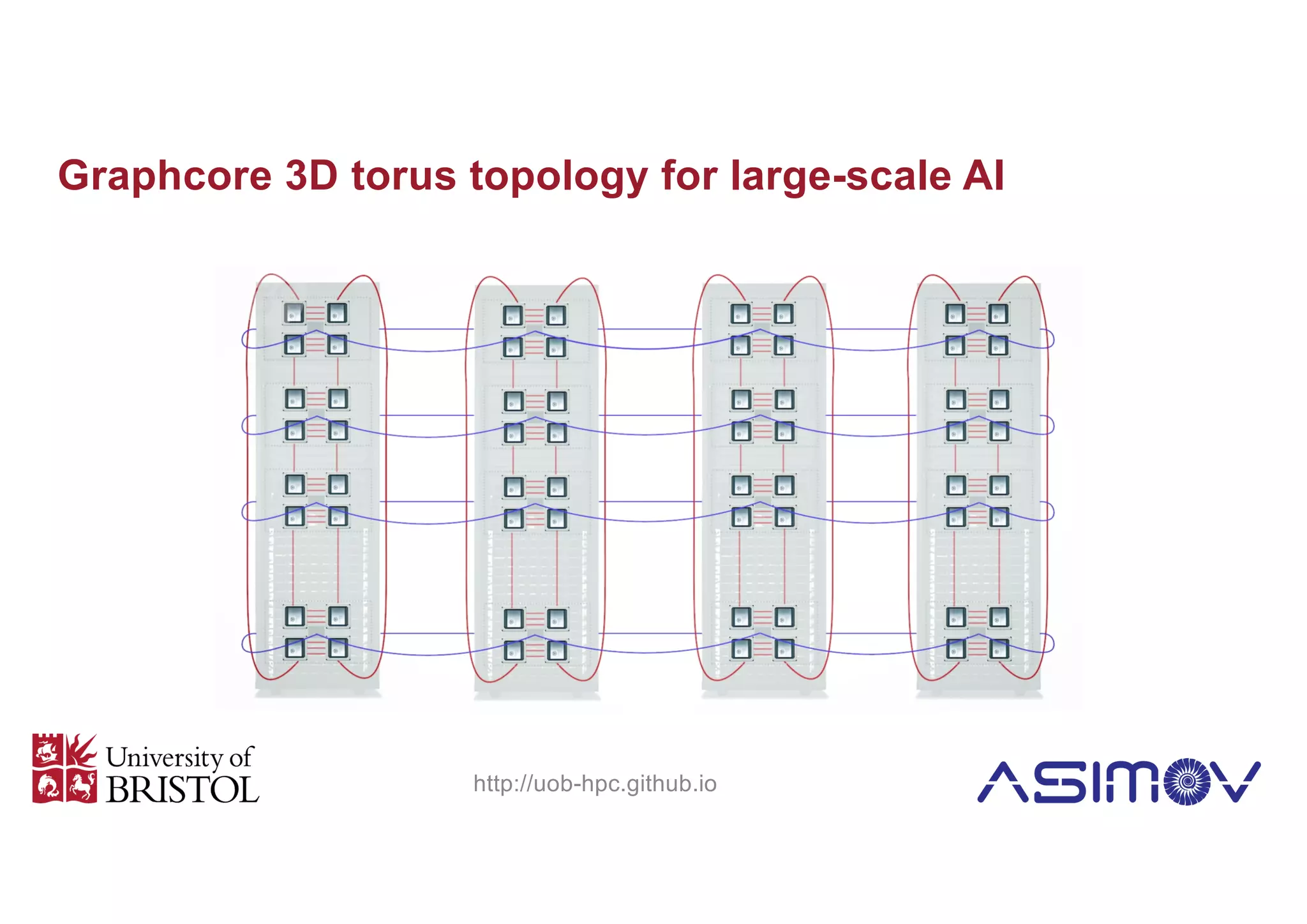

Graphcore 3D torus topology for large-scale AI http://uob-hpc.github.io
http://uob-hpc.github.io

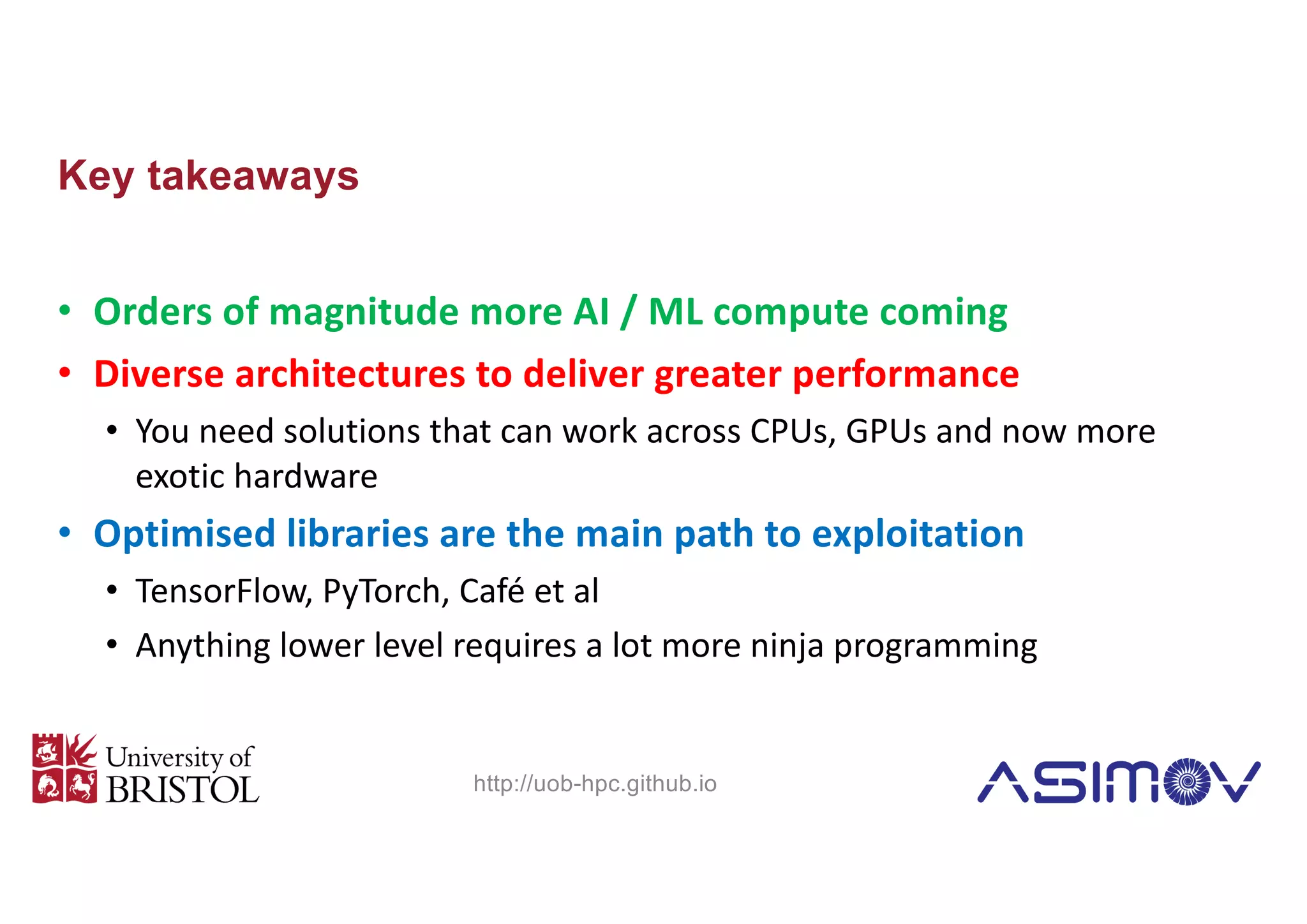

Key takeaways • Orders of magnitude more AI / ML compute coming • Diverse architectures to deliver greater performance • You need solutions that can work across CPUs, GPUs and now more exotic hardware • Optimised libraries are the main path to exploitation • TensorFlow, PyTorch, Café et al • Anything lower level requires a lot more ninja programming http://uob-hpc.github.io

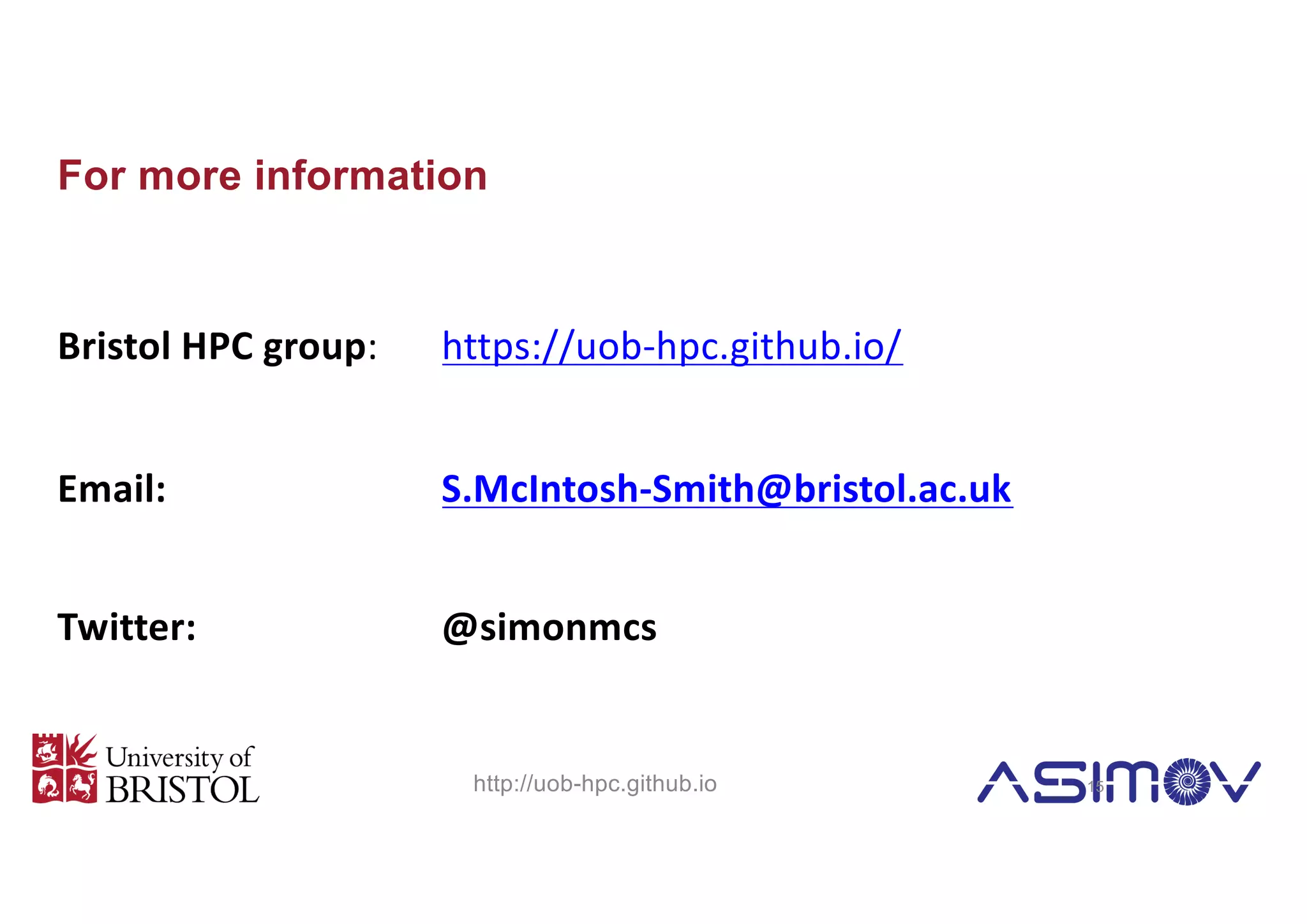

For more information Bristol HPC group: https://uob-hpc.github.io/ Email: S.McIntosh-Smith@bristol.ac.uk Twitter: @simonmcs http://uob-hpc.github.io 15

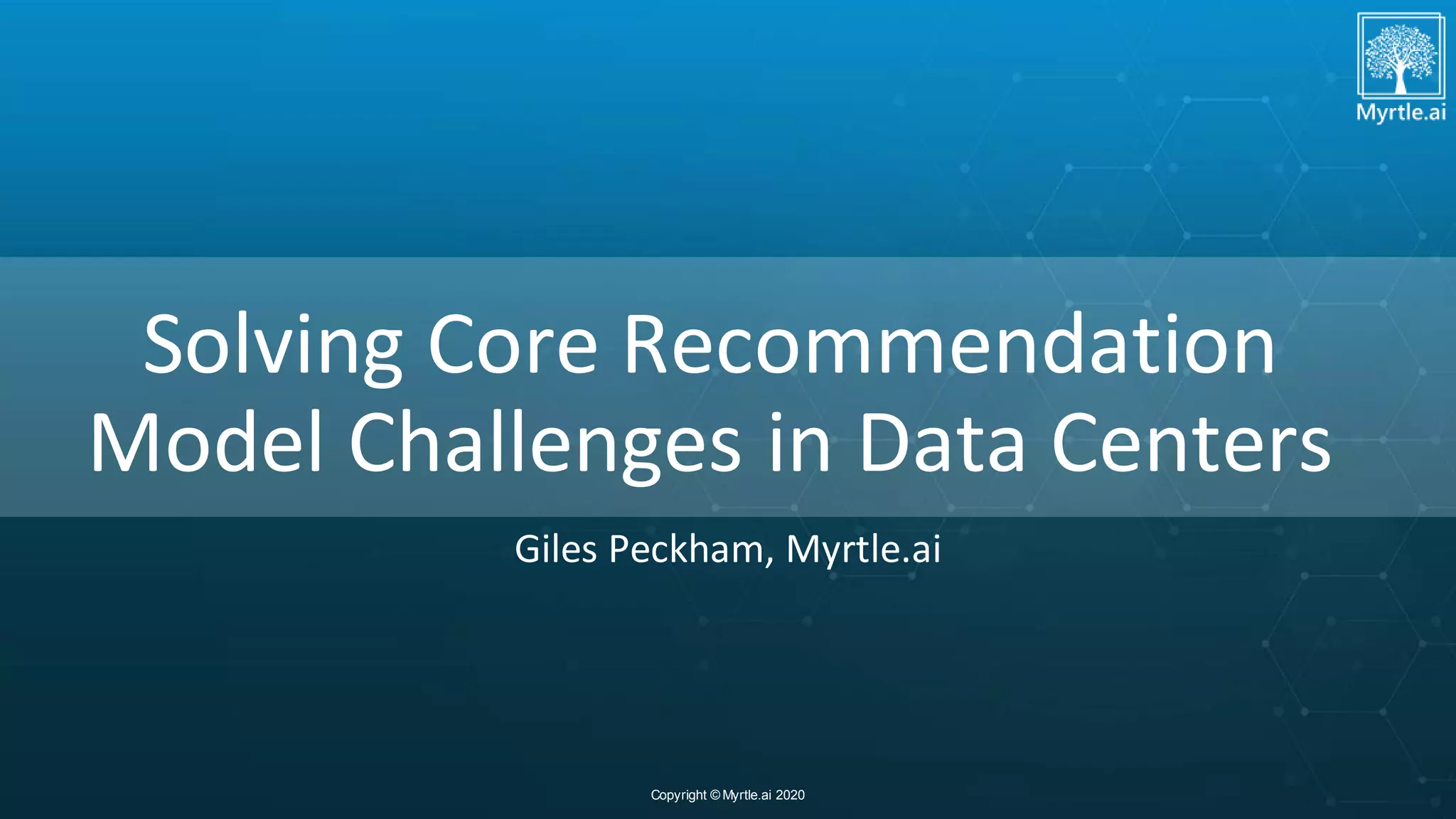

Copyright © Myrtle.ai 2020 Solving Core Recommendation Model Challenges in Data Centers Giles Peckham, Myrtle.ai

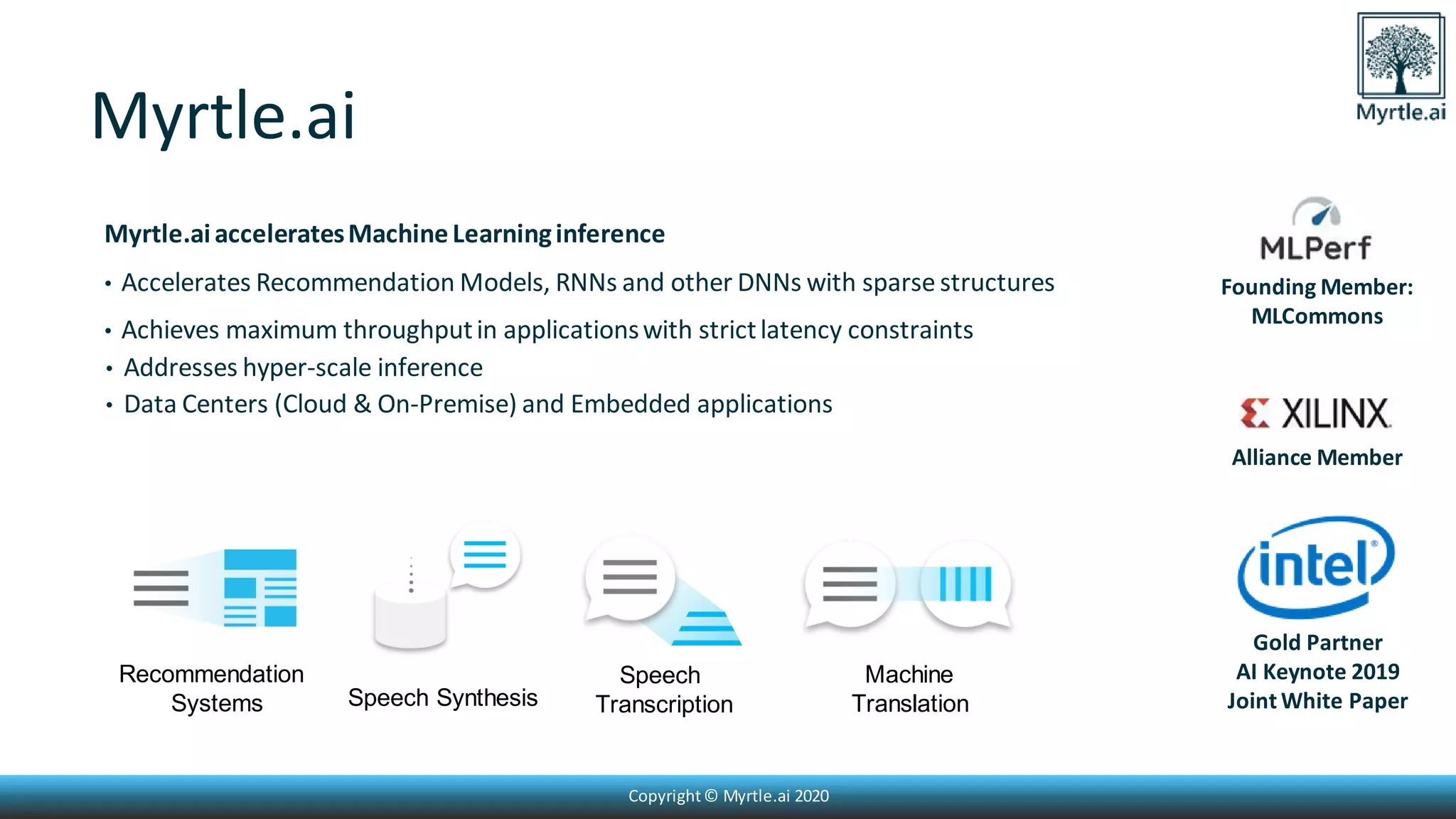

Myrtle.aiacceleratesMachineLearninginference • Accelerates Recommendation Models, RNNs and other DNNs with sparse structures • Achieves maximum throughputin applicationswith strictlatency constraints • Addresses hyper-scale inference • Data Centers (Cloud & On-Premise) and Embedded applications Myrtle.ai Founding Member: MLCommons Alliance Member Gold Partner AI Keynote 2019 Joint White Paper Copyright© Myrtle.ai 2020 Recommendation Systems Speech Synthesis Speech Transcription Machine Translation

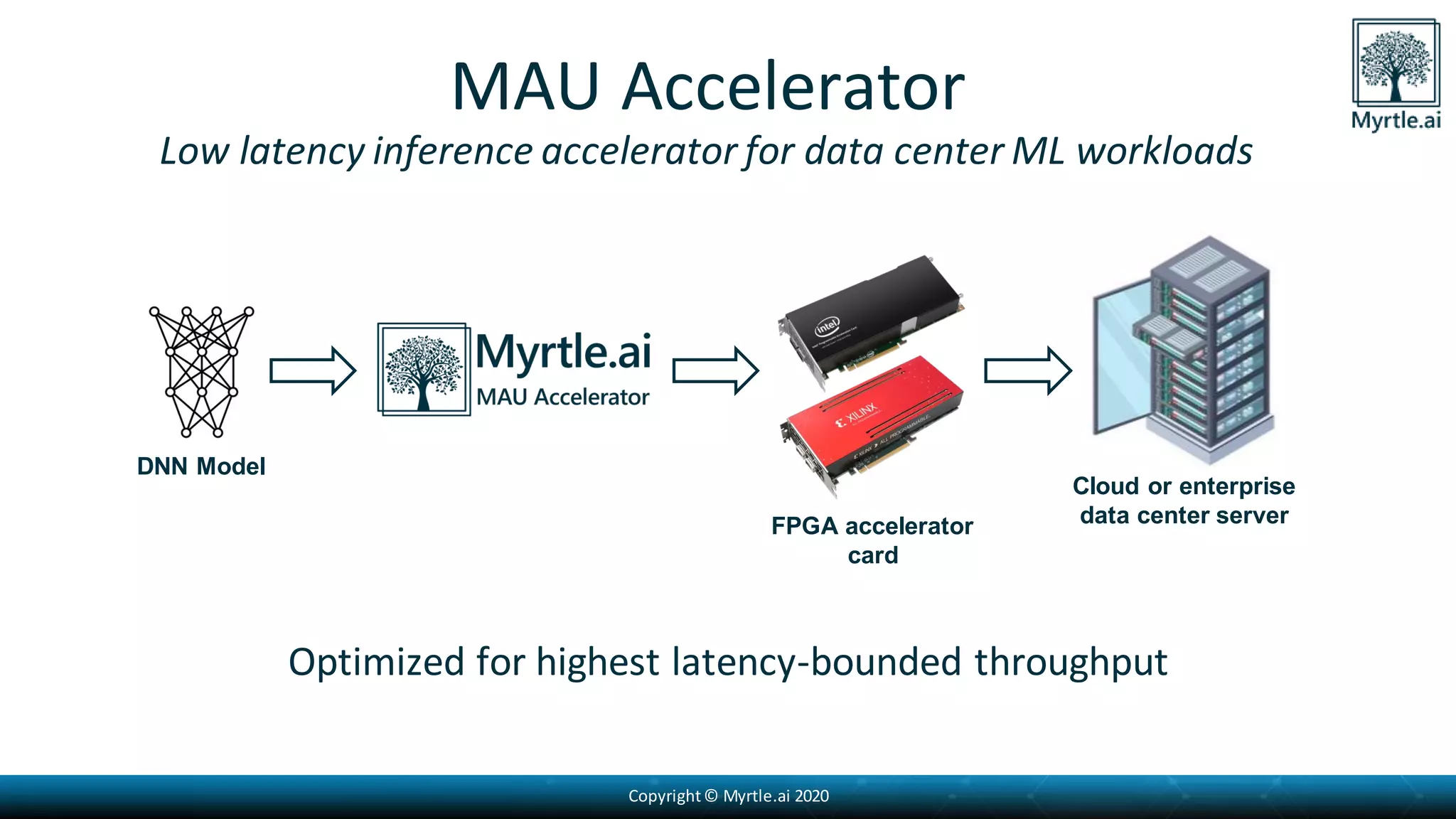

Copyright© Myrtle.ai 2020 MAU Accelerator Low latency inference accelerator for data center ML workloads Optimized for highest latency-bounded throughput DNN Model Cloud or enterprise data center serverFPGA accelerator card

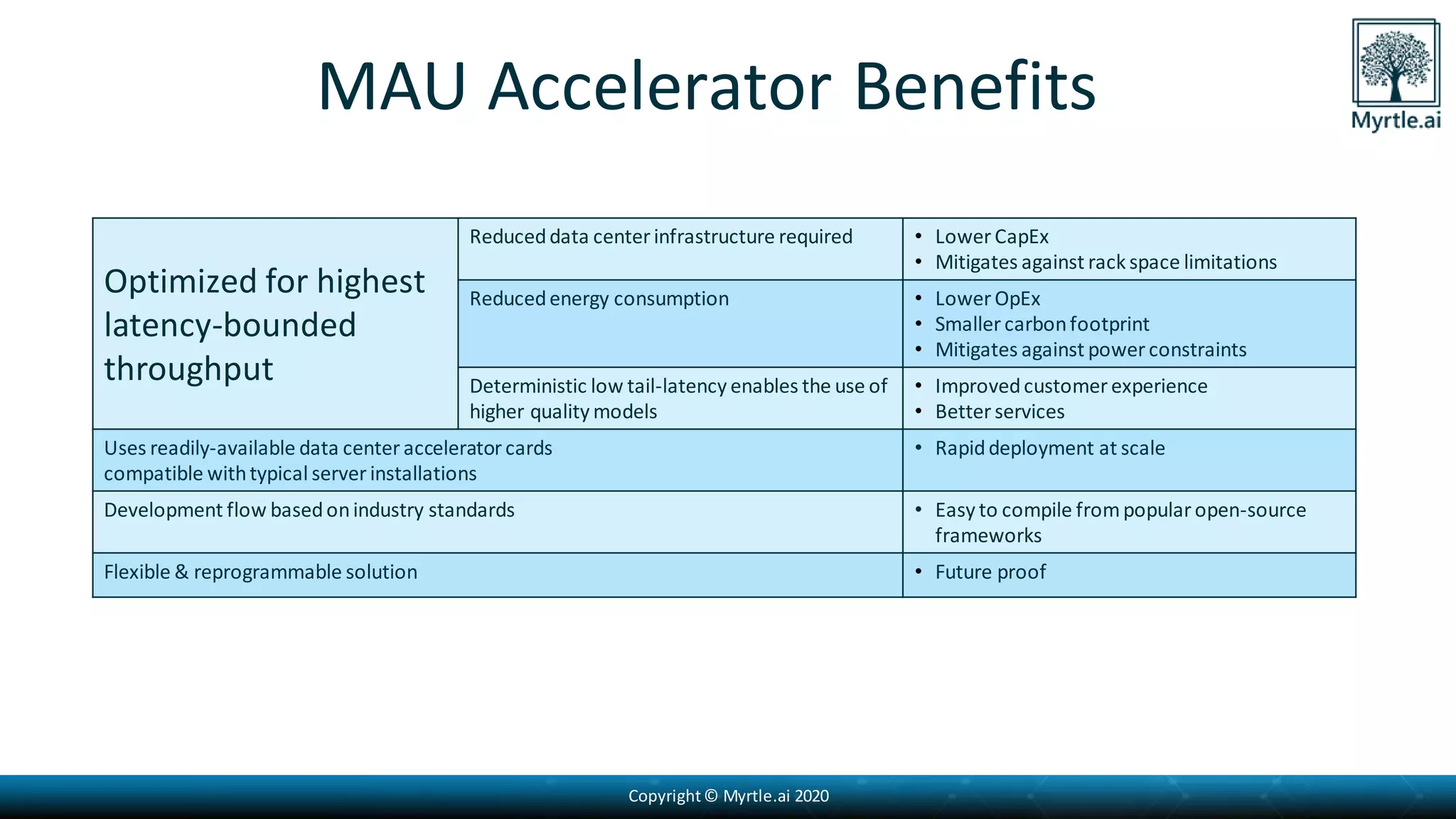

Copyright© Myrtle.ai 2020 MAU Accelerator Benefits Optimized for highest latency-bounded throughput Reduceddata centerinfrastructure required • Lower CapEx • Mitigates against rack space limitations Reducedenergy consumption • Lower OpEx • Smaller carbonfootprint • Mitigates against power constraints Deterministic low tail-latency enables the use of higher quality models • Improvedcustomer experience • Better services Uses readily-available data center accelerator cards compatible withtypical server installations • Rapiddeployment at scale Development flow basedonindustry standards • Easy to compile frompopularopen-source frameworks Flexible & reprogrammable solution • Future proof

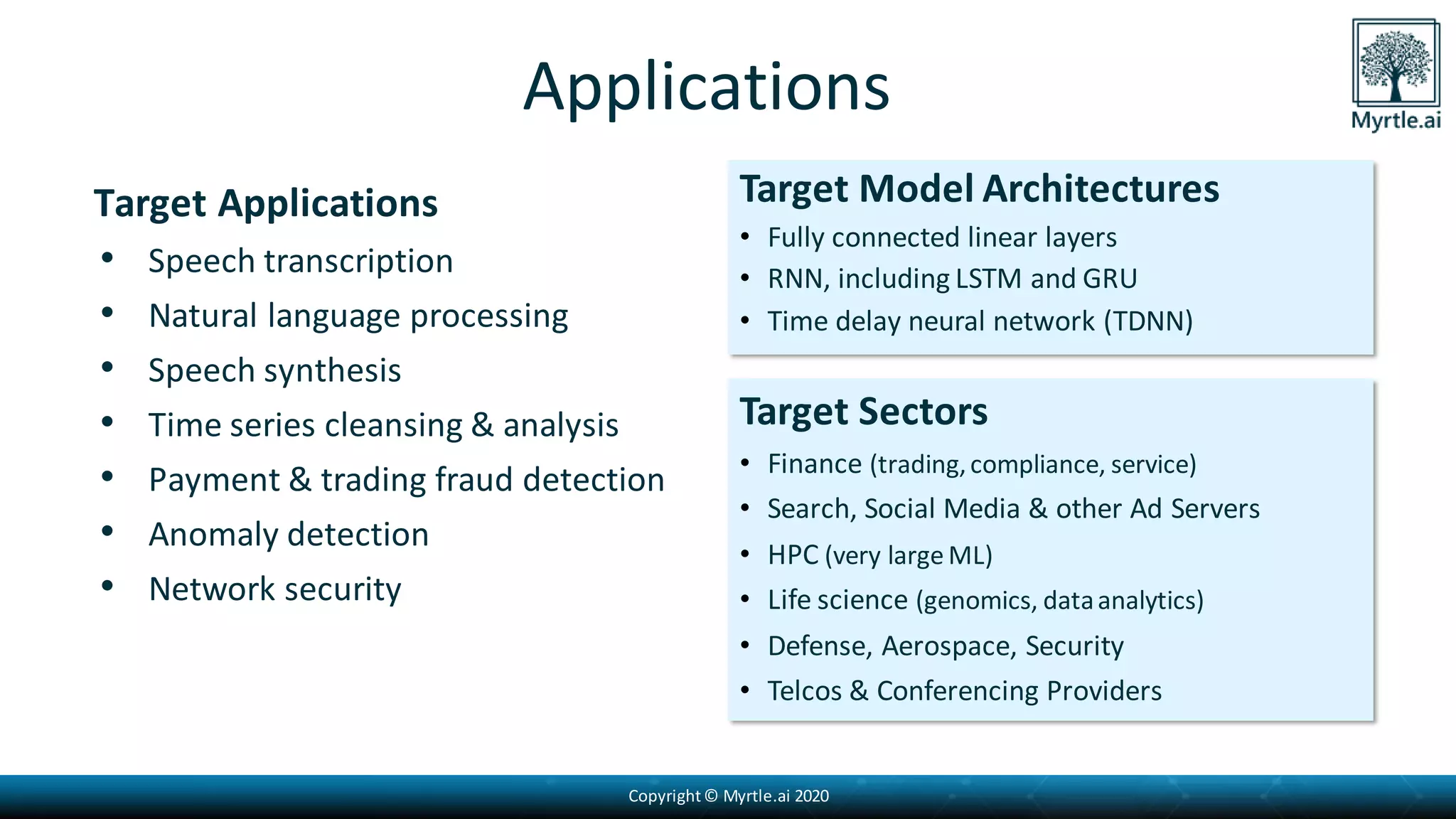

Copyright© Myrtle.ai 2020 Applications Target Applications • Speech transcription • Natural language processing • Speech synthesis • Time series cleansing & analysis • Payment & trading fraud detection • Anomaly detection • Network security Target Model Architectures • Fully connected linear layers • RNN, including LSTM and GRU • Time delay neural network (TDNN) Target Sectors • Finance (trading,compliance, service) • Search, Social Media & other Ad Servers • HPC (very large ML) • Life science (genomics, dataanalytics) • Defense, Aerospace, Security • Telcos & Conferencing Providers

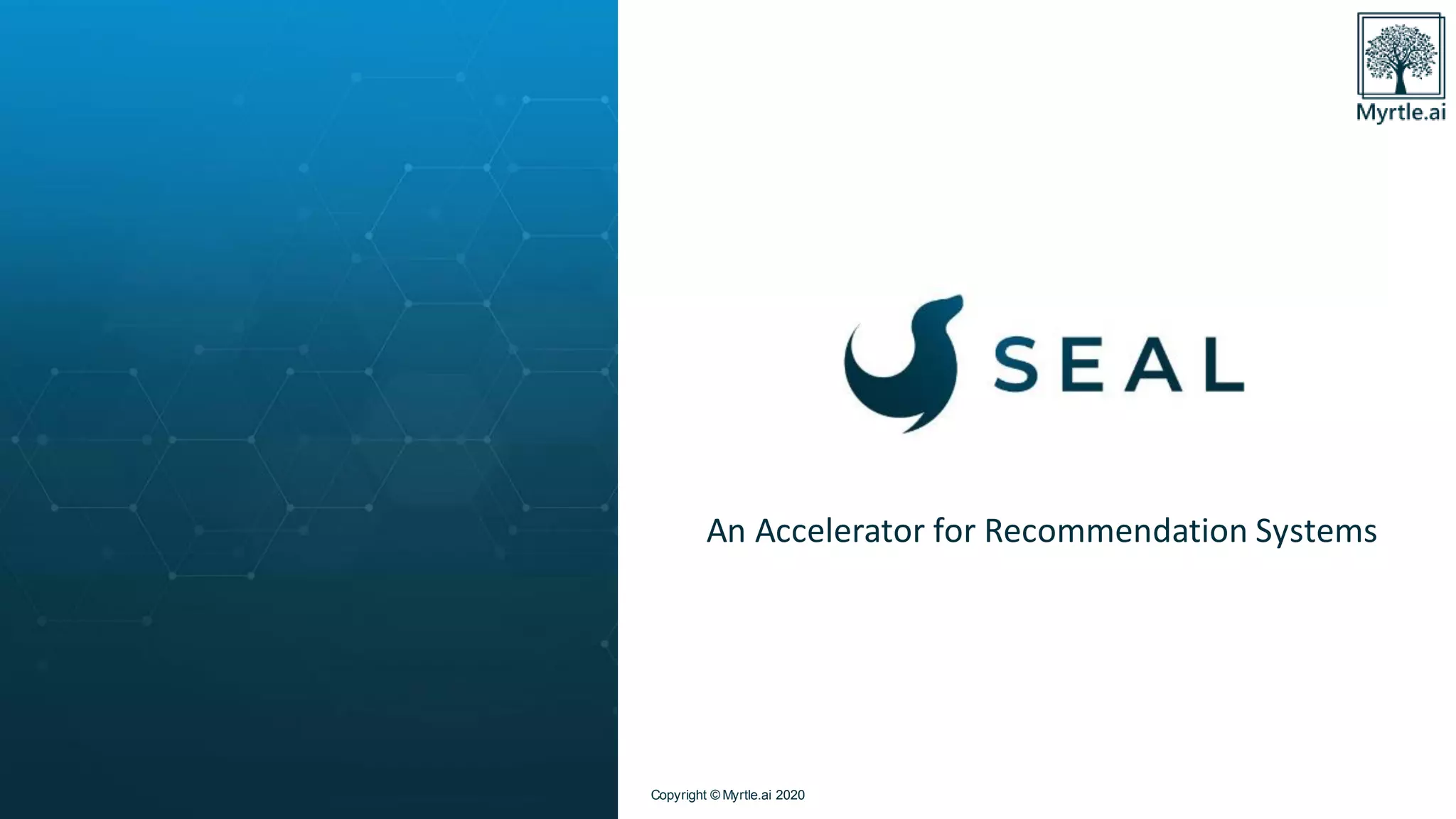

Copyright © Myrtle.ai 2020 An Accelerator for Recommendation Systems

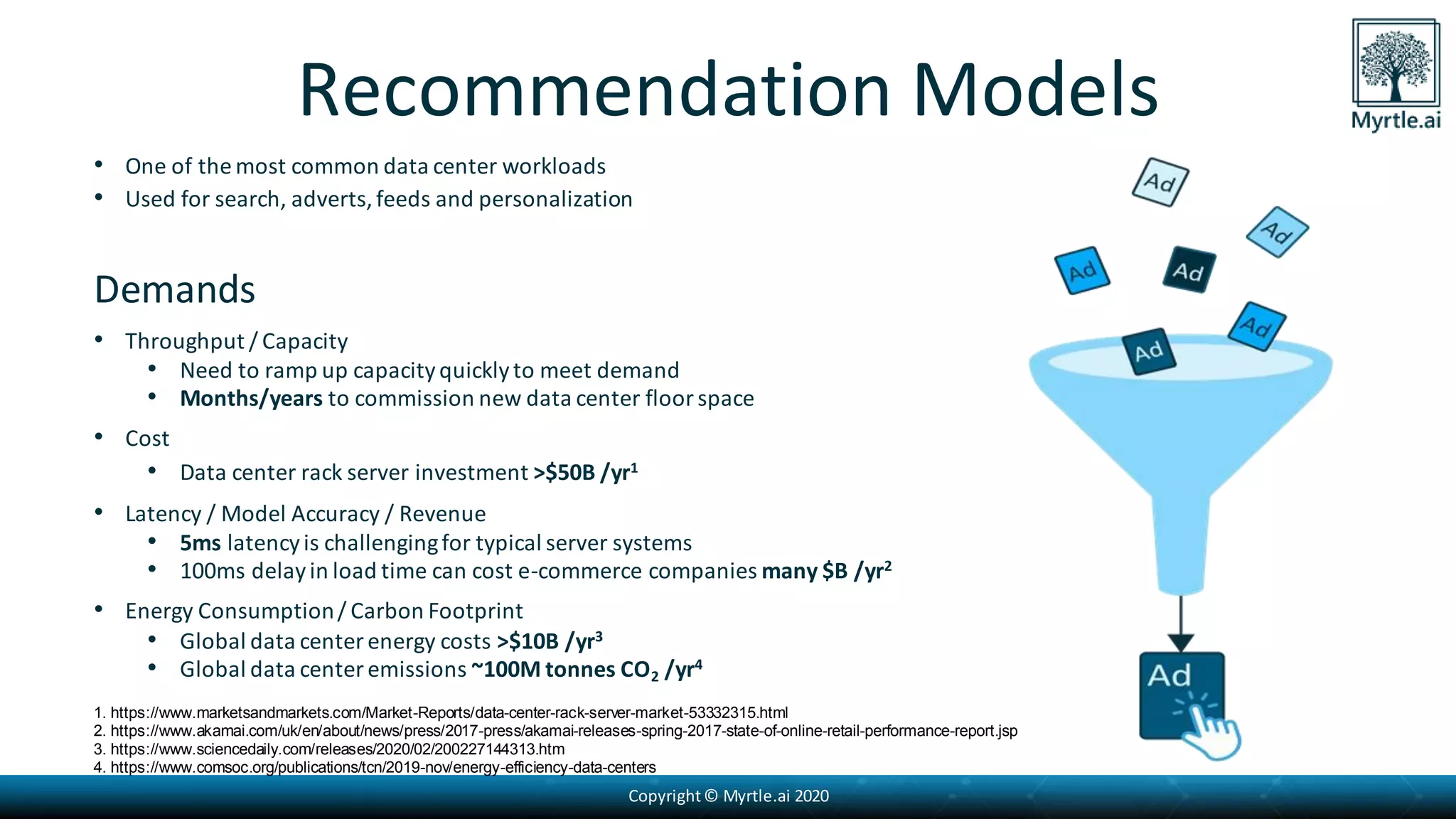

Copyright© Myrtle.ai 2020 Recommendation Models • One of the most common data center workloads • Used for search, adverts,feeds and personalization Demands • Throughput / Capacity • Need to ramp up capacityquicklyto meet demand • Months/years to commission new data center floor space • Cost • Data center rack server investment >$50B /yr1 • Latency / Model Accuracy / Revenue • 5ms latencyis challengingfor typical server systems • 100ms delayin load time can cost e-commerce companies many $B /yr2 • Energy Consumption/ Carbon Footprint • Global data center energy costs >$10B /yr3 • Global data center emissions ~100M tonnes CO2 /yr4 1. https://www.marketsandmarkets.com/Market-Reports/data-center-rack-server-market-53332315.html 2. https://www.akamai.com/uk/en/about/news/press/2017-press/akamai-releases-spring-2017-state-of-online-retail-performance-report.jsp 3. https://www.sciencedaily.com/releases/2020/02/200227144313.htm 4. https://www.comsoc.org/publications/tcn/2019-nov/energy-efficiency-data-centers

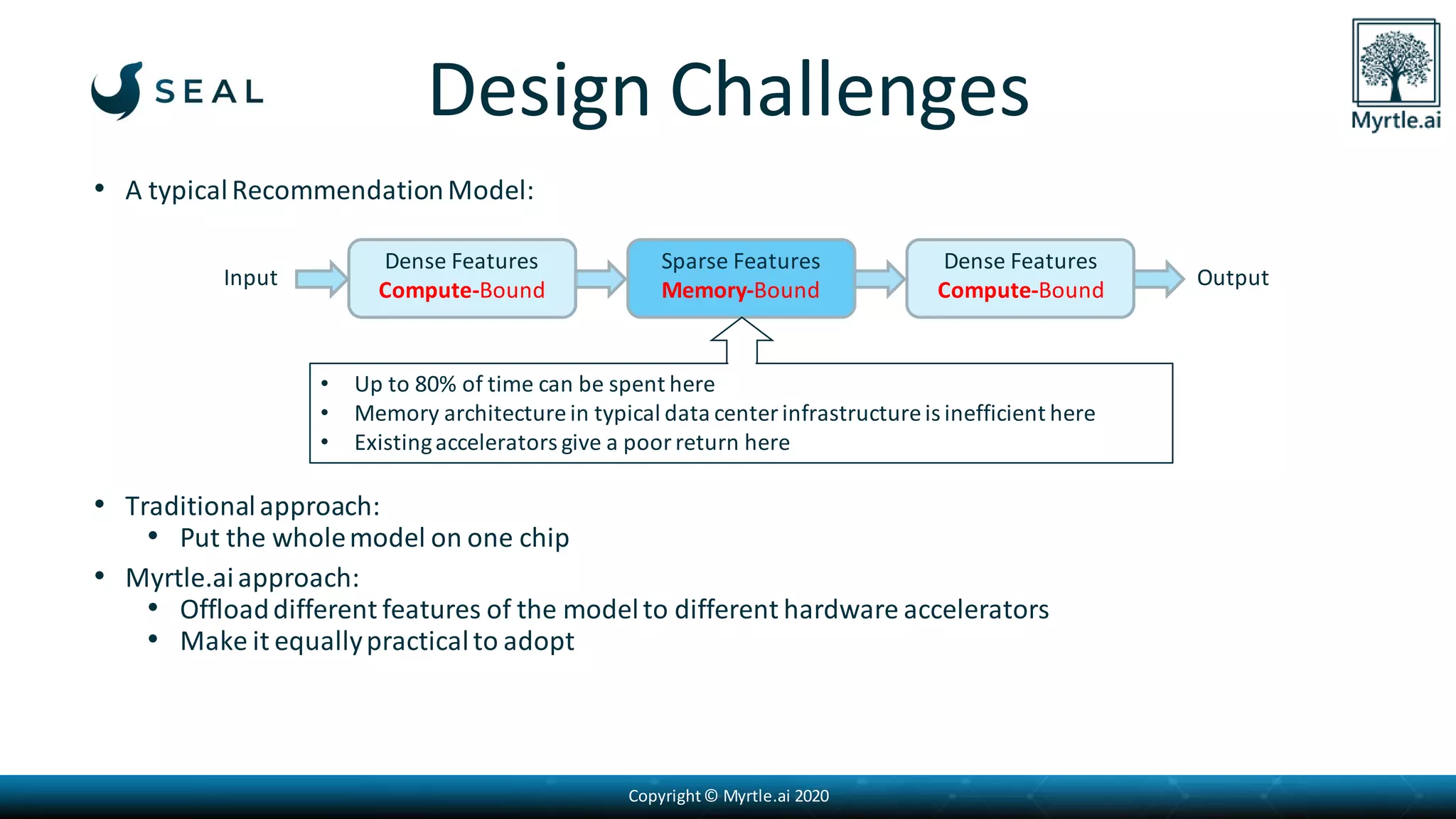

Copyright© Myrtle.ai 2020 Design Challenges • A typicalRecommendationModel: • Traditionalapproach: • Put the wholemodel on one chip • Myrtle.aiapproach: • Offloaddifferent features of the modelto different hardware accelerators • Make it equallypracticalto adopt Dense Features Compute-Bound Sparse Features Memory-Bound Dense Features Compute-Bound OutputInput • Up to 80% of time can be spent here • Memory architecture in typical data center infrastructure is inefficient here • Existingaccelerators give a poor return here

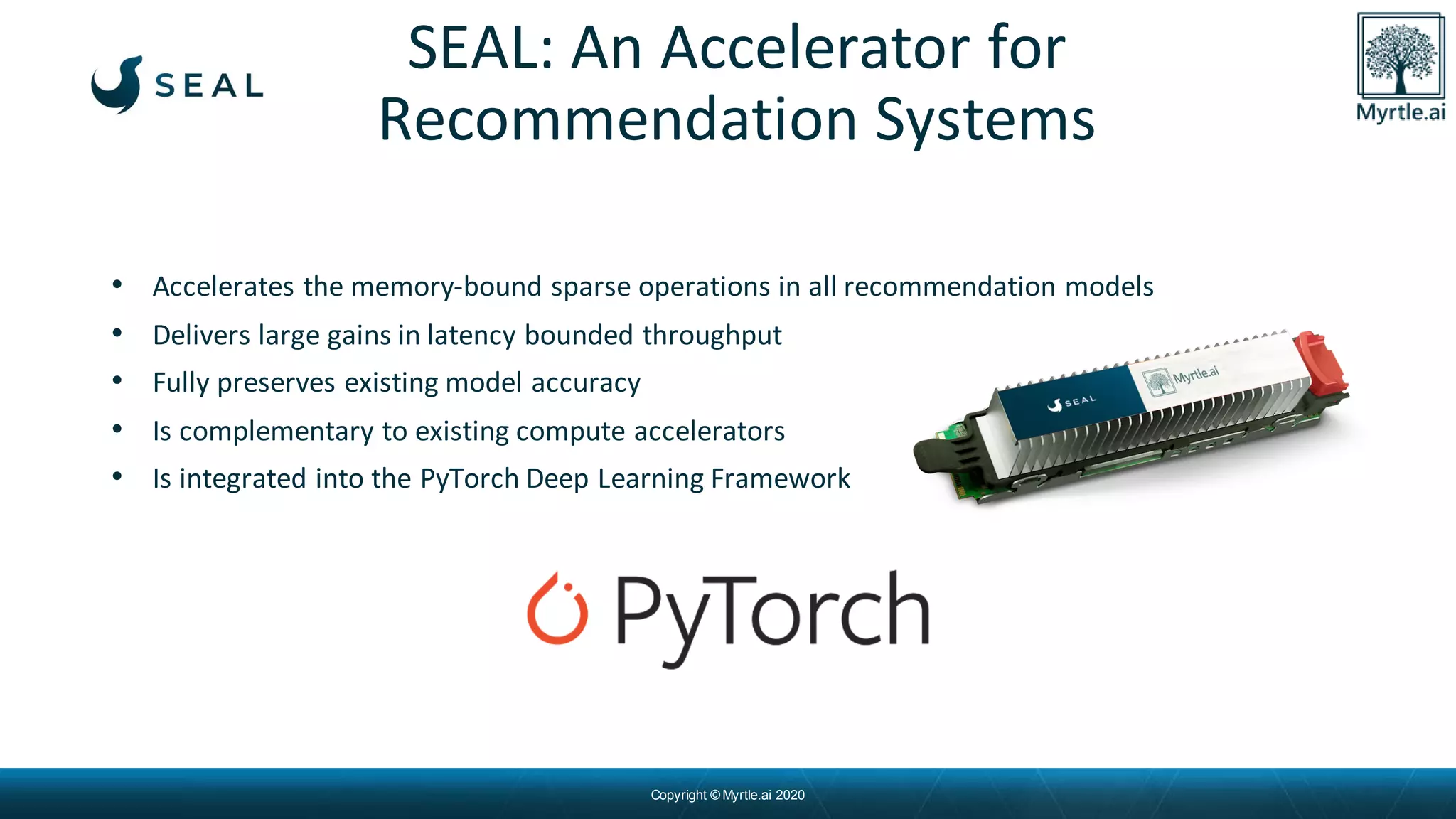

Copyright © Myrtle.ai 2020 • Accelerates the memory-bound sparse operations in all recommendation models • Delivers large gains in latency bounded throughput • Fully preserves existing model accuracy • Is complementary to existing compute accelerators • Is integrated into the PyTorch Deep Learning Framework SEAL: An Accelerator for Recommendation Systems

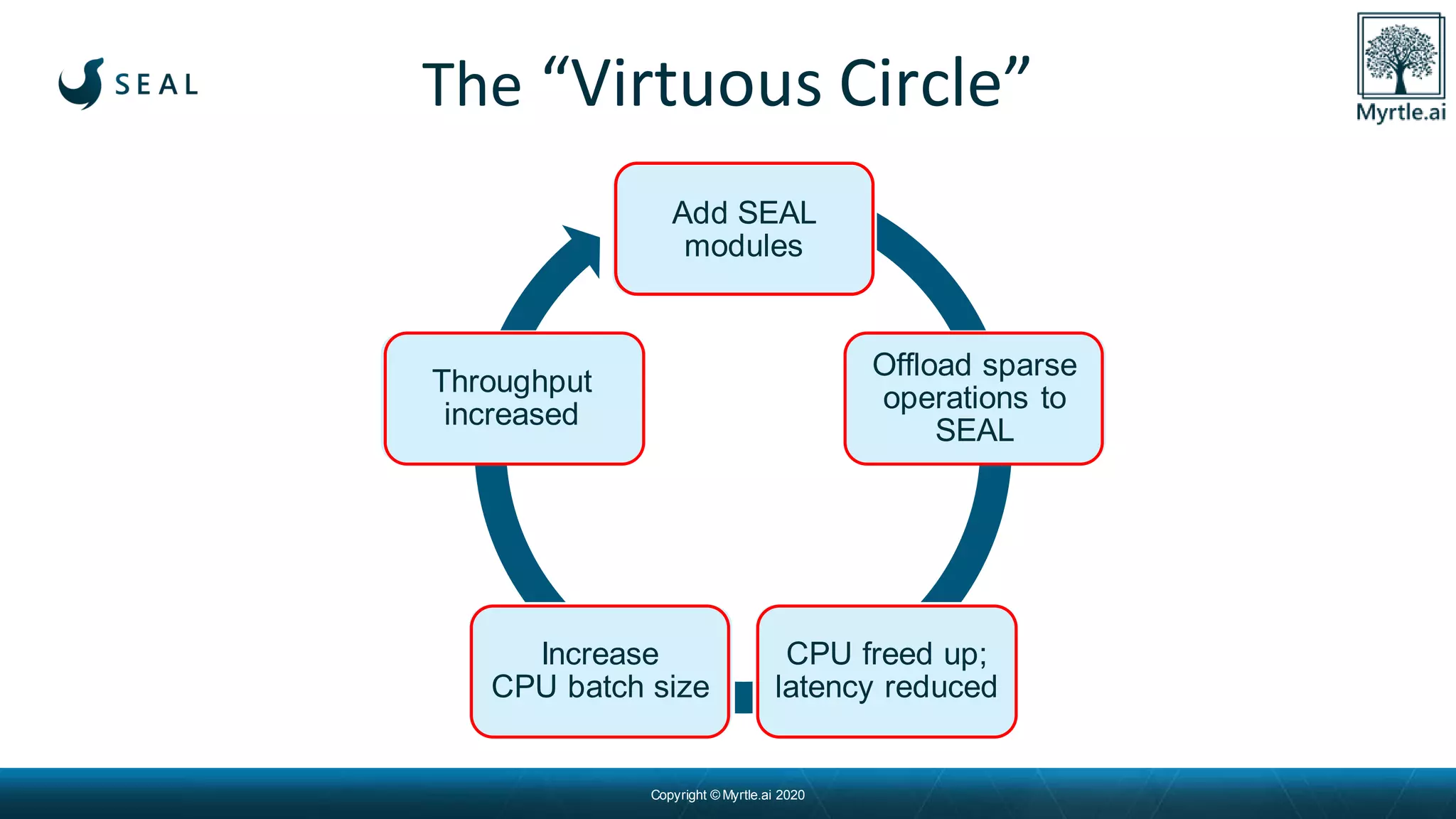

Copyright © Myrtle.ai 2020 Add SEAL modules Offload sparse operations to SEAL CPU freed up; latency reduced Increase CPU batch size Throughput increased The “Virtuous Circle”

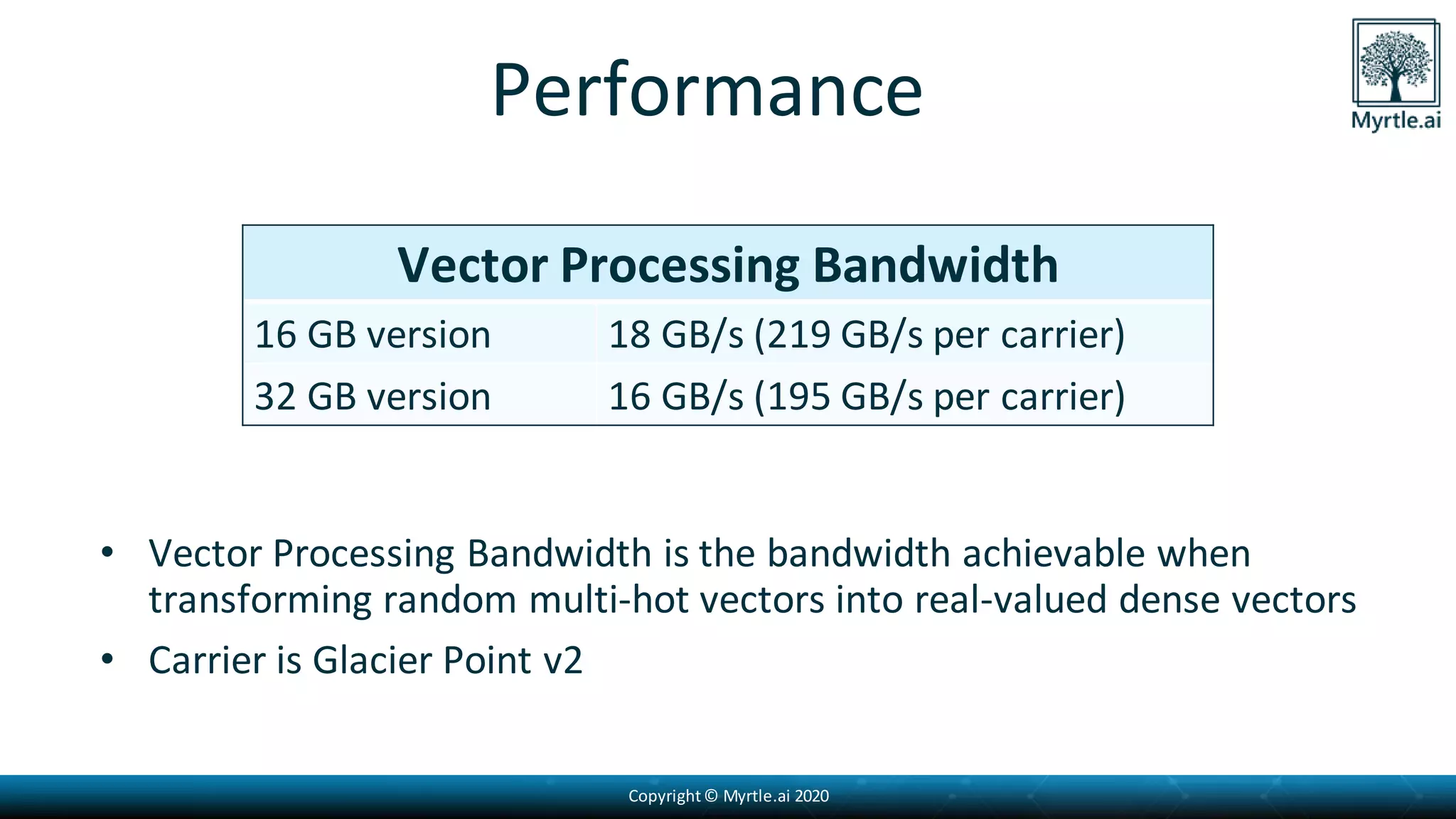

Copyright© Myrtle.ai 2020 Performance • Vector Processing Bandwidth is the bandwidth achievable when transforming random multi-hot vectors into real-valued dense vectors • Carrier is Glacier Point v2 Vector Processing Bandwidth 16 GB version 18 GB/s (219 GB/s per carrier) 32 GB version 16 GB/s (195 GB/s per carrier)

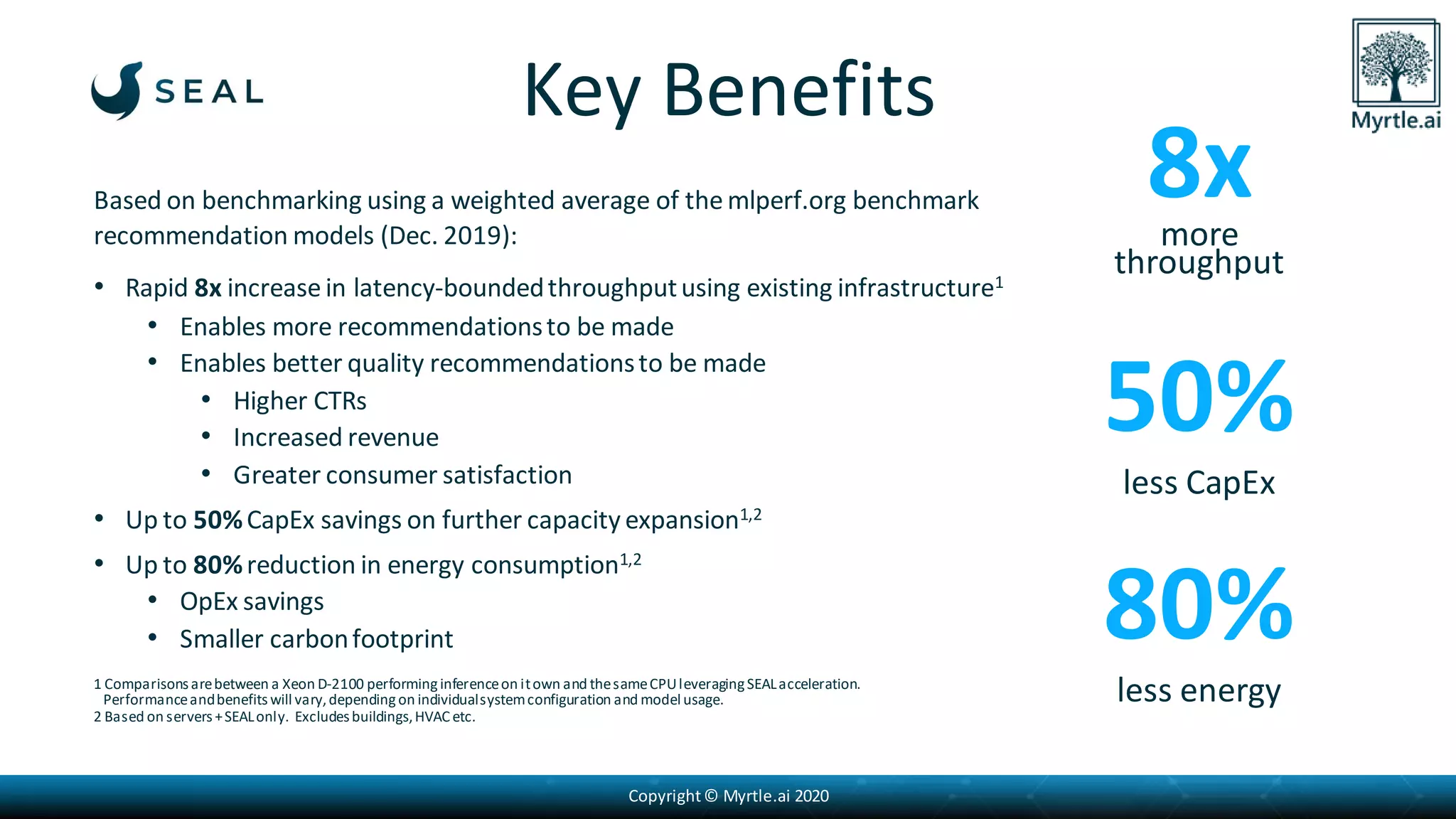

Copyright© Myrtle.ai 2020 Key Benefits Based on benchmarking using a weighted average of the mlperf.org benchmark recommendation models (Dec. 2019): • Rapid 8x increase in latency-boundedthroughputusing existing infrastructure1 • Enables more recommendationsto be made • Enables better quality recommendationsto be made • Higher CTRs • Increased revenue • Greater consumer satisfaction • Up to 50%CapEx savings on further capacity expansion1,2 • Up to 80%reduction in energy consumption1,2 • OpEx savings • Smaller carbonfootprint 1 Comparisonsarebetween a Xeon D-2100 performinginferenceon itown and thesameCPUleveragingSEALacceleration. Performanceandbenefitswill vary,dependingon individualsystemconfiguration and model usage. 2 Based on servers+SEALonly. Excludesbuildings,HVAC etc. 8xmore throughput 50% less CapEx 80% less energy

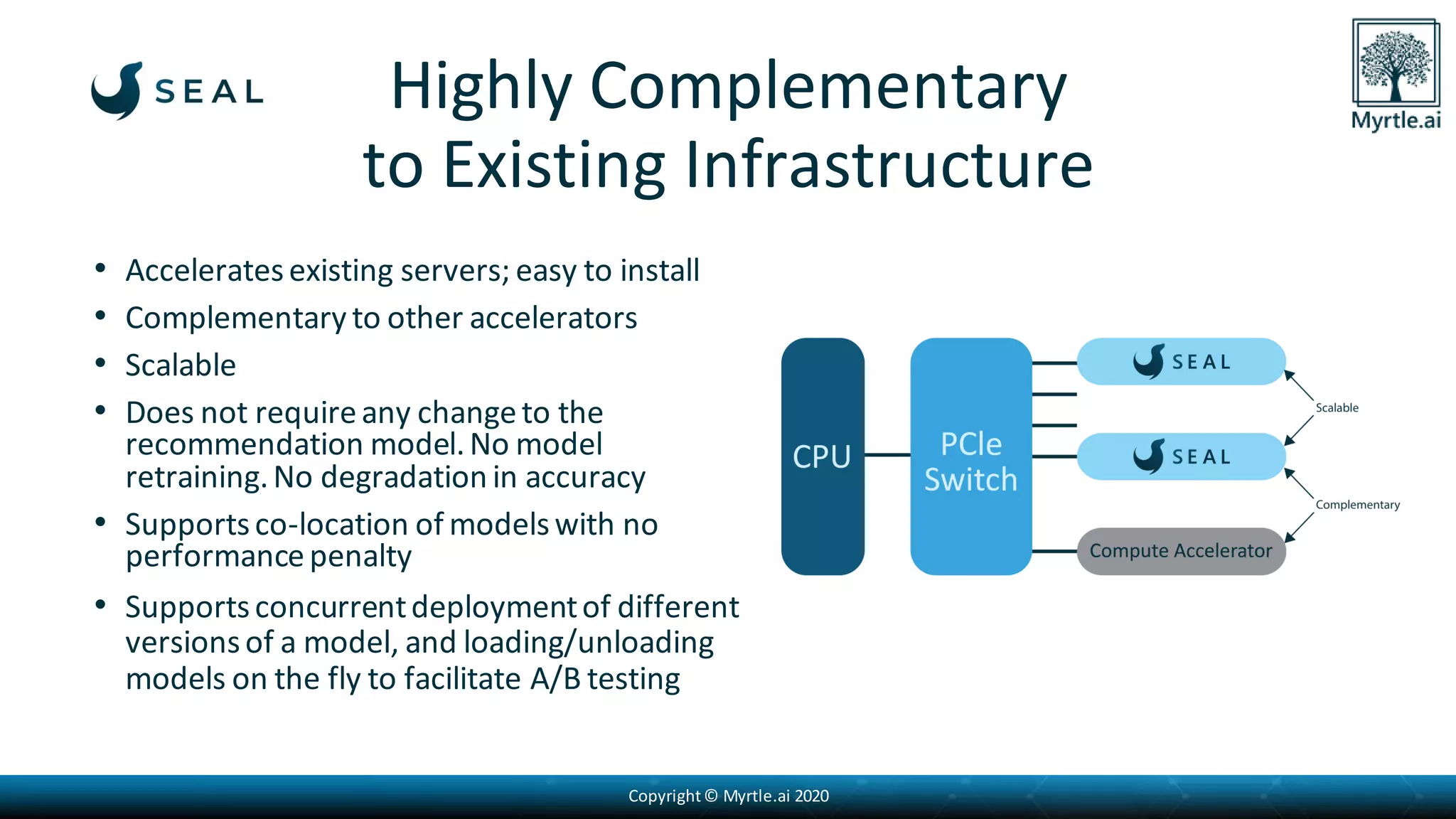

Copyright© Myrtle.ai 2020 Highly Complementary to Existing Infrastructure • Acceleratesexisting servers; easy to install • Complementary to other accelerators • Scalable • Does not requireany changeto the recommendation model.No model retraining.No degradation in accuracy • Supportsco-location of modelswith no performancepenalty • Supportsconcurrentdeploymentof different versionsof a model, and loading/unloading models on the fly to facilitate A/B testing

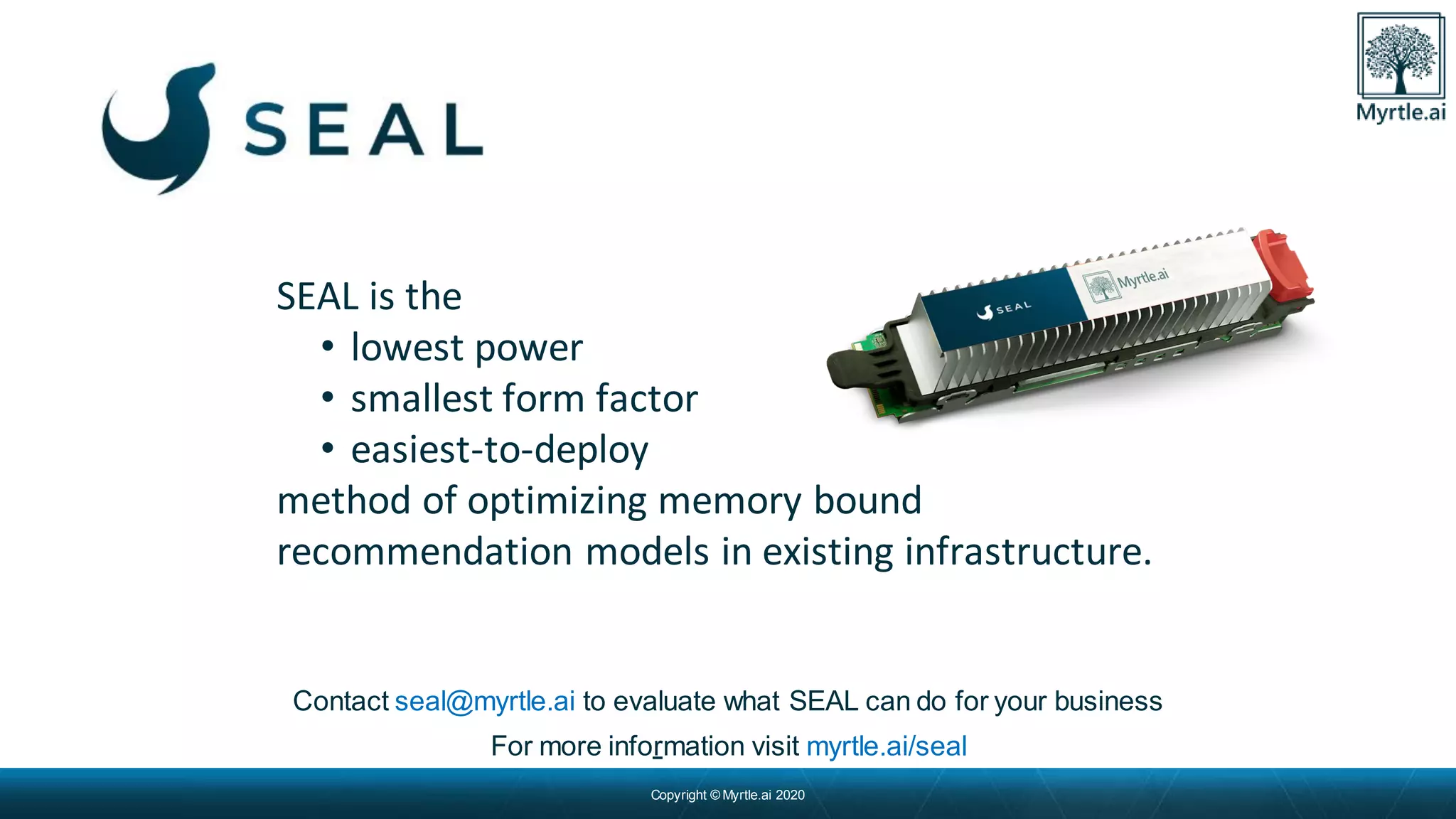

Copyright © Myrtle.ai 2020 Contact seal@myrtle.ai to evaluate what SEAL can do for your business For more information visit myrtle.ai/seal SEAL is the • lowest power • smallest form factor • easiest-to-deploy method of optimizing memory bound recommendation models in existing infrastructure.

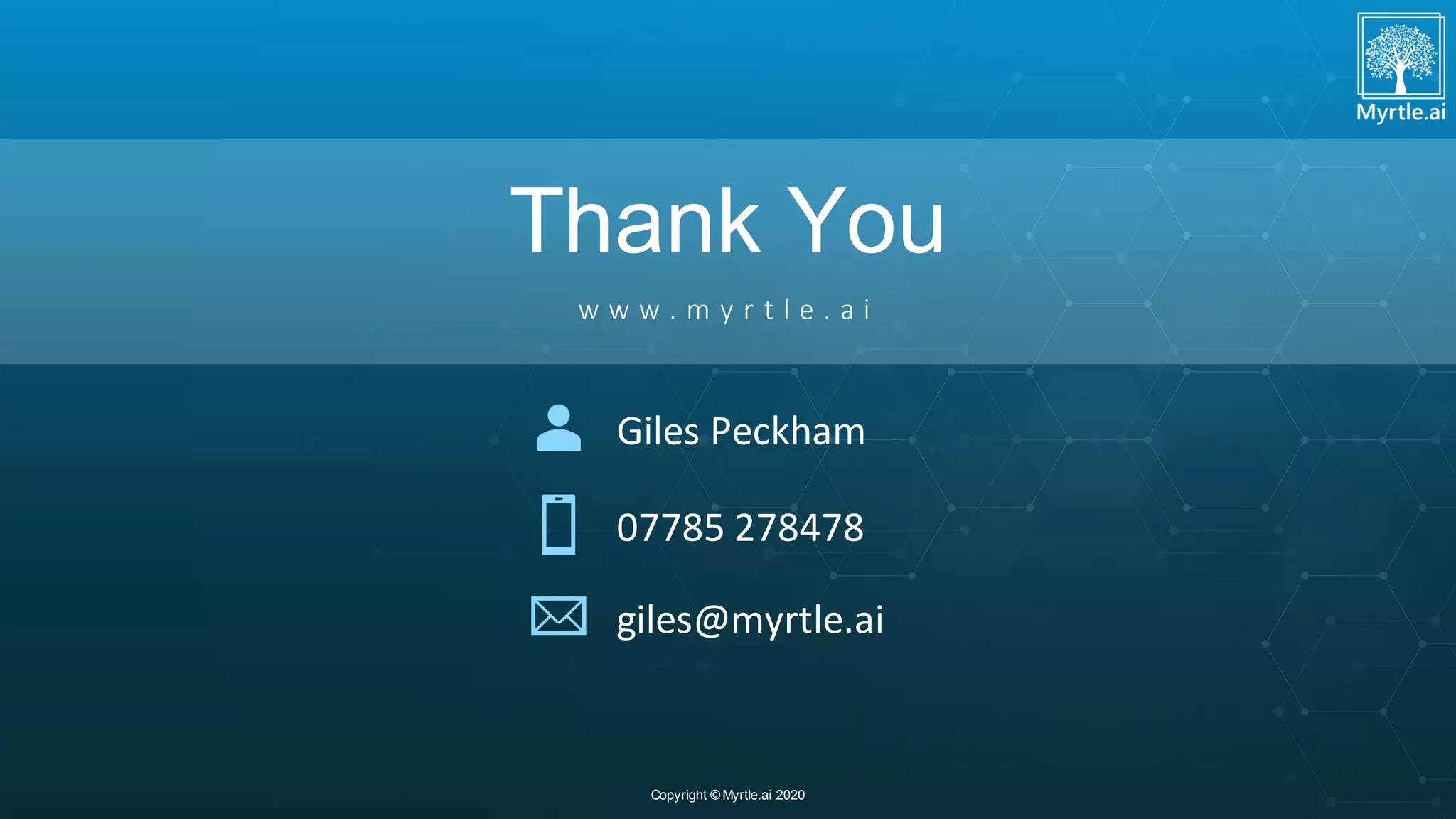

Thank You w w w . m y r t l e . a i Copyright © Myrtle.ai 2020 Giles Peckham 07785 278478 giles@myrtle.ai

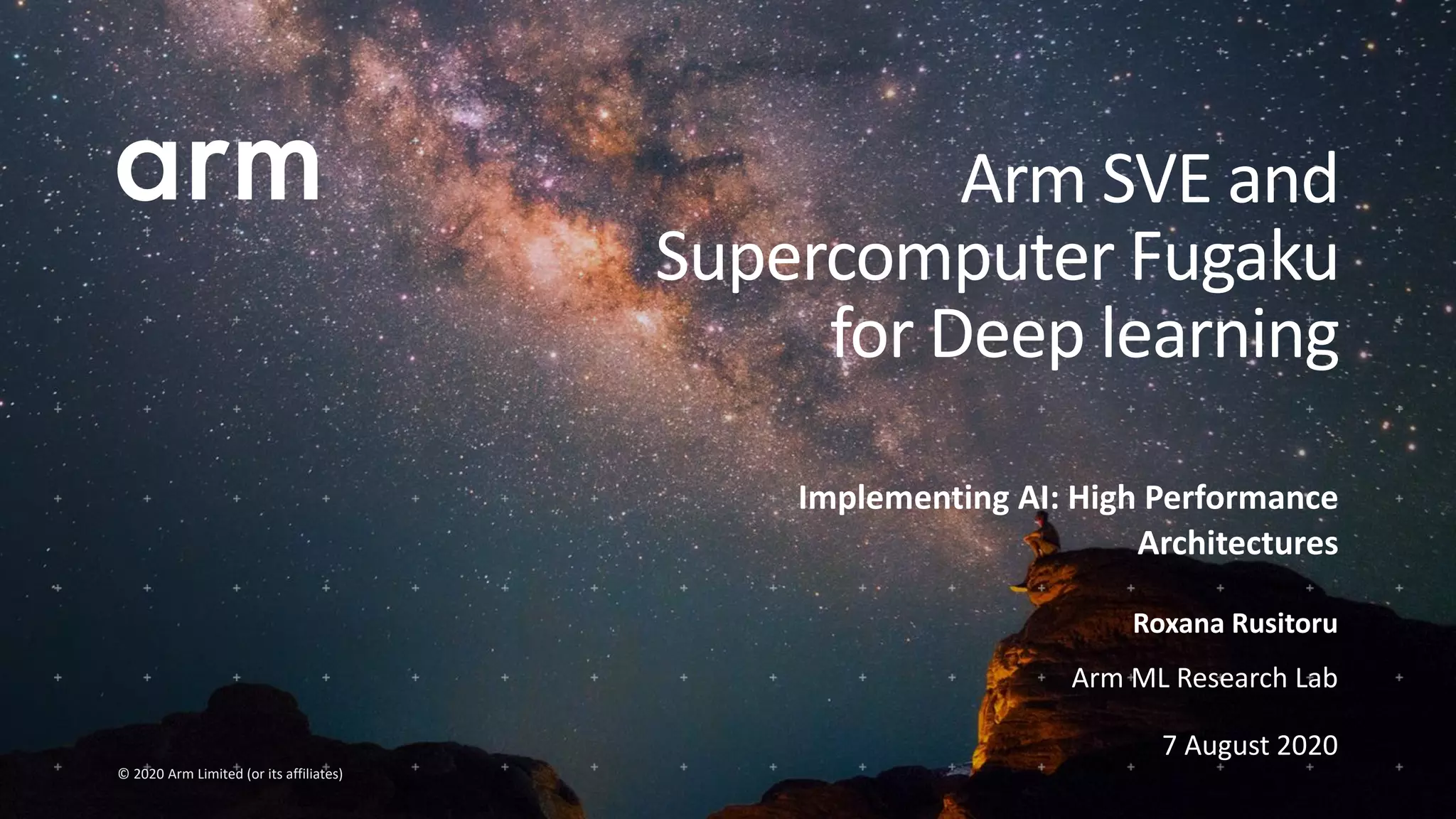

© 2020 Arm Limited (or its affiliates) Roxana Rusitoru Arm ML Research Lab 7 August 2020 Arm SVE and Supercomputer Fugaku for Deep learning Implementing AI: High Performance Architectures

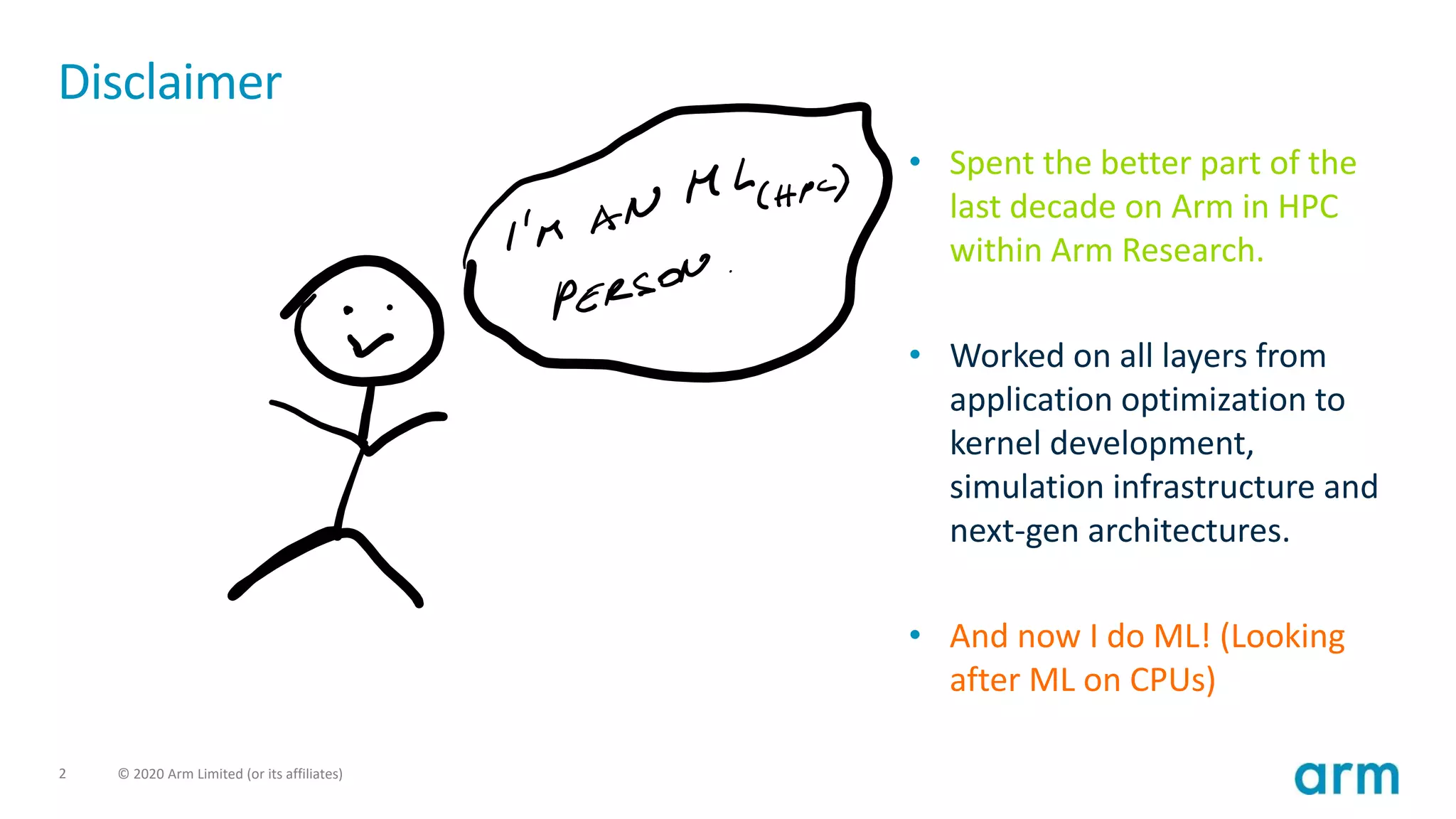

2 © 2020 Arm Limited (or its affiliates) Disclaimer • Spent the better part of the last decade on Arm in HPC within Arm Research. • Worked on all layers from application optimization to kernel development, simulation infrastructure and next-gen architectures. • And now I do ML! (Looking after ML on CPUs)
3 © 2020 Arm Limited (or its affiliates) We want to train large networks on this Supercomputer Fugaku

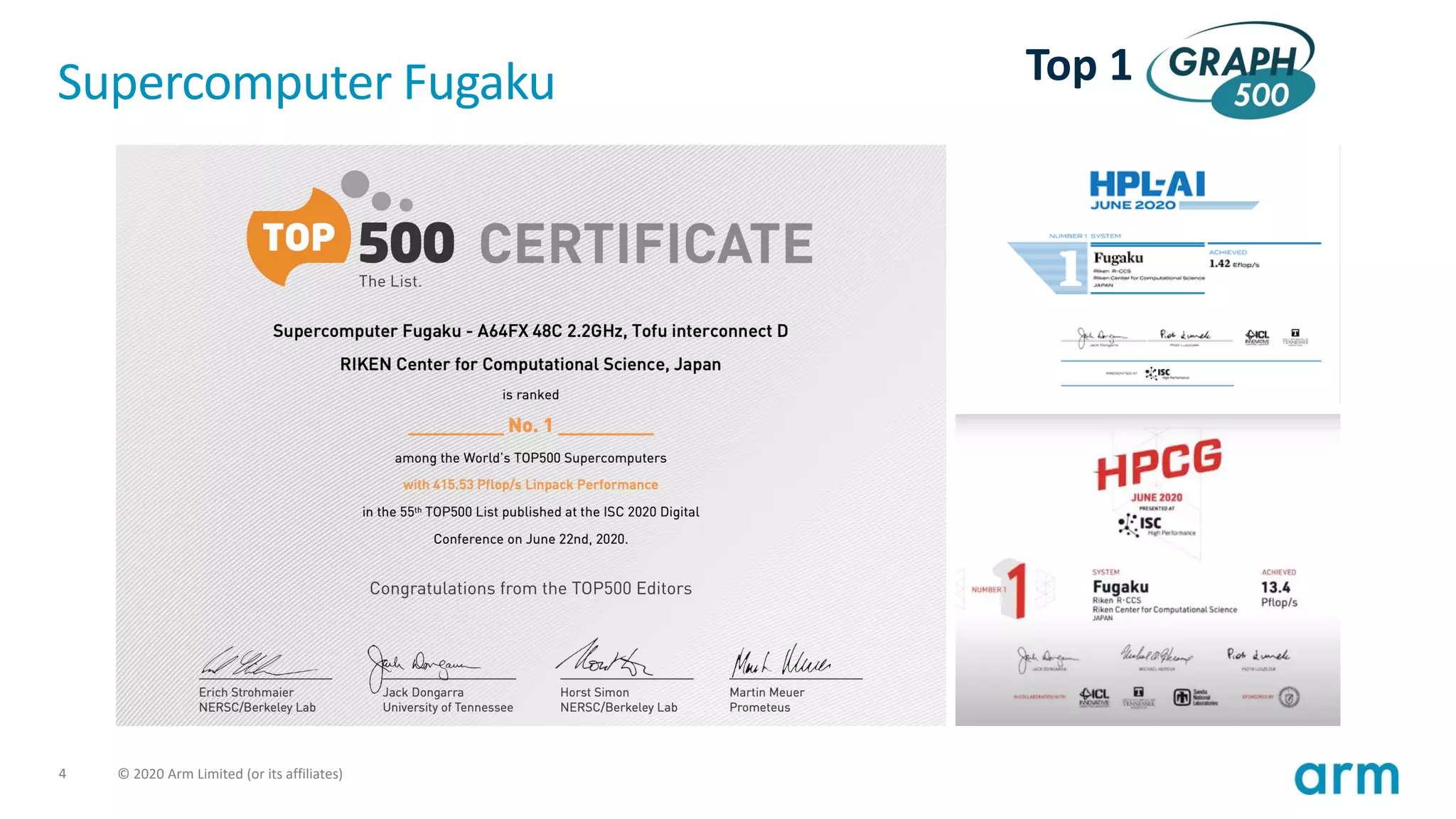

4 © 2020 Arm Limited (or its affiliates) Supercomputer Fugaku Top 1

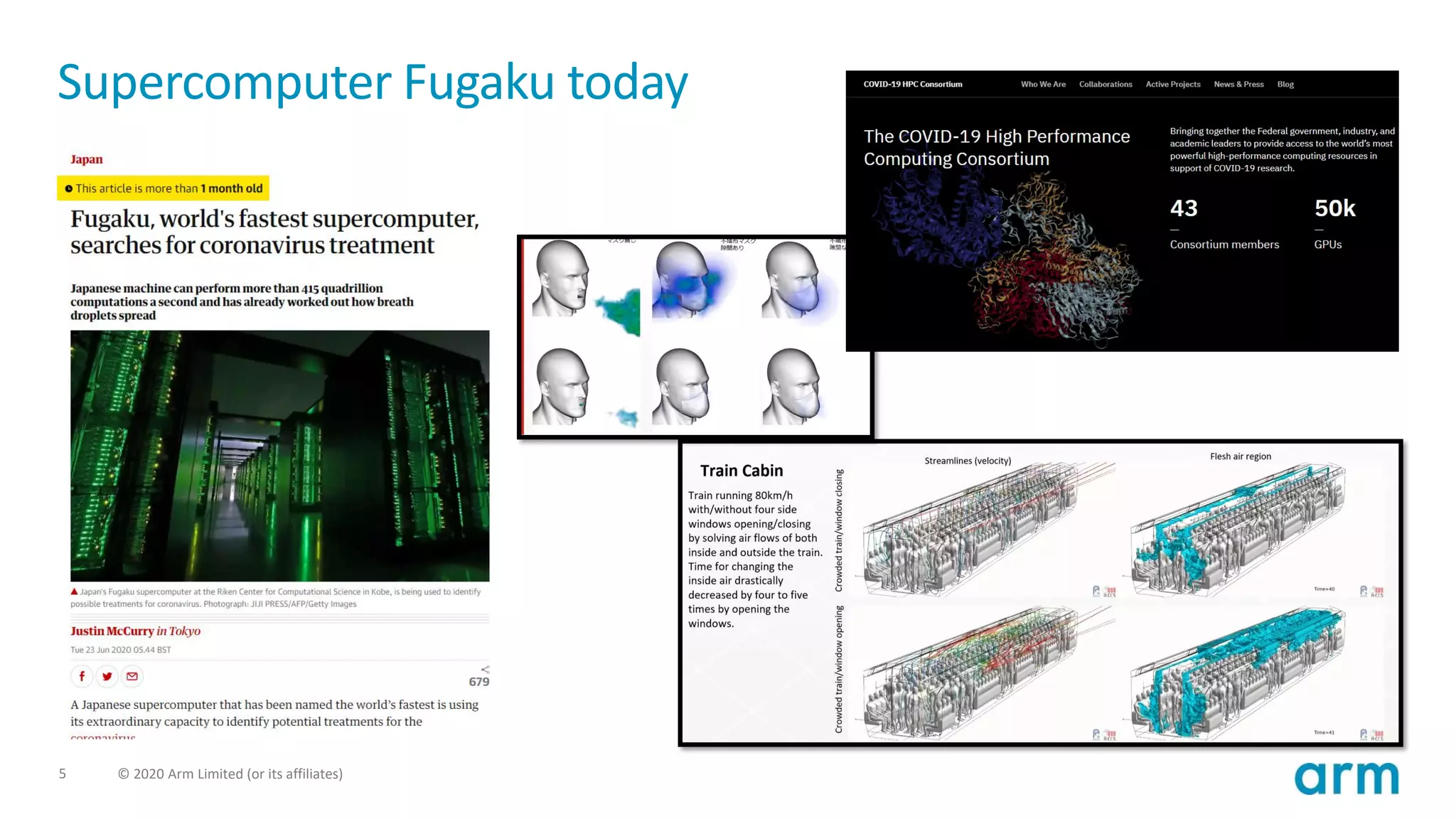

5 © 2020 Arm Limited (or its affiliates) Supercomputer Fugaku today

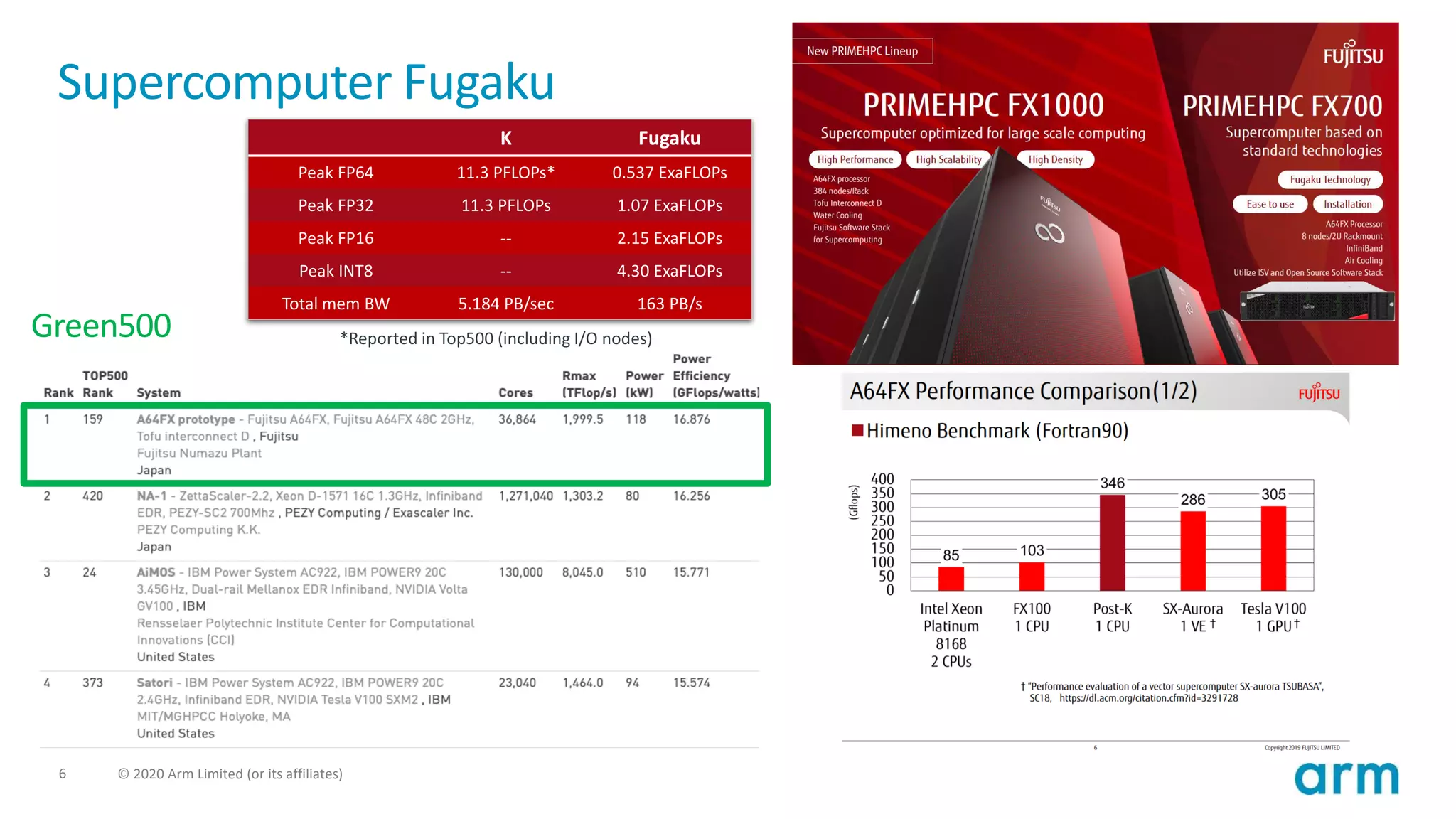

6 © 2020 Arm Limited (or its affiliates) Supercomputer Fugaku Green500 K Fugaku Peak FP64 11.3 PFLOPs* 0.537 ExaFLOPs Peak FP32 11.3 PFLOPs 1.07 ExaFLOPs Peak FP16 -- 2.15 ExaFLOPs Peak INT8 -- 4.30 ExaFLOPs Total mem BW 5.184 PB/sec 163 PB/s *Reported in Top500 (including I/O nodes)

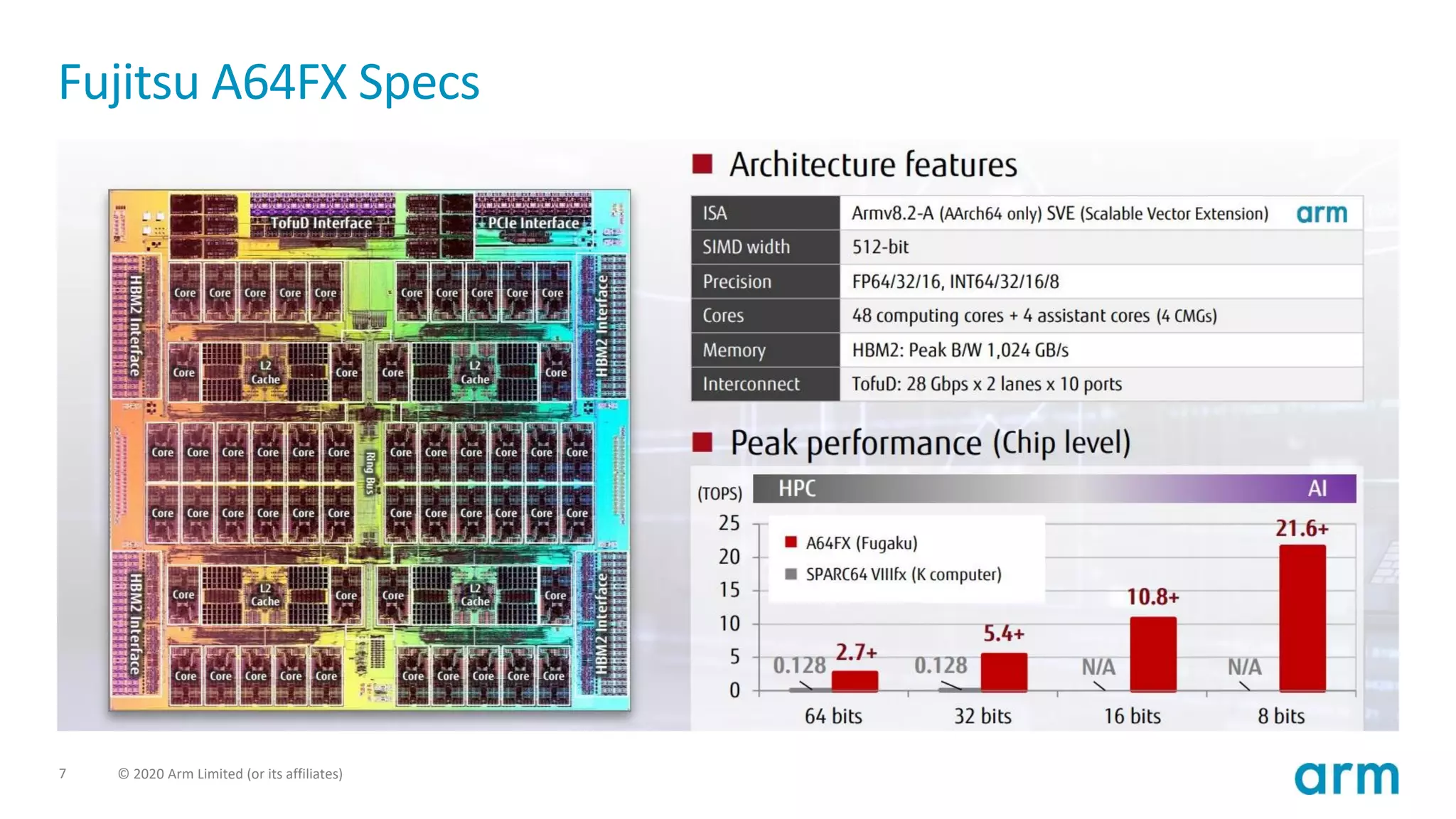

7 © 2020 Arm Limited (or its affiliates) Fujitsu A64FX Specs

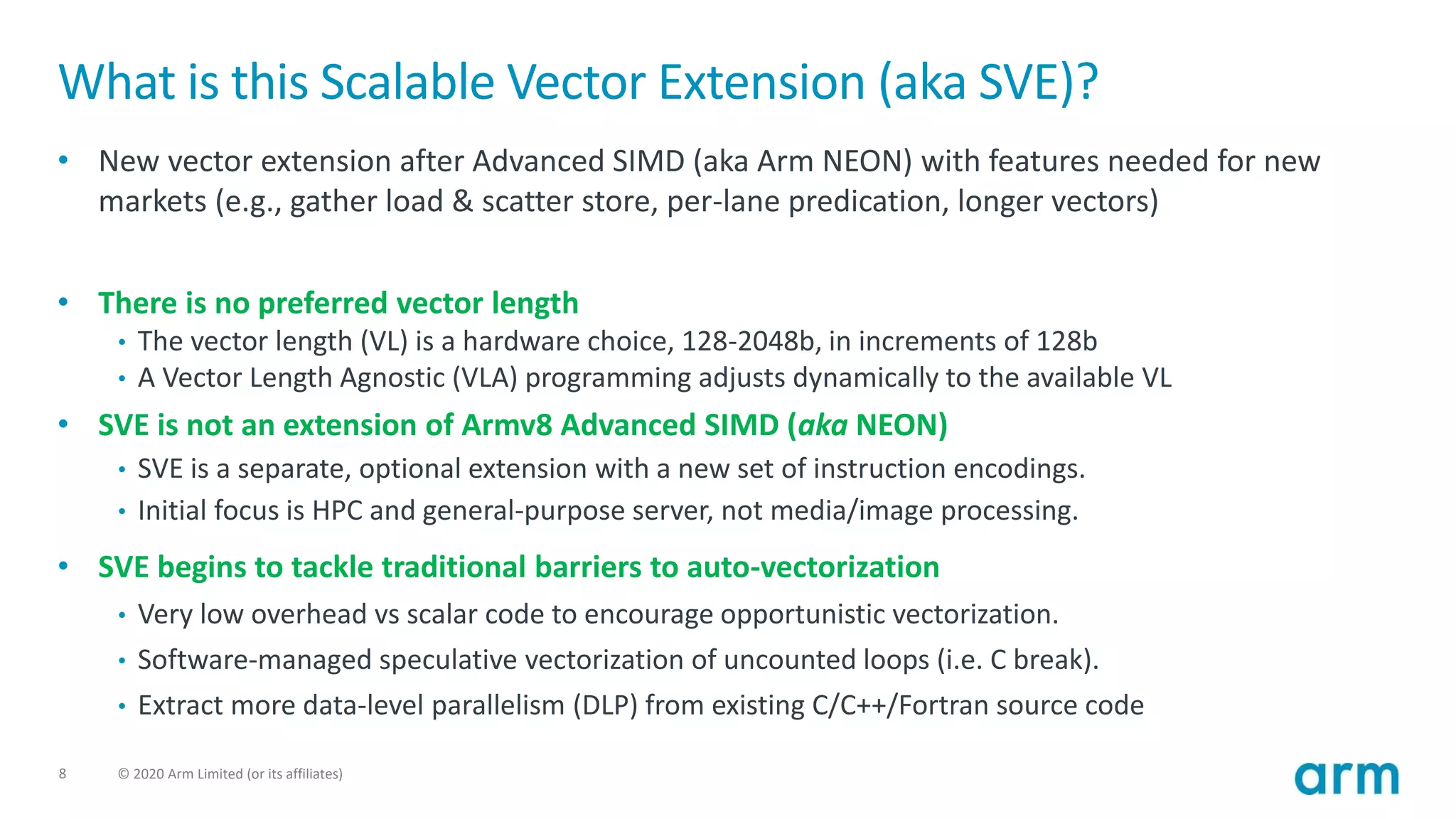

8 © 2020 Arm Limited (or its affiliates) What is this Scalable Vector Extension (aka SVE)? • New vector extension after Advanced SIMD (aka Arm NEON) with features needed for new markets (e.g., gather load & scatter store, per-lane predication, longer vectors) • There is no preferred vector length • The vector length (VL) is a hardware choice, 128-2048b, in increments of 128b • A Vector Length Agnostic (VLA) programming adjusts dynamically to the available VL • SVE is not an extension of Armv8 Advanced SIMD (aka NEON) • SVE is a separate, optional extension with a new set of instruction encodings. • Initial focus is HPC and general-purpose server, not media/image processing. • SVE begins to tackle traditional barriers to auto-vectorization • Very low overhead vs scalar code to encourage opportunistic vectorization. • Software-managed speculative vectorization of uncounted loops (i.e. C break). • Extract more data-level parallelism (DLP) from existing C/C++/Fortran source code

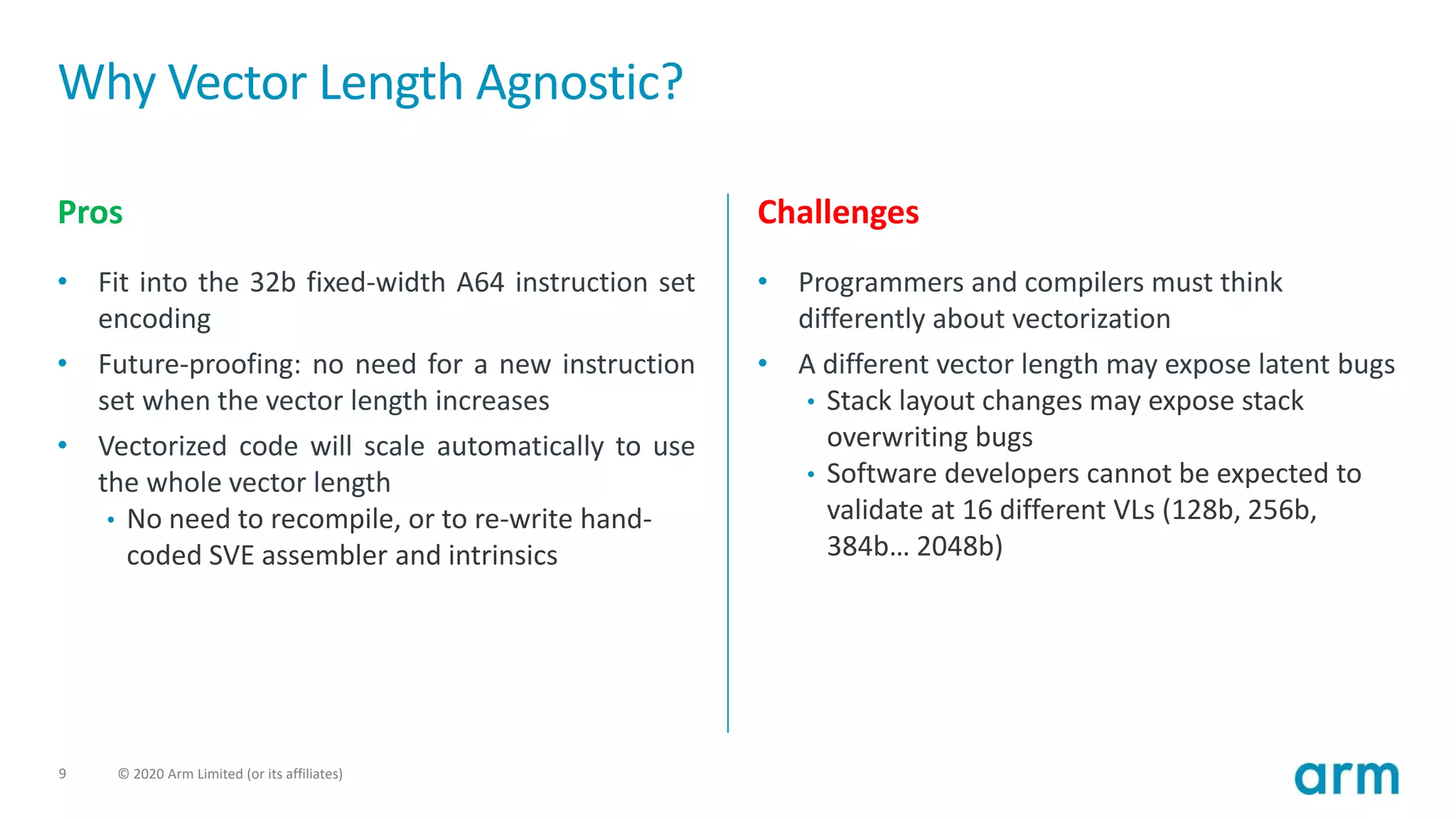

9 © 2020 Arm Limited (or its affiliates) Why Vector Length Agnostic? Pros • Fit into the 32b fixed-width A64 instruction set encoding • Future-proofing: no need for a new instruction set when the vector length increases • Vectorized code will scale automatically to use the whole vector length • No need to recompile, or to re-write hand- coded SVE assembler and intrinsics Challenges • Programmers and compilers must think differently about vectorization • A different vector length may expose latent bugs • Stack layout changes may expose stack overwriting bugs • Software developers cannot be expected to validate at 16 different VLs (128b, 256b, 384b… 2048b)

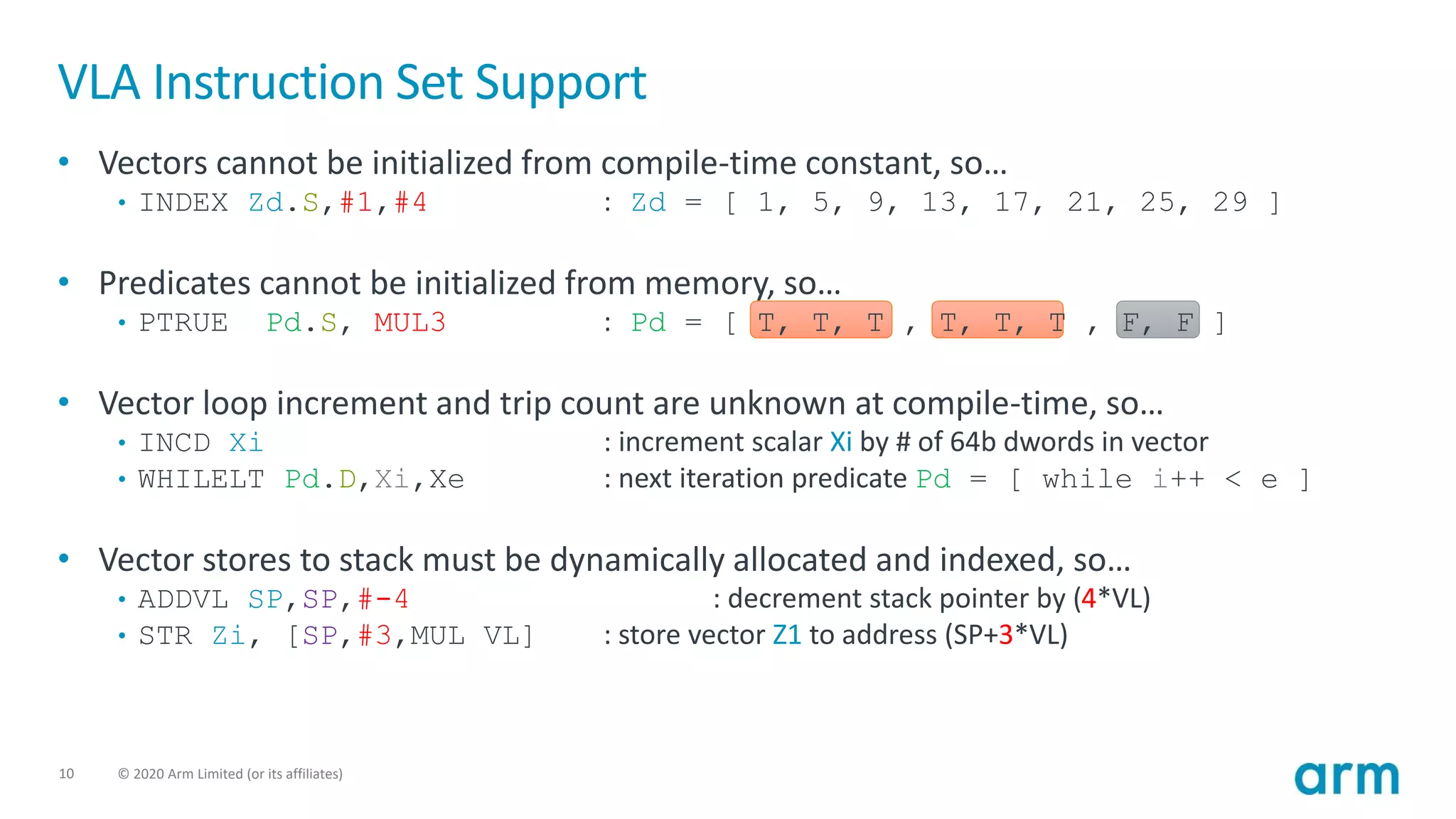

10 © 2020 Arm Limited (or its affiliates) VLA Instruction Set Support • Vectors cannot be initialized from compile-time constant, so… • INDEX Zd.S,#1,#4 : Zd = [ 1, 5, 9, 13, 17, 21, 25, 29 ] • Predicates cannot be initialized from memory, so… • PTRUE Pd.S, MUL3 : Pd = [ T, T, T , T, T, T , F, F ] • Vector loop increment and trip count are unknown at compile-time, so… • INCD Xi : increment scalar Xi by # of 64b dwords in vector • WHILELT Pd.D,Xi,Xe : next iteration predicate Pd = [ while i++ < e ] • Vector stores to stack must be dynamically allocated and indexed, so… • ADDVL SP,SP,#-4 : decrement stack pointer by (4*VL) • STR Zi, [SP,#3,MUL VL] : store vector Z1 to address (SP+3*VL)

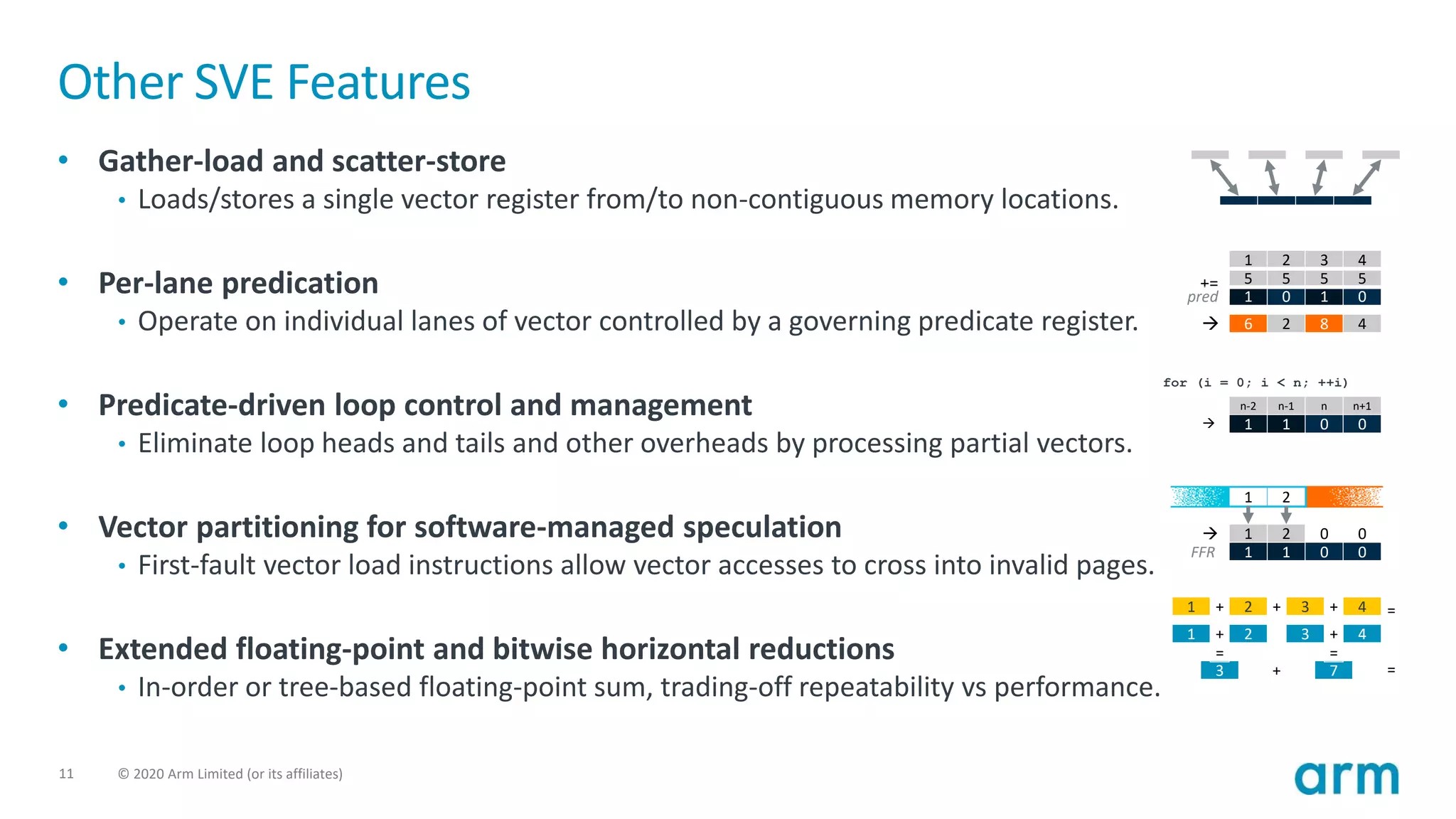

11 © 2020 Arm Limited (or its affiliates) Other SVE Features • Gather-load and scatter-store • Loads/stores a single vector register from/to non-contiguous memory locations. • Per-lane predication • Operate on individual lanes of vector controlled by a governing predicate register. • Predicate-driven loop control and management • Eliminate loop heads and tails and other overheads by processing partial vectors. • Vector partitioning for software-managed speculation • First-fault vector load instructions allow vector accesses to cross into invalid pages. • Extended floating-point and bitwise horizontal reductions • In-order or tree-based floating-point sum, trading-off repeatability vs performance. 1 2 3 4 5 5 5 5 1 0 1 0 6 2 8 4 += → pred 1 2 0 0 1 1 0 0 → FFR 1 2 1 + 2 + 3 + 4 1 + 2 + 3 + 4 3 7 = = = = n-2 1 01 0→ n-1 n n+1 for (i = 0; i < n; ++i)
© 2020 Arm Limited (or its affiliates) Back to the future! software

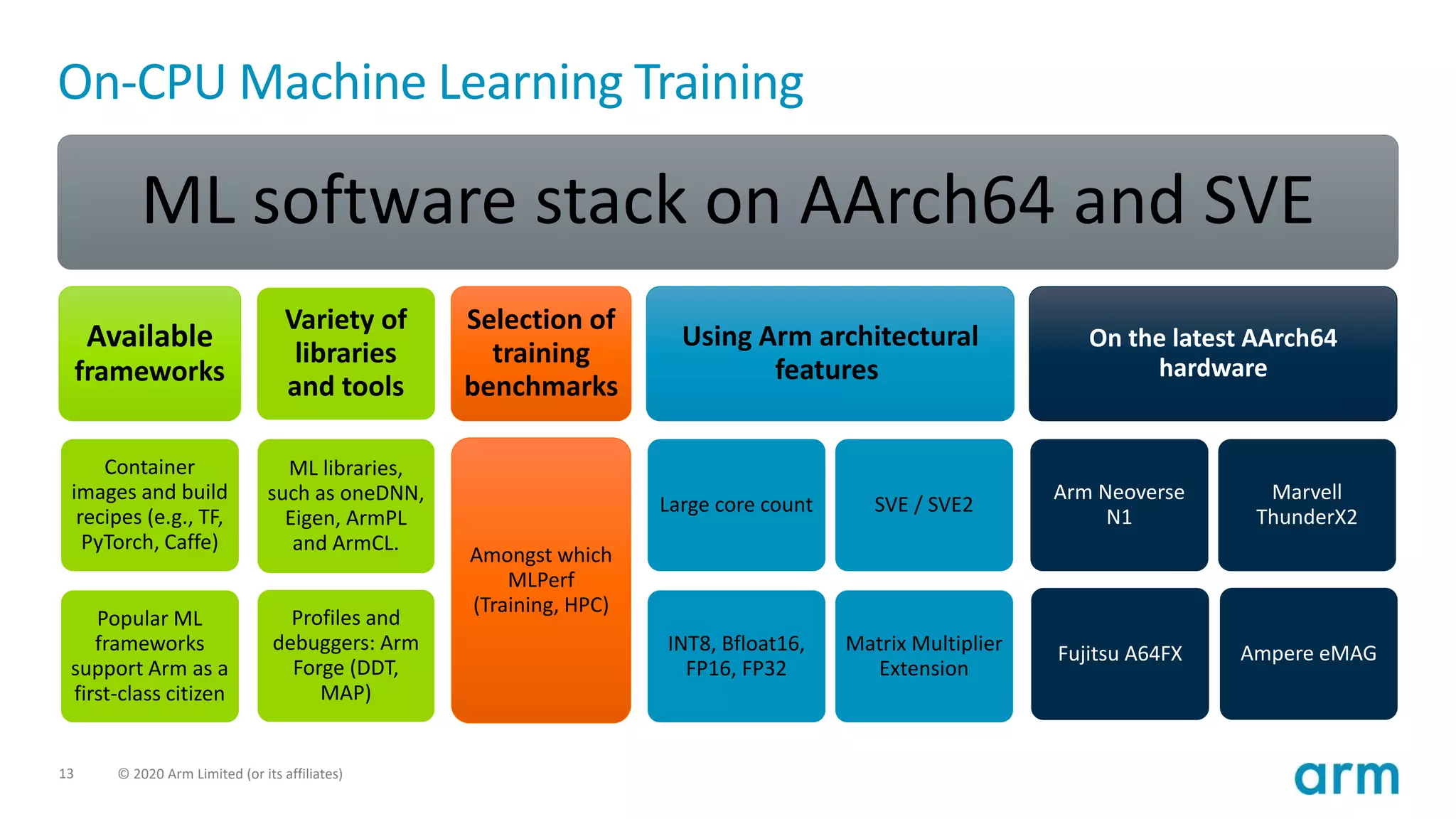

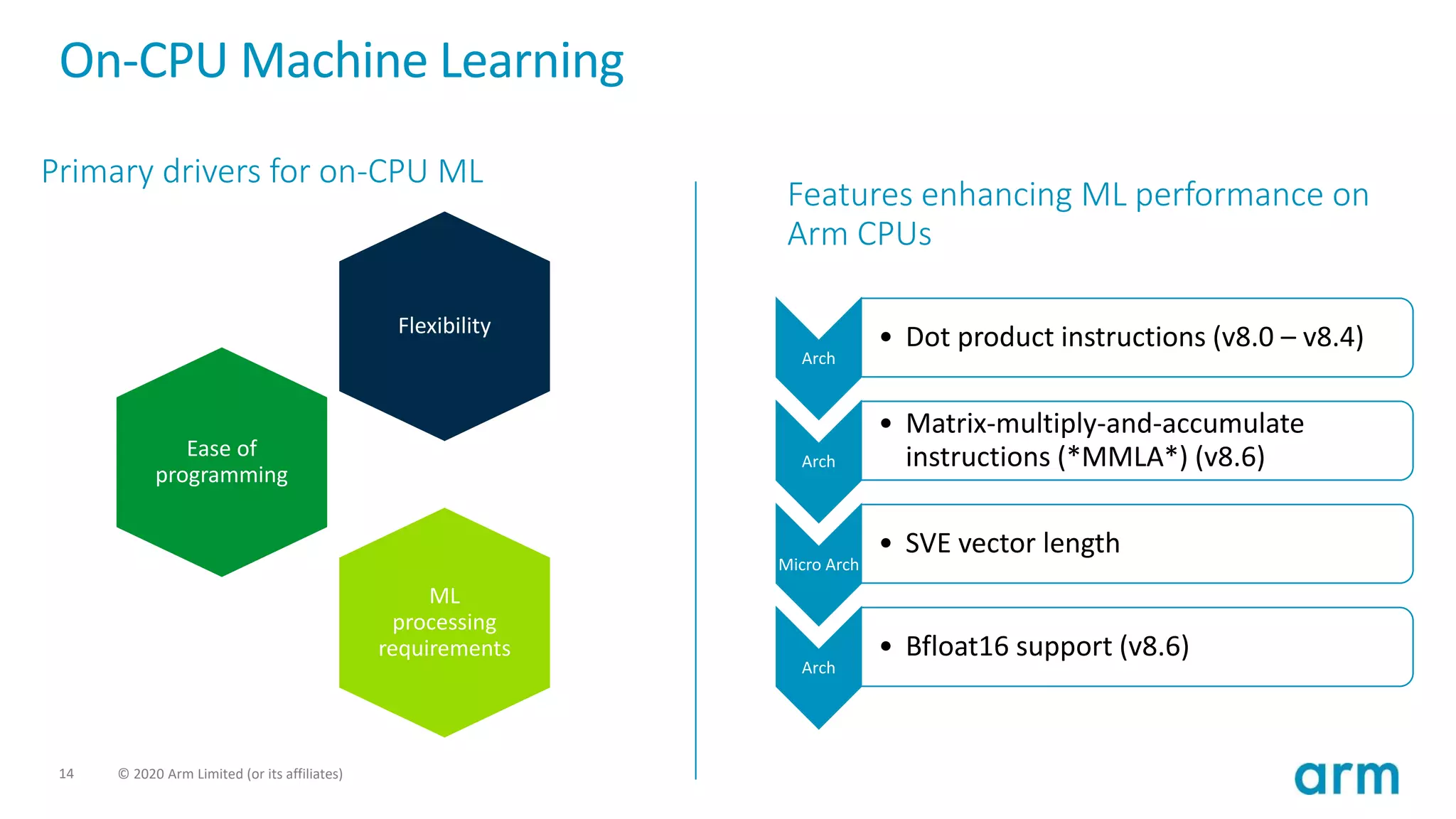

13 © 2020 Arm Limited (or its affiliates) On-CPU Machine Learning Training ML software stack on AArch64 and SVE Available frameworks Container images and build recipes (e.g., TF, PyTorch, Caffe) Popular ML frameworks support Arm as a first-class citizen Variety of libraries and tools ML libraries, such as oneDNN, Eigen, ArmPL and ArmCL. Profiles and debuggers: Arm Forge (DDT, MAP) Selection of training benchmarks Amongst which MLPerf (Training, HPC) Using Arm architectural features Large core count INT8, Bfloat16, FP16, FP32 SVE / SVE2 Matrix Multiplier Extension On the latest AArch64 hardware Arm Neoverse N1 Fujitsu A64FX Marvell ThunderX2 Ampere eMAG
14 © 2020 Arm Limited (or its affiliates) Flexibility Ease of programming ML processing requirements Arch • Dot product instructions (v8.0 – v8.4) Arch • Matrix-multiply-and-accumulate instructions (*MMLA*) (v8.6) Micro Arch • SVE vector length Arch • Bfloat16 support (v8.6) Features enhancing ML performance on Arm CPUs Primary drivers for on-CPU ML On-CPU Machine Learning

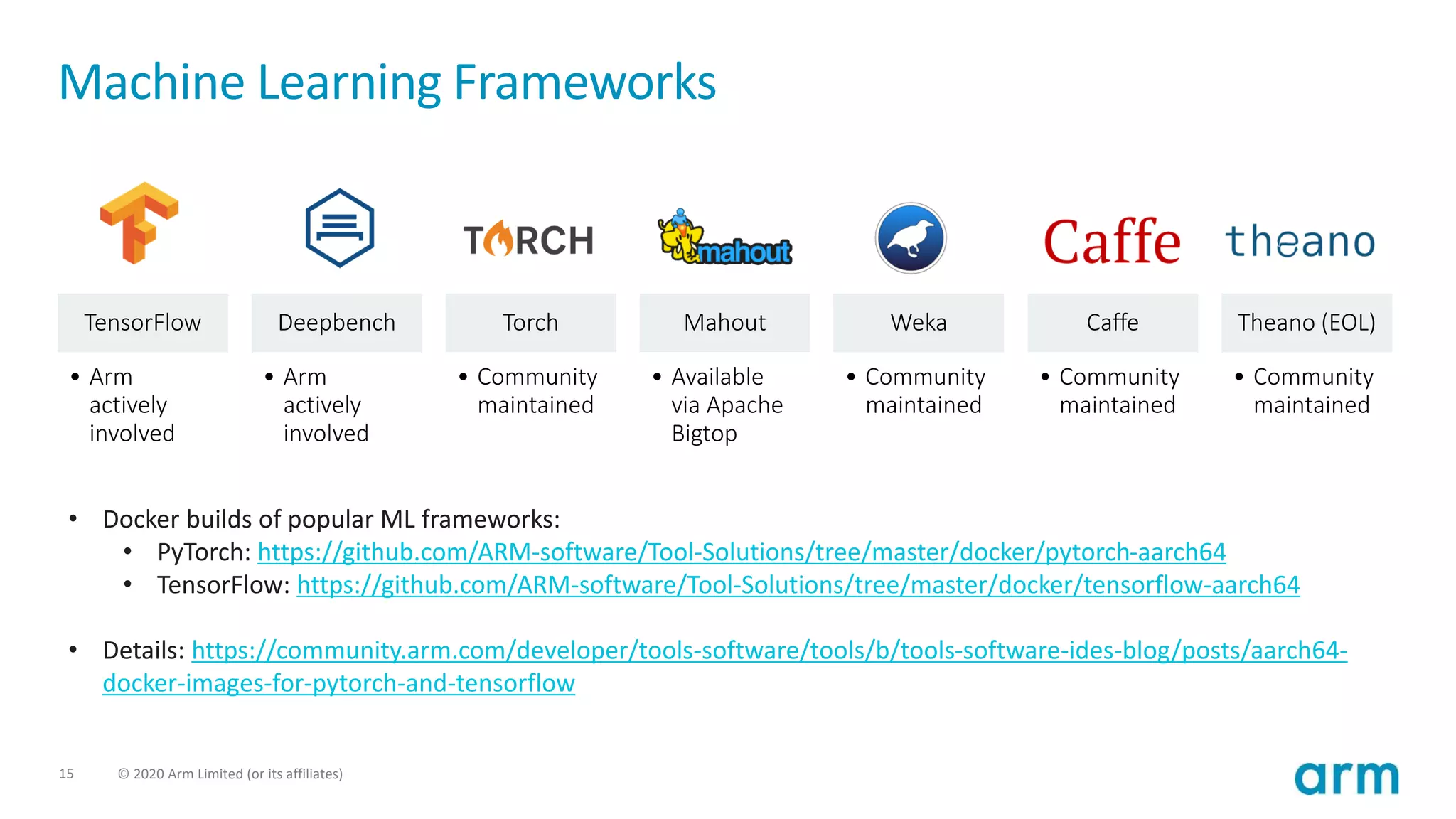

15 © 2020 Arm Limited (or its affiliates) Machine Learning Frameworks TensorFlow • Arm actively involved Deepbench • Arm actively involved Torch • Community maintained Mahout • Available via Apache Bigtop Weka • Community maintained Caffe • Community maintained Theano (EOL) • Community maintained • Docker builds of popular ML frameworks: • PyTorch: https://github.com/ARM-software/Tool-Solutions/tree/master/docker/pytorch-aarch64 • TensorFlow: https://github.com/ARM-software/Tool-Solutions/tree/master/docker/tensorflow-aarch64 • Details: https://community.arm.com/developer/tools-software/tools/b/tools-software-ides-blog/posts/aarch64- docker-images-for-pytorch-and-tensorflow

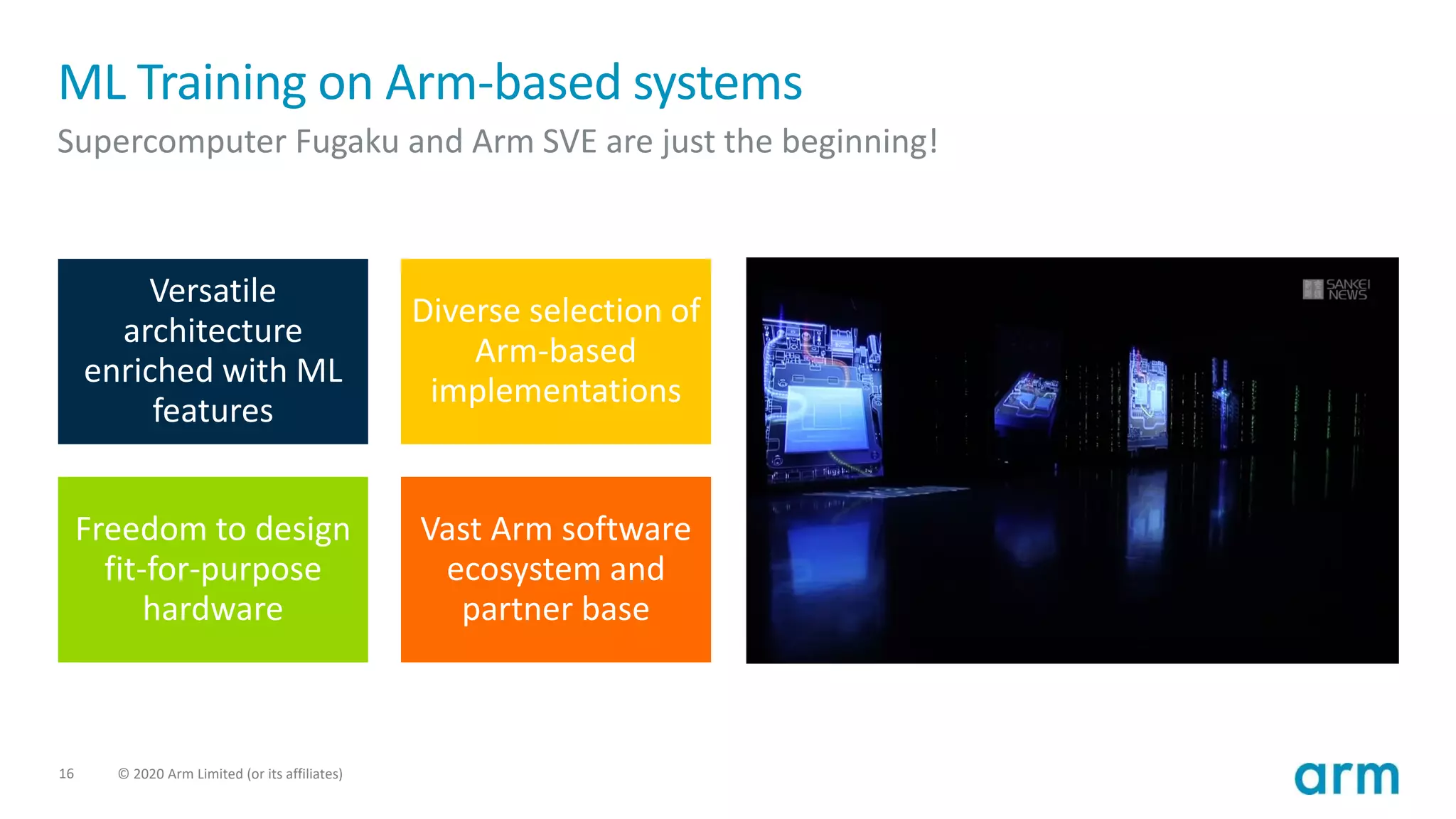

16 © 2020 Arm Limited (or its affiliates) ML Training on Arm-based systems Supercomputer Fugaku and Arm SVE are just the beginning! Versatile architecture enriched with ML features Diverse selection of Arm-based implementations Freedom to design fit-for-purpose hardware Vast Arm software ecosystem and partner base
© 2020 Arm Limited (or its affiliates) Thank You Danke Merci 谢谢 ありがとう Gracias Kiitos 감사합니다 धन्यवाद ‫ا‬ً‫شكر‬ ধন্যবাদ ‫תודה‬
The Arm trademarks featured in this presentation are registered trademarks or trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. All rights reserved. All other marks featured may be trademarks of their respective owners. www.arm.com/company/policies/trademarks © 2020 Arm Limited (or its affiliates)

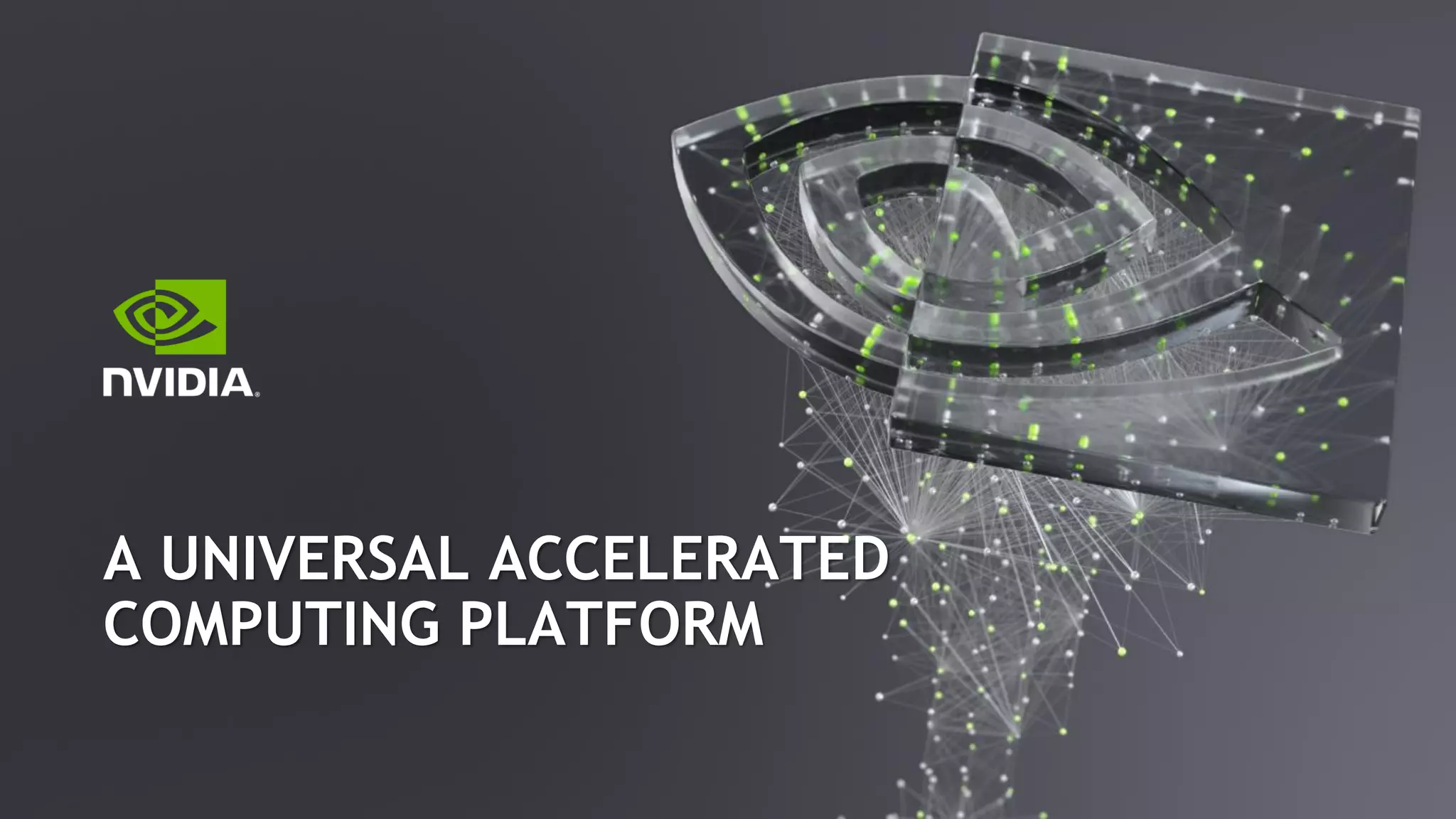

A UNIVERSAL ACCELERATED COMPUTING PLATFORM

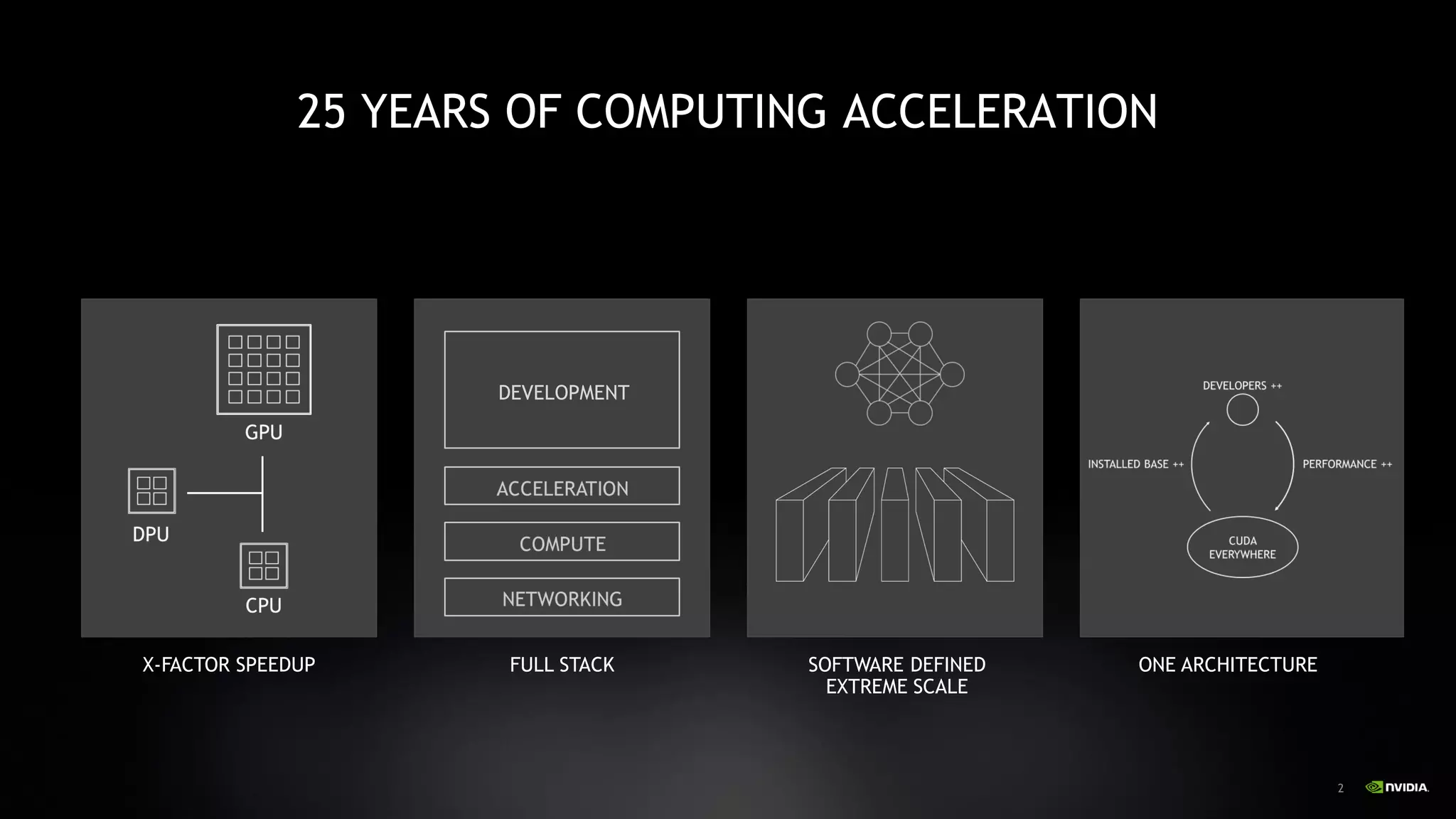

22 25 YEARS OF SCIENTIFIC COMPUTING ACCELERATION X-FACTOR SPEEDUP FULL STACK ONE ARCHITECTURESOFTWARE DEFINED EXTREME SCALE 25 YEARS OF COMPUTING ACCELERATION DEVELOPMENT

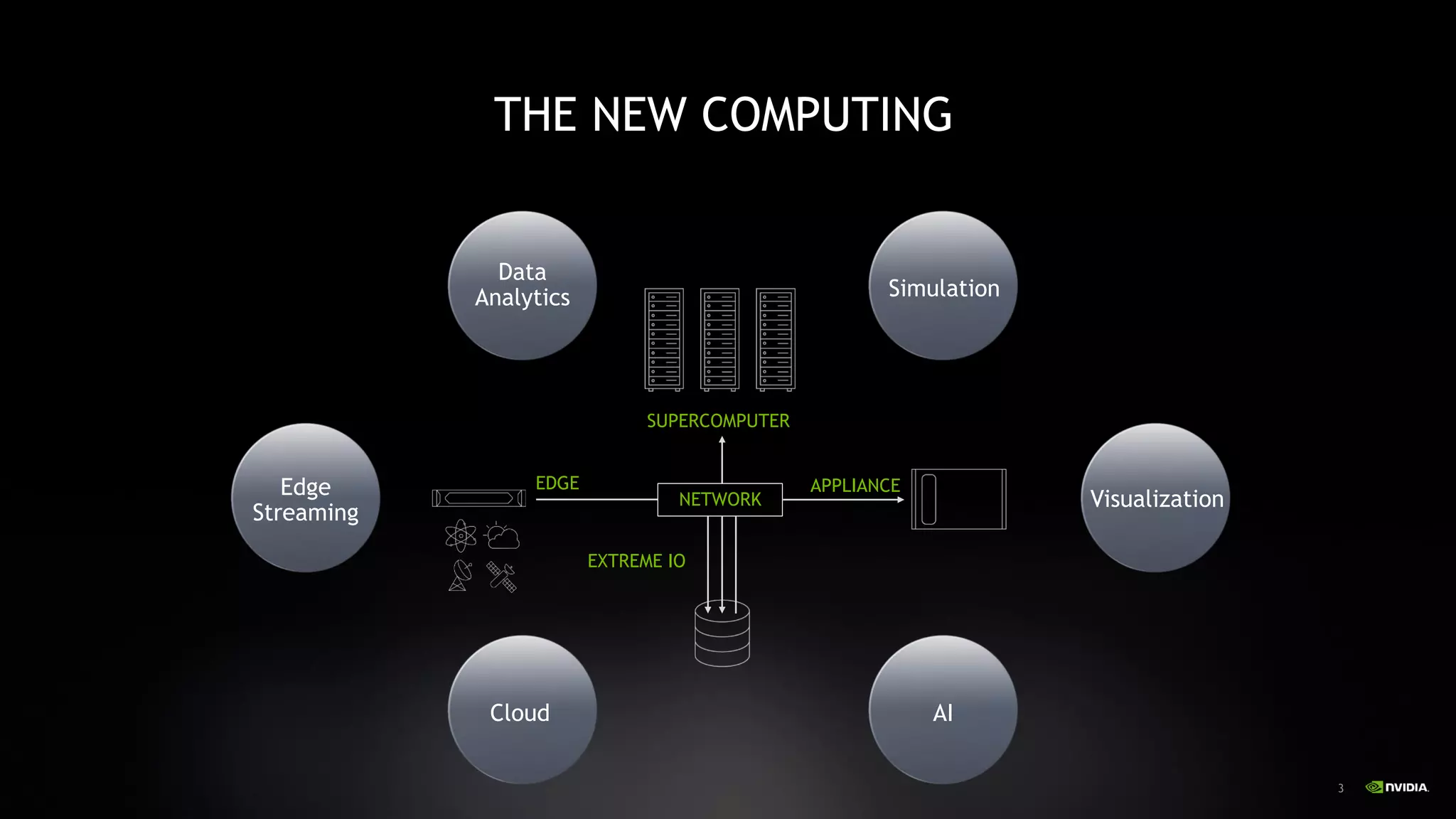

3 THE NEW COMPUTING EDGE APPLIANCE SUPERCOMPUTER AI Edge Streaming Simulation Visualization EXTREME IO Data Analytics Cloud NETWORK

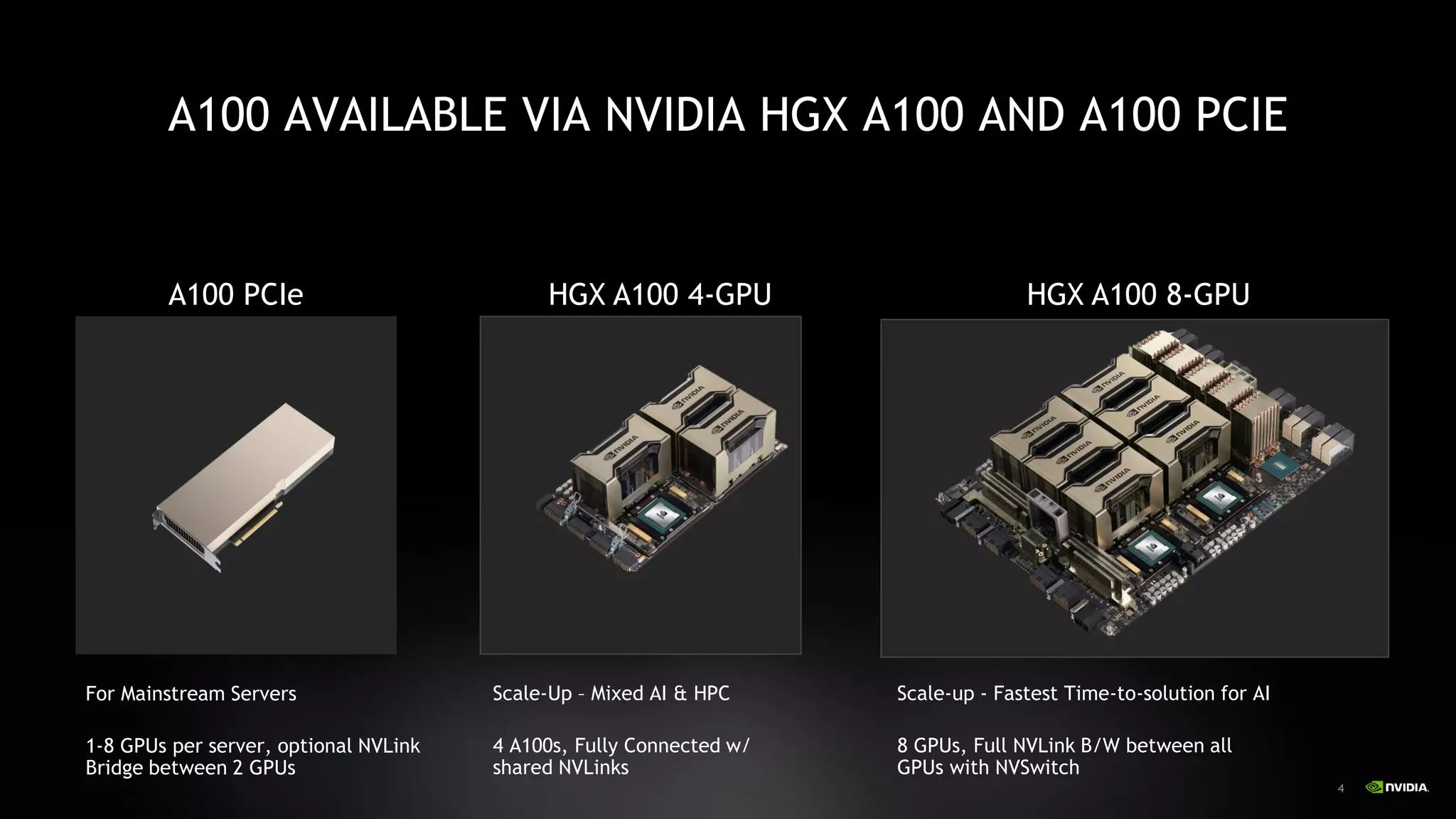

44 A100 AVAILABLE VIA NVIDIA HGX A100 AND A100 PCIE Scale-up - Fastest Time-to-solution for AI 8 GPUs, Full NVLink B/W between all GPUs with NVSwitch HGX A100 8-GPU For Mainstream Servers 1-8 GPUs per server, optional NVLink Bridge between 2 GPUs A100 PCIe Scale-Up – Mixed AI & HPC 4 A100s, Fully Connected w/ shared NVLinks HGX A100 4-GPU

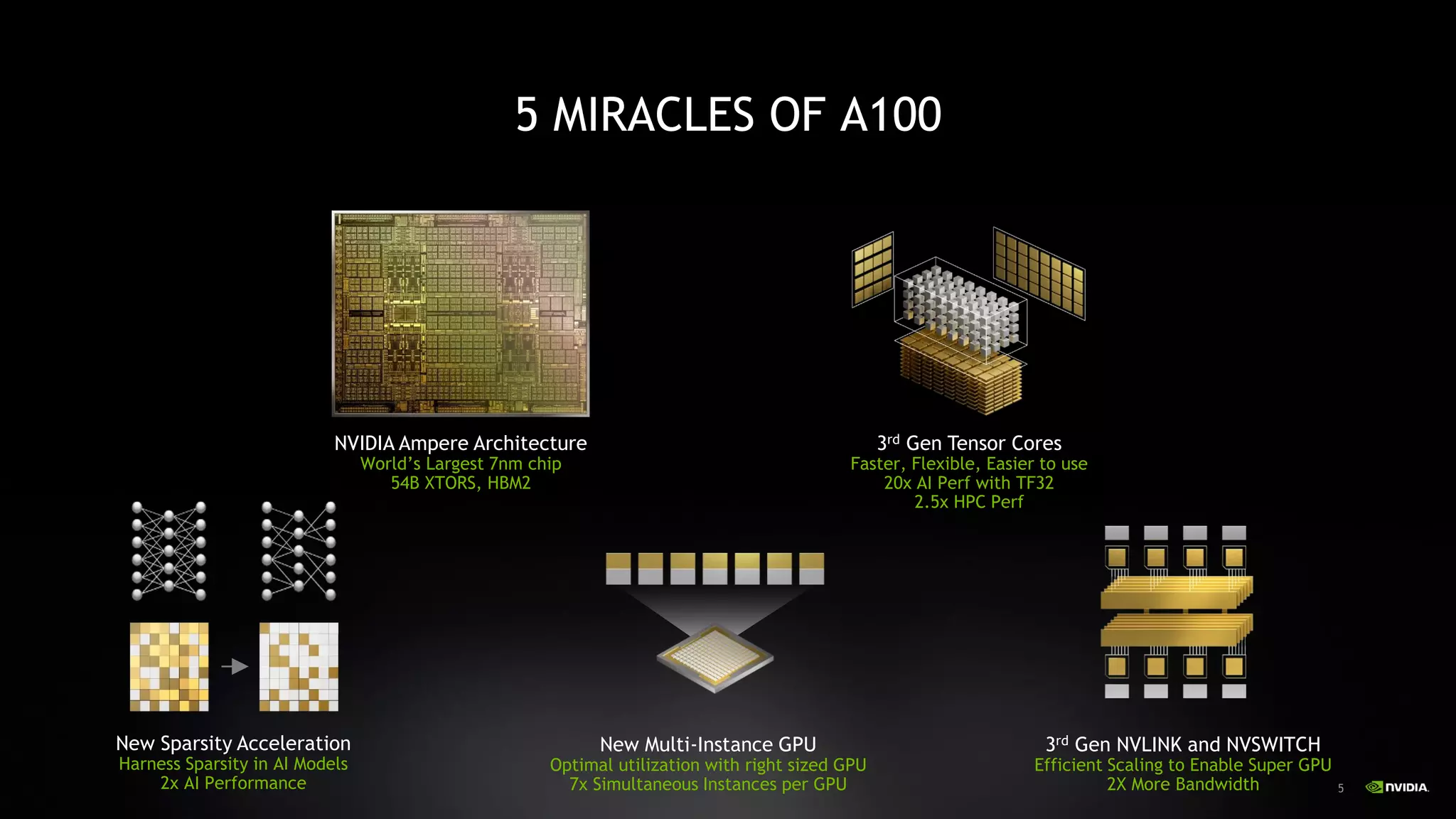

55 5 MIRACLES OF A100 NVIDIA Ampere Architecture World’s Largest 7nm chip 54B XTORS, HBM2 3rd Gen NVLINK and NVSWITCH Efficient Scaling to Enable Super GPU 2X More Bandwidth 3rd Gen Tensor Cores Faster, Flexible, Easier to use 20x AI Perf with TF32 2.5x HPC Perf New Sparsity Acceleration Harness Sparsity in AI Models 2x AI Performance New Multi-Instance GPU Optimal utilization with right sized GPU 7x Simultaneous Instances per GPU

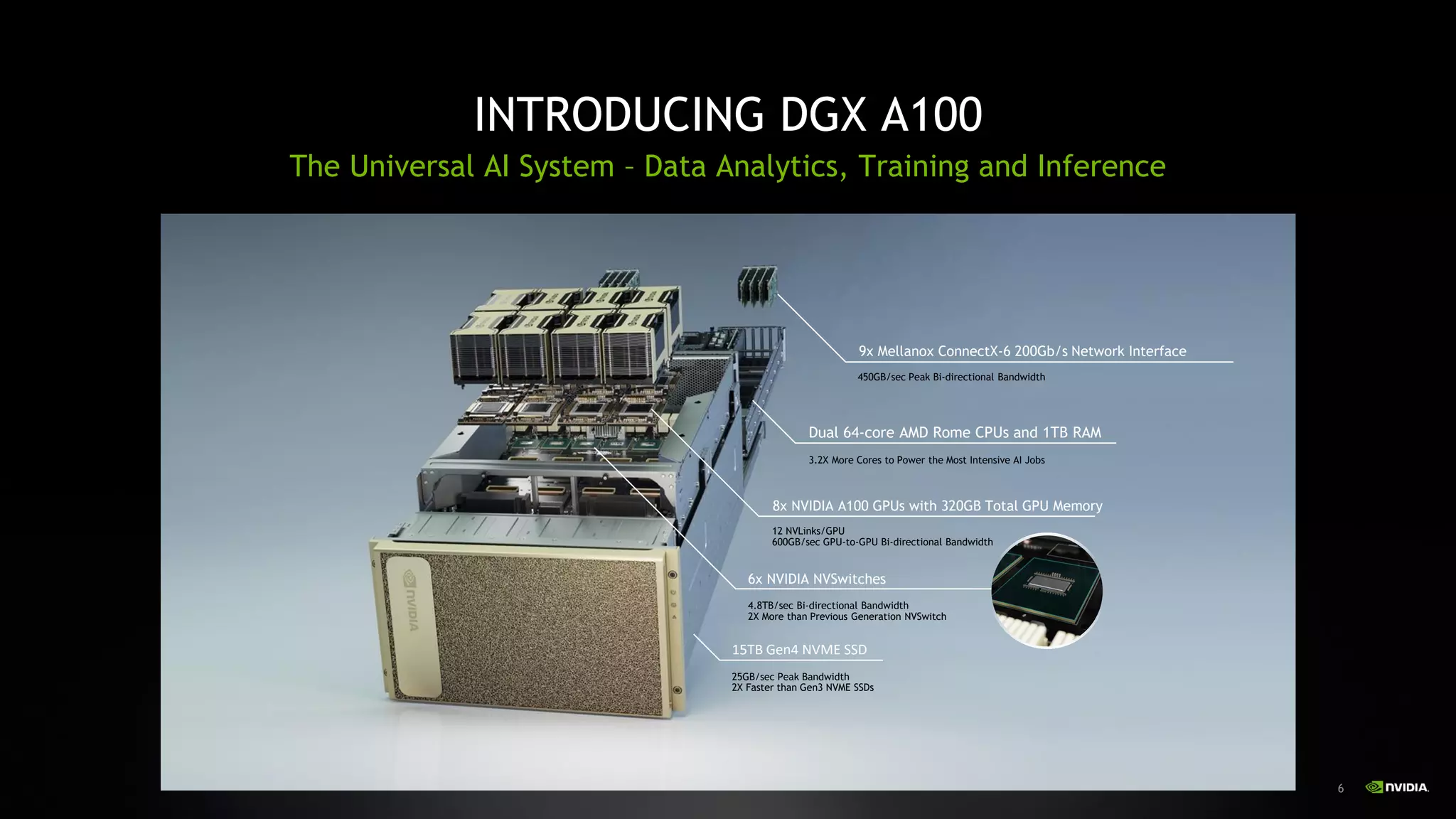

6 INTRODUCING DGX A100 The Universal AI System – Data Analytics, Training and Inference 9x Mellanox ConnectX-6 200Gb/s Network Interface 8x NVIDIA A100 GPUs with 320GB Total GPU Memory 15TB Gen4 NVME SSD Dual 64-core AMD Rome CPUs and 1TB RAM 4.8TB/sec Bi-directional Bandwidth 2X More than Previous Generation NVSwitch 6x NVIDIA NVSwitches 12 NVLinks/GPU 600GB/sec GPU-to-GPU Bi-directional Bandwidth 25GB/sec Peak Bandwidth 2X Faster than Gen3 NVME SSDs 3.2X More Cores to Power the Most Intensive AI Jobs 450GB/sec Peak Bi-directional Bandwidth

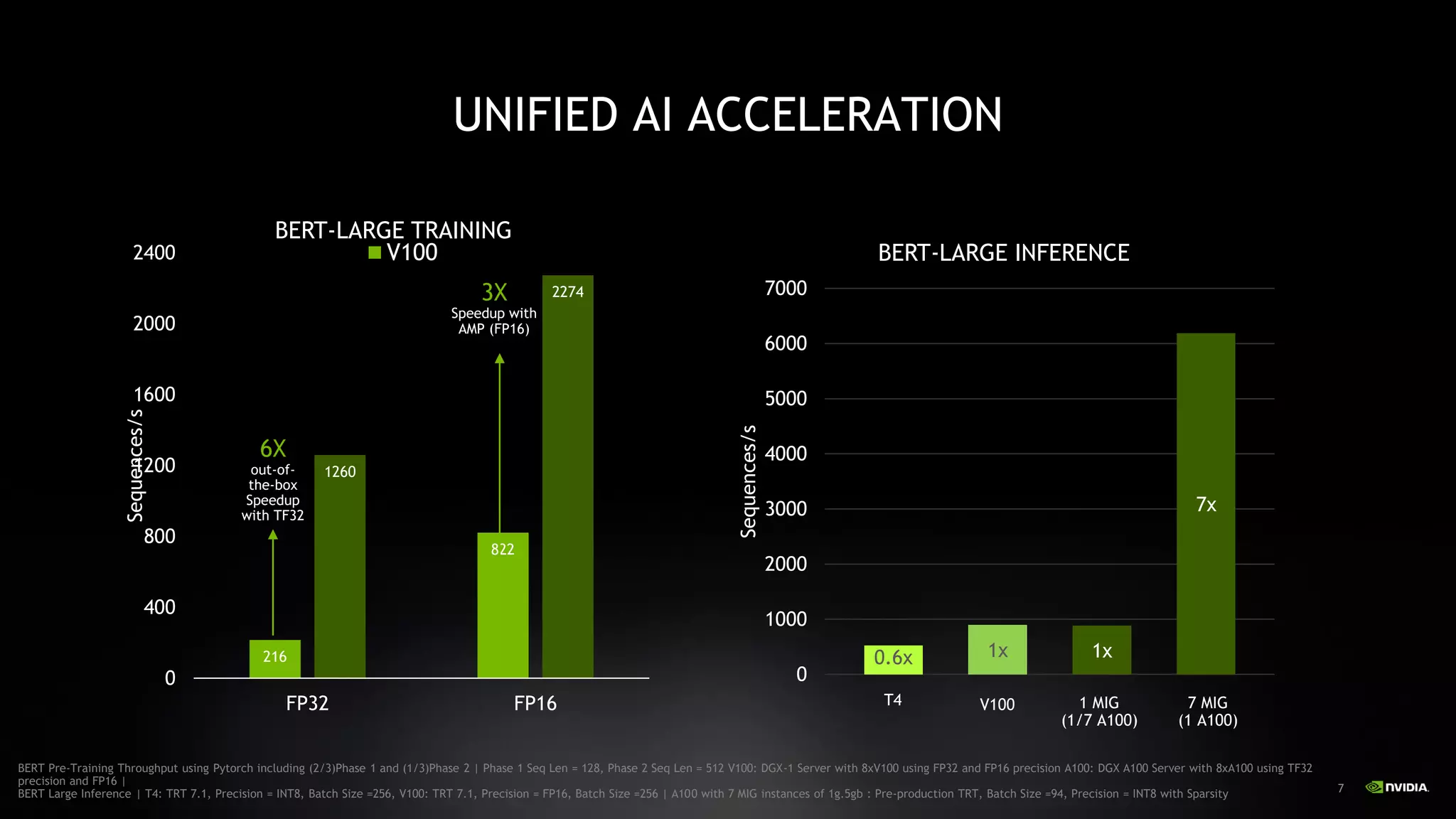

7 UNIFIED AI ACCELERATION BERT Pre-Training Throughput using Pytorch including (2/3)Phase 1 and (1/3)Phase 2 | Phase 1 Seq Len = 128, Phase 2 Seq Len = 512 V100: DGX-1 Server with 8xV100 using FP32 and FP16 precision A100: DGX A100 Server with 8xA100 using TF32 precision and FP16 | BERT Large Inference | T4: TRT 7.1, Precision = INT8, Batch Size =256, V100: TRT 7.1, Precision = FP16, Batch Size =256 | A100 with 7 MIG instances of 1g.5gb : Pre-production TRT, Batch Size =94, Precision = INT8 with Sparsity 216 822 1260 2274 0 400 800 1200 1600 2000 2400 FP32 FP16 Sequences/s BERT-LARGE TRAINING V100 0.6x 1x 1x 7x 0 1000 2000 3000 4000 5000 6000 7000 Sequences/s BERT-LARGE INFERENCE V100T4 1 MIG (1/7 A100) 6X out-of- the-box Speedup with TF32 7 MIG (1 A100) 3X Speedup with AMP (FP16)

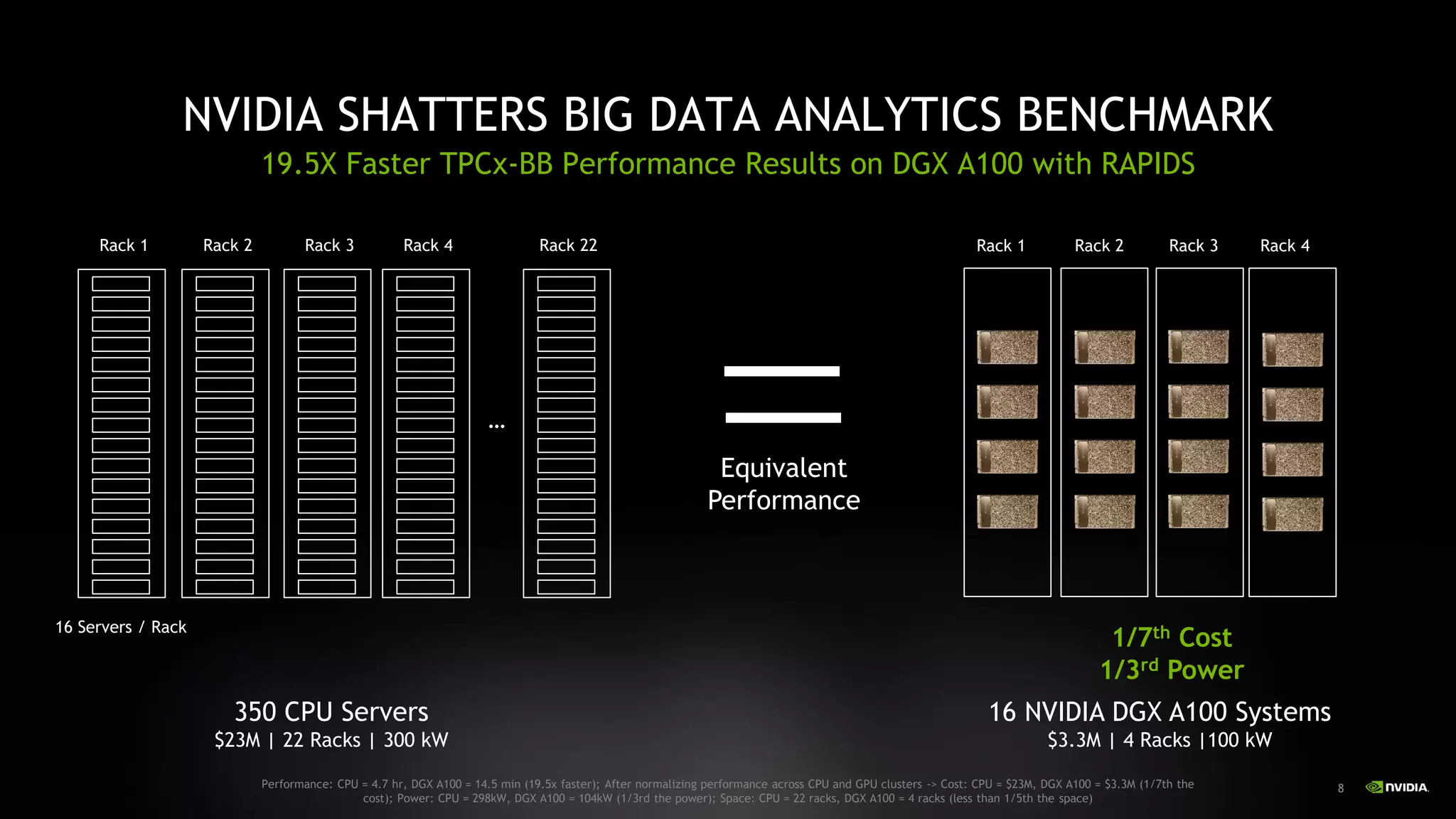

8 350 CPU Servers $23M | 22 Racks | 300 kW NVIDIA SHATTERS BIG DATA ANALYTICS BENCHMARK 19.5X Faster TPCx-BB Performance Results on DGX A100 with RAPIDS 16 NVIDIA DGX A100 Systems $3.3M | 4 Racks |100 kW Equivalent Performance 1/7th Cost 1/3rd Power 16 Servers / Rack … Rack 1 Rack 2 Rack 3 Rack 22Rack 4 Rack 1 Rack 2 Rack 3 Rack 4 Performance: CPU = 4.7 hr, DGX A100 = 14.5 min (19.5x faster); After normalizing performance across CPU and GPU clusters -> Cost: CPU = $23M, DGX A100 = $3.3M (1/7th the cost); Power: CPU = 298kW, DGX A100 = 104kW (1/3rd the power); Space: CPU = 22 racks, DGX A100 = 4 racks (less than 1/5th the space)

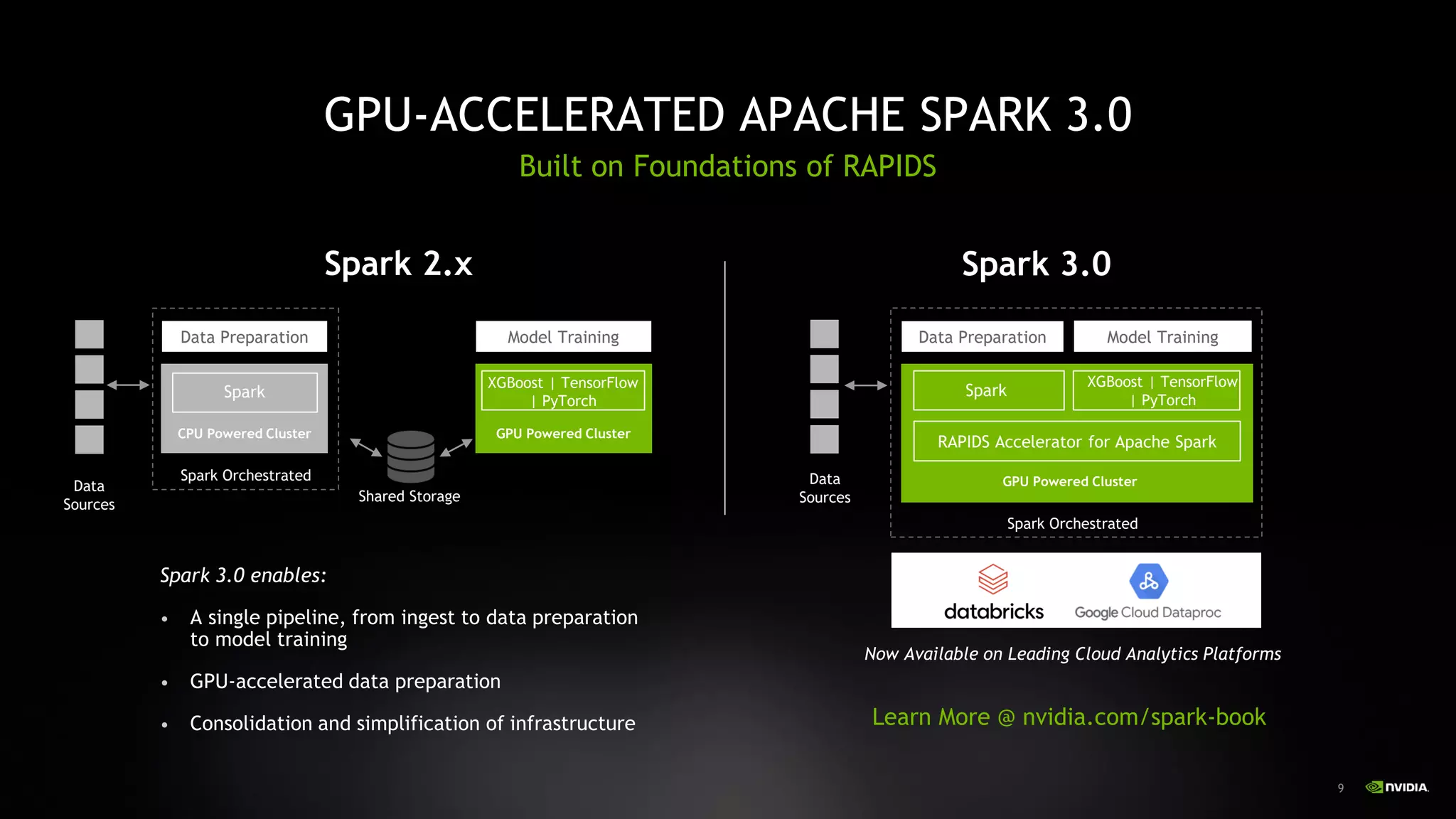

9 GPU-ACCELERATED APACHE SPARK 3.0 Data Preparation Model Training Shared Storage CPU Powered Cluster GPU Powered Cluster Data Sources Spark 2.x Spark 3.0 Data Sources Spark XGBoost | TensorFlow | PyTorch Data Preparation Model Training Spark XGBoost | TensorFlow | PyTorch Spark Orchestrated Spark Orchestrated Spark 3.0 enables: • A single pipeline, from ingest to data preparation to model training • GPU-accelerated data preparation • Consolidation and simplification of infrastructure Built on Foundations of RAPIDS Learn More @ nvidia.com/spark-book Now Available on Leading Cloud Analytics Platforms RAPIDS Accelerator for Apache Spark GPU Powered Cluster

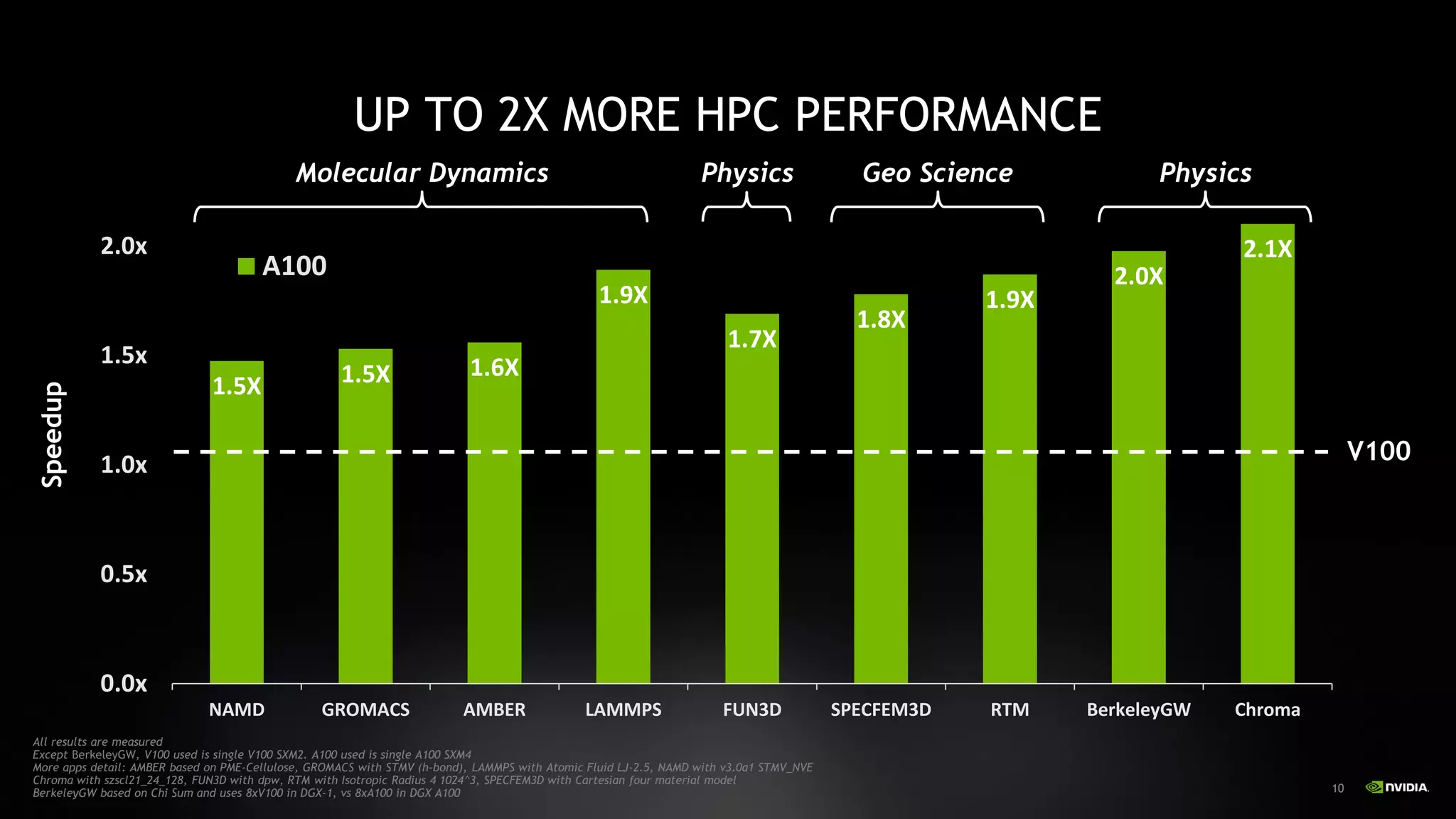

10 1.5X 1.5X 1.6X 1.9X 1.7X 1.8X 1.9X 2.0X 2.1X 0.0x 0.5x 1.0x 1.5x 2.0x NAMD GROMACS AMBER LAMMPS FUN3D SPECFEM3D RTM BerkeleyGW Chroma A100 UP TO 2X MORE HPC PERFORMANCE All results are measured Except BerkeleyGW, V100 used is single V100 SXM2. A100 used is single A100 SXM4 More apps detail: AMBER based on PME-Cellulose, GROMACS with STMV (h-bond), LAMMPS with Atomic Fluid LJ-2.5, NAMD with v3.0a1 STMV_NVE Chroma with szscl21_24_128, FUN3D with dpw, RTM with Isotropic Radius 4 1024^3, SPECFEM3D with Cartesian four material model BerkeleyGW based on Chi Sum and uses 8xV100 in DGX-1, vs 8xA100 in DGX A100 Speedup V100 Molecular Dynamics Physics Geo Science Physics

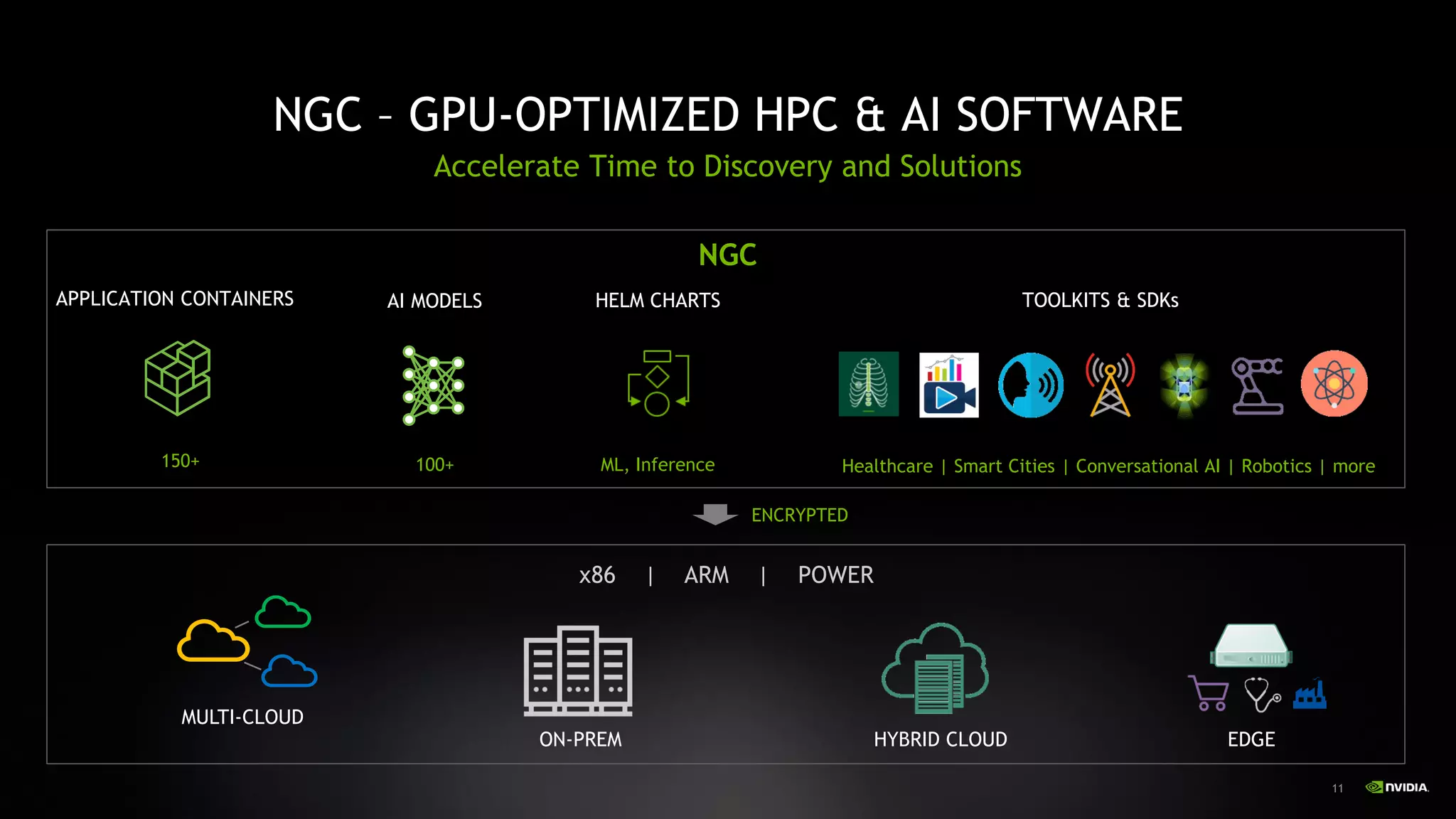

11 NGC – GPU-OPTIMIZED HPC & AI SOFTWARE Accelerate Time to Discovery and Solutions TOOLKITS & SDKsAPPLICATION CONTAINERS AI MODELS HELM CHARTS 150+ 100+ ML, Inference Healthcare | Smart Cities | Conversational AI | Robotics | more NGC ON-PREM MULTI-CLOUD EDGEHYBRID CLOUD ENCRYPTED x86 | ARM | POWER
12 17.1 (1792 A100) 10.5 (256 A100) 3.3 (8 A100) 0.8 (2048 A100) 0.8 (1024 A100) 0.8 (1840 A100) 0.7 (1024 A100) 0.6 (480 A100) 0 5 10 15 20 25 30 35 40 Reinforcement Learning MiniGo Object Detection (Heavy Weight) Mask R-CNN Recommendation DLRM NLP BERT Object Detection (Light Weight) SSD Image Classification ResNet-50 v.1.5 Translation (Recurrent) GNMT Translation (Non-recurrent) Transformer Time to Train (Minutes) Time to Train (Lower is Better) Commercially Available Solutions NVIDIA A100 NVIDIA V100 Google TPUv3 Huawei Ascend MLPERF: DGX SUPERPOD SETS ALL 8 AT SCALE AI RECORDS Under 18 Minutes To Train Each MLPerf Benchmark MLPerf 0.7 Performance comparison at Max Scale. Max scale used for NVIDIA A100, NVIDIA V100, TPUv3 and Huawei Ascend for all applicable benchmarks. | MLPerf ID at Scale: :Transformer: 0.7-30, 0.7-52 , GNMT: 0.7-34, 0.7-54, ResNet-50 v1.5: 0.7-37, 0.7-55, 0.7-1, 0.7-3, SSD: 0.7-33, 0.7-53, BERT: 0.7-38, 0.7-56, 0.7-1, DLRM: 0.7-17, 0.7-43, Mask R-CNN: 0.7-28, 0.7-48, MiniGo: 0.7-36, 0.7-51 | MLPerf name and logo are trademarks. See www.mlperf.org for more information. XXXXXXXXXXXXX X = No result submitted 28.7 (16 TPUv3) 56.7 (16 TPUv3)

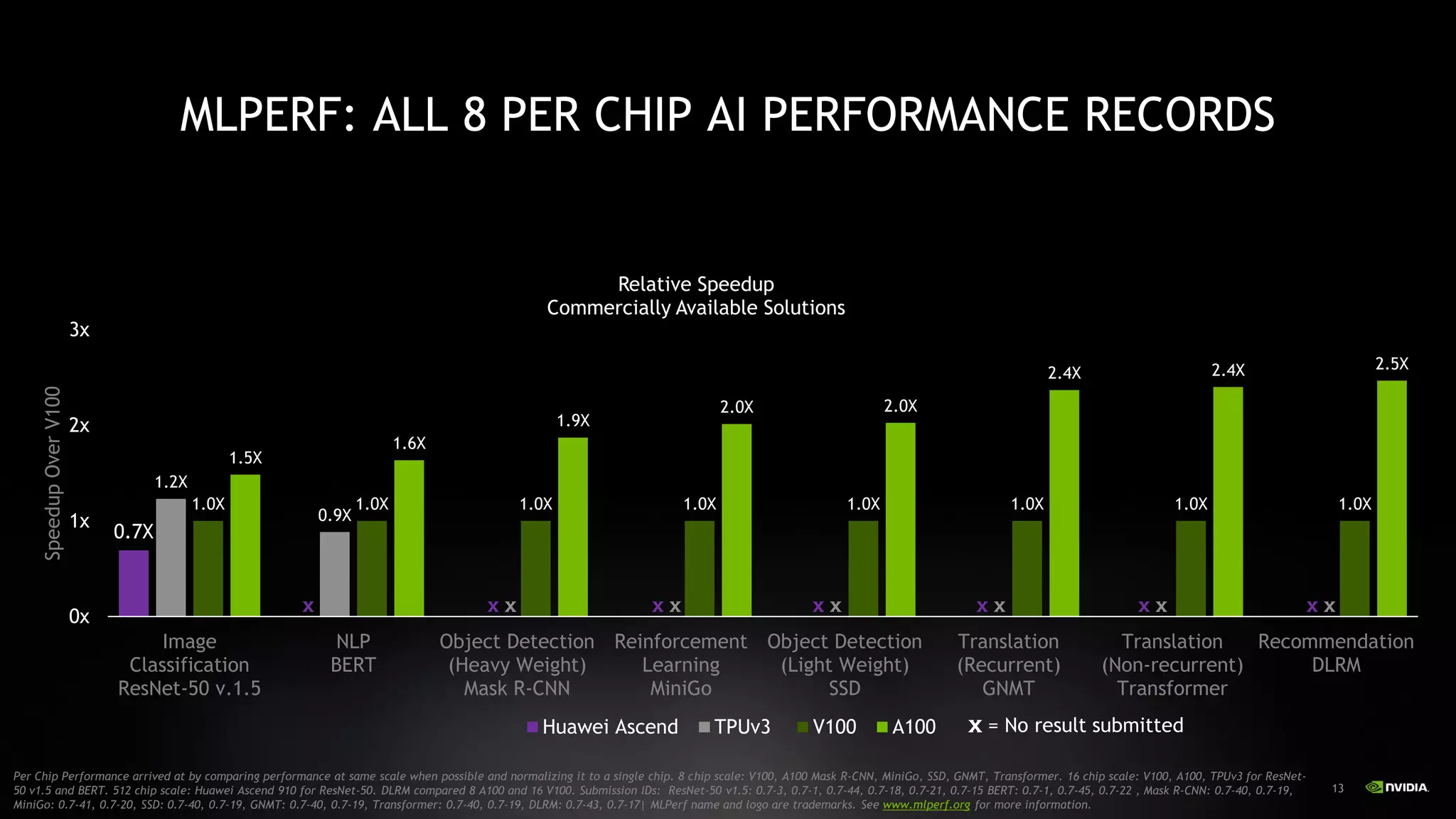

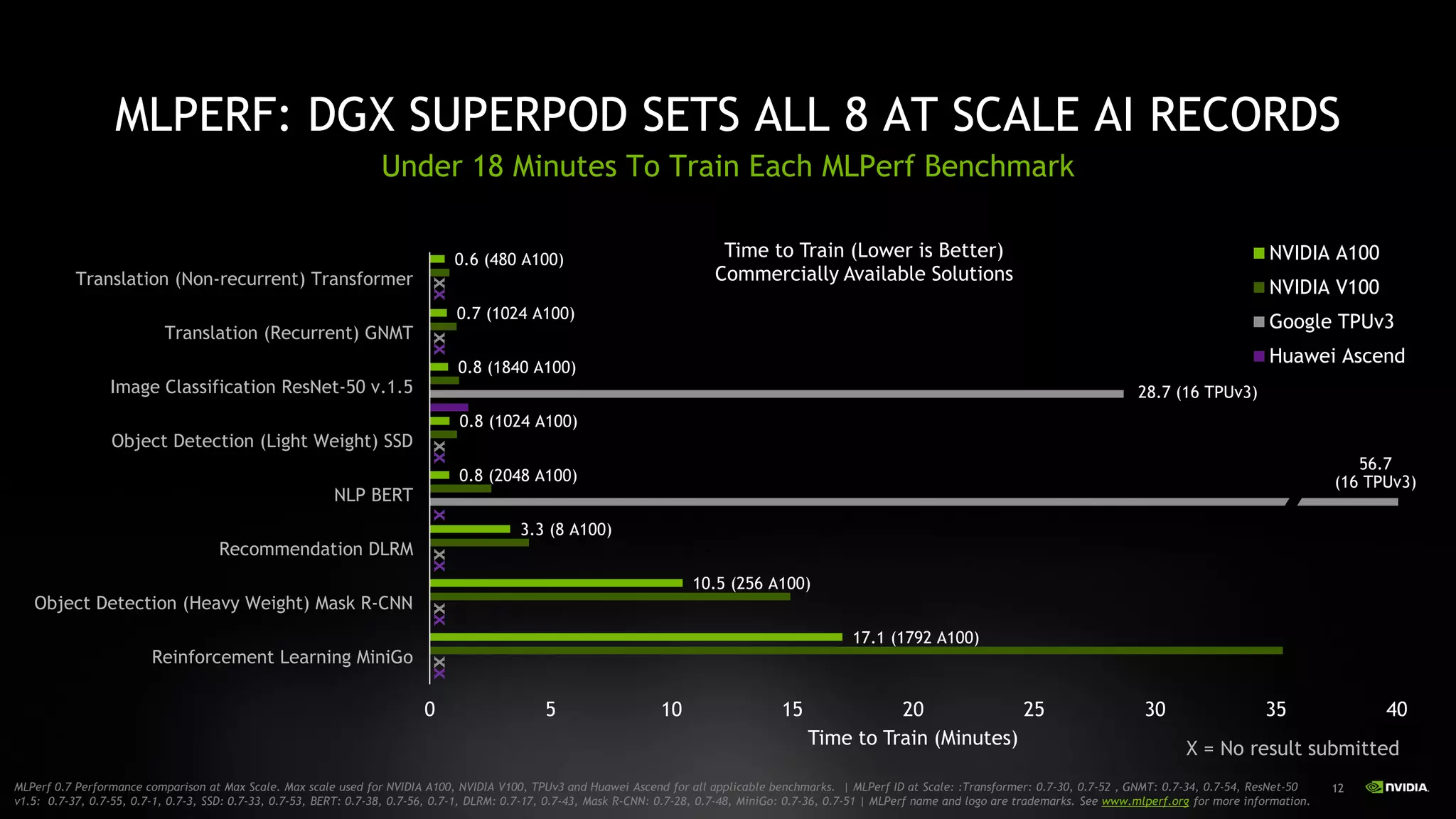

13 MLPERF: ALL 8 PER CHIP AI PERFORMANCE RECORDS 0.7X 1.2X 0.9X 1.0X 1.0X 1.0X 1.0X 1.0X 1.0X 1.0X 1.0X 1.5X 1.6X 1.9X 2.0X 2.0X 2.4X 2.4X 2.5X 0x 1x 2x 3x Image Classification ResNet-50 v.1.5 NLP BERT Object Detection (Heavy Weight) Mask R-CNN Reinforcement Learning MiniGo Object Detection (Light Weight) SSD Translation (Recurrent) GNMT Translation (Non-recurrent) Transformer Recommendation DLRM SpeedupOverV100 Relative Speedup Commercially Available Solutions Huawei Ascend TPUv3 V100 A100 Per Chip Performance arrived at by comparing performance at same scale when possible and normalizing it to a single chip. 8 chip scale: V100, A100 Mask R-CNN, MiniGo, SSD, GNMT, Transformer. 16 chip scale: V100, A100, TPUv3 for ResNet- 50 v1.5 and BERT. 512 chip scale: Huawei Ascend 910 for ResNet-50. DLRM compared 8 A100 and 16 V100. Submission IDs: ResNet-50 v1.5: 0.7-3, 0.7-1, 0.7-44, 0.7-18, 0.7-21, 0.7-15 BERT: 0.7-1, 0.7-45, 0.7-22 , Mask R-CNN: 0.7-40, 0.7-19, MiniGo: 0.7-41, 0.7-20, SSD: 0.7-40, 0.7-19, GNMT: 0.7-40, 0.7-19, Transformer: 0.7-40, 0.7-19, DLRM: 0.7-43, 0.7-17| MLPerf name and logo are trademarks. See www.mlperf.org for more information. X X X X X X X X X X X X X X = No result submitted

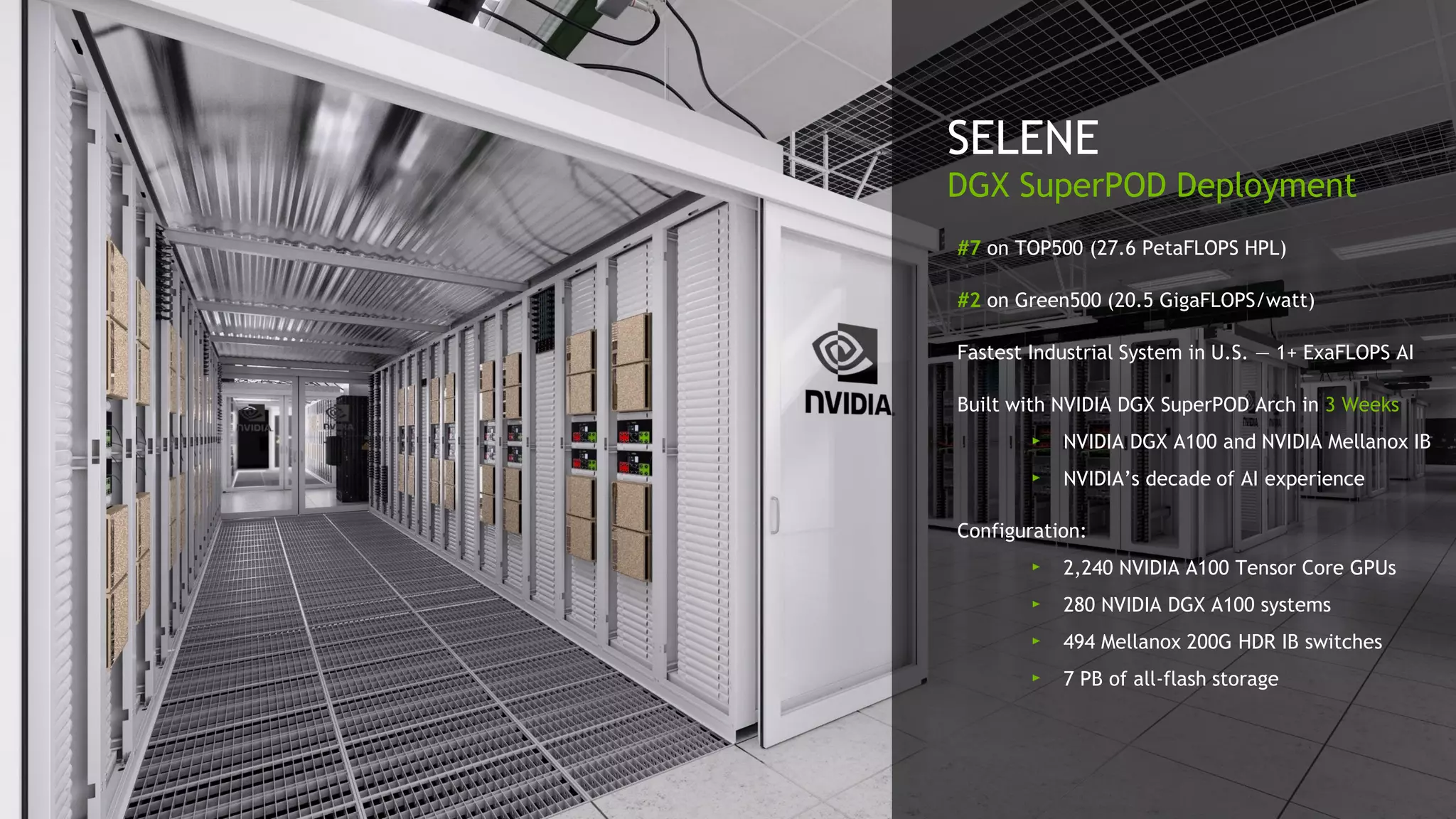

14 #7 on TOP500 (27.6 PetaFLOPS HPL) #2 on Green500 (20.5 GigaFLOPS/watt) Fastest Industrial System in U.S. — 1+ ExaFLOPS AI Built with NVIDIA DGX SuperPOD Arch in 3 Weeks NVIDIA DGX A100 and NVIDIA Mellanox IB NVIDIA’s decade of AI experience Configuration: 2,240 NVIDIA A100 Tensor Core GPUs 280 NVIDIA DGX A100 systems 494 Mellanox 200G HDR IB switches 7 PB of all-flash storage DGX SuperPOD Deployment SELENE
15 Oxford Nanopore Sequence Viral Genome in 7Hrs Plotly, NVIDIA Real-Time Infection Rate Analysis ORNL, Scripps Screen 2B Drug Compounds in 1 Day vs 1 Year Structura, NIH, UT Austin CryoSPARC 1st 3D Structure of Virus Spike Protein NIH, NVIDIA AI COVID-19 Classification Kiwibot Robot Medical Supply Delivery Whiteboard Coordinator AI Elevated Body Temp Screening System ACCELERATED COMPUTING FIGHTS COVID-19 Data Analytics Simulation & Visualization AI Edge
