An Introduction to the Dynamics AX Application Integration Framework
- 1. www.folio3.com@folio_3 Dynamics AX –DynamicsAX – Application IntegrationApplication Integration FrameworkFramework
- 2. Agenda Folio3 –Company Overview Introduction to Dynamics AX Application Integration Framework How Document Are Exchanged AIF Architecture Types of Services Integration Ports Lab session
- 3. Folio3 – AnOverviewFolio3 – An Overview www.folio3.com@folio_3

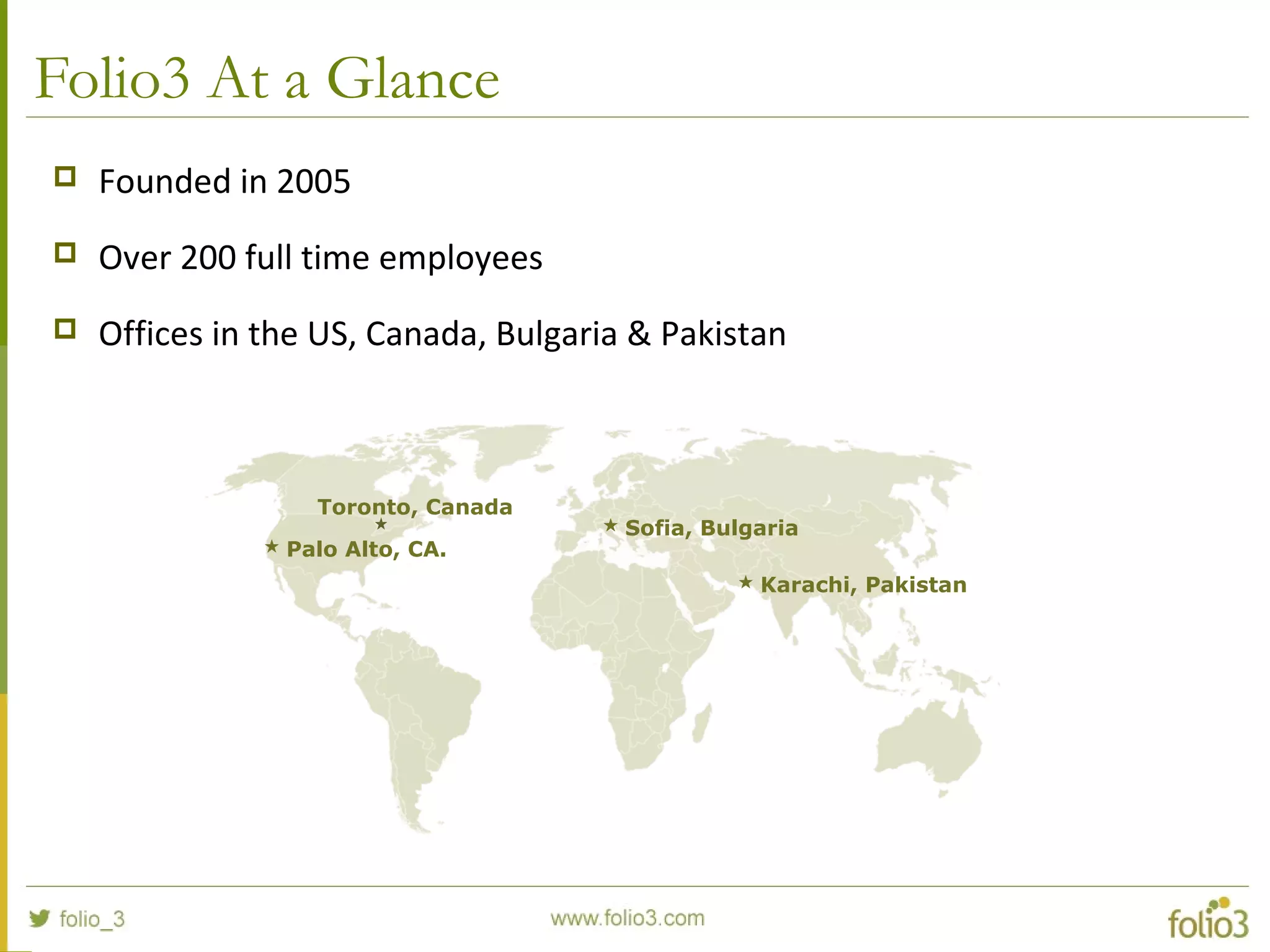

- 4. Folio3 At aGlance Founded in 2005 Over 200 full time employees Offices in the US, Canada, Bulgaria & Pakistan Palo Alto, CA. Sofia, Bulgaria Karachi, Pakistan Toronto, Canada
- 5. What We Do We are a Development Partner for our customers Design software solutions, not just implement them Focus on the solution – Platform and technology agnostic Expertise in building applications that are: Mobile Social Cloud-based Gamified
- 6. What We Do Areas of Focus Enterprise Custom enterprise applications Product development targeting the enterprise Mobile Custom mobile apps for iOS, Android, Windows Phone, BB OS Mobile platform (server-to-server) development Social Media CMS based websites for consumers and enterprise (corporate, consumer, community & social networking) Social media platform development (enterprise & consumer) Gaming Social & casual cross platform games (mobile, web, console) Virtual Worlds

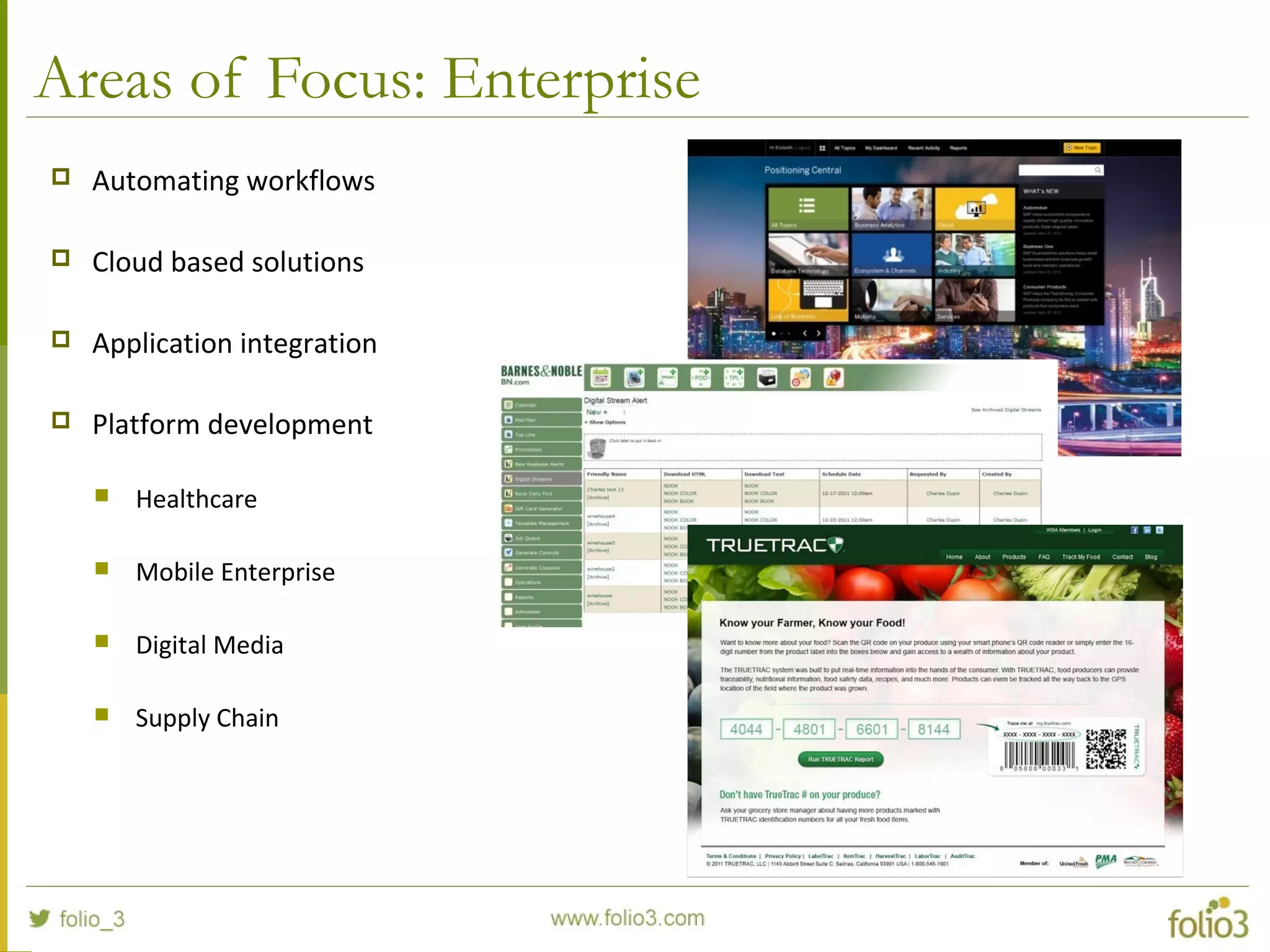

- 7. Areas of Focus:Enterprise Automating workflows Cloud based solutions Application integration Platform development Healthcare Mobile Enterprise Digital Media Supply Chain
- 8. Areas of Focus:Mobile Serious enterprise applications for Banks, Businesses Fun consumer apps for app discovery, interaction, exercise gamification and play Educational apps Augmented Reality apps Mobile Platforms

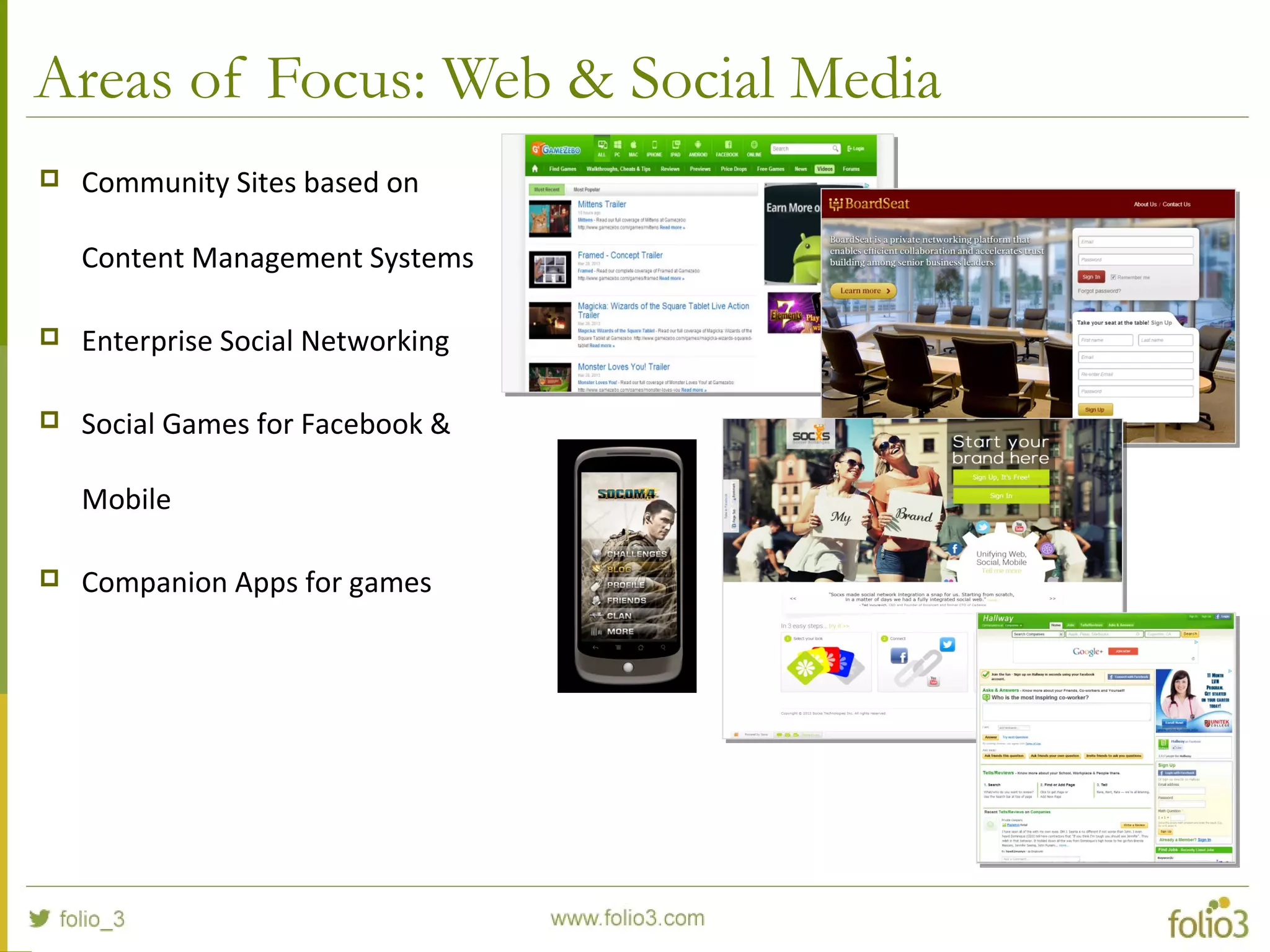

- 9. Areas of Focus:Web & Social Media Community Sites based on Content Management Systems Enterprise Social Networking Social Games for Facebook & Mobile Companion Apps for games

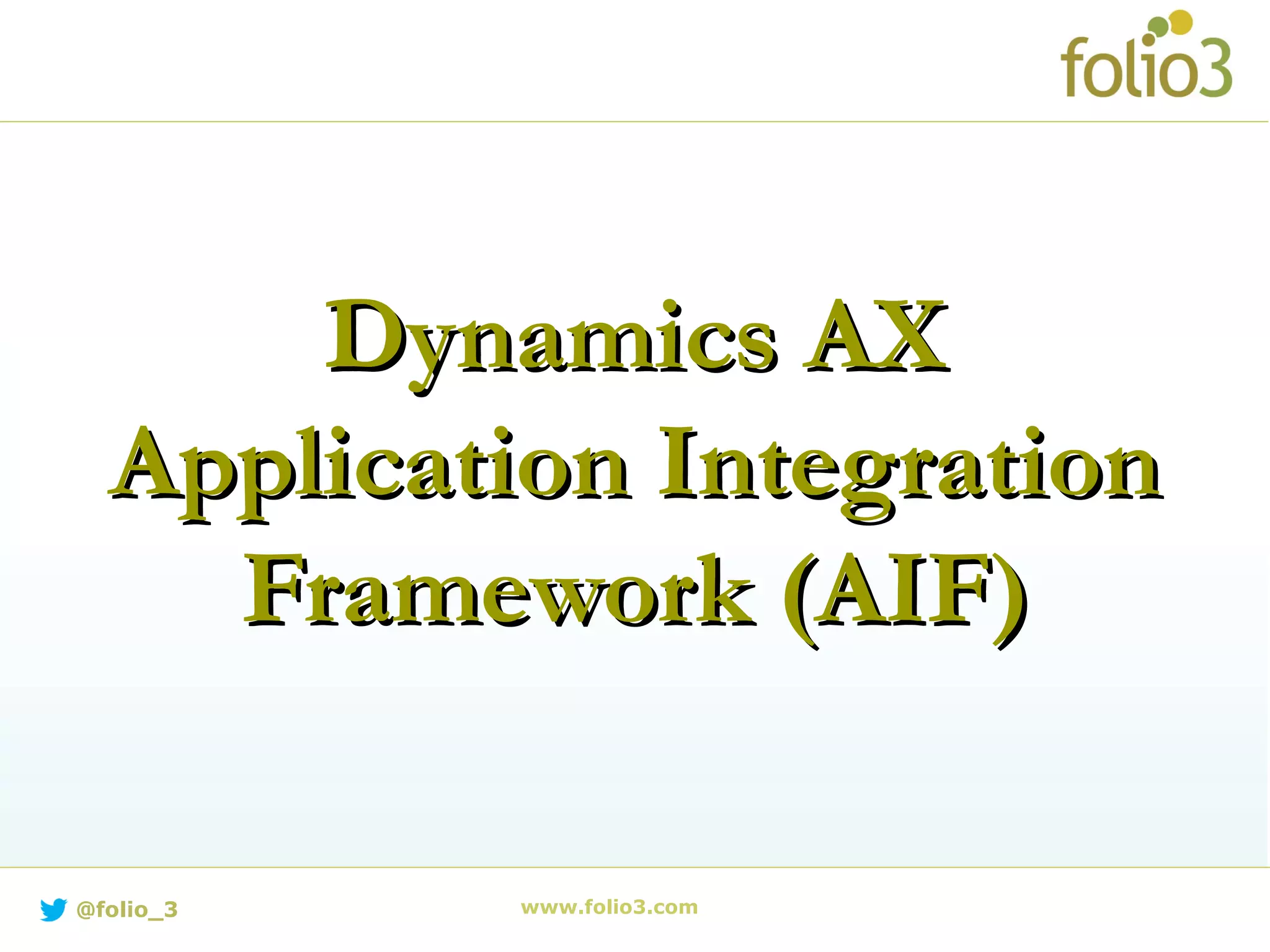

- 10. Dynamics AXDynamics AX ApplicationIntegrationApplication Integration Framework (AIF)Framework (AIF) www.folio3.com@folio_3

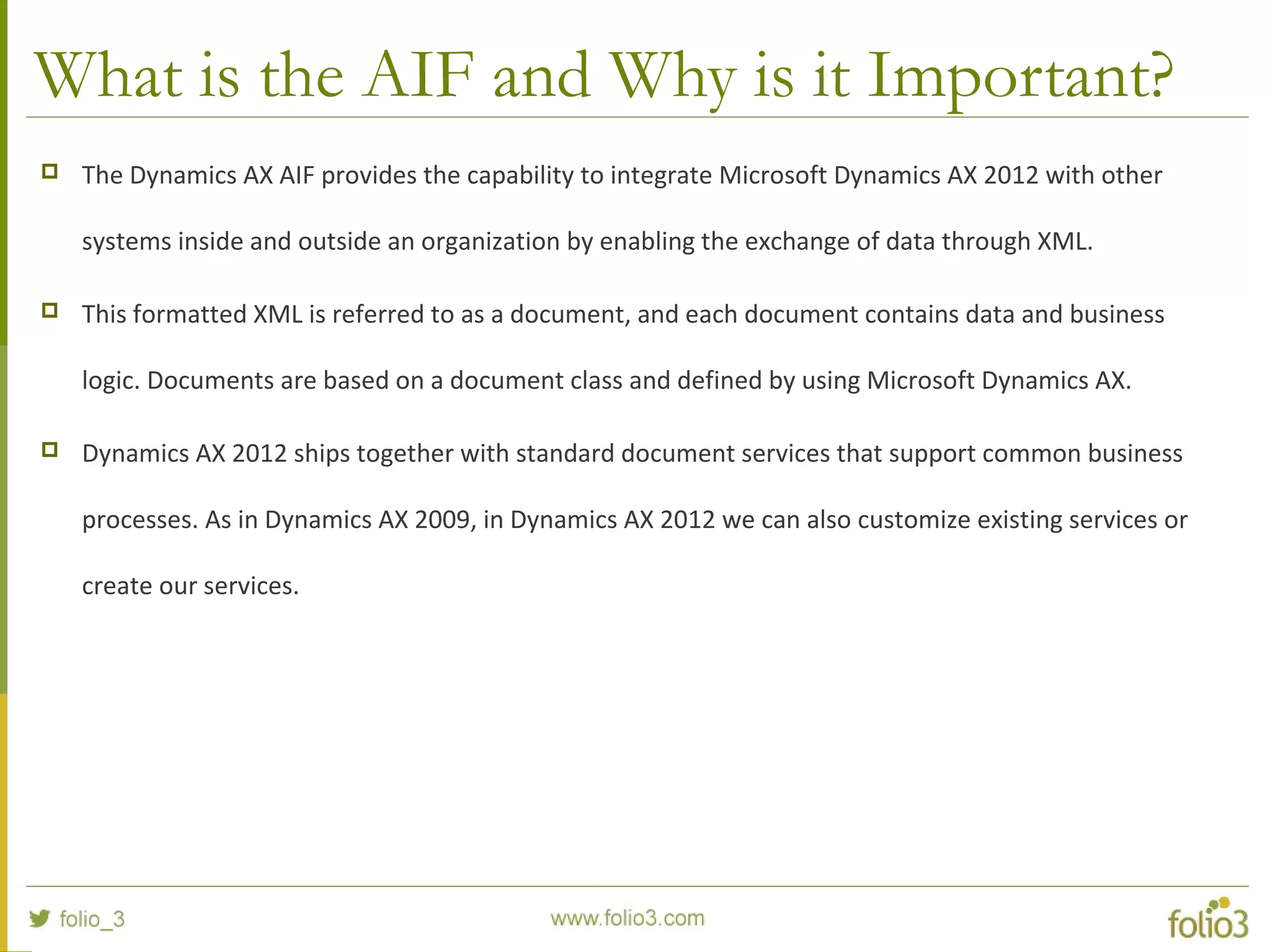

- 11. What is theAIF and Why is it Important? The Dynamics AX AIF provides the capability to integrate Microsoft Dynamics AX 2012 with other systems inside and outside an organization by enabling the exchange of data through XML. This formatted XML is referred to as a document, and each document contains data and business logic. Documents are based on a document class and defined by using Microsoft Dynamics AX. Dynamics AX 2012 ships together with standard document services that support common business processes. As in Dynamics AX 2009, in Dynamics AX 2012 we can also customize existing services or create our services.
- 12. How Documents AreHowDocuments Are ExchangedExchanged www.folio3.com@folio_3

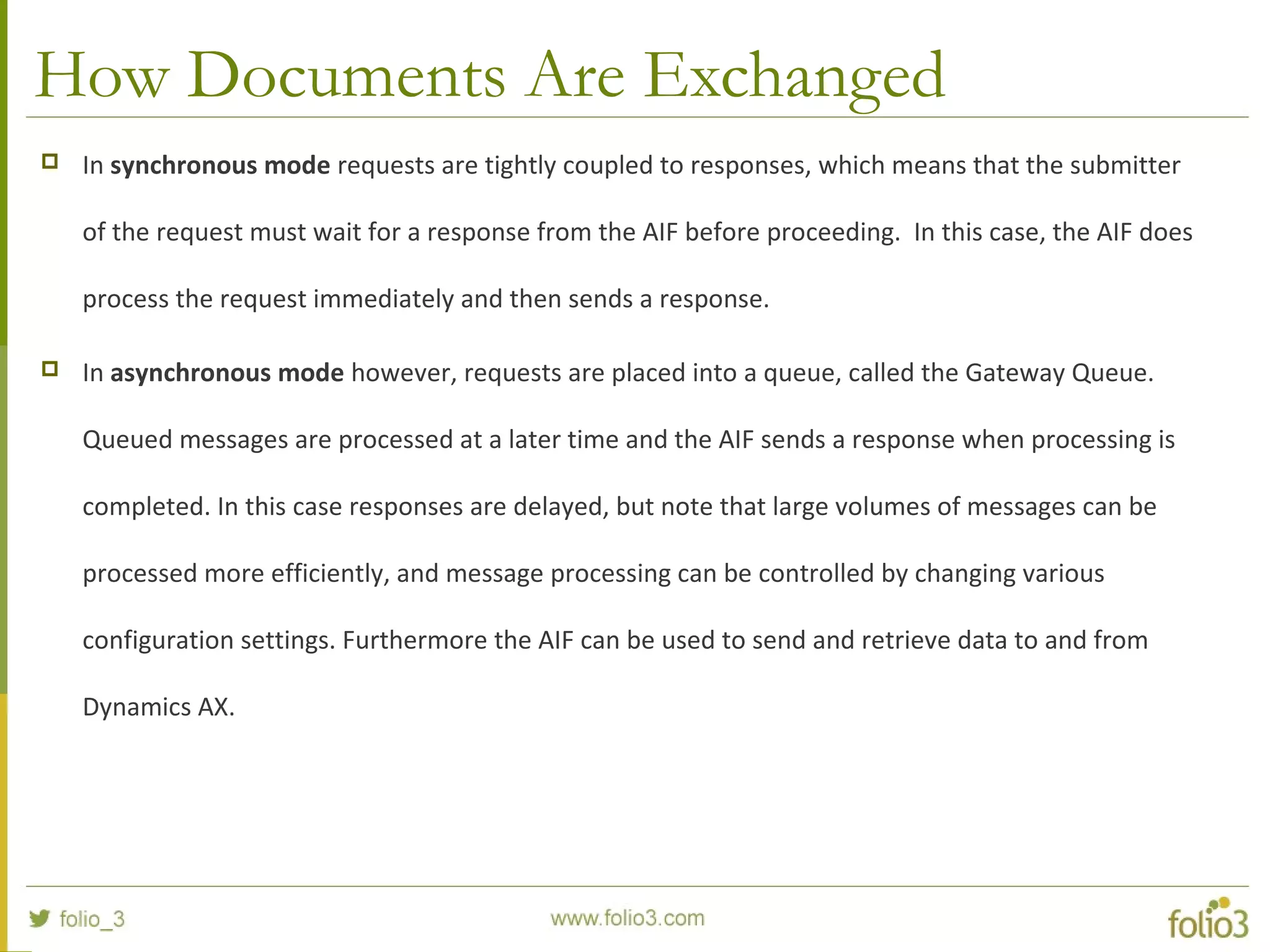

- 13. How Documents AreExchanged In synchronous mode requests are tightly coupled to responses, which means that the submitter of the request must wait for a response from the AIF before proceeding. In this case, the AIF does process the request immediately and then sends a response. In asynchronous mode however, requests are placed into a queue, called the Gateway Queue. Queued messages are processed at a later time and the AIF sends a response when processing is completed. In this case responses are delayed, but note that large volumes of messages can be processed more efficiently, and message processing can be controlled by changing various configuration settings. Furthermore the AIF can be used to send and retrieve data to and from Dynamics AX.
- 14.

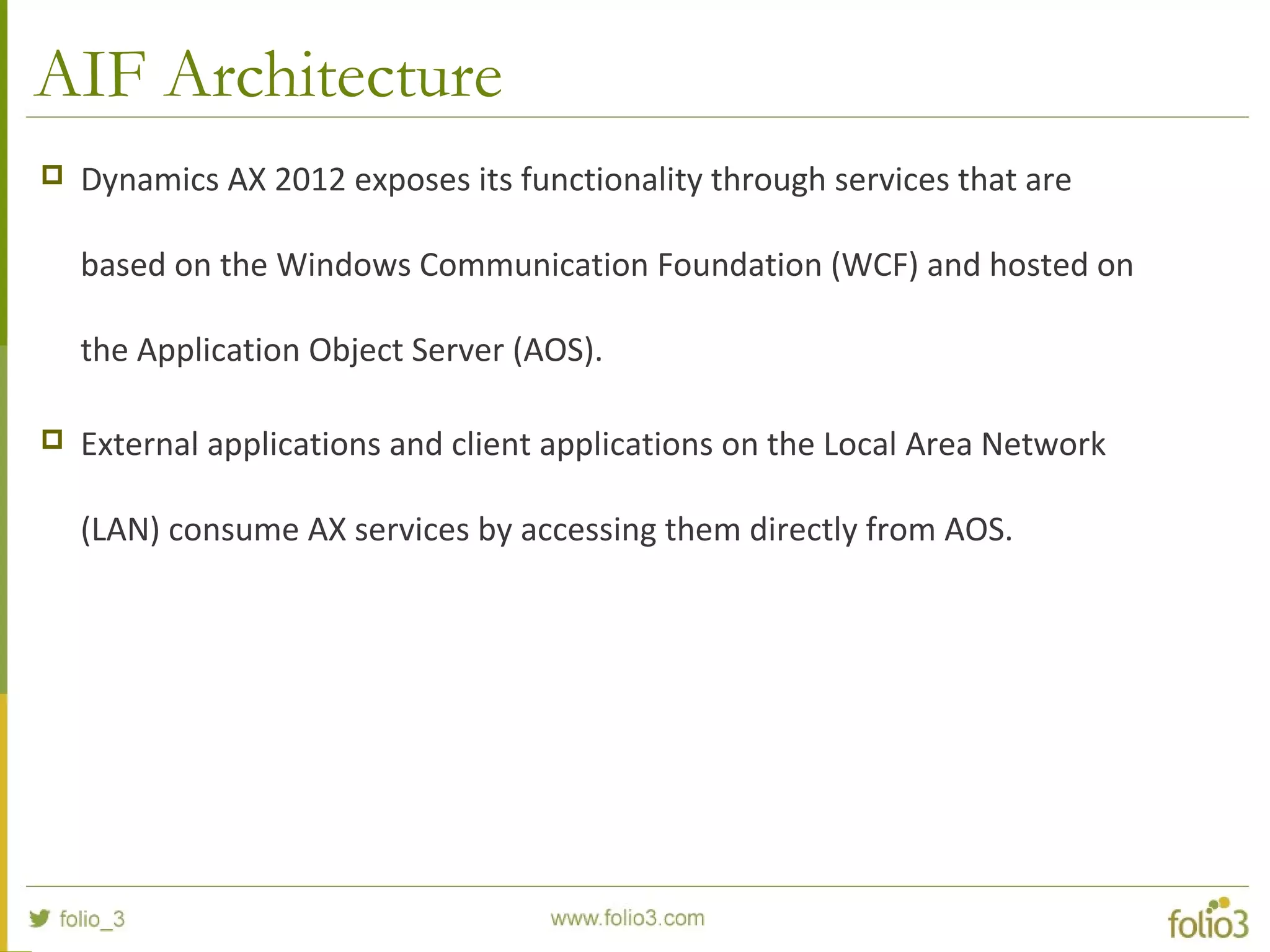

- 15. AIF Architecture DynamicsAX 2012 exposes its functionality through services that are based on the Windows Communication Foundation (WCF) and hosted on the Application Object Server (AOS). External applications and client applications on the Local Area Network (LAN) consume AX services by accessing them directly from AOS.
- 16.

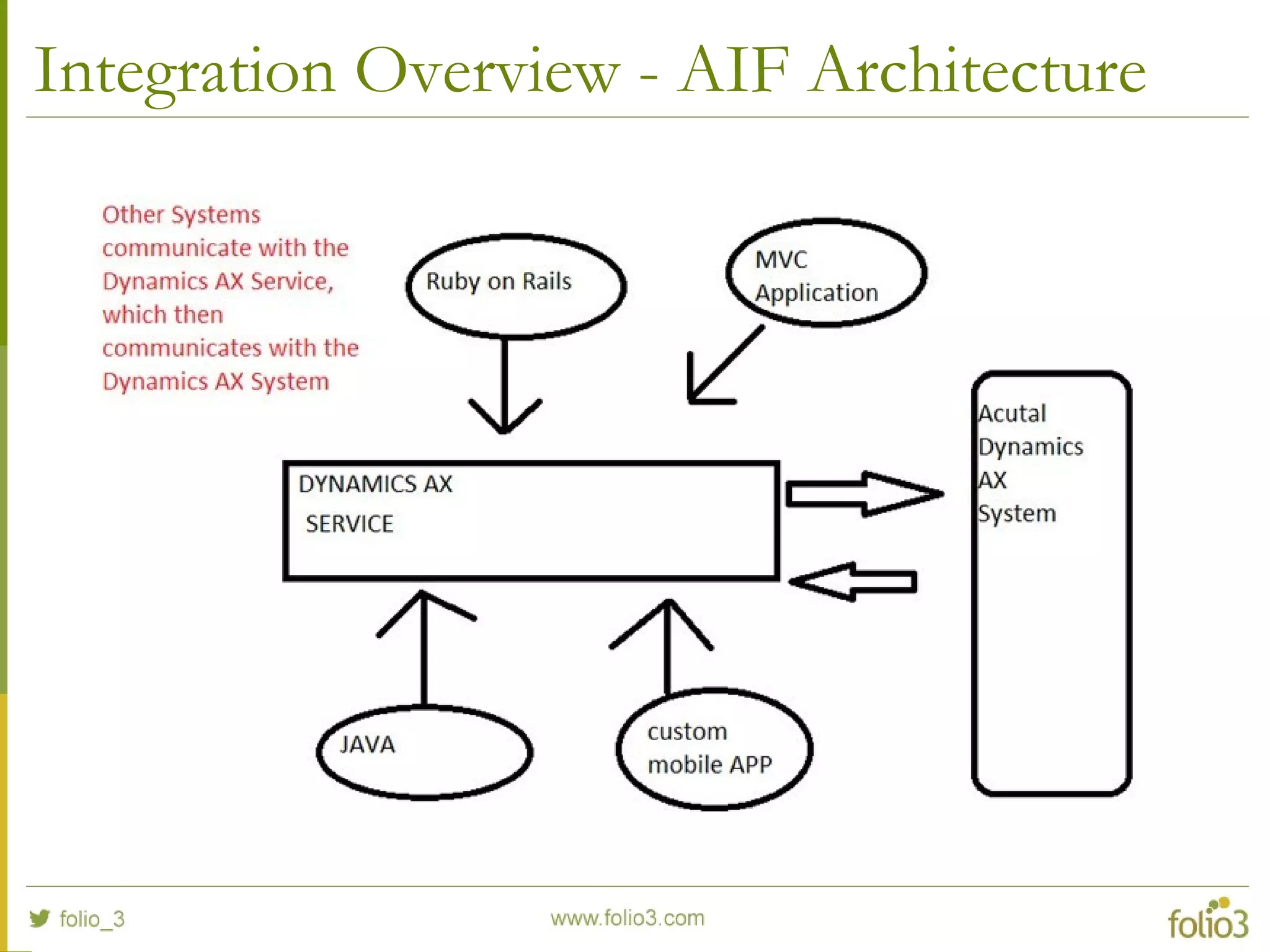

- 17. Integration Overview -AIF Architecture
- 18. Types of ServicesTypesof Services www.folio3.com@folio_3

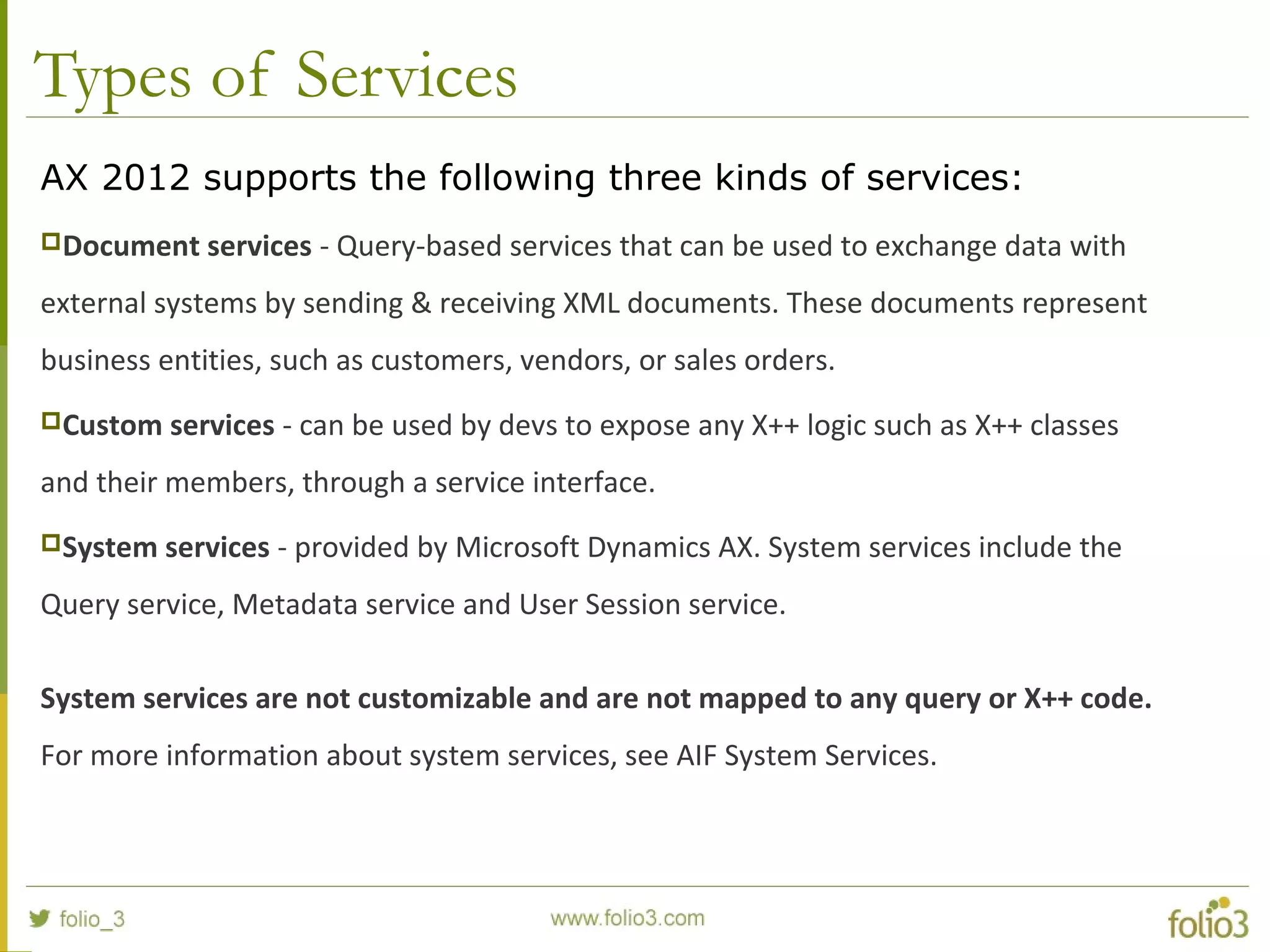

- 19. Types of Services AX2012 supports the following three kinds of services: Document services - Query-based services that can be used to exchange data with external systems by sending & receiving XML documents. These documents represent business entities, such as customers, vendors, or sales orders. Custom services - can be used by devs to expose any X++ logic such as X++ classes and their members, through a service interface. System services - provided by Microsoft Dynamics AX. System services include the Query service, Metadata service and User Session service. System services are not customizable and are not mapped to any query or X++ code. For more information about system services, see AIF System Services.
- 20.

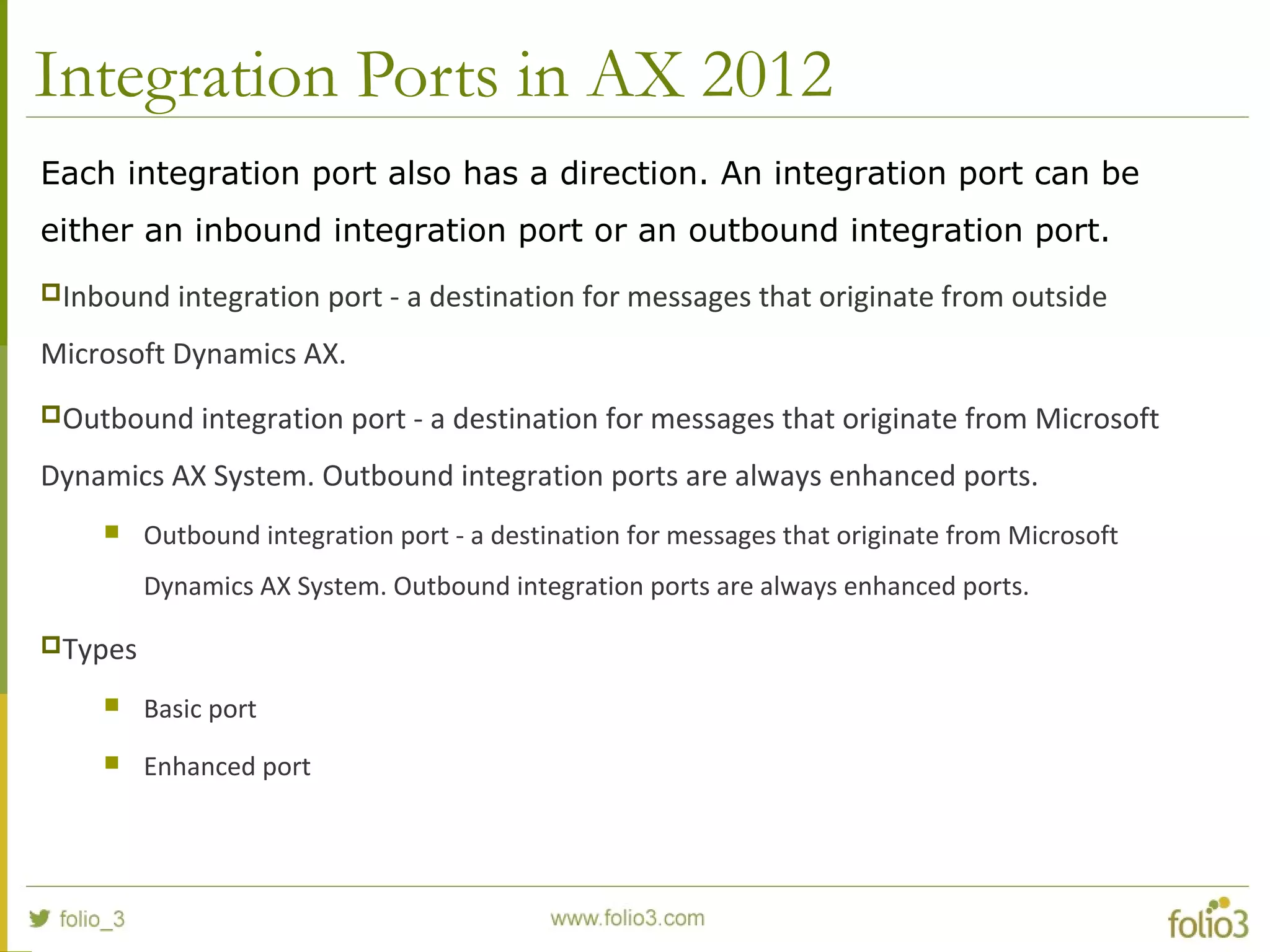

- 21. Integration Ports in AX2012 Each integration port also has a direction. An integration port can be either an inbound integration port or an outbound integration port. Inbound integration port - a destination for messages that originate from outside Microsoft Dynamics AX. Outbound integration port - a destination for messages that originate from Microsoft Dynamics AX System. Outbound integration ports are always enhanced ports. Outbound integration port - a destination for messages that originate from Microsoft Dynamics AX System. Outbound integration ports are always enhanced ports. Types Basic port Enhanced port

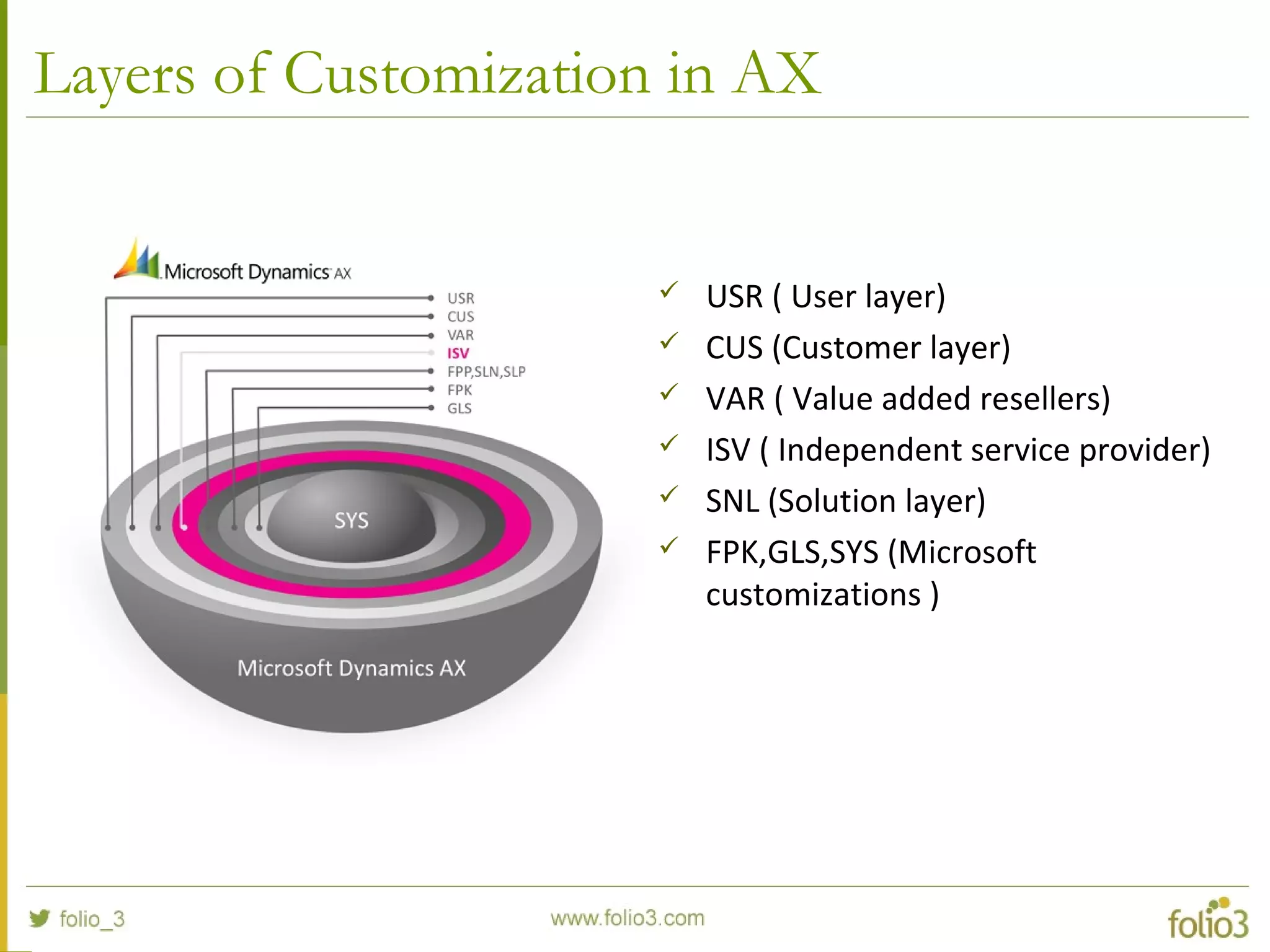

- 22. Layers of Customizationin AX USR ( User layer) CUS (Customer layer) VAR ( Value added resellers) ISV ( Independent service provider) SNL (Solution layer) FPK,GLS,SYS (Microsoft customizations )
- 23.

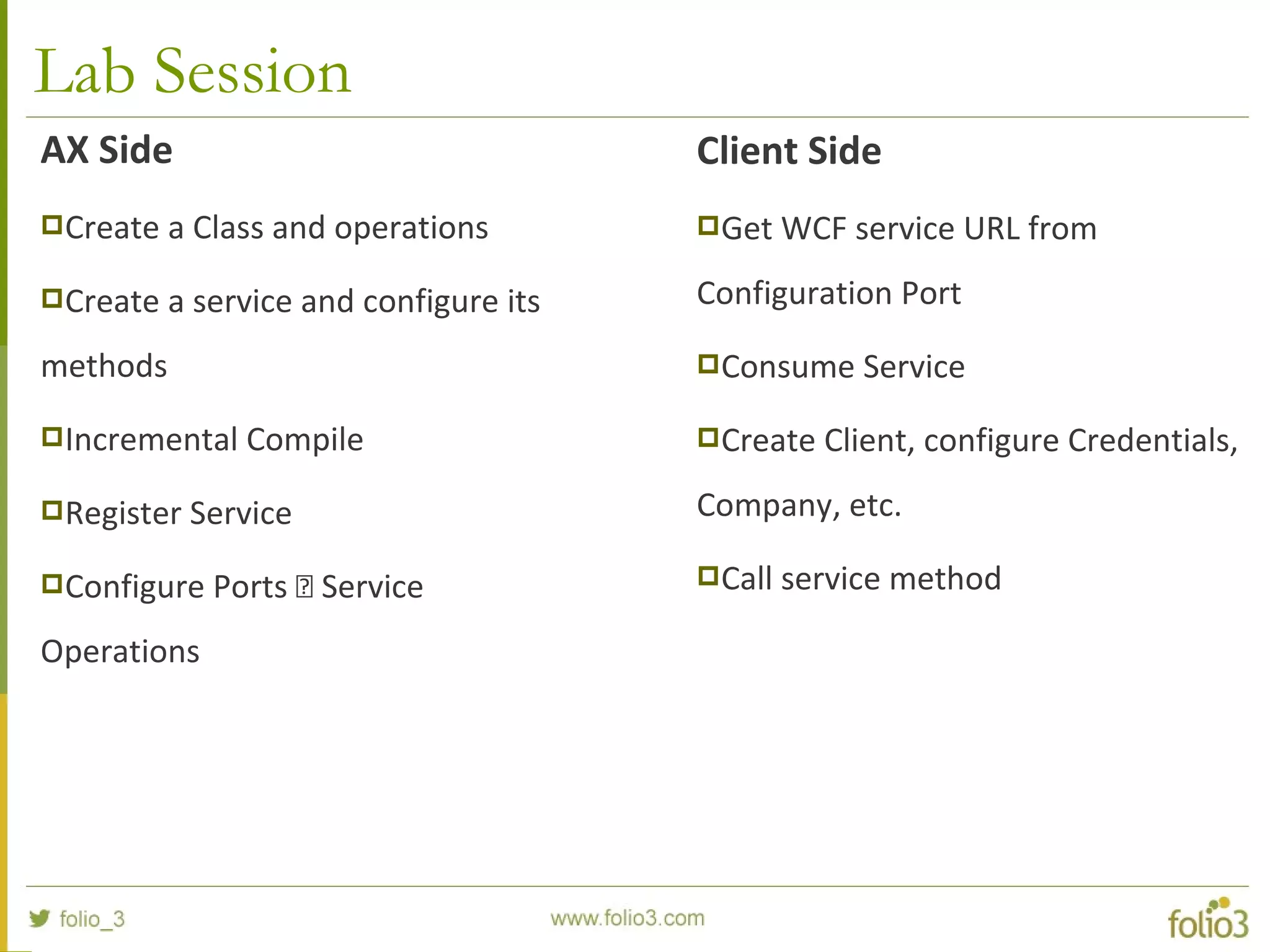

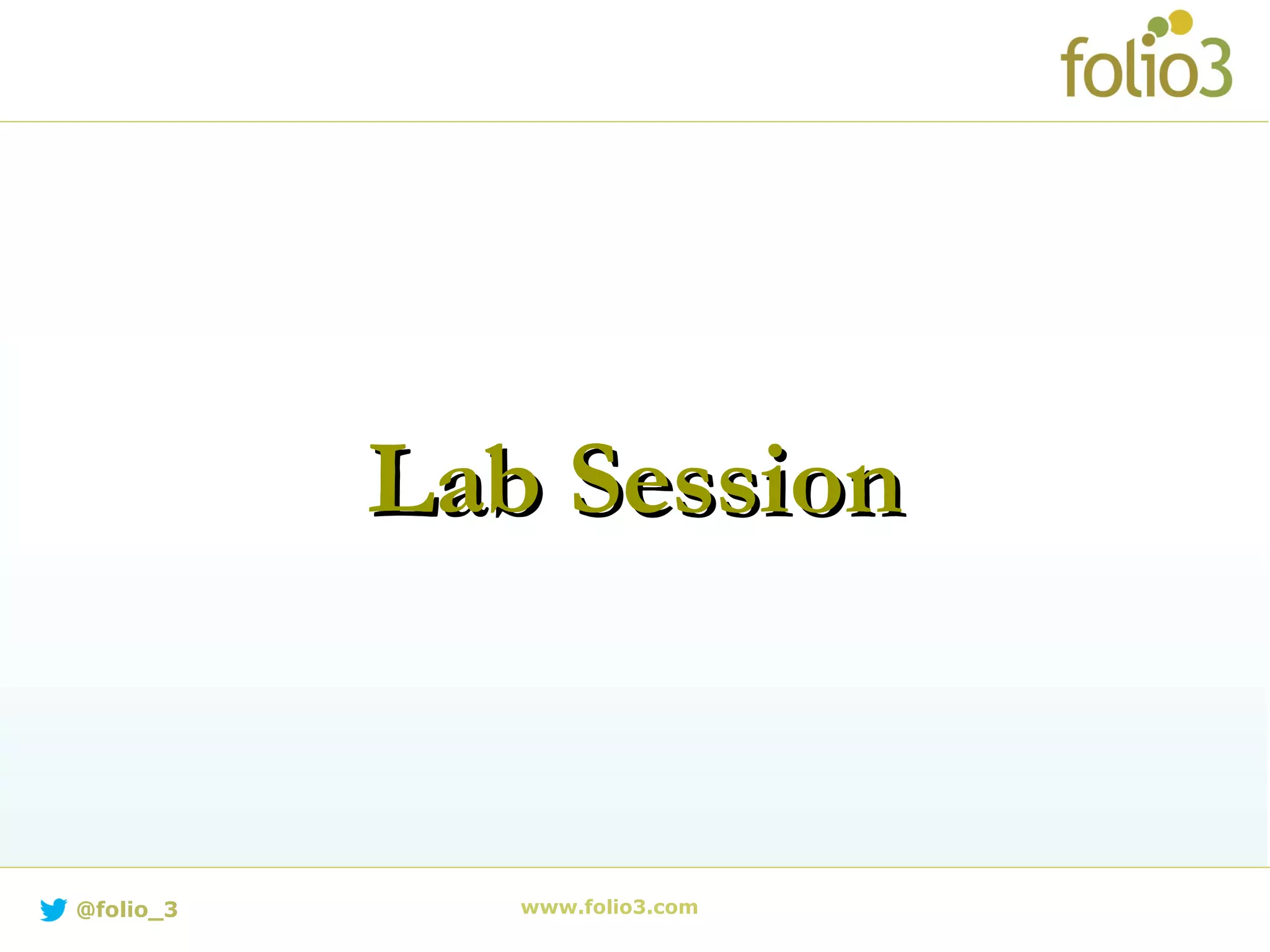

- 24. Lab Session AX Side Createa Class and operations Create a service and configure its methods Incremental Compile Register Service Configure Ports Service Operations Client Side Get WCF service URL from Configuration Port Consume Service Create Client, configure Credentials, Company, etc. Call service method

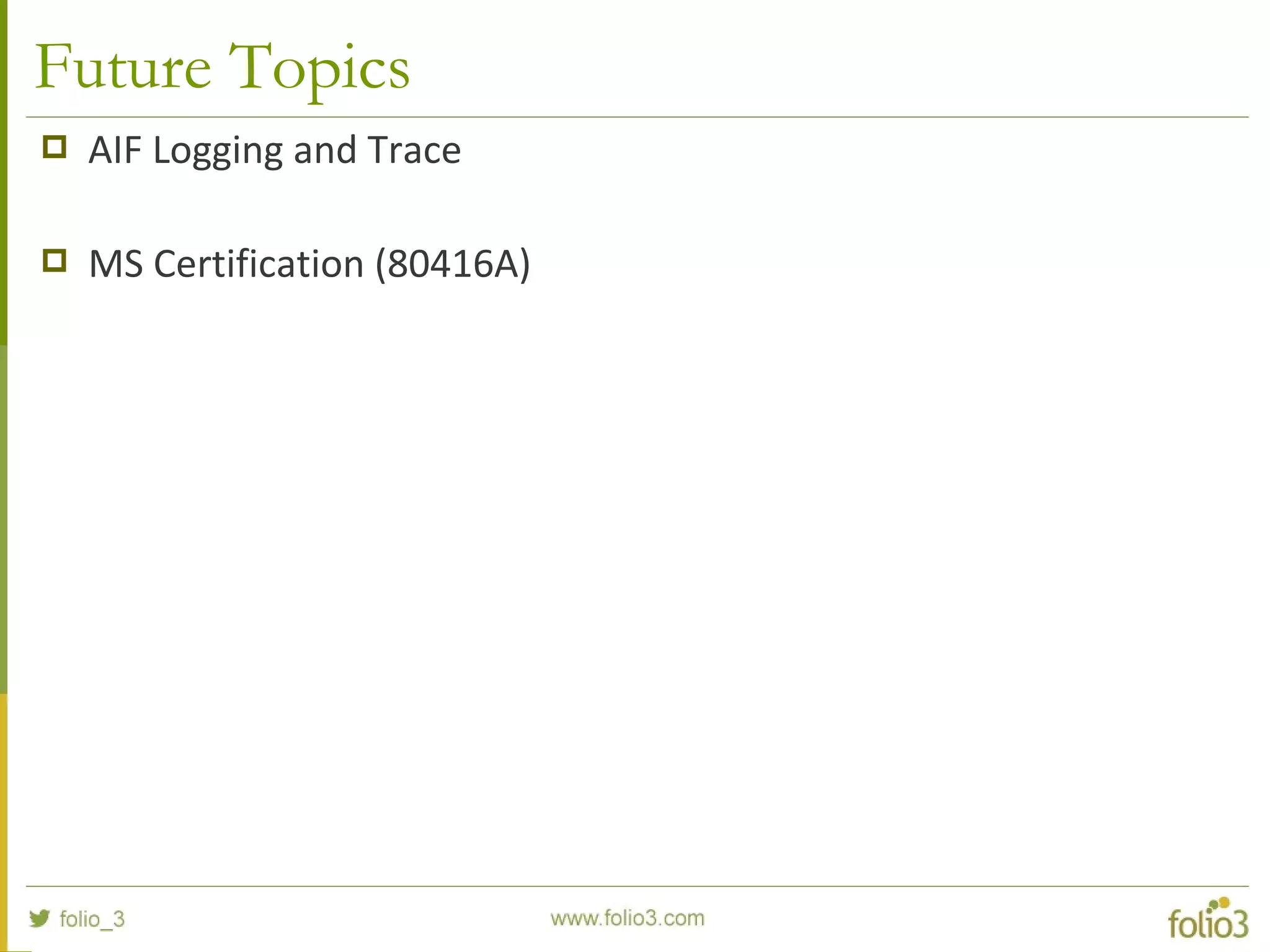

- 25. Future Topics AIFLogging and Trace MS Certification (80416A)
