Fault Tolerance at Speed
- 1. Fault Tolerance atSpeed Todd L. Montgomery @toddlmontgomery StoneTor
- 2. InfoQ.com: News &Community Site • Over 1,000,000 software developers, architects and CTOs read the site world- wide every month • 250,000 senior developers subscribe to our weekly newsletter • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • 2 dedicated podcast channels: The InfoQ Podcast, with a focus on Architecture and The Engineering Culture Podcast, with a focus on building • 96 deep dives on innovative topics packed as downloadable emags and minibooks • Over 40 new content items per week Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ aeron-cluster-raft/
- 3. Purpose of QCon -to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon San Francisco www.qconsf.com
- 4.

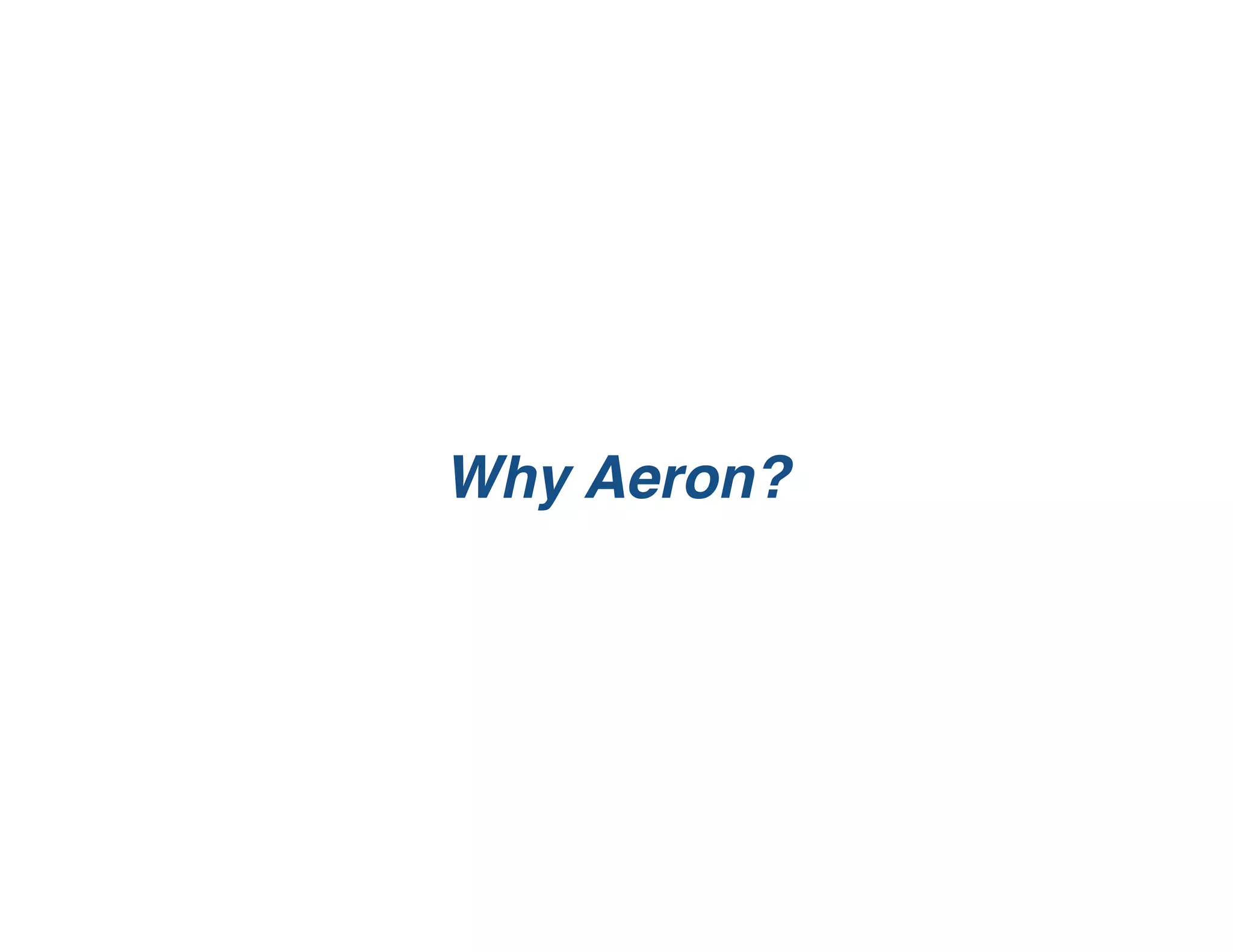

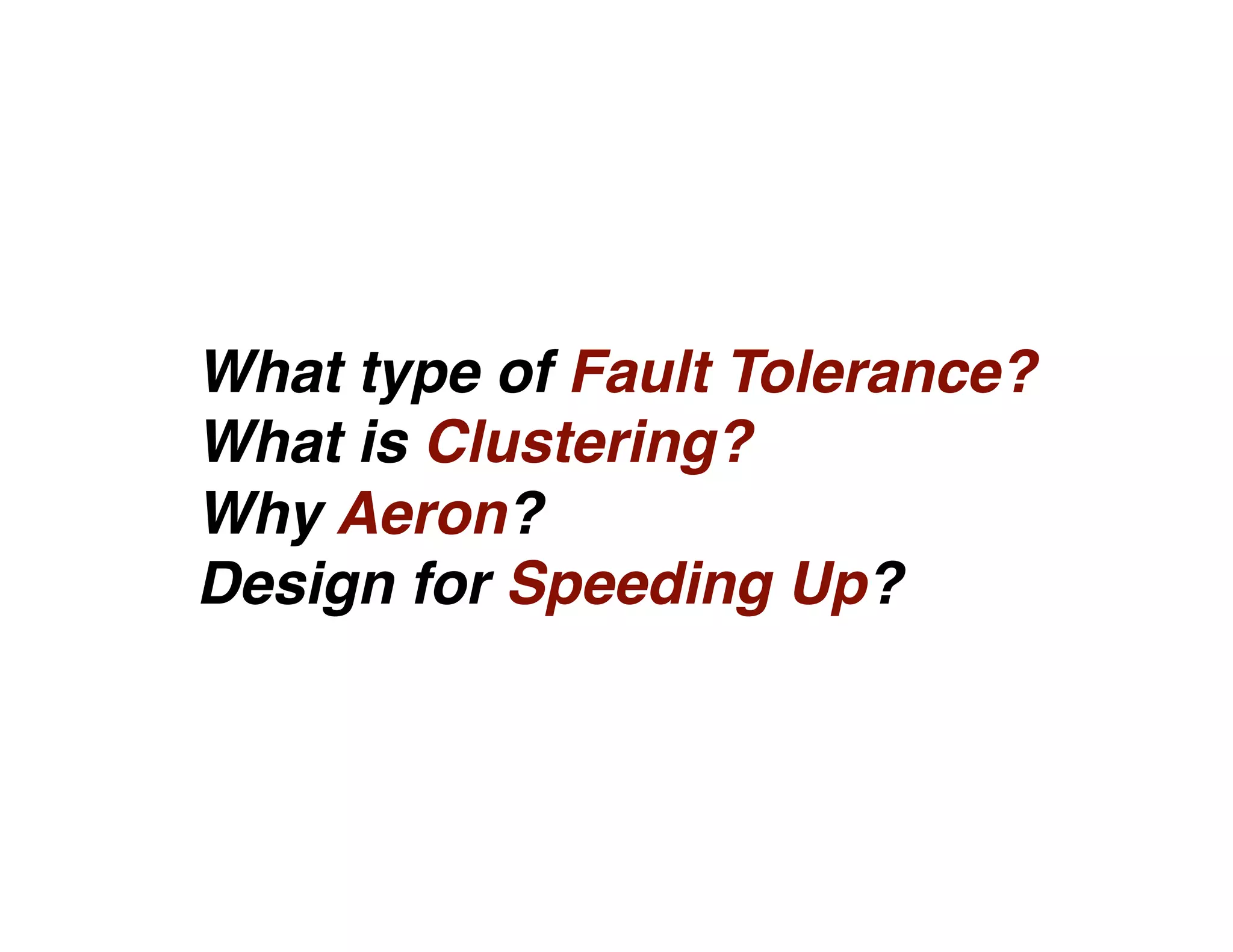

- 5. What type ofFault Tolerance? What is Clustering? Why Aeron? Design for Speeding Up?
- 6. What type ofFault Tolerance? What is Clustering? Why Aeron? Design for Speeding Up? Efficiency
- 7.

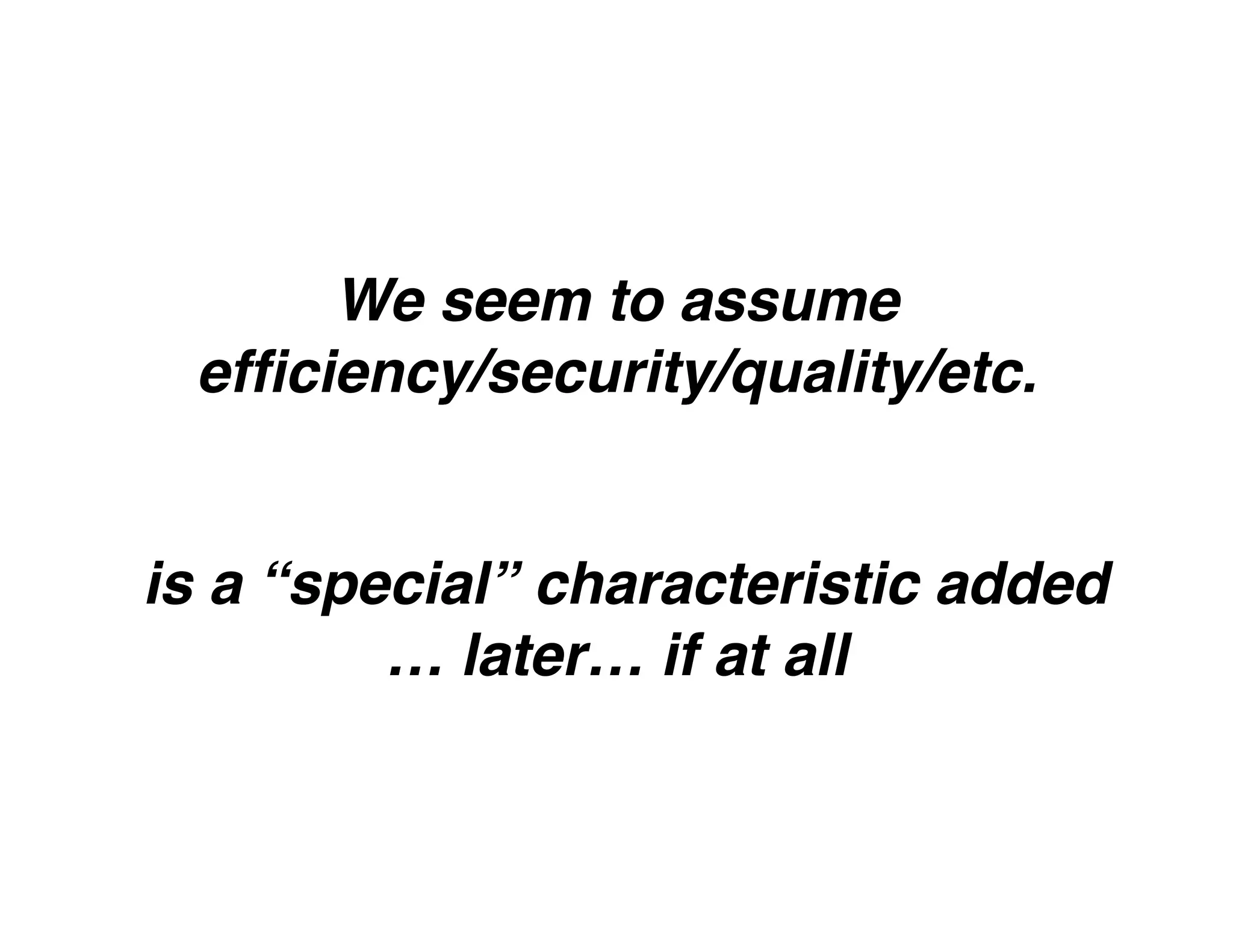

- 8. We seem toassume efficiency/security/quality/etc. is a “special” characteristic added … later… if at all
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 16.
- 17.
- 18. Fault Tolerance ofState
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.

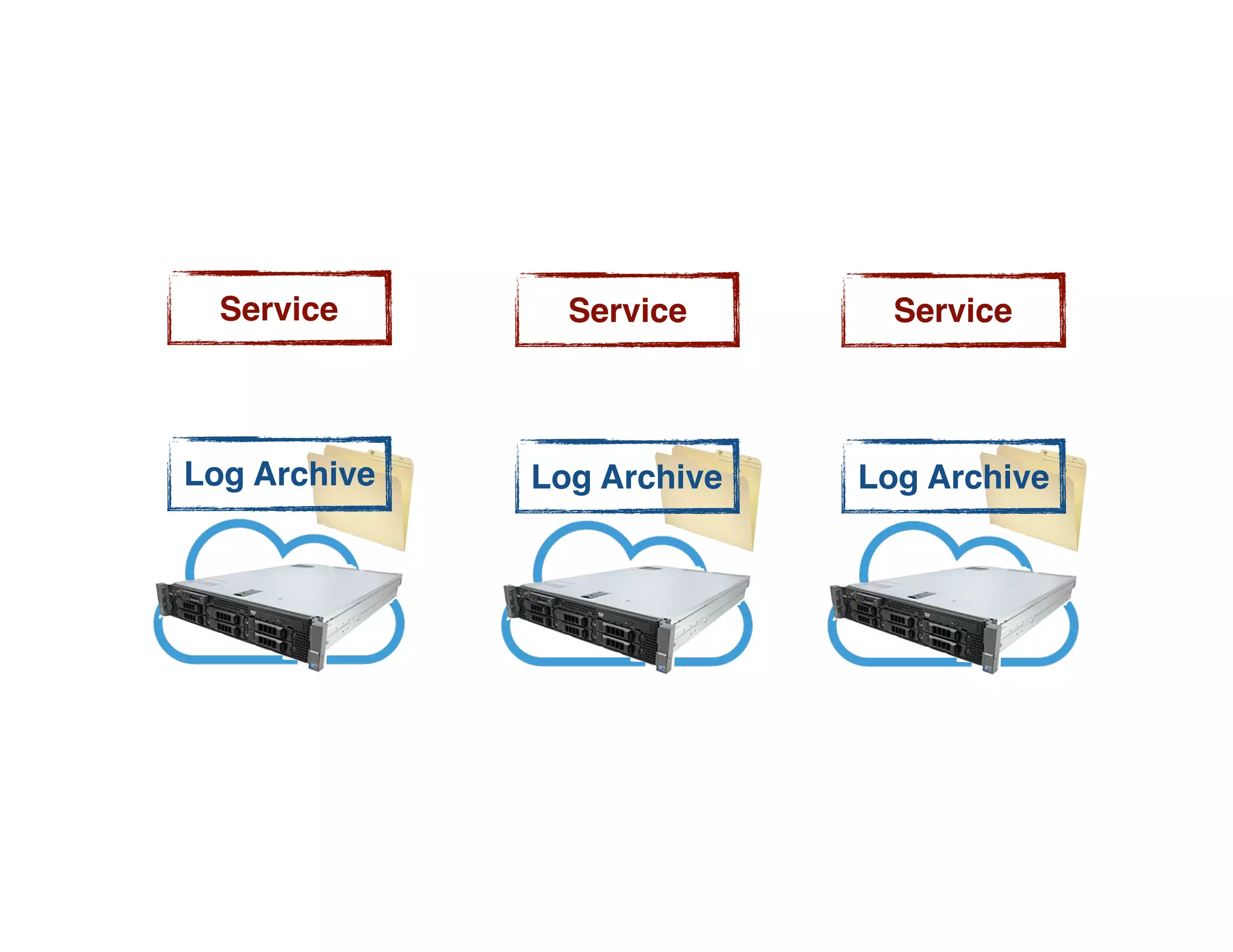

- 27. Service ServiceService Log ArchiveLogArchive Log Archive
- 28.
- 29. Each Replicated Service Sameevent log Same input ordering Log replicated locally Replicated State Machines

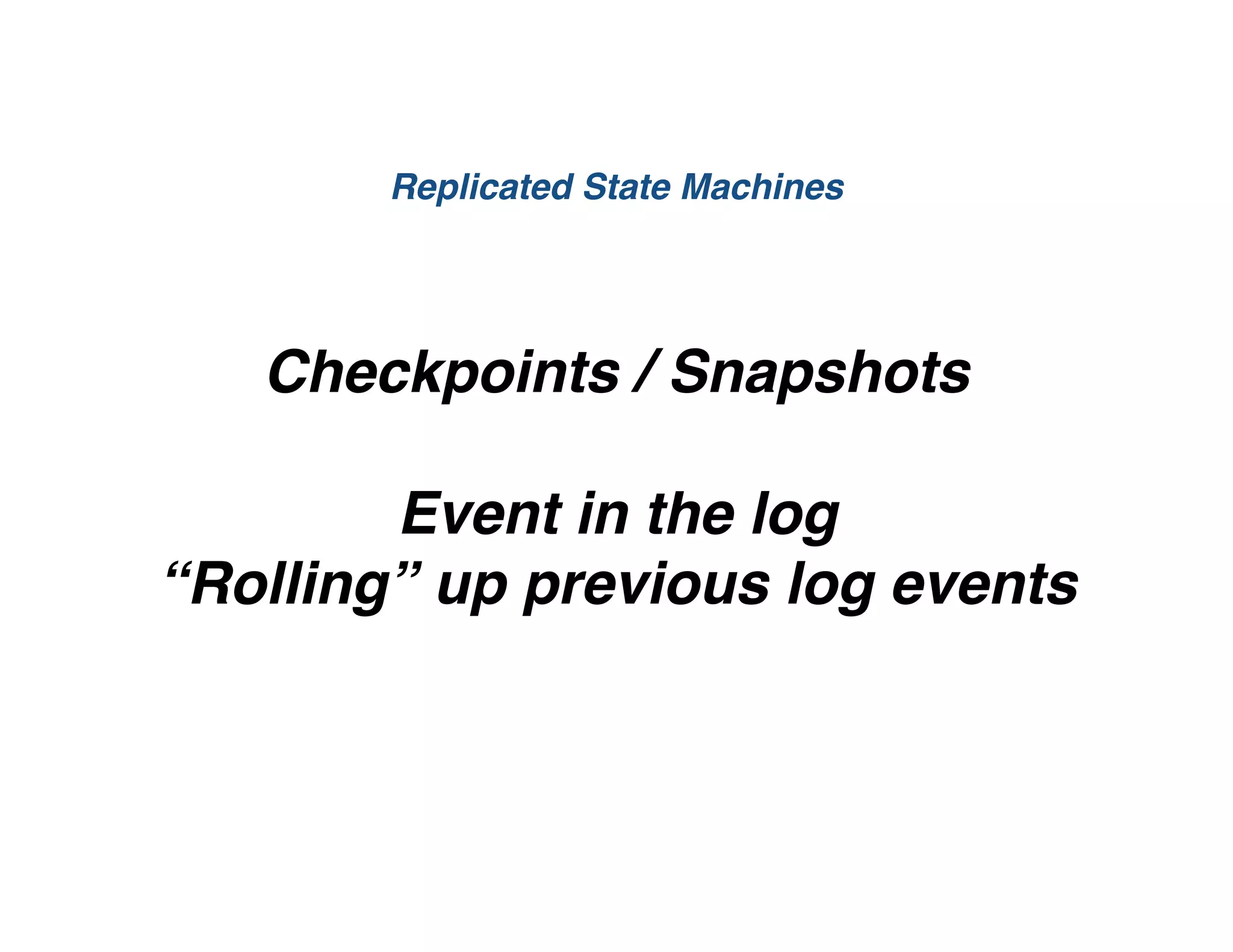

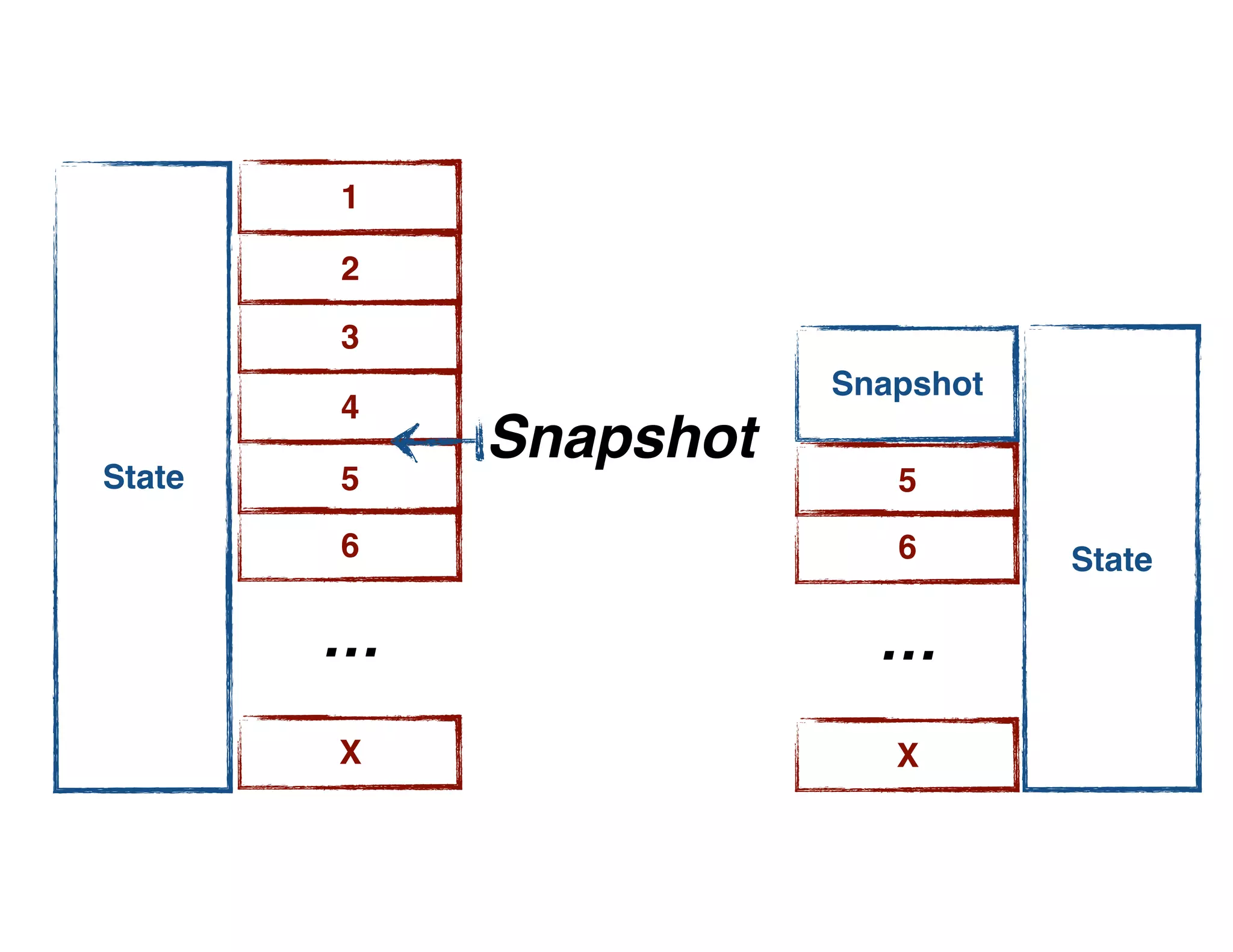

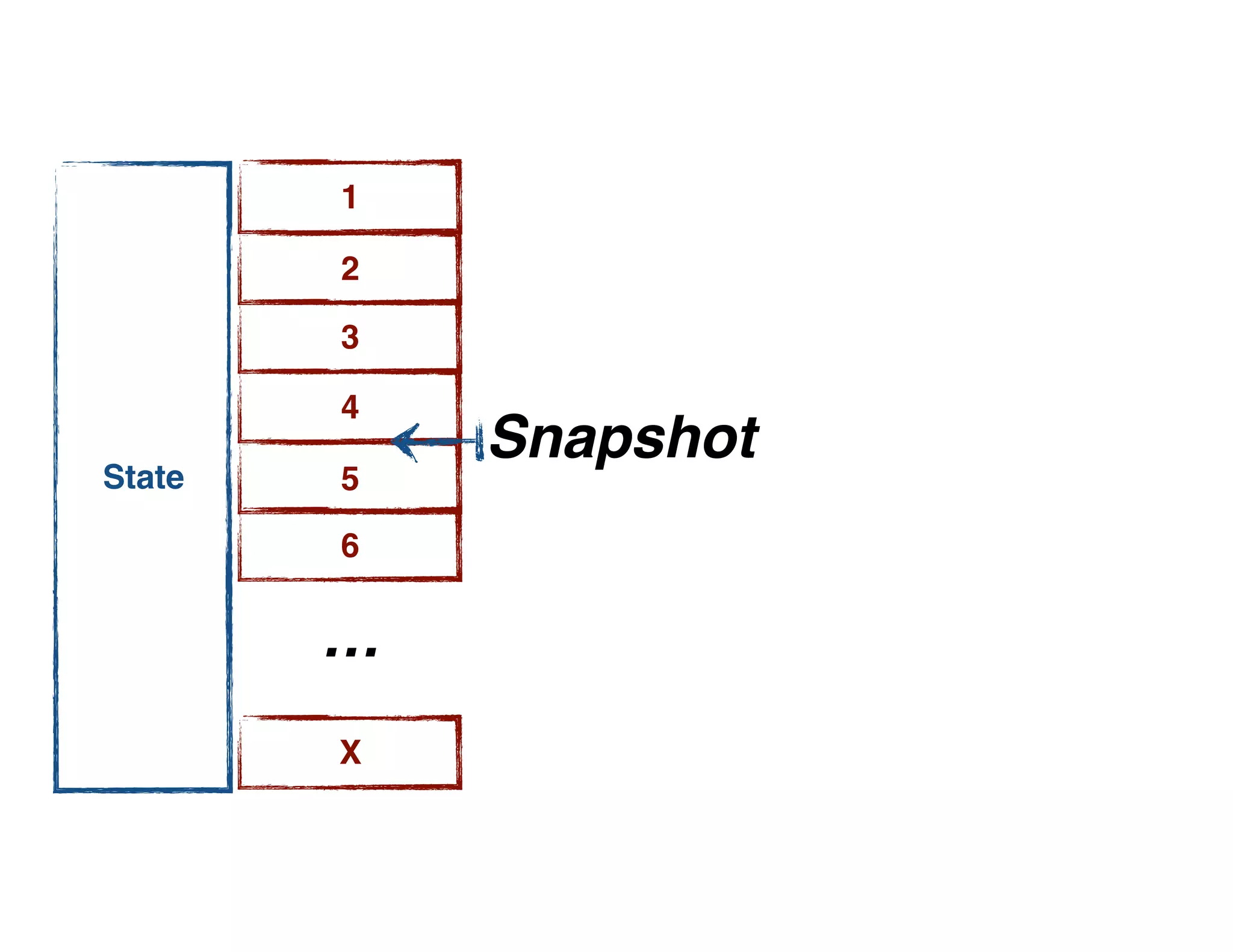

- 30. Checkpoints / Snapshots Eventin the log “Rolling” up previous log events Replicated State Machines
- 31. When should aservice “consume” (or process) a log event?

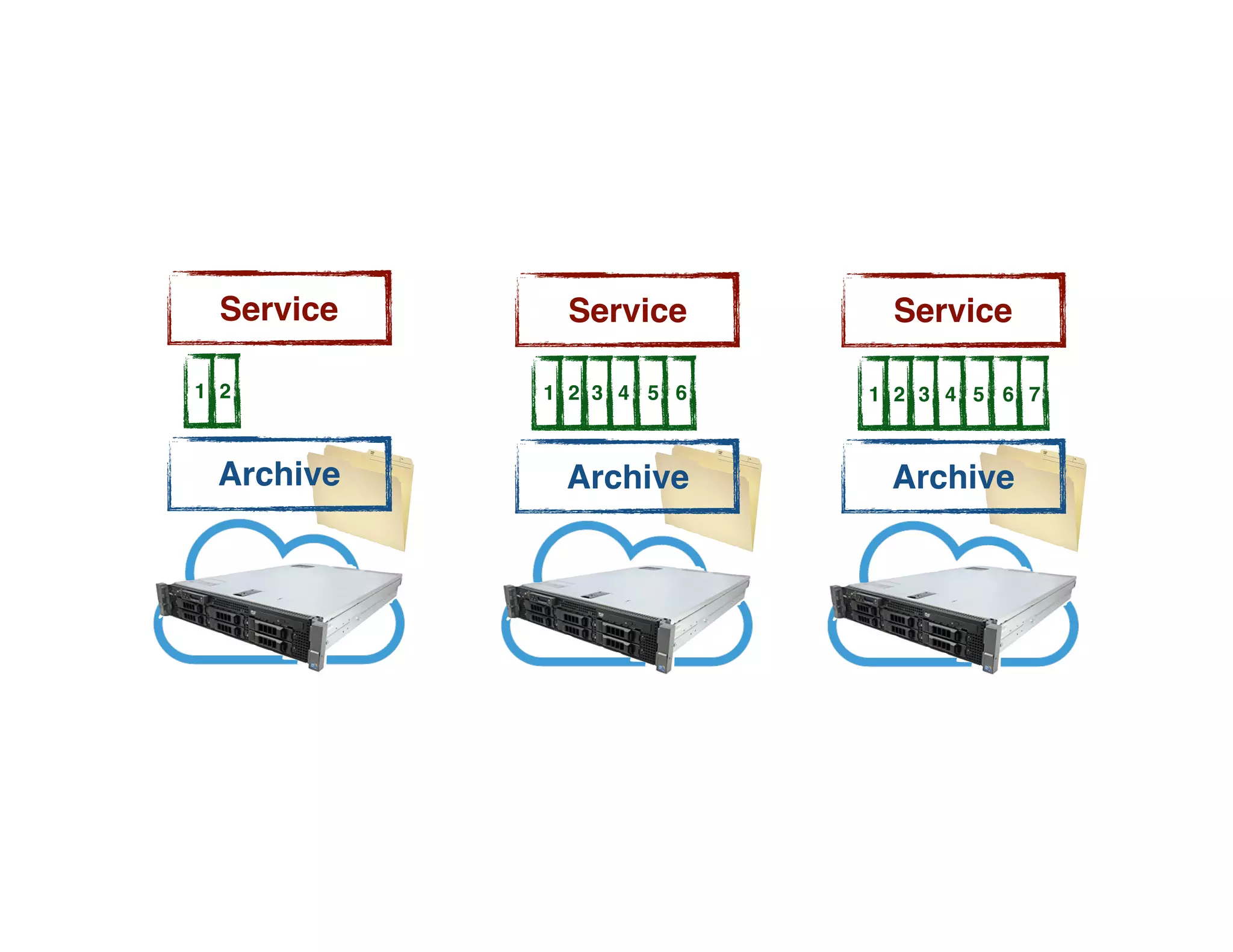

- 32. Service ServiceService ArchiveArchive Archive 12 3 4 5 6 1 2 3 4 5 6 71 2

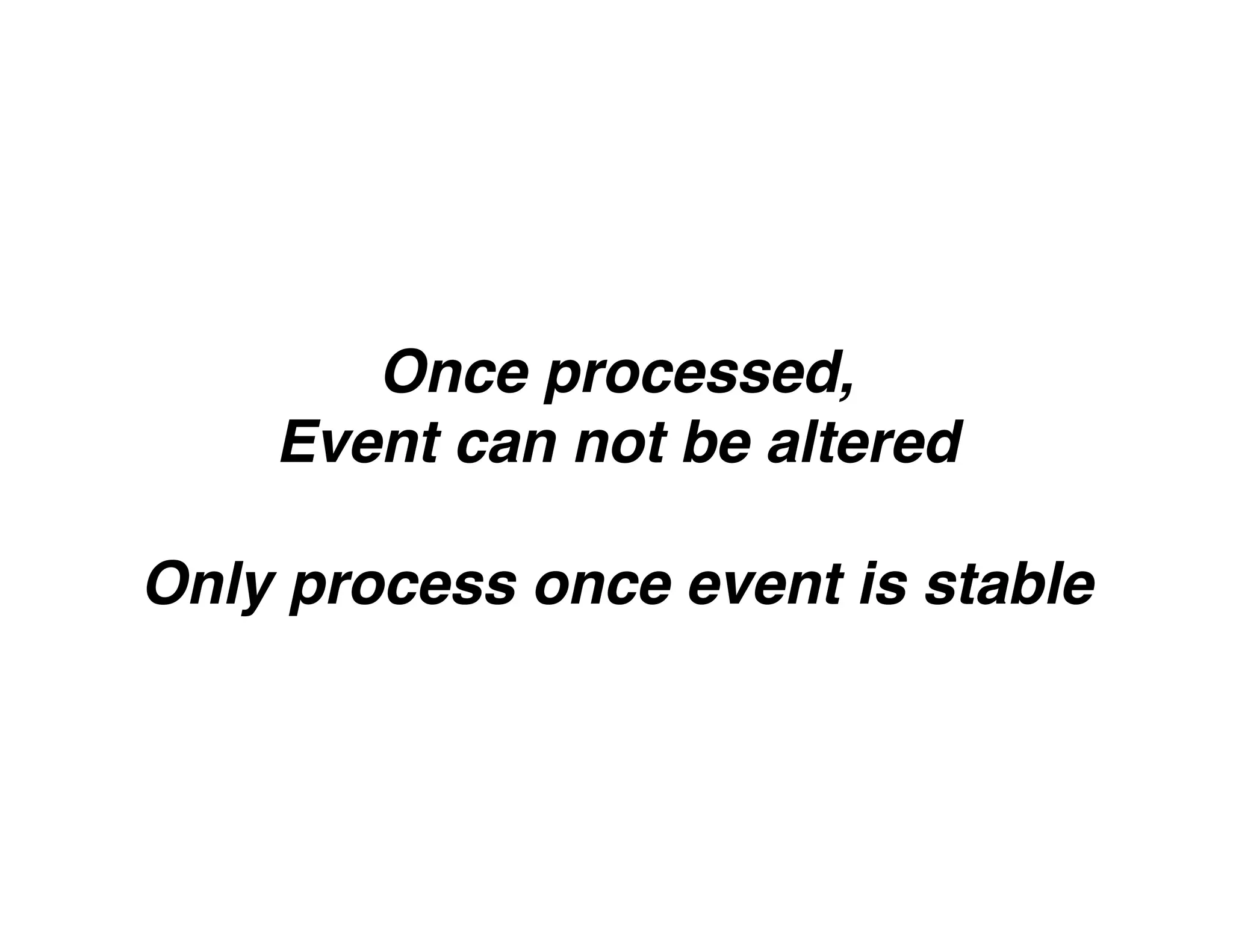

- 33. Once processed, Event cannot be altered Only process once event is stable

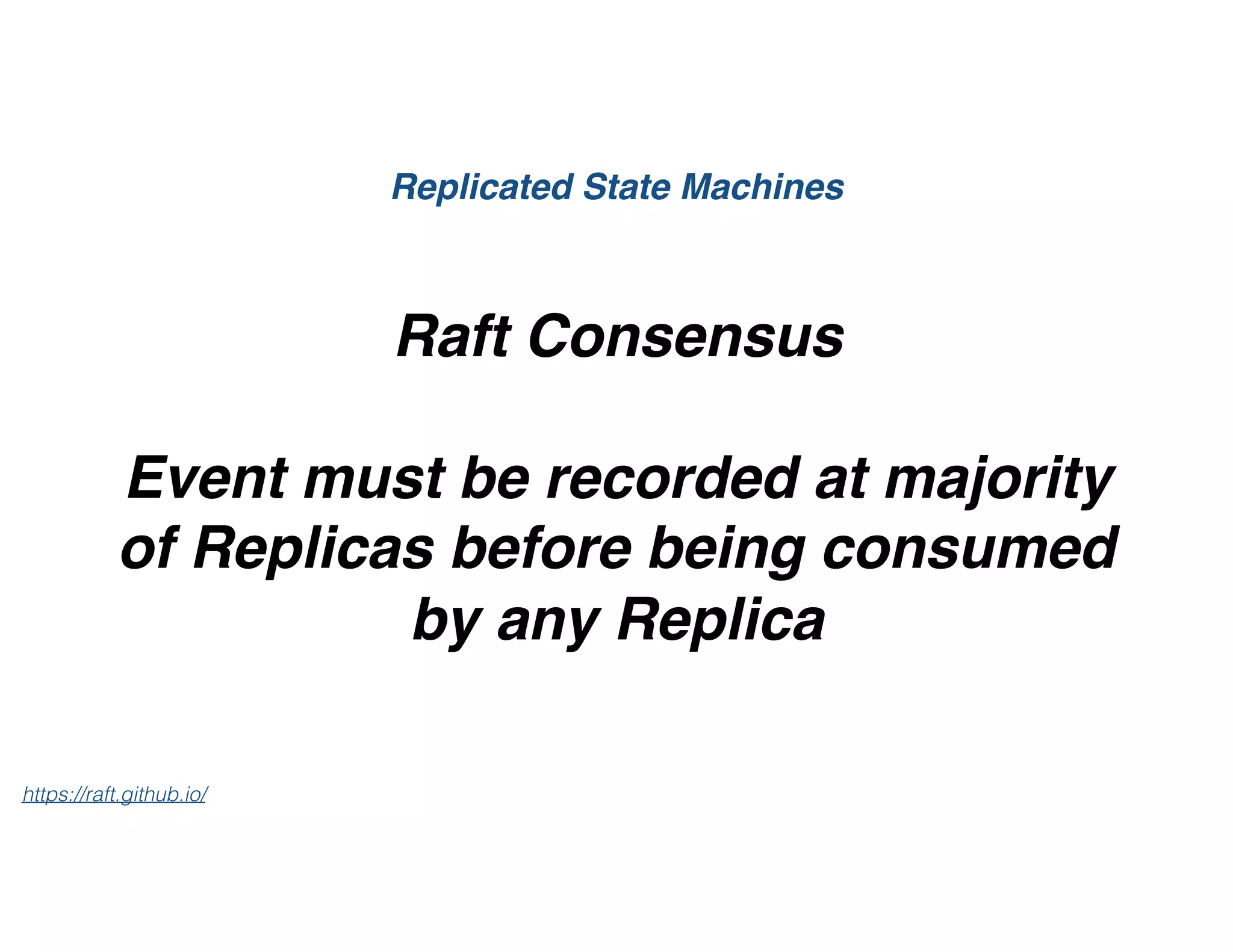

- 34. Raft Consensus Event mustbe recorded at majority of Replicas before being consumed by any Replica Replicated State Machines https://raft.github.io/

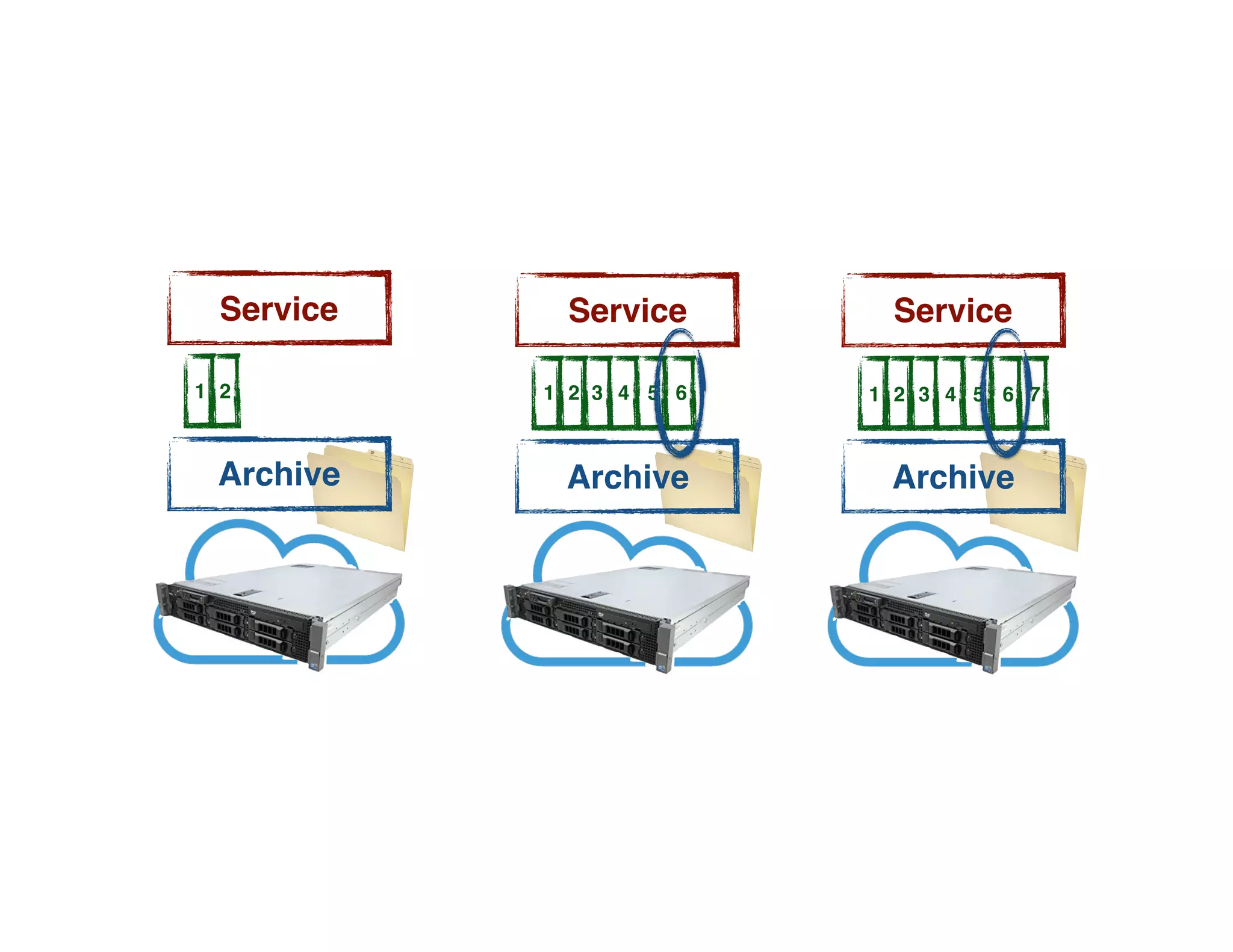

- 35. Service ServiceService ArchiveArchive Archive 12 3 4 5 6 1 2 3 4 5 6 71 2

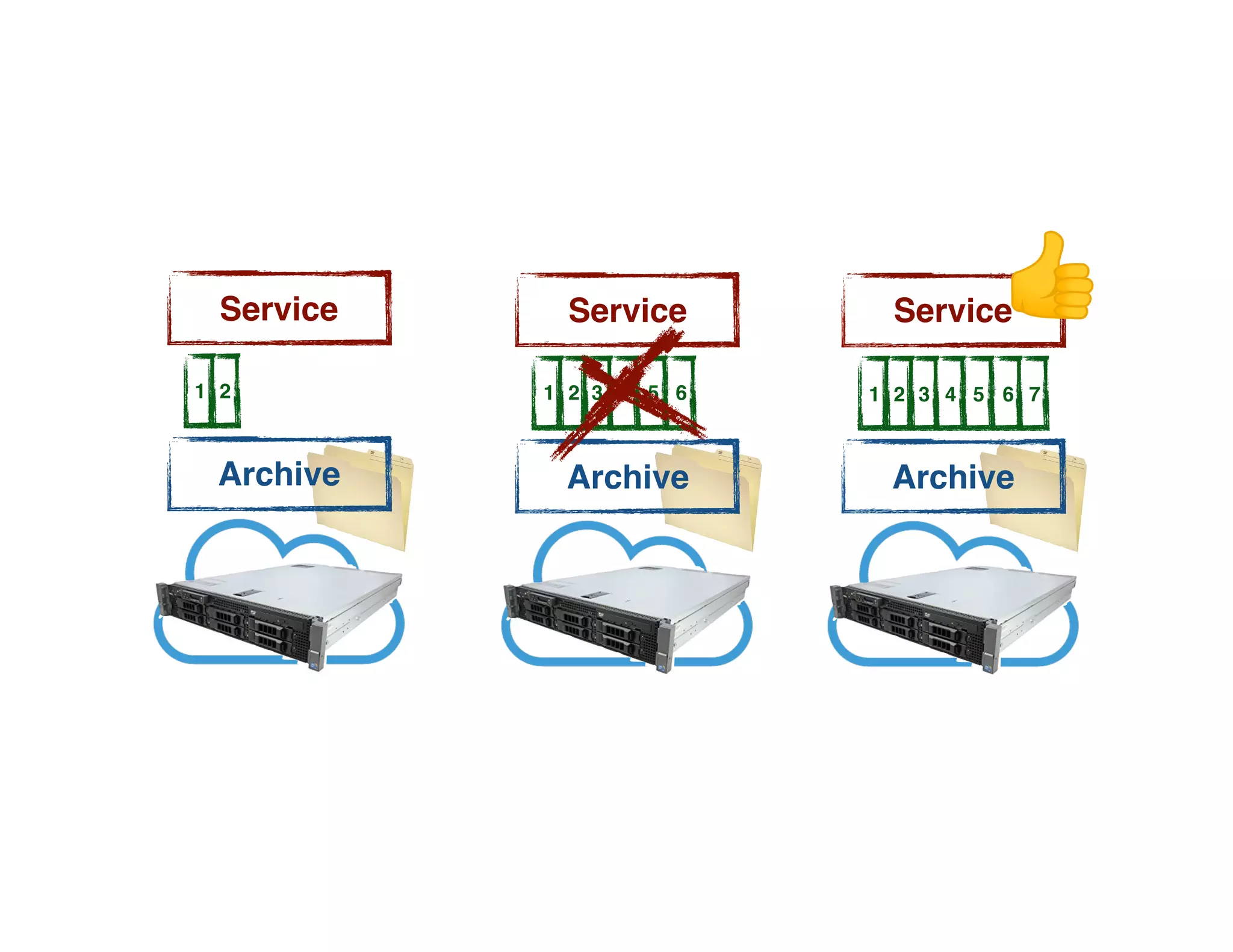

- 36. Service ServiceService ArchiveArchive Archive 12 3 4 5 6 1 2 3 4 5 6 71 2

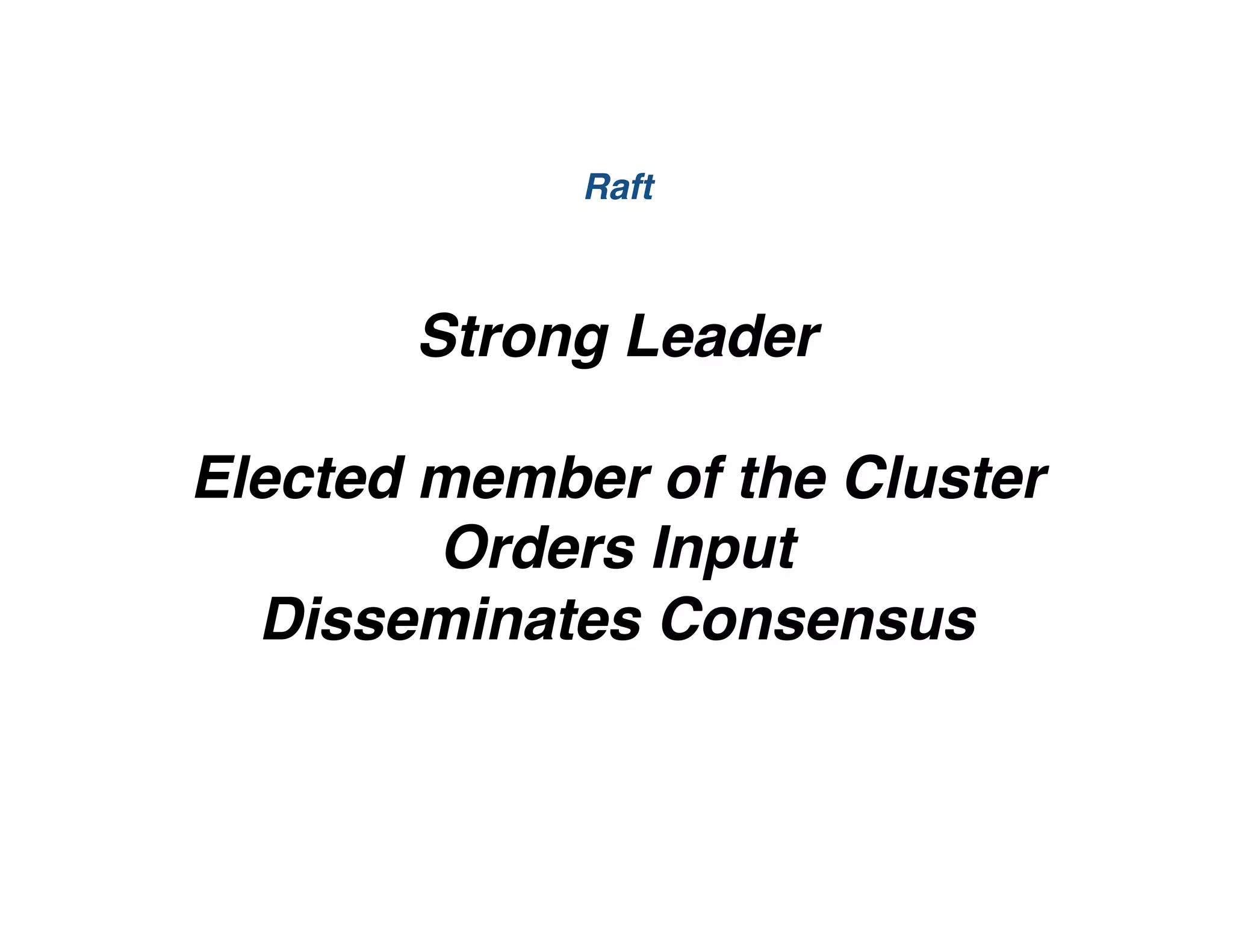

- 37. Strong Leader Elected memberof the Cluster Orders Input Disseminates Consensus Raft

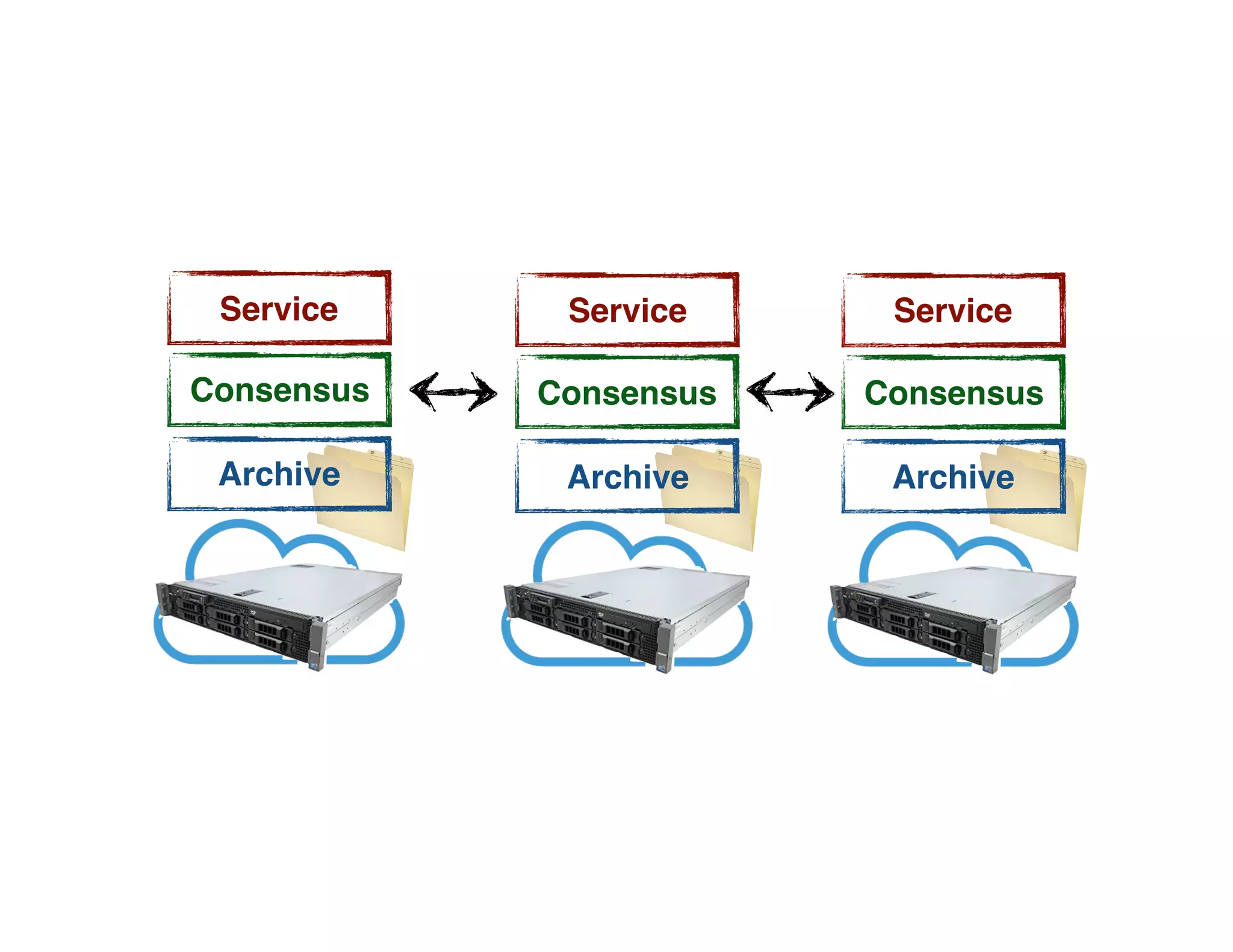

- 38. Service ServiceService Archive ArchiveArchive ConsensusConsensusConsensus

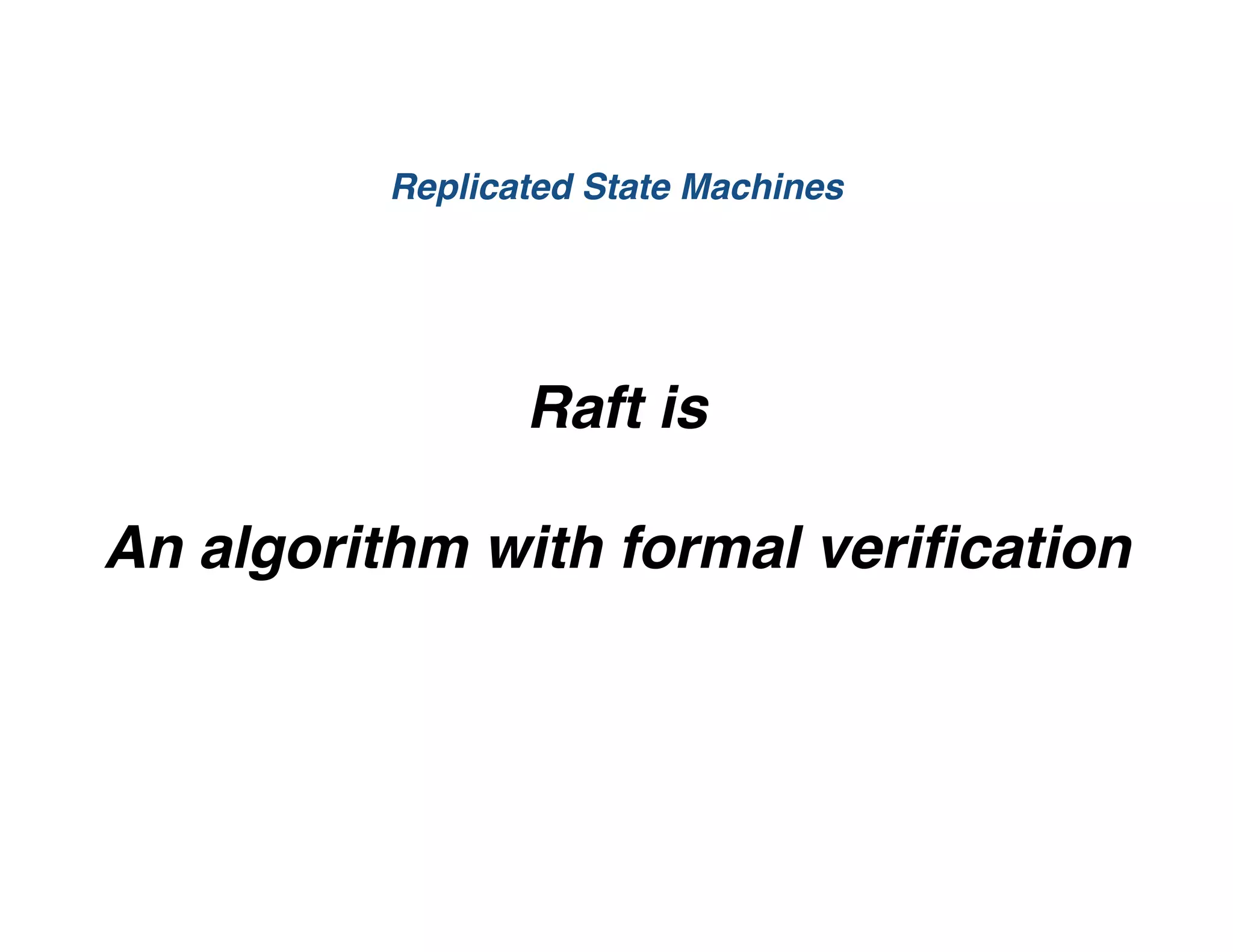

- 39. Raft is An algorithmwith formal verification Replicated State Machines

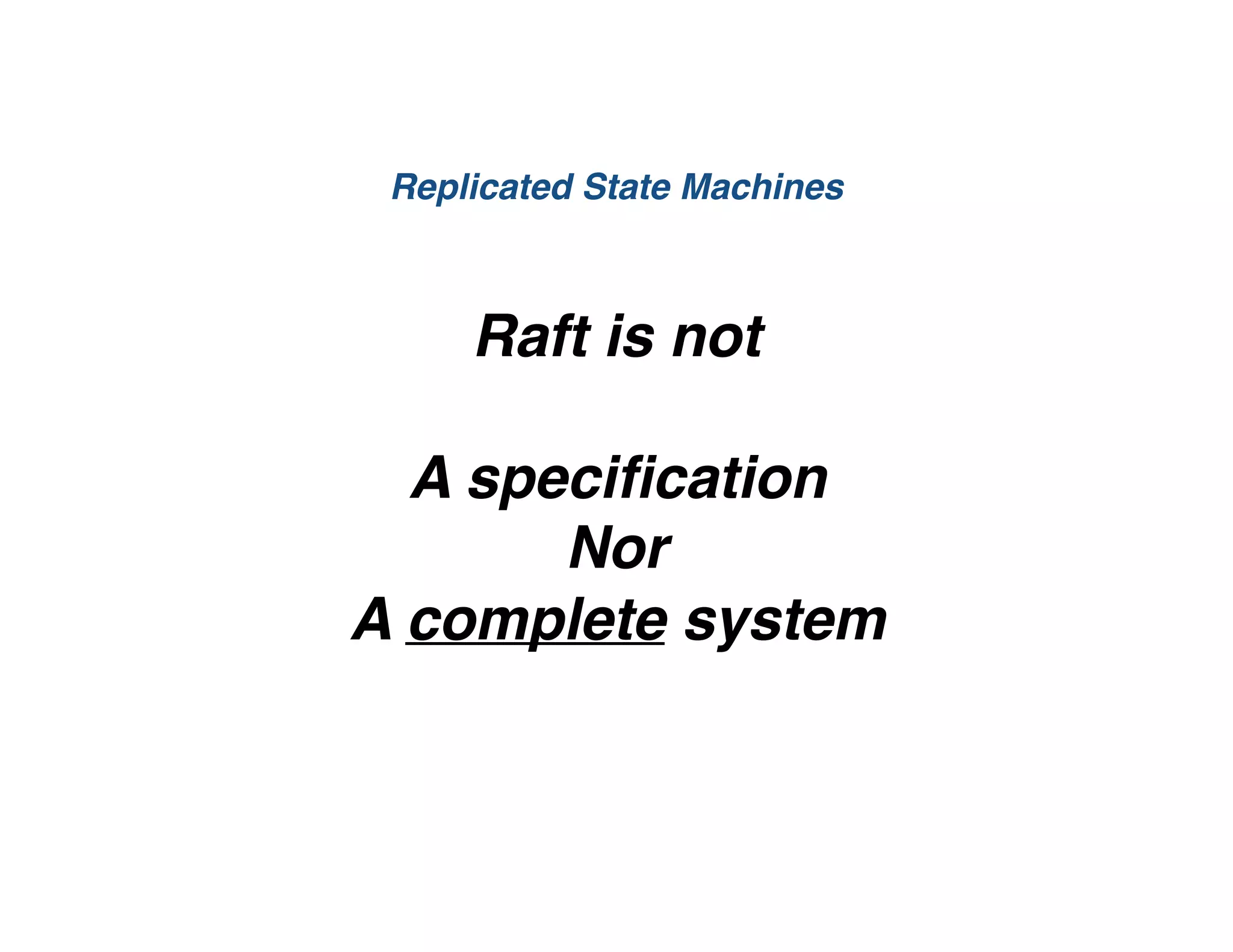

- 40. Raft is not Aspecification Nor A complete system Replicated State Machines

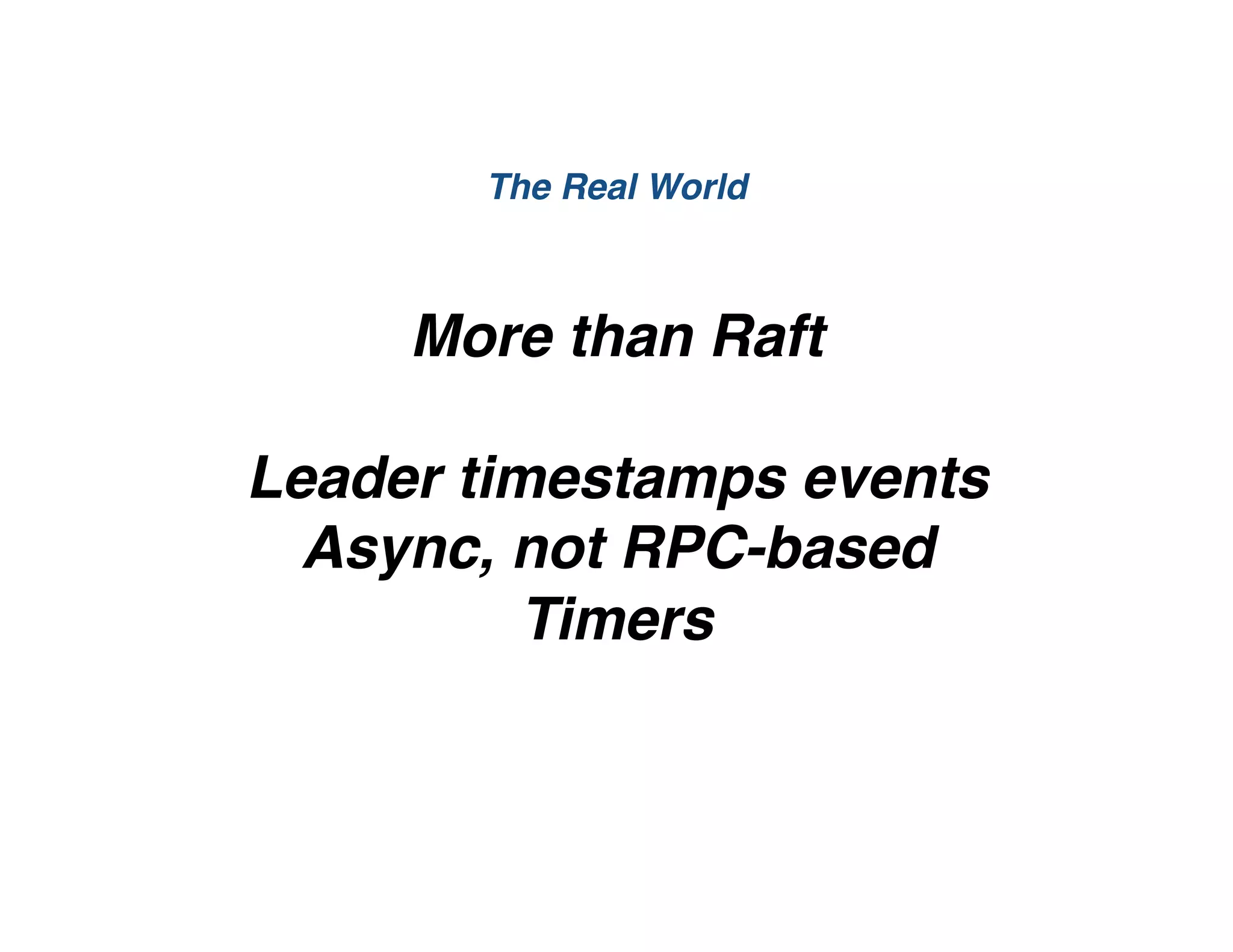

- 41. More than Raft Leadertimestamps events Async, not RPC-based Timers The Real World

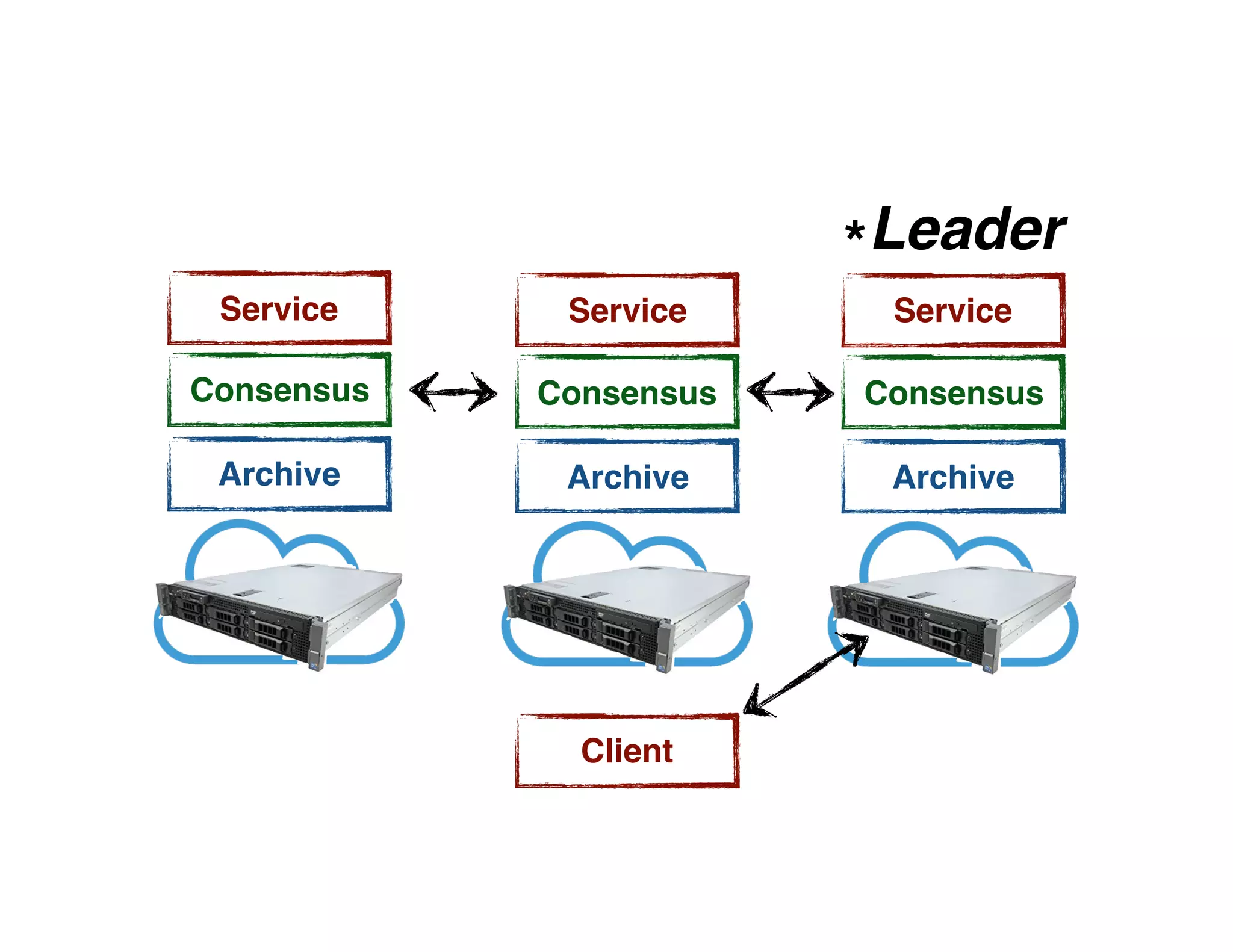

- 42. Service ServiceService Archive ArchiveArchive ConsensusConsensusConsensus *Leader Client
- 43.

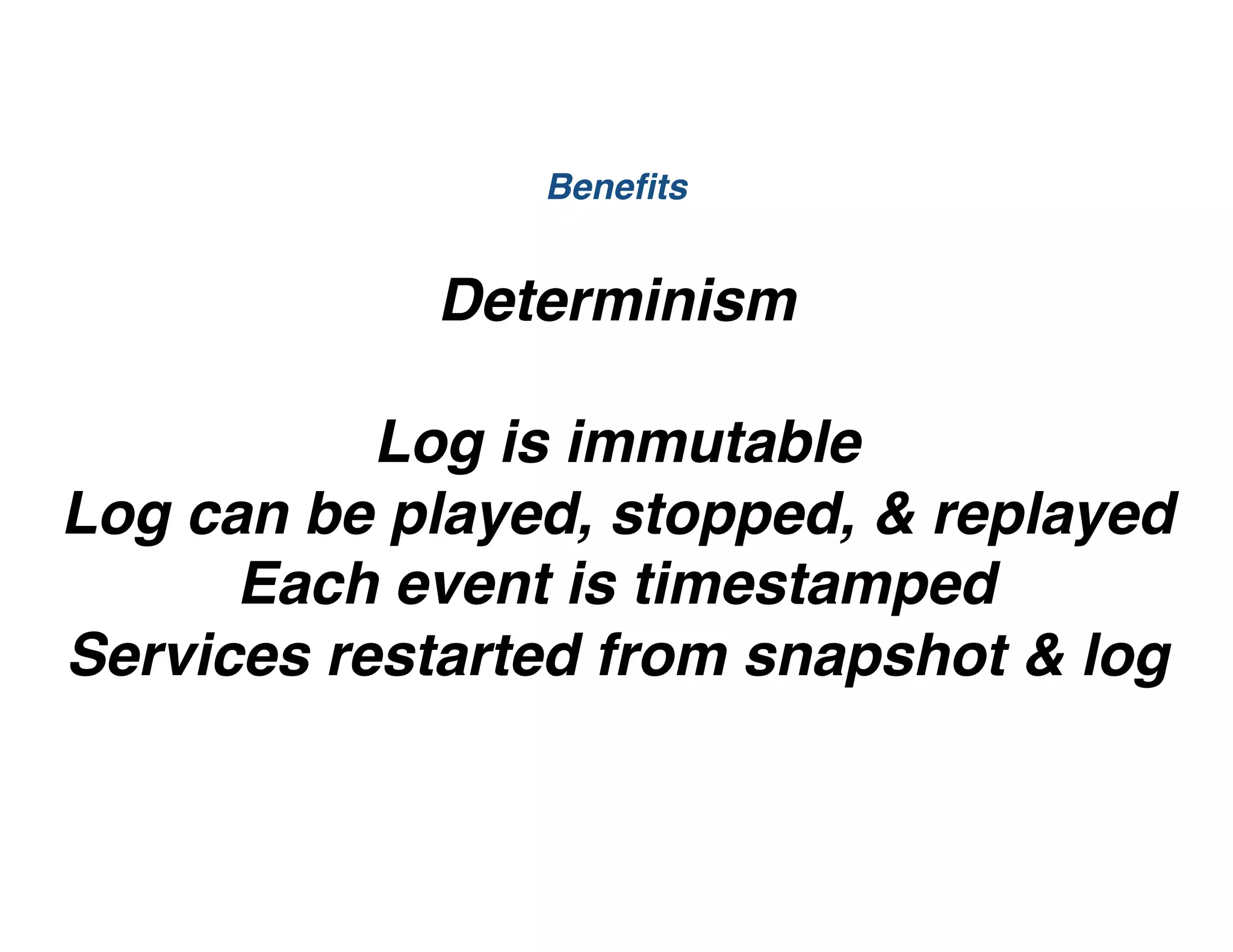

- 44. Determinism Log is immutable Logcan be played, stopped, & replayed Each event is timestamped Services restarted from snapshot & log Benefits
- 45. What Can YouDo?
- 46. Distributed Key/Value Store DistributedTimers Distributed Locks

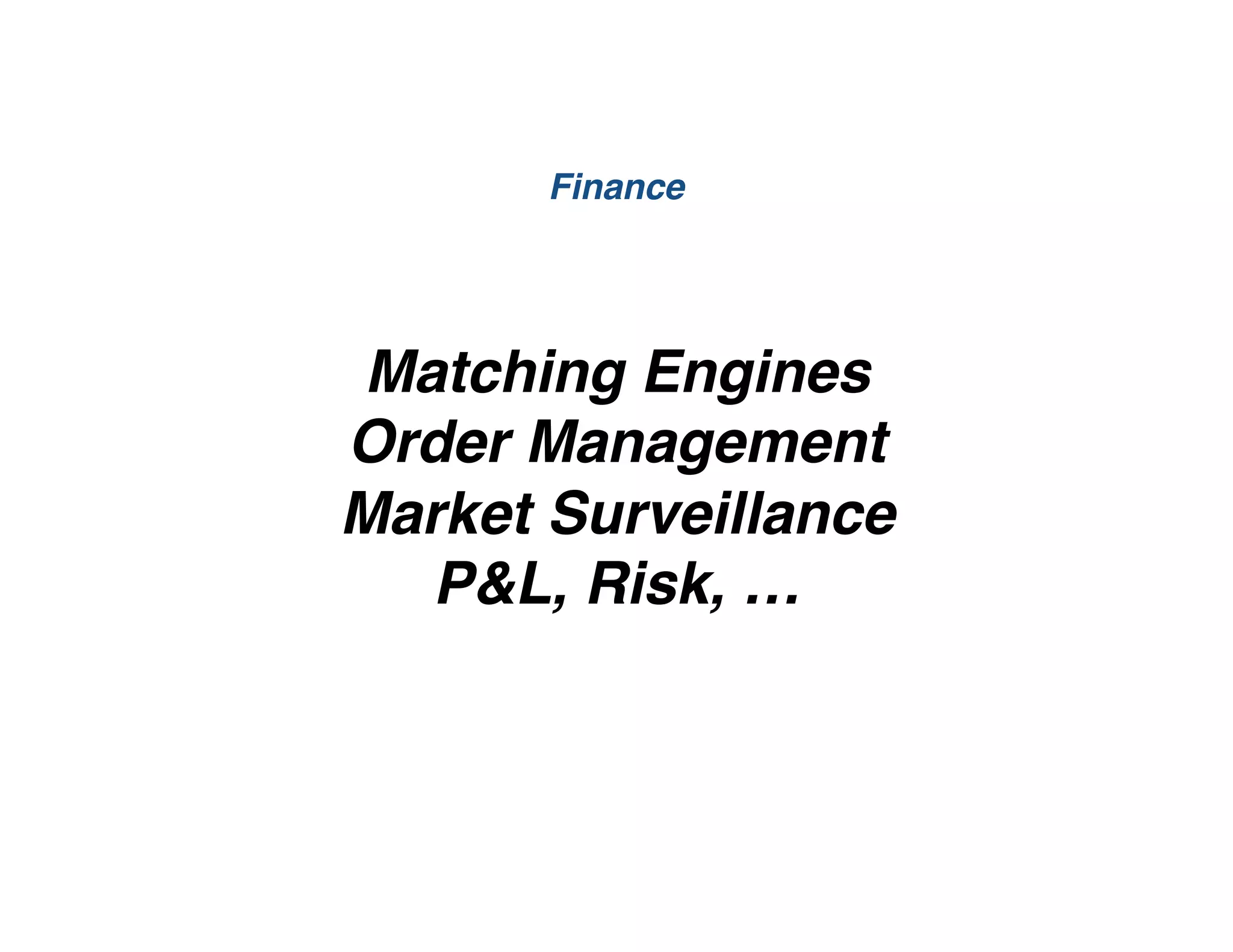

- 47. Matching Engines Order Management MarketSurveillance P&L, Risk, … Finance
- 48. Venue Ticketing /Reservations Auctions Beyond Hint - a contended database is a good indicator
- 49.

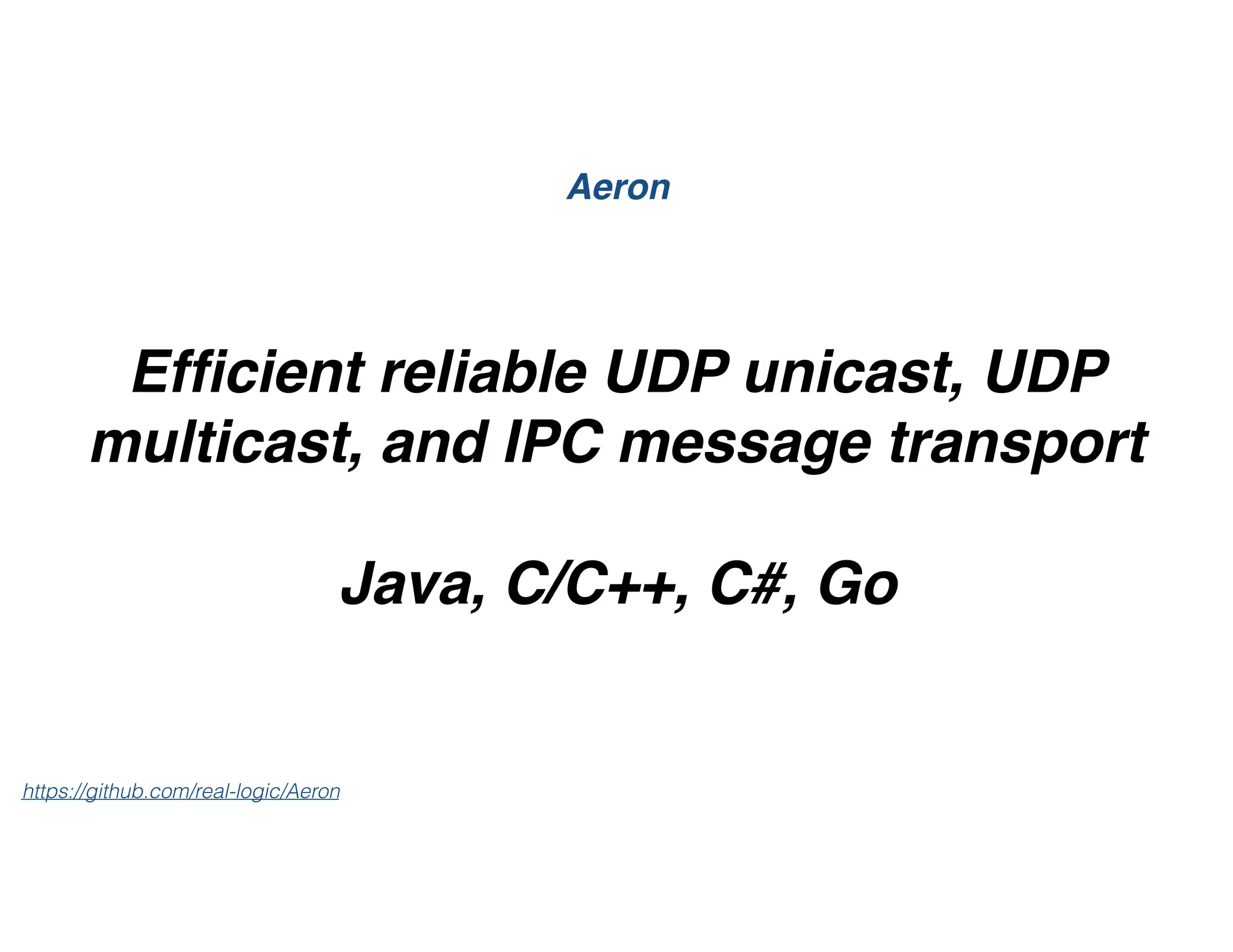

- 50. Efficient reliable UDPunicast, UDP multicast, and IPC message transport Java, C/C++, C#, Go Aeron https://github.com/real-logic/Aeron

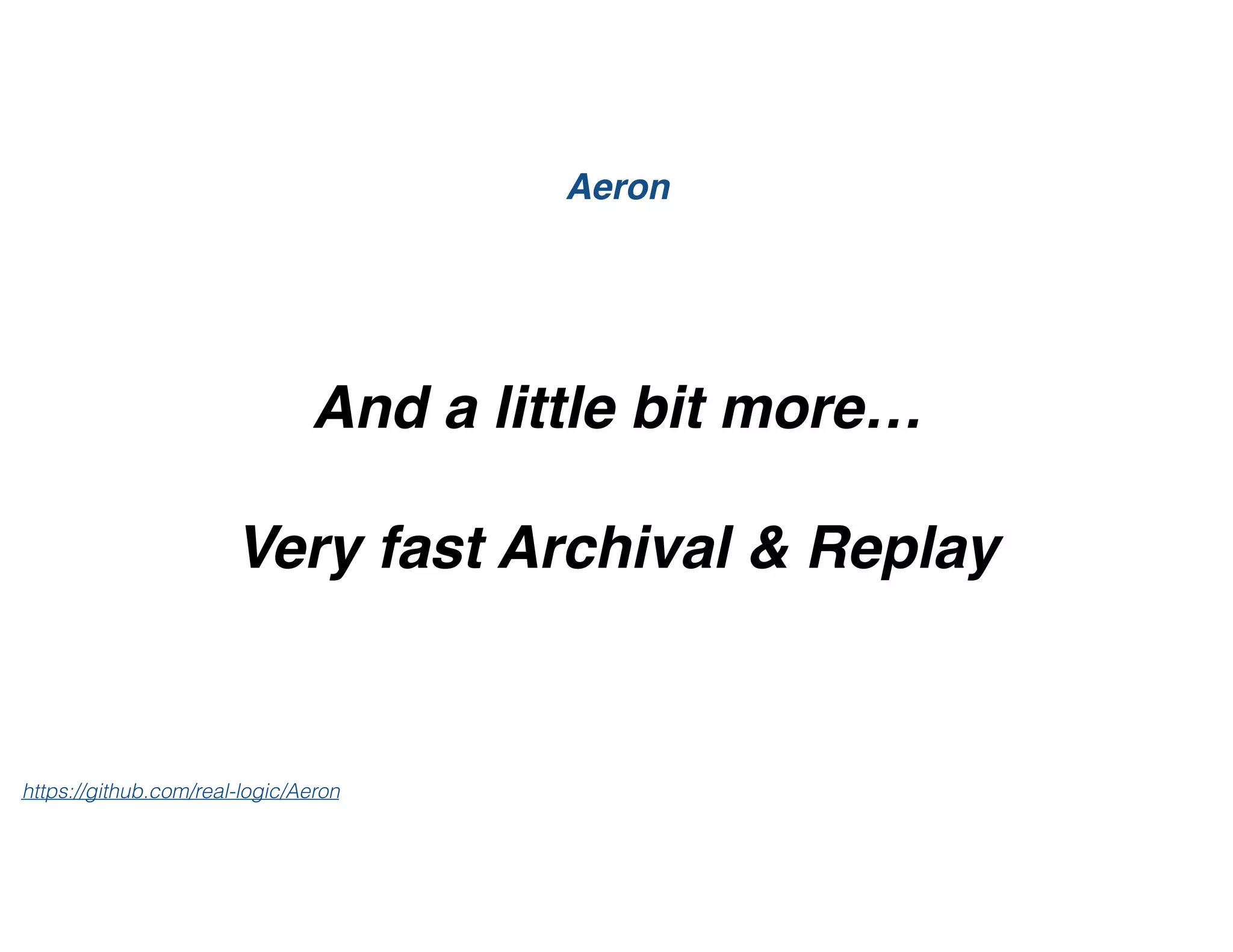

- 51. And a littlebit more… Very fast Archival & Replay Aeron https://github.com/real-logic/Aeron
- 52.

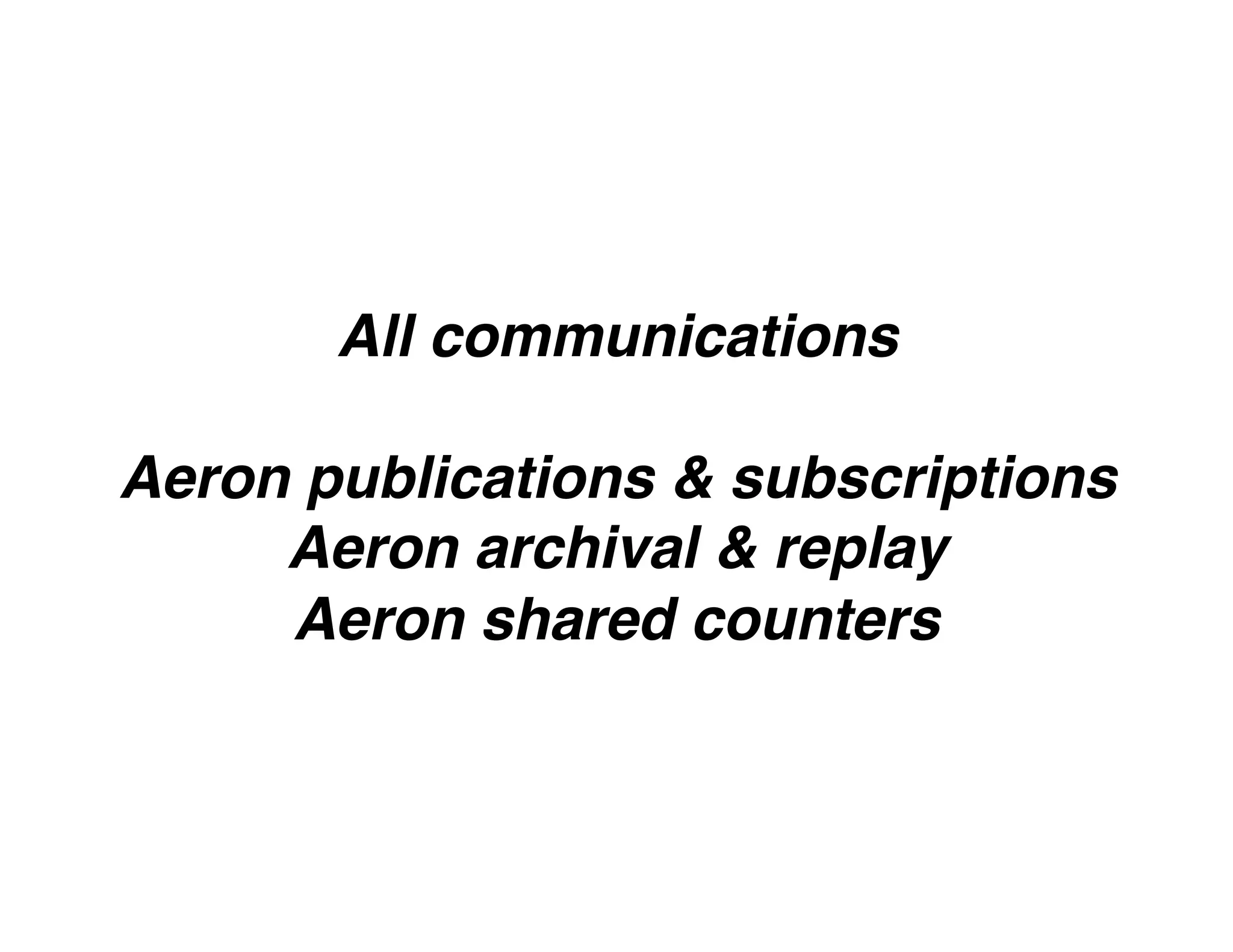

- 53. All communications Aeron publications& subscriptions Aeron archival & replay Aeron shared counters
- 54. Consensus based on Aeronstream position
- 55. Batching Critical to efficientoperation Optimizing pipelined throughput
- 56. Flow Control Critical tocorrect operation
- 57.
- 58. Cache Hit/Miss Ratios BranchPrediction Allocation Rates Garbage Collection Inlining Optimizations
- 59.

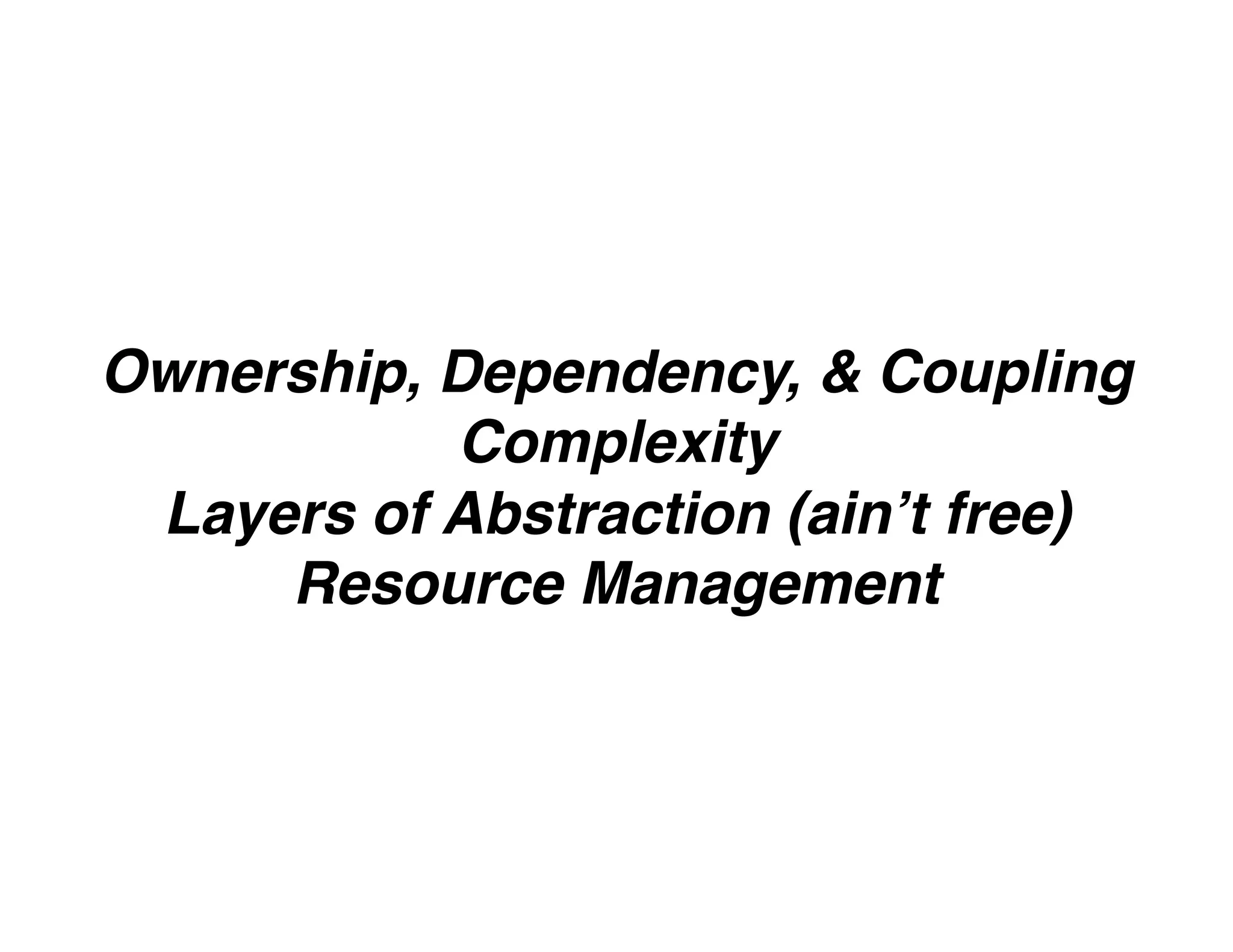

- 60. Ownership, Dependency, &Coupling Complexity Layers of Abstraction (ain’t free) Resource Management
- 61.

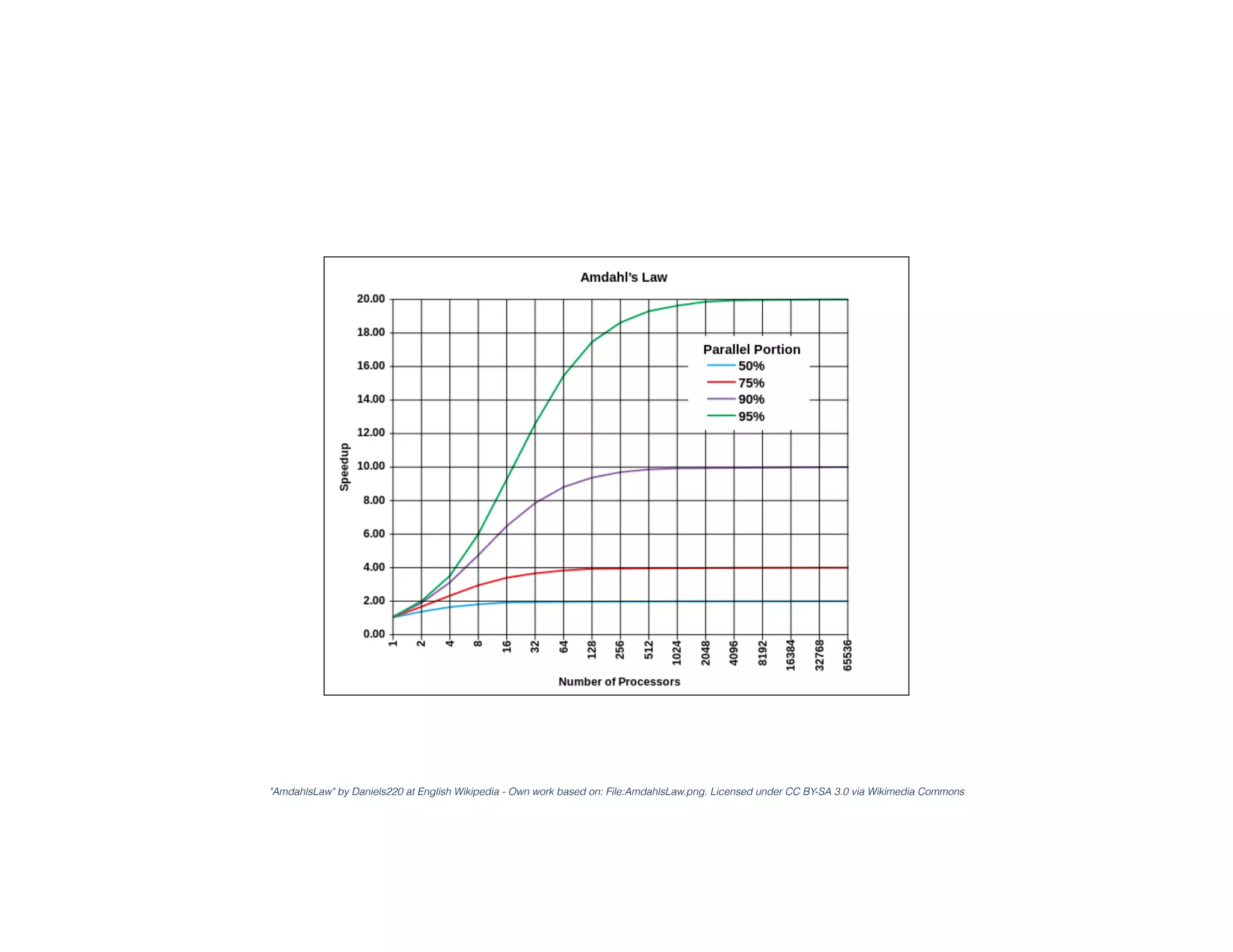

- 62. "AmdahlsLaw" by Daniels220at English Wikipedia - Own work based on: File:AmdahlsLaw.png. Licensed under CC BY-SA 3.0 via Wikimedia Commons

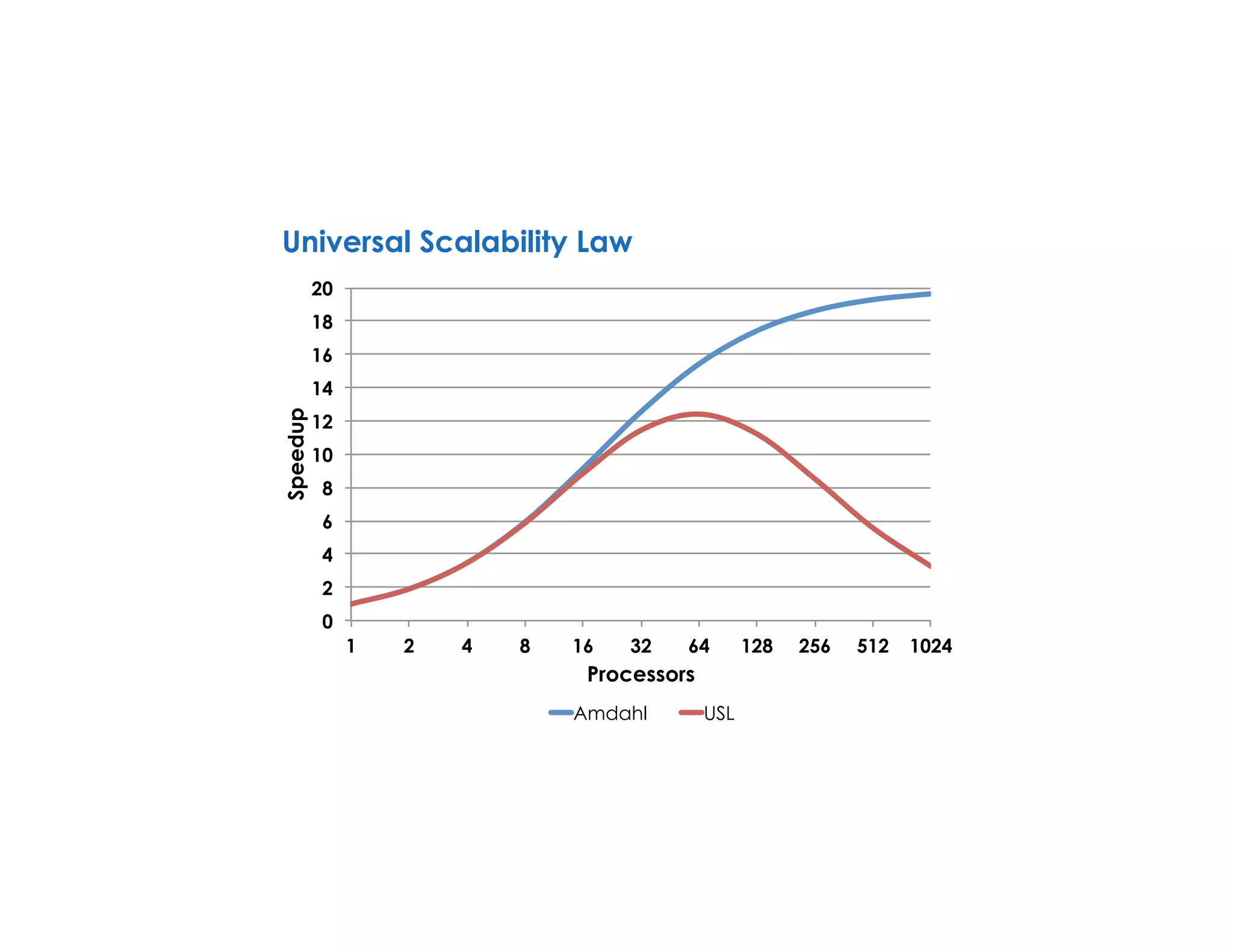

- 63. Universal Scalability Law 0 2 4 6 8 10 12 14 16 18 20 12 4 8 16 32 64 128 256 512 1024 Speedup Processors Amdahl USL
- 64.

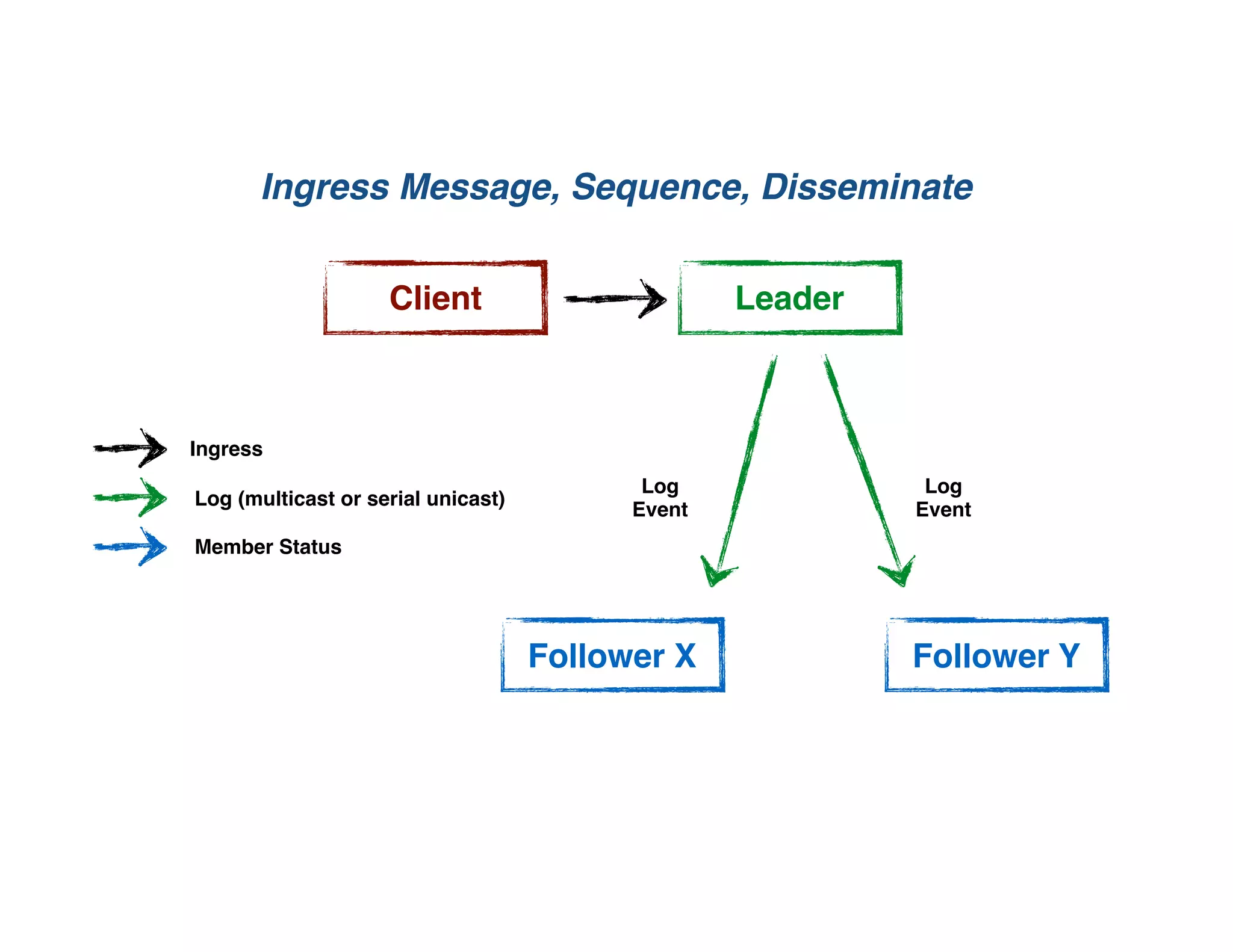

- 65. Ingress Message, Sequence,Disseminate Client Follower X Leader Ingress Follower Y Log (multicast or serial unicast) Member Status Log Event Log Event

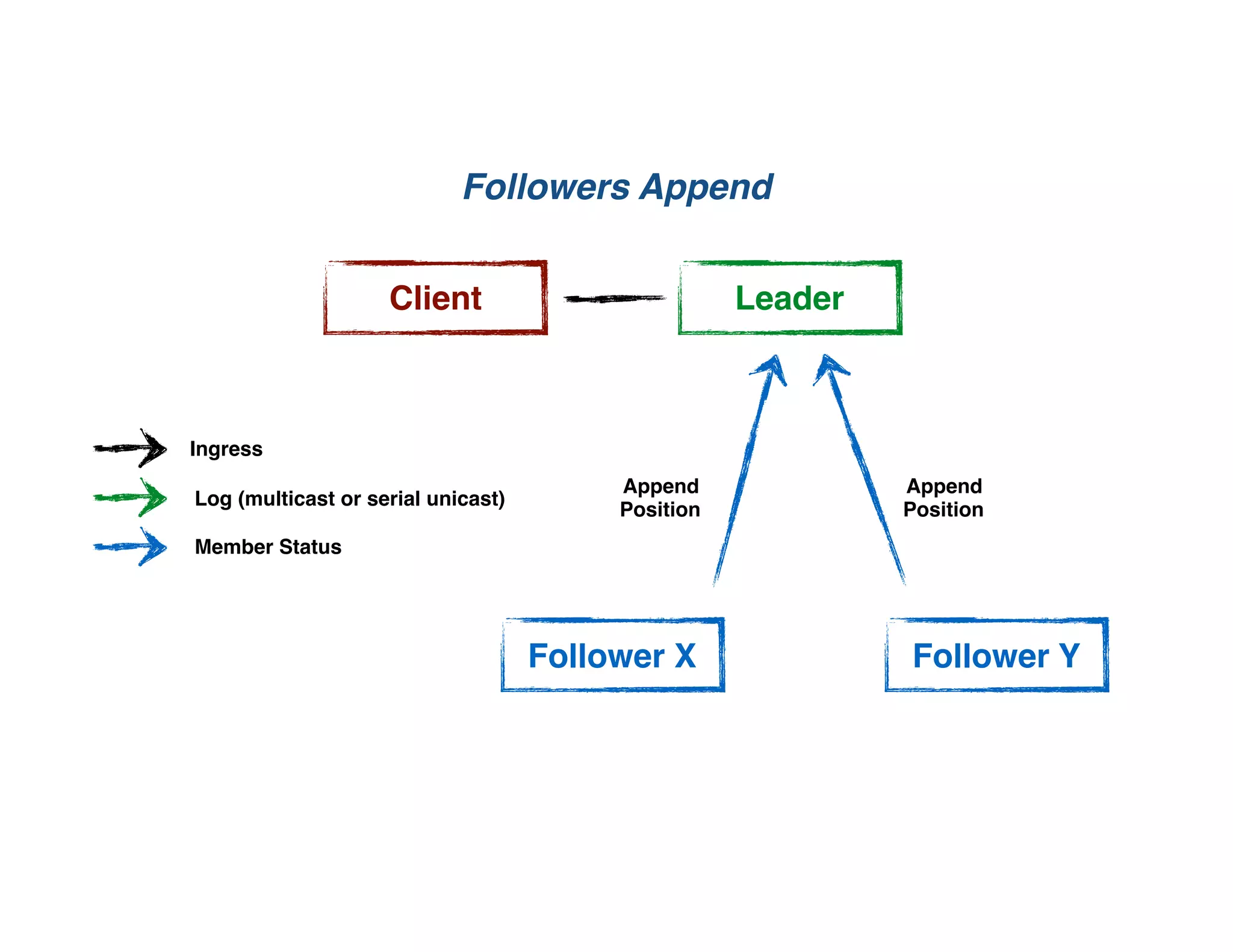

- 66. Followers Append Client Follower X Leader Ingress FollowerY Log (multicast or serial unicast) Member Status Append Position Append Position

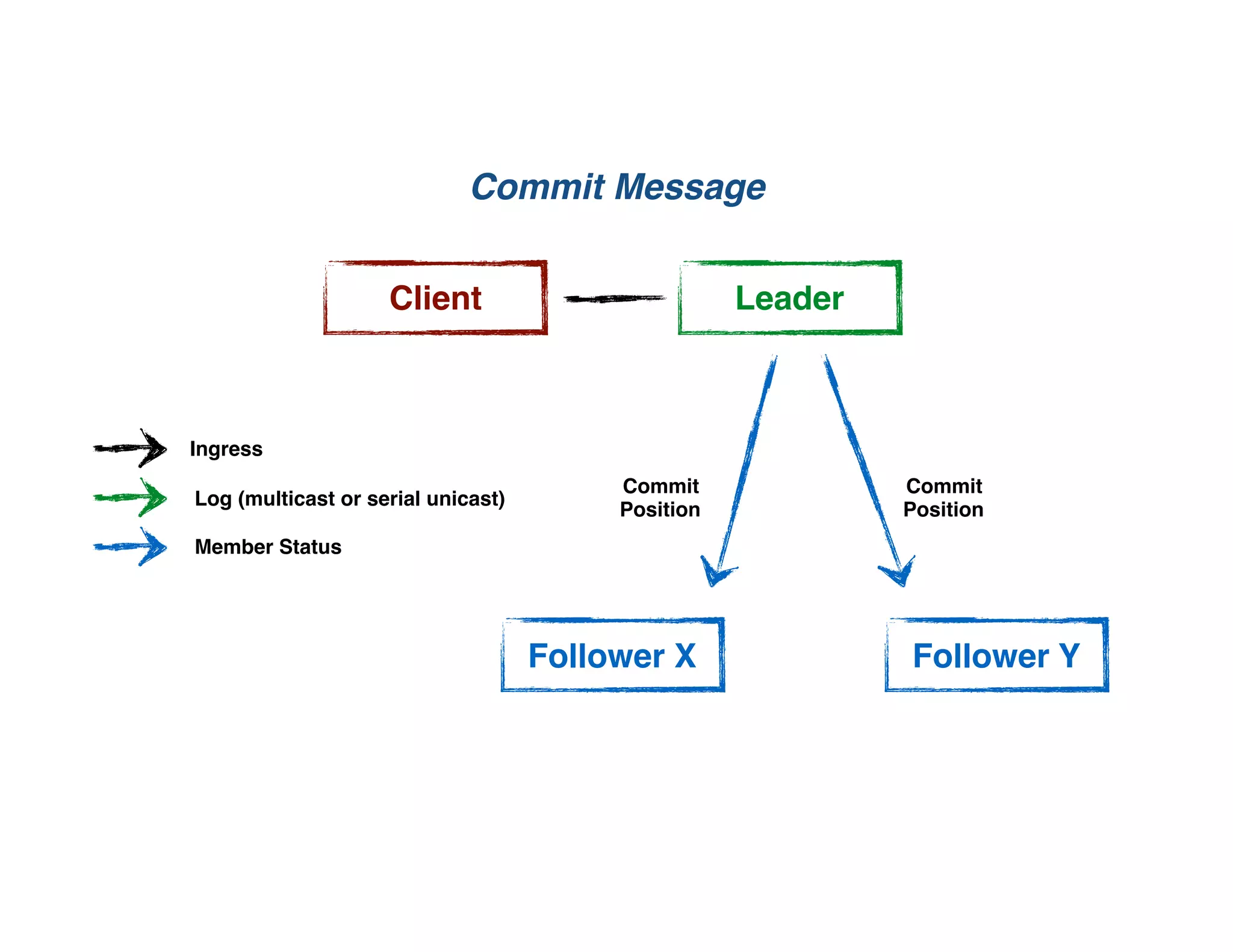

- 67. Commit Message Client Follower X Leader Ingress FollowerY Log (multicast or serial unicast) Member Status Commit Position Commit Position
- 68.

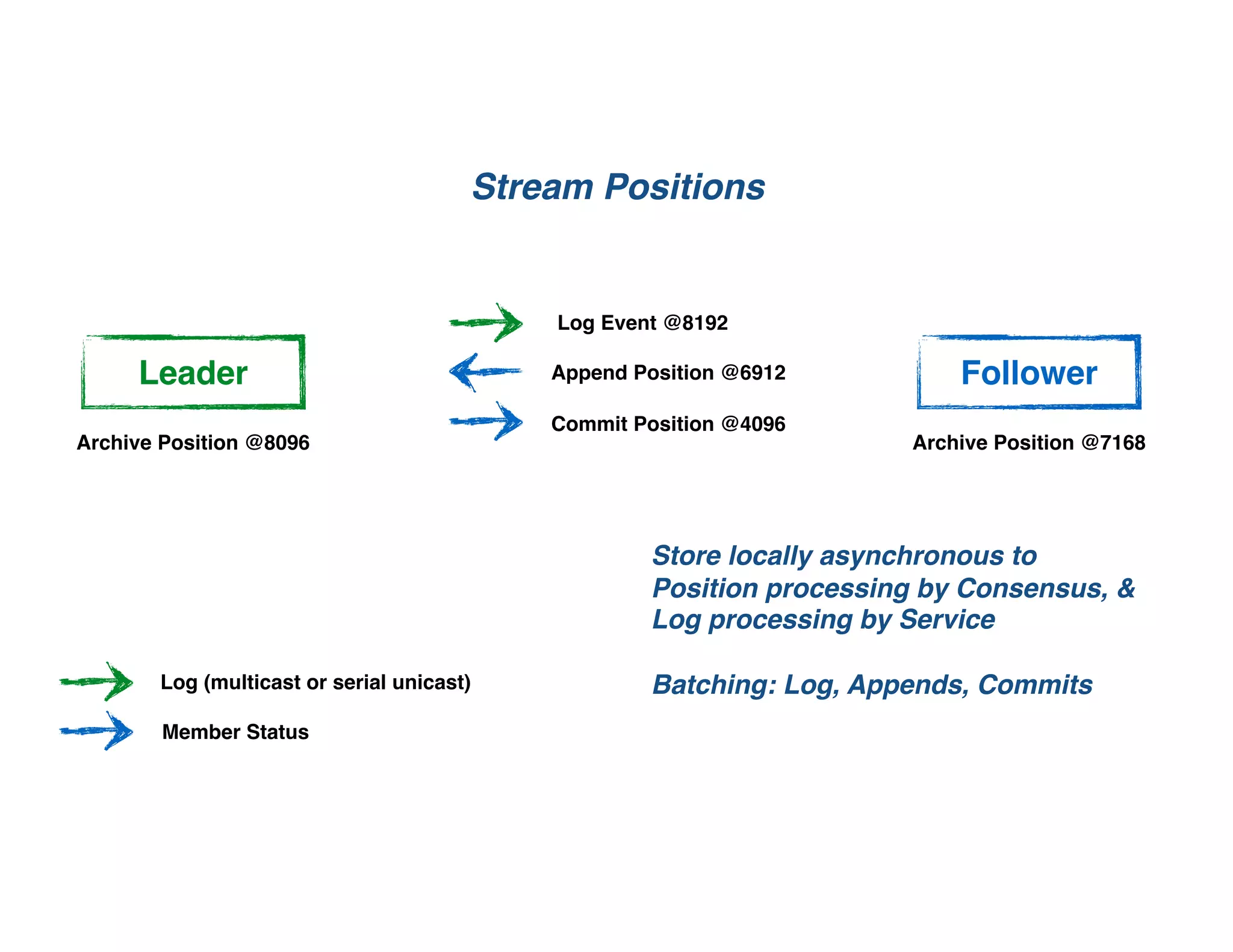

- 69. FollowerLeader Log (multicast orserial unicast) Member Status Commit Position @4096 Append Position @6912 Log Event @8192 Stream Positions Archive Position @8096 Archive Position @7168 Store locally asynchronous to Position processing by Consensus, & Log processing by Service Batching: Log, Appends, Commits

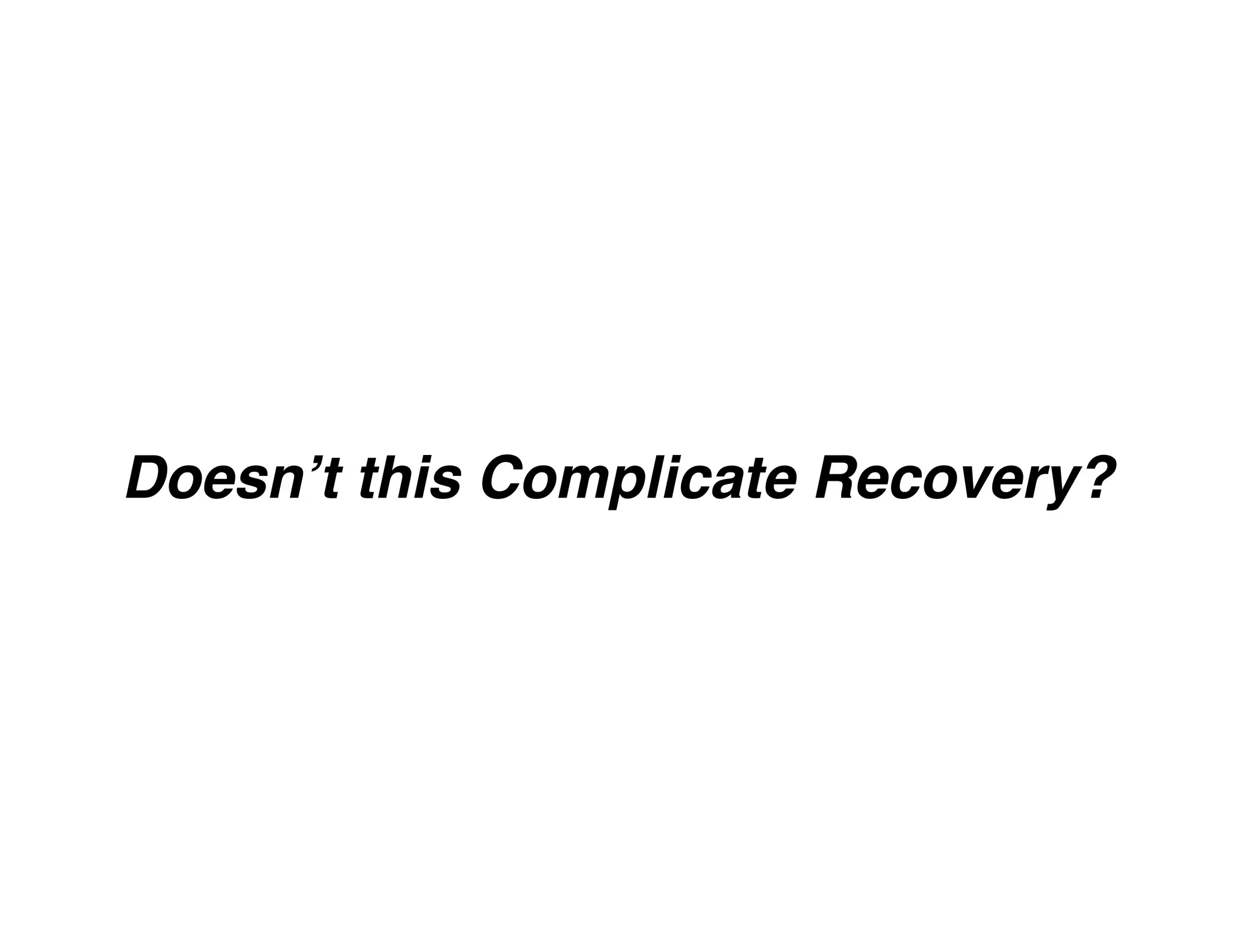

- 70. Doesn’t this ComplicateRecovery?

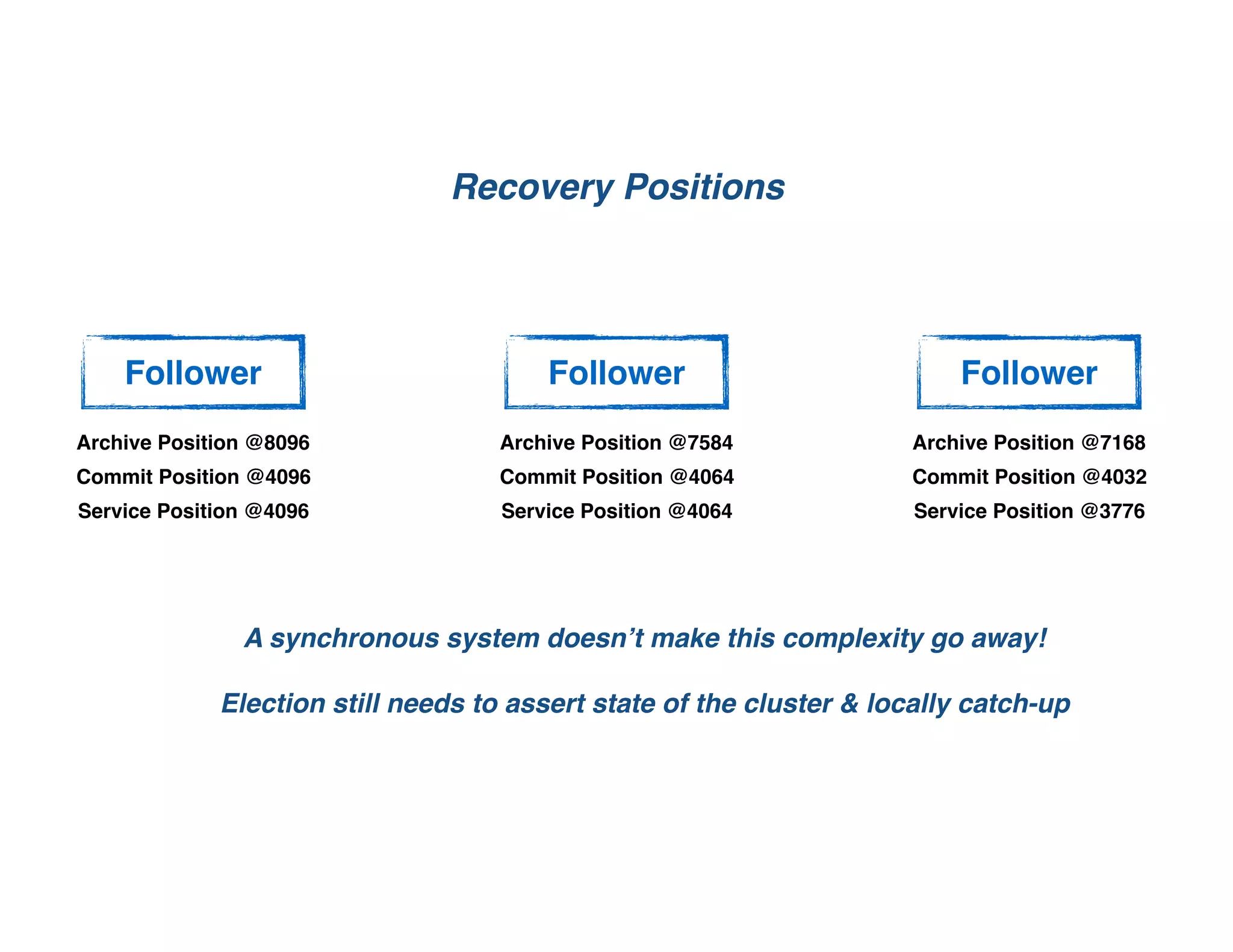

- 71. Follower Recovery Positions Archive Position@8096 Archive Position @7168 A synchronous system doesn’t make this complexity go away! Election still needs to assert state of the cluster & locally catch-up Follower Follower Archive Position @7584 Commit Position @4096 Commit Position @4064 Commit Position @4032 Service Position @4096 Service Position @4064 Service Position @3776

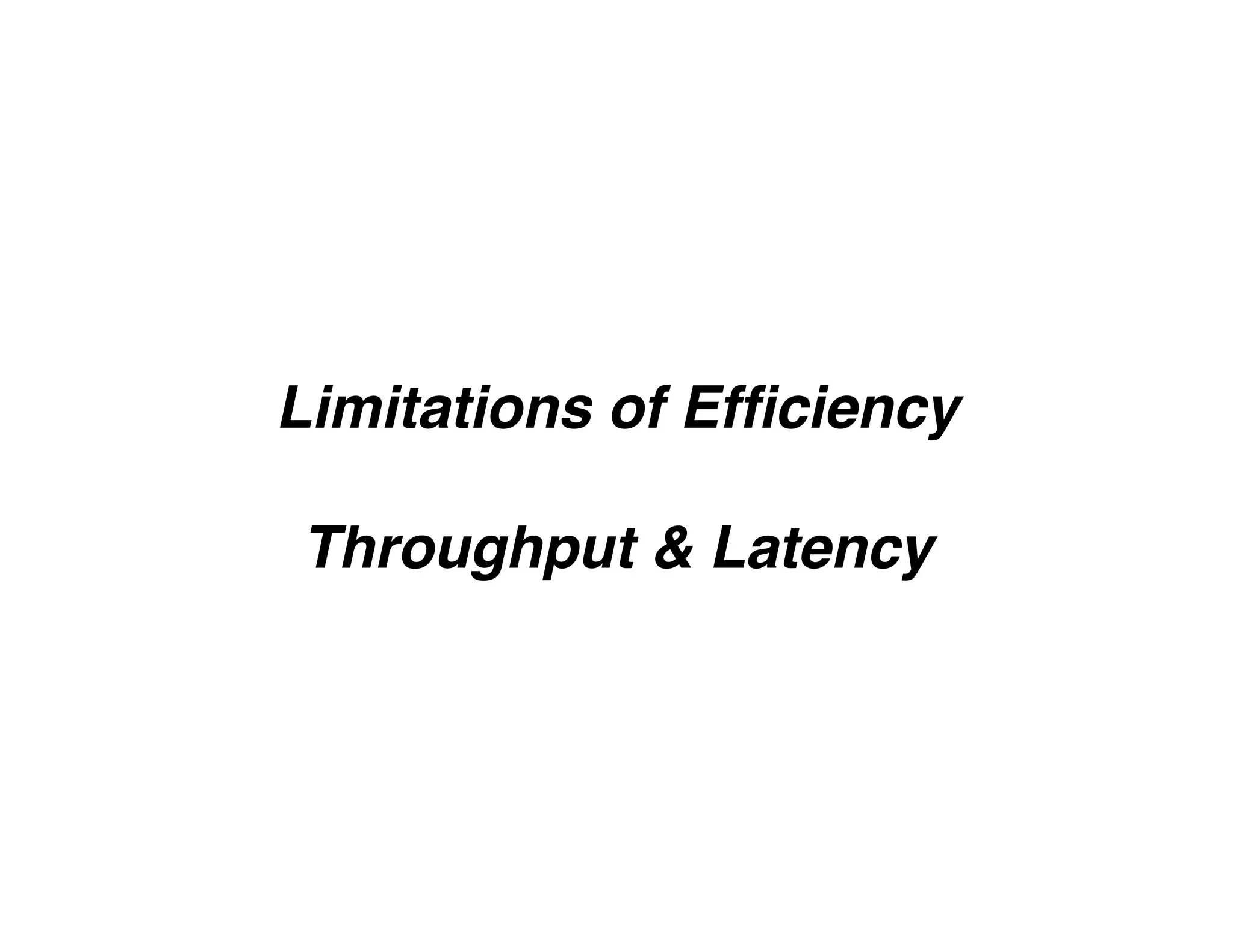

- 72. Limitations of Efficiency Throughput& Latency

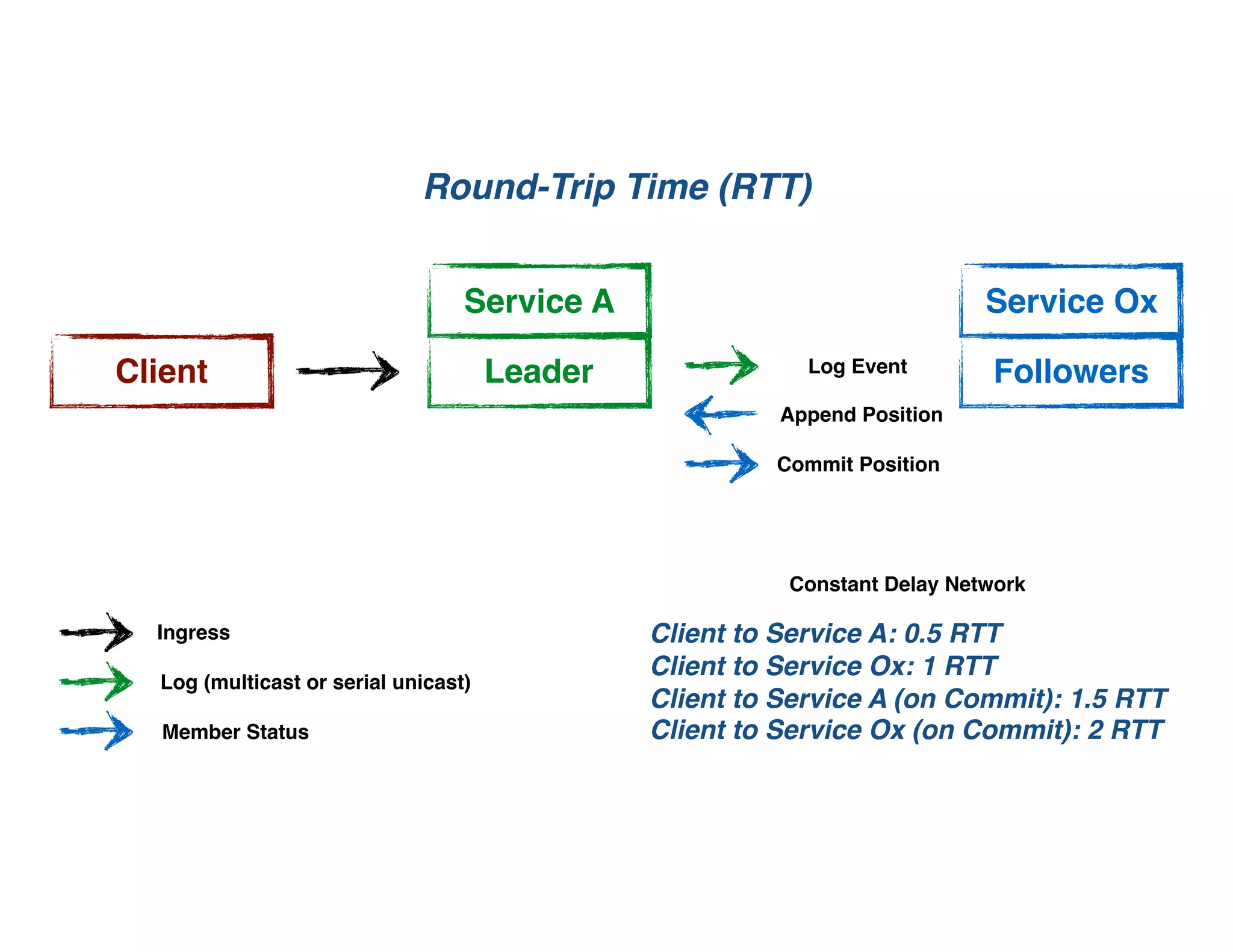

- 73. Client FollowersLeader Ingress Log (multicastor serial unicast) Member Status Commit Position Append Position Log Event Client to Service A: 0.5 RTT Client to Service Ox: 1 RTT Client to Service A (on Commit): 1.5 RTT Client to Service Ox (on Commit): 2 RTT Constant Delay Network Service A Service Ox Round-Trip Time (RTT)

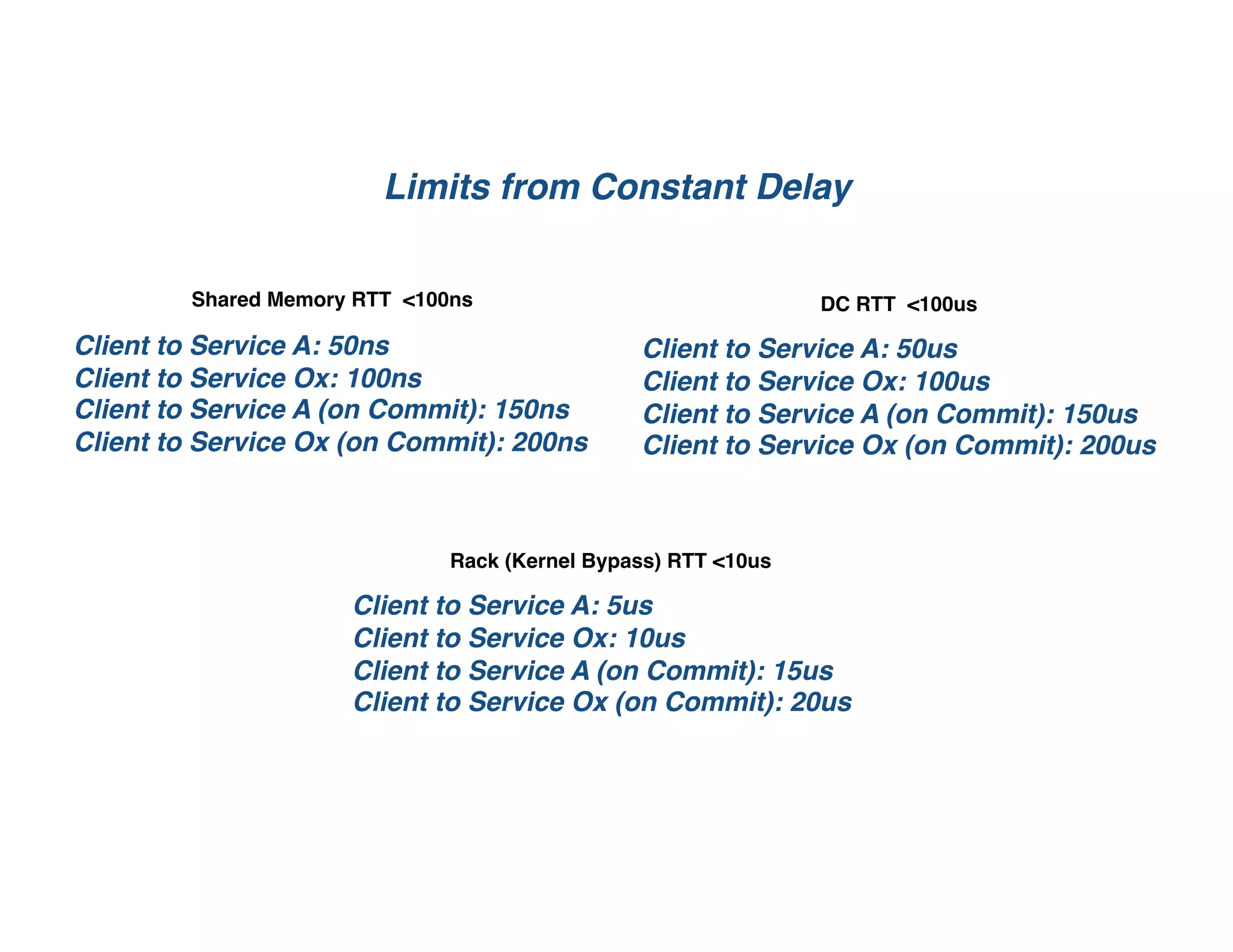

- 74. Client to ServiceA: 50ns Client to Service Ox: 100ns Client to Service A (on Commit): 150ns Client to Service Ox (on Commit): 200ns Limits from Constant Delay Shared Memory RTT <100ns Client to Service A: 50us Client to Service Ox: 100us Client to Service A (on Commit): 150us Client to Service Ox (on Commit): 200us DC RTT <100us Client to Service A: 5us Client to Service Ox: 10us Client to Service A (on Commit): 15us Client to Service Ox (on Commit): 20us Rack (Kernel Bypass) RTT <10us

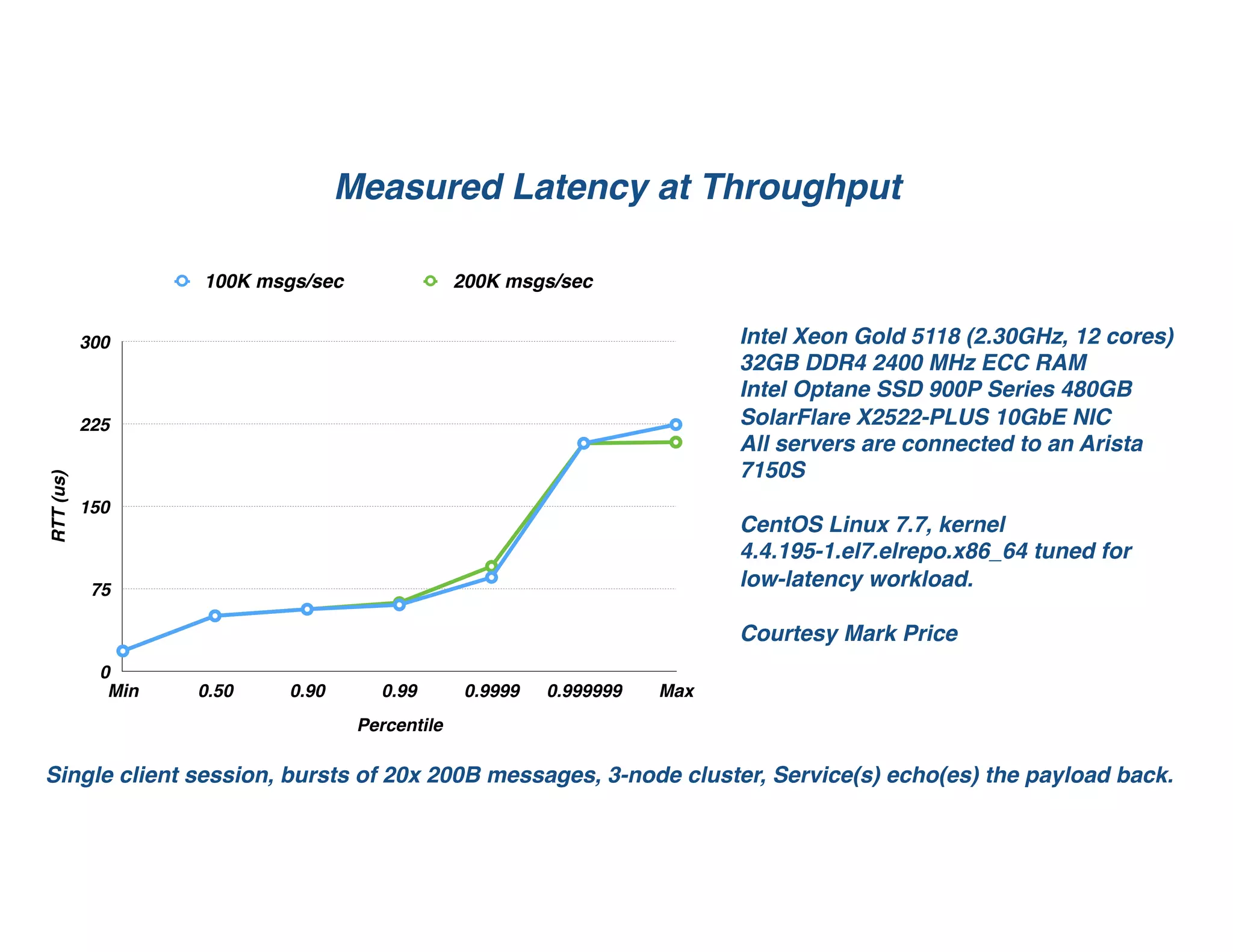

- 75. Measured Latency atThroughput RTT(us) 0 75 150 225 300 Percentile Min 0.50 0.90 0.99 0.9999 0.999999 Max 100K msgs/sec 200K msgs/sec Intel Xeon Gold 5118 (2.30GHz, 12 cores) 32GB DDR4 2400 MHz ECC RAM Intel Optane SSD 900P Series 480GB SolarFlare X2522-PLUS 10GbE NIC All servers are connected to an Arista 7150S CentOS Linux 7.7, kernel 4.4.195-1.el7.elrepo.x86_64 tuned for low-latency workload. Courtesy Mark Price Single client session, bursts of 20x 200B messages, 3-node cluster, Service(s) echo(es) the payload back.

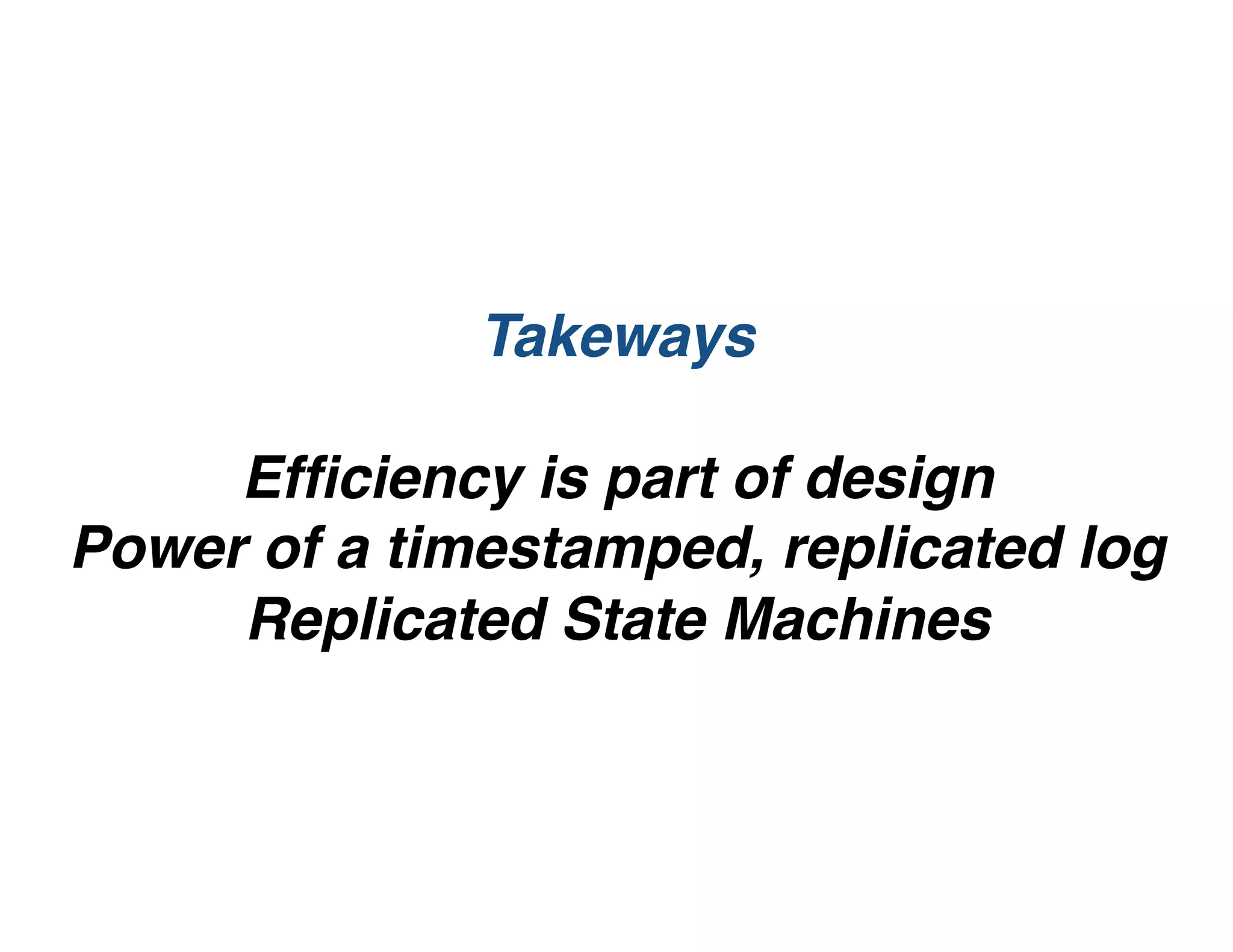

- 76. Takeways Efficiency is partof design Power of a timestamped, replicated log Replicated State Machines

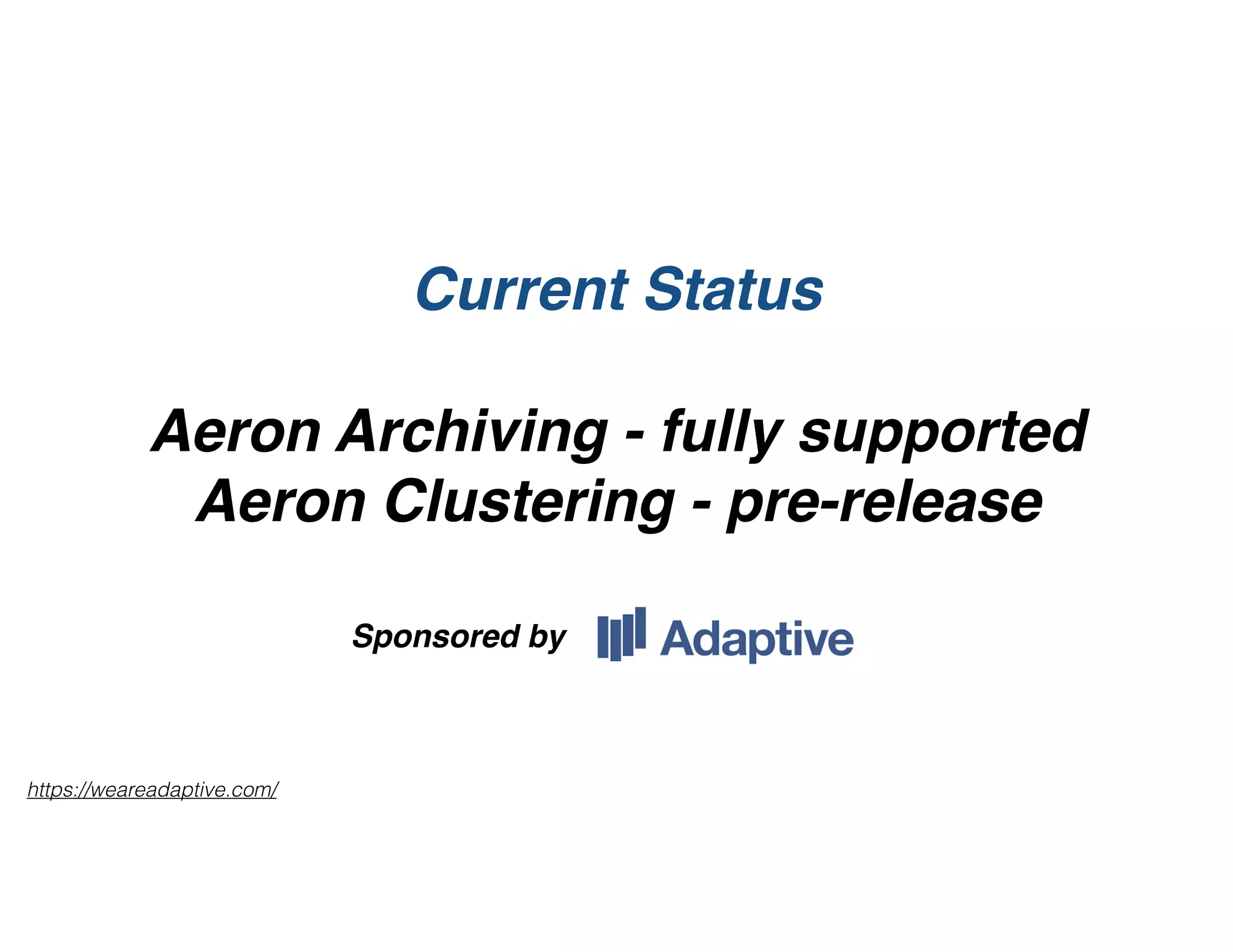

- 77. Current Status Aeron Archiving- fully supported Aeron Clustering - pre-release Sponsored by https://weareadaptive.com/
- 79. Aeron: https://github.com/real-logic/Aeron Twitter: @toddlmontgomery ThankYou! Questions? StoneTor
- 80. Watch the videowith slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ aeron-cluster-raft/
