deep learning Algorithms and Applications Bernardete Ribeiro, bribeiro@dei.uc.pt University of Coimbra, Portugal INIT/AERFAI Summer School on Machine Learning, Benicassim 22-26 June 2015
V - GPU Computing for Machine Learning 1
elements 5: gpu computing
outline ∙ Motivation ∙ Graphics Processing Units (GPUs) Computing ∙ Machine Learning (ML) GPU algorithms ∙ Advantages of Open-Source in the ML field ∙ Open-source GPU ML library (GPUMLib) ∙ Overview of GPUMLib algorithms ∙ Conclusions 3

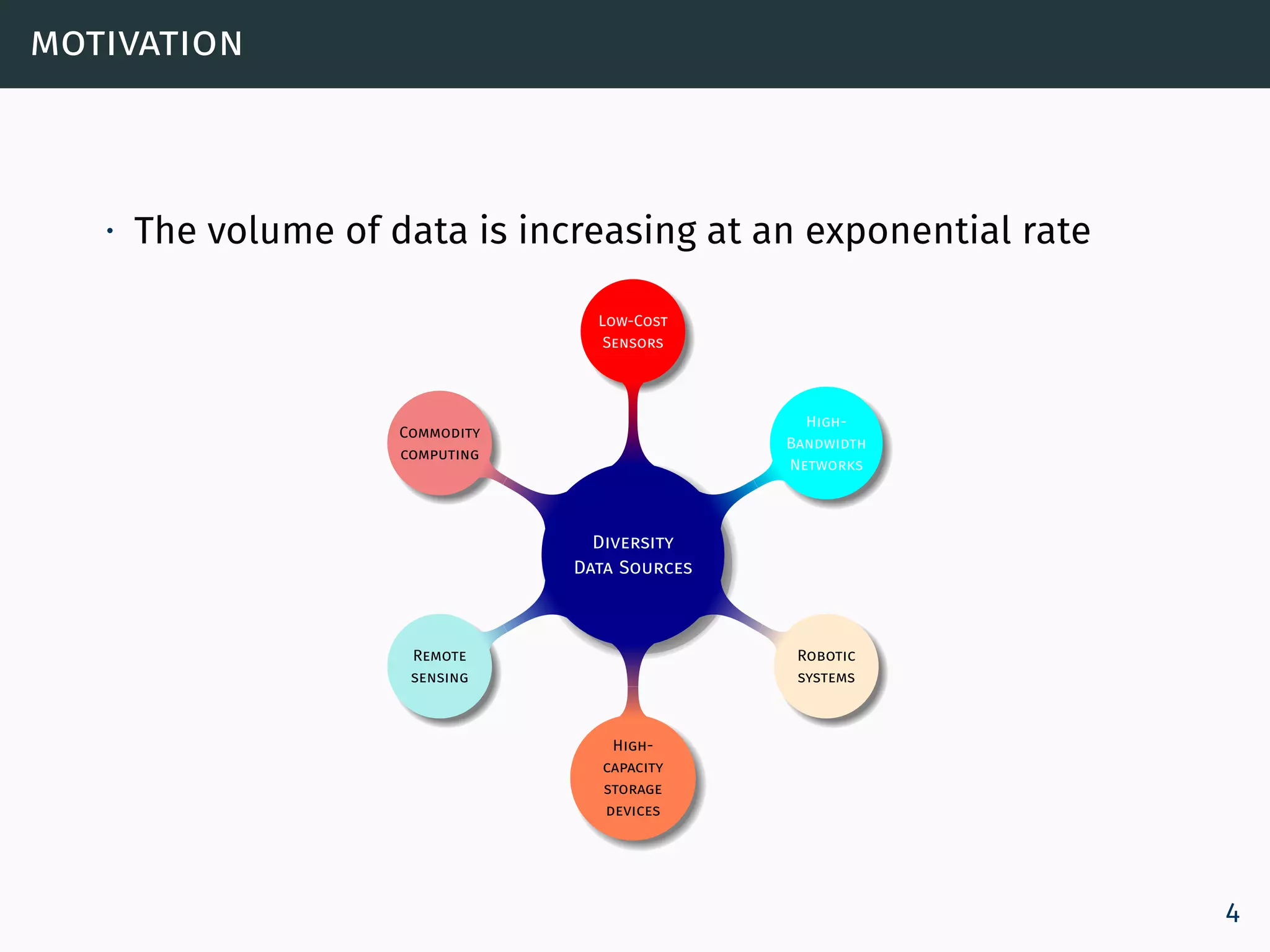

motivation ∙ The volume of data is increasing at an exponential rate Diversity Data Sources Low-Cost Sensors High- Bandwidth Networks Robotic systems High- capacity storage devices Remote sensing Commodity computing 4

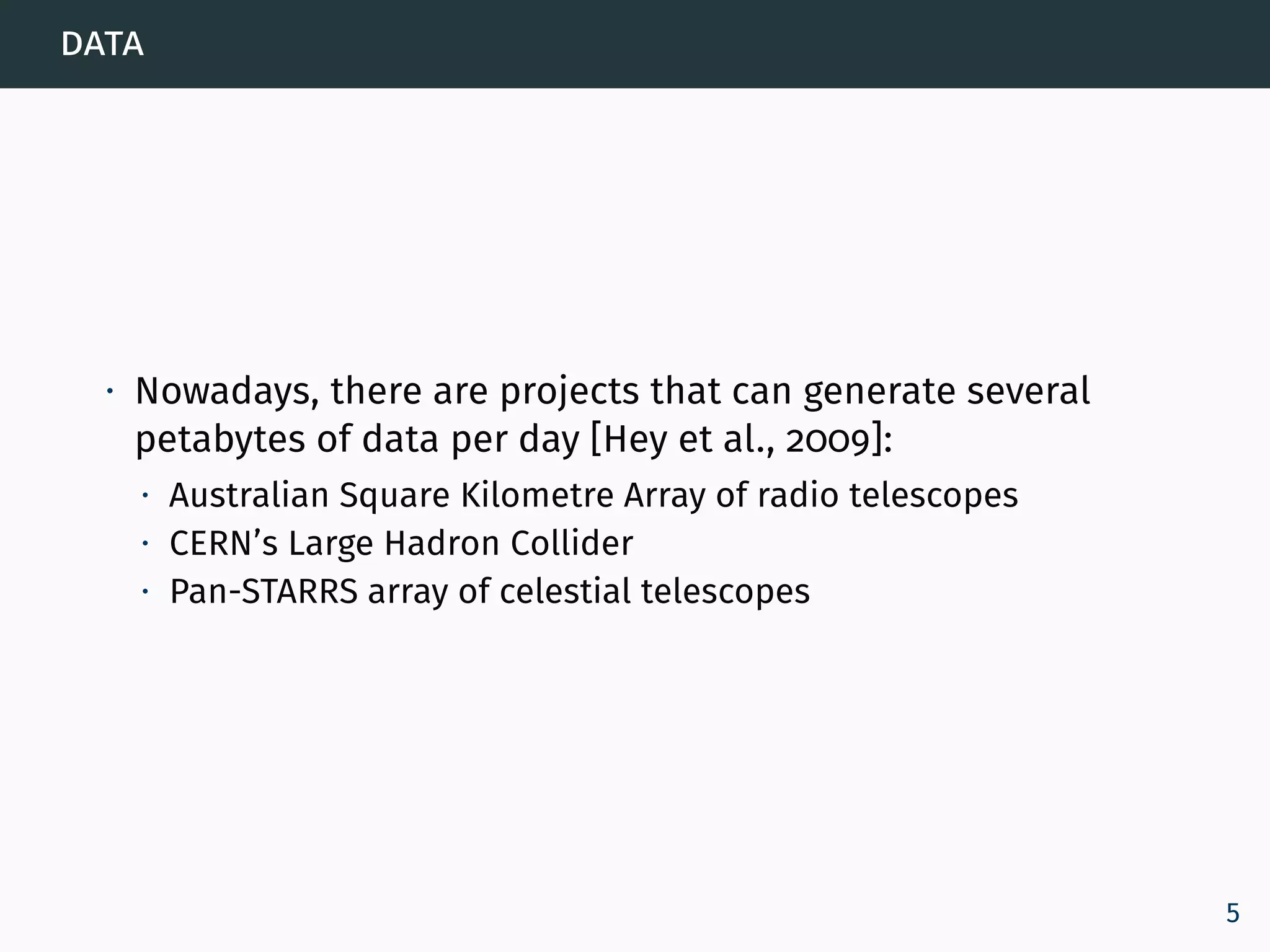

data ∙ Nowadays, there are projects that can generate several petabytes of data per day [Hey et al., 2009]: ∙ Australian Square Kilometre Array of radio telescopes ∙ CERN’s Large Hadron Collider ∙ Pan-STARRS array of celestial telescopes 5
big data ∙ Nowadays, there are projects that can generate several petabytes of data per day [Hey et al., 2009]: ∙ Australian Square Kilometre Array of radio telescopes ∙ CERN’s Large Hadron Collider ∙ Pan-STARRS array of celestial telescopes 6

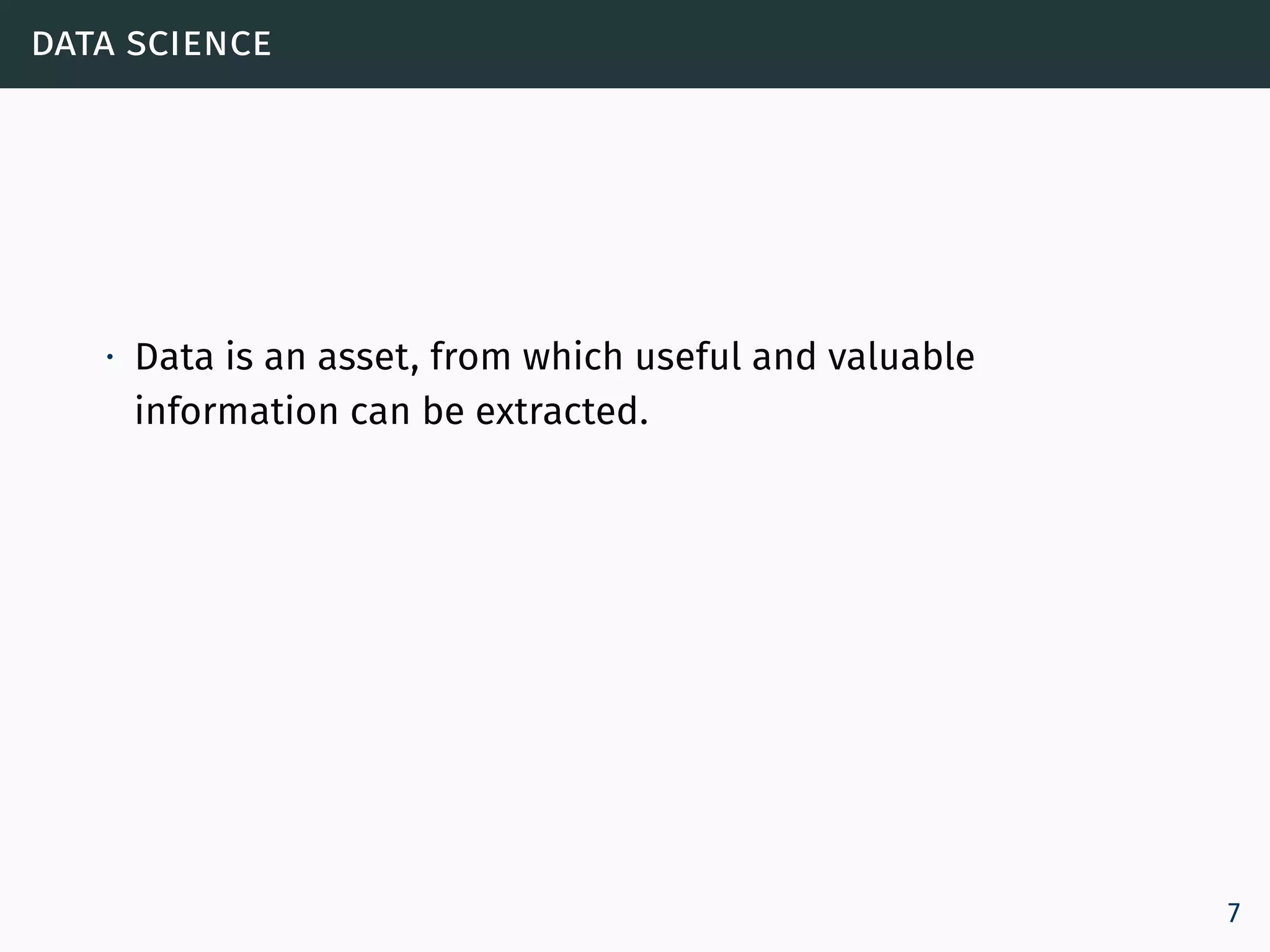

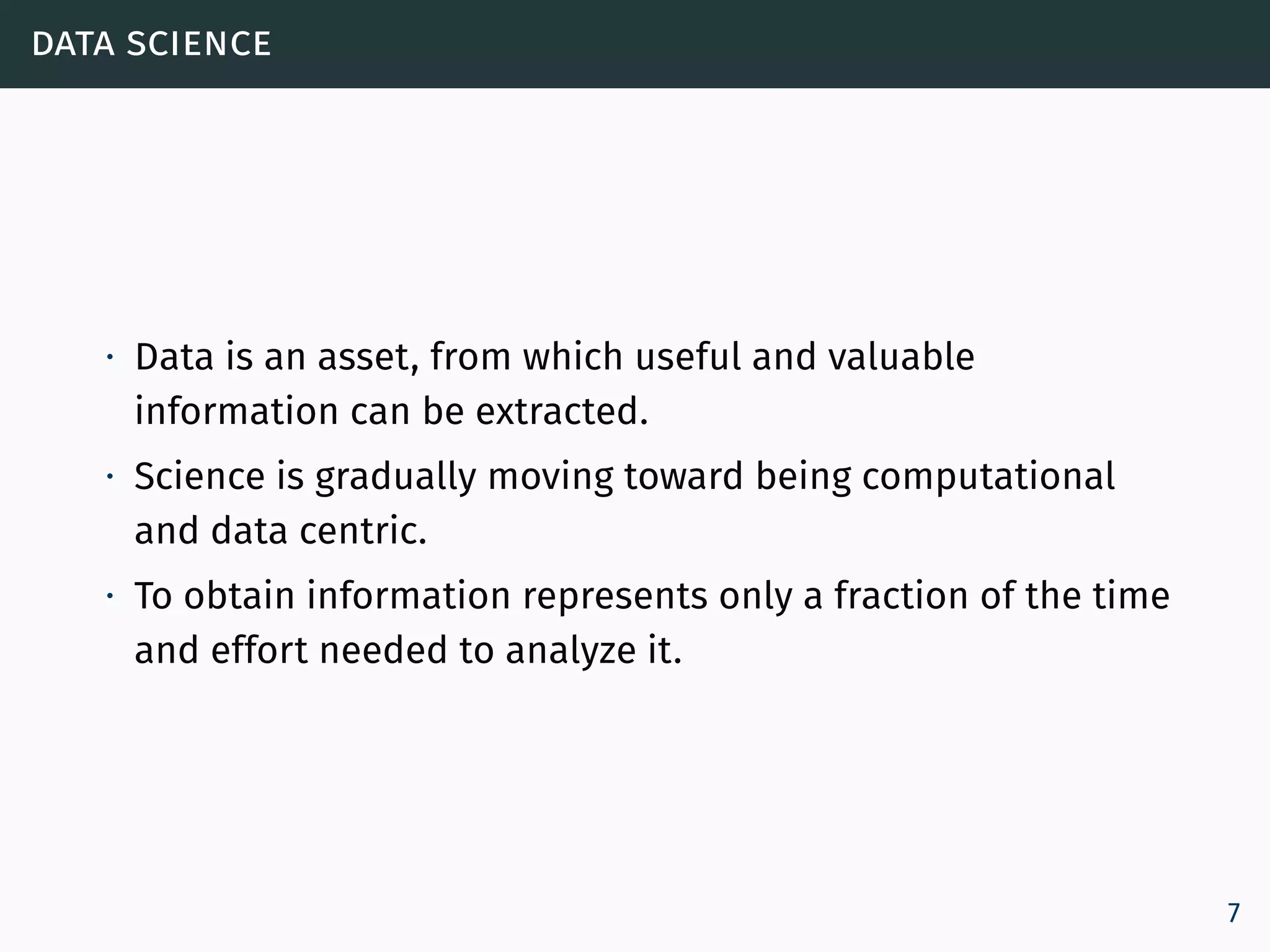

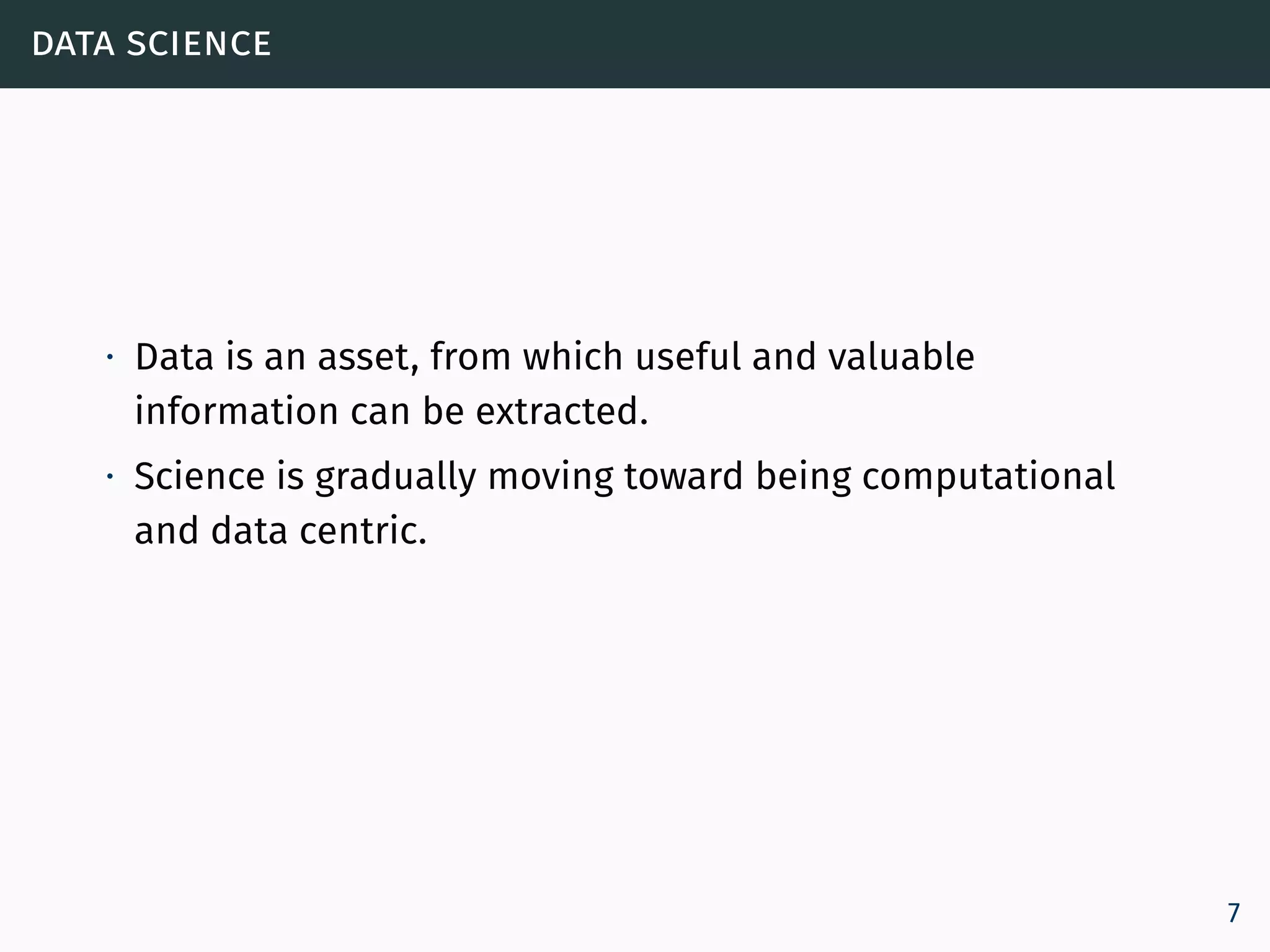

data science ∙ Data is an asset, from which useful and valuable information can be extracted. 7
data science ∙ Data is an asset, from which useful and valuable information can be extracted. ∙ Science is gradually moving toward being computational and data centric. 7
data science ∙ Data is an asset, from which useful and valuable information can be extracted. ∙ Science is gradually moving toward being computational and data centric. ∙ To obtain information represents only a fraction of the time and effort needed to analyze it. 7

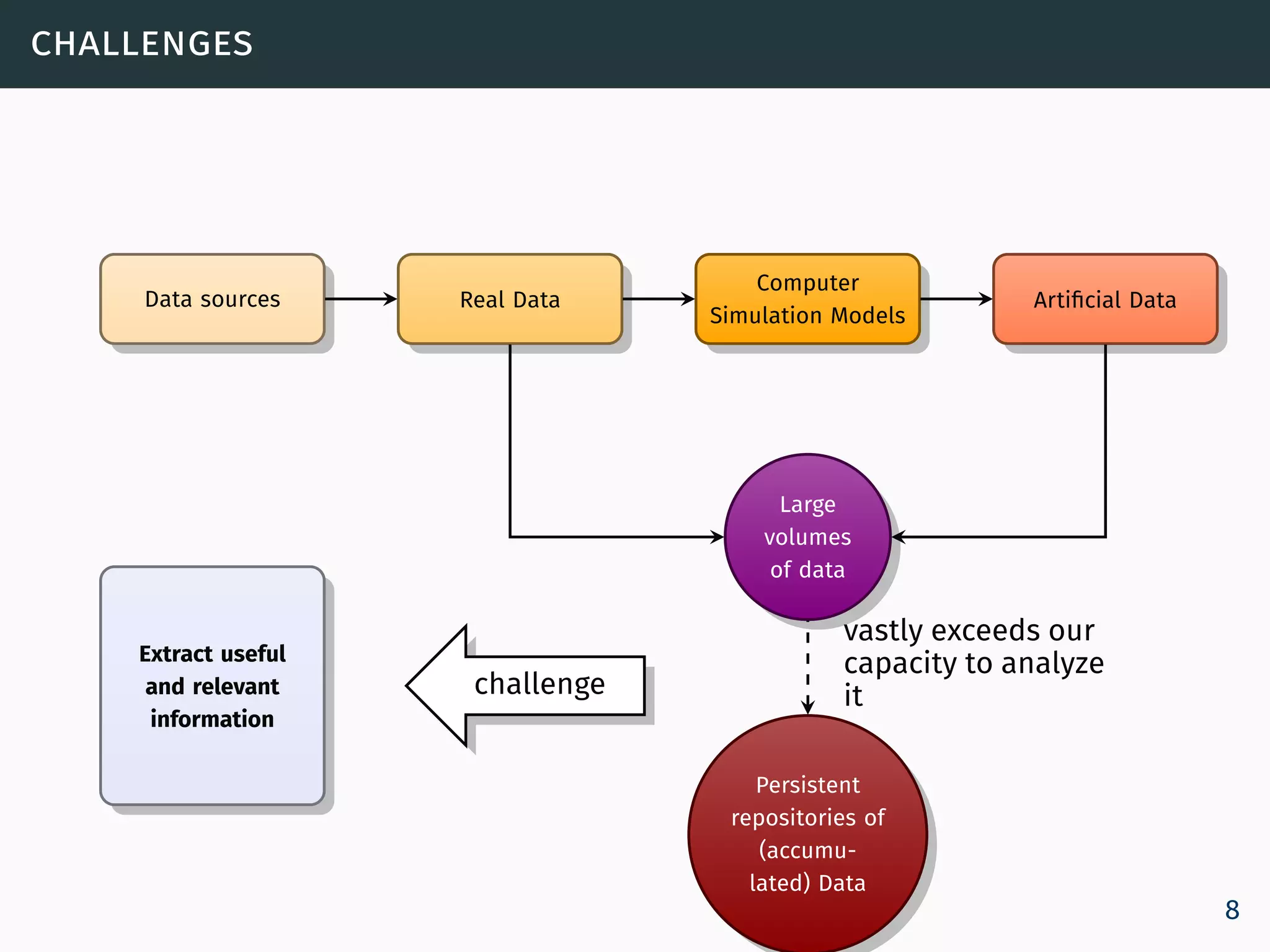

challenges Data sources Real Data Computer Simulation Models Artificial Data Extract useful and relevant information Large volumes of data vastly exceeds our capacity to analyze it Persistent repositories of (accumu- lated) Data challenge 8

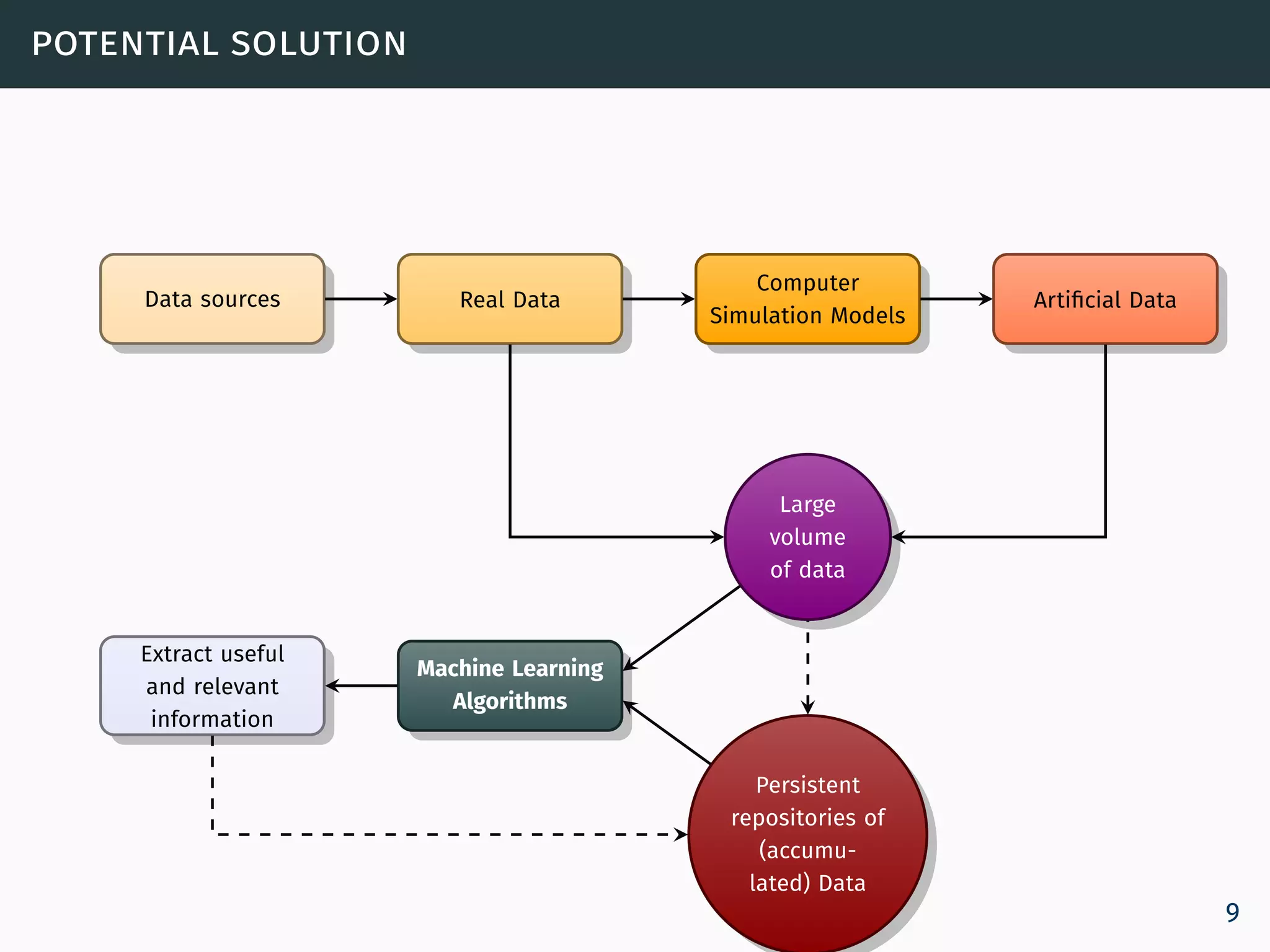

potential solution Data sources Real Data Computer Simulation Models Artificial Data Extract useful and relevant information Machine Learning Algorithms Large volume of data Persistent repositories of (accumu- lated) Data 9
Machine Learning (ML) 10

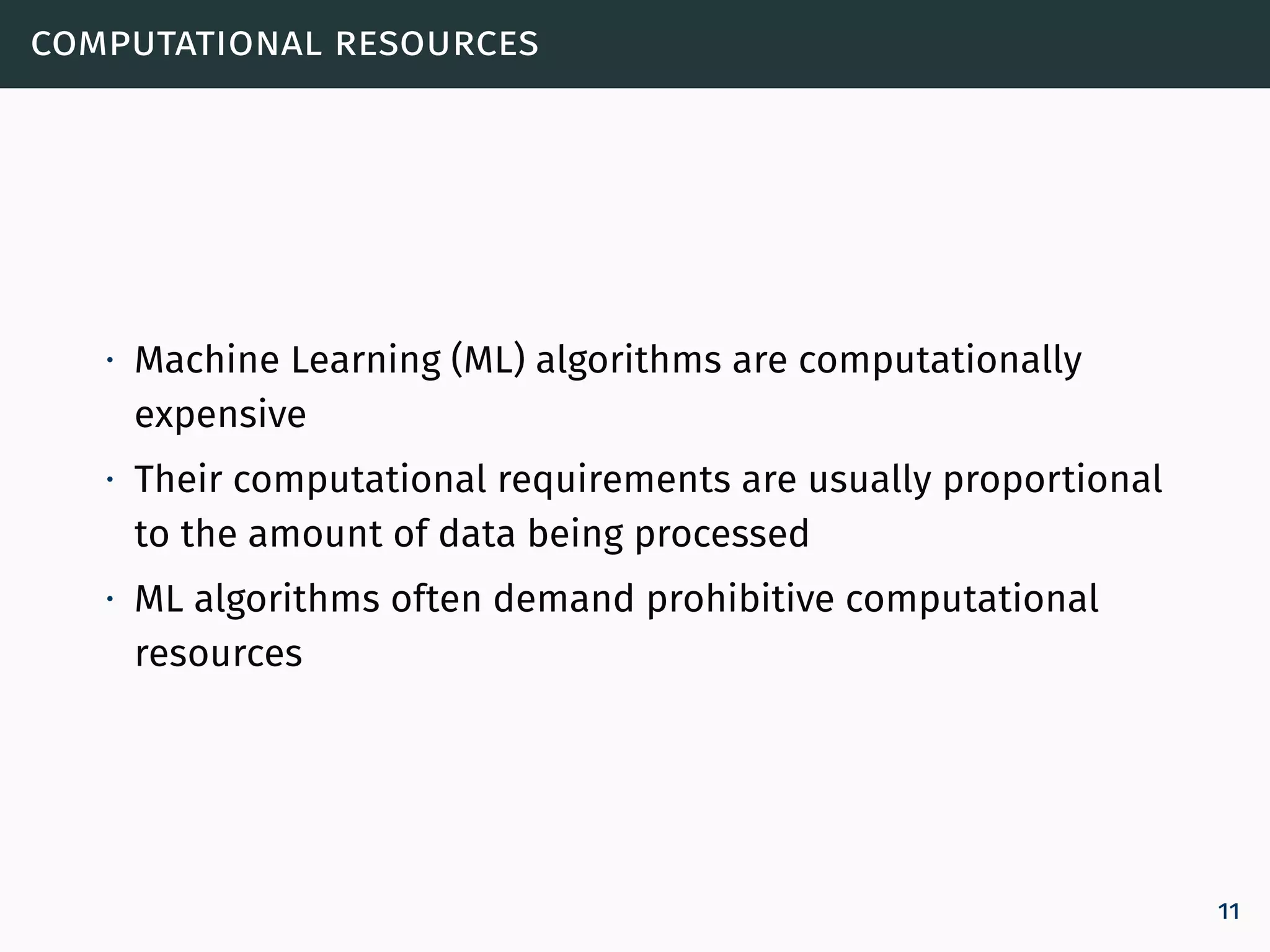

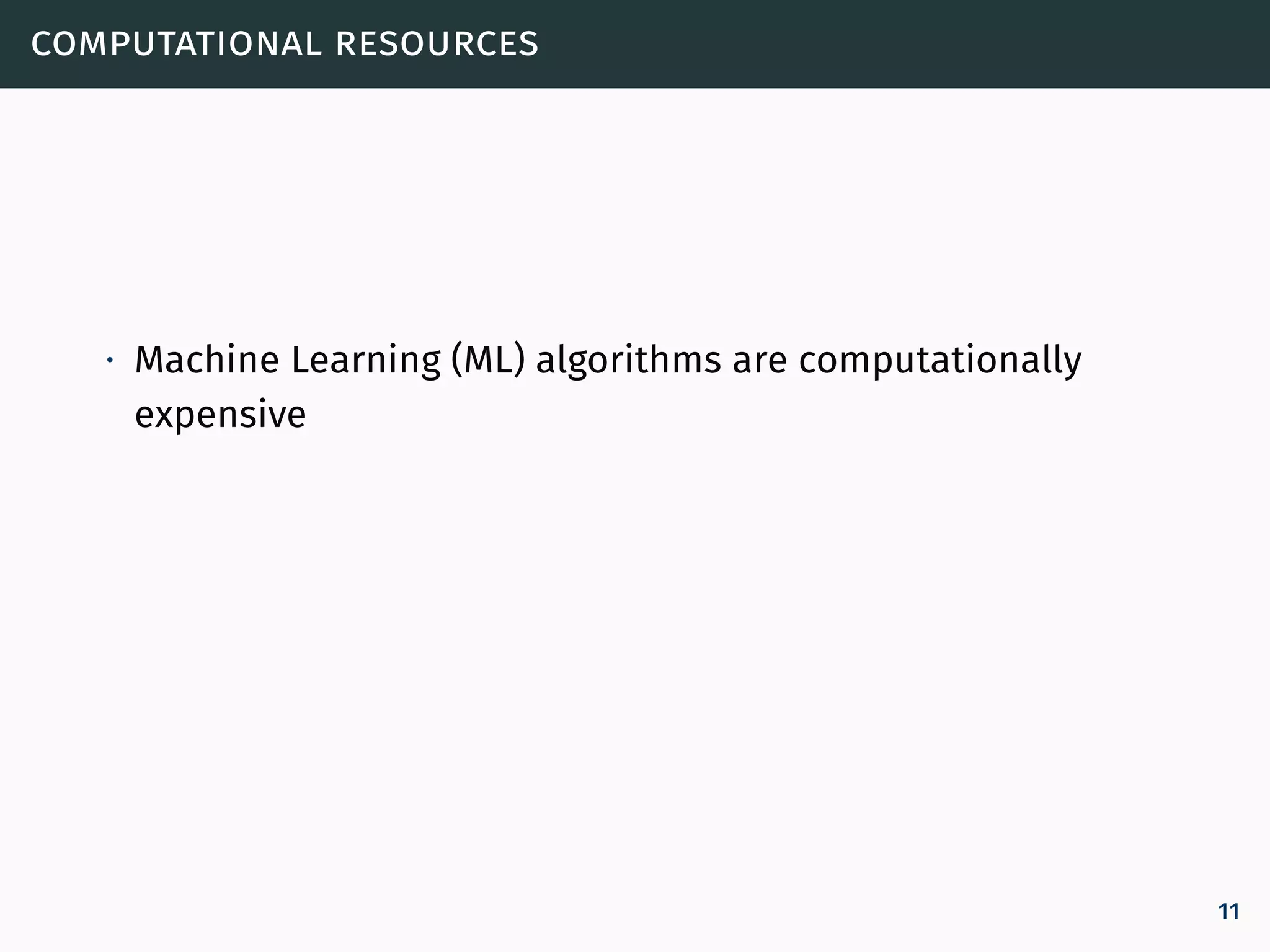

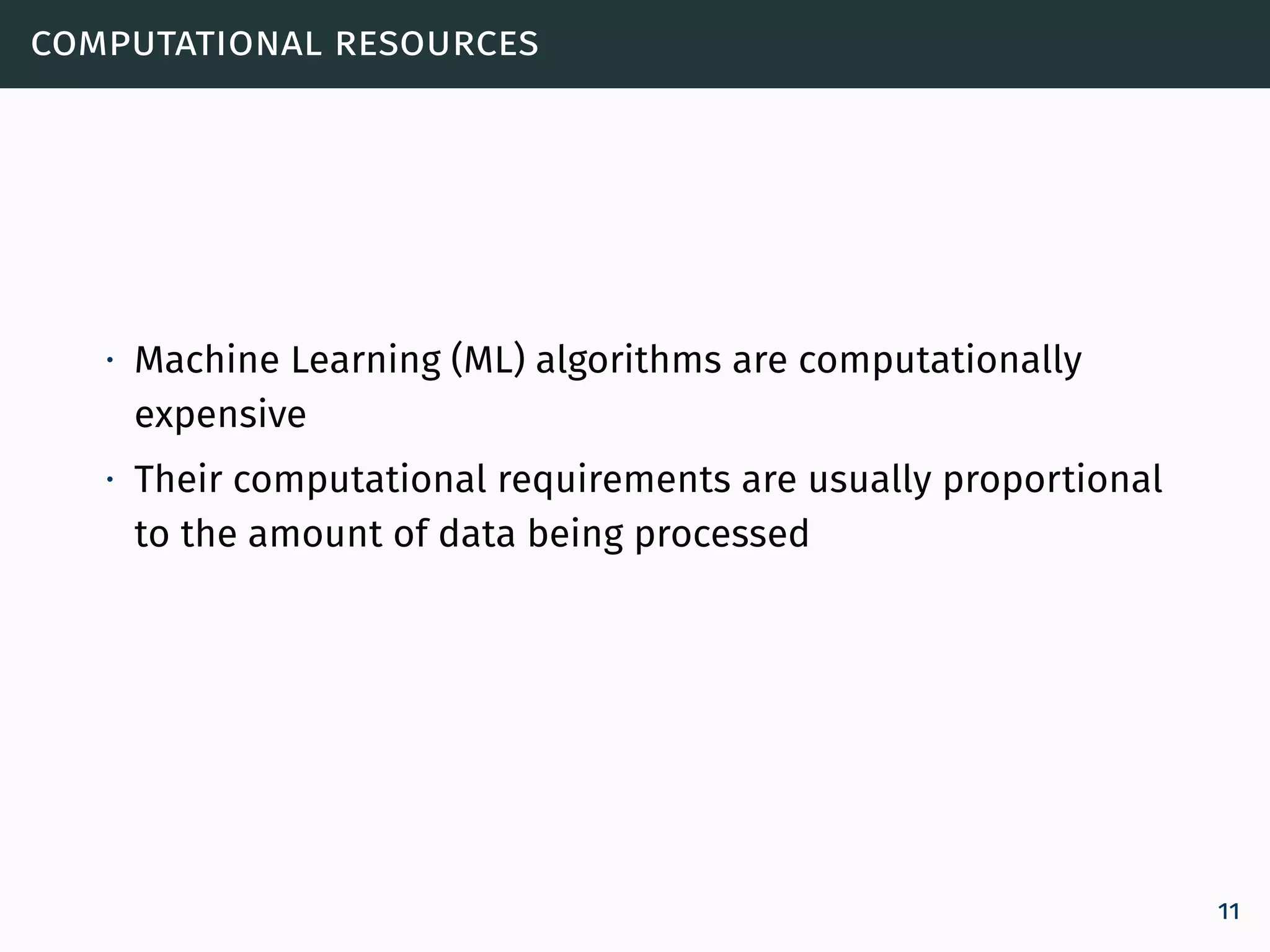

computational resources ∙ Machine Learning (ML) algorithms are computationally expensive 11
computational resources ∙ Machine Learning (ML) algorithms are computationally expensive ∙ Their computational requirements are usually proportional to the amount of data being processed 11
computational resources ∙ Machine Learning (ML) algorithms are computationally expensive ∙ Their computational requirements are usually proportional to the amount of data being processed ∙ ML algorithms often demand prohibitive computational resources 11

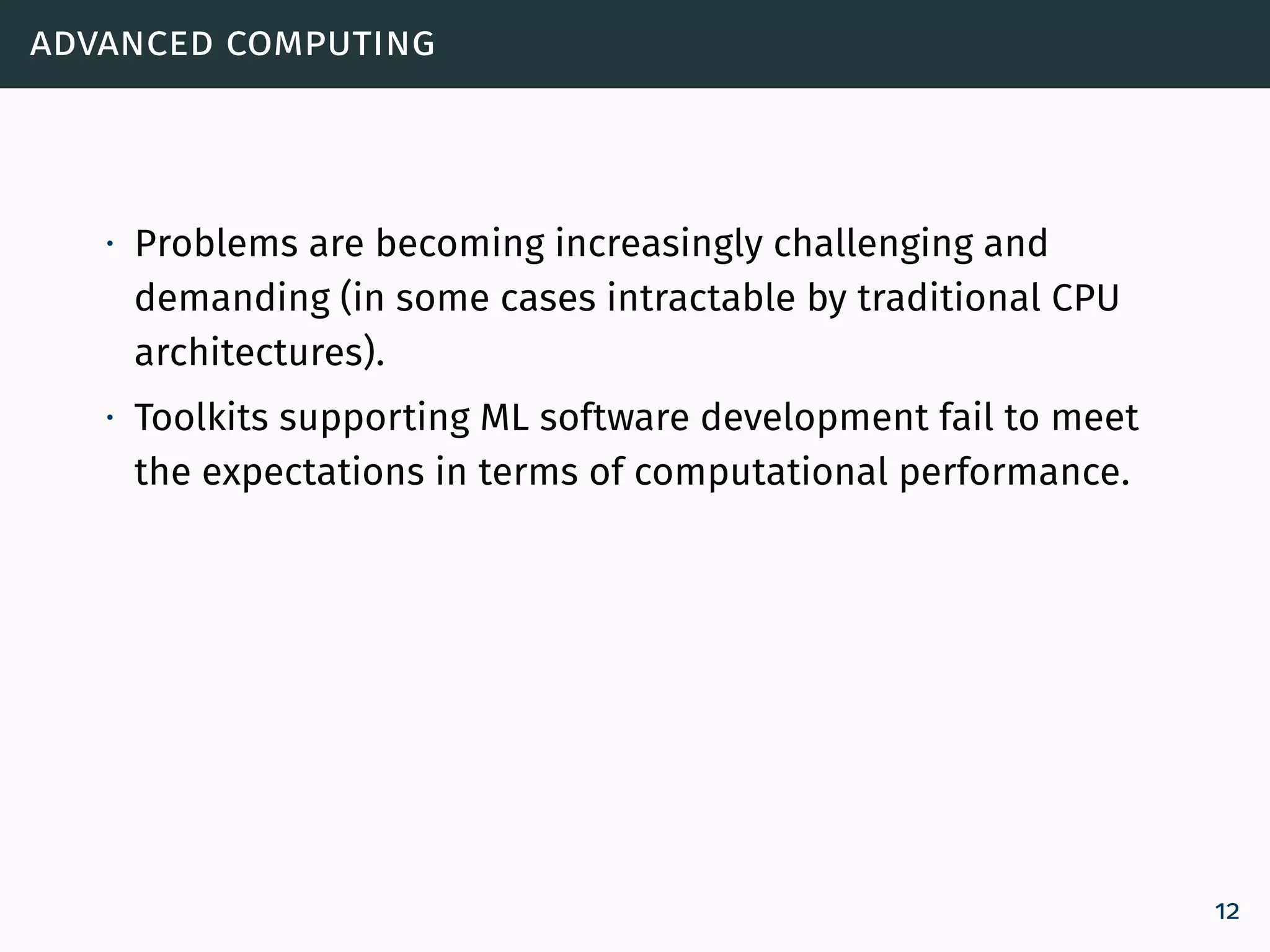

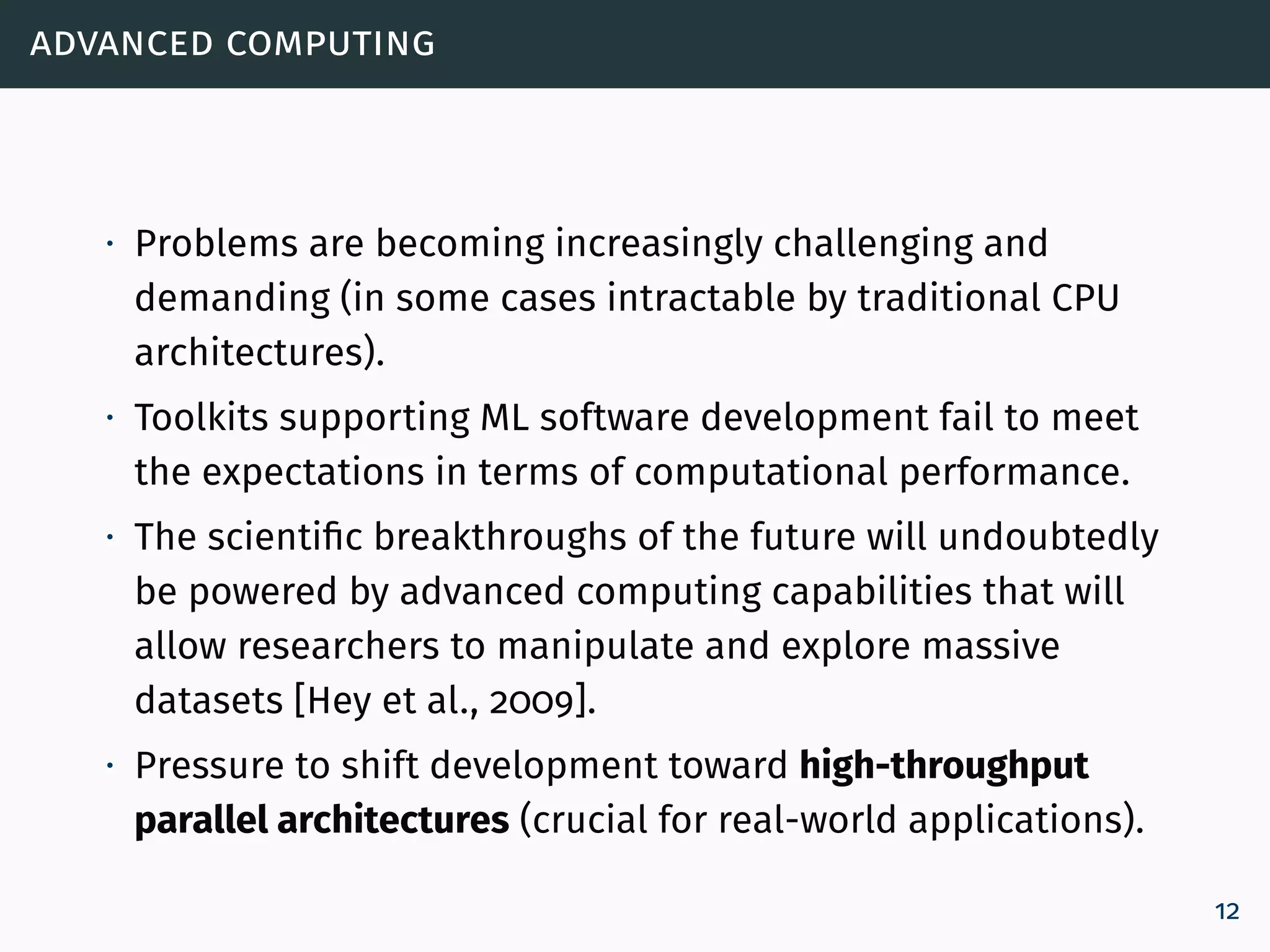

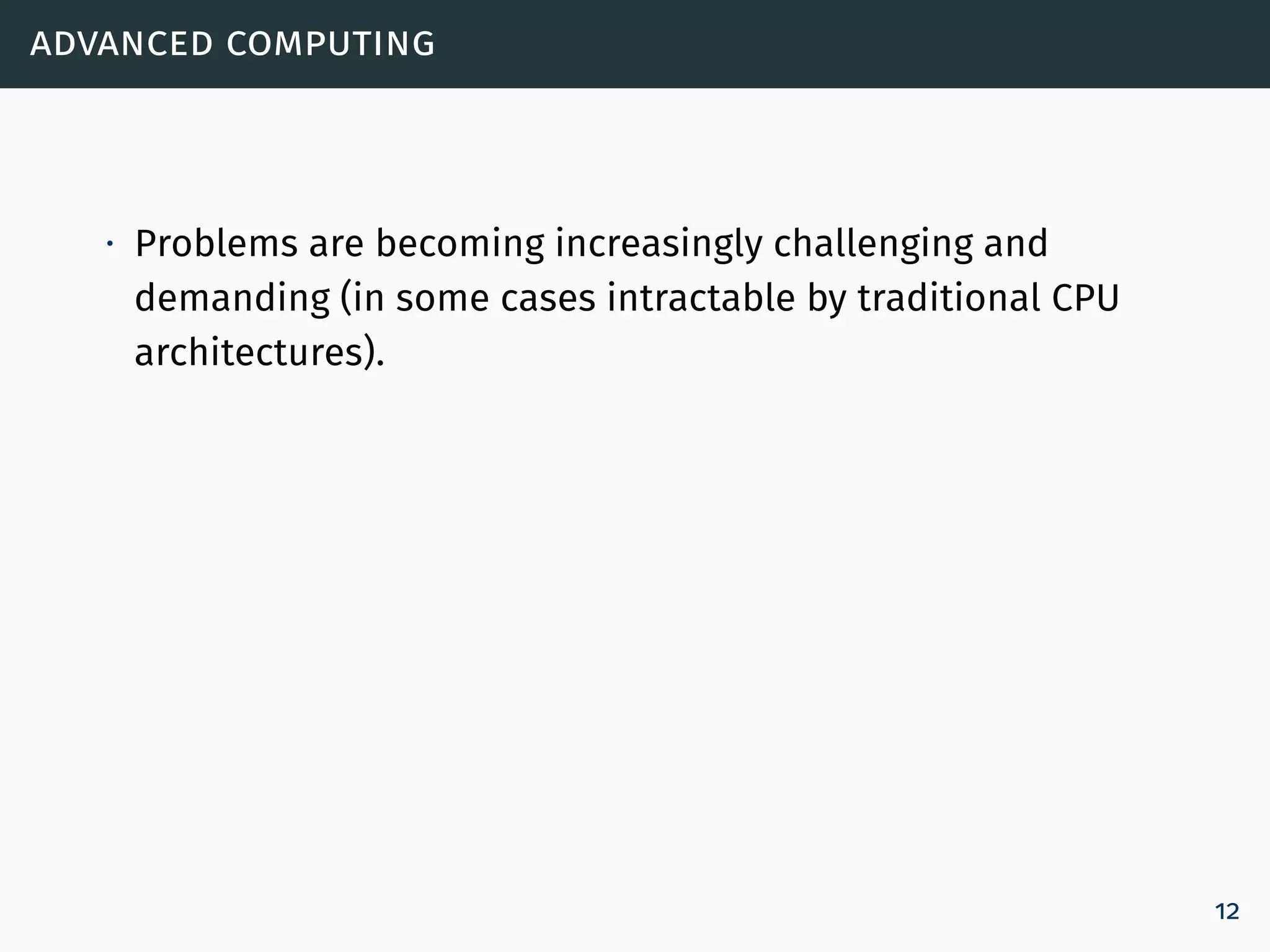

advanced computing ∙ Problems are becoming increasingly challenging and demanding (in some cases intractable by traditional CPU architectures). 12
advanced computing ∙ Problems are becoming increasingly challenging and demanding (in some cases intractable by traditional CPU architectures). ∙ Toolkits supporting ML software development fail to meet the expectations in terms of computational performance. 12
advanced computing ∙ Problems are becoming increasingly challenging and demanding (in some cases intractable by traditional CPU architectures). ∙ Toolkits supporting ML software development fail to meet the expectations in terms of computational performance. ∙ The scientific breakthroughs of the future will undoubtedly be powered by advanced computing capabilities that will allow researchers to manipulate and explore massive datasets [Hey et al., 2009]. 12

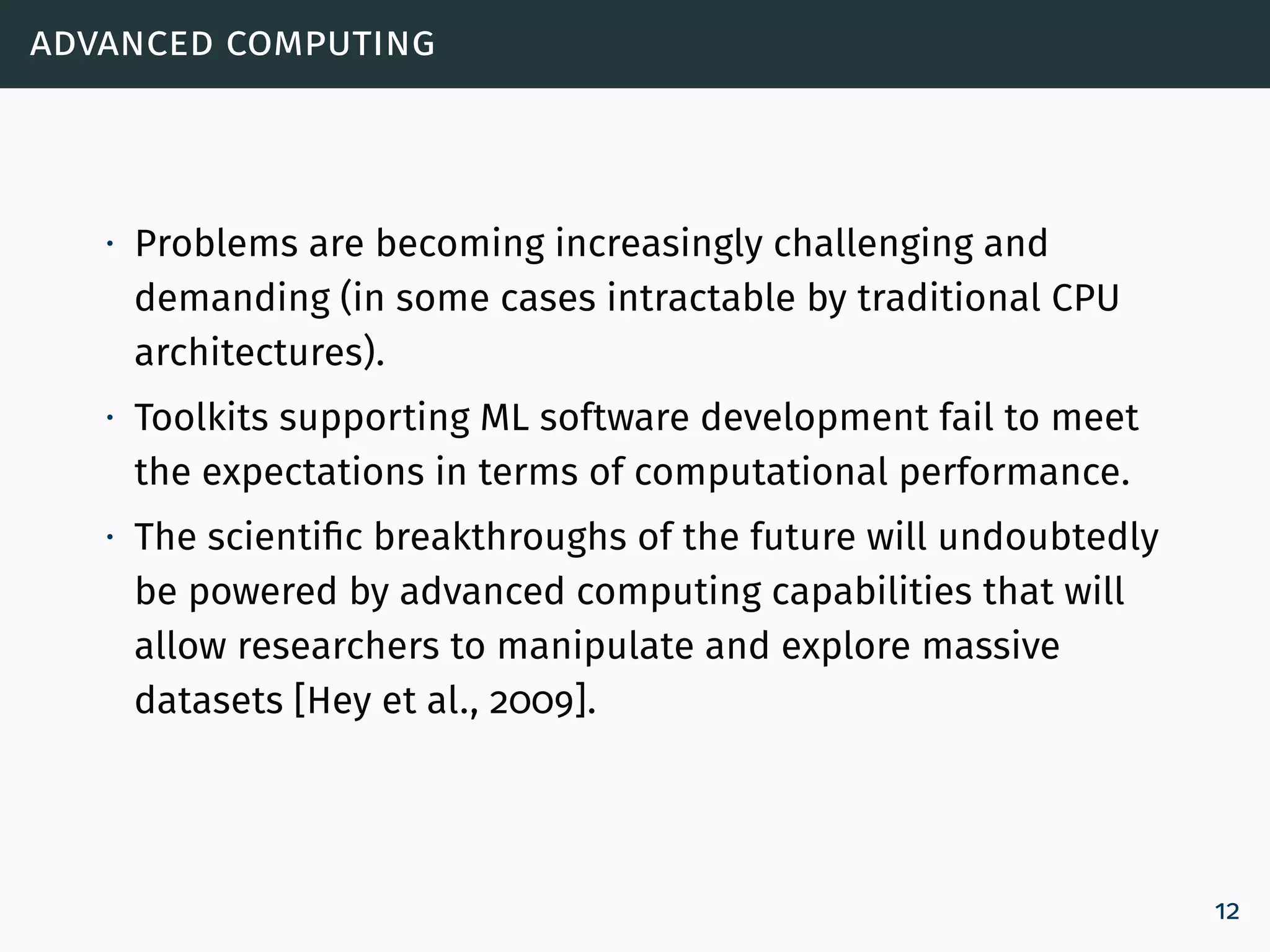

advanced computing ∙ Problems are becoming increasingly challenging and demanding (in some cases intractable by traditional CPU architectures). ∙ Toolkits supporting ML software development fail to meet the expectations in terms of computational performance. ∙ The scientific breakthroughs of the future will undoubtedly be powered by advanced computing capabilities that will allow researchers to manipulate and explore massive datasets [Hey et al., 2009]. ∙ Pressure to shift development toward high-throughput parallel architectures (crucial for real-world applications). 12

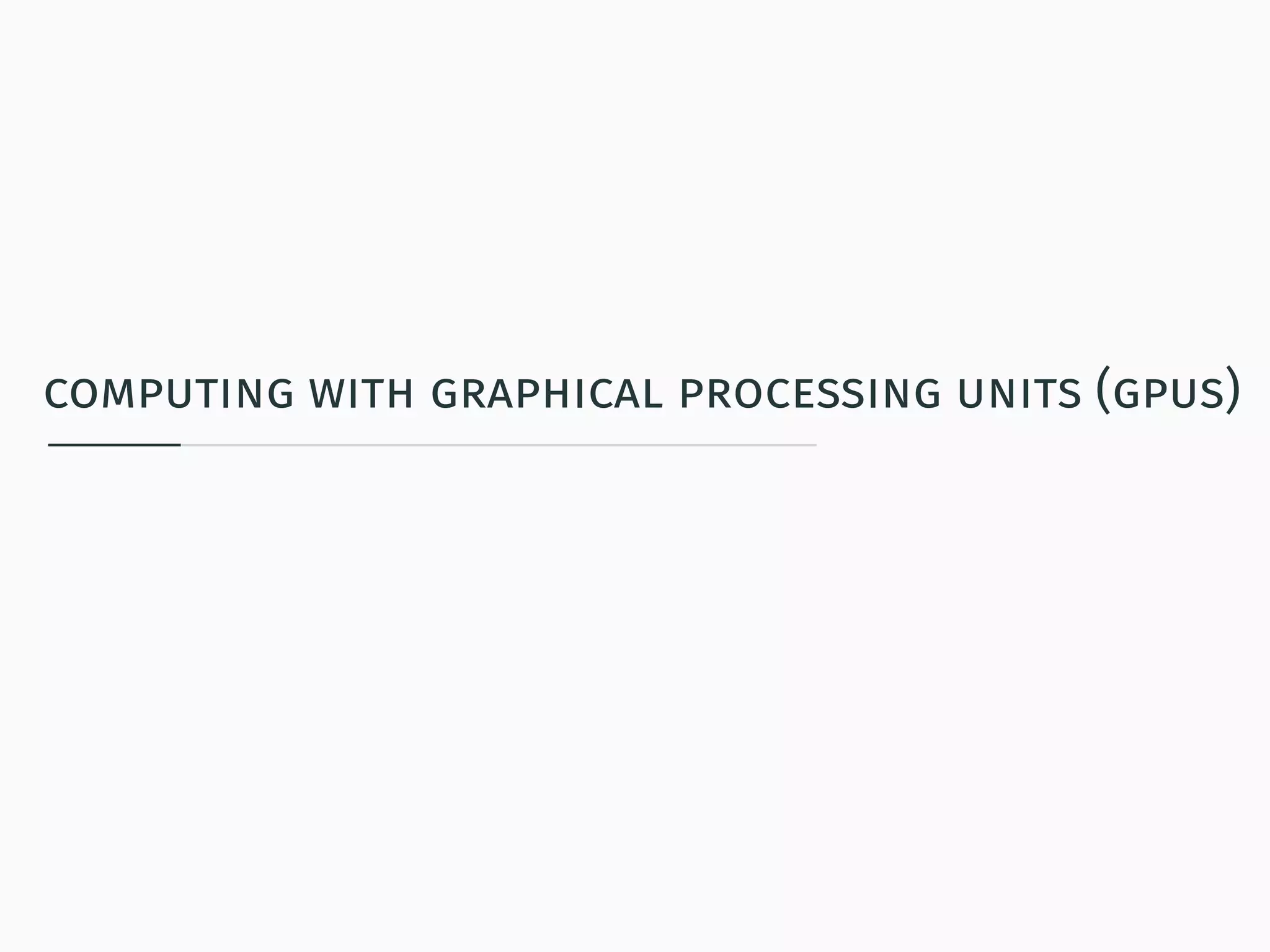

computing with graphical processing units (gpus)

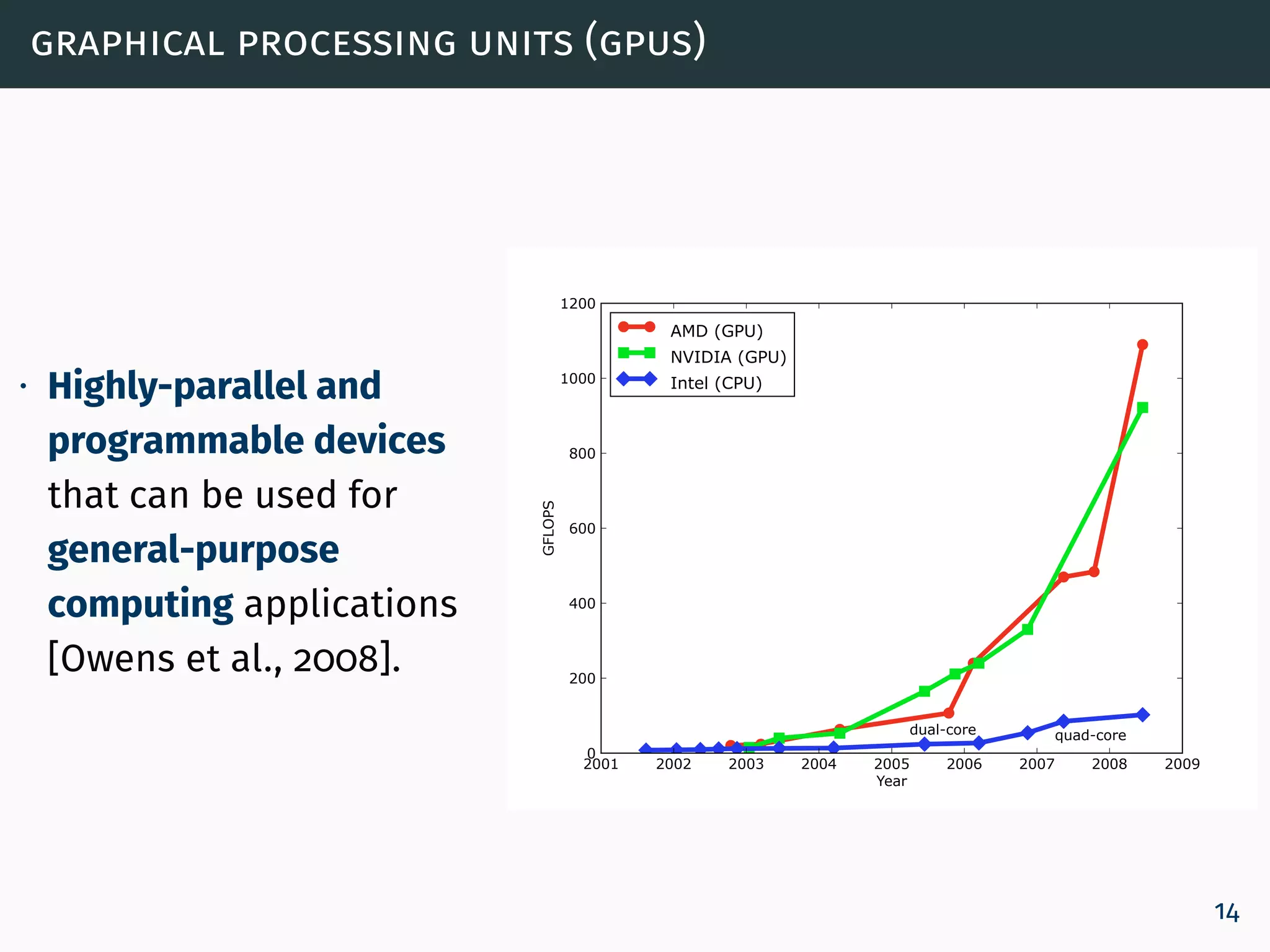

graphical processing units (gpus) ∙ Highly-parallel and programmable devices that can be used for general-purpose computing applications [Owens et al., 2008]. 2001 2002 2003 2004 2005 2006 2007 2008 2009 Year 0 200 400 600 800 1000 1200 GFLOPS dual-core quad-core AMD (GPU) NVIDIA (GPU) Intel (CPU) 14

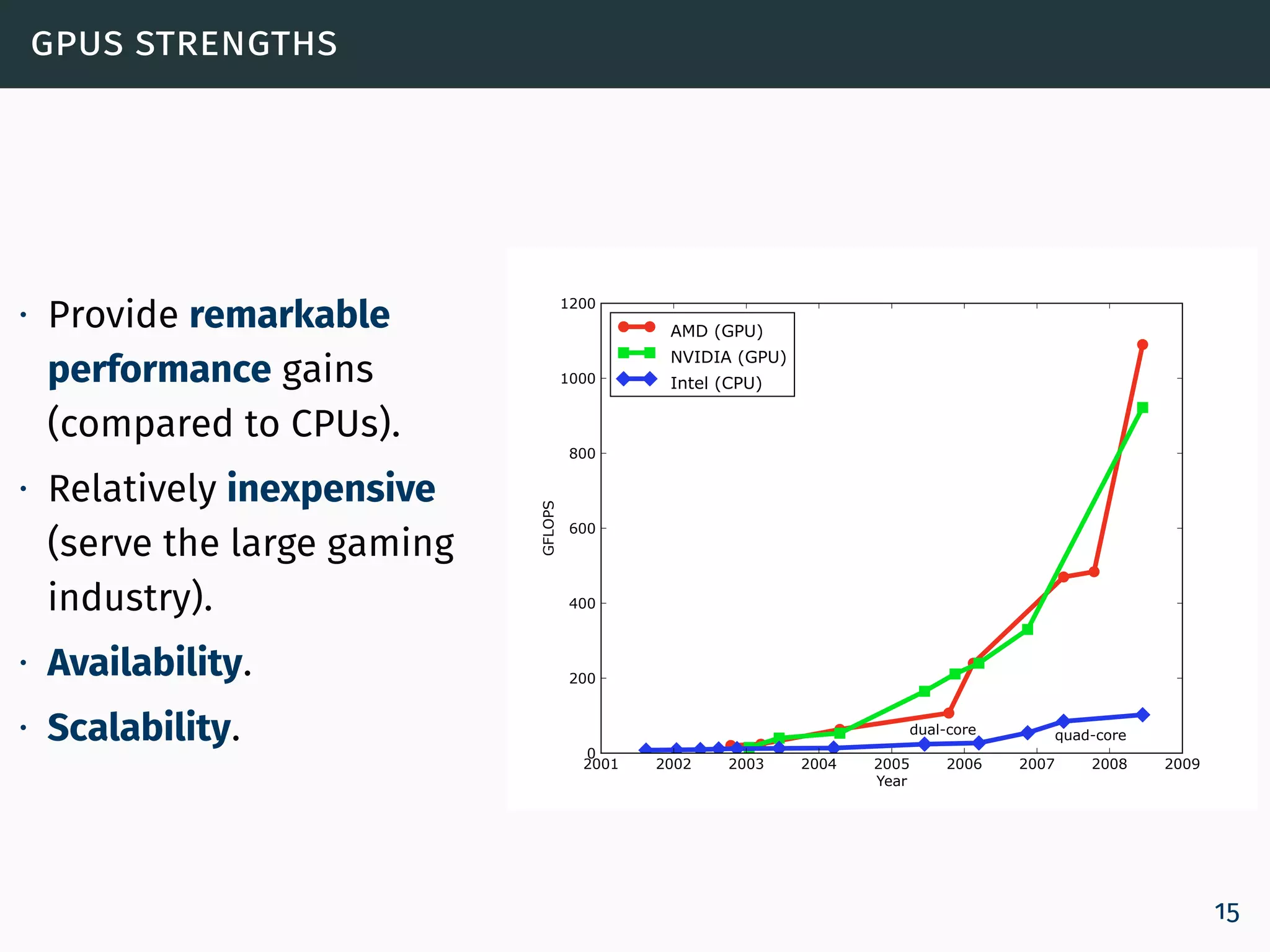

gpus strengths ∙ Provide remarkable performance gains (compared to CPUs). ∙ Relatively inexpensive (serve the large gaming industry). ∙ Availability. ∙ Scalability. 2001 2002 2003 2004 2005 2006 2007 2008 2009 Year 0 200 400 600 800 1000 1200 GFLOPS dual-core quad-core AMD (GPU) NVIDIA (GPU) Intel (CPU) 15
gpu vs cpu performance Disparity between the GPU and CPU peak floating-point performance ∙ The GPU performance is doubled every 12 months while the CPU performance doubles every 18 months [Zhongwen et al., 2005]. 2001 2002 2003 2004 2005 2006 2007 2008 2009 Year 0 200 400 600 800 1000 1200 GFLOPS dual-core quad-core AMD (GPU) NVIDIA (GPU) Intel (CPU) 16

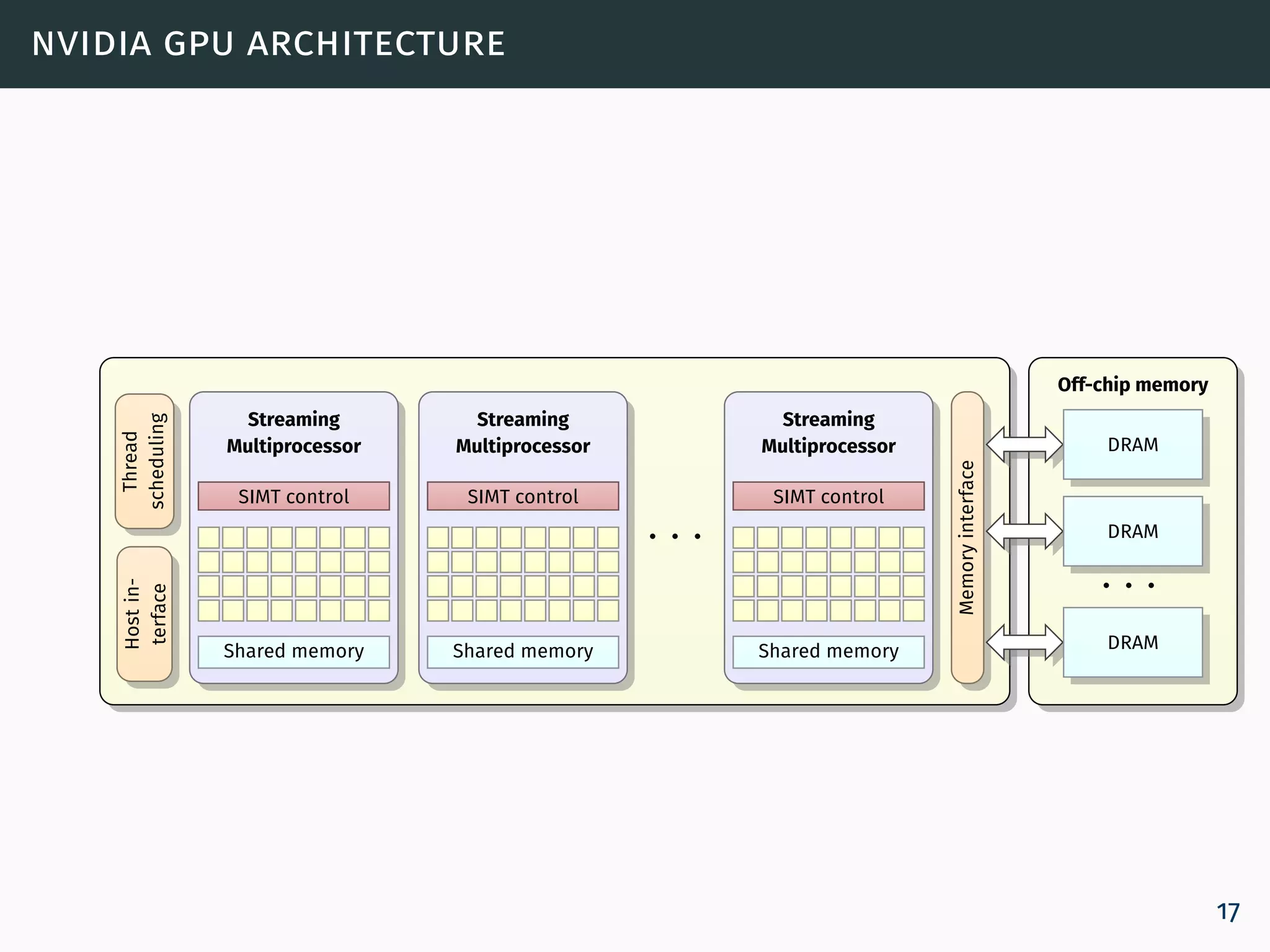

nvidia gpu architecture Streaming Multiprocessor SIMT control Shared memory Streaming Multiprocessor SIMT control Shared memory Streaming Multiprocessor SIMT control Shared memory · · · Thread scheduling Hostin- terface Memoryinterface Off-chip memory DRAM DRAM DRAM · · · 17

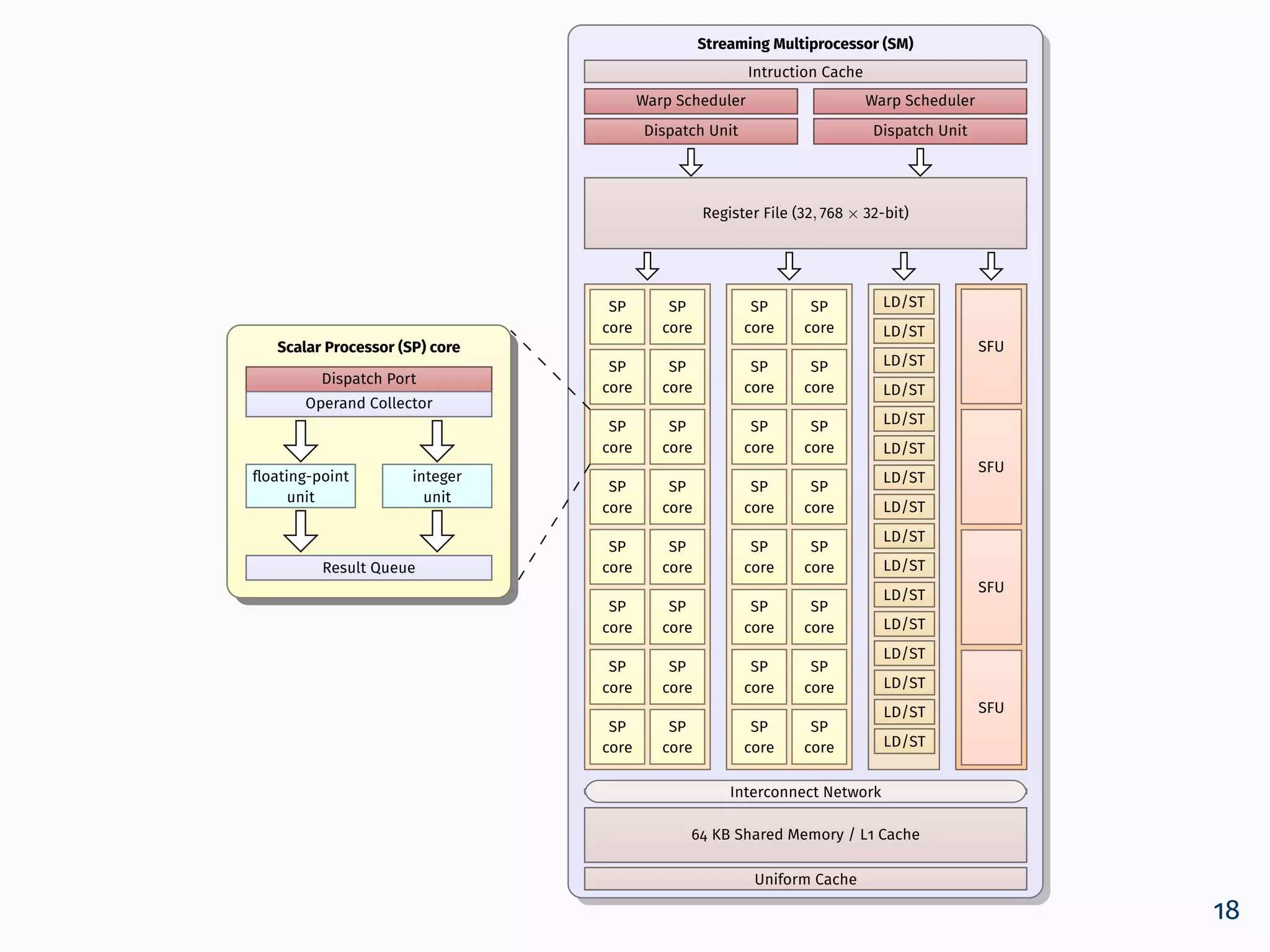

Streaming Multiprocessor (SM) Intruction Cache Register File (32, 768 × 32-bit) Warp Scheduler Dispatch Unit Warp Scheduler Dispatch Unit SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core SP core LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST LD/ST SFU SFU SFU SFU Interconnect Network 64 KB Shared Memory / L1 Cache Uniform Cache Scalar Processor (SP) core Dispatch Port Operand Collector floating-point unit integer unit Result Queue 18

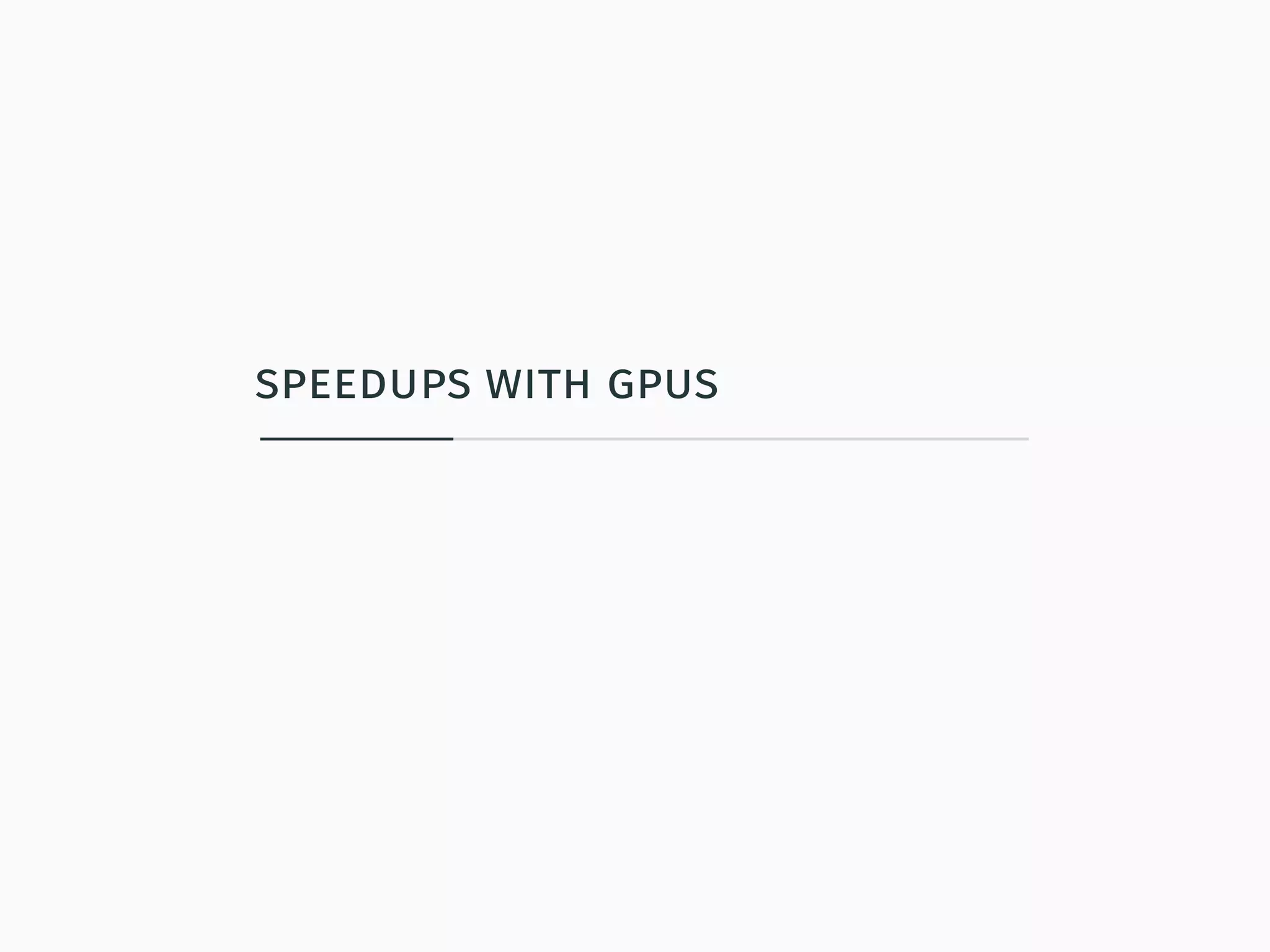

speedups with gpus

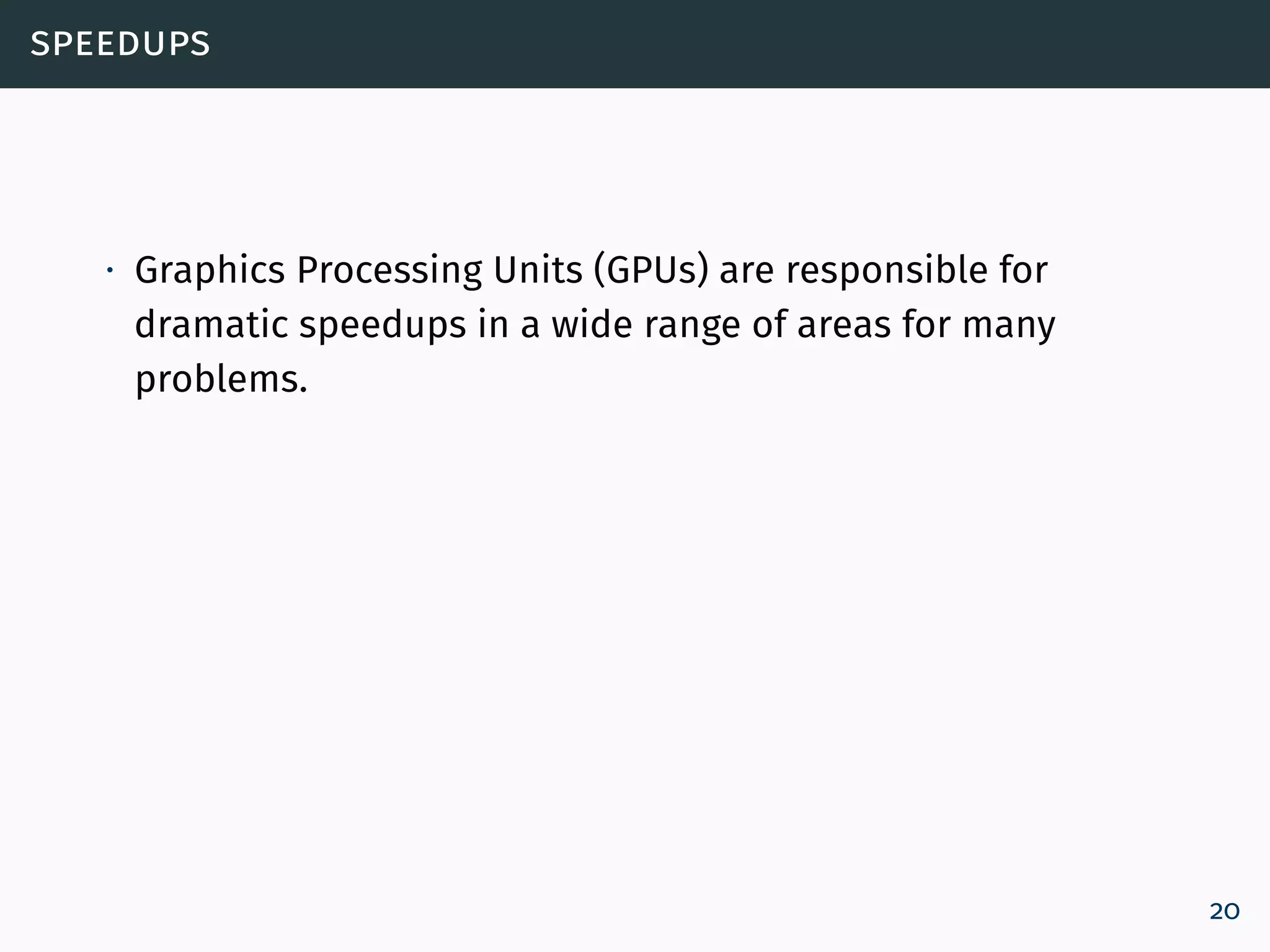

speedups ∙ Graphics Processing Units (GPUs) are responsible for dramatic speedups in a wide range of areas for many problems. 20

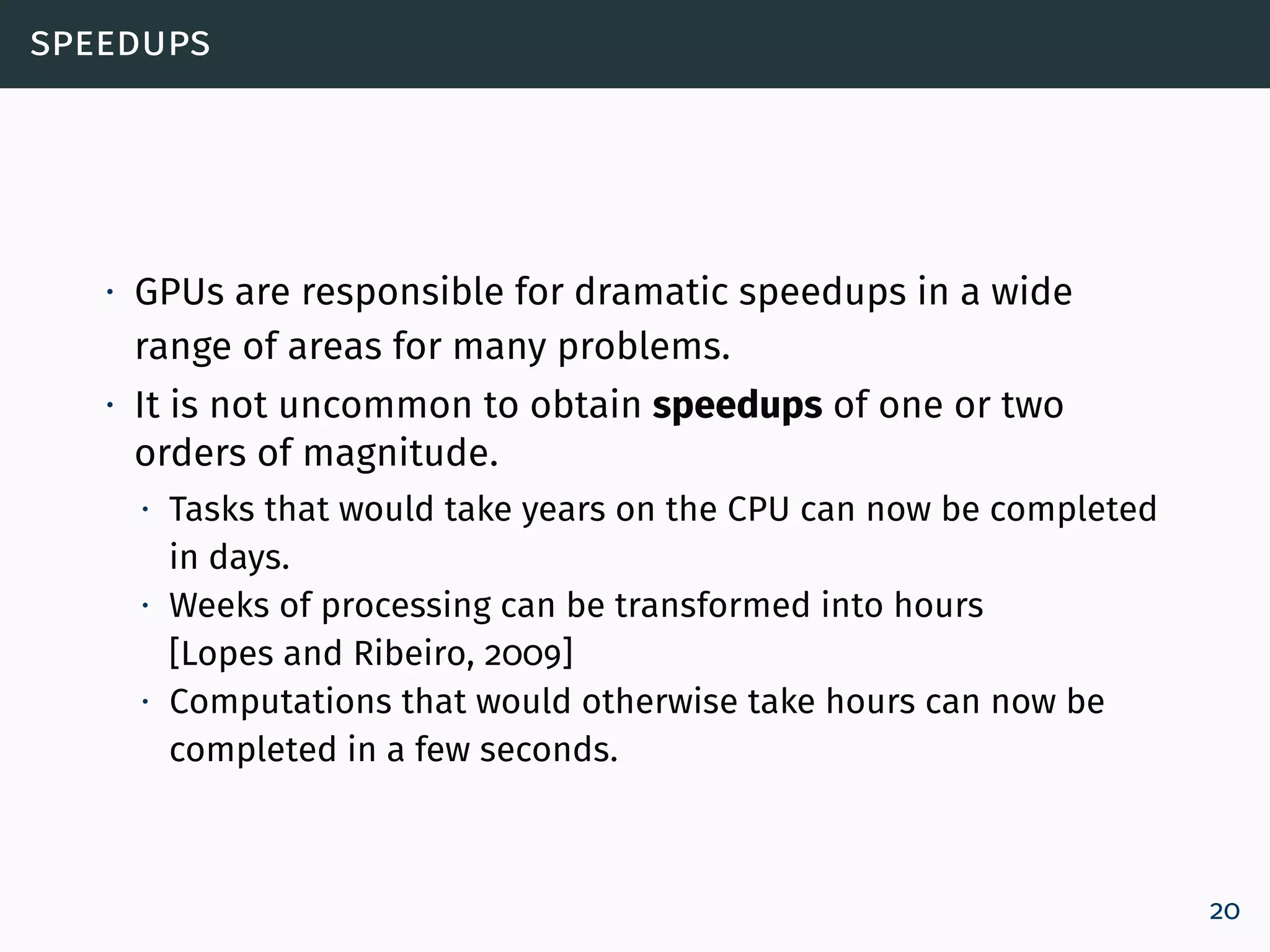

speedups ∙ GPUs are responsible for dramatic speedups in a wide range of areas for many problems. ∙ It is not uncommon to obtain speedups of one or two orders of magnitude. ∙ Tasks that would take years on the CPU can now be completed in days. ∙ Weeks of processing can be transformed into hours [Lopes and Ribeiro, 2009] ∙ Computations that would otherwise take hours can now be completed in a few seconds. 20

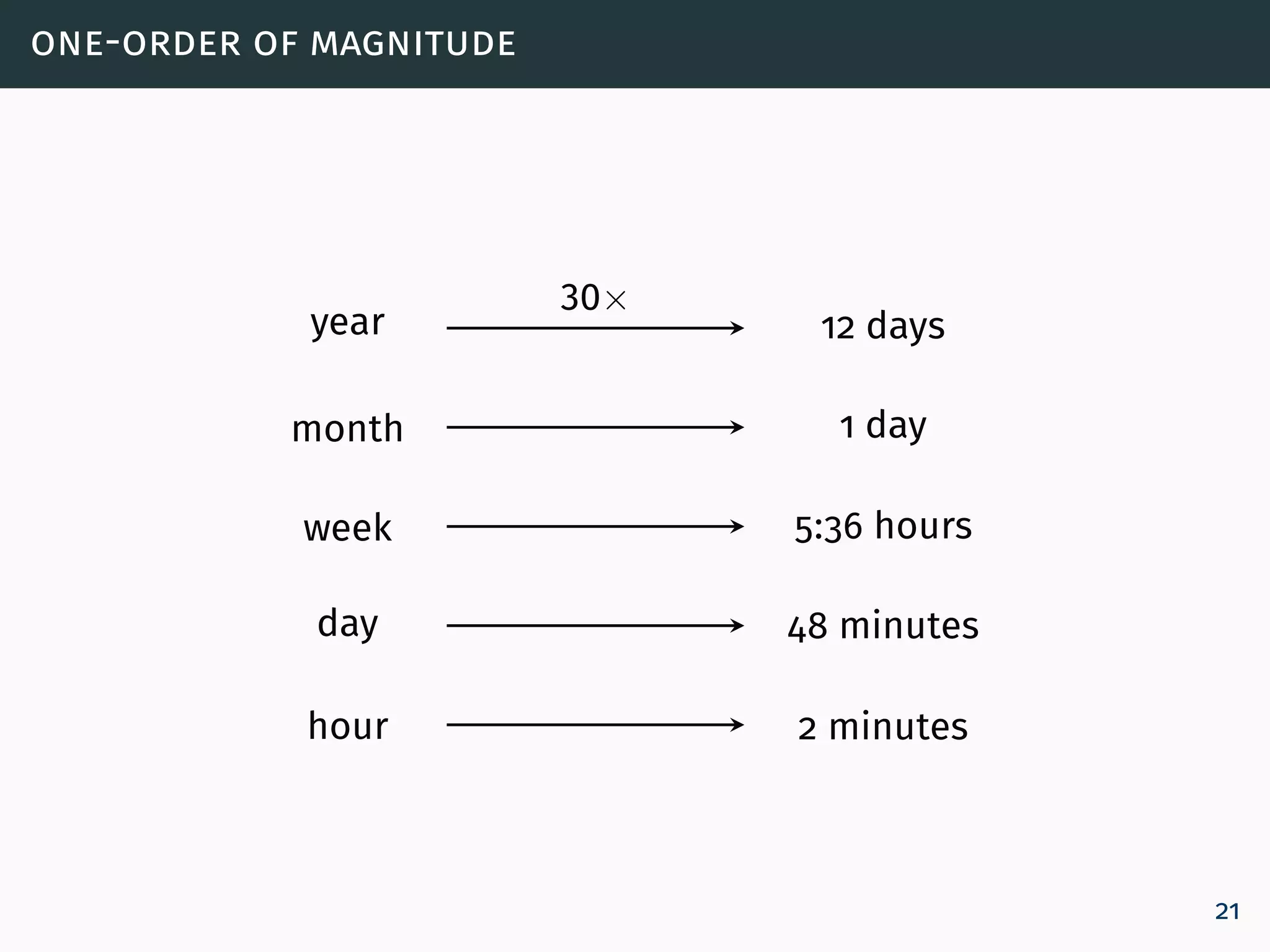

one-order of magnitude year 12 days month 1 day week 5:36 hours day 48 minutes hour 2 minutes 30× 21

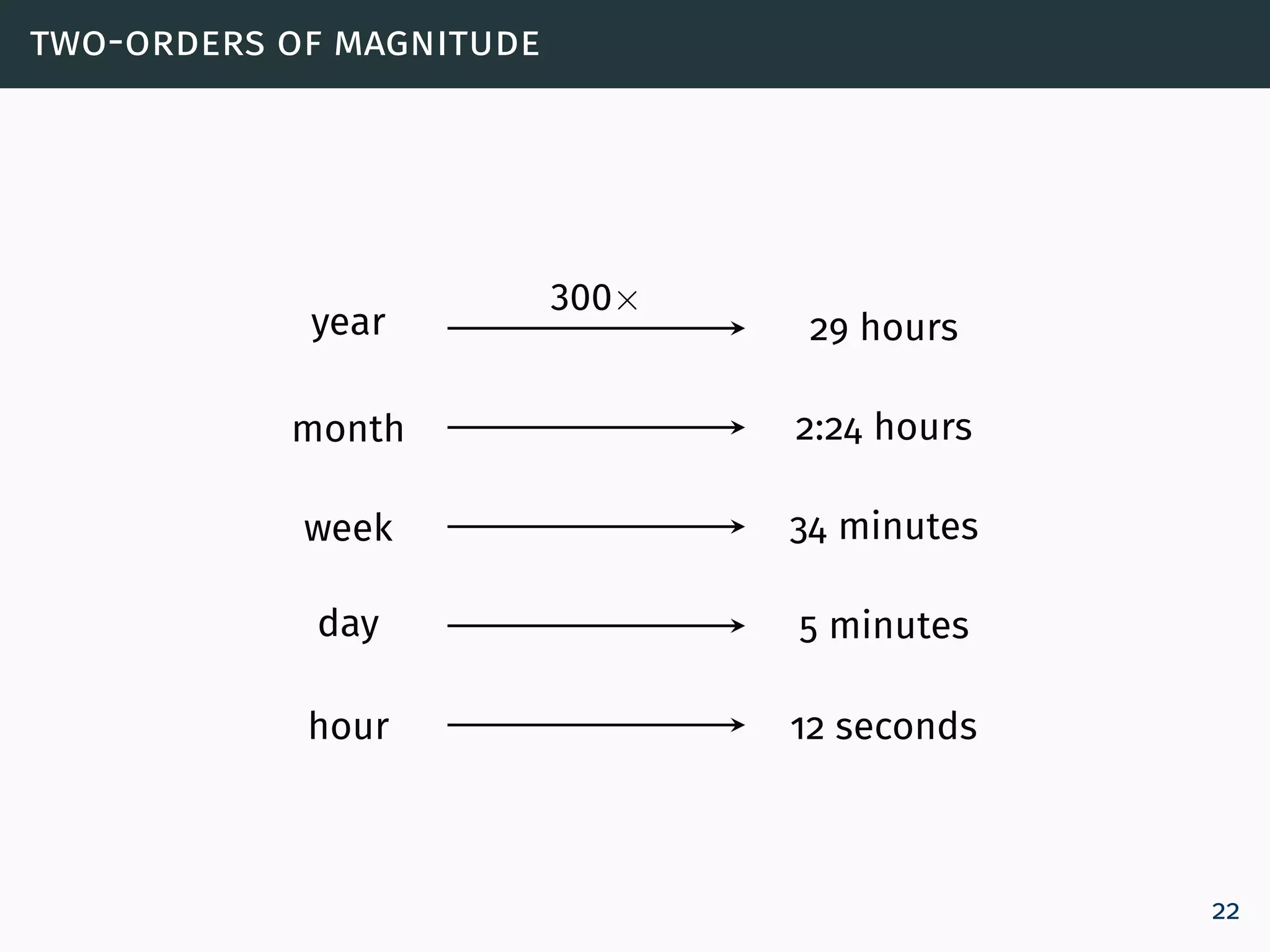

two-orders of magnitude year 29 hours month 2:24 hours week 34 minutes day 5 minutes hour 12 seconds 300× 22
Intractable Problems Become Manageable 23

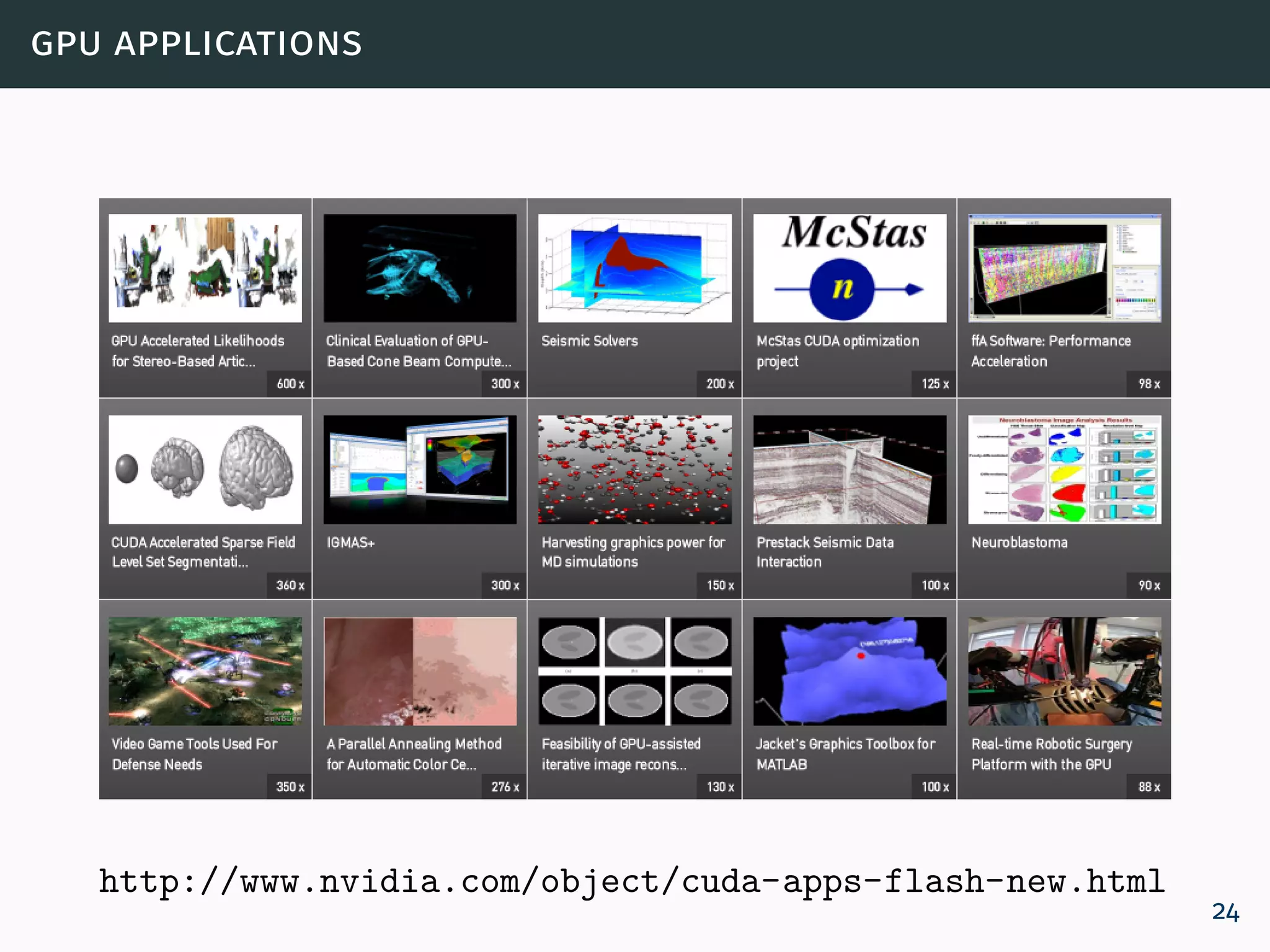

gpu applications http://www.nvidia.com/object/cuda-apps-flash-new.html 24

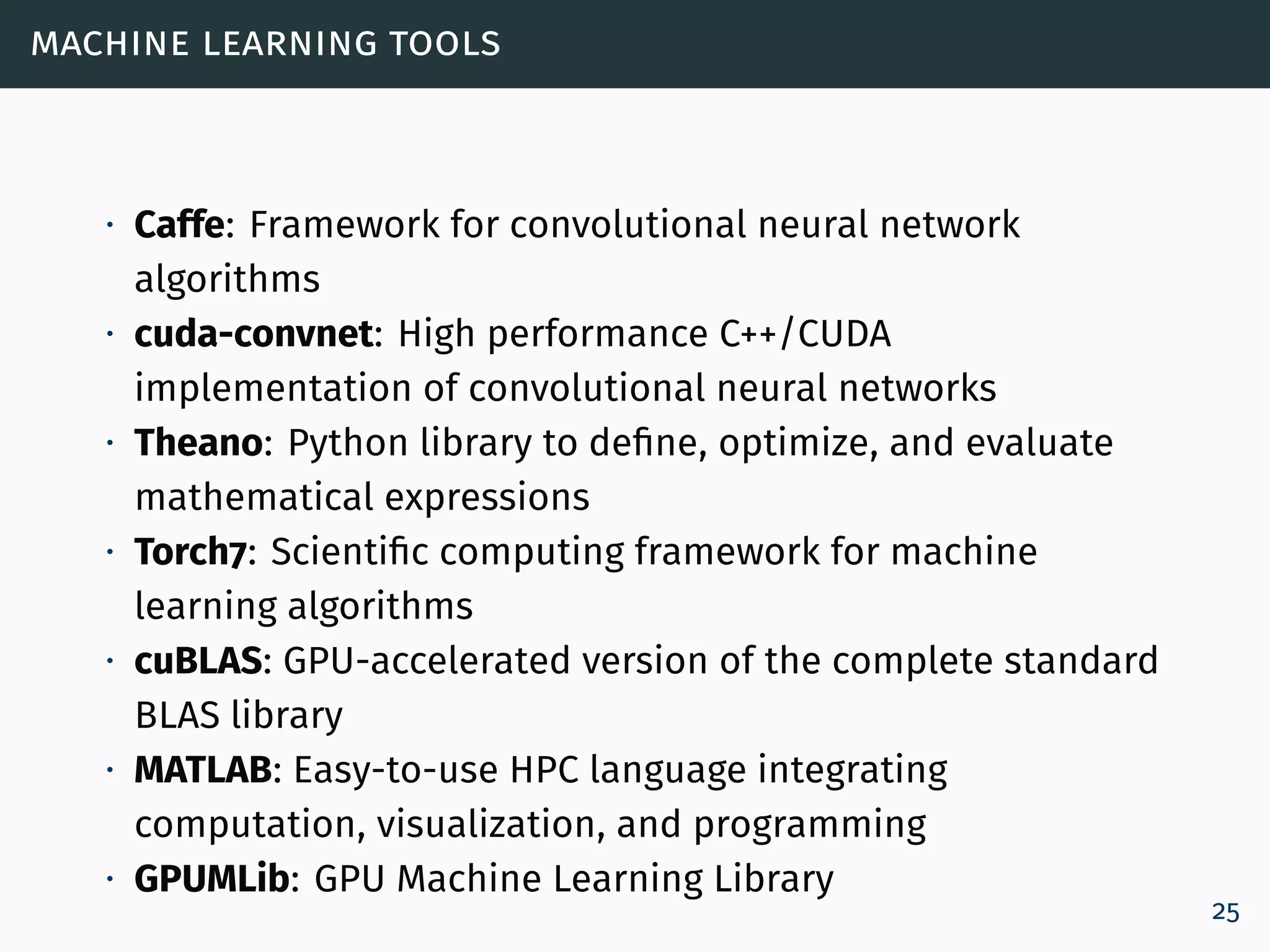

machine learning tools ∙ Caffe: Framework for convolutional neural network algorithms ∙ cuda-convnet: High performance C++/CUDA implementation of convolutional neural networks ∙ Theano: Python library to define, optimize, and evaluate mathematical expressions ∙ Torch7: Scientific computing framework for machine learning algorithms ∙ cuBLAS: GPU-accelerated version of the complete standard BLAS library ∙ MATLAB: Easy-to-use HPC language integrating computation, visualization, and programming ∙ GPUMLib: GPU Machine Learning Library 25
companies using gpus for machine learning http://www.nvidia.com/object/machine-learning.html 26

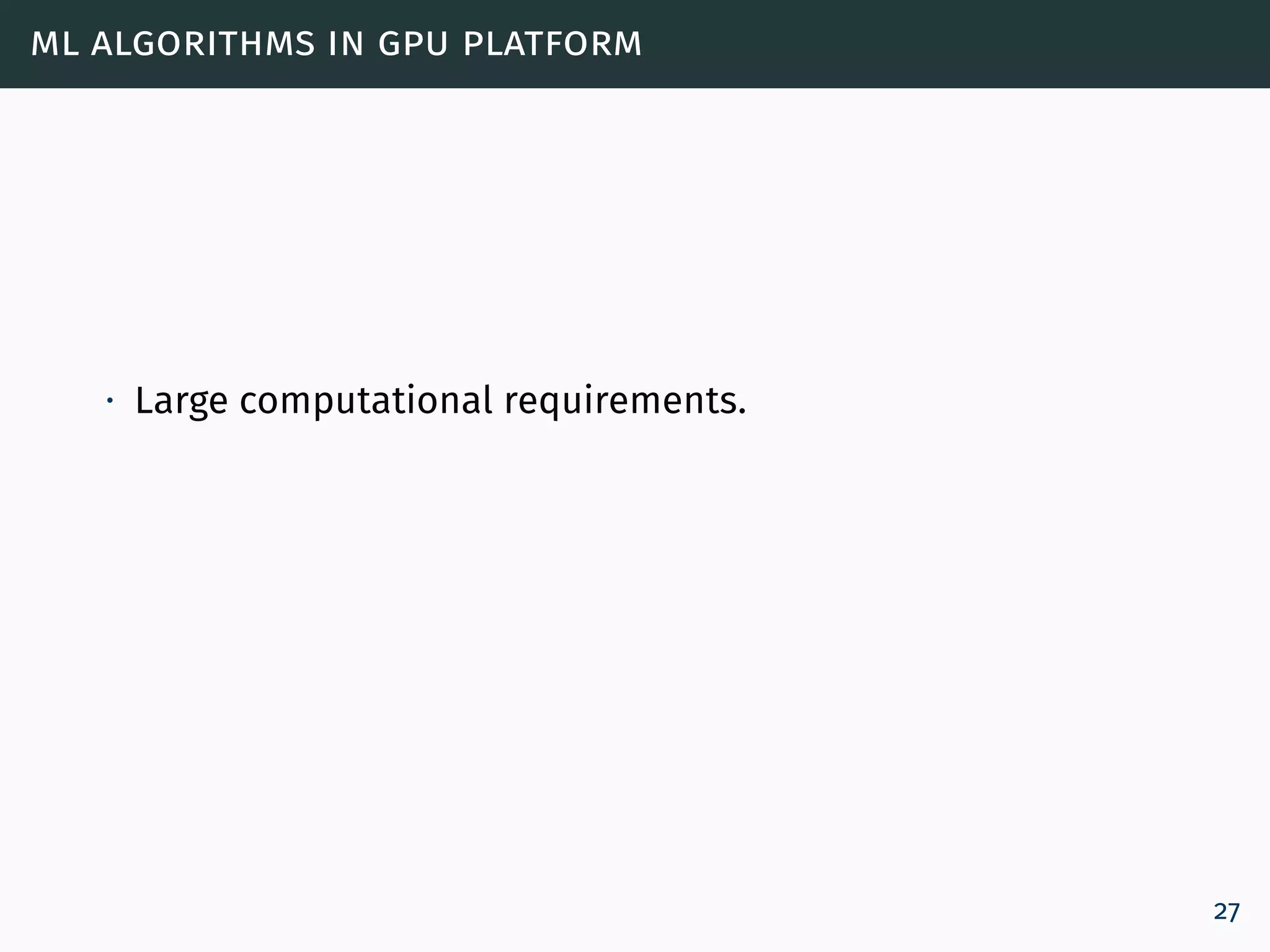

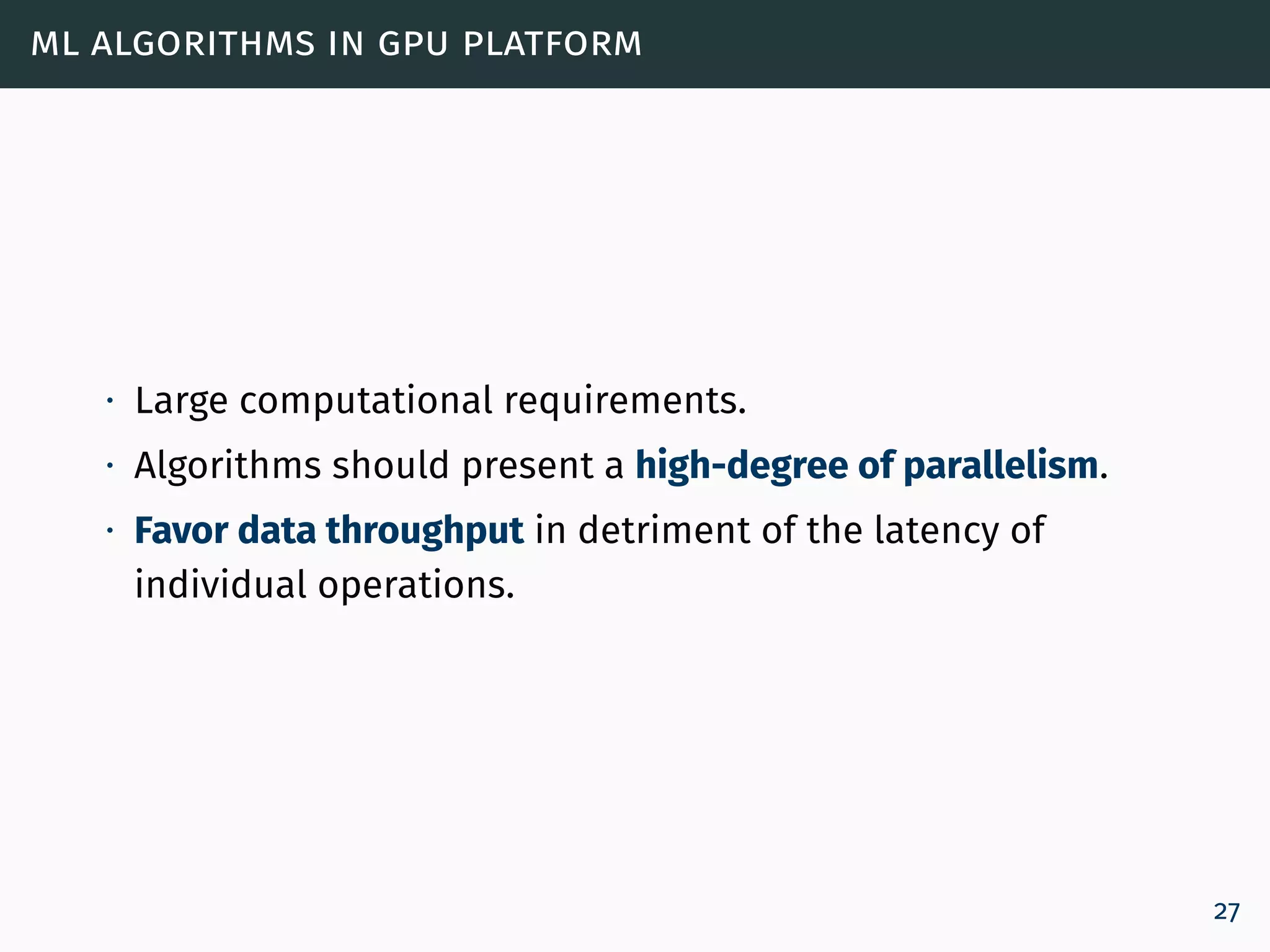

ml algorithms in gpu platform ∙ Large computational requirements. 27

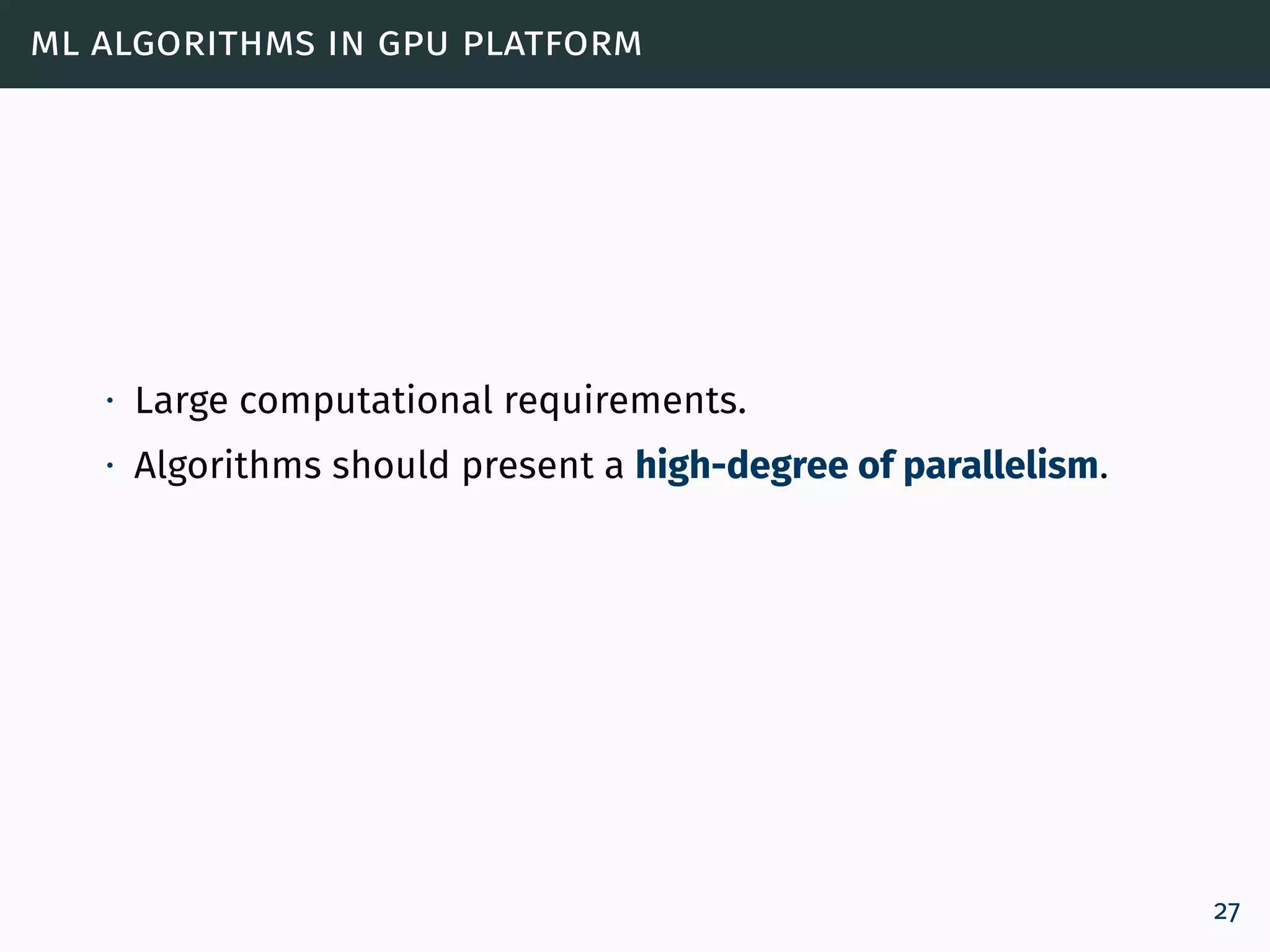

ml algorithms in gpu platform ∙ Large computational requirements. ∙ Algorithms should present a high-degree of parallelism. 27
ml algorithms in gpu platform ∙ Large computational requirements. ∙ Algorithms should present a high-degree of parallelism. ∙ Favor data throughput in detriment of the latency of individual operations. 27

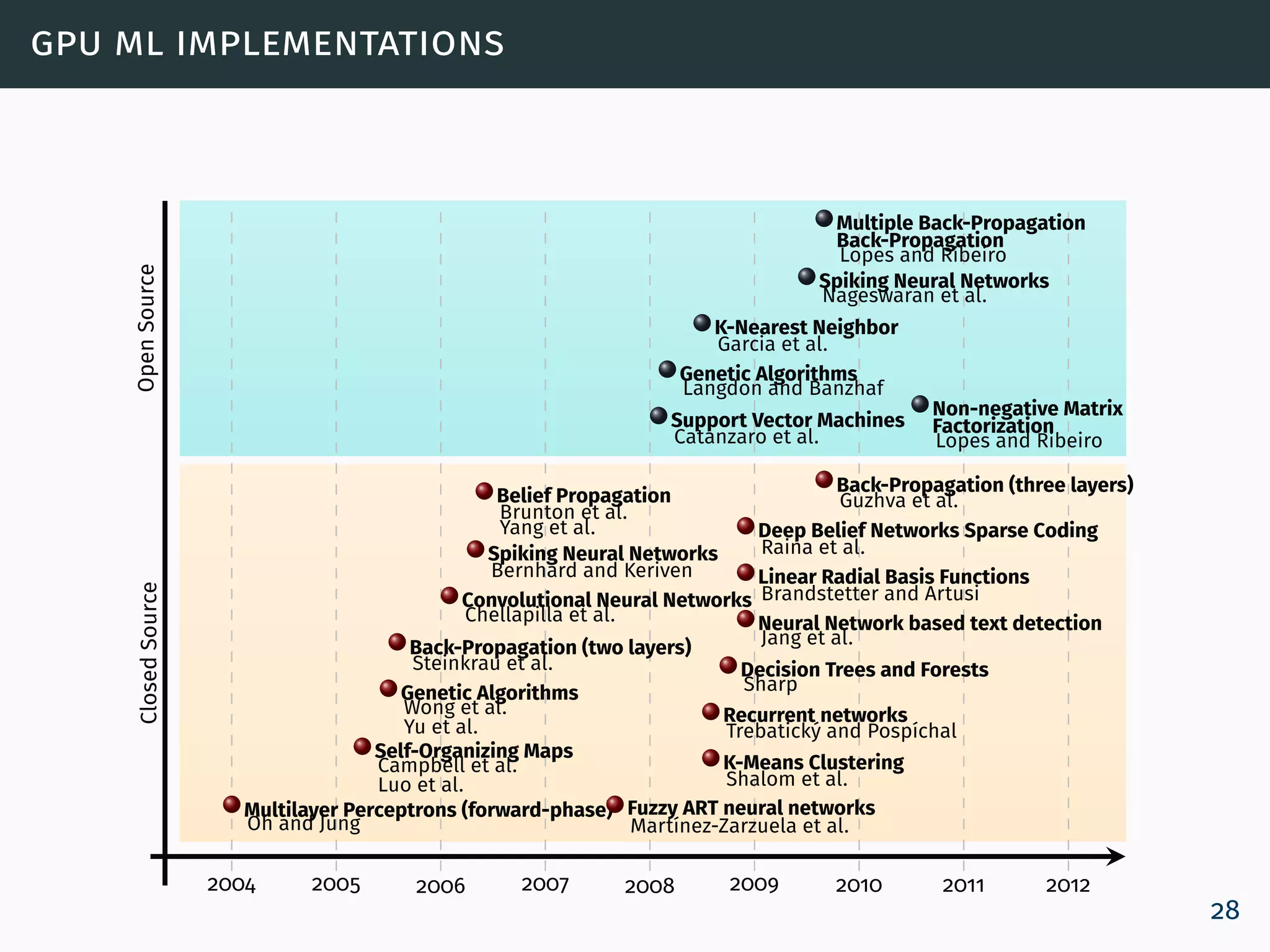

gpu ml implementations ClosedSourceOpenSource 2004 2005 2006 2007 2008 2009 2010 2011 2012 Multilayer Perceptrons (forward-phase) Oh and Jung Self-Organizing Maps Campbell et al. Luo et al. Genetic Algorithms Wong et al. Yu et al. Back-Propagation (two layers) Steinkrau et al. Convolutional Neural Networks Chellapilla et al. Spiking Neural Networks Bernhard and Keriven Belief Propagation Brunton et al. Yang et al. Fuzzy ART neural networks Martínez-Zarzuela et al. K-Means Clustering Shalom et al. Recurrent networks Trebatický and Pospíchal Decision Trees and Forests Sharp Neural Network based text detection Jang et al. Linear Radial Basis Functions Brandstetter and Artusi Deep Belief Networks Sparse Coding Raina et al. Back-Propagation (three layers) Guzhva et al. Support Vector Machines Catanzaro et al. Genetic Algorithms Langdon and Banzhaf K-Nearest Neighbor Garcia et al. Spiking Neural Networks Nageswaran et al. Multiple Back-Propagation Back-Propagation Lopes and Ribeiro Non-negative Matrix Factorization Lopes and Ribeiro 28
Open Source 29

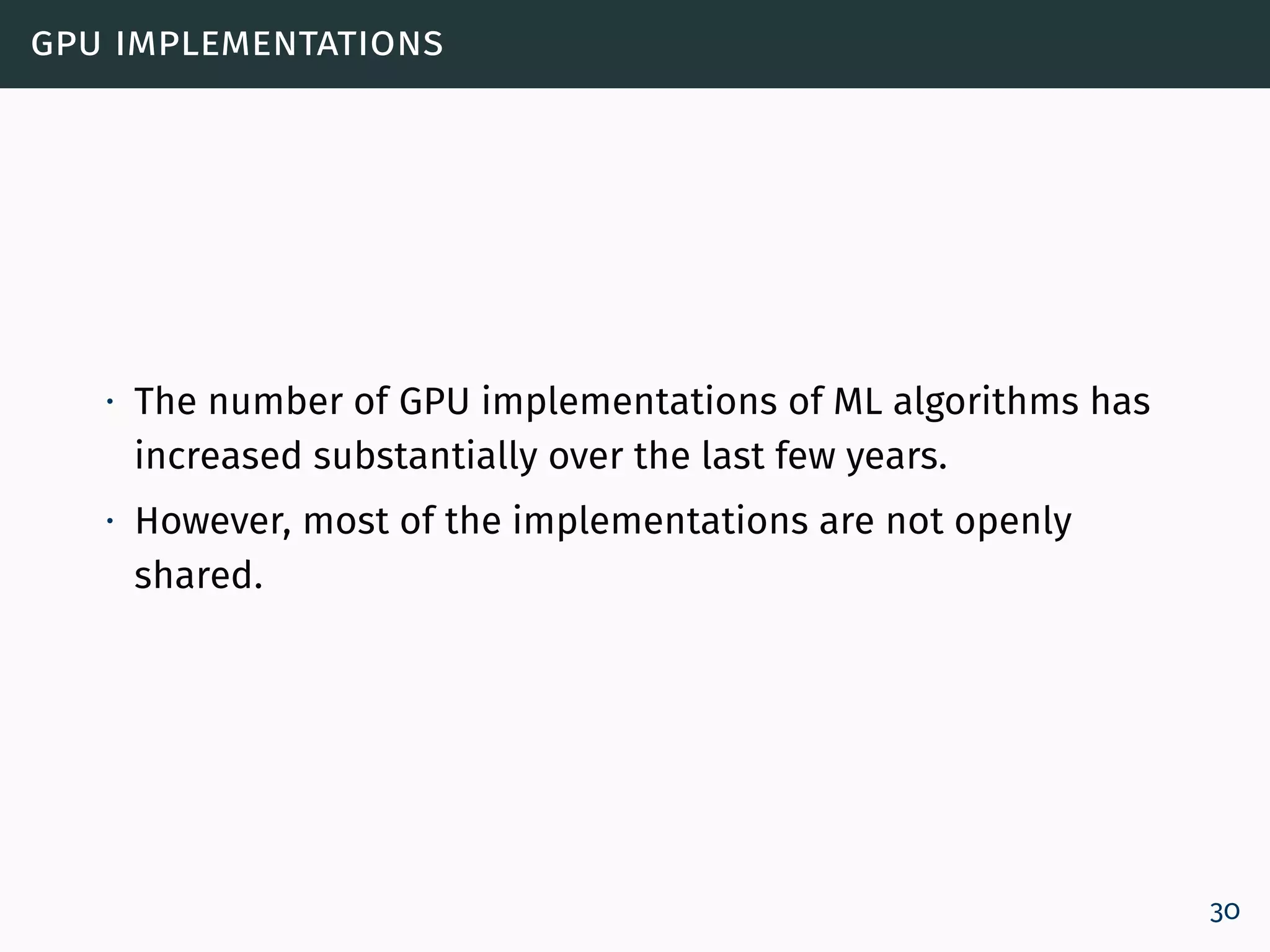

gpu implementations ∙ The number of GPU implementations of ML algorithms has increased substantially over the last few years. ∙ However, most of the implementations are not openly shared. 30

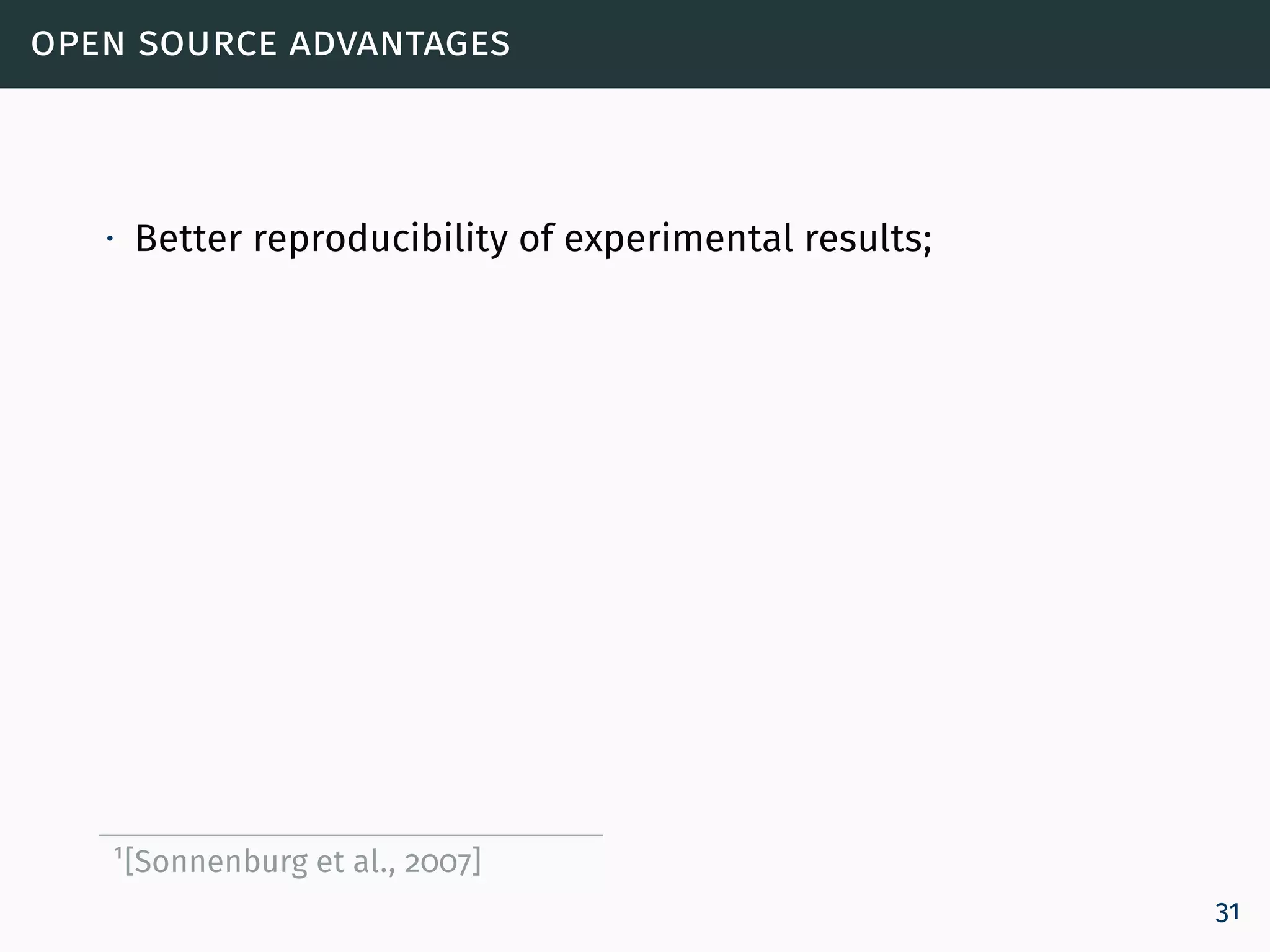

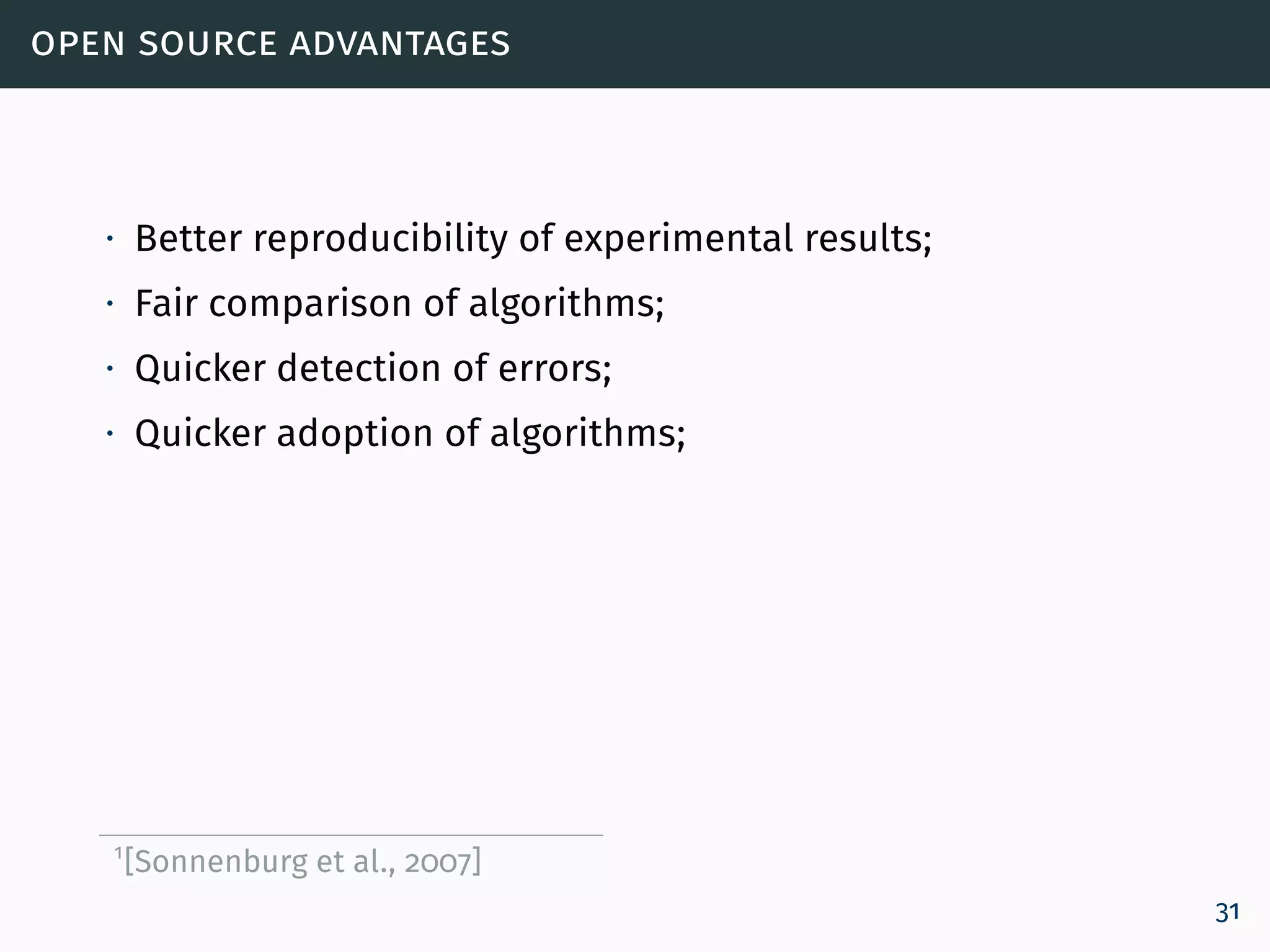

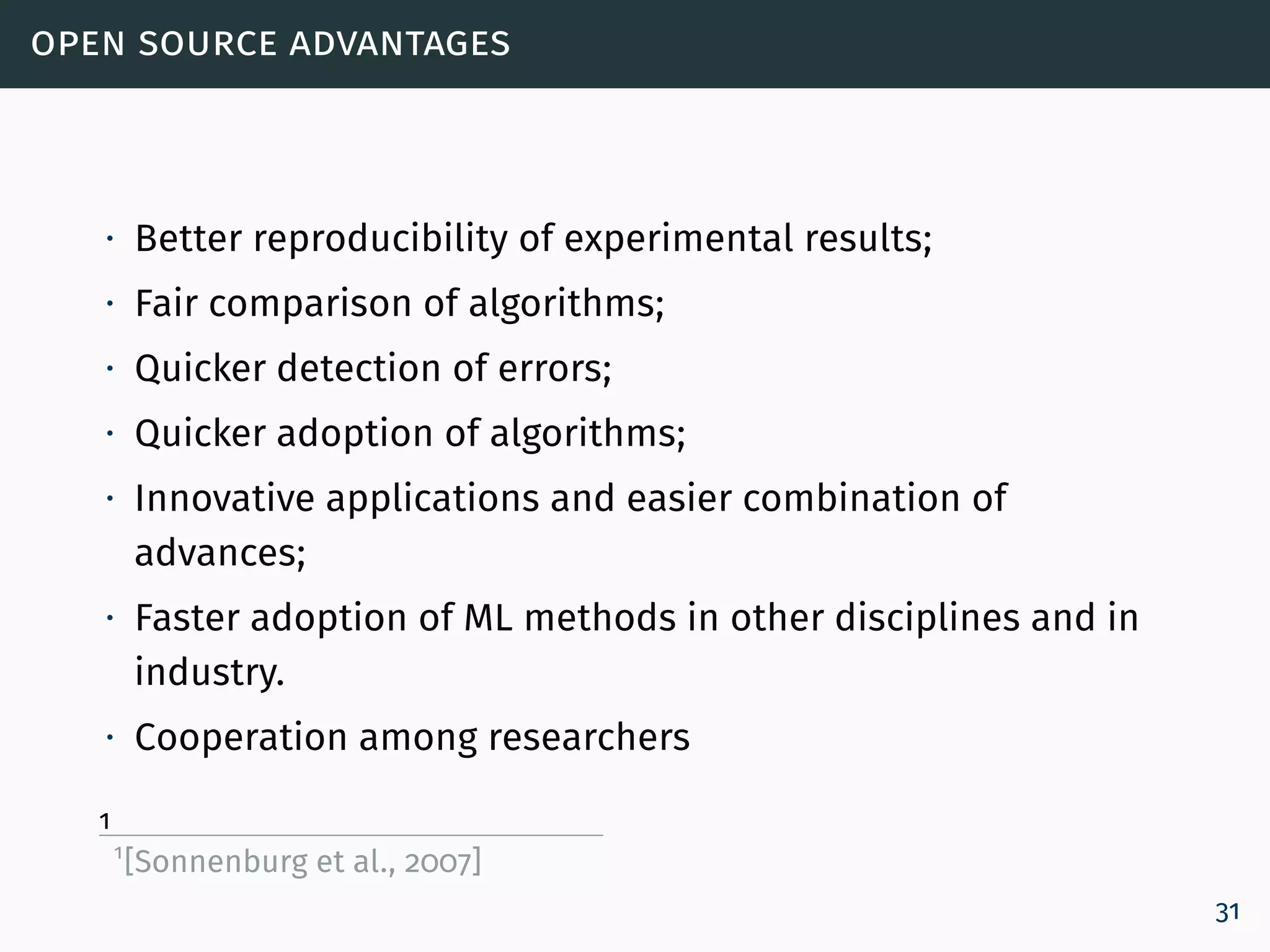

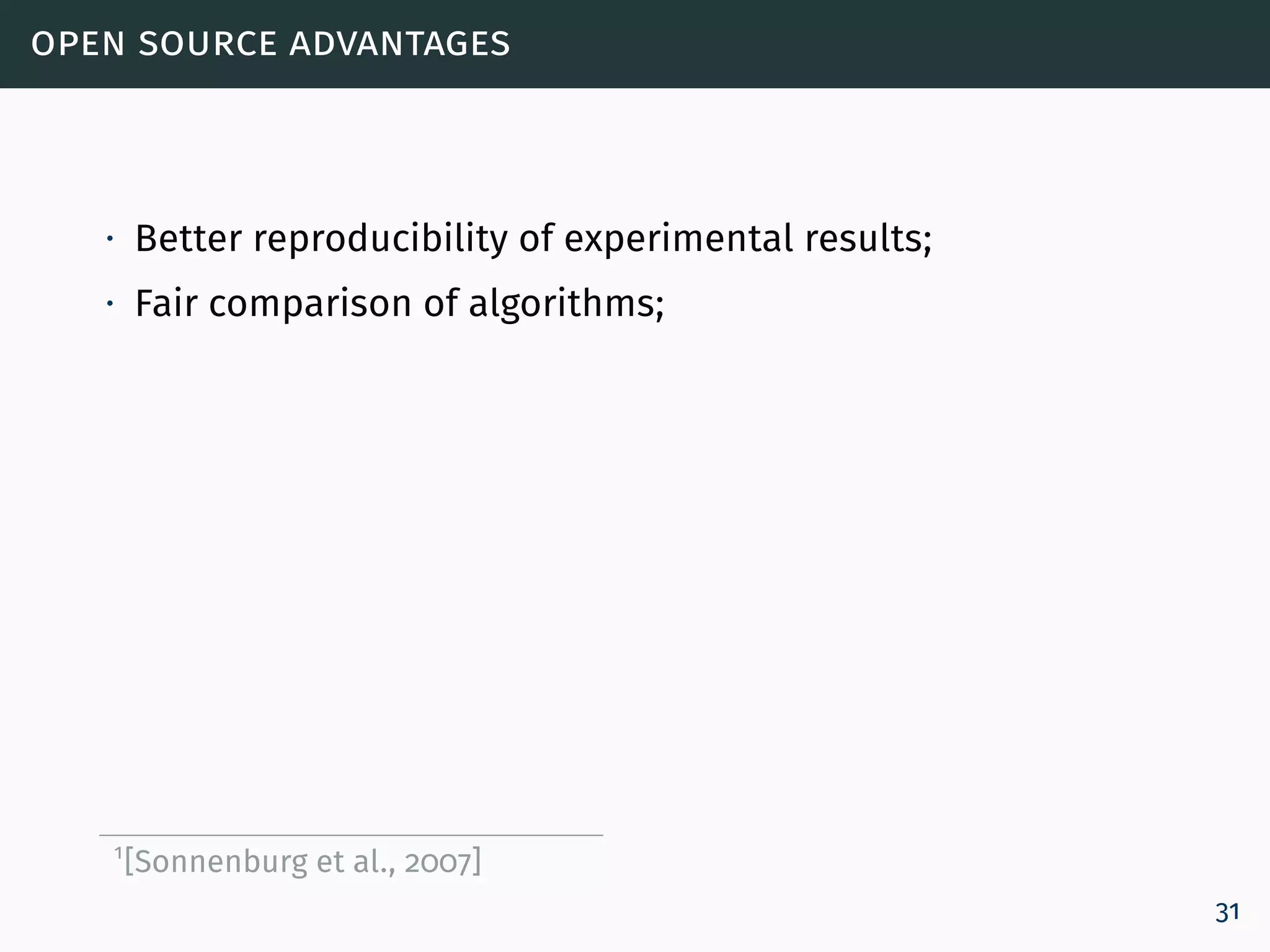

open source advantages ∙ Better reproducibility of experimental results; 1 [Sonnenburg et al., 2007] 31
open source advantages ∙ Better reproducibility of experimental results; ∙ Fair comparison of algorithms; 1 [Sonnenburg et al., 2007] 31

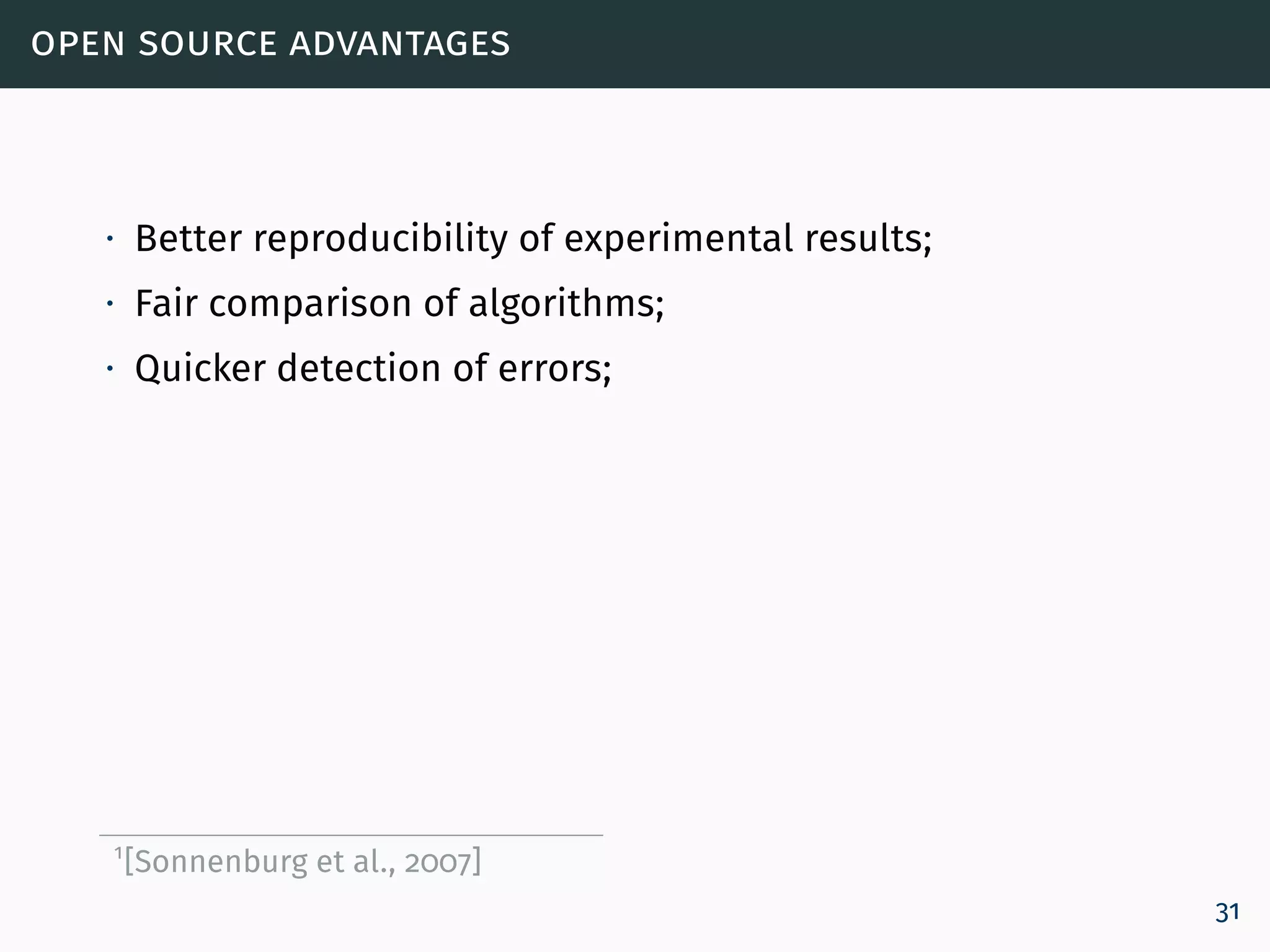

open source advantages ∙ Better reproducibility of experimental results; ∙ Fair comparison of algorithms; ∙ Quicker detection of errors; 1 [Sonnenburg et al., 2007] 31
open source advantages ∙ Better reproducibility of experimental results; ∙ Fair comparison of algorithms; ∙ Quicker detection of errors; ∙ Quicker adoption of algorithms; 1 [Sonnenburg et al., 2007] 31

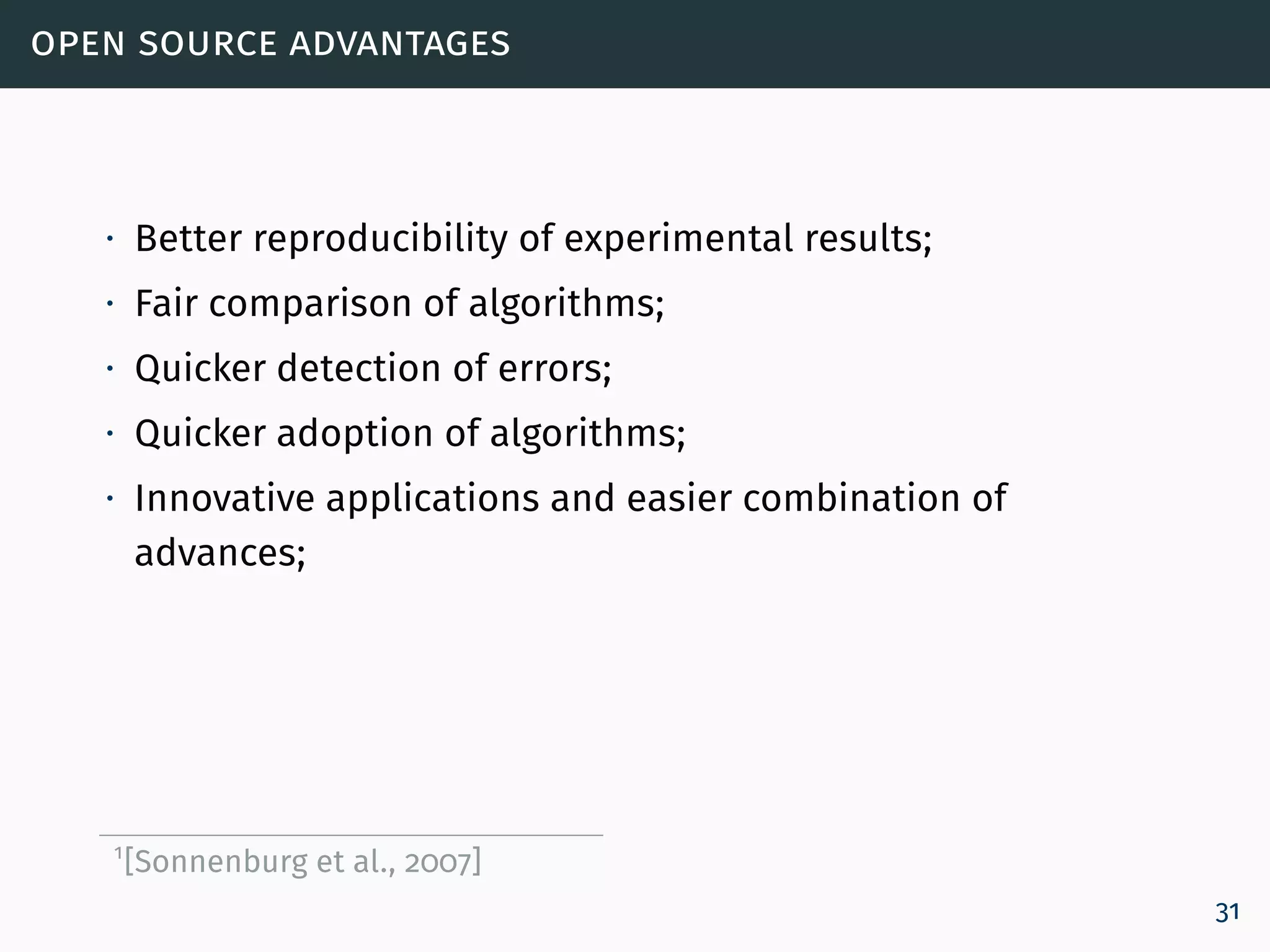

open source advantages ∙ Better reproducibility of experimental results; ∙ Fair comparison of algorithms; ∙ Quicker detection of errors; ∙ Quicker adoption of algorithms; ∙ Innovative applications and easier combination of advances; 1 [Sonnenburg et al., 2007] 31

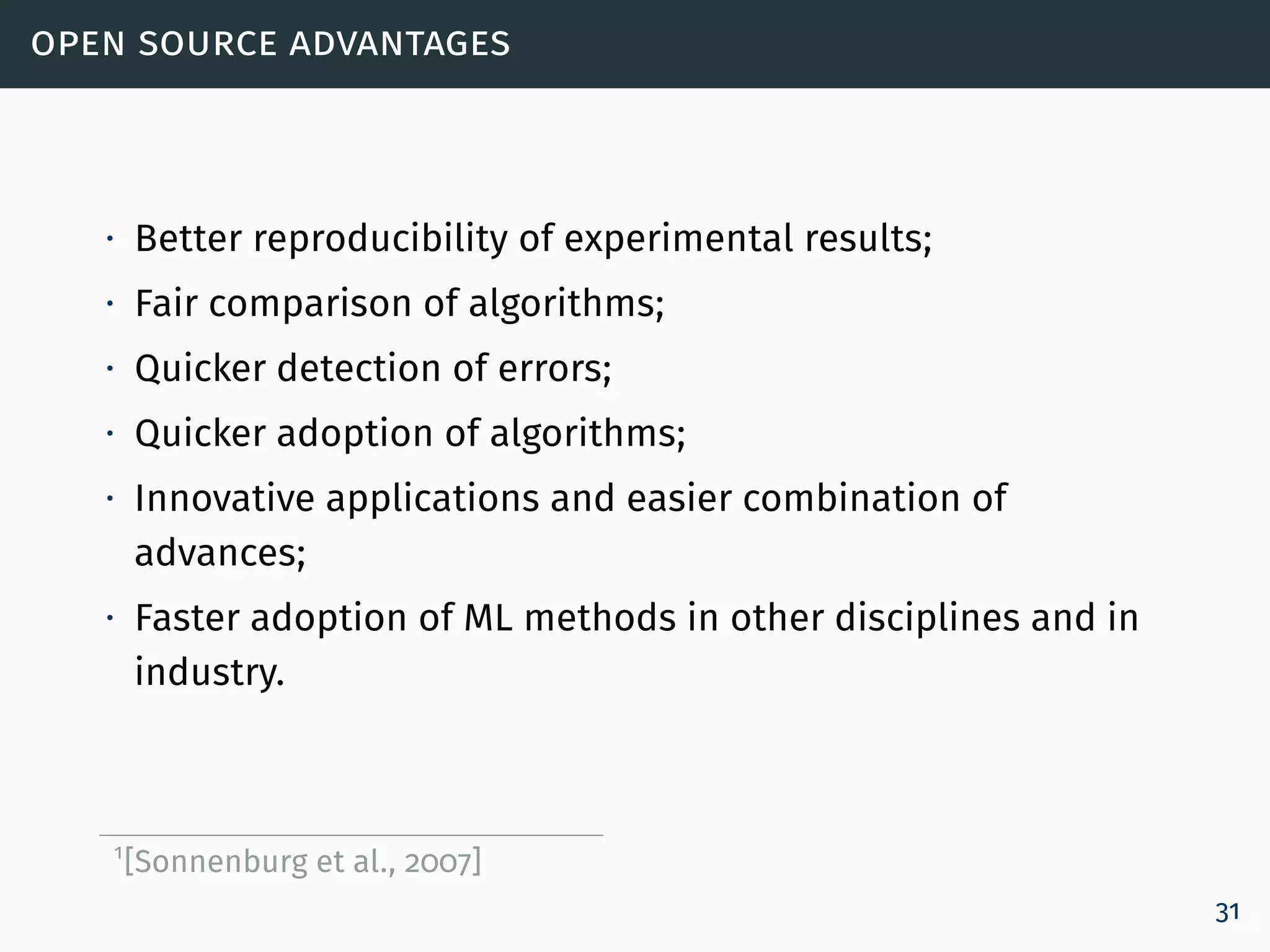

open source advantages ∙ Better reproducibility of experimental results; ∙ Fair comparison of algorithms; ∙ Quicker detection of errors; ∙ Quicker adoption of algorithms; ∙ Innovative applications and easier combination of advances; ∙ Faster adoption of ML methods in other disciplines and in industry. 1 [Sonnenburg et al., 2007] 31
open source advantages ∙ Better reproducibility of experimental results; ∙ Fair comparison of algorithms; ∙ Quicker detection of errors; ∙ Quicker adoption of algorithms; ∙ Innovative applications and easier combination of advances; ∙ Faster adoption of ML methods in other disciplines and in industry. ∙ Cooperation among researchers 1 1 [Sonnenburg et al., 2007] 31

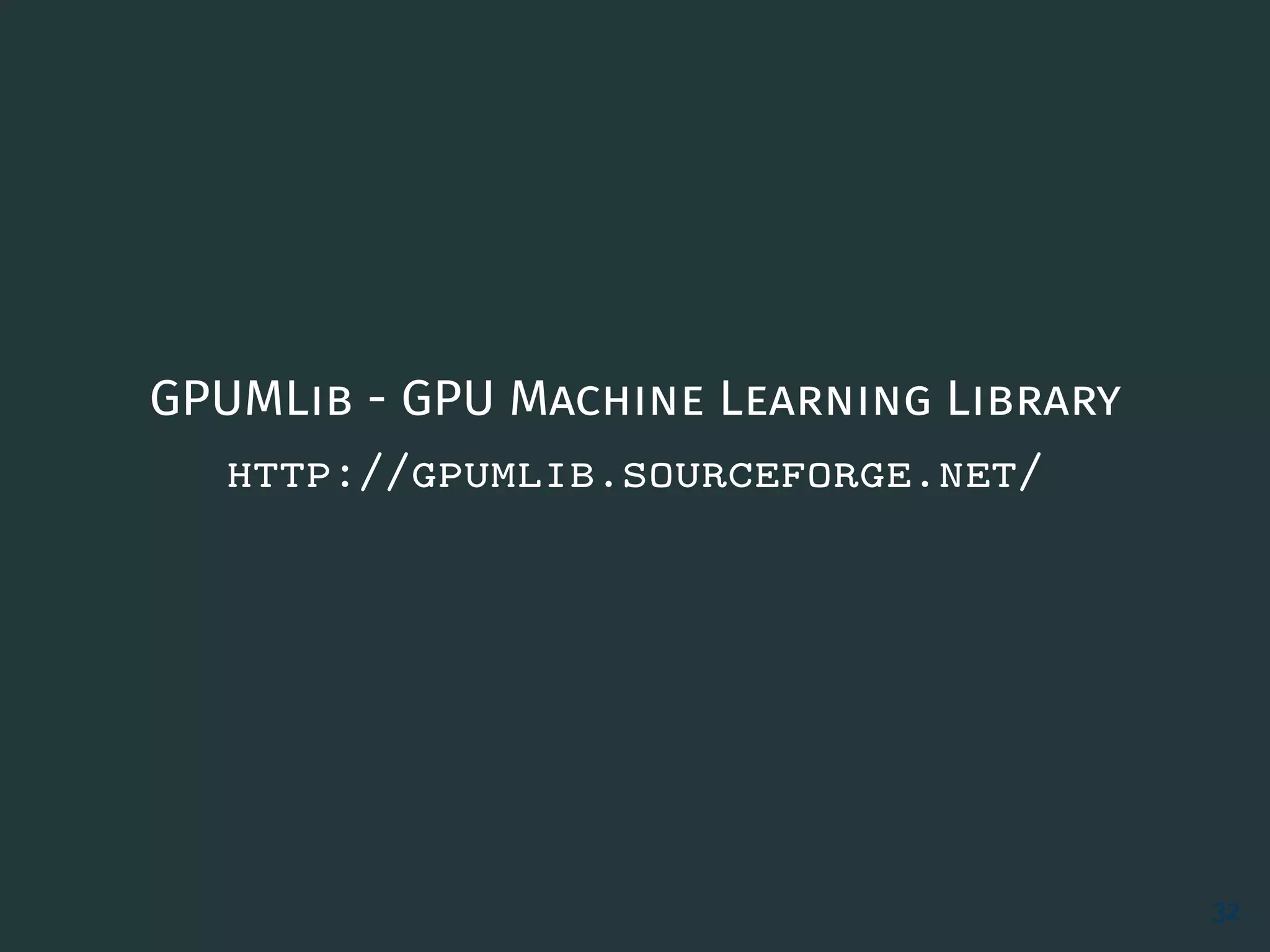

GPUMLib - GPU Machine Learning Library http://gpumlib.sourceforge.net/ 32

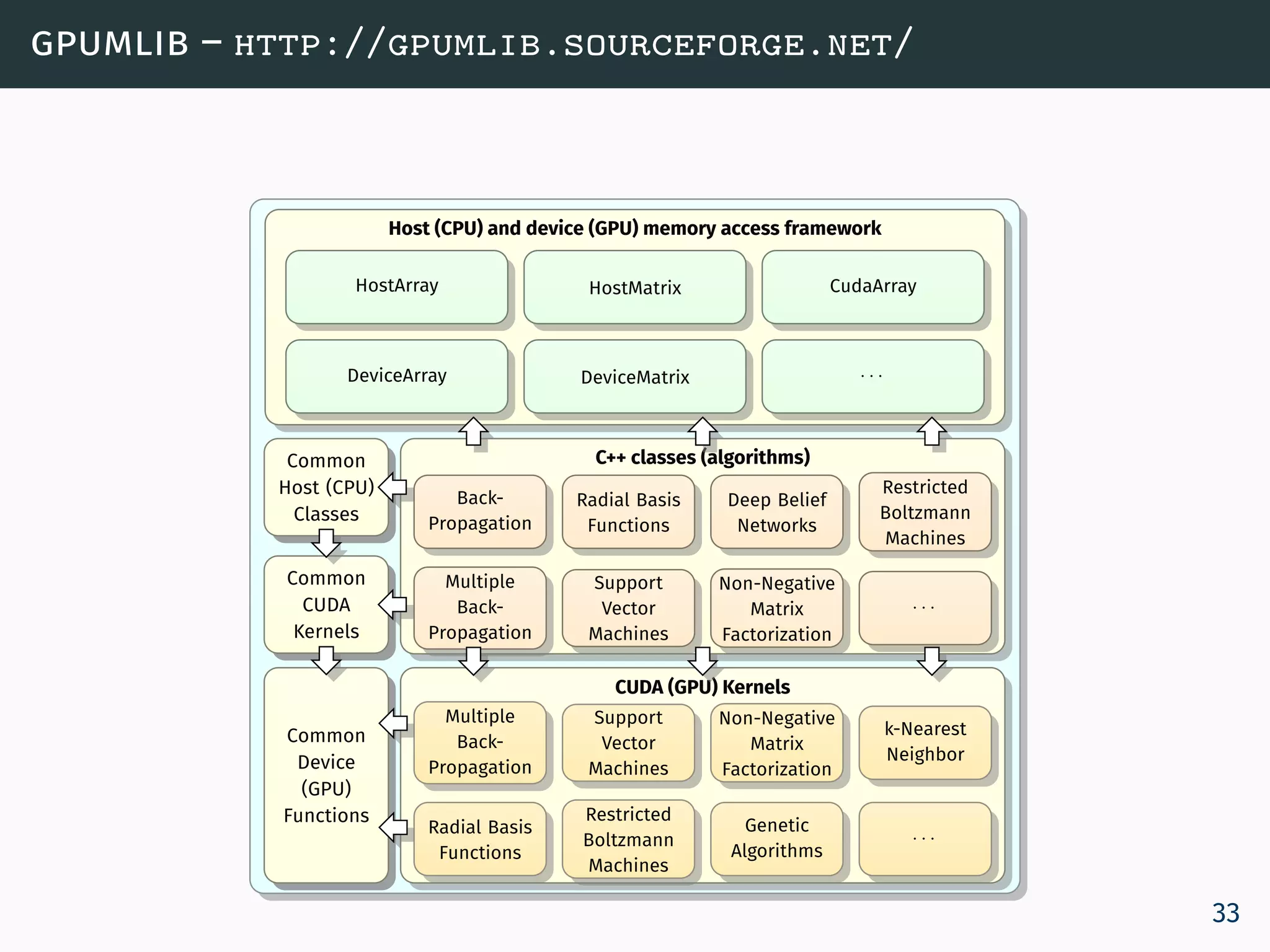

gpumlib – http://gpumlib.sourceforge.net/ Host (CPU) and device (GPU) memory access framework HostArray HostMatrix CudaArray DeviceArray DeviceMatrix · · · C++ classes (algorithms) Back- Propagation Radial Basis Functions Deep Belief Networks Restricted Boltzmann Machines Multiple Back- Propagation Support Vector Machines Non-Negative Matrix Factorization · · · Common Host (CPU) Classes Common CUDA Kernels CUDA (GPU) Kernels Multiple Back- Propagation Support Vector Machines Non-Negative Matrix Factorization k-Nearest Neighbor Radial Basis Functions Restricted Boltzmann Machines Genetic Algorithms · · · Common Device (GPU) Functions 33

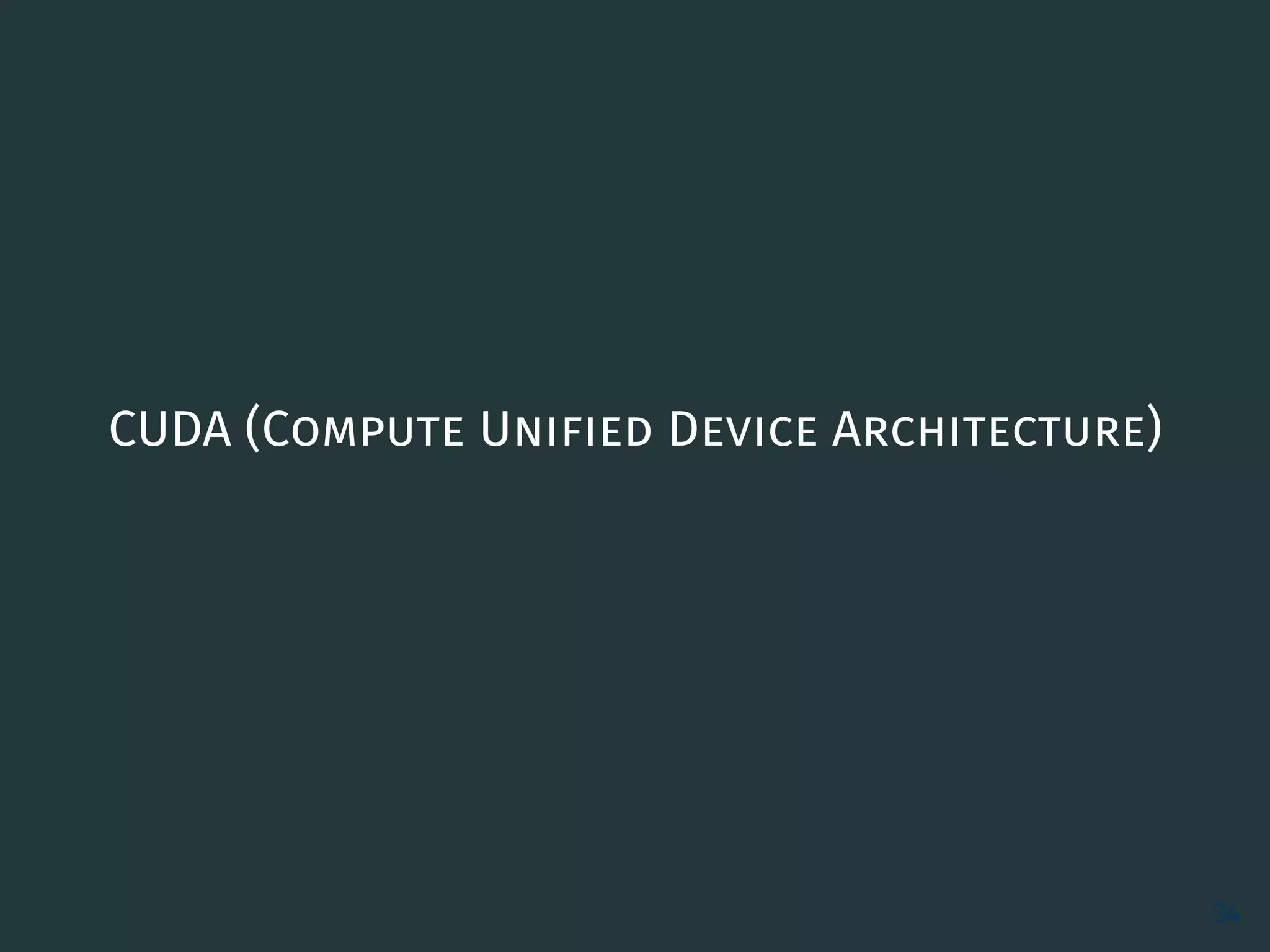

CUDA (Compute Unified Device Architecture) 34

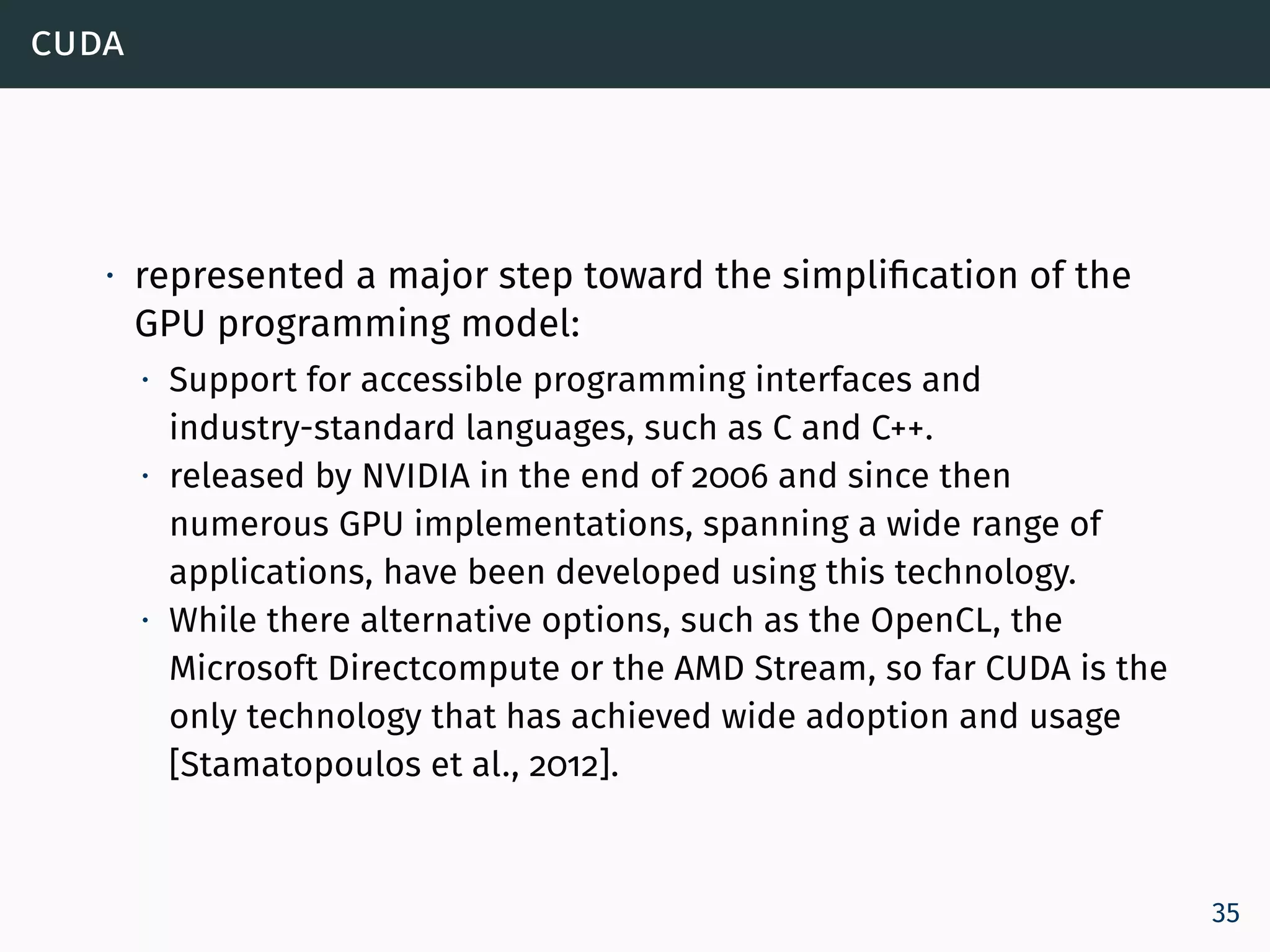

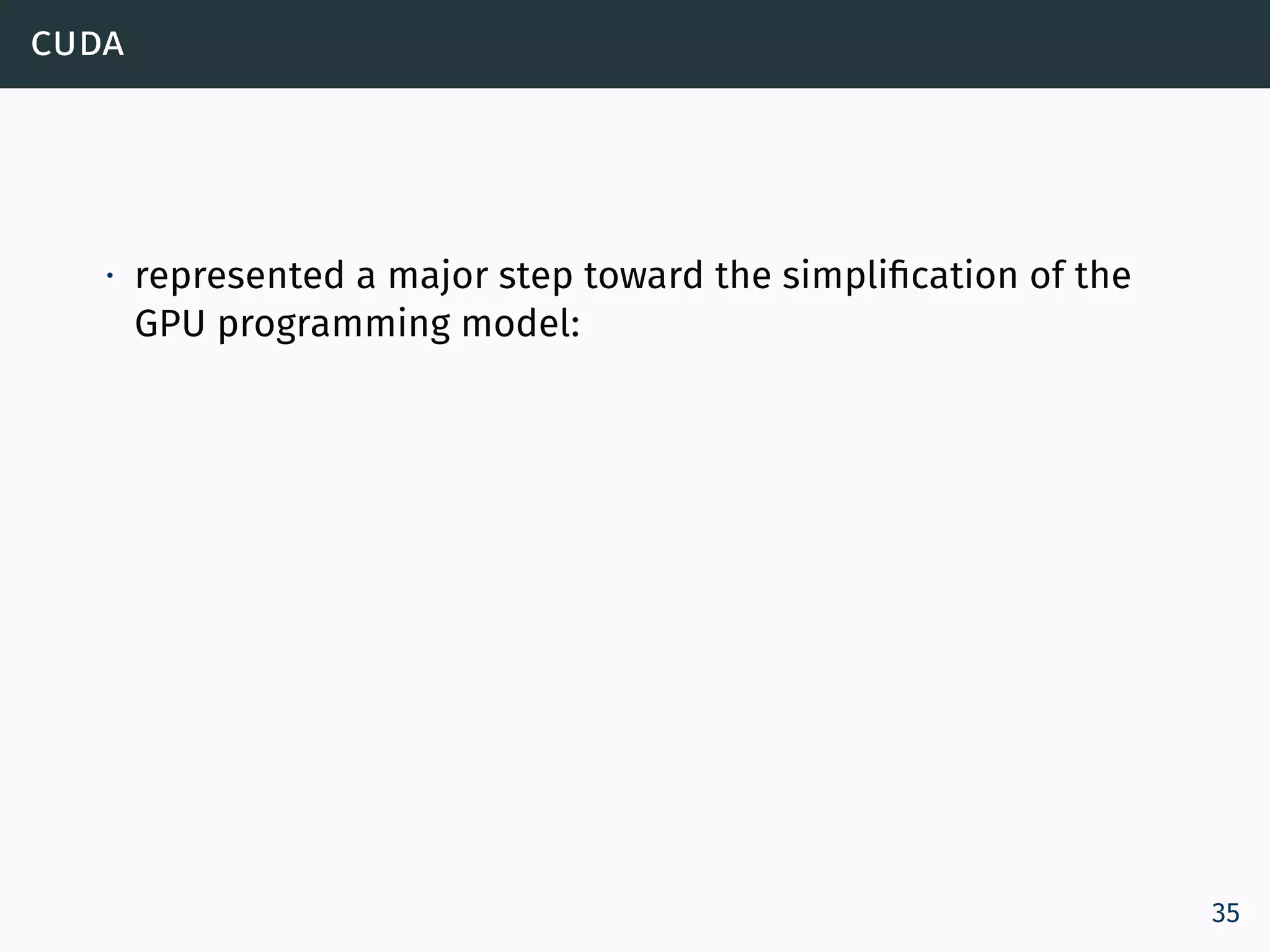

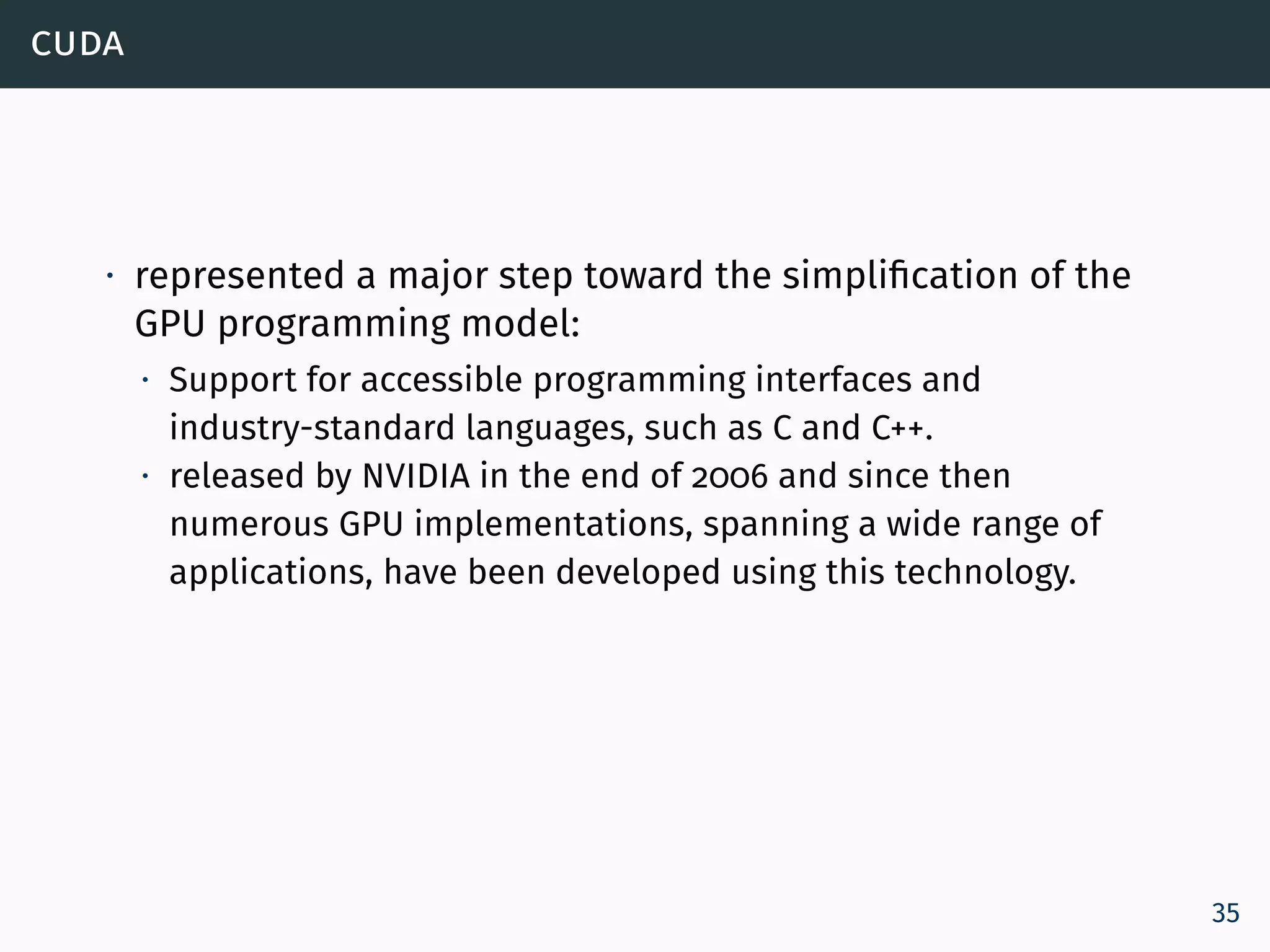

cuda ∙ represented a major step toward the simplification of the GPU programming model: 35

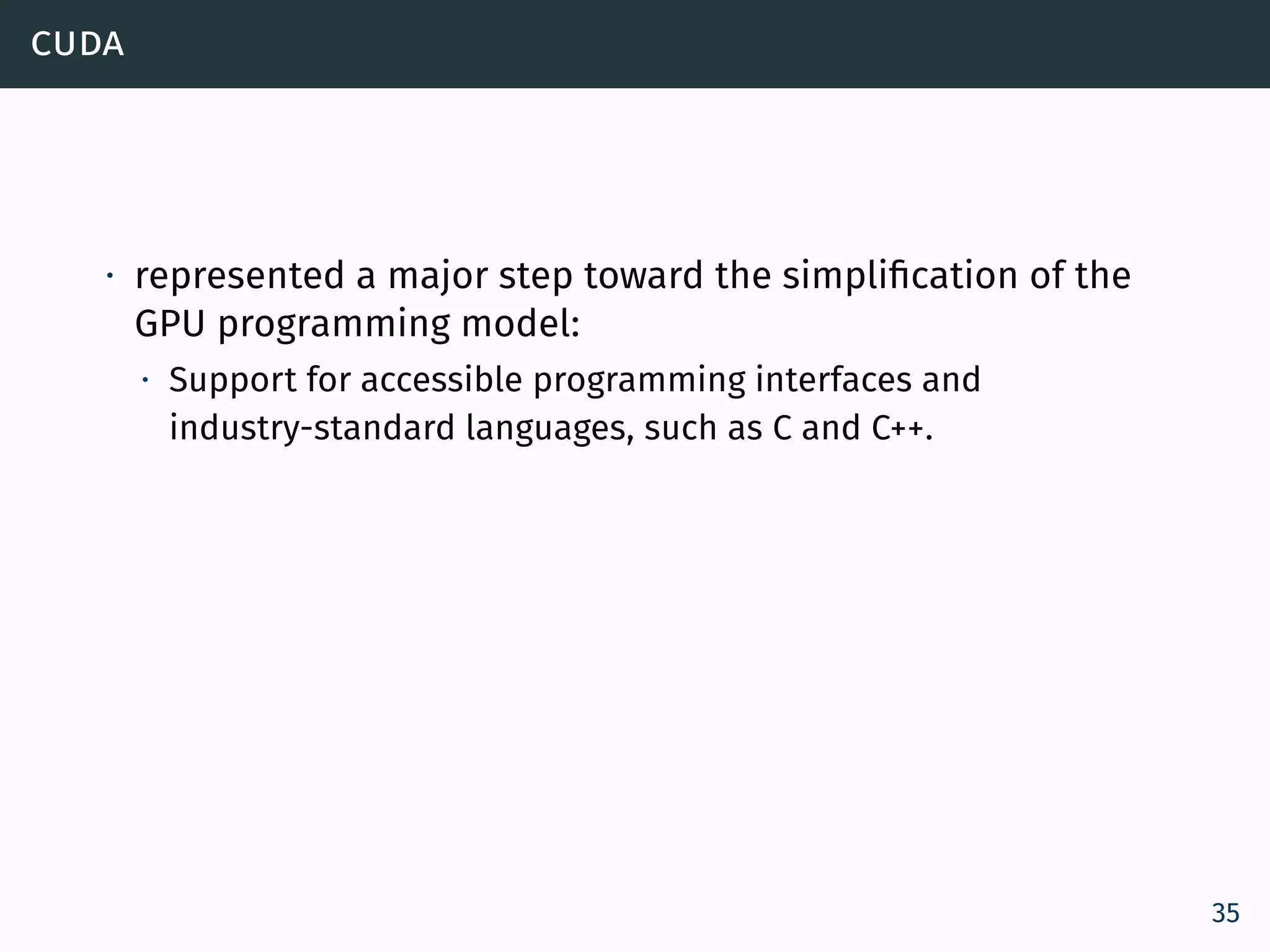

cuda ∙ represented a major step toward the simplification of the GPU programming model: ∙ Support for accessible programming interfaces and industry-standard languages, such as C and C++. 35
cuda ∙ represented a major step toward the simplification of the GPU programming model: ∙ Support for accessible programming interfaces and industry-standard languages, such as C and C++. ∙ released by NVIDIA in the end of 2006 and since then numerous GPU implementations, spanning a wide range of applications, have been developed using this technology. 35
cuda ∙ represented a major step toward the simplification of the GPU programming model: ∙ Support for accessible programming interfaces and industry-standard languages, such as C and C++. ∙ released by NVIDIA in the end of 2006 and since then numerous GPU implementations, spanning a wide range of applications, have been developed using this technology. ∙ While there alternative options, such as the OpenCL, the Microsoft Directcompute or the AMD Stream, so far CUDA is the only technology that has achieved wide adoption and usage [Stamatopoulos et al., 2012]. 35
Hardware and Software 36

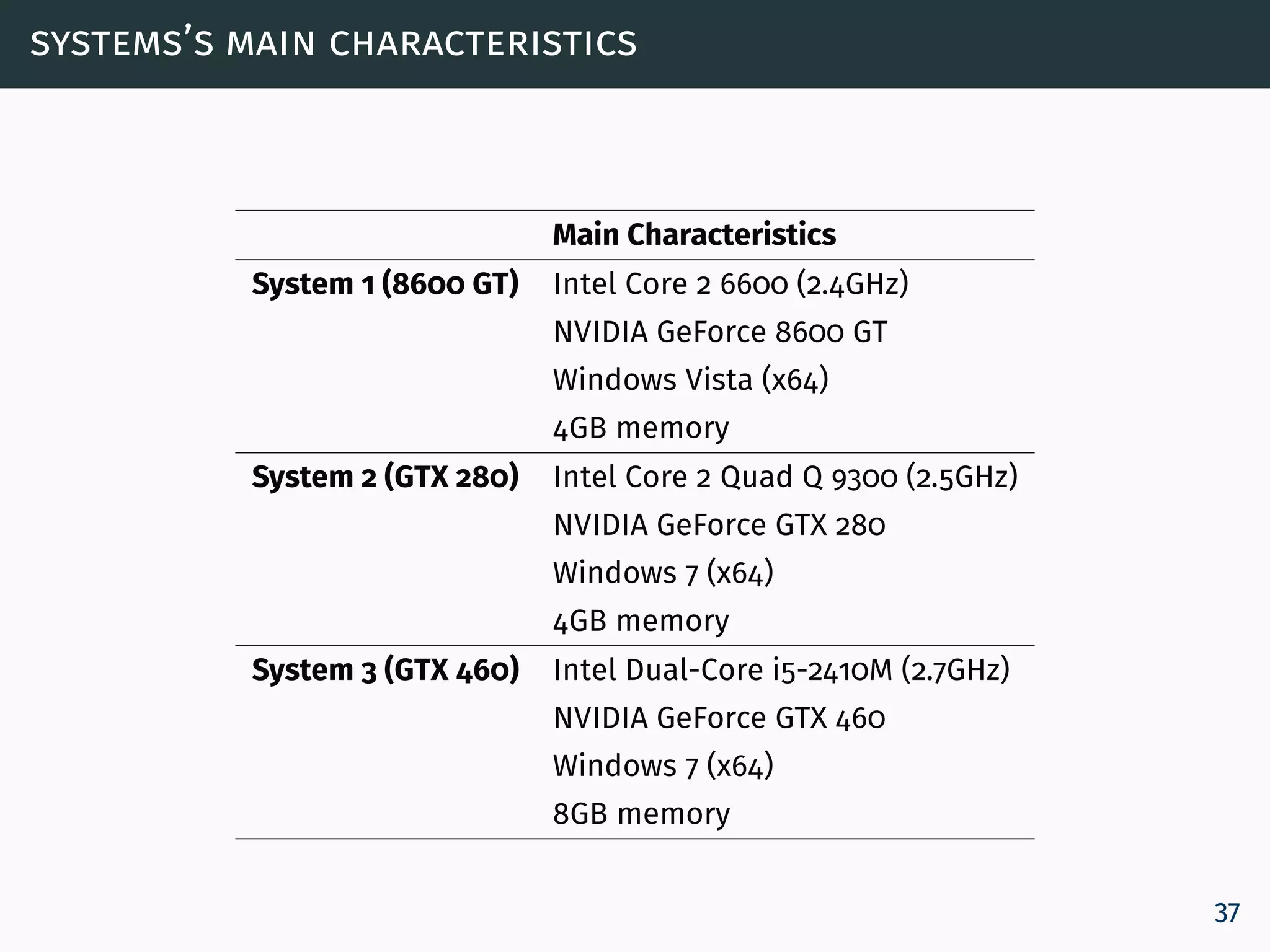

systems’s main characteristics Main Characteristics System 1 (8600 GT) Intel Core 2 6600 (2.4GHz) NVIDIA GeForce 8600 GT Windows Vista (x64) 4GB memory System 2 (GTX 280) Intel Core 2 Quad Q 9300 (2.5GHz) NVIDIA GeForce GTX 280 Windows 7 (x64) 4GB memory System 3 (GTX 460) Intel Dual-Core i5-2410M (2.7GHz) NVIDIA GeForce GTX 460 Windows 7 (x64) 8GB memory 37

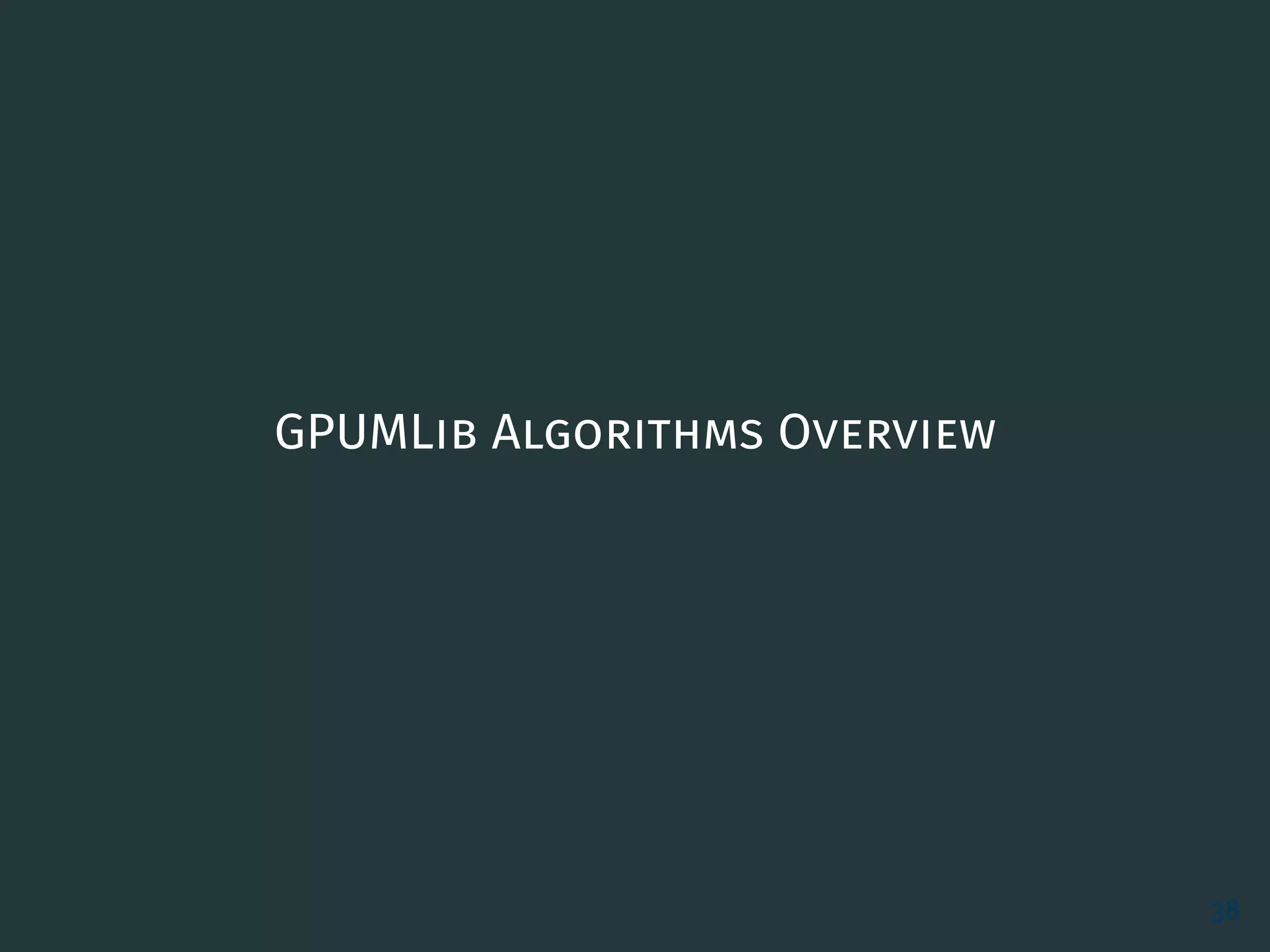

GPUMLib Algorithms Overview 38
neural networks

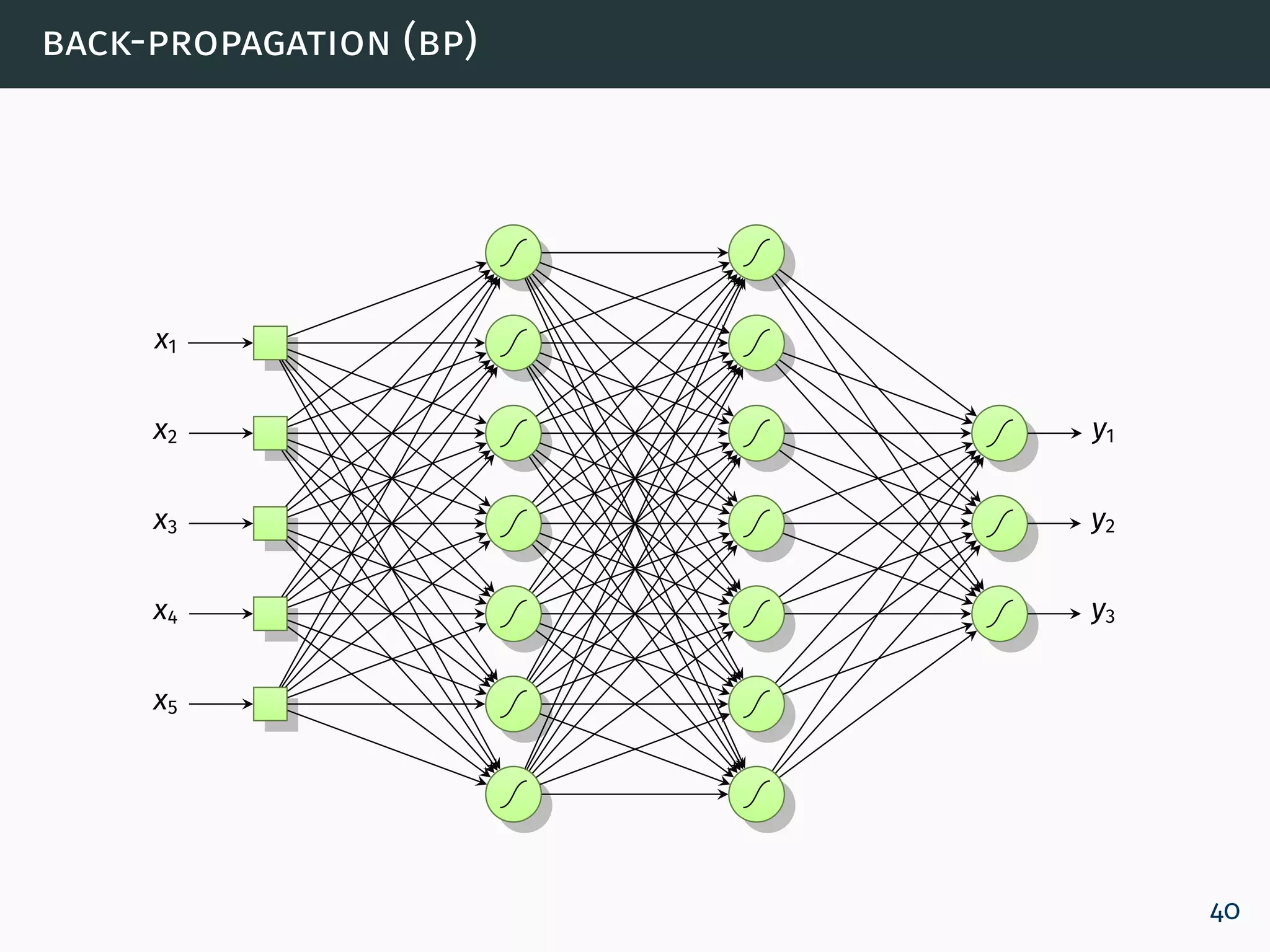

back-propagation (bp) x1 x2 x3 x4 x5 y1 y2 y3 40

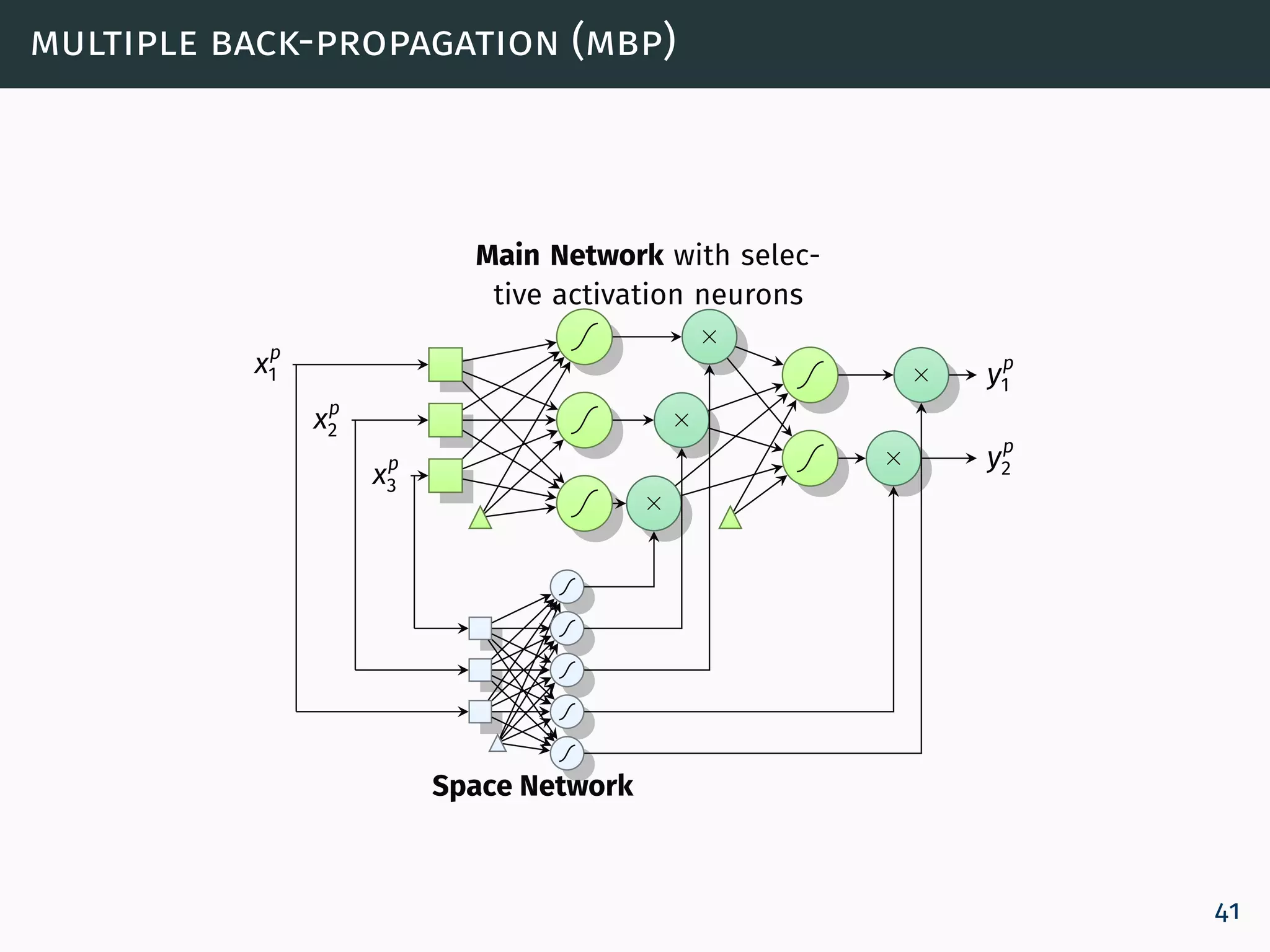

multiple back-propagation (mbp) xp 1 × xp 2 × xp 3 × yp 1× yp 2× Space Network Main Network with selec- tive activation neurons 41

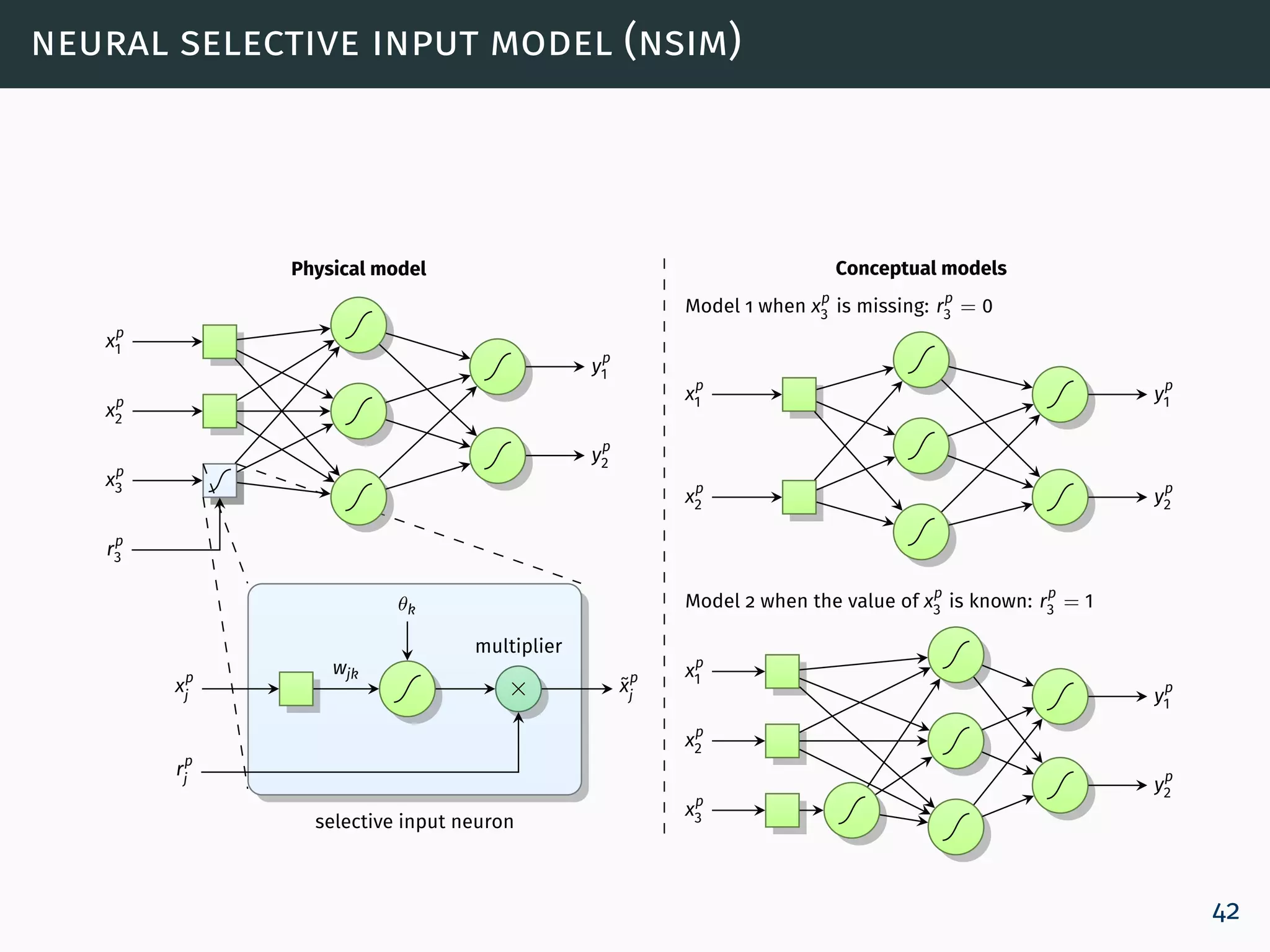

neural selective input model (nsim) x p 1 x p 2 x p 3 r p 3 x p j y p 1 y p 2 wjk θk × multiplier r p j ˜x p j selective input neuron Physical model Model 1 when x p 3 is missing: r p 3 = 0 x p 1 x p 2 Conceptual models y p 1 y p 2 Model 2 when the value of x p 3 is known: r p 3 = 1 x p 1 x p 2 x p 3 y p 1 y p 2 42

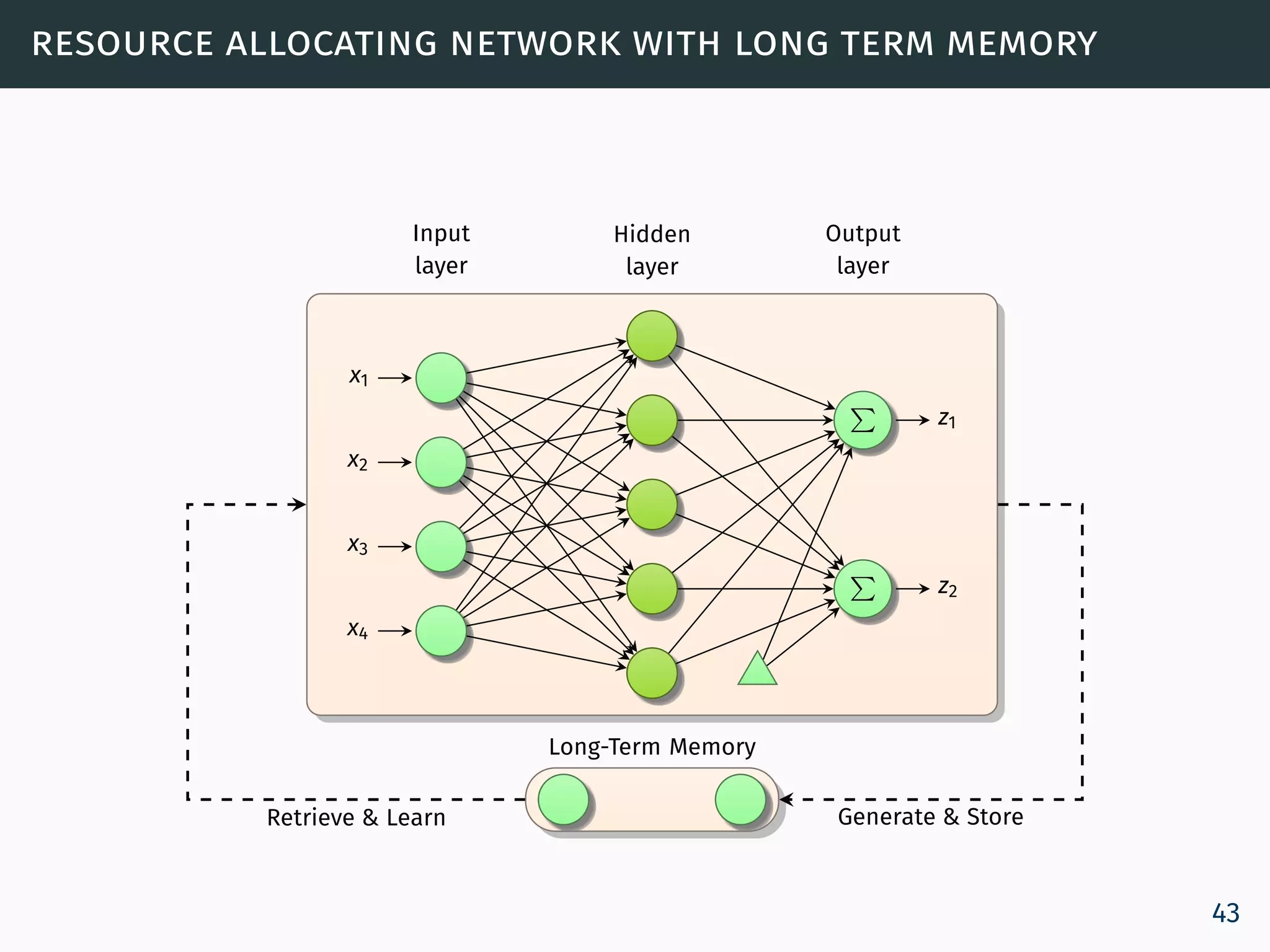

resource allocating network with long term memory x1 x2 x3 x4 z1 z2 Hidden layer Input layer Output layer Generate & StoreRetrieve & Learn Long-Term Memory 43
Datasets 44

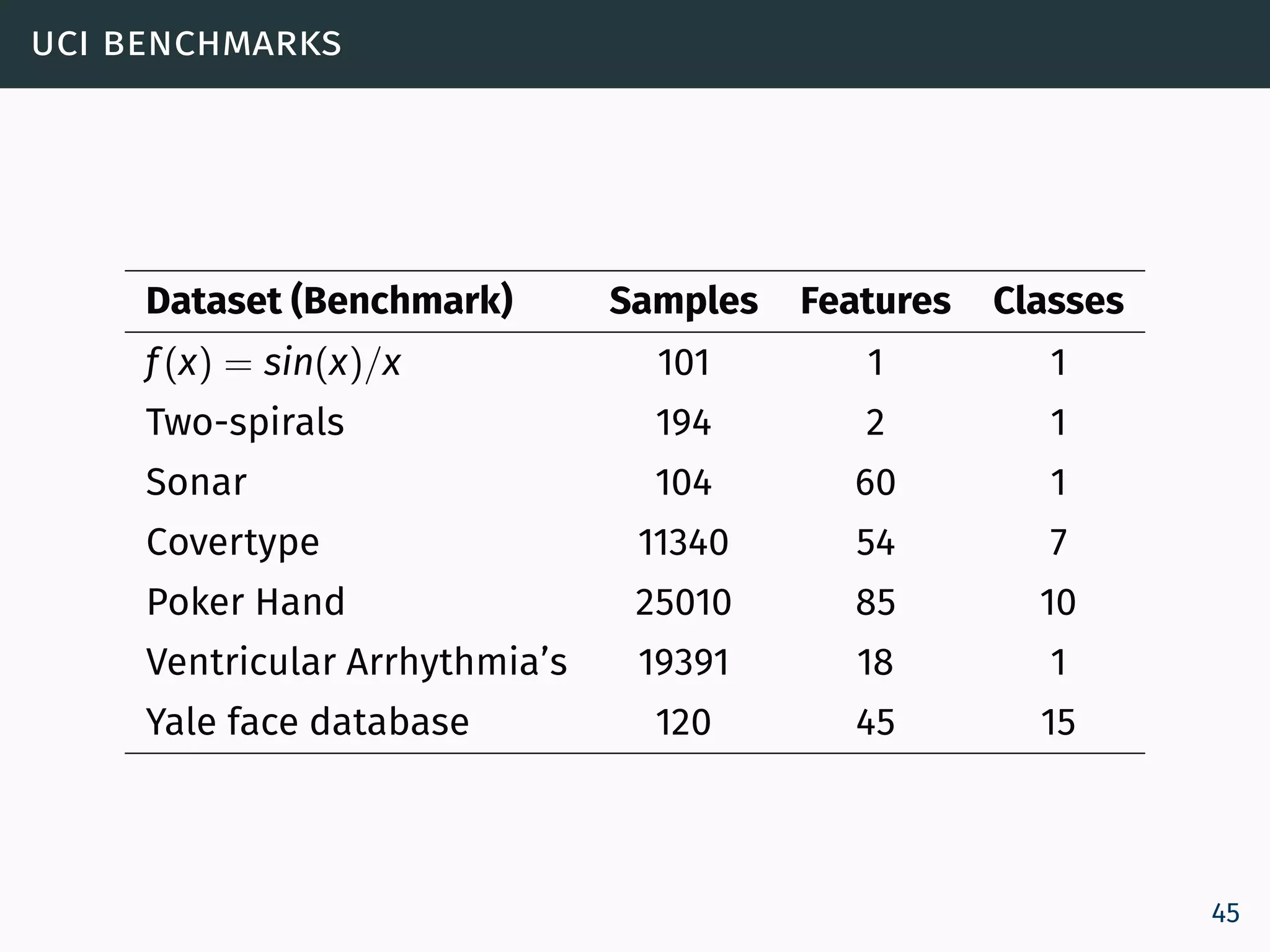

uci benchmarks Dataset (Benchmark) Samples Features Classes f(x) = sin(x)/x 101 1 1 Two-spirals 194 2 1 Sonar 104 60 1 Covertype 11340 54 7 Poker Hand 25010 85 10 Ventricular Arrhythmia’s 19391 18 1 Yale face database 120 45 15 45

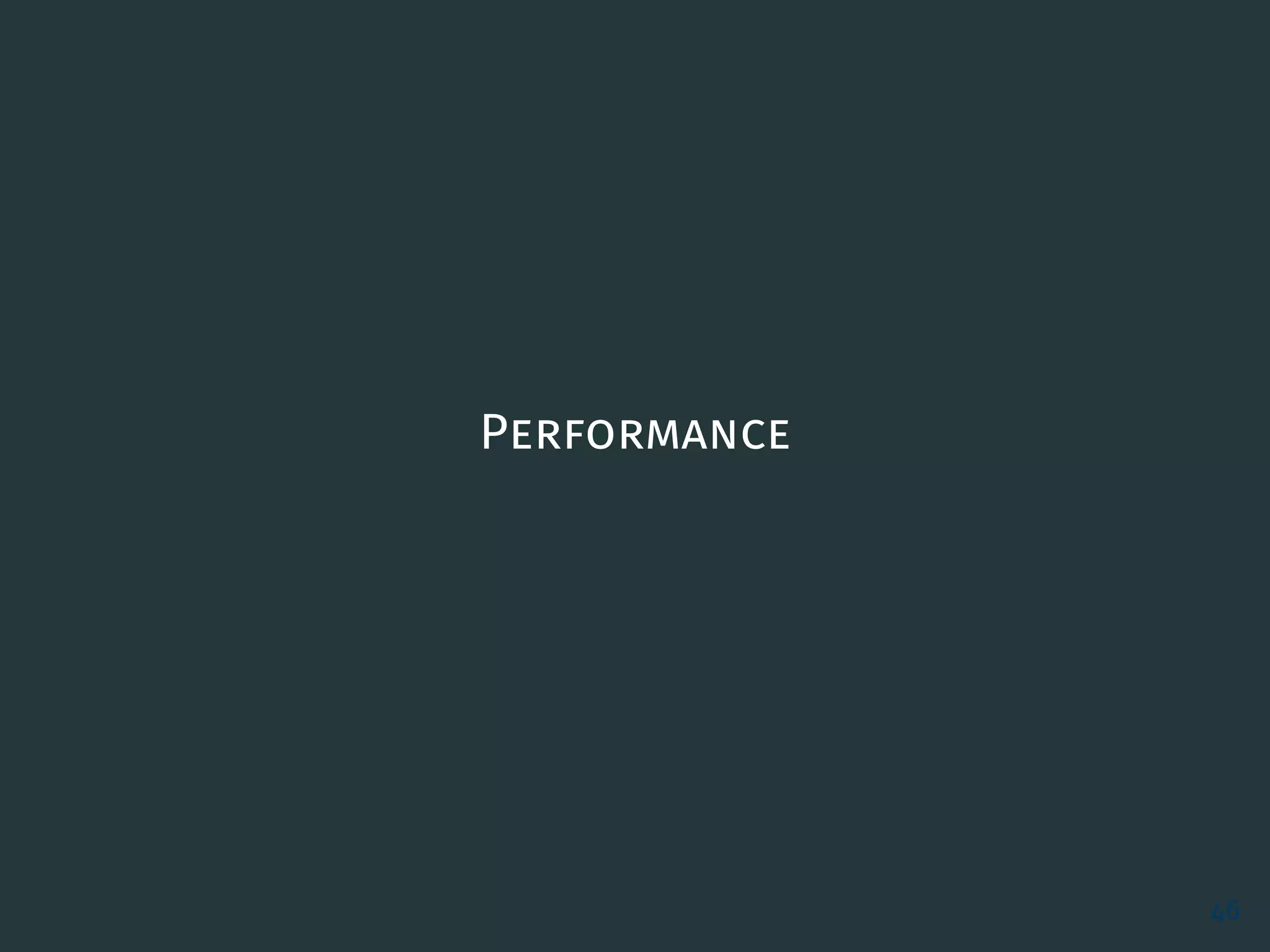

Performance 46
speedup (×) for the f(x) = sin(x)/x problem. Topology Nh 8600 GT GTX 280 FF/BP 7 3.98 ± 0.19 5.48 ± 0.21 9 4.66 ± 0.16 7.15 ± 0.13 11 5.44 ± 0.13 8.43 ± 0.15 MFF/MBP 5 4.37 ± 0.10 6.08 ± 0.13 7 5.73 ± 0.07 7.99 ± 0.10 9 6.77 ± 0.09 10.24 ± 0.12 47

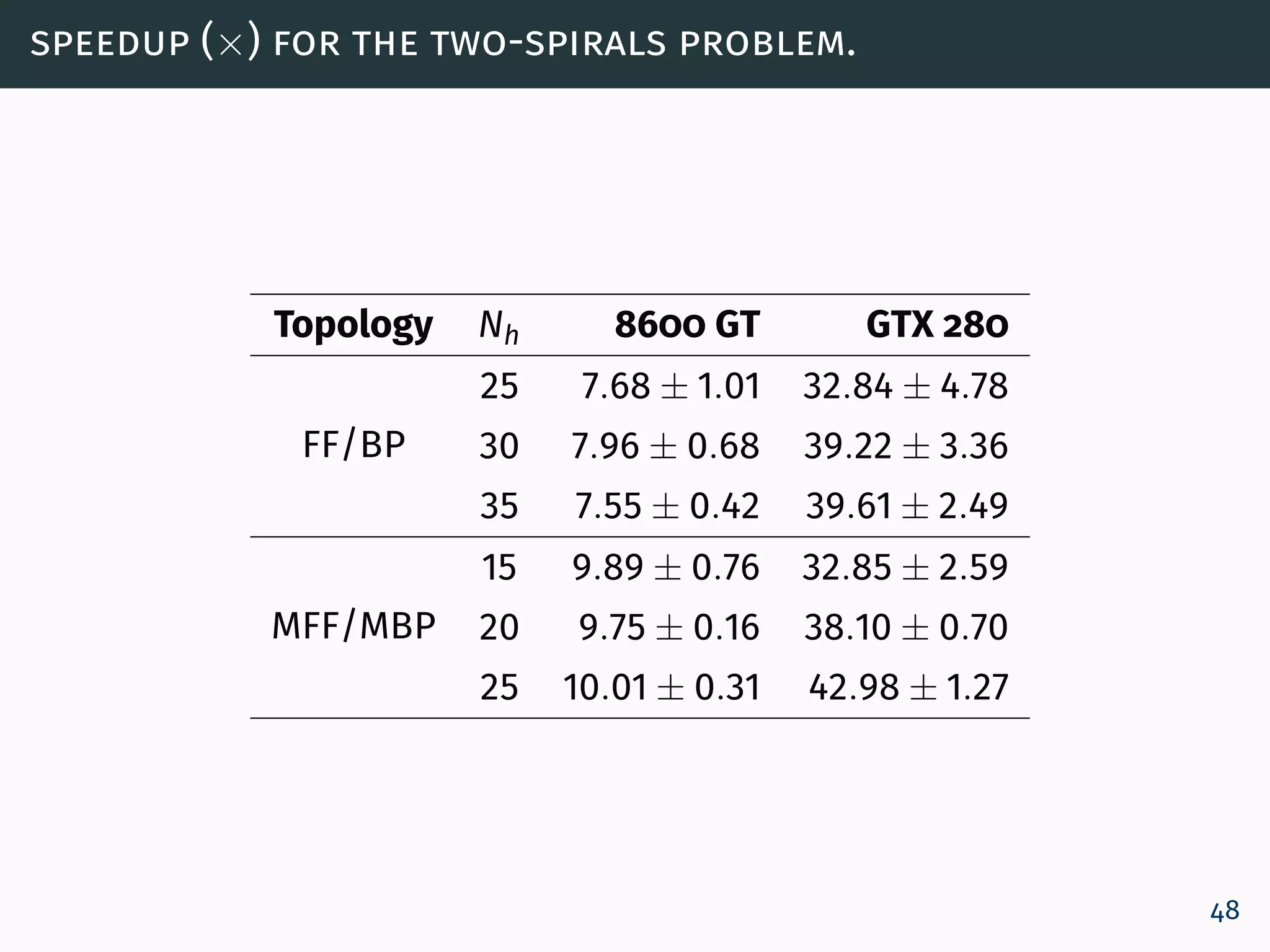

speedup (×) for the two-spirals problem. Topology Nh 8600 GT GTX 280 FF/BP 25 7.68 ± 1.01 32.84 ± 4.78 30 7.96 ± 0.68 39.22 ± 3.36 35 7.55 ± 0.42 39.61 ± 2.49 MFF/MBP 15 9.89 ± 0.76 32.85 ± 2.59 20 9.75 ± 0.16 38.10 ± 0.70 25 10.01 ± 0.31 42.98 ± 1.27 48
two-spirals nns training time (mbp algorithm) 10 100 1000 15 20 25 Time(s) First Hidden Layer Neurons GTX 280 8600 GT Core 2 6600 49
speedup (×) for the covertype problem. Topology Nh 8600 GT GTX 280 FF/BP 12 8.33 ± 0.24 59.67 ± 0.50 24 8.27 ± 0.78 56.37 ± 0.53 60 7.51 ± 0.07 57.87 ± 0.53 120 8.62 ± 0.04 57.92 ± 0.26 180 9.00 ± 0.38 58.40 ± 2.74 240 10.40 ± 0.12 62.88 ± 0.53 300 18.18 ± 0.11 112.56 ± 0.69 MFF/MBP 12 8.63 ± 0.16 64.59 ± 0.87 24 8.20 ± 0.09 59.63 ± 0.74 60 8.09 ± 0.32 60.08 ± 2.41 120 8.92 ± 0.09 59.00 ± 0.57 180 19.21 ± 0.15 121.95 ± 0.75 240 23.85 ± 0.11 141.83 ± 0.52 300 25.35 ± 0.37 153.23 ± 2.22 50

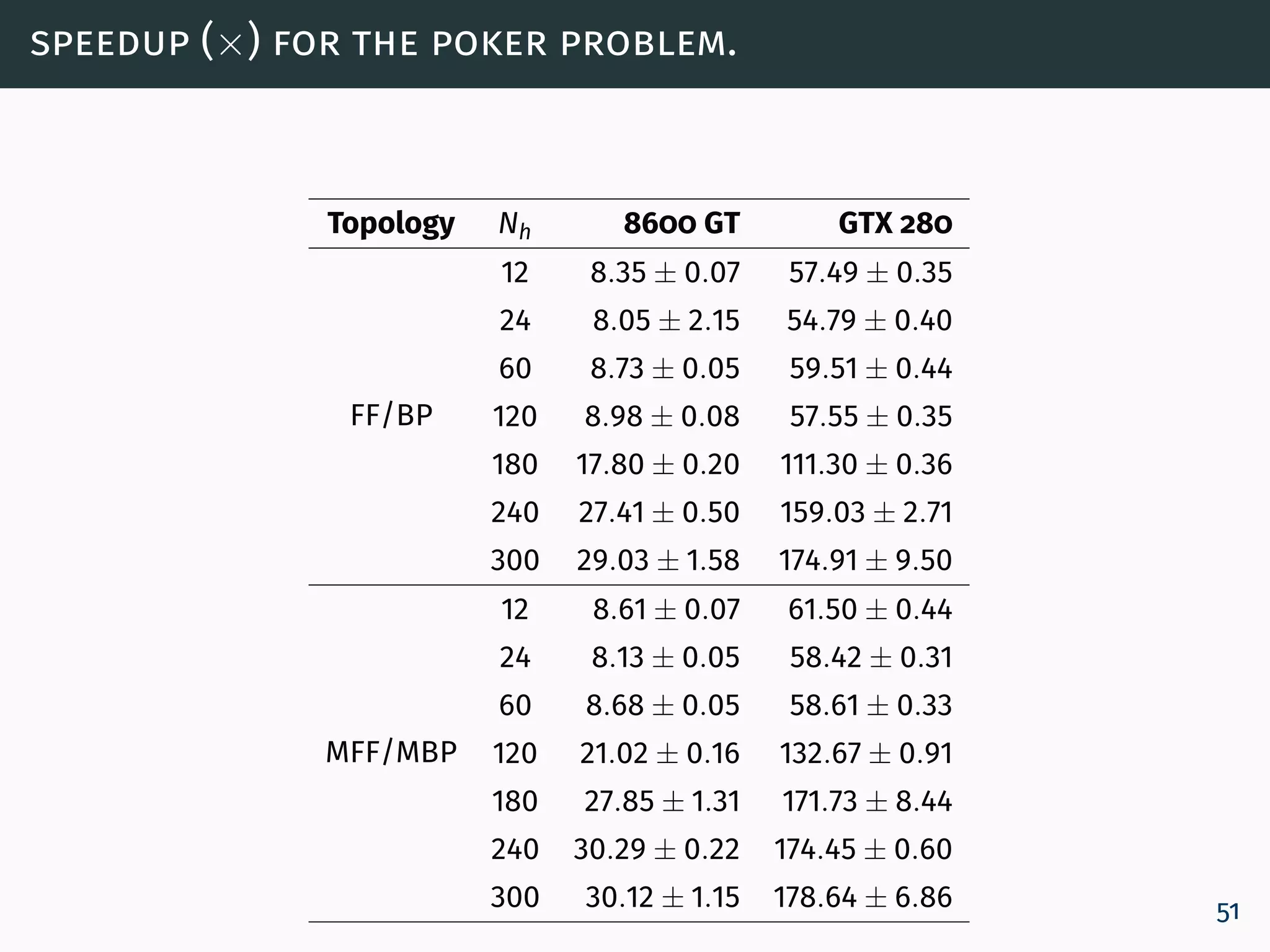

speedup (×) for the poker problem. Topology Nh 8600 GT GTX 280 FF/BP 12 8.35 ± 0.07 57.49 ± 0.35 24 8.05 ± 2.15 54.79 ± 0.40 60 8.73 ± 0.05 59.51 ± 0.44 120 8.98 ± 0.08 57.55 ± 0.35 180 17.80 ± 0.20 111.30 ± 0.36 240 27.41 ± 0.50 159.03 ± 2.71 300 29.03 ± 1.58 174.91 ± 9.50 MFF/MBP 12 8.61 ± 0.07 61.50 ± 0.44 24 8.13 ± 0.05 58.42 ± 0.31 60 8.68 ± 0.05 58.61 ± 0.33 120 21.02 ± 0.16 132.67 ± 0.91 180 27.85 ± 1.31 171.73 ± 8.44 240 30.29 ± 0.22 174.45 ± 0.60 300 30.12 ± 1.15 178.64 ± 6.86 51

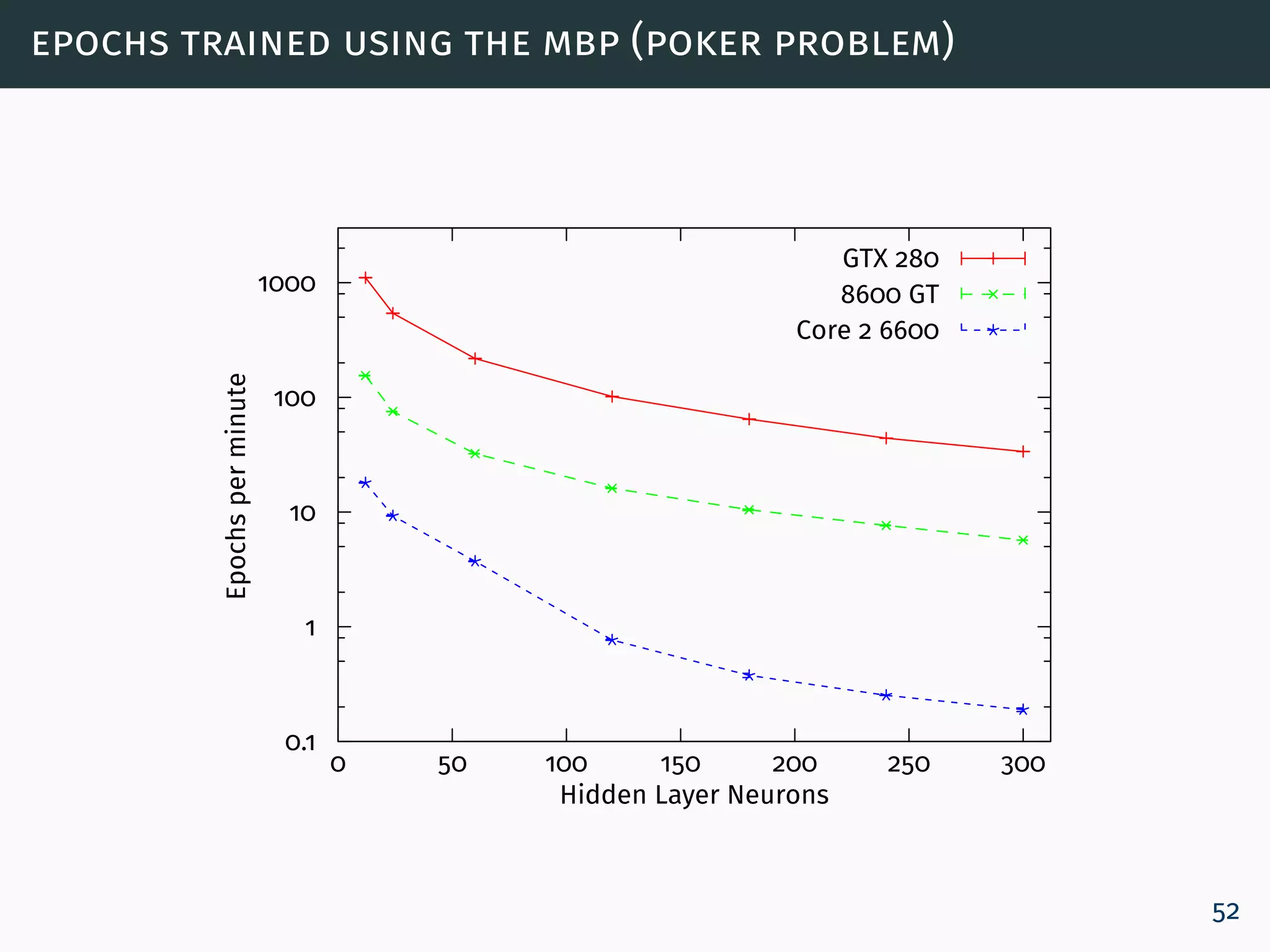

epochs trained using the mbp (poker problem) 0.1 1 10 100 1000 0 50 100 150 200 250 300 Epochsperminute Hidden Layer Neurons GTX 280 8600 GT Core 2 6600 52

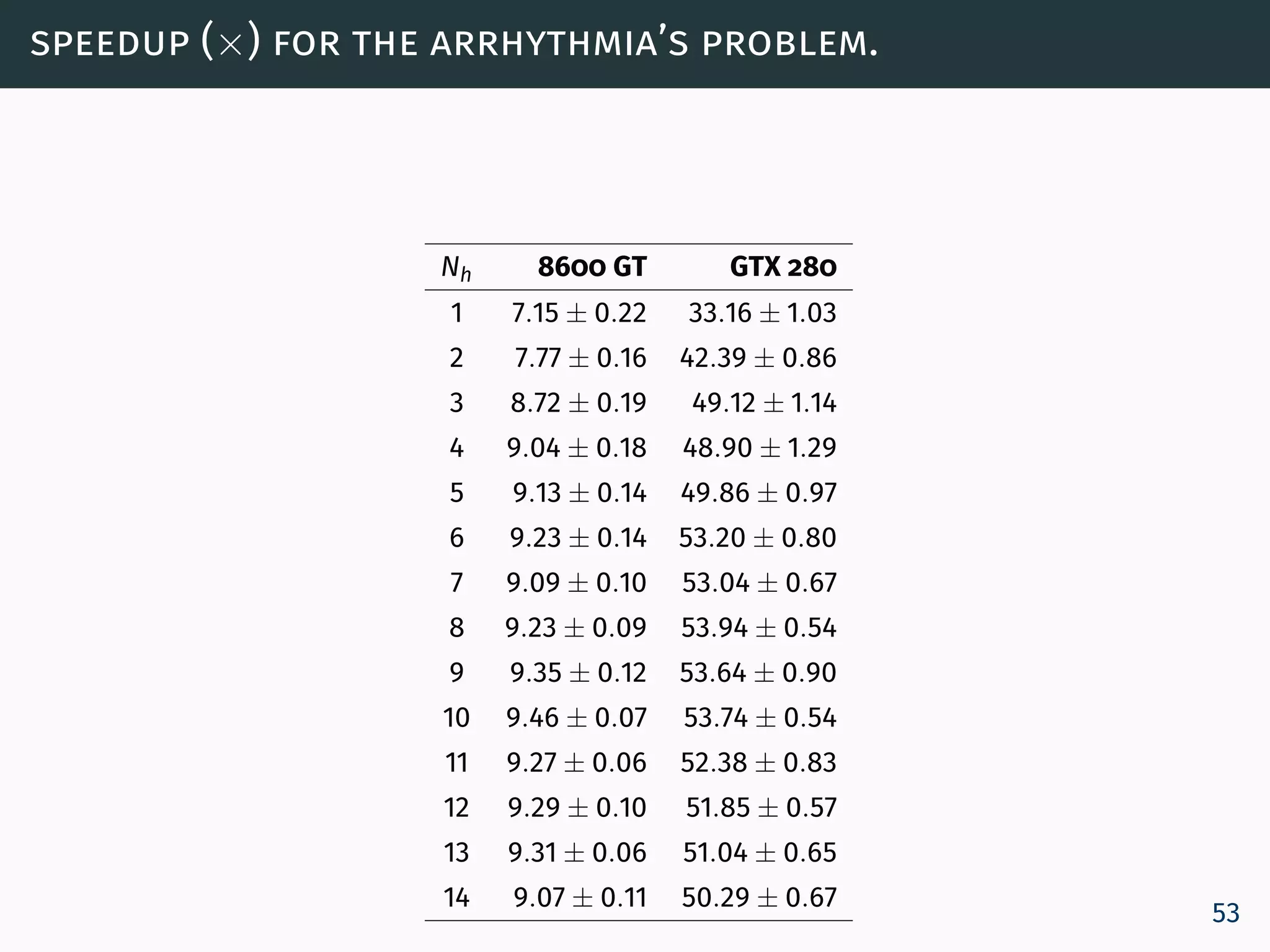

speedup (×) for the arrhythmia’s problem. Nh 8600 GT GTX 280 1 7.15 ± 0.22 33.16 ± 1.03 2 7.77 ± 0.16 42.39 ± 0.86 3 8.72 ± 0.19 49.12 ± 1.14 4 9.04 ± 0.18 48.90 ± 1.29 5 9.13 ± 0.14 49.86 ± 0.97 6 9.23 ± 0.14 53.20 ± 0.80 7 9.09 ± 0.10 53.04 ± 0.67 8 9.23 ± 0.09 53.94 ± 0.54 9 9.35 ± 0.12 53.64 ± 0.90 10 9.46 ± 0.07 53.74 ± 0.54 11 9.27 ± 0.06 52.38 ± 0.83 12 9.29 ± 0.10 51.85 ± 0.57 13 9.31 ± 0.06 51.04 ± 0.65 14 9.07 ± 0.11 50.29 ± 0.67 53

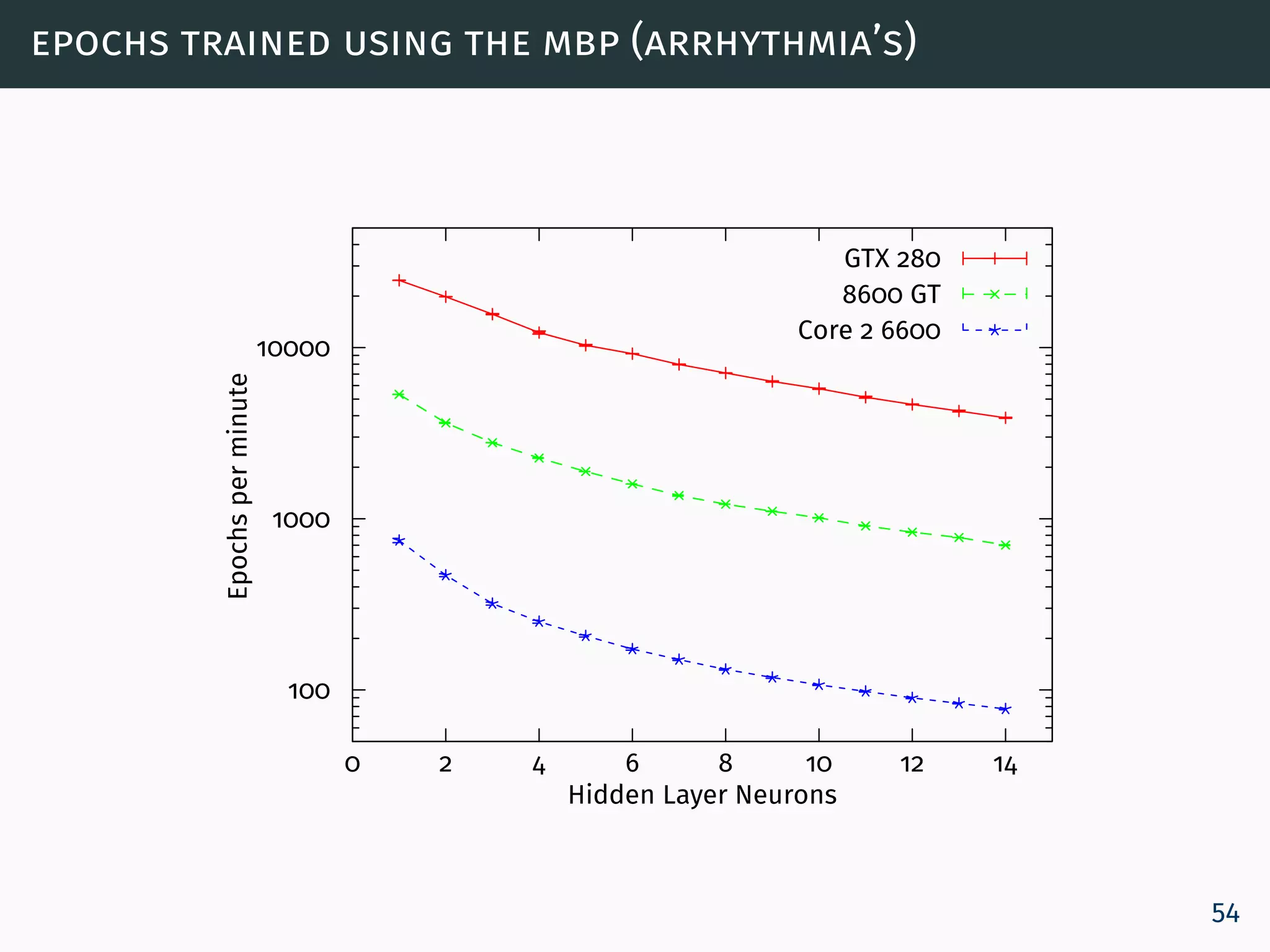

epochs trained using the mbp (arrhythmia’s) 100 1000 10000 0 2 4 6 8 10 12 14 Epochsperminute Hidden Layer Neurons GTX 280 8600 GT Core 2 6600 54

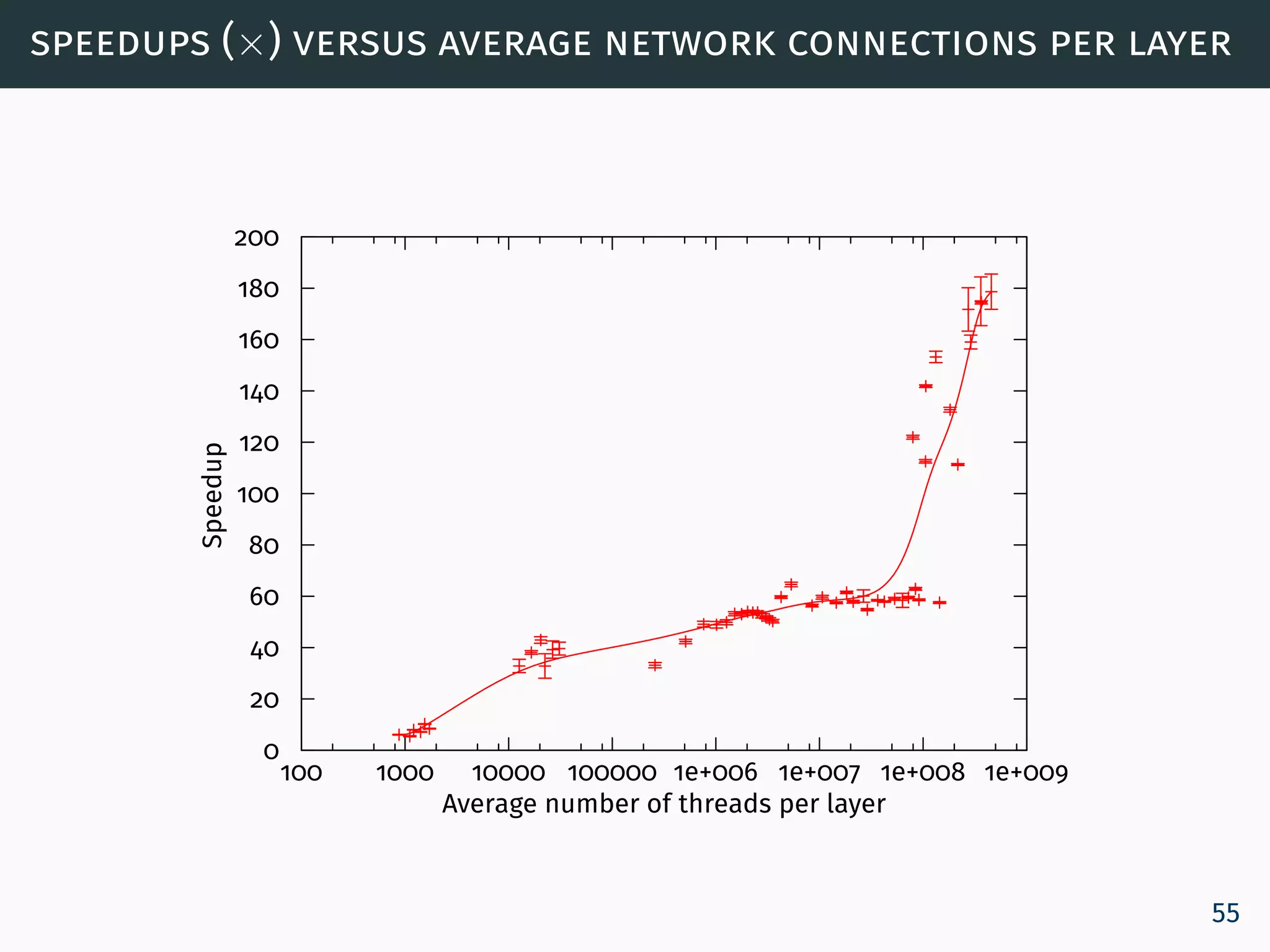

speedups (×) versus average network connections per layer 0 20 40 60 80 100 120 140 160 180 200 100 1000 10000 100000 1e+006 1e+007 1e+008 1e+009 Speedup Average number of threads per layer 55

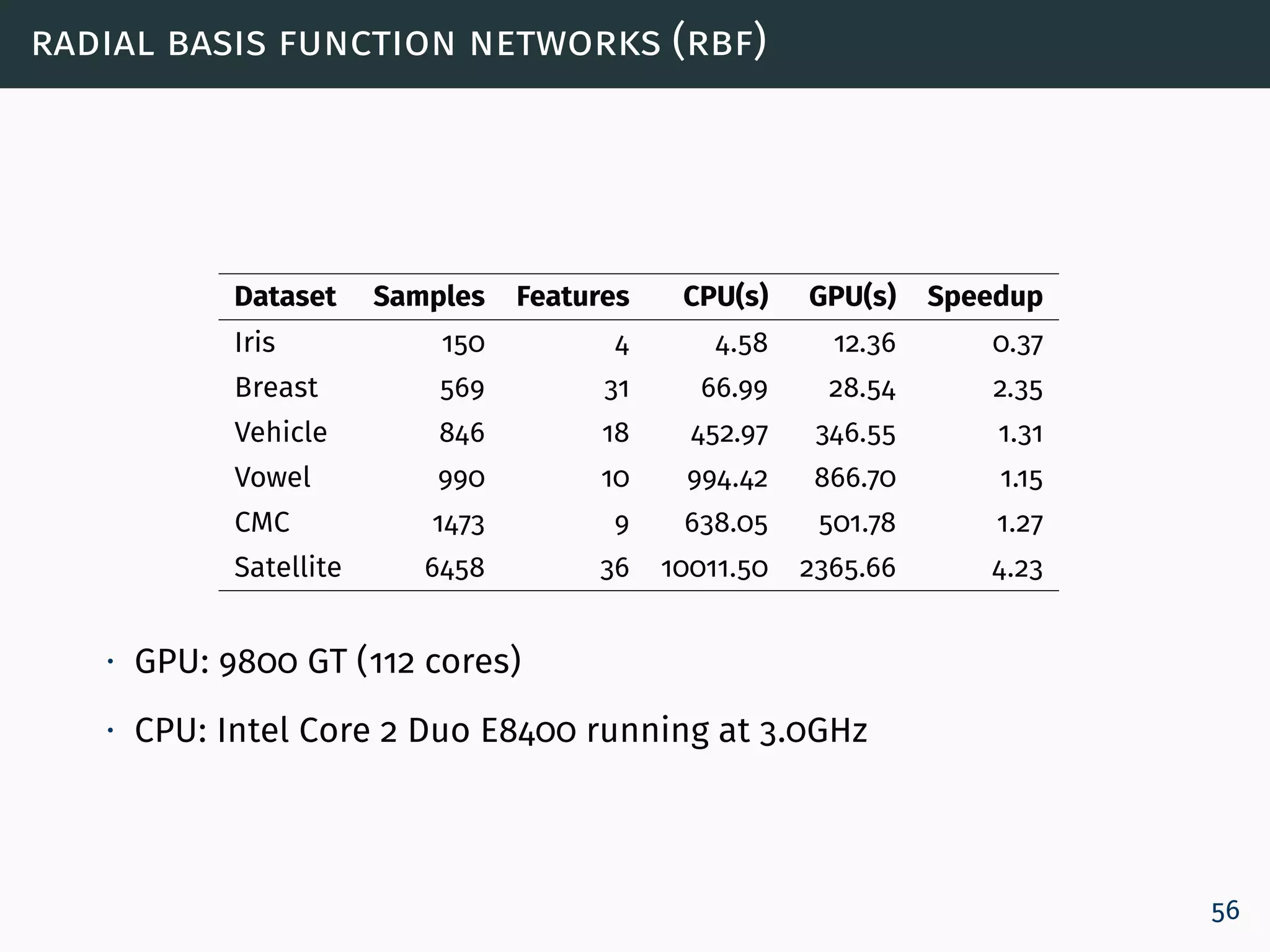

radial basis function networks (rbf) Dataset Samples Features CPU(s) GPU(s) Speedup Iris 150 4 4.58 12.36 0.37 Breast 569 31 66.99 28.54 2.35 Vehicle 846 18 452.97 346.55 1.31 Vowel 990 10 994.42 866.70 1.15 CMC 1473 9 638.05 501.78 1.27 Satellite 6458 36 10011.50 2365.66 4.23 ∙ GPU: 9800 GT (112 cores) ∙ CPU: Intel Core 2 Duo E8400 running at 3.0GHz 56

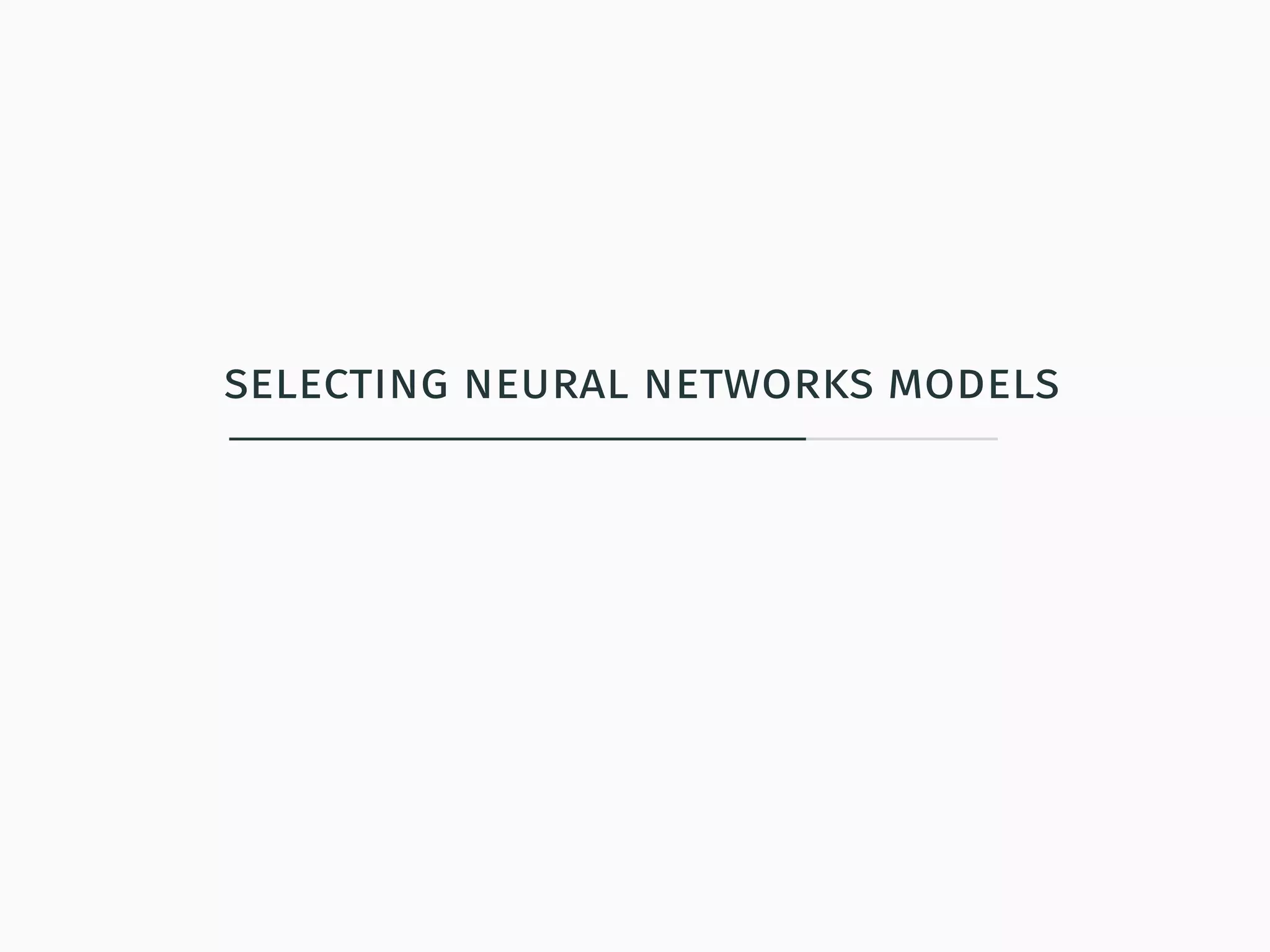

selecting neural networks models

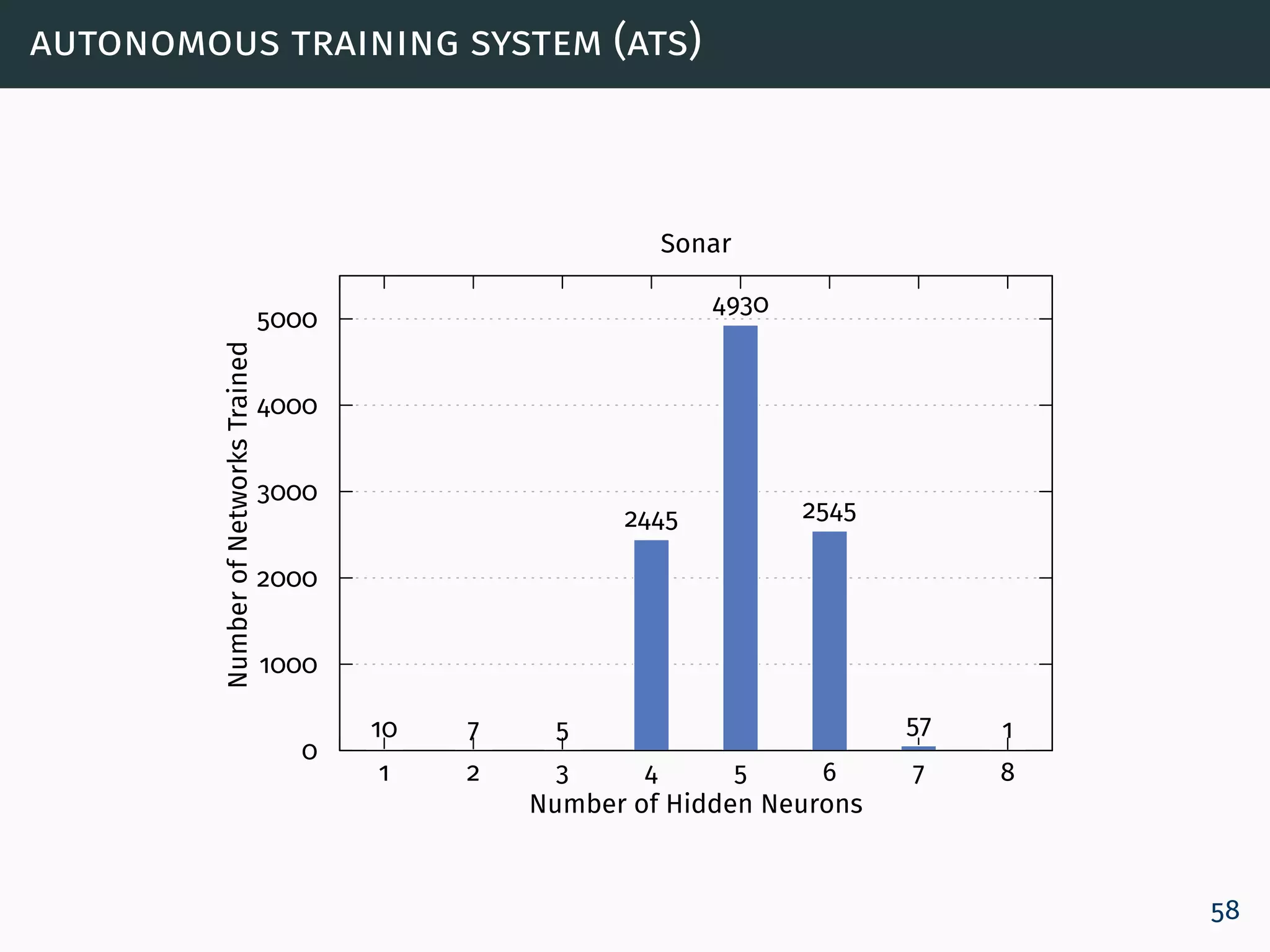

autonomous training system (ats) 0 1000 2000 3000 4000 5000 1 2 3 4 5 6 7 8 NumberofNetworksTrained Number of Hidden Neurons Sonar 10 7 5 2445 4930 2545 57 1 58
decomposition algorithms

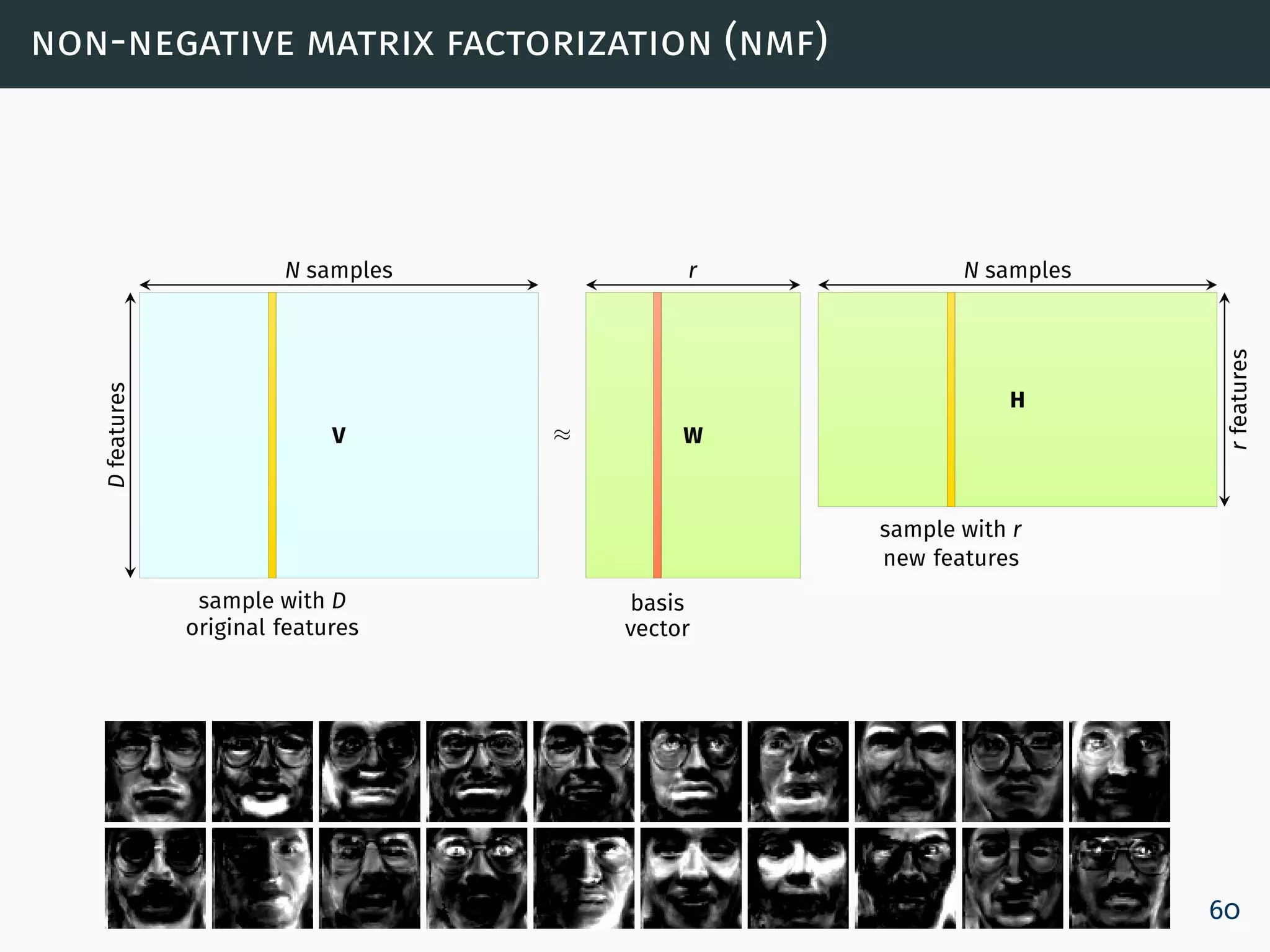

non-negative matrix factorization (nmf) H W≈V rN samples Dfeatures rfeatures N samples sample with D original features sample with r new features basis vector 60

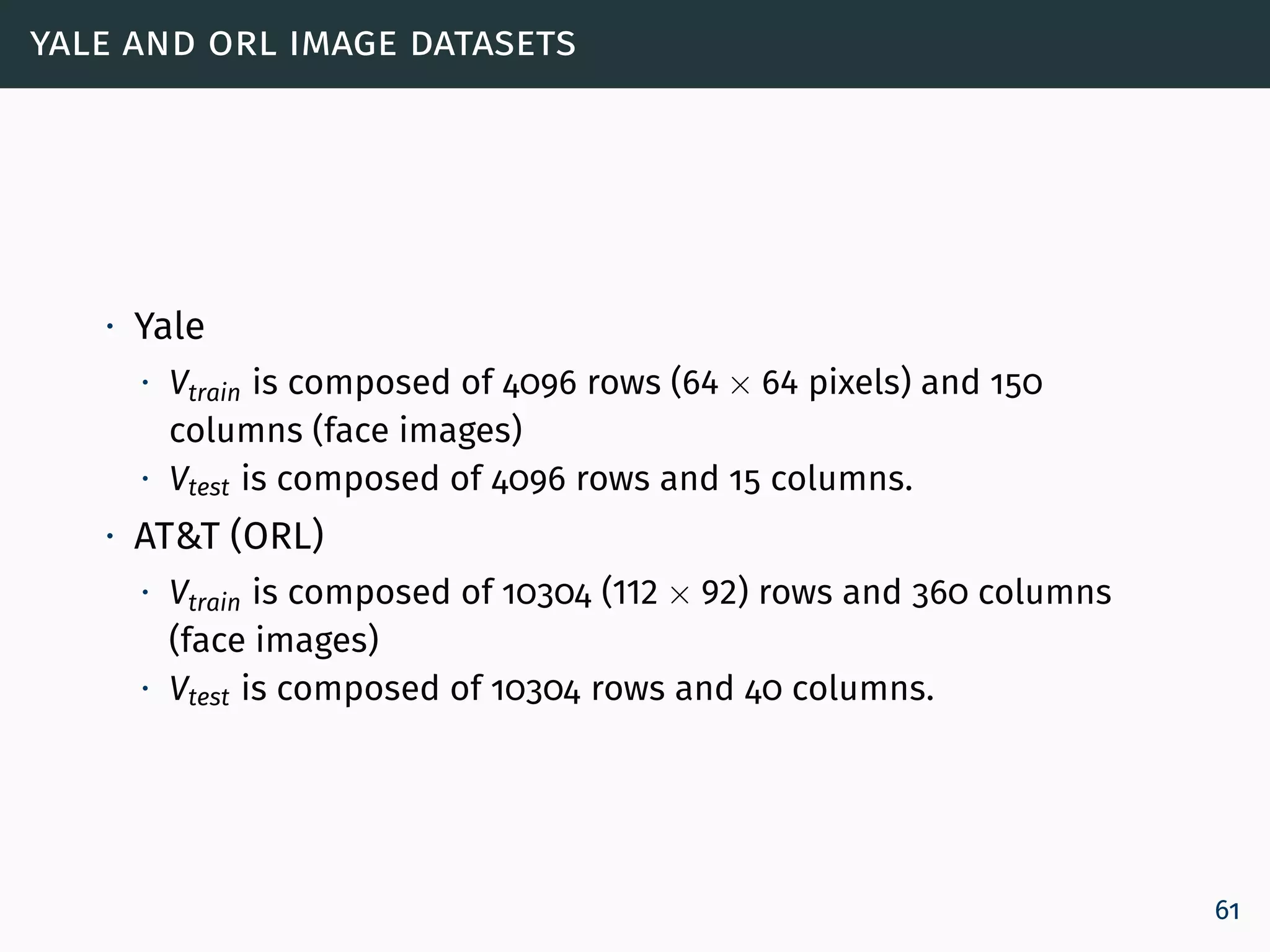

yale and orl image datasets ∙ Yale ∙ Vtrain is composed of 4096 rows (64 × 64 pixels) and 150 columns (face images) ∙ Vtest is composed of 4096 rows and 15 columns. ∙ AT&T (ORL) ∙ Vtrain is composed of 10304 (112 × 92) rows and 360 columns (face images) ∙ Vtest is composed of 10304 rows and 40 columns. 61

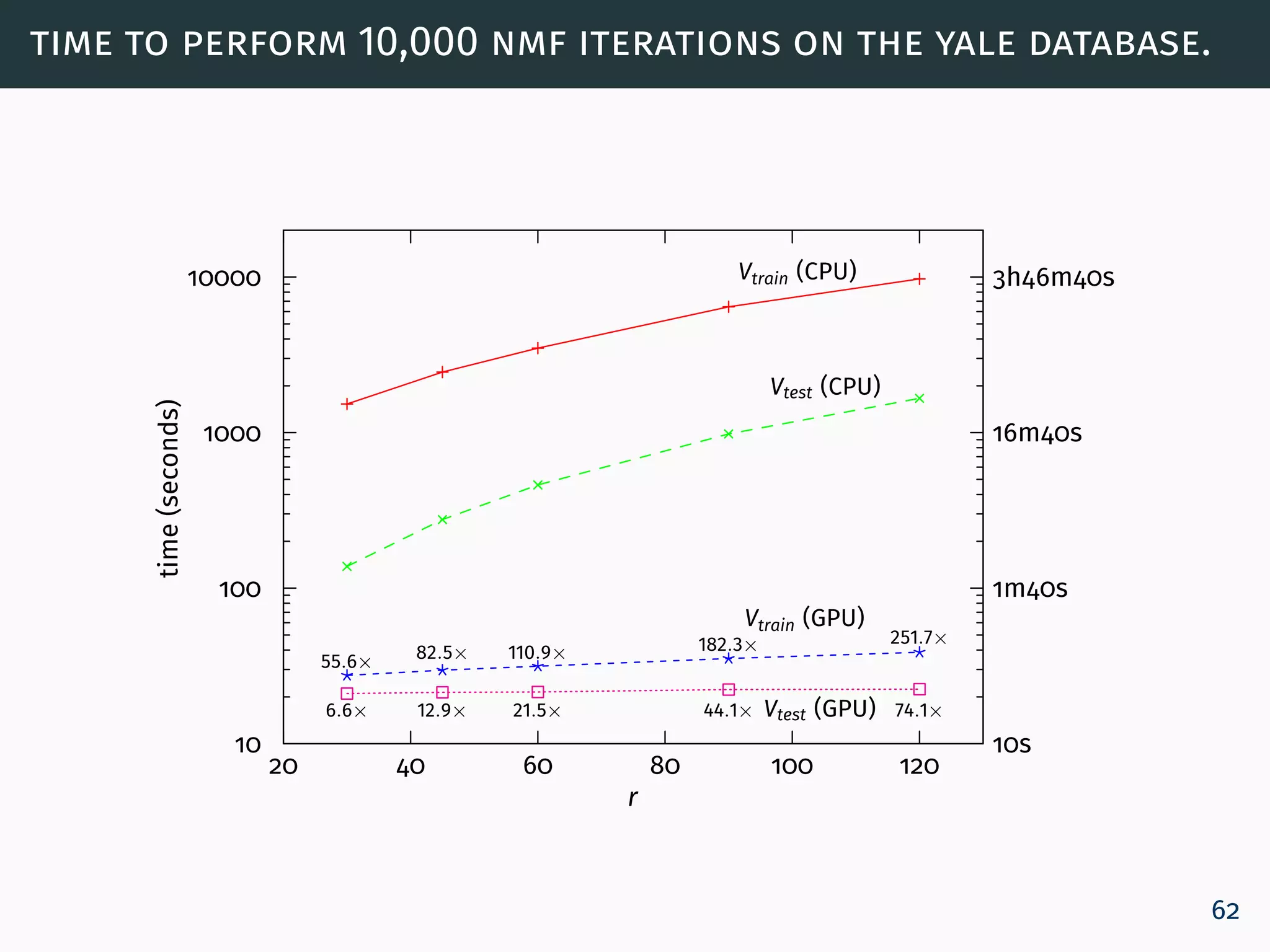

time to perform 10,000 nmf iterations on the yale database. 10 100 1000 10000 20 40 60 80 100 120 time(seconds) r Vtrain (CPU) Vtest (CPU) Vtrain (GPU) Vtest (GPU) 10s 1m40s 16m40s 3h46m40s 55.6× 82.5× 110.9× 182.3× 251.7× 6.6× 12.9× 21.5× 44.1× 74.1× 62
time to perform 10,000 nmf iterations on the at&t (orl) database 10 100 1000 10000 100000 300000 50 100 150 200 250 300 time(seconds) r Vtrain (CPU) Vtest (CPU) Vtrain (GPU) Vtest (GPU) 1m40s 16m40s 3h46m40s 27h46m40s 83h20m00s 277.3× 393.0× 563.9× 533.0× 553.7× 706.8× 18.5× 58.8× 119.7× 134.7× 153.5× 173.6× 63

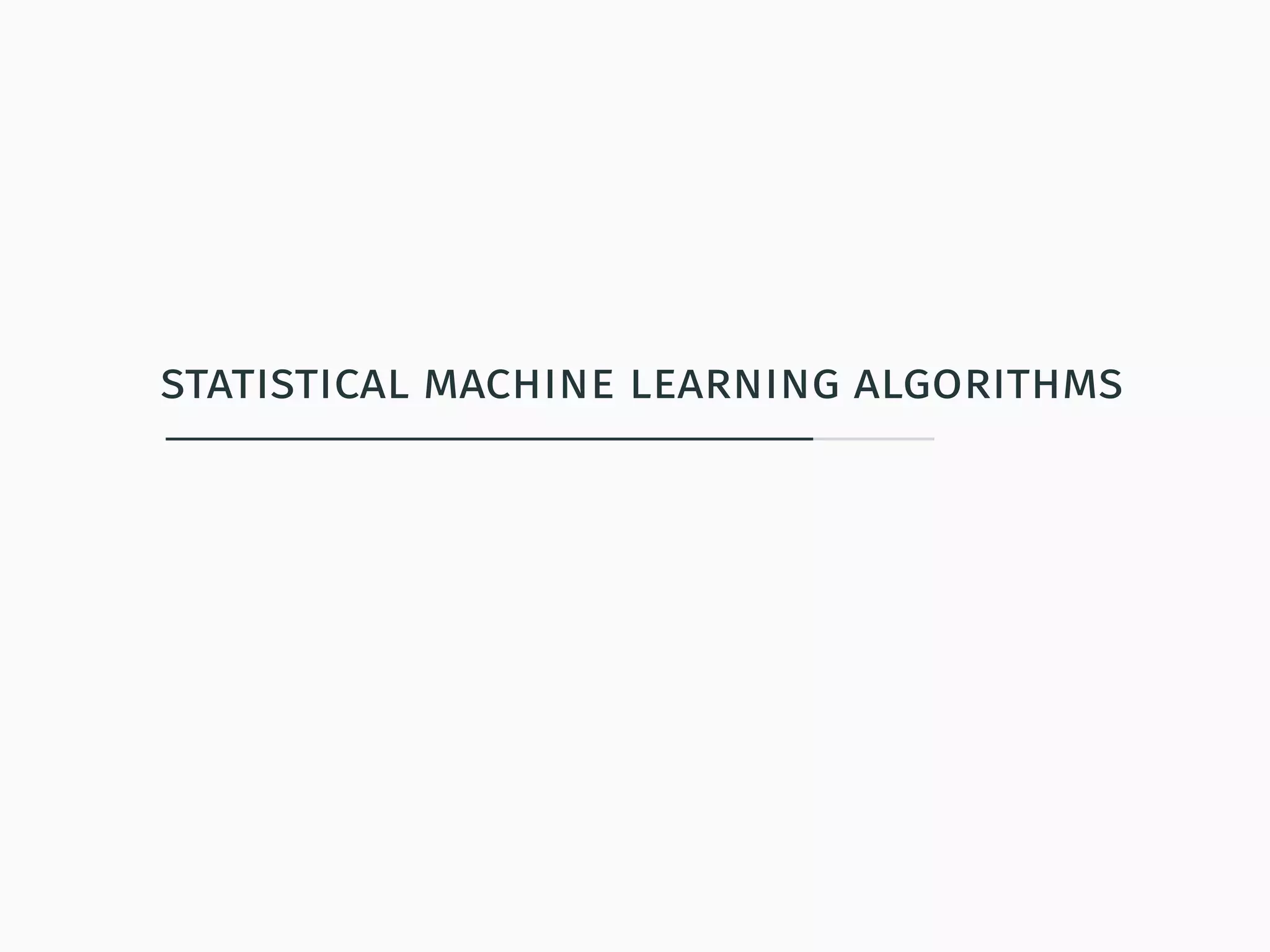

statistical machine learning algorithms

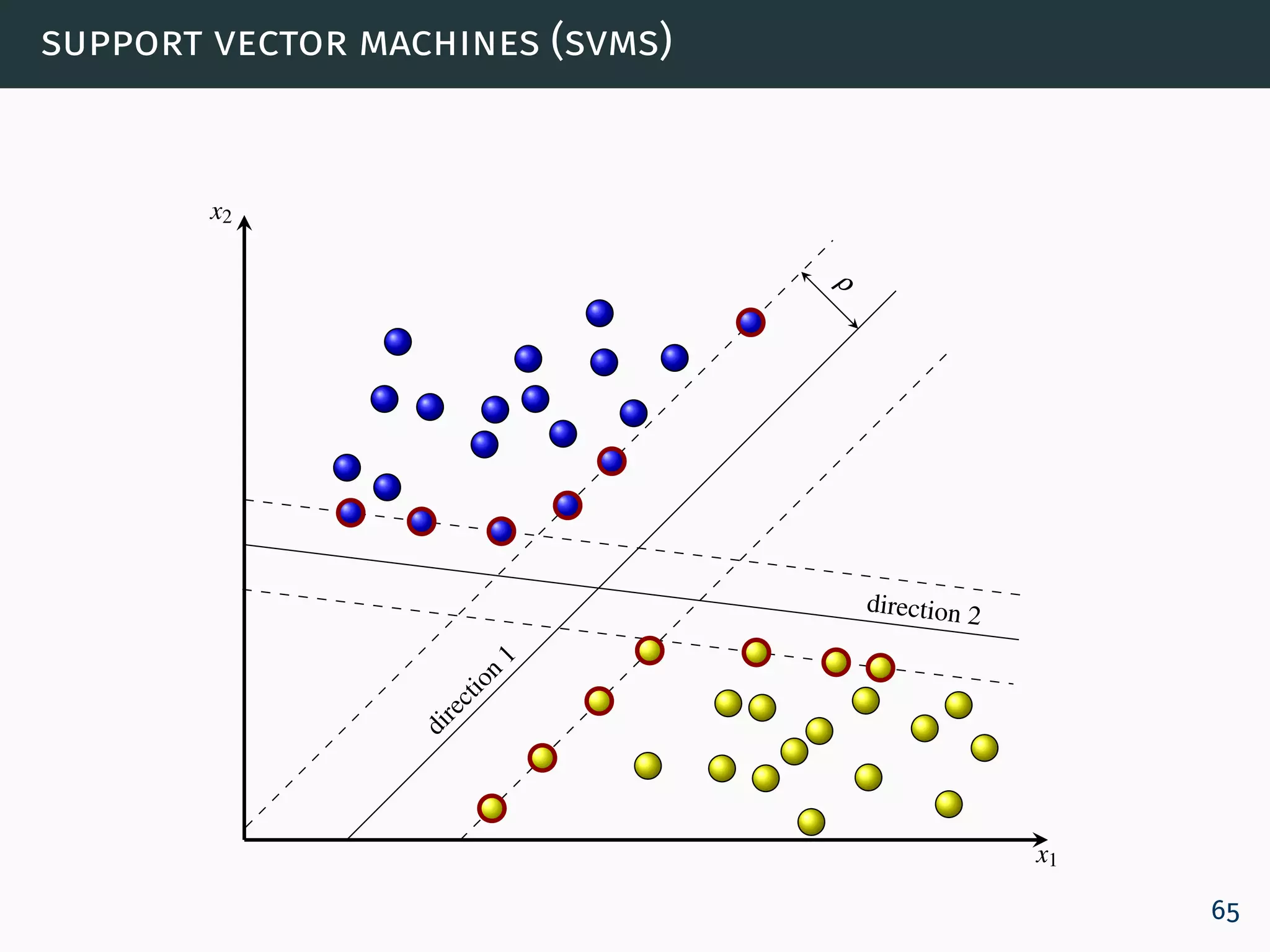

support vector machines (svms) x2 x1 direction 1 ρ direction 2 65

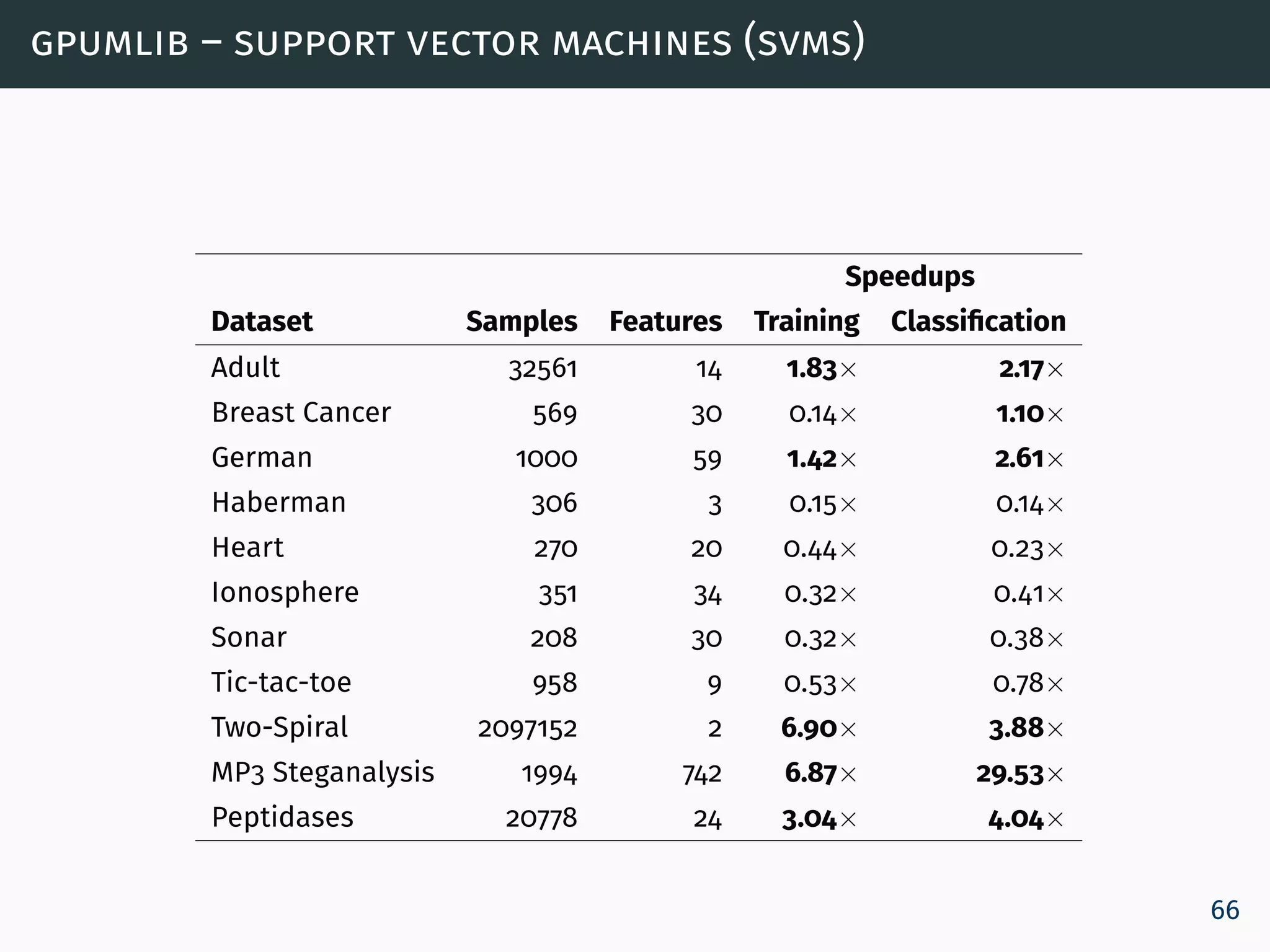

gpumlib – support vector machines (svms) Speedups Dataset Samples Features Training Classification Adult 32561 14 1.83× 2.17× Breast Cancer 569 30 0.14× 1.10× German 1000 59 1.42× 2.61× Haberman 306 3 0.15× 0.14× Heart 270 20 0.44× 0.23× Ionosphere 351 34 0.32× 0.41× Sonar 208 30 0.32× 0.38× Tic-tac-toe 958 9 0.53× 0.78× Two-Spiral 2097152 2 6.90× 3.88× MP3 Steganalysis 1994 742 6.87× 29.53× Peptidases 20778 24 3.04× 4.04× 66

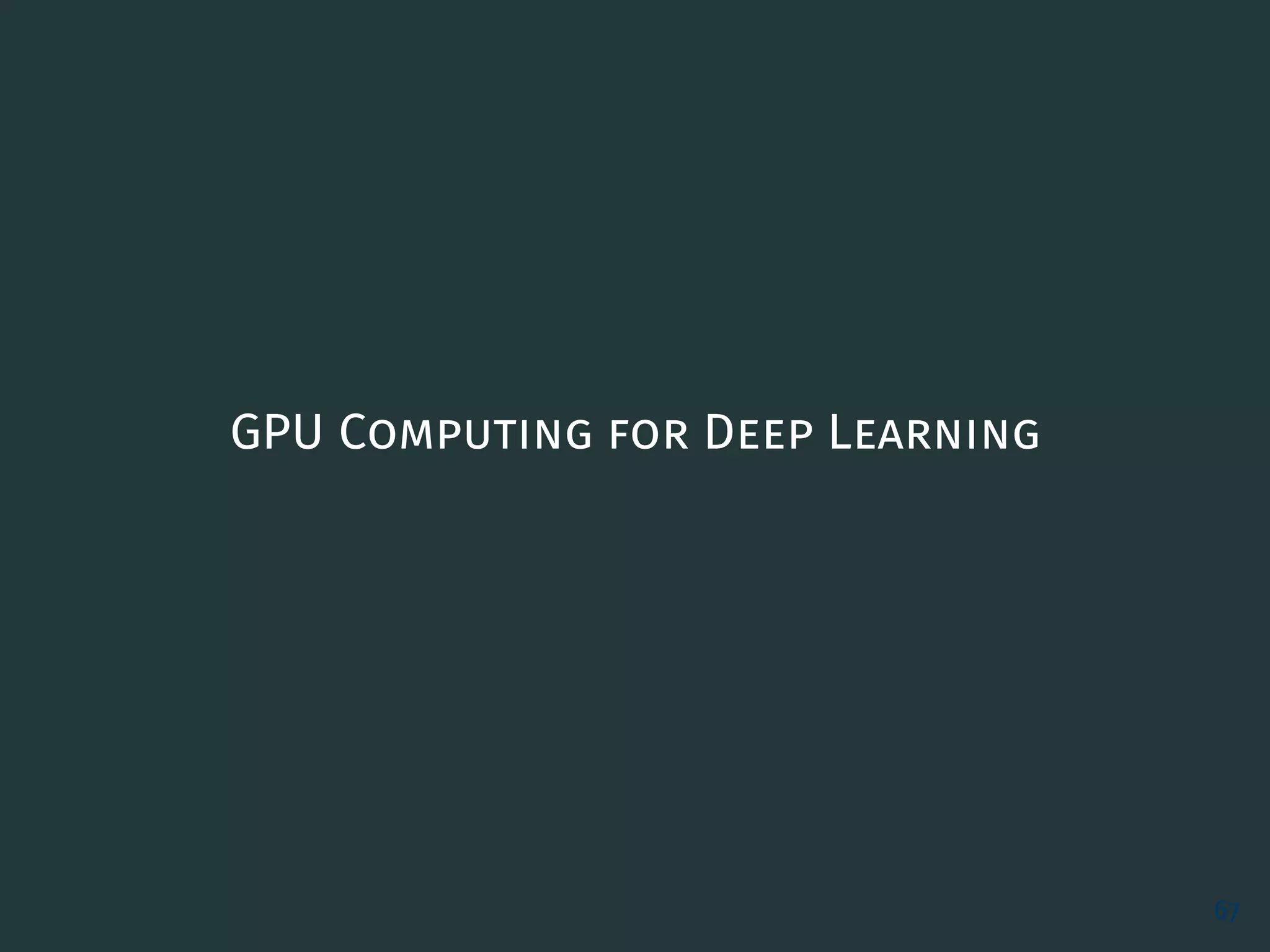

GPU Computing for Deep Learning 67

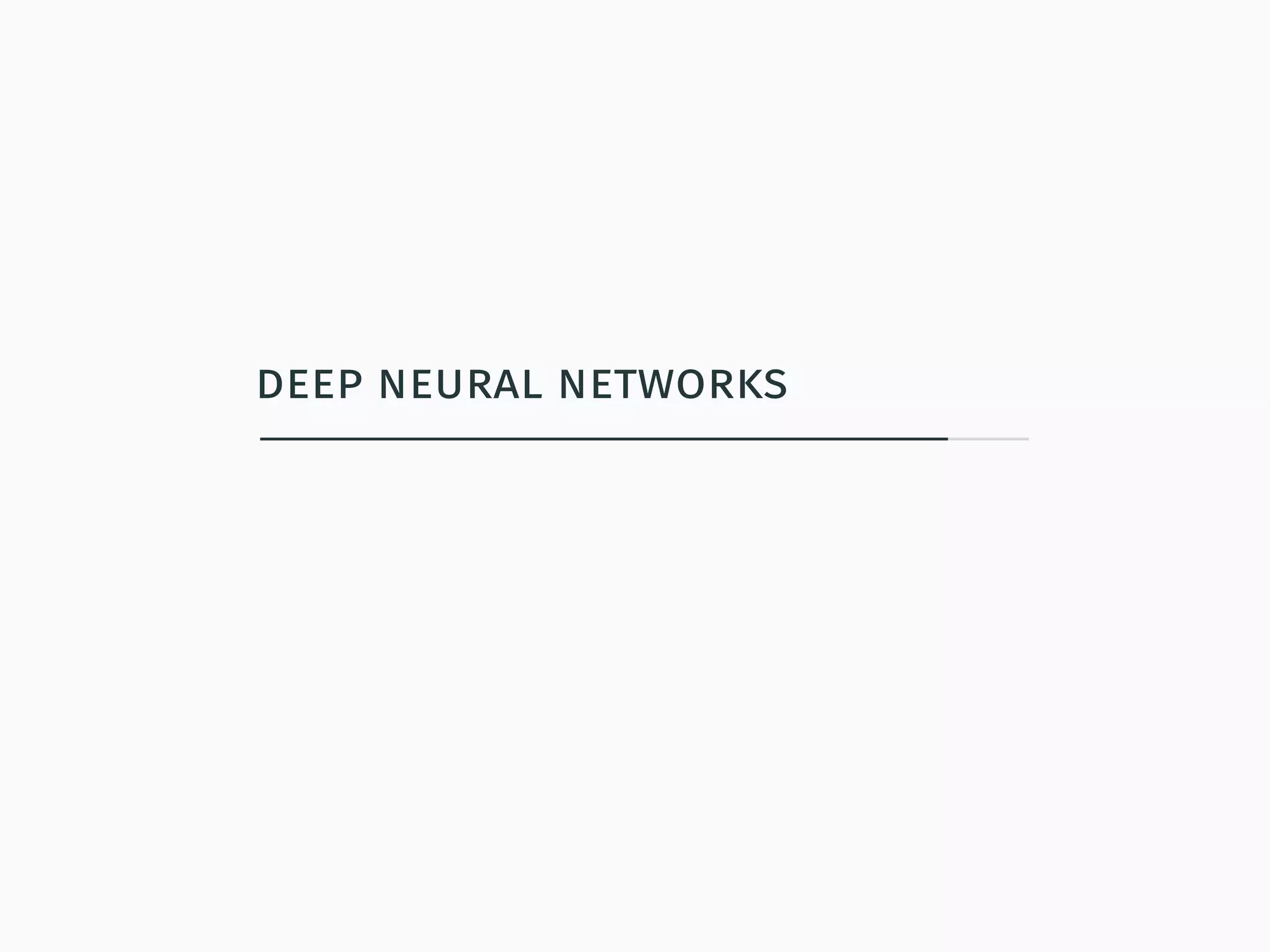

deep neural networks

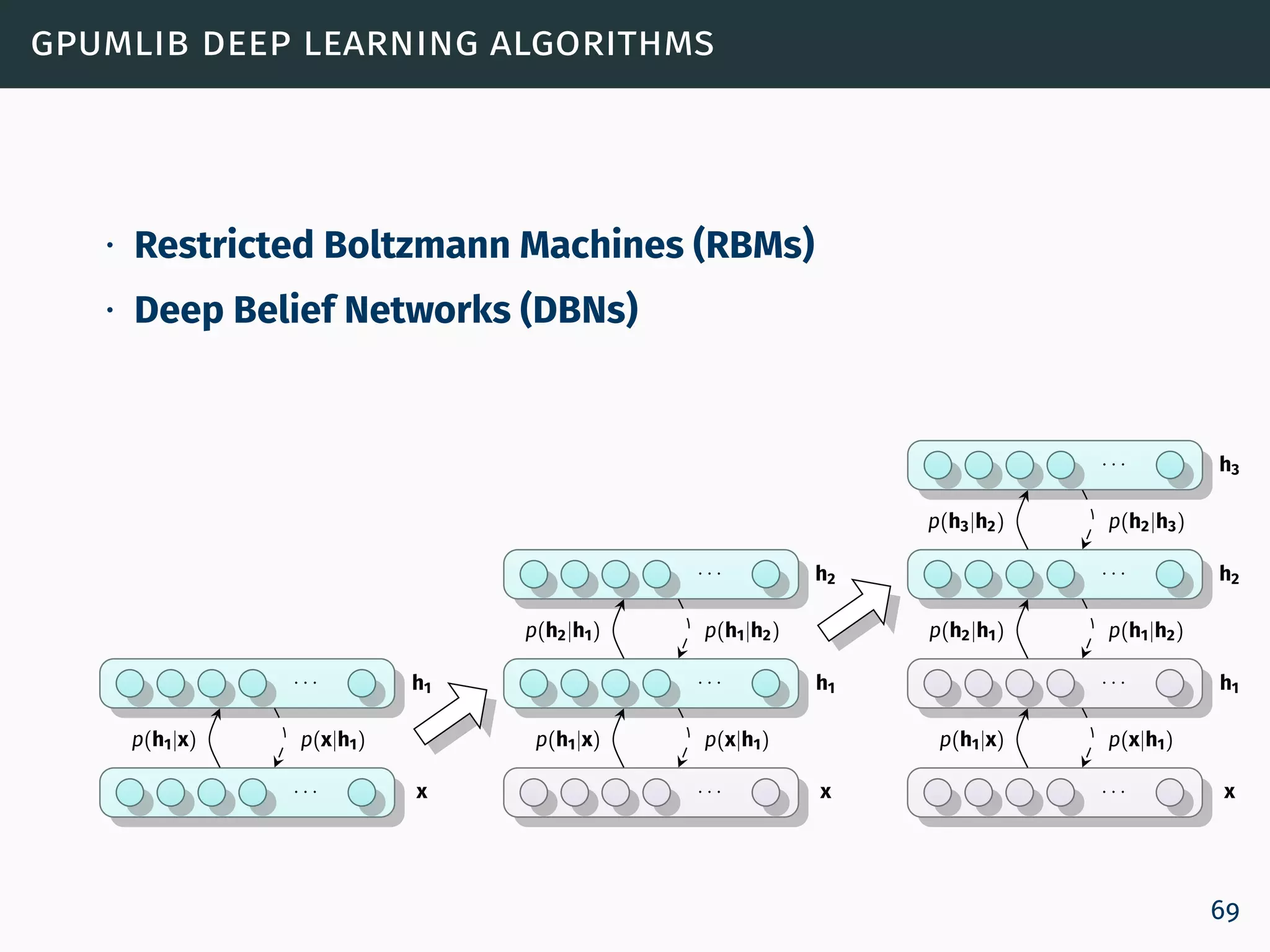

gpumlib deep learning algorithms ∙ Restricted Boltzmann Machines (RBMs) ∙ Deep Belief Networks (DBNs) x· · · h1· · · p(x|h1)p(h1|x) x· · · h1· · · h2· · · p(x|h1)p(h1|x) p(h1|h2)p(h2|h1) x· · · h1· · · h2· · · h3· · · p(x|h1)p(h1|x) p(h1|h2)p(h2|h1) p(h2|h3)p(h3|h2) 69
mnist dataset 70

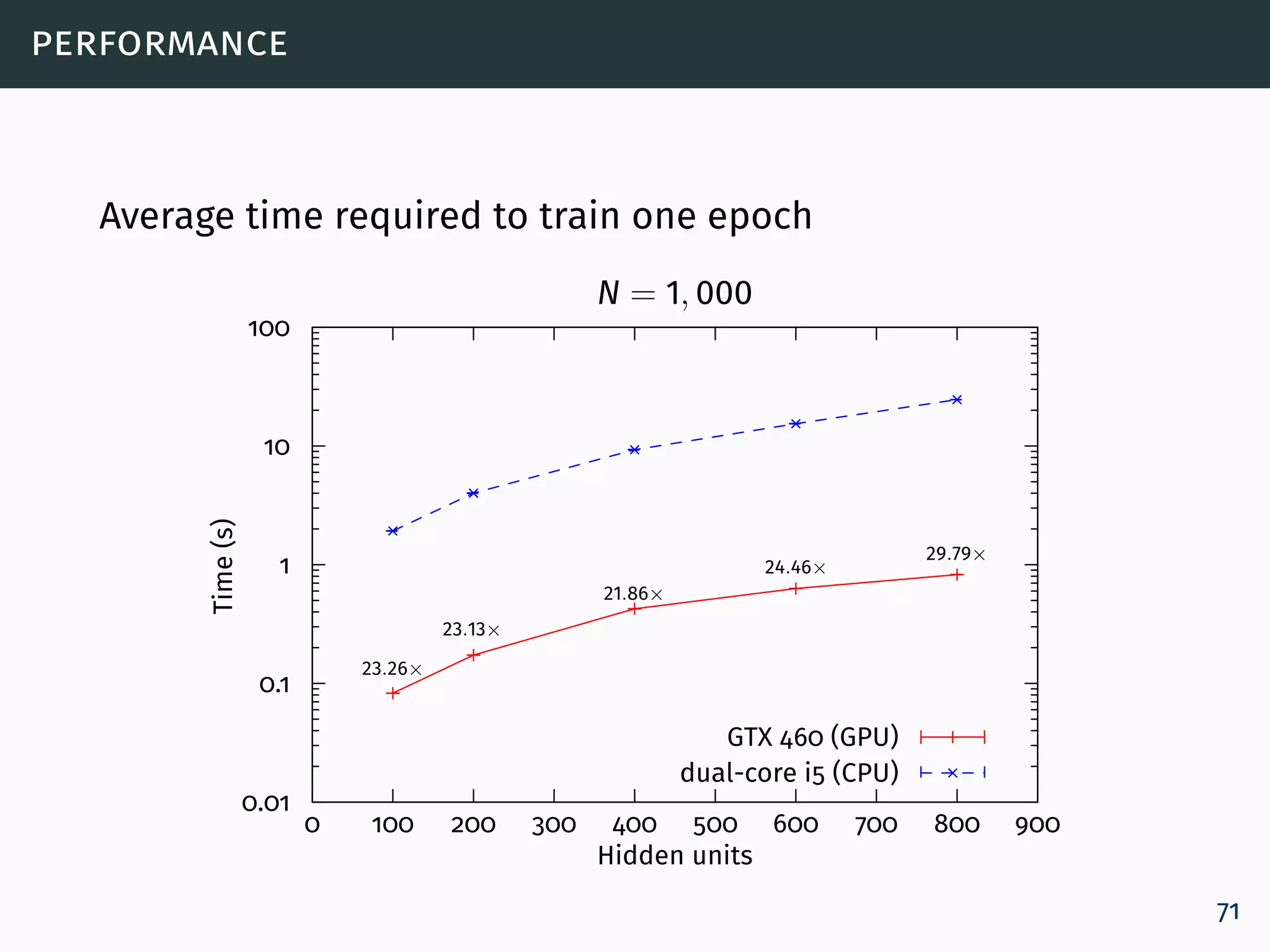

performance Average time required to train one epoch 0.01 0.1 1 10 100 0 100 200 300 400 500 600 700 800 900 Time(s) Hidden units N = 1, 000 23.26× 23.13× 21.86× 24.46× 29.79× GTX 460 (GPU) dual-core i5 (CPU) 71

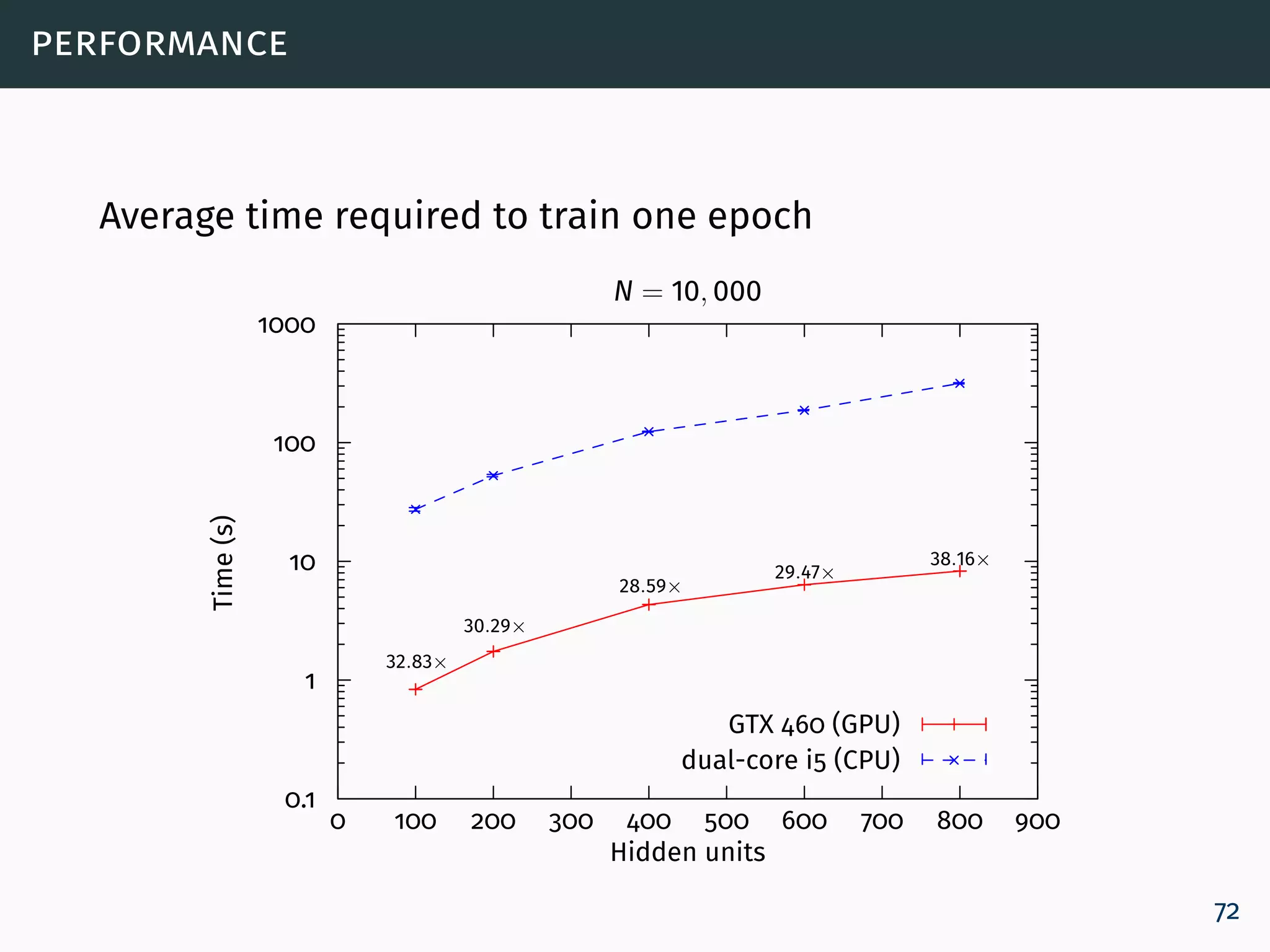

performance Average time required to train one epoch 0.1 1 10 100 1000 0 100 200 300 400 500 600 700 800 900 Time(s) Hidden units N = 10, 000 32.83× 30.29× 28.59× 29.47× 38.16× GTX 460 (GPU) dual-core i5 (CPU) 72

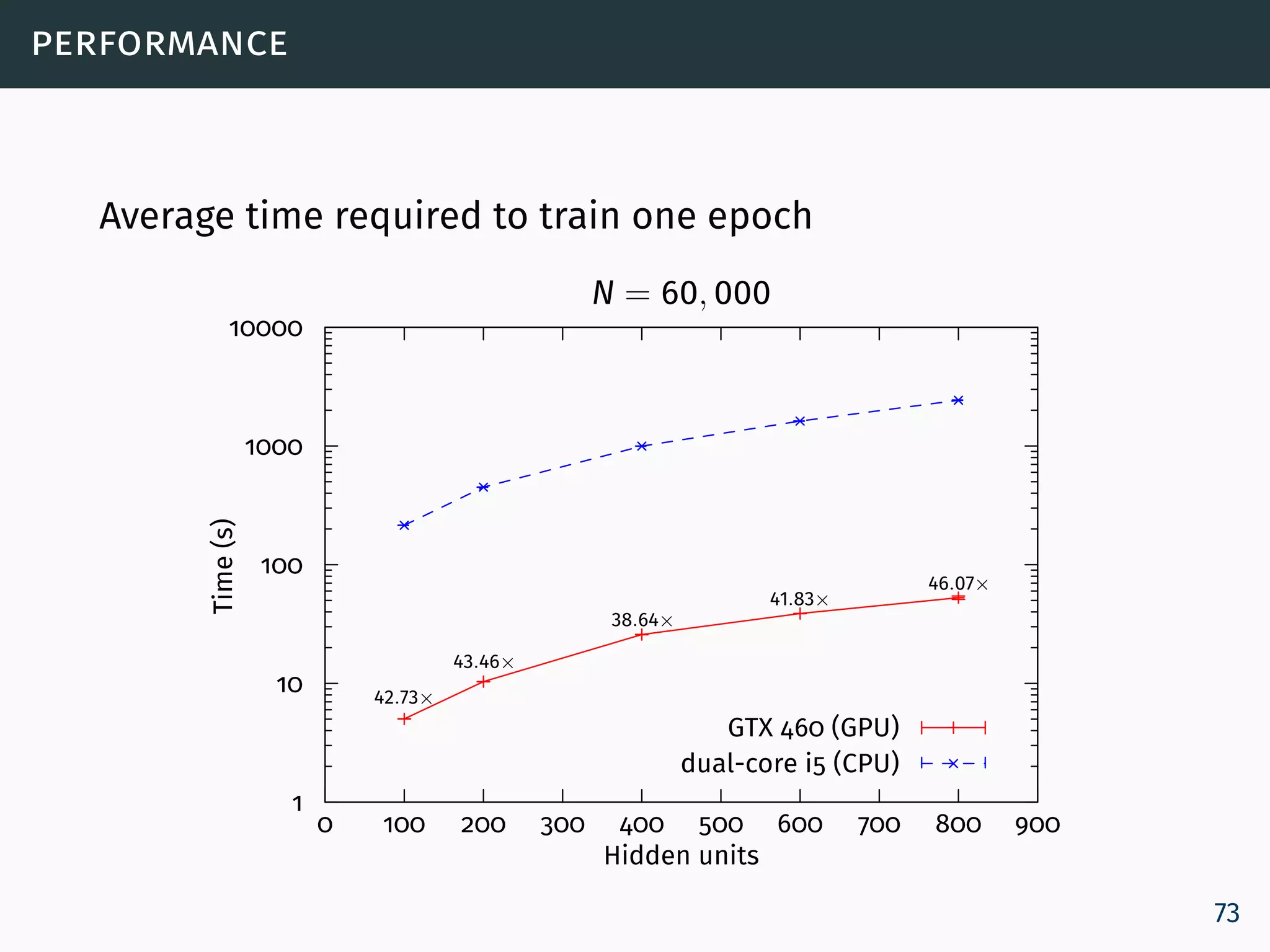

performance Average time required to train one epoch 1 10 100 1000 10000 0 100 200 300 400 500 600 700 800 900 Time(s) Hidden units N = 60, 000 42.73× 43.46× 38.64× 41.83× 46.07× GTX 460 (GPU) dual-core i5 (CPU) 73

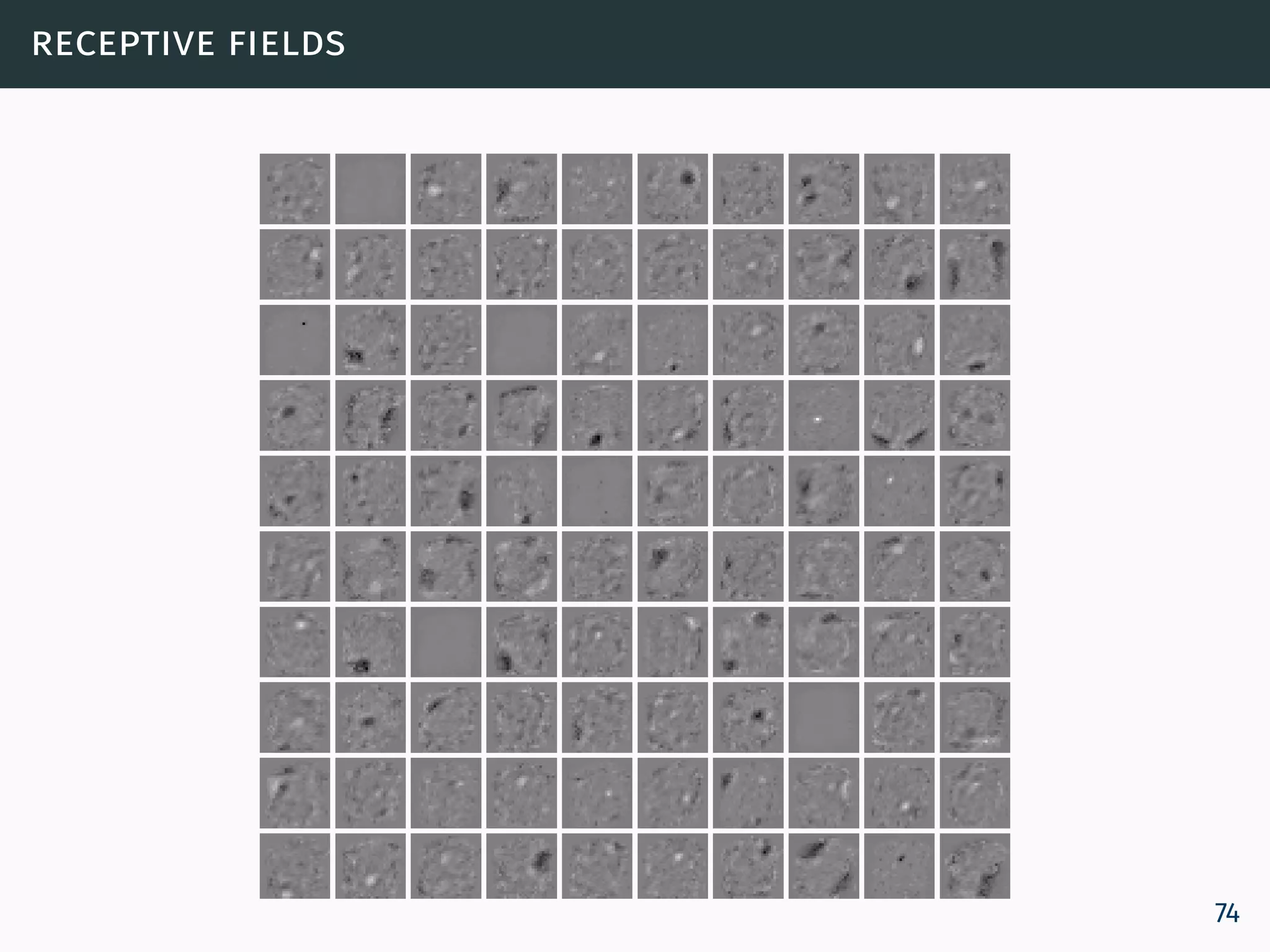

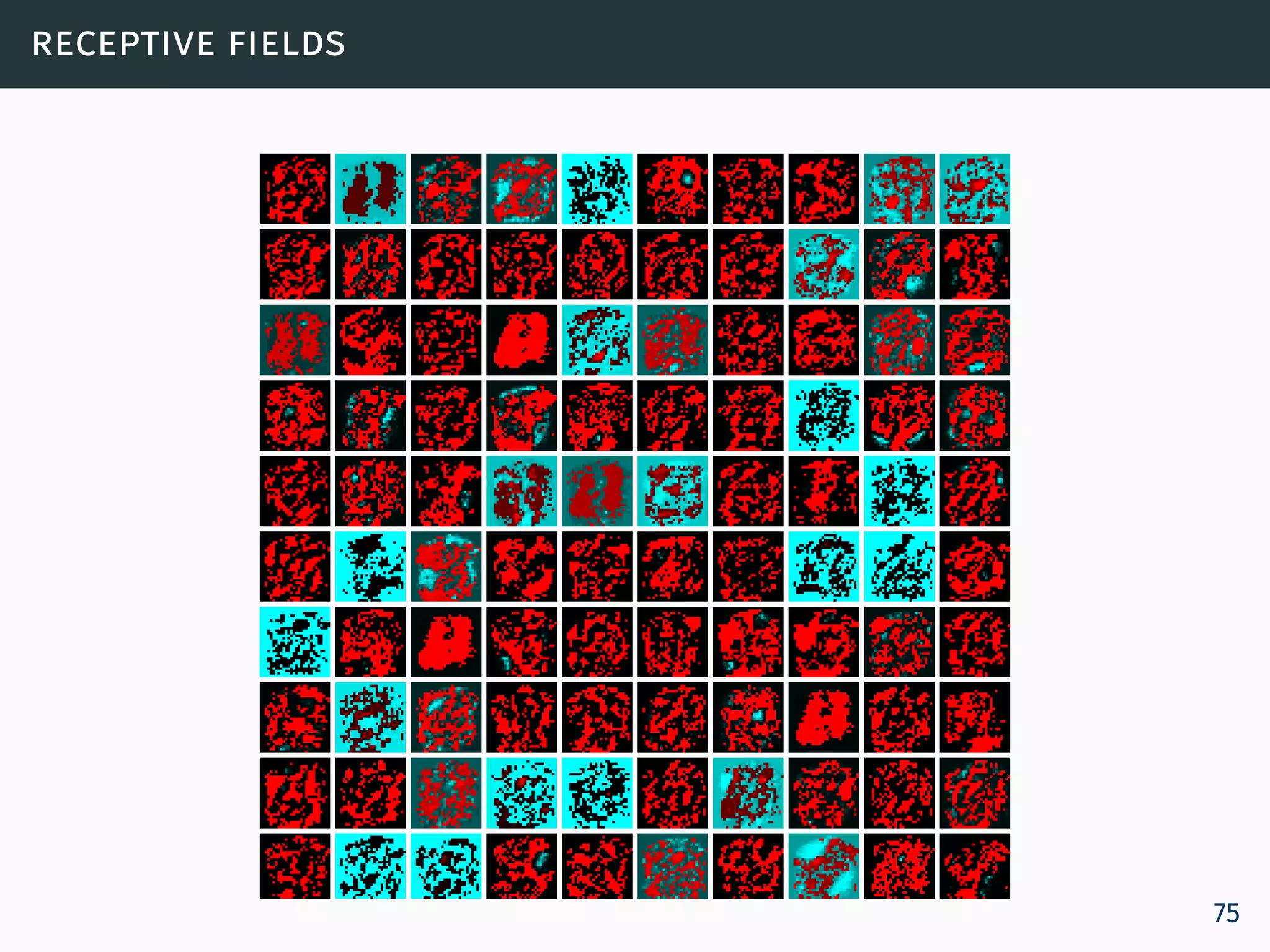

receptive fields 74
receptive fields 75

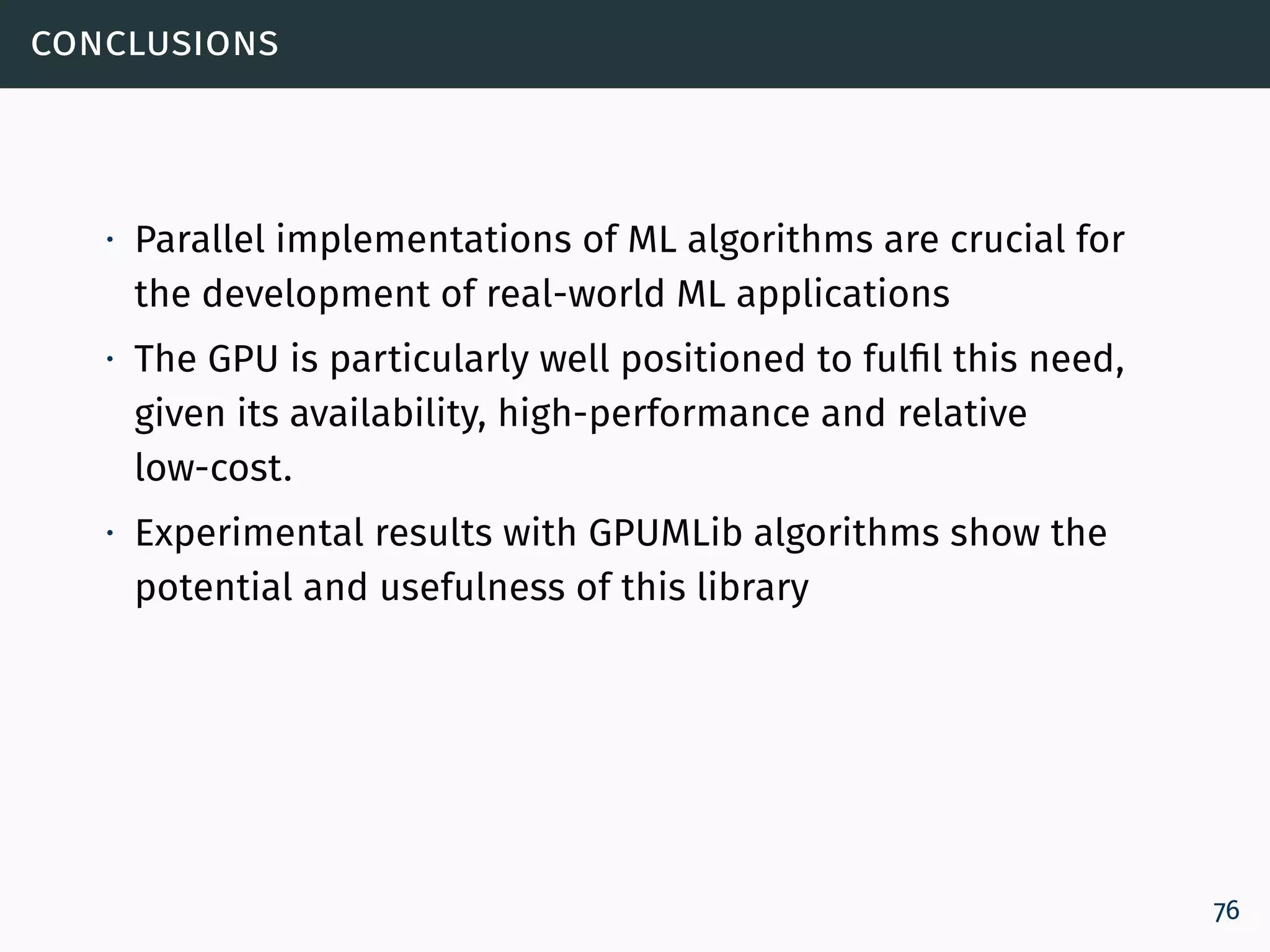

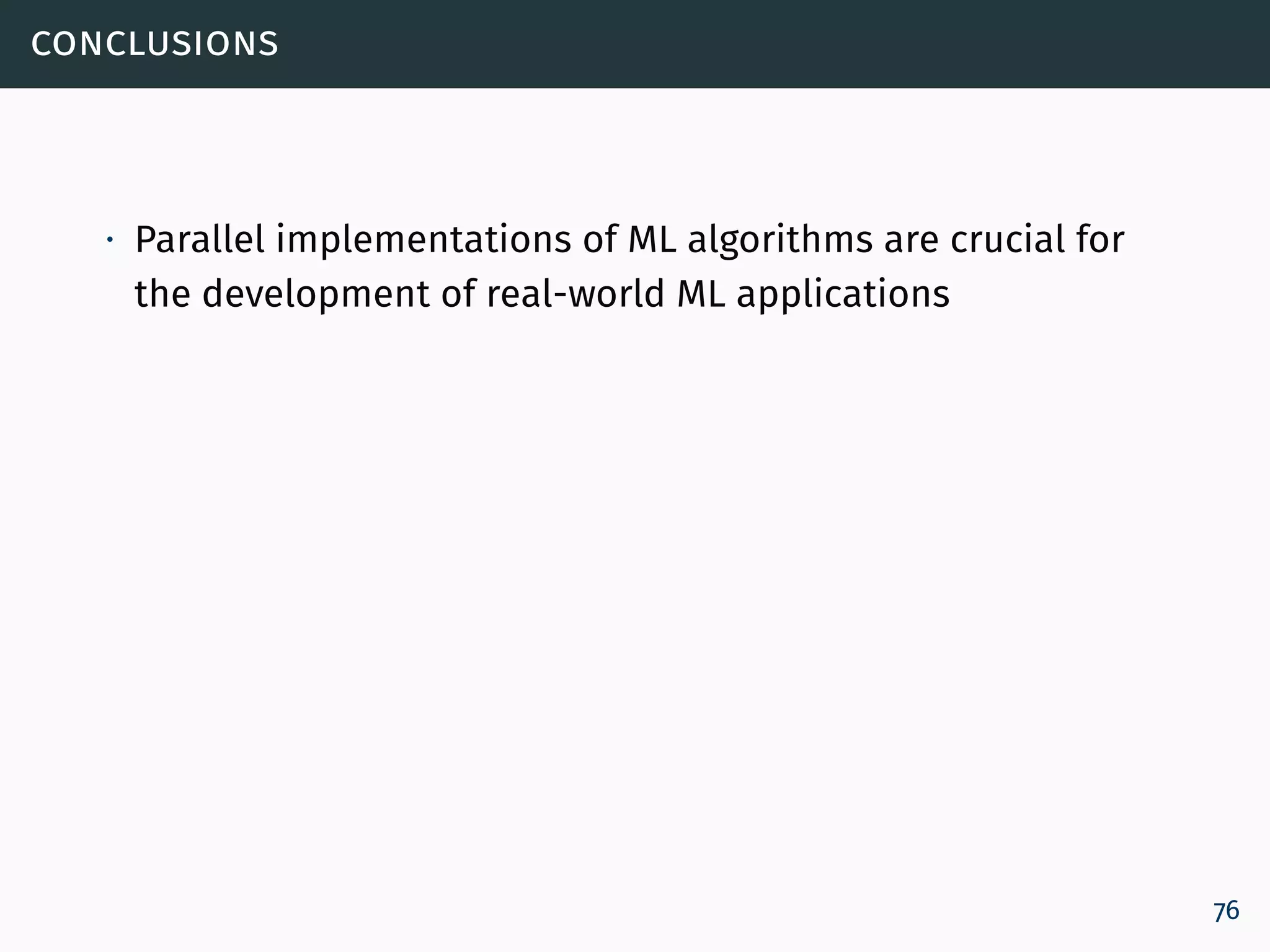

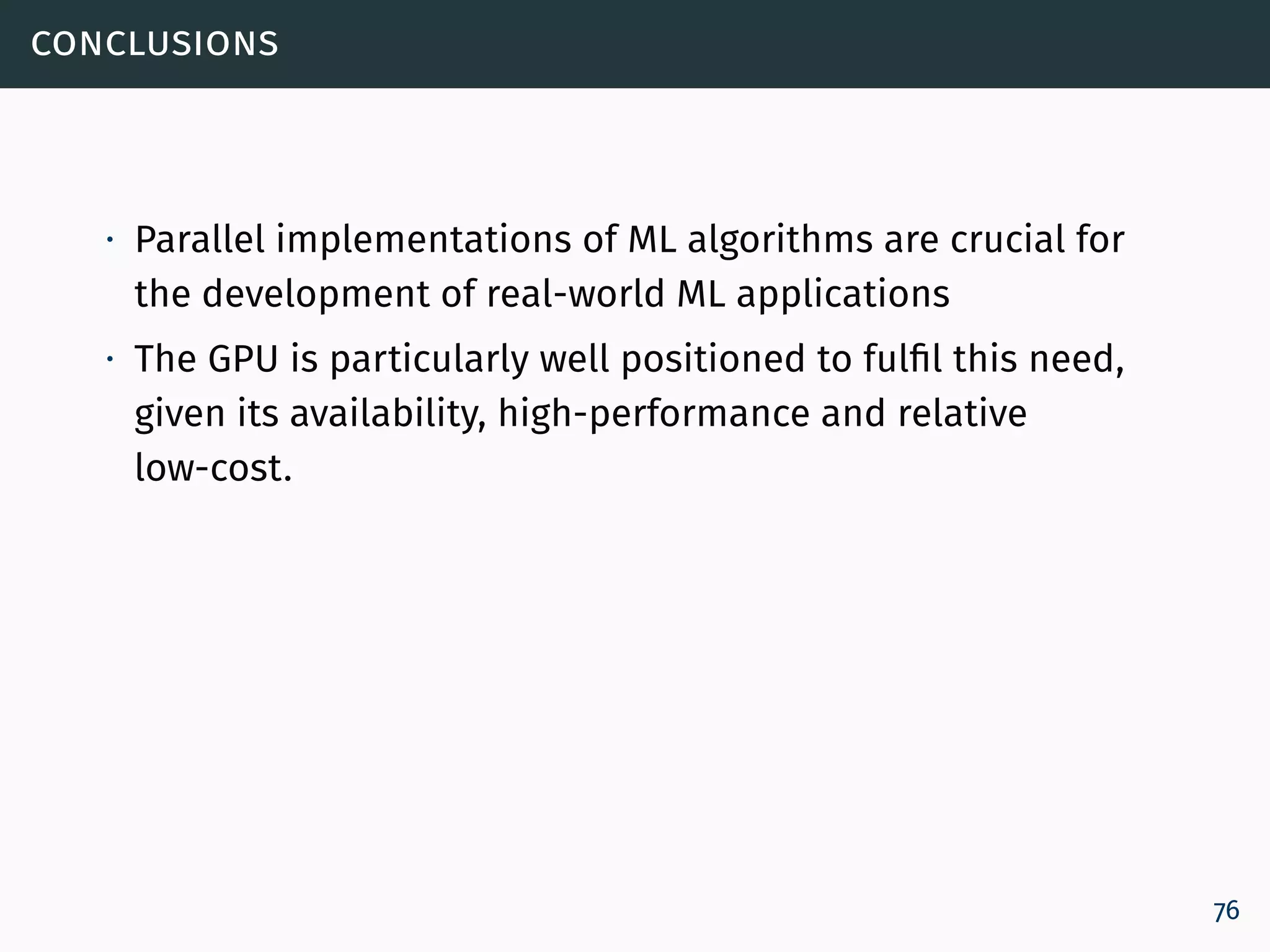

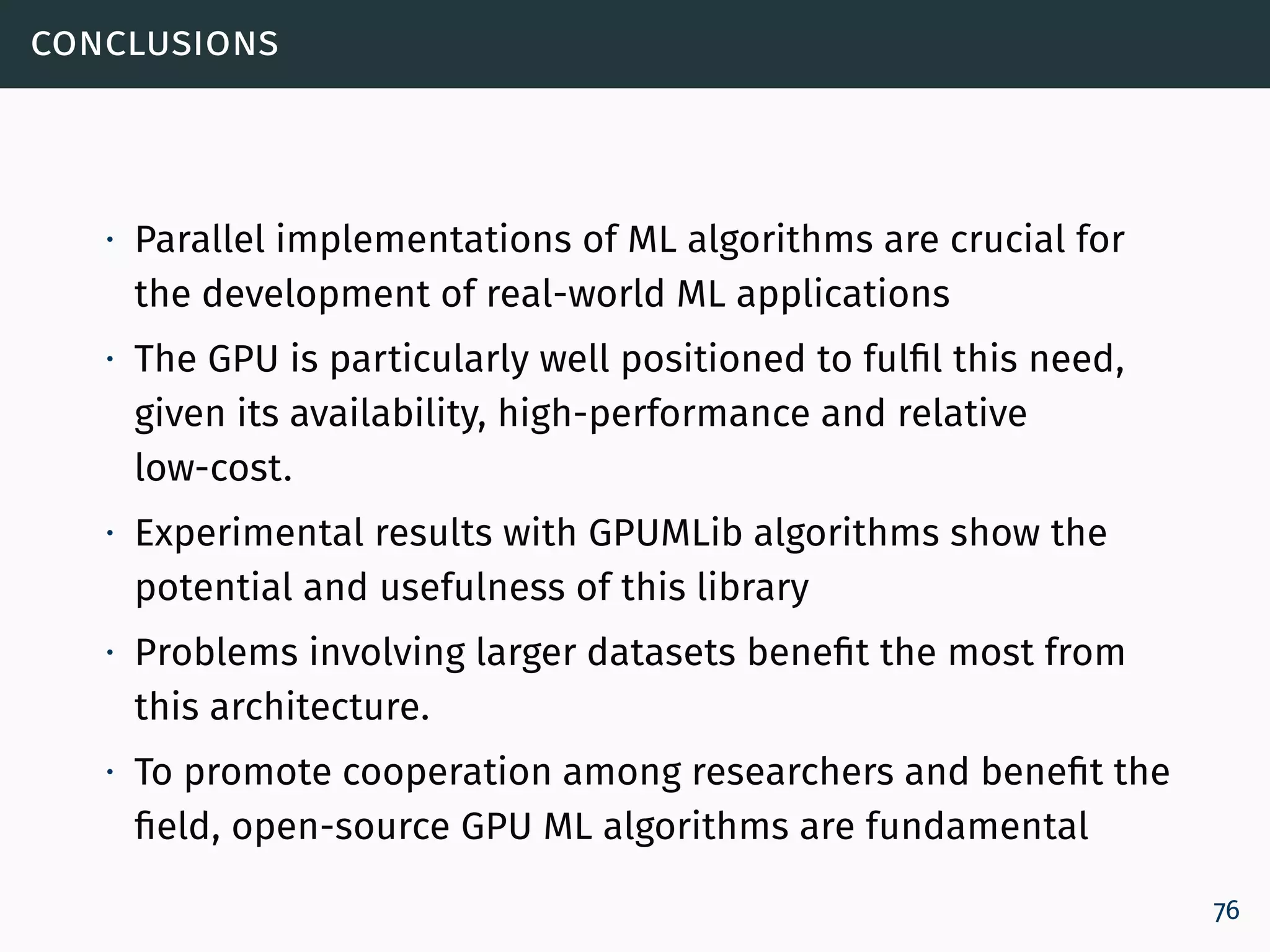

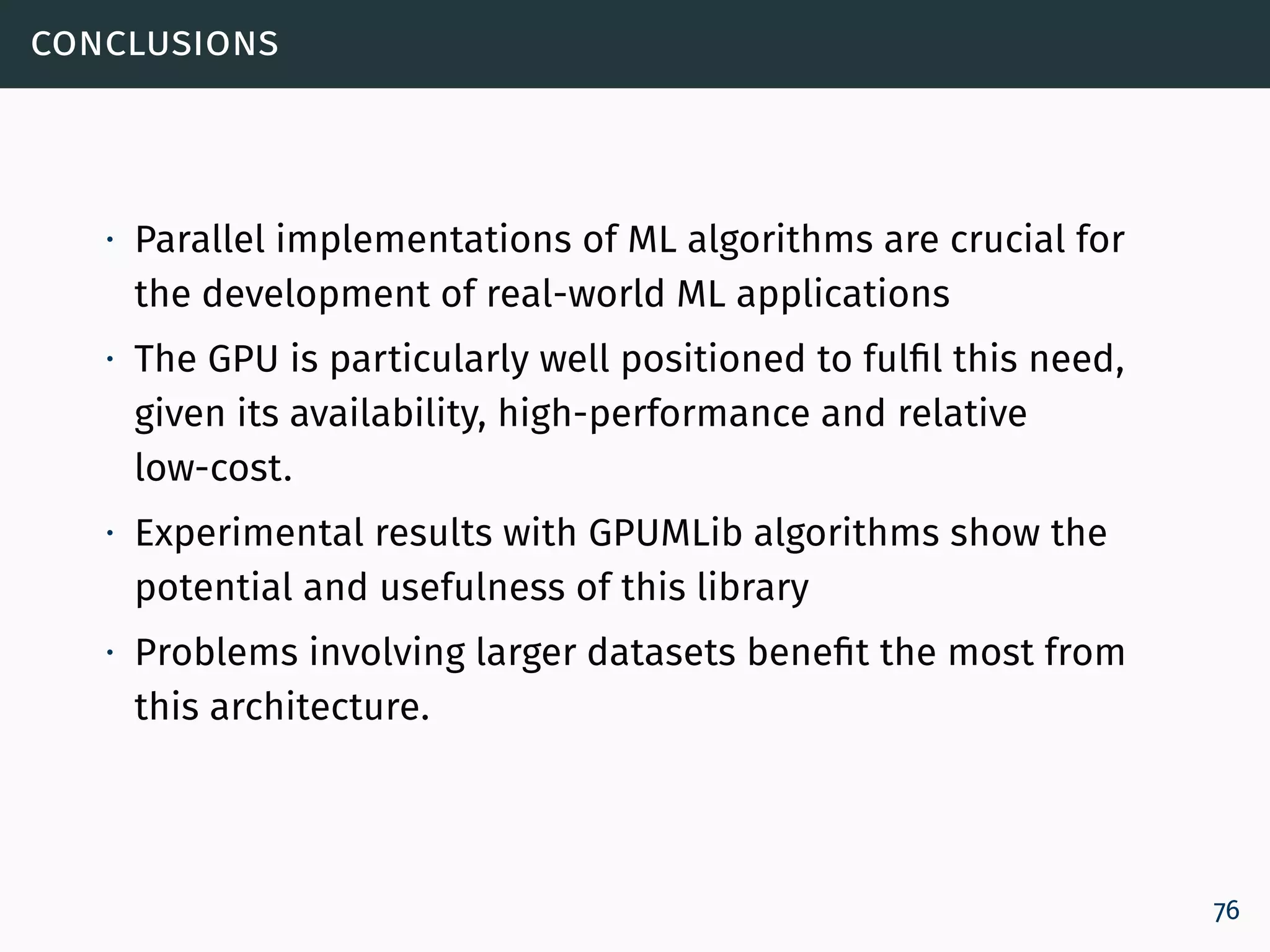

conclusions ∙ Parallel implementations of ML algorithms are crucial for the development of real-world ML applications 76
conclusions ∙ Parallel implementations of ML algorithms are crucial for the development of real-world ML applications ∙ The GPU is particularly well positioned to fulfil this need, given its availability, high-performance and relative low-cost. 76
conclusions ∙ Parallel implementations of ML algorithms are crucial for the development of real-world ML applications ∙ The GPU is particularly well positioned to fulfil this need, given its availability, high-performance and relative low-cost. ∙ Experimental results with GPUMLib algorithms show the potential and usefulness of this library 76
conclusions ∙ Parallel implementations of ML algorithms are crucial for the development of real-world ML applications ∙ The GPU is particularly well positioned to fulfil this need, given its availability, high-performance and relative low-cost. ∙ Experimental results with GPUMLib algorithms show the potential and usefulness of this library ∙ Problems involving larger datasets benefit the most from this architecture. 76
conclusions ∙ Parallel implementations of ML algorithms are crucial for the development of real-world ML applications ∙ The GPU is particularly well positioned to fulfil this need, given its availability, high-performance and relative low-cost. ∙ Experimental results with GPUMLib algorithms show the potential and usefulness of this library ∙ Problems involving larger datasets benefit the most from this architecture. ∙ To promote cooperation among researchers and benefit the field, open-source GPU ML algorithms are fundamental 76

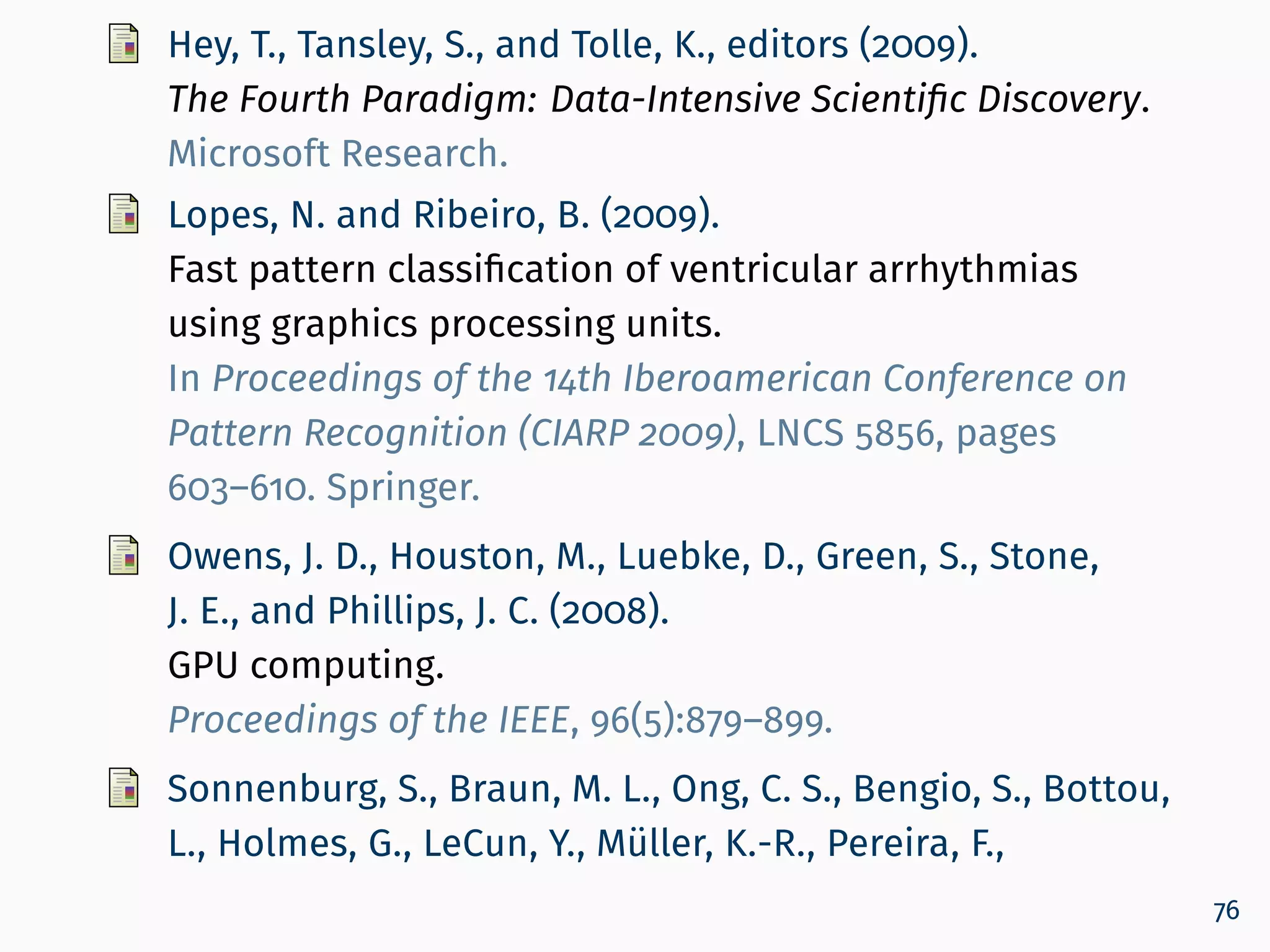

Hey, T., Tansley, S., and Tolle, K., editors (2009). The Fourth Paradigm: Data-Intensive Scientific Discovery. Microsoft Research. Lopes, N. and Ribeiro, B. (2009). Fast pattern classification of ventricular arrhythmias using graphics processing units. In Proceedings of the 14th Iberoamerican Conference on Pattern Recognition (CIARP 2009), LNCS 5856, pages 603–610. Springer. Owens, J. D., Houston, M., Luebke, D., Green, S., Stone, J. E., and Phillips, J. C. (2008). GPU computing. Proceedings of the IEEE, 96(5):879–899. Sonnenburg, S., Braun, M. L., Ong, C. S., Bengio, S., Bottou, L., Holmes, G., LeCun, Y., Müller, K.-R., Pereira, F., 76

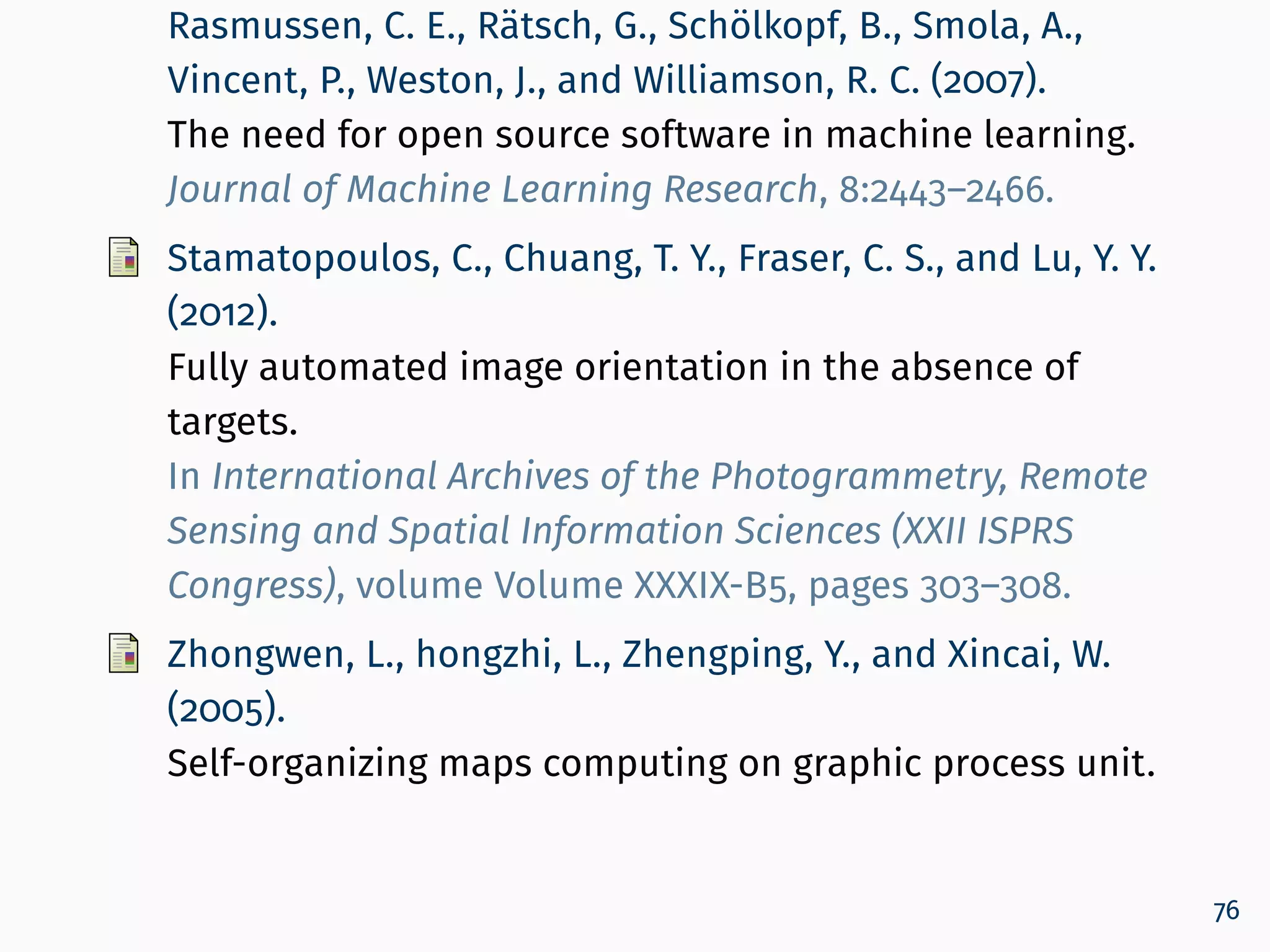

Rasmussen, C. E., Rätsch, G., Schölkopf, B., Smola, A., Vincent, P., Weston, J., and Williamson, R. C. (2007). The need for open source software in machine learning. Journal of Machine Learning Research, 8:2443–2466. Stamatopoulos, C., Chuang, T. Y., Fraser, C. S., and Lu, Y. Y. (2012). Fully automated image orientation in the absence of targets. In International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences (XXII ISPRS Congress), volume Volume XXXIX-B5, pages 303–308. Zhongwen, L., hongzhi, L., Zhengping, Y., and Xincai, W. (2005). Self-organizing maps computing on graphic process unit. 76

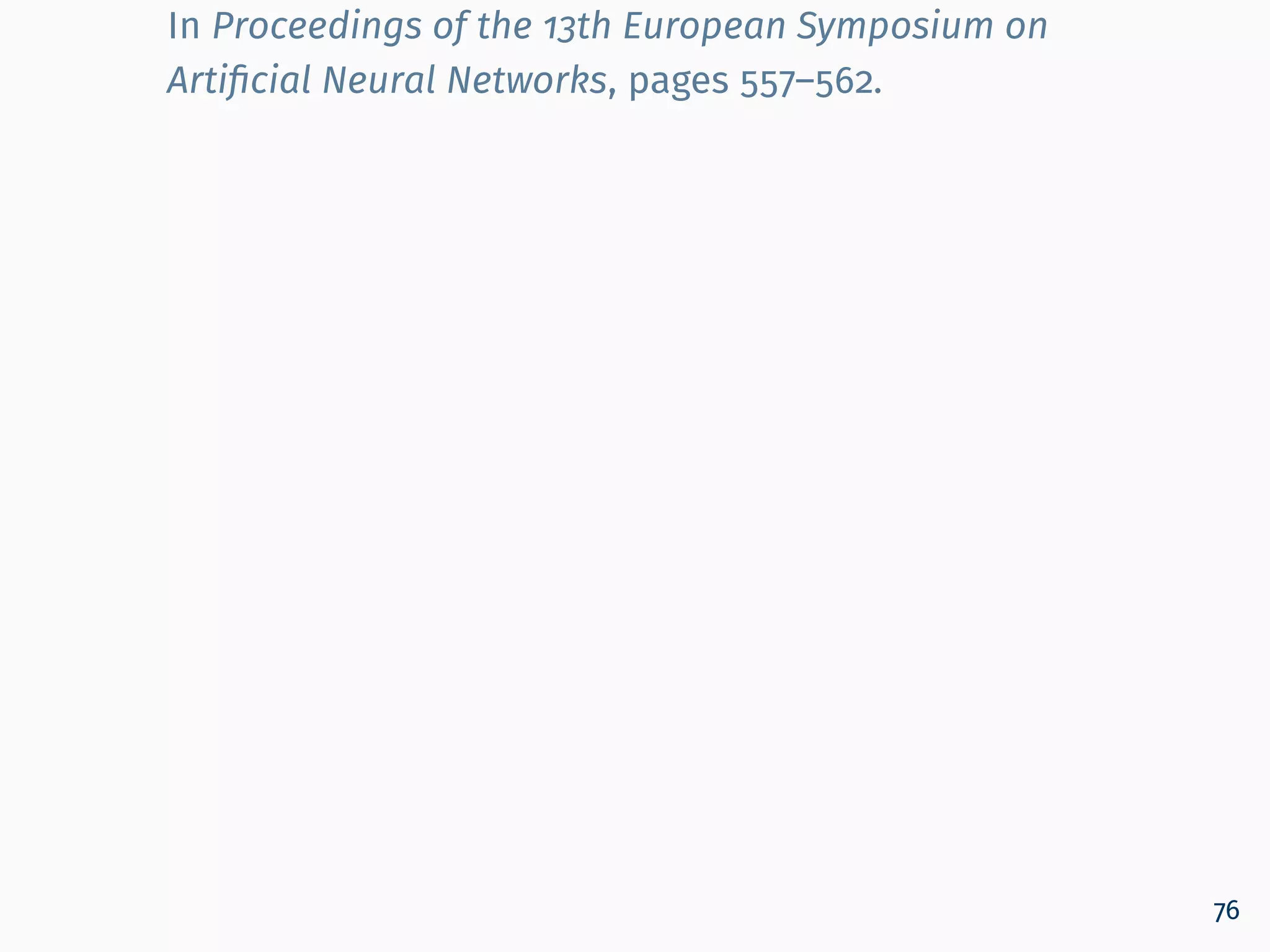

In Proceedings of the 13th European Symposium on Artificial Neural Networks, pages 557–562. 76
