Deep learning tutorial 9/2019

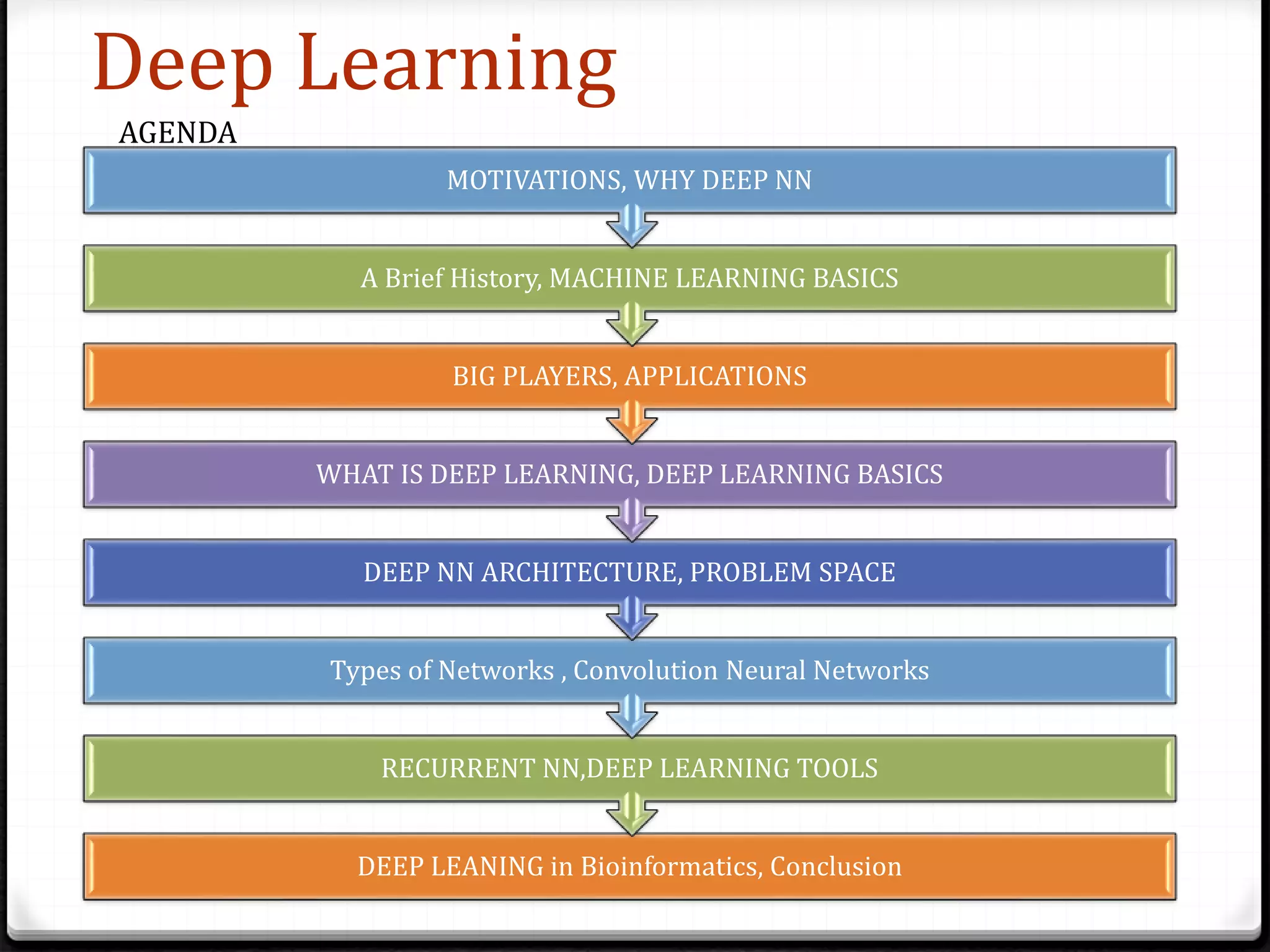

Deep Learning

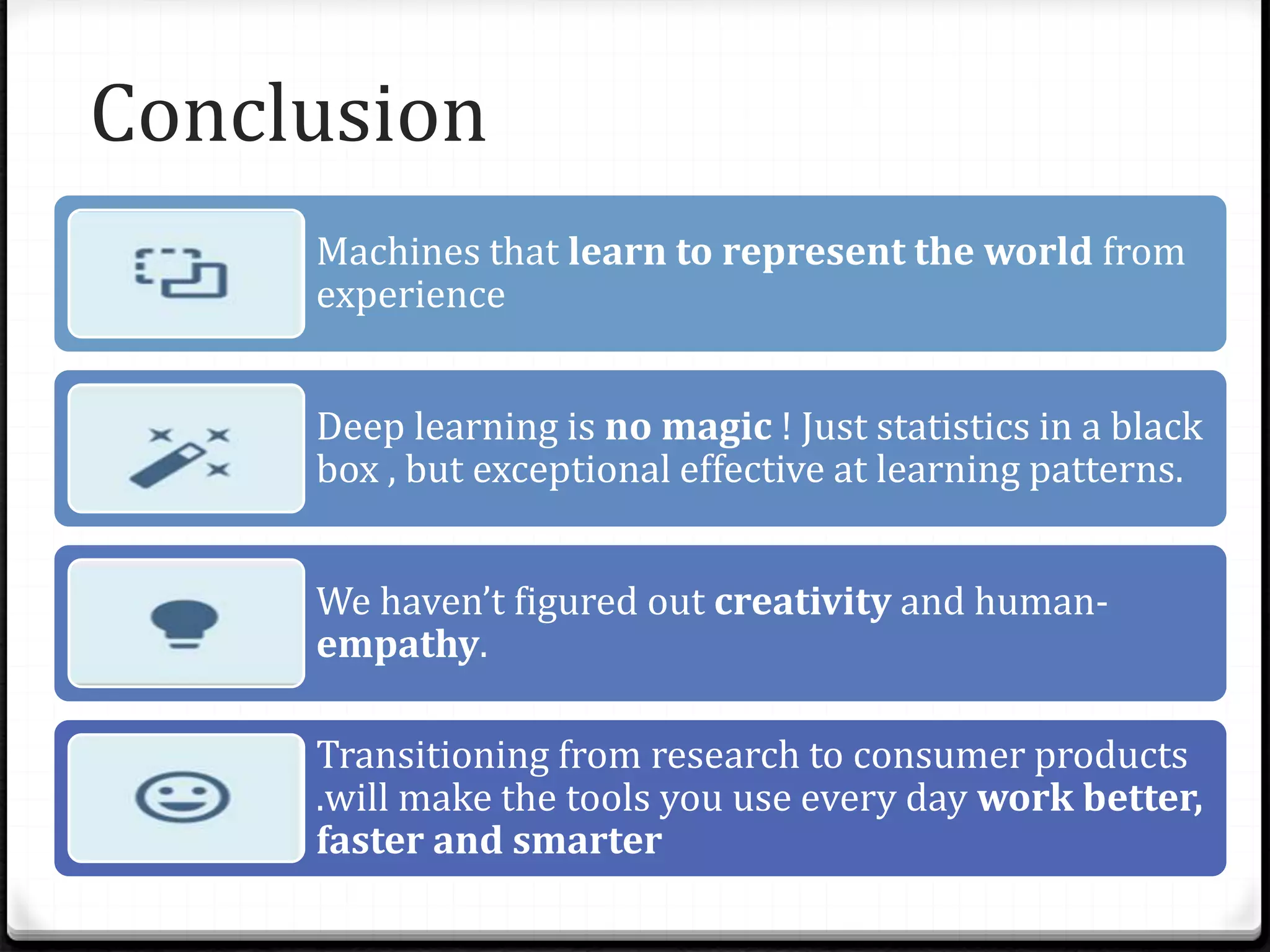

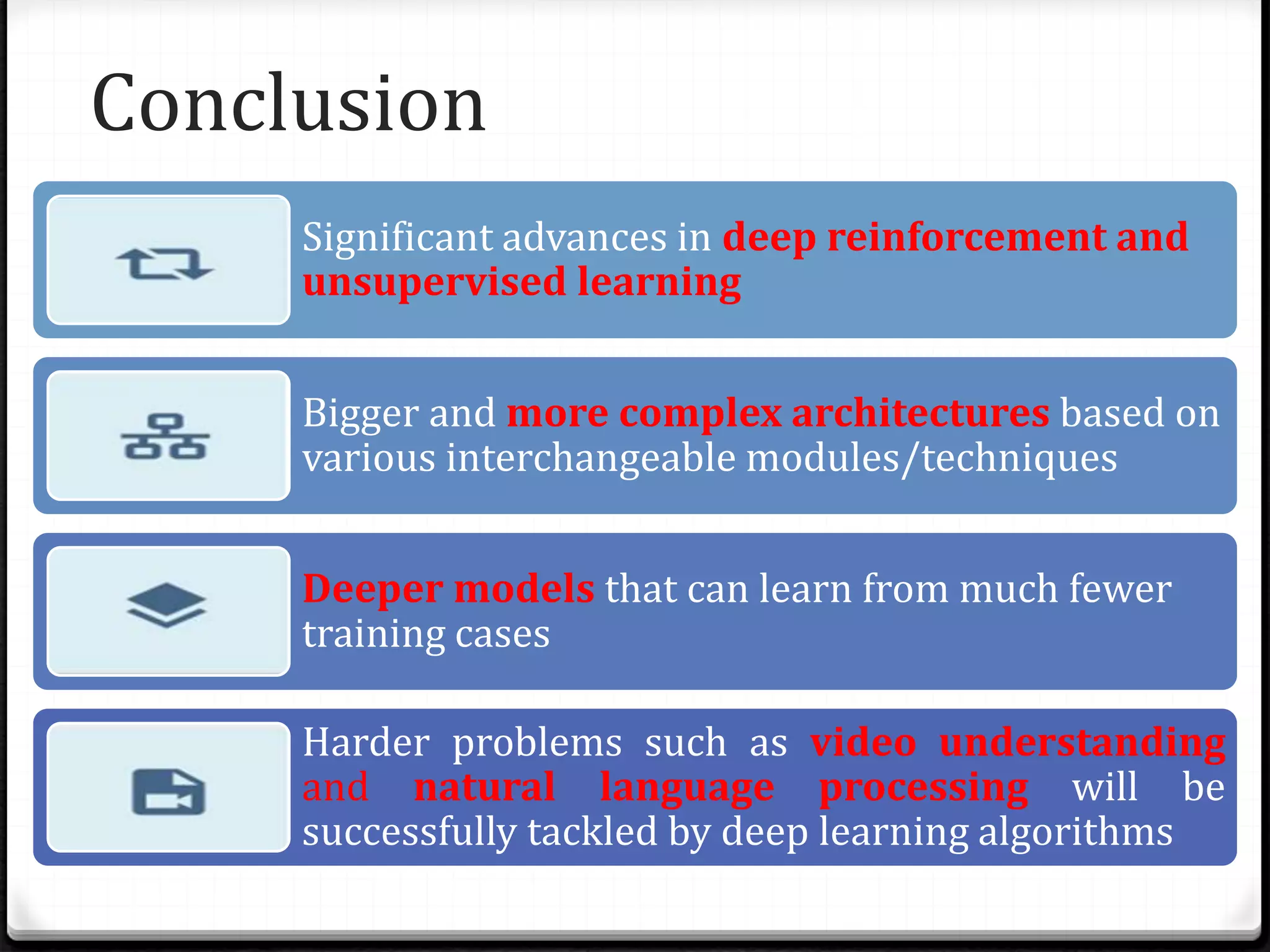

DEEP LEANING in Bioinformatics, Conclusion

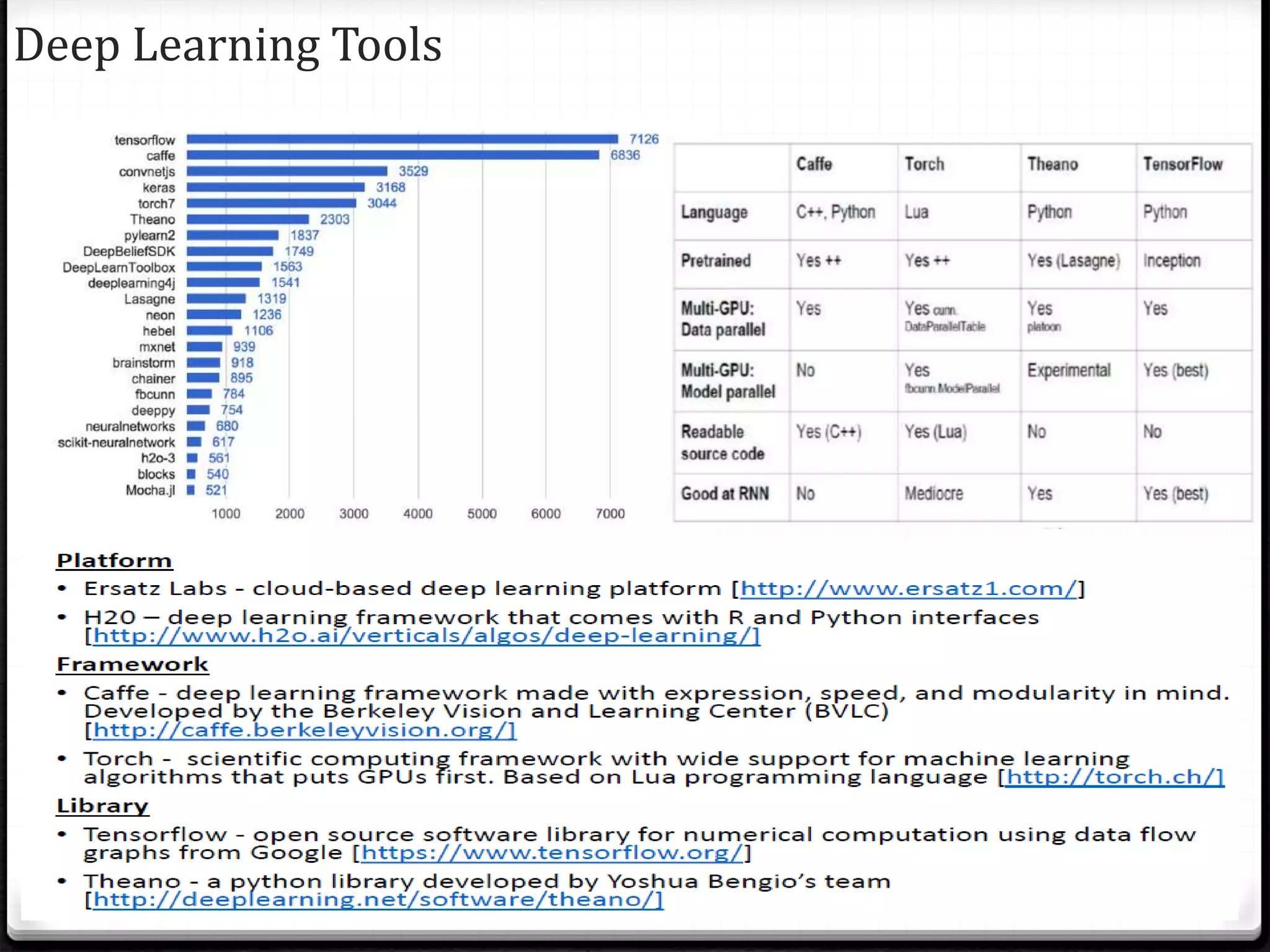

RECURRENT NN,DEEP LEARNING TOOLS
Types of Networks , Convolution Neural Networks
DEEP NN ARCHITECTURE, PROBLEM SPACE
WHAT IS DEEP LEARNING, DEEP LEARNING BASICS
BIG PLAYERS, APPLICATIONS
A Brief History, MACHINE LEARNING BASICS
MOTIVATIONS, WHY DEEP NN
AGENDA

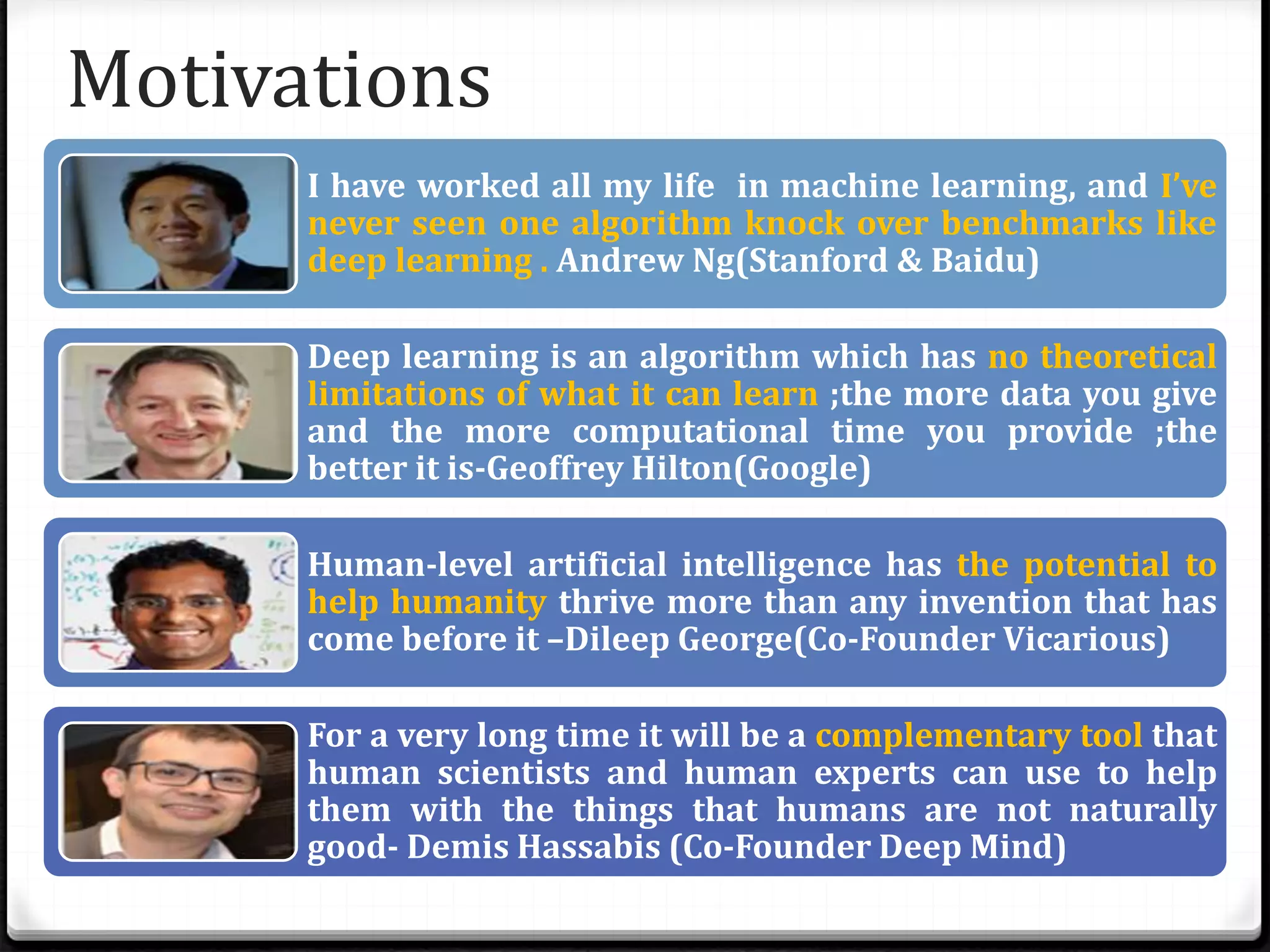

Motivations
I have worked all my life in machine learning, and I’ve
never seen one algorithm knock over benchmarks like
deep learning . Andrew Ng(Stanford & Baidu)
Deep learning is an algorithm which has no theoretical
limitations of what it can learn ;the more data you give
and the more computational time you provide ;the
better it is-Geoffrey Hilton(Google)
Human-level artificial intelligence has the potential to
help humanity thrive more than any invention that has
come before it –Dileep George(Co-Founder Vicarious)
For a very long time it will be a complementary tool that
human scientists and human experts can use to help
them with the things that humans are not naturally
good- Demis Hassabis (Co-Founder Deep Mind)

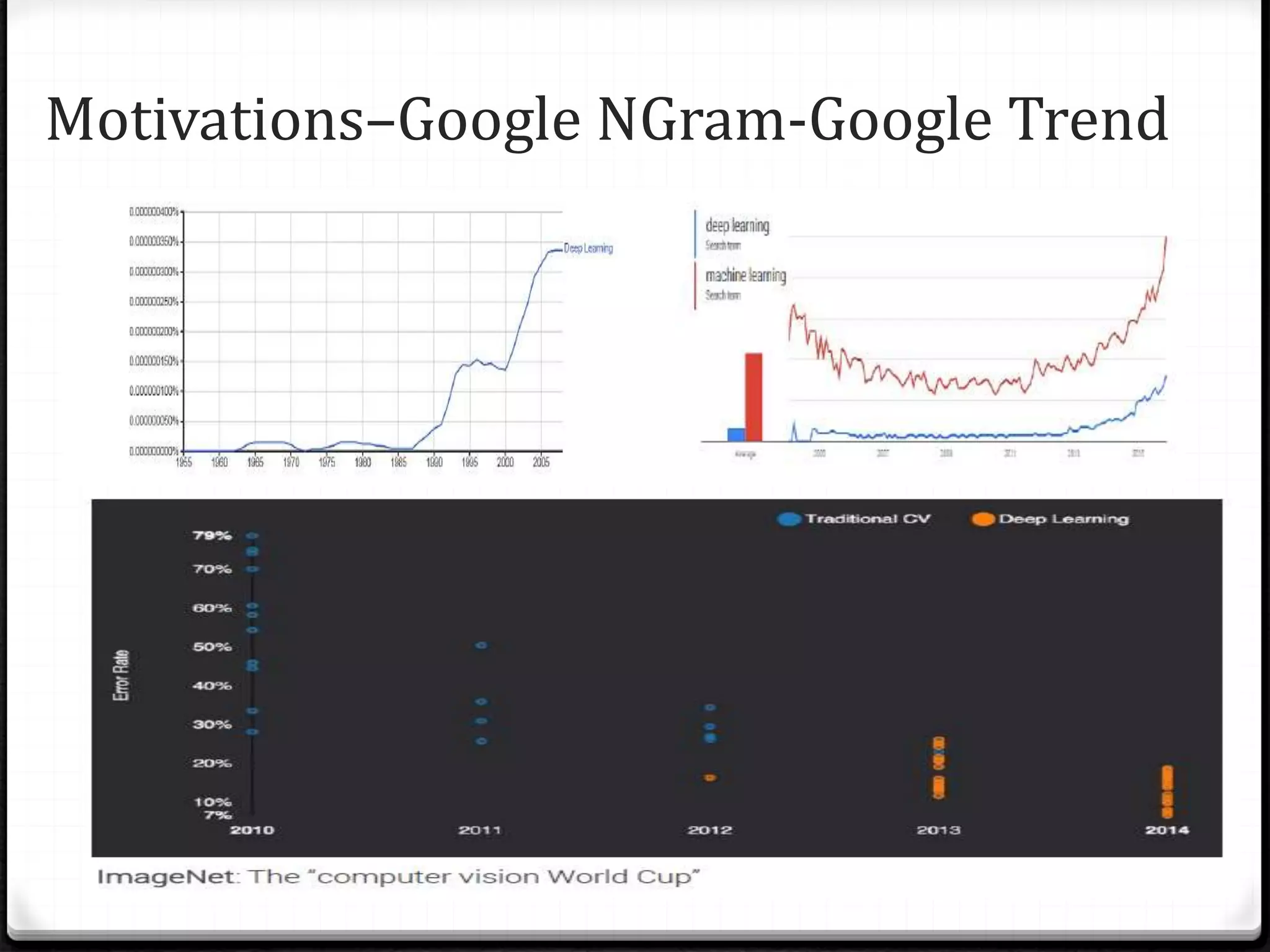

Motivations–Google NGram-Google Trend

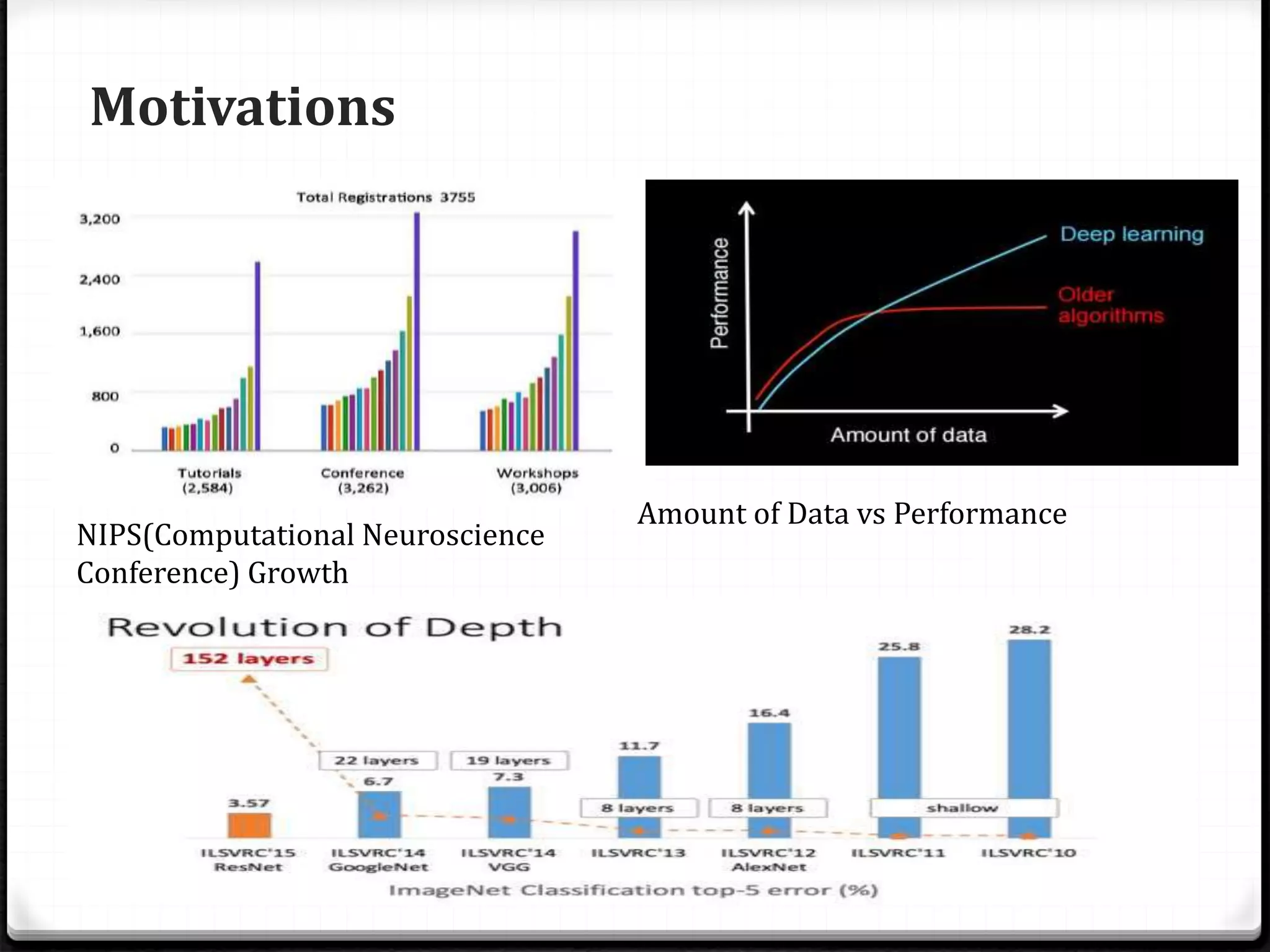

Motivations
NIPS(Computational Neuroscience
Conference) Growth
Amount of Data vs Performance

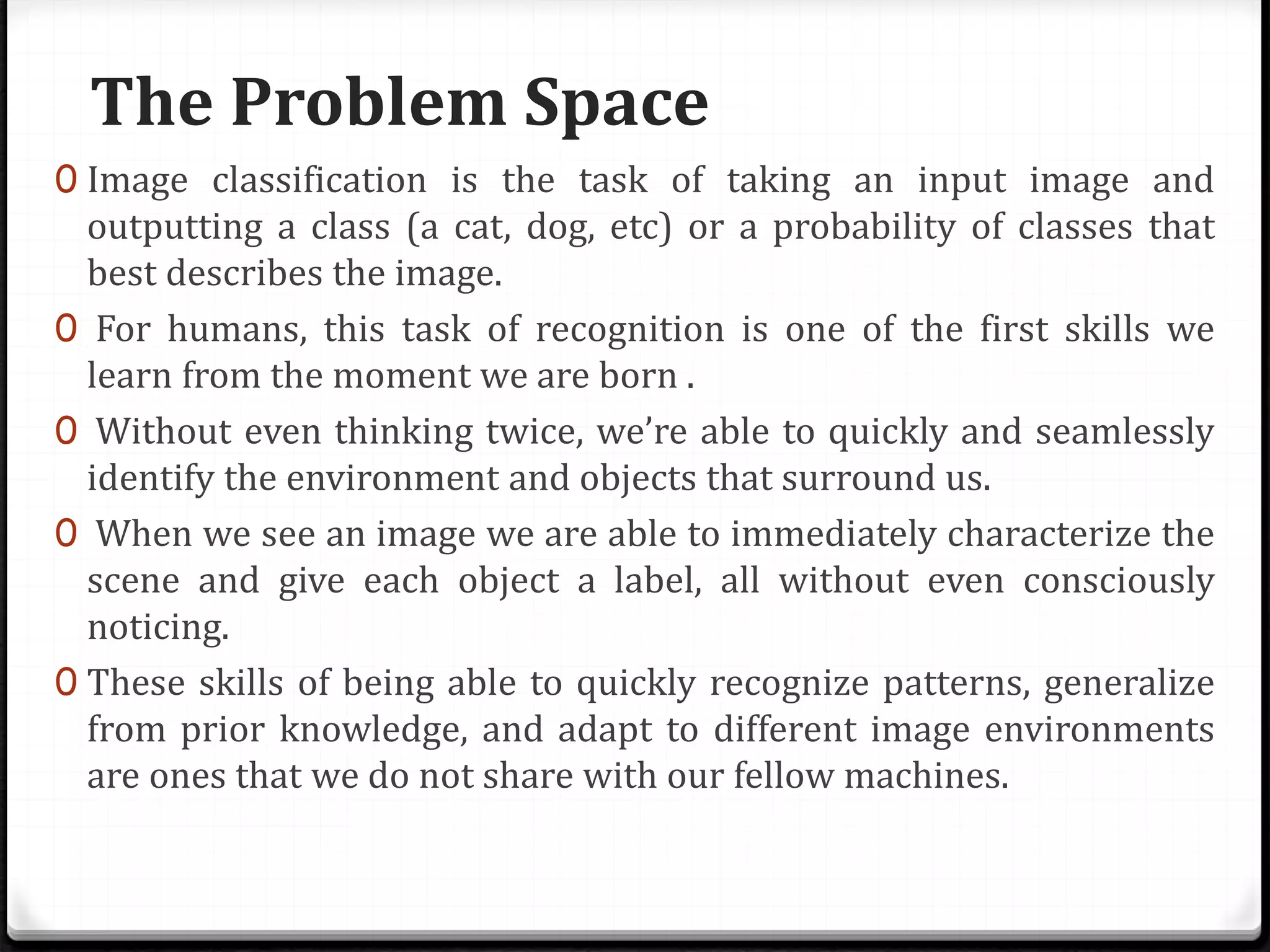

The Problem Space
0 Image classification is the task of taking an input image and
outputting a class (a cat, dog, etc) or a probability of classes that
best describes the image.
0 For humans, this task of recognition is one of the first skills we
learn from the moment we are born .
0 Without even thinking twice, we’re able to quickly and seamlessly
identify the environment and objects that surround us.
0 When we see an image we are able to immediately characterize the
scene and give each object a label, all without even consciously
noticing.
0 These skills of being able to quickly recognize patterns, generalize
from prior knowledge, and adapt to different image environments
are ones that we do not share with our fellow machines.

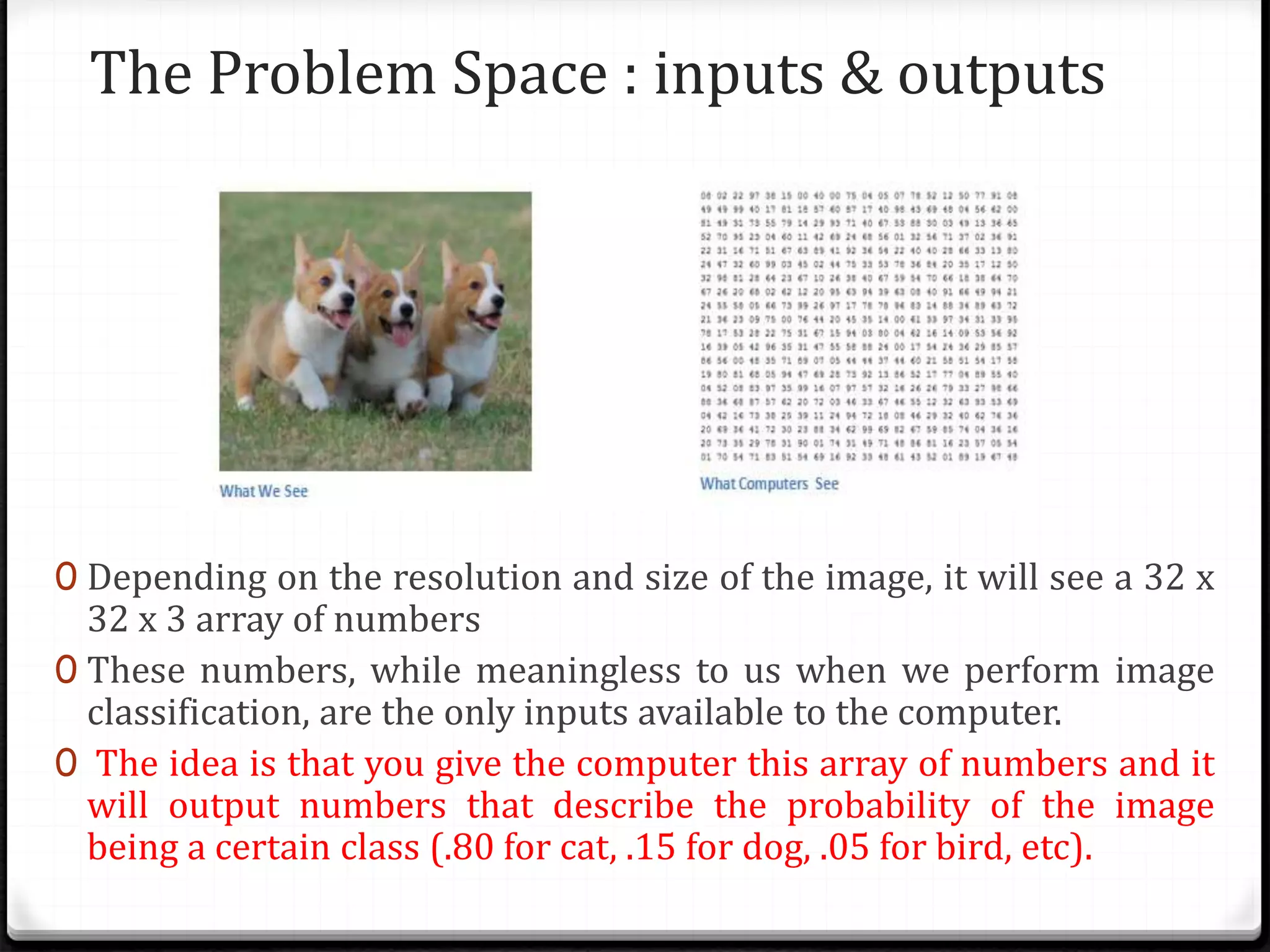

The Problem Space : inputs & outputs
0 Depending on the resolution and size of the image, it will see a 32 x
32 x 3 array of numbers
0 These numbers, while meaningless to us when we perform image
classification, are the only inputs available to the computer.
0 The idea is that you give the computer this array of numbers and it
will output numbers that describe the probability of the image
being a certain class (.80 for cat, .15 for dog, .05 for bird, etc).

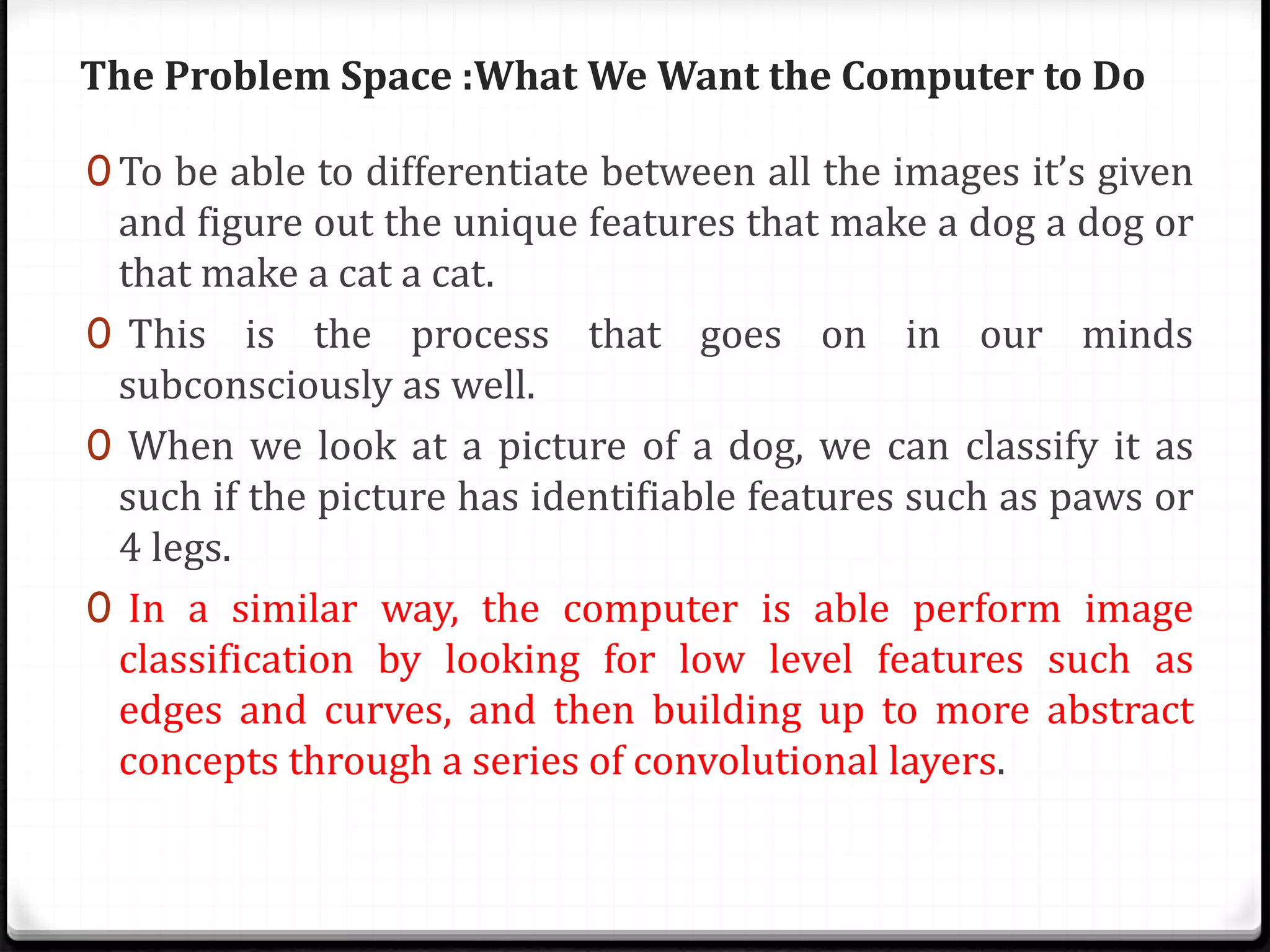

The Problem Space :What We Want the Computer to Do
0 To be able to differentiate between all the images it’s given
and figure out the unique features that make a dog a dog or
that make a cat a cat.
0 This is the process that goes on in our minds
subconsciously as well.
0 When we look at a picture of a dog, we can classify it as
such if the picture has identifiable features such as paws or
4 legs.
0 In a similar way, the computer is able perform image
classification by looking for low level features such as
edges and curves, and then building up to more abstract
concepts through a series of convolutional layers.

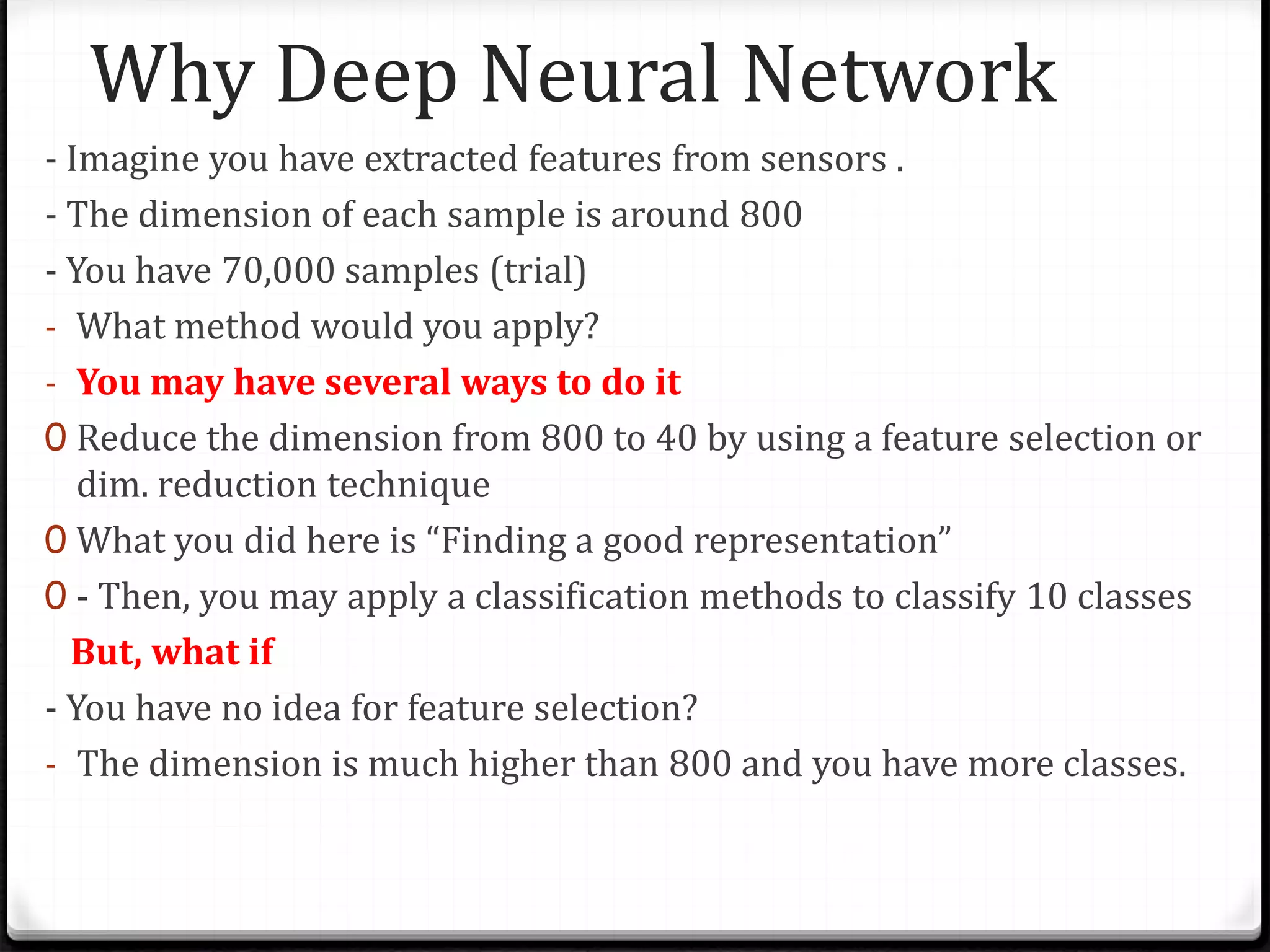

Why Deep Neural Network
- Imagine you have extracted features from sensors .
- The dimension of each sample is around 800
- You have 70,000 samples (trial)
- What method would you apply?
- You may have several ways to do it
0 Reduce the dimension from 800 to 40 by using a feature selection or
dim. reduction technique
0 What you did here is “Finding a good representation”
0 - Then, you may apply a classification methods to classify 10 classes
But, what if
- You have no idea for feature selection?
- The dimension is much higher than 800 and you have more classes.

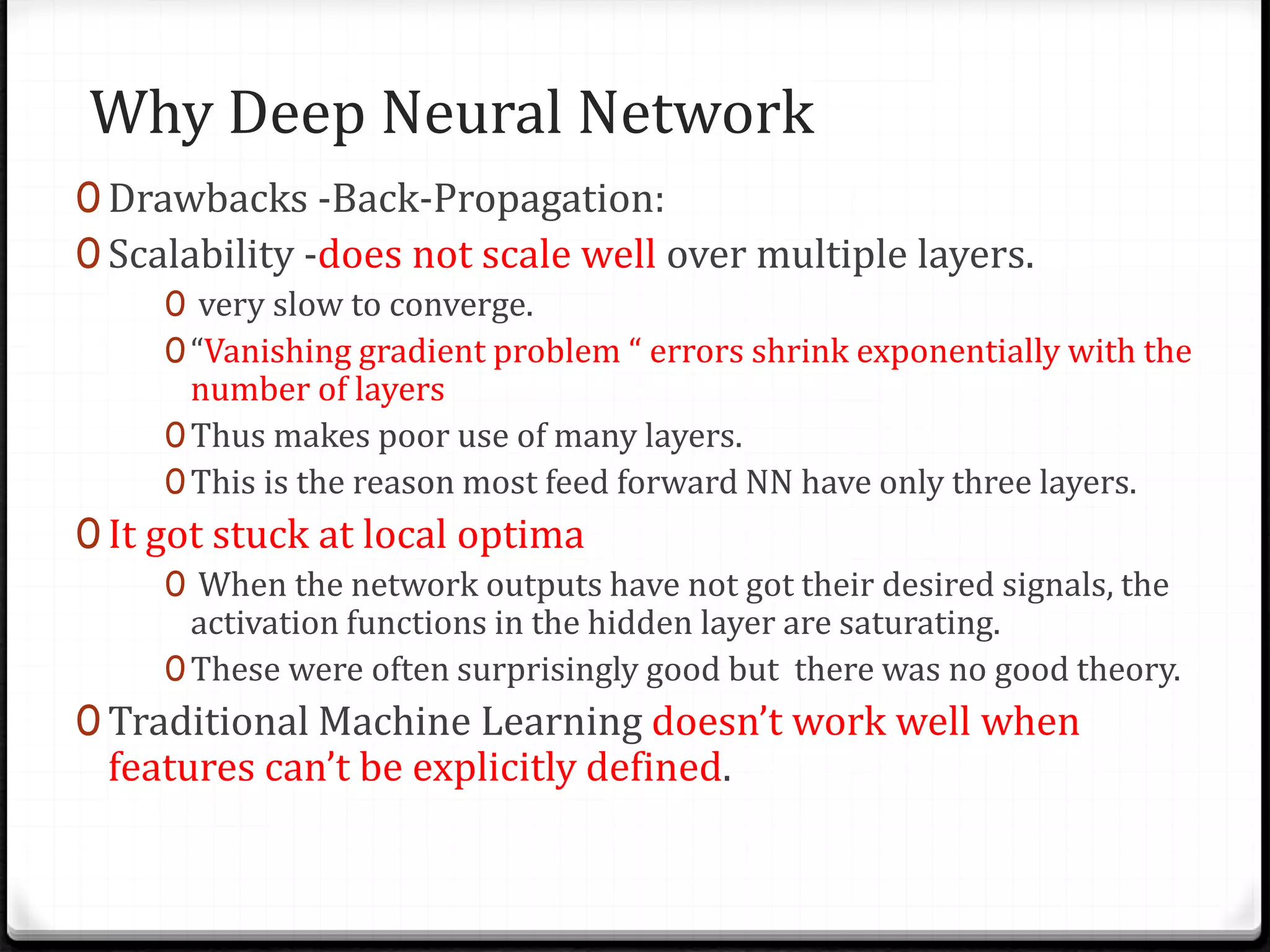

Why Deep Neural Network
0 Drawbacks -Back-Propagation:
0 Scalability -does not scale well over multiple layers.
0 very slow to converge.

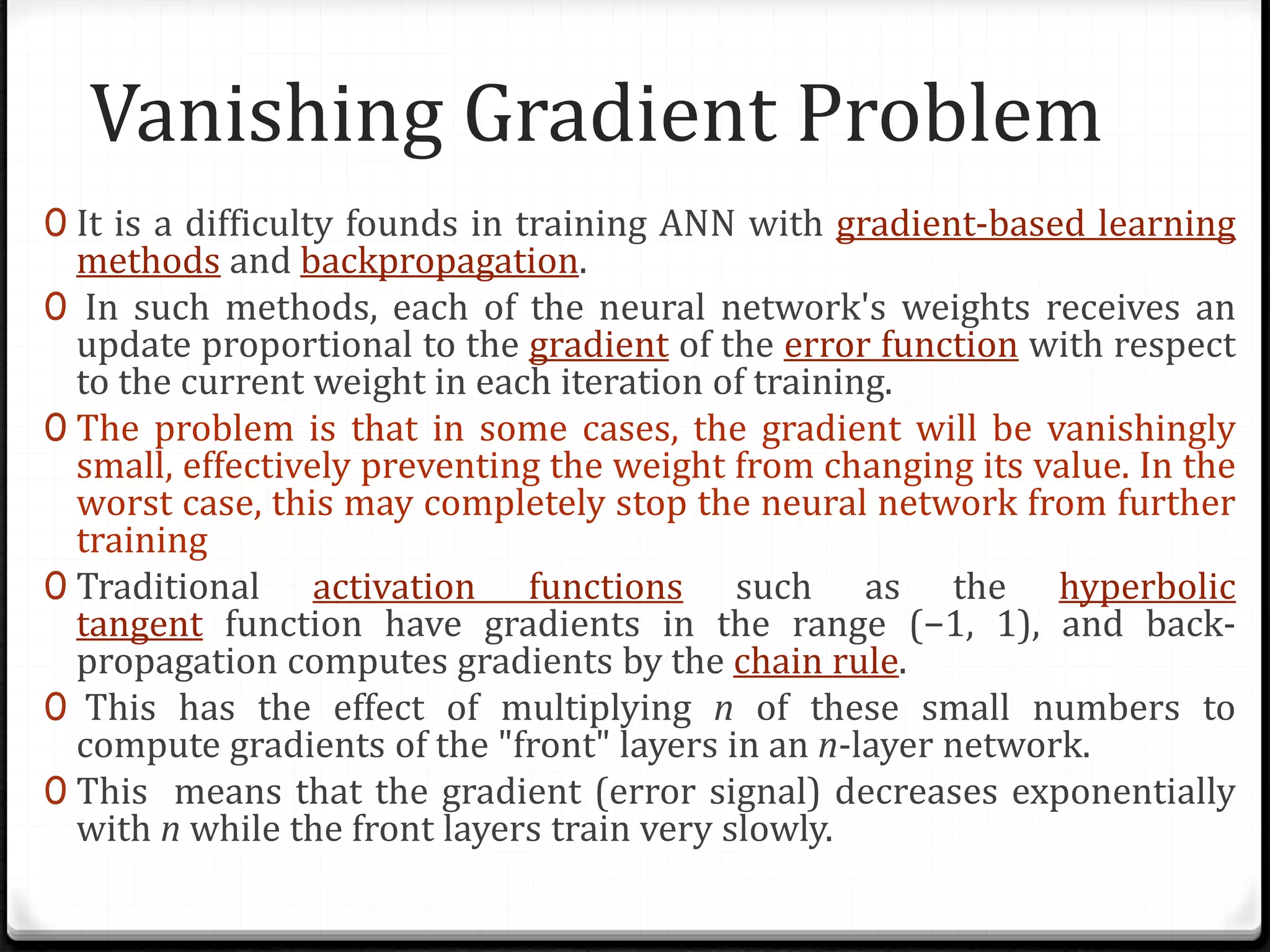

0“Vanishing gradient problem “ errors shrink exponentially with the
number of layers
0Thus makes poor use of many layers.
0This is the reason most feed forward NN have only three layers.
0 It got stuck at local optima
0 When the network outputs have not got their desired signals, the
activation functions in the hidden layer are saturating.
0These were often surprisingly good but there was no good theory.
0 Traditional Machine Learning doesn’t work well when
features can’t be explicitly defined.

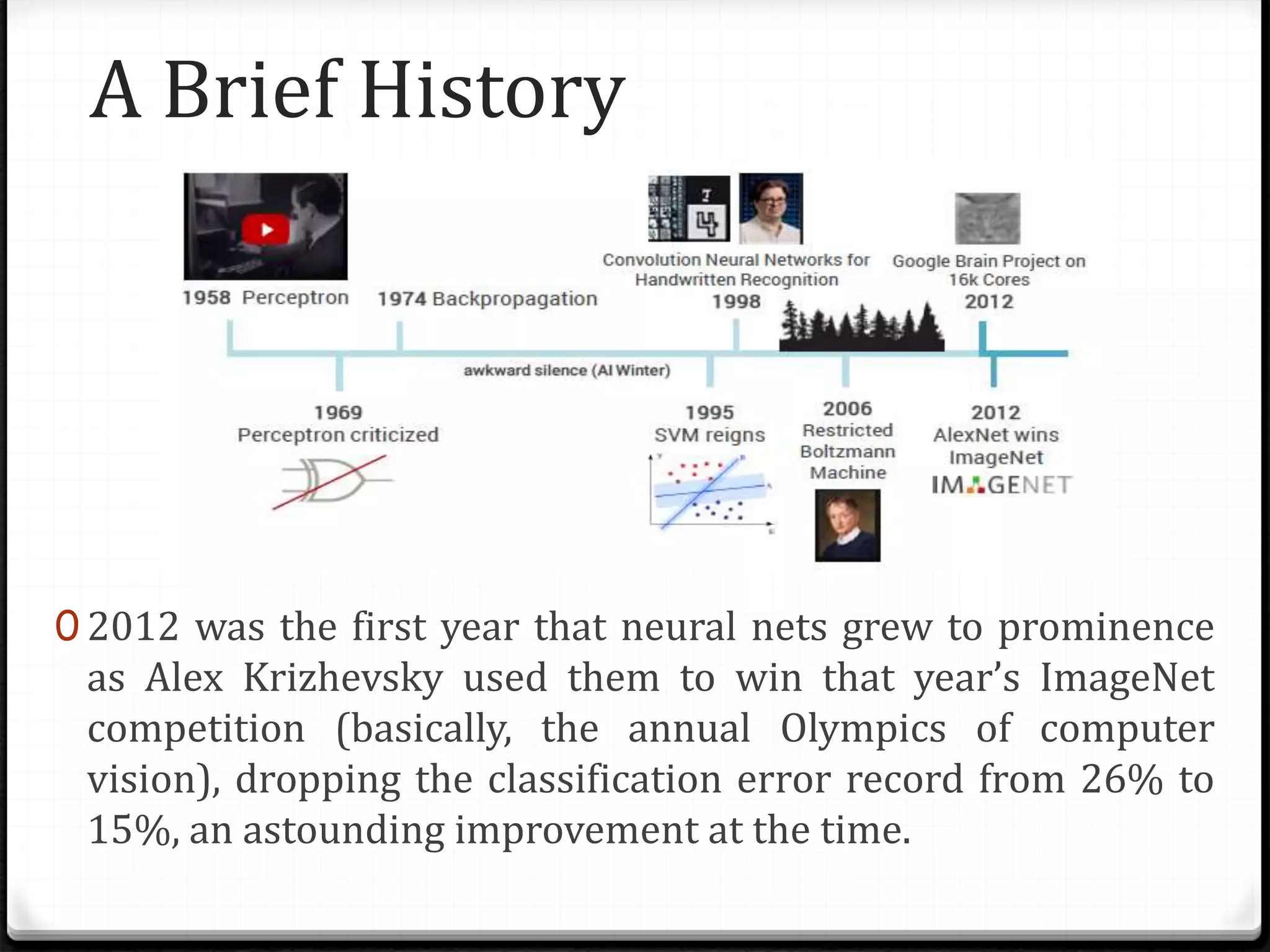

A Brief History

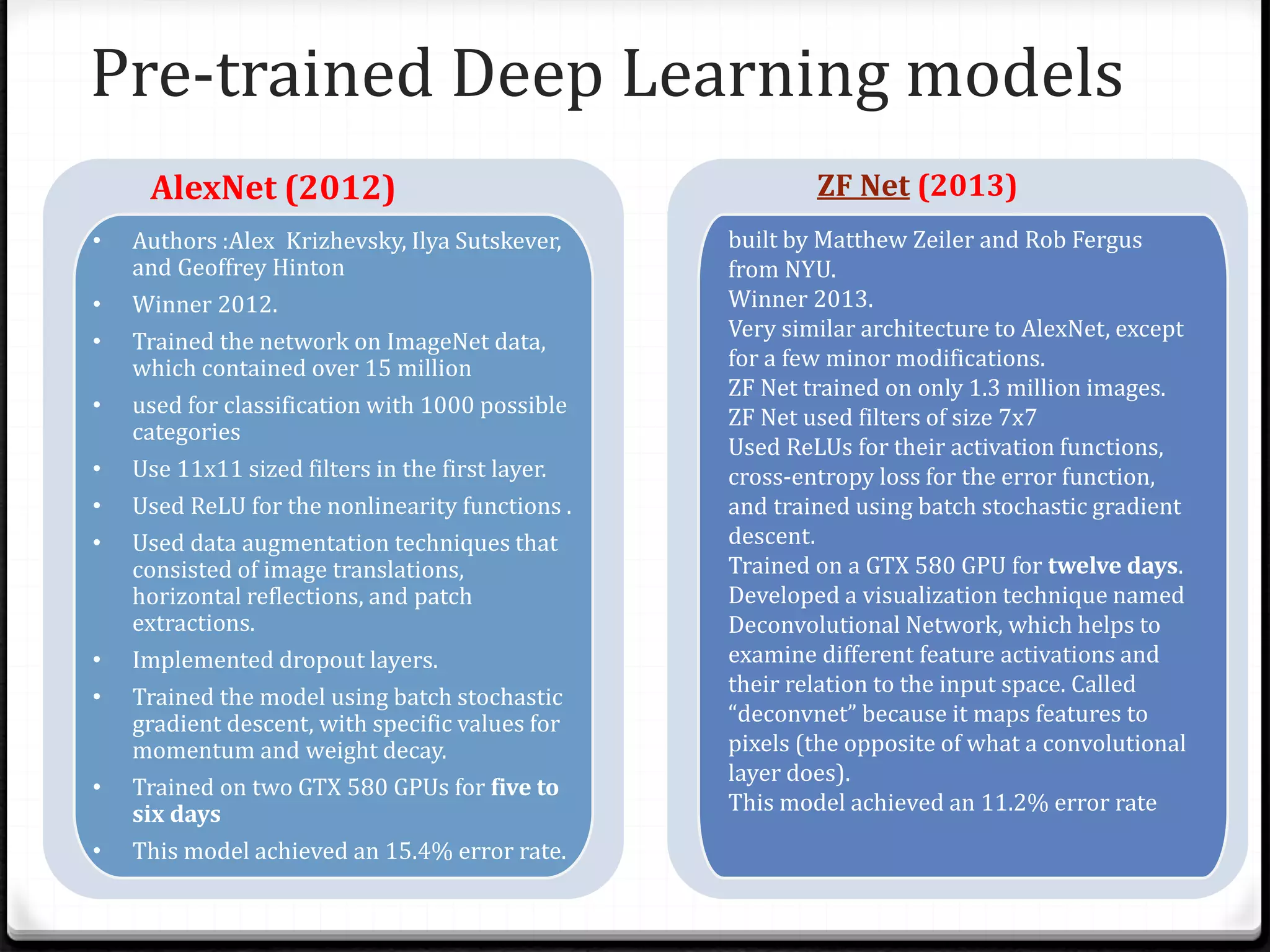

0 2012 was the first year that neural nets grew to prominence
as Alex Krizhevsky used them to win that year’s ImageNet
competition (basically, the annual Olympics of computer
vision), dropping the classification error record from 26% to
15%, an astounding improvement at the time.

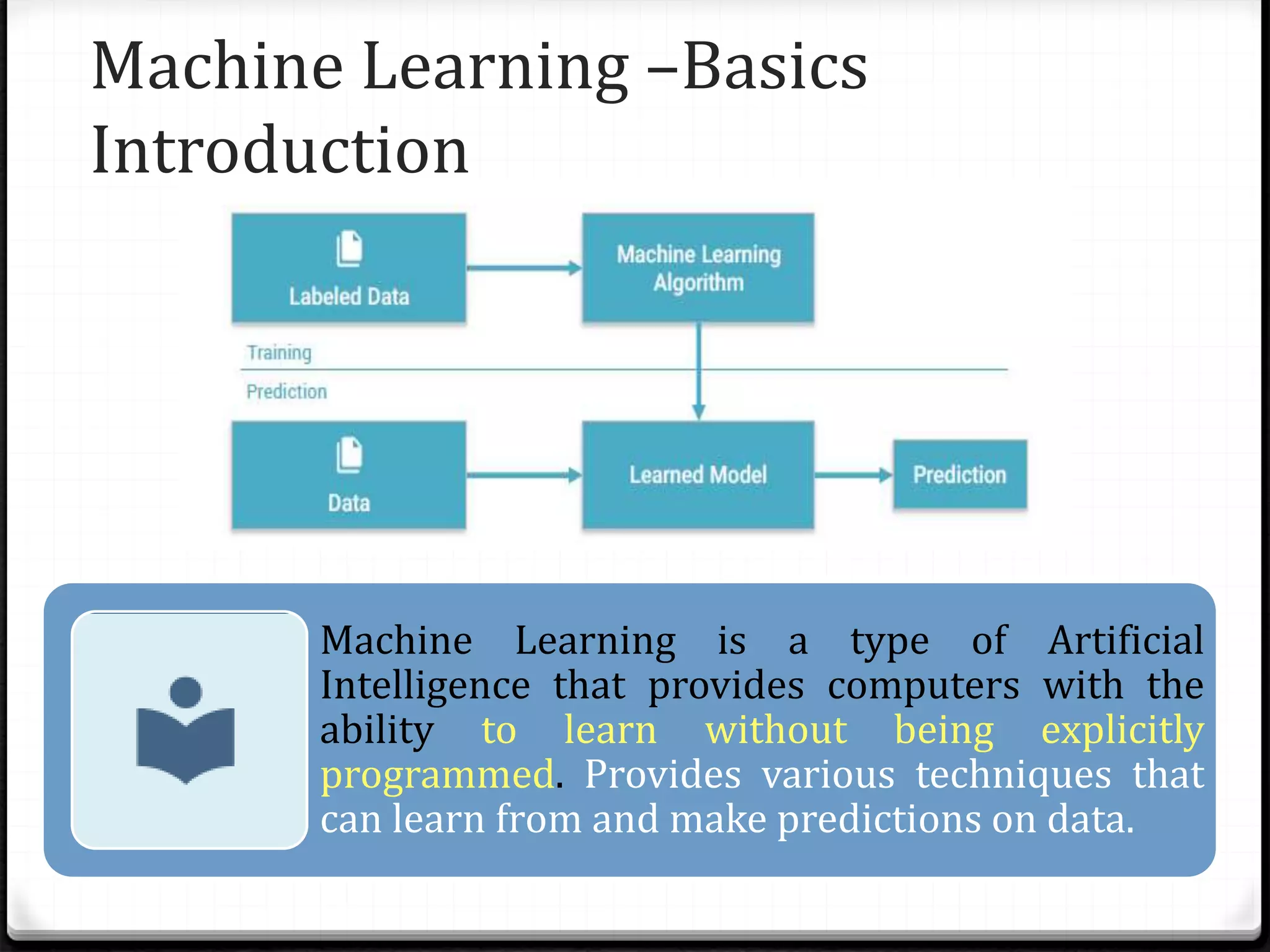

Machine Learning –Basics
Introduction
Machine Learning is a type of Artificial
Intelligence that provides computers with the
ability to learn without being explicitly
programmed. Provides various techniques that
can learn from and make predictions on data.

Supervised Learning : Learning with a labeled
training set
Example : e-mail spam detector with training set of
already labeled emails
Unsupervised Learning :Discovering patterns in
unlabeled data
Example :cluster similar documents based on the text
content
Reinforcement learning : learning based on feedback
or reward.
Example :learn to play chess by wining or losing
Learning Approach

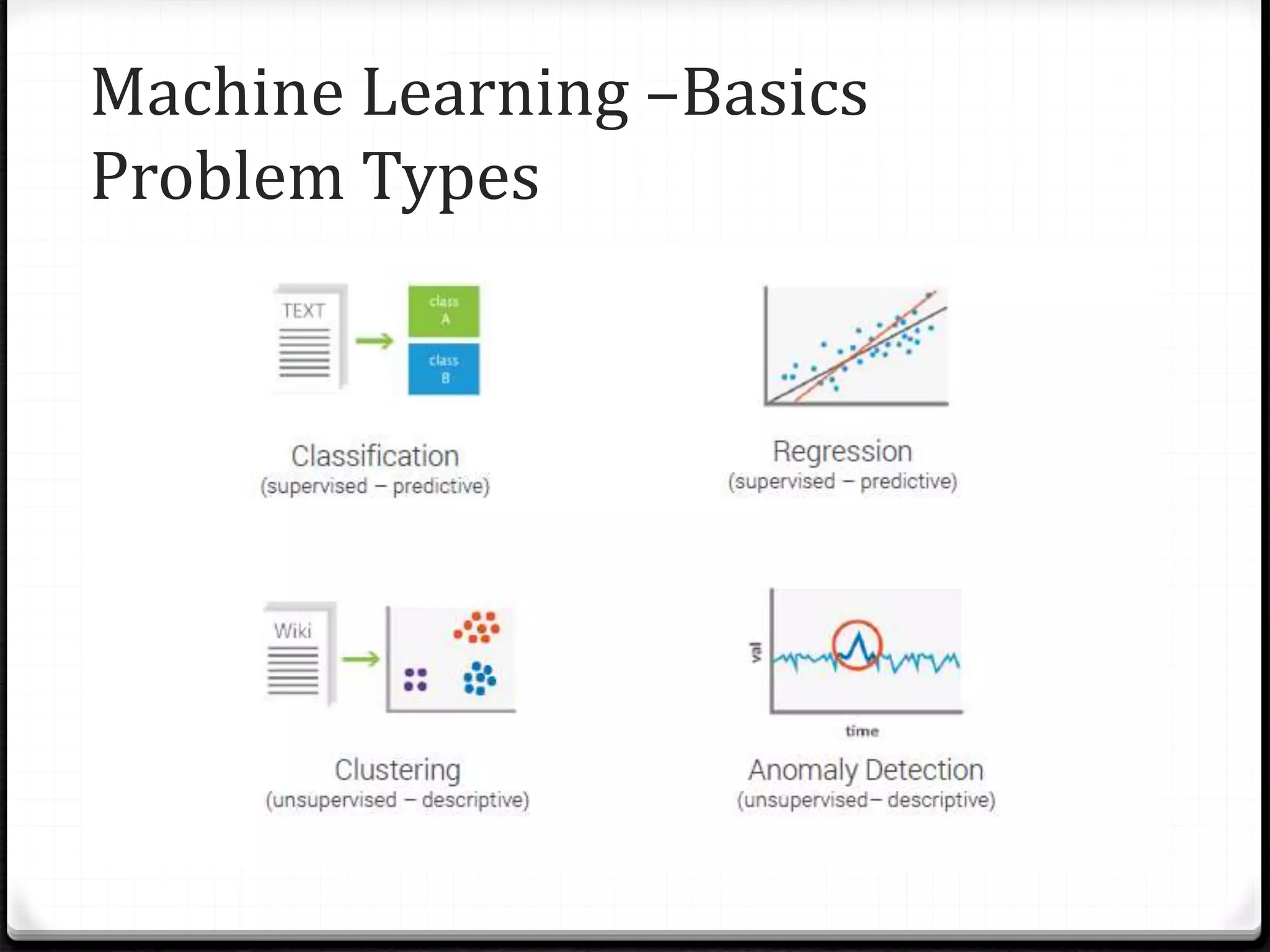

Problem Types

Big Players :Superstar Researcher
Jeoferry Hilton : University of Toronto
&Google
Yann Lecun : New Yourk University
&Facebook
Andrew Ng : Stanford & Baidu
Yoshua Bengio : University of Montreal
Jurgen schmidhuber : Swiss AI Lab &
NNAISENSE

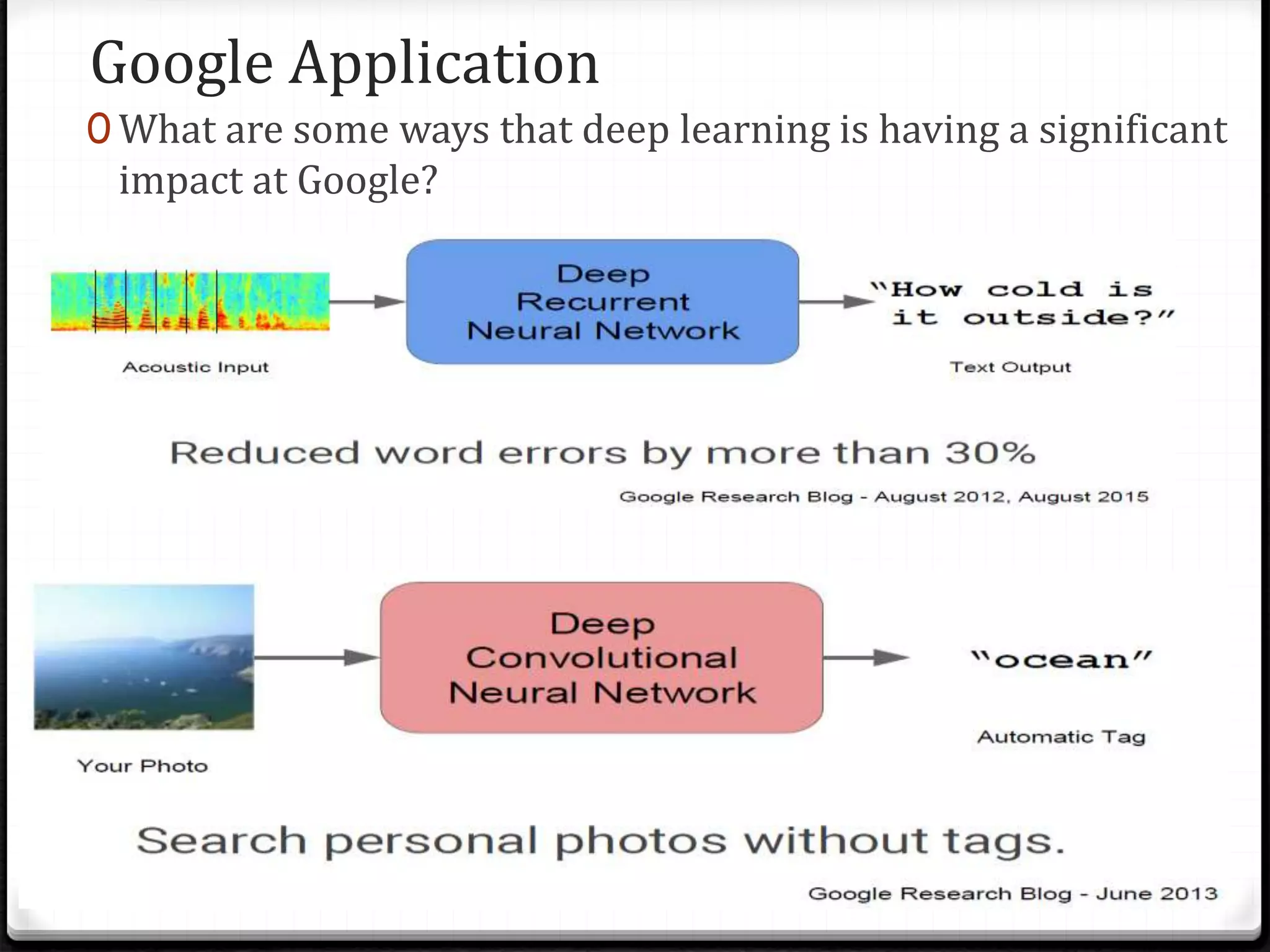

Google Application
0 What are some ways that deep learning is having a significant
impact at Google?

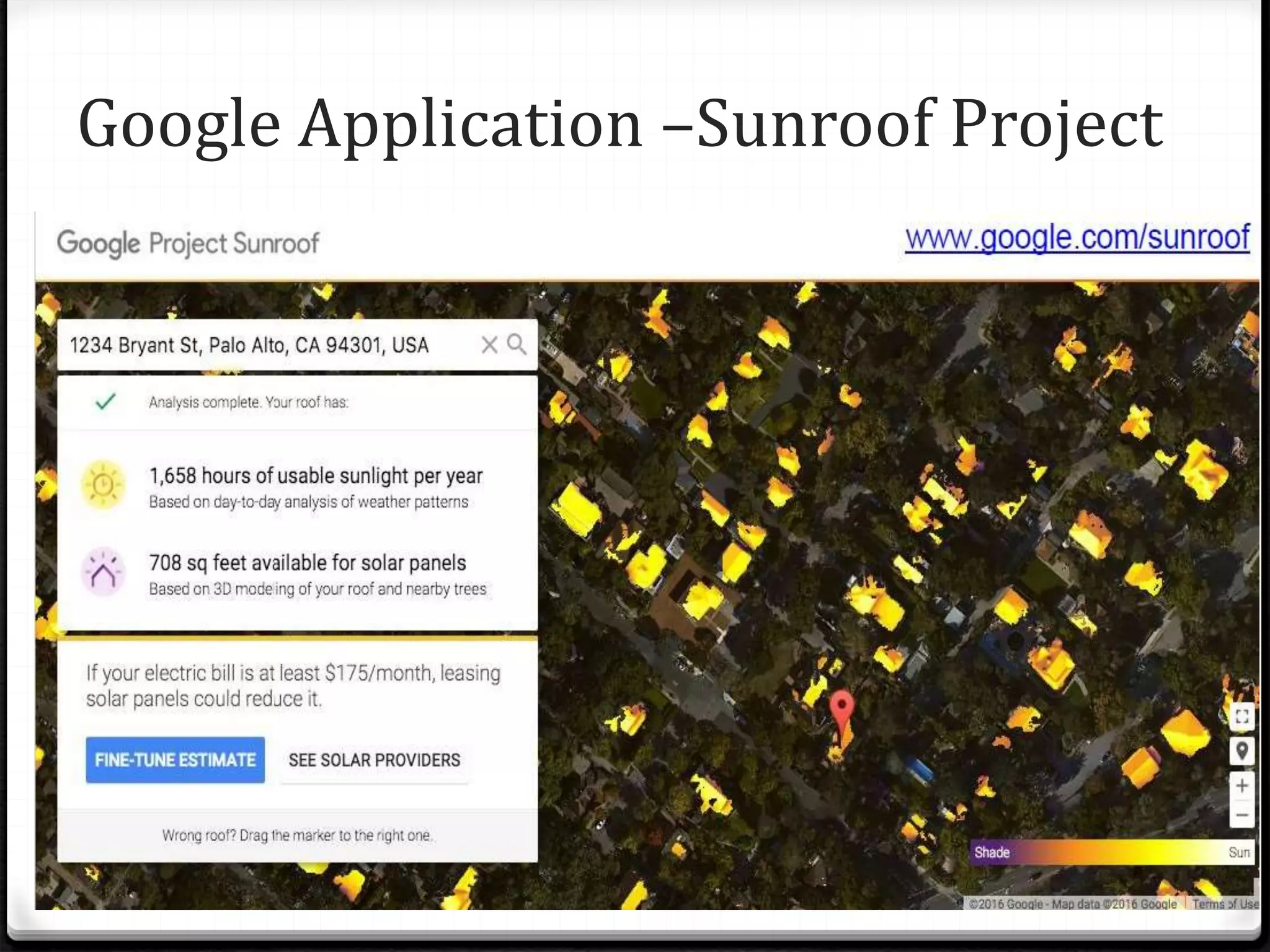

Google Application –Sunroof Project

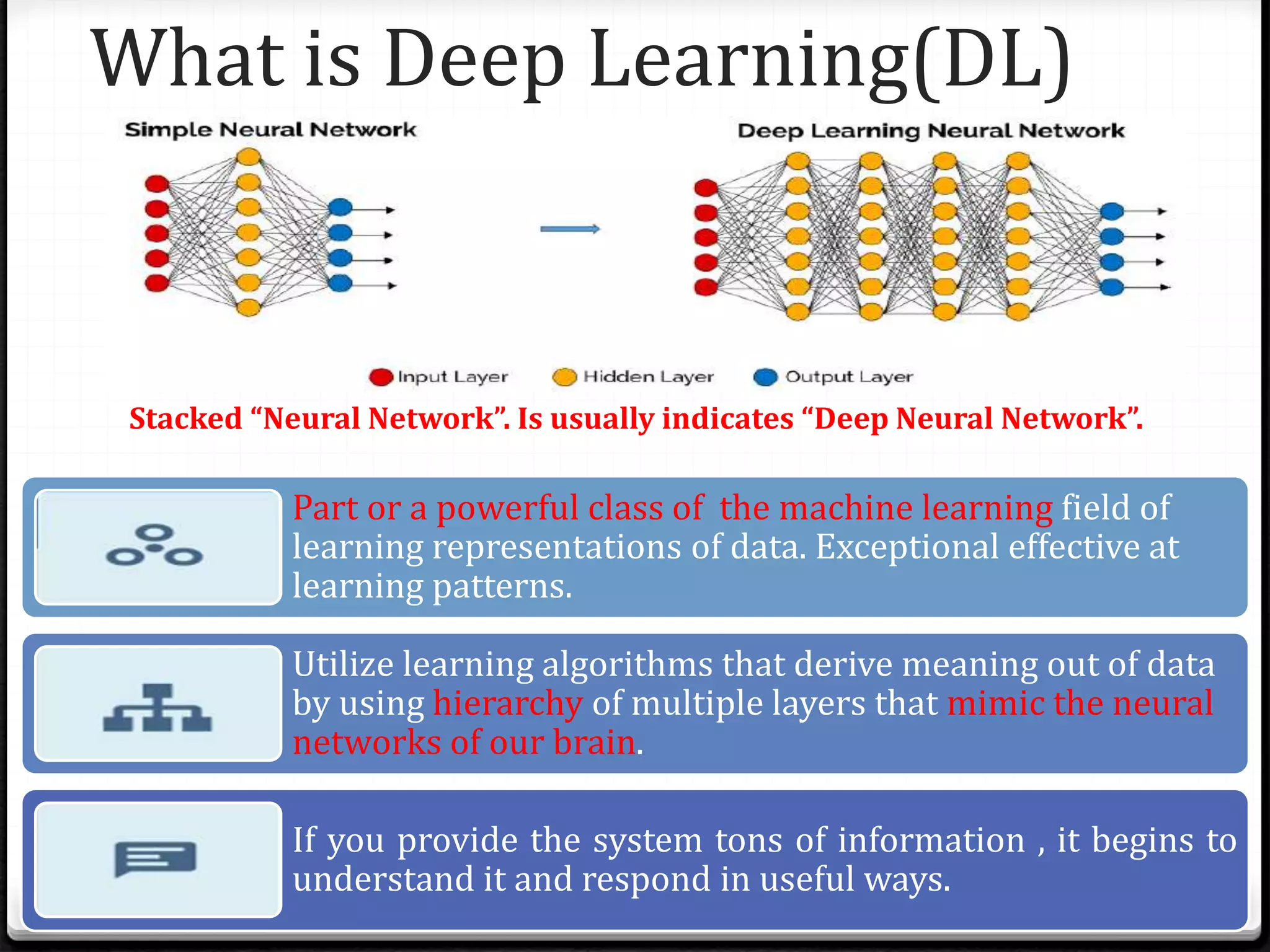

What is Deep Learning(DL)
Part or a powerful class of the machine learning field of
learning representations of data. Exceptional effective at
learning patterns.
Utilize learning algorithms that derive meaning out of data
by using hierarchy of multiple layers that mimic the neural
networks of our brain.
If you provide the system tons of information , it begins to
understand it and respond in useful ways.
Stacked “Neural Network”. Is usually indicates “Deep Neural Network”.

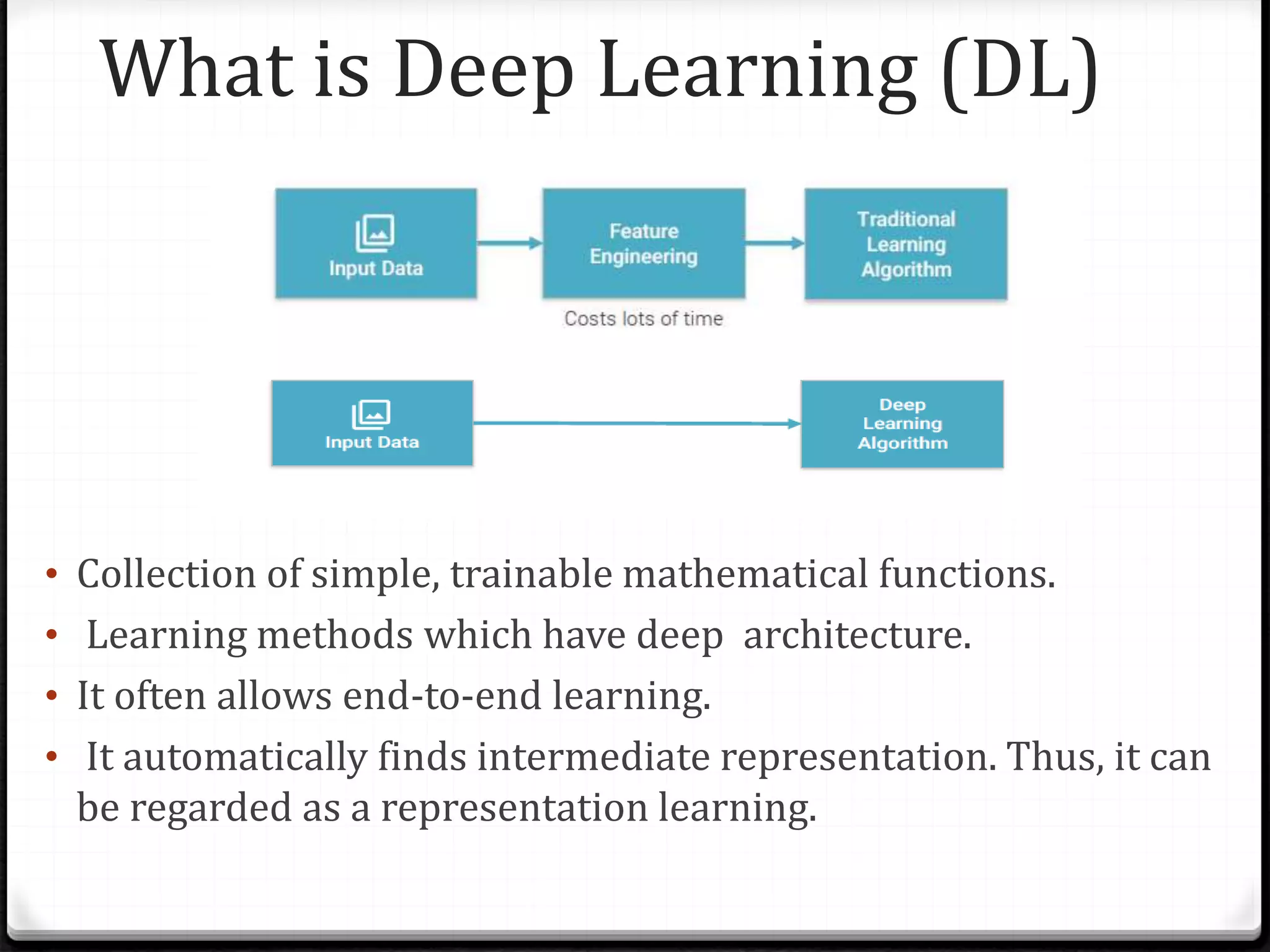

What is Deep Learning (DL)
• Collection of simple, trainable mathematical functions.
• Learning methods which have deep architecture.
• It often allows end-to-end learning.
• It automatically finds intermediate representation. Thus, it can
be regarded as a representation learning.

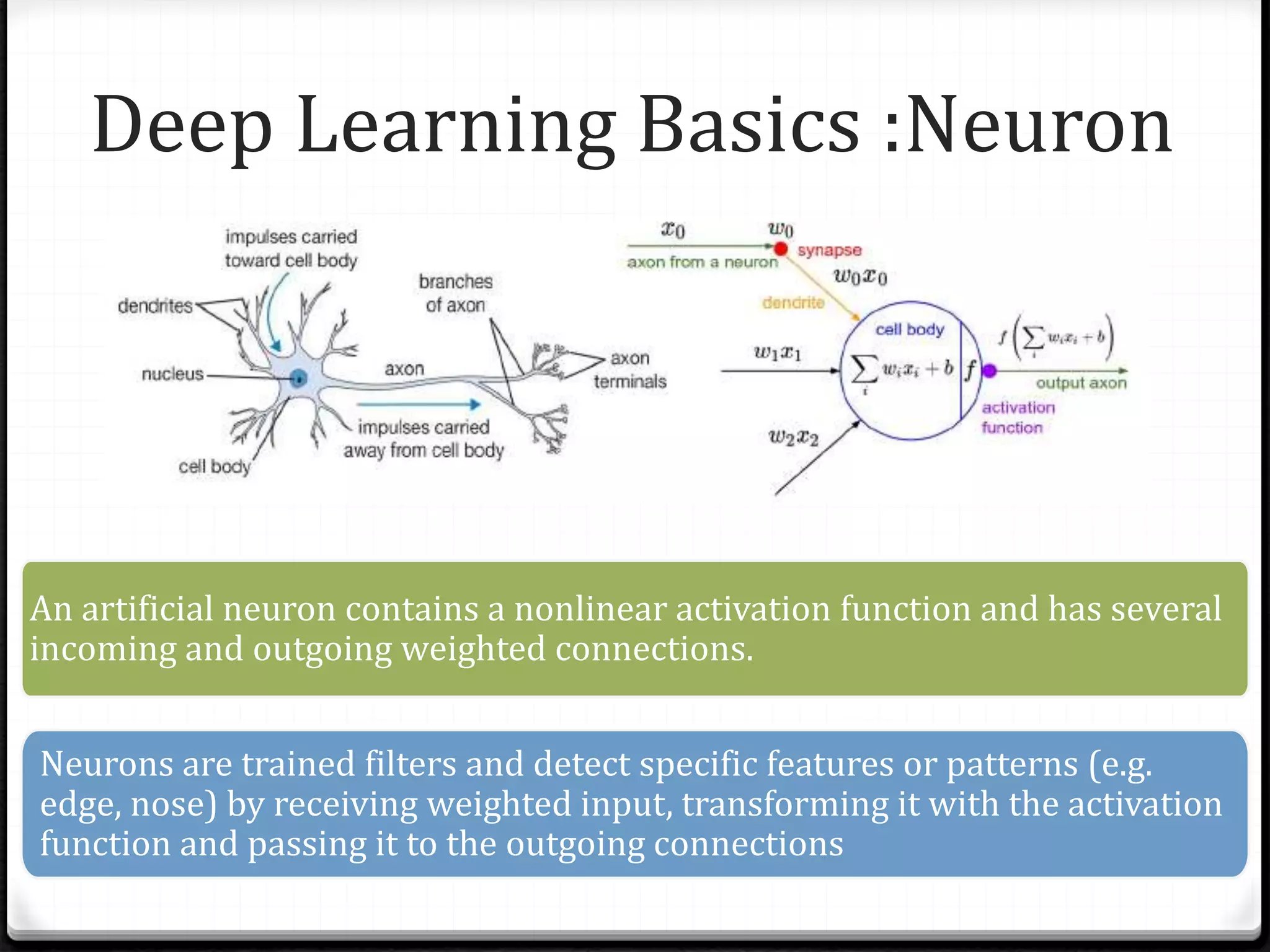

Deep Learning Basics :Neuron

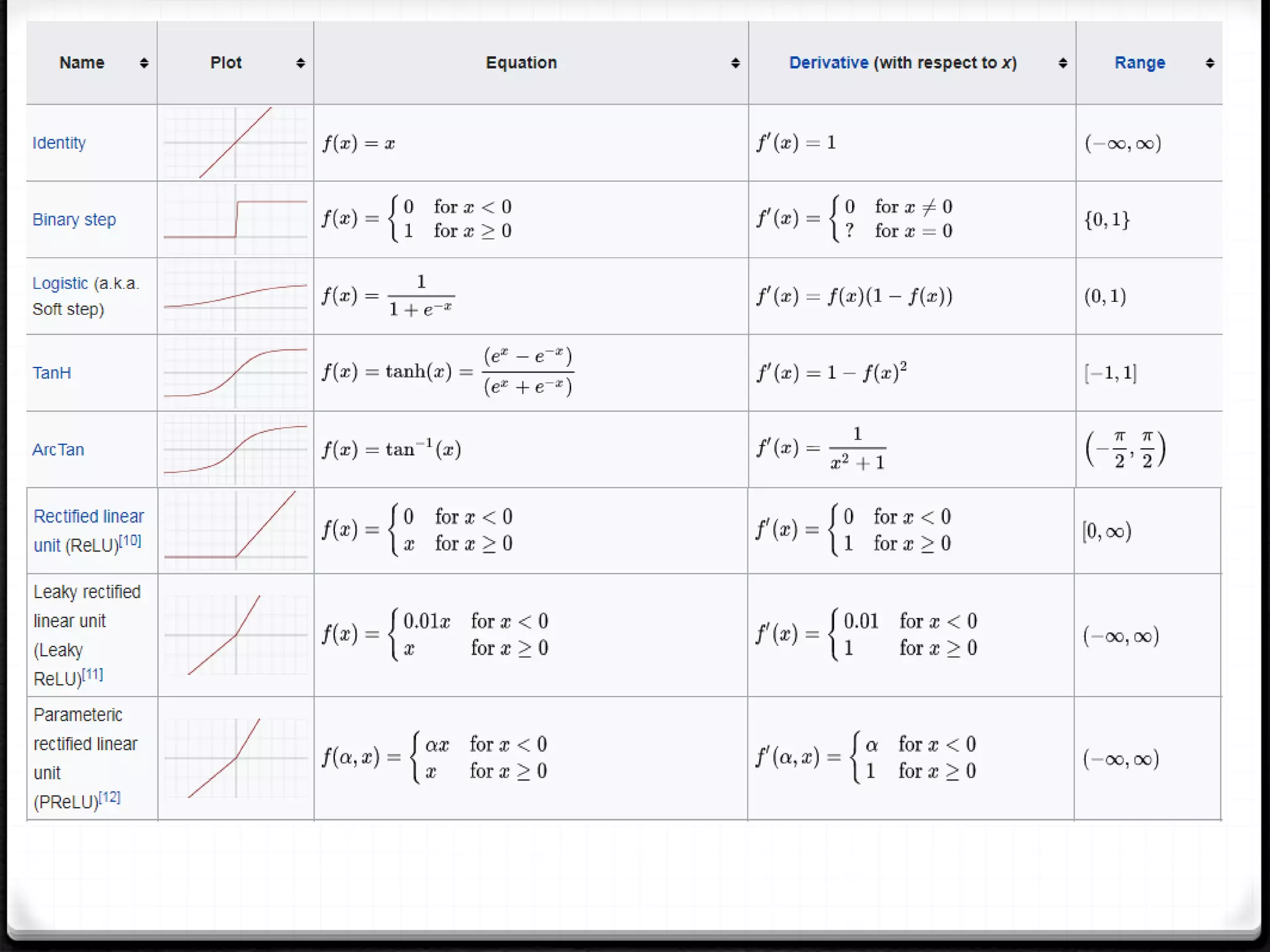

An artificial neuron contains a nonlinear activation function and has several
incoming and outgoing weighted connections.
Neurons are trained filters and detect specific features or patterns (e.g.
edge, nose) by receiving weighted input, transforming it with the activation
function and passing it to the outgoing connections

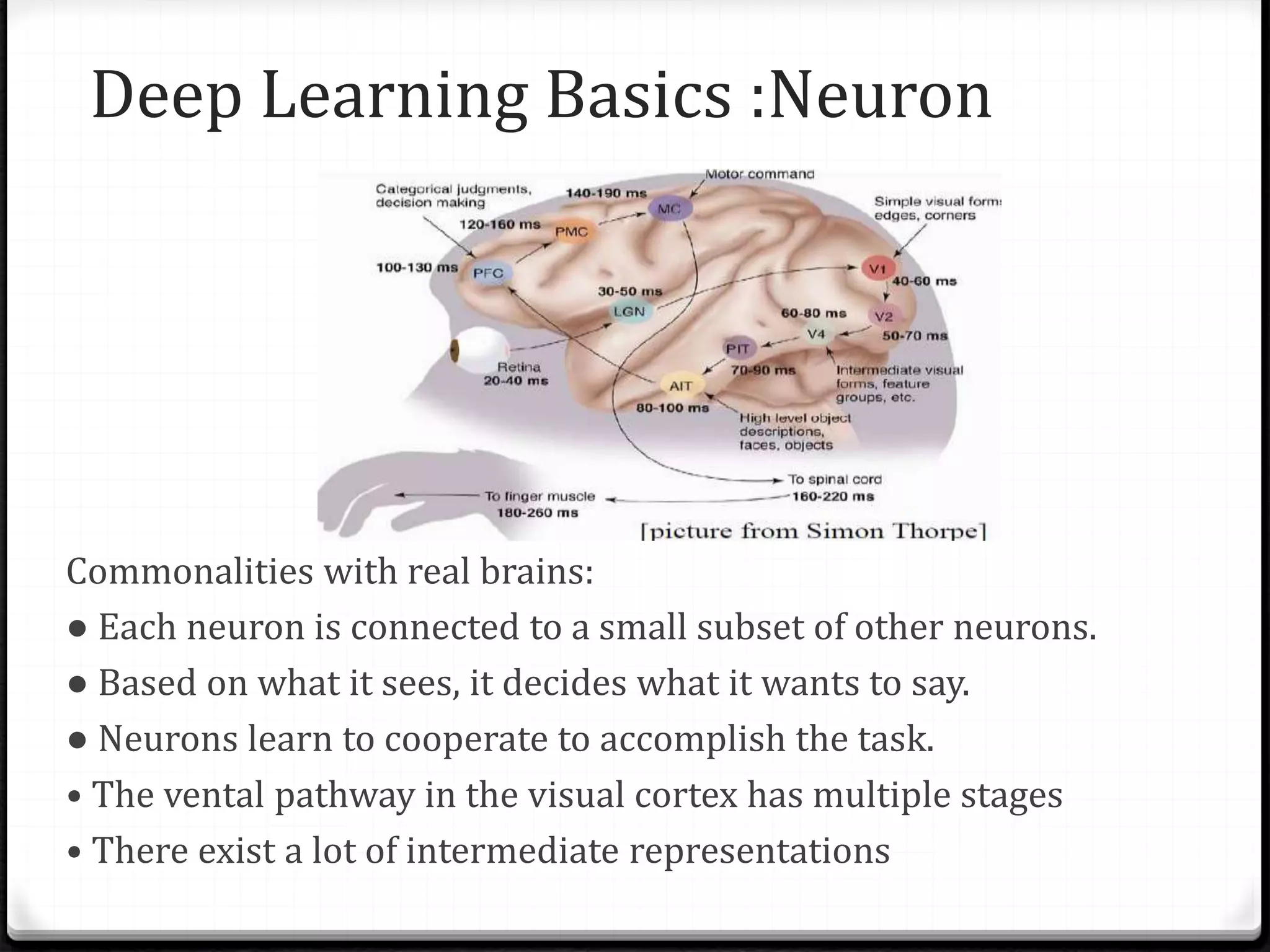

Commonalities with real brains:
● Each neuron is connected to a small subset of other neurons.
● Based on what it sees, it decides what it wants to say.
● Neurons learn to cooperate to accomplish the task.
• The vental pathway in the visual cortex has multiple stages
• There exist a lot of intermediate representations
Deep Learning Basics :Neuron

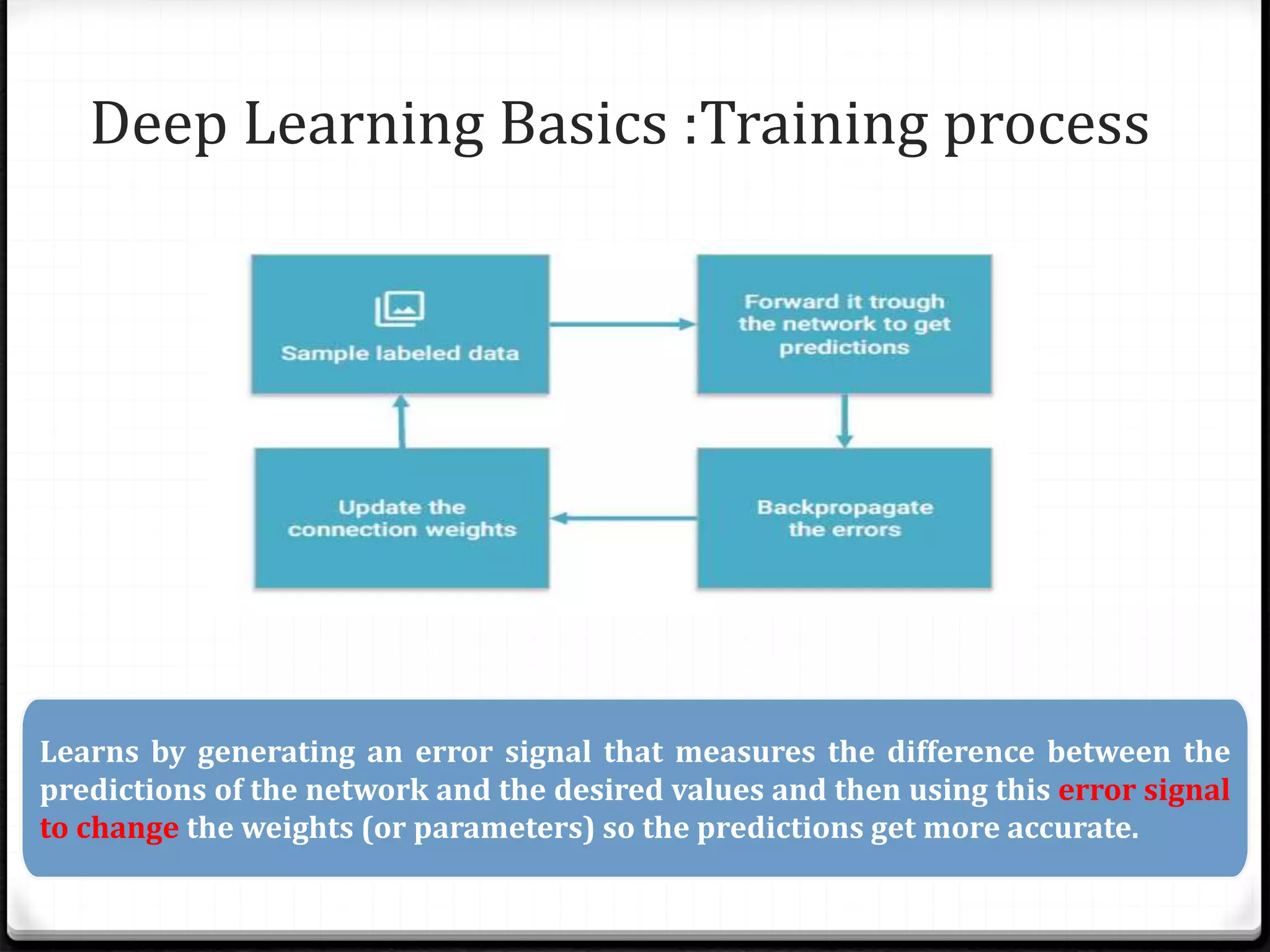

Deep Learning Basics :Training process
Learns by generating an error signal that measures the difference between the
predictions of the network and the desired values and then using this error signal
to change the weights (or parameters) so the predictions get more accurate.

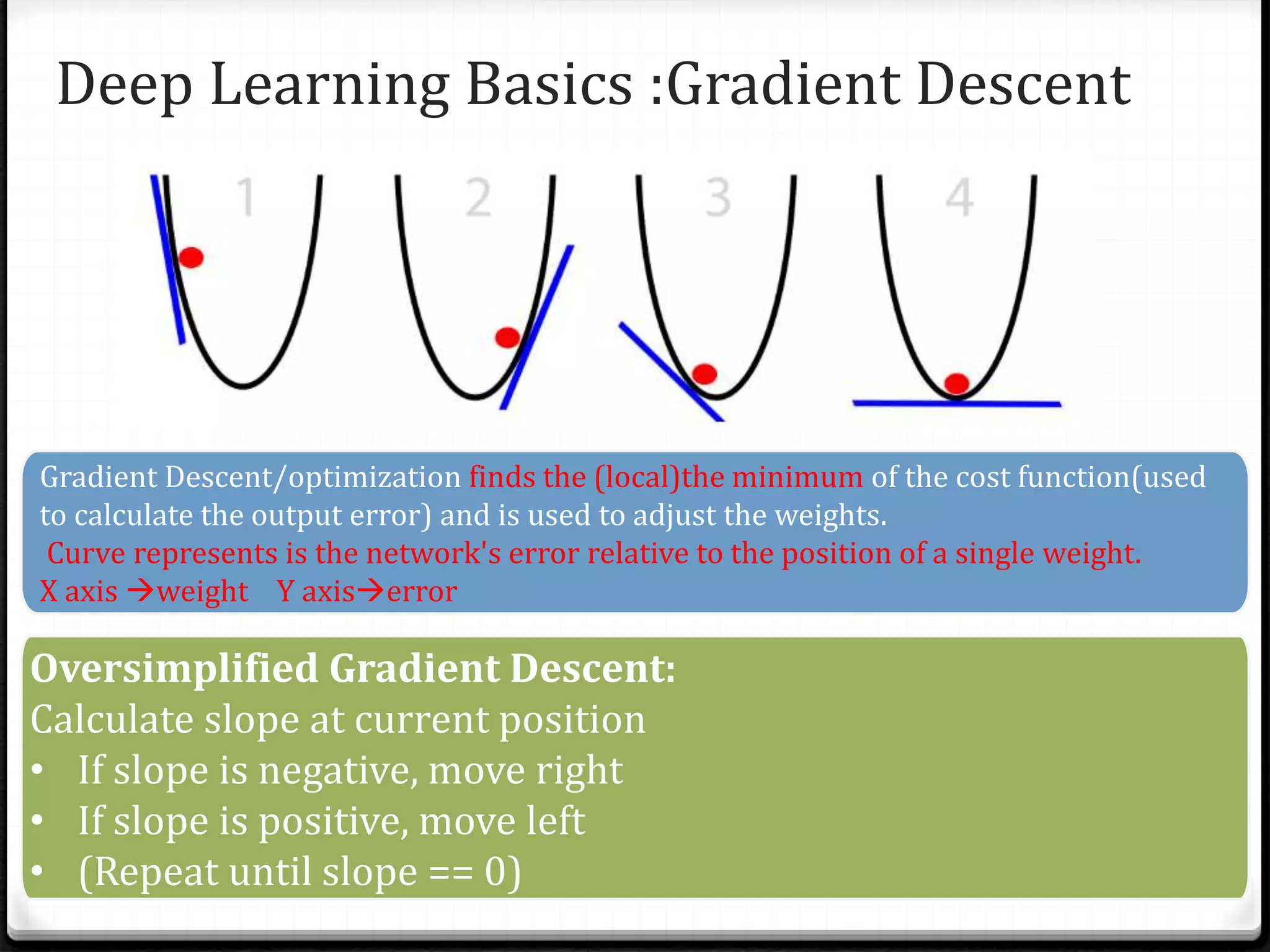

Deep Learning Basics :Gradient Descent
Gradient Descent/optimization finds the (local)the minimum of the cost function(used
to calculate the output error) and is used to adjust the weights.
Curve represents is the network's error relative to the position of a single weight.
X axis weight Y axiserror
Oversimplified Gradient Descent:
Calculate slope at current position
• If slope is negative, move right
• If slope is positive, move left
• (Repeat until slope == 0)

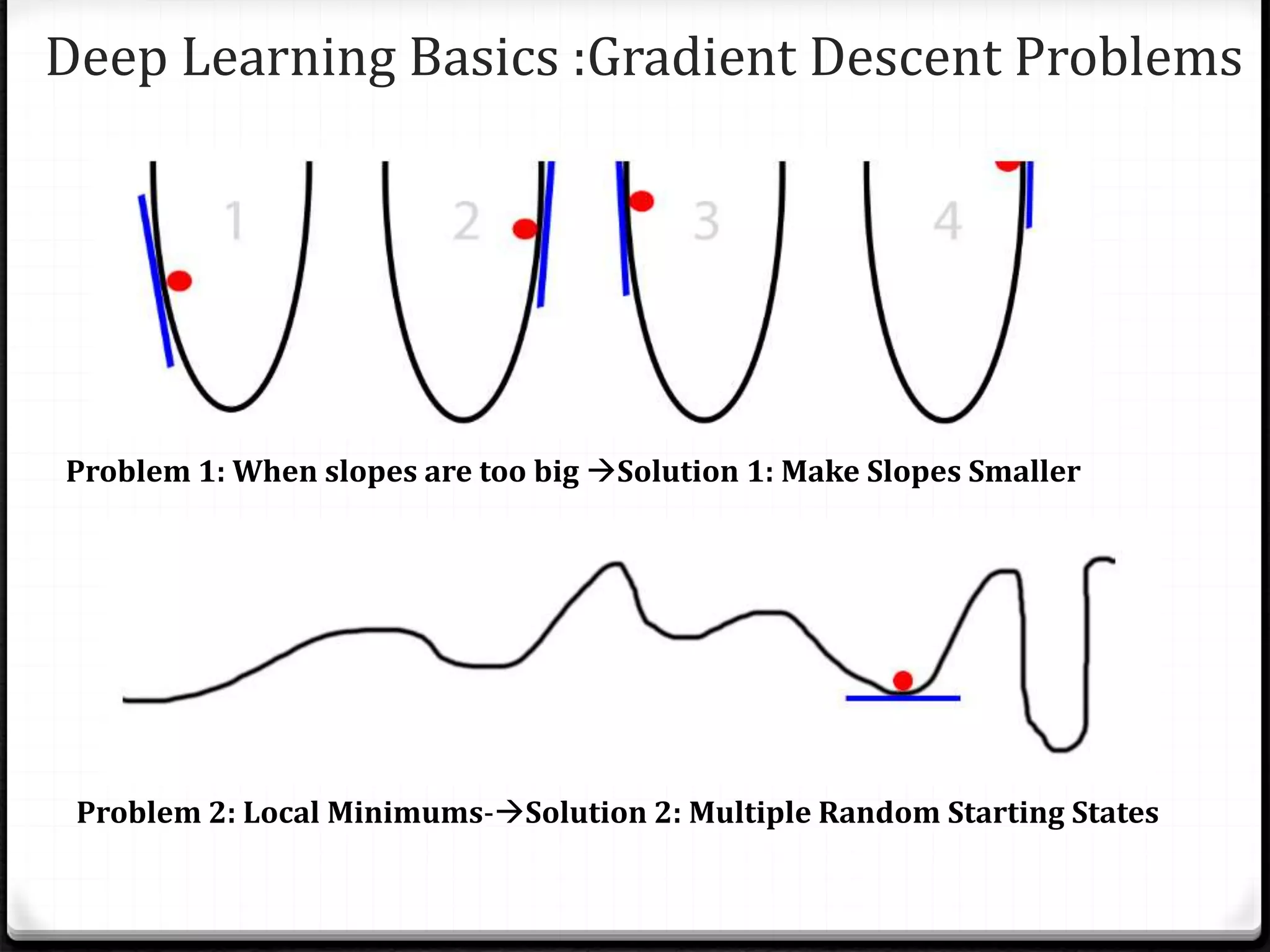

Deep Learning Basics :Gradient Descent Problems
Problem 1: When slopes are too big Solution 1: Make Slopes Smaller
Problem 2: Local Minimums-Solution 2: Multiple Random Starting States

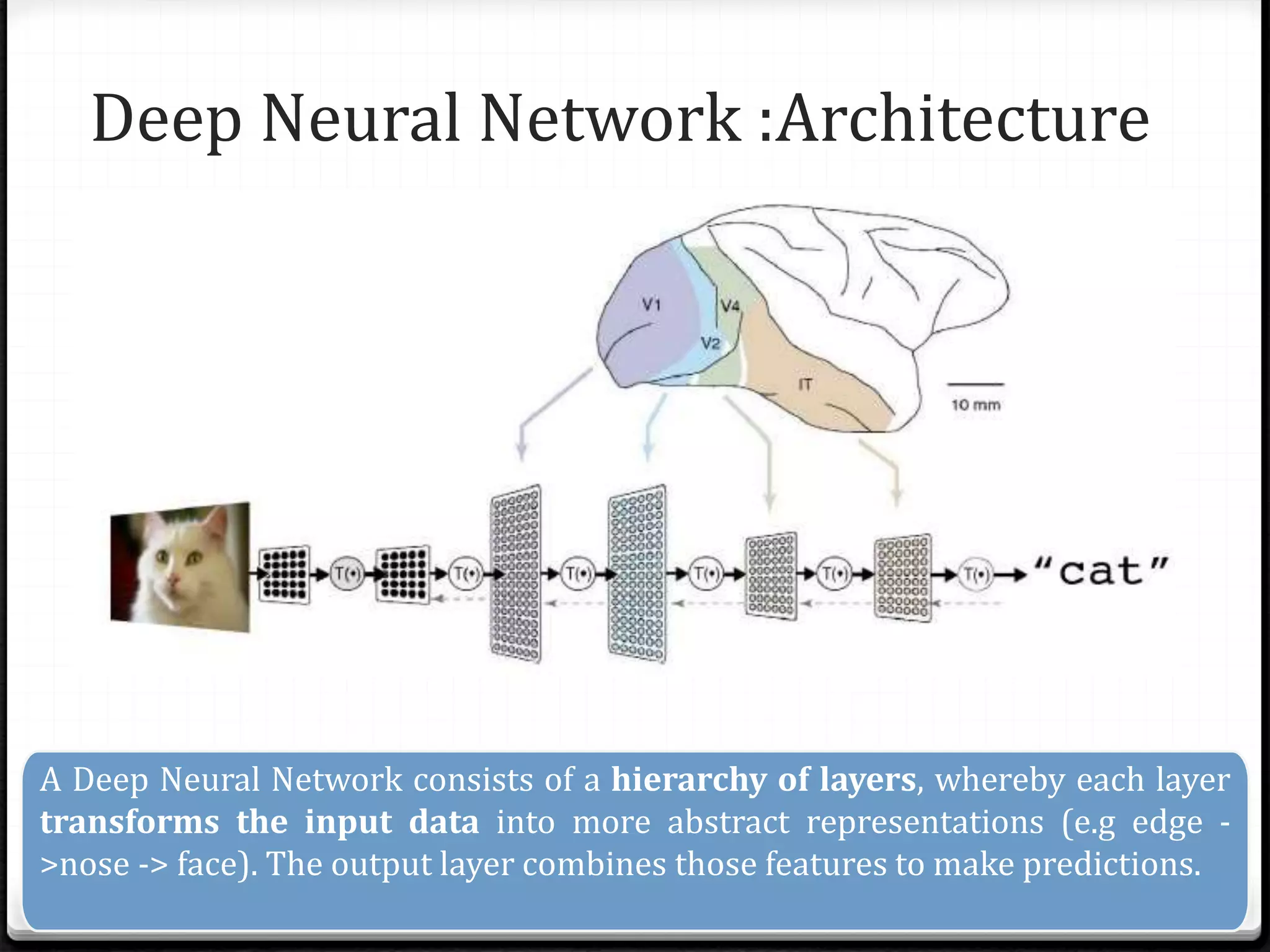

Deep Neural Network :Architecture
A Deep Neural Network consists of a hierarchy of layers, whereby each layer
transforms the input data into more abstract representations (e.g edge -
>nose -> face). The output layer combines those features to make predictions.

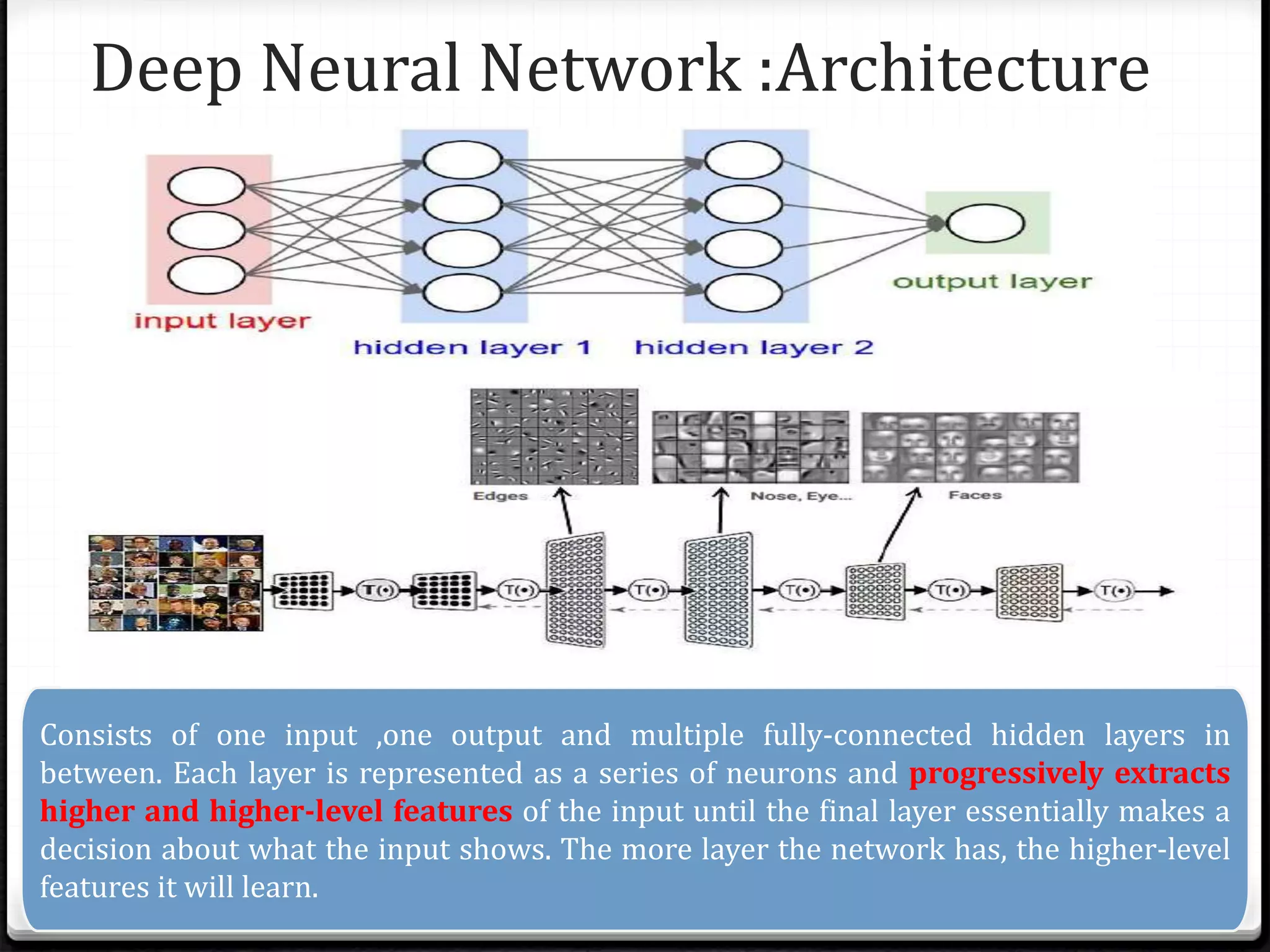

Deep Neural Network :Architecture
Consists of one input ,one output and multiple fully-connected hidden layers in
between. Each layer is represented as a series of neurons and progressively extracts
higher and higher-level features of the input until the final layer essentially makes a
decision about what the input shows. The more layer the network has, the higher-level
features it will learn.

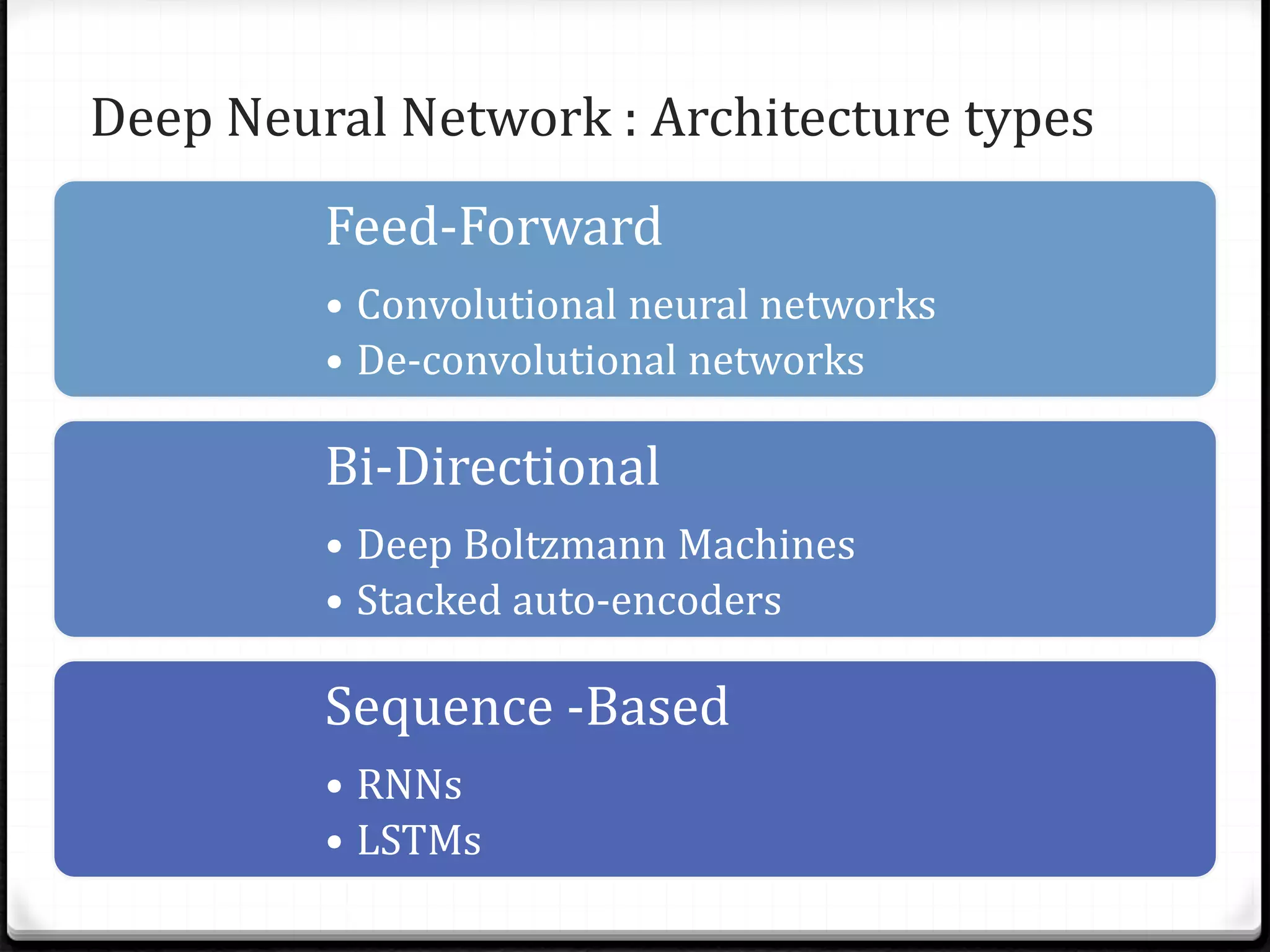

Deep Neural Network : Architecture types
Feed-Forward
• Convolutional neural networks
• De-convolutional networks
Bi-Directional
• Deep Boltzmann Machines
• Stacked auto-encoders
Sequence -Based
• RNNs
• LSTMs

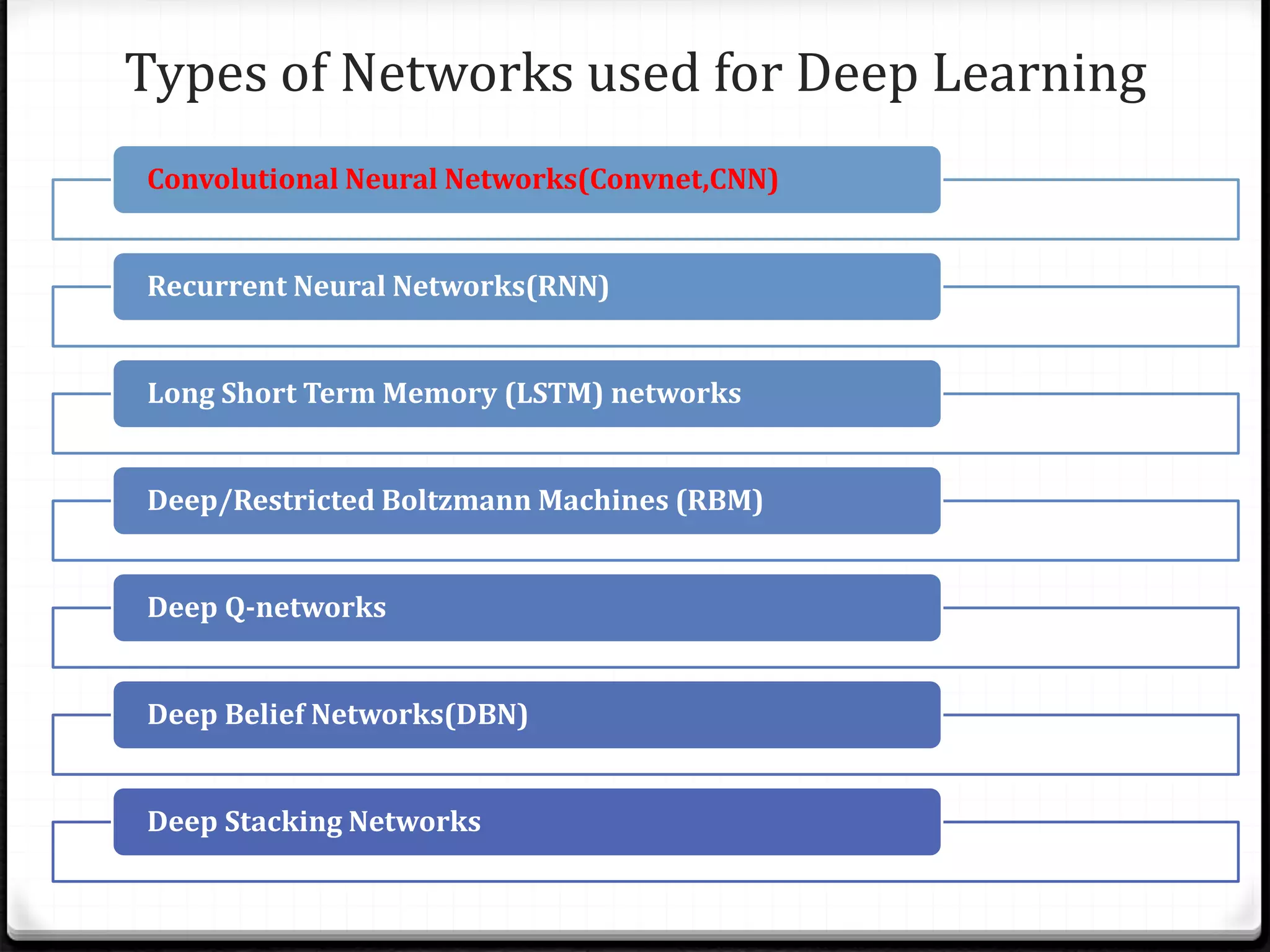

Types of Networks used for Deep Learning
Convolutional Neural Networks(Convnet,CNN)

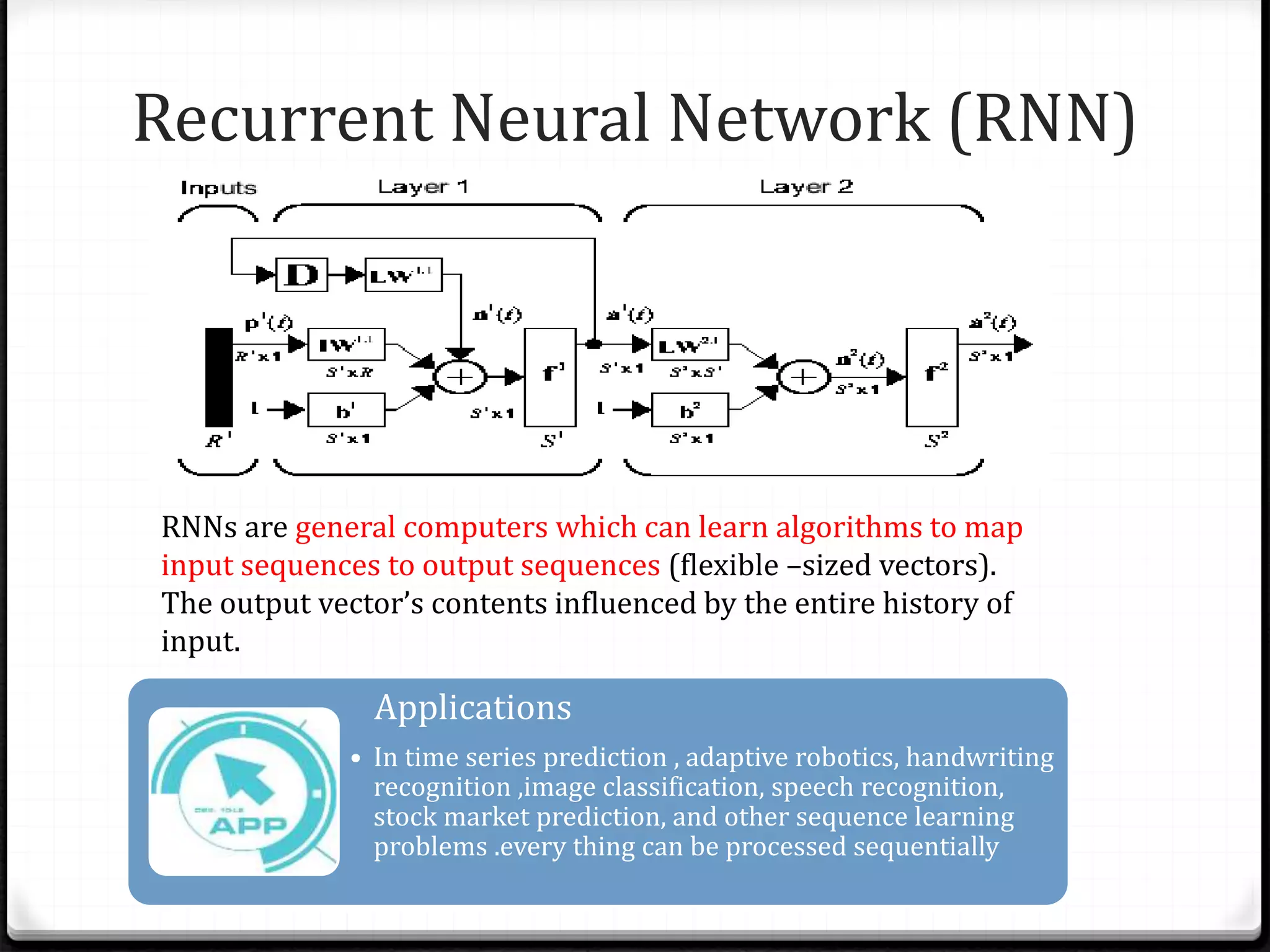

Recurrent Neural Networks(RNN)
Long Short Term Memory (LSTM) networks
Deep/Restricted Boltzmann Machines (RBM)
Deep Q-networks
Deep Belief Networks(DBN)
Deep Stacking Networks

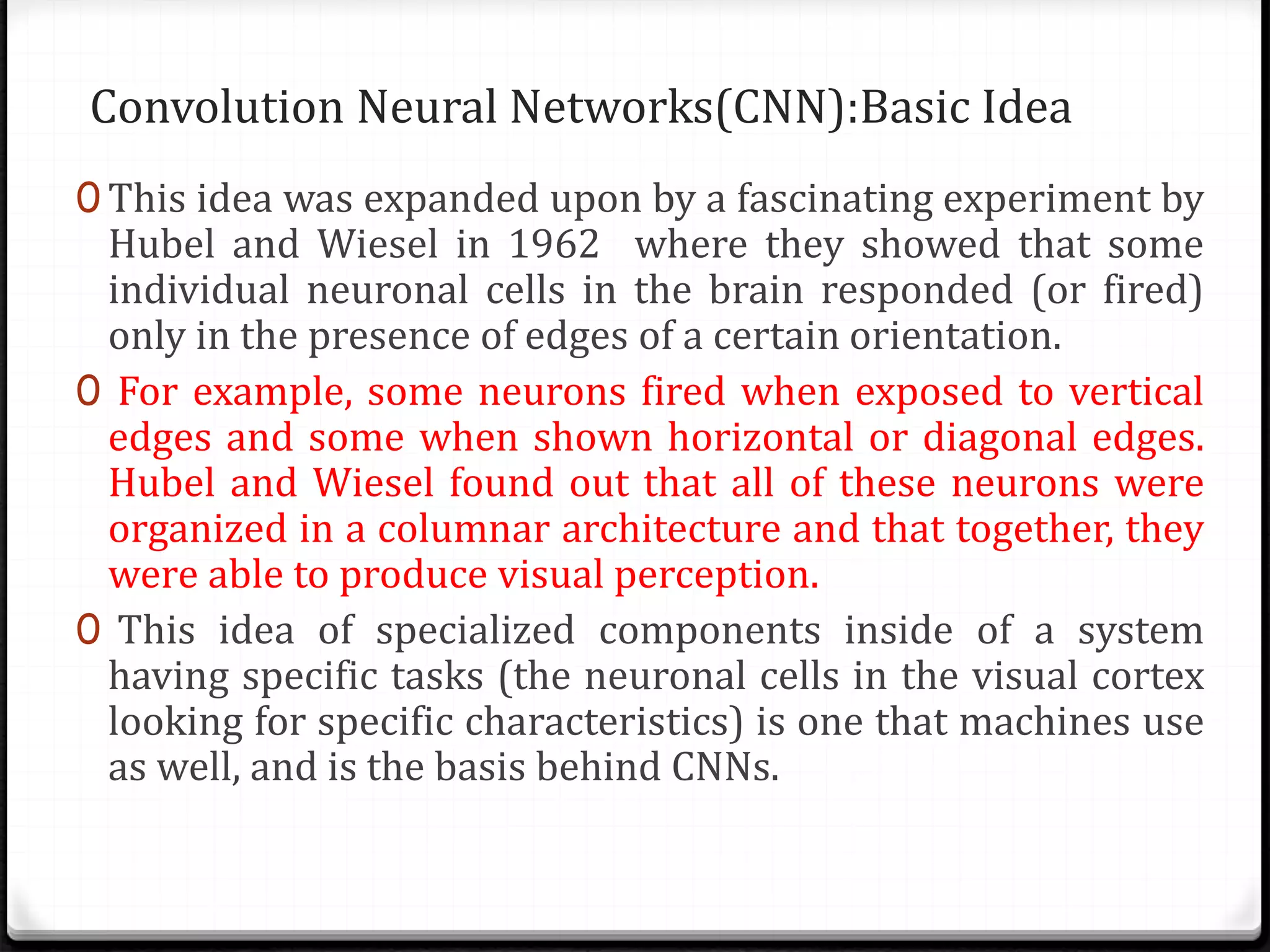

Convolution Neural Networks(CNN):Basic Idea
0 This idea was expanded upon by a fascinating experiment by
Hubel and Wiesel in 1962 where they showed that some
individual neuronal cells in the brain responded (or fired)
only in the presence of edges of a certain orientation.
0 For example, some neurons fired when exposed to vertical
edges and some when shown horizontal or diagonal edges.
Hubel and Wiesel found out that all of these neurons were
organized in a columnar architecture and that together, they
were able to produce visual perception.
0 This idea of specialized components inside of a system
having specific tasks (the neuronal cells in the visual cortex
looking for specific characteristics) is one that machines use
as well, and is the basis behind CNNs.

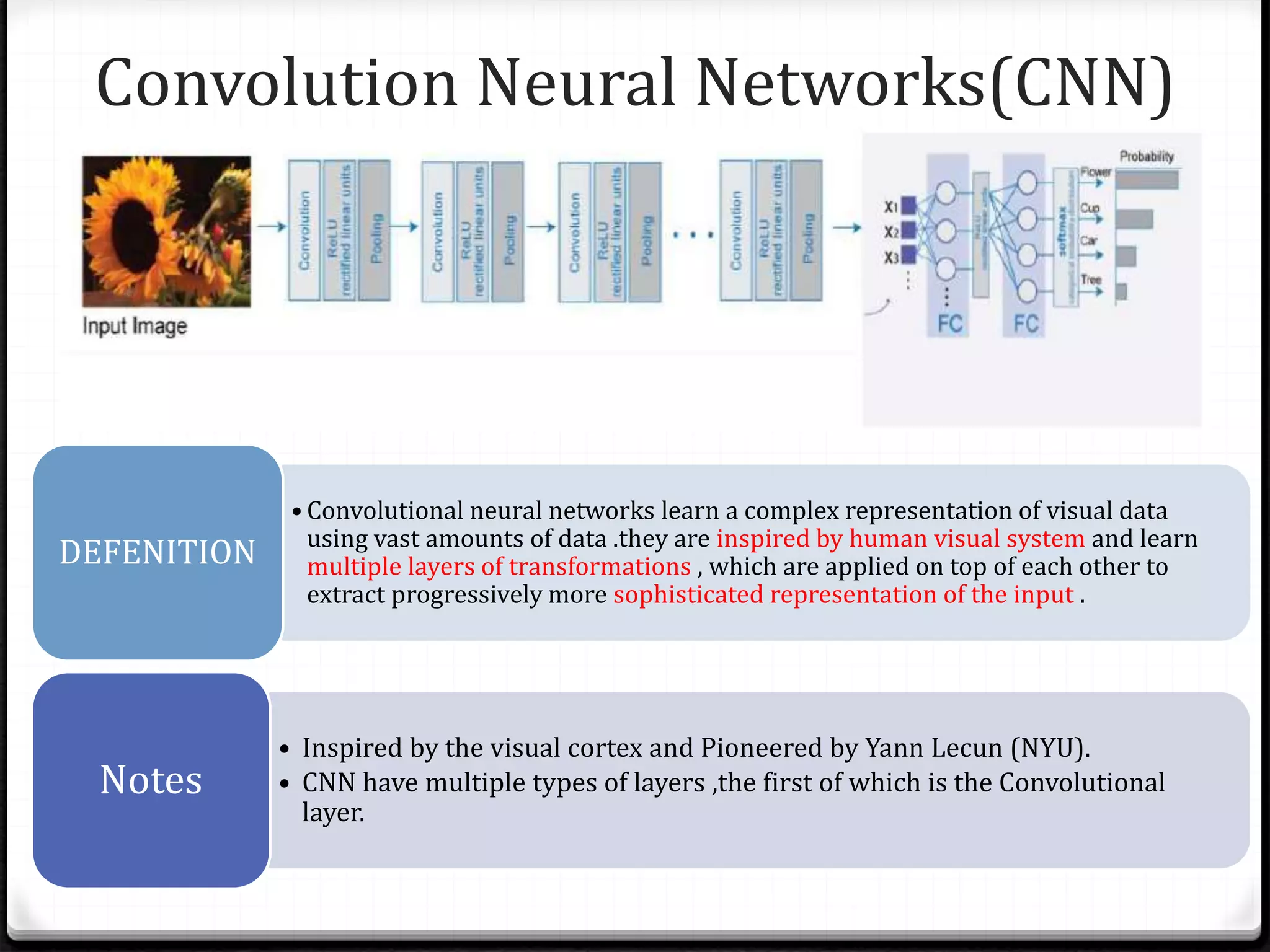

Convolution Neural Networks(CNN)
• Convolutional neural networks learn a complex representation of visual data
using vast amounts of data .they are inspired by human visual system and learn
multiple layers of transformations , which are applied on top of each other to
extract progressively more sophisticated representation of the input .
DEFENITION
• Inspired by the visual cortex and Pioneered by Yann Lecun (NYU).
• CNN have multiple types of layers ,the first of which is the Convolutional
layer.
Notes

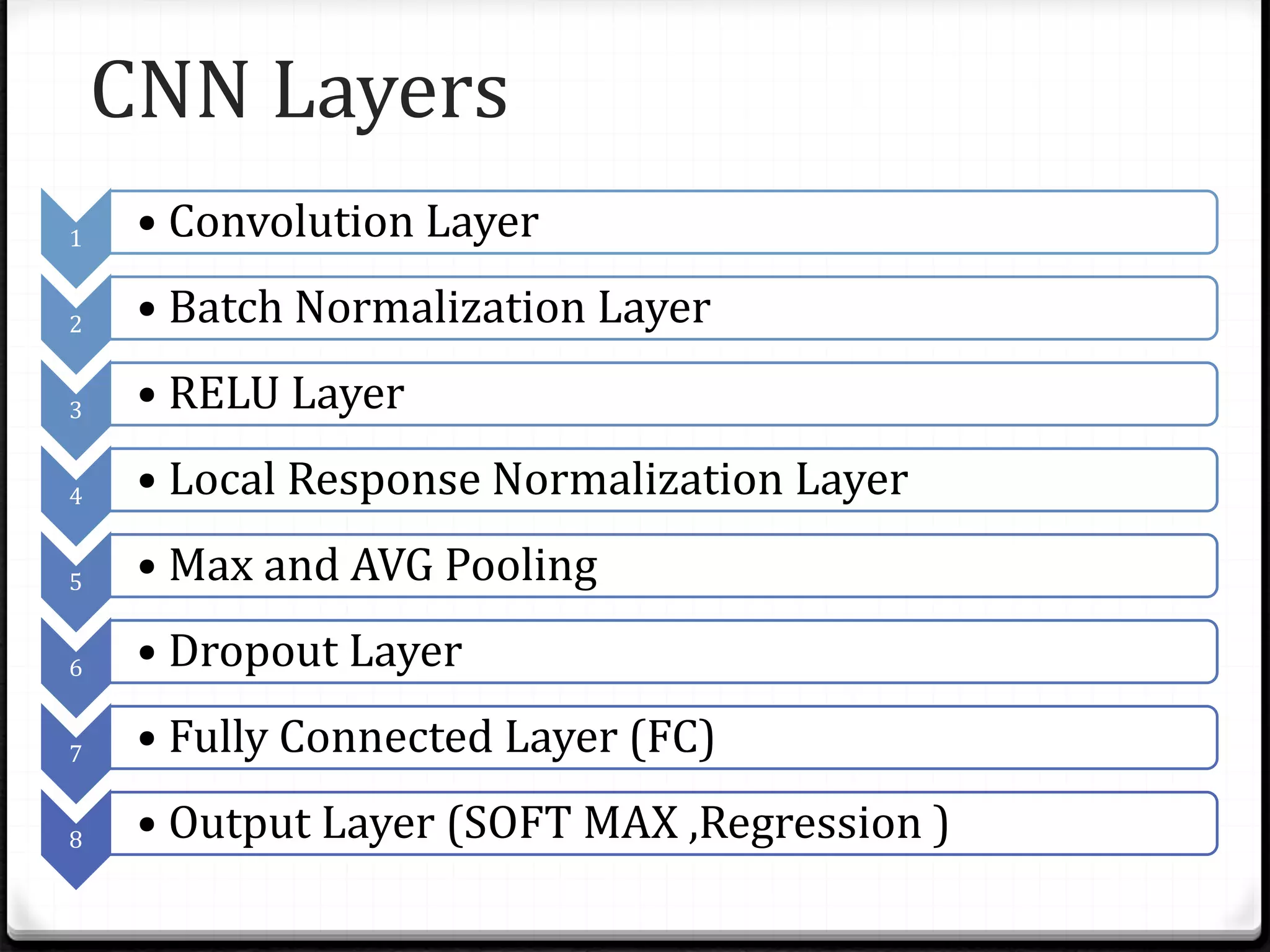

CNN Layers
1 • Convolution Layer

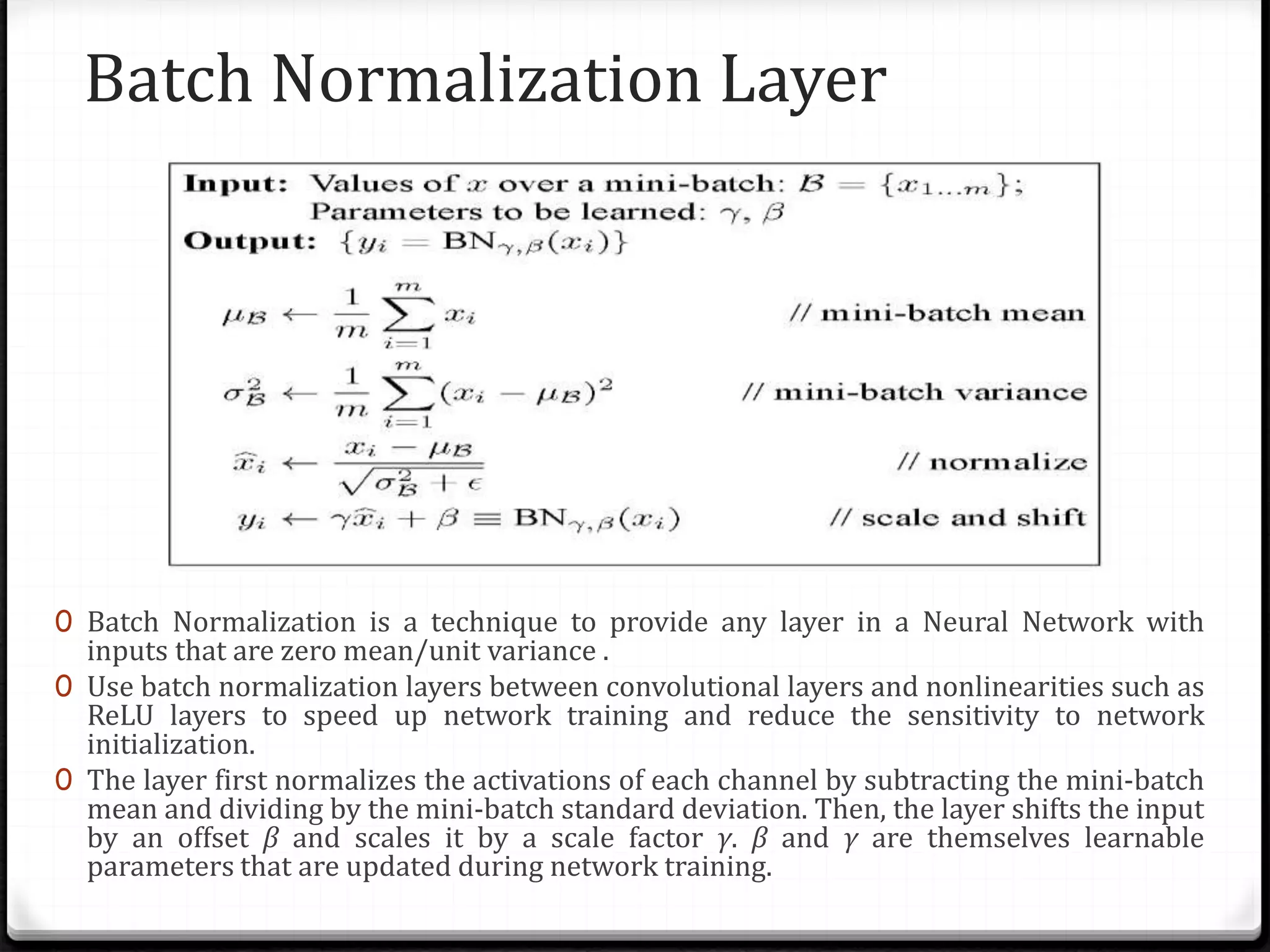

2 • Batch Normalization Layer
3 • RELU Layer

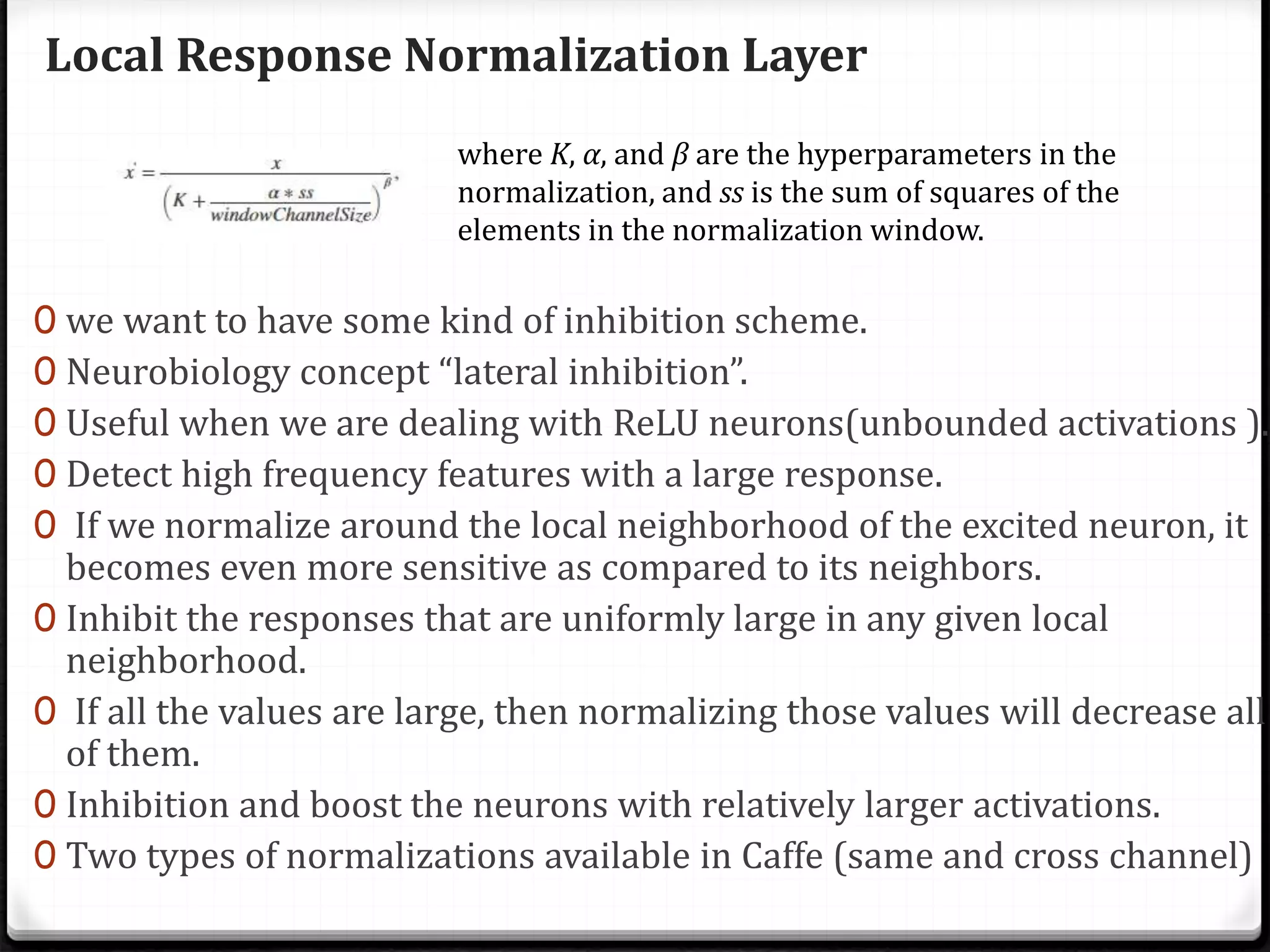

4 • Local Response Normalization Layer

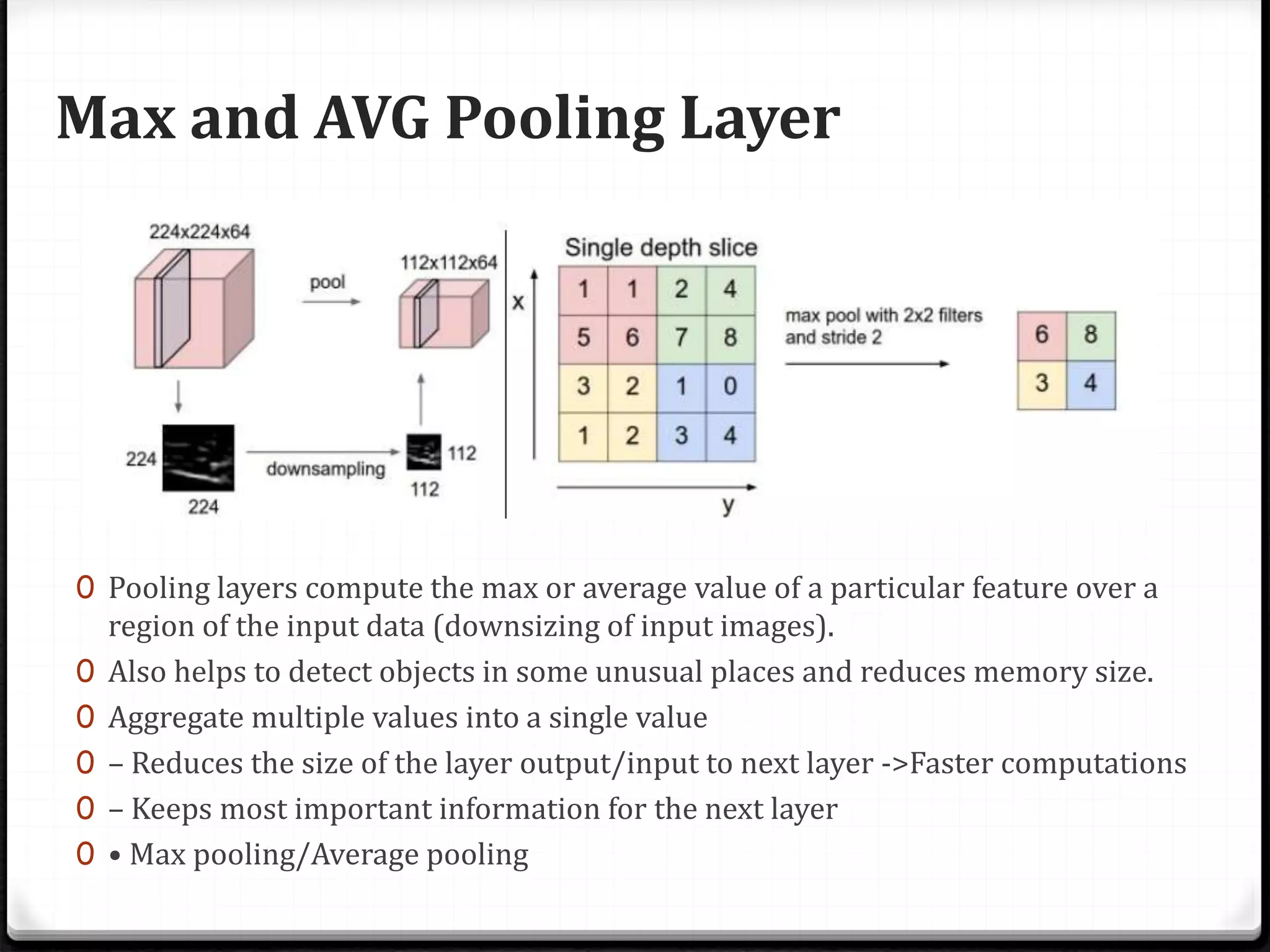

5 • Max and AVG Pooling

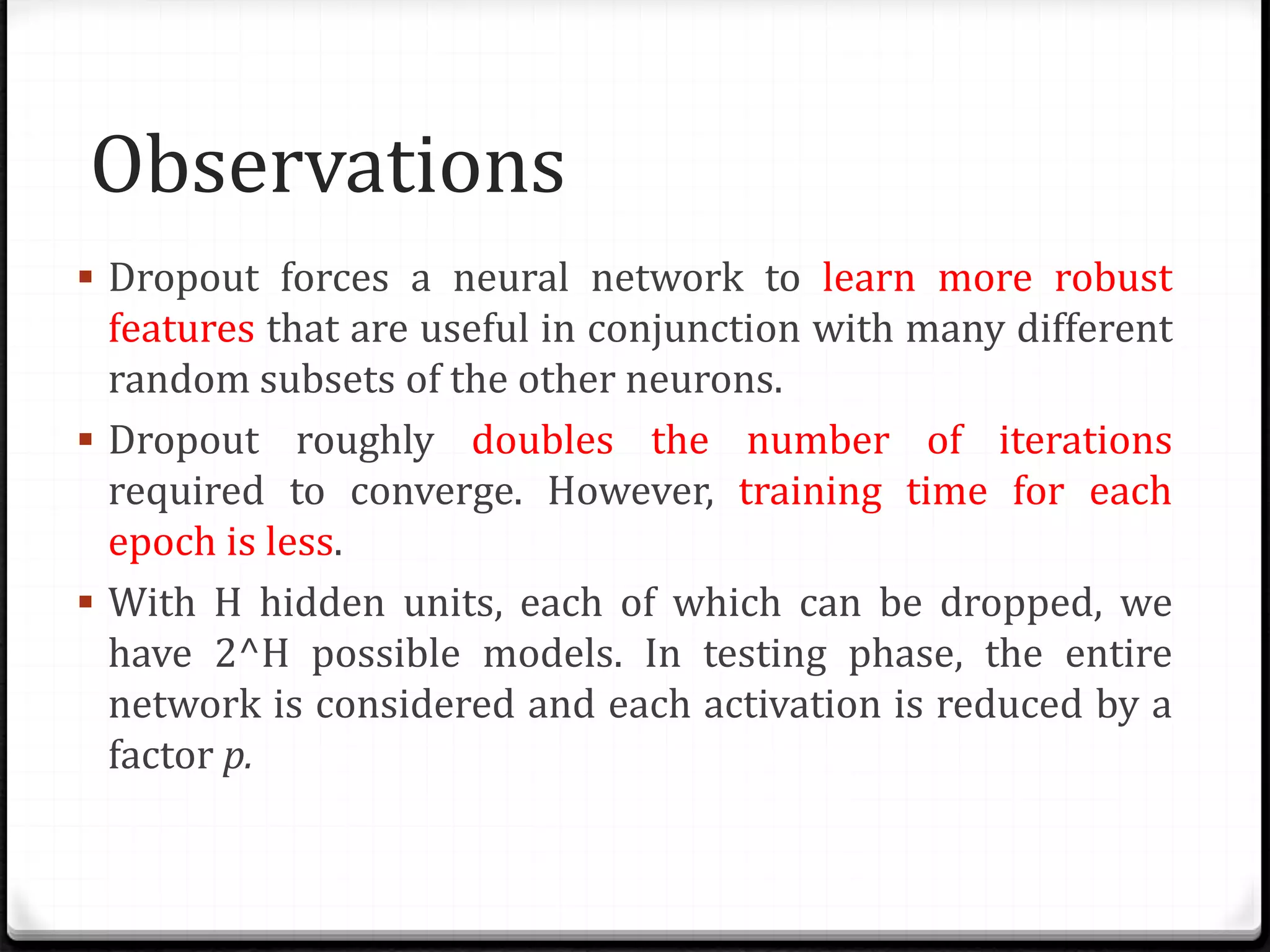

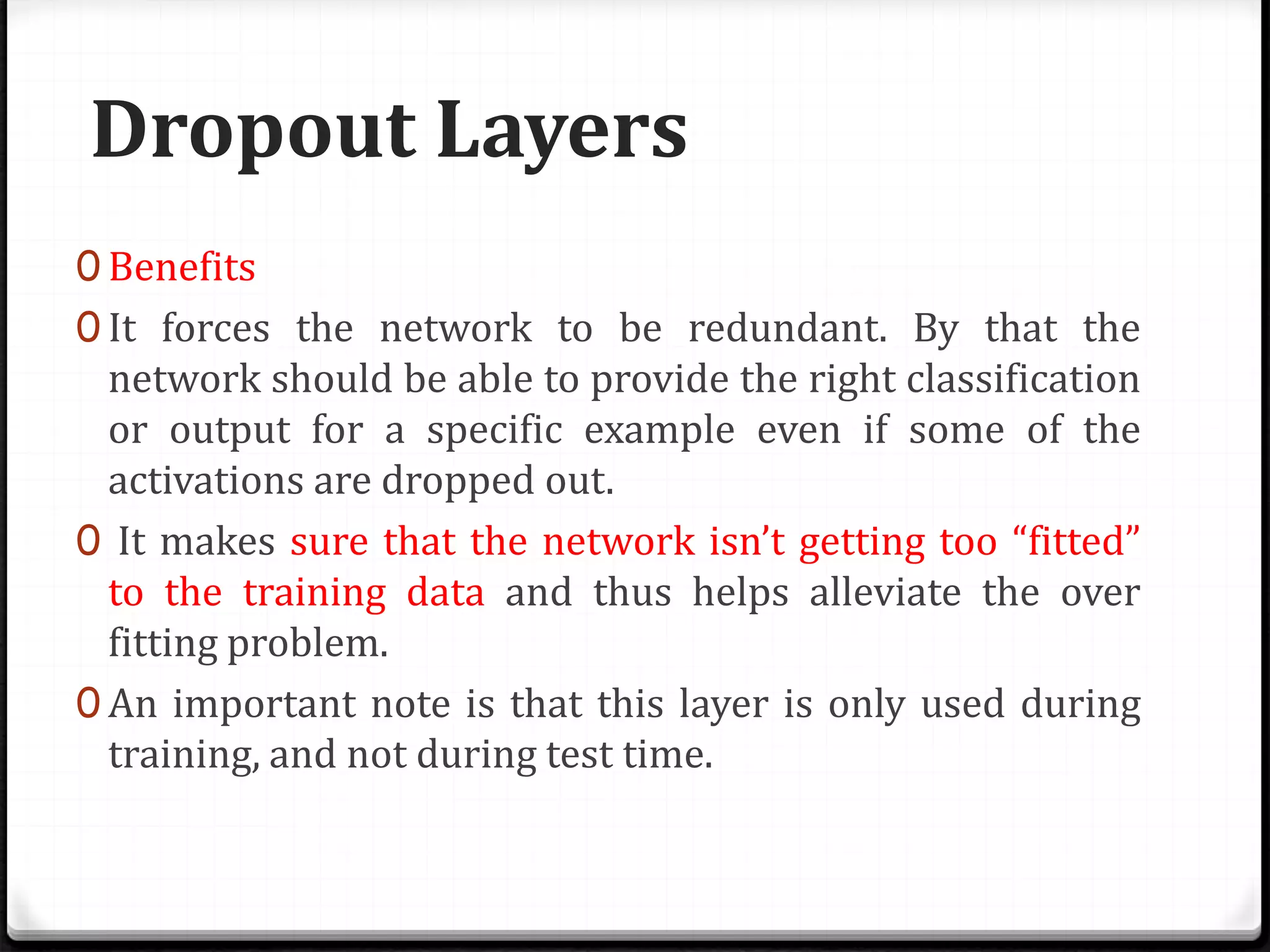

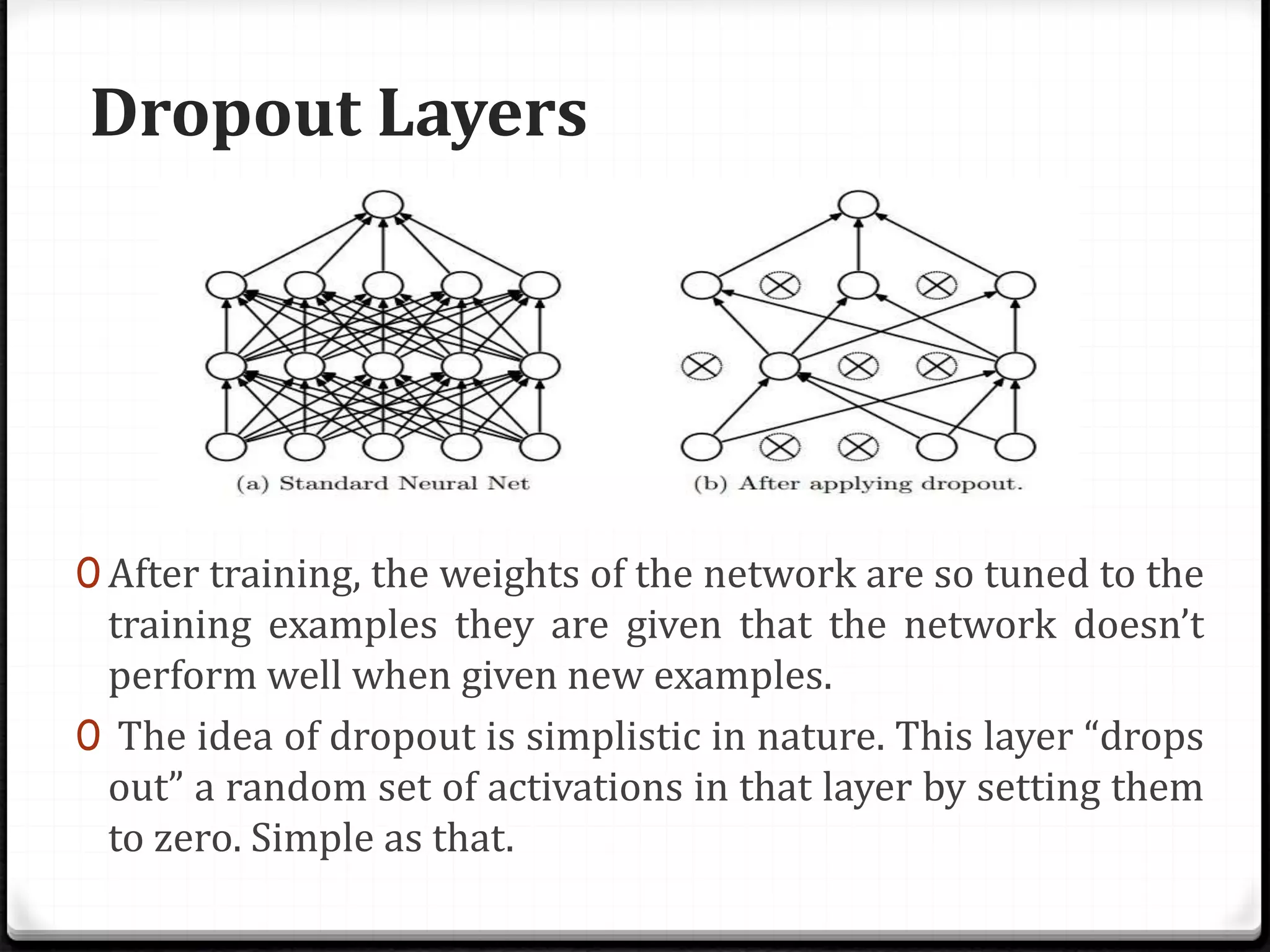

6 • Dropout Layer
7 • Fully Connected Layer (FC)

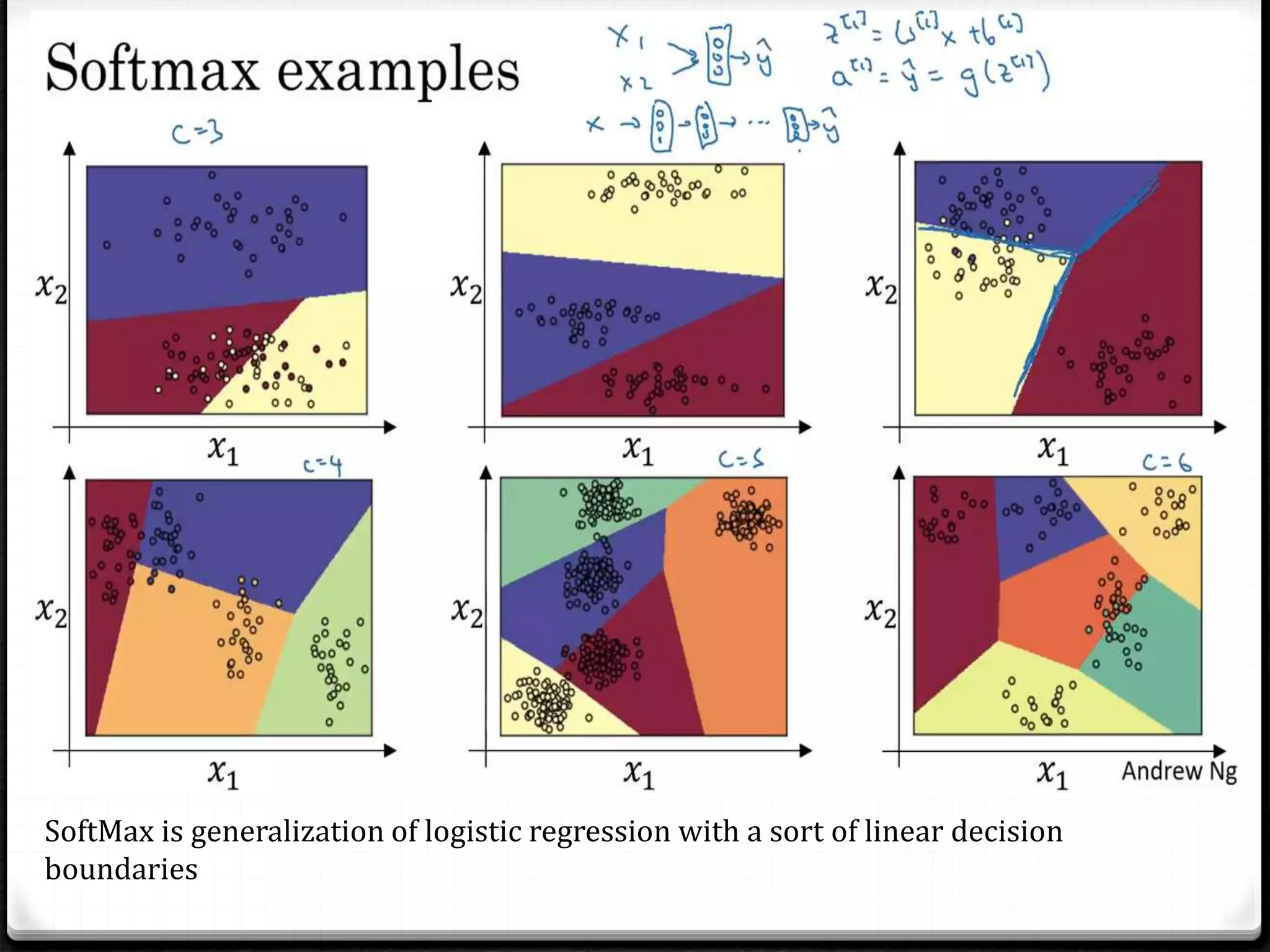

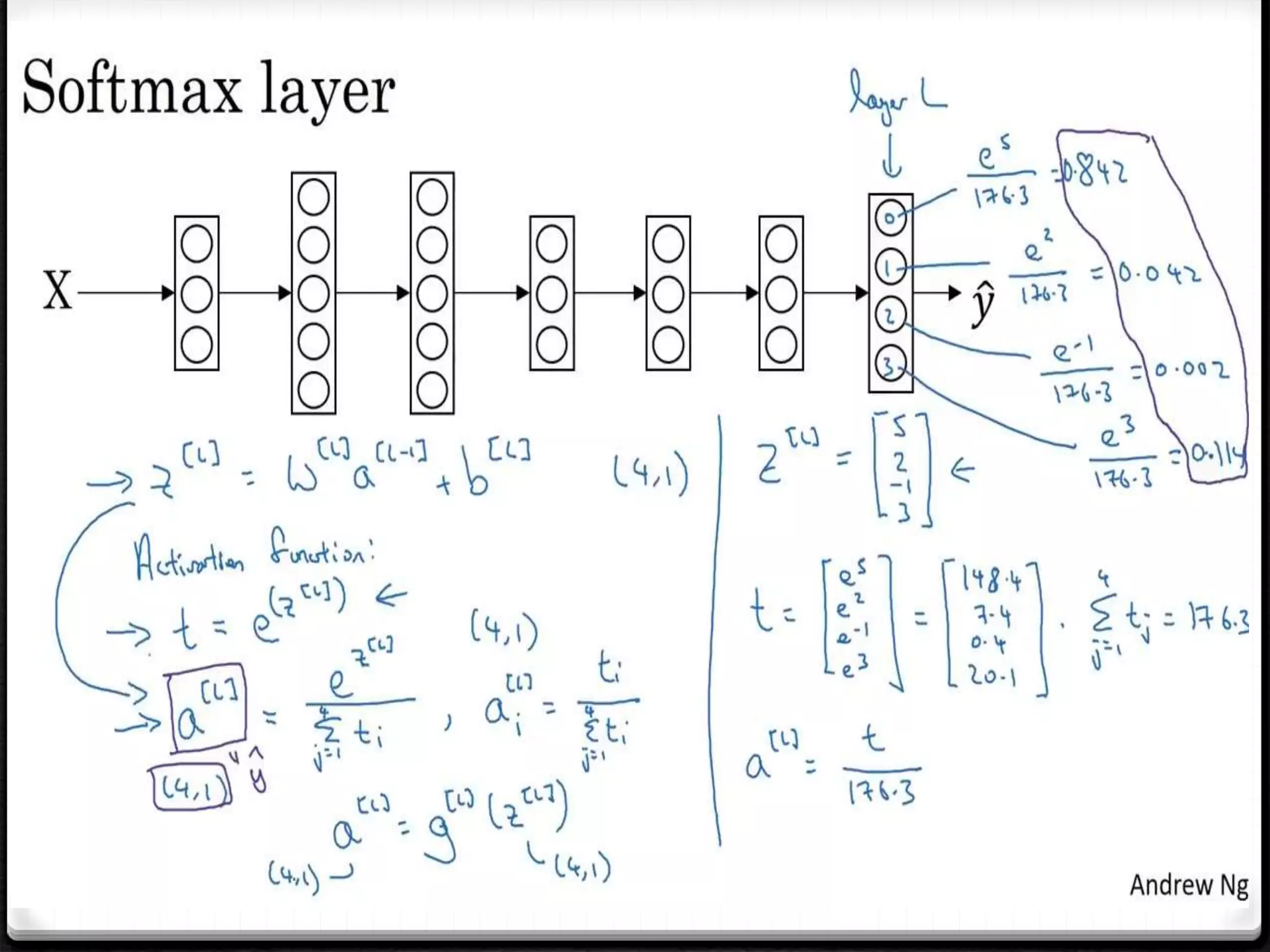

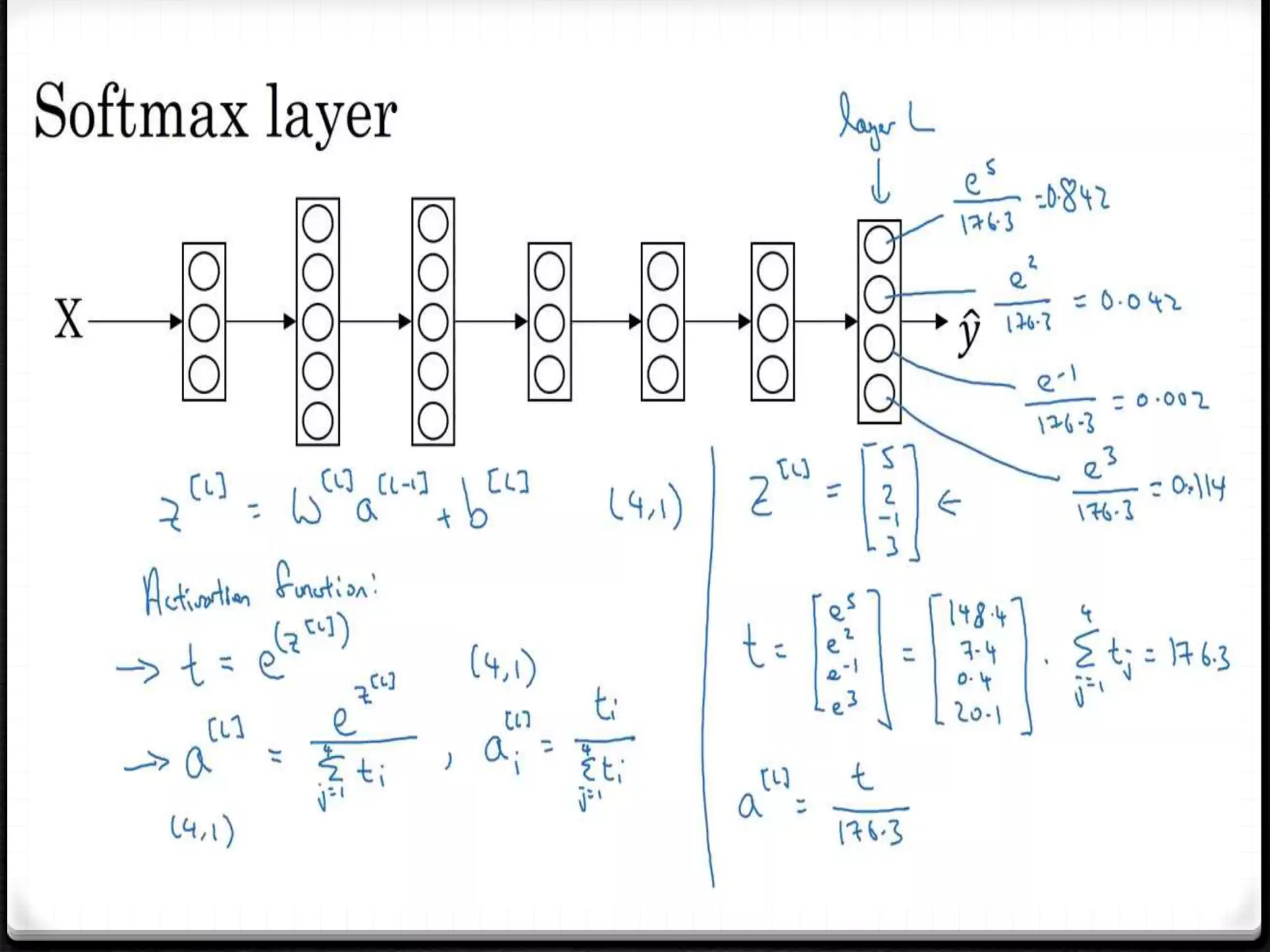

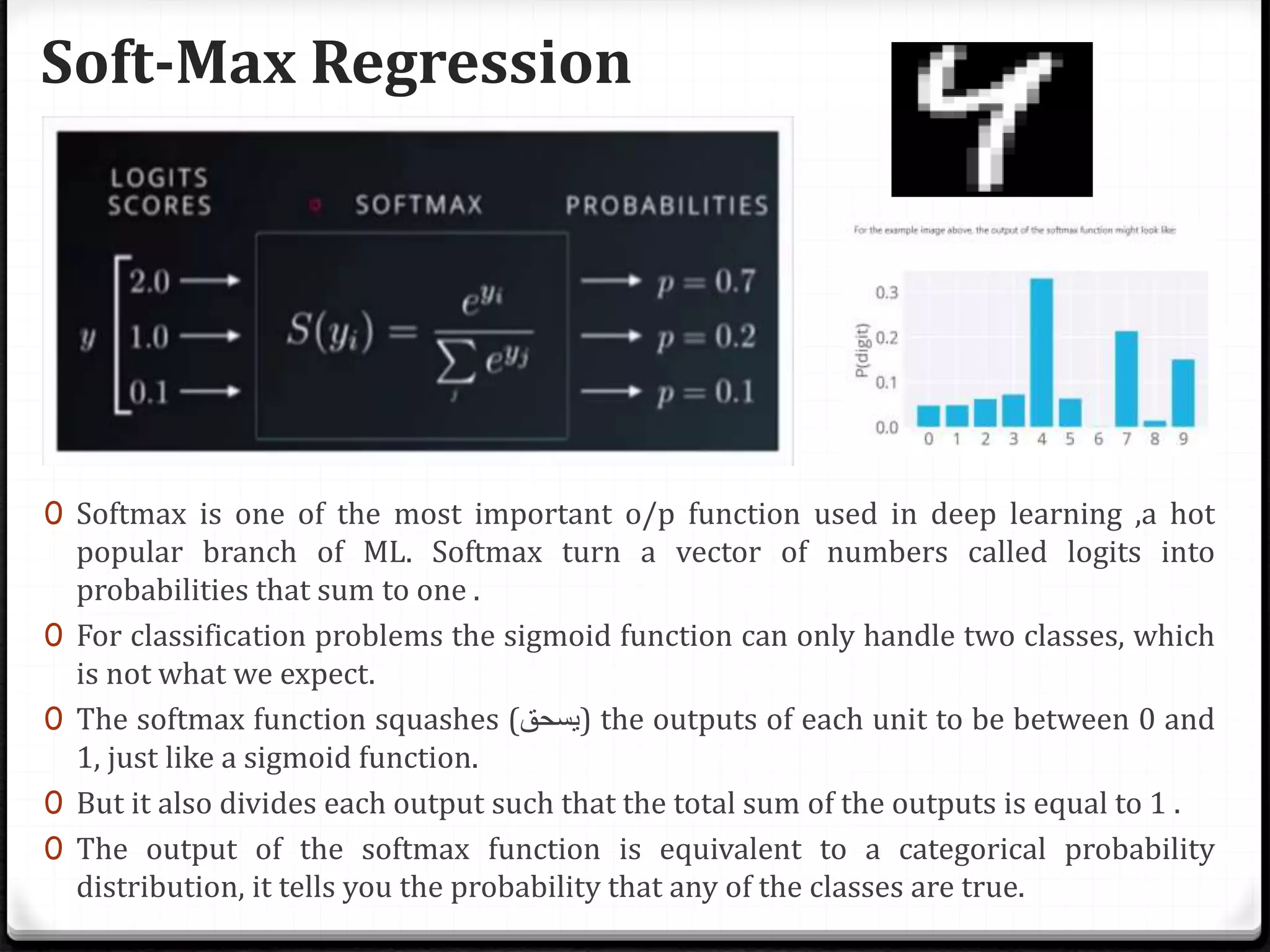

8 • Output Layer (SOFT MAX ,Regression )

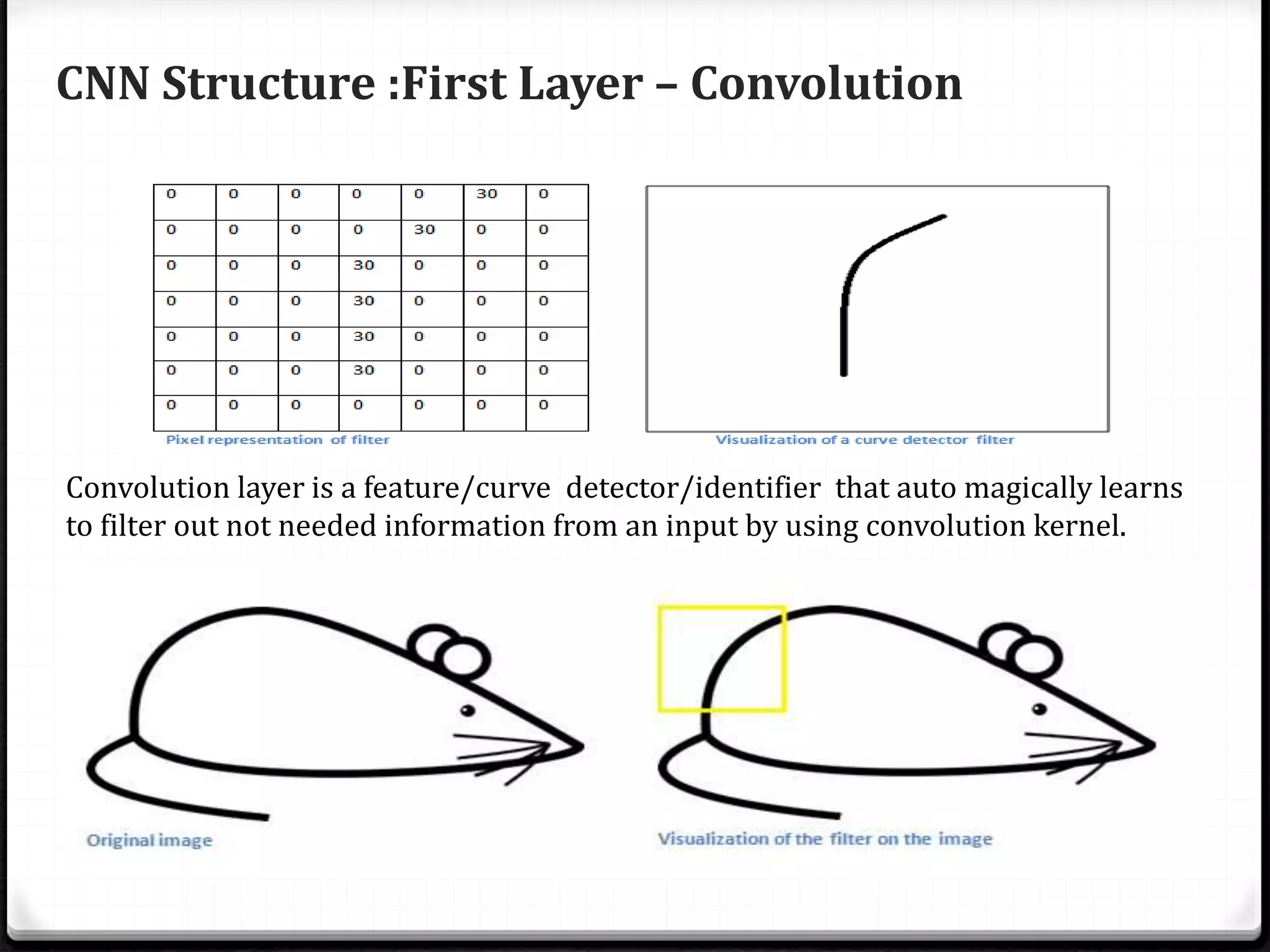

CNN Structure :First Layer – Convolution
Convolution layer is a feature/curve detector/identifier that auto magically learns
to filter out not needed information from an input by using convolution kernel.

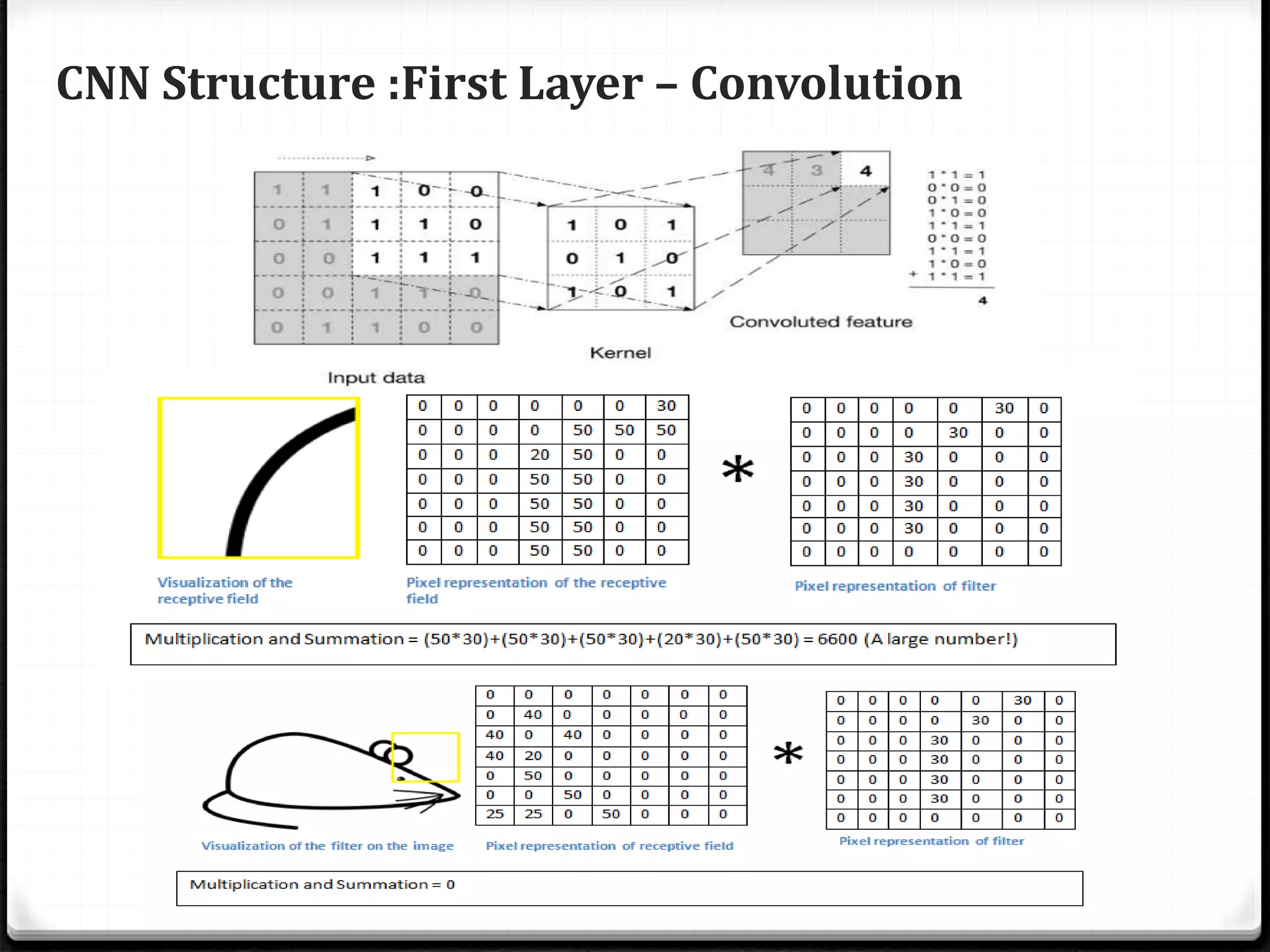

CNN Structure :First Layer – Convolution

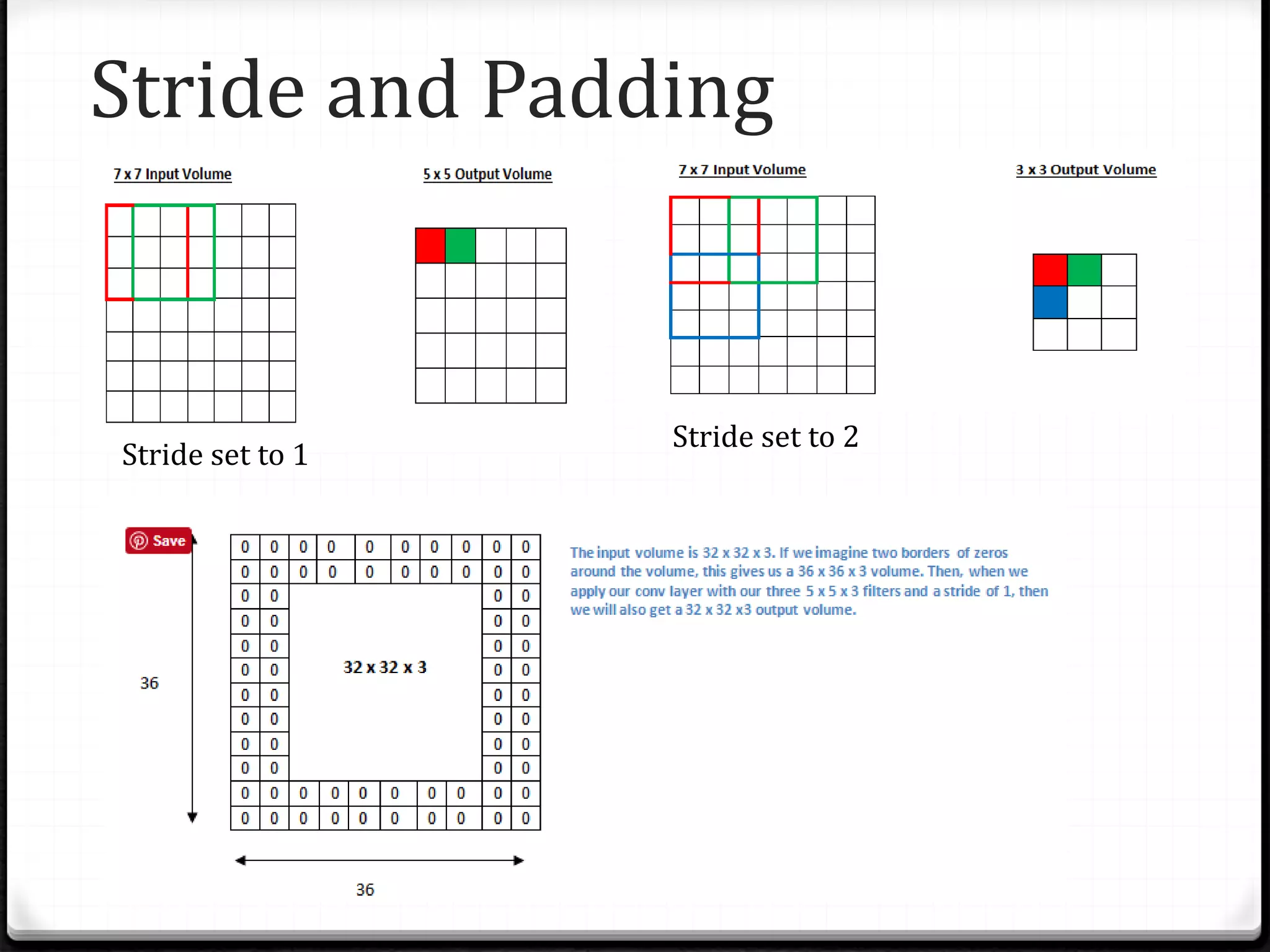

Stride and Padding
Stride set to 1
Stride set to 2

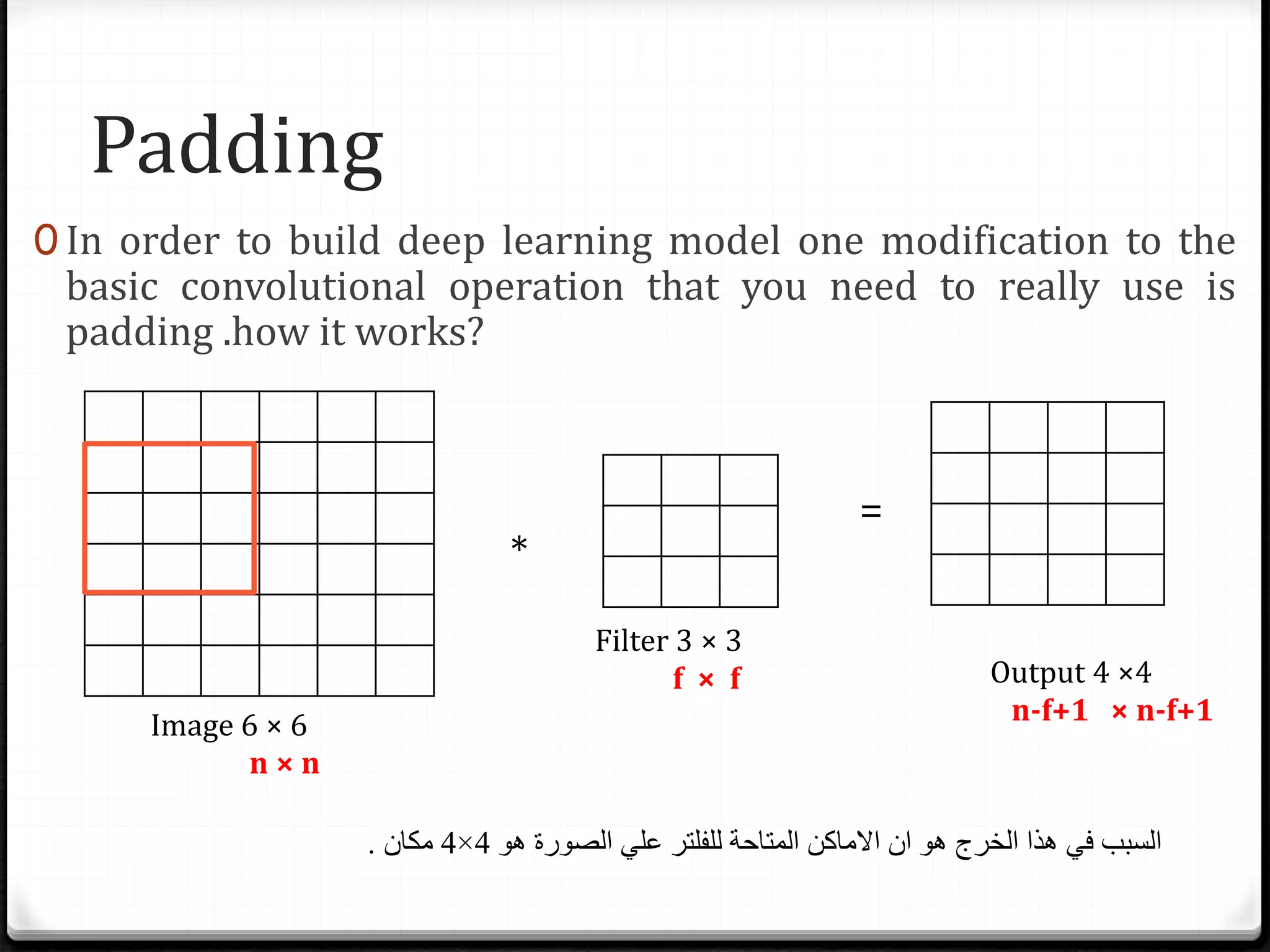

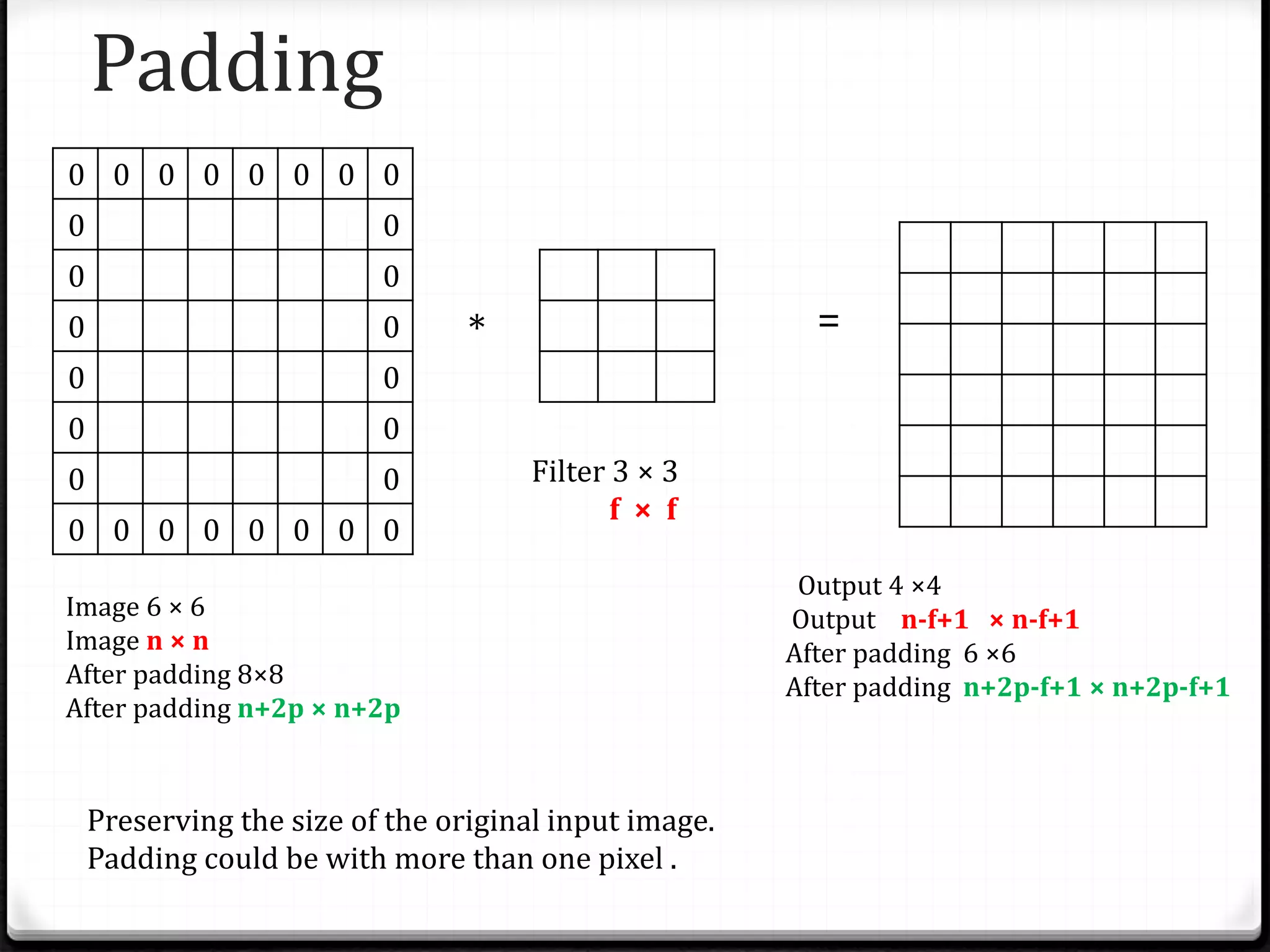

Padding
0 In order to build deep learning model one modification to the
basic convolutional operation that you need to really use is
padding .how it works?
*
=
Image 6 × 6
n × n
Filter 3 × 3
f × f Output 4 ×4
n-f+1 × n-f+1
‫هو‬ ‫الصورة‬ ‫علي‬ ‫للفلتر‬ ‫المتاحة‬ ‫االماكن‬ ‫ان‬ ‫هو‬ ‫الخرج‬ ‫هذا‬ ‫في‬ ‫السبب‬4×4‫مكان‬.

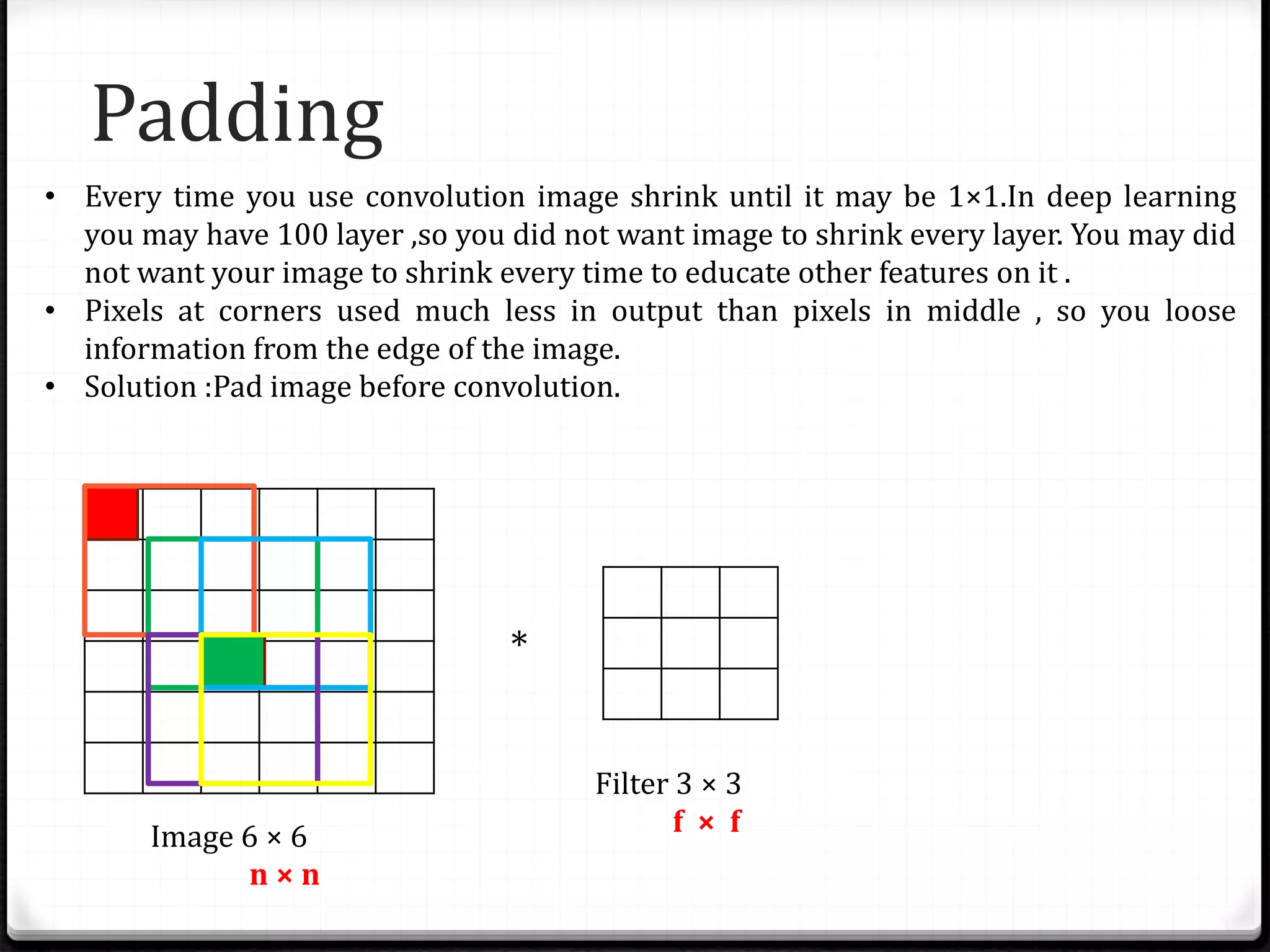

Padding
• Every time you use convolution image shrink until it may be 1×1.In deep learning
you may have 100 layer ,so you did not want image to shrink every layer. You may did
not want your image to shrink every time to educate other features on it .
• Pixels at corners used much less in output than pixels in middle , so you loose
information from the edge of the image.
• Solution :Pad image before convolution.
*
Image 6 × 6
n × n
Filter 3 × 3
f × f

Padding
00000000
00
00
00
00
00
00
00000000
Image 6 × 6
Image n × n
After padding 8×8
After padding n+2p × n+2p
*
Filter 3 × 3
f × f
=
Output 4 ×4
Output n-f+1 × n-f+1
After padding 6 ×6
After padding n+2p-f+1 × n+2p-f+1
Preserving the size of the original input image.
Padding could be with more than one pixel .

Padding: Convolution Types
Valid and Same Convolutions:
“Valid”: means No Padding.
Image * Filter = Output
ex : (n × n) * (f × f) =(n-f+1) × (n-f+1)
“Same”: means Padding so that output size is the same as the input size .
(n+2p-f+1) × (n+2p-f+1)
n+2p-f+1=n
2p=f-1
p=
𝑓−1
2
For 3 × 3 filter
p=
3−1
2
=1
For 5 × 5 filter
p=
5−1
2
=2
• By convention in computer vision it is recommended to use odd size filters.
• If you have an even filter you will need asymmetric padding .
• In computer vision it is nice to have central pixel .I think it will get fine
performance than using even numbers .
Filter 3 × 3
Filter f × f

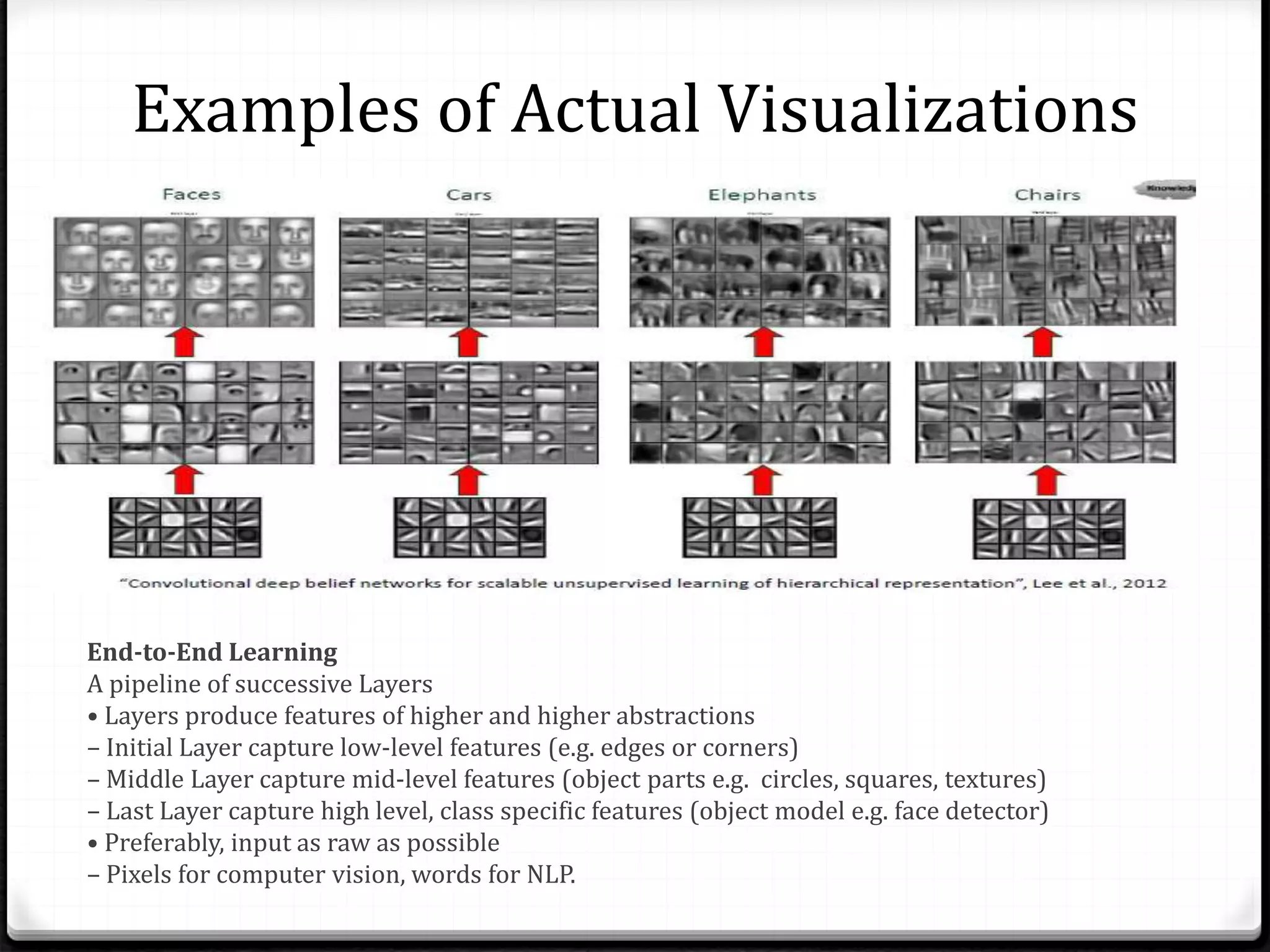

Examples of Actual Visualizations
End-to-End Learning
A pipeline of successive Layers
• Layers produce features of higher and higher abstractions
– Initial Layer capture low-level features (e.g. edges or corners)
– Middle Layer capture mid-level features (object parts e.g. circles, squares, textures)
– Last Layer capture high level, class specific features (object model e.g. face detector)
• Preferably, input as raw as possible
– Pixels for computer vision, words for NLP.

Batch Normalization Layer
0 Batch Normalization is a technique to provide any layer in a Neural Network with
inputs that are zero mean/unit variance .
0 Use batch normalization layers between convolutional layers and nonlinearities such as
ReLU layers to speed up network training and reduce the sensitivity to network
initialization.
0 The layer first normalizes the activations of each channel by subtracting the mini-batch
mean and dividing by the mini-batch standard deviation. Then, the layer shifts the input
by an offset β and scales it by a scale factor γ. β and γ are themselves learnable
parameters that are updated during network training.

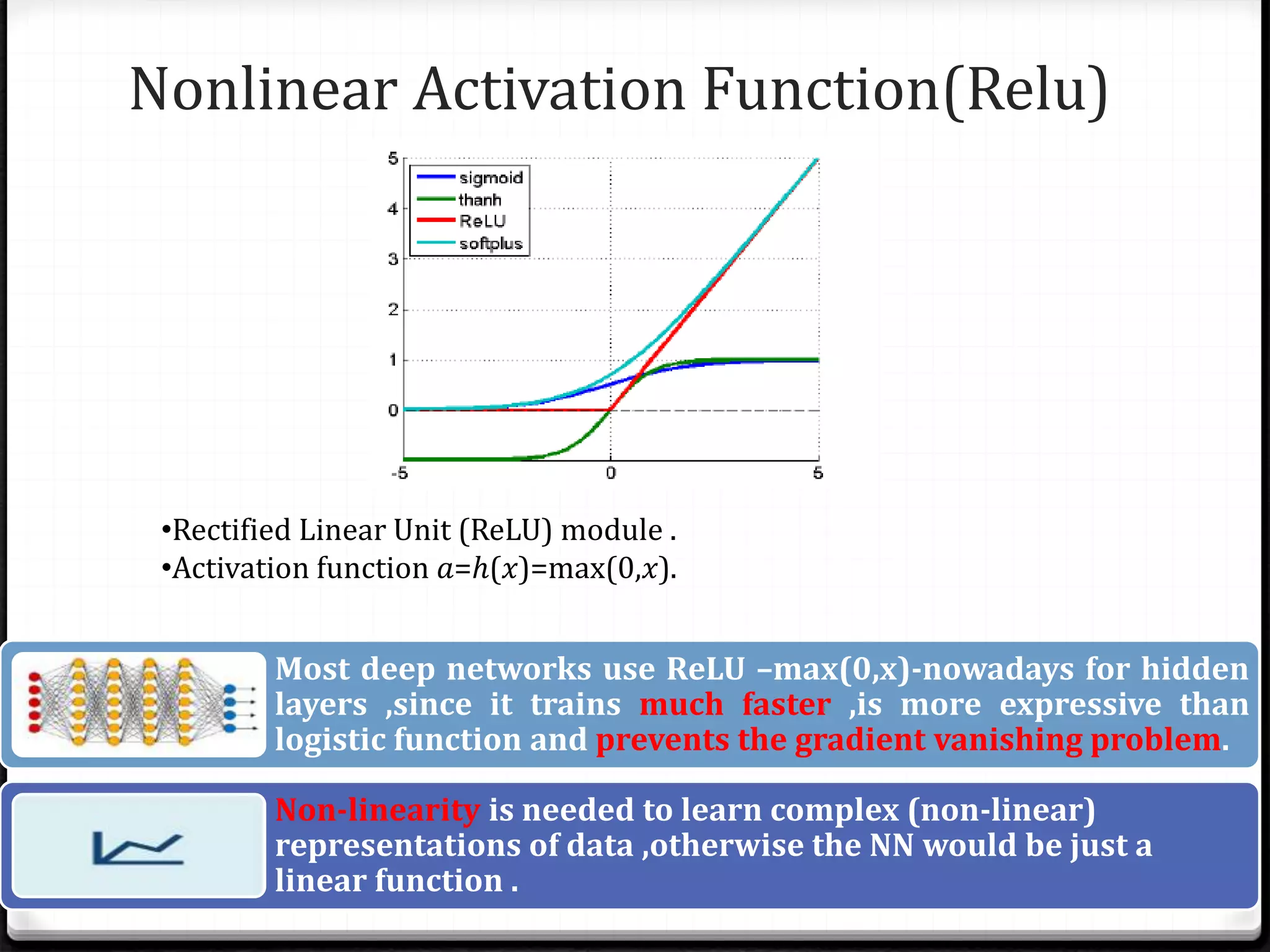

Nonlinear Activation Function(Relu)
•Rectified Linear Unit (ReLU) module .
•Activation function 𝑎=ℎ(𝑥)=max(0,𝑥).
Most deep networks use ReLU –max(0,x)-nowadays for hidden
layers ,since it trains much faster ,is more expressive than
logistic function and prevents the gradient vanishing problem.
Non-linearity is needed to learn complex (non-linear)
representations of data ,otherwise the NN would be just a
linear function .

Vanishing Gradient Problem
0 It is a difficulty founds in training ANN with gradient-based learning
methods and backpropagation.
0 In such methods, each of the neural network's weights receives an
update proportional to the gradient of the error function with respect
to the current weight in each iteration of training.
0 The problem is that in some cases, the gradient will be vanishingly
small, effectively preventing the weight from changing its value. In the
worst case, this may completely stop the neural network from further
training
0 Traditional activation functions such as the hyperbolic
tangent function have gradients in the range (−1, 1), and back-
propagation computes gradients by the chain rule.
0 This has the effect of multiplying n of these small numbers to
compute gradients of the "front" layers in an n-layer network.
0 This means that the gradient (error signal) decreases exponentially
with n while the front layers train very slowly.

Local Response Normalization Layer
0 we want to have some kind of inhibition scheme.
0 Neurobiology concept “lateral inhibition”.
0 Useful when we are dealing with ReLU neurons(unbounded activations ).
0 Detect high frequency features with a large response.
0 If we normalize around the local neighborhood of the excited neuron, it
becomes even more sensitive as compared to its neighbors.
0 Inhibit the responses that are uniformly large in any given local
neighborhood.
0 If all the values are large, then normalizing those values will decrease all
of them.
0 Inhibition and boost the neurons with relatively larger activations.
0 Two types of normalizations available in Caffe (same and cross channel)
where K, α, and β are the hyperparameters in the
normalization, and ss is the sum of squares of the
elements in the normalization window.

Max and AVG Pooling Layer
0 Pooling layers compute the max or average value of a particular feature over a
region of the input data (downsizing of input images).
0 Also helps to detect objects in some unusual places and reduces memory size.
0 Aggregate multiple values into a single value
0 – Reduces the size of the layer output/input to next layer ->Faster computations
0 – Keeps most important information for the next layer
0 • Max pooling/Average pooling

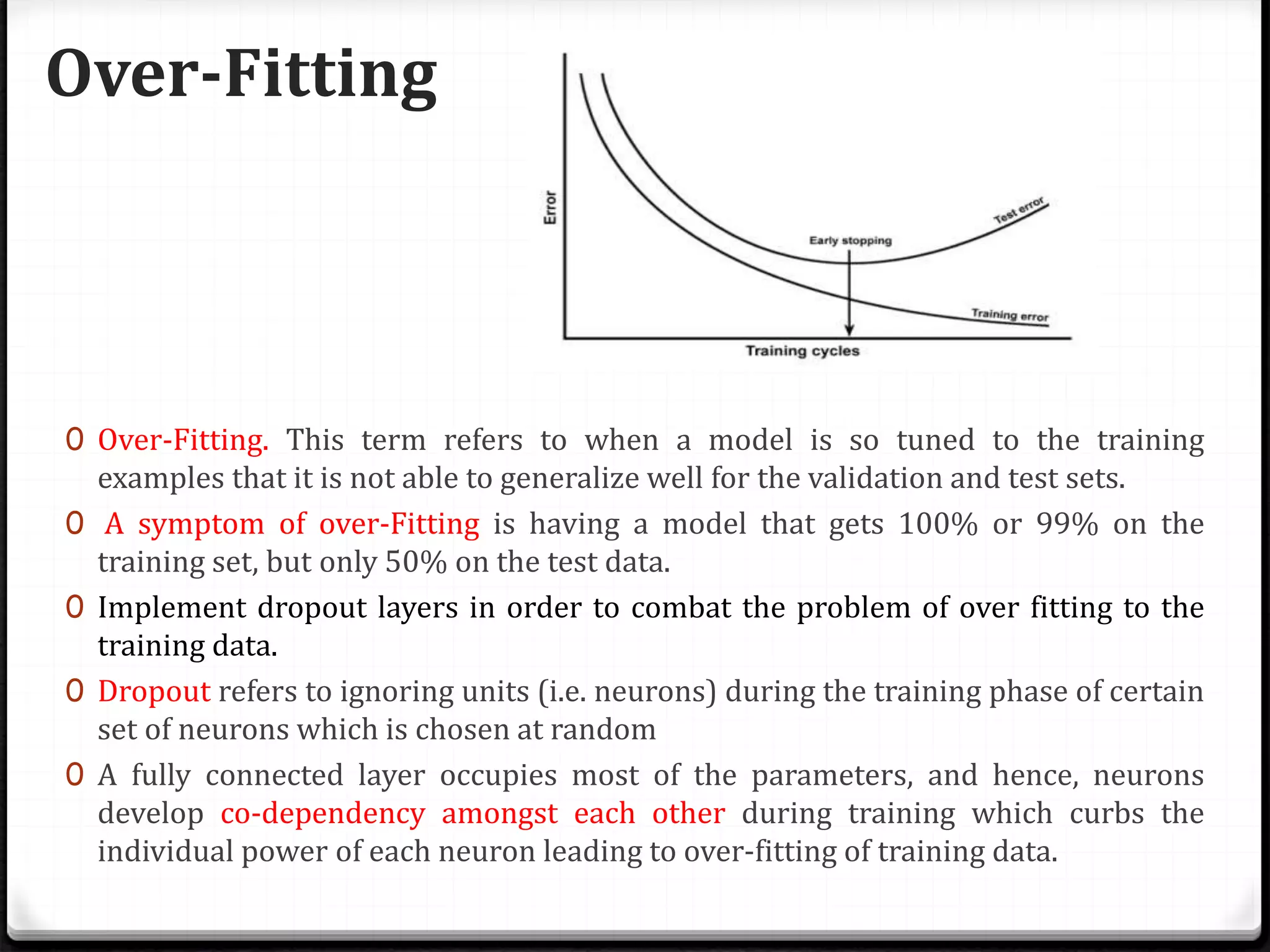

Over-Fitting
0 Over-Fitting. This term refers to when a model is so tuned to the training
examples that it is not able to generalize well for the validation and test sets.
0 A symptom of over-Fitting is having a model that gets 100% or 99% on the
training set, but only 50% on the test data.
0 Implement dropout layers in order to combat the problem of over fitting to the
training data.
0 Dropout refers to ignoring units (i.e. neurons) during the training phase of certain
set of neurons which is chosen at random
0 A fully connected layer occupies most of the parameters, and hence, neurons
develop co-dependency amongst each other during training which curbs the
individual power of each neuron leading to over-fitting of training data.

Dropout Layers
0 After training, the weights of the network are so tuned to the
training examples they are given that the network doesn’t
perform well when given new examples.
0 The idea of dropout is simplistic in nature. This layer “drops
out” a random set of activations in that layer by setting them
to zero. Simple as that.

Dropout Layers
0 Benefits
0 It forces the network to be redundant. By that the
network should be able to provide the right classification
or output for a specific example even if some of the
activations are dropped out.
0 It makes sure that the network isn’t getting too “fitted”
to the training data and thus helps alleviate the over
fitting problem.
0 An important note is that this layer is only used during
training, and not during test time.

Observations
 Dropout forces a neural network to learn more robust
features that are useful in conjunction with many different
random subsets of the other neurons.
 Dropout roughly doubles the number of iterations
required to converge. However, training time for each
epoch is less.
 With H hidden units, each of which can be dropped, we
have 2^H possible models. In testing phase, the entire
network is considered and each activation is reduced by a
factor p.

Soft-Max Regression
0 Softmax is one of the most important o/p function used in deep learning ,a hot
popular branch of ML. Softmax turn a vector of numbers called logits into
probabilities that sum to one .
0 For classification problems the sigmoid function can only handle two classes, which
is not what we expect.
0 The softmax function squashes (‫)يسحق‬ the outputs of each unit to be between 0 and
1, just like a sigmoid function.
0 But it also divides each output such that the total sum of the outputs is equal to 1 .
0 The output of the softmax function is equivalent to a categorical probability
distribution, it tells you the probability that any of the classes are true.

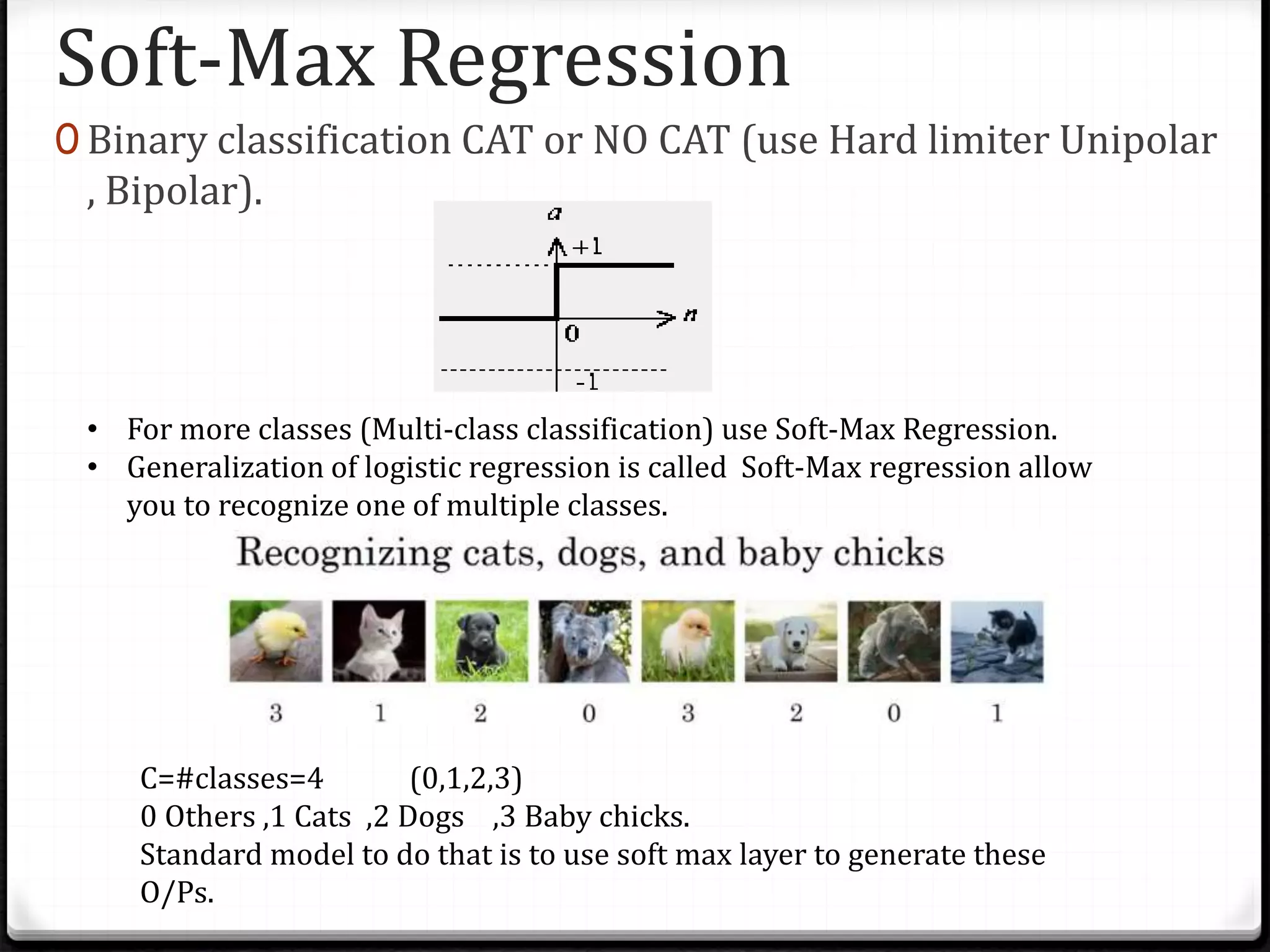

Soft-Max Regression
0 Binary classification CAT or NO CAT (use Hard limiter Unipolar
, Bipolar).

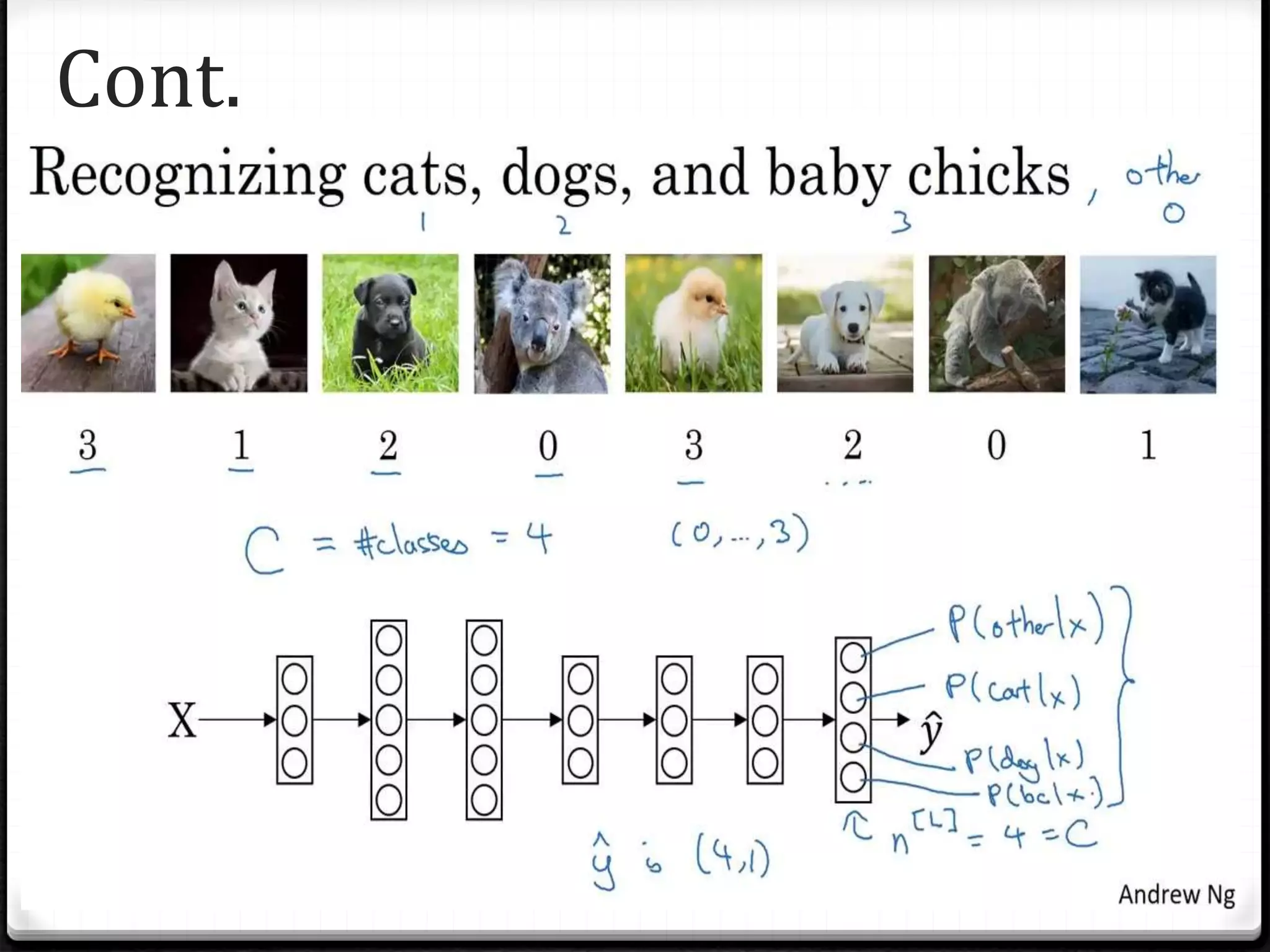

• For more classes (Multi-class classification) use Soft-Max Regression.
• Generalization of logistic regression is called Soft-Max regression allow
you to recognize one of multiple classes.
C=#classes=4 (0,1,2,3)
0 Others ,1 Cats ,2 Dogs ,3 Baby chicks.
Standard model to do that is to use soft max layer to generate these
O/Ps.

SoftMax is generalization of logistic regression with a sort of linear decision
boundaries

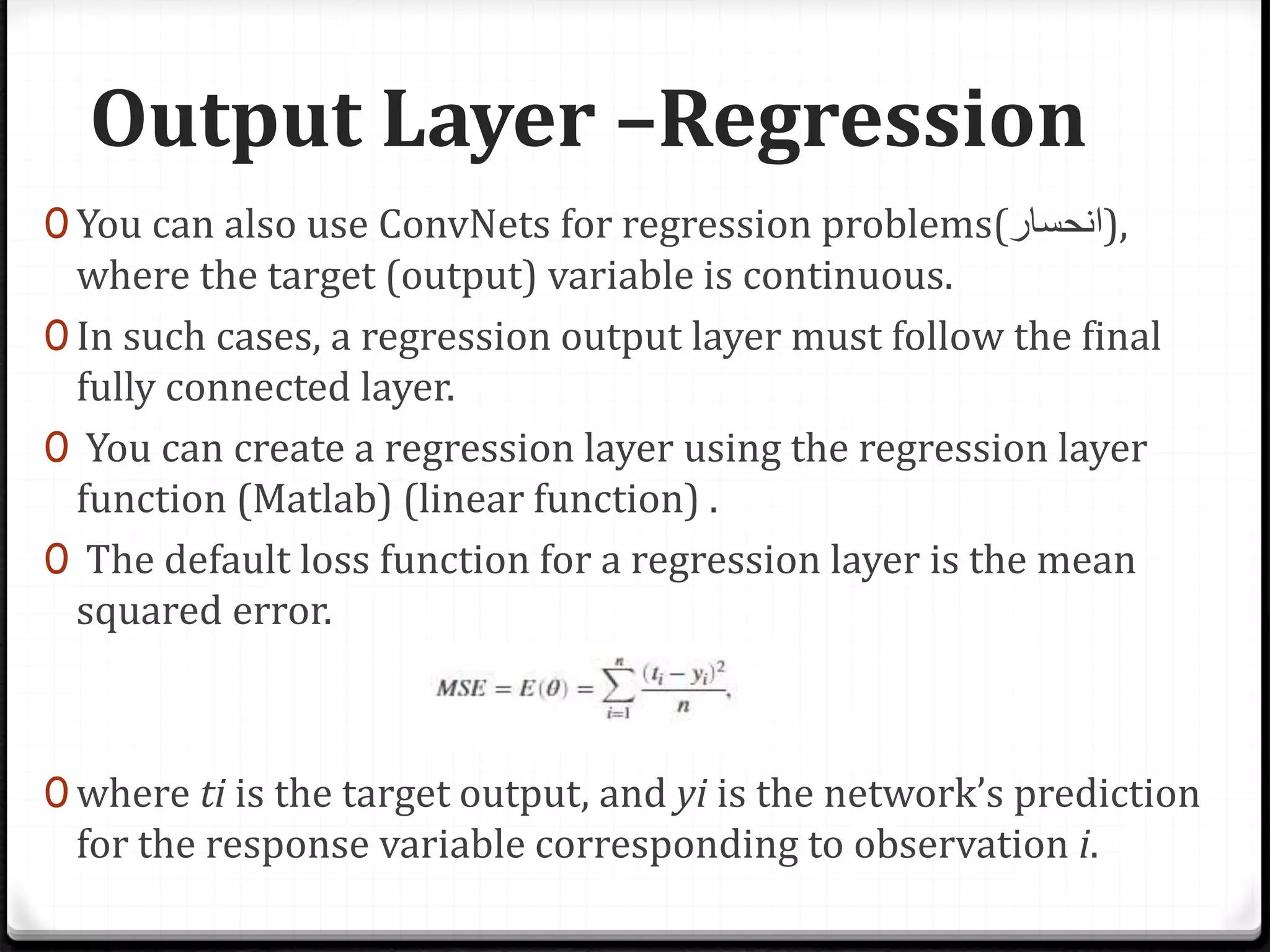

Output Layer –Regression
0 You can also use ConvNets for regression problems(‫,)انحسار‬
where the target (output) variable is continuous.
0 In such cases, a regression output layer must follow the final
fully connected layer.
0 You can create a regression layer using the regression layer
function (Matlab) (linear function) .
0 The default loss function for a regression layer is the mean
squared error.
0 where ti is the target output, and yi is the network’s prediction
for the response variable corresponding to observation i.

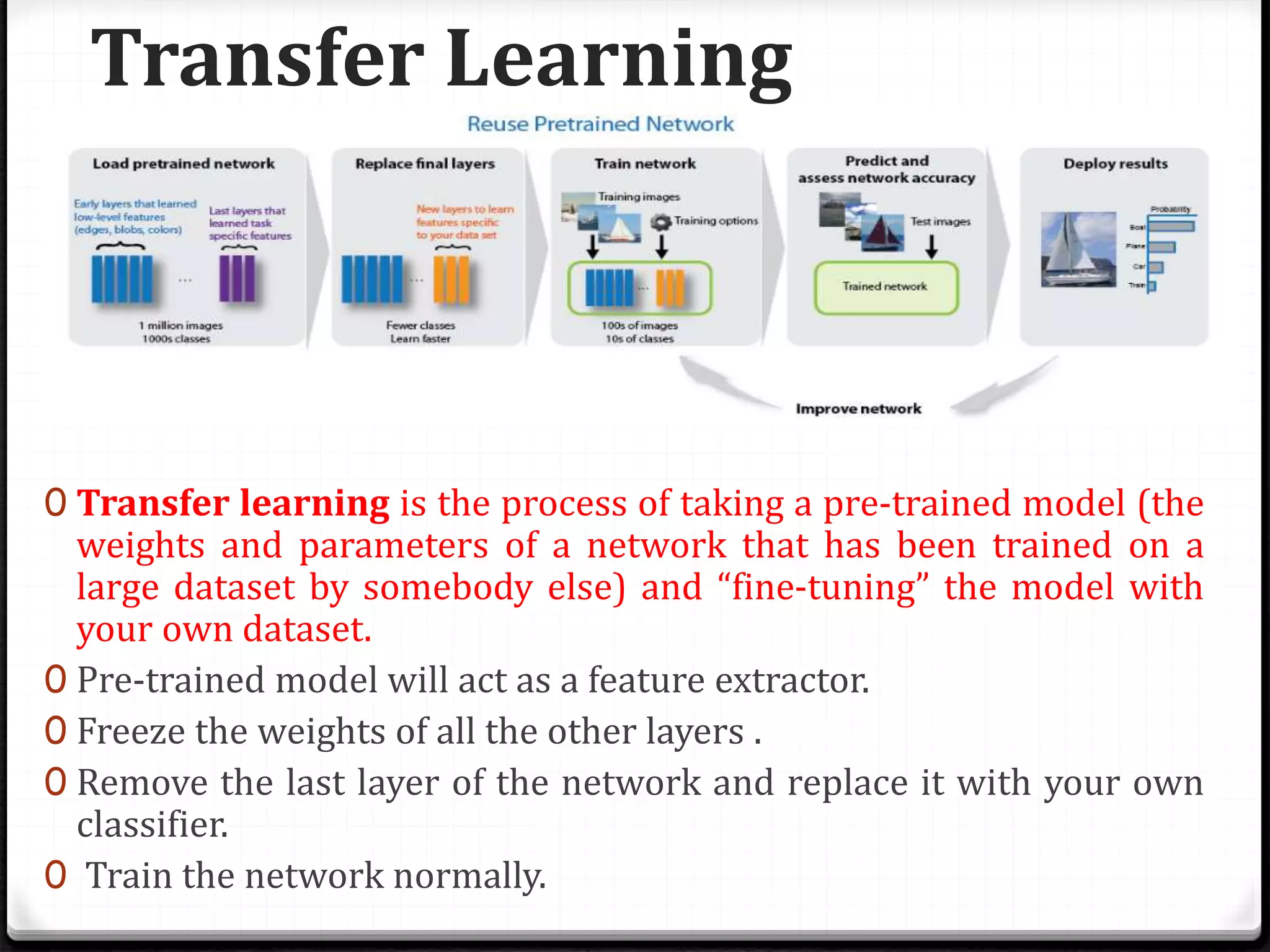

Transfer Learning
0 Transfer learning is the process of taking a pre-trained model (the
weights and parameters of a network that has been trained on a
large dataset by somebody else) and “fine-tuning” the model with
your own dataset.
0 Pre-trained model will act as a feature extractor.
0 Freeze the weights of all the other layers .
0 Remove the last layer of the network and replace it with your own
classifier.
0 Train the network normally.

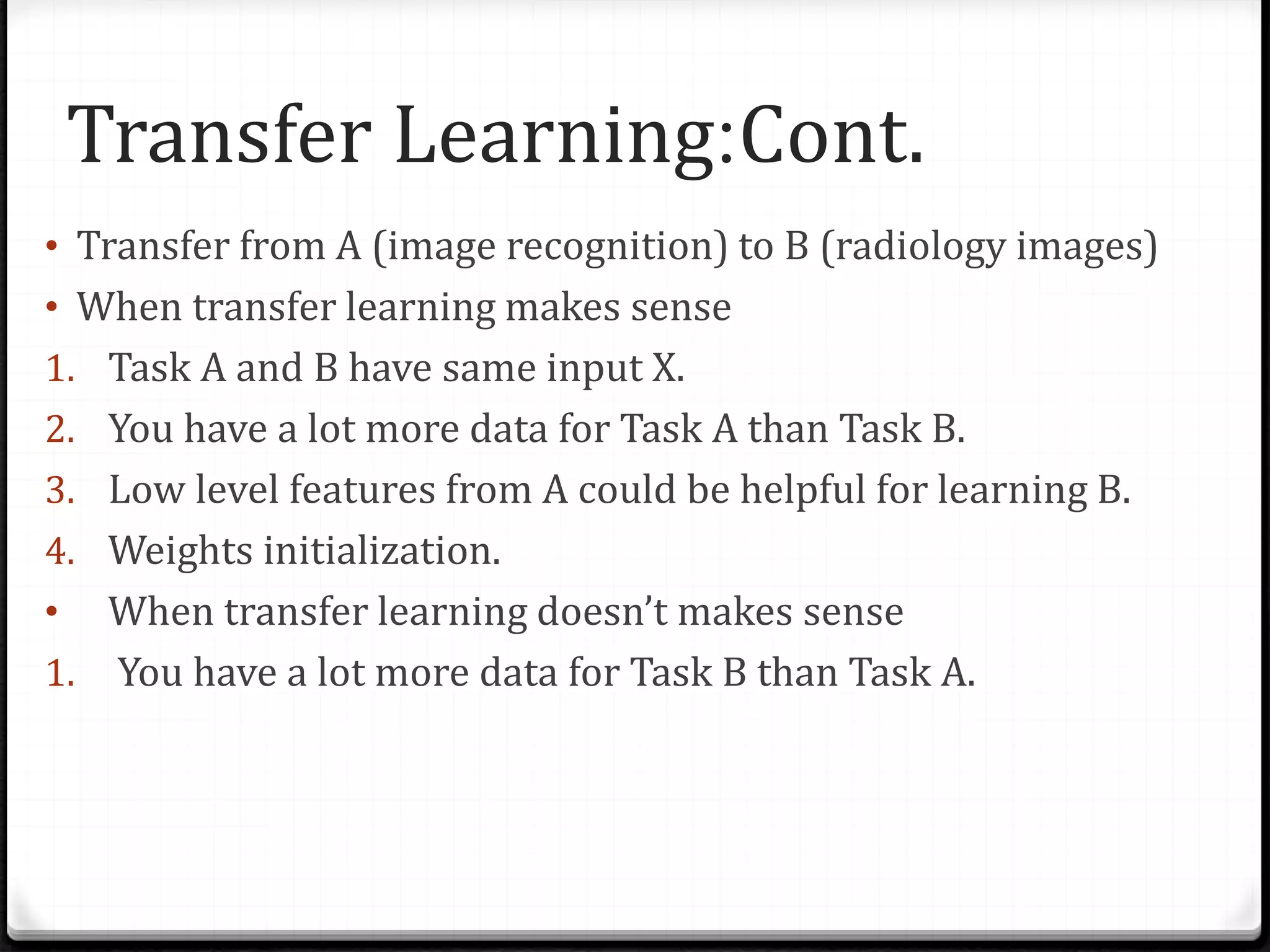

Cont.:Transfer Learning
• Transfer from A (image recognition) to B (radiology images)
• When transfer learning makes sense
1. Task A and B have same input X.
2. You have a lot more data for Task A than Task B.
3. Low level features from A could be helpful for learning B.
4. Weights initialization.
• When transfer learning doesn’t makes sense
1. You have a lot more data for Task B than Task A.

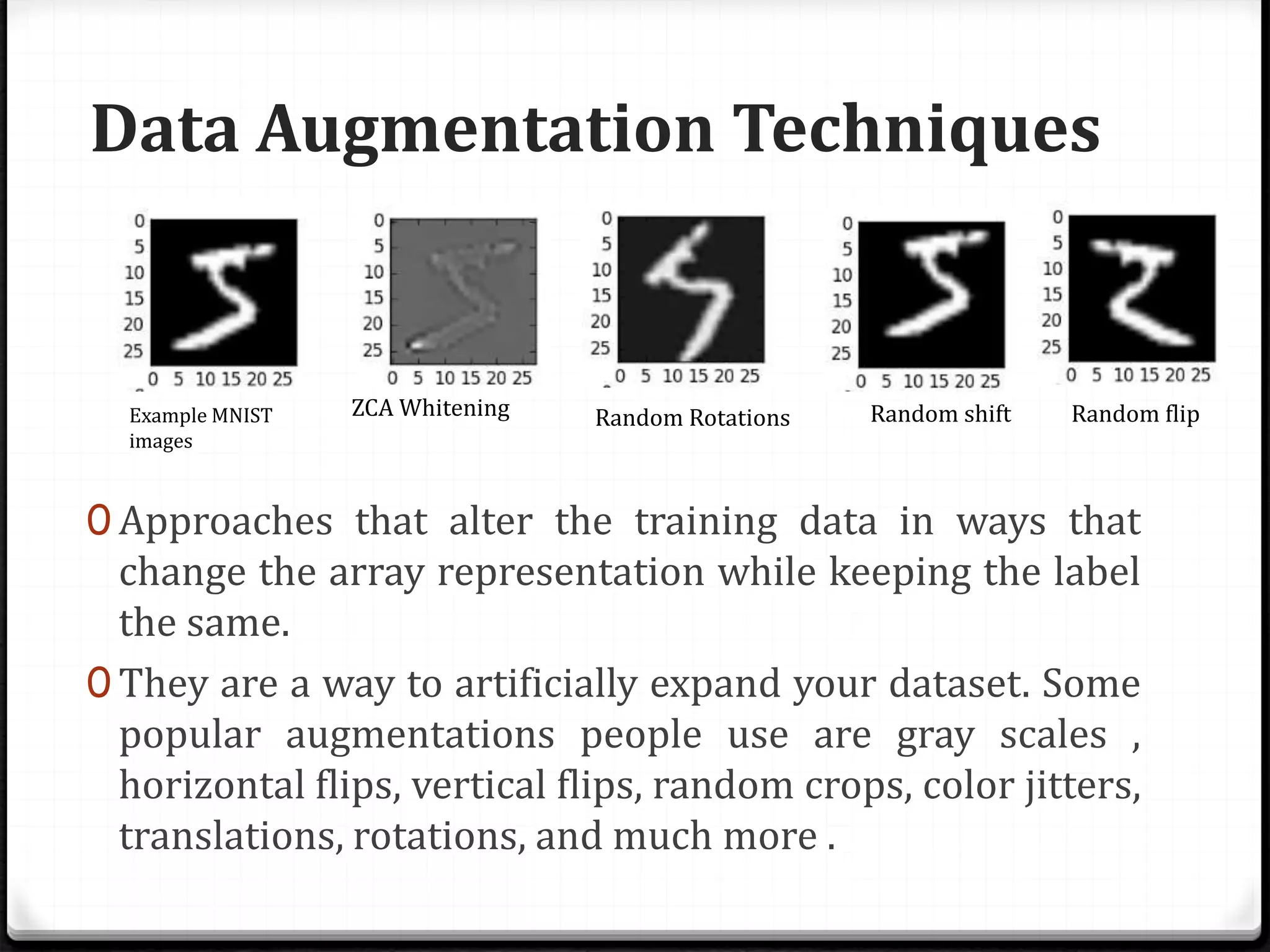

Data Augmentation Techniques
0 Approaches that alter the training data in ways that
change the array representation while keeping the label
the same.
0 They are a way to artificially expand your dataset. Some
popular augmentations people use are gray scales ,
horizontal flips, vertical flips, random crops, color jitters,
translations, rotations, and much more .
ZCA Whitening Random Rotations Random shift Random flipExample MNIST
images

Recurrent Neural Network (RNN)
RNNs are general computers which can learn algorithms to map
input sequences to output sequences (flexible –sized vectors).
The output vector’s contents influenced by the entire history of
input.
Applications
• In time series prediction , adaptive robotics, handwriting
recognition ,image classification, speech recognition,
stock market prediction, and other sequence learning
problems .every thing can be processed sequentially

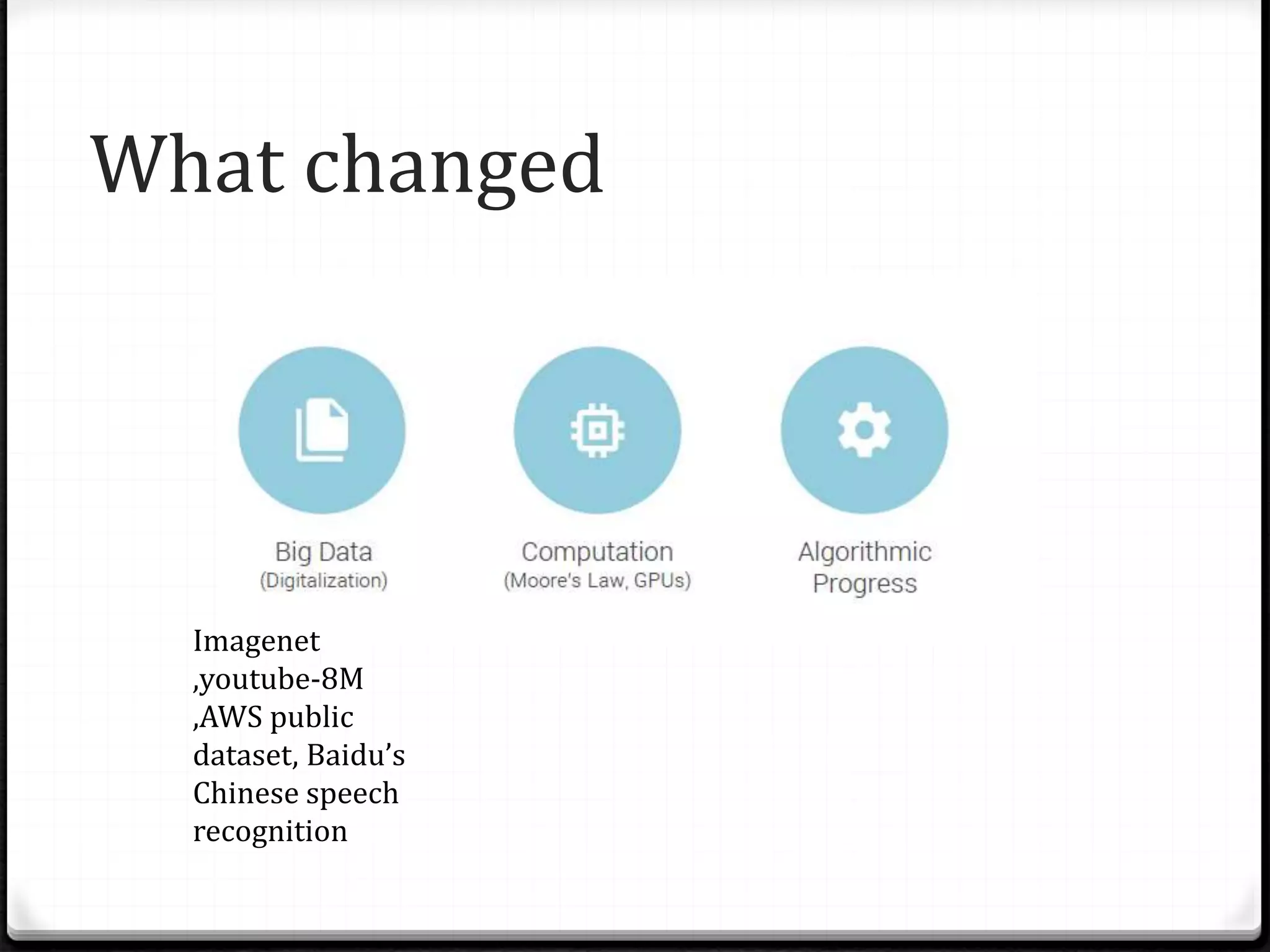

What changed
Imagenet
,youtube-8M
,AWS public
dataset, Baidu’s
Chinese speech
recognition

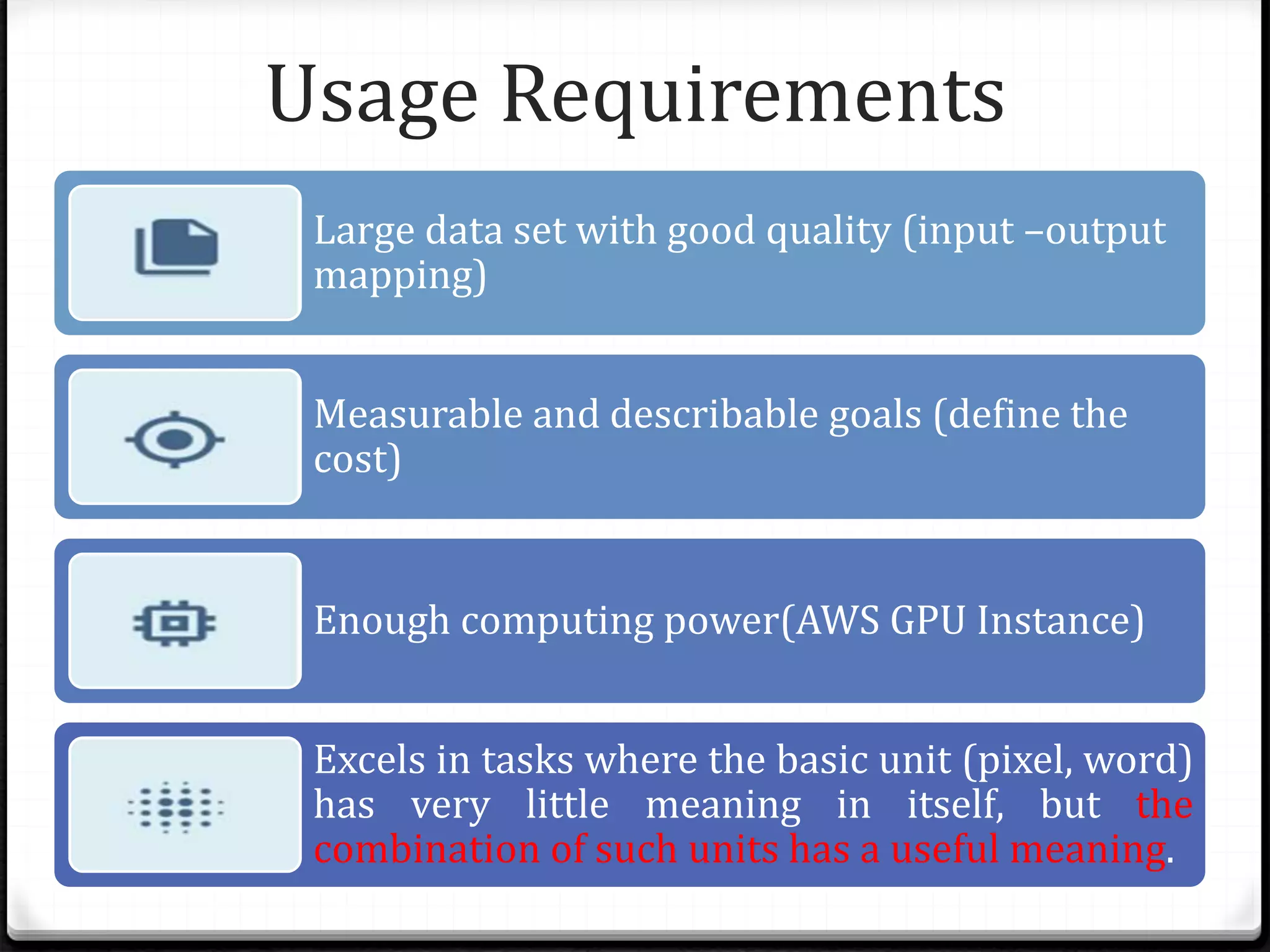

Usage Requirements
Large data set with good quality (input –output
mapping)
Measurable and describable goals (define the
cost)
Enough computing power(AWS GPU Instance)
Excels in tasks where the basic unit (pixel, word)
has very little meaning in itself, but the
combination of such units has a useful meaning.

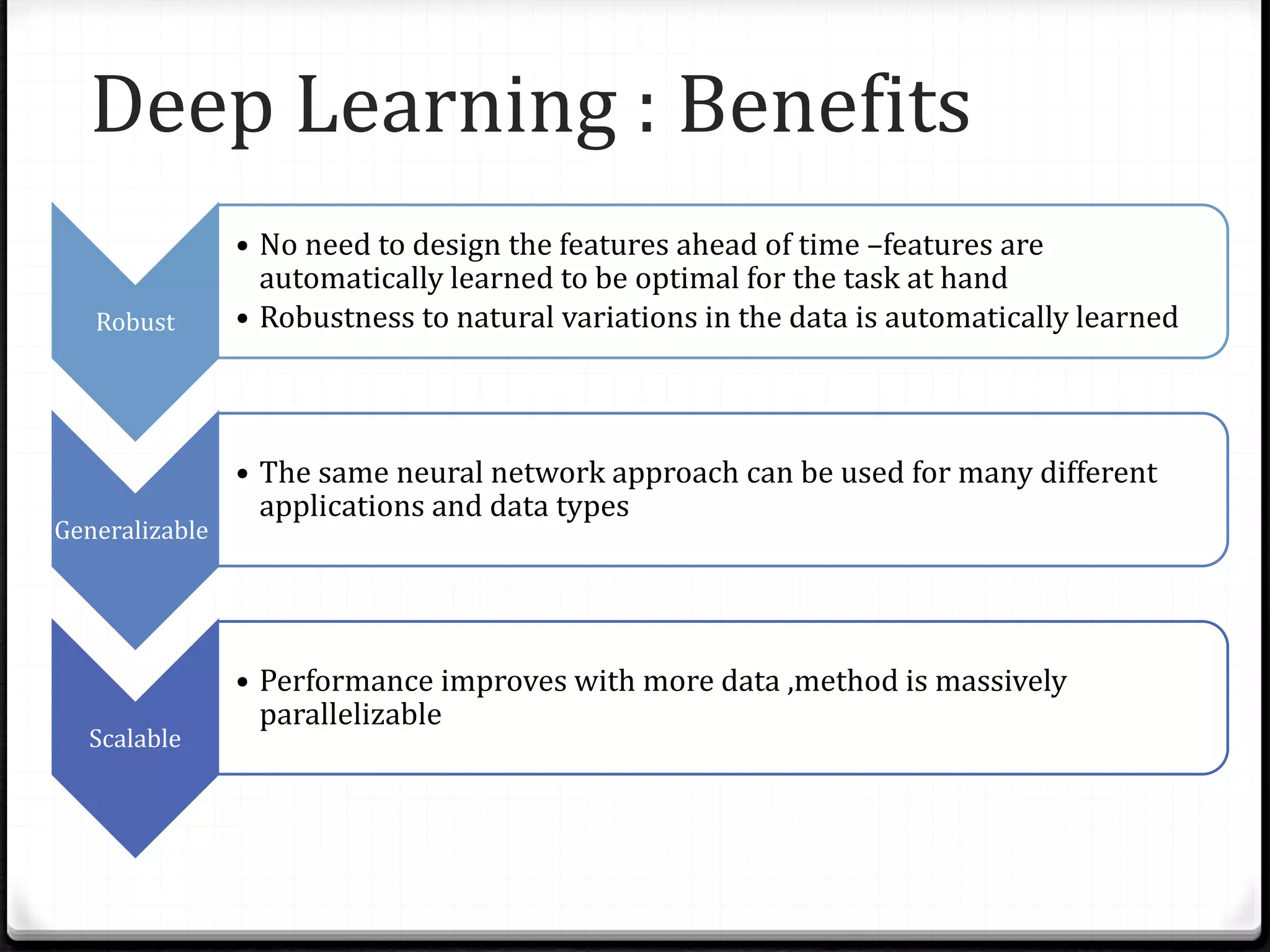

Deep Learning : Benefits
Robust
• No need to design the features ahead of time –features are
automatically learned to be optimal for the task at hand
• Robustness to natural variations in the data is automatically learned
Generalizable
• The same neural network approach can be used for many different
applications and data types
Scalable
• Performance improves with more data ,method is massively
parallelizable

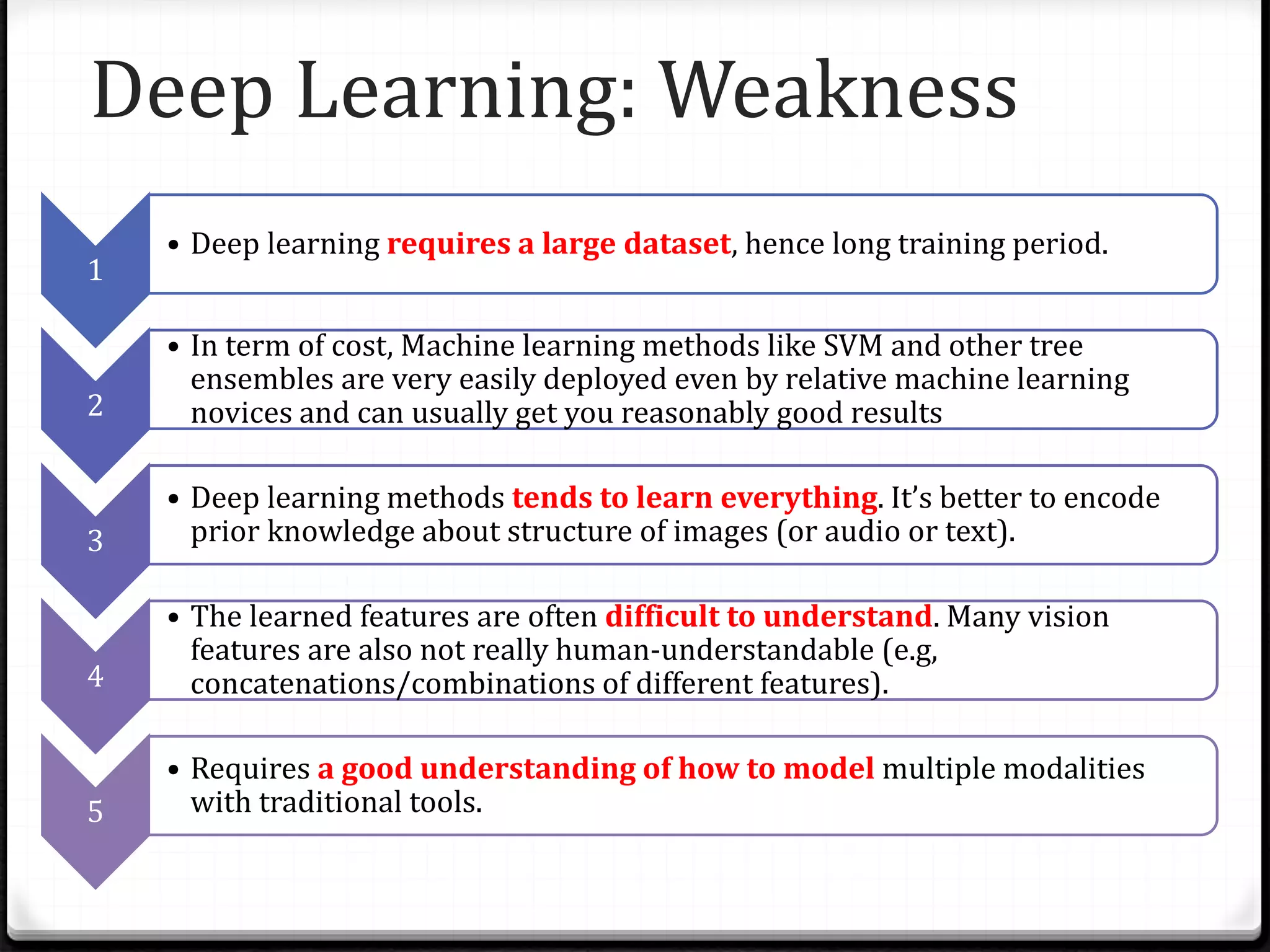

Deep Learning: Weakness
1
• Deep learning requires a large dataset, hence long training period.
2
• In term of cost, Machine learning methods like SVM and other tree
ensembles are very easily deployed even by relative machine learning
novices and can usually get you reasonably good results
3
• Deep learning methods tends to learn everything. It’s better to encode
prior knowledge about structure of images (or audio or text).
4
• The learned features are often difficult to understand. Many vision
features are also not really human-understandable (e.g,
concatenations/combinations of different features).
5
• Requires a good understanding of how to model multiple modalities
with traditional tools.

Pre-trained Deep Learning models
• Authors :Alex Krizhevsky, Ilya Sutskever,
and Geoffrey Hinton
• Winner 2012.
• Trained the network on ImageNet data,
which contained over 15 million
• used for classification with 1000 possible
categories
• Use 11x11 sized filters in the first layer.
• Used ReLU for the nonlinearity functions .
• Used data augmentation techniques that
consisted of image translations,
horizontal reflections, and patch
extractions.
• Implemented dropout layers.
• Trained the model using batch stochastic
gradient descent, with specific values for
momentum and weight decay.
• Trained on two GTX 580 GPUs for five to
six days
• This model achieved an 15.4% error rate.
built by Matthew Zeiler and Rob Fergus
from NYU.
Winner 2013.
Very similar architecture to AlexNet, except
for a few minor modifications.
ZF Net trained on only 1.3 million images.
ZF Net used filters of size 7x7
Used ReLUs for their activation functions,
cross-entropy loss for the error function,
and trained using batch stochastic gradient
descent.
Trained on a GTX 580 GPU for twelve days.
Developed a visualization technique named
Deconvolutional Network, which helps to
examine different feature activations and
their relation to the input space. Called
“deconvnet” because it maps features to
pixels (the opposite of what a convolutional
layer does).
This model achieved an 11.2% error rate
AlexNet (2012) ZF Net (2013)

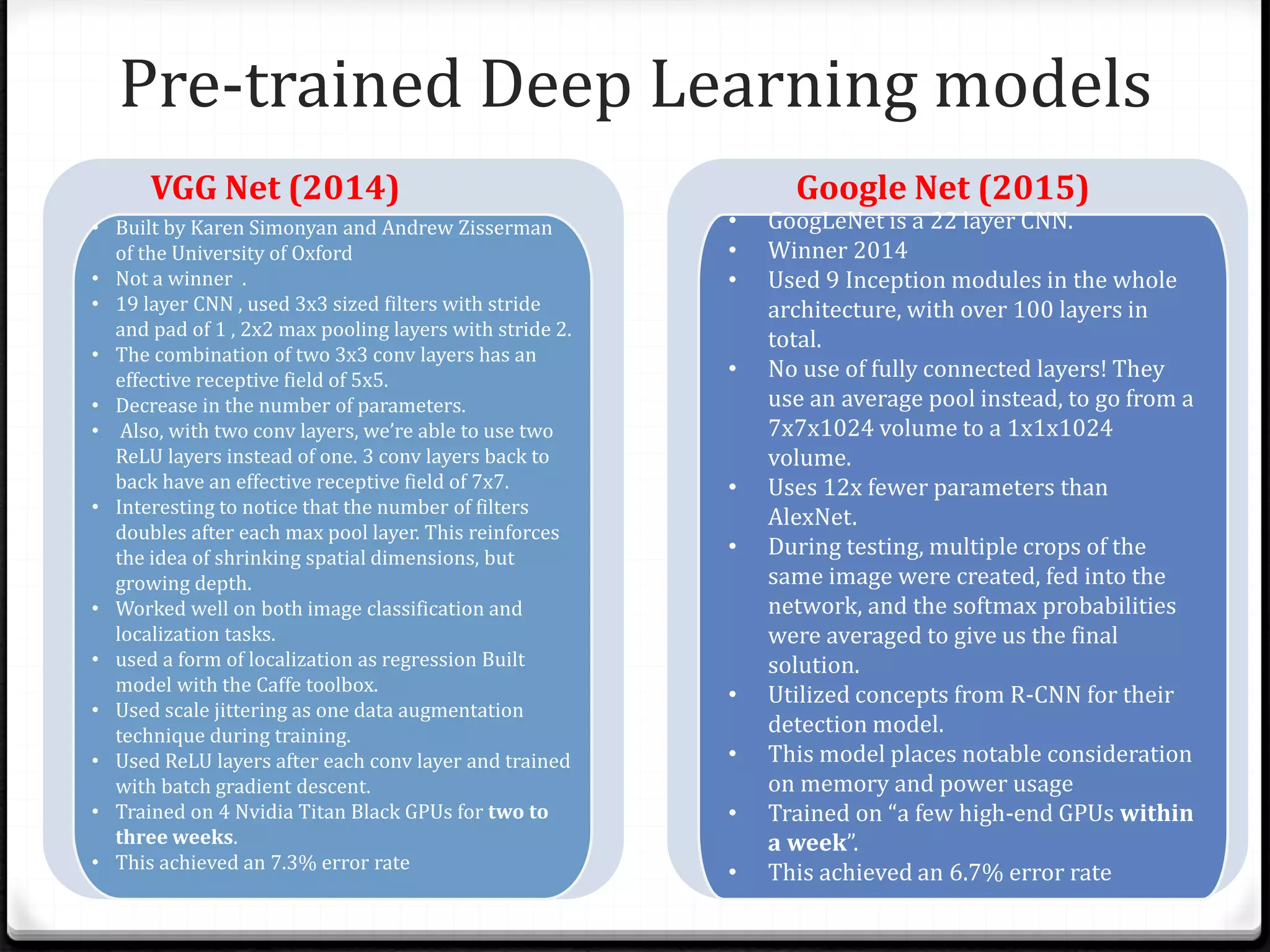

• Built by Karen Simonyan and Andrew Zisserman
of the University of Oxford
• Not a winner .
• 19 layer CNN , used 3x3 sized filters with stride
and pad of 1 , 2x2 max pooling layers with stride 2.
• The combination of two 3x3 conv layers has an
effective receptive field of 5x5.
• Decrease in the number of parameters.
• Also, with two conv layers, we’re able to use two
ReLU layers instead of one. 3 conv layers back to
back have an effective receptive field of 7x7.
• Interesting to notice that the number of filters
doubles after each max pool layer. This reinforces
the idea of shrinking spatial dimensions, but
growing depth.
• Worked well on both image classification and
localization tasks.
• used a form of localization as regression Built
model with the Caffe toolbox.
• Used scale jittering as one data augmentation
technique during training.
• Used ReLU layers after each conv layer and trained
with batch gradient descent.
• Trained on 4 Nvidia Titan Black GPUs for two to
three weeks.
• This achieved an 7.3% error rate
• GoogLeNet is a 22 layer CNN.
• Winner 2014

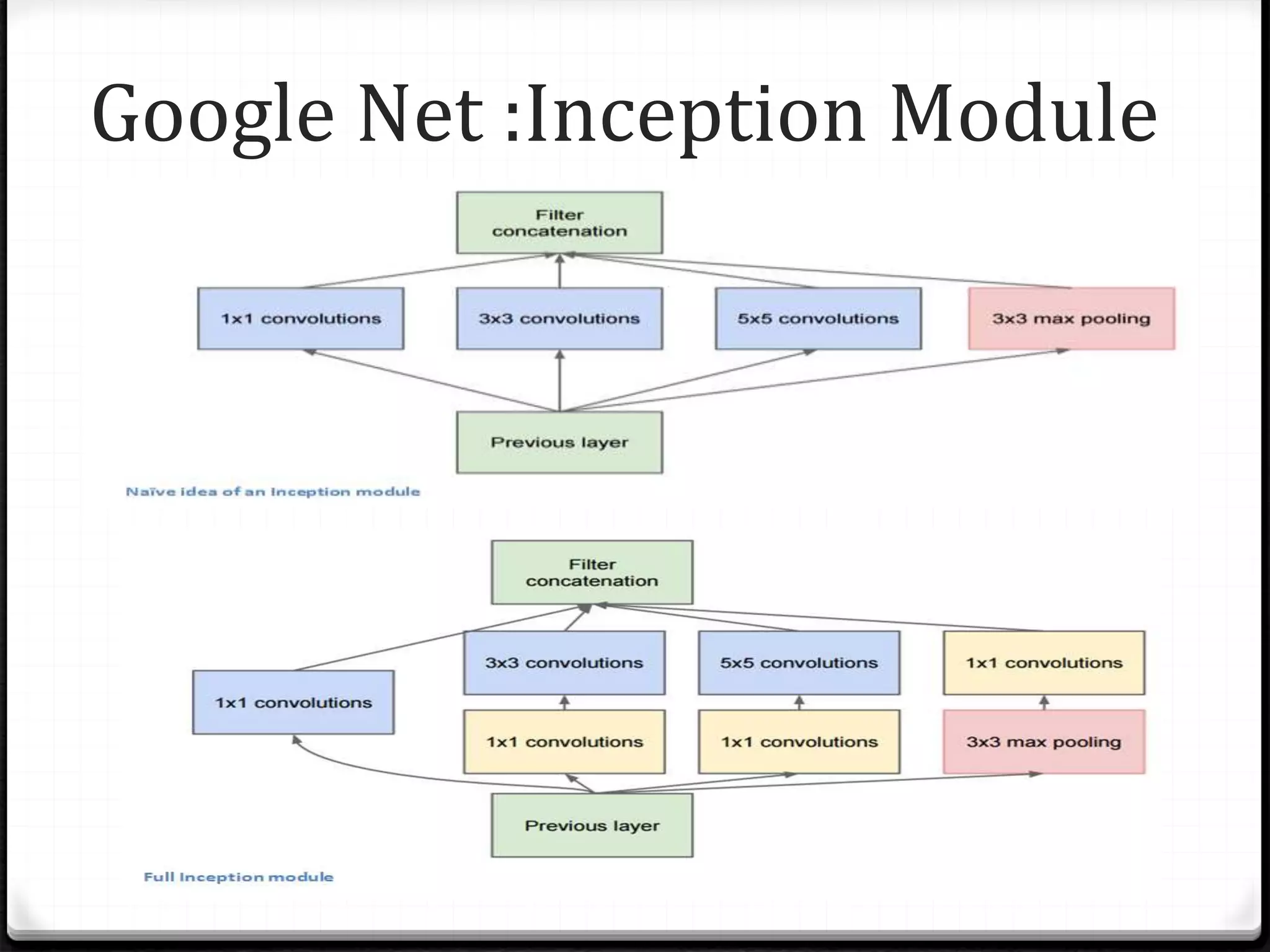

• Used 9 Inception modules in the whole
architecture, with over 100 layers in
total.
• No use of fully connected layers! They
use an average pool instead, to go from a
7x7x1024 volume to a 1x1x1024
volume.
• Uses 12x fewer parameters than
AlexNet.
• During testing, multiple crops of the
same image were created, fed into the
network, and the softmax probabilities
were averaged to give us the final
solution.
• Utilized concepts from R-CNN for their
detection model.
• This model places notable consideration
on memory and power usage
• Trained on “a few high-end GPUs within
a week”.
• This achieved an 6.7% error rate
VGG Net (2014) Google Net (2015)

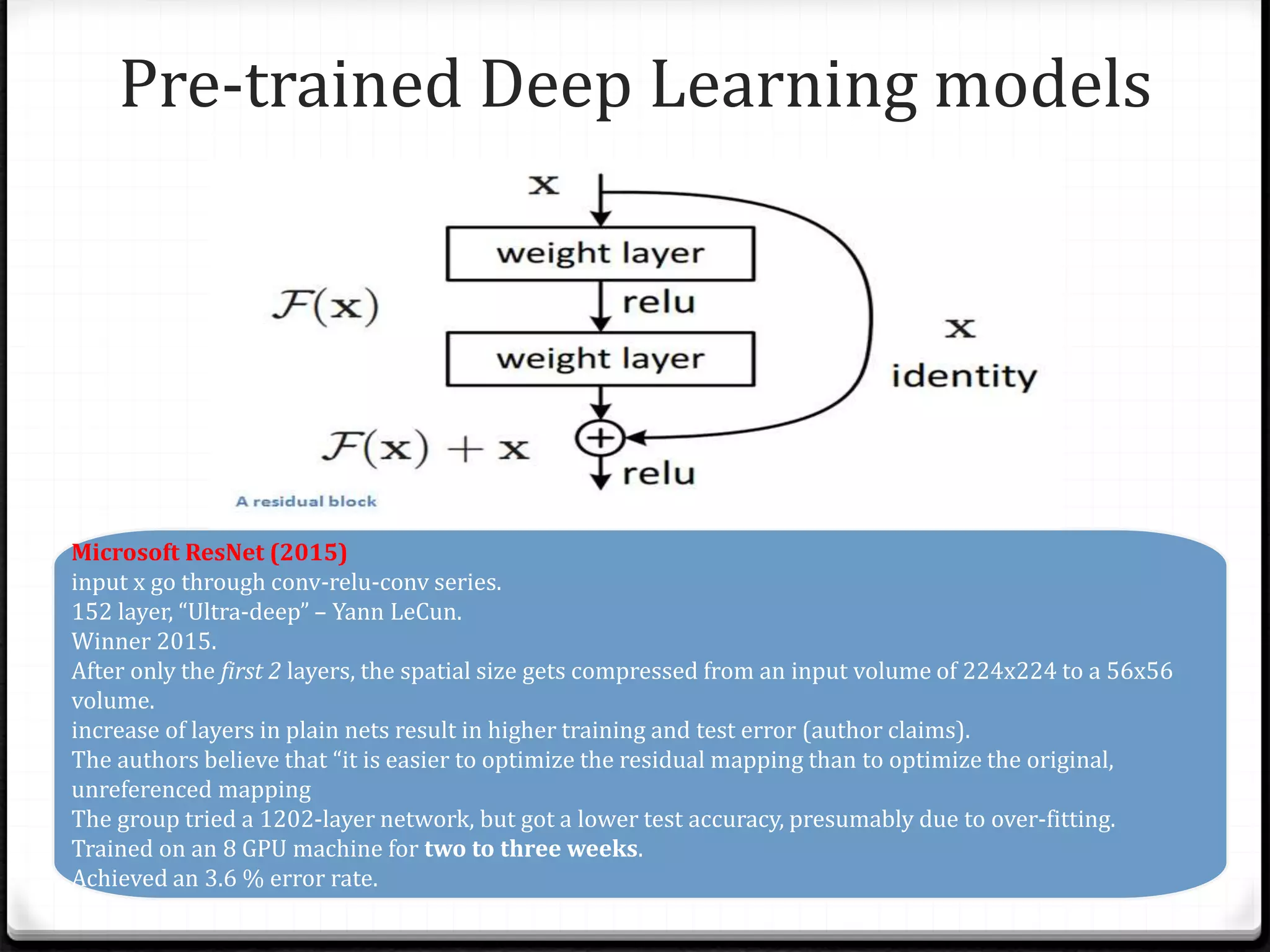

Microsoft ResNet (2015)
input x go through conv-relu-conv series.
152 layer, “Ultra-deep” – Yann LeCun.
Winner 2015.
After only the first 2 layers, the spatial size gets compressed from an input volume of 224x224 to a 56x56
volume.
increase of layers in plain nets result in higher training and test error (author claims).
The authors believe that “it is easier to optimize the residual mapping than to optimize the original,
unreferenced mapping
The group tried a 1202-layer network, but got a lower test accuracy, presumably due to over-fitting.
Trained on an 8 GPU machine for two to three weeks.
Achieved an 3.6 % error rate.

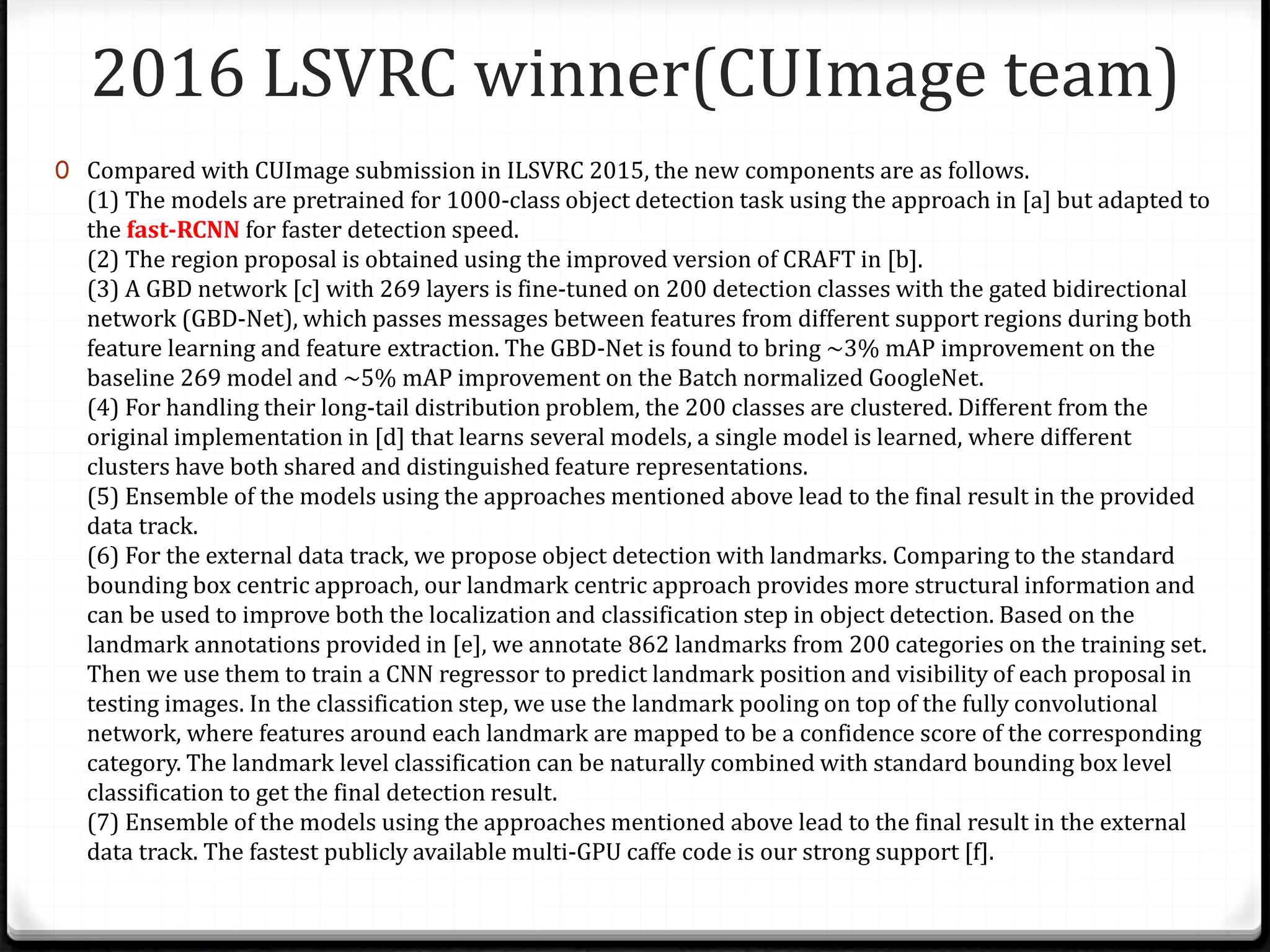

2016 LSVRC winner(CUImage team)
0 Compared with CUImage submission in ILSVRC 2015, the new components are as follows.
(1) The models are pretrained for 1000-class object detection task using the approach in [a] but adapted to
the fast-RCNN for faster detection speed.
(2) The region proposal is obtained using the improved version of CRAFT in [b].
(3) A GBD network [c] with 269 layers is fine-tuned on 200 detection classes with the gated bidirectional
network (GBD-Net), which passes messages between features from different support regions during both
feature learning and feature extraction. The GBD-Net is found to bring ~3% mAP improvement on the
baseline 269 model and ~5% mAP improvement on the Batch normalized GoogleNet.
(4) For handling their long-tail distribution problem, the 200 classes are clustered. Different from the
original implementation in [d] that learns several models, a single model is learned, where different
clusters have both shared and distinguished feature representations.
(5) Ensemble of the models using the approaches mentioned above lead to the final result in the provided
data track.
(6) For the external data track, we propose object detection with landmarks. Comparing to the standard
bounding box centric approach, our landmark centric approach provides more structural information and
can be used to improve both the localization and classification step in object detection. Based on the
landmark annotations provided in [e], we annotate 862 landmarks from 200 categories on the training set.
Then we use them to train a CNN regressor to predict landmark position and visibility of each proposal in
testing images. In the classification step, we use the landmark pooling on top of the fully convolutional
network, where features around each landmark are mapped to be a confidence score of the corresponding
category. The landmark level classification can be naturally combined with standard bounding box level
classification to get the final detection result.
(7) Ensemble of the models using the approaches mentioned above lead to the final result in the external
data track. The fastest publicly available multi-GPU caffe code is our strong support [f].

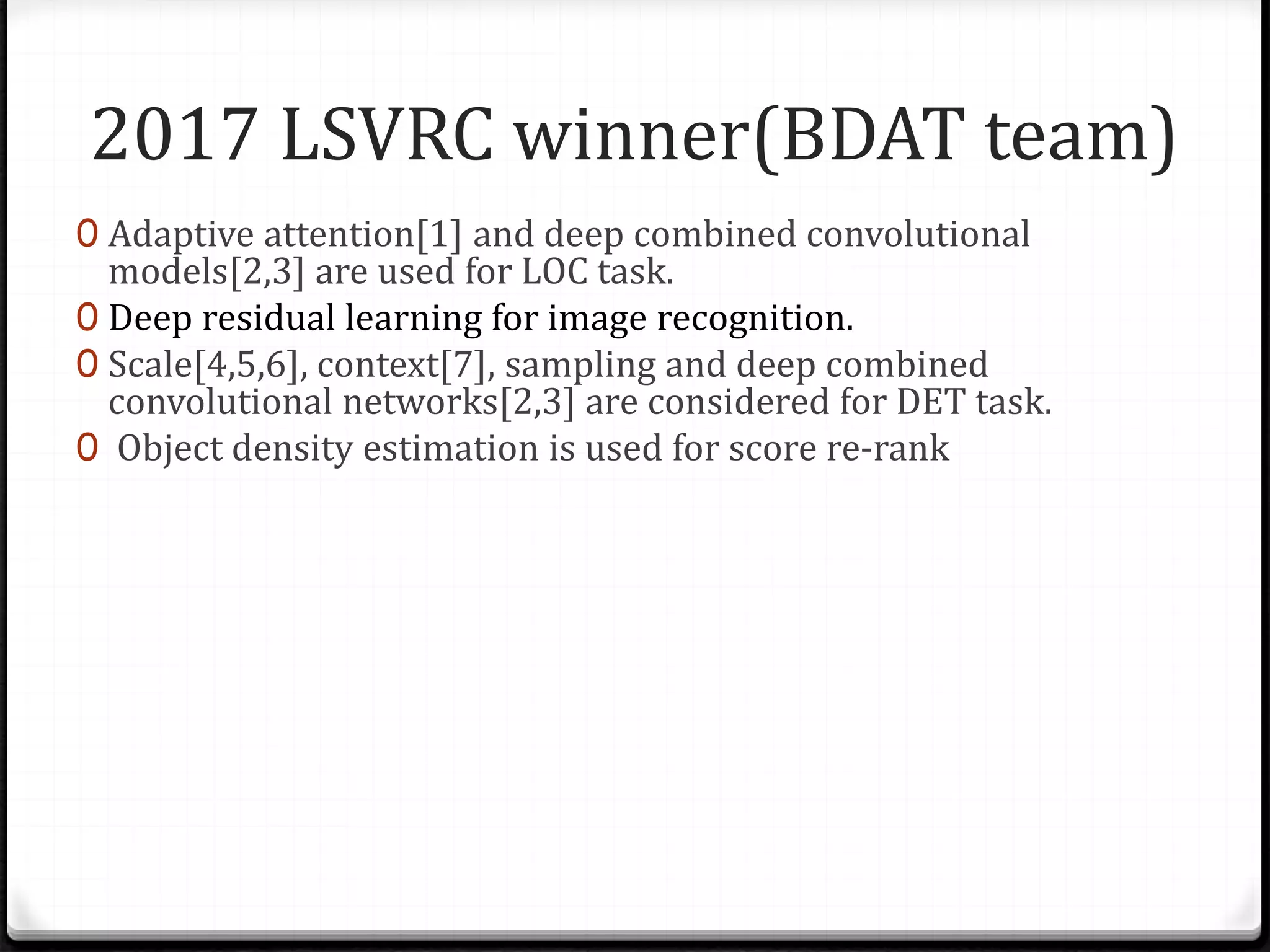

2017 LSVRC winner(BDAT team)
0 Adaptive attention[1] and deep combined convolutional
models[2,3] are used for LOC task.
0 Deep residual learning for image recognition.
0 Scale[4,5,6], context[7], sampling and deep combined
convolutional networks[2,3] are considered for DET task.
0 Object density estimation is used for score re-rank

Object Recognition
0 Problem: Where do we look in the image for the object?

Solution 1:Exhaustively search for objects.
0 Problem: Extremely slow, must process tens of thousands
of candidate objects.

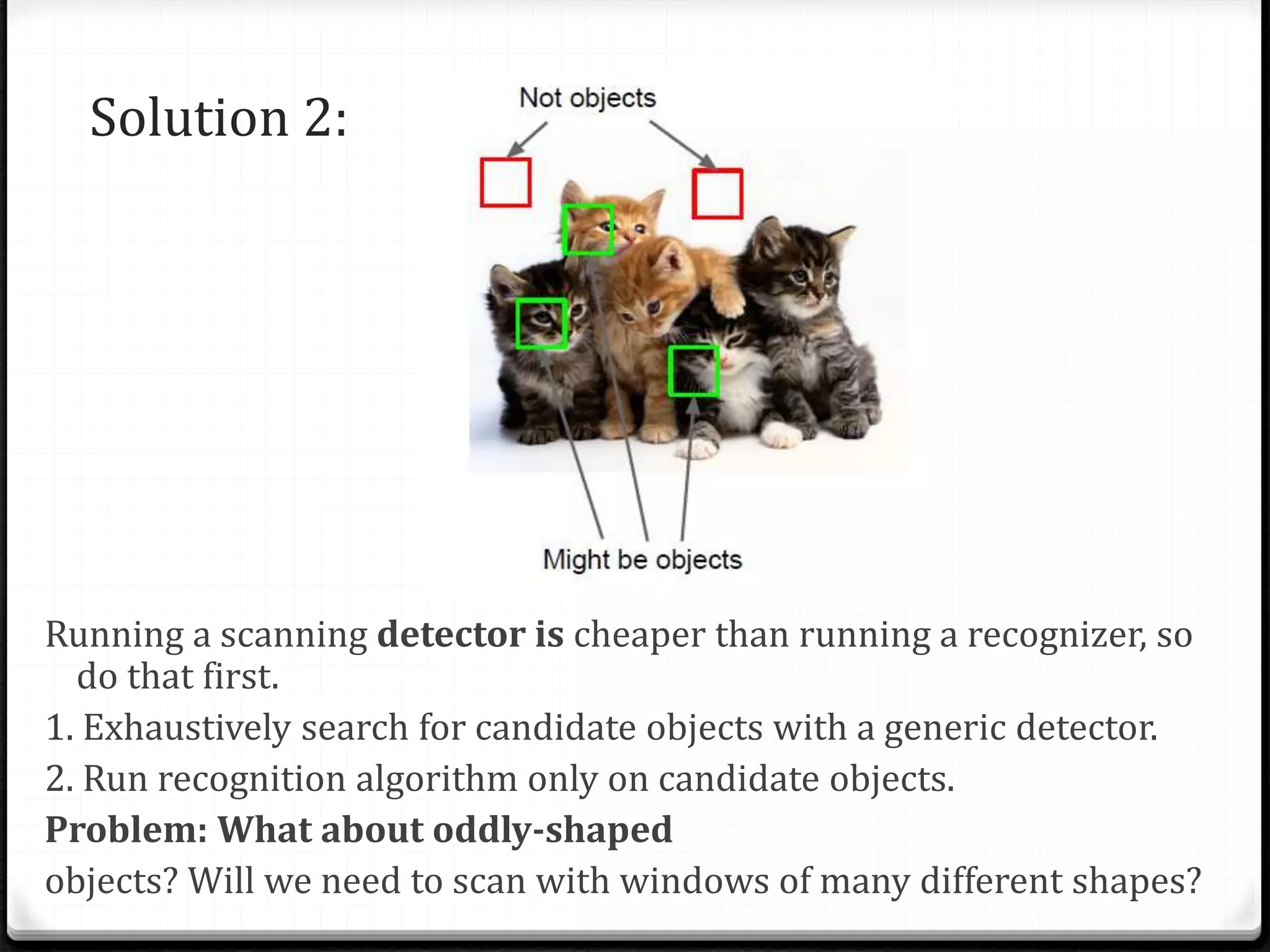

Solution 2:
Running a scanning detector is cheaper than running a recognizer, so
do that first.
1. Exhaustively search for candidate objects with a generic detector.
2. Run recognition algorithm only on candidate objects.
Problem: What about oddly-shaped
objects? Will we need to scan with windows of many different shapes?

Segmentation
0 Idea: If we correctly segment the image before running object
recognition, we can use our segmentations as candidate objects.
0 Advantages: Can be efficient, makes no assumptions about
object sizes or shapes.

Segmentation is Hard
0 As we saw in Project 1, it’s not always clear what separates an
object.

Segmentation is Hard
0 As we saw in Project 1, it’s not always clear what separates
an object.

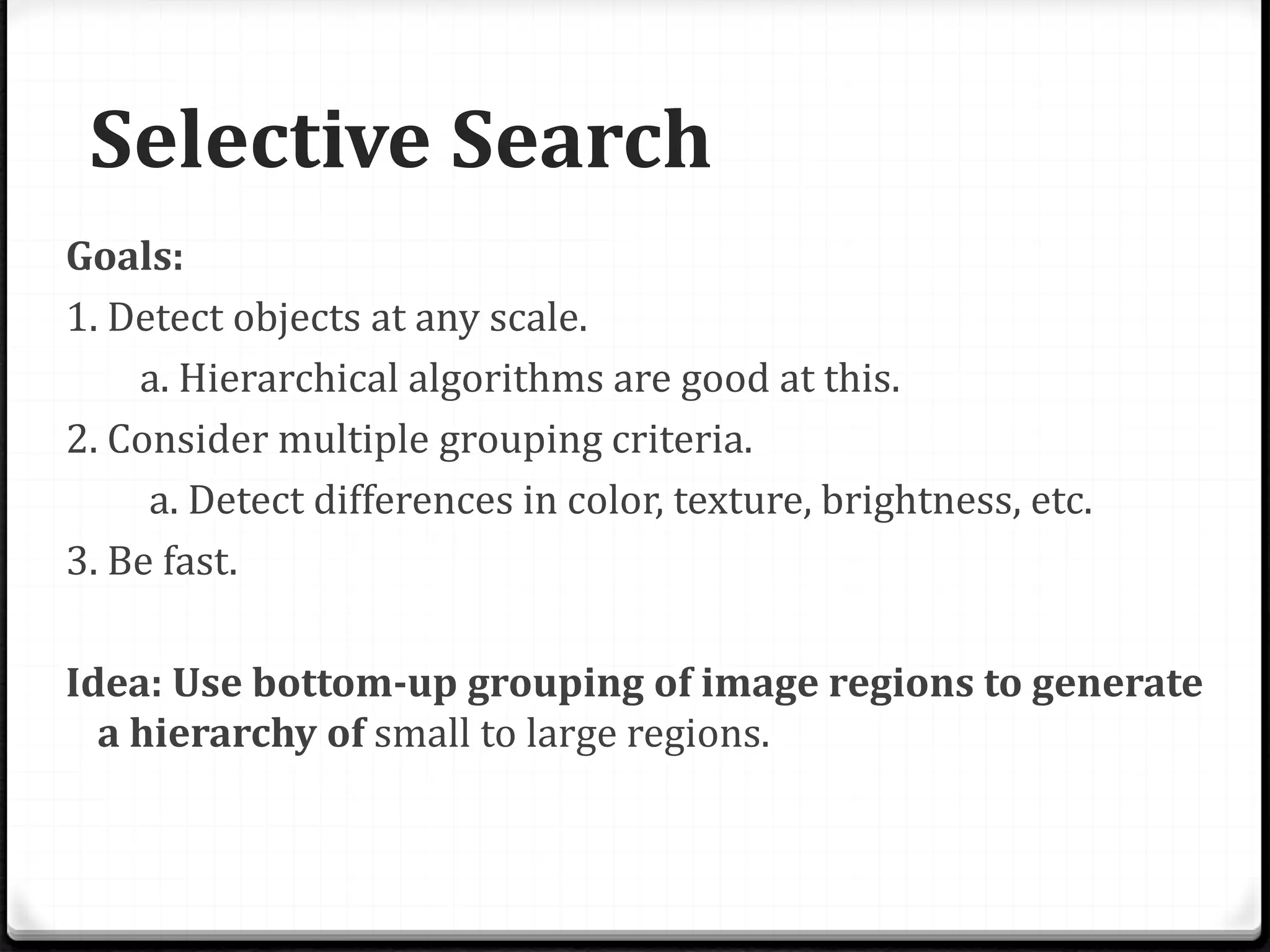

Selective Search
Goals:
1. Detect objects at any scale.
a. Hierarchical algorithms are good at this.
2. Consider multiple grouping criteria.
a. Detect differences in color, texture, brightness, etc.
3. Be fast.
Idea: Use bottom-up grouping of image regions to generate
a hierarchy of small to large regions.

Selective Search
Step 1: Generate initial sub-segmentation
Goal: Generate many regions, each of which belongs to at
most one object.
Using the method described by Felzenszwalb et al. from
week 1 works well.

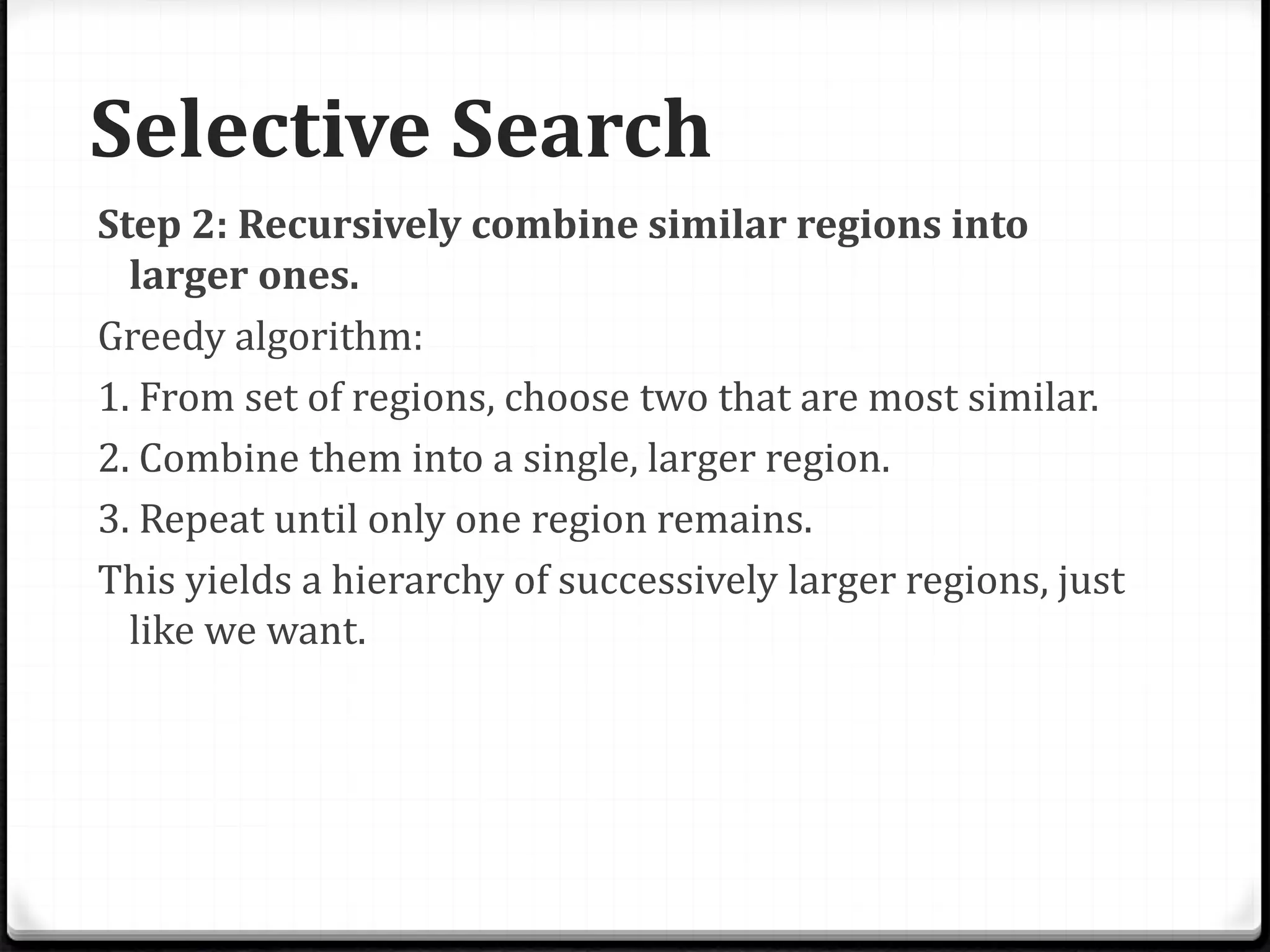

Selective Search
Step 2: Recursively combine similar regions into
larger ones.
Greedy algorithm:
1. From set of regions, choose two that are most similar.
2. Combine them into a single, larger region.
3. Repeat until only one region remains.
This yields a hierarchy of successively larger regions, just
like we want.

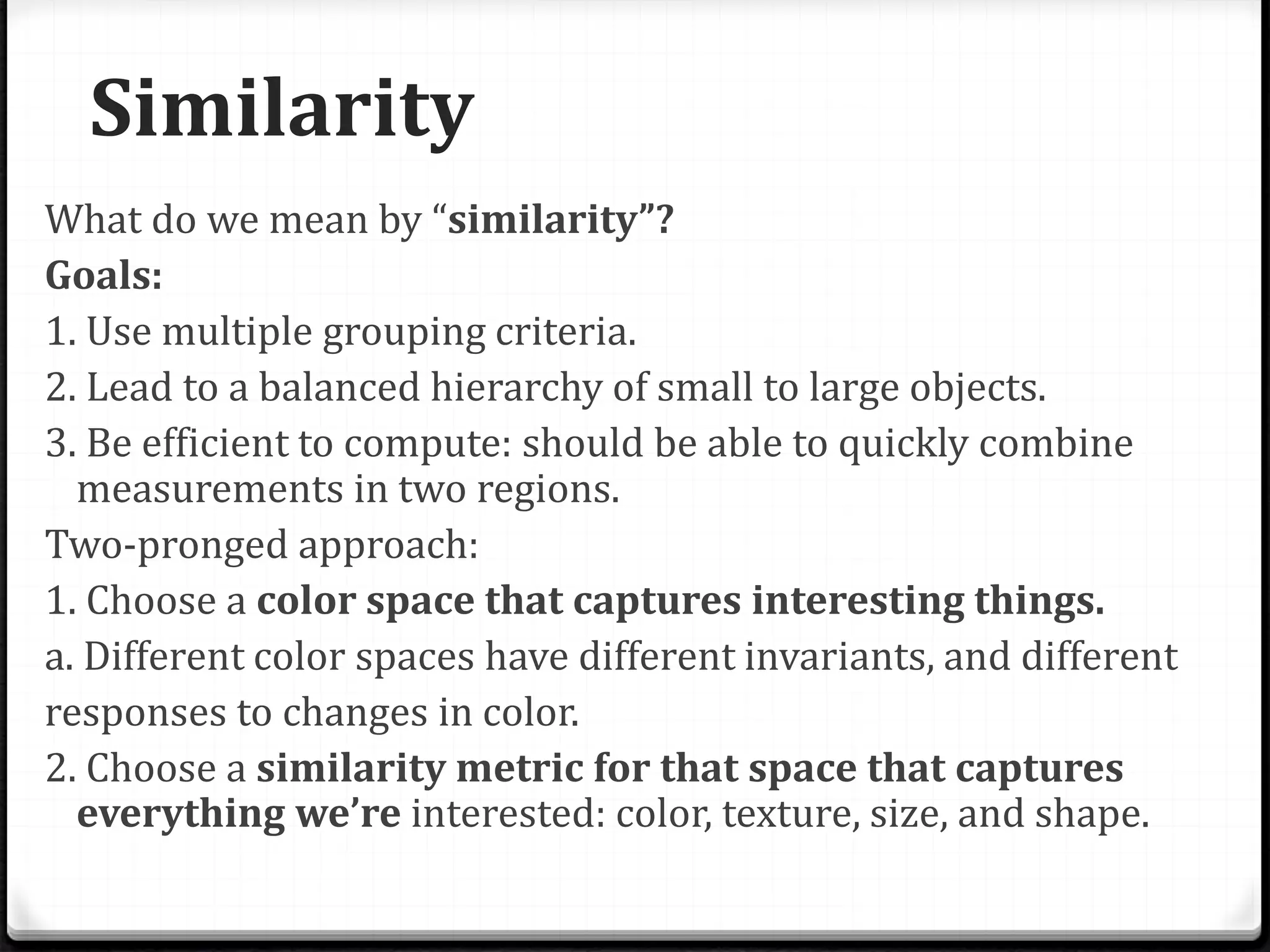

Similarity
What do we mean by “similarity”?
Goals:
1. Use multiple grouping criteria.
2. Lead to a balanced hierarchy of small to large objects.
3. Be efficient to compute: should be able to quickly combine
measurements in two regions.
Two-pronged approach:
1. Choose a color space that captures interesting things.
a. Different color spaces have different invariants, and different
responses to changes in color.
2. Choose a similarity metric for that space that captures
everything we’re interested: color, texture, size, and shape.

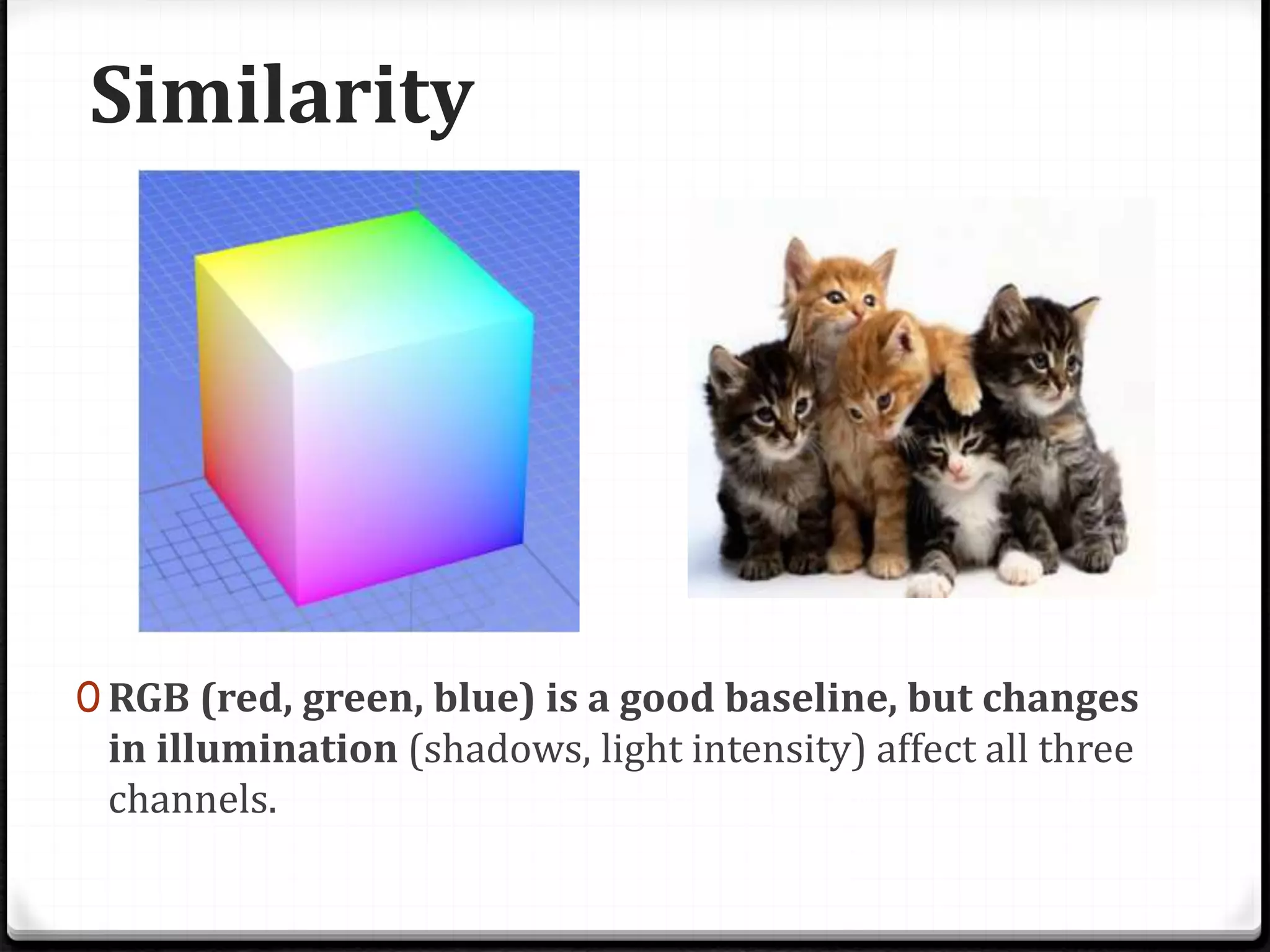

Similarity
0 RGB (red, green, blue) is a good baseline, but changes
in illumination (shadows, light intensity) affect all three
channels.

Similarity
0 HSV (hue, saturation, value) encodes color information in the
hue channel, which is invariant to changes in lighting.
Additionally, saturation is insensitive to shadows, and value is
insensitive to brightness changes.

Similarity
0 Lab uses a lightness channel and two color channels (a and
b). It’s calibrated to be perceptually uniform. Like HSV, it’s also
somewhat invariant to changes in brightness and shadow.

Generative Adversarial Networks
0 According to Yann LeCun, these networks could be the next big development.
0 The idea is to simultaneously train two neural nets.
0 The first one, called the Discriminator D(Y) takes an input (e.g. an image) and
outputs a scalar that indicates whether the image Y looks “natural” or not.
0 The second network is called the generator, denoted G(Z), where Z is generally
a vector randomly sampled in a simple distribution (e.g. Gaussian). The role of
the generator is to produce images so as to train the D(Y) function to take the
right shape (low values for real images, higher values for everything else).

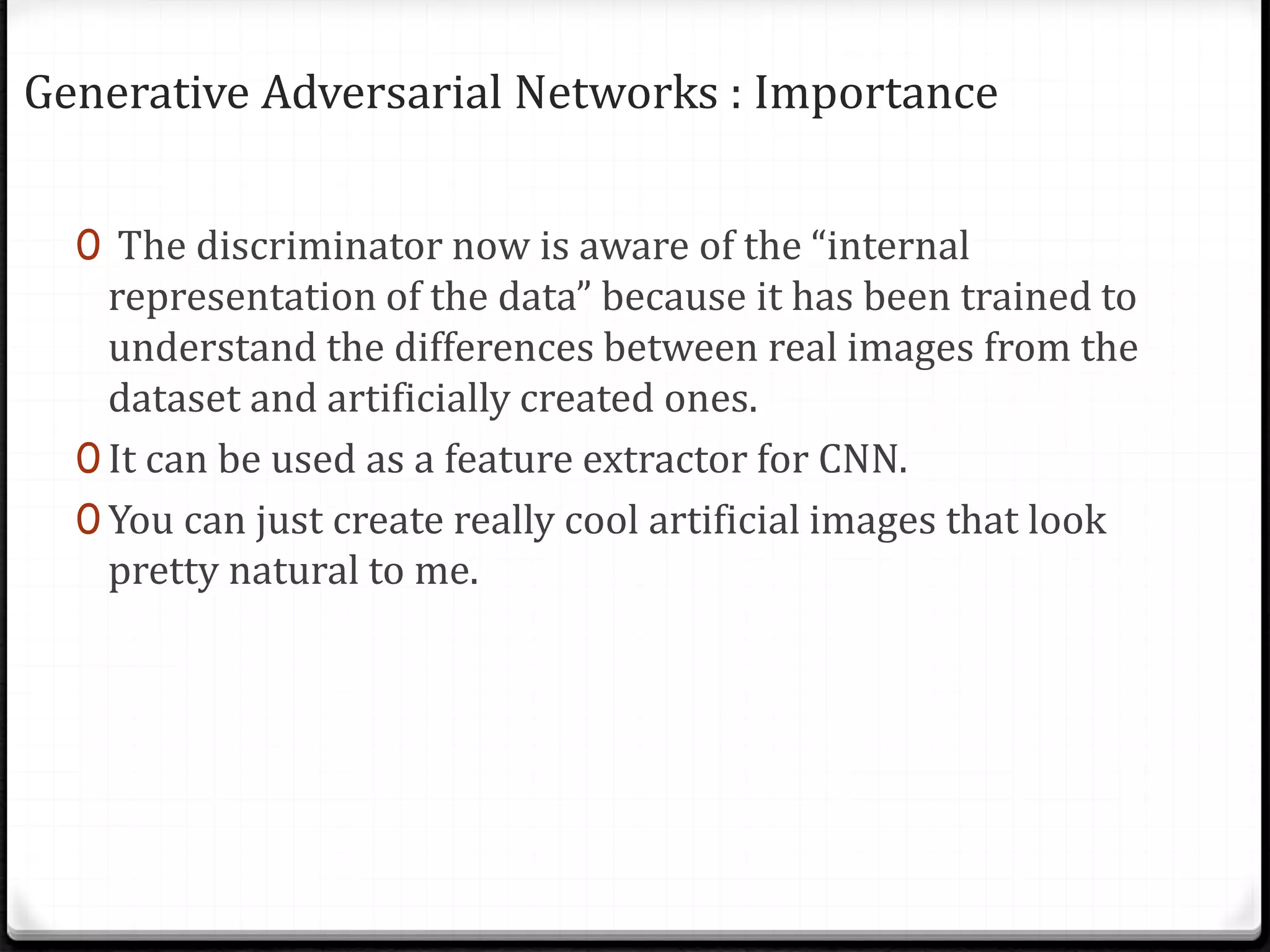

Generative Adversarial Networks : Importance
0 The discriminator now is aware of the “internal
representation of the data” because it has been trained to
understand the differences between real images from the
dataset and artificially created ones.
0 It can be used as a feature extractor for CNN.
0 You can just create really cool artificial images that look
pretty natural to me.

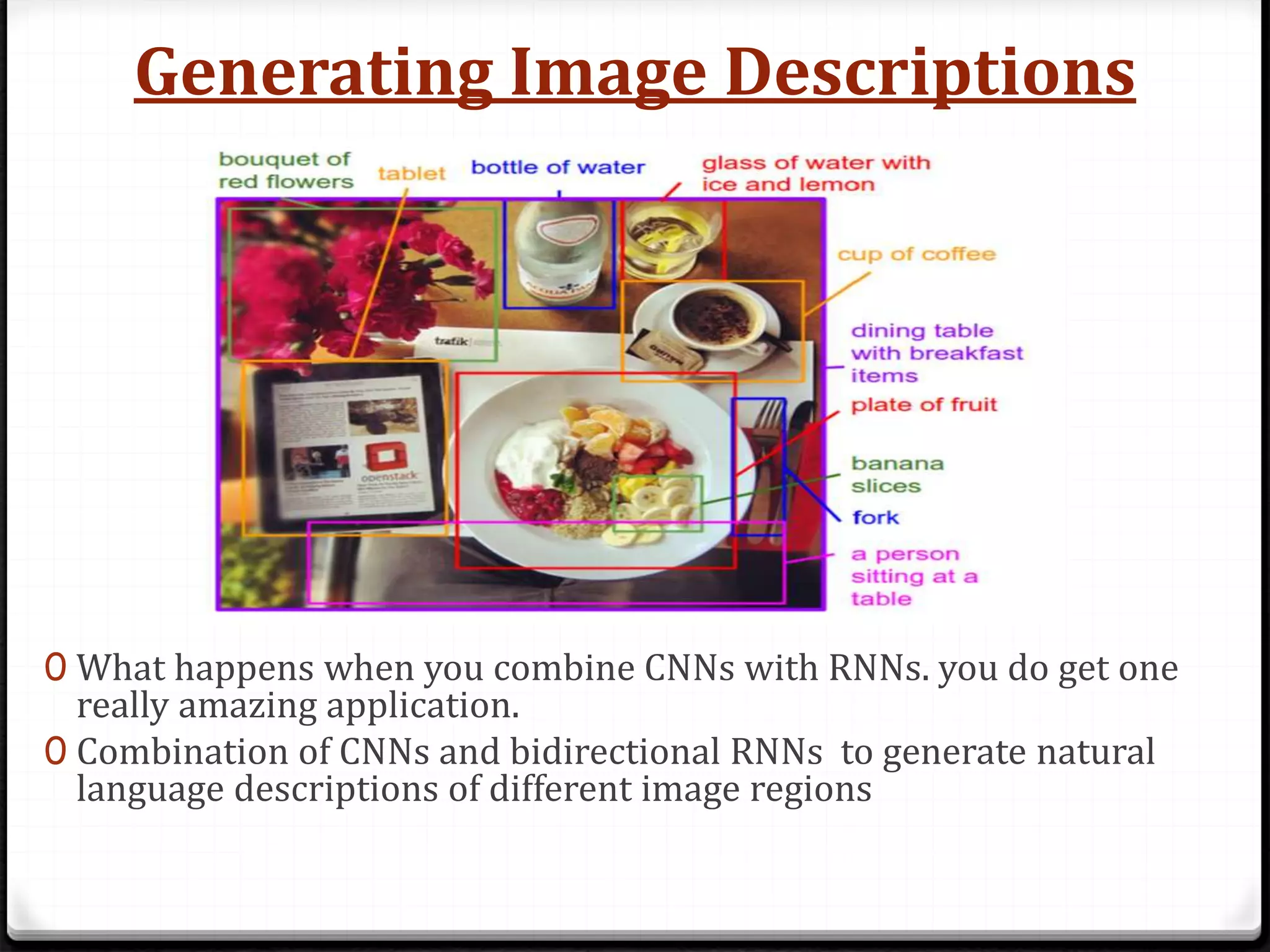

Generating Image Descriptions
0 What happens when you combine CNNs with RNNs. you do get one
really amazing application.
0 Combination of CNNs and bidirectional RNNs to generate natural
language descriptions of different image regions

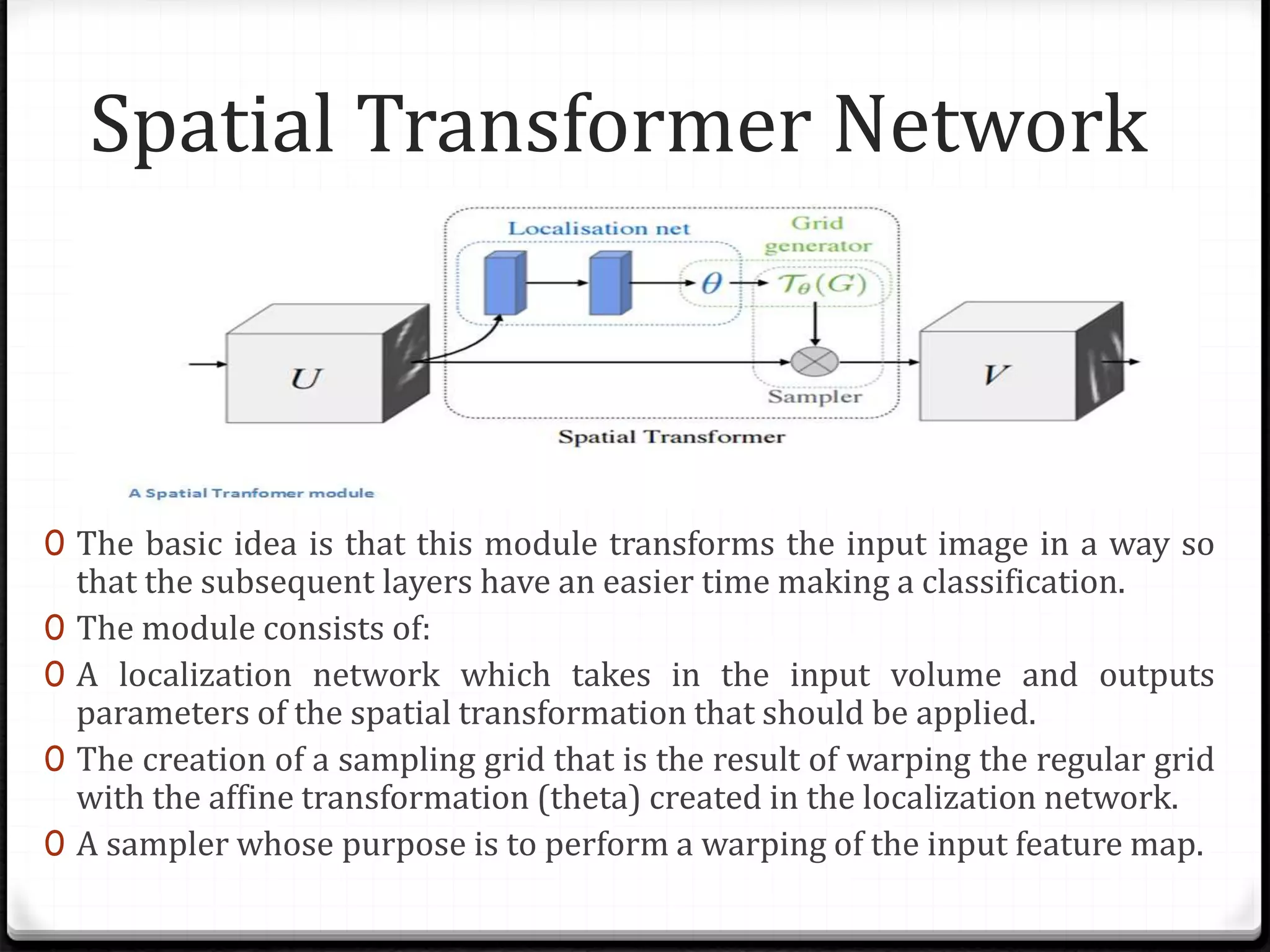

Spatial Transformer Network
0 The basic idea is that this module transforms the input image in a way so
that the subsequent layers have an easier time making a classification.
0 The module consists of:
0 A localization network which takes in the input volume and outputs
parameters of the spatial transformation that should be applied.
0 The creation of a sampling grid that is the result of warping the regular grid
with the affine transformation (theta) created in the localization network.
0 A sampler whose purpose is to perform a warping of the input feature map.

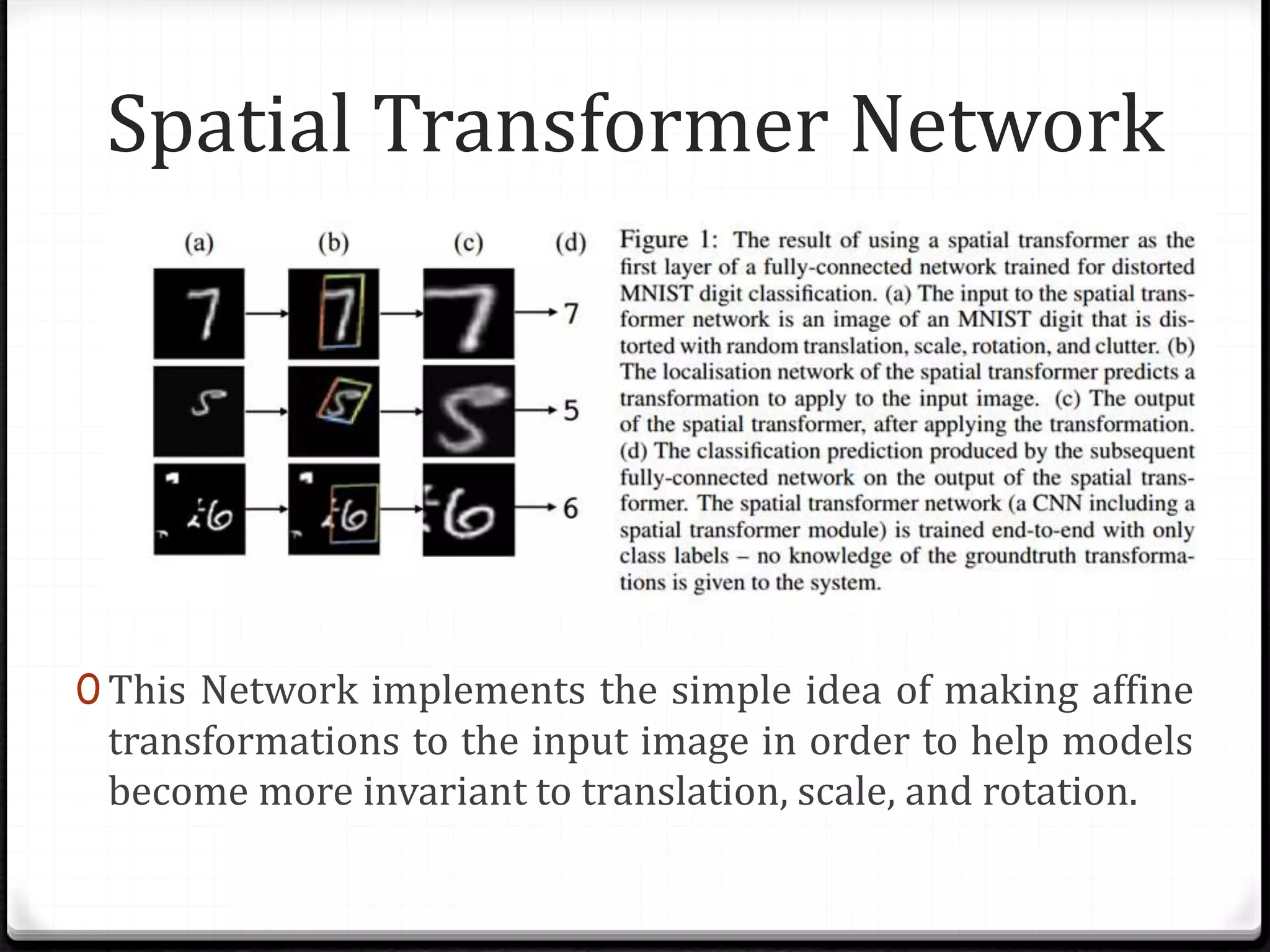

Spatial Transformer Network
0 This Network implements the simple idea of making affine
transformations to the input image in order to help models
become more invariant to translation, scale, and rotation.

Conclusion
Significant advances in deep reinforcement and
unsupervised learning
Bigger and more complex architectures based on
various interchangeable modules/techniques
Deeper models that can learn from much fewer
training cases
Harder problems such as video understanding
and natural language processing will be
successfully tackled by deep learning algorithms

Conclusion
Machines that learn to represent the world from
experience
Deep learning is no magic ! Just statistics in a black
box , but exceptional effective at learning patterns.
We haven’t figured out creativity and human-
empathy.
Transitioning from research to consumer products
.will make the tools you use every day work better,
faster and smarter

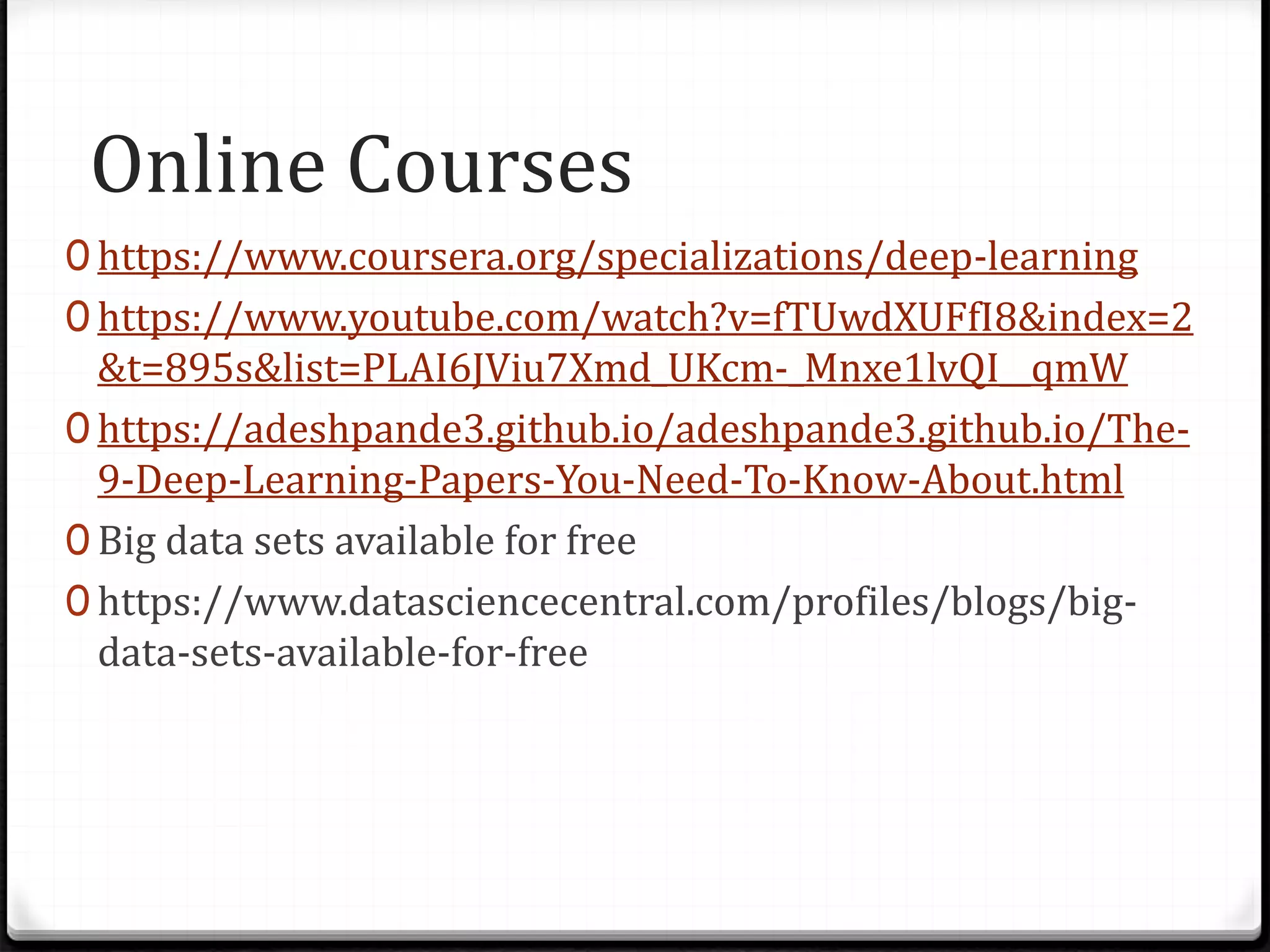

Online Courses
0 https://www.coursera.org/specializations/deep-learning
0 https://www.youtube.com/watch?v=fTUwdXUFfI8&index=2
&t=895s&list=PLAI6JViu7Xmd_UKcm-_Mnxe1lvQI__qmW
0 https://adeshpande3.github.io/adeshpande3.github.io/The-
9-Deep-Learning-Papers-You-Need-To-Know-About.html
0 Big data sets available for free
0 https://www.datasciencecentral.com/profiles/blogs/big-
data-sets-available-for-free

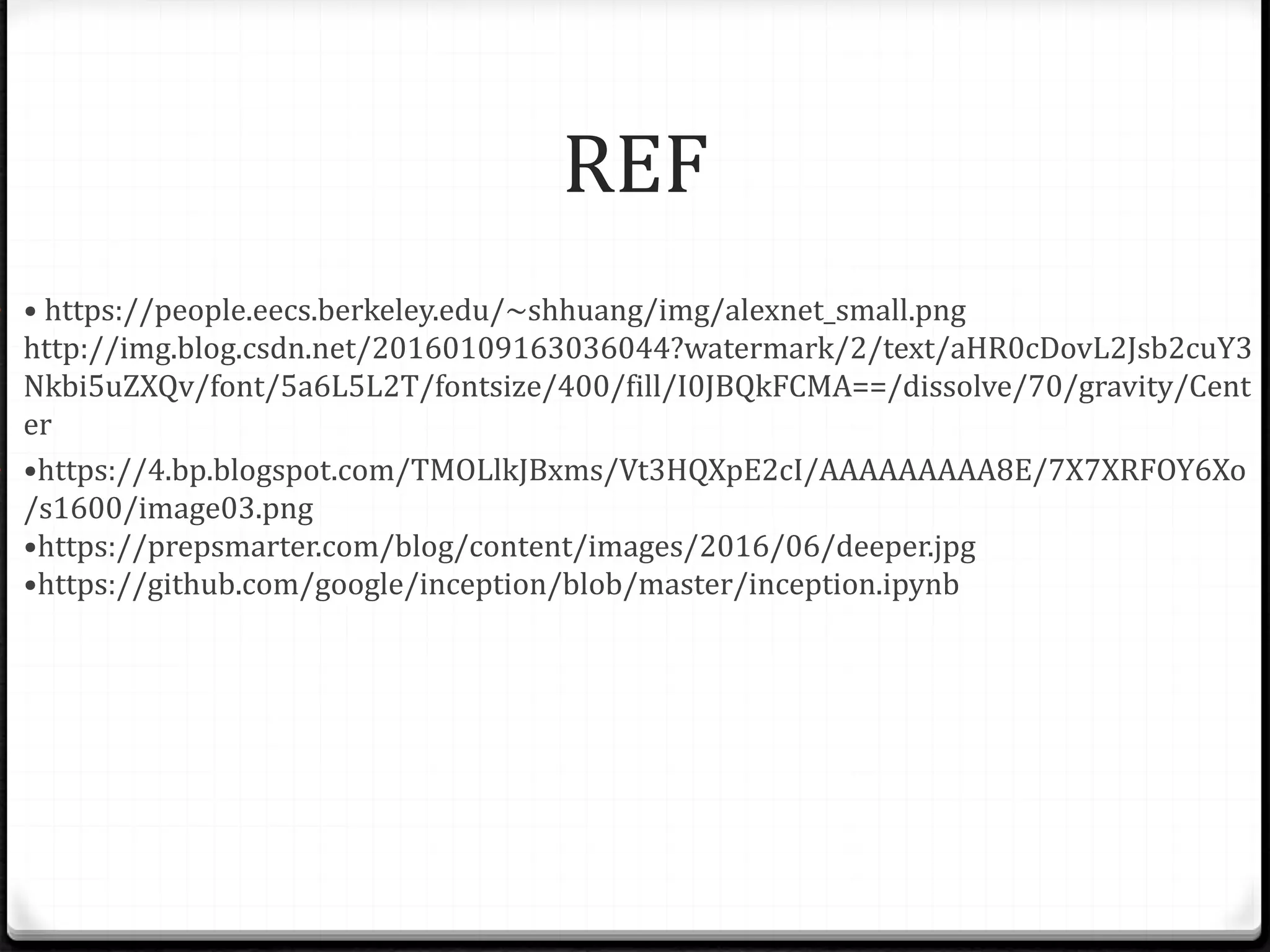

REF
• • https://people.eecs.berkeley.edu/~shhuang/img/alexnet_small.png
http://img.blog.csdn.net/20160109163036044?watermark/2/text/aHR0cDovL2Jsb2cuY3
Nkbi5uZXQv/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Cent
er
• •https://4.bp.blogspot.com/TMOLlkJBxms/Vt3HQXpE2cI/AAAAAAAAA8E/7X7XRFOY6Xo
/s1600/image03.png
•https://prepsmarter.com/blog/content/images/2016/06/deeper.jpg
•https://github.com/google/inception/blob/master/inception.ipynb

Deep learning tutorial 9/2019

In this document
