Deep learning beyond the learning - Jörg Schad - Codemotion Amsterdam 2018

Deep learning beyond the learning
@joerg_schad @dcos

Jörg Schad
Technical Community
Lead / Developer
Deep Learning
● Core Mesos
developer at
Mesosphere
● Twitter:
@joerg_schad

© 2018 Mesosphere, Inc. All Rights Reserved.

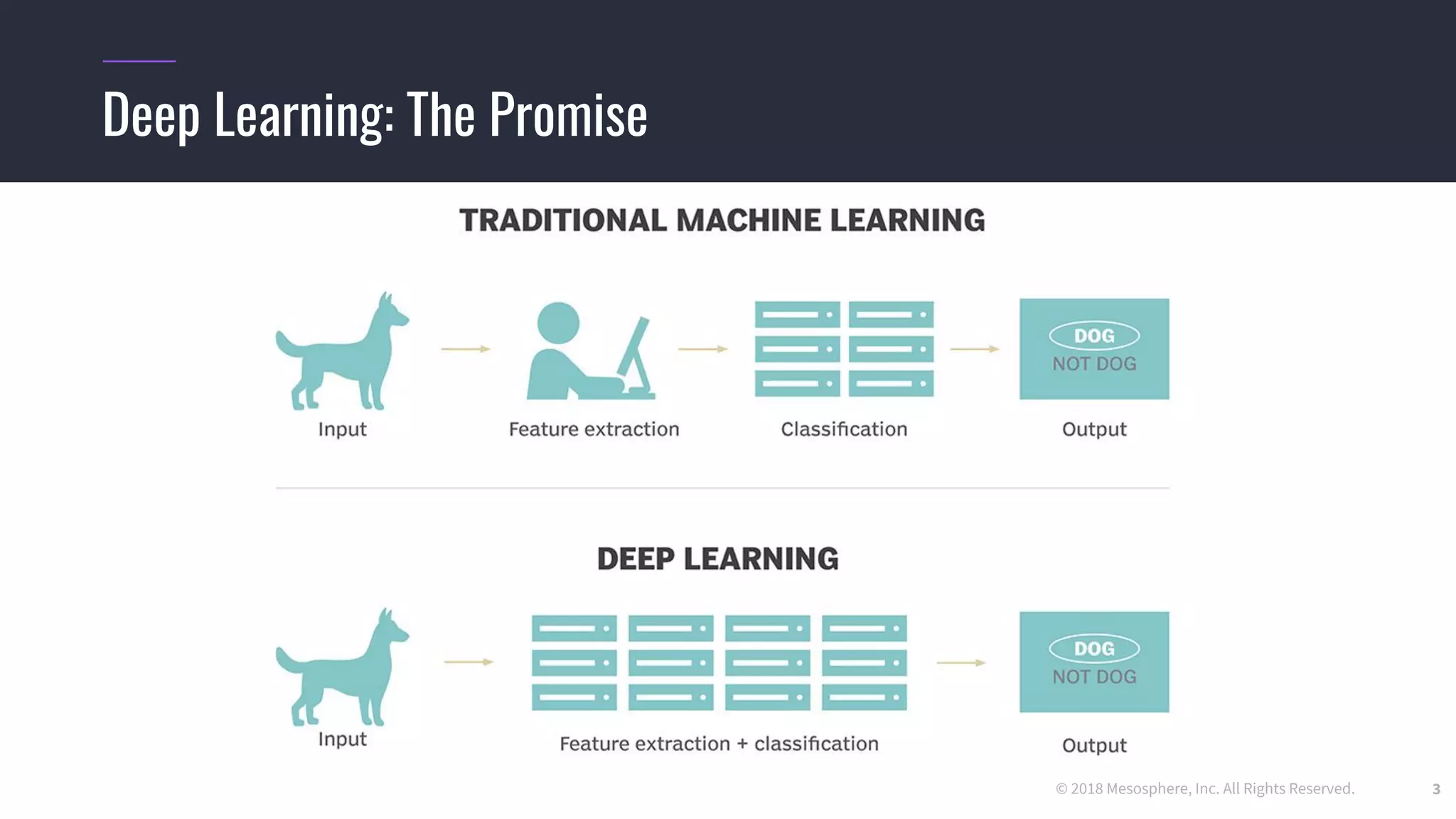

Deep Learning: The Promise
3

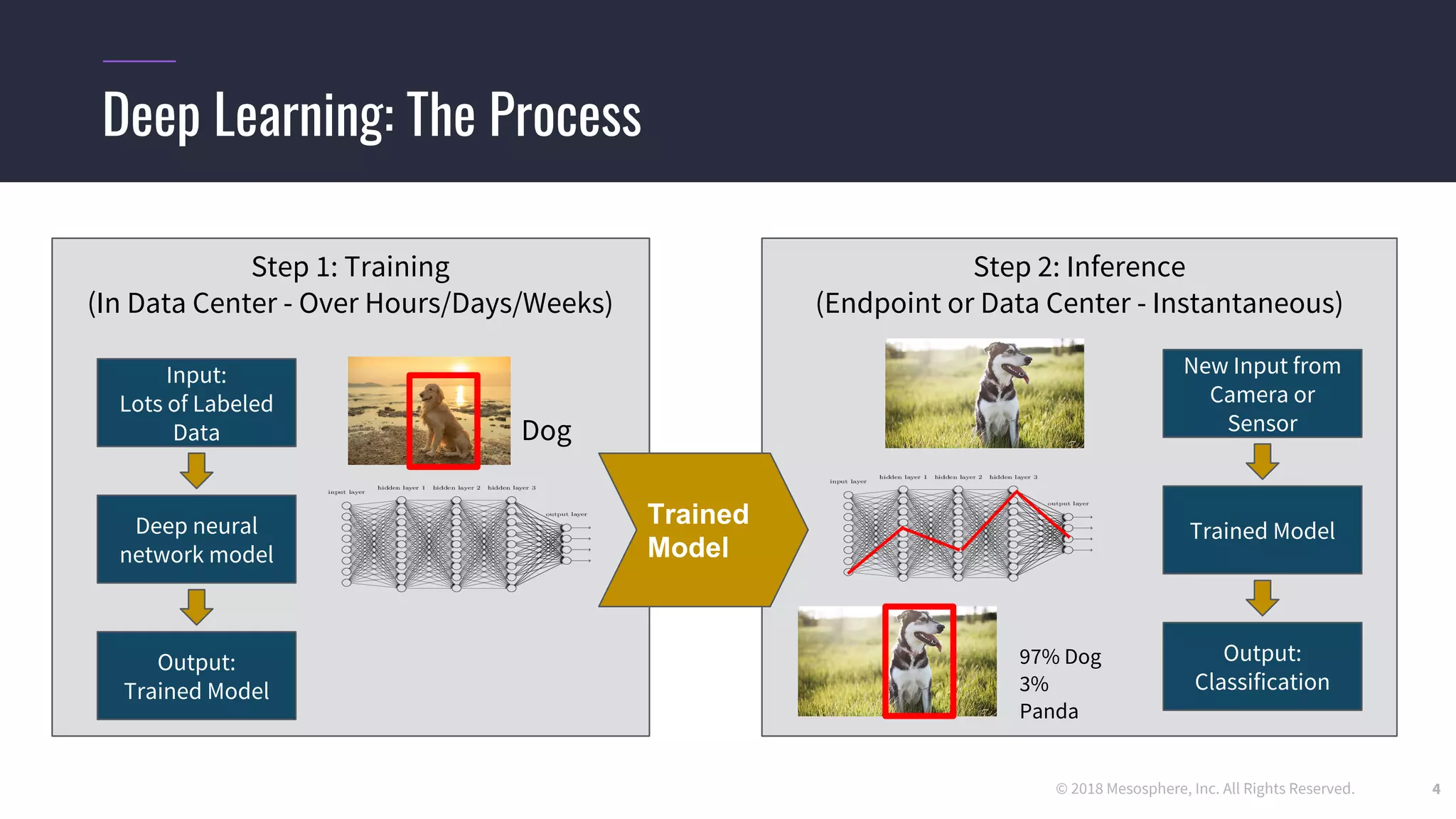

Deep Learning: The Process
4
Step 1: Training
(In Data Center - Over Hours/Days/Weeks)
Step 2: Inference
(Endpoint or Data Center - Instantaneous)
Dog
Input:
Lots of Labeled
Data
Output:
Trained Model
Deep neural
network model
Trained
Model
Output:
Classification
Trained Model
New Input from
Camera or
Sensor
97% Dog
3%
Panda

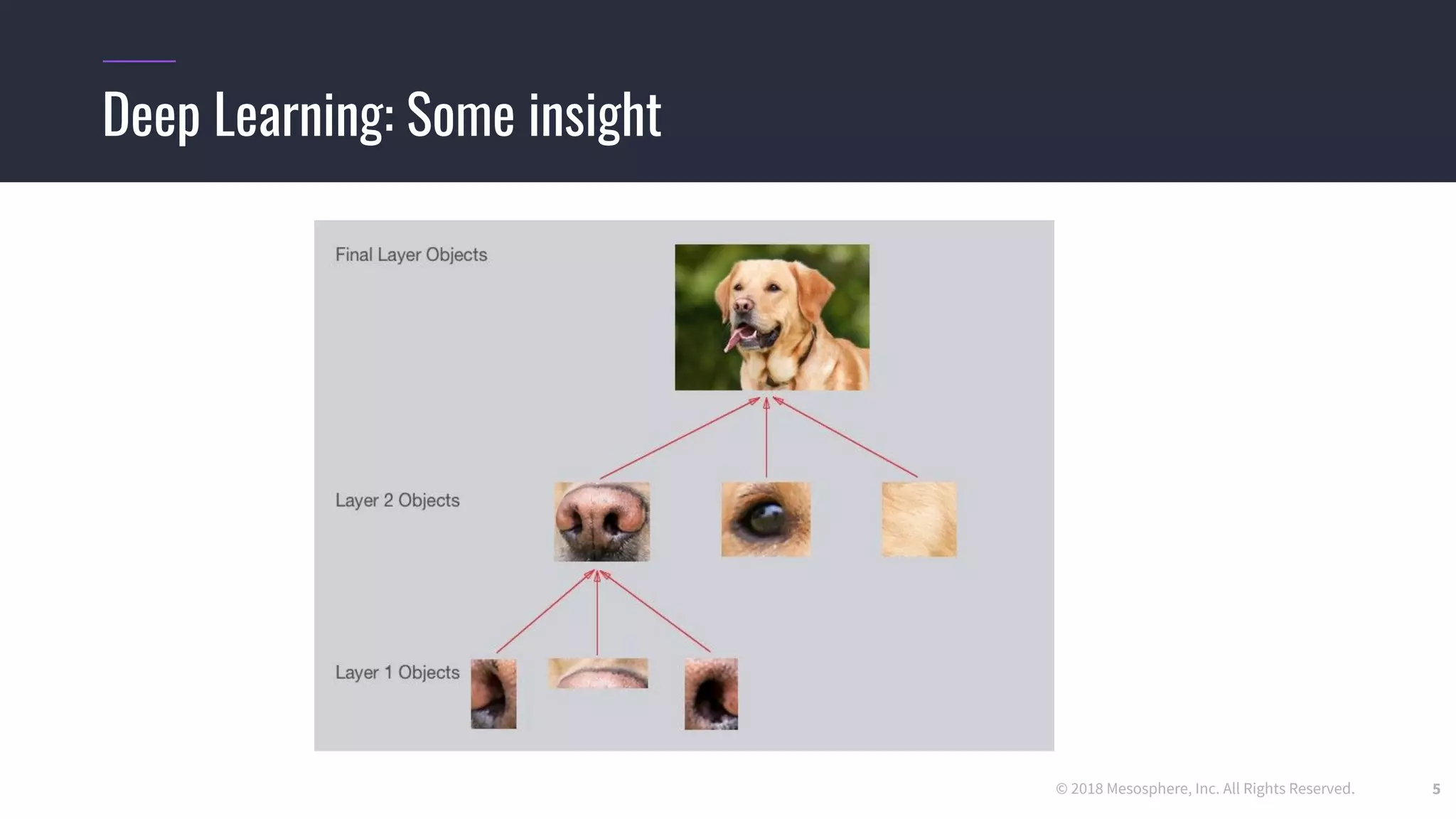

Deep Learning: Some insight
5

Deep Learning: The Challenges
6

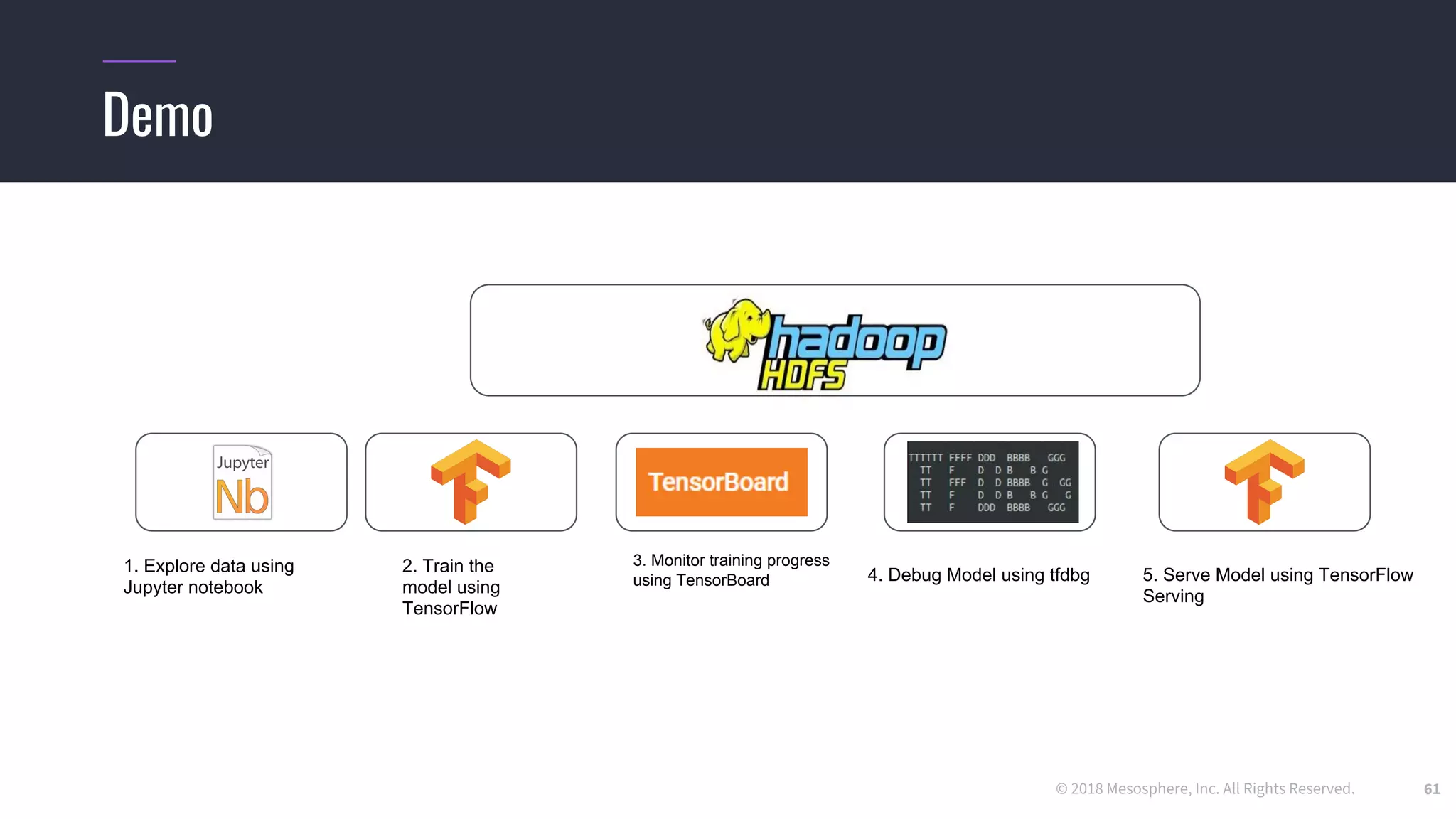

1. Explore data using
Jupyter notebook
2. Train the model
using TensorFlow
3. Monitor training progress
using TensorBoard 4. Debug Model using tfdbg 5. Serve Model using TensorFlow
Serving

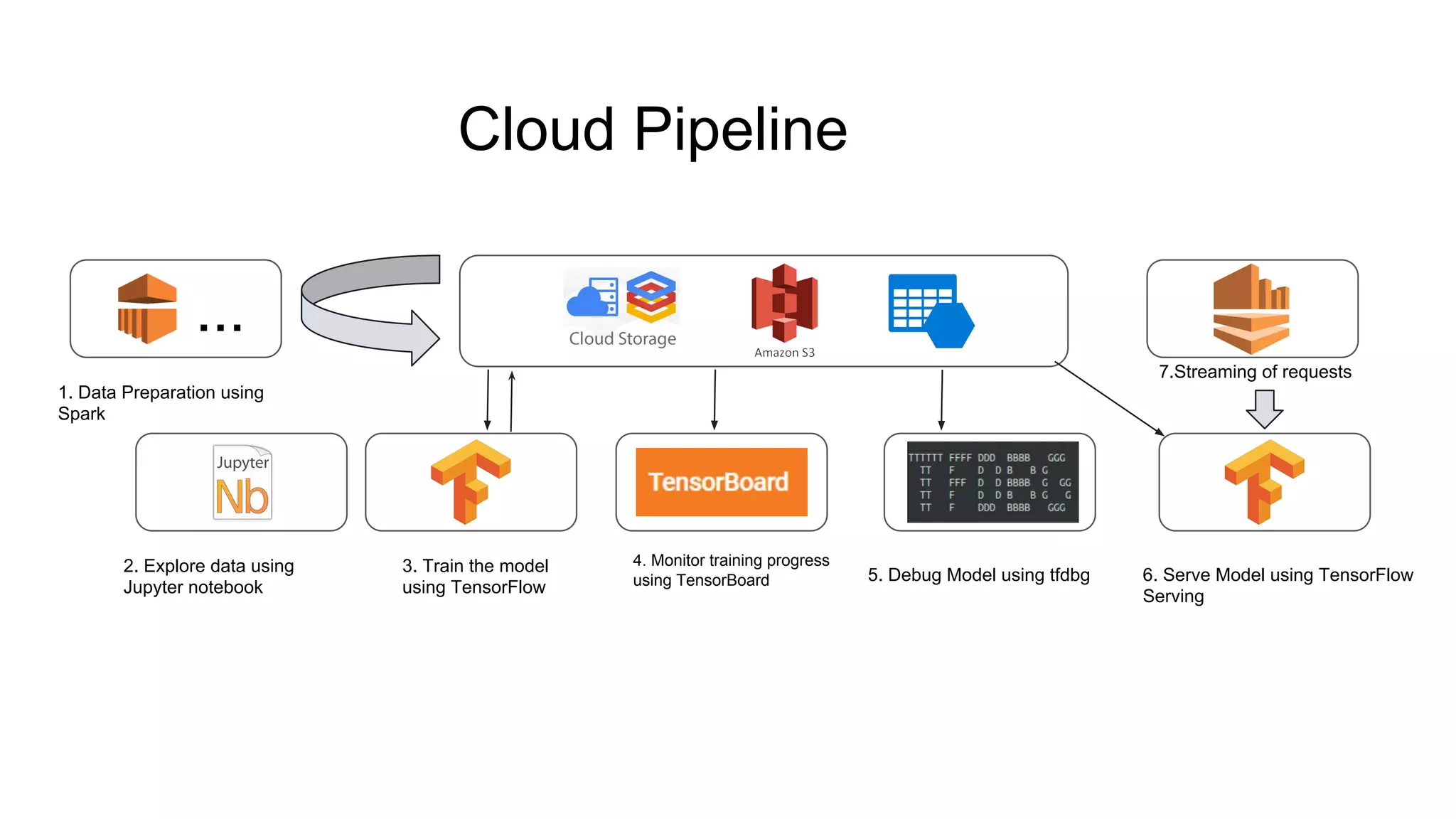

Cloud Pipeline
Jupyter notebook
3. Train the model
using TensorFlow
Serving
1. Data Preparation using
Spark
7.Streaming of requests
...

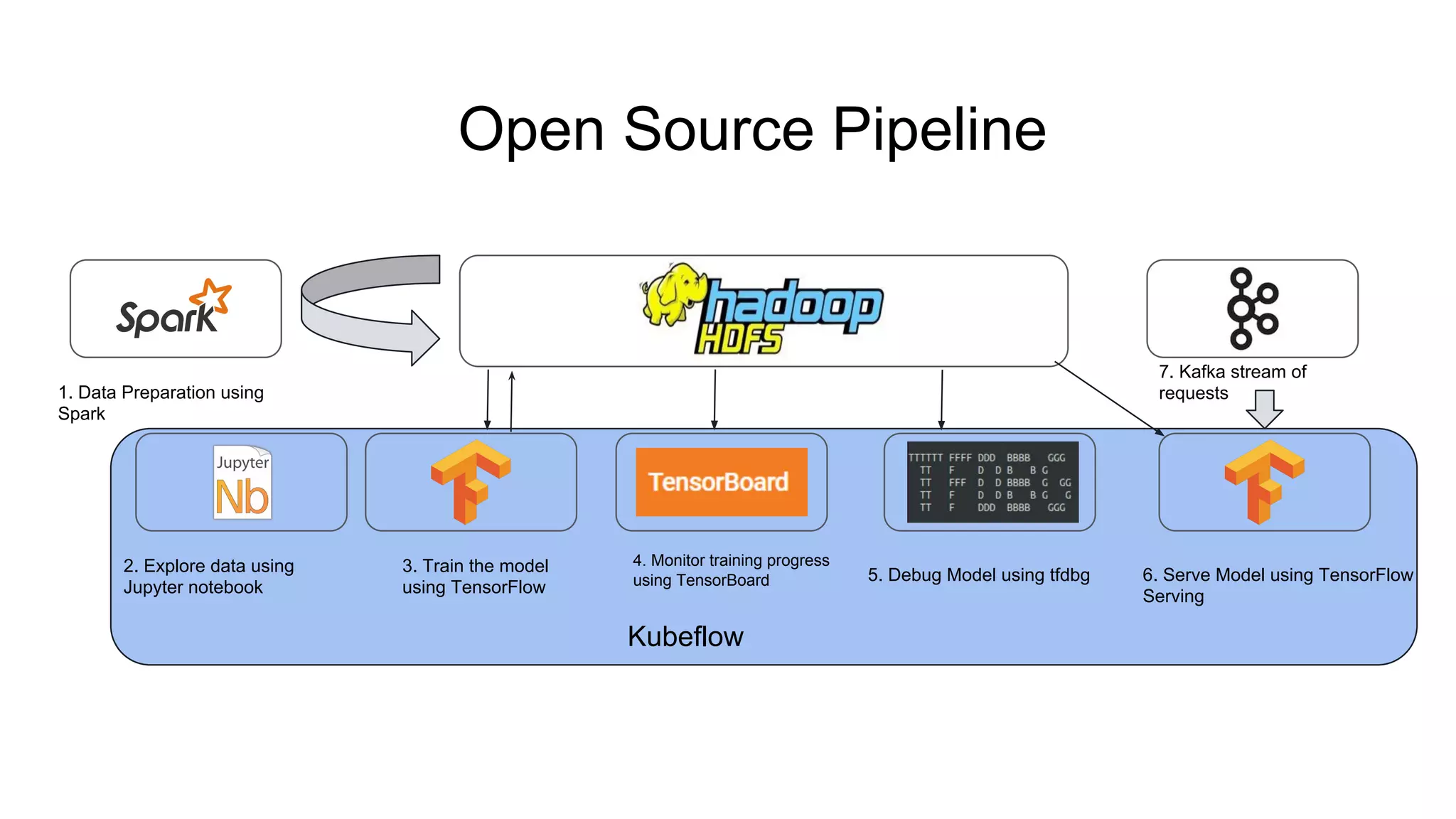

Open Source Pipeline
Jupyter notebook
3. Train the model
using TensorFlow
Serving
1. Data Preparation using
Spark
7. Kafka stream of
requests

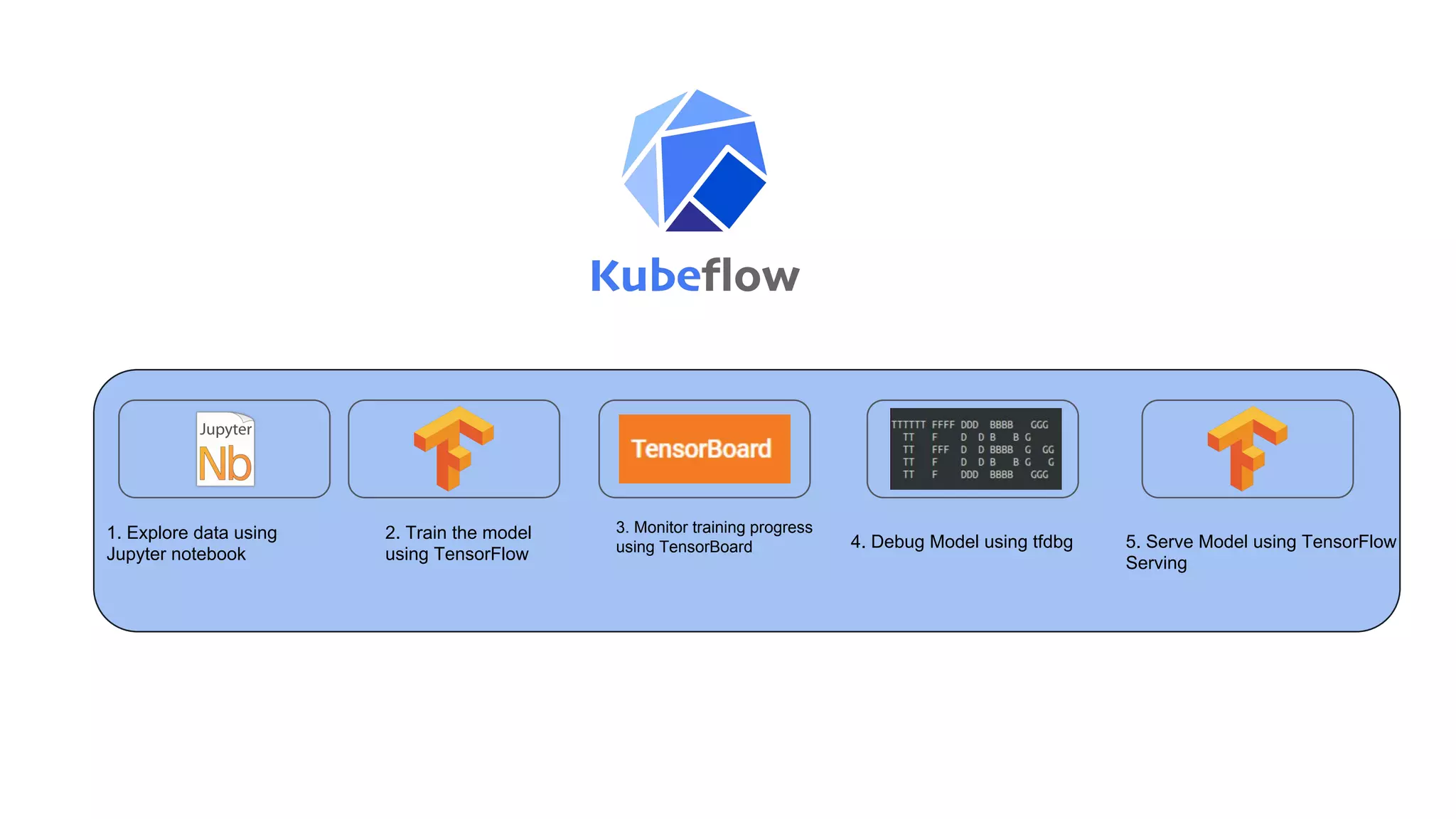

Kubeflow

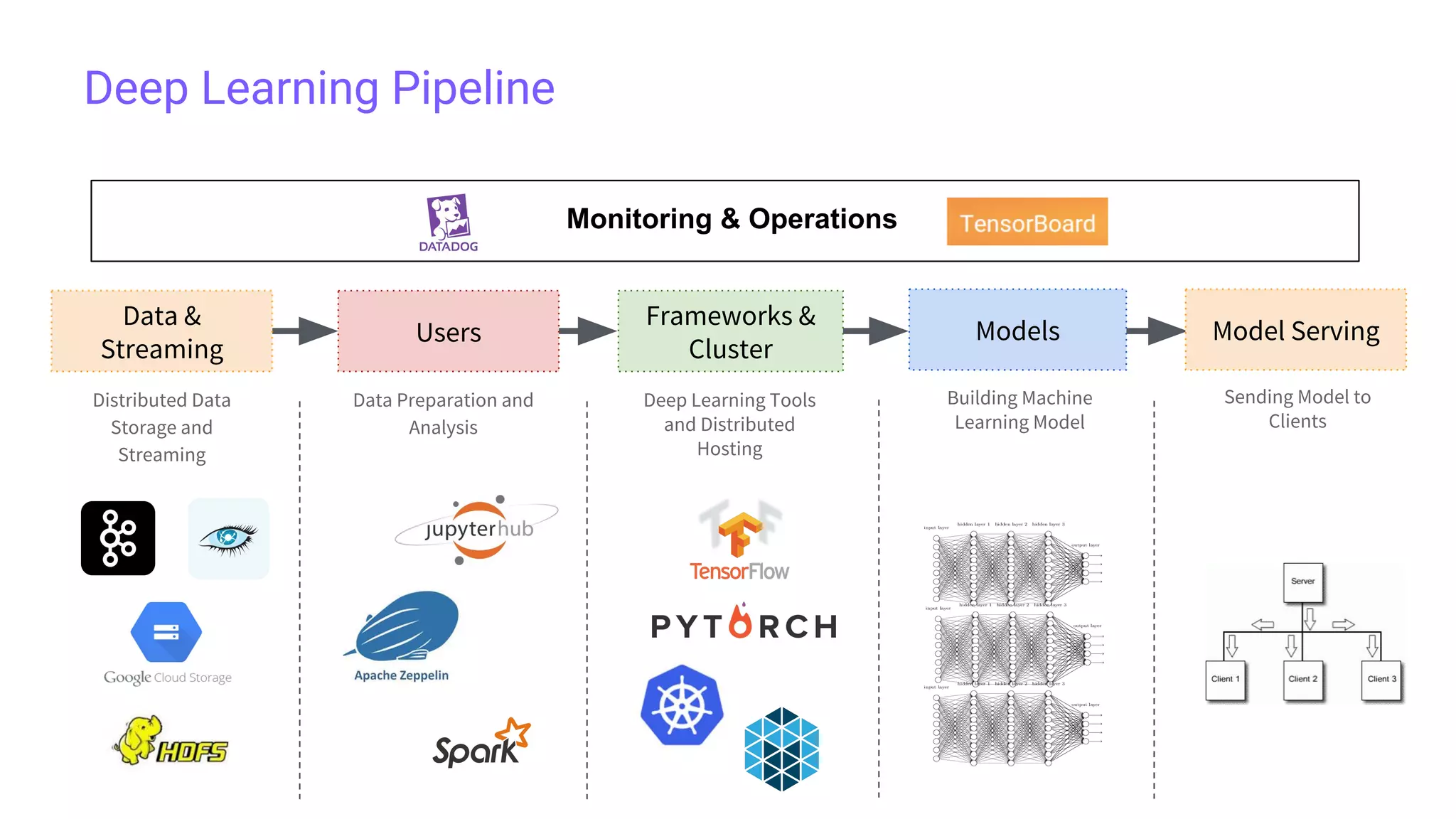

Deep Learning Pipeline
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Data Preparation and
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients
Monitoring & Operations

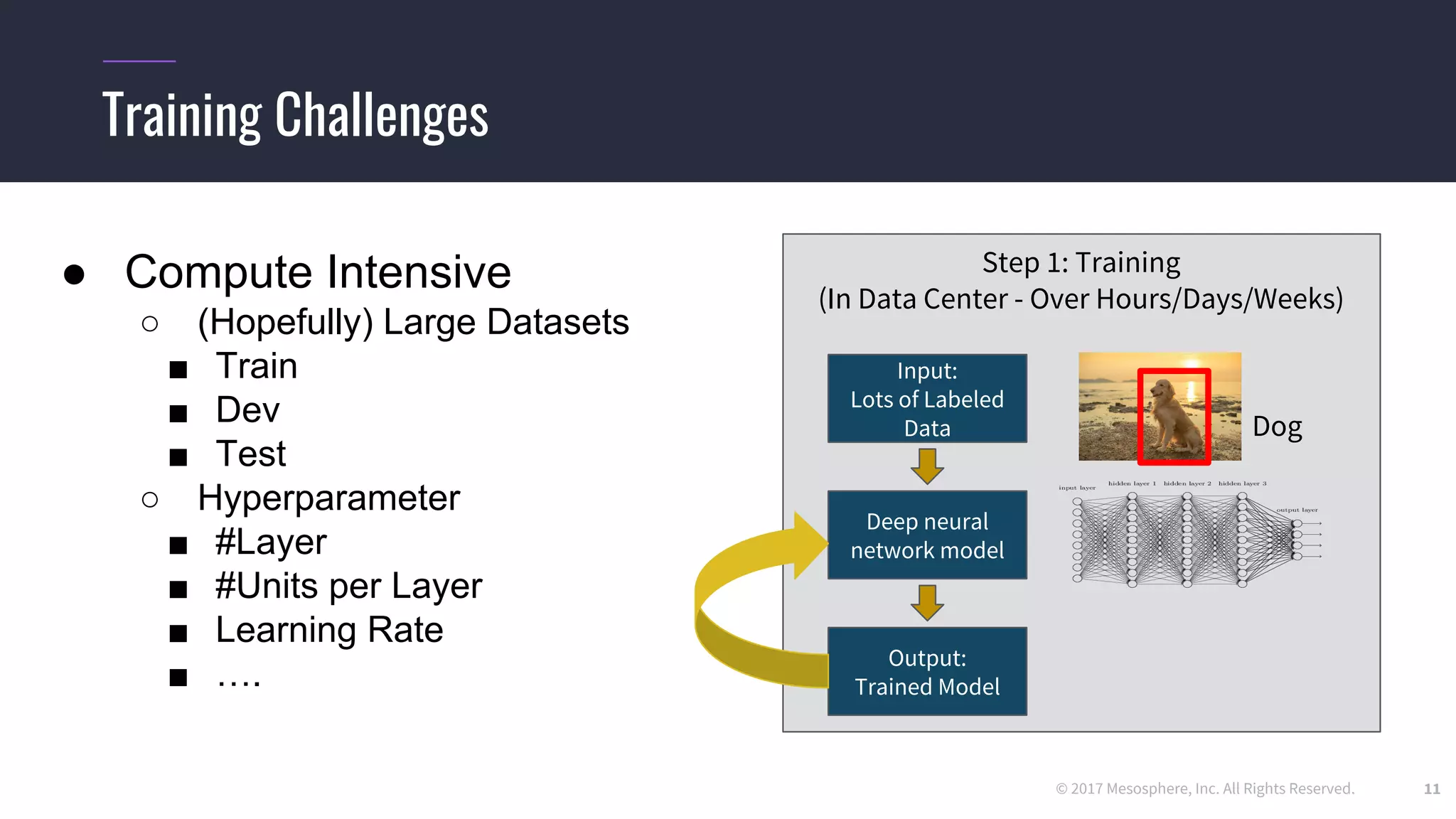

Training Challenges
11
Step 1: Training
Dog
Input:
Lots of Labeled
Data
Output:
Trained Model
Deep neural
network model
● Compute Intensive
○ (Hopefully) Large Datasets
■ Train
■ Dev
■ Test
○ Hyperparameter
■ #Layer
■ #Units per Layer
■ Learning Rate
■ ….

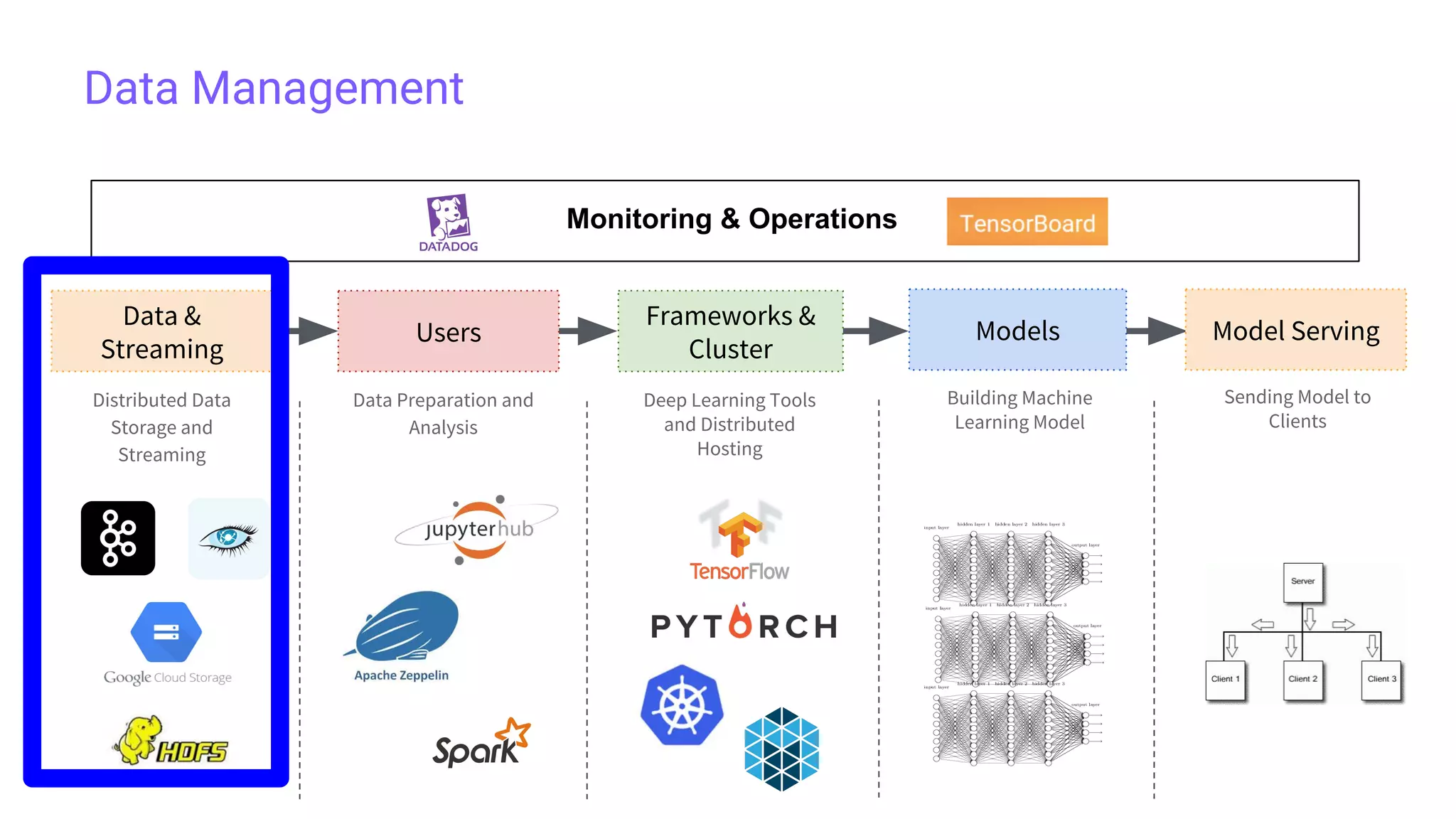

Data Management
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

© 2018 Mesosphere, Inc. All Rights Reserved. 13

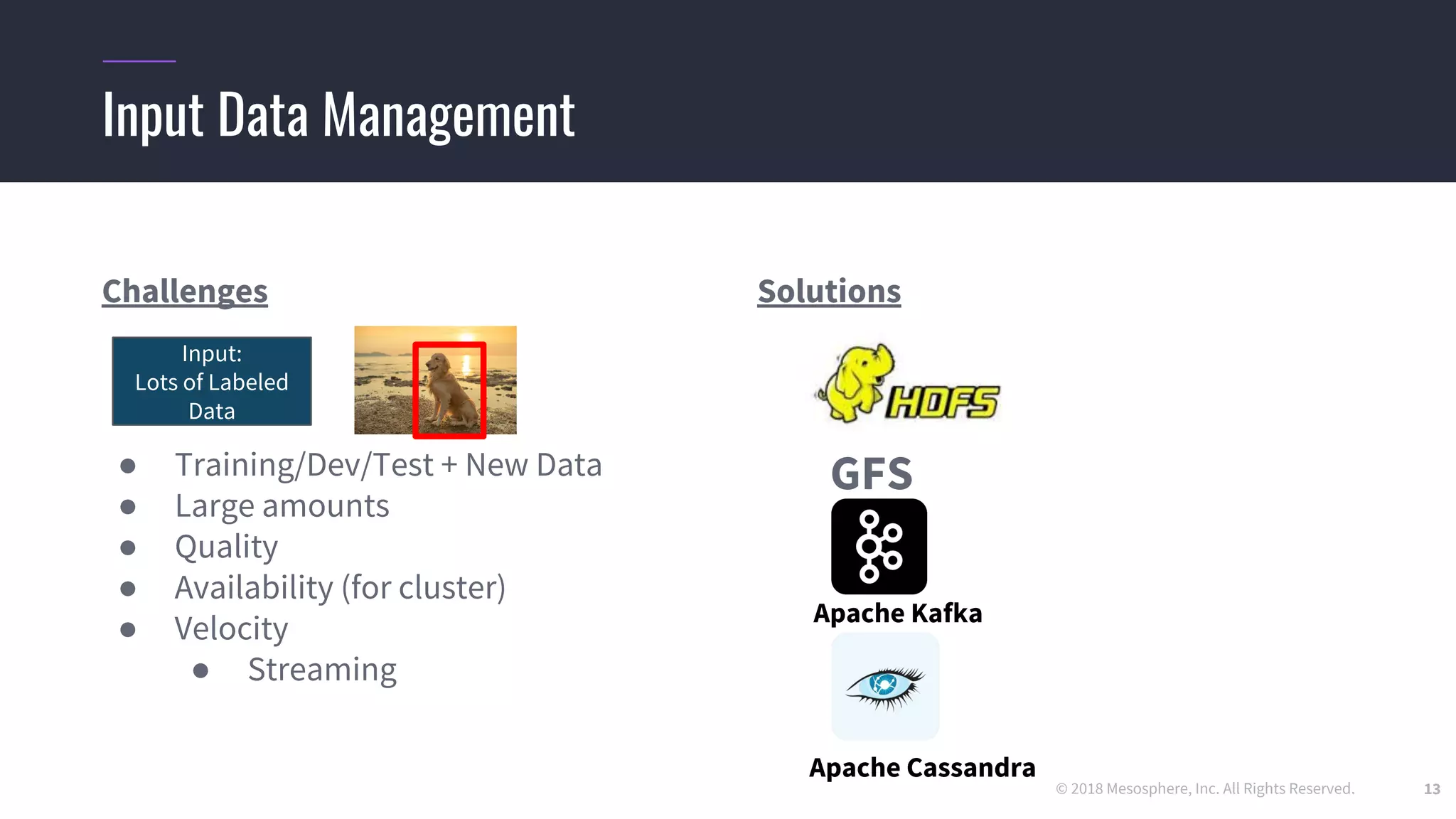

Challenges
●
● Training/Dev/Test + New Data
● Large amounts
● Quality
● Availability (for cluster)
● Velocity
● Streaming
Solutions
GFS
Input Data Management
Input:
Lots of Labeled
Data
Apache Kafka
Apache Cassandra

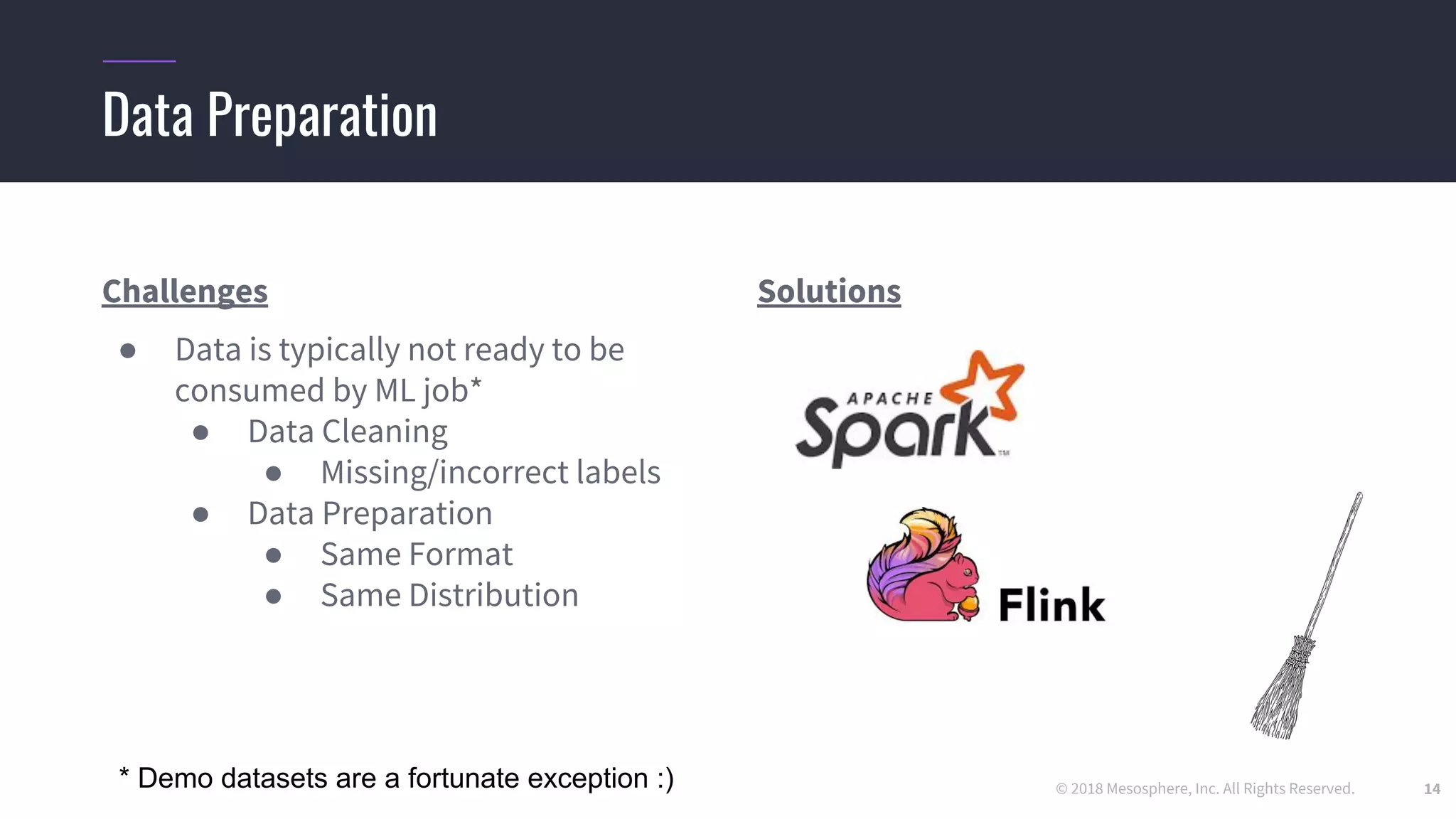

Challenges
● Data is typically not ready to be
consumed by ML job*
● Data Cleaning
● Missing/incorrect labels
● Data Preparation
● Same Format
● Same Distribution
Solutions
Data Preparation
* Demo datasets are a fortunate exception :)

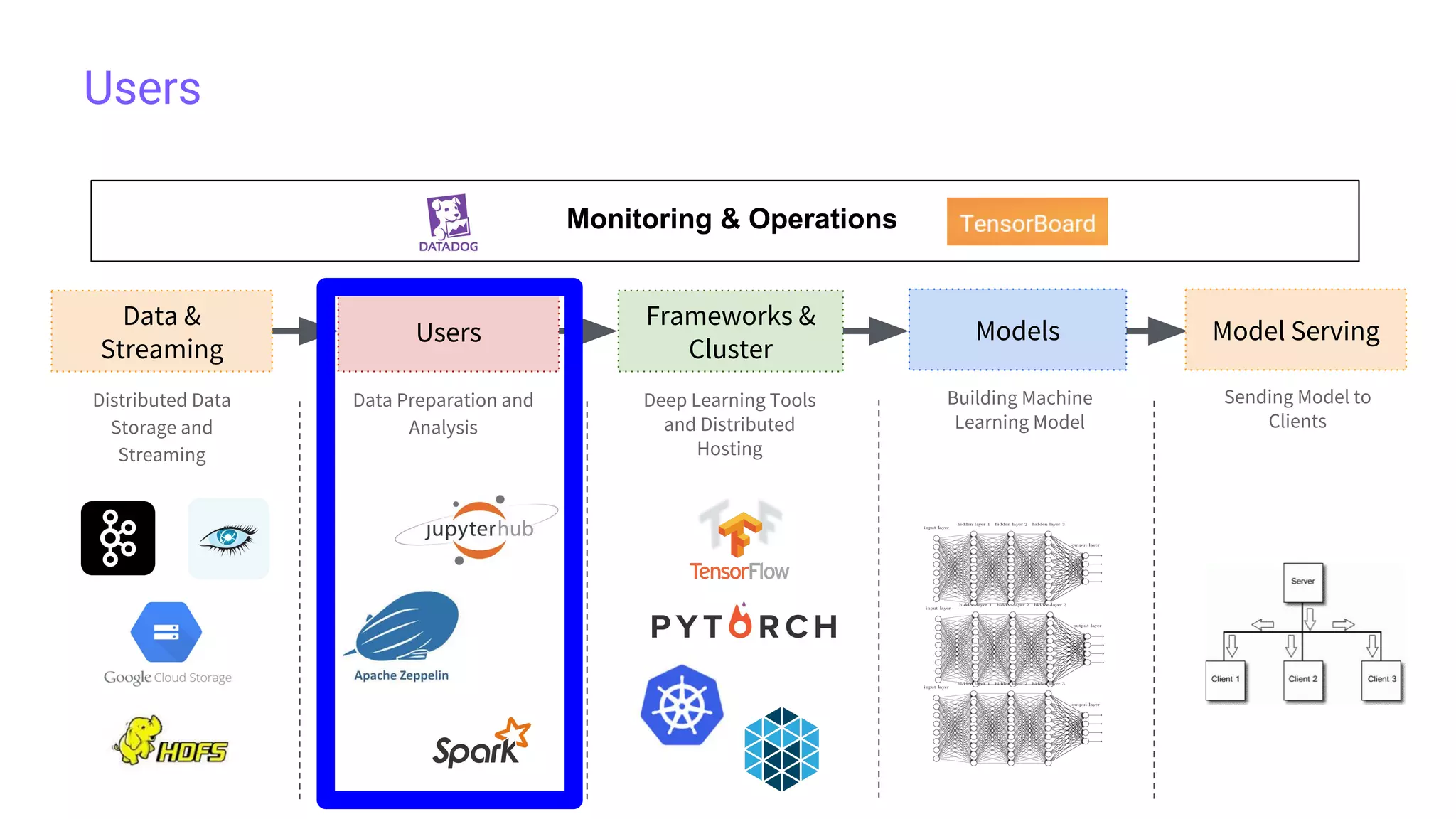

Users
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

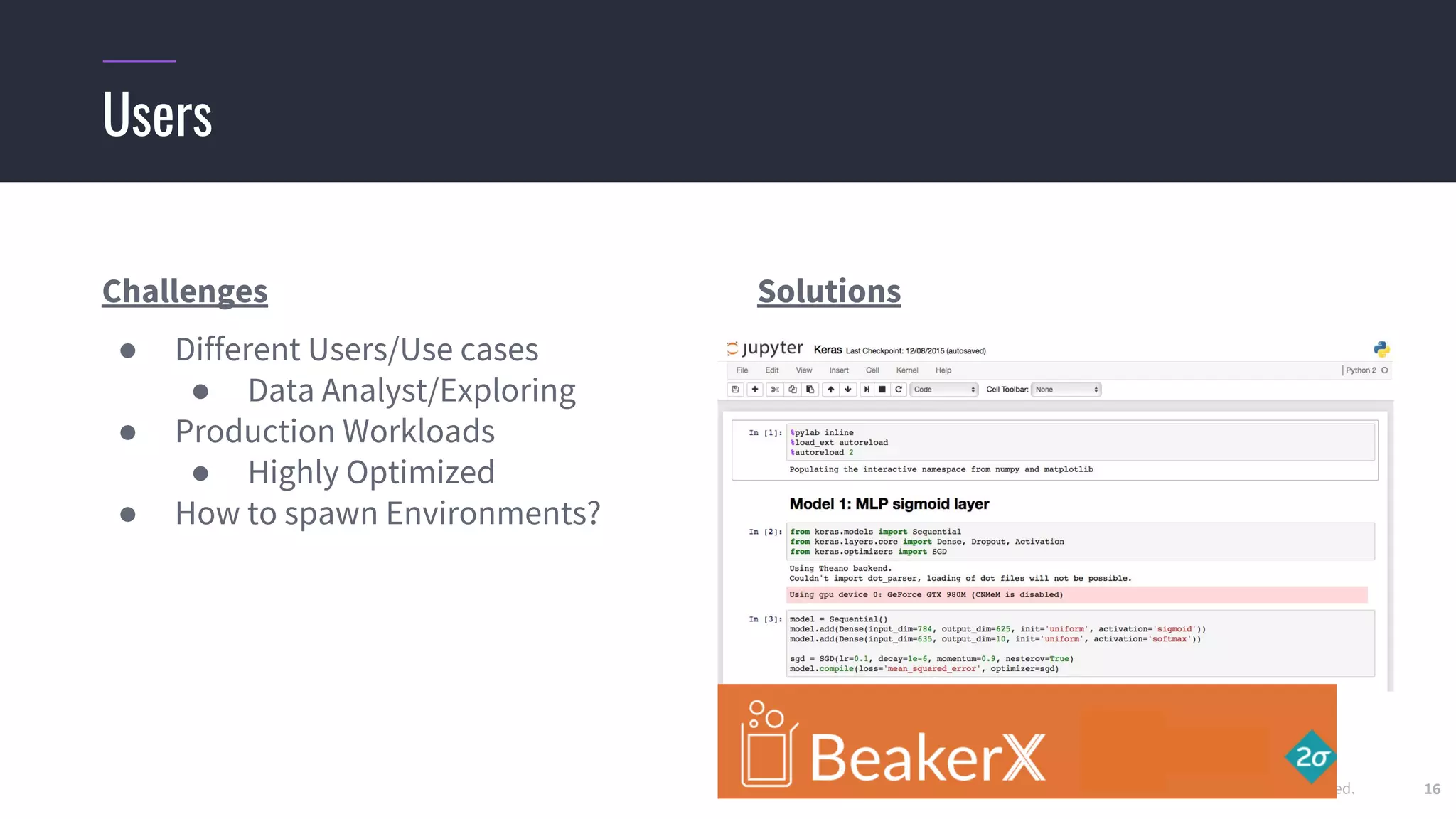

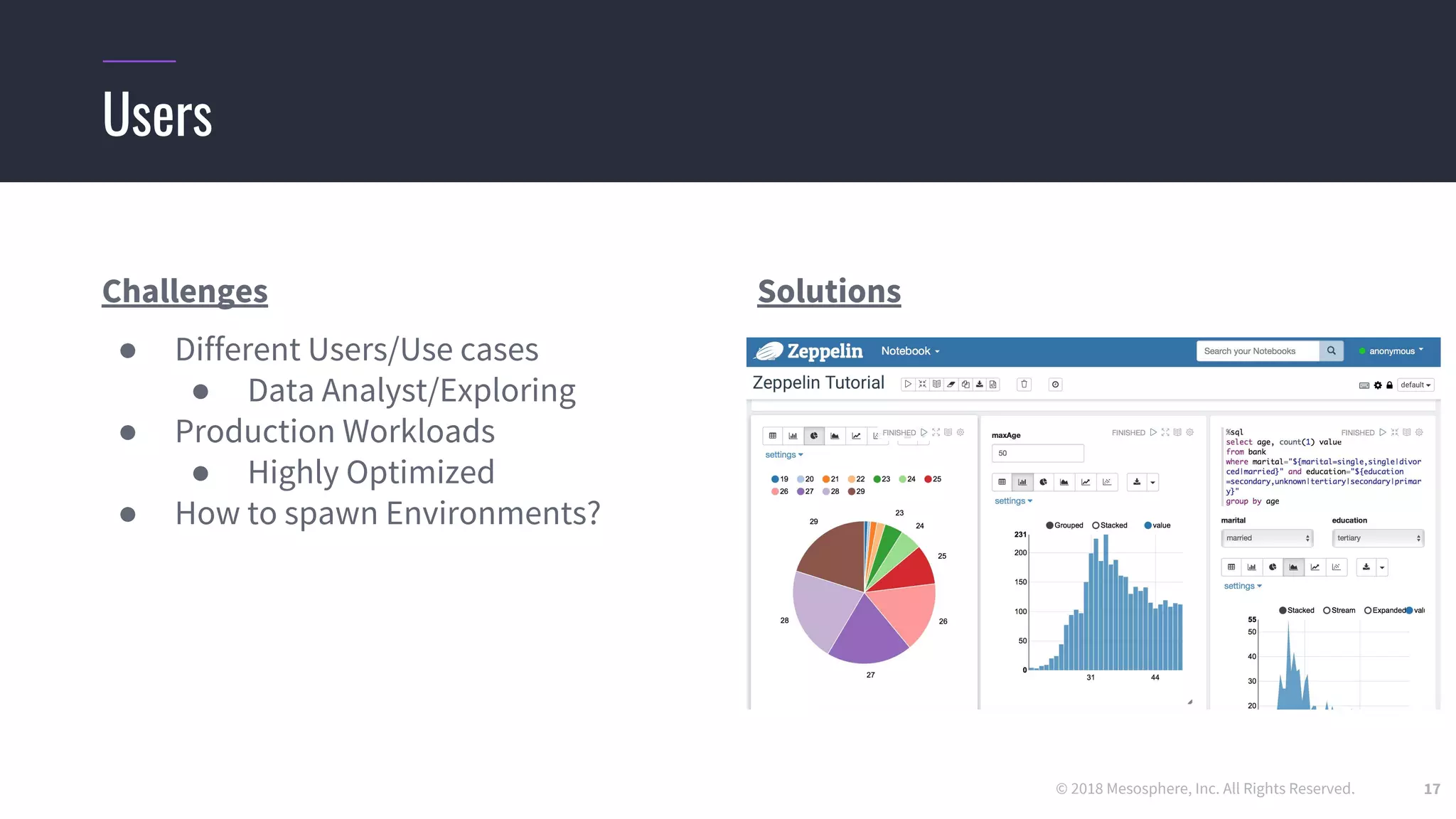

Challenges
● Different Users/Use cases
● Data Analyst/Exploring
● Production Workloads
● Highly Optimized
● How to spawn Environments?
Solutions
Users

Frameworks
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

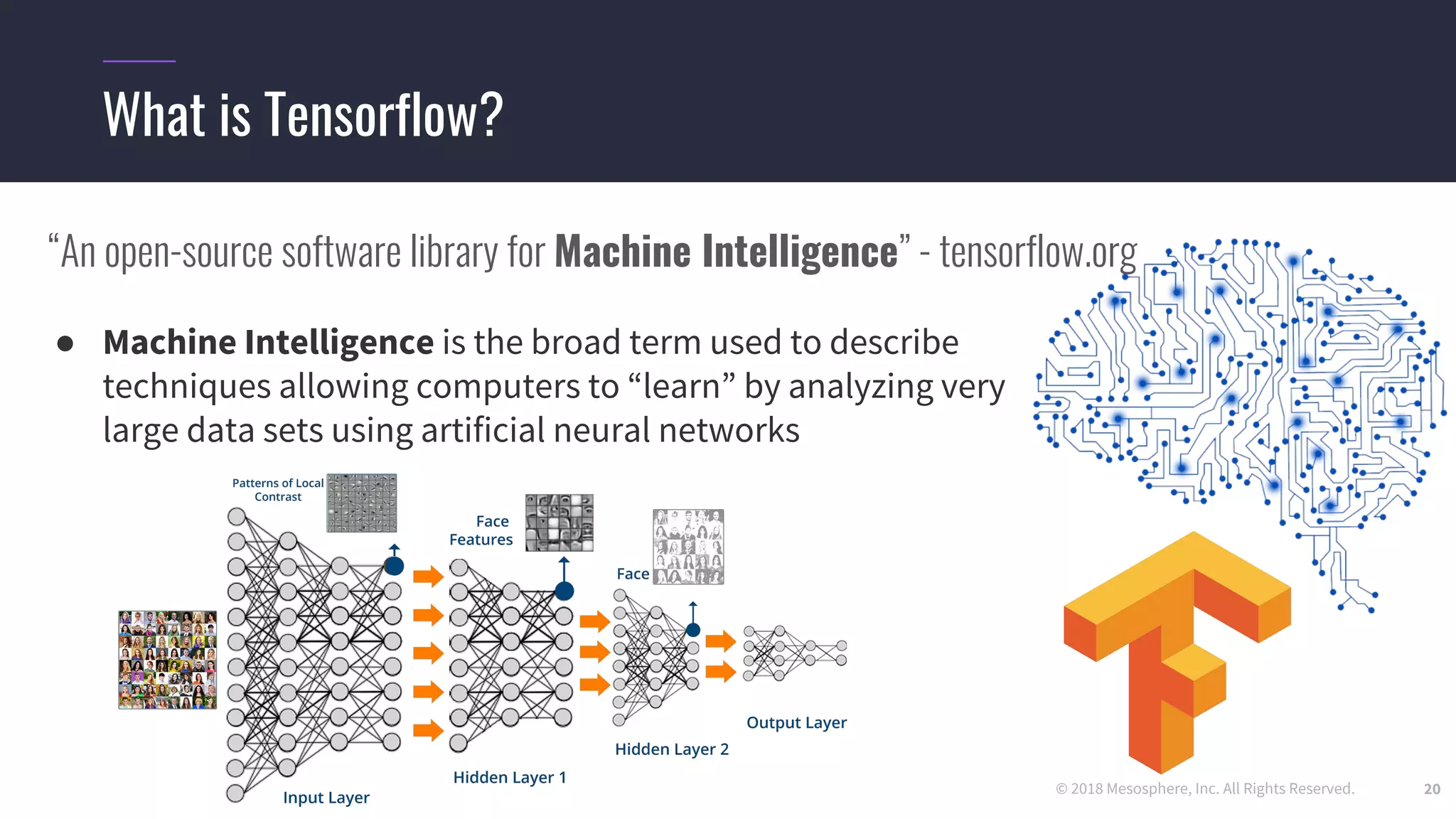

● Machine Intelligence is the broad term used to describe
techniques allowing computers to “learn” by analyzing very
large data sets using artificial neural networks
20
What is Tensorflow?
“An open-source software library for Machine Intelligence” - tensorflow.org

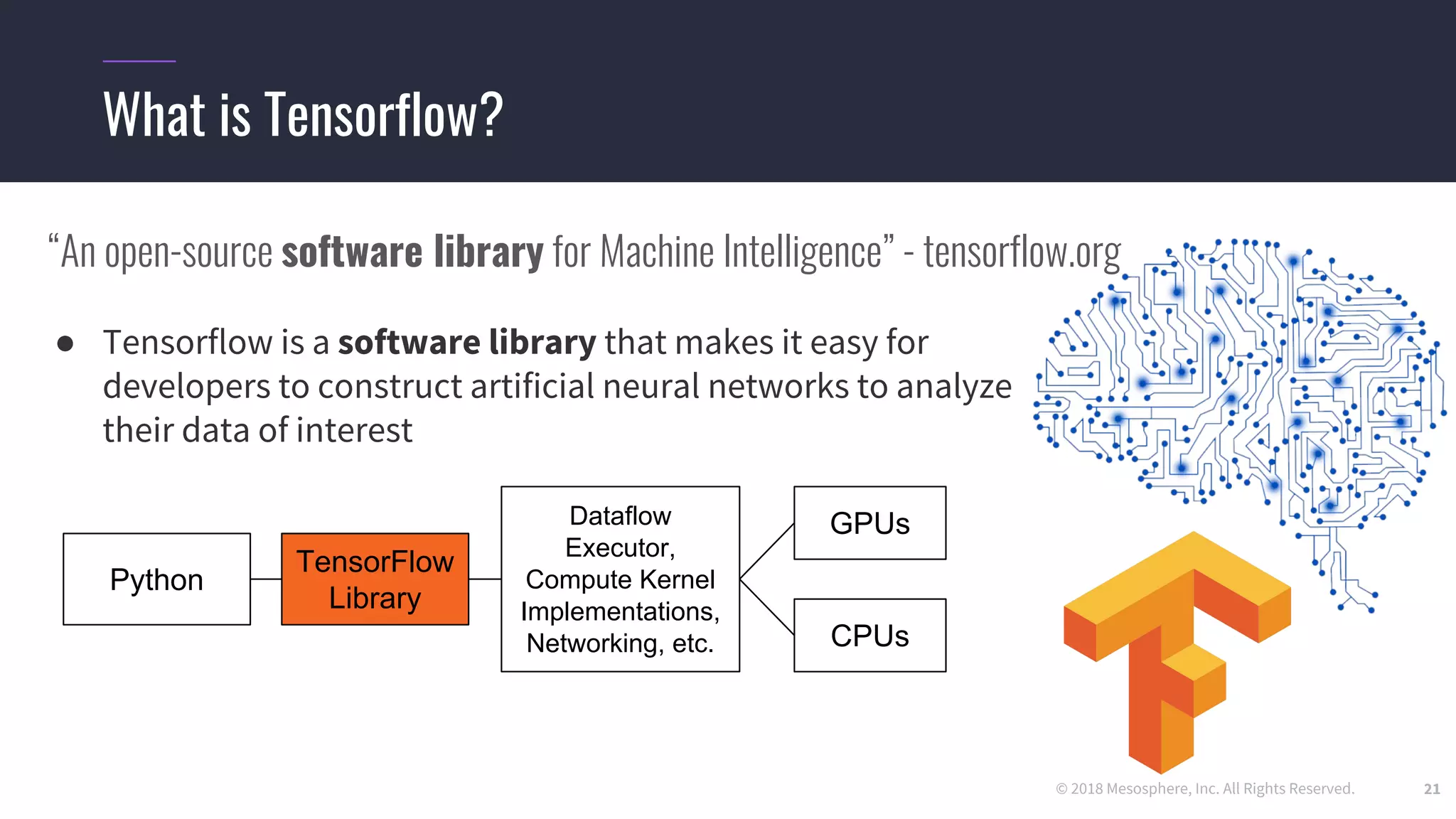

What is Tensorflow?
“An open-source software library for Machine Intelligence” - tensorflow.org
● Tensorflow is a software library that makes it easy for
developers to construct artificial neural networks to analyze
their data of interest
TensorFlow
Library
Python
Dataflow
Executor,
Compute Kernel
Implementations,
Networking, etc.
GPUs
CPUs

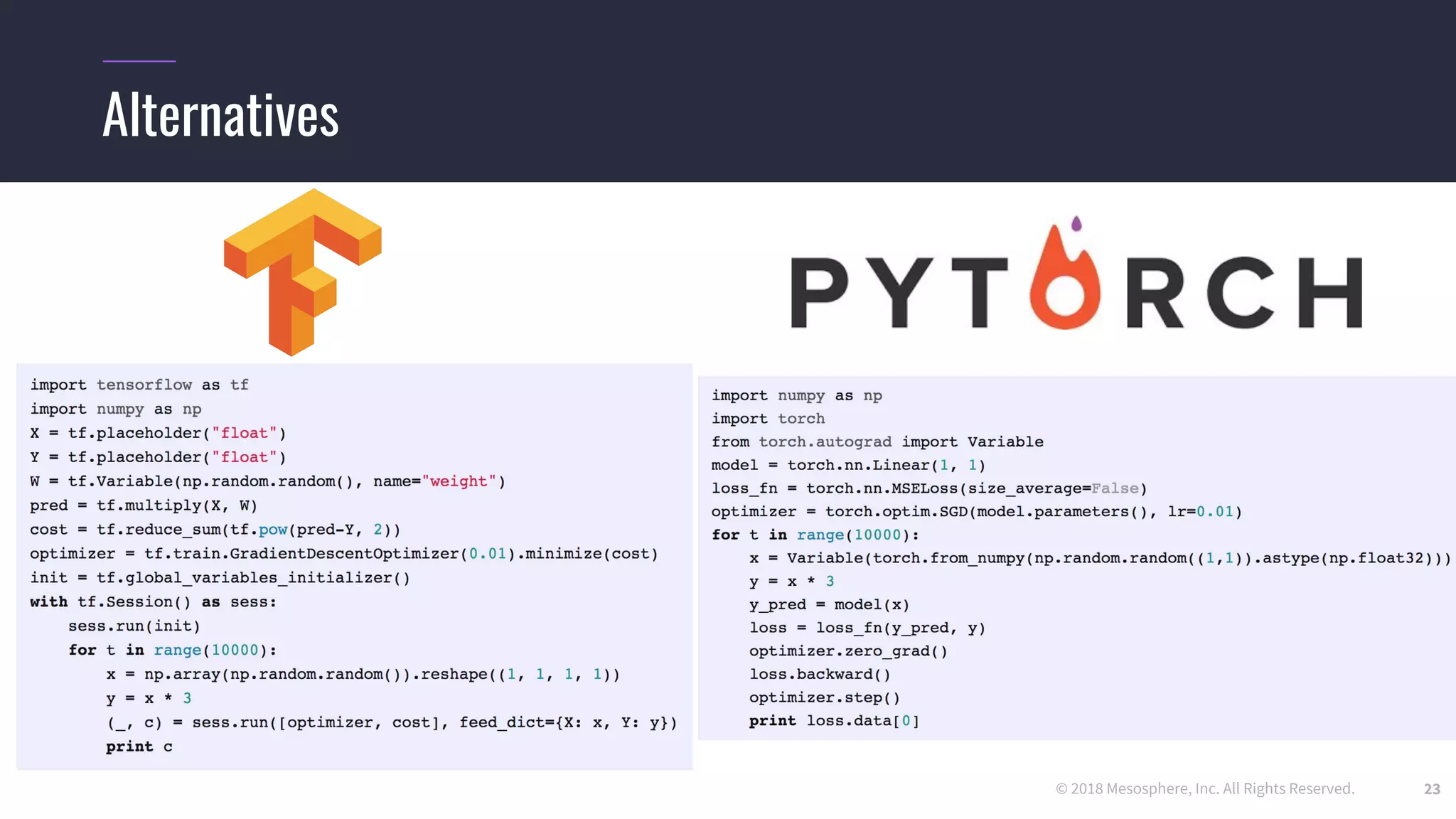

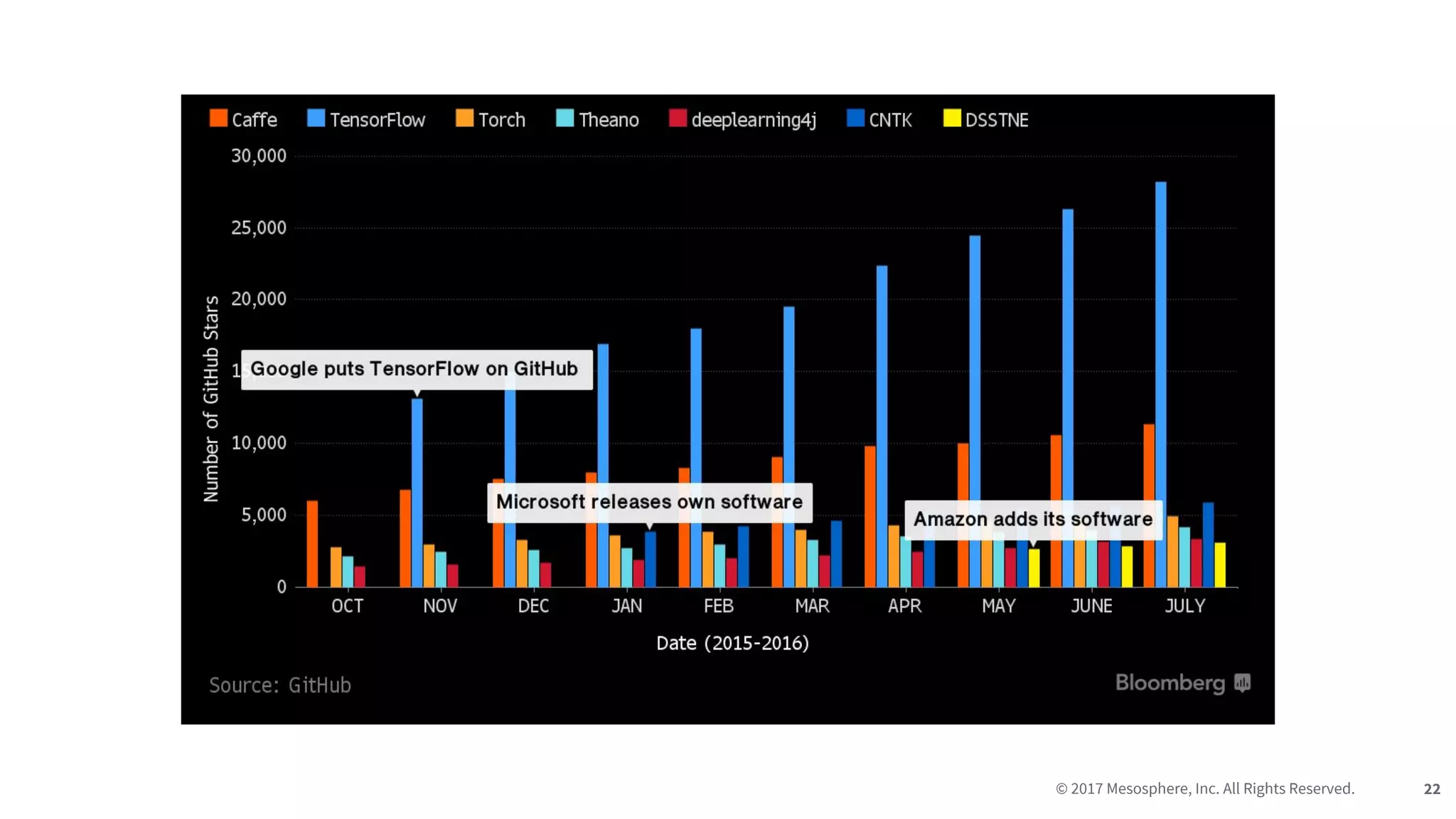

Alternatives

Alternatives
tf.enable_eager_execution()
https://www.tensorflow.org/get_started/eager

Data Analytics Ecosystem

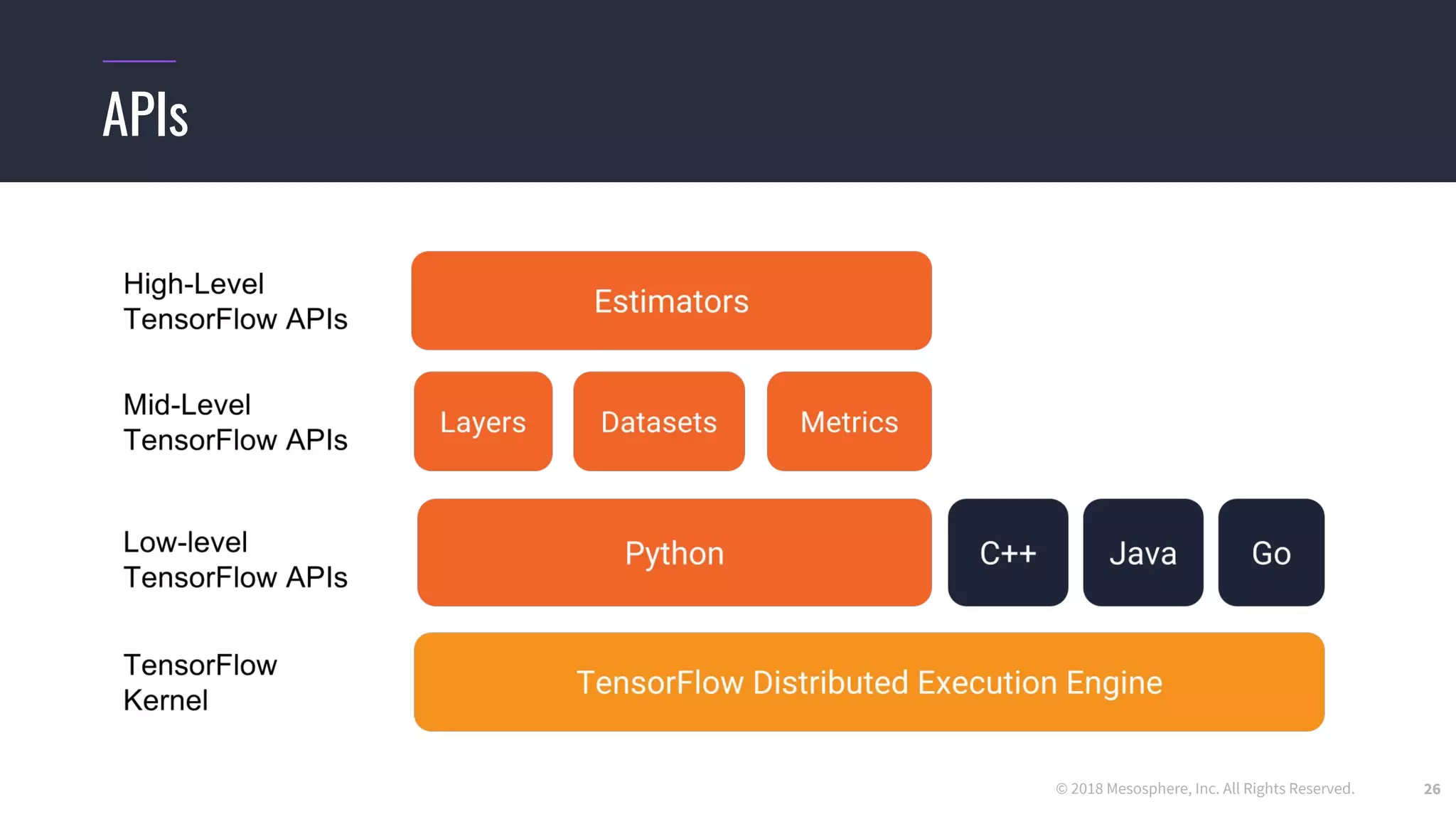

APIs
26

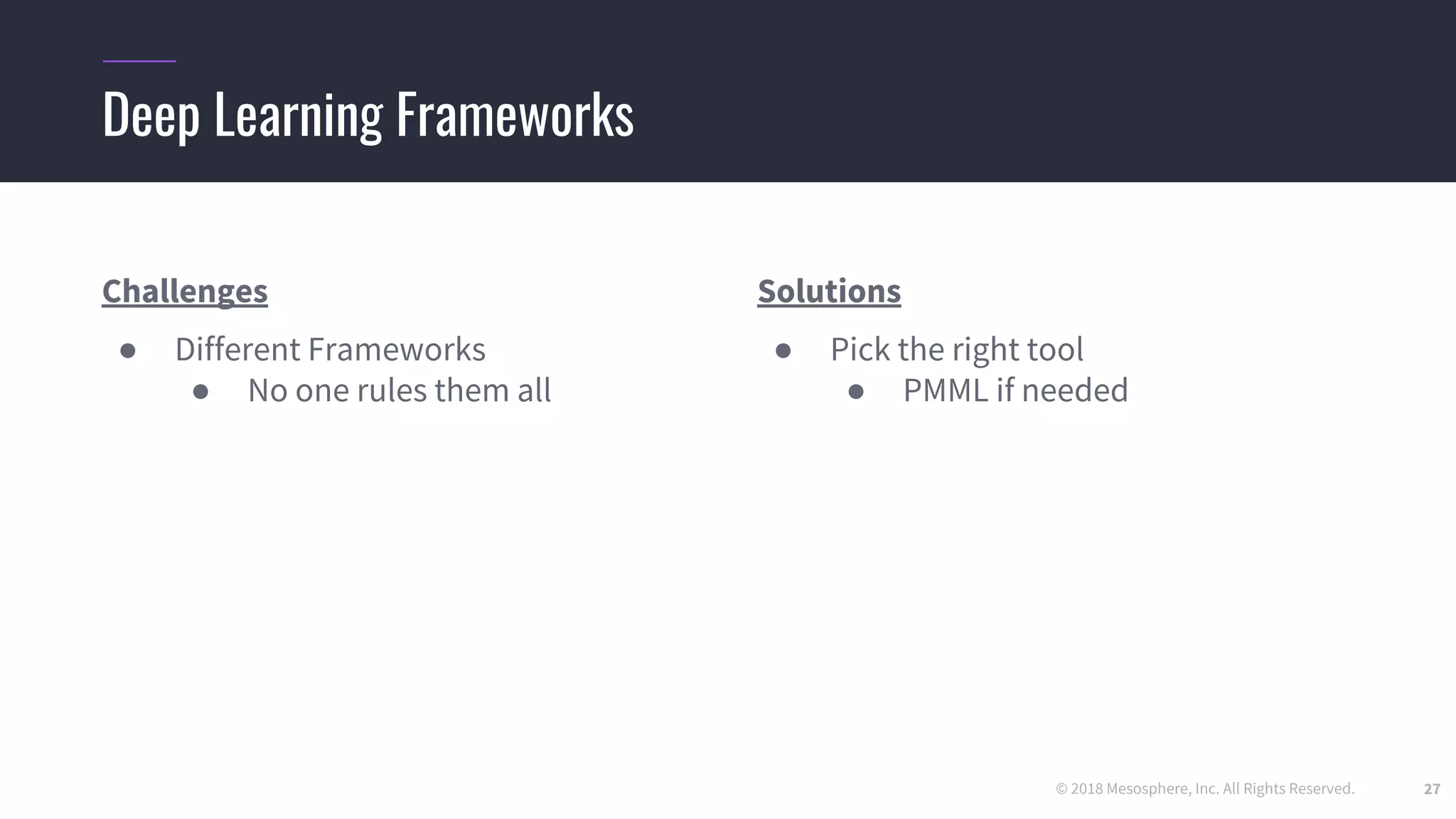

Challenges
● Different Frameworks
● No one rules them all
Solutions
● Pick the right tool
● PMML if needed
Deep Learning Frameworks

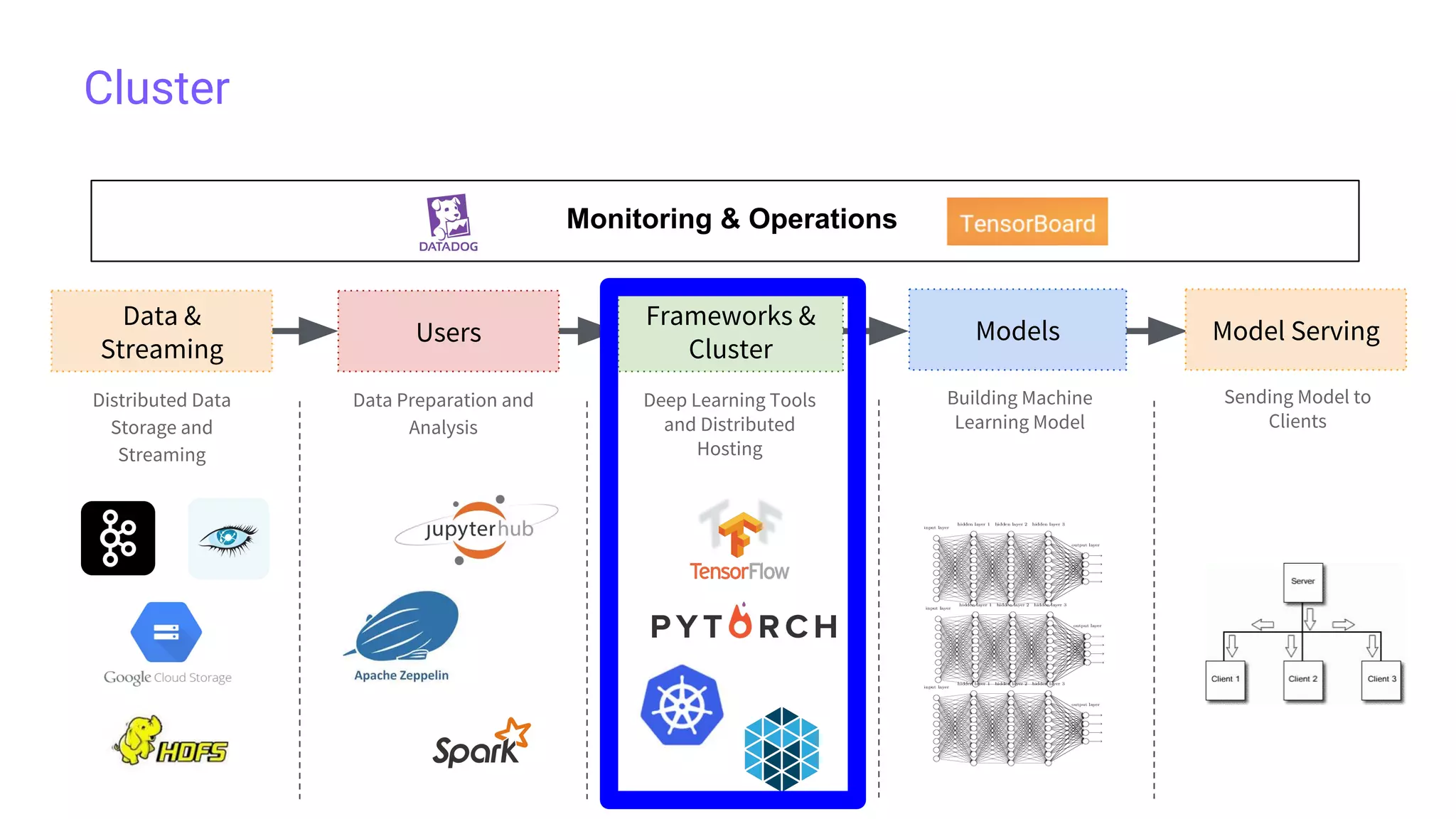

Cluster
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

Trained
Model

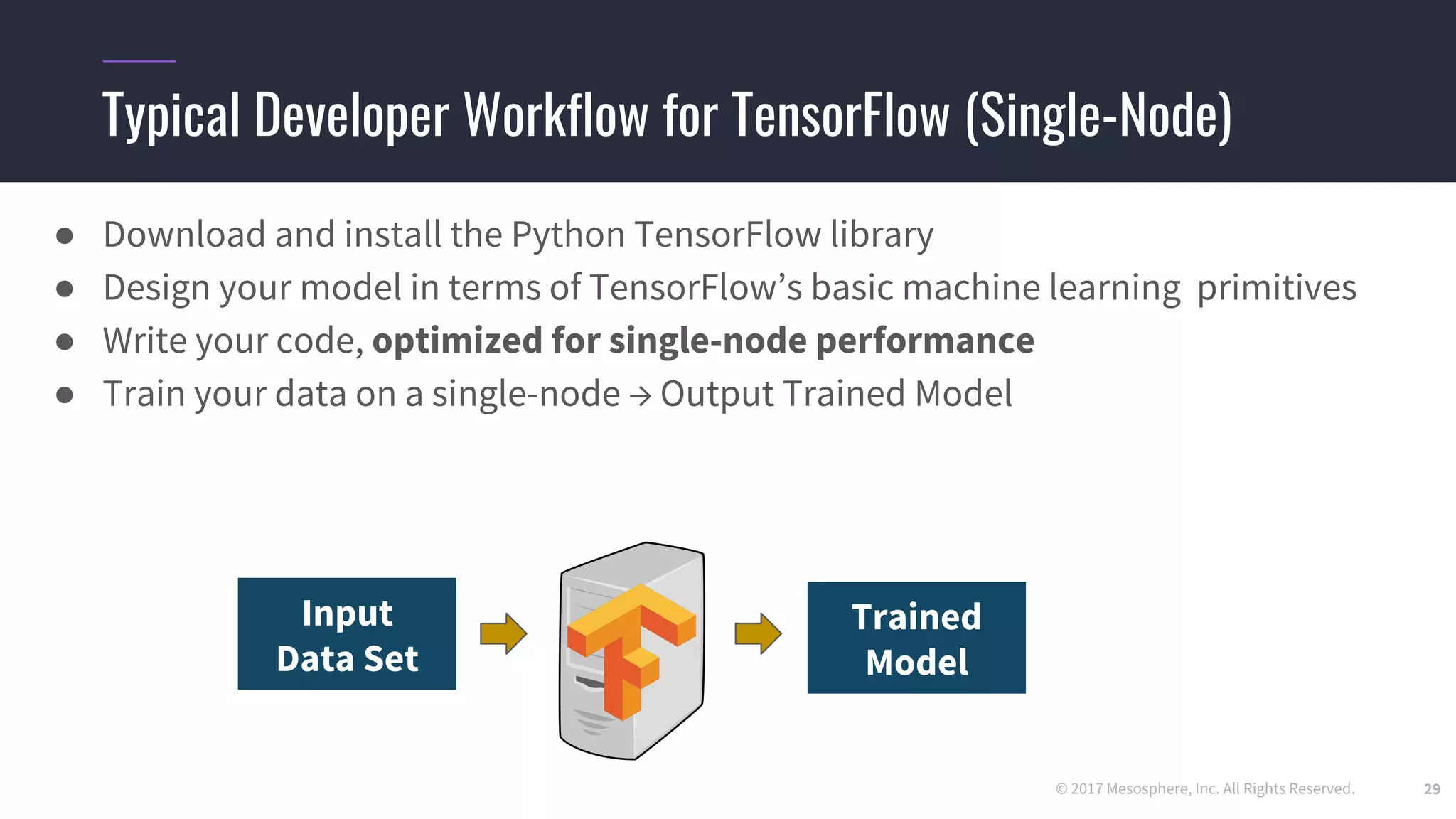

Typical Developer Workflow for TensorFlow (Single-Node)
● Download and install the Python TensorFlow library
● Design your model in terms of TensorFlow’s basic machine learning primitives
● Write your code, optimized for single-node performance
● Train your data on a single-node → Output Trained Model
29
Input
Data Set

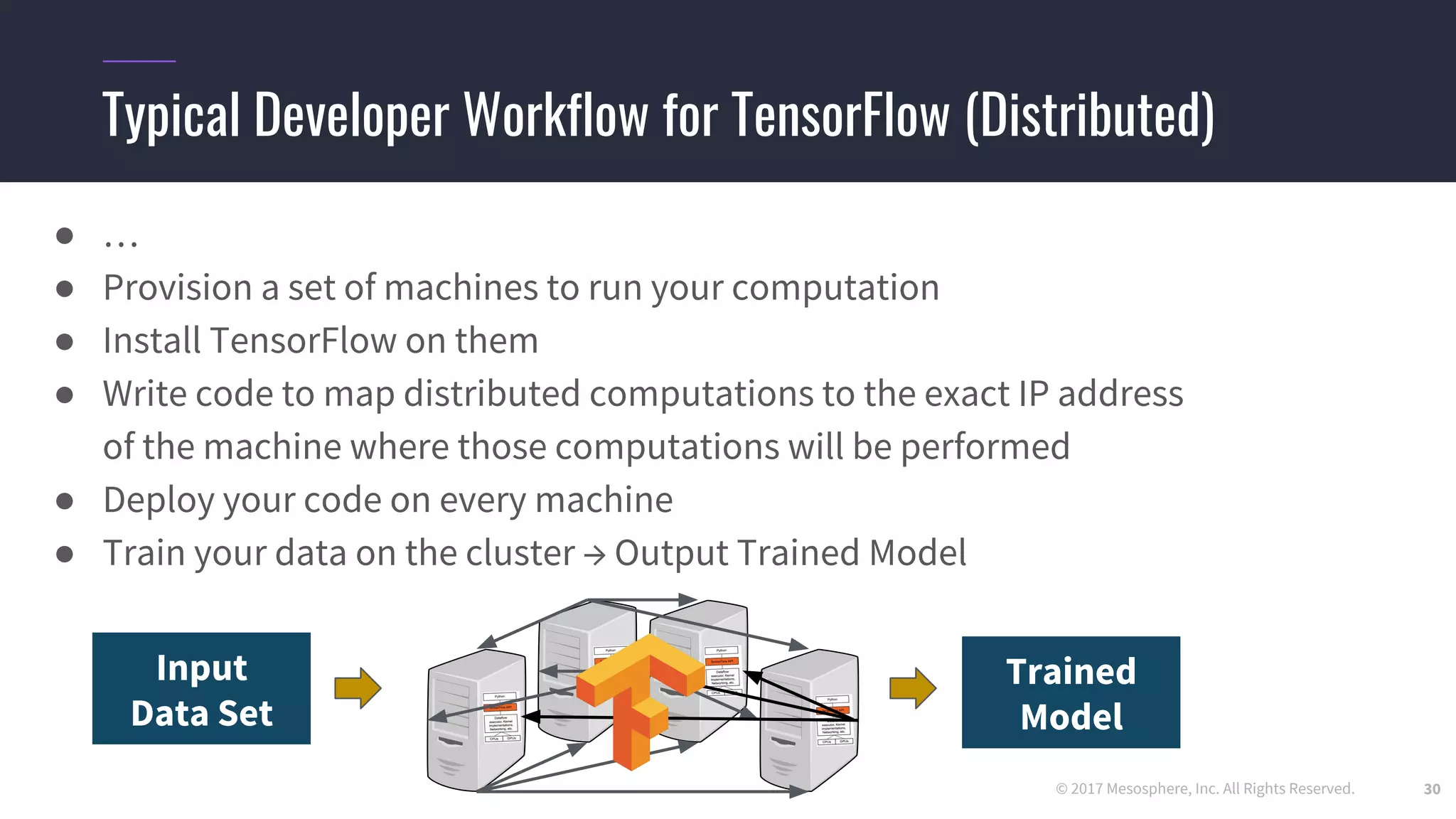

Typical Developer Workflow for TensorFlow (Distributed)
● …
● Provision a set of machines to run your computation
● Install TensorFlow on them
● Write code to map distributed computations to the exact IP address
of the machine where those computations will be performed
● Deploy your code on every machine
● Train your data on the cluster → Output Trained Model
30
Trained
Model
Input
Data Set

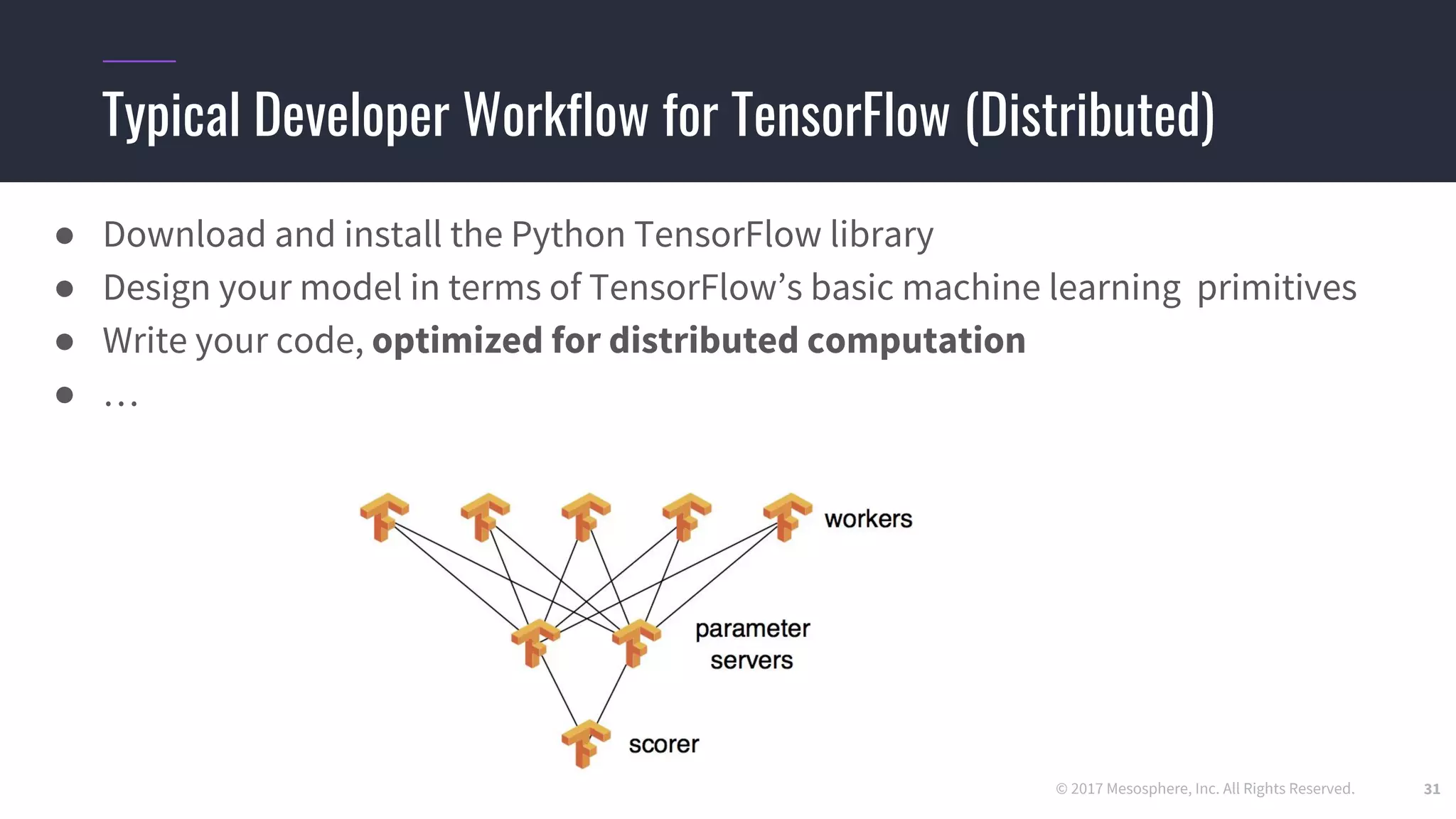

● Download and install the Python TensorFlow library
● Design your model in terms of TensorFlow’s basic machine learning primitives
● Write your code, optimized for distributed computation
● …
31

Resource Isolation and Allocation
32

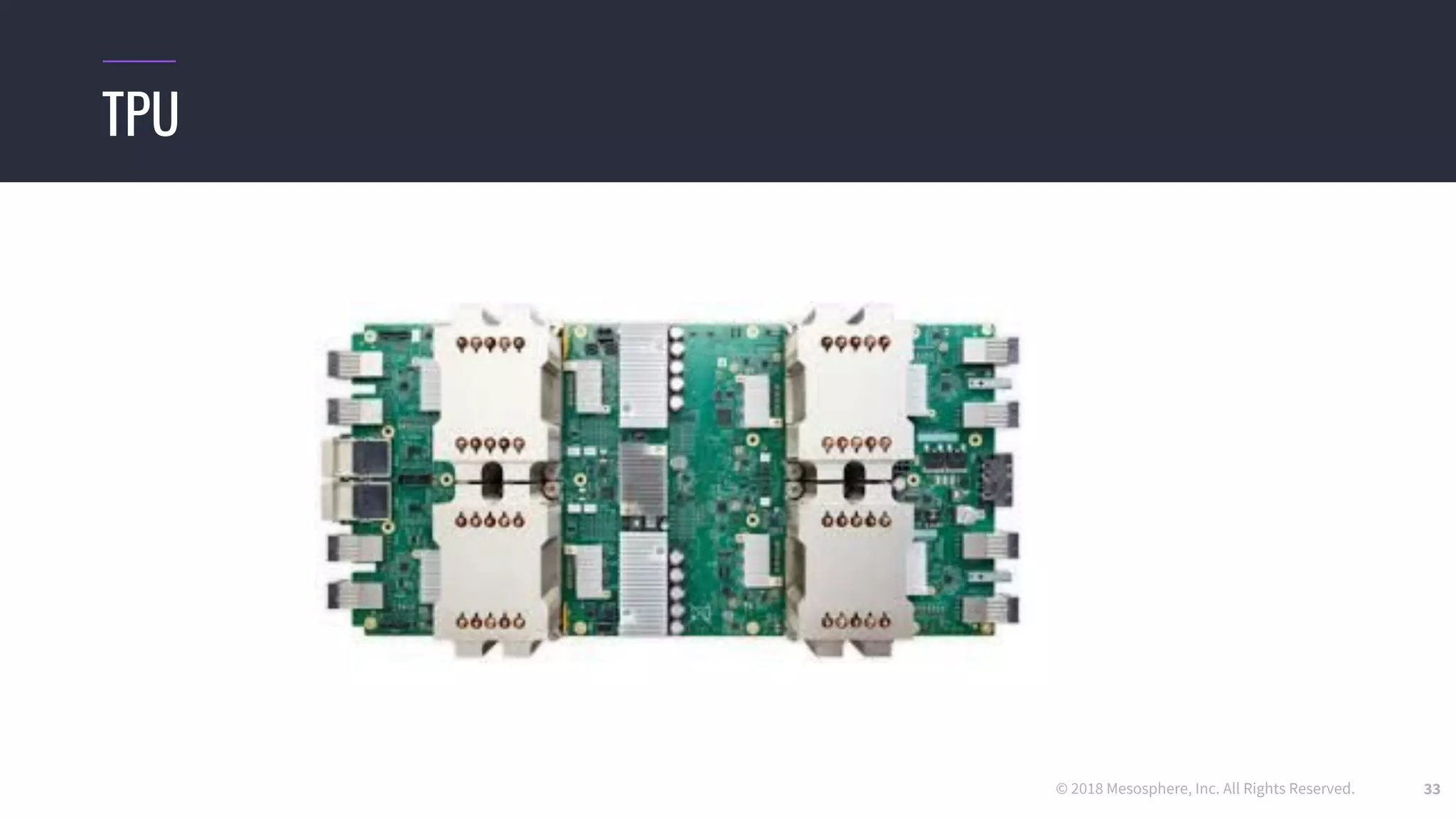

TPU
33

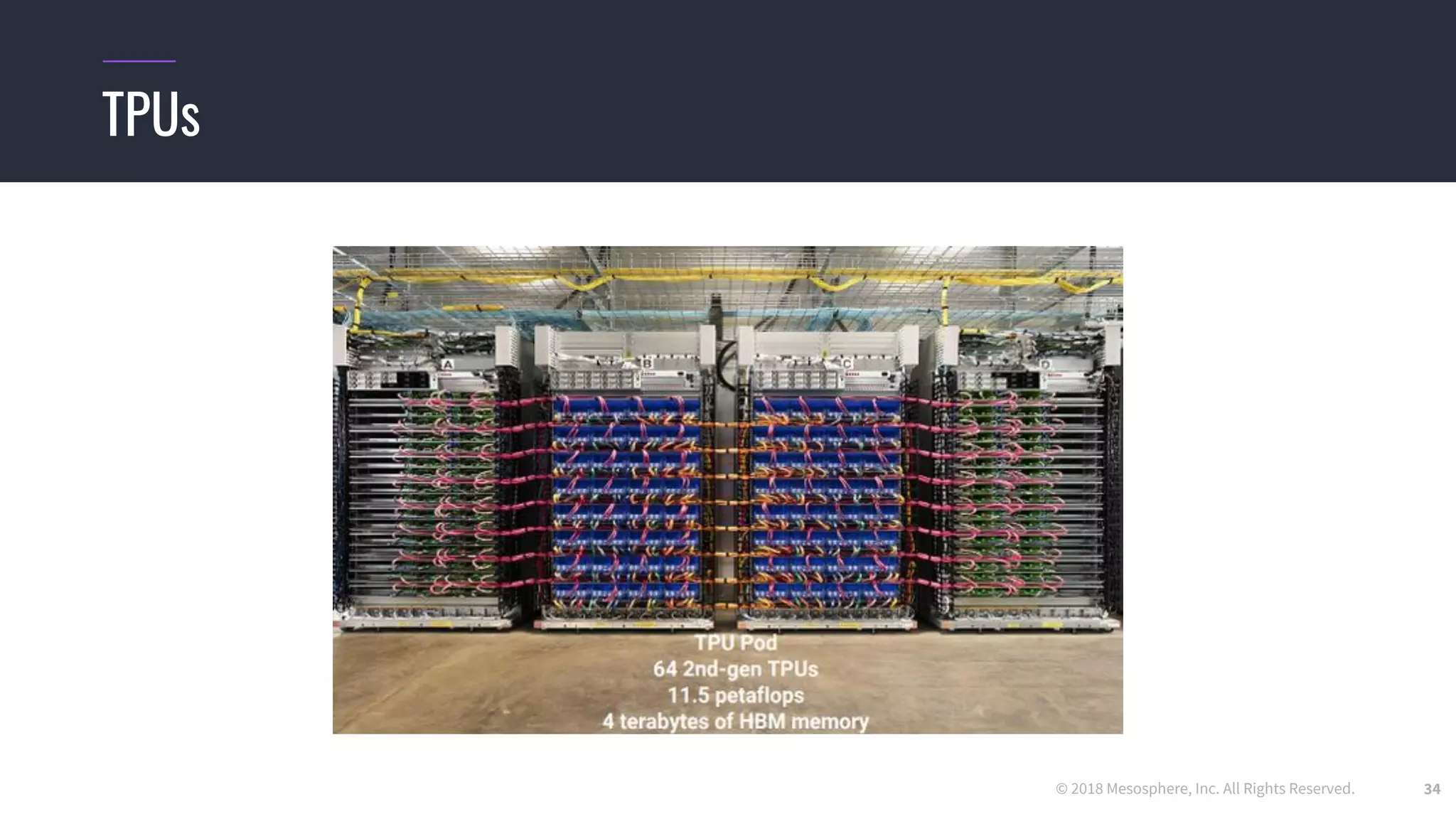

TPUs
34

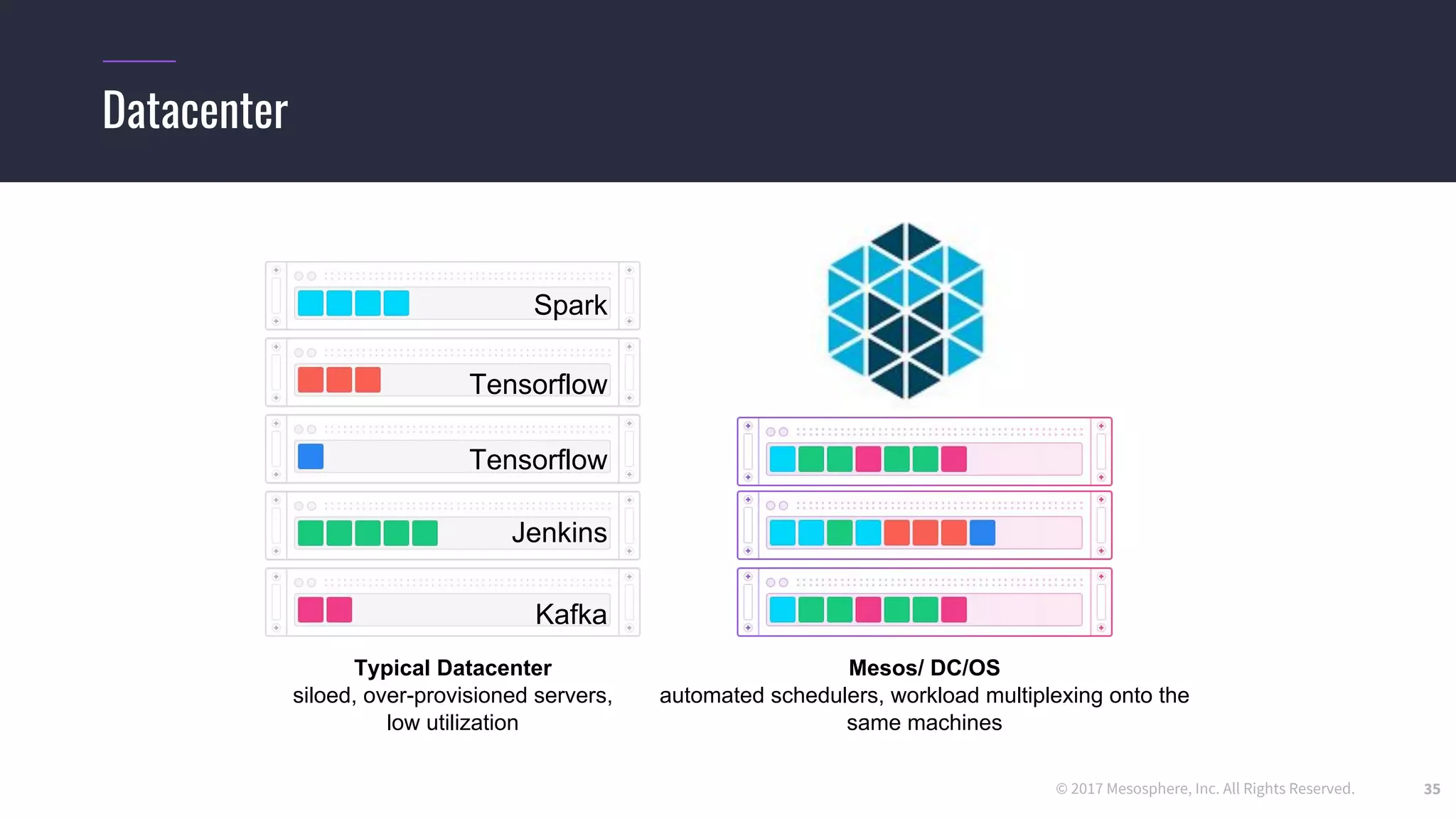

Datacenter
Typical Datacenter
siloed, over-provisioned servers,
low utilization
Mesos/ DC/OS
automated schedulers, workload multiplexing onto the
same machines
Tensorflow
Jenkins
Kafka
Spark
Tensorflow

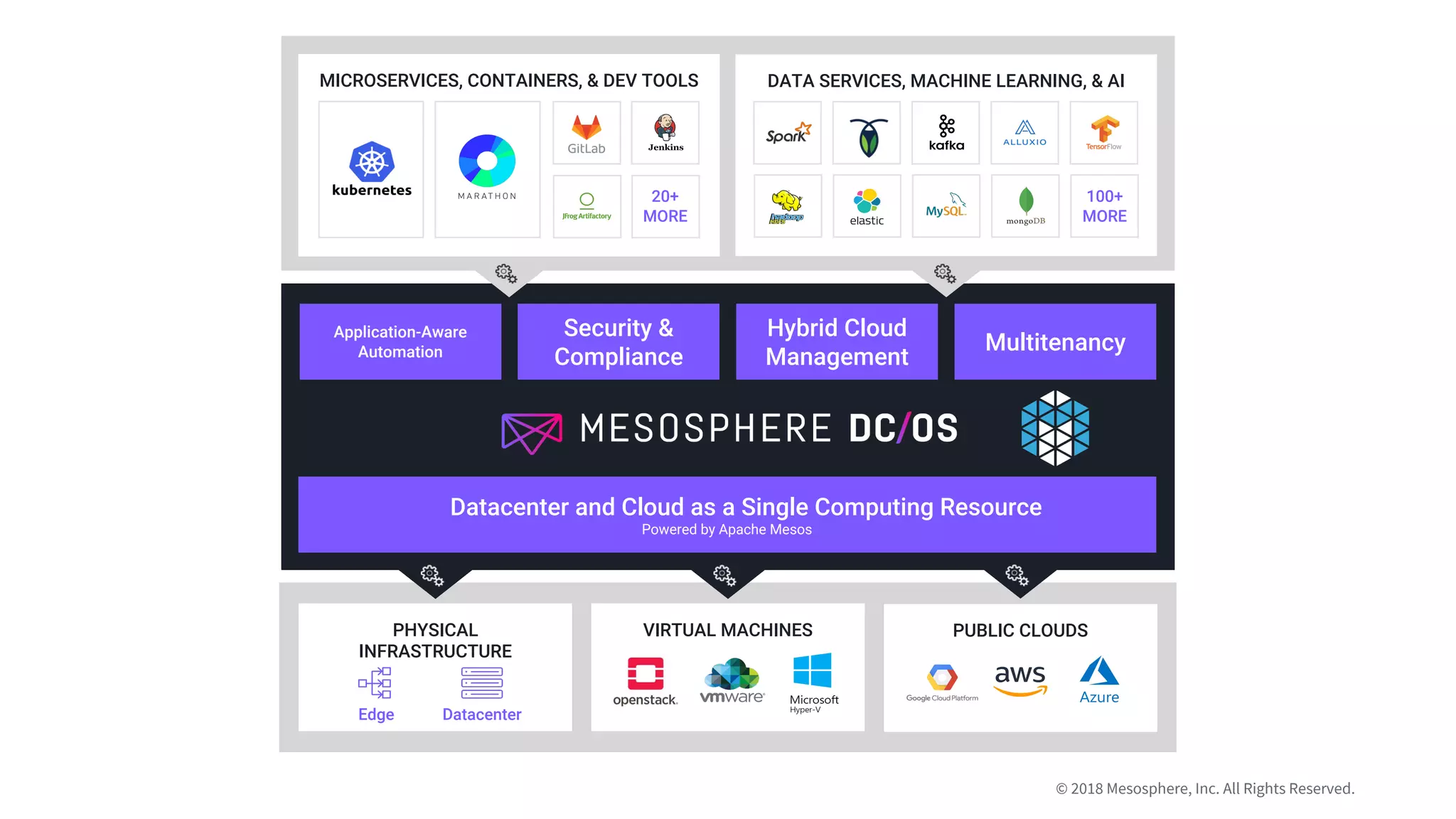

PHYSICAL
INFRASTRUCTURE
MICROSERVICES, CONTAINERS, & DEV TOOLS
VIRTUAL MACHINES PUBLIC CLOUDS
DATA SERVICES, MACHINE LEARNING, & AI
Security &
Compliance
Application-Aware
Automation Multitenancy
Hybrid Cloud
Management
100+
MORE
DatacenterEdge
Datacenter and Cloud as a Single Computing Resource
Powered by Apache Mesos
20+
MORE

Challenges running distributed TensorFlow*
37
● Dealing with failures is not graceful
○ Users need to stop training, change their hard-coded ClusterSpec, and
manually restart their jobs
* Any Distributed System

Deploy
Scale
Configure
Recover

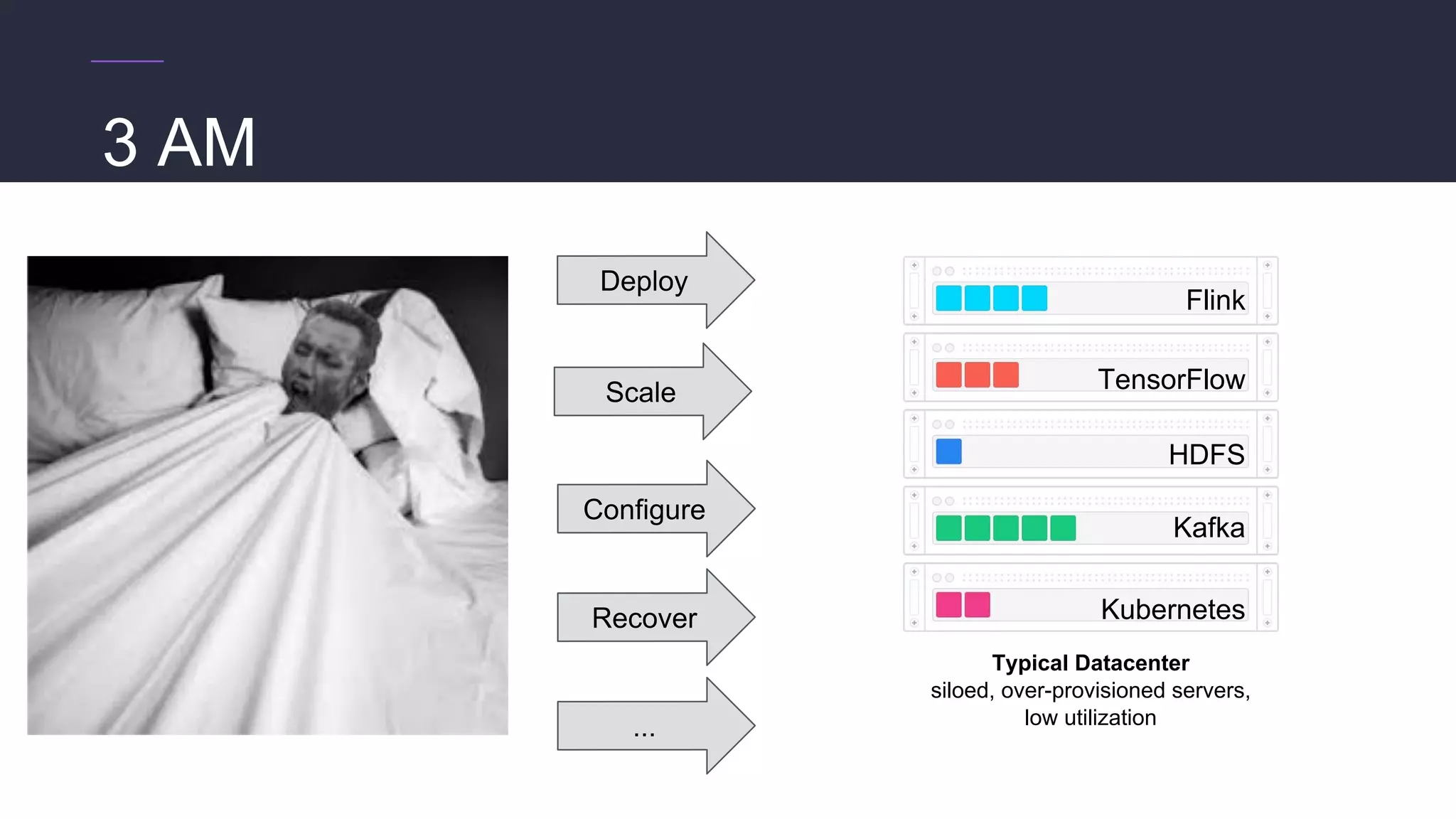

3 AM
...
Typical Datacenter
siloed, over-provisioned servers,
low utilization
HDFS
Kafka
Kubernetes
Flink
TensorFlow

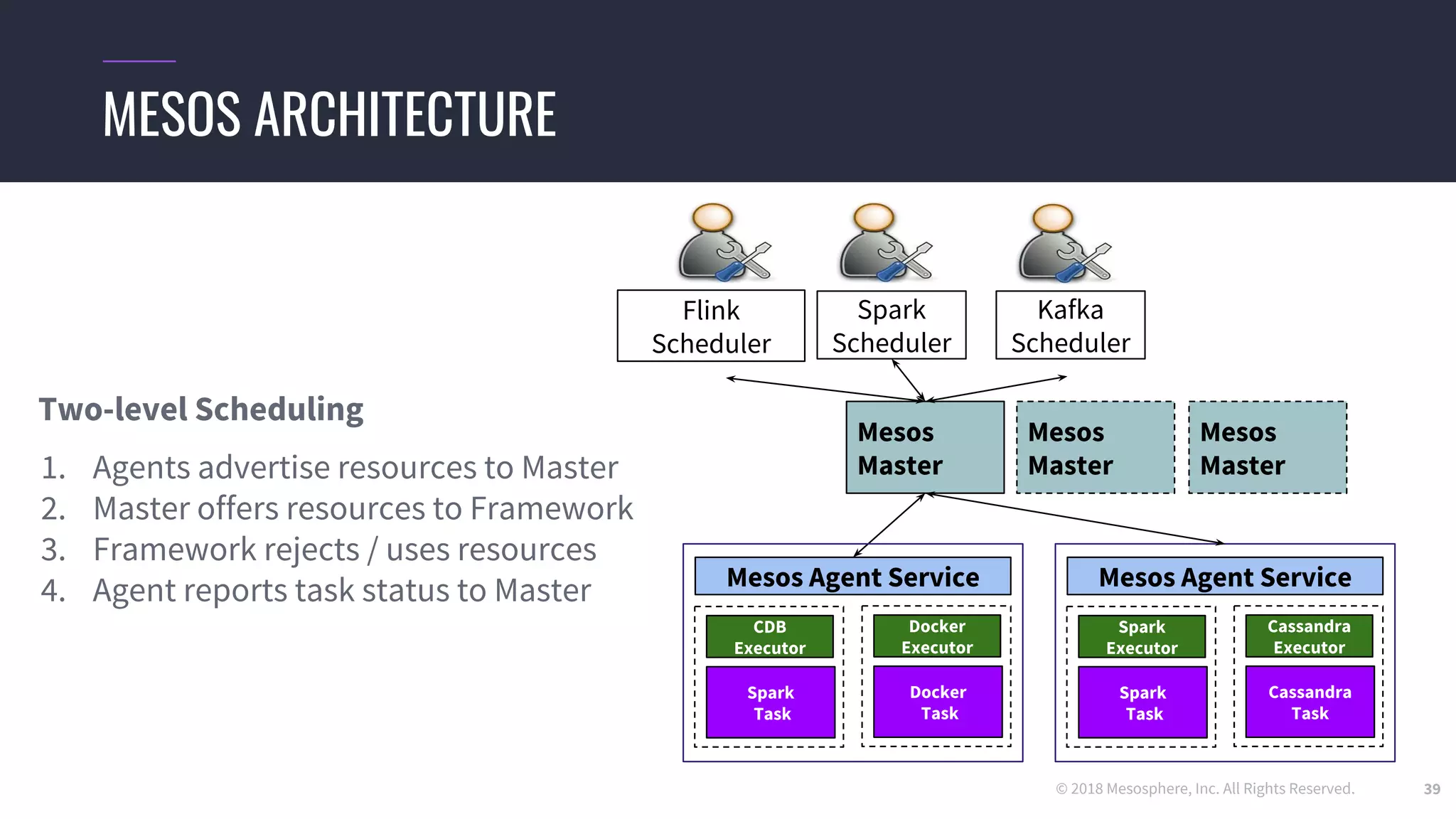

Two-level Scheduling
1. Agents advertise resources to Master
2. Master offers resources to Framework
3. Framework rejects / uses resources
4. Agent reports task status to Master
39
MESOS ARCHITECTURE
Mesos
Master
Mesos
Master
Mesos
Master
Mesos AgentMesos Agent Service
Cassandra
Executor
Cassandra
Task
Flink
Scheduler
Spark
Executor
Spark
Task
Mesos AgentMesos Agent Service
Docker
Executor
Docker
Task
CDB
Executor
Spark
Task
Spark
Scheduler
Kafka
Scheduler

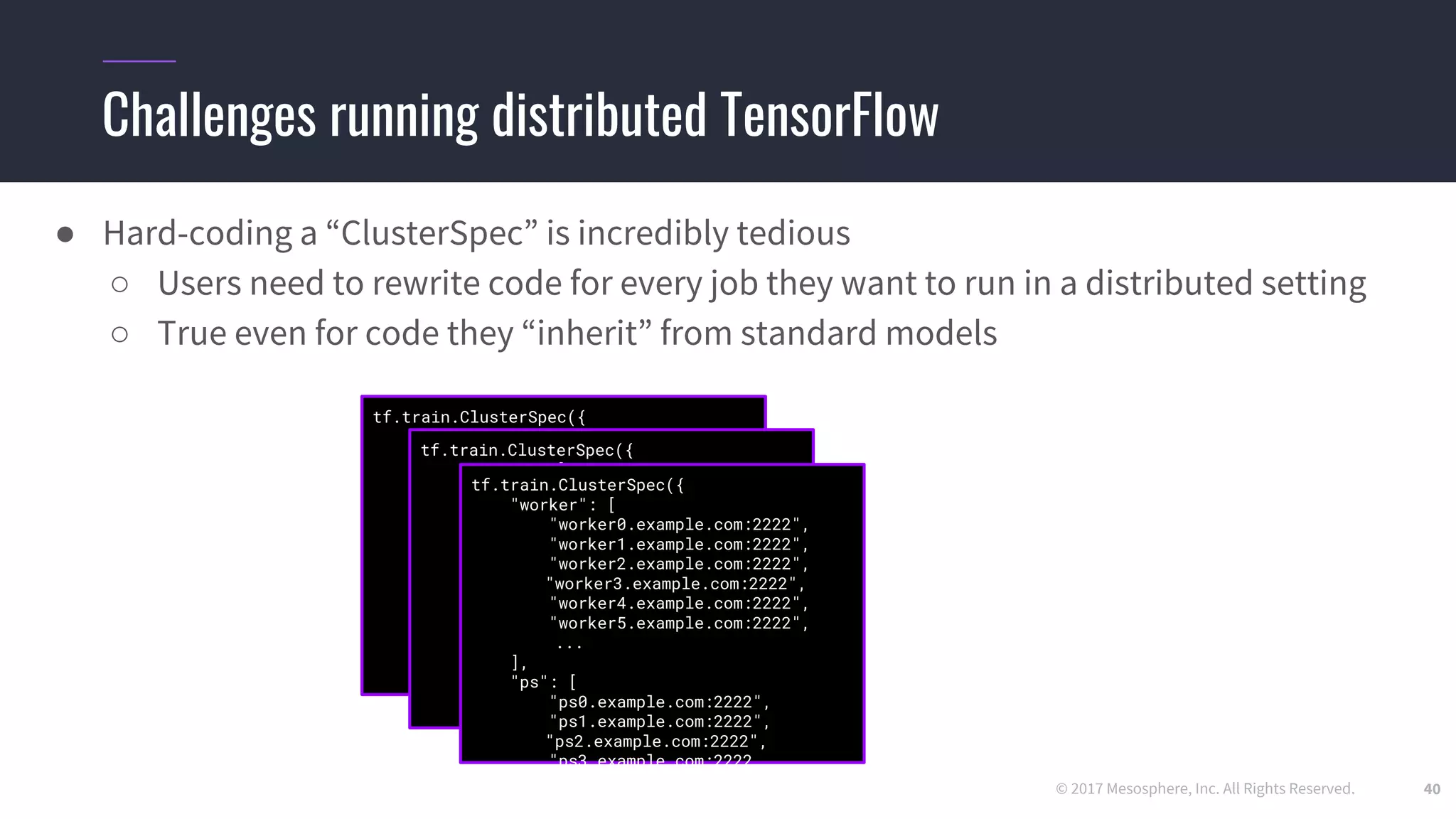

Challenges running distributed TensorFlow
40
● Hard-coding a “ClusterSpec” is incredibly tedious
○ Users need to rewrite code for every job they want to run in a distributed setting
○ True even for code they “inherit” from standard models
tf.train.ClusterSpec({
"worker": [
"worker0.example.com:2222",
...
],
"ps": [
"ps0.example.com:2222",
...
]})
"worker": [
...
],
"ps": [
...
]})
"worker": [
...
],
"ps": [
"ps3.example.com:2222

Challenges running distributed TensorFlow
● Manually configuring each node in a cluster takes a long time and is error-prone
○ Setting up access to a shared file system (for checkpoint and summary files)
requires authenticating on each node
○ Tweaking hyper-parameters requires re-uploading code to every node
41

● …

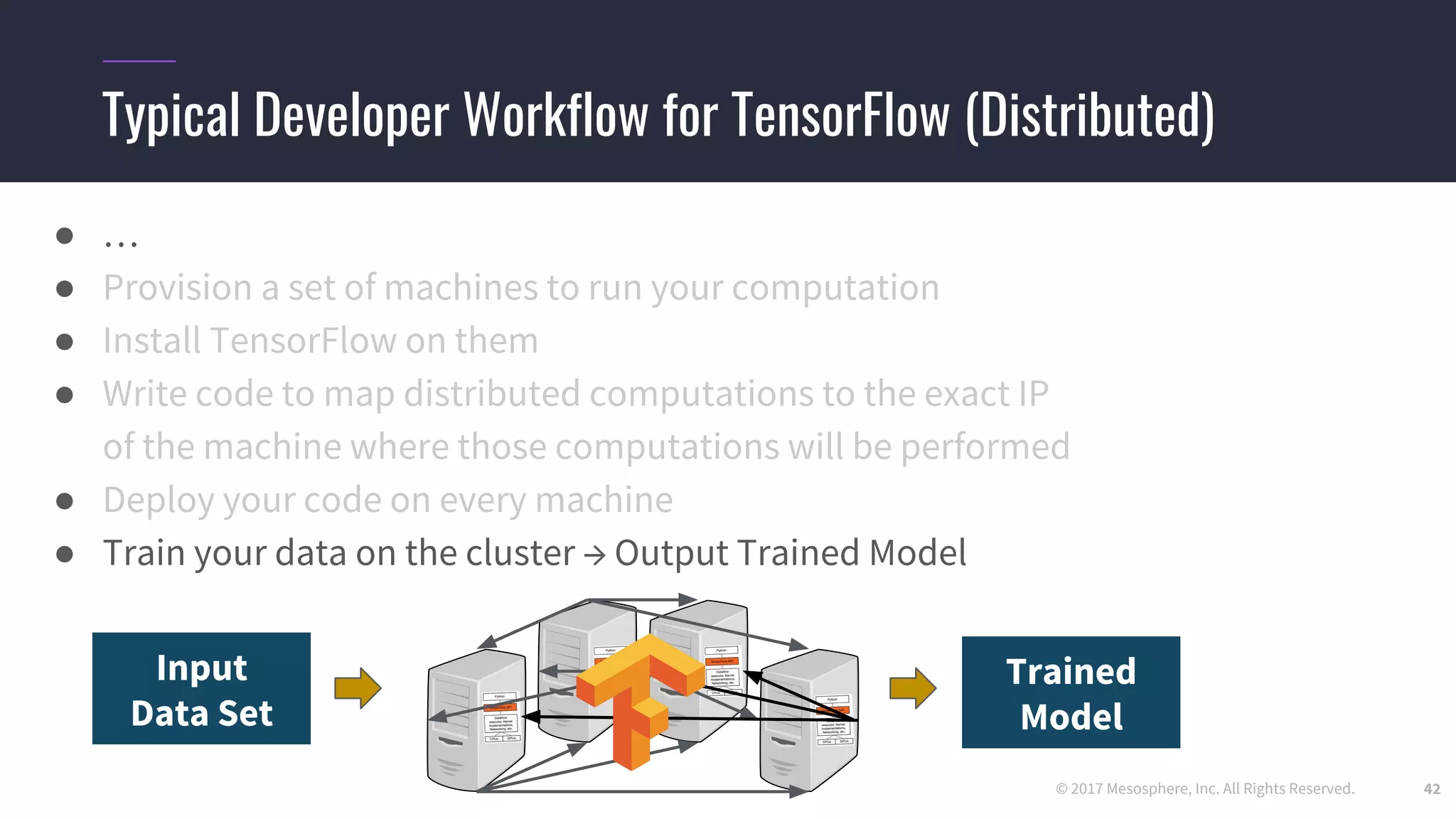

● Provision a set of machines to run your computation
● Install TensorFlow on them
● Write code to map distributed computations to the exact IP
of the machine where those computations will be performed
● Deploy your code on every machine
● Train your data on the cluster → Output Trained Model
42
Trained
Model
Input
Data Set

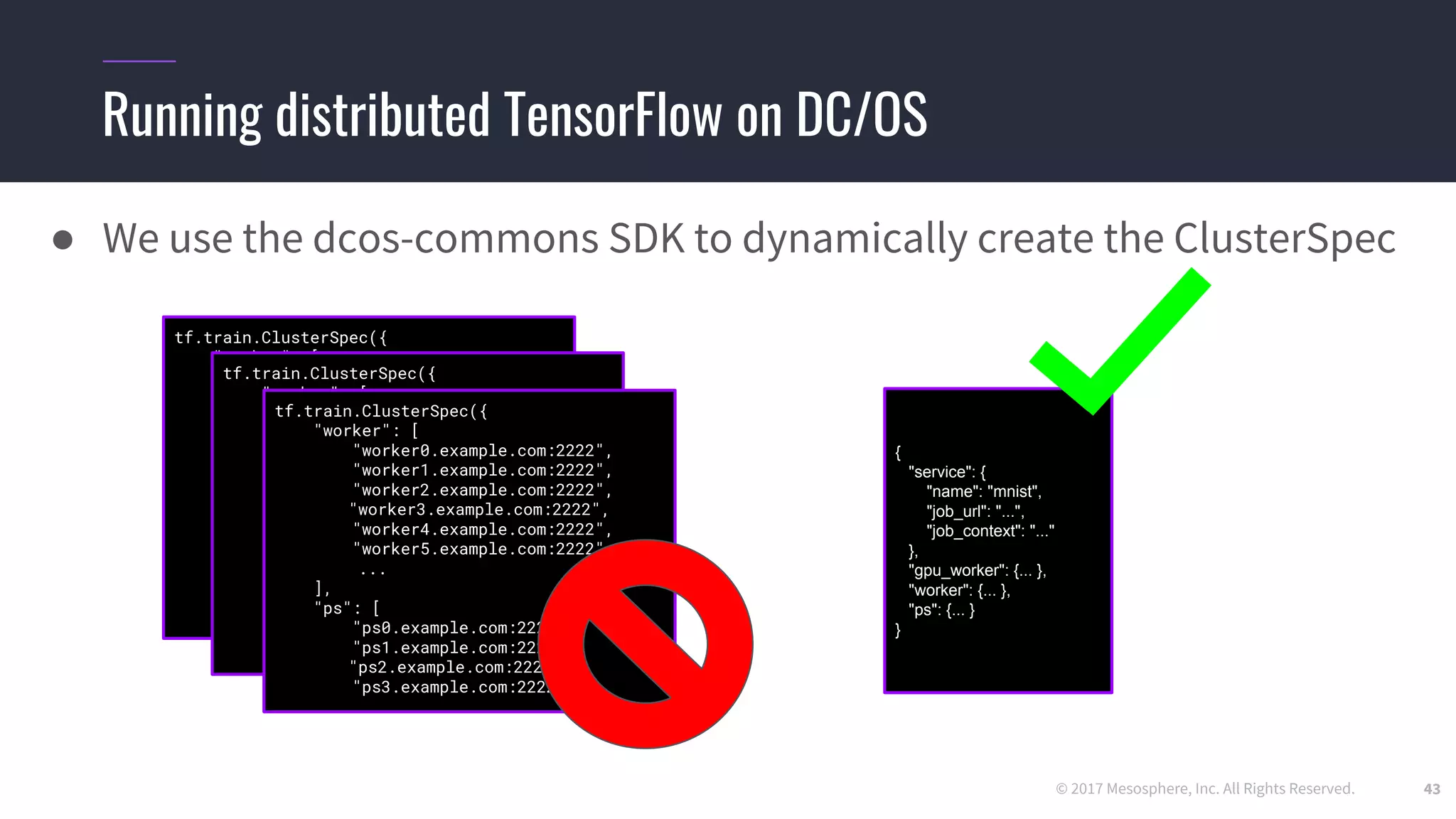

Running distributed TensorFlow on DC/OS
● We use the dcos-commons SDK to dynamically create the ClusterSpec
43
{
"service": {
"name": "mnist",
"job_url": "...",
"job_context": "..."
},
"gpu_worker": {... },
"worker": {... },
"ps": {... }
}
"worker": [
...
],
"ps": [
...
]})
"worker": [
...
],
"ps": [
...
]})
"worker": [
...
],
"ps": [
"ps3.example.com:2222

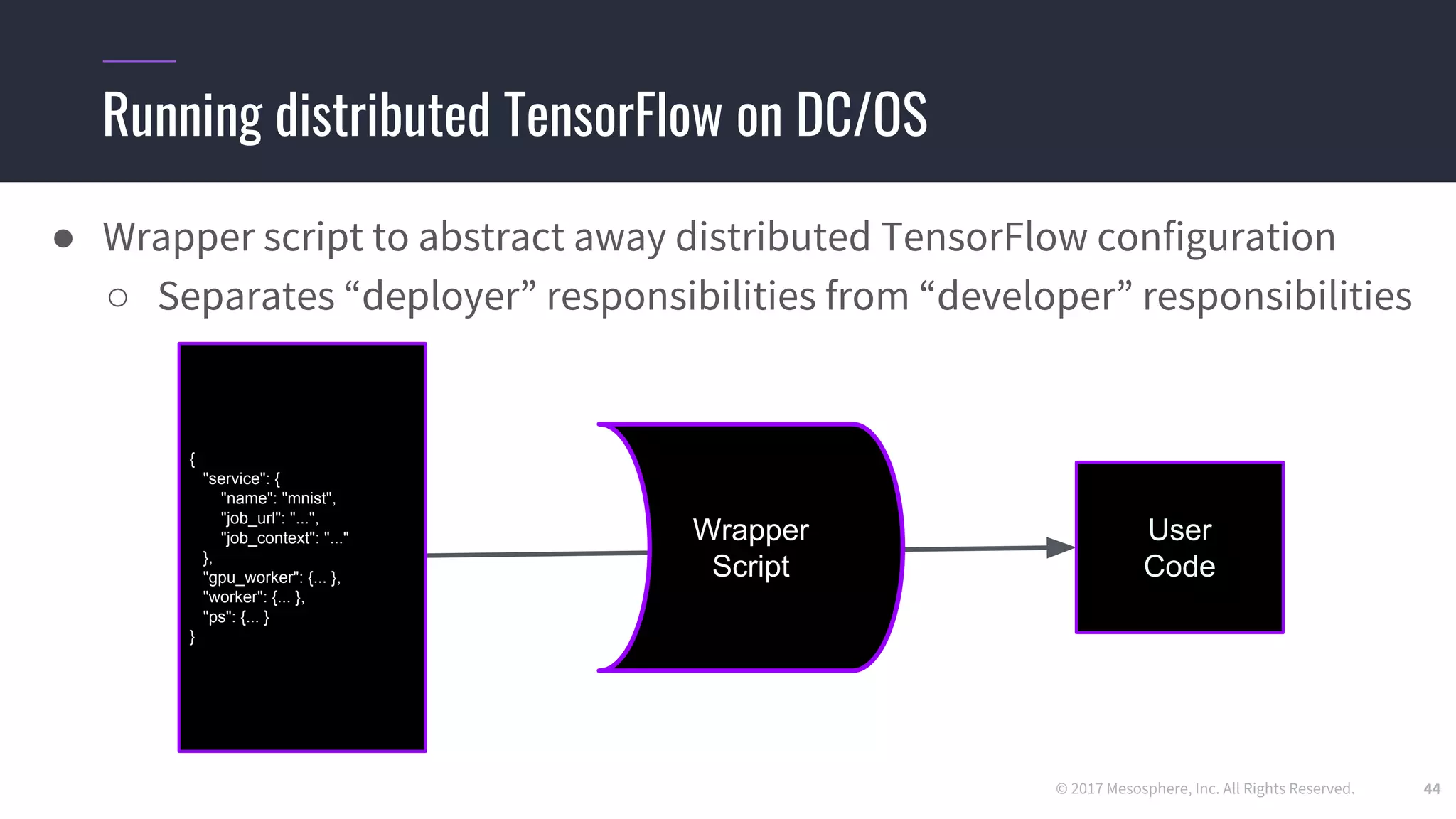

44
● Wrapper script to abstract away distributed TensorFlow configuration
○ Separates “deployer” responsibilities from “developer” responsibilities
{
"service": {
"name": "mnist",
"job_url": "...",
"job_context": "..."
},
"gpu_worker": {... },
"worker": {... },
"ps": {... }
}
User
Code
Wrapper
Script

45

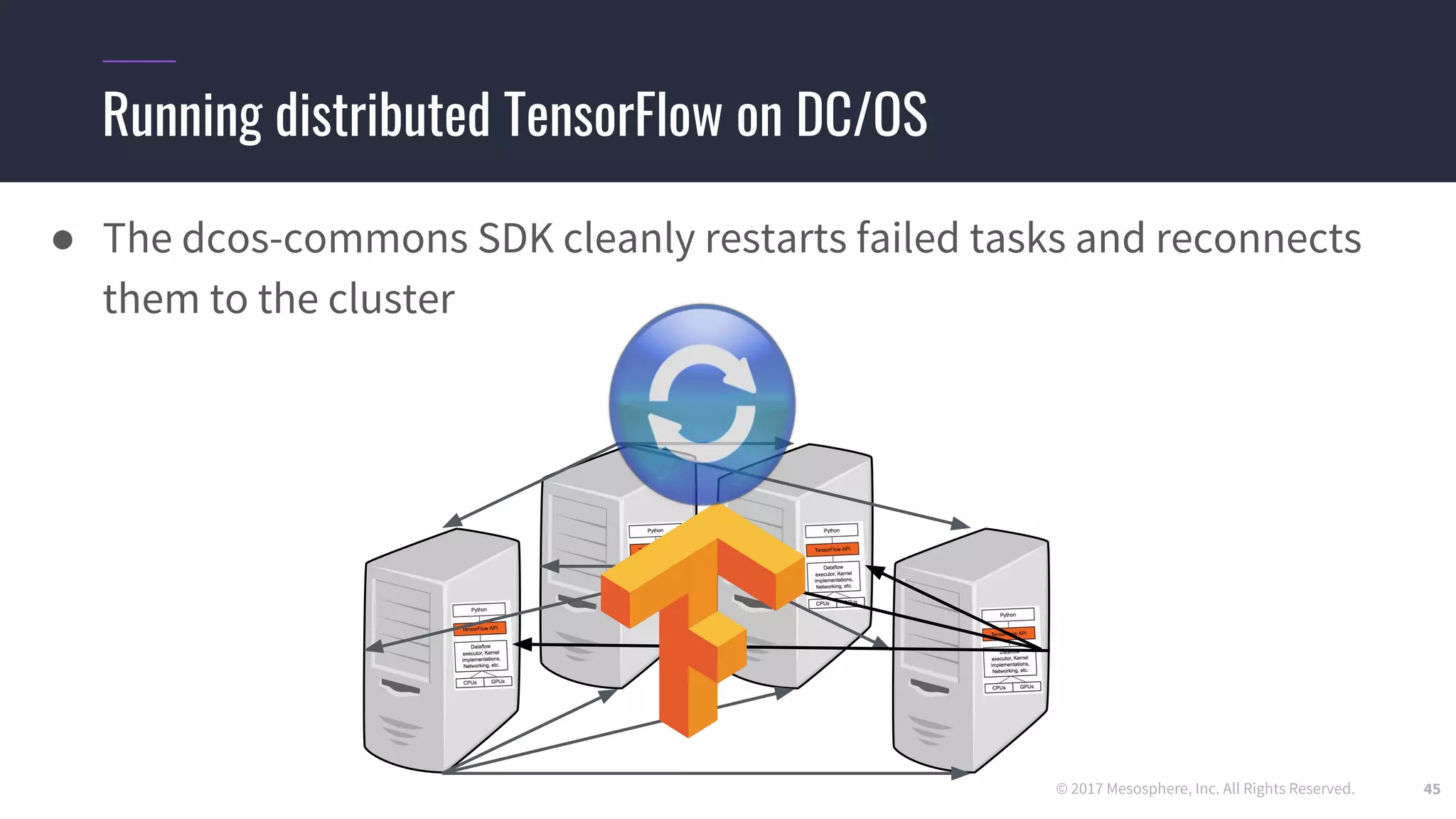

● The dcos-commons SDK cleanly restarts failed tasks and reconnects
them to the cluster

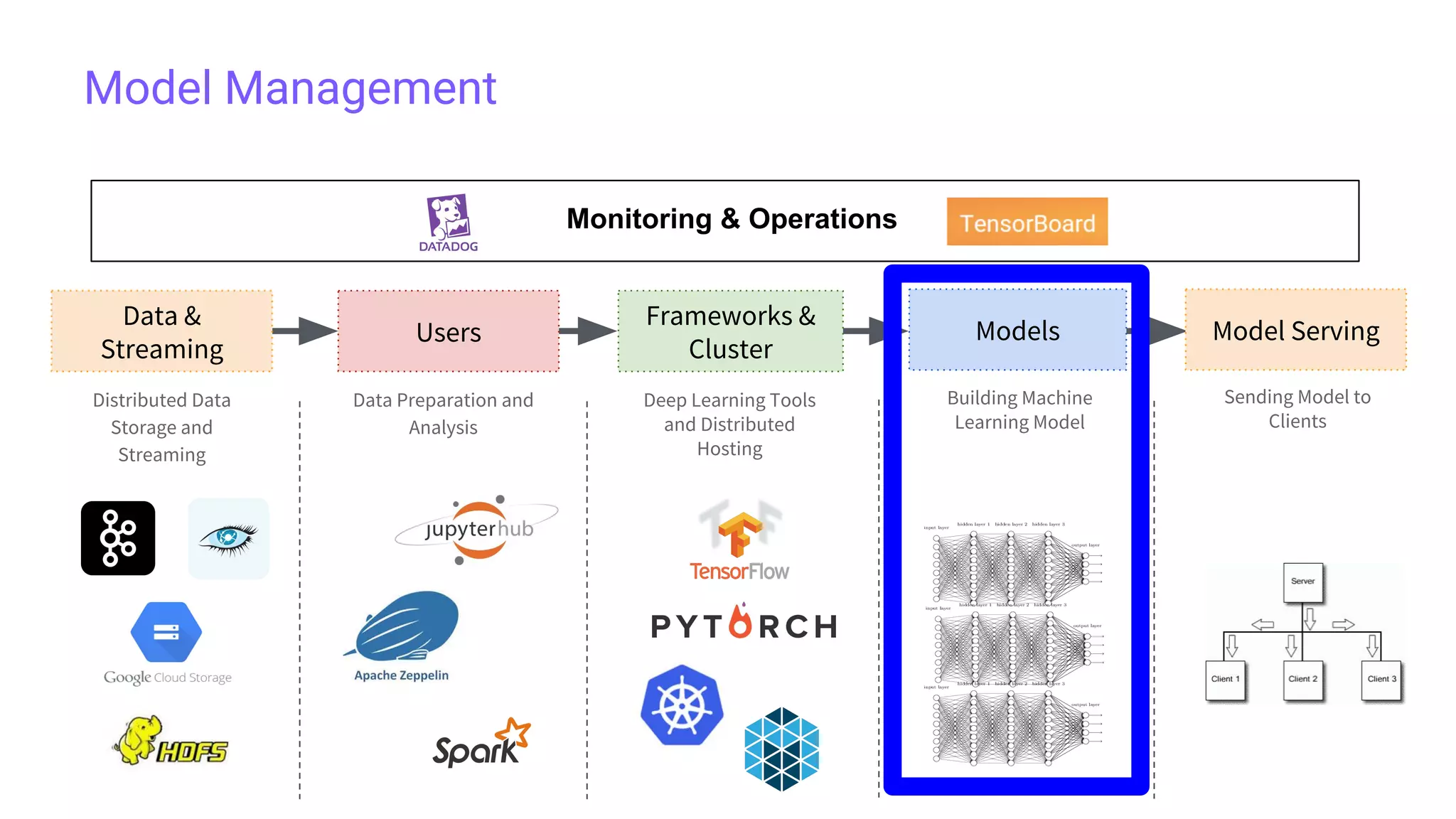

Model Management
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

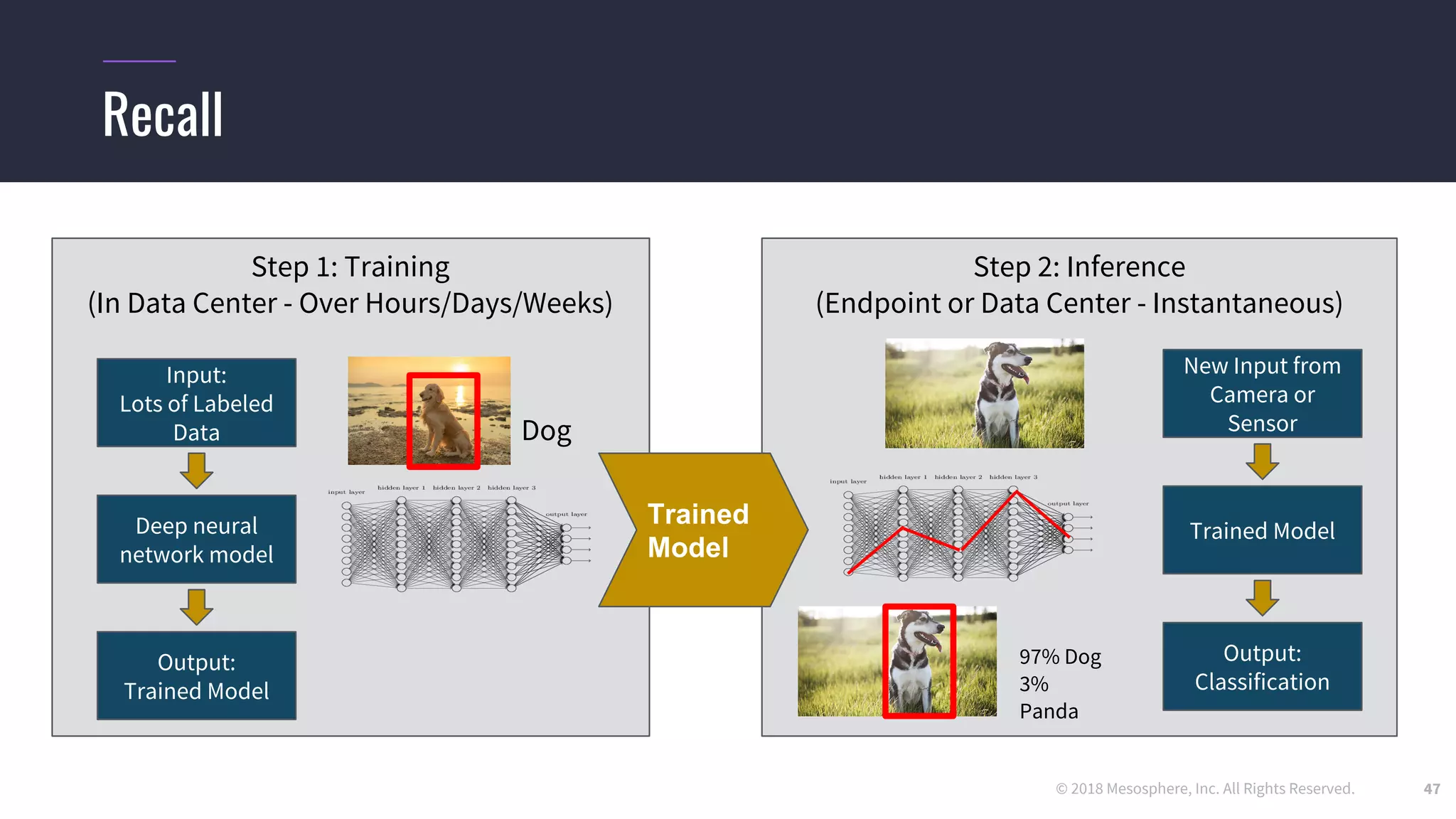

Recall
47
Step 1: Training
Step 2: Inference
(Endpoint or Data Center - Instantaneous)
Dog
Input:
Lots of Labeled
Data
Output:
Trained Model
Deep neural
network model
Trained
Model
Output:
Classification
Trained Model
New Input from
Camera or
Sensor
97% Dog
3%
Panda

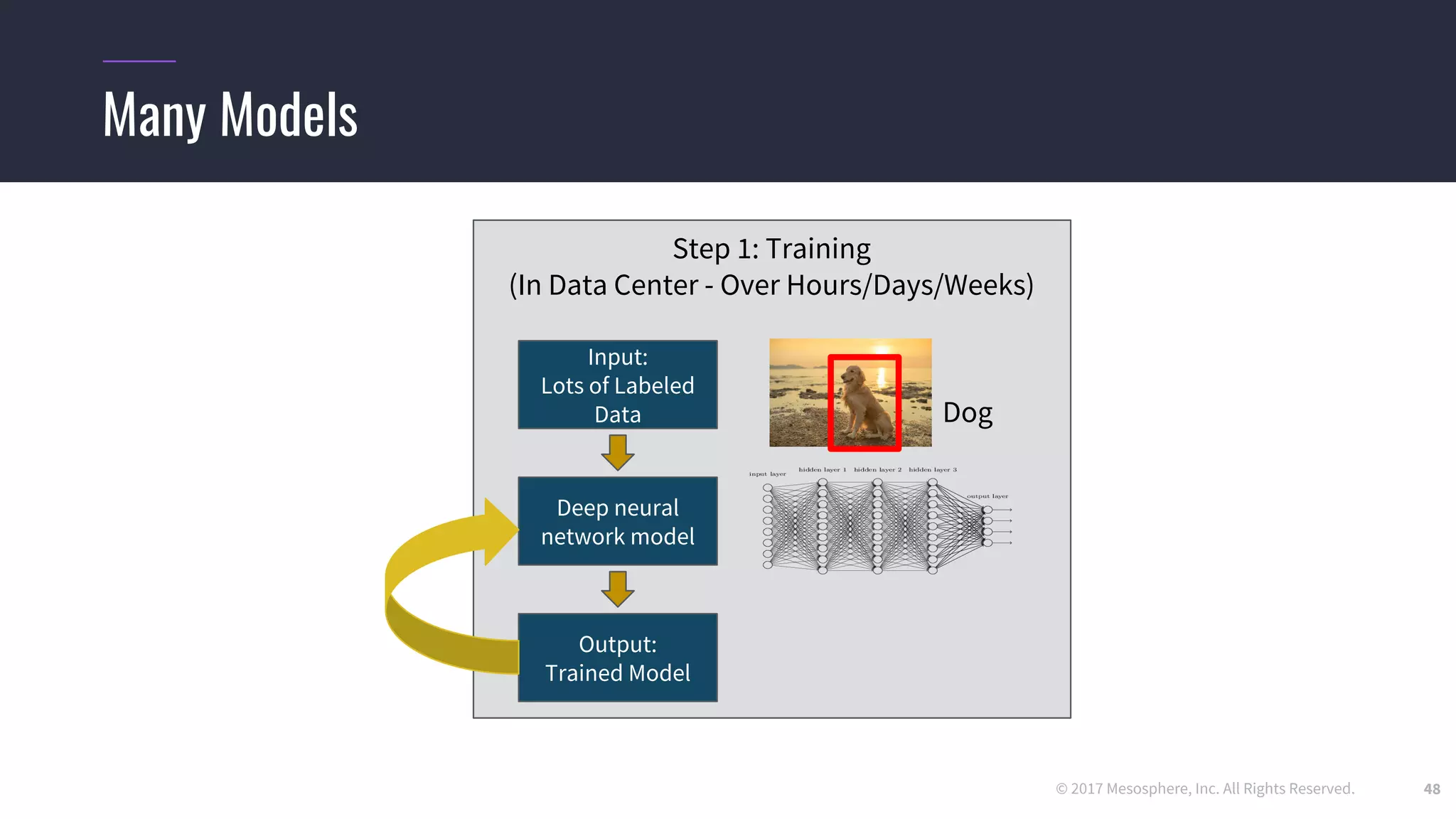

Many Models
48
Step 1: Training
Dog
Input:
Lots of Labeled
Data
Output:
Trained Model
Deep neural
network model

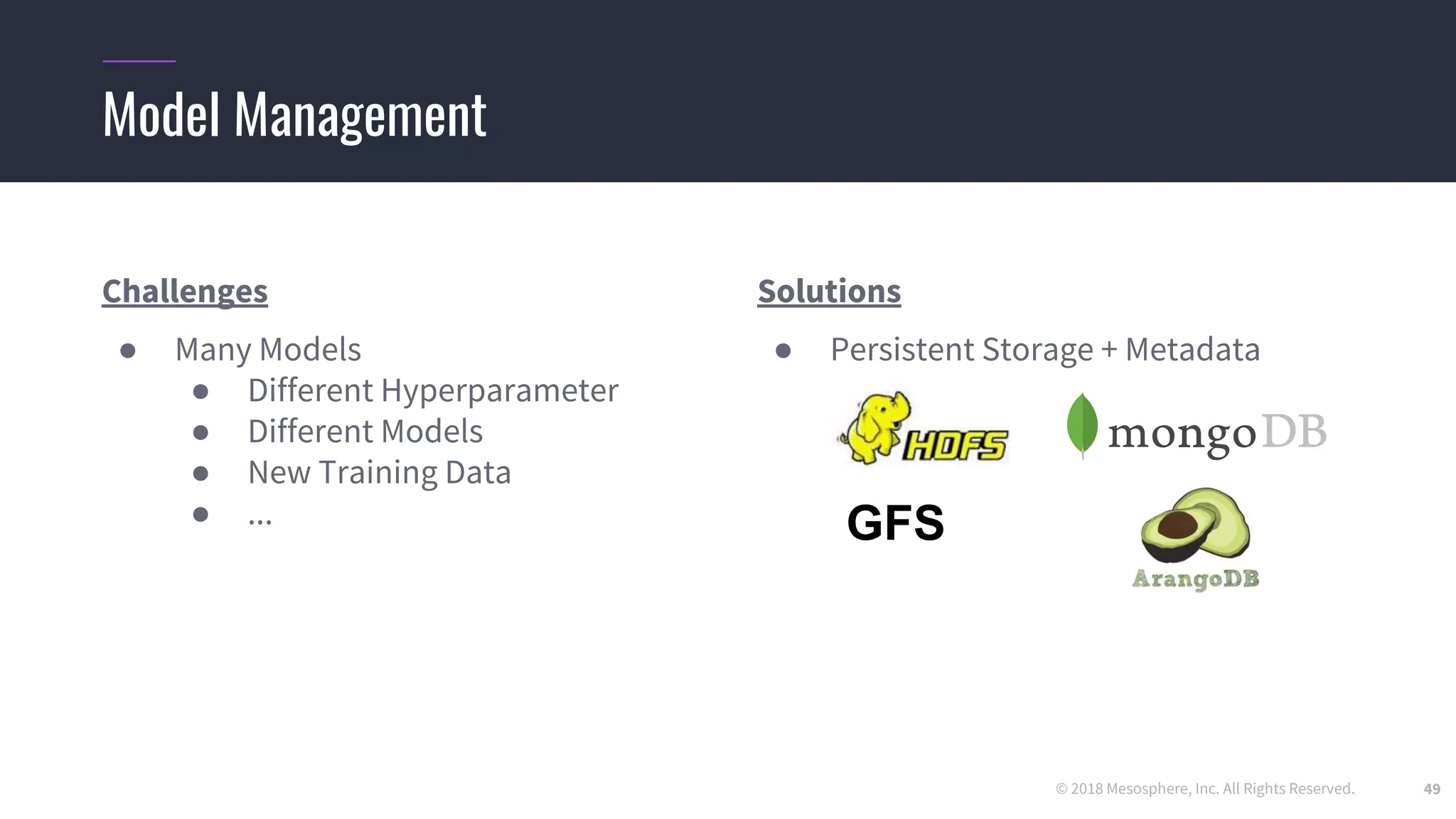

Challenges
● Many Models
● Different Hyperparameter
● Different Models
● New Training Data
● ...
Solutions
● Persistent Storage + Metadata
Model Management
GFS

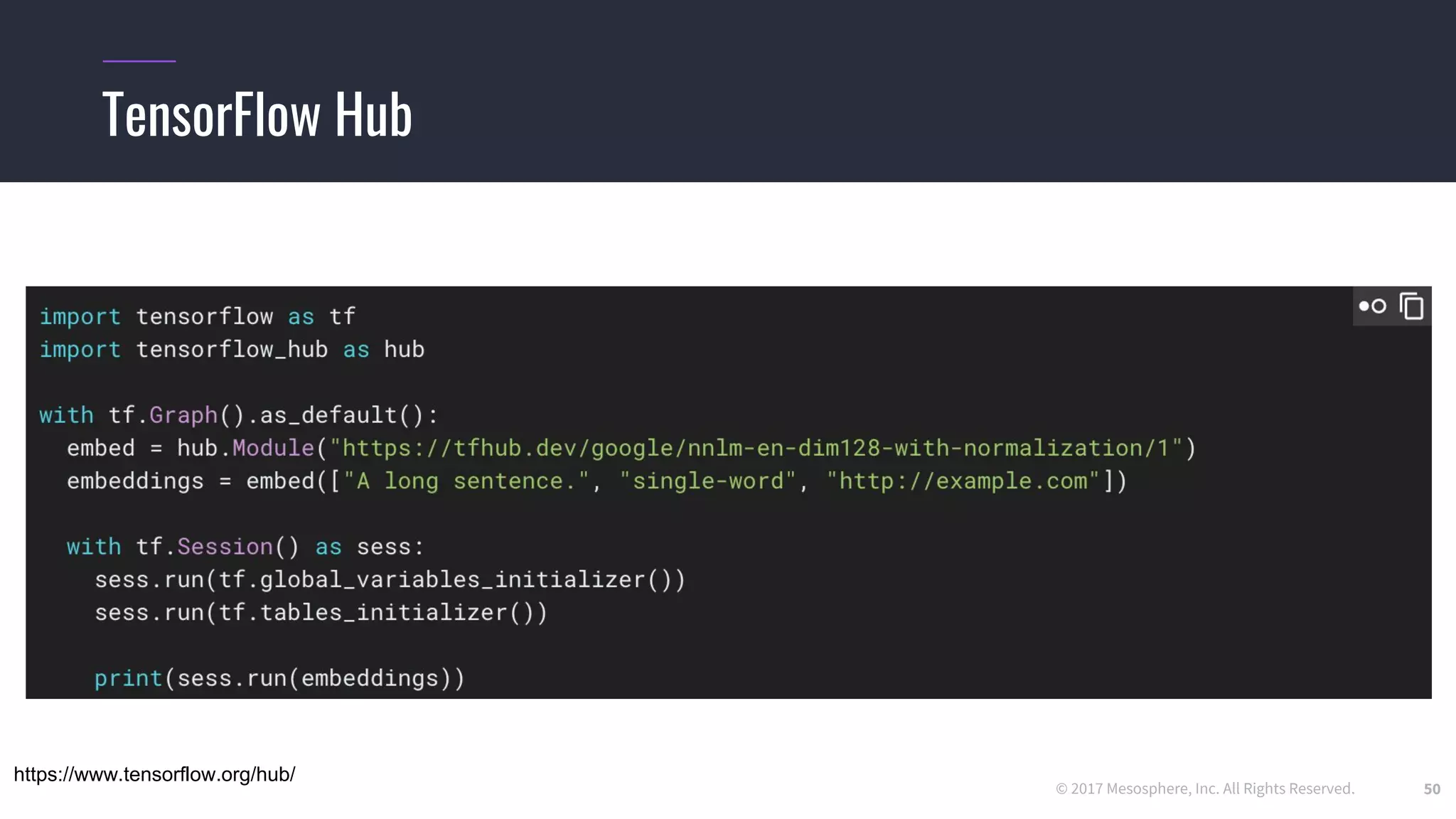

TensorFlow Hub
50
https://www.tensorflow.org/hub/

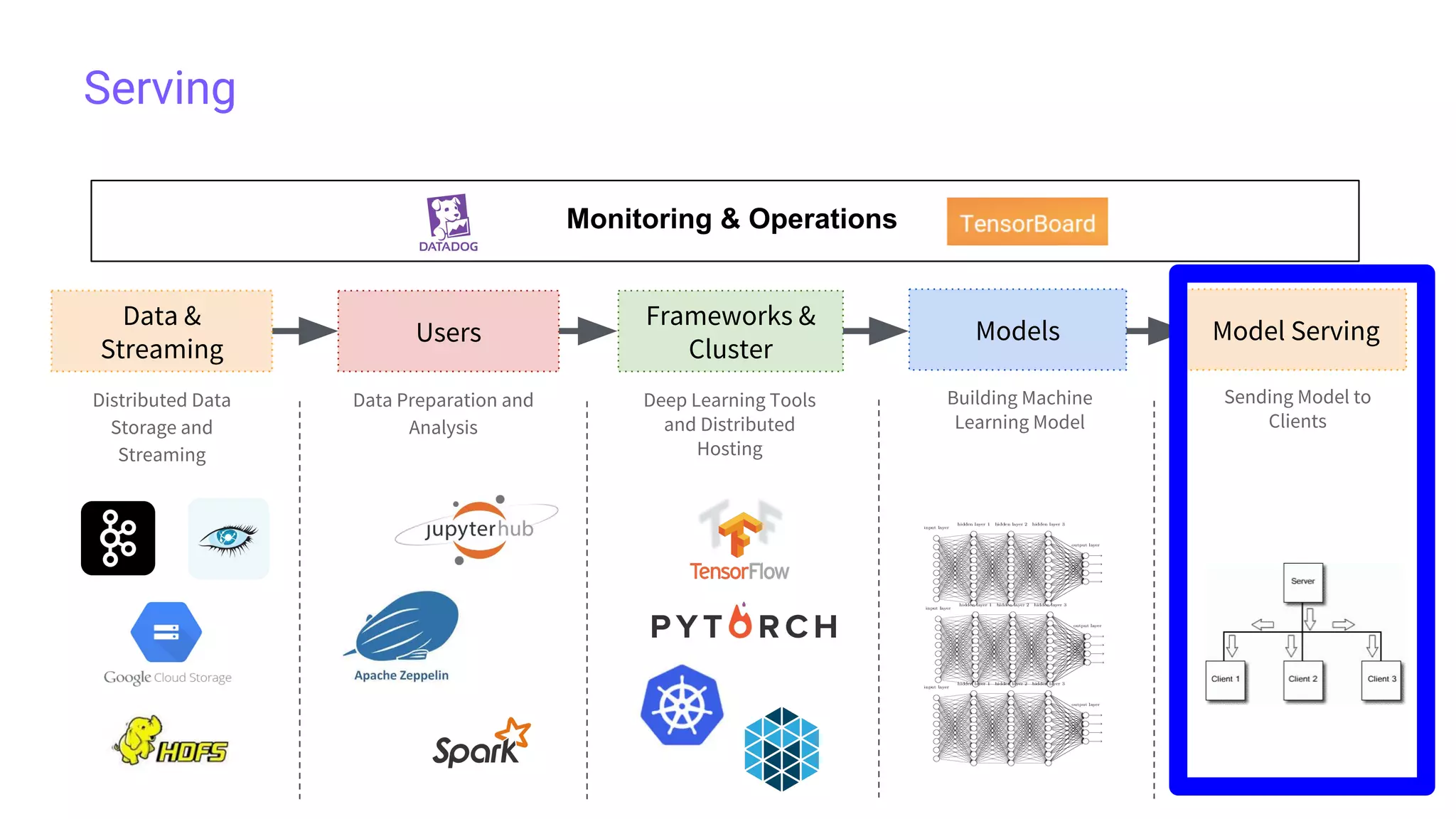

Serving
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

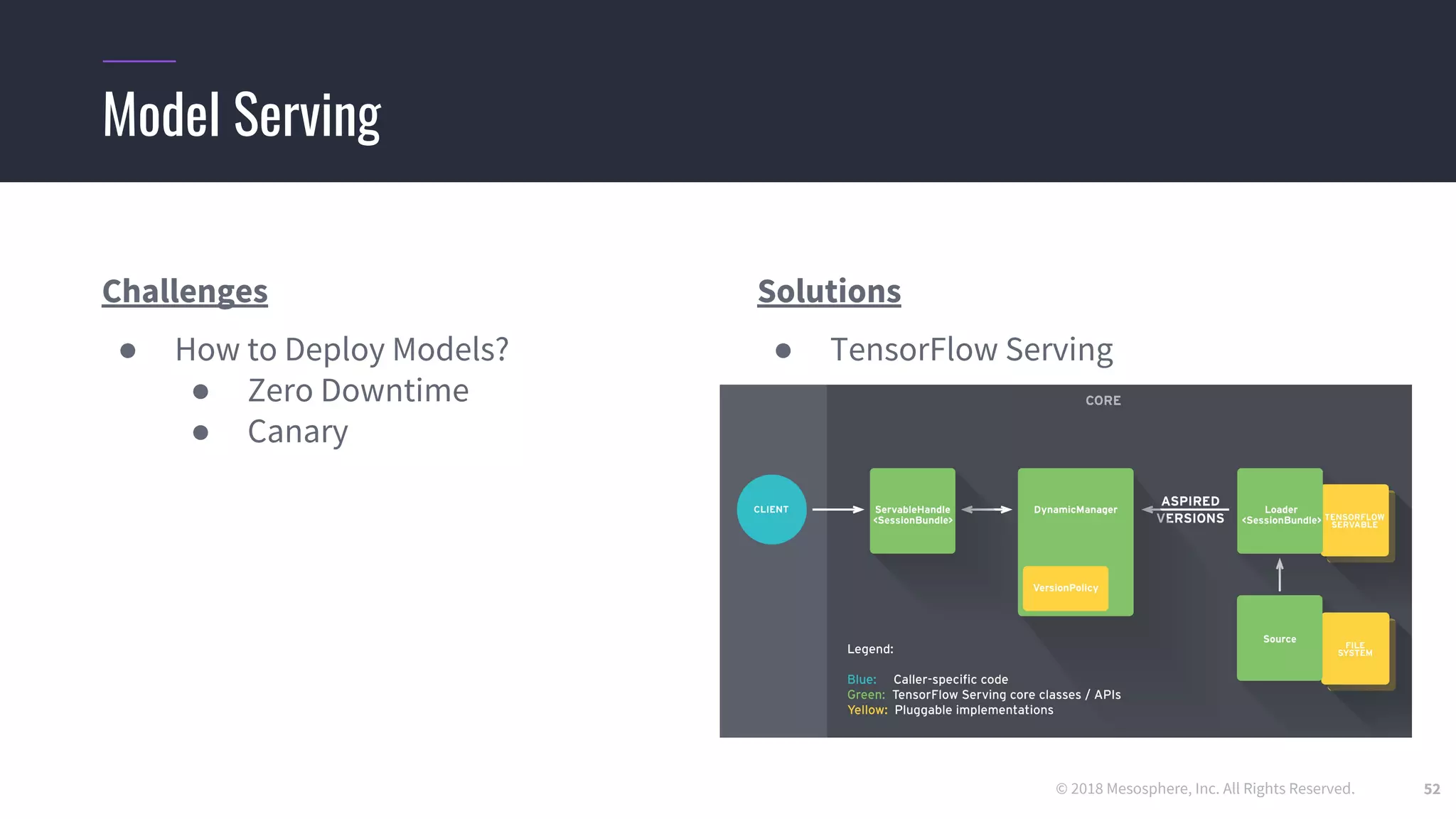

Challenges
● How to Deploy Models?
● Zero Downtime
● Canary
Solutions
● TensorFlow Serving
Model Serving

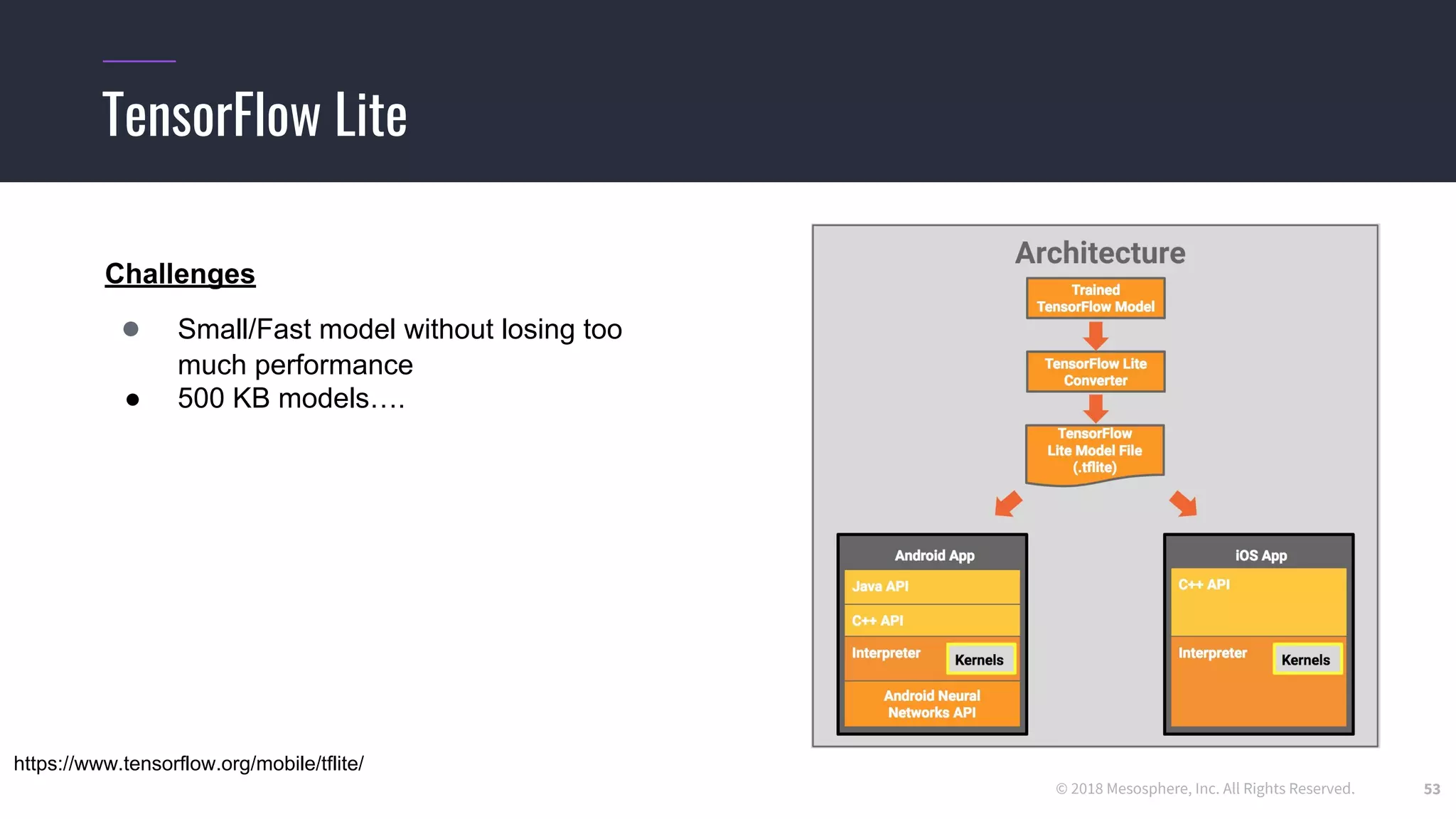

TensorFlow Lite
53
https://www.tensorflow.org/mobile/tflite/
Challenges
● Small/Fast model without losing too
much performance
● 500 KB models….

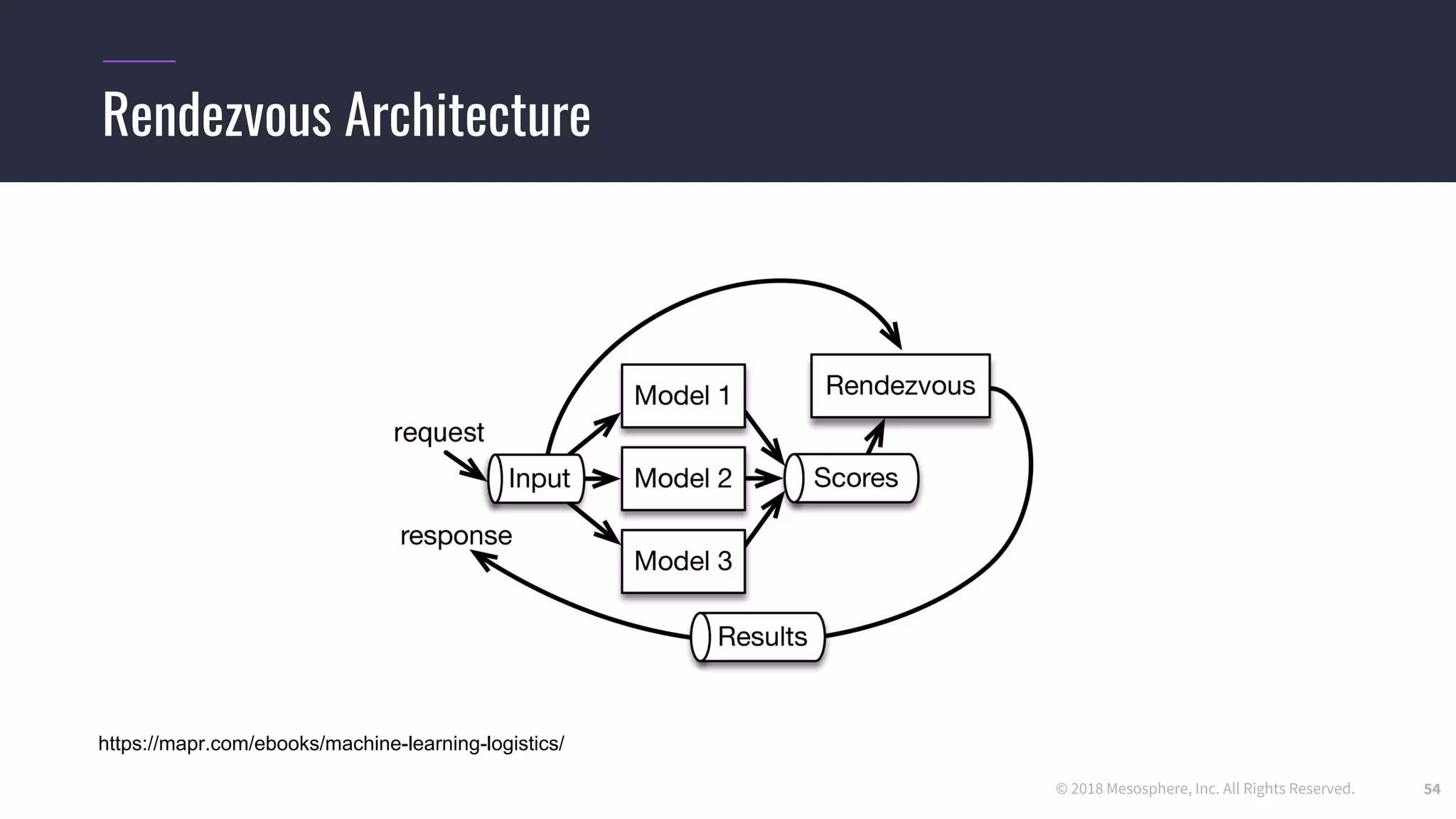

Rendezvous Architecture
54
https://mapr.com/ebooks/machine-learning-logistics/

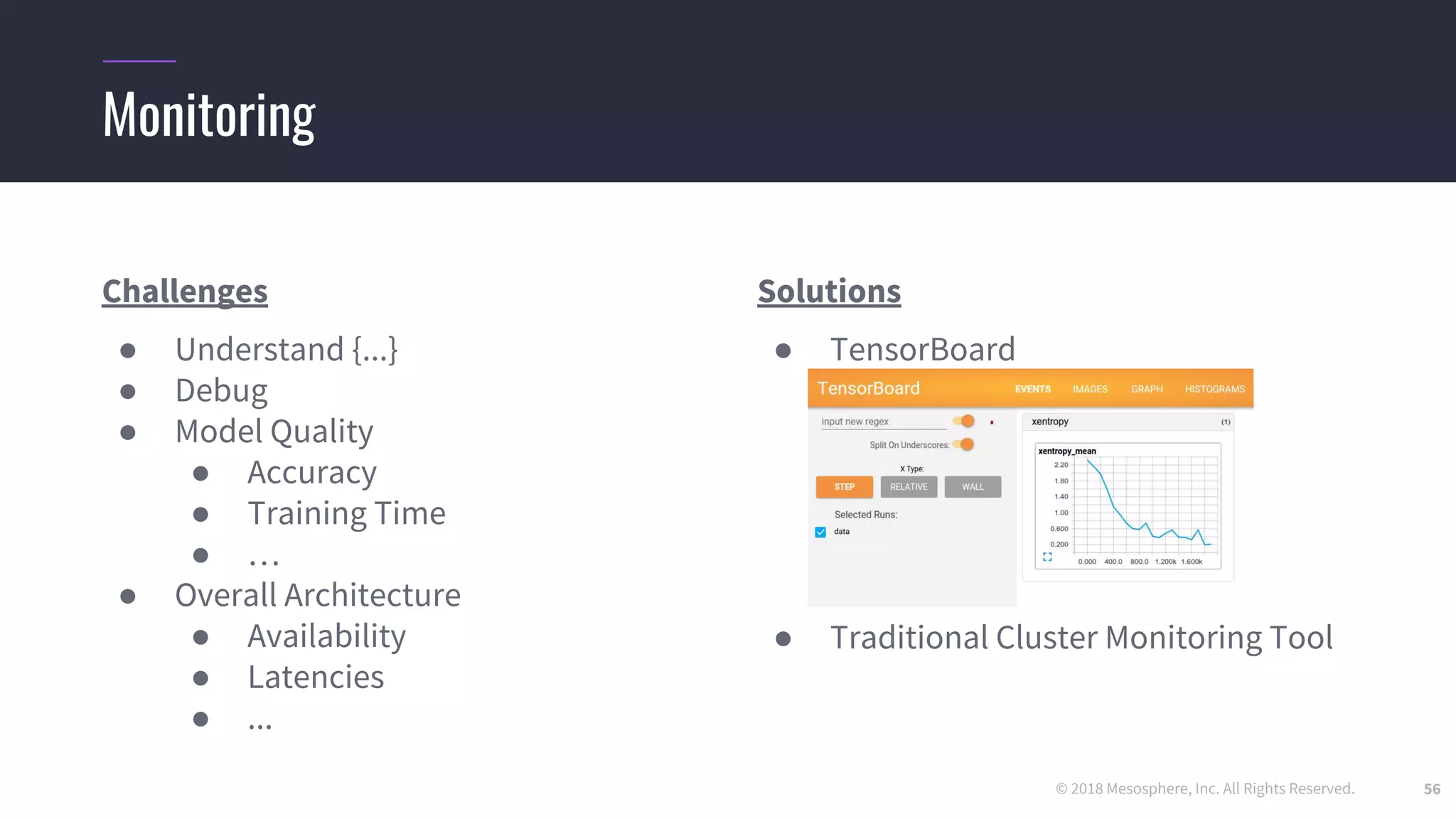

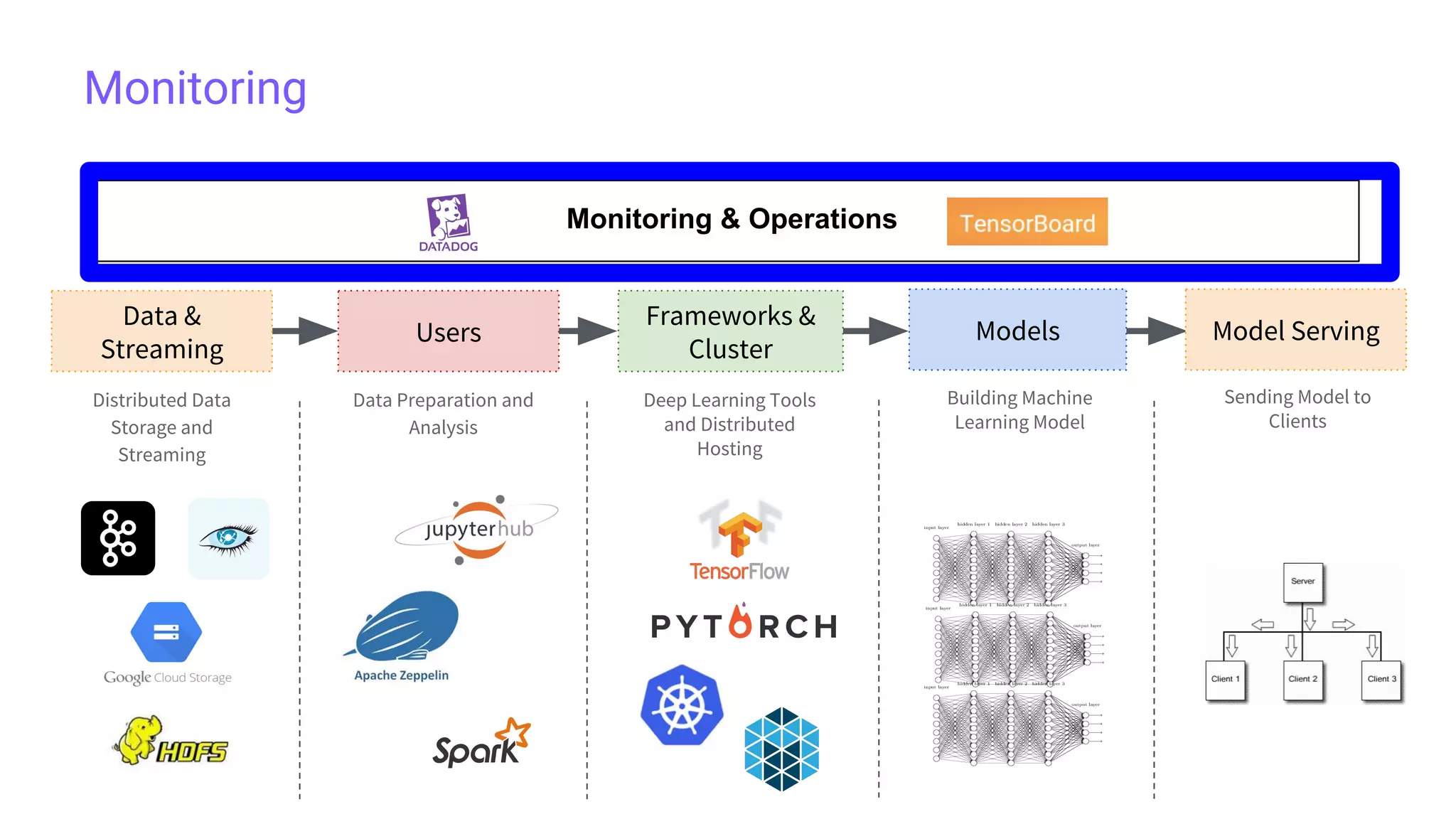

Monitoring
Data &
Streaming
Users
Frameworks &
Cluster
Models
Distributed Data
Storage and
Streaming
Model Serving
Analysis
Deep Learning Tools
and Distributed
Hosting
Building Machine
Learning Model
Sending Model to
Clients

Challenges
● Understand {...}
● Debug
● Model Quality
● Accuracy
● Training Time
● …
● Overall Architecture
● Availability
● Latencies
● ...
Solutions
● TensorBoard
● Traditional Cluster Monitoring Tool
Monitoring

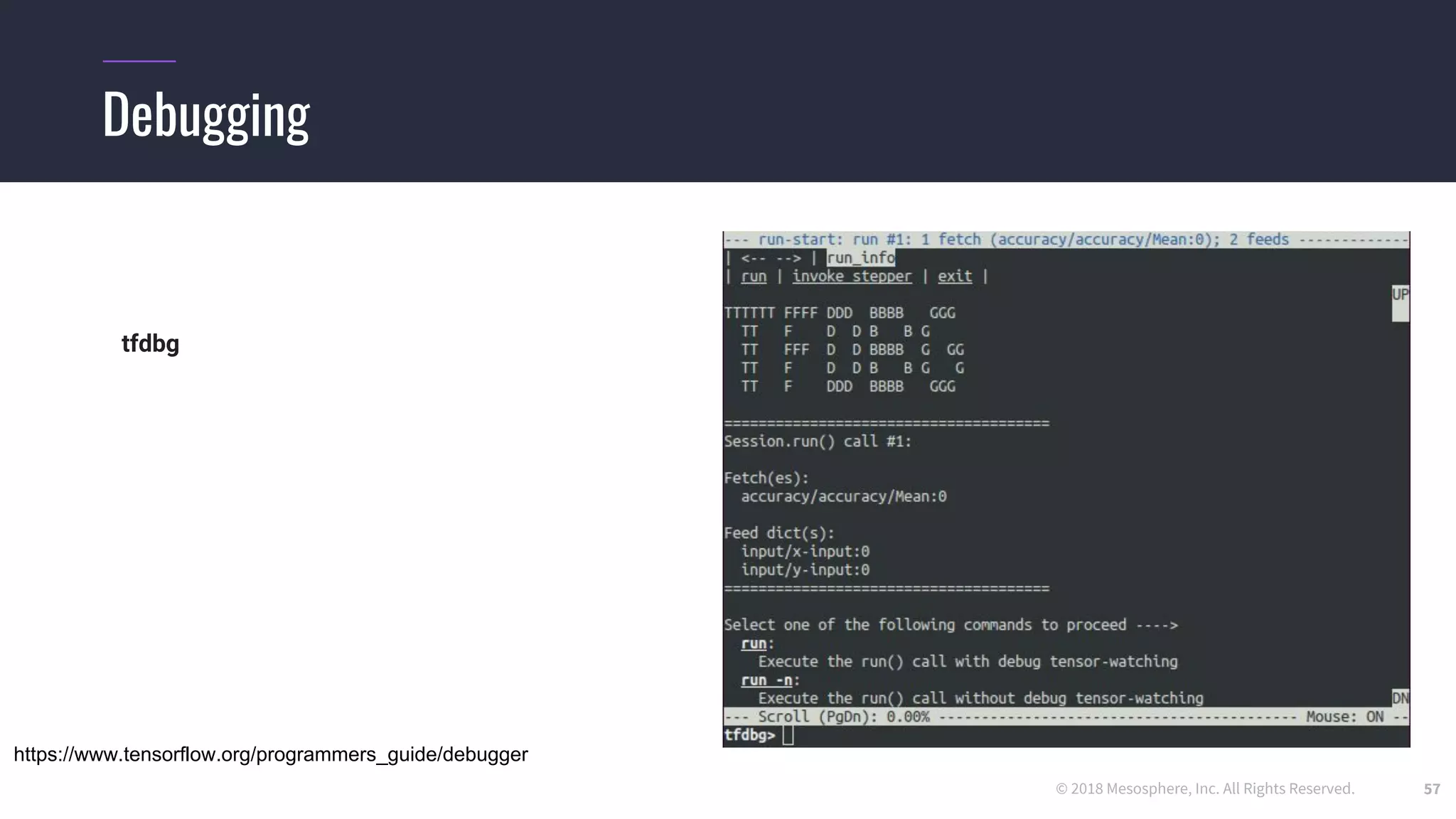

Debugging
57
tfdbg
https://www.tensorflow.org/programmers_guide/debugger

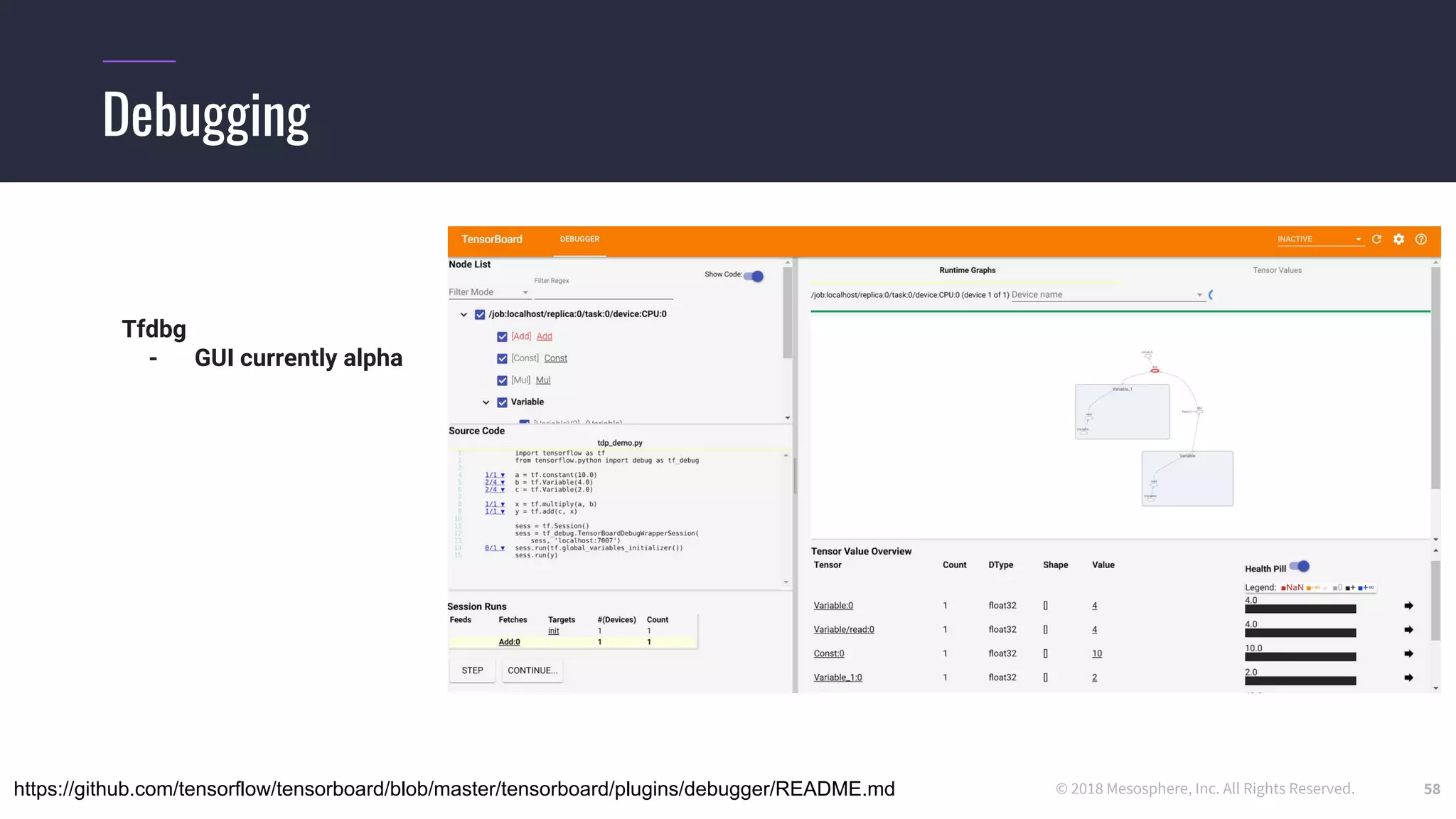

Debugging
58
Tfdbg
- GUI currently alpha
https://github.com/tensorflow/tensorboard/blob/master/tensorboard/plugins/debugger/README.md

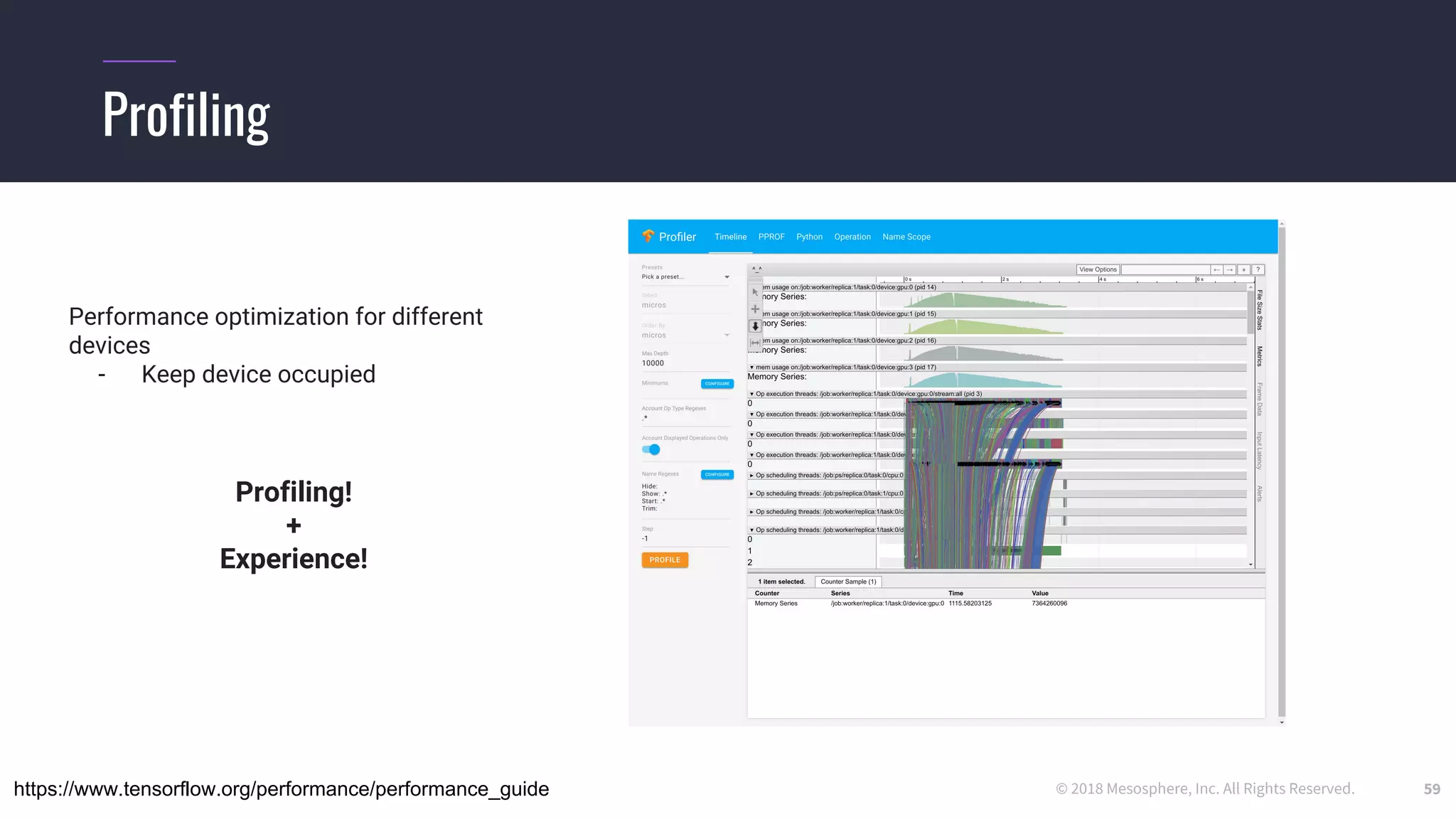

Profiling
59
Performance optimization for different
devices
- Keep device occupied
Profiling!
+
Experience!
https://www.tensorflow.org/performance/performance_guide

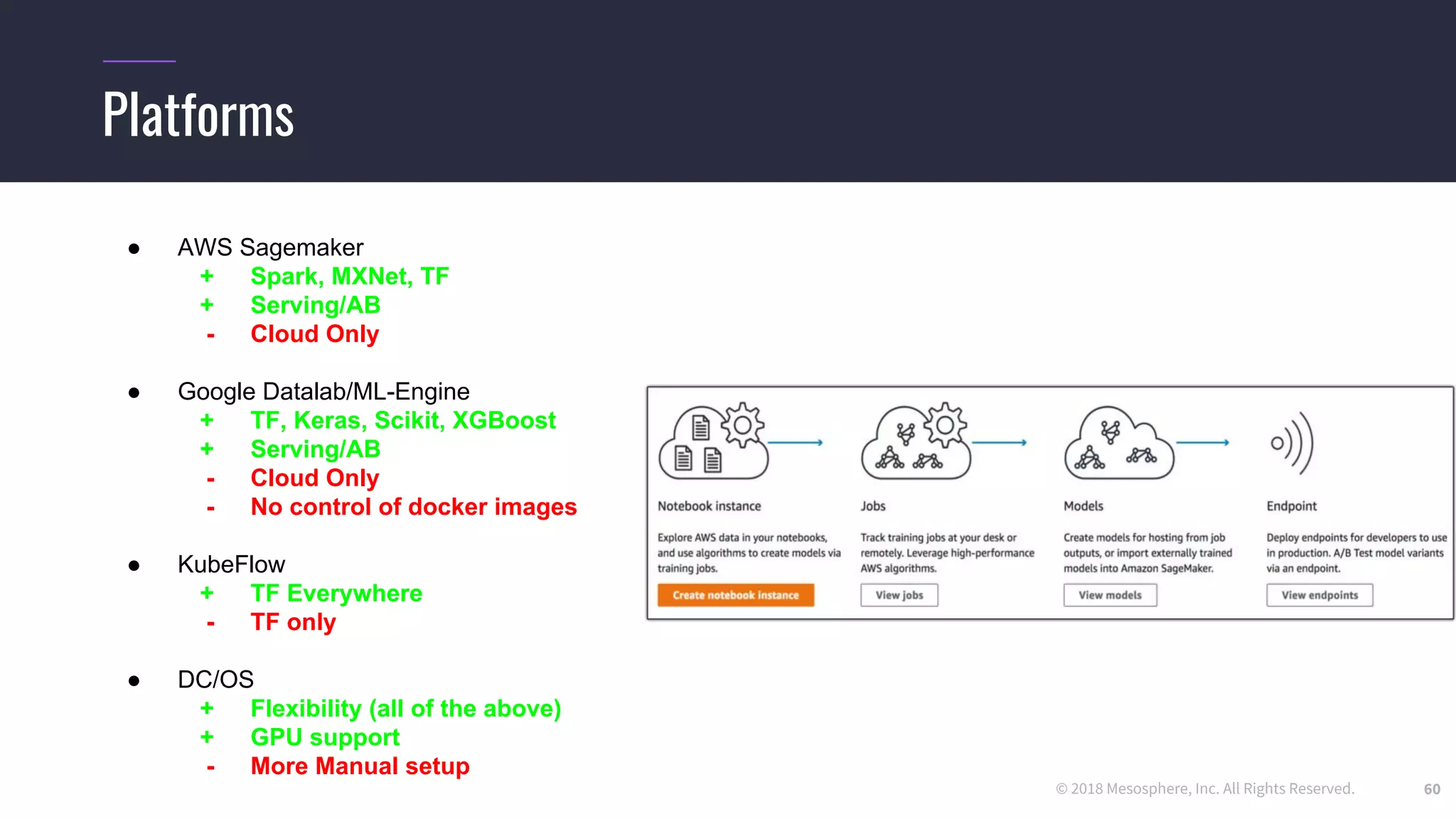

Platforms
60
● AWS Sagemaker
+ Spark, MXNet, TF
+ Serving/AB
- Cloud Only
● Google Datalab/ML-Engine
+ TF, Keras, Scikit, XGBoost
+ Serving/AB
- Cloud Only
- No control of docker images
● KubeFlow
+ TF Everywhere
- TF only
● DC/OS
+ Flexibility (all of the above)
+ GPU support
- More Manual setup

Demo
Jupyter notebook
2. Train the
model using
TensorFlow
Serving

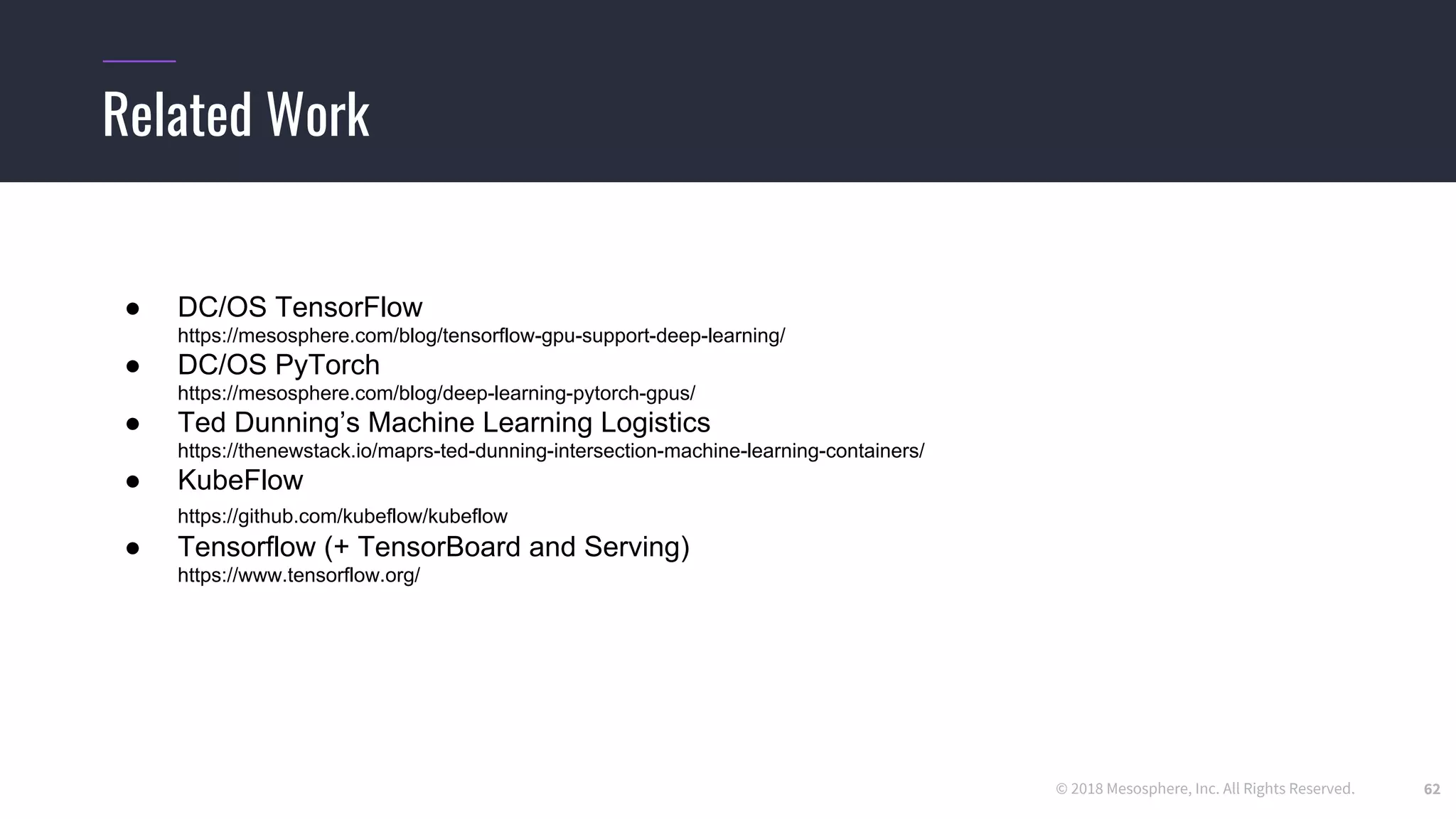

Related Work
62
● DC/OS TensorFlow
https://mesosphere.com/blog/tensorflow-gpu-support-deep-learning/
● DC/OS PyTorch
https://mesosphere.com/blog/deep-learning-pytorch-gpus/
● Ted Dunning’s Machine Learning Logistics
https://thenewstack.io/maprs-ted-dunning-intersection-machine-learning-containers/
● KubeFlow
https://github.com/kubeflow/kubeflow
● Tensorflow (+ TensorBoard and Serving)
https://www.tensorflow.org/

Special Thanks to All Collaborators
63
Ben Wood Robin Oh
Evan Lezar Art Rand
Gabriel Hartmann Chris Lambert
Bo Hu
Sam Pringle Kevin Klues

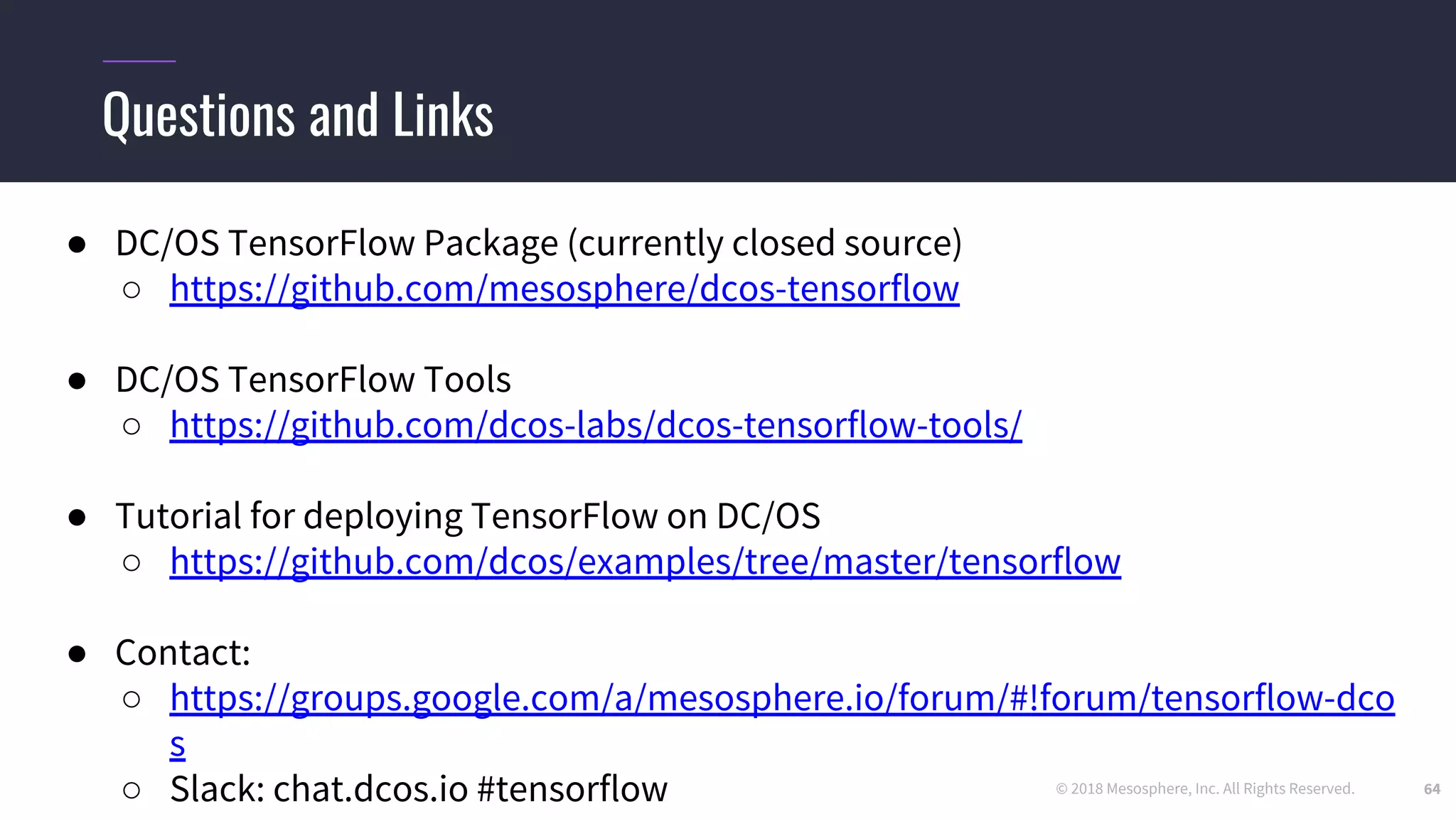

● DC/OS TensorFlow Package (currently closed source)
○ https://github.com/mesosphere/dcos-tensorflow
● DC/OS TensorFlow Tools
○ https://github.com/dcos-labs/dcos-tensorflow-tools/
● Tutorial for deploying TensorFlow on DC/OS
○ https://github.com/dcos/examples/tree/master/tensorflow
● Contact:
○ https://groups.google.com/a/mesosphere.io/forum/#!forum/tensorflow-dco
s
○ Slack: chat.dcos.io #tensorflow
Questions and Links
64

Deep learning beyond the learning - Jörg Schad - Codemotion Amsterdam 2018

More Related Content

What's hot

Similar to Deep learning beyond the learning - Jörg Schad - Codemotion Amsterdam 2018

More from Codemotion

Recently uploaded

Deep learning beyond the learning - Jörg Schad - Codemotion Amsterdam 2018
