Lars Wolff - Performance Testing for DevOps in the Cloud - Codemotion Amsterdam 2019
- 1. Performance Testing for DevOpsin the Cloud Lars Wolff Amsterdam | April 2-3, 2019
- 2. Introduction @larsvegas support@stormforger.com My Journey sofar • Software engineering • Consulting and Agile coaching • Performance Testing • Ship it! • AWS User Group Cologne & AWS Community Days Germany
- 3. Performance Testing SaaSfor DevOps Empower organizations to embrace continuous performance testing
- 4.

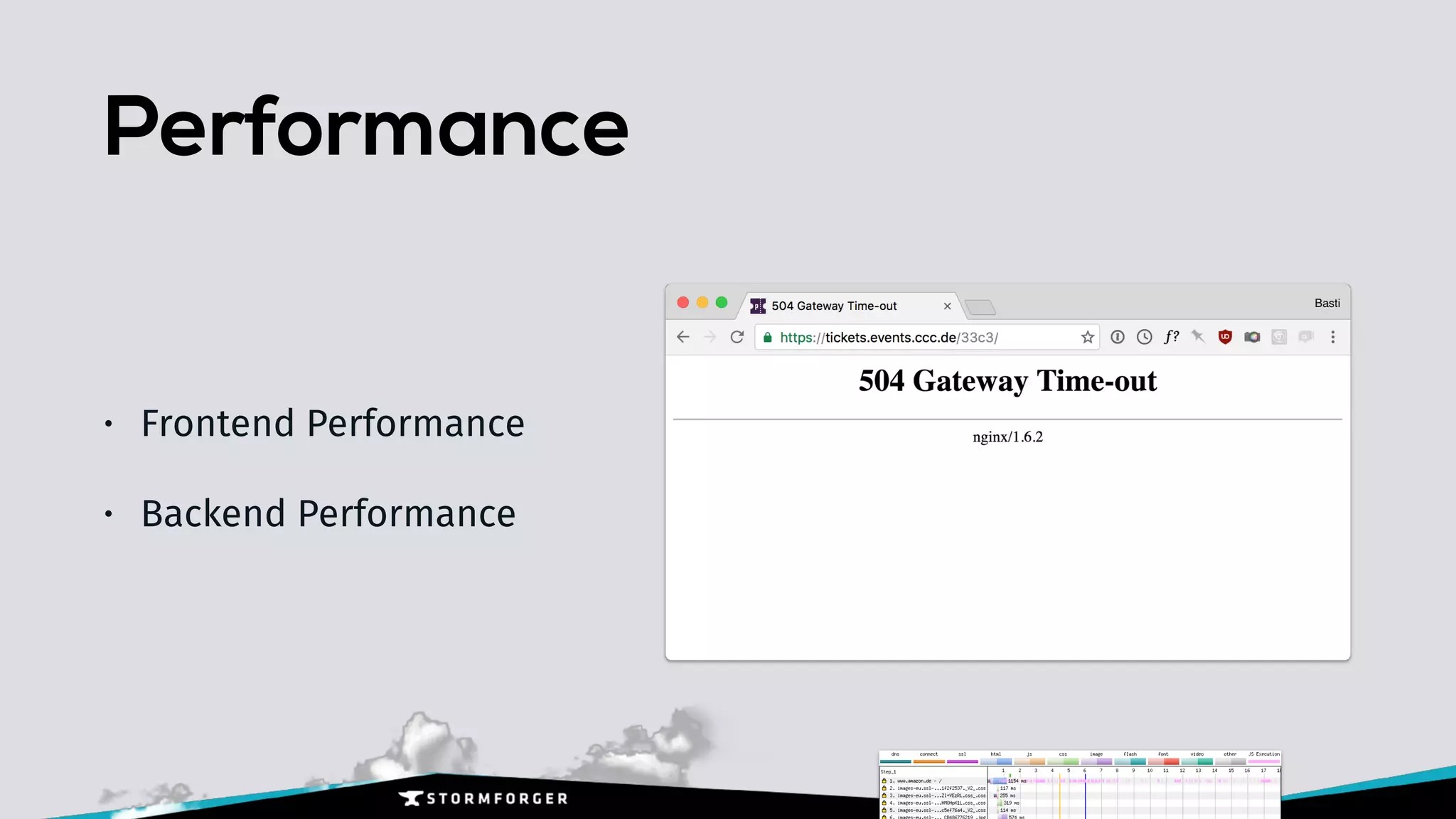

- 5. Performance • Frontend Performance •Backend Performance
- 6. Performance The ability ofa system to execute one task within a defined dimension = efficiency of a system ↪ 1 server manages 250 rps with p99 500ms.
- 7.
- 8.

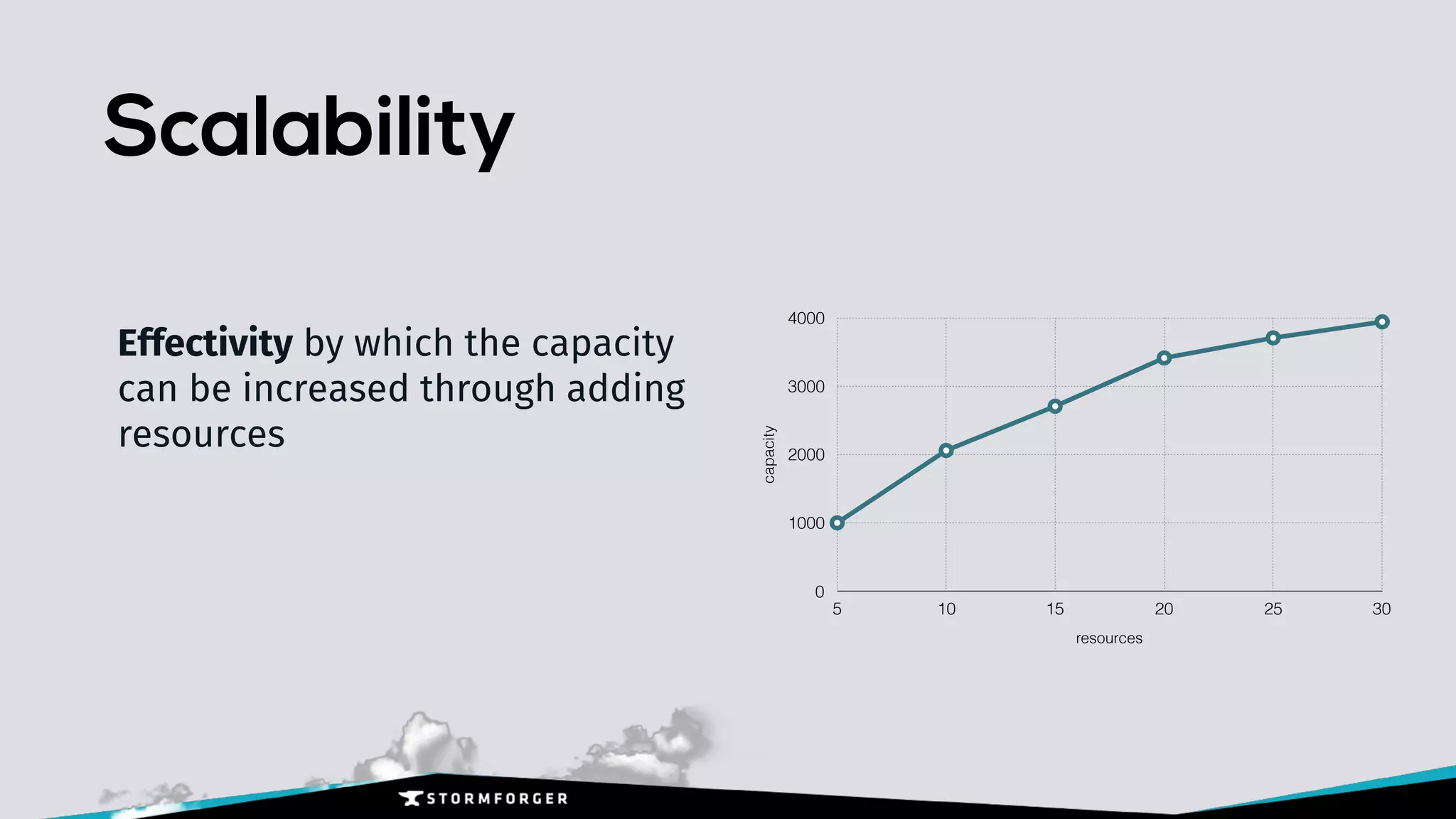

- 9. Scalability capacity 0 1000 2000 3000 4000 resources 5 10 1520 25 30 Effectivity by which the capacity can be increased through adding resources

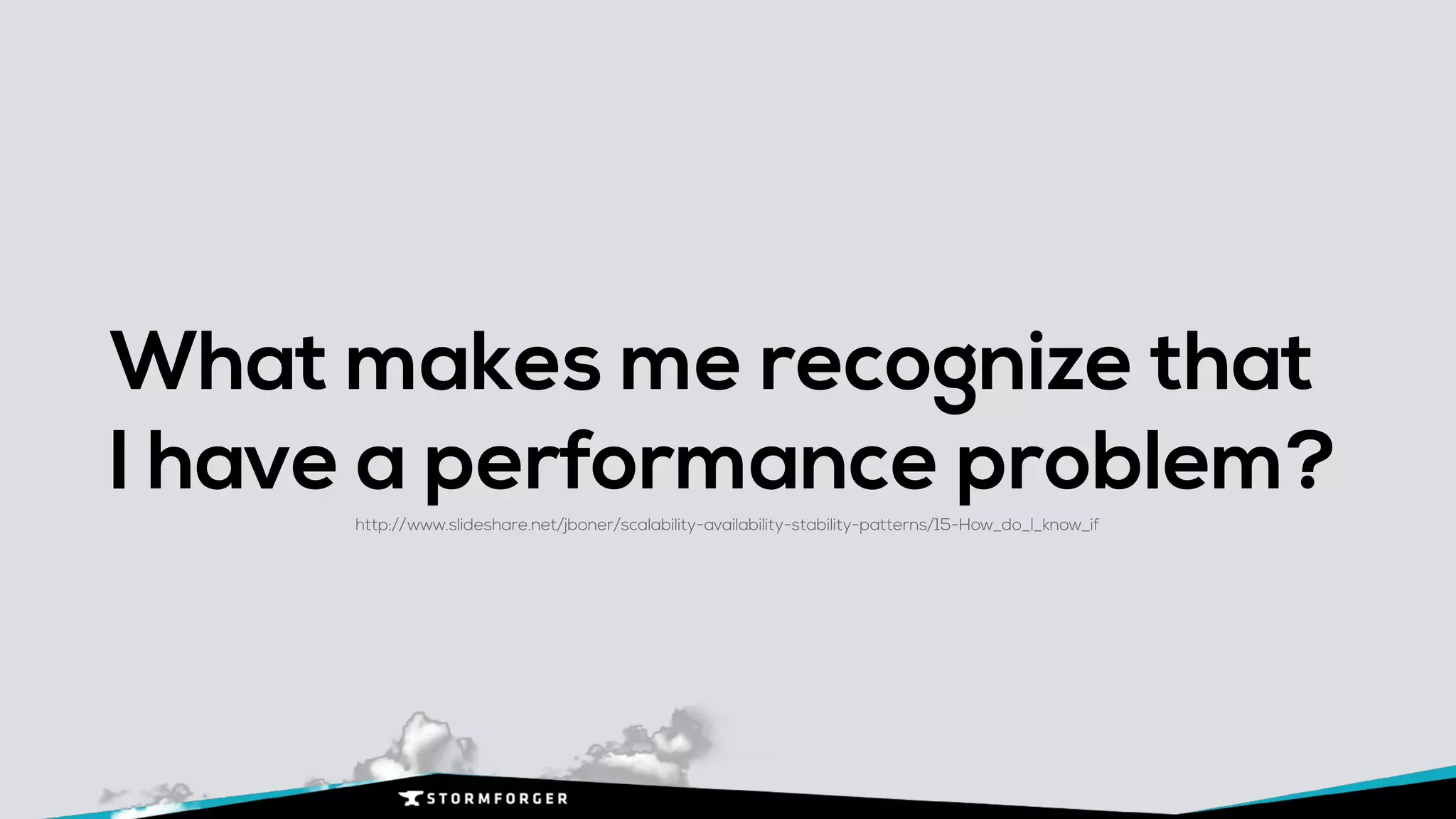

- 10. What makes merecognize that I have a performance problem? http://www.slideshare.net/jboner/scalability-availability-stability-patterns/15-How_do_I_know_if
- 11. If your systemis slow for one single user.
- 12. What makes merecognize that I have a scaling problem? http://www.slideshare.net/jboner/scalability-availability-stability-patterns/15-How_do_I_know_if
- 13. If your systemis fast for single users but slow under load.
- 14. The Cloud™ alreadyscales for us 👍
- 15.
- 16.
- 17.
- 19. Create an understandingof your system, its cloud run time environment and behaviour

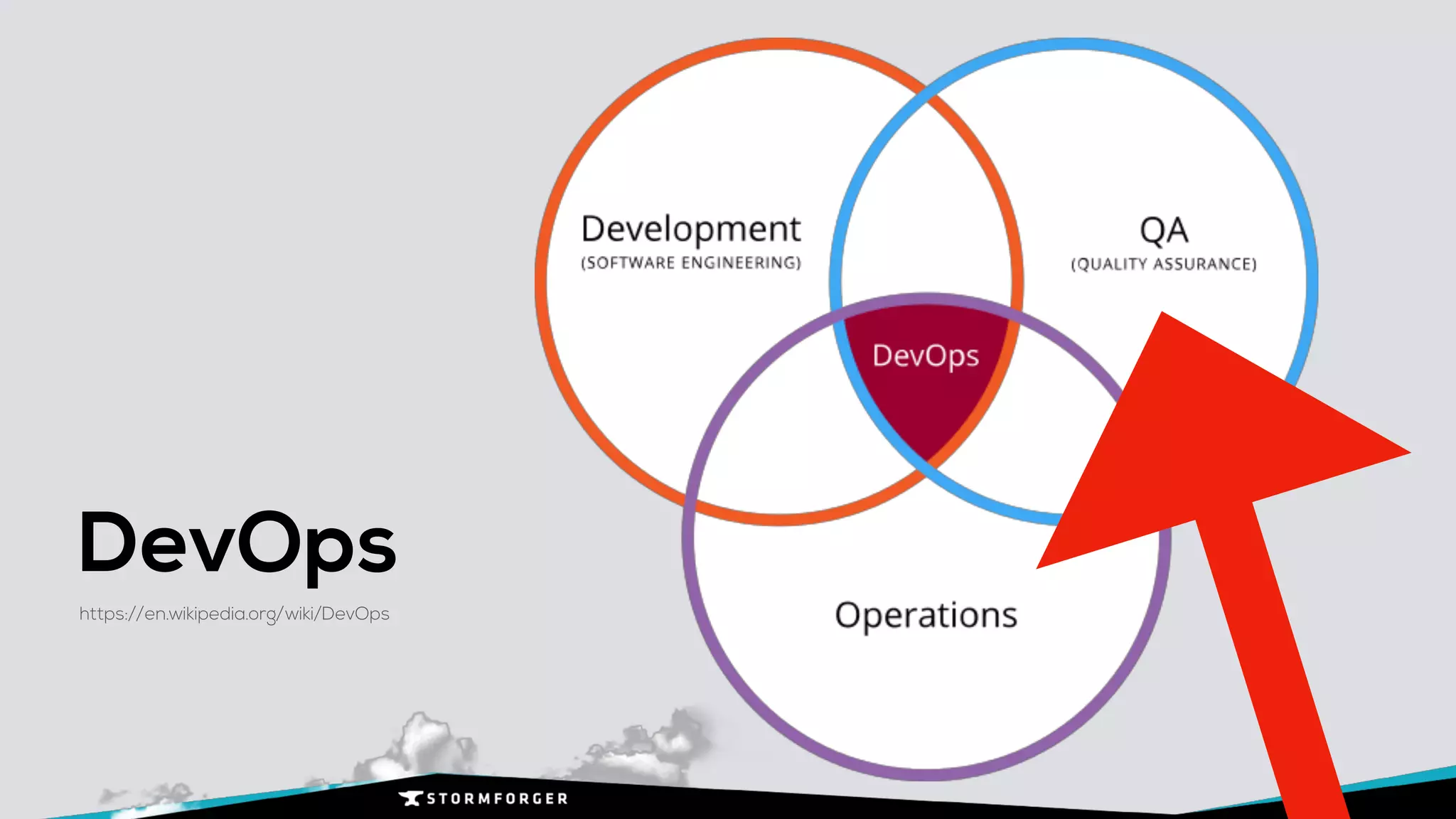

- 20. Communication Collaboration AutomationMonitoring DevOps
- 21.

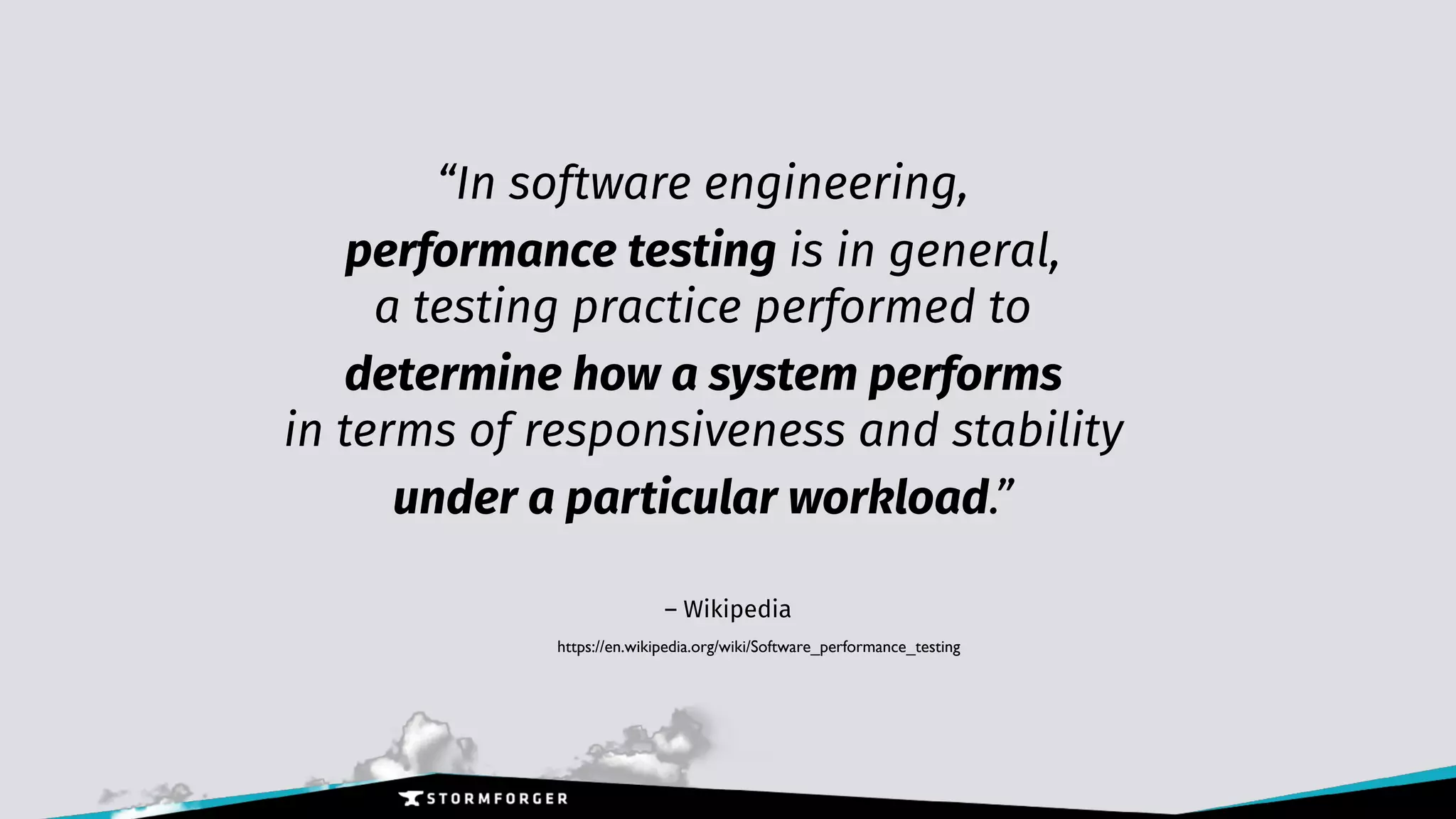

- 22. “In software engineering, performancetesting is in general, a testing practice performed to determine how a system performs in terms of responsiveness and stability under a particular workload.” https://en.wikipedia.org/wiki/Software_performance_testing – Wikipedia
- 23.
- 24. Performance Tests • Collectionof non-functional test methods • Not to be defined with absolute selectivity • Different goals and perspectives Load Testing Stress Testing Spike Testing Soak Testing Endurance Testing Resilience Testing Configuration Testing Scalability Testing

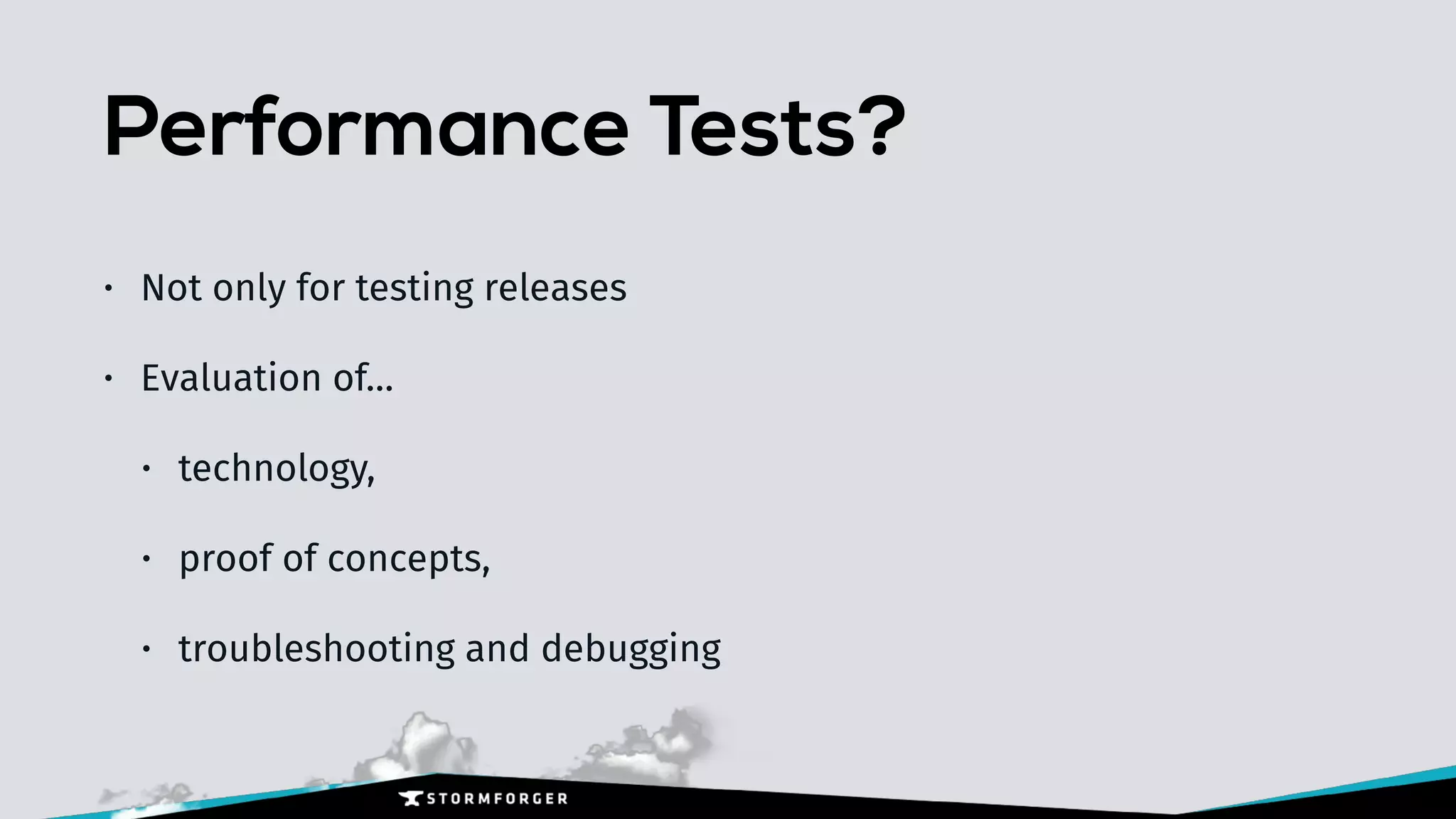

- 25. Performance Tests? • Notonly for testing releases • Evaluation of… • technology, • proof of concepts, • troubleshooting and debugging

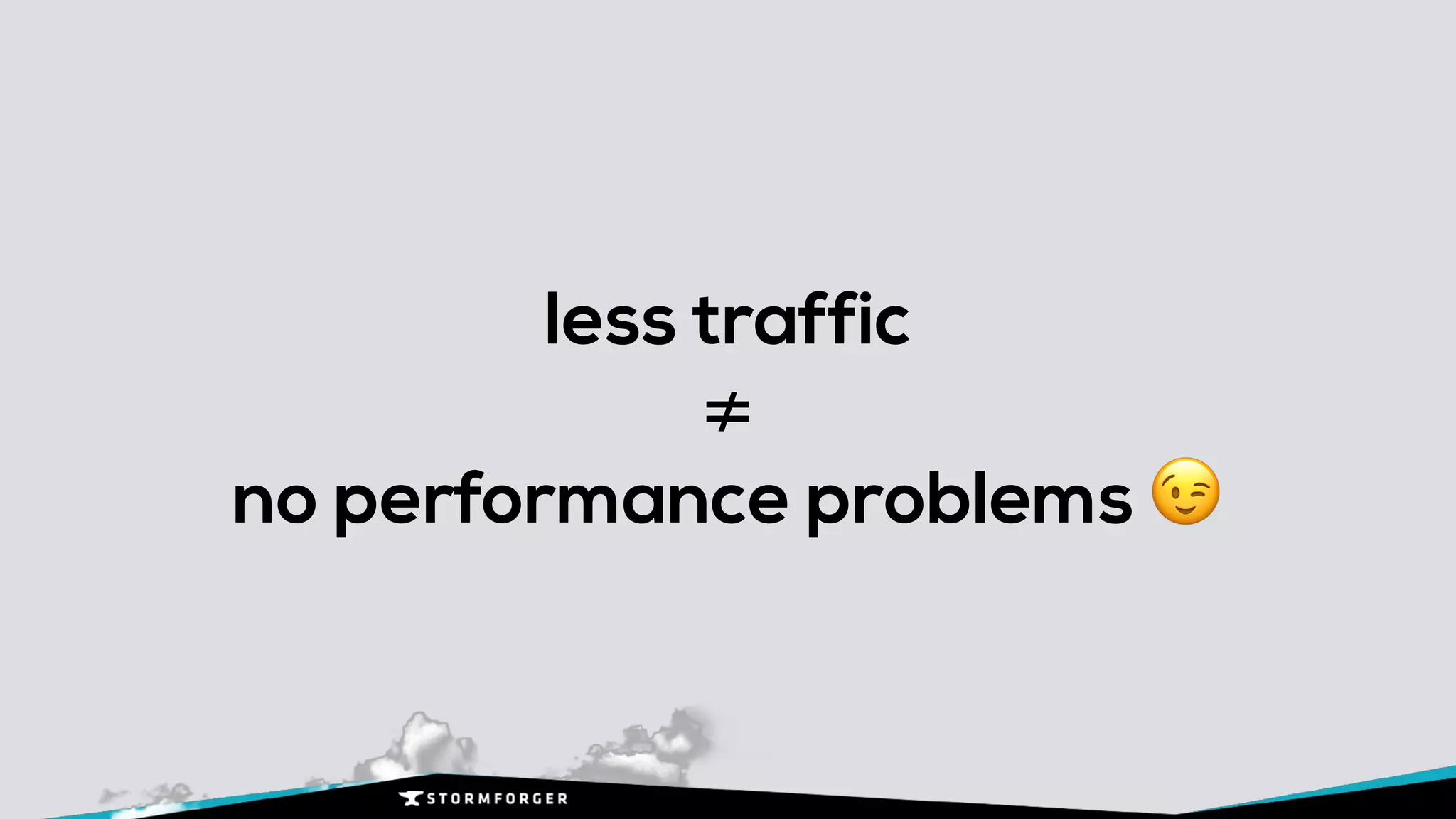

- 26. less traffic ≠ no performanceproblems 😉
- 27. How do youdo it?

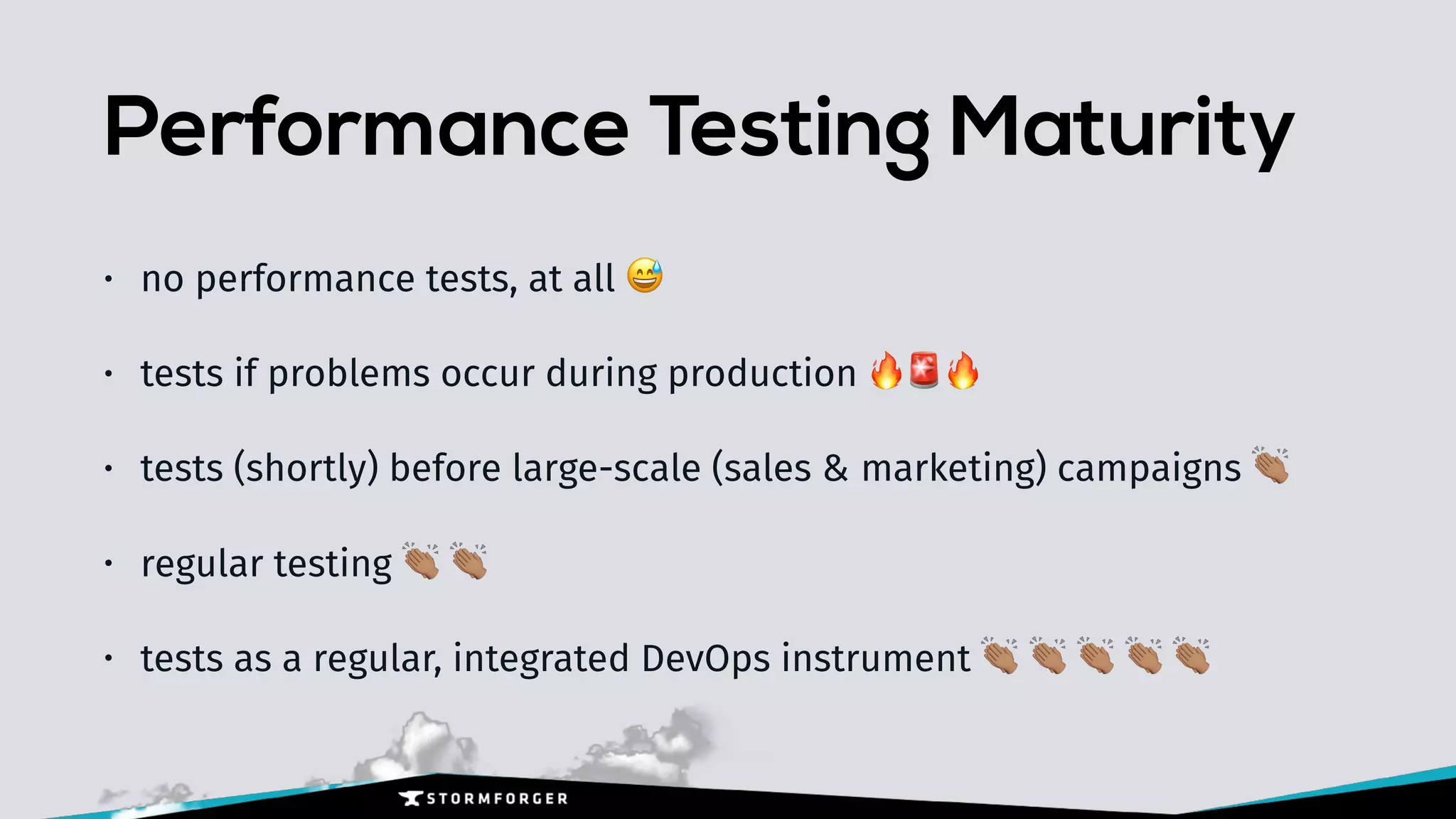

- 28. Performance Testing Maturity •no performance tests, at all 😅 • tests if problems occur during production 🔥🚨🔥 • tests (shortly) before large-scale (sales & marketing) campaigns ) • regular testing ) ) • tests as a regular, integrated DevOps instrument ) ) ) ) )
- 29.
- 30.

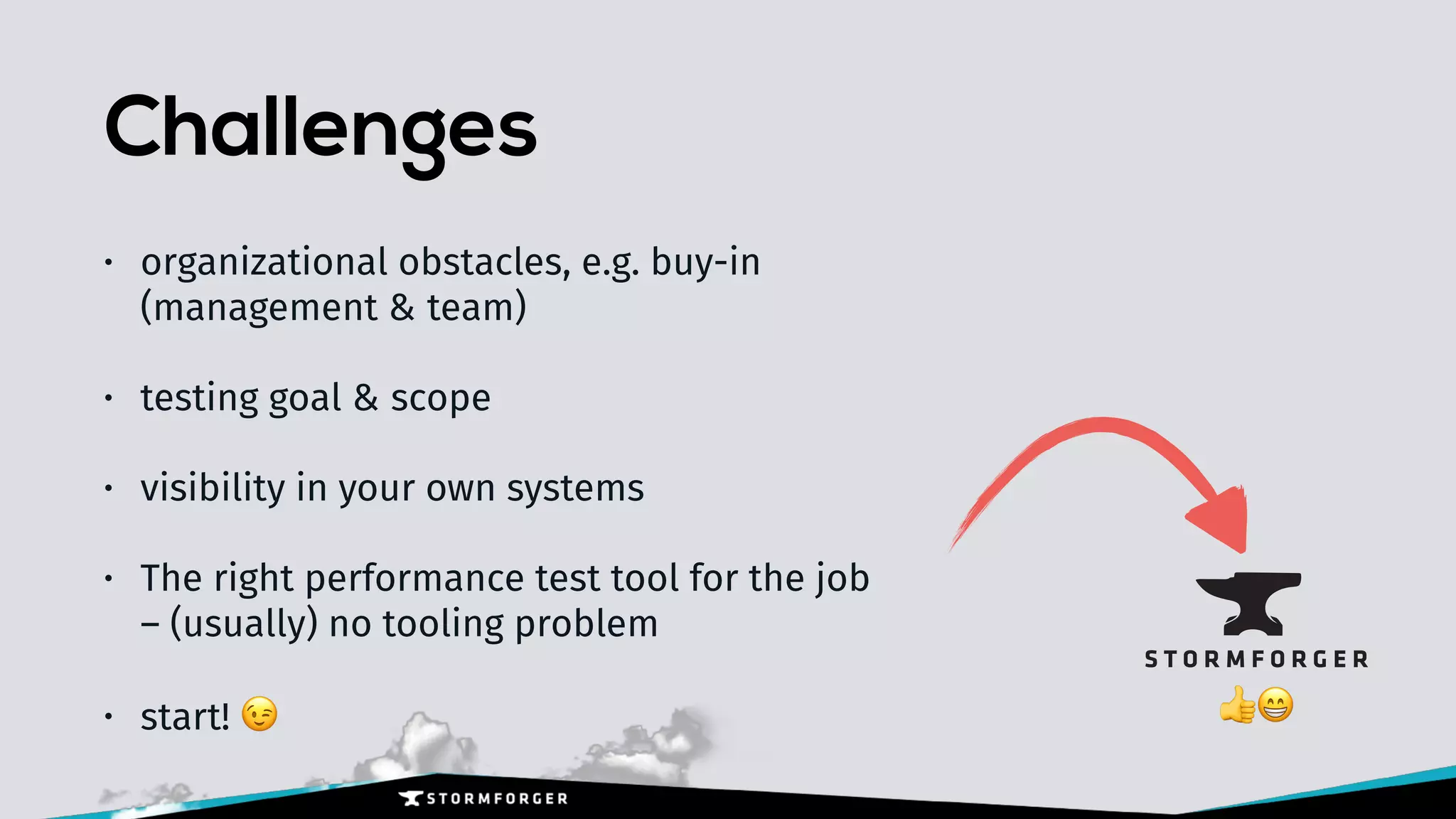

- 31. Challenges • organizational obstacles,e.g. buy-in (management & team) • testing goal & scope • visibility in your own systems • The right performance test tool for the job – (usually) no tooling problem • start! 😉 👍😁
- 32.

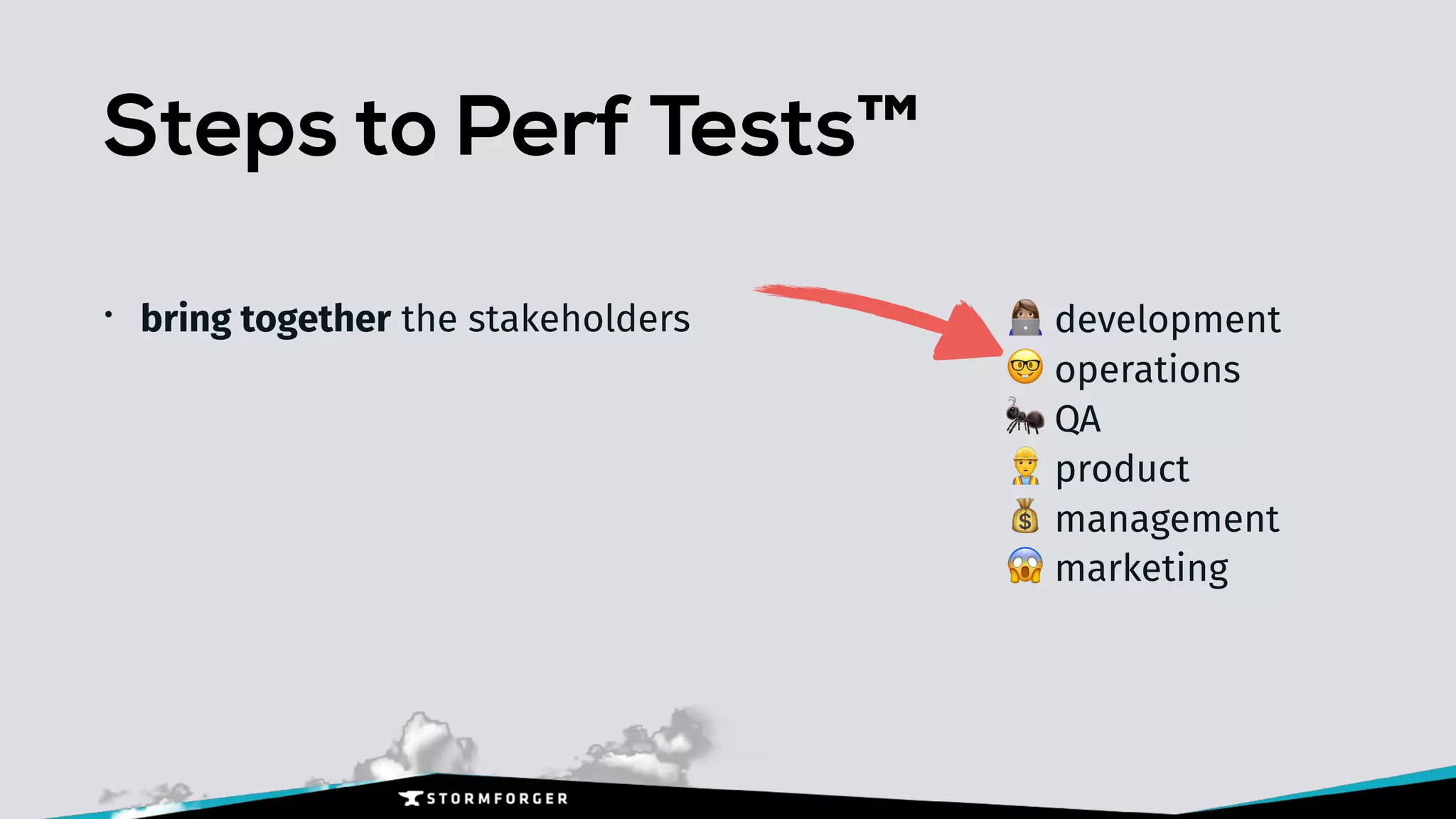

- 33. Steps to PerfTests™ • bring together the stakeholders + development 🤓 operations 🐜 QA 👷 product 💰 management 😱 marketing

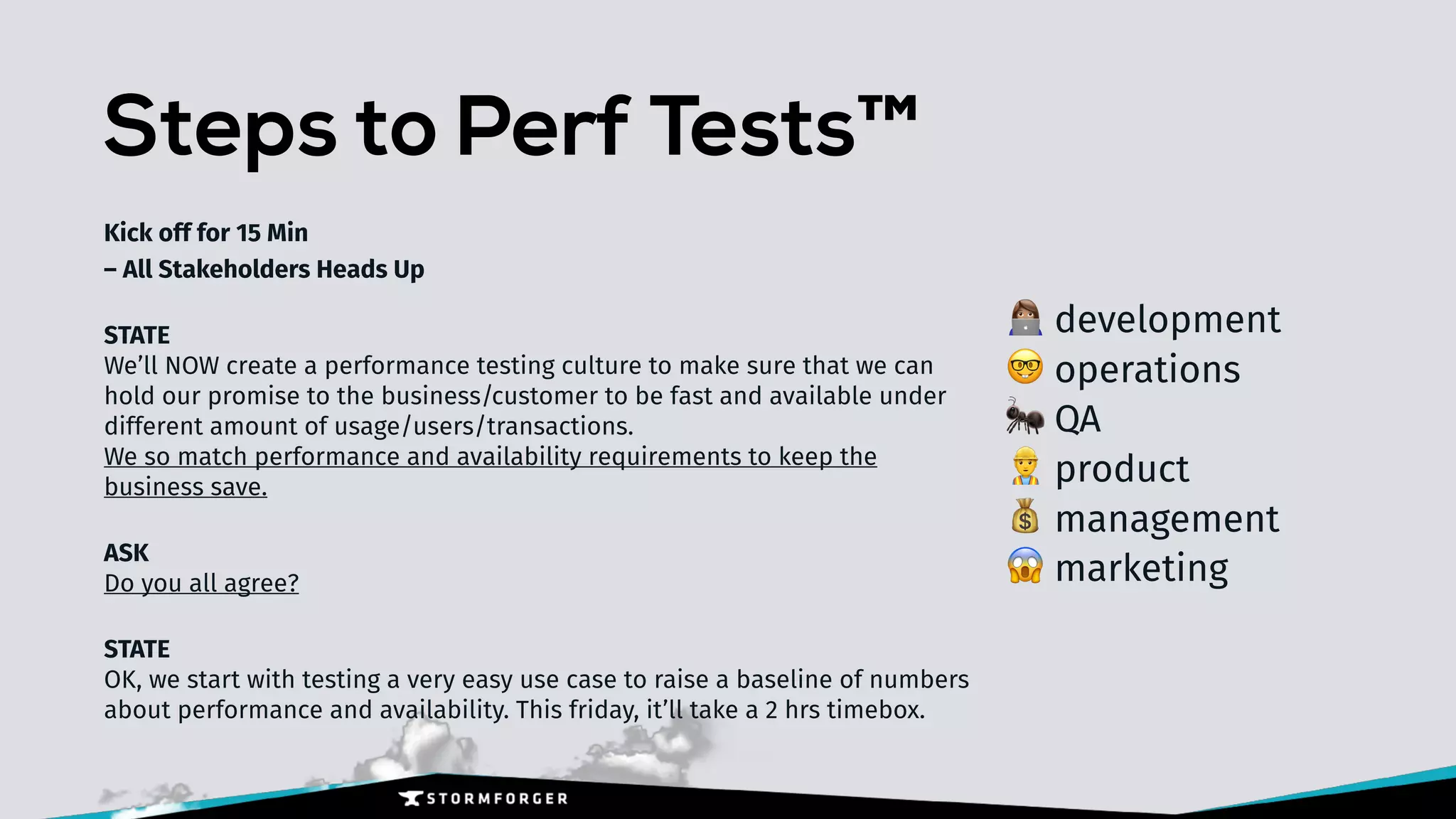

- 34. Steps to PerfTests™ Kick off for 15 Min – All Stakeholders Heads Up STATE We’ll NOW create a performance testing culture to make sure that we can hold our promise to the business/customer to be fast and available under different amount of usage/users/transactions. We so match performance and availability requirements to keep the business save. ASK Do you all agree? STATE OK, we start with testing a very easy use case to raise a baseline of numbers about performance and availability. This friday, it’ll take a 2 hrs timebox. + development 🤓 operations 🐜 QA 👷 product 💰 management 😱 marketing

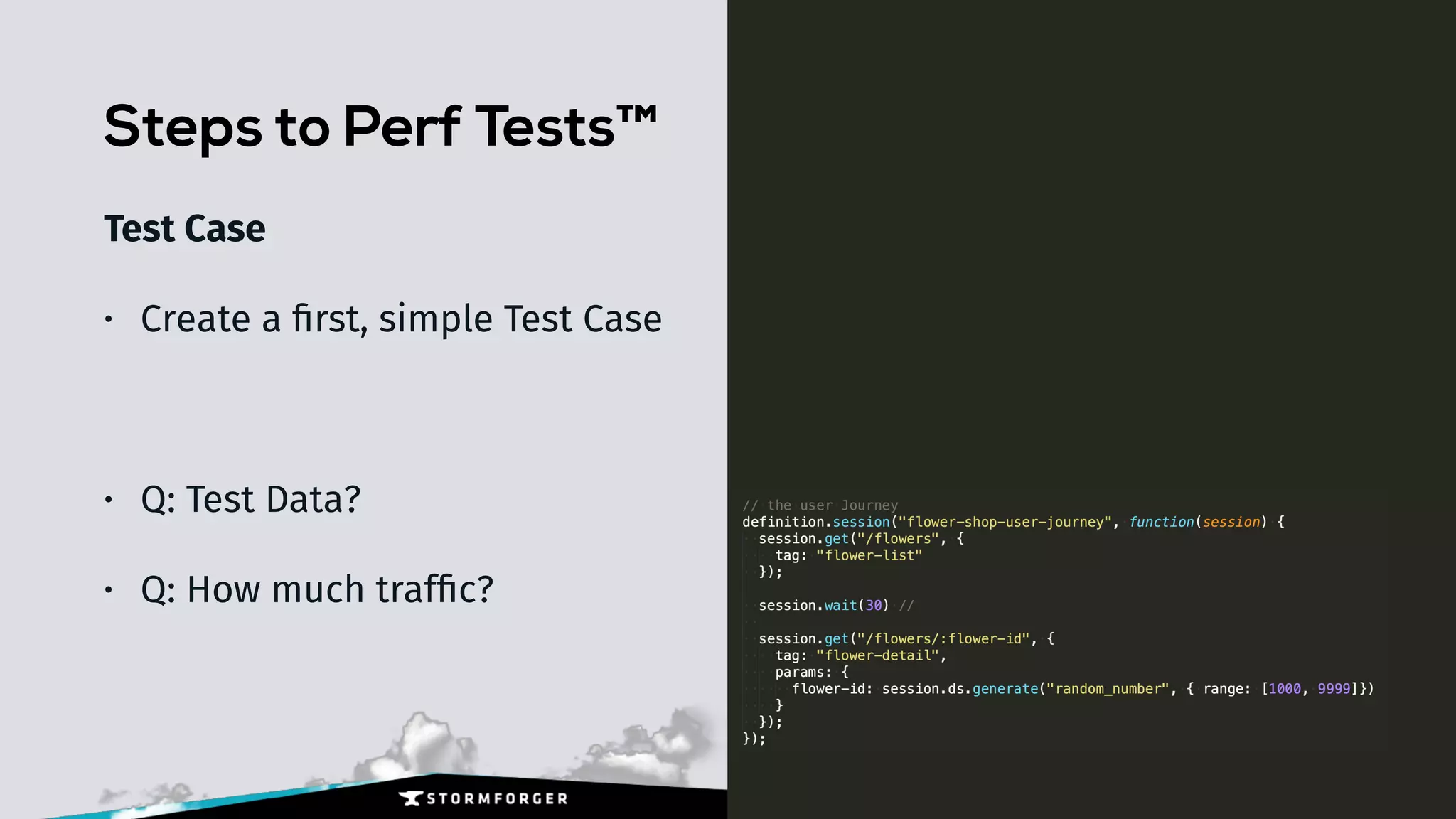

- 36. Steps to PerfTests™ Test Case • Create a first, simple Test Case • Q: Test Data? • Q: How much traffic?

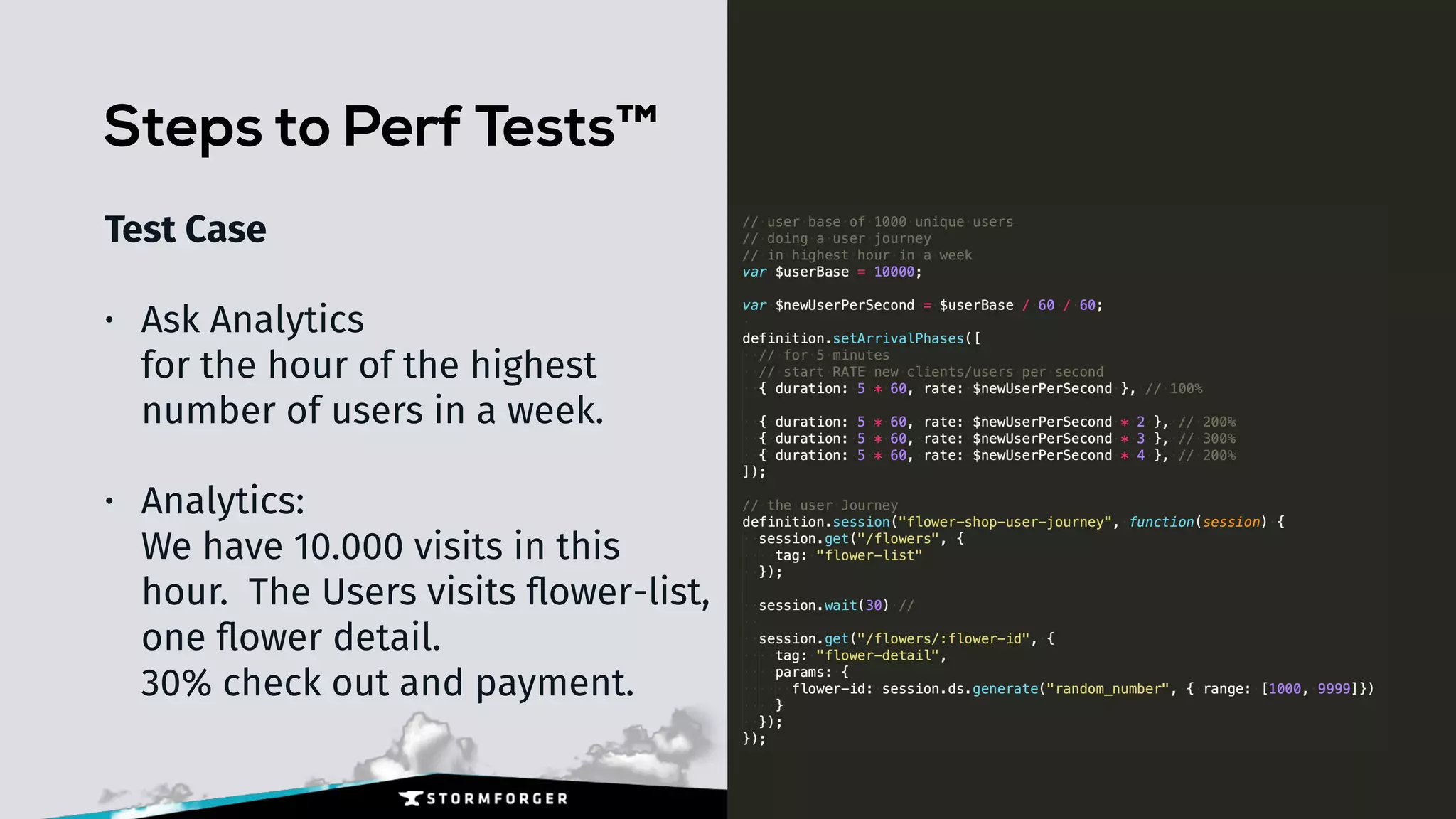

- 37. Steps to PerfTests™ Test Case • Ask Analytics for the hour of the highest number of users in a week. • Analytics: We have 10.000 visits in this hour. The Users visits flower-list, one flower detail. 30% check out and payment.

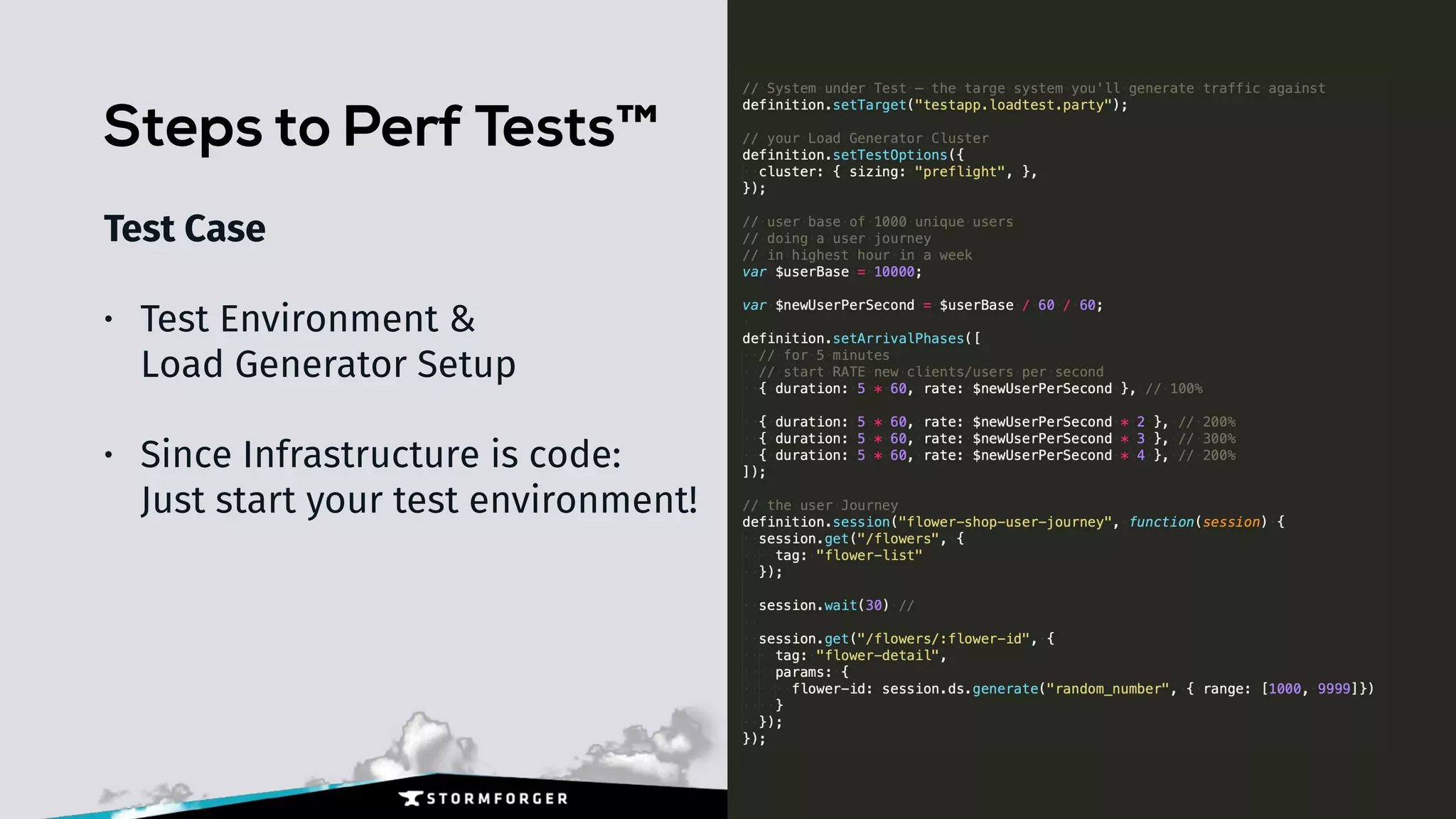

- 38. Steps to PerfTests™ Test Case • Test Environment & Load Generator Setup • Since Infrastructure is code: Just start your test environment!
- 39.

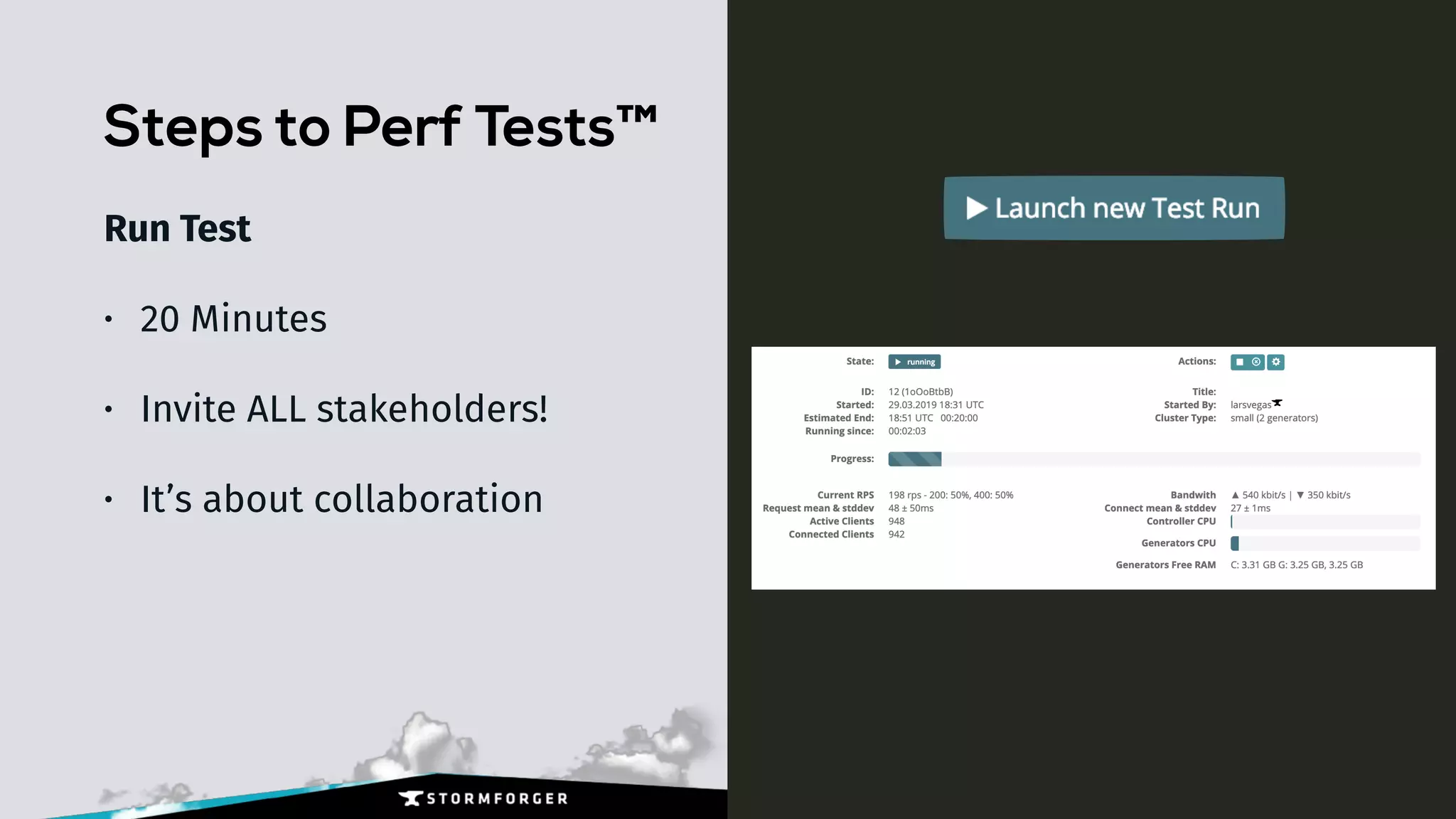

- 40. Steps to PerfTests™ Run Test • 20 Minutes • Invite ALL stakeholders! • It’s about collaboration

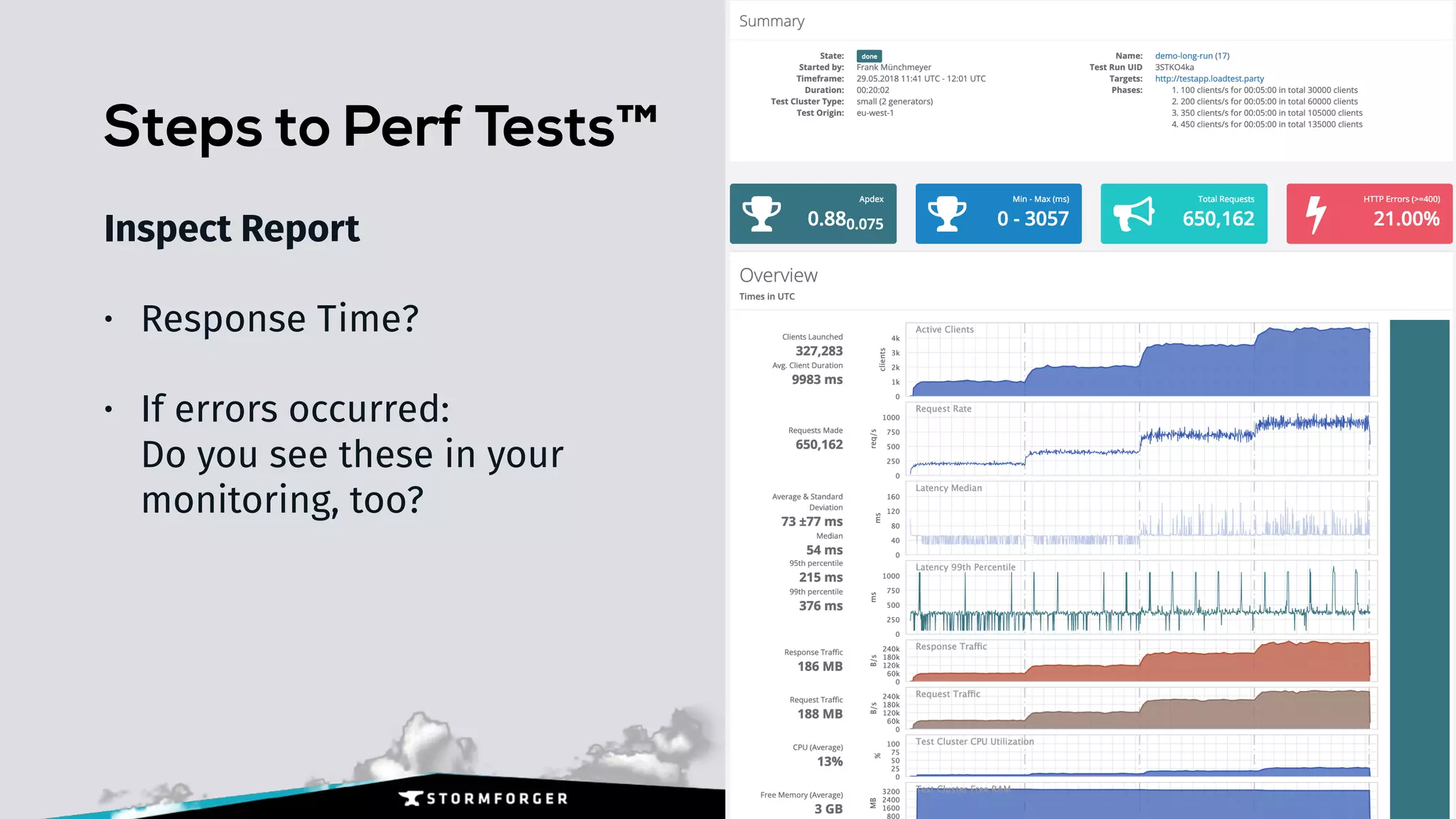

- 41. Steps to PerfTests™ Inspect Report • Response Time? • If errors occurred: Do you see these in your monitoring, too?

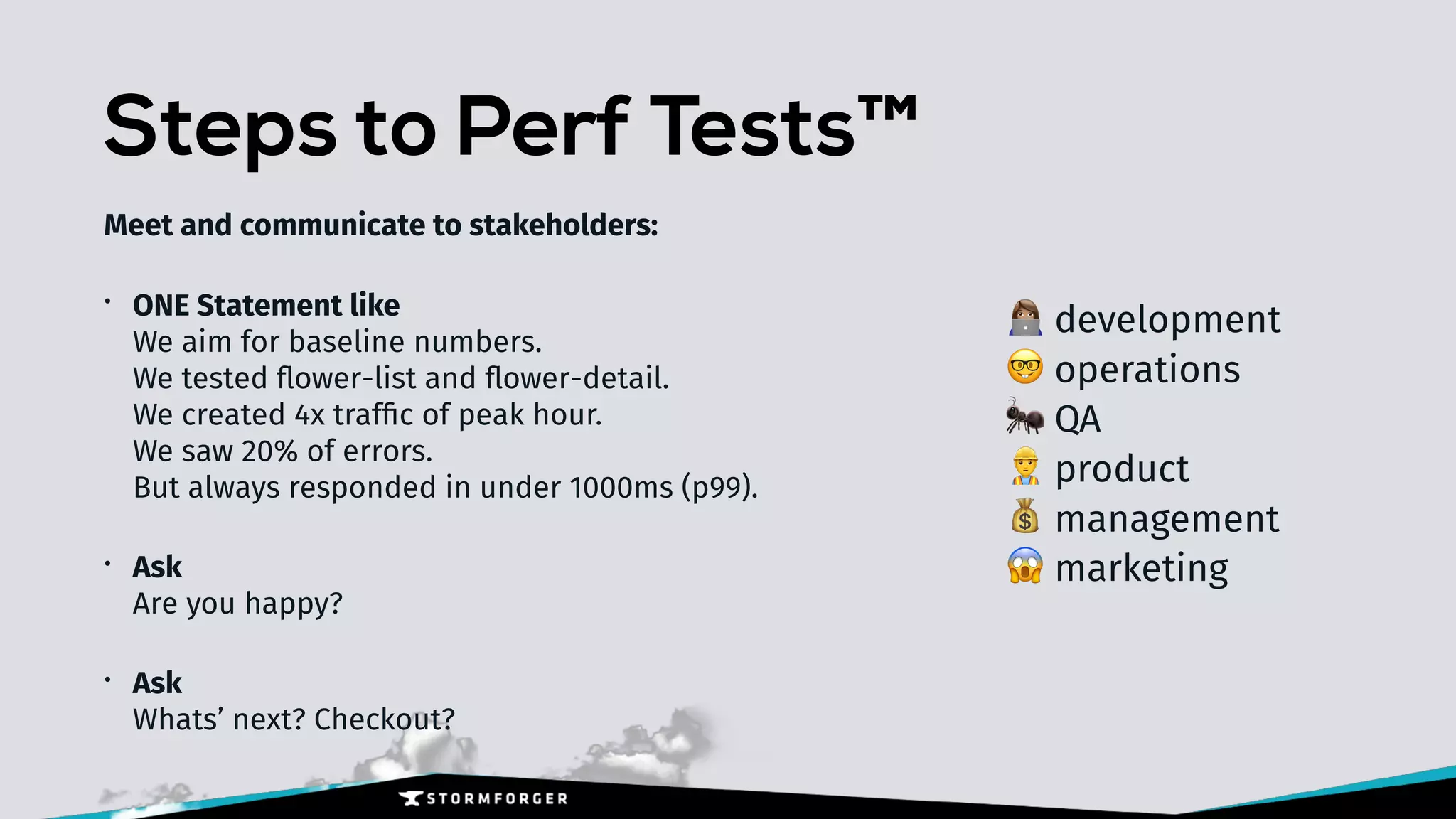

- 42. Steps to PerfTests™ Meet and communicate to stakeholders: • ONE Statement like We aim for baseline numbers. We tested flower-list and flower-detail. We created 4x traffic of peak hour. We saw 20% of errors. But always responded in under 1000ms (p99). • Ask Are you happy? • Ask Whats’ next? Checkout? + development 🤓 operations 🐜 QA 👷 product 💰 management 😱 marketing

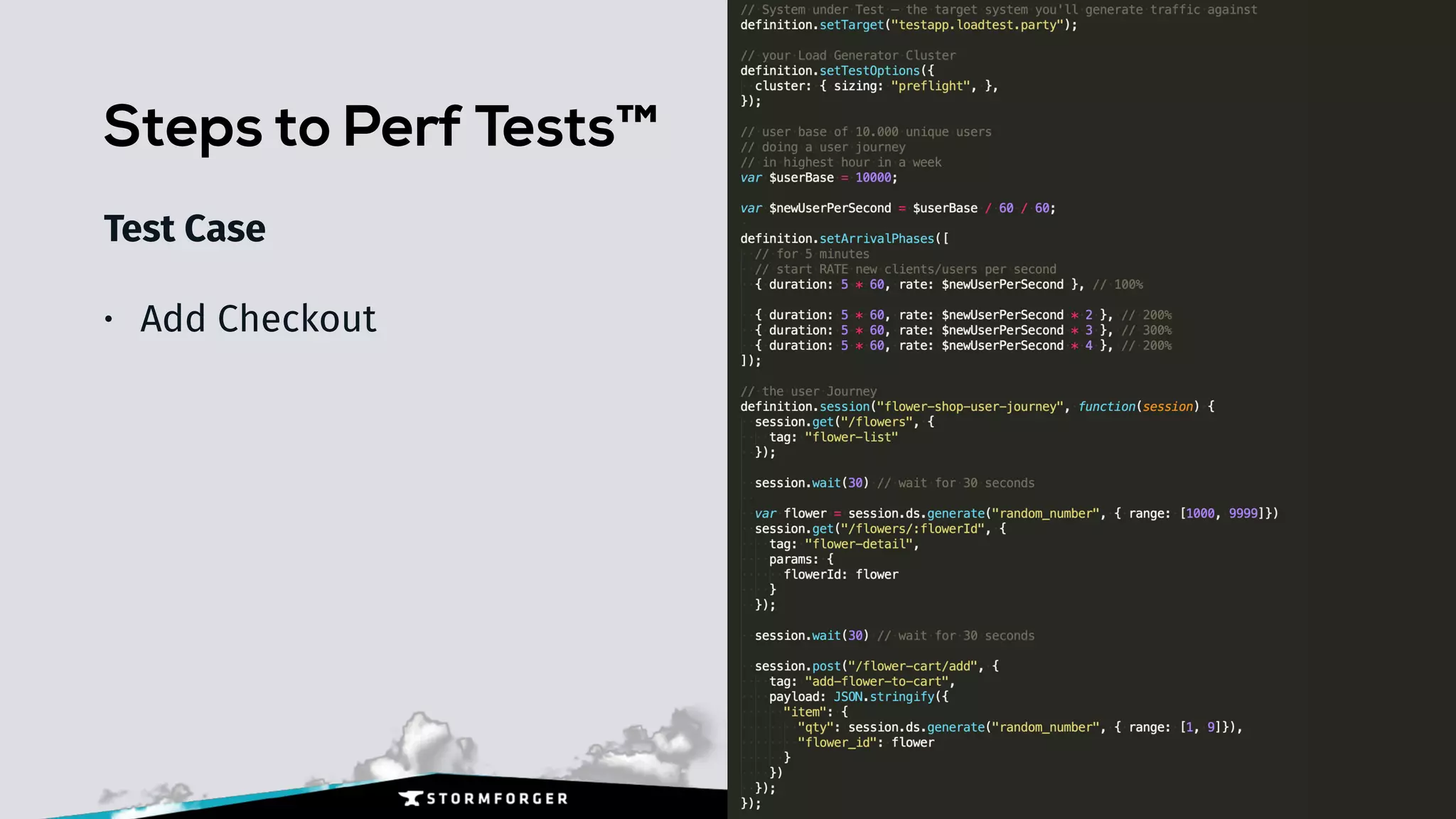

- 43. Steps to PerfTests™ Test Case • Add Checkout
- 44.
- 45.
- 46. Steps to PerfTests™ Non-functional requirements • No errors! • Each request must be faster than 250ms p99th

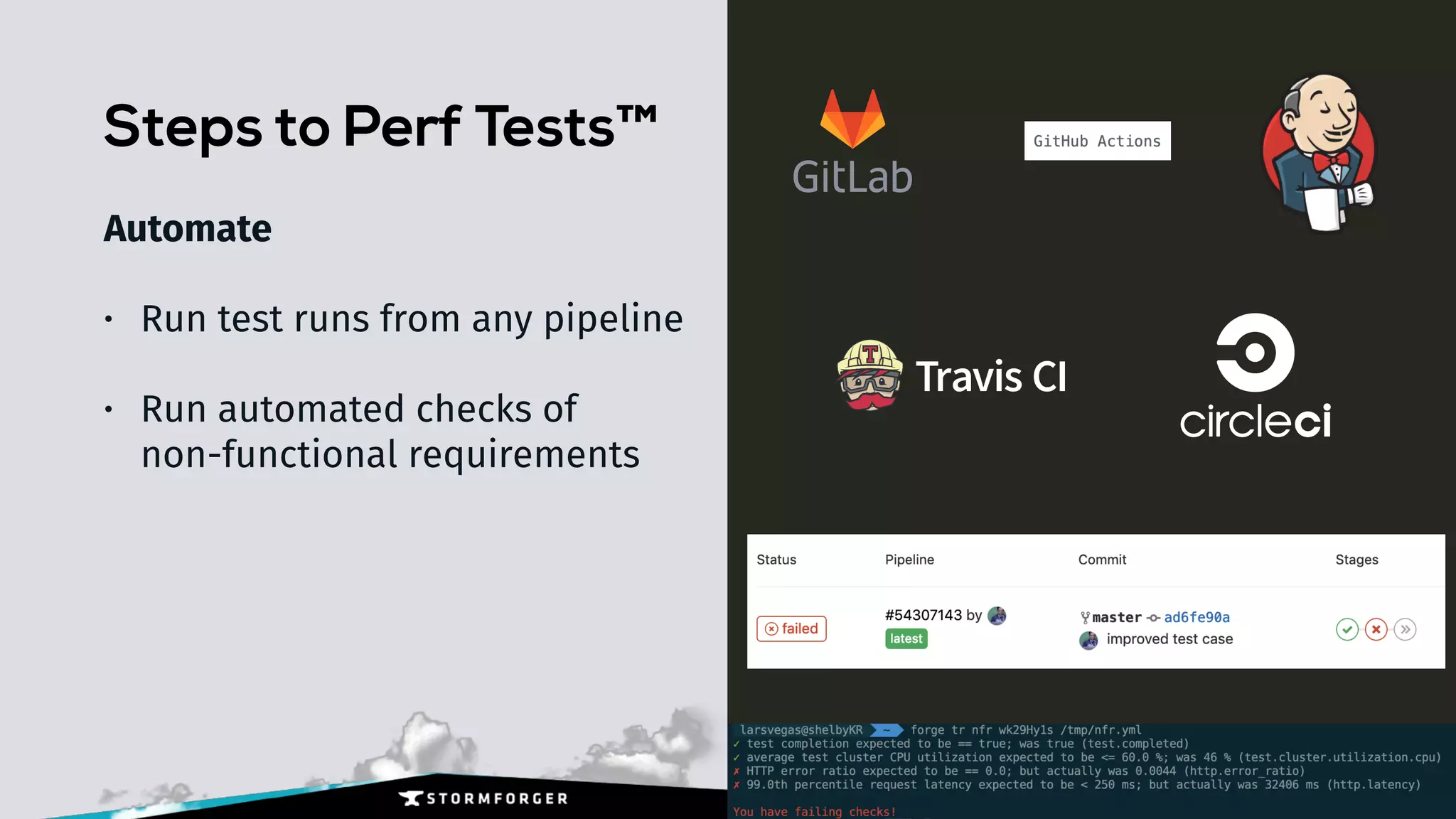

- 47. Steps to PerfTests™ Automate • Run test runs from any pipeline • Run automated checks of non-functional requirements
- 48.

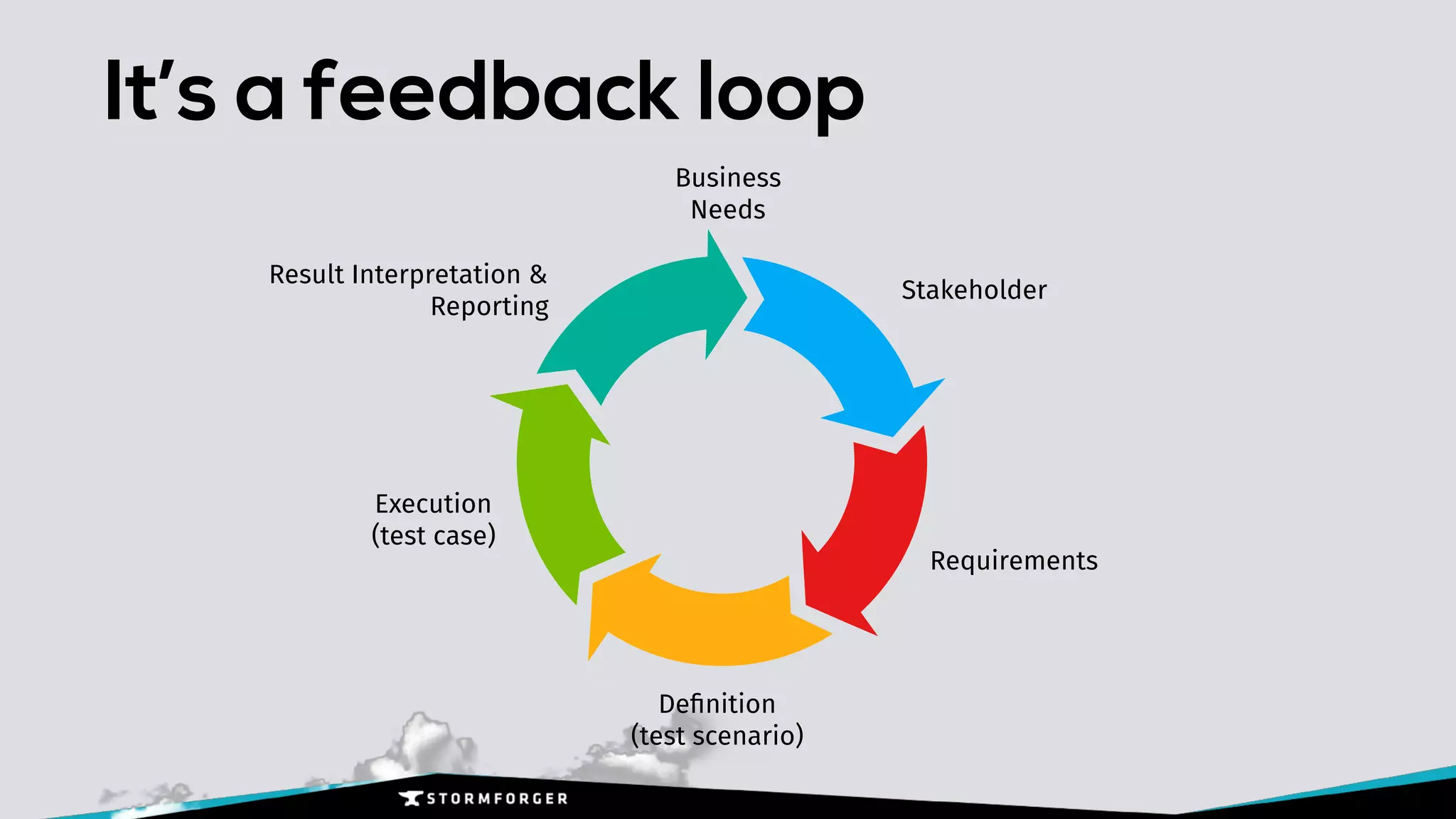

- 49. It’s a feedbackloop Stakeholder Requirements Definition (test scenario) Execution (test case) Result Interpretation & Reporting Business Needs
- 50. Start creating a Communityof practice Special Interest Group since performance testing is an orthogonal topic
- 51. Thanks! 😁 LarsWolff @larsvegas support@stormforger.com https://stormforger.com Slides and more: http://bit.ly/codemotion2019
- 52. Performance Testing SaaSfor DevOps Empower organizations to embrace continuous performance testing http://bit.ly/codemotion2019
- 54.
- 55.
- 56. Defining goals • Defininggoals beforehand (why are we doing tests?) • Important! Always define goals (and requirements) from the specialist side ☝ • A goal can be very simple at first, e.g. “surviving Black Friday well” or “we want to become 20% faster”.

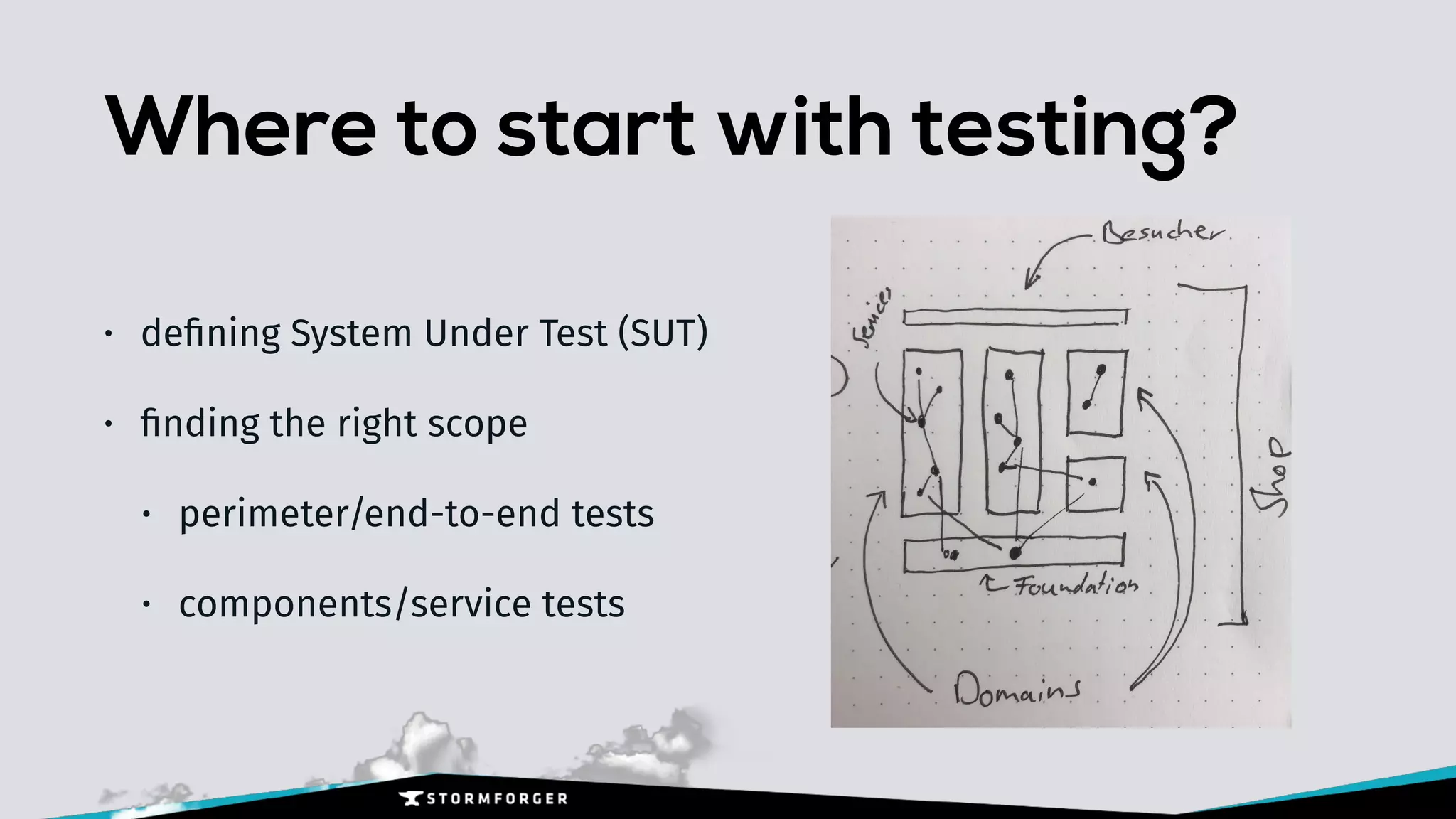

- 57. Where to startwith testing? • defining System Under Test (SUT) • finding the right scope • perimeter/end-to-end tests • components/service tests

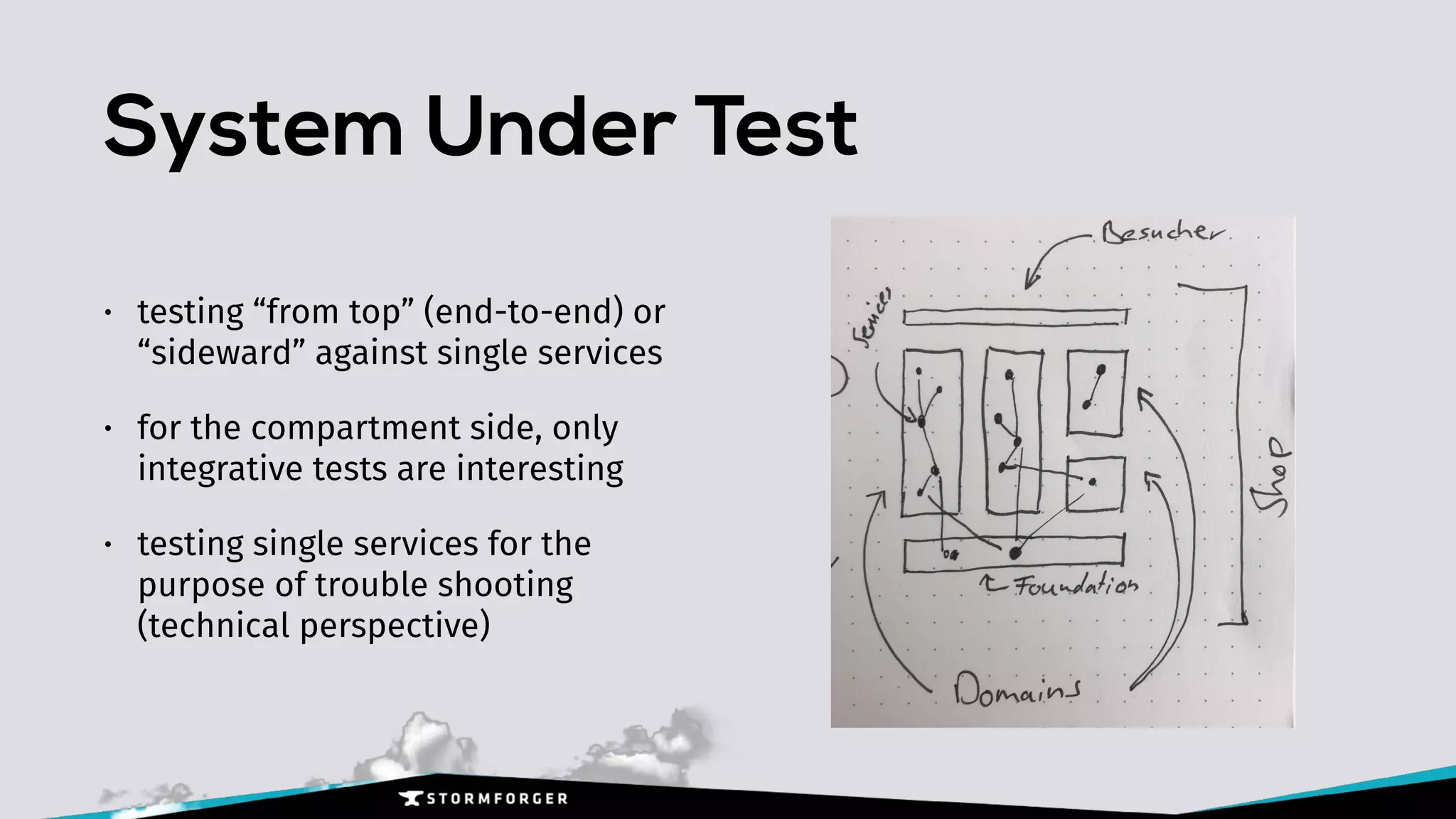

- 58. System Under Test •testing “from top” (end-to-end) or “sideward” against single services • for the compartment side, only integrative tests are interesting • testing single services for the purpose of trouble shooting (technical perspective)

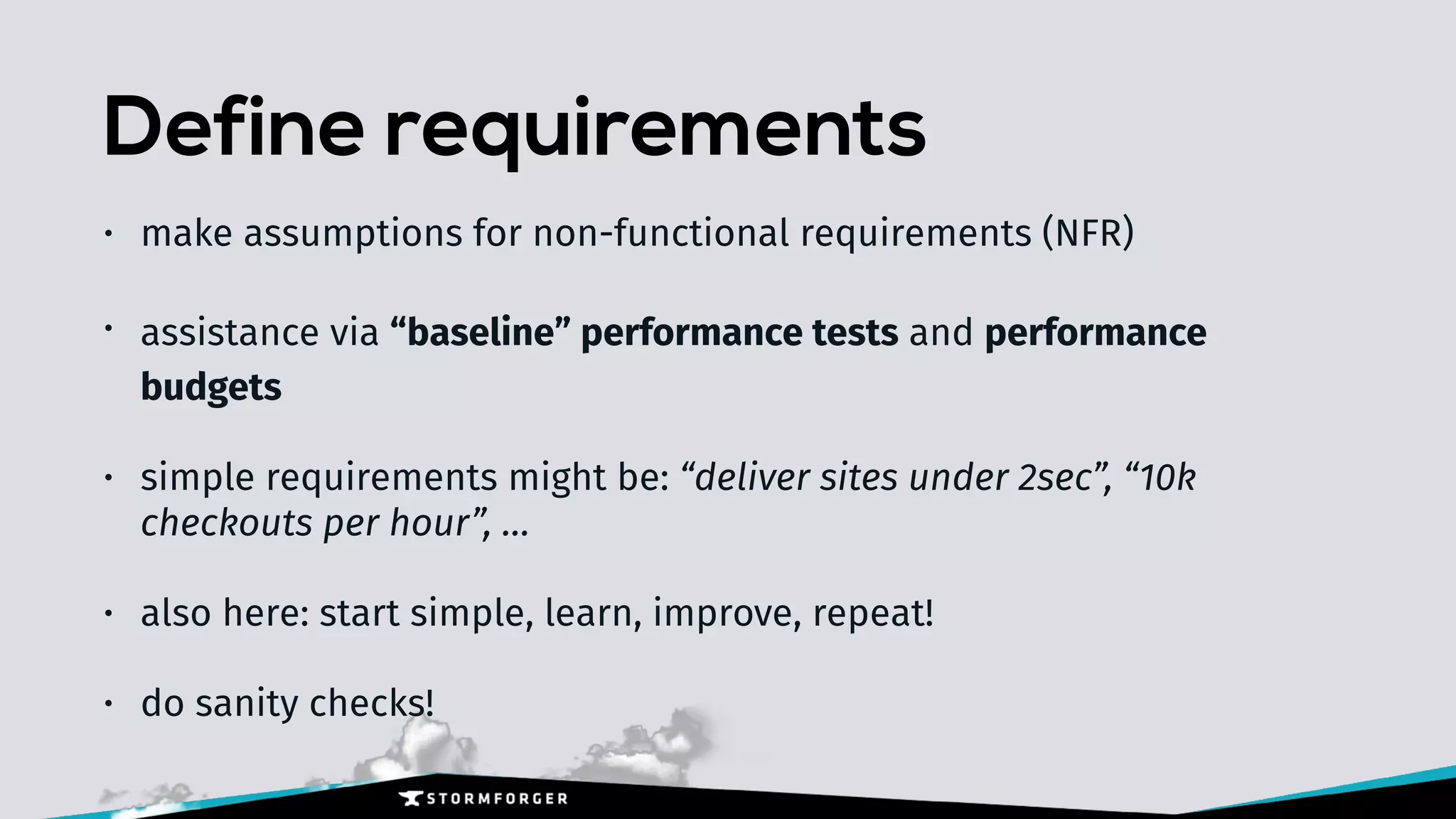

- 59. Define requirements • makeassumptions for non-functional requirements (NFR) • assistance via “baseline” performance tests and performance budgets • simple requirements might be: “deliver sites under 2sec”, “10k checkouts per hour”, … • also here: start simple, learn, improve, repeat! • do sanity checks!

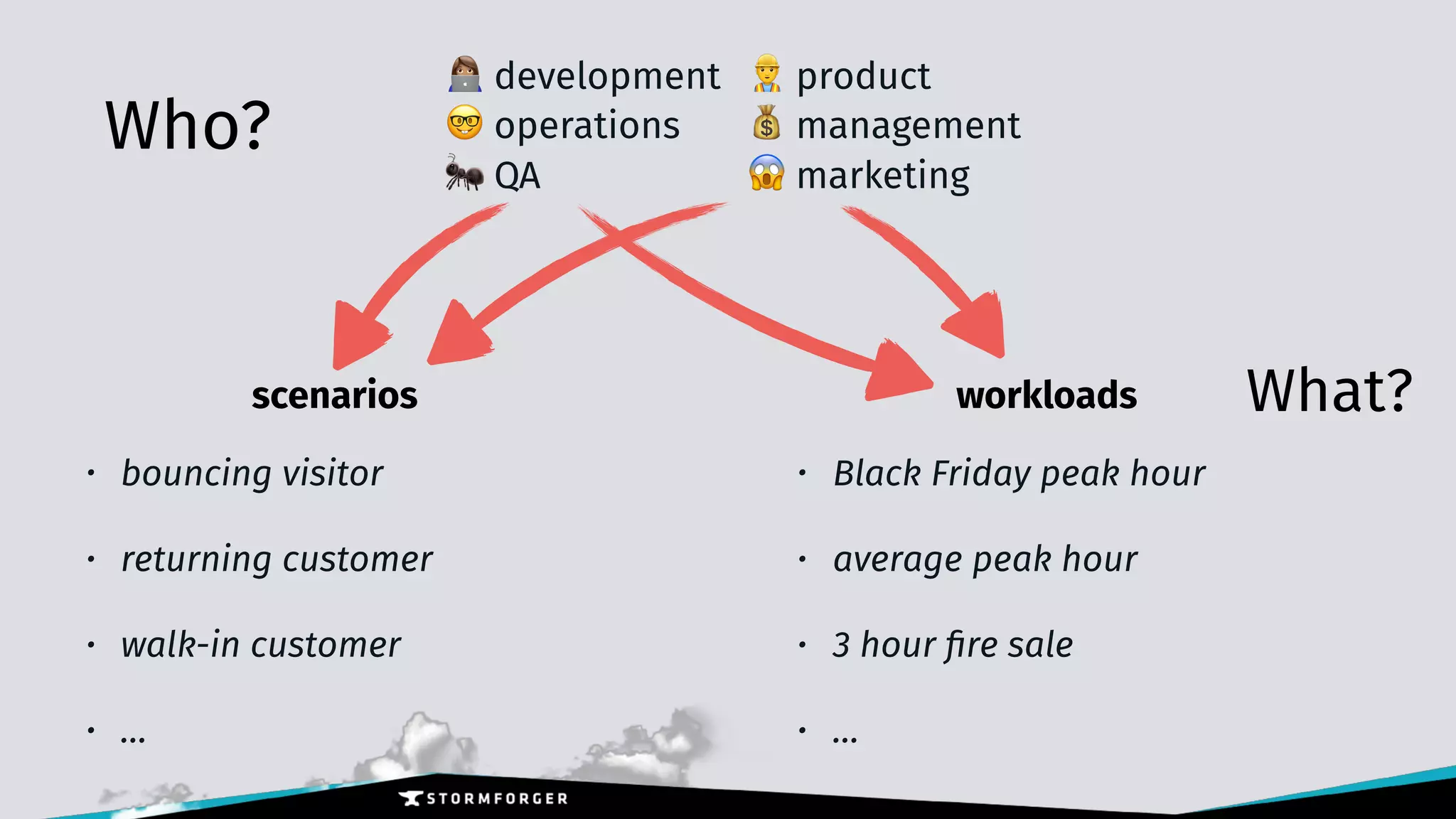

- 60. + development 🤓 operations 🐜QA scenarios • bouncing visitor • returning customer • walk-in customer • … 👷 product 💰 management 😱 marketing workloads • Black Friday peak hour • average peak hour • 3 hour fire sale • … Who? What?

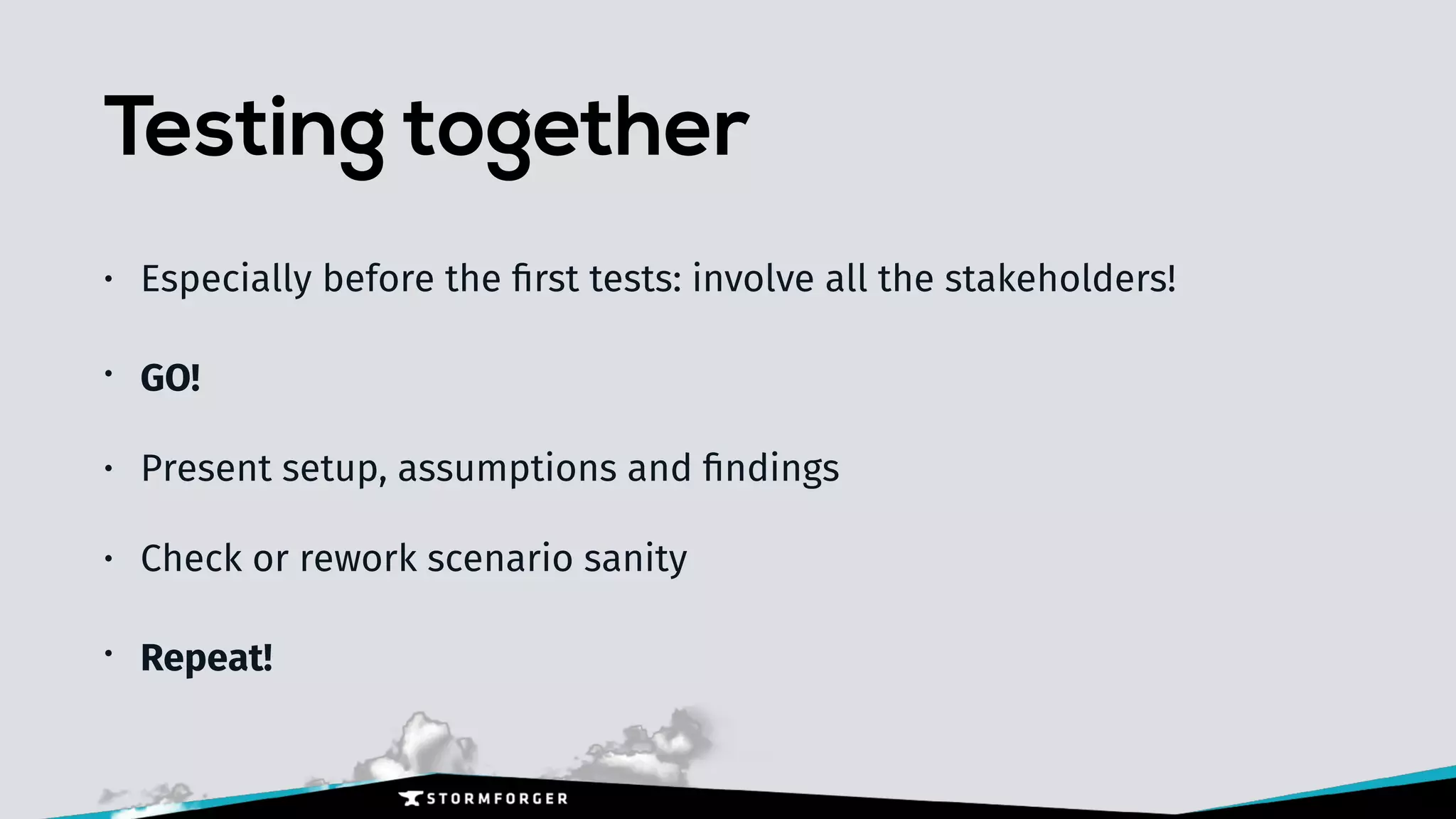

- 61. Testing together • Especiallybefore the first tests: involve all the stakeholders! • GO! • Present setup, assumptions and findings • Check or rework scenario sanity • Repeat!

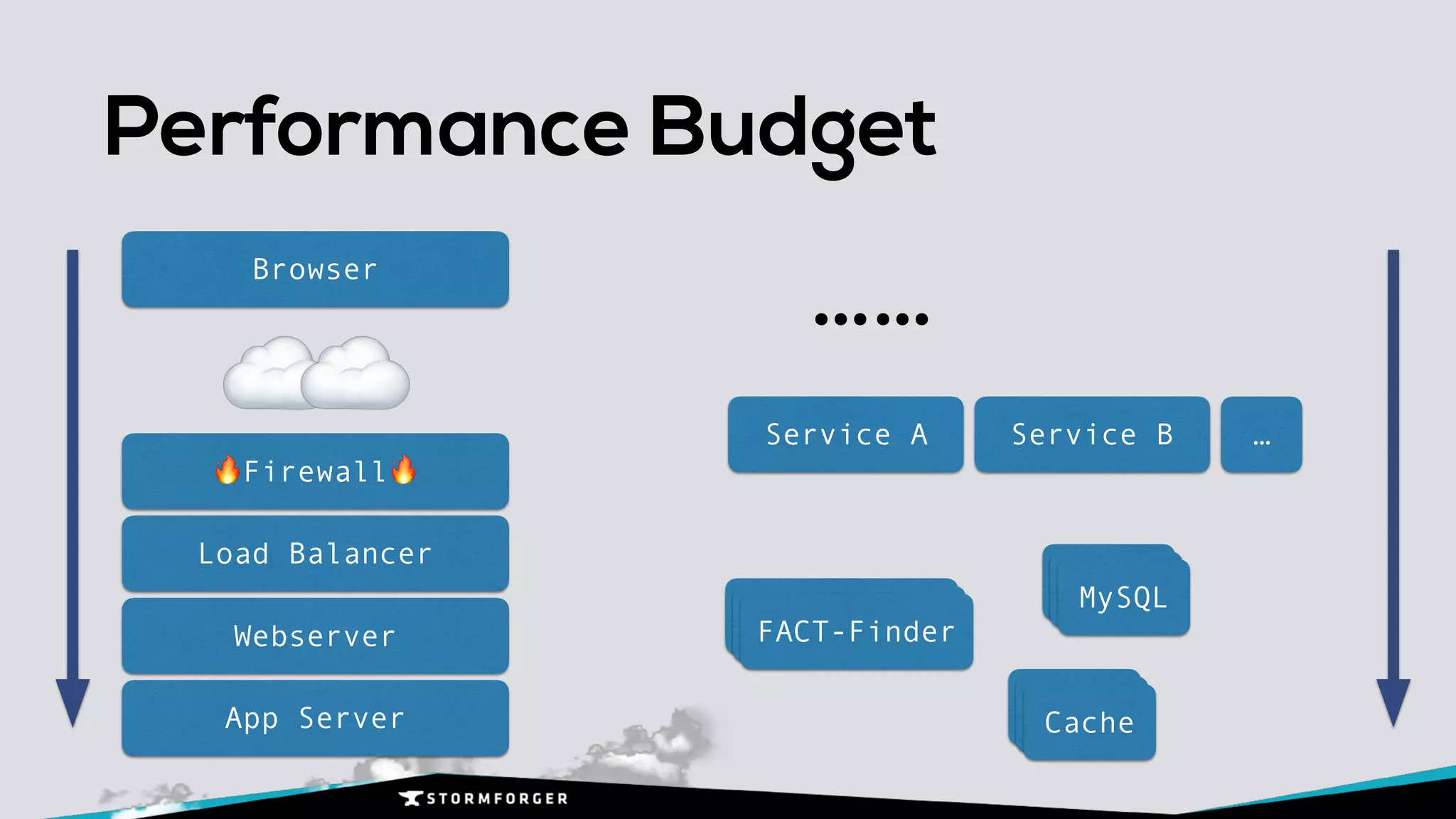

- 62. Performance Budget Browser 🔥Firewall🔥 Load Balancer Webserver AppServer Service A Service B … FACT-FinderFACT-FinderFACT-Finder MySQLMySQLMySQL ☁☁ MySQLMySQLCache ……
- 63. Testing Types andStrategies

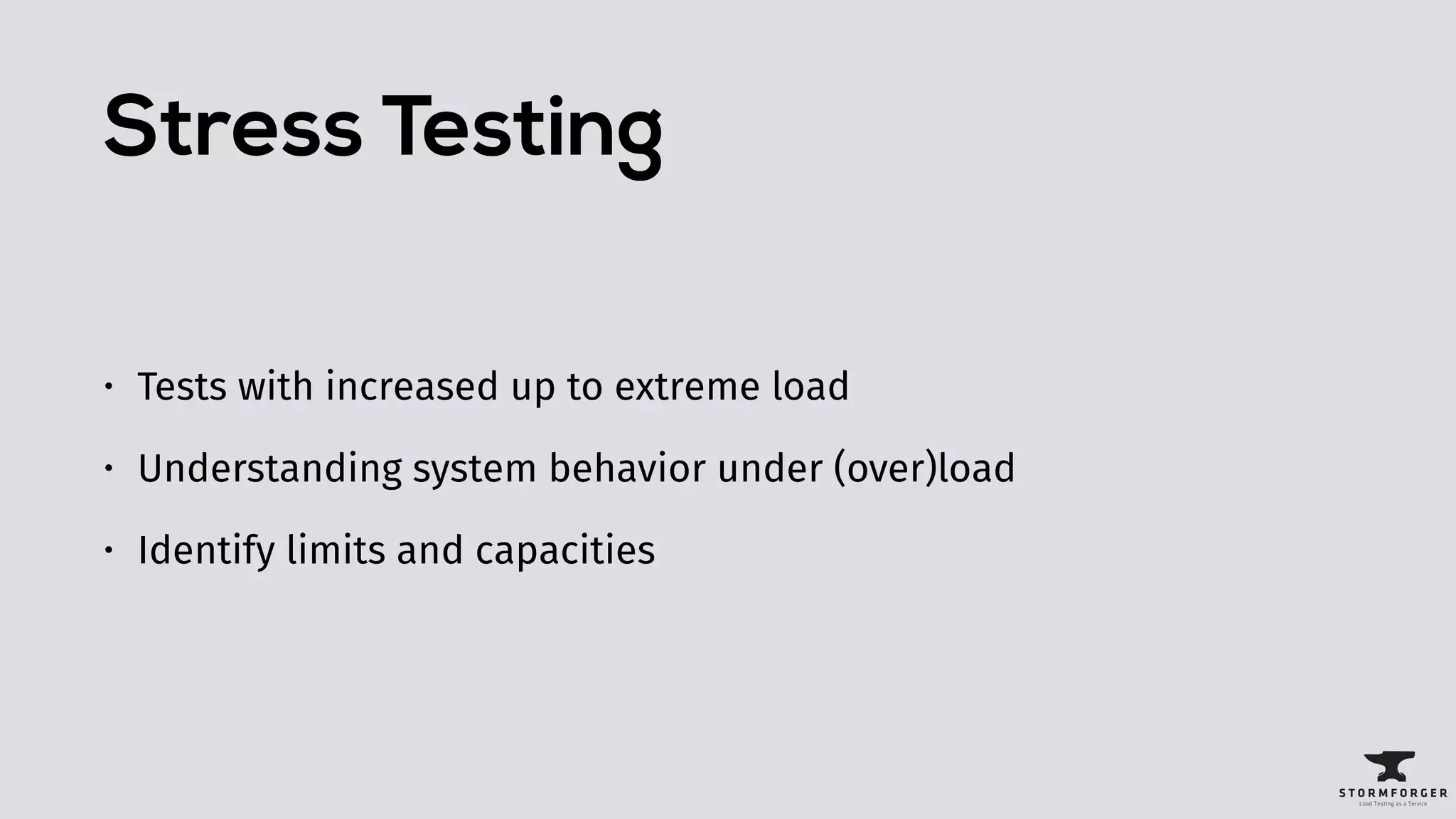

- 64. Stress Testing • Testswith increased up to extreme load • Understanding system behavior under (over)load • Identify limits and capacities

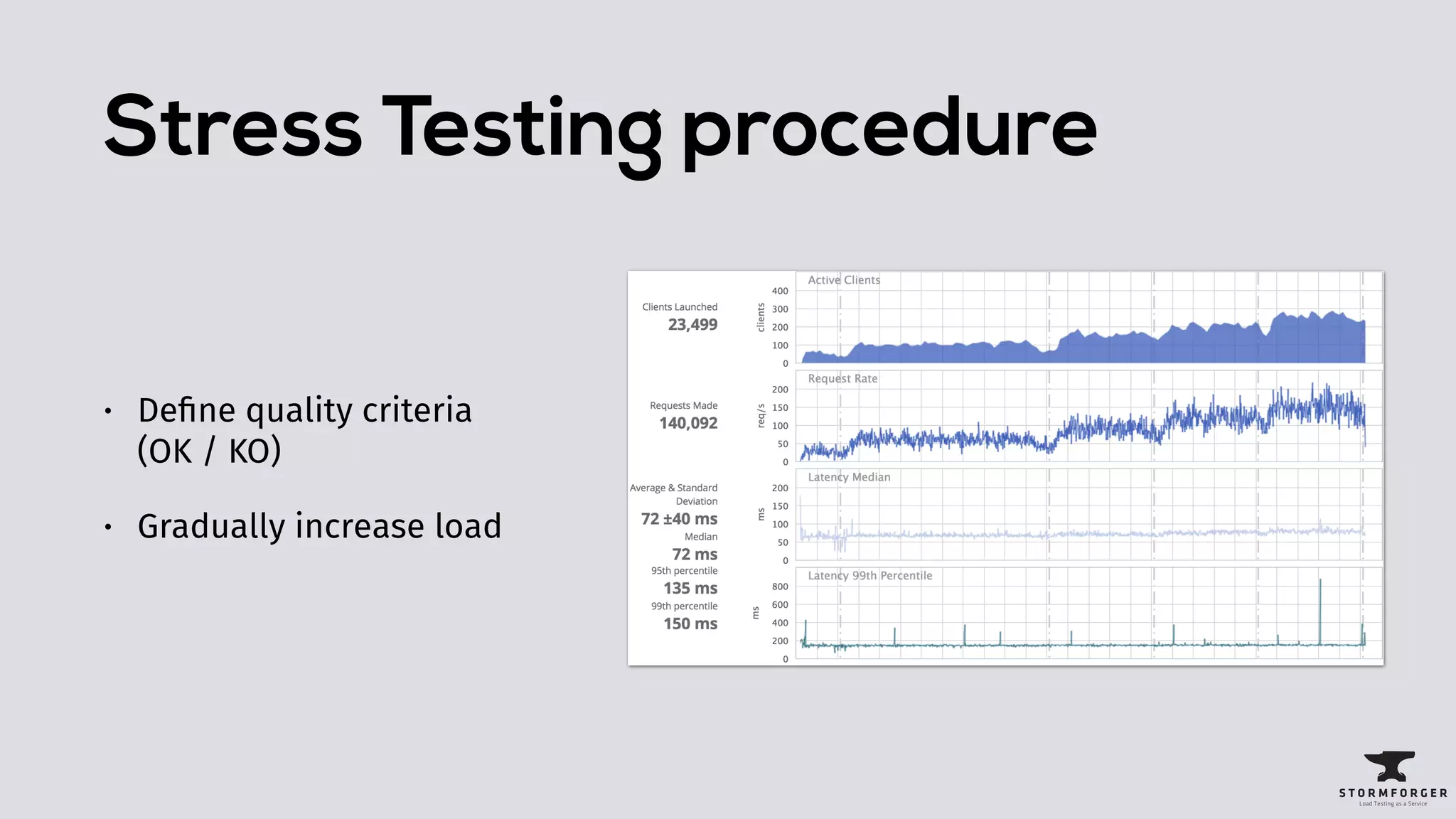

- 65. Stress Testing procedure •Define quality criteria (OK / KO) • Gradually increase load

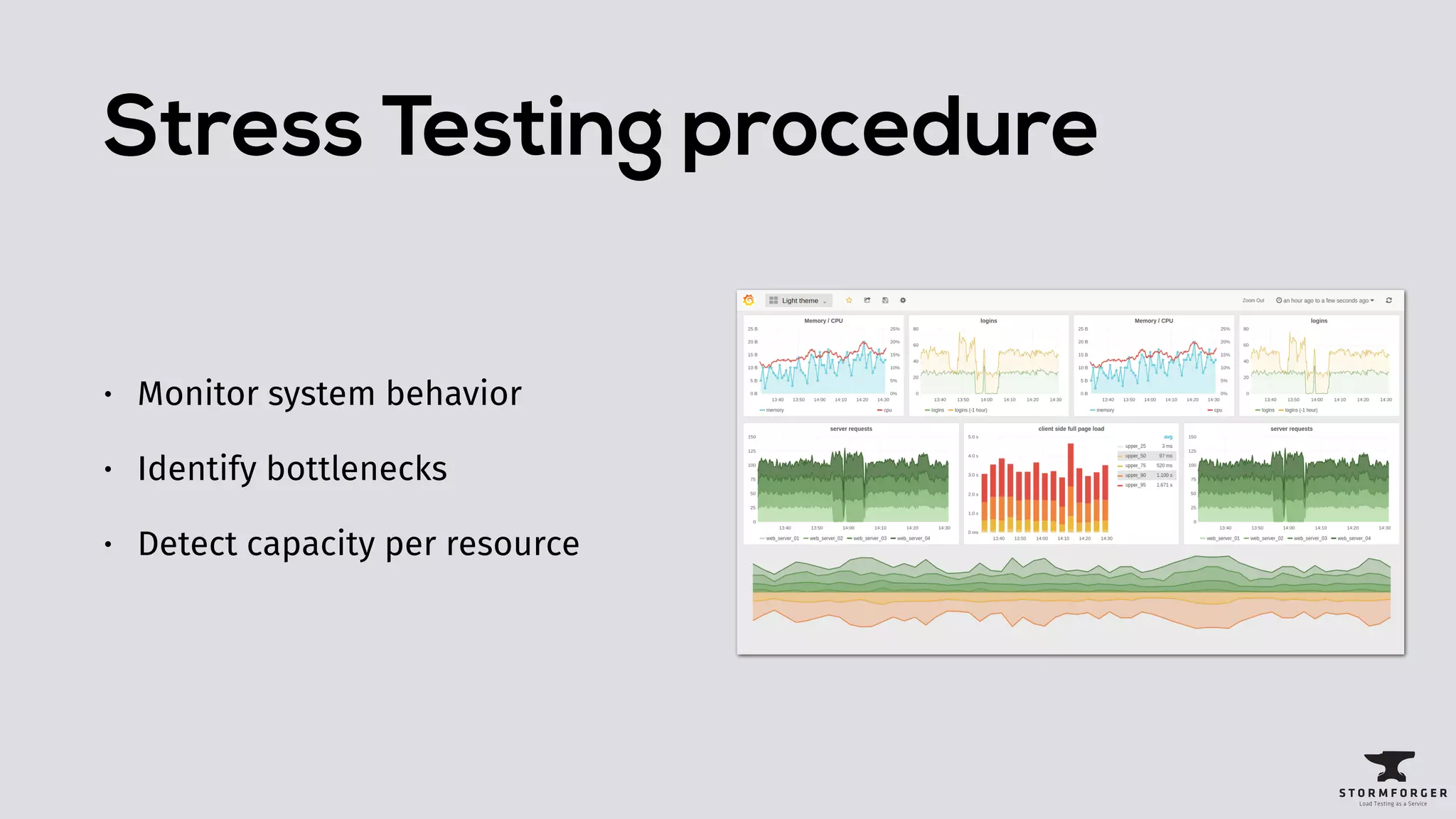

- 66. Stress Testing procedure •Monitor system behavior • Identify bottlenecks • Detect capacity per resource

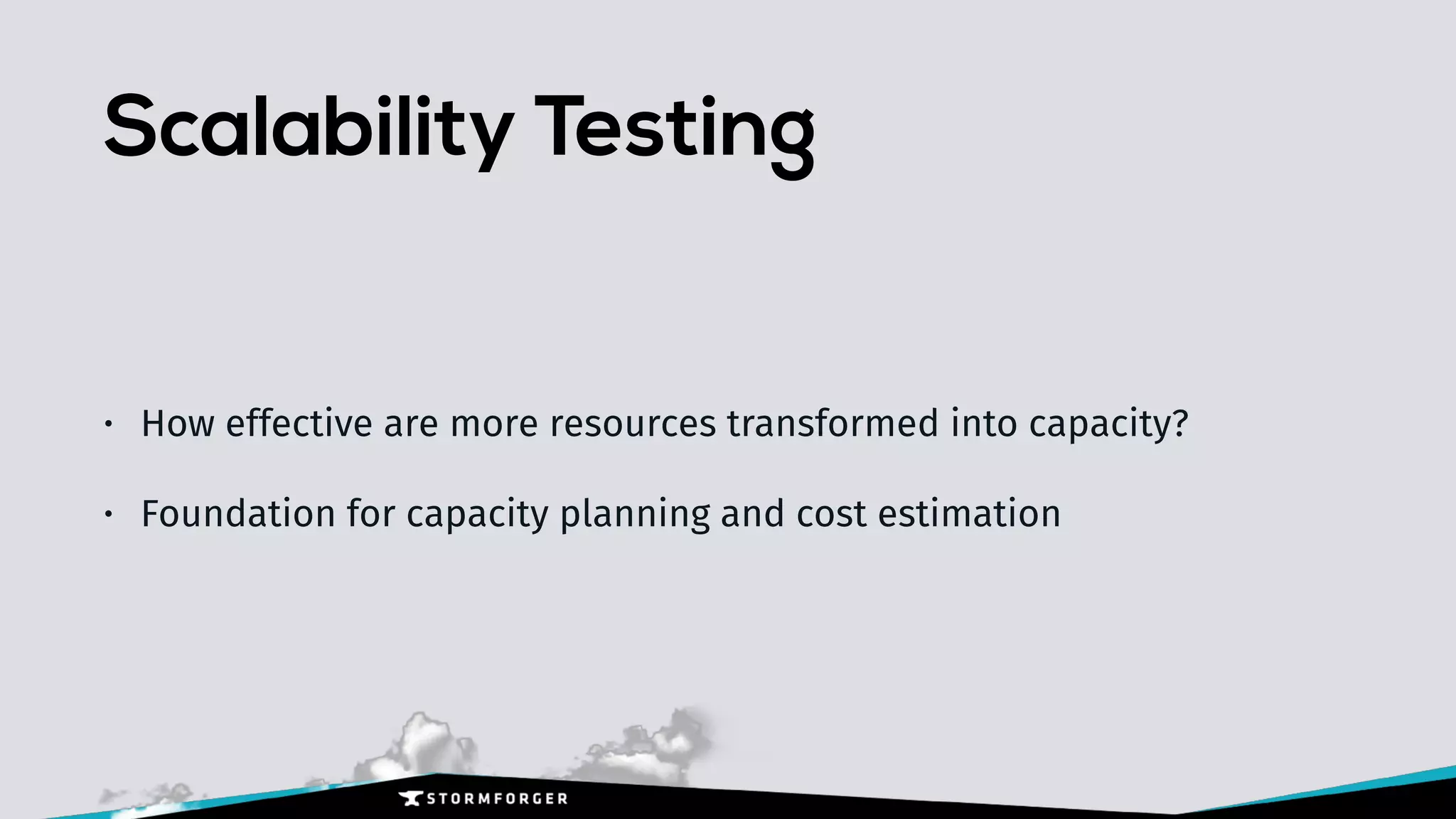

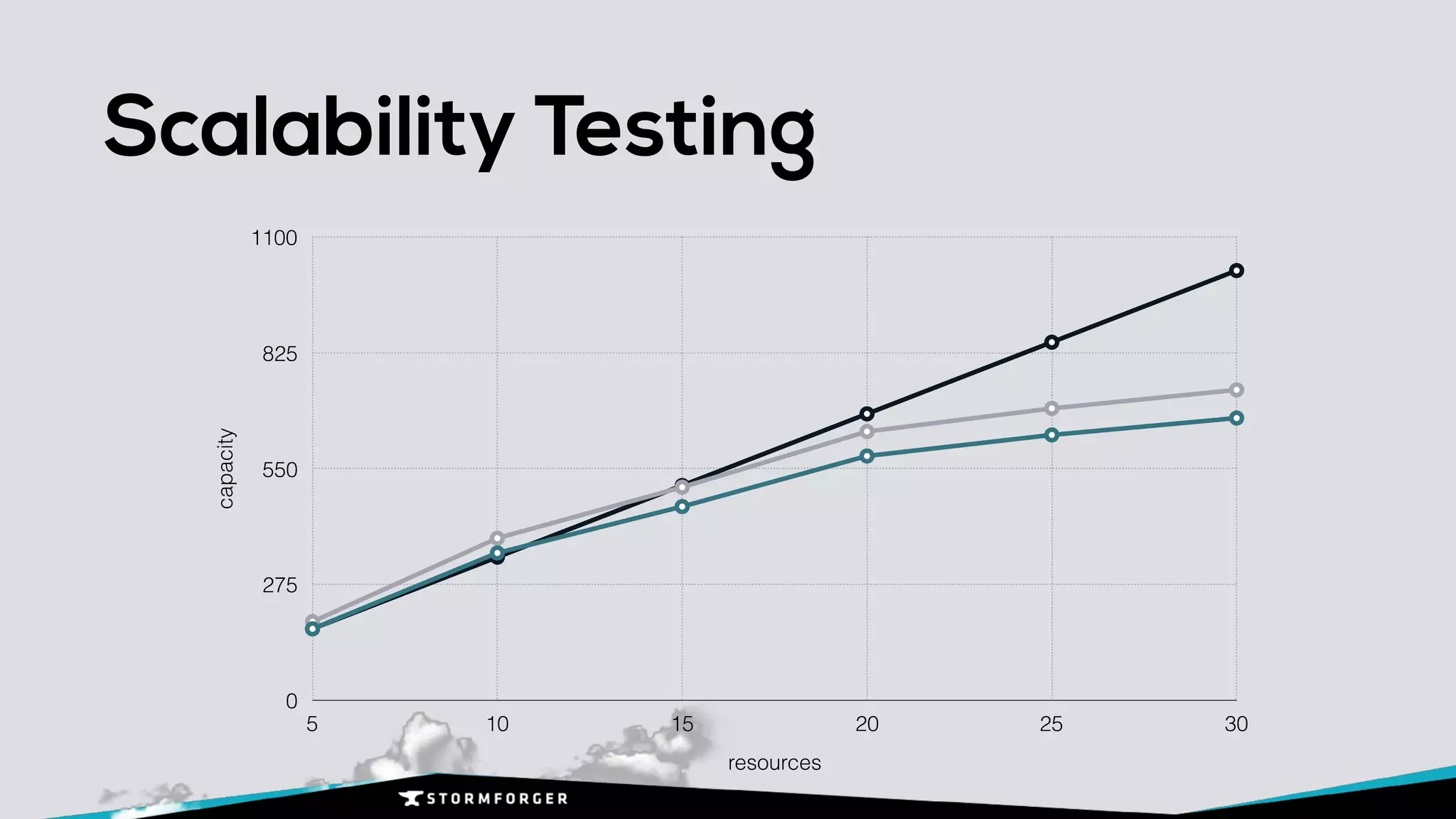

- 67. Scalability Testing • Howeffective are more resources transformed into capacity? • Foundation for capacity planning and cost estimation
- 68.

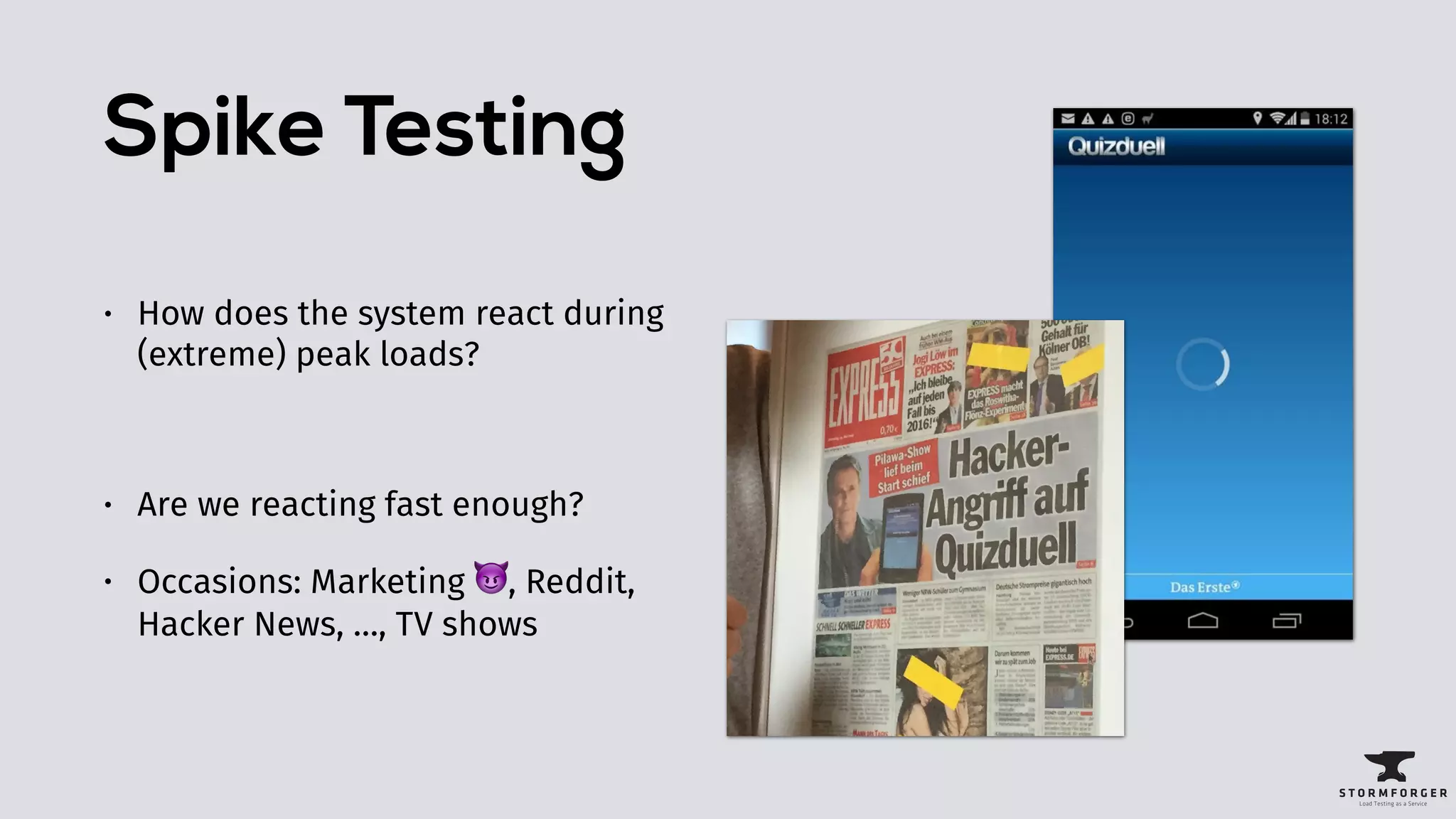

- 69. Spike Testing • Howdoes the system react during (extreme) peak loads? • Are we reacting fast enough? • Occasions: Marketing 😈, Reddit, Hacker News, …, TV shows

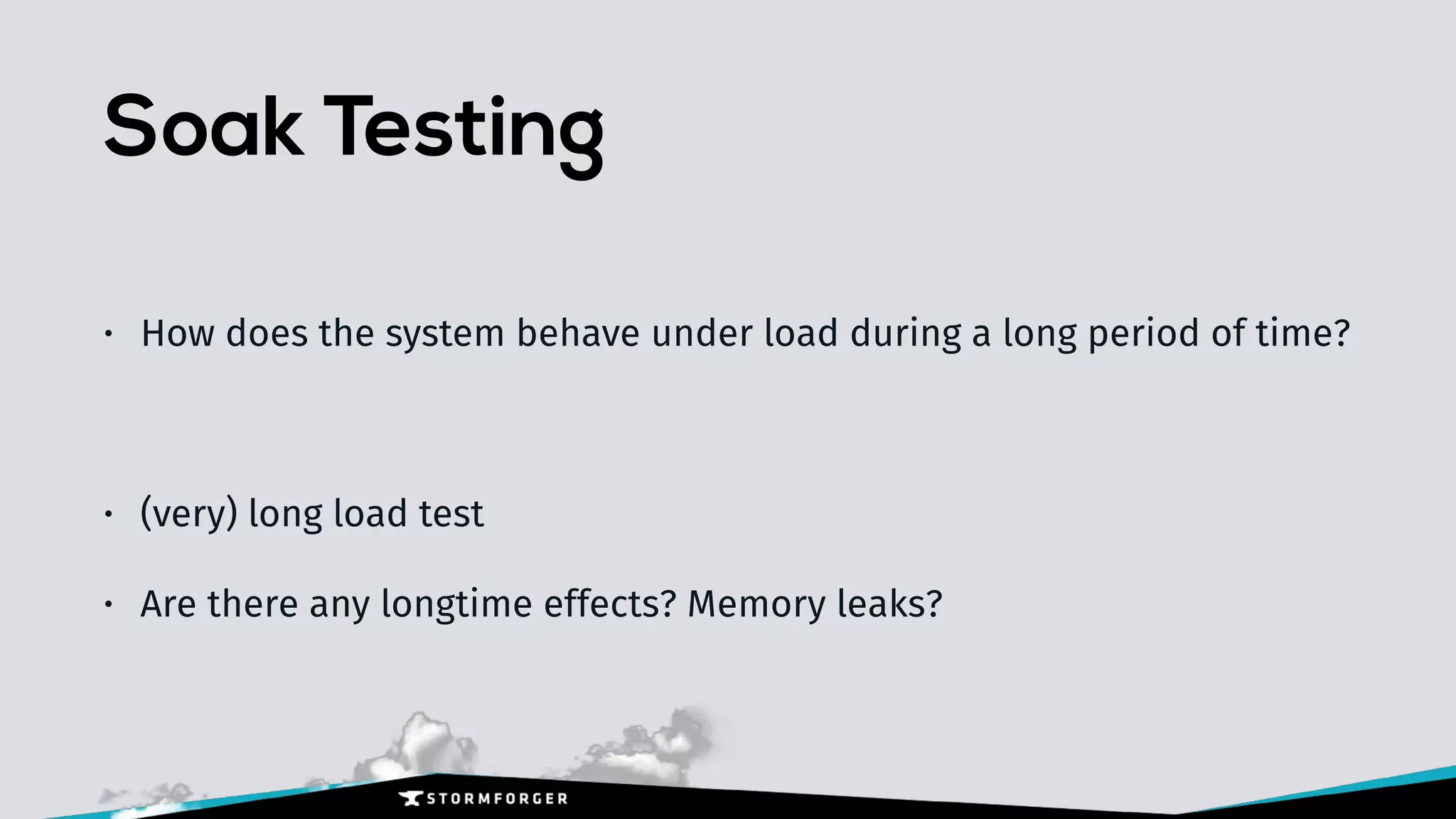

- 70. Soak Testing • Howdoes the system behave under load during a long period of time? • (very) long load test • Are there any longtime effects? Memory leaks?

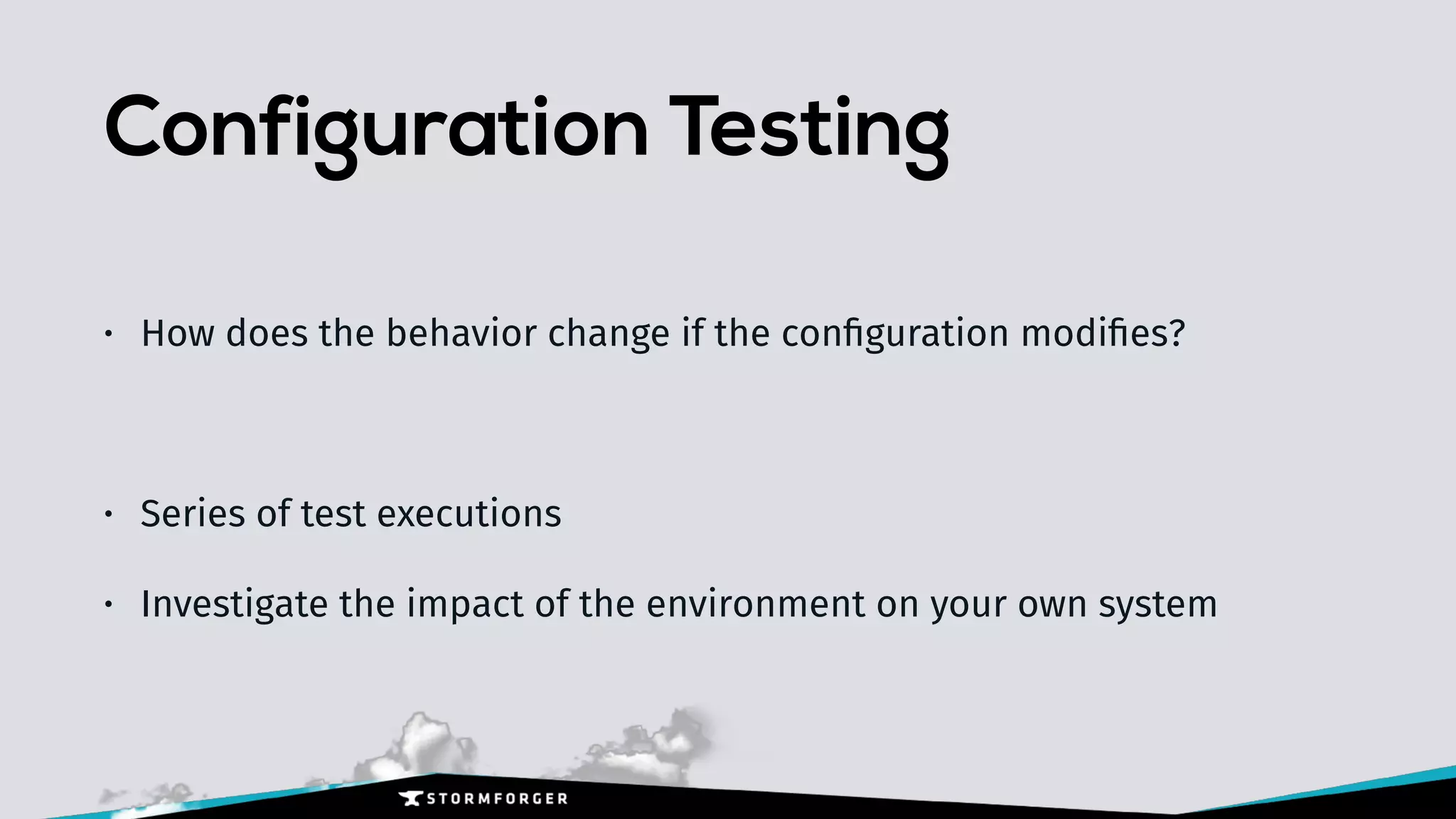

- 71. Configuration Testing • Howdoes the behavior change if the configuration modifies? • Series of test executions • Investigate the impact of the environment on your own system

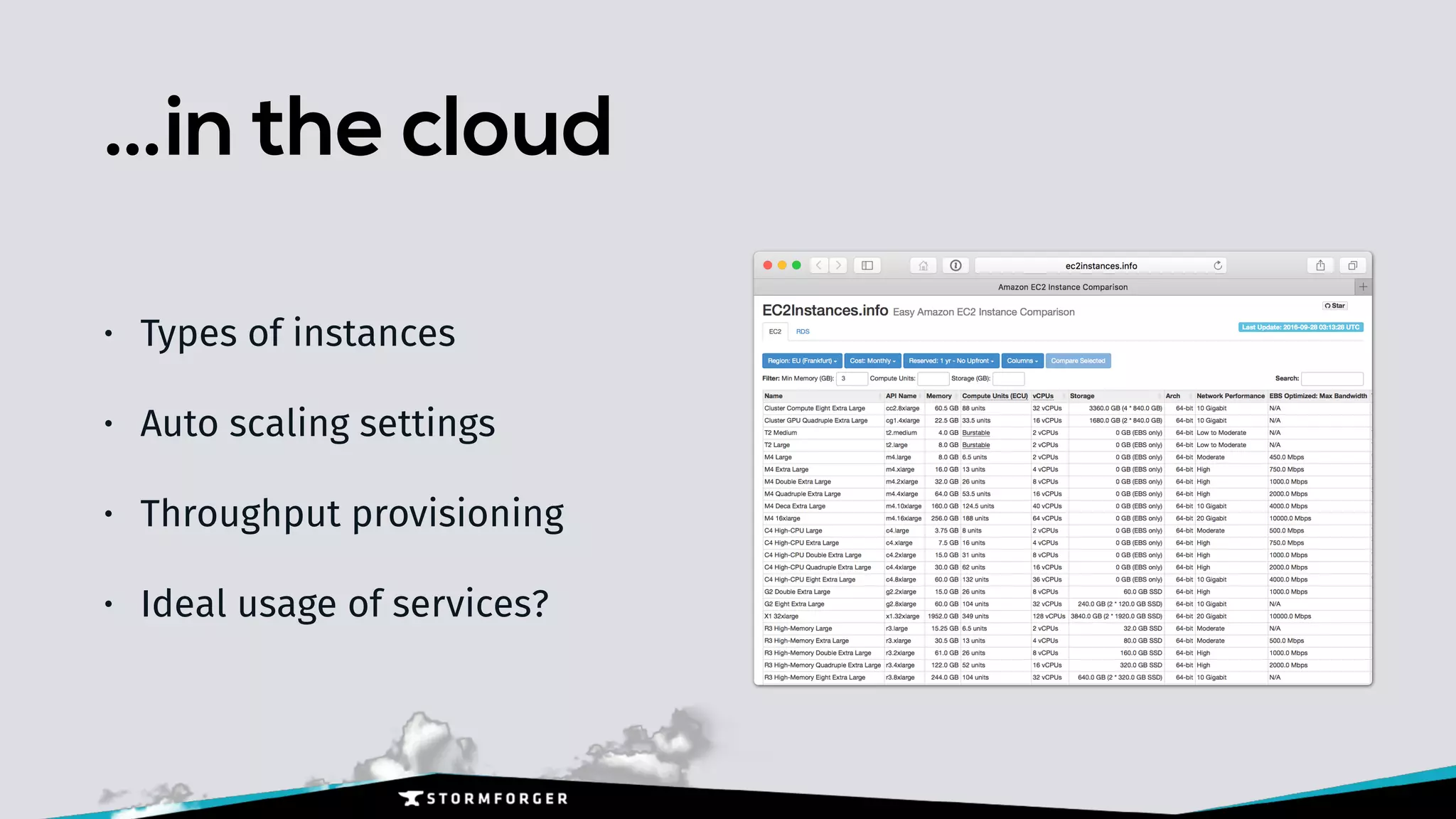

- 72. …in the cloud •Types of instances • Auto scaling settings • Throughput provisioning • Ideal usage of services?

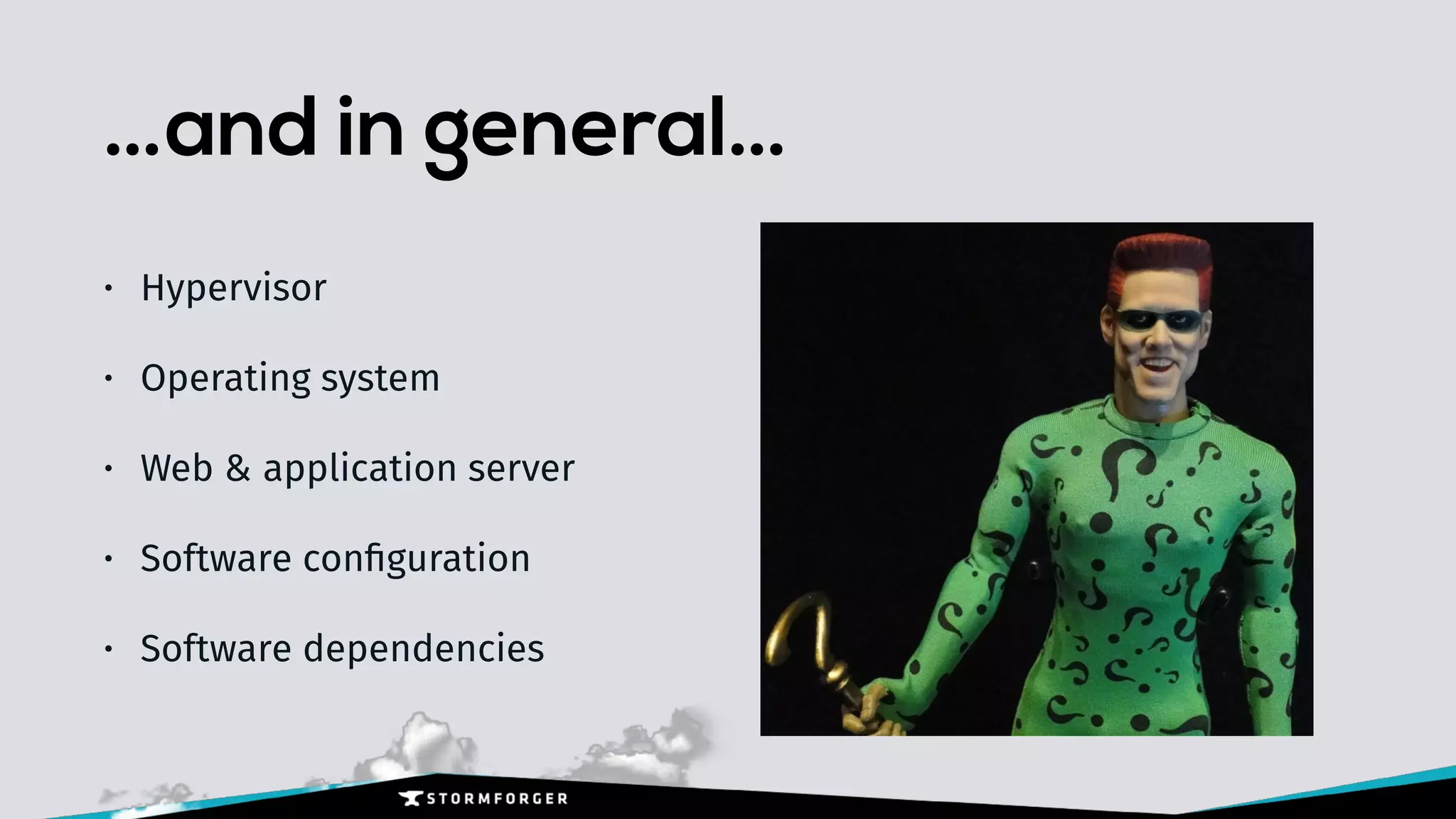

- 73. …and in general… •Hypervisor • Operating system • Web & application server • Software configuration • Software dependencies
- 74.

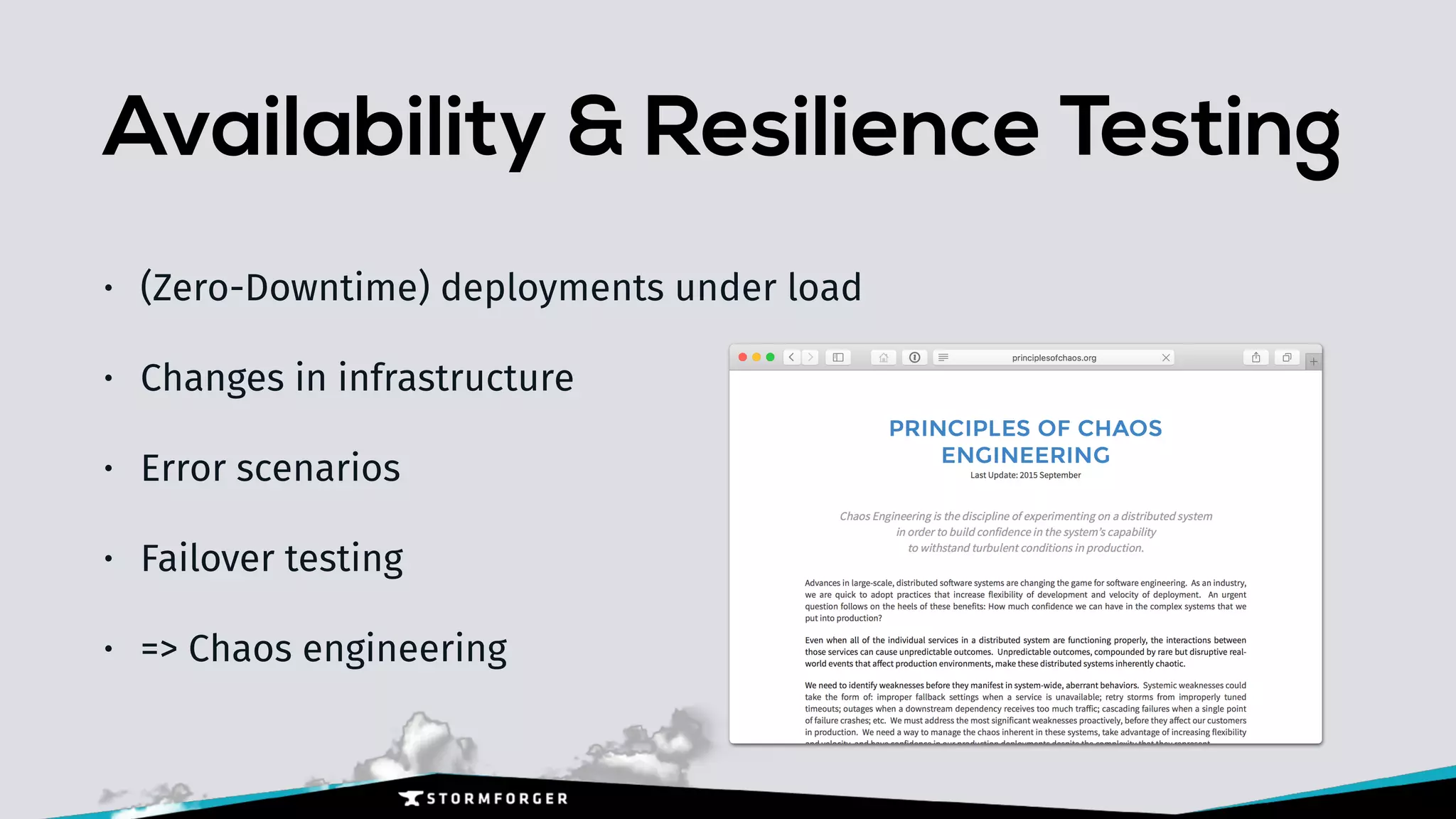

- 75. Availability & ResilienceTesting • (Zero-Downtime) deployments under load • Changes in infrastructure • Error scenarios • Failover testing • => Chaos engineering
