Decompressed vmlinux: Linux Kernel Initialization from Page Table Configuration Perspective Adrian Huang | June, 2021 * Based on kernel 5.11 (x86_64) – QEMU * SMP (4 CPUs) and 8GB memory * Kernel parameter: nokaslr * Legacy BIOS
Agenda • Recap – CPU booting flow and page table before entering decompressed vmlinux • 64-bit Virtual Address • Decompressed vmlinux: Important functions • Entry point: startup_64() • x86_64_start_kernel() -> start_kernel() -> setup_arch() • Apart from focusing on page table configuration, the following are covered as well: • Fixed-mapped addresses • Early ioremap: based on fixed-mapped addresses • Physical memory models • Especially for sparse memory • vsyscall - virtual system call (Built on top of fixed-mapped addresses) • percpu variable • PTI (Page Table Isolation) • kernel thread fork & context switch: struct pt_regs and struct inactive_task_frame in kernel stack • How to boot secondary CPUs? Where is the entry address?
Recap – CPU booting flow before entering decompressed vmlinux setup.bin (arch/x86/boot/setup.bin) Compressed vmlinux (Protected-mode kernel) Note ELF: arch/x86/boot/compressed/vmlinux Binary: arch/x86/boot/vmlinux.bin CRC bzImage Long Mode:
Recap - Compressed vmlinux: Page table before entering decompressed vmlinux Sign-extend Page Map Level-4 Offset Page Directory Pointer Offset Page Directory Offset Physical Page Offset 0 30 21 39 20 38 29 47 48 63 PML4E #0 PDPTE #3 Data Page Map Level-4 Table Page Directory Pointer Table Page Directory Table 40 9 9 9 Linear Address CR3 PDPTE #2 PDPTE #1 PDPTE #0 PDE #1535 PDE #1024 . . PDE #2047 PDE #1536 . . PDE #511 PDE #0 . . PDE #1023 PDE #512 . . 2MBbyte Physical Page 40 40 31 21 [Paging] Identity mapping for 0-4GB memory space
64-bit Virtual Address Kernel Space 0x0000_7FFF_FFFF_FFFF 0xFFFF_8000_0000_0000 128TB Page frame direct mapping (64TB) ZONE_DMA ZONE_DMA32 ZONE_NORMAL page_offset_base 0 16MB 64-bit Virtual Address Kernel Virtual Address Physical Memory 0 0xFFFF_FFFF_FFFF_FFFF Guard hole (8TB) LDT remap for PTI (0.5TB) Unused hole (0.5TB) vmalloc/ioremap (32TB) vmalloc_base Unused hole (1TB) Virtual memory map – 1TB (store page frame descriptor) … vmemmap_base 64TB *page … *page … *page … Page Frame Descriptor vmemmap_base page_ofset_base = 0xFFFF_8880_0000_0000 vmalloc_base = 0xFFFF_C900_0000_0000 vmemmap_base = 0xFFFF_EA00_0000_0000 * Can be dynamically configured by KASLR (Kernel Address Space Layout Randomization - "arch/x86/mm/kaslr.c") Default Configuration Kernel text mapping from physical address 0 Kernel code [.text, .data…] Modules __START_KERNEL_map = 0xFFFF_FFFF_8000_0000 __START_KERNEL = 0xFFFF_FFFF_8100_0000 MODULES_VADDR 0xFFFF_8000_0000_0000 Empty Space User Space 128TB 1GB or 512MB 1GB or 1.5GB Fix-mapped address space (Expanded to 4MB: 05ab1d8a4b36) FIXADDR_START Unused hole (2MB) 0xFFFF_FFFF_FFE0_0000 0xFFFF_FFFF_FFFF_FFFF FIXADDR_TOP = 0xFFFF_FFFF_FF7F_F000 Reference: Documentation/x86/x86_64/mm.rst
Decompressed vmlinux – entry point: startup_64 1. The entry point is still at 0x1000000 (16MB) – not from kernel virtual addresses 2. The kernel virtual addresses will be executed after the corresponding page tables are all set
Decompressed vmlinux – entry point: startup_64
Decompressed vmlinux – entry point: startup_64
Decompressed vmlinux – entry point: startup_64 Change to the kernel virtual address by issuing ‘jmp’ instruction 1 2 3
Decompressed vmlinux – entry point: startup_64 1. Use original per_cpu copy of ‘init_per_cpu__gdt_page’ temporarily 2. Switch CPU’s own per_cpu ‘gdt_page’ when calling switch_to_new_gdt()
Decompressed vmlinux – entry point: startup_64 1. Use original per_cpu copy of ‘init_per_cpu__gdt_page’ temporarily 2. Switch CPU’s own per_cpu ‘gdt_page’ when calling switch_to_new_gdt() When to switch to CPU’s own gdt_page (percpu)?
Decompressed vmlinux – entry point: startup_64
Decompressed vmlinux – x86_64_start_kernel() Page Table Configuration in startup_64 Page Table Configuration in x86_64_start_kernel init_top_pgt
Decompressed vmlinux – x86_64_start_kernel()
Decompressed vmlinux – x86_64_start_kernel()
Decompressed vmlinux – early_idt_handler_common Return frame for iretq pt_regs r15-r12 bx r11-r8 bp ax dx si cx orig_ax ip di cs sp ss flags orig_ax: syscall#, error code for CPU exception or IRQ number of HW interrupt Callee-saved registers: Check x86_64 ABI
early_make_pgtable Memory Map
early_make_pgtable
vmlinux – early_make_pgtable
vmlinux – x86_64_start_kernel()
vmlinux – start_kernel()
setup_arch() – Part 1 memblock: boot time memory management Memblock • Memory allocation during boot time stage • Set up in setup_arch() • Tear down in mem_init(): Release free pages to buddy allocator [memblock] Reserve page 0 • Security: Mitigate L1TF (L1 Terminal Fault) vulnerability
Fixed-mapped Addresses: Compile-time virtual memory allocation vsyscall #0 … vsyscall #511 FIX_DBGP_BASE FIXADDR_TOP = 0xFFFF_FFFF_FF7F_F000 VSYSCALL_ADDR = 0xFFFF_FFFF_FF60_0000 FIX_EARLYCON_MEM_BASE … __end_of_permanent_fixed_addresses FIX_BTMAP_END = 1024 … FIX_BTMAP_BEGIN = 1535 __end_of_fixed_addresses = 1536 vsyscalls (2MB space) Permanent fixed addresses 512 temporary boot-time mappings: used by early_ioremap() FIXADDR_START = 0xFFFF_FFFF_FF57_C000 Enumeration: fixed_addresses 0xFFFF_FFFF_FF3F_F000 0xFFFF_FFFF_FF20_0000 Modules MODULES_VADDR Fix-mapped address space (Expanded to 4MB: 05ab1d8a4b36) FIXADDR_START Unused hole (2MB) 0xFFFF_FFFF_FFE0_0000 0xFFFF_FFFF_FFFF_FFFF FIXADDR_TOP 4MB: fixed-mapped address space 2MB: Borrow from ‘Modules’ space breakdown
Fixed-mapped Addresses: Compile-time virtual memory allocation vsyscall #0 … vsyscall #511 FIX_DBGP_BASE FIXADDR_TOP = 0xFFFF_FFFF_FF7F_F000 VSYSCALL_ADDR = 0xFFFF_FFFF_FF60_0000 FIX_EARLYCON_MEM_BASE … __end_of_permanent_fixed_addresses FIX_BTMAP_END = 1024 … FIX_BTMAP_BEGIN = 1535 __end_of_fixed_addresses = 1536 vsyscalls (2MB space) Permanent fixed addresses 512 temporary boot-time mappings: used by early_ioremap() FIXADDR_START = 0xFFFF_FFFF_FF57_C000 Enumeration: fixed_addresses 0xFFFF_FFFF_FF3F_F000 0xFFFF_FFFF_FF20_0000 4MB: fixed-mapped address space 2MB: Borrow from ‘Modules’ space
Fixed-mapped Addresses: Compile-time virtual memory allocation Fixed-mapped Addresses: Use Case
Early ioremap: based on fixed-mapped address PDE #507: 0xFFFF_FFFF_FF60_0000 PDE #506: 0xFFFF_FFFF_FF40_0000 PDE #505: 0xFFFF_FFFF_FF20_0000 #1528 … FIX_BTMAP_BEGIN = 1535 … FIX_BTMAP_END = 1024 … # 1031 slot_virt[0] slot_virt[7] slot_virt[0] = 0xFFFF_FFFF_FF20_0000 slot_virt[7] = 0xFFFF_FFFF_FF3C_0000 early_ioremap_setup() Early ioremap • Mapping/unmapping of I/O physical address to virtual address before ioremap mechanism is ready • early_ioremap() & early_iounmap() Fixed-mapped Addresses
setup_arch() – Part 1
setup_arch() – Part 1 [Linux x86 Boot Protocol] setup_data: 64-bit physical pointer to linked list of struct setup_data
setup_arch() – Part 2
setup_arch() – Part 2 - cleanup_highmap
setup_arch() – Part 2
setup_arch() – Part 2: init_mem_mapping() -- Page Table Configuration for Direct Mapping
setup_arch() – Part 2: init_mem_mapping() -- Page Table Configuration for Direct Mapping
setup_arch() – Part 2: init_mem_mapping() -- Page Table Configuration for Direct Mapping Split memory range into sub-ranges that fulfill 4K, 2M or 1G page. split_mem_range
setup_arch() – Part 2: init_mem_mapping() -- Page Table Configuration for Direct Mapping
kernel_physical_mapping_init(): Page Table Configuration for Direct Mapping
setup_arch() – Part 3 Initialize the idt table with early pagefault handler. idt_setup_early_pf
setup_arch() – Part 3 - x86_init.paging.pagetable_init() x86_init.paging.pagetable_init native_pagetable_init paging_init sparse_init zone_sizes_init cfg number of pfn for each zone free_area_init Zone Allocator Buddy system Per-CPU page frame cache Buddy system Per-CPU page frame cache Buddy system Per-CPU page frame cache ZONE_DMA (Physical address: 0-16MB) ZONE_DMA32 (Physical address: 16MB-4GB) ZONE_NORMAL (Physical address > 4GB) Buddy system Per-CPU page frame cache Buddy system Per-CPU page frame cache ZONE_MOVABLE ZONE_DEVICE ZONE_DMA ZONE_DMA32 ZONE_NORMAL 0 16MB Physical Memory 64TB 4GB paging_init() • Initialize sparse memory and zone sizes
Physical Memory Models • Flat Memory Model (CONFIG_FLATMEM) • UMA (Uniform Memory Access) • Discontinuous Memory Model (CONFIG_DISCONTIGMEM) • NUMA (Non-Uniform Memory Access) • Sparse Memory Virtual Memmap (CONFIG_SPARSEMEM_VMEMMAP) • NUMA • Default configuration • Sparse Memory • NUMA
Sparse Memory Virtual Memmap (CONFIG_SPARSEMEM_VMEMMAP=y)
sparse_init() – Page Table Configuration for ‘struct page’
sparse_init()
sparse_init() ALIGN_DOWN(0xbffd_efff, 128MB) >> 27 = 0xb800_0000 >> 27 = 23 ALIGN_DOWN(0x1_0000_0000, 128MB) >> 27 = 0x1_0000_0000 >> 27 = 32 ALIGN_DOWN(0x2_403f_ffff, 128MB) >> 27 = 0x2_4000_0000 >> 27 = 72
setup_arch() – Part 3 – map_vsyscall
vsyscall (Virtual System Call) – Issue Statement • The context switch overhead (user <-> kernel) of some system calls (gettimeofday, time, getcpu) is greater than execution time of those functions. • Quote from Linux Programmer's Manual - VDSO(7) • Making system calls can be slow. In x86 32-bit systems, you can trigger a software interrupt (int $0x80) to tell the kernel you wish to make a system call. However, this instruction is expensive: it goes through the full interrupt- handling paths in the processor's microcode as well as in the kernel. Newer processors have faster (but backward incompatible) instructions to initiate system calls. • Built on top of the fixed-mapped address

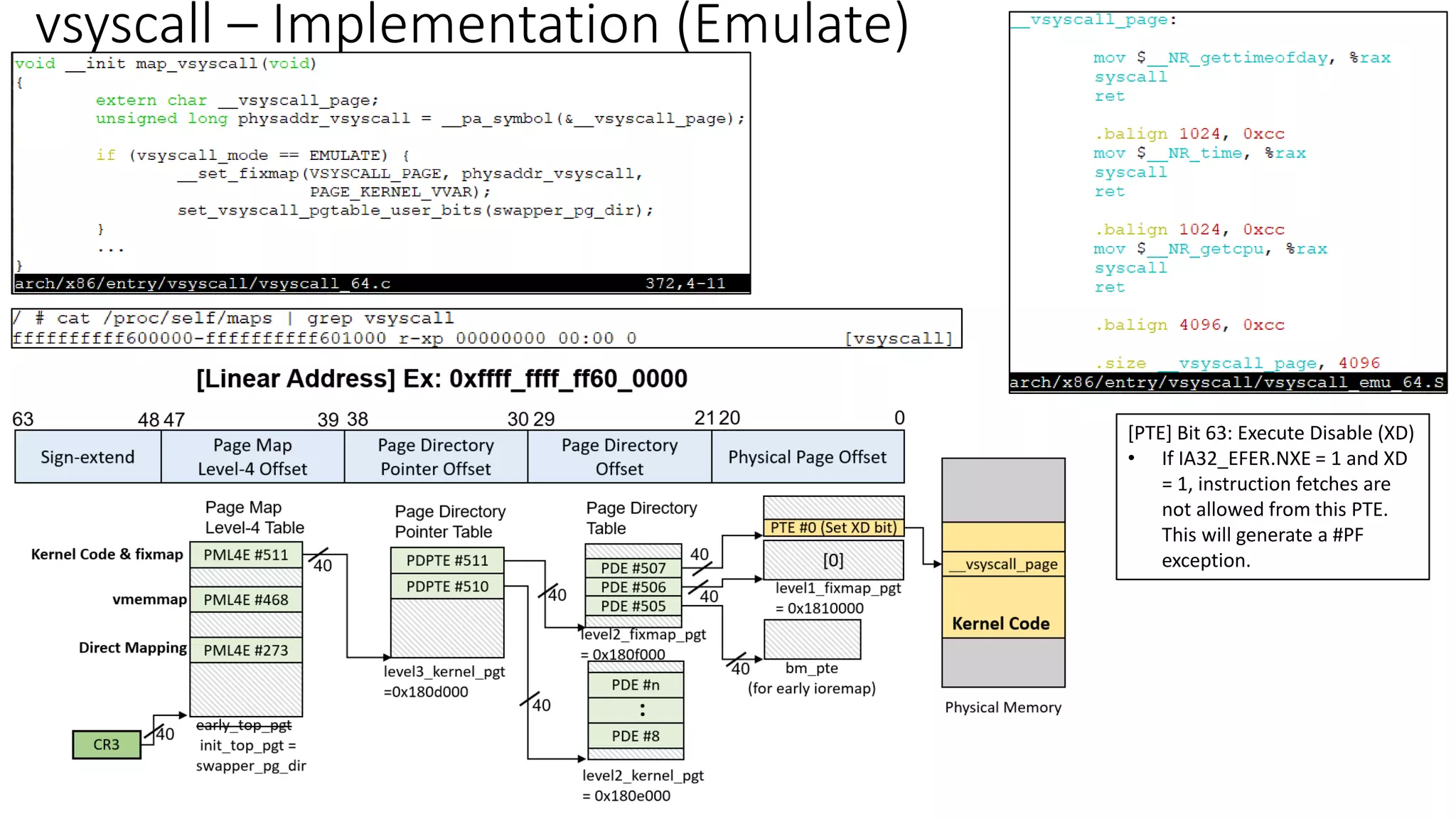

vsyscall – Implementation (Emulate) [PTE] Bit 63: Execute Disable (XD) • If IA32_EFER.NXE = 1 and XD = 1, instruction fetches are not allowed from this PTE. This will generate a #PF exception.
vsyscall - Experiment
vsyscall – Experiment – gdb + backtrace Terminal #1 Terminal #2
vsyscall – Experiment – gdb + backtrace Terminal #1 Terminal #2 error_code = 21 (0x15)
vsyscall – Experiment – gdb + backtrace Terminal #1 Terminal #2
Replacement of vsyscall: vDSO (virtual Dynamic Shared Object) • vsyscall limitation • Security concern: fixed virtual address (0xFFFF_FFFF_FF60_0000) • vDSO • Exploit ASLR (Address Space Layout Randomization) • Can be enabled/disabled via /proc/sys/kernel/randomize_va_space • [Enable] echo 1 > /proc/sys/kernel/randomize_va_space • [Disable] echo 0 > /proc/sys/kernel/randomize_va_space • User space address • Security enhancement
setup_arch() – Part 3
[Recap] Page Table Configuration after finishing setup_arch()
[Recap] Page Table Configuration after finishing setup_arch() 1 2 3 1 1 2 3
vmlinux – start_kernel() – Part 2 Original .data..percpu .data..percpu for core 2 .data..percpu for core 3 .data..percpu for core 0 .data..percpu for core 1 Physical Memory memcpy in setup_per_cpu_areas()
percpu section *(.data..percpu..shared_aligned) *(.data..percpu) *(.data..percpu..read_mostly) *(.data..percpu..page_aligned) *(.data..percpu..first) .data..percpu __per_cpu_load (kernel virtual address) __per_cpu_end __per_cpu_start = 0
percpu section *(.data..percpu..shared_aligned) *(.data..percpu) *(.data..percpu..read_mostly) *(.data..percpu..page_aligned) *(.data..percpu..first) .data..percpu __per_cpu_load (kernel virtual address) __per_cpu_end __per_cpu_start = 0
percpu variable access option #1: __per_cpu_offset APIs (include/linux/percpu-defs.h): * per_cpu_ptr(ptr, cpu): via __per_cpu_offset Original .data..percpu .data..percpu for core 2 .data..percpu for core 3 .data..percpu for core 0 .data..percpu for core 1 Physical Memory memcpy with source address ‘__per_cpu_load’ in setup_per_cpu_areas() __per_cpu_offset[0] __per_cpu_offset[1] __per_cpu_offset[2] __per_cpu_offset[3]
percpu variable access option #1: __per_cpu_offset *(.data..percpu..shared_aligned) *(.data..percpu) *(.data..percpu..read_mostly) *(.data..percpu..page_aligned) *(.data..percpu..first) .data..percpu __per_cpu_load (kernel virtual address) __per_cpu_end __per_cpu_start = 0 [Example] gdt_page = 0xb000 Original .data..percpu .data..percpu for core 2 .data..percpu for core 3 .data..percpu for core 0 .data..percpu for core 1 Physical Memory memcpy with source address ‘__per_cpu_load’ in setup_per_cpu_areas() __per_cpu_offset[0] __per_cpu_offset[1] __per_cpu_offset[2] __per_cpu_offset[3]
percpu variable access option #2: gs register (MSR: IA32_GS_BASE) APIs (include/linux/percpu-defs.h): * this_cpu_read(pcp) * this_cpu_write(pcp, val) * this_cpu_add(pcp, val) * this_cpu_ptr(ptr) & raw_cpu_ptr(ptr) 1. Use gs register 2. If option #1 is not supported, use this_cpu_off per-cpu variable (read mostly) Original .data..percpu .data..percpu for core 2 .data..percpu for core 3 .data..percpu for core 0 .data..percpu for core 1 Physical Memory memcpy with source address ‘__per_cpu_load’ in setup_per_cpu_areas() CPU #0: IA32_GS_BASE CPU #1: IA32_GS_BASE CPU #2: IA32_GS_BASE CPU #3: IA32_GS_BASE
gs register (MSR: IA32_GS_BASE) vs __per_cpu_offset DEFINE_PER_CPU(int, x); int z; z = this_cpu_read(x); Convert to a single instruction: mov %gs:x,%edx Atomic: No need to disable preemption and interrupt this_cpu_inc(x) Convert to a single instruction: inc %gs:x int *y; int cpu; cpu = get_cpu(); y = per_cpu_ptr(&x, cpu); (*y)++; put_cpu(); Non-atomic: Need to disable preemption gs register __per_cpu_offset this_cpu_read() this_cpu_inc() this_cpu_inc() implementation via __per_cpu_offset
vmlinux – start_kernel() – Part 2
vmlinux – start_kernel() – Part 2 – trap_init() CPU Entry Area (percpu) • Page Table Isolation (PTI) o Mitigate Meltdown o Isolate user space and kernel space memory o When the kernel is entered via syscalls, interrupts or exceptions, the page tables are switched to the full "kernel“ copy. ▪ Entry/exit functions and IDT (Interrupt Descriptor Table) are needed for userspace page table Kernel Space User Space User mode & Kernel Mode PTI Kernel Space User Space Kernel mode Kernel Space User Space User mode User Space percpu TSS entry Kernel Space syscall [User mode] User Page Table User Space percpu TSS entry Kernel Space Switch to kernel page table [Kernel Mode] User Page Table User Space percpu TSS entry Kernel Space [Kernel Mode] Kernel Page Table … PTI: Concept PTI: High-level implementation
vmlinux – start_kernel() – Part 2 – setup_cpu_entry_area()
vmlinux – start_kernel() – Part 2 – trap_init()
vmlinux – start_kernel() – Part 2 – mm_init() mm_init • Set up different parts of Linux kernel memory managers
vmlinux – start_kernel() – Part 2 - preallocate_vmalloc_pages()
vmlinux – start_kernel() – Part 2
pti_init()
pti_init()
vmlinux – start_kernel() – Part 2
vmlinux – start_kernel() – Part 3
vmlinux – start_kernel() – Part 4
vmlinux – start_kernel() – Part 4 CommitLimit: Total amount of memory currently available to be allocated on the system. Committed_AS: The amount of memory requested by processes. Over Commit: Committed_AS > CommitLimit
vmlinux – start_kernel() – Part 4 Idle Process (swapper) = init_task (pid = 0)
STACK_END_MAGIC = 0x57AC6E9D struct pt_regs (save CPU registers for userspace application) task.stack THREAD_SIZE = 16KB kernel stack usage space task.stack + THREAD_SIZE struct inactive_task_frame task.thread_struct.sp struct fork_frame Kernel Stack Context Switch – Kernel Stack
Context Switch – Kernel Stack Return frame for iretq pt_regs r15-r12 bx r11-r8 bp ax dx si cx orig_ax ip di cs sp ss flags orig_ax: syscall#, error code for CPU exception or IRQ number of HW interrupt thread_struct tls_array es, ds fsindex, gsindex fsbase, gsbase sp … inactive_task_frame r15-r13 bx (kernel thread function) bp ret_addr = ret_from_fork r12 ( kernel thread argument) Configured by copy_thread() – kernel thread callee-saved registers STACK_END_MAGIC = 0x57AC6E9D struct pt_regs (save CPU registers for userspace application) task.stack THREAD_SIZE = 16KB kernel stack usage space task.stack + THREAD_SIZE struct inactive_task_frame task.thread_struct.sp struct fork_frame Kernel Stack
Context Switch – Kernel Thread inactive_task_frame r15-r13 bx (kernel thread function) bp ret_addr = ret_from_fork r12 (kernel thread argument) Configured by copy_thread() – kernel thread callee-saved registers STACK_END_MAGIC = 0x57AC6E9D struct pt_regs (save CPU registers for userspace application) task.stack kernel stack usage space Kernel Stack bx (kernel thread function) r13 r14 r15 r12 (kernel thread argument) ret_addr = ret_from_fork bp task.stack + THREAD_SIZE rsp rip
STACK_END_MAGIC = 0x57AC6E9D struct pt_regs (save CPU registers for userspace application) task.stack kernel stack usage space Kernel Stack bx (kernel thread function) r13 r14 r15 r12 (kernel thread argument) ret_addr = ret_from_fork bp task.stack + THREAD_SIZE rsp rip inactive_task_frame r15-r13 bx (kernel thread function) bp ret_addr = ret_from_fork r12 (kernel thread argument) Configured by copy_thread() – kernel thread callee-saved registers Context Switch – Kernel Thread
STACK_END_MAGIC = 0x57AC6E9D struct pt_regs (save CPU registers for userspace application) task.stack kernel stack usage space Kernel Stack bx (kernel thread function) r13 r14 r15 r12 (kernel thread argument) ret_addr = ret_from_fork bp task.stack + THREAD_SIZE rsp rip inactive_task_frame r15-r13 bx (kernel thread function) bp ret_addr = ret_from_fork r12 (kernel thread argument) Configured by copy_thread() – kernel thread callee-saved registers Context Switch – Kernel Thread
Context Switch – Kernel Thread jump
[Prev task] Return to the next instruction of calling switch_to() when the previous task is re-scheduled. 4 task.stack Kernel Stack STACK_END_MAGIC = 0x57AC6E9D struct pt_regs (save/restore CPU registers for userspace tasks) kernel stack usage space bx (kernel thread function) r13 r14 r15 r12 (kernel thread argument) ret_addr = ret_from_fork bp task.stack + THREAD_SIZE rsp 2 3 rsp `return prev_p` 1 Context Switch – Kernel Thread jump 4

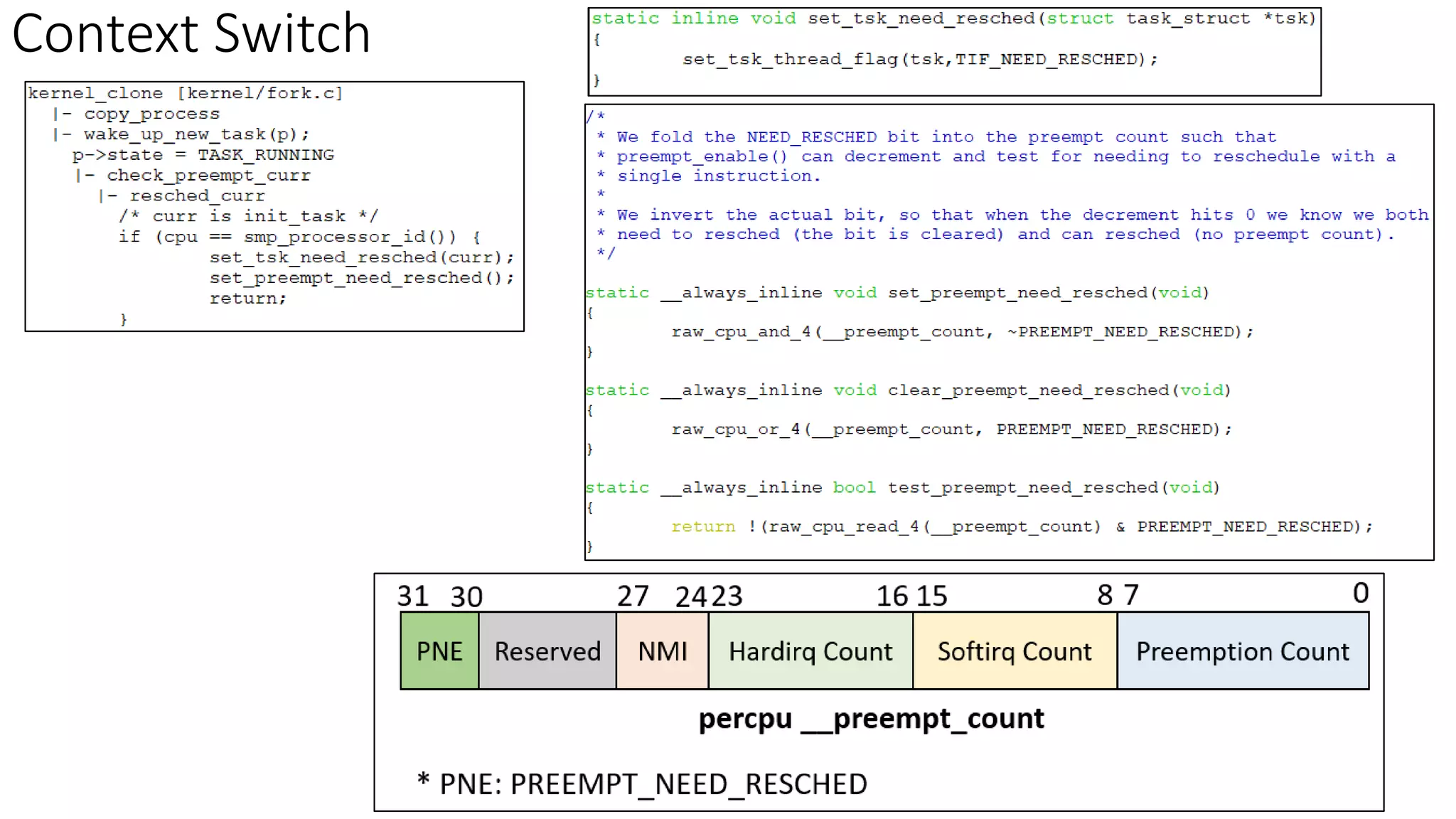

Context Switch – When to run ‘context switch’? Explicitly call ‘schedule()’ Call ‘cond_resched()’ to yield CPU resource
Context Switch
Context Switch – init_task is rescheduled [Prev task] Return to the next instruction of calling switch_to() when the previous task is re-scheduled. 4 Backtrace when init_task (pid = 0) is rescheduled because kernel_init thread (pid = 1) is scheduled out jump 4
Kernel Thread Context Switch mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct mm = NULL active_mm = NULL task_struct mm = NULL active_mm = NULL task_struct mm = NULL active_mm scheduler init_task (pid = 0) init_mm swapper_pg_dir = init_top_pgt init process (pid = 1) kthreadd (pid = 2)
Kernel Thread Context Switch mm_struct mmap (list of VMAs) pgd pgd_t pgd init_task (pid = 0) init_mm swapper_pg_dir = init_top_pgt task_struct mm = NULL active_mm init process (pid = 1) kthreadd (pid = 2) task_struct mm = NULL active_mm = NULL task_struct mm = NULL active_mm = NULL scheduler pid = 0 pid = 1
Kernel Thread Context Switch – Start Here (Aug 2, 2021) mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct mm = NULL active_mm task_struct mm = NULL active_mm = NULL task_struct mm = NULL active_mm = NULL scheduler init_task (pid = 0) init_mm swapper_pg_dir = init_top_pgt init process (pid = 1) kthreadd (pid = 2)
Kernel Thread Context Switch mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct mm = NULL active_mm = NULL task_struct mm = NULL active_mm task_struct mm = NULL active_mm = NULL scheduler init_task (pid = 0) init_mm swapper_pg_dir = init_top_pgt init process (pid = 1) kthreadd (pid = 2) pid = 1 pid = 2
Kernel Thread Context Switch mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct mm = NULL active_mm = NULL task_struct mm = NULL active_mm task_struct mm = NULL active_mm = NULL scheduler init_task (pid = 0) init_mm swapper_pg_dir = init_top_pgt init process (pid = 1) kthreadd (pid = 2) pid = 1 pid = 2 1. Each kernel thread does not have its own ‘mm’. 2. The active_mm of the next task inherits the one of the previous task (use the same page table).
Context Switch: Kernel Thread <-> User Space Task mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct scheduler init_task (pid = 0) sleep program (pid = 40) task_struct mm = NULL active_mm cpu = 2 mm_struct mmap (list of VMAs) pgd pgd_t pgd mm active_mm cpu = 2 Two breakpoints breakpoint #1 breakpoint #2 gdb breakpoint configuration
Context Switch: Kernel Thread <-> User Space Task mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct scheduler init_task (pid = 0) sleep program (pid = 40) task_struct mm = NULL active_mm = NULL cpu = 2 mm_struct mmap (list of VMAs) pgd pgd_t pgd mm active_mm cpu = 2 `sleep` userspace task is selected to run
Context Switch: Kernel Thread <-> User Space Task mm_struct mmap (list of VMAs) pgd pgd_t pgd task_struct scheduler init_task (pid = 0) sleep program (pid = 40) task_struct mm = NULL active_mm = NULL cpu = 2 mm_struct mmap (list of VMAs) pgd pgd_t pgd mm active_mm cpu = 2 pid = 0 pid = 40 `sleep` userspace task is selected to run
Context Switch: Kernel Thread <-> User Space Task task_struct scheduler sleep program (pid = 40) mm_struct mmap (list of VMAs) pgd pgd_t pgd mm active_mm cpu = 2 `sleep` userspace task is scheduled out
Context Switch: Kernel Thread <-> User Space Task task_struct scheduler sleep program (pid = 40) mm_struct mmap (list of VMAs) pgd pgd_t pgd mm active_mm cpu = 2 task_struct ksoftirqd/2 (pid = 20) mm = NULL active_mm cpu = 2 pid = 40 pid = 20 [Kernel Thread ] Inherit active_mm of the previous task. (No need to flush TLB because cr3 is not changed) `sleep` userspace task is scheduled out
vmlinux – start_kernel() – Part 4 init process = kernel_init() (pid = 1)
[pid = 1 – init process] When are mm & active_mm allocated?
[pid = 1 – init process] When are mm & active_mm allocated?
[pid = 1 – init process] When are mm & active_mm allocated? clone_pgd_range()
[pid = 1 – init process] When are mm & active_mm allocated? [pid = 1] Before running run_init_process() [pid = 1] After finishing run_init_process(): kernel thread -> user process clone_pgd_range(): mm.pgd verification [pid = 1] mm_struct
smp_init() - boot secondary CPUs
smp_init() - boot secondary CPUs
smp_init() - boot secondary CPUs cpuhp/cpu_id kernel thread • Execute callbacks (teardown, startup and son on) when CPU hotplug state is changed.
smp_init() - boot secondary CPUs
smp_init() - boot secondary CPUs – Boot Flow startup_32: setup cr3 @trampoline_pgd secondary_startup_64: setup cr3 @init_top_pgt [Secondary CPUs] CR3 Register Configuration
startup_32() - boot secondary CPUs – Page Table Configuration startup_32: setup cr3 @trampoline_pgd secondary_startup_64: setup cr3 @init_top_pgt [Secondary CPUs] CR3 Register Configuration
startup_32() - boot secondary CPUs – Page Table Configuration startup_32: setup cr3 @trampoline_pgd secondary_startup_64: setup cr3 @init_top_pgt [Secondary CPUs] CR3 Register Configuration
secondary_startup_64() - boot secondary CPUs – Page Table startup_32: setup cr3 @trampoline_pgd secondary_startup_64: setup cr3 @init_top_pgt [Secondary CPUs] CR3 Register Configuration
Secondary CPUs – When to configure active_mm for idle_threads?
pstree after finishing start_kernel()
• The Linux/x86 Boot Protocol, Documentation/x86/boot.rst • Intel® 64 and IA-32 Architectures Software Developer’s Manual • https://wdv4758h.github.io/notes/blog/linux-kernel-boot.html • Linux insides, https://0xax.gitbooks.io/linux-insides/content/ • Debugging kernel and modules via gdb, https://www.kernel.org/doc/Documentation/dev-tools/gdb-kernel- debugging.rst Reference
