Data preprocessing PPT
- 1. Data Preprocessing MS. T.K.ANUSUYA ASSISTANT PROFESSOR DEPARTMENT OF COMPUTER SCIENCE BON SECOURS COLLEGE FOR WOMEN, THANJAVUR.
- 2. Why Data Pre-processing? Data in real-world Highly noisy, - errors or outliers Missing/incomplete – lacking attribute values eg name=“” Duplicate tuples inconsistent data due to their typically huge size. Low quality data low quality mining results. Different data sources Data extraction, cleaning and transformation 2 Data Pre-processing

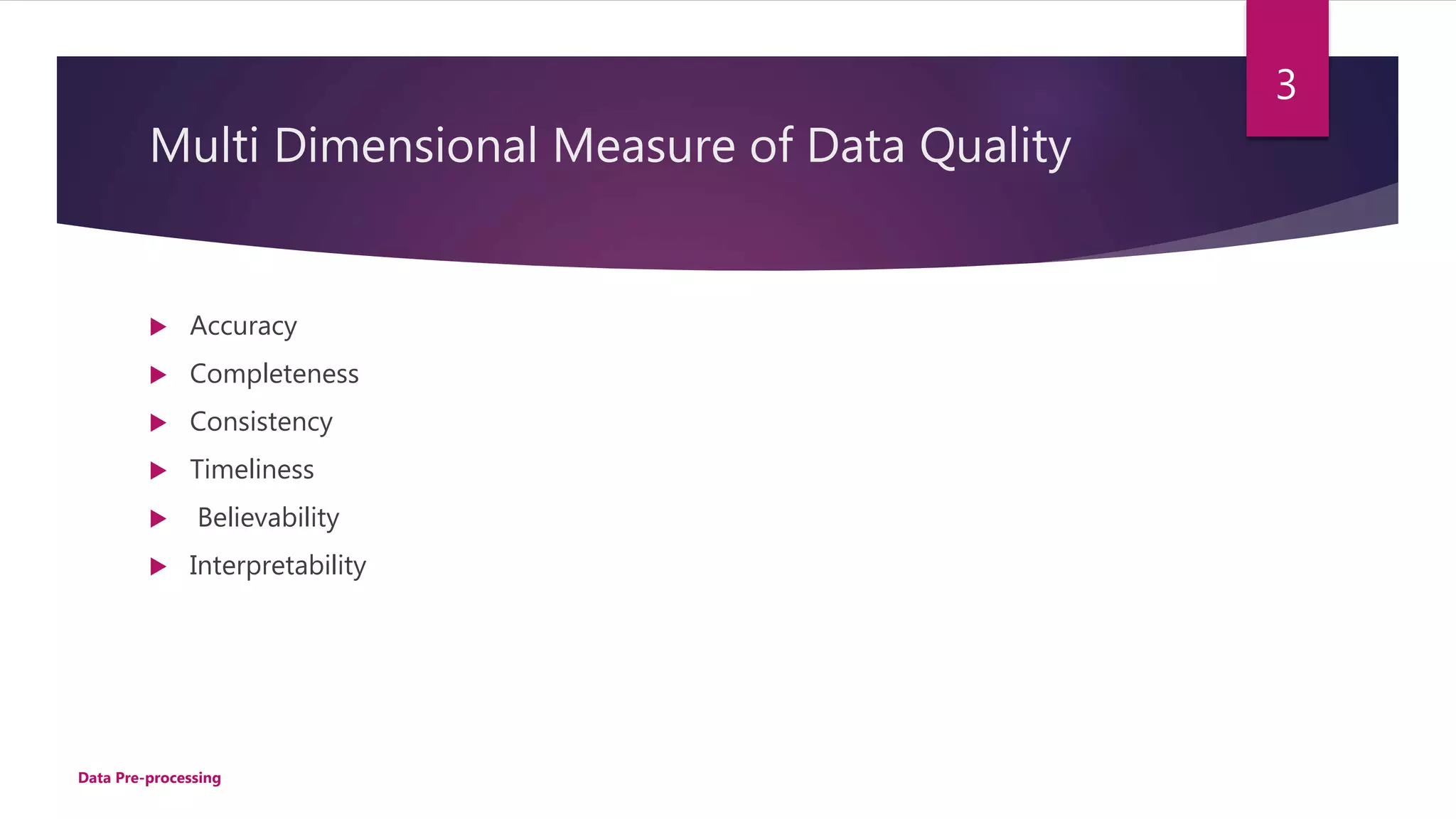

- 3. Multi Dimensional Measureof Data Quality Accuracy Completeness Consistency Timeliness Believability Interpretability 3 Data Pre-processing
- 4. Data Pre-processing Techniques Data Cleaning Data integration Data reduction Data transformation 4 Data Pre-processing

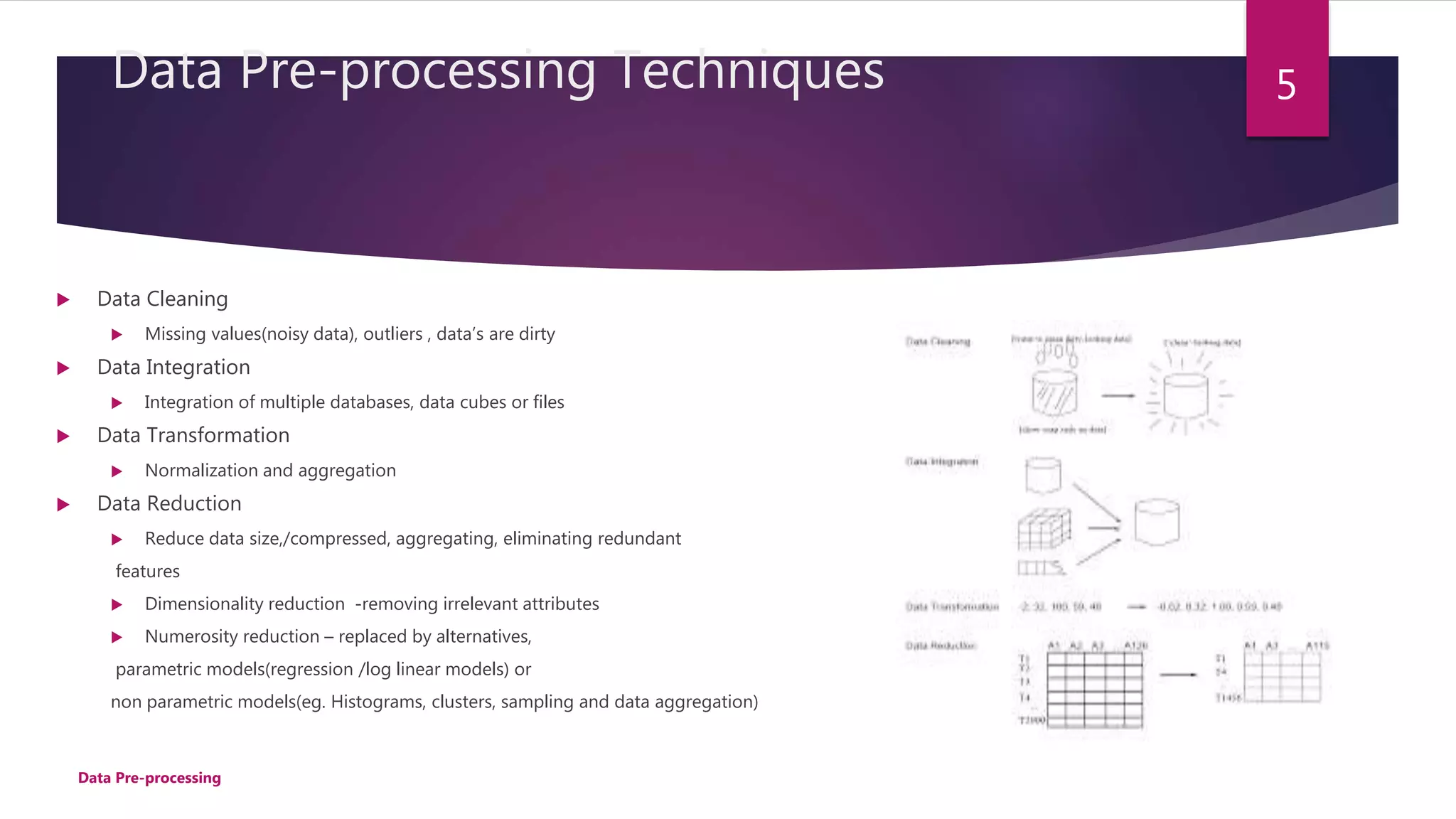

- 5. Data Pre-processing Techniques Data Cleaning Missing values(noisy data), outliers , data’s are dirty Data Integration Integration of multiple databases, data cubes or files Data Transformation Normalization and aggregation Data Reduction Reduce data size,/compressed, aggregating, eliminating redundant features Dimensionality reduction -removing irrelevant attributes Numerosity reduction – replaced by alternatives, parametric models(regression /log linear models) or non parametric models(eg. Histograms, clusters, sampling and data aggregation) 5 Data Pre-processing

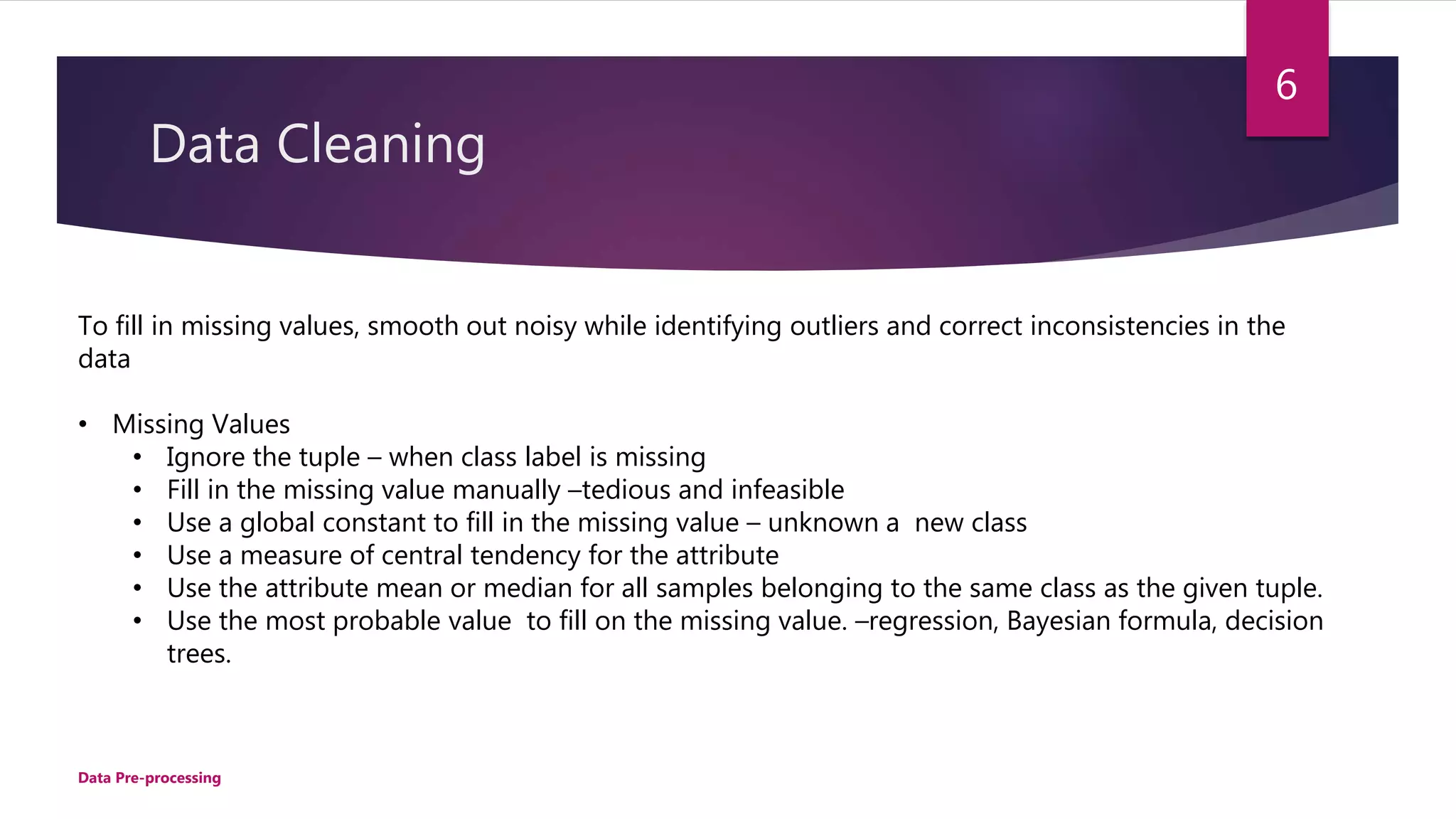

- 6. Data Cleaning To fillin missing values, smooth out noisy while identifying outliers and correct inconsistencies in the data • Missing Values • Ignore the tuple – when class label is missing • Fill in the missing value manually –tedious and infeasible • Use a global constant to fill in the missing value – unknown a new class • Use a measure of central tendency for the attribute • Use the attribute mean or median for all samples belonging to the same class as the given tuple. • Use the most probable value to fill on the missing value. –regression, Bayesian formula, decision trees. 6 Data Pre-processing
- 7. Data Cleaning • NoisyData • Noise is a random error or variance in a measured variable. • Binning Method : sorting the data • Smooth by bin median, median and boundaries. • Clustering – detect and remove outliers • Semi Automated – Computer and Manual intervention • Regression – use regression functions 7 Data Pre-processing
- 8. Data Integration DataIntegration Merging of data from multiple data stores. Reduce and avoid redundancies and inconsistencies Improves the accuracy and speed of the mining process. Entity identification problem Identify real world entities from multiple data sources, e.g., Bill Clinton = William Clinton Redundant attributes may be able to detected to correlation analysis and covariance analysis 8 Data Pre-processing

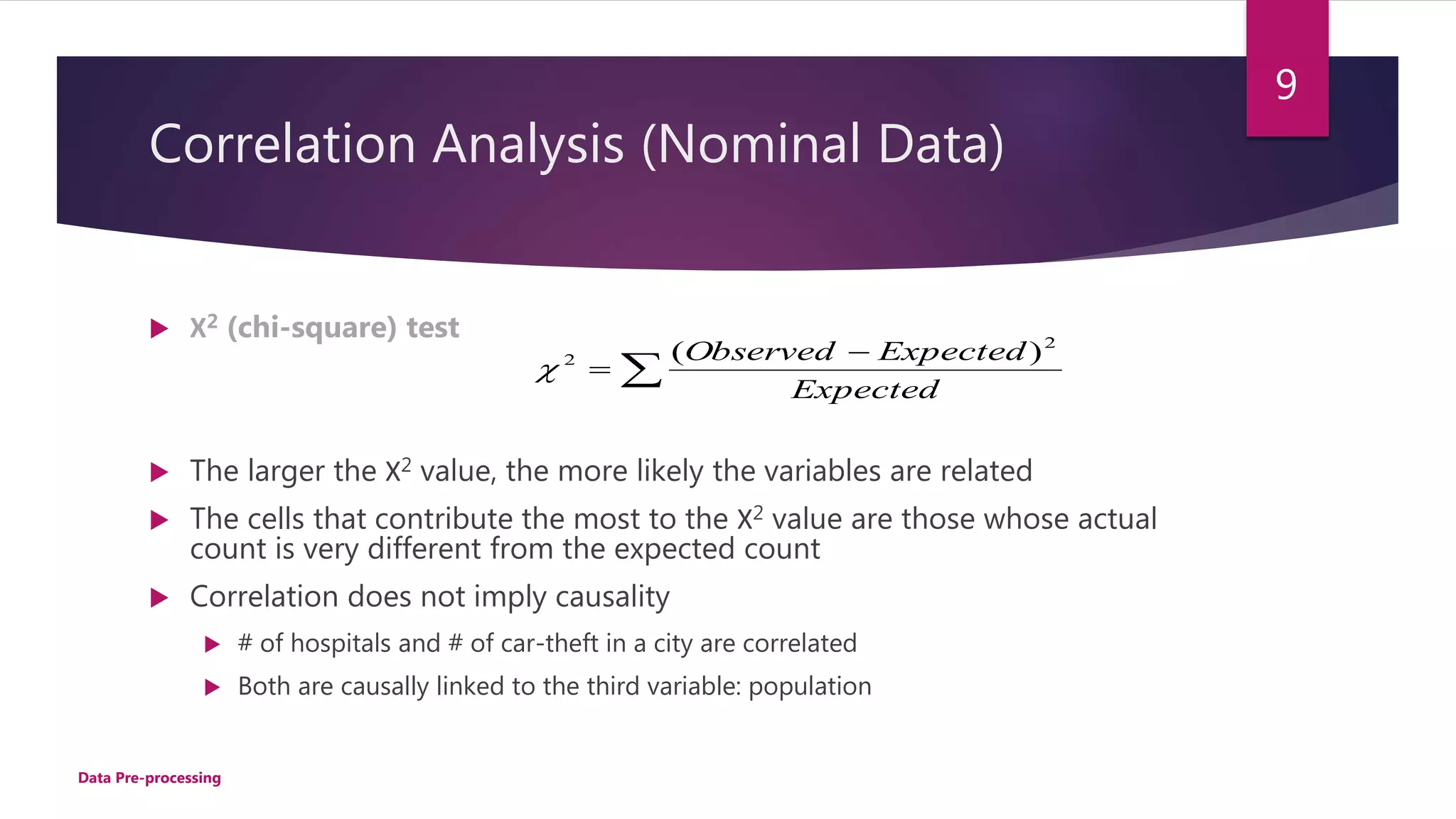

- 9. Correlation Analysis (NominalData) Χ2 (chi-square) test The larger the Χ2 value, the more likely the variables are related The cells that contribute the most to the Χ2 value are those whose actual count is very different from the expected count Correlation does not imply causality # of hospitals and # of car-theft in a city are correlated Both are causally linked to the third variable: population Expected ExpectedObserved 2 2 )( 9 Data Pre-processing

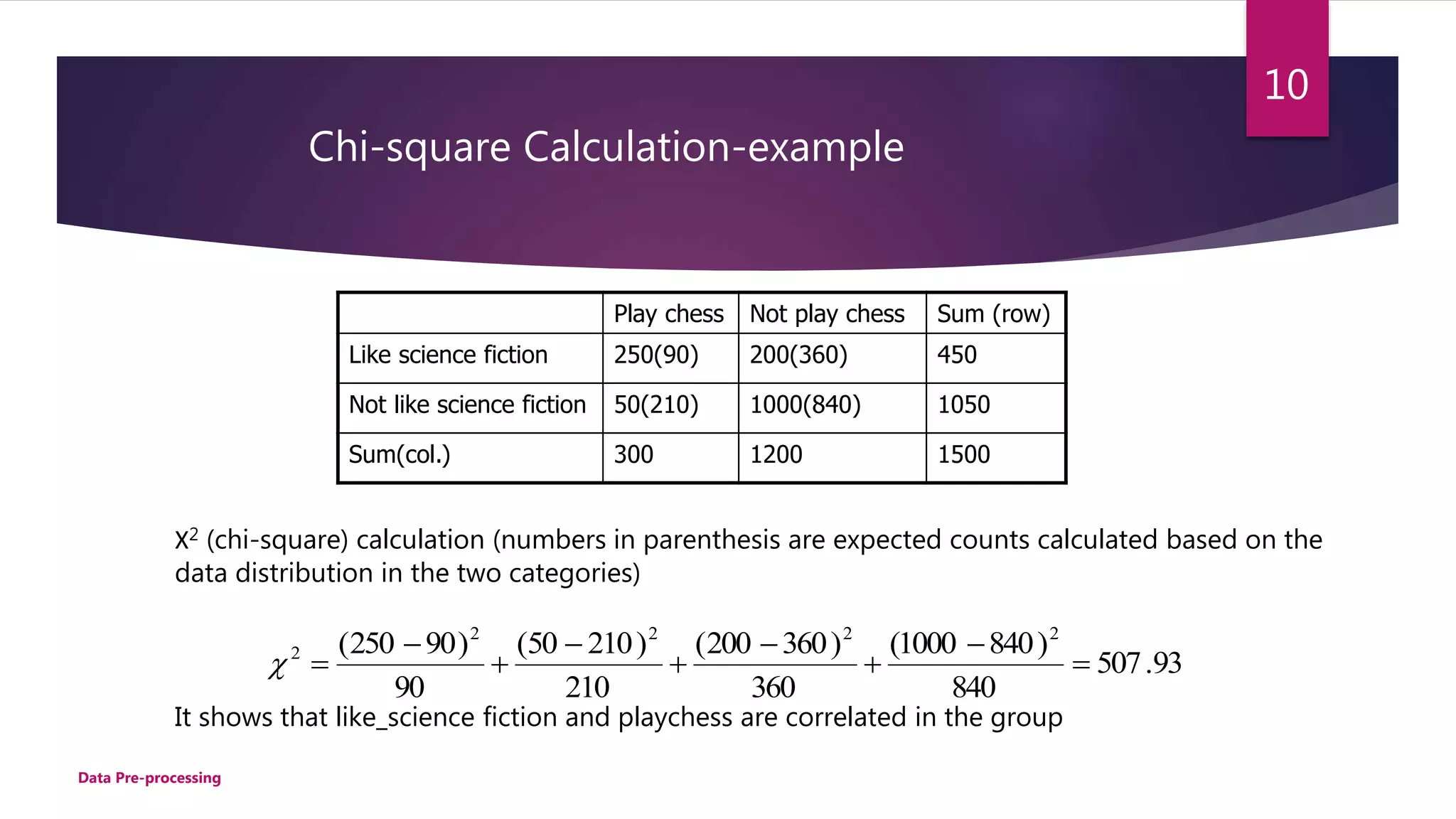

- 10. 10 Data Pre-processing Chi-square Calculation-example Playchess Not play chess Sum (row) Like science fiction 250(90) 200(360) 450 Not like science fiction 50(210) 1000(840) 1050 Sum(col.) 300 1200 1500 Χ2 (chi-square) calculation (numbers in parenthesis are expected counts calculated based on the data distribution in the two categories) It shows that like_science fiction and playchess are correlated in the group 93.507 840 )8401000( 360 )360200( 210 )21050( 90 )90250( 2222 2
- 11. 11 Data Pre-processing Correlation Analysis(Numerical Data) Correlation coefficient (also called Pearson’s product moment coefficient) where n is the number of tuples, and are the respective means of A and B, σA and σB are the respective standard deviation of A and B, and Σ(AB) is the sum of the AB cross-product. If rA,B > 0, A and B are positively correlated (A’s values increase as B’s). The higher, the stronger correlation. rA,B = 0: independent; rA,B < 0: negatively correlated BABA n BAnAB n BBAA r BA )1( )( )1( ))(( ,

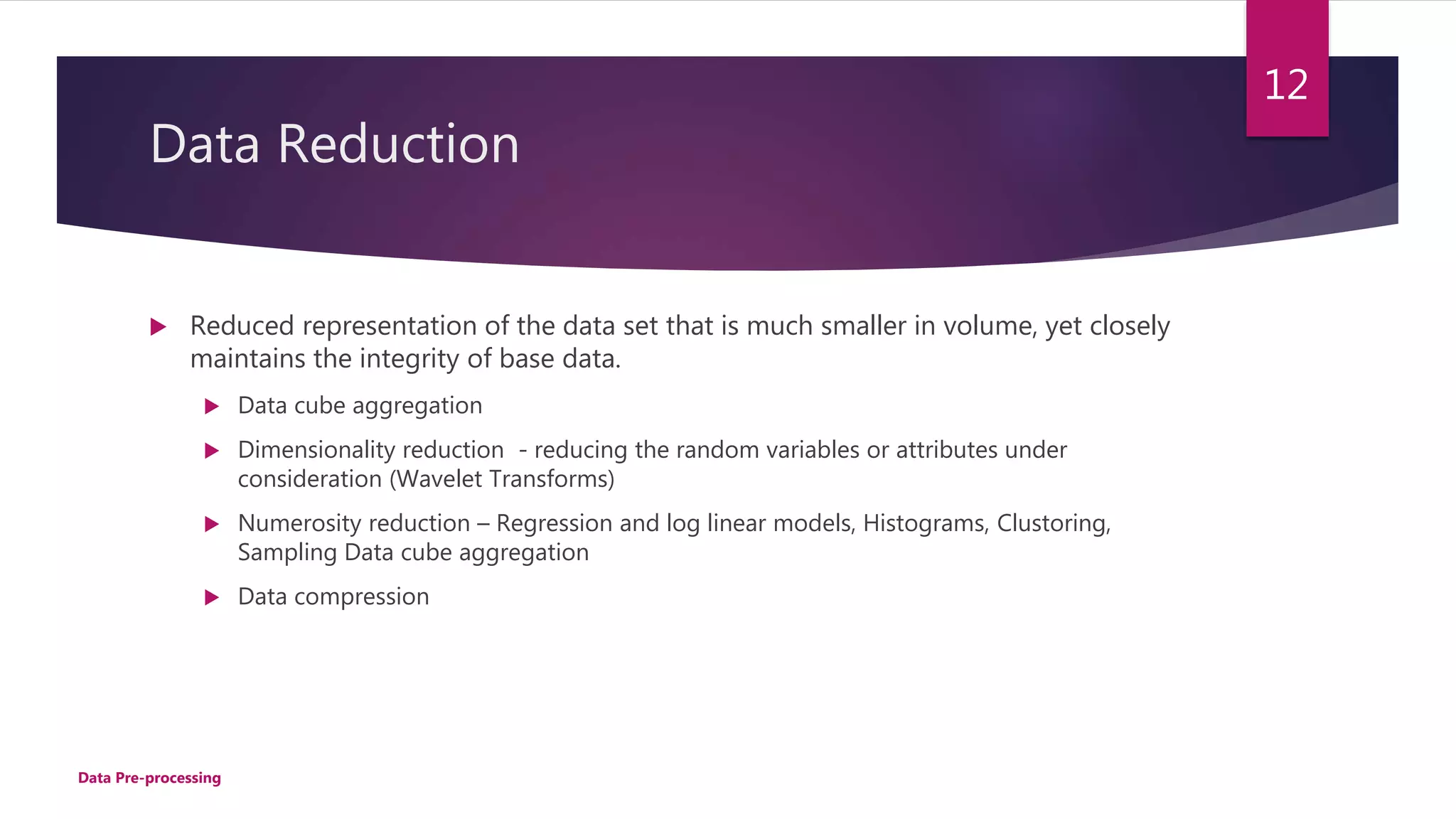

- 12. Data Reduction Reducedrepresentation of the data set that is much smaller in volume, yet closely maintains the integrity of base data. Data cube aggregation Dimensionality reduction - reducing the random variables or attributes under consideration (Wavelet Transforms) Numerosity reduction – Regression and log linear models, Histograms, Clustoring, Sampling Data cube aggregation Data compression 12 Data Pre-processing

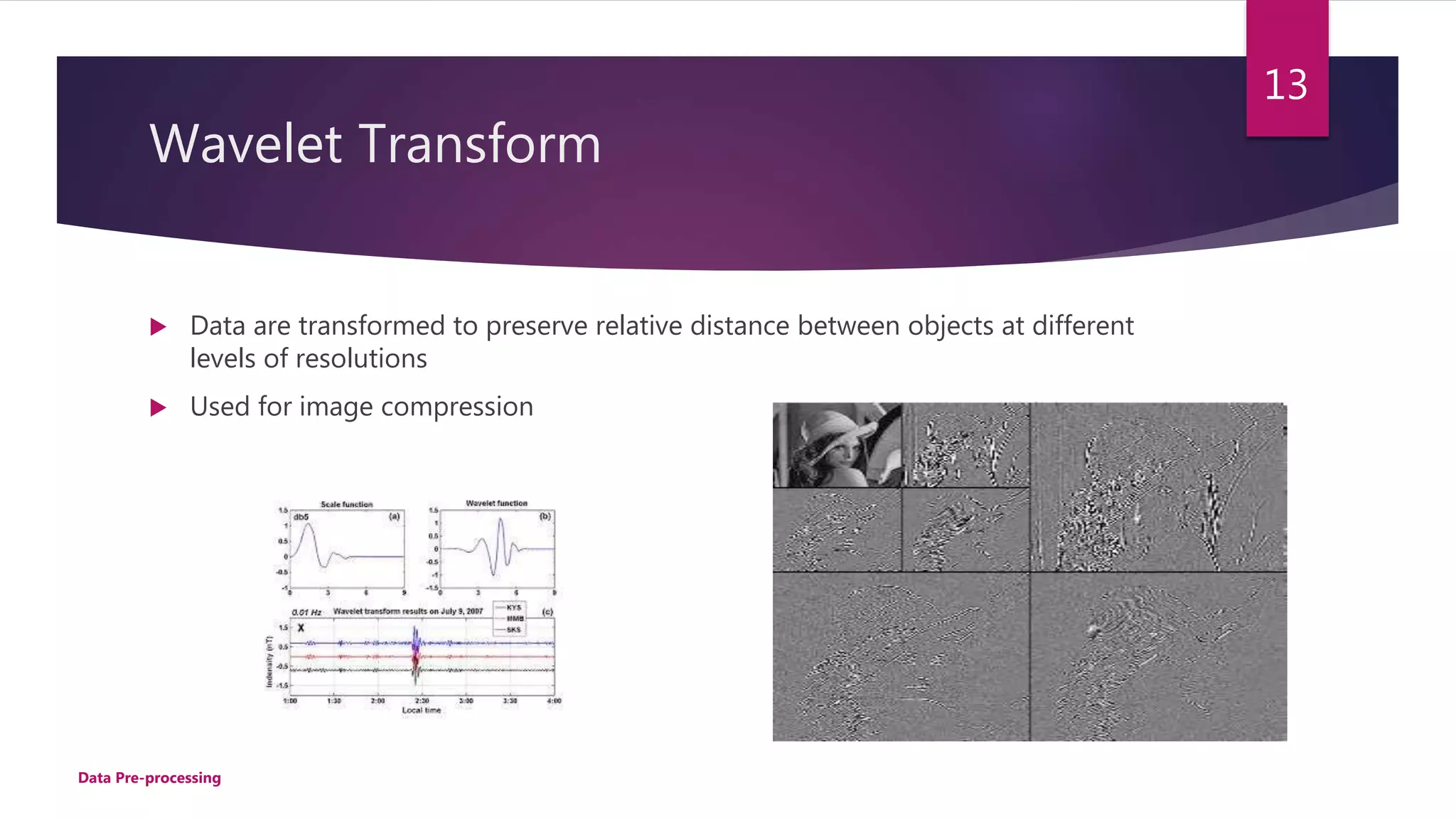

- 13. Wavelet Transform Dataare transformed to preserve relative distance between objects at different levels of resolutions Used for image compression 13 Data Pre-processing
- 14. Numerosity Reduction Reducedata volume by choosing alternative forms of data representation Parametric Methods (Regressions) Assume the data fits in models Linear Regression -Straight line Multiple Regression – multidimensional vector Log linear model- discrete multidimensional distributions Non-Parametric Methods Don’t assume models (Histograms, clustering, sampling…) 14 Data Pre-processing

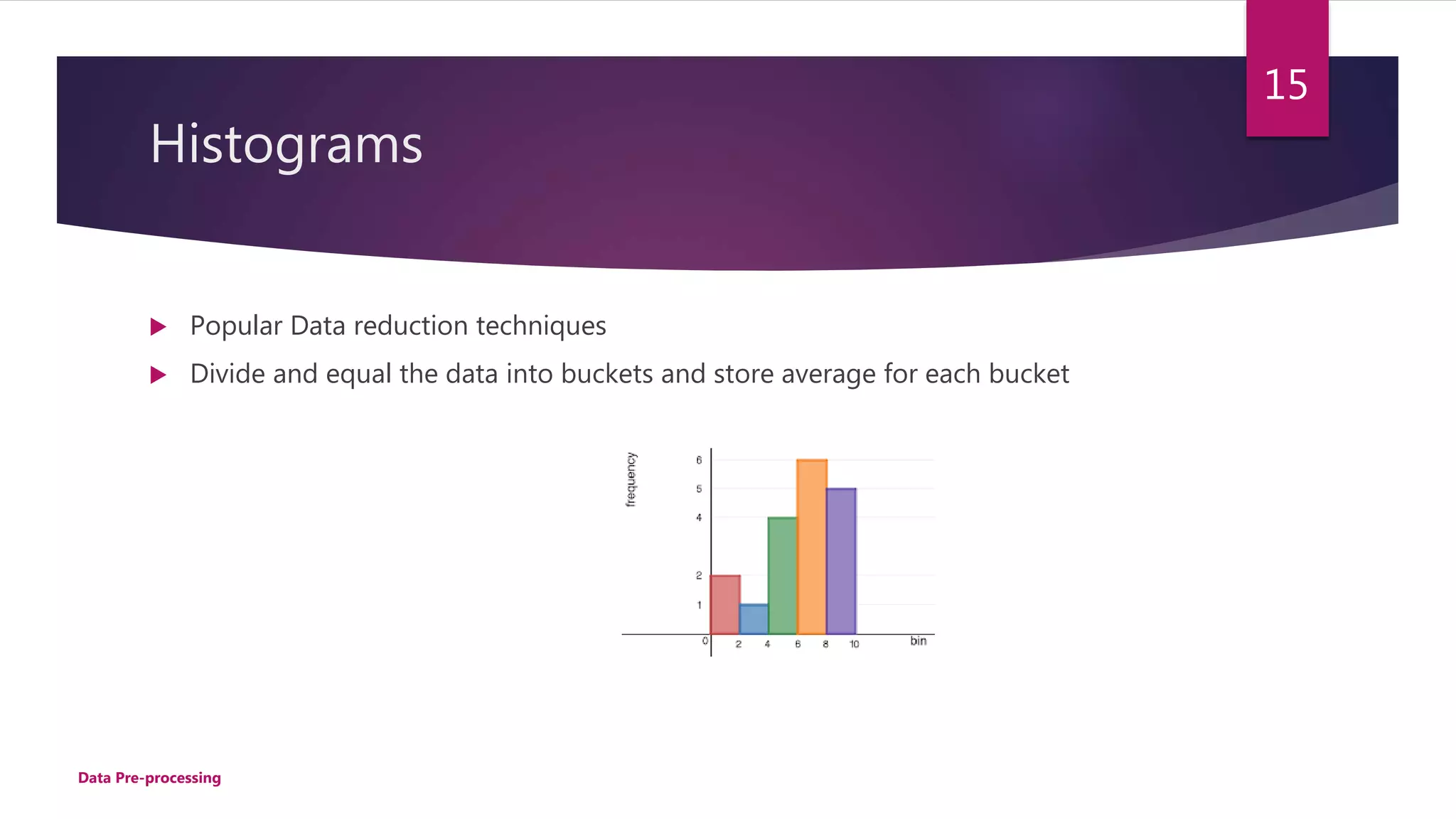

- 15. Histograms Popular Datareduction techniques Divide and equal the data into buckets and store average for each bucket 15 Data Pre-processing
- 16. Data Cube Aggregation The lowest level of a data cube (Cubiod) A cube is highest level of abstraction is apex cuboid Multiple levels of aggregation in data cubes Provide fast access to precomputed, summarized data. Reduce the size of data 16 Data Pre-processing
- 17. Data Transformation Pre-processingstep Data are transformed or consolidated the resulting mining process may be more efficient and the patterns found. Smoothing – remove noisy data (binning, regression and clustering) Attribute construction – new attributes constructed Aggregation –summarized, data cube Normalization –(min-max, z-score) Discretization –hierarchy climbing Concept hierarchy generation for nominal data 17 Data Pre-processing
- 18. Normalization Min –maz normalization 9new mina, new maxA) Ex. Let income range $12,000 to $98,000 normalized to [0.0, 1.0]. Then $73,000 is mapped to Z-score normalization (μ: mean, σ: standard deviation): Normalization by decimal scaling where j is the smallest integer such that max v <1 AAA AA A minnewminnewmaxnew minmax minv v _)__(' A Av v ' j v v' 18 Data Pre-processing

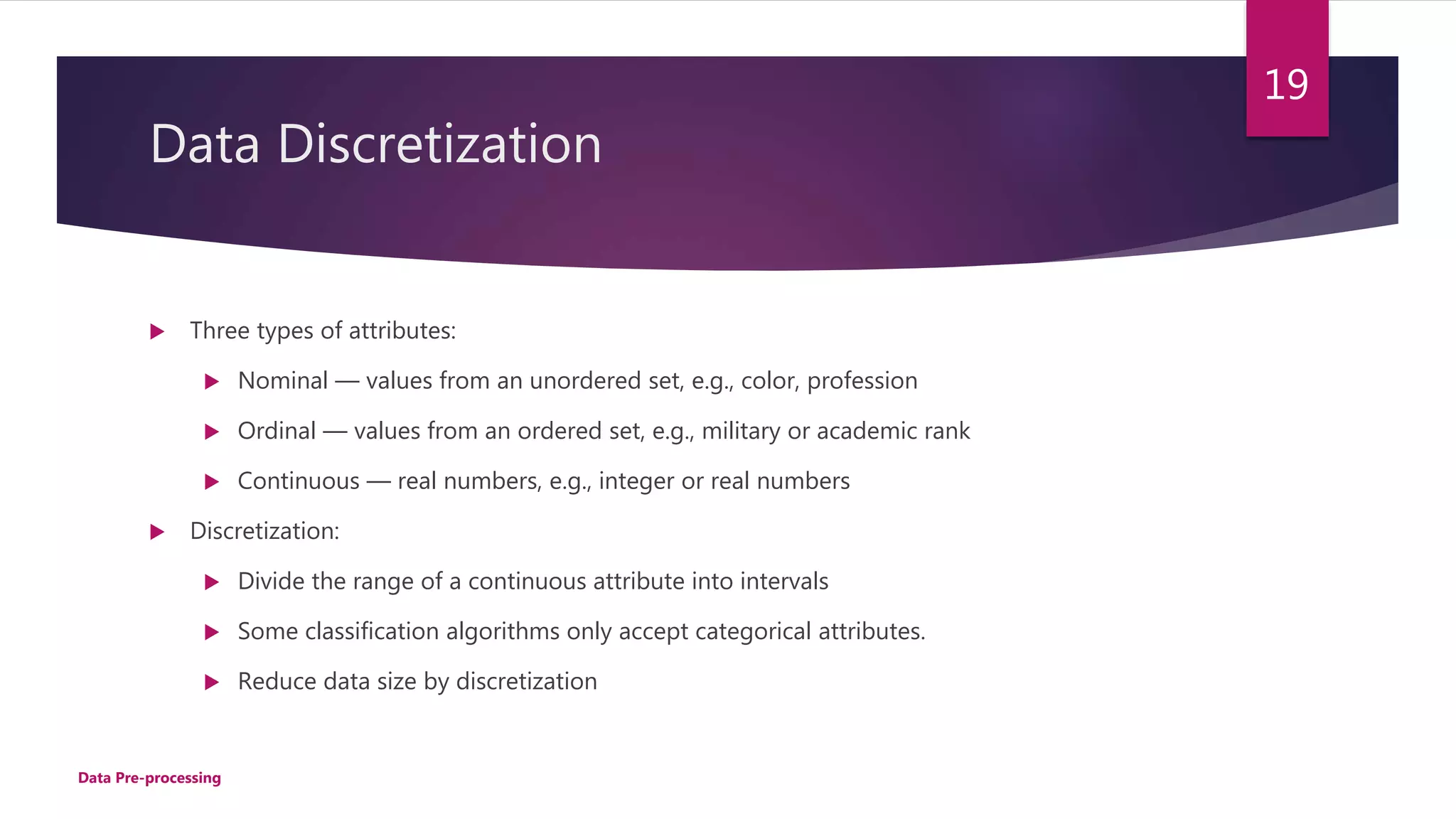

- 19. Data Discretization Threetypes of attributes: Nominal — values from an unordered set, e.g., color, profession Ordinal — values from an ordered set, e.g., military or academic rank Continuous — real numbers, e.g., integer or real numbers Discretization: Divide the range of a continuous attribute into intervals Some classification algorithms only accept categorical attributes. Reduce data size by discretization Data Pre-processing 19

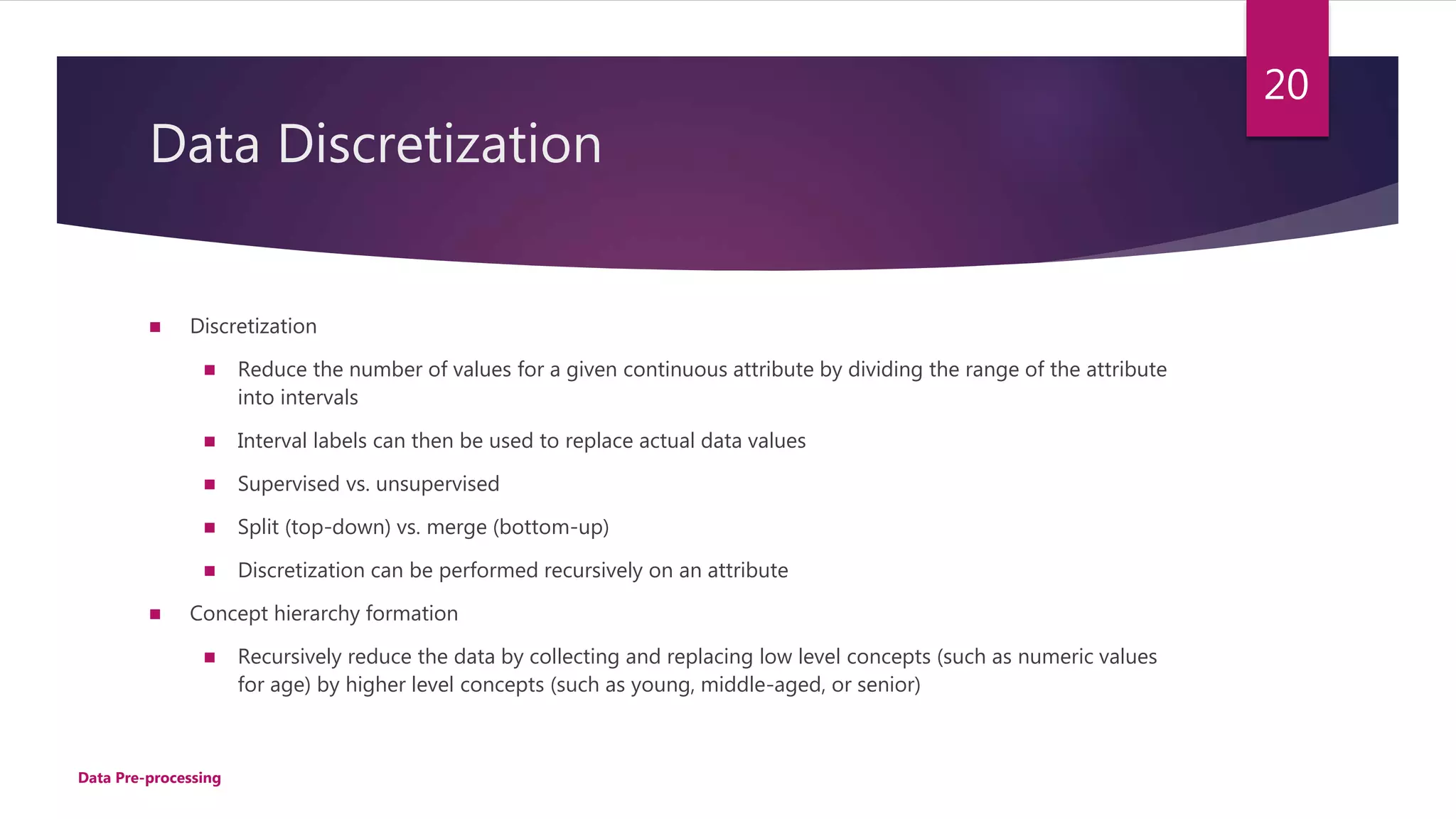

- 20. Data Discretization Discretization Reduce the number of values for a given continuous attribute by dividing the range of the attribute into intervals Interval labels can then be used to replace actual data values Supervised vs. unsupervised Split (top-down) vs. merge (bottom-up) Discretization can be performed recursively on an attribute Concept hierarchy formation Recursively reduce the data by collecting and replacing low level concepts (such as numeric values for age) by higher level concepts (such as young, middle-aged, or senior) Data Pre-processing 20
- 21. Data Discretization Methods Typical methods: All the methods can be applied recursively Binning Top-down split, unsupervised Histogram analysis Top-down split, unsupervised Clustering analysis (unsupervised, top-down split or bottom-up merge) Decision-tree analysis (supervised, top-down split) Correlation (e.g., 2) analysis (unsupervised, bottom-up merge) 21 Data Pre-processing
