Clustering - Machine Learning Techniques

Lesson 20
Clustering Kush Kulshrestha

Supervised vs Unsupervised
Supervised Learning
• For every x there is a y
• Goal is to predict y using x
• Most of the industrial problems are solved using
supervised learning.
Unsupervised Learning
• For every x there is no y.
• Goal is not prediction, but to investigate the x
• Unsupervised learning has less use cases
comparatively. It is used as one of the pre-processing
step before supervised learning.

Clustering
• Clustering splits data in order to find out how observations are similar on a number of different features.
• We are not predicting a true Y.
• The clusters are the model. We decide the number of clusters, represented as K.

Clustering

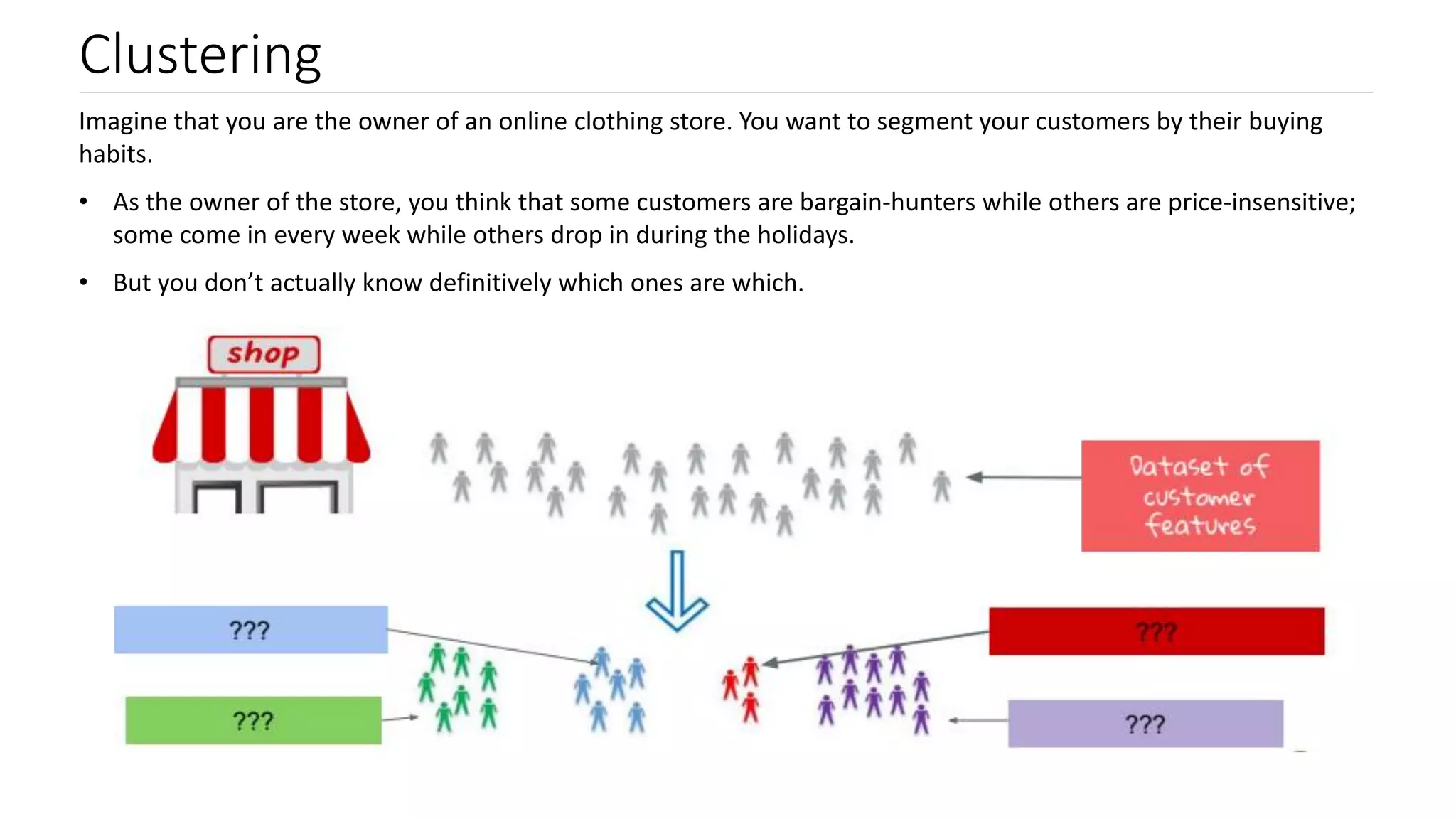

Imagine that you are the owner of an online clothing store. You want to segment your customers by their buying
habits.
• As the owner of the store, you think that some customers are bargain-hunters while others are price-insensitive;
some come in every week while others drop in during the holidays.
• But you don’t actually know definitively which ones are which.

Clustering
You could take a supervised approach to this problem, and try to predict how much a customer will spend, or how
frequently a customer will drop in.
But here, we’re just trying to see what the data will tell us. This is what makes clustering an unsupervised problem.

Clustering

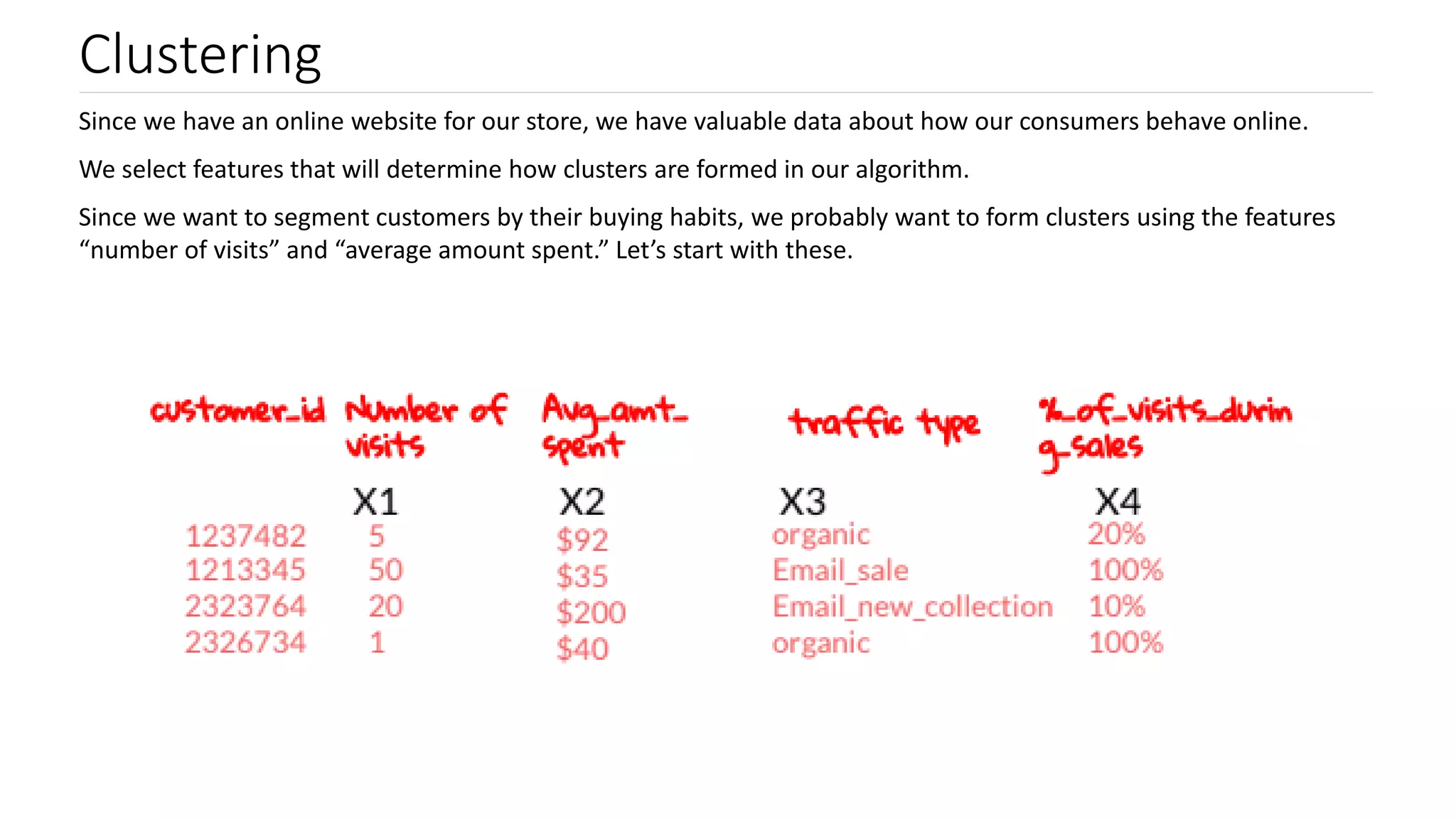

Since we have an online website for our store, we have valuable data about how our consumers behave online.
We select features that will determine how clusters are formed in our algorithm.
Since we want to segment customers by their buying habits, we probably want to form clusters using the features
“number of visits” and “average amount spent.” Let’s start with these.

Clustering
By applying clustering on “number of visits” and “average amount spent”, we can demonstrate clustering using
two features in two dimensional space!

Clustering

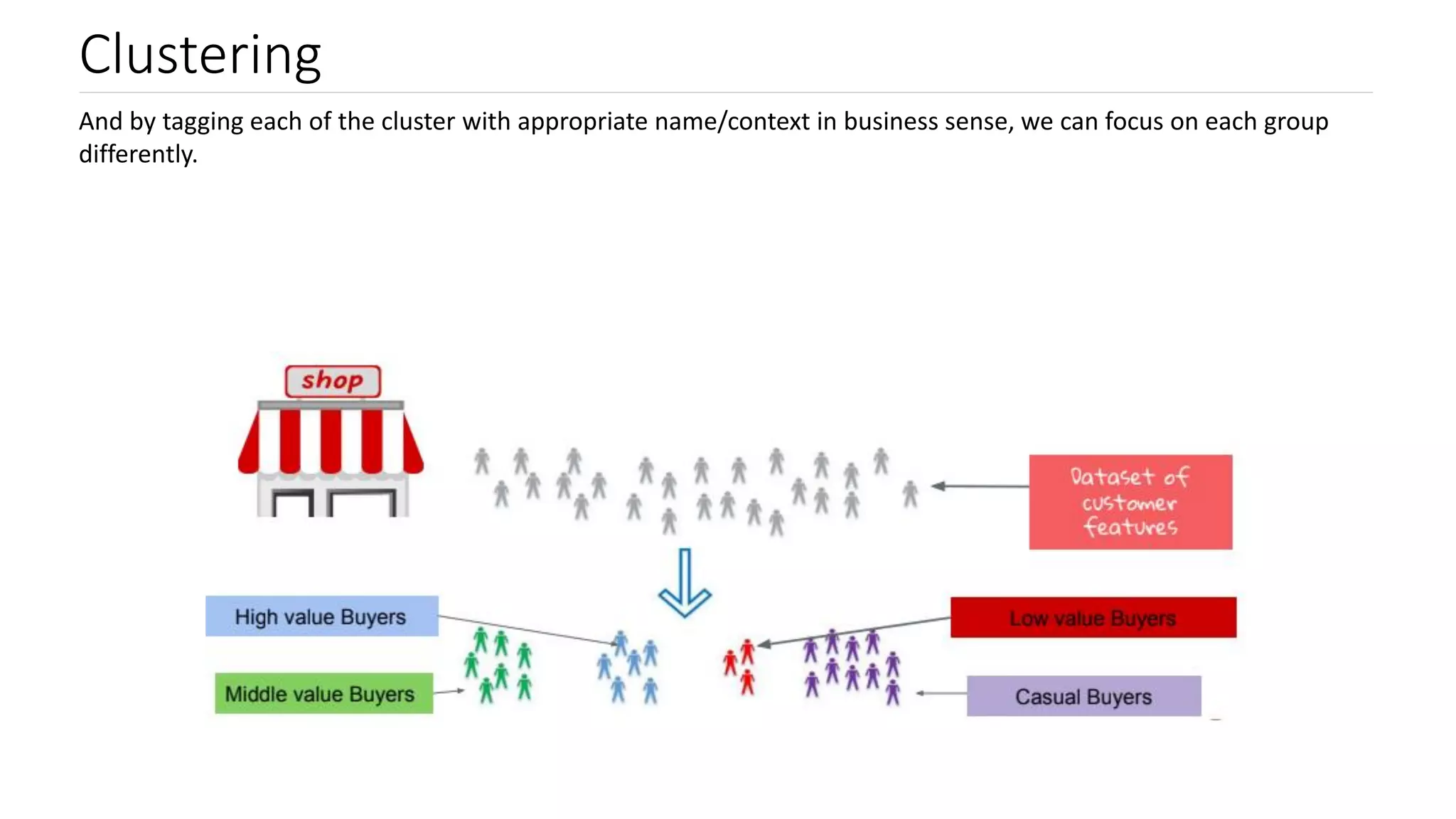

And by tagging each of the cluster with appropriate name/context in business sense, we can focus on each group
differently.

K-Means Clustering - Algorithm
Step – I
We start with a simple scatter plot of number of visits against average amount spent.
Decide the value of K – total number of clusters in your data.

K-Means Clustering
Step – II
Randomly assign each customer to a cluster.
Data points have randomly been assigned into pink, yellow, and green groupings.

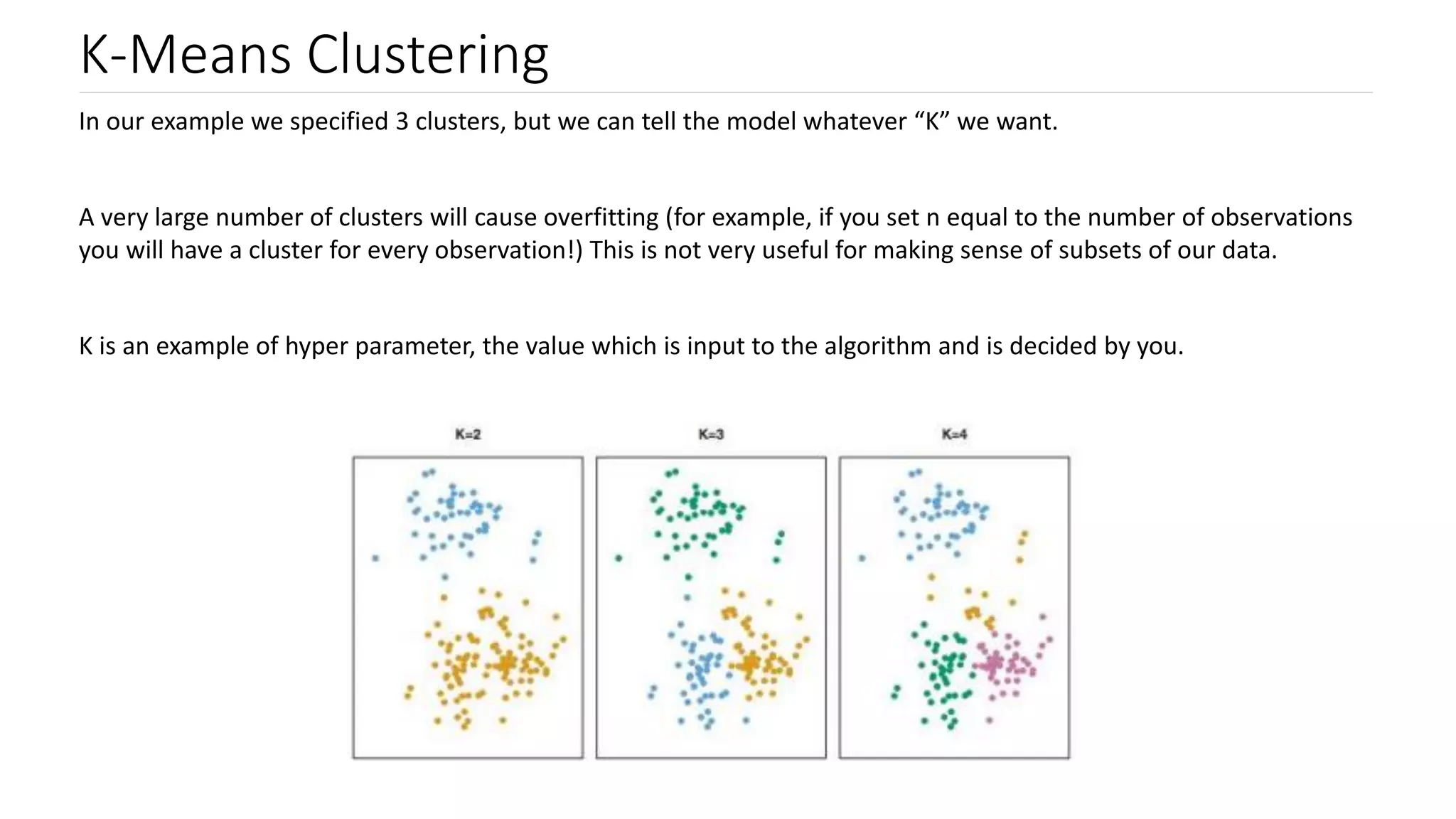

K-Means Clustering
In our example we specified 3 clusters, but we can tell the model whatever “K” we want.
A very large number of clusters will cause overfitting (for example, if you set n equal to the number of observations
you will have a cluster for every observation!) This is not very useful for making sense of subsets of our data.
K is an example of hyper parameter, the value which is input to the algorithm and is decided by you.

K-Means Clustering

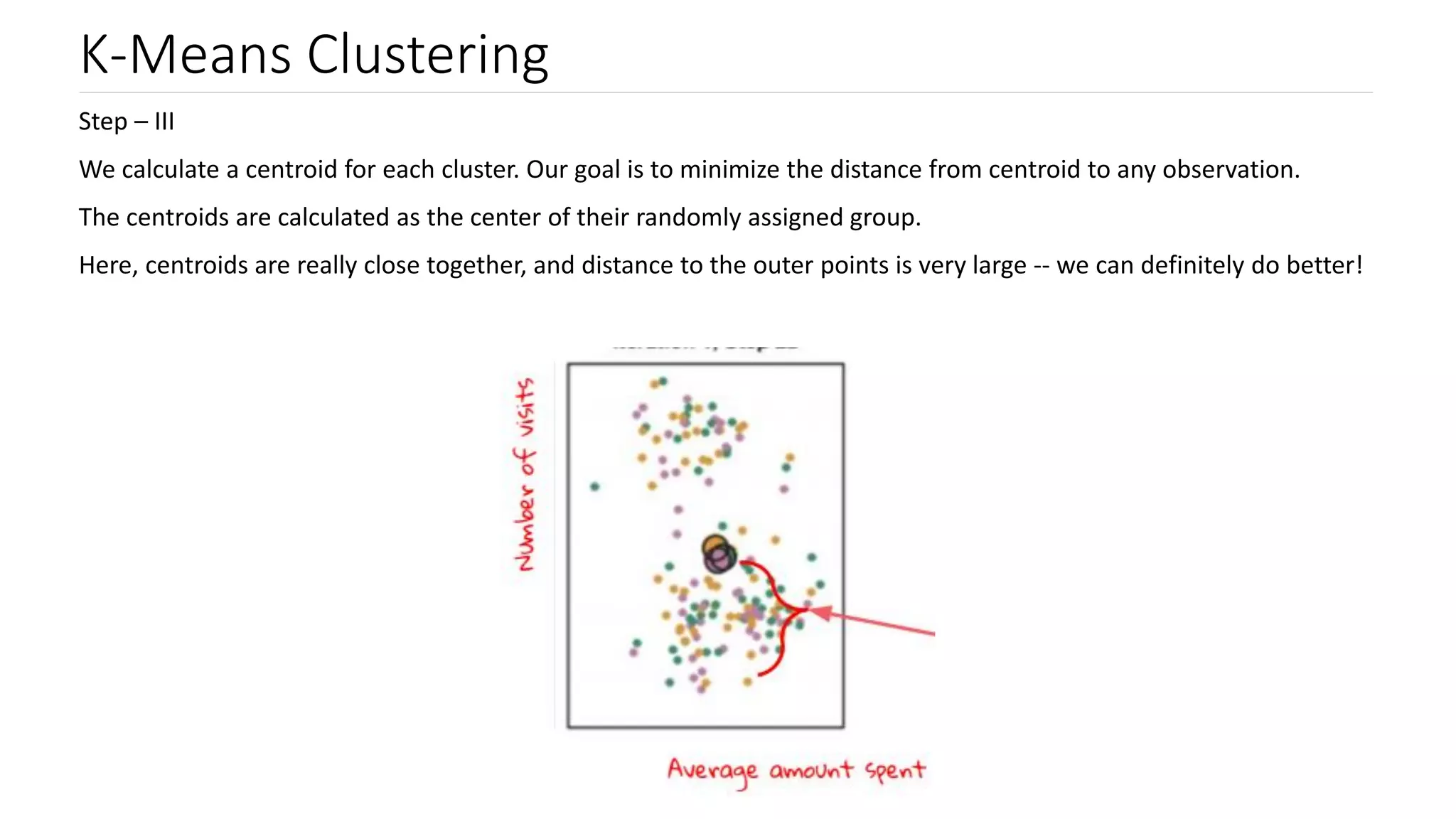

Step – III
We calculate a centroid for each cluster. Our goal is to minimize the distance from centroid to any observation.
The centroids are calculated as the center of their randomly assigned group.
Here, centroids are really close together, and distance to the outer points is very large -- we can definitely do better!

K-Means Clustering
Step – IV
Now we re-assign each observation to the cluster group of the nearest centroid.
Recalculate centroid, with time centroids will go further apart.
With time, fewer observations will change clusters.
We keep repeating the centroid calculation / cluster re-assignments until nothing moves anymore - the model is
complete!

K-Means Clustering
Selecting Optimal value of K
An Elbow Plot visualizes how the error decreases as K increases.
If K == n (number of observations), then distance = 0 (each observation its own cluster)! This, as we know, is a case of
overfitting.
In the graph to the right, we should choose K=6. This appears to be the number of clusters where the biggest gains in
reducing error have already been made.

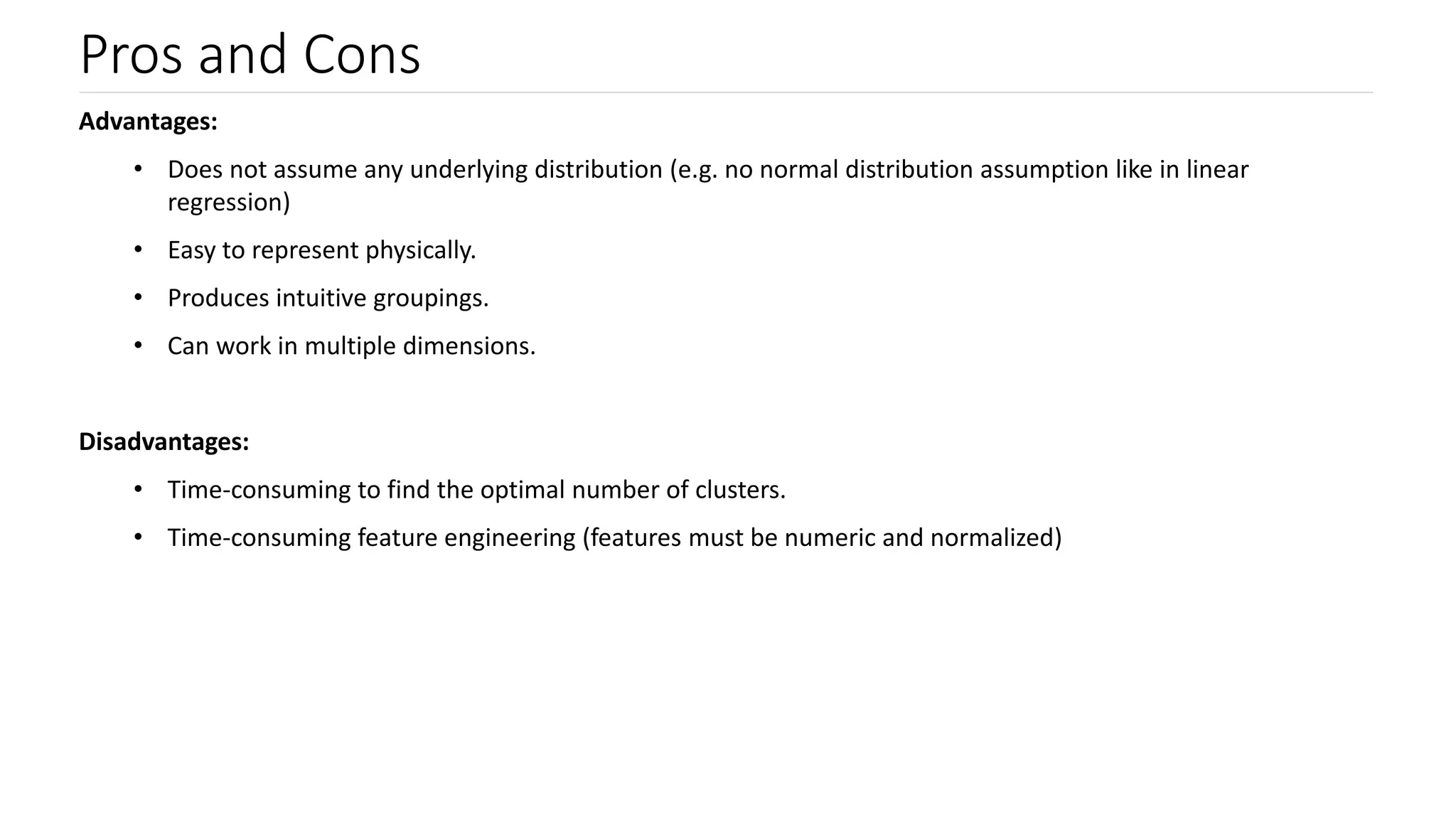

Pros and Cons
Advantages:
• Does not assume any underlying distribution (e.g. no normal distribution assumption like in linear
regression)
• Easy to represent physically.
• Produces intuitive groupings.
• Can work in multiple dimensions.
Disadvantages:
• Time-consuming to find the optimal number of clusters.
• Time-consuming feature engineering (features must be numeric and normalized)

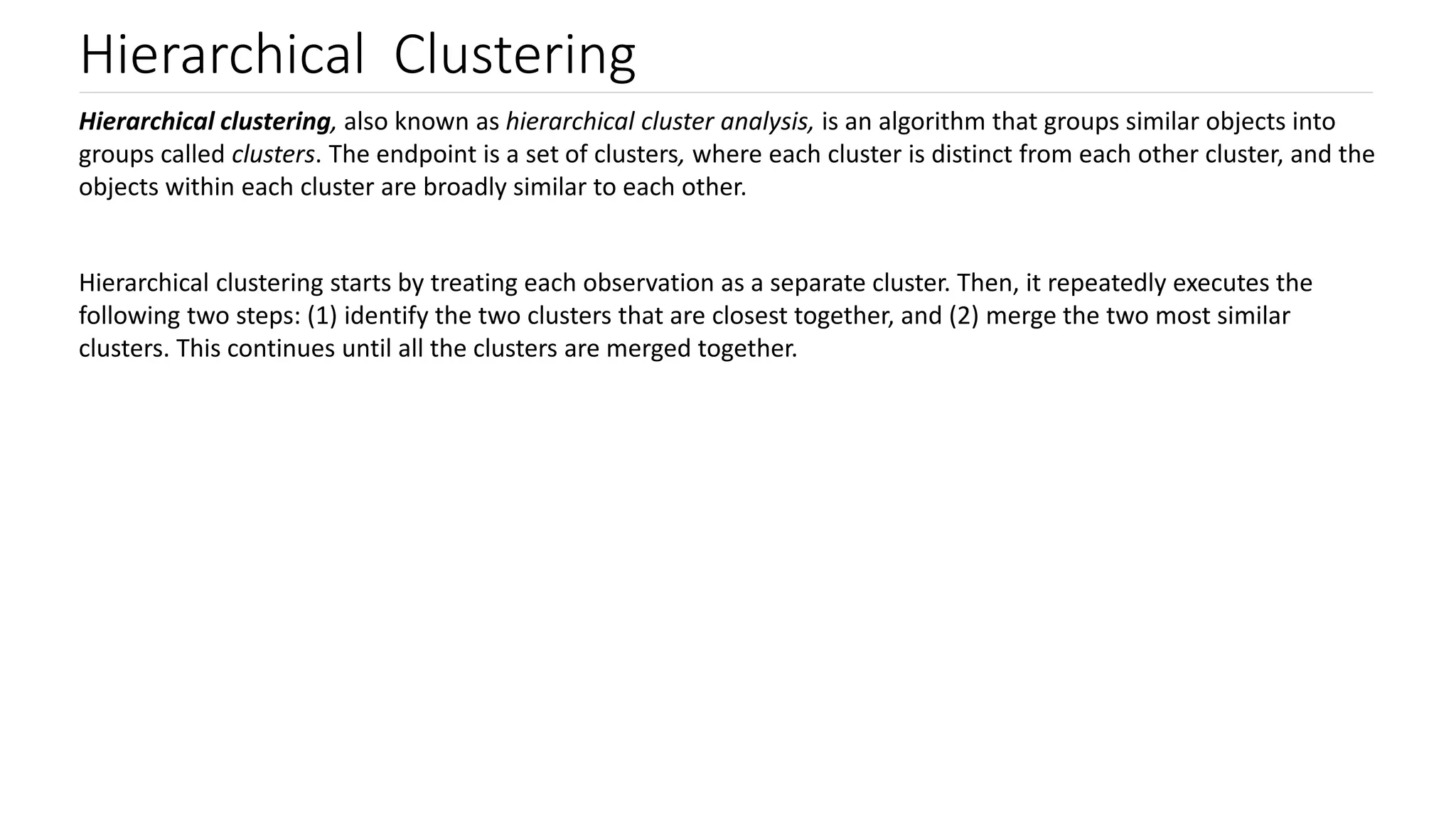

Hierarchical Clustering
Hierarchical clustering, also known as hierarchical cluster analysis, is an algorithm that groups similar objects into
groups called clusters. The endpoint is a set of clusters, where each cluster is distinct from each other cluster, and the
objects within each cluster are broadly similar to each other.

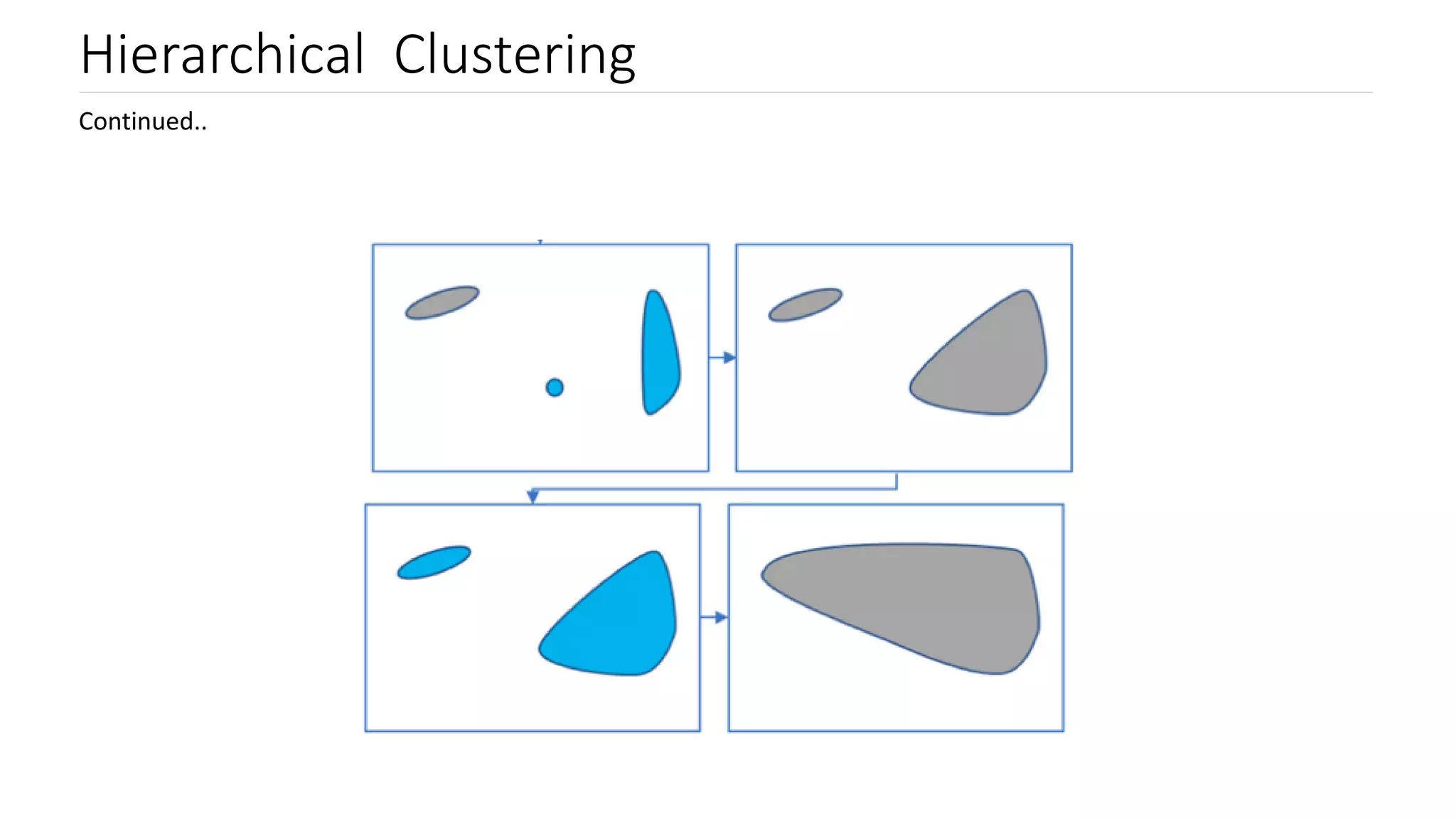

Hierarchical clustering starts by treating each observation as a separate cluster. Then, it repeatedly executes the
following two steps: (1) identify the two clusters that are closest together, and (2) merge the two most similar
clusters. This continues until all the clusters are merged together.

Continued..

The main output of Hierarchical Clustering is a dendrogram, which shows the hierarchical relationship between the
clusters:

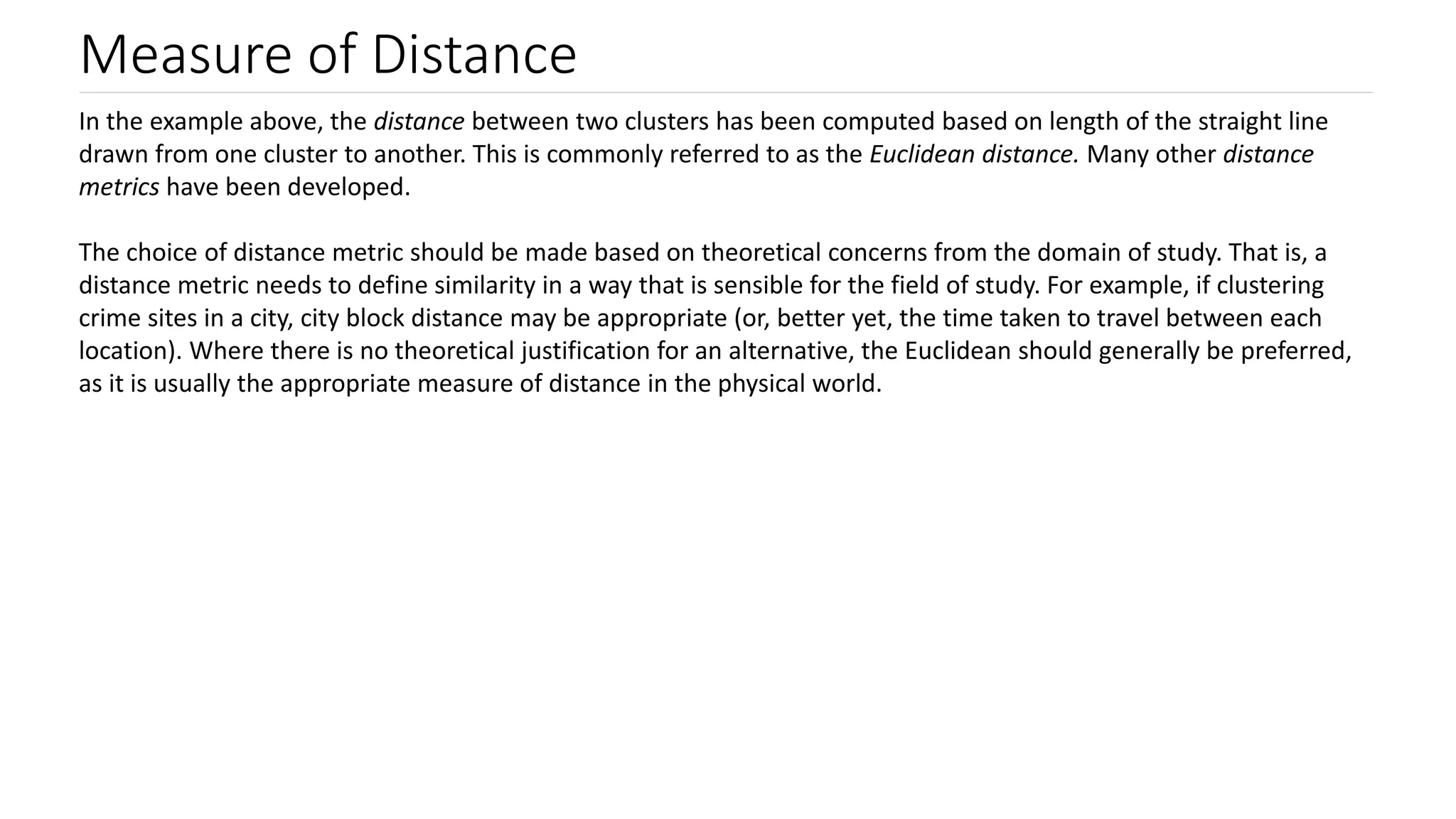

Measure of Distance
In the example above, the distance between two clusters has been computed based on length of the straight line
drawn from one cluster to another. This is commonly referred to as the Euclidean distance. Many other distance
metrics have been developed.
The choice of distance metric should be made based on theoretical concerns from the domain of study. That is, a
distance metric needs to define similarity in a way that is sensible for the field of study. For example, if clustering
crime sites in a city, city block distance may be appropriate (or, better yet, the time taken to travel between each
location). Where there is no theoretical justification for an alternative, the Euclidean should generally be preferred,
as it is usually the appropriate measure of distance in the physical world.
