Chromium Sandbox on Linux (NDC Security 2019)
- 1.
- 2. Linux Security and theChromium Sandbox Patricia Aas, TurtleSec NDC Security 2019 @pati_gallardo Turtle Sec
- 3. Patricia Aas - Consultant C++Programmer, Application Security Currently : TurtleSec Previously : Vivaldi, Cisco Systems, Knowit, Opera Software Master in Computer Science - main language Java Pronouns: she/her Turtle Sec @pati_gallardo
- 4. Remote Code Execution iswhat browsers do. 4

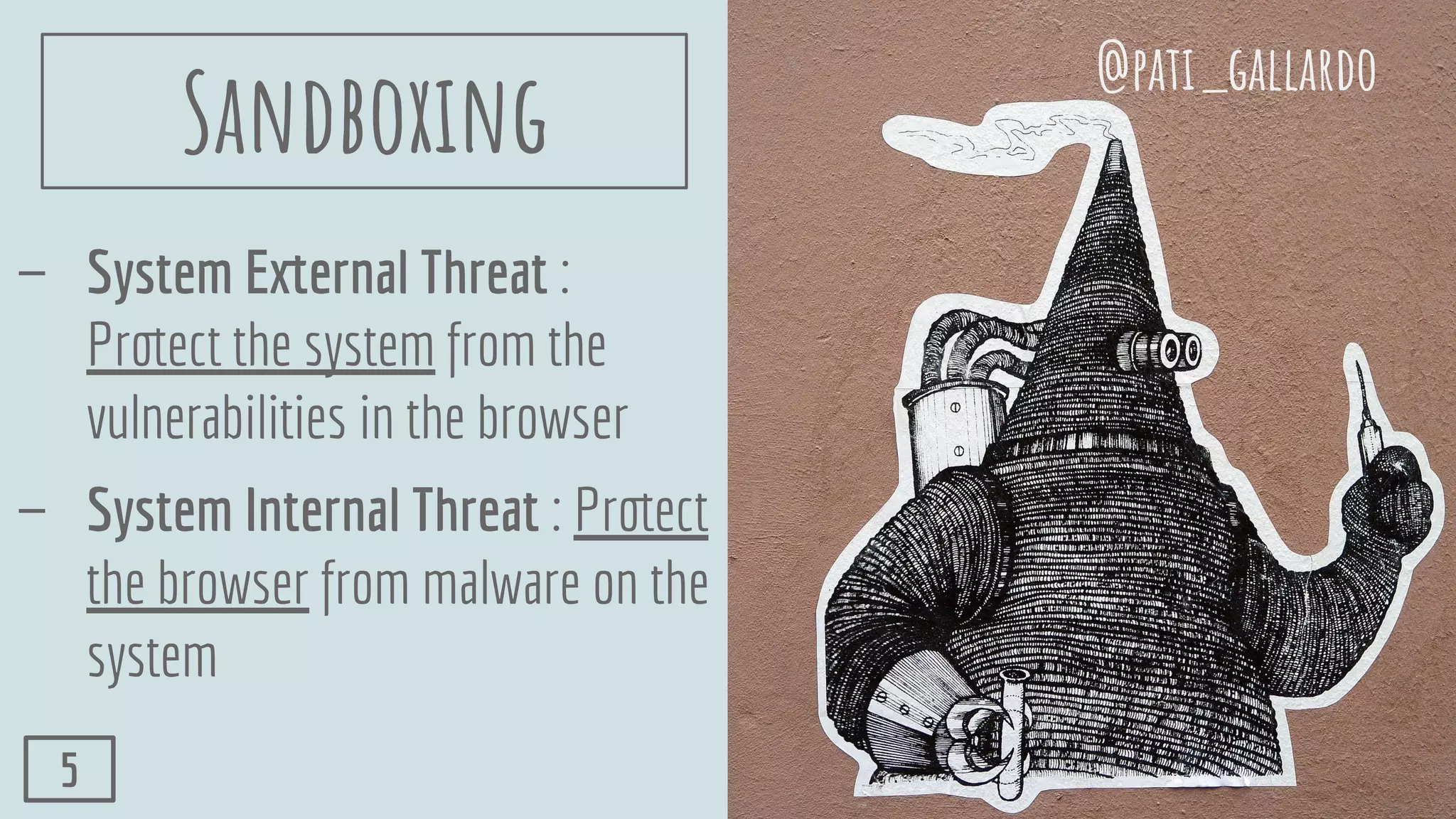

- 5. Sandboxing - System ExternalThreat : Protect the system from the vulnerabilities in the browser - System Internal Threat : Protect the browser from malware on the system @pati_gallardo 5
- 6. - Process Architecture -Linux Security APIs - The Initial Sandbox - Shrinking the Sandbox Outline @pati_gallardo 6
- 7.

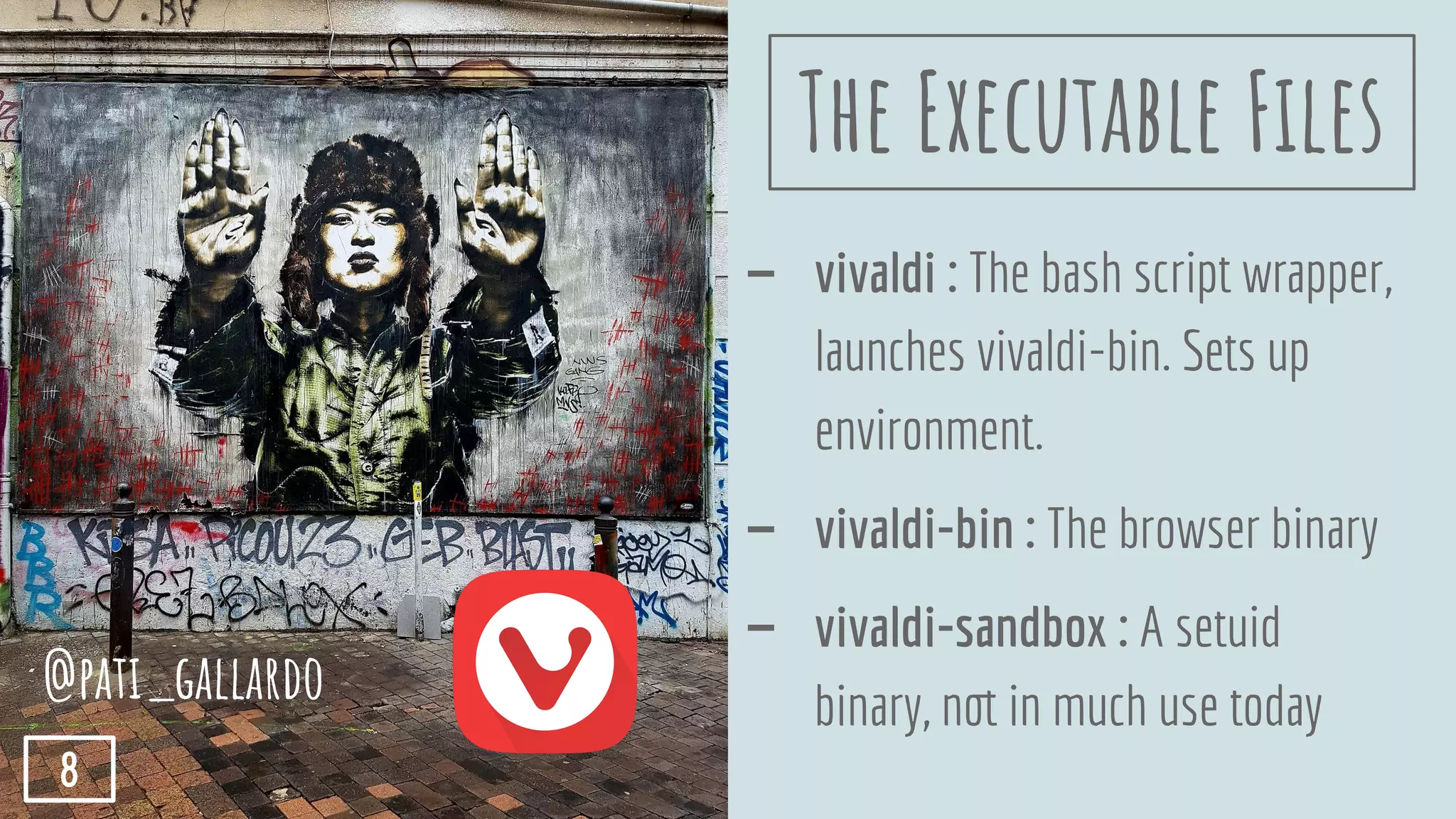

- 8. - vivaldi :The bash script wrapper, launches vivaldi-bin. Sets up environment. - vivaldi-bin : The browser binary - vivaldi-sandbox : A setuid binary, not in much use today The Executable Files @pati_gallardo 8

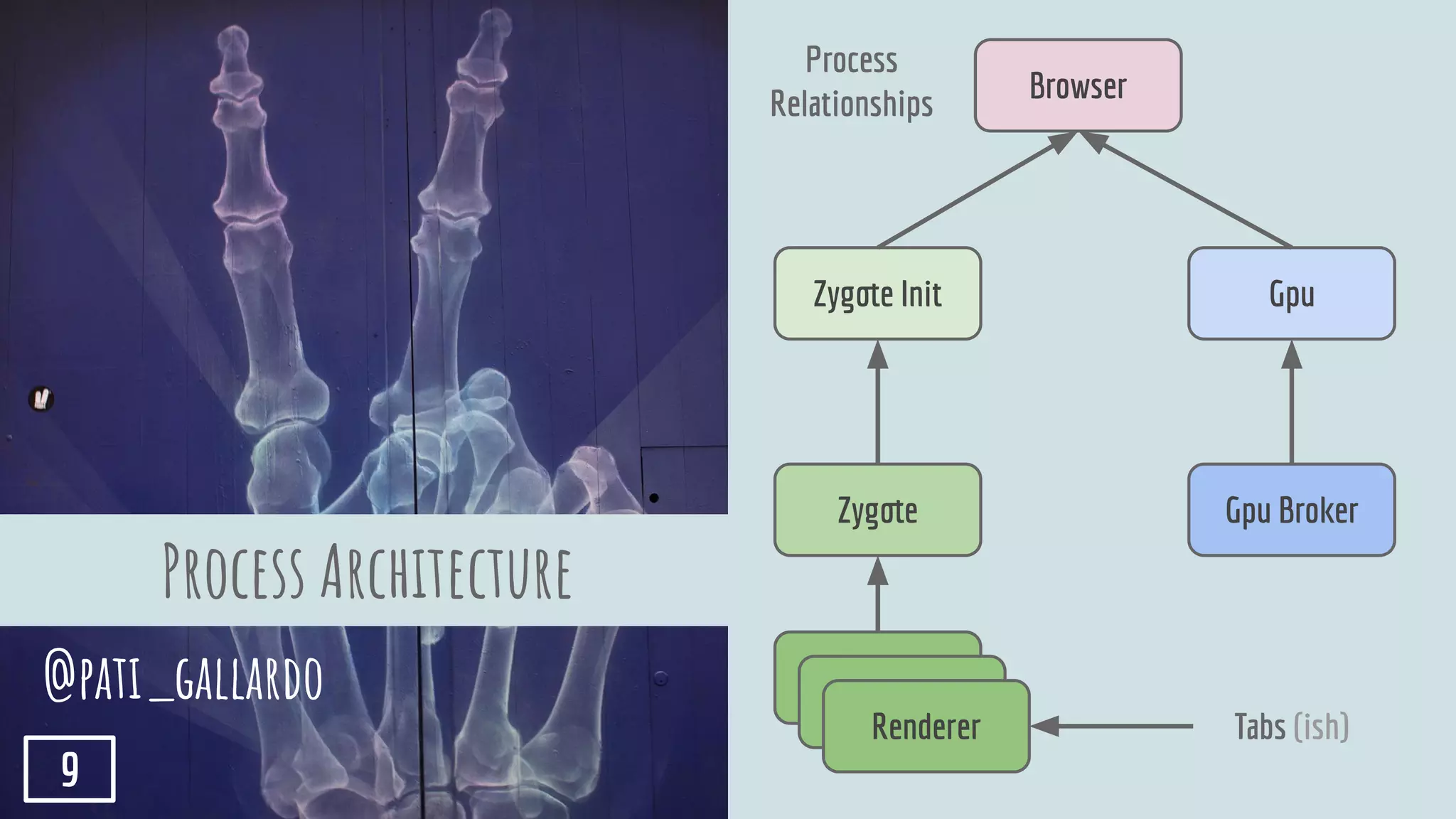

- 9. Process Architecture Browser Gpu BrokerZygote Renderer GpuZygoteInit Renderer Renderer Process Relationships Tabs (ish) @pati_gallardo 9

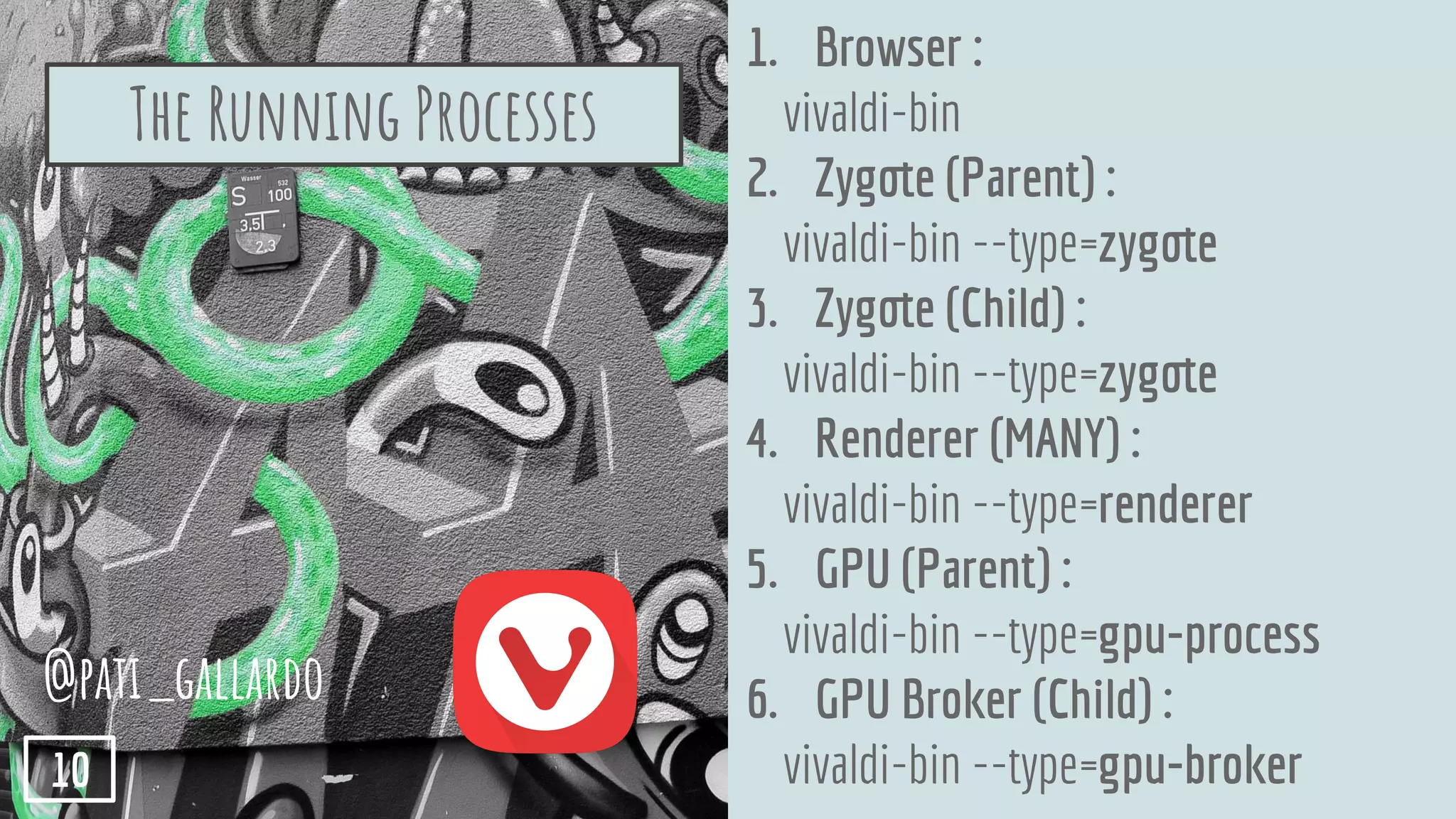

- 10. 1. Browser : vivaldi-bin 2.Zygote (Parent) : vivaldi-bin --type=zygote 3. Zygote (Child) : vivaldi-bin --type=zygote 4. Renderer (MANY) : vivaldi-bin --type=renderer 5. GPU (Parent) : vivaldi-bin --type=gpu-process 6. GPU Broker (Child) : vivaldi-bin --type=gpu-broker The Running Processes @pati_gallardo 10
- 11. Outline - Process Architecture -Linux Security APIs - The Initial Sandbox - Shrinking the Sandbox @pati_gallardo 11
- 12.
- 13.

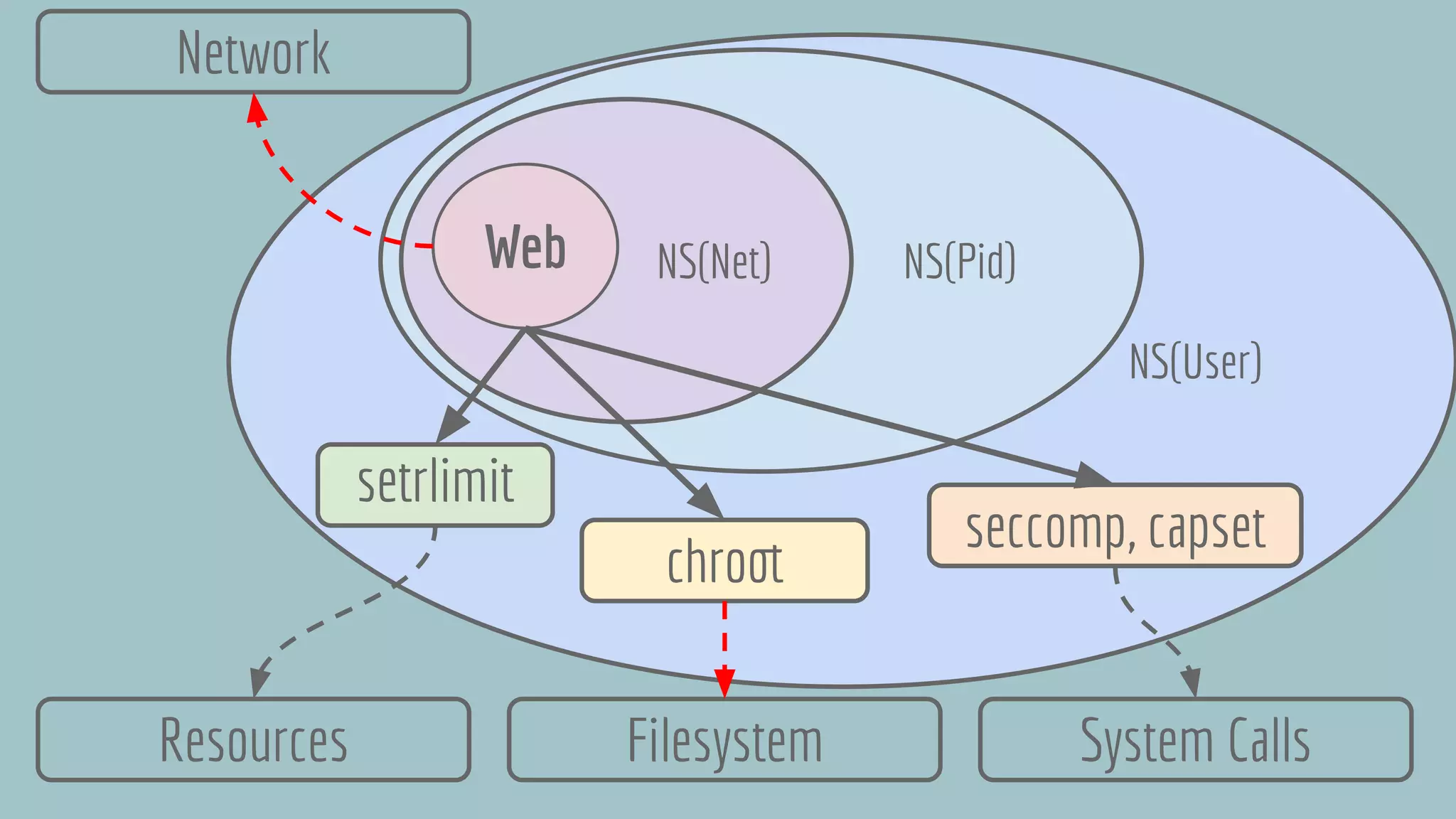

- 14. NS(User) NS(Pid)NS(Net)Web Network Filesystem System Calls chroot seccomp,capset Resources setrlimit
- 15. - Process Architecture -Linux Security APIs - The Initial Sandbox - Shrinking the Sandbox Outline @pati_gallardo 15
- 16.

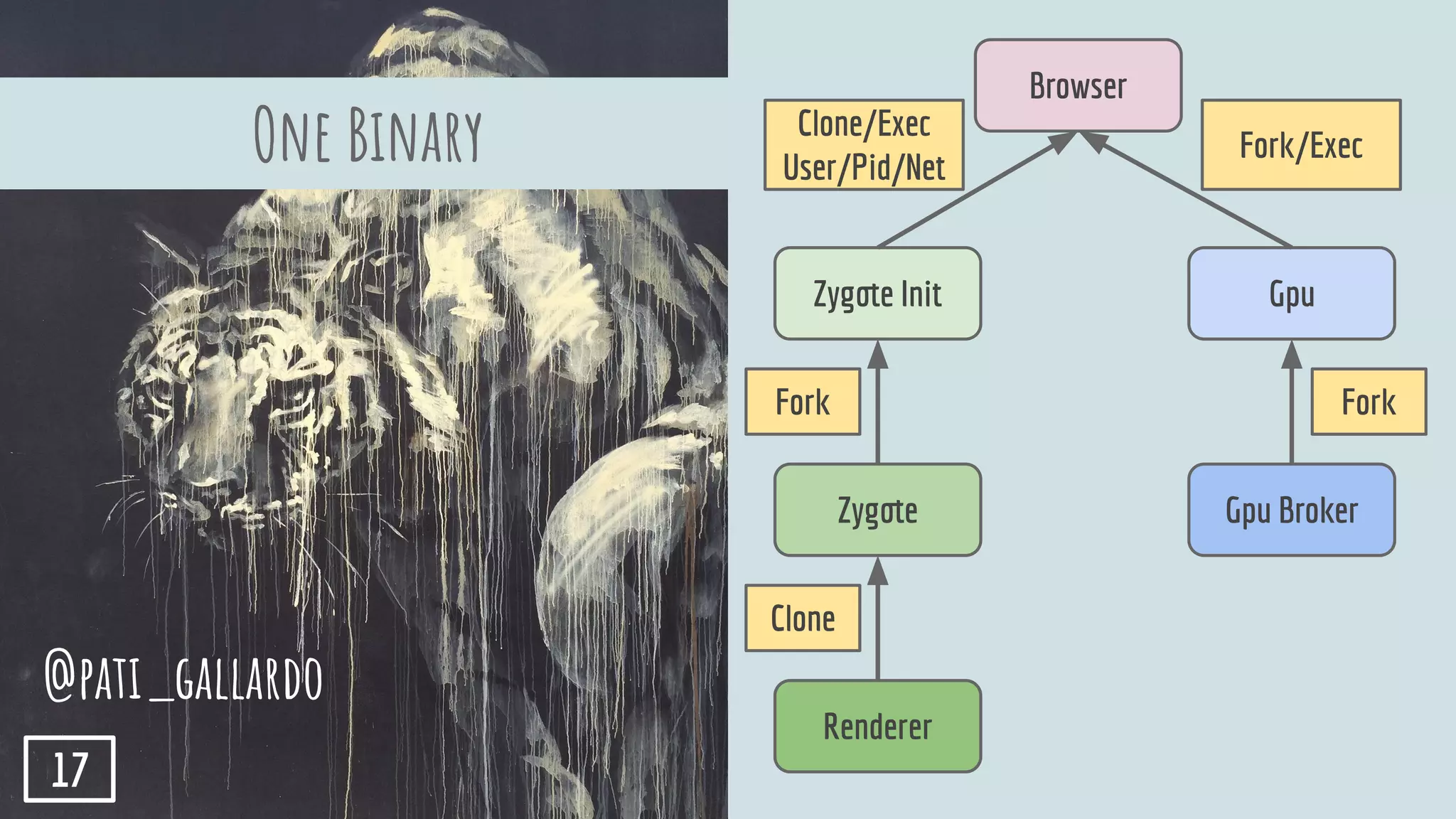

- 17. One Binary Browser Gpu BrokerZygote Renderer GpuZygoteInit Clone/Exec User/Pid/Net Fork/Exec ForkFork Clone @pati_gallardo 17

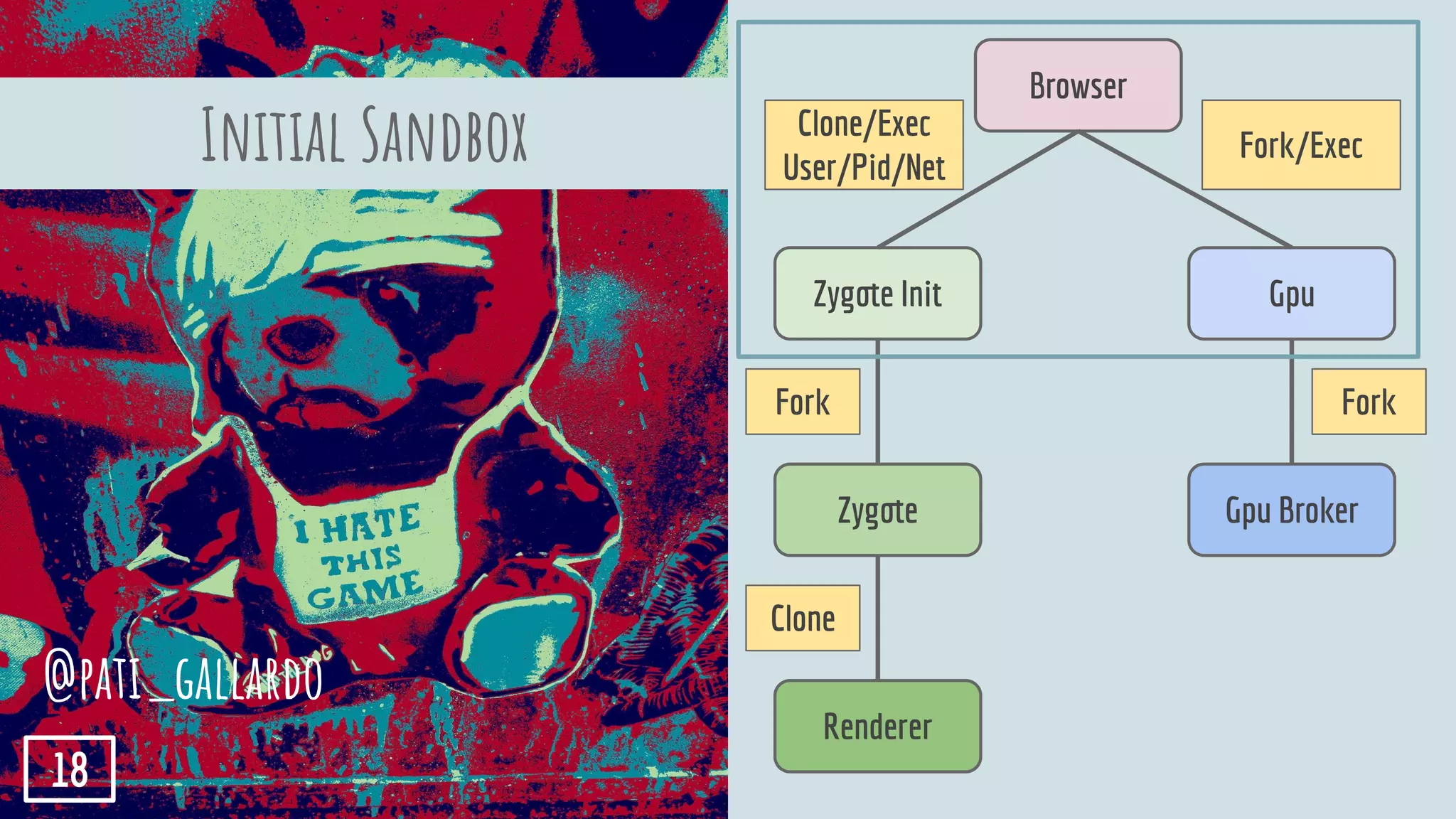

- 18. Initial Sandbox Browser Gpu BrokerZygote Renderer GpuZygoteInit Clone/Exec User/Pid/Net Fork/Exec ForkFork Clone @pati_gallardo 18

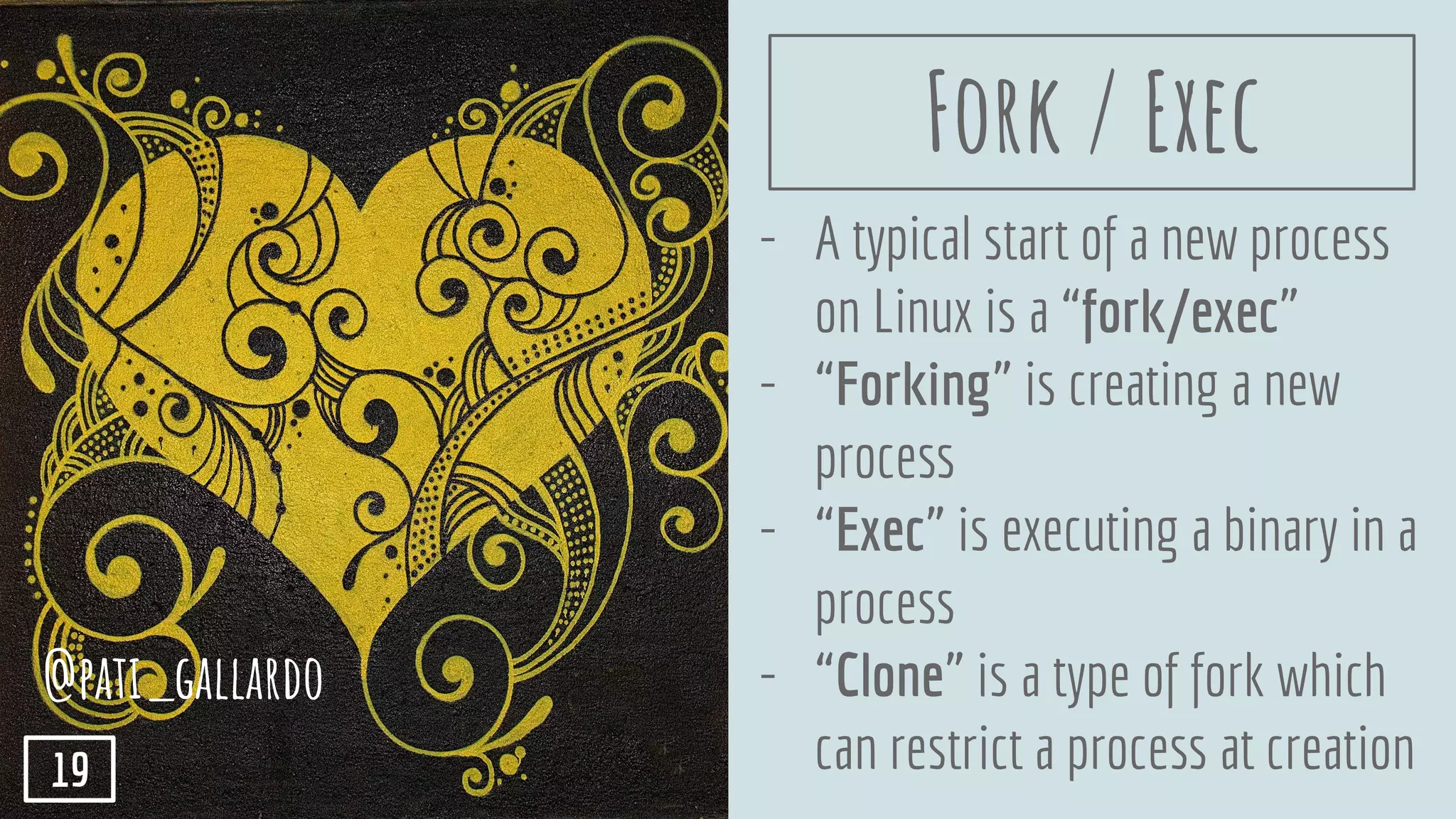

- 19. - A typicalstart of a new process on Linux is a “fork/exec” - “Forking” is creating a new process - “Exec” is executing a binary in a process - “Clone” is a type of fork which can restrict a process at creation @pati_gallardo 19 Fork / Exec
- 20. The sandbox is constructedin stages 20
- 21. 1. Before Fork 2.After Fork 21 Sandboxing Opportunities: Fork

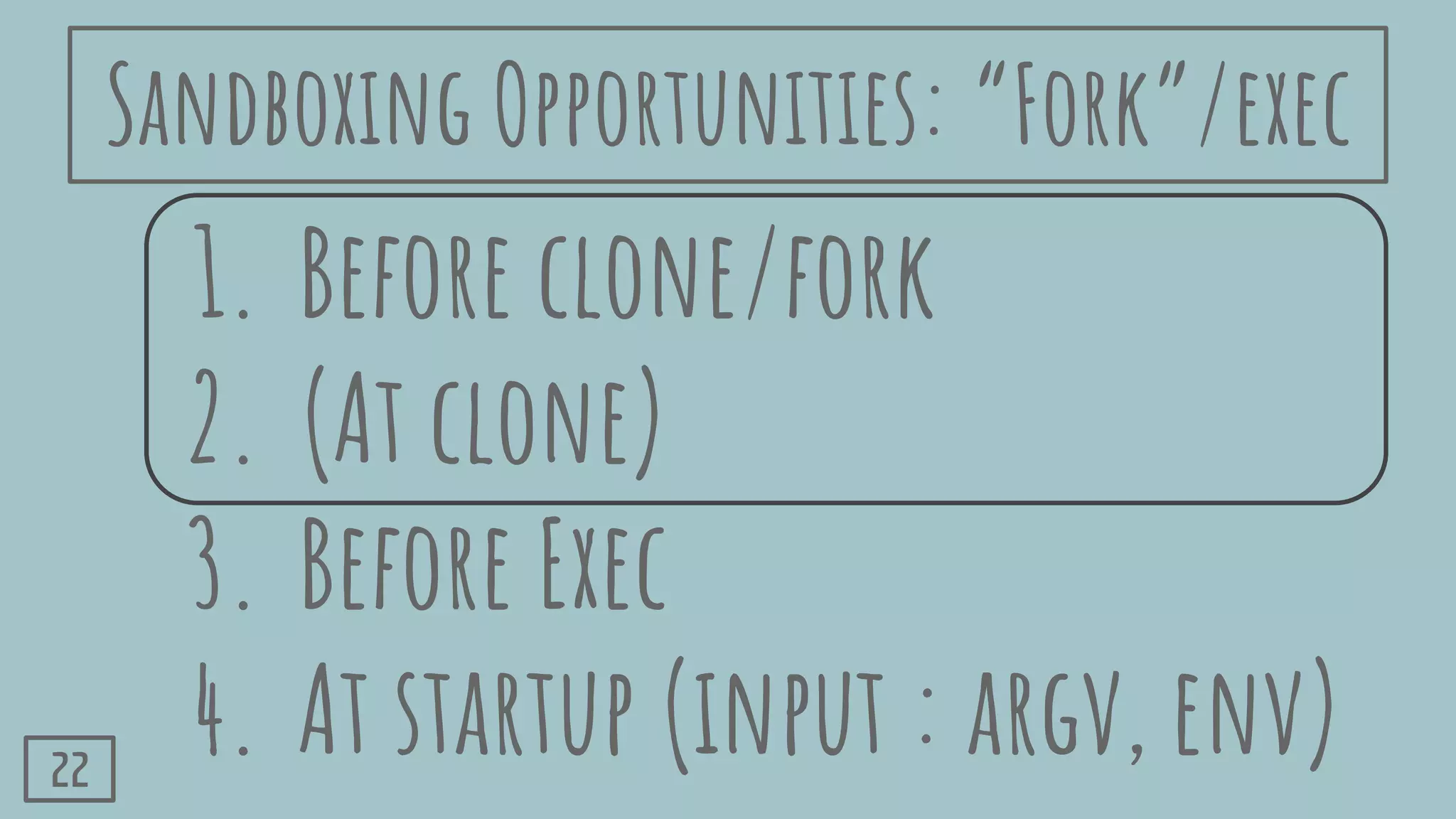

- 22. 1. Before clone/fork 2.(At clone) 3. Before Exec 4. At startup (input : argv, env)22 Sandboxing Opportunities: “Fork”/exec
- 23.
- 24. Namespaces (Zygotes/Renderers) Limits what aprocess can see Api : clone/unshare @pati_gallardo 24
- 25. CLONE_NEWUSER Inside a USERNS we can create a PID NS. CLONE_NEWPID Same PID number can represent different processes in different PID namespaces. One init (PID 1) process per PID NS CLONE_NEWNET Isolate a process from network Zygote + Renderer @pati_gallardo 25 Namespaces in use
- 26. Clone flags definethe process* created and will create namespaces (NS) for it 1. Test which NS are available 2. Fail if not sufficient 3. Construct the biggest supported and applicable set Emulates fork with longjmp * Also used to create threads @pati_gallardo 26 At Clone : Create NAmespacesZygote + Renderer

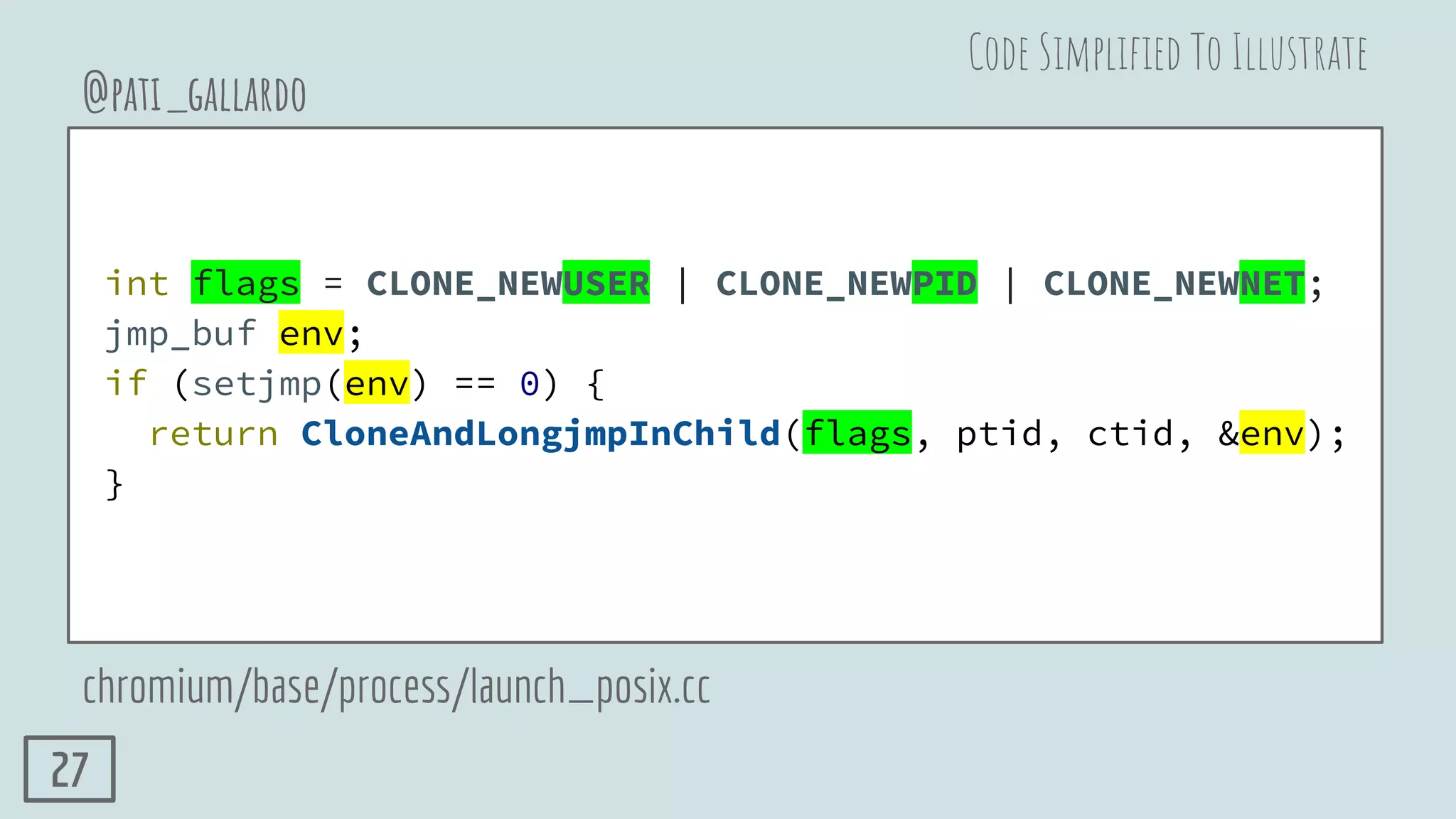

- 27. int flags =CLONE_NEWUSER | CLONE_NEWPID | CLONE_NEWNET; jmp_buf env; if (setjmp(env) == 0) { return CloneAndLongjmpInChild(flags, ptid, ctid, &env); } @pati_gallardo chromium/base/process/launch_posix.cc Code Simplified To Illustrate 27

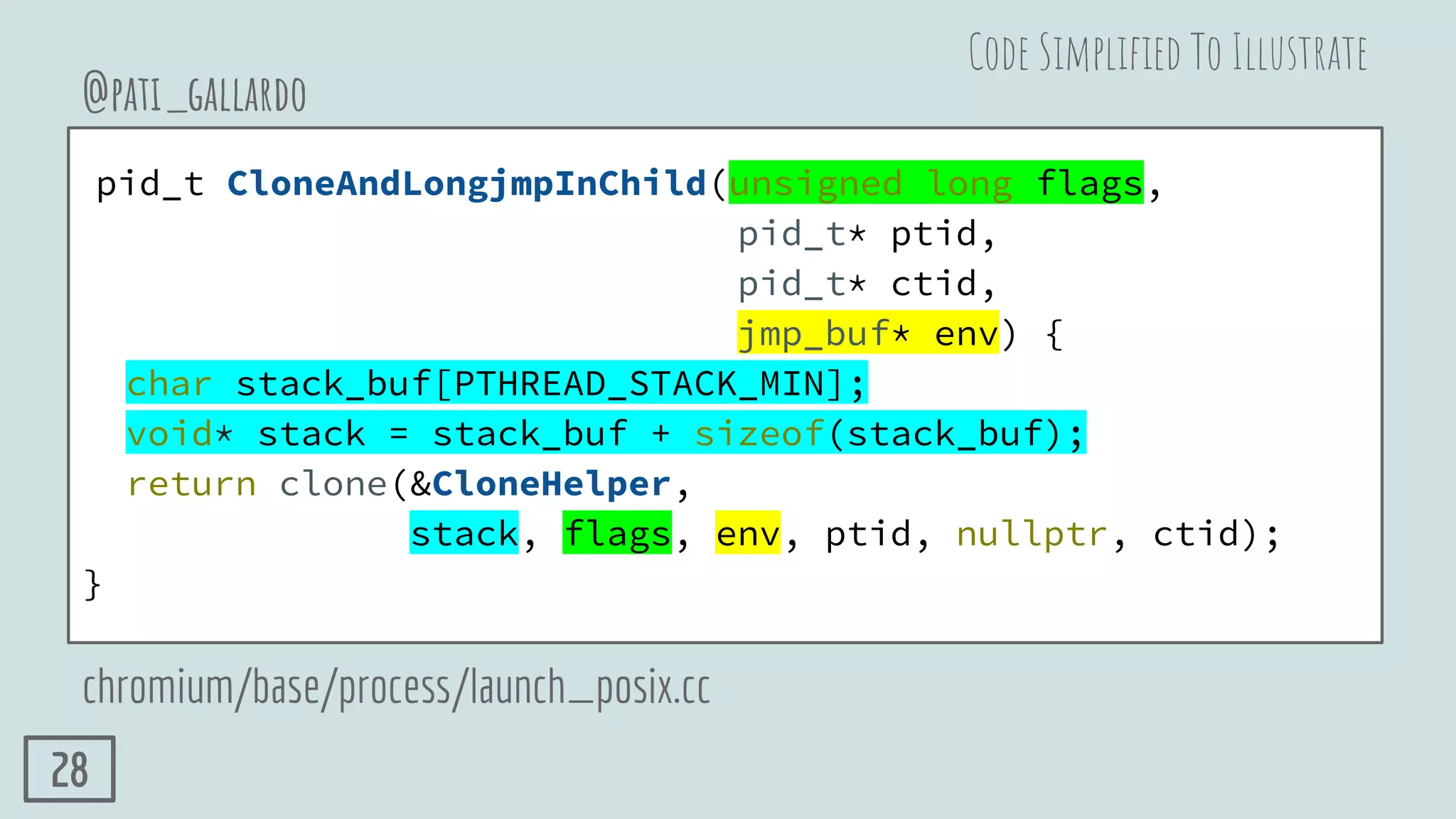

- 28. pid_t CloneAndLongjmpInChild(unsigned longflags, pid_t* ptid, pid_t* ctid, jmp_buf* env) { char stack_buf[PTHREAD_STACK_MIN]; void* stack = stack_buf + sizeof(stack_buf); return clone(&CloneHelper, stack, flags, env, ptid, nullptr, ctid); } @pati_gallardo chromium/base/process/launch_posix.cc Code Simplified To Illustrate 28

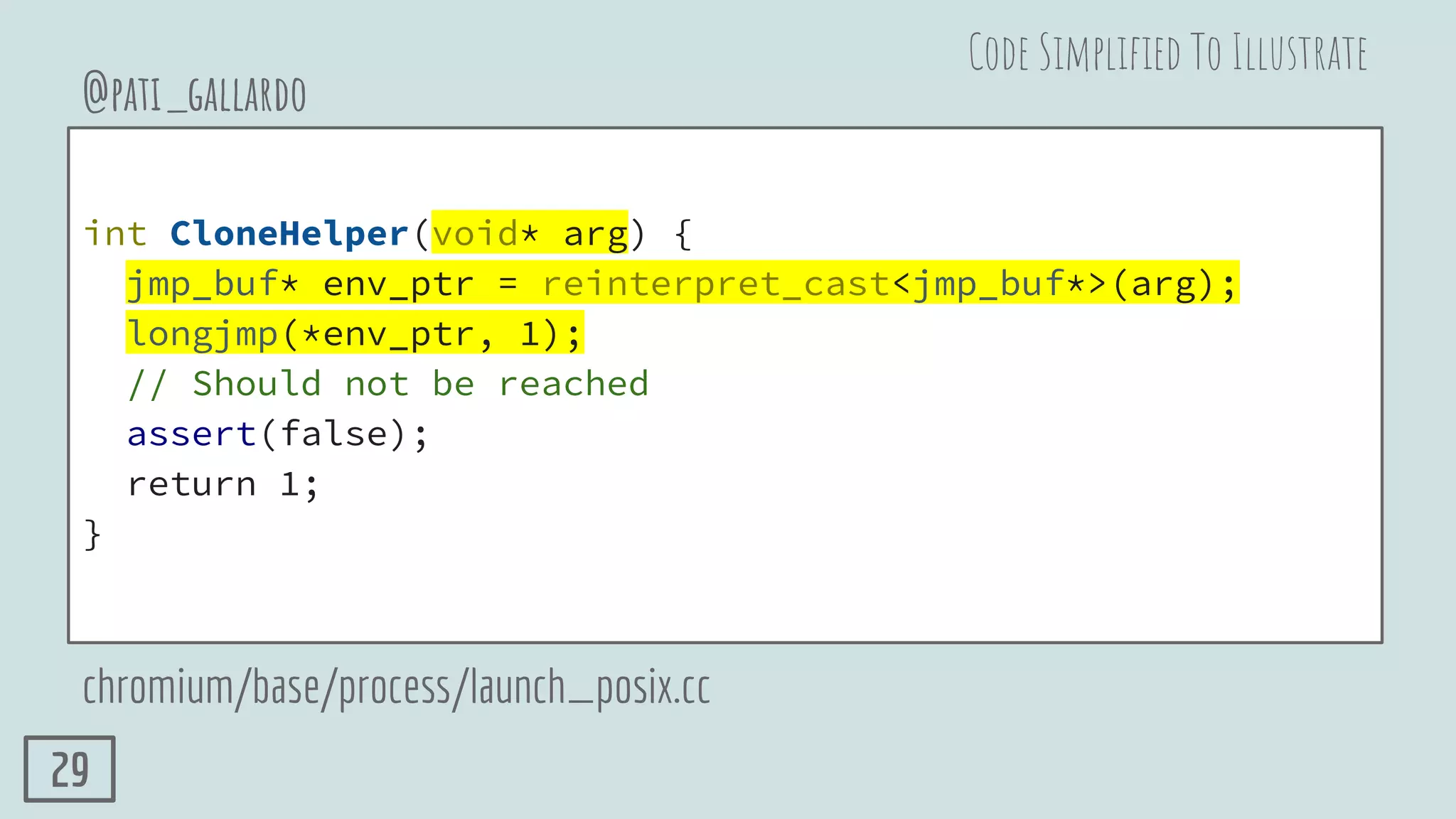

- 29. int CloneHelper(void* arg){ jmp_buf* env_ptr = reinterpret_cast<jmp_buf*>(arg); longjmp(*env_ptr, 1); // Should not be reached assert(false); return 1; } @pati_gallardo chromium/base/process/launch_posix.cc Code Simplified To Illustrate 29

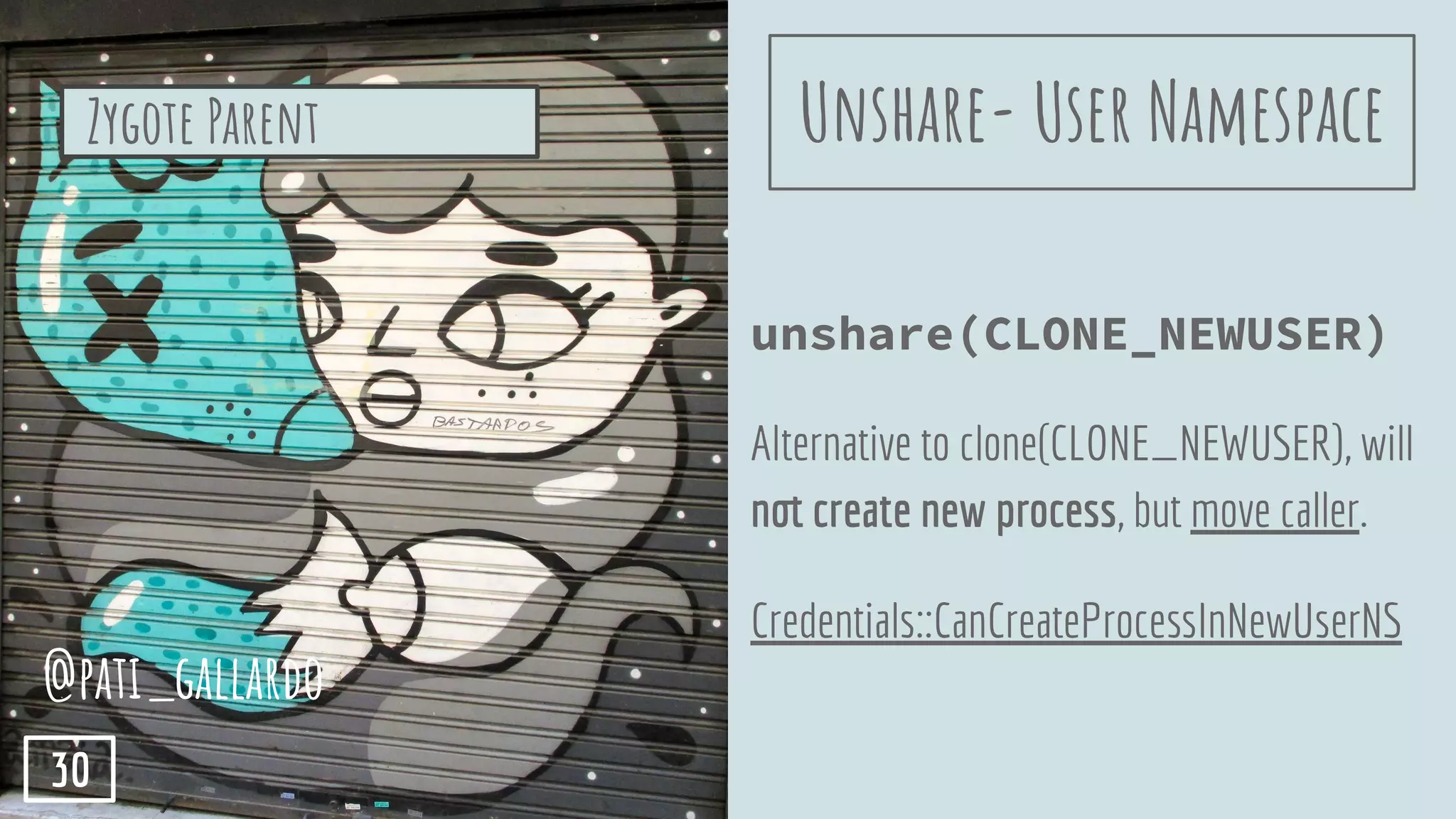

- 30. unshare(CLONE_NEWUSER) Alternative to clone(CLONE_NEWUSER),will not create new process, but move caller. Credentials::CanCreateProcessInNewUserNS Zygote Parent @pati_gallardo 30 Unshare- User Namespace
- 31. 1. Before clone/fork 2.At clone 3. Before Exec 4. At startup (input : argv, env)31 Sandboxing Opportunities: “Fork”/exec
- 32. 1. Fix theenvironment 2. Fix file descriptors 3. Fix signal handling 4. Set up process group 5. Maximize resource limits 6. Set PR_SET_NO_NEW_PRIVS 7. Change current dir 8. Select executable path 9. Setup command-line GPU + Zygote @pati_gallardo 32 Before Exec : Launch Options Prepare for Exec
- 33. - Process Architecture -Linux Security APIs - The Initial Sandbox - Shrinking the Sandbox Outline @pati_gallardo 33
- 34.

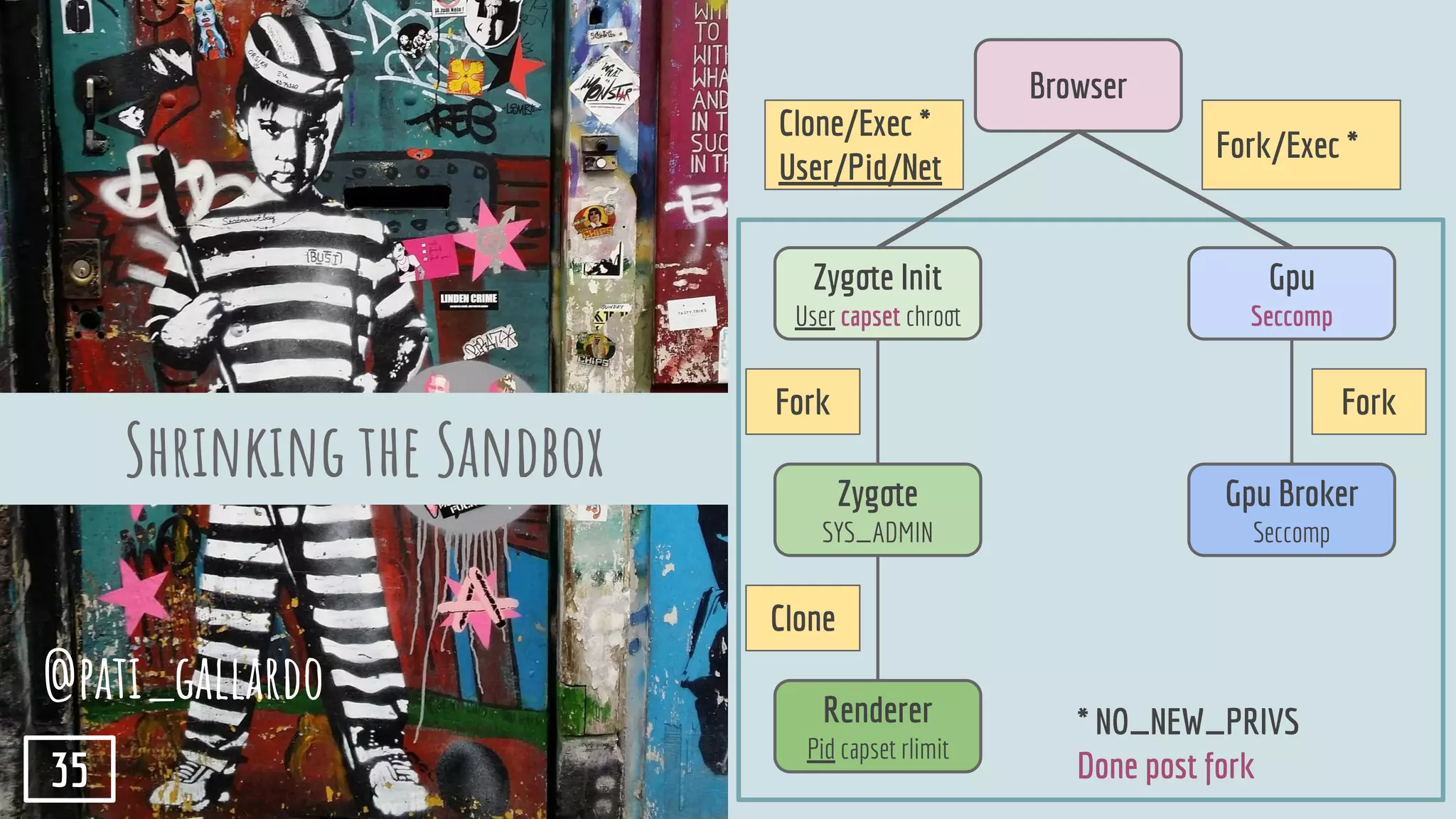

- 35. Shrinking the Sandbox @pati_gallardo 35 Browser GpuBroker Seccomp Zygote SYS_ADMIN Renderer Pid capset rlimit Gpu Seccomp Zygote Init User capset chroot Clone/Exec * User/Pid/Net Fork/Exec * * NO_NEW_PRIVS Done post fork ForkFork Clone

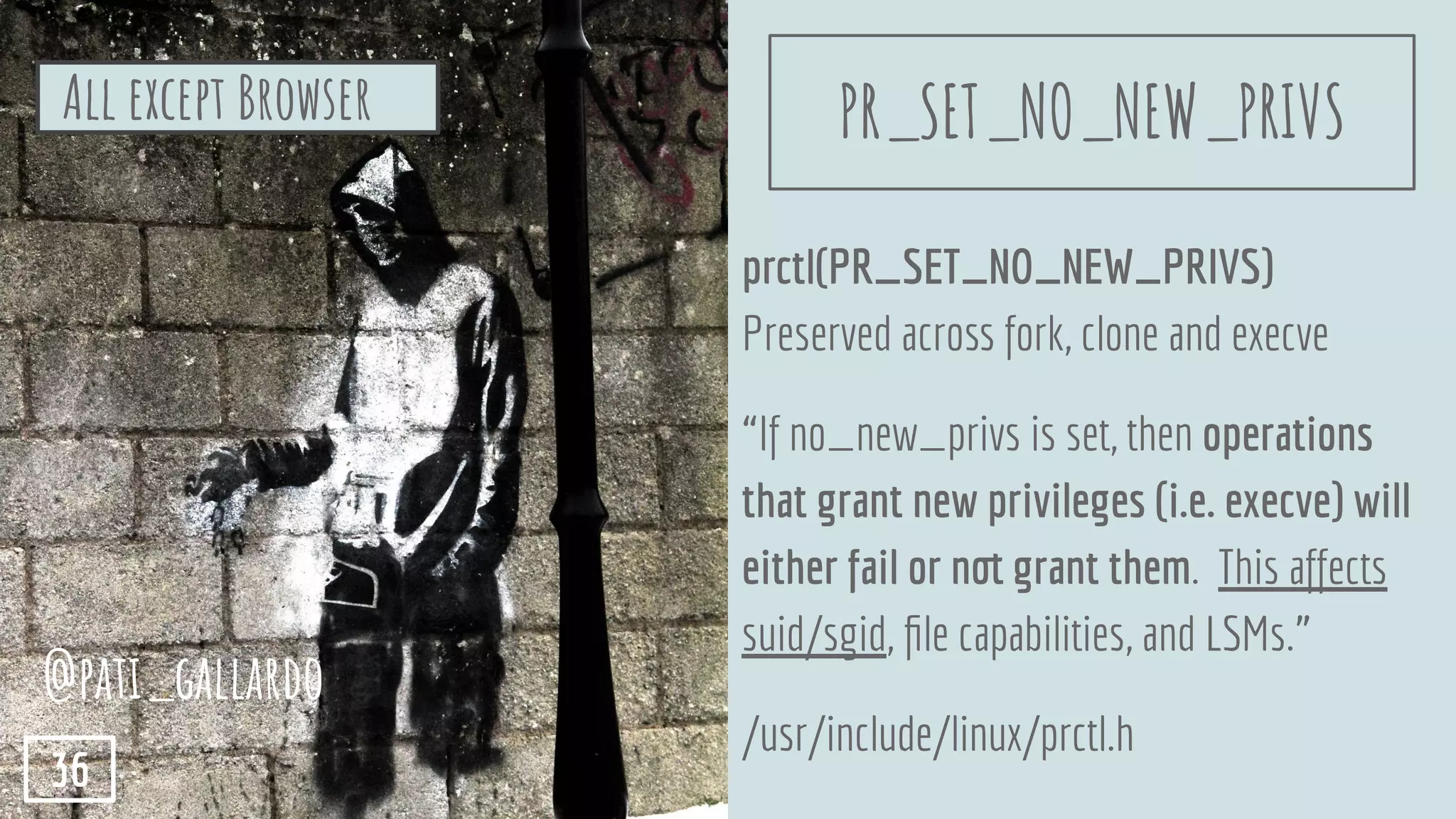

- 36. prctl(PR_SET_NO_NEW_PRIVS) Preserved across fork,clone and execve “If no_new_privs is set, then operations that grant new privileges (i.e. execve) will either fail or not grant them. This affects suid/sgid, file capabilities, and LSMs.” /usr/include/linux/prctl.h All except Browser @pati_gallardo 36 PR_SET_NO_NEW_PRIVS
- 37.
- 38. Seccomp (Renderers/GPU/Broker) Limits which syscallsa process can call and how these calls are handled Api : seccomp @pati_gallardo 38

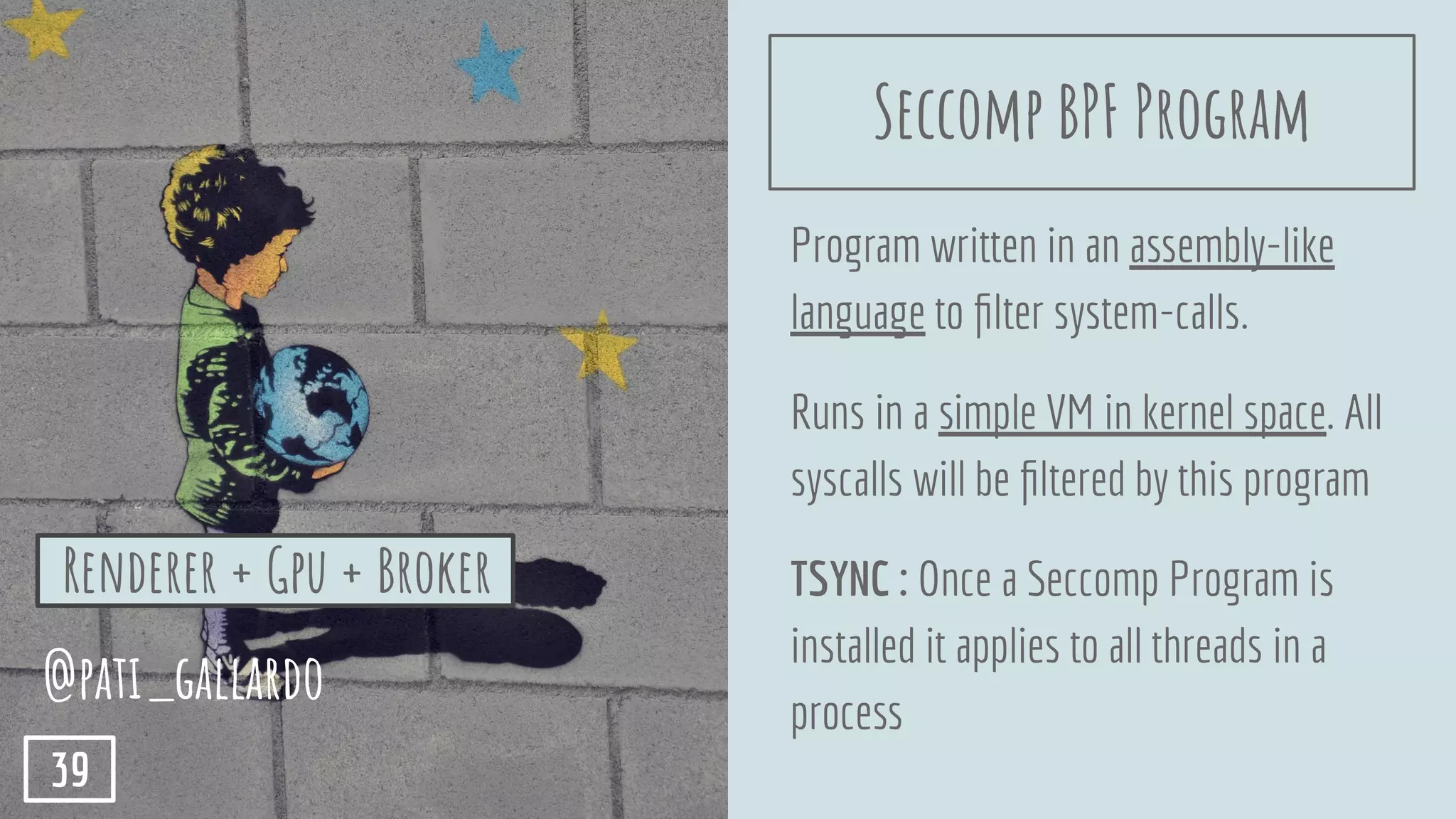

- 39. Program written inan assembly-like language to filter system-calls. Runs in a simple VM in kernel space. All syscalls will be filtered by this program TSYNC : Once a Seccomp Program is installed it applies to all threads in a process Renderer + Gpu + Broker @pati_gallardo 39 Seccomp BPF Program
- 40. BPF Program definedin a Policy Fundamentally a whitelist, allows a set of syscalls and has custom handling of others. An extended Policy is generally more permissive 1. BaselinePolicy 1.1 GpuProcessPolicy 1.1.1 GpuBrokerProcessPolicy 1.2 RendererProcessPolicy @pati_gallardo 40 Renderer + Gpu + Broker Seccomp : BPF Policies

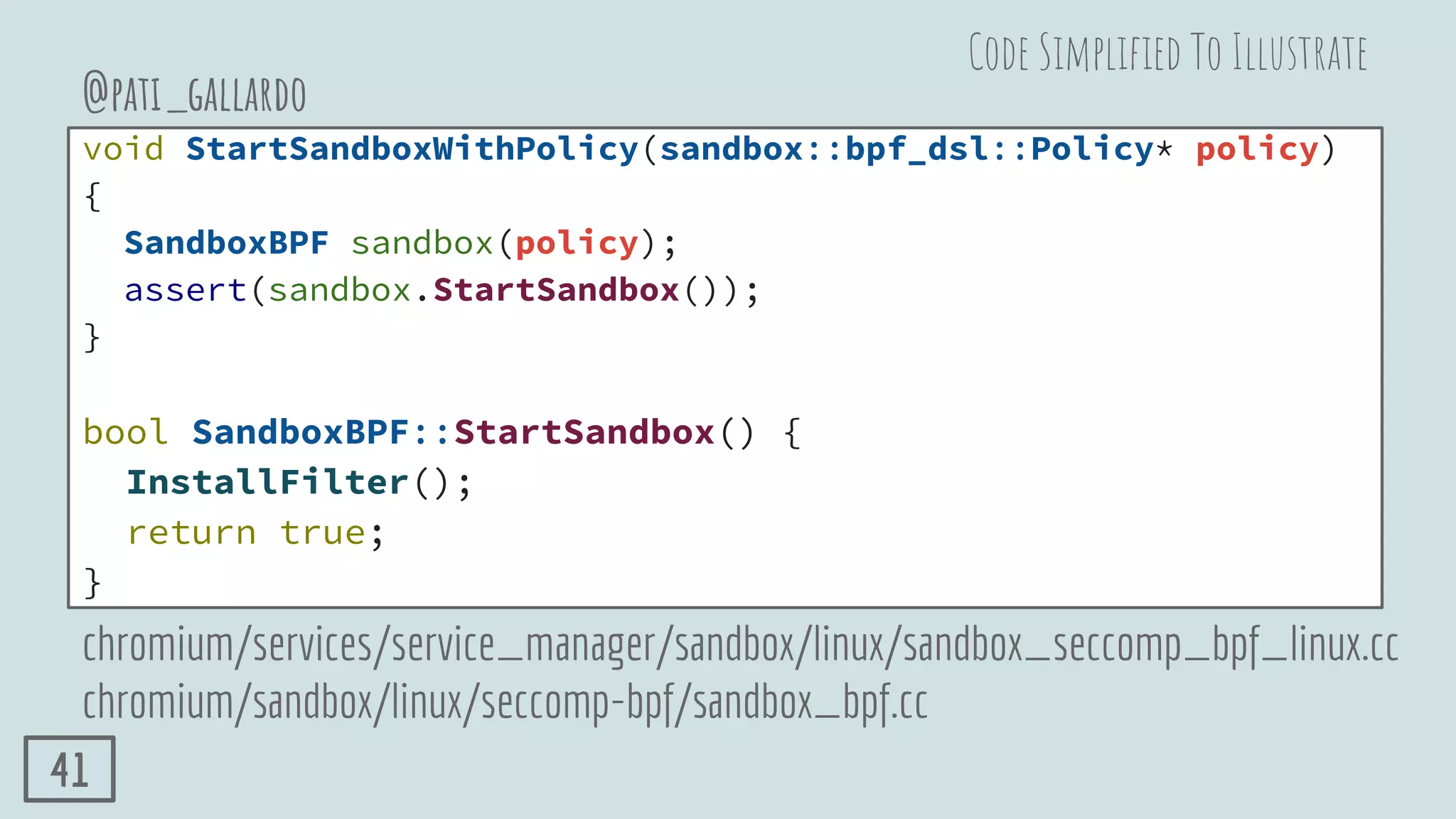

- 41. void StartSandboxWithPolicy(sandbox::bpf_dsl::Policy* policy) { SandboxBPFsandbox(policy); assert(sandbox.StartSandbox()); } bool SandboxBPF::StartSandbox() { InstallFilter(); return true; } @pati_gallardo chromium/services/service_manager/sandbox/linux/sandbox_seccomp_bpf_linux.cc chromium/sandbox/linux/seccomp-bpf/sandbox_bpf.cc Code Simplified To Illustrate 41

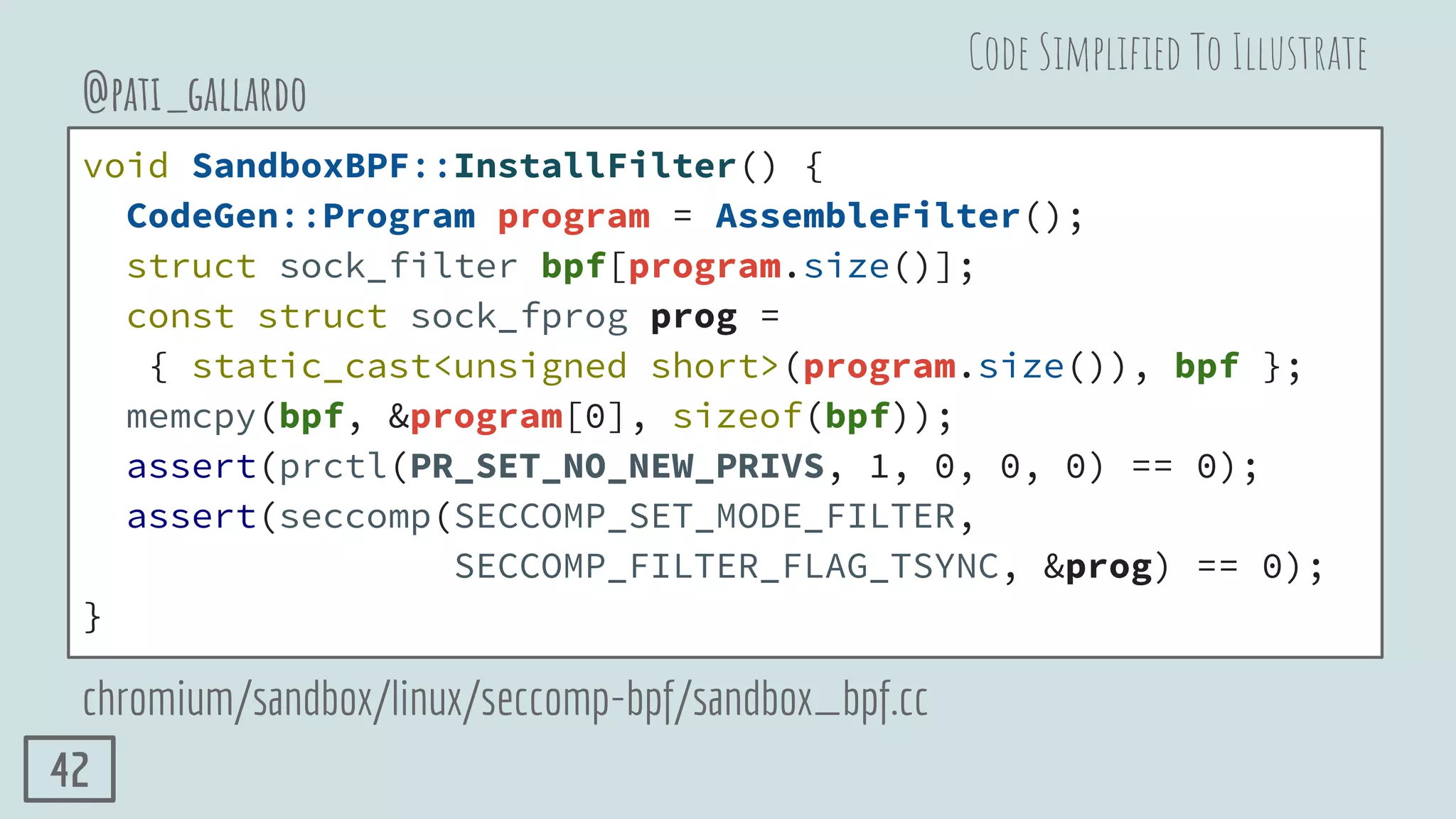

- 42. void SandboxBPF::InstallFilter() { CodeGen::Programprogram = AssembleFilter(); struct sock_filter bpf[program.size()]; const struct sock_fprog prog = { static_cast<unsigned short>(program.size()), bpf }; memcpy(bpf, &program[0], sizeof(bpf)); assert(prctl(PR_SET_NO_NEW_PRIVS, 1, 0, 0, 0) == 0); assert(seccomp(SECCOMP_SET_MODE_FILTER, SECCOMP_FILTER_FLAG_TSYNC, &prog) == 0); } @pati_gallardo chromium/sandbox/linux/seccomp-bpf/sandbox_bpf.cc Code Simplified To Illustrate 42
- 43.
- 44. Chroot (Zygotes/Renderers) Limits what aprocess can see of the filesystem Api : chroot @pati_gallardo 44
- 45. - clone(CLONE_FS) achild process - Child chroot(”/proc/self/fdinfo/”) - Child immediately does a chdir(“/”) - Child does _exit(kExitSuccess) You can see this by looking at ls -l /proc/<pid>/root Of the Zygote or any ancestor Credentials::DropFileSystemAccess Zygotes + Renderer @pati_gallardo 45 Chroot : Drop Access to FS

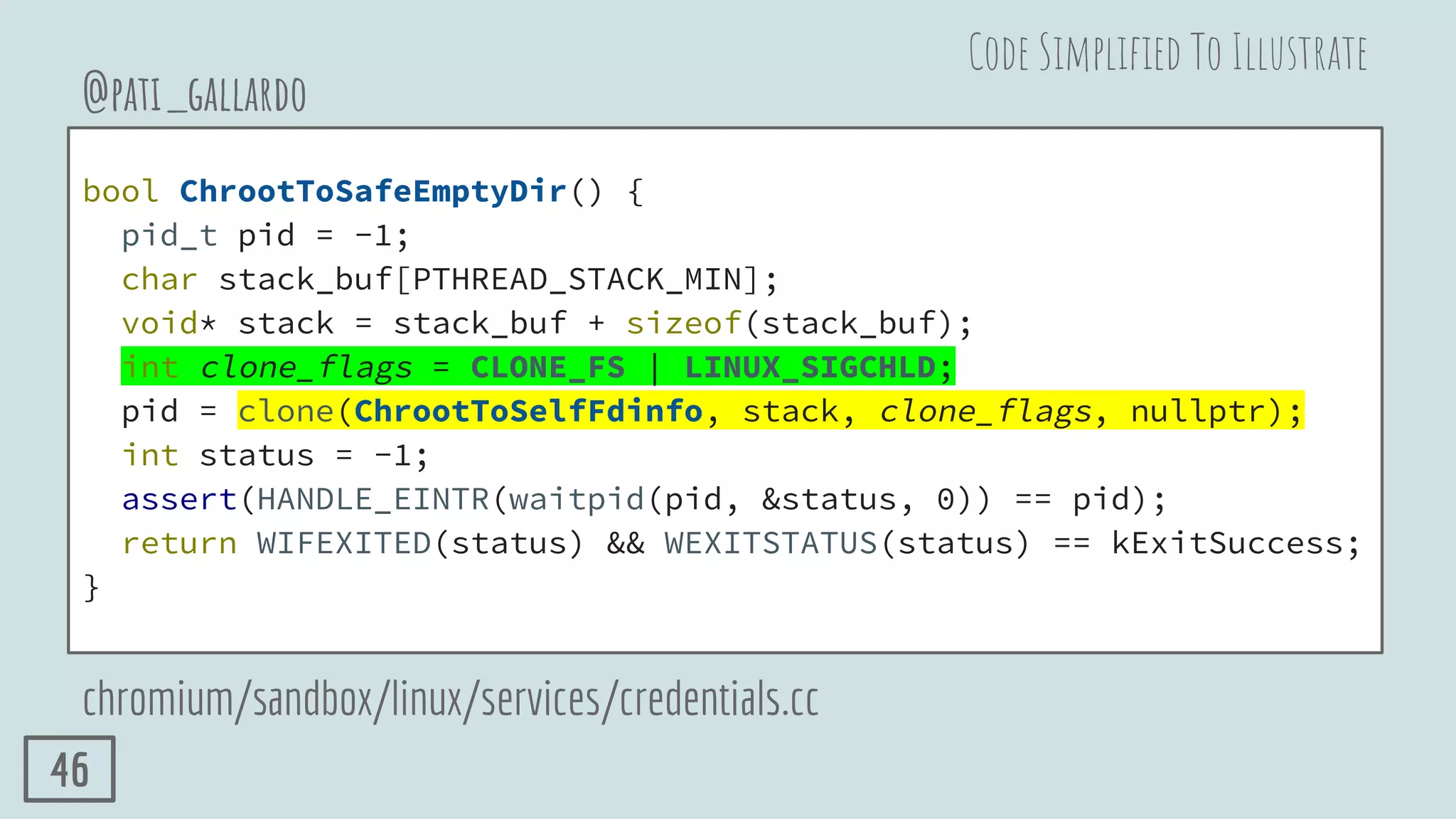

- 46. bool ChrootToSafeEmptyDir() { pid_tpid = -1; char stack_buf[PTHREAD_STACK_MIN]; void* stack = stack_buf + sizeof(stack_buf); int clone_flags = CLONE_FS | LINUX_SIGCHLD; pid = clone(ChrootToSelfFdinfo, stack, clone_flags, nullptr); int status = -1; assert(HANDLE_EINTR(waitpid(pid, &status, 0)) == pid); return WIFEXITED(status) && WEXITSTATUS(status) == kExitSuccess; } @pati_gallardo chromium/sandbox/linux/services/credentials.cc Code Simplified To Illustrate 46

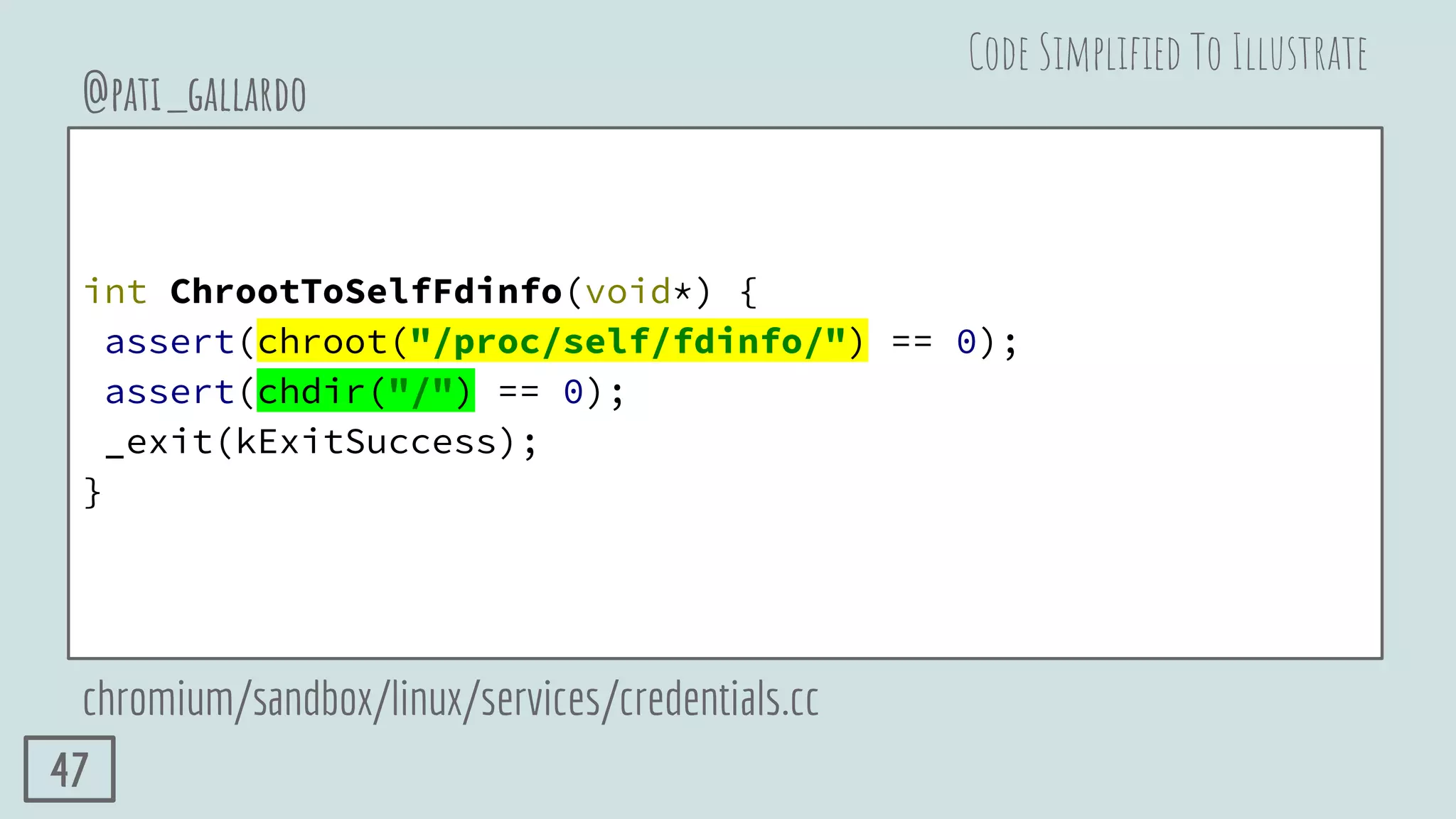

- 47. int ChrootToSelfFdinfo(void*) { assert(chroot("/proc/self/fdinfo/")== 0); assert(chdir("/") == 0); _exit(kExitSuccess); } @pati_gallardo chromium/sandbox/linux/services/credentials.cc Code Simplified To Illustrate 47
- 48.
- 49. Capabilities (Zygote/Renderers) Limits what aprocess is privileged enough to do Api : capset @pati_gallardo 49
- 50. Uses capset() todrop all or some capabilities “Linux divides the privileges traditionally associated with superuser into distinct units, known as capabilities, which can be independently enabled and disabled.” Man page for capabilities Credentials::DropAllCapabilities Zygotes + Renderers @pati_gallardo 50 Drop Capabilities
- 51.
- 52. Resource Limits (Renderers) Limits theaccess this process has to platform resources Api : setrlimit @pati_gallardo 52
- 53. Limits using setrlimit: 1.RLIMIT_AS : Maximum size of the process’ virtual memory (address space) in bytes 2. RLIMIT_DATA : Maximum size of the process's data segment LinuxSandbox::LimitAddressSpace Renderer @pati_gallardo 53 Resource Limits : setrlimit

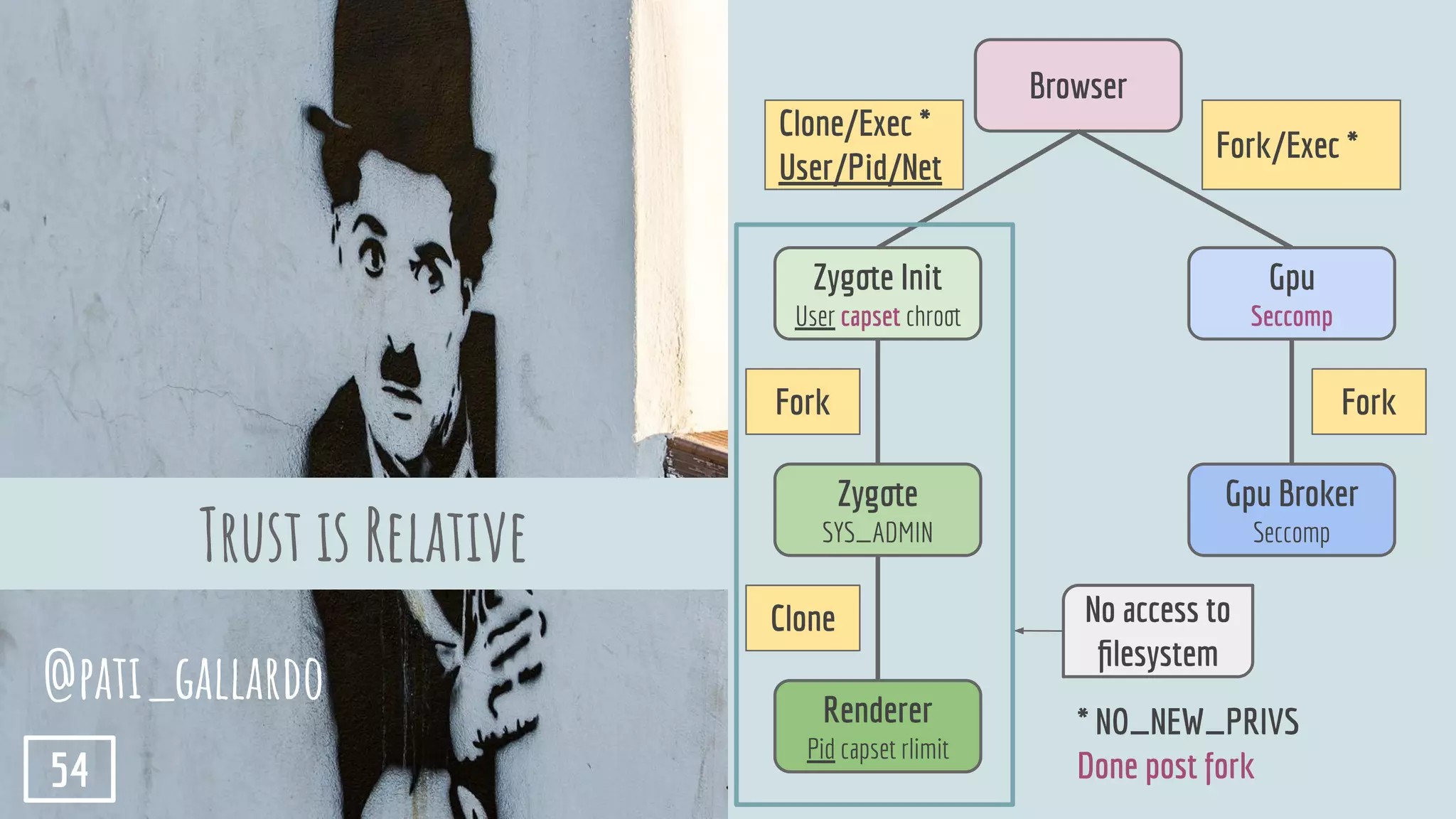

- 54. Trust is Relative Browser GpuBroker Seccomp Zygote SYS_ADMIN Renderer Pid capset rlimit Gpu Seccomp Zygote Init User capset chroot Clone/Exec * User/Pid/Net Fork/Exec * * NO_NEW_PRIVS Done post fork ForkFork Clone No access to filesystem @pati_gallardo 54

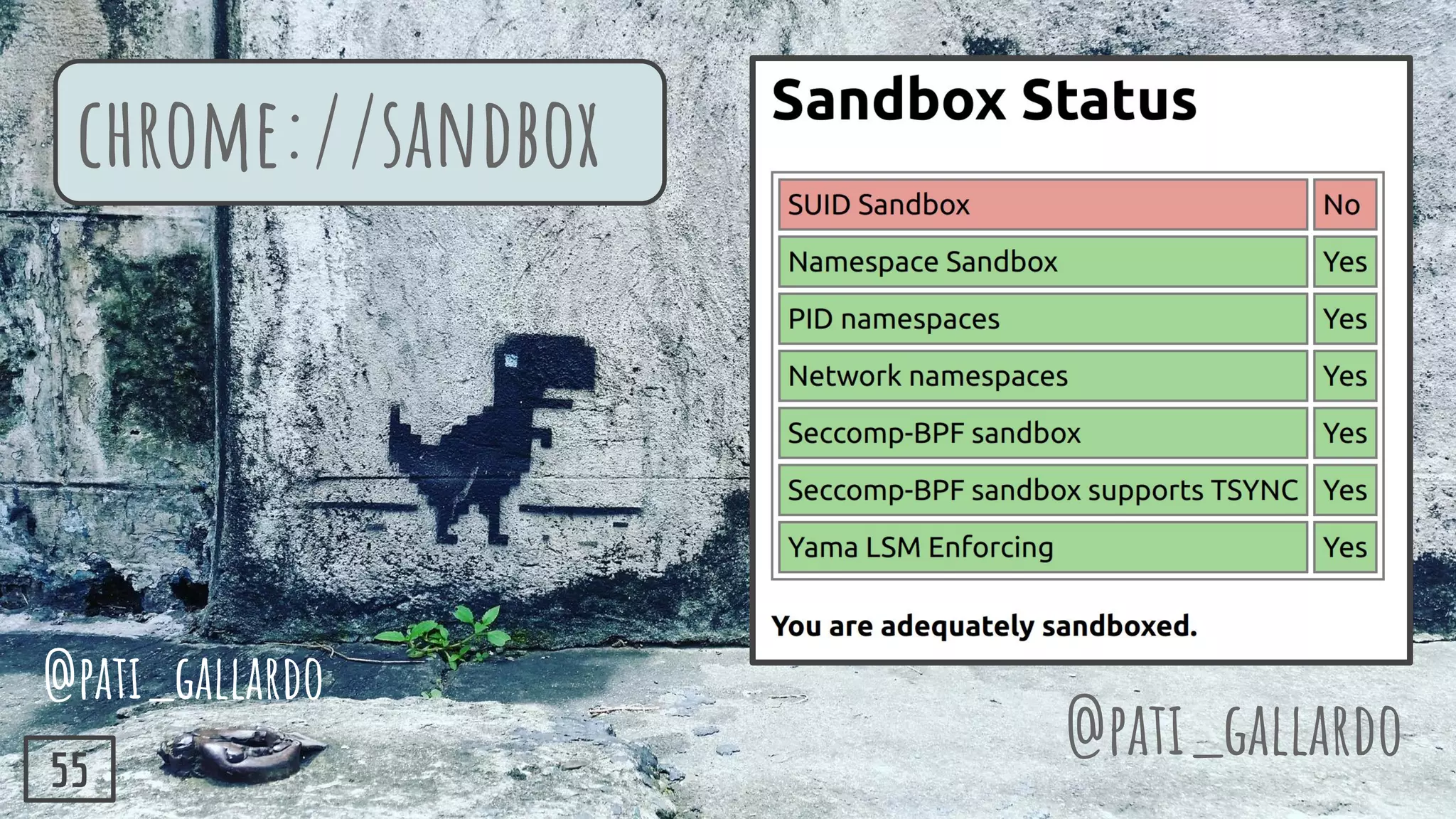

- 55.

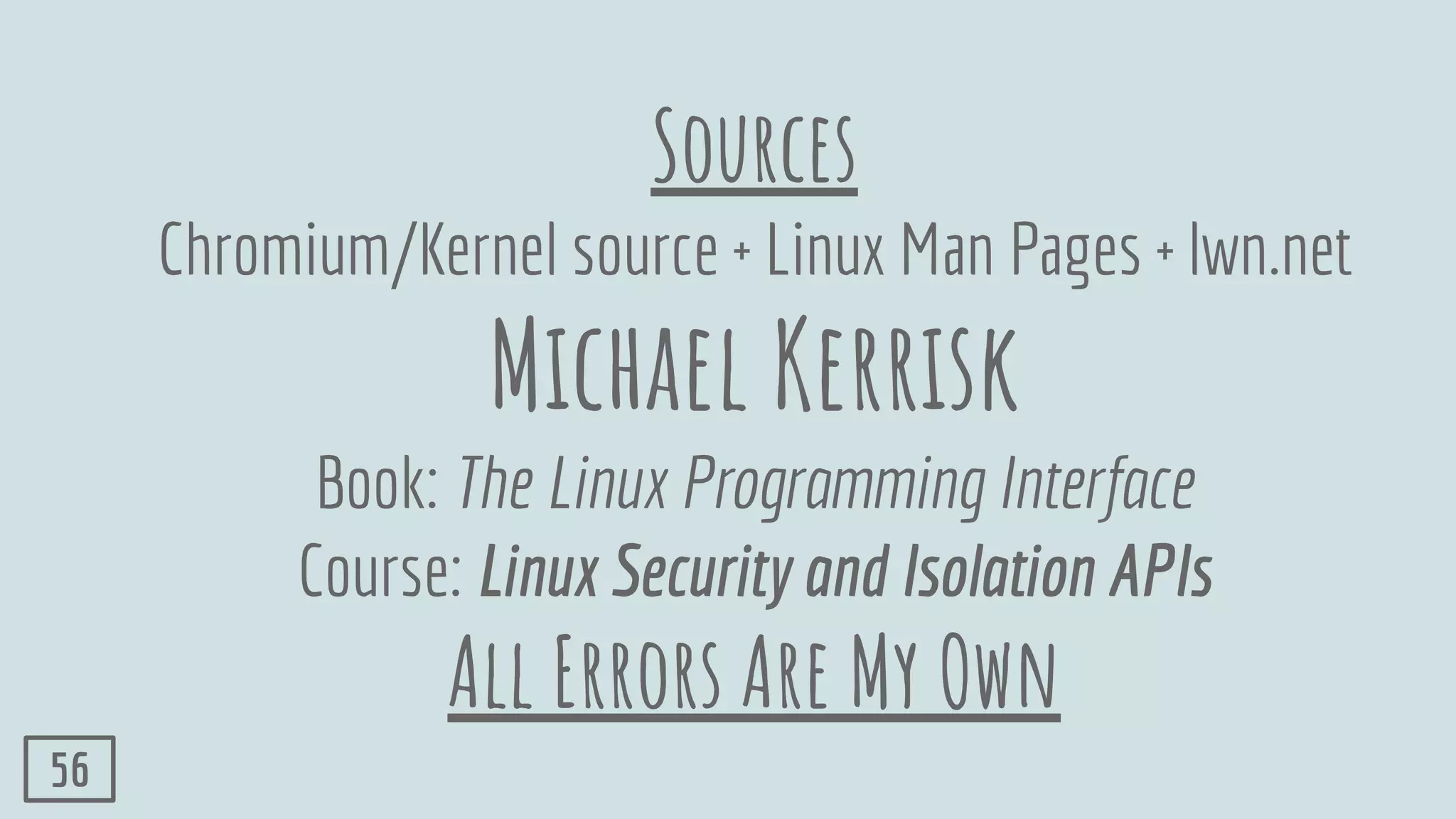

- 56. Sources Chromium/Kernel source +Linux Man Pages + lwn.net Michael Kerrisk Book: The Linux Programming Interface Course: Linux Security and Isolation APIs All Errors Are My Own 56
- 57. Patricia Aas, Consultant TurtleSec C++and Application Security Turtle Sec @pati_gallardo
- 58.
- 59. Appendix / SomeNotes @pati_gallardo
- 60.
- 61. Not Used Muchin Chromium, but... 61

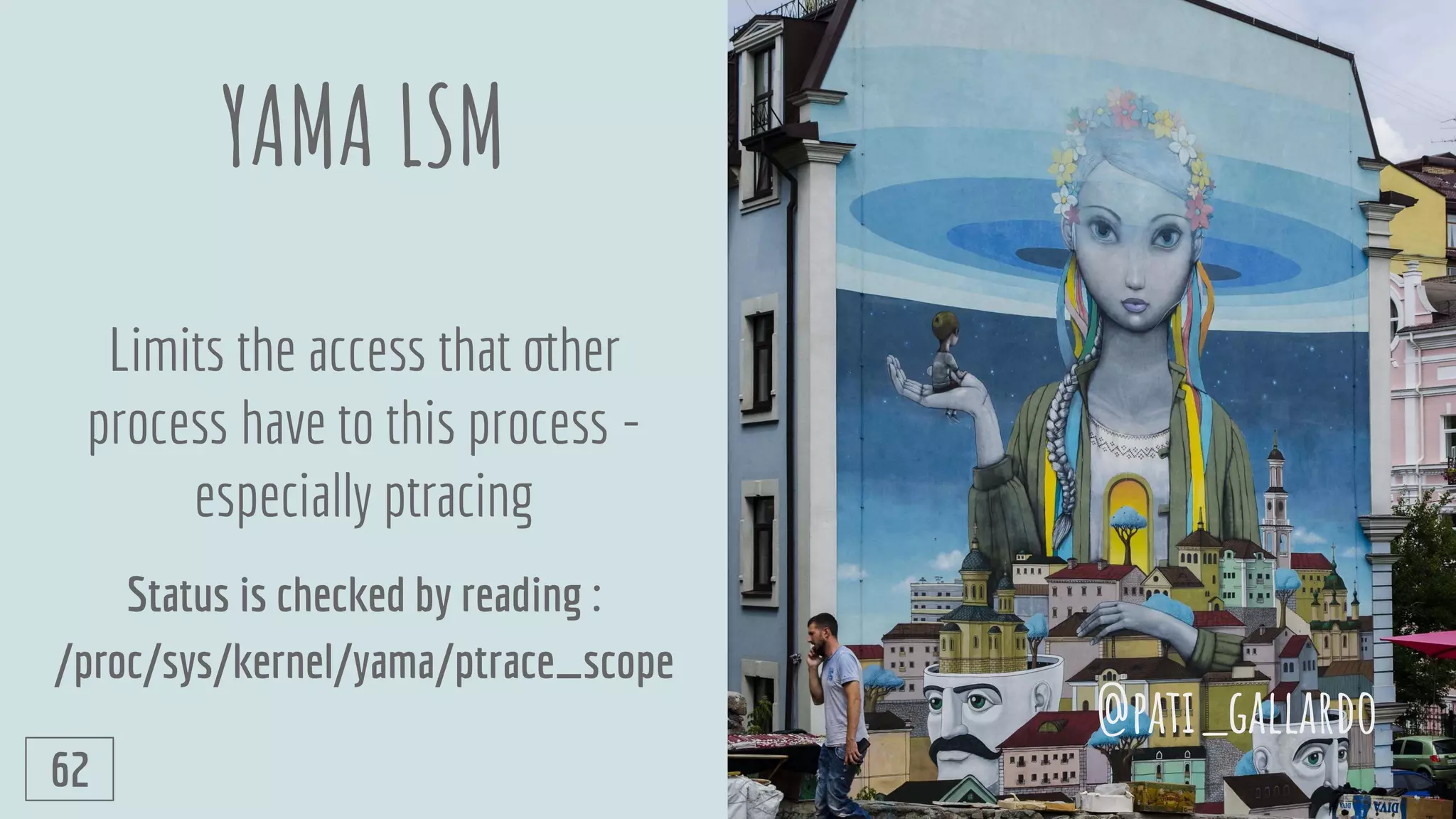

- 62. YAMA LSM Limits theaccess that other process have to this process - especially ptracing Status is checked by reading : /proc/sys/kernel/yama/ptrace_scope @pati_gallardo 62

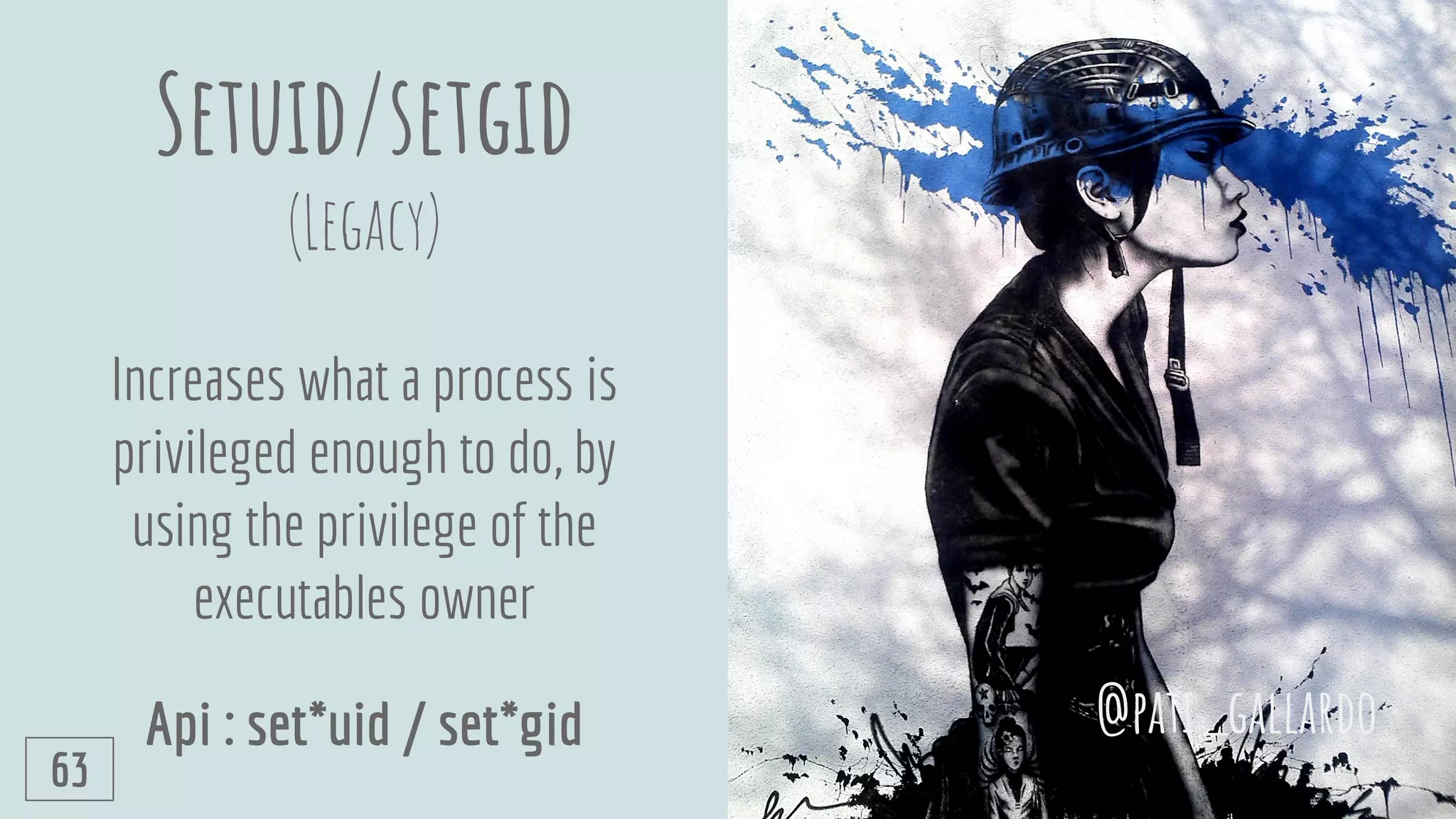

- 63. Setuid/setgid (Legacy) Increases what aprocess is privileged enough to do, by using the privilege of the executables owner Api : set*uid / set*gid @pati_gallardo 63

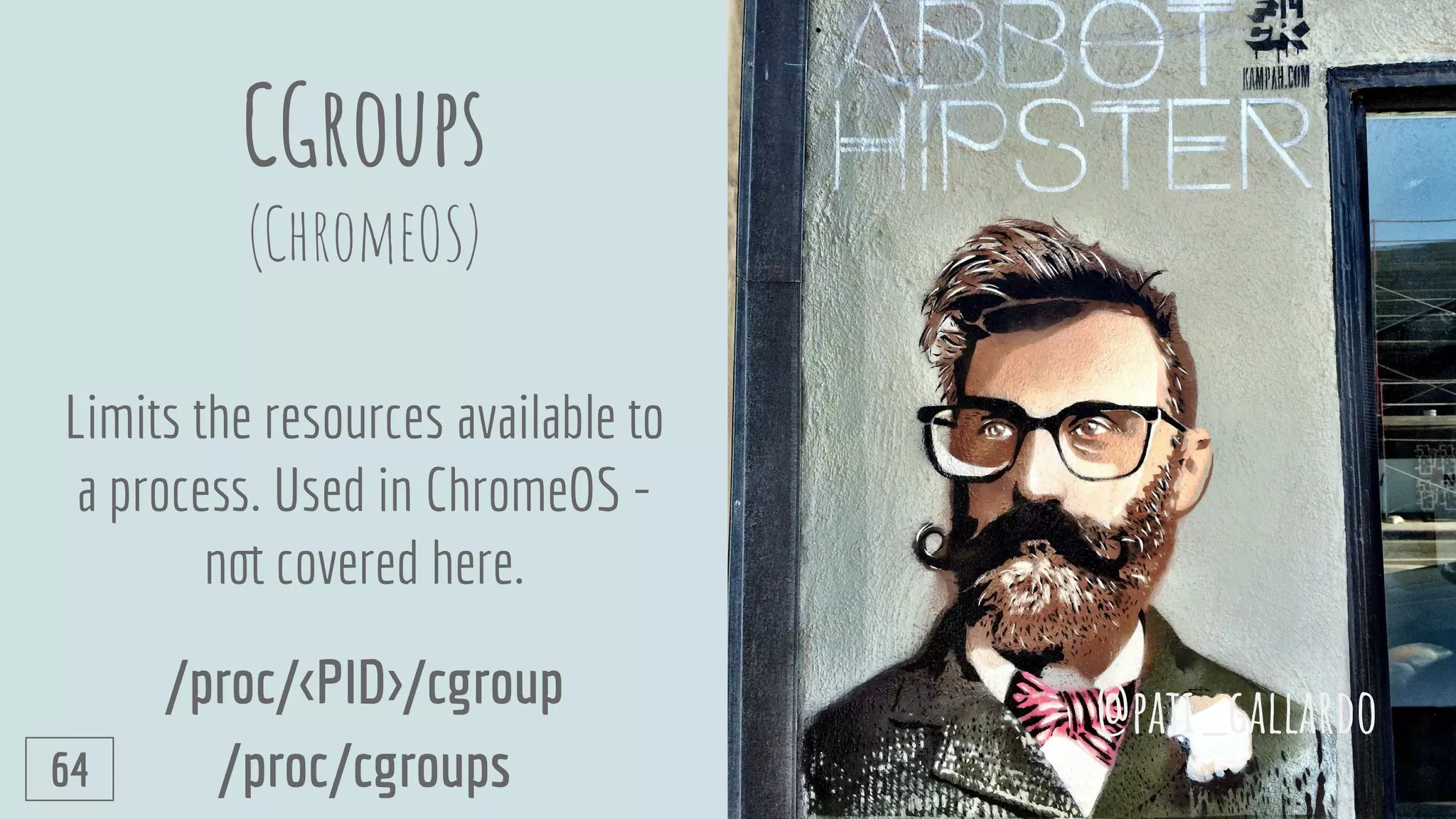

- 64. CGroups (ChromeOS) Limits the resourcesavailable to a process. Used in ChromeOS - not covered here. /proc/<PID>/cgroup /proc/cgroups @pati_gallardo 64

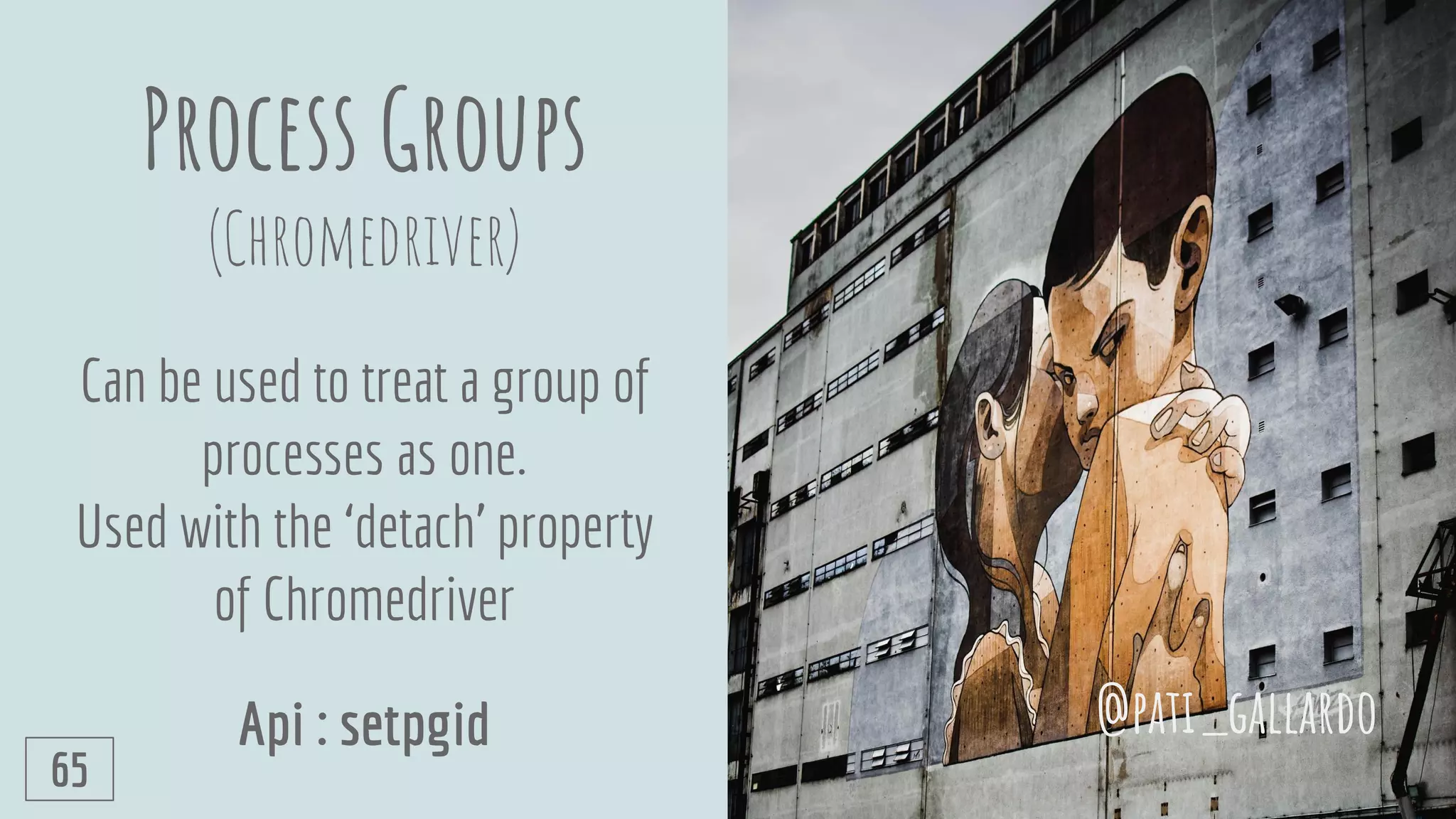

- 65. Process Groups (Chromedriver) Can beused to treat a group of processes as one. Used with the ‘detach’ property of Chromedriver Api : setpgid @pati_gallardo 65
- 66.
- 67.
- 68.
- 69. Photos from pixabay.com PatriciaAas, TurtleSec @pati_gallardo Turtle Sec
