  ‘C’ for Microcontrollers, Just Being Efficient Lloyd Moore, President Lloyd@CyberData-Robotics.com www.CyberData-Robotics.com Seattle Robotics Society 9/15/2012
• 2.
  Agenda  MicrocontrollerResources  Knowing Your Environment  Memory Usage  Code Structure  Optimization  Summary
• 3.

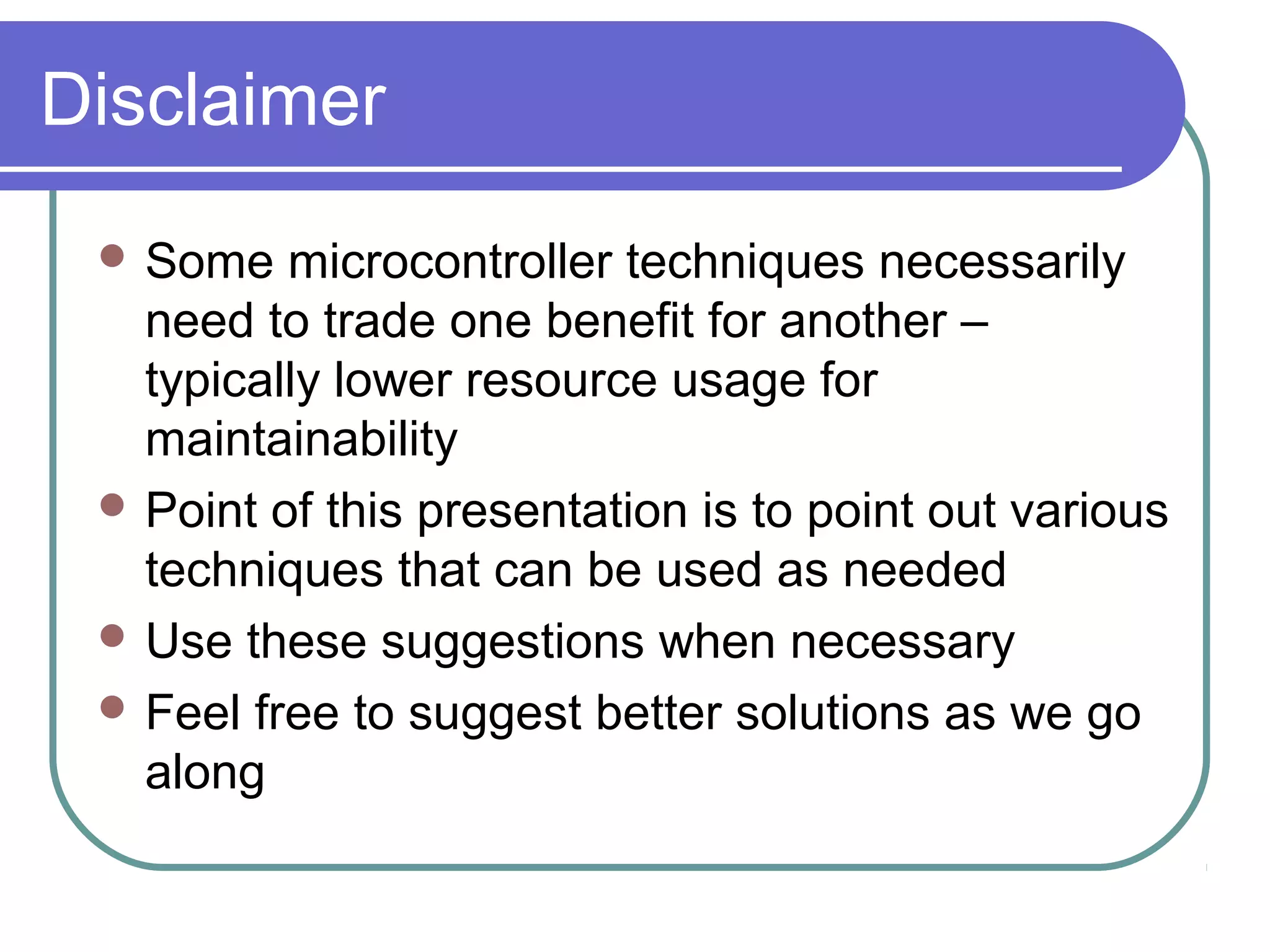

  Disclaimer  Some microcontroller techniques necessarily need to trade one benefit for another – typically lower resource usage for maintainability  Point of this presentation is to point out various techniques that can be used as needed  Use these suggestions when necessary  Feel free to suggest better solutions as we go along
• 4.

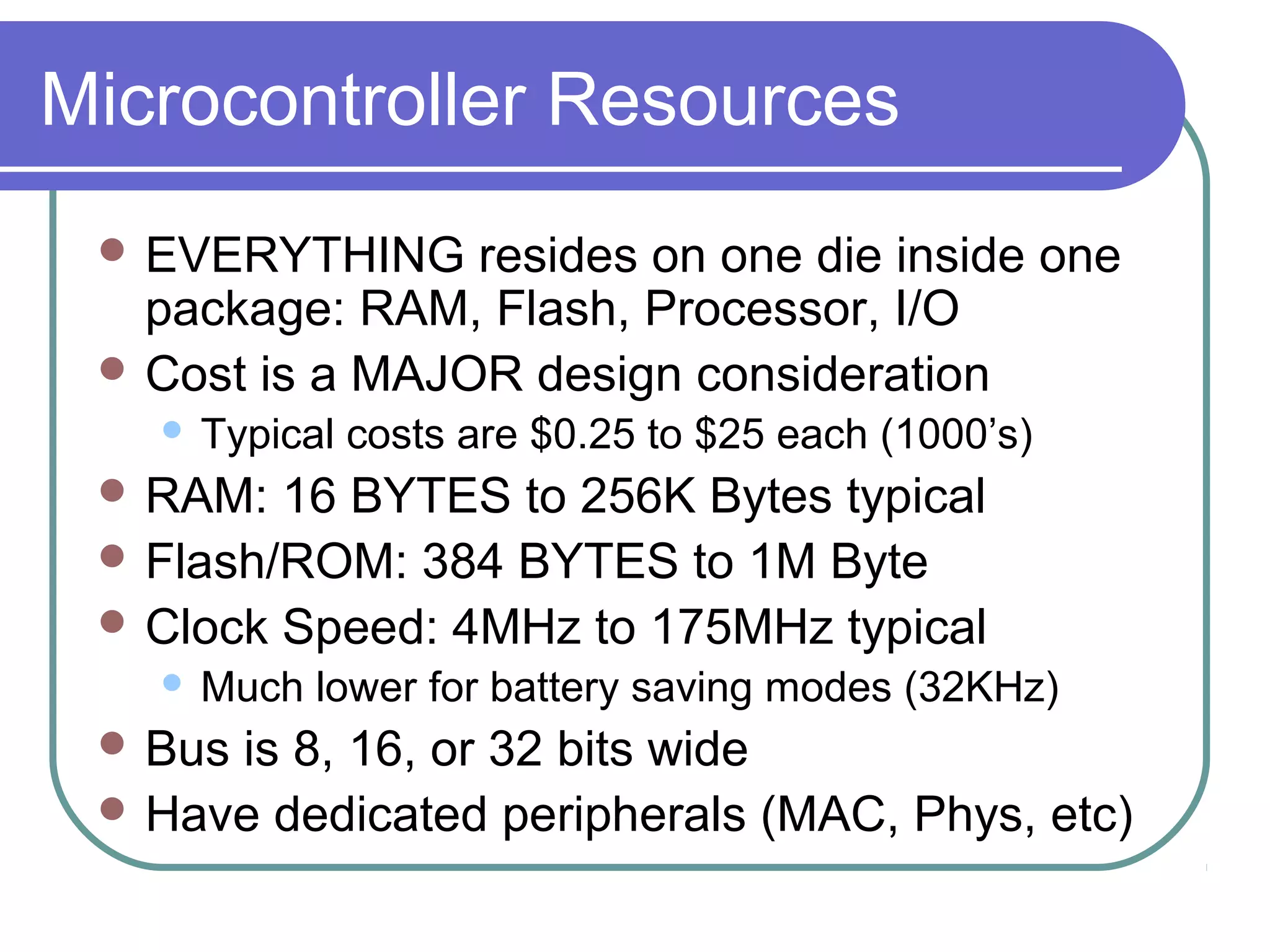

  Microcontroller Resources EVERYTHING resides on one die inside one package: RAM, Flash, Processor, I/O  Cost is a MAJOR design consideration  Typical costs are $0.25 to $25 each (1000’s)  RAM: 16 BYTES to 256K Bytes typical  Flash/ROM: 384 BYTES to 1M Byte  Clock Speed: 4MHz to 175MHz typical  Much lower for battery saving modes (32KHz)  Busis 8, 16, or 32 bits wide  Have dedicated peripherals (MAC, Phys, etc)
• 5.

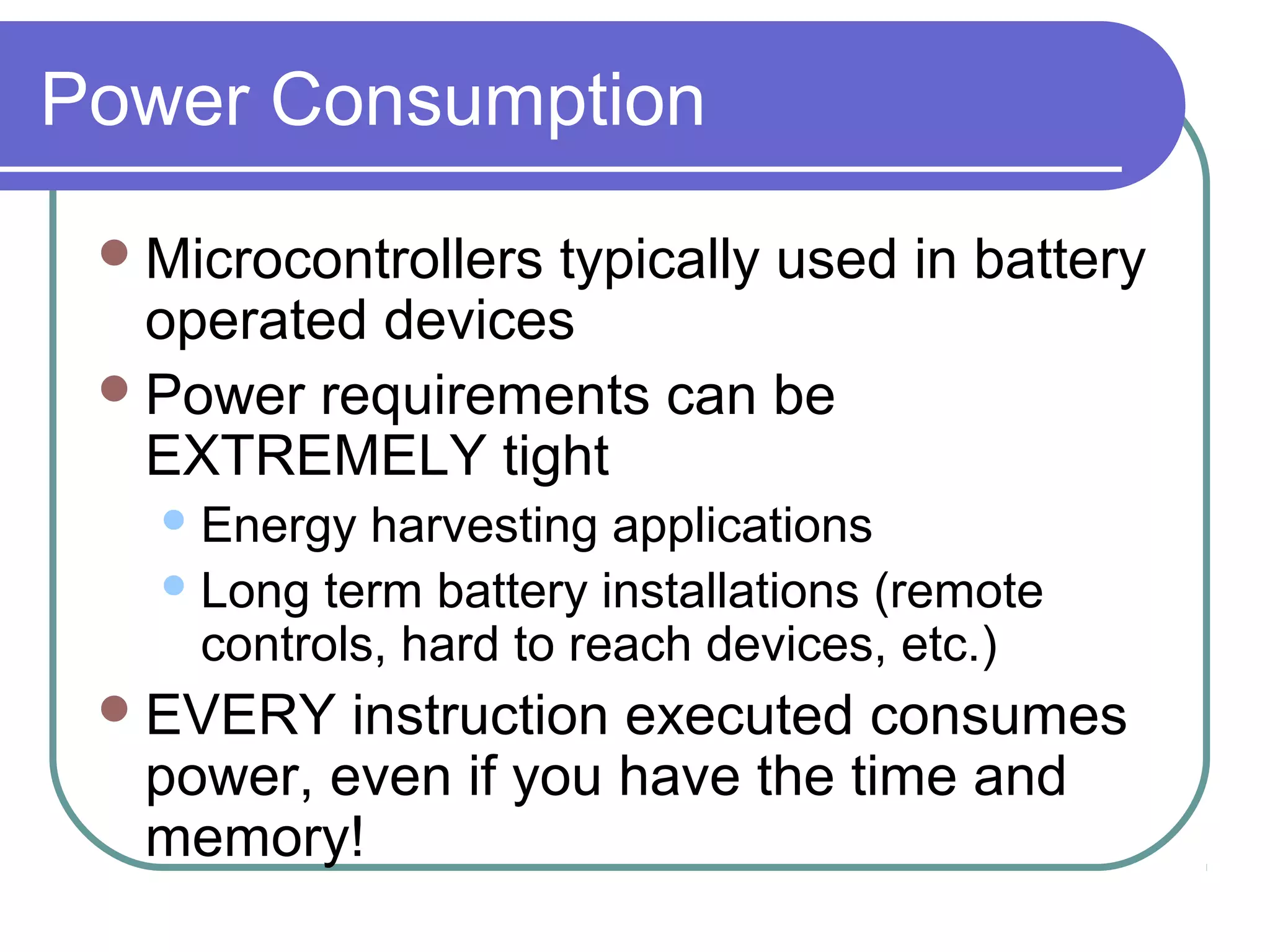

  Power Consumption Microcontrollers typically used in battery operated devices  Power requirements can be EXTREMELY tight  Energy harvesting applications  Long term battery installations (remote controls, hard to reach devices, etc.)  EVERY instruction executed consumes power, even if you have the time and memory!
• 6.

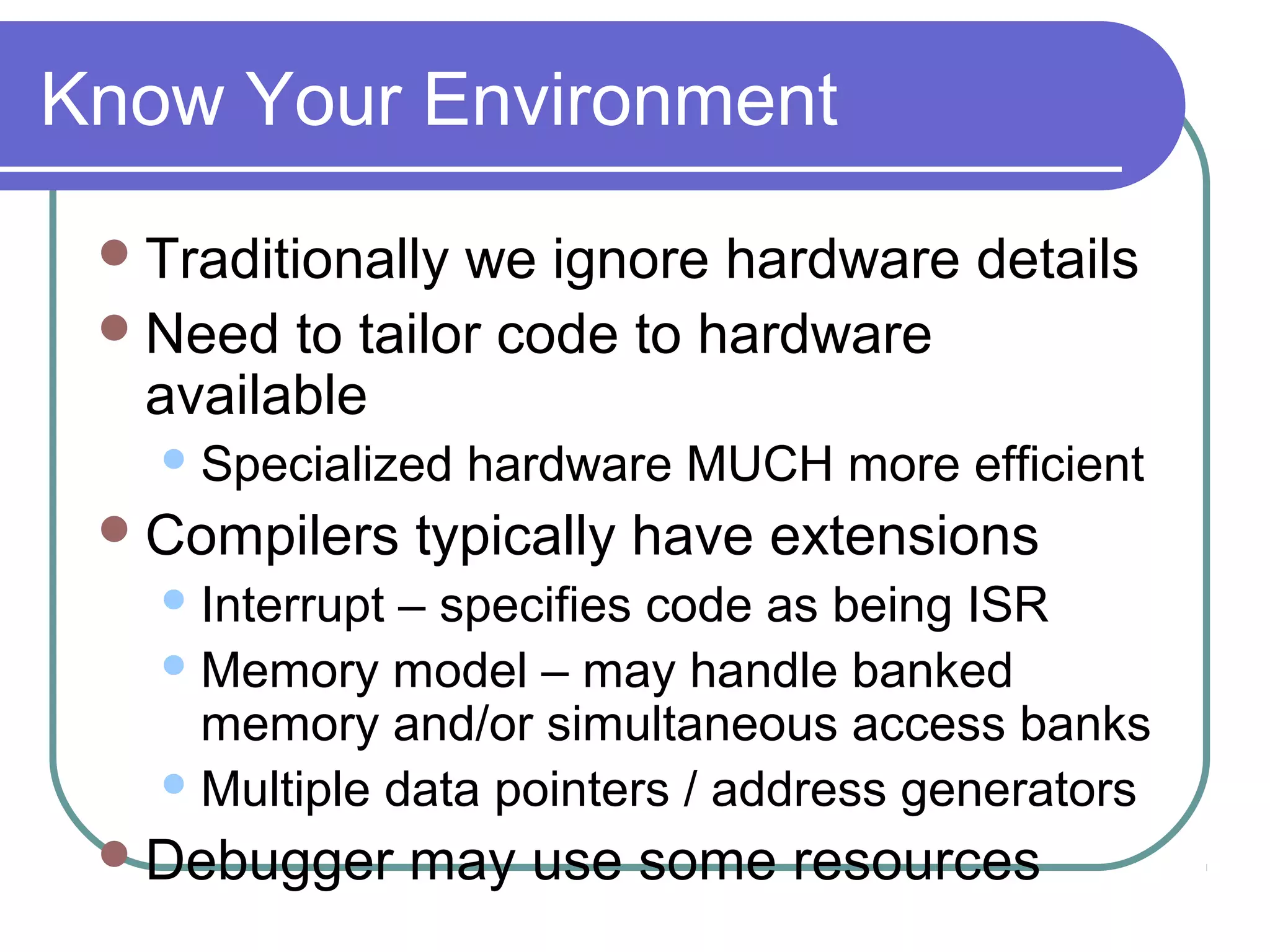

  Know Your Environment  Traditionallywe ignore hardware details  Need to tailor code to hardware available  Specialized hardware MUCH more efficient  Compilers typically have extensions  Interrupt – specifies code as being ISR  Memory model – may handle banked memory and/or simultaneous access banks  Multiple data pointers / address generators  Debugger may use some resources
• 7.

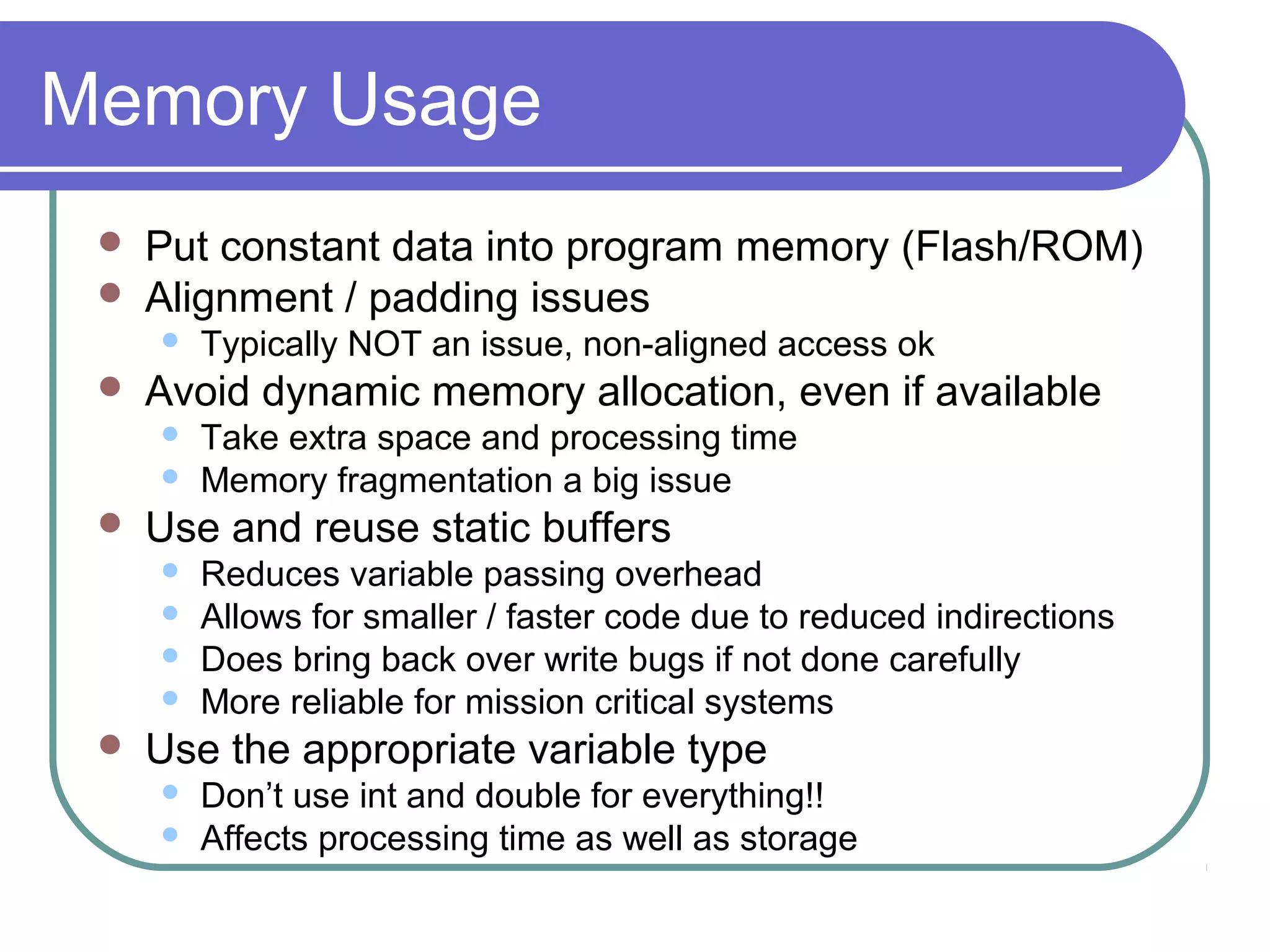

  Memory Usage  Put constant data into program memory (Flash/ROM)  Alignment / padding issues  Typically NOT an issue, non-aligned access ok  Avoid dynamic memory allocation, even if available  Take extra space and processing time  Memory fragmentation a big issue  Use and reuse static buffers  Reduces variable passing overhead  Allows for smaller / faster code due to reduced indirections  Does bring back over write bugs if not done carefully  More reliable for mission critical systems  Use the appropriate variable type  Don’t use int and double for everything!!  Affects processing time as well as storage
• 8.

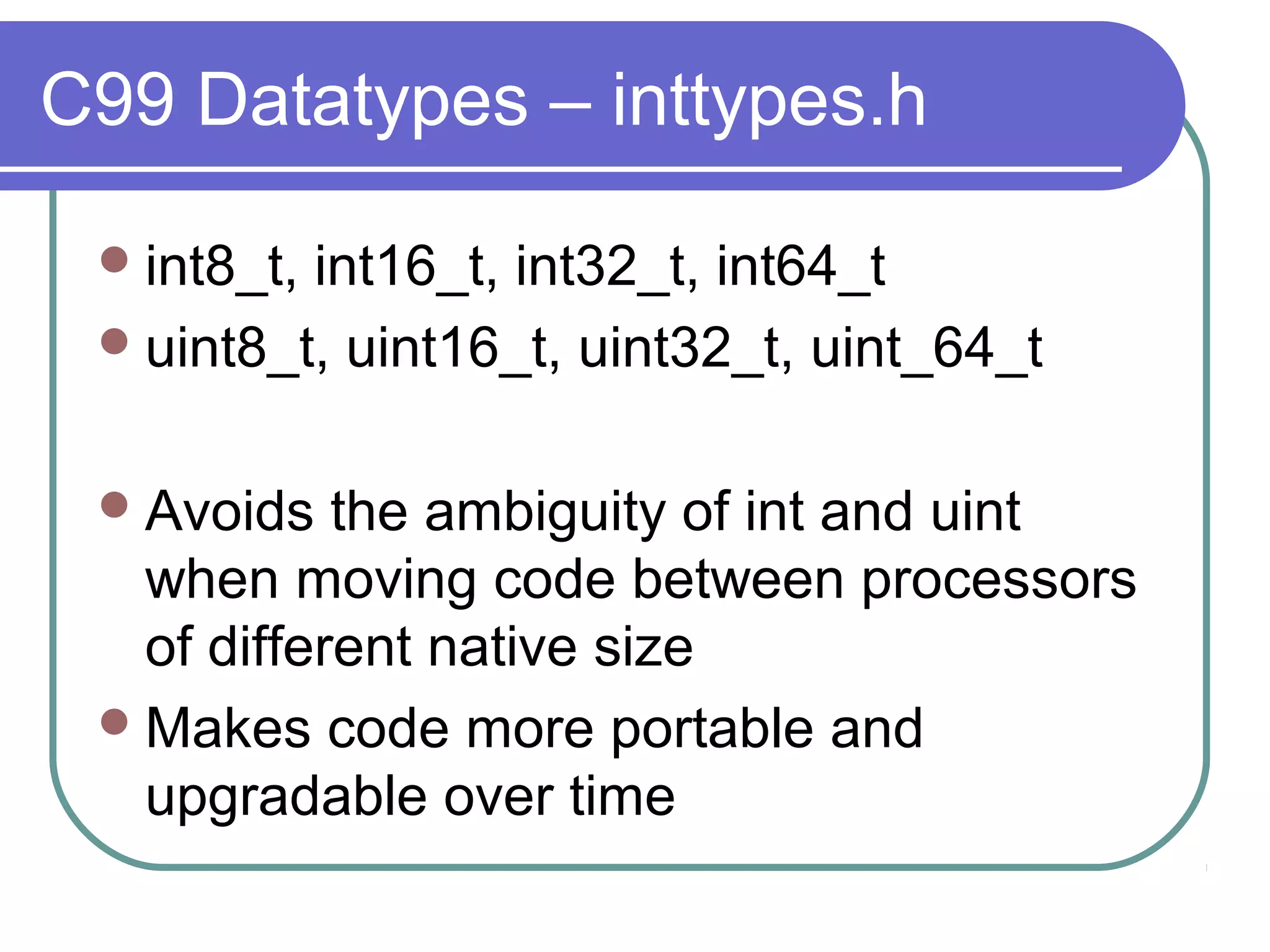

  C99 Datatypes –inttypes.h  int8_t,int16_t, int32_t, int64_t  uint8_t, uint16_t, uint32_t, uint_64_t  Avoids the ambiguity of int and uint when moving code between processors of different native size  Makes code more portable and upgradable over time
• 9.

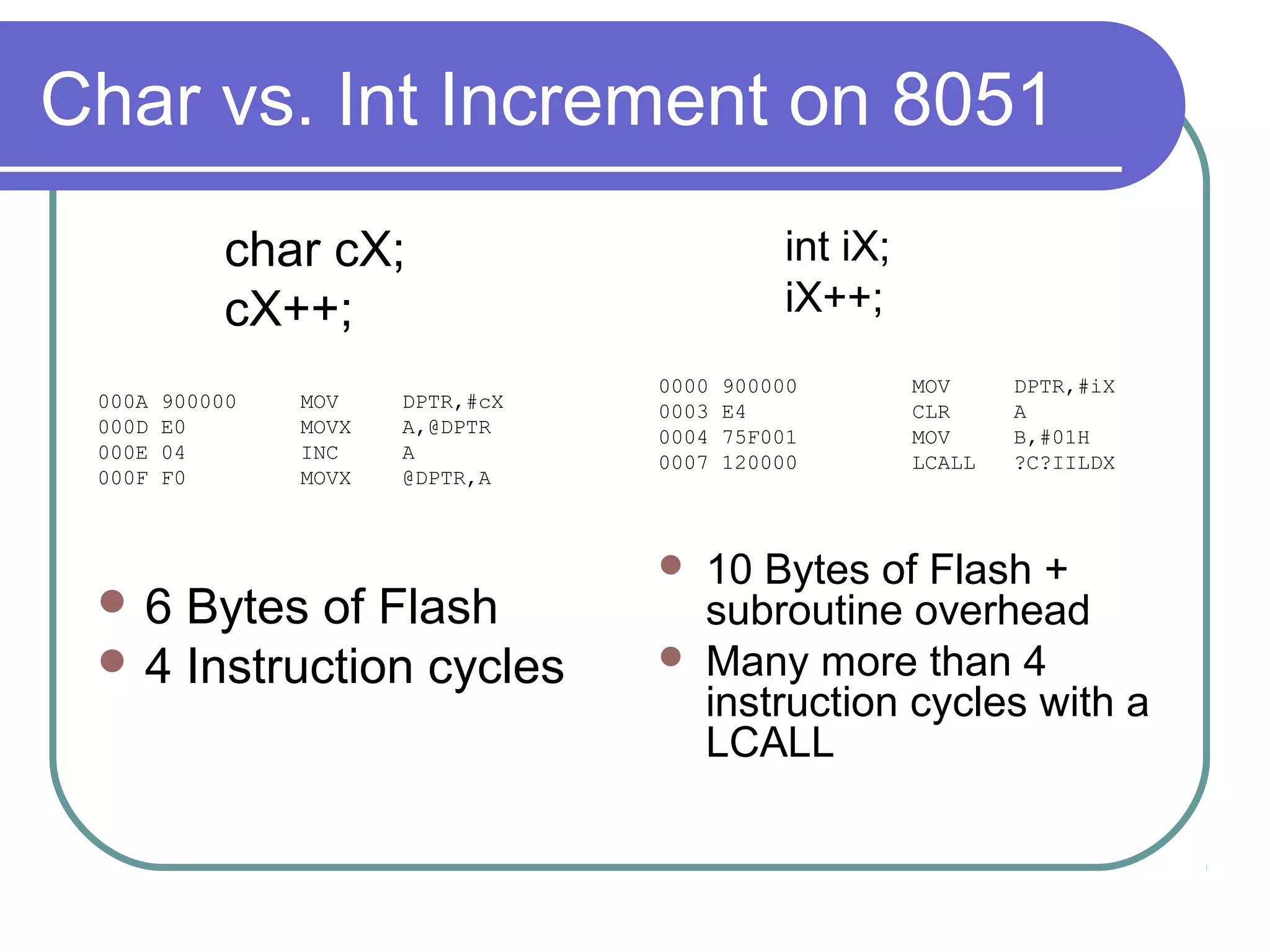

  Char vs. IntIncrement on 8051 char cX; int iX; cX++; iX++; 0000 900000 MOV DPTR,#iX 000A 900000 MOV DPTR,#cX 0003 E4 CLR A 000D E0 MOVX A,@DPTR 0004 75F001 MOV B,#01H 000E 04 INC A 0007 120000 LCALL ?C?IILDX 000F F0 MOVX @DPTR,A  10 Bytes of Flash + 6 Bytes of Flash subroutine overhead  4 Instruction cycles  Many more than 4 instruction cycles with a LCALL
• 10.

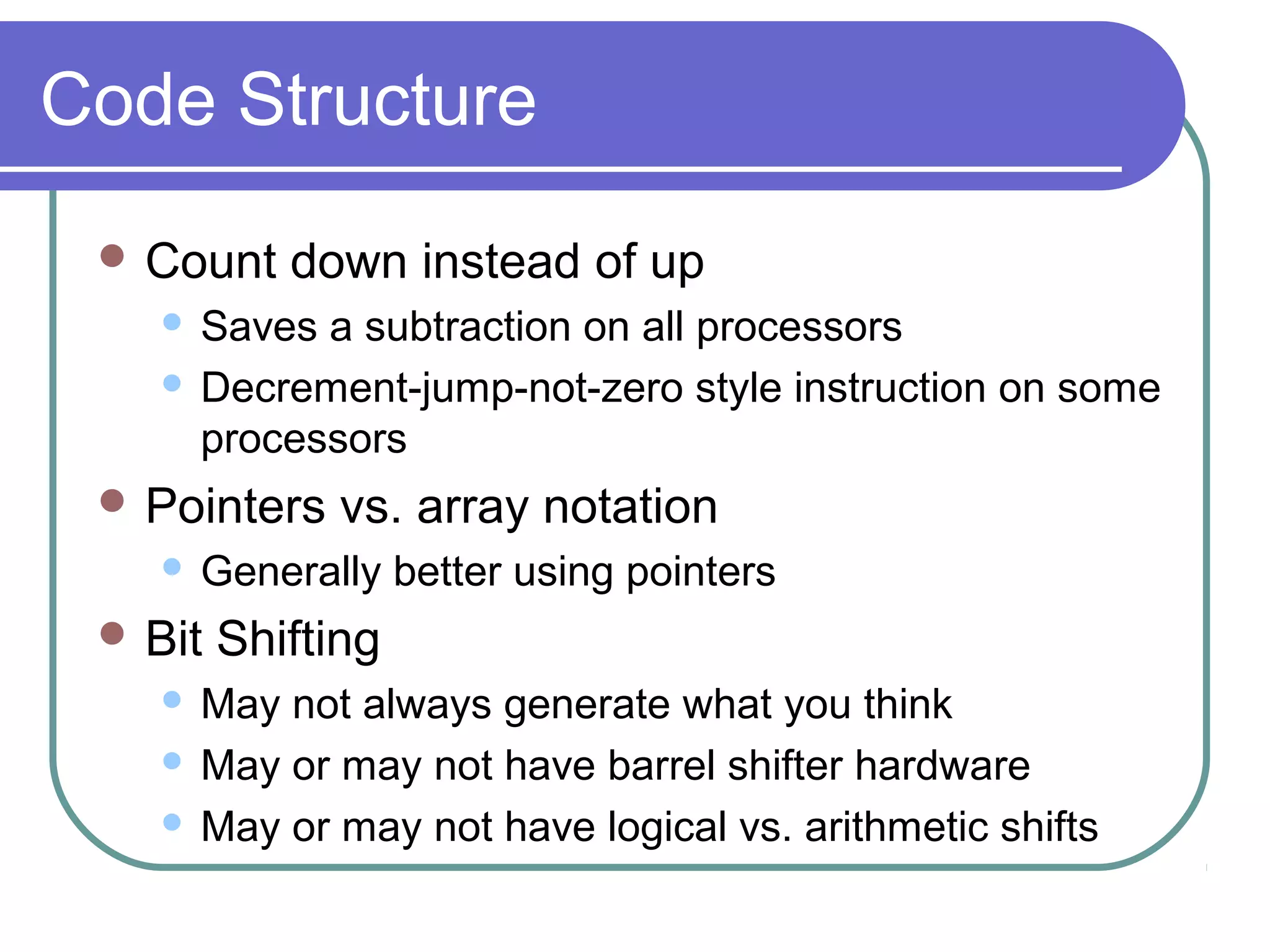

  Code Structure Count down instead of up  Saves a subtraction on all processors  Decrement-jump-not-zero style instruction on some processors  Pointers vs. array notation  Generally better using pointers  Bit Shifting  May not always generate what you think  May or may not have barrel shifter hardware  May or may not have logical vs. arithmetic shifts
• 11.

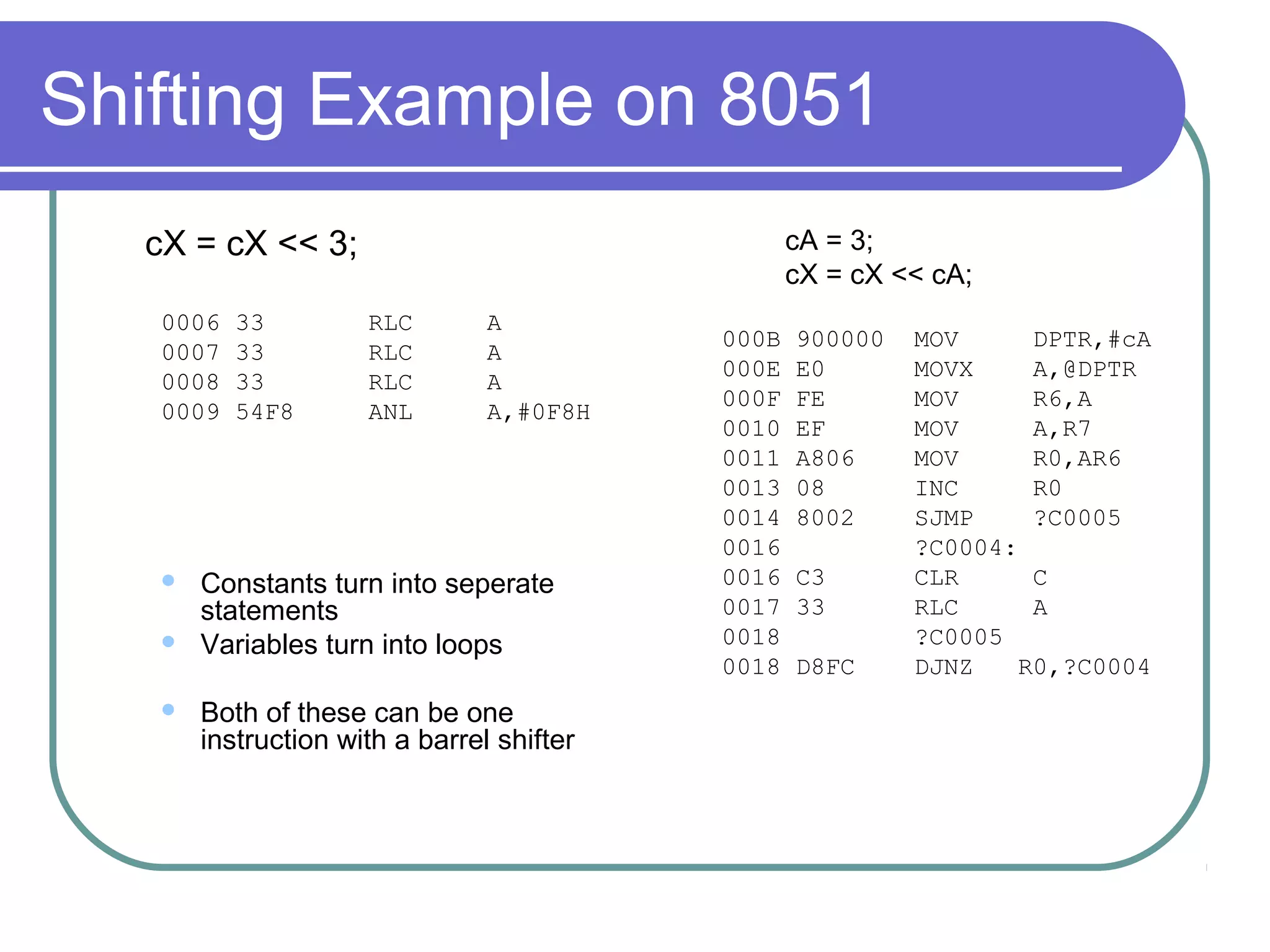

  Shifting Example on8051 cX = cX << 3; cA = 3; cX = cX << cA; 0006 33 RLC A 000B 900000 MOV DPTR,#cA 0007 33 RLC A 000E E0 MOVX A,@DPTR 0008 33 RLC A 000F FE MOV R6,A 0009 54F8 ANL A,#0F8H 0010 EF MOV A,R7 0011 A806 MOV R0,AR6 0013 08 INC R0 0014 8002 SJMP ?C0005 0016 ?C0004:  Constants turn into seperate 0016 C3 CLR C statements 0017 33 RLC A  Variables turn into loops 0018 ?C0005 0018 D8FC DJNZ R0,?C0004  Both of these can be one instruction with a barrel shifter
• 12.

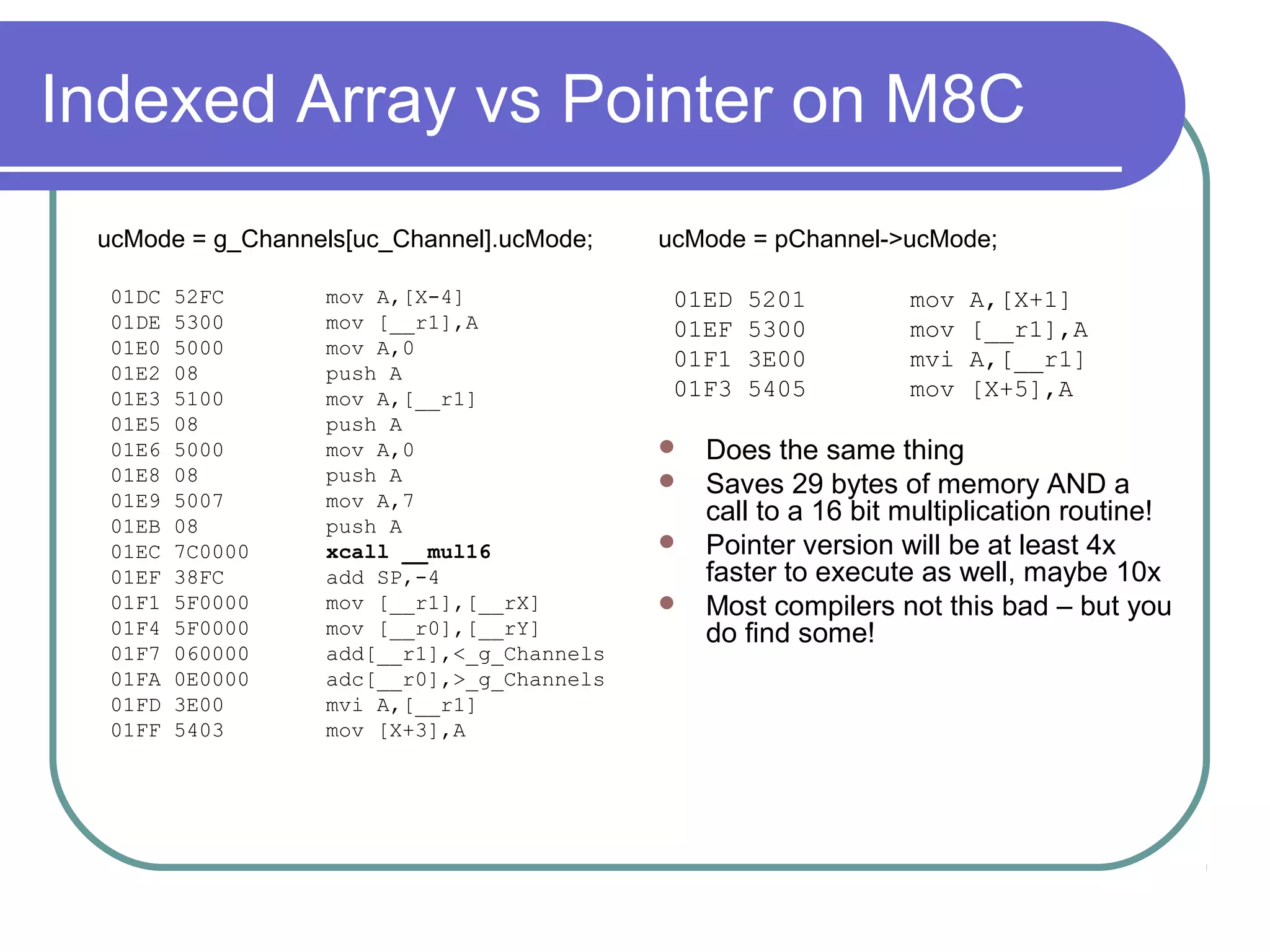

  Indexed Array vsPointer on M8C ucMode = g_Channels[uc_Channel].ucMode; ucMode = pChannel->ucMode; 01DC 52FC mov A,[X-4] 01ED 5201 mov A,[X+1] 01DE 5300 mov [__r1],A 01EF 5300 mov [__r1],A 01E0 5000 mov A,0 01F1 3E00 mvi A,[__r1] 01E2 08 push A 01E3 5100 mov A,[__r1] 01F3 5405 mov [X+5],A 01E5 08 push A 01E6 5000 mov A,0  Does the same thing 01E8 08 push A  Saves 29 bytes of memory AND a 01E9 5007 mov A,7 01EB 08 push A call to a 16 bit multiplication routine! 01EC 7C0000 xcall __mul16  Pointer version will be at least 4x 01EF 38FC add SP,-4 faster to execute as well, maybe 10x 01F1 5F0000 mov [__r1],[__rX]  Most compilers not this bad – but you 01F4 5F0000 mov [__r0],[__rY] do find some! 01F7 060000 add[__r1],<_g_Channels 01FA 0E0000 adc[__r0],>_g_Channels 01FD 3E00 mvi A,[__r1] 01FF 5403 mov [X+3],A
• 13.

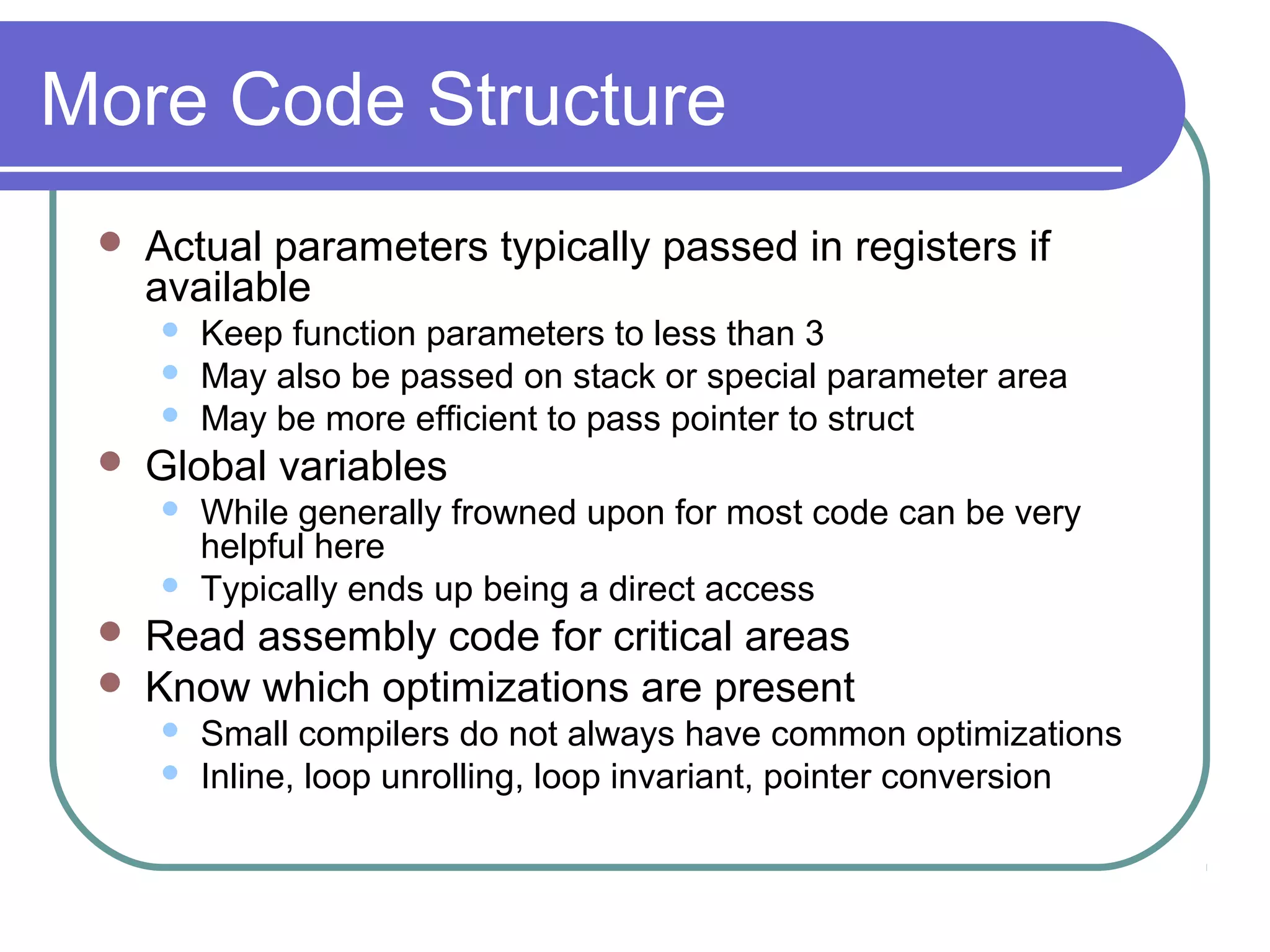

  More Code Structure  Actual parameters typically passed in registers if available  Keep function parameters to less than 3  May also be passed on stack or special parameter area  May be more efficient to pass pointer to struct  Global variables  While generally frowned upon for most code can be very helpful here  Typically ends up being a direct access  Read assembly code for critical areas  Know which optimizations are present  Small compilers do not always have common optimizations  Inline, loop unrolling, loop invariant, pointer conversion
• 14.

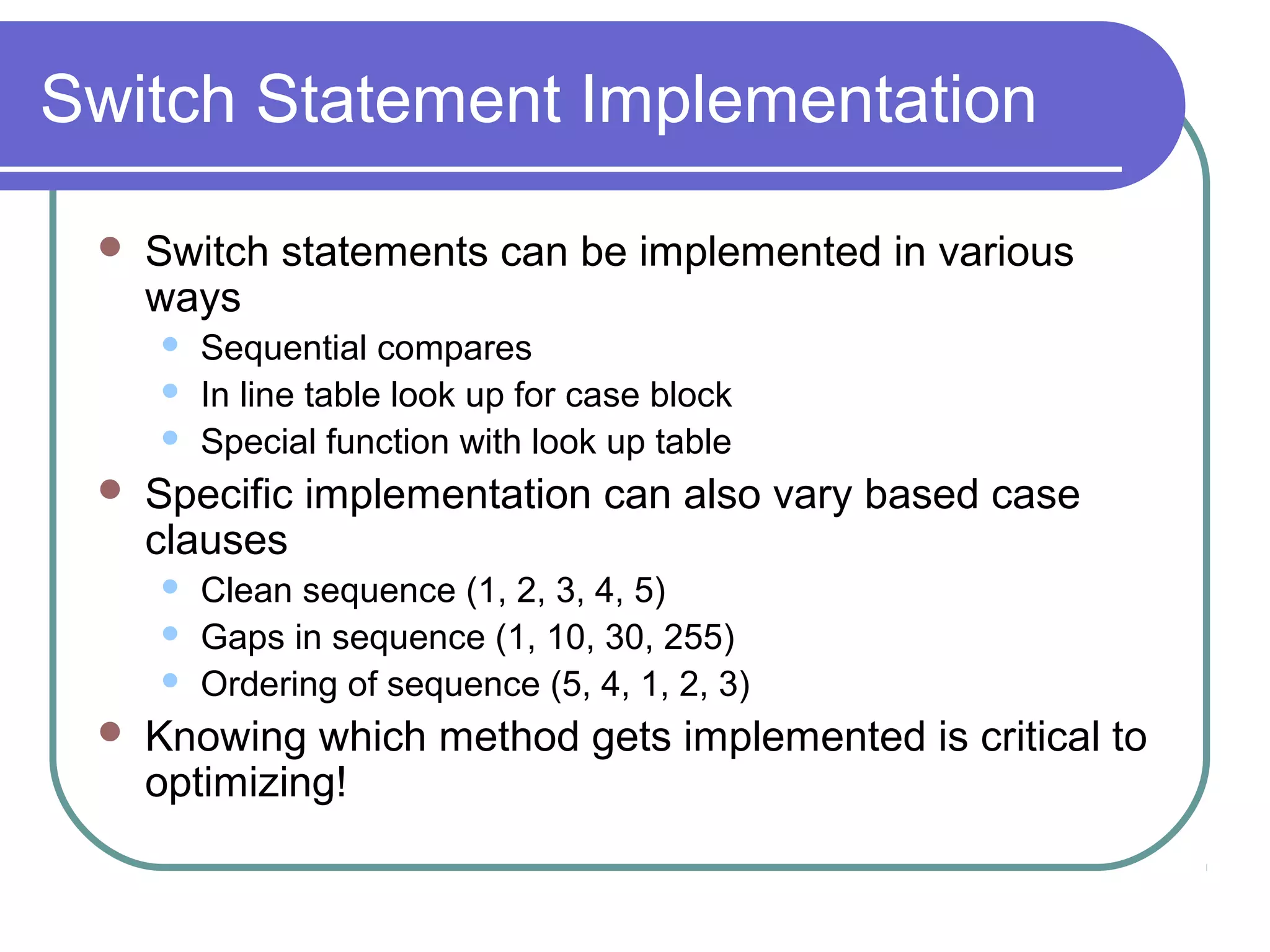

  Switch Statement Implementation  Switch statements can be implemented in various ways  Sequential compares  In line table look up for case block  Special function with look up table  Specific implementation can also vary based case clauses  Clean sequence (1, 2, 3, 4, 5)  Gaps in sequence (1, 10, 30, 255)  Ordering of sequence (5, 4, 1, 2, 3)  Knowing which method gets implemented is critical to optimizing!
• 15.

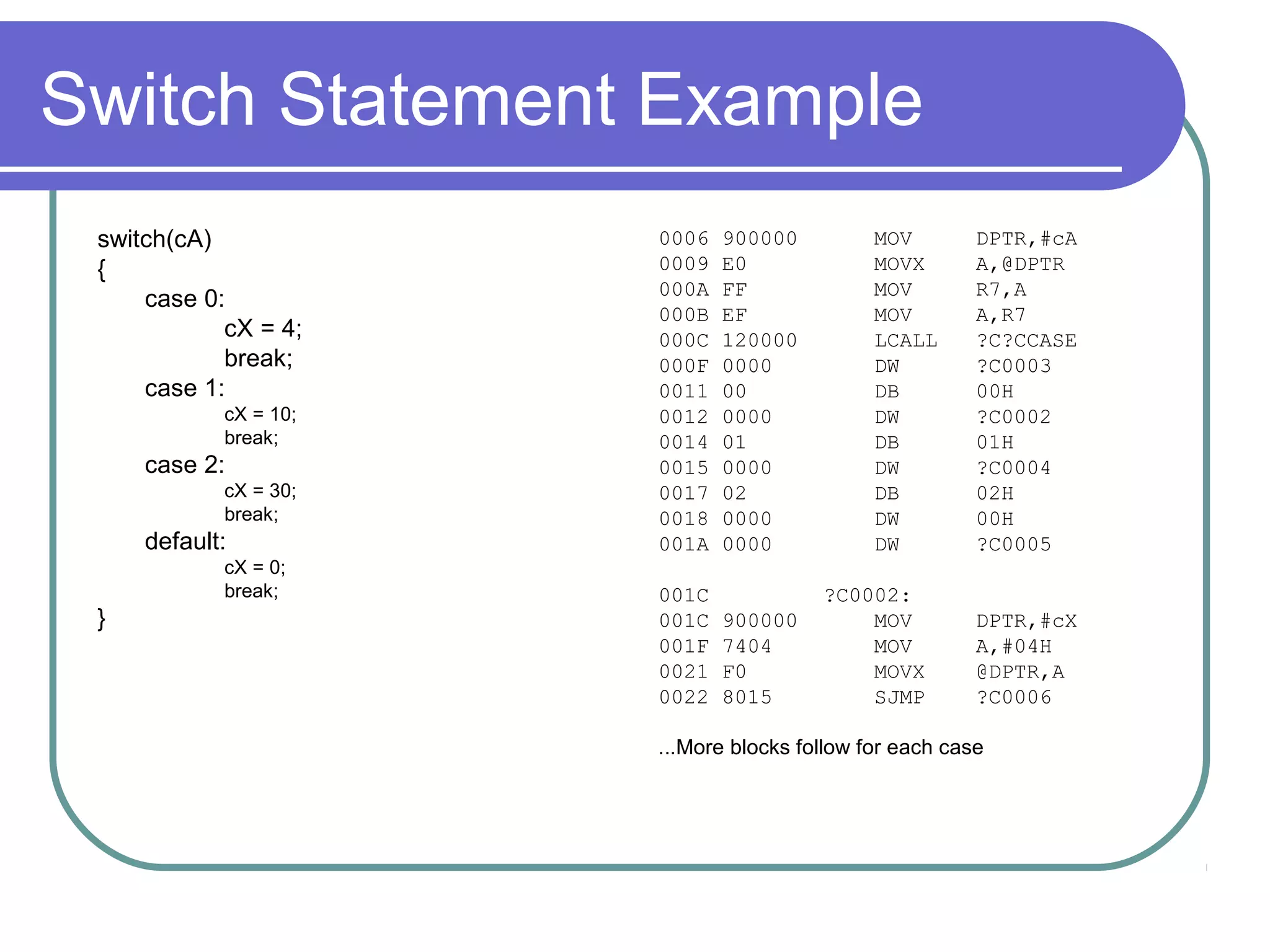

  Switch Statement Example switch(cA) 0006 900000 MOV DPTR,#cA { 0009 E0 MOVX A,@DPTR 000A FF MOV R7,A case 0: 000B EF MOV A,R7 cX = 4; 000C 120000 LCALL ?C?CCASE break; 000F 0000 DW ?C0003 case 1: 0011 00 DB 00H cX = 10; 0012 0000 DW ?C0002 break; 0014 01 DB 01H case 2: 0015 0000 DW ?C0004 cX = 30; 0017 02 DB 02H break; 0018 0000 DW 00H default: 001A 0000 DW ?C0005 cX = 0; break; 001C ?C0002: } 001C 900000 MOV DPTR,#cX 001F 7404 MOV A,#04H 0021 F0 MOVX @DPTR,A 0022 8015 SJMP ?C0006 ...More blocks follow for each case
• 16.

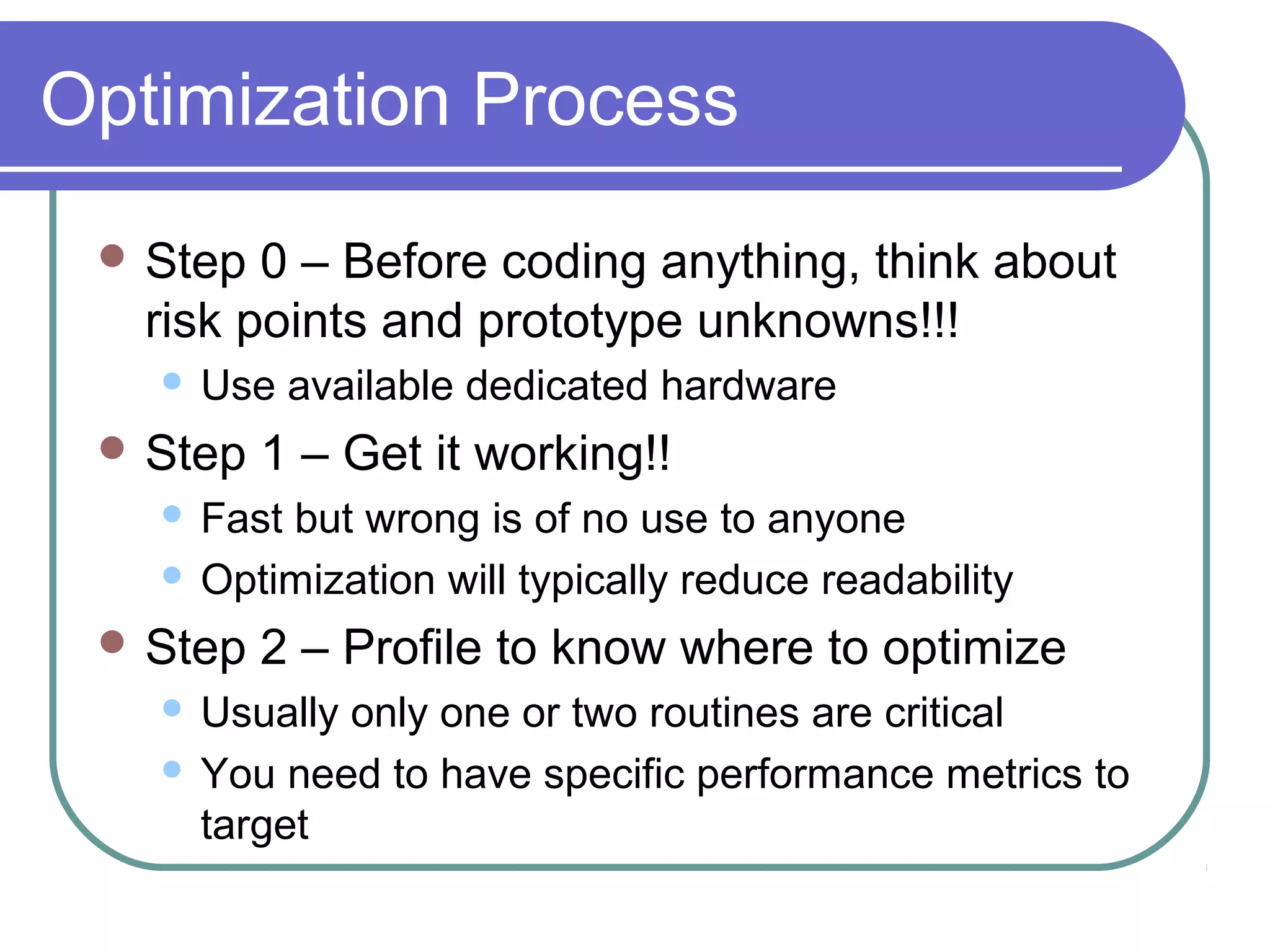

  Optimization Process Step 0 – Before coding anything, think about risk points and prototype unknowns!!!  Use available dedicated hardware  Step 1 – Get it working!!  Fast but wrong is of no use to anyone  Optimization will typically reduce readability  Step 2 – Profile to know where to optimize  Usually only one or two routines are critical  You need to have specific performance metrics to target
• 17.

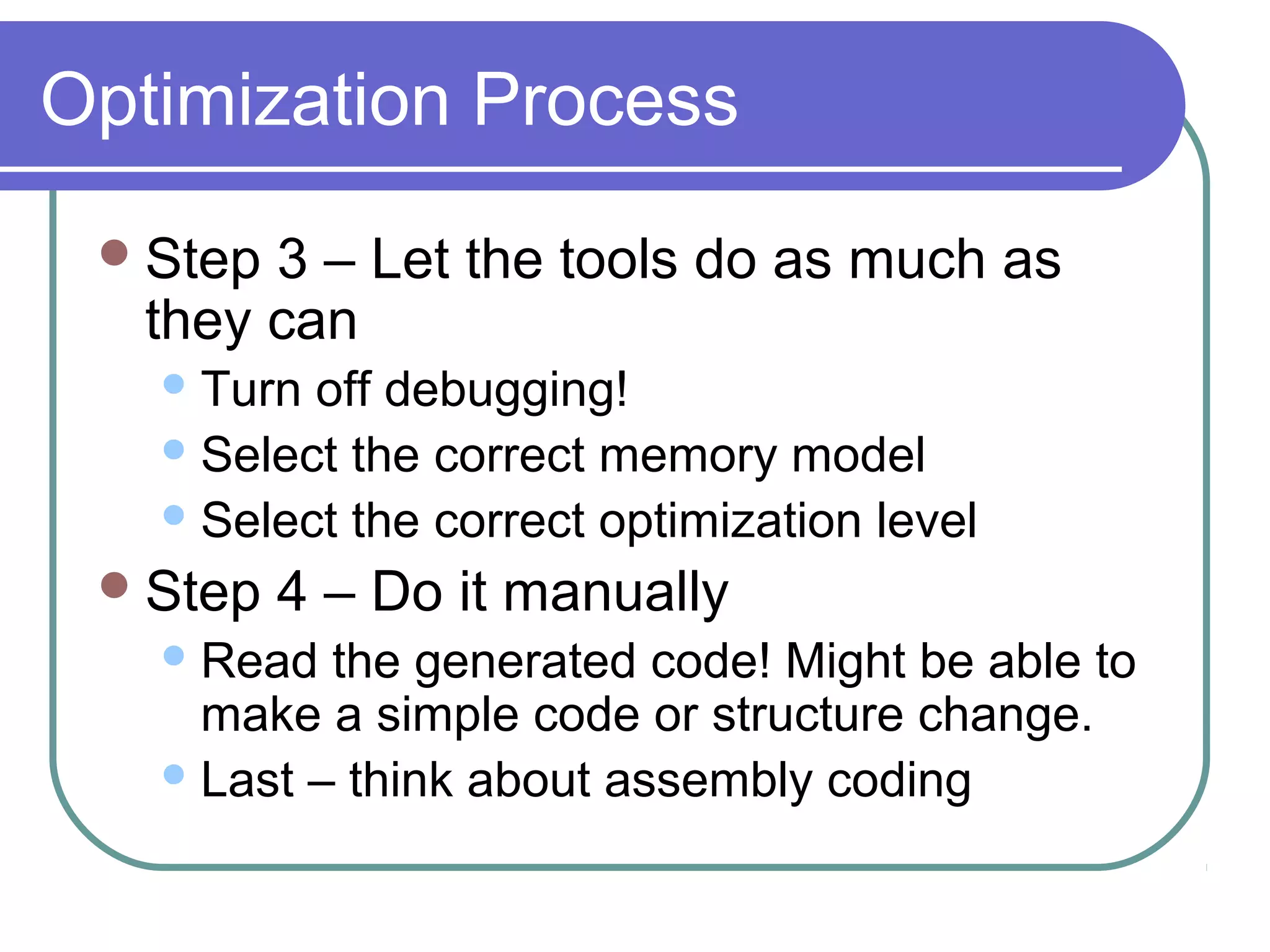

  Optimization Process Step 3 – Let the tools do as much as they can  Turn off debugging!  Select the correct memory model  Select the correct optimization level  Step 4 – Do it manually  Read the generated code! Might be able to make a simple code or structure change.  Last – think about assembly coding
• 18.

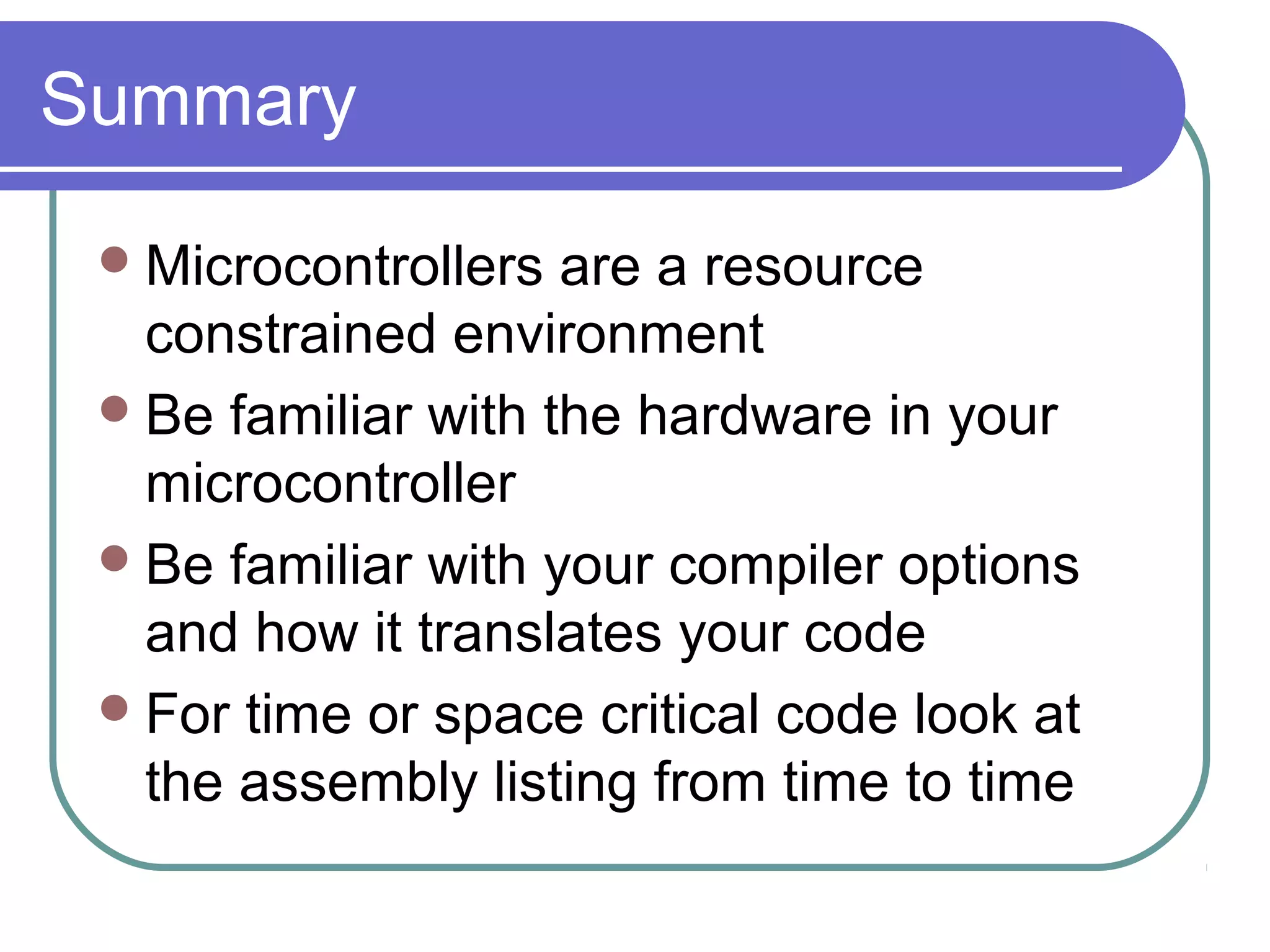

  Summary  Microcontrollers are a resource constrained environment  Be familiar with the hardware in your microcontroller  Be familiar with your compiler options and how it translates your code  For time or space critical code look at the assembly listing from time to time
• 19.

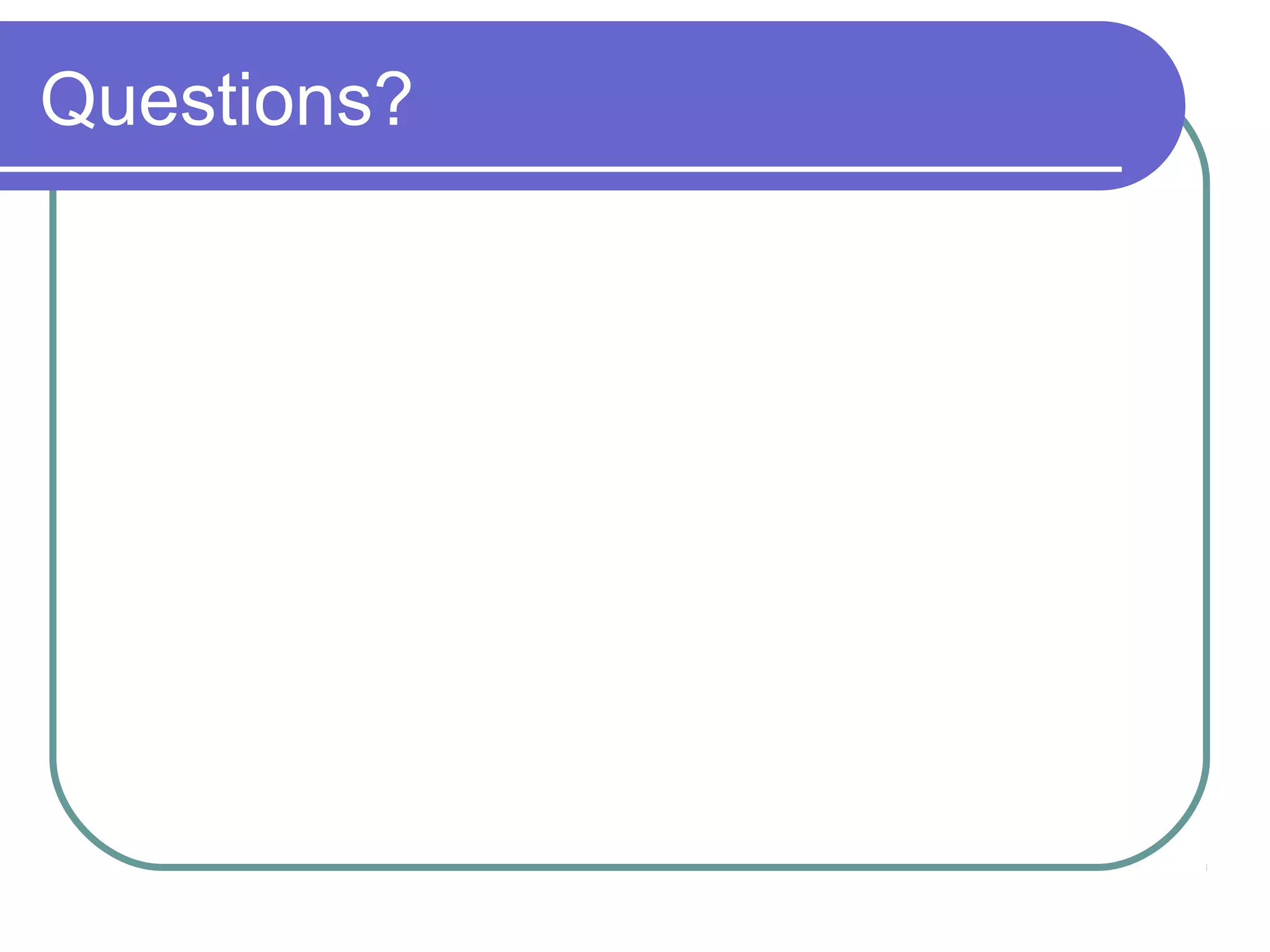

  Questions?
