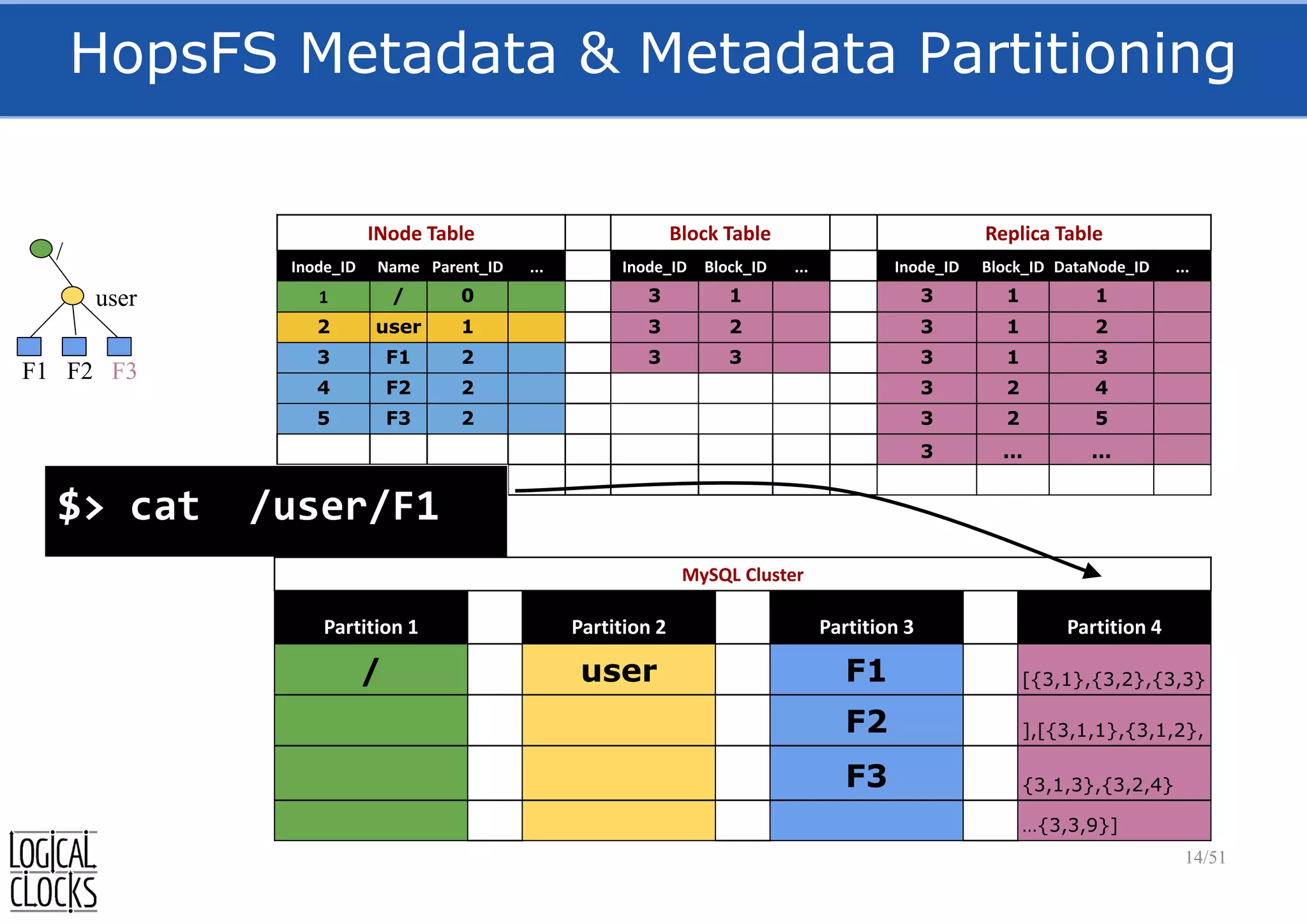

$> cat /user/F1
/
user
F1 F2 F3
MySQL Cluster
Partition 1 Partition 2 Partition 3 Partition 4
/ user F1 [{3,1},{3,2},{3,3}
F2 ],[{3,1,1},{3,1,2},
F3 {3,1,3},{3,2,4}
…{3,3,9}]](https://image.slidesharecdn.com/april61700kthdowling-170411151014/75/Breaking-the-1-Million-OPS-SEC-Barrier-in-HOPS-Hadoop-14-2048.jpg)
![*Niazi et al, Size Matters: Improving the Performance of Small Files in HDFS, Poster at Eurosys 2017
Small Files in HopsFS*
inode_id varbinary (on-disk column)
32123432 [File contents go here]
46/51
•In HopsFS, we can store small files co-located with the
metadata in MySQL Cluster as on-disk data.](https://image.slidesharecdn.com/april61700kthdowling-170411151014/75/Breaking-the-1-Million-OPS-SEC-Barrier-in-HOPS-Hadoop-46-2048.jpg)
![HopsFS Metadata & Metadata Partitioning
13/51
INode Table Block Table Replica Table
Inode_ID Name Parent_ID ... Inode_ID Block_ID ... Inode_ID Block_ID DataNode_ID ...
1 / 0 3 1 3 1 1
2 user 1 3 2 3 1 2
3 F1 2 3 3 3 1 3
4 F2 2 3 2 4
5 F3 2 3 2 5
3 ... ...
$> ls /user/*
/
user
F1 F2 F3
MySQL Cluster
Partition 1 Partition 2 Partition 3 Partition 4
/ user F1 [{3,1},{3,2},{3,3}
F2 ],[{3,1,1},{3,1,2},
F3 {3,1,3},{3,2,4}
…{3,3,9}]](https://crownmelresort.com/image.slidesharecdn.com/april61700kthdowling-170411151014/75/Breaking-the-1-Million-OPS-SEC-Barrier-in-HOPS-Hadoop-13-2048.jpg)
![HopsFS Metadata & Metadata Partitioning
14/51
INode Table Block Table Replica Table
Inode_ID Name Parent_ID ... Inode_ID Block_ID ... Inode_ID Block_ID DataNode_ID ...
1 / 0 3 1 3 1 1
2 user 1 3 2 3 1 2
3 F1 2 3 3 3 1 3
4 F2 2 3 2 4
5 F3 2 3 2 5
3 ... ...
$> cat /user/F1
/
user
F1 F2 F3
MySQL Cluster
Partition 1 Partition 2 Partition 3 Partition 4
/ user F1 [{3,1},{3,2},{3,3}
F2 ],[{3,1,1},{3,1,2},
F3 {3,1,3},{3,2,4}
…{3,3,9}]](https://crownmelresort.com/image.slidesharecdn.com/april61700kthdowling-170411151014/75/Breaking-the-1-Million-OPS-SEC-Barrier-in-HOPS-Hadoop-14-2048.jpg)
![*Niazi et al, Size Matters: Improving the Performance of Small Files in HDFS, Poster at Eurosys 2017
Small Files in HopsFS*
inode_id varbinary (on-disk column)
32123432 [File contents go here]
46/51
•In HopsFS, we can store small files co-located with the
metadata in MySQL Cluster as on-disk data.](https://crownmelresort.com/image.slidesharecdn.com/april61700kthdowling-170411151014/75/Breaking-the-1-Million-OPS-SEC-Barrier-in-HOPS-Hadoop-46-2048.jpg)
Uploaded byDataWorks Summit/Hadoop Summit
Breaking the 1 Million OPS/SEC Barrier in HOPS Hadoop
HopsFS has significantly improved the scalability and performance of Hadoop, breaking the 1 million operations per second barrier by redesigning the metadata management with multiple stateless namenodes and removing the global namespace lock. The system demonstrates superior performance compared to HDFS, particularly in write-intensive workloads and handling small files, which enhances overall efficiency in data processing frameworks. Additionally, future developments include integrating Hive metastore with HopsFS for enhanced metadata consistency and facilitating multi-data-center capabilities.
Technologyâ—¦
More Related Content
Similar to Breaking the 1 Million OPS/SEC Barrier in HOPS Hadoop
More from DataWorks Summit/Hadoop Summit
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Breaking the 1 Million OPS/SEC Barrier in HOPS Hadoop

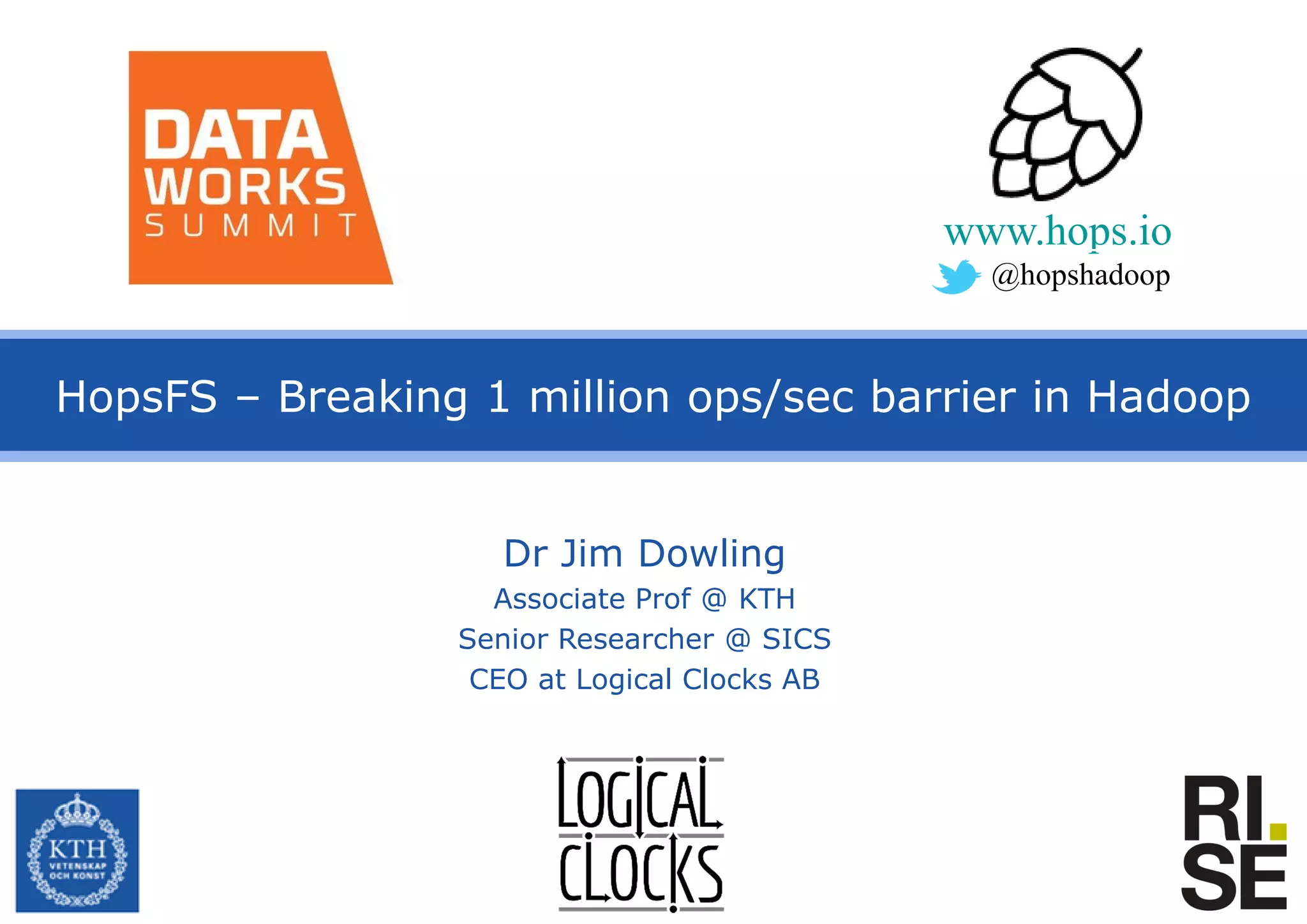

- 1. HopsFS – Breaking1 million ops/sec barrier in Hadoop Dr Jim Dowling Associate Prof @ KTH Senior Researcher @ SICS CEO at Logical Clocks AB www.hops.io @hopshadoop
- 2. Evolution of Hadoop 2017-04-05HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 2/51 2009 2017
- 3. Evolution of Hadoop 2017-04-05HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 3/51 2009 2017 ? Tiny Brain (NameNode, ResourceMgr) Huge Body (DataNodes)

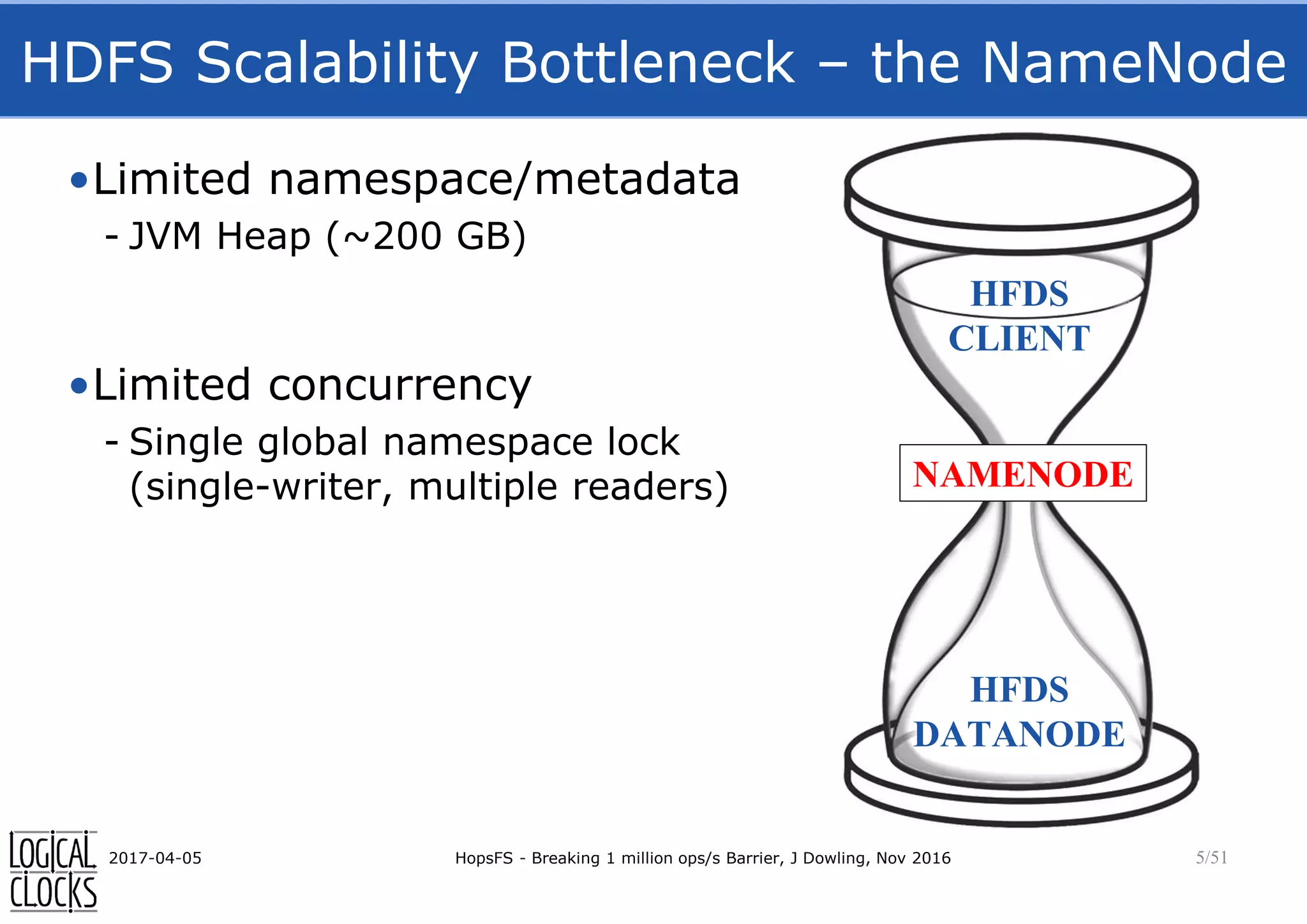

- 5. HDFS Scalability Bottleneck– the NameNode •Limited namespace/metadata - JVM Heap (~200 GB) •Limited concurrency - Single global namespace lock (single-writer, multiple readers) 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 5/51 HFDS CLIENT HFDS DATANODE NAMENODE

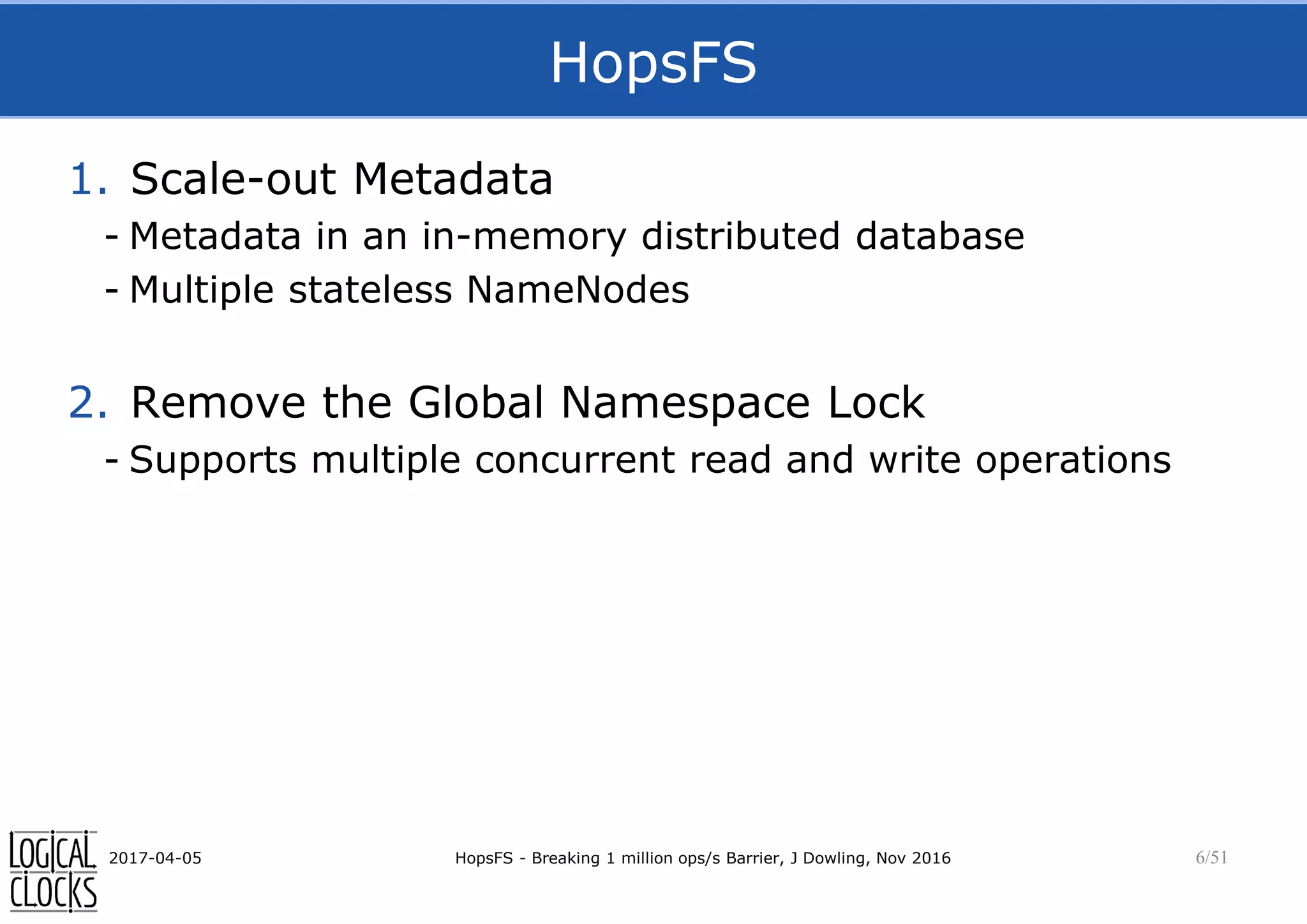

- 6. HopsFS 1. Scale-out Metadata -Metadata in an in-memory distributed database - Multiple stateless NameNodes 2. Remove the Global Namespace Lock - Supports multiple concurrent read and write operations 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 6/51

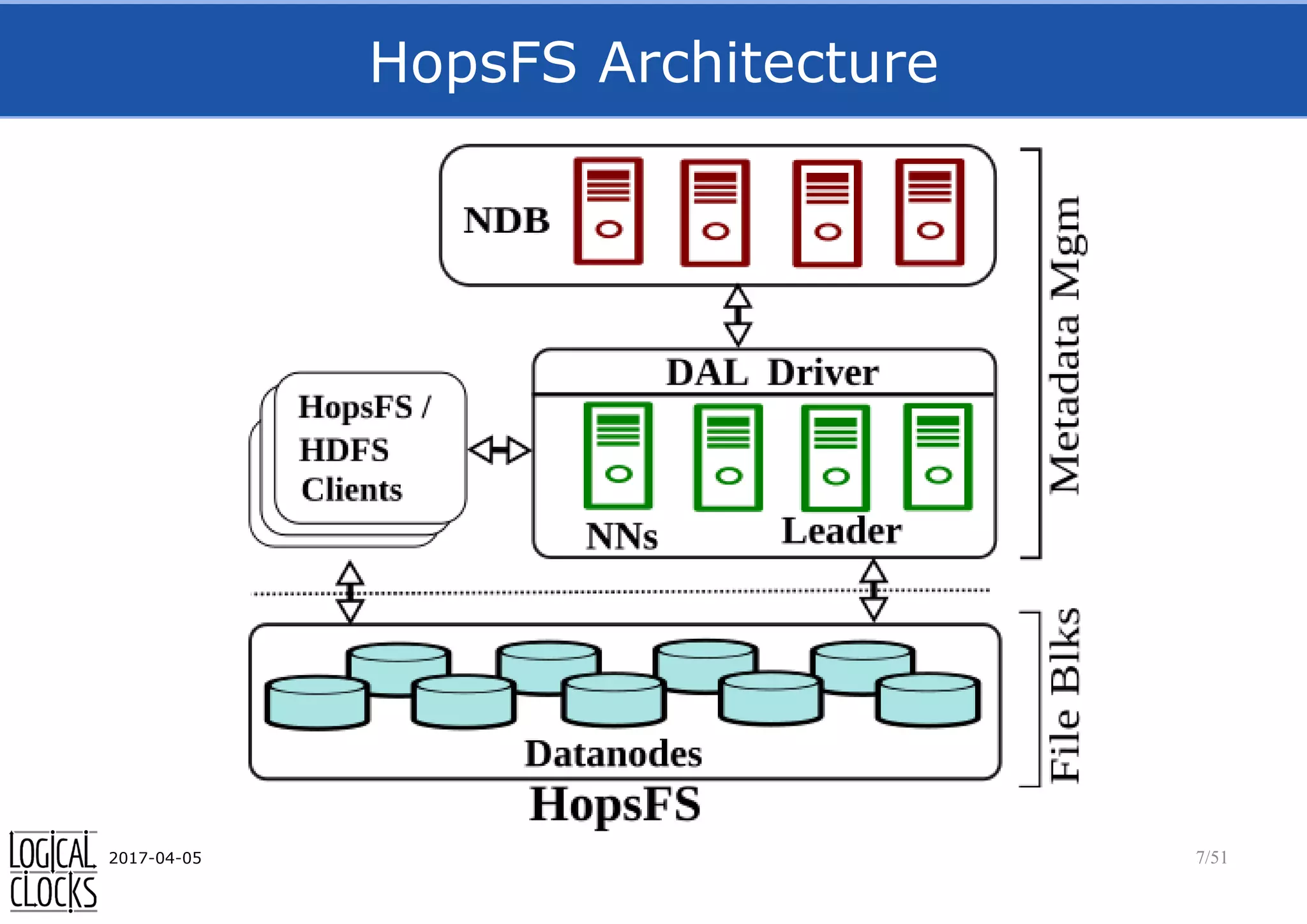

- 7.

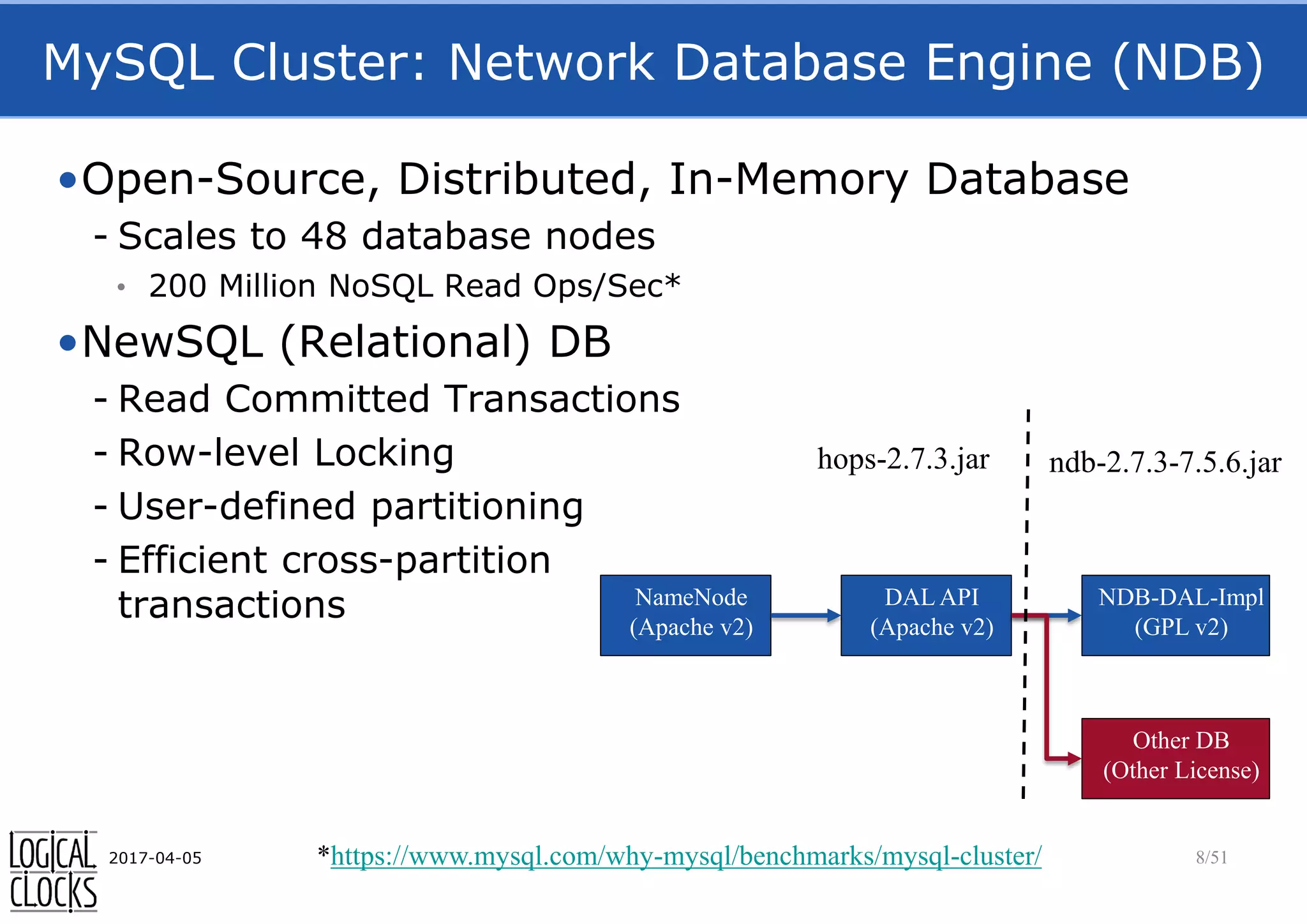

- 8. MySQL Cluster: NetworkDatabase Engine (NDB) •Open-Source, Distributed, In-Memory Database - Scales to 48 database nodes • 200 Million NoSQL Read Ops/Sec* •NewSQL (Relational) DB - Read Committed Transactions - Row-level Locking - User-defined partitioning - Efficient cross-partition transactions 2017-04-05 8/51*https://www.mysql.com/why-mysql/benchmarks/mysql-cluster/ NameNode (Apache v2) DAL API (Apache v2) NDB-DAL-Impl (GPL v2) Other DB (Other License) hops-2.7.3.jar ndb-2.7.3-7.5.6.jar

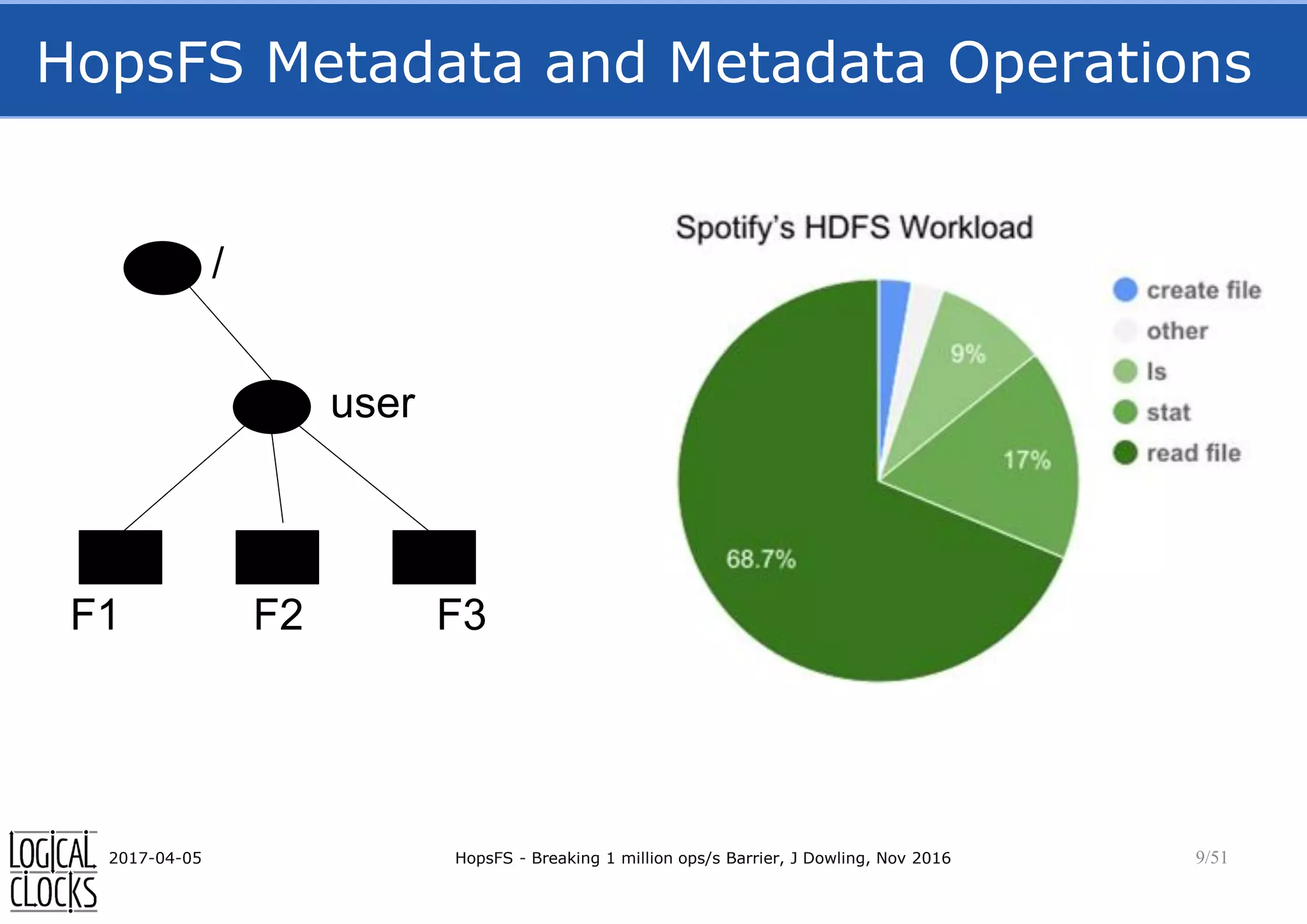

- 9. HopsFS Metadata andMetadata Operations 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 9/51 / user F1 F2 F3

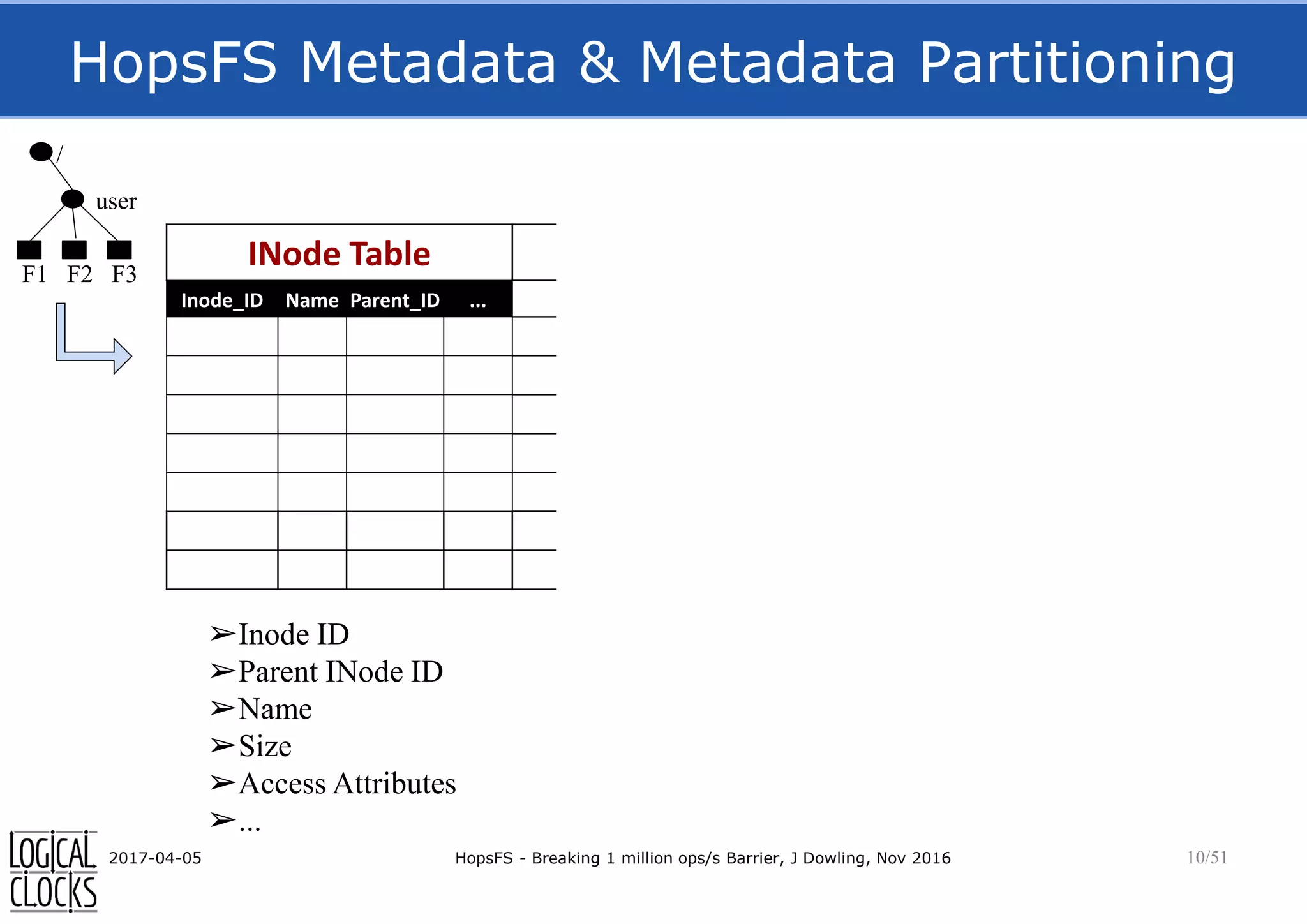

- 10. HopsFS Metadata &Metadata Partitioning 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 10/51 INode Table Block Table Replica Table Inode_ID Name Parent_ID ... Block_ID Inode_ID ... Inode_ID Block_ID DataNode_ID ... / user F1 F2 F3 ➢Inode ID ➢Parent INode ID ➢Name ➢Size ➢Access Attributes ➢...

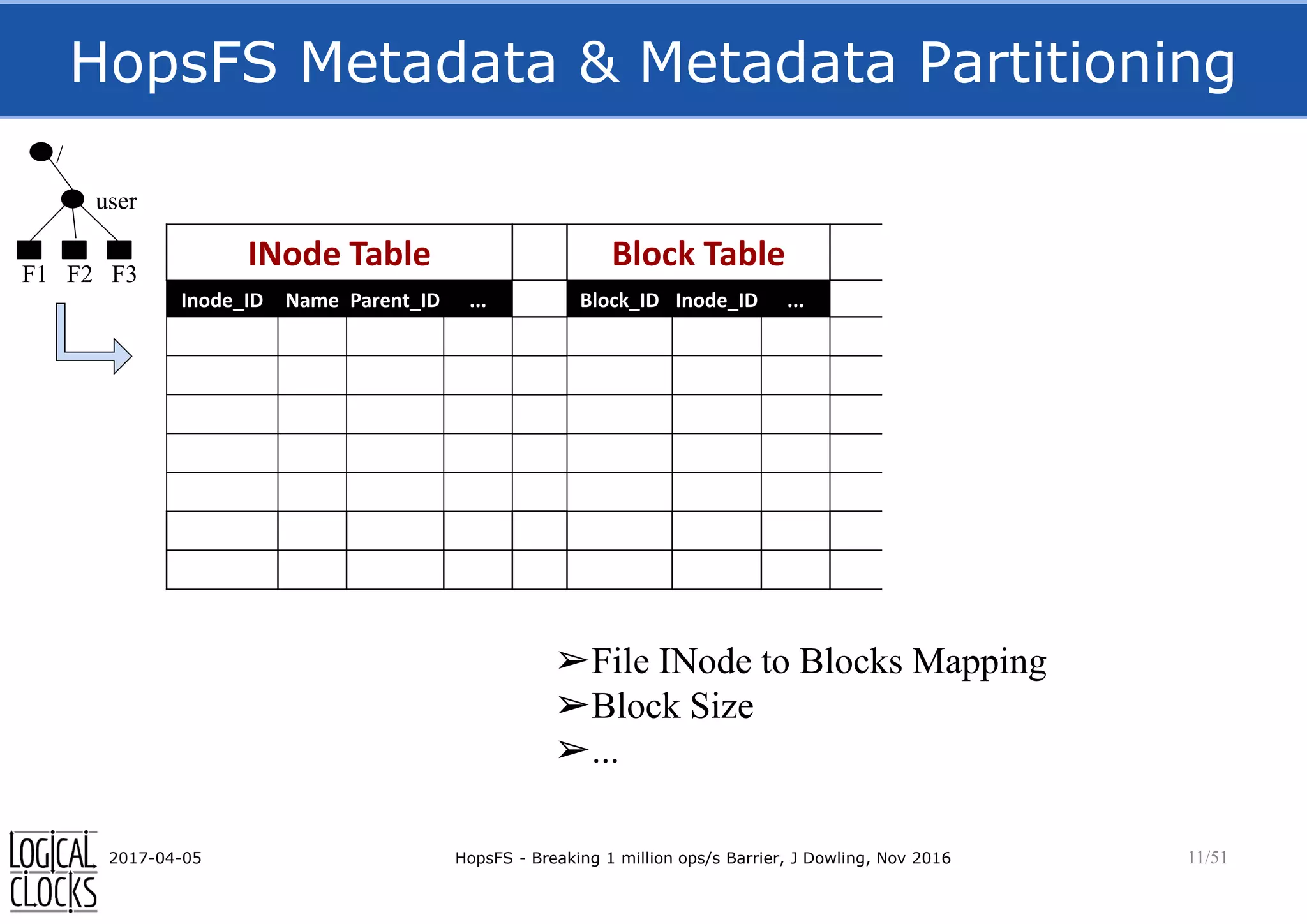

- 11. HopsFS Metadata &Metadata Partitioning 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 11/51 INode Table Block Table Replica Table Inode_ID Name Parent_ID ... Block_ID Inode_ID ... Inode_ID Block_ID DataNode_ID ... / user F1 F2 F3 ➢File INode to Blocks Mapping ➢Block Size ➢...

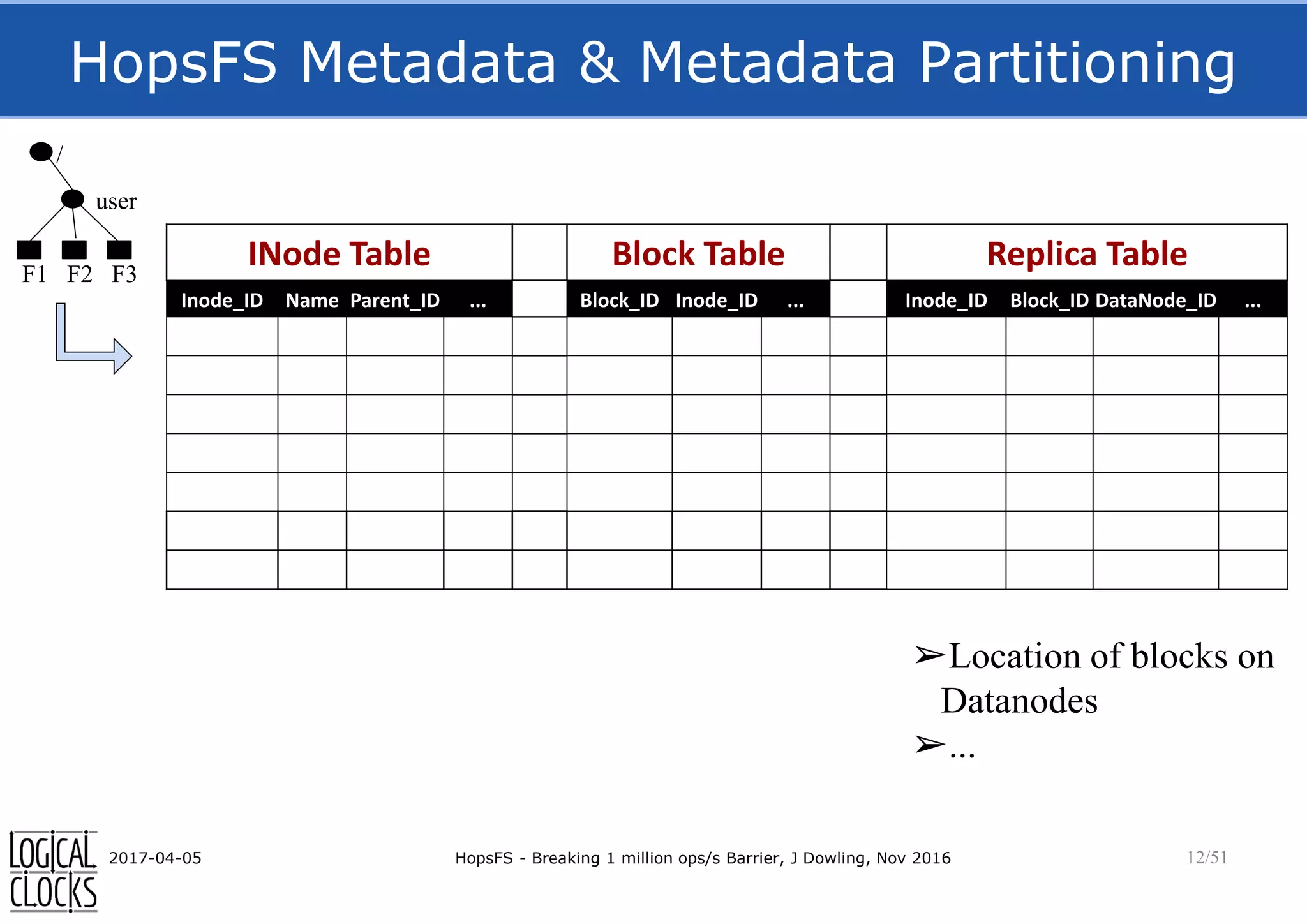

- 12. HopsFS Metadata &Metadata Partitioning 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 12/51 INode Table Block Table Replica Table Inode_ID Name Parent_ID ... Block_ID Inode_ID ... Inode_ID Block_ID DataNode_ID ... / user F1 F2 F3 ➢Location of blocks on Datanodes ➢...

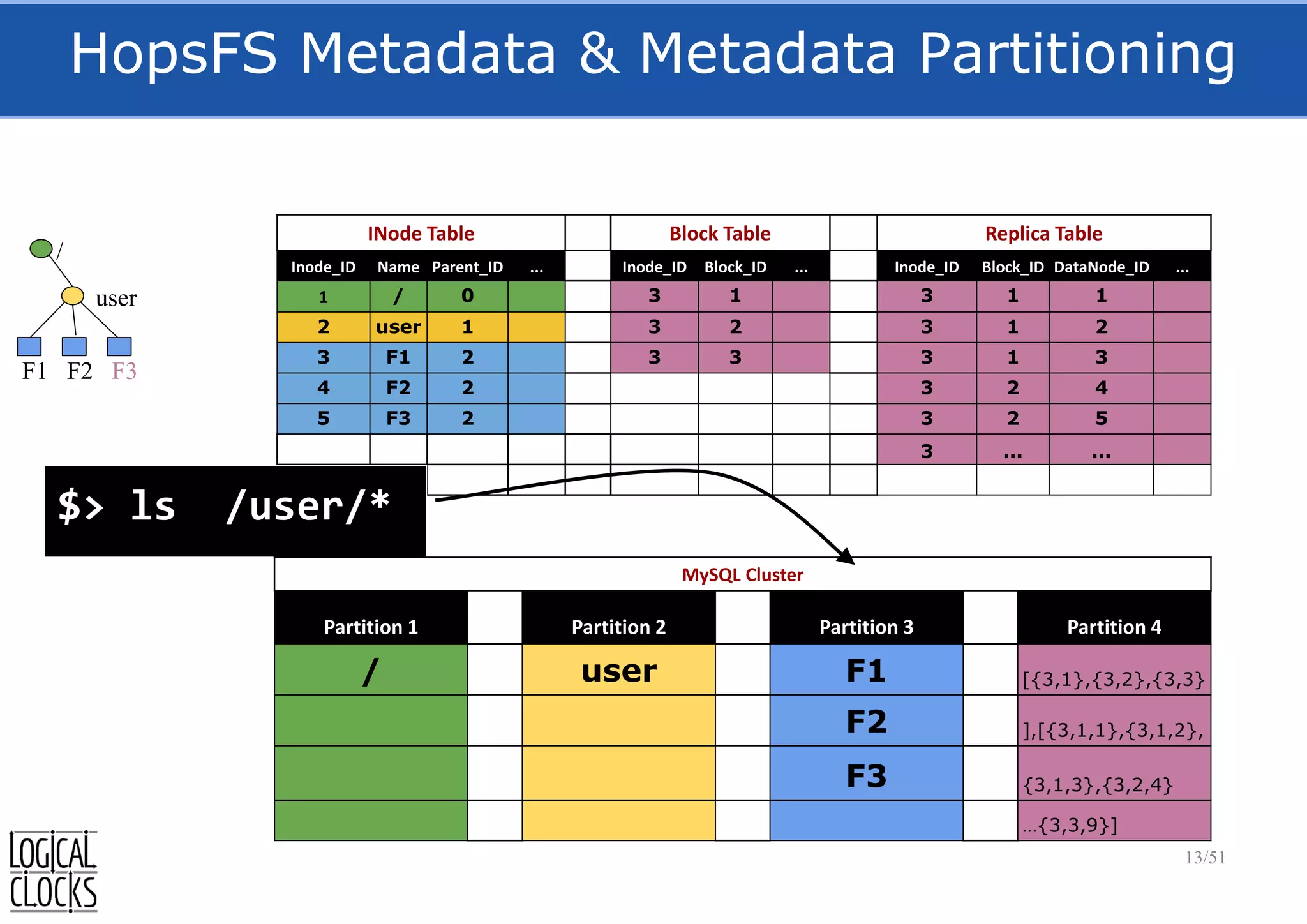

- 13. HopsFS Metadata &Metadata Partitioning 13/51 INode Table Block Table Replica Table Inode_ID Name Parent_ID ... Inode_ID Block_ID ... Inode_ID Block_ID DataNode_ID ... 1 / 0 3 1 3 1 1 2 user 1 3 2 3 1 2 3 F1 2 3 3 3 1 3 4 F2 2 3 2 4 5 F3 2 3 2 5 3 ... ... $> ls /user/* / user F1 F2 F3 MySQL Cluster Partition 1 Partition 2 Partition 3 Partition 4 / user F1 [{3,1},{3,2},{3,3} F2 ],[{3,1,1},{3,1,2}, F3 {3,1,3},{3,2,4} …{3,3,9}]
- 14. HopsFS Metadata &Metadata Partitioning 14/51 INode Table Block Table Replica Table Inode_ID Name Parent_ID ... Inode_ID Block_ID ... Inode_ID Block_ID DataNode_ID ... 1 / 0 3 1 3 1 1 2 user 1 3 2 3 1 2 3 F1 2 3 3 3 1 3 4 F2 2 3 2 4 5 F3 2 3 2 5 3 ... ... $> cat /user/F1 / user F1 F2 F3 MySQL Cluster Partition 1 Partition 2 Partition 3 Partition 4 / user F1 [{3,1},{3,2},{3,3} F2 ],[{3,1,1},{3,1,2}, F3 {3,1,3},{3,2,4} …{3,3,9}]

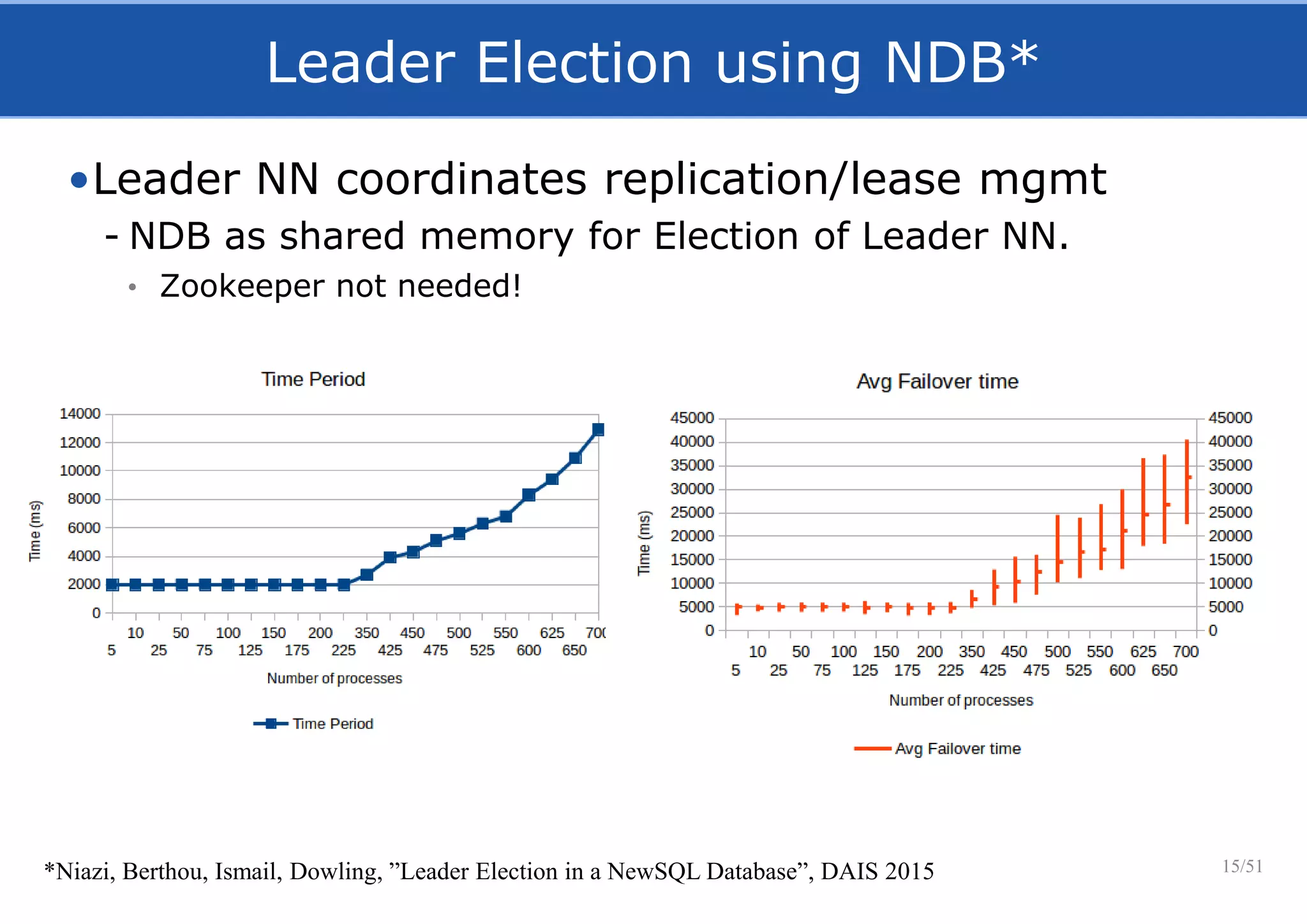

- 15. Leader Election usingNDB* •Leader NN coordinates replication/lease mgmt - NDB as shared memory for Election of Leader NN. • Zookeeper not needed! 15/51*Niazi, Berthou, Ismail, Dowling, ”Leader Election in a NewSQL Database”, DAIS 2015
- 16.

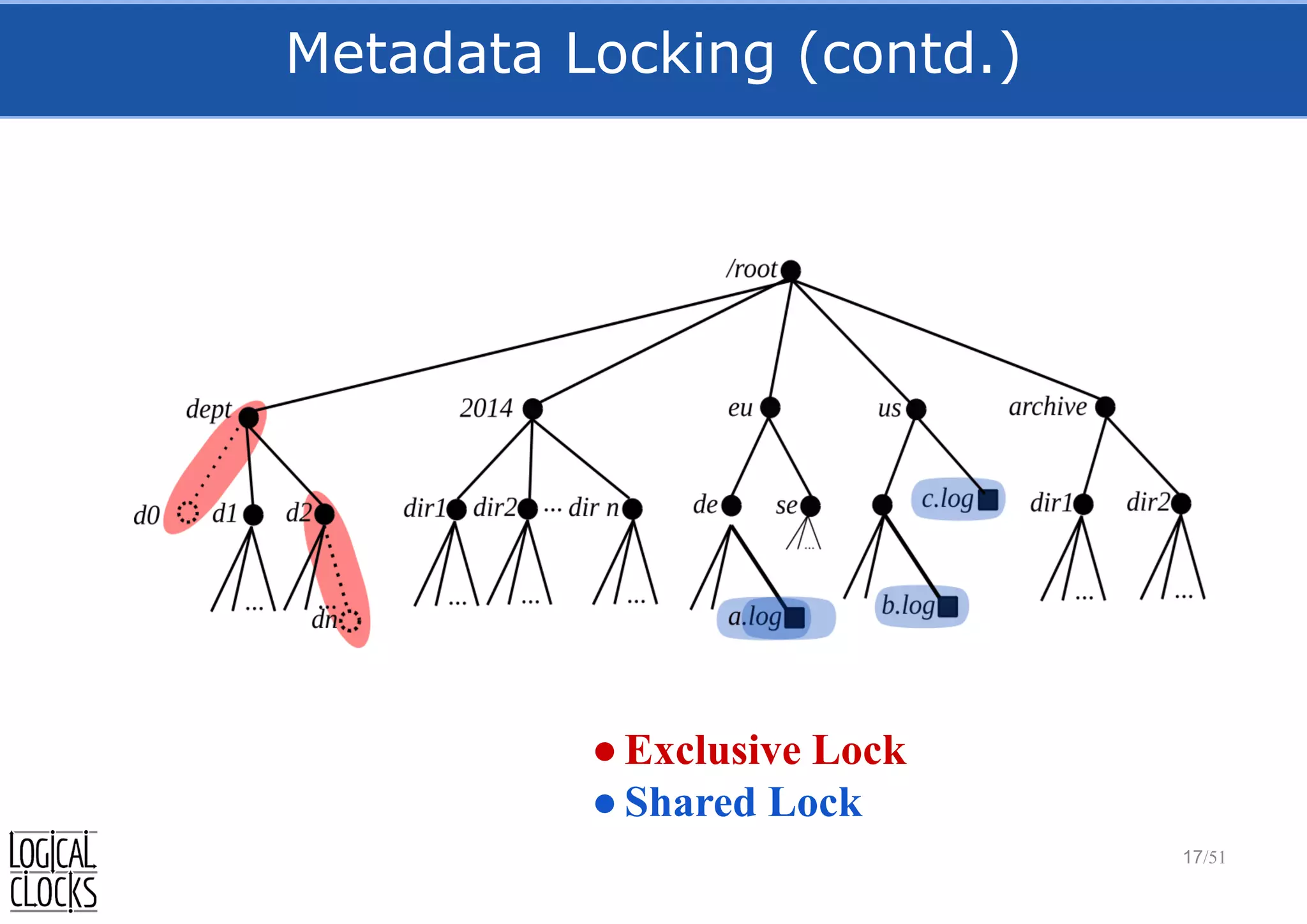

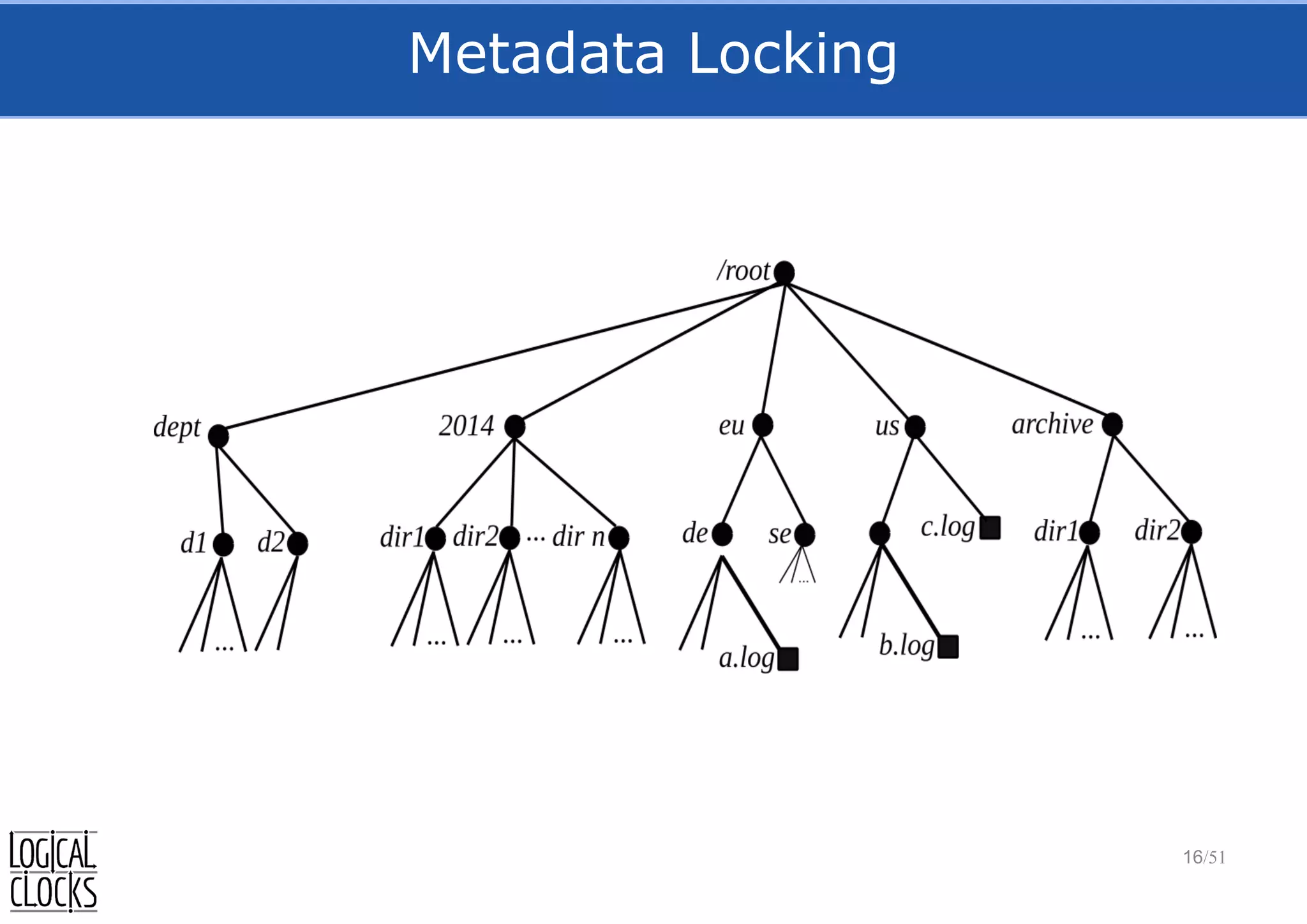

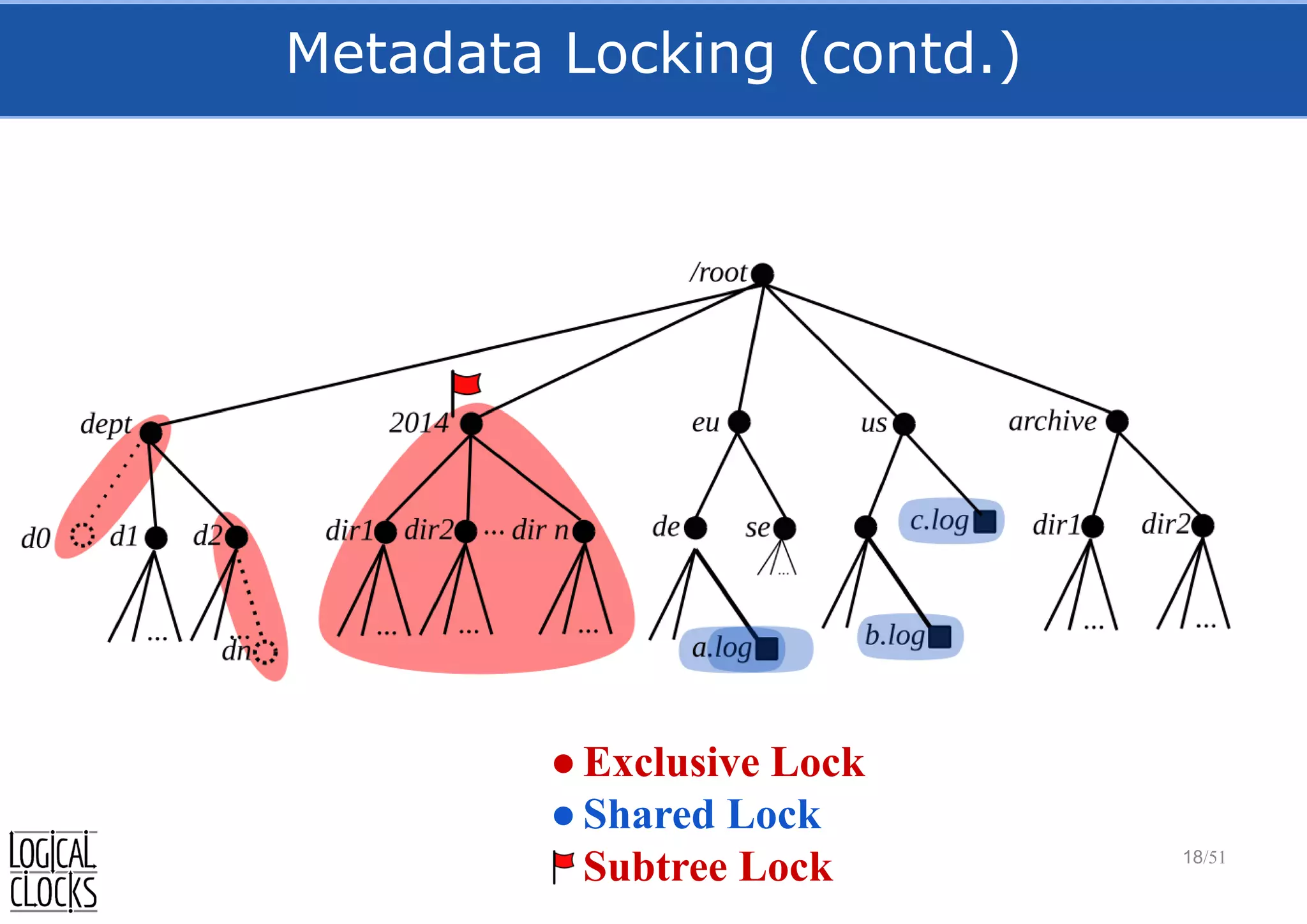

- 17. Metadata Locking (contd.) 17/51 â—ŹExclusiveLock â—ŹShared Lock
- 18. Metadata Locking (contd.) 18/51 â—ŹExclusiveLock â—ŹShared Lock Subtree Lock

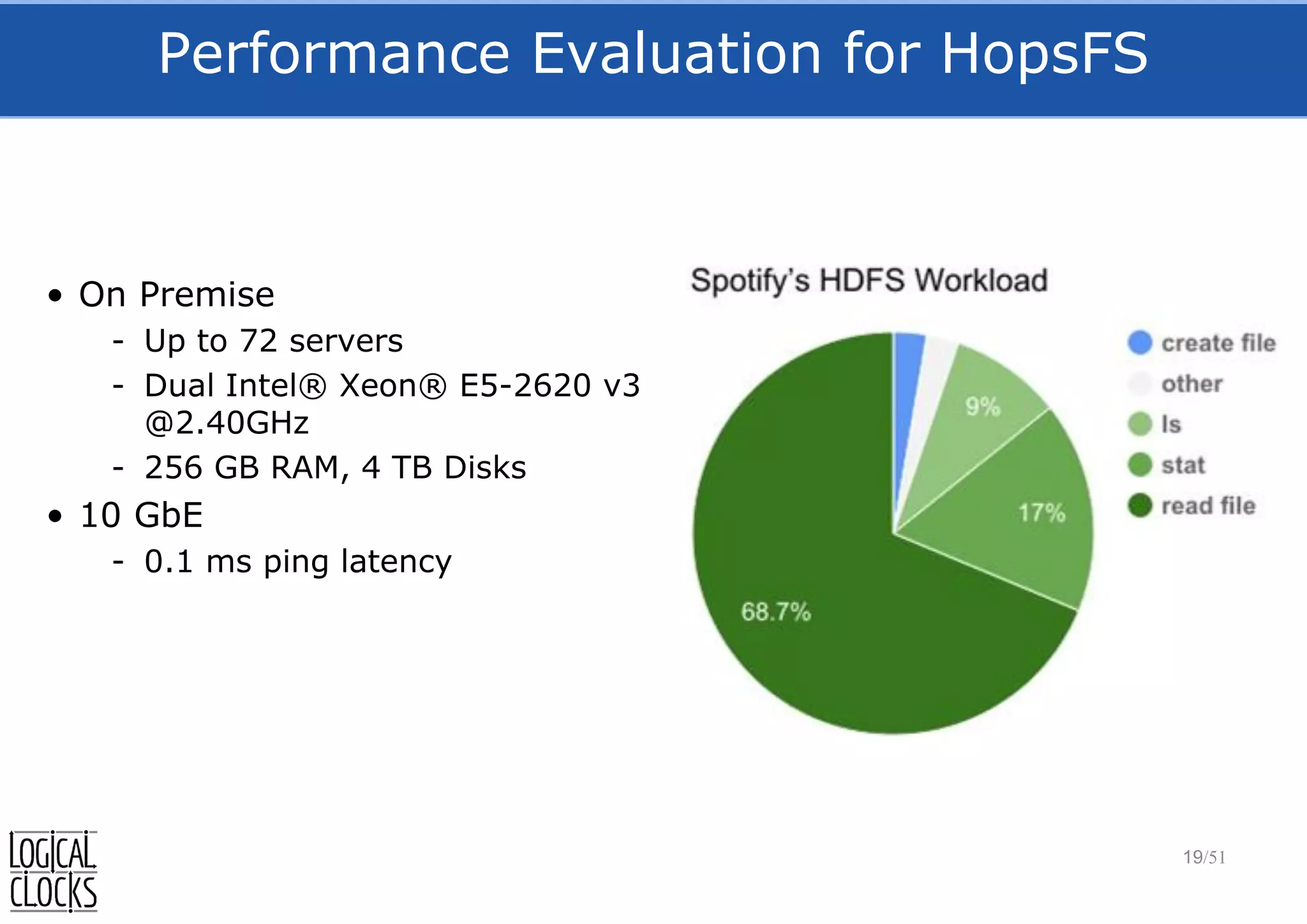

- 19. Performance Evaluation forHopsFS 19/51 • On Premise - Up to 72 servers - Dual Intel® Xeon® E5-2620 v3 @2.40GHz - 256 GB RAM, 4 TB Disks • 10 GbE - 0.1 ms ping latency

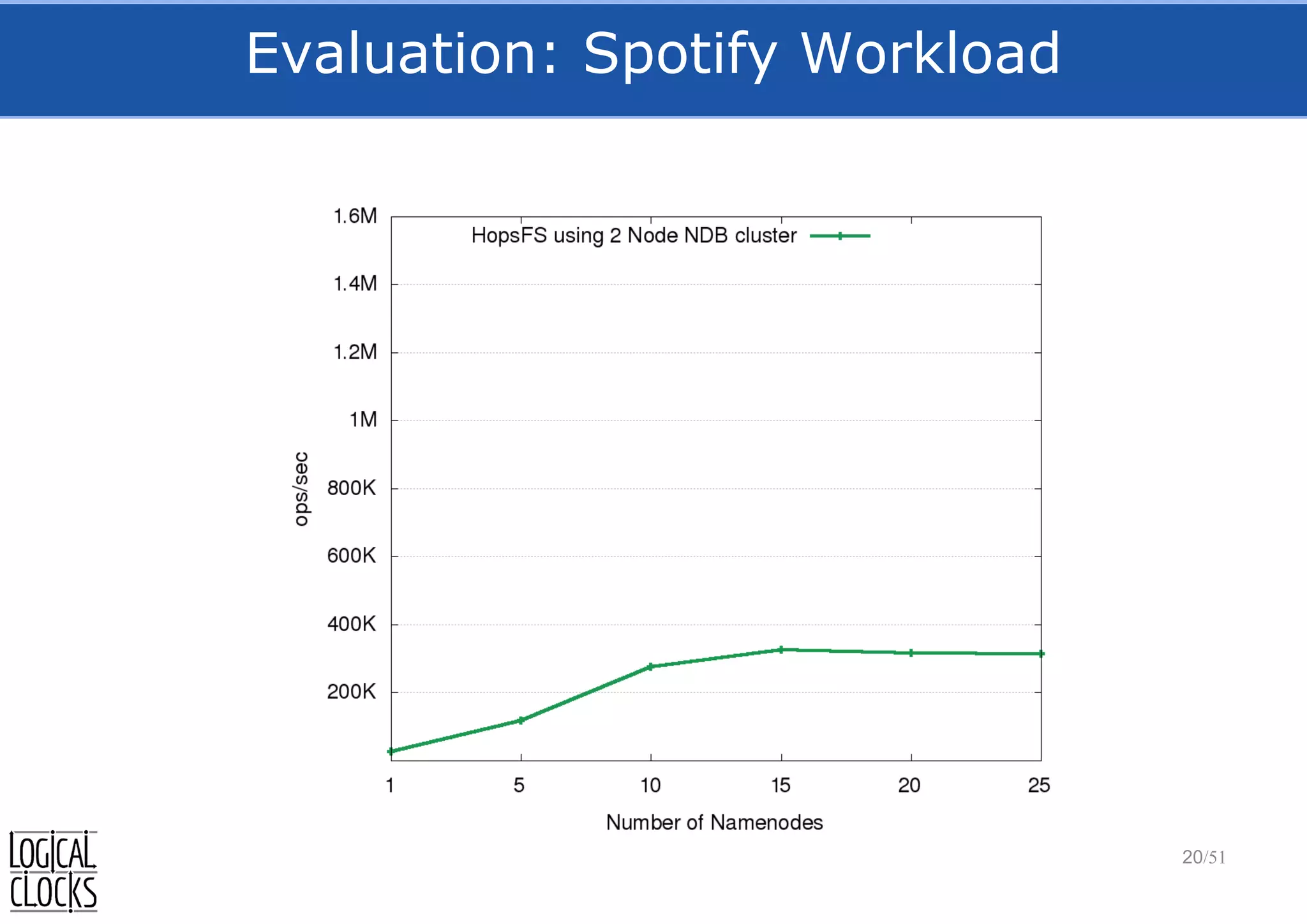

- 20.

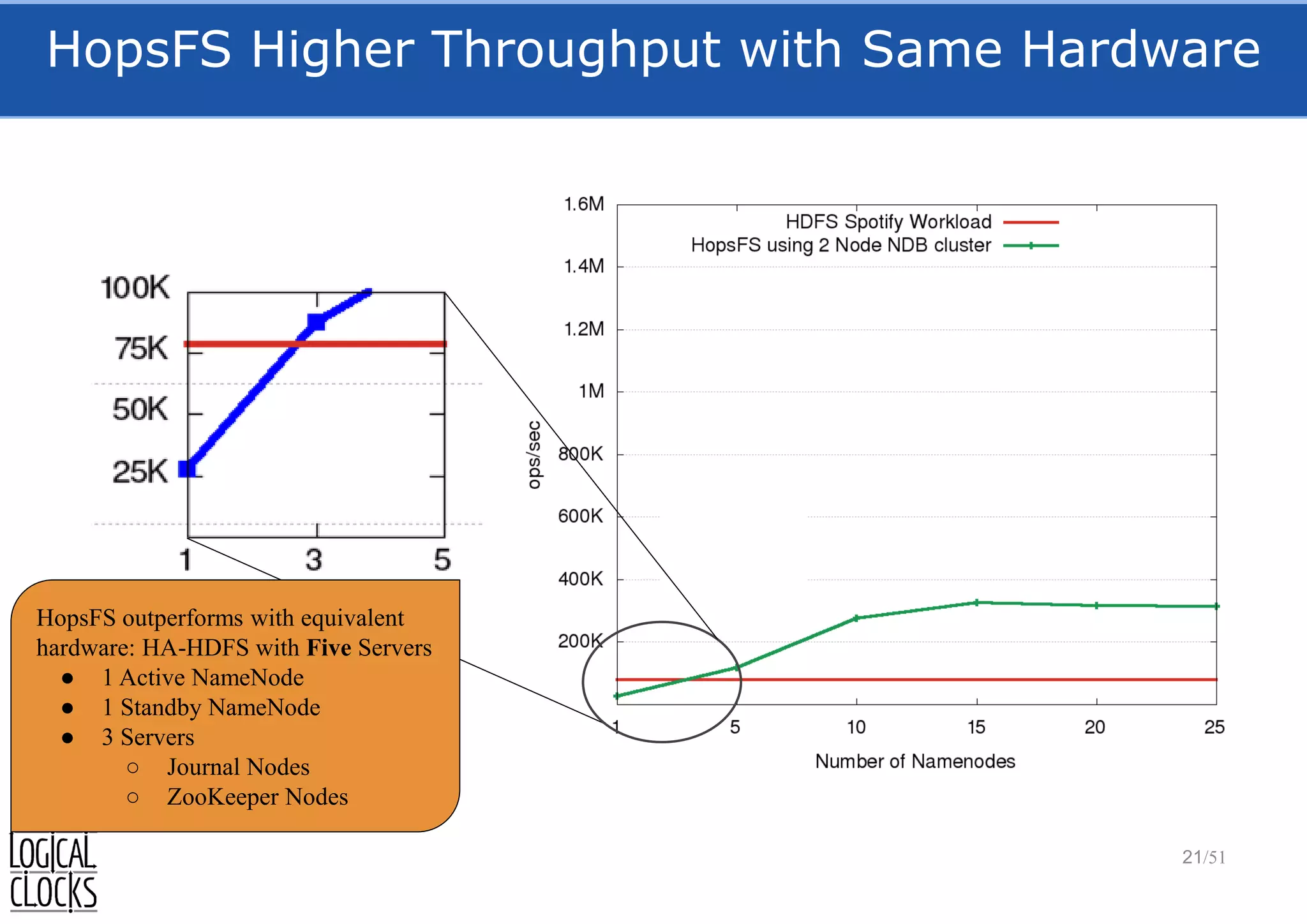

- 21. HopsFS Higher Throughputwith Same Hardware 21/51 HopsFS outperforms with equivalent hardware: HA-HDFS with Five Servers â—Ź 1 Active NameNode â—Ź 1 Standby NameNode â—Ź 3 Servers â—‹ Journal Nodes â—‹ ZooKeeper Nodes

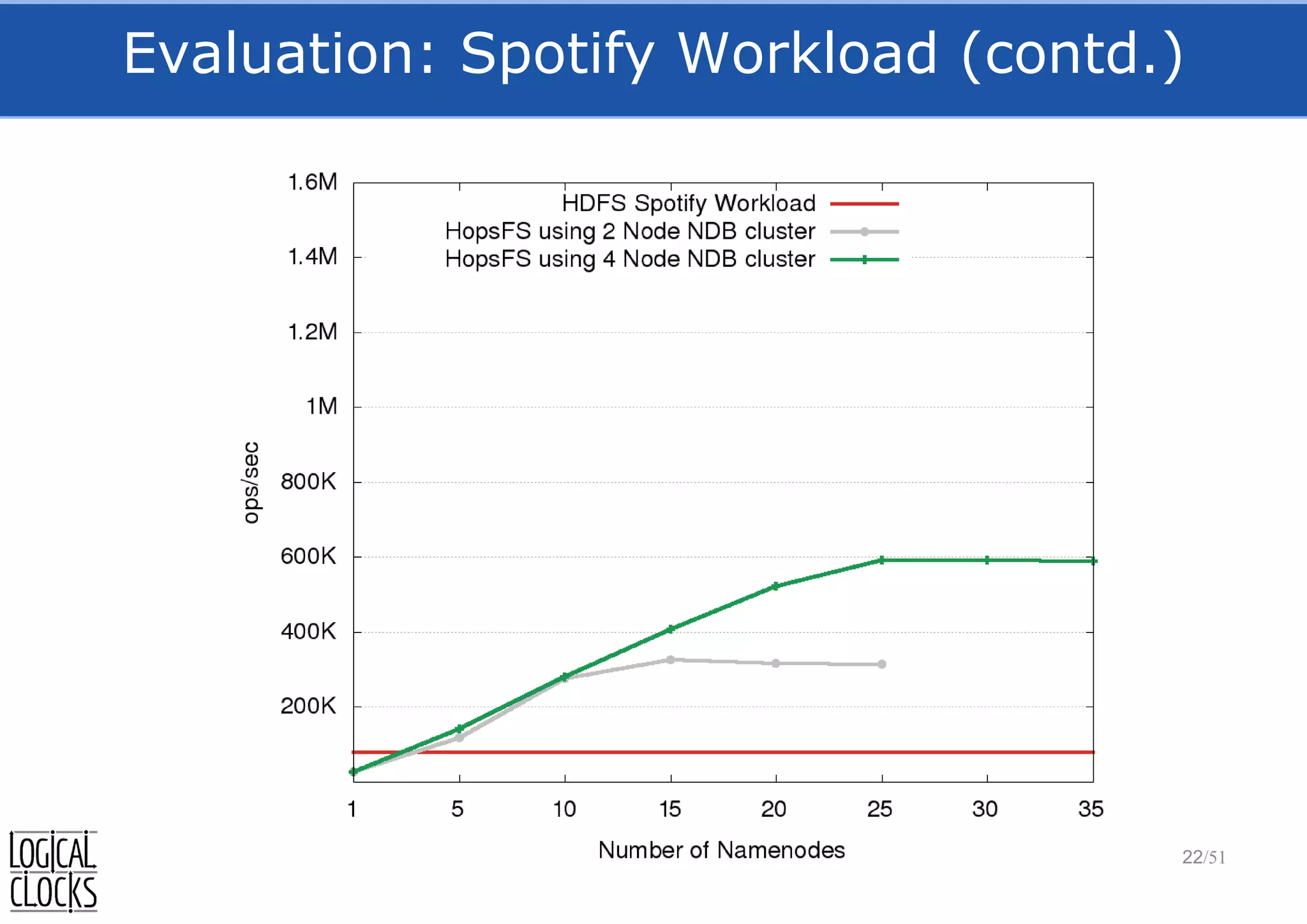

- 22. Evaluation: Spotify Workload(contd.) 22/51

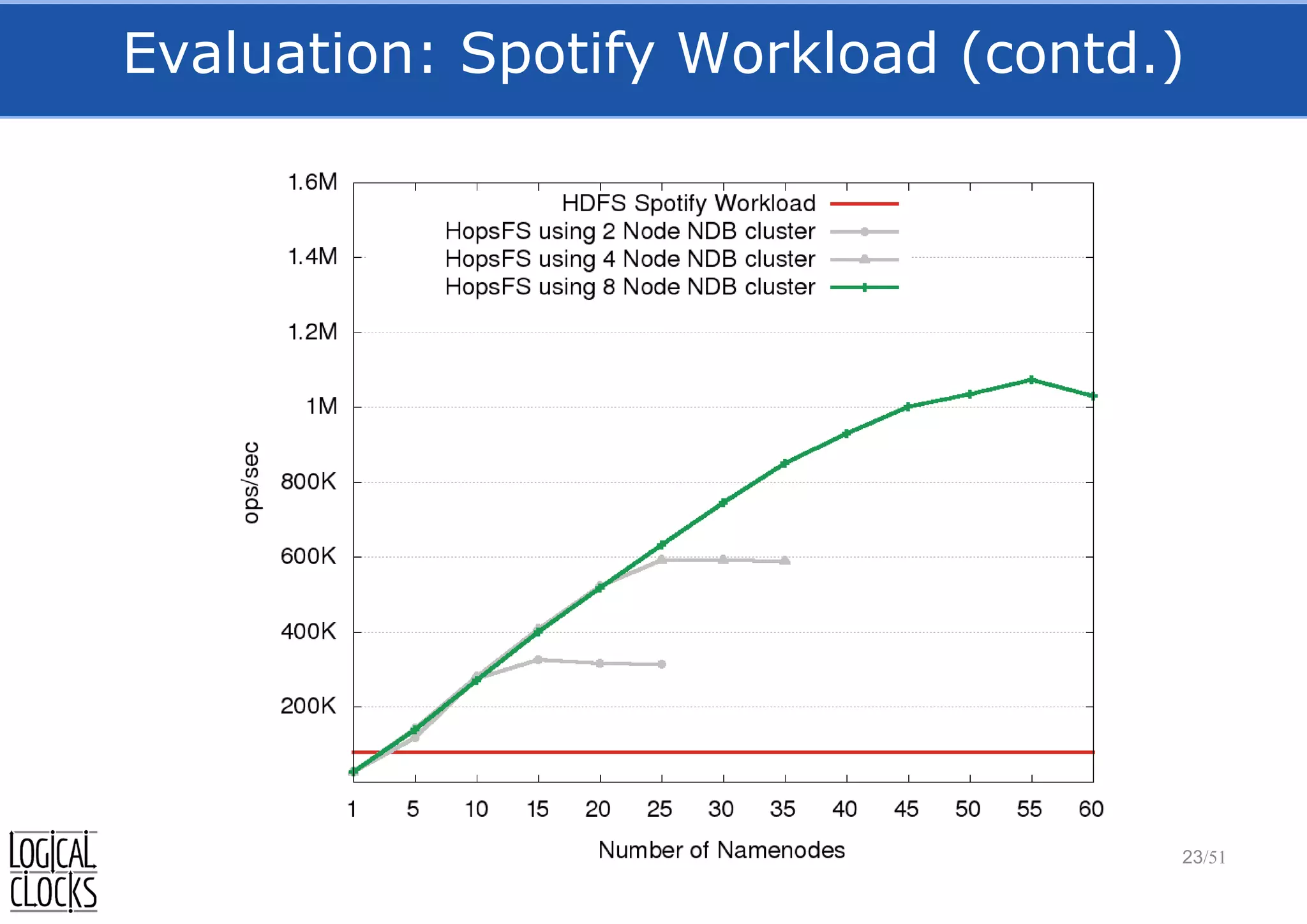

- 23. Evaluation: Spotify Workload(contd.) 23/51

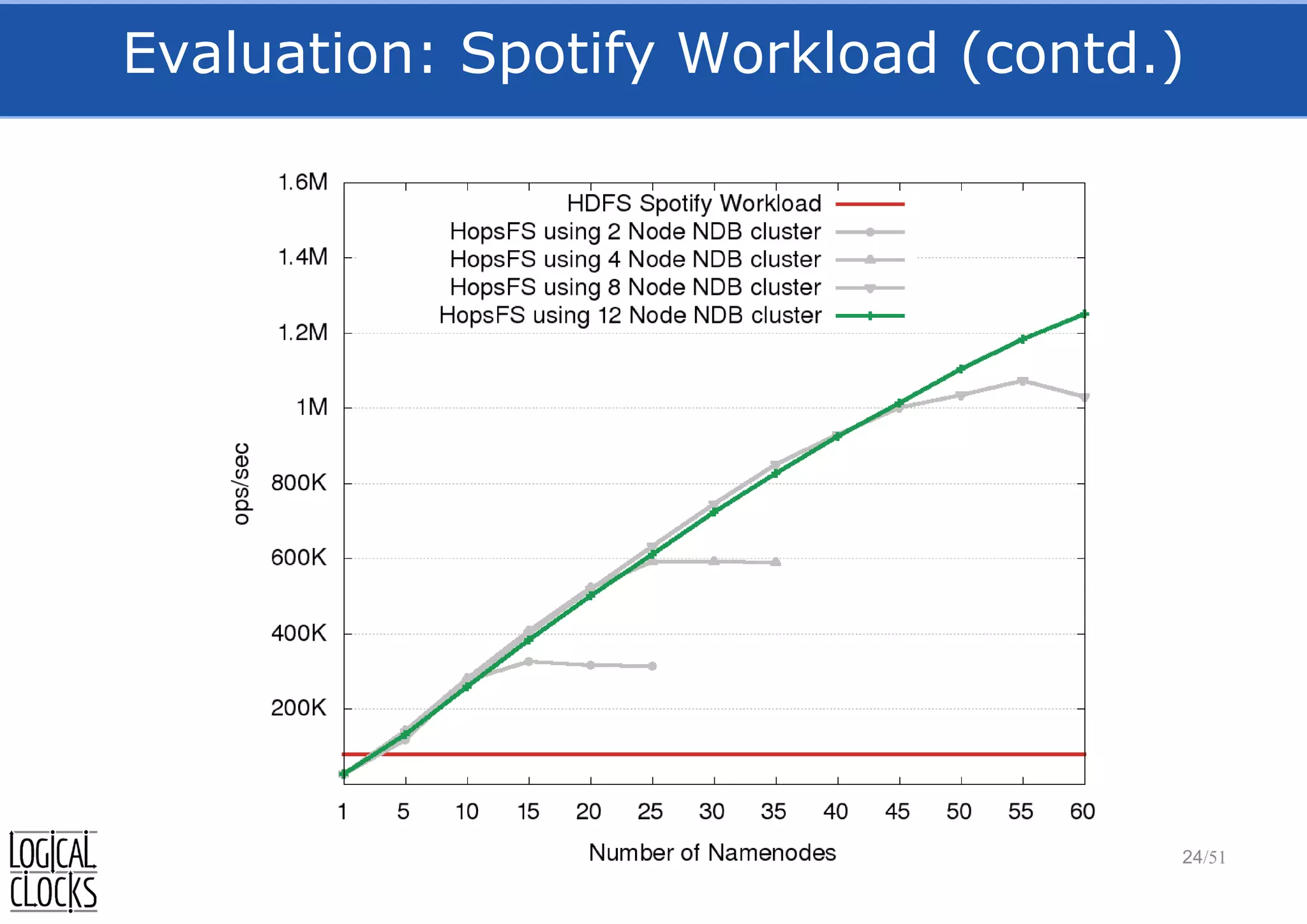

- 24. Evaluation: Spotify Workload(contd.) 24/51

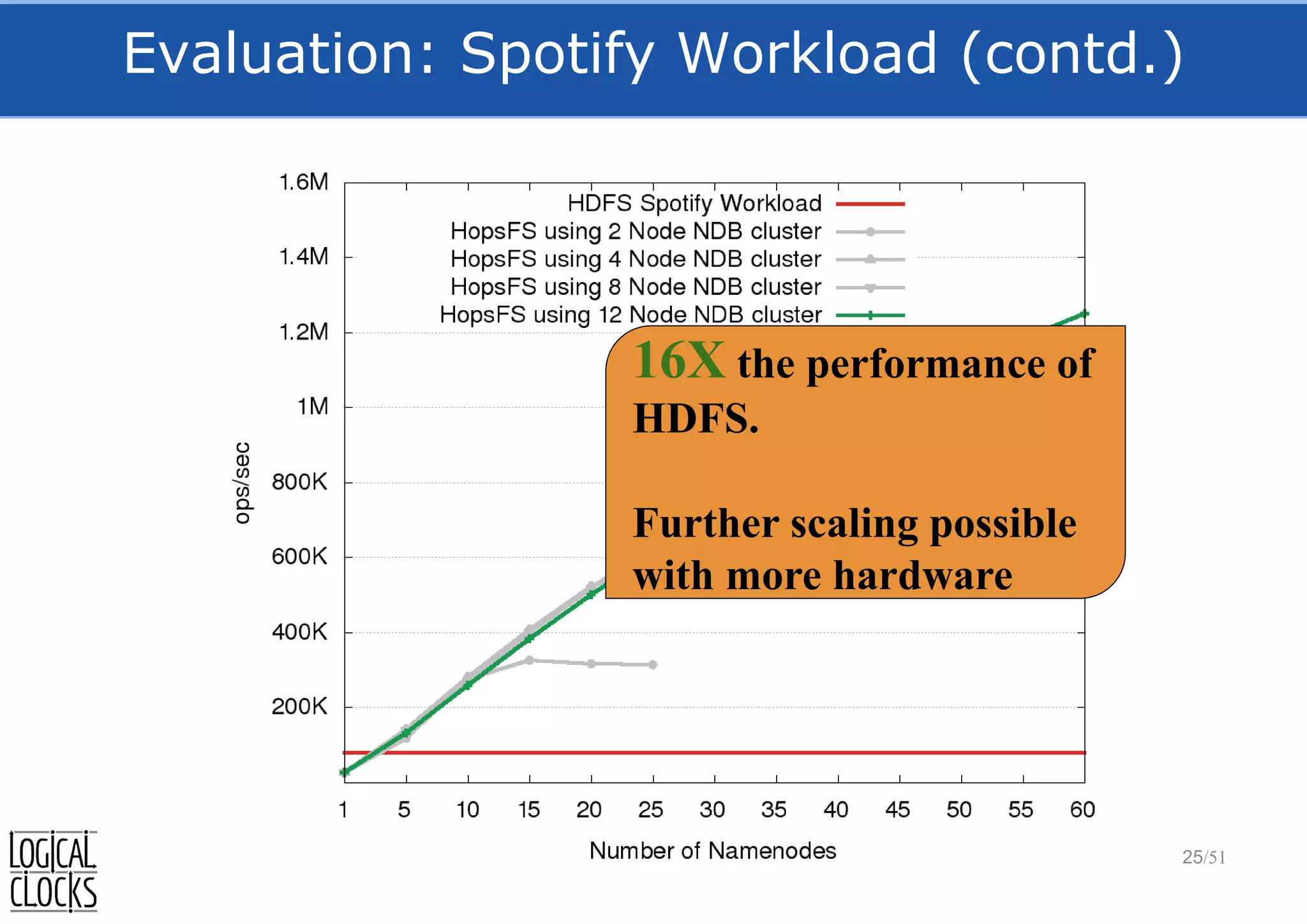

- 25. Evaluation: Spotify Workload(contd.) 25/51 16X the performance of HDFS. Further scaling possible with more hardware

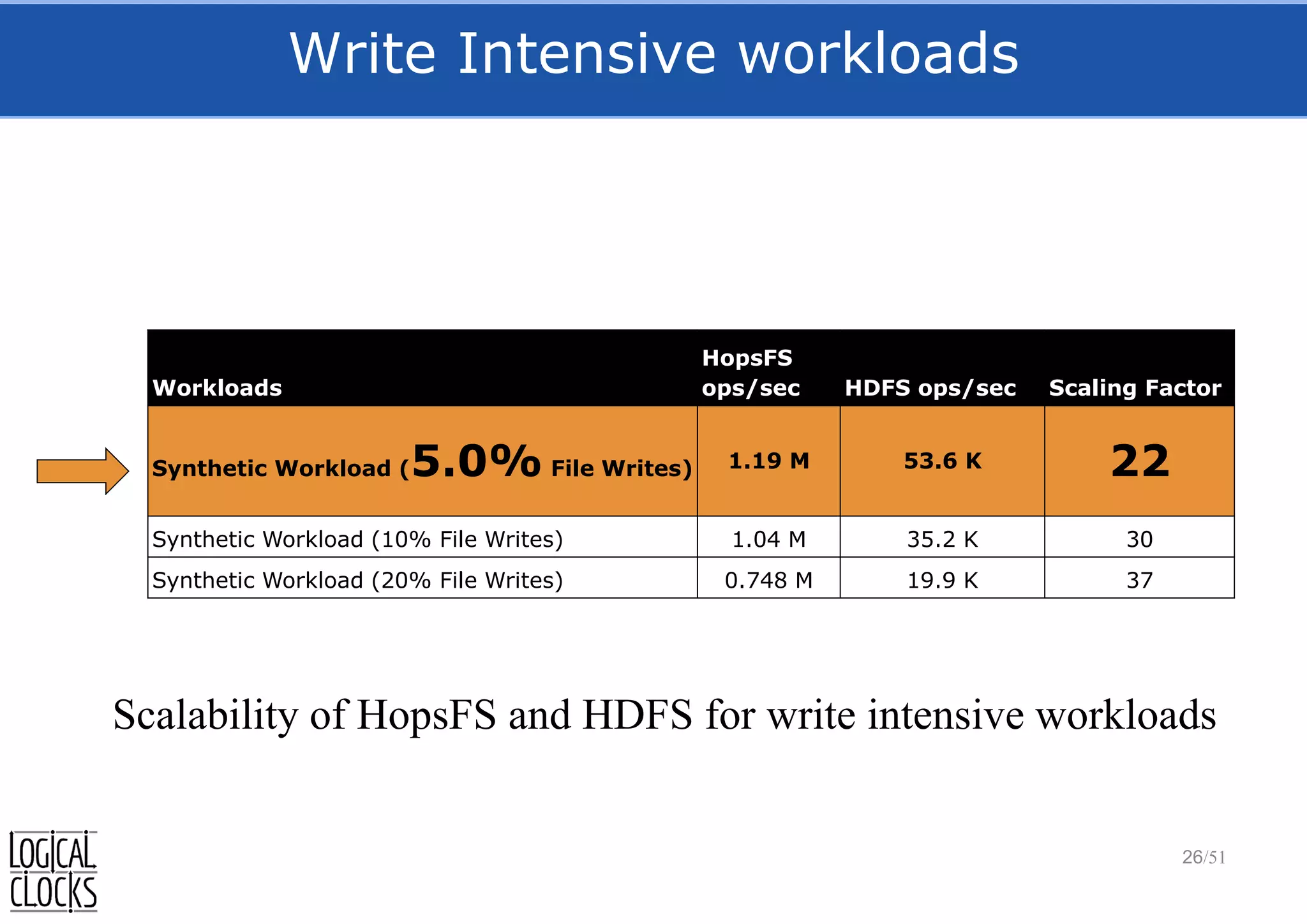

- 26. Write Intensive workloads 26/51 Workloads HopsFS ops/secHDFS ops/sec Scaling Factor Synthetic Workload (5.0% File Writes) 1.19 M 53.6 K 22 Synthetic Workload (10% File Writes) 1.04 M 35.2 K 30 Synthetic Workload (20% File Writes) 0.748 M 19.9 K 37 Scalability of HopsFS and HDFS for write intensive workloads

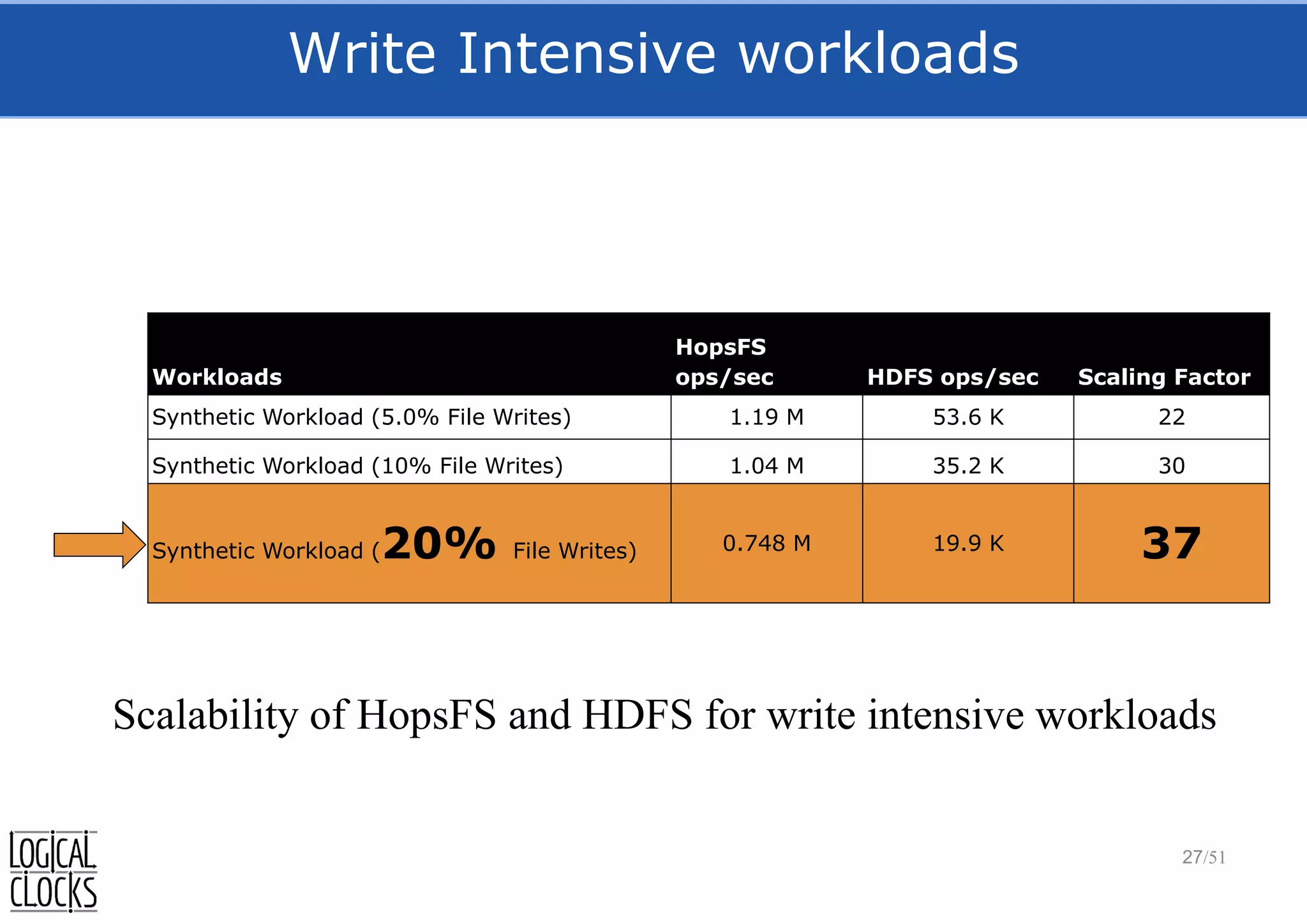

- 27. Write Intensive workloads 27/51 Workloads HopsFS ops/secHDFS ops/sec Scaling Factor Synthetic Workload (5.0% File Writes) 1.19 M 53.6 K 22 Synthetic Workload (10% File Writes) 1.04 M 35.2 K 30 Synthetic Workload (20% File Writes) 0.748 M 19.9 K 37 Scalability of HopsFS and HDFS for write intensive workloads

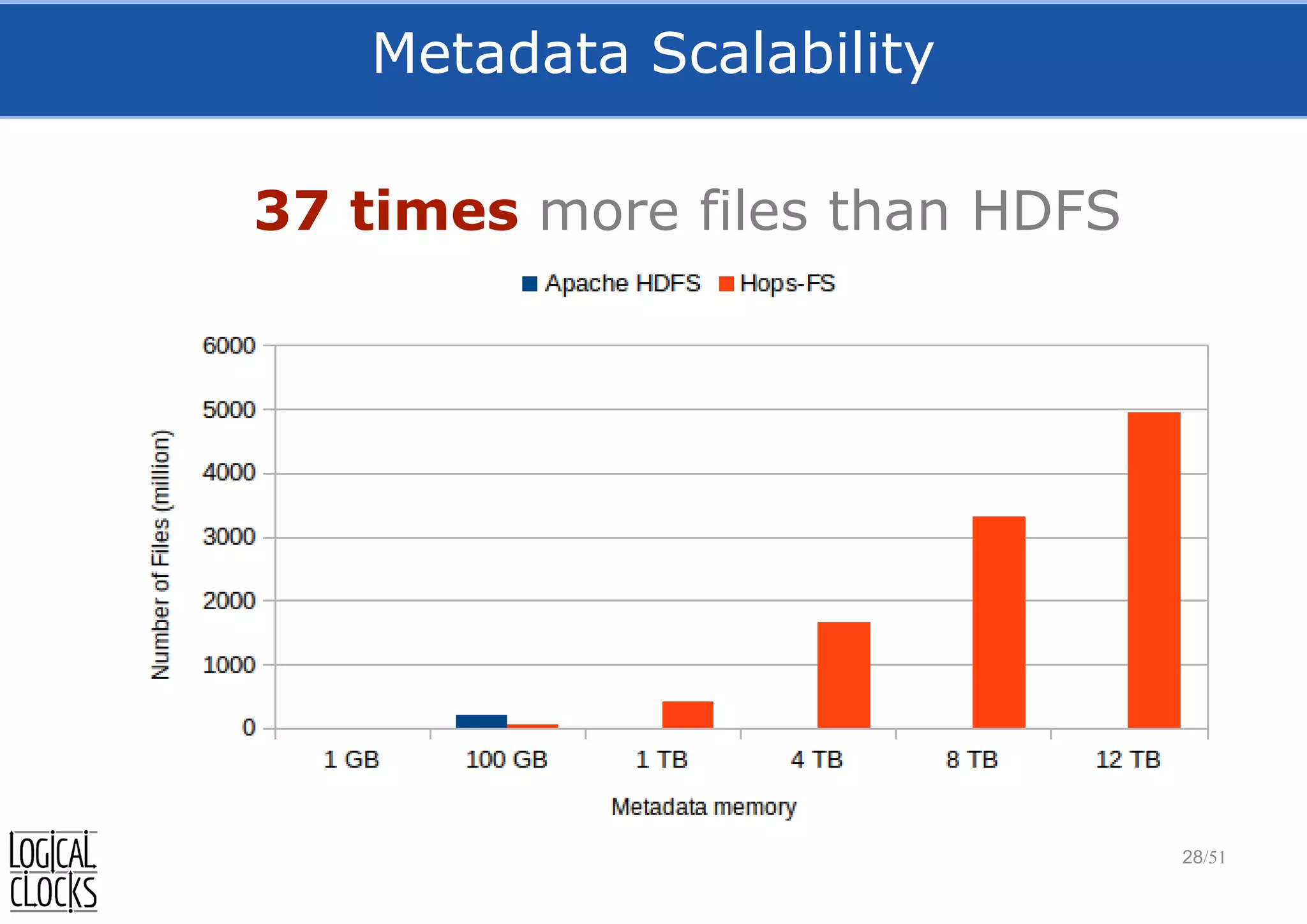

- 28. Metadata Scalability 28/51 37 timesmore files than HDFS

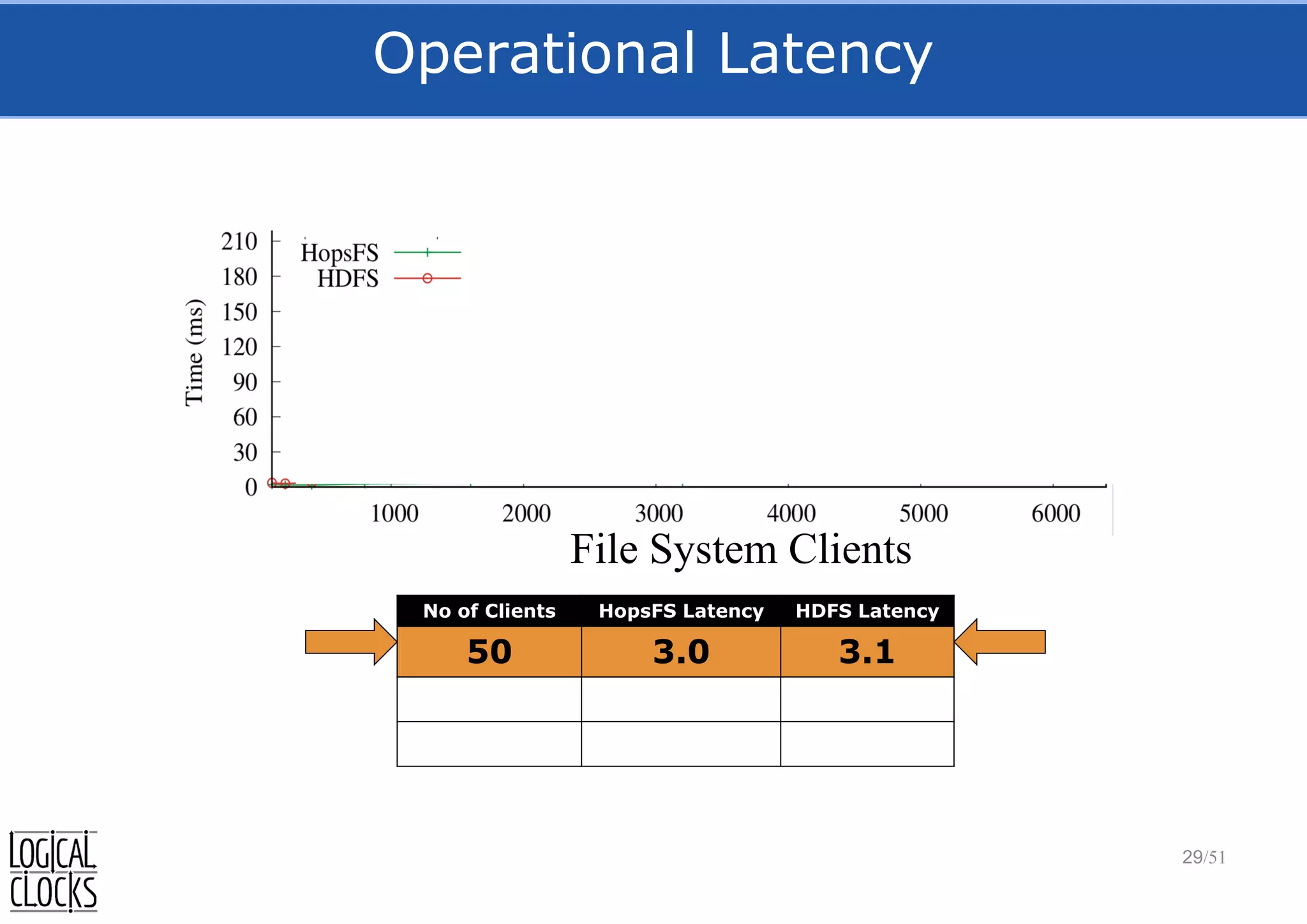

- 29. Operational Latency 29/51 File SystemClients No of Clients HopsFS Latency HDFS Latency 50 3.0 3.1

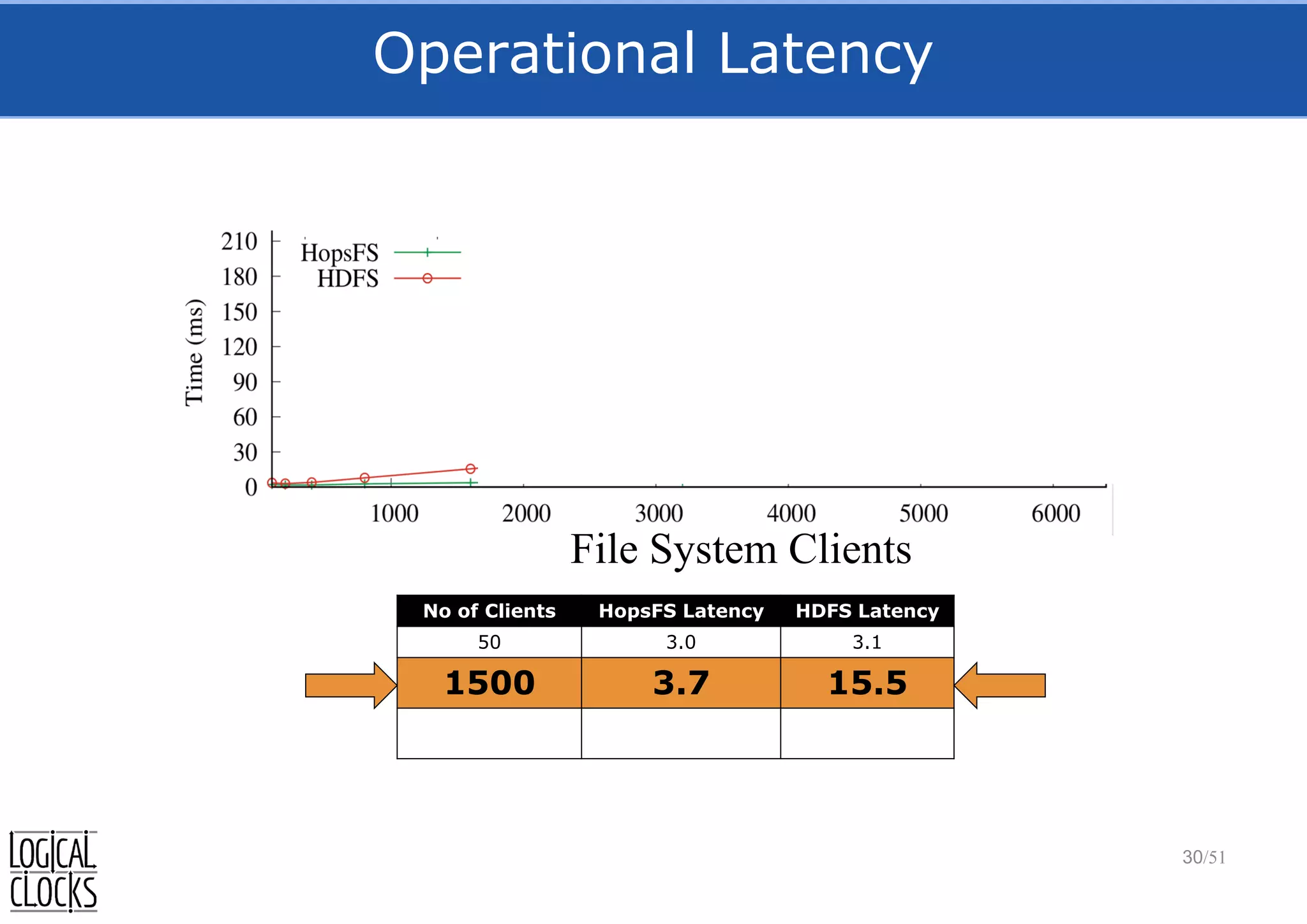

- 30. Operational Latency 30/51 File SystemClients No of Clients HopsFS Latency HDFS Latency 50 3.0 3.1 1500 3.7 15.5

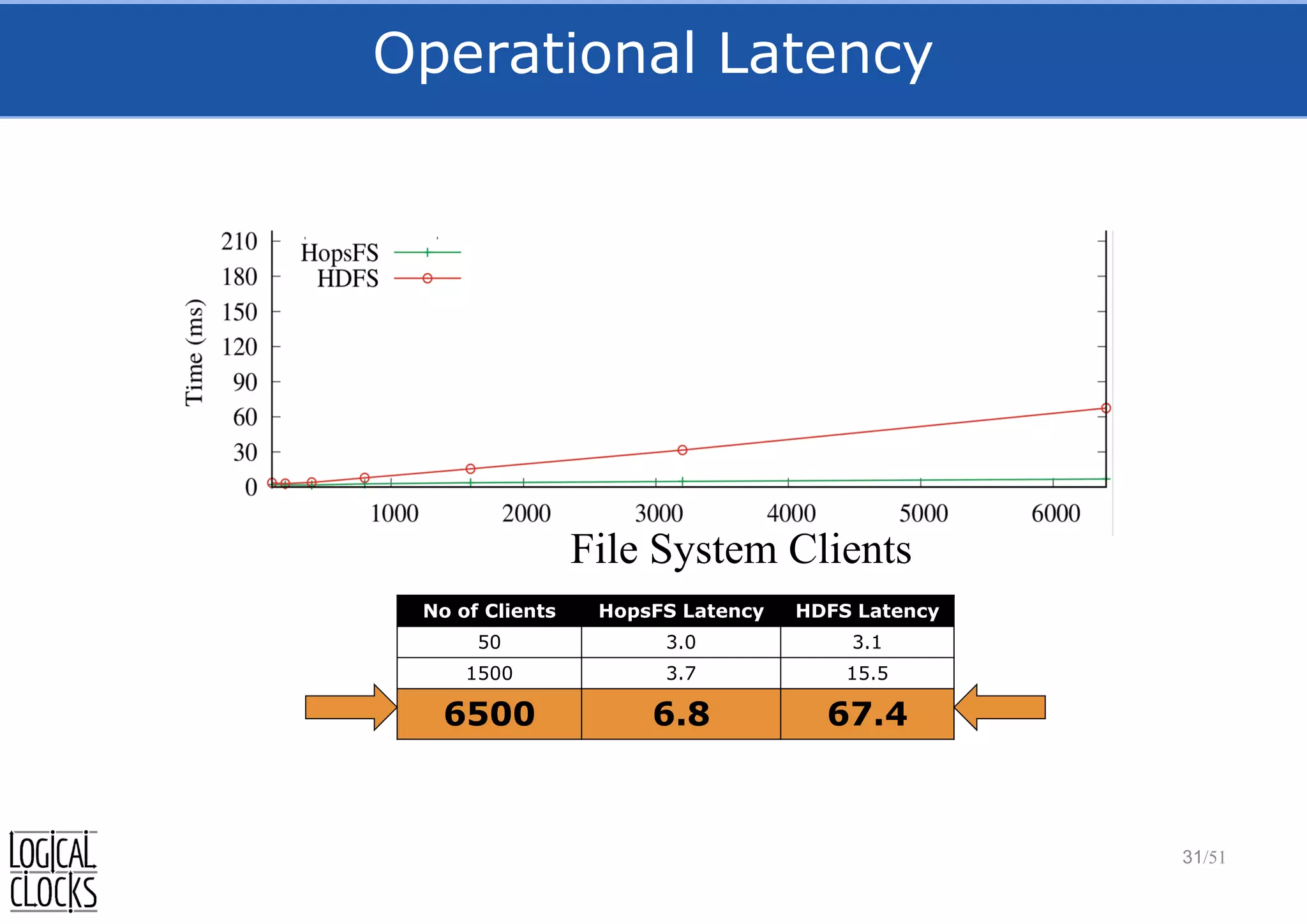

- 31. Operational Latency 31/51 File SystemClients No of Clients HopsFS Latency HDFS Latency 50 3.0 3.1 1500 3.7 15.5 6500 6.8 67.4

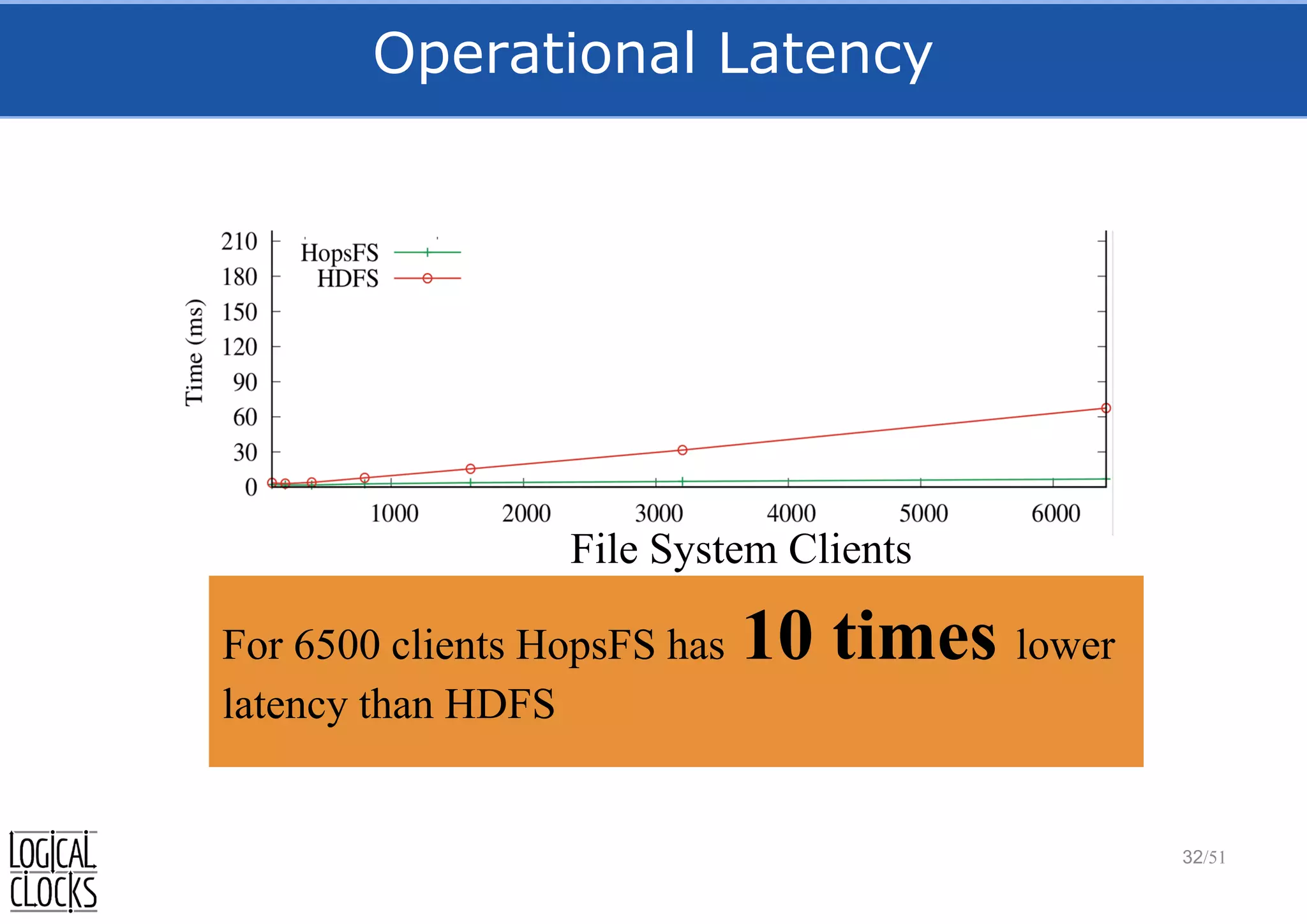

- 32. Operational Latency 32/51 File SystemClients No of Clients HopsFS Latency HDFS Latency 50 3.0 3.1 1500 3.7 15.5 6500 6.8 67.4

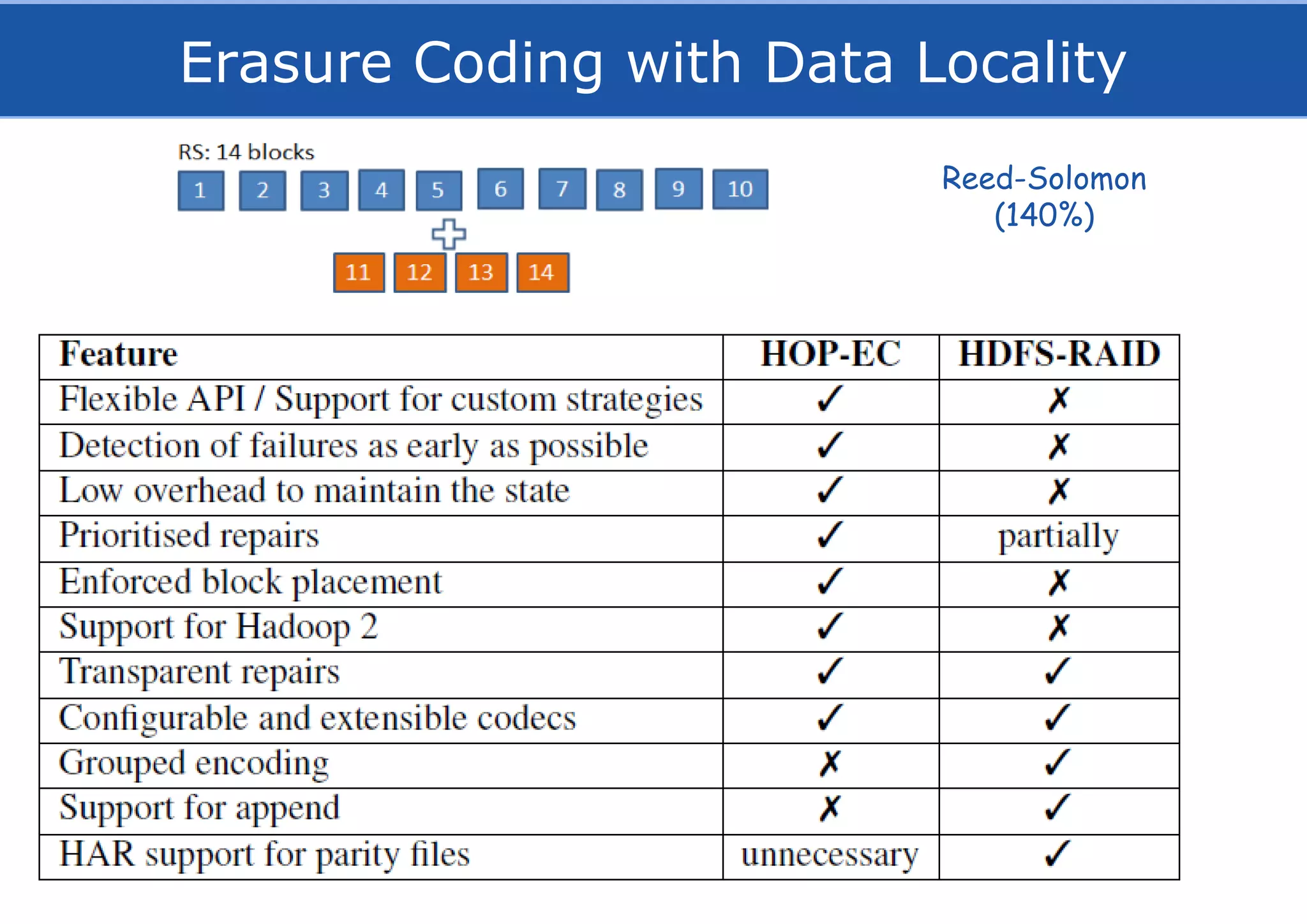

- 33. Erasure Coding withData Locality 33/51 Reed-Solomon (140%)

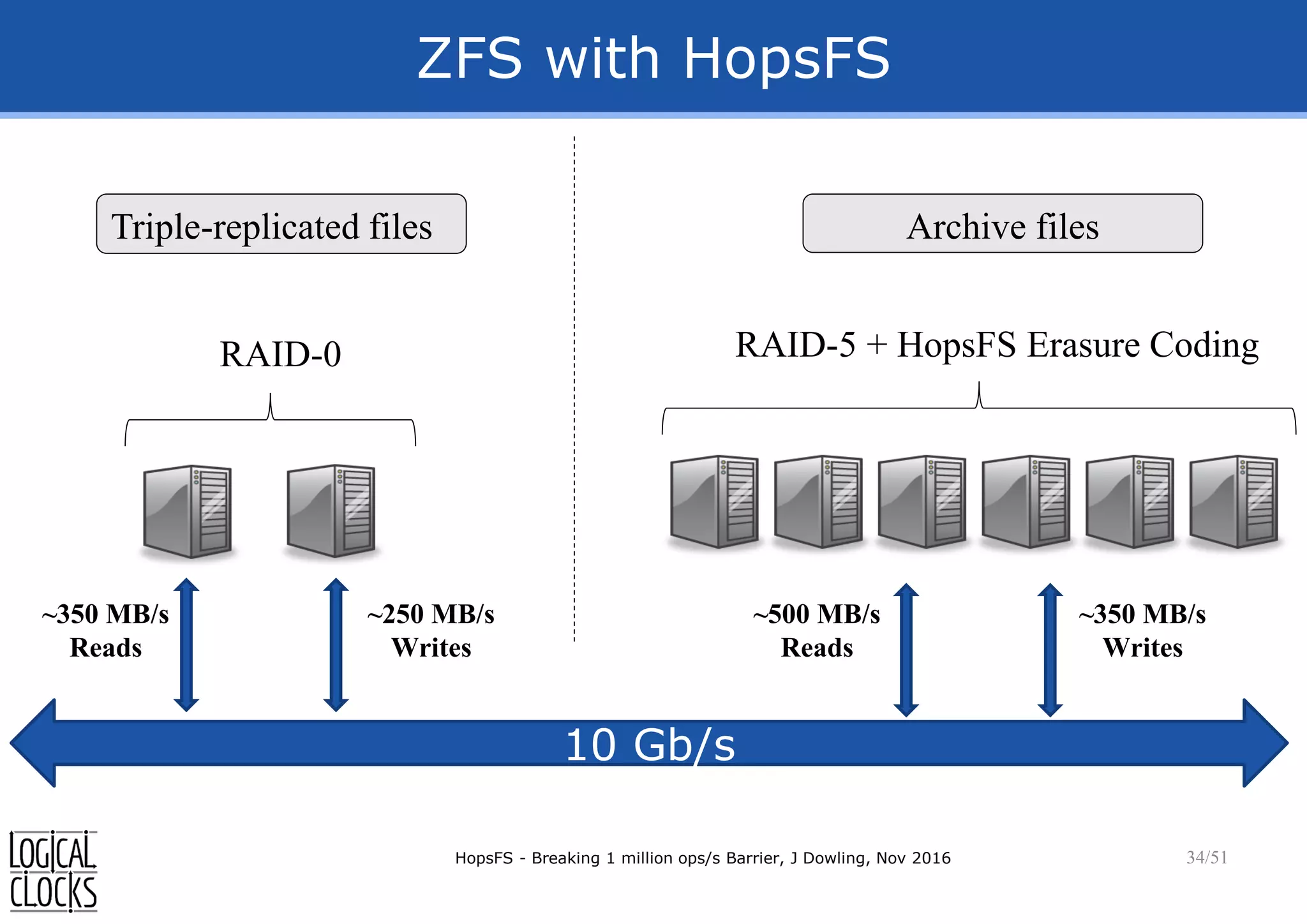

- 34. ZFS with HopsFS HopsFS- Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 34/51 RAID-0 10 Gb/s ~350 MB/s Reads ~250 MB/s Writes RAID-5 + HopsFS Erasure Coding ~500 MB/s Reads ~350 MB/s Writes Archive filesTriple-replicated files

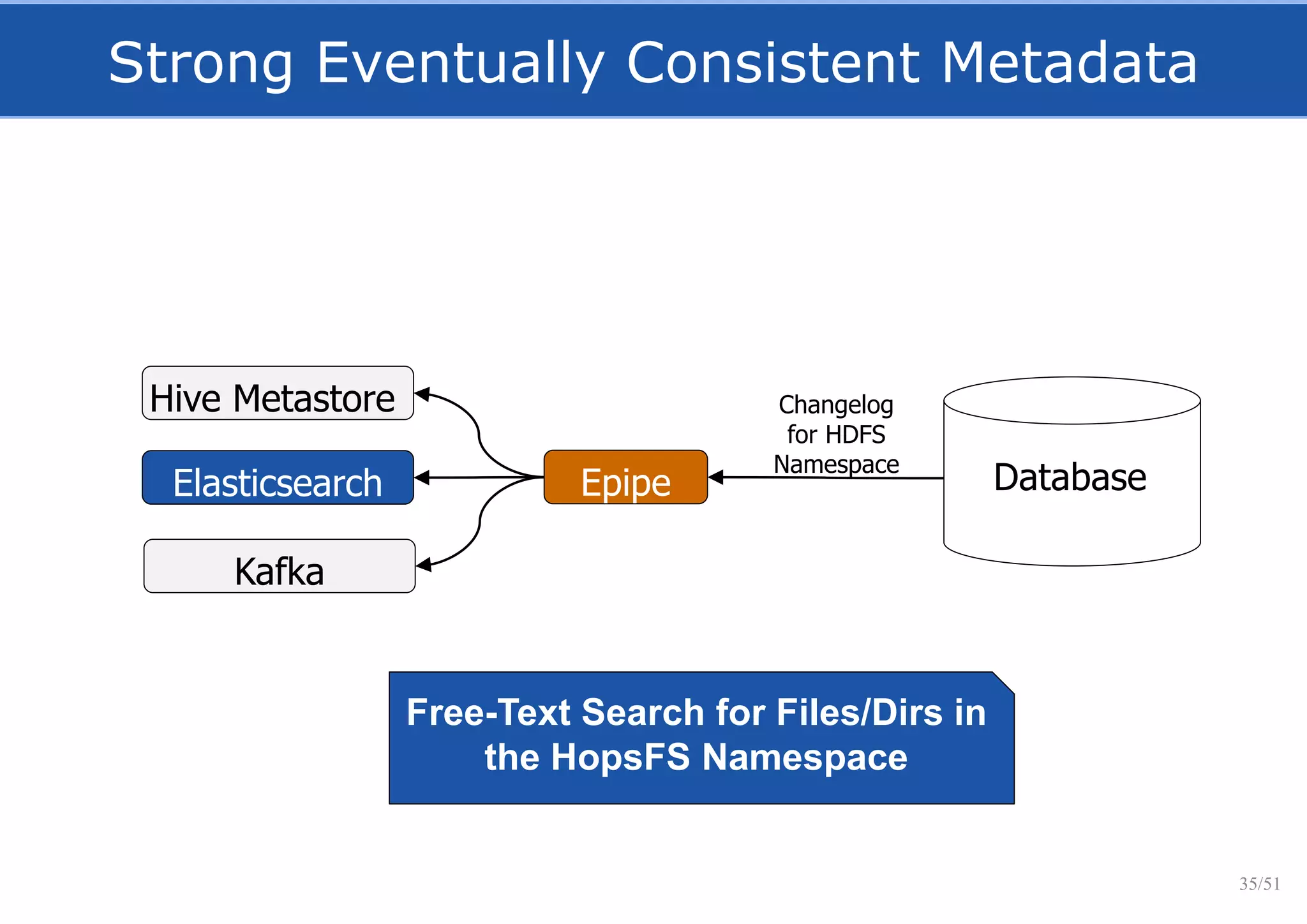

- 35. Elasticsearch Strong Eventually ConsistentMetadata 35/51 Database Kafka Epipe Hive Metastore Changelog for HDFS Namespace Free-Text Search for Files/Dirs in the HopsFS Namespace

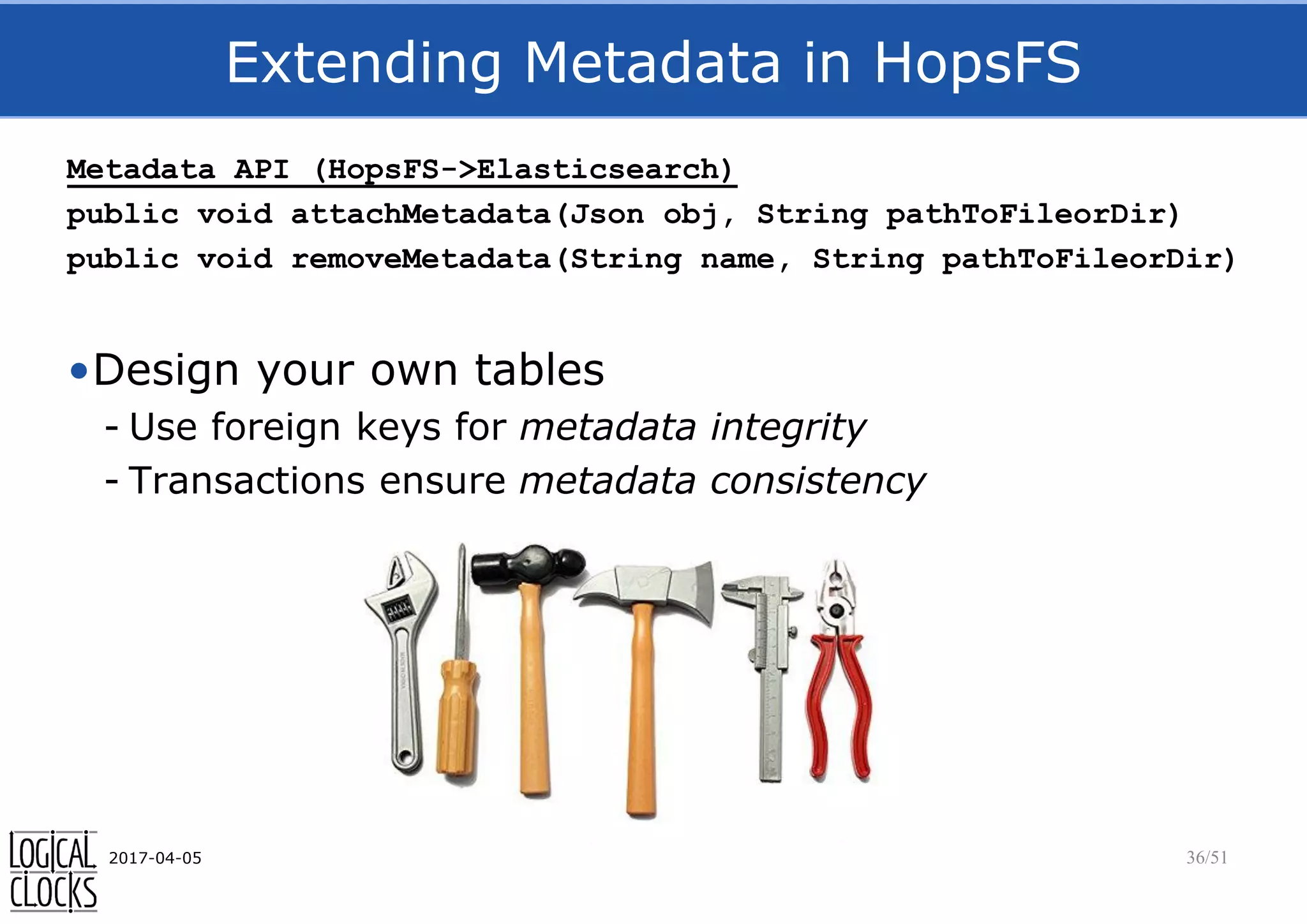

- 36. Extending Metadata inHopsFS Metadata API (HopsFS->Elasticsearch) public void attachMetadata(Json obj, String pathToFileorDir) public void removeMetadata(String name, String pathToFileorDir) •Design your own tables - Use foreign keys for metadata integrity - Transactions ensure metadata consistency 2017-04-05 36/51

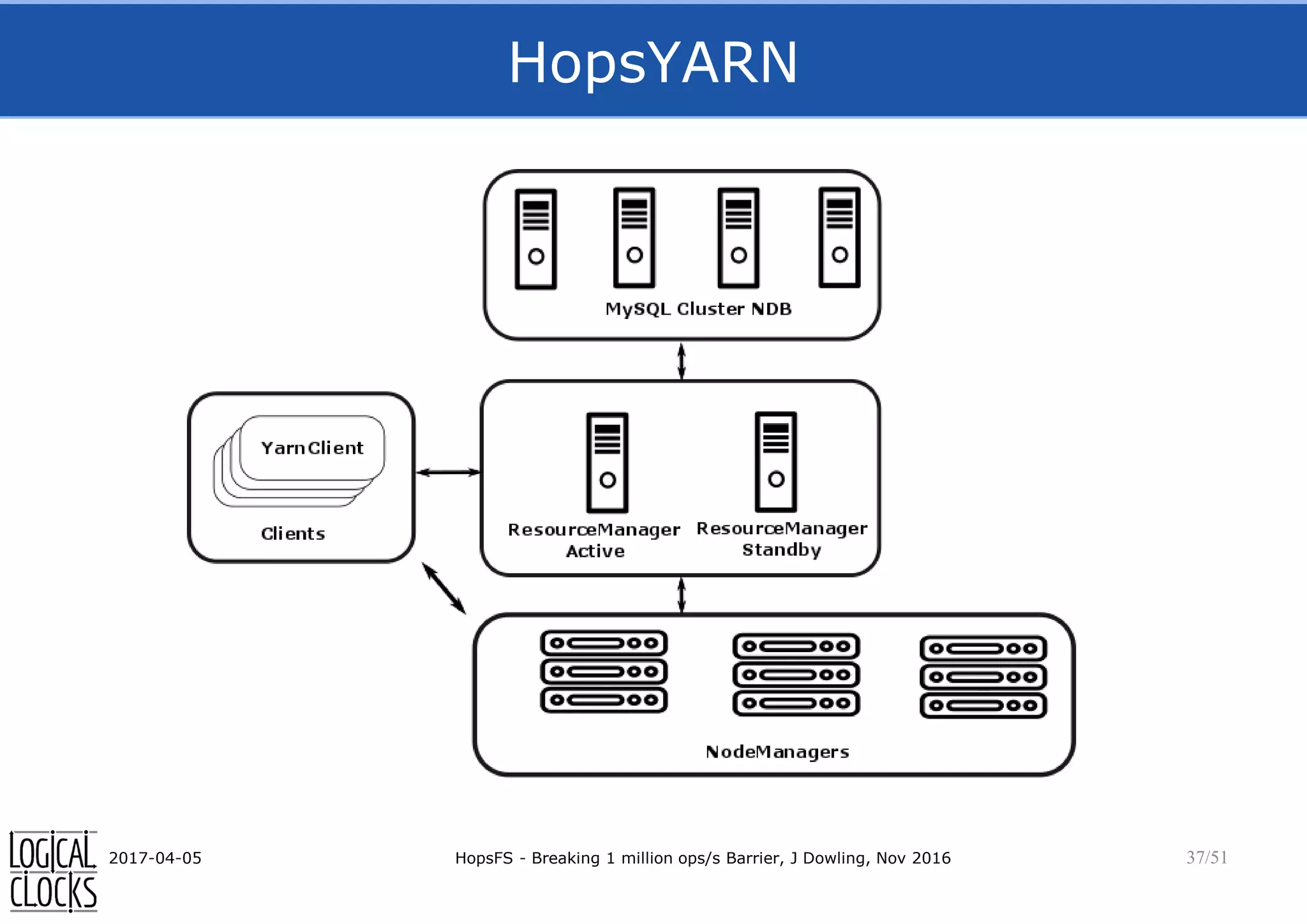

- 37. HopsYARN 2017-04-05 HopsFS -Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 37/51

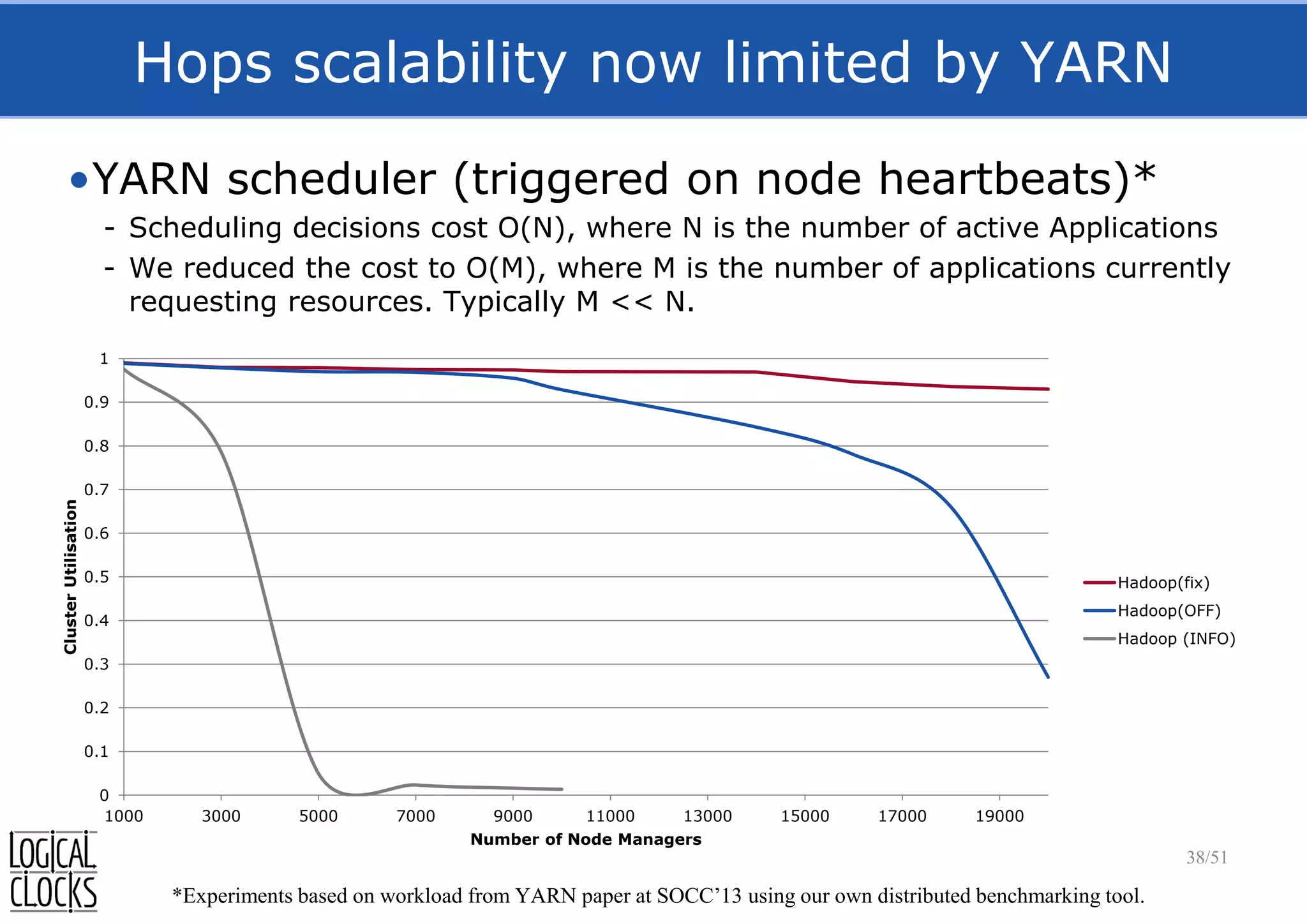

- 38. Hops scalability nowlimited by YARN •YARN scheduler (triggered on node heartbeats)* - Scheduling decisions cost O(N), where N is the number of active Applications - We reduced the cost to O(M), where M is the number of applications currently requesting resources. Typically M << N. 38/51 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1000 3000 5000 7000 9000 11000 13000 15000 17000 19000 ClusterUtilisation Number of Node Managers Hadoop(fix) Hadoop(OFF) Hadoop (INFO) *Experiments based on workload from YARN paper at SOCC’13 using our own distributed benchmarking tool.

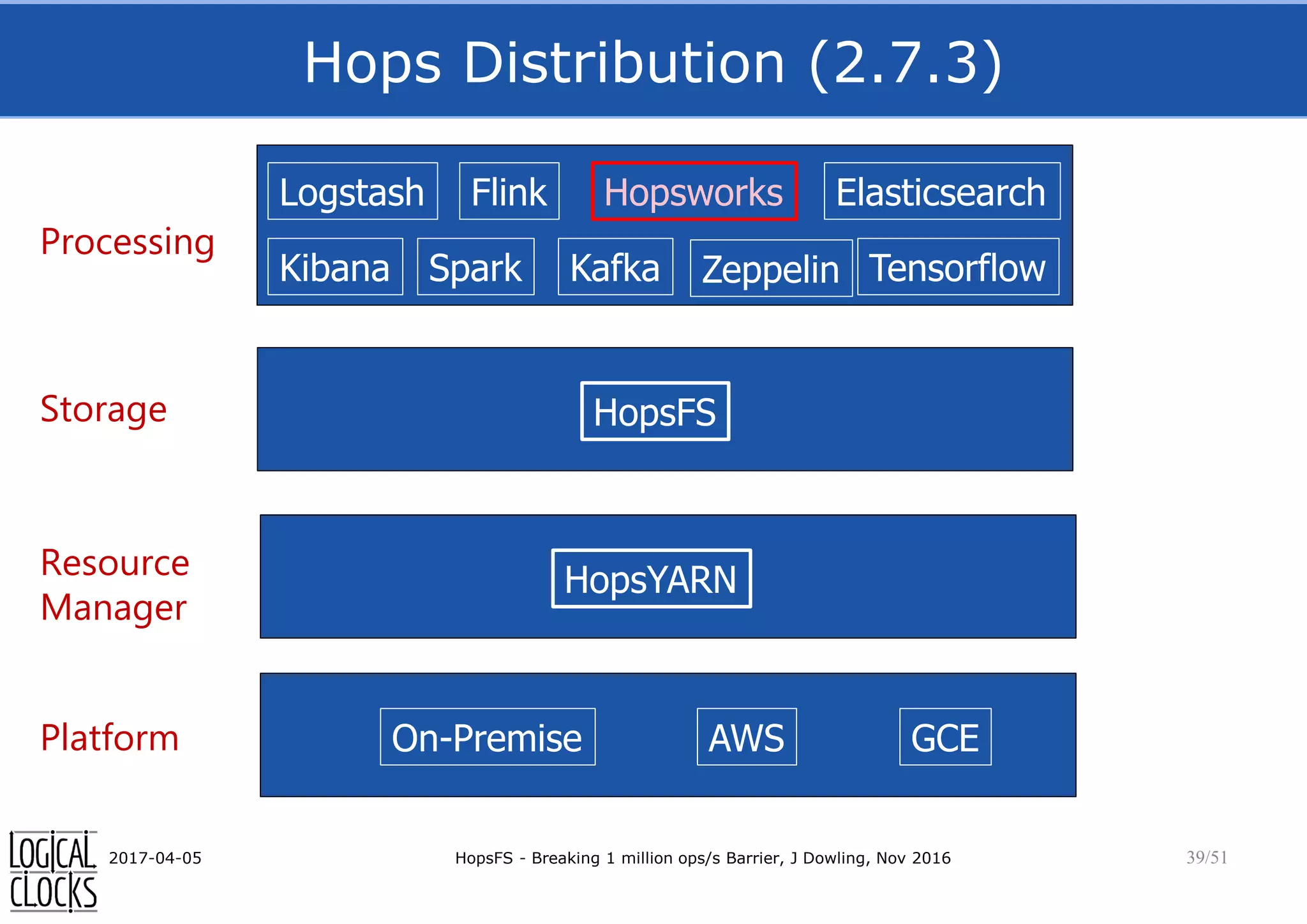

- 39. Hops Distribution (2.7.3) 2017-04-05HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 39/51 HopsYARNResource Manager Storage HopsFS On-Premise GCEAWSPlatform Processing Logstash TensorflowSpark Flink Kafka Hopsworks Elasticsearch Kibana Zeppelin

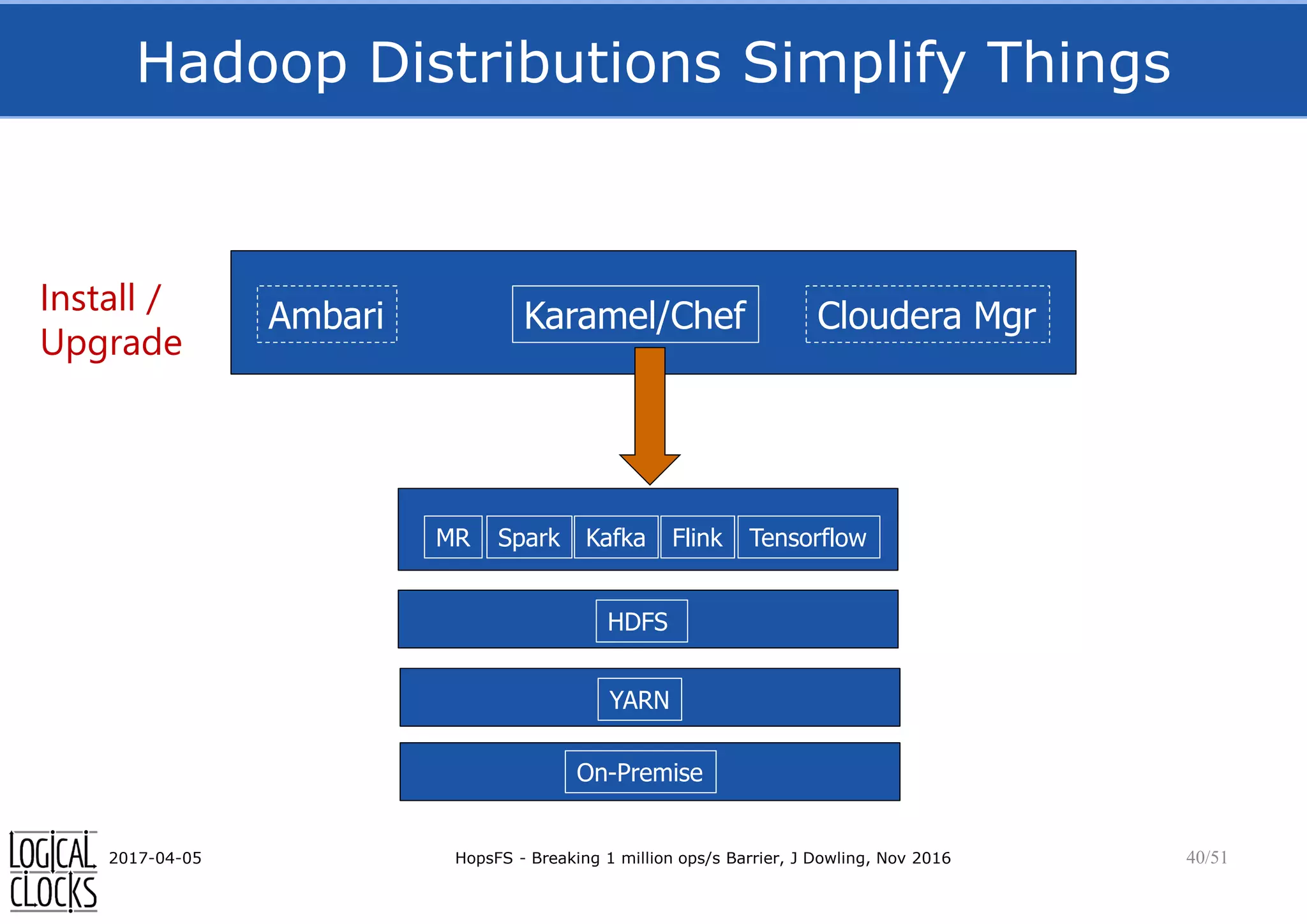

- 40. Hadoop Distributions SimplifyThings 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 40/51 Cloudera MgrKaramel/ChefAmbariInstall / Upgrade YARN HDFS On-Premise MR TensorflowSpark FlinkKafka
- 41. Future of HopsFS 2017-04-05HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 41/51

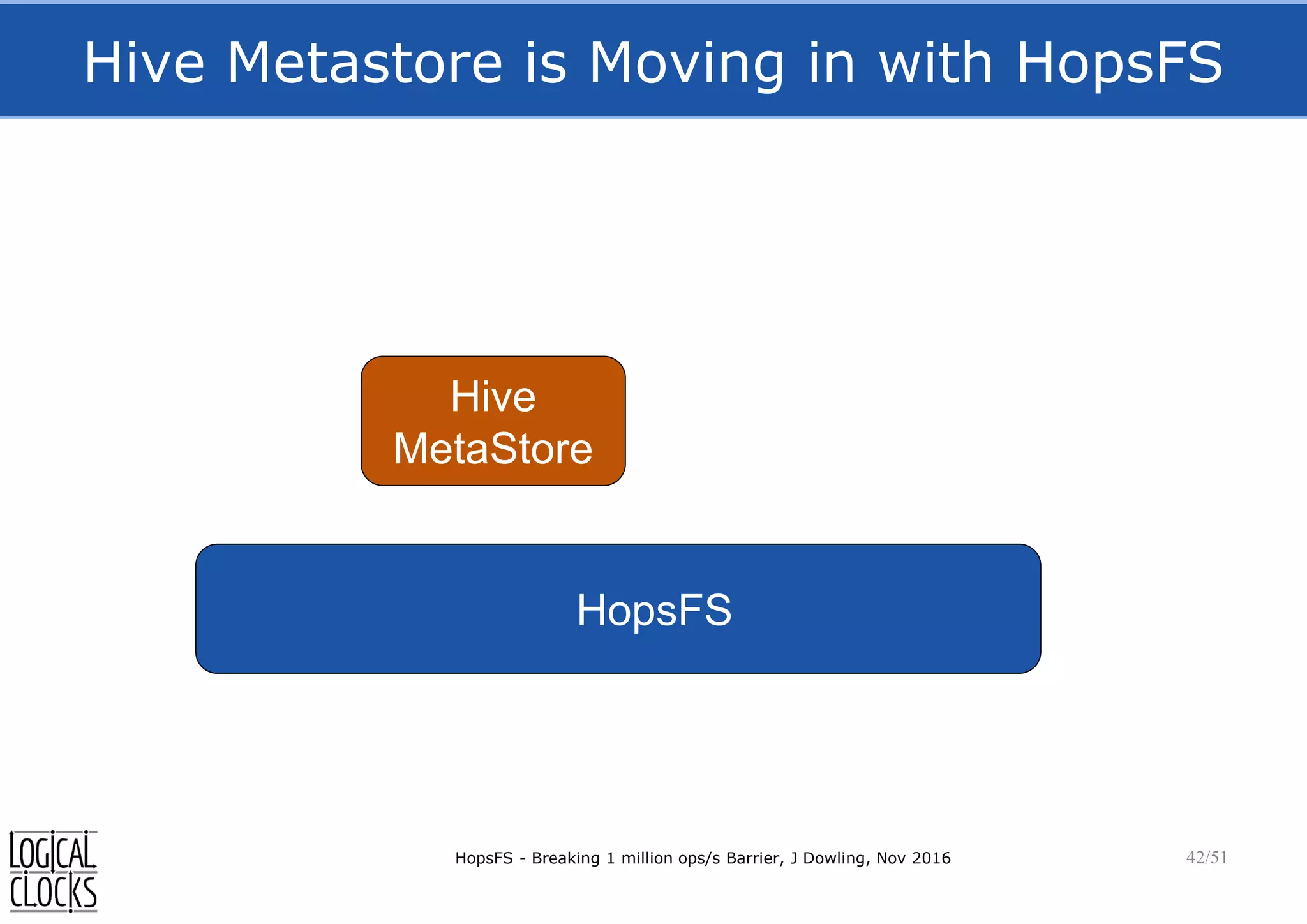

- 42. Hive Metastore isMoving in with HopsFS HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 42/51 HopsFS Hive MetaStore

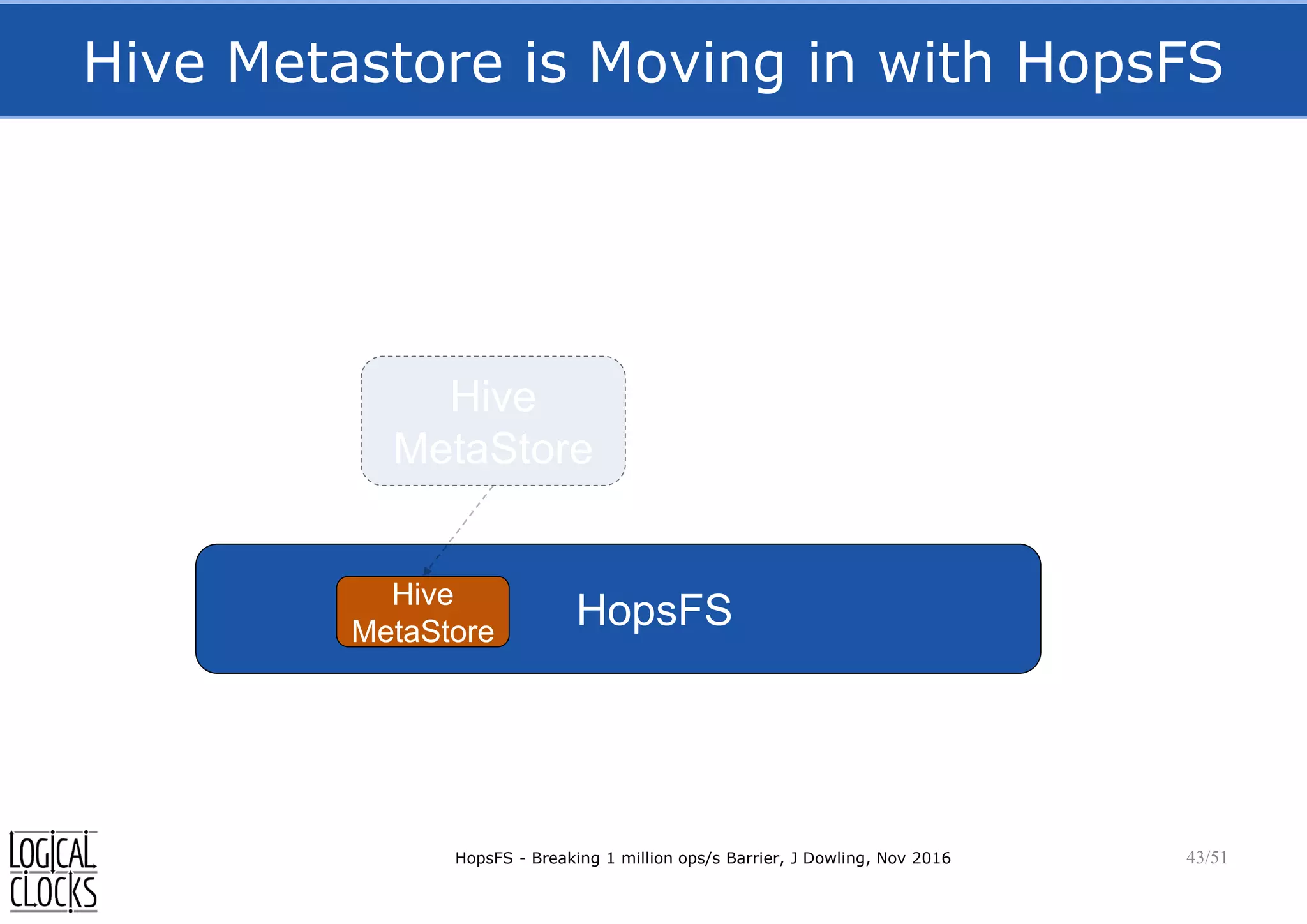

- 43. Hive Metastore isMoving in with HopsFS HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 43/51 HopsFSHive MetaStore Hive MetaStore

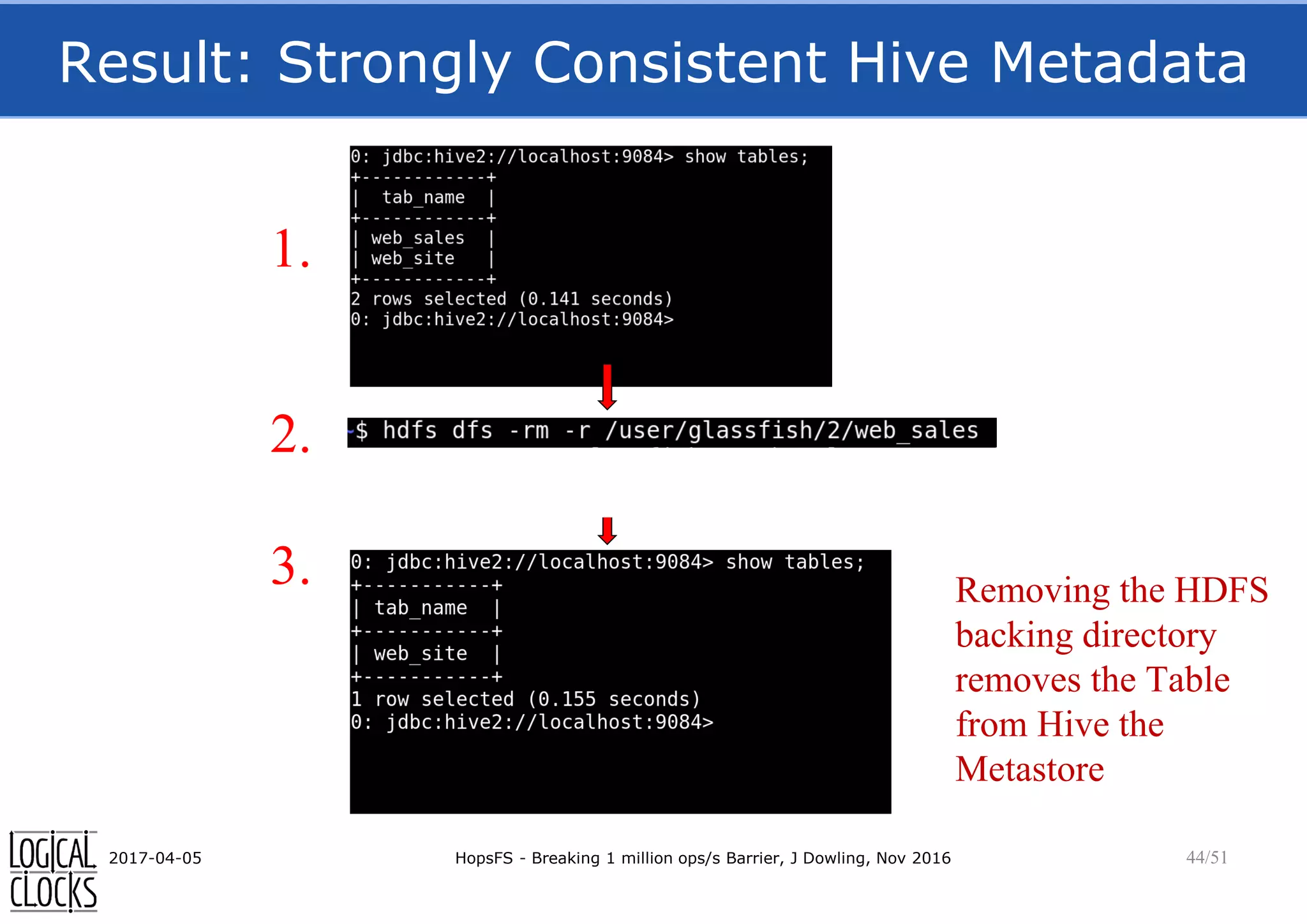

- 44. Result: Strongly ConsistentHive Metadata 2017-04-05 HopsFS - Breaking 1 million ops/s Barrier, J Dowling, Nov 2016 44/51 1. 3. 2. Removing the HDFS backing directory removes the Table from Hive the Metastore

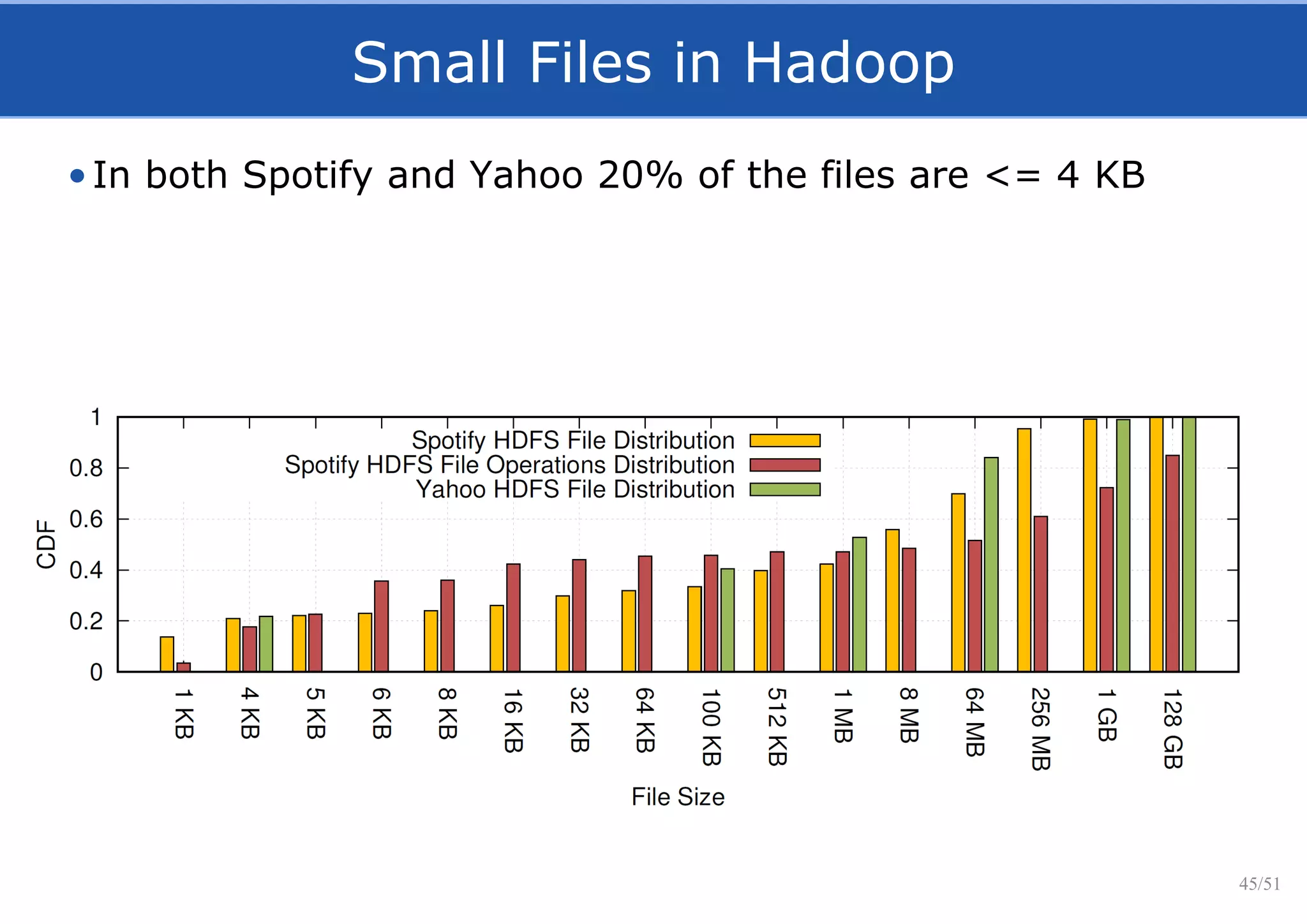

- 45. Small Files inHadoop •In both Spotify and Yahoo 20% of the files are <= 4 KB 45/51

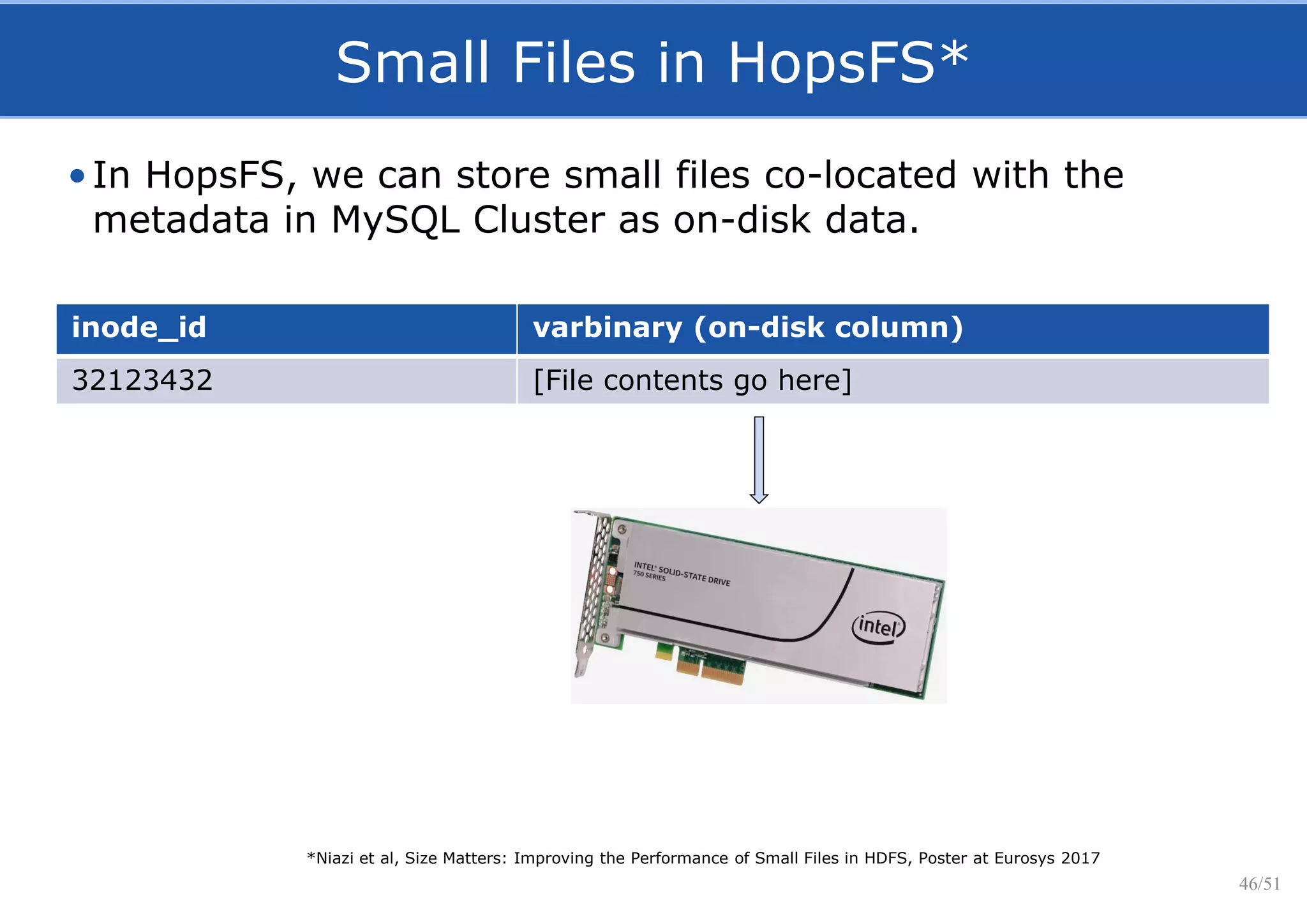

- 46. *Niazi et al,Size Matters: Improving the Performance of Small Files in HDFS, Poster at Eurosys 2017 Small Files in HopsFS* inode_id varbinary (on-disk column) 32123432 [File contents go here] 46/51 •In HopsFS, we can store small files co-located with the metadata in MySQL Cluster as on-disk data.

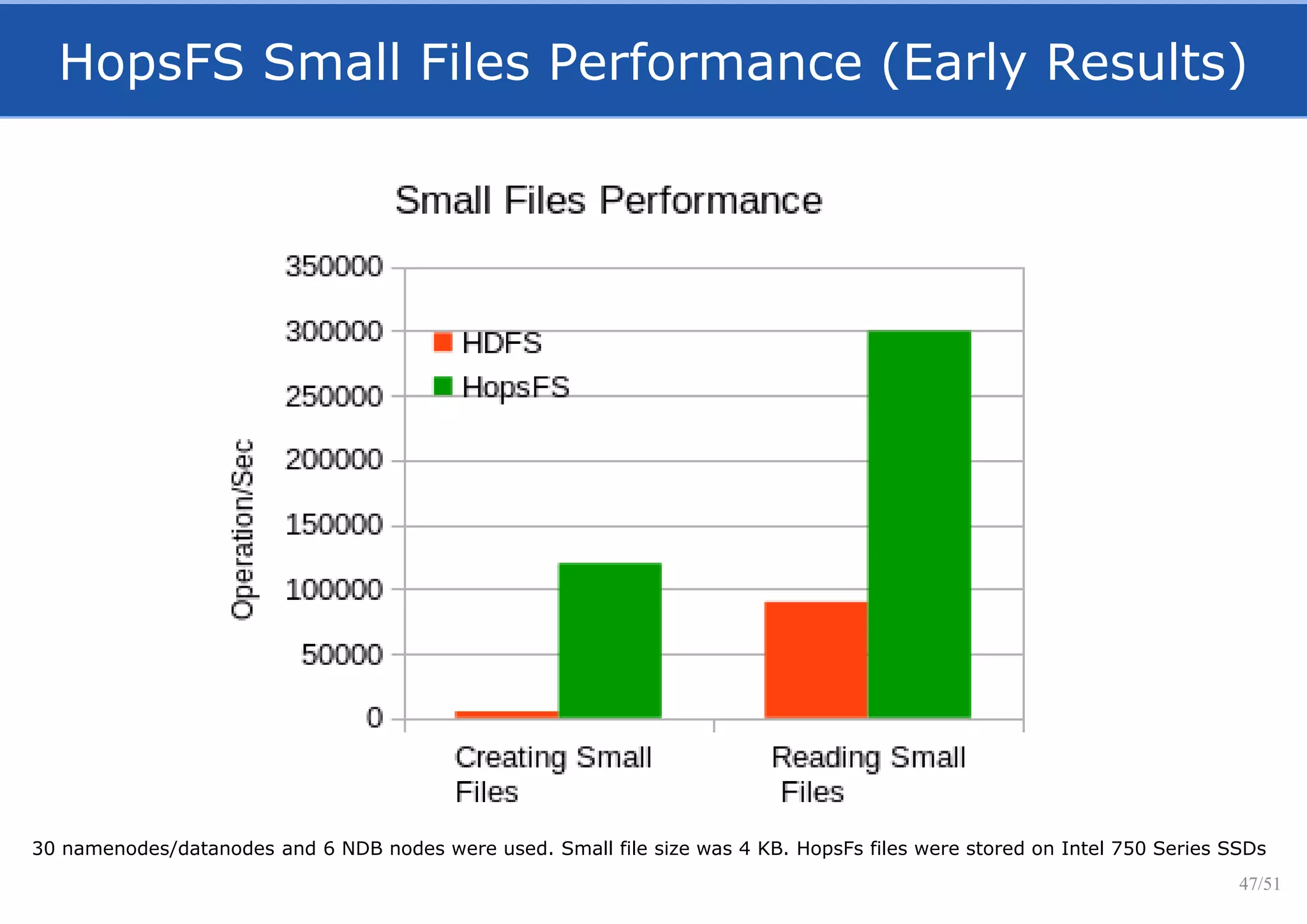

- 47. 30 namenodes/datanodes and6 NDB nodes were used. Small file size was 4 KB. HopsFs files were stored on Intel 750 Series SSDs HopsFS Small Files Performance (Early Results) 47/51

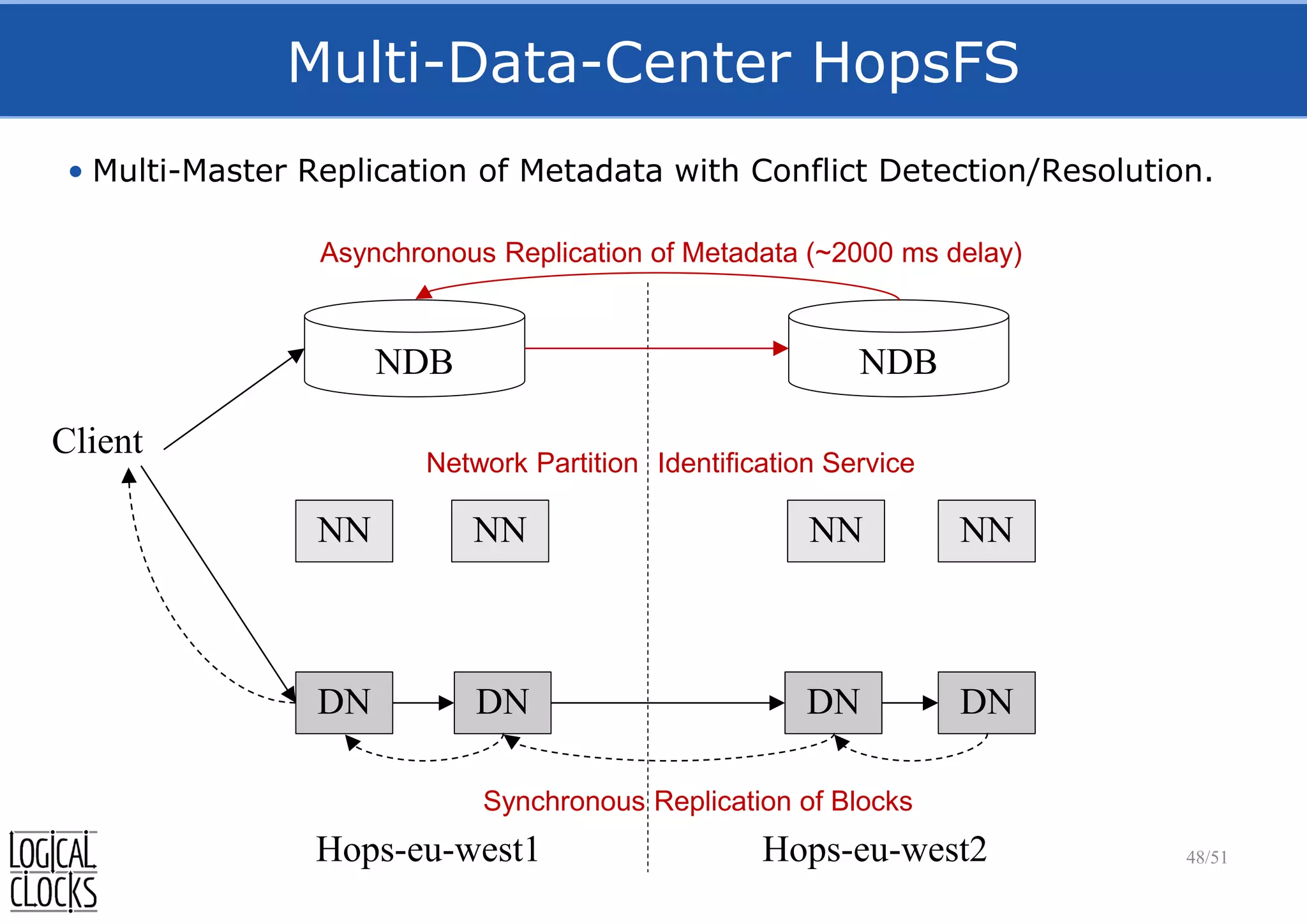

- 48. Multi-Data-Center HopsFS • Multi-MasterReplication of Metadata with Conflict Detection/Resolution. 48/51 NDB NDB DN DN DN DN Client Synchronous Replication of Blocks Network Partition Identification Service NNNN NNNN Asynchronous Replication of Metadata (~2000 ms delay) Hops-eu-west1 Hops-eu-west2

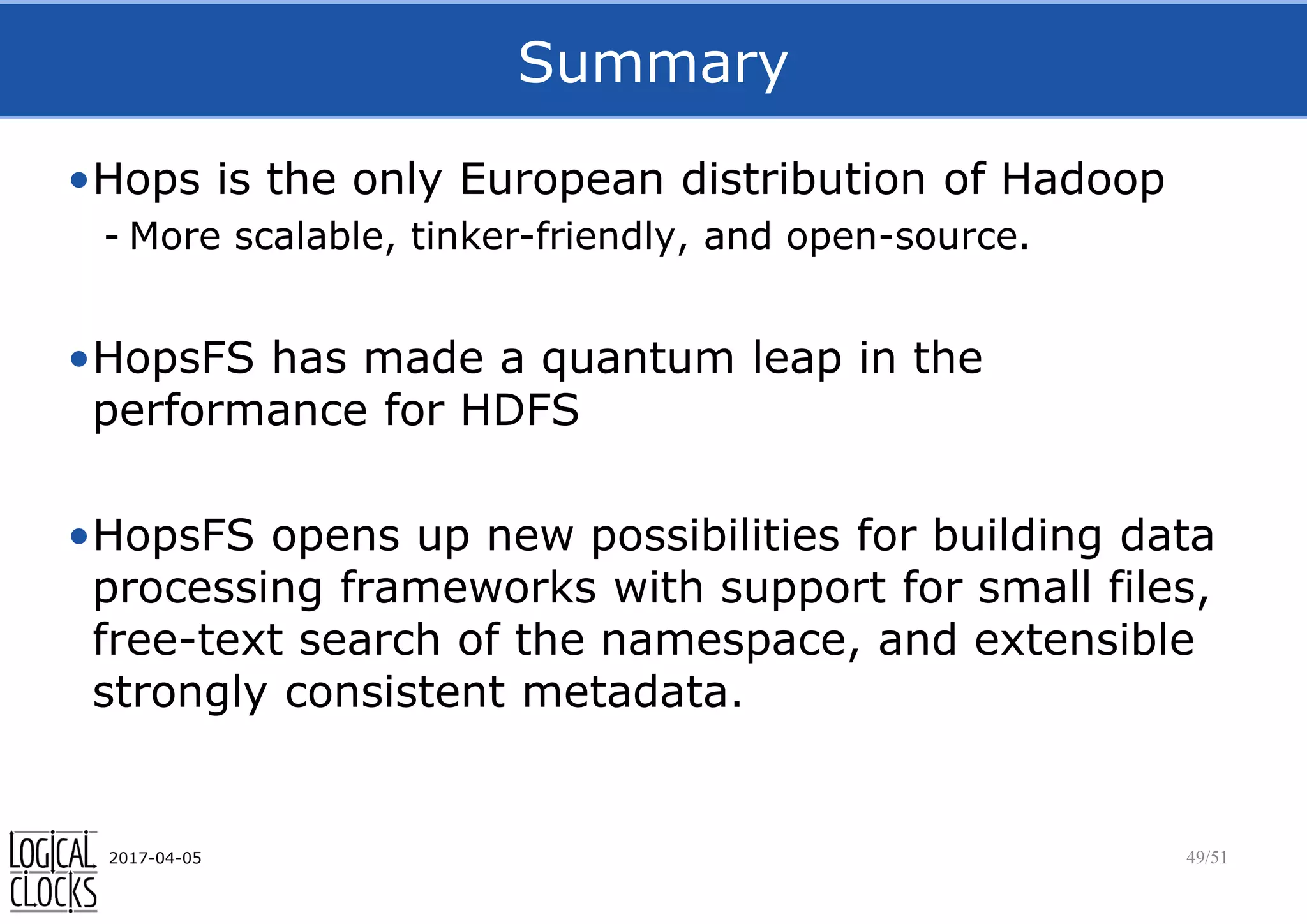

- 49. Summary •Hops is theonly European distribution of Hadoop - More scalable, tinker-friendly, and open-source. •HopsFS has made a quantum leap in the performance for HDFS •HopsFS opens up new possibilities for building data processing frameworks with support for small files, free-text search of the namespace, and extensible strongly consistent metadata. 2017-04-05 49/51
- 50. The Hops Team JimDowling, Seif Haridi, Tor Björn Minde, Gautier Berthou, Salman Niazi, Mahmoud Ismail, Theofilos Kakantousis, Ermias Gebremeskel, Antonios Kouzoupis, Alex Ormenisan, Roberto Bampi, Fabio Buso, Fanti Machmount Al Samisti, Braulio Grana, Zahin Azher Rashid, Robin Andersson, ArunaKumari Yedurupaka, Tobias Johansson, August Bonds, Filotas Siskos. Active: Alumni: Vasileios Giannokostas, Johan Svedlund Nordström,Rizvi Hasan, Paul Mälzer, Bram Leenders, Juan Roca, Misganu Dessalegn, K “Sri” Srijeyanthan, Jude D’Souza, Alberto Lorente, Andre Moré, Ali Gholami, Davis Jaunzems, Stig Viaene, Hooman Peiro, Evangelos Savvidis, Steffen Grohsschmiedt, Qi Qi, Gayana Chandrasekara, Nikolaos Stanogias, Daniel Bali, Ioannis Kerkinos, Peter Buechler, Pushparaj Motamari, Hamid Afzali, Wasif Malik, Lalith Suresh, Mariano Valles, Ying Lieu. Hops Heads

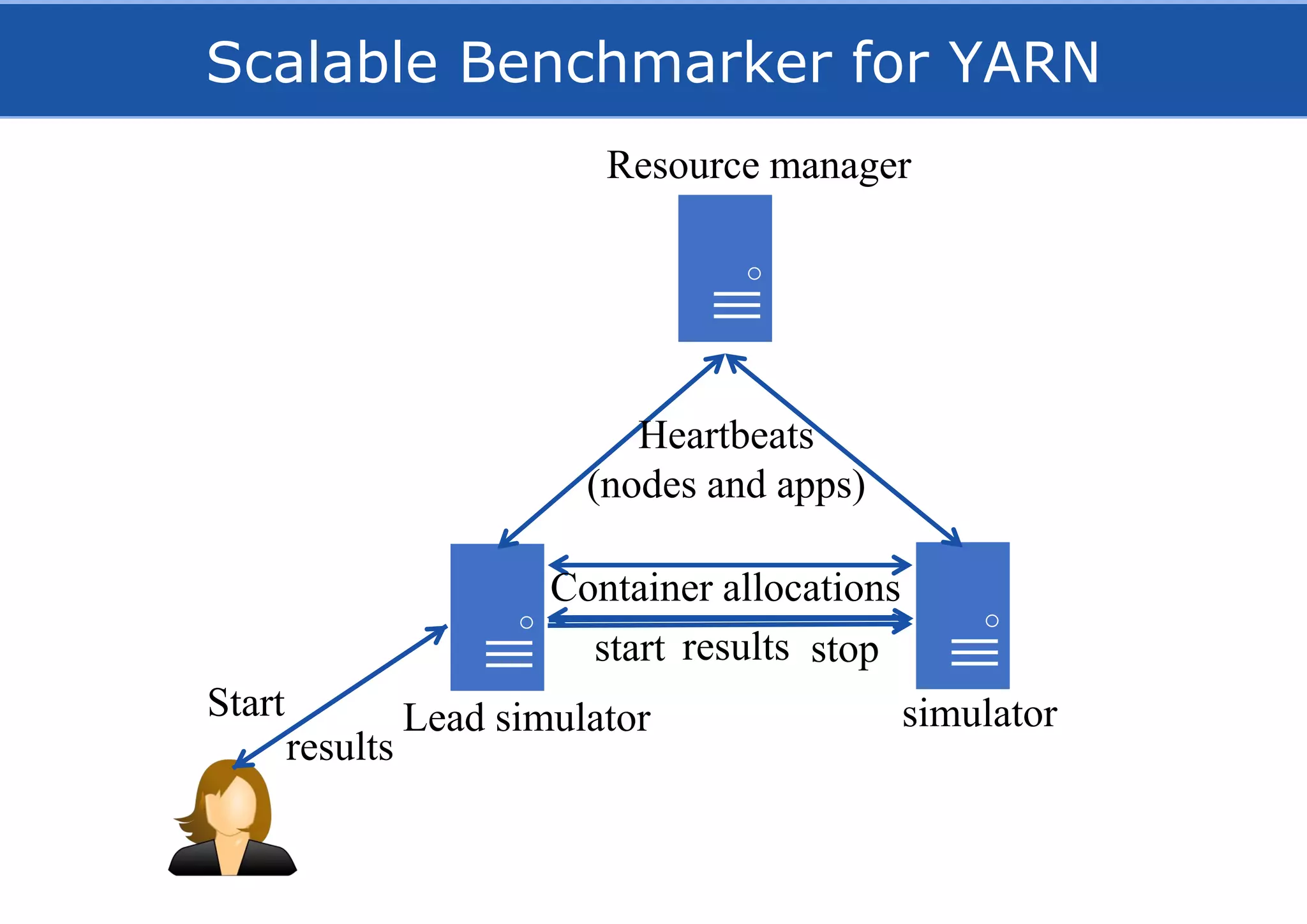

- 51. Resource manager Lead simulatorsimulatorStart start Heartbeats (nodes and apps) Container allocations stop results results Scalable Benchmarker for YARN
