ANALYSIS AND DESIGN
OF ALGORITHM
BACKTRACKING

Backtracking
N-Queens’ Problem
Graph Coloring
Hamiltonian Circuits

Backtracking
Backtracking is a general algorithm for finding all (or some) solutions to some computational
problems, notably constraint satisfaction problems, that incrementally builds candidates to the
solutions, and abandons each partial candidate ("backtracks") as soon as it determines that the
candidate cannot possibly be completed to a valid solution.
What is meant by possible solutions and how these are differentiated from the impossible ones
are issues specific to the problem being solved.
function backtrack(current depth)
if solution is valid
return / print the solution
else
for each element from A[ ] source array
let X[current depth]  element
if possible candidate (current depth + 1)
backtrack(current depth + 1)
end if
end for
end if
end function

Backtracking is used to solve problems in which a feasible solution is needed rather
than an optimal one, such as the solution to a maze or an arrangement of squares in
the 15-puzzle. Backtracking problems are typically a sequence of items (or objects)
chosen from a set of alternatives that satisfy some criterion.
6
10
14
15

Backtracking is a modified depth-first search of the solution-space tree. In the case of
the maze the start location is the root of a tree, that branches at each point in the maze
where there is a choice of direction.

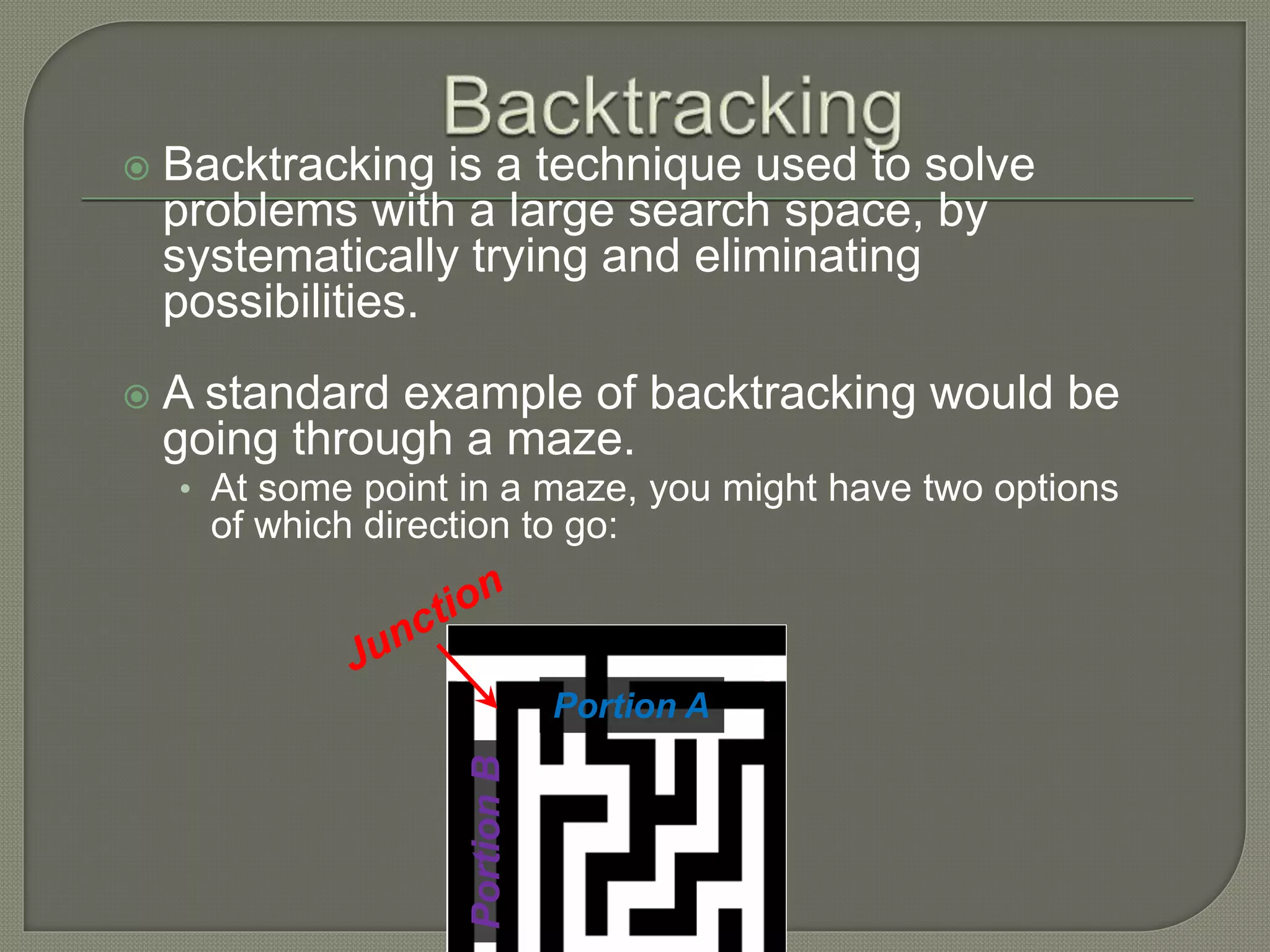

 Backtracking is a technique used to solve
problems with a large search space, by
systematically trying and eliminating
possibilities.
 A standard example of backtracking would be
going through a maze.
• At some point in a maze, you might have two options
of which direction to go:
Portion A
PortionB

Portion B
PortionA

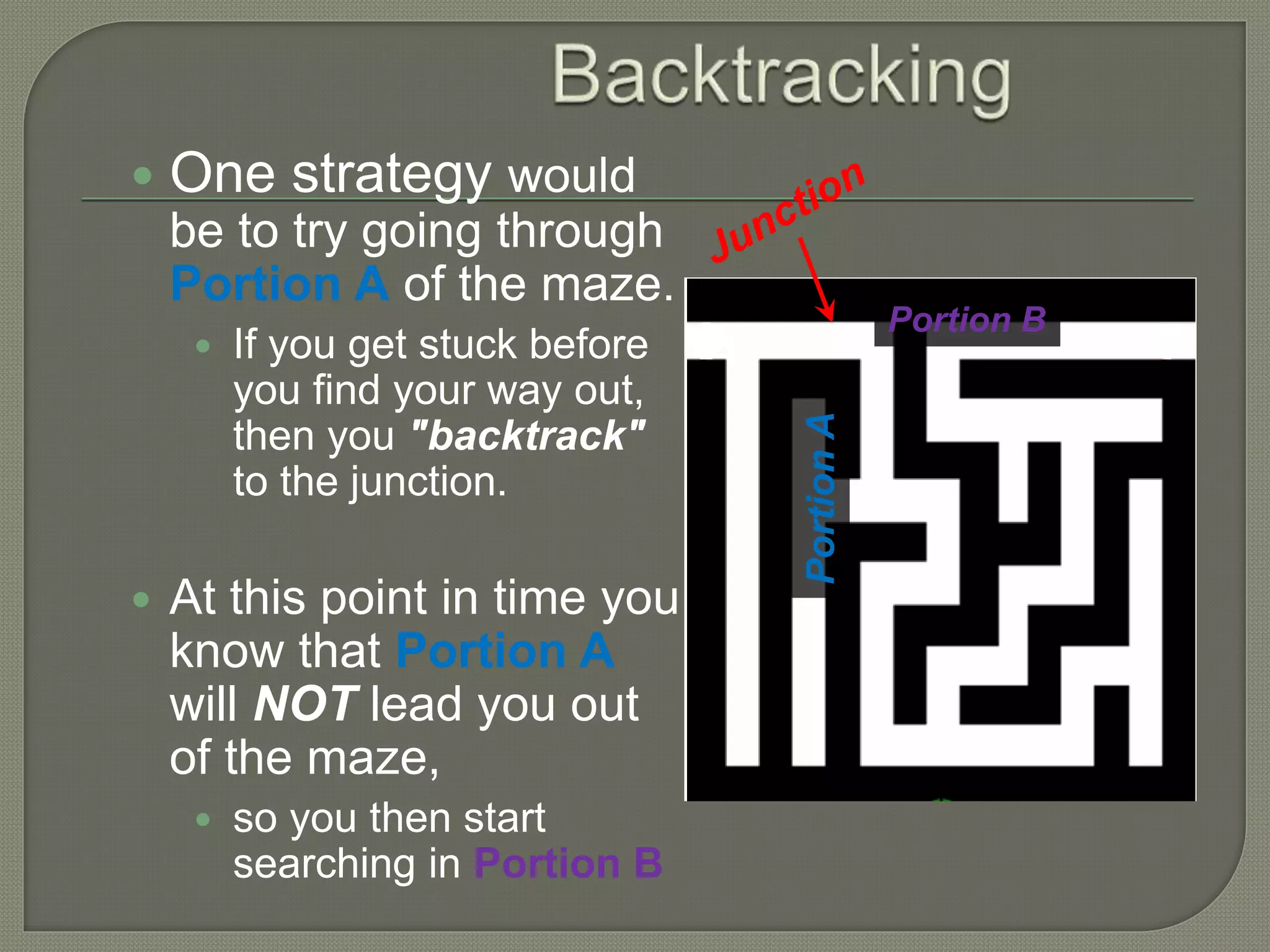

 One strategy would
be to try going through
Portion A of the maze.
 If you get stuck before
you find your way out,
then you "backtrack"
to the junction.
 At this point in time you
know that Portion A
will NOT lead you out
of the maze,
 so you then start
searching in Portion B

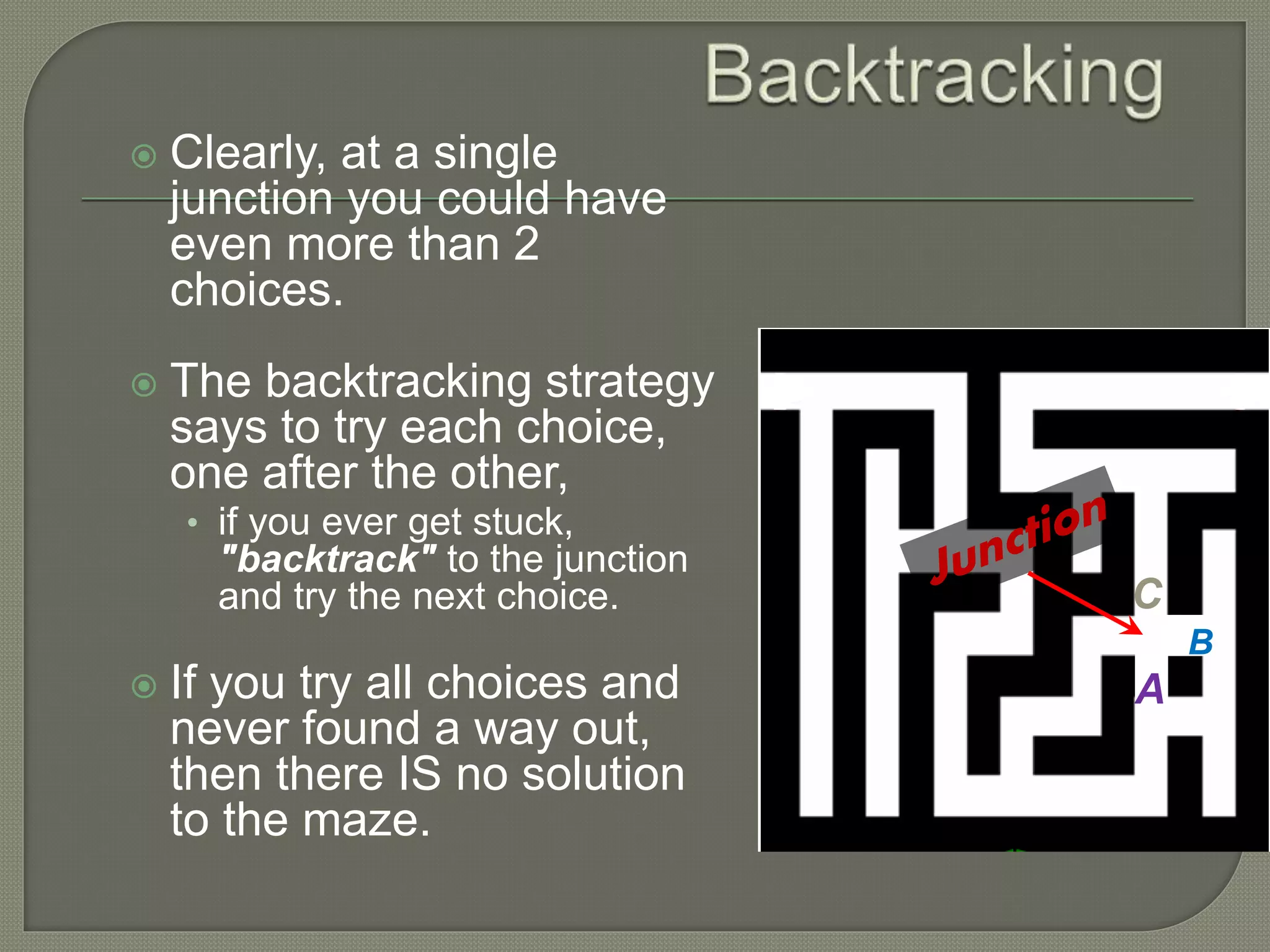

 Clearly, at a single
junction you could have
even more than 2
choices.
 The backtracking strategy
says to try each choice,
one after the other,
• if you ever get stuck,
"backtrack" to the junction
and try the next choice.
 If you try all choices and
never found a way out,
then there IS no solution
to the maze.
B
C
A

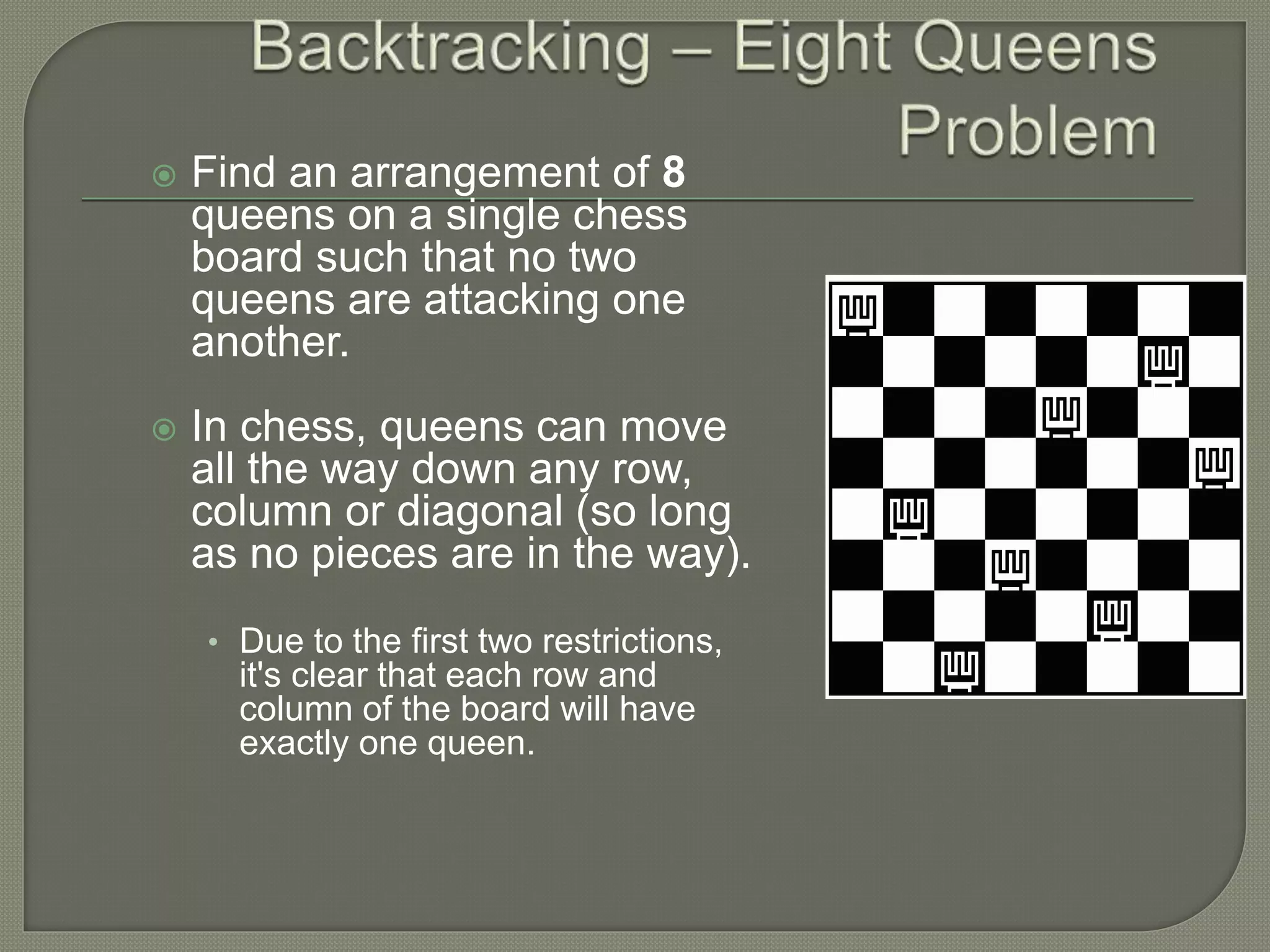

 Find an arrangement of 8
queens on a single chess
board such that no two
queens are attacking one
another.
 In chess, queens can move
all the way down any row,
column or diagonal (so long
as no pieces are in the way).
• Due to the first two restrictions,
it's clear that each row and
column of the board will have
exactly one queen.

 The backtracking strategy is
as follows:
1) Place a queen on the first
available square in row 1.
2) Move onto the next row,
placing a queen on the first
available square there (that
doesn't conflict with the
previously placed queens).
3) Continue in this fashion until
either:
a) you have solved the problem, or
b) you get stuck.
 When you get stuck, remove the
queens that got you there, until
you get to a row where there is
another valid square to try.
Q
Q
Q
Q
Q Q
Continue…

 When we carry out backtracking, an easy
way to visualize what is going on is a tree
that shows all the different possibilities that
have been tried.
 On the board we will show a visual
representation of solving the 4 Queens
problem (placing 4 queens on a 4x4 board
where no two attack one another).

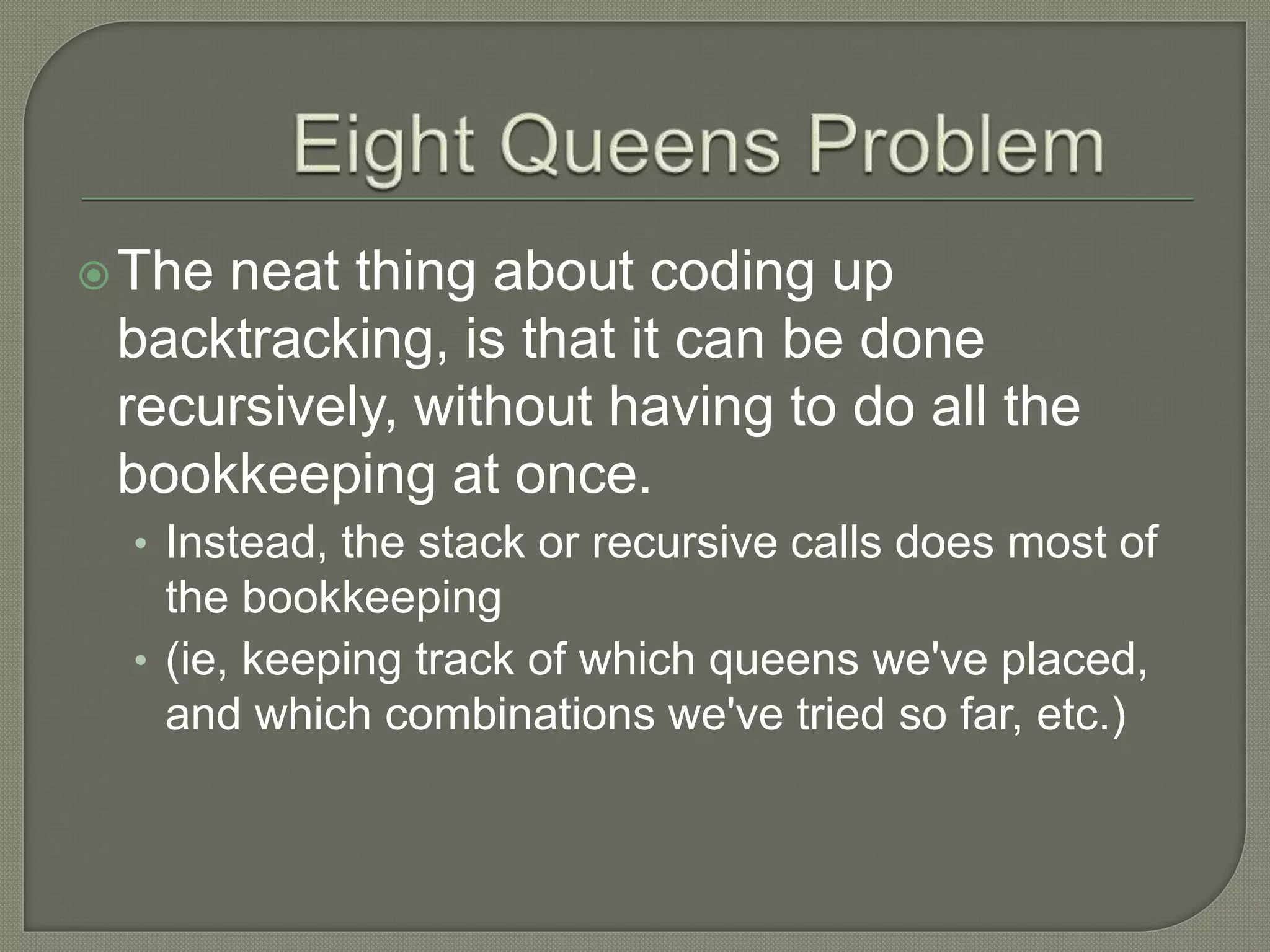

The neat thing about coding up
backtracking, is that it can be done
recursively, without having to do all the
bookkeeping at once.
• Instead, the stack or recursive calls does most of
the bookkeeping
• (ie, keeping track of which queens we've placed,
and which combinations we've tried so far, etc.)

void solveItRec(int perm[], int location, struct onesquare
usedList[]) {
if (location == SIZE) {
printSol(perm);
}
for (int i=0; i<SIZE; i++) {
if (usedList[i] == false) {
if (!conflict(perm, location, i)) {
perm[location] = i;
usedList[i] = true;
solveItRec(perm, location+1, usedList);
usedList[i] = false;
}
}
}
}
perm[] - stores a valid permutation of queens from index 0 to location-1.
location – the column we are placing the next queen
usedList[] – keeps track of the rows in which the queens have already been placed.
Found a solution to the problem, so print it!
Loop through possible rows to place this queen.
Only try this row if it hasn’t been used
Check if this position conflicts with any
previous queens on the diagonal
1) mark the queen in this row
2) mark the row as used
3) solve the next column
location recursively
4) un-mark the row as used, so
we can get ALL possible valid
solutions.

 Another possible brute-force algorithm is generate the
permutations of the numbers 1 through 8 (of which there are
8! = 40,320),
• and uses the elements of each permutation as indices to place a queen
on each row.
• Then it rejects those boards with diagonal attacking positions.
 The backtracking algorithm, is a slight improvement on the
permutation method,
• constructs the search tree by considering one row of the board at a time,
eliminating most non-solution board positions at a very early stage in
their construction.
• Because it rejects row and diagonal attacks even on incomplete boards,
it examines only 15,720 possible queen placements.
 A further improvement which examines only 5,508 possible
queen placements is to combine the permutation based
method with the early pruning method:
• The permutations are generated depth-first, and the search space is
pruned if the partial permutation produces a diagonal attack

Analysis & Design of Algorithms

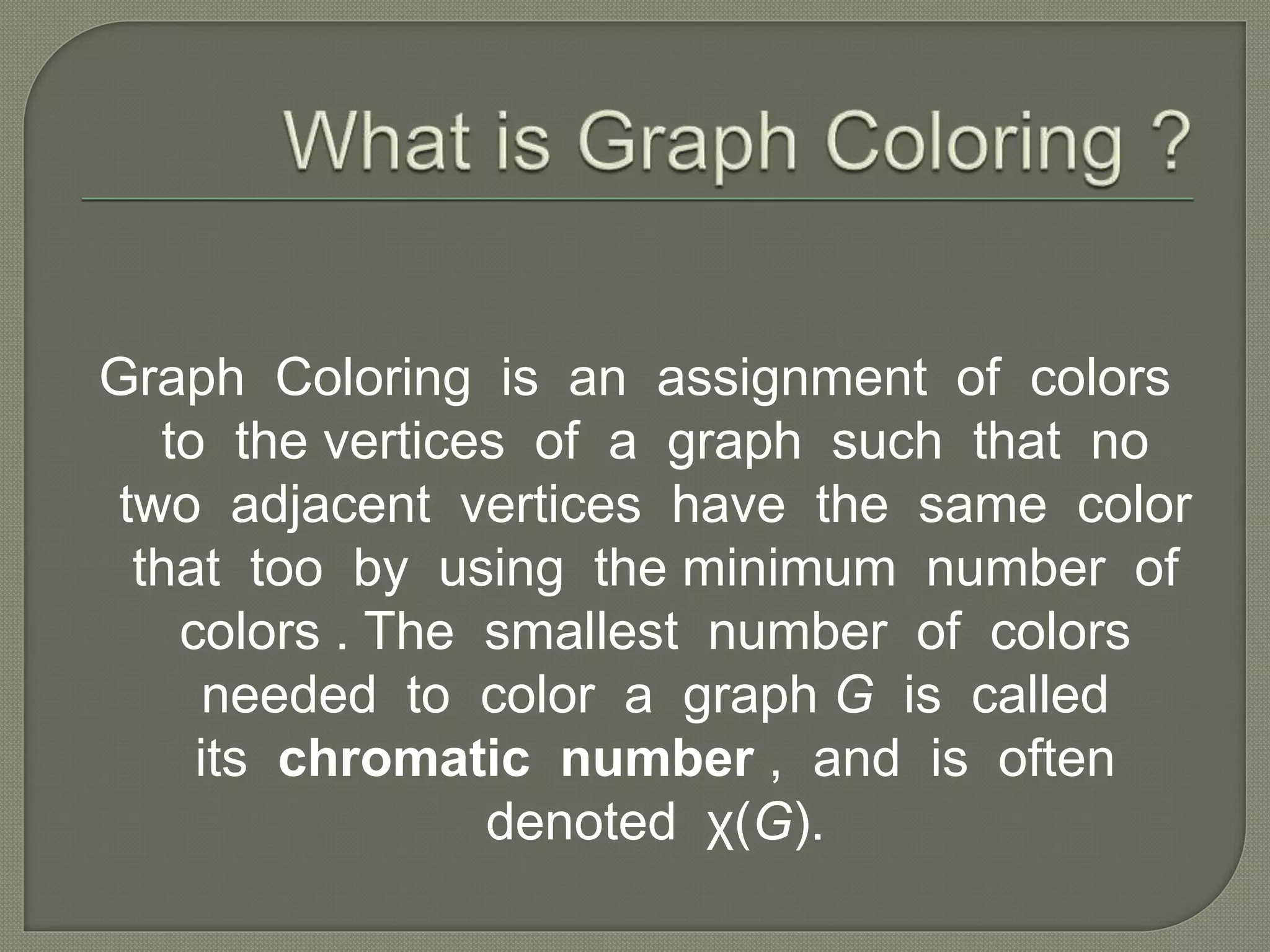

Graph Coloring is an assignment of colors
to the vertices of a graph such that no
two adjacent vertices have the same color
that too by using the minimum number of
colors . The smallest number of colors
needed to color a graph G is called
its chromatic number , and is often
denoted χ(G).

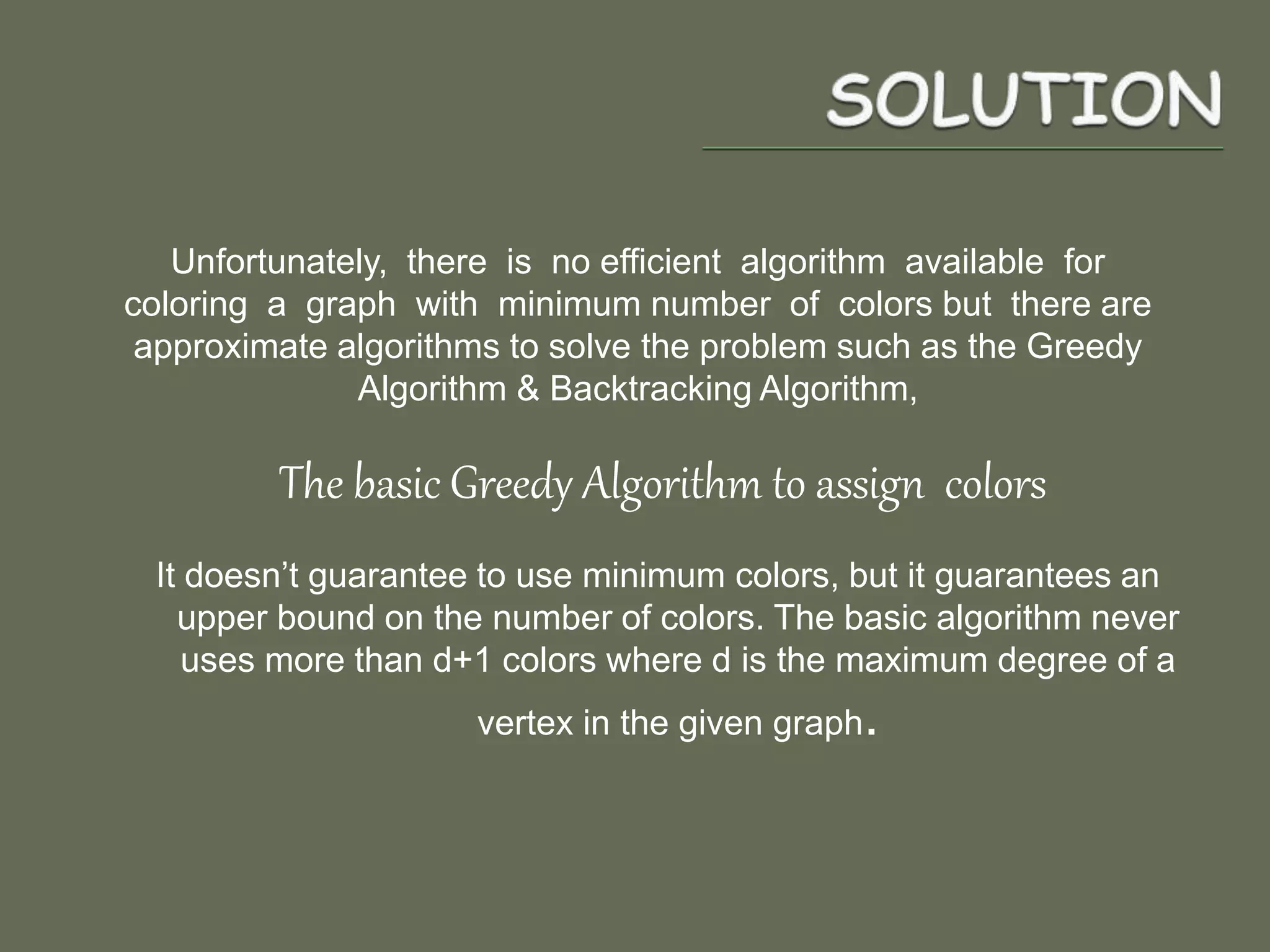

Unfortunately, there is no efficient algorithm available for
coloring a graph with minimum number of colors but there are
approximate algorithms to solve the problem such as the Greedy
Algorithm & Backtracking Algorithm,
The basic Greedy Algorithm to assign colors
It doesn’t guarantee to use minimum colors, but it guarantees an
upper bound on the number of colors. The basic algorithm never
uses more than d+1 colors where d is the maximum degree of a
vertex in the given graph.

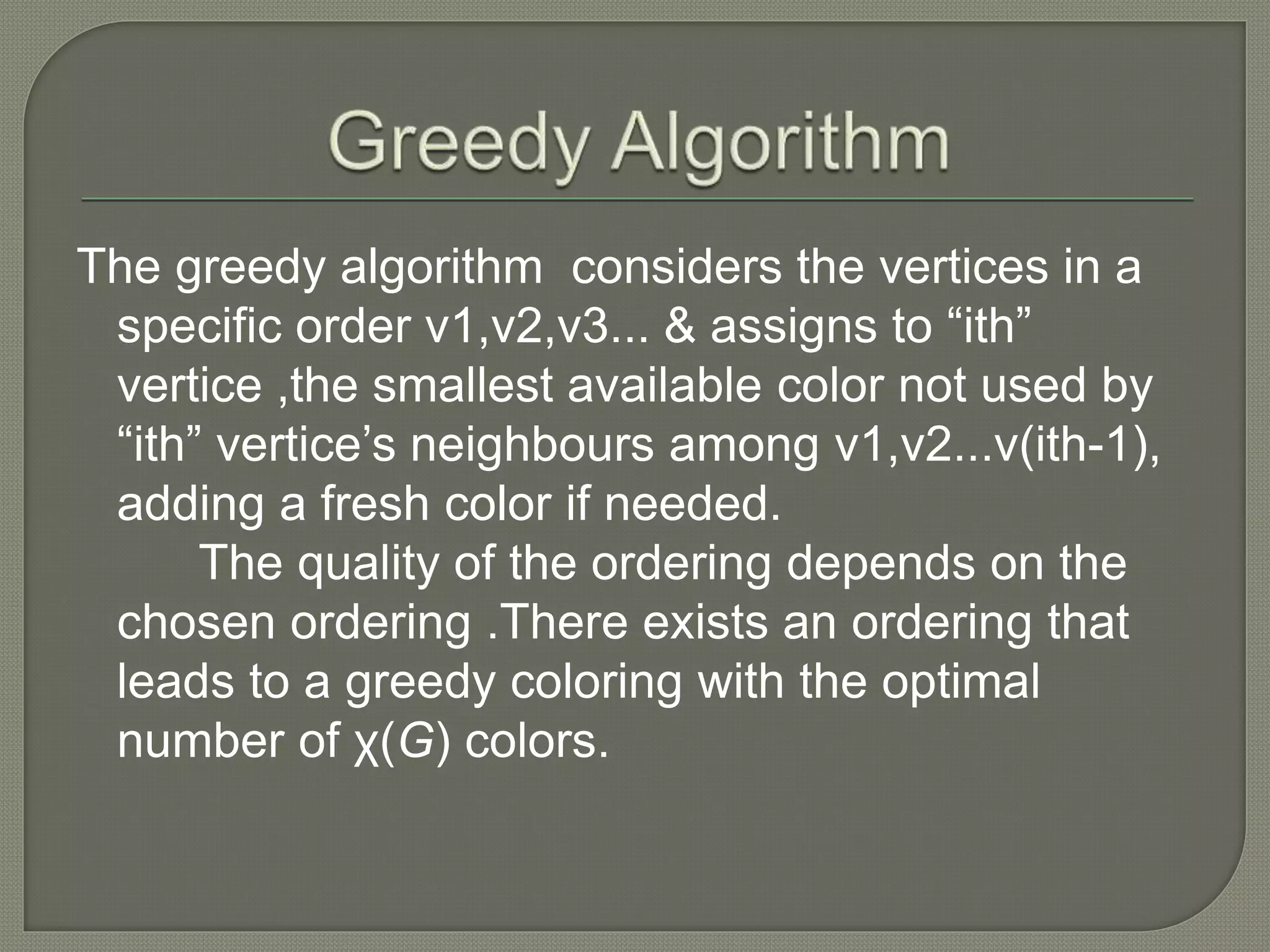

The greedy algorithm considers the vertices in a
specific order v1,v2,v3... & assigns to “ith”
vertice ,the smallest available color not used by
“ith” vertice’s neighbours among v1,v2...v(ith-1),
adding a fresh color if needed.
The quality of the ordering depends on the
chosen ordering .There exists an ordering that
leads to a greedy coloring with the optimal
number of χ(G) colors.

 Given an undirected graph and a number
m, the solution is to color the graph with at
most m colors such that no two adjacent
vertices of the graph are colored with same
color.
 In this algorithm , the graph is represented by its
boolean adjacency matrix G[1:n,1:n]. Here K
is the index of the next vertex to color.

mColoring(k)
{ repeat
{ NextValue(k); // ASSIGN A COLOR
if (x[k]=0) then return; //NO COLOR POSSIBLE
if(k=n) then //AT MOST M COLORS USED TO COLOR N
VERTICES write(x[1:n]);
else mColoring(k+1);
}until (false);
}
NextValue(k)
{ repeat
{ x[k]=(x[k+1) mod (m+1); //NEXT HIGGEST COLOR
if(x[k]=0) then return ; //ALL COLORS USED
for j=1 to n do
{ if((G[k,j]!=0) and (x[k]=x[j])) //CHECK IF ADJACENT COLOR IS DIFFERENT
then break;
}
if(j=n+1) then return; //NEW COLOR FOUND
}until(false); //FIND ANOTHER COLOR
}

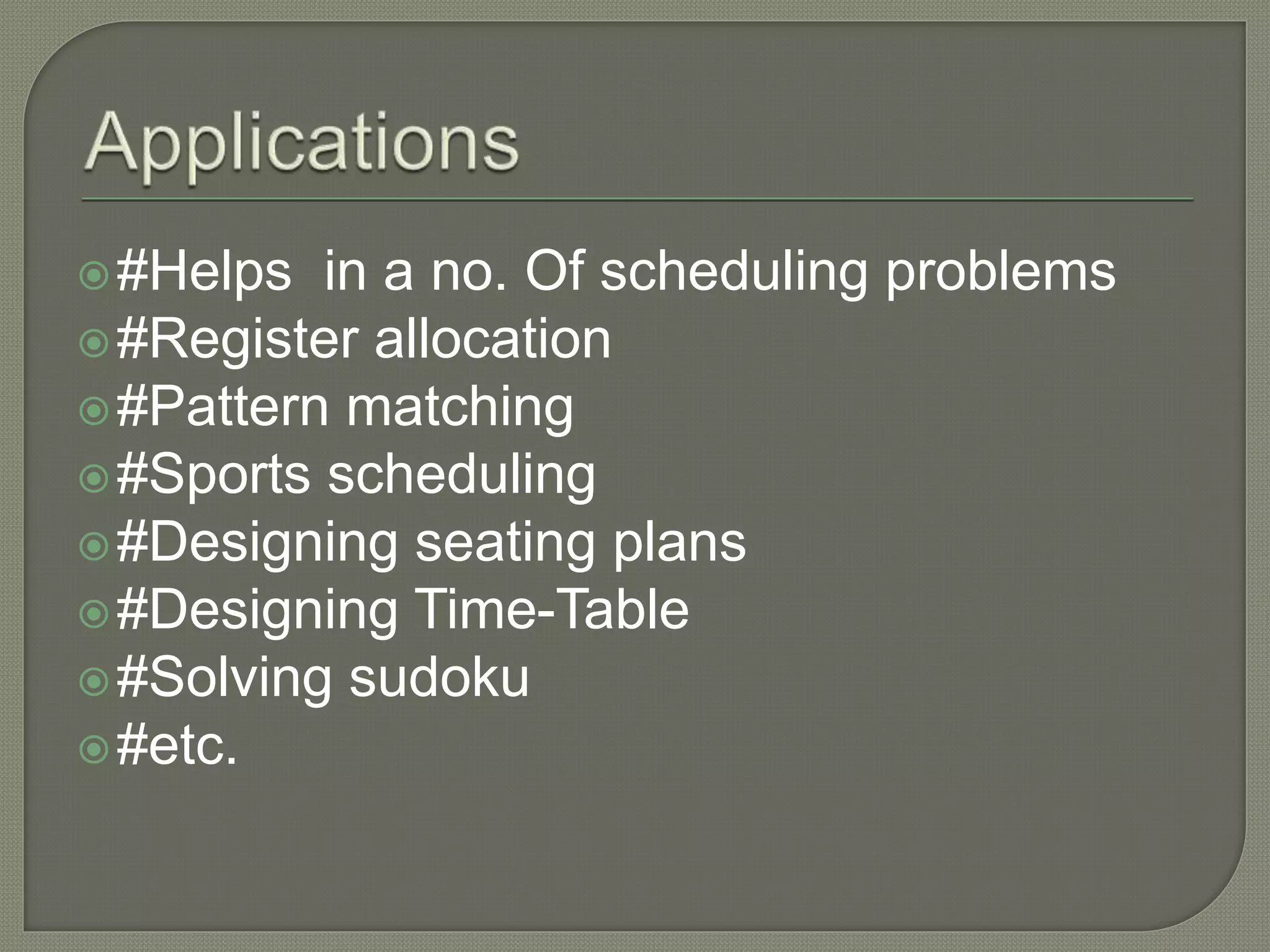

#Helps in a no. Of scheduling problems
#Register allocation
#Pattern matching
#Sports scheduling
#Designing seating plans
#Designing Time-Table
#Solving sudoku
#etc.

Graph coloring with greedy algorithm

Graph coloring with backtracking

Definitions:-
• A Hamiltonian path is a path in an undirected or
directed graph that visits each vertex exactly once. A
Hamiltonian cycle (or Hamiltonian circuit) is a
Hamiltonian path that is a cycle.
• A Hamiltonian cycle is a cycle that visits each vertex
exactly once (except for the vertex that is both the
start and end, which is visited twice). A graph that
contains a Hamiltonian cycle is called a Hamiltonian
graph.
Examples:-
• The graph of every platonic solid is a Hamiltonian
graph.
• Every complete graph with more than two vertices is
a Hamiltonian graph.

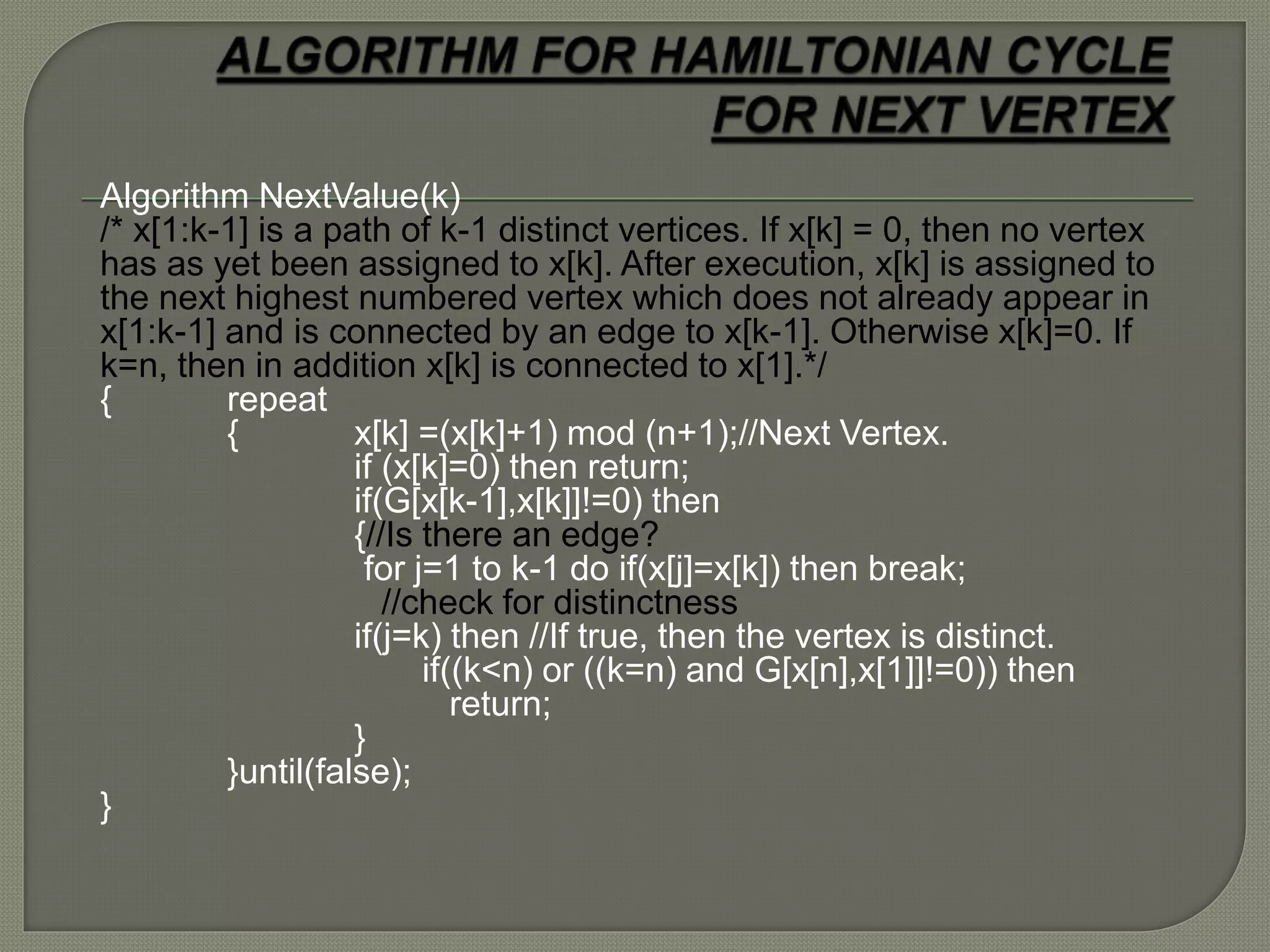

Algorithm NextValue(k)
/* x[1:k-1] is a path of k-1 distinct vertices. If x[k] = 0, then no vertex
has as yet been assigned to x[k]. After execution, x[k] is assigned to
the next highest numbered vertex which does not already appear in
x[1:k-1] and is connected by an edge to x[k-1]. Otherwise x[k]=0. If
k=n, then in addition x[k] is connected to x[1].*/
{ repeat
{ x[k] =(x[k]+1) mod (n+1);//Next Vertex.
if (x[k]=0) then return;
if(G[x[k-1],x[k]]!=0) then
{//Is there an edge?
for j=1 to k-1 do if(x[j]=x[k]) then break;
//check for distinctness
if(j=k) then //If true, then the vertex is distinct.
if((k<n) or ((k=n) and G[x[n],x[1]]!=0)) then
return;
}
}until(false);
}

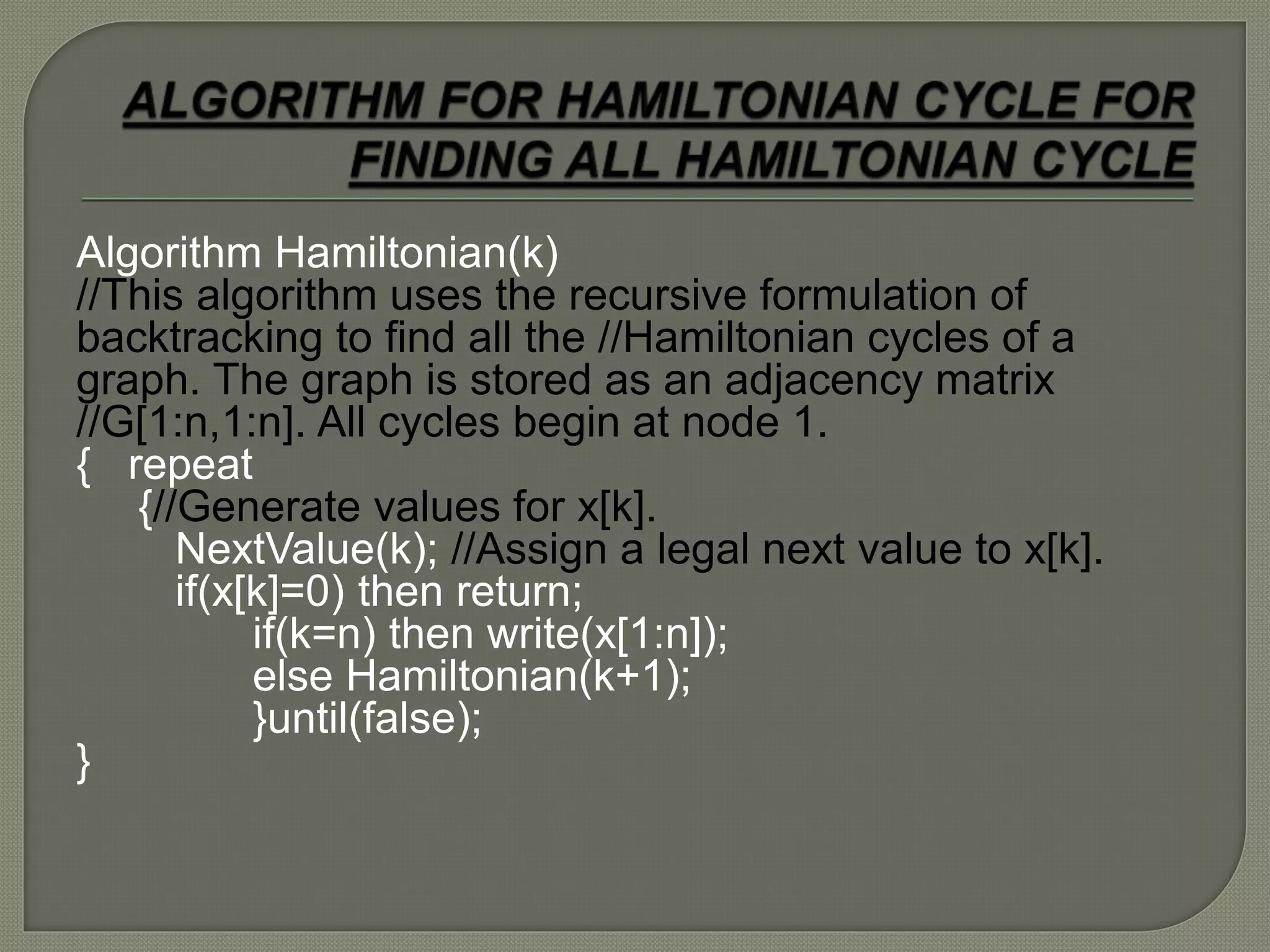

Algorithm Hamiltonian(k)
//This algorithm uses the recursive formulation of
backtracking to find all the //Hamiltonian cycles of a
graph. The graph is stored as an adjacency matrix
//G[1:n,1:n]. All cycles begin at node 1.
{ repeat
{//Generate values for x[k].
NextValue(k); //Assign a legal next value to x[k].
if(x[k]=0) then return;
if(k=n) then write(x[1:n]);
else Hamiltonian(k+1);
}until(false);
}
