Auto cad shortcuts

One Key Shortcuts
Toggles and Screen Management
Hot Keys A–Z
Printable Keyboard Stickers
Shortcuts Guide

2

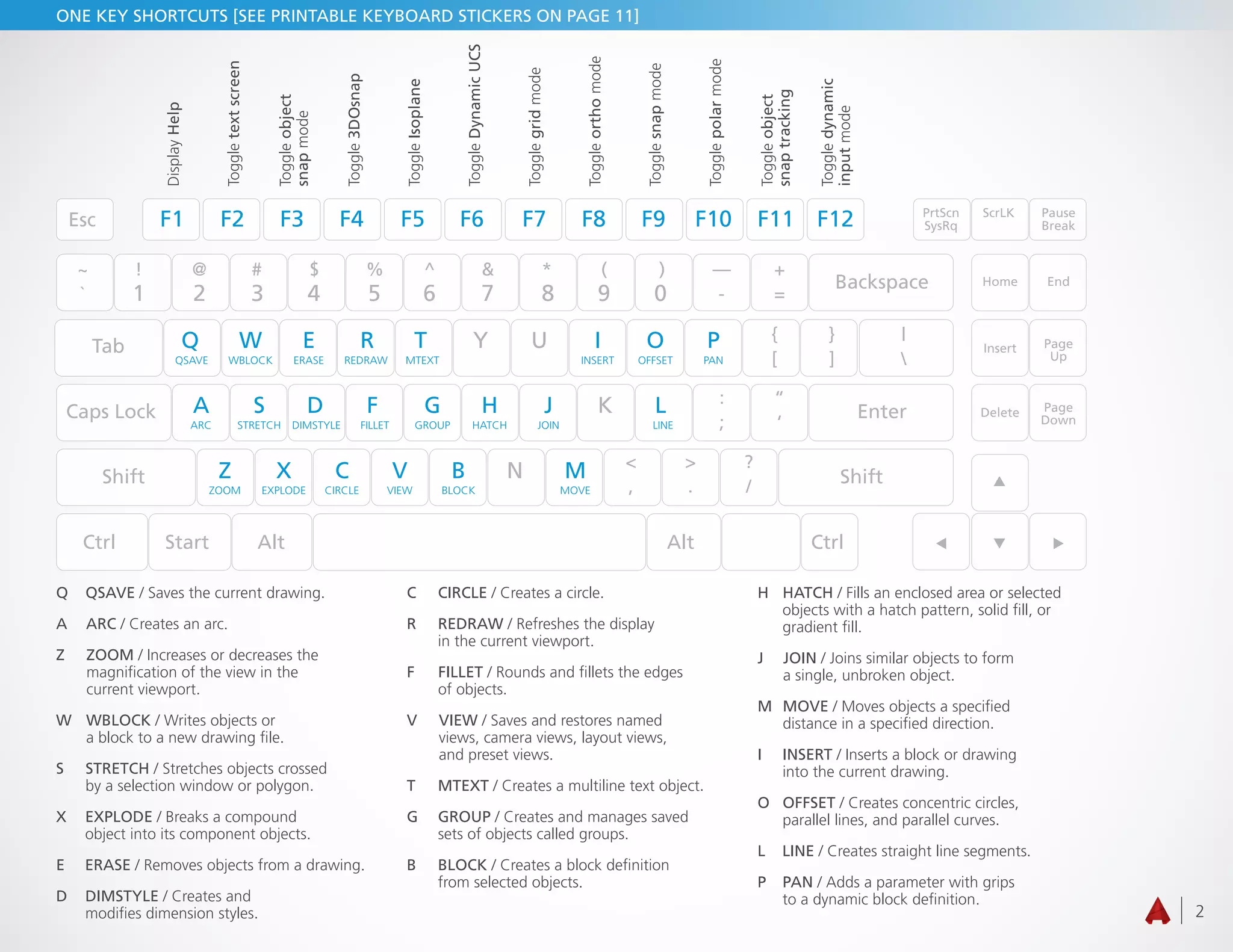

ONE KEY SHORTCUTS [SEE PRINTABLE KEYBOARD STICKERS ON PAGE 11]
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
ACaps Lock Enter
Backspace
PrtScn
SysRq
Home End
Insert Page
Up
Delete Page
Down
Pause
Break
ScrLK
Shift Shift
Esc
Tab
Ctrl Start Alt Alt Ctrl
ARC
S
STRETCH
D
DIMSTYLE
F
FILLET
G
GROUP
H
HATCH
J
JOIN
K L
LINE
Z
ZOOM
X
EXPLODE
C
CIRCLE
V
VIEW
B
BLOCK
N M
MOVE
Q
1
! @ # $ % ^ & * ( ) —
-
~
`
<
,
>
.
:
;
“
‘
{
[
}
]
|

?
/
+
=2 3 4 5 6 7 8 9 0
W
WBLOCKQSAVE
E
ERASE
R
REDRAW
T
MTEXT
Y U I O
OFFSET
P
PANINSERT
Toggledynamic
inputmode
Q QSAVE / Saves the current drawing.
A ARC / Creates an arc.
Z ZOOM / Increases or decreases the
magnification of the view in the
current viewport.
W WBLOCK / Writes objects or
a block to a new drawing file.
S STRETCH / Stretches objects crossed
by a selection window or polygon.
X EXPLODE / Breaks a compound
object into its component objects.
E ERASE / Removes objects from a drawing.
D DIMSTYLE / Creates and
modifies dimension styles.
C CIRCLE / Creates a circle.
R REDRAW / Refreshes the display
in the current viewport.
F FILLET / Rounds and fillets the edges
of objects.
V VIEW / Saves and restores named
views, camera views, layout views,
and preset views.
T MTEXT / Creates a multiline text object.
G GROUP / Creates and manages saved
sets of objects called groups.
B BLOCK / Creates a block definition
from selected objects.
H HATCH / Fills an enclosed area or selected
objects with a hatch pattern, solid fill, or
gradient fill.
J JOIN / Joins similar objects to form
a single, unbroken object.
M MOVE / Moves objects a specified
distance in a specified direction.
I INSERT / Inserts a block or drawing
into the current drawing.
O OFFSET / Creates concentric circles,
parallel lines, and parallel curves.
L LINE / Creates straight line segments.
P PAN / Adds a parameter with grips
to a dynamic block definition.
Toggleobject
snapmode
DisplayHelp
Toggletextscreen
Toggle3DOsnap
ToggleIsoplane
ToggleDynamicUCS
Togglegridmode
Toggleorthomode
Togglesnapmode
Togglepolarmode
Toggleobject
snaptracking

3

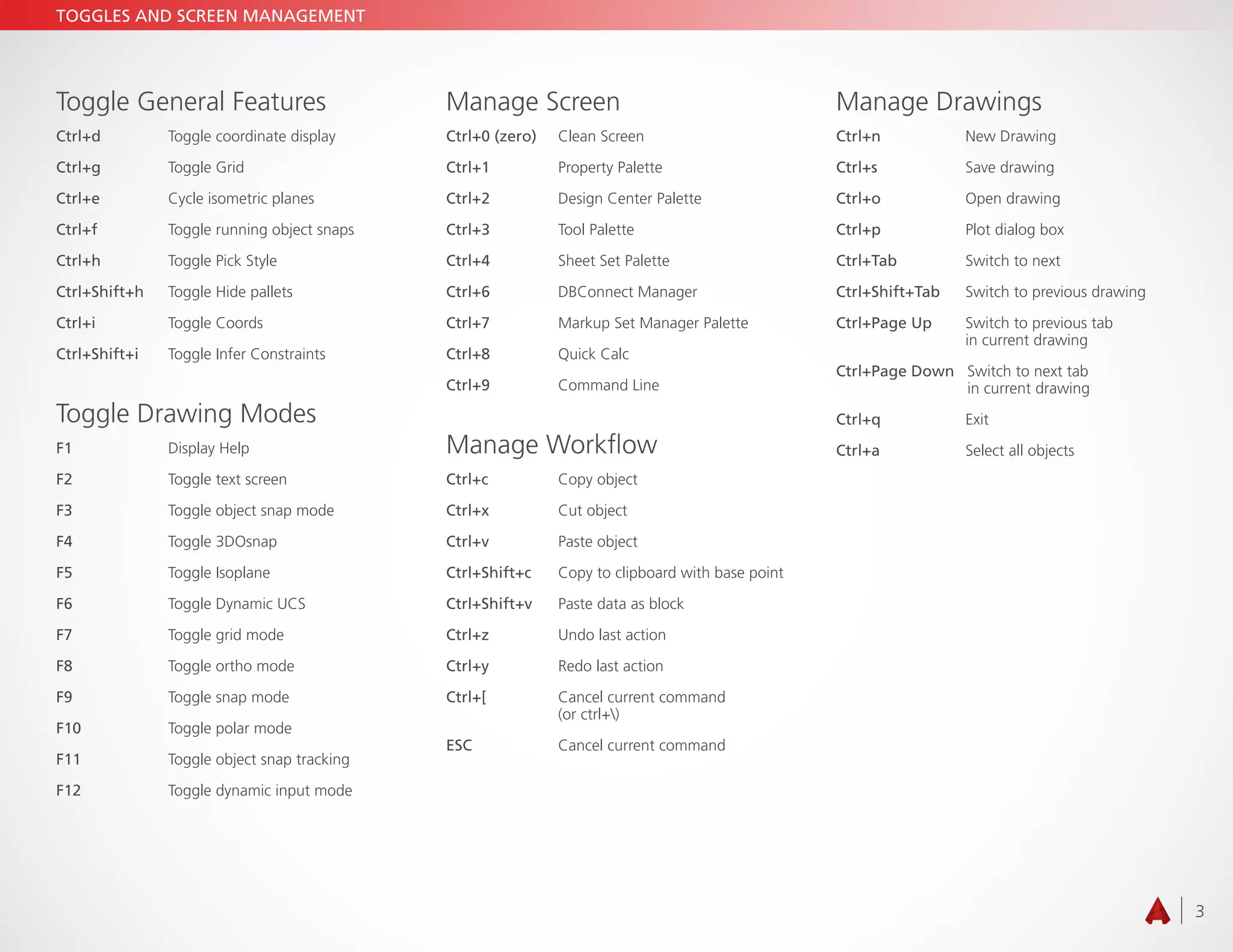

Toggle General Features
Ctrl+d Toggle coordinate display
Ctrl+g Toggle Grid
Ctrl+e Cycle isometric planes
Ctrl+f Toggle running object snaps
Ctrl+h Toggle Pick Style
Ctrl+Shift+h Toggle Hide pallets
Ctrl+i Toggle Coords
Ctrl+Shift+i Toggle Infer Constraints
Toggle Drawing Modes
F1 Display Help
F2 Toggle text screen
F3 Toggle object snap mode
F4 Toggle 3DOsnap
F5 Toggle Isoplane
F6 Toggle Dynamic UCS
F7 Toggle grid mode
F8 Toggle ortho mode
F9 Toggle snap mode
F10 Toggle polar mode
F11 Toggle object snap tracking
F12 Toggle dynamic input mode
Manage Screen
Ctrl+0 (zero) Clean Screen
Ctrl+1 Property Palette
Ctrl+2 Design Center Palette
Ctrl+3 Tool Palette
Ctrl+4 Sheet Set Palette
Ctrl+6 DBConnect Manager
Ctrl+7 Markup Set Manager Palette
Ctrl+8 Quick Calc
Ctrl+9 Command Line
Manage Workflow
Ctrl+c Copy object
Ctrl+x Cut object
Ctrl+v Paste object
Ctrl+Shift+c Copy to clipboard with base point
Ctrl+Shift+v Paste data as block
Ctrl+z Undo last action
Ctrl+y Redo last action
Ctrl+[ Cancel current command
(or ctrl+)
ESC Cancel current command
Manage Drawings
Ctrl+n New Drawing
Ctrl+s Save drawing
Ctrl+o Open drawing
Ctrl+p Plot dialog box
Ctrl+Tab Switch to next
Ctrl+Shift+Tab Switch to previous drawing
Ctrl+Page Up Switch to previous tab
in current drawing
Ctrl+Page Down Switch to next tab
in current drawing
Ctrl+q Exit
Ctrl+a Select all objects
TOGGLES AND SCREEN MANAGEMENT

4
HOT KEYS A–Z

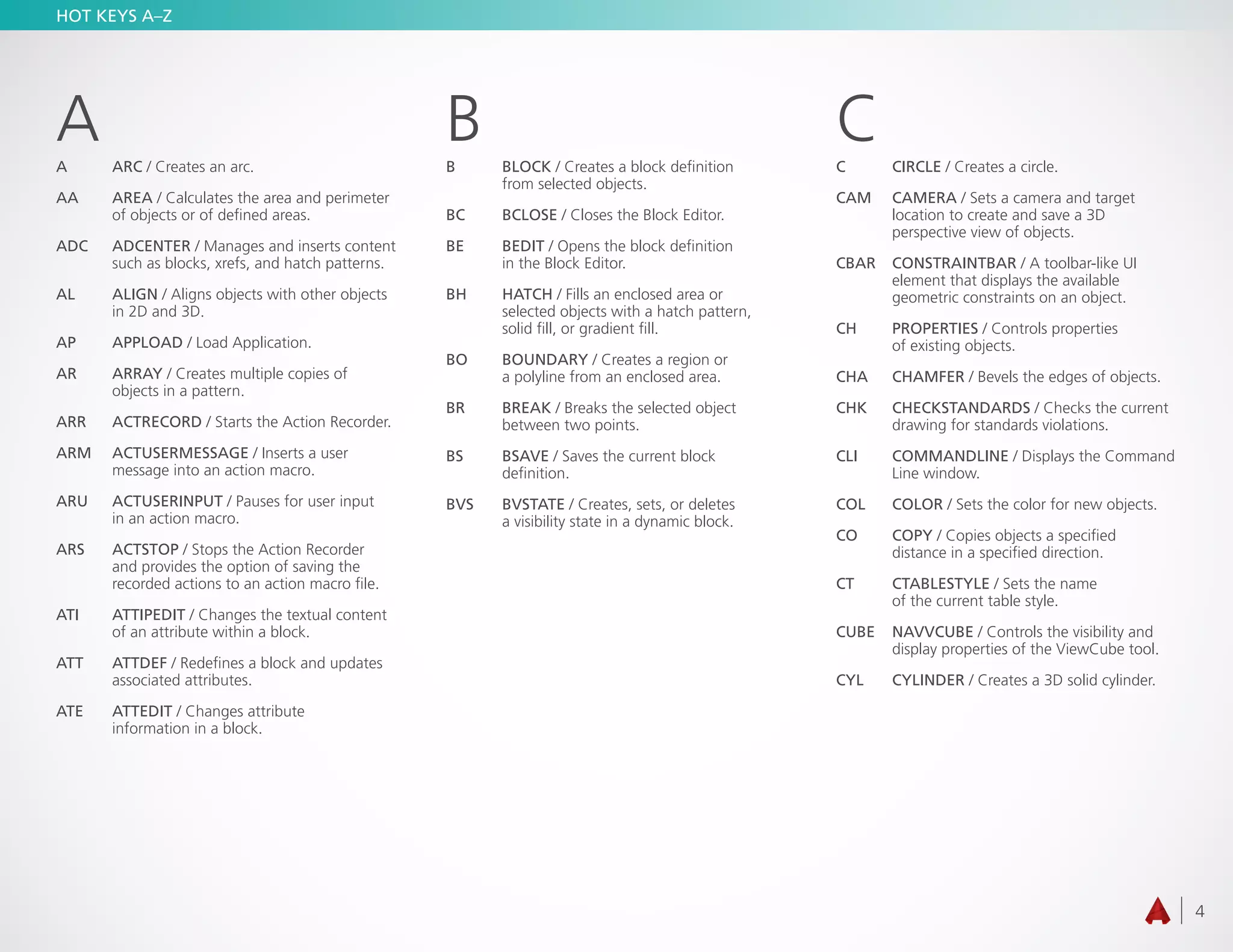

AA ARC / Creates an arc.
AA AREA / Calculates the area and perimeter
of objects or of defined areas.
ADC ADCENTER / Manages and inserts content
such as blocks, xrefs, and hatch patterns.
AL ALIGN / Aligns objects with other objects
in 2D and 3D.
AP APPLOAD / Load Application.
AR ARRAY / Creates multiple copies of
objects in a pattern.
ARR ACTRECORD / Starts the Action Recorder.
ARM ACTUSERMESSAGE / Inserts a user
message into an action macro.
ARU ACTUSERINPUT / Pauses for user input
in an action macro.
ARS ACTSTOP / Stops the Action Recorder
and provides the option of saving the
recorded actions to an action macro file.
ATI ATTIPEDIT / Changes the textual content
of an attribute within a block.
ATT ATTDEF / Redefines a block and updates
associated attributes.
ATE ATTEDIT / Changes attribute
information in a block.
BB BLOCK / Creates a block definition
from selected objects.
BC BCLOSE / Closes the Block Editor.
BE BEDIT / Opens the block definition
in the Block Editor.
BH HATCH / Fills an enclosed area or
selected objects with a hatch pattern,
solid fill, or gradient fill.
BO BOUNDARY / Creates a region or
a polyline from an enclosed area.
BR BREAK / Breaks the selected object
between two points.
BS BSAVE / Saves the current block
definition.
BVS BVSTATE / Creates, sets, or deletes
a visibility state in a dynamic block.
CC CIRCLE / Creates a circle.
CAM CAMERA / Sets a camera and target
location to create and save a 3D
perspective view of objects.
CBAR CONSTRAINTBAR / A toolbar-like UI
element that displays the available
geometric constraints on an object.
CH PROPERTIES / Controls properties
of existing objects.
CHA CHAMFER / Bevels the edges of objects.
CHK CHECKSTANDARDS / Checks the current
drawing for standards violations.
CLI COMMANDLINE / Displays the Command
Line window.
COL COLOR / Sets the color for new objects.
CO COPY / Copies objects a specified
CT CTABLESTYLE / Sets the name
of the current table style.
CUBE NAVVCUBE / Controls the visibility and
display properties of the ViewCube tool.
CYL CYLINDER / Creates a 3D solid cylinder.

5
HOT KEYS A–Z

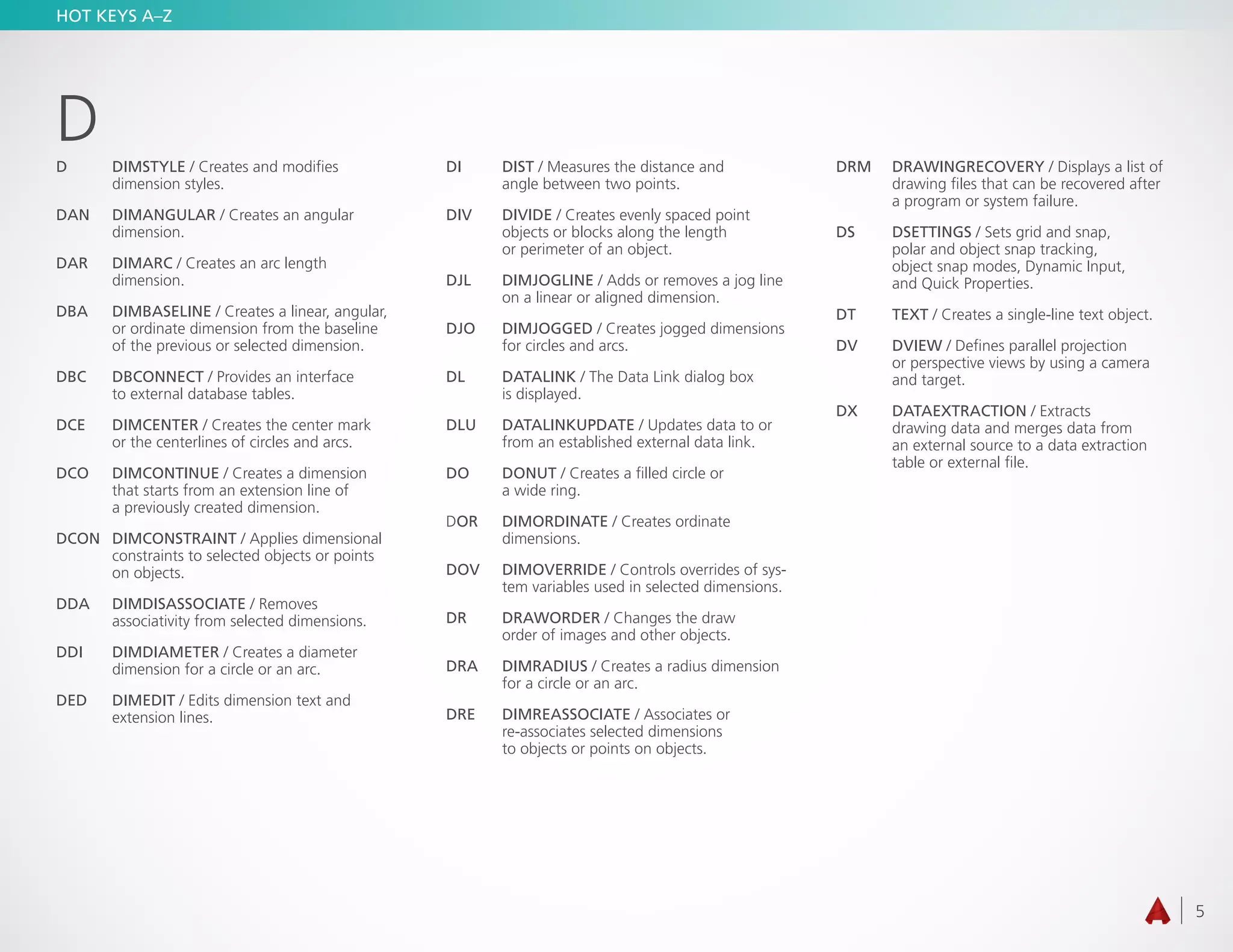

DD DIMSTYLE / Creates and modifies
dimension styles.
DAN DIMANGULAR / Creates an angular
dimension.
DAR DIMARC / Creates an arc length
dimension.
DBA DIMBASELINE / Creates a linear, angular,
or ordinate dimension from the baseline
of the previous or selected dimension.
DBC DBCONNECT / Provides an interface
to external database tables.
DCE DIMCENTER / Creates the center mark
or the centerlines of circles and arcs.
DCO DIMCONTINUE / Creates a dimension
that starts from an extension line of
a previously created dimension.
DCON DIMCONSTRAINT / Applies dimensional
constraints to selected objects or points
on objects.
DDA DIMDISASSOCIATE / Removes
associativity from selected dimensions.
DDI DIMDIAMETER / Creates a diameter
dimension for a circle or an arc.
DED DIMEDIT / Edits dimension text and
extension lines.
DI DIST / Measures the distance and
angle between two points.
DIV DIVIDE / Creates evenly spaced point
objects or blocks along the length
or perimeter of an object.
DJL DIMJOGLINE / Adds or removes a jog line
on a linear or aligned dimension.
DJO DIMJOGGED / Creates jogged dimensions
for circles and arcs.
DL DATALINK / The Data Link dialog box
is displayed.
DLU DATALINKUPDATE / Updates data to or
from an established external data link.
DO DONUT / Creates a filled circle or
a wide ring.
DOR DIMORDINATE / Creates ordinate
dimensions.
DOV DIMOVERRIDE / Controls overrides of sys-
tem variables used in selected dimensions.
DR DRAWORDER / Changes the draw
order of images and other objects.
DRA DIMRADIUS / Creates a radius dimension
for a circle or an arc.
DRE DIMREASSOCIATE / Associates or
re-associates selected dimensions
to objects or points on objects.
DRM DRAWINGRECOVERY / Displays a list of
drawing files that can be recovered after
a program or system failure.
DS DSETTINGS / Sets grid and snap,
polar and object snap tracking,
object snap modes, Dynamic Input,
and Quick Properties.
DT TEXT / Creates a single-line text object.
DV DVIEW / Defines parallel projection
or perspective views by using a camera
and target.
DX DATAEXTRACTION / Extracts
drawing data and merges data from
an external source to a data extraction
table or external file.

6
HOT KEYS A–Z

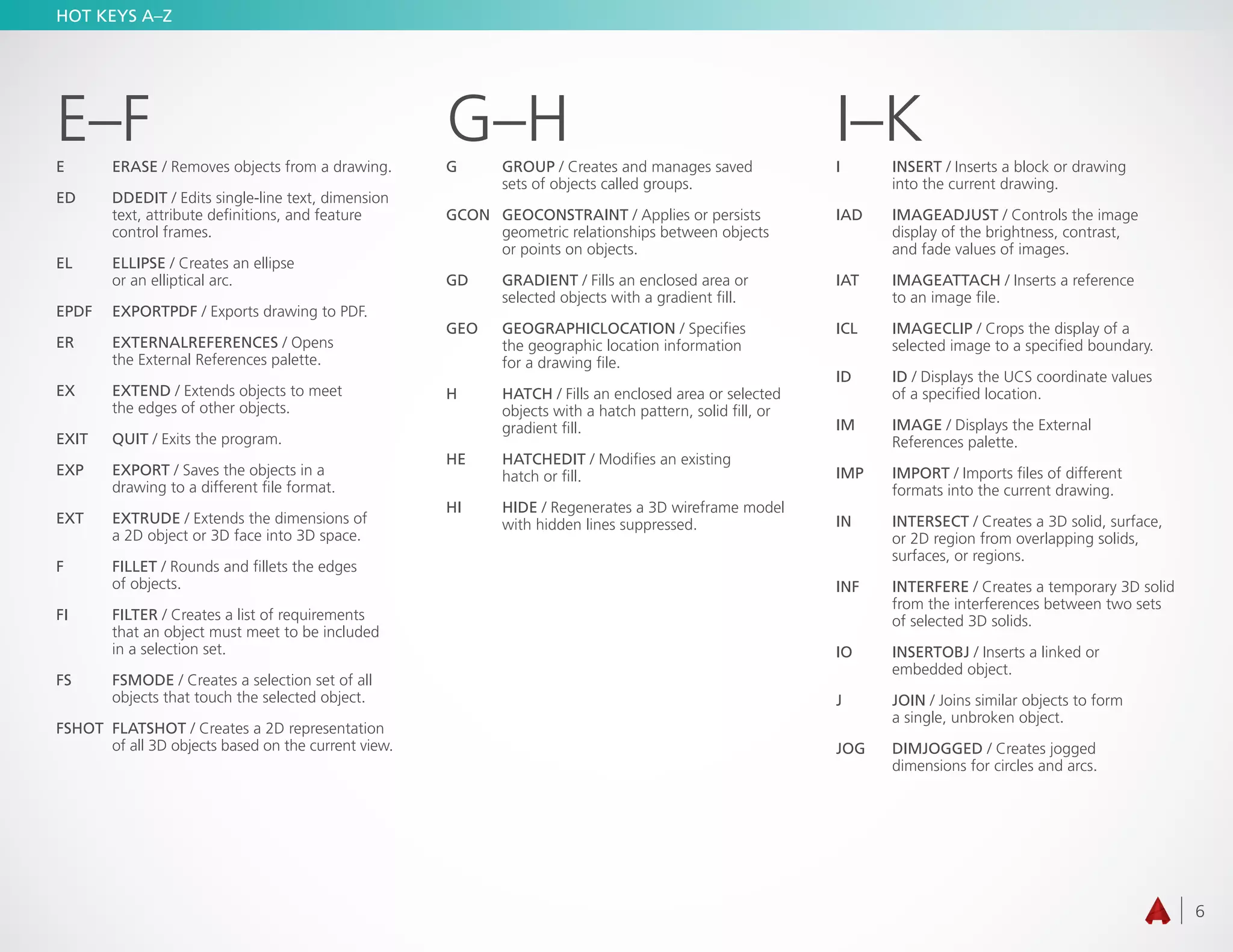

E–FE ERASE / Removes objects from a drawing.
ED DDEDIT / Edits single-line text, dimension
text, attribute definitions, and feature
control frames.
EL ELLIPSE / Creates an ellipse
or an elliptical arc.
EPDF EXPORTPDF / Exports drawing to PDF.
ER EXTERNALREFERENCES / Opens
the External References palette.
EX EXTEND / Extends objects to meet
the edges of other objects.
EXIT QUIT / Exits the program.
EXP EXPORT / Saves the objects in a
drawing to a different file format.
EXT EXTRUDE / Extends the dimensions of
a 2D object or 3D face into 3D space.
F FILLET / Rounds and fillets the edges
of objects.
FI FILTER / Creates a list of requirements
that an object must meet to be included
in a selection set.
FS FSMODE / Creates a selection set of all
objects that touch the selected object.
FSHOT FLATSHOT / Creates a 2D representation
of all 3D objects based on the current view.
G–HG GROUP / Creates and manages saved
sets of objects called groups.
GCON GEOCONSTRAINT / Applies or persists
geometric relationships between objects
or points on objects.
GD GRADIENT / Fills an enclosed area or
selected objects with a gradient fill.
GEO GEOGRAPHICLOCATION / Specifies
the geographic location information
for a drawing file.
H HATCH / Fills an enclosed area or selected
objects with a hatch pattern, solid fill, or
gradient fill.
HE HATCHEDIT / Modifies an existing
hatch or fill.
HI HIDE / Regenerates a 3D wireframe model
with hidden lines suppressed.
I–KI INSERT / Inserts a block or drawing
into the current drawing.
IAD IMAGEADJUST / Controls the image
display of the brightness, contrast,
and fade values of images.
IAT IMAGEATTACH / Inserts a reference
to an image file.
ICL IMAGECLIP / Crops the display of a
selected image to a specified boundary.
ID ID / Displays the UCS coordinate values
of a specified location.
IM IMAGE / Displays the External
References palette.
IMP IMPORT / Imports files of different
formats into the current drawing.
IN INTERSECT / Creates a 3D solid, surface,
or 2D region from overlapping solids,
surfaces, or regions.
INF INTERFERE / Creates a temporary 3D solid
from the interferences between two sets
of selected 3D solids.
IO INSERTOBJ / Inserts a linked or
embedded object.
J JOIN / Joins similar objects to form
a single, unbroken object.
JOG DIMJOGGED / Creates jogged
dimensions for circles and arcs.

7
HOT KEYS A–Z

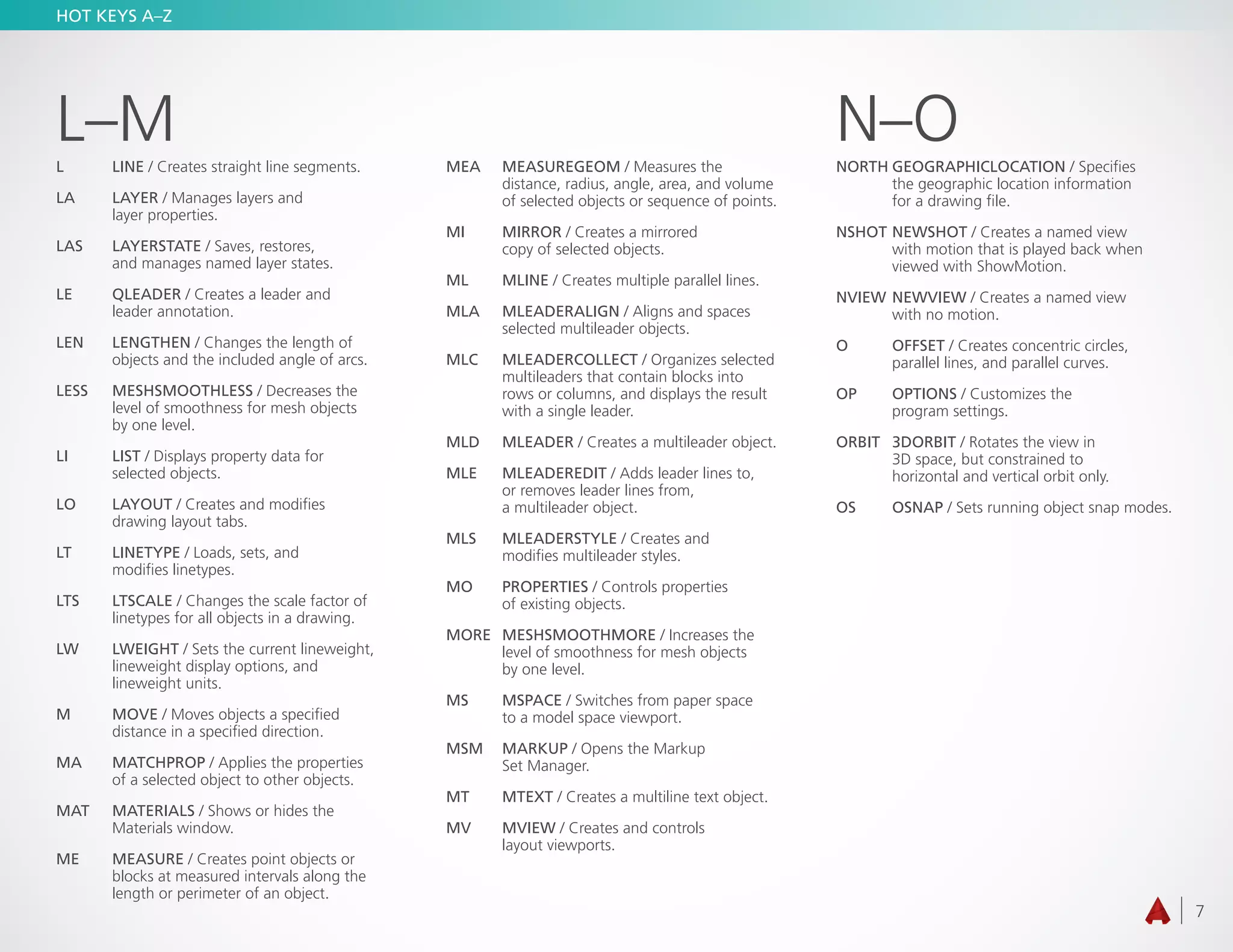

L–ML LINE / Creates straight line segments.
LA LAYER / Manages layers and
layer properties.
LAS LAYERSTATE / Saves, restores,
and manages named layer states.
LE QLEADER / Creates a leader and
leader annotation.
LEN LENGTHEN / Changes the length of
objects and the included angle of arcs.
LESS MESHSMOOTHLESS / Decreases the
level of smoothness for mesh objects
by one level.
LI LIST / Displays property data for
selected objects.
LO LAYOUT / Creates and modifies
drawing layout tabs.
LT LINETYPE / Loads, sets, and
modifies linetypes.
LTS LTSCALE / Changes the scale factor of
linetypes for all objects in a drawing.
LW LWEIGHT / Sets the current lineweight,
lineweight display options, and
lineweight units.
M MOVE / Moves objects a specified
MA MATCHPROP / Applies the properties
of a selected object to other objects.
MAT MATERIALS / Shows or hides the
Materials window.
ME MEASURE / Creates point objects or
blocks at measured intervals along the
length or perimeter of an object.
MEA MEASUREGEOM / Measures the
distance, radius, angle, area, and volume
of selected objects or sequence of points.
MI MIRROR / Creates a mirrored
copy of selected objects.
ML MLINE / Creates multiple parallel lines.
MLA MLEADERALIGN / Aligns and spaces
selected multileader objects.
MLC MLEADERCOLLECT / Organizes selected
multileaders that contain blocks into
rows or columns, and displays the result
with a single leader.
MLD MLEADER / Creates a multileader object.
MLE MLEADEREDIT / Adds leader lines to,
or removes leader lines from,
a multileader object.
MLS MLEADERSTYLE / Creates and
modifies multileader styles.
MO PROPERTIES / Controls properties
of existing objects.
MORE MESHSMOOTHMORE / Increases the
level of smoothness for mesh objects
by one level.
MS MSPACE / Switches from paper space
to a model space viewport.
MSM MARKUP / Opens the Markup
Set Manager.
MT MTEXT / Creates a multiline text object.
MV MVIEW / Creates and controls
layout viewports.
N–ONORTH GEOGRAPHICLOCATION / Specifies
the geographic location information
for a drawing file.
NSHOT NEWSHOT / Creates a named view
with motion that is played back when
viewed with ShowMotion.
NVIEW NEWVIEW / Creates a named view
with no motion.
O OFFSET / Creates concentric circles,
parallel lines, and parallel curves.
OP OPTIONS / Customizes the
program settings.
ORBIT 3DORBIT / Rotates the view in
3D space, but constrained to
horizontal and vertical orbit only.
OS OSNAP / Sets running object snap modes.

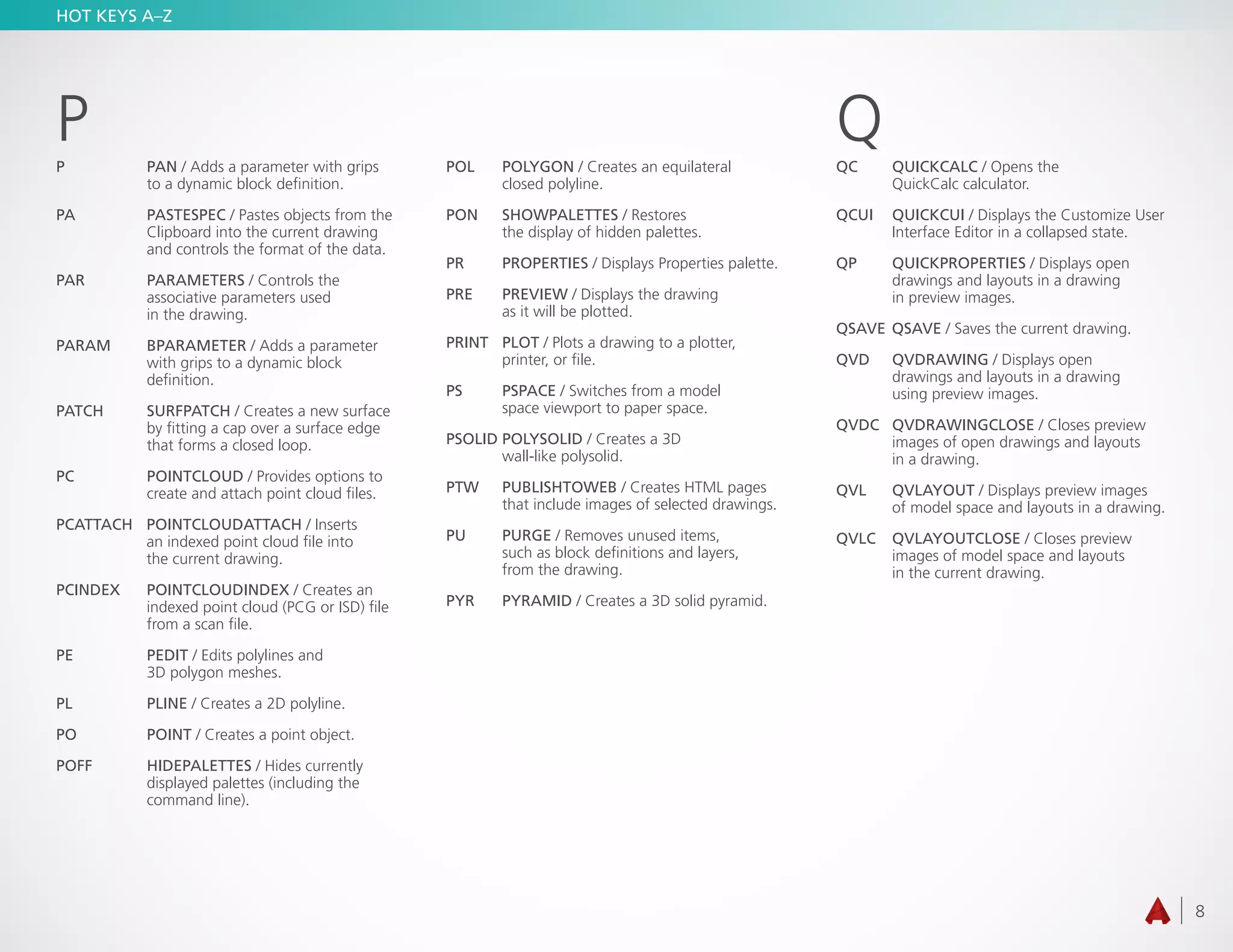

8
HOT KEYS A–Z
PP PAN / Adds a parameter with grips
to a dynamic block definition.
PA PASTESPEC / Pastes objects from the
Clipboard into the current drawing
and controls the format of the data.
PAR PARAMETERS / Controls the
associative parameters used
in the drawing.
PARAM BPARAMETER / Adds a parameter
with grips to a dynamic block
definition.
PATCH SURFPATCH / Creates a new surface
by fitting a cap over a surface edge
that forms a closed loop.
PC POINTCLOUD / Provides options to
create and attach point cloud files.
PCATTACH POINTCLOUDATTACH / Inserts
an indexed point cloud file into
the current drawing.
PCINDEX POINTCLOUDINDEX / Creates an
indexed point cloud (PCG or ISD) file
from a scan file.
PE PEDIT / Edits polylines and
3D polygon meshes.
PL PLINE / Creates a 2D polyline.
PO POINT / Creates a point object.
POFF HIDEPALETTES / Hides currently
displayed palettes (including the
command line).
POL POLYGON / Creates an equilateral
closed polyline.
PON SHOWPALETTES / Restores
the display of hidden palettes.
PR PROPERTIES / Displays Properties palette.
PRE PREVIEW / Displays the drawing
as it will be plotted.
PRINT PLOT / Plots a drawing to a plotter,
printer, or file.
PS PSPACE / Switches from a model
space viewport to paper space.
PSOLID POLYSOLID / Creates a 3D
wall-like polysolid.
PTW PUBLISHTOWEB / Creates HTML pages
that include images of selected drawings.
PU PURGE / Removes unused items,
such as block definitions and layers,
from the drawing.
PYR PYRAMID / Creates a 3D solid pyramid.
QQC QUICKCALC / Opens the
QuickCalc calculator.
QCUI QUICKCUI / Displays the Customize User
Interface Editor in a collapsed state.
QP QUICKPROPERTIES / Displays open
drawings and layouts in a drawing
in preview images.
QSAVE QSAVE / Saves the current drawing.
QVD QVDRAWING / Displays open
drawings and layouts in a drawing
using preview images.
QVDC QVDRAWINGCLOSE / Closes preview
images of open drawings and layouts
in a drawing.
QVL QVLAYOUT / Displays preview images
of model space and layouts in a drawing.
QVLC QVLAYOUTCLOSE / Closes preview
images of model space and layouts
in the current drawing.

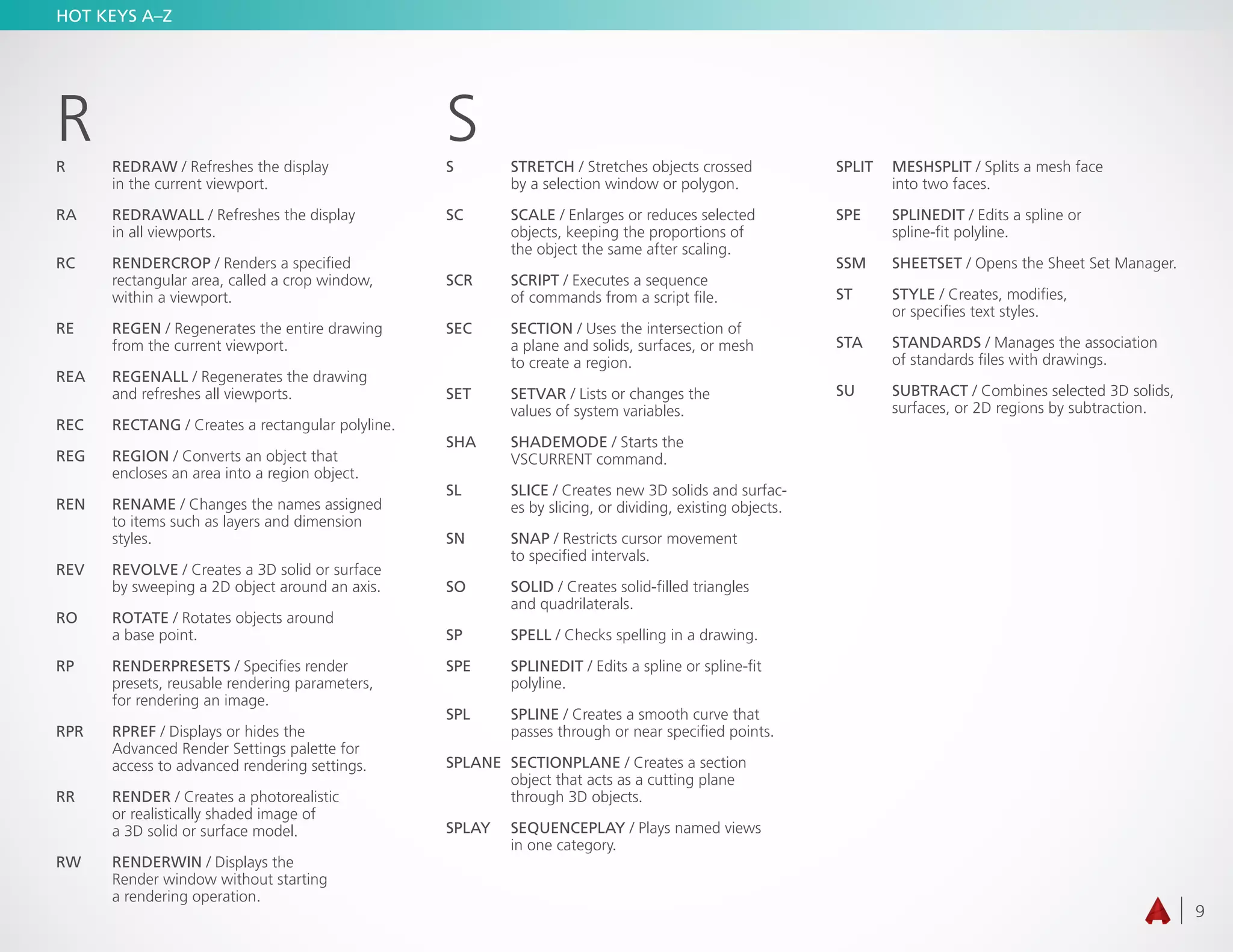

9
HOT KEYS A–Z
RR REDRAW / Refreshes the display
RA REDRAWALL / Refreshes the display
in all viewports.
RC RENDERCROP / Renders a specified
rectangular area, called a crop window,
within a viewport.
RE REGEN / Regenerates the entire drawing
from the current viewport.
REA REGENALL / Regenerates the drawing
and refreshes all viewports.
REC RECTANG / Creates a rectangular polyline.
REG REGION / Converts an object that
encloses an area into a region object.
REN RENAME / Changes the names assigned
to items such as layers and dimension
styles.
REV REVOLVE / Creates a 3D solid or surface
by sweeping a 2D object around an axis.
RO ROTATE / Rotates objects around
a base point.
RP RENDERPRESETS / Specifies render
presets, reusable rendering parameters,
for rendering an image.
RPR RPREF / Displays or hides the
Advanced Render Settings palette for
access to advanced rendering settings.
RR RENDER / Creates a photorealistic
or realistically shaded image of
a 3D solid or surface model.
RW RENDERWIN / Displays the
Render window without starting
a rendering operation.
SS STRETCH / Stretches objects crossed
by a selection window or polygon.
SC SCALE / Enlarges or reduces selected
objects, keeping the proportions of
the object the same after scaling.
SCR SCRIPT / Executes a sequence
of commands from a script file.
SEC SECTION / Uses the intersection of
a plane and solids, surfaces, or mesh
to create a region.
SET SETVAR / Lists or changes the
values of system variables.
SHA SHADEMODE / Starts the
VSCURRENT command.
SL SLICE / Creates new 3D solids and surfac-
es by slicing, or dividing, existing objects.
SN SNAP / Restricts cursor movement
to specified intervals.
SO SOLID / Creates solid-filled triangles
and quadrilaterals.
SP SPELL / Checks spelling in a drawing.
SPE SPLINEDIT / Edits a spline or spline-fit
polyline.
SPL SPLINE / Creates a smooth curve that
passes through or near specified points.
SPLANE SECTIONPLANE / Creates a section
object that acts as a cutting plane
through 3D objects.
SPLAY SEQUENCEPLAY / Plays named views
in one category.
SPLIT MESHSPLIT / Splits a mesh face
into two faces.
SPE SPLINEDIT / Edits a spline or
spline-fit polyline.
SSM SHEETSET / Opens the Sheet Set Manager.
ST STYLE / Creates, modifies,
or specifies text styles.
STA STANDARDS / Manages the association
of standards files with drawings.
SU SUBTRACT / Combines selected 3D solids,
surfaces, or 2D regions by subtraction.

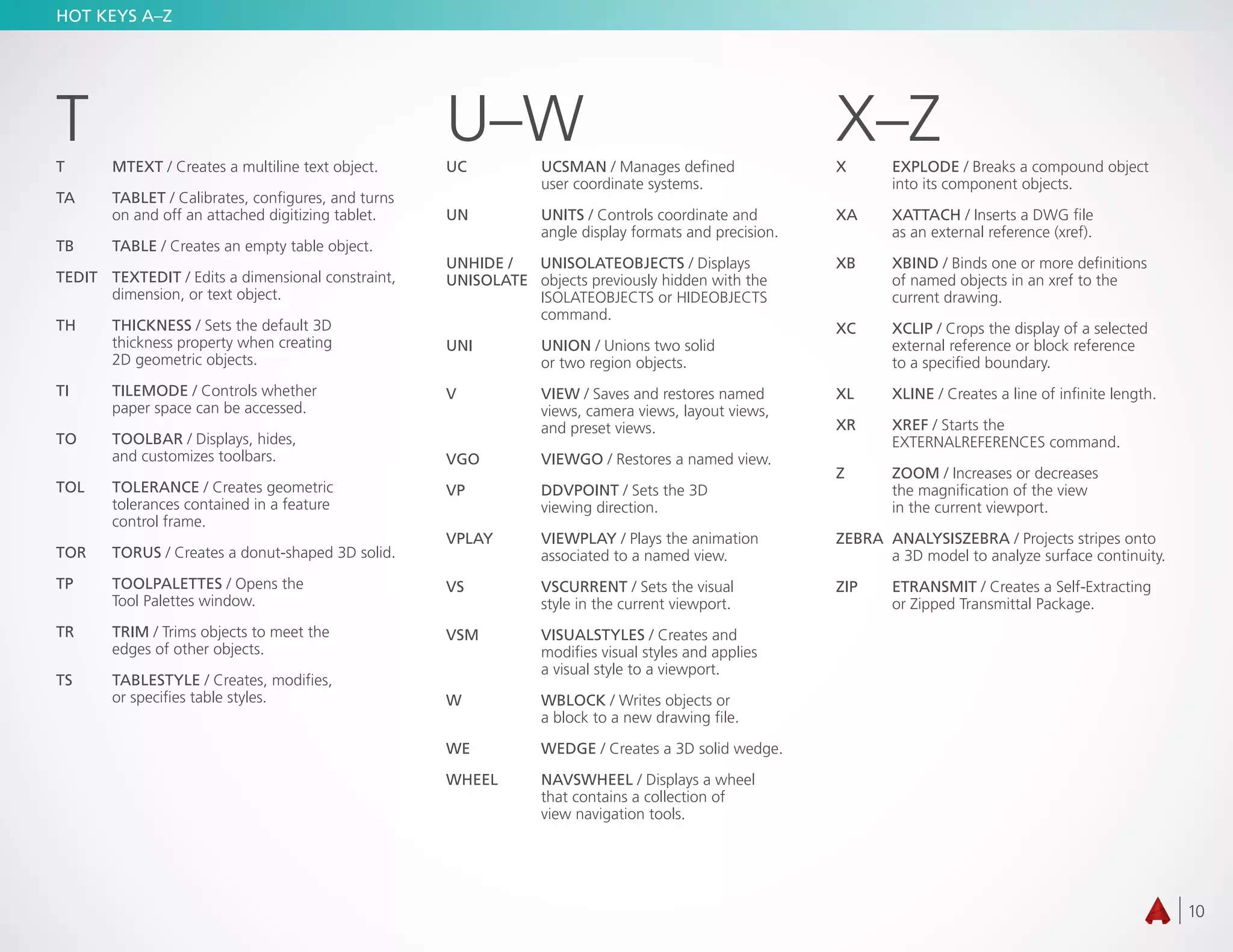

HOT KEYS A–Z
10
TT MTEXT / Creates a multiline text object.
TA TABLET / Calibrates, configures, and turns
on and off an attached digitizing tablet.
TB TABLE / Creates an empty table object.
TEDIT TEXTEDIT / Edits a dimensional constraint,
dimension, or text object.
TH THICKNESS / Sets the default 3D
thickness property when creating
2D geometric objects.
TI TILEMODE / Controls whether
paper space can be accessed.
TO TOOLBAR / Displays, hides,
and customizes toolbars.
TOL TOLERANCE / Creates geometric
tolerances contained in a feature
control frame.
TOR TORUS / Creates a donut-shaped 3D solid.
TP TOOLPALETTES / Opens the
Tool Palettes window.
TR TRIM / Trims objects to meet the
edges of other objects.
TS TABLESTYLE / Creates, modifies,
or specifies table styles.
U–WUC UCSMAN / Manages defined
user coordinate systems.
UN UNITS / Controls coordinate and
angle display formats and precision.
UNHIDE / UNISOLATEOBJECTS / Displays
UNISOLATE objects previously hidden with the
ISOLATEOBJECTS or HIDEOBJECTS
command.
UNI UNION / Unions two solid
or two region objects.
V VIEW / Saves and restores named
views, camera views, layout views,
and preset views.
VGO VIEWGO / Restores a named view.
VP DDVPOINT / Sets the 3D
viewing direction.
VPLAY VIEWPLAY / Plays the animation
associated to a named view.
VS VSCURRENT / Sets the visual
style in the current viewport.
VSM VISUALSTYLES / Creates and
modifies visual styles and applies
a visual style to a viewport.
W WBLOCK / Writes objects or
a block to a new drawing file.
WE WEDGE / Creates a 3D solid wedge.
WHEEL NAVSWHEEL / Displays a wheel
that contains a collection of
view navigation tools.
X–ZX EXPLODE / Breaks a compound object
into its component objects.
XA XATTACH / Inserts a DWG file
as an external reference (xref).
XB XBIND / Binds one or more definitions
of named objects in an xref to the
current drawing.
XC XCLIP / Crops the display of a selected
external reference or block reference
to a specified boundary.
XL XLINE / Creates a line of infinite length.
XR XREF / Starts the
EXTERNALREFERENCES command.
Z ZOOM / Increases or decreases
the magnification of the view
ZEBRA ANALYSISZEBRA / Projects stripes onto
a 3D model to analyze surface continuity.
ZIP ETRANSMIT / Creates a Self-Extracting
or Zipped Transmittal Package.

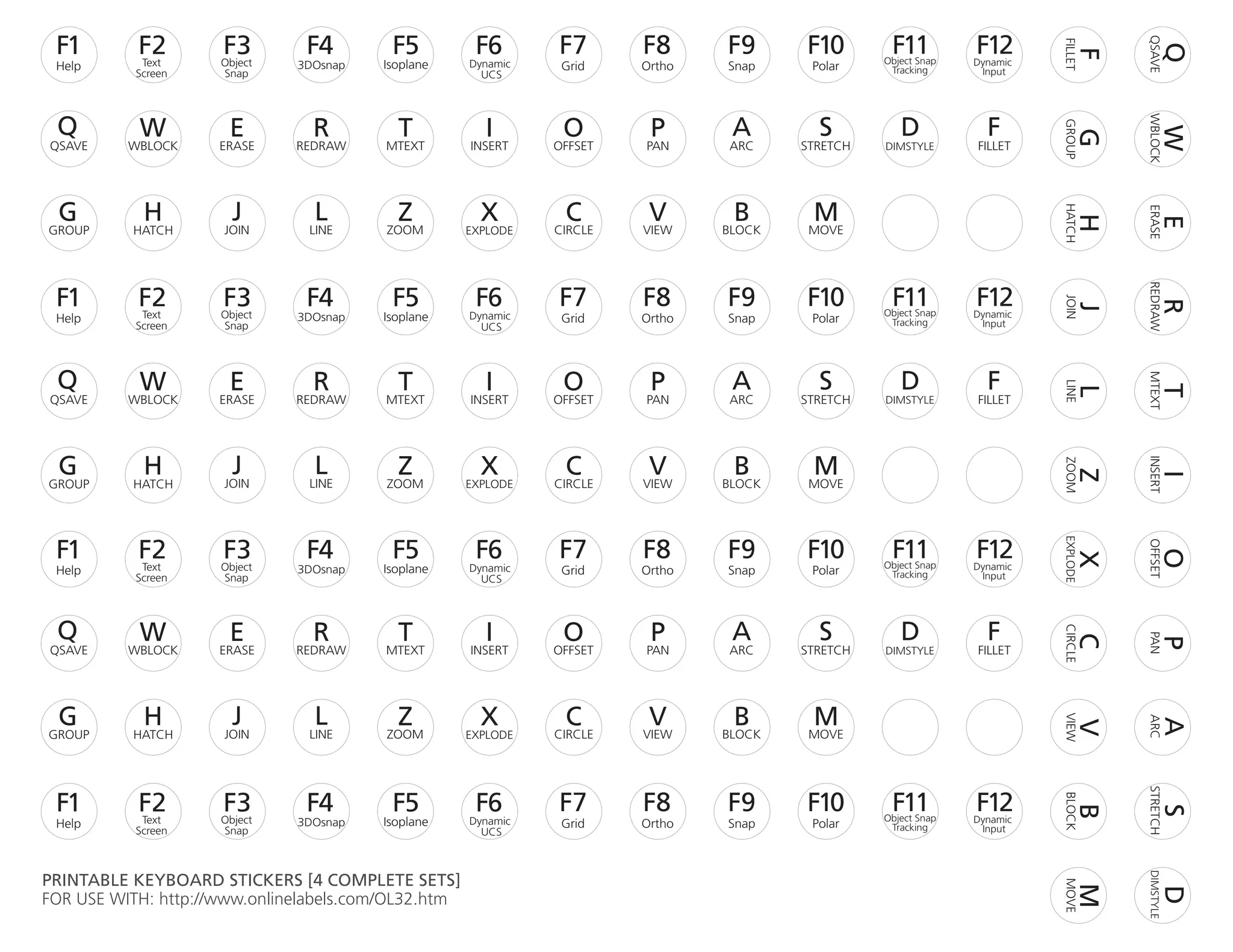

A
ARC
S
STRETCH
D
DIMSTYLE
F
FILLET
G
GROUP
H
HATCH
J
JOIN
L
LINE
Z
ZOOM
X
EXPLODE
C
CIRCLE
V
VIEW
B
BLOCK
M
MOVE
F1 F2 F3 F4 F5 F6
Help Text
Screen
Object
Snap
3DOsnap Isoplane Dynamic
UCS
F7 F8 F9 F10 F11 F12
Grid Ortho Snap Polar Object Snap
Tracking
Dynamic
Input
F1 F2 F3 F4 F5 F6
Help Text
Screen
Object
Snap
UCS
F7 F8 F9 F10 F11 F12
Tracking
Dynamic
Input
Q W
WBLOCKQSAVE
E
ERASE
R
REDRAW
T
MTEXT
I O
OFFSET
P
PANINSERT
A
ARC
S
STRETCH
D
DIMSTYLE
F
FILLET
G
GROUP
H
HATCH
J
JOIN
L
LINE
Z
ZOOM
X
EXPLODE
C
CIRCLE
V
VIEW
B
BLOCK
M
MOVE
F1 F2 F3 F4 F5 F6
Help Text
Screen
Object
Snap
UCS
F7 F8 F9 F10 F11 F12
Tracking
Dynamic
Input
Q W
WBLOCKQSAVE
E
ERASE
R
REDRAW
T
MTEXT
I O
OFFSET
P
PANINSERT
A
ARC
S
STRETCH
D
DIMSTYLE
F
FILLET
G
GROUP
H
HATCH
J
JOIN
L
LINE
Z
ZOOM
X
EXPLODE
C
CIRCLE
V
VIEW
B
BLOCK
M
MOVE
F1 F2 F3 F4 F5 F6
Help Text
Screen
Object
Snap
UCS
F7 F8 F9 F10 F11 F12
Tracking
Dynamic
Input
Q W
WBLOCKQSAVE
E
ERASE
R
REDRAW
T
MTEXT
I O
OFFSET
P
PANINSERT
A
ARC
S
STRETCH
D
DIMSTYLE
F
FILLET
G
GROUP
H
HATCH
J
JOIN
L
LINE
Z
ZOOM
X
EXPLODE
C
CIRCLE
V
VIEW
B
BLOCK
M
MOVE
QW
WBLOCKQSAVE
E
ERASE
R
REDRAW
T
MTEXT
IO
OFFSET
P
PANINSERT
PRINTABLE KEYBOARD STICKERS [4 COMPLETE SETS]
FOR USE WITH: http://www.onlinelabels.com/OL32.htm

Auto cad shortcuts

More Related Content

Similar to Auto cad shortcuts

Recently uploaded

Auto cad shortcuts
