Uploaded byPacSecJP
Di shen pacsec_final
- The document discusses exploiting unconventional use-after-free (UAF) bugs in the Android kernel perf system to gain root privileges on Android devices. - It describes two UAF bugs, CVE-2016-6787 and CVE-2017-0403, that are difficult to exploit due to lack of control over freed objects and inability to achieve code execution. - Novel exploitation techniques are proposed, such as freezing threads to gain time to refill freed objects for CVE-2016-6787 and compromising the pipe subsystem to achieve arbitrary kernel writes for CVE-2017-0403.
More Related Content
![Semtex.c [CVE-2013-2094] - A Linux Privelege Escalation](https://cdn.slidesharecdn.com/ss_thumbnails/semtex-160316092108-thumbnail.jpg?width=640&height=640&fit=bounds)
![Jaime Peñalba - Kernel exploitation. ¿El octavo arte? [rooted2019]](https://cdn.slidesharecdn.com/ss_thumbnails/rooted2019-kernelexploitation-190403185847-thumbnail.jpg?width=640&height=640&fit=bounds)
![[h2hc] Generic exploitation of invalid memory writes](https://cdn.slidesharecdn.com/ss_thumbnails/brossard-h2hc2010-101210130057-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Ruxcon 2011] Post Memory Corruption Memory Analysis](https://cdn.slidesharecdn.com/ss_thumbnails/ruxcon-111127233040-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Di shen pacsec_final

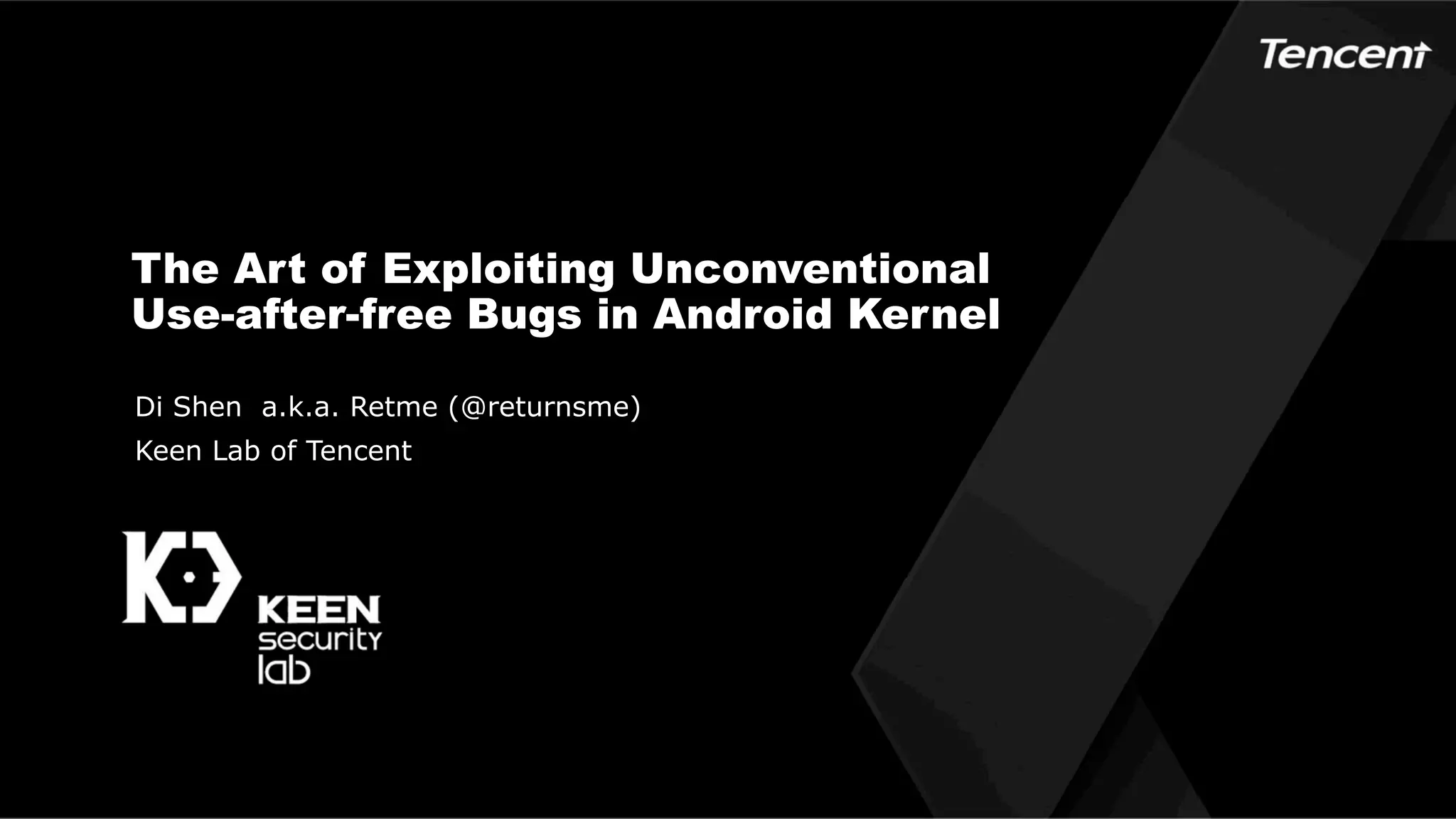

- 1. The Art ofExploiting Unconventional Use-after-free Bugs in Android Kernel Di Shen a.k.a. Retme (@returnsme) Keen Lab of Tencent

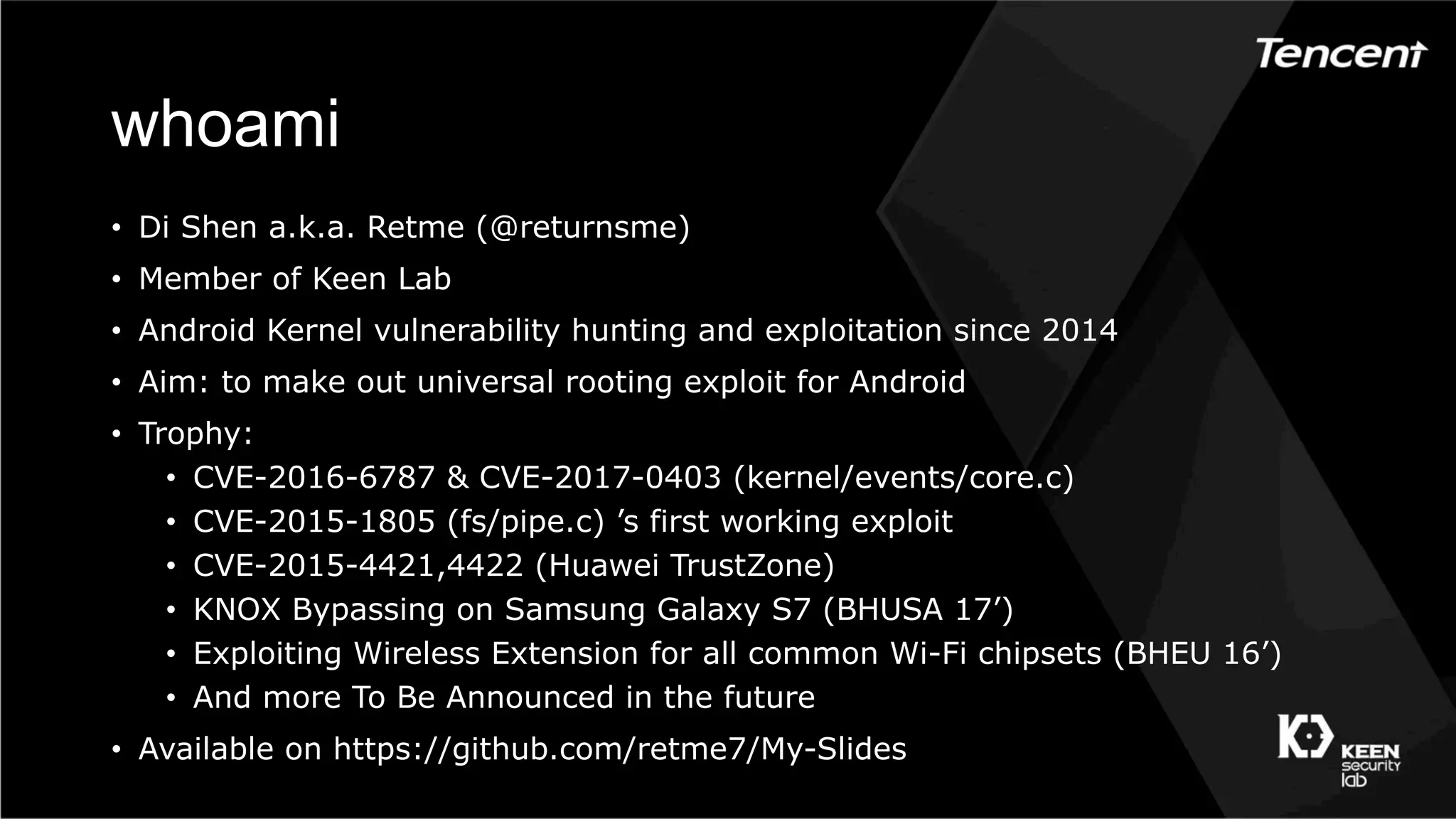

- 2. whoami • Di Shena.k.a. Retme (@returnsme) • Member of Keen Lab • Android Kernel vulnerability hunting and exploitation since 2014 • Aim: to make out universal rooting exploit for Android • Trophy: • CVE-2016-6787 & CVE-2017-0403 (kernel/events/core.c) • CVE-2015-1805 (fs/pipe.c) ’s first working exploit • CVE-2015-4421,4422 (Huawei TrustZone) • KNOX Bypassing on Samsung Galaxy S7 (BHUSA 17’) • Exploiting Wireless Extension for all common Wi-Fi chipsets (BHEU 16’) • And more To Be Announced in the future • Available on https://github.com/retme7/My-Slides

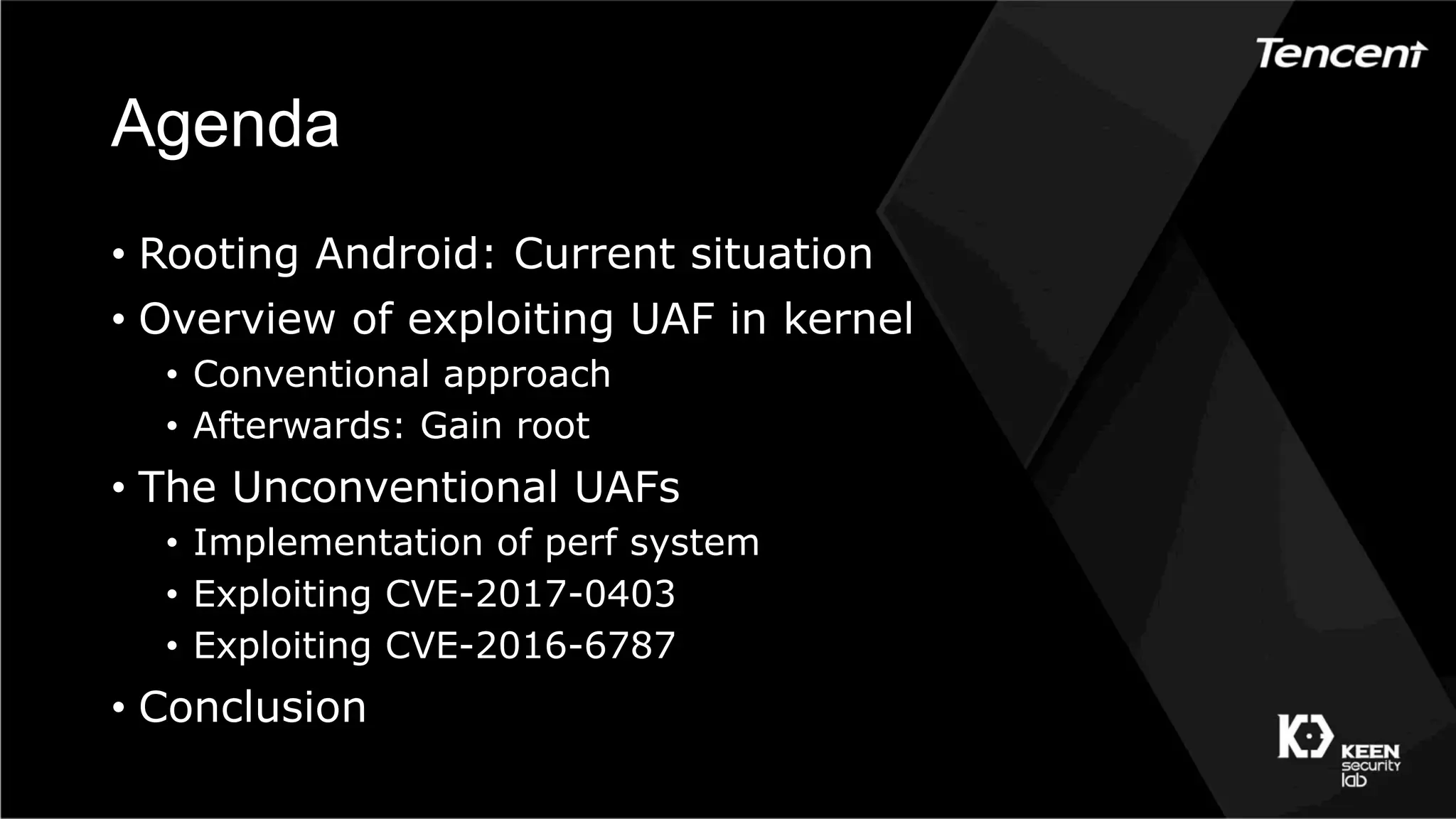

- 3. Agenda • Rooting Android:Current situation • Overview of exploiting UAF in kernel • Conventional approach • Afterwards: Gain root • The Unconventional UAFs • Implementation of perf system • Exploiting CVE-2017-0403 • Exploiting CVE-2016-6787 • Conclusion

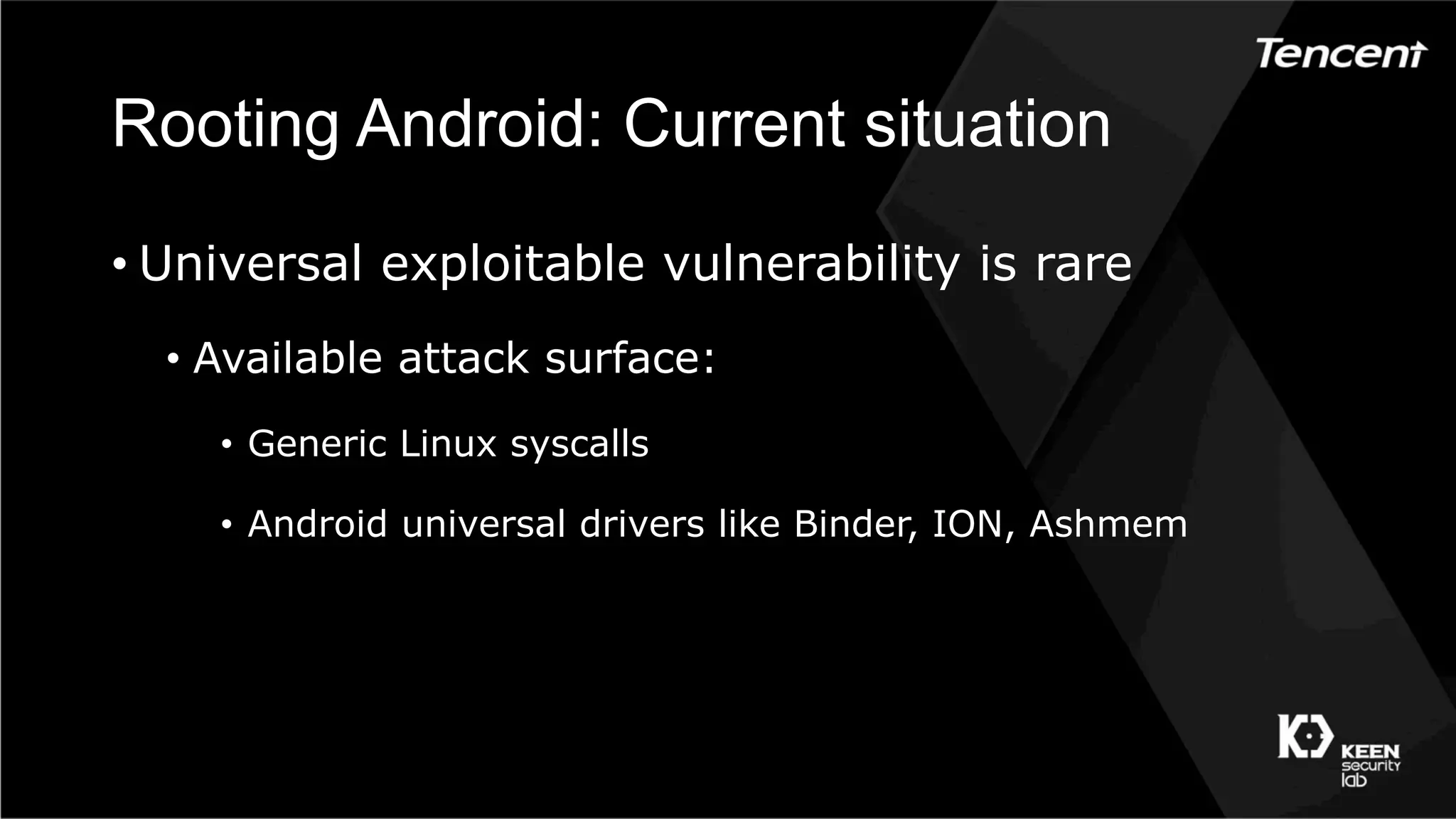

- 4. Rooting Android: Currentsituation • Universal exploitable vulnerability is rare • Available attack surface: • Generic Linux syscalls • Android universal drivers like Binder, ION, Ashmem

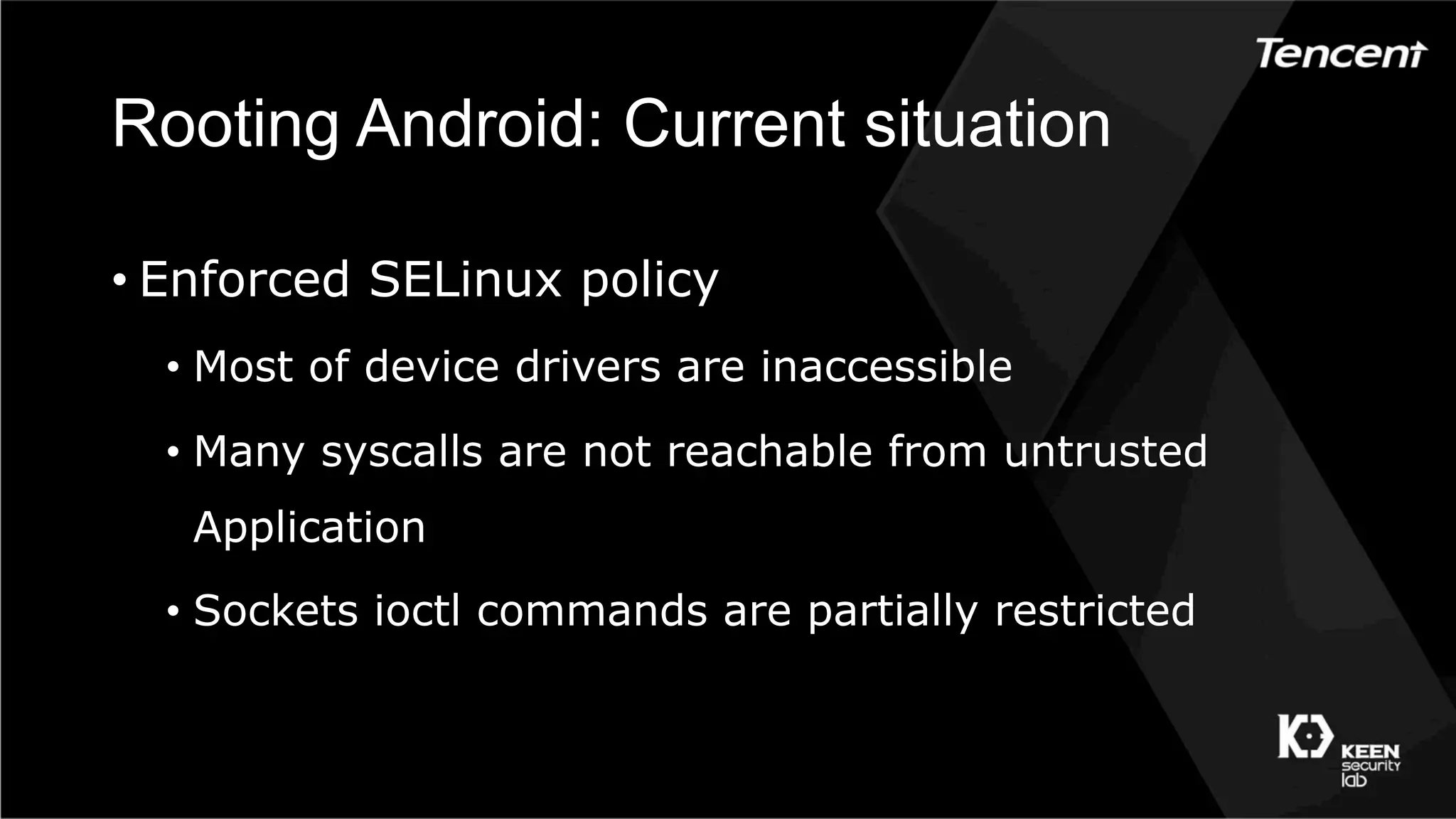

- 5. Rooting Android: Currentsituation • Enforced SELinux policy • Most of device drivers are inaccessible • Many syscalls are not reachable from untrusted Application • Sockets ioctl commands are partially restricted

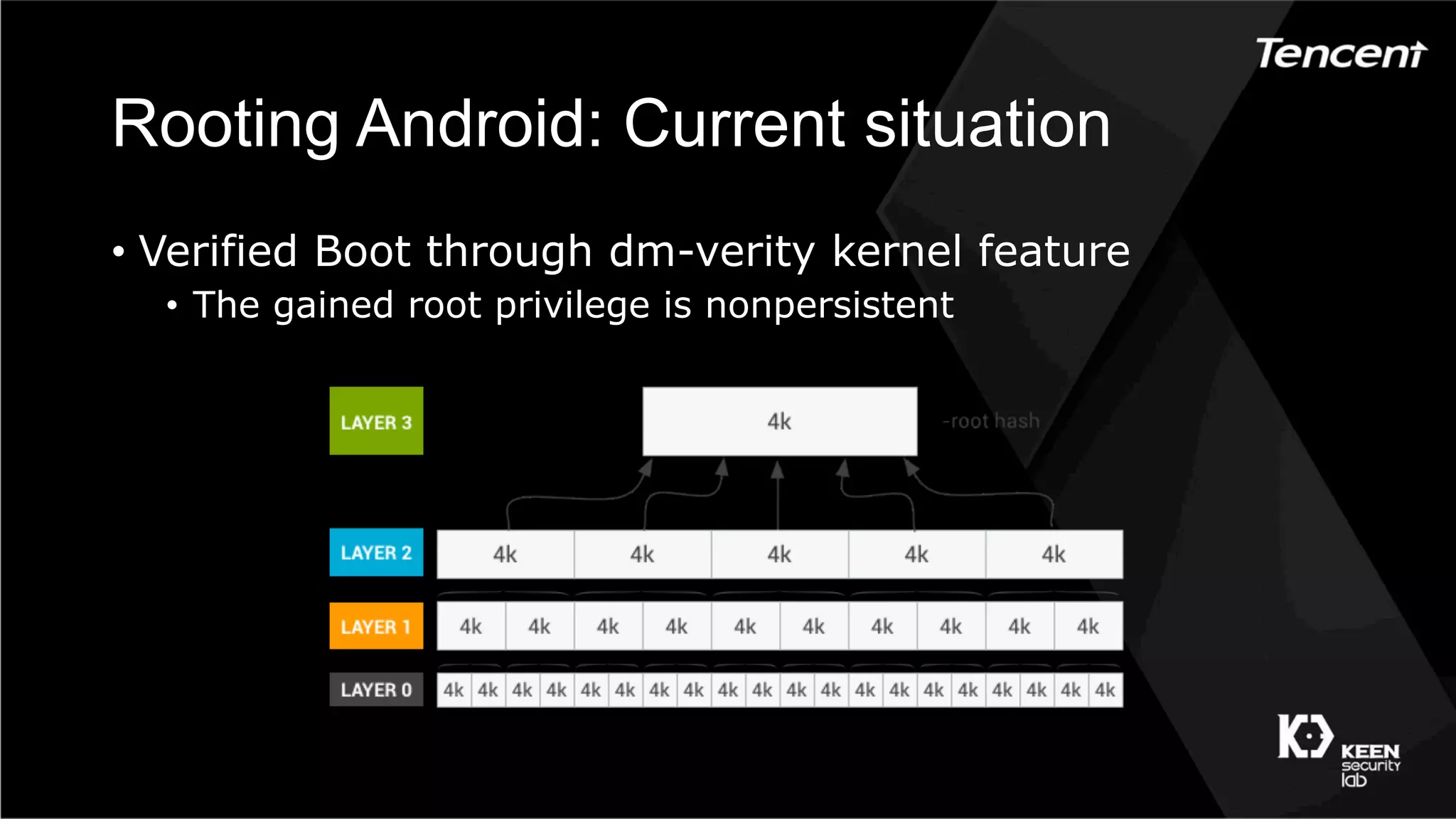

- 6. Rooting Android: Currentsituation • Verified Boot through dm-verity kernel feature • The gained root privilege is nonpersistent

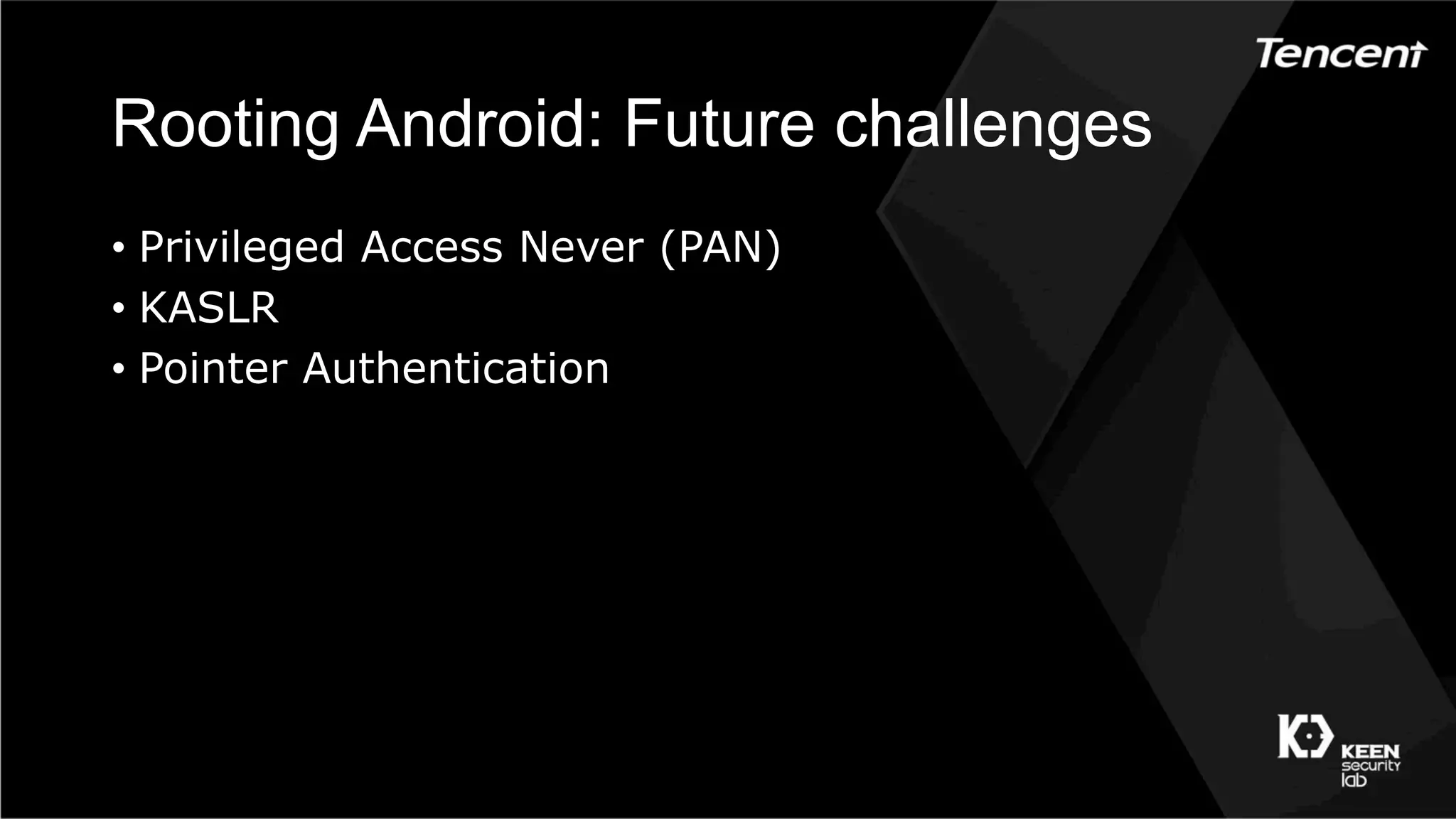

- 7. Rooting Android: Futurechallenges • Privileged Access Never (PAN) • KASLR • Pointer Authentication

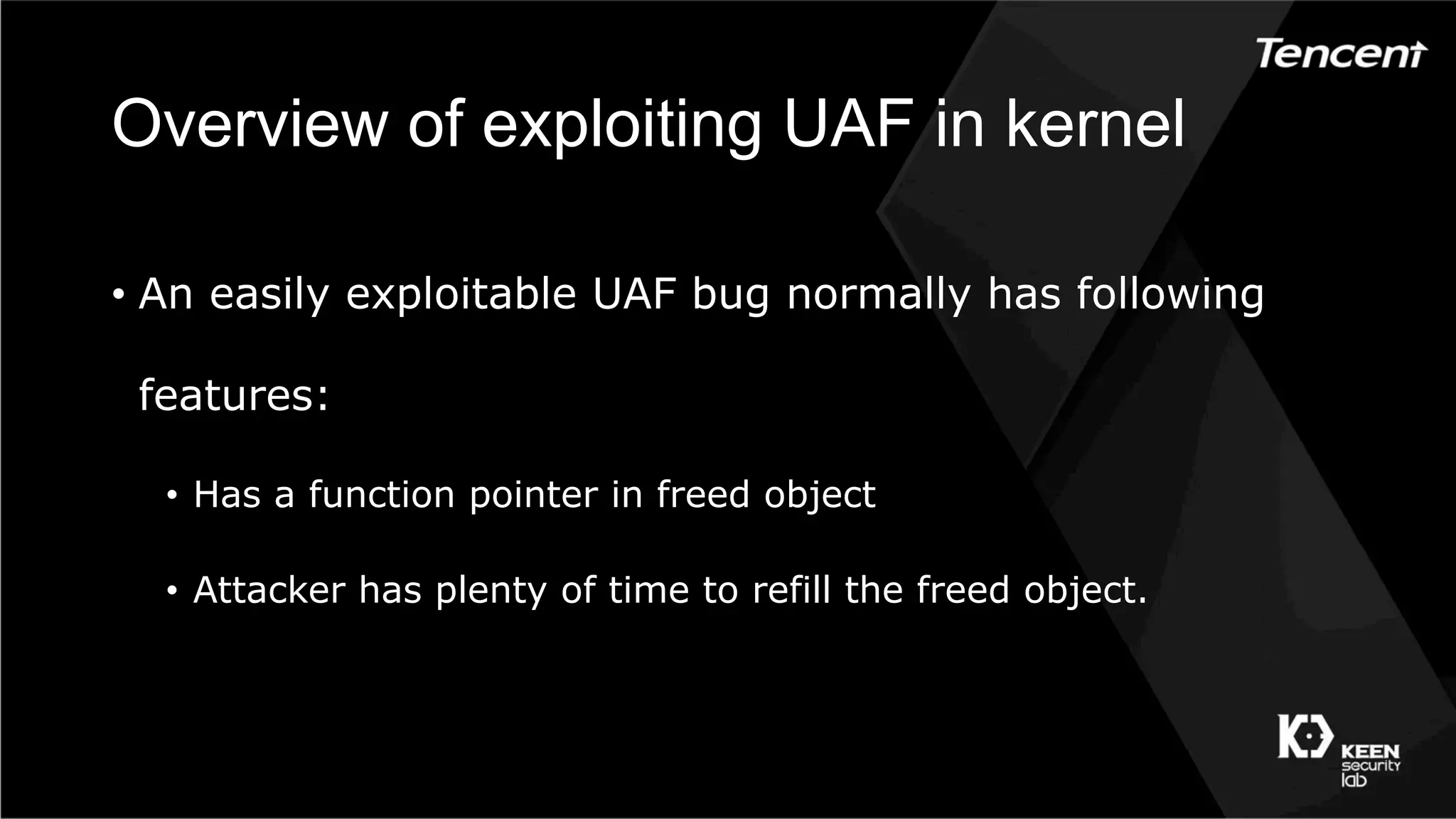

- 8. Overview of exploitingUAF in kernel • An easily exploitable UAF bug normally has following features: • Has a function pointer in freed object • Attacker has plenty of time to refill the freed object.

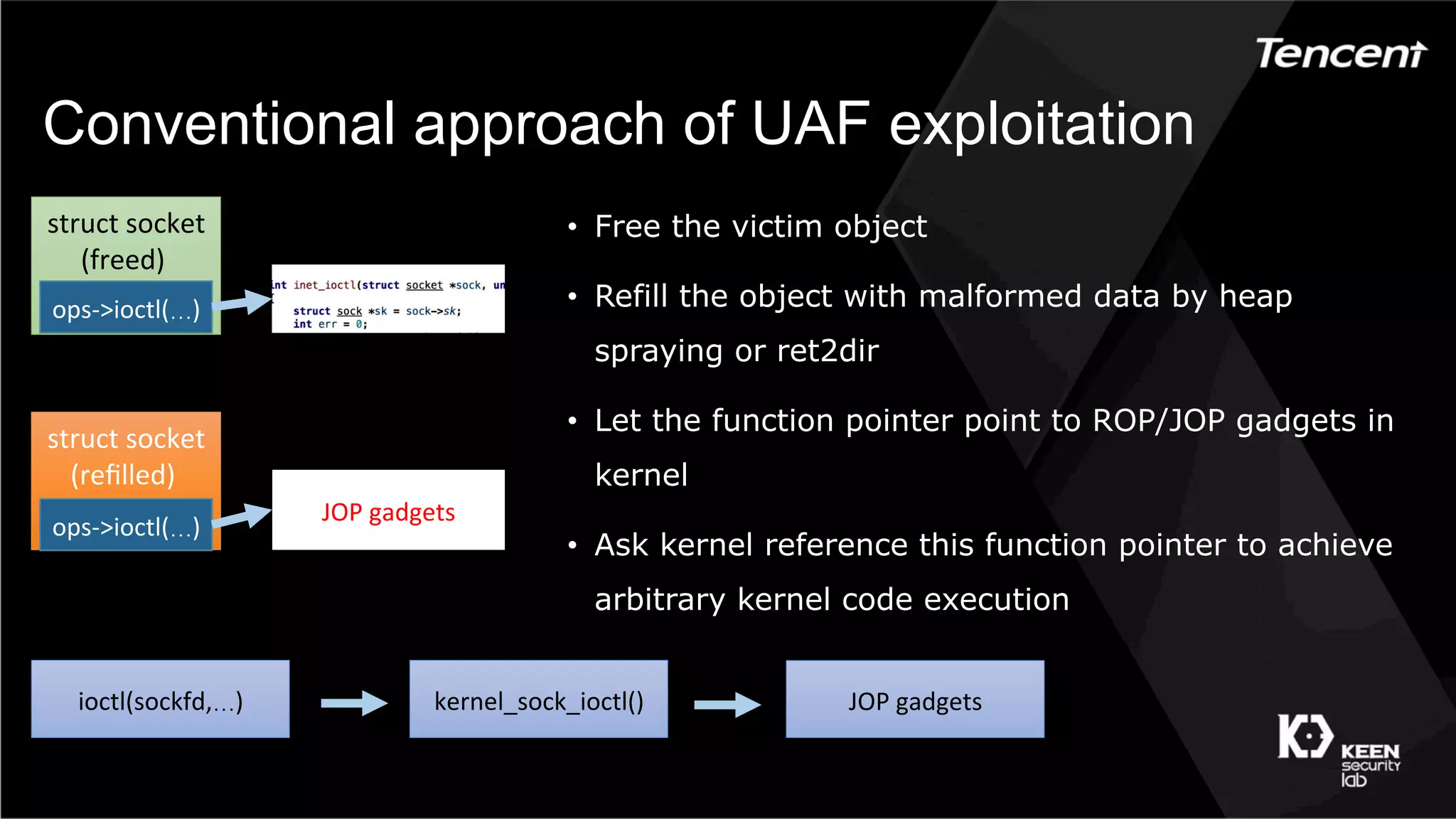

- 9. Conventional approach ofUAF exploitation struct socket (freed) ops->ioctl(…) struct socket (refilled) ops->ioctl(…) JOP gadgets • Free the victim object • Refill the object with malformed data by heap spraying or ret2dir • Let the function pointer point to ROP/JOP gadgets in kernel • Ask kernel reference this function pointer to achieve arbitrary kernel code execution ioctl(sockfd,…) kernel_sock_ioctl() JOP gadgets

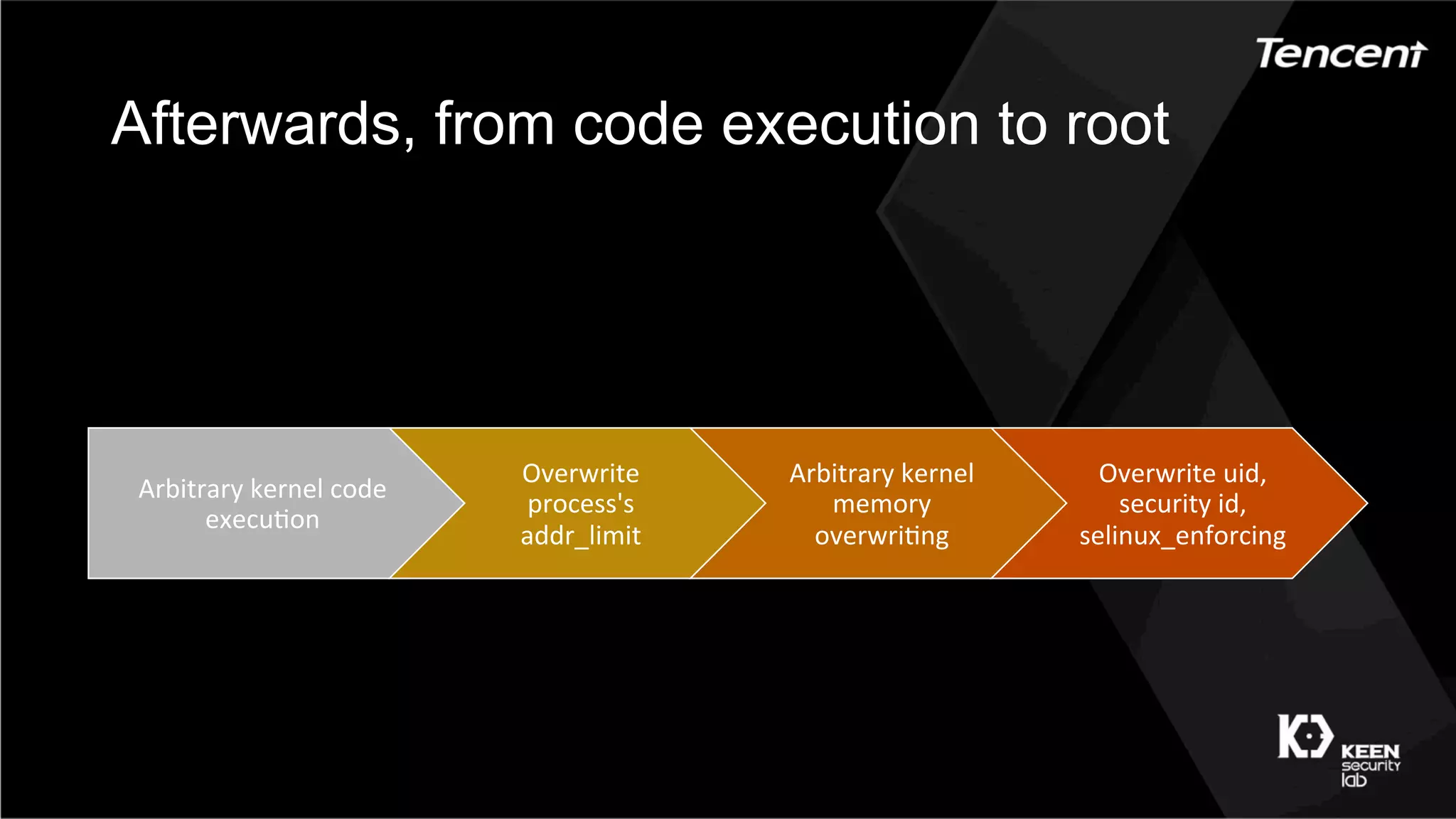

- 10. Afterwards, from codeexecution to root Arbitrary kernel code execuAon Overwrite process's addr_limit Arbitrary kernel memory overwriAng Overwrite uid, security id, selinux_enforcing

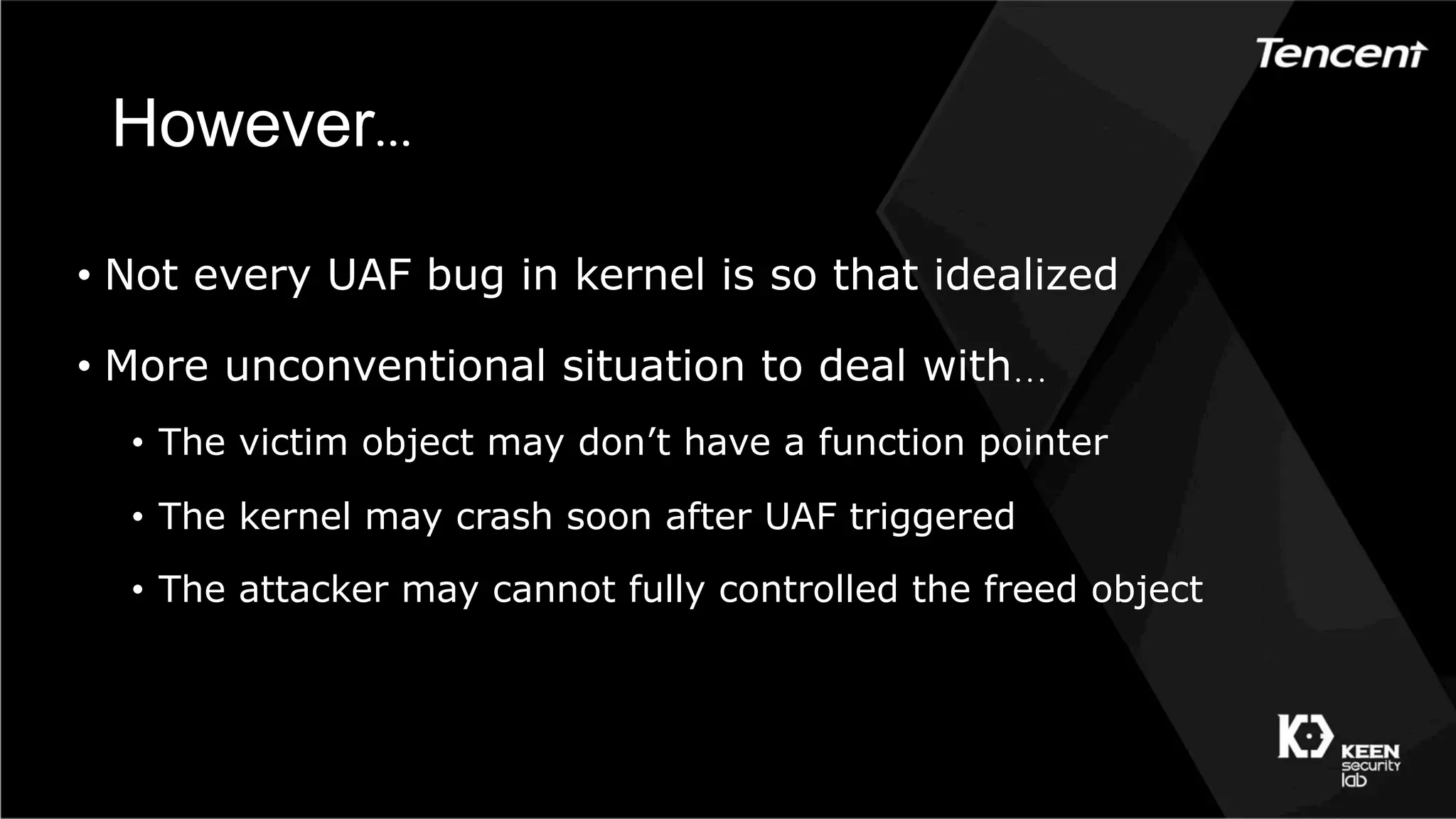

- 11. However… • Not everyUAF bug in kernel is so that idealized • More unconventional situation to deal with… • The victim object may don’t have a function pointer • The kernel may crash soon after UAF triggered • The attacker may cannot fully controlled the freed object

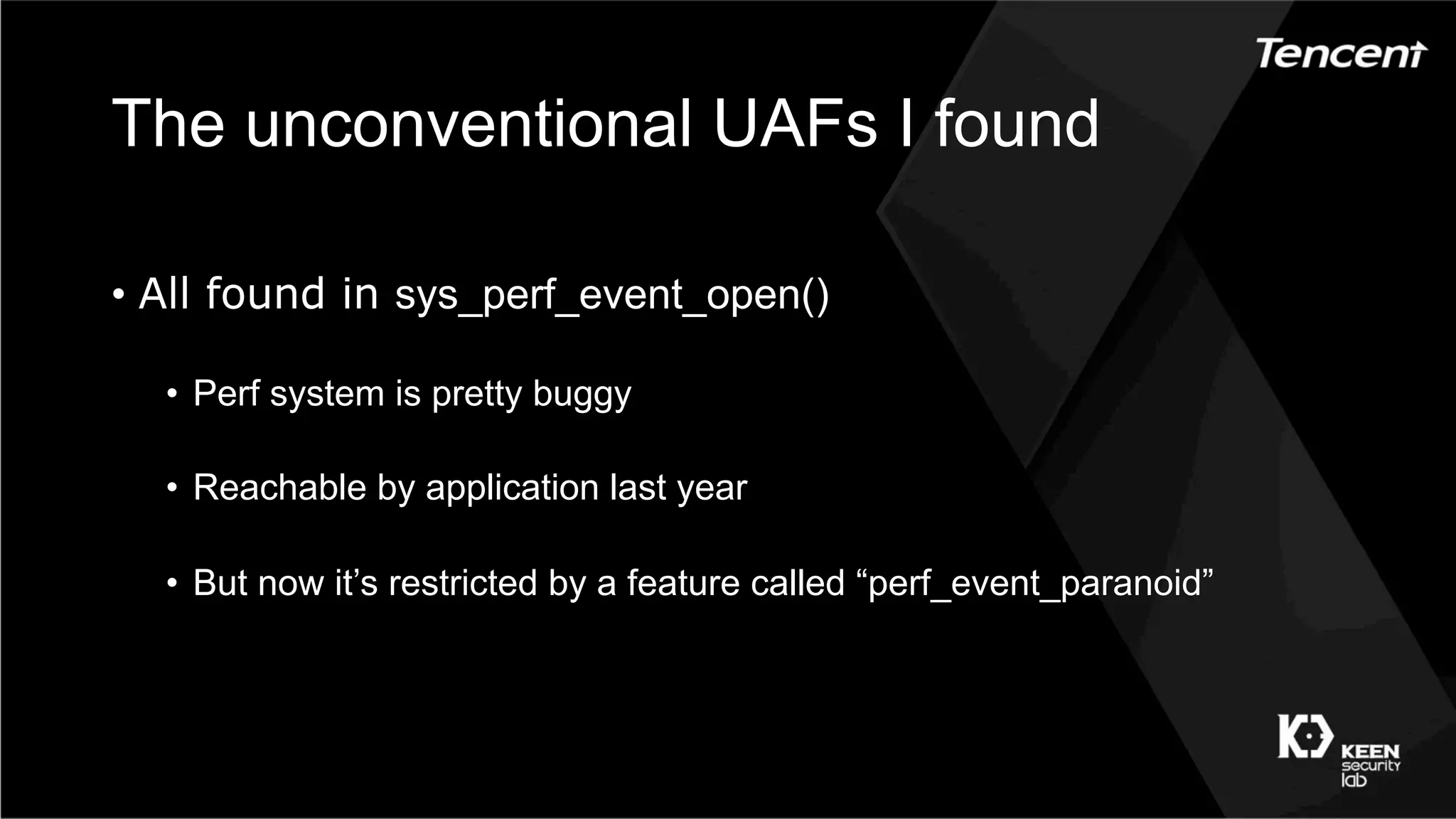

- 12. The unconventional UAFsI found • All found in sys_perf_event_open() • Perf system is pretty buggy • Reachable by application last year • But now it’s restricted by a feature called “perf_event_paranoid”

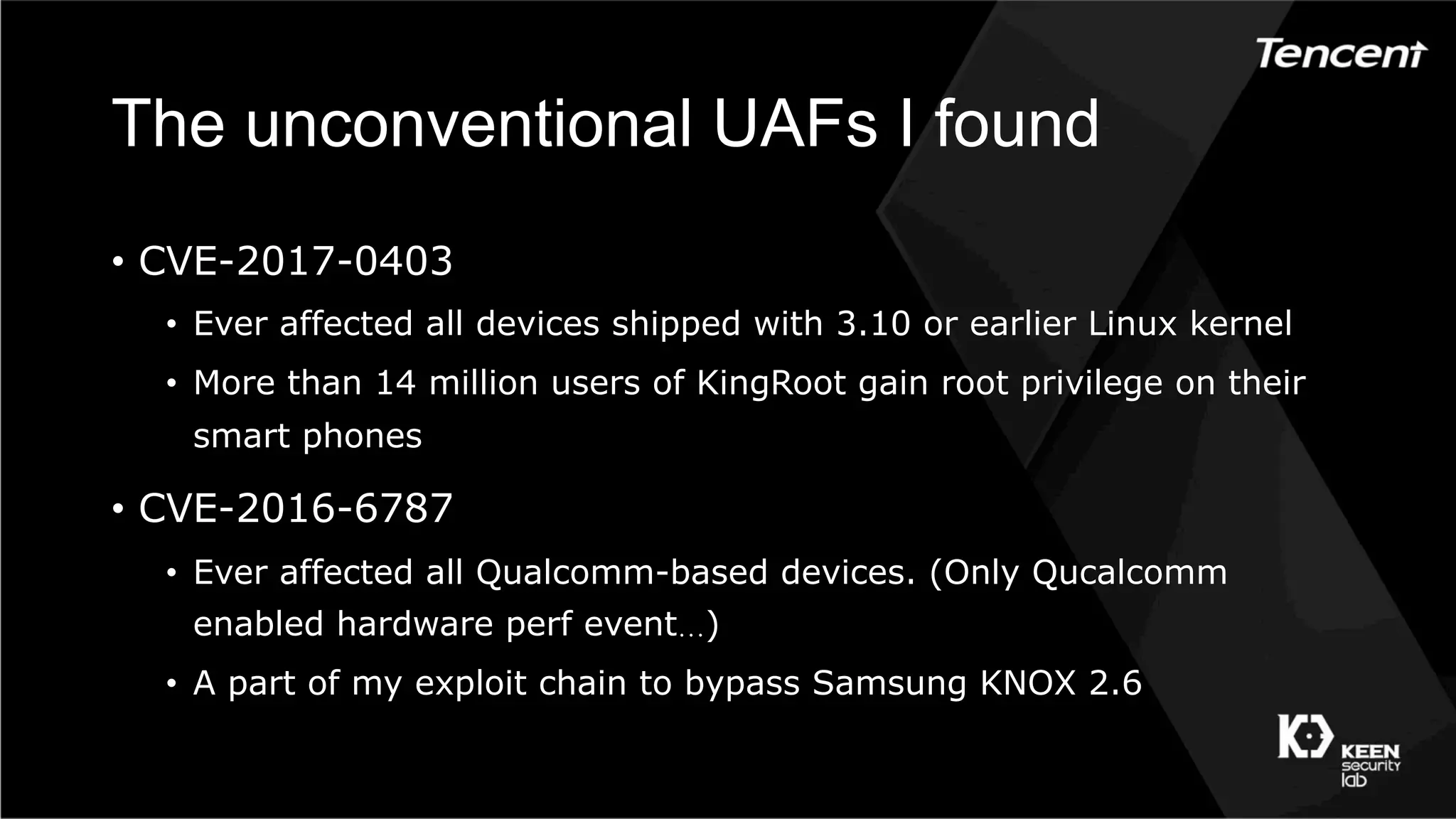

- 13. The unconventional UAFsI found • CVE-2017-0403 • Ever affected all devices shipped with 3.10 or earlier Linux kernel • More than 14 million users of KingRoot gain root privilege on their smart phones • CVE-2016-6787 • Ever affected all Qualcomm-based devices. (Only Qucalcomm enabled hardware perf event…) • A part of my exploit chain to bypass Samsung KNOX 2.6

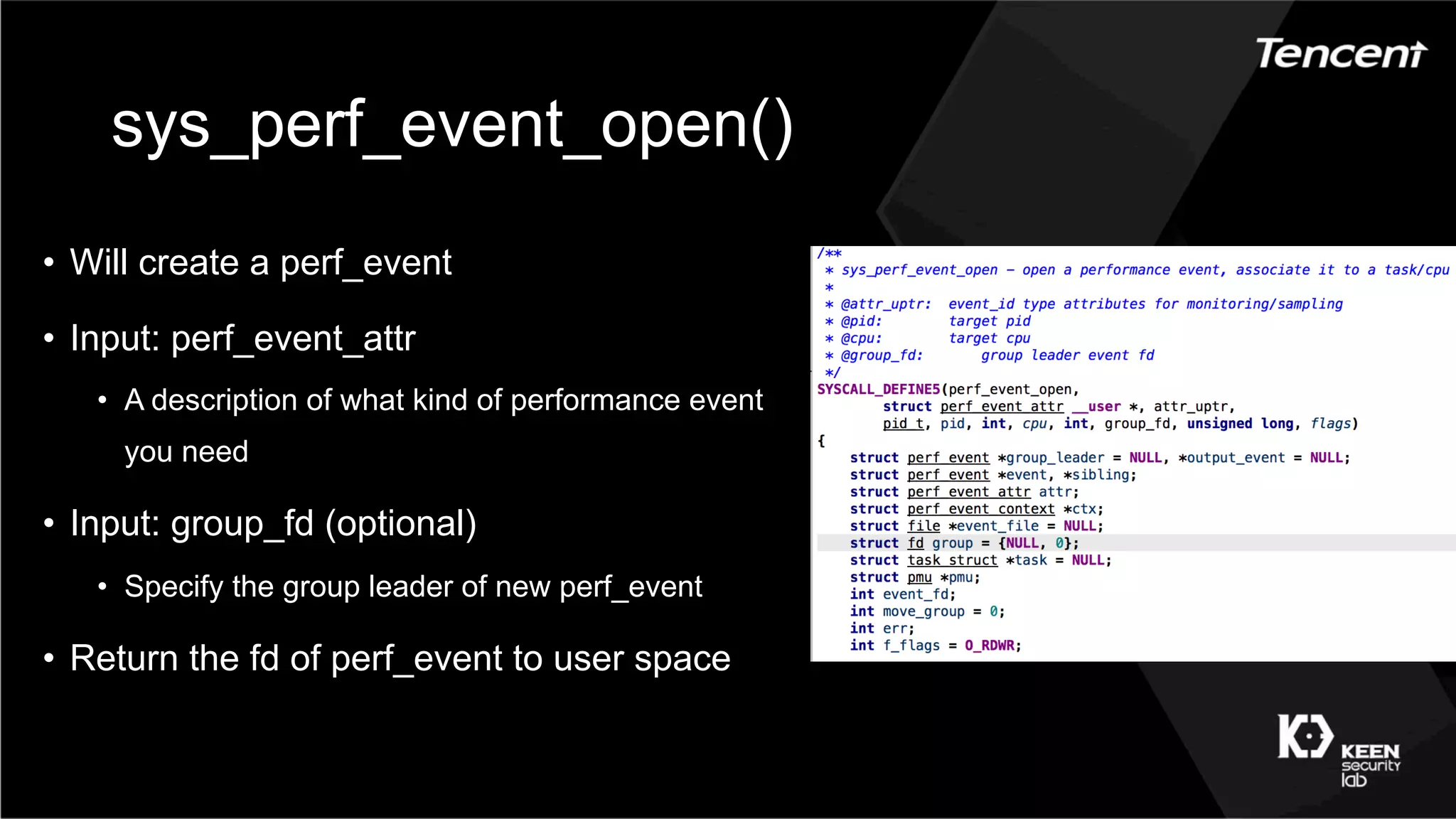

- 14. sys_perf_event_open() • Will createa perf_event • Input: perf_event_attr • A description of what kind of performance event you need • Input: group_fd (optional) • Specify the group leader of new perf_event • Return the fd of perf_event to user space

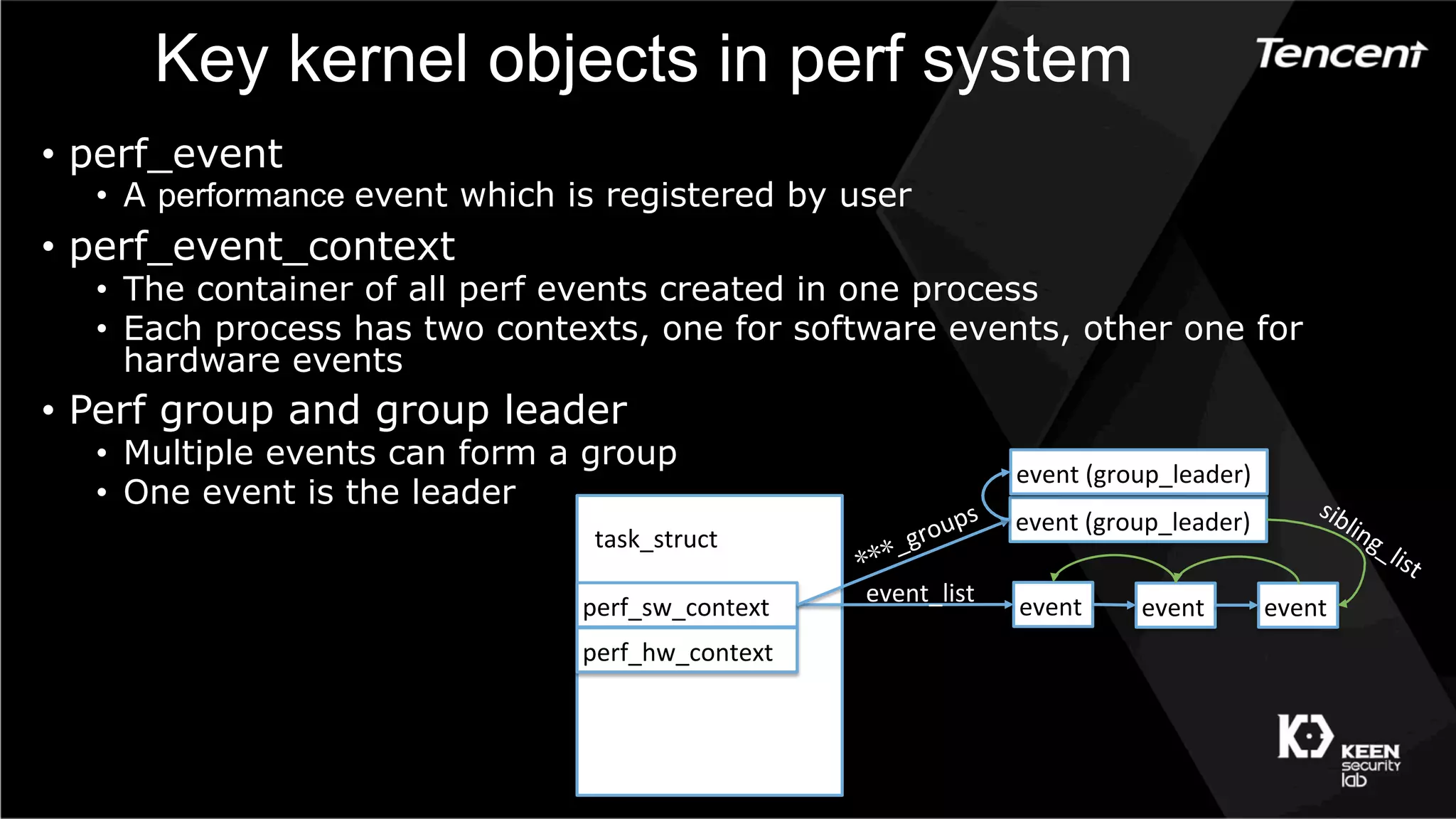

- 15. Key kernel objectsin perf system • perf_event • A performance event which is registered by user • perf_event_context • The container of all perf events created in one process • Each process has two contexts, one for software events, other one for hardware events • Perf group and group leader • Multiple events can form a group • One event is the leader perf_sw_context perf_hw_context task_struct event event event event_list event (group_leader) event (group_leader)

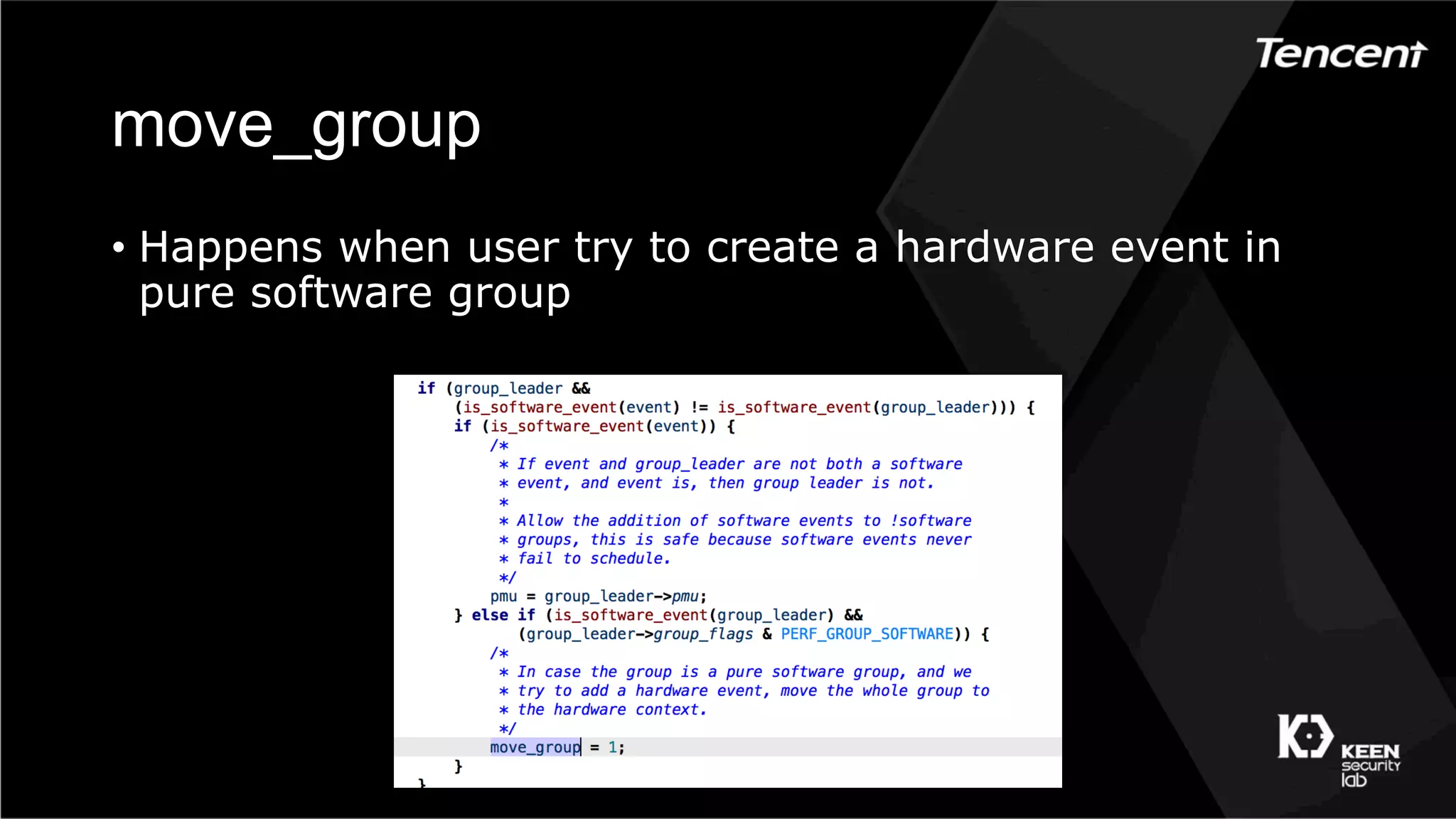

- 16. move_group • Happens whenuser try to create a hardware event in pure software group

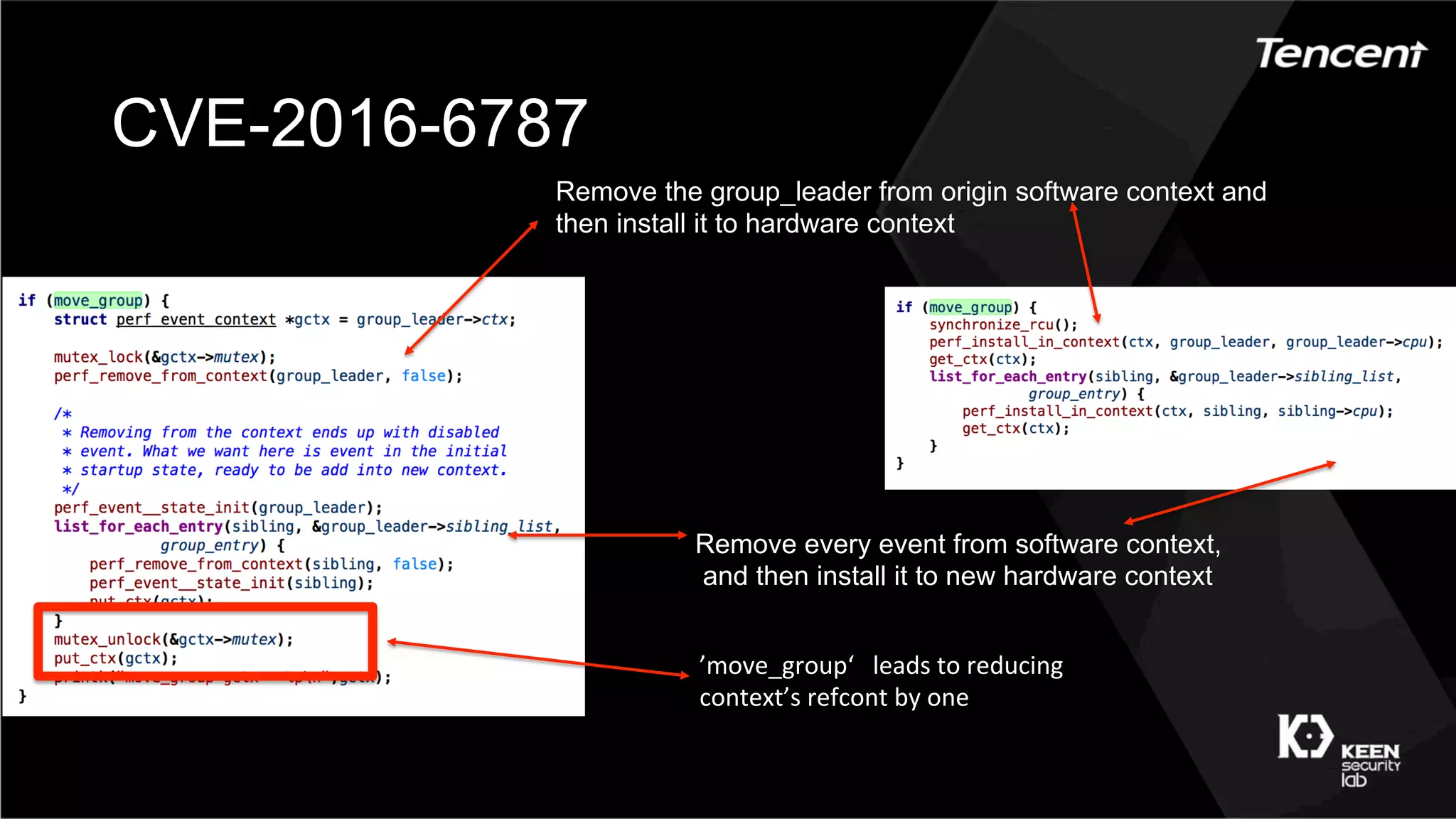

- 17. CVE-2016-6787 Remove the group_leaderfrom origin software context and then install it to hardware context Remove every event from software context, and then install it to new hardware context ’move_group‘ leads to reducing context’s refcont by one

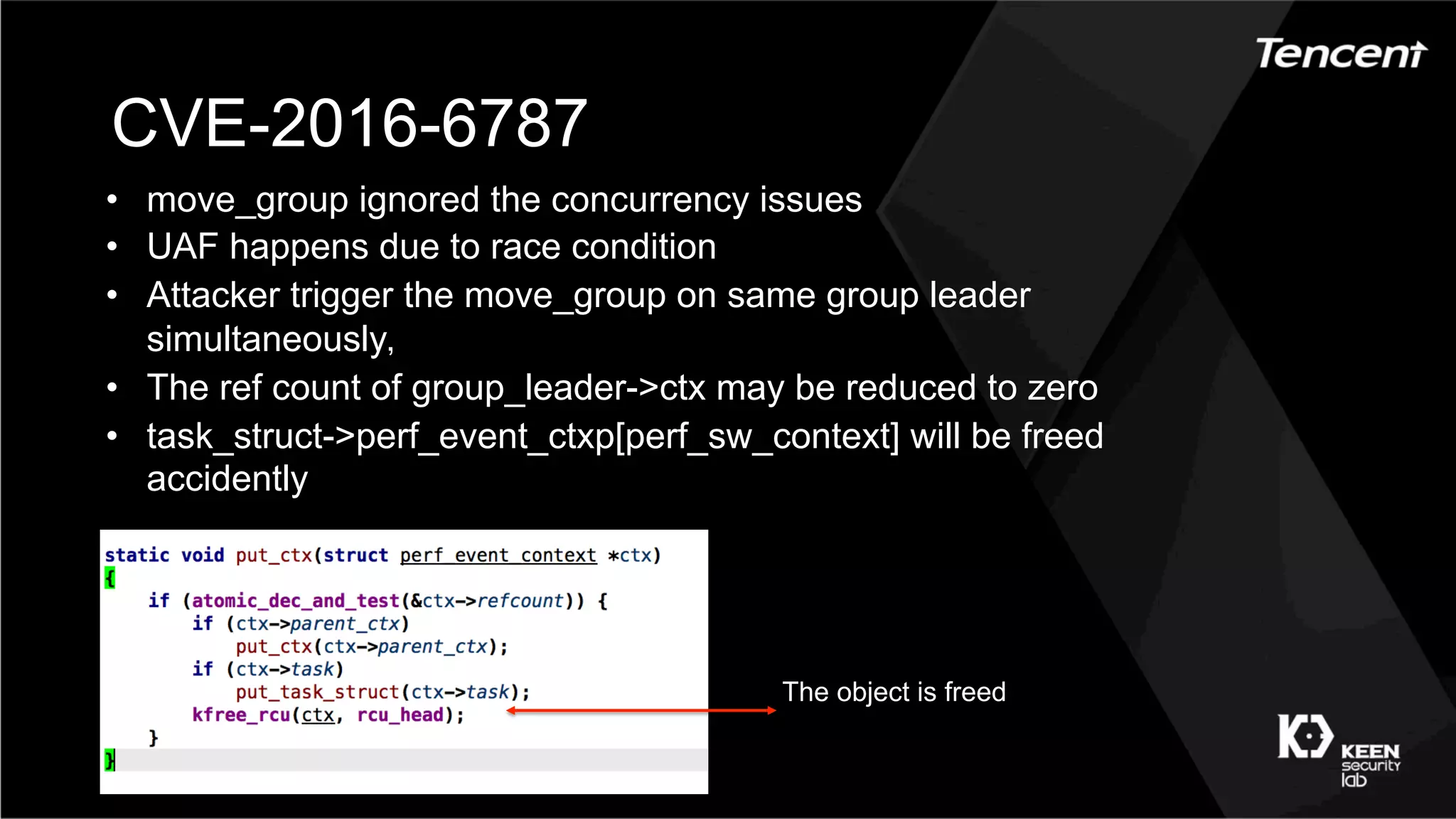

- 18. CVE-2016-6787 • move_group ignoredthe concurrency issues • UAF happens due to race condition • Attacker trigger the move_group on same group leader simultaneously， • The ref count of group_leader->ctx may be reduced to zero • task_struct->perf_event_ctxp[perf_sw_context] will be freed accidently The object is freed

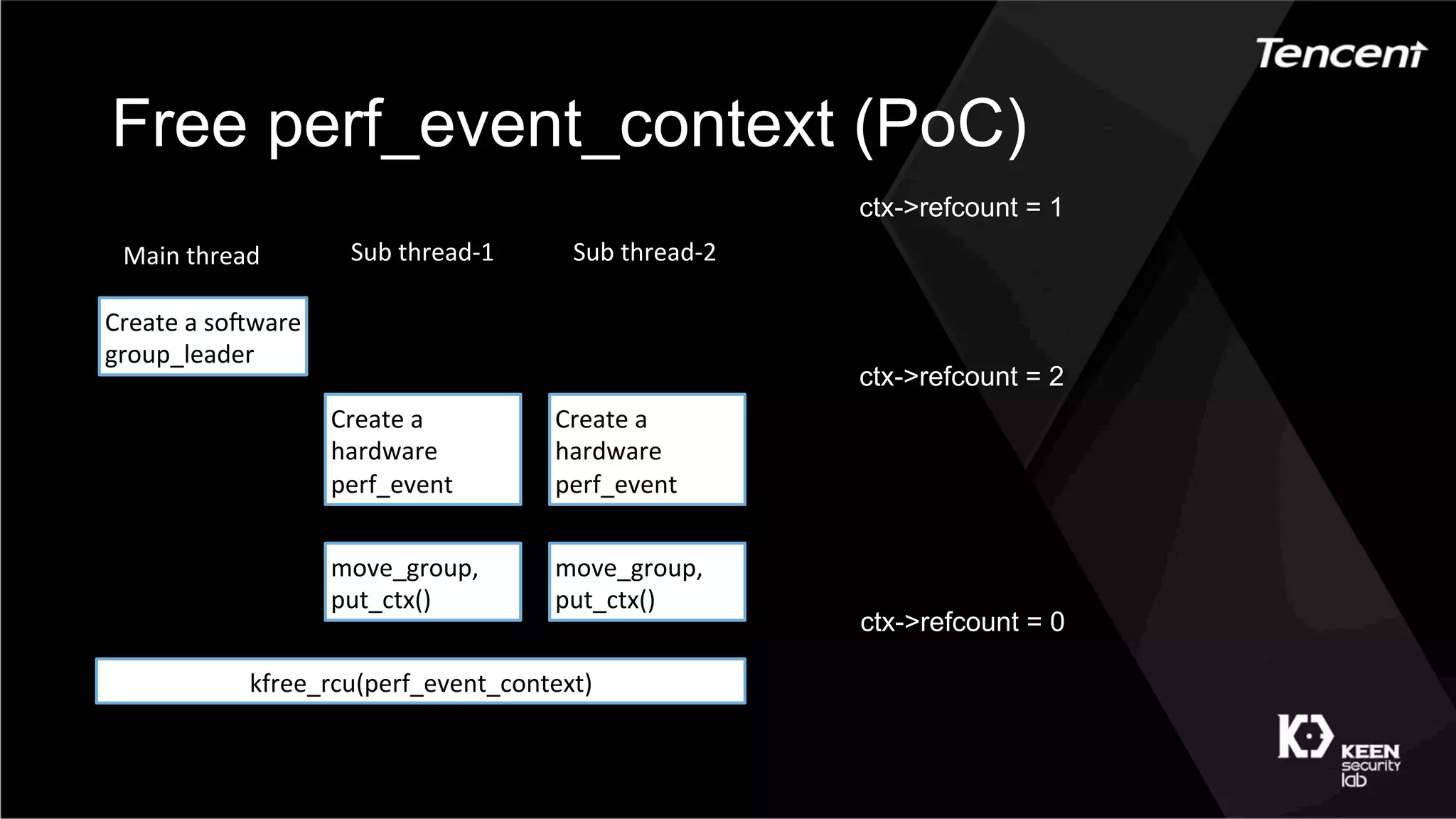

- 19. Free perf_event_context (PoC) Create a soJware group_leader Create a hardware perf_event Create a hardware perf_event Main threadSub thread-1 Sub thread-2 move_group, put_ctx() move_group, put_ctx() kfree_rcu(perf_event_context) ctx->refcount = 1 ctx->refcount = 2 ctx->refcount = 0

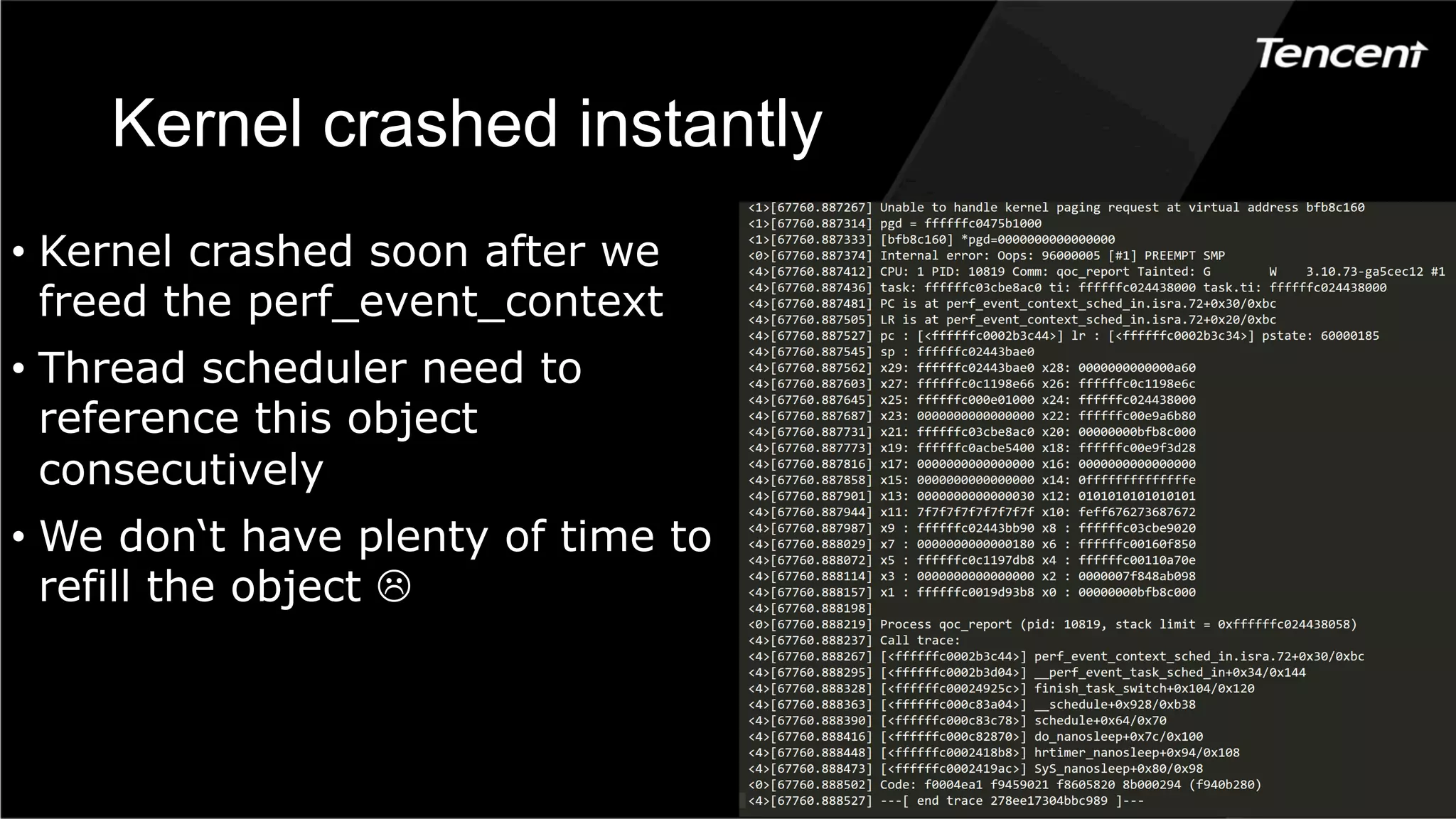

- 20. Kernel crashed instantly • Kernel crashed soon after we freed the perf_event_context • Thread scheduler need to reference this object consecutively • We don‘t have plenty of time to refill the object L

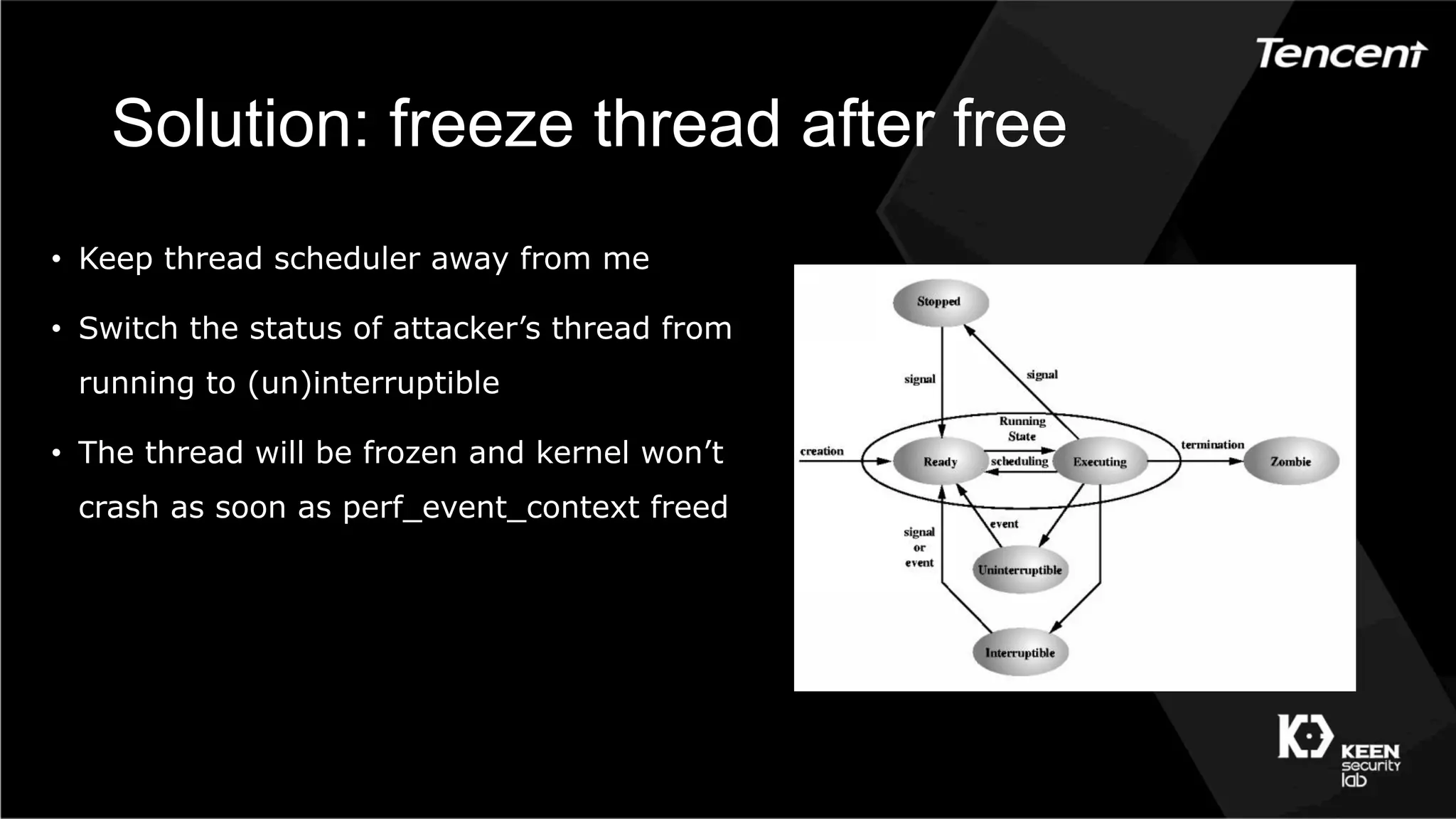

- 21. Solution: freeze threadafter free • Keep thread scheduler away from me • Switch the status of attacker’s thread from running to (un)interruptible • The thread will be frozen and kernel won’t crash as soon as perf_event_context freed

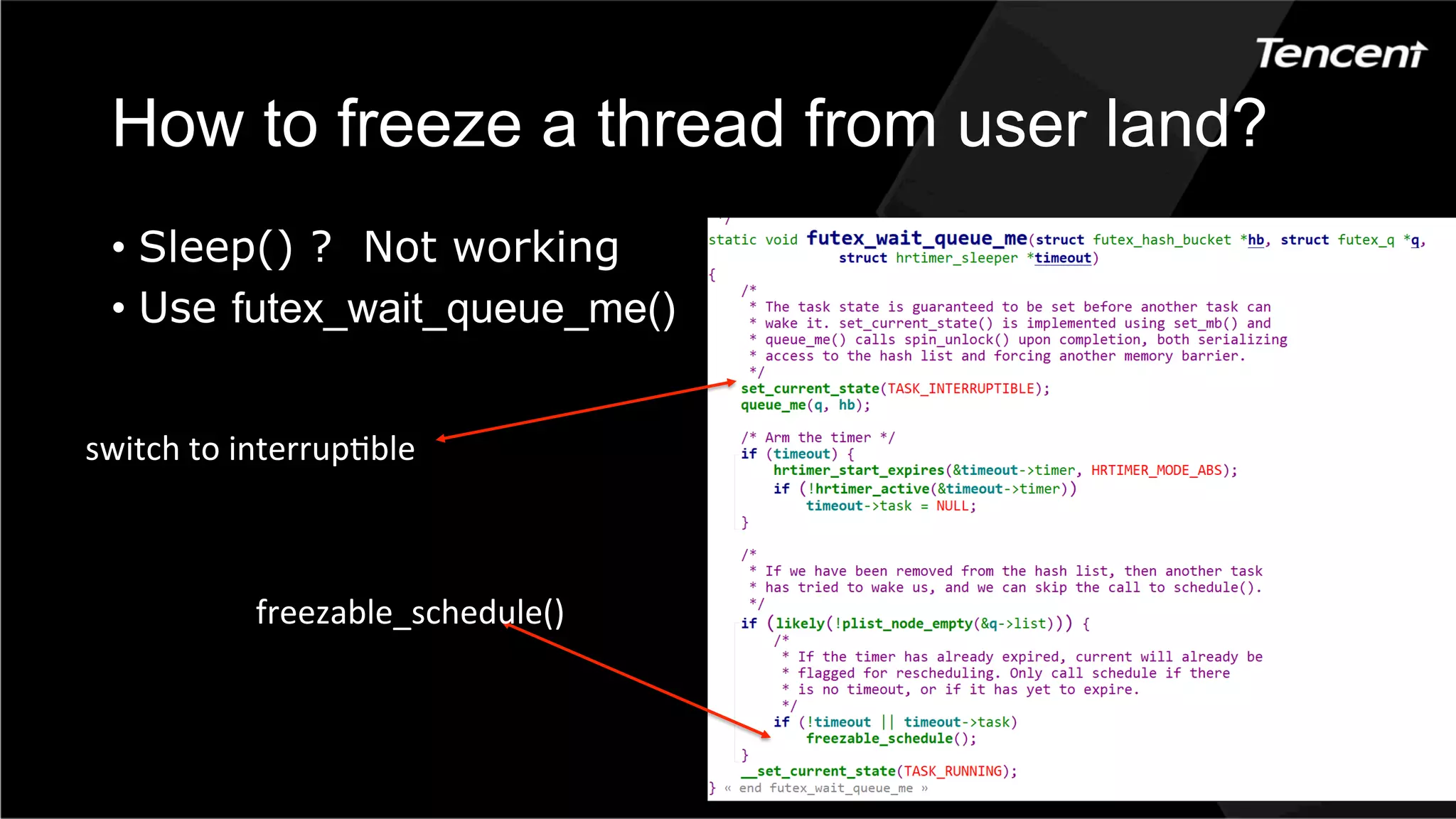

- 22. How to freezea thread from user land? • Sleep() ? Not working • Use futex_wait_queue_me() switch to interrupAble freezable_schedule()
- 23.

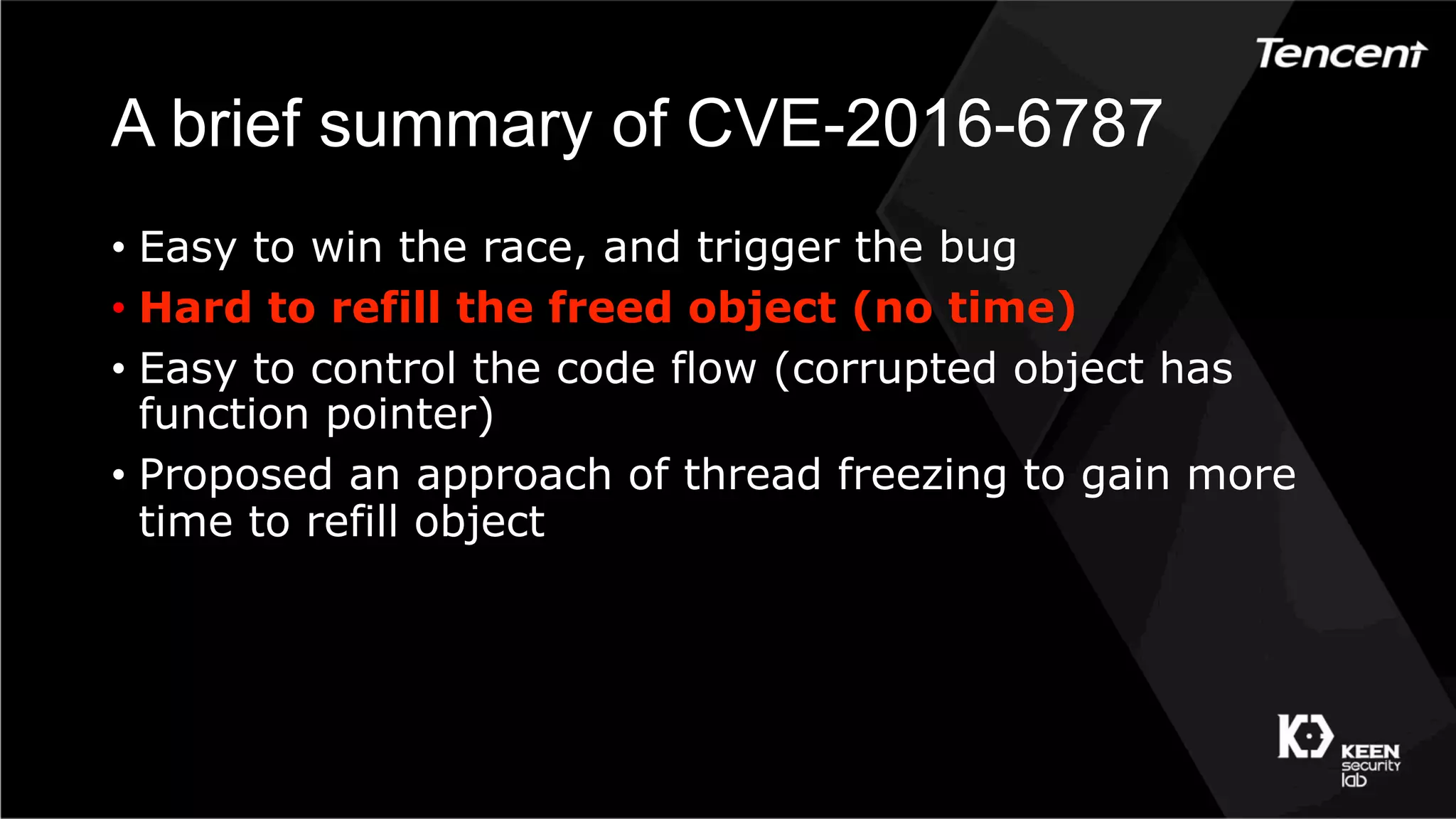

- 24. A brief summaryof CVE-2016-6787 • Easy to win the race, and trigger the bug • Hard to refill the freed object (no time) • Easy to control the code flow (corrupted object has function pointer) • Proposed an approach of thread freezing to gain more time to refill object

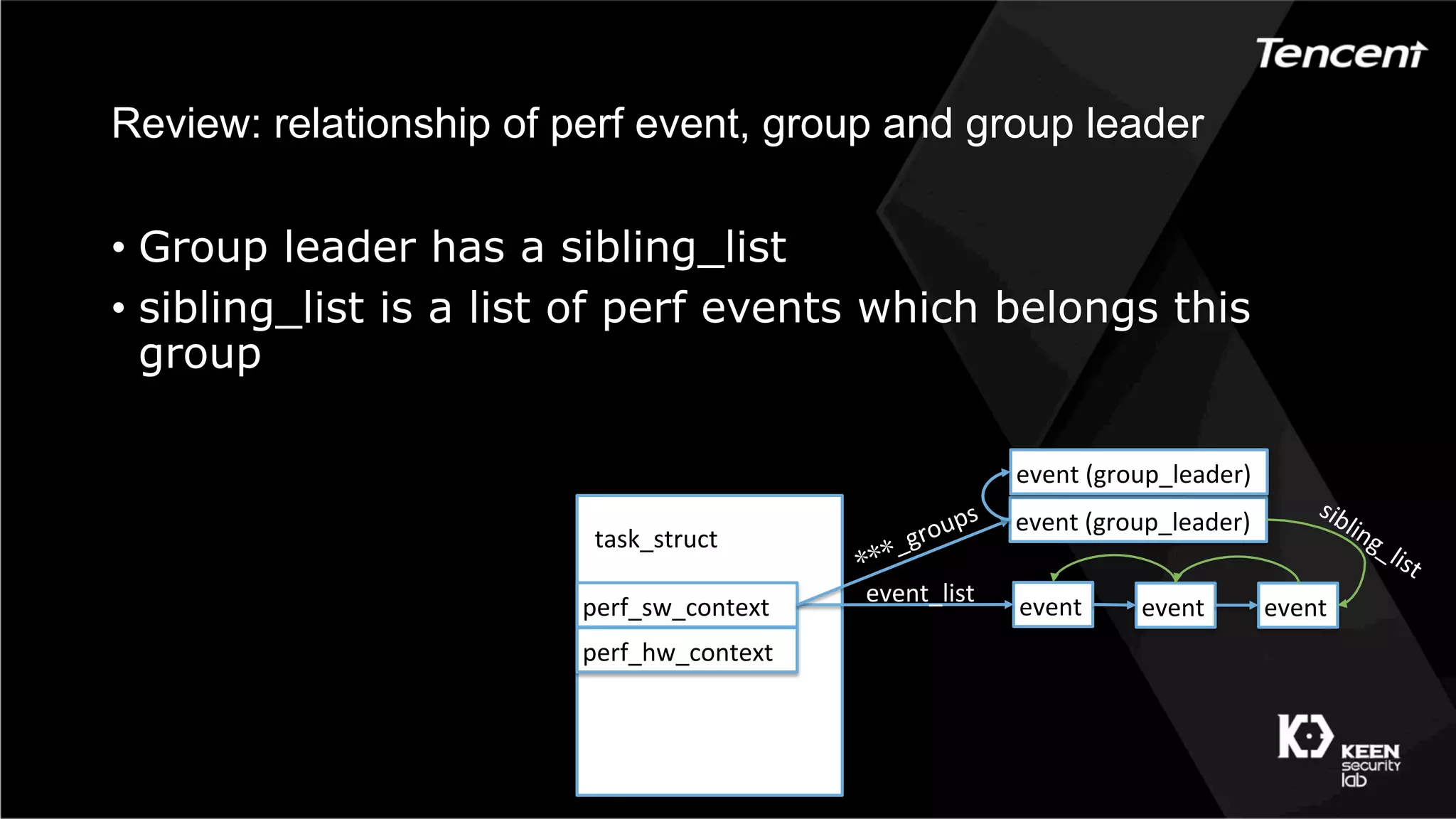

- 25. Review: relationship ofperf event, group and group leader • Group leader has a sibling_list • sibling_list is a list of perf events which belongs this group perf_sw_context perf_hw_context task_struct event event event event_list event (group_leader) event (group_leader)

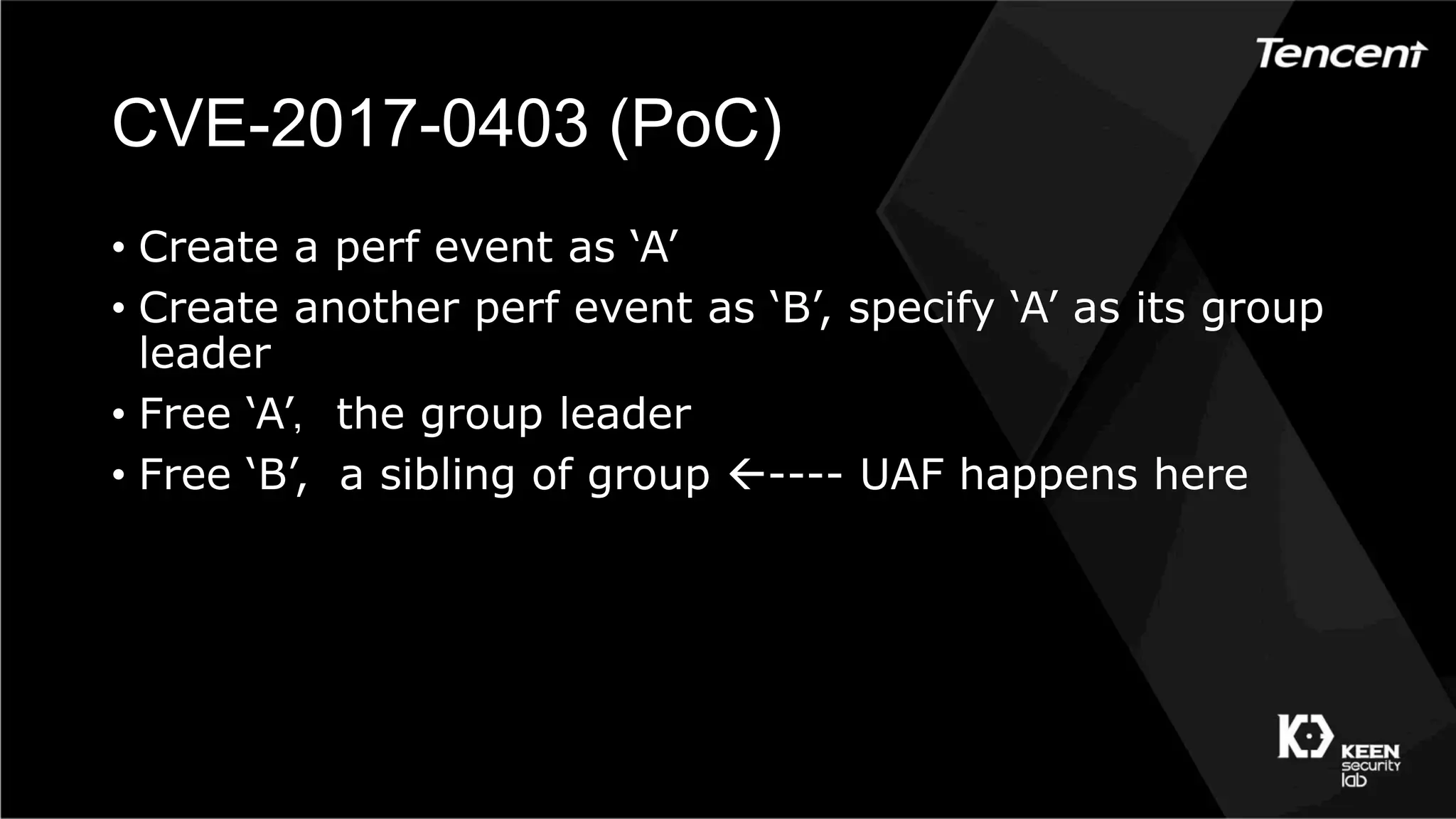

- 26. CVE-2017-0403 (PoC) • Createa perf event as ‘A’ • Create another perf event as ‘B’, specify ‘A’ as its group leader • Free ‘A’，the group leader • Free ‘B’, a sibling of group ß---- UAF happens here

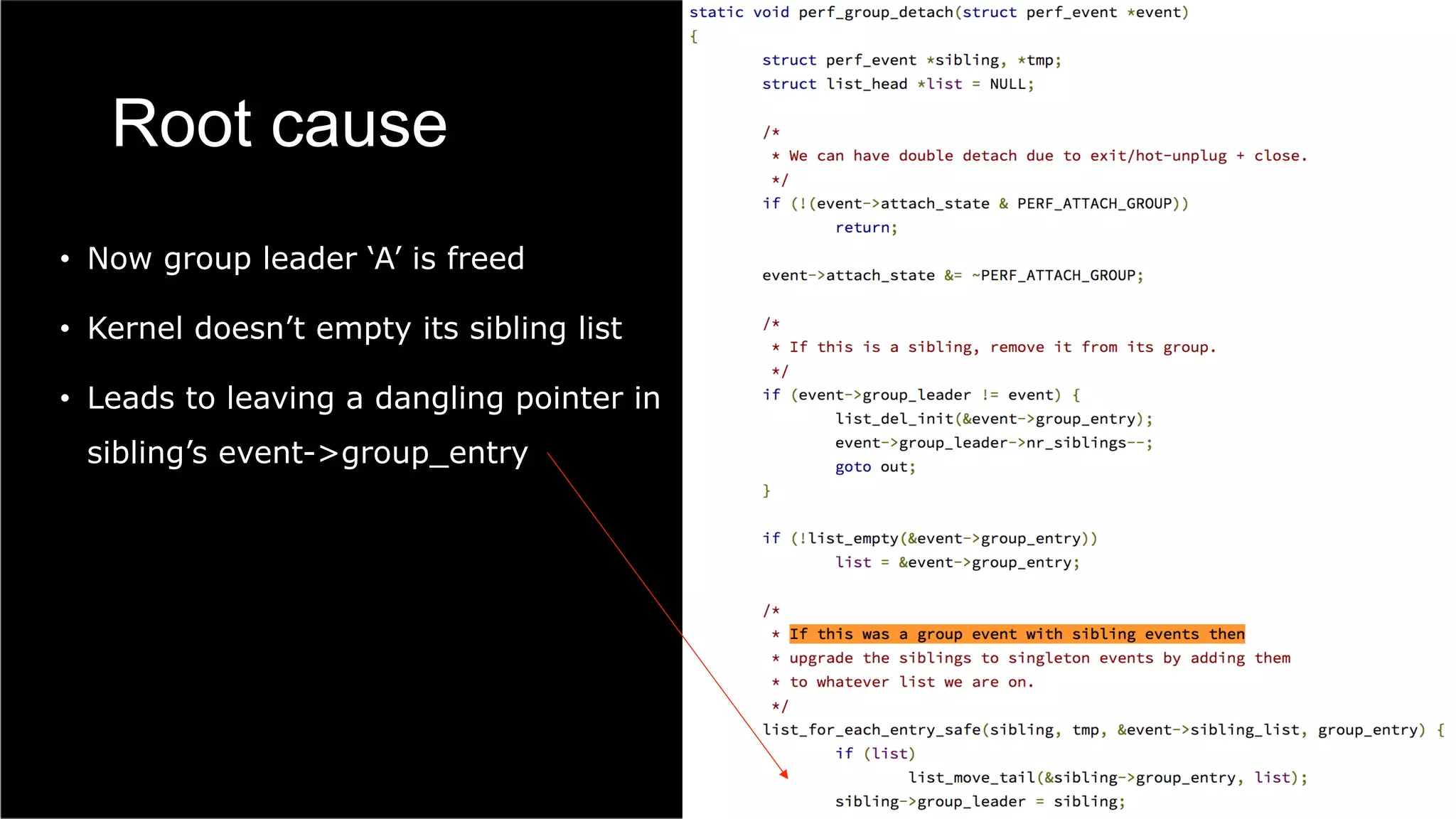

- 27. Root cause • Nowgroup leader ‘A’ is freed • Kernel doesn’t empty its sibling list • Leads to leaving a dangling pointer in sibling’s event->group_entry

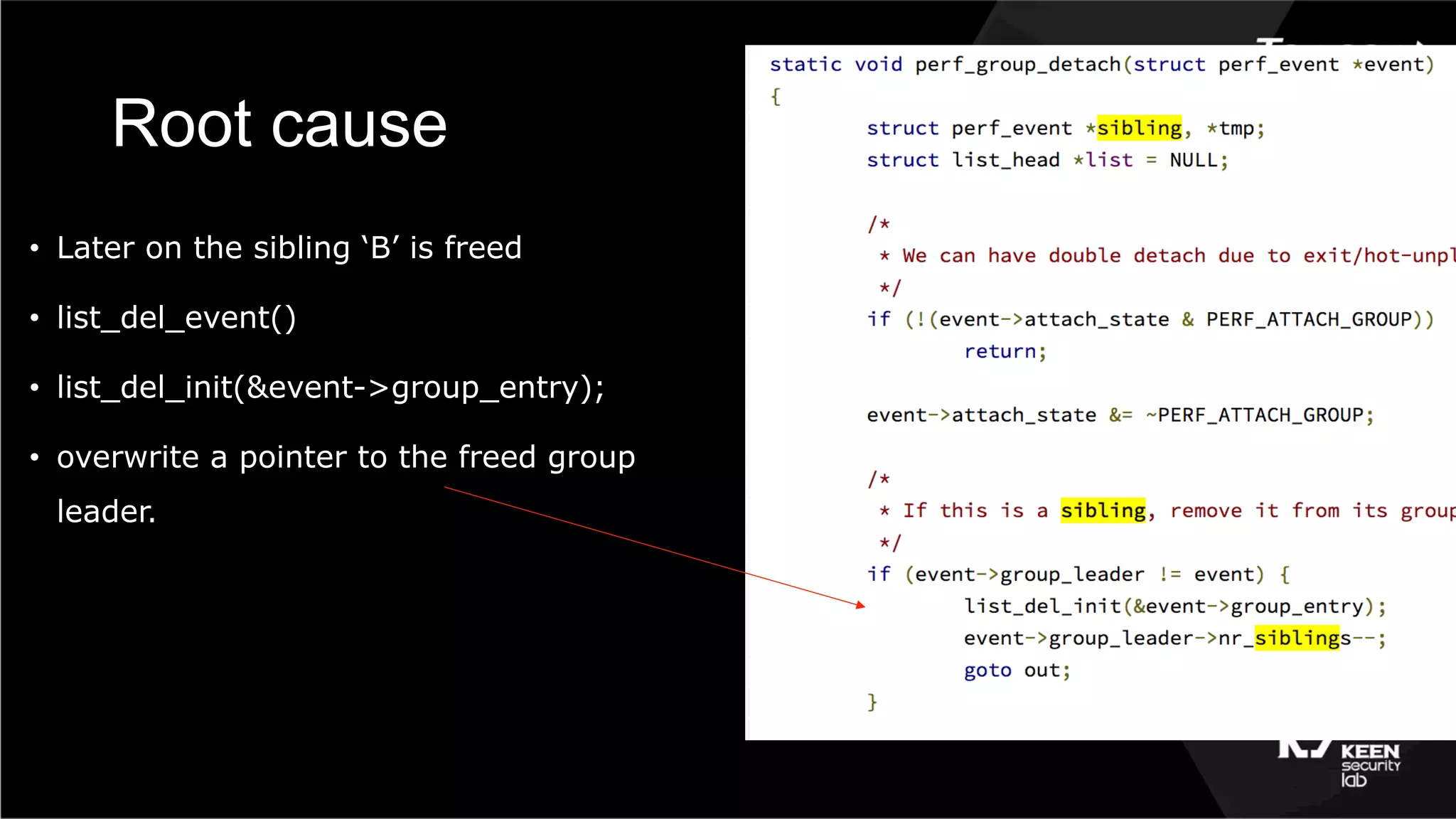

- 28. Root cause • Lateron the sibling ‘B’ is freed • list_del_event() • list_del_init(&event->group_entry); • overwrite a pointer to the freed group leader.

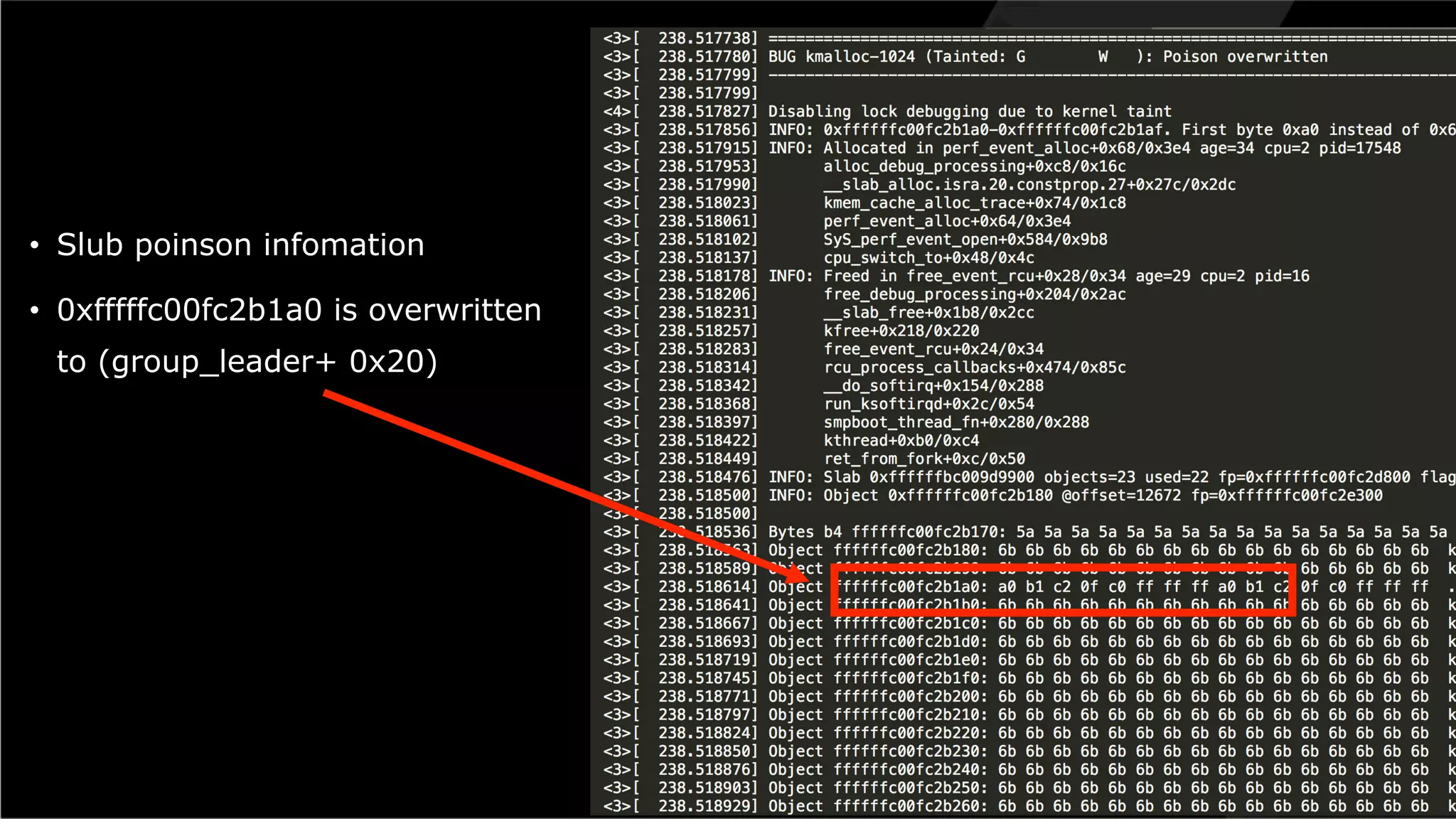

- 29. • Slub poinsoninfomation • 0xfffffc00fc2b1a0 is overwritten to (group_leader+ 0x20)

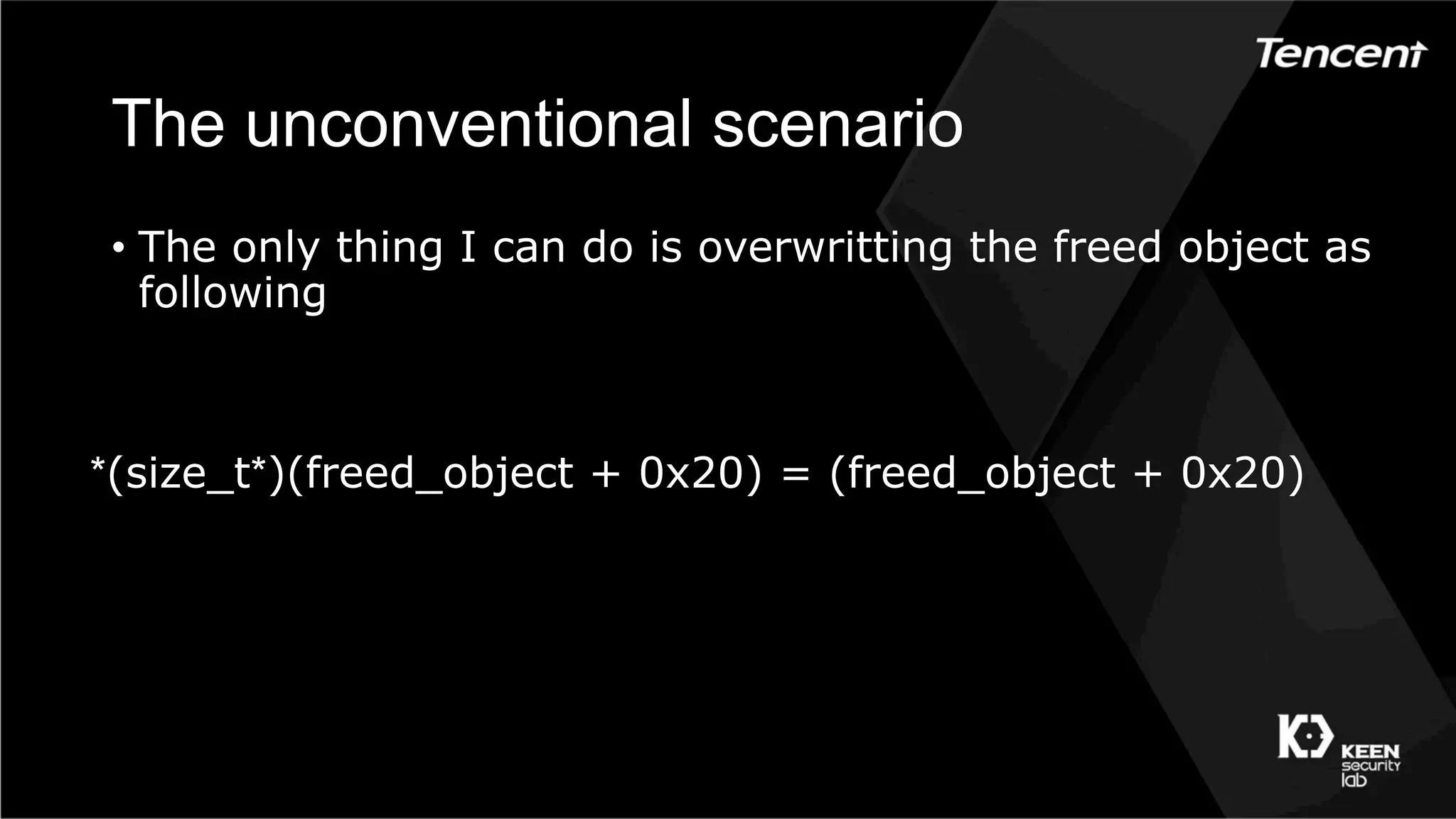

- 30. The unconventional scenario • The only thing I can do is overwritting the freed object as following *(size_t*)(freed_object + 0x20) = (freed_object + 0x20)

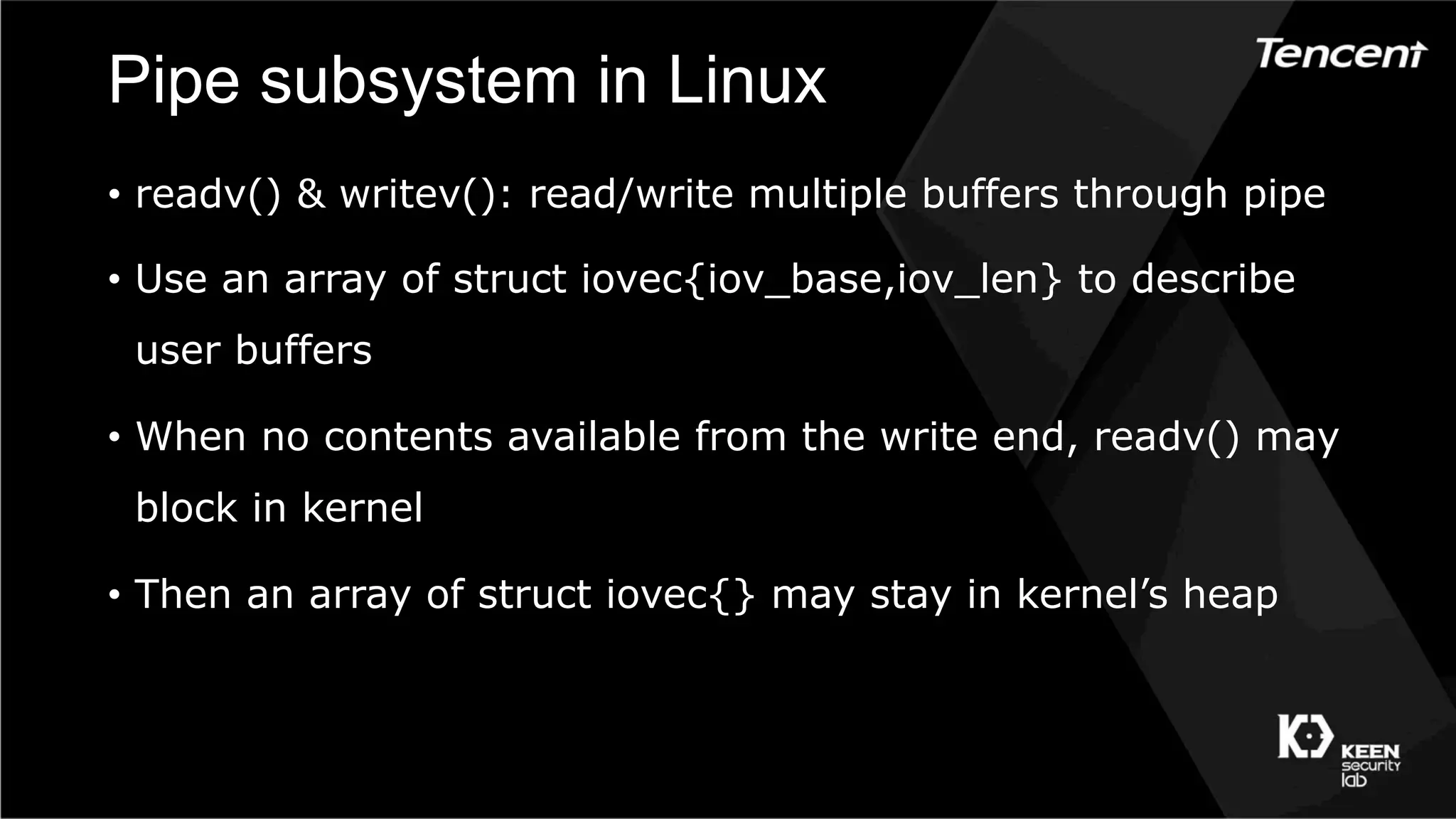

- 31. Pipe subsystem inLinux • readv() & writev(): read/write multiple buffers through pipe • Use an array of struct iovec{iov_base,iov_len} to describe user buffers • When no contents available from the write end, readv() may block in kernel • Then an array of struct iovec{} may stay in kernel’s heap

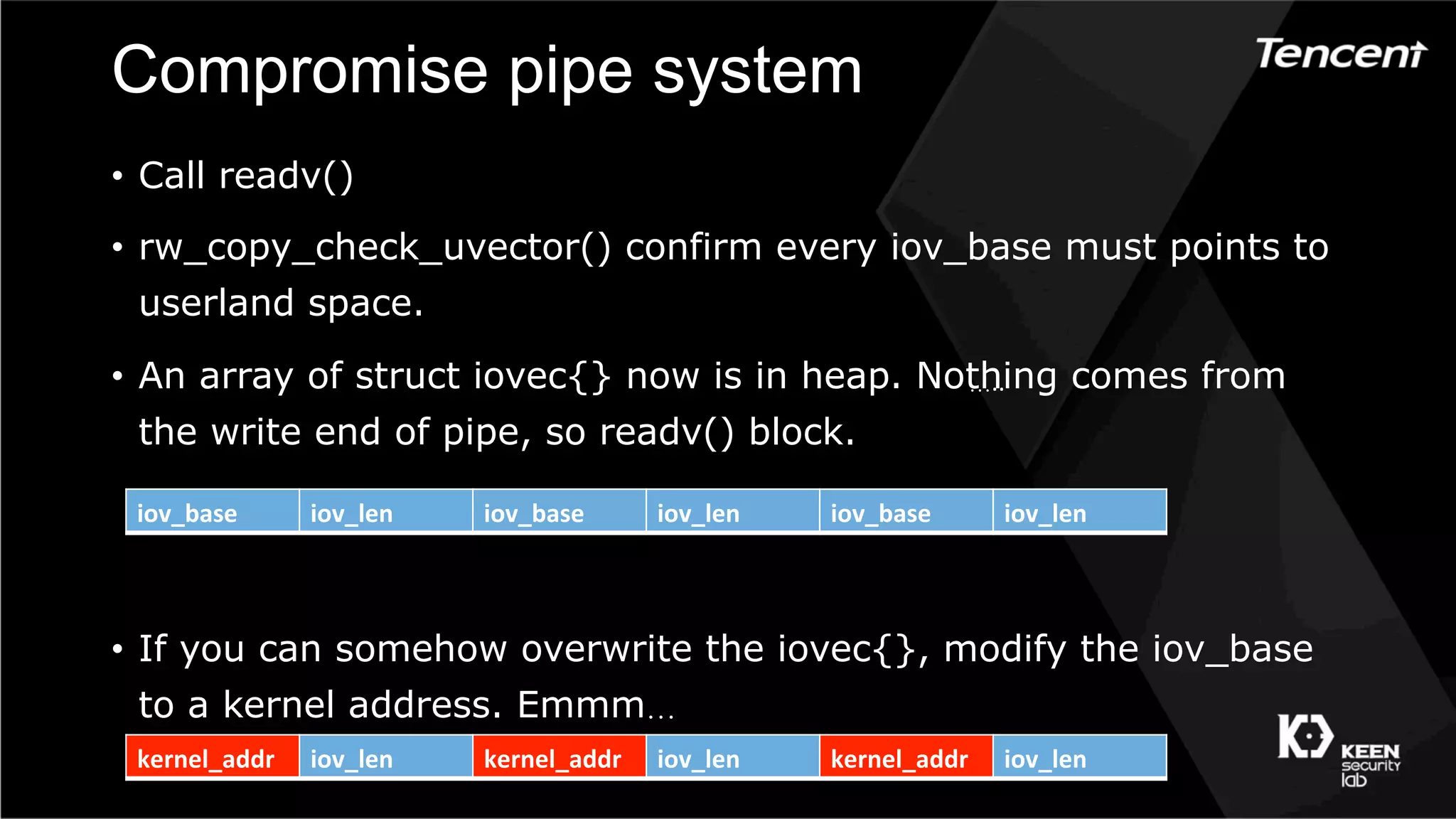

- 32. Compromise pipe system • Call readv() • rw_copy_check_uvector() confirm every iov_base must points to userland space. • An array of struct iovec{} now is in heap. Nothing comes from the write end of pipe, so readv() block. • If you can somehow overwrite the iovec{}, modify the iov_base to a kernel address. Emmm… iov_base iov_len iov_base iov_len iov_base iov_len ….. kernel_addr iov_len kernel_addr iov_len kernel_addr iov_len

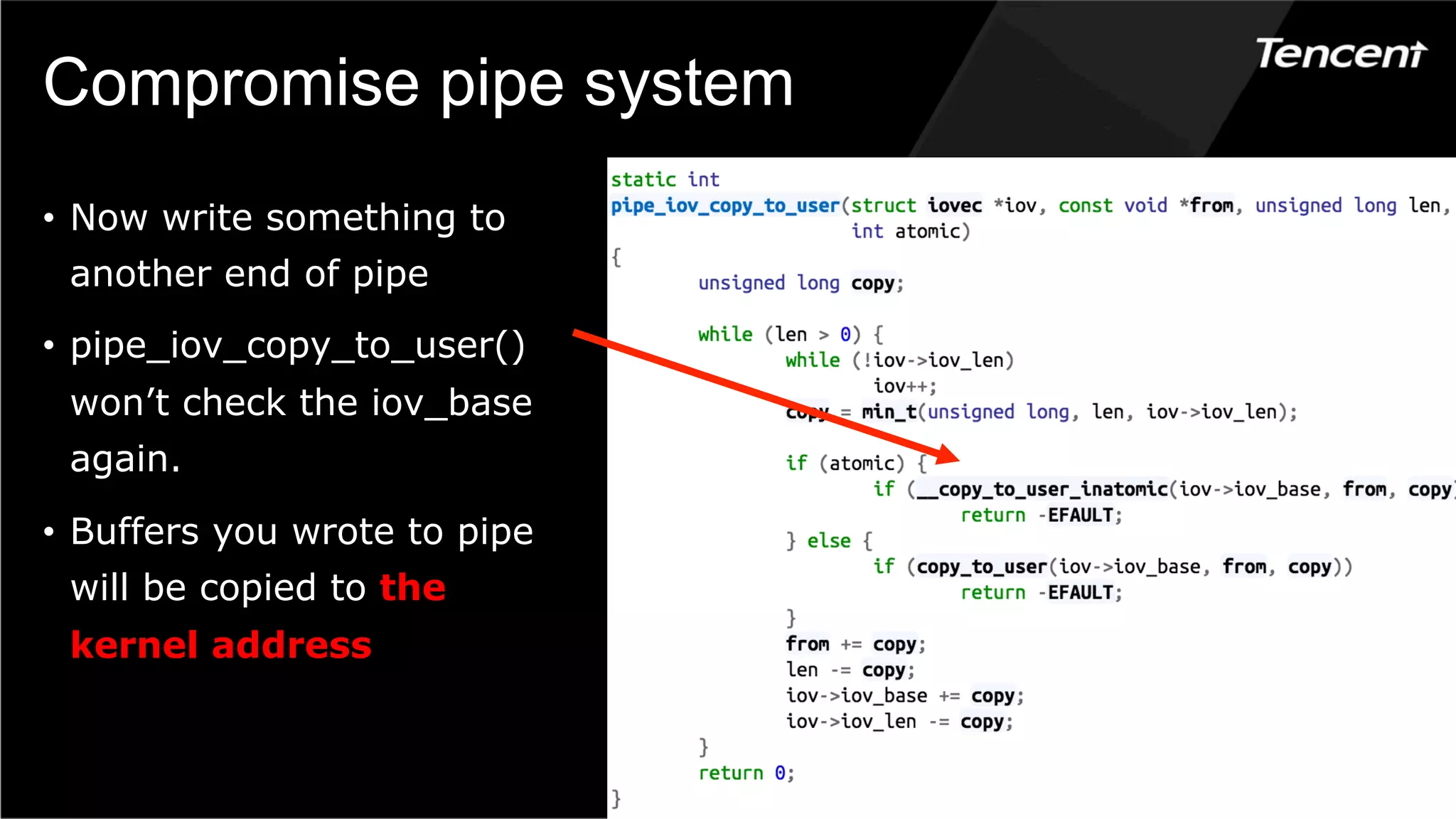

- 33. Compromise pipe system • Now write something to another end of pipe • pipe_iov_copy_to_user() won’t check the iov_base again. • Buffers you wrote to pipe will be copied to the kernel address

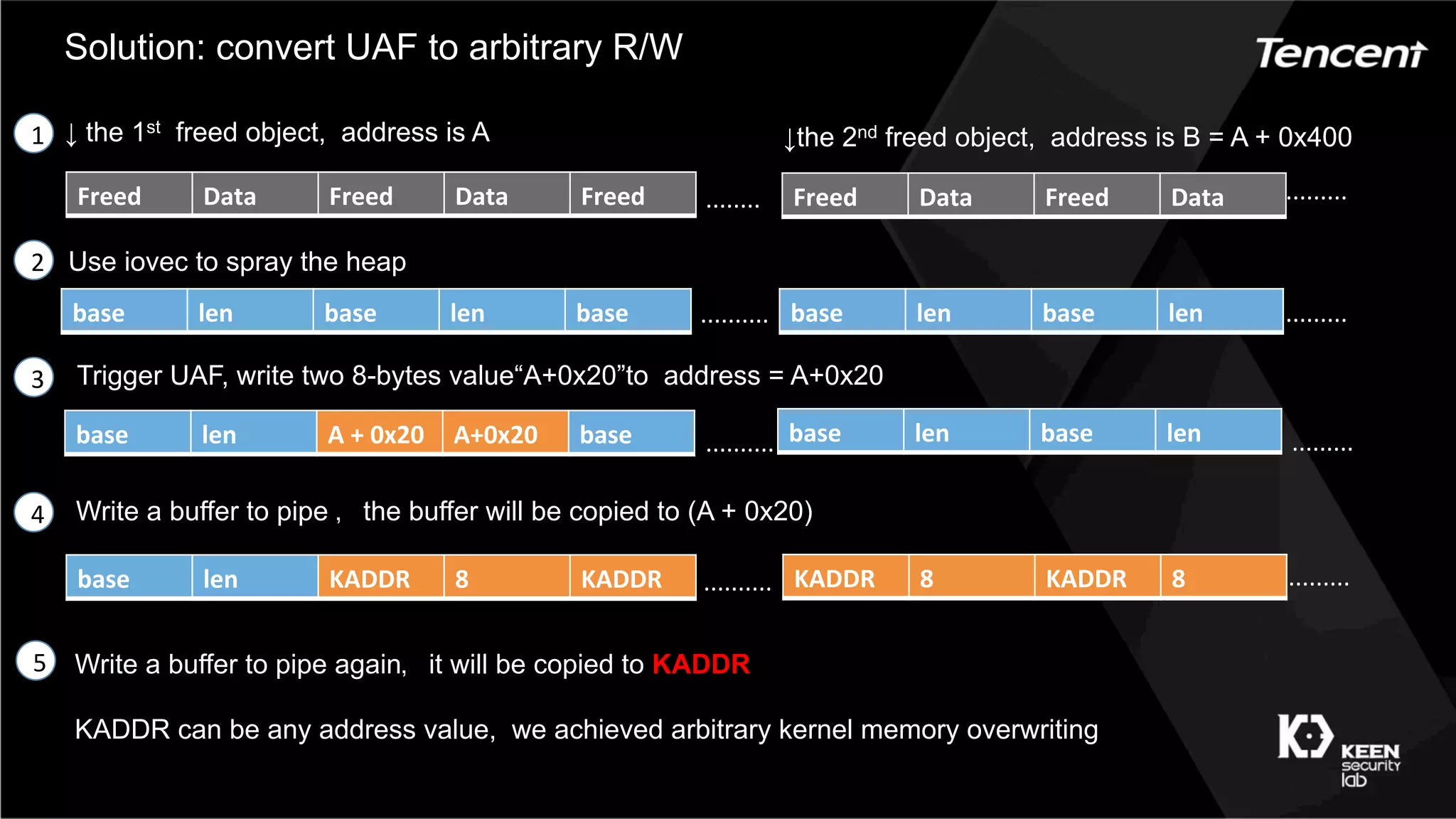

- 34. ········ Trigger UAF, writetwo 8-bytes value“A+0x20”to address = A+0x20 ↓ the 1st freed object, address is A Solution: convert UAF to arbitrary R/W ↓the 2nd freed object, address is B = A + 0x400 Use iovec to spray the heap Freed Data Freed Data Freed Freed Data Freed Data ········· base len base len base base len base len ··················· base len A + 0x20 A+0x20 base ·········· base len base len Write a buffer to pipe ，the buffer will be copied to (A + 0x20) ········· base len KADDR 8 KADDR ·········· KADDR 8 KADDR 8 ········· Write a buffer to pipe again，it will be copied to KADDR KADDR can be any address value, we achieved arbitrary kernel memory overwriting 1 2 3 4 5

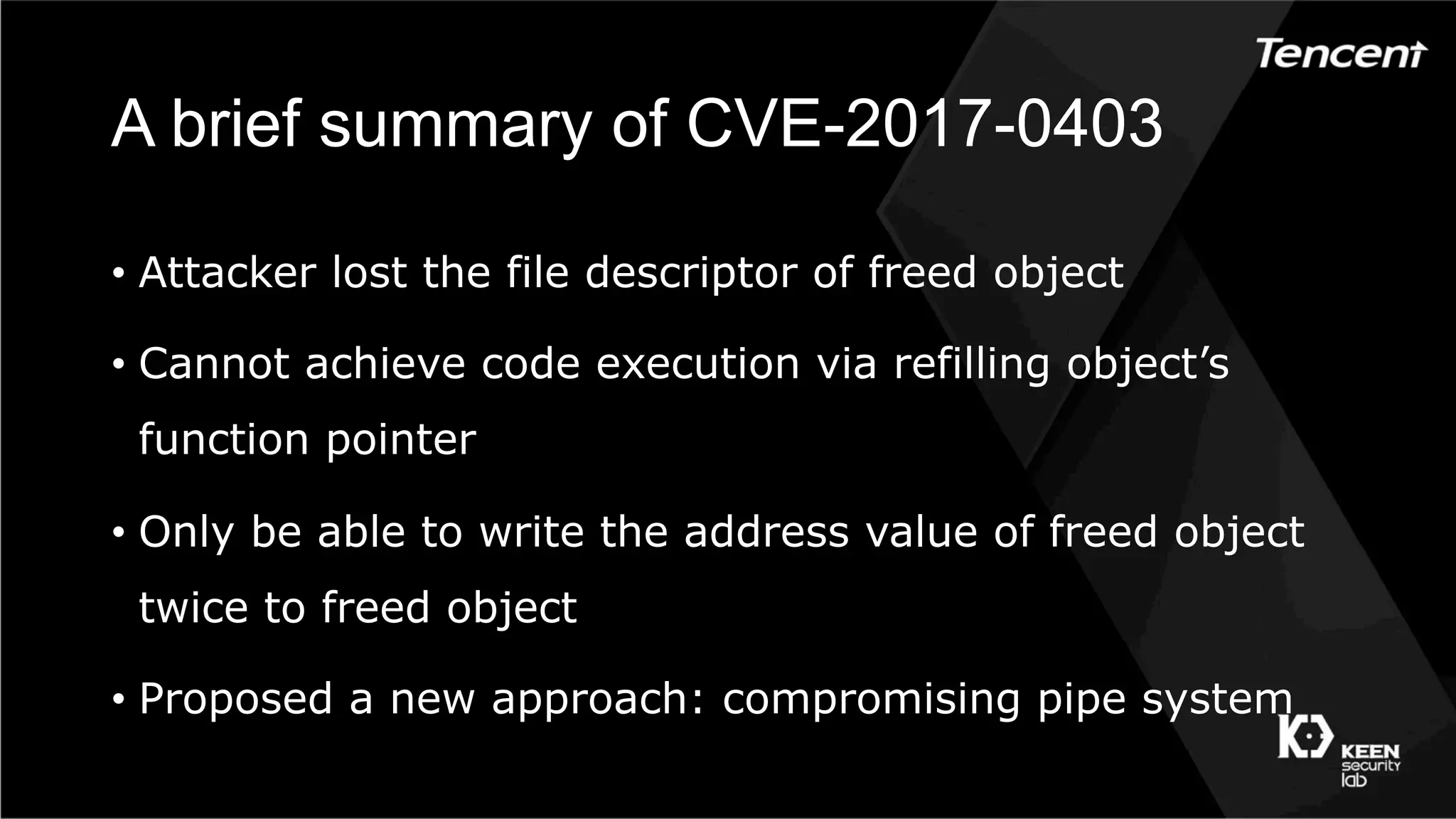

- 35. A brief summaryof CVE-2017-0403 • Attacker lost the file descriptor of freed object • Cannot achieve code execution via refilling object’s function pointer • Only be able to write the address value of freed object twice to freed object • Proposed a new approach: compromising pipe system

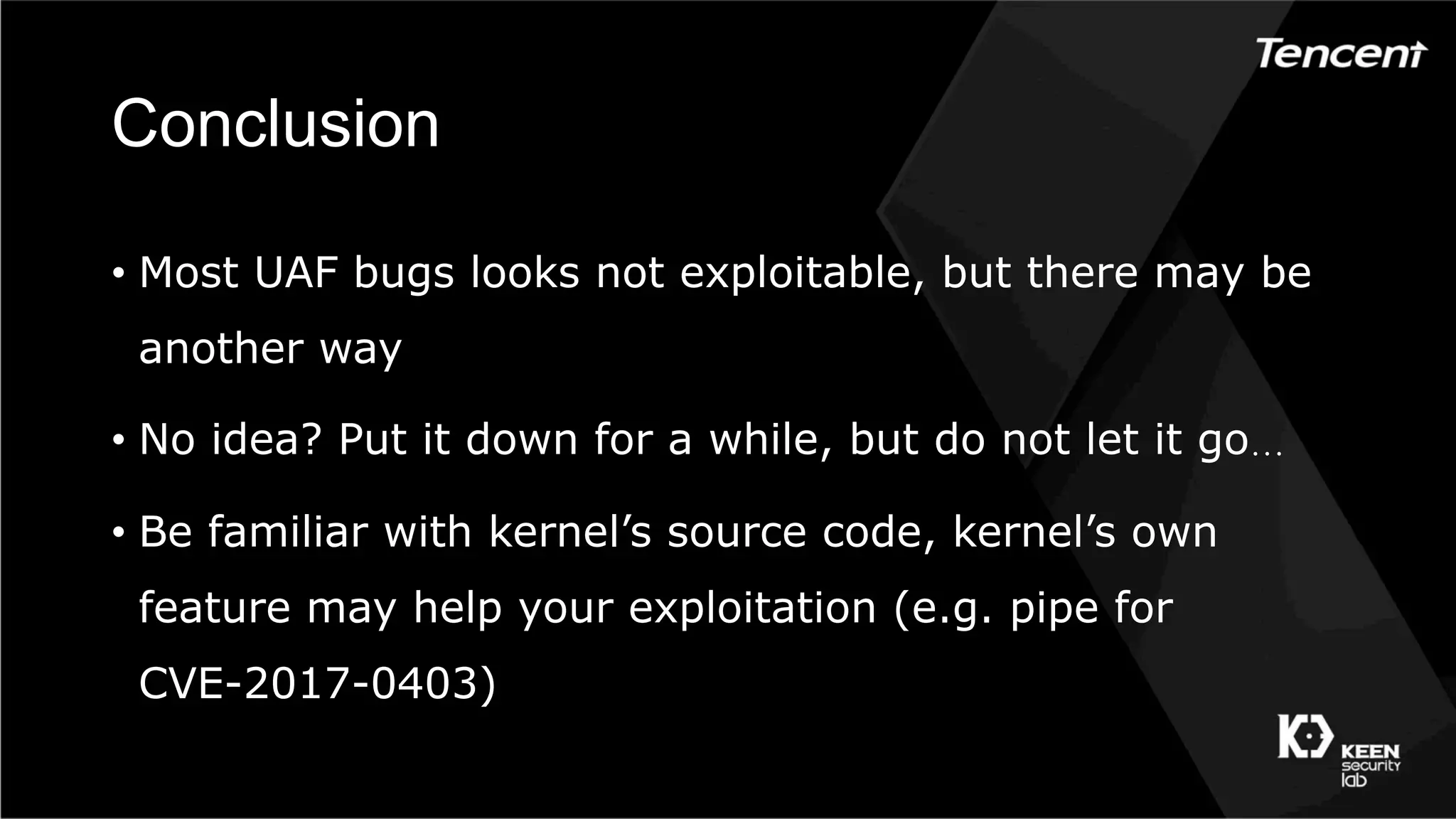

- 36. Conclusion • Most UAFbugs looks not exploitable, but there may be another way • No idea? Put it down for a while, but do not let it go… • Be familiar with kernel’s source code, kernel’s own feature may help your exploitation (e.g. pipe for CVE-2017-0403)
