Simseer and Bugwise - Web Services for Binary-level Software Similarity and Defect Detection
This document describes two web services called Simseer and Bugwise for software defect detection and similarity analysis. Simseer performs malware variant and plagiarism detection by generating control flow signatures and comparing similarities. Bugwise detects bugs like double frees through decompilation and data flow analysis. The services are implemented through a PHP frontend and C++ backend called Malwise that performs analysis through plugins. Initial results found the web services had minimal overhead compared to command line usage.
More Related Content
Similar to Simseer and Bugwise - Web Services for Binary-level Software Similarity and Defect Detection
Simseer and Bugwise - Web Services for Binary-level Software Similarity and Defect Detection
- 1. Simseer and Bugwise WebServices for Binary-level Software Similarity and Defect Detection SILVIO CESARE AND YANG XIANG DEAKIN UNIVERSITY
- 2. Introduction Defect detection Finds software bugs E.g., buffer overflows, divide-by-zeros, use-after-frees Malware variant detection Discover obfuscated, evolved, mutated copies of malware Software theft detection Discover illegitimate copies of software Plagiarism detection Discover unauthorized copying of software code. E.g., student assignments.

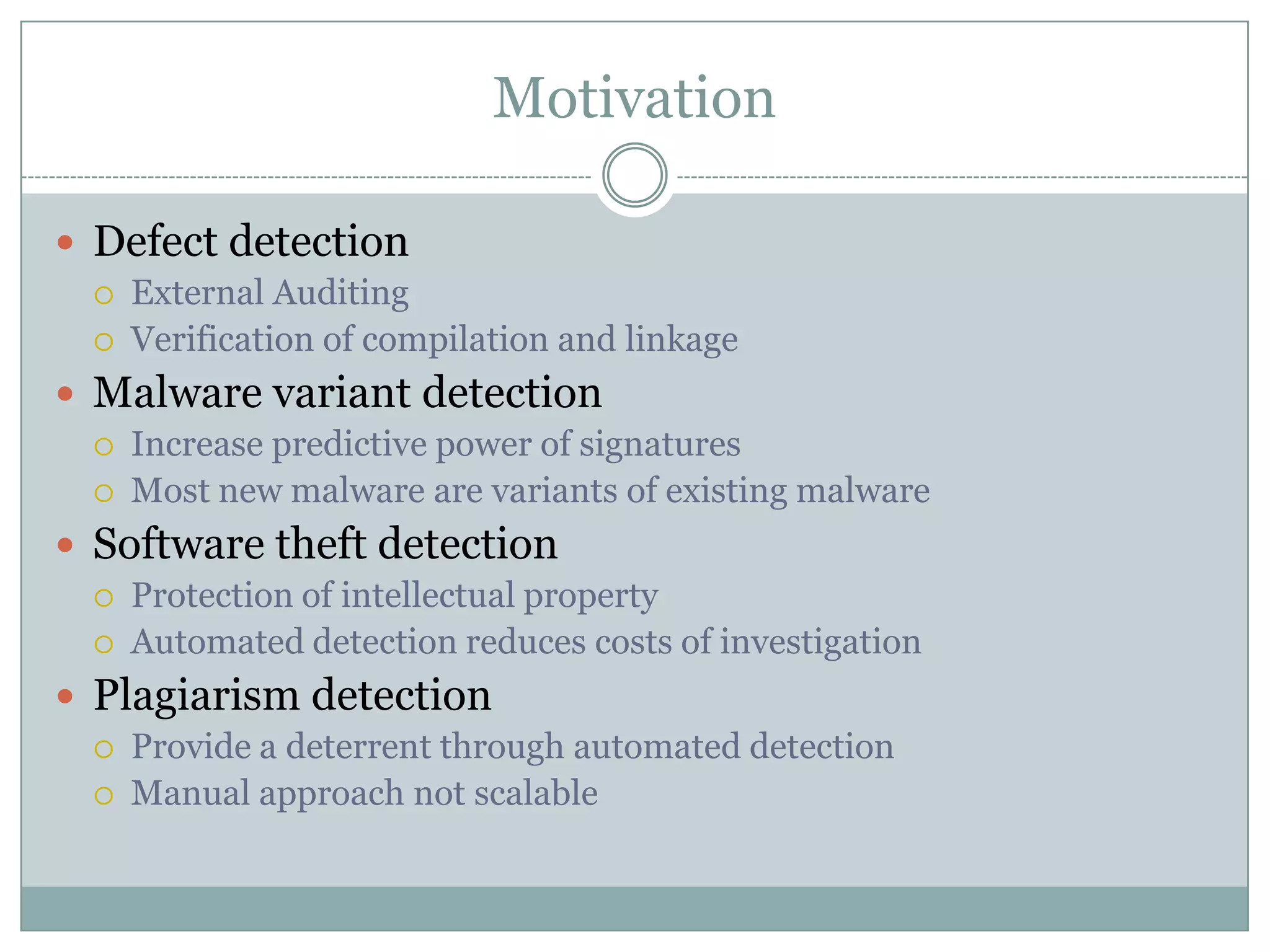

- 3. Motivation Defect detection External Auditing Verification of compilation and linkage Malware variant detection Increase predictive power of signatures Most new malware are variants of existing malware Software theft detection Protection of intellectual property Automated detection reduces costs of investigation Plagiarism detection Provide a deterrent through automated detection Manual approach not scalable

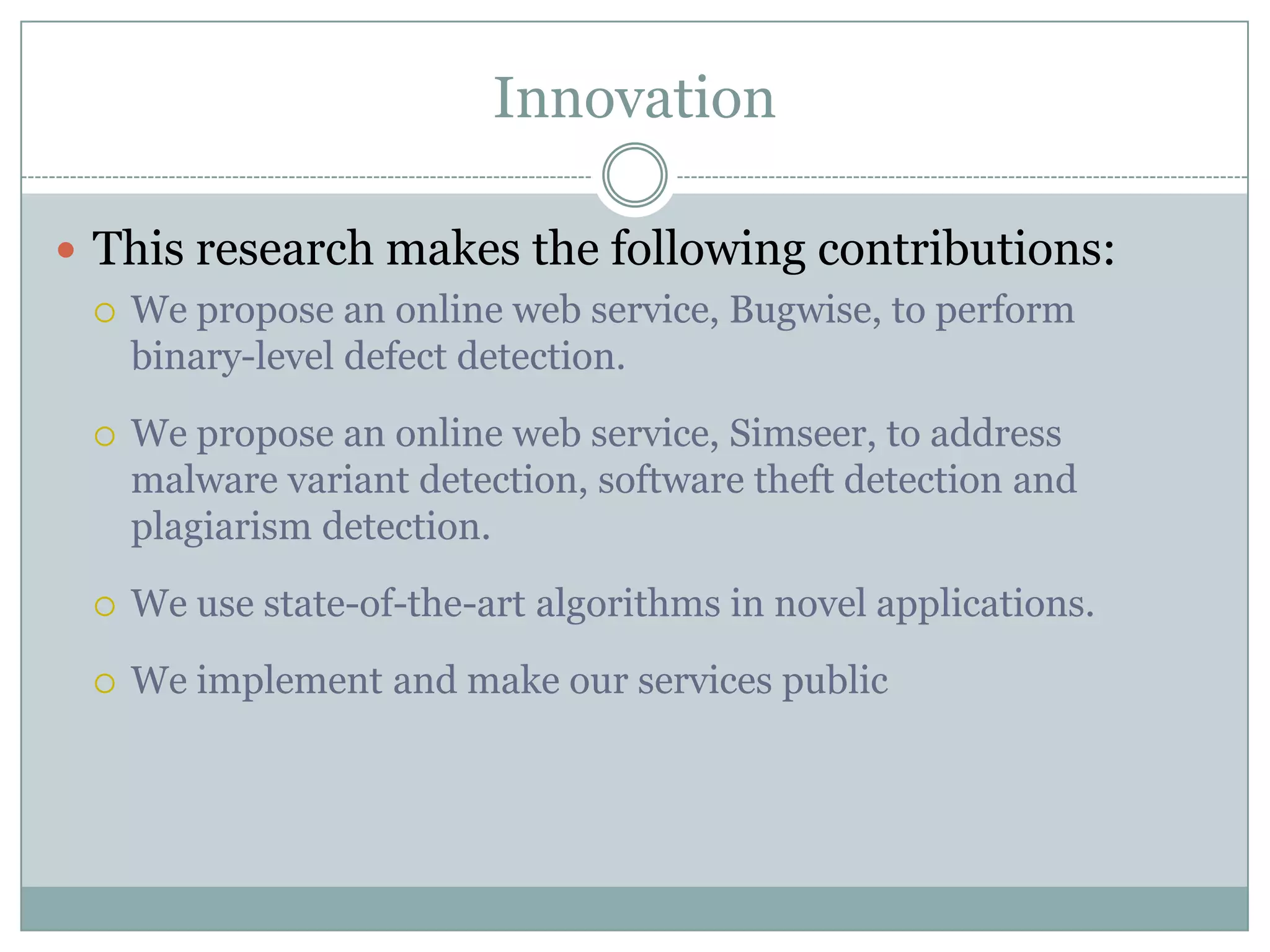

- 4. Innovation This researchmakes the following contributions: We propose an online web service, Bugwise, to perform binary-level defect detection. We propose an online web service, Simseer, to address malware variant detection, software theft detection and plagiarism detection. We use state-of-the-art algorithms in novel applications. We implement and make our services public

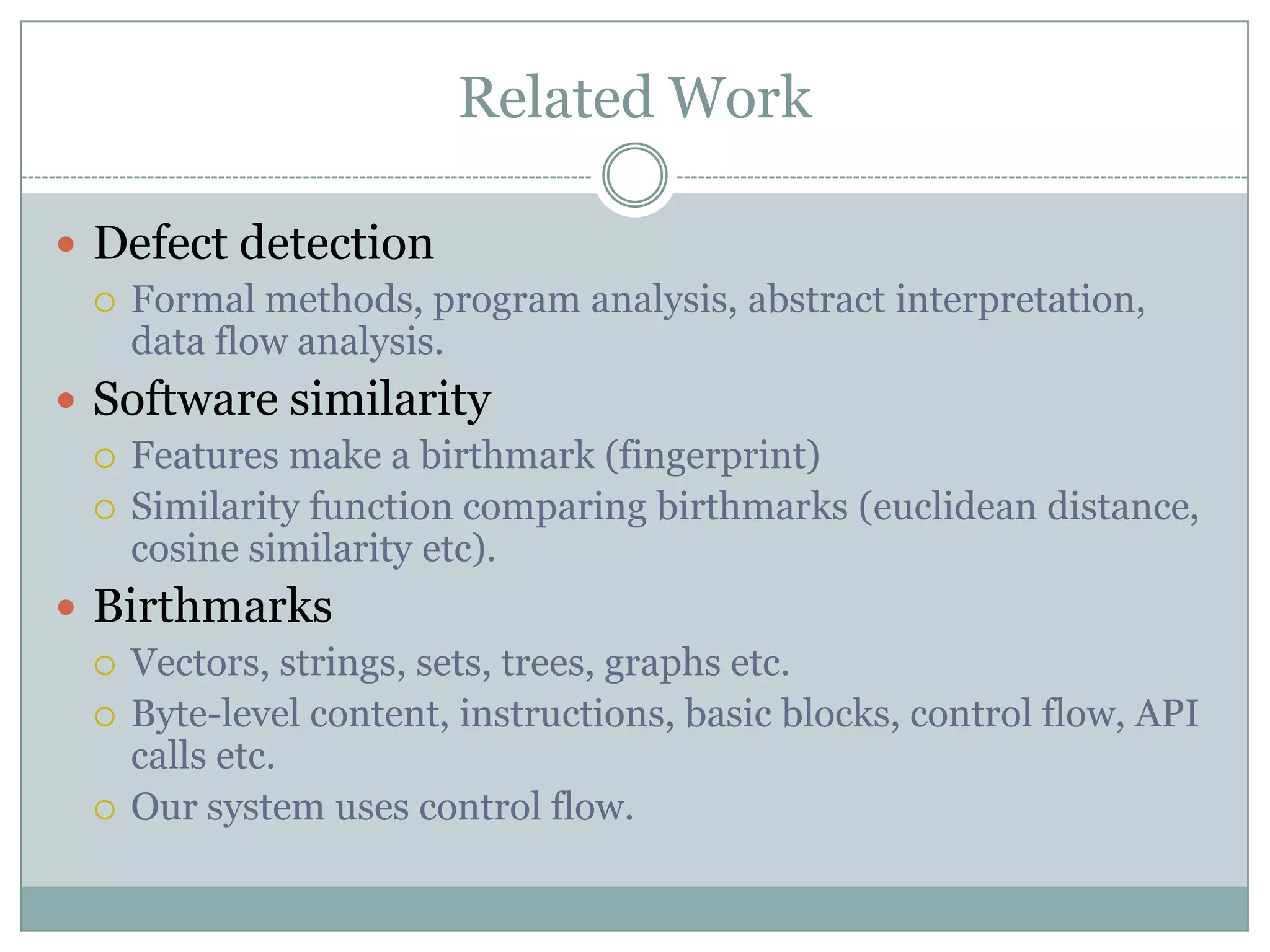

- 5. Related Work Defectdetection Formal methods, program analysis, abstract interpretation, data flow analysis. Software similarity Features make a birthmark (fingerprint) Similarity function comparing birthmarks (euclidean distance, cosine similarity etc). Birthmarks Vectors, strings, sets, trees, graphs etc. Byte-level content, instructions, basic blocks, control flow, API calls etc. Our system uses control flow.

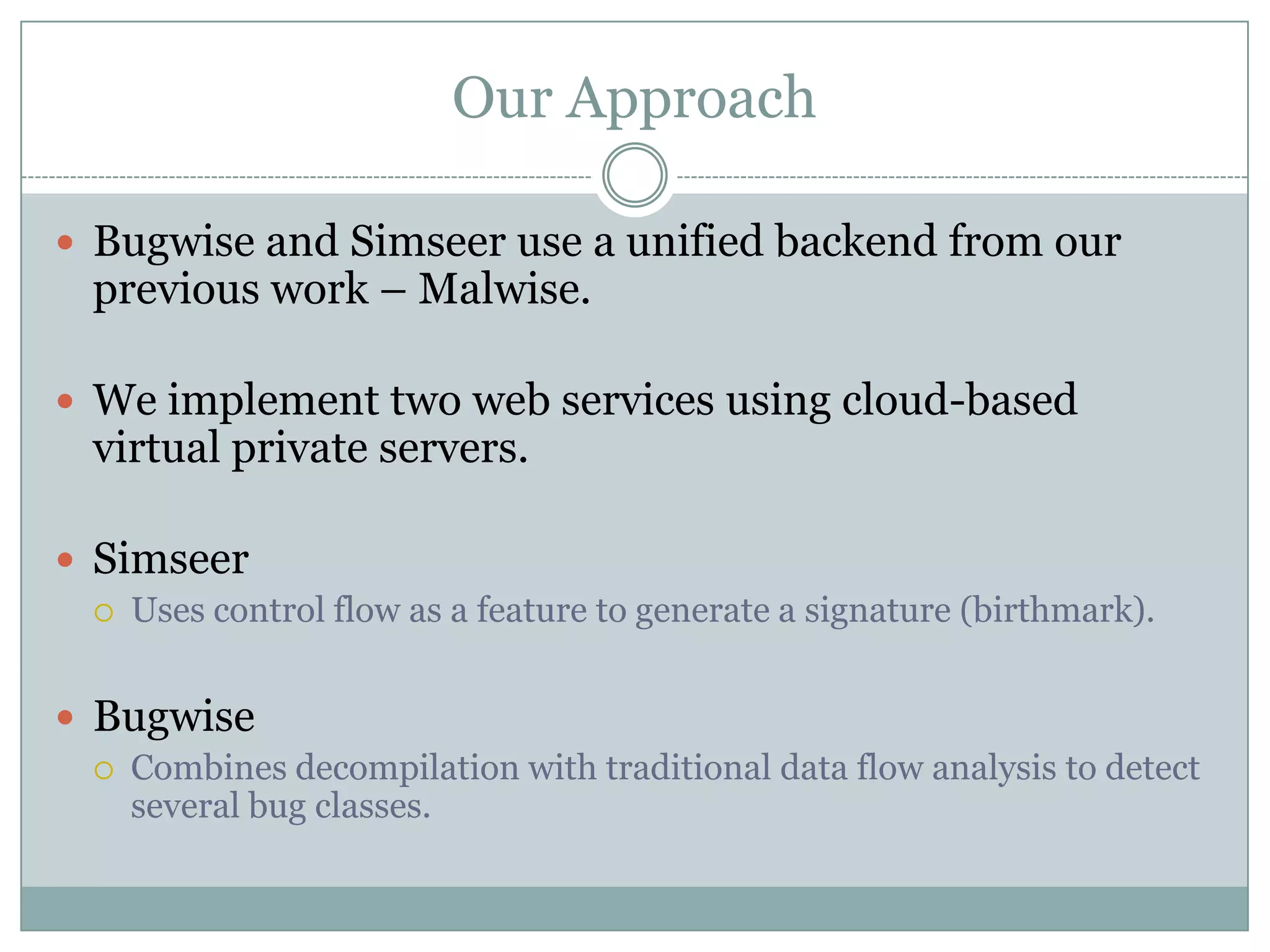

- 6. Our Approach Bugwiseand Simseer use a unified backend from our previous work – Malwise. We implement two web services using cloud-based virtual private servers. Simseer Uses control flow as a feature to generate a signature (birthmark). Bugwise Combines decompilation with traditional data flow analysis to detect several bug classes.

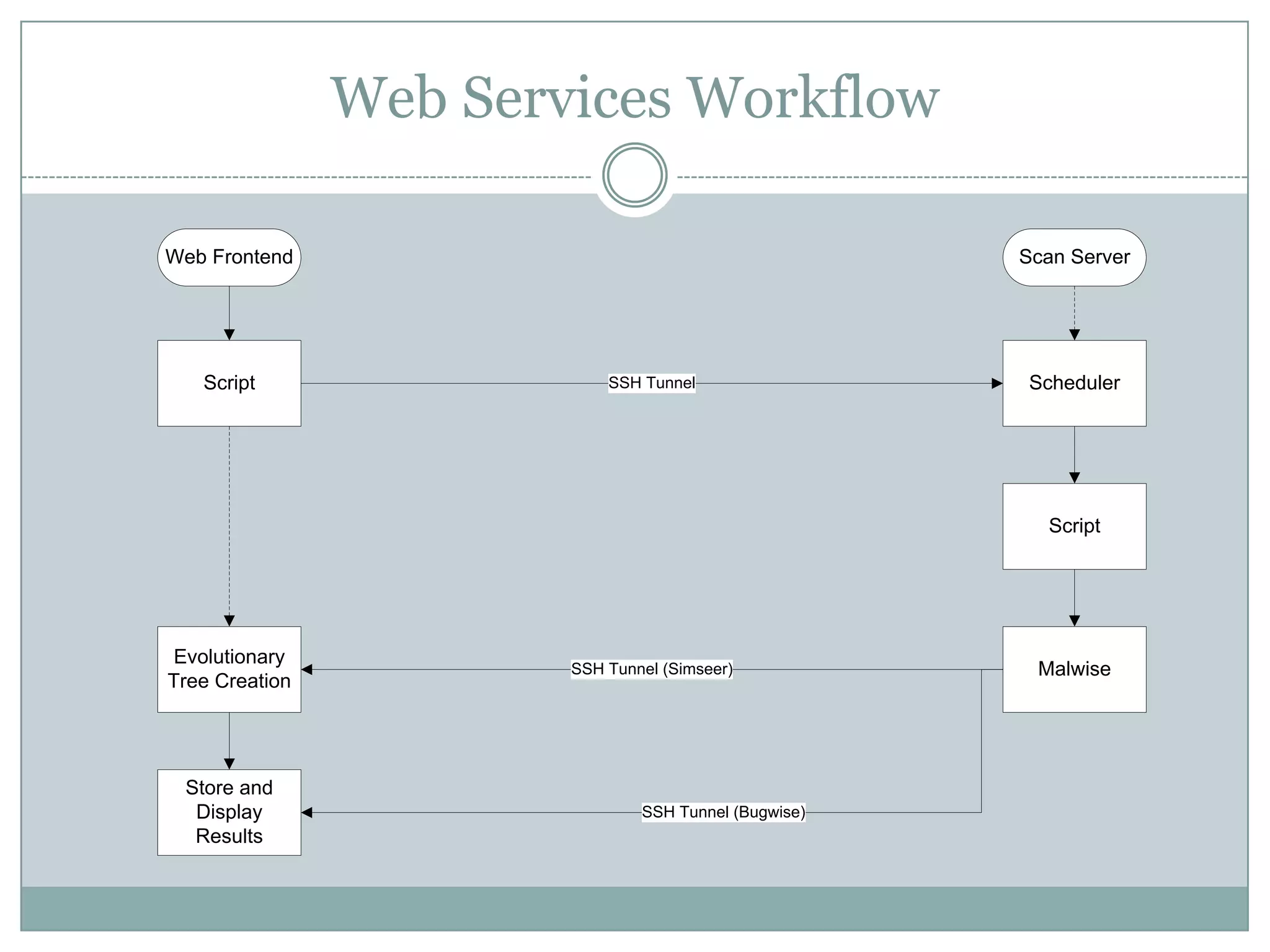

- 7. Web Services Workflow WebFrontend Scan Server Script SSH Tunnel Scheduler Script Evolutionary SSH Tunnel (Simseer) Malwise Tree Creation Store and Display SSH Tunnel (Bugwise) Results

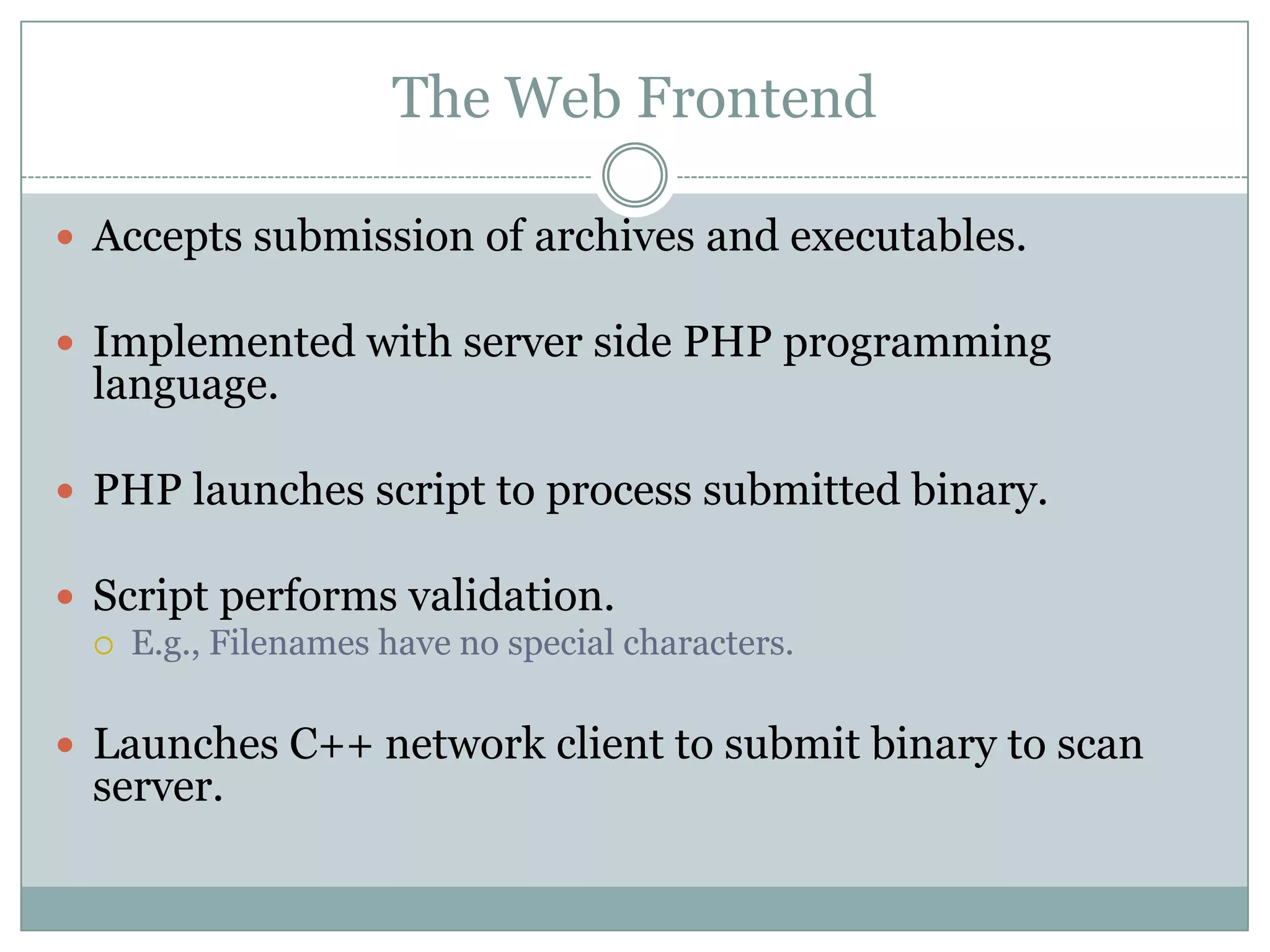

- 8. The Web Frontend Accepts submission of archives and executables. Implemented with server side PHP programming language. PHP launches script to process submitted binary. Script performs validation. E.g., Filenames have no special characters. Launches C++ network client to submit binary to scan server.
- 9.

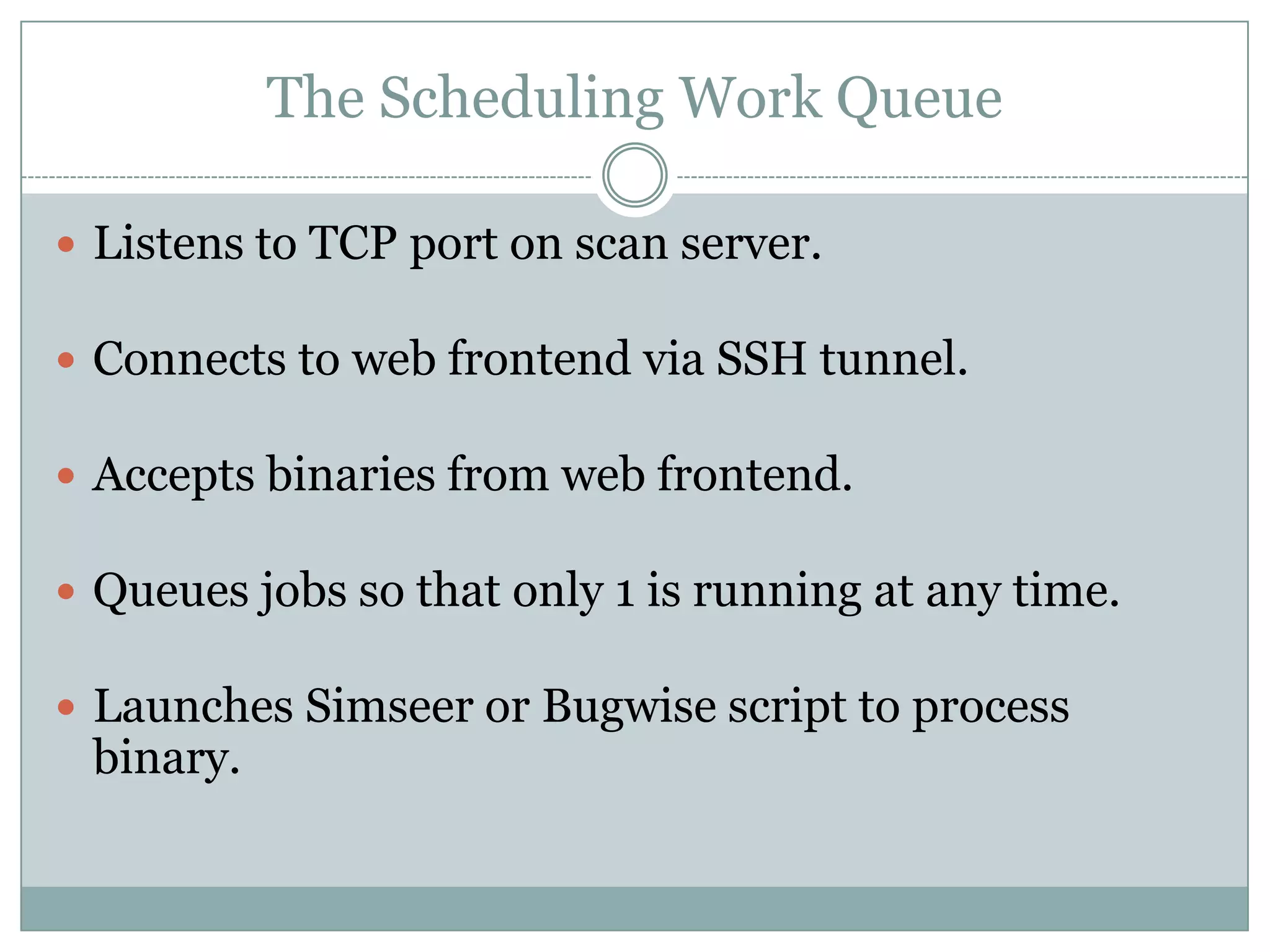

- 10. The Scheduling WorkQueue Listens to TCP port on scan server. Connects to web frontend via SSH tunnel. Accepts binaries from web frontend. Queues jobs so that only 1 is running at any time. Launches Simseer or Bugwise script to process binary.

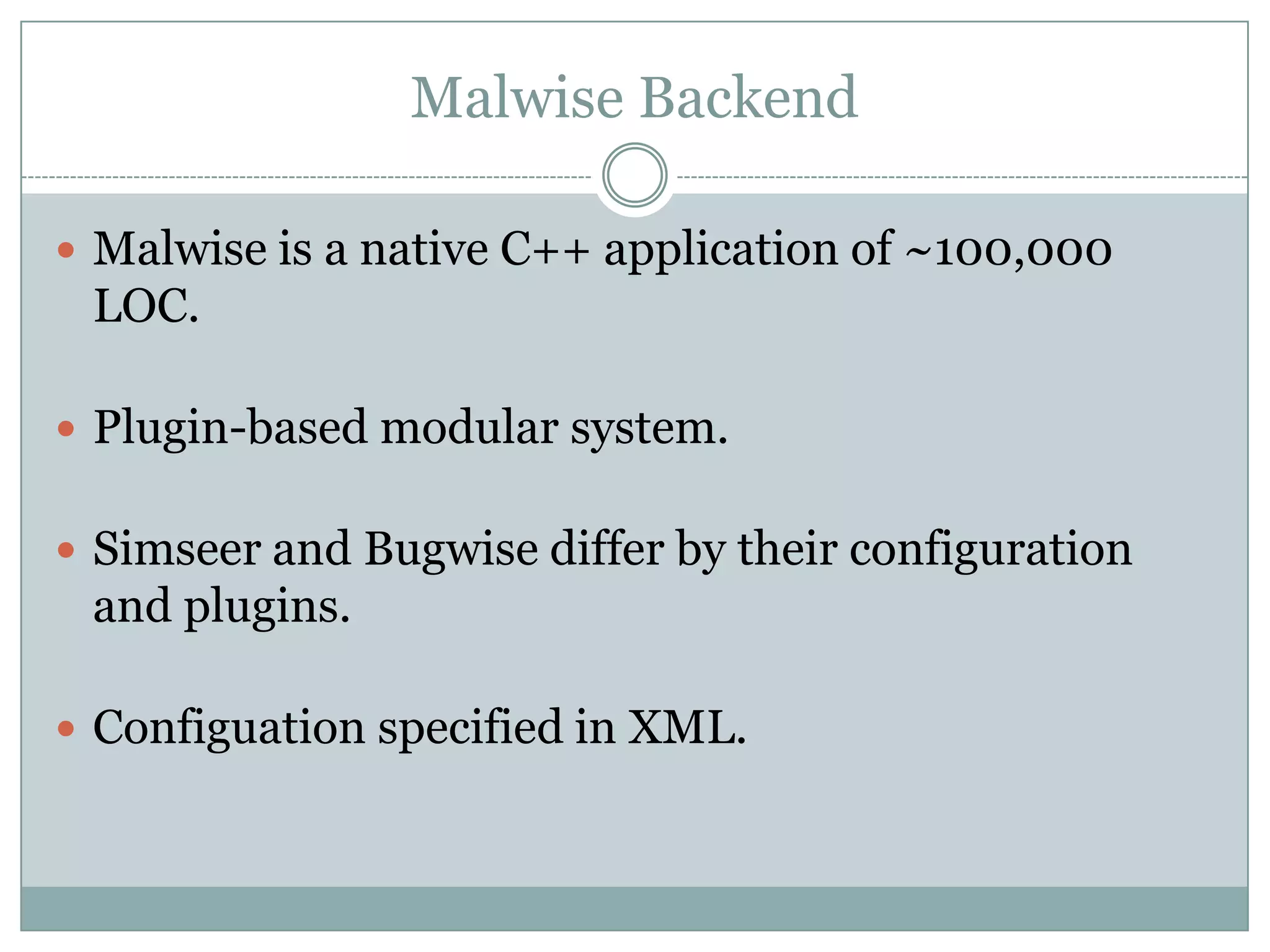

- 11. Malwise Backend Malwiseis a native C++ application of ~100,000 LOC. Plugin-based modular system. Simseer and Bugwise differ by their configuration and plugins. Configuation specified in XML.

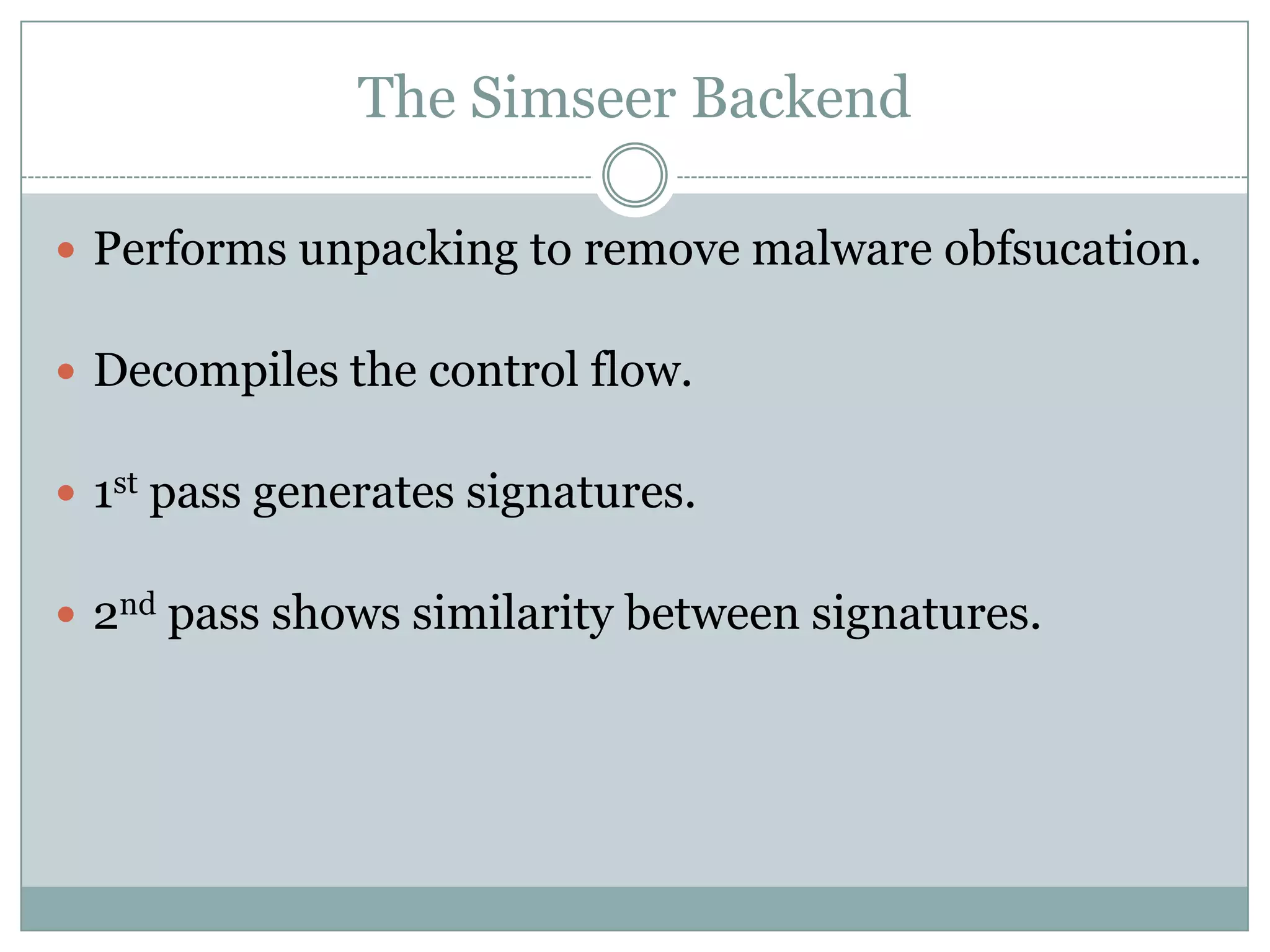

- 12. The Simseer Backend Performs unpacking to remove malware obfsucation. Decompiles the control flow. 1st pass generates signatures. 2nd pass shows similarity between signatures.

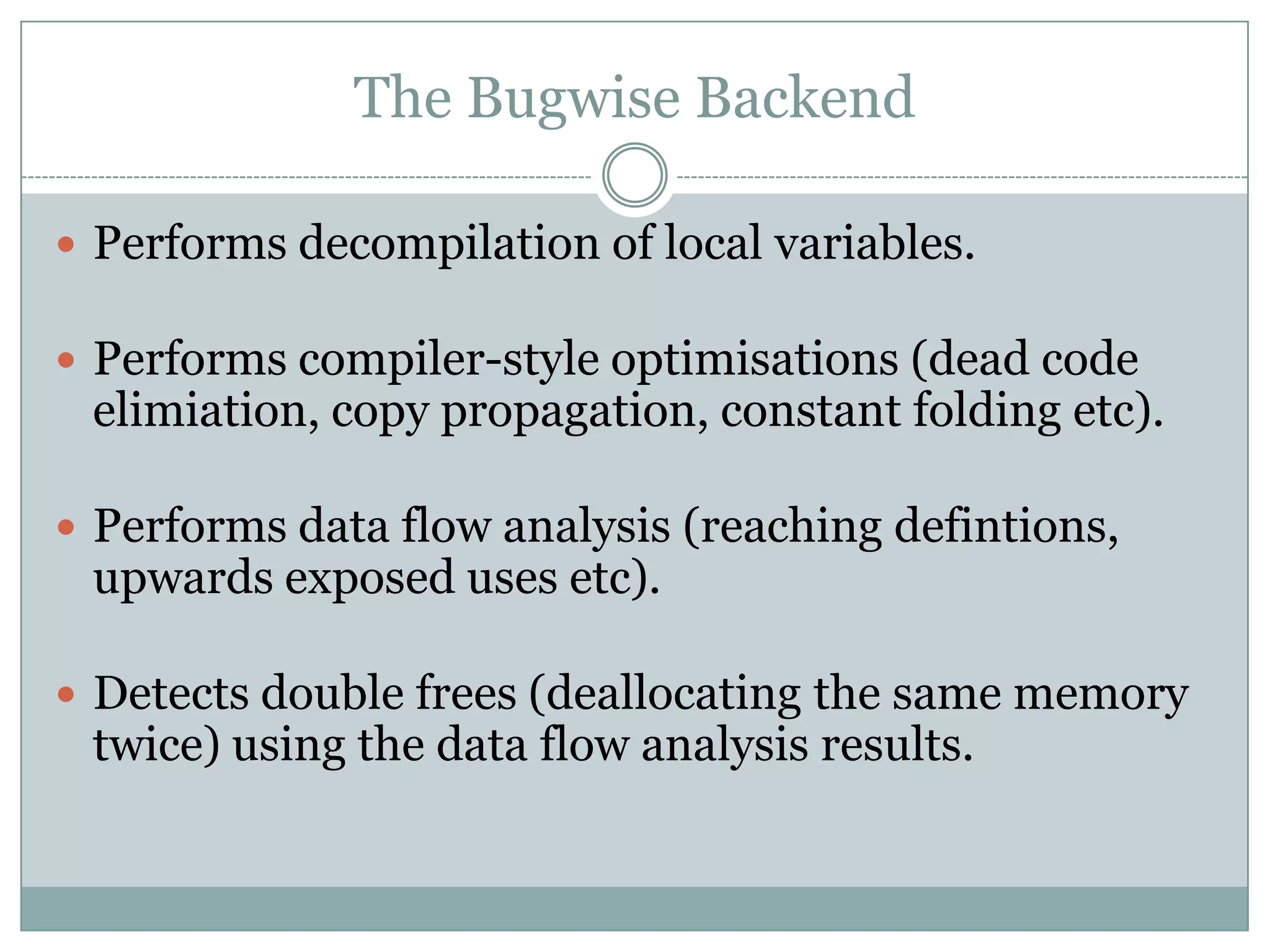

- 13. The Bugwise Backend Performs decompilation of local variables. Performs compiler-style optimisations (dead code elimiation, copy propagation, constant folding etc). Performs data flow analysis (reaching defintions, upwards exposed uses etc). Detects double frees (deallocating the same memory twice) using the data flow analysis results.

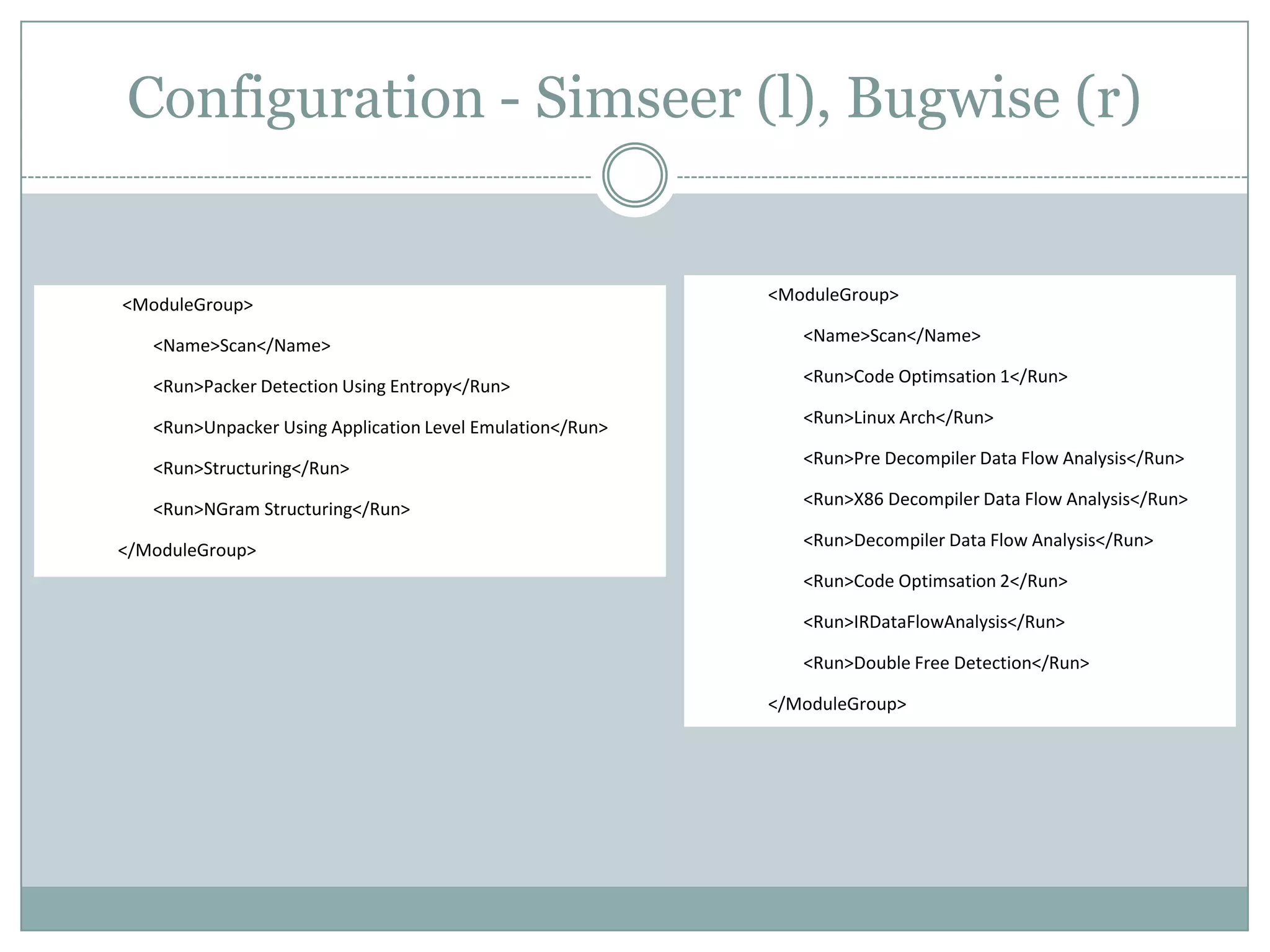

- 14. Configuration - Simseer(l), Bugwise (r) <ModuleGroup> <ModuleGroup> <Name>Scan</Name> <Name>Scan</Name> <Run>Code Optimsation 1</Run> <Run>Packer Detection Using Entropy</Run> <Run>Linux Arch</Run> <Run>Unpacker Using Application Level Emulation</Run> <Run>Pre Decompiler Data Flow Analysis</Run> <Run>Structuring</Run> <Run>X86 Decompiler Data Flow Analysis</Run> <Run>NGram Structuring</Run> <Run>Decompiler Data Flow Analysis</Run> </ModuleGroup> <Run>Code Optimsation 2</Run> <Run>IRDataFlowAnalysis</Run> <Run>Double Free Detection</Run> </ModuleGroup>

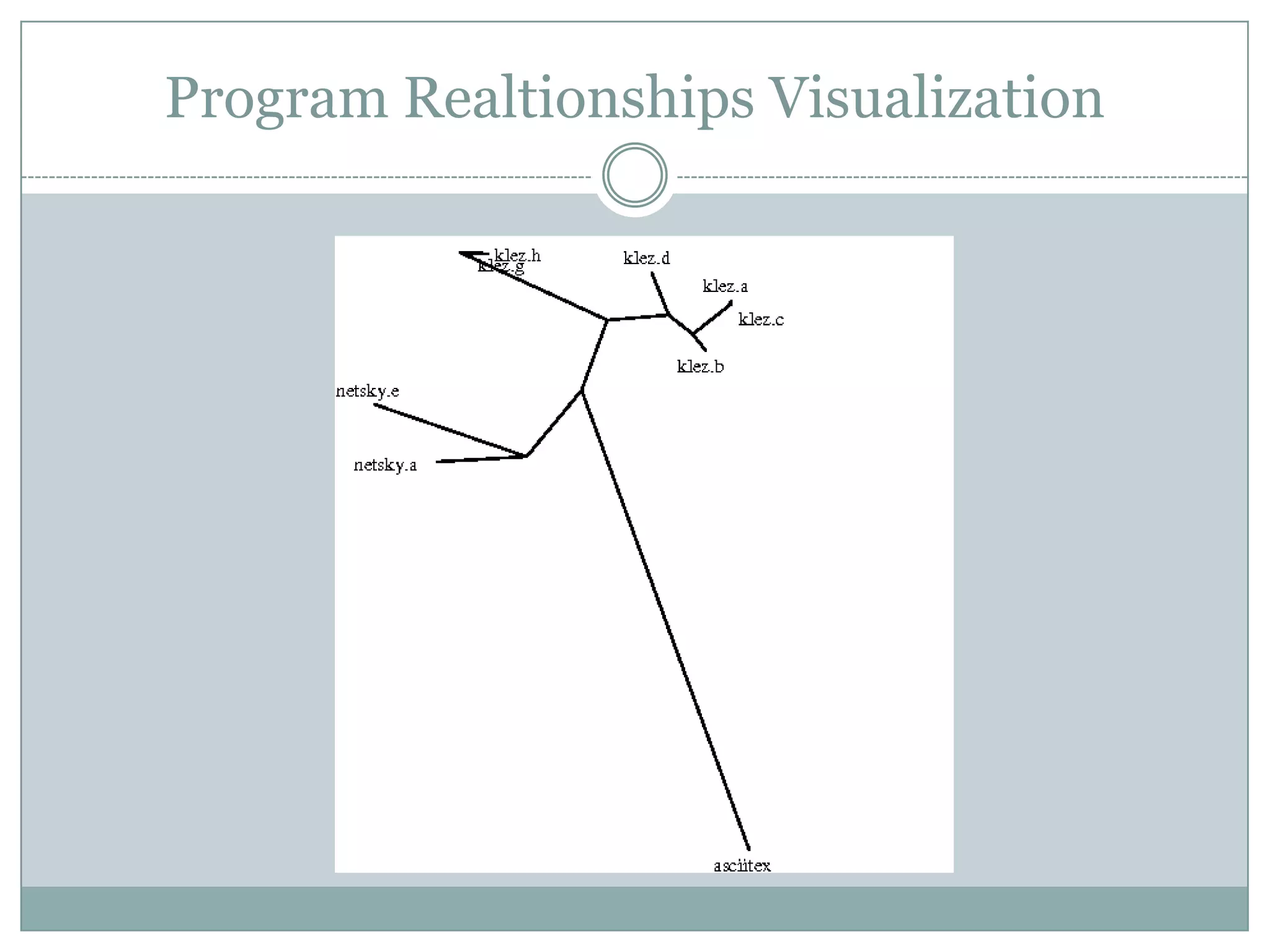

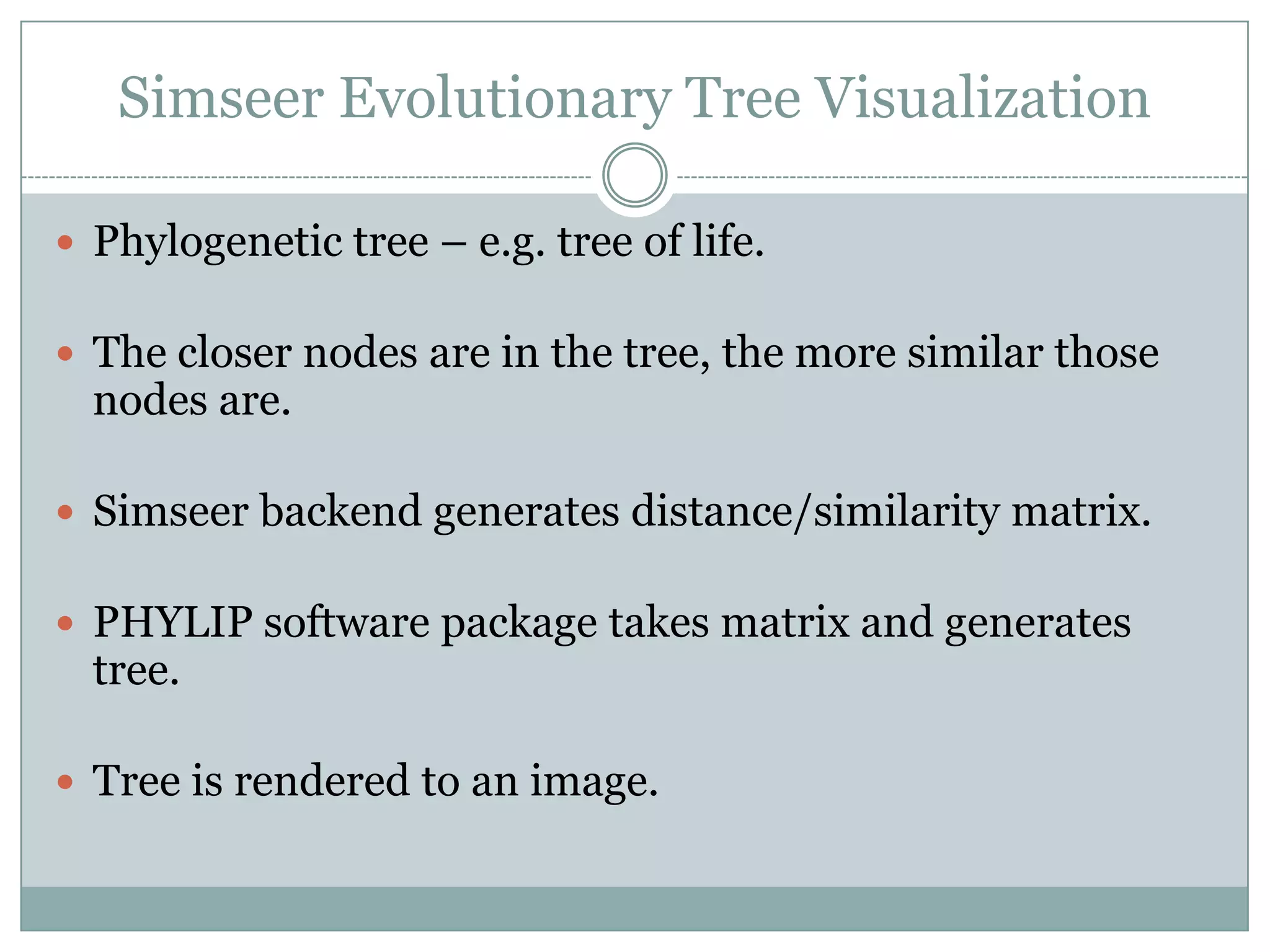

- 15. Simseer Evolutionary TreeVisualization Phylogenetic tree – e.g. tree of life. The closer nodes are in the tree, the more similar those nodes are. Simseer backend generates distance/similarity matrix. PHYLIP software package takes matrix and generates tree. Tree is rendered to an image.
- 16.

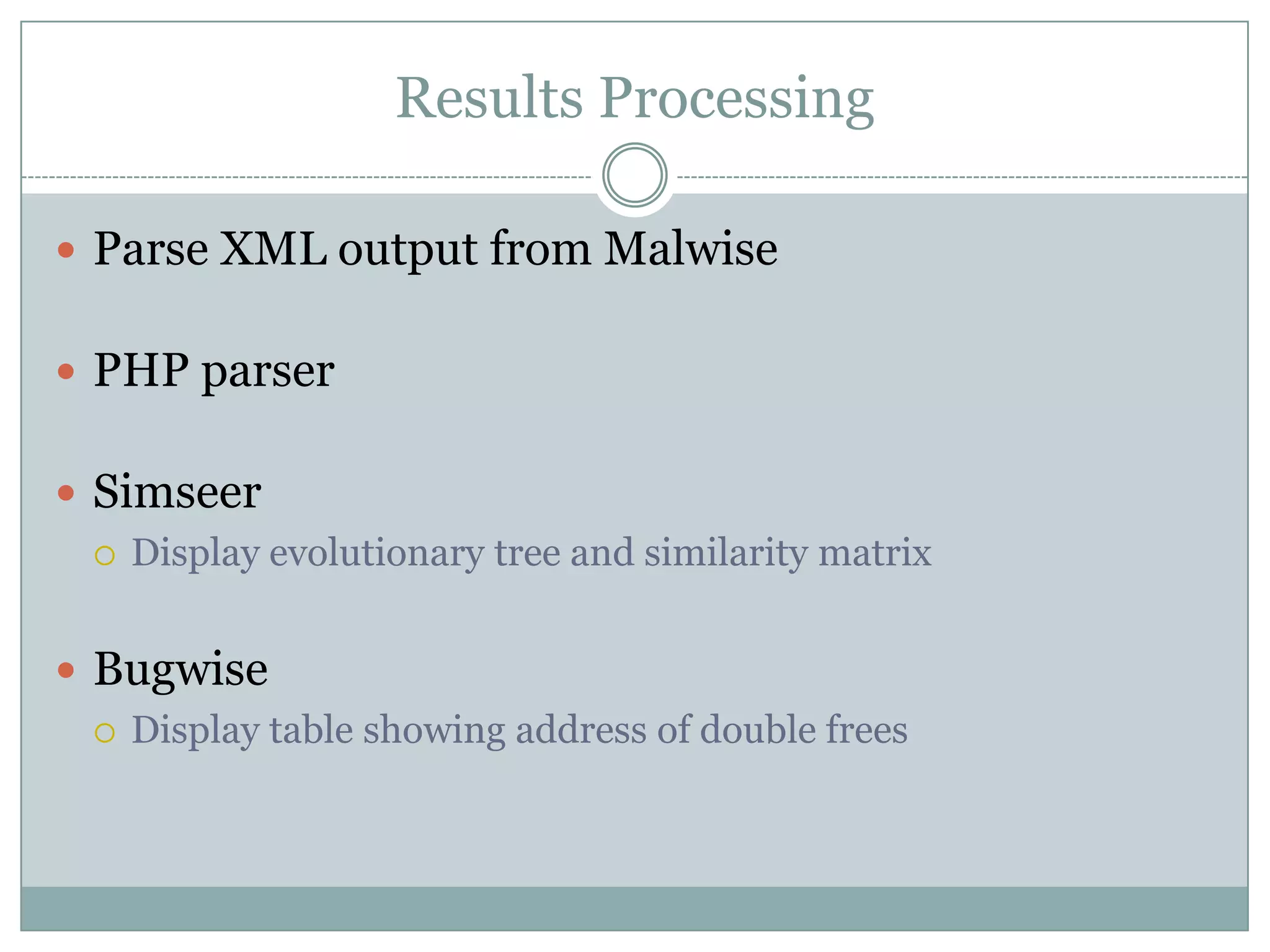

- 17. Results Processing ParseXML output from Malwise PHP parser Simseer Display evolutionary tree and similarity matrix Bugwise Display table showing address of double frees

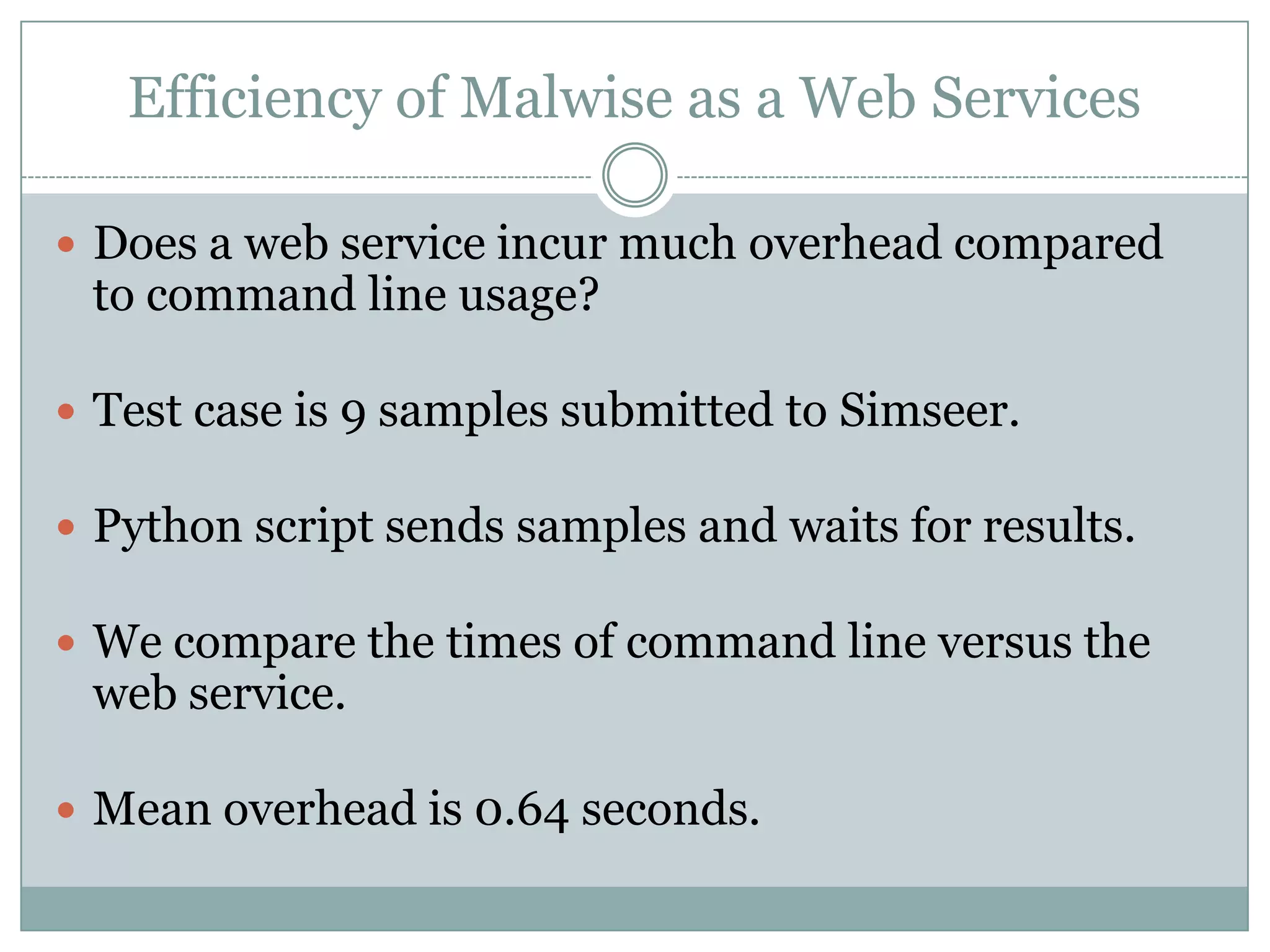

- 18. Efficiency of Malwiseas a Web Services Does a web service incur much overhead compared to command line usage? Test case is 9 samples submitted to Simseer. Python script sends samples and waits for results. We compare the times of command line versus the web service. Mean overhead is 0.64 seconds.

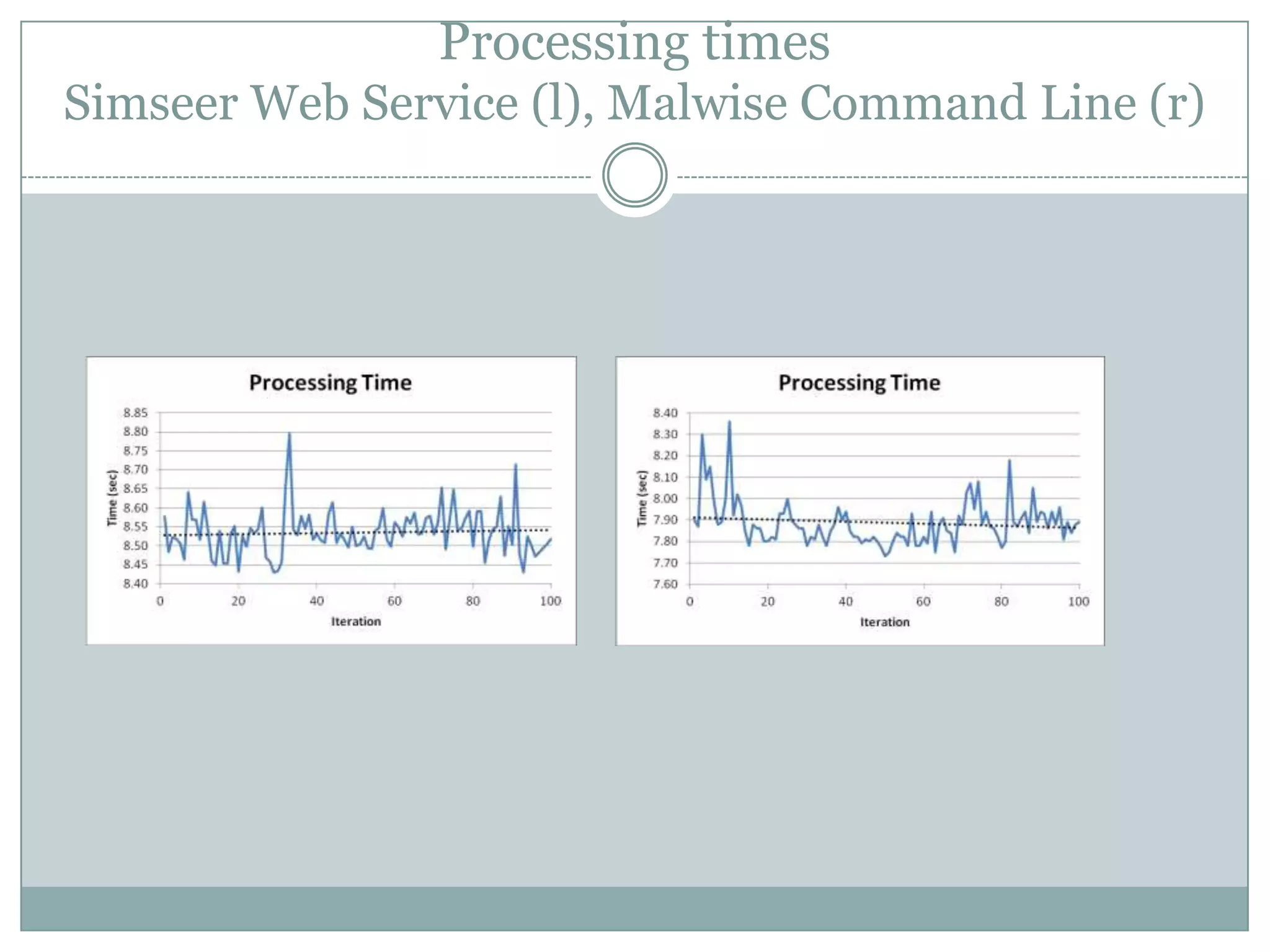

- 19. Processing times Simseer WebService (l), Malwise Command Line (r)

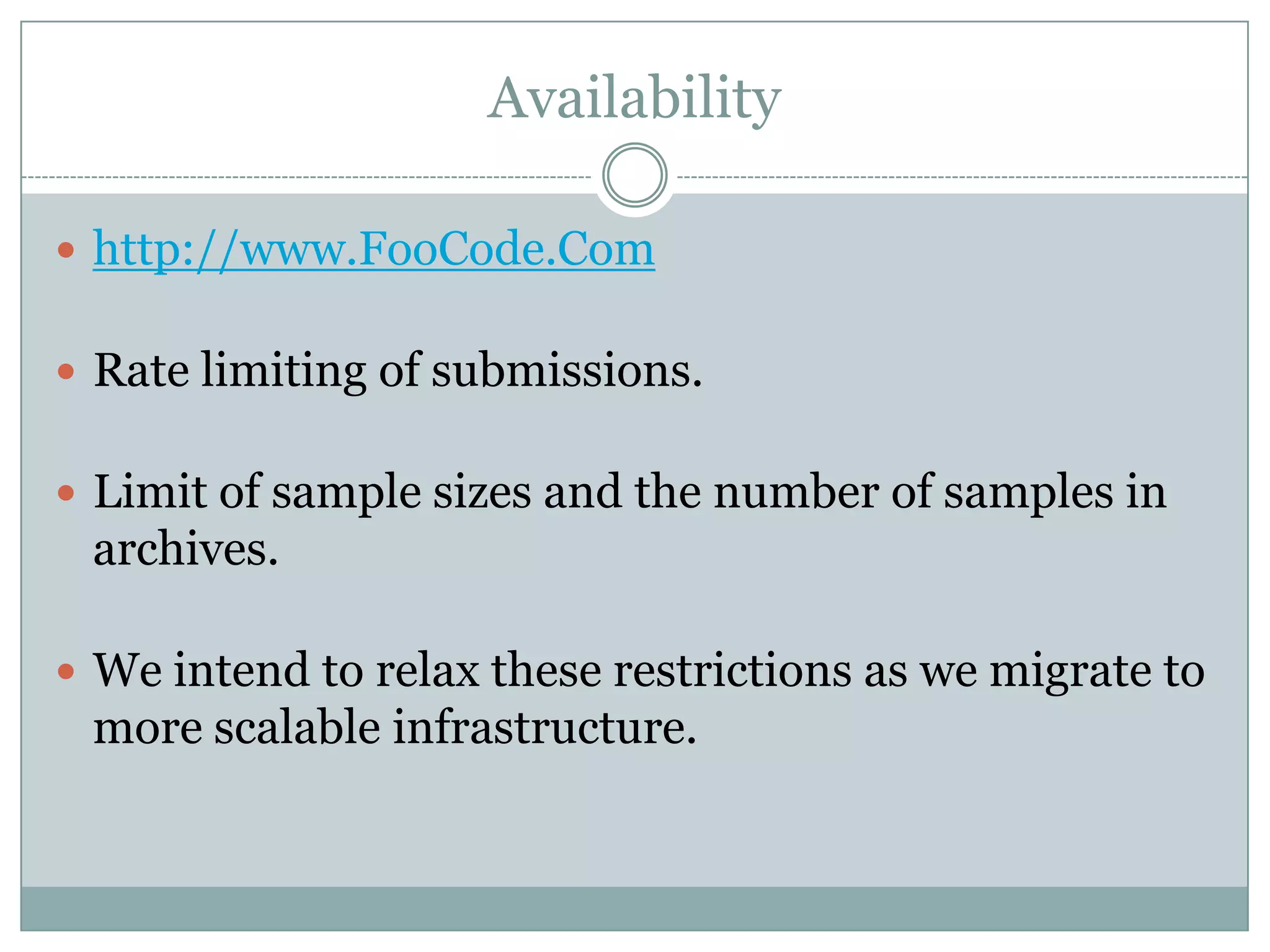

- 20. Availability http://www.FooCodeChu.Com Ratelimiting of submissions. Limit of sample sizes and the number of samples in archives. We intend to relax these restrictions as we migrate to more scalable infrastructure.

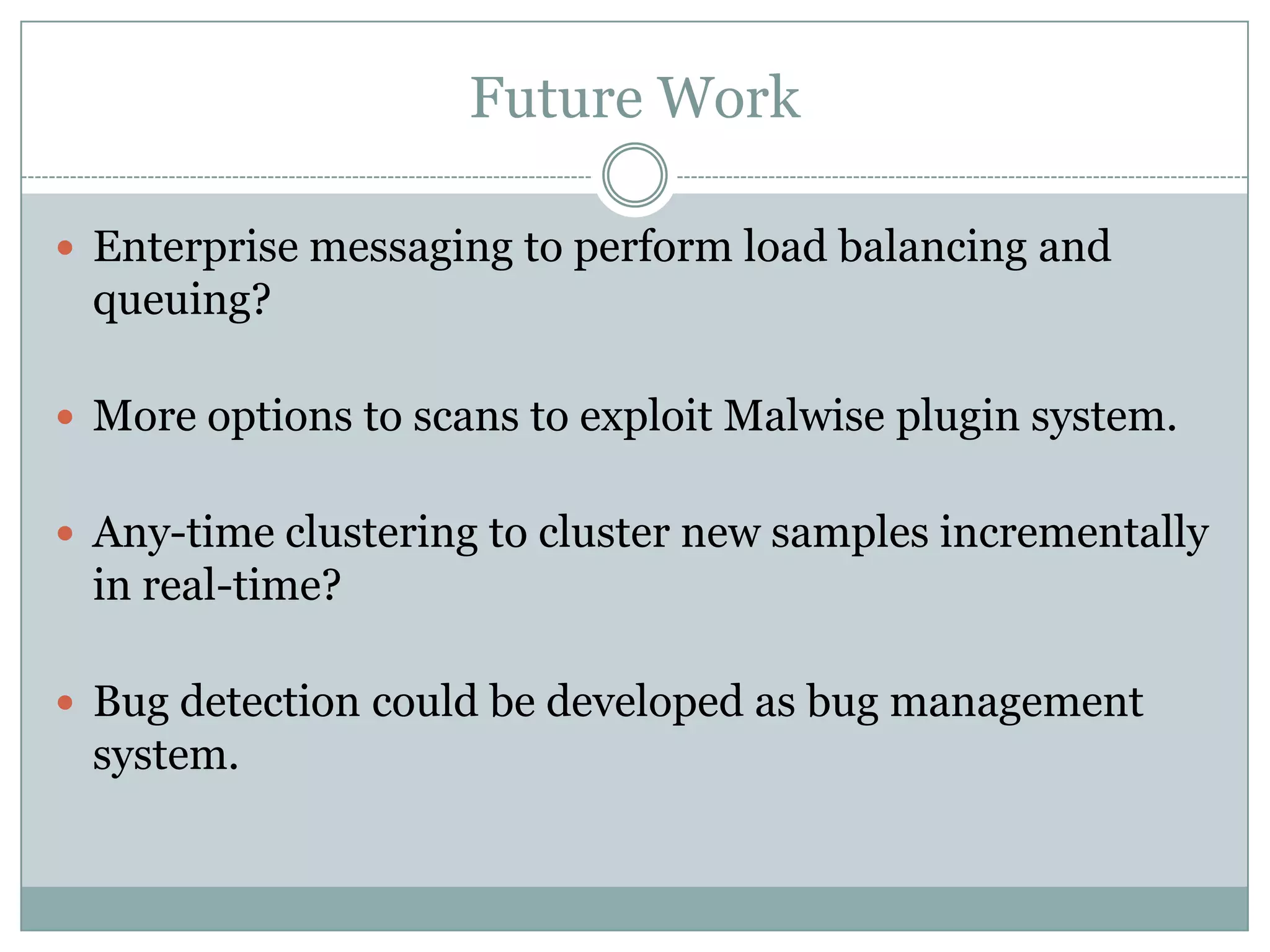

- 21. Future Work Enterprisemessaging to perform load balancing and queuing? More options to scans to exploit Malwise plugin system. Any-time clustering to cluster new samples incrementally in real-time? Bug detection could be developed as bug management system.

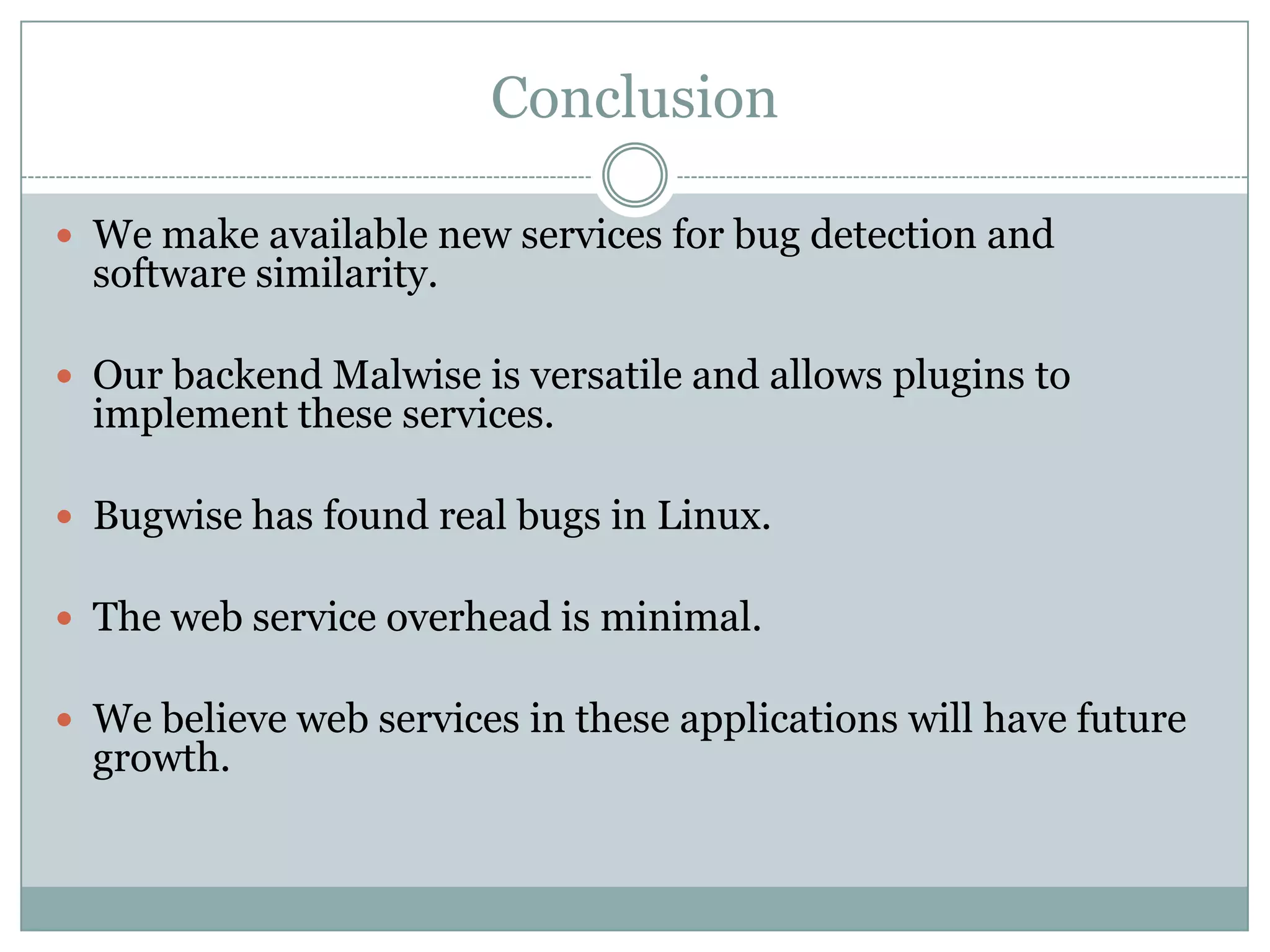

- 22. Conclusion We makeavailable new services for bug detection and software similarity. Our backend Malwise is versatile and allows plugins to implement these services. Bugwise has found real bugs in Linux. The web service overhead is minimal. We believe web services in these applications will have future growth.
