Applications of linear programming

Applications of linear programming

• 1.
  Linear Programming 8/July/2010By Group 1
• 2.
  What is LinearProgramming? Linear programming (LP) is a mathematical method for determining a way to achieve the best outcome (such as maximum profit or lowest cost) in a given mathematical model for some list of requirements represented as linear equations. Many applications in mathematics involve systems of inequalities/equations. Consider the following example: 8/July/2010 Group 1
• 3.

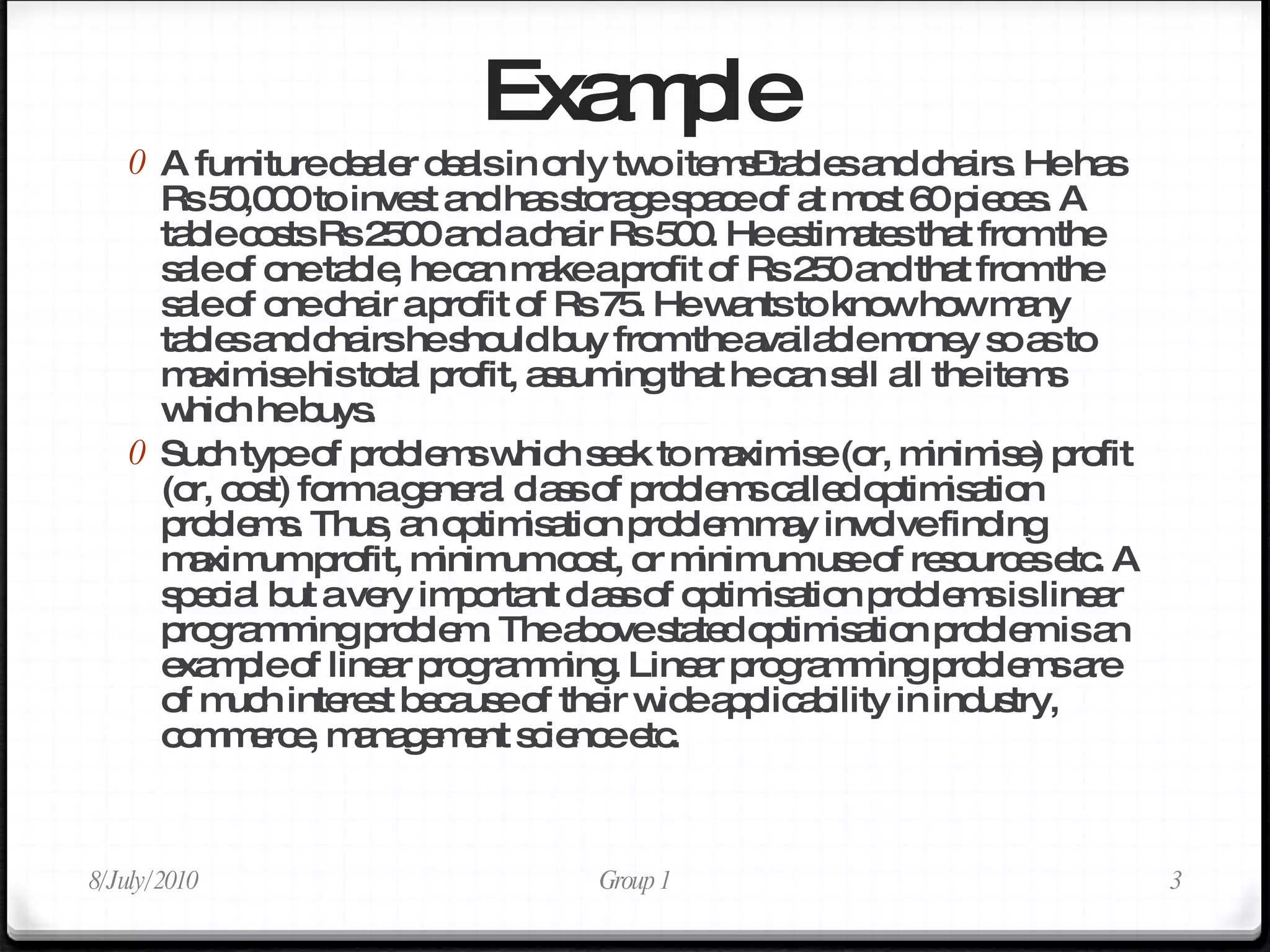

  Example A furnituredealer deals in only two items–tables and chairs. He has Rs 50,000 to invest and has storage space of at most 60 pieces. A table costs Rs 2500 and a chair Rs 500. He estimates that from the sale of one table, he can make a profit of Rs 250 and that from the sale of one chair a profit of Rs 75. He wants to know how many tables and chairs he should buy from the available money so as to maximise his total profit, assuming that he can sell all the items which he buys. Such type of problems which seek to maximise (or, minimise) profit (or, cost) form a general class of problems called optimisation problems. Thus, an optimisation problem may involve finding maximum profit, minimum cost, or minimum use of resources etc. A special but a very important class of optimisation problems is linear programming problem. The above stated optimisation problem is an example of linear programming. Linear programming problems are of much interest because of their wide applicability in industry, commerce, management science etc. 8/July/2010 Group 1
• 4.

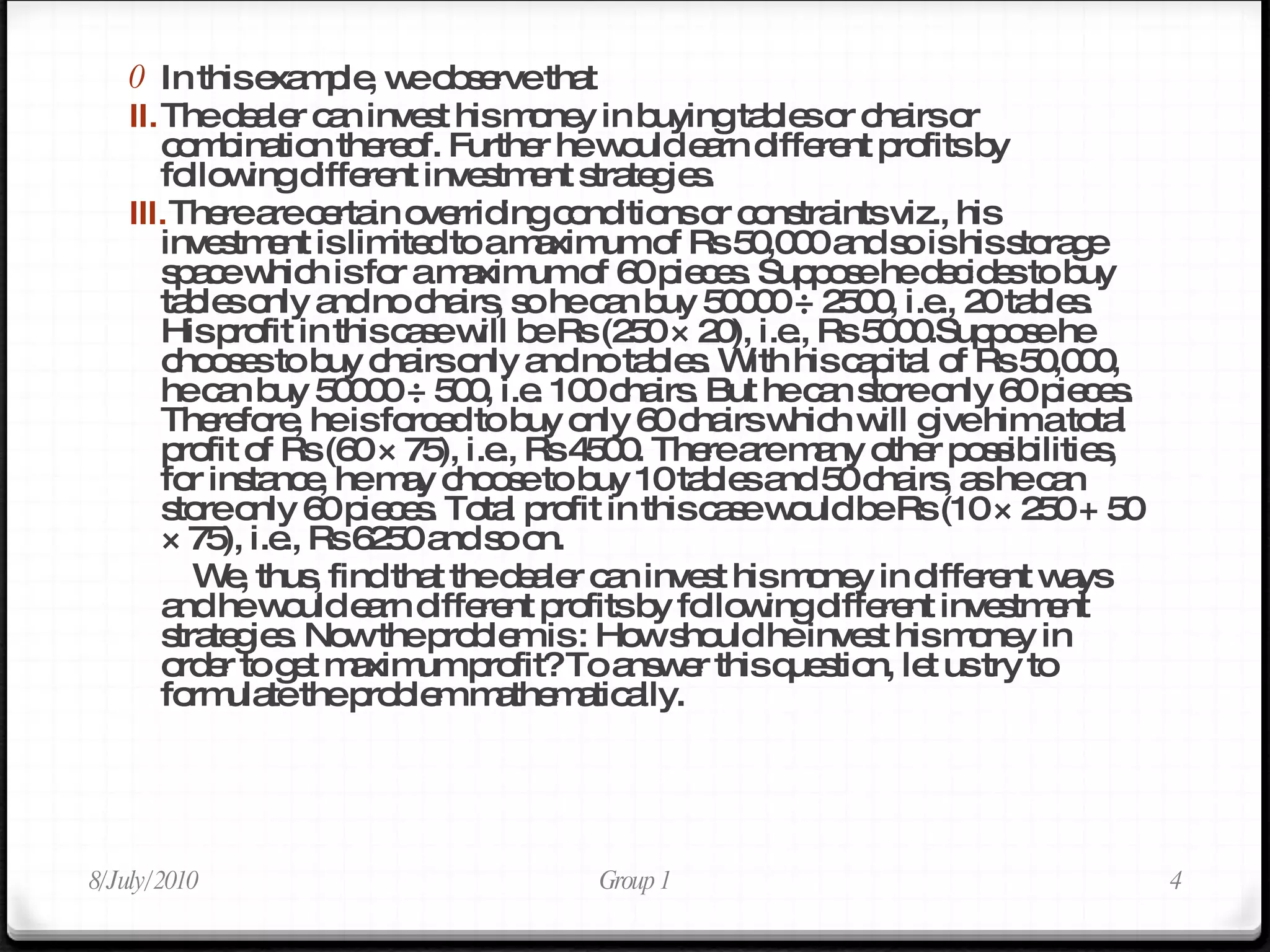

  In this example,we observe that The dealer can invest his money in buying tables or chairs or combination thereof. Further he would earn different profits by following different investment strategies. There are certain overriding conditions or constraints viz., his investment is limited to a maximum of Rs 50,000 and so is his storage space which is for a maximum of 60 pieces. Suppose he decides to buy tables only and no chairs, so he can buy 50000 ÷ 2500, i.e., 20 tables. His profit in this case will be Rs (250 × 20), i.e., Rs 5000.Suppose he chooses to buy chairs only and no tables. With his capital of Rs 50,000, he can buy 50000 ÷ 500, i.e. 100 chairs. But he can store only 60 pieces. Therefore, he is forced to buy only 60 chairs which will give him a total profit of Rs (60 × 75), i.e., Rs 4500. There are many other possibilities, for instance, he may choose to buy 10 tables and 50 chairs, as he can store only 60 pieces. Total profit in this case would be Rs (10 × 250 + 50 × 75), i.e., Rs 6250 and so on. We, thus, find that the dealer can invest his money in different ways and he would earn different profits by following different investment strategies. Now the problem is : How should he invest his money in order to get maximum profit? To answer this question, let us try to formulate the problem mathematically. 8/July/2010 Group 1
• 5.
  Let x bethe number of tables and y be the number of chairs that the dealer buys. Obviously, x and y must be non-negative, i.e., x ≥ 0 y ≥ 0 The dealer is constrained by the maximum amount he can invest (Here it is Rs 50,000) and by the maximum number of items he can store (Here it is 60). Stated mathematically, 2500x + 500y ≤ 50000 (investment constraint)ie:- 5x + y ≤ 100 and x + y ≤ 60 The dealer wants to invest in such a way so as to maximise his profit, say, Z which stated as a function of x and y is given by Z = 250x + 75y (called objective function) Mathematically, the given problems now reduces to: Maximise Z = 250x + 75y subject to the constraints: 5x + y ≤ 100 x + y ≤ 60 x ≥ 0, y ≥ 0 So, we have to maximise the linear function Z subject to certain conditions determined by a set of linear inequalities with variables as non-negative 8/July/2010 Group 1 } (Non-negative Constraints) …… (1) …… (2) …… (3) …… (4) …… (5)
• 6.
  Let us graphthe constraints stated as linear inequalities. The graph of this system (shaded region) consists of the points common to all half planes determined by the inequalities (1) to (4). Each point in this region represents a feasible choice open to the dealer for investing in tables and chairs. The region, therefore, is called the feasible region for the problem. Every point of this region is called a feasible solution to the problem. The region other than feasible region is called an infeasible region. Optimal (feasible) solution : Any point in the feasible region that gives the optimal value (maximum or minimum) of the objective function is called an optimal solution.Since there are infinitely many points, it is not evident how we should go about finding a point that gives a maximum value of the objective function Z = 250x + 75y. To handle this situation, we use the following theorems 8/July/2010 Group 1
• 7.

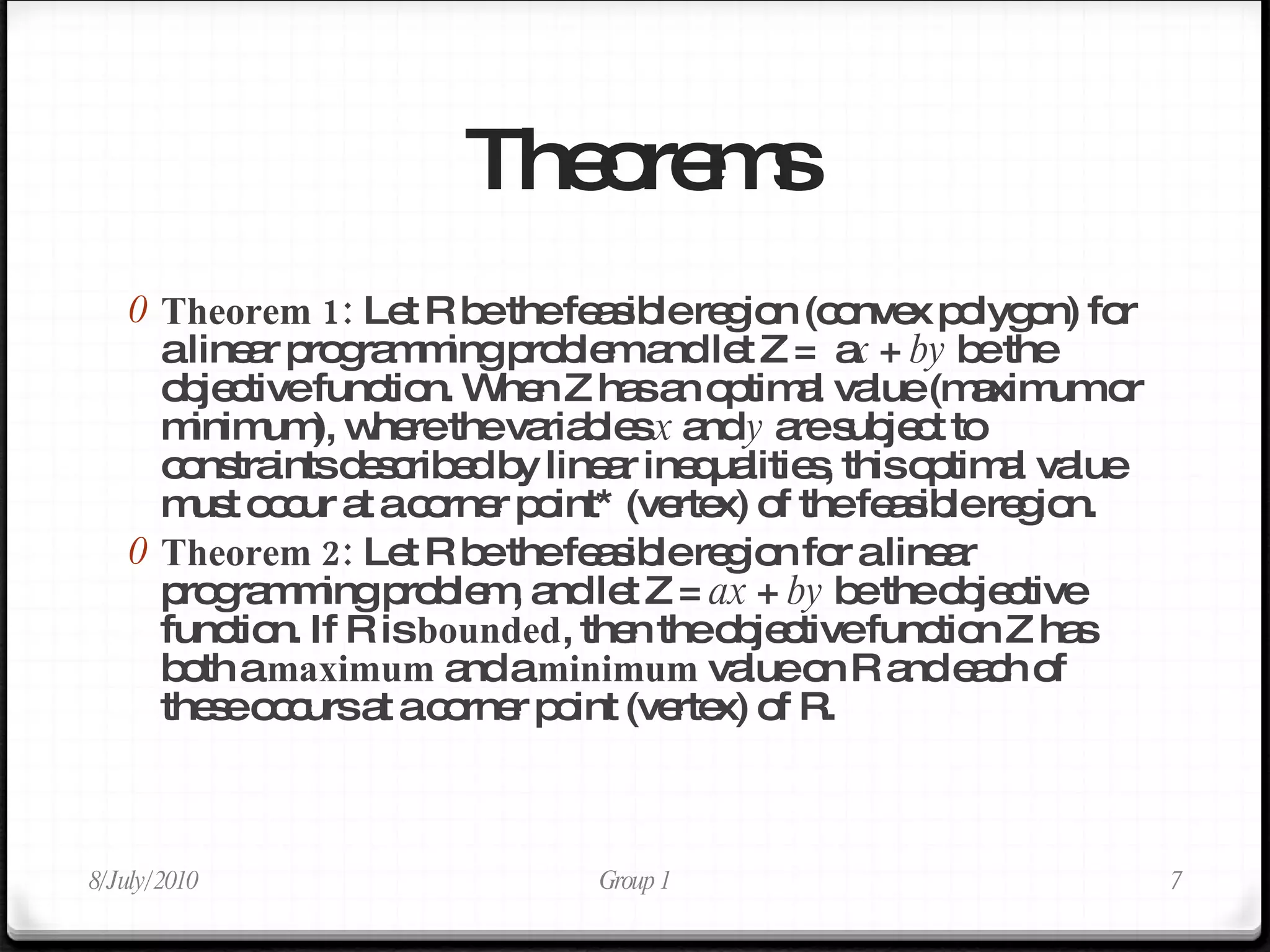

  Theorems Theorem 1: Let R be the feasible region (convex polygon) for a linear programming problem and let Z = a x + by be the objective function. When Z has an optimal value (maximum or minimum), where the variables x and y are subject to constraints described by linear inequalities, this optimal value must occur at a corner point* (vertex) of the feasible region. Theorem 2: Let R be the feasible region for a linear programming problem, and let Z = ax + by be the objective function. If R is bounded , then the objective function Z has both a maximum and a minimum value on R and each of these occurs at a corner point (vertex) of R. 8/July/2010 Group 1
• 8.

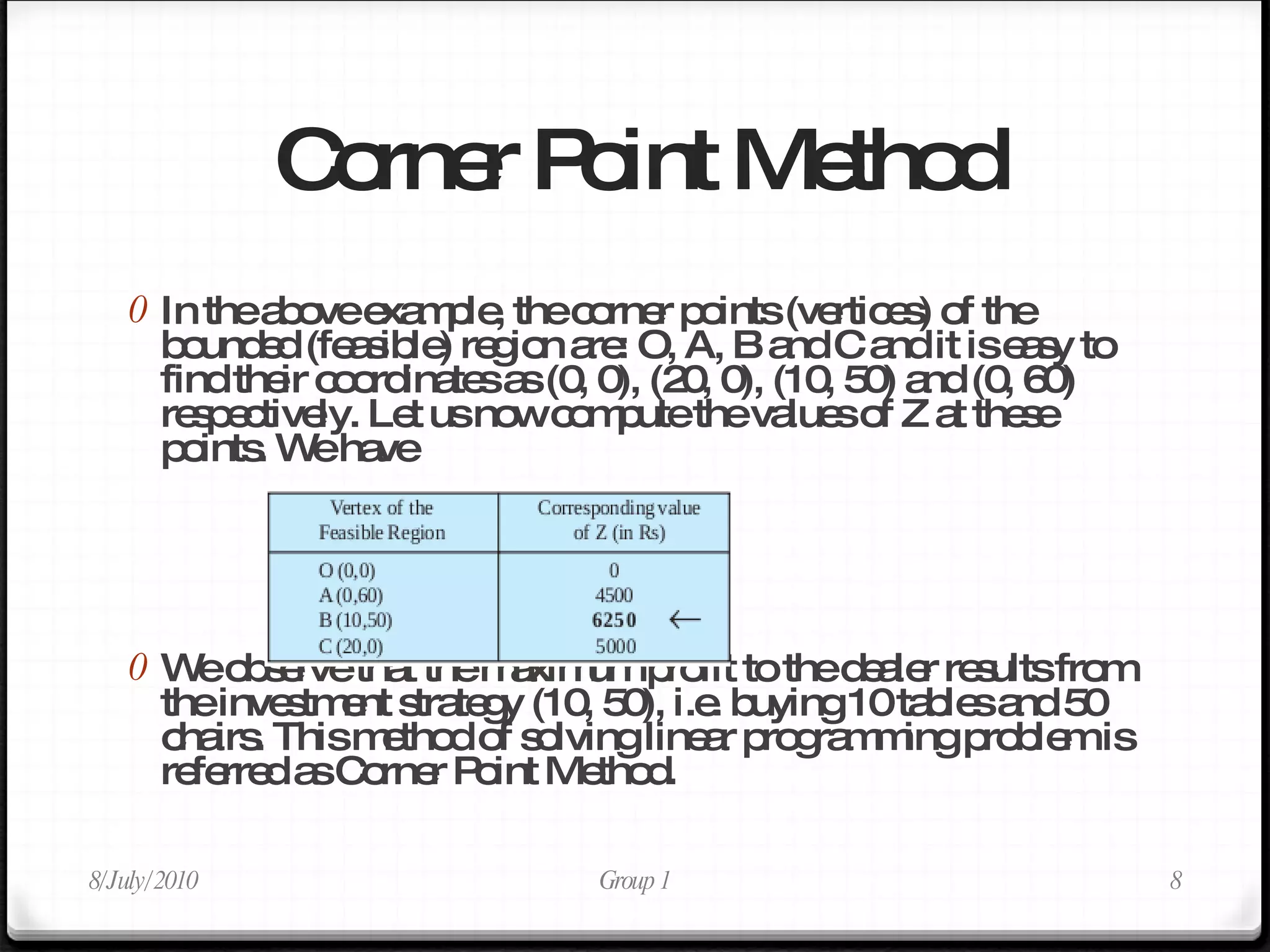

  Corner Point MethodIn the above example, the corner points (vertices) of the bounded (feasible) region are: O, A, B and C and it is easy to find their coordinates as (0, 0), (20, 0), (10, 50) and (0, 60) respectively. Let us now compute the values of Z at these points. We have We observe that the maximum profit to the dealer results from the investment strategy (10, 50), i.e. buying 10 tables and 50 chairs. This method of solving linear programming problem is referred as Corner Point Method. 8/July/2010 Group 1
• 9.

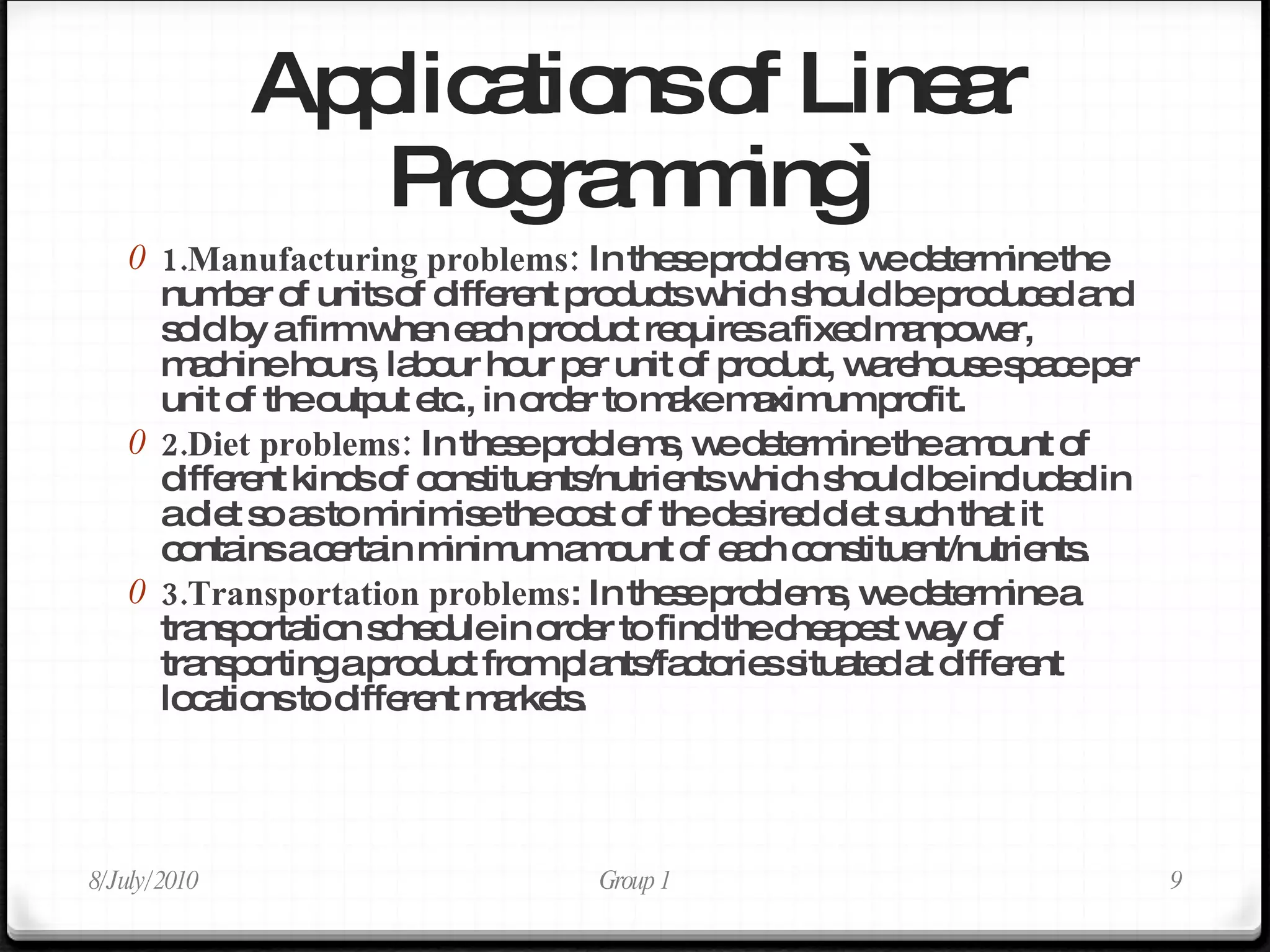

  Applications of LinearProgramming` 1.Manufacturing problems: In these problems, we determine the number of units of different products which should be produced and sold by a firm when each product requires a fixed manpower, machine hours, labour hour per unit of product, warehouse space per unit of the output etc., in order to make maximum profit. 2.Diet problems: In these problems, we determine the amount of different kinds of constituents/nutrients which should be included in a diet so as to minimise the cost of the desired diet such that it contains a certain minimum amount of each constituent/nutrients. 3.Transportation problems : In these problems, we determine a transportation schedule in order to find the cheapest way of transporting a product from plants/factories situated at different locations to different markets. 8/July/2010 Group 1
• 10.

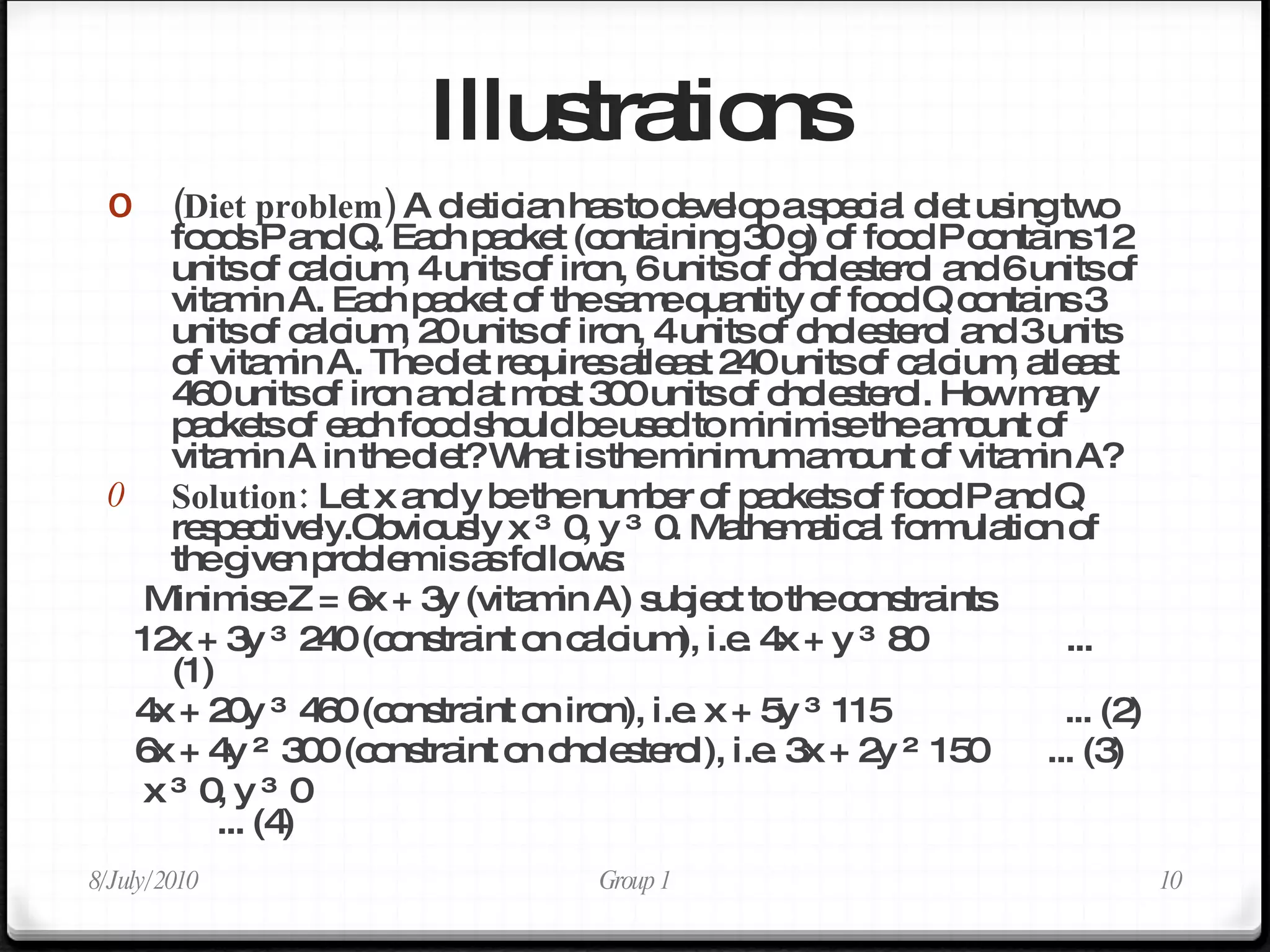

  Illustrations (Diet problem) A dietician has to develop a special diet using two foods P and Q. Each packet (containing 30 g) of food P contains 12 units of calcium, 4 units of iron, 6 units of cholesterol and 6 units of vitamin A. Each packet of the same quantity of food Q contains 3 units of calcium, 20 units of iron, 4 units of cholesterol and 3 units of vitamin A. The diet requires atleast 240 units of calcium, atleast 460 units of iron and at most 300 units of cholesterol. How many packets of each food should be used to minimise the amount of vitamin A in the diet? What is the minimum amount of vitamin A? Solution: Let x and y be the number of packets of food P and Q respectively.Obviously x ≥ 0, y ≥ 0. Mathematical formulation of the given problem is as follows: Minimise Z = 6x + 3y (vitamin A) subject to the constraints 12x + 3y ≥ 240 (constraint on calcium), i.e. 4x + y ≥ 80 ... (1) 4x + 20y ≥ 460 (constraint on iron), i.e. x + 5y ≥ 115 ... (2) 6x + 4y ≤ 300 (constraint on cholesterol), i.e. 3x + 2y ≤ 150 ... (3) x ≥ 0, y ≥ 0 ... (4) 8/July/2010 Group 1
• 11.

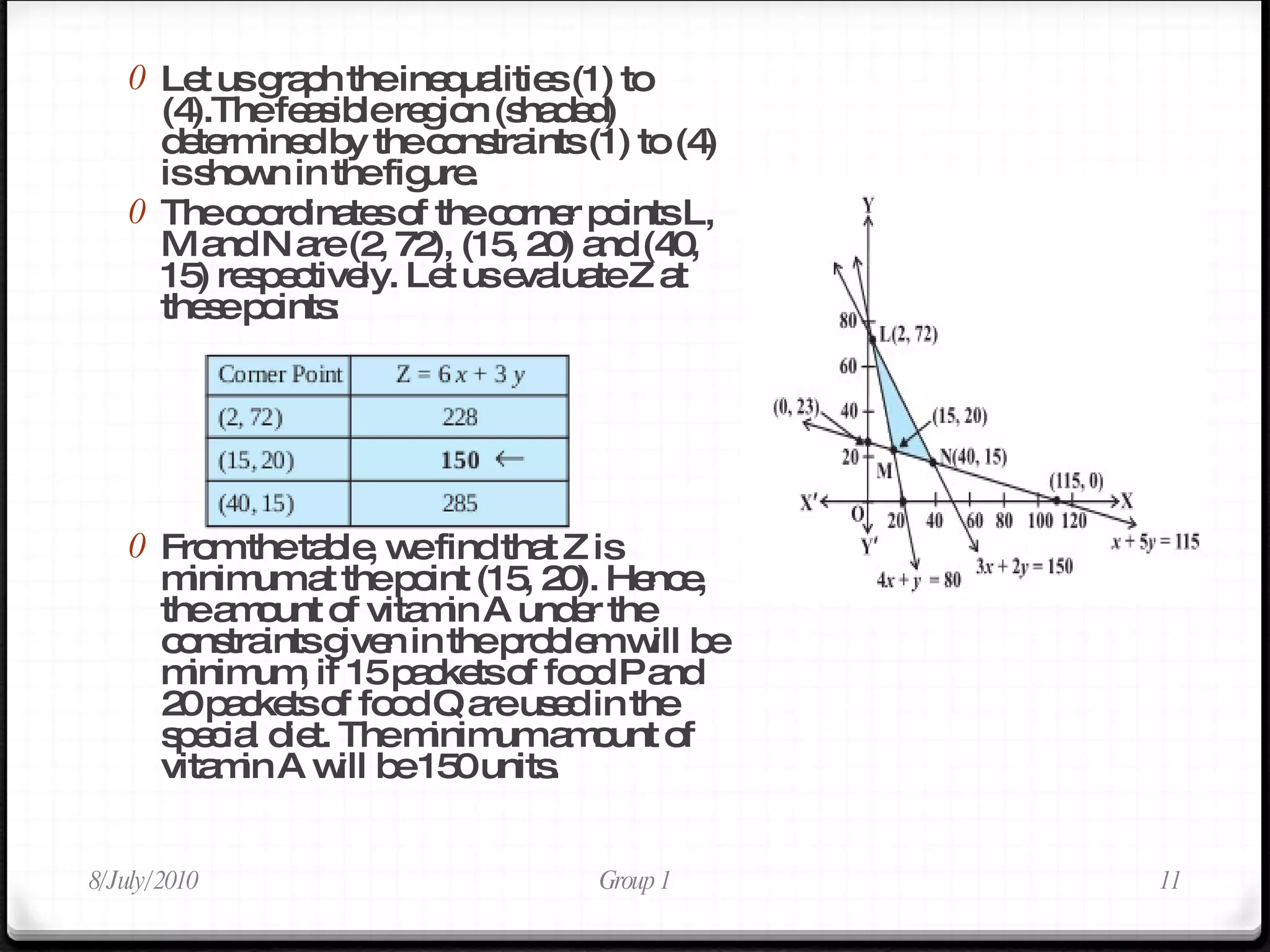

  Let us graphthe inequalities (1) to (4).The feasible region (shaded) determined by the constraints (1) to (4) is shown in the figure. The coordinates of the corner points L, M and N are (2, 72), (15, 20) and (40, 15) respectively. Let us evaluate Z at these points: From the table, we find that Z is minimum at the point (15, 20). Hence, the amount of vitamin A under the constraints given in the problem will be minimum, if 15 packets of food P and 20 packets of food Q are used in the special diet. The minimum amount of vitamin A will be 150 units. 8/July/2010 Group 1
• 12.

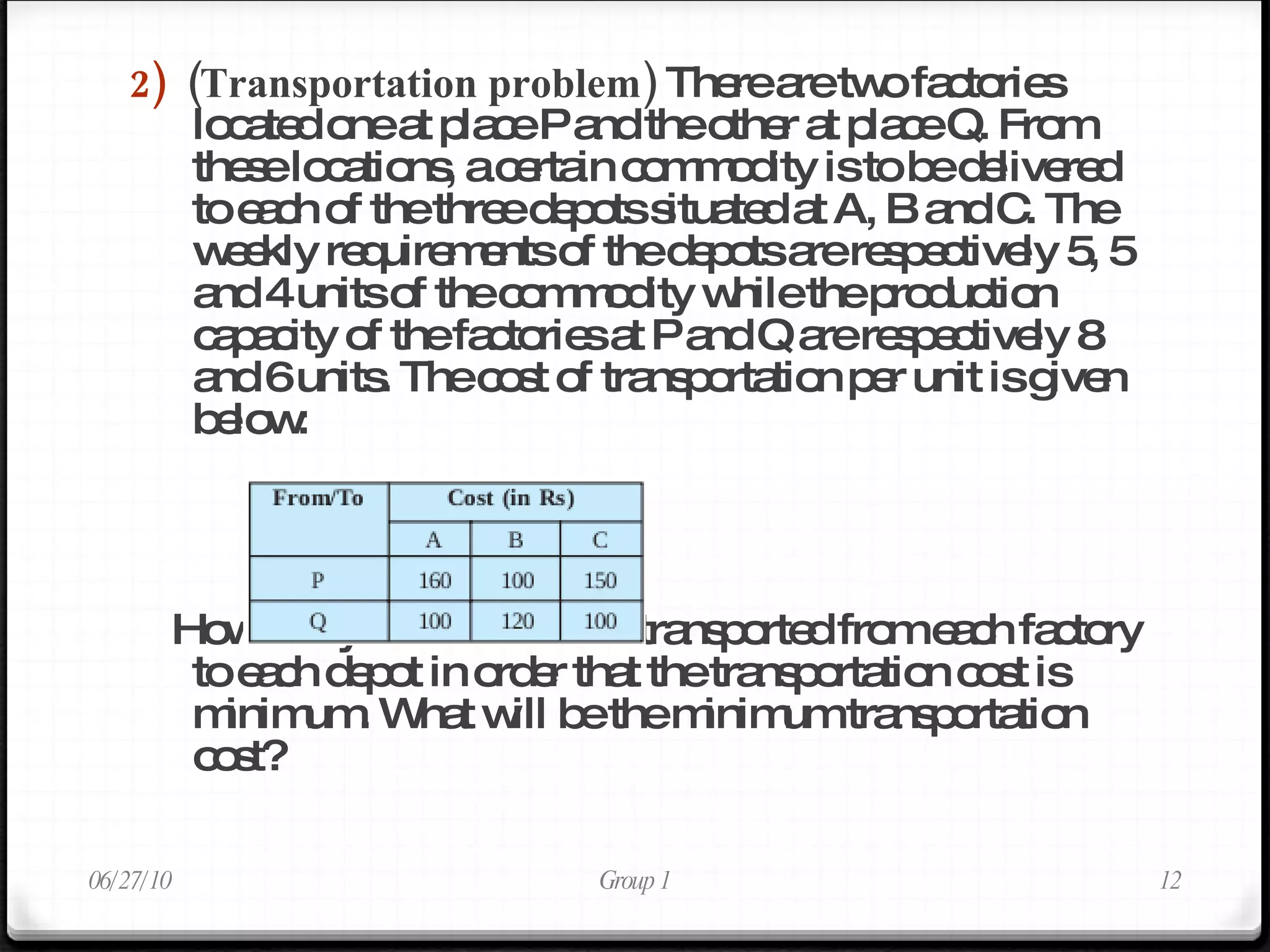

  2) (Transportationproblem) There are two factories located one at place P and the other at place Q. From these locations, a certain commodity is to be delivered to each of the three depots situated at A, B and C. The weekly requirements of the depots are respectively 5, 5 and 4 units of the commodity while the production capacity of the factories at P and Q are respectively 8 and 6 units. The cost of transportation per unit is given below: How many units should be transported from each factory to each depot in order that the transportation cost is minimum. What will be the minimum transportation cost? 06/27/10 Group 1
• 13.

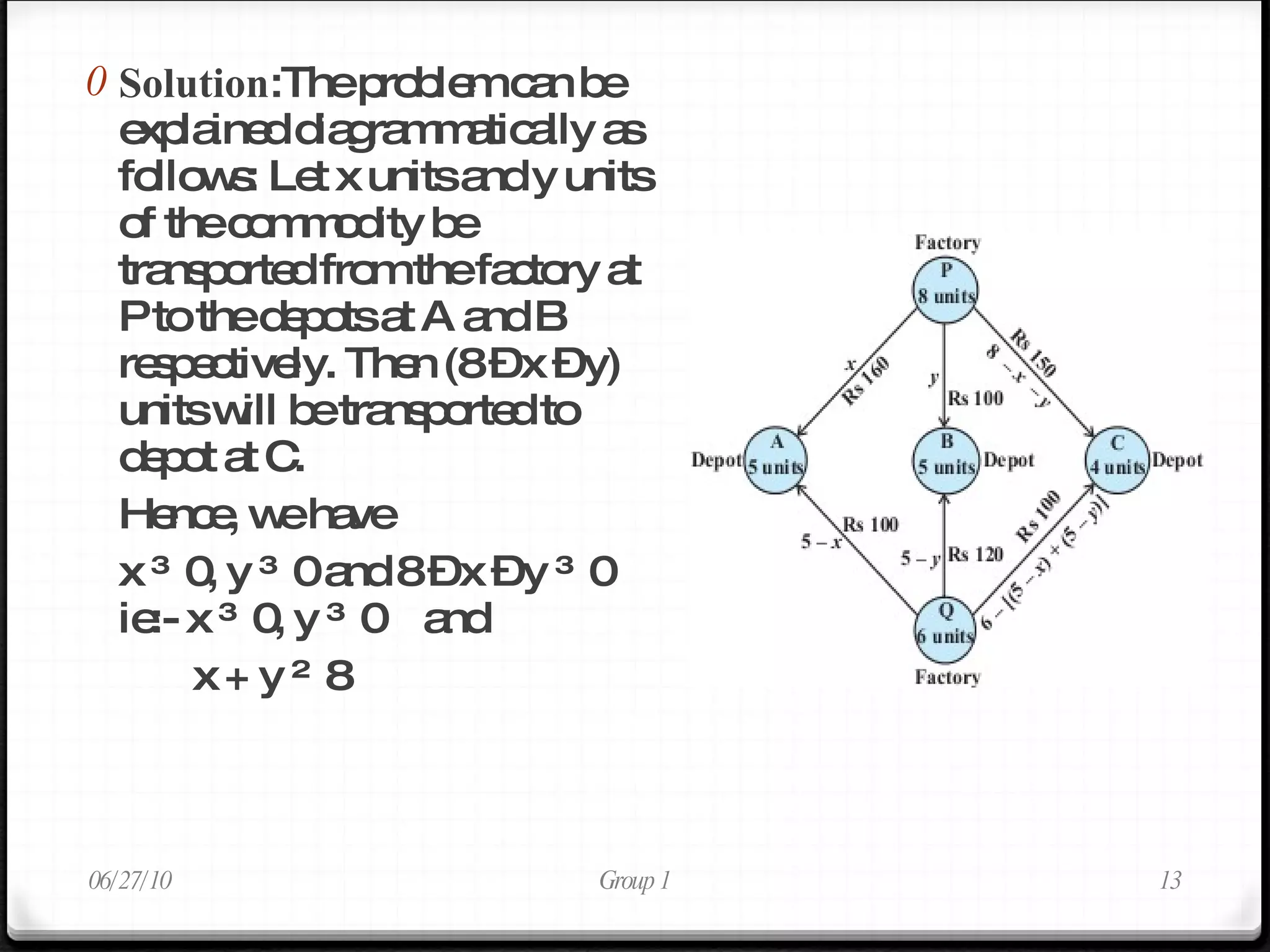

  Solution :The problemcan be explained diagrammatically as follows: Let x units and y units of the commodity be transported from the factory at P to the depots at A and B respectively. Then (8 – x – y) units will be transported to depot at C. Hence, we have x ≥ 0, y ≥ 0 and 8 – x – y ≥ 0 ie:- x ≥ 0, y ≥ 0 and x + y ≤ 8 06/27/10 Group 1
• 14.
  Now, the weeklyrequirement of the depot at A is 5 units of the commodity. Since x units are transported from the factory at P, the remaining (5 – x) units need to be transported from the factory at Q. Obviously, 5 – x ≥ 0, i.e. x ≤ 5.Similarly, (5 – y) and 6 – (5 – x + 5 – y) = x + y – 4 units are to be transported from the factory at Q to the depots at B and C respectively. Thus, 5 – y ≥ 0 , x + y – 4 ≥0 ie:- y≤5 , x+y≥ 4 Total transportation cost Z is given by Z=160 x+100 y+100(5–x) + 120 (5 – y) + 100 (x + y – 4) + 150 (8 – x – y)= 10 (x – 7 y + 190).Therefore, the problem reduces to Minimise Z = 10 (x – 7y + 190) subject to the constraints: x ≥ 0, y ≥ 0 ... (1) x+y≤8 ... (2) x≤5 ... (3) y≤5 ... (4) and x+y≥4 ... (5) 06/27/10 Group 1
• 15.

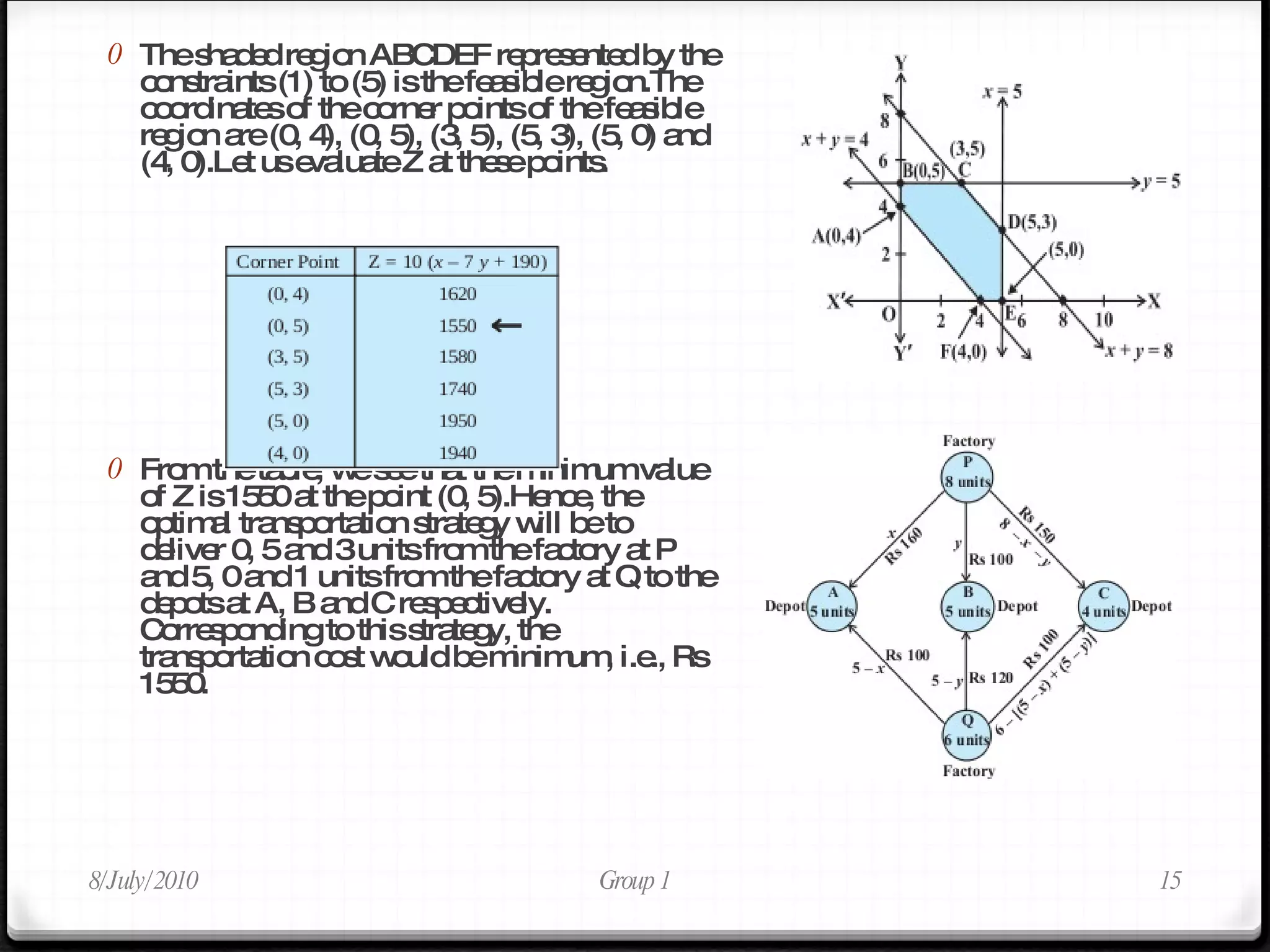

  The shaded regionABCDEF represented by the constraints (1) to (5) is the feasible region.The coordinates of the corner points of the feasible region are (0, 4), (0, 5), (3, 5), (5, 3), (5, 0) and (4, 0).Let us evaluate Z at these points. From the table, we see that the minimum value of Z is 1550 at the point (0, 5).Hence, the optimal transportation strategy will be to deliver 0, 5 and 3 units from the factory at P and 5, 0 and 1 units from the factory at Q to the depots at A, B and C respectively. Corresponding to this strategy, the transportation cost would be minimum, i.e., Rs 1550. 8/July/2010 Group 1
