Apache HBase™
The document provides an introduction to NoSQL and HBase. It discusses what NoSQL is, the different types of NoSQL databases, and compares NoSQL to SQL databases. It then focuses on HBase, describing its architecture and components like HMaster, regionservers, Zookeeper. It explains how HBase stores and retrieves data, the write process involving memstores and compaction. It also covers HBase shell commands for creating, inserting, querying and deleting data.
More Related Content
Apache HBase™
- 1.

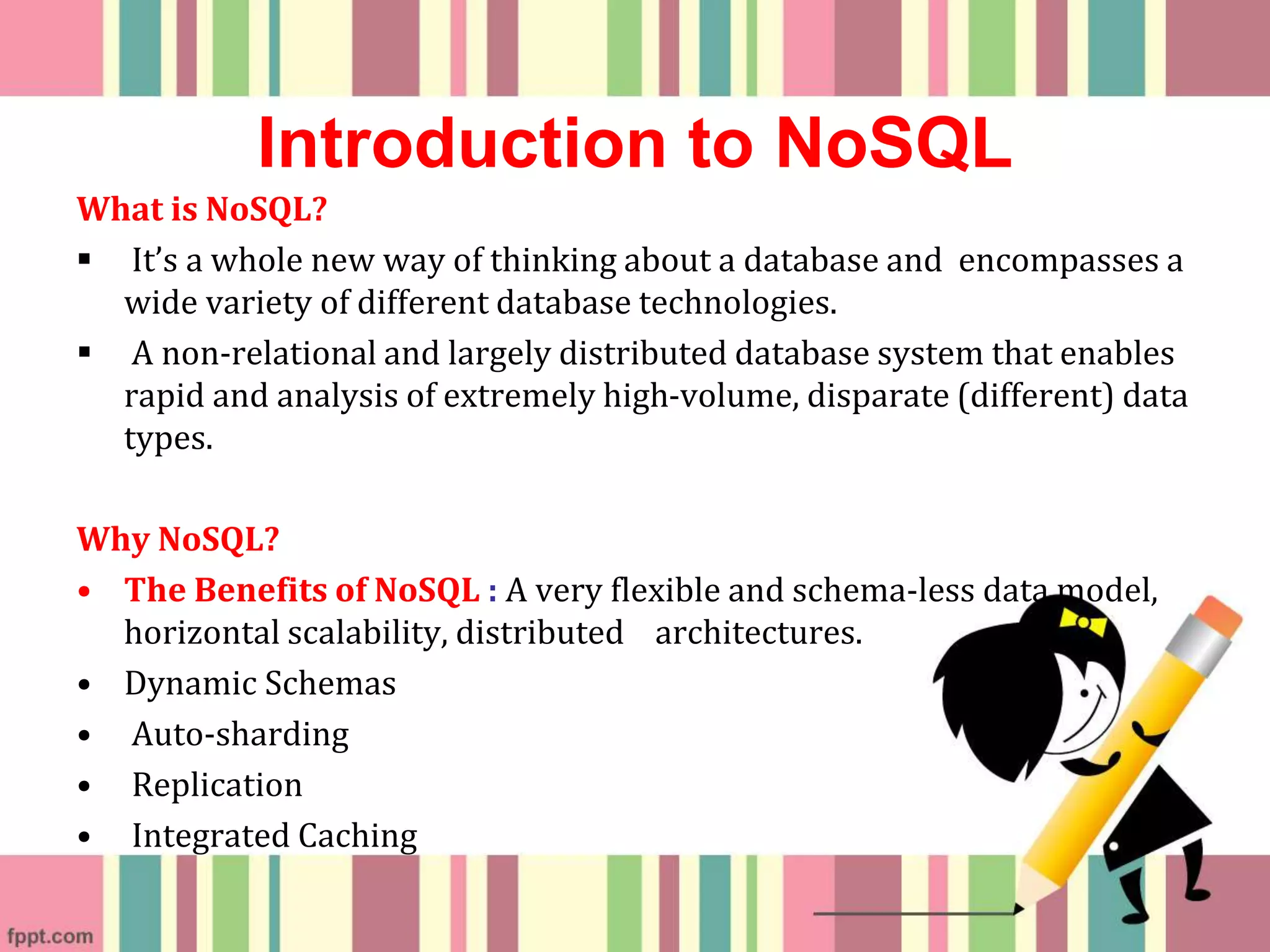

- 2. Introduction to NoSQL Whatis NoSQL? It’s a whole new way of thinking about a database and encompasses a wide variety of different database technologies. A non-relational and largely distributed database system that enables rapid and analysis of extremely high-volume, disparate (different) data types. Why NoSQL? • The Benefits of NoSQL : A very flexible and schema-less data model, horizontal scalability, distributed architectures. • Dynamic Schemas • Auto-sharding • Replication • Integrated Caching

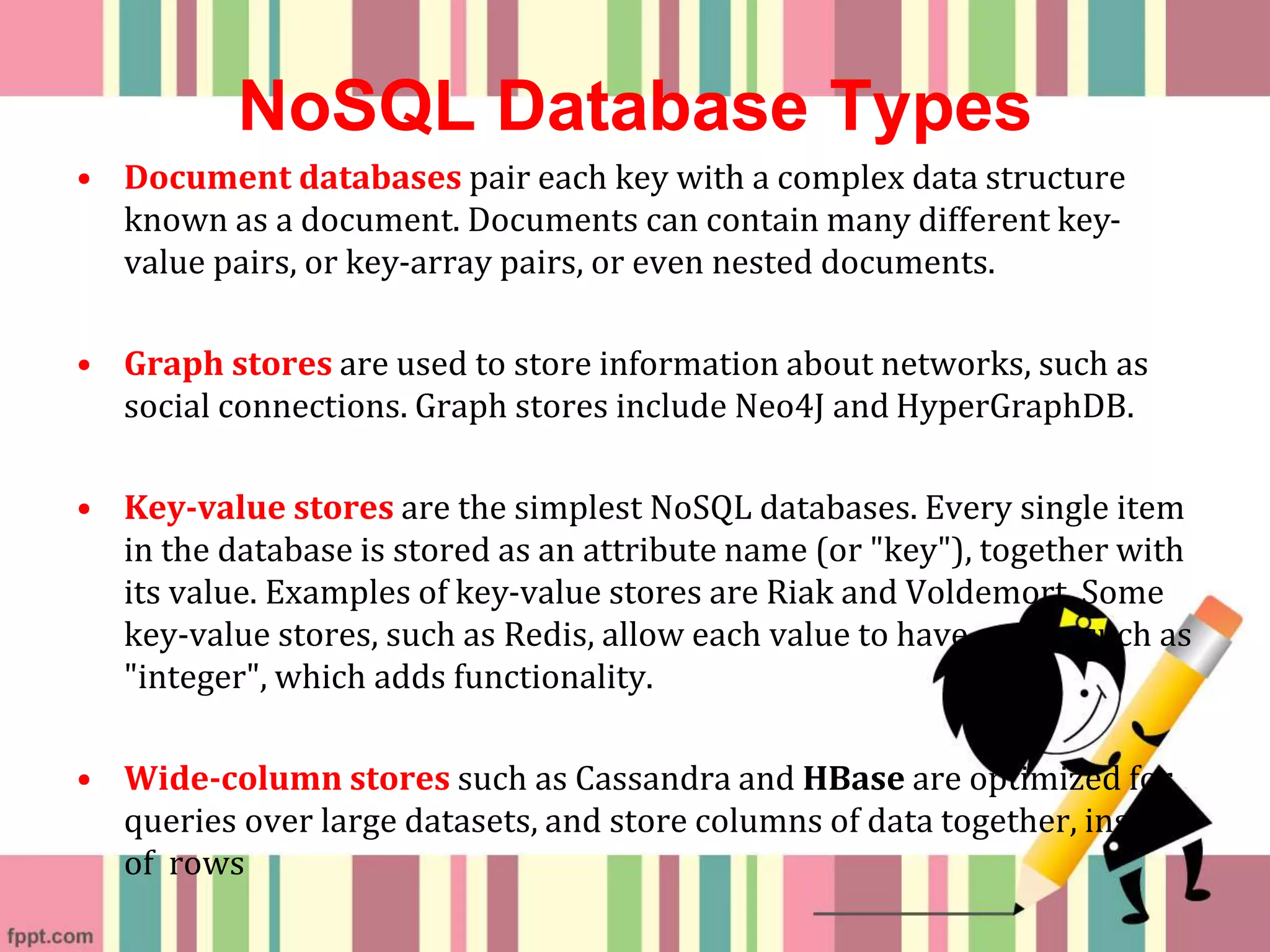

- 3. NoSQL Database Types •Document databases pair each key with a complex data structure known as a document. Documents can contain many different key- value pairs, or key-array pairs, or even nested documents. • Graph stores are used to store information about networks, such as social connections. Graph stores include Neo4J and HyperGraphDB. • Key-value stores are the simplest NoSQL databases. Every single item in the database is stored as an attribute name (or "key"), together with its value. Examples of key-value stores are Riak and Voldemort. Some key-value stores, such as Redis, allow each value to have a type, such as "integer", which adds functionality. • Wide-column stores such as Cassandra and HBase are optimized for queries over large datasets, and store columns of data together, instead of rows

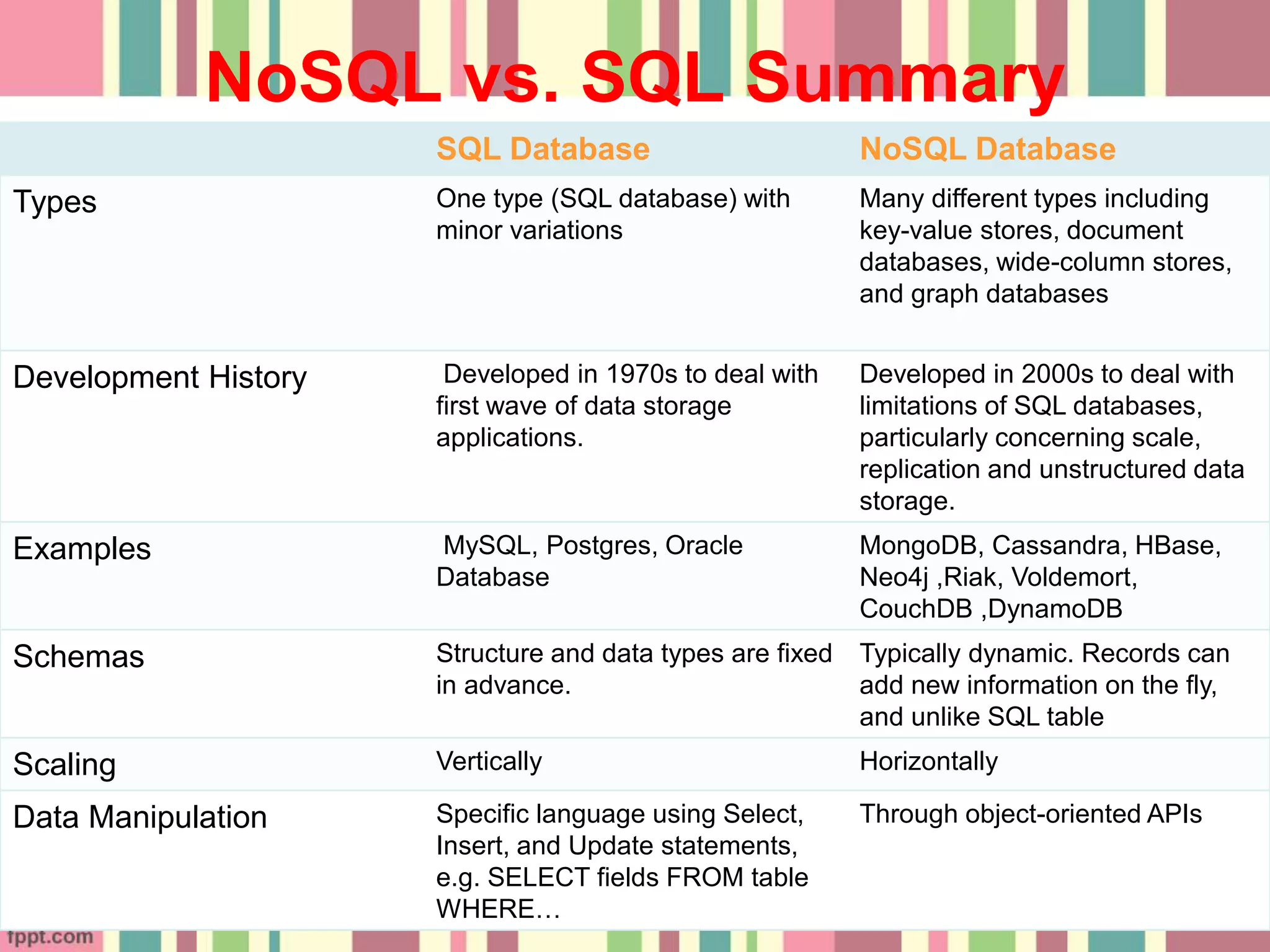

- 4. SQL Database NoSQLDatabase Types One type (SQL database) with minor variations Many different types including key-value stores, document databases, wide-column stores, and graph databases Development History Developed in 1970s to deal with first wave of data storage applications. Developed in 2000s to deal with limitations of SQL databases, particularly concerning scale, replication and unstructured data storage. Examples MySQL, Postgres, Oracle Database MongoDB, Cassandra, HBase, Neo4j ,Riak, Voldemort, CouchDB ,DynamoDB Schemas Structure and data types are fixed in advance. Typically dynamic. Records can add new information on the fly, and unlike SQL table Scaling Vertically Horizontally Data Manipulation Specific language using Select, Insert, and Update statements, e.g. SELECT fields FROM table WHERE… Through object-oriented APIs NoSQL vs. SQL Summary

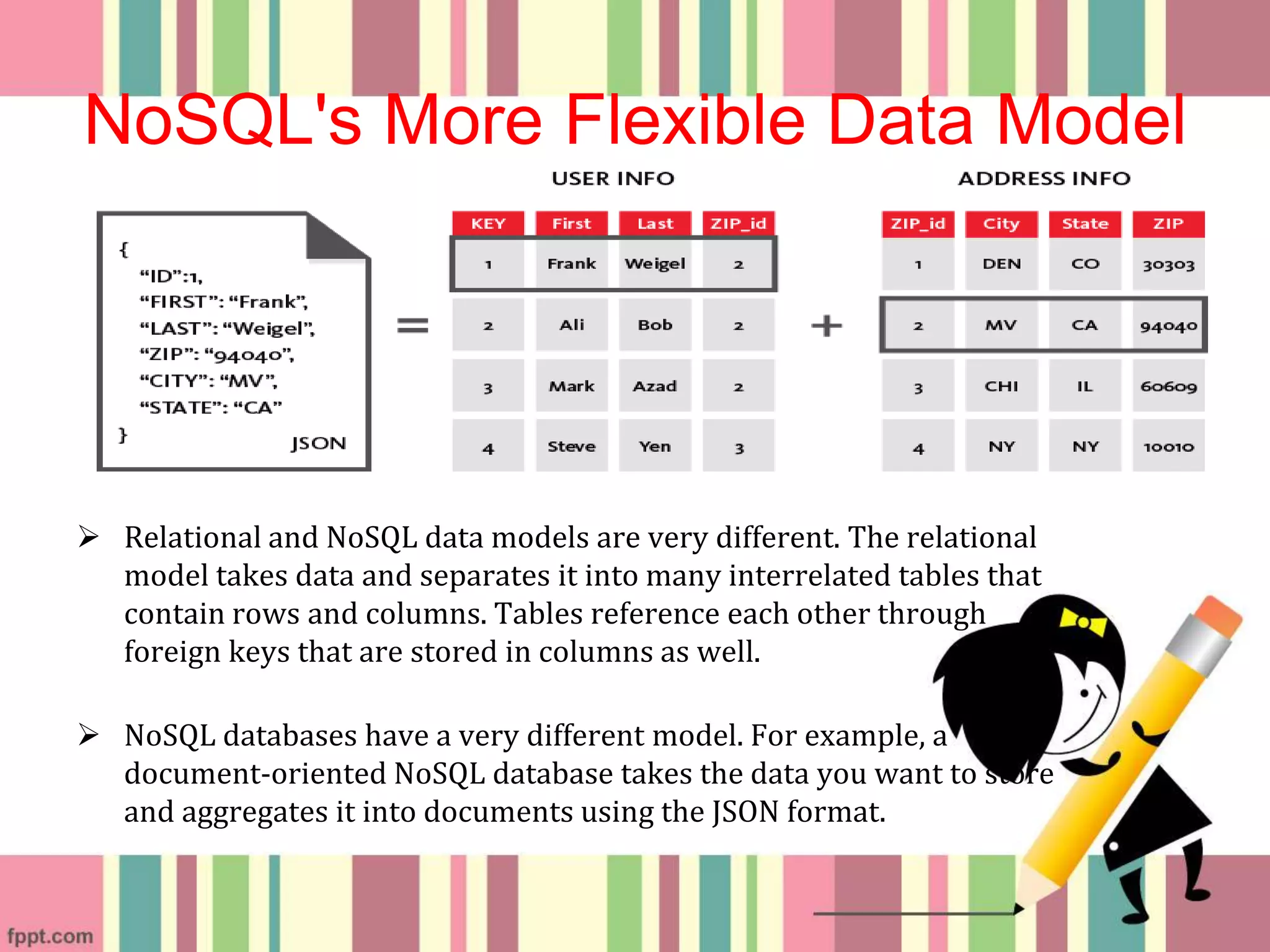

- 5. Relational andNoSQL data models are very different. The relational model takes data and separates it into many interrelated tables that contain rows and columns. Tables reference each other through foreign keys that are stored in columns as well. NoSQL databases have a very different model. For example, a document-oriented NoSQL database takes the data you want to store and aggregates it into documents using the JSON format. NoSQL's More Flexible Data Model

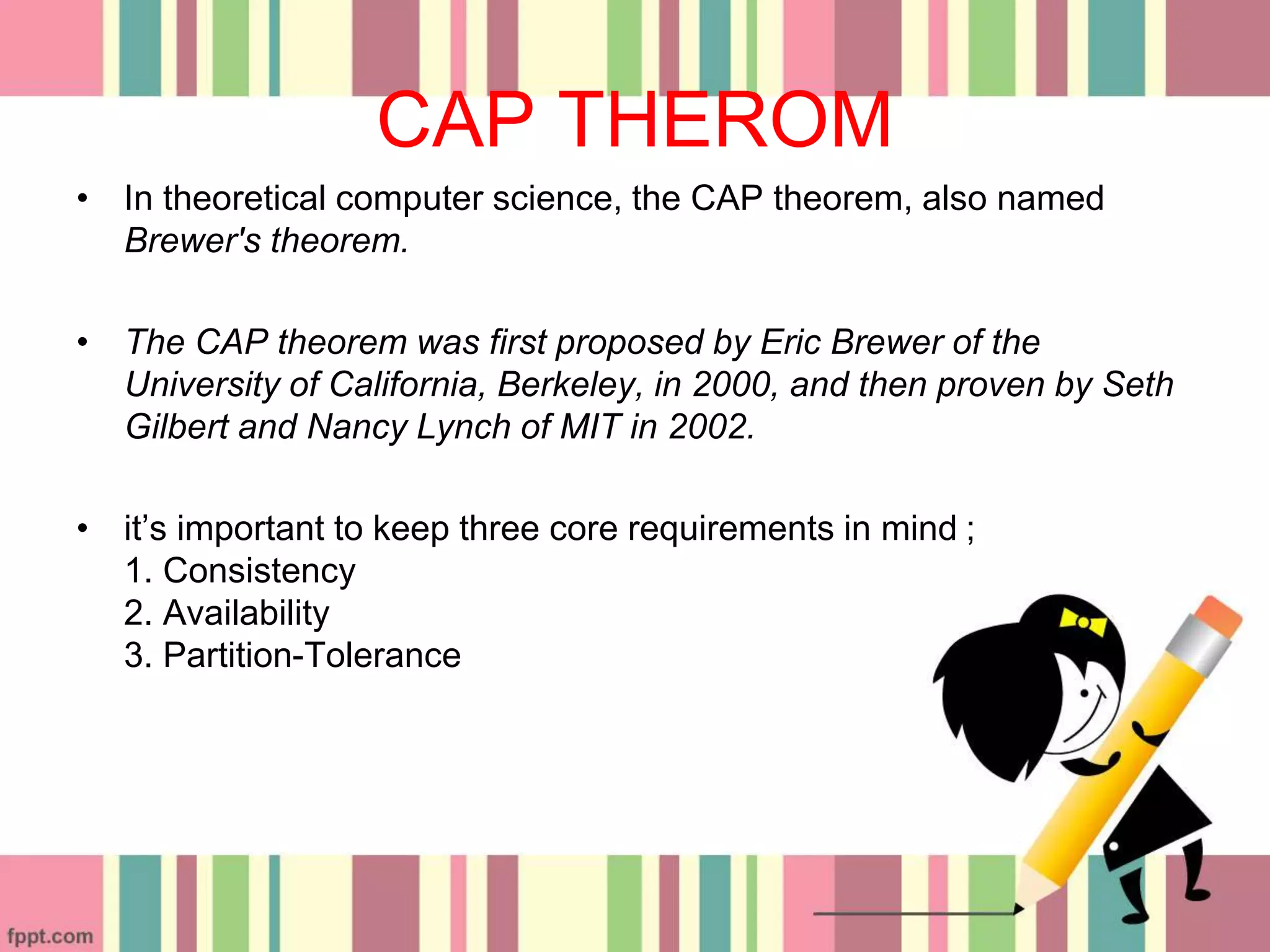

- 6. CAP THEROM • Intheoretical computer science, the CAP theorem, also named Brewer's theorem. • The CAP theorem was first proposed by Eric Brewer of the University of California, Berkeley, in 2000, and then proven by Seth Gilbert and Nancy Lynch of MIT in 2002. • it’s important to keep three core requirements in mind ; 1. Consistency 2. Availability 3. Partition-Tolerance

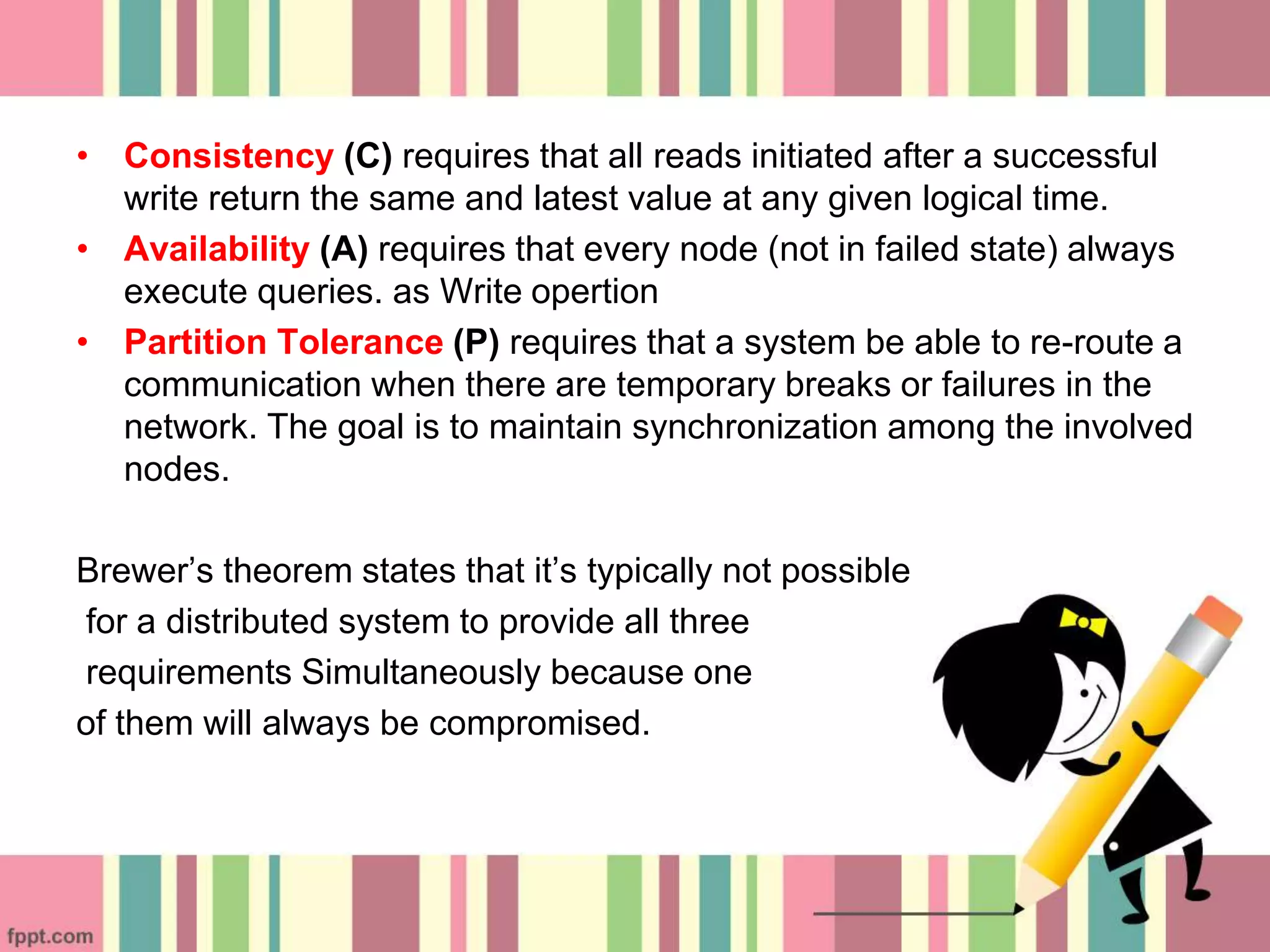

- 7. • Consistency (C)requires that all reads initiated after a successful write return the same and latest value at any given logical time. • Availability (A) requires that every node (not in failed state) always execute queries. as Write opertion • Partition Tolerance (P) requires that a system be able to re-route a communication when there are temporary breaks or failures in the network. The goal is to maintain synchronization among the involved nodes. Brewer’s theorem states that it’s typically not possible for a distributed system to provide all three requirements Simultaneously because one of them will always be compromised.

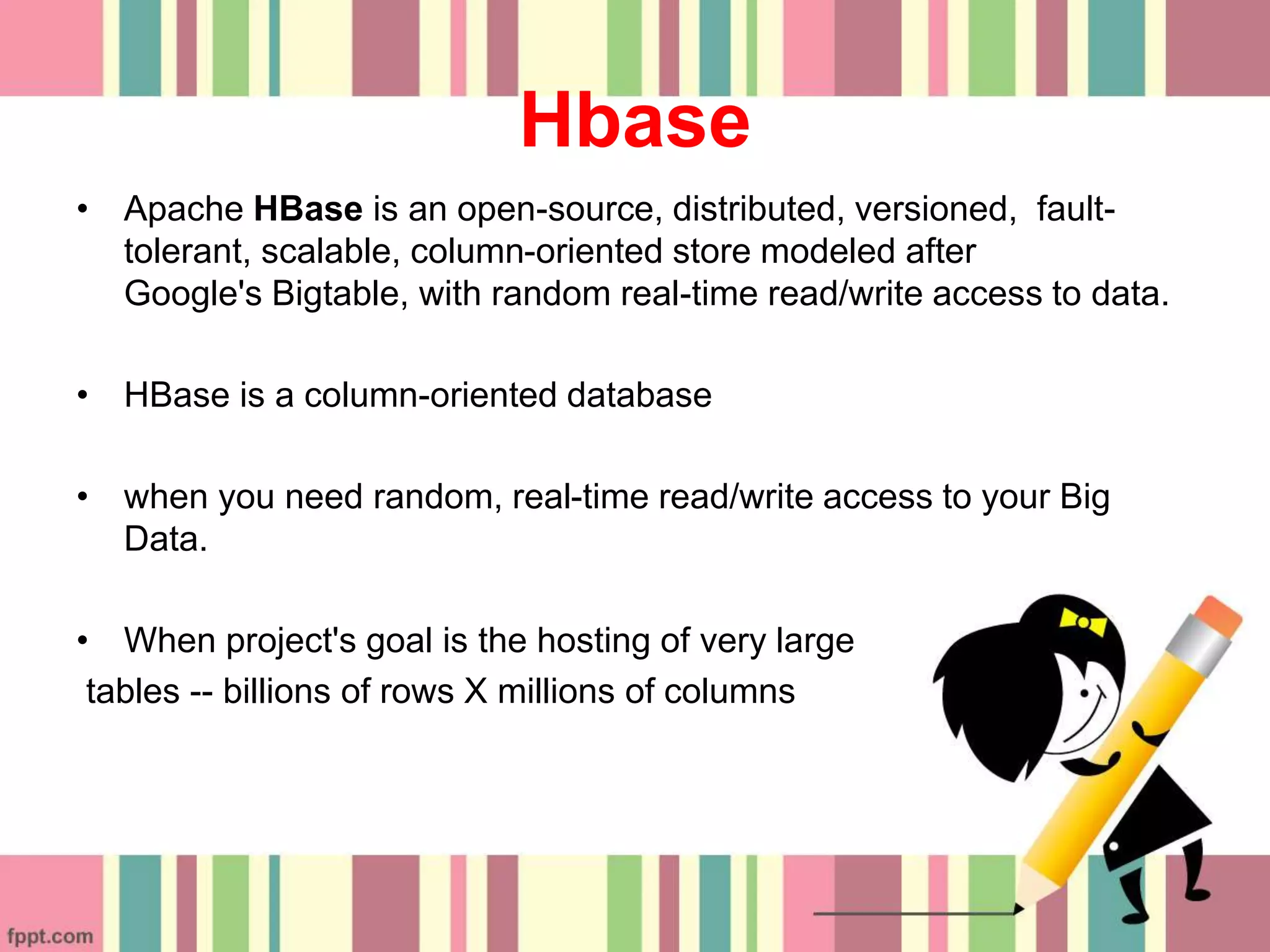

- 9. Hbase • Apache HBaseis an open-source, distributed, versioned, fault- tolerant, scalable, column-oriented store modeled after Google's Bigtable, with random real-time read/write access to data. • HBase is a column-oriented database • when you need random, real-time read/write access to your Big Data. • When project's goal is the hosting of very large tables -- billions of rows X millions of columns

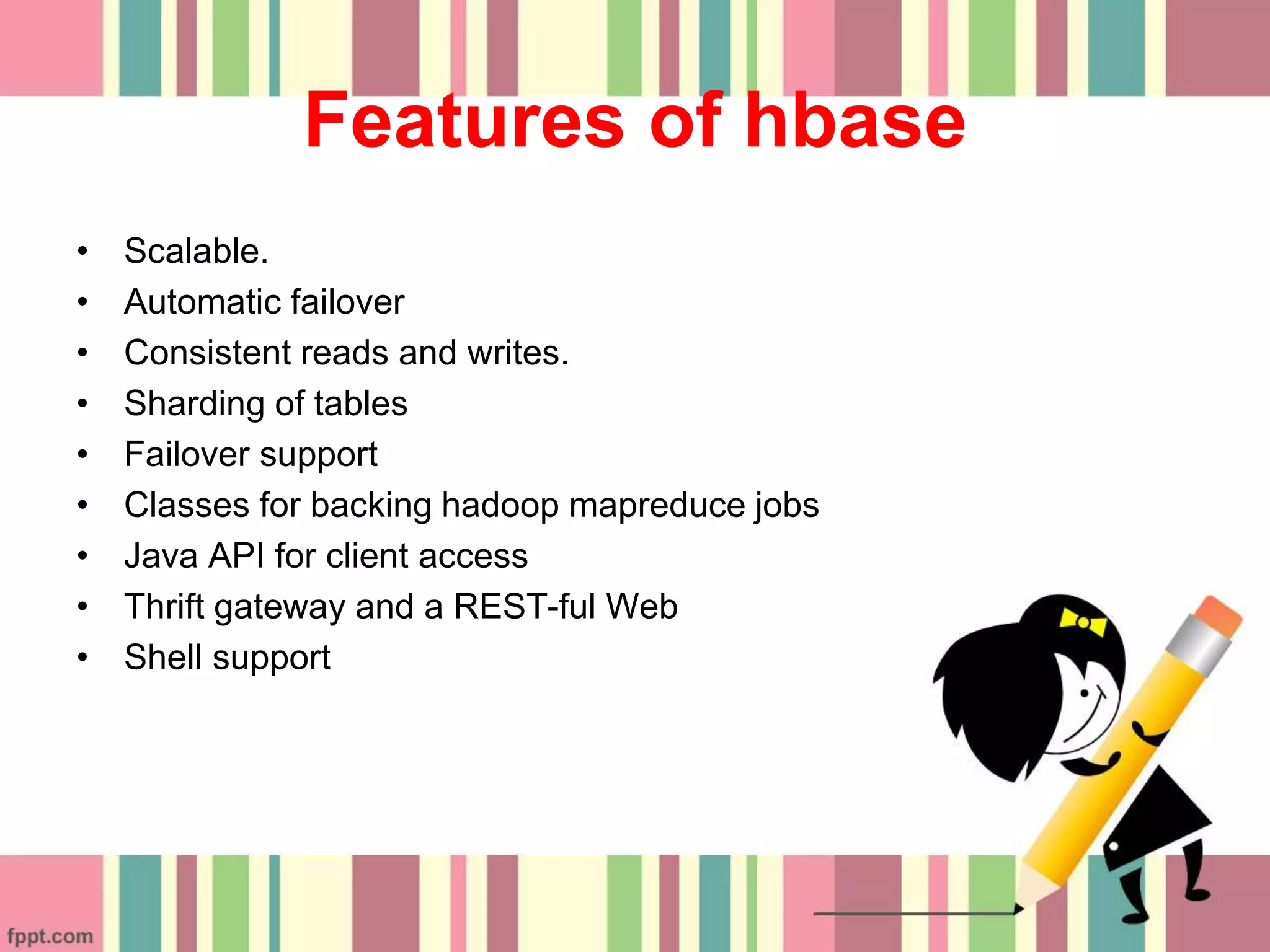

- 10. Features of hbase •Scalable. • Automatic failover • Consistent reads and writes. • Sharding of tables • Failover support • Classes for backing hadoop mapreduce jobs • Java API for client access • Thrift gateway and a REST-ful Web • Shell support
- 11. Backdrop • Started towardby Chad Walters and Jim • 2006.NOV – Google releases paper on BigTable • 2007.FEB – Initial HBase prototype created as Hadoop contrib. • 2007.OCT – First useable HBase • 2008.JAN – Hadoop become Apache top-level project and HBase becomes subproject • 2008.OCT – HBase 0.18, 0.19 released • 2013.JUNE Latest version is HBase 0.97

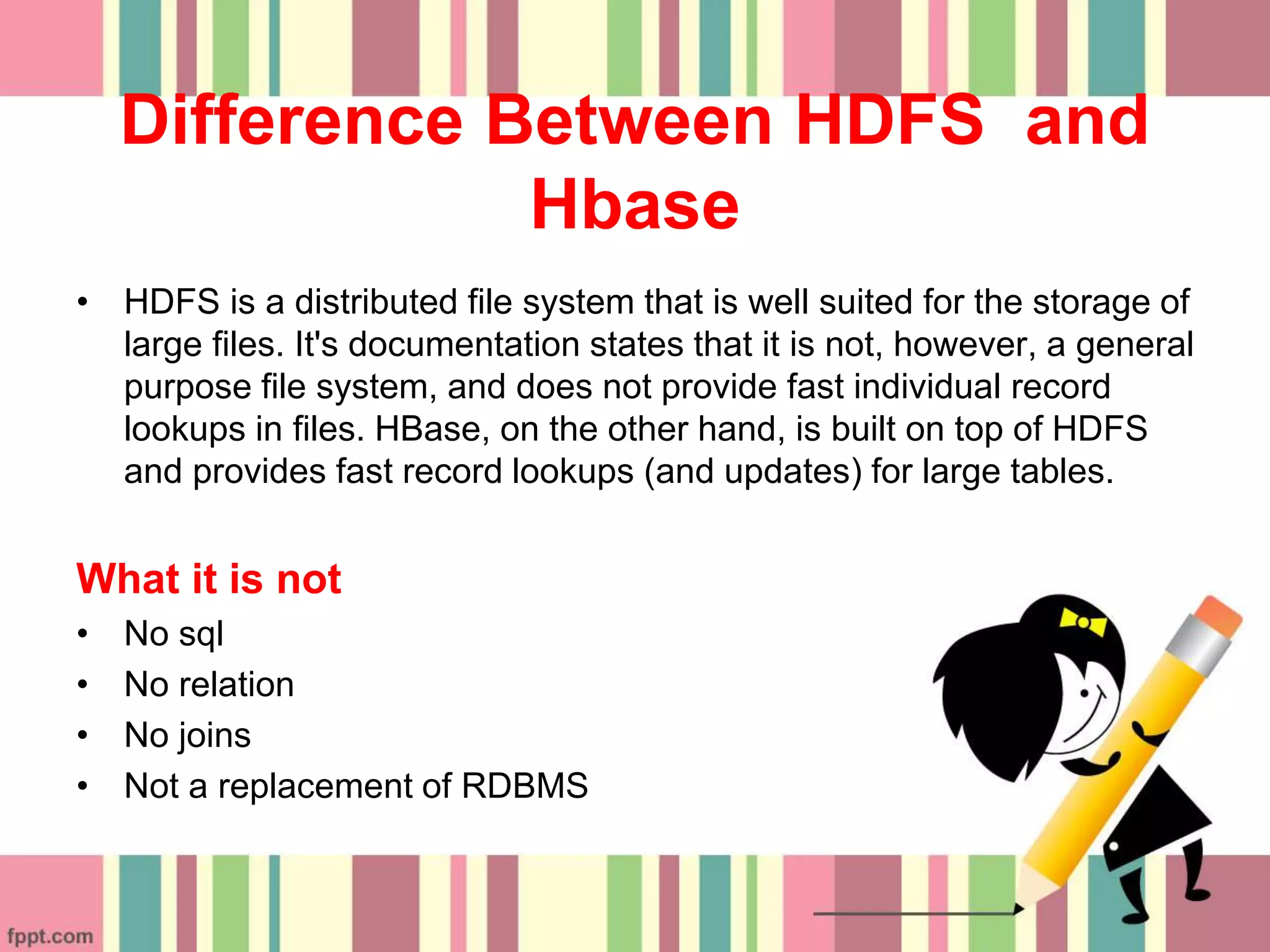

- 12. Difference Between HDFSand Hbase • HDFS is a distributed file system that is well suited for the storage of large files. It's documentation states that it is not, however, a general purpose file system, and does not provide fast individual record lookups in files. HBase, on the other hand, is built on top of HDFS and provides fast record lookups (and updates) for large tables. What it is not • No sql • No relation • No joins • Not a replacement of RDBMS

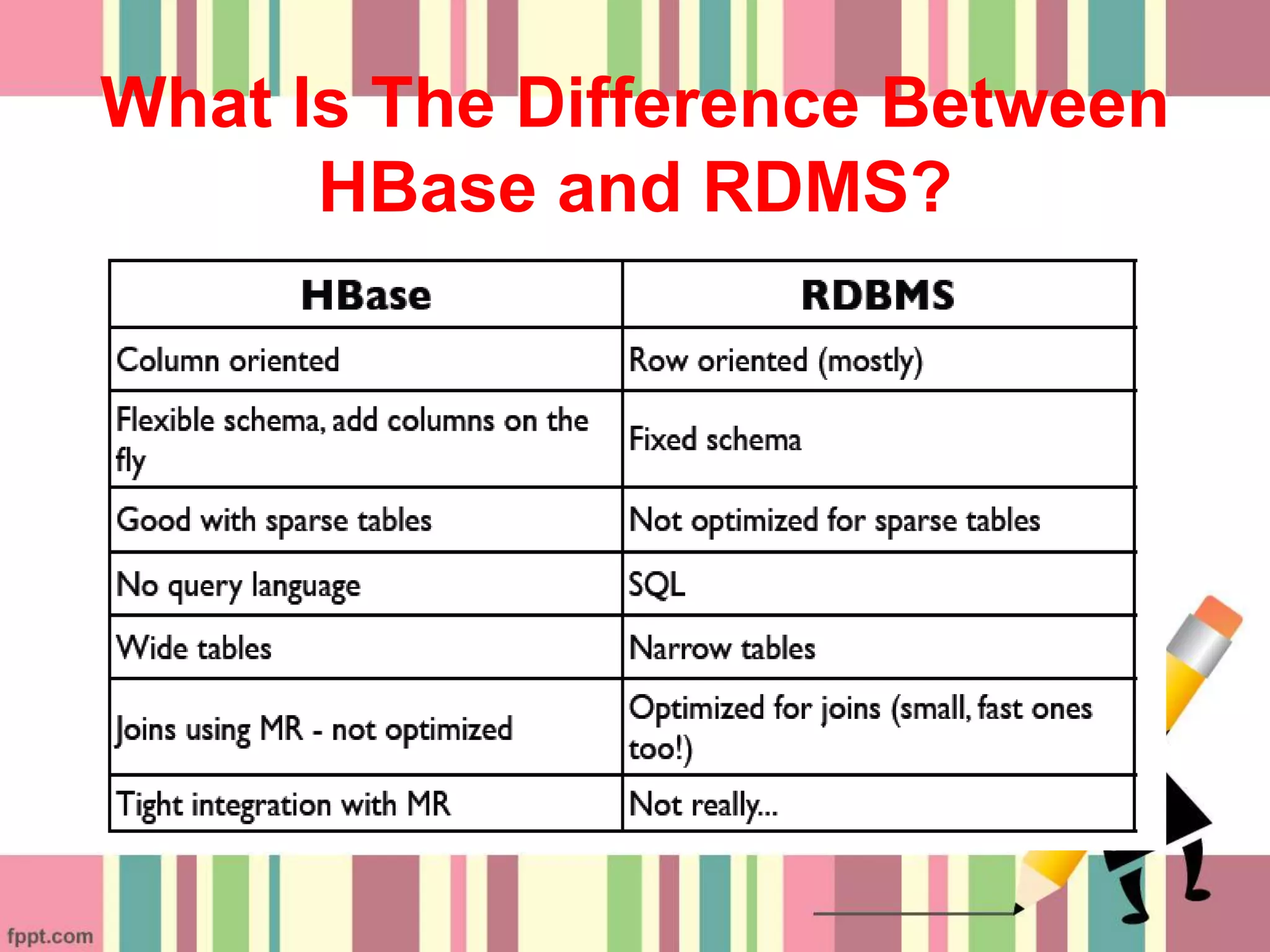

- 13. What Is TheDifference Between HBase and RDMS?

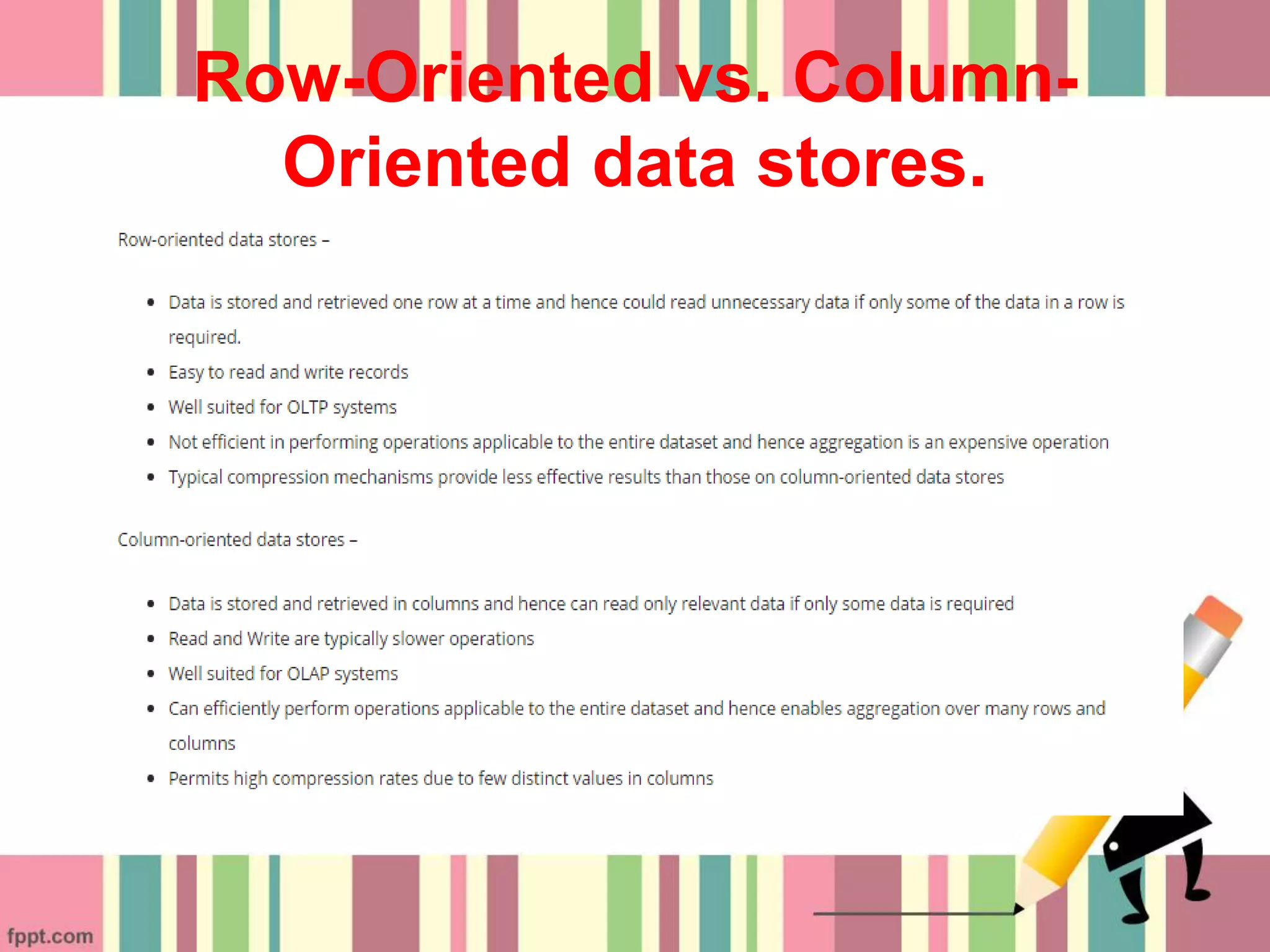

- 14. Row-Oriented vs. Column- Orienteddata stores.
- 16.

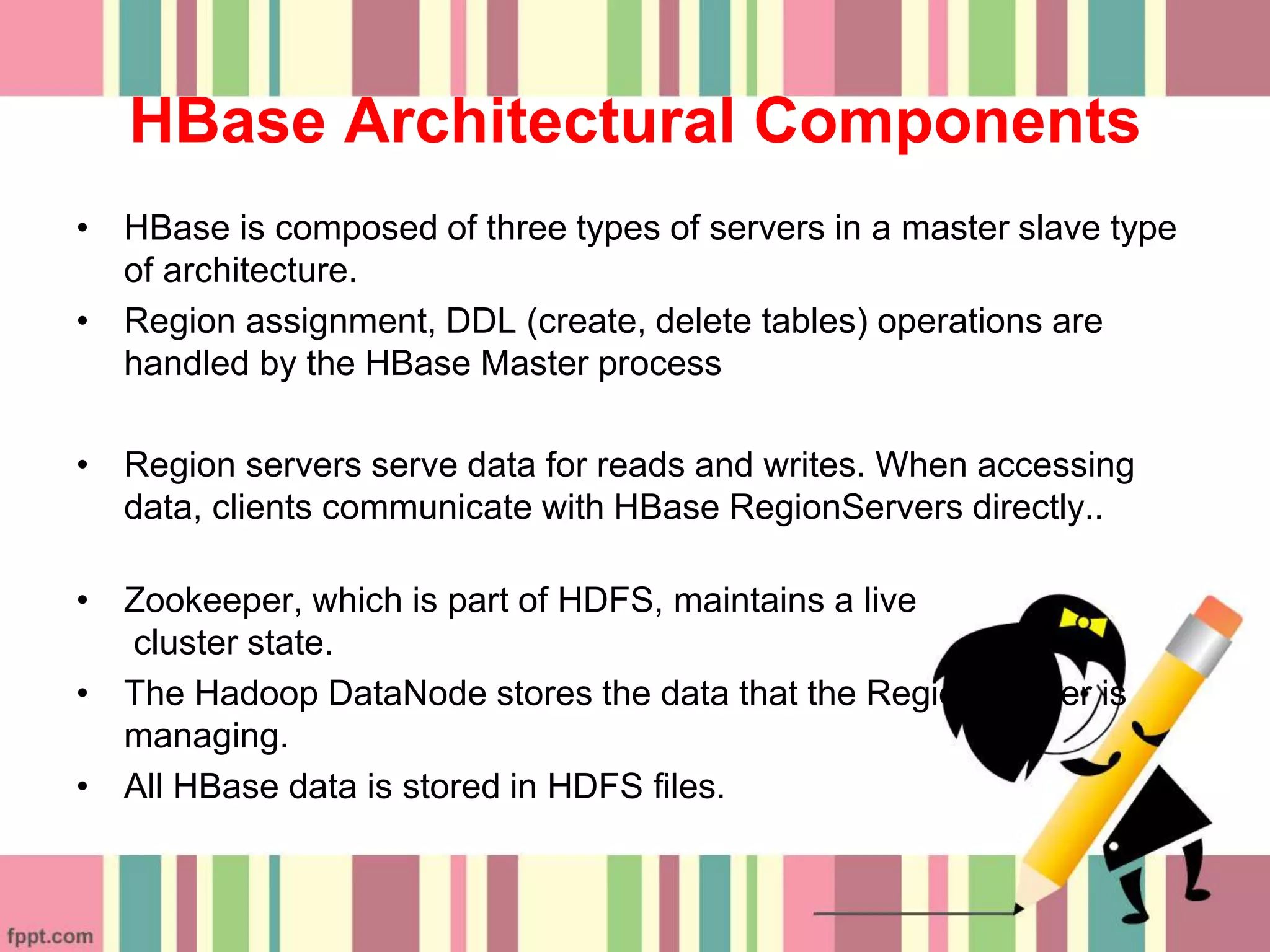

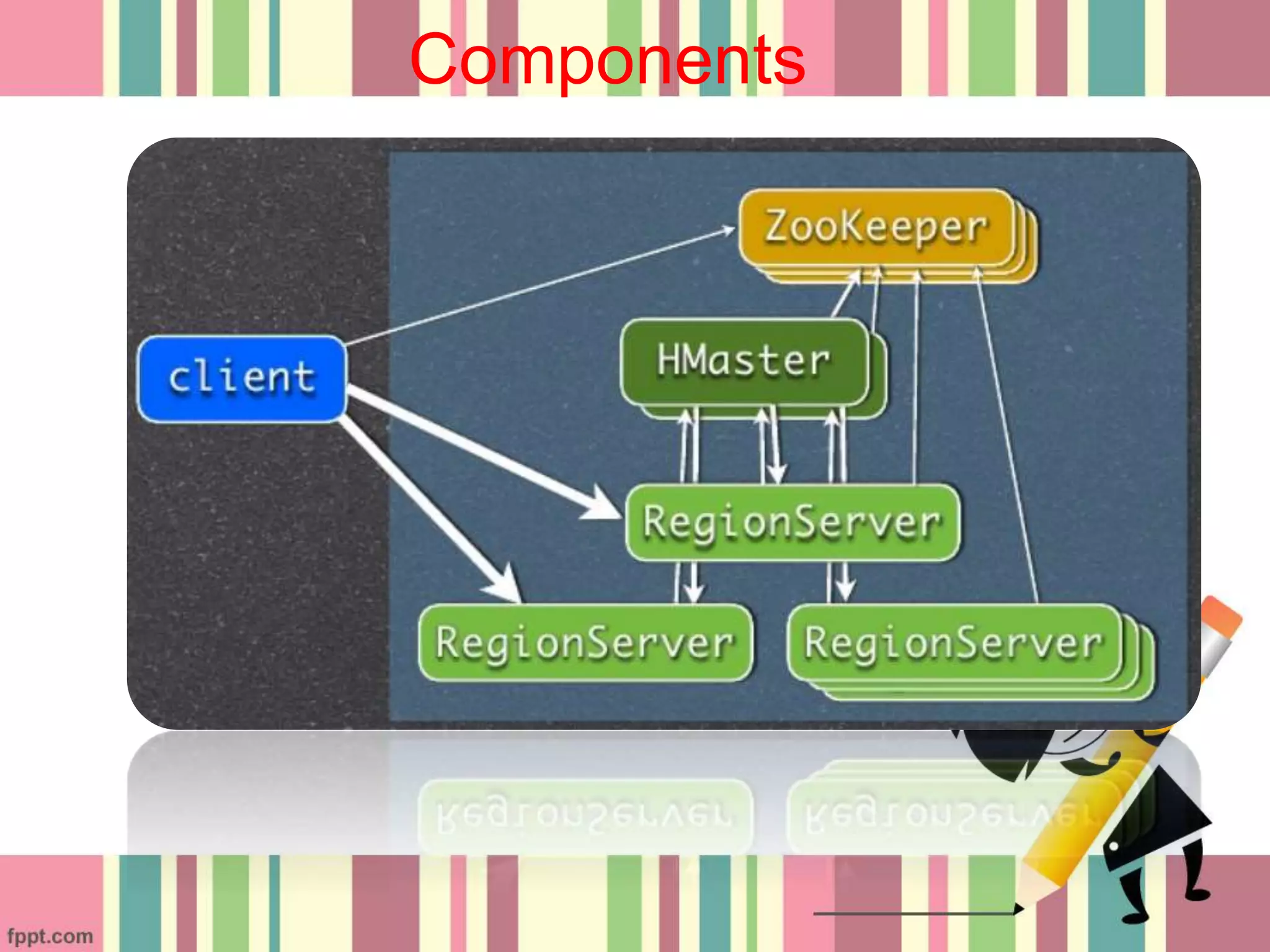

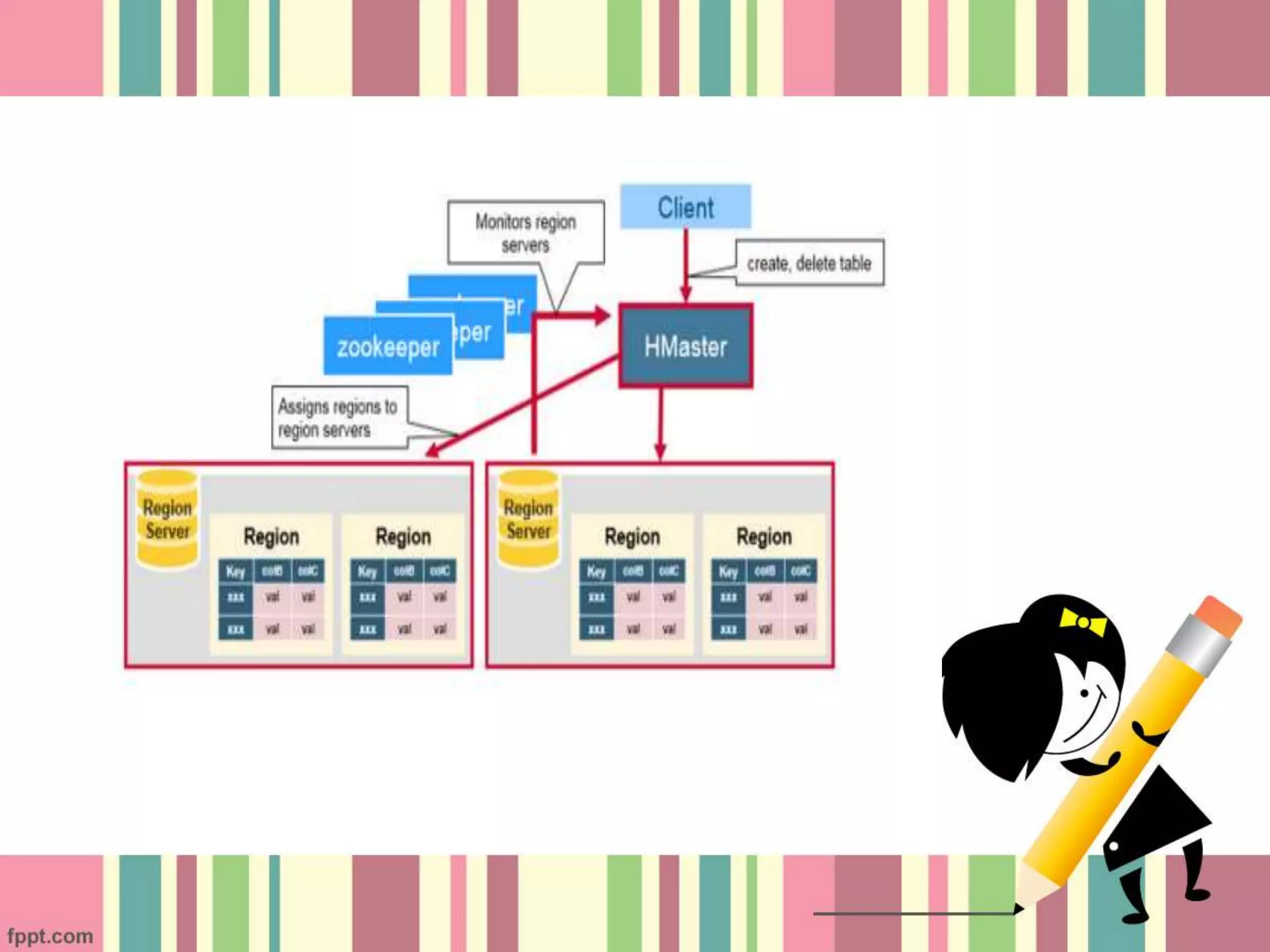

- 17. HBase Architectural Components •HBase is composed of three types of servers in a master slave type of architecture. • Region assignment, DDL (create, delete tables) operations are handled by the HBase Master process • Region servers serve data for reads and writes. When accessing data, clients communicate with HBase RegionServers directly.. • Zookeeper, which is part of HDFS, maintains a live cluster state. • The Hadoop DataNode stores the data that the Region Server is managing. • All HBase data is stored in HDFS files.
- 18.
- 19.

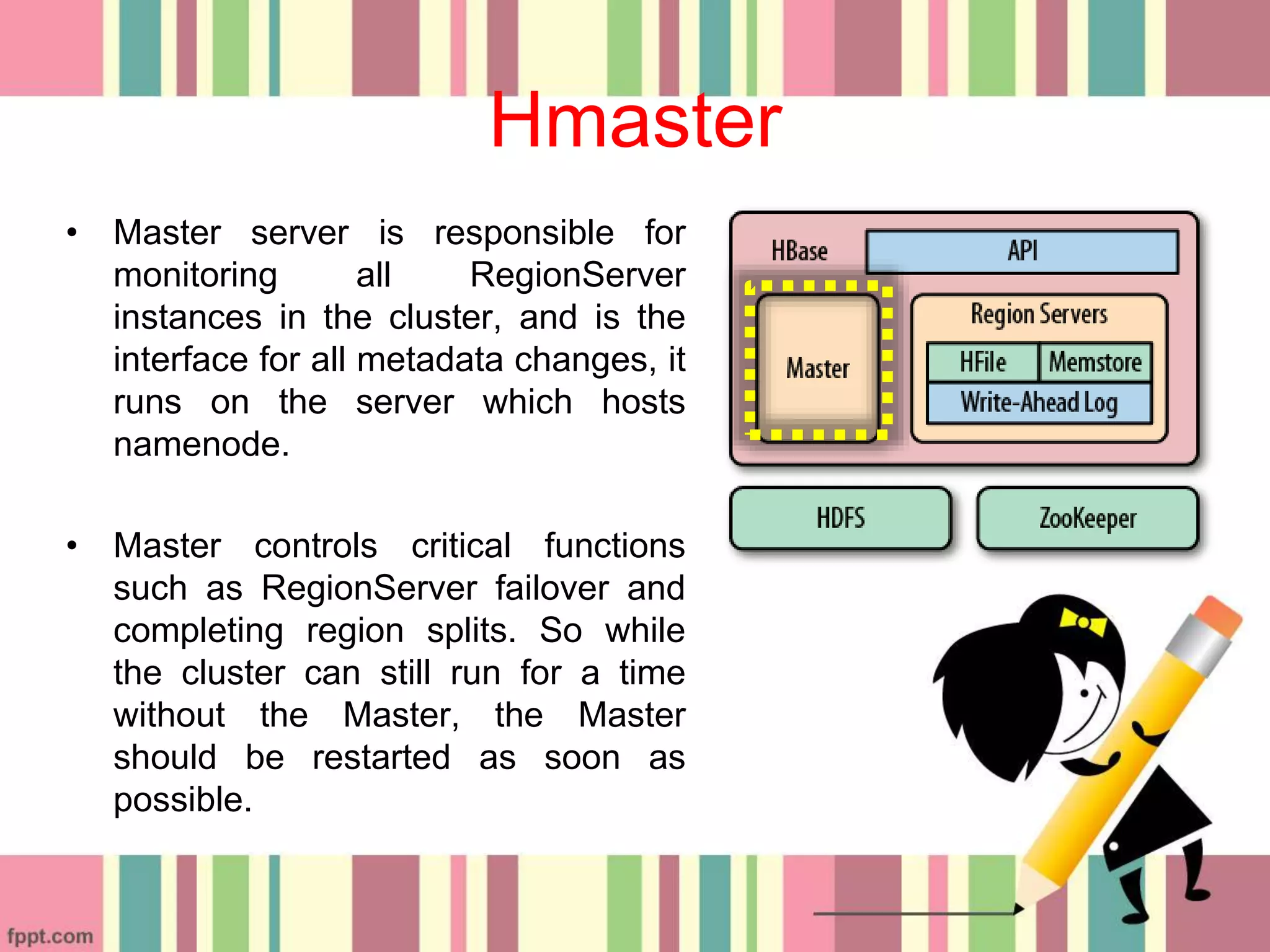

- 20. Hmaster • Master serveris responsible for monitoring all RegionServer instances in the cluster, and is the interface for all metadata changes, it runs on the server which hosts namenode. • Master controls critical functions such as RegionServer failover and completing region splits. So while the cluster can still run for a time without the Master, the Master should be restarted as soon as possible.

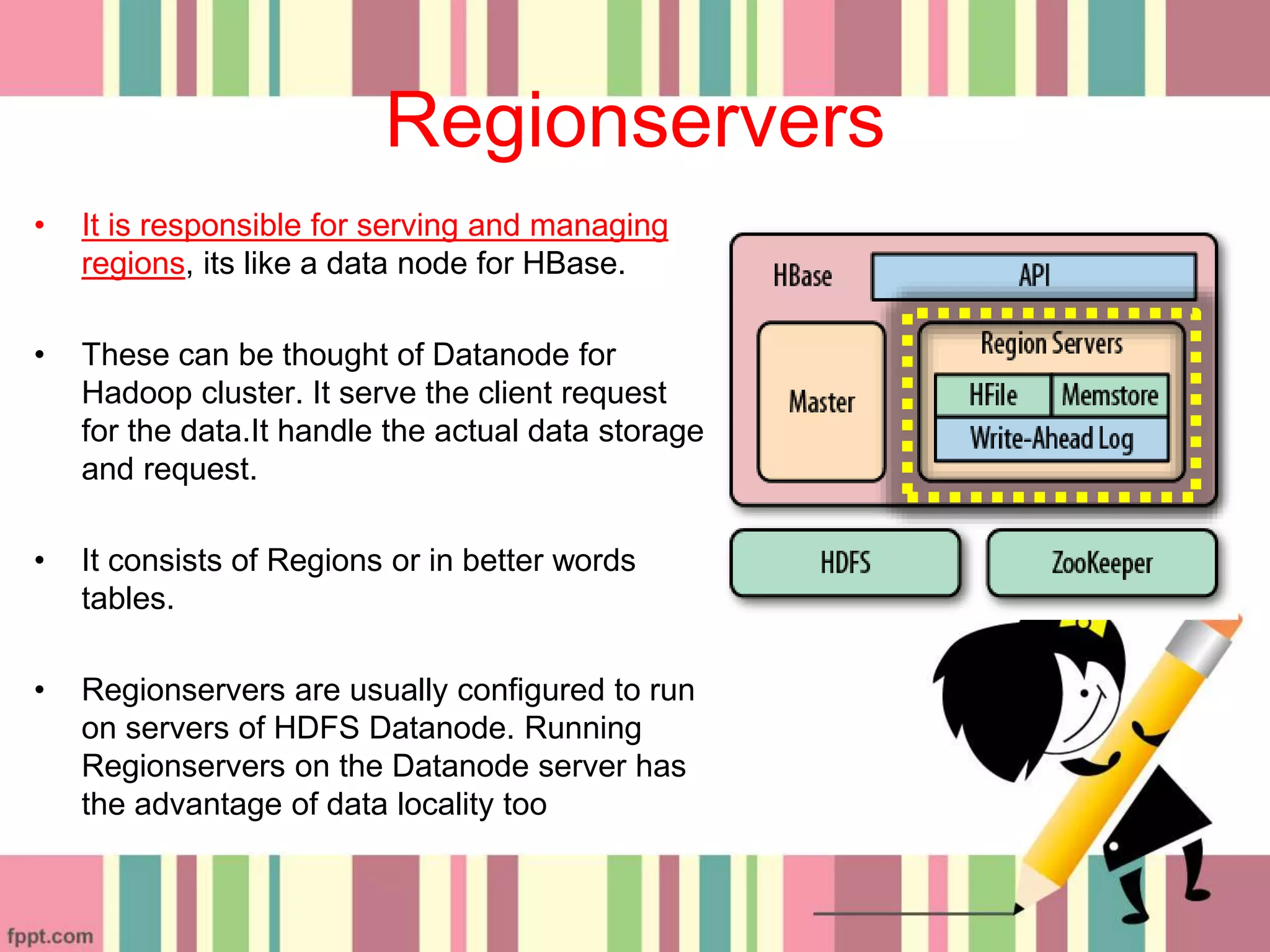

- 22. Regionservers • It isresponsible for serving and managing regions, its like a data node for HBase. • These can be thought of Datanode for Hadoop cluster. It serve the client request for the data.It handle the actual data storage and request. • It consists of Regions or in better words tables. • Regionservers are usually configured to run on servers of HDFS Datanode. Running Regionservers on the Datanode server has the advantage of data locality too

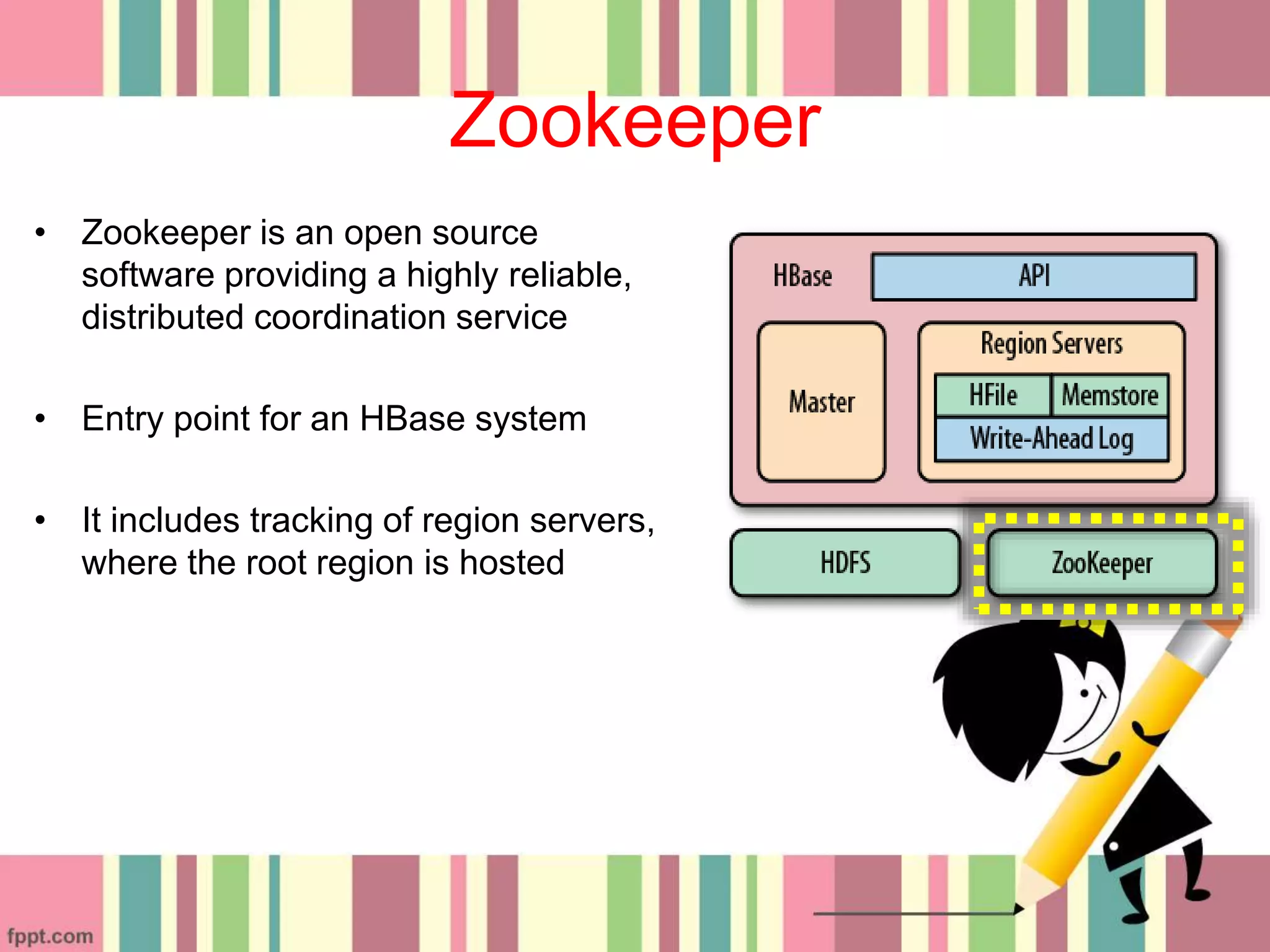

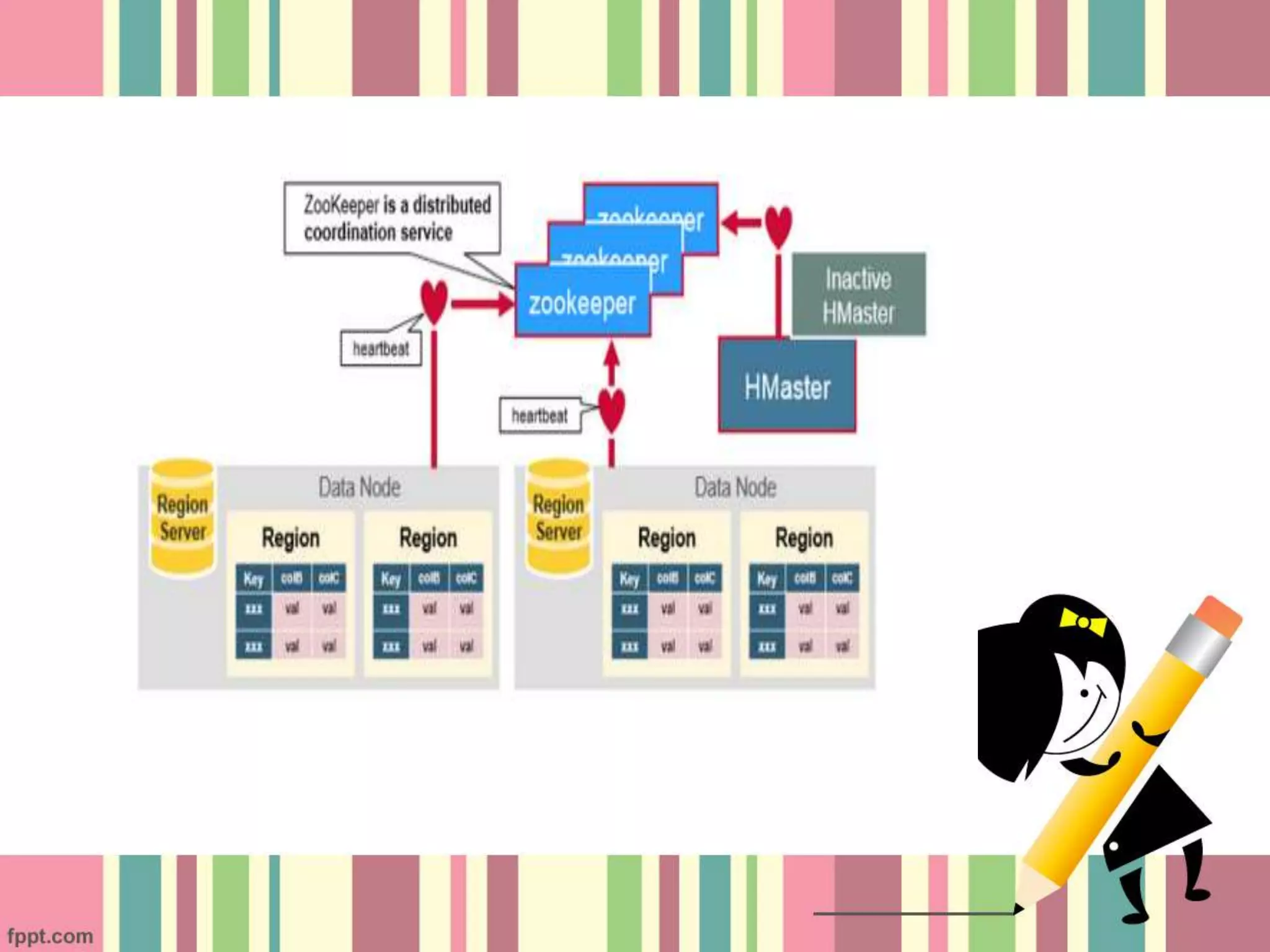

- 24. Zookeeper • Zookeeper isan open source software providing a highly reliable, distributed coordination service • Entry point for an HBase system • It includes tracking of region servers, where the root region is hosted

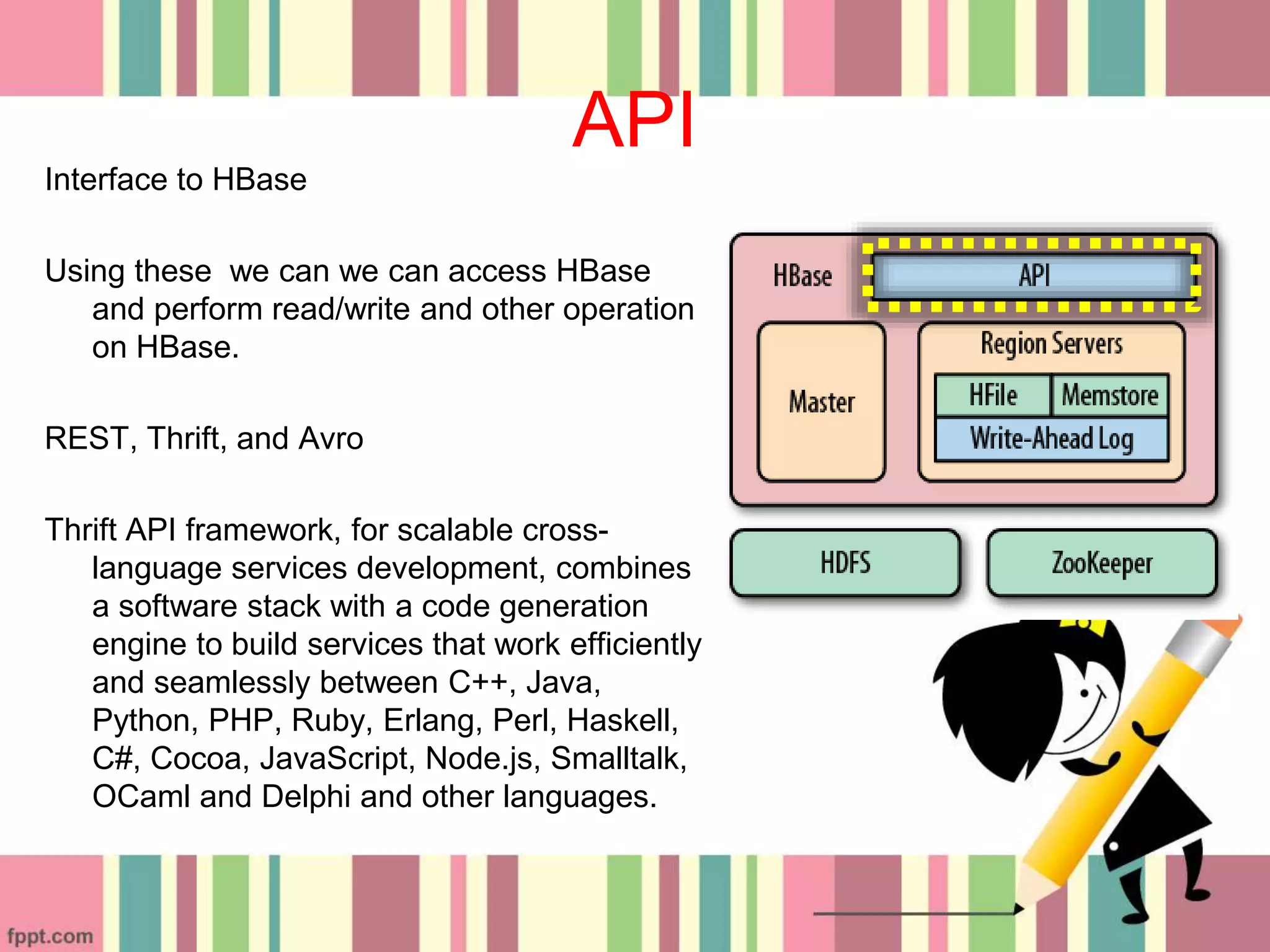

- 26. API Interface to HBase Usingthese we can we can access HBase and perform read/write and other operation on HBase. REST, Thrift, and Avro Thrift API framework, for scalable cross- language services development, combines a software stack with a code generation engine to build services that work efficiently and seamlessly between C++, Java, Python, PHP, Ruby, Erlang, Perl, Haskell, C#, Cocoa, JavaScript, Node.js, Smalltalk, OCaml and Delphi and other languages.

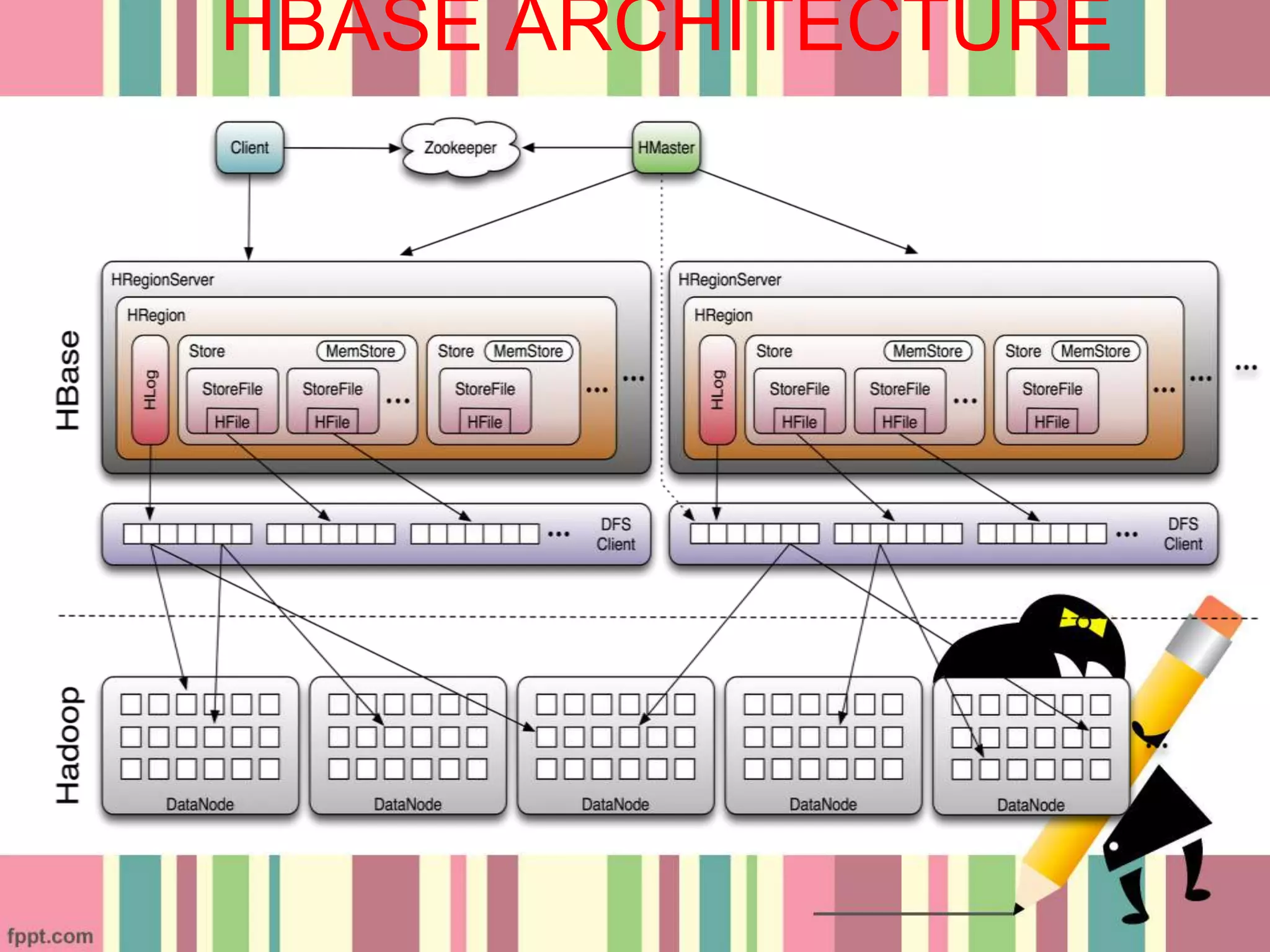

- 27.

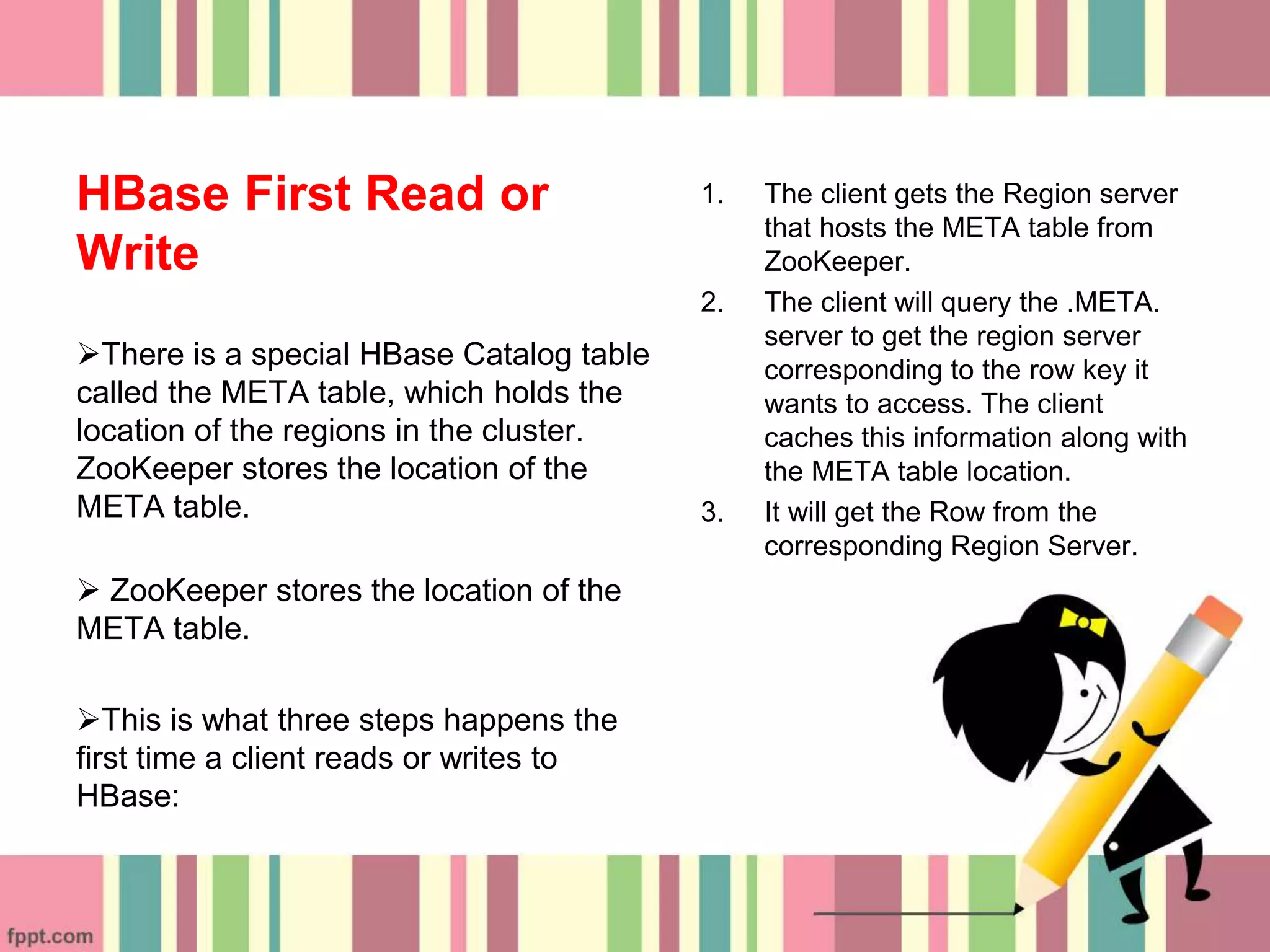

- 29. 1. The clientgets the Region server that hosts the META table from ZooKeeper. 2. The client will query the .META. server to get the region server corresponding to the row key it wants to access. The client caches this information along with the META table location. 3. It will get the Row from the corresponding Region Server. HBase First Read or Write There is a special HBase Catalog table called the META table, which holds the location of the regions in the cluster. ZooKeeper stores the location of the META table. ZooKeeper stores the location of the META table. This is what three steps happens the first time a client reads or writes to HBase:

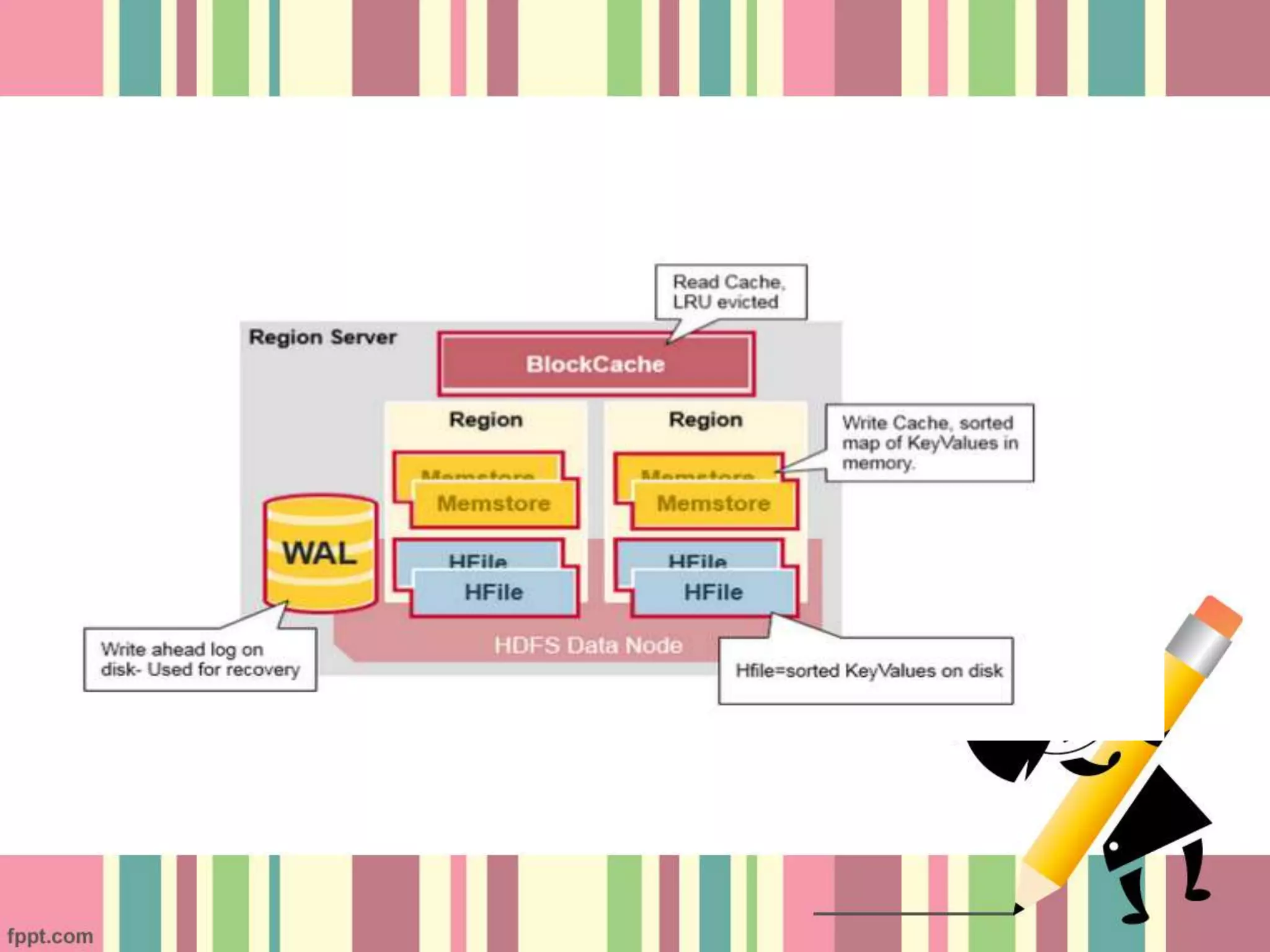

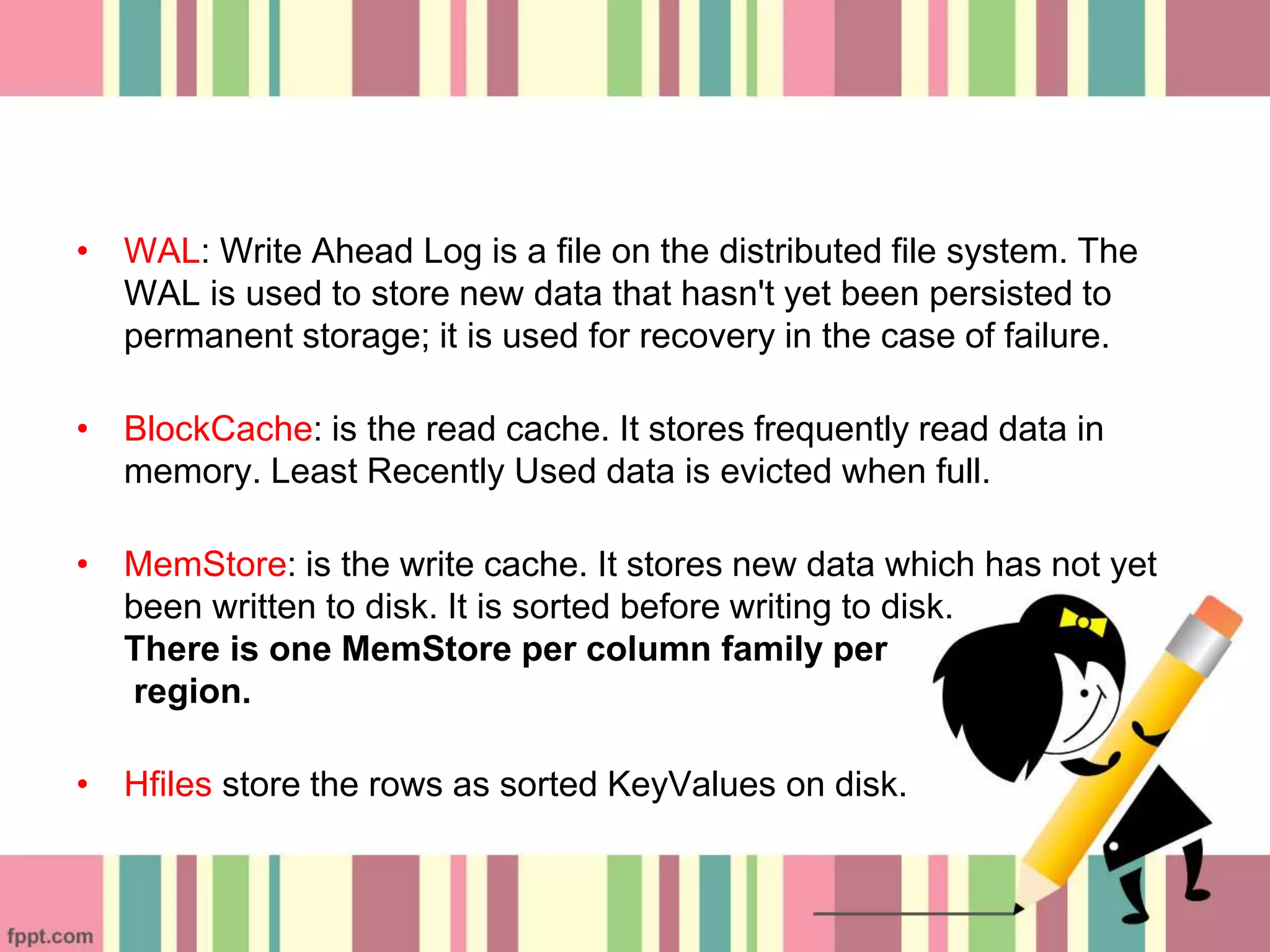

- 30. • WAL: WriteAhead Log is a file on the distributed file system. The WAL is used to store new data that hasn't yet been persisted to permanent storage; it is used for recovery in the case of failure. • BlockCache: is the read cache. It stores frequently read data in memory. Least Recently Used data is evicted when full. • MemStore: is the write cache. It stores new data which has not yet been written to disk. It is sorted before writing to disk. There is one MemStore per column family per region. • Hfiles store the rows as sorted KeyValues on disk.

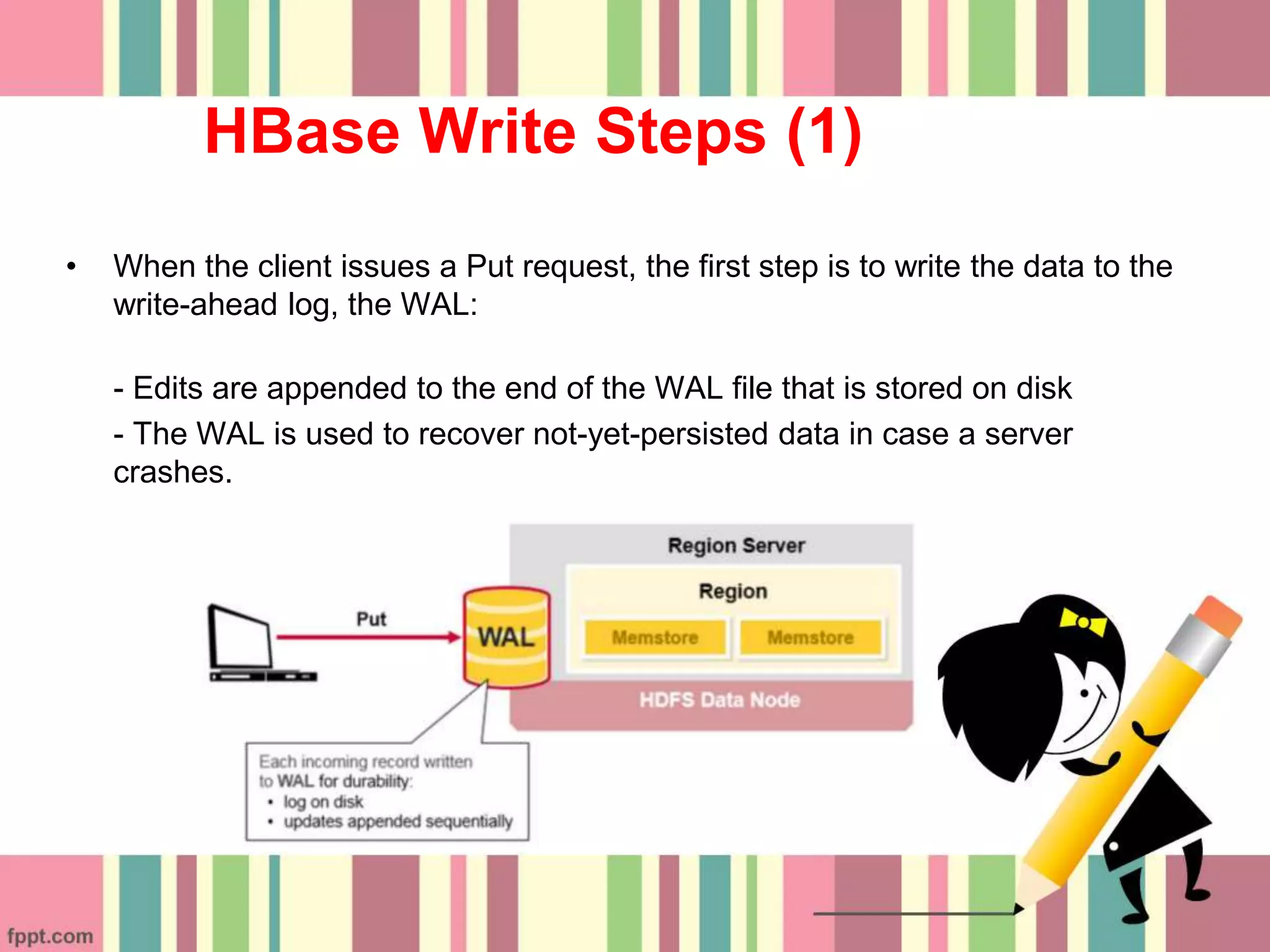

- 32. HBase Write Steps(1) • When the client issues a Put request, the first step is to write the data to the write-ahead log, the WAL: - Edits are appended to the end of the WAL file that is stored on disk - The WAL is used to recover not-yet-persisted data in case a server crashes.

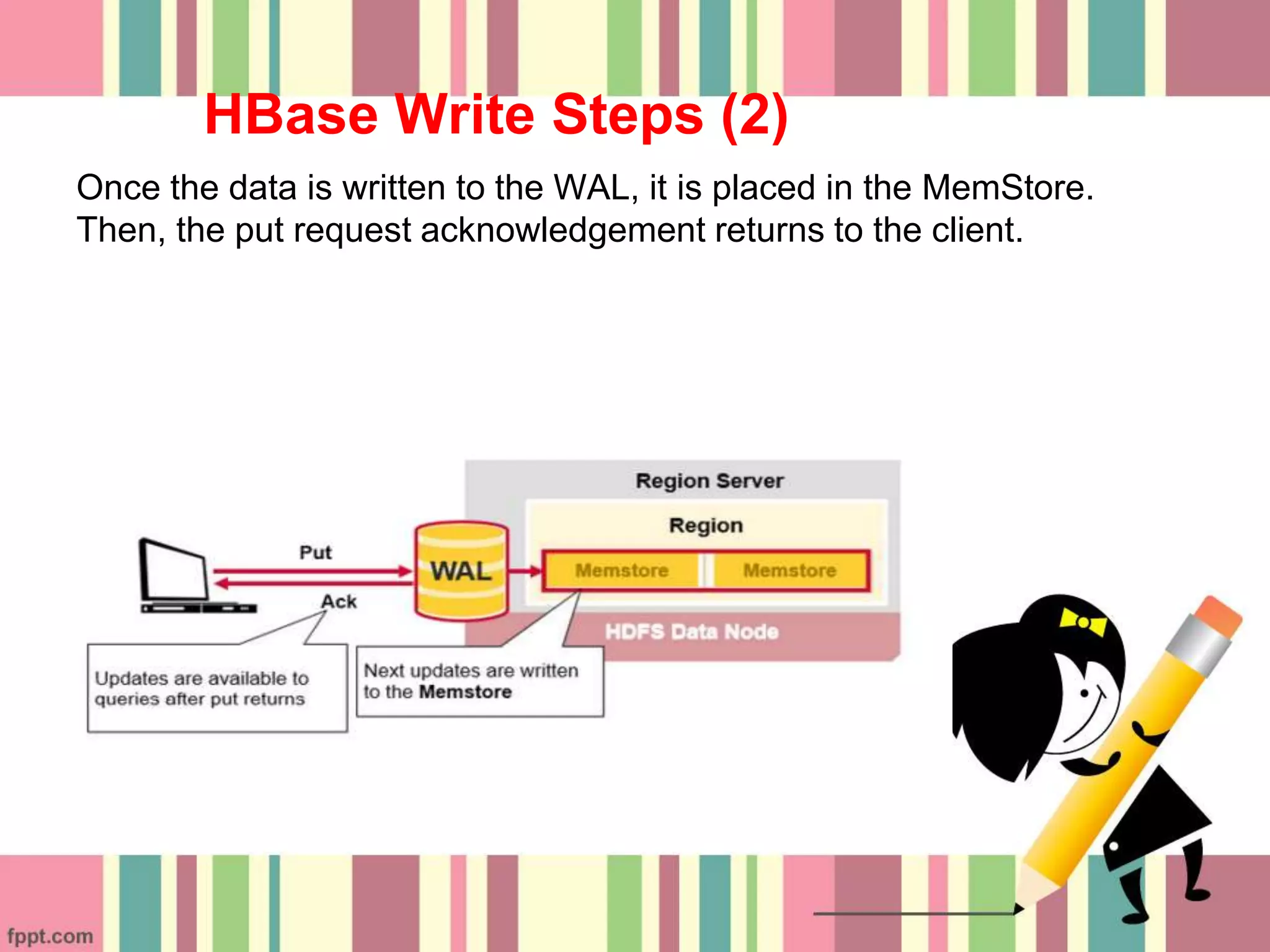

- 33. HBase Write Steps(2) Once the data is written to the WAL, it is placed in the MemStore. Then, the put request acknowledgement returns to the client.
- 34.
- 35.

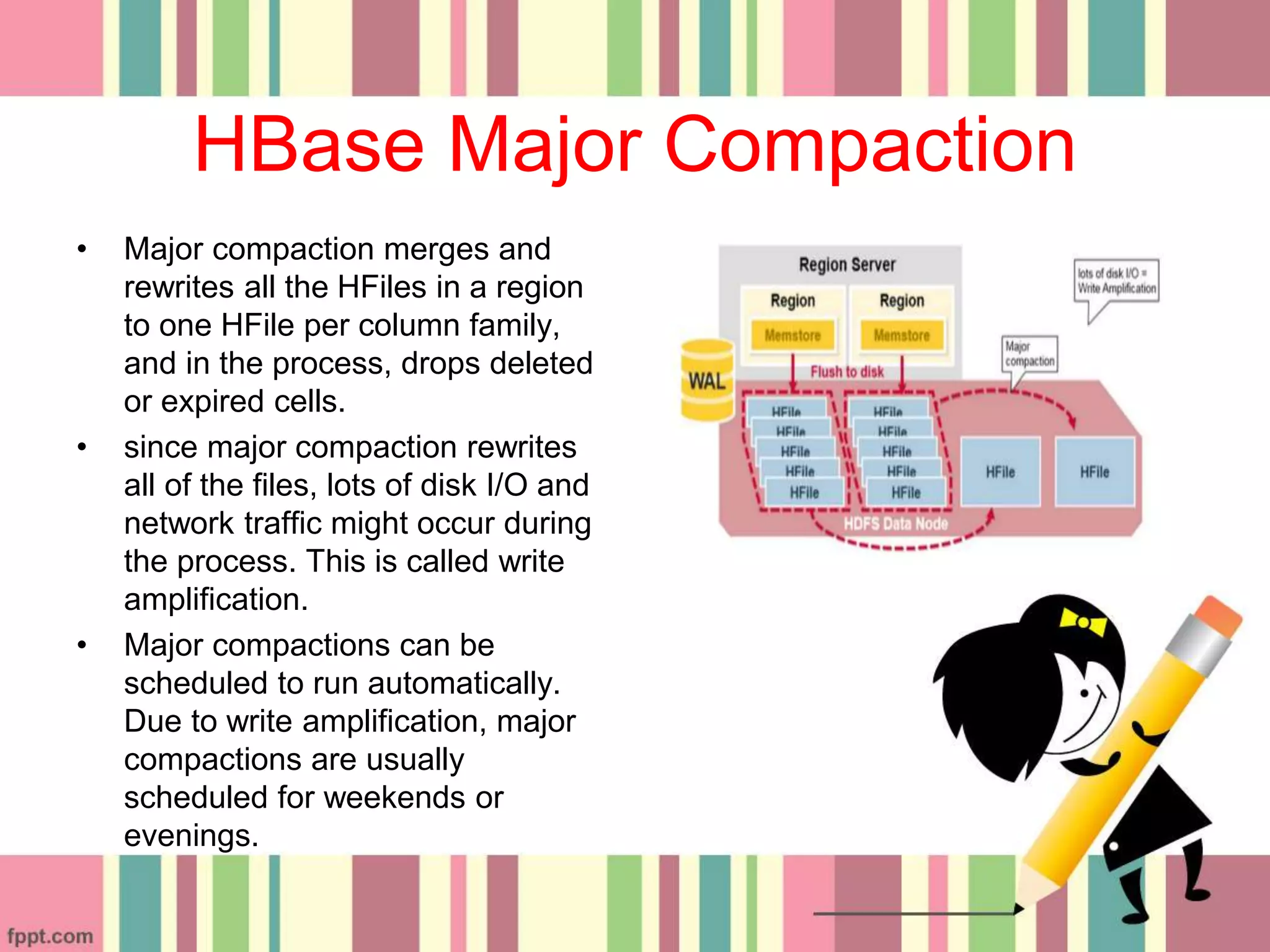

- 37. HBase Major Compaction •Major compaction merges and rewrites all the HFiles in a region to one HFile per column family, and in the process, drops deleted or expired cells. • since major compaction rewrites all of the files, lots of disk I/O and network traffic might occur during the process. This is called write amplification. • Major compactions can be scheduled to run automatically. Due to write amplification, major compactions are usually scheduled for weekends or evenings.
- 38.

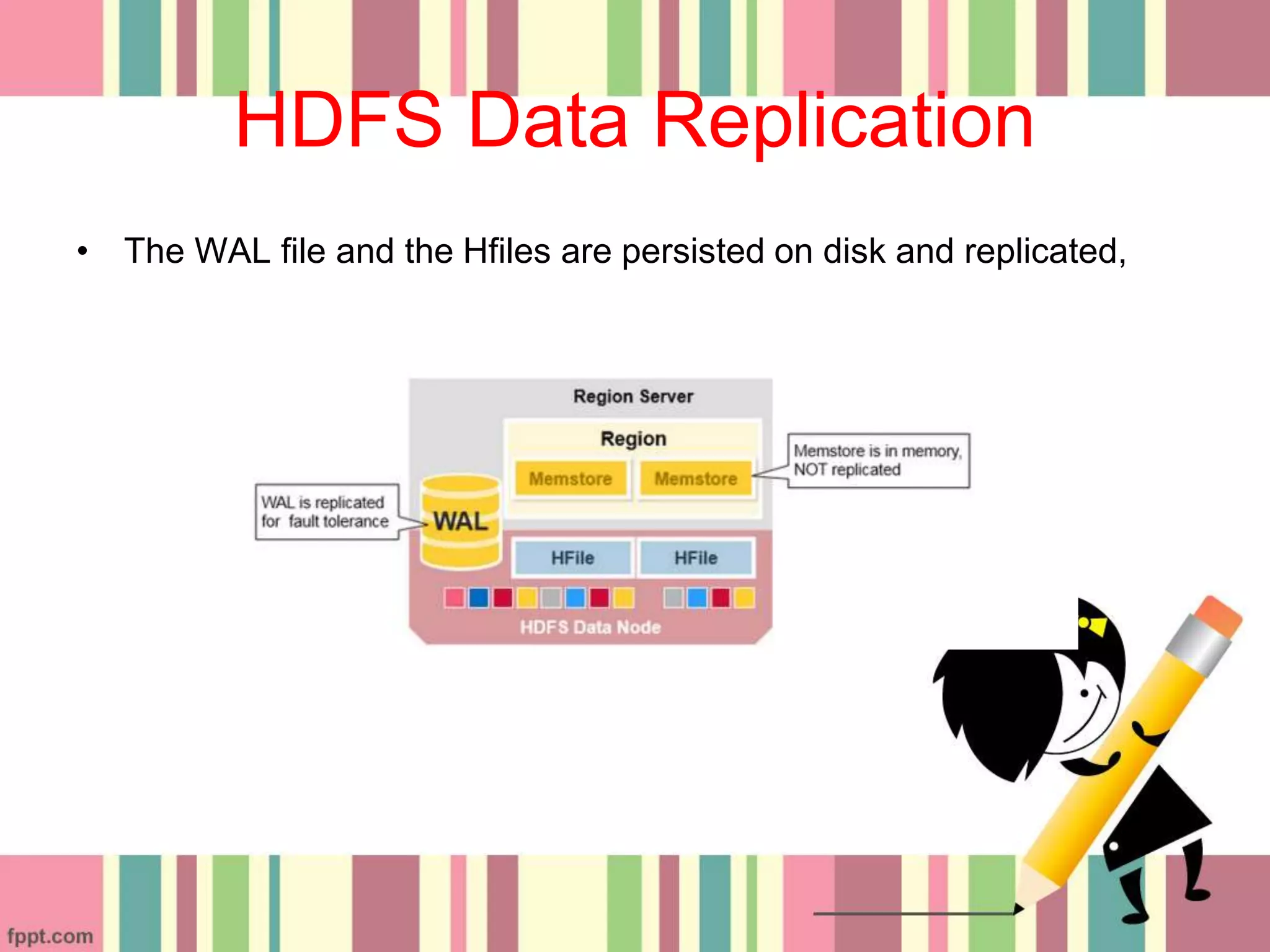

- 39. HDFS Data Replication •The WAL file and the Hfiles are persisted on disk and replicated,
- 40. Start Hbase Serverand Shell • To start Hbase server, go up to HBase folder and run following command in terminal $ ./bin/start-hbase.sh Note: HMaster, Zookeeper, Regionserver is started when we use above command • Stop your HBase instance by running the stop script – $bin/stop-hbase.sh stopping HBase...............

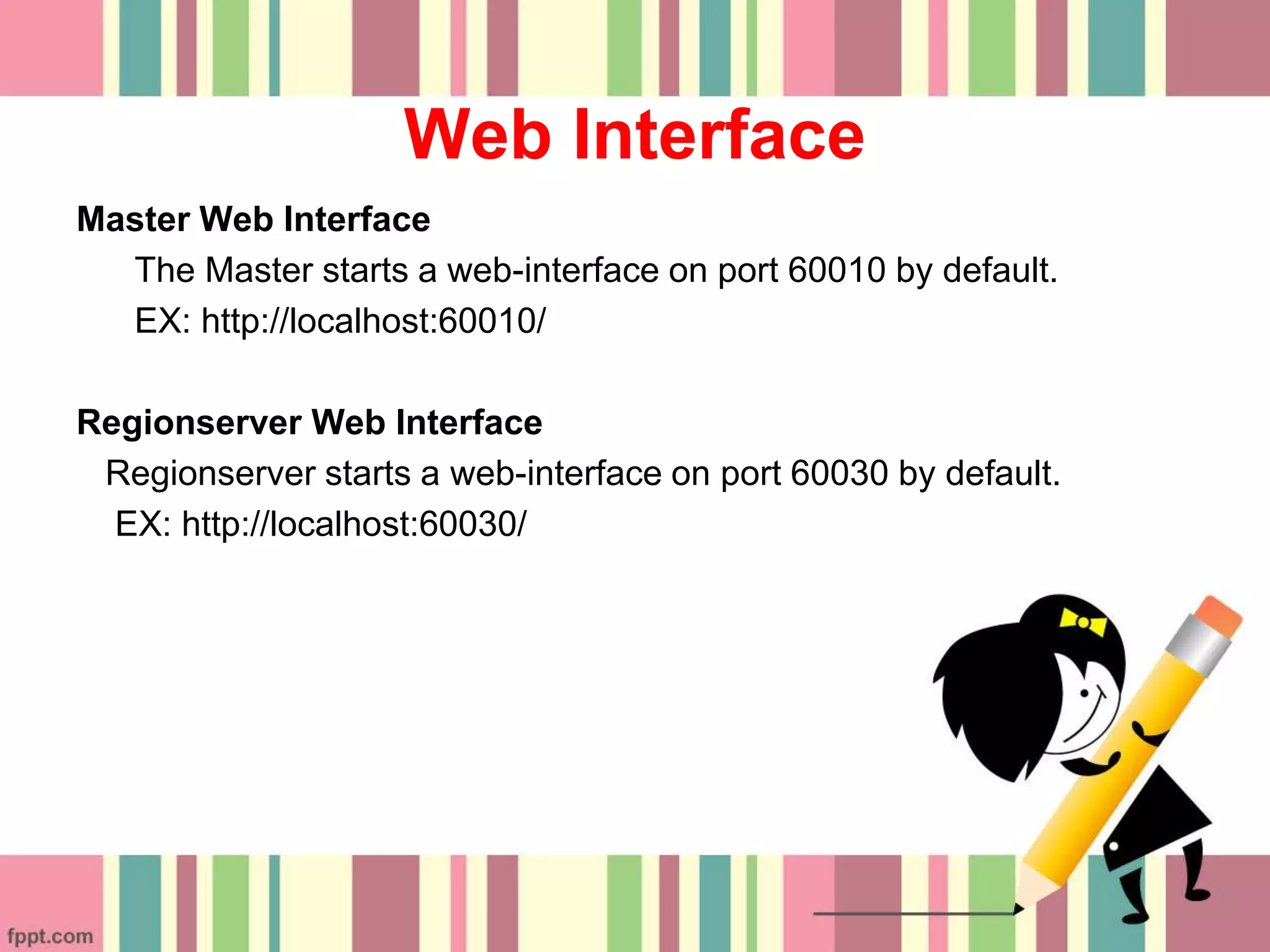

- 41. Web Interface Master WebInterface The Master starts a web-interface on port 60010 by default. EX: http://localhost:60010/ Regionserver Web Interface Regionserver starts a web-interface on port 60030 by default. EX: http://localhost:60030/

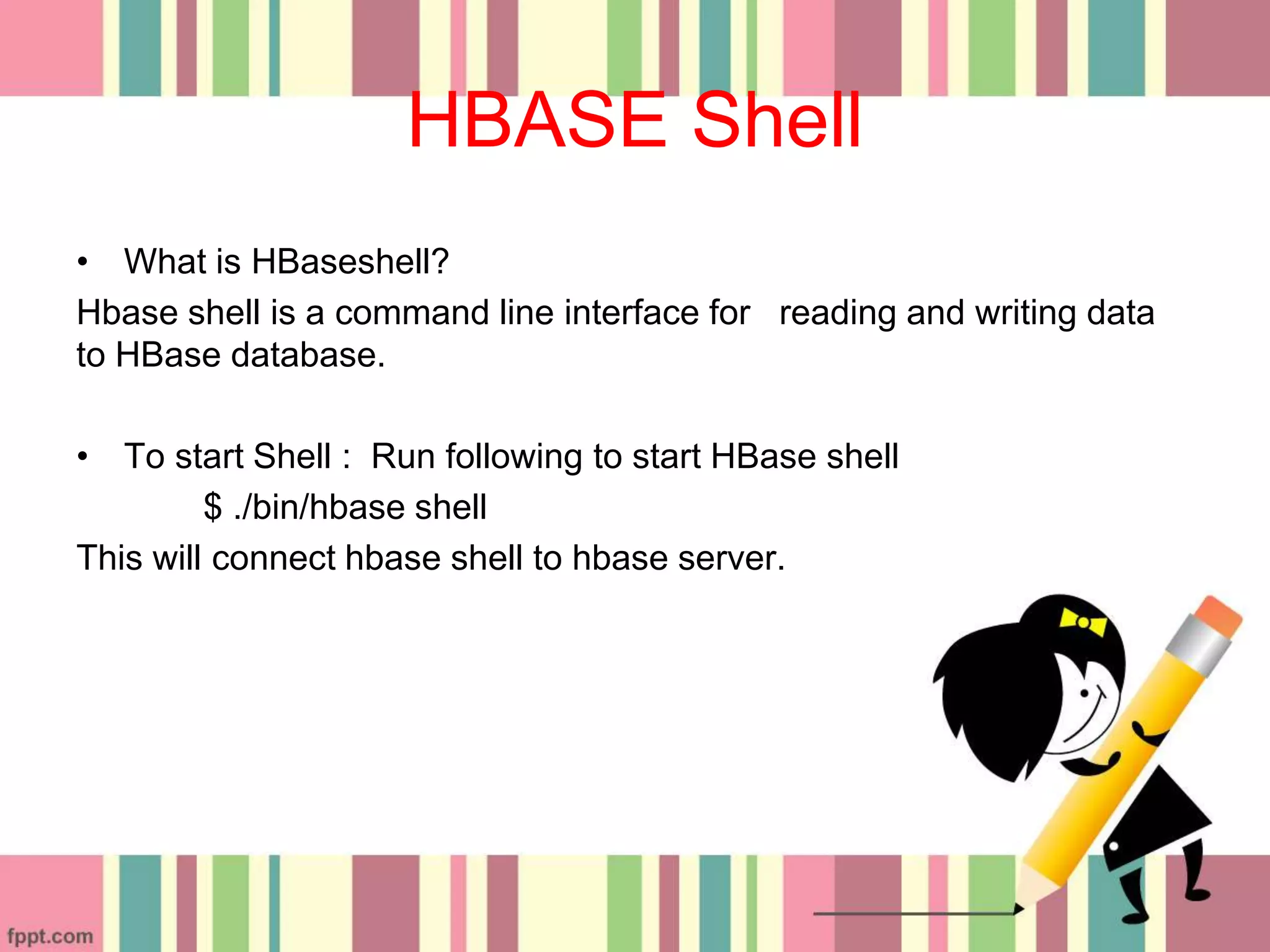

- 42. HBASE Shell • Whatis HBaseshell? Hbase shell is a command line interface for reading and writing data to HBase database. • To start Shell : Run following to start HBase shell $ ./bin/hbase shell This will connect hbase shell to hbase server.

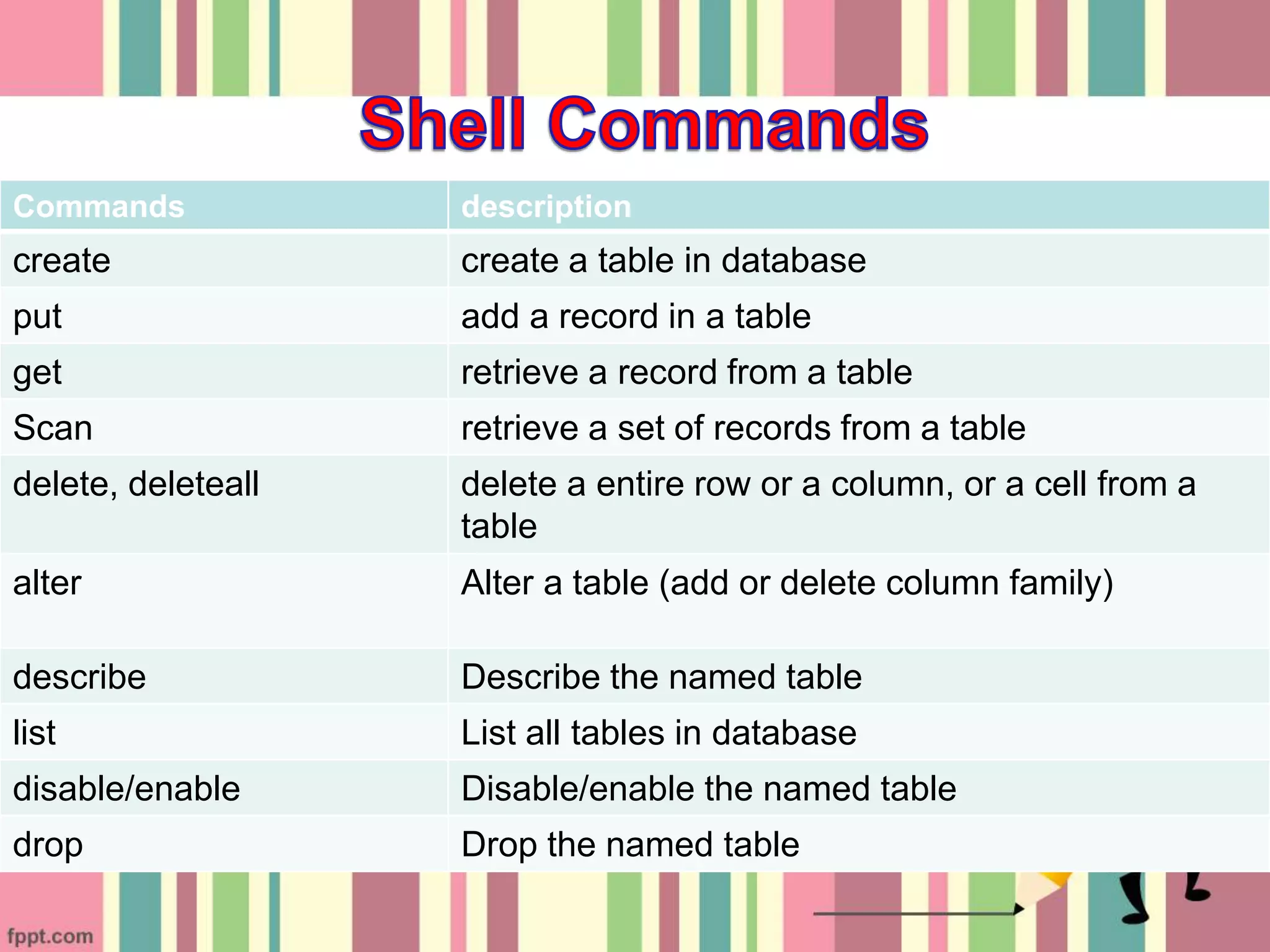

- 43. Commands description create createa table in database put add a record in a table get retrieve a record from a table Scan retrieve a set of records from a table delete, deleteall delete a entire row or a column, or a cell from a table alter Alter a table (add or delete column family) describe Describe the named table list List all tables in database disable/enable Disable/enable the named table drop Drop the named table

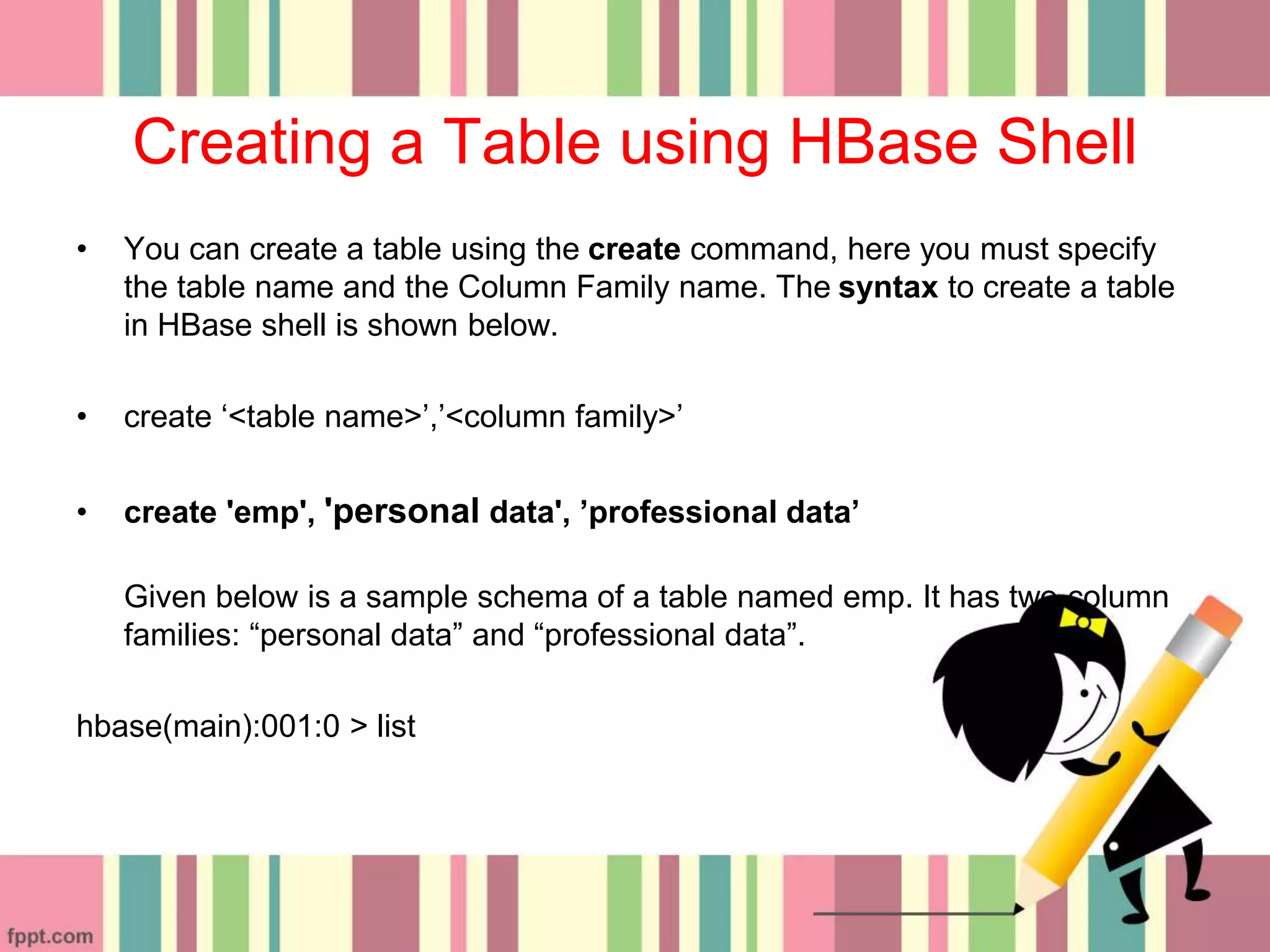

- 44. Creating a Tableusing HBase Shell • You can create a table using the create command, here you must specify the table name and the Column Family name. The syntax to create a table in HBase shell is shown below. • create ‘<table name>’,’<column family>’ • create 'emp', 'personal data', ’professional data’ Given below is a sample schema of a table named emp. It has two column families: “personal data” and “professional data”. hbase(main):001:0 > list

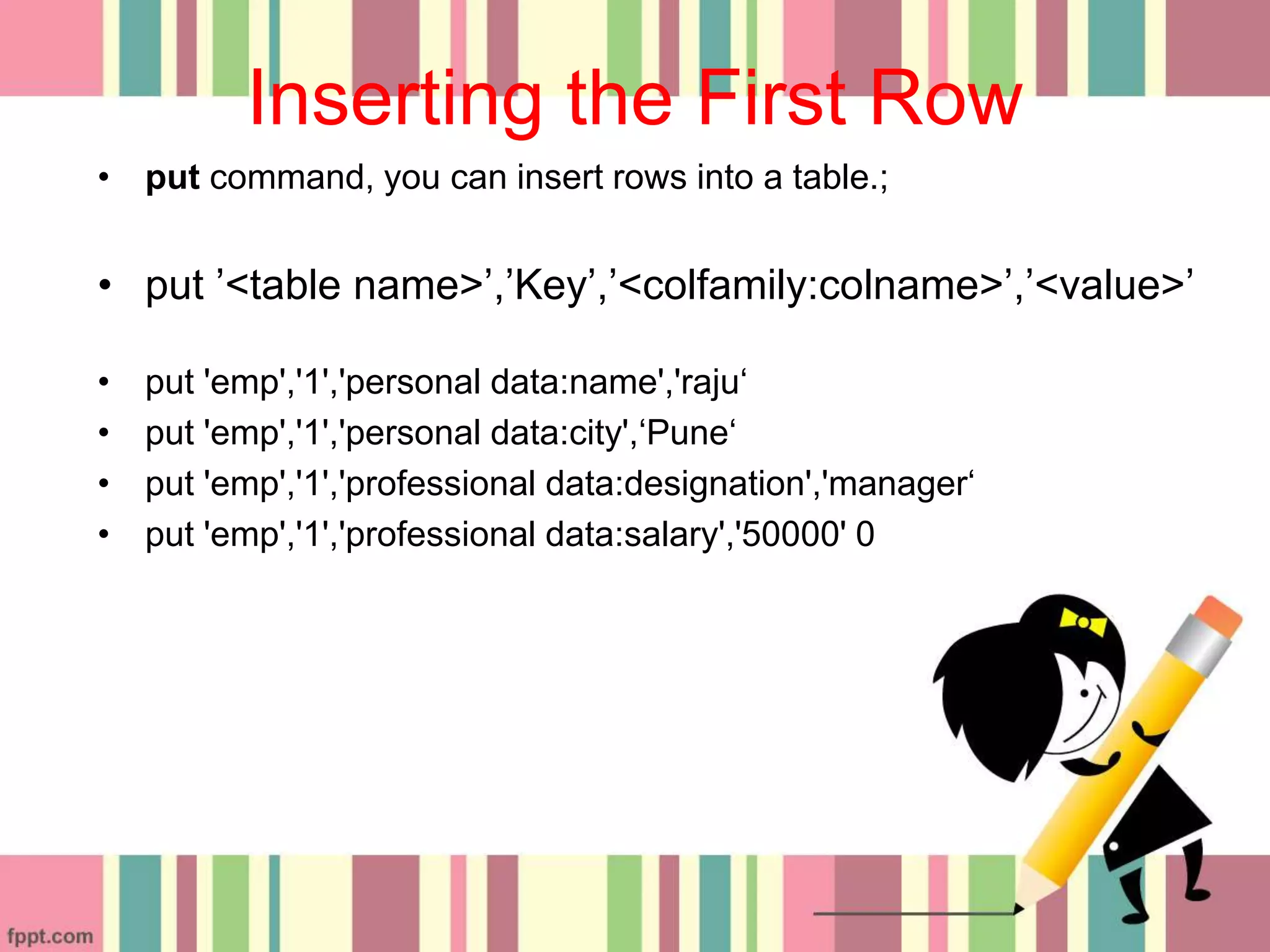

- 45. Inserting the FirstRow • put command, you can insert rows into a table.; • put ’<table name>’,’Key’,’<colfamily:colname>’,’<value>’ • put 'emp','1','personal data:name','raju‘ • put 'emp','1','personal data:city',‘Pune‘ • put 'emp','1','professional data:designation','manager‘ • put 'emp','1','professional data:salary','50000' 0

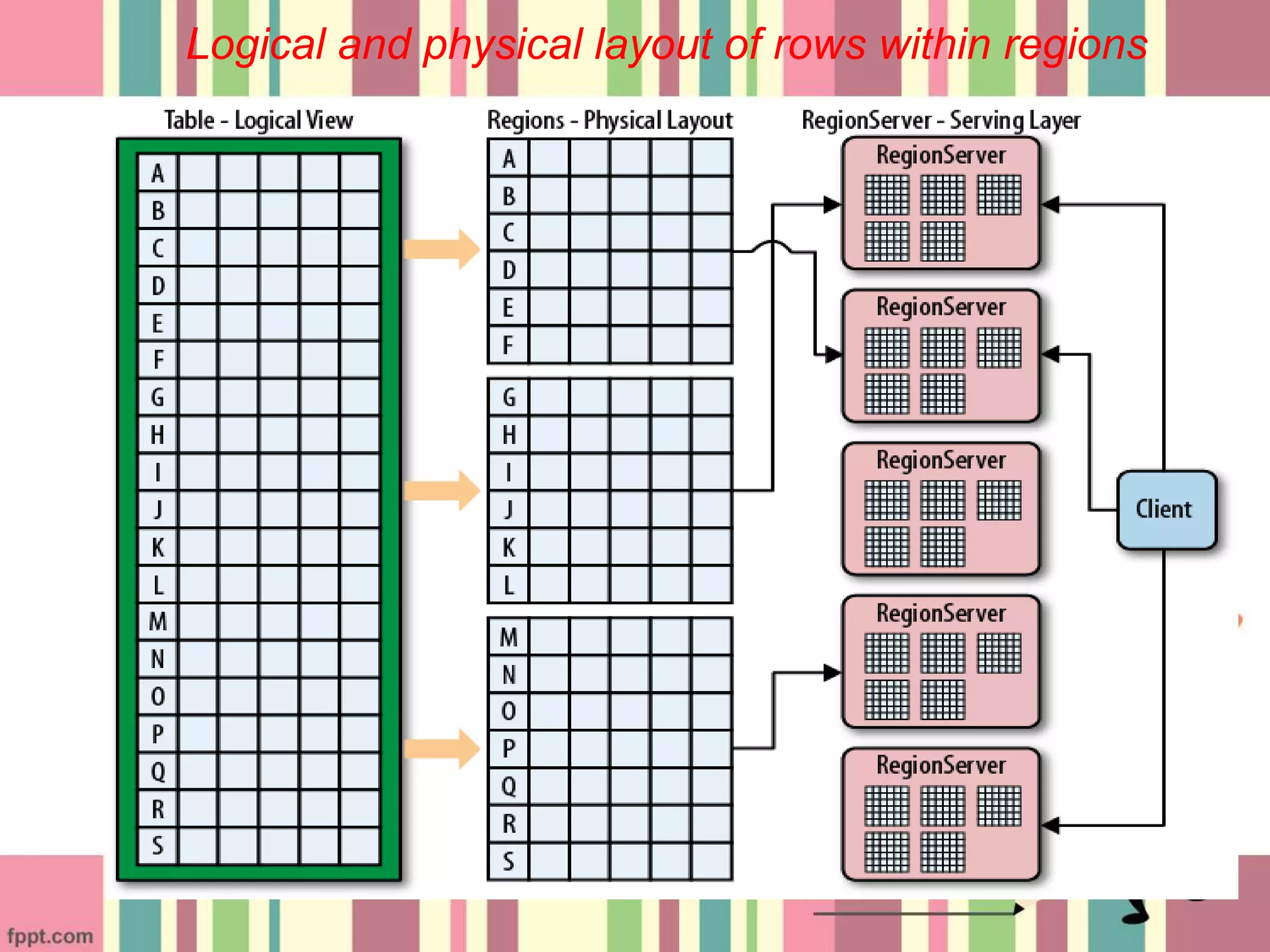

- 47. Logical and physicallayout of rows within regions

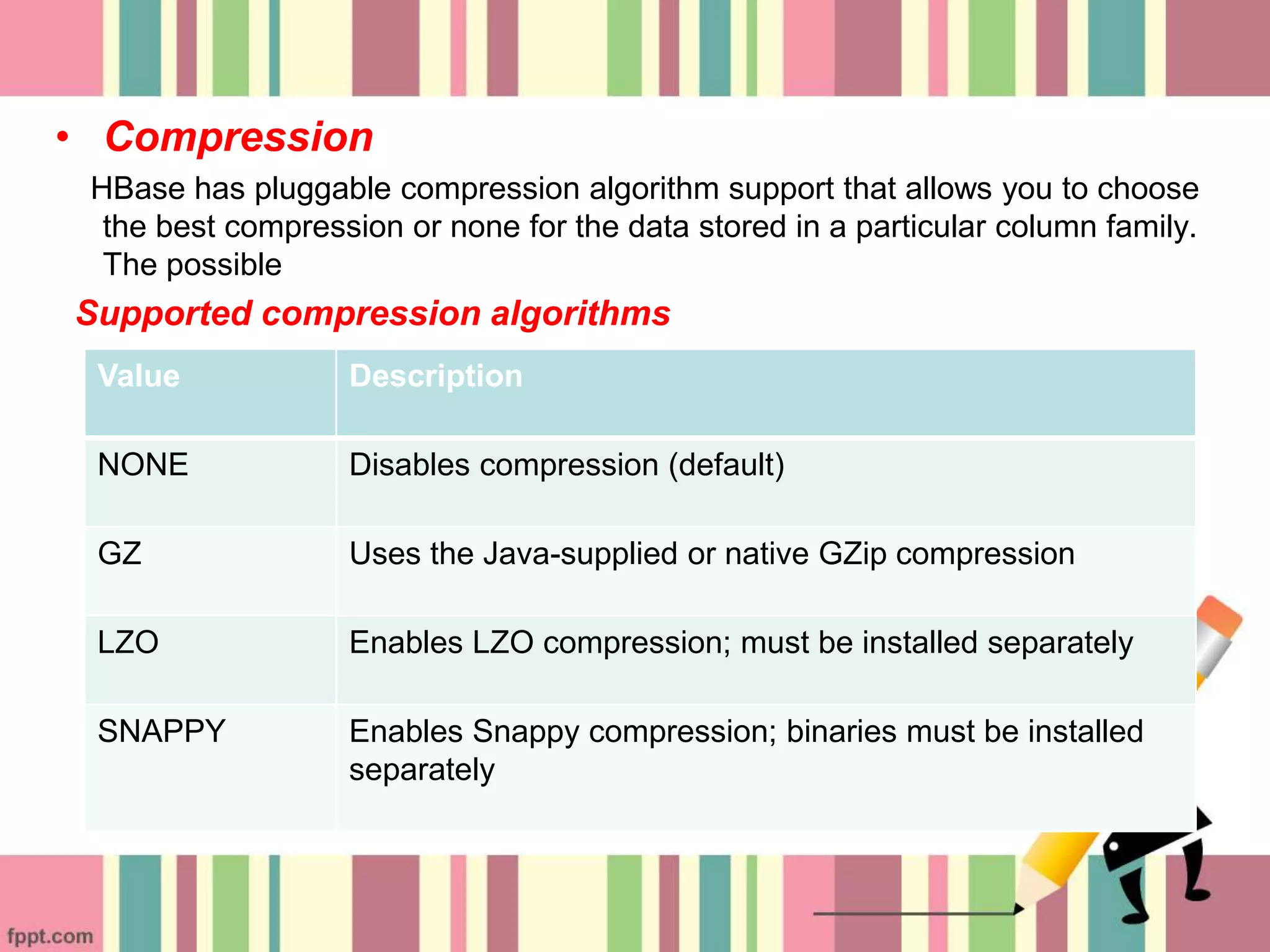

- 48. • Compression HBase haspluggable compression algorithm support that allows you to choose the best compression or none for the data stored in a particular column family. The possible Supported compression algorithms Value Description NONE Disables compression (default) GZ Uses the Java-supplied or native GZip compression LZO Enables LZO compression; must be installed separately SNAPPY Enables Snappy compression; binaries must be installed separately

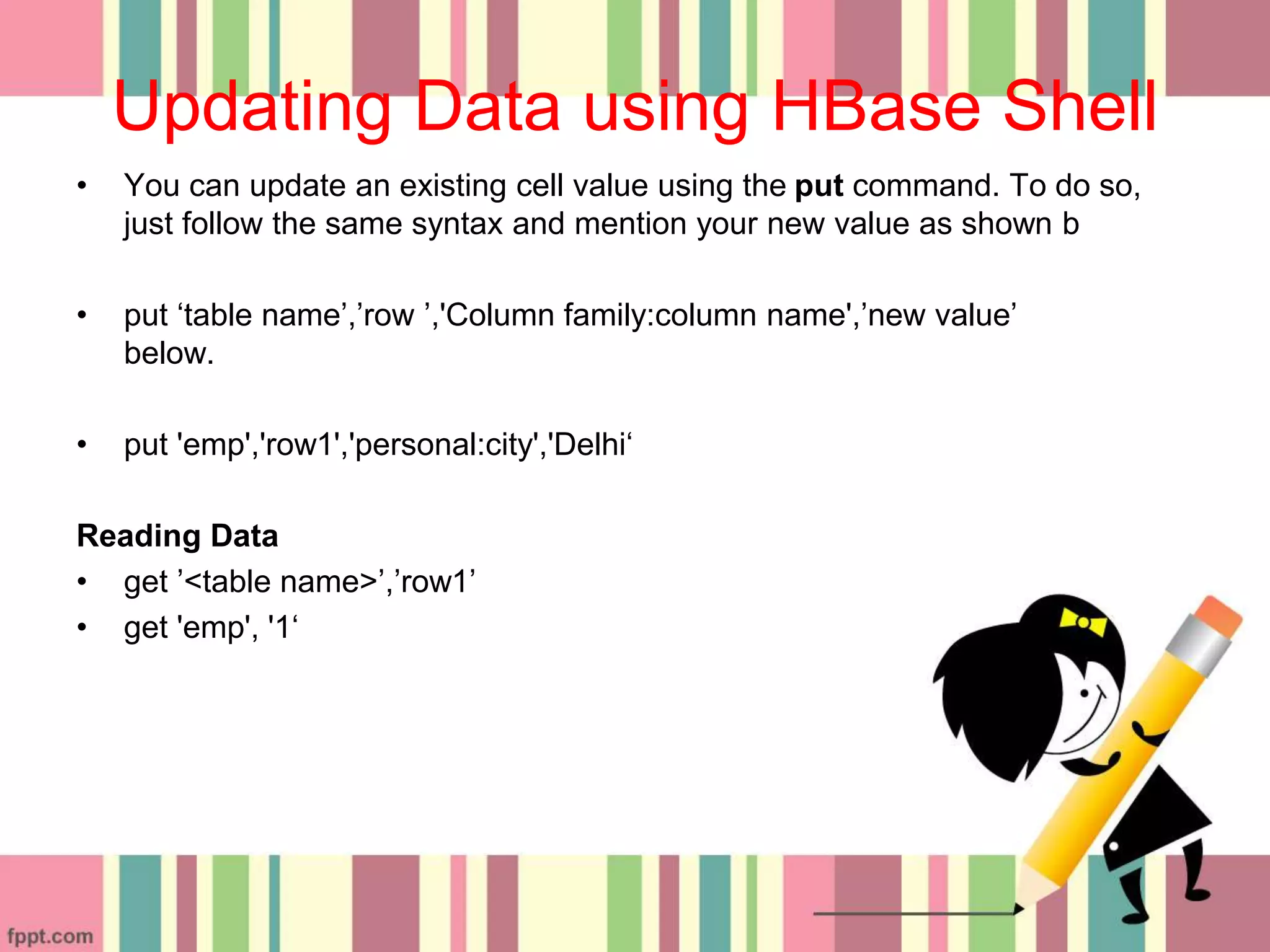

- 49. Updating Data usingHBase Shell • You can update an existing cell value using the put command. To do so, just follow the same syntax and mention your new value as shown b • put ‘table name’,’row ’,'Column family:column name',’new value’ below. • put 'emp','row1','personal:city','Delhi‘ Reading Data • get ’<table name>’,’row1’ • get 'emp', '1‘

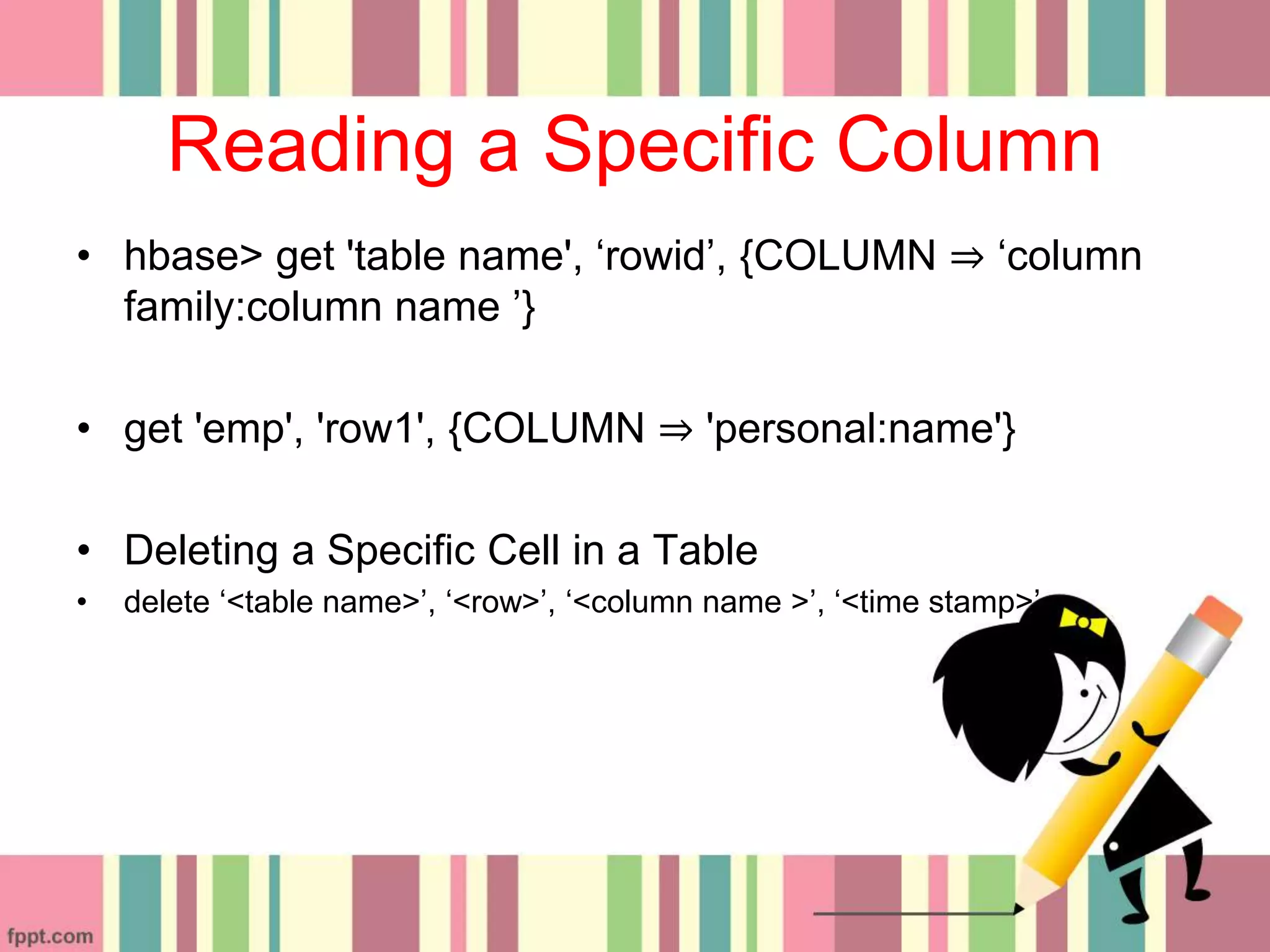

- 50. Reading a SpecificColumn • hbase> get 'table name', ‘rowid’, {COLUMN ⇒ ‘column family:column name ’} • get 'emp', 'row1', {COLUMN ⇒ 'personal:name'} • Deleting a Specific Cell in a Table • delete ‘<table name>’, ‘<row>’, ‘<column name >’, ‘<time stamp>’
- 51.
- 55.
- 57. HANDS-ON document Create atable ; create 'customer', {NAME=>'addr'}, {NAME=>'order'} Use ‘describe’ to get the description of the table. describe 'customer' insert and get the records Put some data into the table put 'customer', 'jsmith', 'addr:city', 'nashville' Use ‘get’ to retrieve the data for ‘jsmith’ get 'customer', 'jsmith'
Editor's Notes
- #3 The Combiner is a "mini-reduce" process which operates only on data generated by one machine.
- #5 Voldemort is a distributed key-value storage system, It is used at ’LinkedIn’ by numerous critical services powering a large portion of the site. Riak uses a simple key/value model for object storage. You can store anything you want in Riak: text, images, JSON/XML/HTML documents, user and session data, backups, log files, an MongoDB uses a document mode.
- #8 Consistency – roughly meaning that all clients of a data store get responses to requests that ‘make sense’. For example, if Client A writes 1 then 2 to location X, Client B cannot read 2 followed by 1. Availability – all operations on a data store eventually return successfully. We say that a data store is ‘available’ for, e.g. write operations. Partition tolerance – if the network stops delivering messages between two sets of servers, will the system continue to work correctly? Further Reading - http://robertgreiner.com/2014/08/cap-theorem-revisited/

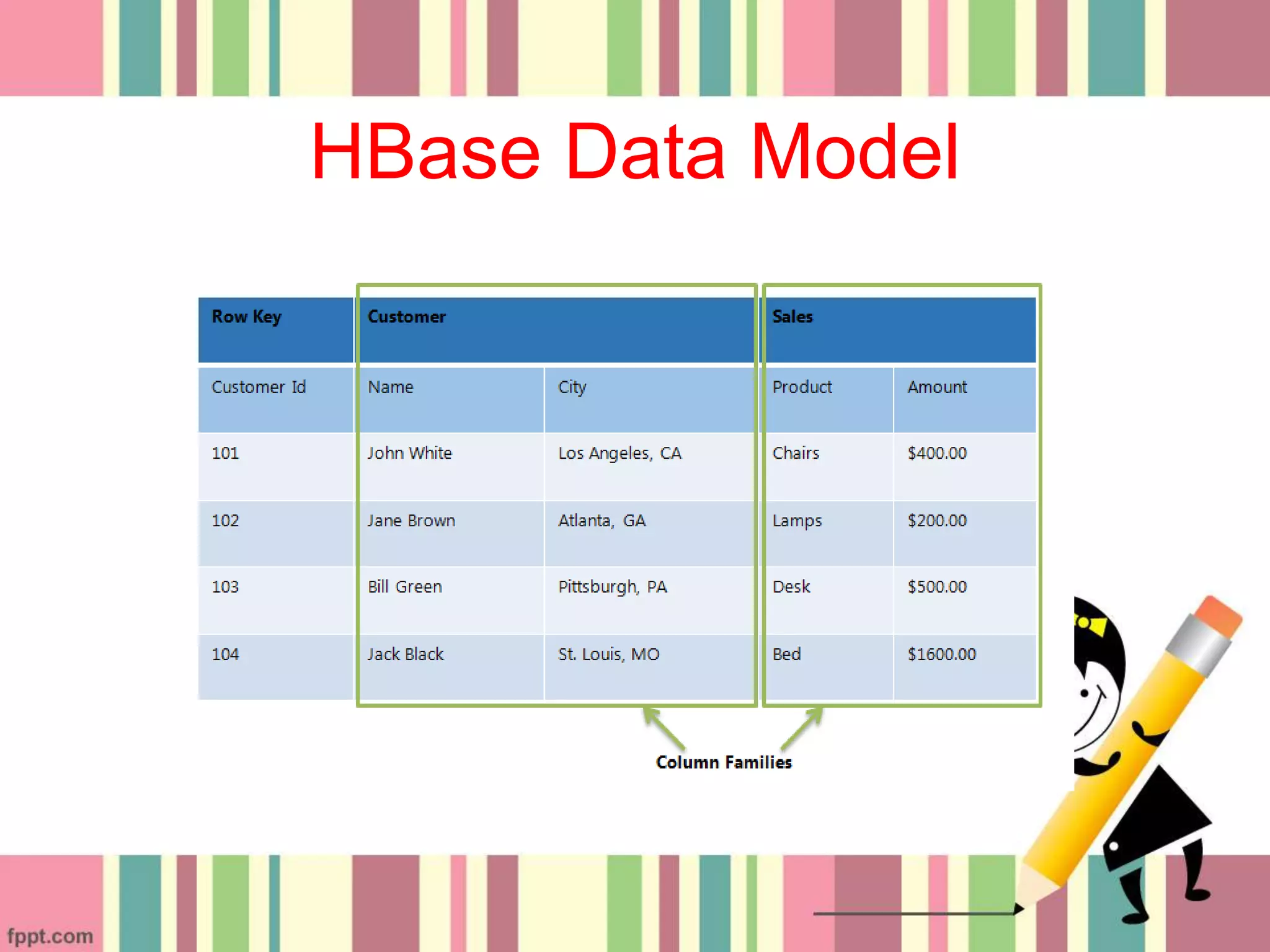

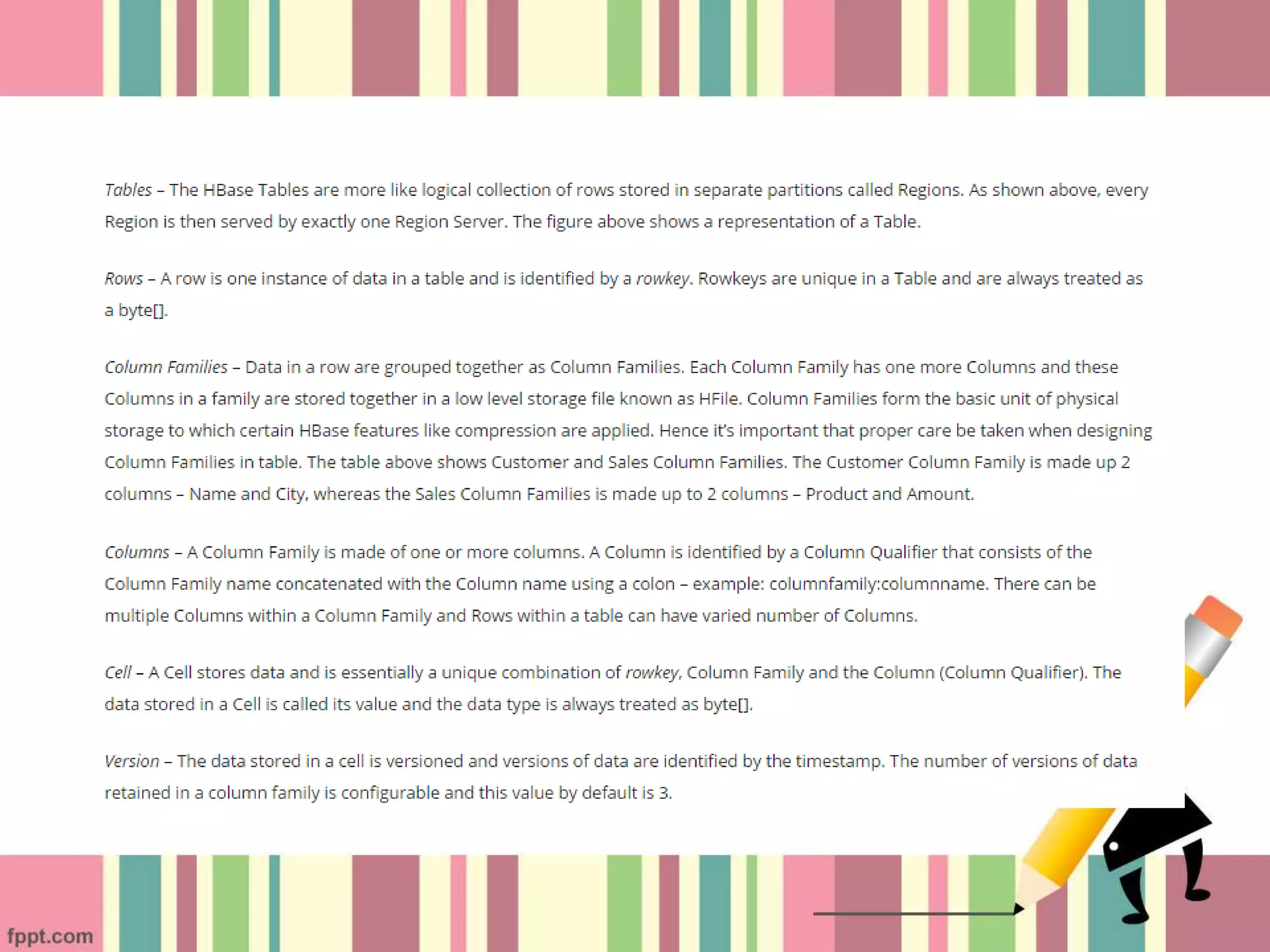

- #17 The Data Model in HBase is made of different logical components such as Tables, Rows, Column Families, Columns, Cells and Versions.
- #18 Region Servers are collocated with the HDFS DataNodes, which enable data locality (putting the data close to where it is needed) for the data served by the RegionServers. HBase data is local when it is written, but when a region is moved, it is not local until compaction. The NameNode maintains metadata information for all the physical data blocks that comprise the files.
- #22 A master is responsible for: Coordinating the region servers- Assigning regions on startup , re-assigning regions for recovery or load balancing- Monitoring all RegionServer instances in the cluster (listens for notifications from zookeeper) Admin functions- Interface for creating, deleting, updating tables
- #23 Hfile : File System for hbase Memstore: In memory store for hbase Write Ahead Log (WAL) is that HLog edits will be written immediately

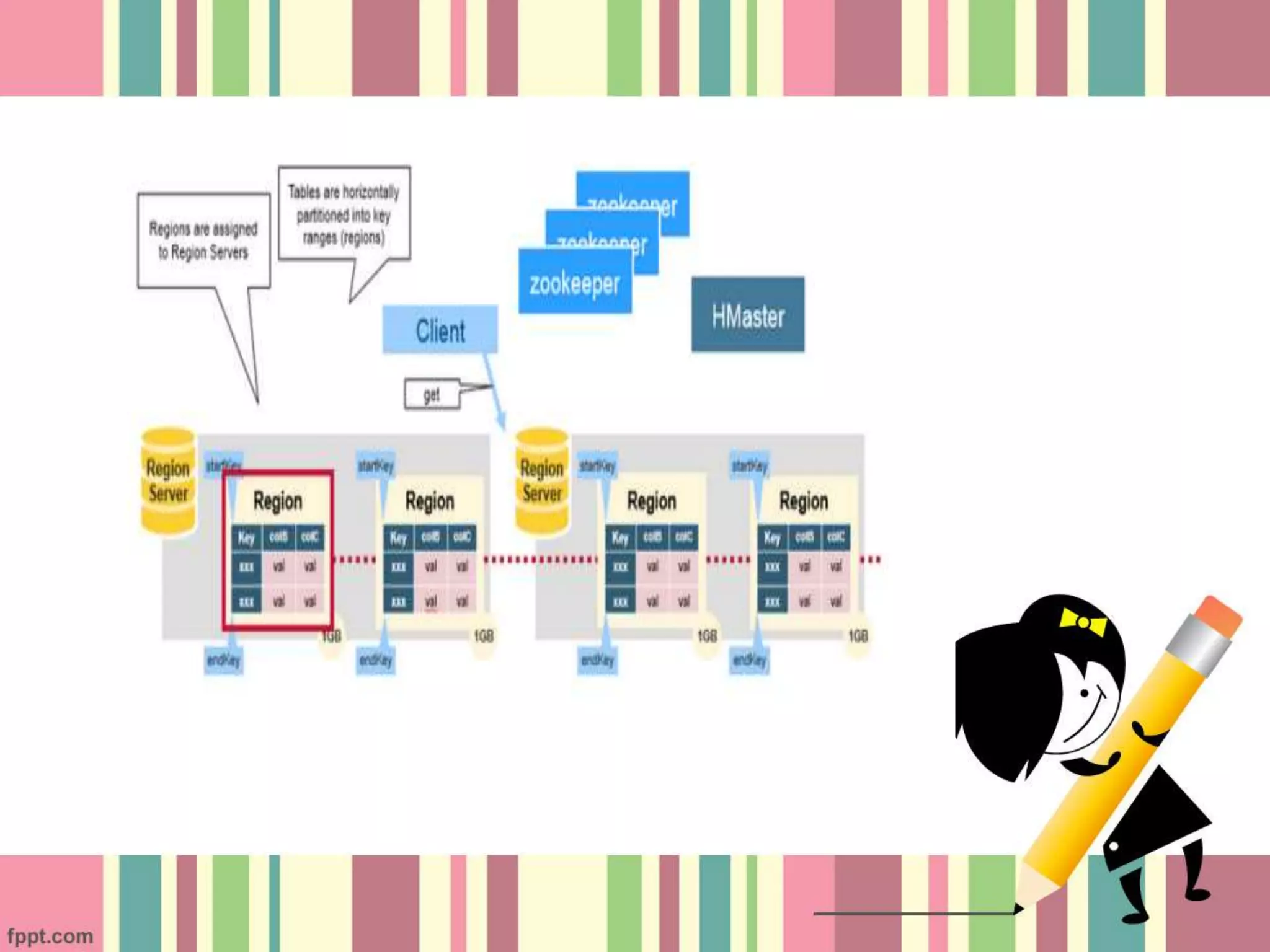

- #24 HBase Tables are divided horizontally by row key range into “Regions.” A region contains all rows in the table between the region’s start key and end key. Regions are assigned to the nodes in the cluster, called “Region Servers,” and these serve data for reads and writes. A region server can serve about 1,000 regions.
- #26 HBase uses ZooKeeper as a distributed coordination service to maintain server state in the cluster. Zookeeper maintains which servers are alive and available, and provides server failure notification. Zookeeper uses consensus to guarantee common shared state. Note that there should be three or five machines for consensus.
- #30 For future reads, the client uses the cache to retrieve the META location and previously read row keys. Over time, it does not need to query the META table, unless there is a miss because a region has moved; then it will re-query and update the cache. HBase Meta Table This META table is an HBase table that keeps a list of all regions in the system. The .META. table is like a b tree. The .META. table structure is as follows:- Key: region start key,region id- Values: RegionServer

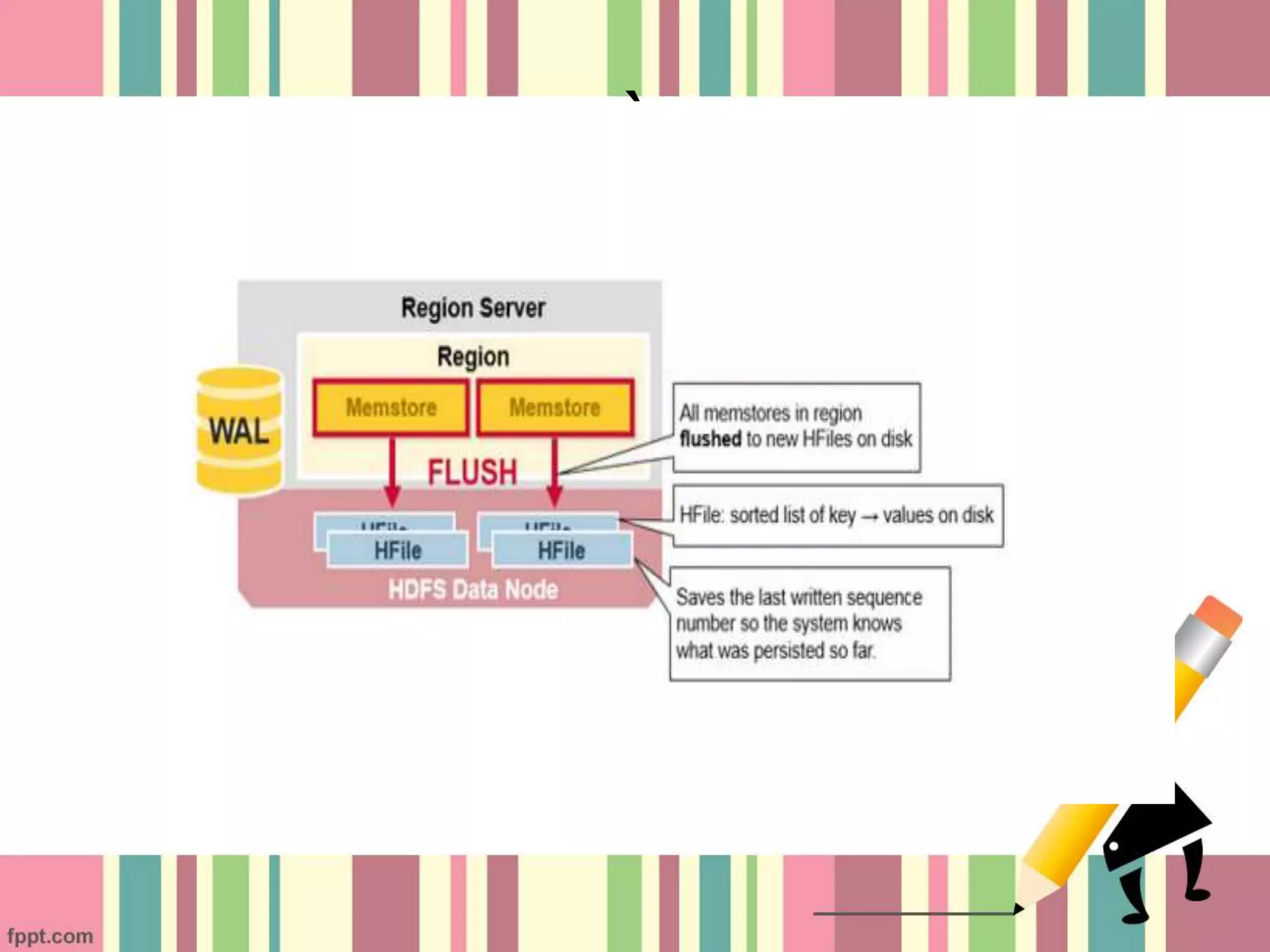

- #36 Data is stored in an HFile which contains sorted key/values. When the MemStore accumulates enough data, the entire sorted KeyValue set is written to a new HFile in HDFS. This is a sequential write. It is very fast, as it avoids moving the disk drive head. An HFile contains a multi-layered index which allows HBase to seek to the data without having to read the whole file. The multi-level index is like a b+tree: Key value pairs are stored in increasing order Indexes point by row key to the key value data in 64KB “blocks” Each block has its own leaf-index The last key of each block is put in the intermediate index The root index points to the intermediate index The trailer points to the meta blocks, and is written at the end of persisting the data to the file. The trailer also has information like bloom filters and time range info. Bloom filters help to skip files that do not contain a certain row key. The time range info is useful for skipping the file if it is not in the time range the read is looking for.

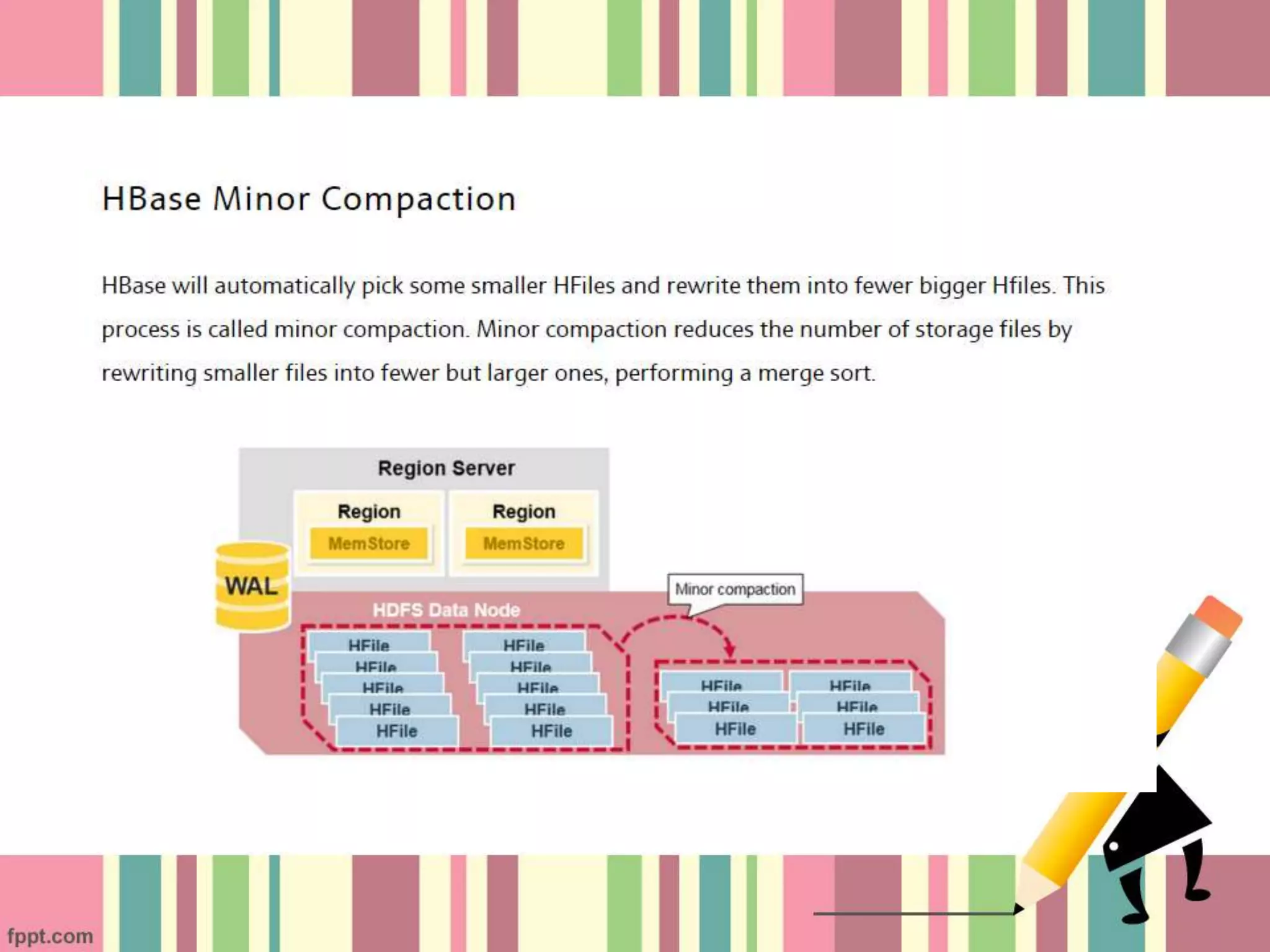

- #37 Minor compactions will usually pick up a couple of the smaller adjacent StoreFiles and rewrite them as one. Minors do not drop deletes or expired cells, only major compactions do this. Sometimes a minor compaction will pick up all the StoreFiles in the Store and in this case it actually promotes itself to being a major compaction.
- #40 how does HBase recover the MemStore updates not persisted to Hfiles ? HBase Crash Recovery =============== When a RegionServer fails, Crashed Regions are unavailable until detection and recovery steps have happened. Zookeeper will determine Node failure when it loses region server heart beats. The HMaster will then be notified that the Region Server has failed. When the HMaster detects that a region server has crashed, the HMaster reassigns the regions from the crashed server to active Region servers. In order to recover the crashed region server’s memstore edits that were not flushed to disk. The HMaster splits the WAL belonging to the crashed region server into separate files and stores these file in the new region servers’ data nodes. Each Region Server then replays the WAL from the respective split WAL, to rebuild the memstore for that region.
- #45 Verification You can verify whether the table is created using the list command as shown below.
