Anypoint Code Builder June Release Overview, ASync API and Einstein Features.pptx

Patna/Surat MuleSoft Meetup
Anypoint Code Builder June Release
Overview, AsyncAPI and Einstein
Features

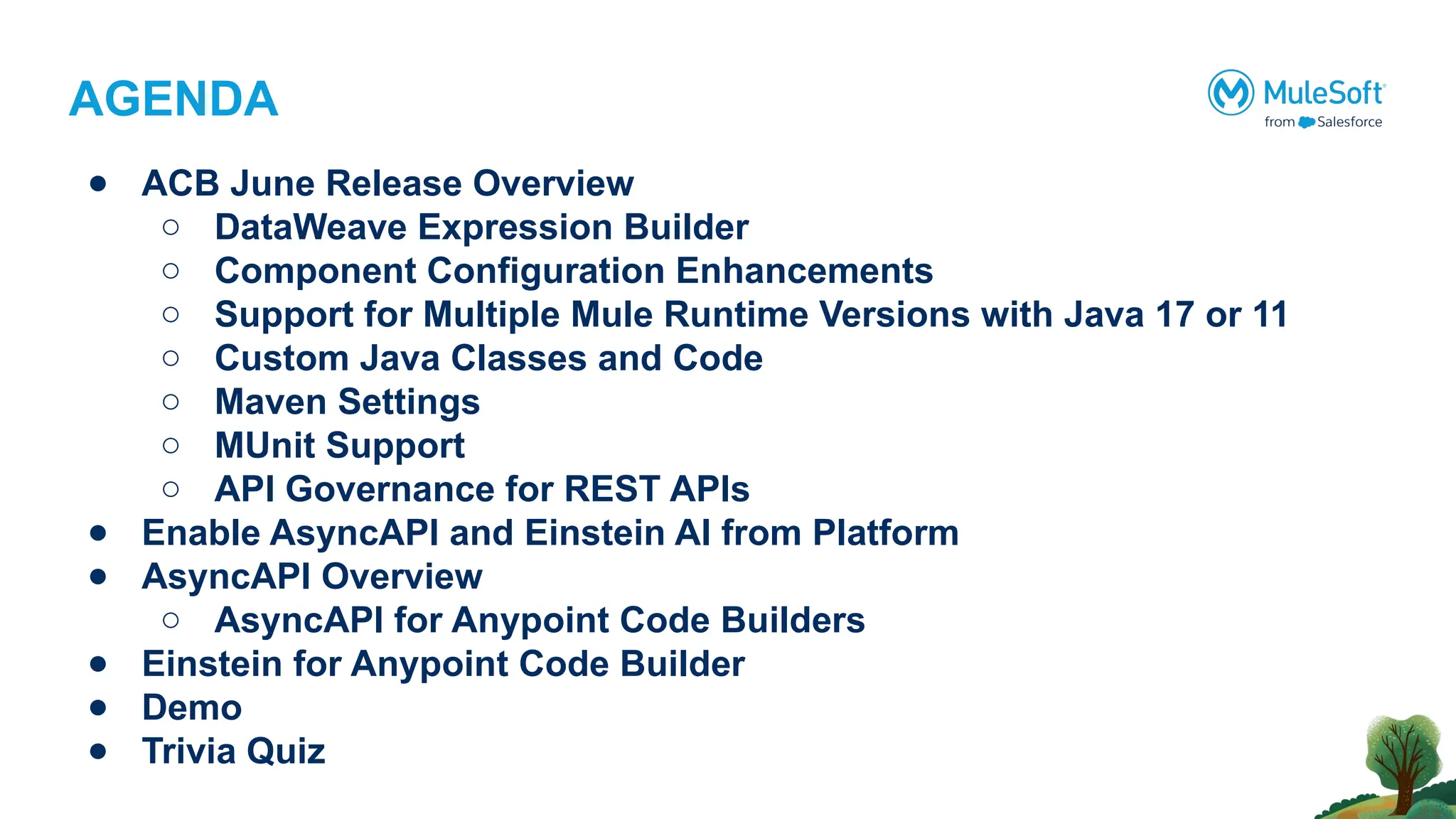

AGENDA
● ACB June Release Overview
○ DataWeave Expression Builder
○ Component Configuration Enhancements
○ Support for Multiple Mule Runtime Versions with Java 17 or 11
○ Custom Java Classes and Code
○ Maven Settings
○ MUnit Support
○ API Governance for REST APIs
● Enable AsyncAPI and Einstein AI from Platform
● AsyncAPI Overview
○ AsyncAPI for Anypoint Code Builders
● Einstein for Anypoint Code Builder
● Demo
● Trivia Quiz

Speaker
● MuleSoft Ambassador
● MuleSoft Meetup Speaker
● Patna/Bangalore Meetup Leader
● Total 14+ years of experience (6+ in MuleSoft)
● Certified MuleSoft Developer and Architect.
● Top Contributors of MuleSoft Help Forum
● Founder of DataWeave Fun
Shyam Raj Prasad
Tricon Infotech Pvt. Ltd.
Engineering Leader
linkedin.com/in/shyam-raj-prasad/

Speaker
Abhishek Bathwal
NeuraFlash India Pvt. Ltd.
Principal Developer
● MuleSoft Ambassador
● MuleSoft Meetup India Regional Leader
● MuleSoft Meetup Speaker
● Guwahati & Lucknow Meetup Leader
● Total 9+ years of experience (7+ in MuleSoft)
● Certified MuleSoft Developer & Architect
● MuleSoft Industry & GTM Champion
● Salesforce Double Star Ranger Rank
● Salesforce | Solace | Dell Boomi | GCP Certifications
● Write technical Blogs and Create technical Videos
● Own a Patent for developing a Portable Washing Machine
linkedin.com/in/abhishek-bathwal-49360694
youtube.com/@abhishekbathwal1805
youtube.com/@developersguide5562

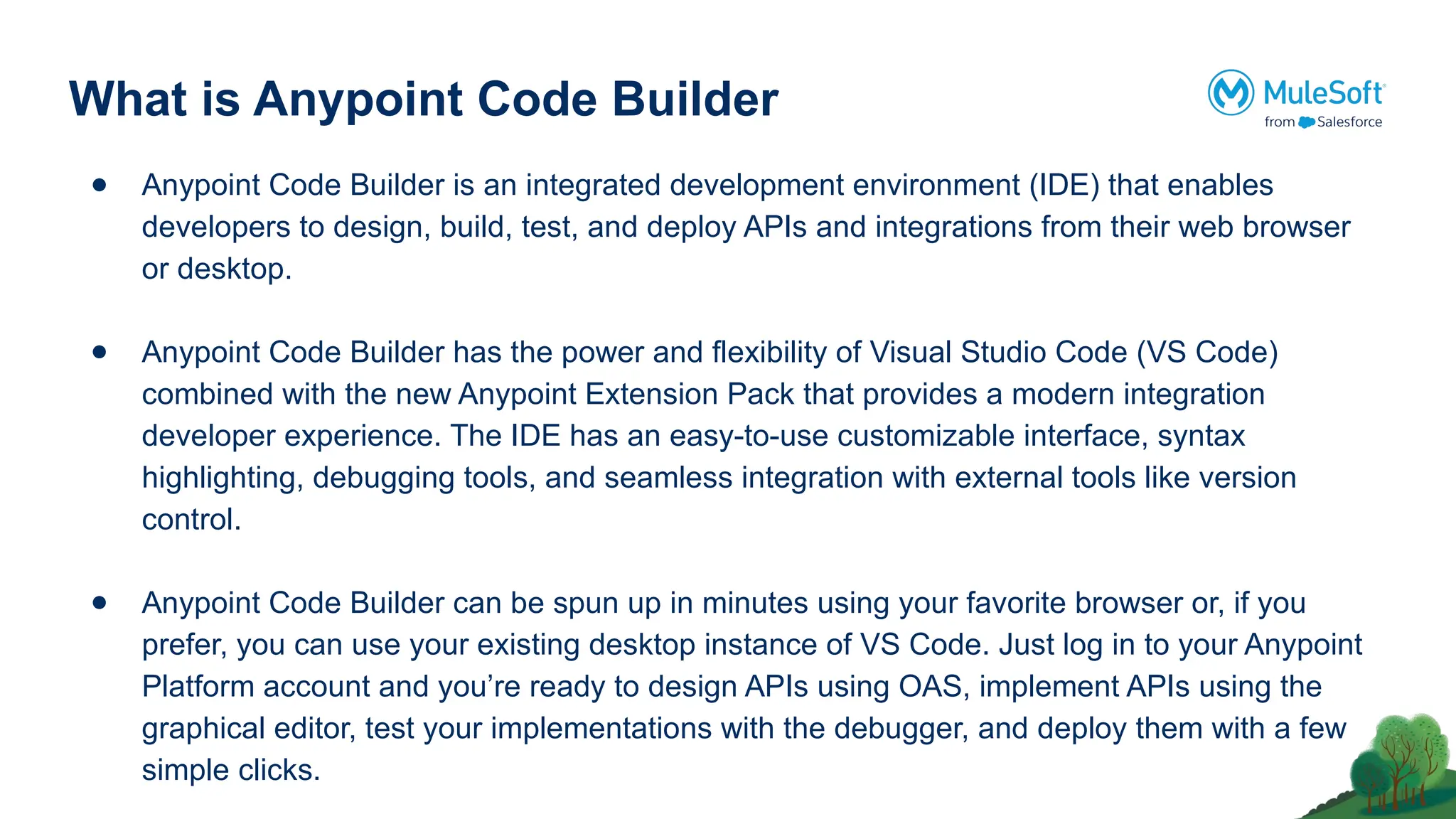

What is Anypoint Code Builder
● Anypoint Code Builder is an integrated development environment (IDE) that enables
developers to design, build, test, and deploy APIs and integrations from their web browser
or desktop.
● Anypoint Code Builder has the power and flexibility of Visual Studio Code (VS Code)
combined with the new Anypoint Extension Pack that provides a modern integration
developer experience. The IDE has an easy-to-use customizable interface, syntax
highlighting, debugging tools, and seamless integration with external tools like version
control.
● Anypoint Code Builder can be spun up in minutes using your favorite browser or, if you
prefer, you can use your existing desktop instance of VS Code. Just log in to your Anypoint
Platform account and you’re ready to design APIs using OAS, implement APIs using the
graphical editor, test your implementations with the debugger, and deploy them with a few
simple clicks.

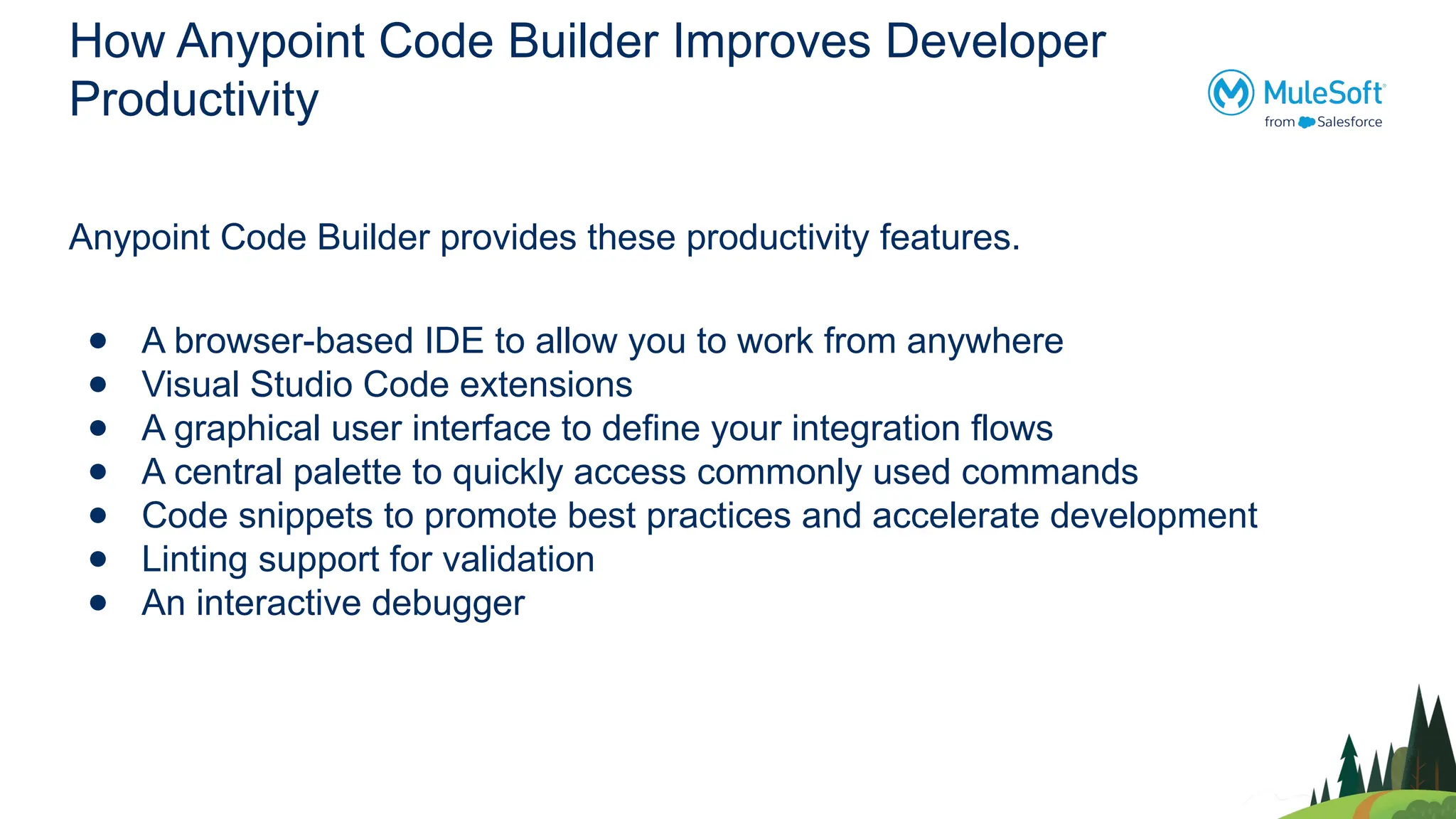

How Anypoint Code Builder Improves Developer
Productivity
Anypoint Code Builder provides these productivity features.
● A browser-based IDE to allow you to work from anywhere
● Visual Studio Code extensions
● A graphical user interface to define your integration flows
● A central palette to quickly access commonly used commands
● Code snippets to promote best practices and accelerate development
● Linting support for validation
● An interactive debugger

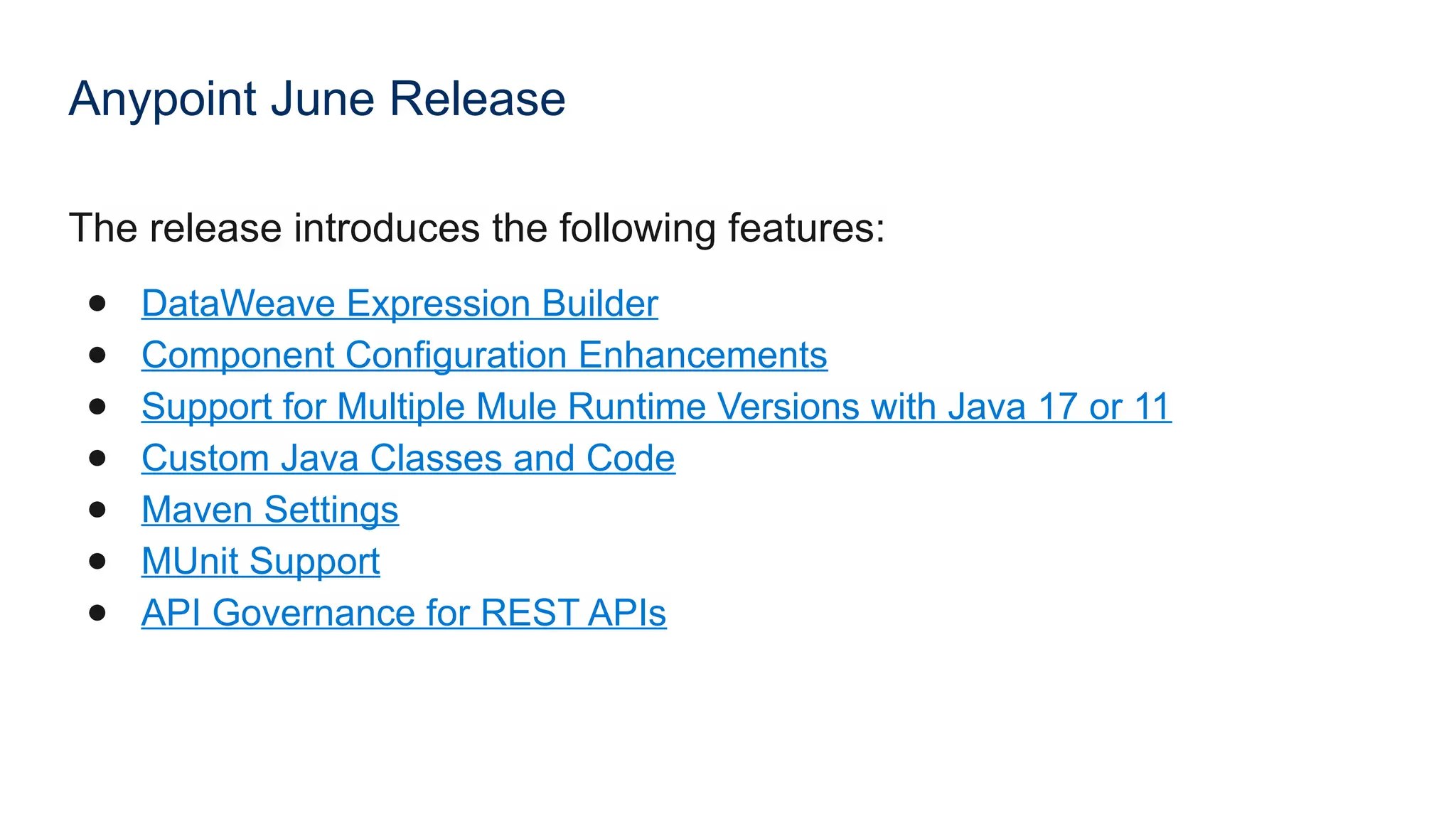

Anypoint June Release
The release introduces the following features:
● DataWeave Expression Builder
● Component Configuration Enhancements
● Support for Multiple Mule Runtime Versions with Java 17 or 11
● Custom Java Classes and Code
● Maven Settings
● MUnit Support
● API Governance for REST APIs

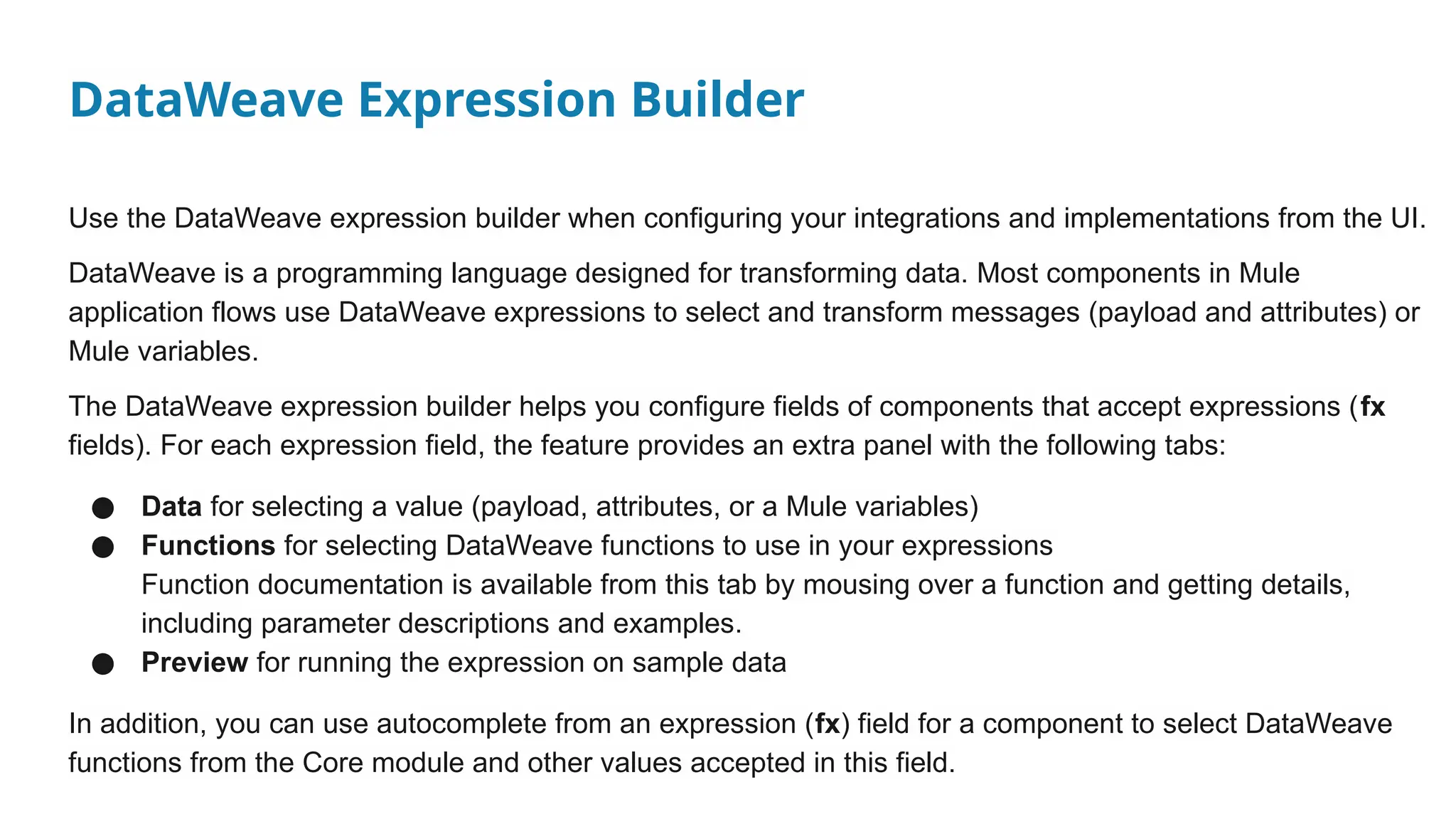

DataWeave Expression Builder
Use the DataWeave expression builder when configuring your integrations and implementations from the UI.
DataWeave is a programming language designed for transforming data. Most components in Mule
application flows use DataWeave expressions to select and transform messages (payload and attributes) or
Mule variables.
The DataWeave expression builder helps you configure fields of components that accept expressions (fx
fields). For each expression field, the feature provides an extra panel with the following tabs:
● Data for selecting a value (payload, attributes, or a Mule variables)
● Functions for selecting DataWeave functions to use in your expressions
Function documentation is available from this tab by mousing over a function and getting details,
including parameter descriptions and examples.
● Preview for running the expression on sample data
In addition, you can use autocomplete from an expression (fx) field for a component to select DataWeave
functions from the Core module and other values accepted in this field.

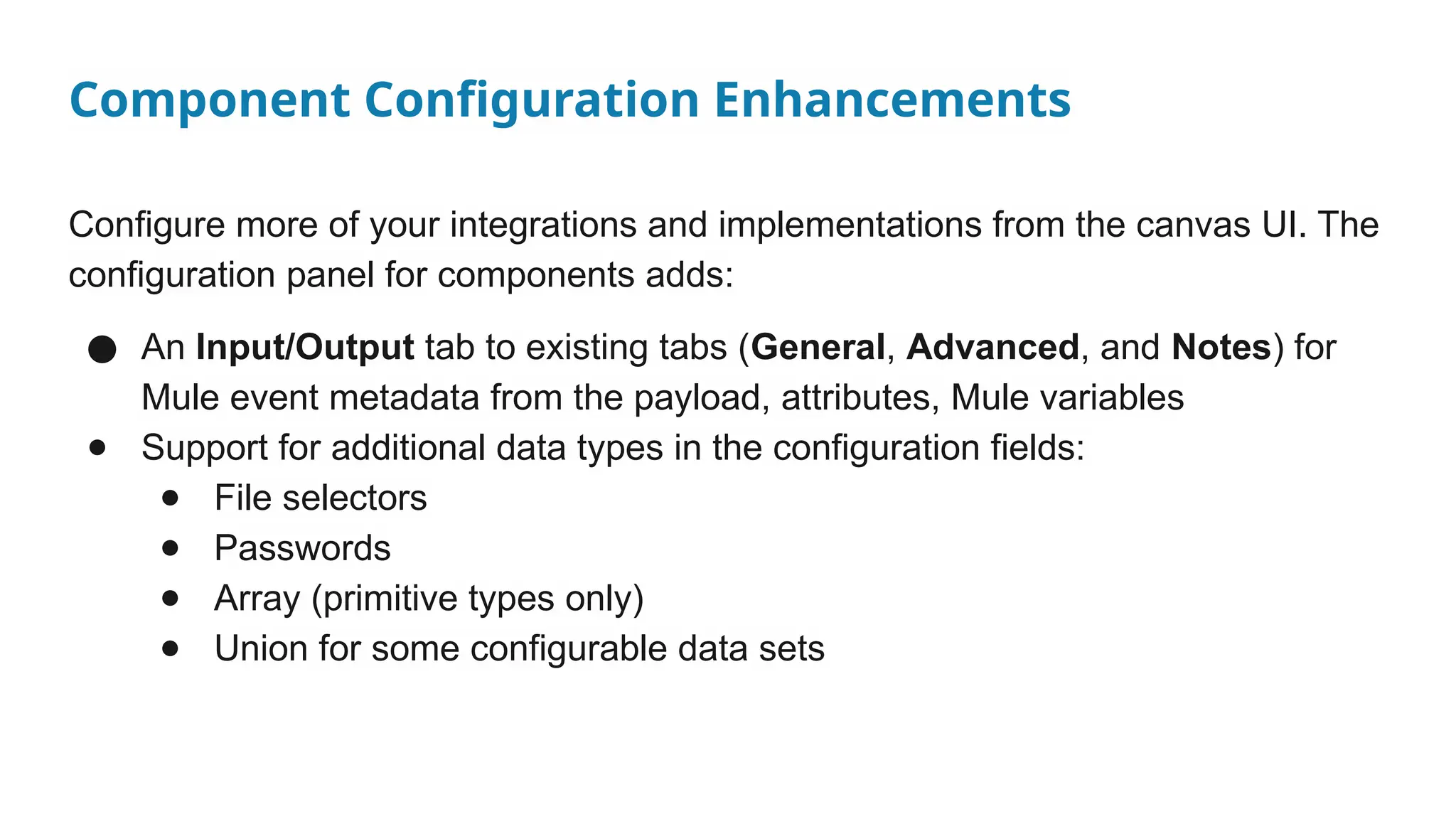

Component Configuration Enhancements
Configure more of your integrations and implementations from the canvas UI. The
configuration panel for components adds:
● An Input/Output tab to existing tabs (General, Advanced, and Notes) for
Mule event metadata from the payload, attributes, Mule variables
● Support for additional data types in the configuration fields:
● File selectors
● Passwords
● Array (primitive types only)
● Union for some configurable data sets

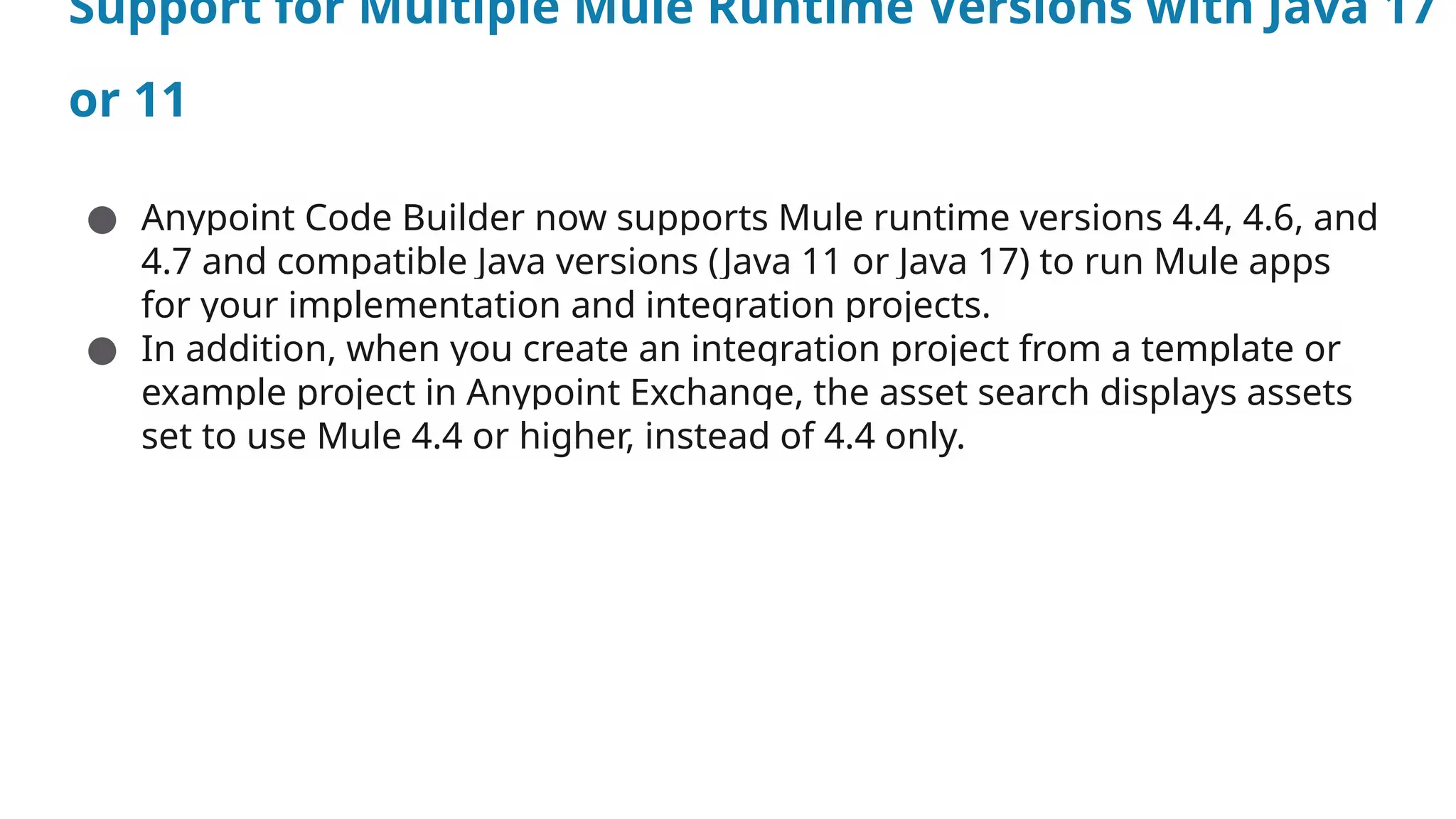

Support for Multiple Mule Runtime Versions with Java 17
or 11
● Anypoint Code Builder now supports Mule runtime versions 4.4, 4.6, and
4.7 and compatible Java versions (Java 11 or Java 17) to run Mule apps
for your implementation and integration projects.
● In addition, when you create an integration project from a template or
example project in Anypoint Exchange, the asset search displays assets
set to use Mule 4.4 or higher, instead of 4.4 only.

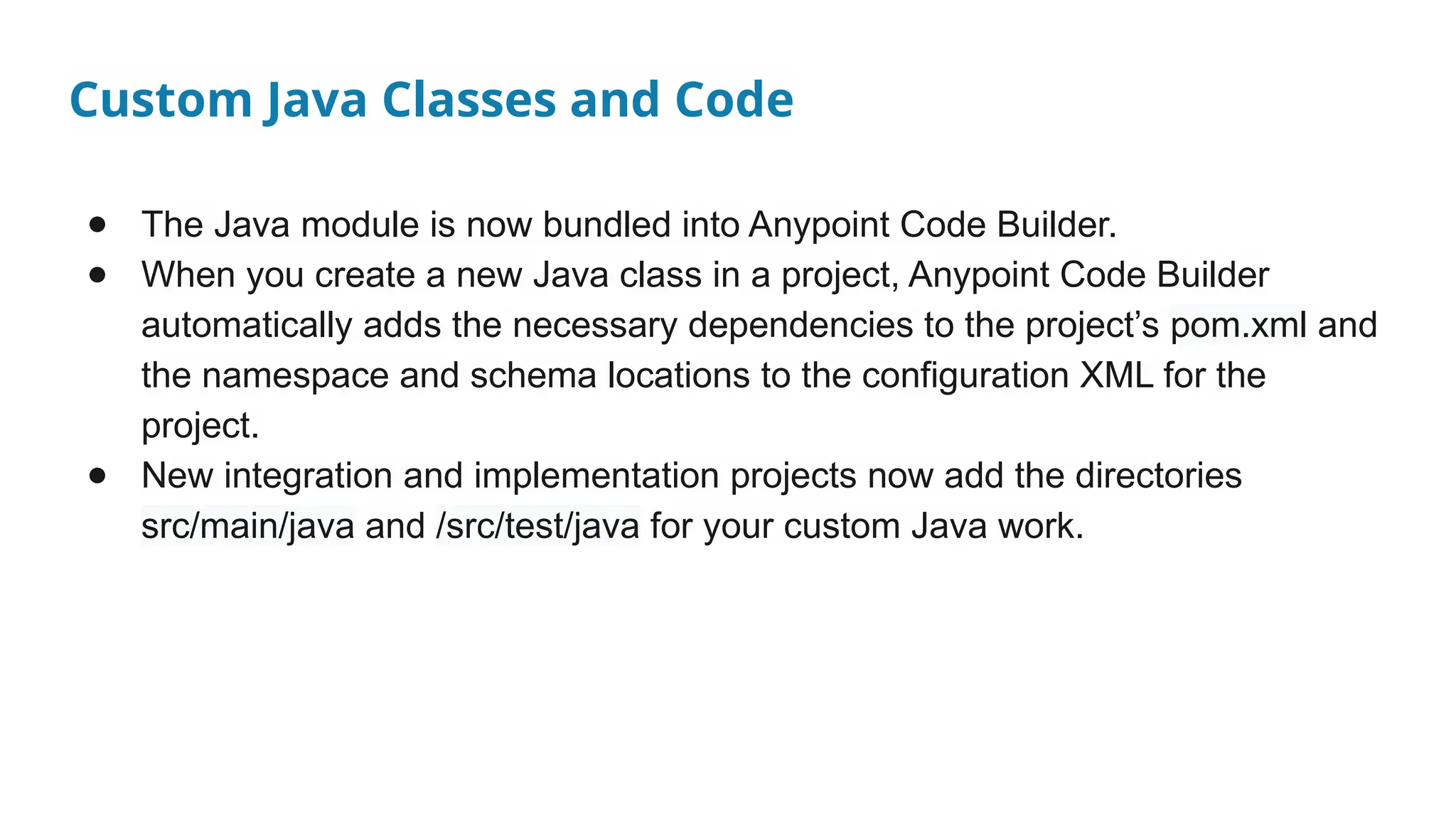

Custom Java Classes and Code
● The Java module is now bundled into Anypoint Code Builder.
● When you create a new Java class in a project, Anypoint Code Builder
automatically adds the necessary dependencies to the project’s pom.xml and
the namespace and schema locations to the configuration XML for the
project.
● New integration and implementation projects now add the directories
src/main/java and /src/test/java for your custom Java work.

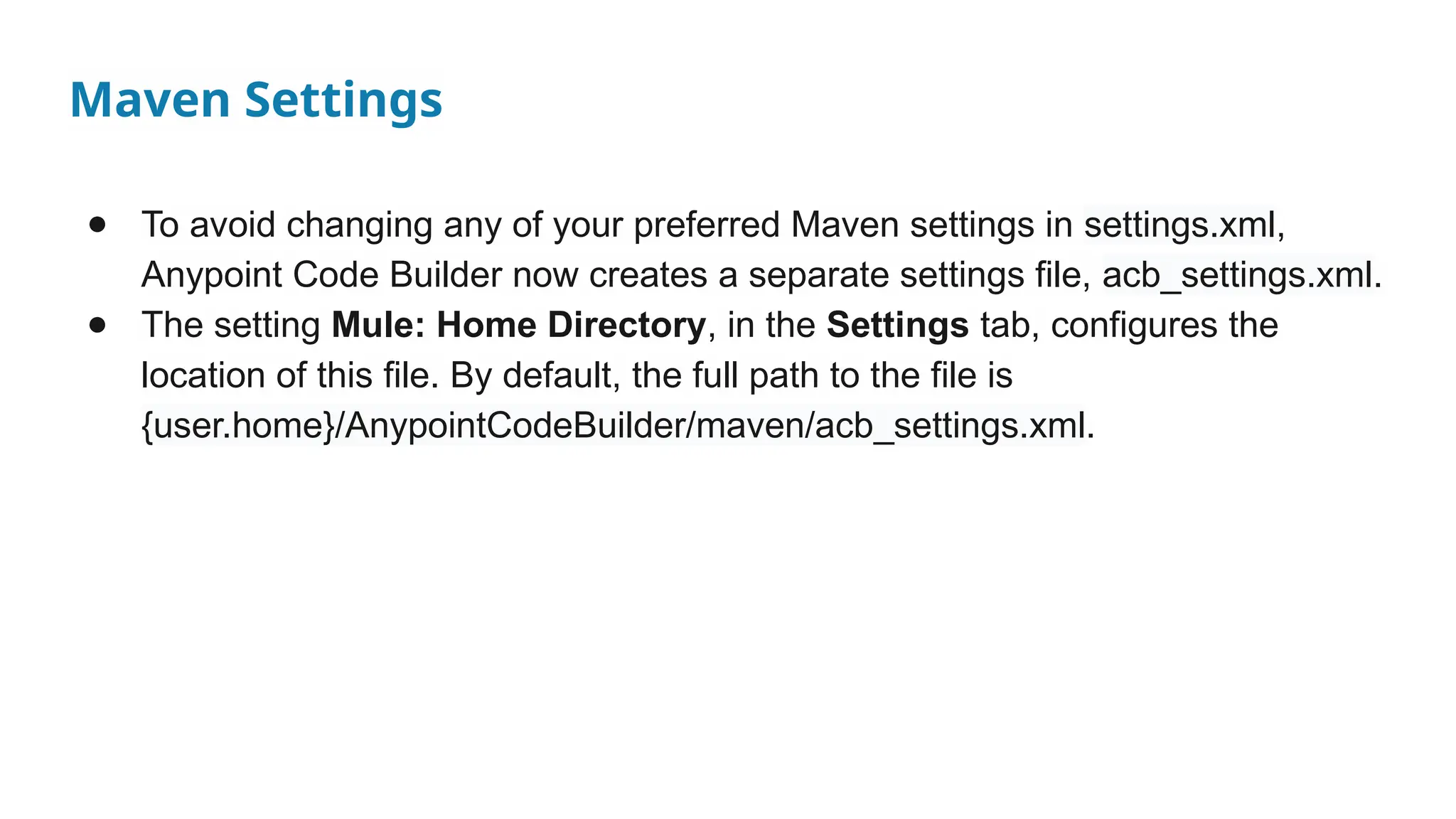

Maven Settings
● To avoid changing any of your preferred Maven settings in settings.xml,
Anypoint Code Builder now creates a separate settings file, acb_settings.xml.
● The setting Mule: Home Directory, in the Settings tab, configures the
location of this file. By default, the full path to the file is
{user.home}/AnypointCodeBuilder/maven/acb_settings.xml.

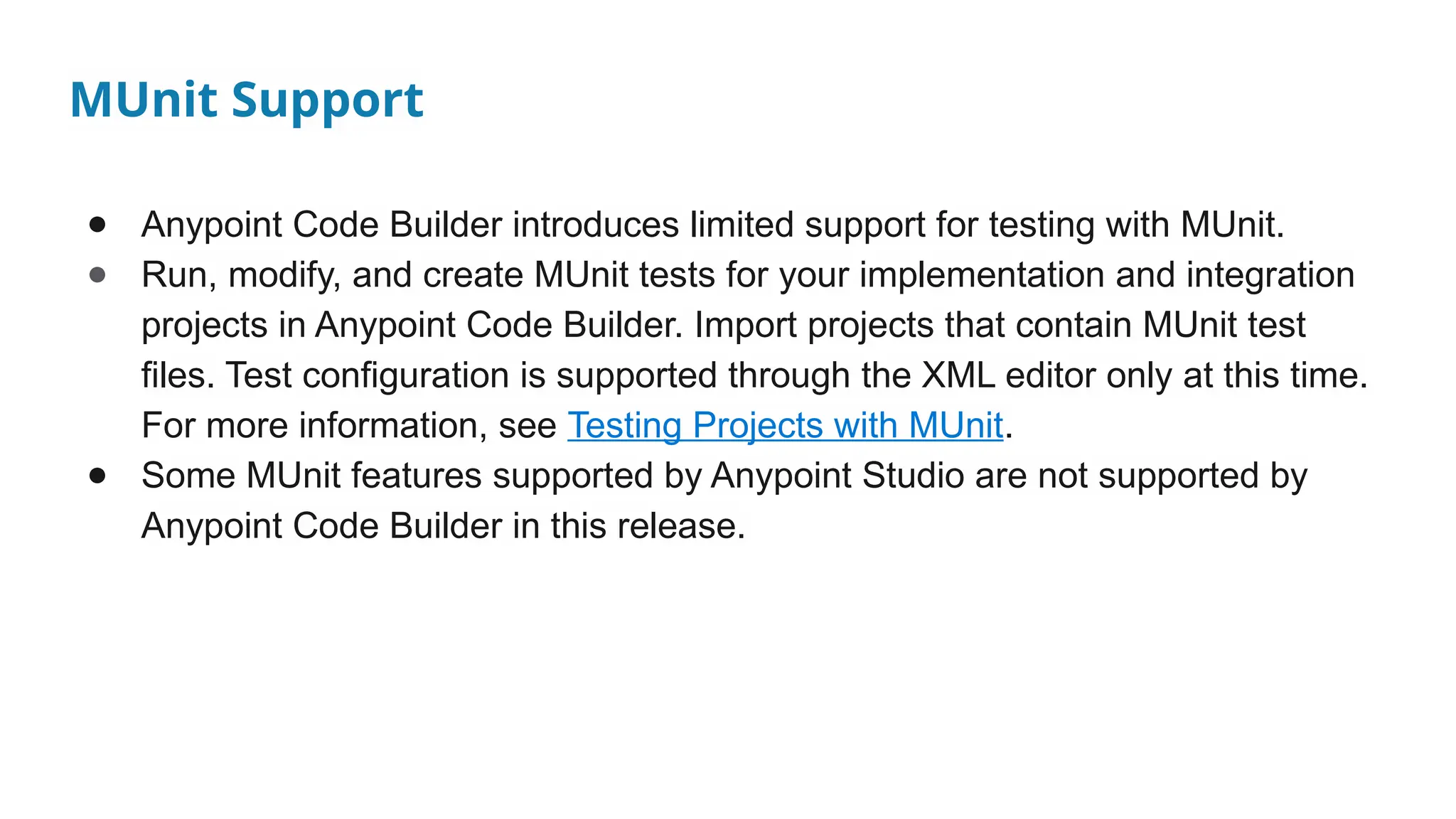

MUnit Support
● Anypoint Code Builder introduces limited support for testing with MUnit.
● Run, modify, and create MUnit tests for your implementation and integration
projects in Anypoint Code Builder. Import projects that contain MUnit test
files. Test configuration is supported through the XML editor only at this time.
For more information, see Testing Projects with MUnit.
● Some MUnit features supported by Anypoint Studio are not supported by
Anypoint Code Builder in this release.

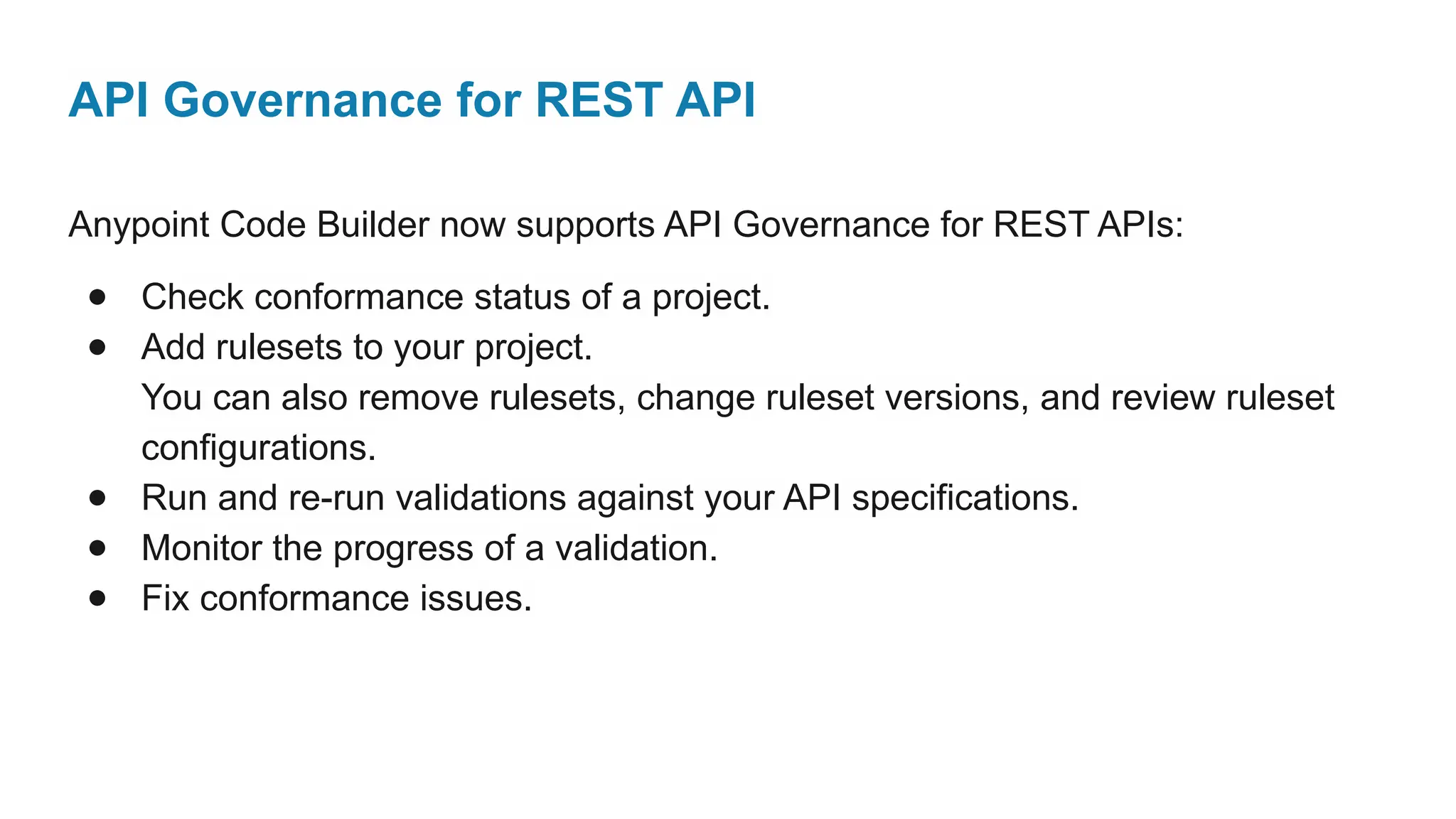

API Governance for REST API
Anypoint Code Builder now supports API Governance for REST APIs:
● Check conformance status of a project.
● Add rulesets to your project.
You can also remove rulesets, change ruleset versions, and review ruleset
configurations.
● Run and re-run validations against your API specifications.
● Monitor the progress of a validation.
● Fix conformance issues.

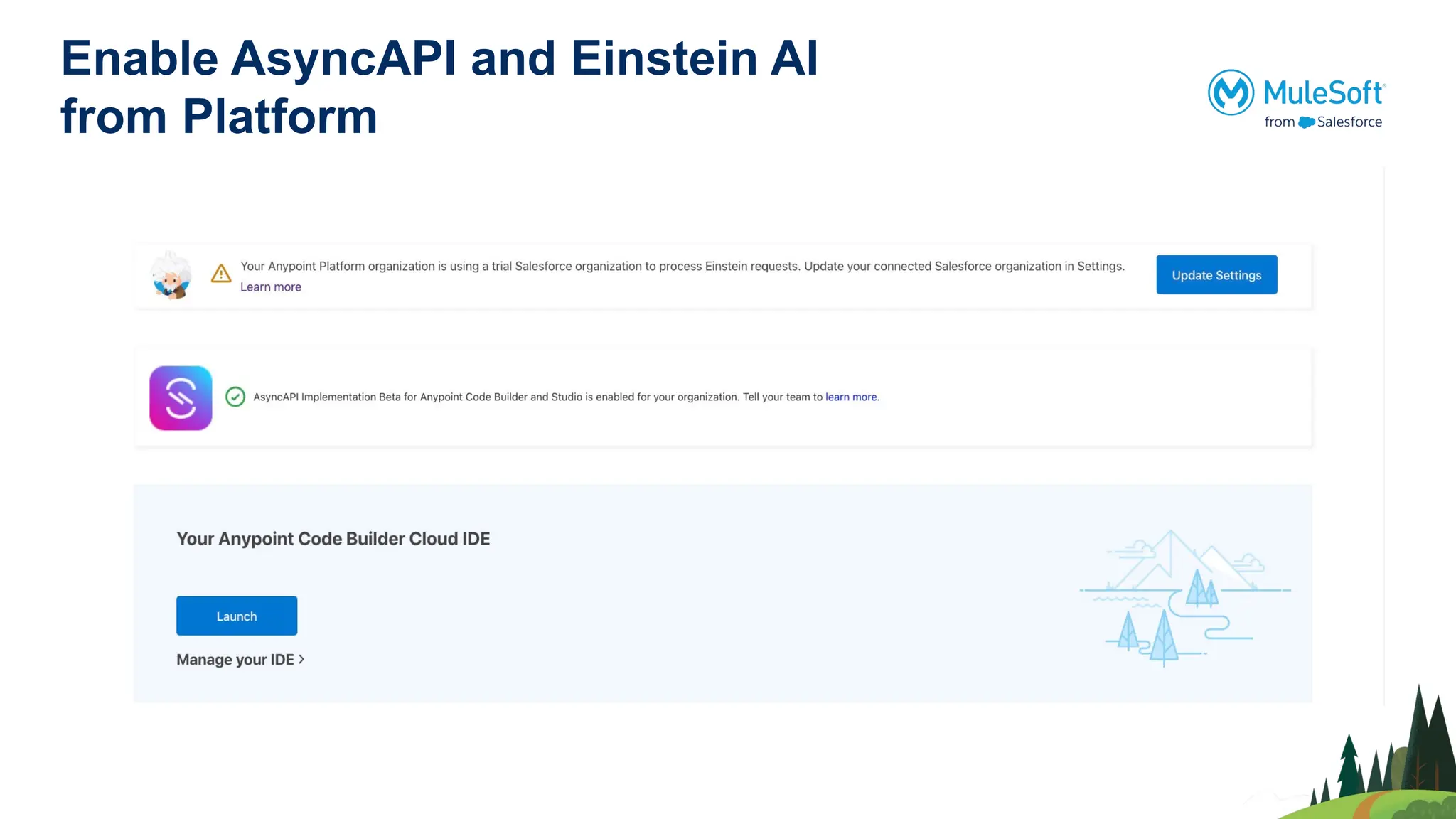

Enable AsyncAPI and Einstein AI
from Platform

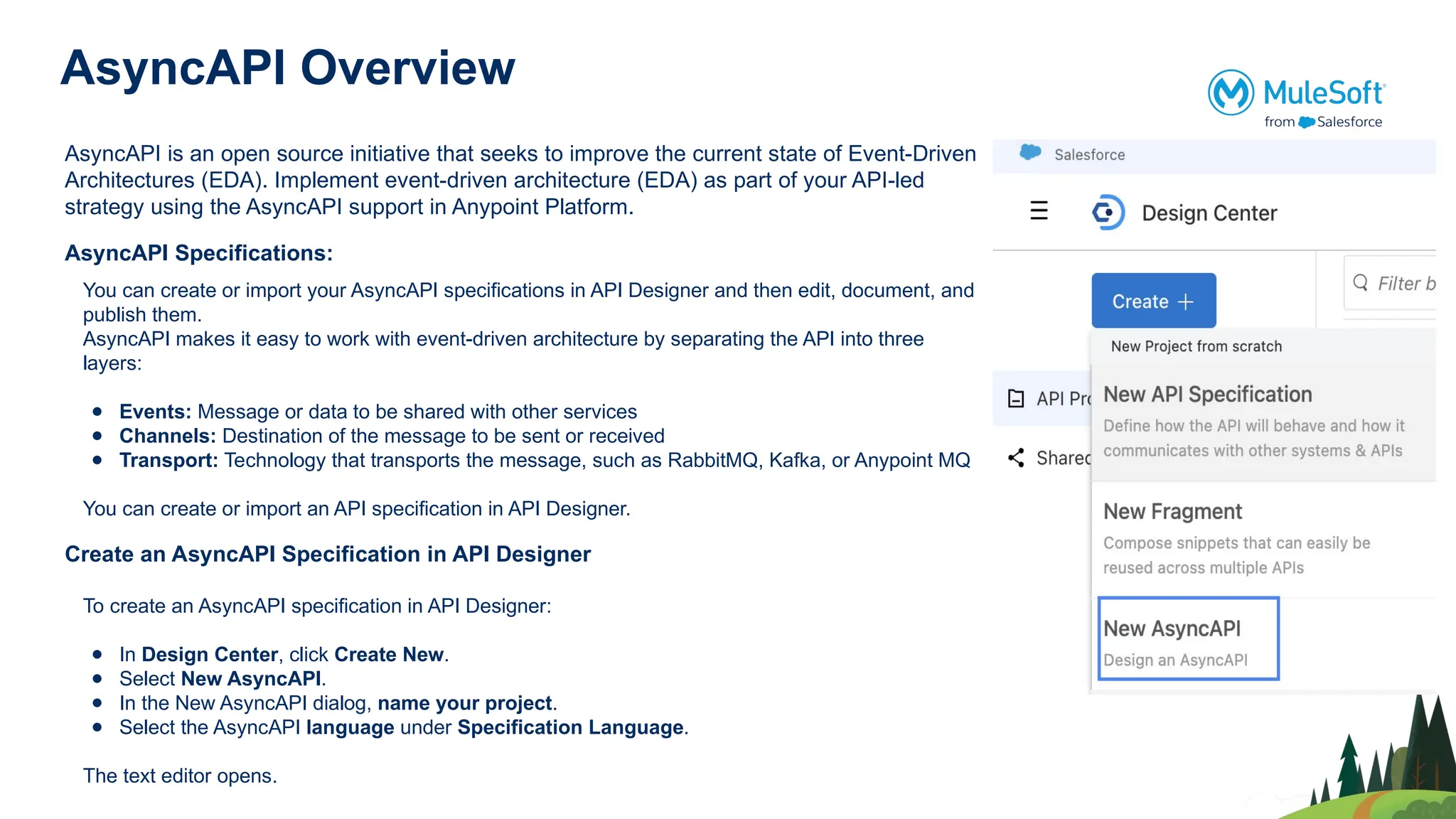

AsyncAPI Overview
AsyncAPI is an open source initiative that seeks to improve the current state of Event-Driven
Architectures (EDA). Implement event-driven architecture (EDA) as part of your API-led
strategy using the AsyncAPI support in Anypoint Platform.
AsyncAPI Specifications:
You can create or import your AsyncAPI specifications in API Designer and then edit, document, and
publish them.
AsyncAPI makes it easy to work with event-driven architecture by separating the API into three
layers:
● Events: Message or data to be shared with other services
● Channels: Destination of the message to be sent or received
● Transport: Technology that transports the message, such as RabbitMQ, Kafka, or Anypoint MQ
You can create or import an API specification in API Designer.
Create an AsyncAPI Specification in API Designer
To create an AsyncAPI specification in API Designer:
● In Design Center, click Create New.
● Select New AsyncAPI.
● In the New AsyncAPI dialog, name your project.
● Select the AsyncAPI language under Specification Language.
The text editor opens.

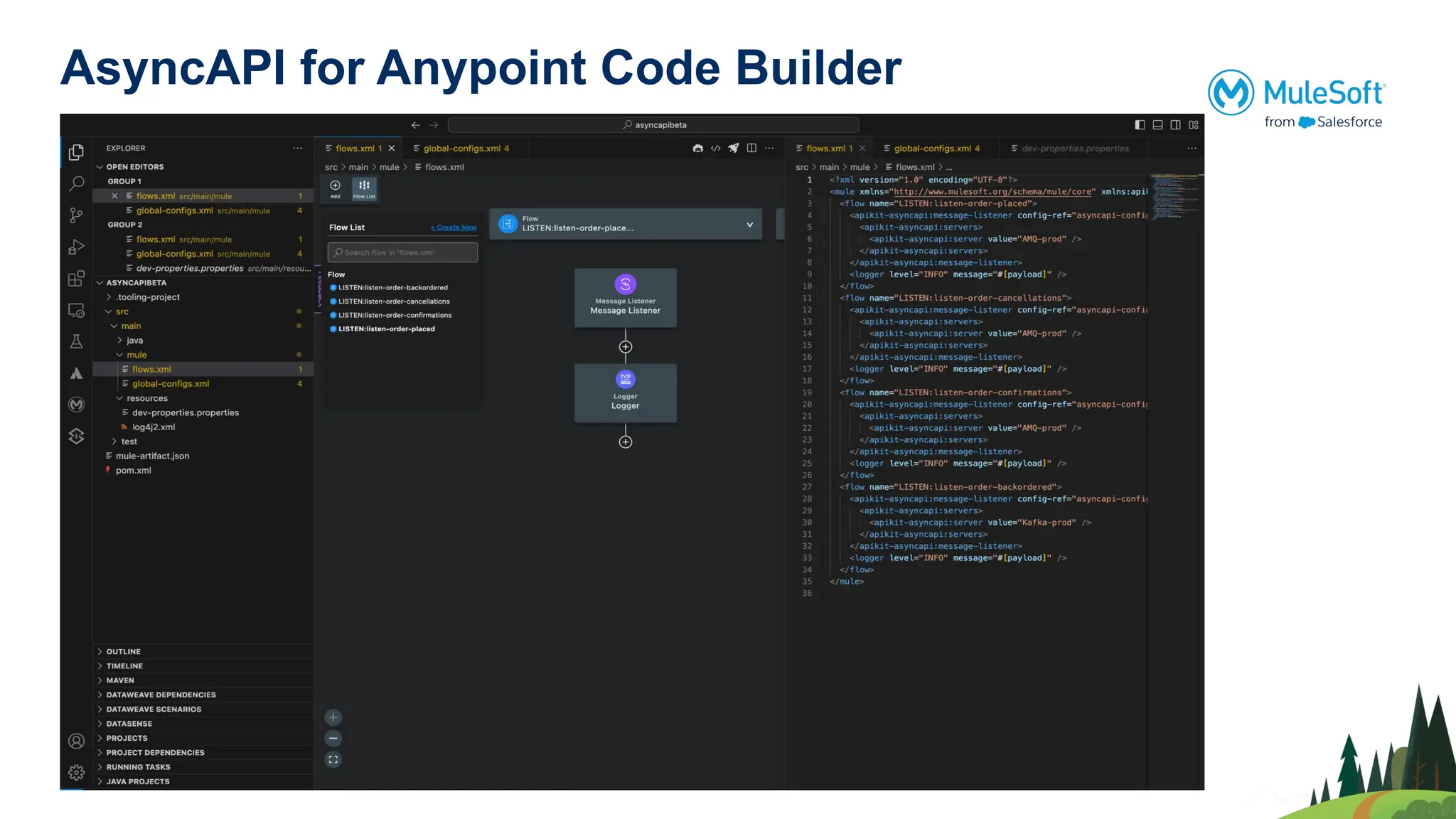

AsyncAPI for Anypoint Code Builder

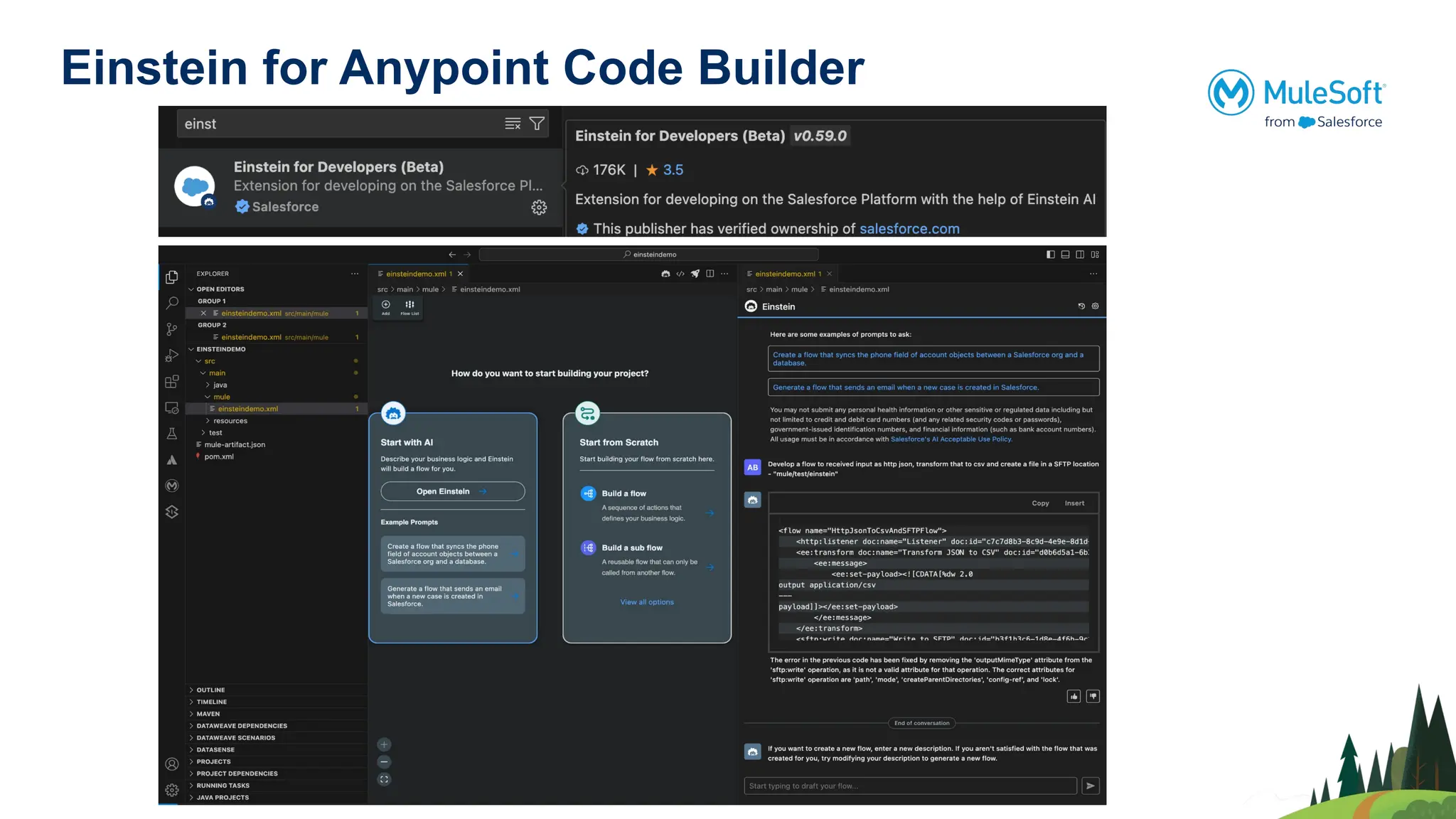

Einstein for Anypoint Code Builder
