ANALYSIS OF EXISTING TRAILERS’ CONTAINER LOCK SYSTEMS

International Journal of Computer Science, Engineering and Information Technology (IJCSEIT), Vol.8, No.4, August 2018
DOI : 10.5121/ijcseit.2018.8401 1
ANALYSIS OF EXISTING TRAILERS’
CONTAINER LOCK SYSTEMS
Semwogerere Twaibu1*
, Byamugisha Nathan2
, Matovu Davis3
, Ocen Gilbert4
,
Namwanje Sophie5
1-5
Computer Engineering Department, Busitema University
5
Faculty of Management Studies, Islamic University in Uganda
ABSTRACT
Trailers carry large containers to various destinations in the world. These are manually locked on to
trailers as they move through these long distances. Security mainly refers to the safety of a state,
organization, property, and individuals against criminal activity. The study was made to analyze the
existing trailer locks and the insecurity being experienced currently. The study also focused on creating a
background to building an automated lock system for auto-mobiles. Findings showed that there are various
container types like the General Purpose containers, the Hard-Top containers and the Open-Top among
others. Similarly, the twist locks were the ones revised for this study. The study also discussed the
weaknesses of the twist locks, most especially the non-notification on unsecured locks. This causes leads to
accidents and wastage of lives and property. The study finally proposed an automated lock system to
overcome these weaknesses to some good extent.
KEYWORDS
Accidents, Automated Lock System, Container, Security, Trailer.
1. INTRODUCTION
Most luggage that is imported in various countries is carried in containers. These are locked and
carried on the trailer cars. Cartons, crates, wooden cases, palletized cargo, drums, plastic cans,
sacks and bales, rolls and coils, steel plates, vehicles, sheets of glass, wet hides and skins, liquids,
bulk freight, long cargo and live animals are some of the contents in the containers. [1].
The security and safety of the container as it travels from place to place and before it leaves for its
destination mainly depends on the trailer driver to check whether the container is fully locked or
not. Surprisingly from time to time containers fall off the trailers due to many reasons like
insecure locks and over speeding. Insecure locking is mostly a result of the drivers failing to
physically check the locks, and the lack of secure lock system displayed in the cabin. Several
scenarios from around the world where accidents from insecure locks have been identified. Three
cases have been highlighted:
On Monday, April 20th
2015, in Dubai, United Arab Emirates, two containers loaded with paint
fell off the truck on a main road called Al Muhaisana, though no one was injured. These damaged

2
the road surface, road signs and symbol boards [2]. In another incident, one person reportedly
killed after a shipping container fell on the top of a truck on the north east side of Oklahoma City.
The second person who was in the car was rushed to hospital for immediate attention [3].
On Wednesday, 2nd
September 2015, a container fell off from a trailer while crossing the bridge at
Ojuelegba in Nigeria. This instantly killed two people in a car below the bridge [4]. Similarly, in
October 2014, a container fell off a trailer which was heading to Kampala at Bweyogerere on the
Jinja highway road. Nobody was killed or injured in this incident [5].
2. METHODS AND MATERIALS
2.1 Observation
In the verge of acquiring information, direct observation on how the different procedures about
container locking were used. This observation was done at different places where trailers
normally park or pass. For this study, I used places like the checkpoints of Busitema
Revenue/weighing bridge point, Malaba and Busia Boarders, Tororo, and Kampala Industrial
area.
2.2 Literature Review
It involved reading a vast number of pieces of literature. These were largely from different
informative sources like internet, books, journals, and newspapers [1], …, [5], among others. The
literature was about the containers, trailers and the lock monitoring systems. The information
necessary for the identification and analysis of the requirements needed to accomplish the
implementation of the system. It should be noted that container shipping, for example has been in
use for over 60 years now, although, transportation of goods and services has been on-going for
several centuries now [6][7][8]. The efficiency of such transportation has been improving ever
since up to the “Inter-modalism” level [8]. Inter-modalism is a system that is based on the theory
that efficiency will be vastly improved when the same container, with the same cargo, can be
transported with minimum interruption via different transport modes, to the final delivery points
[8]. The modes of transport include the trailer mode on land, and the ship mode on water. The
systems identified in the literature do not include automated lock systems alert which has led to
several containers falling of the trailers.
The collected data was thoroughly analyzed basing on the aim of the study. The analysis of all the
relevant information and interpretation of the data depended on the historical transformation of
container locks up to the automated possibility therein. The analysis was also targeting the
automation process in the forth coming manuscript. Therefore, the study aimed at studying the
inherent weaknesses of the existing monitoring method for Trailer Container locks and to identify
the requirements necessary for designing the user interface for the automated type. It involved
developing a hardware module for the proposed Trailer Container lock monitoring system in the
next study.

3
3. FINDINGS
3.1 Container Types and their Lock Systems

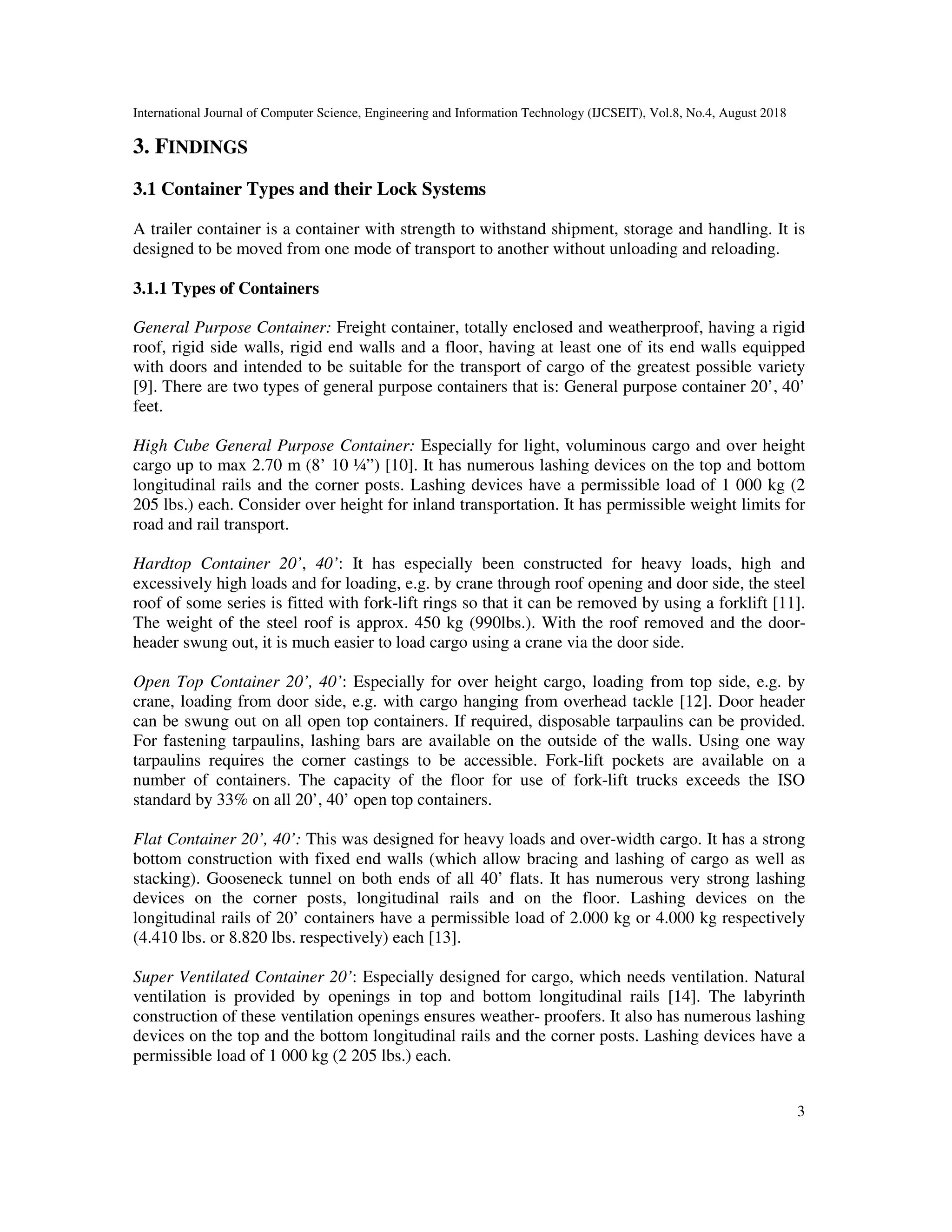

A trailer container is a container with strength to withstand shipment, storage and handling. It is
designed to be moved from one mode of transport to another without unloading and reloading.
3.1.1 Types of Containers
General Purpose Container: Freight container, totally enclosed and weatherproof, having a rigid
roof, rigid side walls, rigid end walls and a floor, having at least one of its end walls equipped
with doors and intended to be suitable for the transport of cargo of the greatest possible variety
[9]. There are two types of general purpose containers that is: General purpose container 20’, 40’
feet.
High Cube General Purpose Container: Especially for light, voluminous cargo and over height
cargo up to max 2.70 m (8’ 10 ¼”) [10]. It has numerous lashing devices on the top and bottom
longitudinal rails and the corner posts. Lashing devices have a permissible load of 1 000 kg (2
205 lbs.) each. Consider over height for inland transportation. It has permissible weight limits for
road and rail transport.
Hardtop Container 20’, 40’: It has especially been constructed for heavy loads, high and
excessively high loads and for loading, e.g. by crane through roof opening and door side, the steel
roof of some series is fitted with fork-lift rings so that it can be removed by using a forklift [11].
The weight of the steel roof is approx. 450 kg (990lbs.). With the roof removed and the door-
header swung out, it is much easier to load cargo using a crane via the door side.
Open Top Container 20’, 40’: Especially for over height cargo, loading from top side, e.g. by
crane, loading from door side, e.g. with cargo hanging from overhead tackle [12]. Door header
can be swung out on all open top containers. If required, disposable tarpaulins can be provided.
For fastening tarpaulins, lashing bars are available on the outside of the walls. Using one way
tarpaulins requires the corner castings to be accessible. Fork-lift pockets are available on a
number of containers. The capacity of the floor for use of fork-lift trucks exceeds the ISO
standard by 33% on all 20’, 40’ open top containers.
Flat Container 20’, 40’: This was designed for heavy loads and over-width cargo. It has a strong
bottom construction with fixed end walls (which allow bracing and lashing of cargo as well as
stacking). Gooseneck tunnel on both ends of all 40’ flats. It has numerous very strong lashing
devices on the corner posts, longitudinal rails and on the floor. Lashing devices on the
longitudinal rails of 20’ containers have a permissible load of 2.000 kg or 4.000 kg respectively
(4.410 lbs. or 8.820 lbs. respectively) each [13].
Super Ventilated Container 20’: Especially designed for cargo, which needs ventilation. Natural
ventilation is provided by openings in top and bottom longitudinal rails [14]. The labyrinth
construction of these ventilation openings ensures weather- proofers. It also has numerous lashing
devices on the top and the bottom longitudinal rails and the corner posts. Lashing devices have a
permissible load of 1 000 kg (2 205 lbs.) each.

4

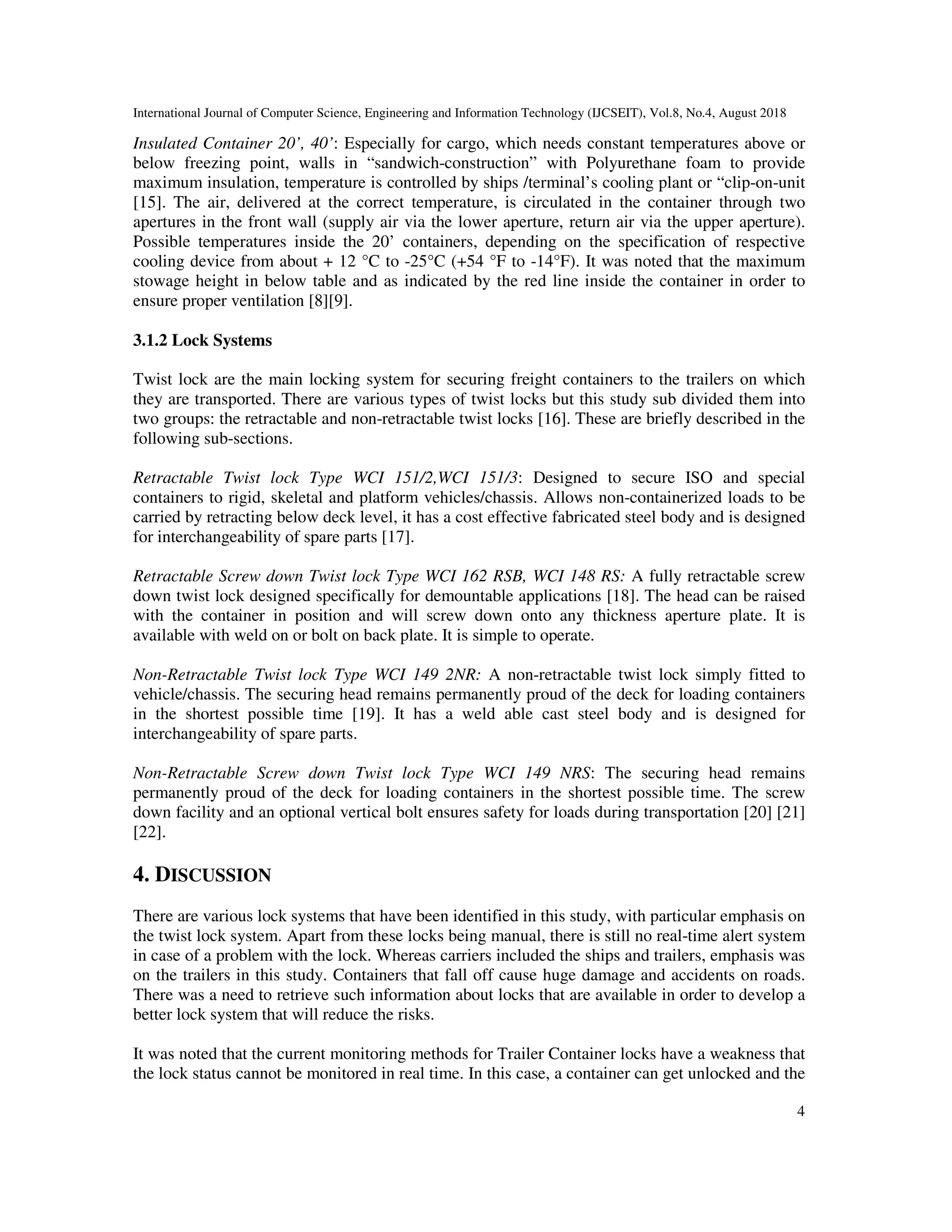

Insulated Container 20’, 40’: Especially for cargo, which needs constant temperatures above or
below freezing point, walls in “sandwich-construction” with Polyurethane foam to provide
maximum insulation, temperature is controlled by ships /terminal’s cooling plant or “clip-on-unit
[15]. The air, delivered at the correct temperature, is circulated in the container through two
apertures in the front wall (supply air via the lower aperture, return air via the upper aperture).
Possible temperatures inside the 20’ containers, depending on the specification of respective
cooling device from about + 12 °C to -25°C (+54 °F to -14°F). It was noted that the maximum
stowage height in below table and as indicated by the red line inside the container in order to
ensure proper ventilation [8][9].
3.1.2 Lock Systems
Twist lock are the main locking system for securing freight containers to the trailers on which
they are transported. There are various types of twist locks but this study sub divided them into
two groups: the retractable and non-retractable twist locks [16]. These are briefly described in the
following sub-sections.
Retractable Twist lock Type WCI 151/2,WCI 151/3: Designed to secure ISO and special
containers to rigid, skeletal and platform vehicles/chassis. Allows non-containerized loads to be
carried by retracting below deck level, it has a cost effective fabricated steel body and is designed
for interchangeability of spare parts [17].
Retractable Screw down Twist lock Type WCI 162 RSB, WCI 148 RS: A fully retractable screw
down twist lock designed specifically for demountable applications [18]. The head can be raised
with the container in position and will screw down onto any thickness aperture plate. It is
available with weld on or bolt on back plate. It is simple to operate.
Non-Retractable Twist lock Type WCI 149 2NR: A non-retractable twist lock simply fitted to
vehicle/chassis. The securing head remains permanently proud of the deck for loading containers
in the shortest possible time [19]. It has a weld able cast steel body and is designed for
interchangeability of spare parts.
Non-Retractable Screw down Twist lock Type WCI 149 NRS: The securing head remains
permanently proud of the deck for loading containers in the shortest possible time. The screw
down facility and an optional vertical bolt ensures safety for loads during transportation [20] [21]
[22].
4. DISCUSSION
There are various lock systems that have been identified in this study, with particular emphasis on
the twist lock system. Apart from these locks being manual, there is still no real-time alert system
in case of a problem with the lock. Whereas carriers included the ships and trailers, emphasis was
on the trailers in this study. Containers that fall off cause huge damage and accidents on roads.
There was a need to retrieve such information about locks that are available in order to develop a
better lock system that will reduce the risks.
It was noted that the current monitoring methods for Trailer Container locks have a weakness that
the lock status cannot be monitored in real time. In this case, a container can get unlocked and the

5
trailer driver will never get to know until the container has fallen off the trailer. There is therefore
need to design a system that can notify the trailer driver about the status of the container locks in
real time that is before driving and also when the driver is driving the trailer truck. It is expected
to enable the trailer driver to know the status of the locks in real time. The system should be able
to notify him in case any of the locks on the container is not secure. The design shall in a way fail
the start if there is a problem with locks. A buzzer shall sound and the trailer driver can check the

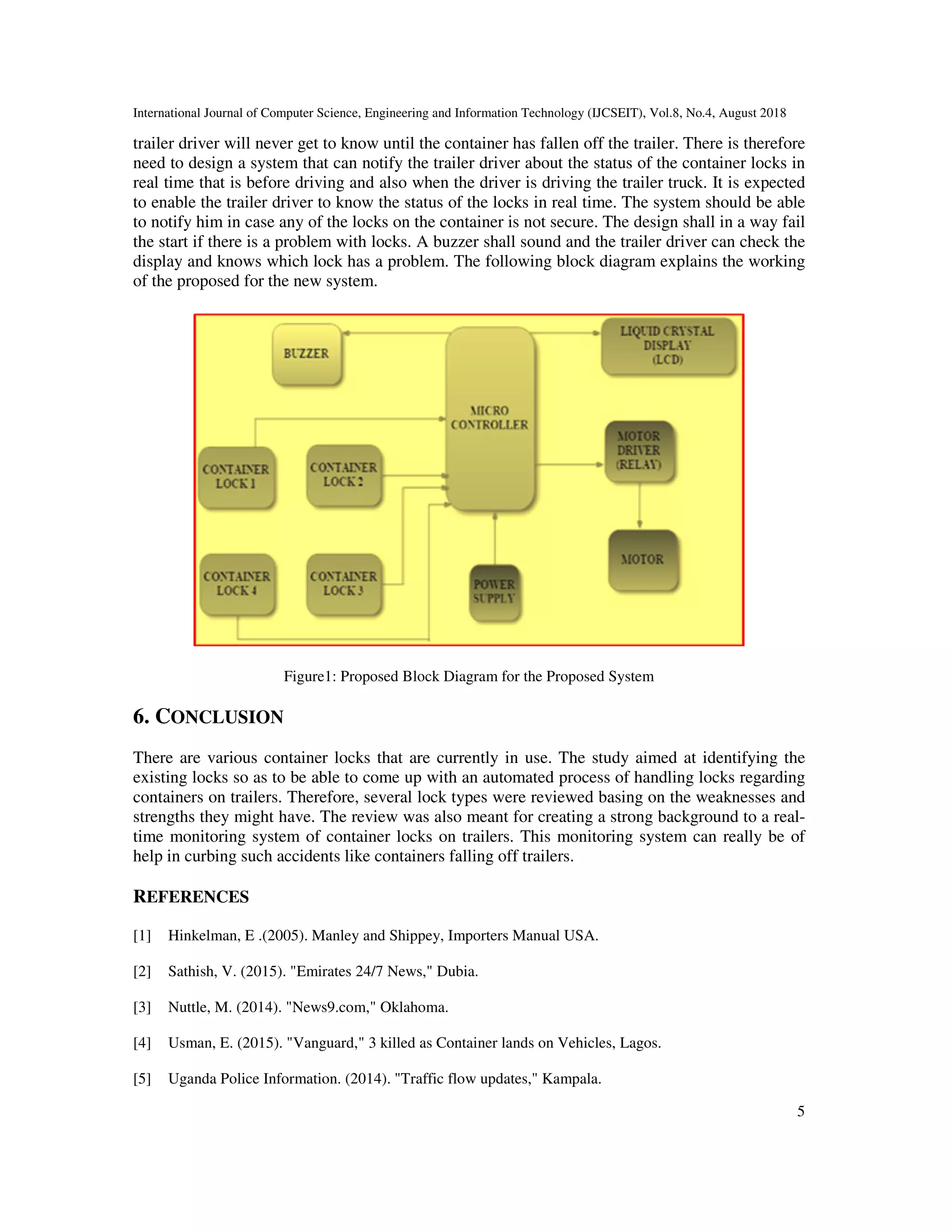

display and knows which lock has a problem. The following block diagram explains the working
of the proposed for the new system.
Figure1: Proposed Block Diagram for the Proposed System
6. CONCLUSION
There are various container locks that are currently in use. The study aimed at identifying the
existing locks so as to be able to come up with an automated process of handling locks regarding
containers on trailers. Therefore, several lock types were reviewed basing on the weaknesses and
strengths they might have. The review was also meant for creating a strong background to a real-
time monitoring system of container locks on trailers. This monitoring system can really be of
help in curbing such accidents like containers falling off trailers.
REFERENCES
[1] Hinkelman, E .(2005). Manley and Shippey, Importers Manual USA.
[2] Sathish, V. (2015). "Emirates 24/7 News," Dubia.
[3] Nuttle, M. (2014). "News9.com," Oklahoma.
[4] Usman, E. (2015). "Vanguard," 3 killed as Container lands on Vehicles, Lagos.
[5] Uganda Police Information. (2014). "Traffic flow updates," Kampala.

6
[6] Essery, R. J, Rowland. D. P. & Steel W. O. (1979). British Goods Wagons from 1887 to the Present
Day. Augustus M. Kelly Publishers. New York USA. Page 92
[7] Lewandowski, K. (2015). “Benjamin Franklin Fitch the Forgotten Developer of the Container System
in US of America”. Global journal of Human Social Science. H, Interdisplinary. 15 (8): 39-48. ISSN
0975-587X.
[8] Lewandowski, K. (2014). “Stanislaw Rodowicz, Eng. The Forgotten Pioneer of Containerization in
Poland”. Logistics and Transport. 23(3): 73-78. ISSN 1734-2015.
[9] Silvers, F. (2008). Building and Maintaining a Data Warehouse, 2008.
[10] Branch, E. (2012). Elements of Shipping: 7th Edition.
[11] Hinkelman, E. (2005). Dictionary of International Trade: Handbook of the Global Trade Community.
[12] Brodie, P. (2013). Illustrated Dictionary of Cargo Handling.
[13] Branch, A. (2013). Export Practice and Management.
[14] Nemerow, N. (2009). Environmental Engineering.

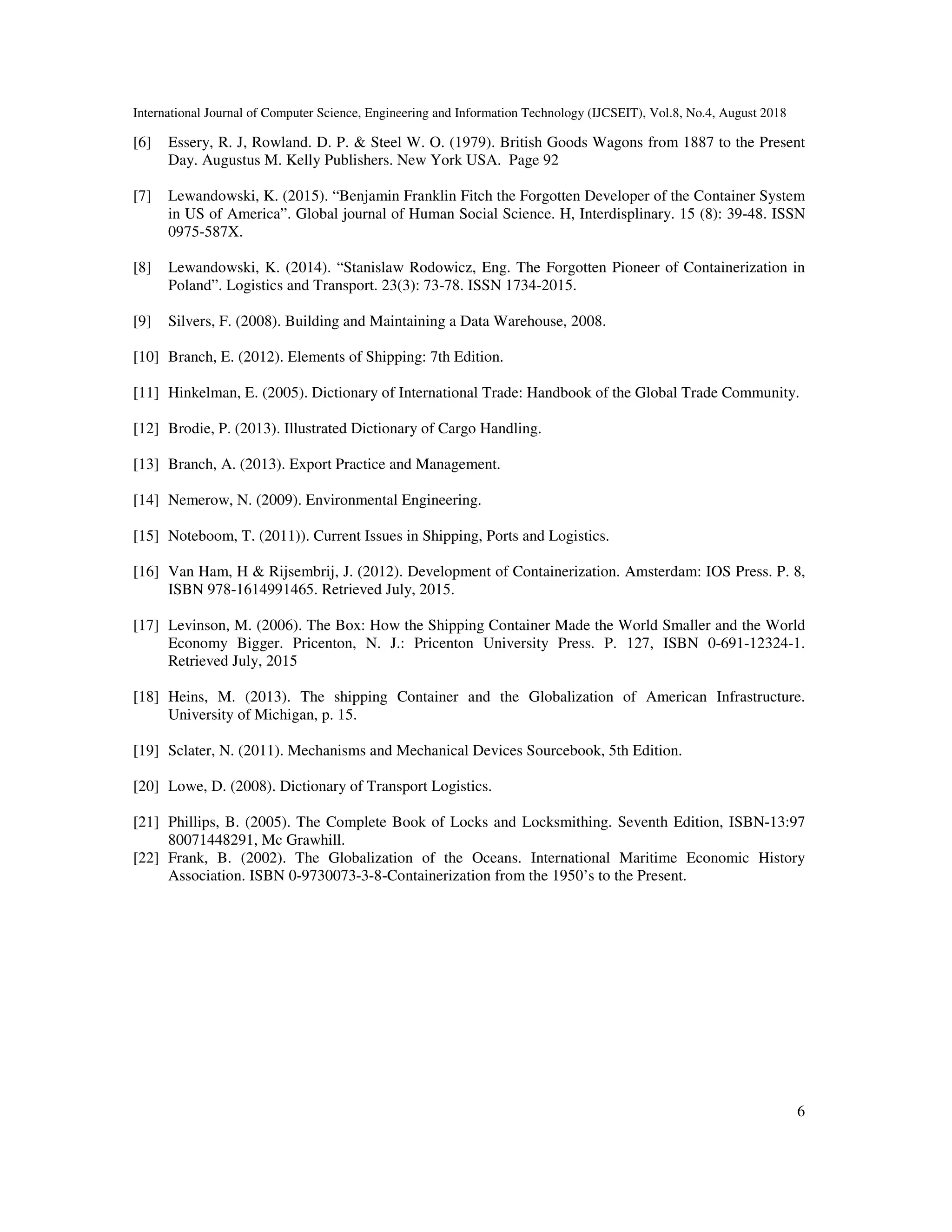

[15] Noteboom, T. (2011)). Current Issues in Shipping, Ports and Logistics.
[16] Van Ham, H & Rijsembrij, J. (2012). Development of Containerization. Amsterdam: IOS Press. P. 8,
ISBN 978-1614991465. Retrieved July, 2015.
[17] Levinson, M. (2006). The Box: How the Shipping Container Made the World Smaller and the World
Economy Bigger. Pricenton, N. J.: Pricenton University Press. P. 127, ISBN 0-691-12324-1.
Retrieved July, 2015
[18] Heins, M. (2013). The shipping Container and the Globalization of American Infrastructure.
University of Michigan, p. 15.
[19] Sclater, N. (2011). Mechanisms and Mechanical Devices Sourcebook, 5th Edition.
[20] Lowe, D. (2008). Dictionary of Transport Logistics.
[21] Phillips, B. (2005). The Complete Book of Locks and Locksmithing. Seventh Edition, ISBN-13:97
80071448291, Mc Grawhill.
[22] Frank, B. (2002). The Globalization of the Oceans. International Maritime Economic History
Association. ISBN 0-9730073-3-8-Containerization from the 1950’s to the Present.

7

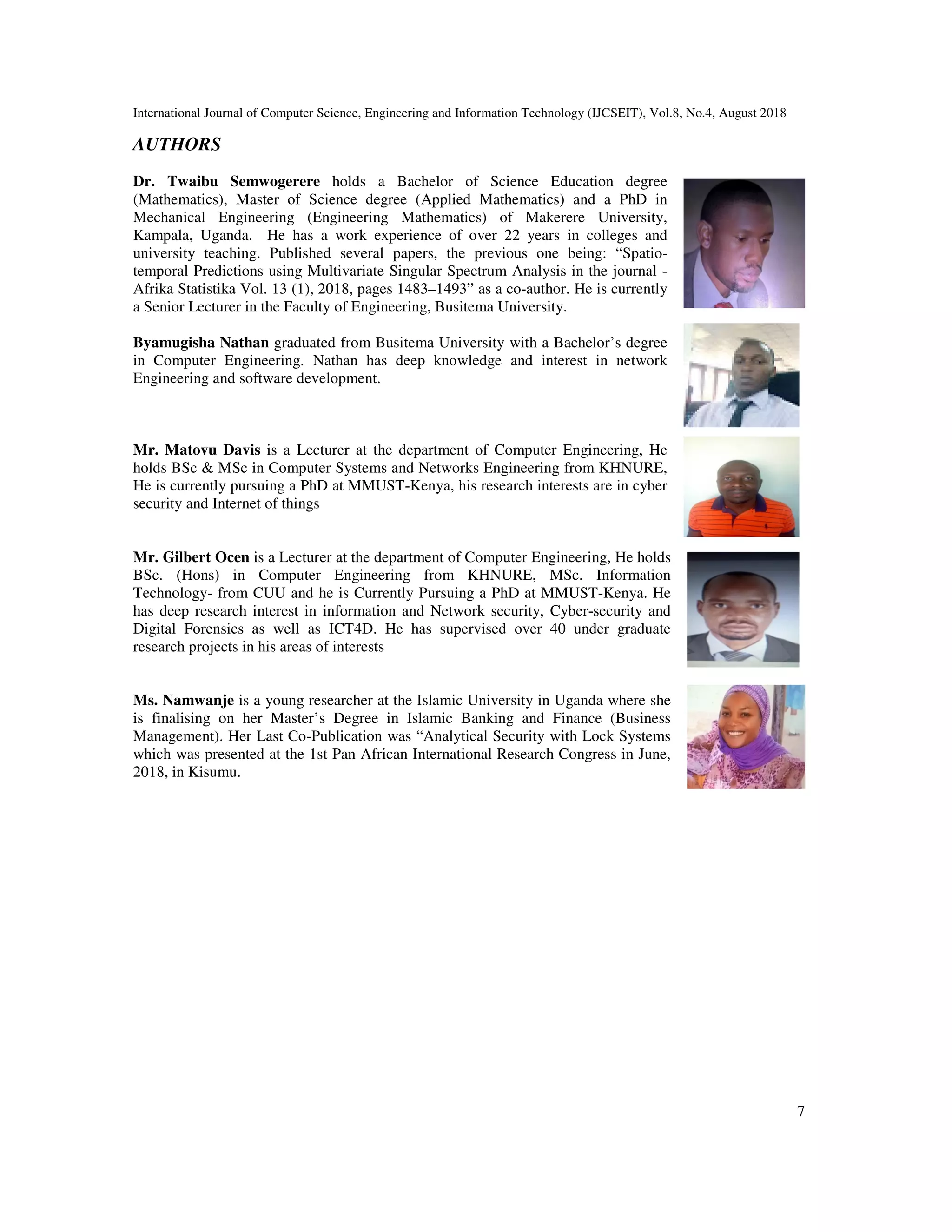

AUTHORS
Dr. Twaibu Semwogerere holds a Bachelor of Science Education degree
(Mathematics), Master of Science degree (Applied Mathematics) and a PhD in
Mechanical Engineering (Engineering Mathematics) of Makerere University,
Kampala, Uganda. He has a work experience of over 22 years in colleges and
university teaching. Published several papers, the previous one being: “Spatio-
temporal Predictions using Multivariate Singular Spectrum Analysis in the journal -
Afrika Statistika Vol. 13 (1), 2018, pages 1483–1493” as a co-author. He is currently
a Senior Lecturer in the Faculty of Engineering, Busitema University.
Byamugisha Nathan graduated from Busitema University with a Bachelor’s degree
in Computer Engineering. Nathan has deep knowledge and interest in network
Engineering and software development.
Mr. Matovu Davis is a Lecturer at the department of Computer Engineering, He
holds BSc & MSc in Computer Systems and Networks Engineering from KHNURE,
He is currently pursuing a PhD at MMUST-Kenya, his research interests are in cyber
security and Internet of things
Mr. Gilbert Ocen is a Lecturer at the department of Computer Engineering, He holds
BSc. (Hons) in Computer Engineering from KHNURE, MSc. Information
Technology- from CUU and he is Currently Pursuing a PhD at MMUST-Kenya. He
has deep research interest in information and Network security, Cyber-security and
Digital Forensics as well as ICT4D. He has supervised over 40 under graduate
research projects in his areas of interests
Ms. Namwanje is a young researcher at the Islamic University in Uganda where she
is finalising on her Master’s Degree in Islamic Banking and Finance (Business
Management). Her Last Co-Publication was “Analytical Security with Lock Systems
which was presented at the 1st Pan African International Research Congress in June,
2018, in Kisumu.

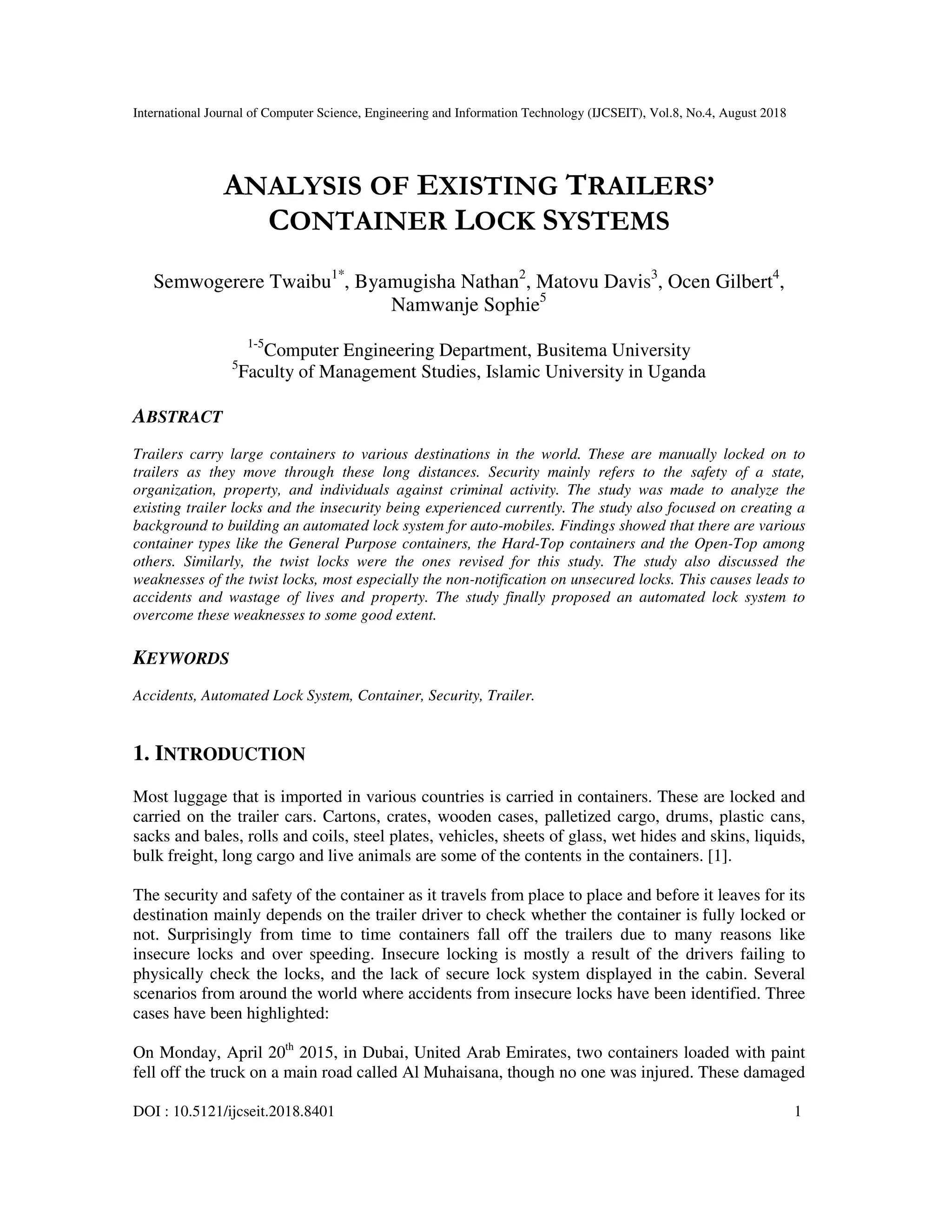

ANALYSIS OF EXISTING TRAILERS’ CONTAINER LOCK SYSTEMS

More Related Content

Similar to ANALYSIS OF EXISTING TRAILERS’ CONTAINER LOCK SYSTEMS

Recently uploaded

ANALYSIS OF EXISTING TRAILERS’ CONTAINER LOCK SYSTEMS
