  Building Production Platform for Large-Scale Recommendation Applications XuNing Snap
• 2.

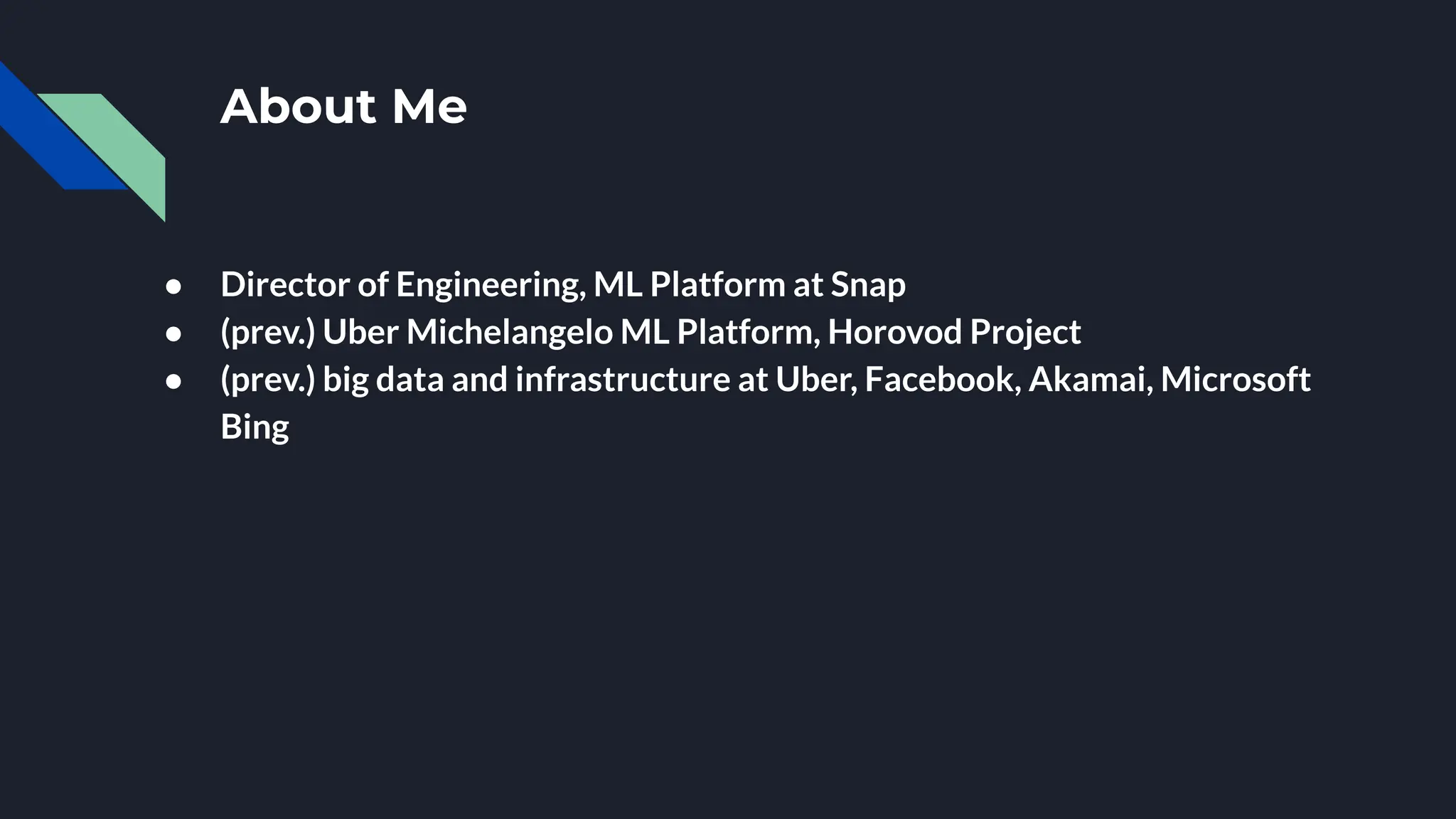

  About Me ● Directorof Engineering, ML Platform at Snap ● (prev.) Uber Michelangelo ML Platform, Horovod Project ● (prev.) big data and infrastructure at Uber, Facebook, Akamai, Microsoft Bing
• 3.

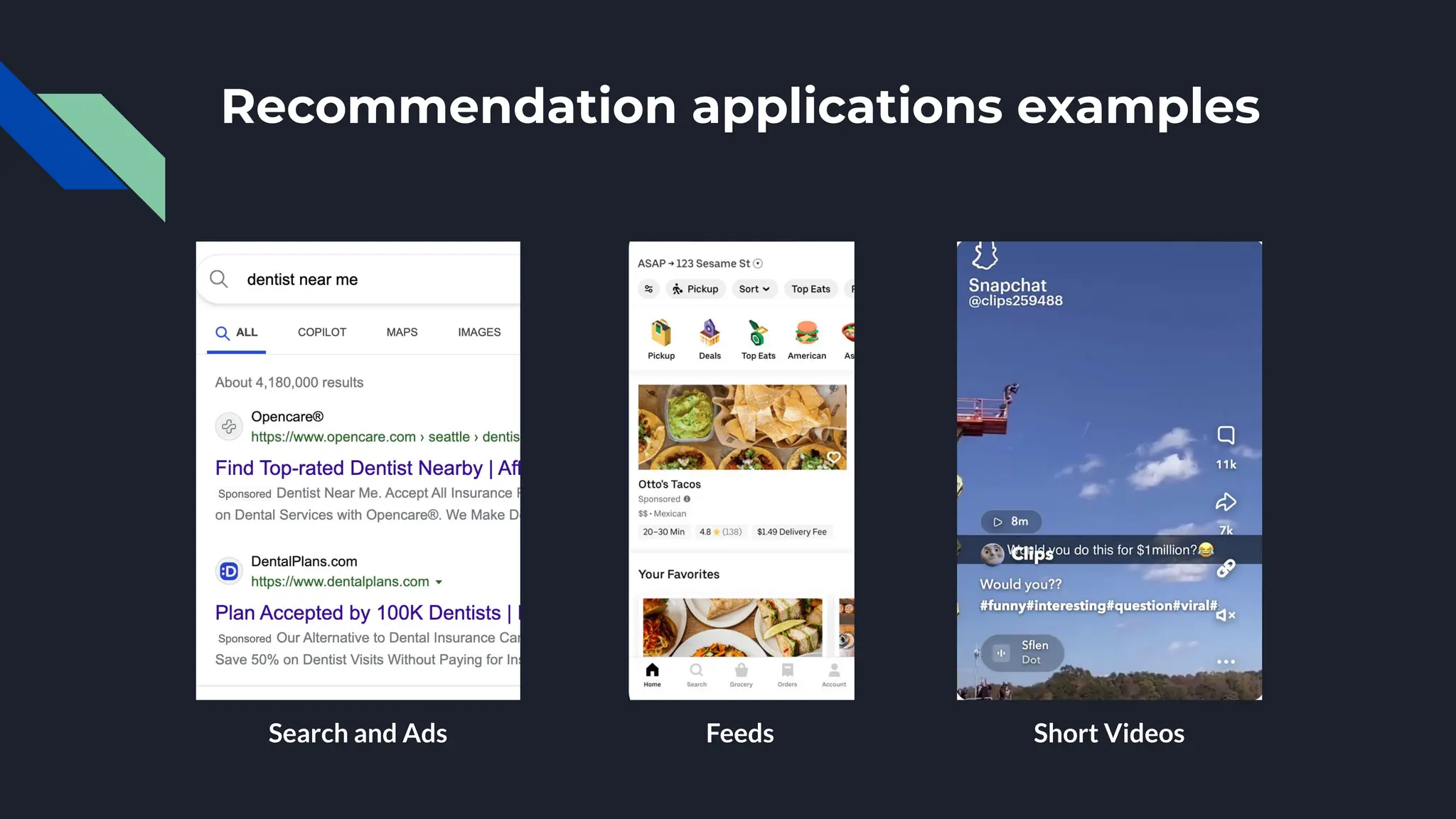

  Recommendation applications examples Searchand Ads Short Videos Feeds
• 4.

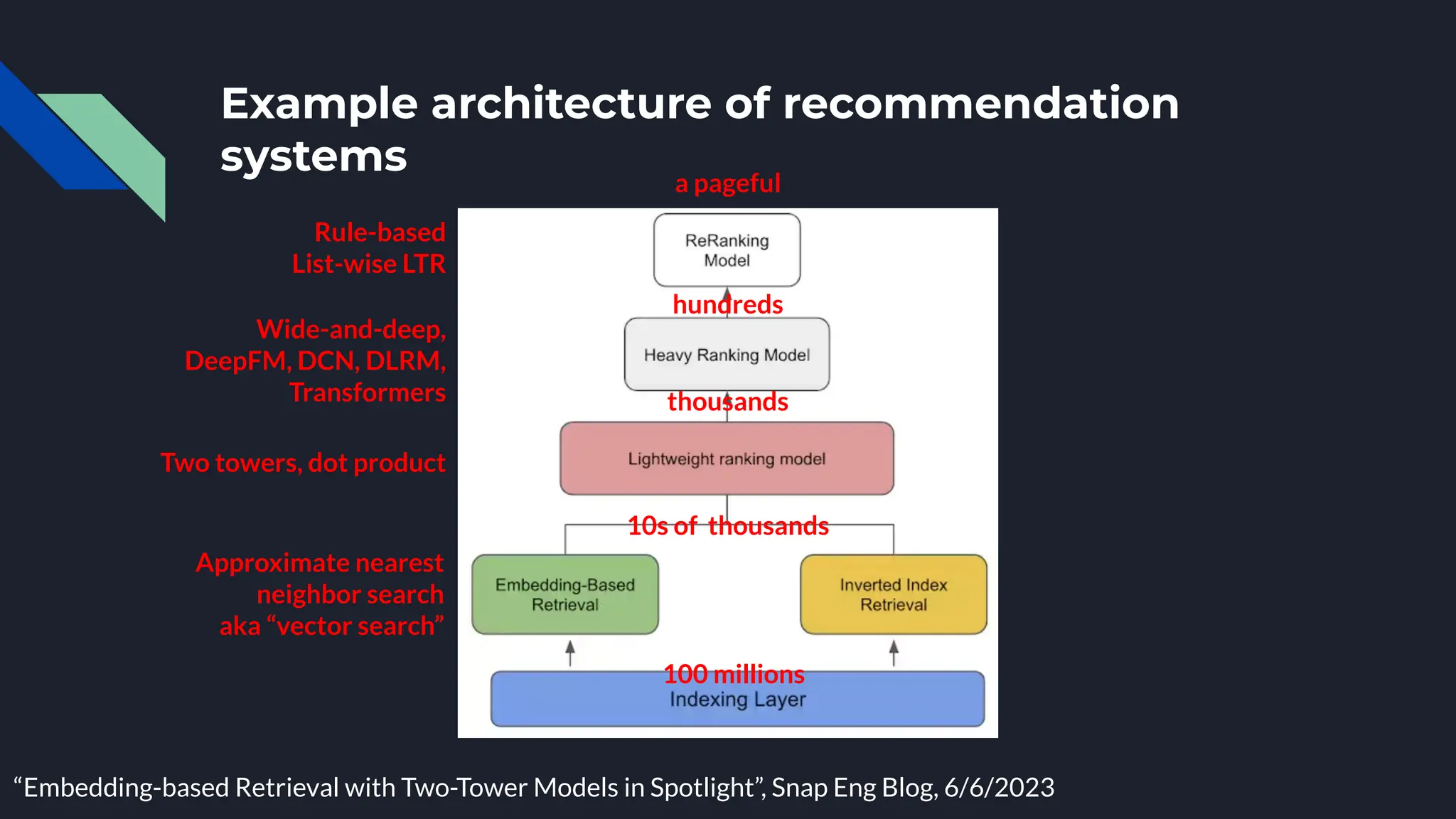

  Example architecture ofrecommendation systems “Embedding-based Retrieval with Two-Tower Models in Spotlight”, Snap Eng Blog, 6/6/2023 100 millions thousands 10s of thousands hundreds a pageful Approximate nearest neighbor search aka “vector search” Two towers, dot product Wide-and-deep, DeepFM, DCN, DLRM, Transformers Rule-based List-wise LTR
• 5.

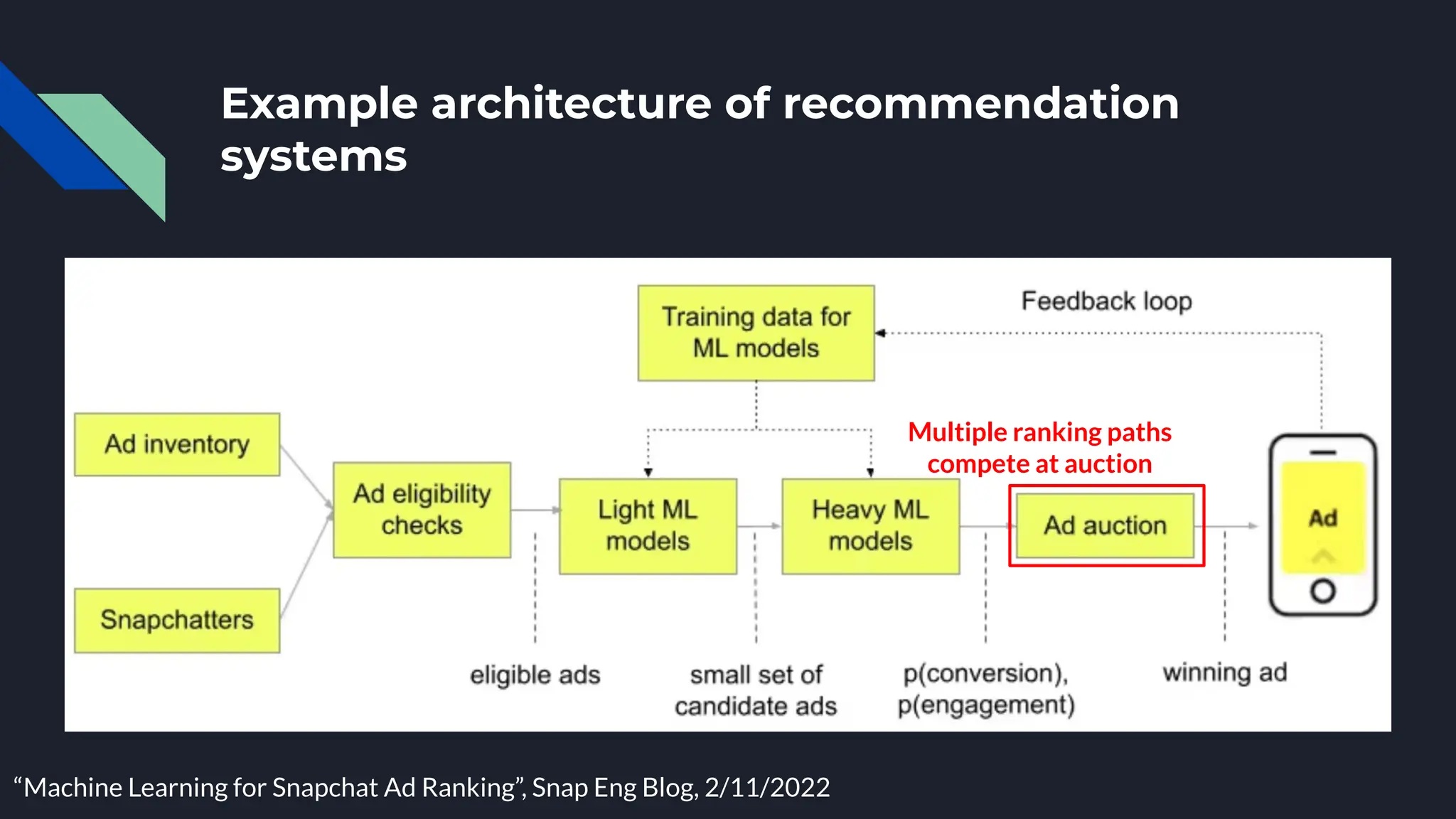

  Example architecture ofrecommendation systems “Machine Learning for Snapchat Ad Ranking”, Snap Eng Blog, 2/11/2022 Multiple ranking paths compete at auction
• 6.
  Example recommendation models 1.“Embedding-based Retrieval with Two-Tower Models in Spotlight”, Snap Eng Blog, 6/6/2023 2. “Machine Learning for Snapchat Ad Ranking”, Snap Eng Blog, 2/11/2022 Light ranking “L1” Heavy ranking “L2”
• 7.

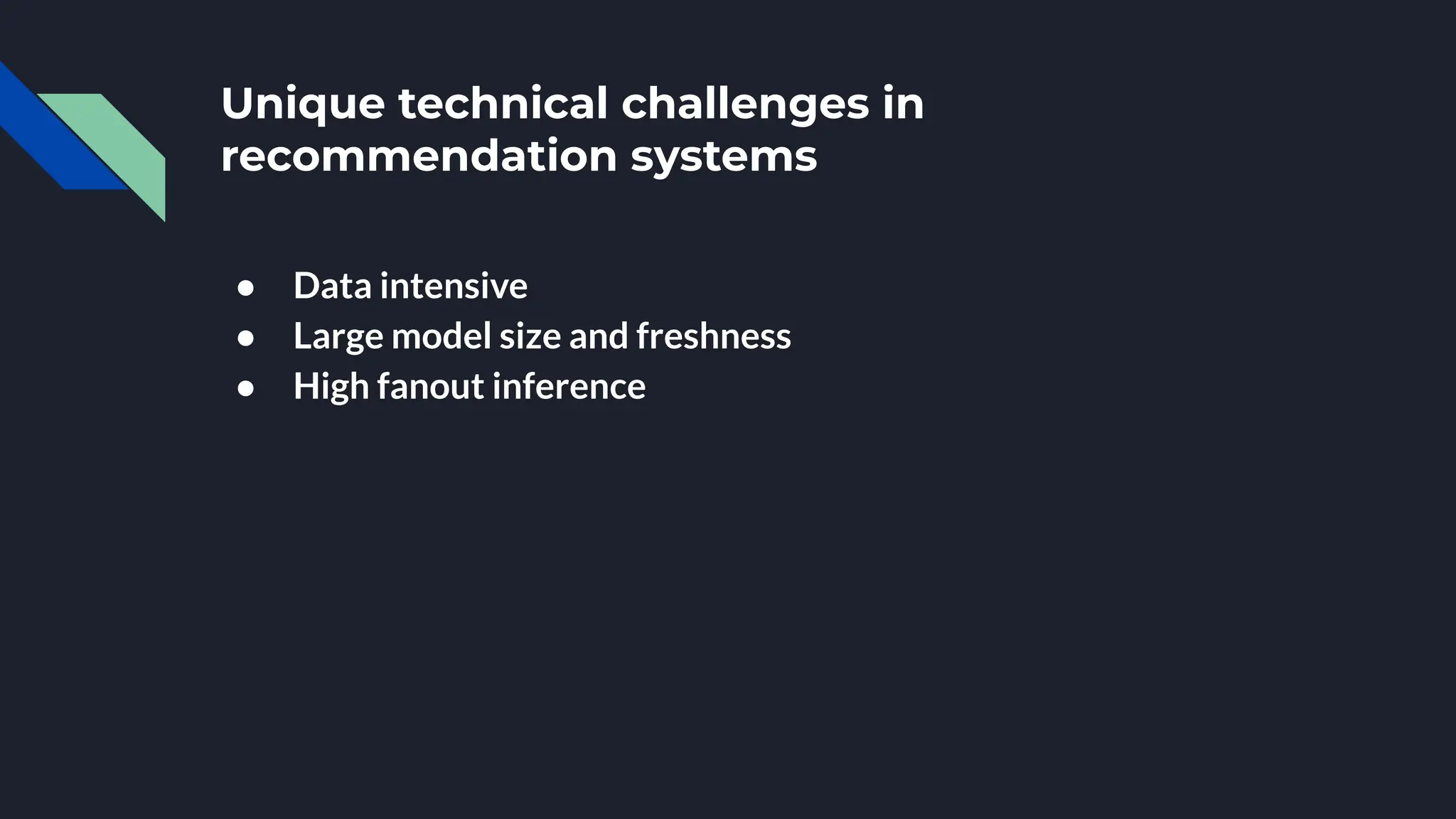

  Unique technical challengesin recommendation systems ● Data intensive ● Large model size and freshness ● High fanout inference
• 8.

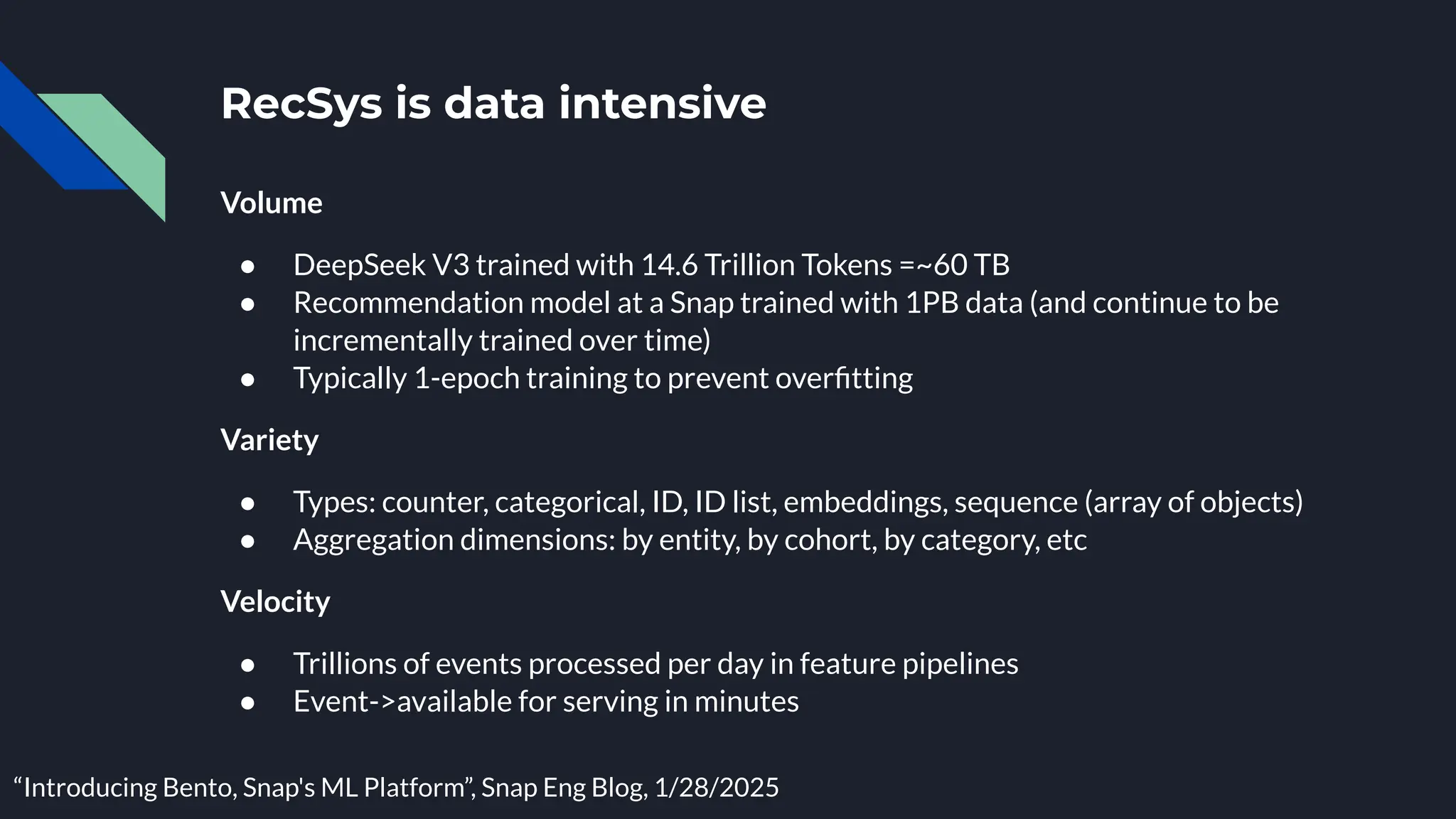

  Volume ● DeepSeek V3trained with 14.6 Trillion Tokens =~60 TB ● Recommendation model at a Snap trained with 1PB data (and continue to be incrementally trained over time) ● Typically 1-epoch training to prevent overfitting Variety ● Types: counter, categorical, ID, ID list, embeddings, sequence (array of objects) ● Aggregation dimensions: by entity, by cohort, by category, etc Velocity ● Trillions of events processed per day in feature pipelines ● Event->available for serving in minutes RecSys is data intensive “Introducing Bento, Snap's ML Platform”, Snap Eng Blog, 1/28/2025
• 9.

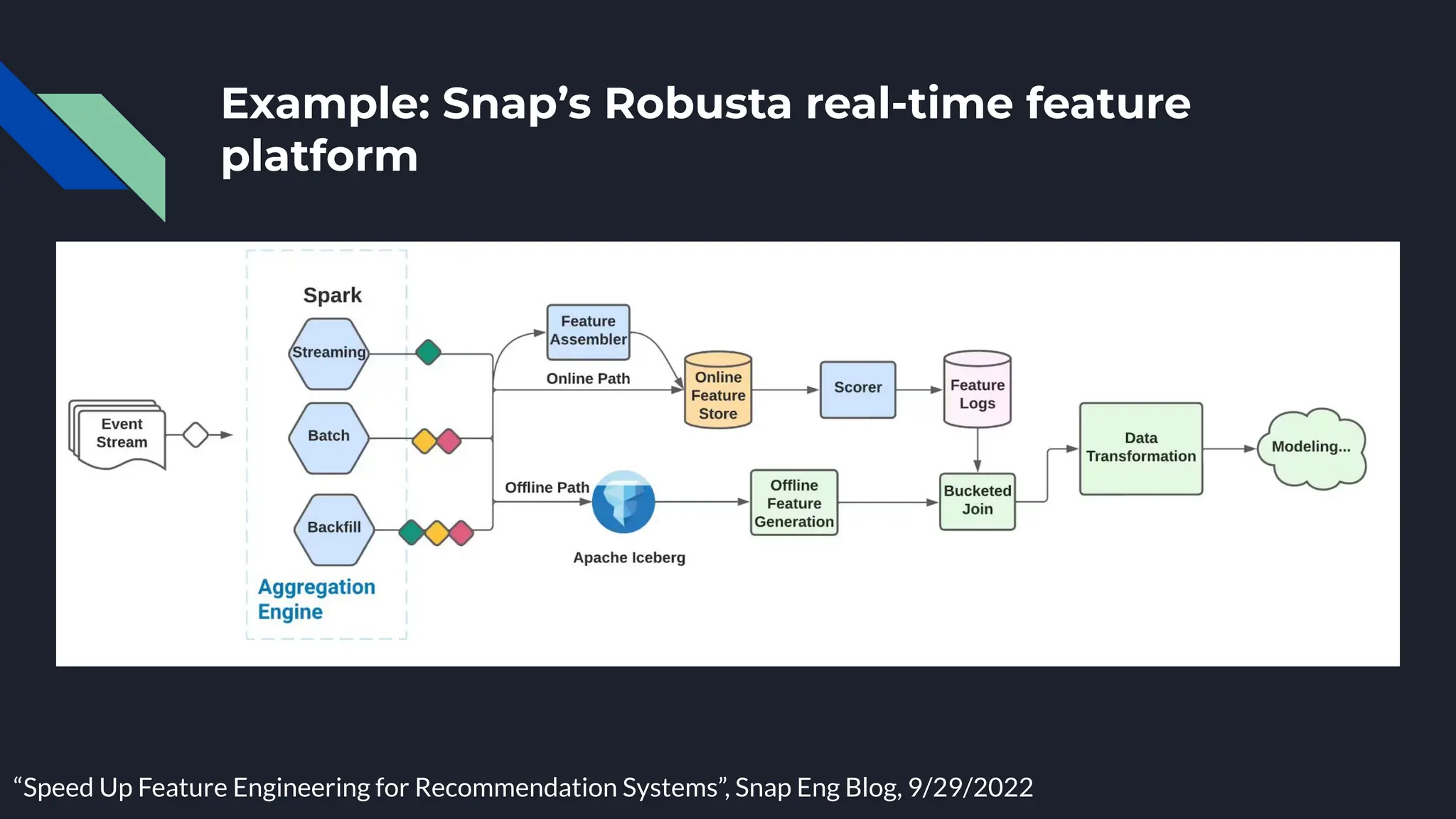

  Example: Snap’s Robustareal-time feature platform “Speed Up Feature Engineering for Recommendation Systems”, Snap Eng Blog, 9/29/2022
• 10.

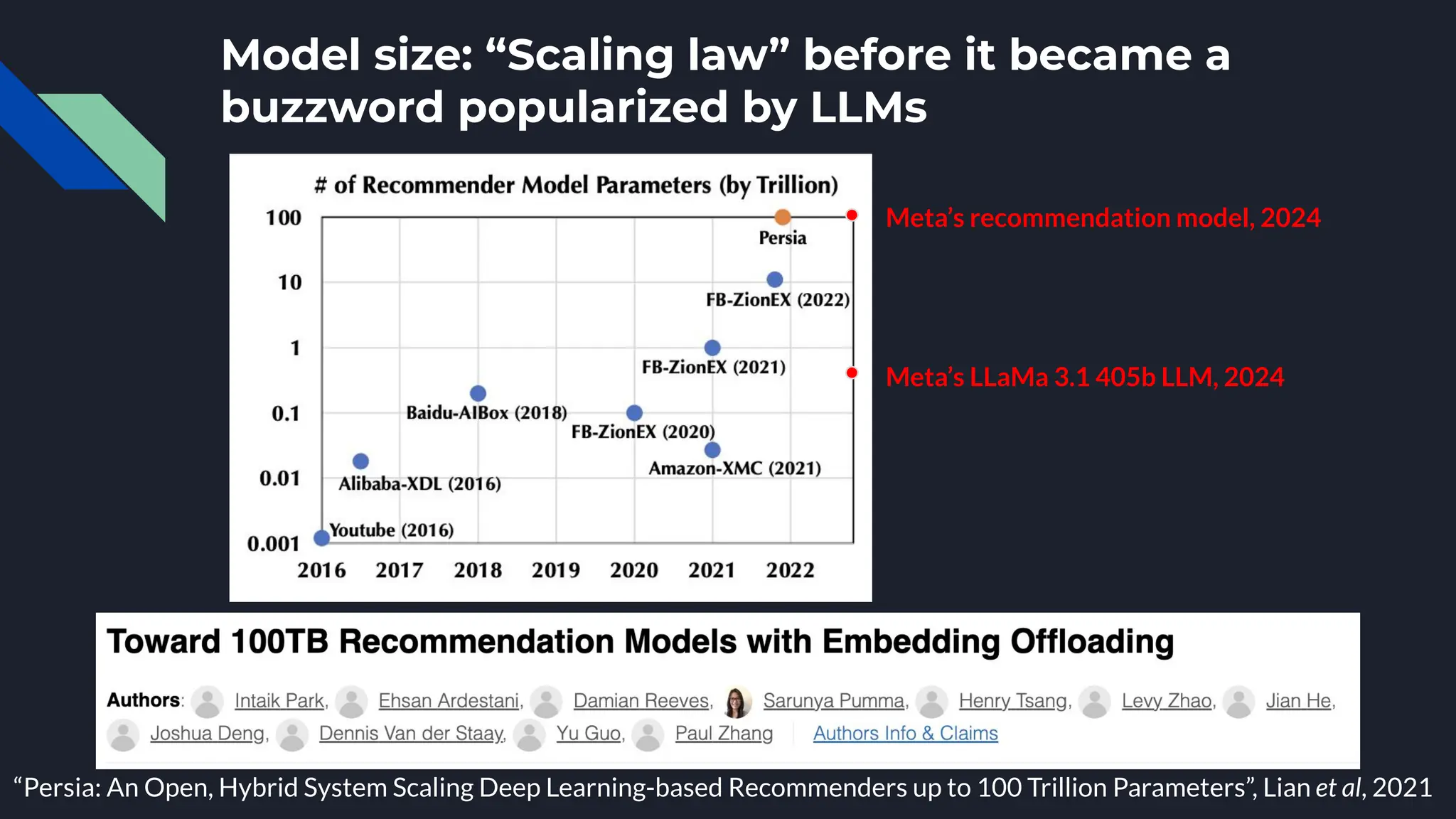

  Model size: “Scalinglaw” before it became a buzzword popularized by LLMs Meta’s recommendation model, 2024 Meta’s LLaMa 3.1 405b LLM, 2024 “Persia: An Open, Hybrid System Scaling Deep Learning-based Recommenders up to 100 Trillion Parameters”, Lian et al, 2021
• 11.

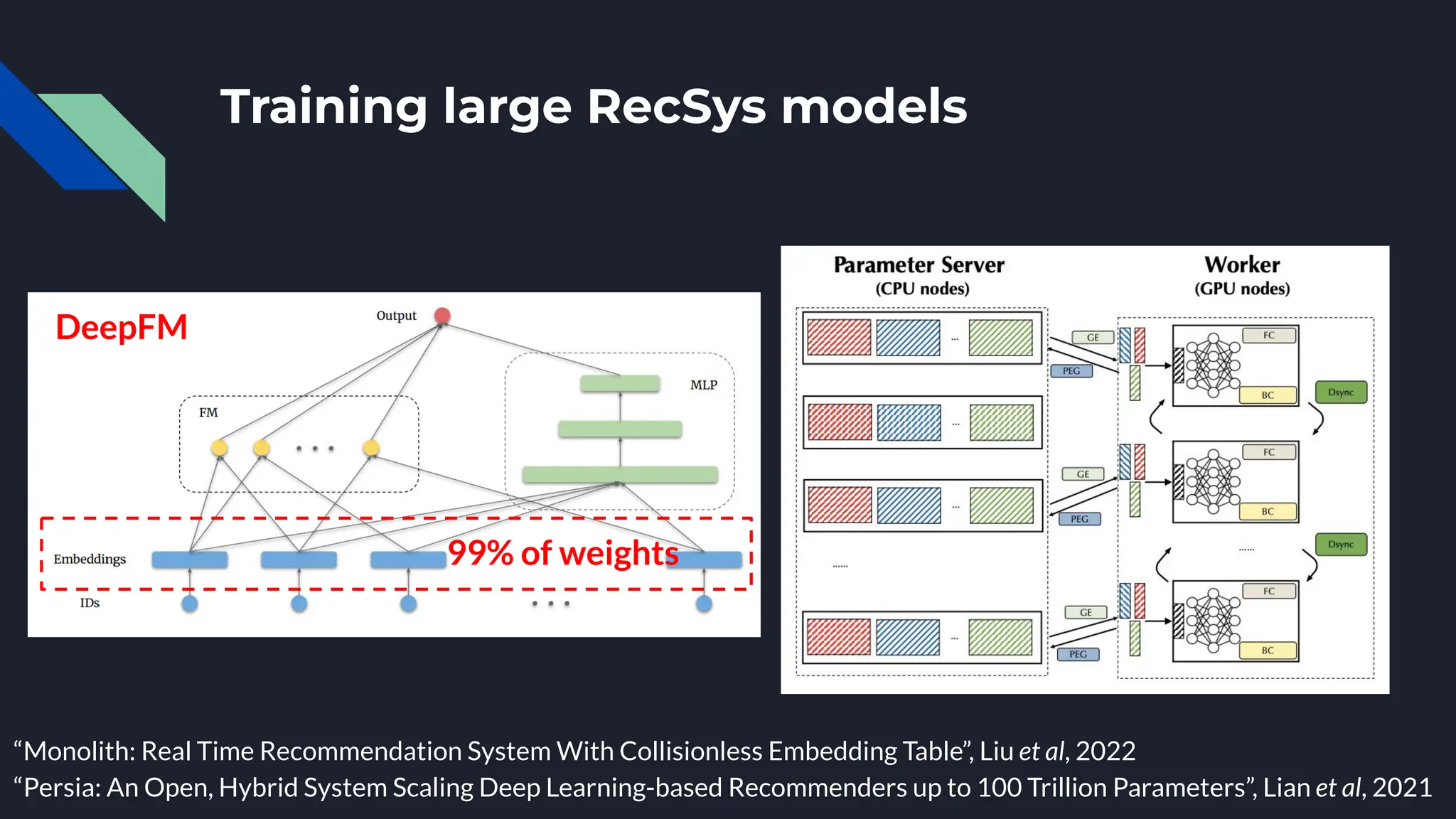

  Training large RecSysmodels “Persia: An Open, Hybrid System Scaling Deep Learning-based Recommenders up to 100 Trillion Parameters”, Lian et al, 2021 “Monolith: Real Time Recommendation System With Collisionless Embedding Table”, Liu et al, 2022 99% of weights DeepFM
• 12.
  How fresh isfresh enough? “Monolith: Real Time Recommendation System With Collisionless Embedding Table”, Liu et al, 2022
• 13.
  High Fanout Inference Compilingmodel for inference: User feature broadcast ● Train: (user_feature, document_feature) →label ● Inference: user_feature, [(document_feature)] ○ Need to broadcast user_feature at model compilation or inference server Document feature fetching ● Each request may need to fetch 10s of 000s document features ○ 1TB/s read volume Externalized Embedding serving ● 1TB model–cannot fit in memory ● In memory database/serving parameter server “Introducing Bento, Snap's ML Platform”, Snap Eng Blog, 1/28/2025
• 14.
  Inference and onlinefeature fetching for RecSys “Introducing Bento, Snap's ML Platform”, Snap Eng Blog, 1/28/2025
• 15.
  Closing words ● Recommendationsystems have unique platform technology and operational challenges due to scale, and complexity. ● It’s highly customized, and there is no clear cloud/open-source OOTB solution at scale. ○ Kuaishou Persia (unmaintained), ByteDance Monolith (unmaintained) ○ Very challenging to adopt ● More on how Snap powers its recommendation applications: https://eng.snap.com/introducing-bento 🍱
