Writing less code with Serverless on AWS at AWS Community Day DACH 2021
- 1. Writing less codewith Serverless on Vadym Kazulkin, ip.labs, 21 October 2021
- 2. Contact Vadym Kazulkin ip.labs GmbHBonn, Germany Co-Organizer of the Java User Group Bonn and Serverless Bonn Meetup v.kazulkin@gmail.com @VKazulkin https://www.linkedin.com/in/vadymkazulk in/ https://www.iplabs.de/
- 3.

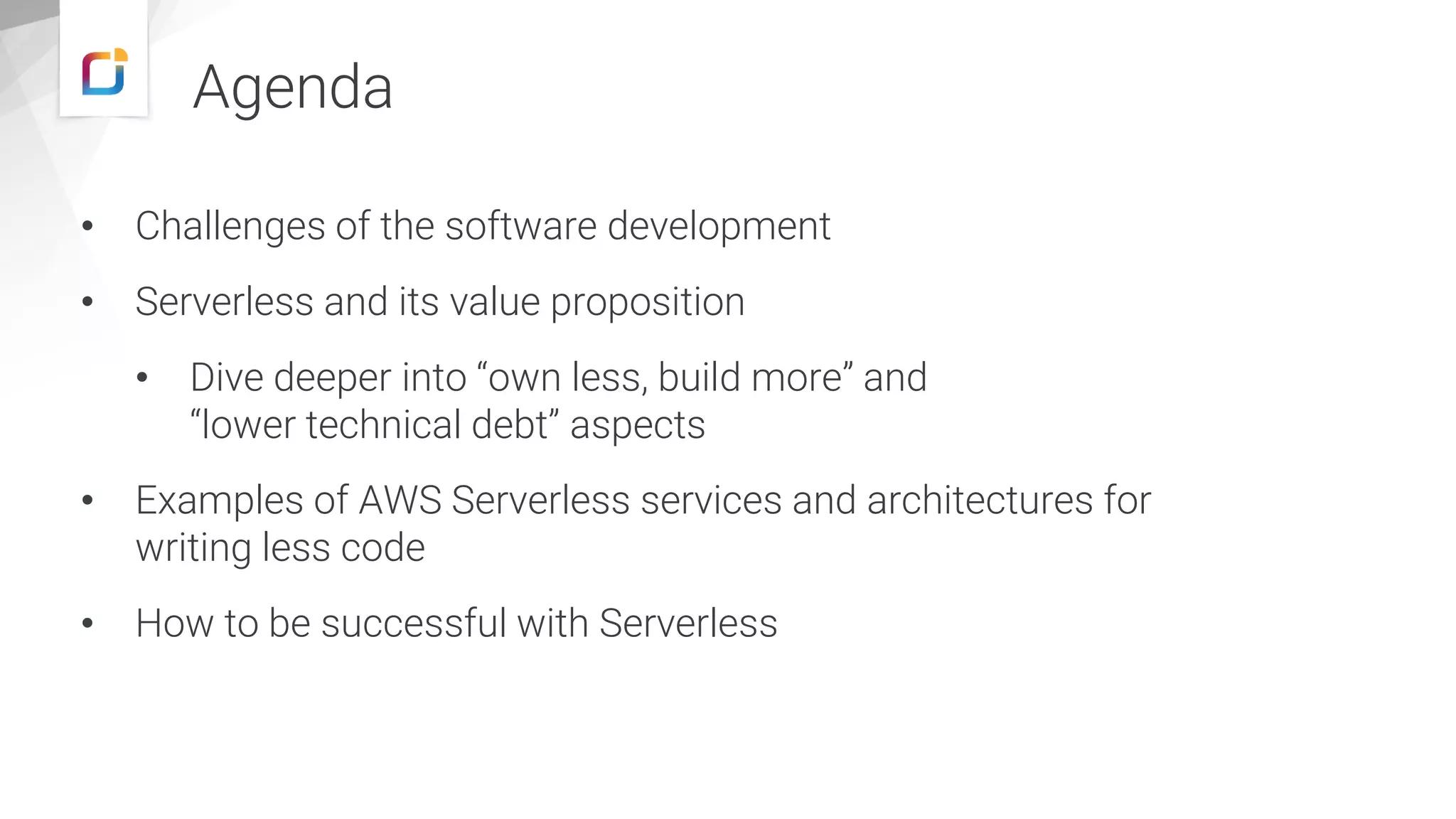

- 4. Agenda • Challenges ofthe software development • Serverless and its value proposition • Dive deeper into “own less, build more” and “lower technical debt” aspects • Examples of AWS Serverless services and architectures for writing less code • How to be successful with Serverless
- 5. Let’s talk aboutthe challenges of the software development in general first

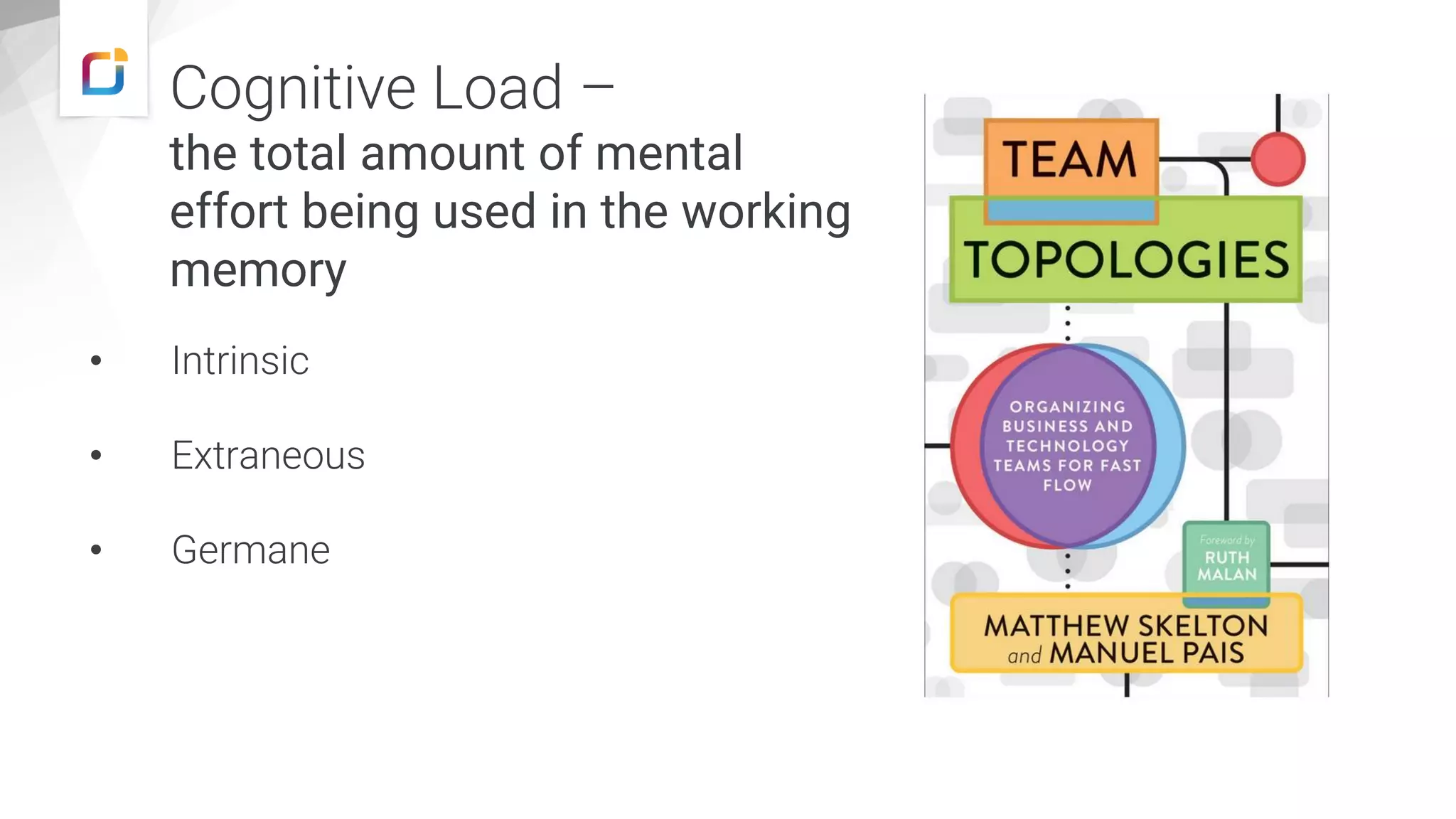

- 6. Cognitive Load – thetotal amount of mental effort being used in the working memory • Intrinsic • Extraneous • Germane

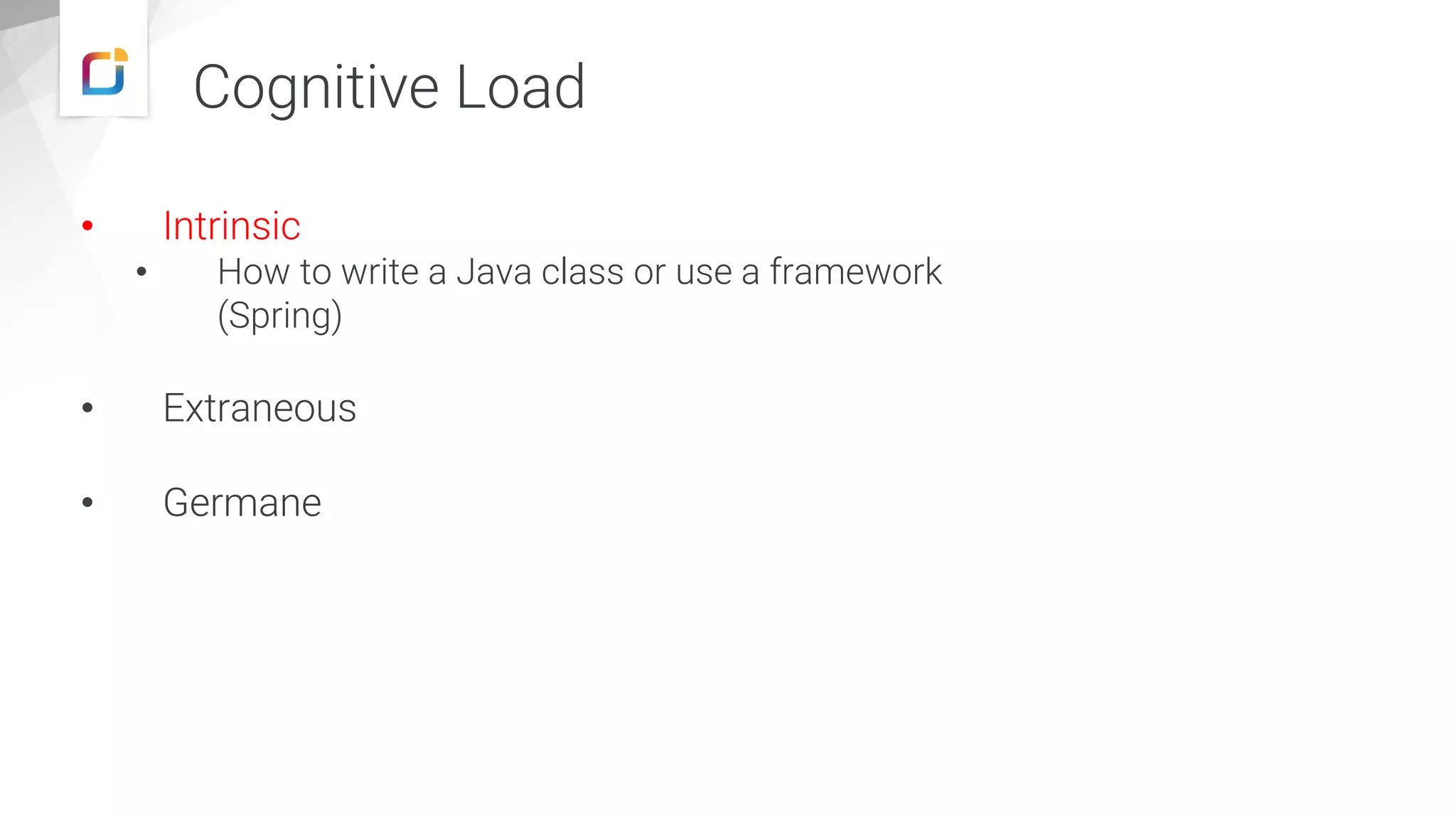

- 7. Cognitive Load • Intrinsic •How to write a Java class or use a framework (Spring) • Extraneous • Germane

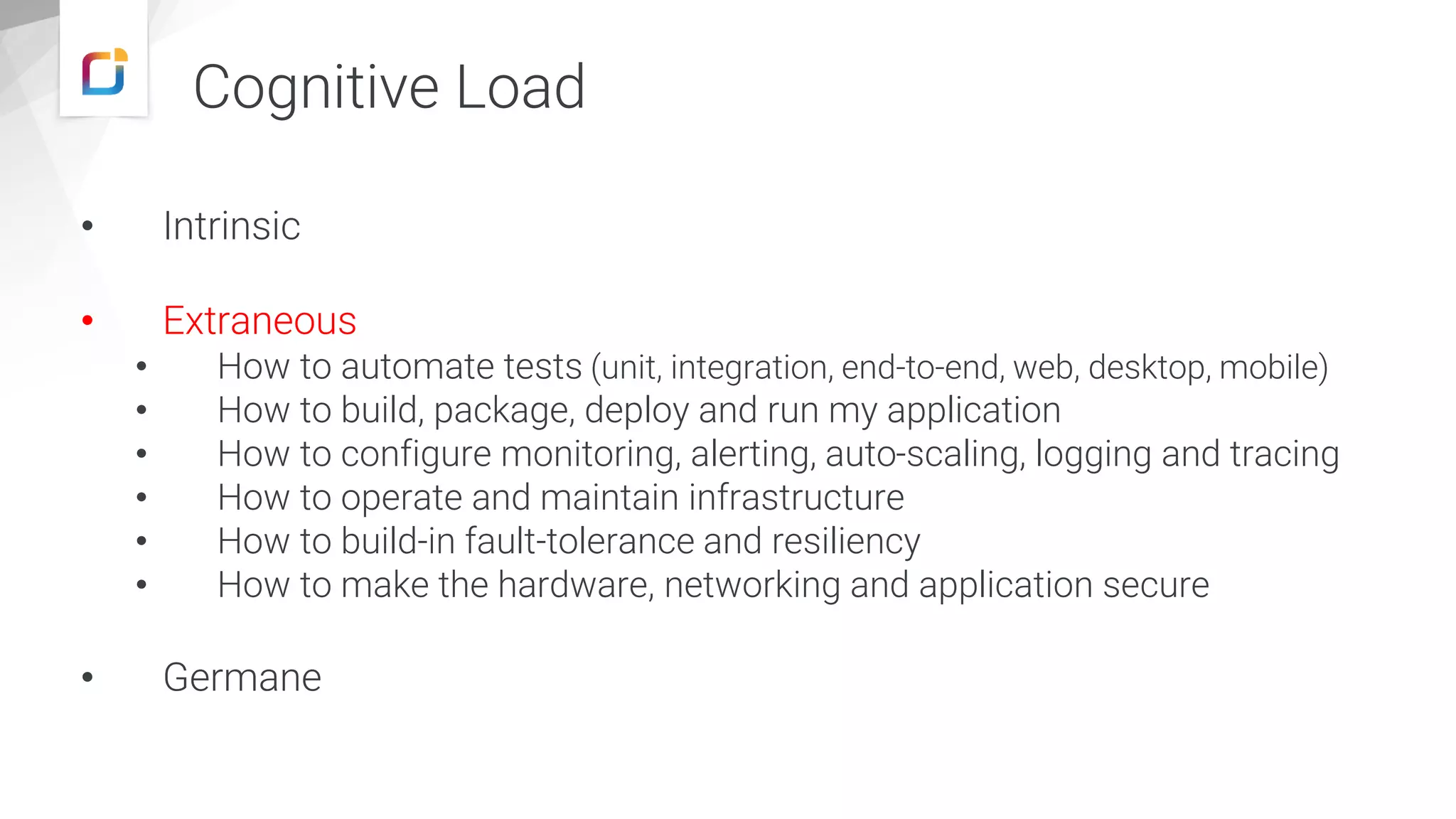

- 8. • Intrinsic • Extraneous •How to automate tests (unit, integration, end-to-end, web, desktop, mobile) • How to build, package, deploy and run my application • How to configure monitoring, alerting, auto-scaling, logging and tracing • How to operate and maintain infrastructure • How to build-in fault-tolerance and resiliency • How to make the hardware, networking and application secure • Germane Cognitive Load

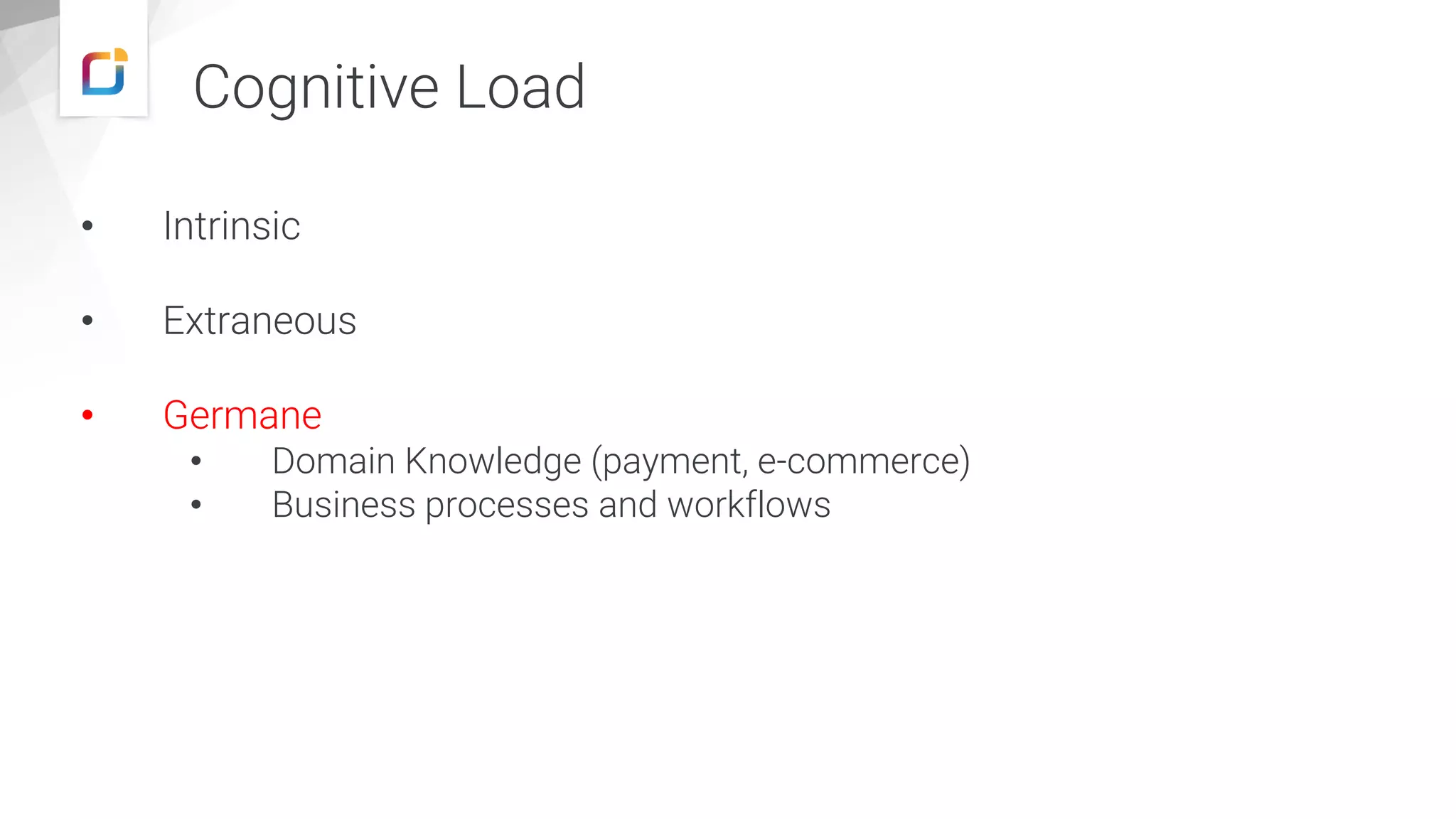

- 9. • Intrinsic • Extraneous •Germane • Domain Knowledge (payment, e-commerce) • Business processes and workflows Cognitive Load

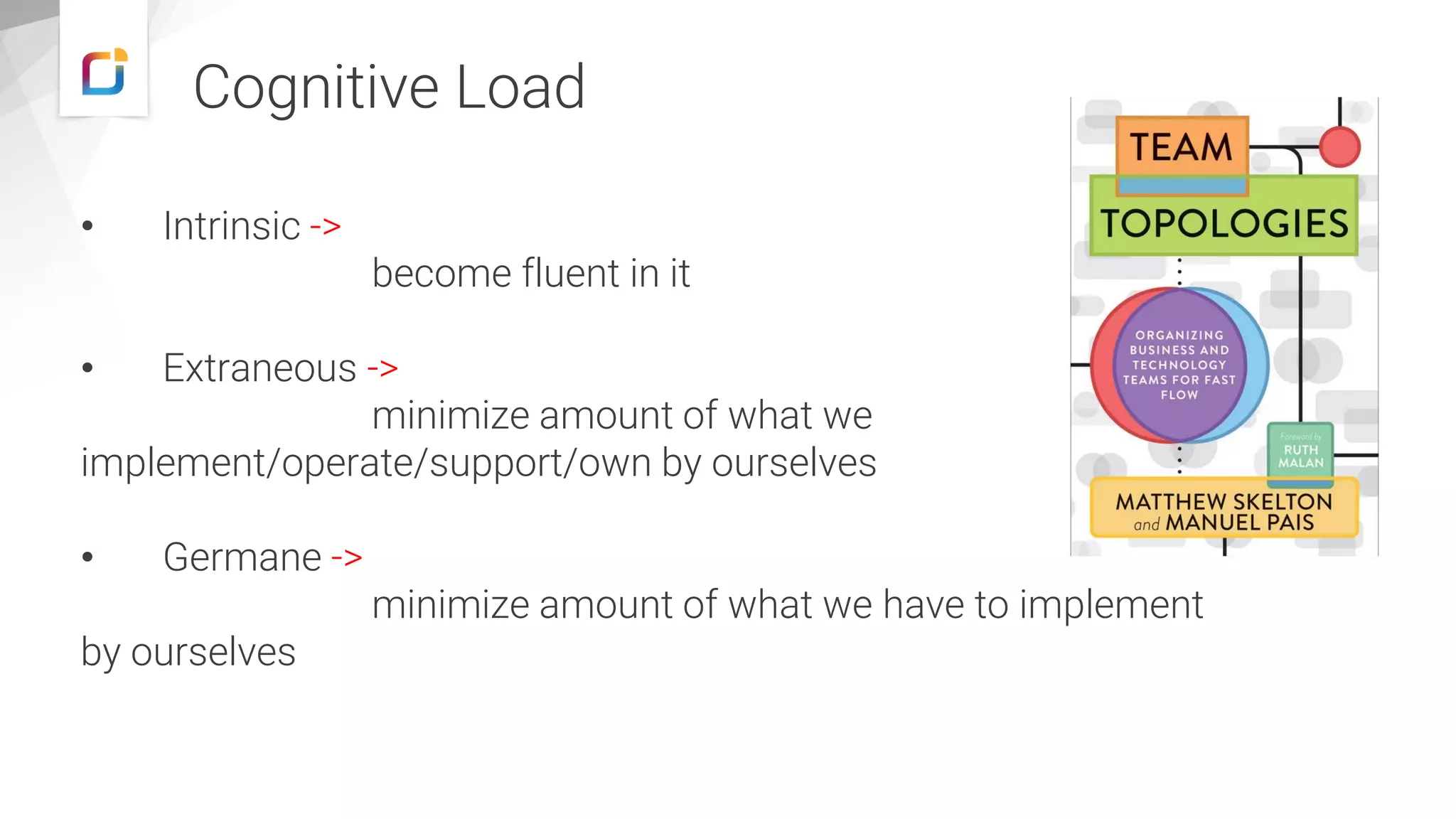

- 10. • Intrinsic -> becomefluent in it • Extraneous -> minimize amount of what we implement/operate/support/own by ourselves • Germane -> minimize amount of what we have to implement by ourselves Cognitive Load

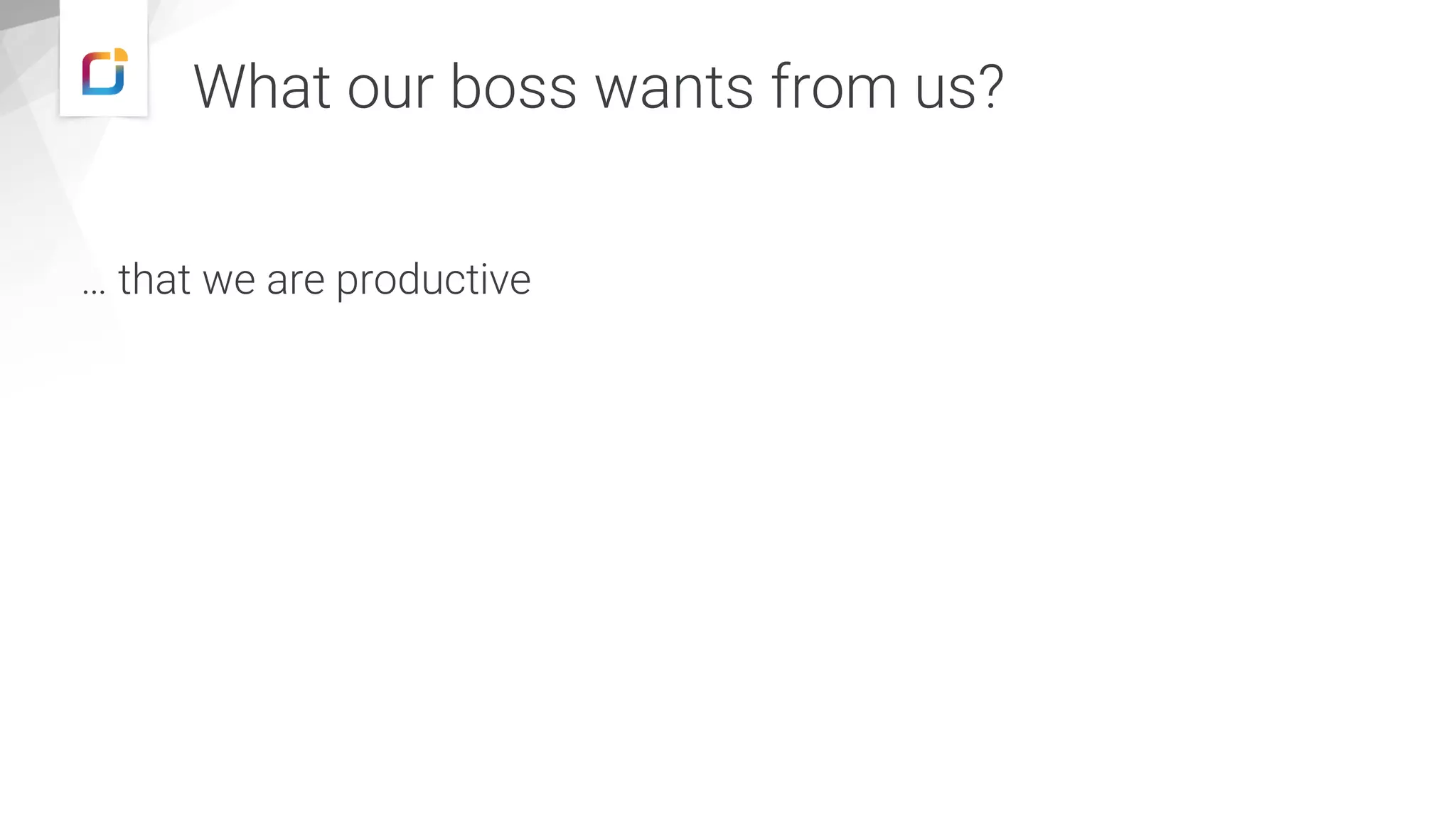

- 11. What our bosswants from us? … that we are productive

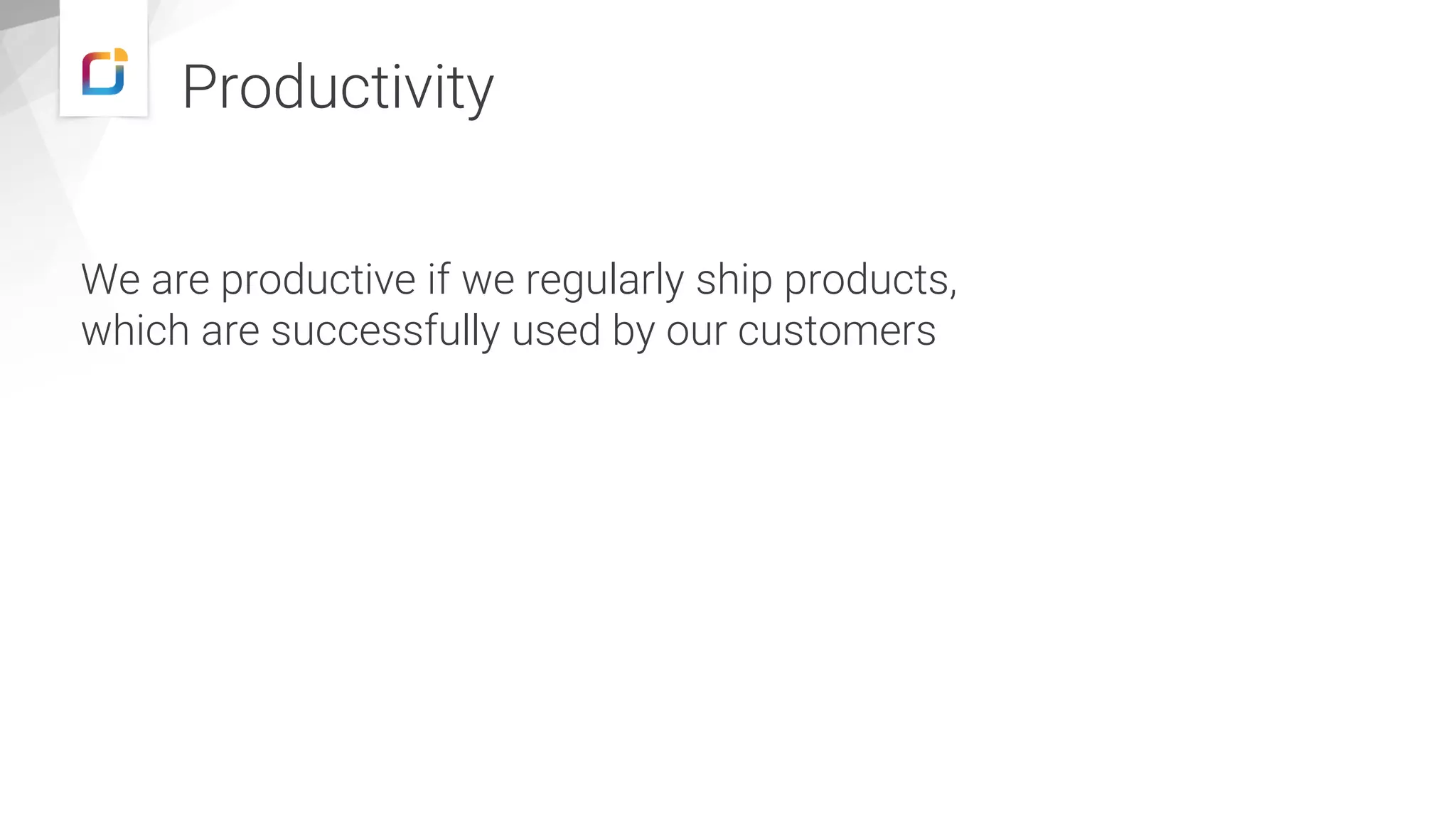

- 12. Productivity We are productiveif we regularly ship products, which are successfully used by our customers

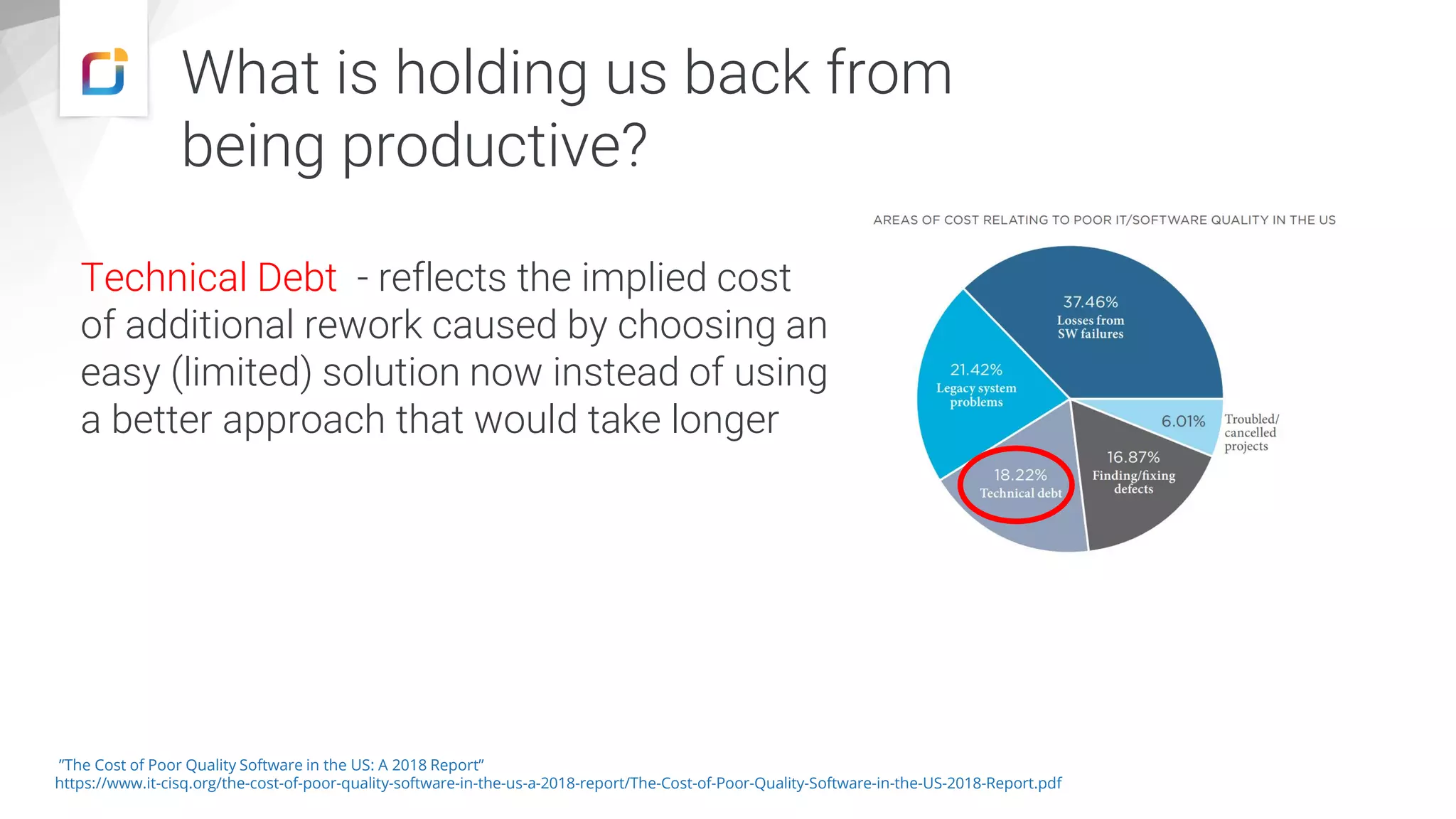

- 13. What is holdingus back from being productive? Technical Debt - reflects the implied cost of additional rework caused by choosing an easy (limited) solution now instead of using a better approach that would take longer ”The Cost of Poor Quality Software in the US: A 2018 Report” https://www.it-cisq.org/the-cost-of-poor-quality-software-in-the-us-a-2018-report/The-Cost-of-Poor-Quality-Software-in-the-US-2018-Report.pdf

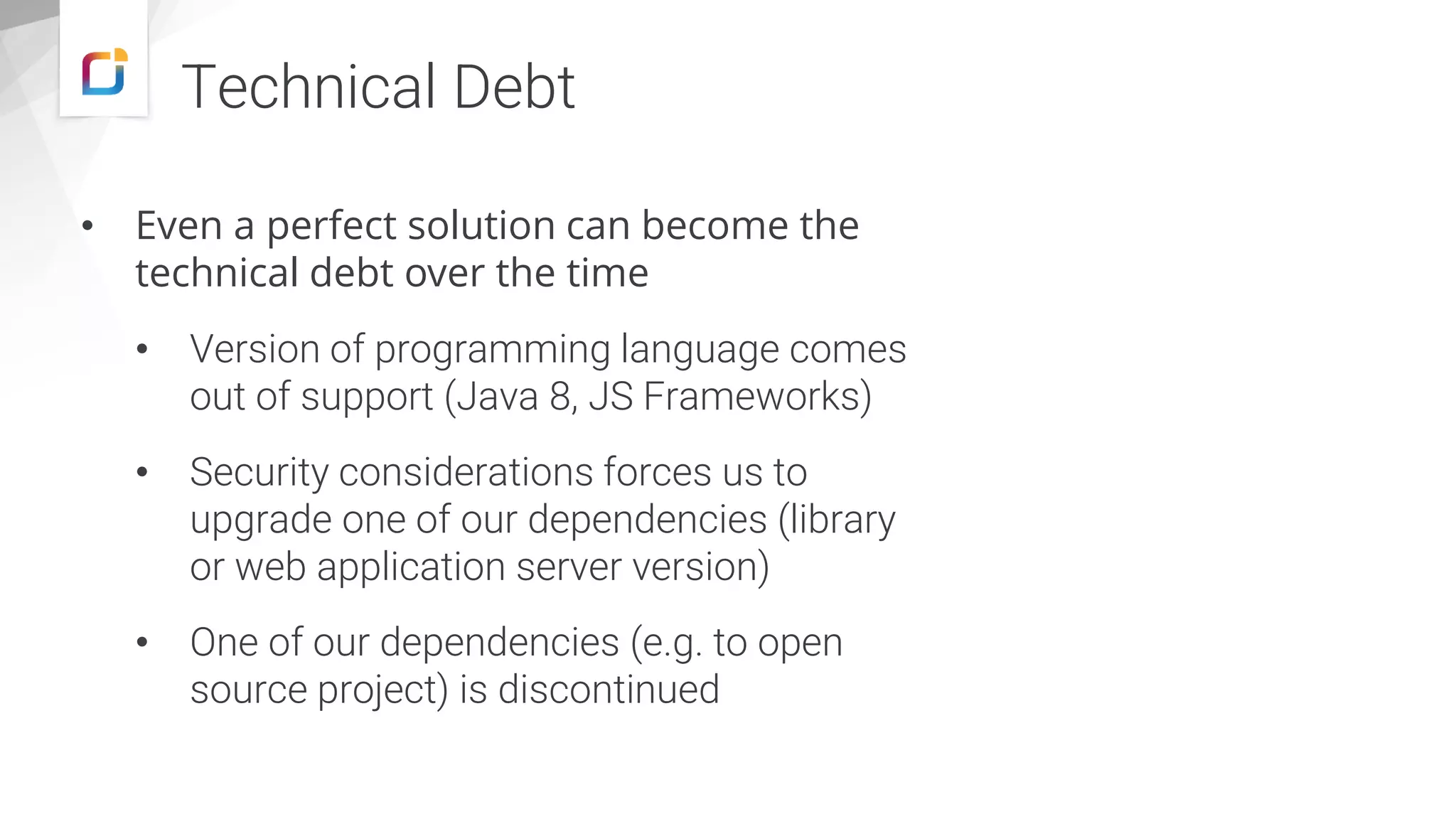

- 14. Technical Debt • Evena perfect solution can become the technical debt over the time • Version of programming language comes out of support (Java 8, JS Frameworks) • Security considerations forces us to upgrade one of our dependencies (library or web application server version) • One of our dependencies (e.g. to open source project) is discontinued

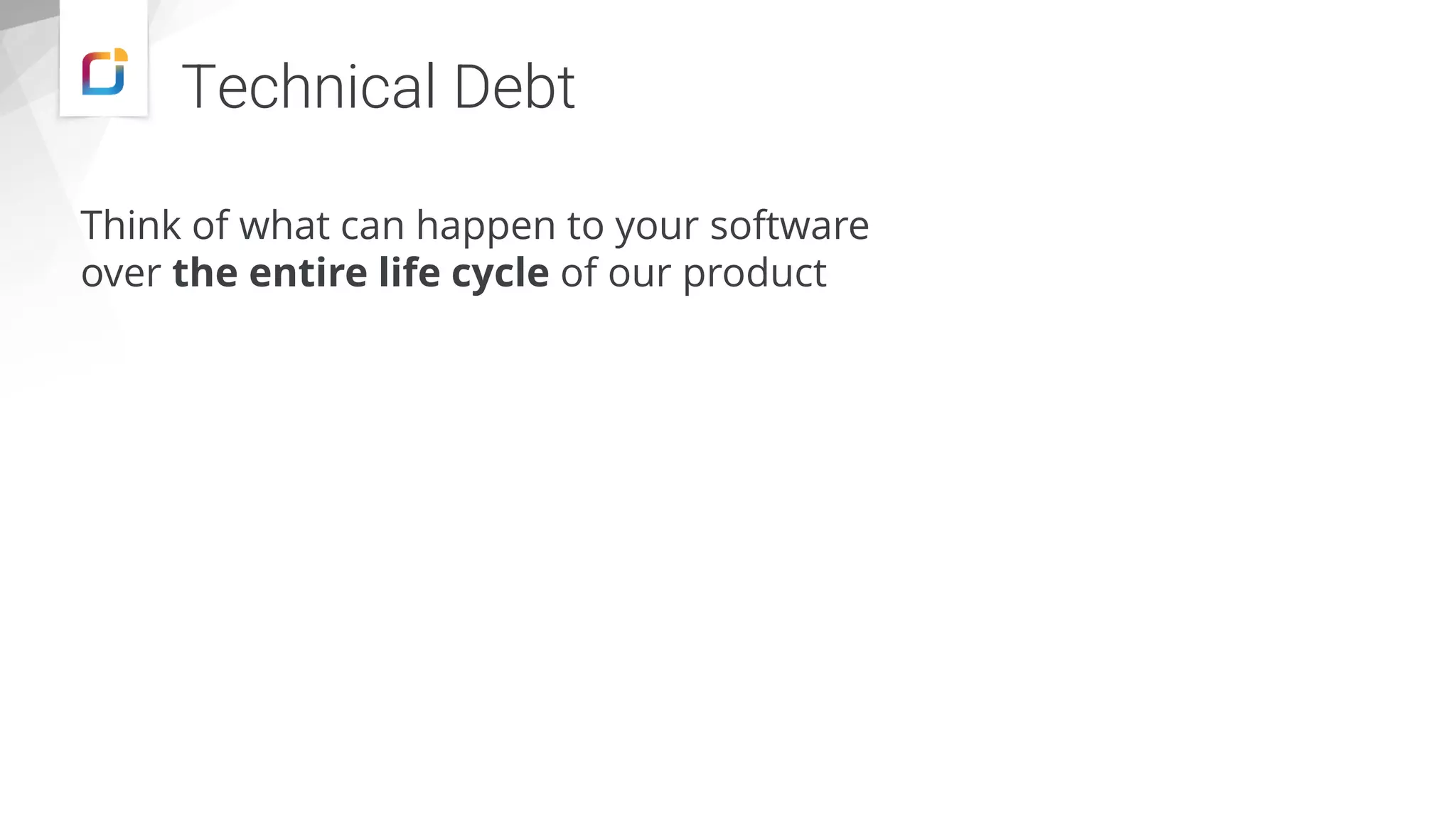

- 15. Think of whatcan happen to your software over the entire life cycle of our product Technical Debt

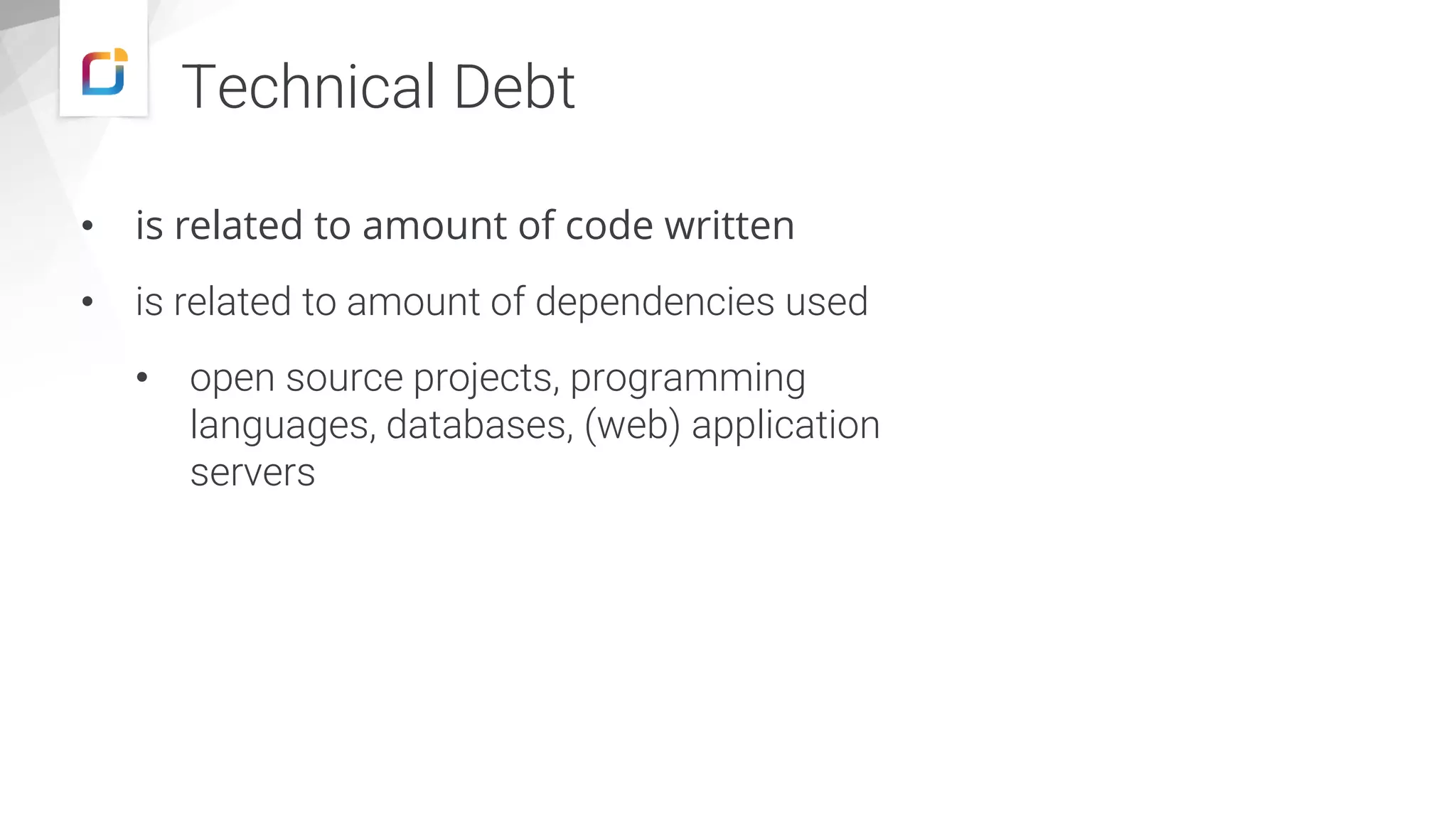

- 16. • is relatedto amount of code written • is related to amount of dependencies used • open source projects, programming languages, databases, (web) application servers Technical Debt

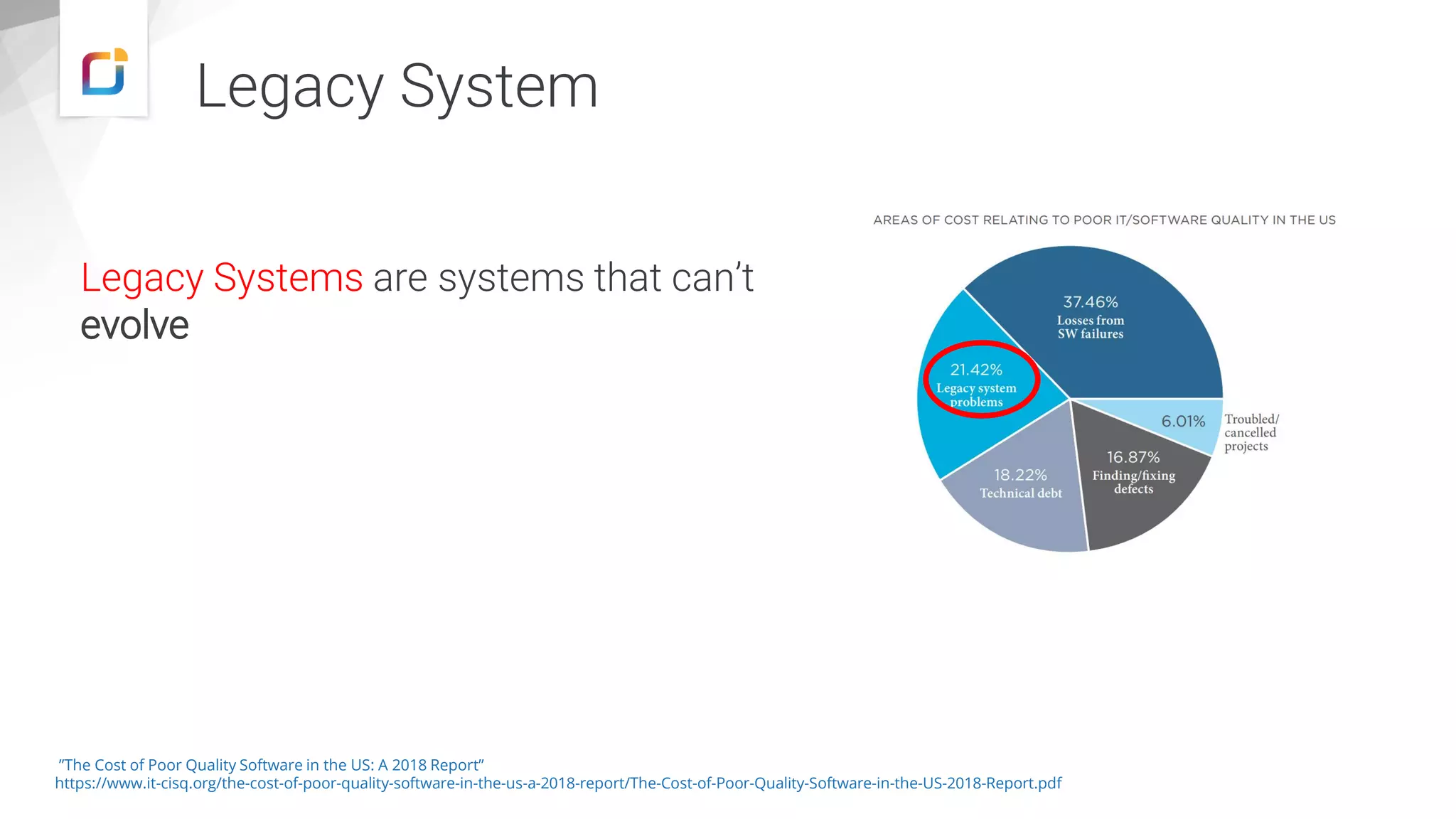

- 17. Legacy Systems aresystems that can’t evolve ”The Cost of Poor Quality Software in the US: A 2018 Report” https://www.it-cisq.org/the-cost-of-poor-quality-software-in-the-us-a-2018-report/The-Cost-of-Poor-Quality-Software-in-the-US-2018-Report.pdf Legacy System
- 18. Evolutionary Architecture– supports guided,incremental change across multiple dimensions • Incremental change • Appropriate architectural coupling • Fitness functions ”Architectural Coupling” https://learning.oreilly.com/library/view/building-evolutionary-architectures/9781491986356/ch04.html

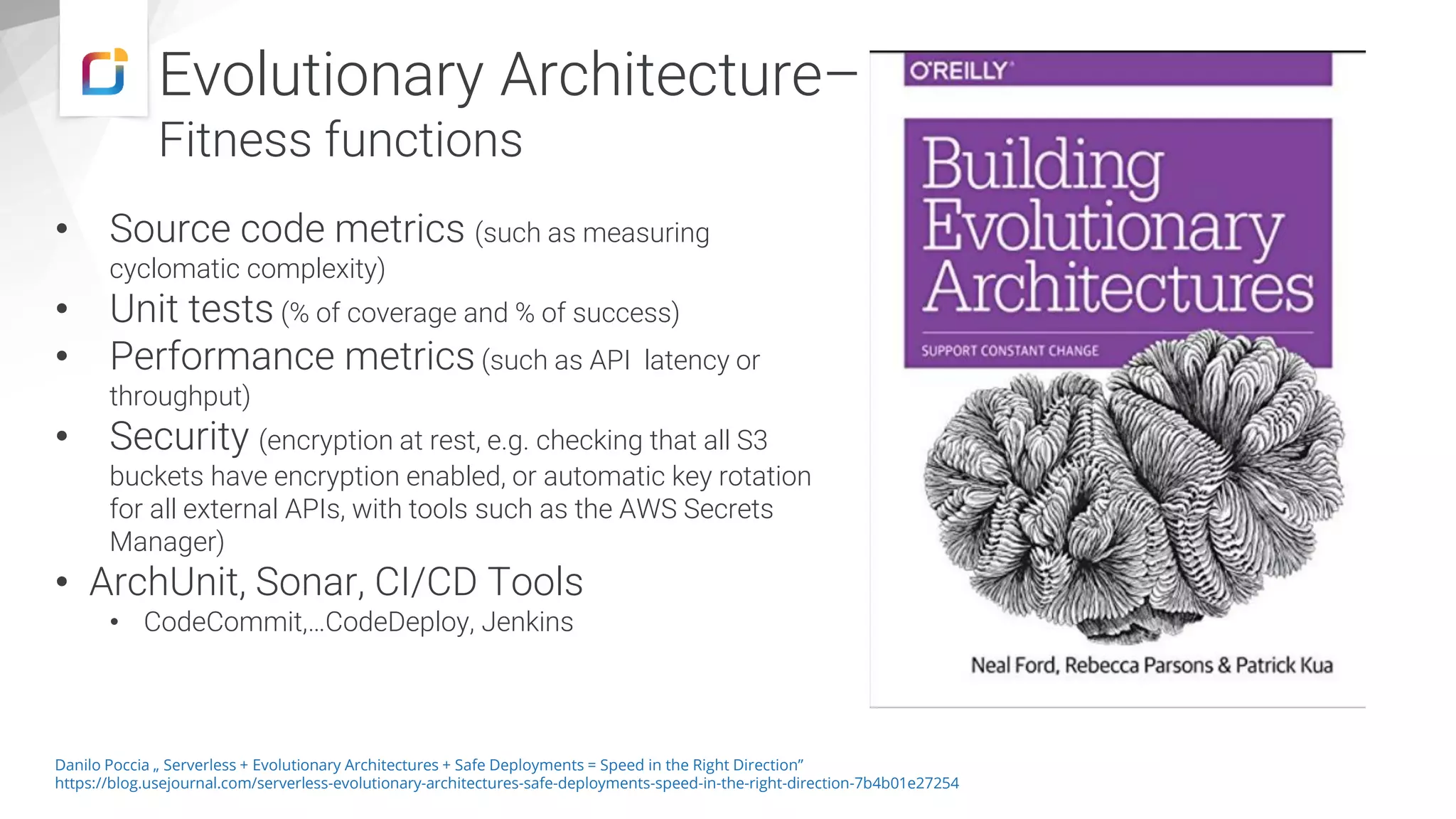

- 19. Evolutionary Architecture– Fitness functions •Source code metrics (such as measuring cyclomatic complexity) • Unit tests (% of coverage and % of success) • Performance metrics(such as API latency or throughput) • Security (encryption at rest, e.g. checking that all S3 buckets have encryption enabled, or automatic key rotation for all external APIs, with tools such as the AWS Secrets Manager) • ArchUnit, Sonar, CI/CD Tools • CodeCommit,…CodeDeploy, Jenkins Danilo Poccia „ Serverless + Evolutionary Architectures + Safe Deployments = Speed in the Right Direction” https://blog.usejournal.com/serverless-evolutionary-architectures-safe-deployments-speed-in-the-right-direction-7b4b01e27254
- 20.

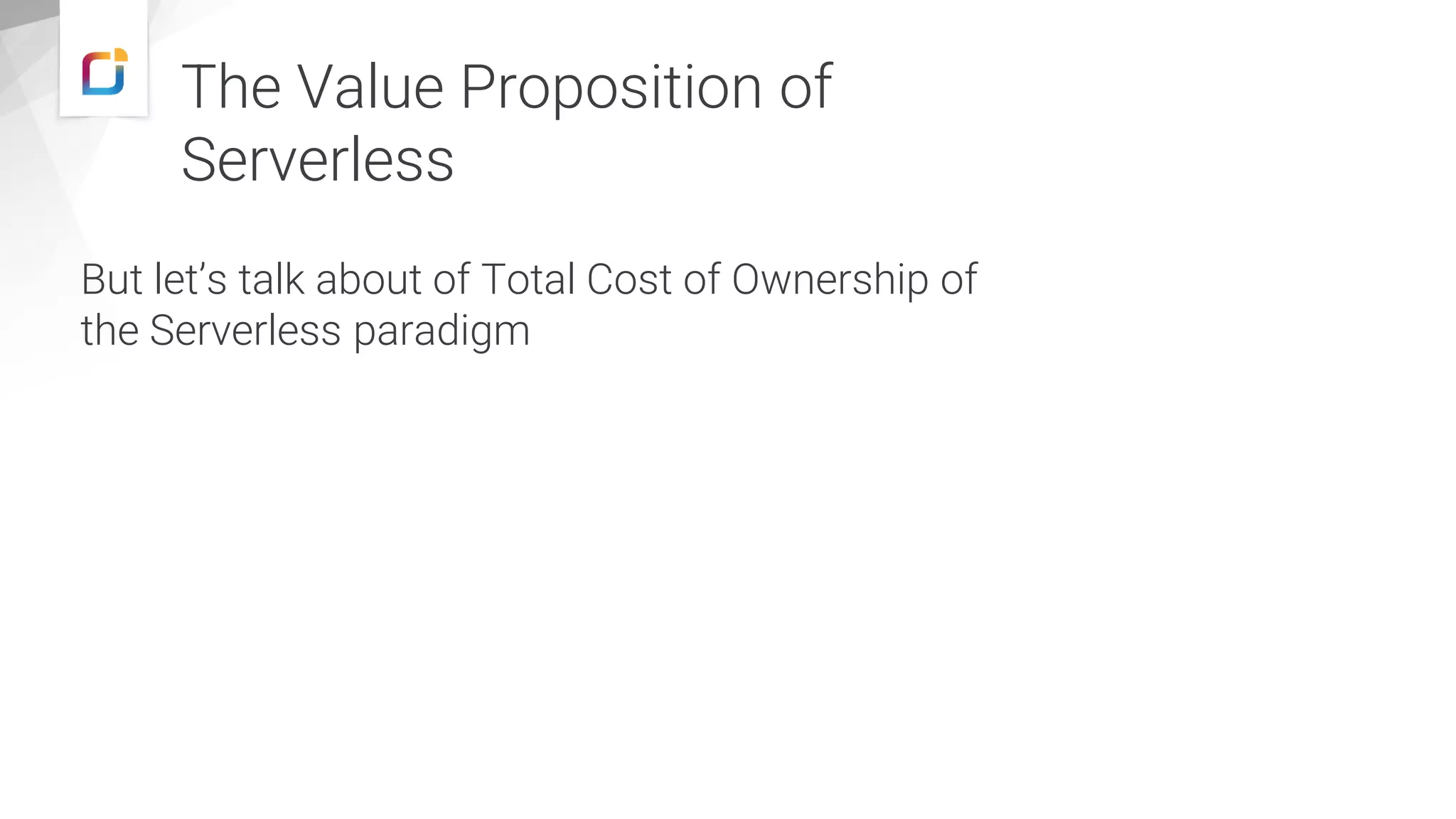

- 21. The Value Propositionof Serverless But let’s talk about of Total Cost of Ownership of the Serverless paradigm

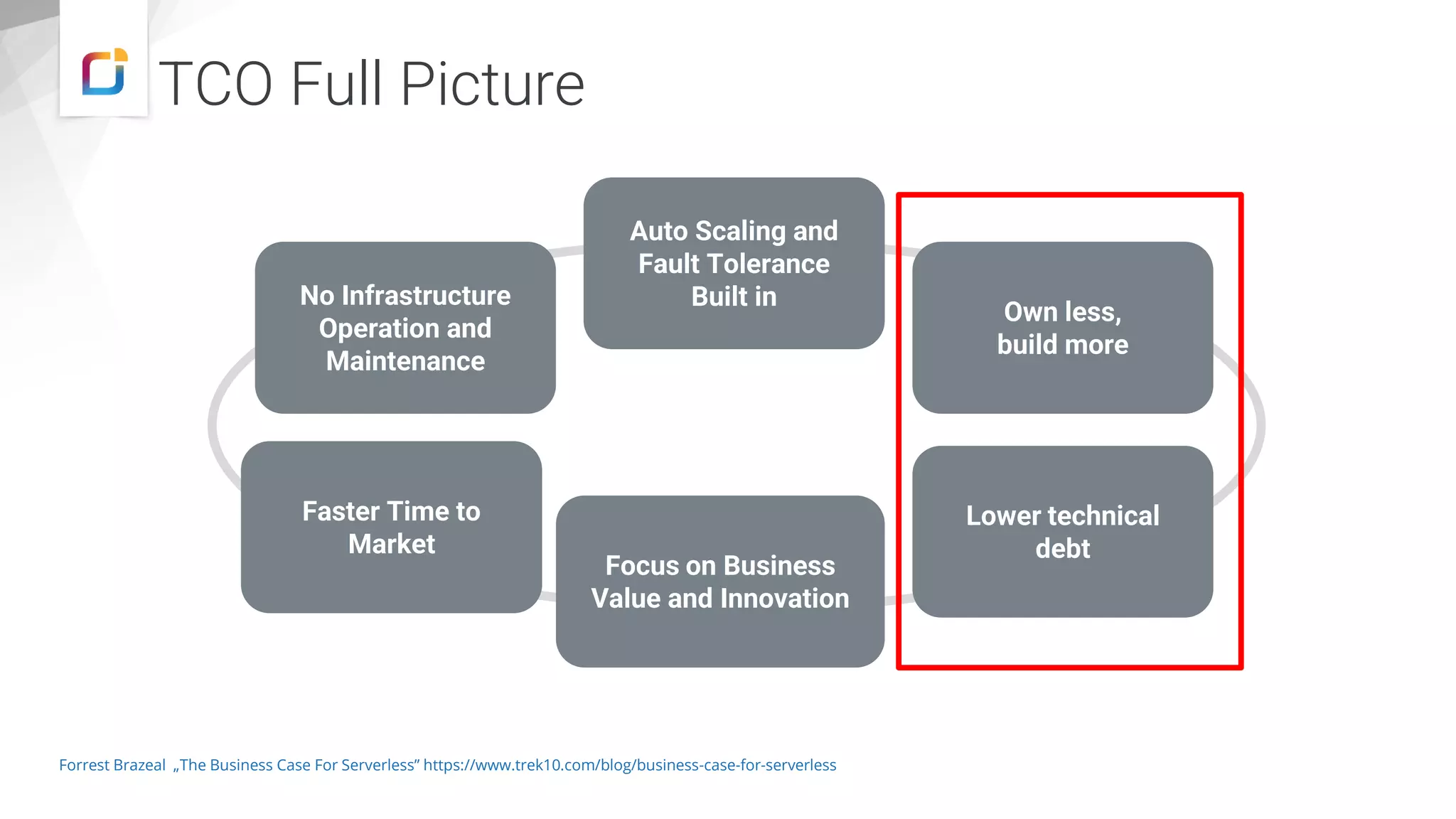

- 22. TCO Full Picture NoInfrastructure Operation and Maintenance Auto Scaling and Fault Tolerance Built in Own less, build more Lower technical debt Faster Time to Market Forrest Brazeal „The Business Case For Serverless” https://www.trek10.com/blog/business-case-for-serverless Focus on Business Value and Innovation

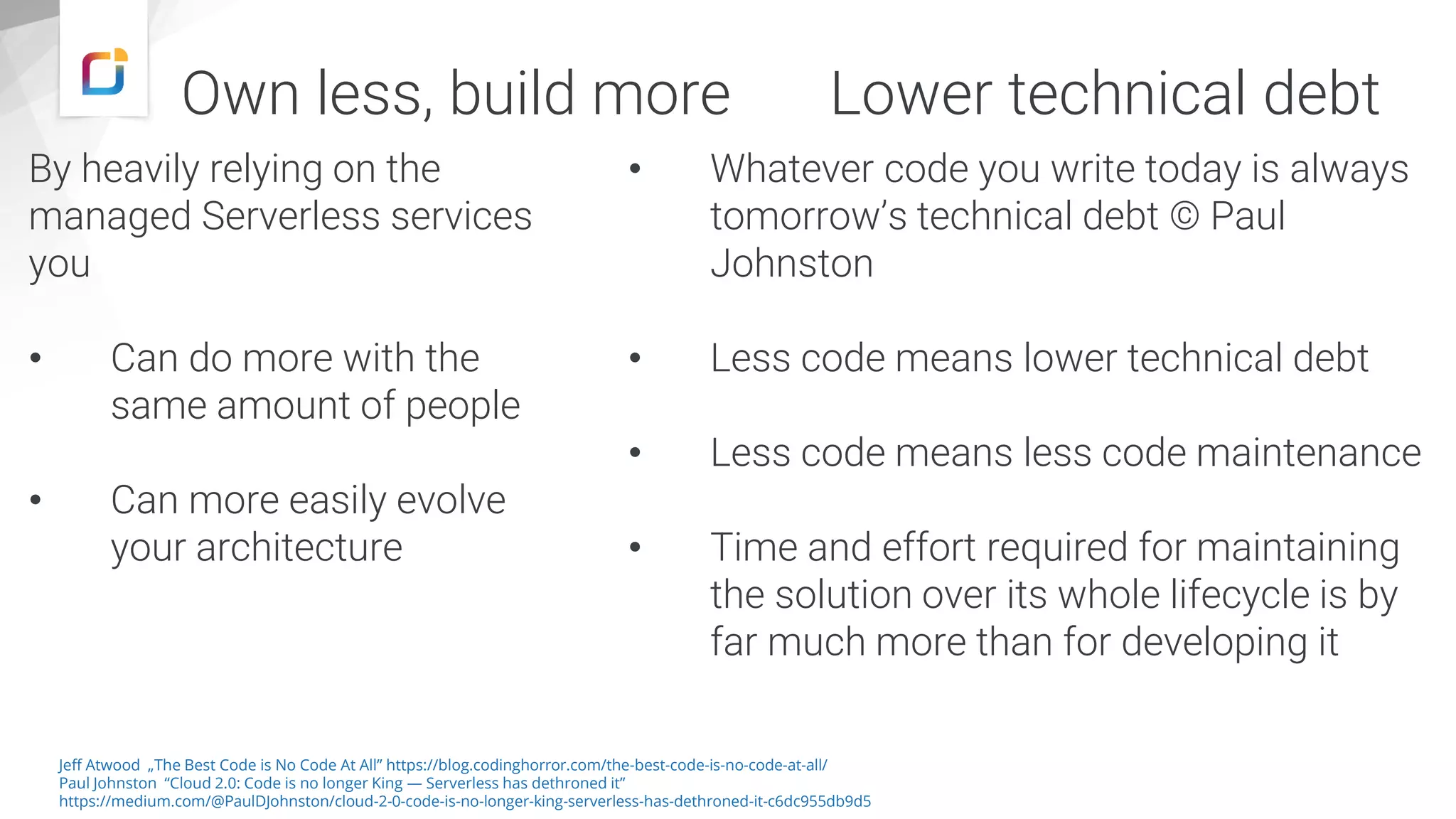

- 23. Own less, buildmore By heavily relying on the managed Serverless services you • Can do more with the same amount of people • Can more easily evolve your architecture Lower technical debt • Whatever code you write today is always tomorrow’s technical debt © Paul Johnston • Less code means lower technical debt • Less code means less code maintenance • Time and effort required for maintaining the solution over its whole lifecycle is by far much more than for developing it Jeff Atwood „The Best Code is No Code At All” https://blog.codinghorror.com/the-best-code-is-no-code-at-all/ Paul Johnston “Cloud 2.0: Code is no longer King — Serverless has dethroned it” https://medium.com/@PaulDJohnston/cloud-2-0-code-is-no-longer-king-serverless-has-dethroned-it-c6dc955db9d5

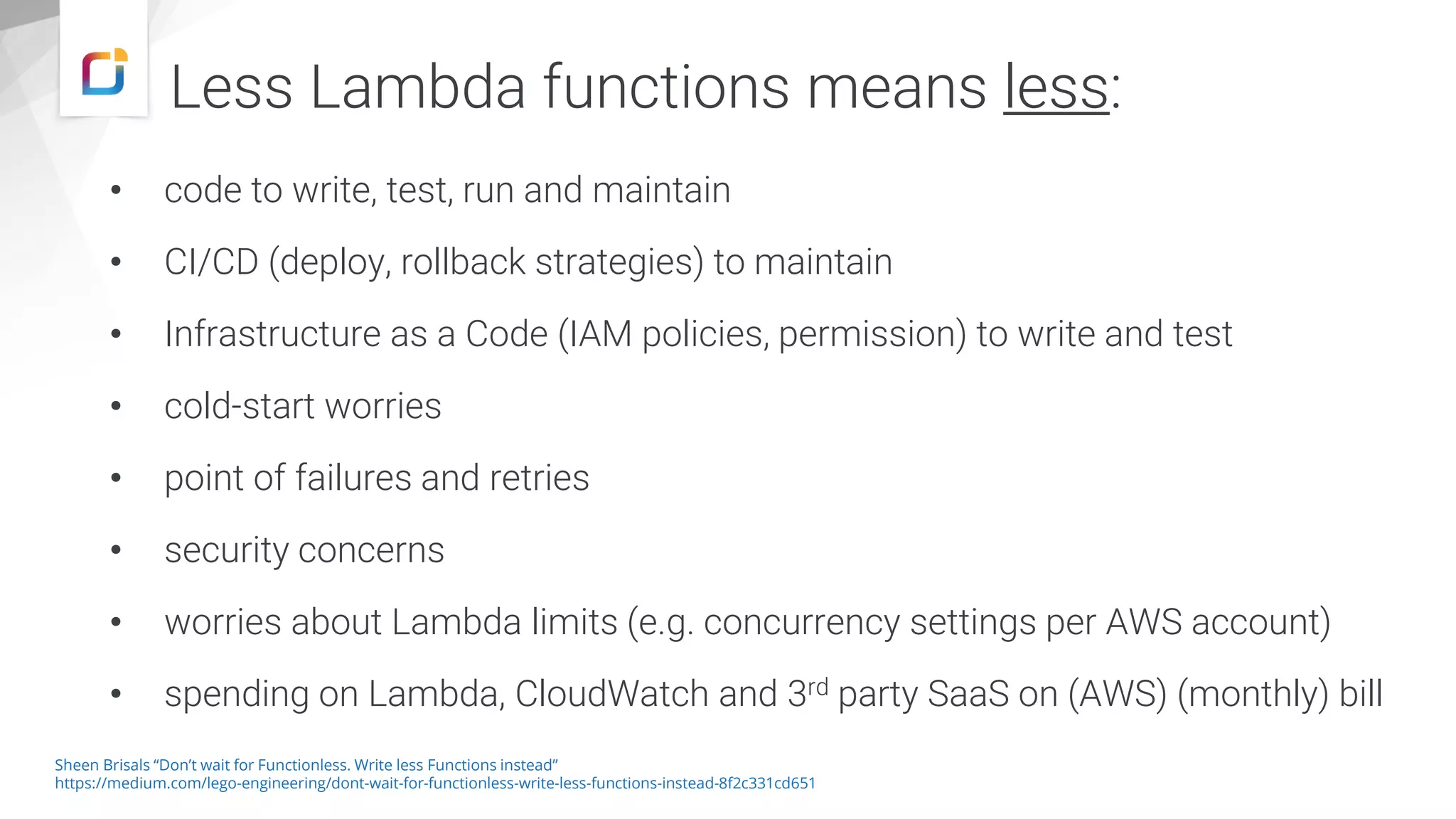

- 24. Less Lambda functionsmeans less: • code to write, test, run and maintain • CI/CD (deploy, rollback strategies) to maintain • Infrastructure as a Code (IAM policies, permission) to write and test • cold-start worries • point of failures and retries • security concerns • worries about Lambda limits (e.g. concurrency settings per AWS account) • spending on Lambda, CloudWatch and 3rd party SaaS on (AWS) (monthly) bill Sheen Brisals “Don’t wait for Functionless. Write less Functions instead” https://medium.com/lego-engineering/dont-wait-for-functionless-write-less-functions-instead-8f2c331cd651

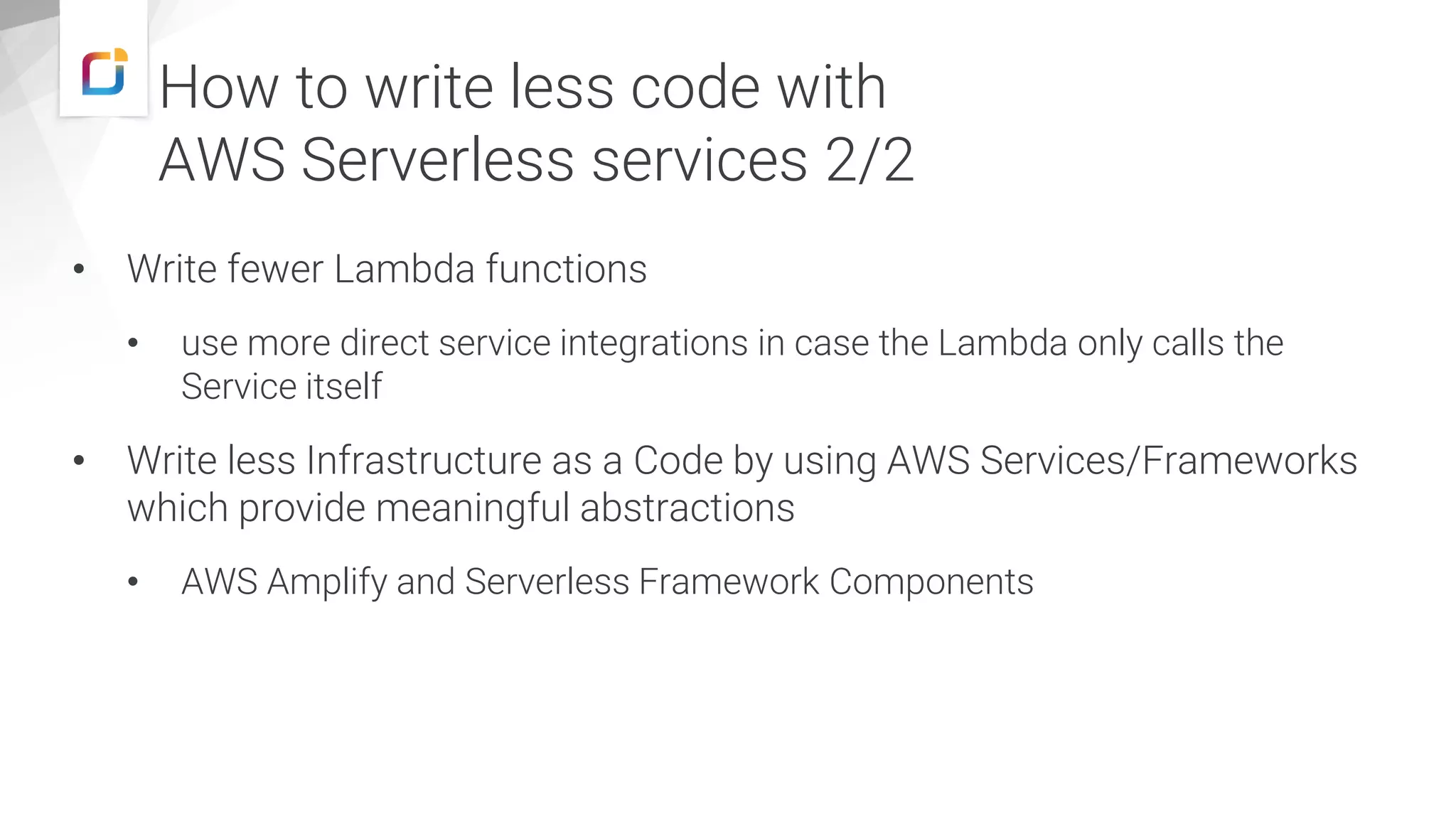

- 25. • Write fewerLambda functions • use more direct service integrations in case the Lambda only calls the Service itself • Write less Infrastructure as a Code by using AWS Services/Frameworks which provide meaningful abstractions • AWS Amplify and Serverless Framework Components How to write less code with AWS Serverless services 2/2

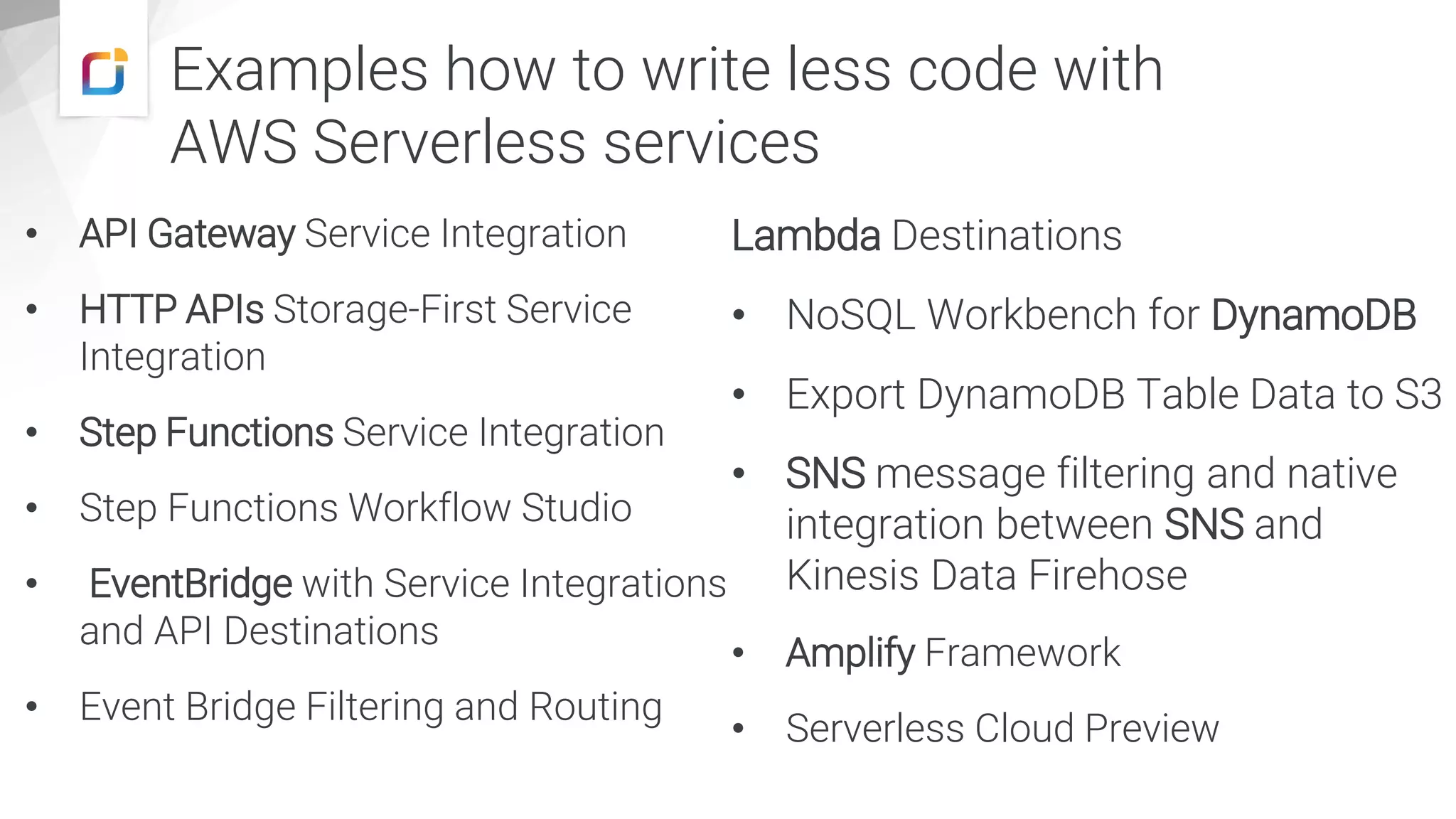

- 26. Examples how towrite less code with AWS Serverless services • API Gateway Service Integration • HTTP APIs Storage-First Service Integration • Step Functions Service Integration • Step Functions Workflow Studio • EventBridge with Service Integrations and API Destinations • Event Bridge Filtering and Routing Lambda Destinations • NoSQL Workbench for DynamoDB • Export DynamoDB Table Data to S3 • SNS message filtering and native integration between SNS and Kinesis Data Firehose • Amplify Framework • Serverless Cloud Preview

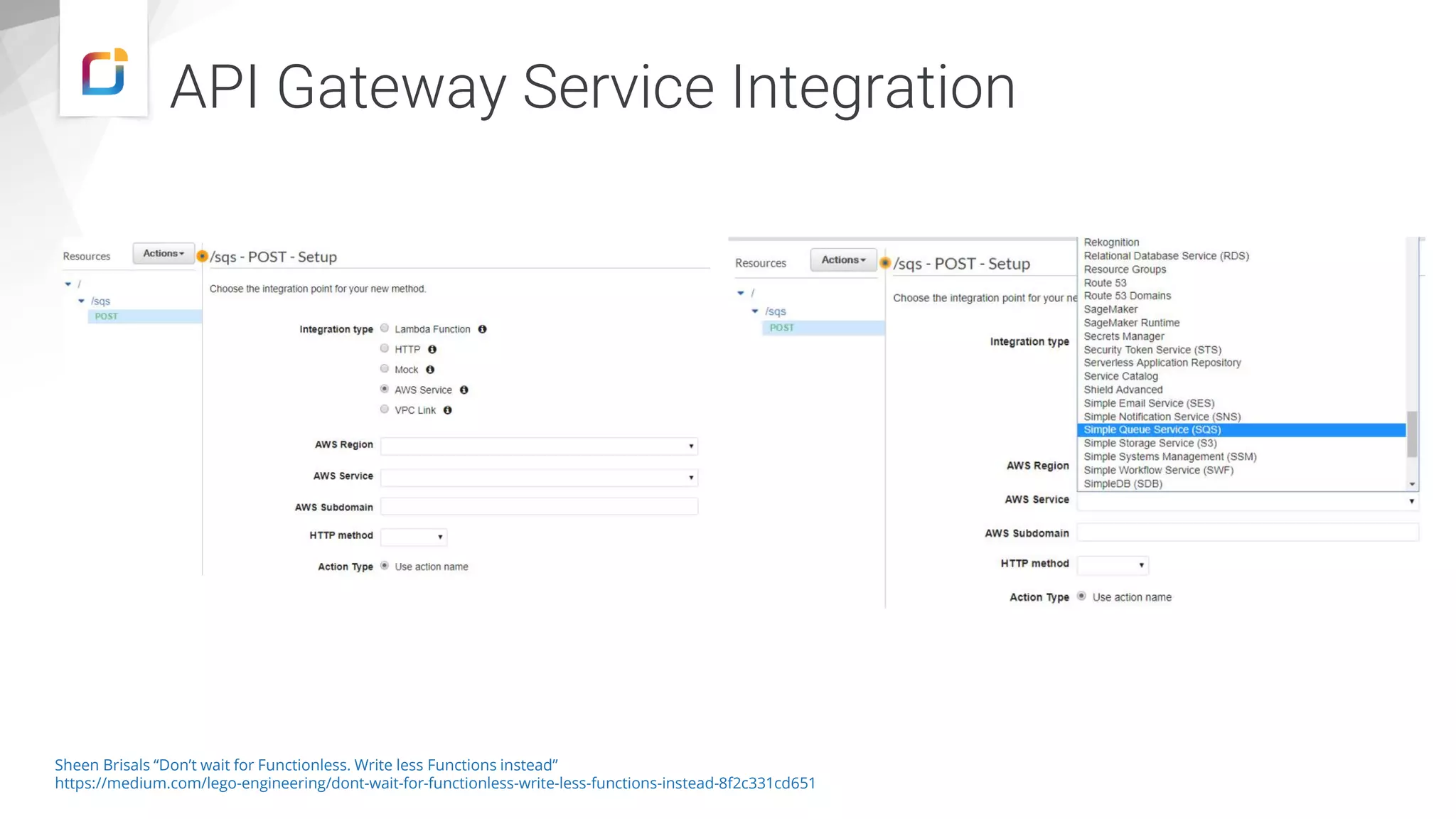

- 27. Sheen Brisals “Don’twait for Functionless. Write less Functions instead” https://medium.com/lego-engineering/dont-wait-for-functionless-write-less-functions-instead-8f2c331cd651 API Gateway Service Integration

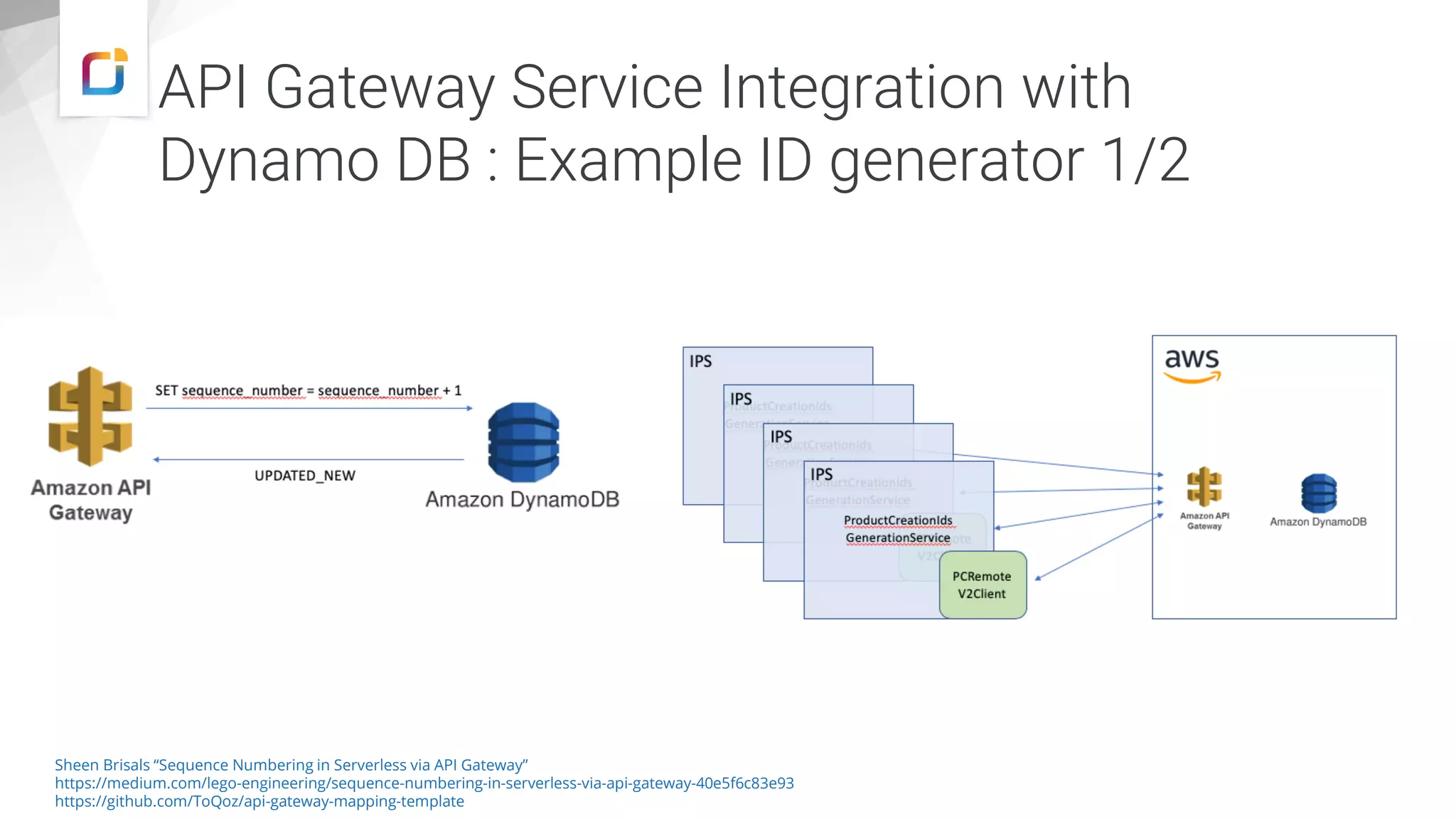

- 28. API Gateway ServiceIntegration with Dynamo DB : Example ID generator 1/2 Sheen Brisals “Sequence Numbering in Serverless via API Gateway” https://medium.com/lego-engineering/sequence-numbering-in-serverless-via-api-gateway-40e5f6c83e93 https://github.com/ToQoz/api-gateway-mapping-template

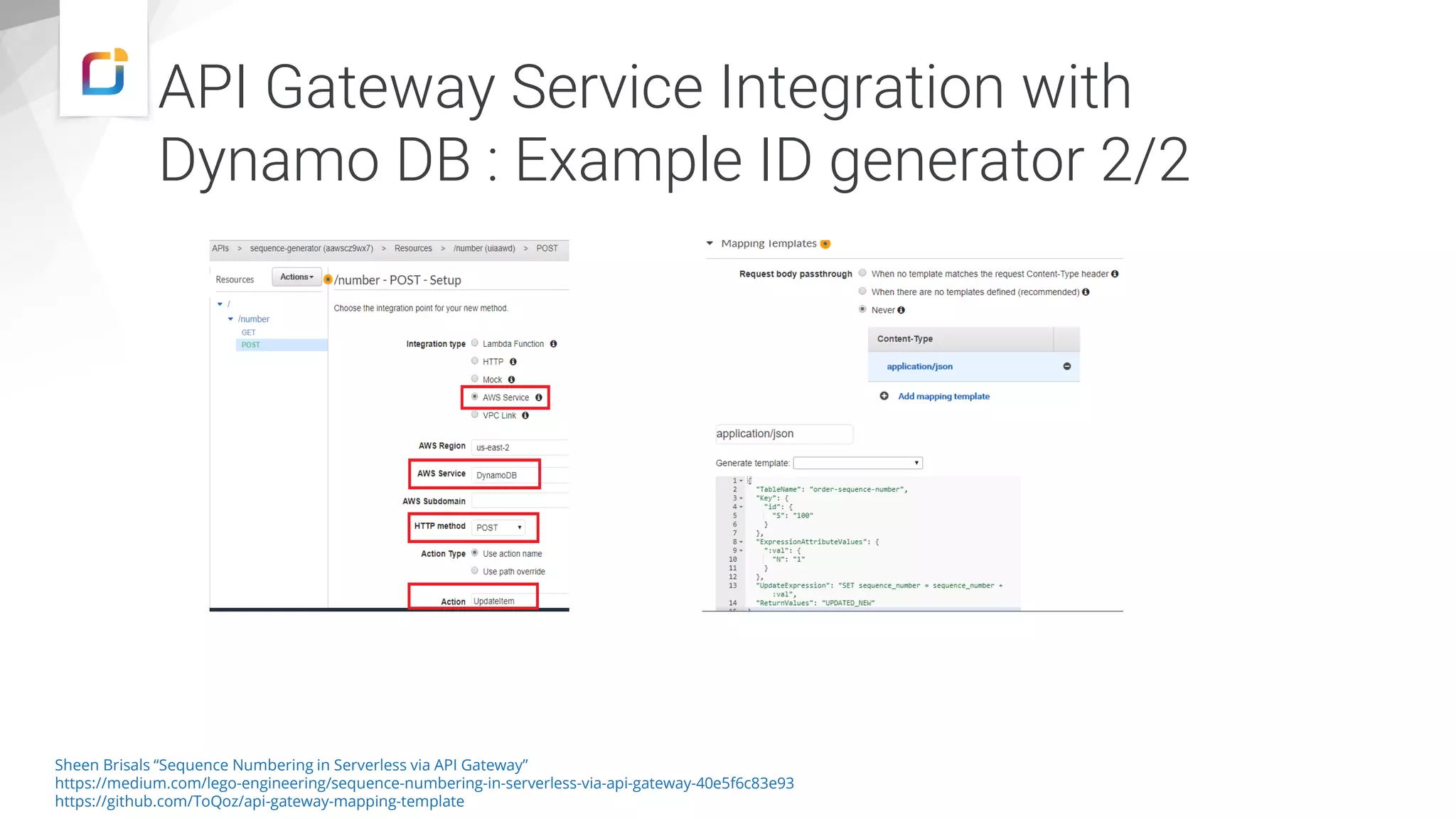

- 29. Sheen Brisals “SequenceNumbering in Serverless via API Gateway” https://medium.com/lego-engineering/sequence-numbering-in-serverless-via-api-gateway-40e5f6c83e93 https://github.com/ToQoz/api-gateway-mapping-template API Gateway Service Integration with Dynamo DB : Example ID generator 2/2

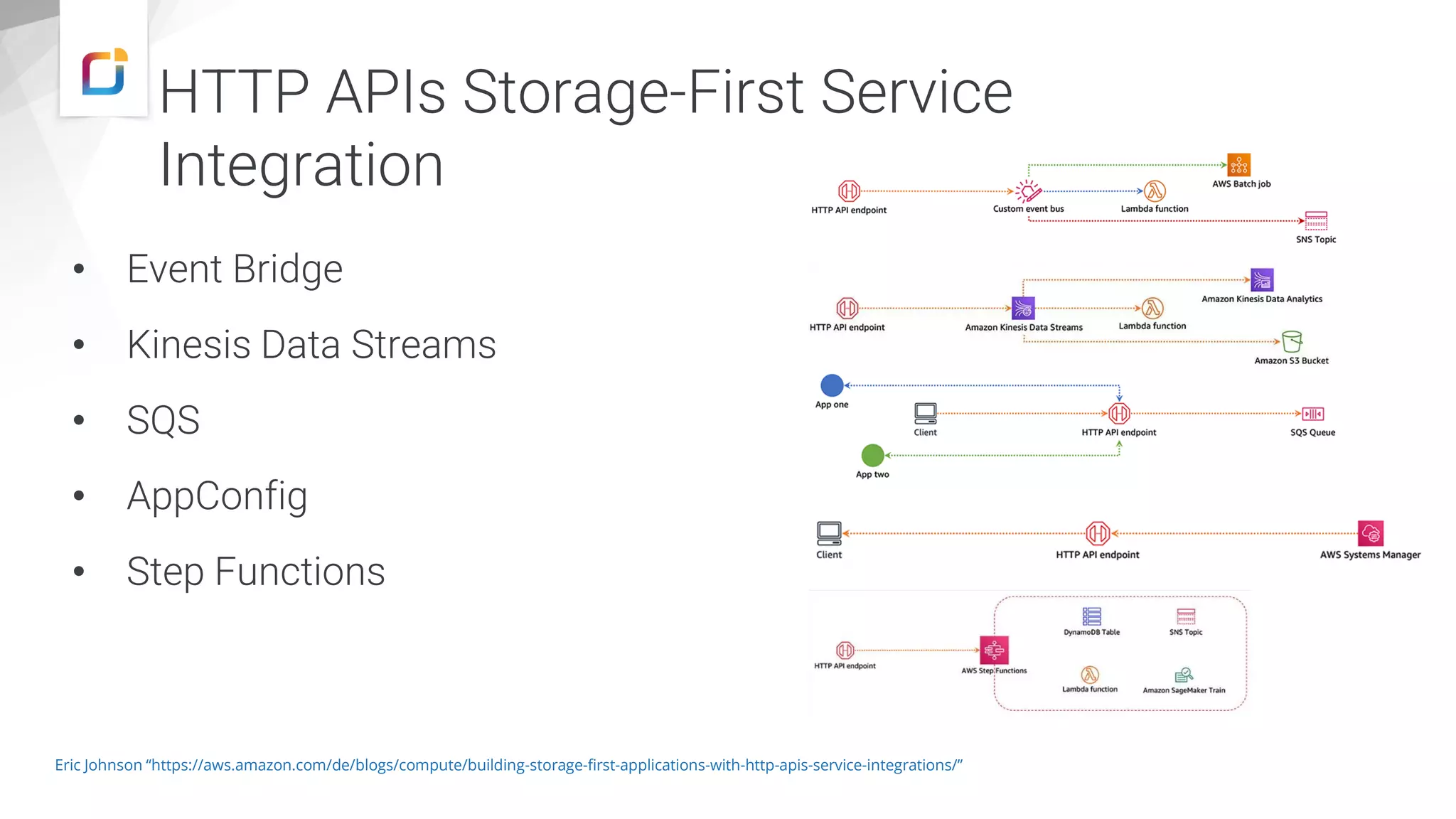

- 30. Eric Johnson “https://aws.amazon.com/de/blogs/compute/building-storage-first-applications-with-http-apis-service-integrations/” HTTPAPIs Storage-First Service Integration • Event Bridge • Kinesis Data Streams • SQS • AppConfig • Step Functions

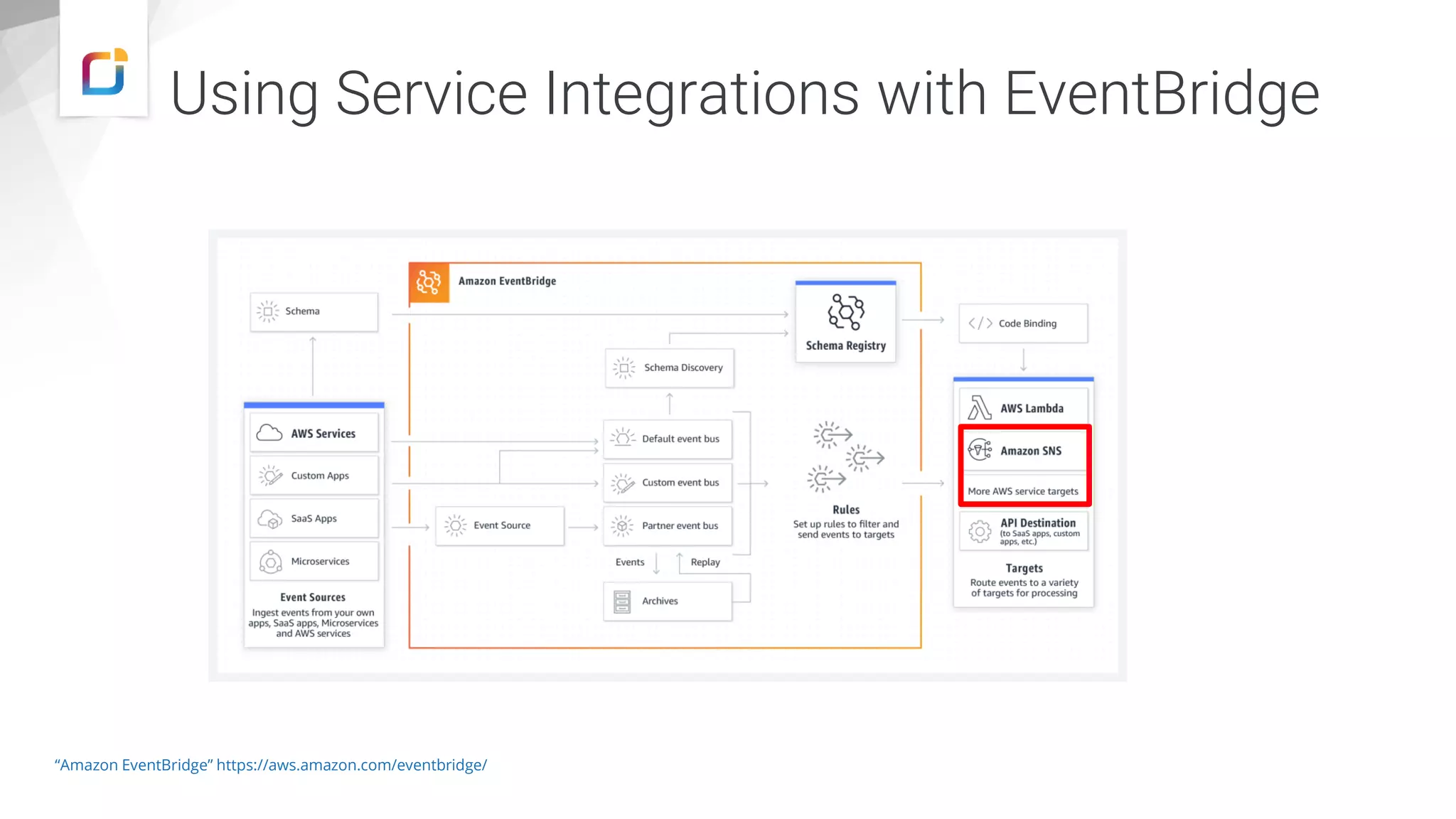

- 31. Using Service Integrationswith EventBridge “Amazon EventBridge” https://aws.amazon.com/eventbridge/

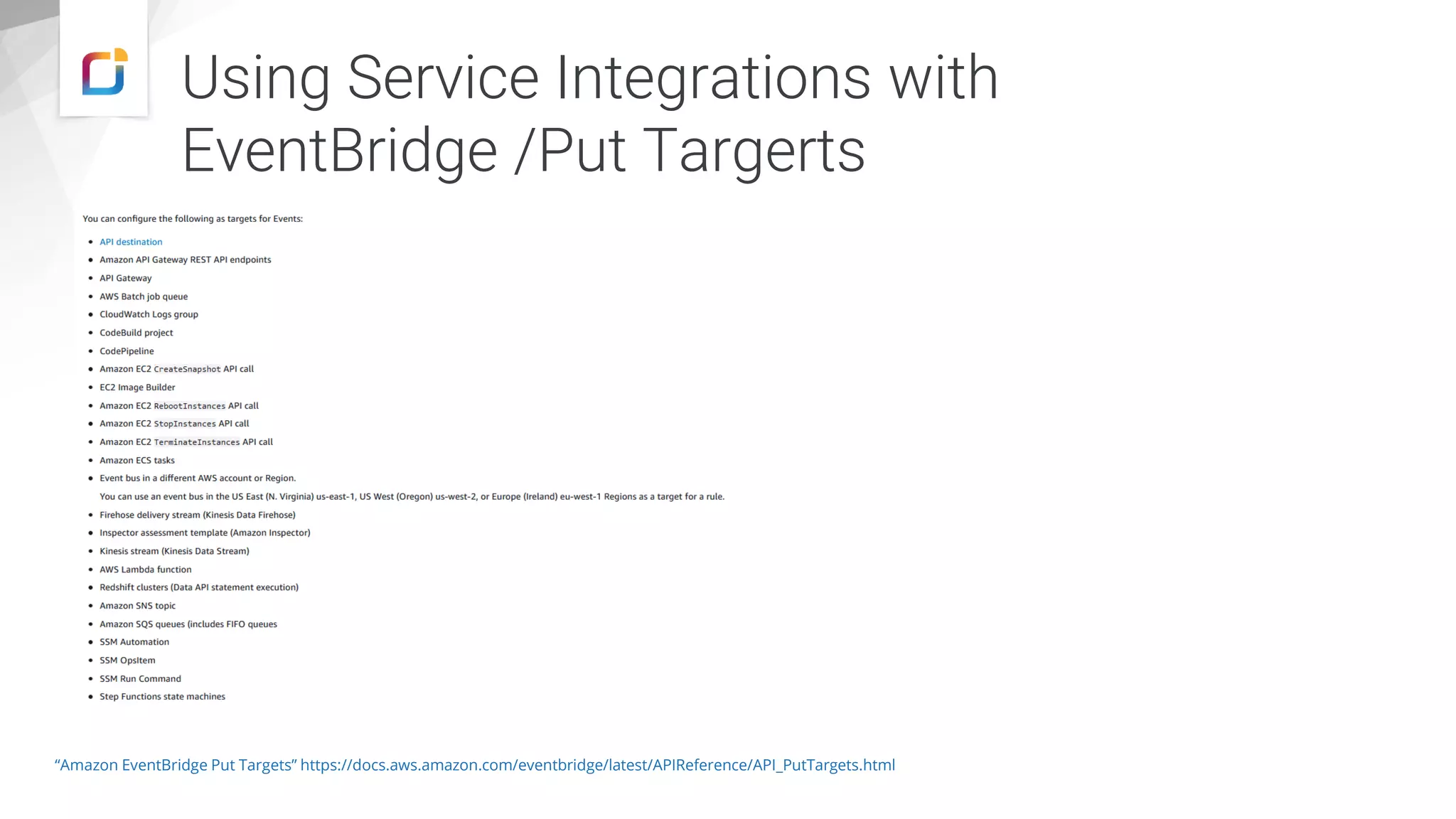

- 32. Using Service Integrationswith EventBridge /Put Targerts “Amazon EventBridge Put Targets” https://docs.aws.amazon.com/eventbridge/latest/APIReference/API_PutTargets.html

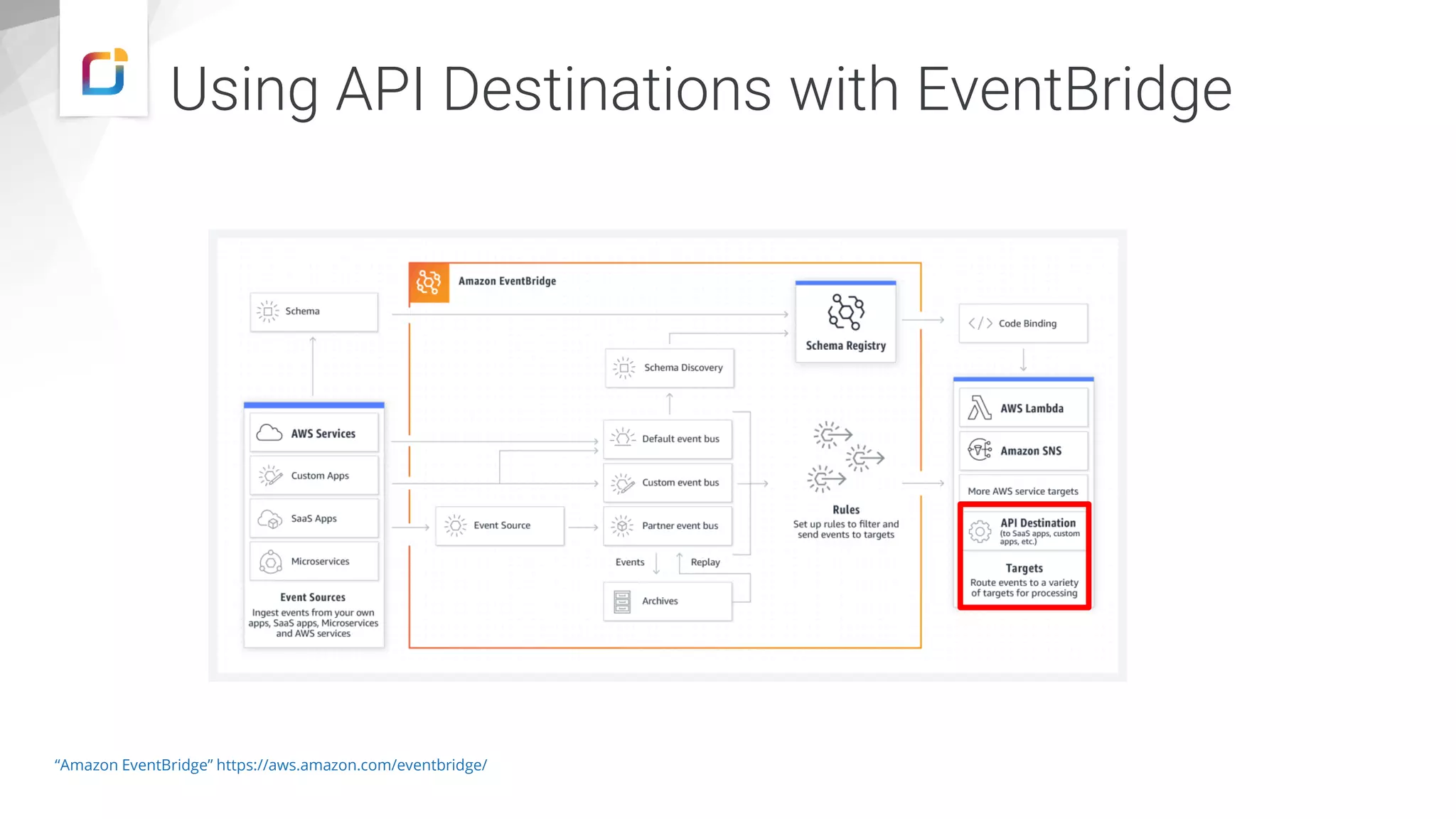

- 33. Using API Destinationswith EventBridge “Amazon EventBridge” https://aws.amazon.com/eventbridge/

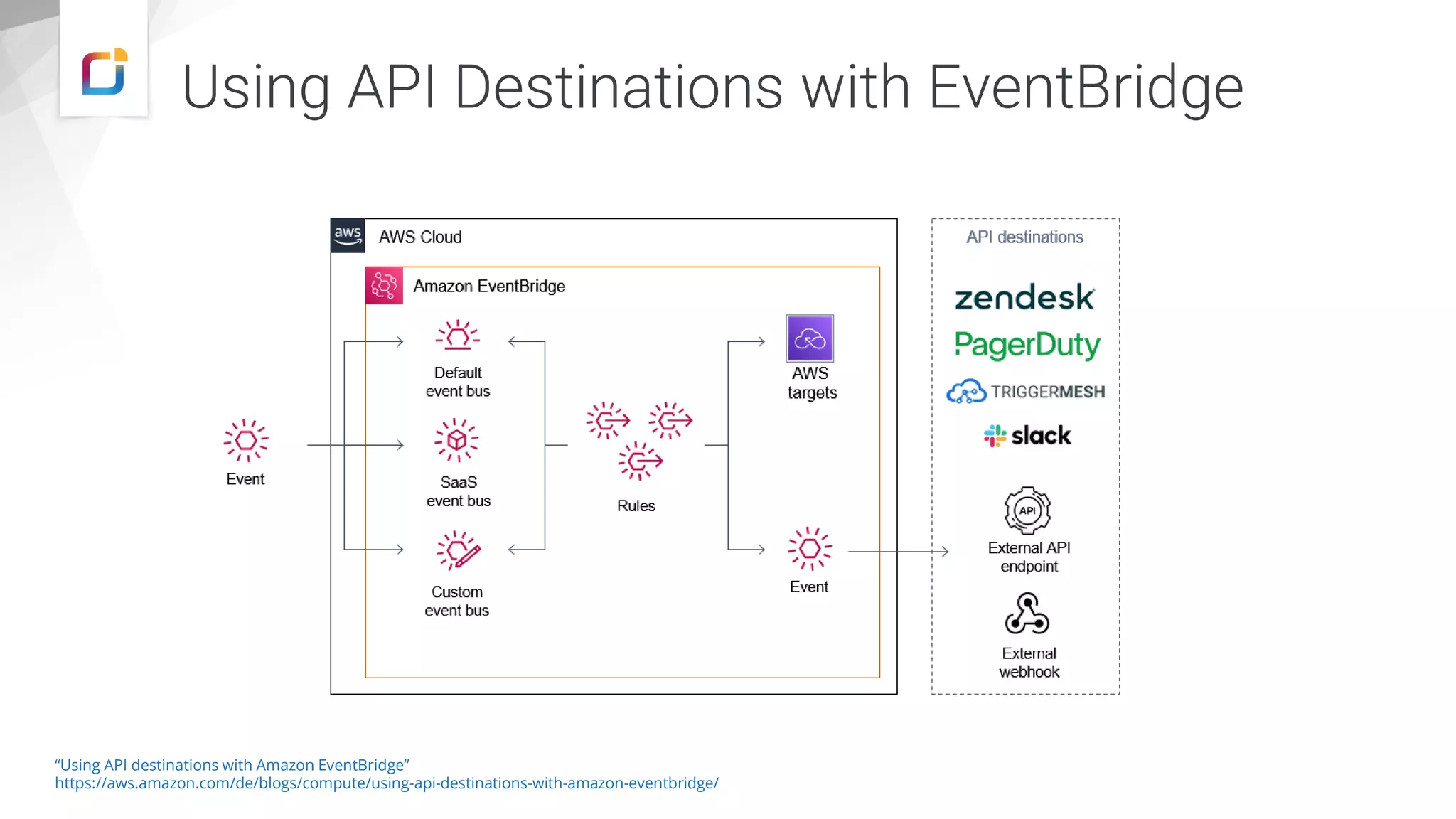

- 34. Using API Destinationswith EventBridge “Using API destinations with Amazon EventBridge” https://aws.amazon.com/de/blogs/compute/using-api-destinations-with-amazon-eventbridge/

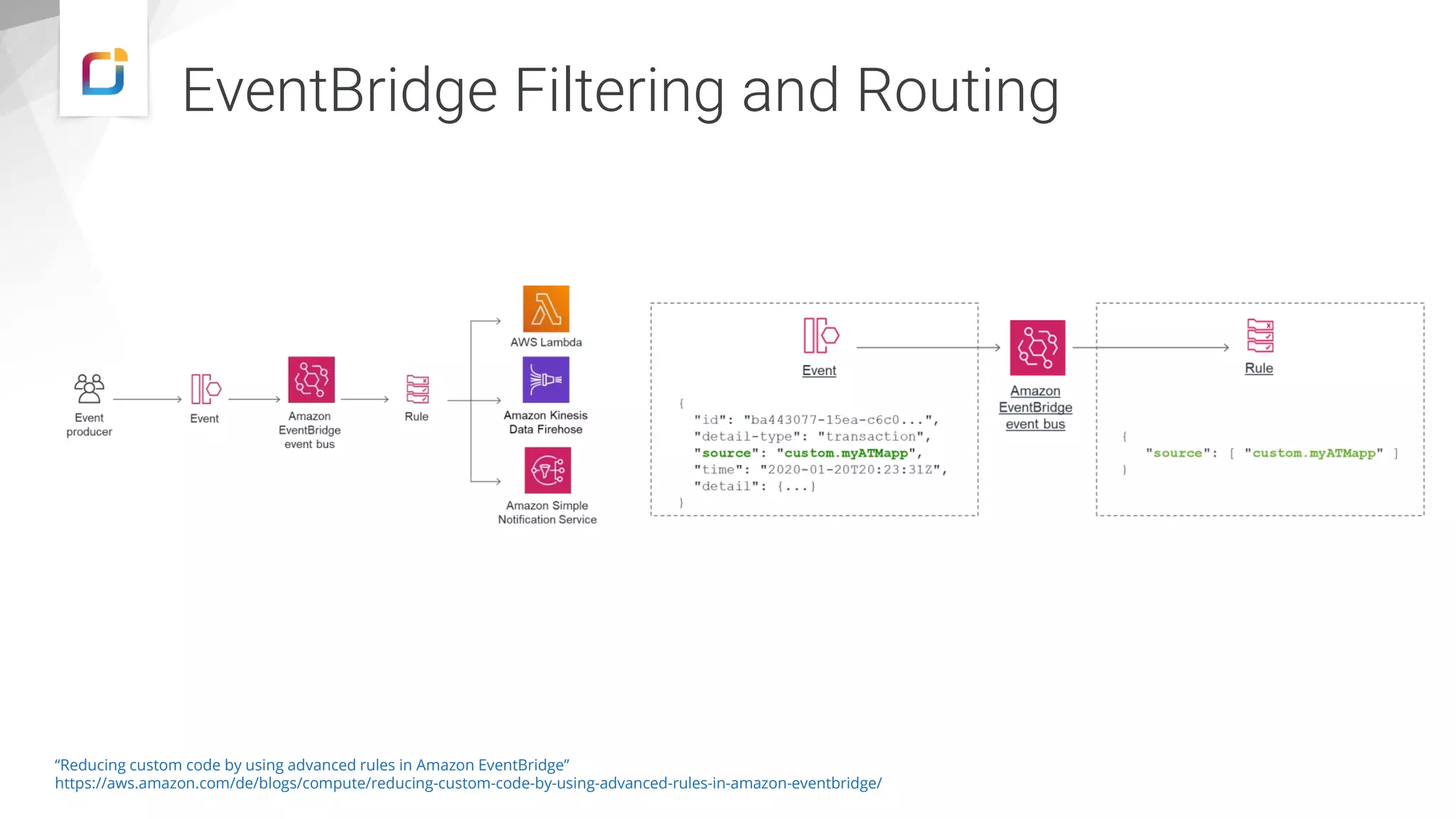

- 35. EventBridge Filtering andRouting “Reducing custom code by using advanced rules in Amazon EventBridge” https://aws.amazon.com/de/blogs/compute/reducing-custom-code-by-using-advanced-rules-in-amazon-eventbridge/

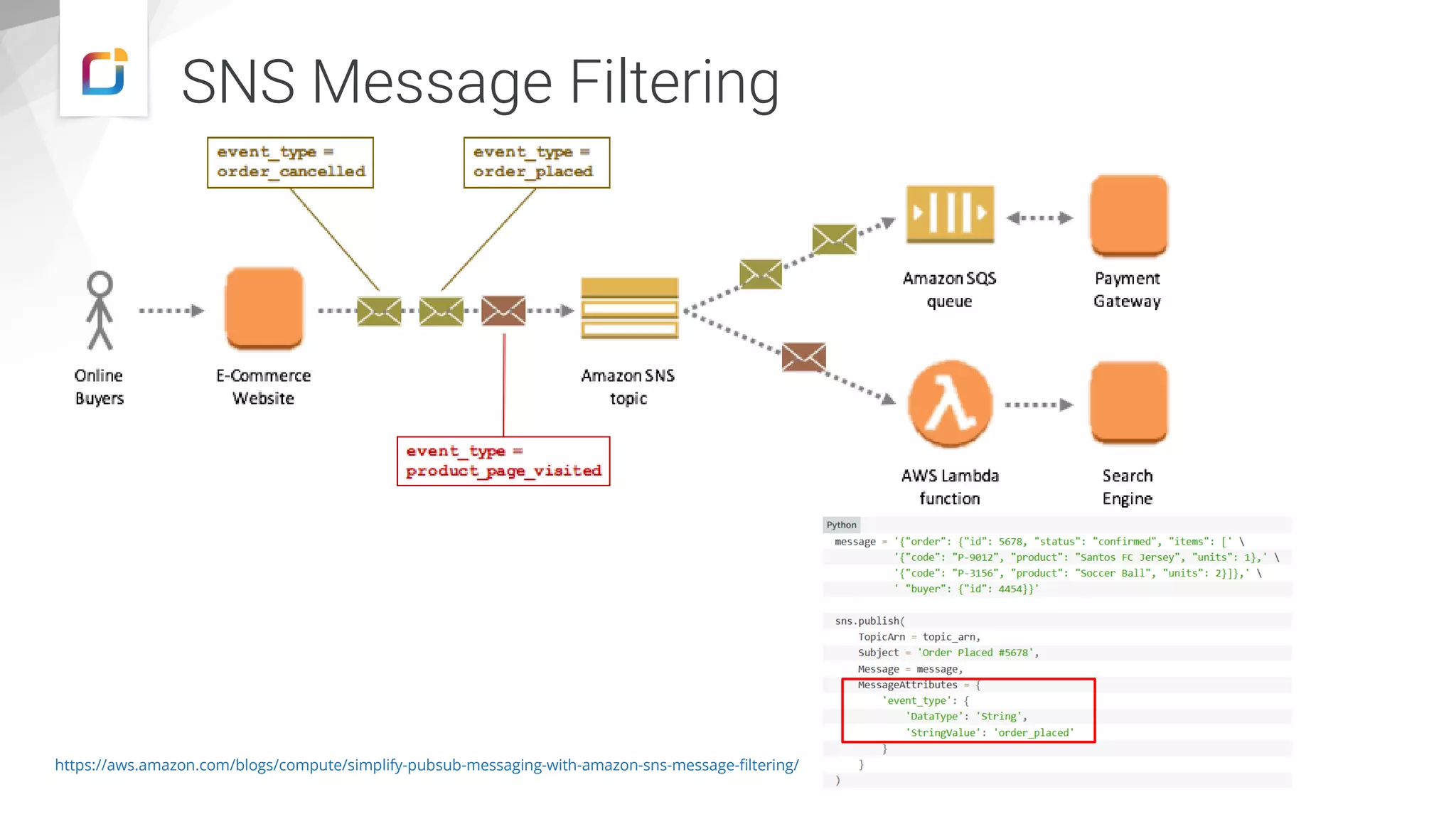

- 36.

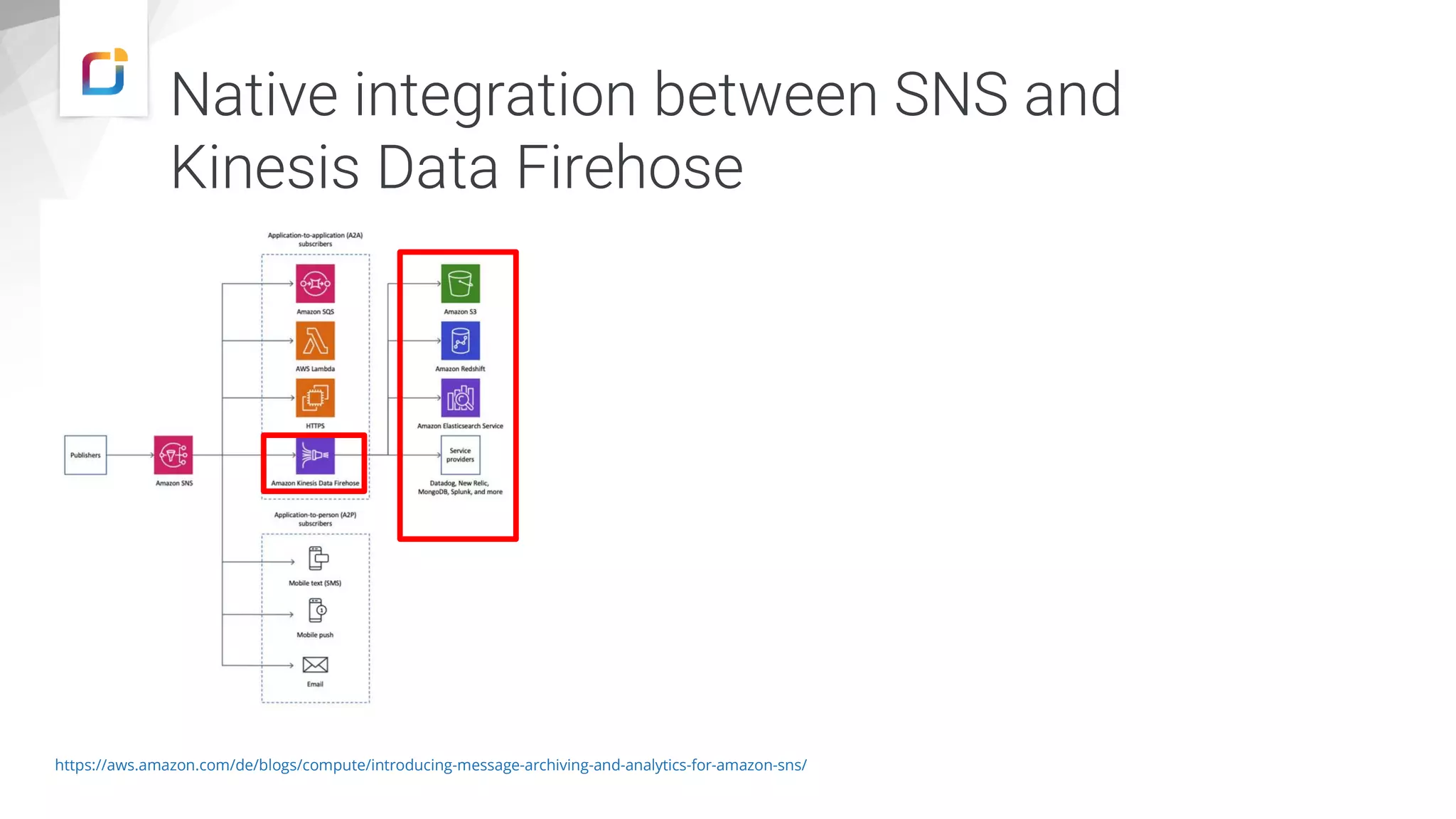

- 37. Native integration betweenSNS and Kinesis Data Firehose https://aws.amazon.com/de/blogs/compute/introducing-message-archiving-and-analytics-for-amazon-sns/

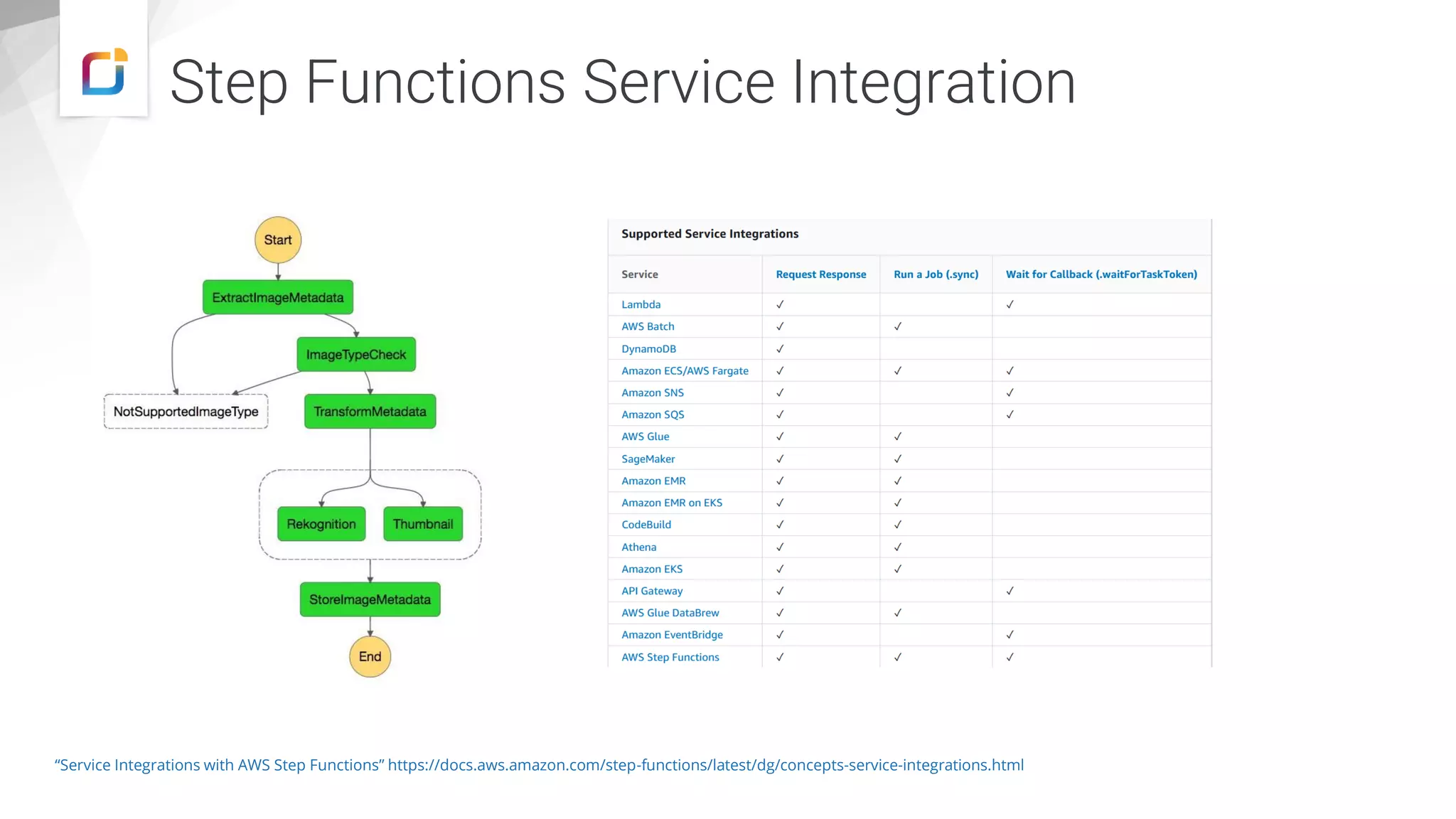

- 38. Step Functions ServiceIntegration “Service Integrations with AWS Step Functions” https://docs.aws.amazon.com/step-functions/latest/dg/concepts-service-integrations.html

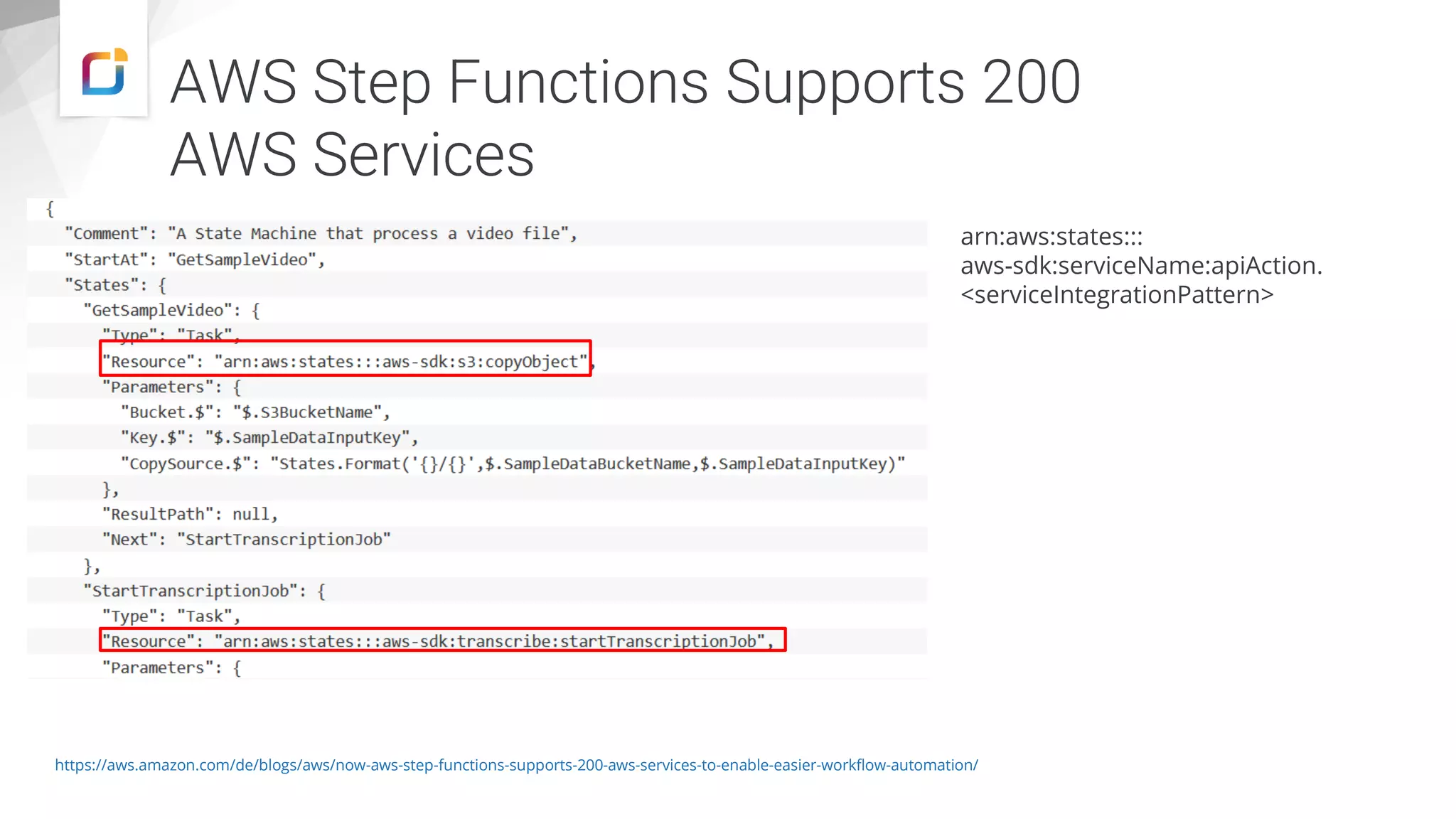

- 39. AWS Step FunctionsSupports 200 AWS Services https://aws.amazon.com/de/blogs/aws/now-aws-step-functions-supports-200-aws-services-to-enable-easier-workflow-automation/ arn:aws:states::: aws-sdk:serviceName:apiAction. <serviceIntegrationPattern>

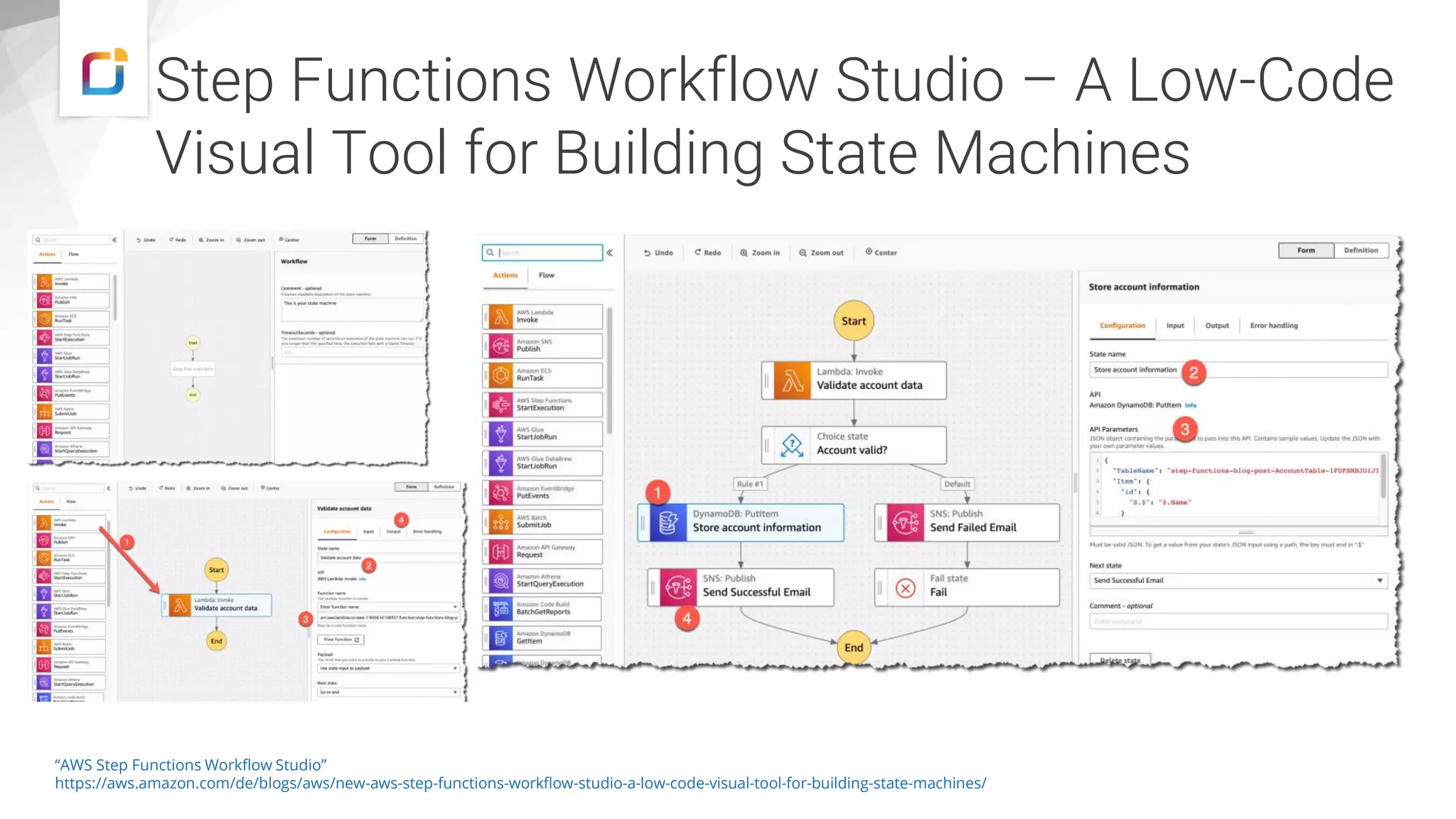

- 40. Step Functions WorkflowStudio – A Low-Code Visual Tool for Building State Machines “AWS Step Functions Workflow Studio” https://aws.amazon.com/de/blogs/aws/new-aws-step-functions-workflow-studio-a-low-code-visual-tool-for-building-state-machines/

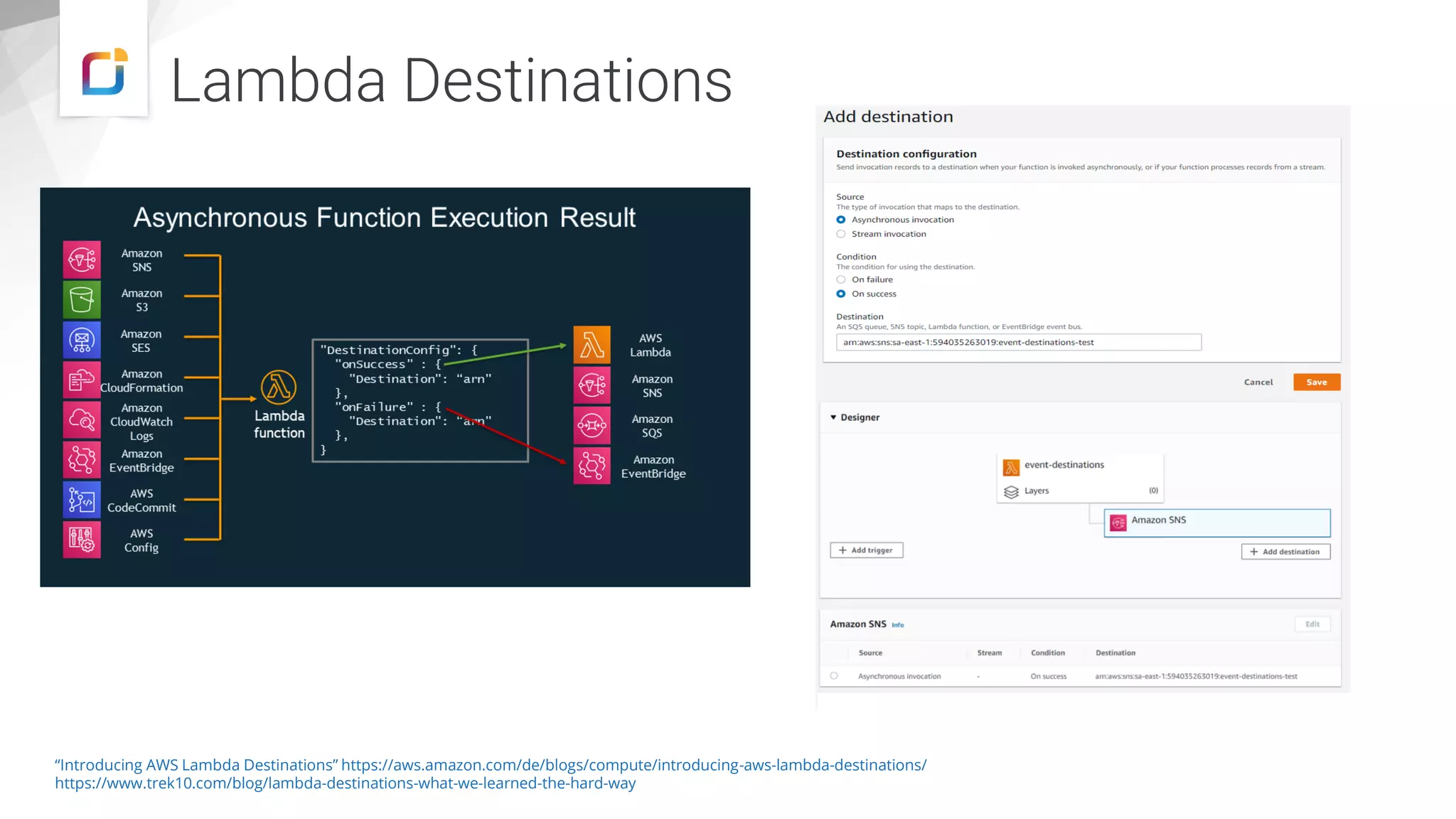

- 41. Lambda Destinations “Introducing AWSLambda Destinations” https://aws.amazon.com/de/blogs/compute/introducing-aws-lambda-destinations/ https://www.trek10.com/blog/lambda-destinations-what-we-learned-the-hard-way

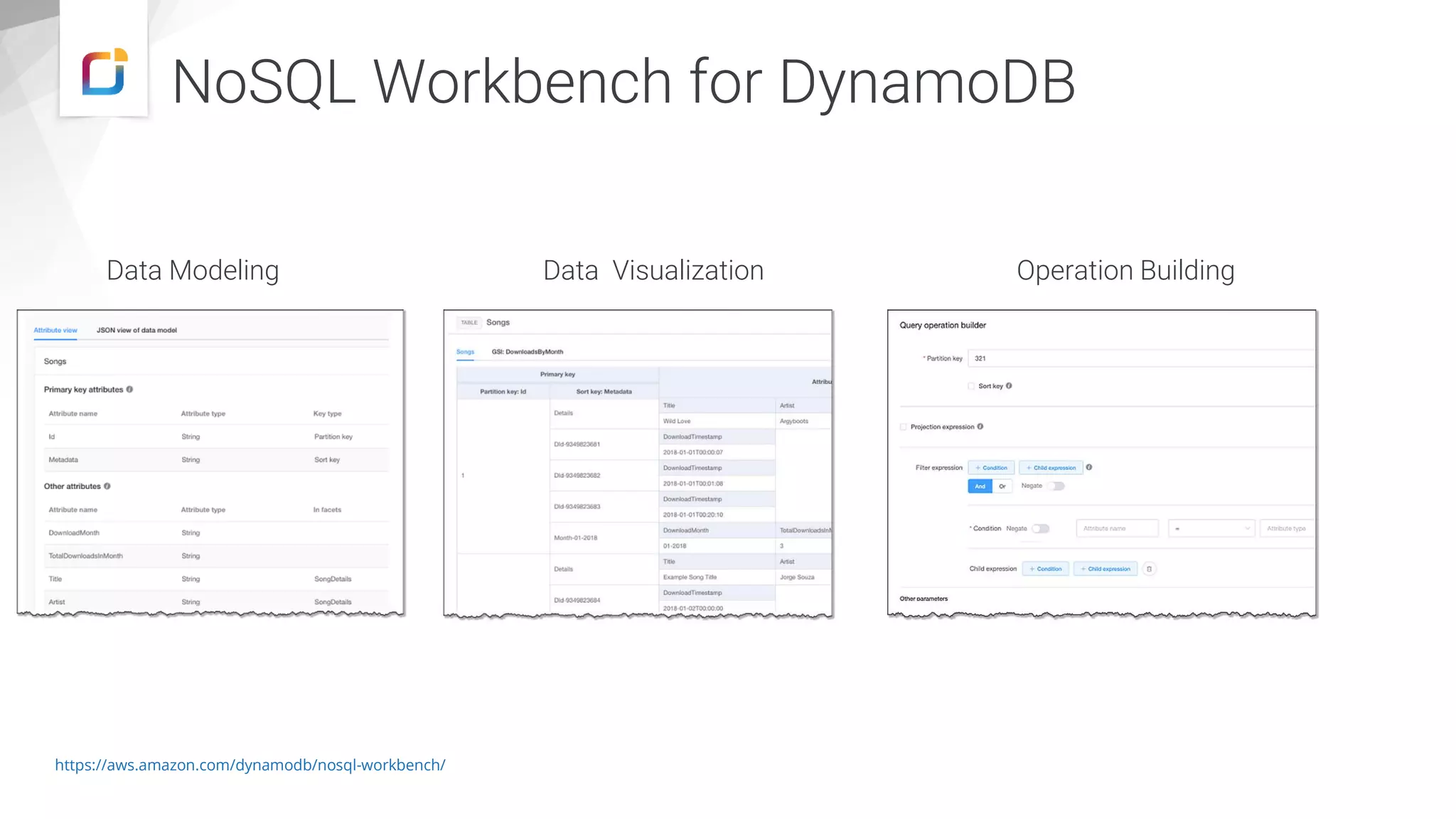

- 42. NoSQL Workbench forDynamoDB https://aws.amazon.com/dynamodb/nosql-workbench/ Data Modeling Data Visualization Operation Building

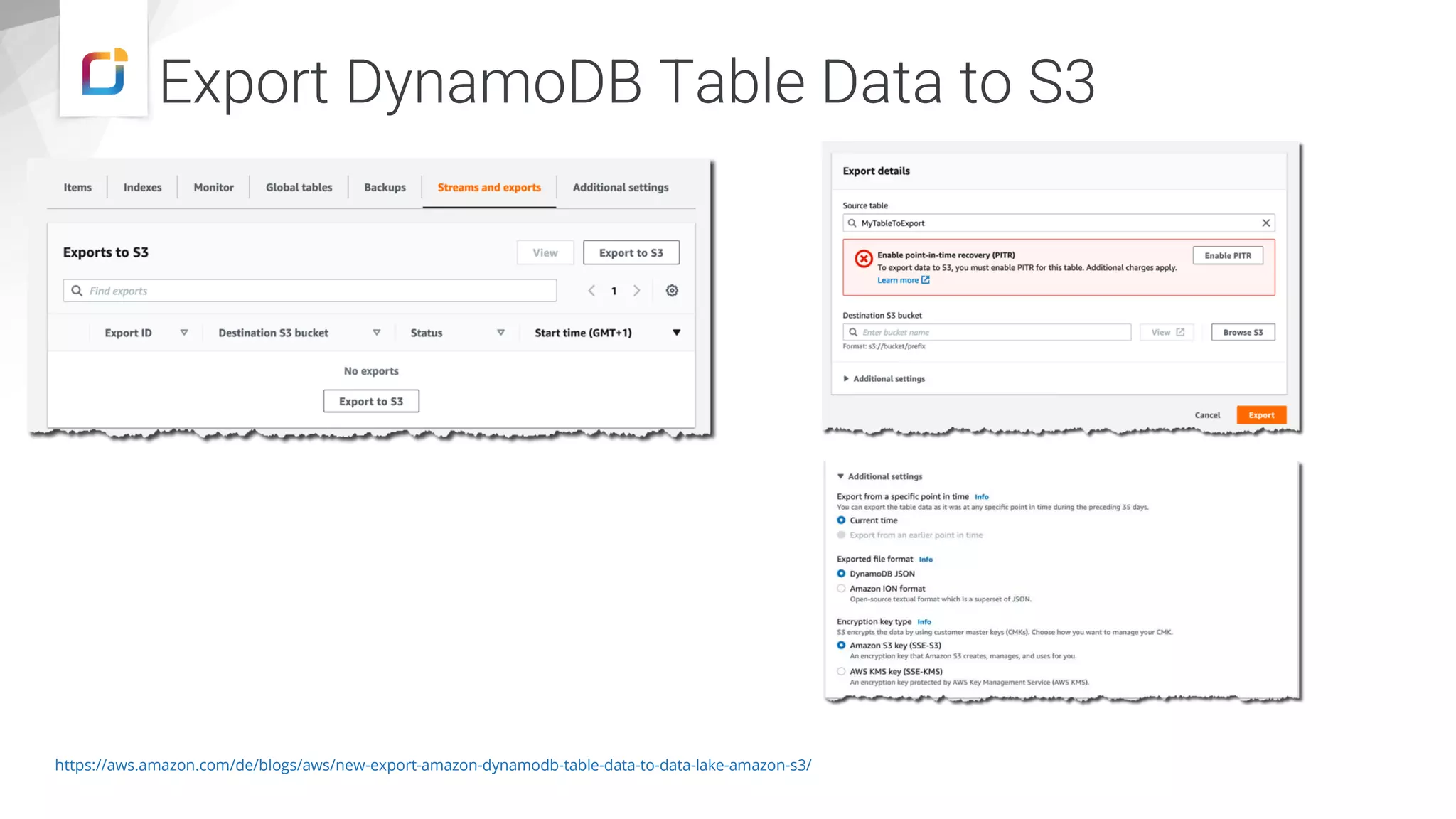

- 43. Export DynamoDB TableData to S3 https://aws.amazon.com/de/blogs/aws/new-export-amazon-dynamodb-table-data-to-data-lake-amazon-s3/

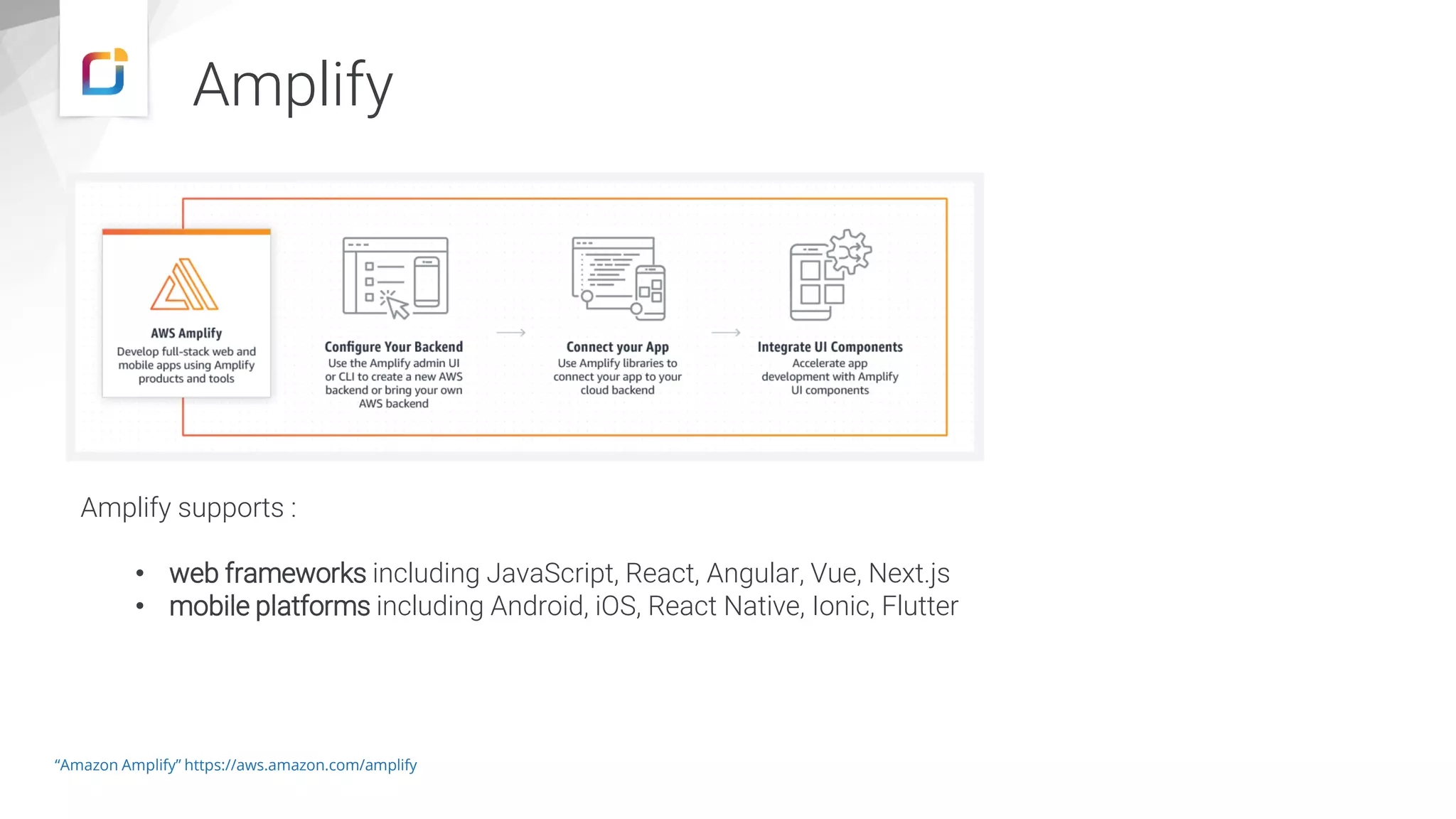

- 44. Amplify “Amazon Amplify” https://aws.amazon.com/amplify Amplifysupports : • web frameworks including JavaScript, React, Angular, Vue, Next.js • mobile platforms including Android, iOS, React Native, Ionic, Flutter

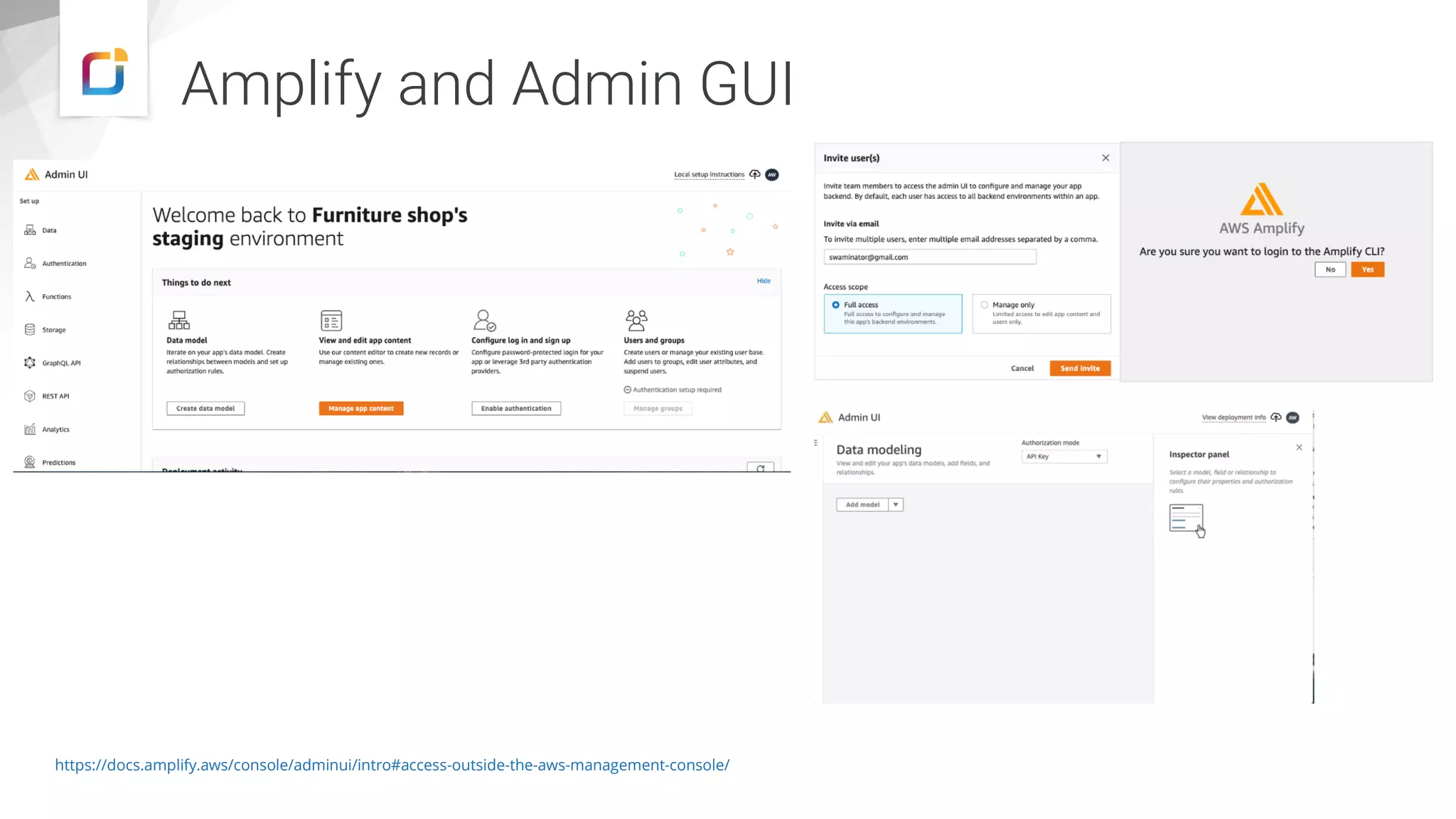

- 45. Amplify and AdminGUI https://docs.amplify.aws/console/adminui/intro#access-outside-the-aws-management-console/

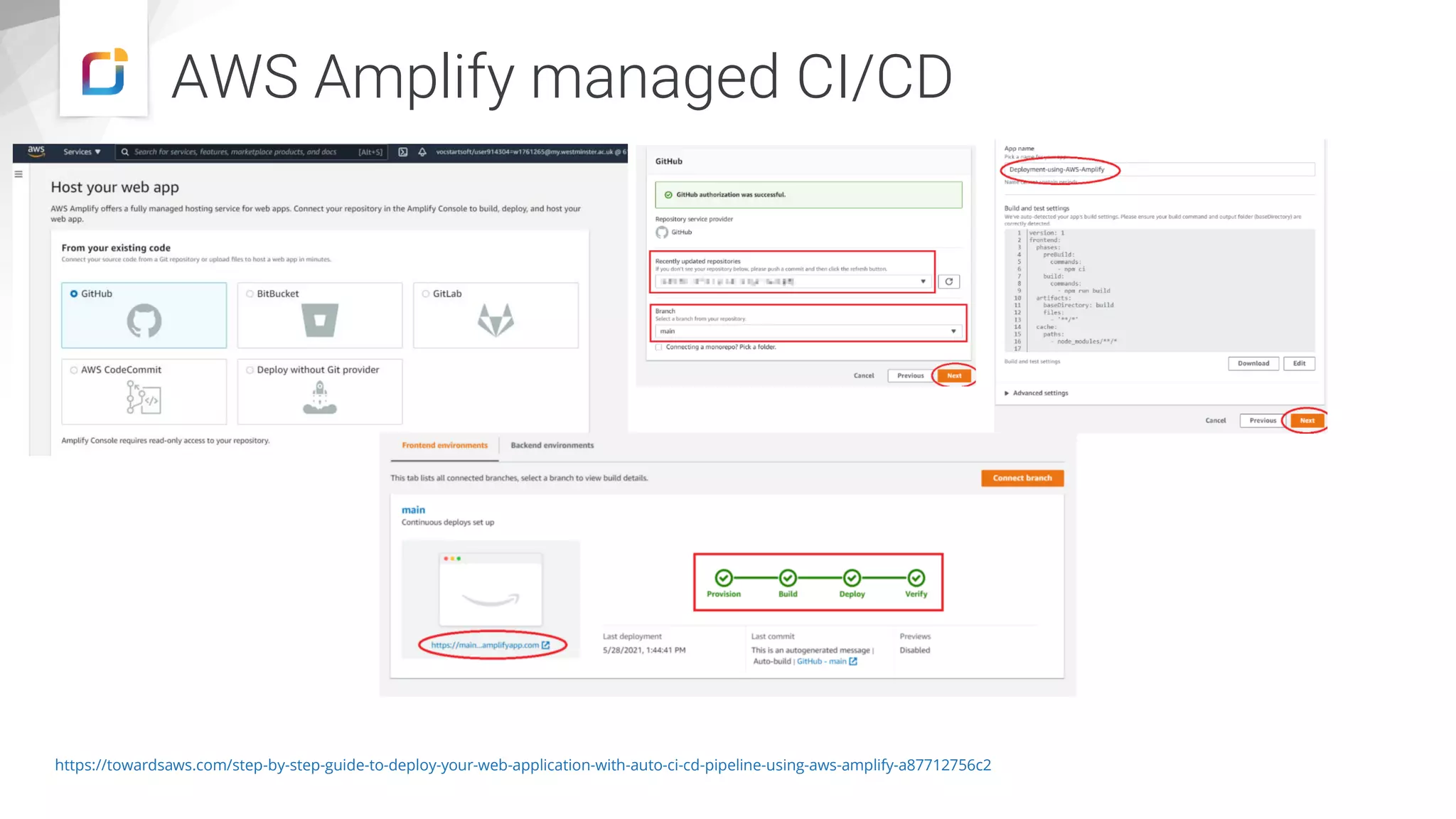

- 46. AWS Amplify managedCI/CD https://towardsaws.com/step-by-step-guide-to-deploy-your-web-application-with-auto-ci-cd-pipeline-using-aws-amplify-a87712756c2
- 47.
- 48.
- 49.

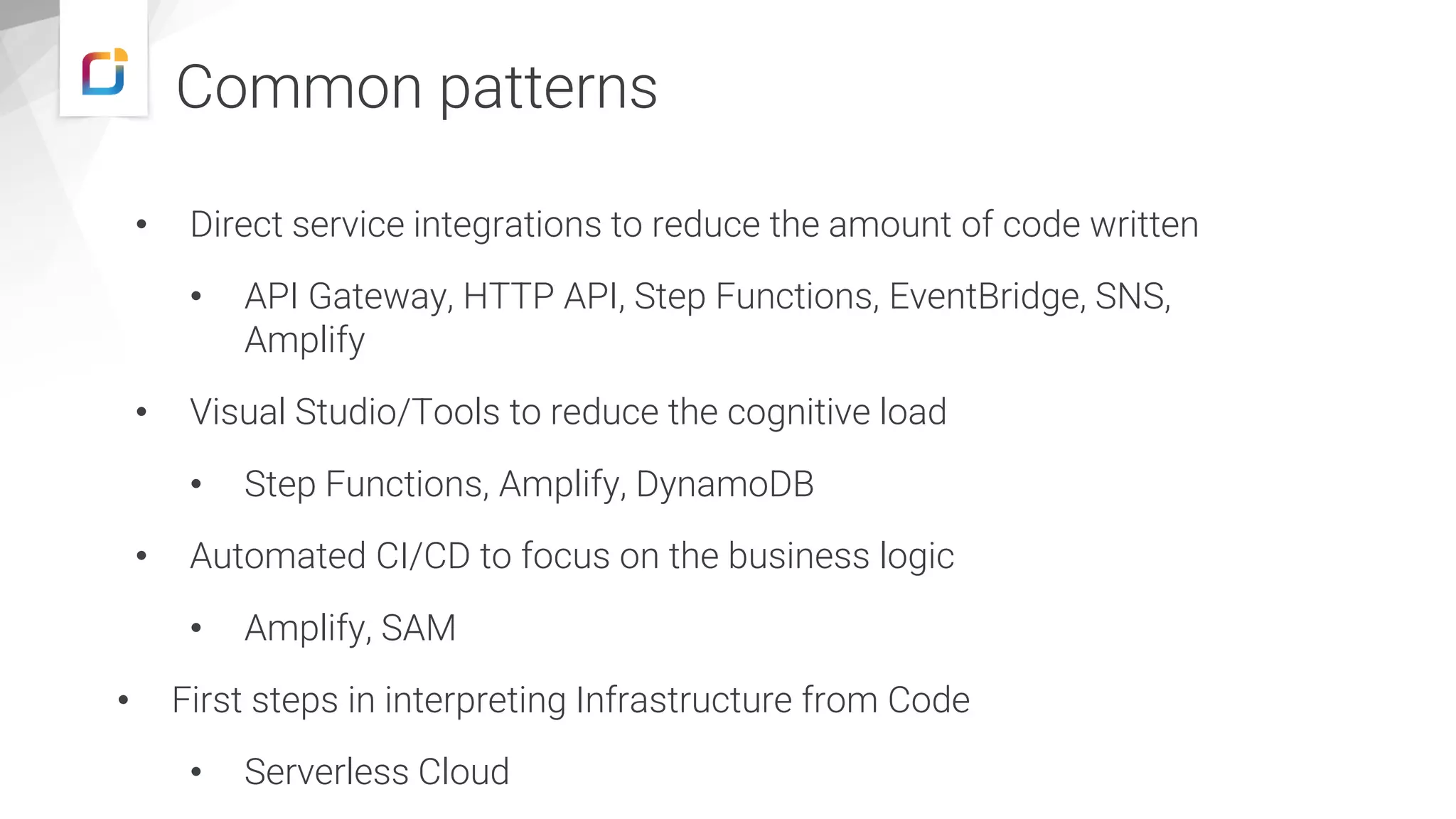

- 50. Common patterns • Directservice integrations to reduce the amount of code written • API Gateway, HTTP API, Step Functions, EventBridge, SNS, Amplify • Visual Studio/Tools to reduce the cognitive load • Step Functions, Amplify, DynamoDB • Automated CI/CD to focus on the business logic • Amplify, SAM • First steps in interpreting Infrastructure from Code • Serverless Cloud
- 51. Focus on BusinessValue

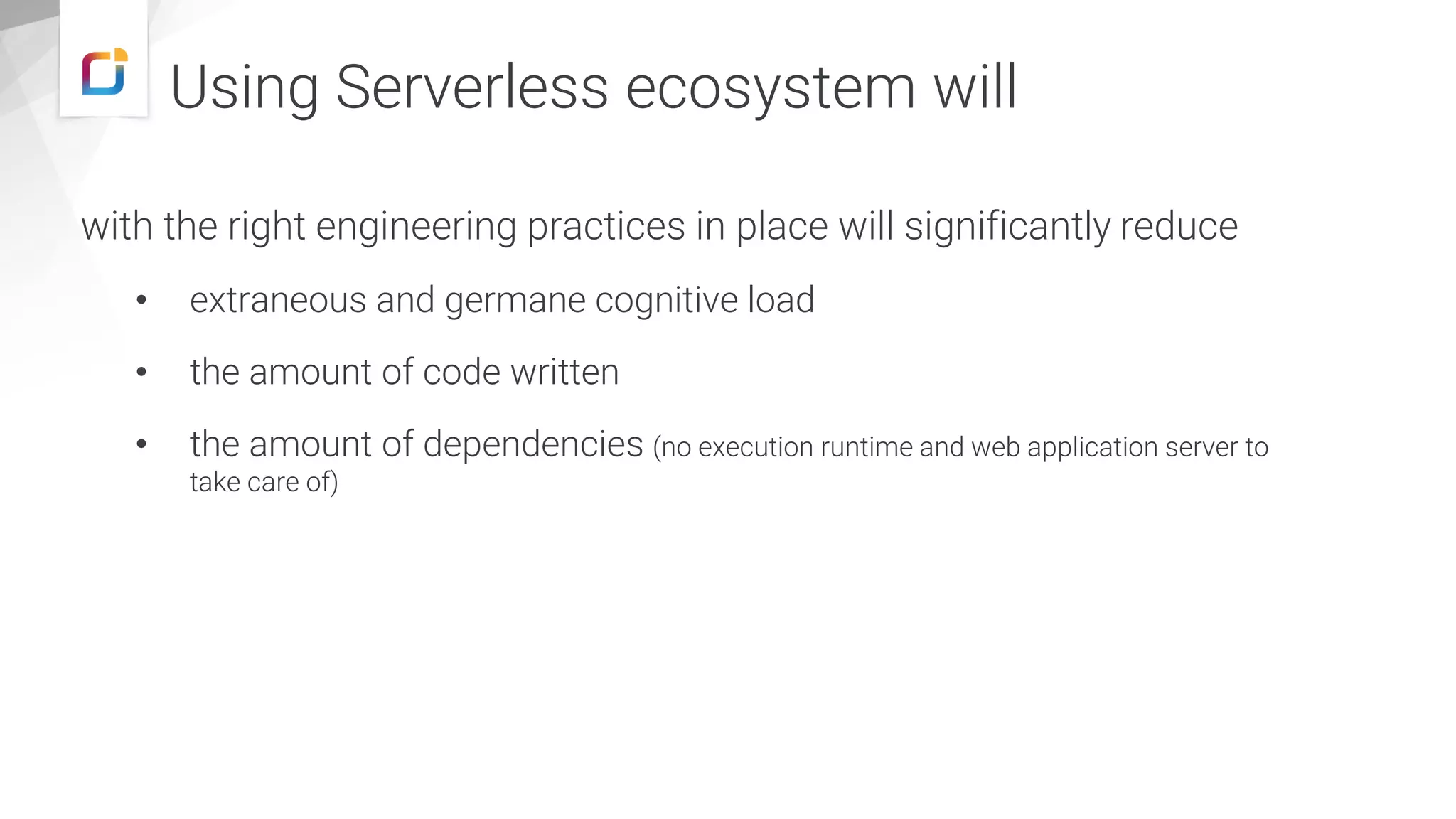

- 52. Using Serverless ecosystemwill with the right engineering practices in place will significantly reduce • extraneous and germane cognitive load • the amount of code written • the amount of dependencies (no execution runtime and web application server to take care of)

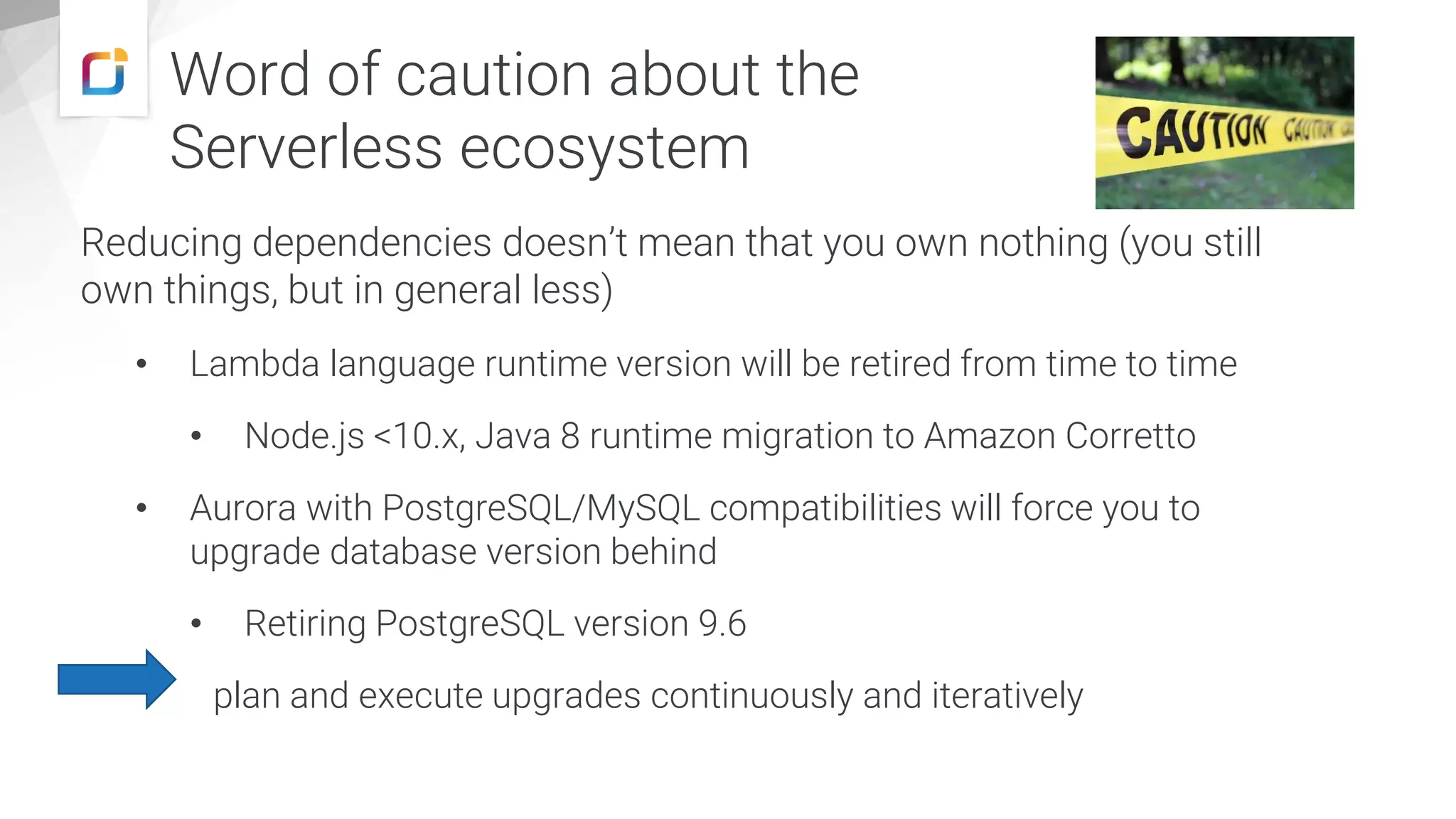

- 53. Reducing dependencies doesn’tmean that you own nothing (you still own things, but in general less) • Lambda language runtime version will be retired from time to time • Node.js <10.x, Java 8 runtime migration to Amazon Corretto • Aurora with PostgreSQL/MySQL compatibilities will force you to upgrade database version behind • Retiring PostgreSQL version 9.6 plan and execute upgrades continuously and iteratively Word of caution about the Serverless ecosystem
- 54. How to besuccessful with Serverless

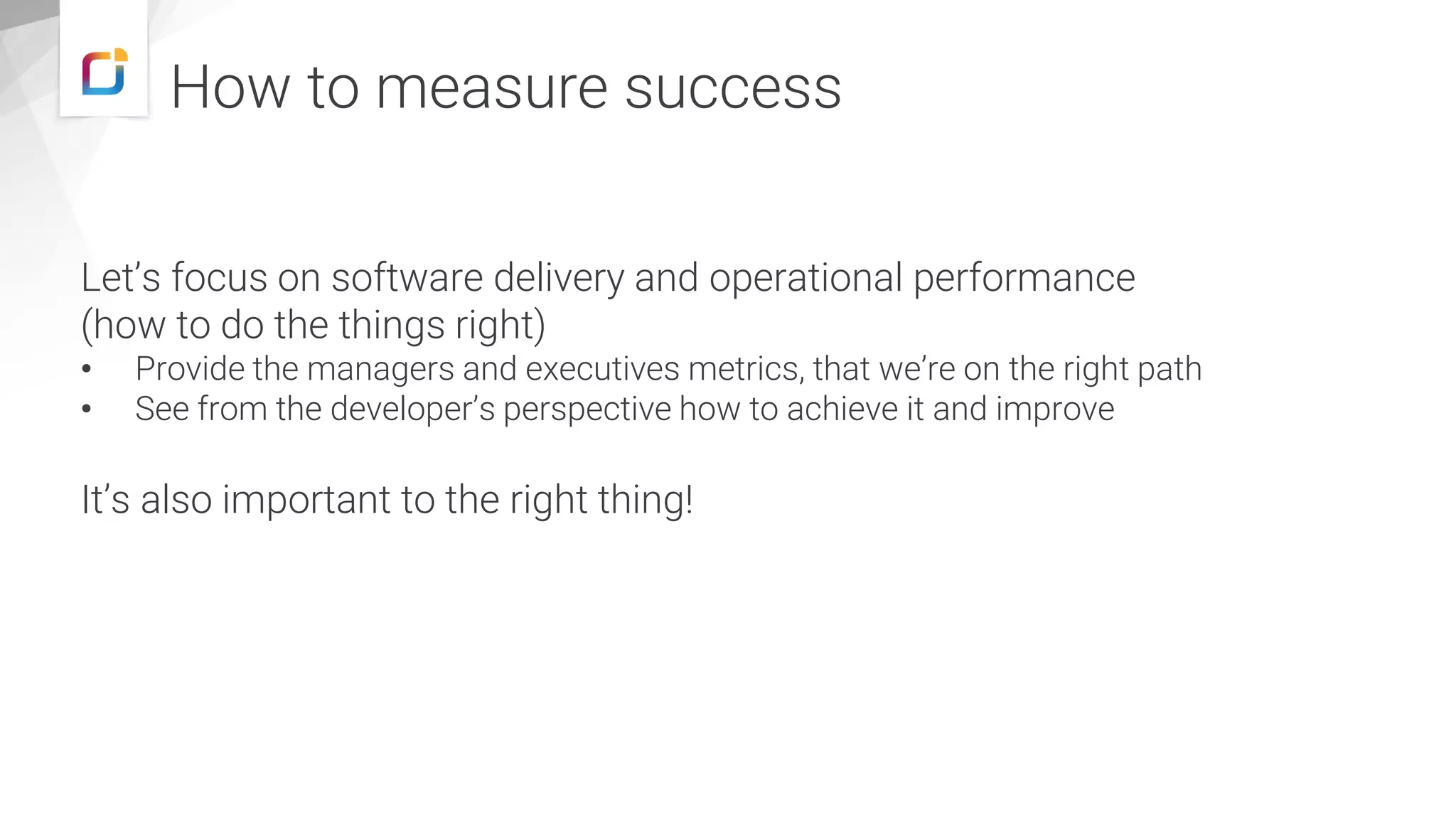

- 55. How to measuresuccess Let’s focus on software delivery and operational performance (how to do the things right) • Provide the managers and executives metrics, that we’re on the right path • See from the developer’s perspective how to achieve it and improve It’s also important to the right thing!

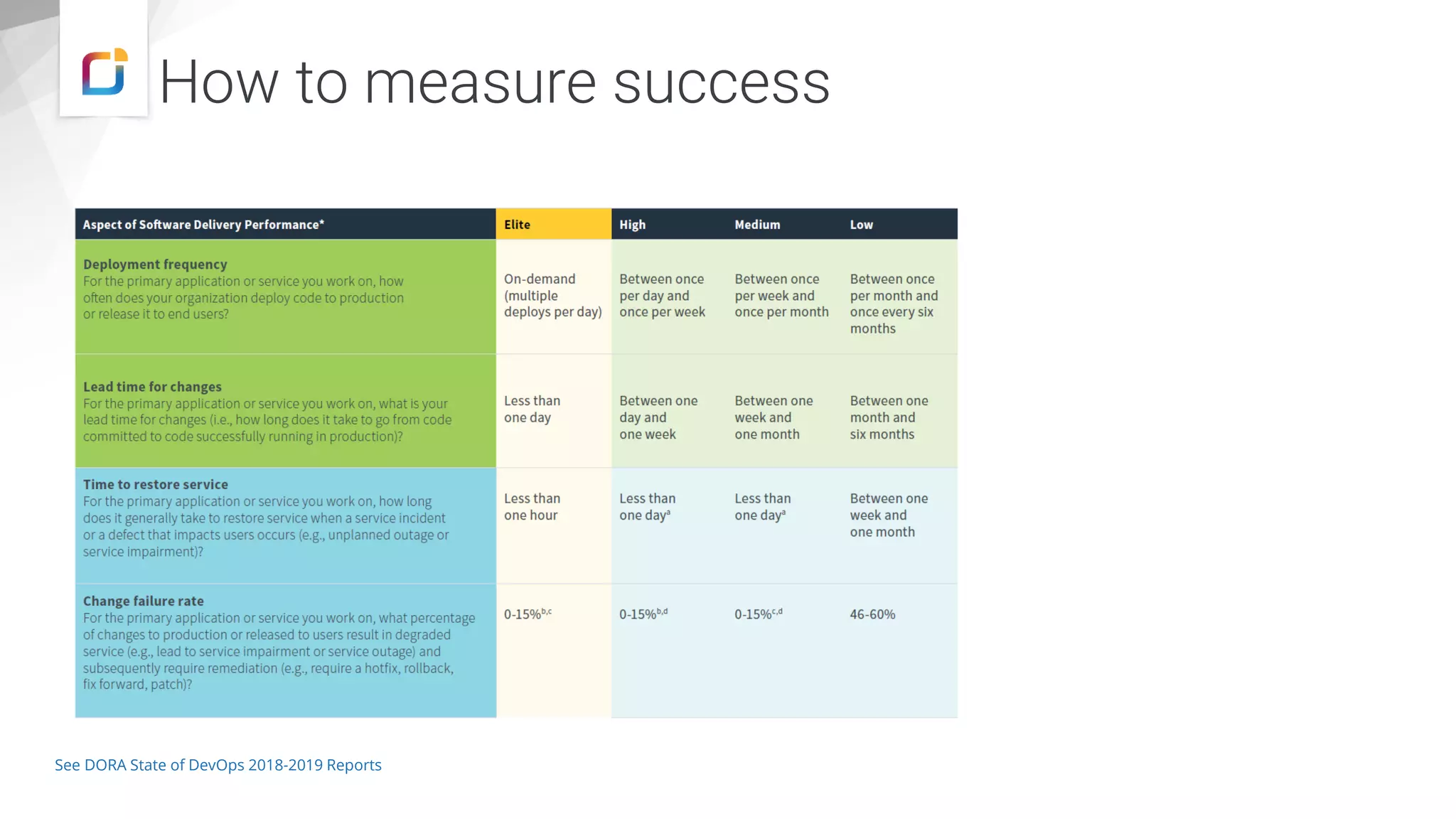

- 56. How to measuresuccess See DORA State of DevOps 2018-2019 Reports

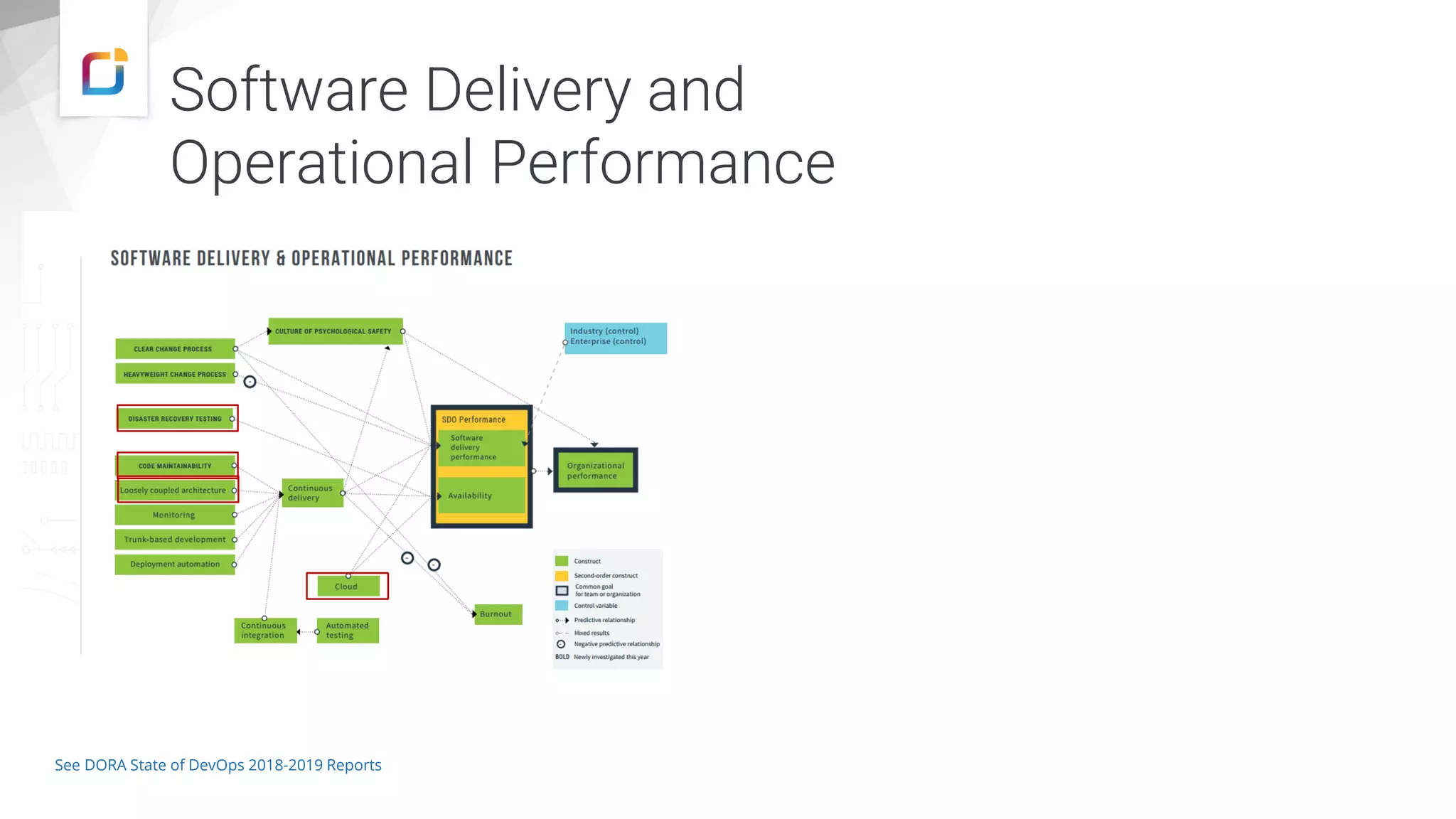

- 57. Software Delivery and OperationalPerformance See DORA State of DevOps 2018-2019 Reports

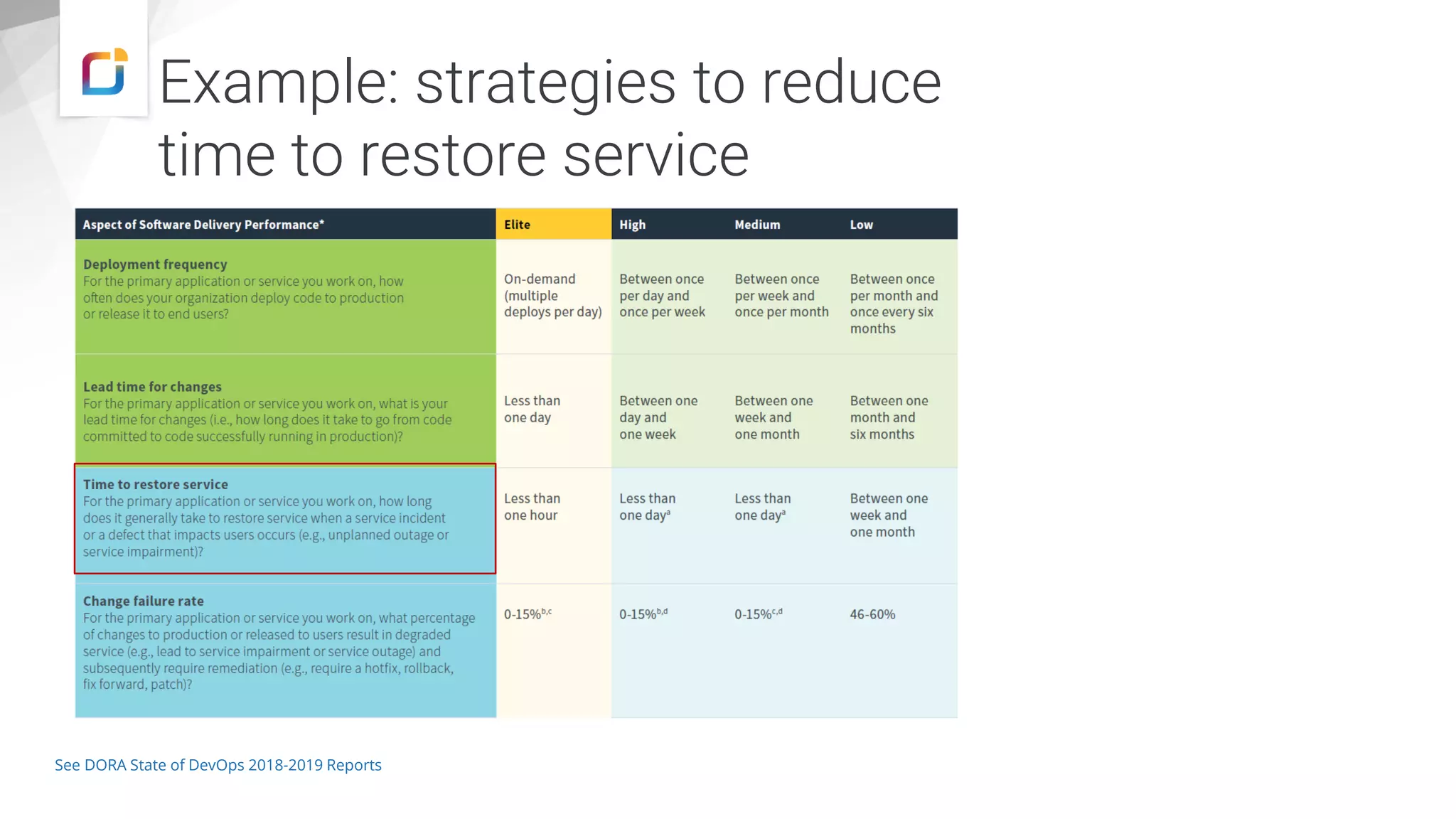

- 58. Example: strategies toreduce time to restore service See DORA State of DevOps 2018-2019 Reports

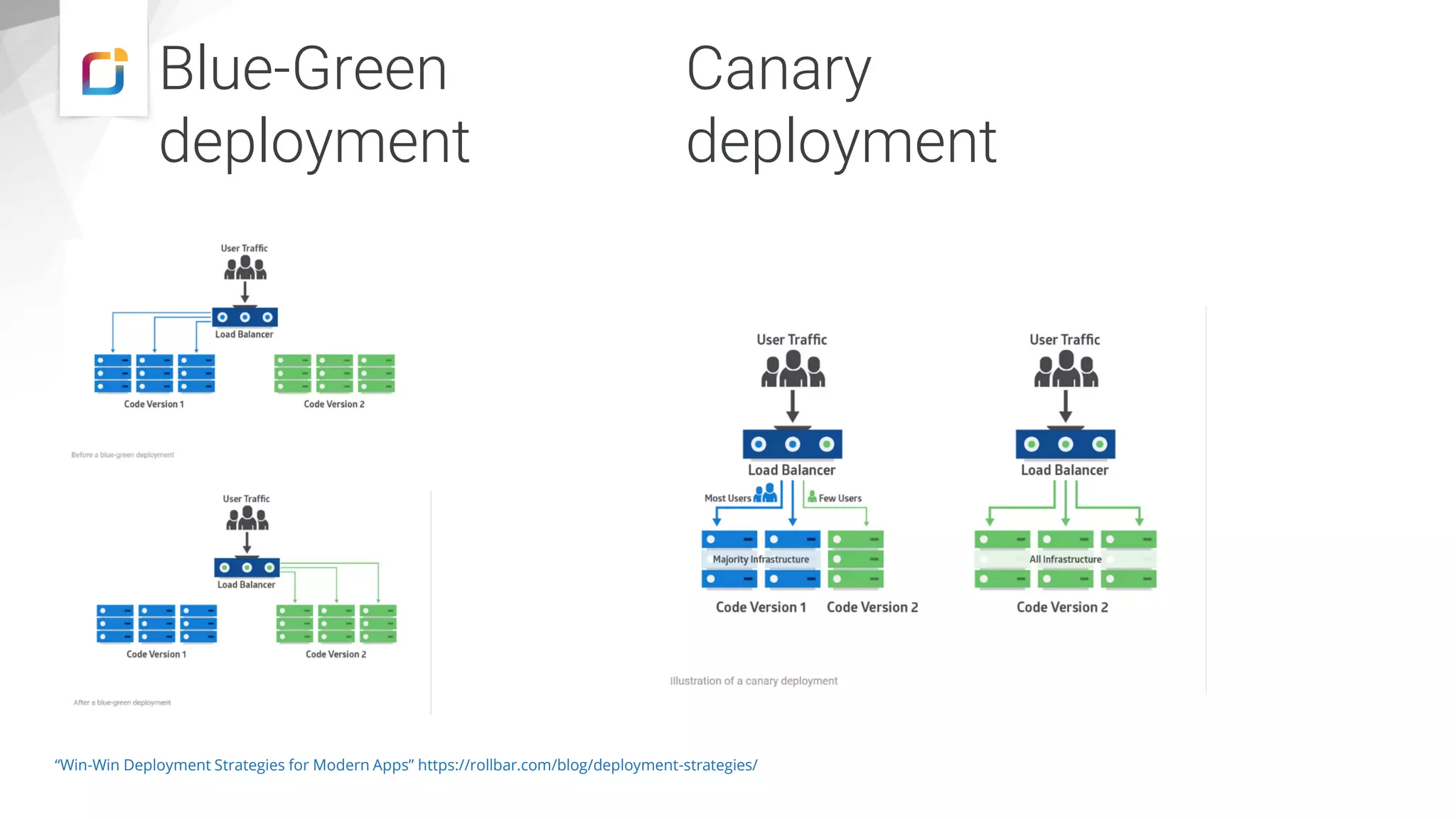

- 59. Blue-Green deployment “Win-Win Deployment Strategiesfor Modern Apps” https://rollbar.com/blog/deployment-strategies/ Canary deployment

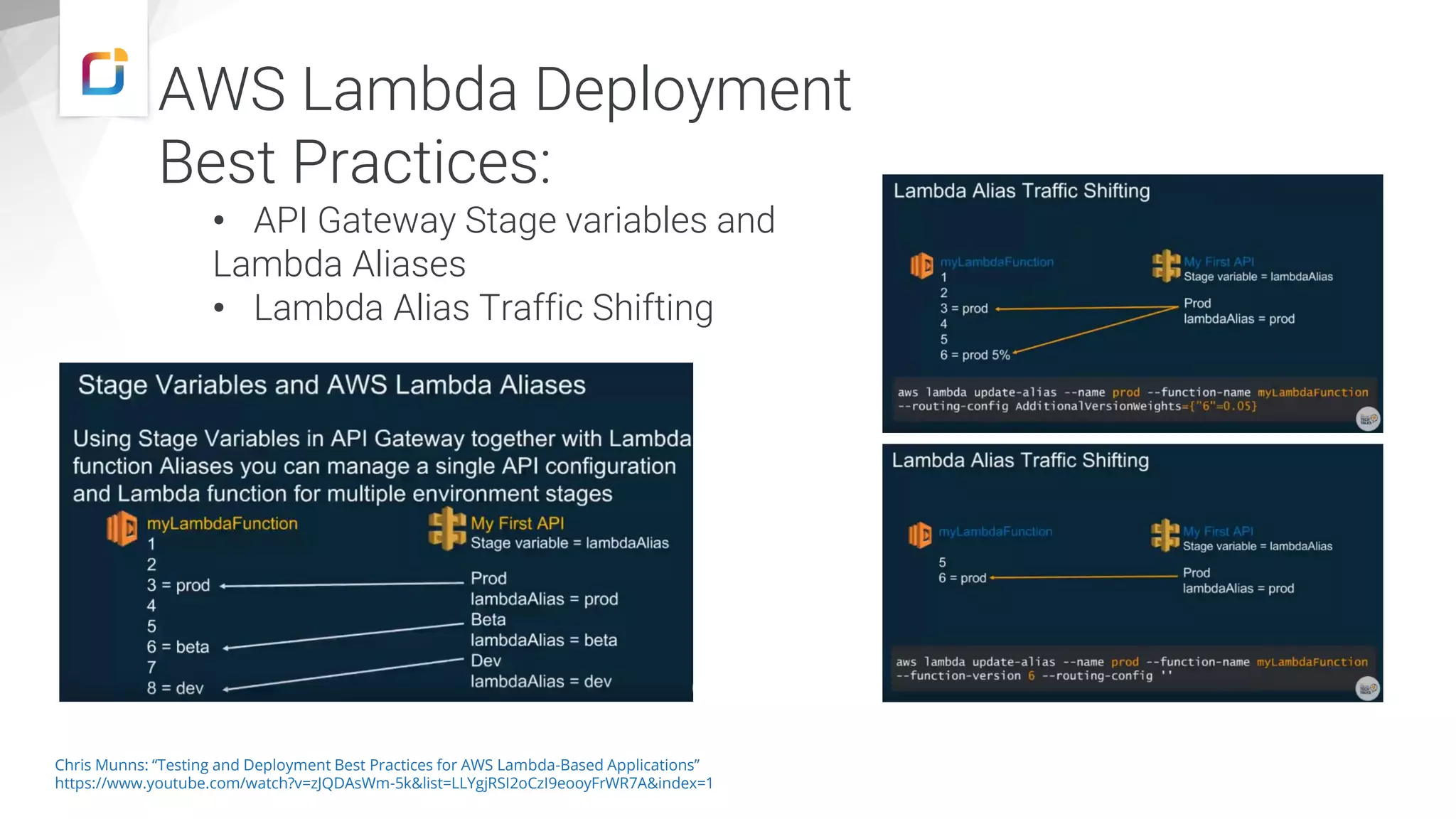

- 60. AWS Lambda Deployment BestPractices: • API Gateway Stage variables and Lambda Aliases • Lambda Alias Traffic Shifting Chris Munns: “Testing and Deployment Best Practices for AWS Lambda-Based Applications” https://www.youtube.com/watch?v=zJQDAsWm-5k&list=LLYgjRSI2oCzI9eooyFrWR7A&index=1

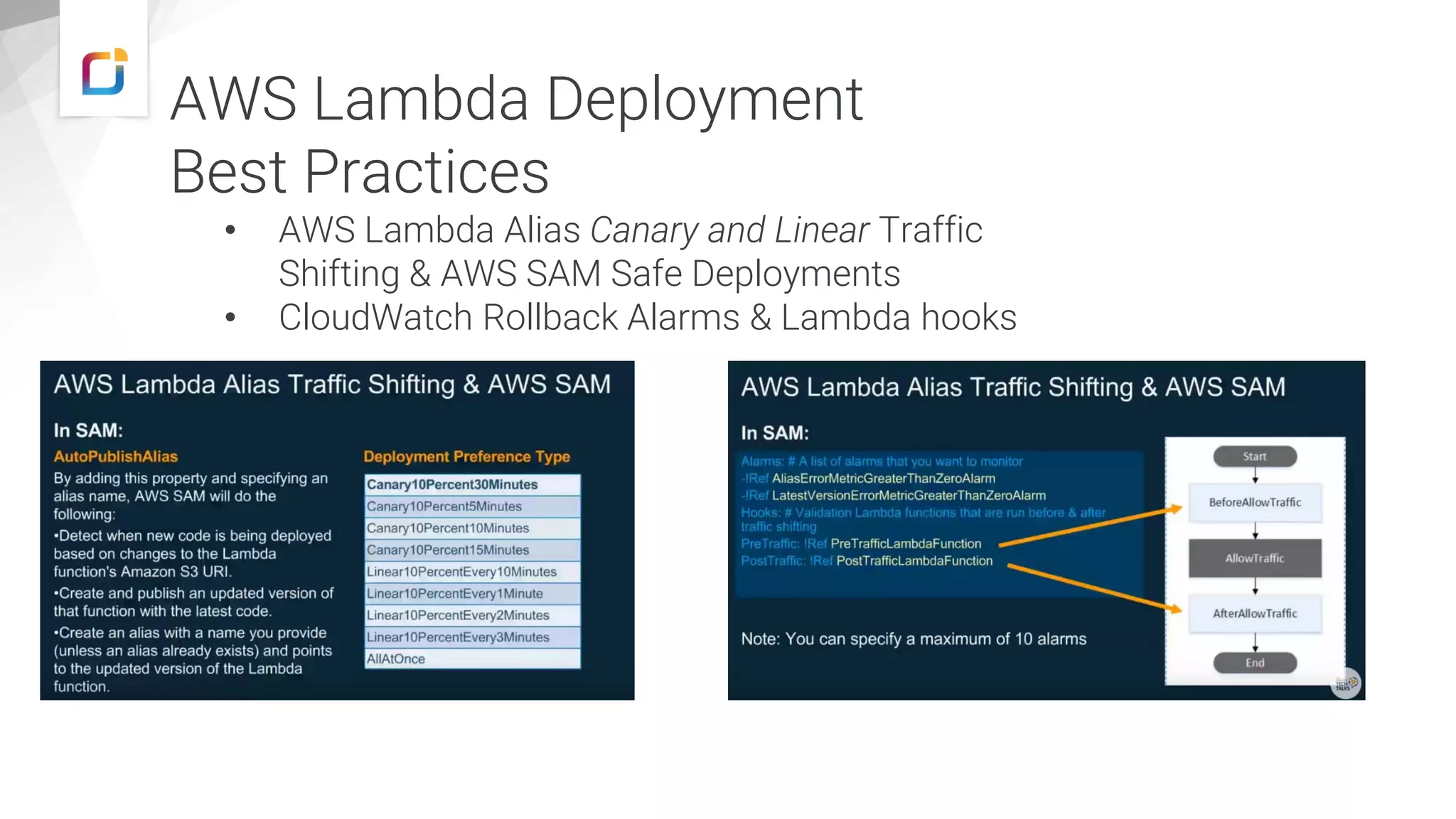

- 61. AWS Lambda Deployment BestPractices • AWS Lambda Alias Canary and Linear Traffic Shifting & AWS SAM Safe Deployments • CloudWatch Rollback Alarms & Lambda hooks Chris Munns: “Testing and Deployment Best Practices for AWS Lambda-Based Applications” https://www.youtube.com/watch?v=zJQDAsWm-5k&list=LLYgjRSI2oCzI9eooyFrWR7A&index=1

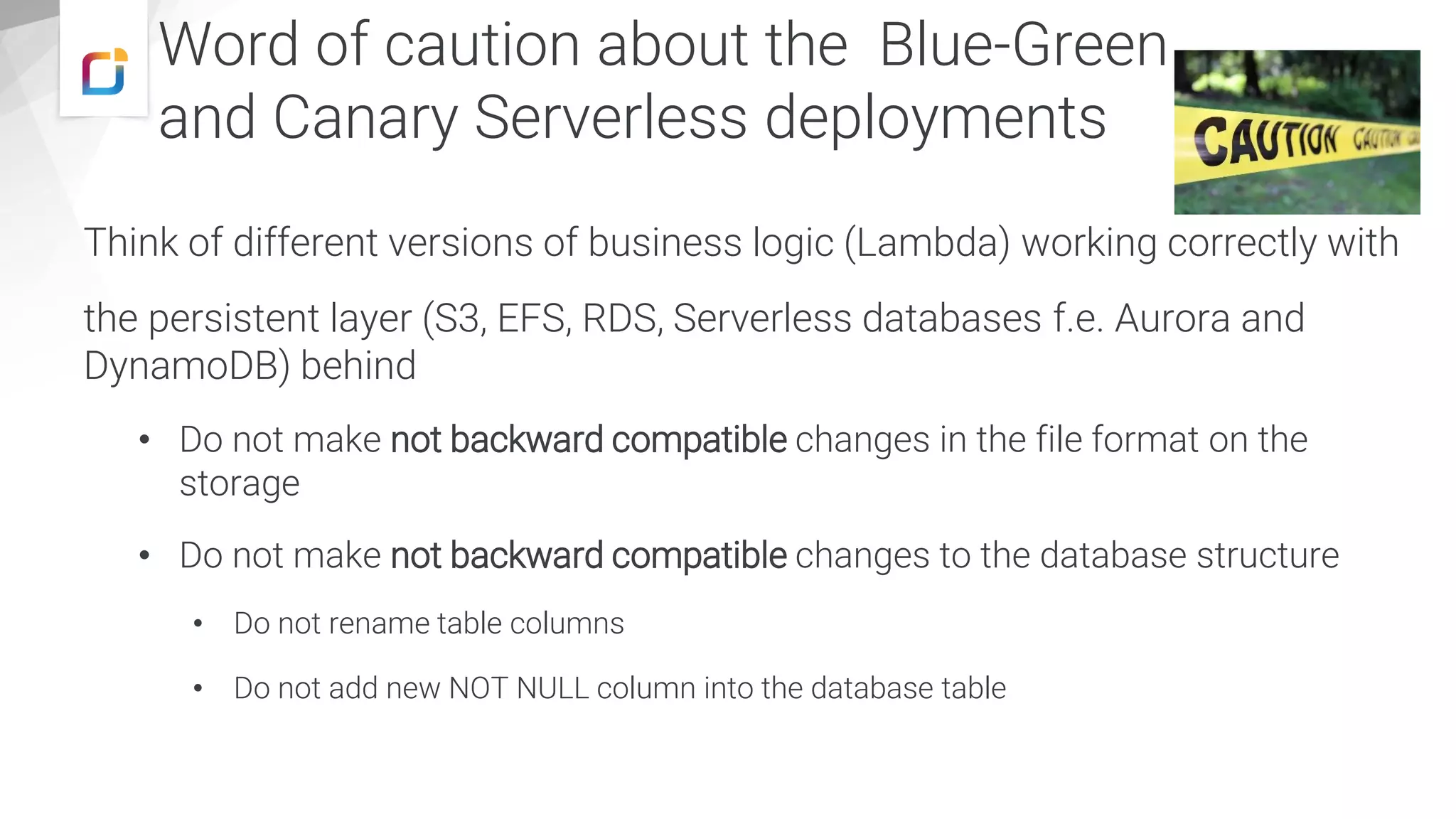

- 62. Think of differentversions of business logic (Lambda) working correctly with the persistent layer (S3, EFS, RDS, Serverless databases f.e. Aurora and DynamoDB) behind • Do not make not backward compatible changes in the file format on the storage • Do not make not backward compatible changes to the database structure • Do not rename table columns • Do not add new NOT NULL column into the database table Word of caution about the Blue-Green and Canary Serverless deployments

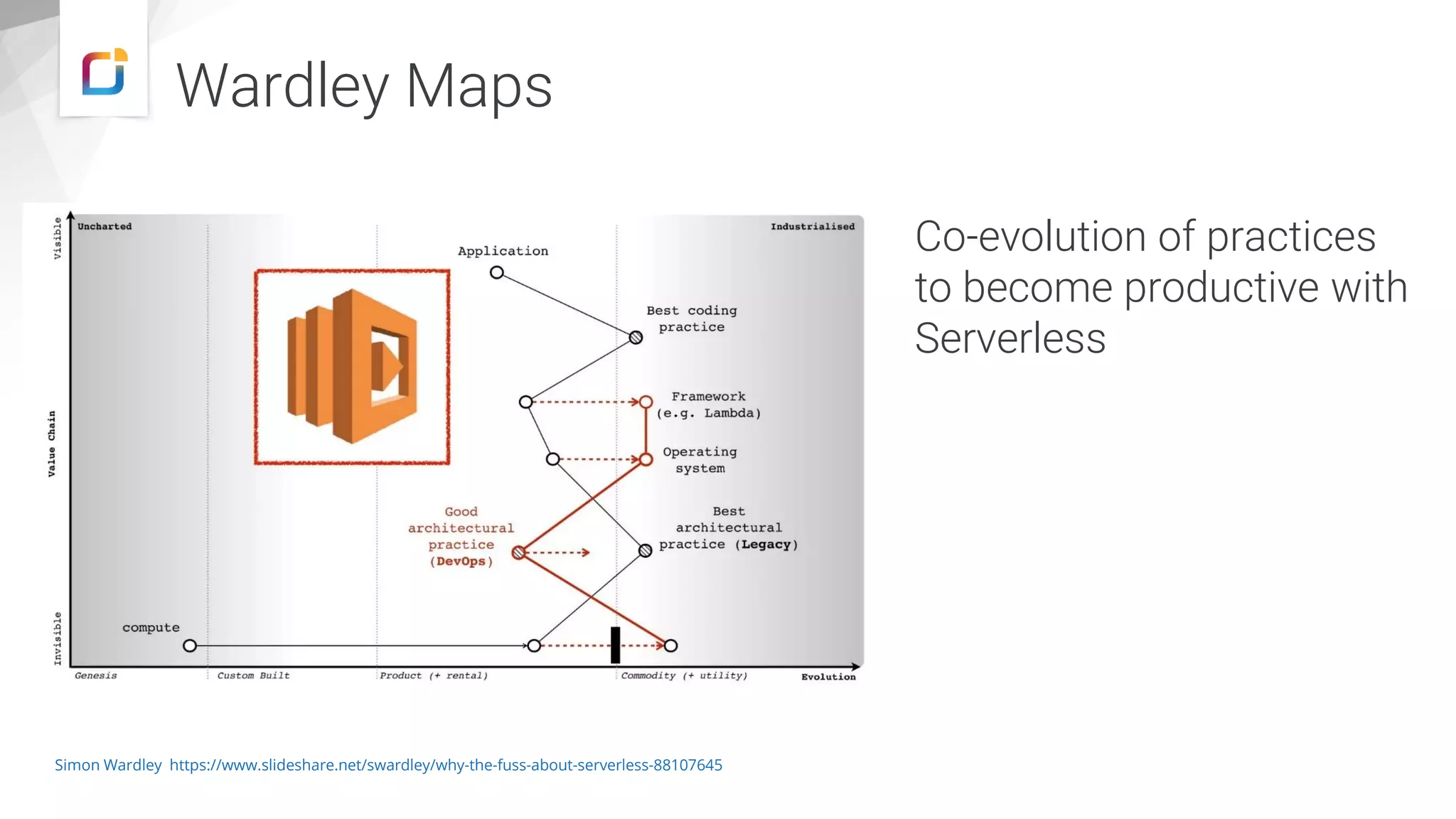

- 63. Wardley Maps Simon Wardleyhttps://www.slideshare.net/swardley/why-the-fuss-about-serverless-88107645 Co-evolution of practices to become productive with Serverless

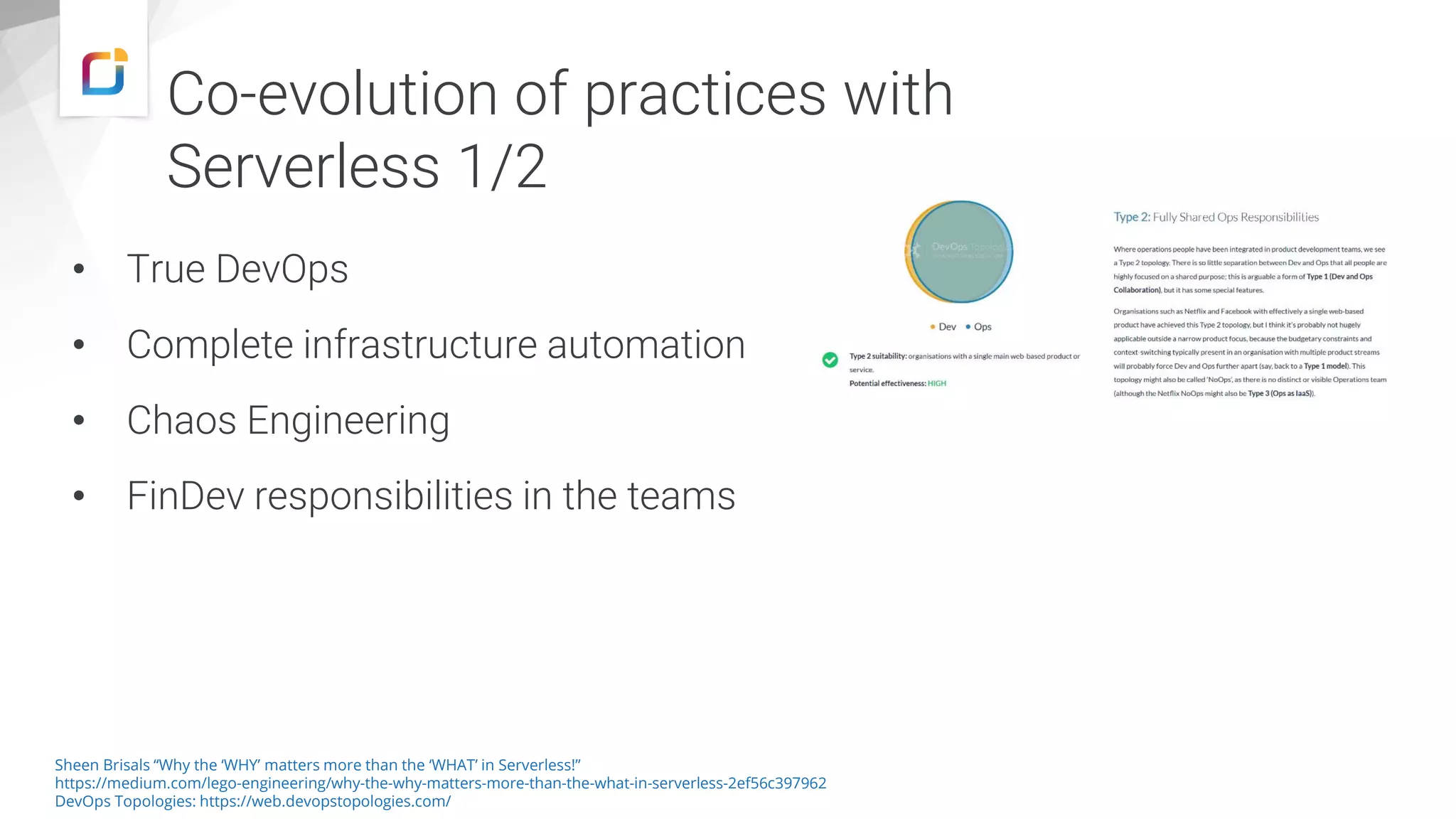

- 64. Co-evolution of practiceswith Serverless 1/2 • True DevOps • Complete infrastructure automation • Chaos Engineering • FinDev responsibilities in the teams Sheen Brisals “Why the ‘WHY’ matters more than the ‘WHAT’ in Serverless!” https://medium.com/lego-engineering/why-the-why-matters-more-than-the-what-in-serverless-2ef56c397962 DevOps Topologies: https://web.devopstopologies.com/

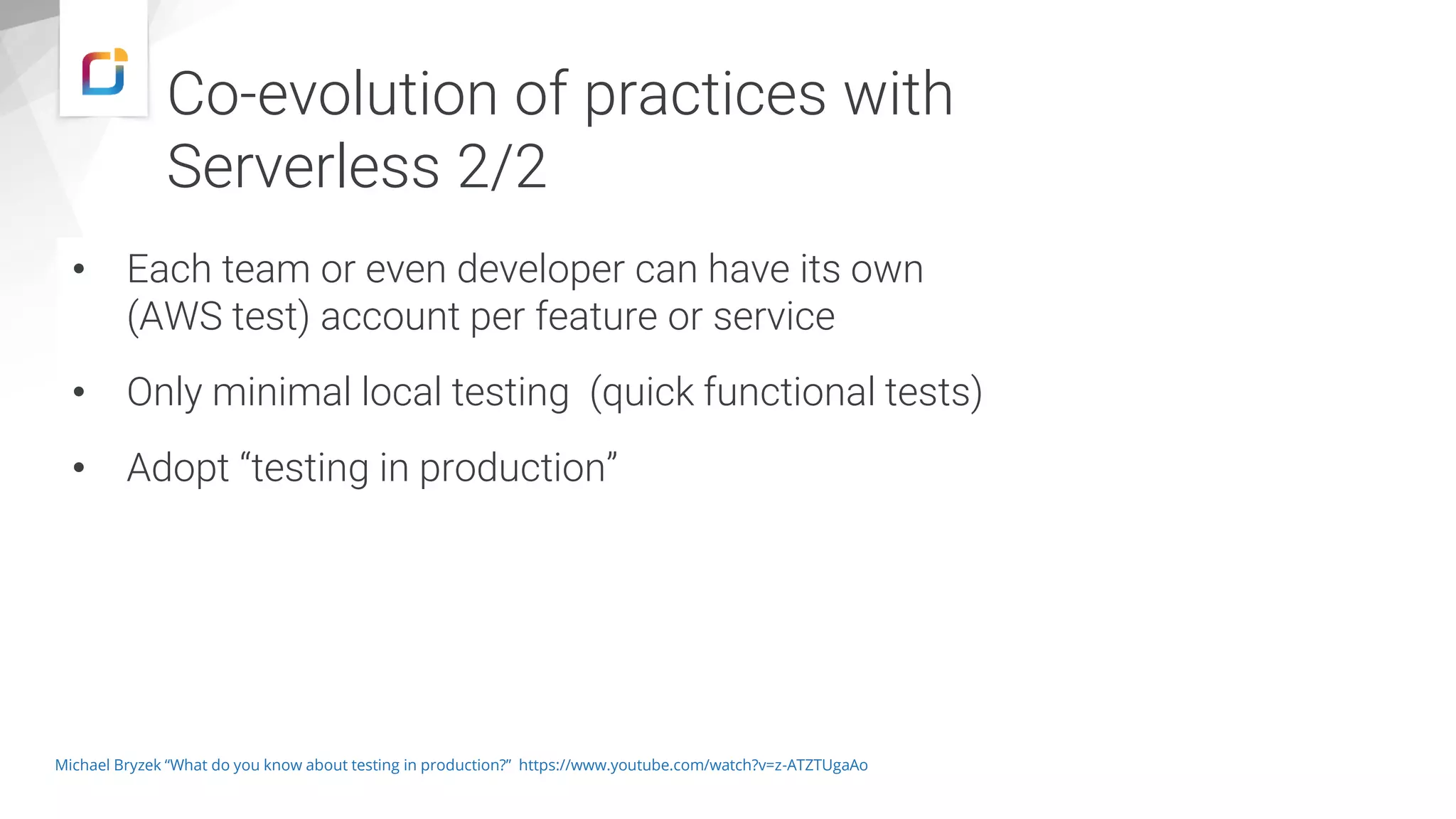

- 65. • Each teamor even developer can have its own (AWS test) account per feature or service • Only minimal local testing (quick functional tests) • Adopt “testing in production” Michael Bryzek “What do you know about testing in production?” https://www.youtube.com/watch?v=z-ATZTUgaAo Co-evolution of practices with Serverless 2/2
