Transactions and Concurrency Control
The document covers transactions and concurrency control in distributed systems, emphasizing the ACID properties (Atomicity, Consistency, Isolation, Durability) essential for reliable database management. It discusses transaction models, types (flat, nested, distributed), and implementation techniques (private workspace, write-ahead log), as well as concurrency control issues and algorithms such as two-phase locking and timestamp ordering. The goal is to ensure effective isolation and consistency of transactions while allowing simultaneous execution.
More Related Content
Similar to Transactions and Concurrency Control
More from Dilum Bandara
Transactions and Concurrency Control
- 1. Transactions & Concurrency Control CS4262Distributed Systems Dilum Bandara Dilum.Bandara@uom.lk Some slides adapted from U Uthaiyashankar (WSO2) and Rajkumar Buyya’s

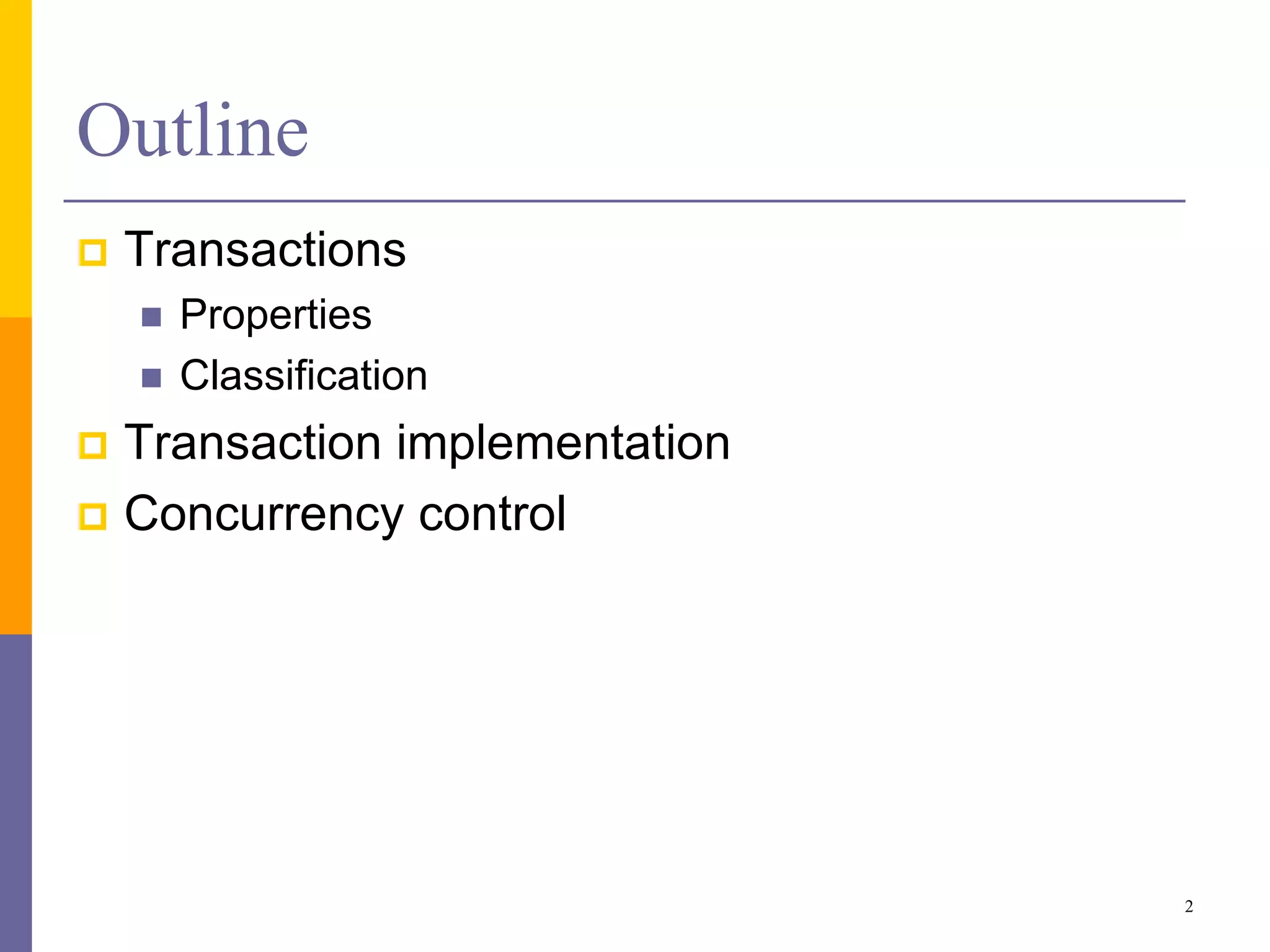

- 2. Outline Transactions Properties Classification Transaction implementation Concurrency control 2

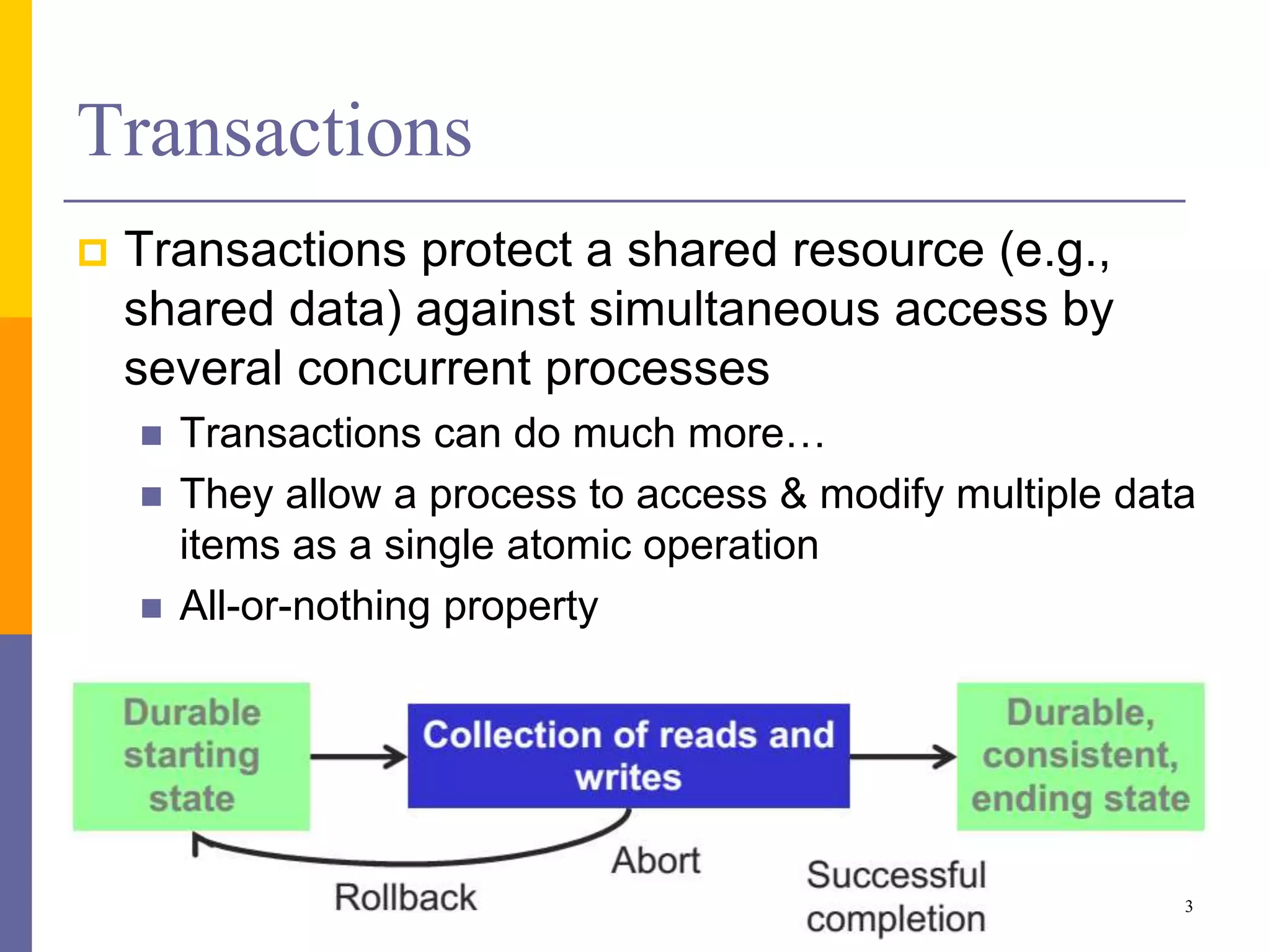

- 3. Transactions Transactions protecta shared resource (e.g., shared data) against simultaneous access by several concurrent processes Transactions can do much more… They allow a process to access & modify multiple data items as a single atomic operation All-or-nothing property 3
- 4. Transactions in DBMS A unit of work performed within a DBMS against a database Treated in a coherent & reliable way independent of other transactions 2 main purposes To provide reliable units of work that allow correct recovery from failures & keep a database consistent even in cases of (complete or partial) system failure To provide isolation between programs accessing a database concurrently 4
- 5. Goal of Transactions To ensure objects managed by a server remain in a consistent state when accessed by multiple transactions in the presence of server failure Transactions deal with process crash failures & communication omission failures Transactions don’t deal with Byzantine failure 5

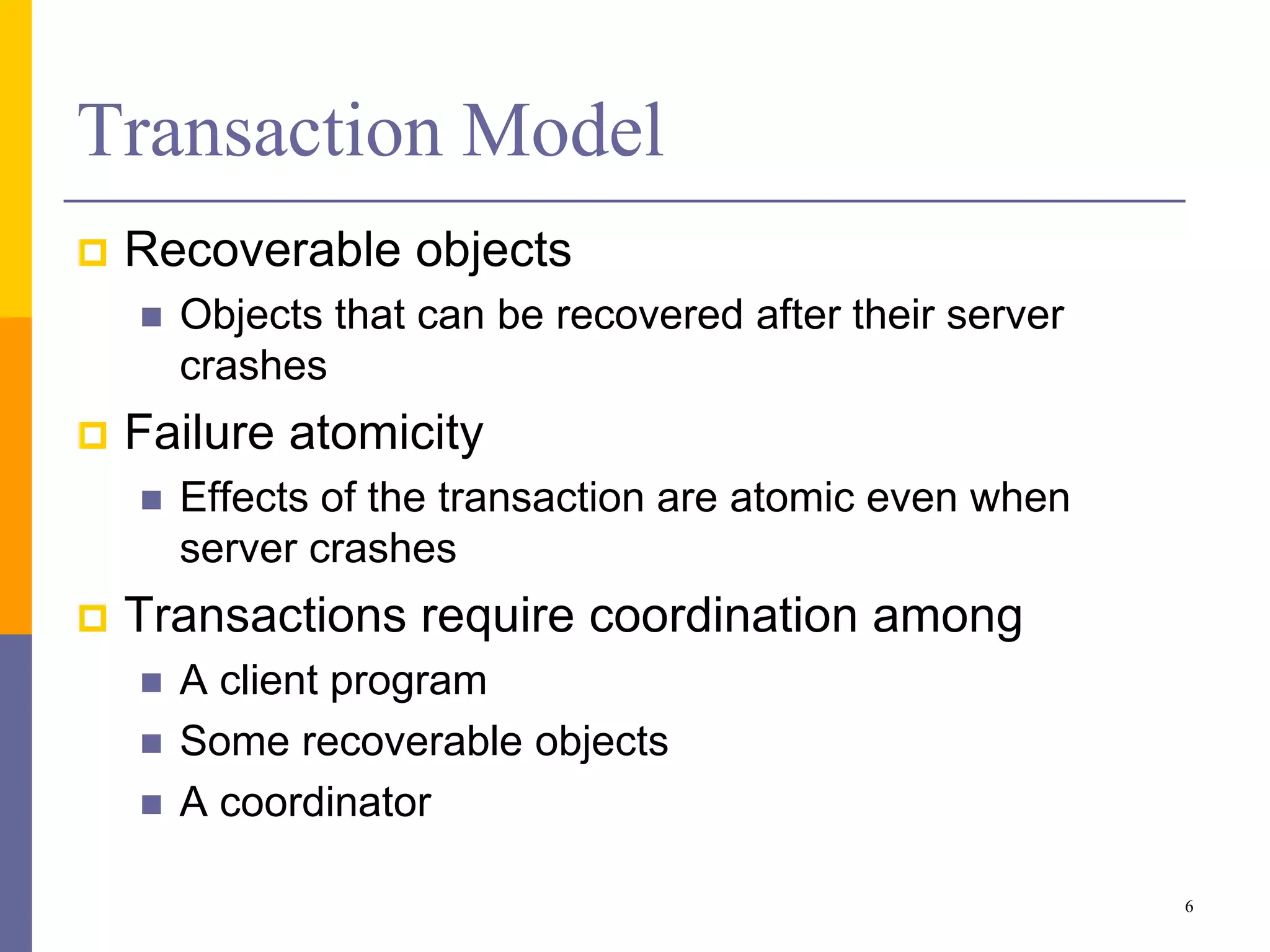

- 6. Transaction Model Recoverableobjects Objects that can be recovered after their server crashes Failure atomicity Effects of the transaction are atomic even when server crashes Transactions require coordination among A client program Some recoverable objects A coordinator 6

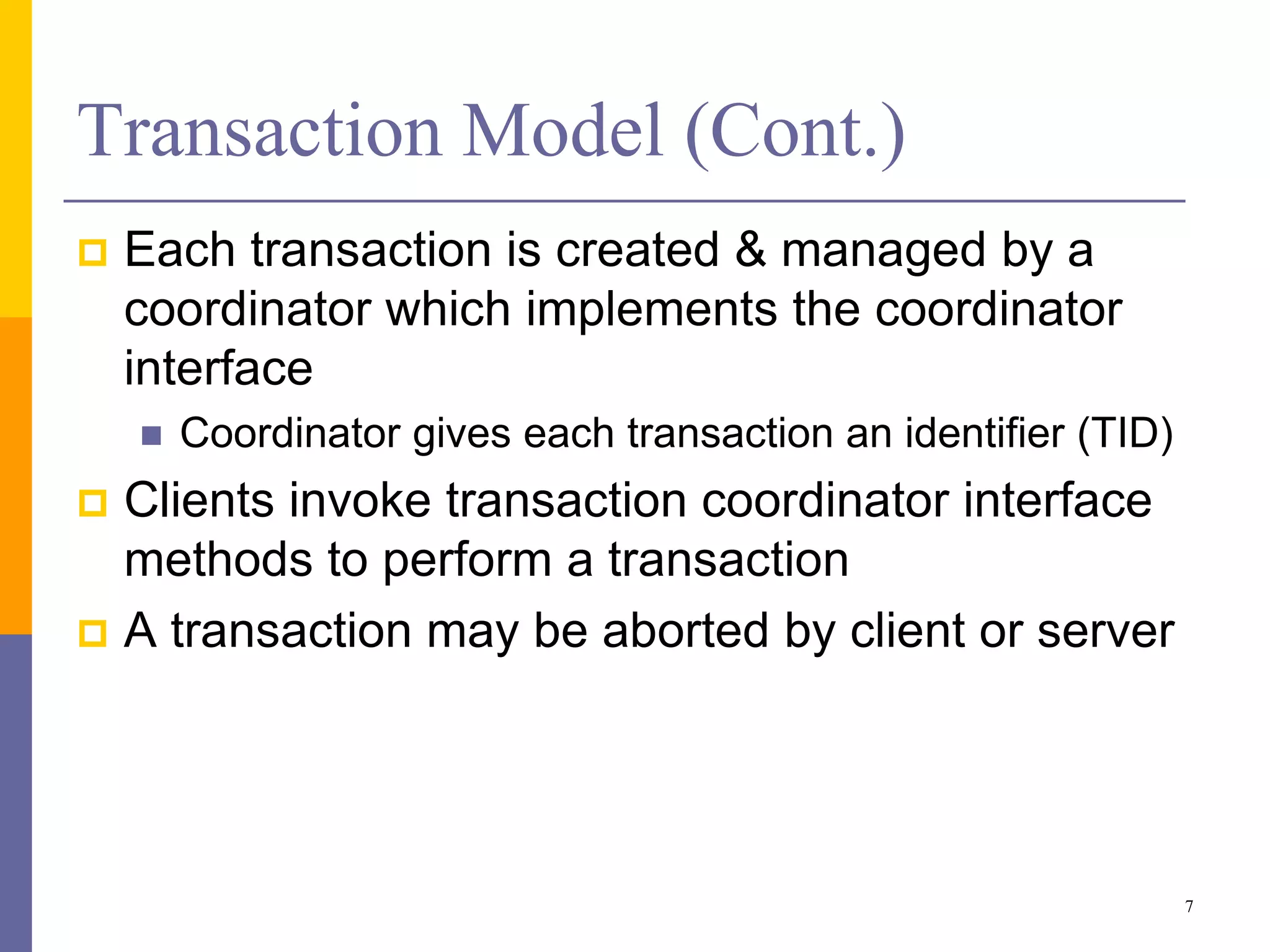

- 7. Transaction Model (Cont.) Each transaction is created & managed by a coordinator which implements the coordinator interface Coordinator gives each transaction an identifier (TID) Clients invoke transaction coordinator interface methods to perform a transaction A transaction may be aborted by client or server 7

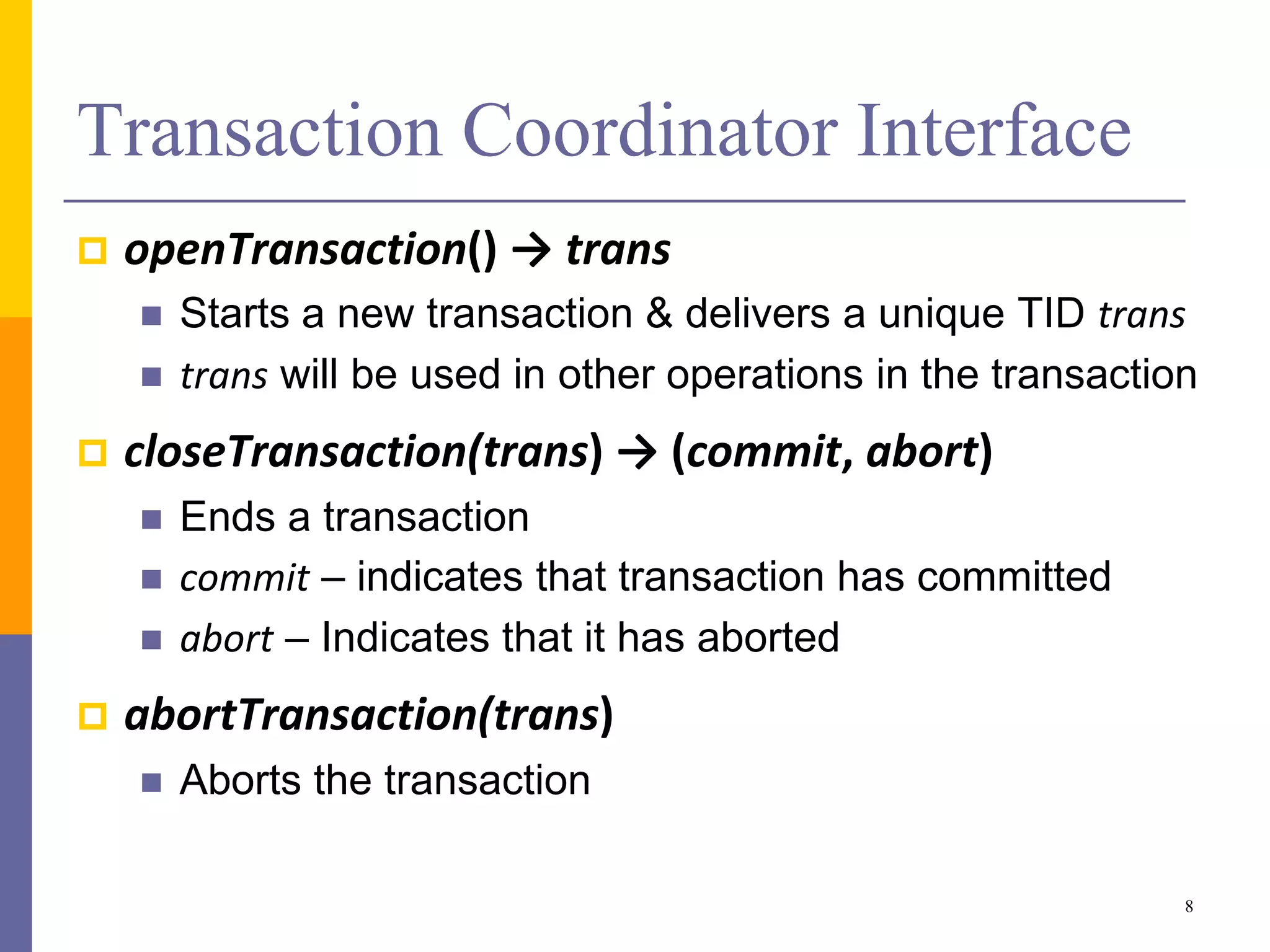

- 8. Transaction Coordinator Interface openTransaction() → trans Starts a new transaction & delivers a unique TID trans trans will be used in other operations in the transaction closeTransaction(trans) → (commit, abort) Ends a transaction commit – indicates that transaction has committed abort – Indicates that it has aborted abortTransaction(trans) Aborts the transaction 8
- 9. Properties of aTransaction Proposed by Harder & Reuter in 1983 ACID Property Atomic Consistent Isolated Durable 9

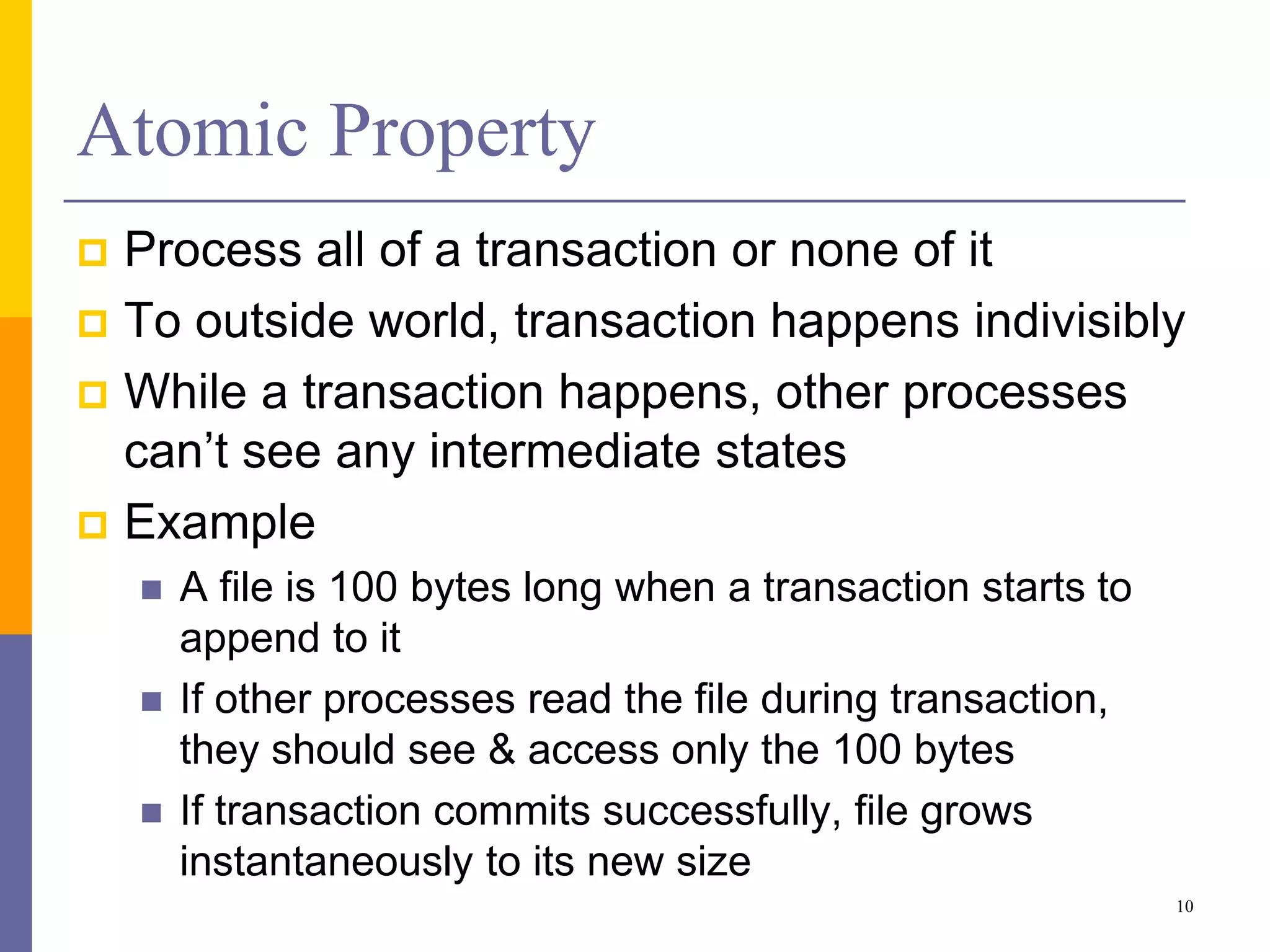

- 10. Atomic Property Processall of a transaction or none of it To outside world, transaction happens indivisibly While a transaction happens, other processes can’t see any intermediate states Example A file is 100 bytes long when a transaction starts to append to it If other processes read the file during transaction, they should see & access only the 100 bytes If transaction commits successfully, file grows instantaneously to its new size 10

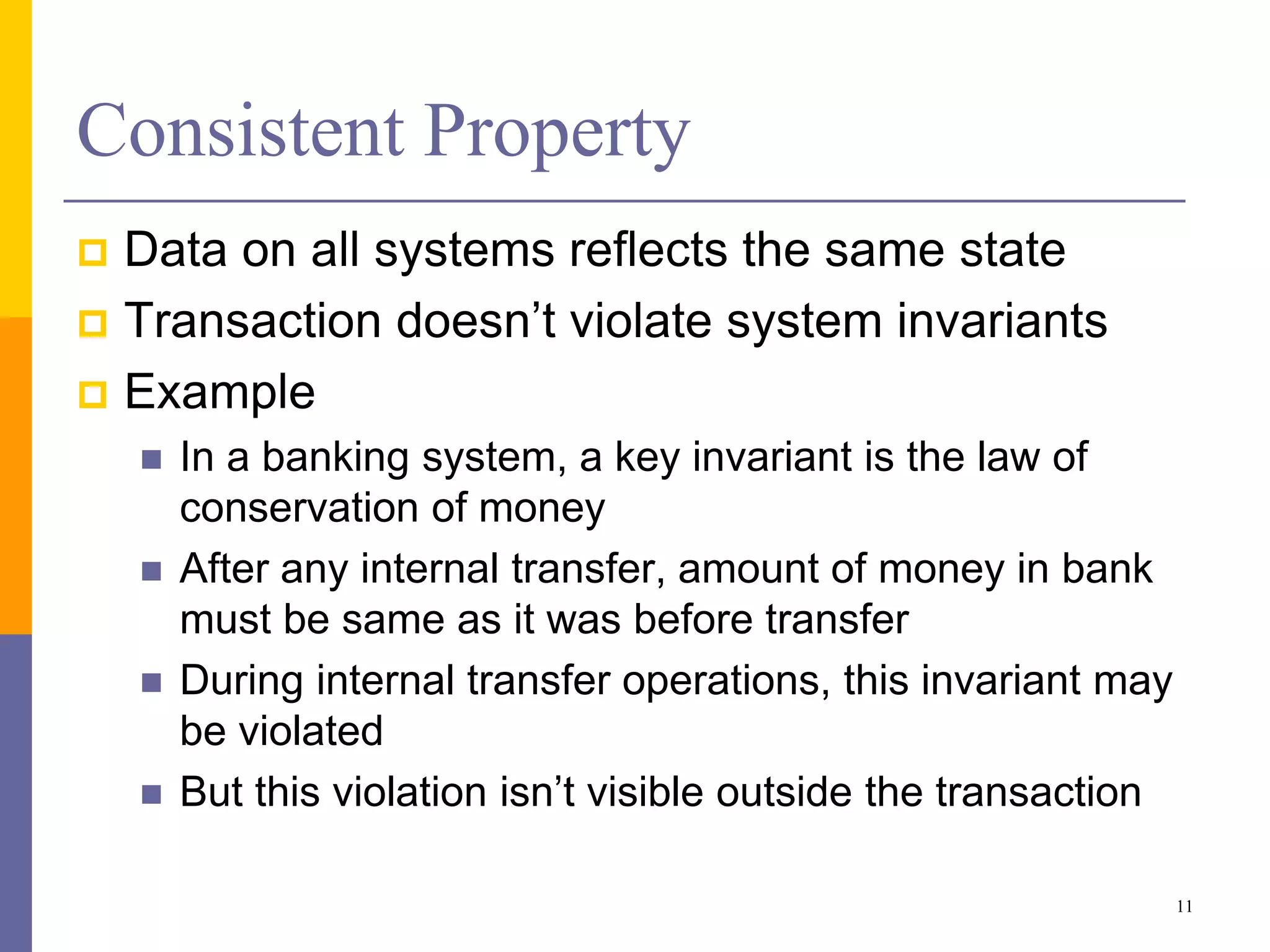

- 11. Consistent Property Dataon all systems reflects the same state Transaction doesn’t violate system invariants Example In a banking system, a key invariant is the law of conservation of money After any internal transfer, amount of money in bank must be same as it was before transfer During internal transfer operations, this invariant may be violated But this violation isn’t visible outside the transaction 11

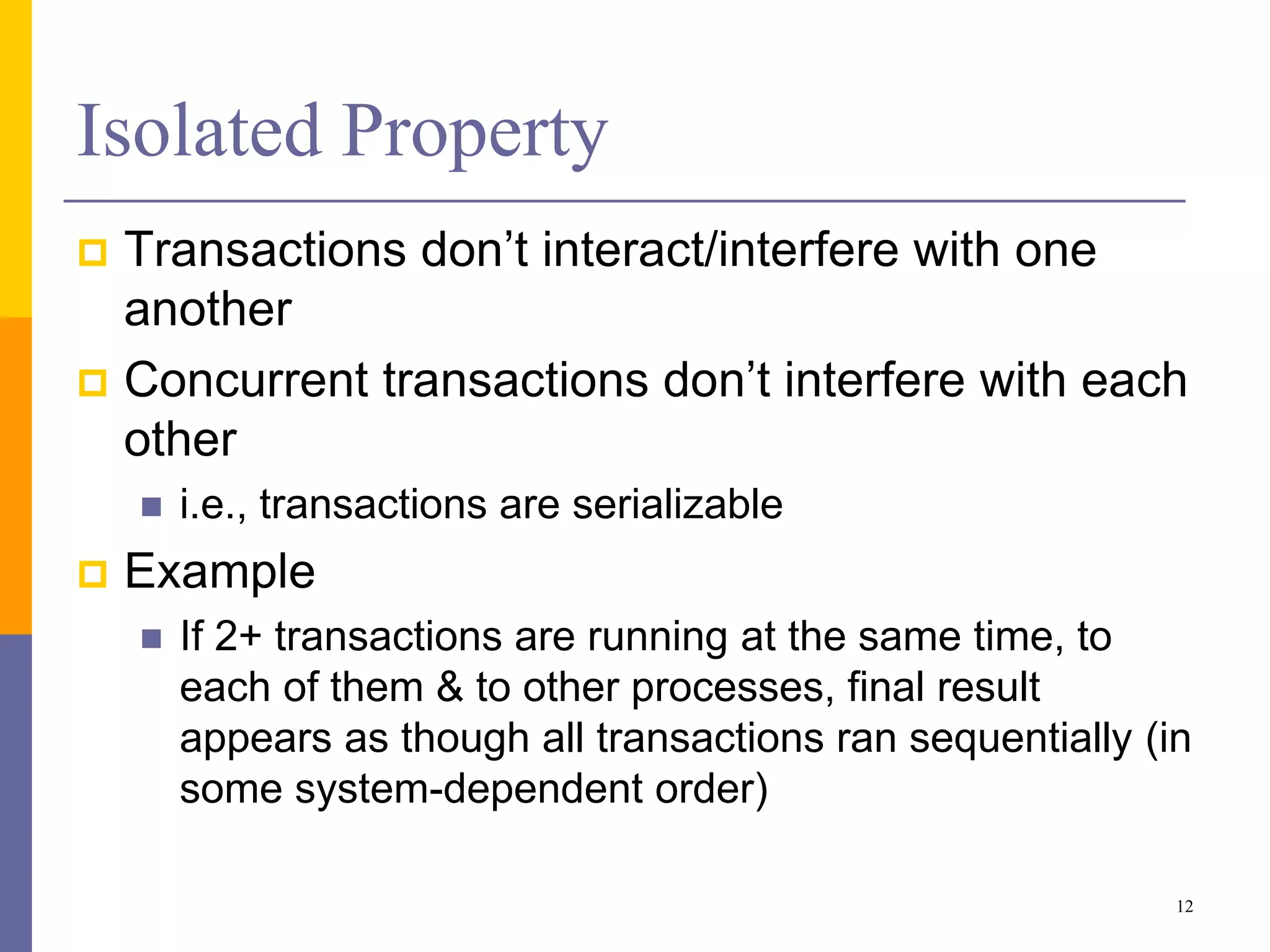

- 12. Isolated Property Transactionsdon’t interact/interfere with one another Concurrent transactions don’t interfere with each other i.e., transactions are serializable Example If 2+ transactions are running at the same time, to each of them & to other processes, final result appears as though all transactions ran sequentially (in some system-dependent order) 12

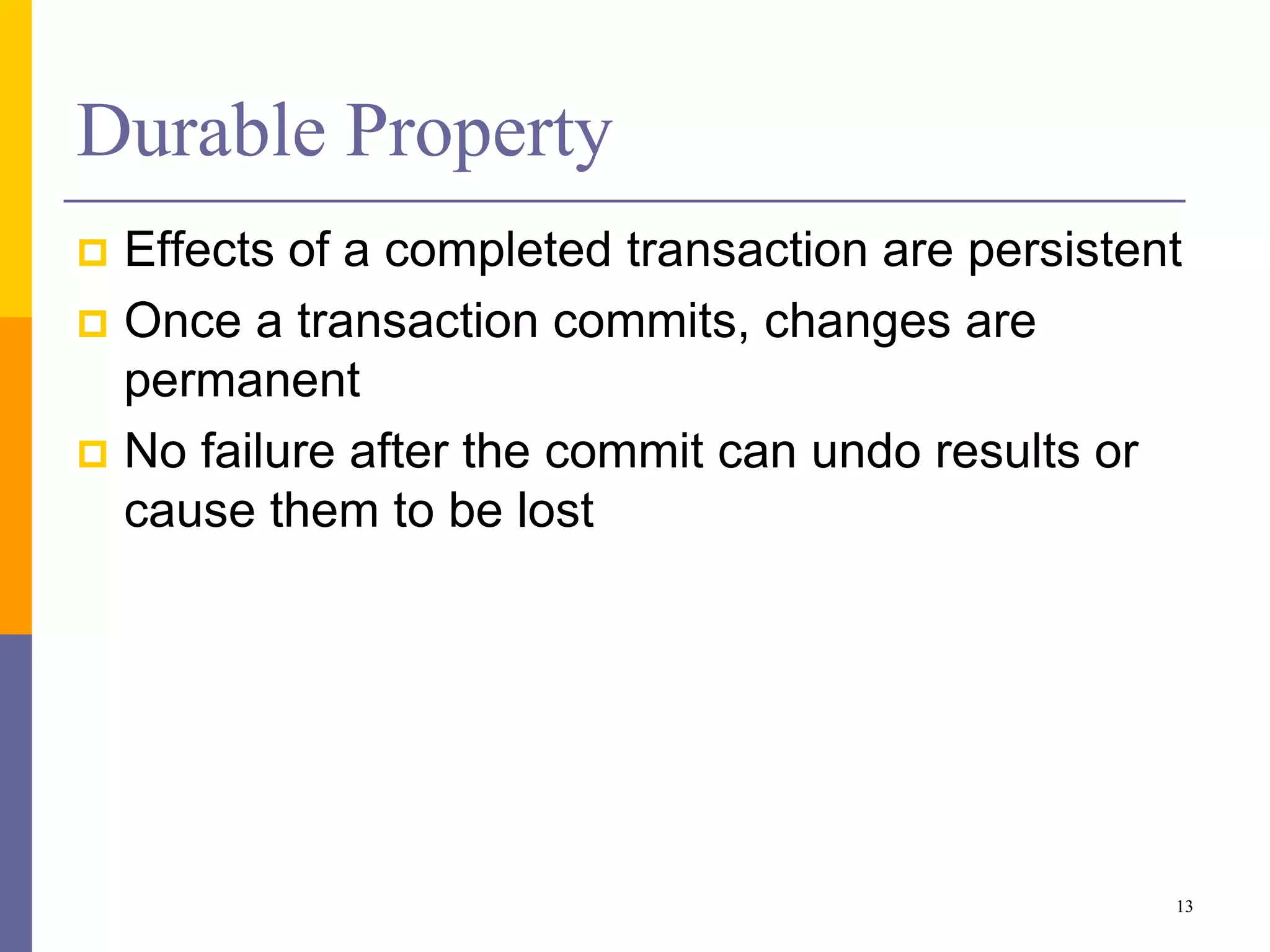

- 13. Durable Property Effectsof a completed transaction are persistent Once a transaction commits, changes are permanent No failure after the commit can undo results or cause them to be lost 13

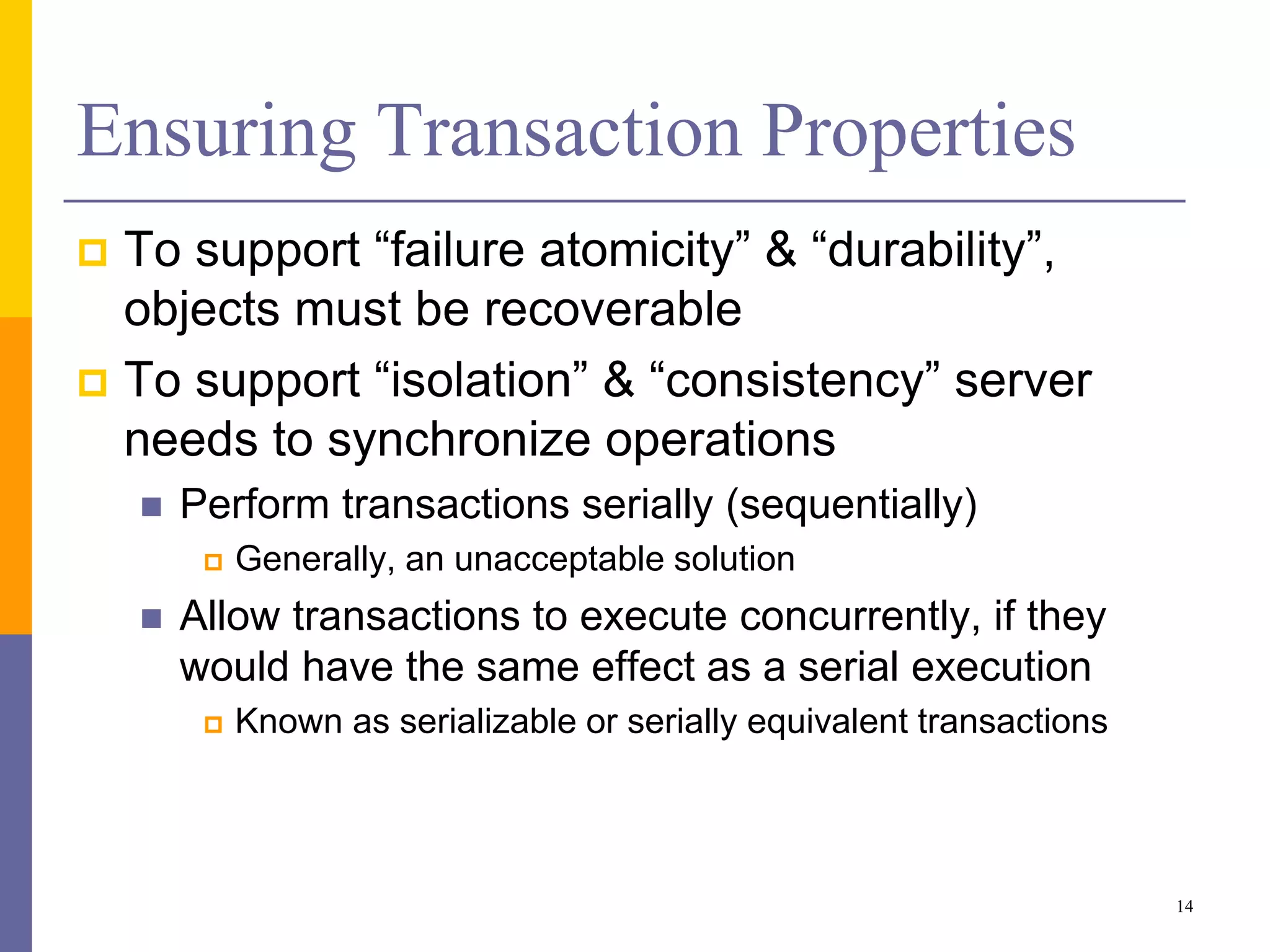

- 14. Ensuring Transaction Properties To support “failure atomicity” & “durability”, objects must be recoverable To support “isolation” & “consistency” server needs to synchronize operations Perform transactions serially (sequentially) Generally, an unacceptable solution Allow transactions to execute concurrently, if they would have the same effect as a serial execution Known as serializable or serially equivalent transactions 14

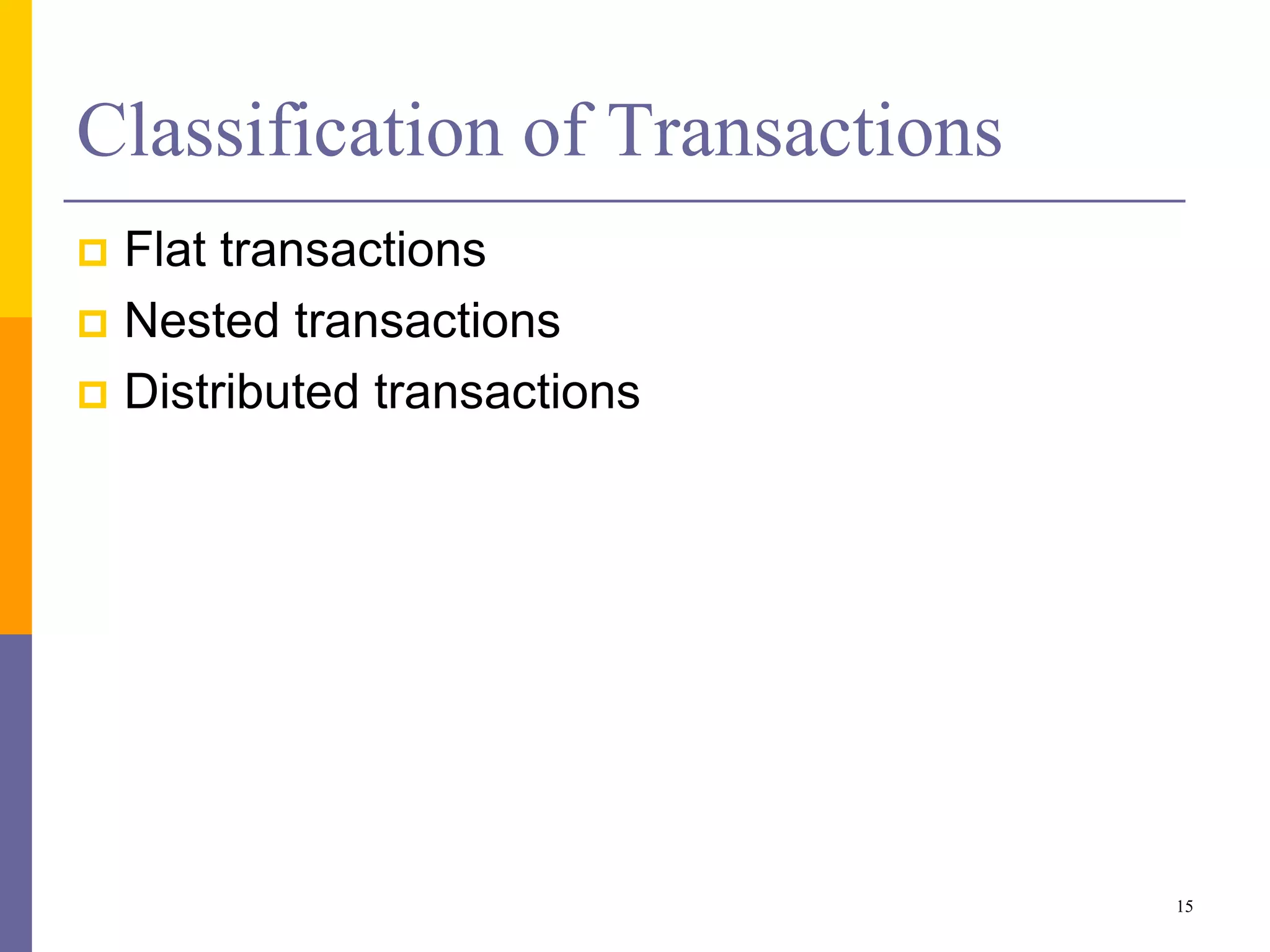

- 15. Classification of Transactions Flat transactions Nested transactions Distributed transactions 15

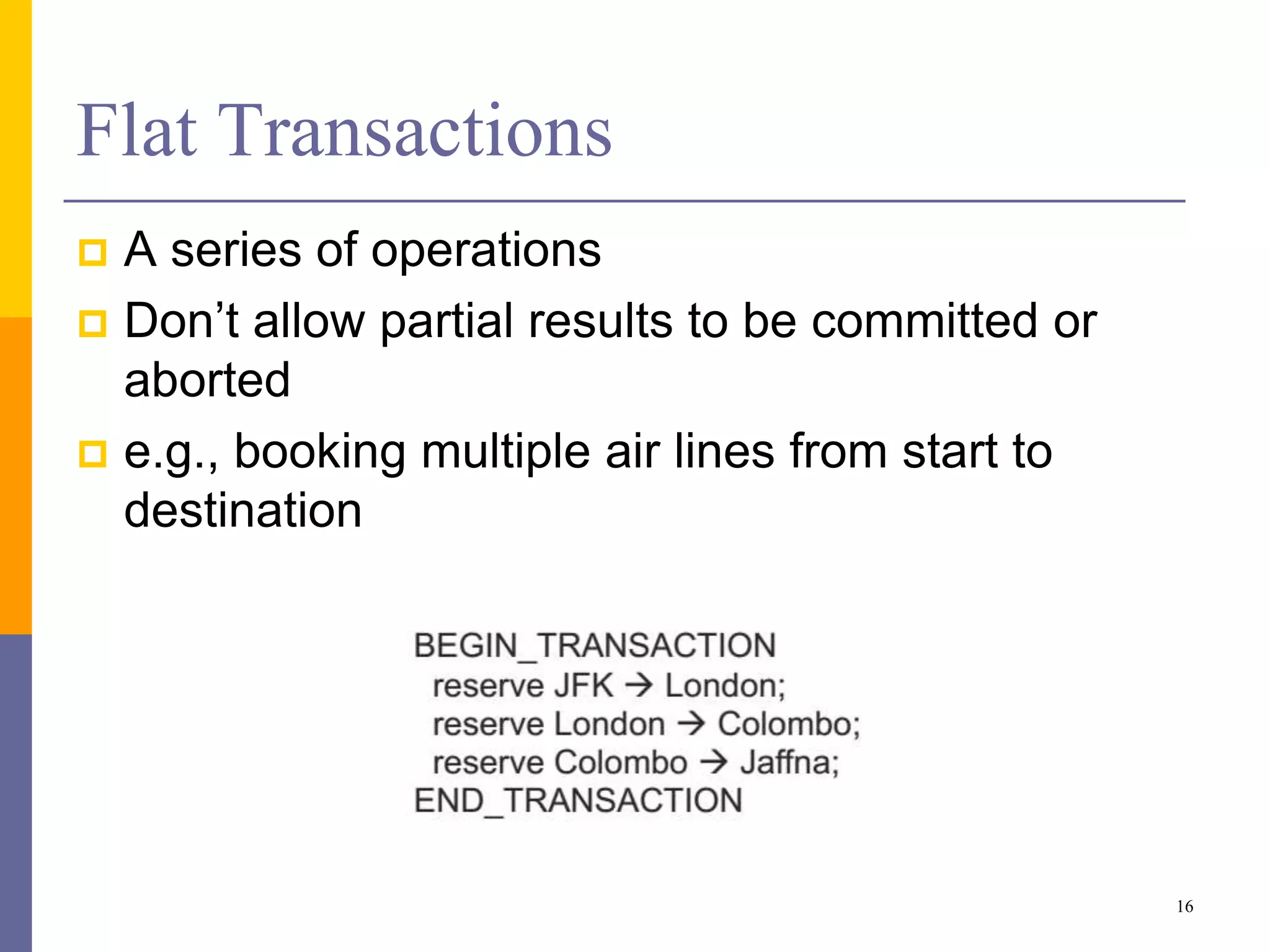

- 16. Flat Transactions Aseries of operations Don’t allow partial results to be committed or aborted e.g., booking multiple air lines from start to destination 16

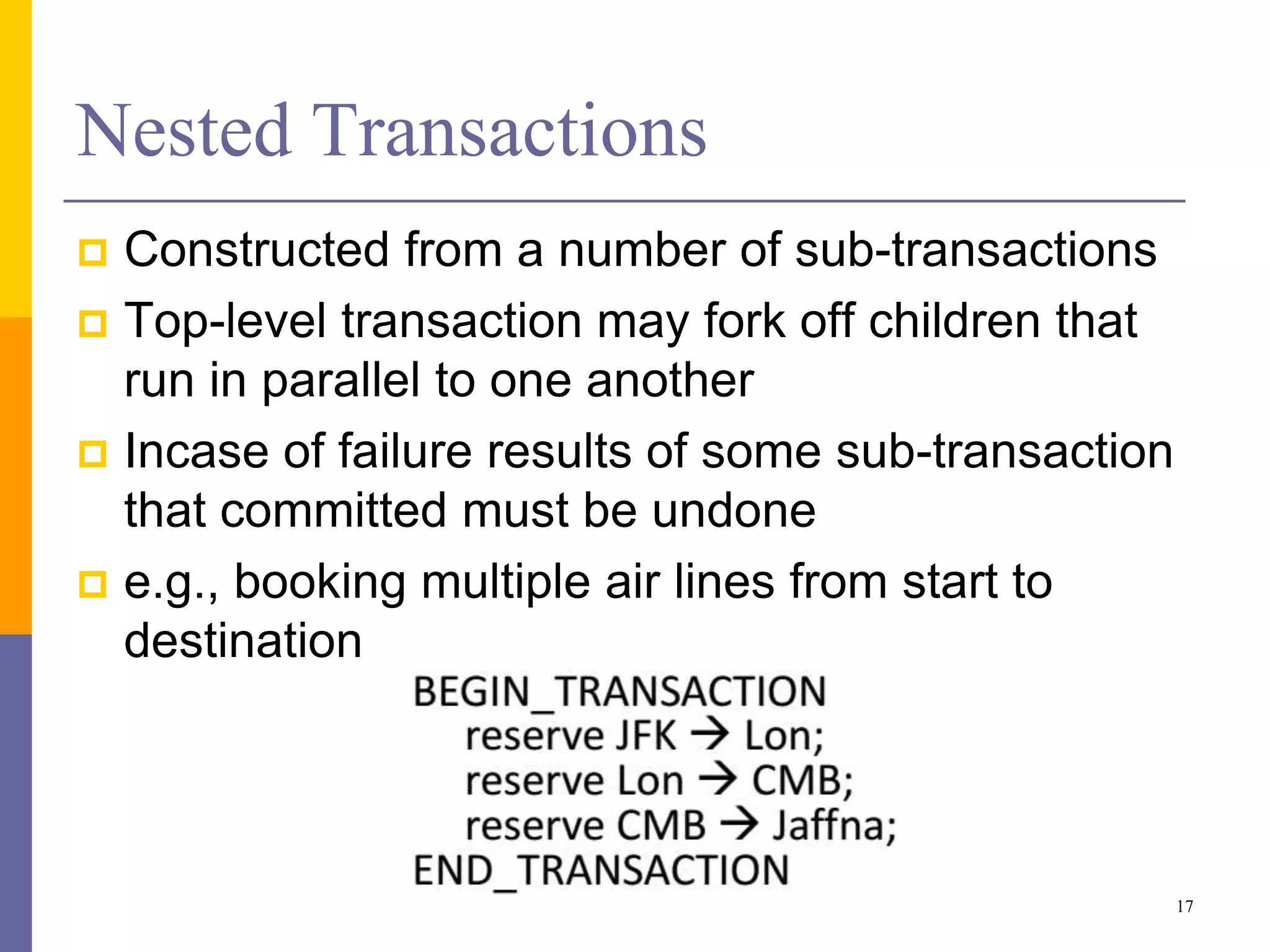

- 17. Nested Transactions Constructedfrom a number of sub-transactions Top-level transaction may fork off children that run in parallel to one another Incase of failure results of some sub-transaction that committed must be undone e.g., booking multiple air lines from start to destination 17

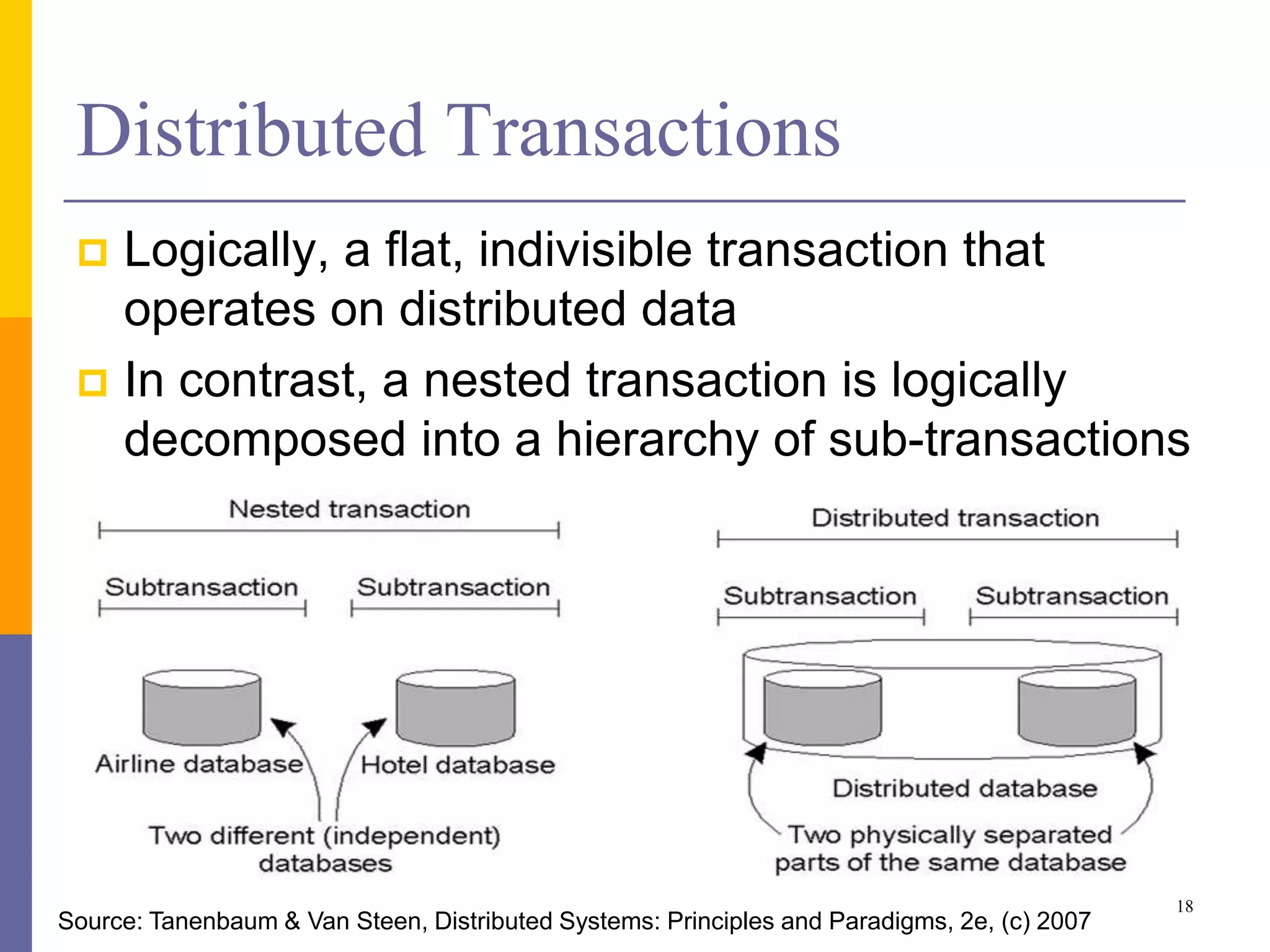

- 18. Distributed Transactions Logically,a flat, indivisible transaction that operates on distributed data In contrast, a nested transaction is logically decomposed into a hierarchy of sub-transactions 18 Source: Tanenbaum & Van Steen, Distributed Systems: Principles and Paradigms, 2e, (c) 2007

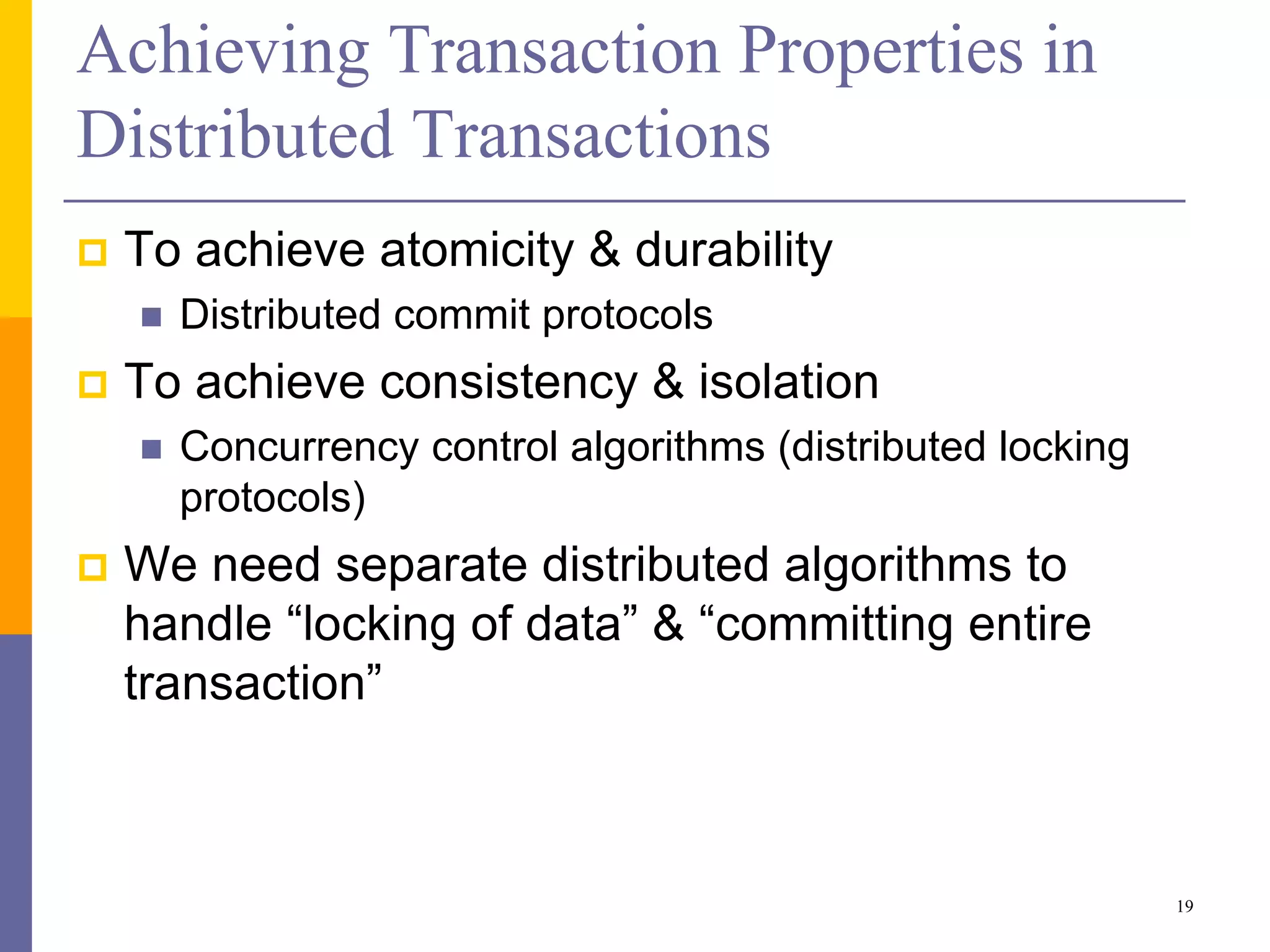

- 19. Achieving Transaction Propertiesin Distributed Transactions To achieve atomicity & durability Distributed commit protocols To achieve consistency & isolation Concurrency control algorithms (distributed locking protocols) We need separate distributed algorithms to handle “locking of data” & “committing entire transaction” 19

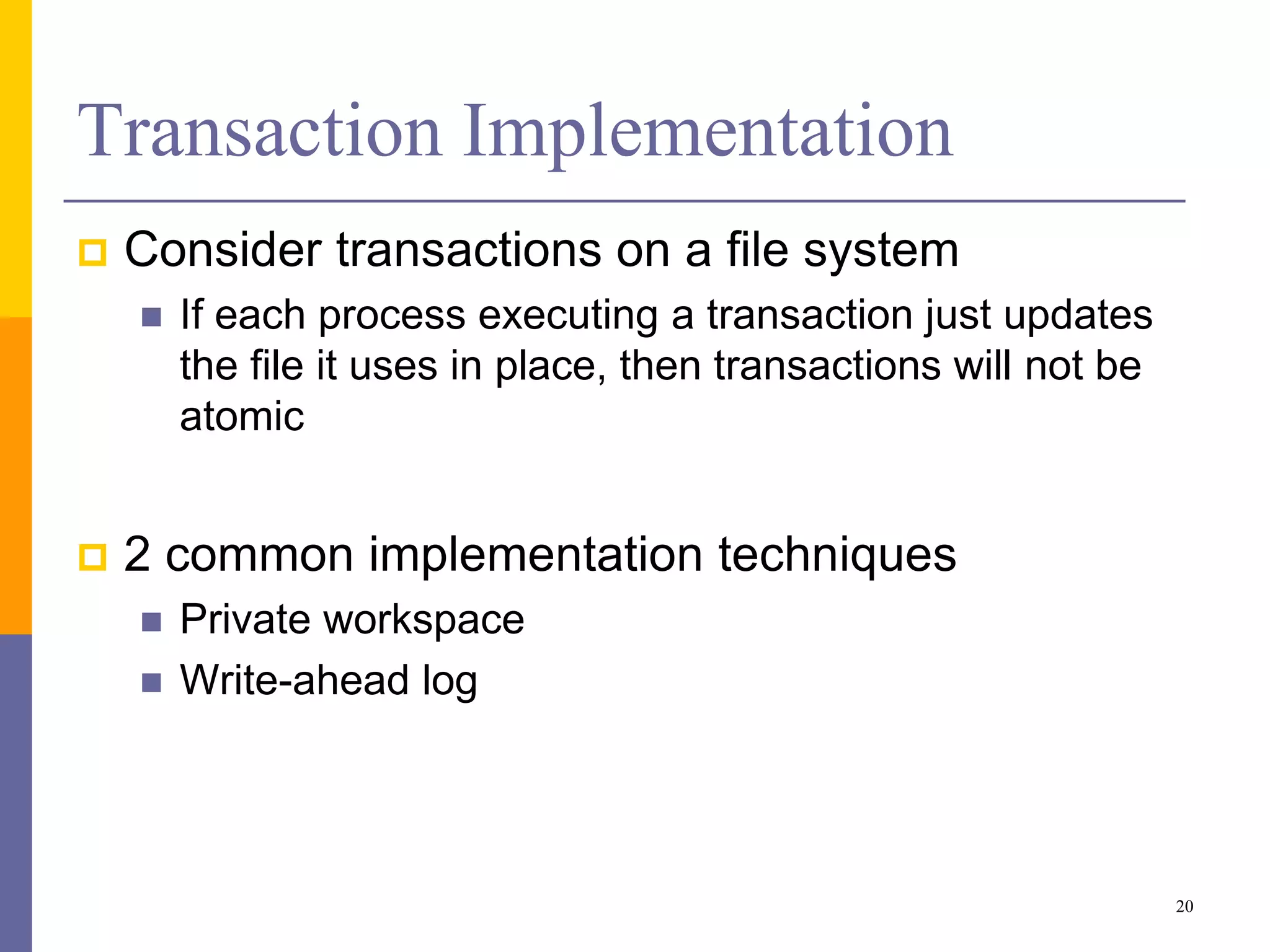

- 20. Transaction Implementation Considertransactions on a file system If each process executing a transaction just updates the file it uses in place, then transactions will not be atomic 2 common implementation techniques Private workspace Write-ahead log 20

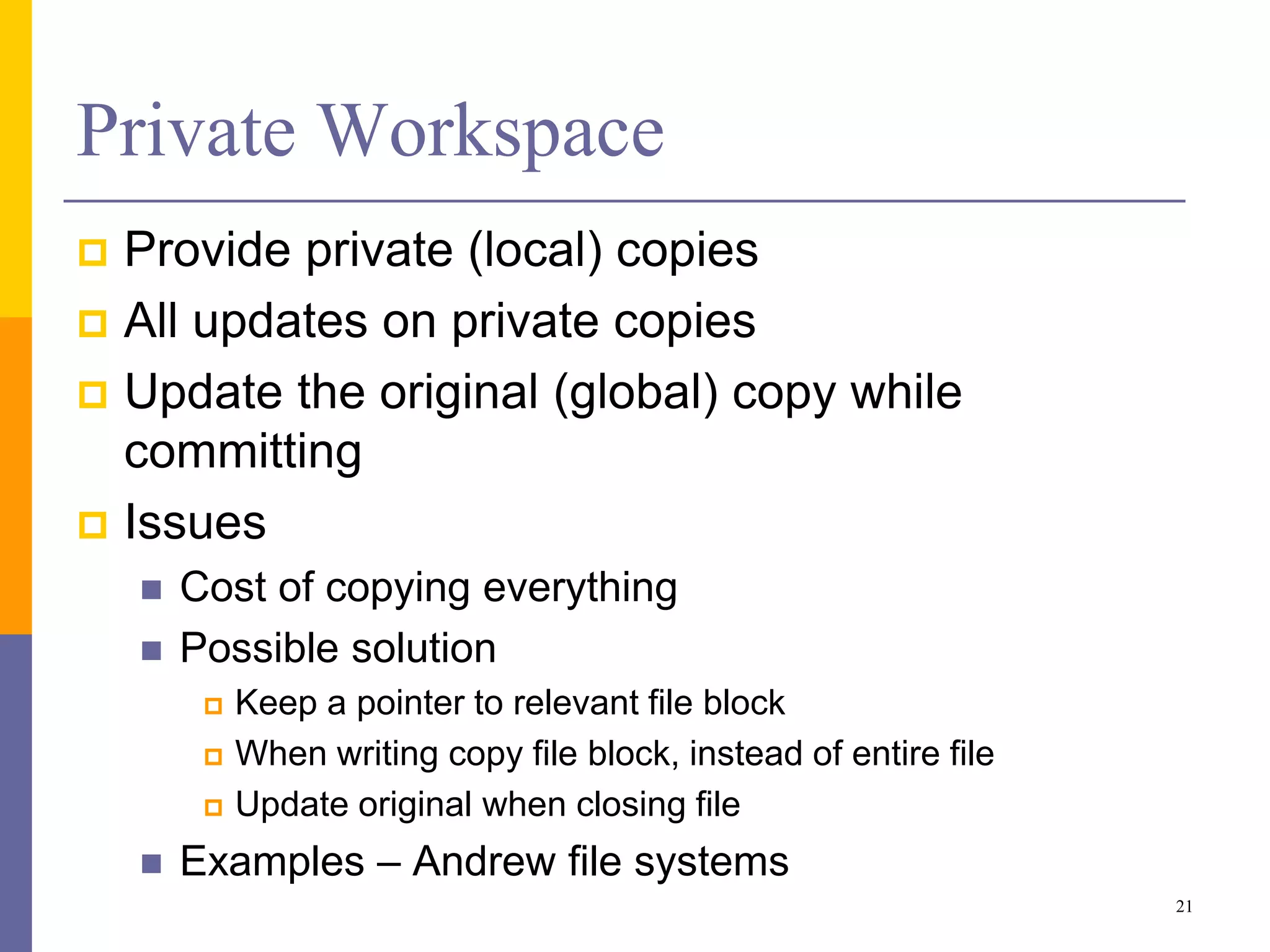

- 21. Private Workspace Provideprivate (local) copies All updates on private copies Update the original (global) copy while committing Issues Cost of copying everything Possible solution Keep a pointer to relevant file block When writing copy file block, instead of entire file Update original when closing file Examples – Andrew file systems 21

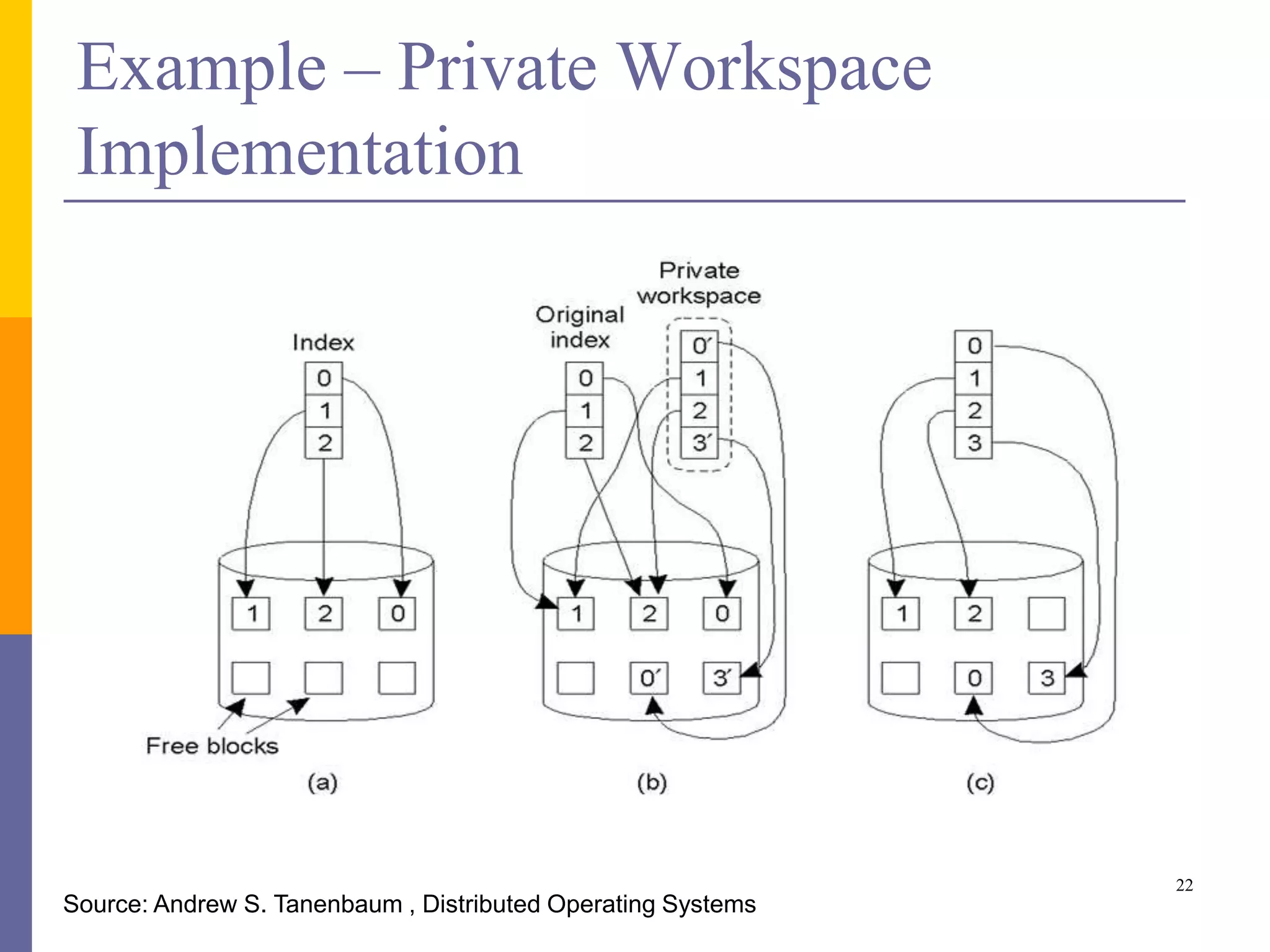

- 22. Example – PrivateWorkspace Implementation 22 Source: Andrew S. Tanenbaum , Distributed Operating Systems

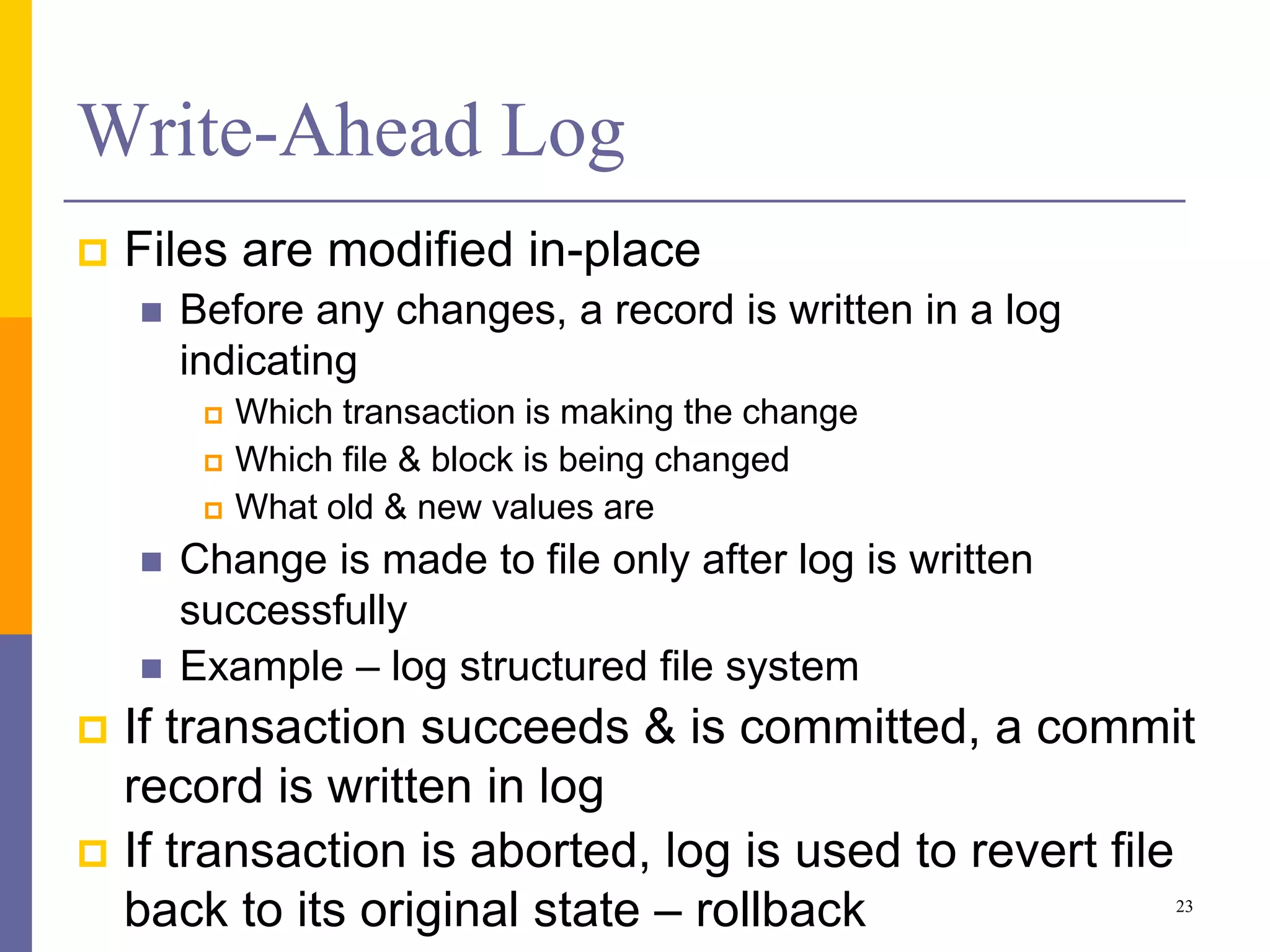

- 23. Write-Ahead Log Filesare modified in-place Before any changes, a record is written in a log indicating Which transaction is making the change Which file & block is being changed What old & new values are Change is made to file only after log is written successfully Example – log structured file system If transaction succeeds & is committed, a commit record is written in log If transaction is aborted, log is used to revert file back to its original state – rollback 23

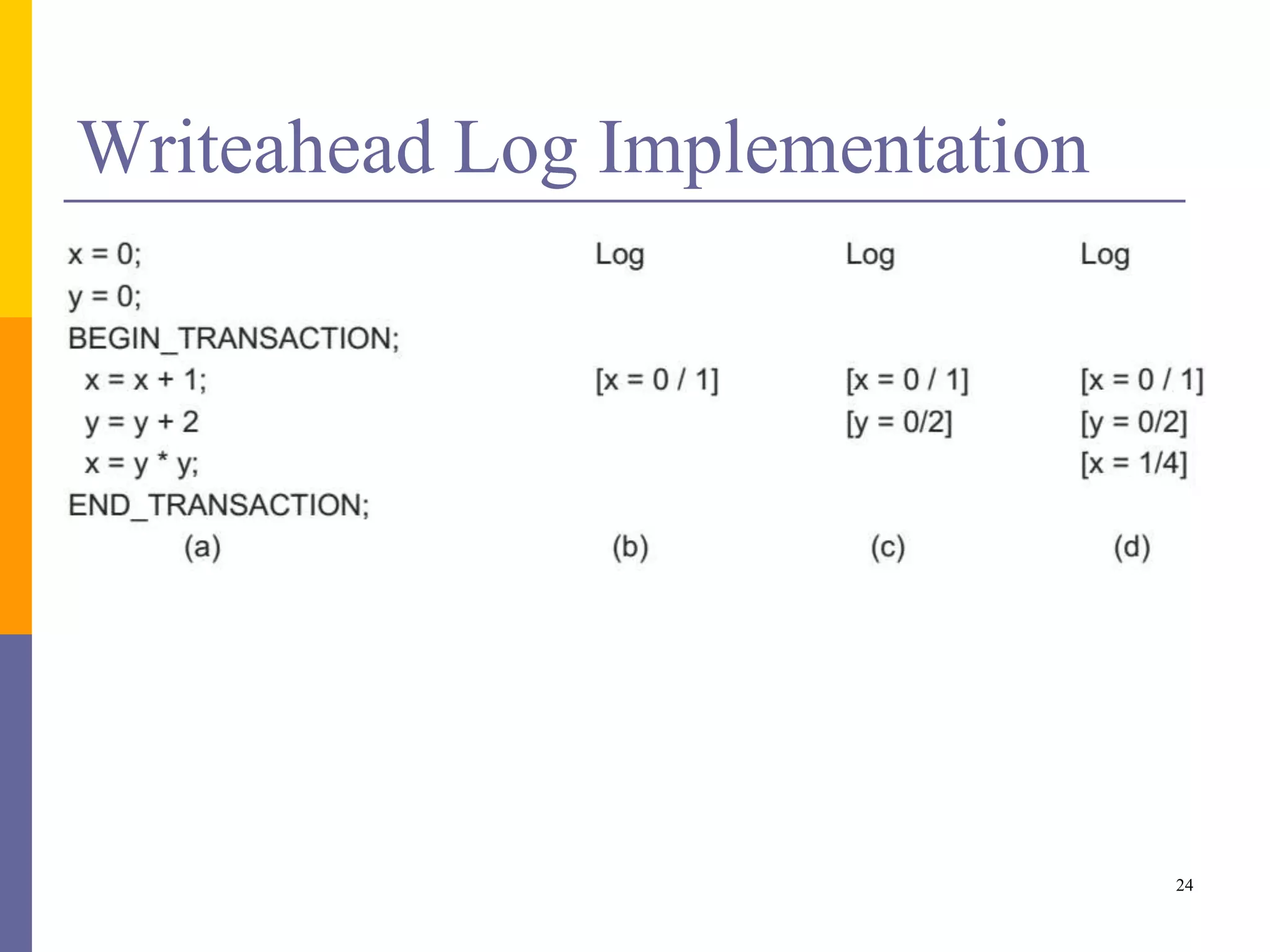

- 24.

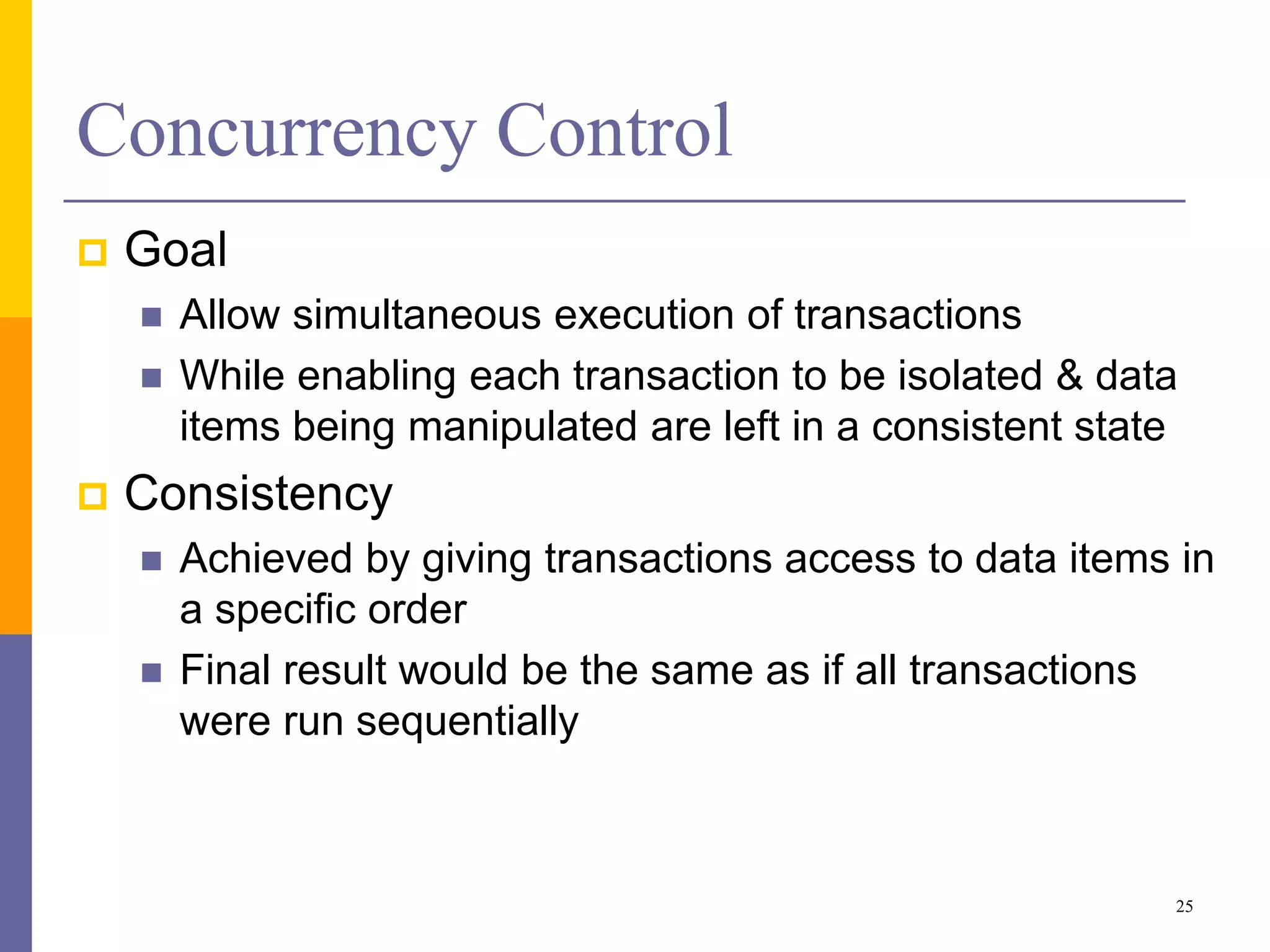

- 25. Concurrency Control Goal Allow simultaneous execution of transactions While enabling each transaction to be isolated & data items being manipulated are left in a consistent state Consistency Achieved by giving transactions access to data items in a specific order Final result would be the same as if all transactions were run sequentially 25

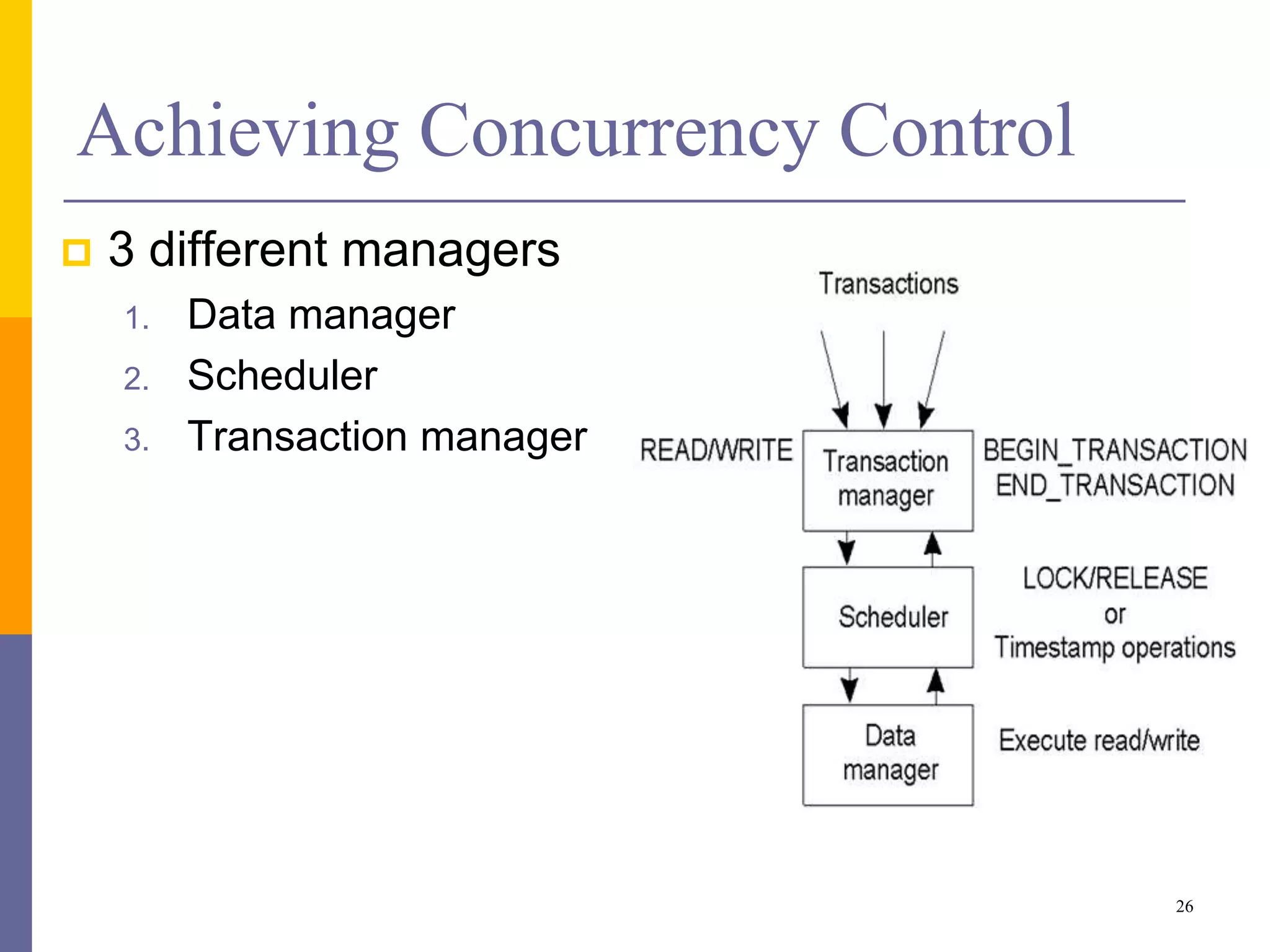

- 26. Achieving Concurrency Control 3 different managers 1. Data manager 2. Scheduler 3. Transaction manager 26

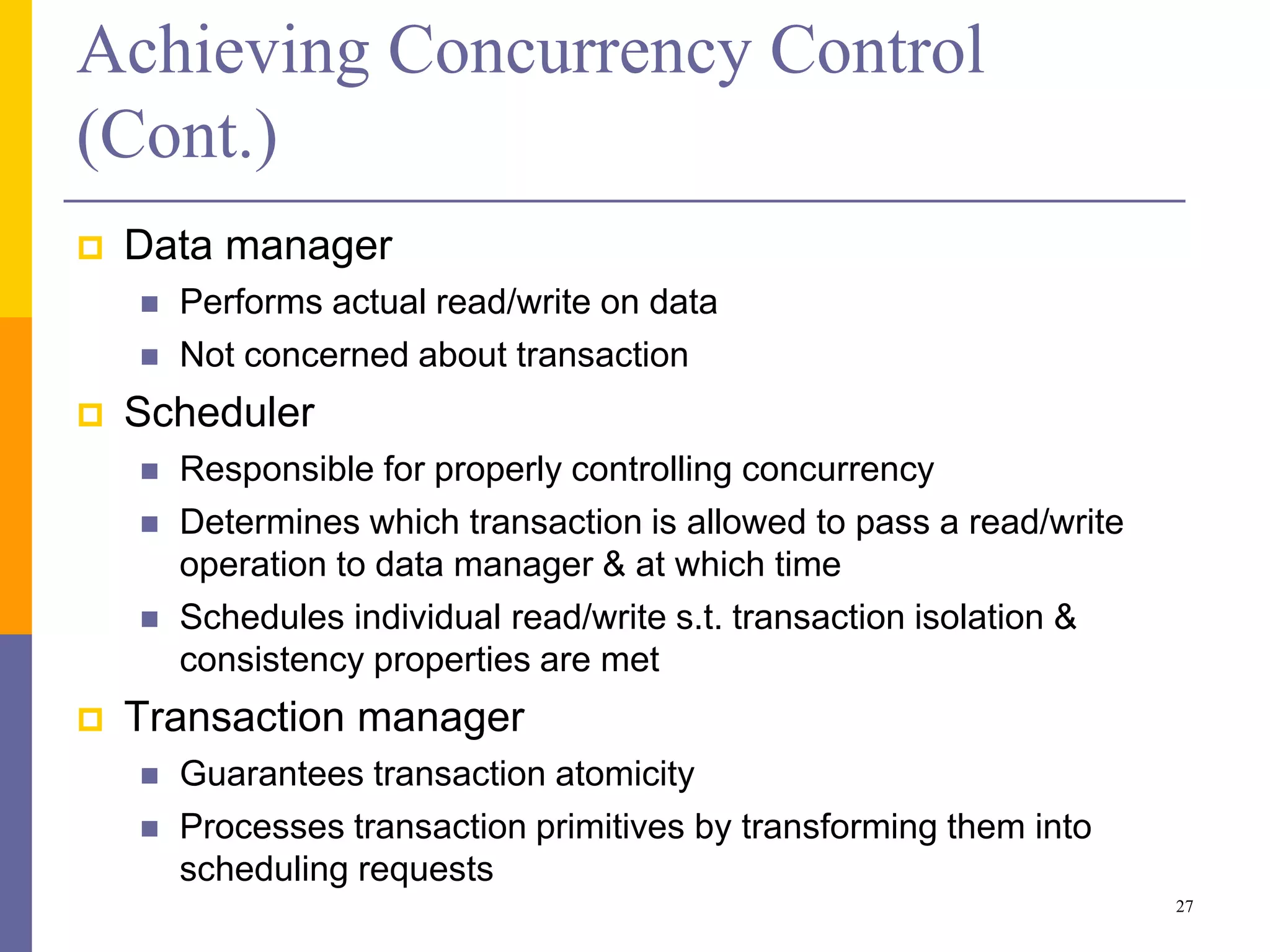

- 27. Achieving Concurrency Control (Cont.) Data manager Performs actual read/write on data Not concerned about transaction Scheduler Responsible for properly controlling concurrency Determines which transaction is allowed to pass a read/write operation to data manager & at which time Schedules individual read/write s.t. transaction isolation & consistency properties are met Transaction manager Guarantees transaction atomicity Processes transaction primitives by transforming them into scheduling requests 27

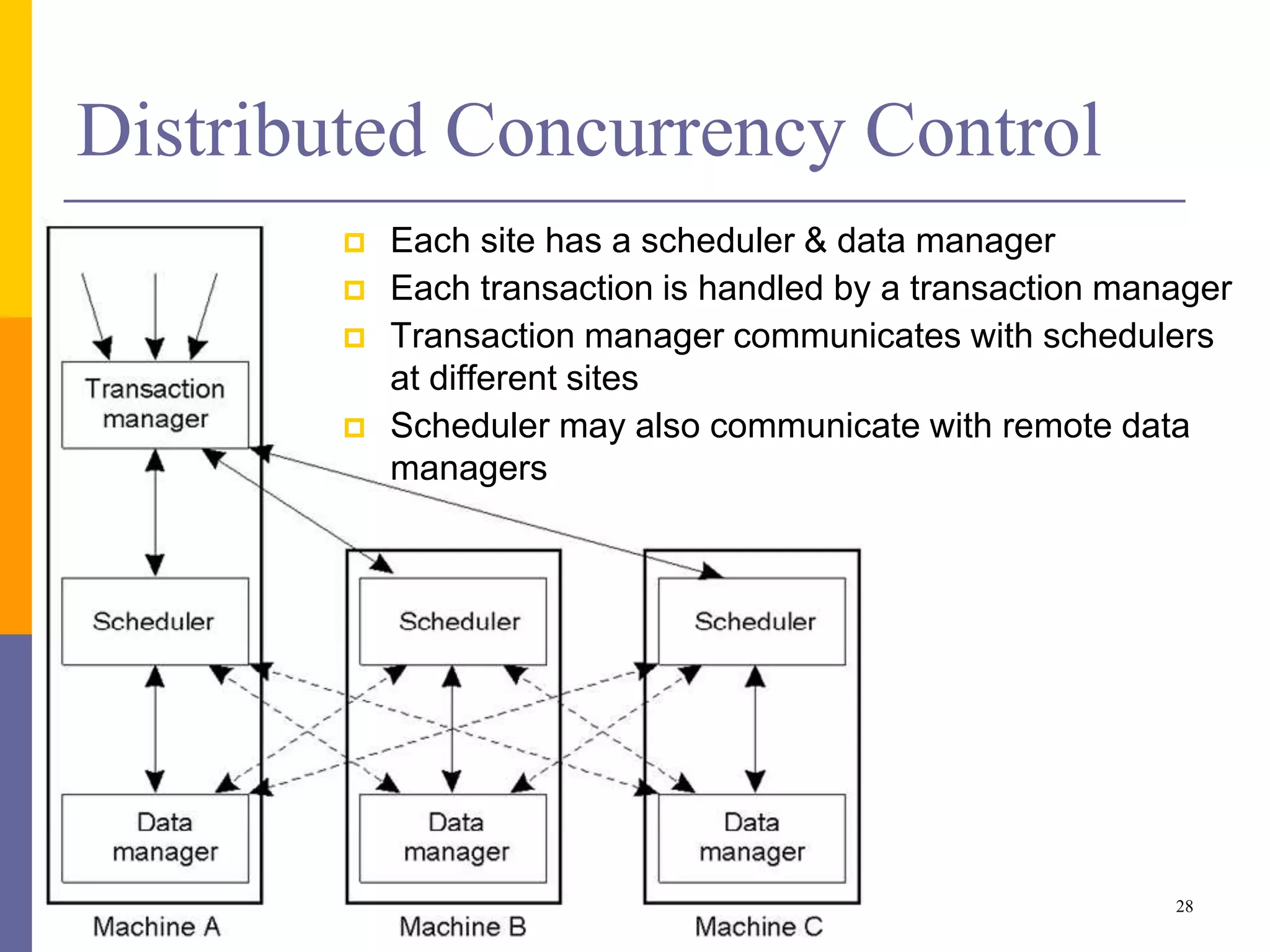

- 28. Each sitehas a scheduler & data manager Each transaction is handled by a transaction manager Transaction manager communicates with schedulers at different sites Scheduler may also communicate with remote data managers Distributed Concurrency Control 28

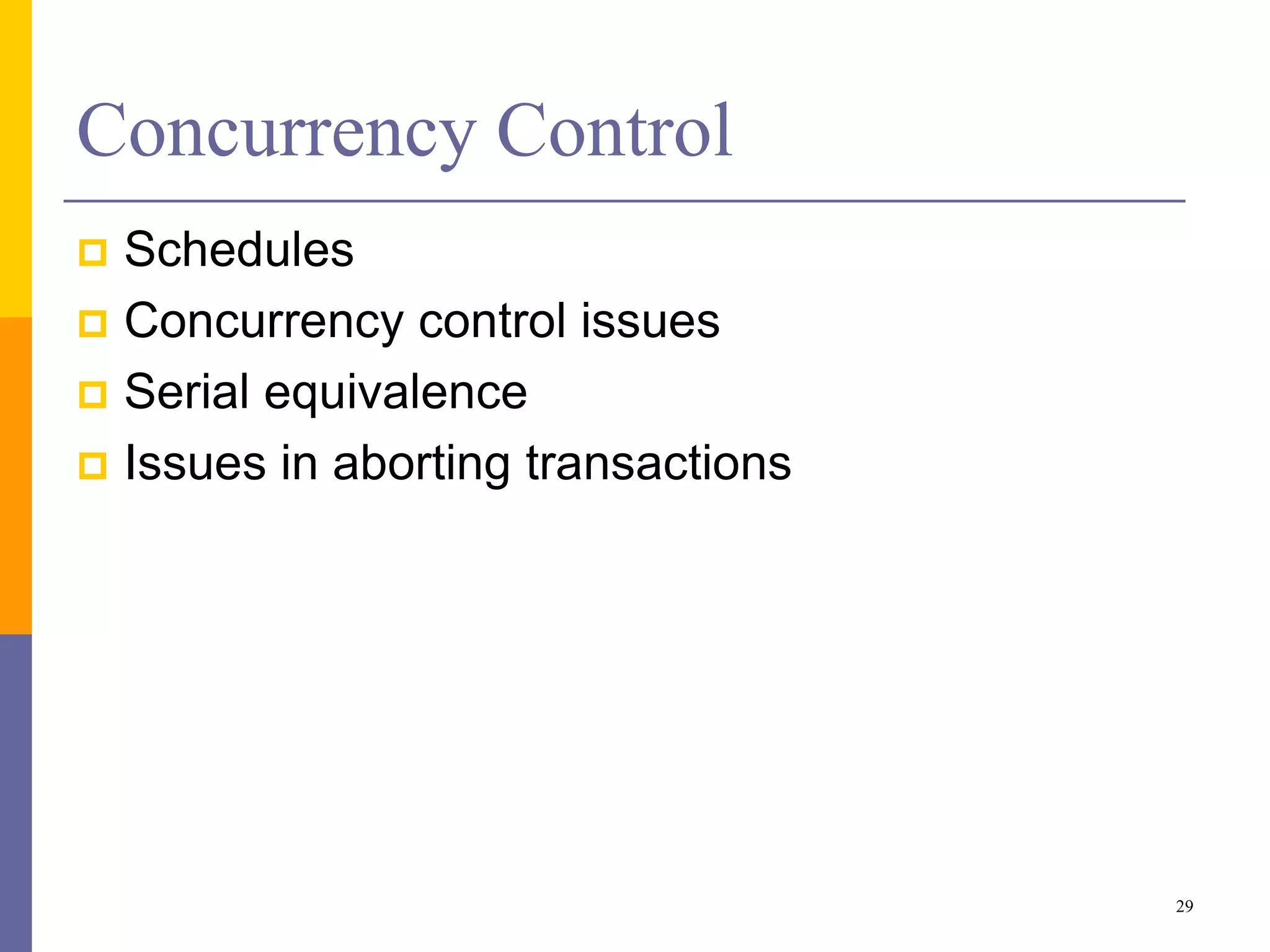

- 29. Concurrency Control Schedules Concurrency control issues Serial equivalence Issues in aborting transactions 29
- 30. Schedules – Example Schedule – system dependent order of actions Final result looks as though all transactions ran sequentially 30

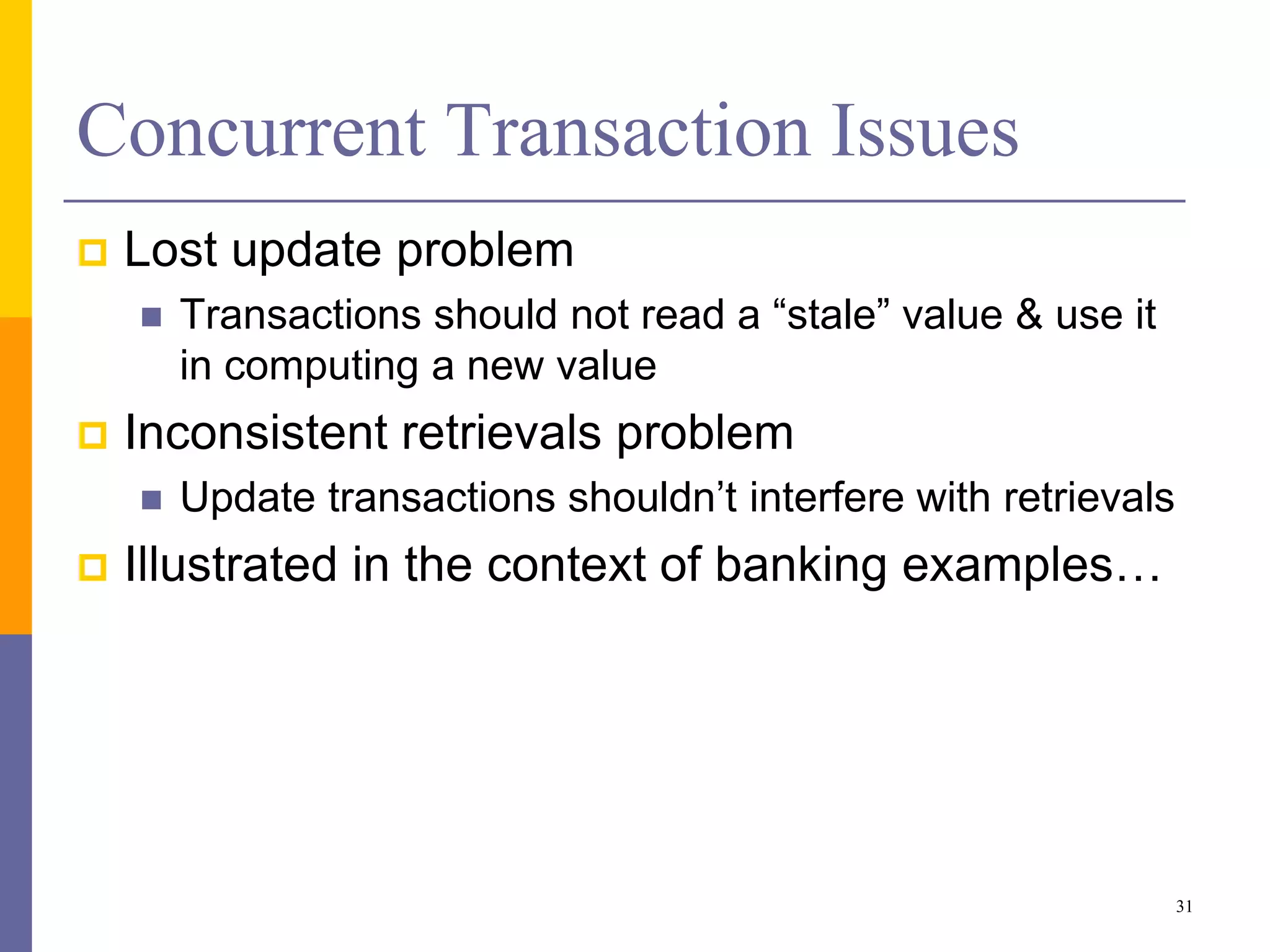

- 31. Concurrent Transaction Issues Lost update problem Transactions should not read a “stale” value & use it in computing a new value Inconsistent retrievals problem Update transactions shouldn’t interfere with retrievals Illustrated in the context of banking examples… 31

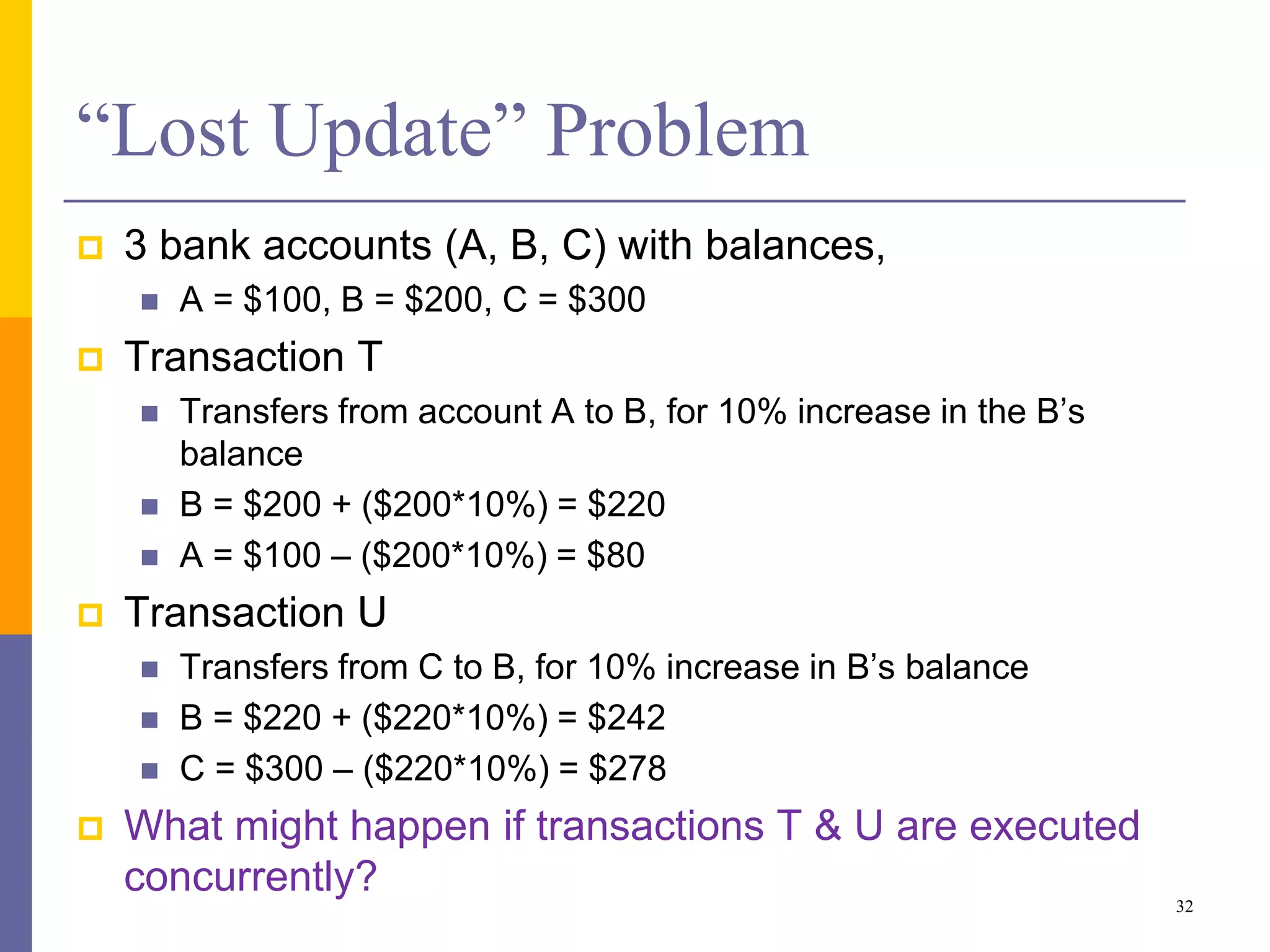

- 32. “Lost Update” Problem 3 bank accounts (A, B, C) with balances, A = $100, B = $200, C = $300 Transaction T Transfers from account A to B, for 10% increase in the B’s balance B = $200 + ($200*10%) = $220 A = $100 – ($200*10%) = $80 Transaction U Transfers from C to B, for 10% increase in B’s balance B = $220 + ($220*10%) = $242 C = $300 – ($220*10%) = $278 What might happen if transactions T & U are executed concurrently? 32

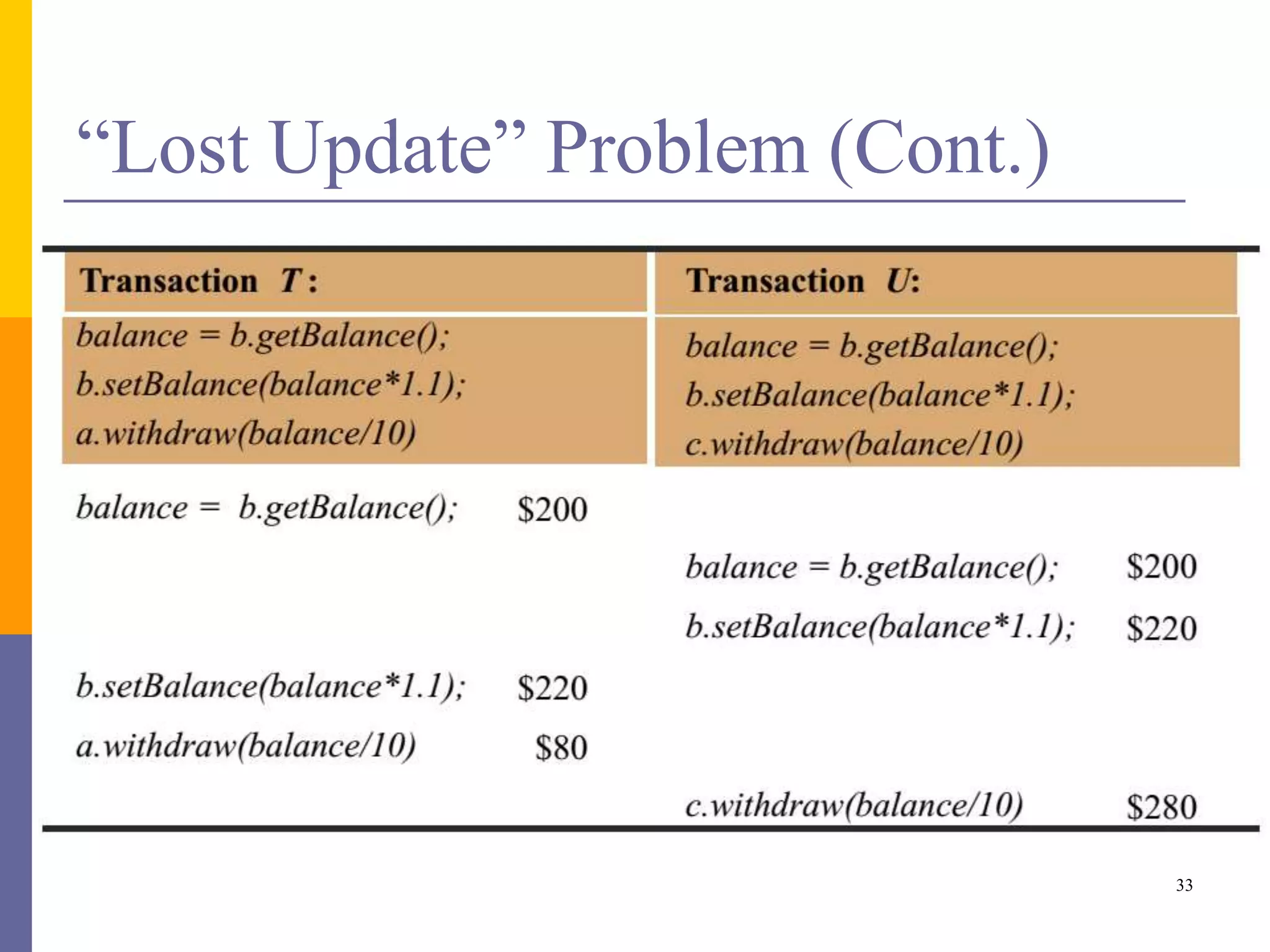

- 33. “Lost Update” Problem(Cont.) 33

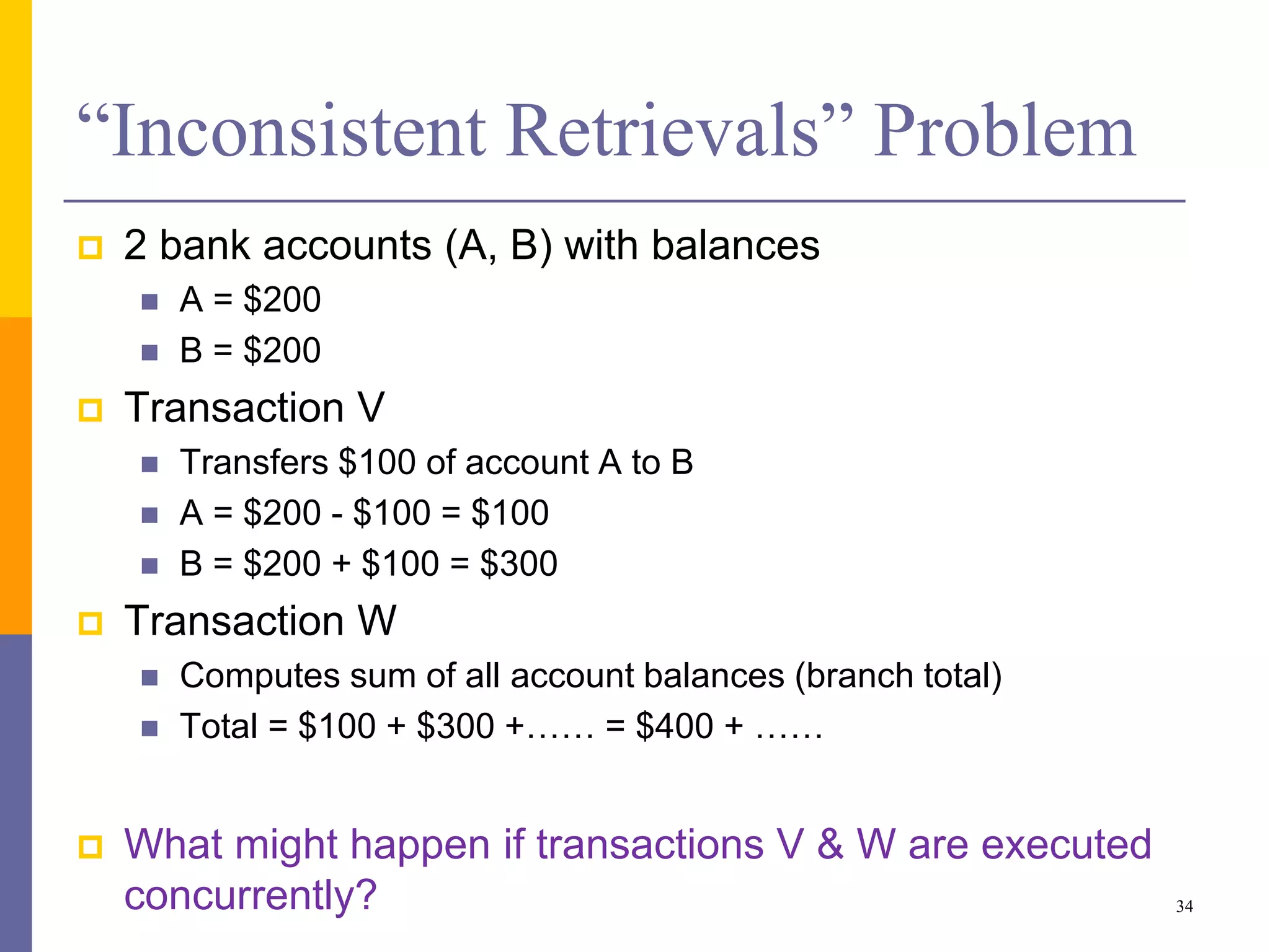

- 34. “Inconsistent Retrievals” Problem 2 bank accounts (A, B) with balances A = $200 B = $200 Transaction V Transfers $100 of account A to B A = $200 - $100 = $100 B = $200 + $100 = $300 Transaction W Computes sum of all account balances (branch total) Total = $100 + $300 +…… = $400 + …… What might happen if transactions V & W are executed concurrently? 34

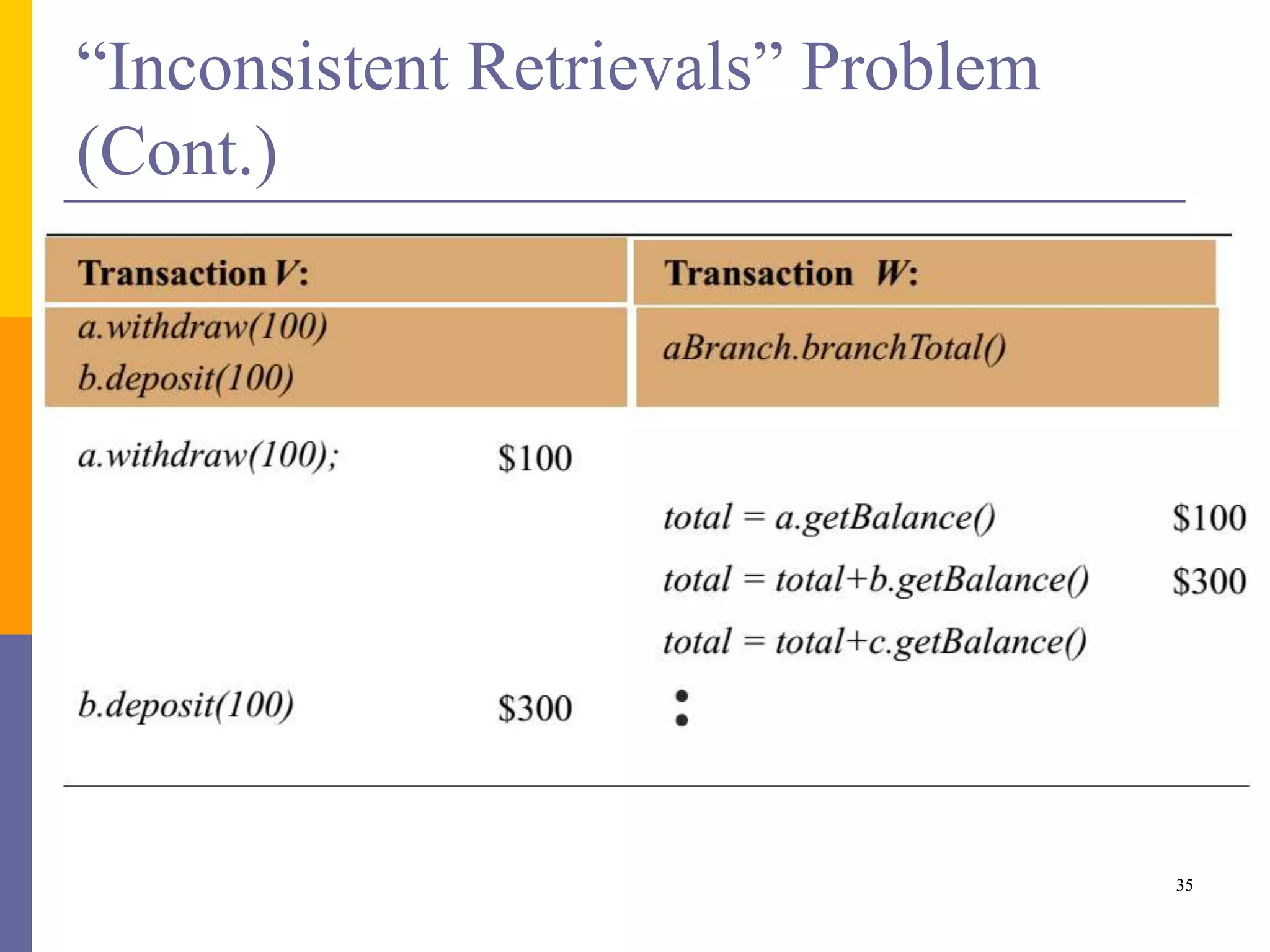

- 35.

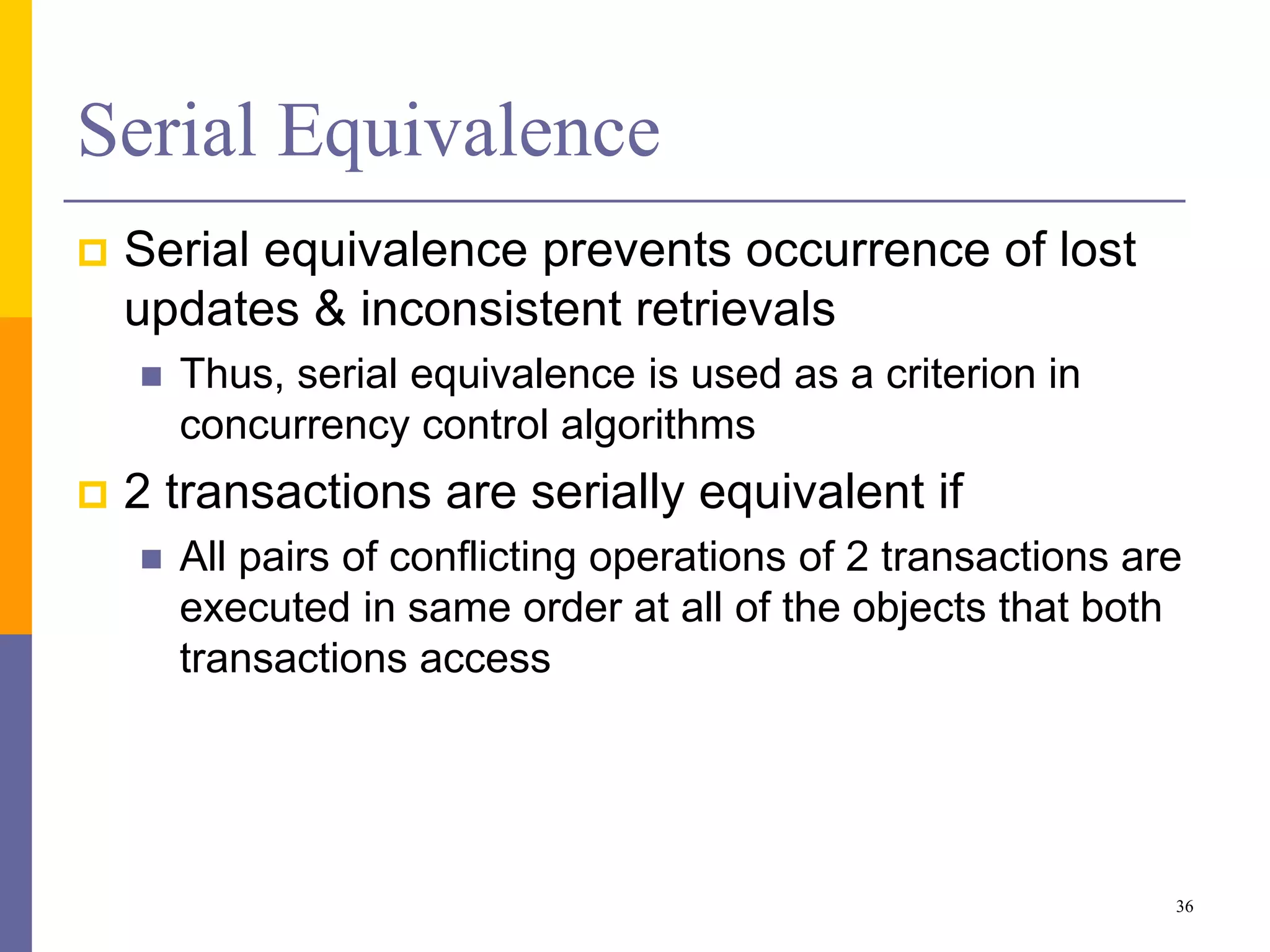

- 36. Serial Equivalence Serialequivalence prevents occurrence of lost updates & inconsistent retrievals Thus, serial equivalence is used as a criterion in concurrency control algorithms 2 transactions are serially equivalent if All pairs of conflicting operations of 2 transactions are executed in same order at all of the objects that both transactions access 36

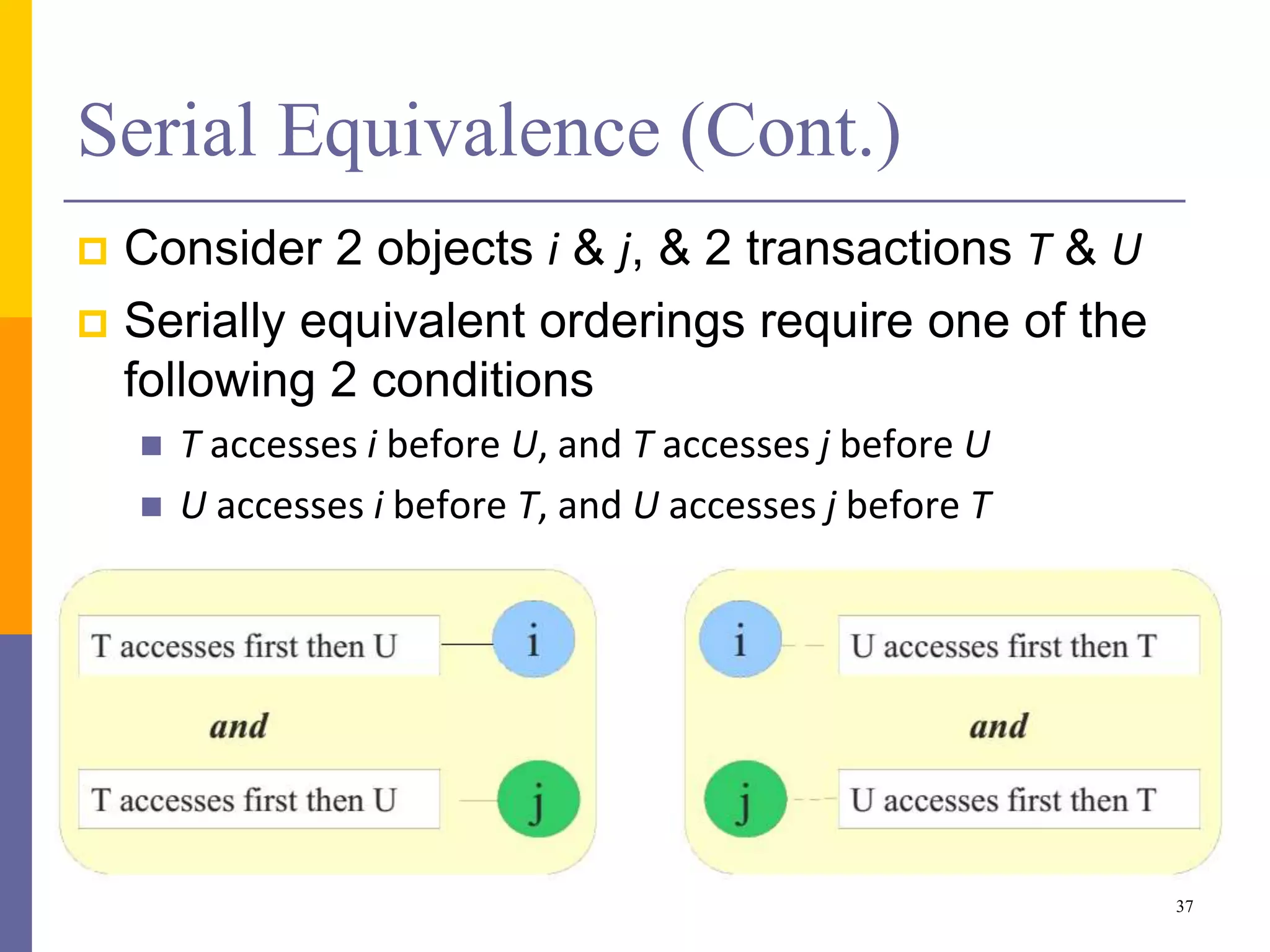

- 37. Serial Equivalence (Cont.) Consider 2 objects i & j, & 2 transactions T & U Serially equivalent orderings require one of the following 2 conditions T accesses i before U, and T accesses j before U U accesses i before T, and U accesses j before T 37
- 38.
- 39.
- 40.

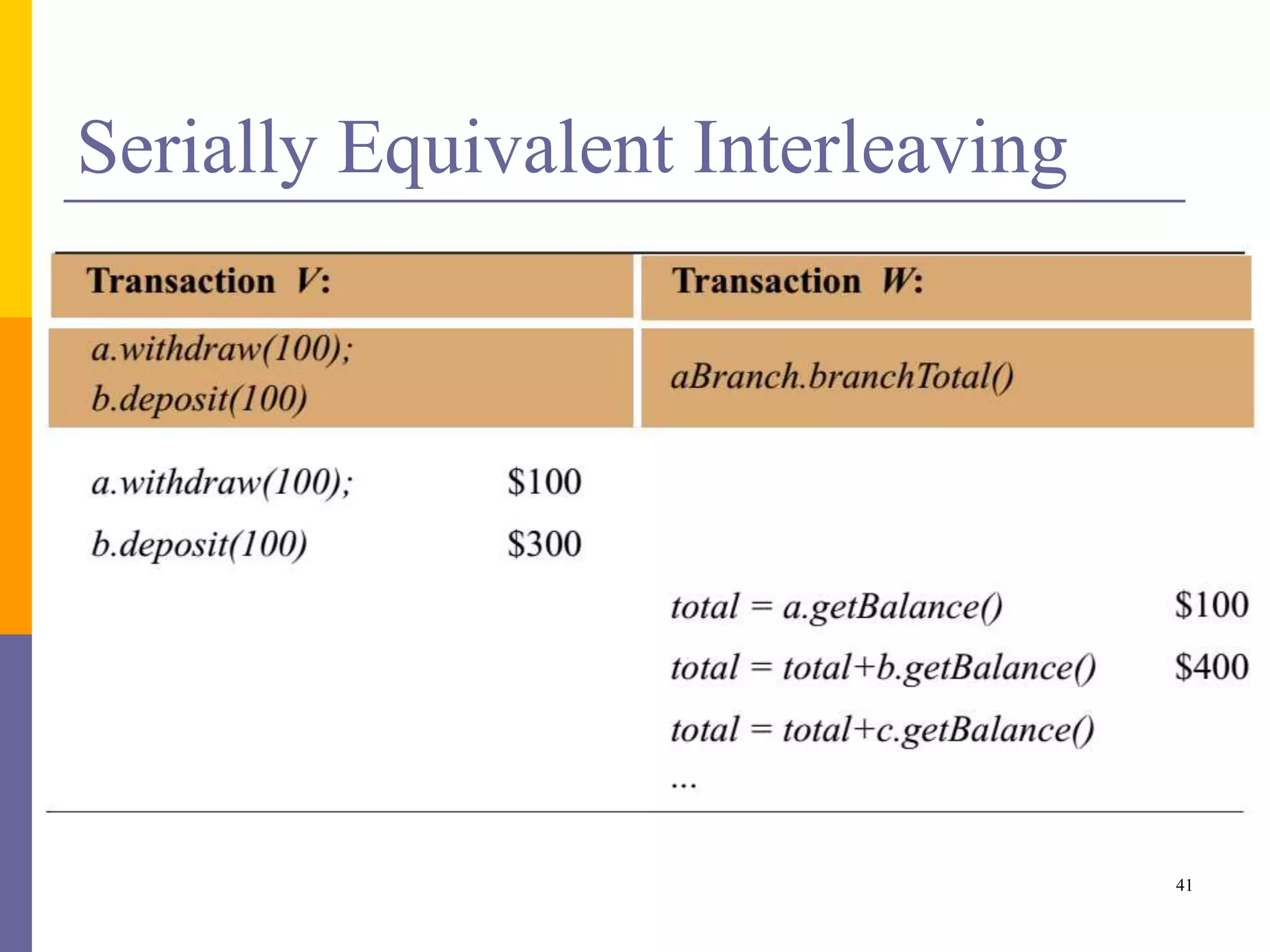

- 41.
- 42. Issues in AbortingTransactions Servers must record effects of all committed transactions & none of aborted transactions 2 well-known problems Dirty reads Premature writes Both of these can occur in the presence of serially equivalent executions of transactions 42

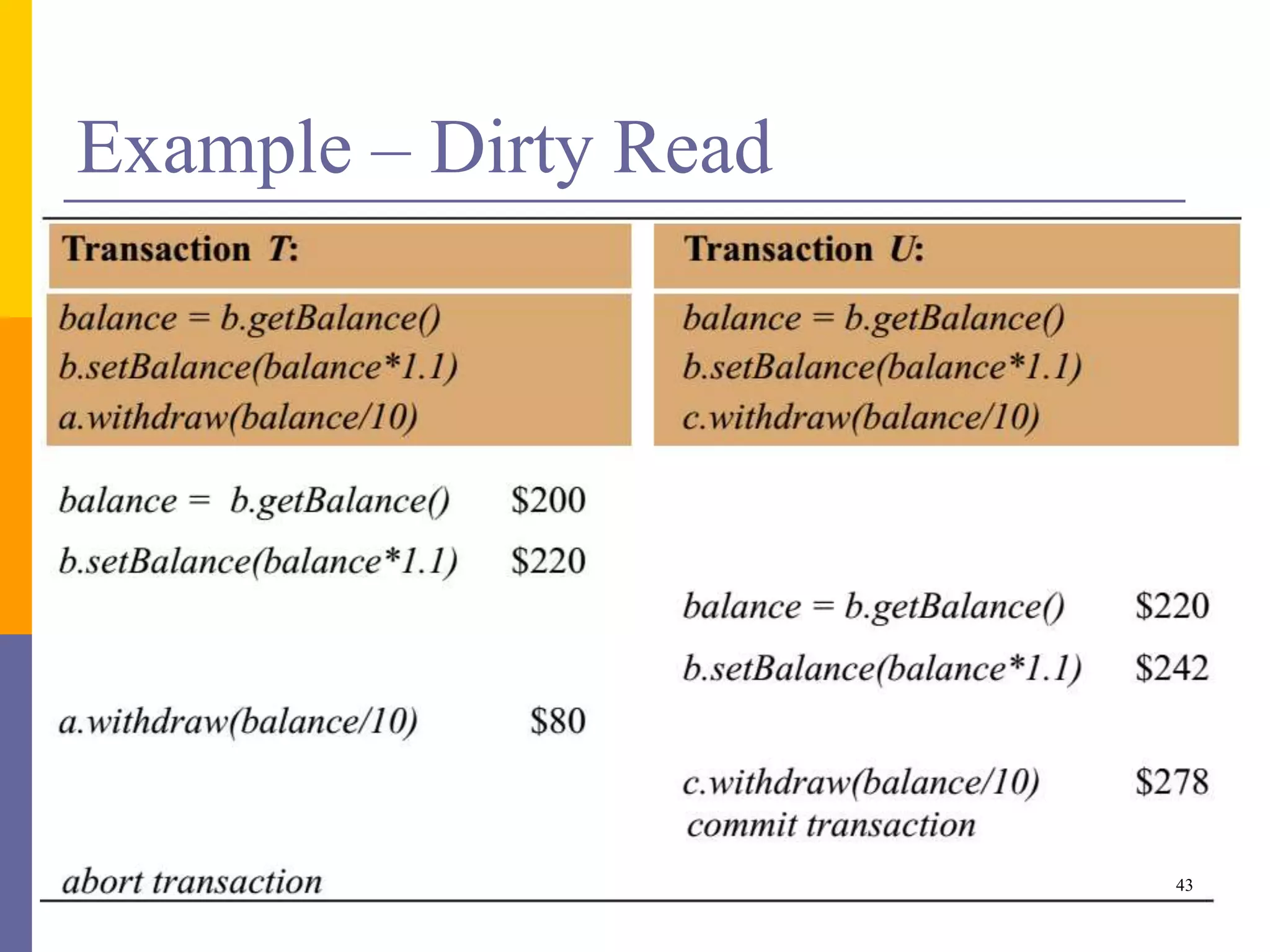

- 43. Example – DirtyRead 43
- 44. Example – PrematureWrites Due to interaction between write operations on the same object belonging to different transactions If U aborts & T commits, balance should be $105 44

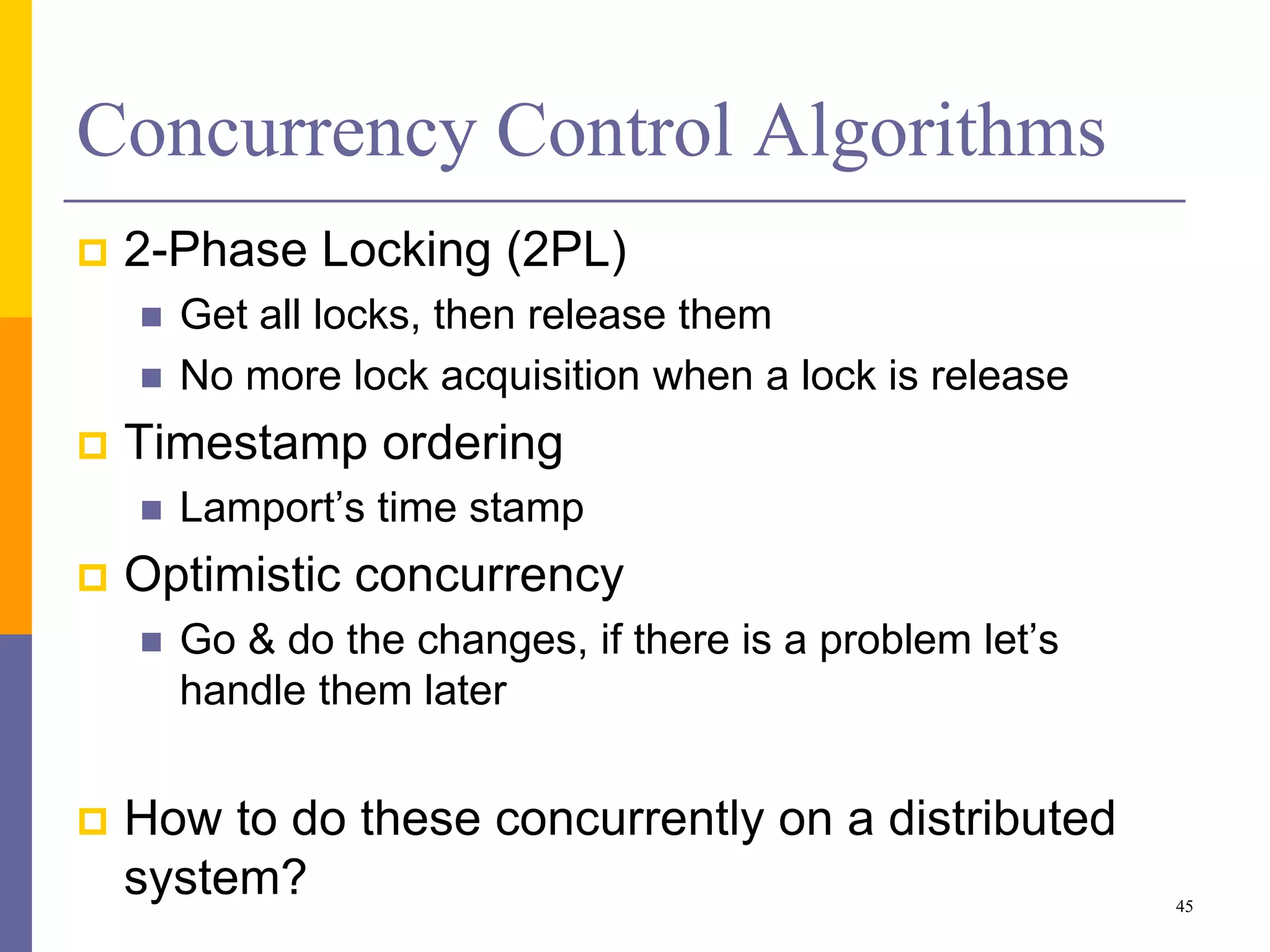

- 45. Concurrency Control Algorithms 2-Phase Locking (2PL) Get all locks, then release them No more lock acquisition when a lock is release Timestamp ordering Lamport’s time stamp Optimistic concurrency Go & do the changes, if there is a problem let’s handle them later How to do these concurrently on a distributed system? 45
