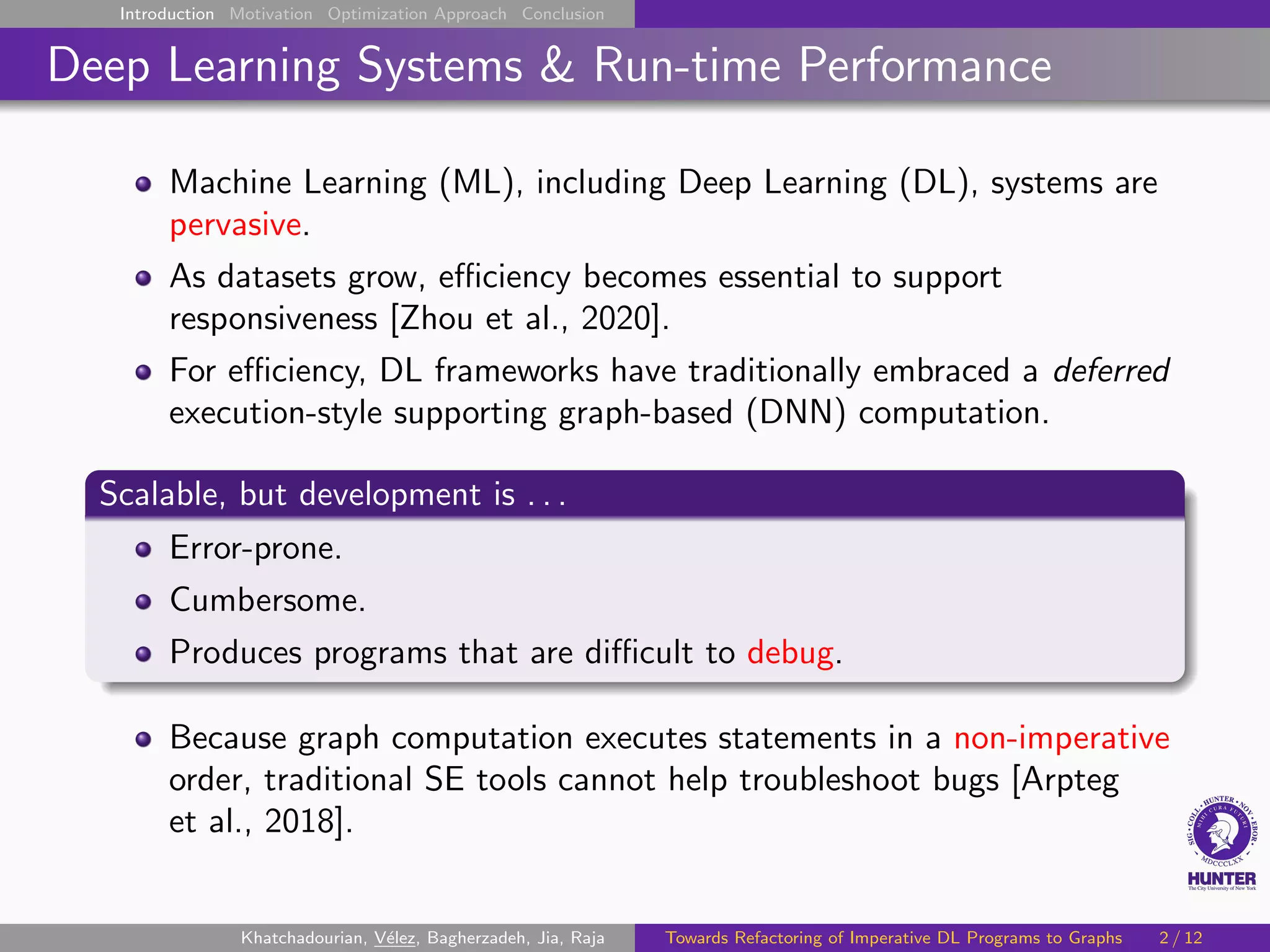

![Introduction Motivation Optimization Approach Conclusion
Deep Learning Systems & Run-time Performance
Machine Learning (ML), including Deep Learning (DL), systems are
pervasive.
As datasets grow, efficiency becomes essential to support
responsiveness [Zhou et al., 2020].
For efficiency, DL frameworks have traditionally embraced a deferred
execution-style supporting graph-based (DNN) computation.
Scalable, but development is . . .
Error-prone.
Cumbersome.
Produces programs that are difficult to debug.
Because graph computation executes statements in a non-imperative
order, traditional SE tools cannot help troubleshoot bugs [Arpteg
et al., 2018].
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 2 / 12](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-2-2048.jpg)

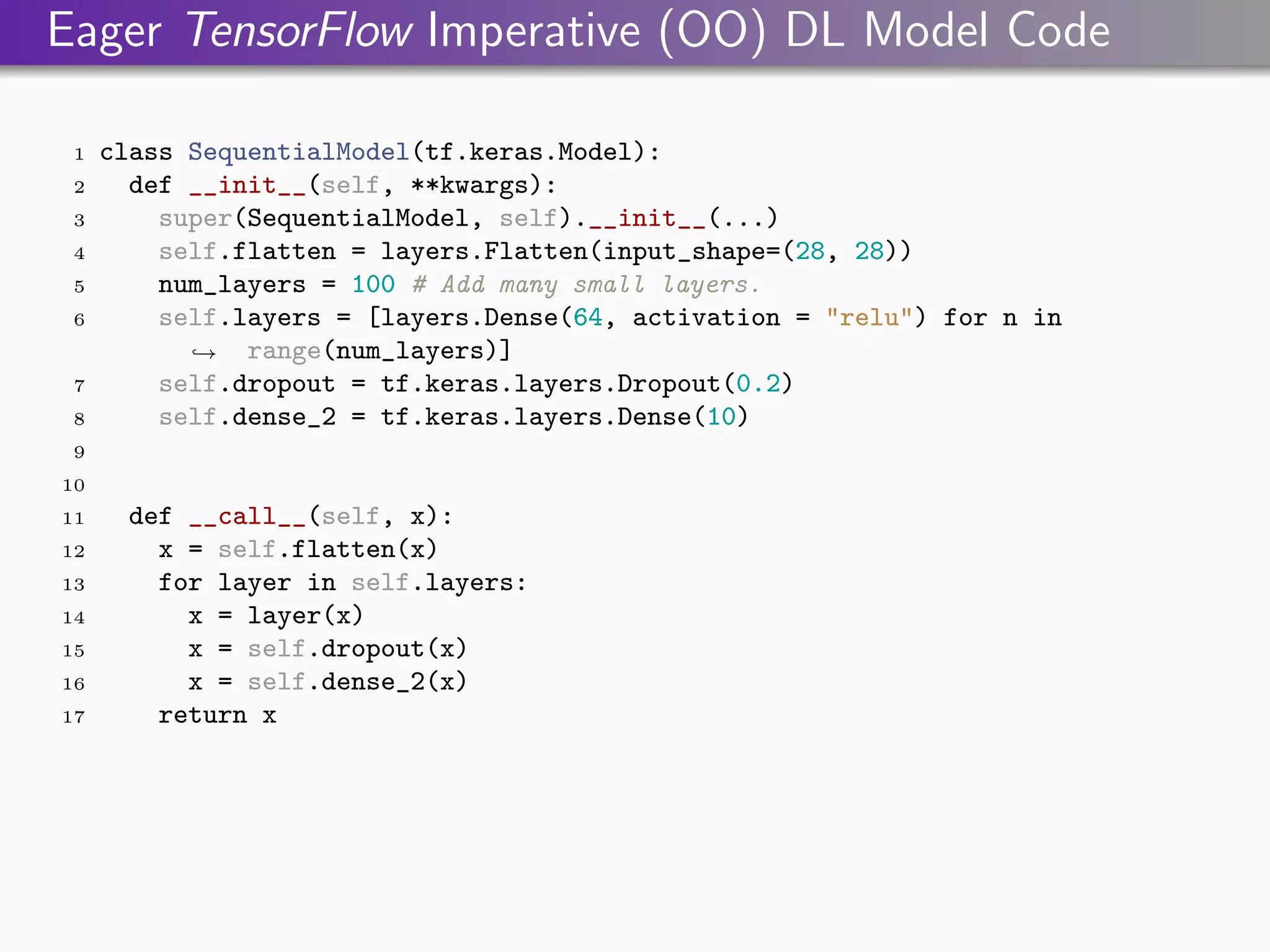

![Eager TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-7-2048.jpg)

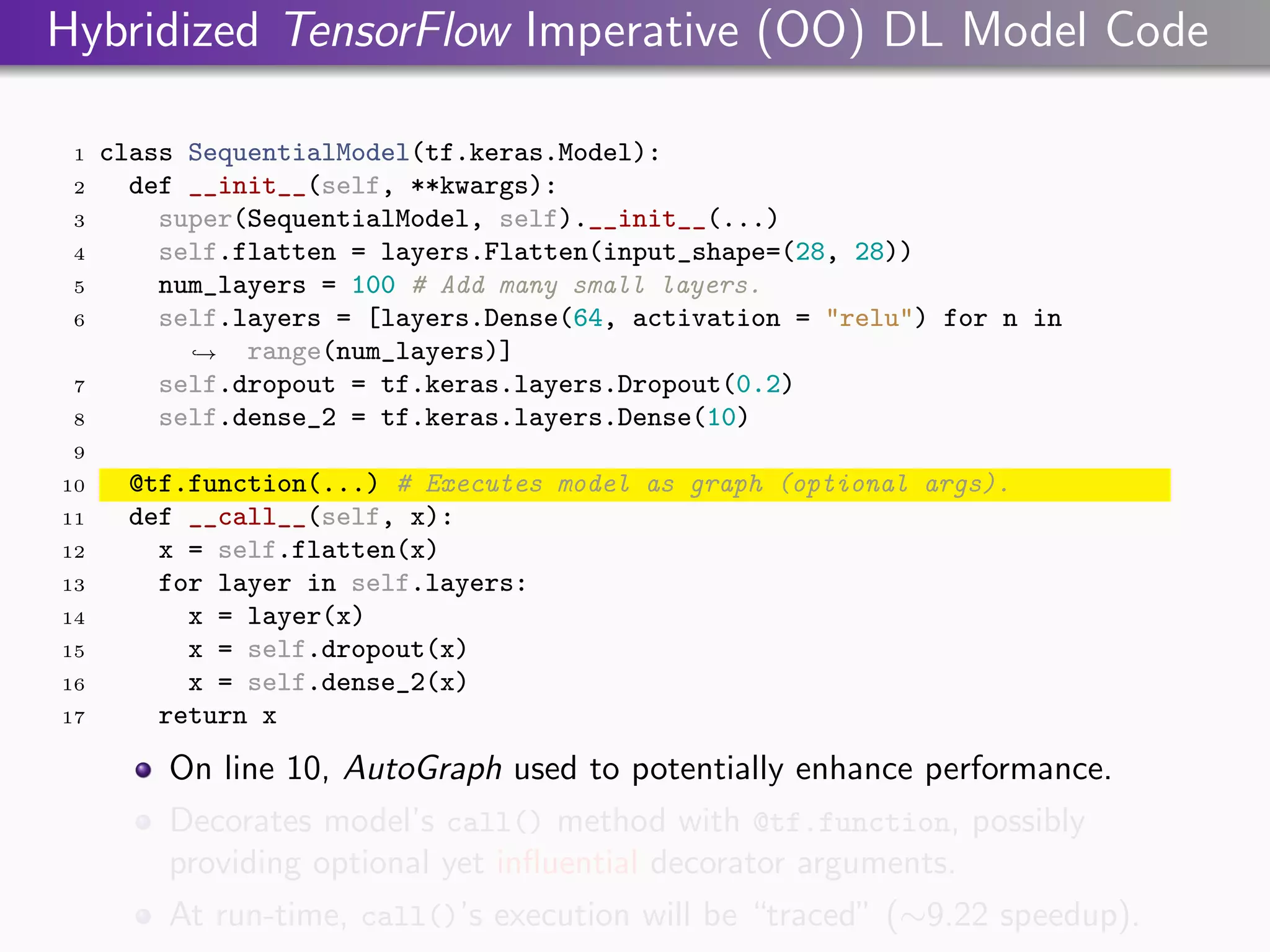

![Hybridized TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10 @tf.function(...) # Executes model as graph (optional args).
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x
On line 10, AutoGraph used to potentially enhance performance.
Decorates model’s call() method with @tf.function, possibly
providing optional yet influential decorator arguments.
At run-time, call()’s execution will be “traced” (∼9.22 speedup).](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-8-2048.jpg)

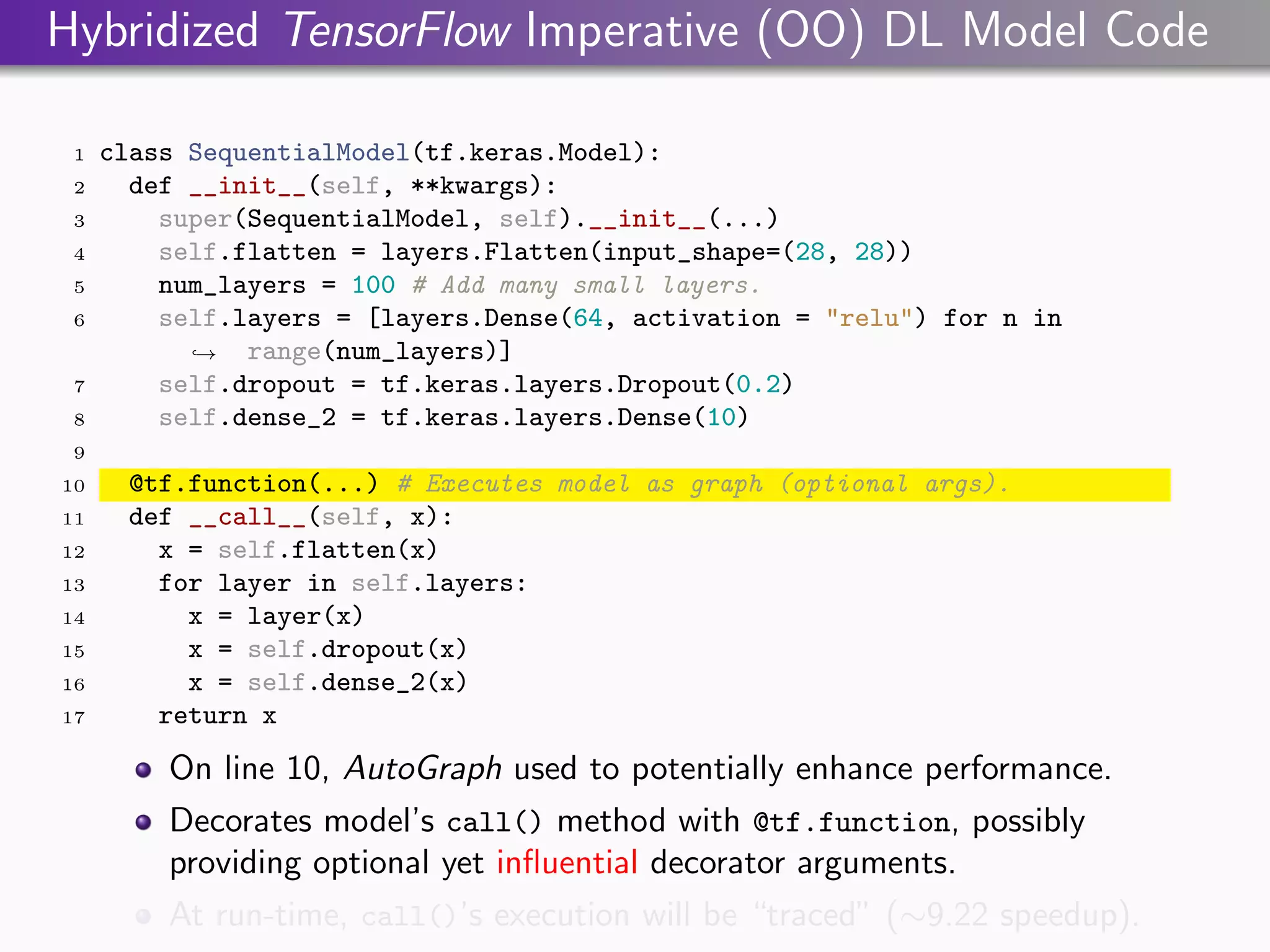

![Hybridized TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10 @tf.function(...) # Executes model as graph (optional args).
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x
On line 10, AutoGraph used to potentially enhance performance.
Decorates model’s call() method with @tf.function, possibly
providing optional yet influential decorator arguments.
At run-time, call()’s execution will be “traced” (∼9.22 speedup).](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-9-2048.jpg)

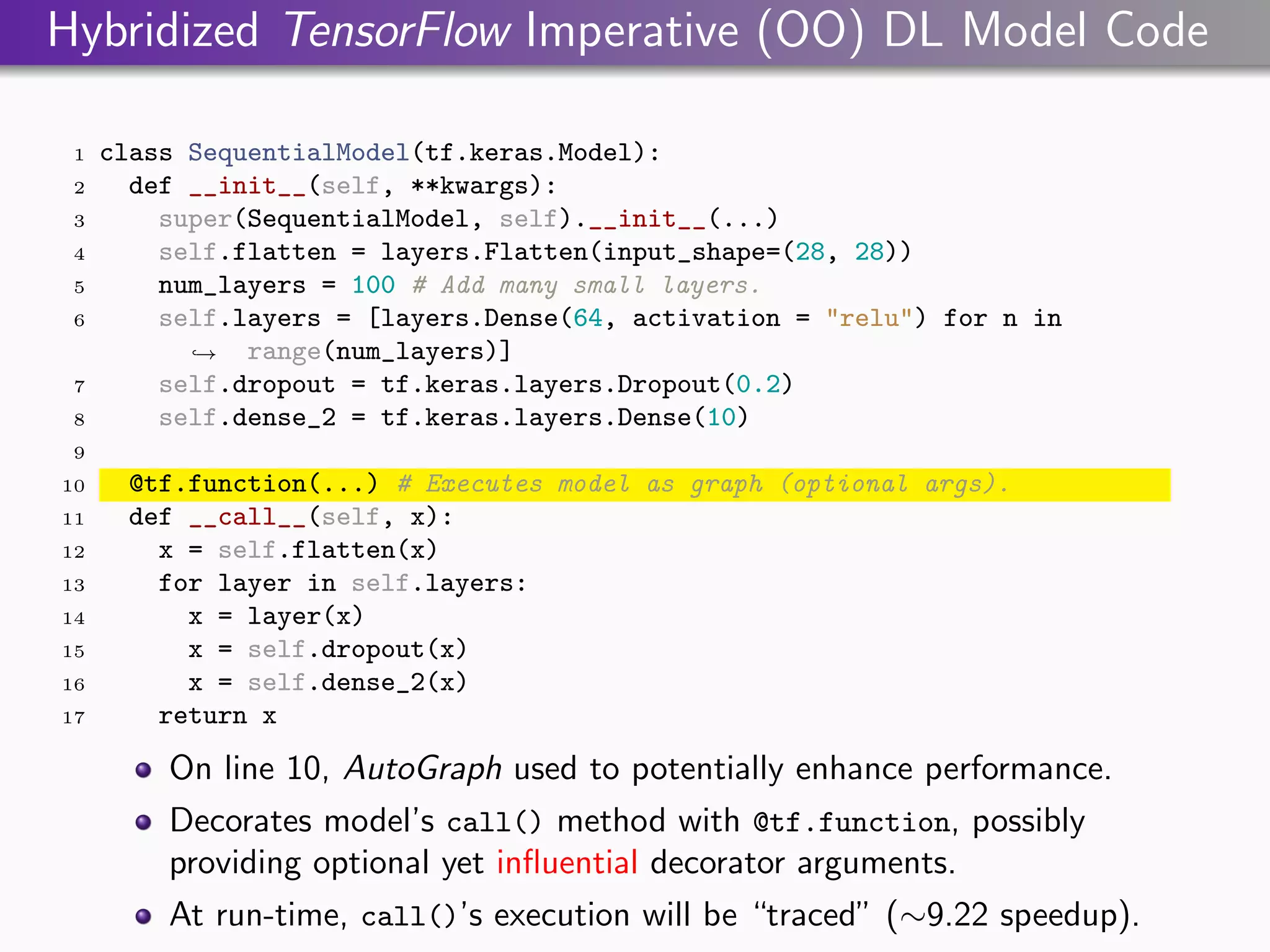

![Hybridized TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10 @tf.function(...) # Executes model as graph (optional args).
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x
On line 10, AutoGraph used to potentially enhance performance.
Decorates model’s call() method with @tf.function, possibly
providing optional yet influential decorator arguments.
At run-time, call()’s execution will be “traced” (∼9.22 speedup).](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-10-2048.jpg)

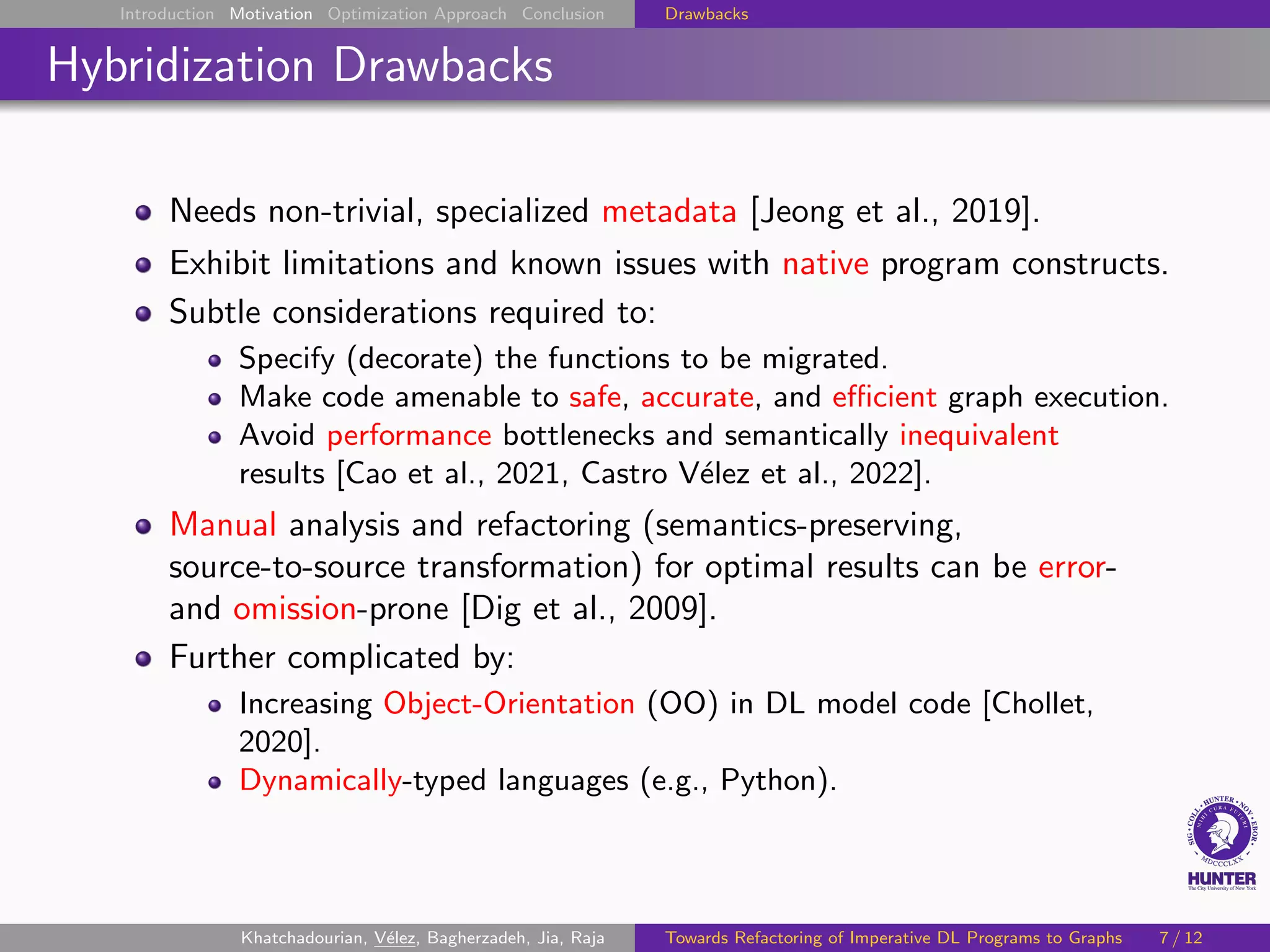

![Introduction Motivation Optimization Approach Conclusion Drawbacks
Hybridization Drawbacks
Needs non-trivial, specialized metadata [Jeong et al., 2019].
Exhibit limitations and known issues with native program constructs.
Subtle considerations required to:
Specify (decorate) the functions to be migrated.
Make code amenable to safe, accurate, and efficient graph execution.
Avoid performance bottlenecks and semantically inequivalent
results [Cao et al., 2021, Castro Vélez et al., 2022].
Manual analysis and refactoring (semantics-preserving,
source-to-source transformation) for optimal results can be error-
and omission-prone [Dig et al., 2009].
Further complicated by:
Increasing Object-Orientation (OO) in DL model code [Chollet,
2020].
Dynamically-typed languages (e.g., Python).
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 7 / 12](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-11-2048.jpg)

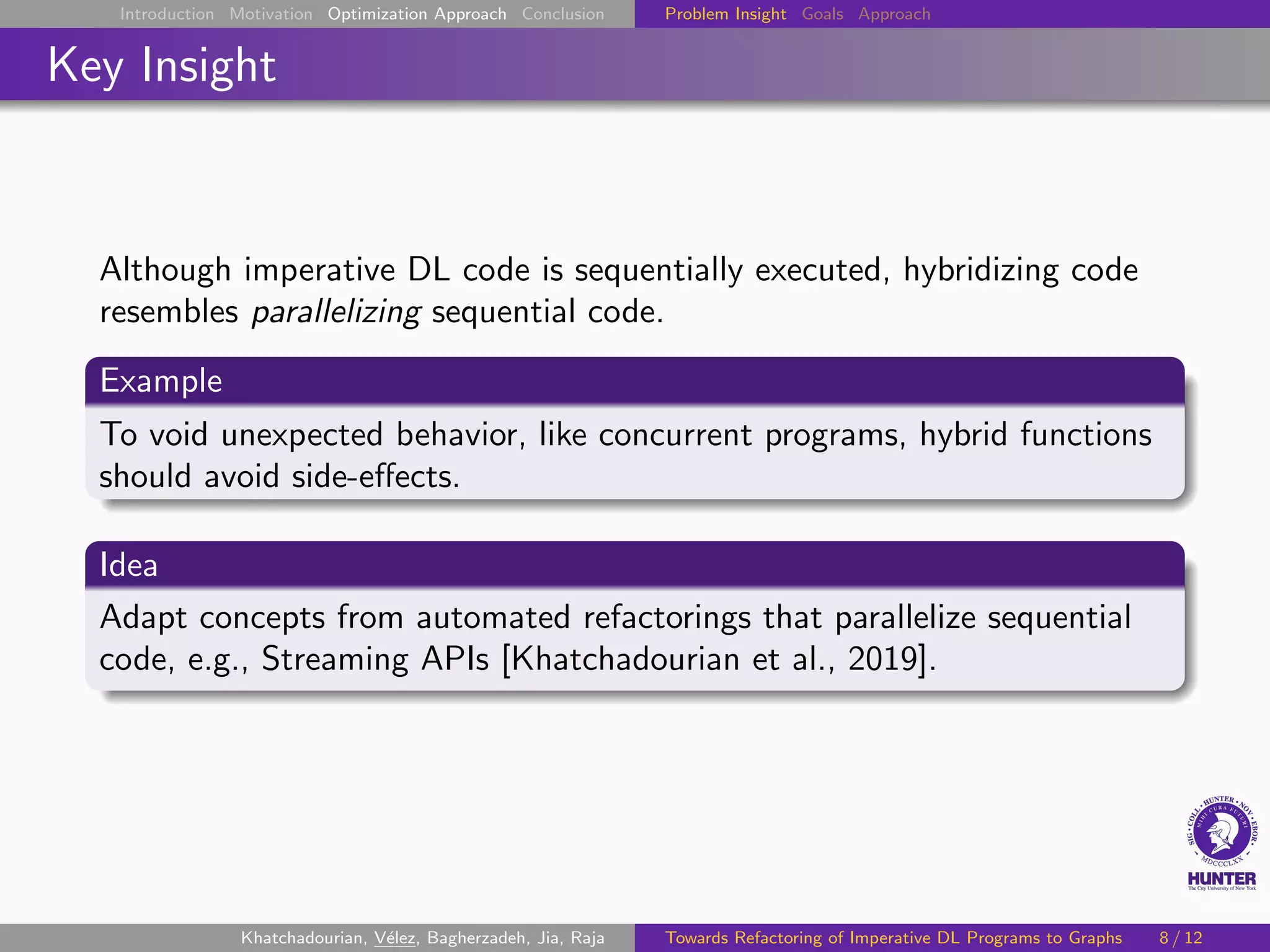

![Introduction Motivation Optimization Approach Conclusion Problem Insight Goals Approach
Key Insight
Although imperative DL code is sequentially executed, hybridizing code
resembles parallelizing sequential code.
Example
To void unexpected behavior, like concurrent programs, hybrid functions
should avoid side-effects.
Idea
Adapt concepts from automated refactorings that parallelize sequential
code, e.g., Streaming APIs [Khatchadourian et al., 2019].
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 8 / 12](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-12-2048.jpg)

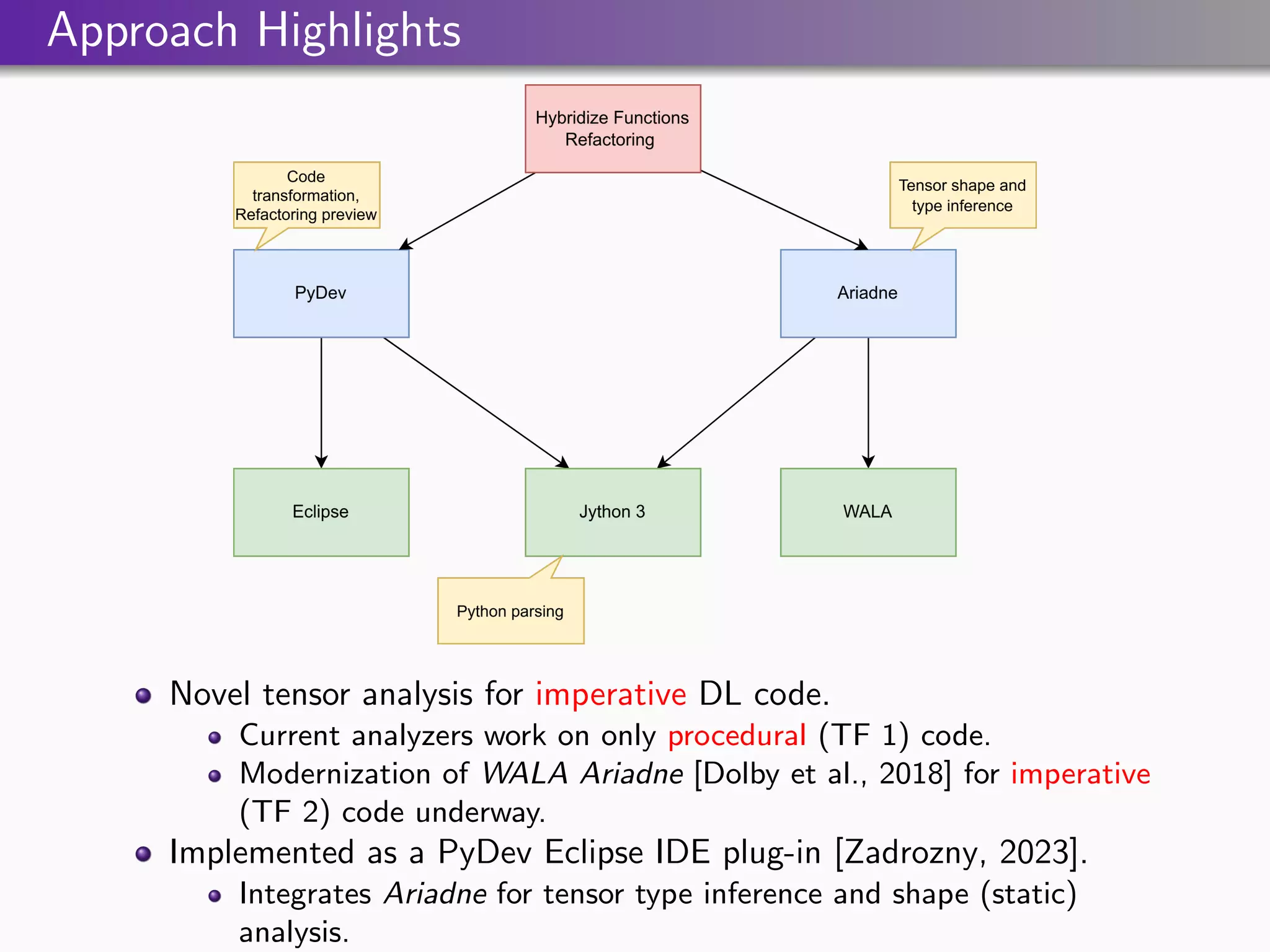

![Approach Highlights
Novel tensor analysis for imperative DL code.
Current analyzers work on only procedural (TF 1) code.
Modernization of WALA Ariadne [Dolby et al., 2018] for imperative
(TF 2) code underway.
Implemented as a PyDev Eclipse IDE plug-in [Zadrozny, 2023].
Integrates Ariadne for tensor type inference and shape (static)
analysis.](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-14-2048.jpg)

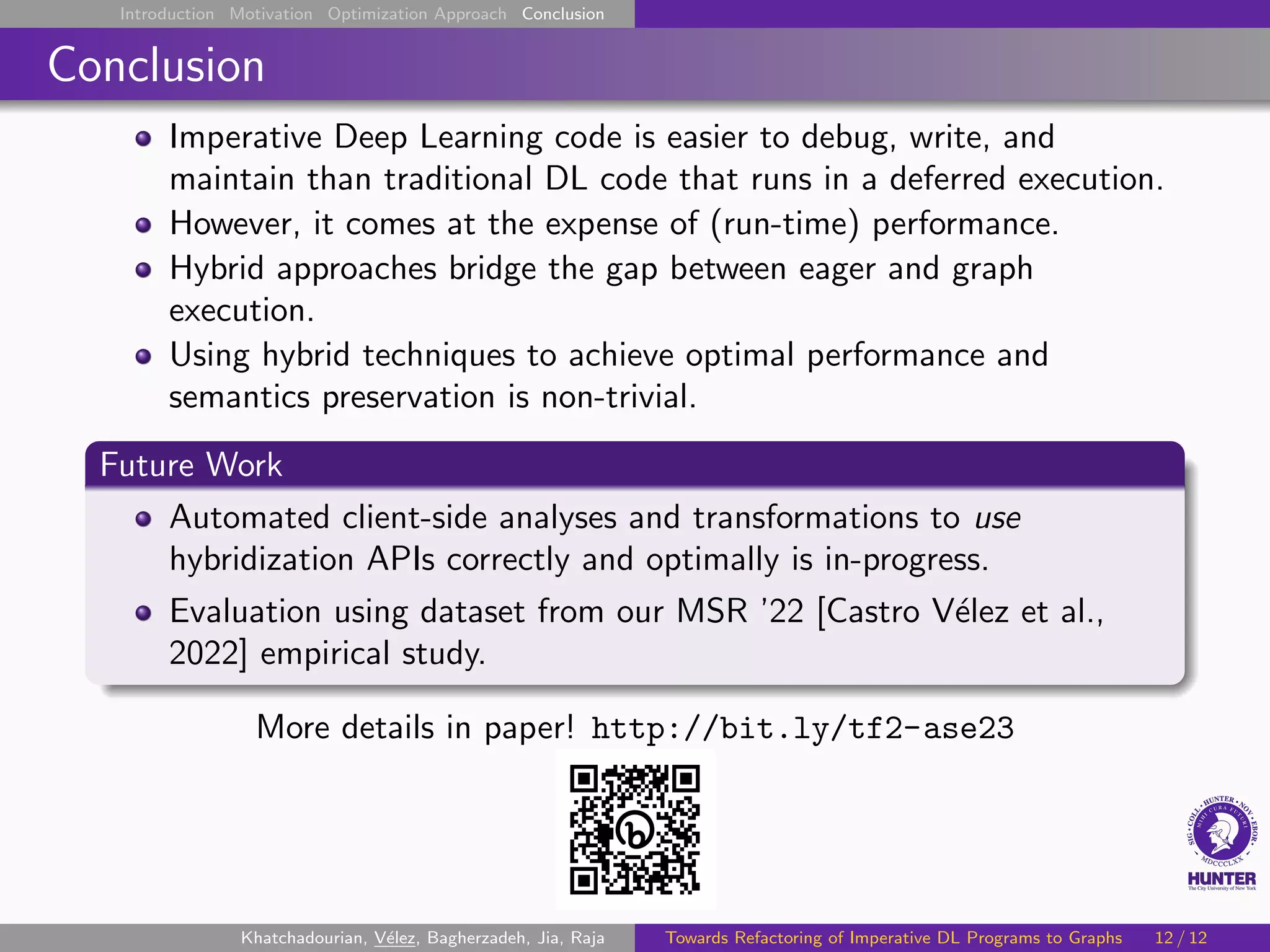

![Introduction Motivation Optimization Approach Conclusion
Conclusion
Imperative Deep Learning code is easier to debug, write, and
maintain than traditional DL code that runs in a deferred execution.
However, it comes at the expense of (run-time) performance.
Hybrid approaches bridge the gap between eager and graph
execution.
Using hybrid techniques to achieve optimal performance and
semantics preservation is non-trivial.
Future Work
Automated client-side analyses and transformations to use
hybridization APIs correctly and optimally is in-progress.
Evaluation using dataset from our MSR ’22 [Castro Vélez et al.,
2022] empirical study.
More details in paper! http://bit.ly/tf2-ase23
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-16-2048.jpg)

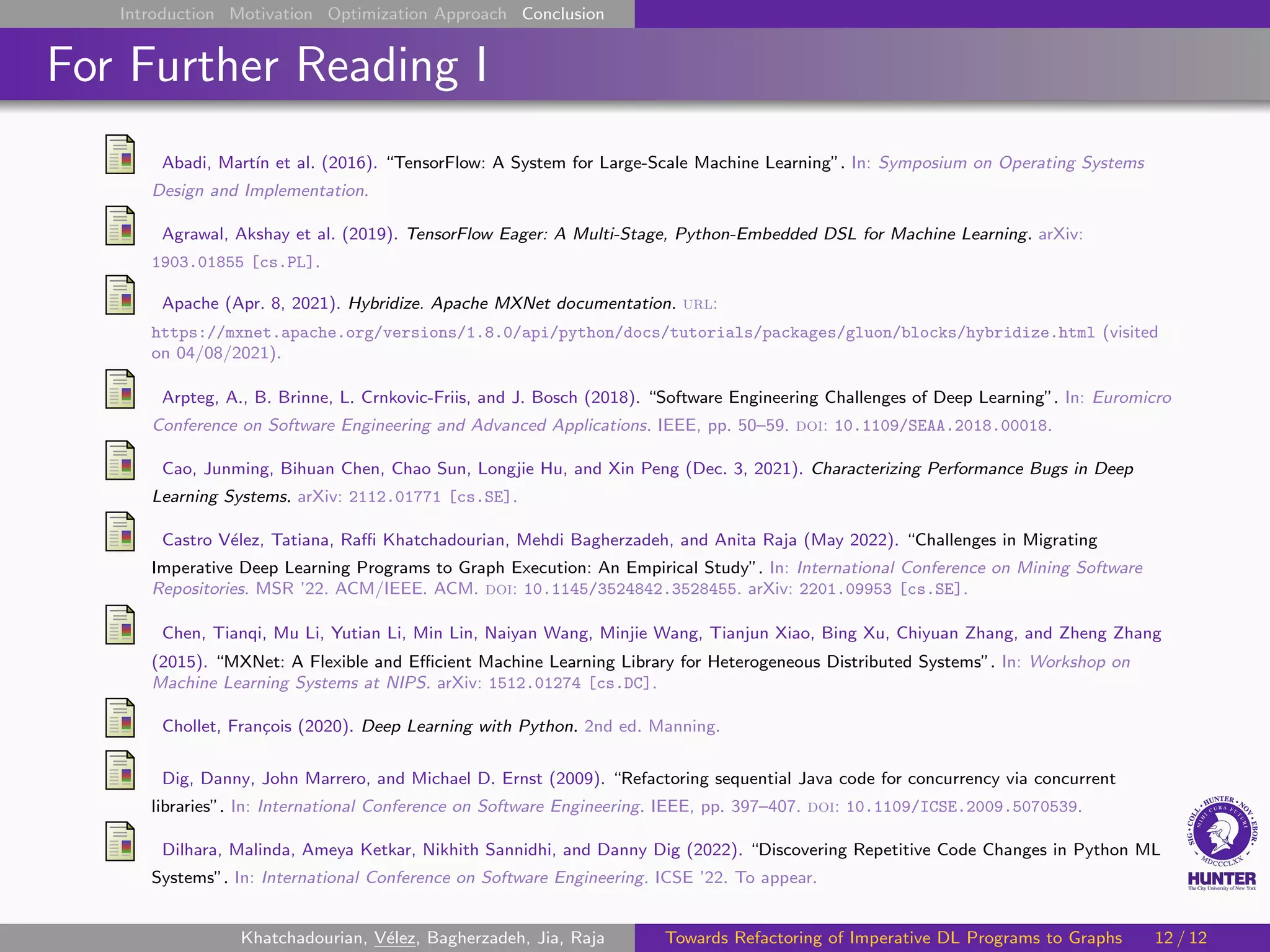

![Introduction Motivation Optimization Approach Conclusion
For Further Reading I
Abadi, Martı́n et al. (2016). “TensorFlow: A System for Large-Scale Machine Learning”. In: Symposium on Operating Systems
Design and Implementation.
Agrawal, Akshay et al. (2019). TensorFlow Eager: A Multi-Stage, Python-Embedded DSL for Machine Learning. arXiv:
1903.01855 [cs.PL].
Apache (Apr. 8, 2021). Hybridize. Apache MXNet documentation. url:
https://mxnet.apache.org/versions/1.8.0/api/python/docs/tutorials/packages/gluon/blocks/hybridize.html (visited
on 04/08/2021).
Arpteg, A., B. Brinne, L. Crnkovic-Friis, and J. Bosch (2018). “Software Engineering Challenges of Deep Learning”. In: Euromicro
Conference on Software Engineering and Advanced Applications. IEEE, pp. 50–59. doi: 10.1109/SEAA.2018.00018.
Cao, Junming, Bihuan Chen, Chao Sun, Longjie Hu, and Xin Peng (Dec. 3, 2021). Characterizing Performance Bugs in Deep
Learning Systems. arXiv: 2112.01771 [cs.SE].
Castro Vélez, Tatiana, Raffi Khatchadourian, Mehdi Bagherzadeh, and Anita Raja (May 2022). “Challenges in Migrating
Imperative Deep Learning Programs to Graph Execution: An Empirical Study”. In: International Conference on Mining Software
Repositories. MSR ’22. ACM/IEEE. ACM. doi: 10.1145/3524842.3528455. arXiv: 2201.09953 [cs.SE].
Chen, Tianqi, Mu Li, Yutian Li, Min Lin, Naiyan Wang, Minjie Wang, Tianjun Xiao, Bing Xu, Chiyuan Zhang, and Zheng Zhang
(2015). “MXNet: A Flexible and Efficient Machine Learning Library for Heterogeneous Distributed Systems”. In: Workshop on
Machine Learning Systems at NIPS. arXiv: 1512.01274 [cs.DC].
Chollet, François (2020). Deep Learning with Python. 2nd ed. Manning.
Dig, Danny, John Marrero, and Michael D. Ernst (2009). “Refactoring sequential Java code for concurrency via concurrent
libraries”. In: International Conference on Software Engineering. IEEE, pp. 397–407. doi: 10.1109/ICSE.2009.5070539.
Dilhara, Malinda, Ameya Ketkar, Nikhith Sannidhi, and Danny Dig (2022). “Discovering Repetitive Code Changes in Python ML
Systems”. In: International Conference on Software Engineering. ICSE ’22. To appear.
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-17-2048.jpg)

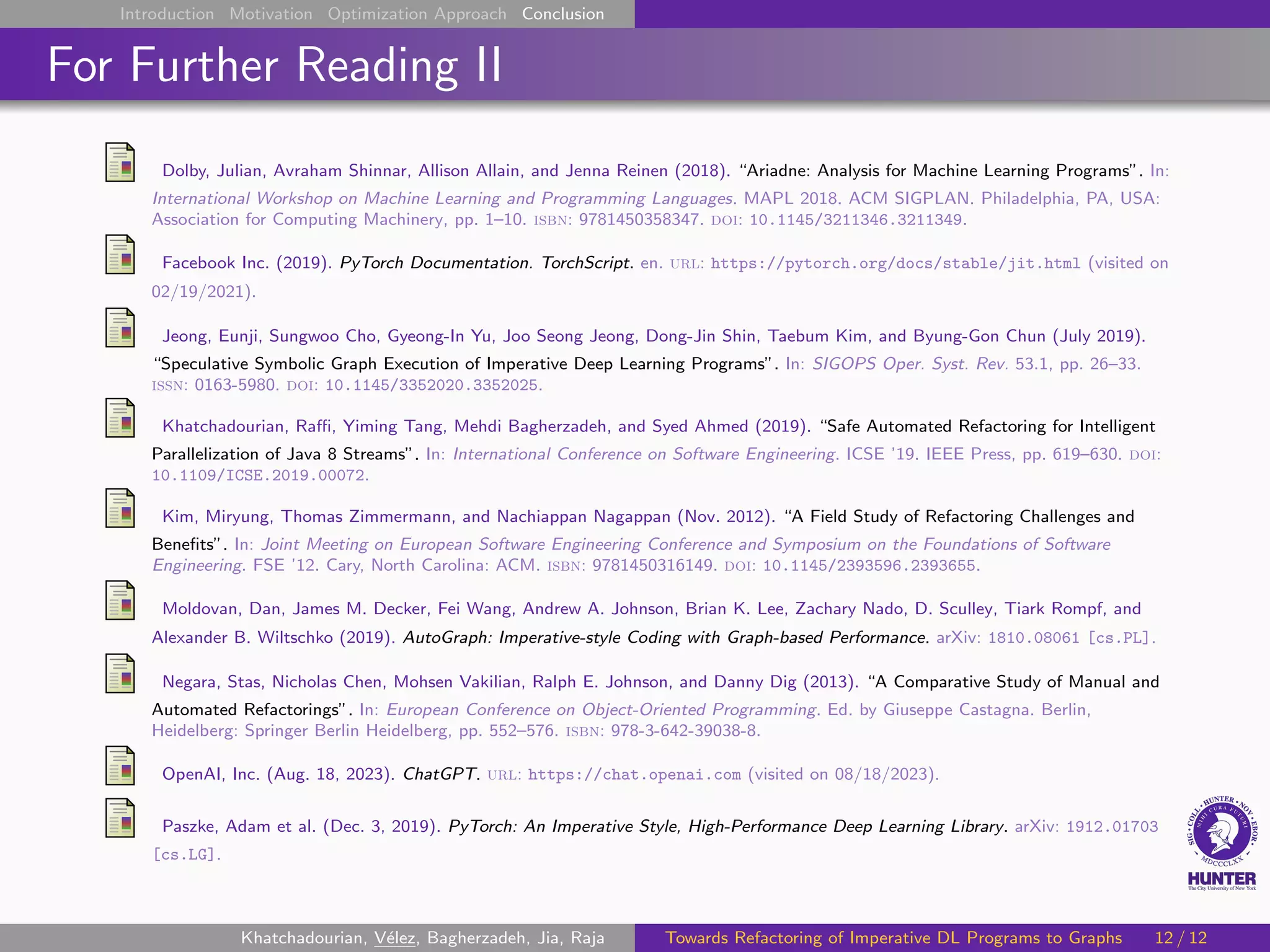

![Introduction Motivation Optimization Approach Conclusion
For Further Reading II
Dolby, Julian, Avraham Shinnar, Allison Allain, and Jenna Reinen (2018). “Ariadne: Analysis for Machine Learning Programs”. In:
International Workshop on Machine Learning and Programming Languages. MAPL 2018. ACM SIGPLAN. Philadelphia, PA, USA:
Association for Computing Machinery, pp. 1–10. isbn: 9781450358347. doi: 10.1145/3211346.3211349.
Facebook Inc. (2019). PyTorch Documentation. TorchScript. en. url: https://pytorch.org/docs/stable/jit.html (visited on
02/19/2021).
Jeong, Eunji, Sungwoo Cho, Gyeong-In Yu, Joo Seong Jeong, Dong-Jin Shin, Taebum Kim, and Byung-Gon Chun (July 2019).
“Speculative Symbolic Graph Execution of Imperative Deep Learning Programs”. In: SIGOPS Oper. Syst. Rev. 53.1, pp. 26–33.
issn: 0163-5980. doi: 10.1145/3352020.3352025.
Khatchadourian, Raffi, Yiming Tang, Mehdi Bagherzadeh, and Syed Ahmed (2019). “Safe Automated Refactoring for Intelligent
Parallelization of Java 8 Streams”. In: International Conference on Software Engineering. ICSE ’19. IEEE Press, pp. 619–630. doi:
10.1109/ICSE.2019.00072.
Kim, Miryung, Thomas Zimmermann, and Nachiappan Nagappan (Nov. 2012). “A Field Study of Refactoring Challenges and
Benefits”. In: Joint Meeting on European Software Engineering Conference and Symposium on the Foundations of Software
Engineering. FSE ’12. Cary, North Carolina: ACM. isbn: 9781450316149. doi: 10.1145/2393596.2393655.
Moldovan, Dan, James M. Decker, Fei Wang, Andrew A. Johnson, Brian K. Lee, Zachary Nado, D. Sculley, Tiark Rompf, and
Alexander B. Wiltschko (2019). AutoGraph: Imperative-style Coding with Graph-based Performance. arXiv: 1810.08061 [cs.PL].
Negara, Stas, Nicholas Chen, Mohsen Vakilian, Ralph E. Johnson, and Danny Dig (2013). “A Comparative Study of Manual and
Automated Refactorings”. In: European Conference on Object-Oriented Programming. Ed. by Giuseppe Castagna. Berlin,
Heidelberg: Springer Berlin Heidelberg, pp. 552–576. isbn: 978-3-642-39038-8.
OpenAI, Inc. (Aug. 18, 2023). ChatGPT. url: https://chat.openai.com (visited on 08/18/2023).
Paszke, Adam et al. (Dec. 3, 2019). PyTorch: An Imperative Style, High-Performance Deep Learning Library. arXiv: 1912.01703
[cs.LG].
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-18-2048.jpg)

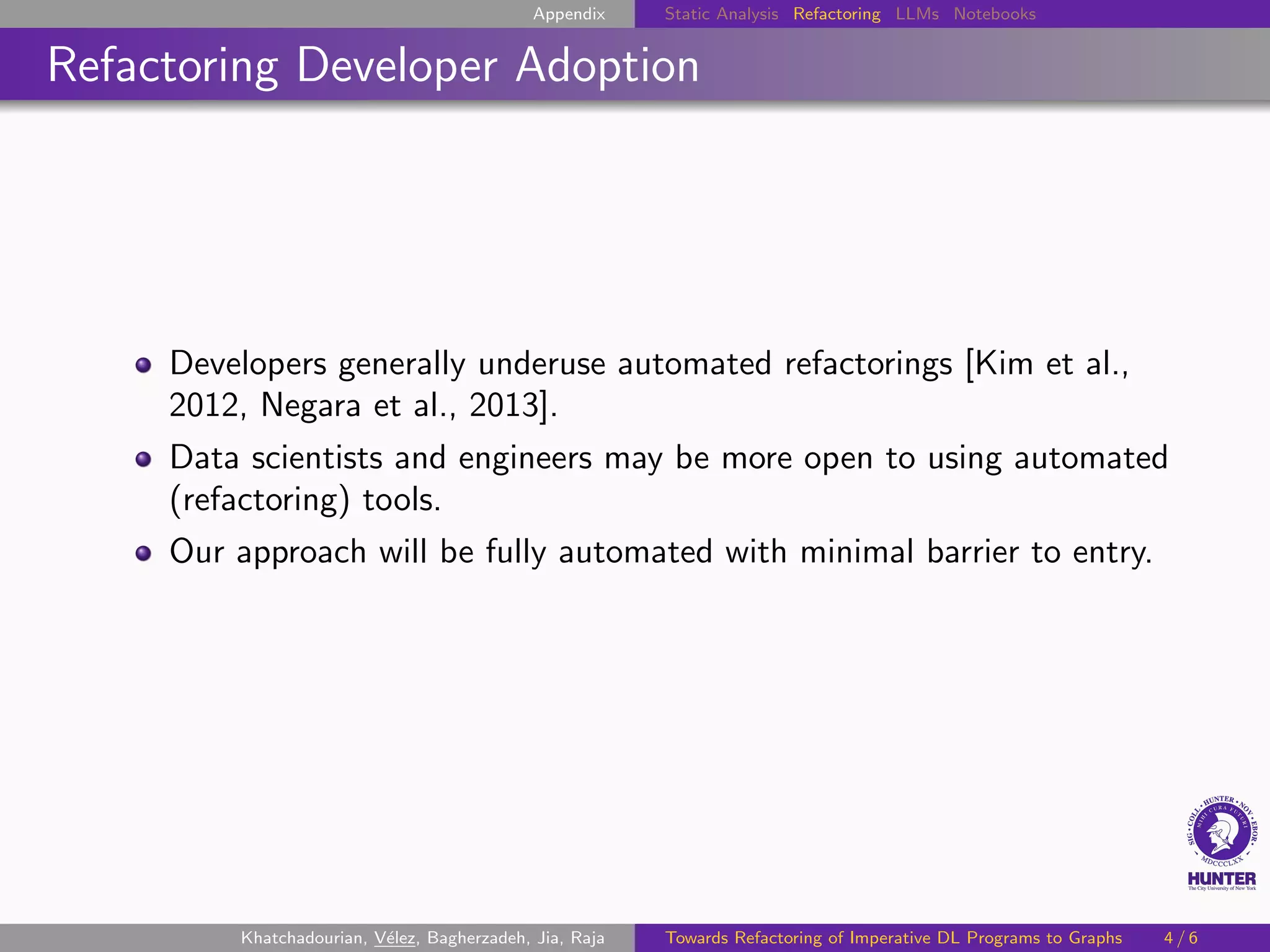

![Appendix Static Analysis Refactoring LLMs Notebooks
Refactoring Developer Adoption
Developers generally underuse automated refactorings [Kim et al.,
2012, Negara et al., 2013].
Data scientists and engineers may be more open to using automated
(refactoring) tools.
Our approach will be fully automated with minimal barrier to entry.
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 4 / 6](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-23-2048.jpg)

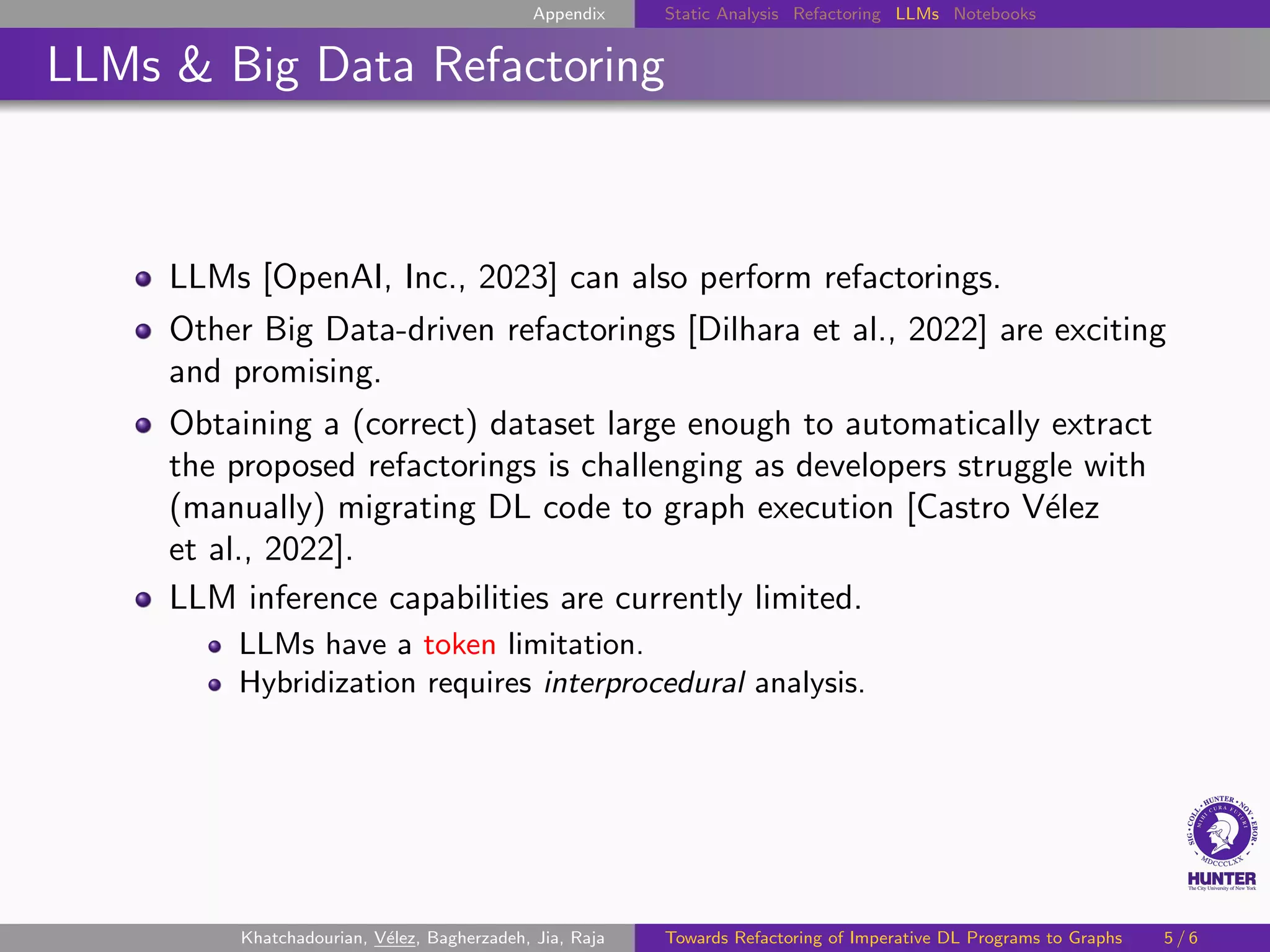

![Appendix Static Analysis Refactoring LLMs Notebooks
LLMs & Big Data Refactoring
LLMs [OpenAI, Inc., 2023] can also perform refactorings.
Other Big Data-driven refactorings [Dilhara et al., 2022] are exciting
and promising.
Obtaining a (correct) dataset large enough to automatically extract
the proposed refactorings is challenging as developers struggle with
(manually) migrating DL code to graph execution [Castro Vélez
et al., 2022].
LLM inference capabilities are currently limited.
LLMs have a token limitation.
Hybridization requires interprocedural analysis.
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 5 / 6](https://image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-24-2048.jpg)
![Introduction Motivation Optimization Approach Conclusion
Deep Learning Systems & Run-time Performance
Machine Learning (ML), including Deep Learning (DL), systems are
pervasive.
As datasets grow, efficiency becomes essential to support
responsiveness [Zhou et al., 2020].
For efficiency, DL frameworks have traditionally embraced a deferred
execution-style supporting graph-based (DNN) computation.
Scalable, but development is . . .
Error-prone.
Cumbersome.
Produces programs that are difficult to debug.
Because graph computation executes statements in a non-imperative
order, traditional SE tools cannot help troubleshoot bugs [Arpteg
et al., 2018].
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 2 / 12](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-2-2048.jpg)
![Eager TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-7-2048.jpg)
![Hybridized TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10 @tf.function(...) # Executes model as graph (optional args).
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x
On line 10, AutoGraph used to potentially enhance performance.
Decorates model’s call() method with @tf.function, possibly
providing optional yet influential decorator arguments.
At run-time, call()’s execution will be “traced” (∼9.22 speedup).](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-8-2048.jpg)
![Hybridized TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10 @tf.function(...) # Executes model as graph (optional args).
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x
On line 10, AutoGraph used to potentially enhance performance.
Decorates model’s call() method with @tf.function, possibly
providing optional yet influential decorator arguments.
At run-time, call()’s execution will be “traced” (∼9.22 speedup).](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-9-2048.jpg)
![Hybridized TensorFlow Imperative (OO) DL Model Code
1 class SequentialModel(tf.keras.Model):
2 def __init__(self, **kwargs):
3 super(SequentialModel, self).__init__(...)
4 self.flatten = layers.Flatten(input_shape=(28, 28))
5 num_layers = 100 # Add many small layers.
6 self.layers = [layers.Dense(64, activation = "relu") for n in
range(num_layers)]
,
→
7 self.dropout = tf.keras.layers.Dropout(0.2)
8 self.dense_2 = tf.keras.layers.Dense(10)
9
10 @tf.function(...) # Executes model as graph (optional args).
11 def __call__(self, x):
12 x = self.flatten(x)
13 for layer in self.layers:
14 x = layer(x)
15 x = self.dropout(x)
16 x = self.dense_2(x)
17 return x
On line 10, AutoGraph used to potentially enhance performance.
Decorates model’s call() method with @tf.function, possibly
providing optional yet influential decorator arguments.
At run-time, call()’s execution will be “traced” (∼9.22 speedup).](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-10-2048.jpg)
![Introduction Motivation Optimization Approach Conclusion Drawbacks
Hybridization Drawbacks
Needs non-trivial, specialized metadata [Jeong et al., 2019].
Exhibit limitations and known issues with native program constructs.
Subtle considerations required to:
Specify (decorate) the functions to be migrated.
Make code amenable to safe, accurate, and efficient graph execution.
Avoid performance bottlenecks and semantically inequivalent
results [Cao et al., 2021, Castro Vélez et al., 2022].
Manual analysis and refactoring (semantics-preserving,
source-to-source transformation) for optimal results can be error-
and omission-prone [Dig et al., 2009].
Further complicated by:
Increasing Object-Orientation (OO) in DL model code [Chollet,
2020].
Dynamically-typed languages (e.g., Python).
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 7 / 12](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-11-2048.jpg)
![Introduction Motivation Optimization Approach Conclusion Problem Insight Goals Approach
Key Insight
Although imperative DL code is sequentially executed, hybridizing code
resembles parallelizing sequential code.
Example
To void unexpected behavior, like concurrent programs, hybrid functions
should avoid side-effects.
Idea
Adapt concepts from automated refactorings that parallelize sequential
code, e.g., Streaming APIs [Khatchadourian et al., 2019].
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 8 / 12](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-12-2048.jpg)
![Approach Highlights
Novel tensor analysis for imperative DL code.
Current analyzers work on only procedural (TF 1) code.
Modernization of WALA Ariadne [Dolby et al., 2018] for imperative
(TF 2) code underway.
Implemented as a PyDev Eclipse IDE plug-in [Zadrozny, 2023].
Integrates Ariadne for tensor type inference and shape (static)
analysis.](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-14-2048.jpg)
![Introduction Motivation Optimization Approach Conclusion
Conclusion
Imperative Deep Learning code is easier to debug, write, and
maintain than traditional DL code that runs in a deferred execution.
However, it comes at the expense of (run-time) performance.
Hybrid approaches bridge the gap between eager and graph
execution.
Using hybrid techniques to achieve optimal performance and
semantics preservation is non-trivial.
Future Work
Automated client-side analyses and transformations to use
hybridization APIs correctly and optimally is in-progress.
Evaluation using dataset from our MSR ’22 [Castro Vélez et al.,
2022] empirical study.
More details in paper! http://bit.ly/tf2-ase23
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-16-2048.jpg)
![Introduction Motivation Optimization Approach Conclusion
For Further Reading I
Abadi, Martı́n et al. (2016). “TensorFlow: A System for Large-Scale Machine Learning”. In: Symposium on Operating Systems
Design and Implementation.
Agrawal, Akshay et al. (2019). TensorFlow Eager: A Multi-Stage, Python-Embedded DSL for Machine Learning. arXiv:
1903.01855 [cs.PL].
Apache (Apr. 8, 2021). Hybridize. Apache MXNet documentation. url:
https://mxnet.apache.org/versions/1.8.0/api/python/docs/tutorials/packages/gluon/blocks/hybridize.html (visited
on 04/08/2021).
Arpteg, A., B. Brinne, L. Crnkovic-Friis, and J. Bosch (2018). “Software Engineering Challenges of Deep Learning”. In: Euromicro
Conference on Software Engineering and Advanced Applications. IEEE, pp. 50–59. doi: 10.1109/SEAA.2018.00018.
Cao, Junming, Bihuan Chen, Chao Sun, Longjie Hu, and Xin Peng (Dec. 3, 2021). Characterizing Performance Bugs in Deep
Learning Systems. arXiv: 2112.01771 [cs.SE].
Castro Vélez, Tatiana, Raffi Khatchadourian, Mehdi Bagherzadeh, and Anita Raja (May 2022). “Challenges in Migrating
Imperative Deep Learning Programs to Graph Execution: An Empirical Study”. In: International Conference on Mining Software
Repositories. MSR ’22. ACM/IEEE. ACM. doi: 10.1145/3524842.3528455. arXiv: 2201.09953 [cs.SE].
Chen, Tianqi, Mu Li, Yutian Li, Min Lin, Naiyan Wang, Minjie Wang, Tianjun Xiao, Bing Xu, Chiyuan Zhang, and Zheng Zhang
(2015). “MXNet: A Flexible and Efficient Machine Learning Library for Heterogeneous Distributed Systems”. In: Workshop on
Machine Learning Systems at NIPS. arXiv: 1512.01274 [cs.DC].
Chollet, François (2020). Deep Learning with Python. 2nd ed. Manning.
Dig, Danny, John Marrero, and Michael D. Ernst (2009). “Refactoring sequential Java code for concurrency via concurrent
libraries”. In: International Conference on Software Engineering. IEEE, pp. 397–407. doi: 10.1109/ICSE.2009.5070539.
Dilhara, Malinda, Ameya Ketkar, Nikhith Sannidhi, and Danny Dig (2022). “Discovering Repetitive Code Changes in Python ML
Systems”. In: International Conference on Software Engineering. ICSE ’22. To appear.
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-17-2048.jpg)
![Introduction Motivation Optimization Approach Conclusion
For Further Reading II
Dolby, Julian, Avraham Shinnar, Allison Allain, and Jenna Reinen (2018). “Ariadne: Analysis for Machine Learning Programs”. In:
International Workshop on Machine Learning and Programming Languages. MAPL 2018. ACM SIGPLAN. Philadelphia, PA, USA:
Association for Computing Machinery, pp. 1–10. isbn: 9781450358347. doi: 10.1145/3211346.3211349.
Facebook Inc. (2019). PyTorch Documentation. TorchScript. en. url: https://pytorch.org/docs/stable/jit.html (visited on
02/19/2021).
Jeong, Eunji, Sungwoo Cho, Gyeong-In Yu, Joo Seong Jeong, Dong-Jin Shin, Taebum Kim, and Byung-Gon Chun (July 2019).
“Speculative Symbolic Graph Execution of Imperative Deep Learning Programs”. In: SIGOPS Oper. Syst. Rev. 53.1, pp. 26–33.
issn: 0163-5980. doi: 10.1145/3352020.3352025.
Khatchadourian, Raffi, Yiming Tang, Mehdi Bagherzadeh, and Syed Ahmed (2019). “Safe Automated Refactoring for Intelligent
Parallelization of Java 8 Streams”. In: International Conference on Software Engineering. ICSE ’19. IEEE Press, pp. 619–630. doi:
10.1109/ICSE.2019.00072.
Kim, Miryung, Thomas Zimmermann, and Nachiappan Nagappan (Nov. 2012). “A Field Study of Refactoring Challenges and
Benefits”. In: Joint Meeting on European Software Engineering Conference and Symposium on the Foundations of Software
Engineering. FSE ’12. Cary, North Carolina: ACM. isbn: 9781450316149. doi: 10.1145/2393596.2393655.
Moldovan, Dan, James M. Decker, Fei Wang, Andrew A. Johnson, Brian K. Lee, Zachary Nado, D. Sculley, Tiark Rompf, and
Alexander B. Wiltschko (2019). AutoGraph: Imperative-style Coding with Graph-based Performance. arXiv: 1810.08061 [cs.PL].
Negara, Stas, Nicholas Chen, Mohsen Vakilian, Ralph E. Johnson, and Danny Dig (2013). “A Comparative Study of Manual and
Automated Refactorings”. In: European Conference on Object-Oriented Programming. Ed. by Giuseppe Castagna. Berlin,
Heidelberg: Springer Berlin Heidelberg, pp. 552–576. isbn: 978-3-642-39038-8.
OpenAI, Inc. (Aug. 18, 2023). ChatGPT. url: https://chat.openai.com (visited on 08/18/2023).
Paszke, Adam et al. (Dec. 3, 2019). PyTorch: An Imperative Style, High-Performance Deep Learning Library. arXiv: 1912.01703
[cs.LG].
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-18-2048.jpg)
![Appendix Static Analysis Refactoring LLMs Notebooks
Refactoring Developer Adoption
Developers generally underuse automated refactorings [Kim et al.,
2012, Negara et al., 2013].
Data scientists and engineers may be more open to using automated
(refactoring) tools.
Our approach will be fully automated with minimal barrier to entry.
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 4 / 6](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-23-2048.jpg)
![Appendix Static Analysis Refactoring LLMs Notebooks
LLMs & Big Data Refactoring
LLMs [OpenAI, Inc., 2023] can also perform refactorings.
Other Big Data-driven refactorings [Dilhara et al., 2022] are exciting
and promising.
Obtaining a (correct) dataset large enough to automatically extract
the proposed refactorings is challenging as developers struggle with
(manually) migrating DL code to graph execution [Castro Vélez
et al., 2022].
LLM inference capabilities are currently limited.
LLMs have a token limitation.
Hybridization requires interprocedural analysis.
Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 5 / 6](https://crownmelresort.com/image.slidesharecdn.com/presentation-230914070202-73864f37/75/Towards-Safe-Automated-Refactoring-of-Imperative-Deep-Learning-Programs-to-Graph-Execution-24-2048.jpg)
Uploaded byRaffi Khatchadourian
Towards Safe Automated Refactoring of Imperative Deep Learning Programs to Graph Execution
The document discusses the challenges and approaches for refactoring imperative deep learning programs into graph execution formats to enhance performance while maintaining debugging efficiency. It highlights the limitations of traditional methods and introduces hybrid techniques as a solution, detailing ongoing efforts to automate certain refactoring processes for better execution speed. The work aims to provide safer and more efficient methods for converting and optimizing deep learning code.
More Related Content
Similar to Towards Safe Automated Refactoring of Imperative Deep Learning Programs to Graph Execution
Towards Safe Automated Refactoring of Imperative Deep Learning Programs to Graph Execution
- 1. Introduction Motivation OptimizationApproach Conclusion Towards Safe Automated Refactoring of Imperative Deep Learning Programs to Graph Execution Raffi Khatchadourian1,2 Tatiana Castro Vélez2 Mehdi Bagherzadeh3 Nan Jia2 Anita Raja1,2 1 City University of New York (CUNY) Hunter College, USA 2 City University of New York (CUNY) Graduate Center, USA 3 Oakland University, USA International Conference on Automated Software Engineering September 14, 2023, Kirchberg, Luxembourg Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 1 / 12
- 2. Introduction Motivation OptimizationApproach Conclusion Deep Learning Systems & Run-time Performance Machine Learning (ML), including Deep Learning (DL), systems are pervasive. As datasets grow, efficiency becomes essential to support responsiveness [Zhou et al., 2020]. For efficiency, DL frameworks have traditionally embraced a deferred execution-style supporting graph-based (DNN) computation. Scalable, but development is . . . Error-prone. Cumbersome. Produces programs that are difficult to debug. Because graph computation executes statements in a non-imperative order, traditional SE tools cannot help troubleshoot bugs [Arpteg et al., 2018]. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 2 / 12

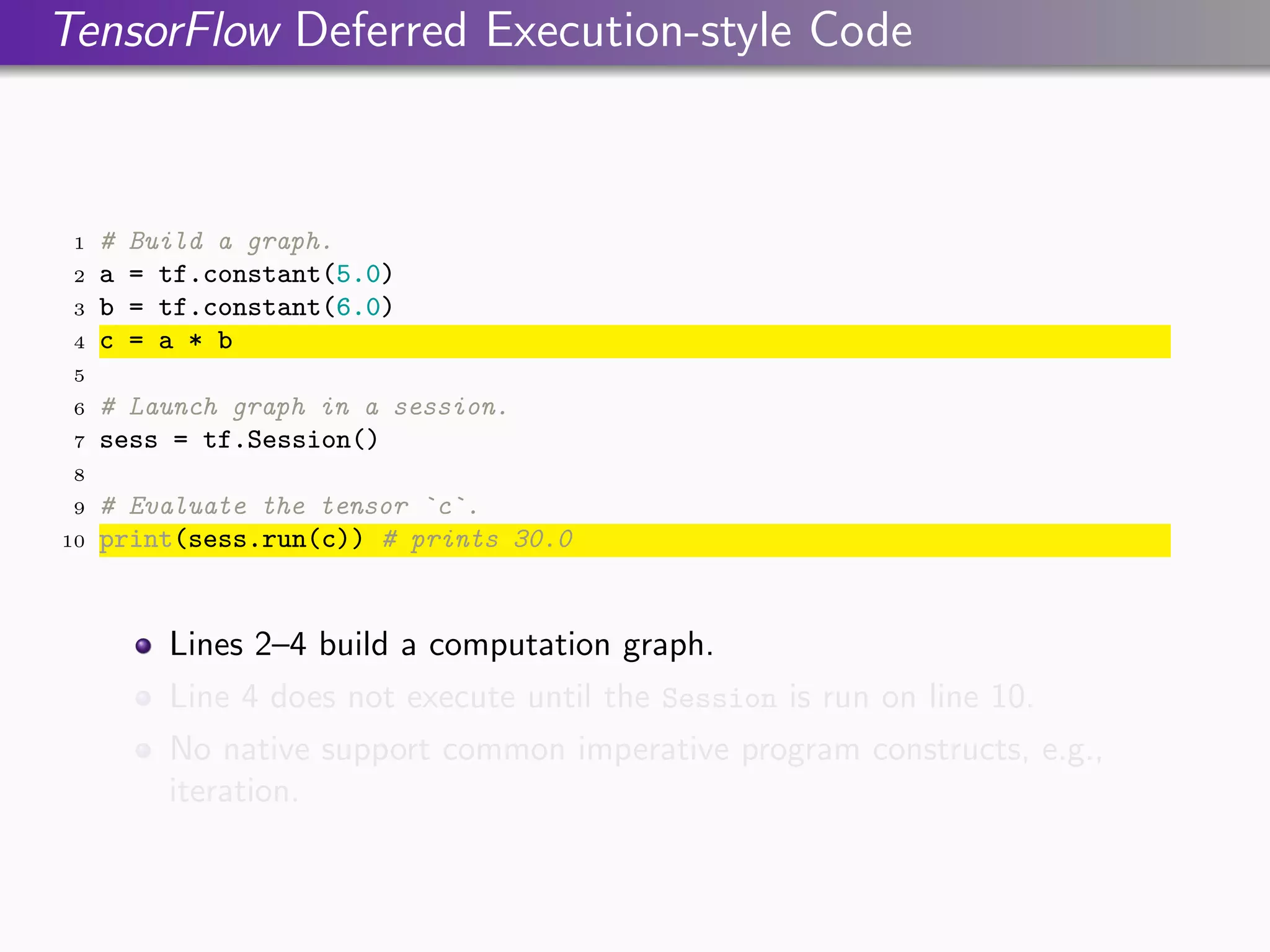

- 3. TensorFlow Deferred Execution-styleCode 1 # Build a graph. 2 a = tf.constant(5.0) 3 b = tf.constant(6.0) 4 c = a * b 5 6 # Launch graph in a session. 7 sess = tf.Session() 8 9 # Evaluate the tensor `c`. 10 print(sess.run(c)) # prints 30.0 Lines 2–4 build a computation graph. Line 4 does not execute until the Session is run on line 10. No native support common imperative program constructs, e.g., iteration.
- 4. TensorFlow Deferred Execution-styleCode 1 # Build a graph. 2 a = tf.constant(5.0) 3 b = tf.constant(6.0) 4 c = a * b 5 6 # Launch graph in a session. 7 sess = tf.Session() 8 9 # Evaluate the tensor `c`. 10 print(sess.run(c)) # prints 30.0 Lines 2–4 build a computation graph. Line 4 does not execute until the Session is run on line 10. No native support common imperative program constructs, e.g., iteration.
- 5. TensorFlow Deferred Execution-styleCode 1 # Build a graph. 2 a = tf.constant(5.0) 3 b = tf.constant(6.0) 4 c = a * b 5 6 # Launch graph in a session. 7 sess = tf.Session() 8 9 # Evaluate the tensor `c`. 10 print(sess.run(c)) # prints 30.0 Lines 2–4 build a computation graph. Line 4 does not execute until the Session is run on line 10. No native support common imperative program constructs, e.g., iteration.
- 6. Introduction Motivation OptimizationApproach Conclusion Imperative DL Programming, Eager Execution, & Hybridization Imperative DL frameworks (e.g., TensorFlow Eager, Keras, PyTorch) encouraging eager execution are more natural, less error-prone, and easier to debug. Sacrifices run-time performance. Thus, hybrid approaches (e.g., Hybridize, TorchScript, AutoGraph) have surfaced that: Execute imperative DL programs as static graphs at run-time. Are integrated into mainstream DL frameworks (e.g., TensorFlow, MXNet, PyTorch). Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 4 / 12
- 7. Eager TensorFlow Imperative(OO) DL Model Code 1 class SequentialModel(tf.keras.Model): 2 def __init__(self, **kwargs): 3 super(SequentialModel, self).__init__(...) 4 self.flatten = layers.Flatten(input_shape=(28, 28)) 5 num_layers = 100 # Add many small layers. 6 self.layers = [layers.Dense(64, activation = "relu") for n in range(num_layers)] , → 7 self.dropout = tf.keras.layers.Dropout(0.2) 8 self.dense_2 = tf.keras.layers.Dense(10) 9 10 11 def __call__(self, x): 12 x = self.flatten(x) 13 for layer in self.layers: 14 x = layer(x) 15 x = self.dropout(x) 16 x = self.dense_2(x) 17 return x
- 8. Hybridized TensorFlow Imperative(OO) DL Model Code 1 class SequentialModel(tf.keras.Model): 2 def __init__(self, **kwargs): 3 super(SequentialModel, self).__init__(...) 4 self.flatten = layers.Flatten(input_shape=(28, 28)) 5 num_layers = 100 # Add many small layers. 6 self.layers = [layers.Dense(64, activation = "relu") for n in range(num_layers)] , → 7 self.dropout = tf.keras.layers.Dropout(0.2) 8 self.dense_2 = tf.keras.layers.Dense(10) 9 10 @tf.function(...) # Executes model as graph (optional args). 11 def __call__(self, x): 12 x = self.flatten(x) 13 for layer in self.layers: 14 x = layer(x) 15 x = self.dropout(x) 16 x = self.dense_2(x) 17 return x On line 10, AutoGraph used to potentially enhance performance. Decorates model’s call() method with @tf.function, possibly providing optional yet influential decorator arguments. At run-time, call()’s execution will be “traced” (∼9.22 speedup).
- 9. Hybridized TensorFlow Imperative(OO) DL Model Code 1 class SequentialModel(tf.keras.Model): 2 def __init__(self, **kwargs): 3 super(SequentialModel, self).__init__(...) 4 self.flatten = layers.Flatten(input_shape=(28, 28)) 5 num_layers = 100 # Add many small layers. 6 self.layers = [layers.Dense(64, activation = "relu") for n in range(num_layers)] , → 7 self.dropout = tf.keras.layers.Dropout(0.2) 8 self.dense_2 = tf.keras.layers.Dense(10) 9 10 @tf.function(...) # Executes model as graph (optional args). 11 def __call__(self, x): 12 x = self.flatten(x) 13 for layer in self.layers: 14 x = layer(x) 15 x = self.dropout(x) 16 x = self.dense_2(x) 17 return x On line 10, AutoGraph used to potentially enhance performance. Decorates model’s call() method with @tf.function, possibly providing optional yet influential decorator arguments. At run-time, call()’s execution will be “traced” (∼9.22 speedup).
- 10. Hybridized TensorFlow Imperative(OO) DL Model Code 1 class SequentialModel(tf.keras.Model): 2 def __init__(self, **kwargs): 3 super(SequentialModel, self).__init__(...) 4 self.flatten = layers.Flatten(input_shape=(28, 28)) 5 num_layers = 100 # Add many small layers. 6 self.layers = [layers.Dense(64, activation = "relu") for n in range(num_layers)] , → 7 self.dropout = tf.keras.layers.Dropout(0.2) 8 self.dense_2 = tf.keras.layers.Dense(10) 9 10 @tf.function(...) # Executes model as graph (optional args). 11 def __call__(self, x): 12 x = self.flatten(x) 13 for layer in self.layers: 14 x = layer(x) 15 x = self.dropout(x) 16 x = self.dense_2(x) 17 return x On line 10, AutoGraph used to potentially enhance performance. Decorates model’s call() method with @tf.function, possibly providing optional yet influential decorator arguments. At run-time, call()’s execution will be “traced” (∼9.22 speedup).
- 11. Introduction Motivation OptimizationApproach Conclusion Drawbacks Hybridization Drawbacks Needs non-trivial, specialized metadata [Jeong et al., 2019]. Exhibit limitations and known issues with native program constructs. Subtle considerations required to: Specify (decorate) the functions to be migrated. Make code amenable to safe, accurate, and efficient graph execution. Avoid performance bottlenecks and semantically inequivalent results [Cao et al., 2021, Castro Vélez et al., 2022]. Manual analysis and refactoring (semantics-preserving, source-to-source transformation) for optimal results can be error- and omission-prone [Dig et al., 2009]. Further complicated by: Increasing Object-Orientation (OO) in DL model code [Chollet, 2020]. Dynamically-typed languages (e.g., Python). Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 7 / 12
- 12. Introduction Motivation OptimizationApproach Conclusion Problem Insight Goals Approach Key Insight Although imperative DL code is sequentially executed, hybridizing code resembles parallelizing sequential code. Example To void unexpected behavior, like concurrent programs, hybrid functions should avoid side-effects. Idea Adapt concepts from automated refactorings that parallelize sequential code, e.g., Streaming APIs [Khatchadourian et al., 2019]. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 8 / 12
- 13. Work In Progress Twonew, fully-automated refactorings are in-progress: Convert Eager Function to Hybrid Transforms otherwise eagerly-executed imperative (Python) DL code for enhanced run-time performance. Automatically specifies (decorates) whether and how code could be reliably and efficiently executed as graphs at run-time. Avoids hybridizing code under certain conditions (e.g., side-effecting code) to preserve semantics. Optimize Hybrid Function Transforms code already running as graphs for optimal run-time performance. Modifies existing decorator parameters (e.g., tensor shape specs). Potentially restructures code to be more amenable to graph transformation. Possibly dehybridize code when eager execution could be faster (e.g., graph “retracing”).
- 14. Approach Highlights Novel tensoranalysis for imperative DL code. Current analyzers work on only procedural (TF 1) code. Modernization of WALA Ariadne [Dolby et al., 2018] for imperative (TF 2) code underway. Implemented as a PyDev Eclipse IDE plug-in [Zadrozny, 2023]. Integrates Ariadne for tensor type inference and shape (static) analysis.

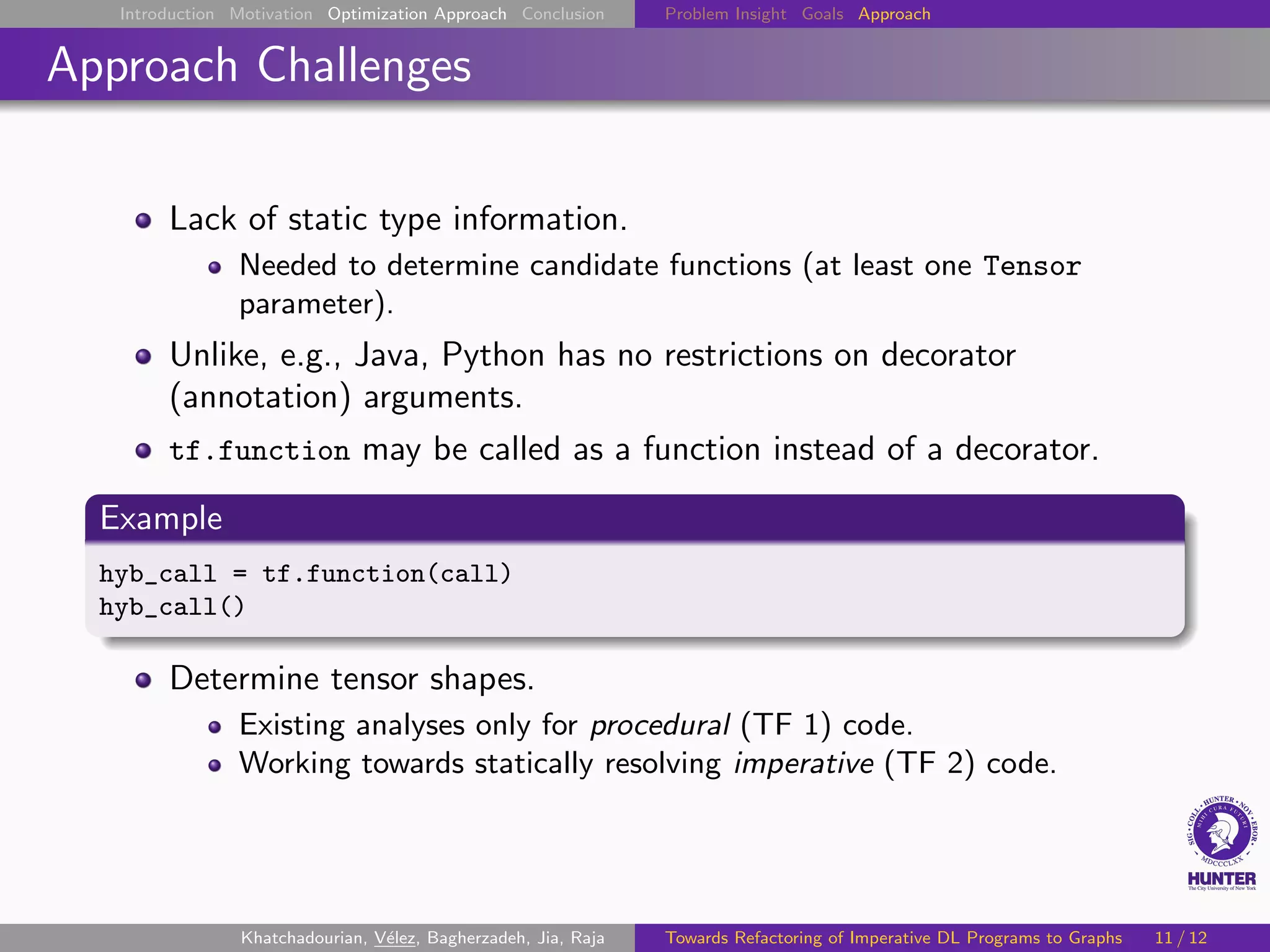

- 15. Introduction Motivation OptimizationApproach Conclusion Problem Insight Goals Approach Approach Challenges Lack of static type information. Needed to determine candidate functions (at least one Tensor parameter). Unlike, e.g., Java, Python has no restrictions on decorator (annotation) arguments. tf.function may be called as a function instead of a decorator. Example hyb_call = tf.function(call) hyb_call() Determine tensor shapes. Existing analyses only for procedural (TF 1) code. Working towards statically resolving imperative (TF 2) code. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 11 / 12
- 16. Introduction Motivation OptimizationApproach Conclusion Conclusion Imperative Deep Learning code is easier to debug, write, and maintain than traditional DL code that runs in a deferred execution. However, it comes at the expense of (run-time) performance. Hybrid approaches bridge the gap between eager and graph execution. Using hybrid techniques to achieve optimal performance and semantics preservation is non-trivial. Future Work Automated client-side analyses and transformations to use hybridization APIs correctly and optimally is in-progress. Evaluation using dataset from our MSR ’22 [Castro Vélez et al., 2022] empirical study. More details in paper! http://bit.ly/tf2-ase23 Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12
- 17. Introduction Motivation OptimizationApproach Conclusion For Further Reading I Abadi, Martı́n et al. (2016). “TensorFlow: A System for Large-Scale Machine Learning”. In: Symposium on Operating Systems Design and Implementation. Agrawal, Akshay et al. (2019). TensorFlow Eager: A Multi-Stage, Python-Embedded DSL for Machine Learning. arXiv: 1903.01855 [cs.PL]. Apache (Apr. 8, 2021). Hybridize. Apache MXNet documentation. url: https://mxnet.apache.org/versions/1.8.0/api/python/docs/tutorials/packages/gluon/blocks/hybridize.html (visited on 04/08/2021). Arpteg, A., B. Brinne, L. Crnkovic-Friis, and J. Bosch (2018). “Software Engineering Challenges of Deep Learning”. In: Euromicro Conference on Software Engineering and Advanced Applications. IEEE, pp. 50–59. doi: 10.1109/SEAA.2018.00018. Cao, Junming, Bihuan Chen, Chao Sun, Longjie Hu, and Xin Peng (Dec. 3, 2021). Characterizing Performance Bugs in Deep Learning Systems. arXiv: 2112.01771 [cs.SE]. Castro Vélez, Tatiana, Raffi Khatchadourian, Mehdi Bagherzadeh, and Anita Raja (May 2022). “Challenges in Migrating Imperative Deep Learning Programs to Graph Execution: An Empirical Study”. In: International Conference on Mining Software Repositories. MSR ’22. ACM/IEEE. ACM. doi: 10.1145/3524842.3528455. arXiv: 2201.09953 [cs.SE]. Chen, Tianqi, Mu Li, Yutian Li, Min Lin, Naiyan Wang, Minjie Wang, Tianjun Xiao, Bing Xu, Chiyuan Zhang, and Zheng Zhang (2015). “MXNet: A Flexible and Efficient Machine Learning Library for Heterogeneous Distributed Systems”. In: Workshop on Machine Learning Systems at NIPS. arXiv: 1512.01274 [cs.DC]. Chollet, François (2020). Deep Learning with Python. 2nd ed. Manning. Dig, Danny, John Marrero, and Michael D. Ernst (2009). “Refactoring sequential Java code for concurrency via concurrent libraries”. In: International Conference on Software Engineering. IEEE, pp. 397–407. doi: 10.1109/ICSE.2009.5070539. Dilhara, Malinda, Ameya Ketkar, Nikhith Sannidhi, and Danny Dig (2022). “Discovering Repetitive Code Changes in Python ML Systems”. In: International Conference on Software Engineering. ICSE ’22. To appear. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12
- 18. Introduction Motivation OptimizationApproach Conclusion For Further Reading II Dolby, Julian, Avraham Shinnar, Allison Allain, and Jenna Reinen (2018). “Ariadne: Analysis for Machine Learning Programs”. In: International Workshop on Machine Learning and Programming Languages. MAPL 2018. ACM SIGPLAN. Philadelphia, PA, USA: Association for Computing Machinery, pp. 1–10. isbn: 9781450358347. doi: 10.1145/3211346.3211349. Facebook Inc. (2019). PyTorch Documentation. TorchScript. en. url: https://pytorch.org/docs/stable/jit.html (visited on 02/19/2021). Jeong, Eunji, Sungwoo Cho, Gyeong-In Yu, Joo Seong Jeong, Dong-Jin Shin, Taebum Kim, and Byung-Gon Chun (July 2019). “Speculative Symbolic Graph Execution of Imperative Deep Learning Programs”. In: SIGOPS Oper. Syst. Rev. 53.1, pp. 26–33. issn: 0163-5980. doi: 10.1145/3352020.3352025. Khatchadourian, Raffi, Yiming Tang, Mehdi Bagherzadeh, and Syed Ahmed (2019). “Safe Automated Refactoring for Intelligent Parallelization of Java 8 Streams”. In: International Conference on Software Engineering. ICSE ’19. IEEE Press, pp. 619–630. doi: 10.1109/ICSE.2019.00072. Kim, Miryung, Thomas Zimmermann, and Nachiappan Nagappan (Nov. 2012). “A Field Study of Refactoring Challenges and Benefits”. In: Joint Meeting on European Software Engineering Conference and Symposium on the Foundations of Software Engineering. FSE ’12. Cary, North Carolina: ACM. isbn: 9781450316149. doi: 10.1145/2393596.2393655. Moldovan, Dan, James M. Decker, Fei Wang, Andrew A. Johnson, Brian K. Lee, Zachary Nado, D. Sculley, Tiark Rompf, and Alexander B. Wiltschko (2019). AutoGraph: Imperative-style Coding with Graph-based Performance. arXiv: 1810.08061 [cs.PL]. Negara, Stas, Nicholas Chen, Mohsen Vakilian, Ralph E. Johnson, and Danny Dig (2013). “A Comparative Study of Manual and Automated Refactorings”. In: European Conference on Object-Oriented Programming. Ed. by Giuseppe Castagna. Berlin, Heidelberg: Springer Berlin Heidelberg, pp. 552–576. isbn: 978-3-642-39038-8. OpenAI, Inc. (Aug. 18, 2023). ChatGPT. url: https://chat.openai.com (visited on 08/18/2023). Paszke, Adam et al. (Dec. 3, 2019). PyTorch: An Imperative Style, High-Performance Deep Learning Library. arXiv: 1912.01703 [cs.LG]. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12

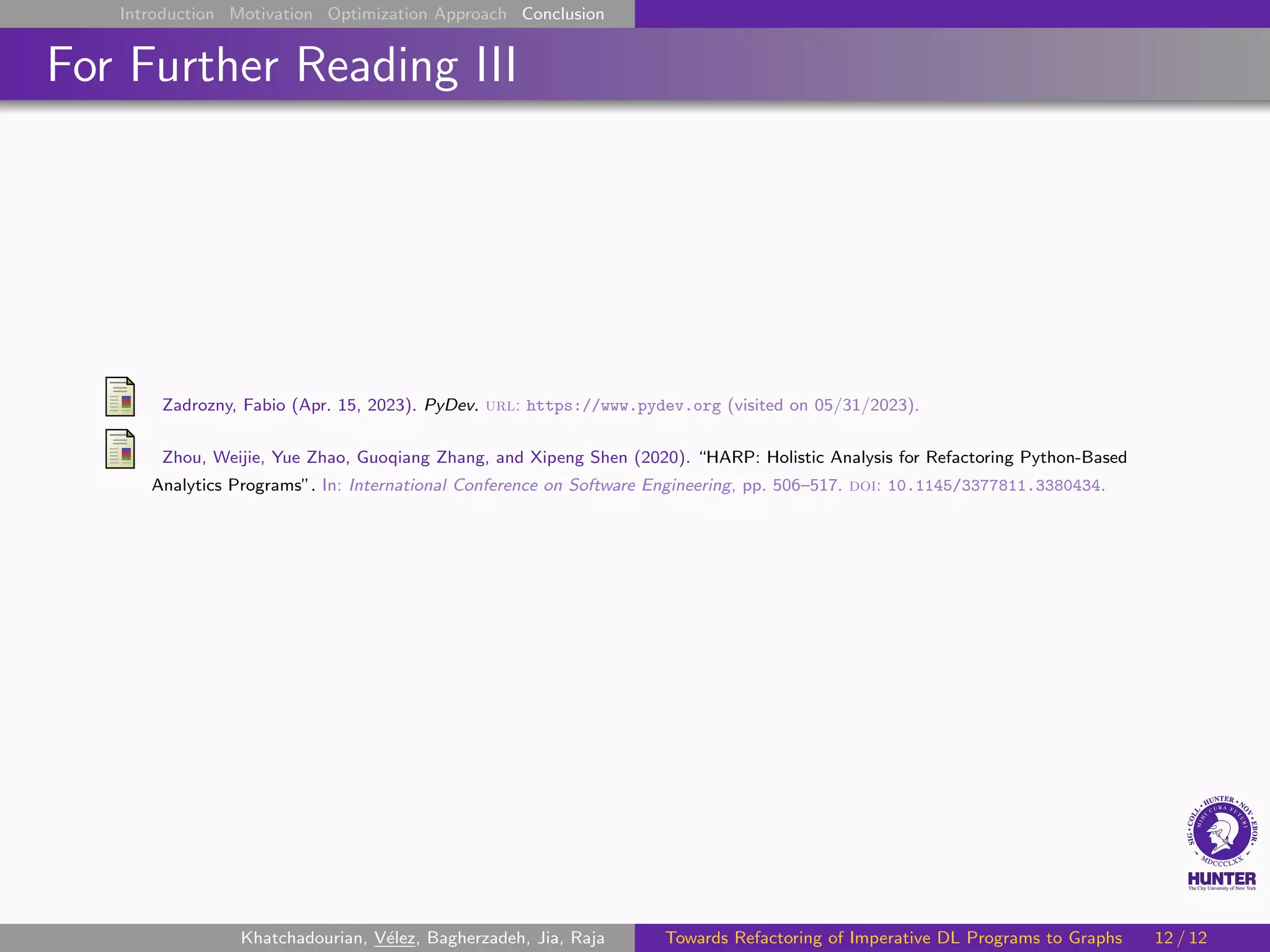

- 19. Introduction Motivation OptimizationApproach Conclusion For Further Reading III Zadrozny, Fabio (Apr. 15, 2023). PyDev. url: https://www.pydev.org (visited on 05/31/2023). Zhou, Weijie, Yue Zhao, Guoqiang Zhang, and Xipeng Shen (2020). “HARP: Holistic Analysis for Refactoring Python-Based Analytics Programs”. In: International Conference on Software Engineering, pp. 506–517. doi: 10.1145/3377811.3380434. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 12 / 12

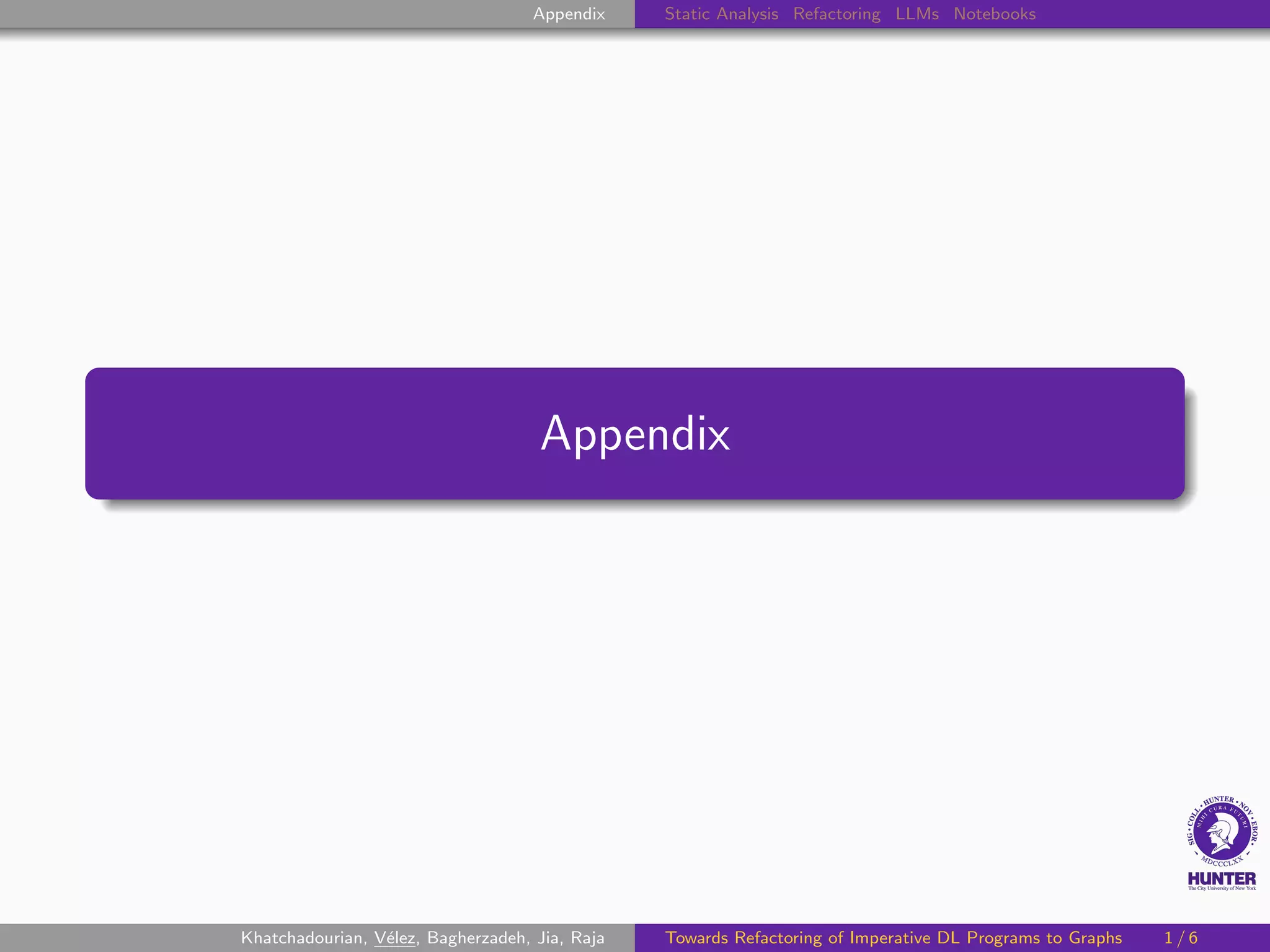

- 20. Appendix Static AnalysisRefactoring LLMs Notebooks Appendix Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 1 / 6

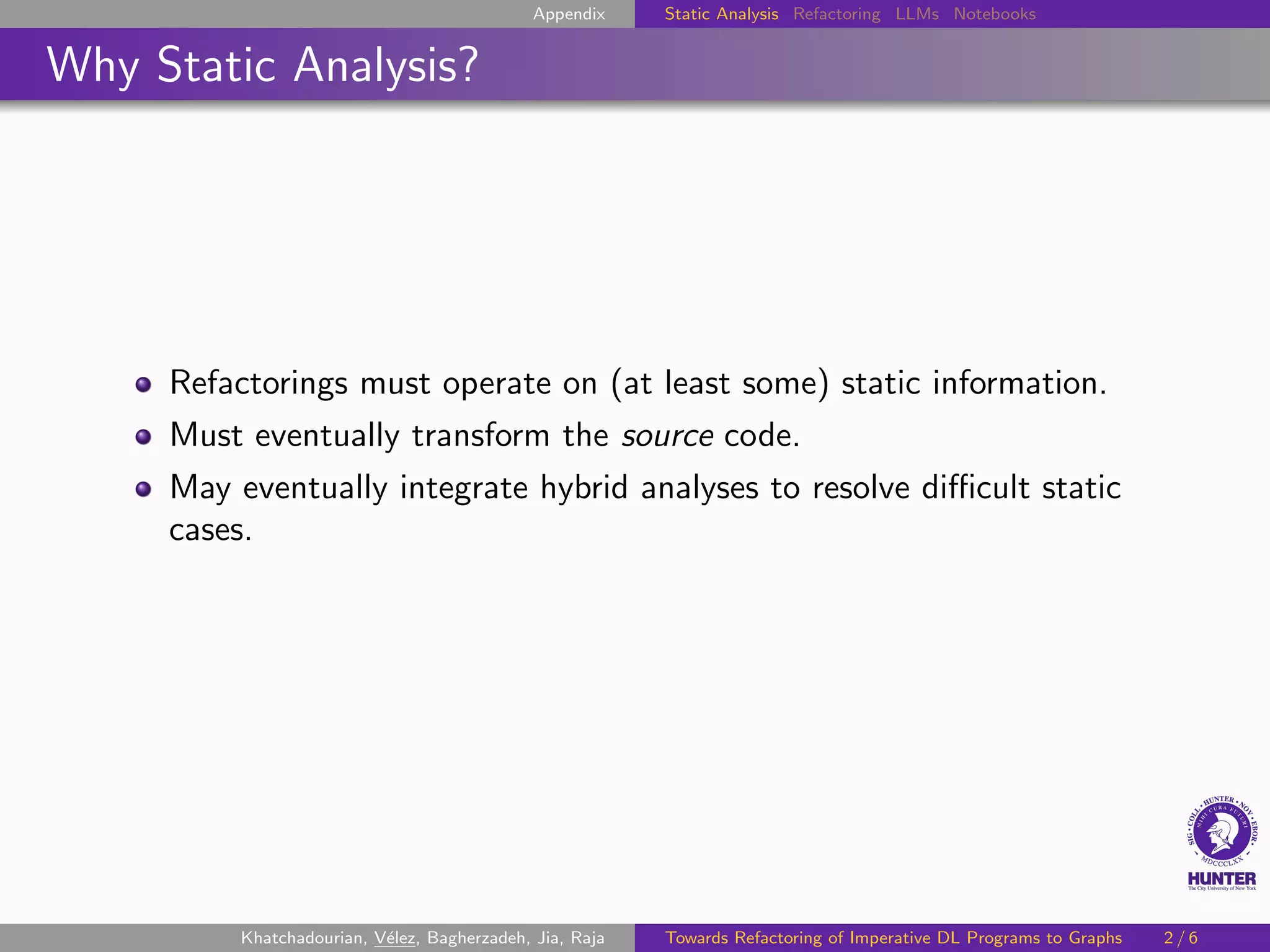

- 21. Appendix Static AnalysisRefactoring LLMs Notebooks Why Static Analysis? Refactorings must operate on (at least some) static information. Must eventually transform the source code. May eventually integrate hybrid analyses to resolve difficult static cases. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 2 / 6

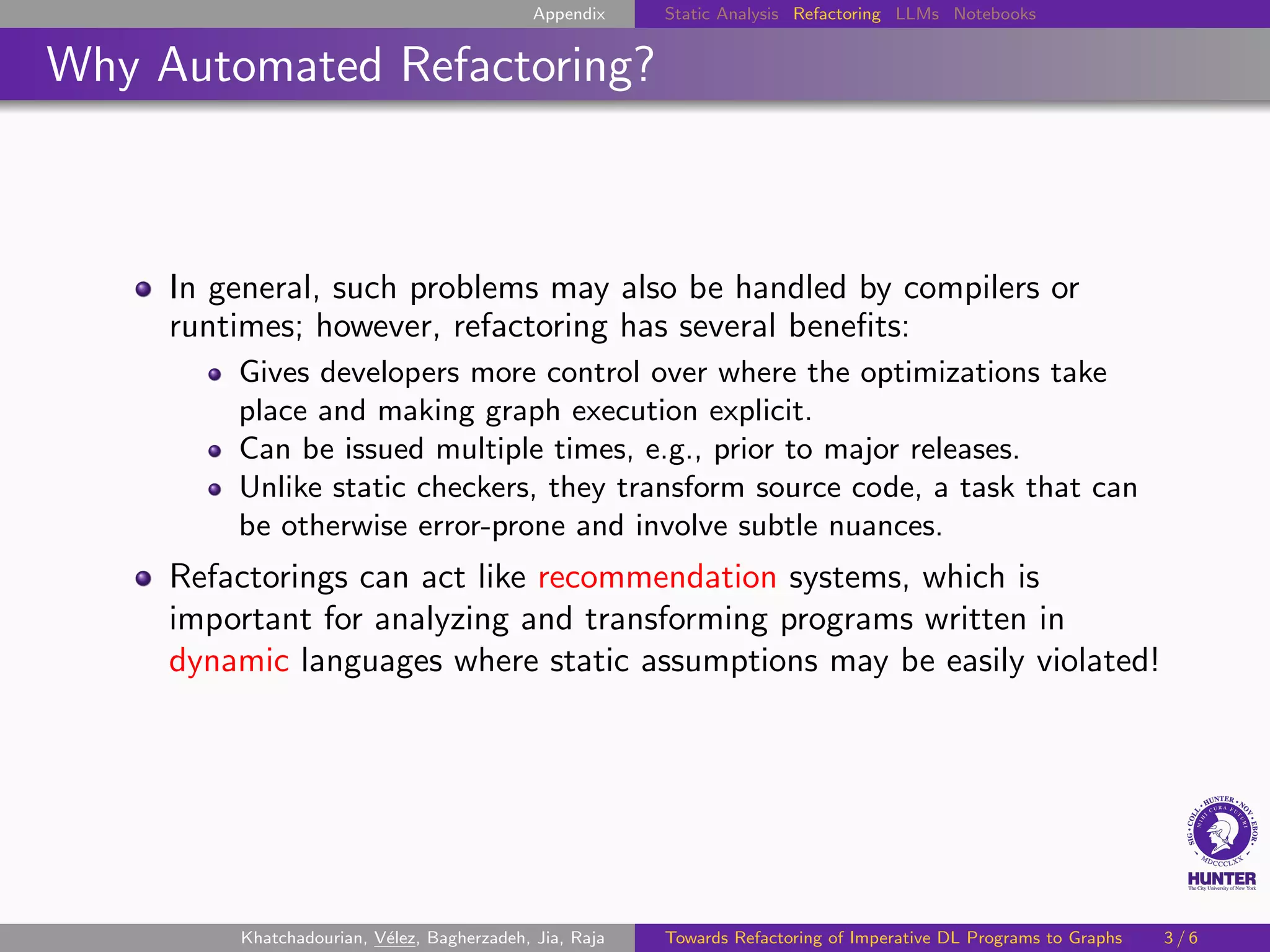

- 22. Appendix Static AnalysisRefactoring LLMs Notebooks Why Automated Refactoring? In general, such problems may also be handled by compilers or runtimes; however, refactoring has several benefits: Gives developers more control over where the optimizations take place and making graph execution explicit. Can be issued multiple times, e.g., prior to major releases. Unlike static checkers, they transform source code, a task that can be otherwise error-prone and involve subtle nuances. Refactorings can act like recommendation systems, which is important for analyzing and transforming programs written in dynamic languages where static assumptions may be easily violated! Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 3 / 6
- 23. Appendix Static AnalysisRefactoring LLMs Notebooks Refactoring Developer Adoption Developers generally underuse automated refactorings [Kim et al., 2012, Negara et al., 2013]. Data scientists and engineers may be more open to using automated (refactoring) tools. Our approach will be fully automated with minimal barrier to entry. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 4 / 6
- 24. Appendix Static AnalysisRefactoring LLMs Notebooks LLMs & Big Data Refactoring LLMs [OpenAI, Inc., 2023] can also perform refactorings. Other Big Data-driven refactorings [Dilhara et al., 2022] are exciting and promising. Obtaining a (correct) dataset large enough to automatically extract the proposed refactorings is challenging as developers struggle with (manually) migrating DL code to graph execution [Castro Vélez et al., 2022]. LLM inference capabilities are currently limited. LLMs have a token limitation. Hybridization requires interprocedural analysis. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 5 / 6

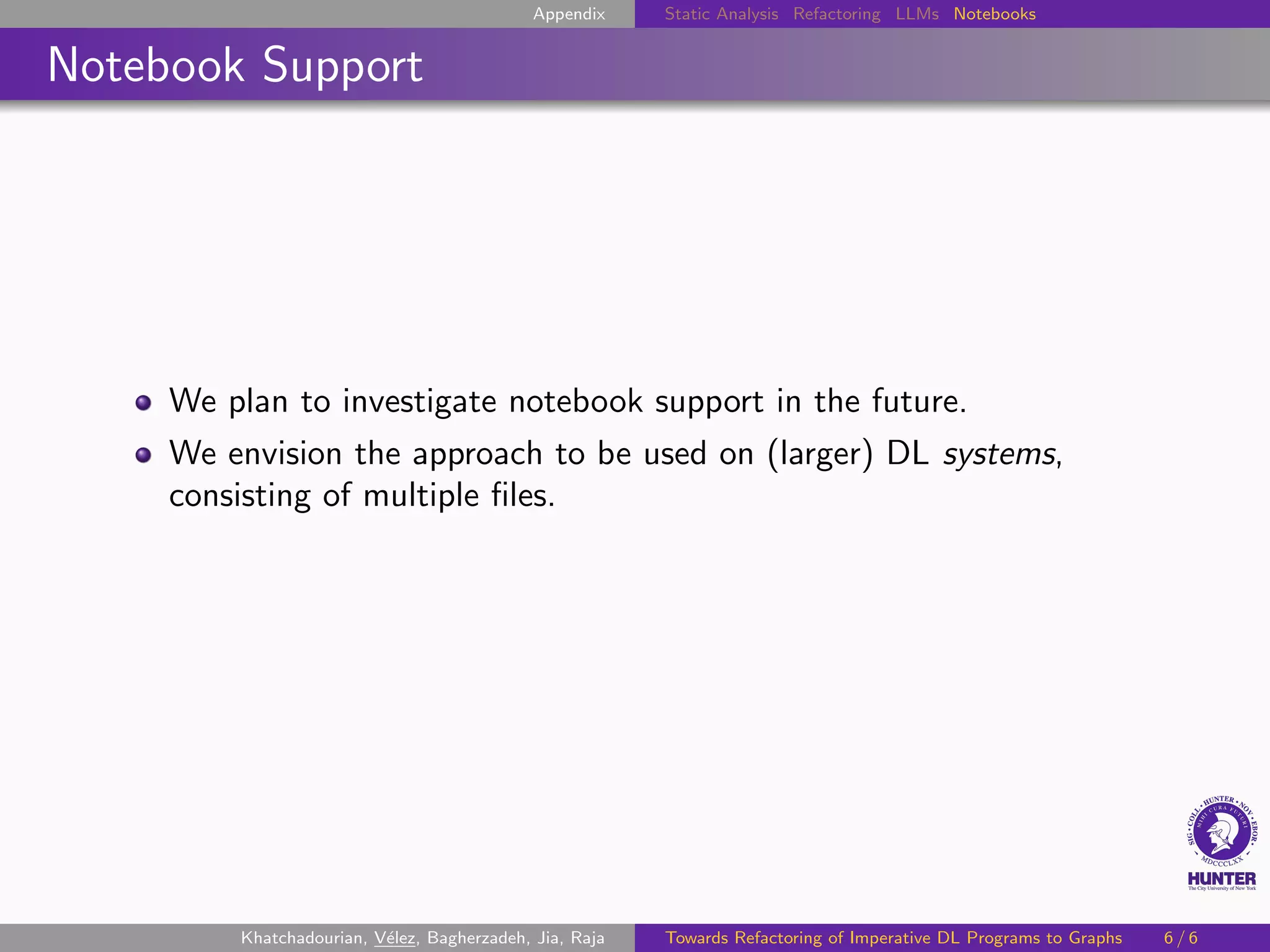

- 25. Appendix Static AnalysisRefactoring LLMs Notebooks Notebook Support We plan to investigate notebook support in the future. We envision the approach to be used on (larger) DL systems, consisting of multiple files. Khatchadourian, Vélez, Bagherzadeh, Jia, Raja Towards Refactoring of Imperative DL Programs to Graphs 6 / 6
