![def create_pipeline():
"""Implements the chicago taxi pipeline with TFX."""
examples = csv_input(os.path.join(data_root, 'simple'))
example_gen = CsvExampleGen(input_base=examples)
statistics_gen = StatisticsGen(input_data=...)
infer_schema = SchemaGen(stats=...)
validate_stats = ExampleValidator(stats=..., schema=...)
# Performs transformations and feature engineering in training and serving
transform = Transform(
input_data=example_gen.outputs.examples,
schema=infer_schema.outputs.output,
module_file=_taxi_module_file)
trainer = Trainer(...)
model_analyzer = Evaluator(examples=..., model_exports=...)
model_validator = ModelValidator(examples=..., model=...)
pusher = Pusher(model_export=..., model_blessing=..., serving_model_dir=...)
return [example_gen, statistics_gen, infer_schema, validate_stats, transform, trainer,
model_analyzer, model_validator, pusher]
pipeline = AirflowDAGRunner(_airflow_config).run(_create_pipeline())](https://image.slidesharecdn.com/tensorflowextendedanend-to-endmachinelearningplatformfortensorflow-190507104954/75/Flink-Forward-San-Francisco-2019-TensorFlow-Extended-An-end-to-end-machine-learning-platform-for-TensorFlow-Robert-Crowe-40-2048.jpg)
![Component: Transform
transform = Transform(
input_data=example_gen.outputs.examples,
schema=infer_schema.outputs.output,
module_file=taxi_module_file)
Configuration
for key in _DENSE_FLOAT_FEATURE_KEYS:
outputs[_transformed_name(key)] = transform.scale_to_z_score(
_fill_in_missing(inputs[key]))
# ...
outputs[_transformed_name(_LABEL_KEY)] = tf.where(
tf.is_nan(taxi_fare),
tf.cast(tf.zeros_like(taxi_fare), tf.int64),
# Test if the tip was > 20% of the fare.
tf.cast(
tf.greater(tips, tf.multiply(taxi_fare, tf.constant(0.2))), tf.int64))
# ...
CodeTransform
Data Schema
Transform
Graph
Transformed
Data
ExampleGen SchemaGen
Trainer
Inputs and Outputs
Code](https://image.slidesharecdn.com/tensorflowextendedanend-to-endmachinelearningplatformfortensorflow-190507104954/75/Flink-Forward-San-Francisco-2019-TensorFlow-Extended-An-end-to-end-machine-learning-platform-for-TensorFlow-Robert-Crowe-52-2048.jpg)
![def create_pipeline():
"""Implements the chicago taxi pipeline with TFX."""
examples = csv_input(os.path.join(data_root, 'simple'))
example_gen = CsvExampleGen(input_base=examples)

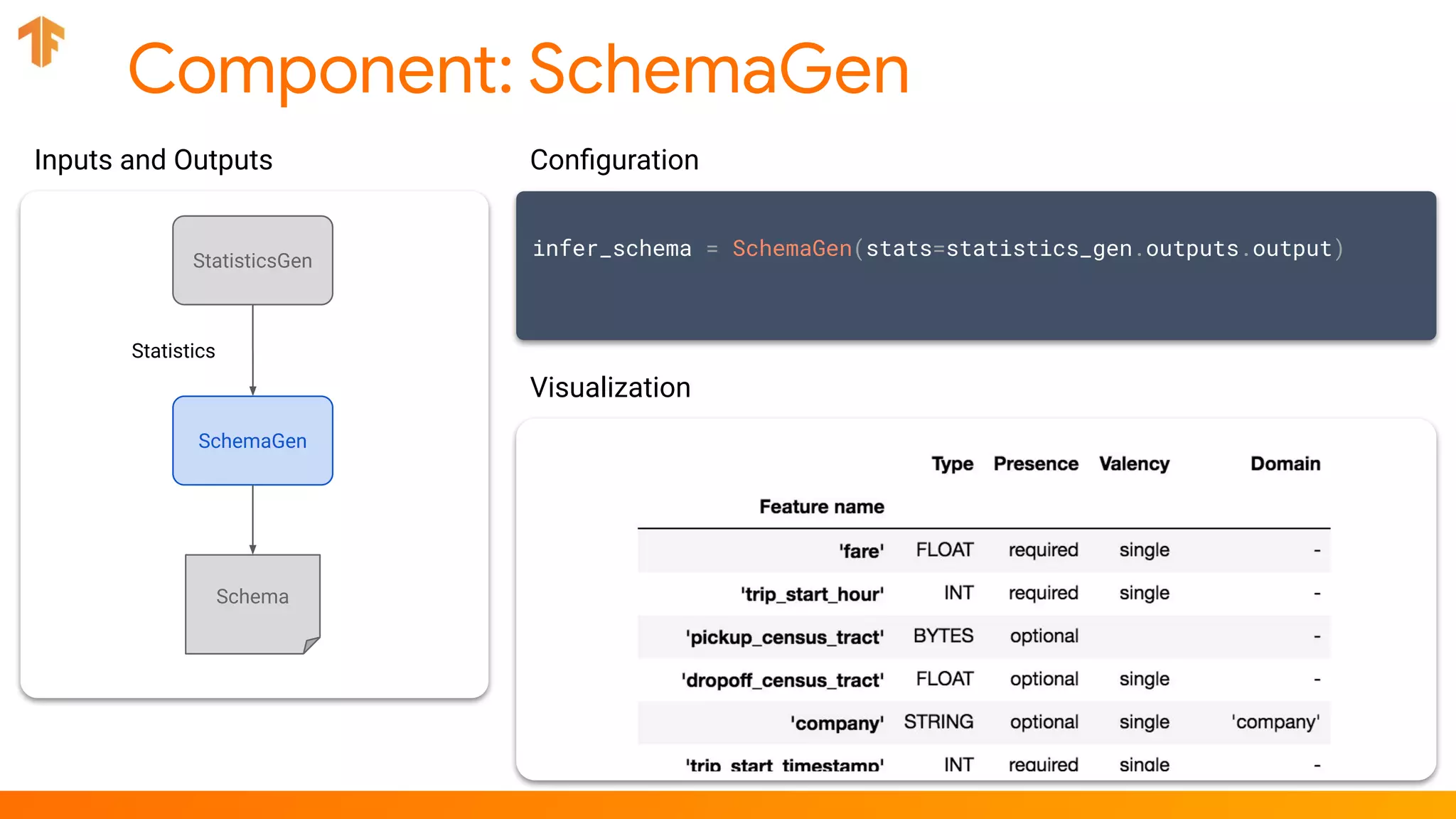

statistics_gen = StatisticsGen(input_data=...)

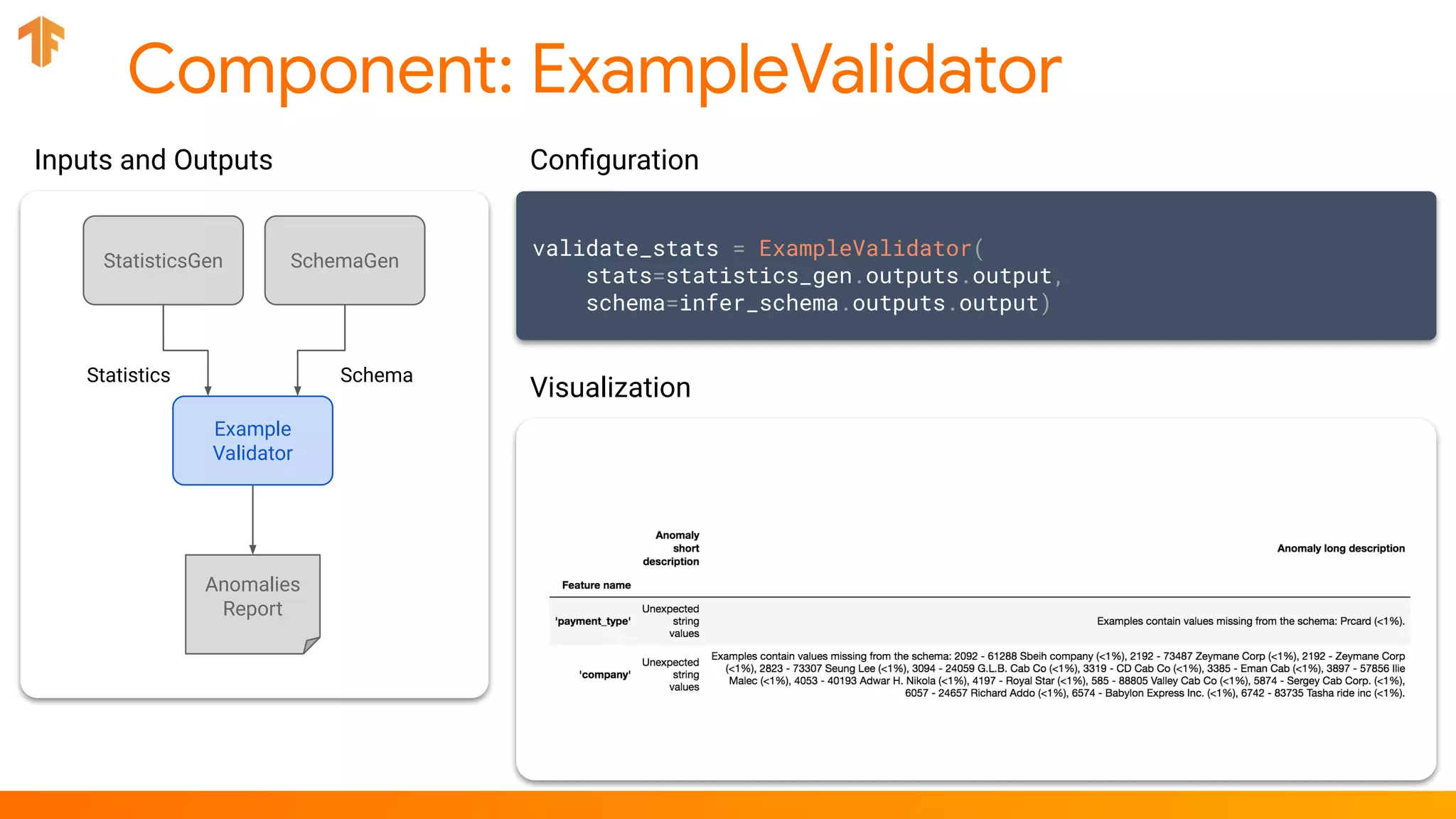

infer_schema = SchemaGen(stats=...)

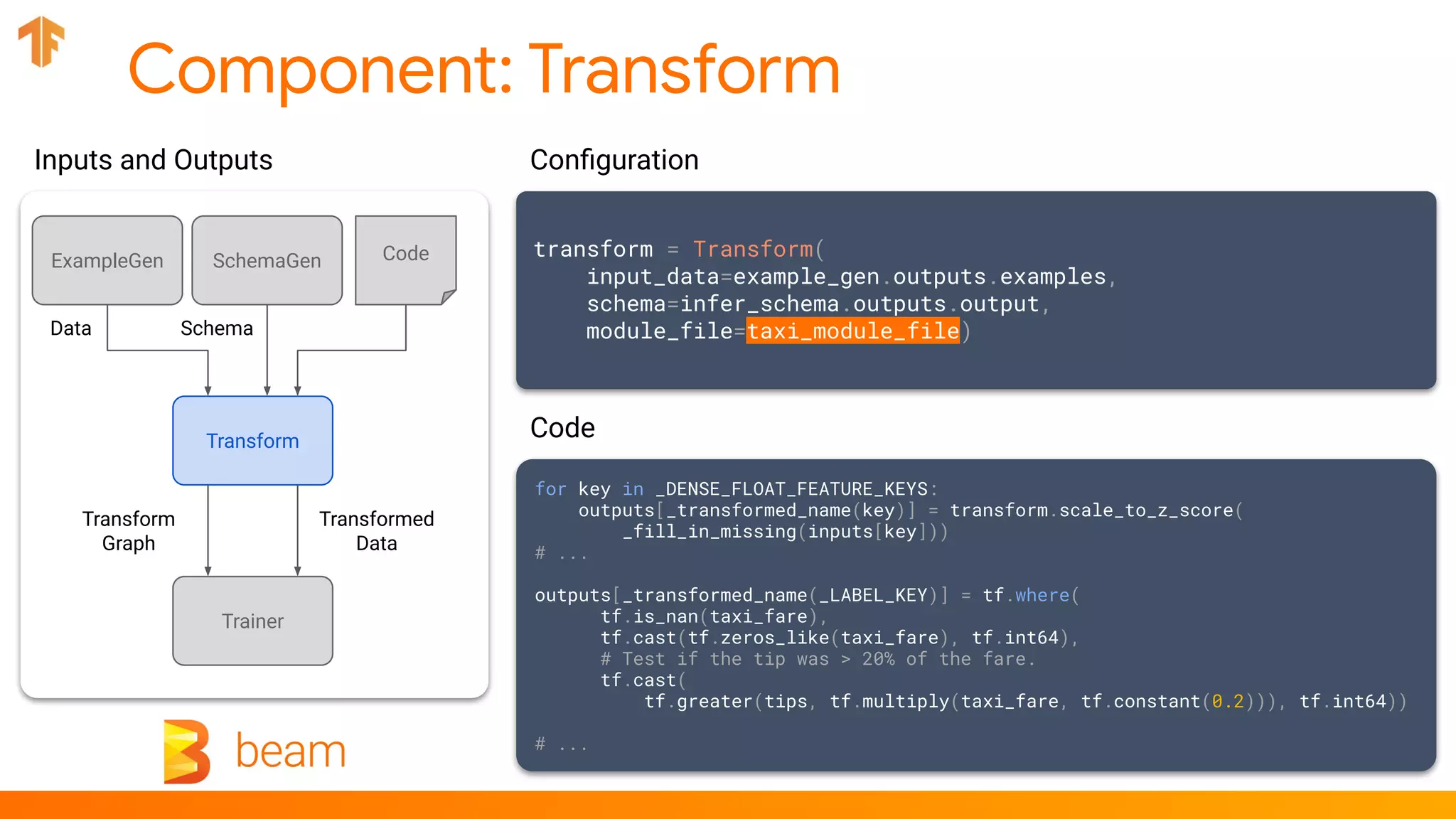

validate_stats = ExampleValidator(stats=..., schema=...)
# Performs transformations and feature engineering in training and serving
transform = Transform(
input_data=example_gen.outputs.examples,
schema=infer_schema.outputs.output,
module_file=_taxi_module_file)

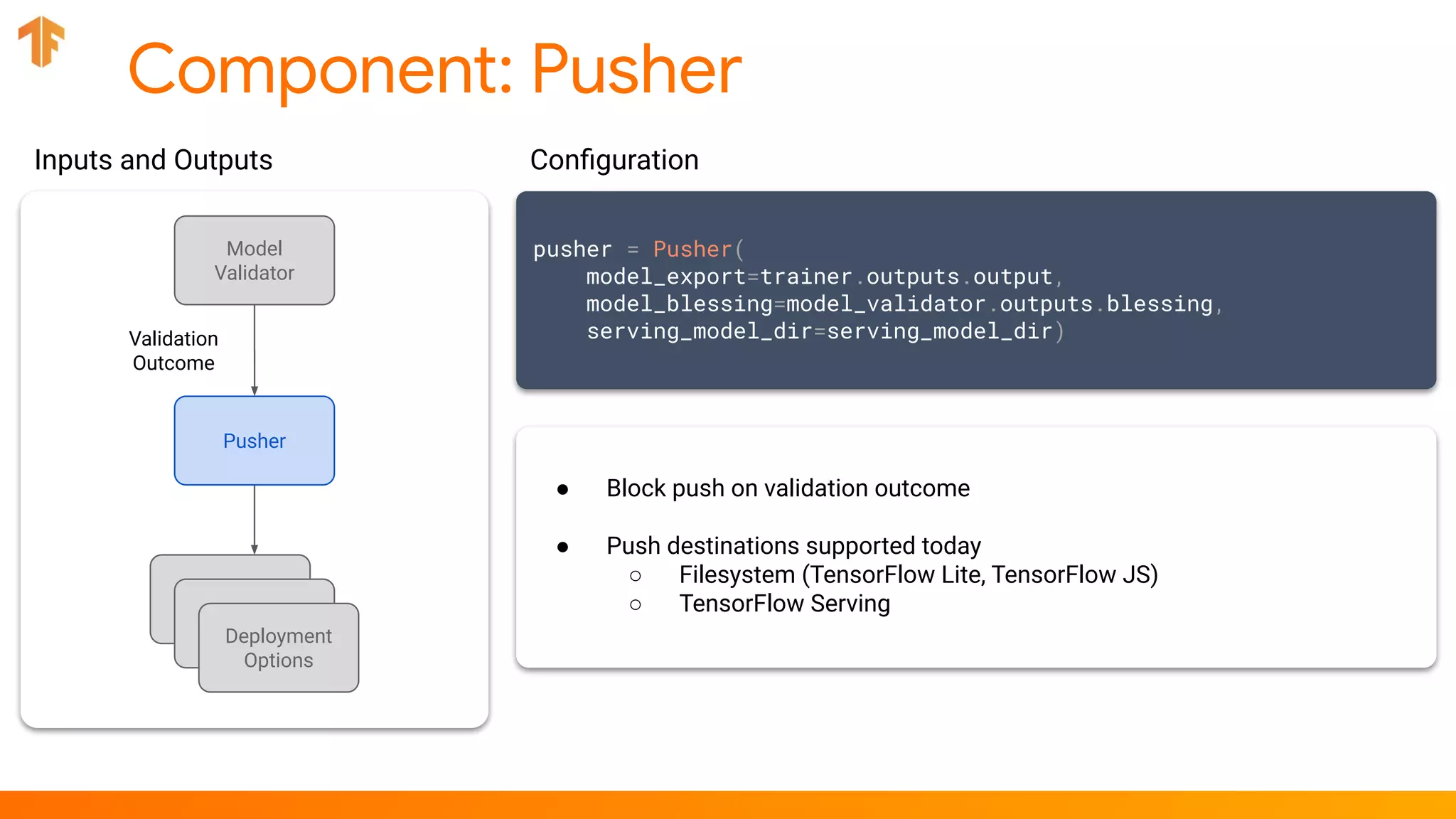

trainer = Trainer(...)
model_analyzer = Evaluator(examples=..., model_exports=...)
model_validator = ModelValidator(examples=..., model=...)
pusher = Pusher(model_export=..., model_blessing=..., serving_model_dir=...)
return [example_gen, statistics_gen, infer_schema, validate_stats, transform, trainer,
model_analyzer, model_validator, pusher]
pipeline = AirflowDAGRunner(_airflow_config).run(_create_pipeline())](https://crownmelresort.com/image.slidesharecdn.com/tensorflowextendedanend-to-endmachinelearningplatformfortensorflow-190507104954/75/Flink-Forward-San-Francisco-2019-TensorFlow-Extended-An-end-to-end-machine-learning-platform-for-TensorFlow-Robert-Crowe-40-2048.jpg)
![Component: Transform
transform = Transform(
input_data=example_gen.outputs.examples,
schema=infer_schema.outputs.output,
module_file=taxi_module_file)
Configuration
for key in _DENSE_FLOAT_FEATURE_KEYS:
outputs[_transformed_name(key)] = transform.scale_to_z_score(
_fill_in_missing(inputs[key]))
# ...
outputs[_transformed_name(_LABEL_KEY)] = tf.where(
tf.is_nan(taxi_fare),
tf.cast(tf.zeros_like(taxi_fare), tf.int64),
# Test if the tip was > 20% of the fare.
tf.cast(
tf.greater(tips, tf.multiply(taxi_fare, tf.constant(0.2))), tf.int64))
# ...
CodeTransform
Data Schema
Transform
Graph
Transformed
Data
ExampleGen SchemaGen
Trainer
Inputs and Outputs
Code](https://crownmelresort.com/image.slidesharecdn.com/tensorflowextendedanend-to-endmachinelearningplatformfortensorflow-190507104954/75/Flink-Forward-San-Francisco-2019-TensorFlow-Extended-An-end-to-end-machine-learning-platform-for-TensorFlow-Robert-Crowe-52-2048.jpg)
Uploaded byFlink Forward
Flink Forward San Francisco 2019: TensorFlow Extended: An end-to-end machine learning platform for TensorFlow - Robert Crowe
TFX (TensorFlow Extended) is an end-to-end machine learning platform for TensorFlow that addresses common challenges with ML workflows. It provides reusable components like ExampleGen, Transform, Trainer and Pusher that together form a complete ML pipeline. The components communicate with each other via a metadata store. TFX uses Apache Beam and Kubernetes to provide portability and scalability. It aims to make machine learning workflows easier to build, operate and monitor.
More Related Content
Similar to Flink Forward San Francisco 2019: TensorFlow Extended: An end-to-end machine learning platform for TensorFlow - Robert Crowe
![Hybrid Cloud, Kubeflow and Tensorflow Extended [TFX]](https://cdn.slidesharecdn.com/ss_thumbnails/tfx-kfp-191031073013-thumbnail.jpg?width=640&height=640&fit=bounds)
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Flink Forward San Francisco 2019: TensorFlow Extended: An end-to-end machine learning platform for TensorFlow - Robert Crowe
- 1.
- 2.

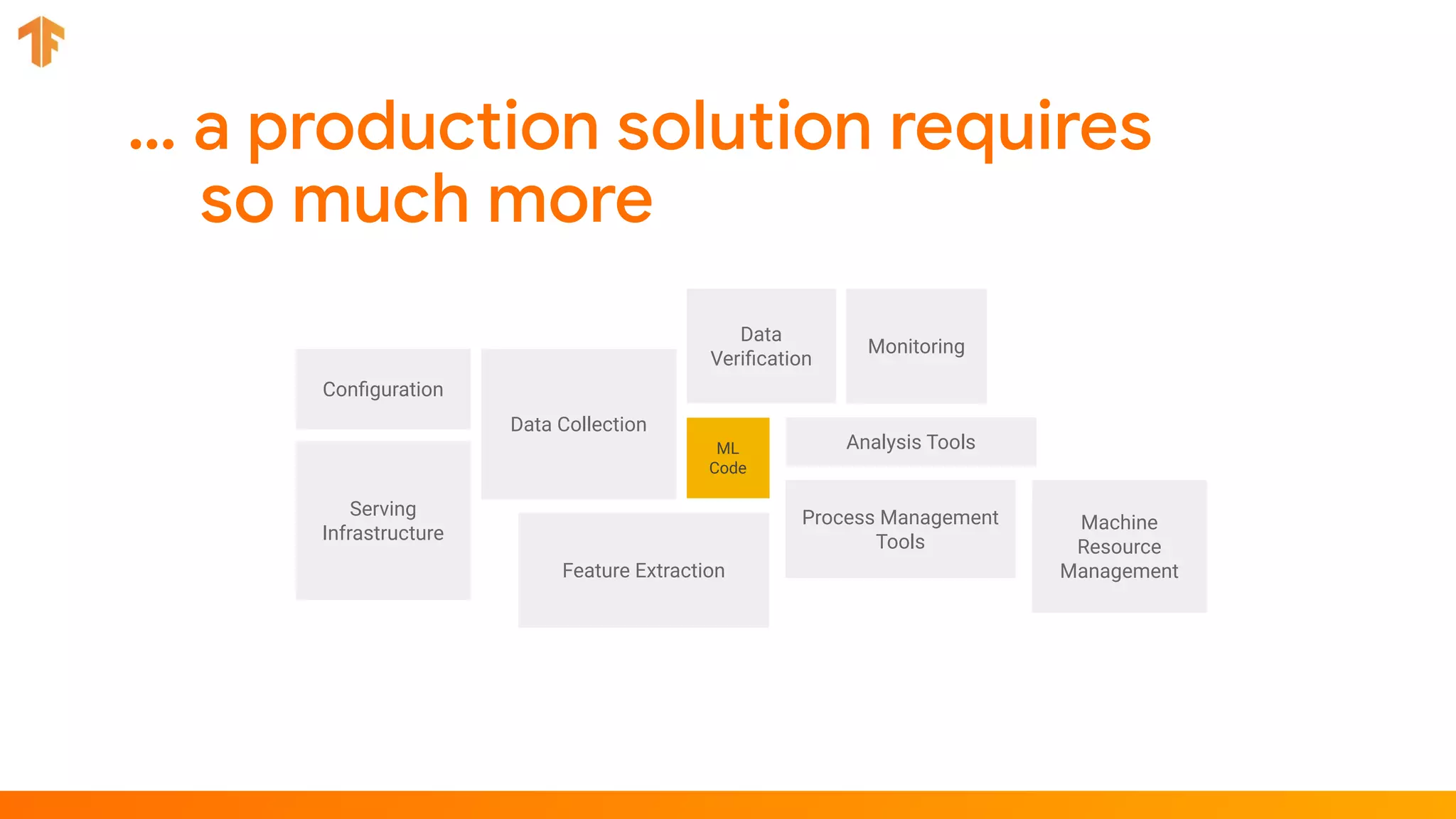

- 3. Configuration Data Collection Data Verification Feature Extraction ProcessManagement Tools Analysis Tools Machine Resource Management Serving Infrastructure Monitoring ML Code

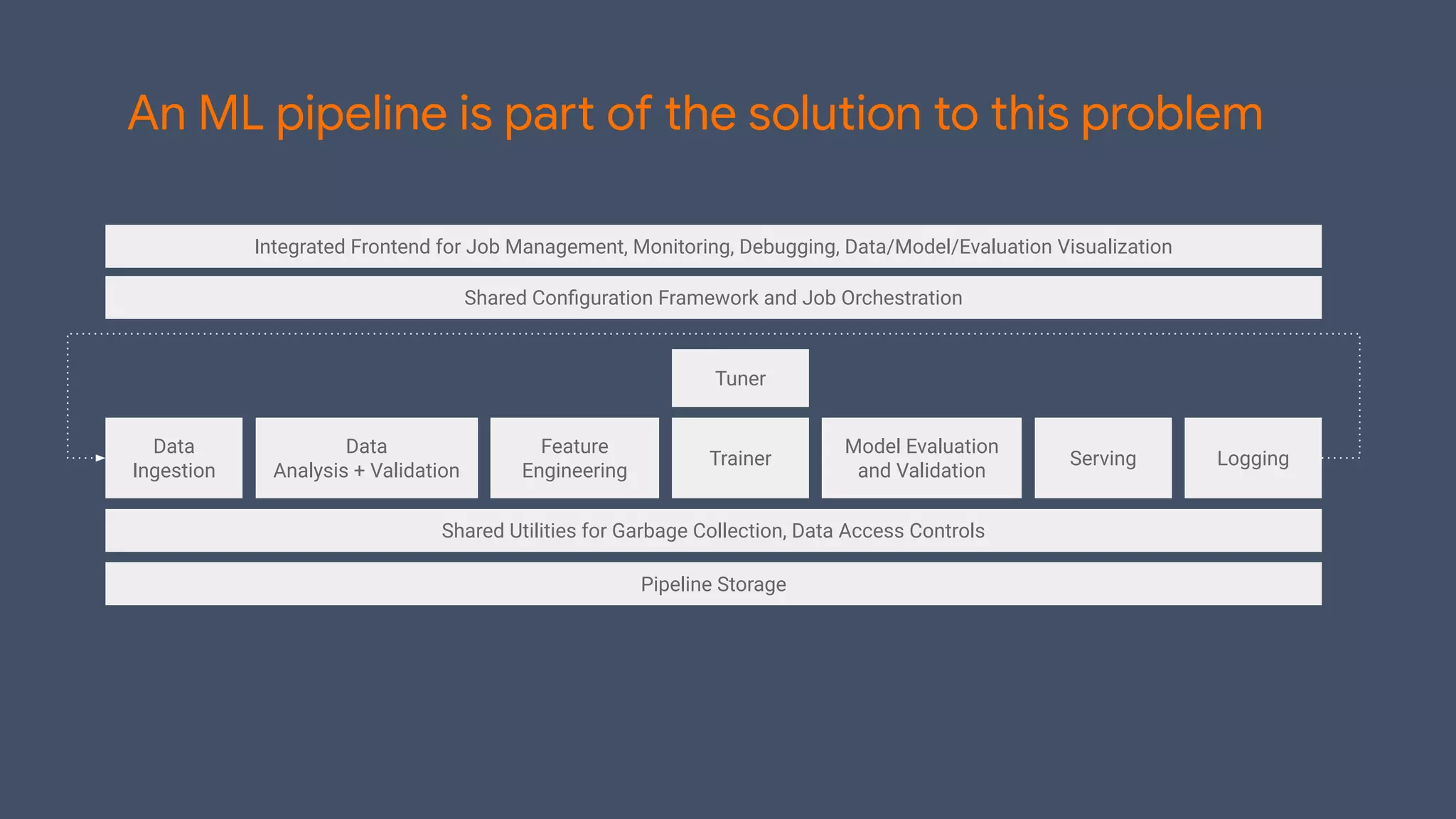

- 4. Data Ingestion Data Analysis + Validation Feature Engineering Trainer ModelEvaluation and Validation Serving Logging Shared Utilities for Garbage Collection, Data Access Controls Pipeline Storage Tuner Shared Configuration Framework and Job Orchestration Integrated Frontend for Job Management, Monitoring, Debugging, Data/Model/Evaluation Visualization An ML pipeline is part of the solution to this problem

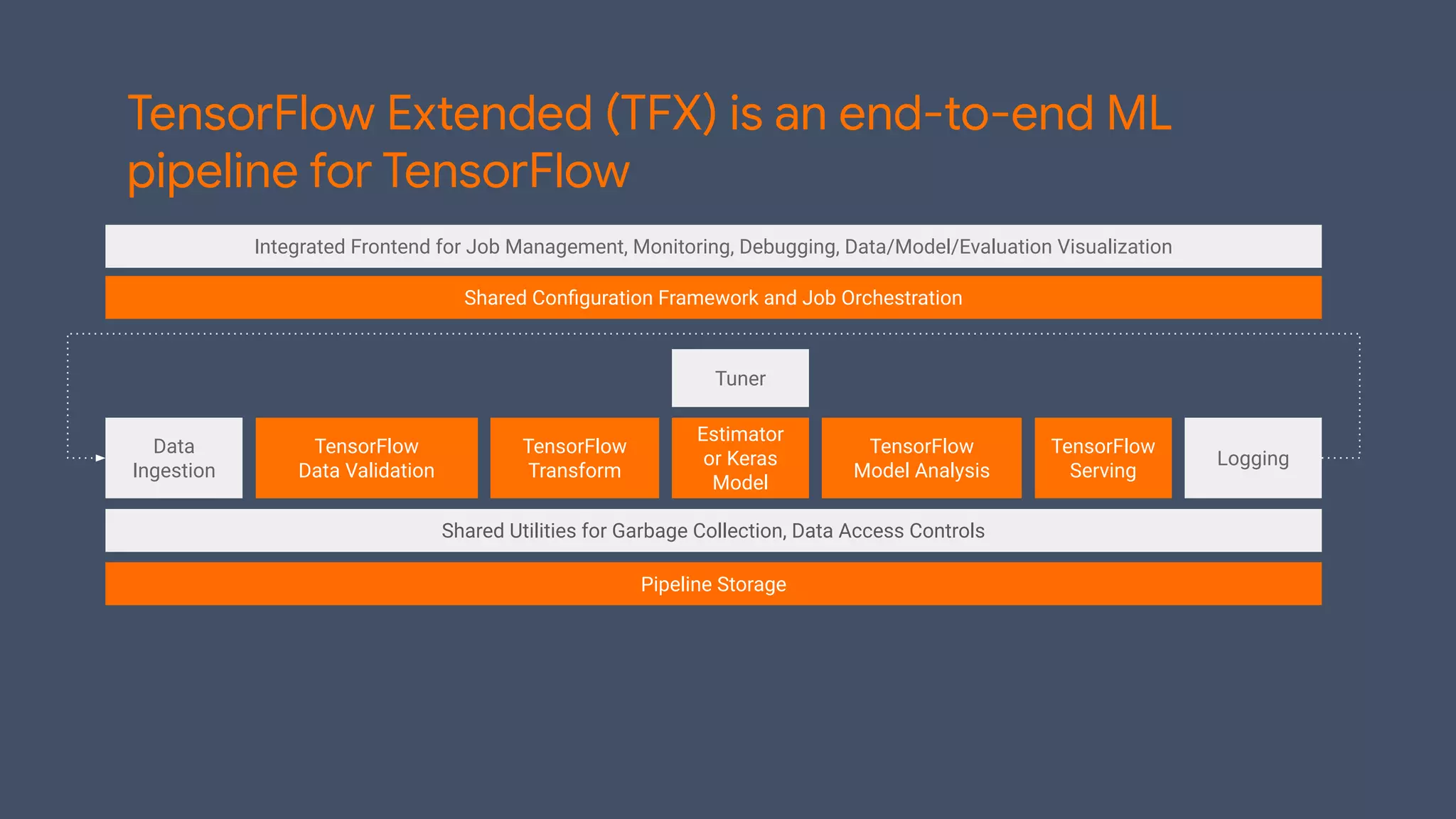

- 5. Data Ingestion TensorFlow Data Validation TensorFlow Transform Estimator or Keras Model TensorFlow ModelAnalysis TensorFlow Serving Logging Shared Utilities for Garbage Collection, Data Access Controls Pipeline Storage Tuner Shared Configuration Framework and Job Orchestration Integrated Frontend for Job Management, Monitoring, Debugging, Data/Model/Evaluation Visualization TensorFlow Extended (TFX) is an end-to-end ML pipeline for TensorFlow
- 6.

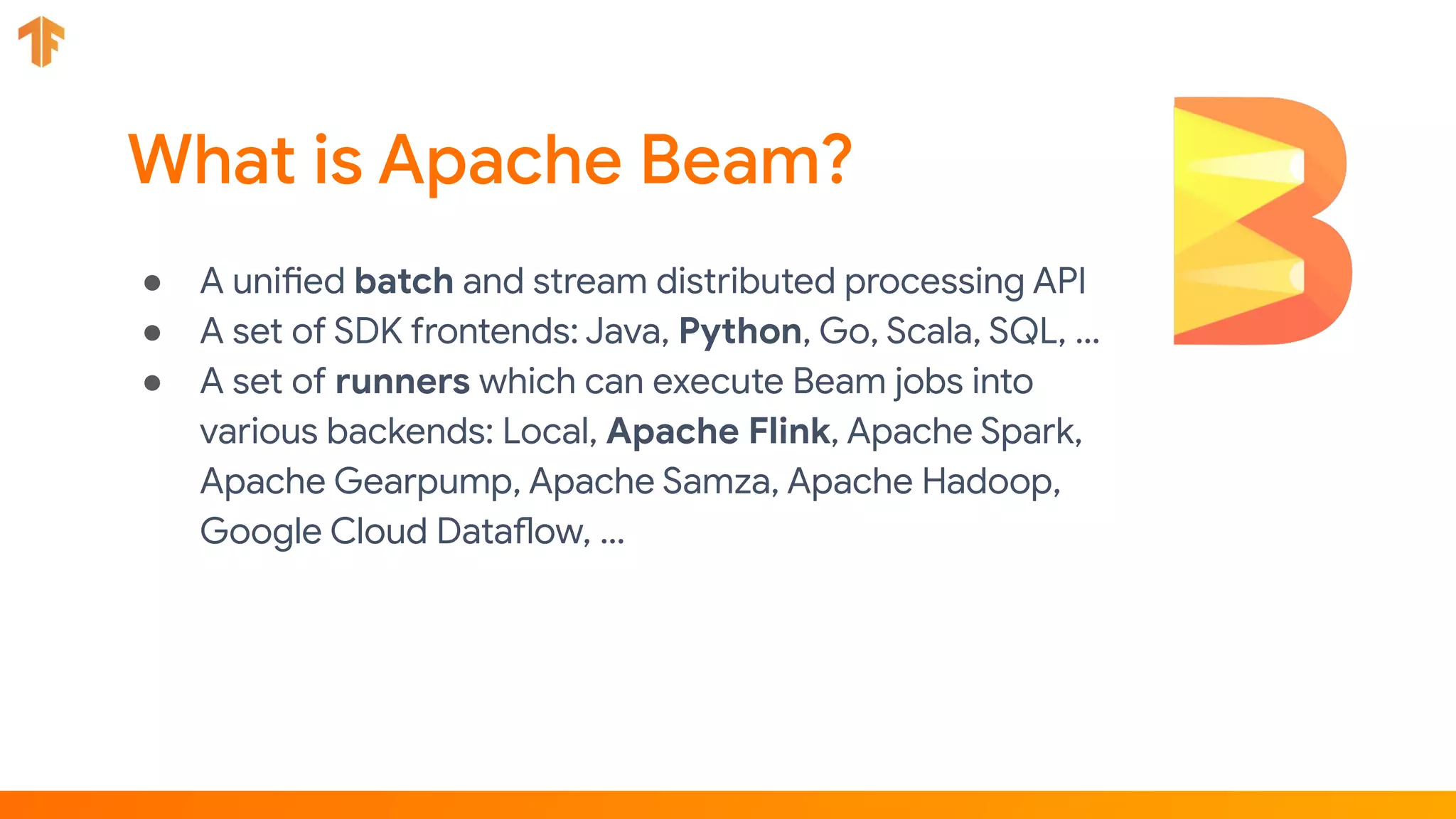

- 8. ● A unifiedbatch and stream distributed processing API ● A set of SDK frontends: Java, Python, Go, Scala, SQL, … ● A set of runners which can execute Beam jobs into various backends: Local, Apache Flink, Apache Spark, Apache Gearpump, Apache Samza, Apache Hadoop, Google Cloud Dataflow, …

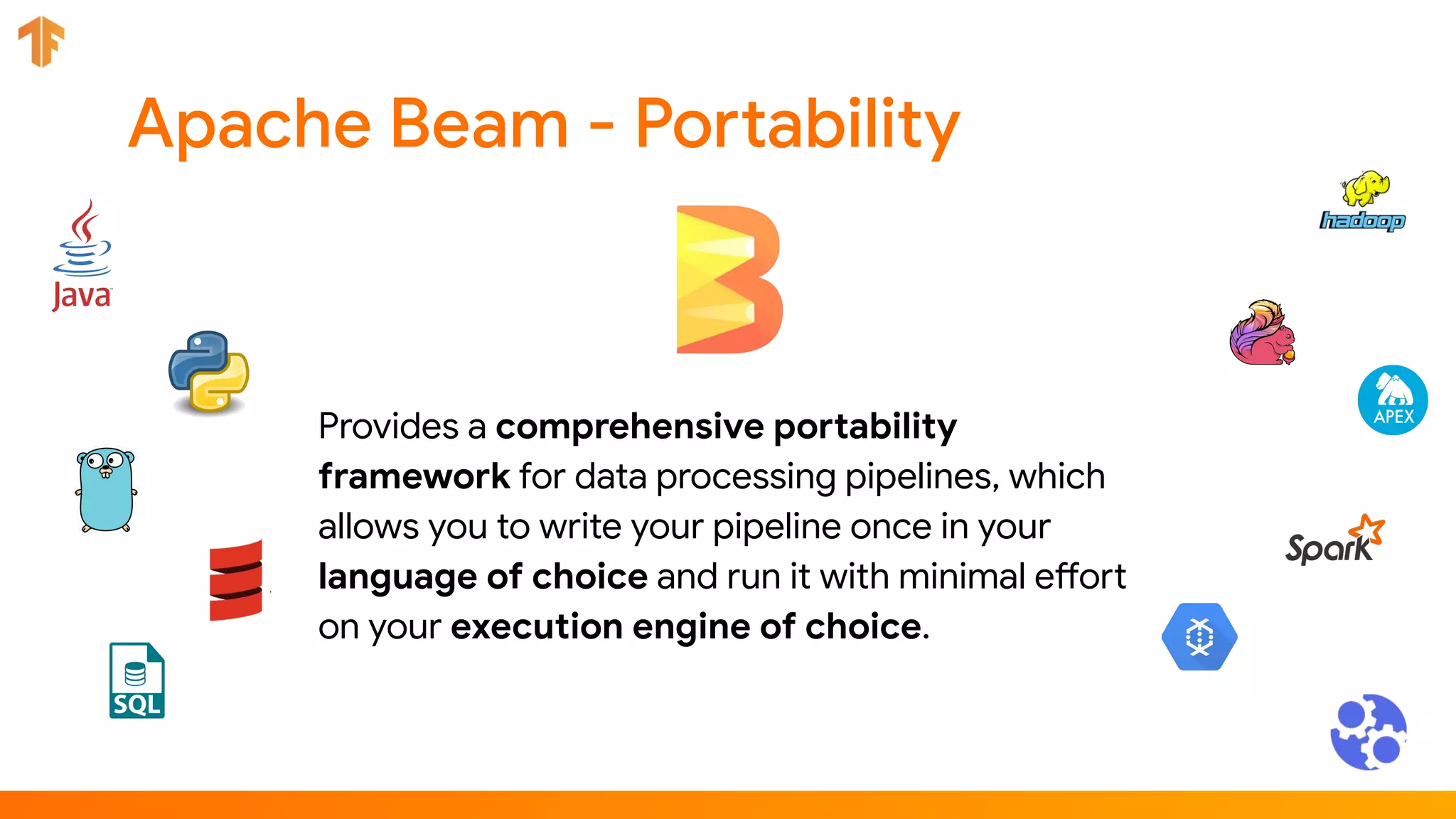

- 9. Provides a comprehensiveportability framework for data processing pipelines, which allows you to write your pipeline once in your language of choice and run it with minimal effort on your execution engine of choice.

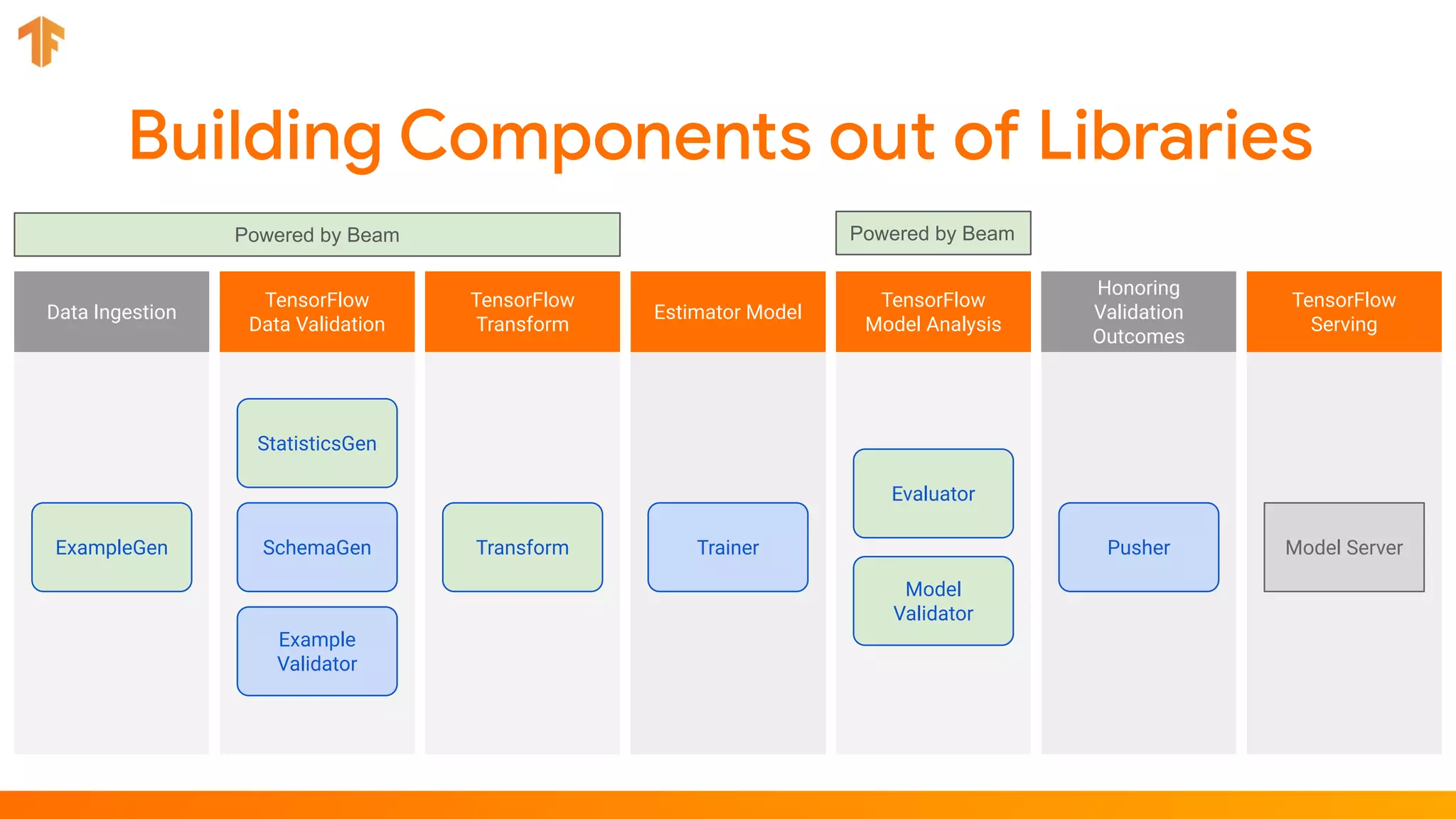

- 10. Data Ingestion TensorFlow Transform Estimator Model TensorFlow ModelAnalysis Honoring Validation Outcomes TensorFlow Data Validation TensorFlow Serving ExampleGen StatisticsGen SchemaGen Example Validator Transform Trainer Evaluator Model Validator Pusher Model Server Powered by Beam Powered by Beam

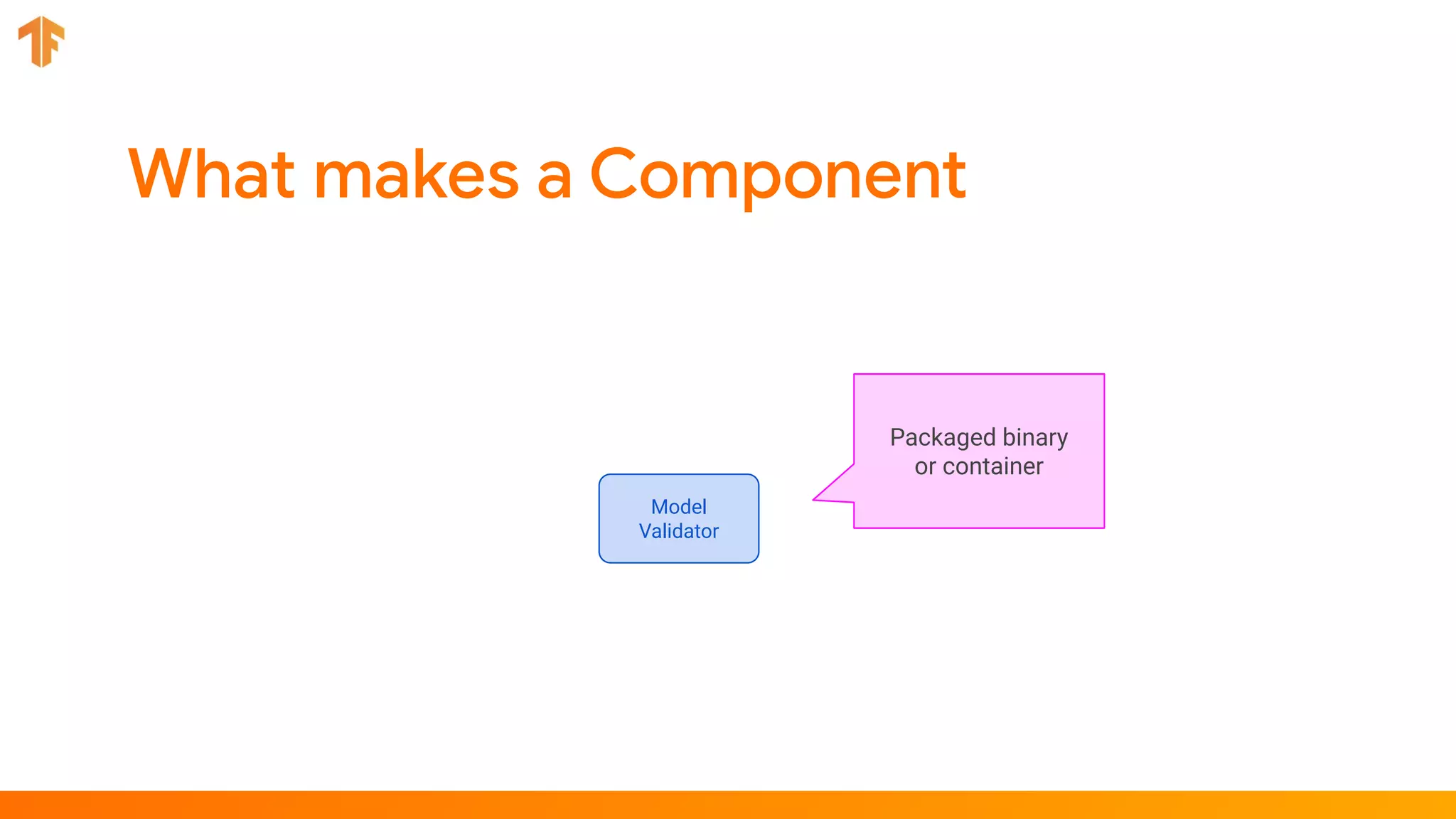

- 11.

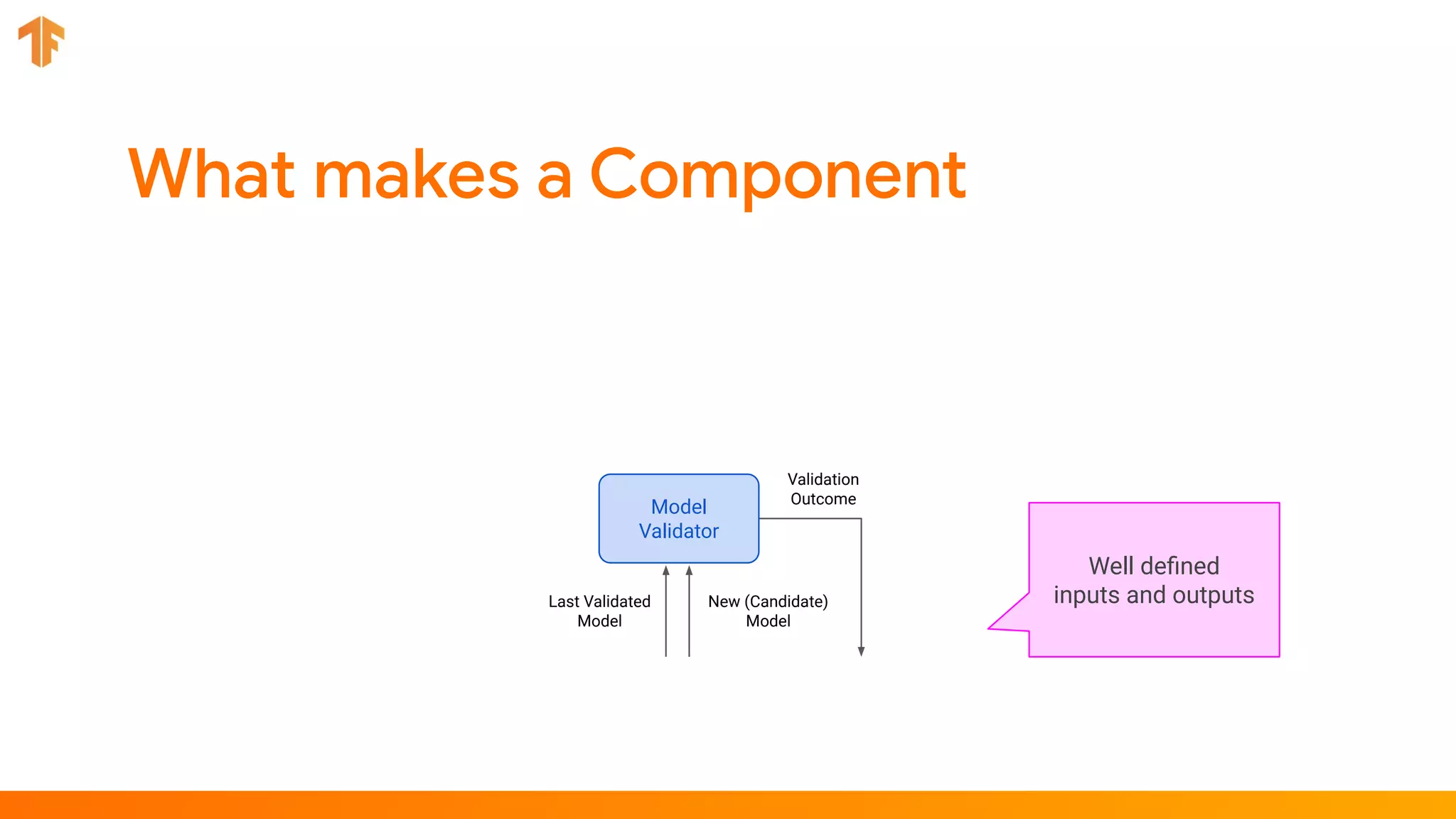

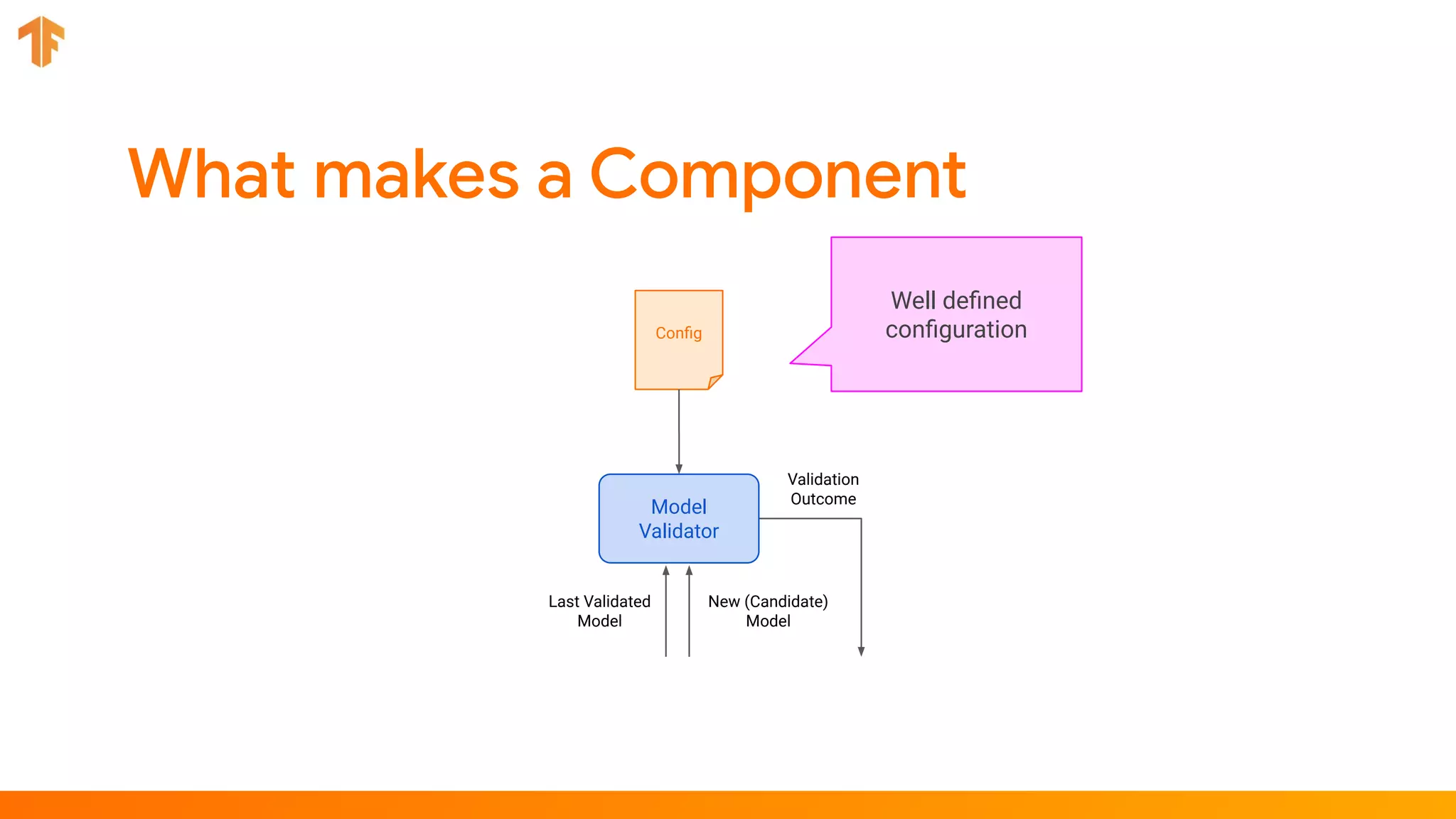

- 12. Last Validated Model New (Candidate) Model Model Validator Validation Outcome Welldefined inputs and outputs
- 13.

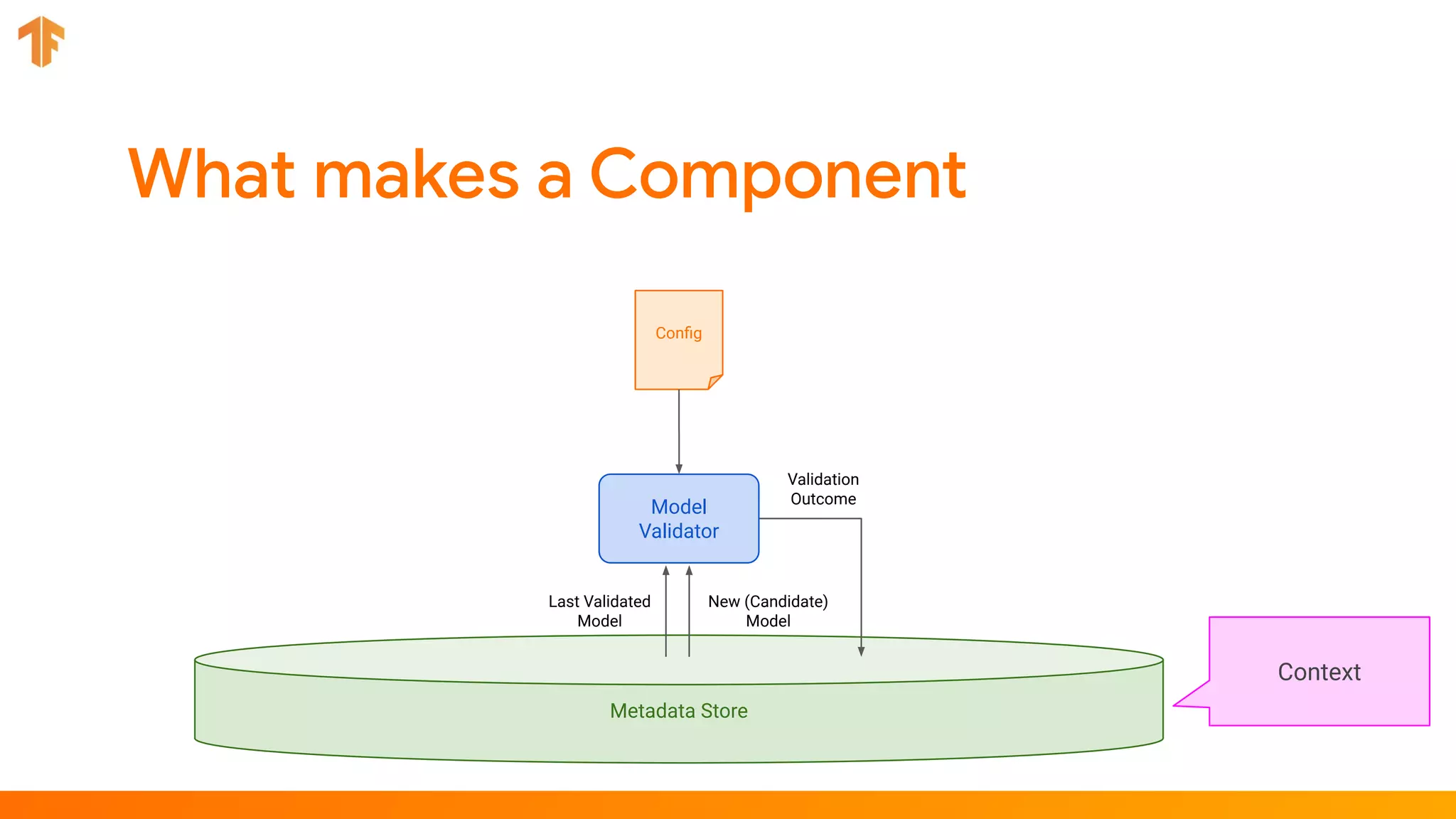

- 14. Metadata Store Config Last Validated Model New(Candidate) Model Model Validator Validation Outcome Context

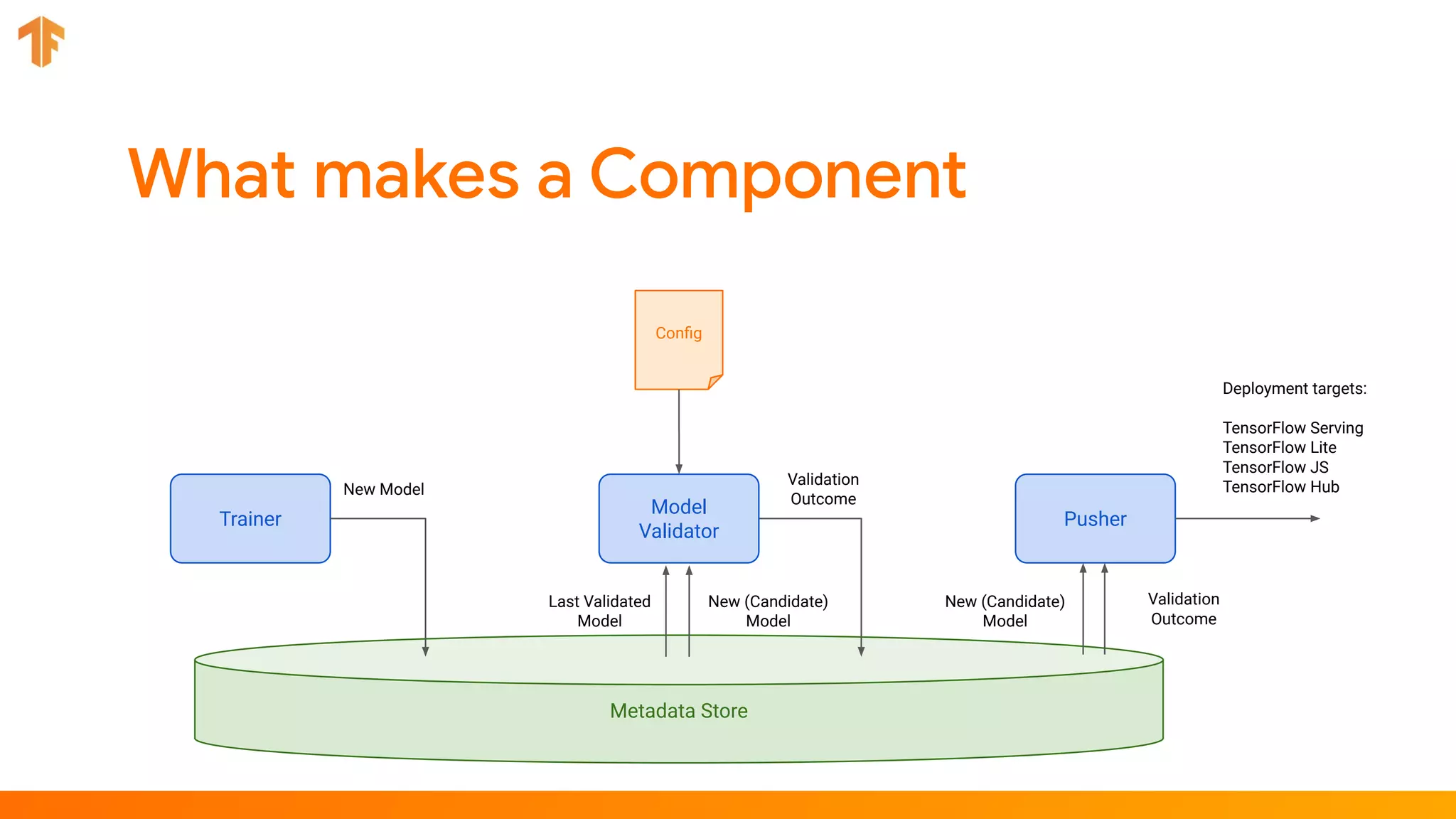

- 15. Metadata Store Trainer Config Last Validated Model New(Candidate) Model New Model Model Validator Validation Outcome Pusher New (Candidate) Model Validation Outcome Deployment targets: TensorFlow Serving TensorFlow Lite TensorFlow JS TensorFlow Hub
- 17.

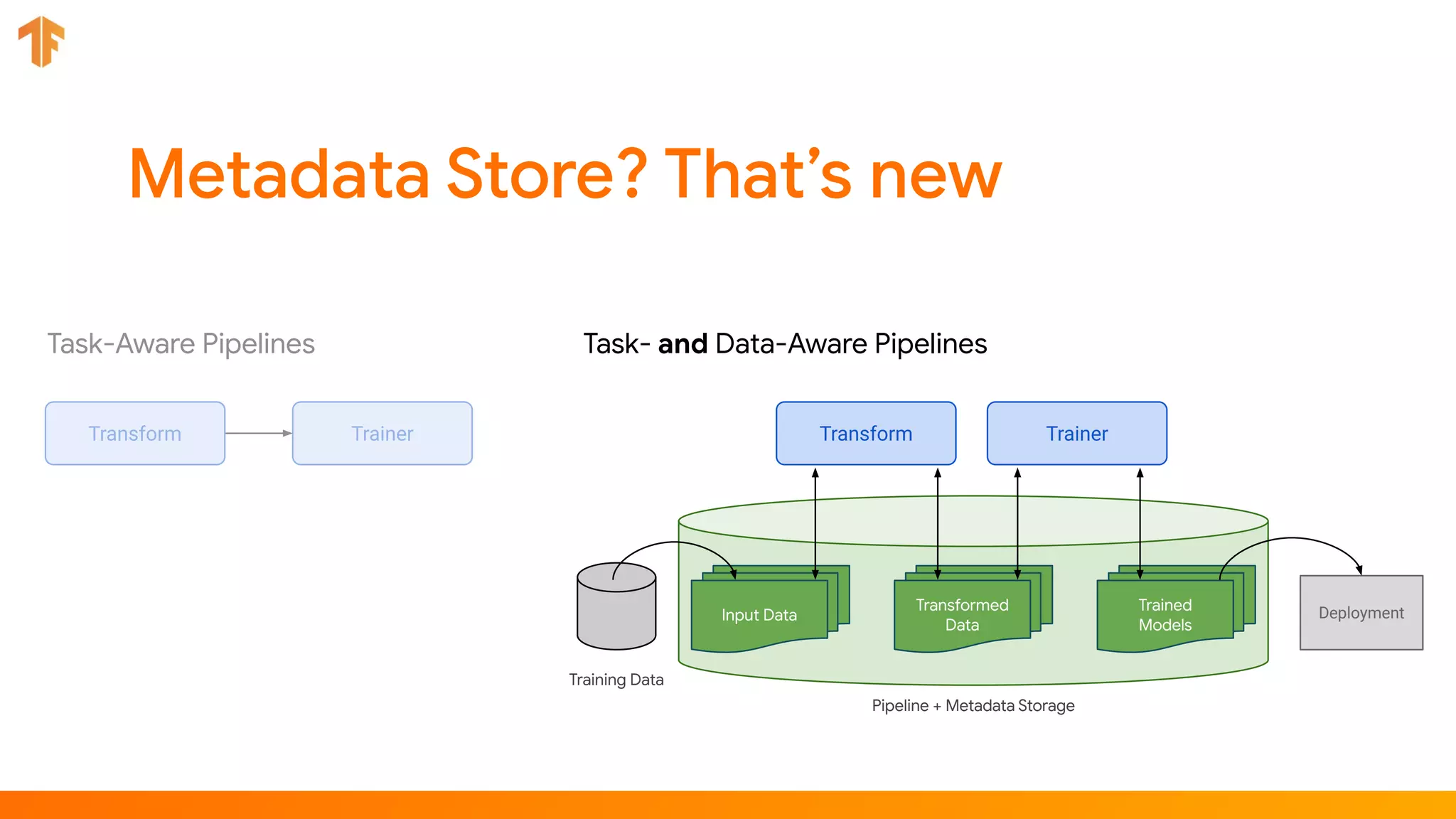

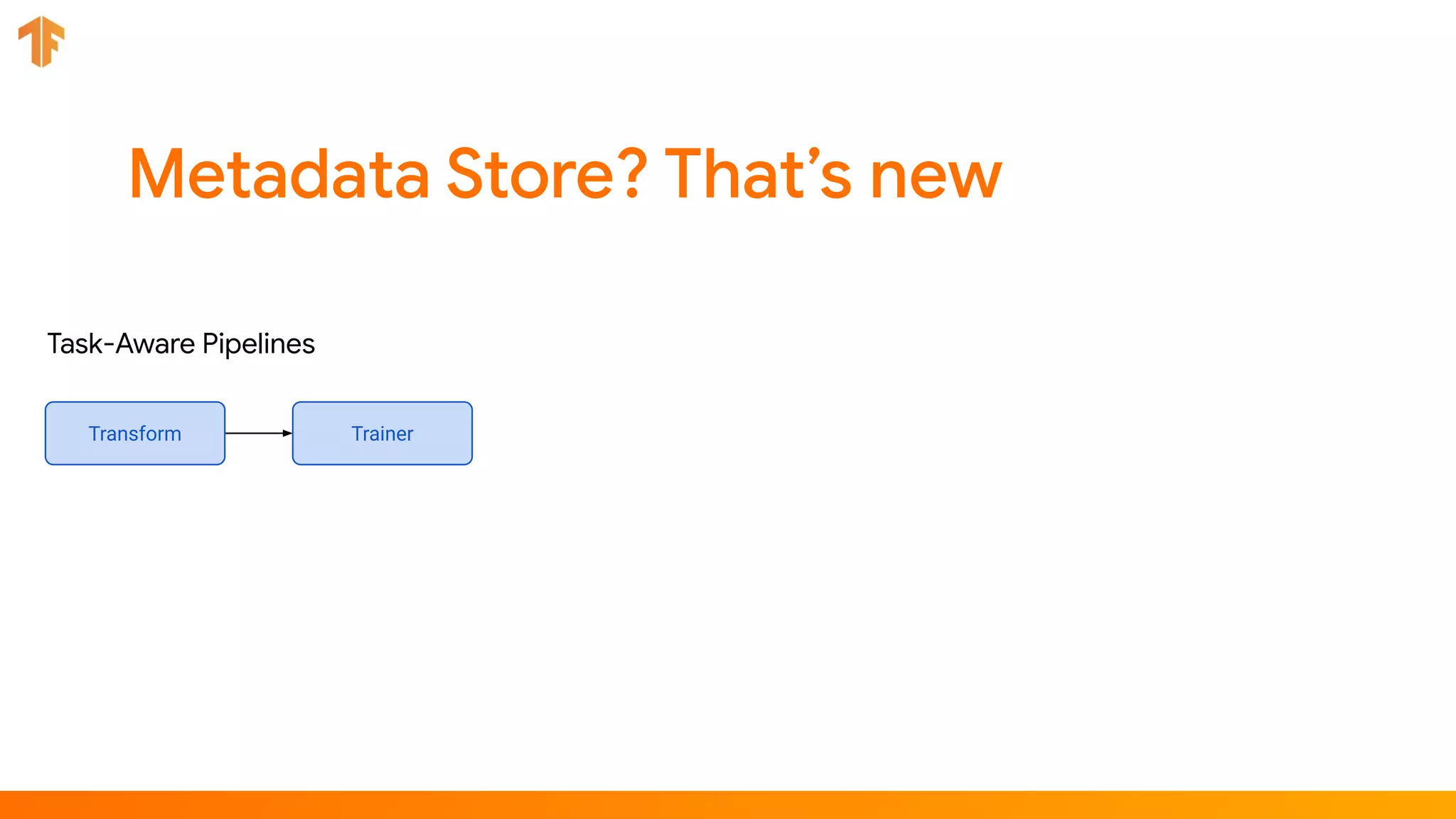

- 18. Trainer Task-Aware Pipelines Input Data Transformed Data Trained Models Deployment Task-and Data-Aware Pipelines Pipeline + Metadata Storage Training Data Transform TrainerTransform

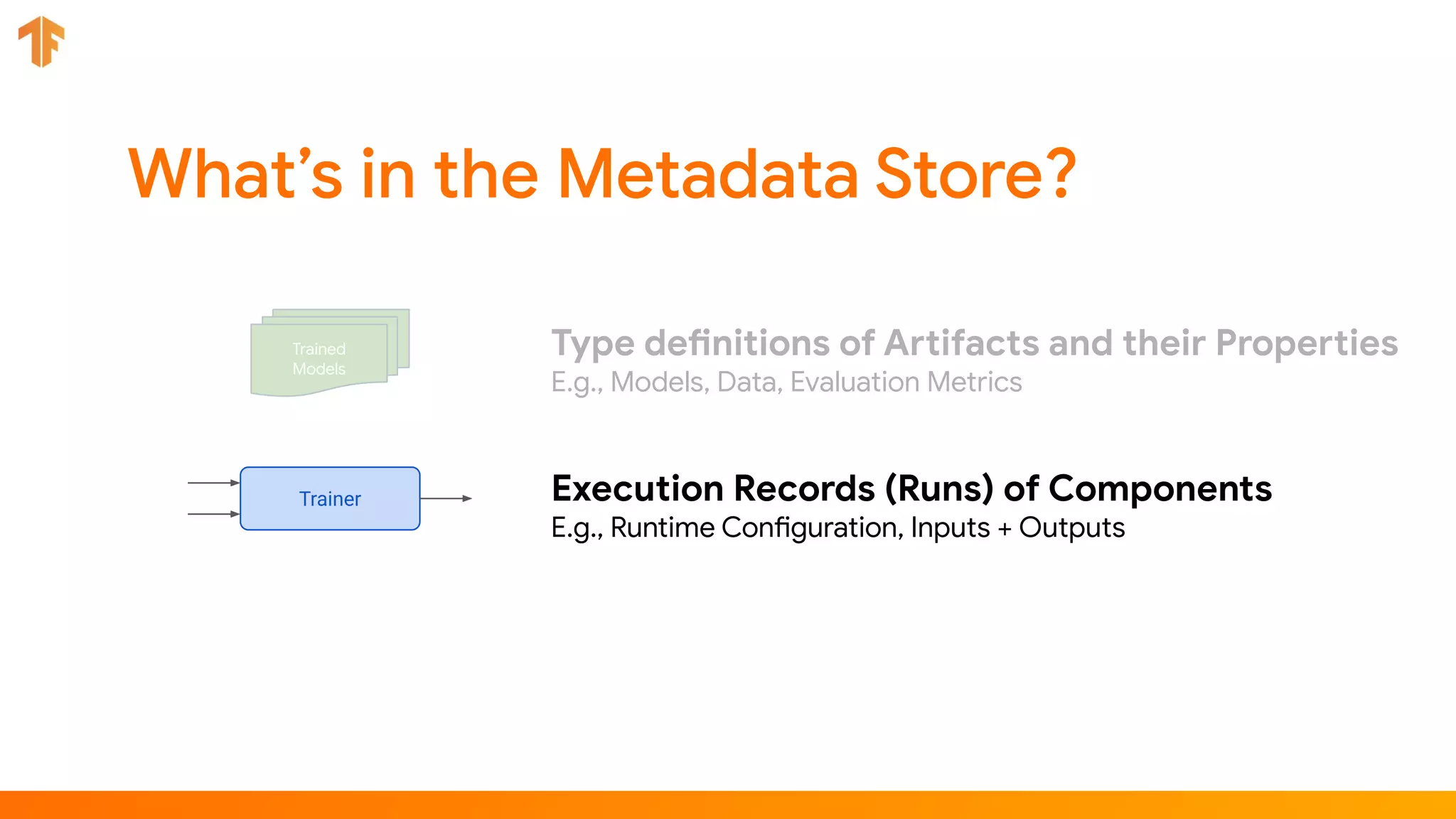

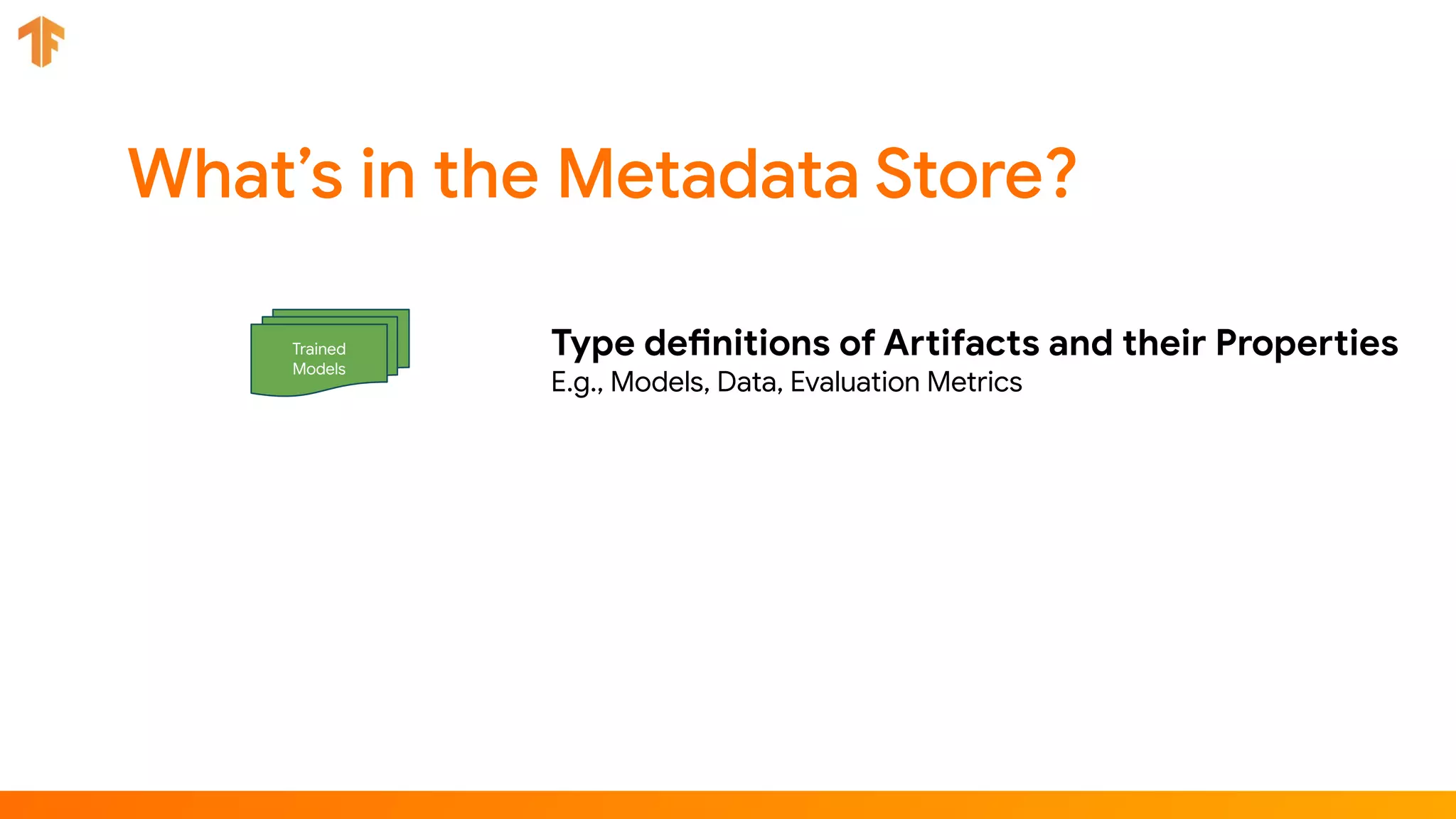

- 19. Trained Models Type definitions ofArtifacts and their Properties E.g., Models, Data, Evaluation Metrics
- 20. Trained Models Type definitions ofArtifacts and their Properties E.g., Models, Data, Evaluation Metrics Trainer Execution Records (Runs) of Components E.g., Runtime Configuration, Inputs + Outputs

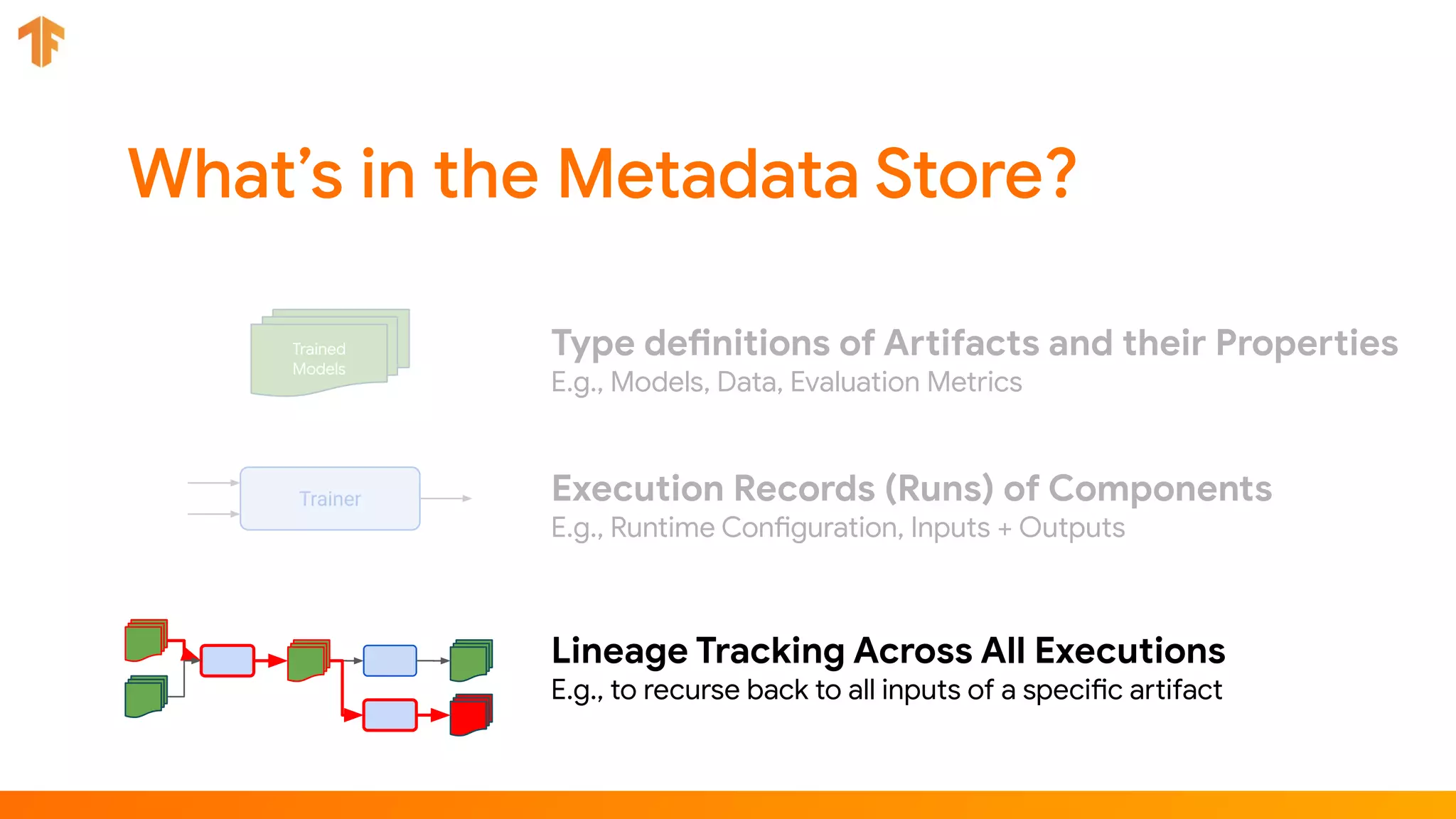

- 21. Trained Models Type definitions ofArtifacts and their Properties E.g., Models, Data, Evaluation Metrics Trainer Execution Records (Runs) of Components E.g., Runtime Configuration, Inputs + Outputs Lineage Tracking Across All Executions E.g., to recurse back to all inputs of a specific artifact

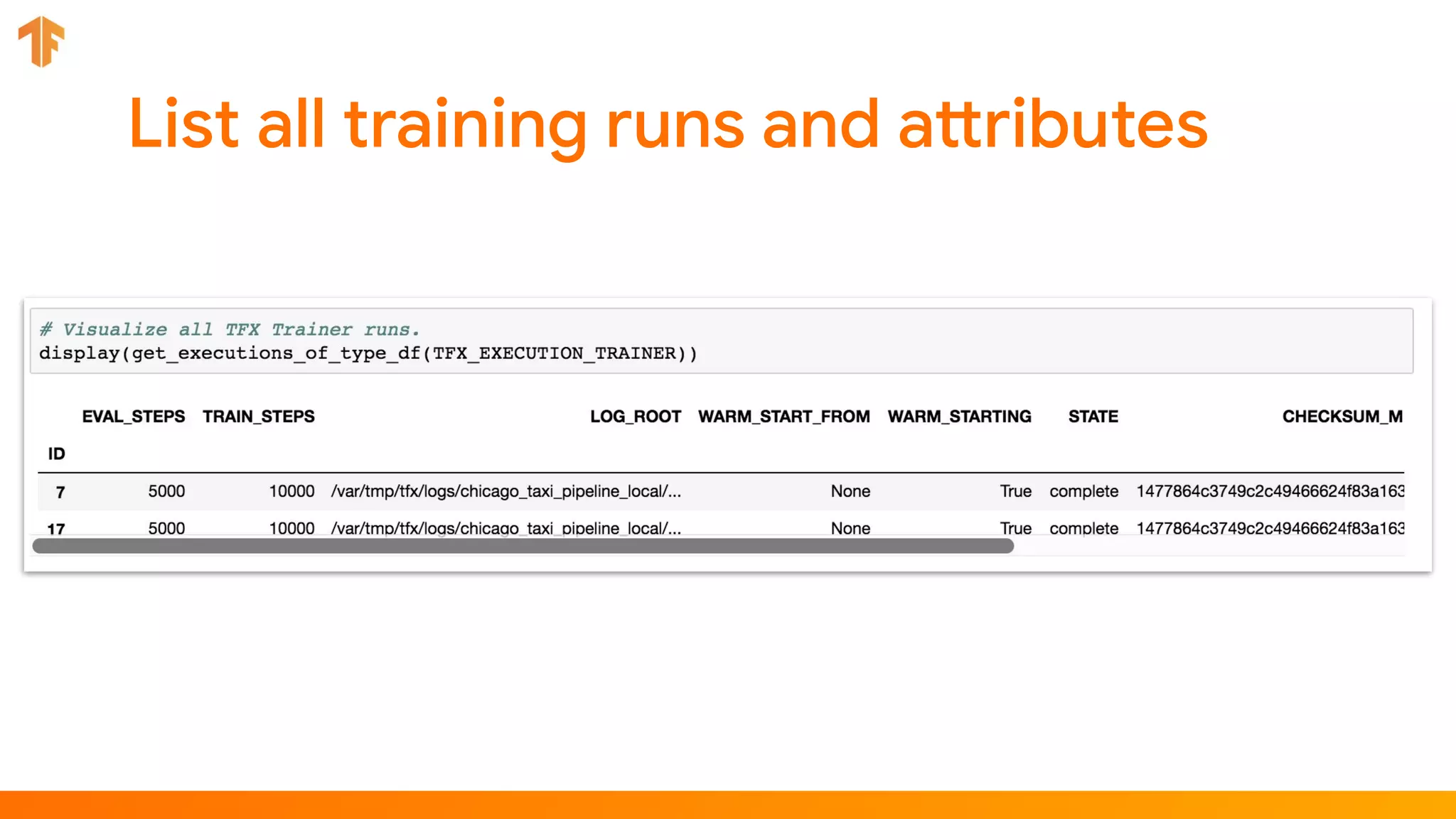

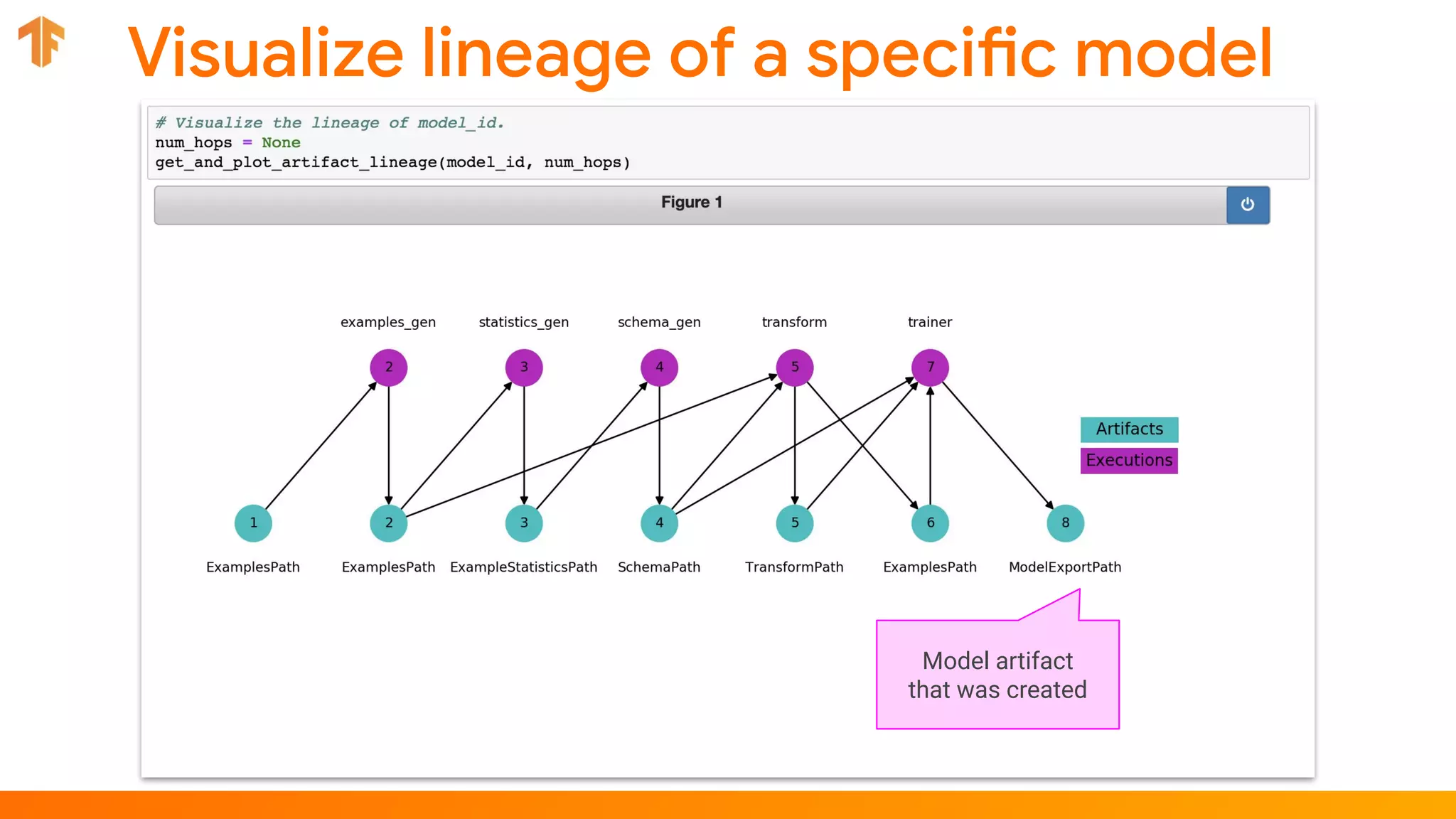

- 23. Model artifact that wascreated

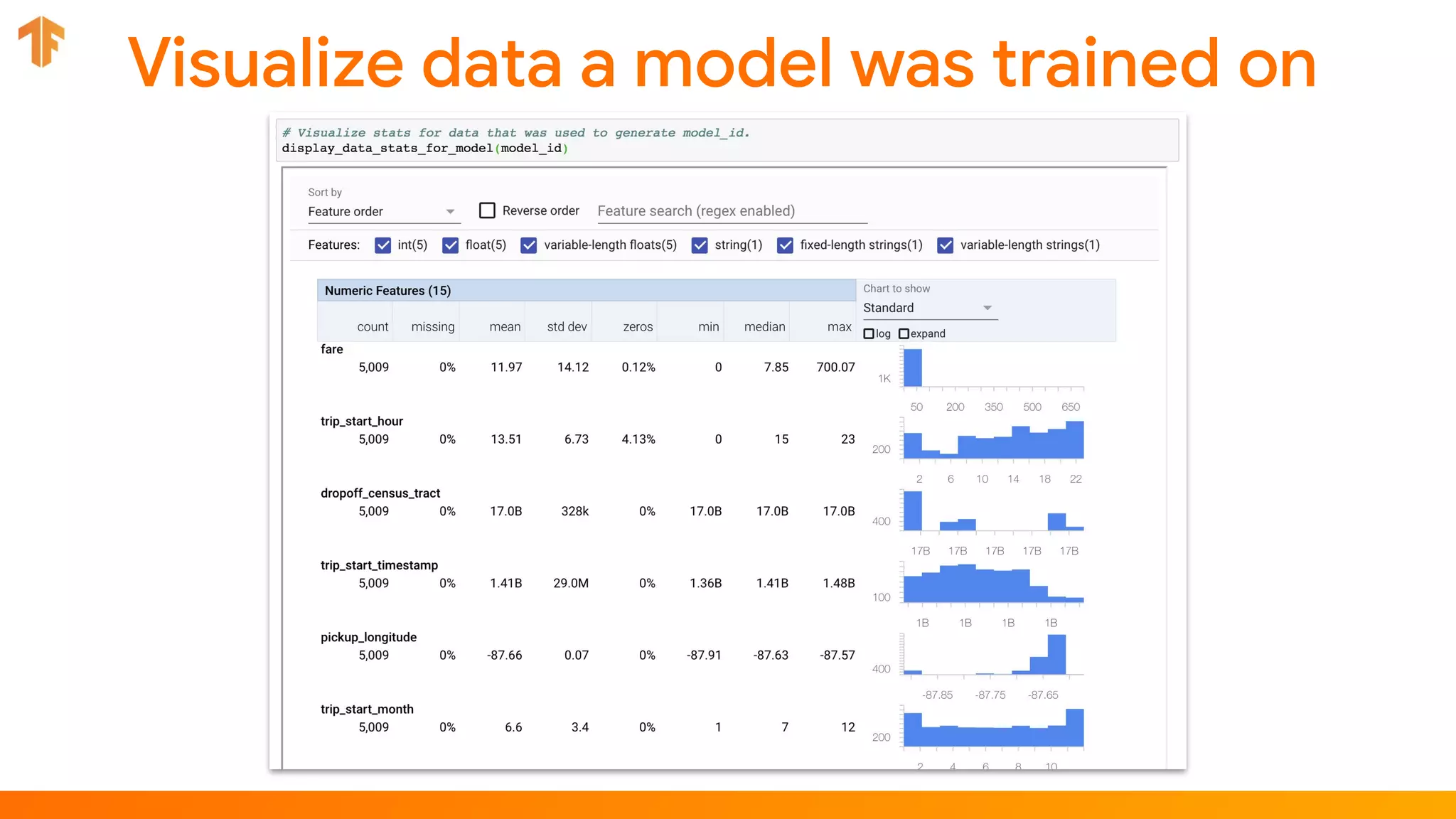

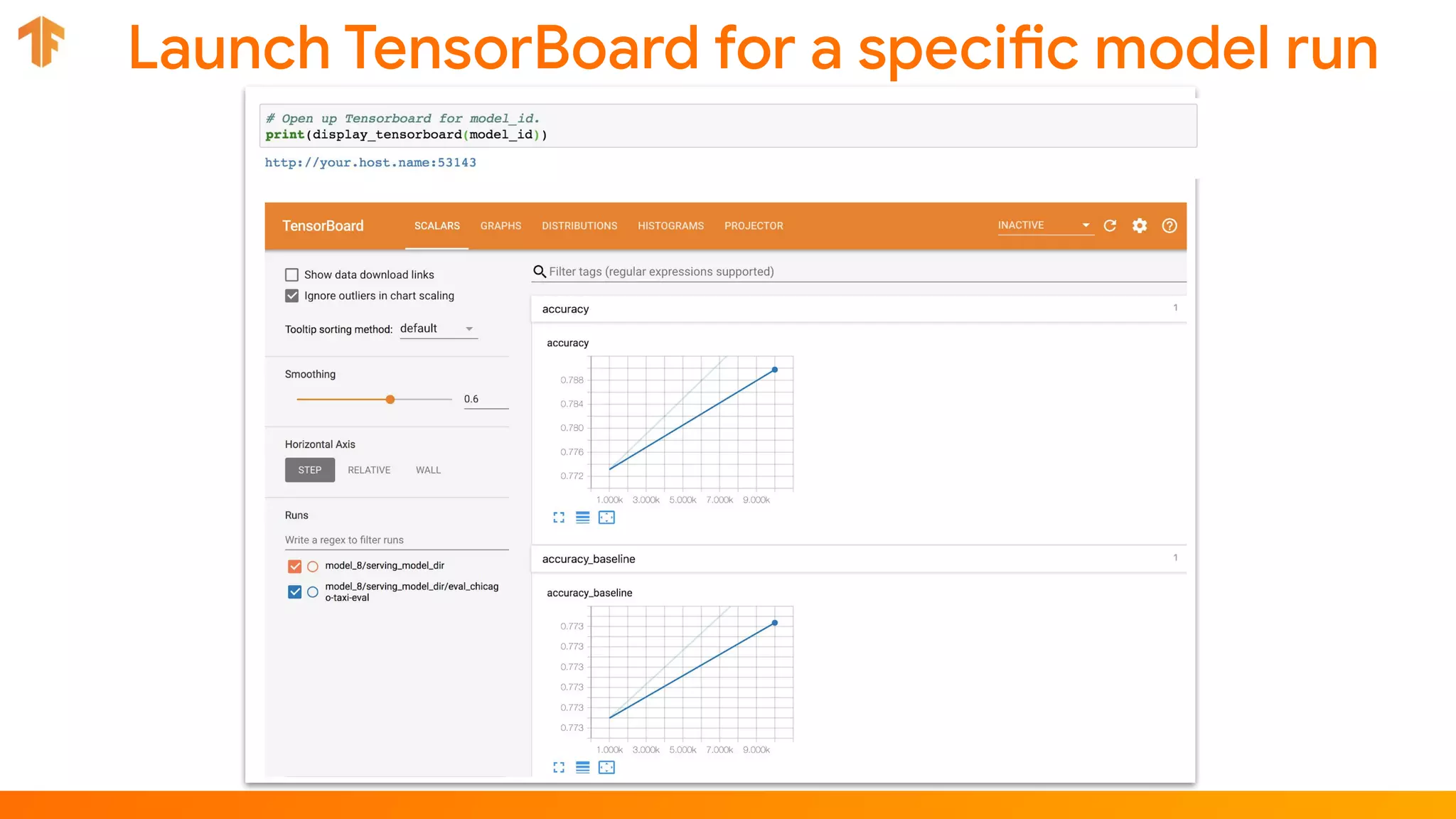

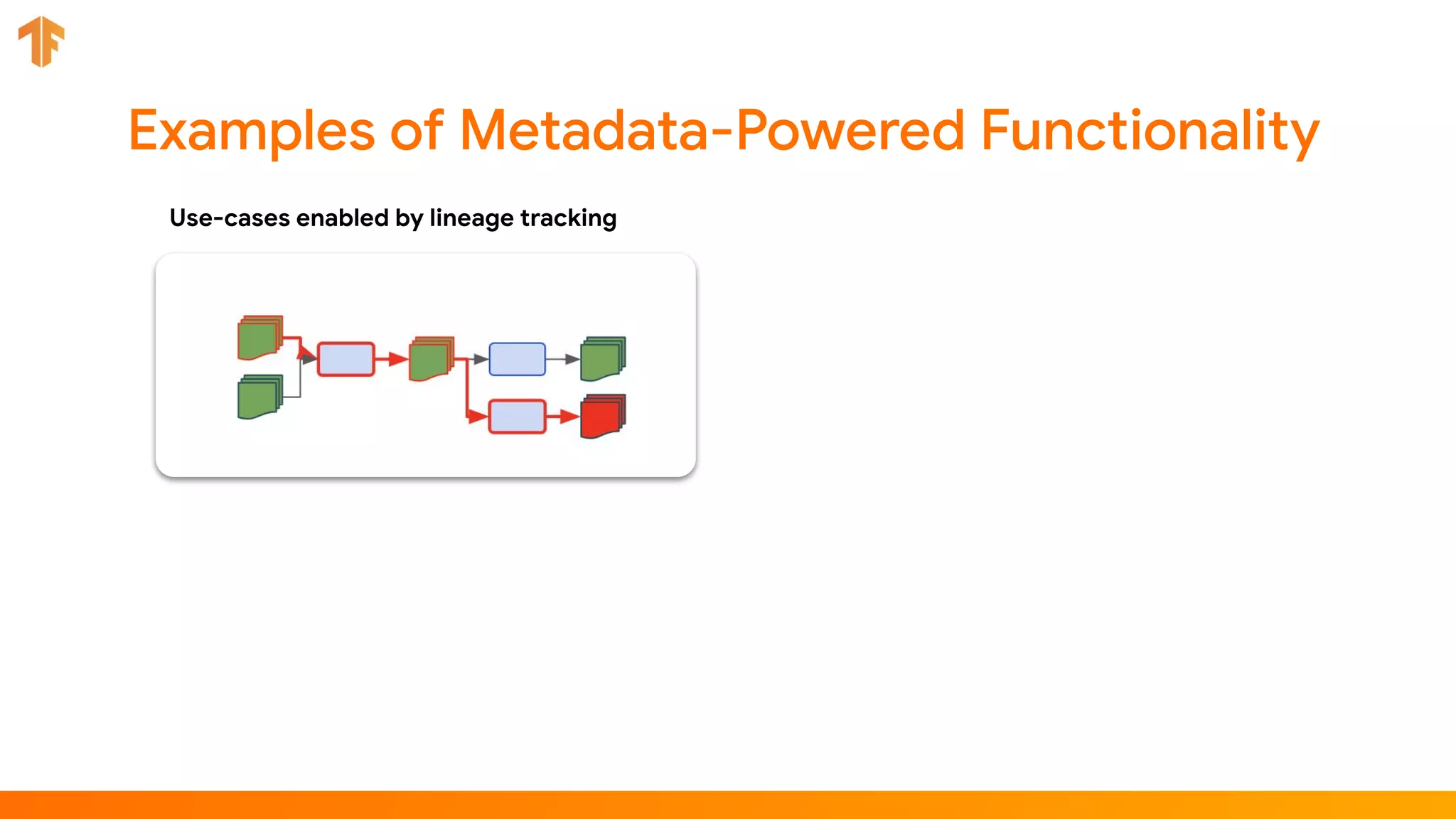

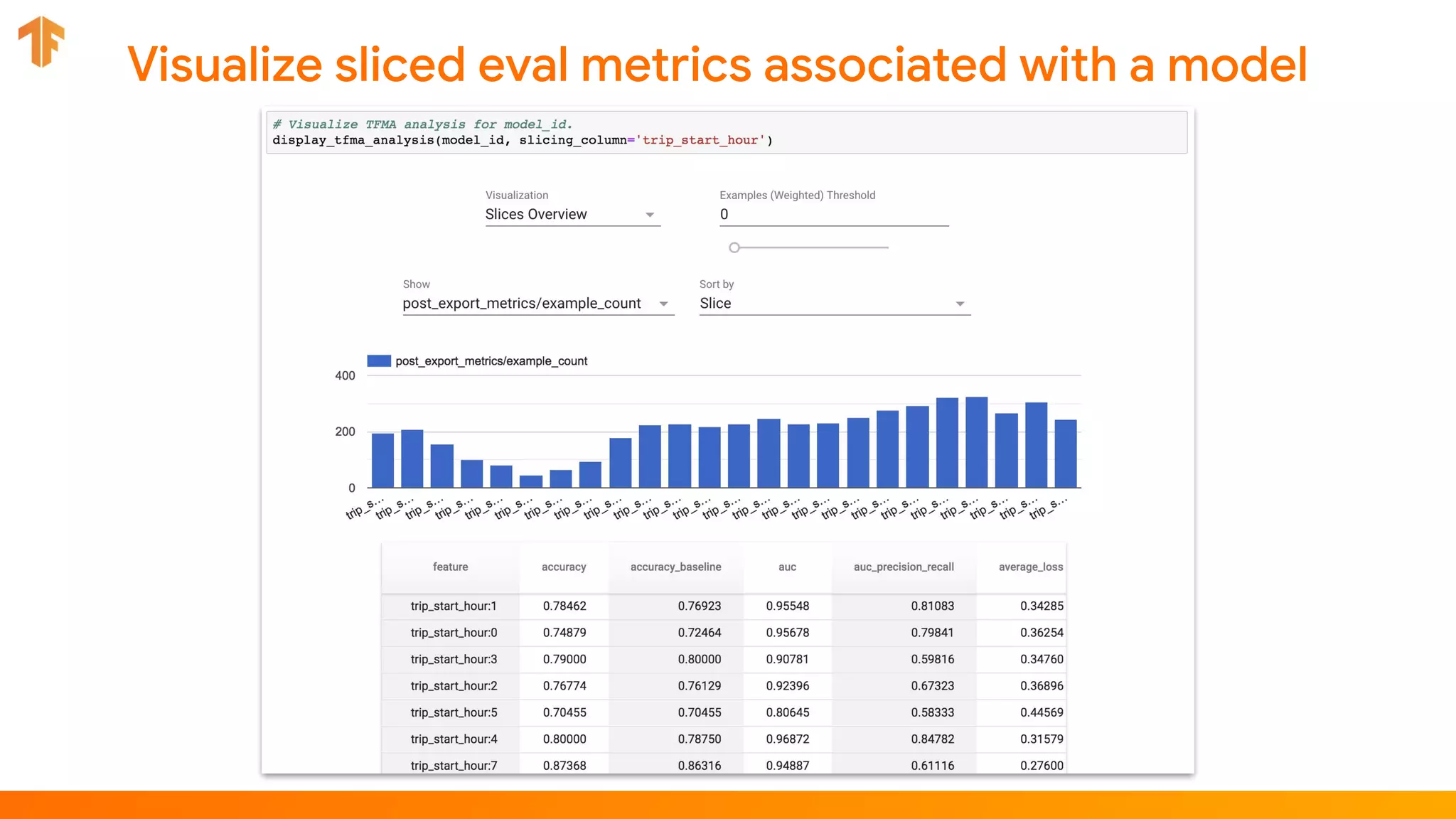

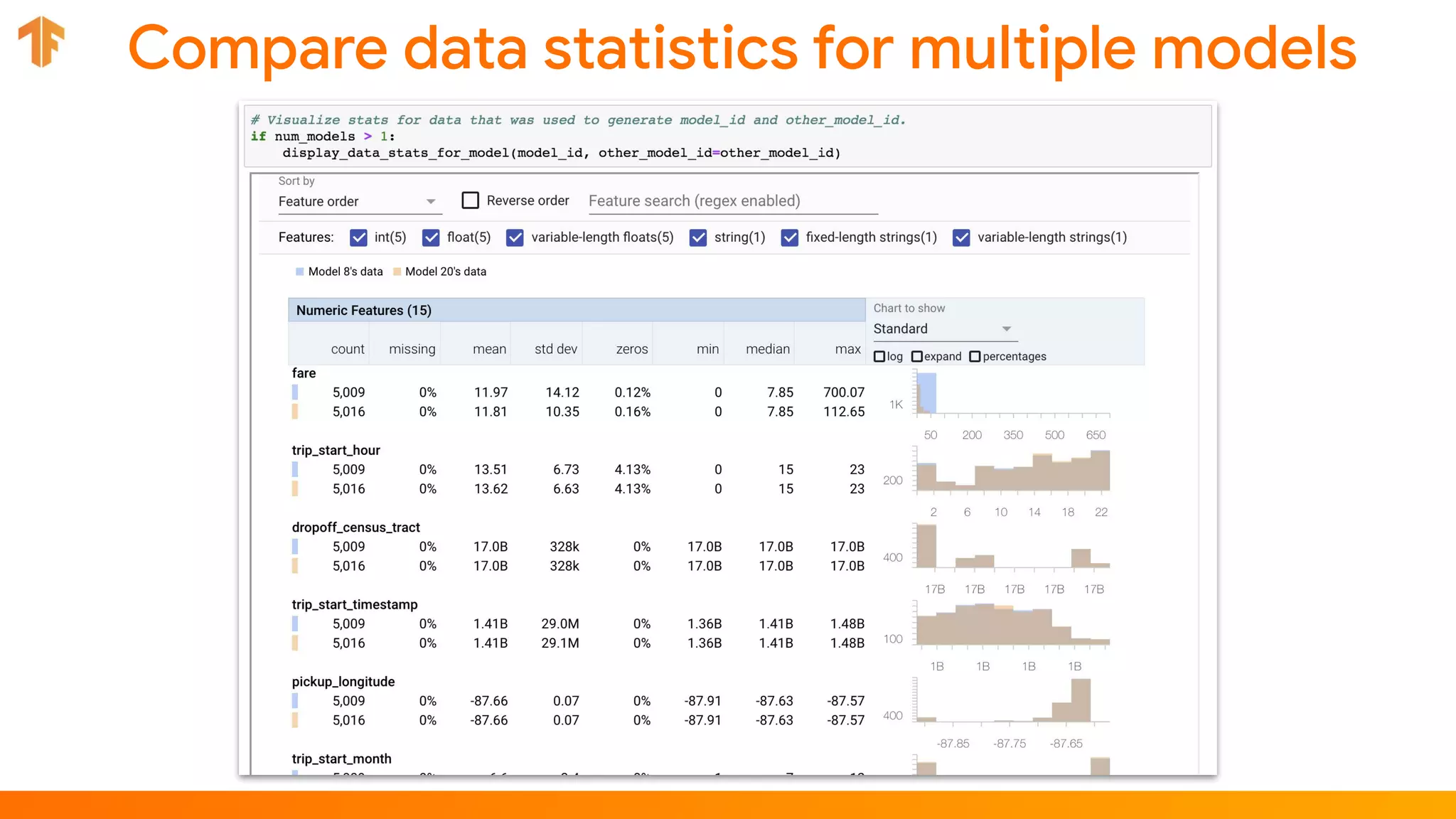

- 29. Use-cases enabled bylineage tracking

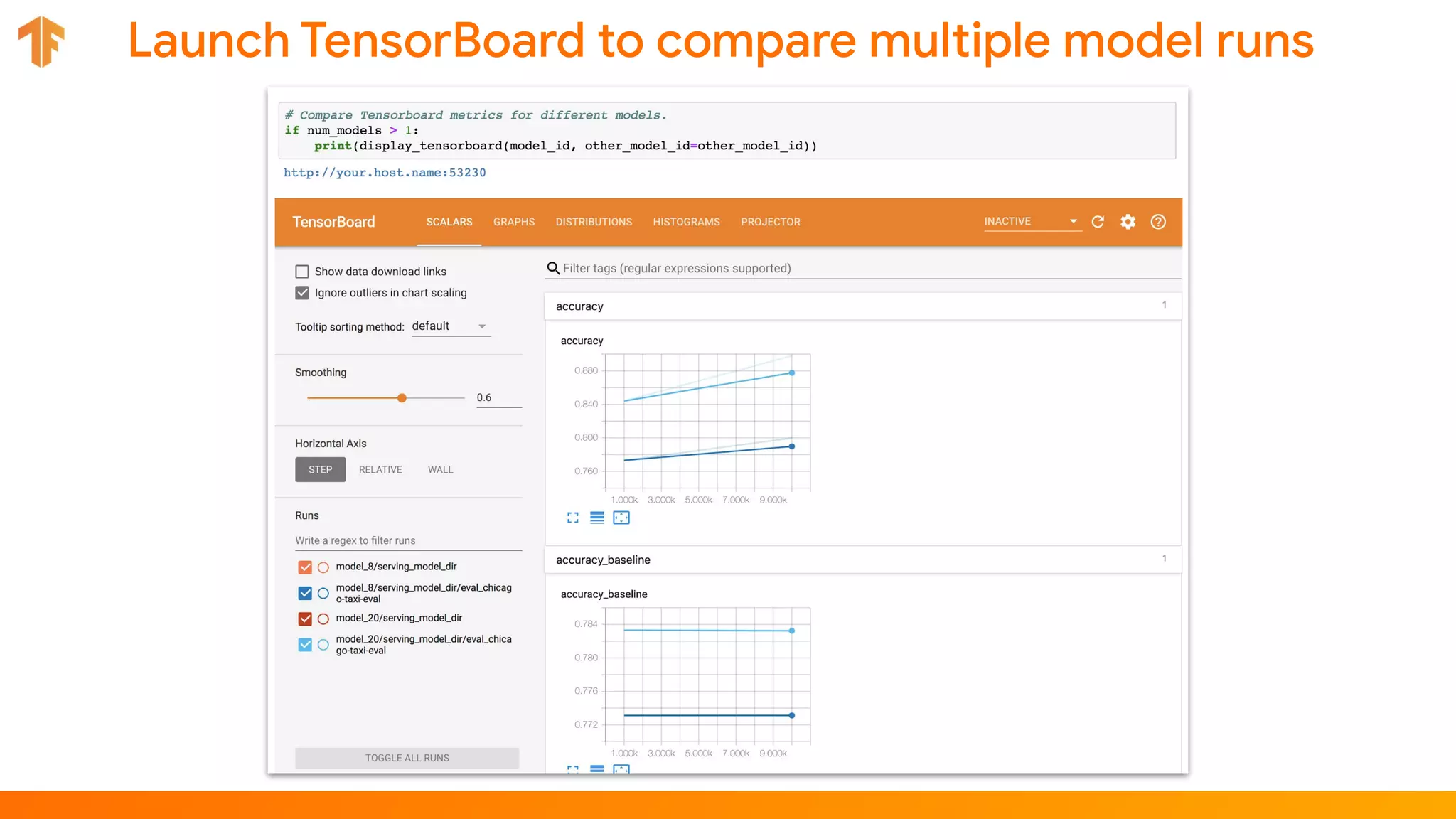

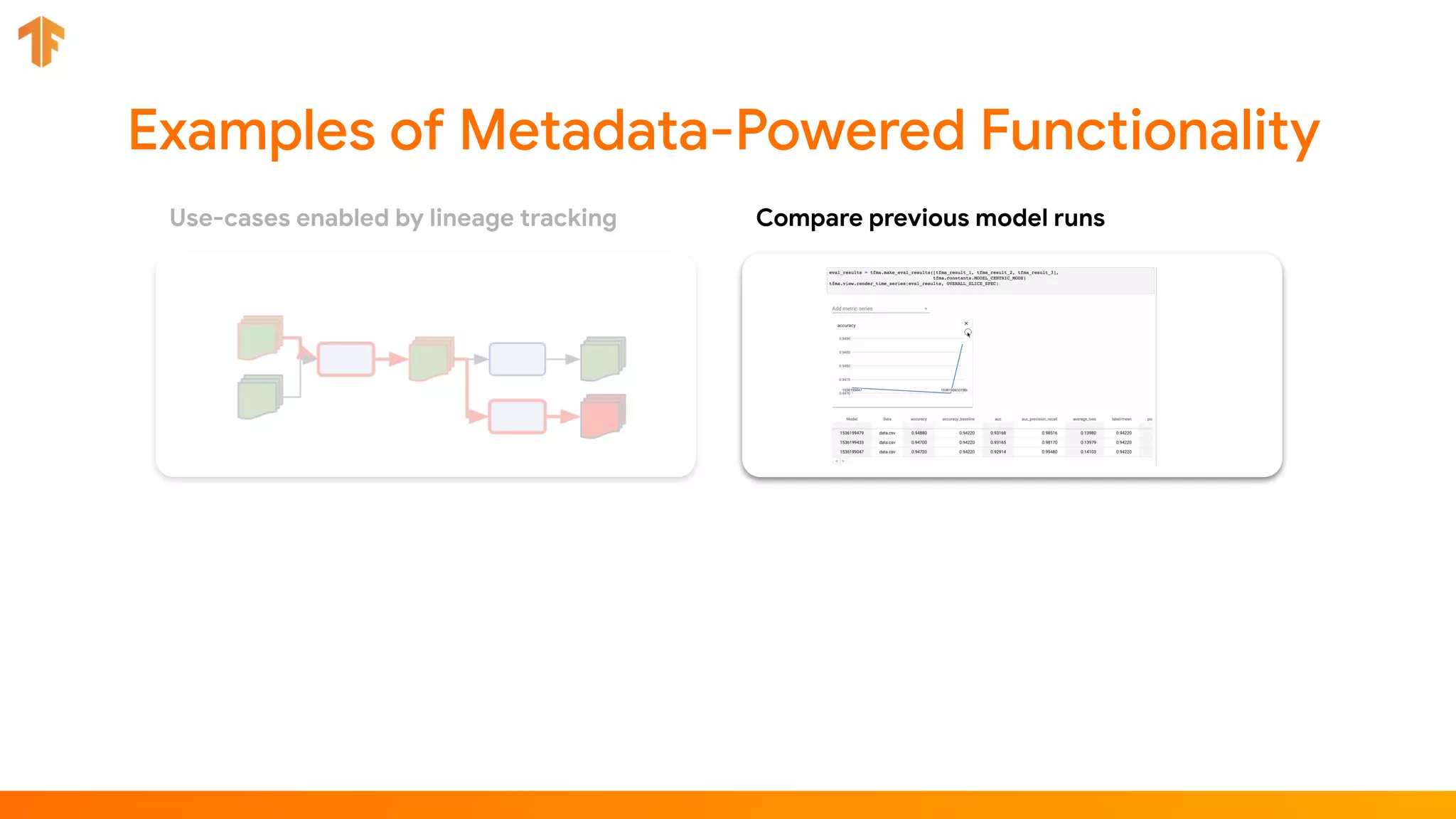

- 30. Use-cases enabled bylineage tracking Compare previous model runs

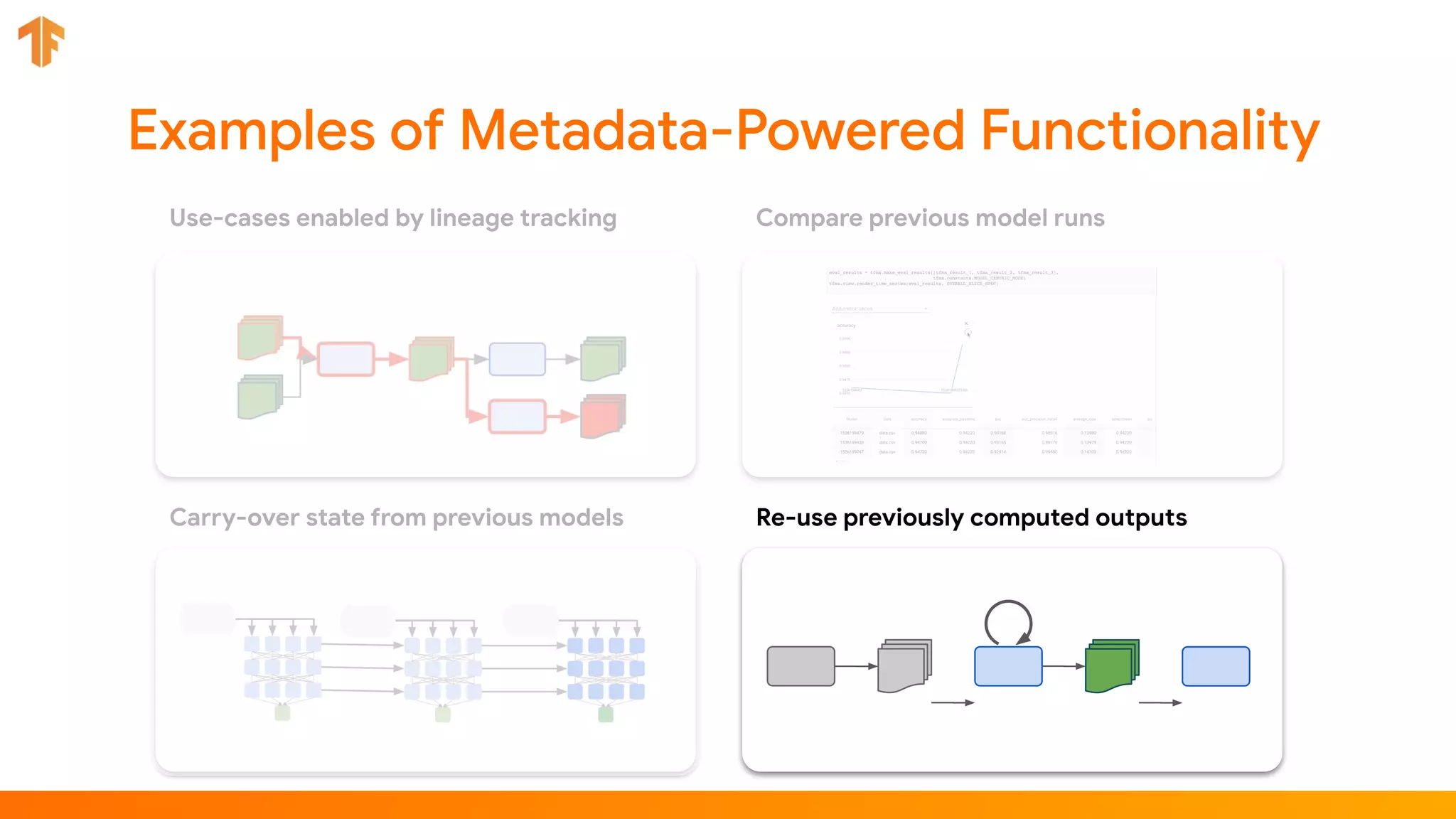

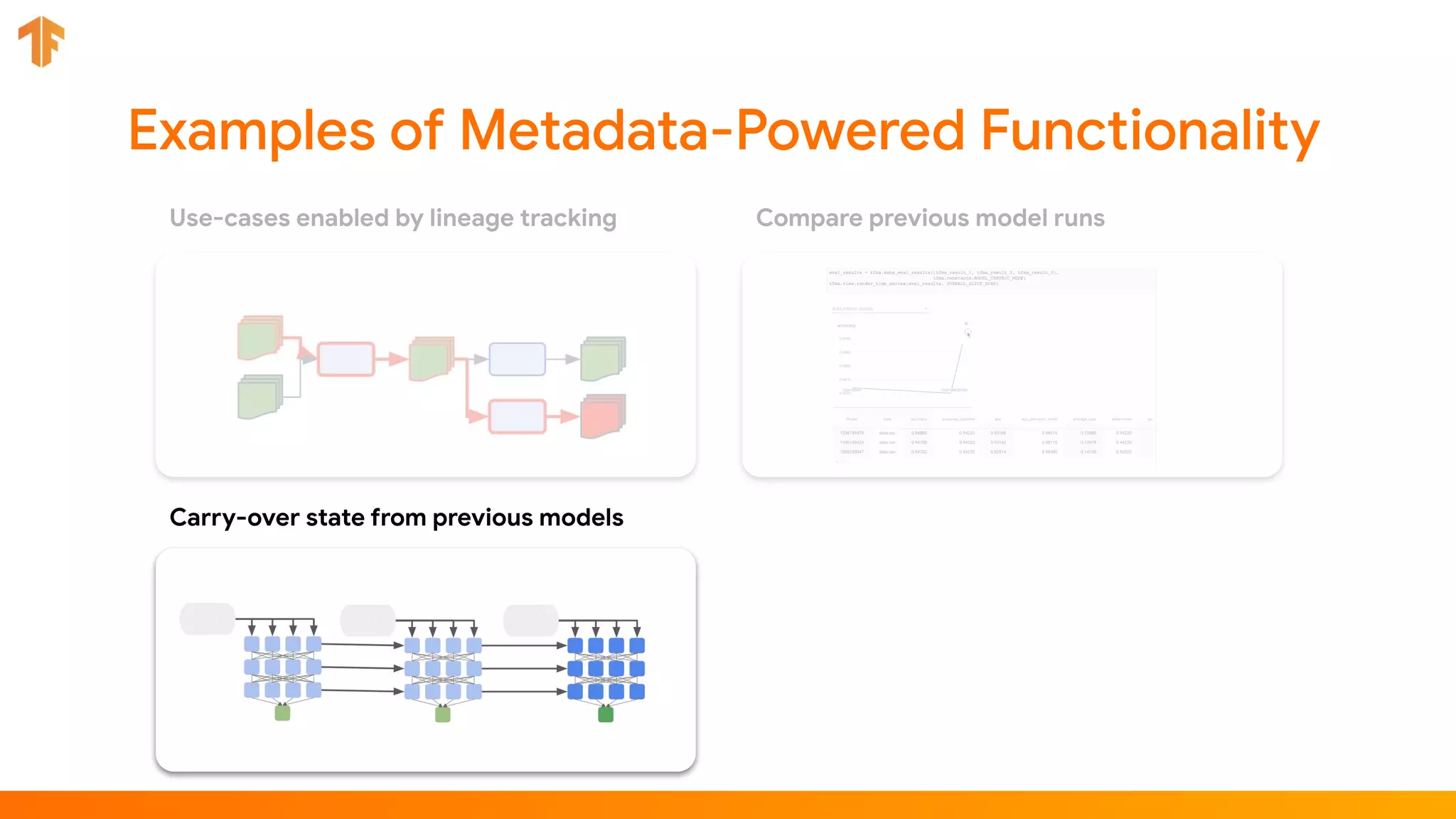

- 31. Use-cases enabled bylineage tracking Compare previous model runs Carry-over state from previous models
- 32. Use-cases enabled bylineage tracking Compare previous model runs Carry-over state from previous models Re-use previously computed outputs
- 33.

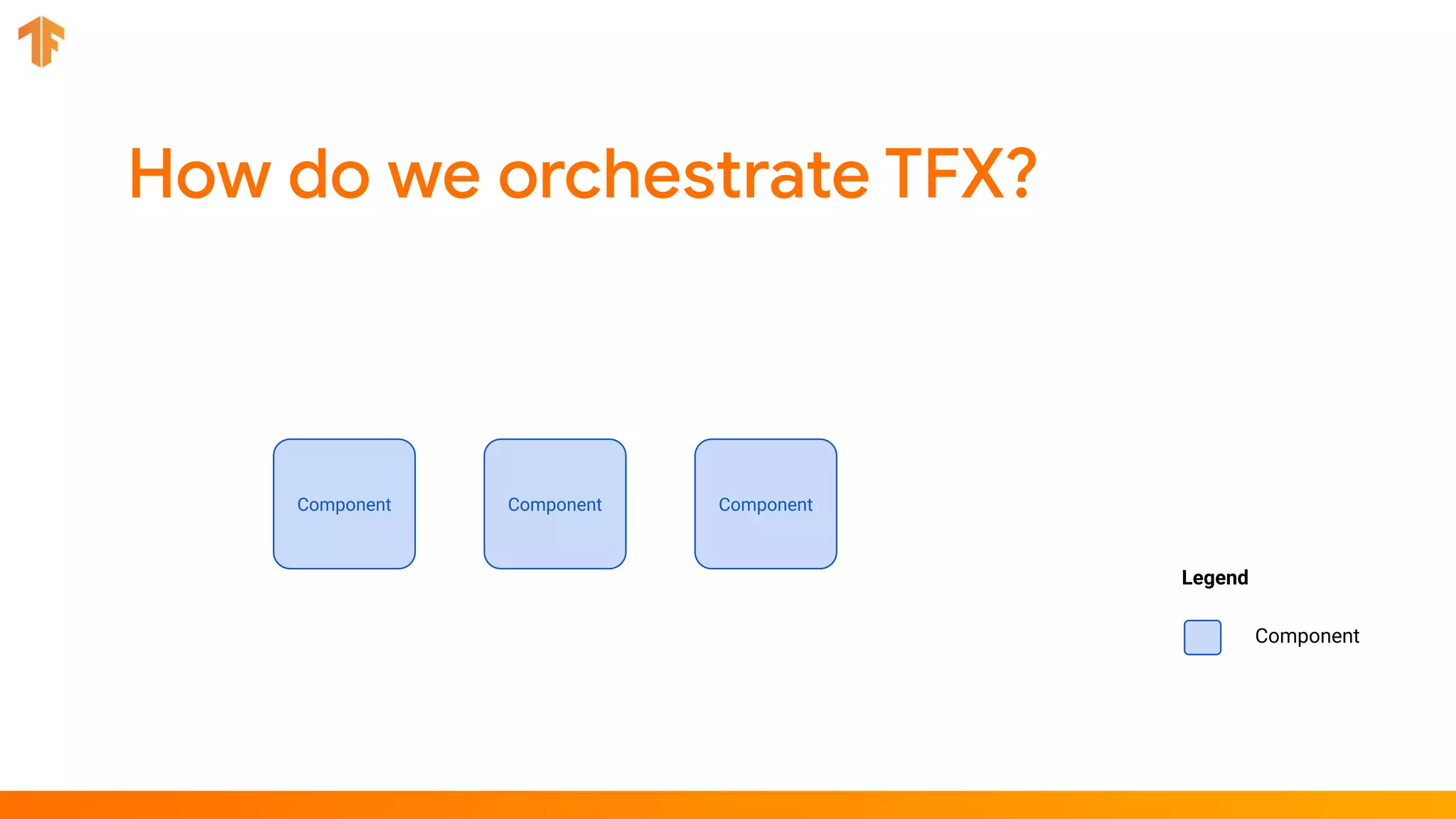

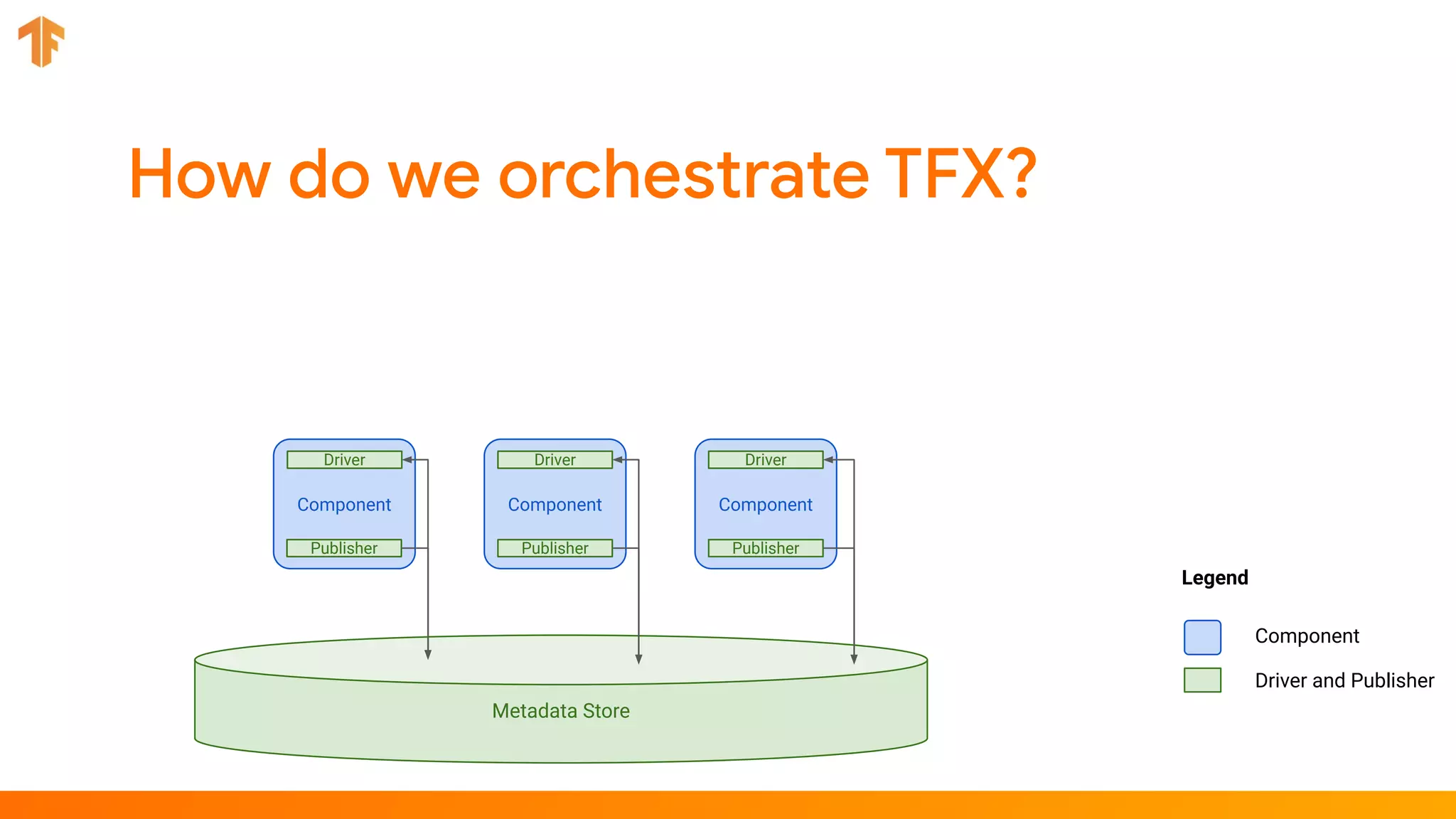

- 34. Component Legend Component Driver Metadata Store Component Component Publisher Driverand Publisher Driver Publisher Driver Publisher

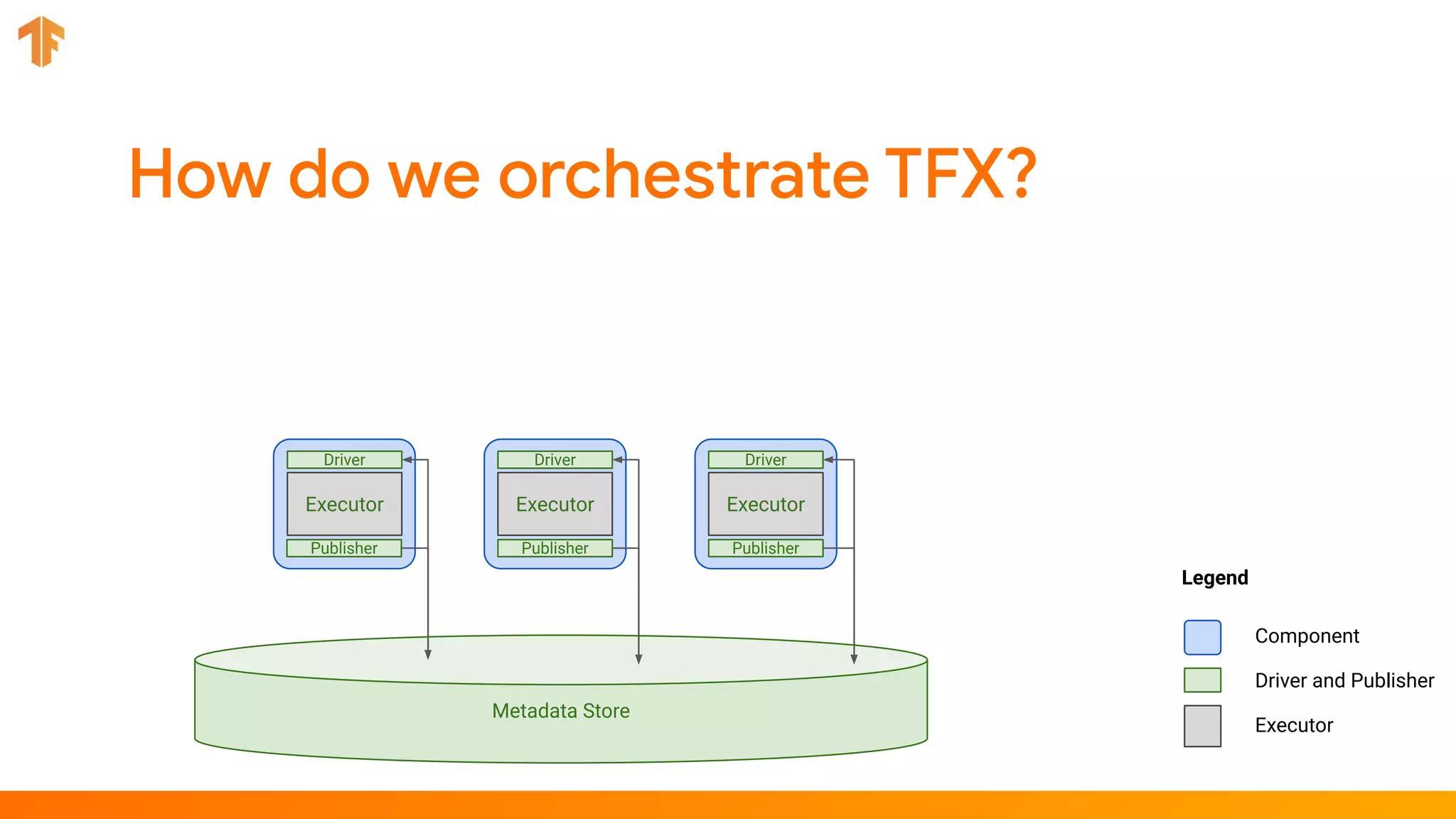

- 35. Component Executor Legend Driver and Publisher Driver MetadataStore Publisher Driver Publisher Driver Publisher Executor Executor Executor

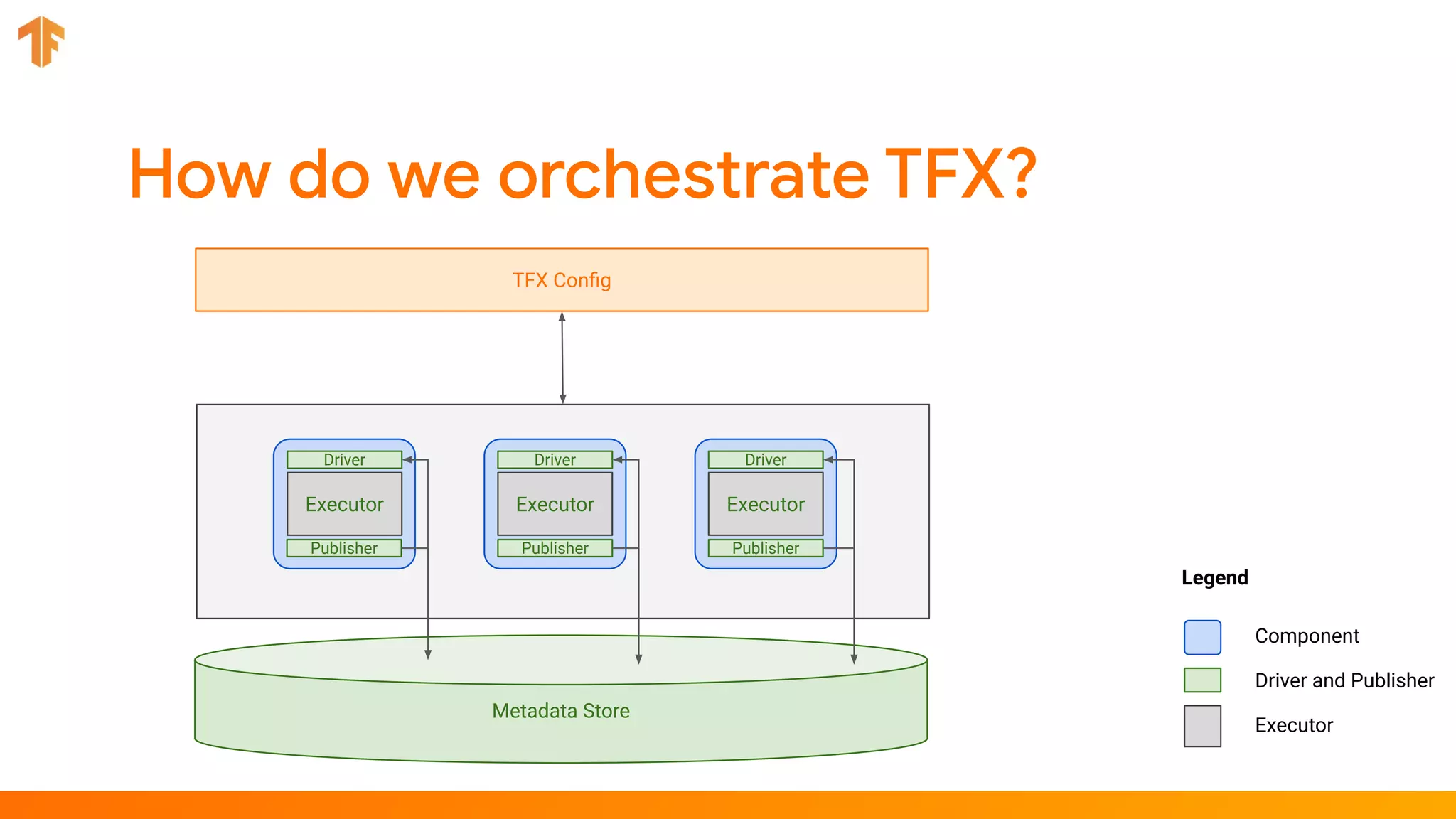

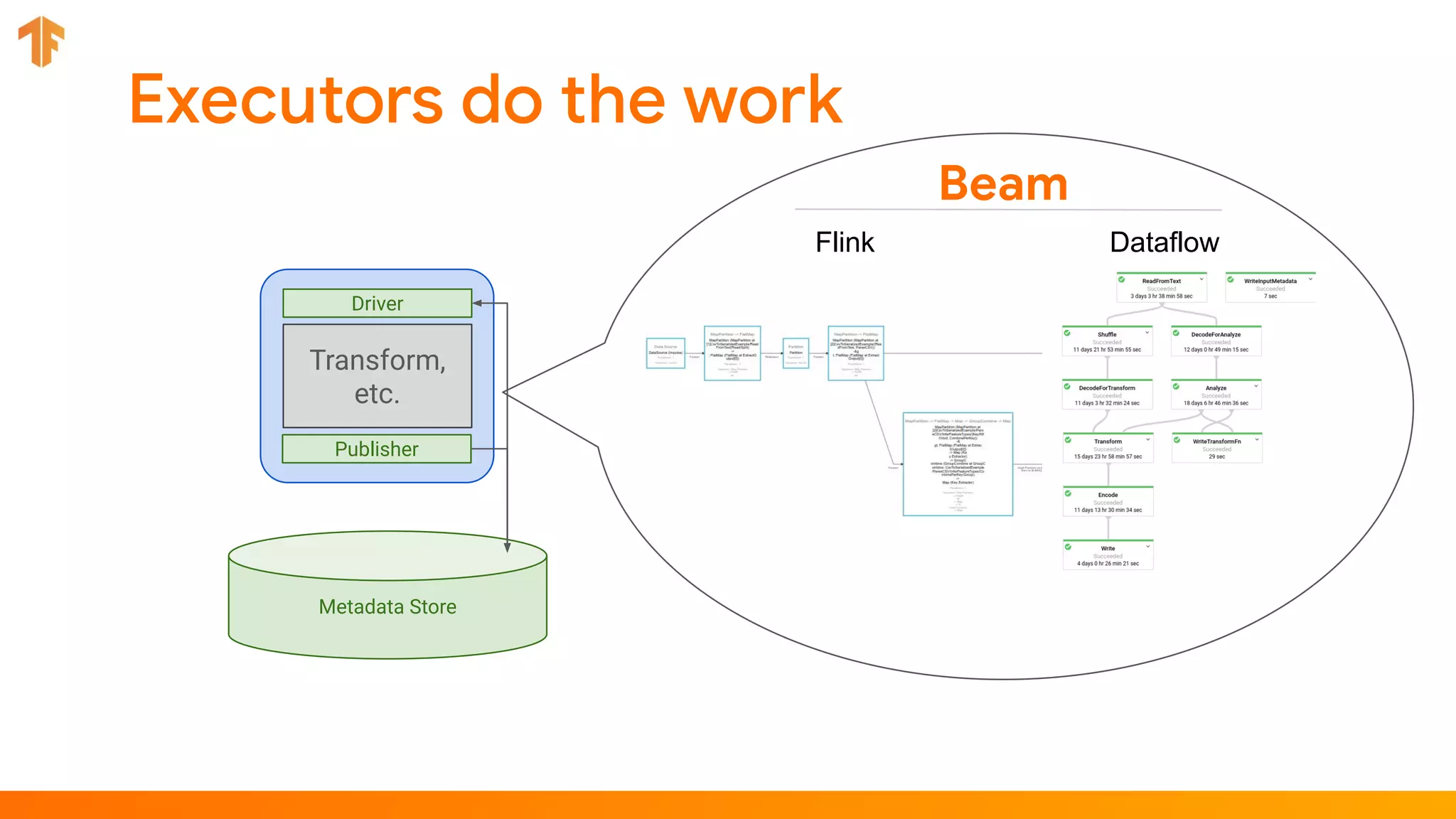

- 36. TFX Config Component Executor Legend Driver andPublisher Driver Metadata Store Publisher Driver Publisher Driver Publisher Executor Executor Executor
- 37.

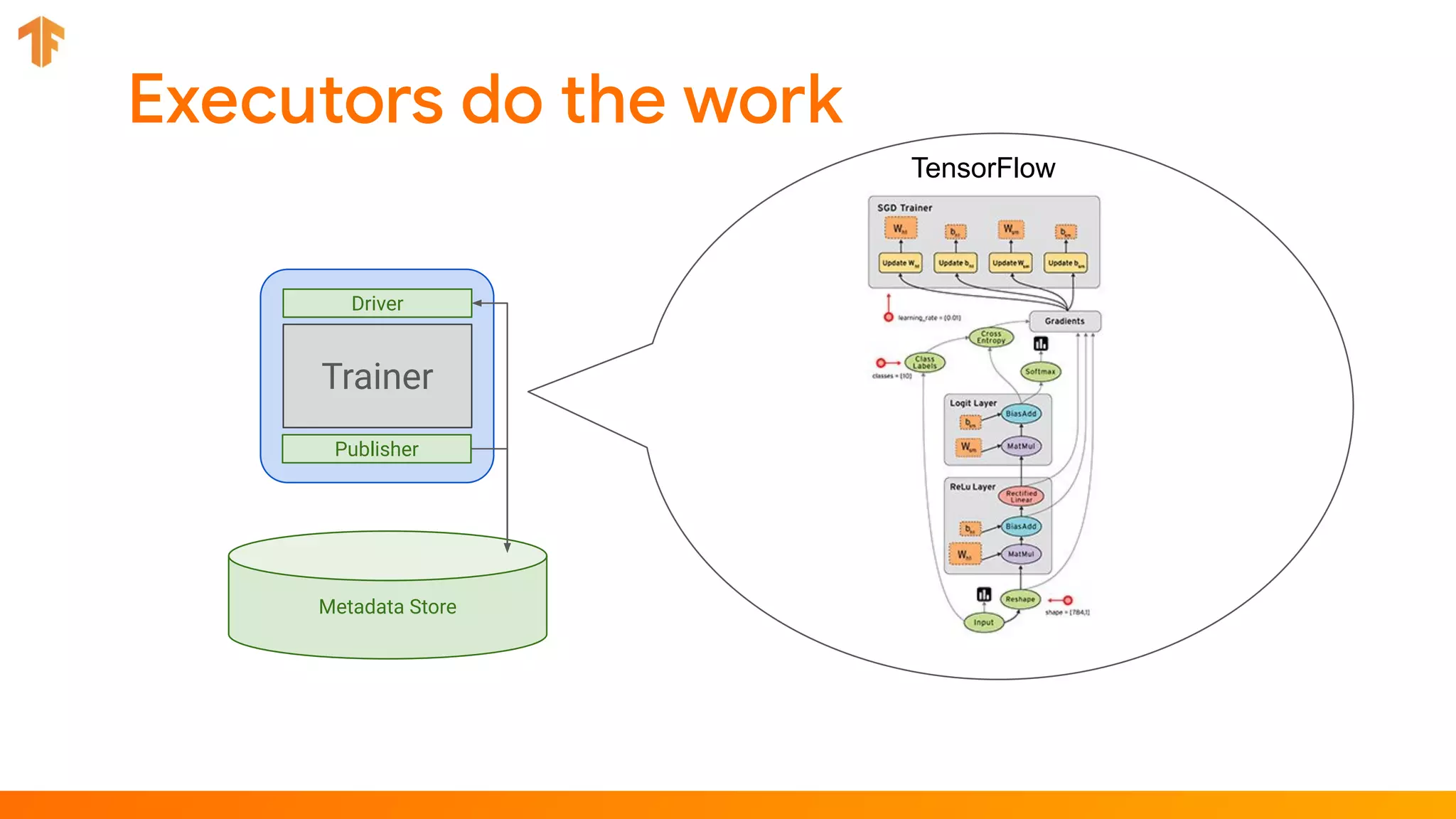

- 38.
- 39.

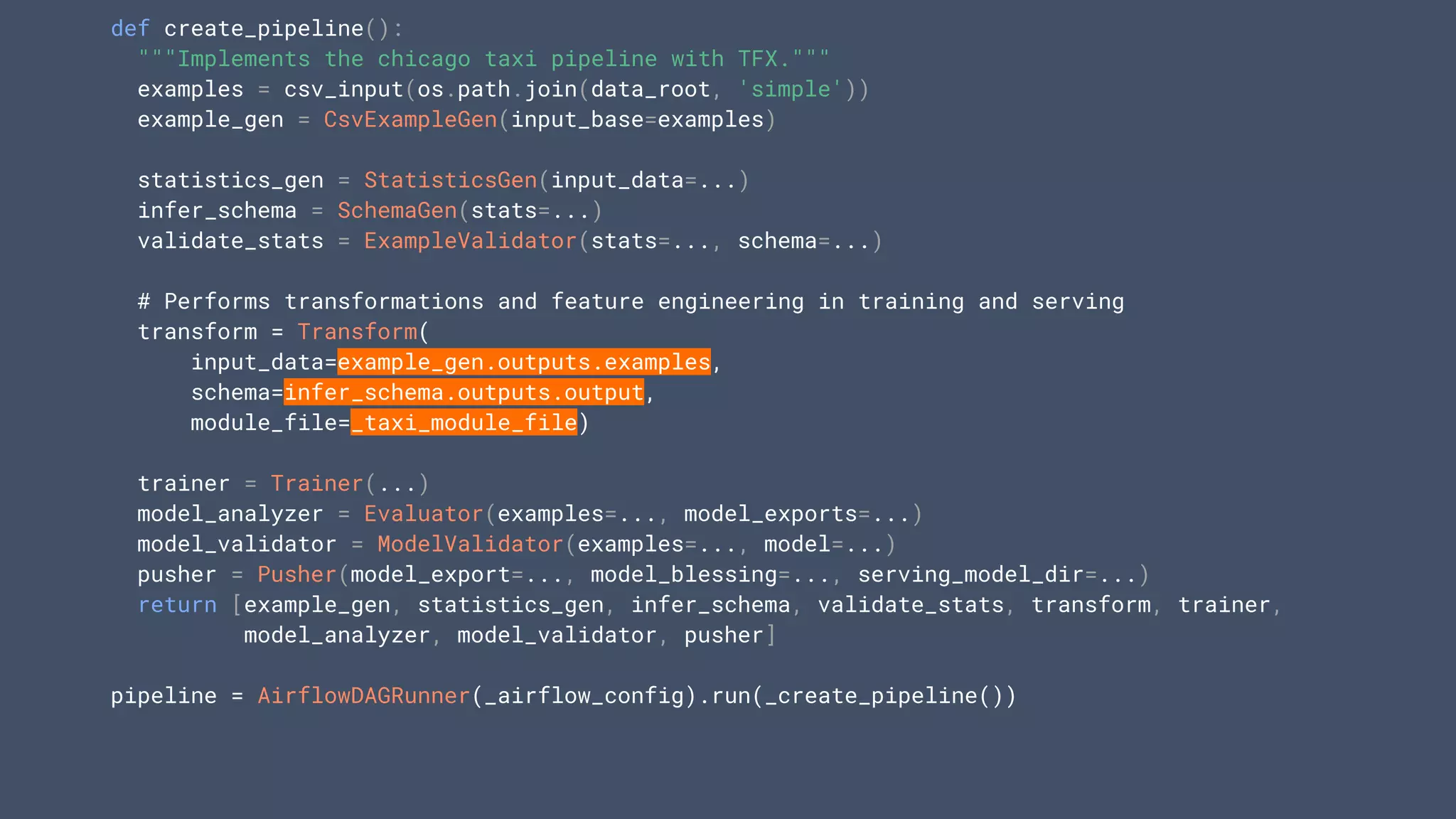

- 40. def create_pipeline(): """Implements thechicago taxi pipeline with TFX.""" examples = csv_input(os.path.join(data_root, 'simple')) example_gen = CsvExampleGen(input_base=examples) statistics_gen = StatisticsGen(input_data=...) infer_schema = SchemaGen(stats=...) validate_stats = ExampleValidator(stats=..., schema=...) # Performs transformations and feature engineering in training and serving transform = Transform( input_data=example_gen.outputs.examples, schema=infer_schema.outputs.output, module_file=_taxi_module_file) trainer = Trainer(...) model_analyzer = Evaluator(examples=..., model_exports=...) model_validator = ModelValidator(examples=..., model=...) pusher = Pusher(model_export=..., model_blessing=..., serving_model_dir=...) return [example_gen, statistics_gen, infer_schema, validate_stats, transform, trainer, model_analyzer, model_validator, pusher] pipeline = AirflowDAGRunner(_airflow_config).run(_create_pipeline())

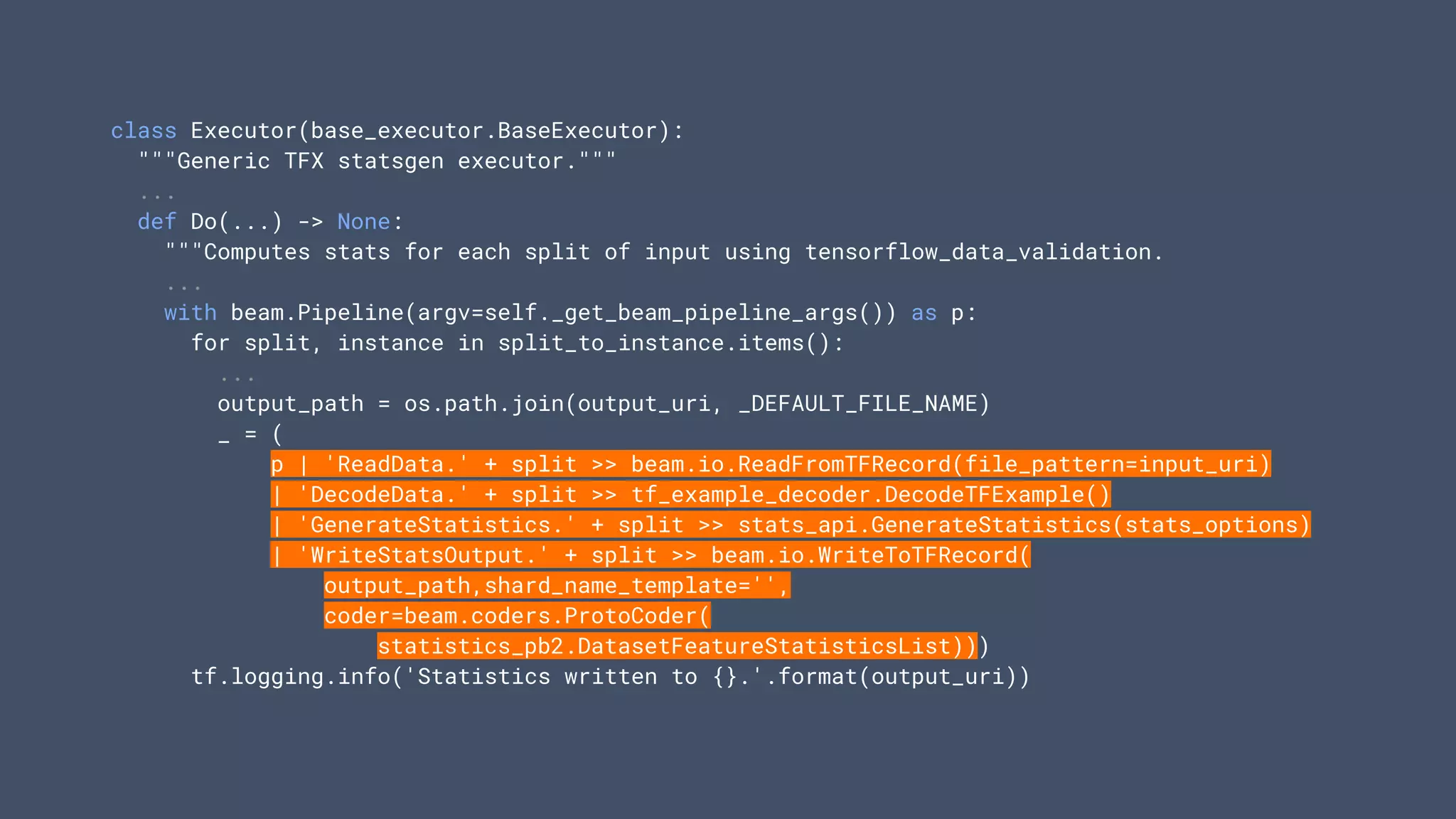

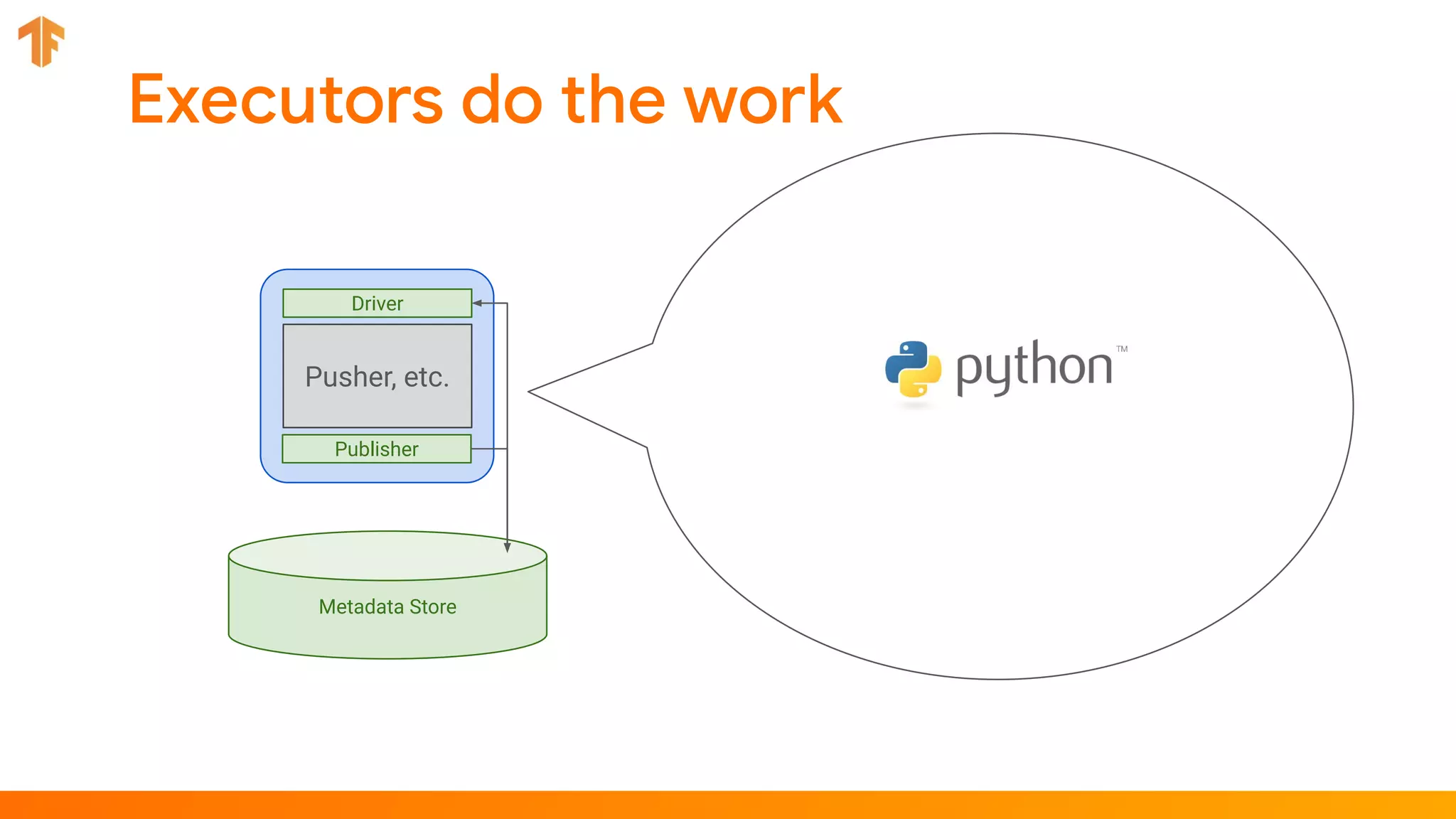

- 41. class Executor(base_executor.BaseExecutor): """Generic TFXstatsgen executor.""" ... def Do(...) -> None: """Computes stats for each split of input using tensorflow_data_validation. ... with beam.Pipeline(argv=self._get_beam_pipeline_args()) as p: for split, instance in split_to_instance.items(): ... output_path = os.path.join(output_uri, _DEFAULT_FILE_NAME) _ = ( p | 'ReadData.' + split >> beam.io.ReadFromTFRecord(file_pattern=input_uri) | 'DecodeData.' + split >> tf_example_decoder.DecodeTFExample() | 'GenerateStatistics.' + split >> stats_api.GenerateStatistics(stats_options) | 'WriteStatsOutput.' + split >> beam.io.WriteToTFRecord( output_path,shard_name_template='', coder=beam.coders.ProtoCoder( statistics_pb2.DatasetFeatureStatisticsList))) tf.logging.info('Statistics written to {}.'.format(output_uri))

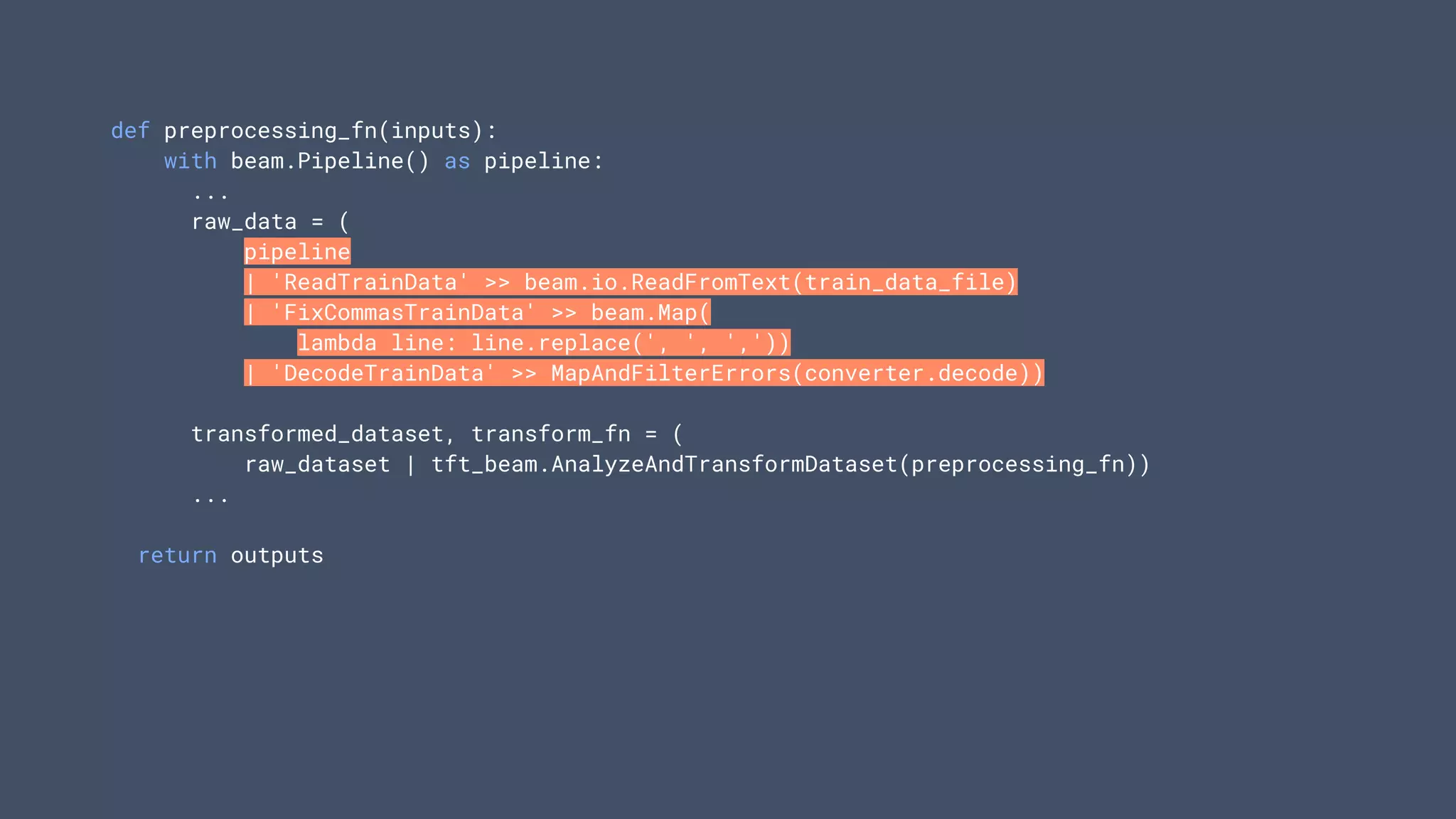

- 42. def preprocessing_fn(inputs): with beam.Pipeline()as pipeline: ... raw_data = ( pipeline | 'ReadTrainData' >> beam.io.ReadFromText(train_data_file) | 'FixCommasTrainData' >> beam.Map( lambda line: line.replace(', ', ',')) | 'DecodeTrainData' >> MapAndFilterErrors(converter.decode)) transformed_dataset, transform_fn = ( raw_dataset | tft_beam.AnalyzeAndTransformDataset(preprocessing_fn)) ... return outputs
- 43.

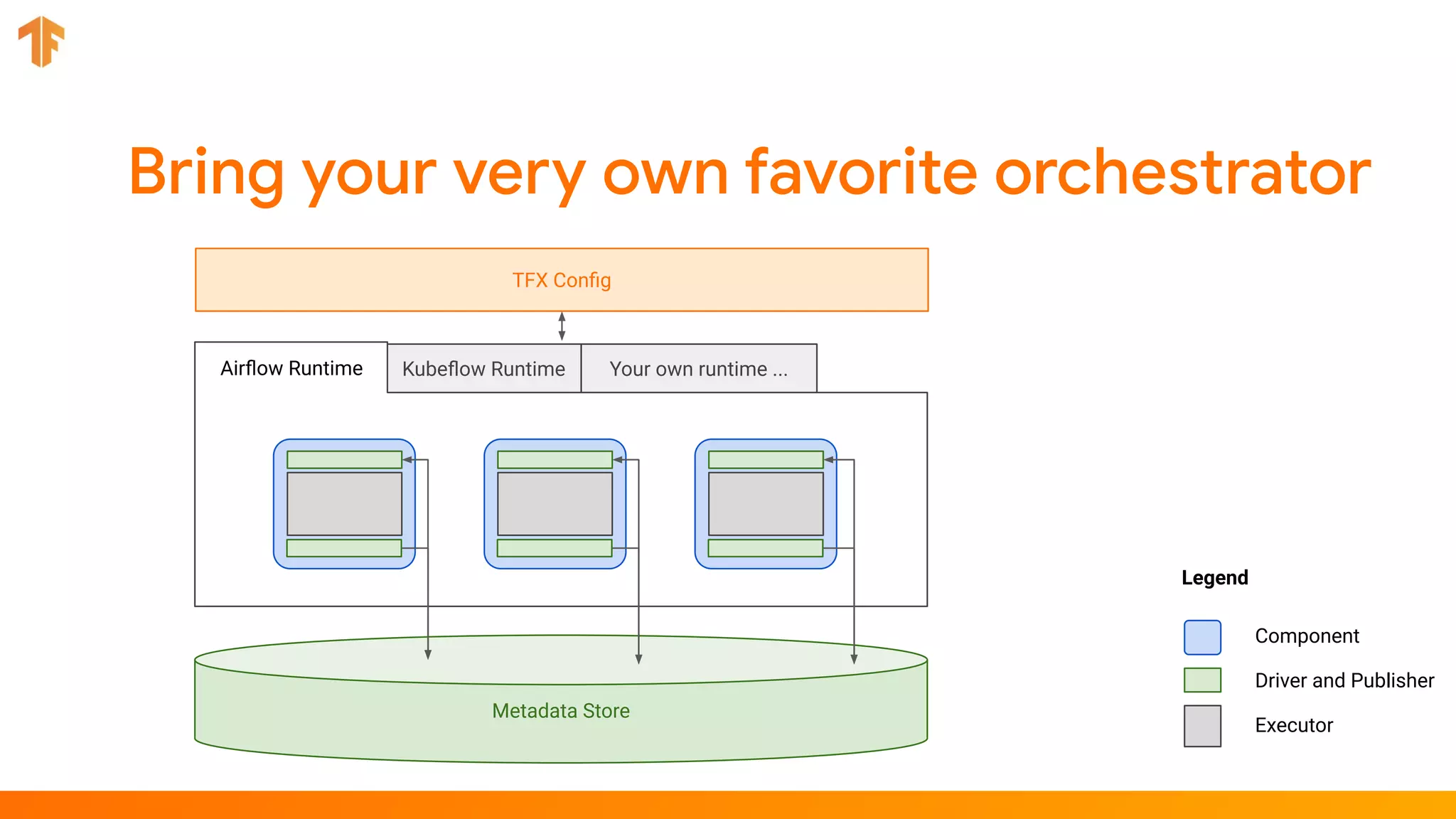

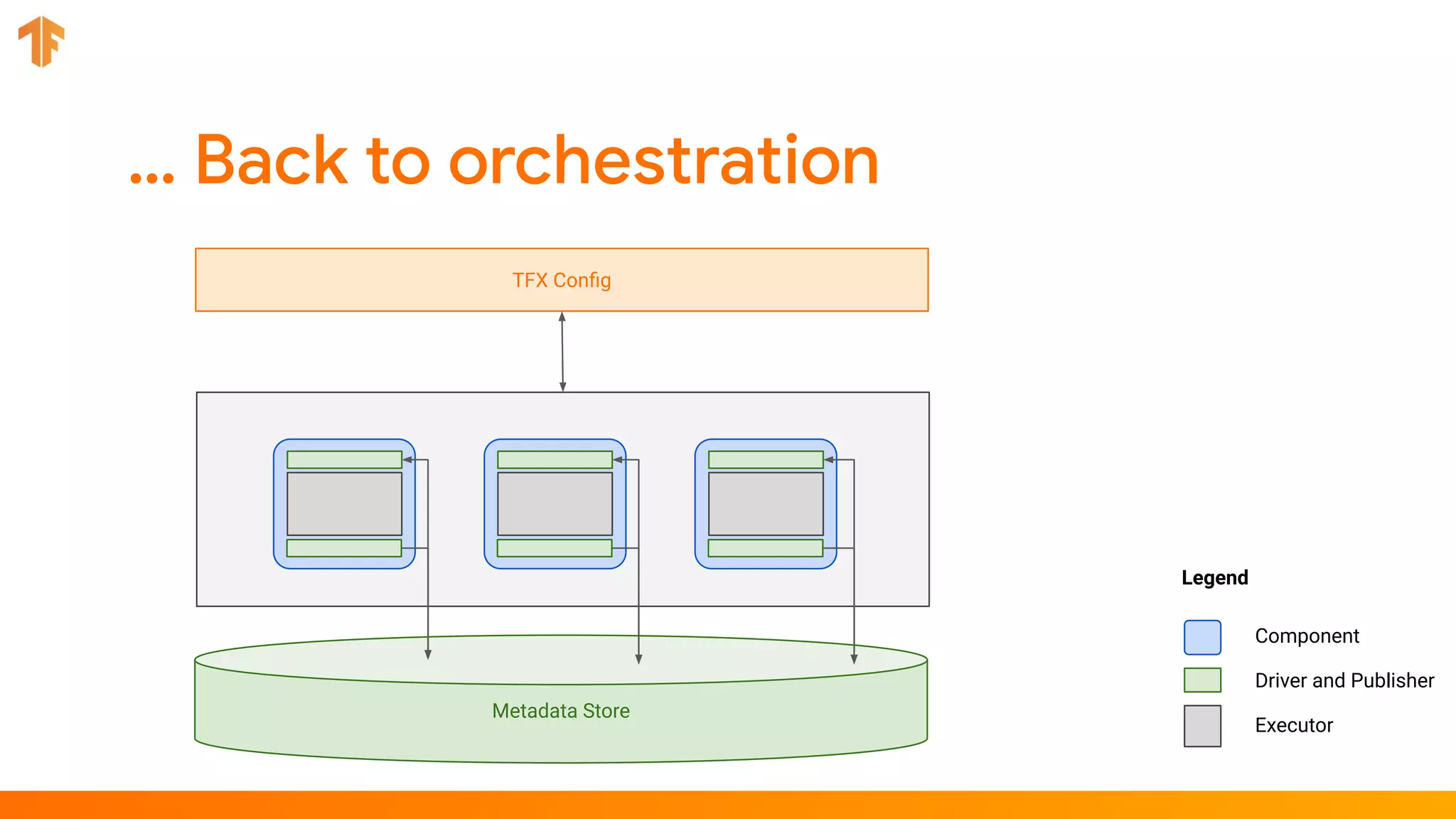

- 44. Your own runtime...Kubeflow Runtime Metadata Store Component Driver and Publisher Executor Legend Airflow Runtime TFX Config

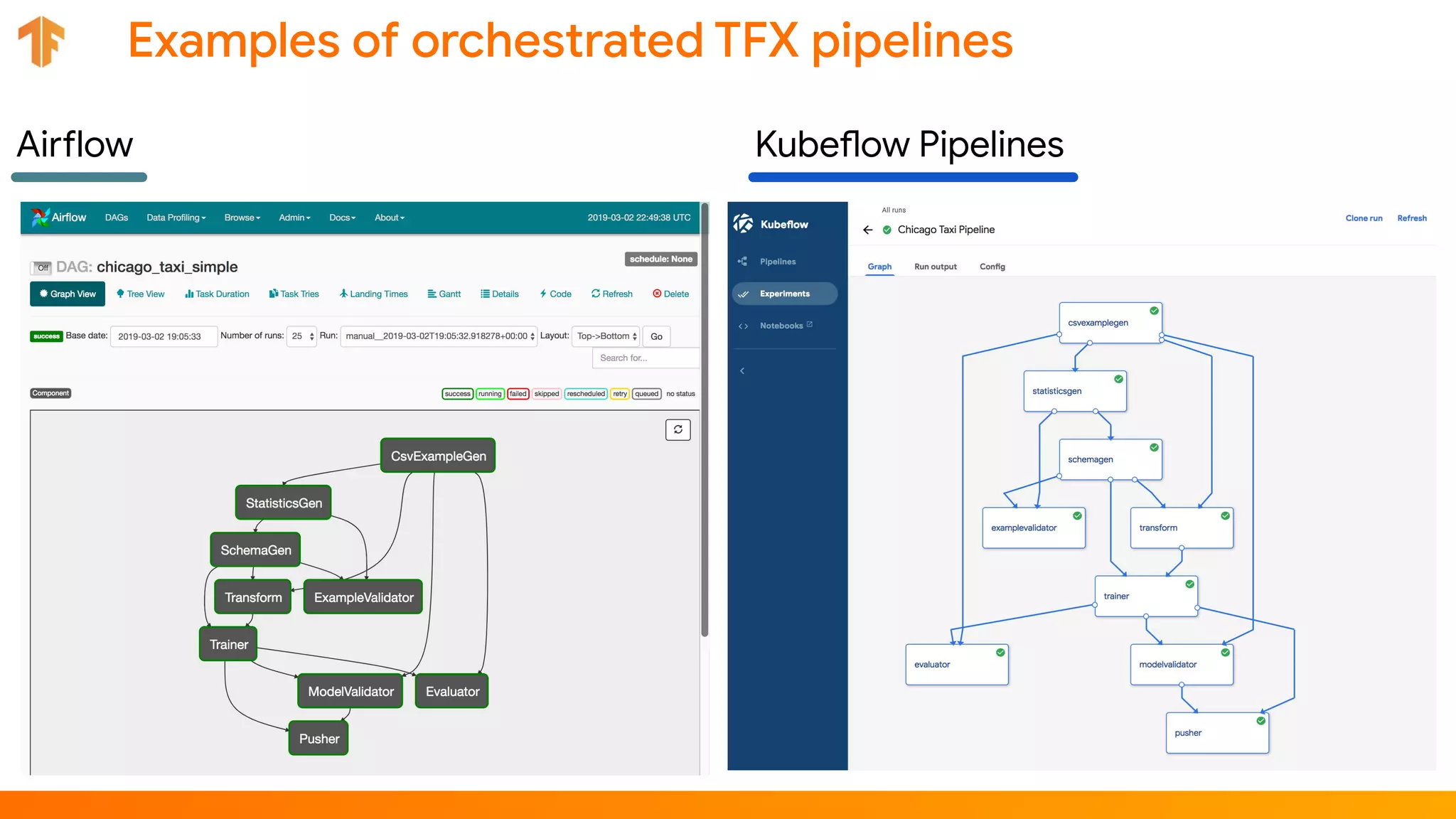

- 45.

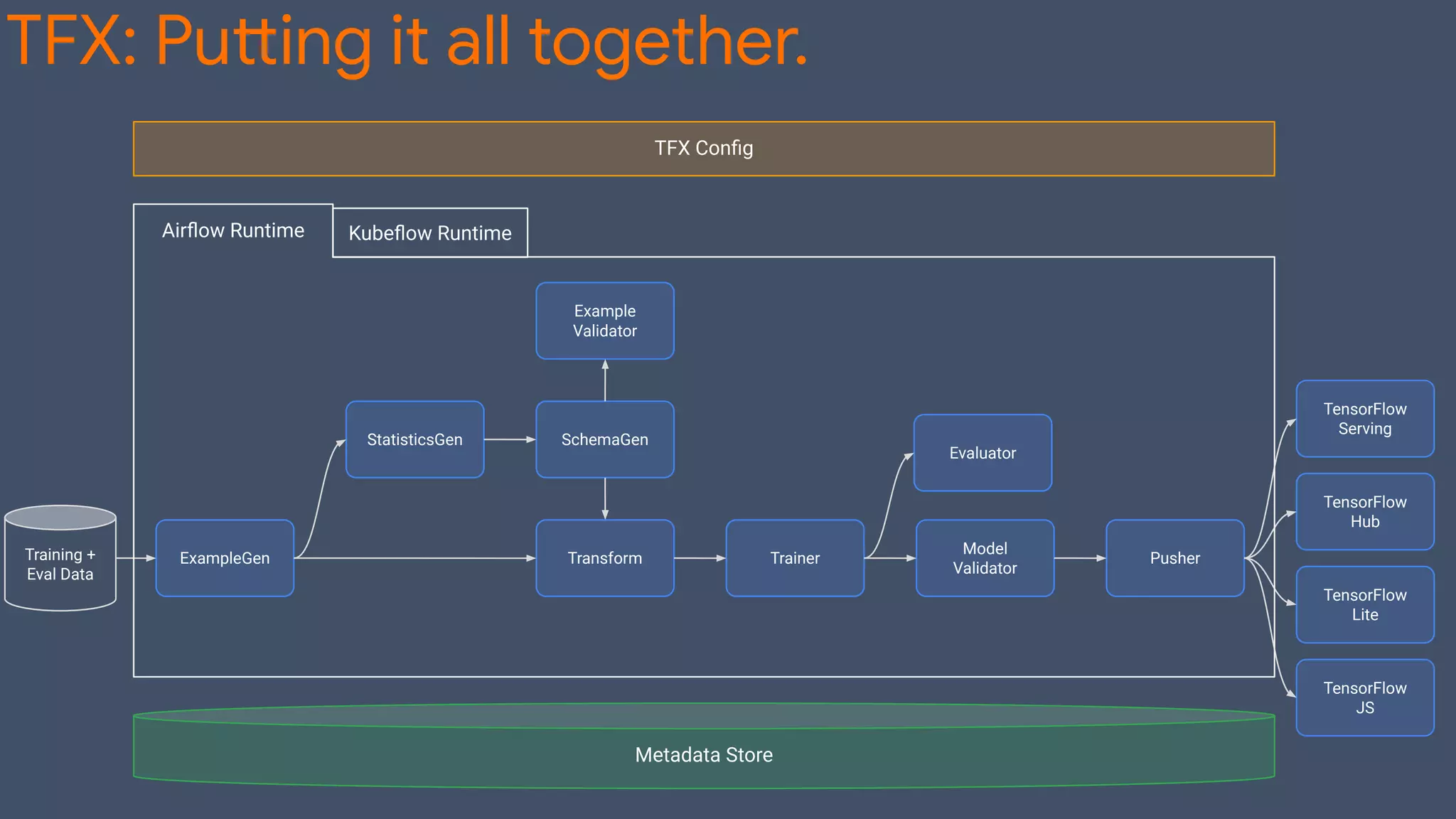

- 46. Kubeflow Runtime ExampleGen StatisticsGen SchemaGen Example Validator TransformTrainer Evaluator Model Validator Pusher TFX Config Metadata Store Training + Eval Data TensorFlow Serving TensorFlow Hub TensorFlow Lite TensorFlow JS TFX: Putting it all together. Airflow Runtime

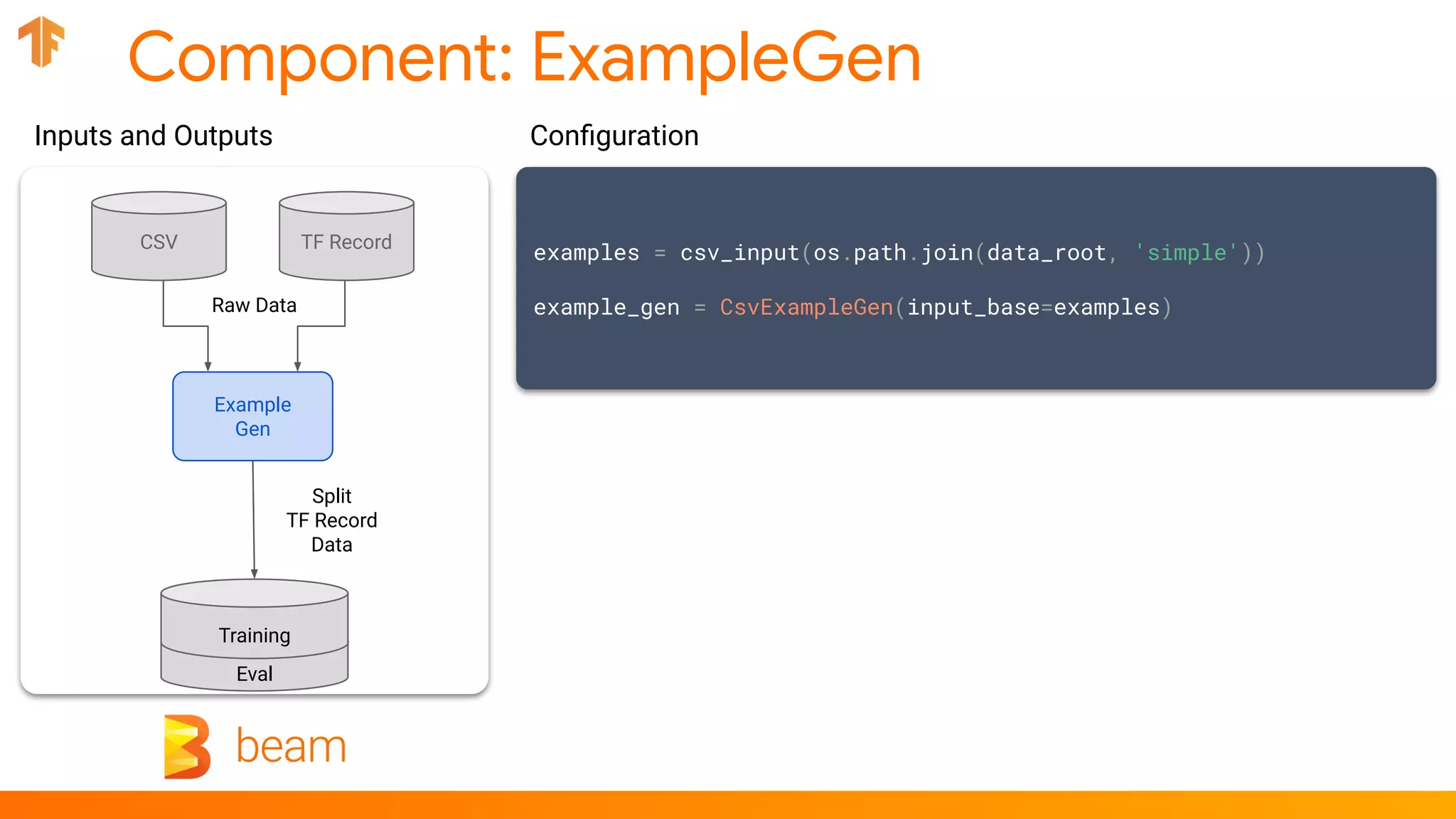

- 47. Component: ExampleGen examples =csv_input(os.path.join(data_root, 'simple')) example_gen = CsvExampleGen(input_base=examples) Configuration Example Gen Raw Data Inputs and Outputs CSV TF Record Split TF Record Data Training Eval

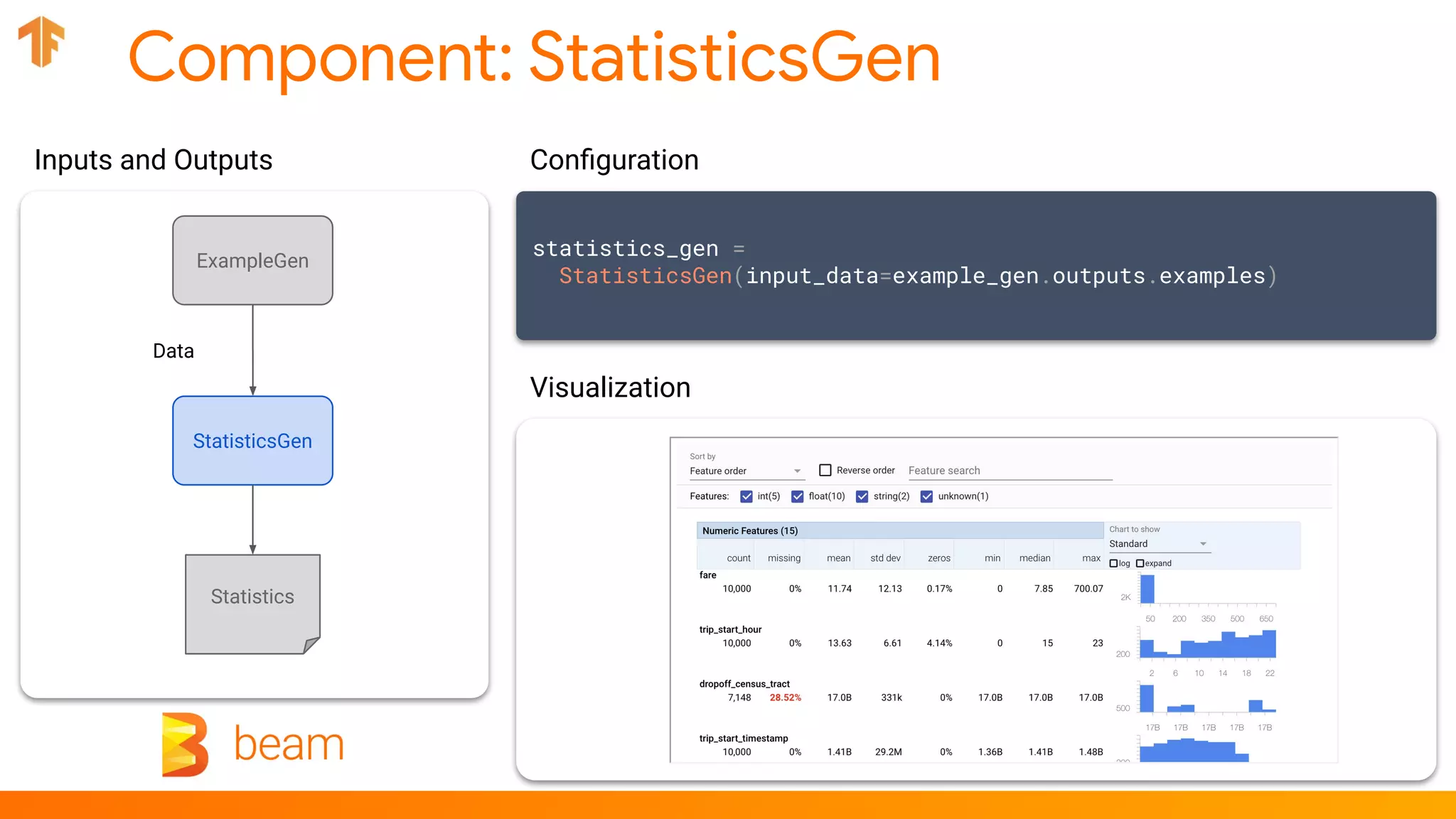

- 48.

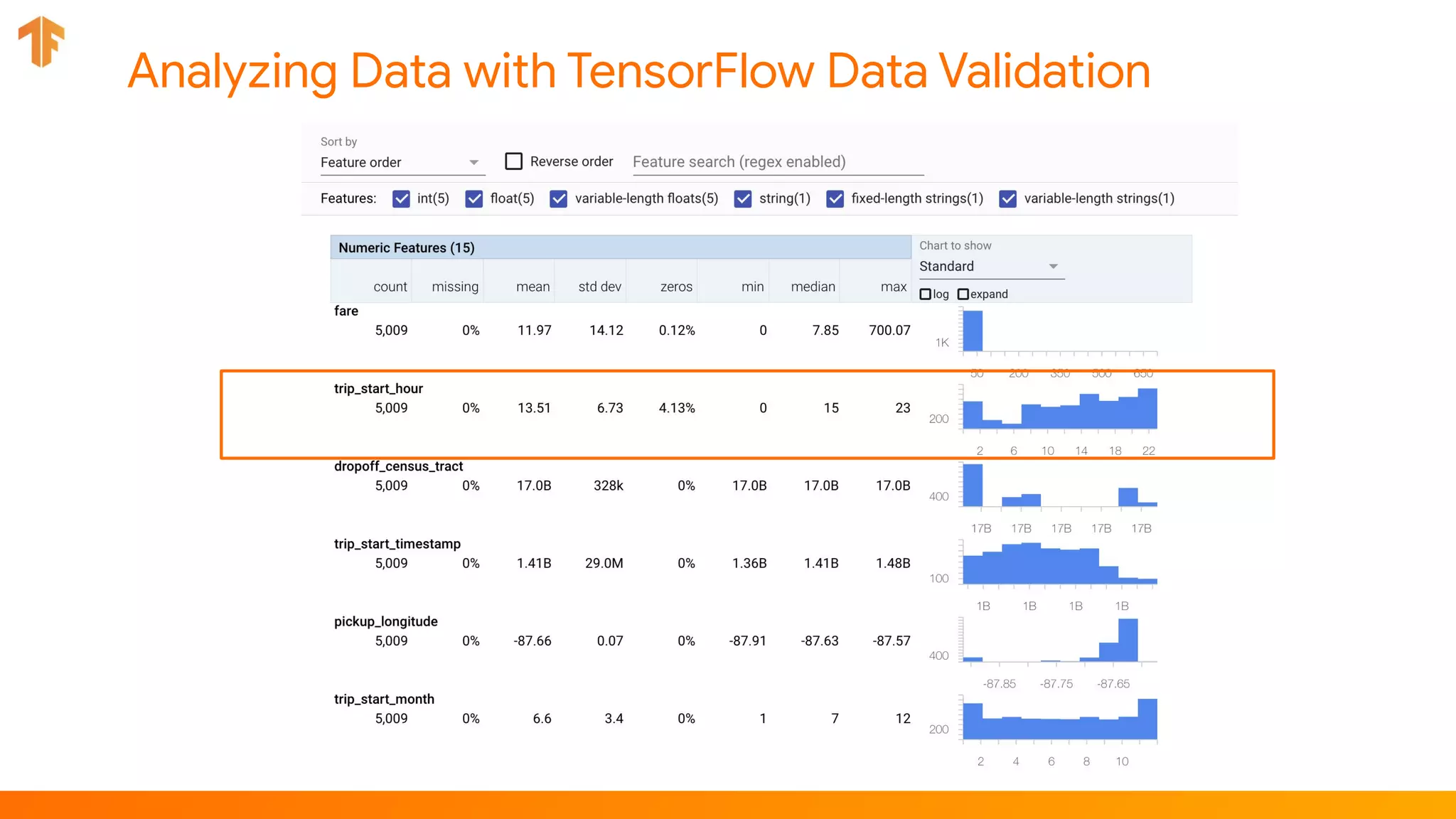

- 49. Analyzing Data withTensorFlow Data Validation
- 50. Component: SchemaGen SchemaGen Statistics StatisticsGen Inputs andOutputs Schema infer_schema = SchemaGen(stats=statistics_gen.outputs.output) Configuration Visualization
- 51. Component: ExampleValidator Example Validator Statistics Schema StatisticsGenSchemaGen Inputs and Outputs Anomalies Report validate_stats = ExampleValidator( stats=statistics_gen.outputs.output, schema=infer_schema.outputs.output) Configuration Visualization
- 52. Component: Transform transform =Transform( input_data=example_gen.outputs.examples, schema=infer_schema.outputs.output, module_file=taxi_module_file) Configuration for key in _DENSE_FLOAT_FEATURE_KEYS: outputs[_transformed_name(key)] = transform.scale_to_z_score( _fill_in_missing(inputs[key])) # ... outputs[_transformed_name(_LABEL_KEY)] = tf.where( tf.is_nan(taxi_fare), tf.cast(tf.zeros_like(taxi_fare), tf.int64), # Test if the tip was > 20% of the fare. tf.cast( tf.greater(tips, tf.multiply(taxi_fare, tf.constant(0.2))), tf.int64)) # ... CodeTransform Data Schema Transform Graph Transformed Data ExampleGen SchemaGen Trainer Inputs and Outputs Code

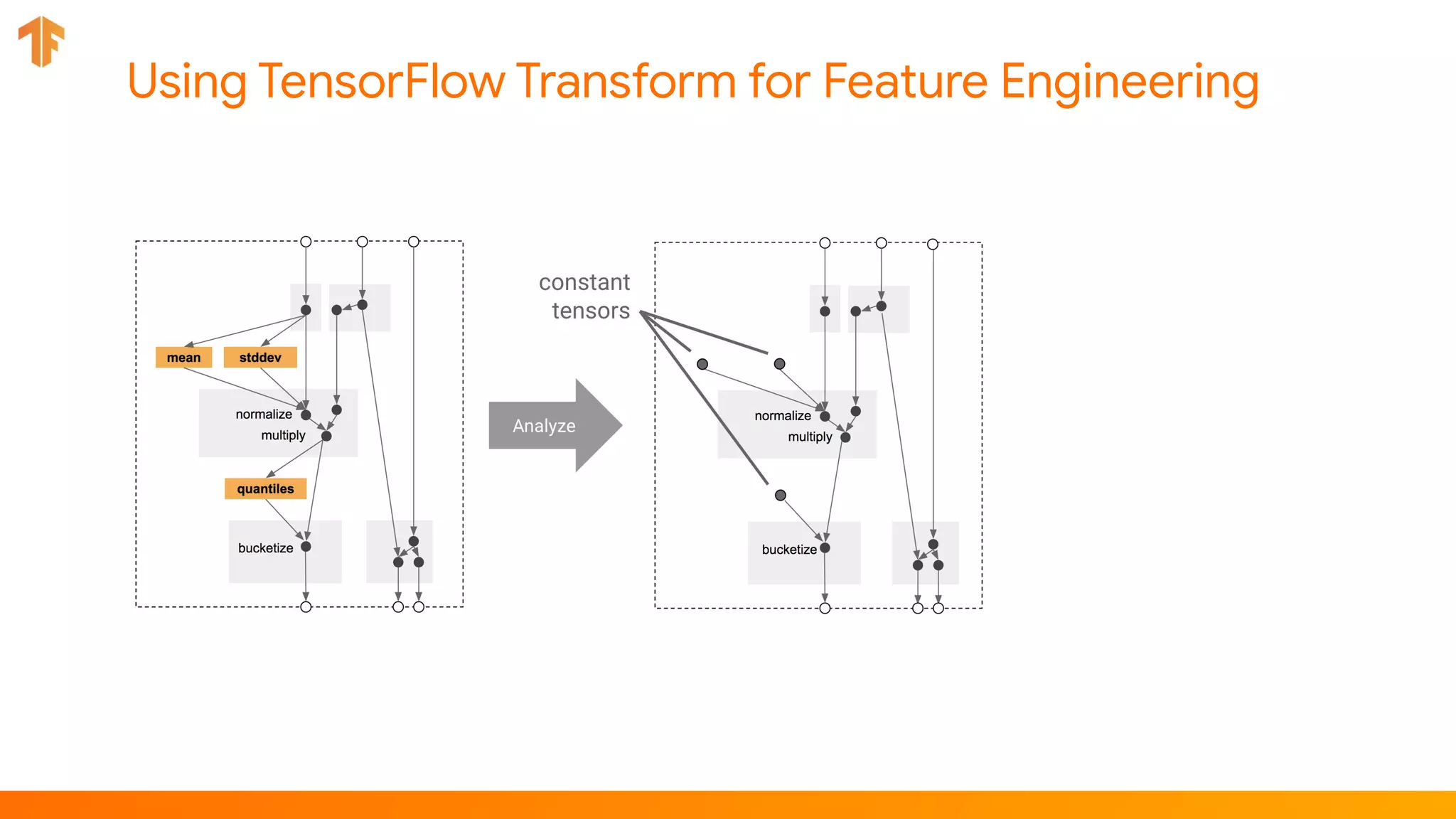

- 53. Using TensorFlow Transformfor Feature Engineering

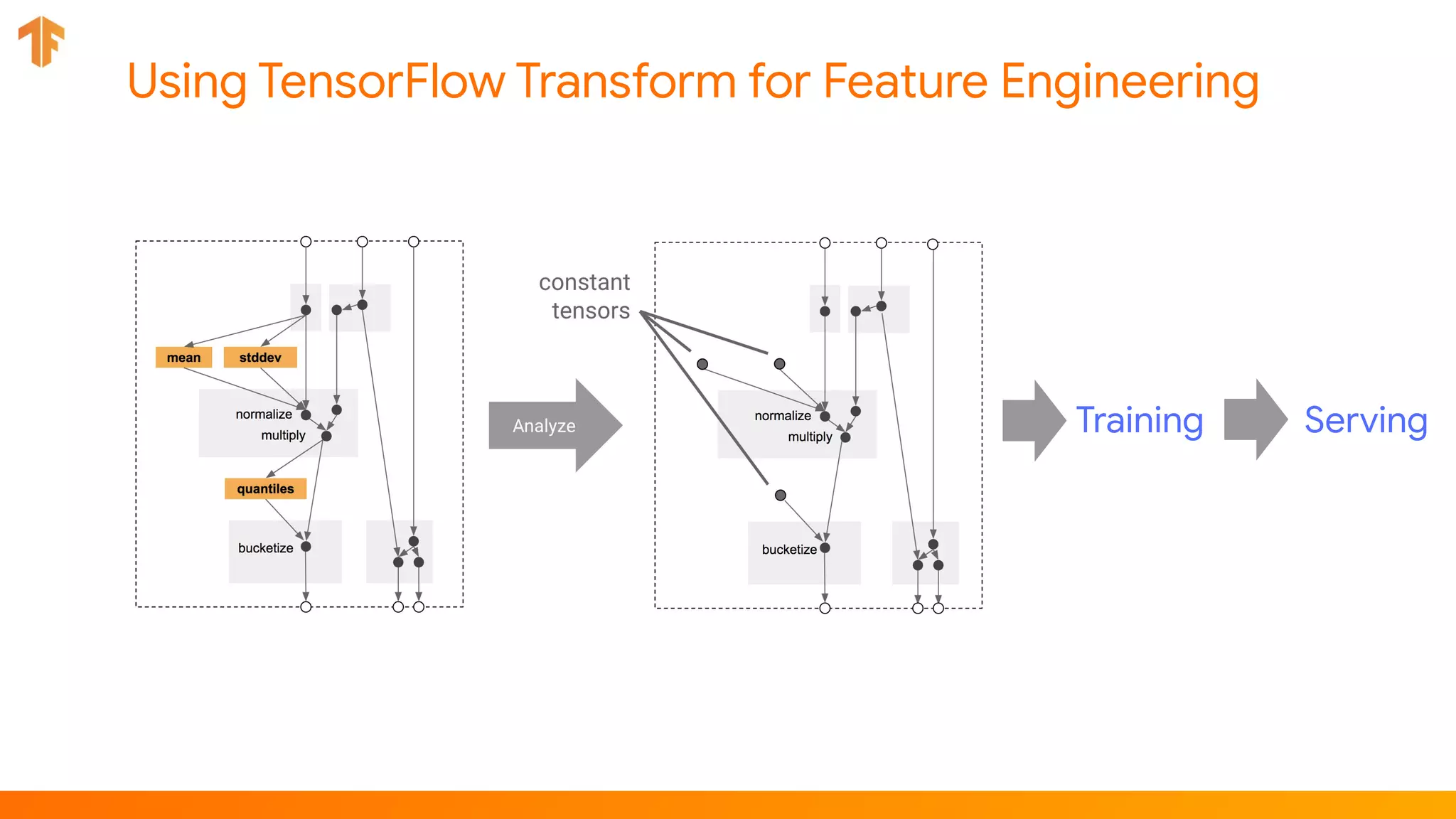

- 54. Using TensorFlow Transformfor Feature Engineering Training Serving

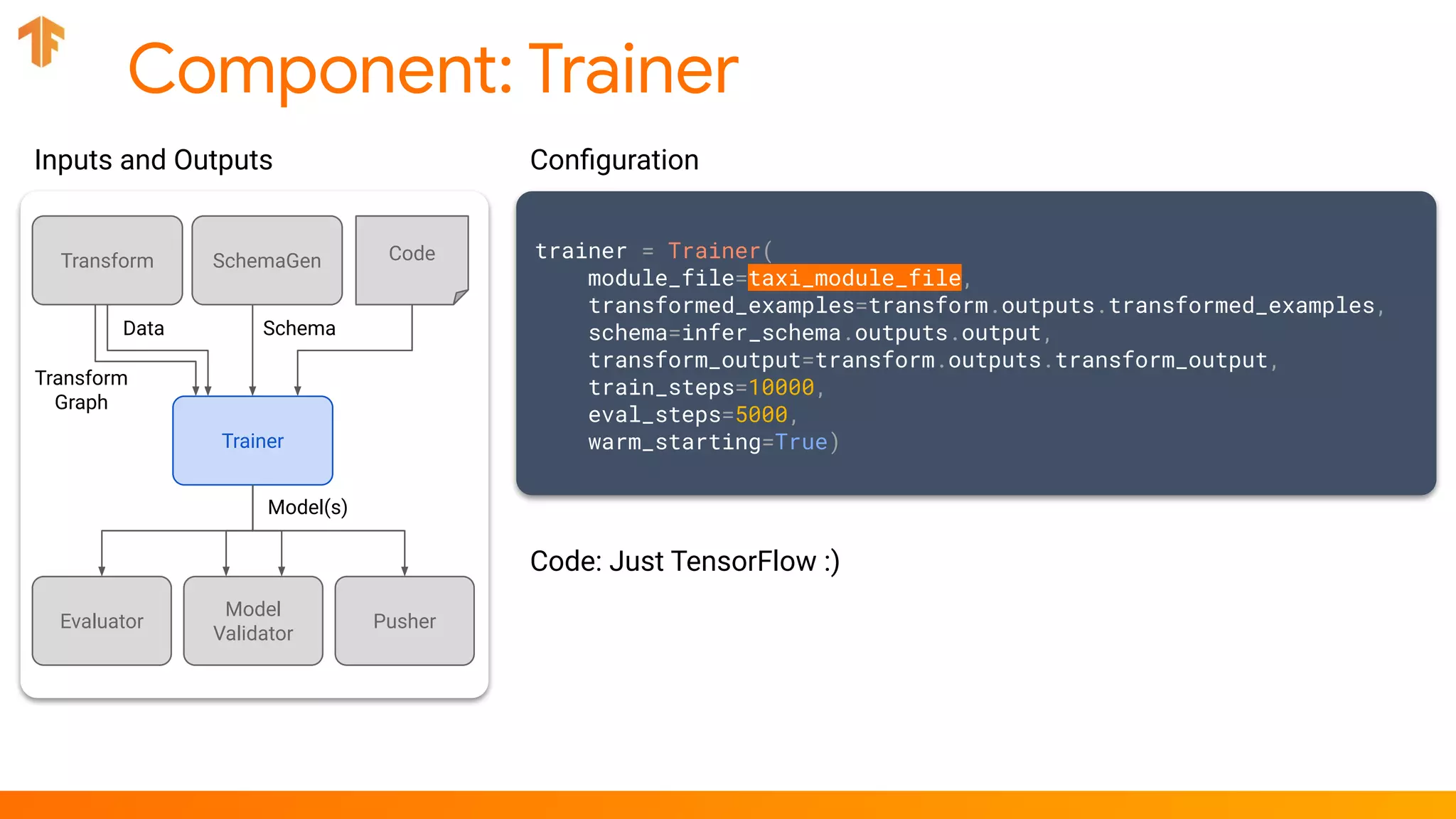

- 55. Component: Trainer trainer =Trainer( module_file=taxi_module_file, transformed_examples=transform.outputs.transformed_examples, schema=infer_schema.outputs.output, transform_output=transform.outputs.transform_output, train_steps=10000, eval_steps=5000, warm_starting=True) Configuration Code: Just TensorFlow :) Trainer Data Schema Transform SchemaGen Evaluator Inputs and Outputs Code Transform Graph Model Validator Pusher Model(s)

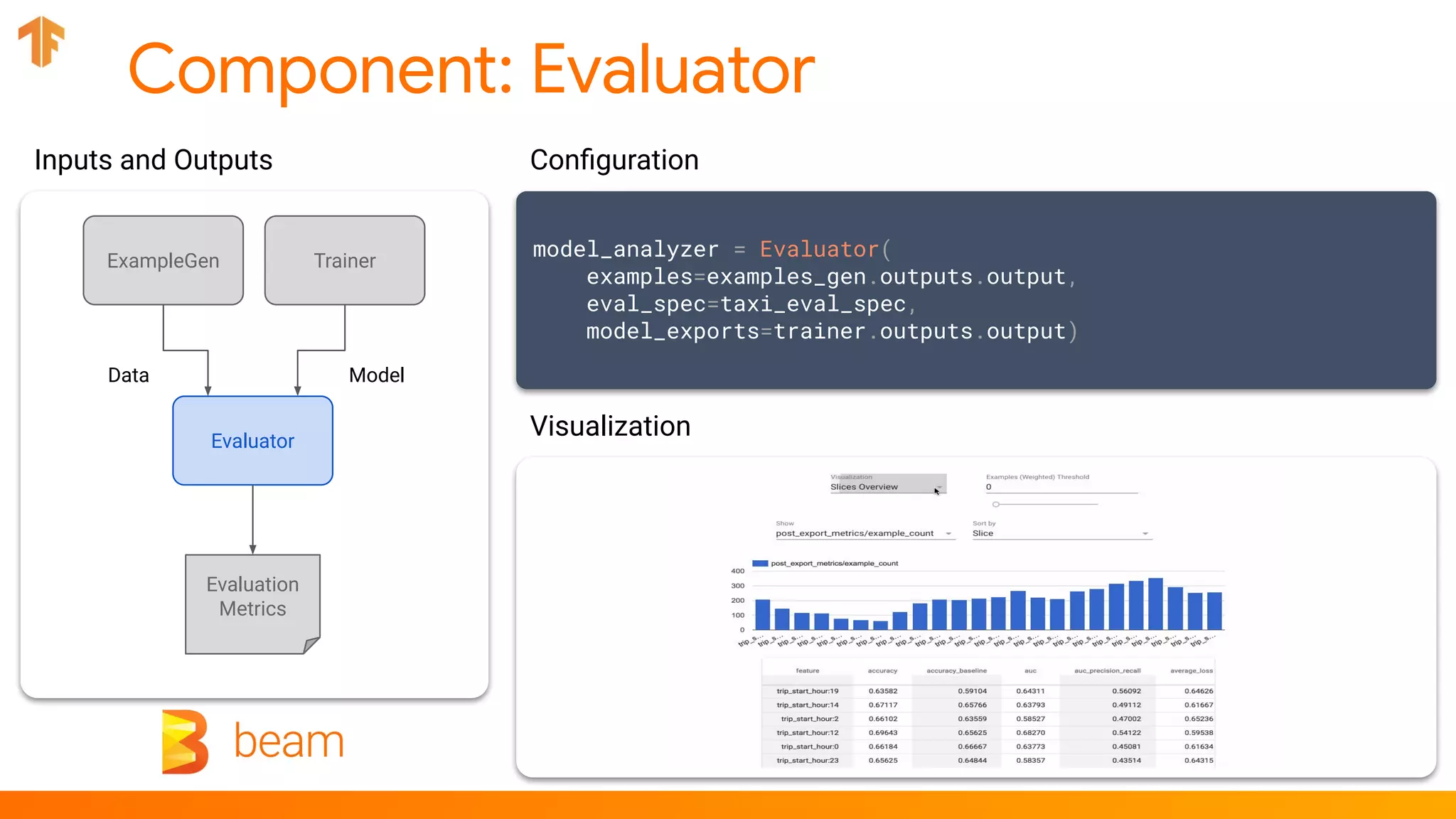

- 56. Component: Evaluator Evaluator Data Model ExampleGenTrainer Inputs and Outputs Evaluation Metrics model_analyzer = Evaluator( examples=examples_gen.outputs.output, eval_spec=taxi_eval_spec, model_exports=trainer.outputs.output) Configuration Visualization

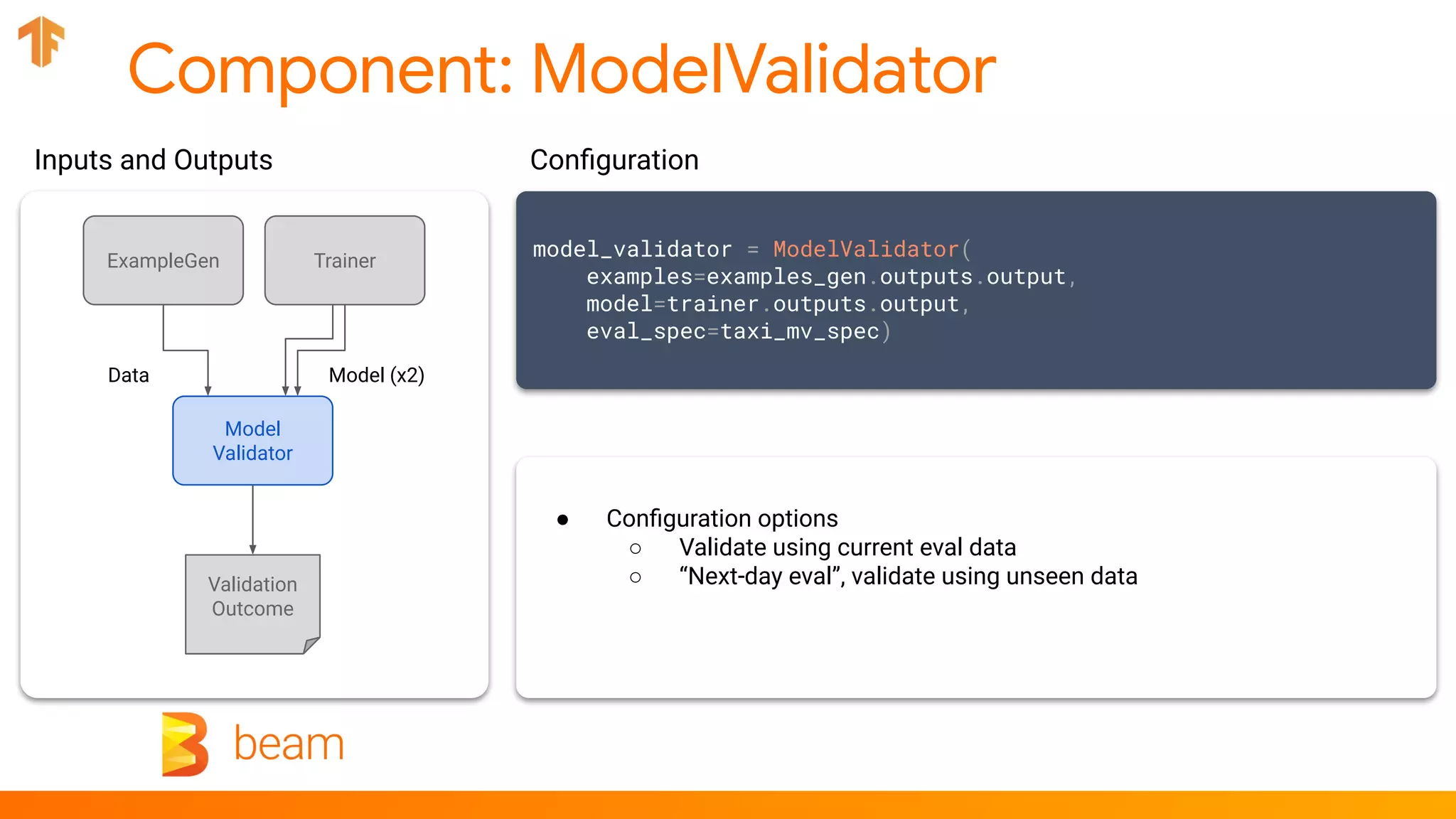

- 57. Component: ModelValidator Model Validator Data ExampleGen Trainer Inputsand Outputs Validation Outcome Model (x2) model_validator = ModelValidator( examples=examples_gen.outputs.output, model=trainer.outputs.output, eval_spec=taxi_mv_spec) Configuration ● Configuration options ○ Validate using current eval data ○ “Next-day eval”, validate using unseen data
- 58. Component: Pusher Validation Outcome Pusher Model Validator Inputs andOutputs Pusher Pusher Deployment Options pusher = Pusher( model_export=trainer.outputs.output, model_blessing=model_validator.outputs.blessing, serving_model_dir=serving_model_dir) Configuration ● Block push on validation outcome ● Push destinations supported today ○ Filesystem (TensorFlow Lite, TensorFlow JS) ○ TensorFlow Serving

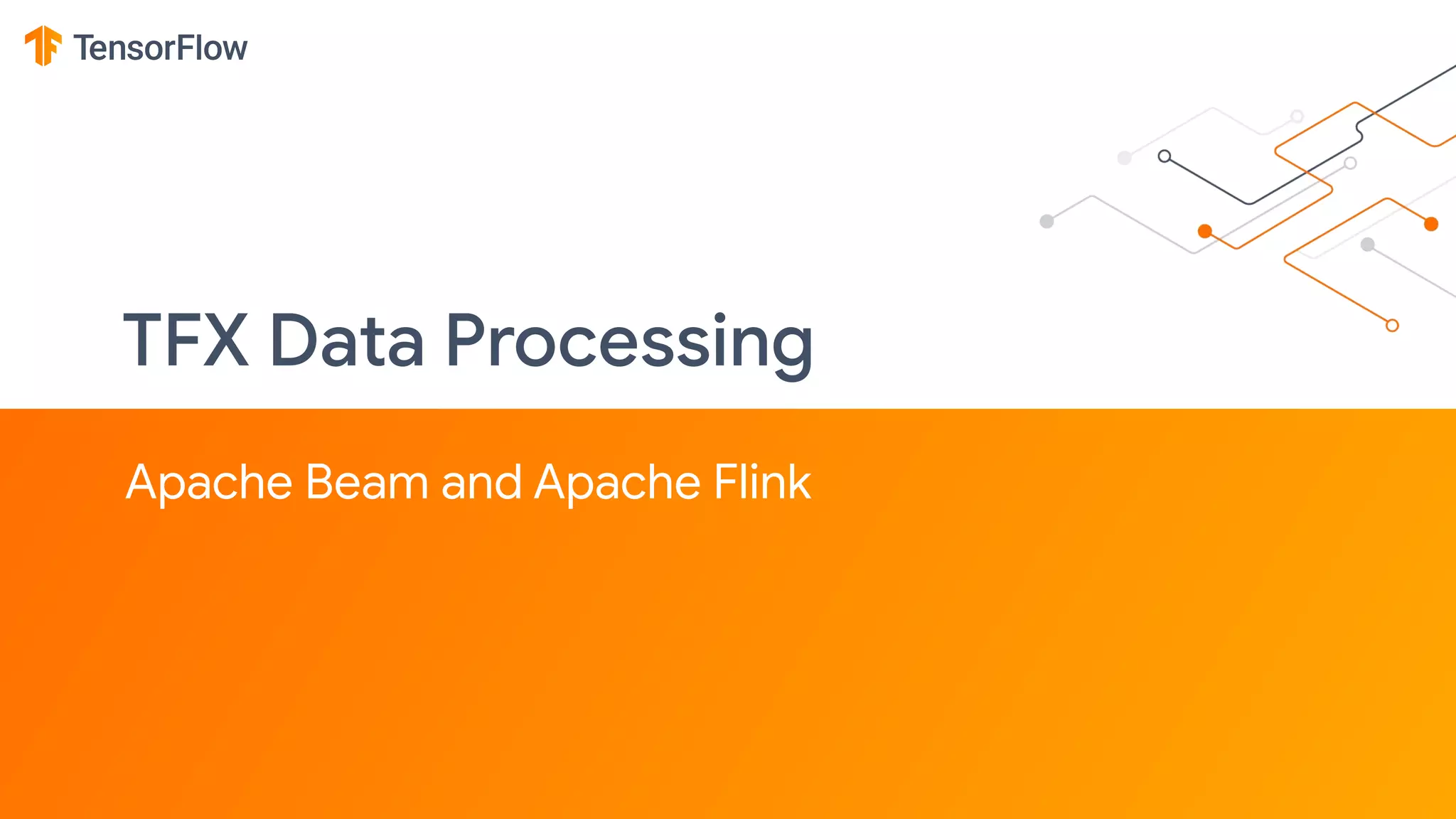

- 59. Apache Beam andApache Flink

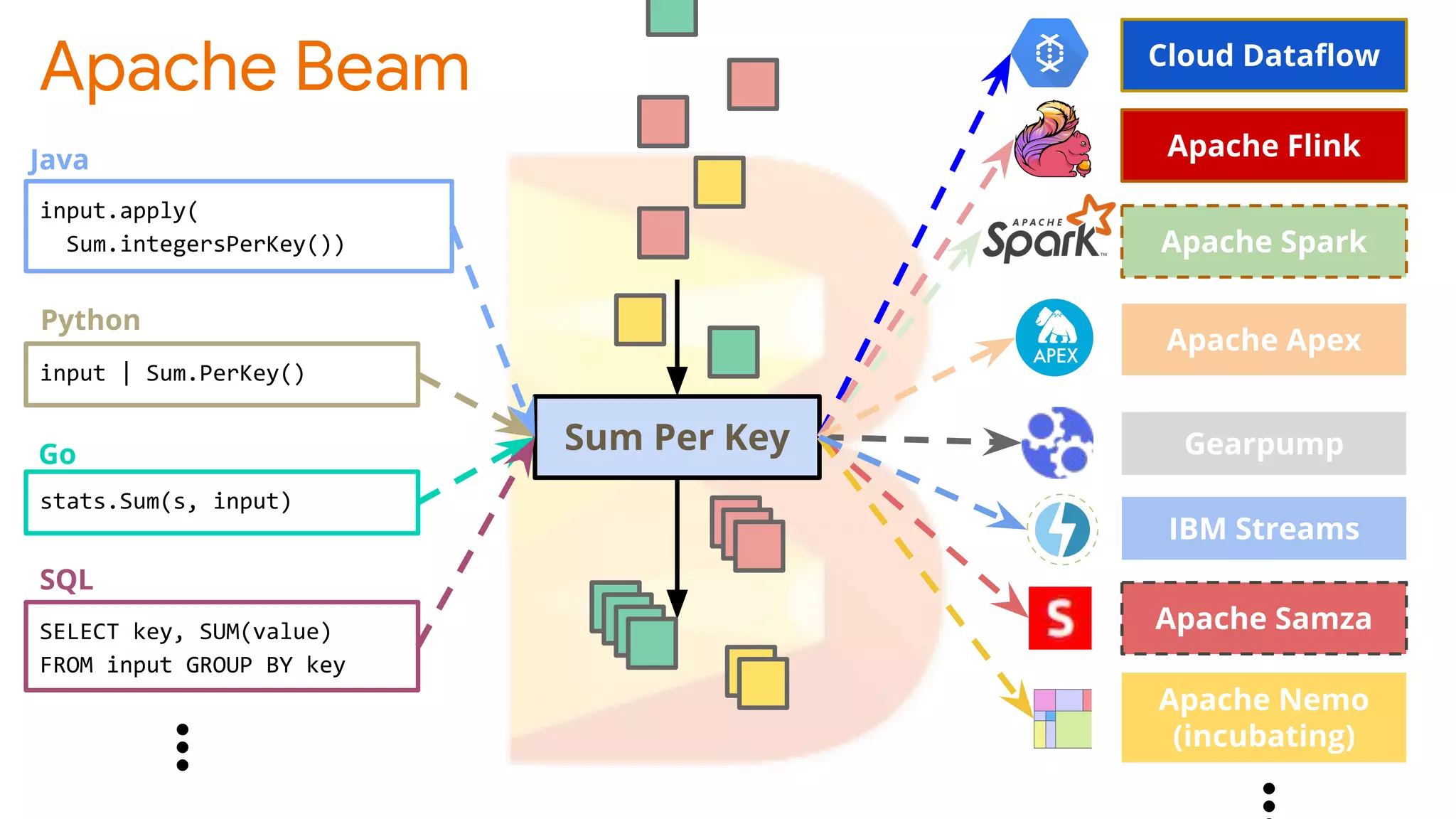

- 60. Apache Beam Sum PerKey ⋮ input | Sum.PerKey() Python input.apply( Sum.integersPerKey()) Java stats.Sum(s, input) Go SELECT key, SUM(value) FROM input GROUP BY key SQL Cloud Dataflow Apache Spark Apache Flink Apache Apex Gearpump Apache Samza Apache Nemo (incubating) IBM Streams

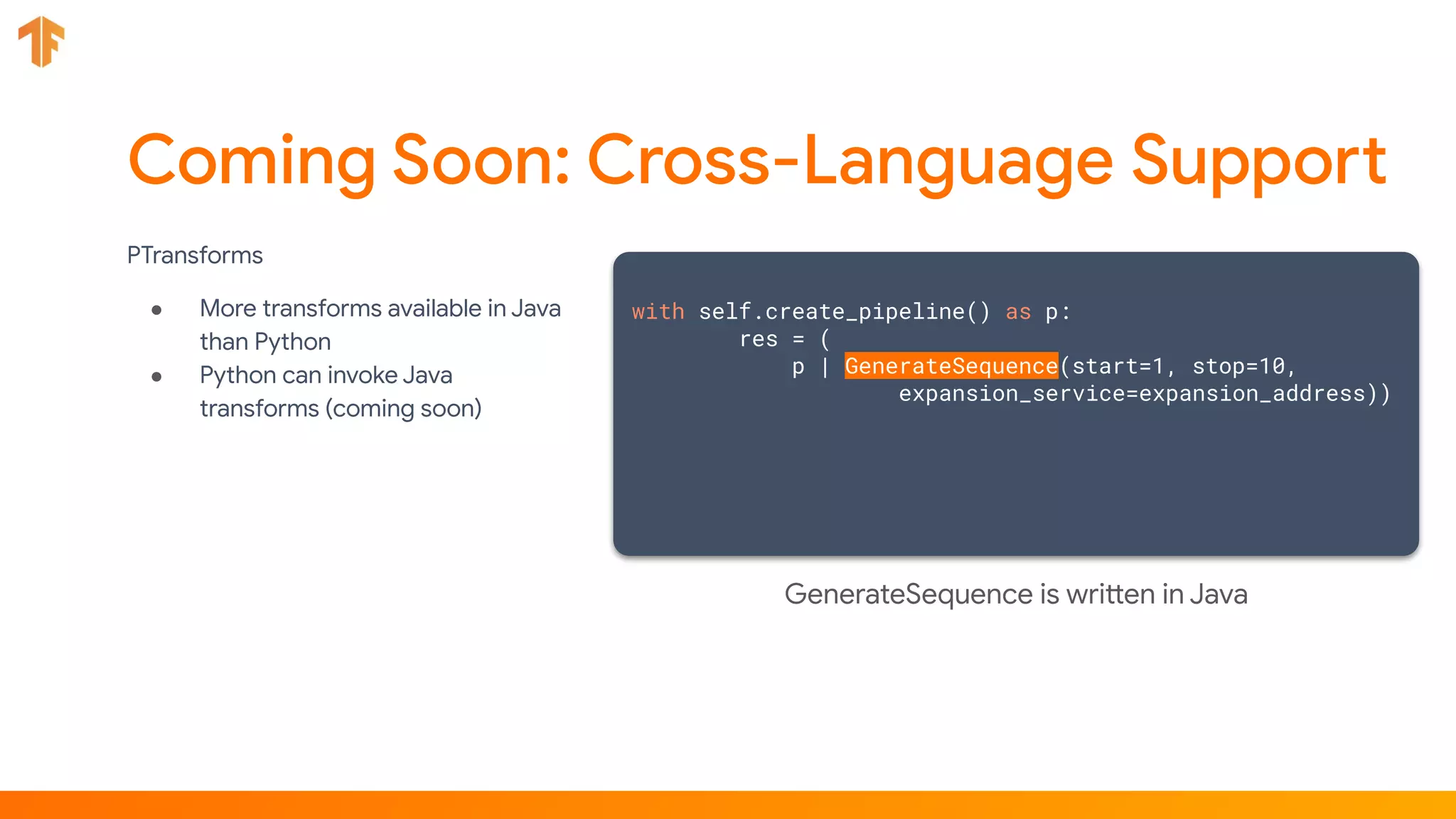

- 61. PTransforms ● More transformsavailable in Java than Python ● Python can invoke Java transforms (coming soon) with self.create_pipeline() as p: res = ( p | GenerateSequence(start=1, stop=10, expansion_service=expansion_address)) GenerateSequence is written in Java

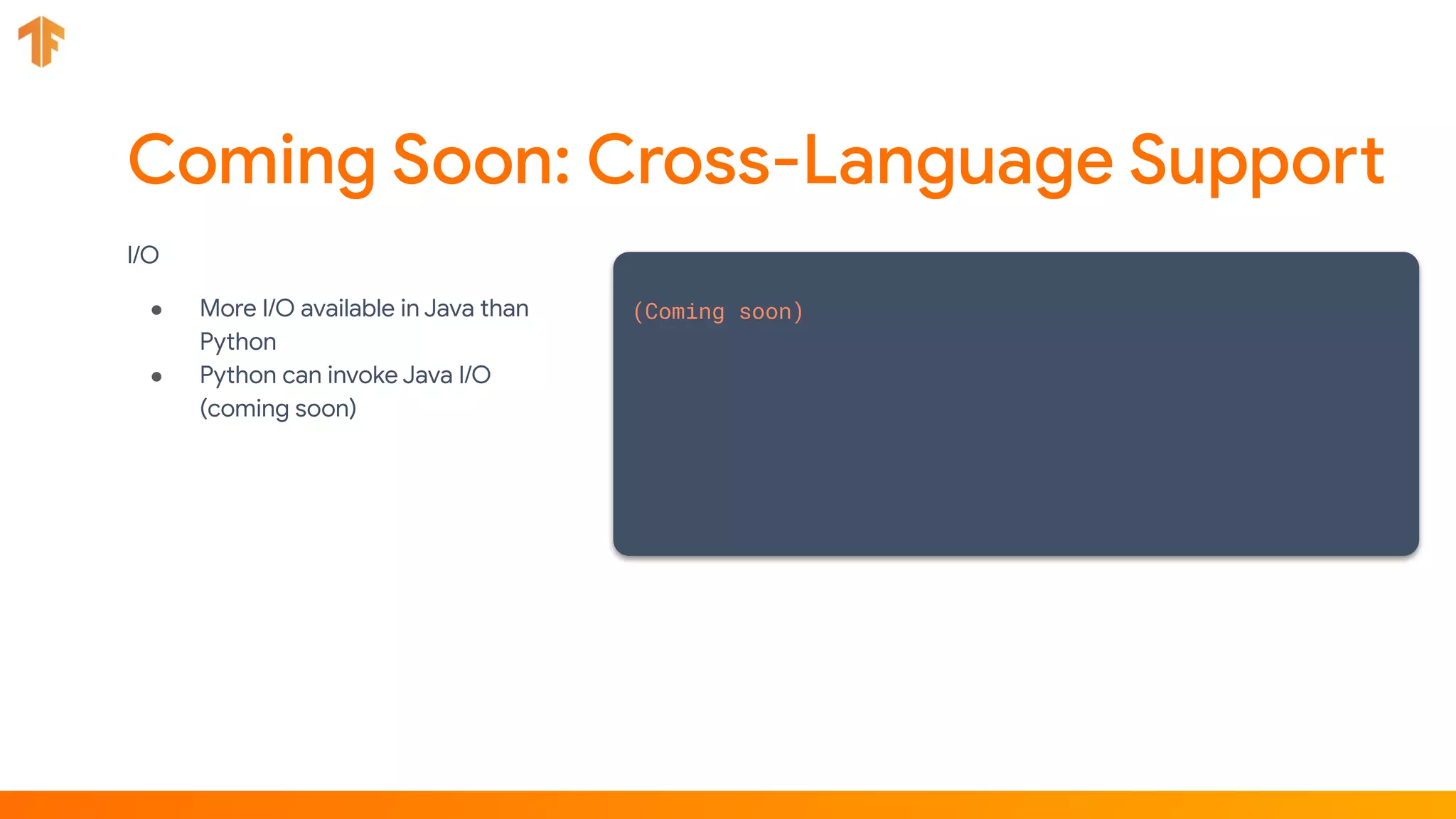

- 62. I/O ● More I/Oavailable in Java than Python ● Python can invoke Java I/O (coming soon) (Coming soon)

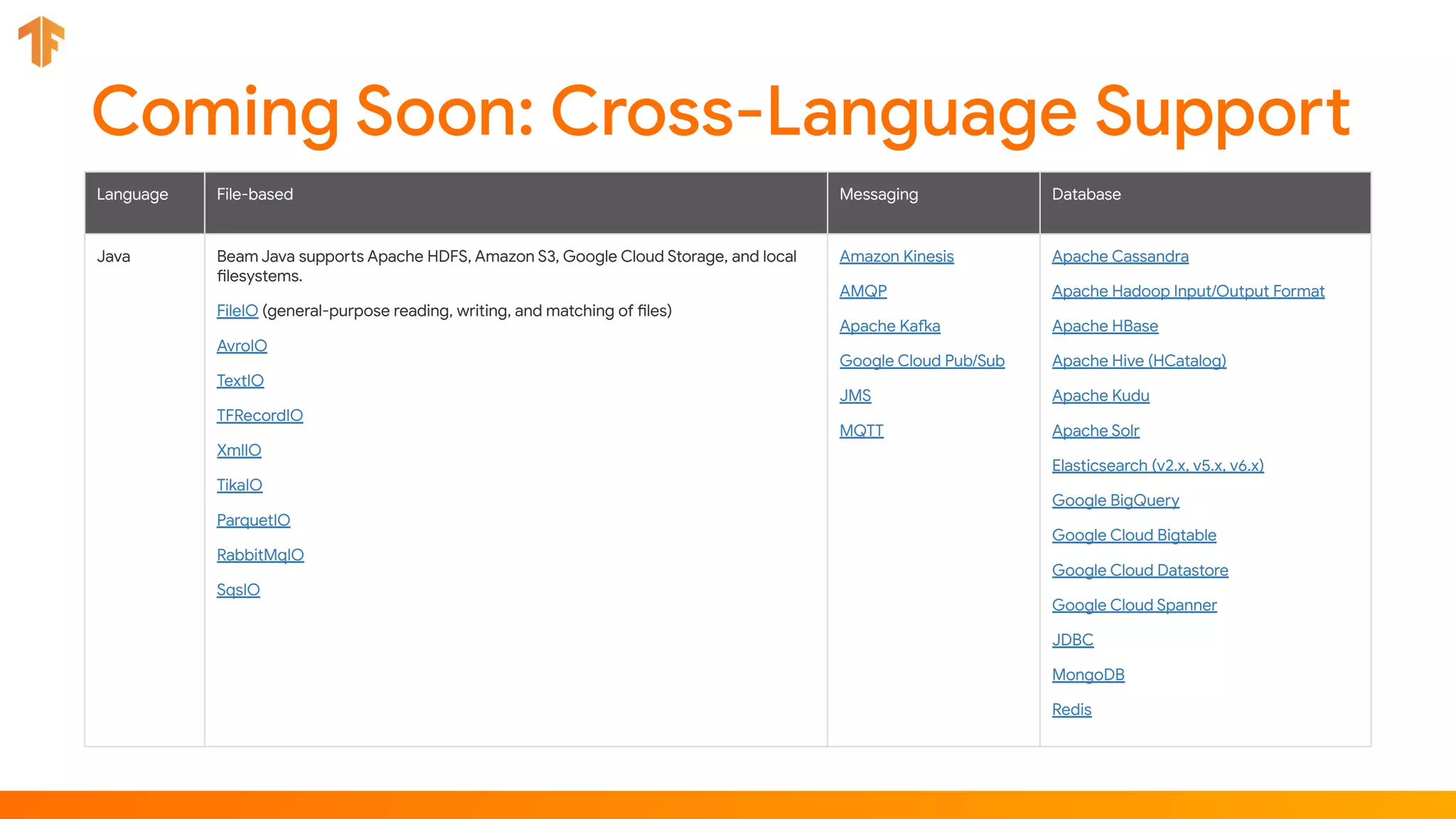

- 63. Language File-based MessagingDatabase Java Beam Java supports Apache HDFS, Amazon S3, Google Cloud Storage, and local filesystems. FileIO (general-purpose reading, writing, and matching of files) AvroIO TextIO TFRecordIO XmlIO TikaIO ParquetIO RabbitMqIO SqsIO Amazon Kinesis AMQP Apache Kafka Google Cloud Pub/Sub JMS MQTT Apache Cassandra Apache Hadoop Input/Output Format Apache HBase Apache Hive (HCatalog) Apache Kudu Apache Solr Elasticsearch (v2.x, v5.x, v6.x) Google BigQuery Google Cloud Bigtable Google Cloud Datastore Google Cloud Spanner JDBC MongoDB Redis

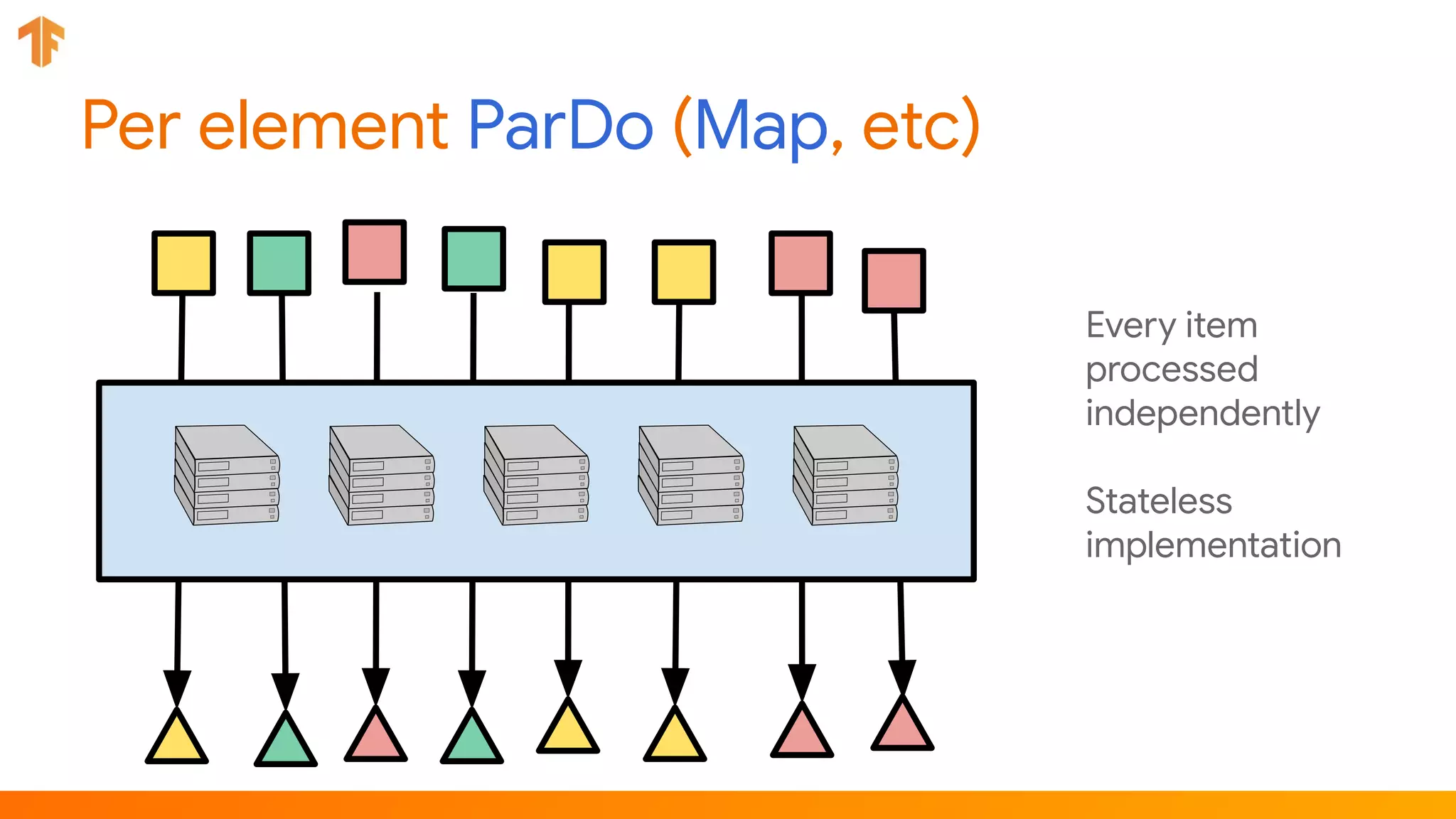

- 64. Per element ParDo(Map, etc) Every item processed independently Stateless implementation

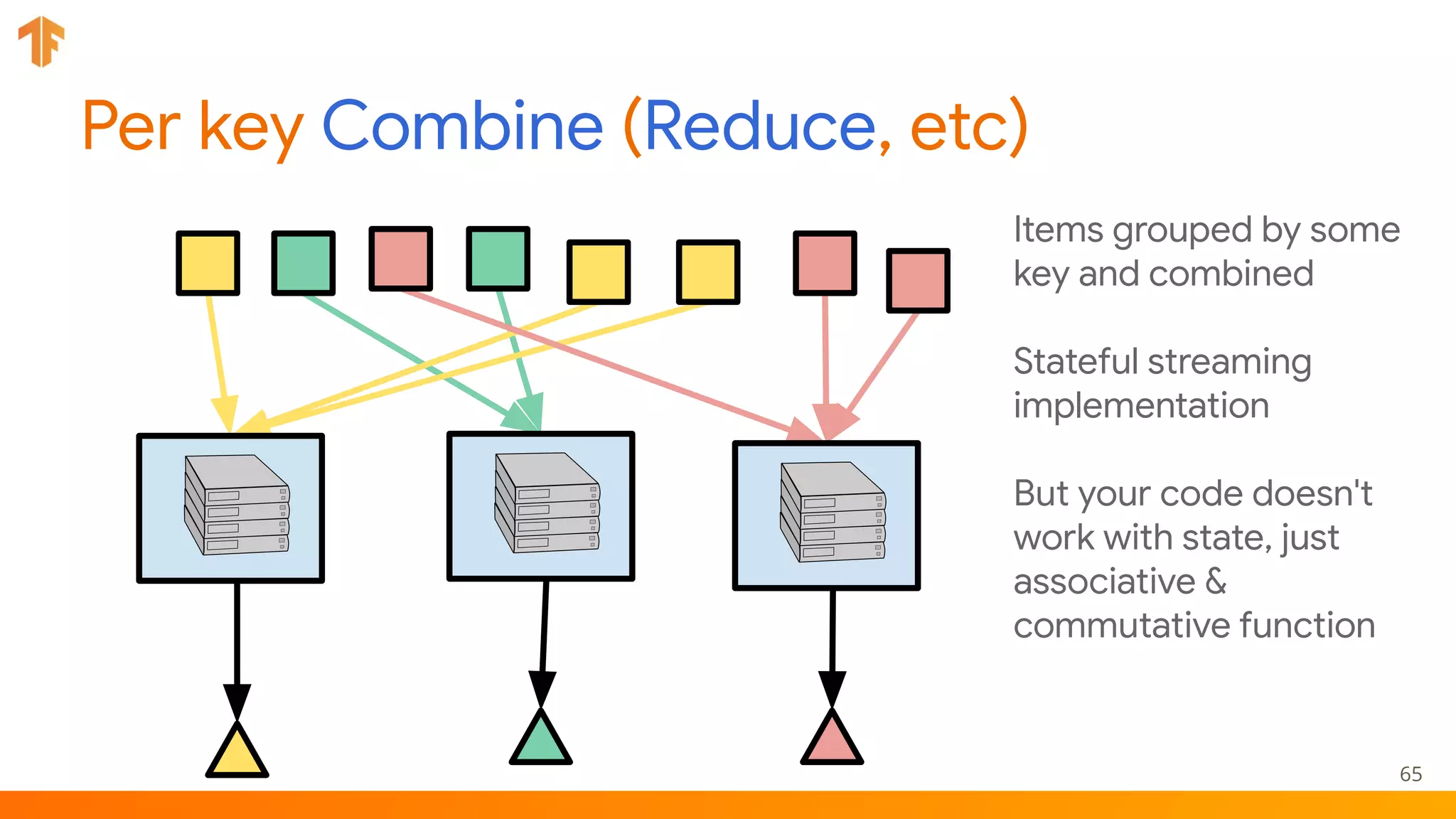

- 65. Per key Combine(Reduce, etc) 65 Items grouped by some key and combined Stateful streaming implementation But your code doesn't work with state, just associative & commutative function

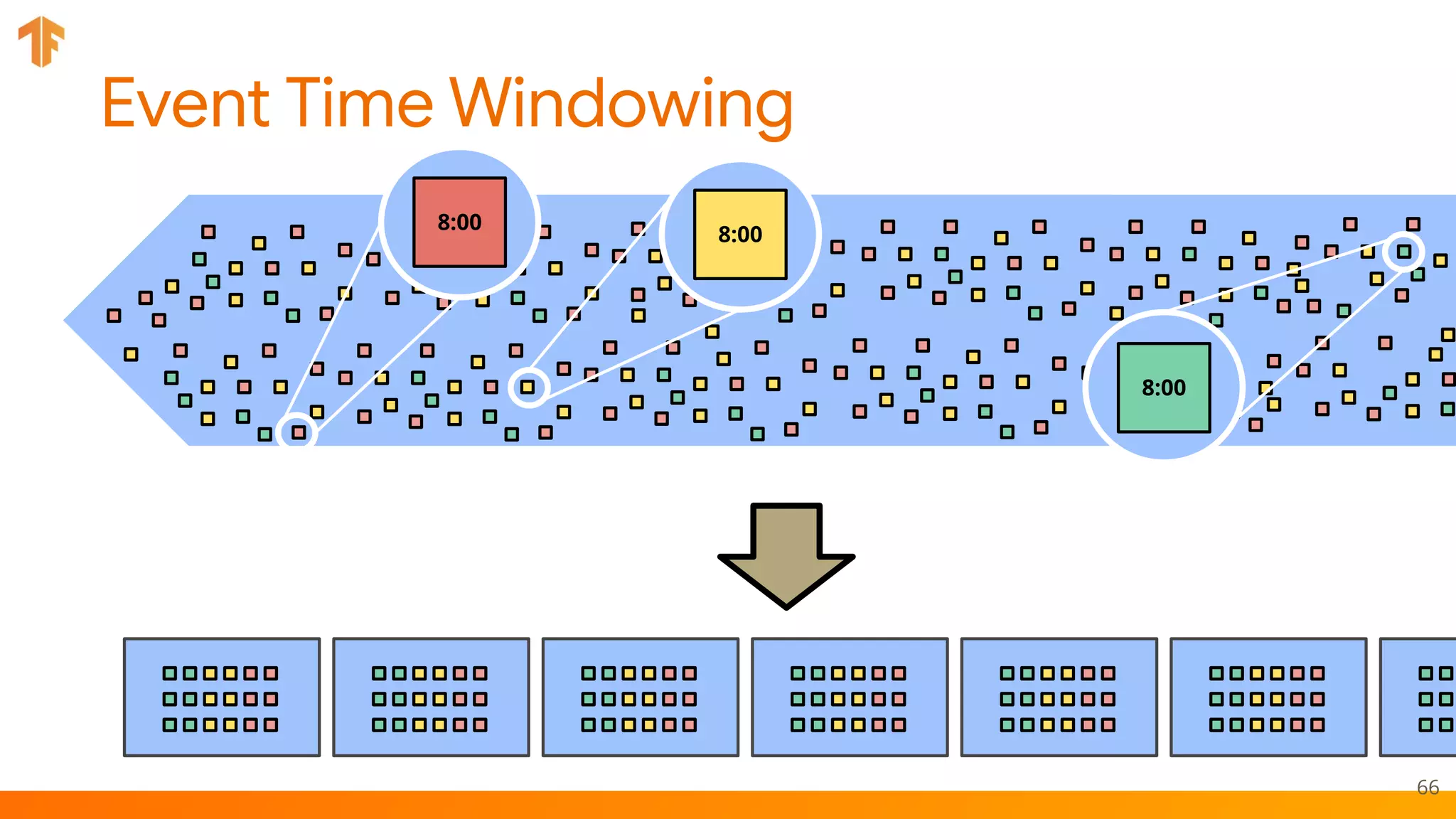

- 66.

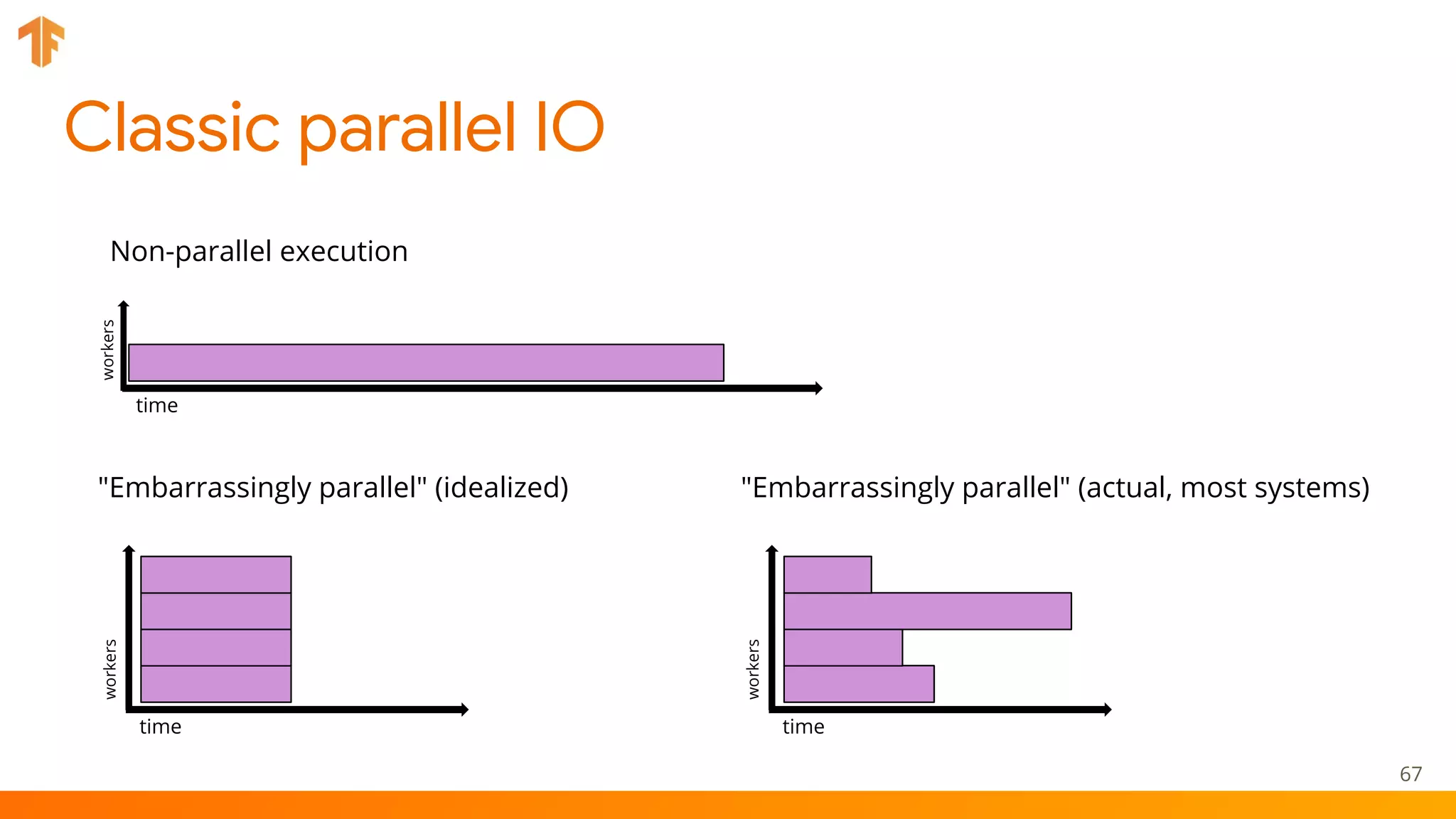

- 67. Classic parallel IO 67 "Embarrassinglyparallel" (idealized) Non-parallel execution time workersworkers time "Embarrassingly parallel" (actual, most systems) workers time

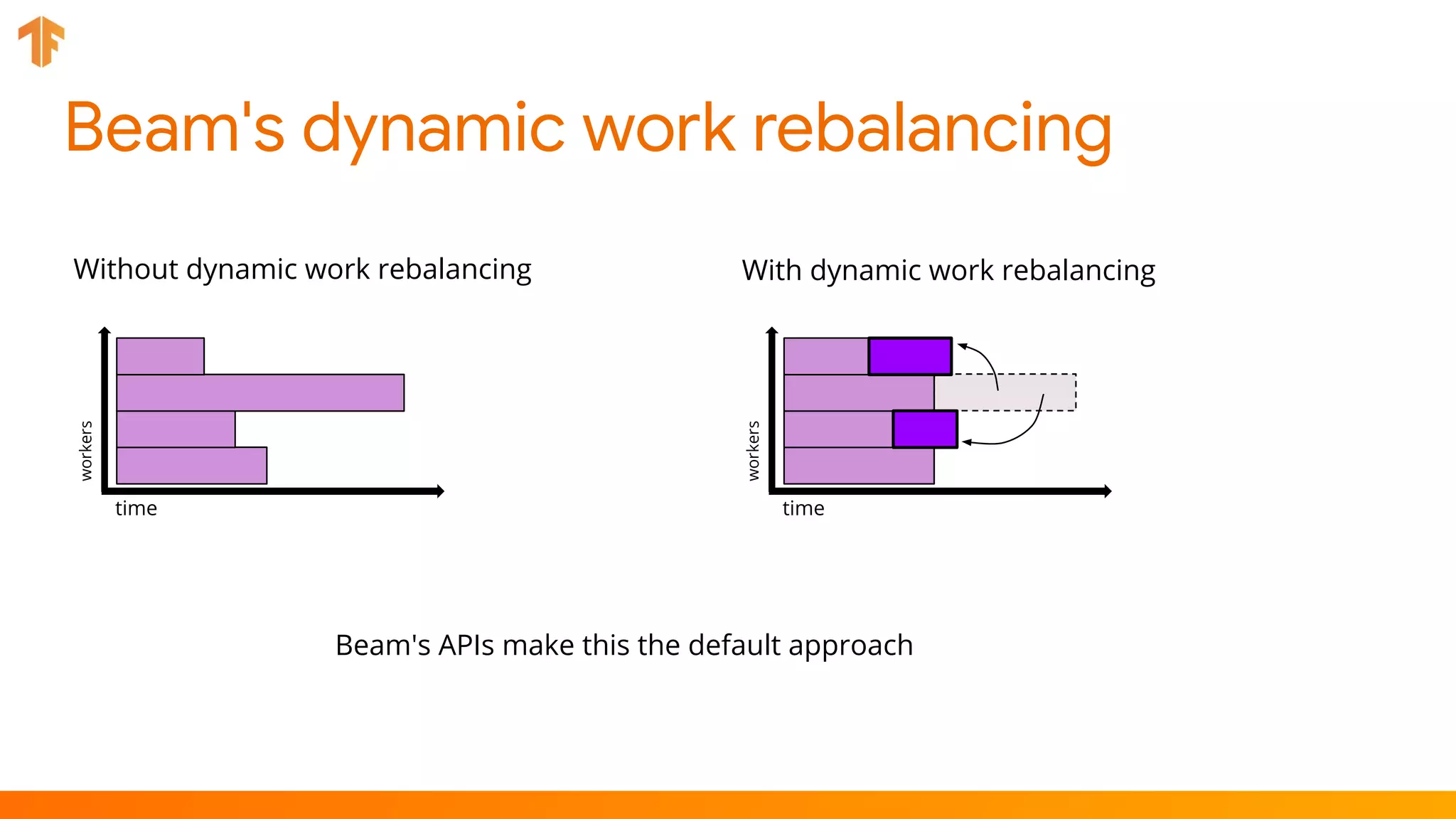

- 68. Beam's dynamic workrebalancing Without dynamic work rebalancing workers time With dynamic work rebalancing workers time Beam's APIs make this the default approach

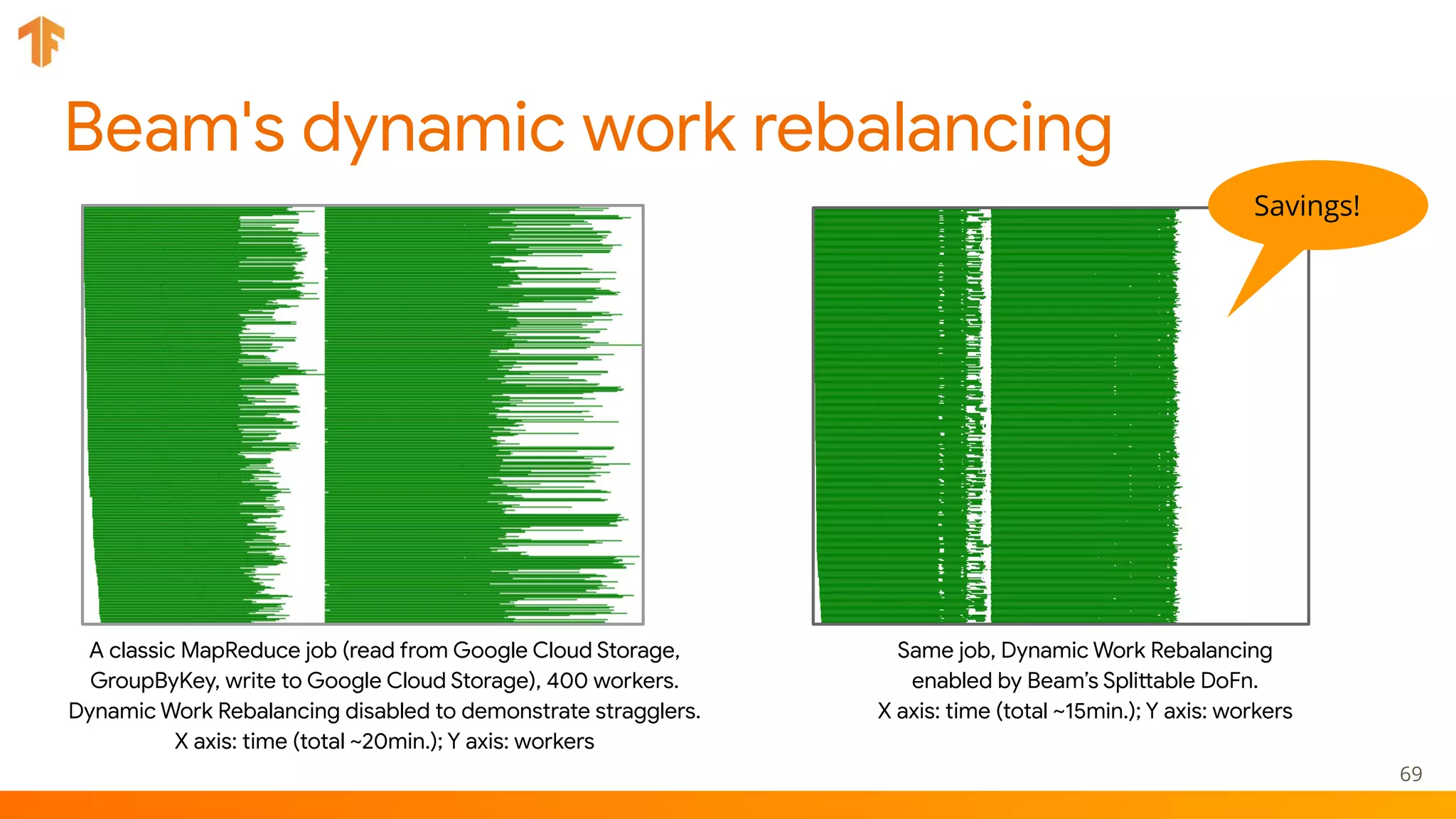

- 69. Beam's dynamic workrebalancing 69 A classic MapReduce job (read from Google Cloud Storage, GroupByKey, write to Google Cloud Storage), 400 workers. Dynamic Work Rebalancing disabled to demonstrate stragglers. X axis: time (total ~20min.); Y axis: workers Same job, Dynamic Work Rebalancing enabled by Beam’s Splittable DoFn. X axis: time (total ~15min.); Y axis: workers Savings!

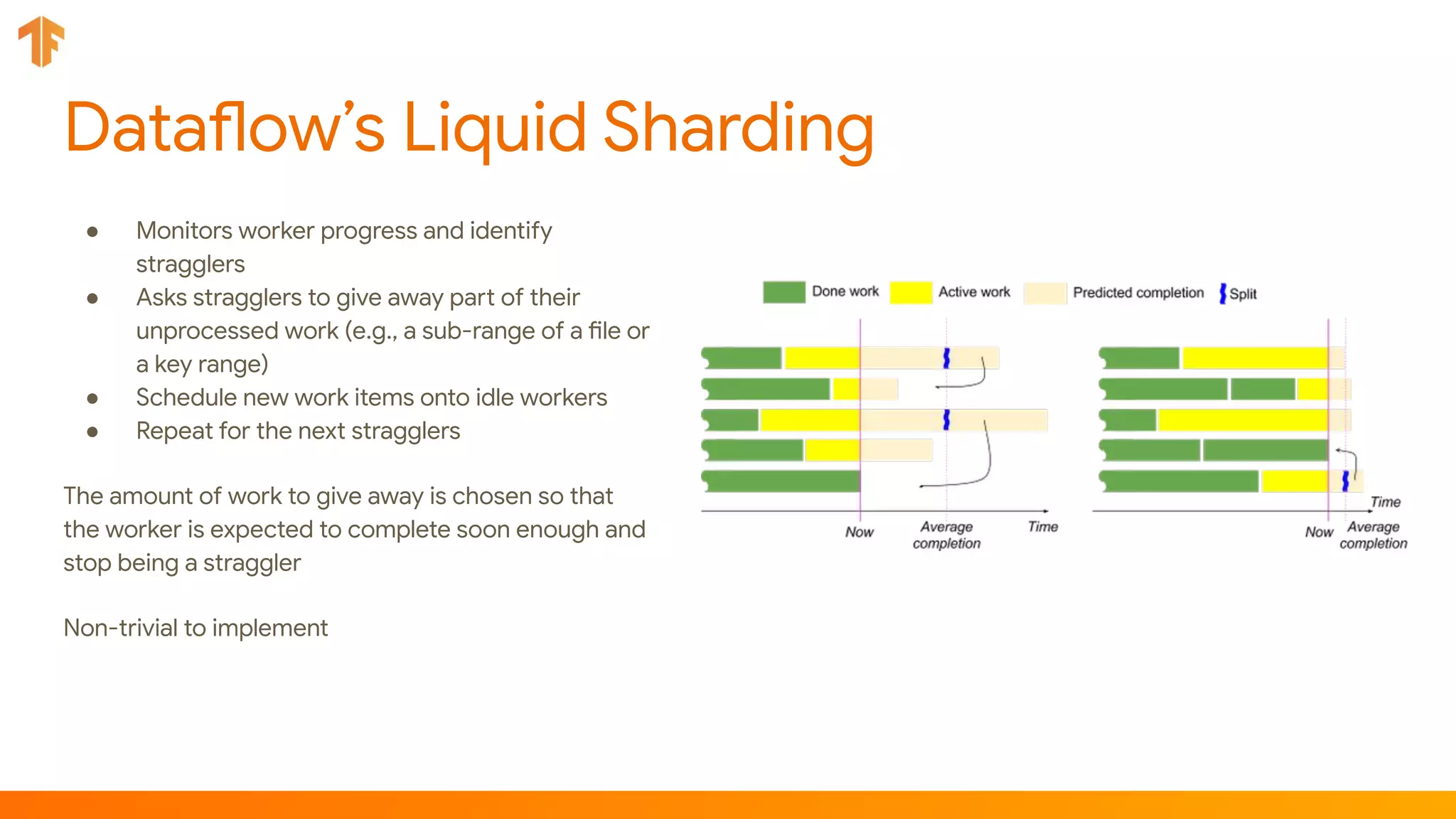

- 70. Dataflow’s Liquid Sharding ●Monitors worker progress and identify stragglers ● Asks stragglers to give away part of their unprocessed work (e.g., a sub-range of a file or a key range) ● Schedule new work items onto idle workers ● Repeat for the next stragglers The amount of work to give away is chosen so that the worker is expected to complete soon enough and stop being a straggler Non-trivial to implement

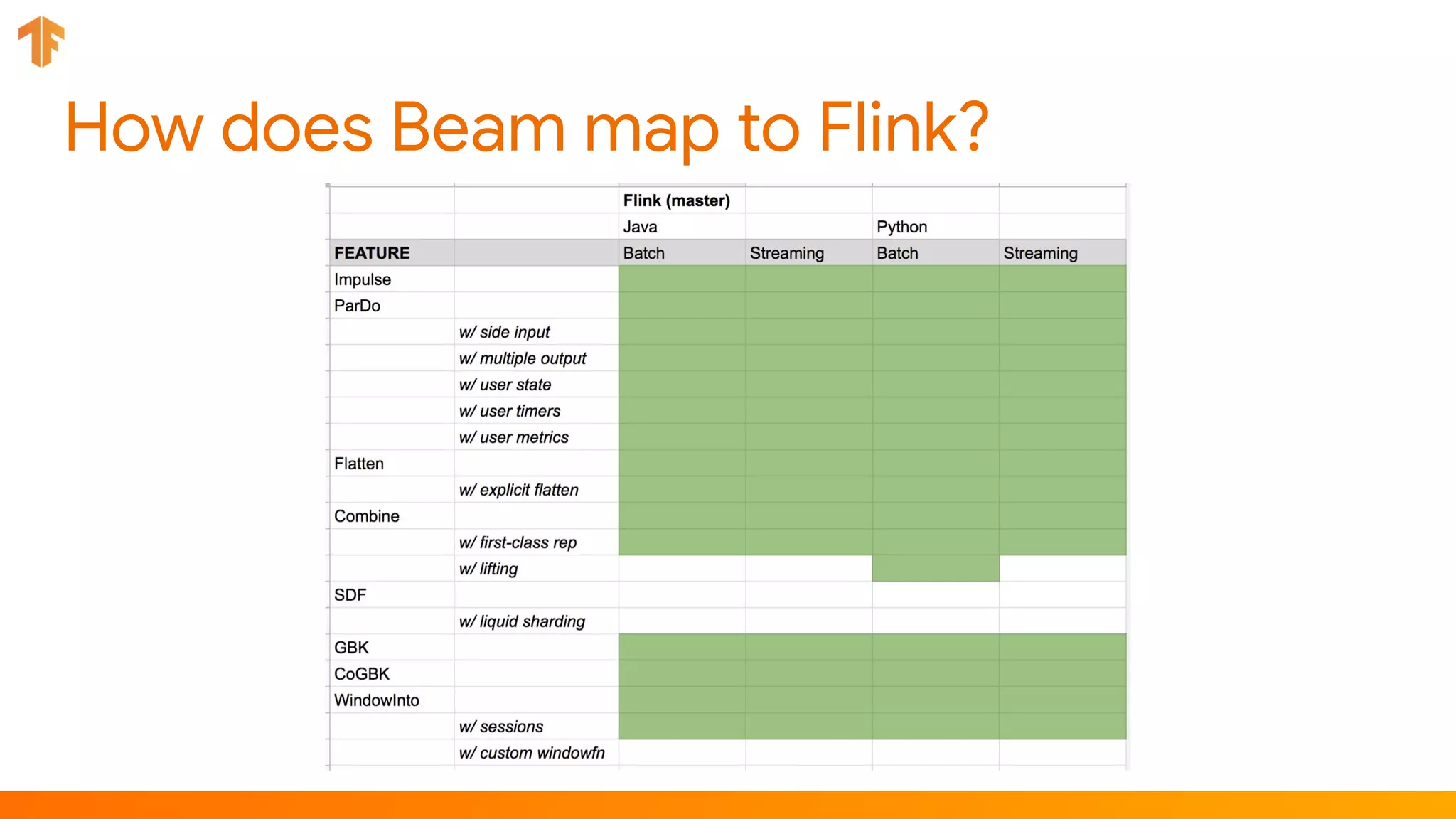

- 71. How does Beammap to Flink?

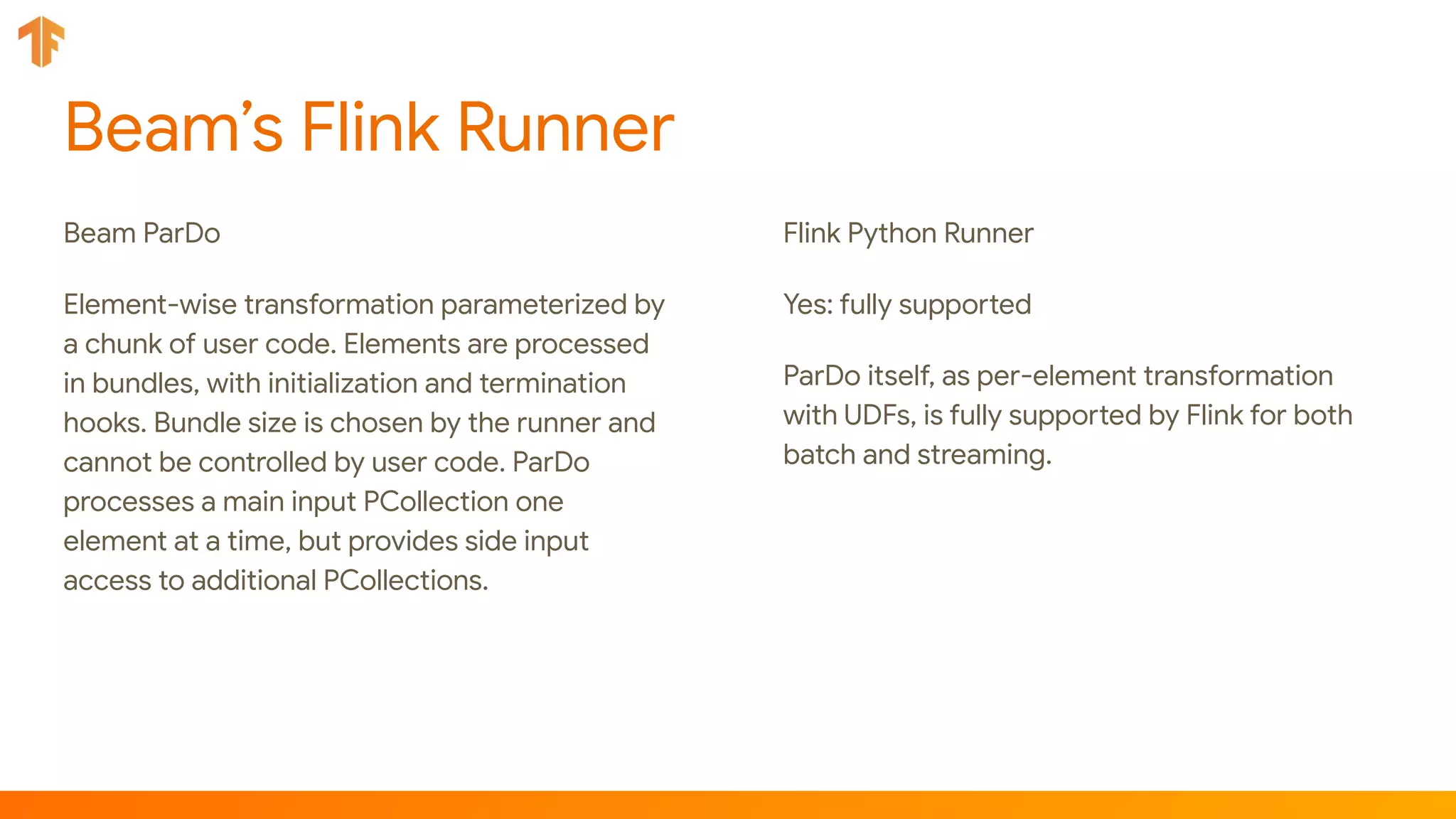

- 72. Beam’s Flink Runner BeamParDo Element-wise transformation parameterized by a chunk of user code. Elements are processed in bundles, with initialization and termination hooks. Bundle size is chosen by the runner and cannot be controlled by user code. ParDo processes a main input PCollection one element at a time, but provides side input access to additional PCollections. Flink Python Runner Yes: fully supported ParDo itself, as per-element transformation with UDFs, is fully supported by Flink for both batch and streaming.

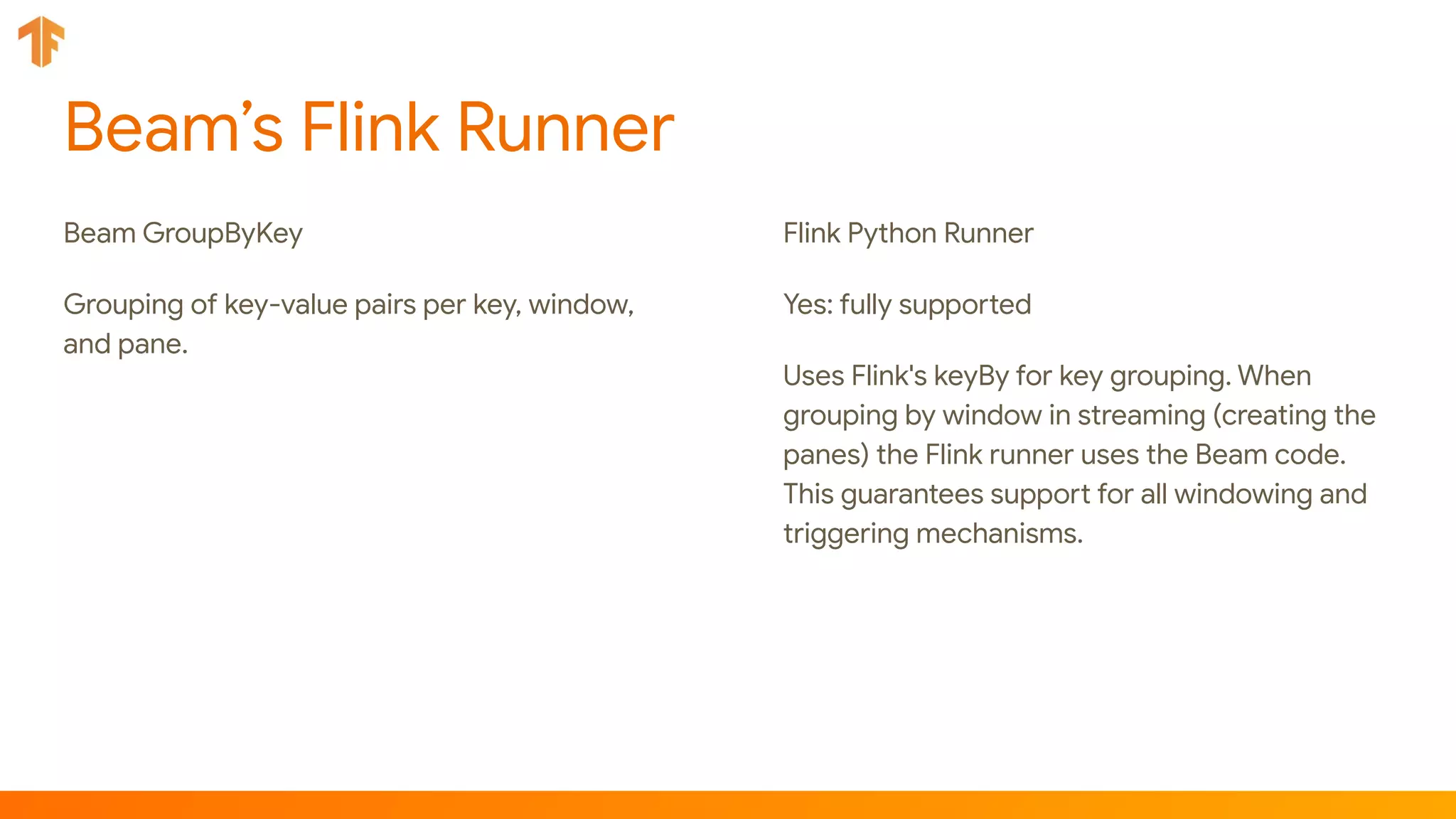

- 73. Beam’s Flink Runner BeamGroupByKey Grouping of key-value pairs per key, window, and pane. Flink Python Runner Yes: fully supported Uses Flink's keyBy for key grouping. When grouping by window in streaming (creating the panes) the Flink runner uses the Beam code. This guarantees support for all windowing and triggering mechanisms.

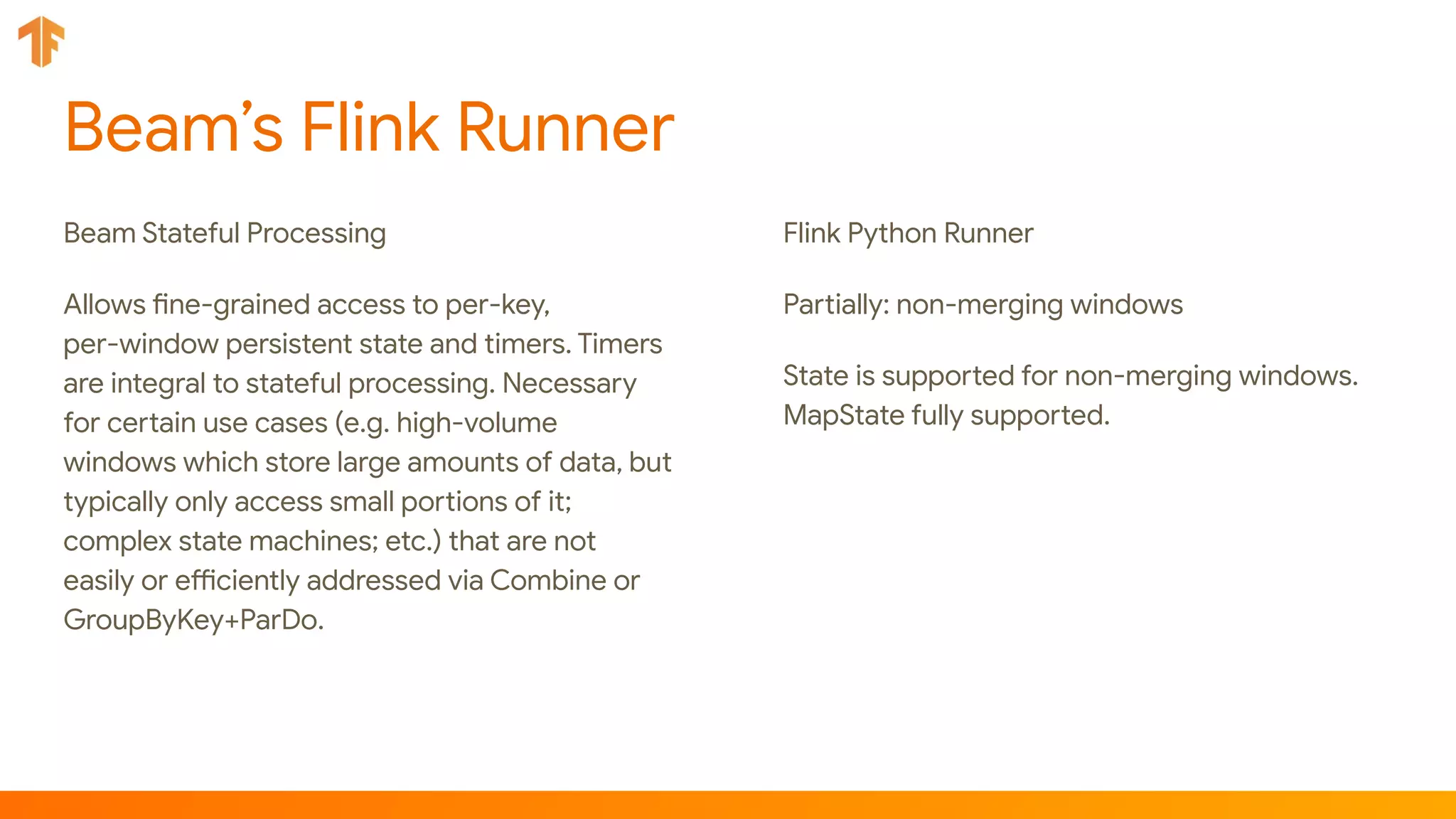

- 74. Beam’s Flink Runner BeamStateful Processing Allows fine-grained access to per-key, per-window persistent state and timers. Timers are integral to stateful processing. Necessary for certain use cases (e.g. high-volume windows which store large amounts of data, but typically only access small portions of it; complex state machines; etc.) that are not easily or efficiently addressed via Combine or GroupByKey+ParDo. Flink Python Runner Partially: non-merging windows State is supported for non-merging windows. MapState fully supported.

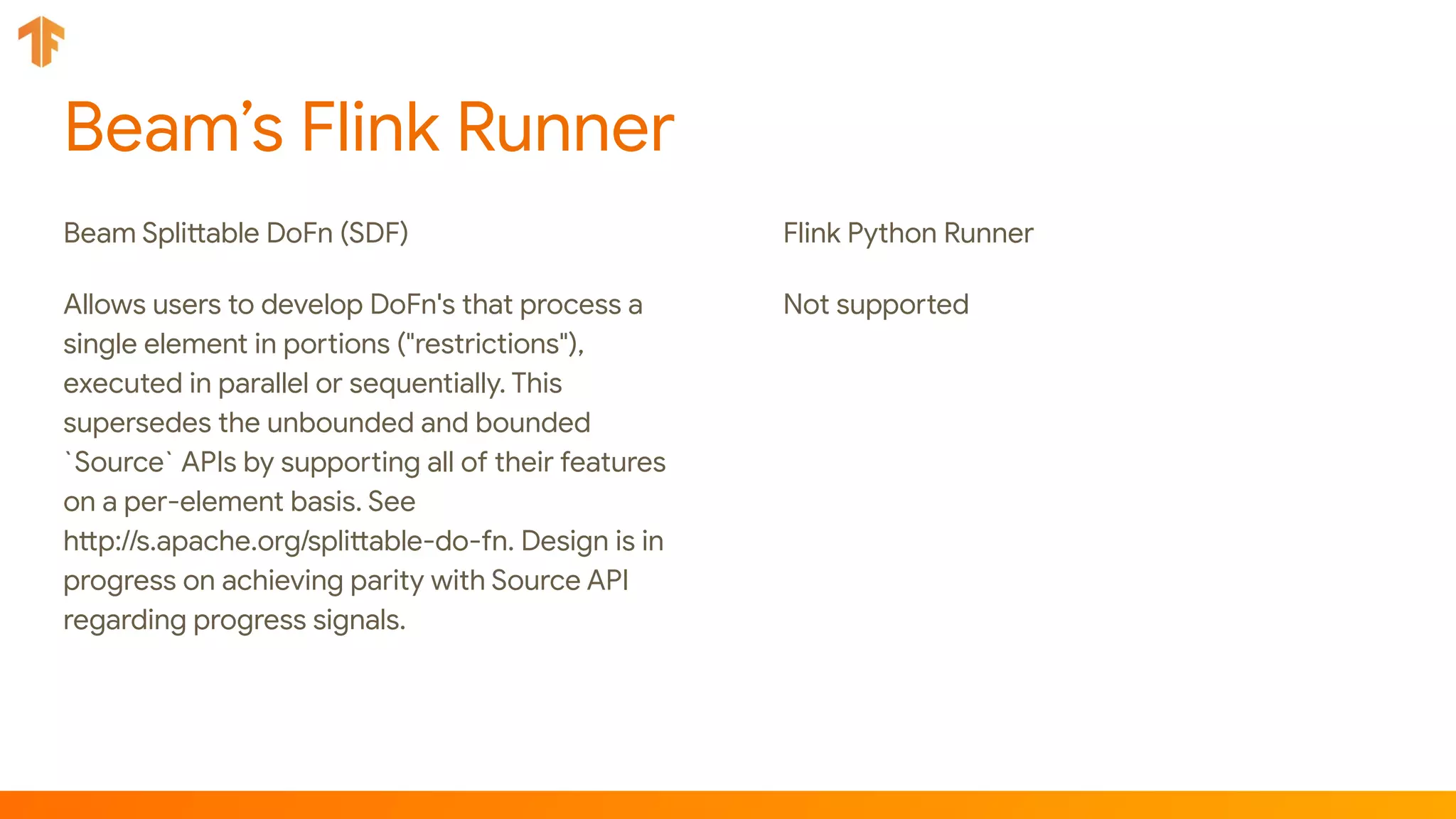

- 75. Beam’s Flink Runner BeamSplittable DoFn (SDF) Allows users to develop DoFn's that process a single element in portions ("restrictions"), executed in parallel or sequentially. This supersedes the unbounded and bounded `Source` APIs by supporting all of their features on a per-element basis. See http://s.apache.org/splittable-do-fn. Design is in progress on achieving parity with Source API regarding progress signals. Flink Python Runner Not supported
