System On Chip
- 1. Core Based SOCDesign Prof. Anish Goel

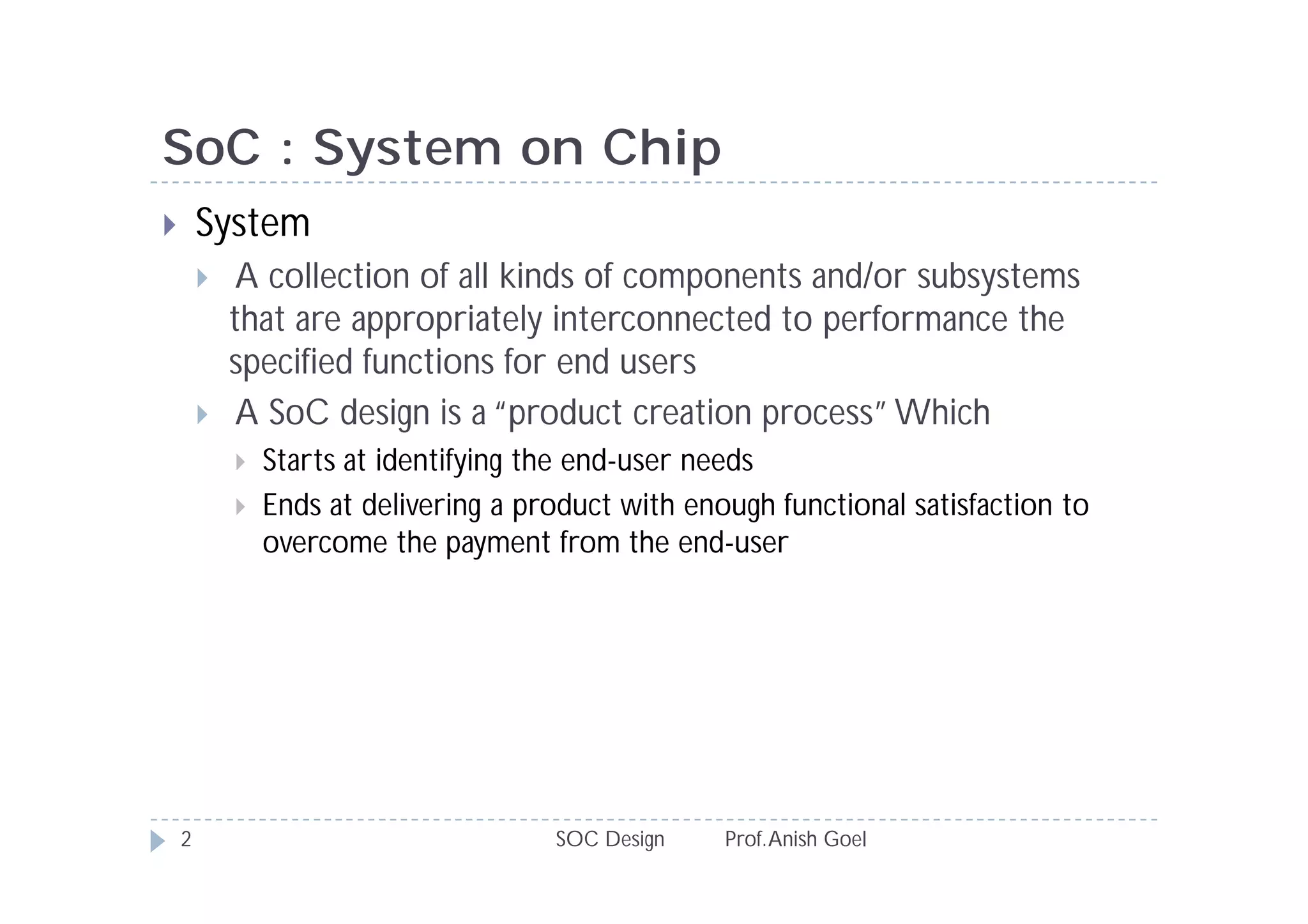

- 2. SoC : Systemon Chip System A collection of all kinds of components and/or subsystems that are appropriately interconnected to performance the specified functions for end users A SoC design is a “product creation process” Which Starts at identifying the end-user needs Ends at delivering a product with enough functional satisfaction to overcome the payment from the end-user 2 SOC Design Prof. Anish Goel

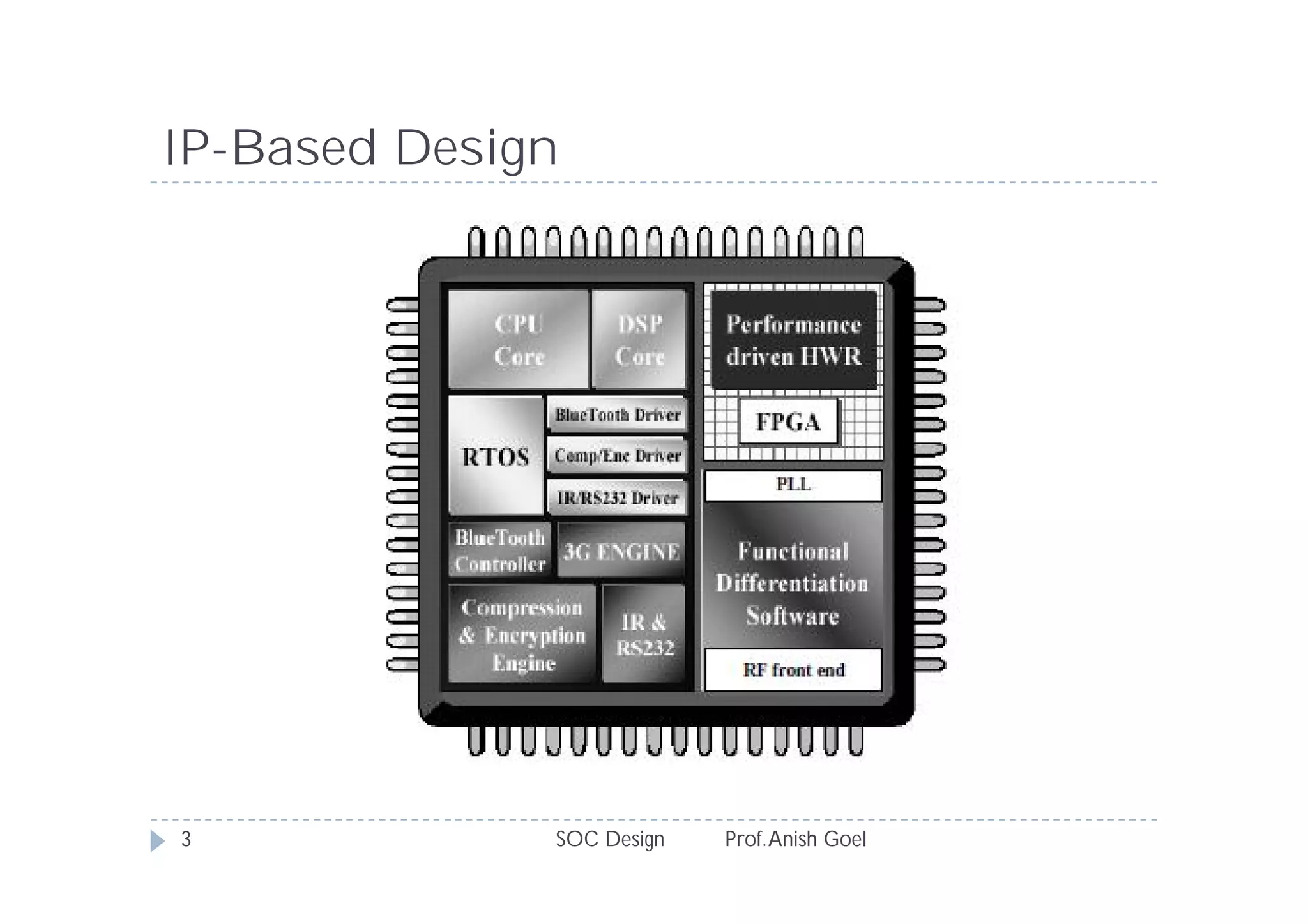

- 3. IP-Based Design 3 SOC Design Prof. Anish Goel

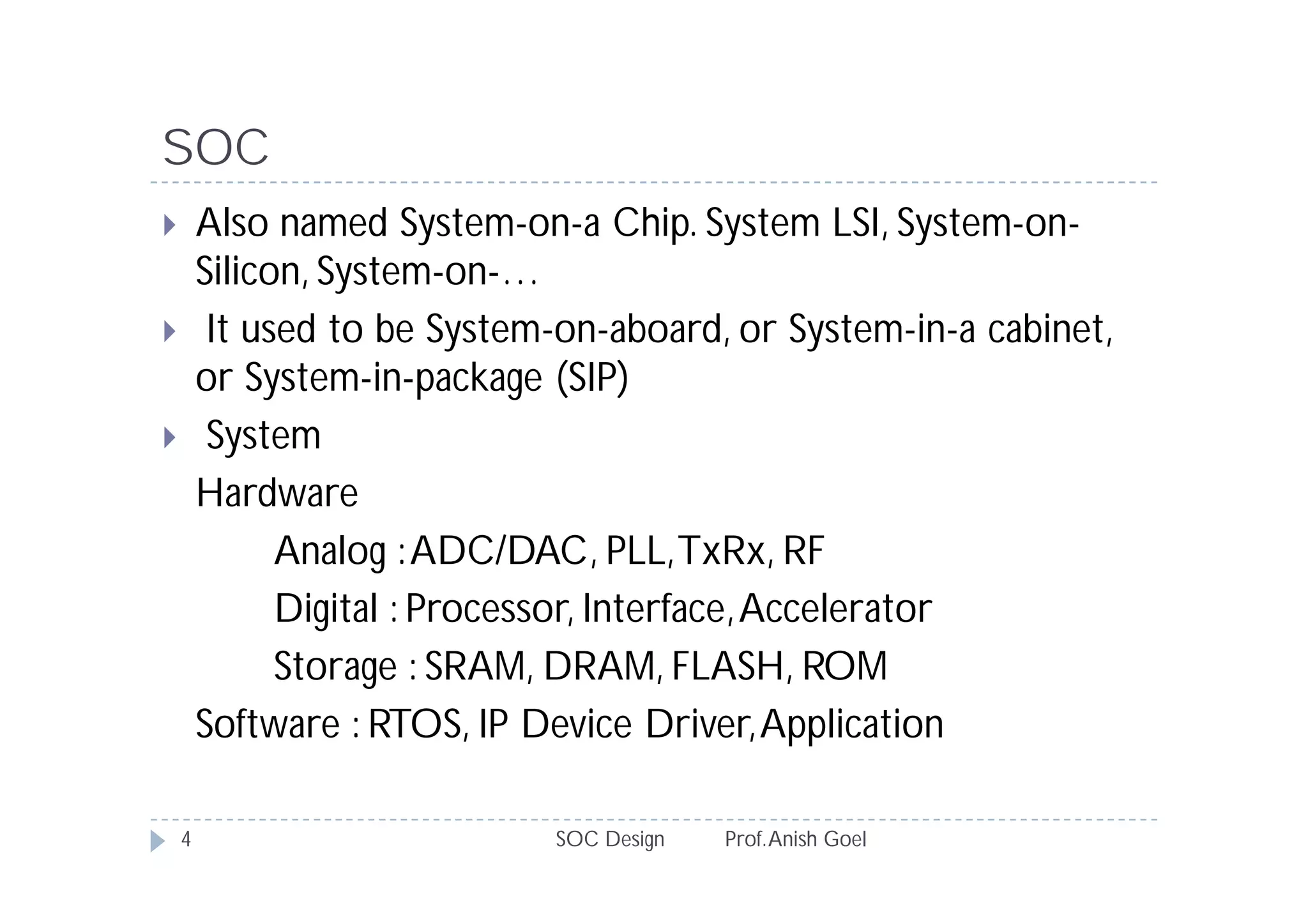

- 4. SOC Also named System-on-a Chip. System LSI, System-on- Silicon, System-on-… It used to be System-on-aboard, or System-in-a cabinet, or System-in-package (SIP) System Hardware Analog : ADC/DAC, PLL, TxRx, RF Digital : Processor, Interface, Accelerator Storage : SRAM, DRAM, FLASH, ROM Software : RTOS, IP Device Driver, Application 4 SOC Design Prof. Anish Goel

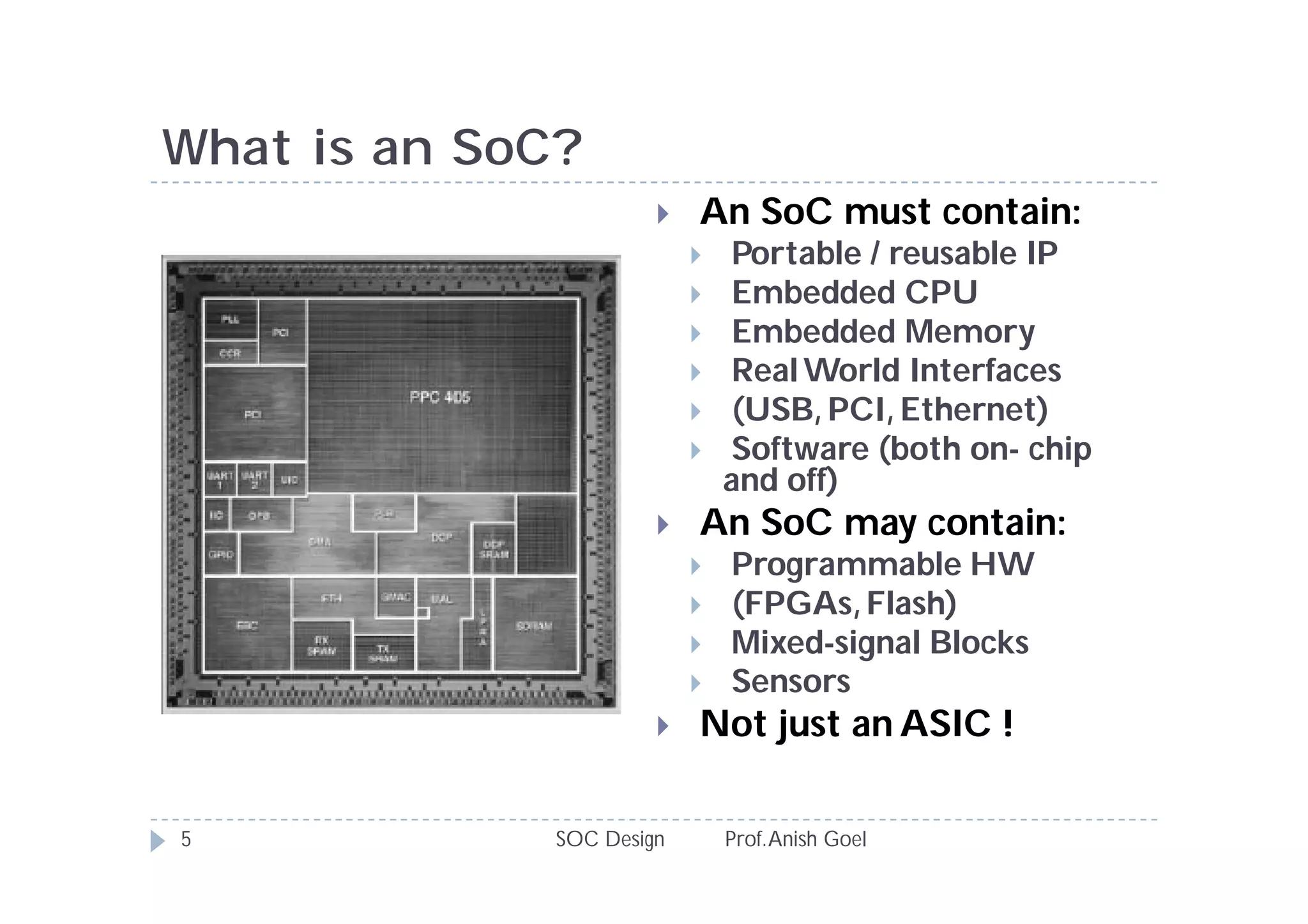

- 5. What is anSoC? An SoC must contain: Portable / reusable IP Embedded CPU Embedded Memory Real World Interfaces (USB, PCI, Ethernet) Software (both on- chip and off) An SoC may contain: Programmable HW (FPGAs, Flash) Mixed-signal Blocks Sensors Not just an ASIC ! 5 SOC Design Prof. Anish Goel

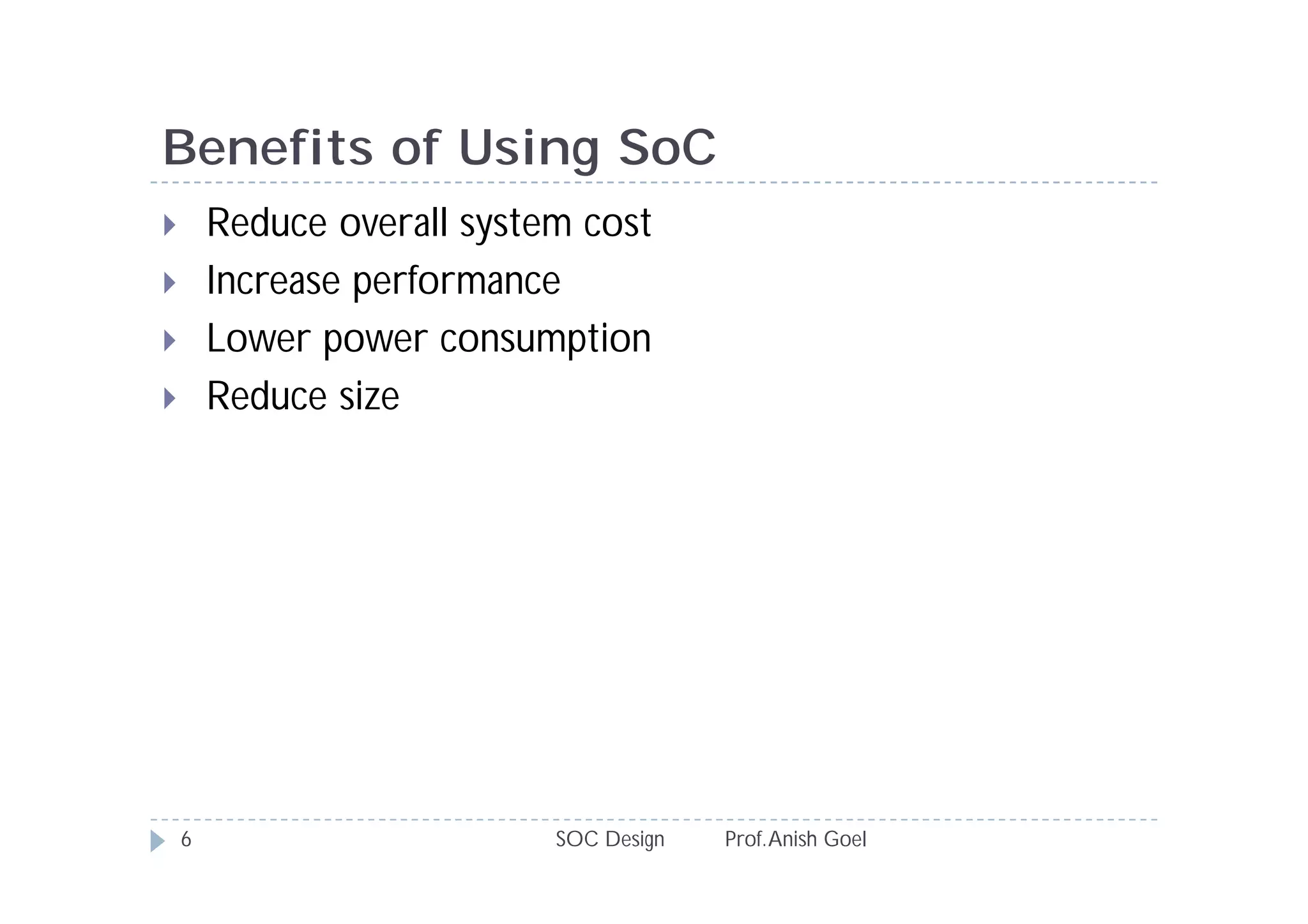

- 6. Benefits of UsingSoC Reduce overall system cost Increase performance Lower power consumption Reduce size 6 SOC Design Prof. Anish Goel

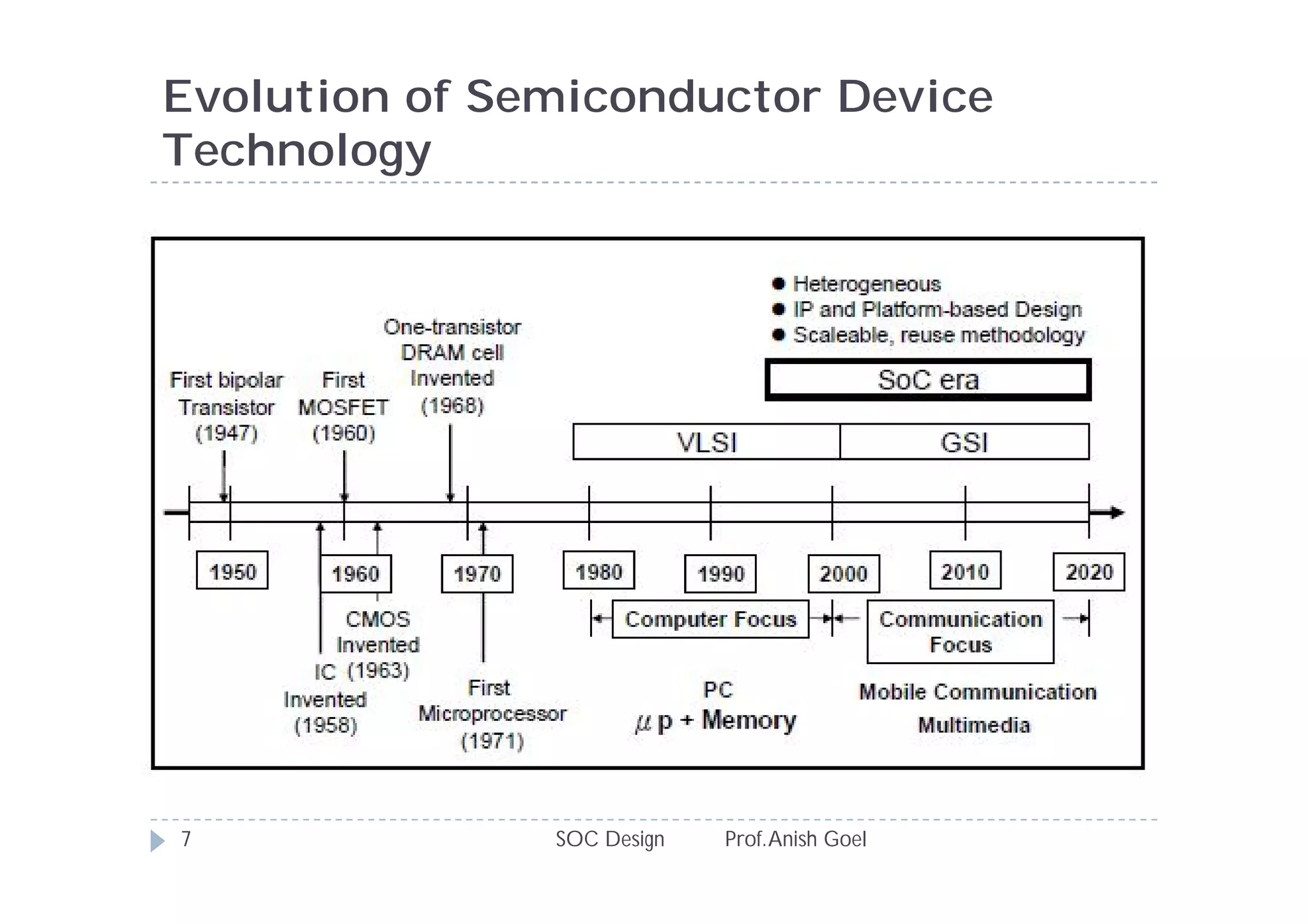

- 7. Evolution of SemiconductorDevice Technology 7 SOC Design Prof. Anish Goel

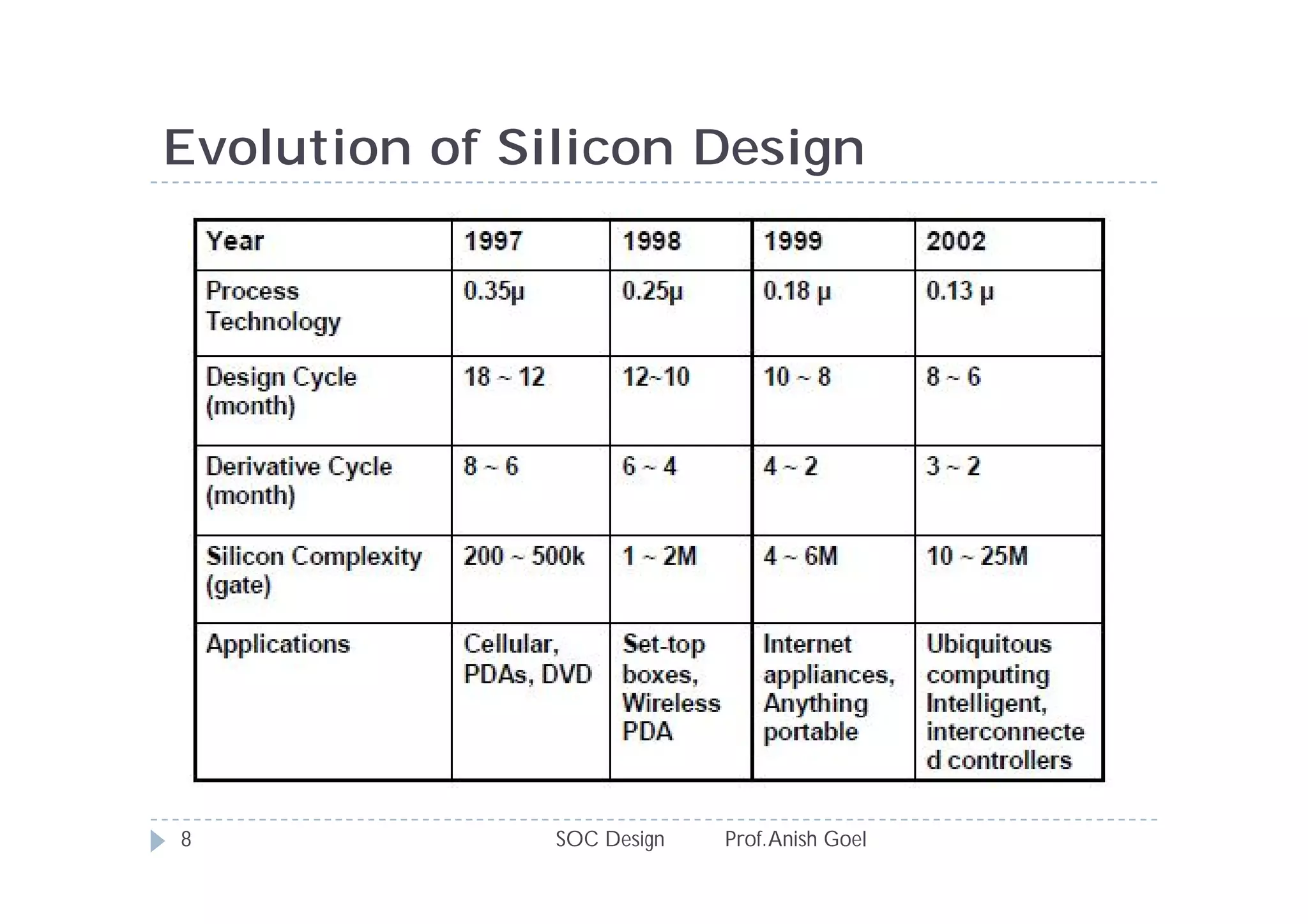

- 8. Evolution of SiliconDesign 8 SOC Design Prof. Anish Goel

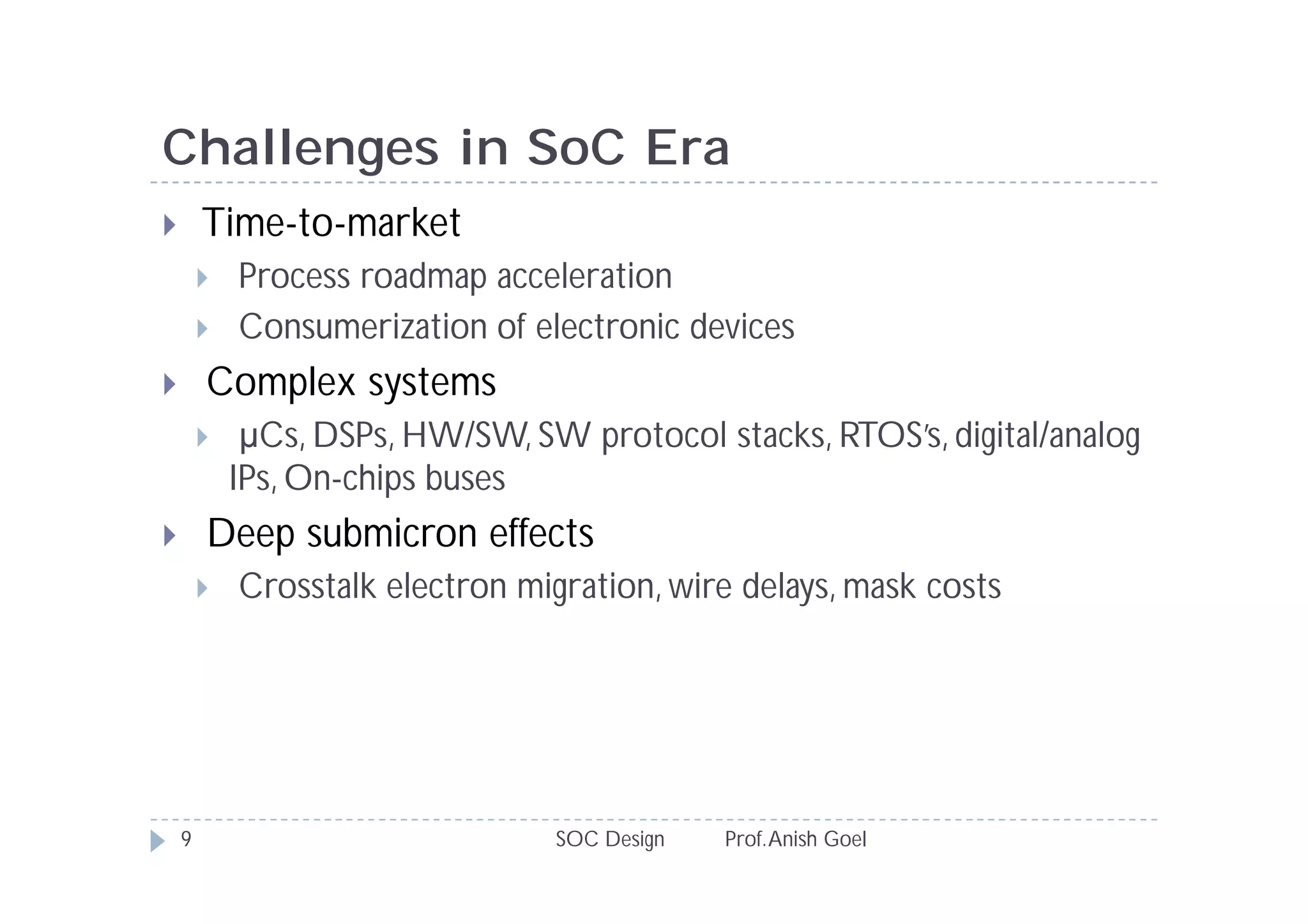

- 9. Challenges in SoCEra Time-to-market Process roadmap acceleration Consumerization of electronic devices Complex systems µCs, DSPs, HW/SW, SW protocol stacks, RTOS’s, digital/analog IPs, On-chips buses Deep submicron effects Crosstalk electron migration, wire delays, mask costs 9 SOC Design Prof. Anish Goel

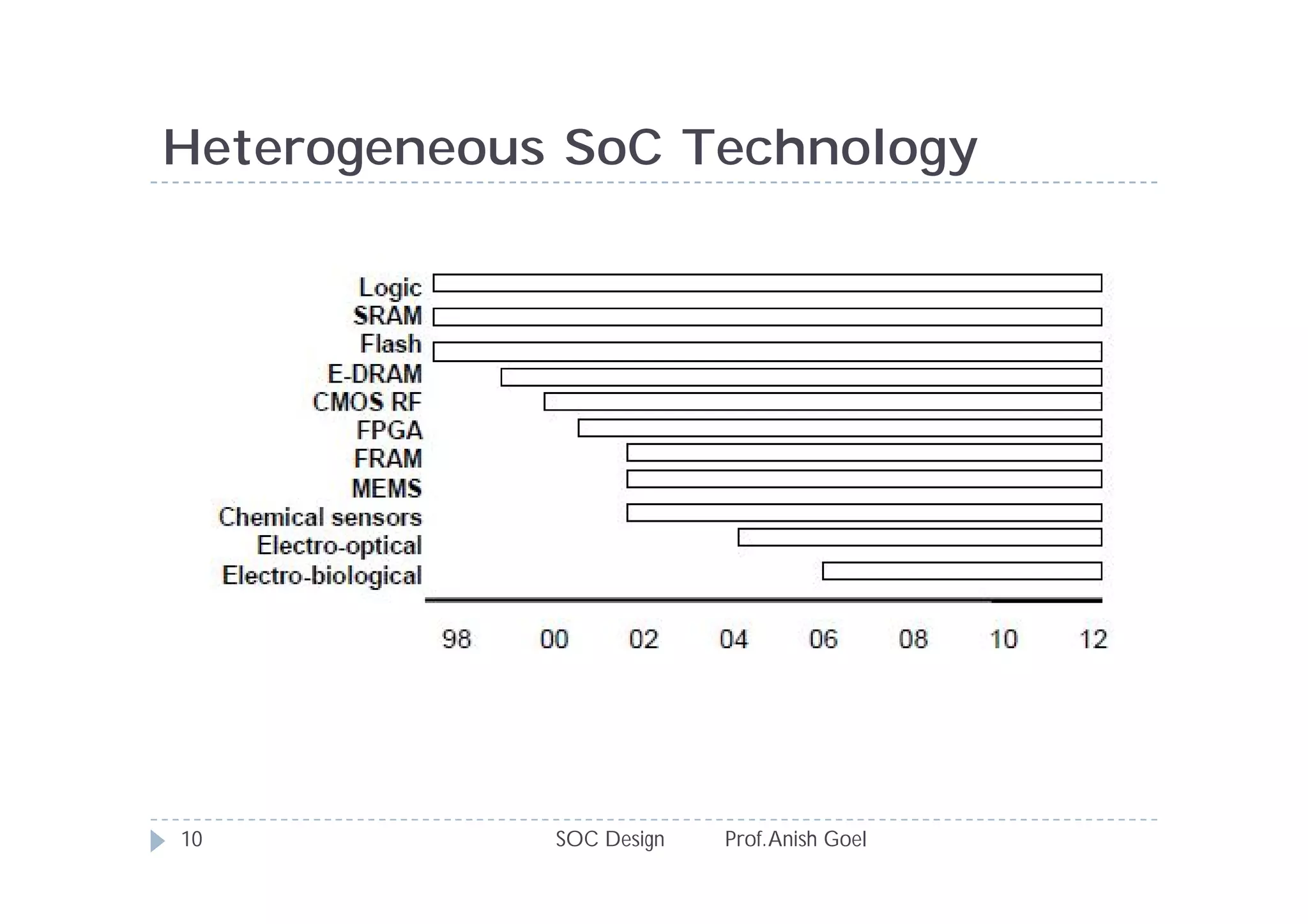

- 10. Heterogeneous SoC Technology 10 SOC Design Prof. Anish Goel

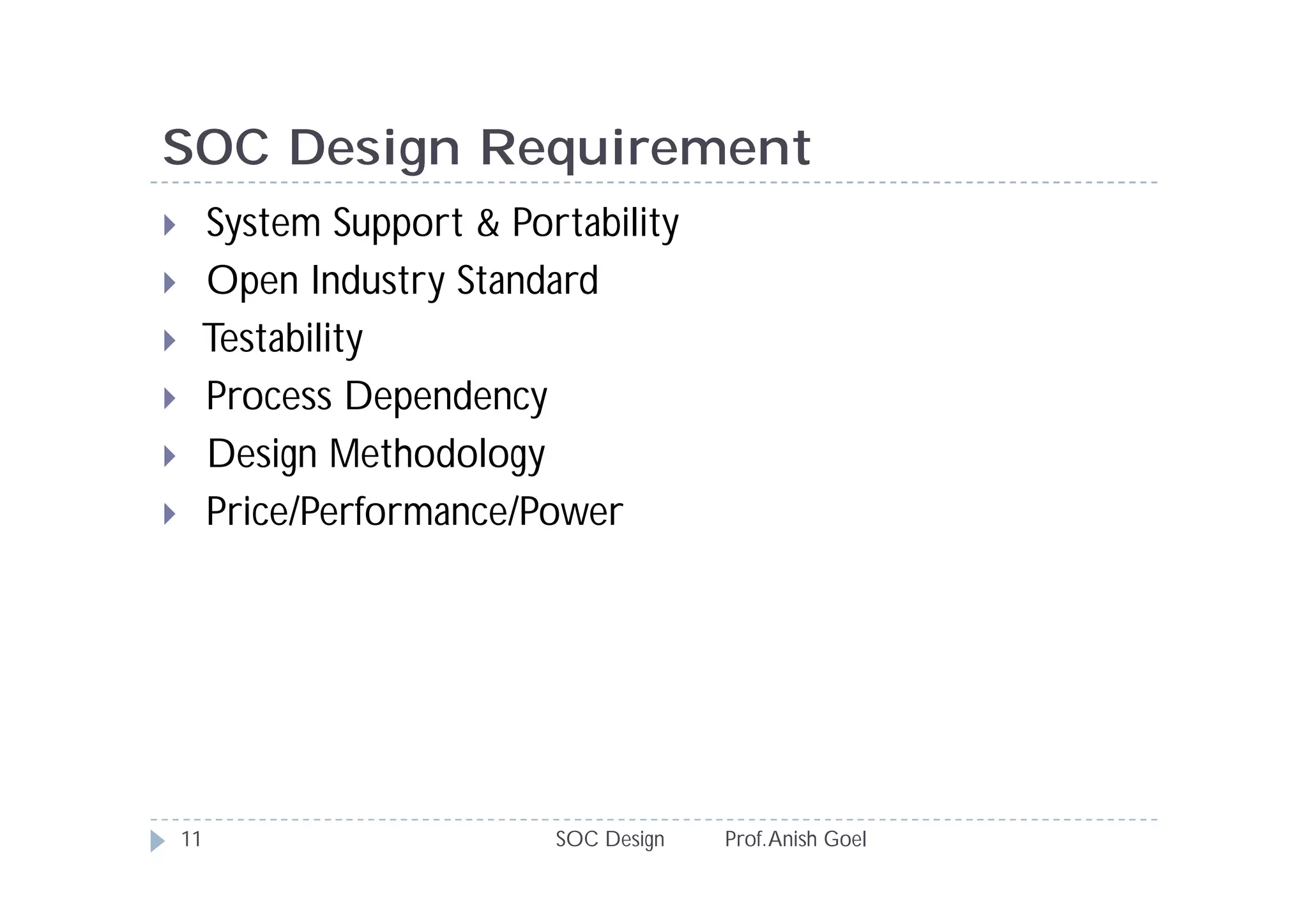

- 11. SOC Design Requirement System Support & Portability Open Industry Standard Testability Process Dependency Design Methodology Price/Performance/Power 11 SOC Design Prof. Anish Goel
- 12. How to Conquerthe Complexity Use a known real entity A pre-designed component (IP reuse) A Platform (architecture reuse) Partition Based on functionality Hardware and software Modeling At different Level Consistent and accurate 12 SOC Design Prof. Anish Goel

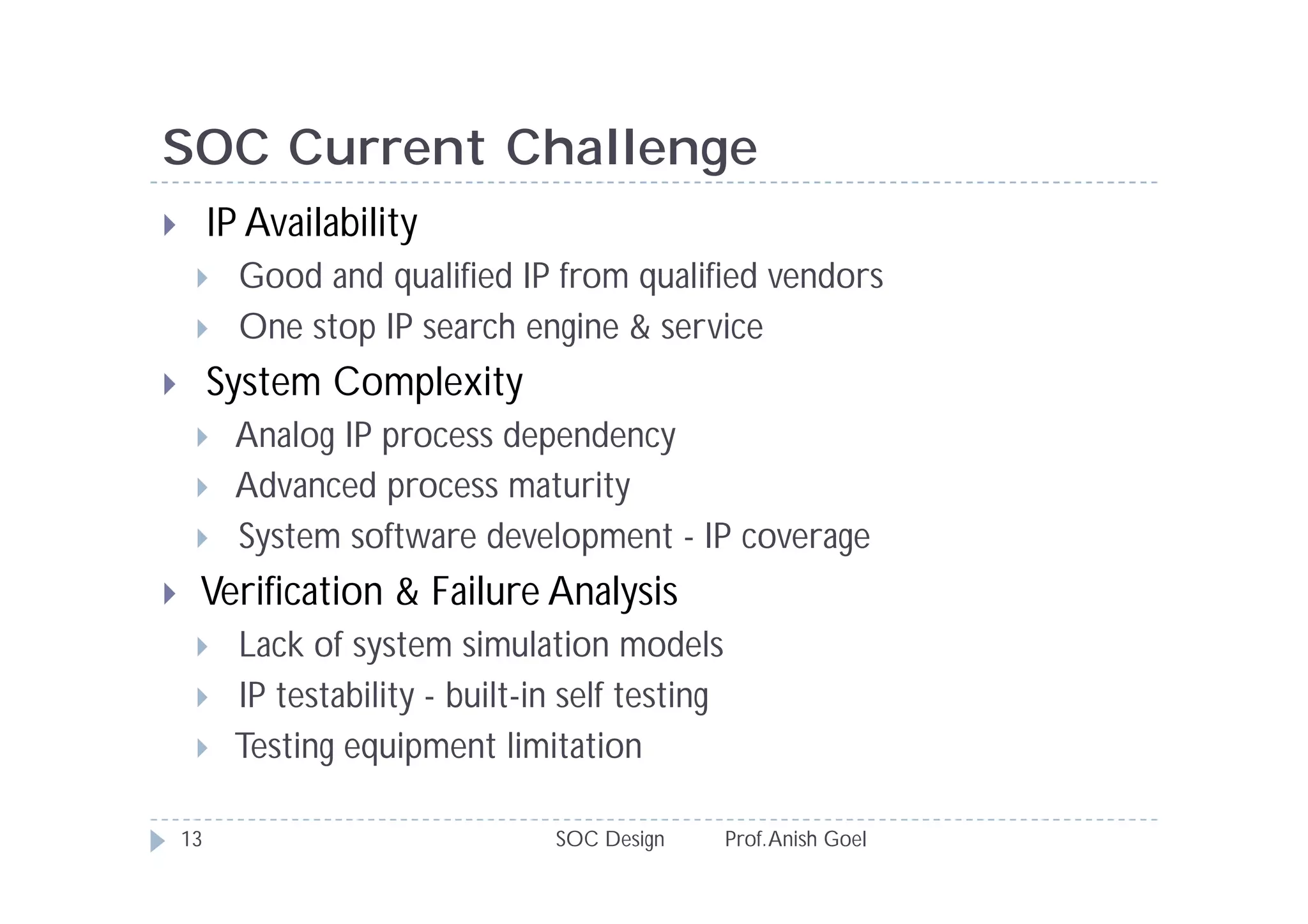

- 13. SOC Current Challenge IP Availability Good and qualified IP from qualified vendors One stop IP search engine & service System Complexity Analog IP process dependency Advanced process maturity System software development - IP coverage Verification & Failure Analysis Lack of system simulation models IP testability - built-in self testing Testing equipment limitation 13 SOC Design Prof. Anish Goel

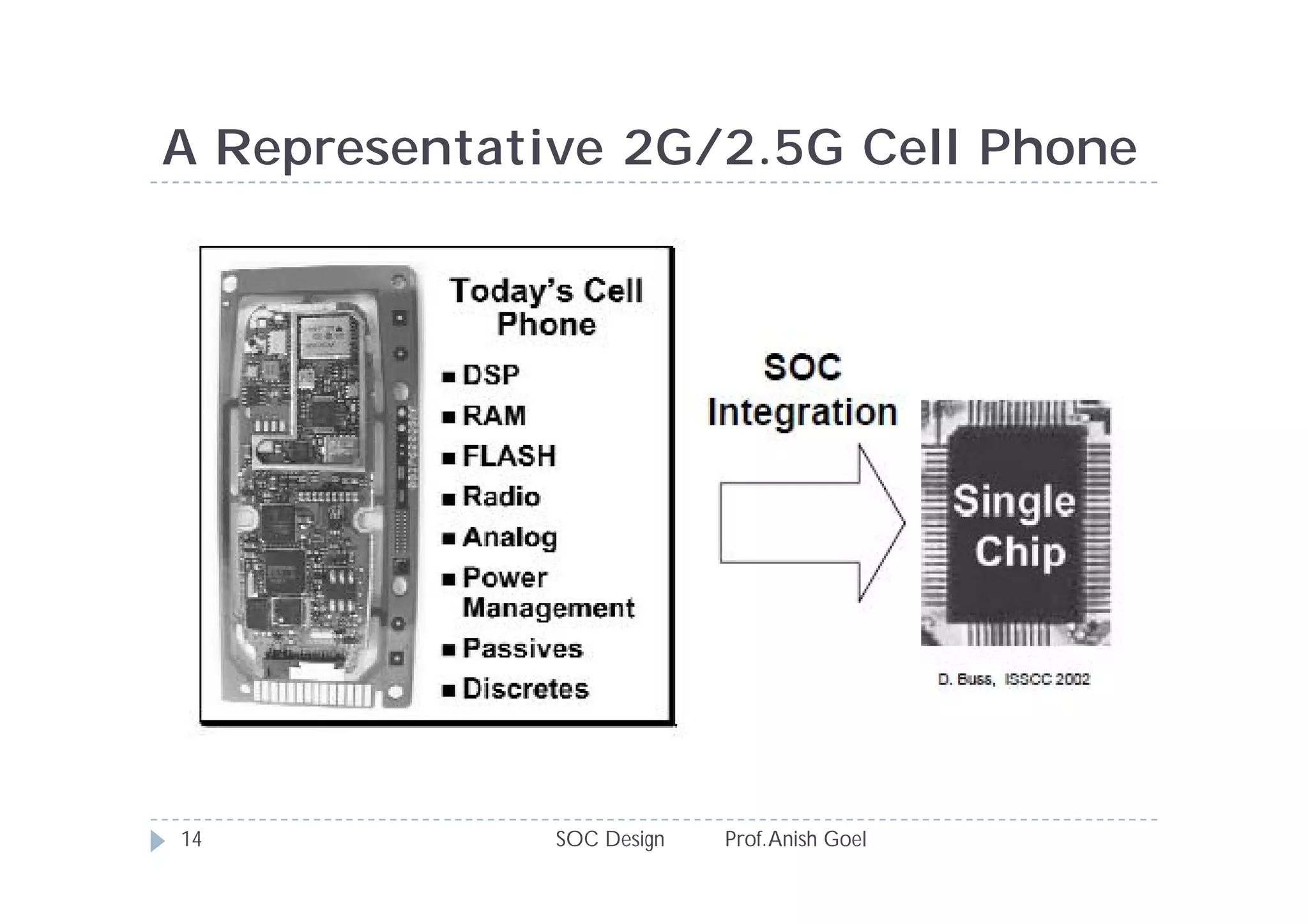

- 14. A Representative 2G/2.5GCell Phone 14 SOC Design Prof. Anish Goel

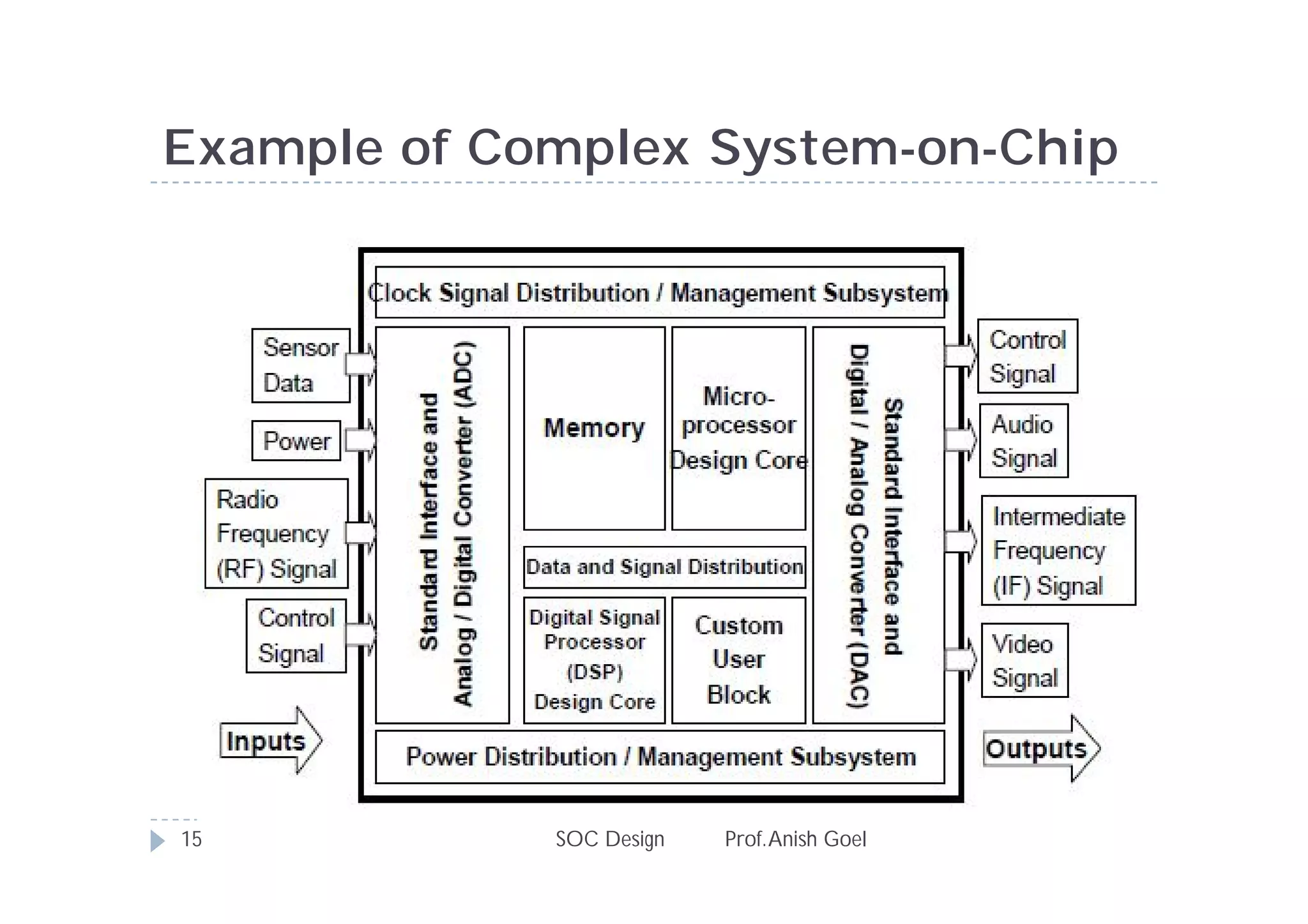

- 15. Example of ComplexSystem-on-Chip 15 SOC Design Prof. Anish Goel

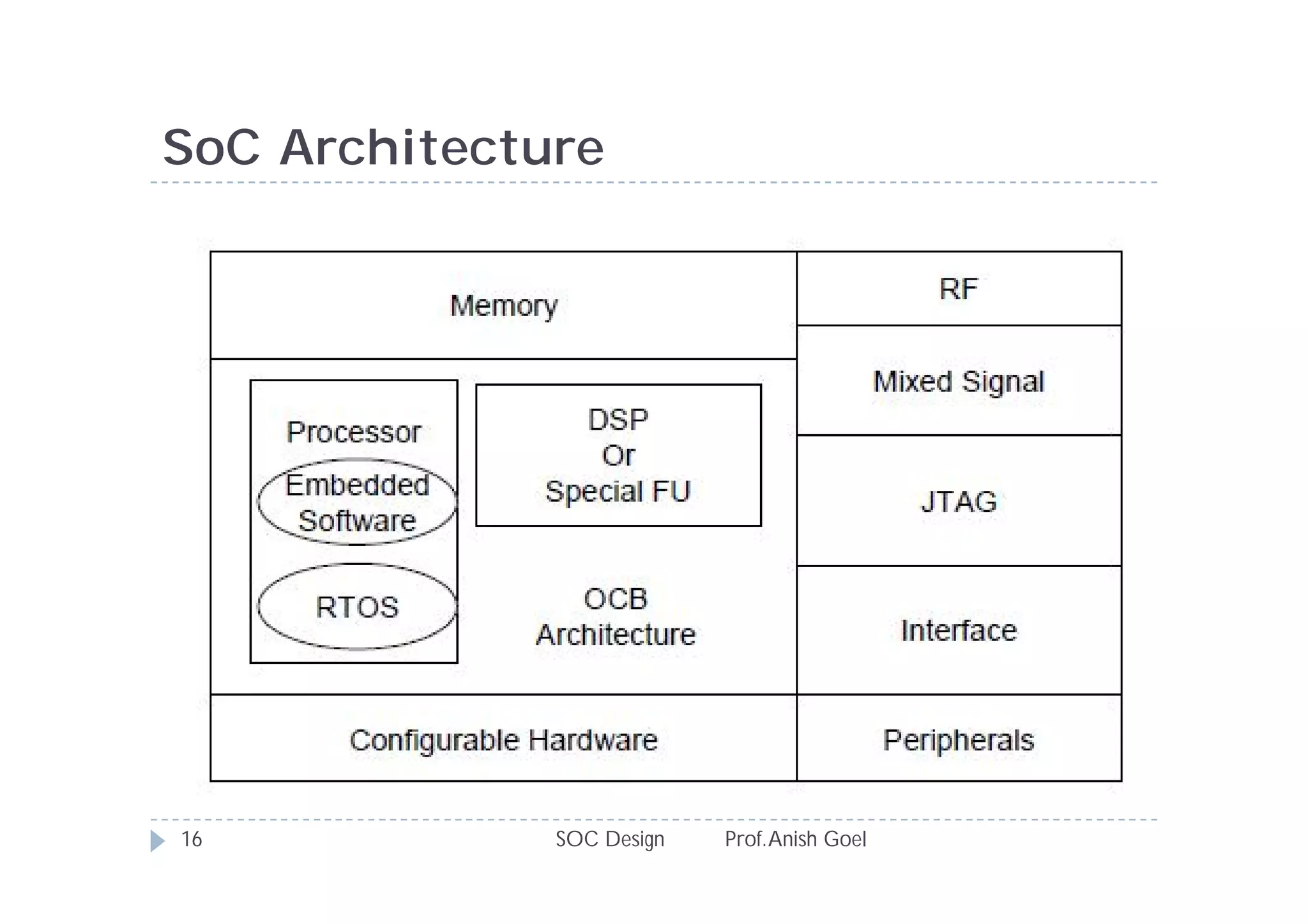

- 16. SoC Architecture 16 SOC Design Prof. Anish Goel

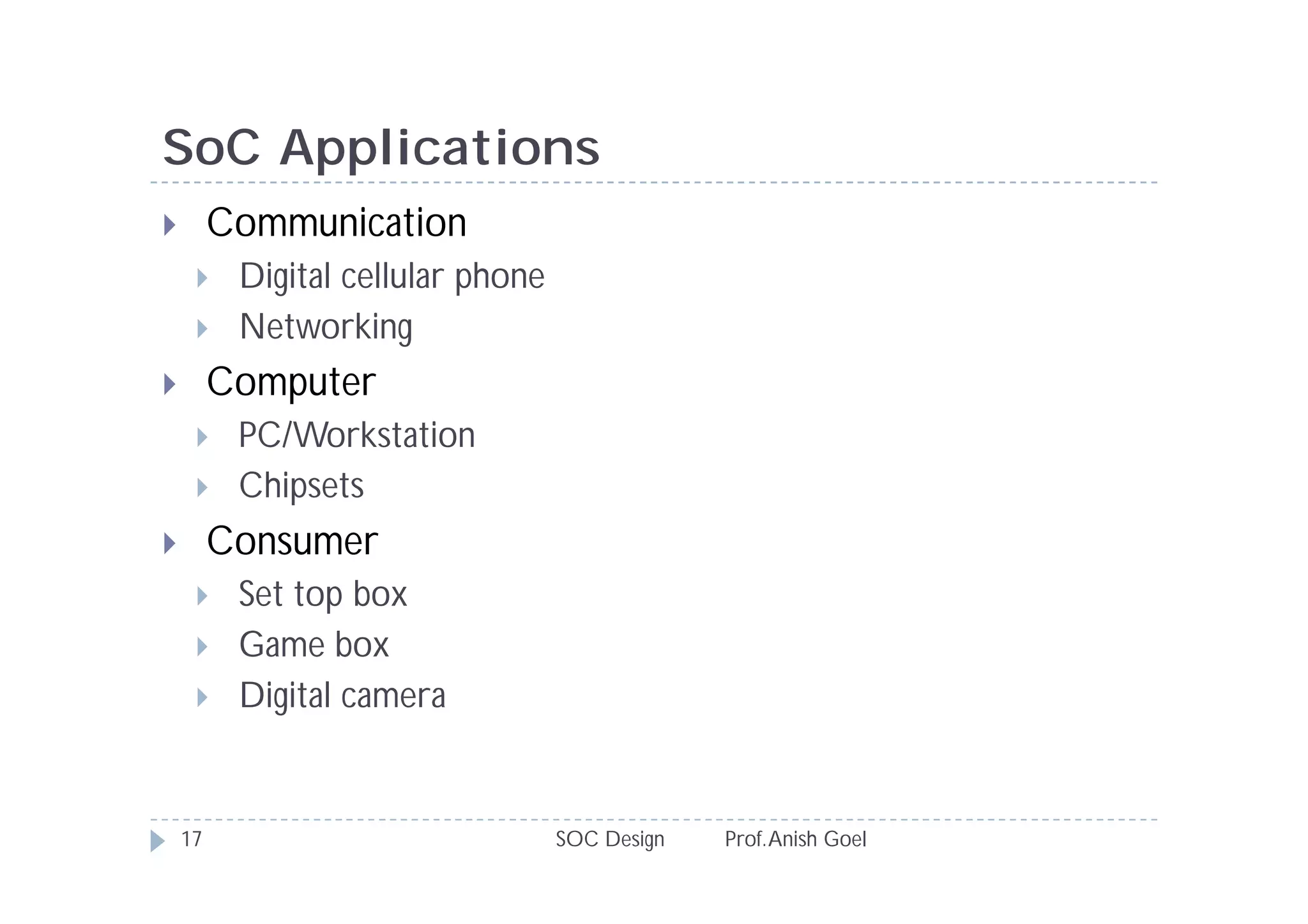

- 17. SoC Applications Communication Digital cellular phone Networking Computer PC/Workstation Chipsets Consumer Set top box Game box Digital camera 17 SOC Design Prof. Anish Goel

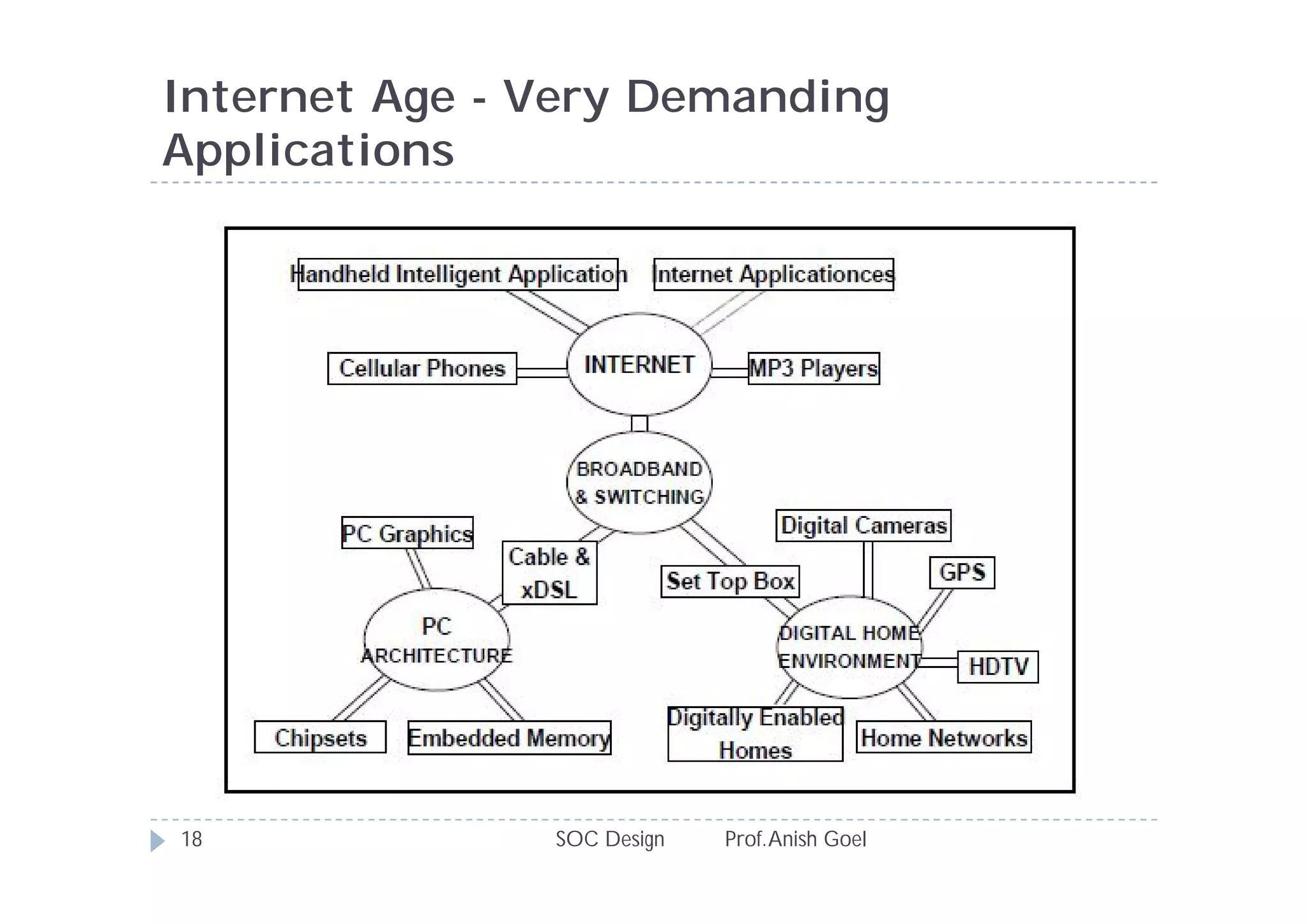

- 18. Internet Age -Very Demanding Applications 18 SOC Design Prof. Anish Goel

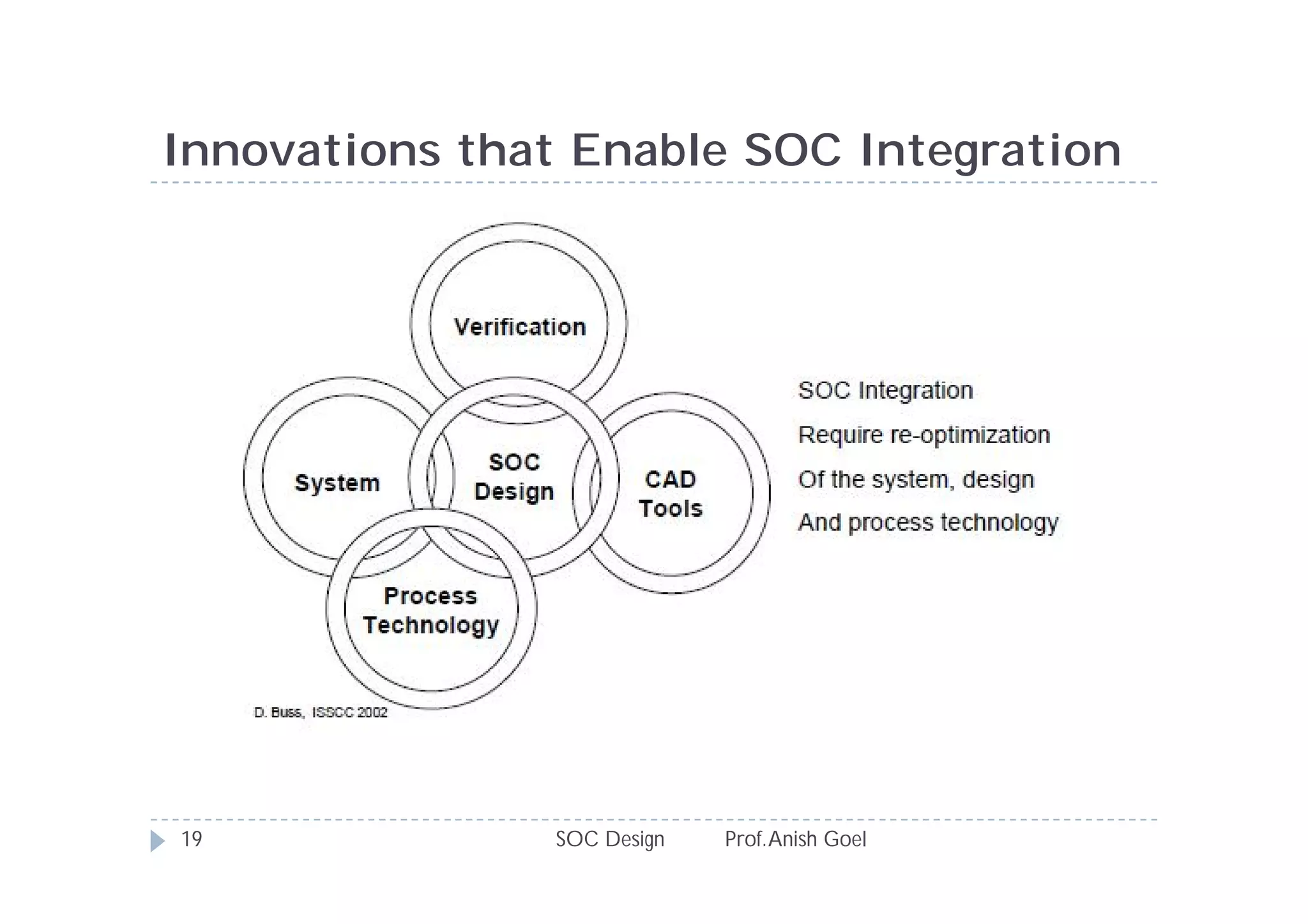

- 19. Innovations that EnableSOC Integration 19 SOC Design Prof. Anish Goel

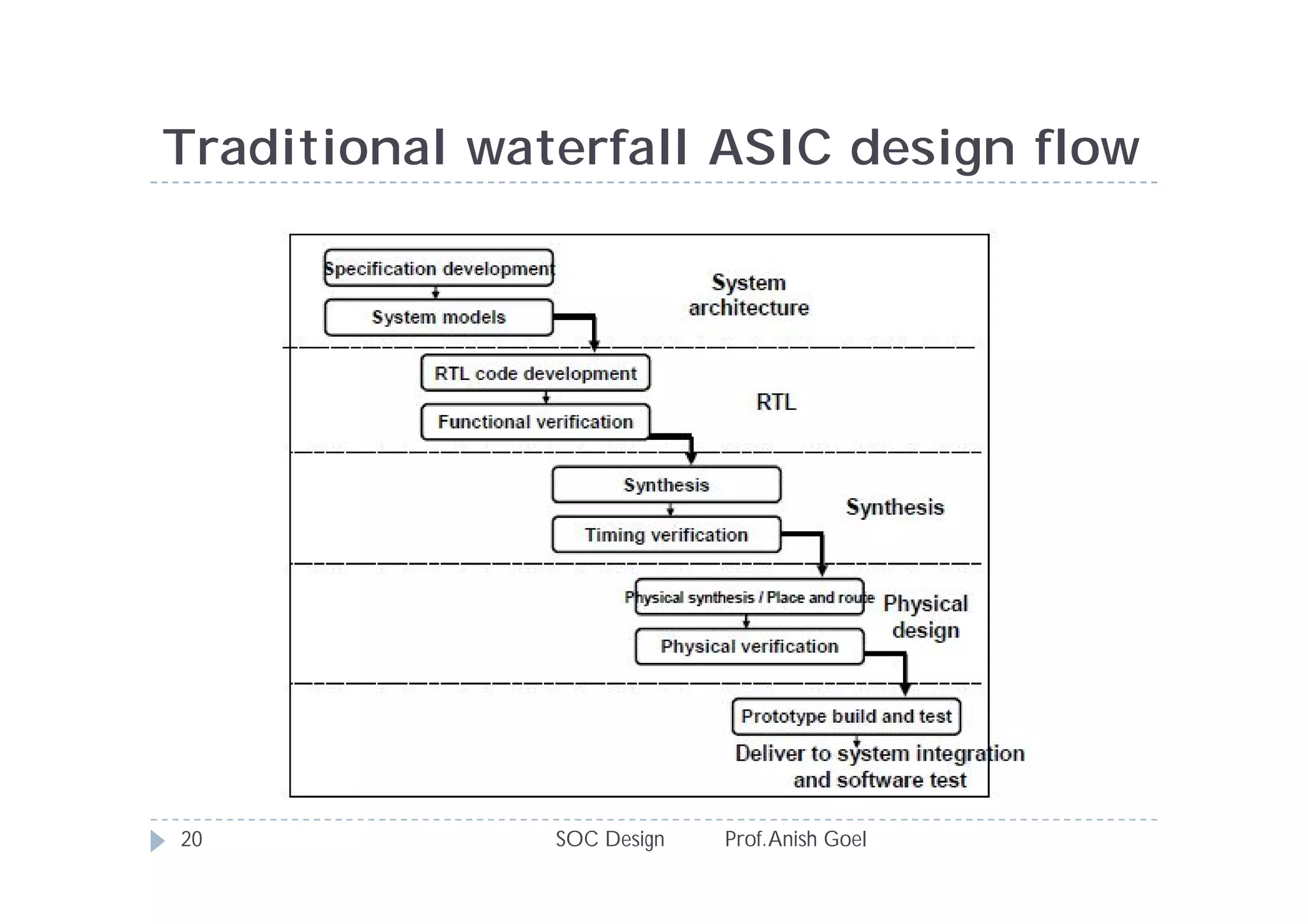

- 20. Traditional waterfall ASICdesign flow 20 SOC Design Prof. Anish Goel

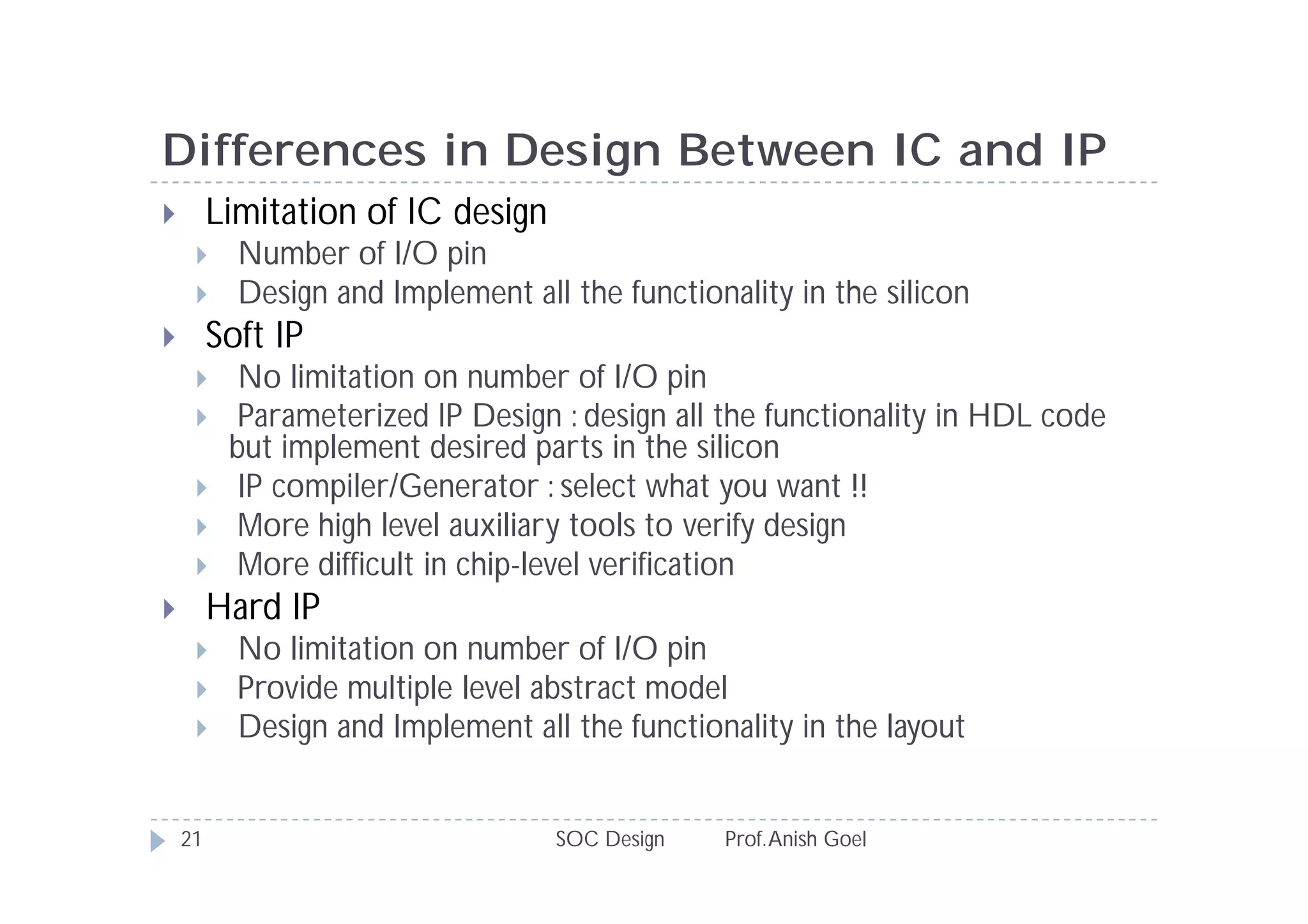

- 21. Differences in DesignBetween IC and IP Limitation of IC design Number of I/O pin Design and Implement all the functionality in the silicon Soft IP No limitation on number of I/O pin Parameterized IP Design : design all the functionality in HDL code but implement desired parts in the silicon IP compiler/Generator : select what you want !! More high level auxiliary tools to verify design More difficult in chip-level verification Hard IP No limitation on number of I/O pin Provide multiple level abstract model Design and Implement all the functionality in the layout 21 SOC Design Prof. Anish Goel
- 22. SoC Design Flow 22 SOC Design Prof. Anish Goel

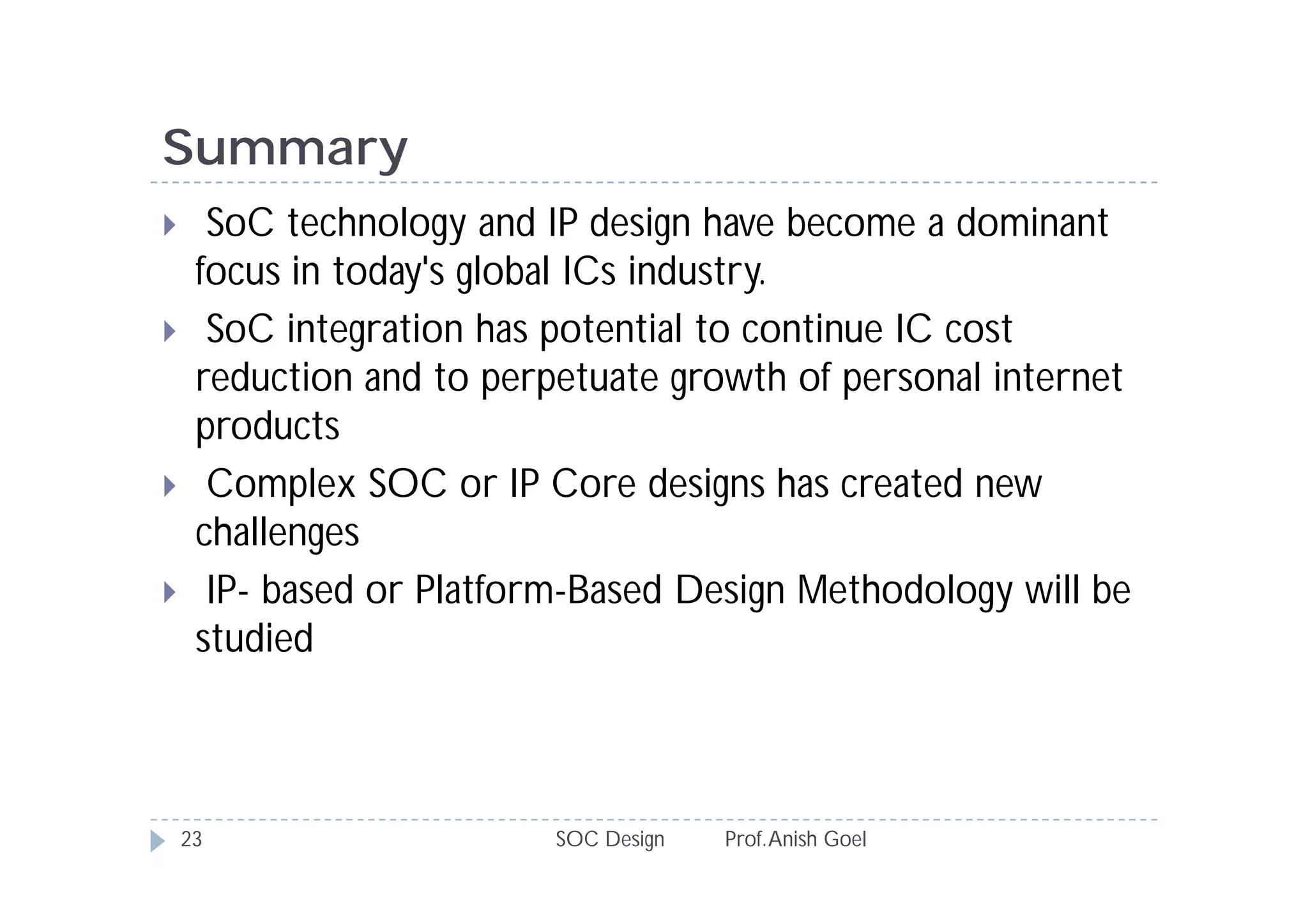

- 23. Summary SoC technology and IP design have become a dominant focus in today's global ICs industry. SoC integration has potential to continue IC cost reduction and to perpetuate growth of personal internet products Complex SOC or IP Core designs has created new challenges IP- based or Platform-Based Design Methodology will be studied 23 SOC Design Prof. Anish Goel
