String Matching with Finite Automata and Knuth Morris Pratt Algorithm

String Matching with Finite Automata
Dr. Kiran K
Assistant Professor
Department of CSE
UVCE
Bengaluru, India.

Finite Automata
A Finite Automata is a 5-tuple (Q, q0, A, ∑, δ), where
• Q : Finite set of States
• q0 є Q : Start State
• A C Q : Distinguished set of Accepting States
• ∑ : Finite Input Alphabet
• δ : Transition Function. A function from Q x ∑ into Q,
• Φ : Final-State Function from ∑* to Q such that Φ (w) is the
state M ends up in after scanning the string w.
M accepts a string w iff Φ (w) є A.
Φ (ε) = q0
Φ (ε) = δ (Φ (w), a) for w є ∑*, a є ∑

Finite Automata…

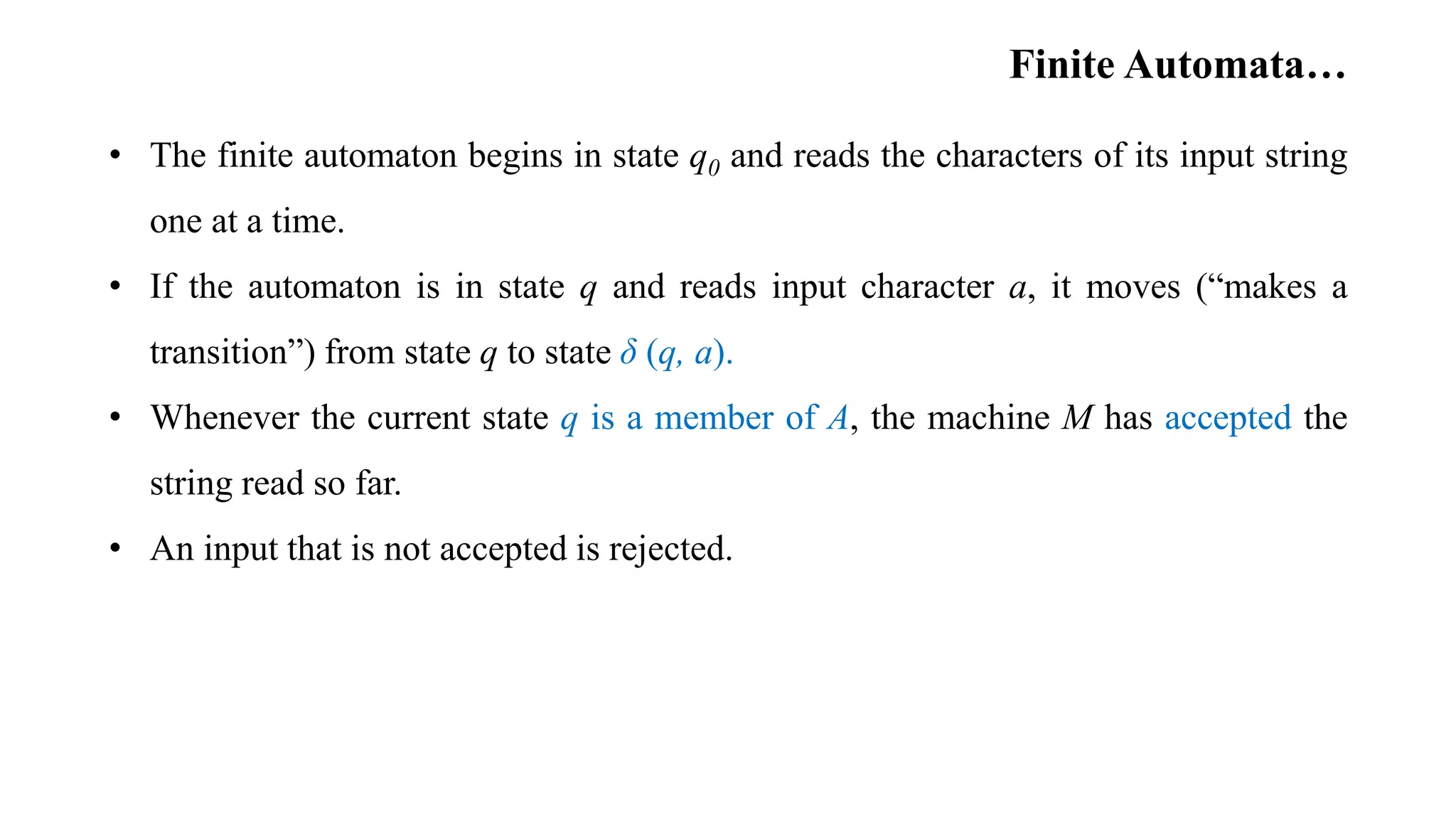

• The finite automaton begins in state q0 and reads the characters of its input string
one at a time.
• If the automaton is in state q and reads input character a, it moves (“makes a
transition”) from state q to state δ (q, a).
• Whenever the current state q is a member of A, the machine M has accepted the
string read so far.
• An input that is not accepted is rejected.

Finite Automata…
Q = {0, 1}
q0 = 0
∑ = {a, b}
State Transition Diagram
State 1: Accepting State
Directed Edges: Transitions
abaaa : Enters states <0, 1, 0, 1, 0, 1>; Accepts.
abbaa : Enters states <0, 1, 0, 0, 1, 0>; Rejects.

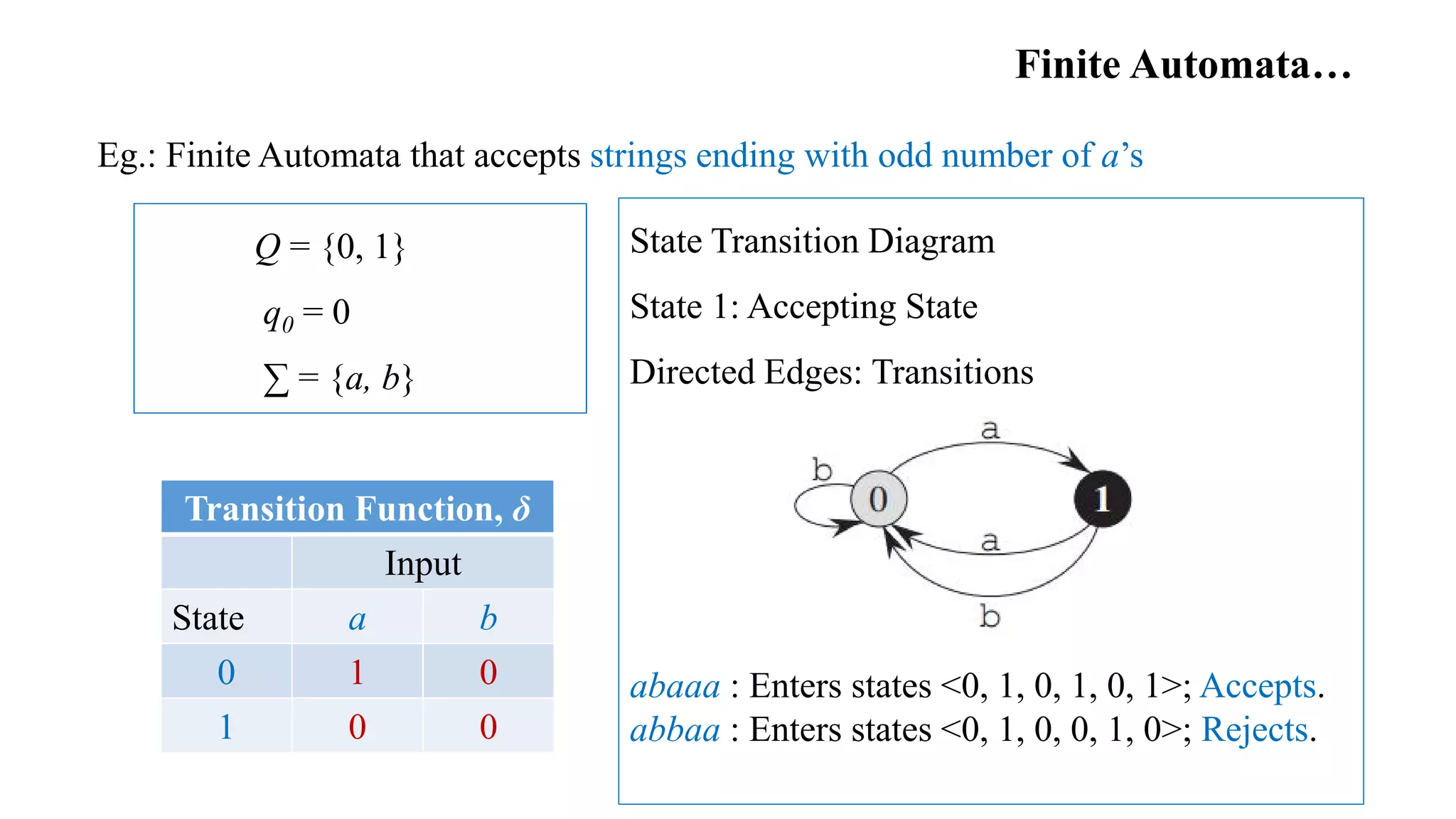

Eg.: Finite Automata that accepts strings ending with odd number of a’s
Transition Function, δ
Input
State a b
0 1 0
1 0 0

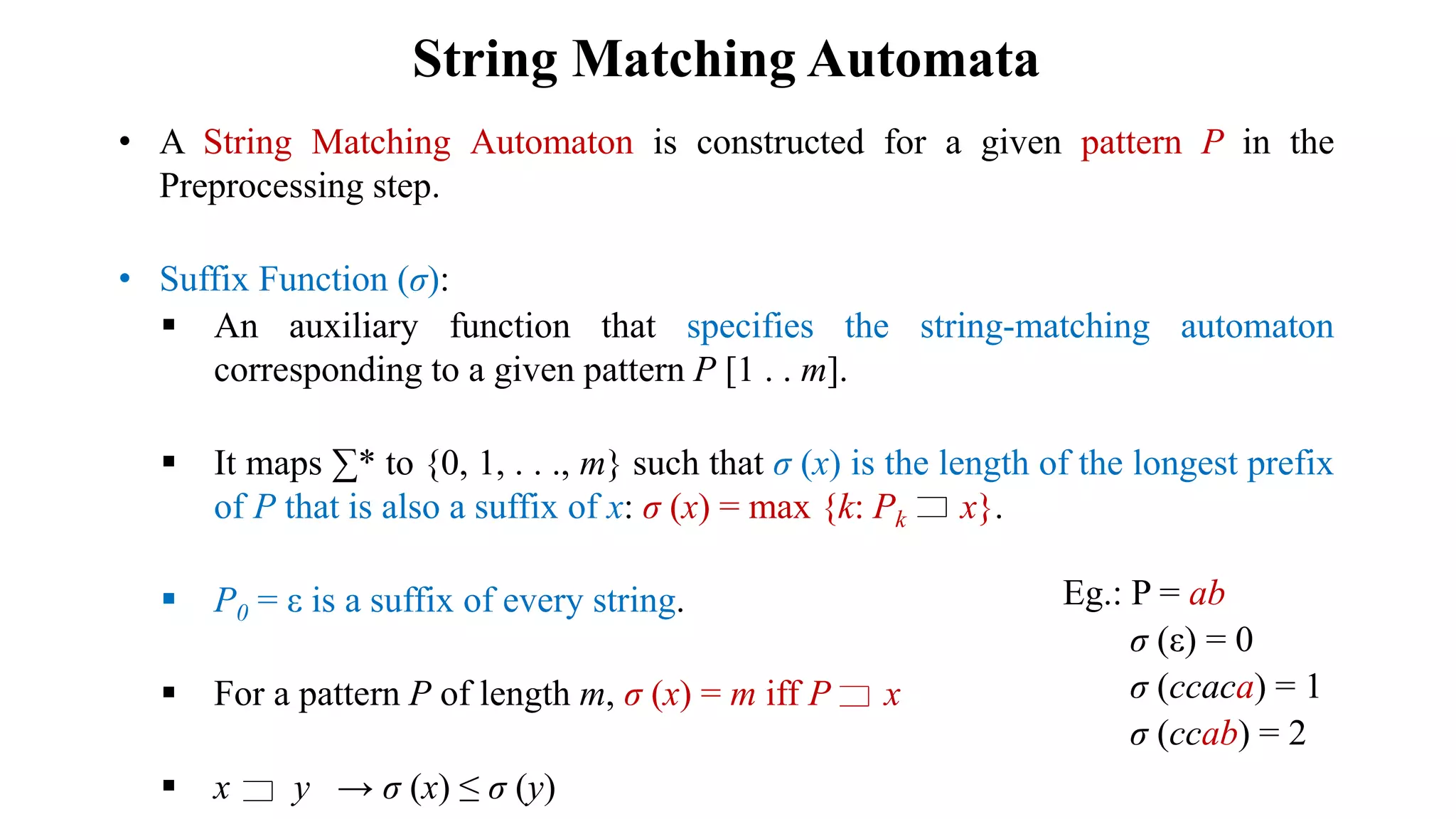

String Matching Automata
• A String Matching Automaton is constructed for a given pattern P in the
Preprocessing step.
• Suffix Function (σ):
 An auxiliary function that specifies the string-matching automaton
corresponding to a given pattern P [1 . . m].
 It maps ∑* to {0, 1, . . ., m} such that σ (x) is the length of the longest prefix
of P that is also a suffix of x: σ (x) = max {k: Pk x}.
 P0 = ε is a suffix of every string.
 For a pattern P of length m, σ (x) = m iff P x
 x y → σ (x) ≤ σ (y)
Eg.: P = ab
σ (ε) = 0
σ (ccaca) = 1
σ (ccab) = 2

String Matching Automata…

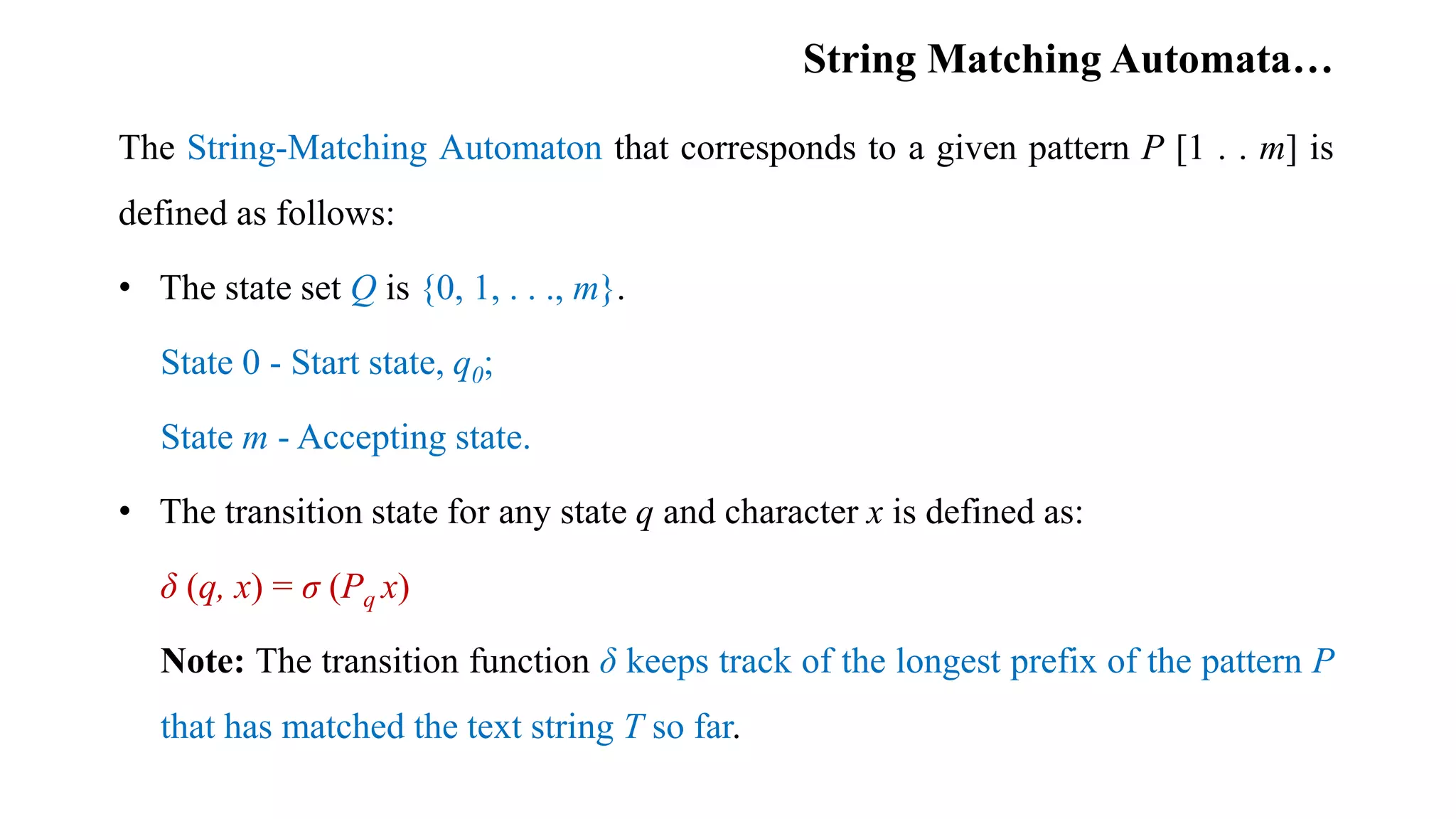

The String-Matching Automaton that corresponds to a given pattern P [1 . . m] is
defined as follows:
• The state set Q is {0, 1, . . ., m}.
State 0 - Start state, q0;
State m - Accepting state.
• The transition state for any state q and character x is defined as:
δ (q, x) = σ (Pq x)
Note: The transition function δ keeps track of the longest prefix of the pattern P
that has matched the text string T so far.

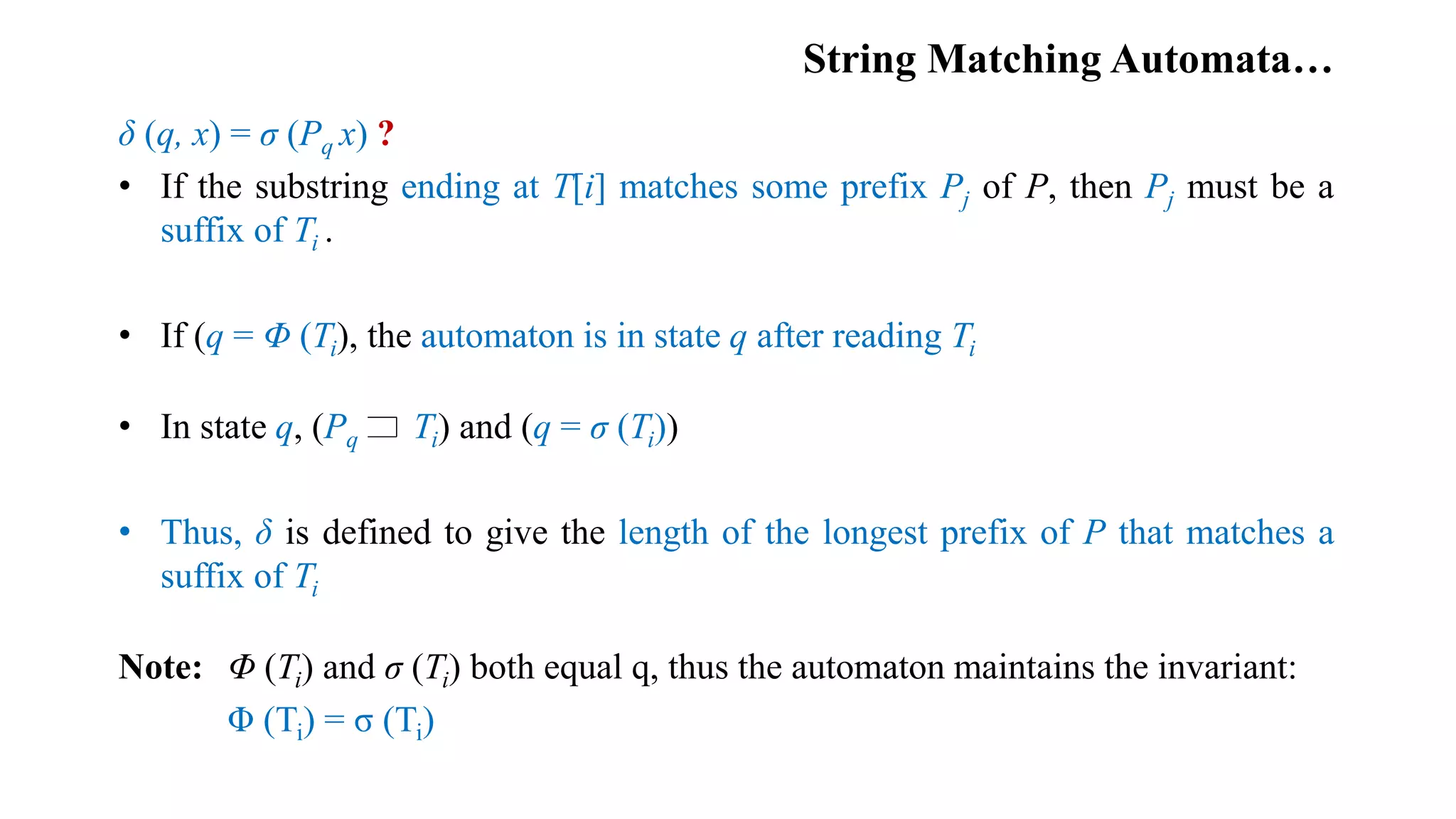

δ (q, x) = σ (Pq x) ?
• If the substring ending at T[i] matches some prefix Pj of P, then Pj must be a
suffix of Ti .
• If (q = Φ (Ti), the automaton is in state q after reading Ti
• In state q, (Pq Ti) and (q = σ (Ti))
• Thus, δ is defined to give the length of the longest prefix of P that matches a
suffix of Ti
Note: Φ (Ti) and σ (Ti) both equal q, thus the automaton maintains the invariant:
Φ (Ti) = σ (Ti)

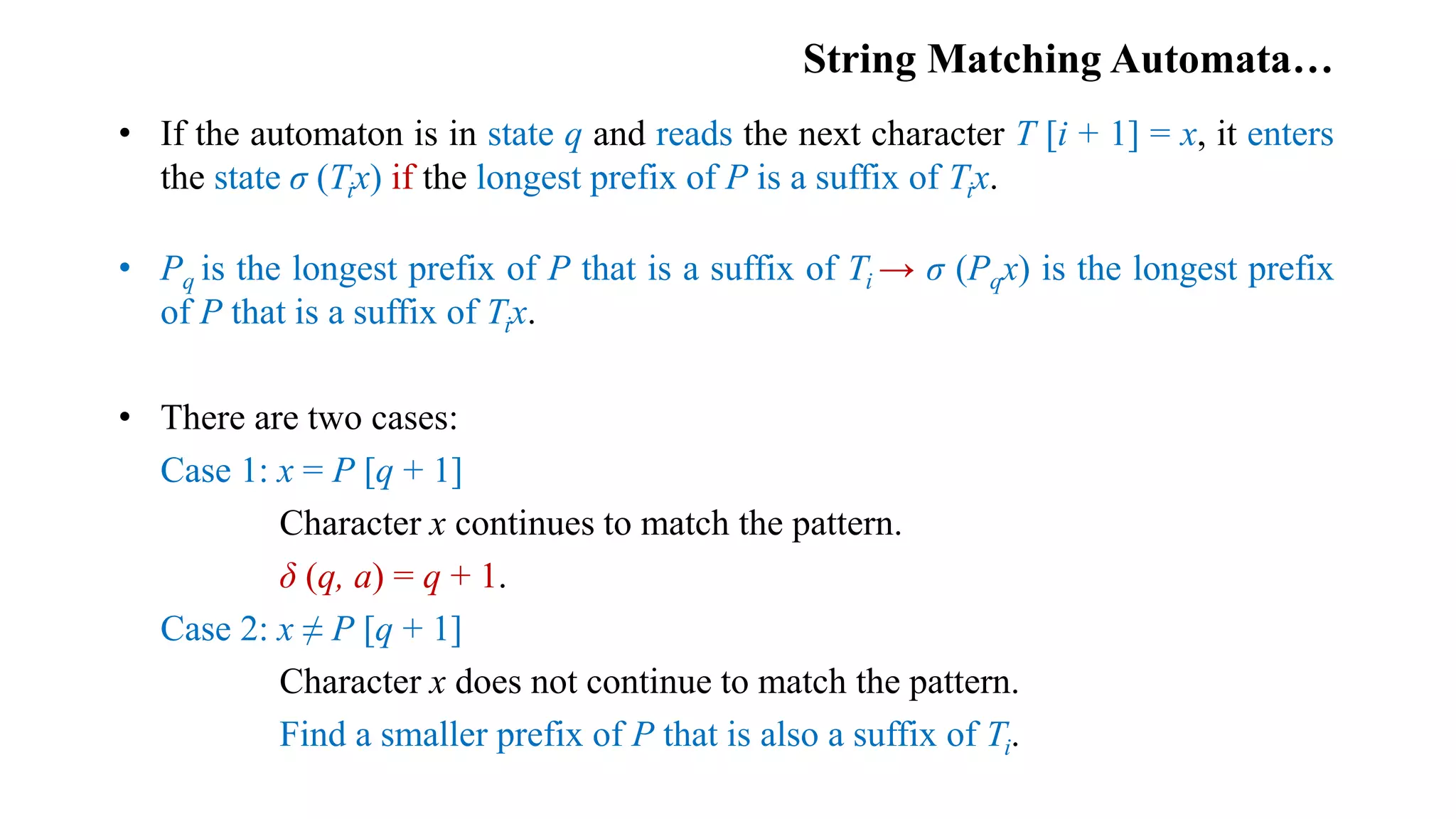

• If the automaton is in state q and reads the next character T [i + 1] = x, it enters
the state σ (Tix) if the longest prefix of P is a suffix of Tix.
• Pq is the longest prefix of P that is a suffix of Ti → σ (Pqx) is the longest prefix
of P that is a suffix of Tix.
• There are two cases:
Case 1: x = P [q + 1]
Character x continues to match the pattern.
δ (q, a) = q + 1.
Case 2: x ≠ P [q + 1]
Character x does not continue to match the pattern.
Find a smaller prefix of P that is also a suffix of Ti.

Example
P = ababaca
δ (q, x) = σ (Pq x)

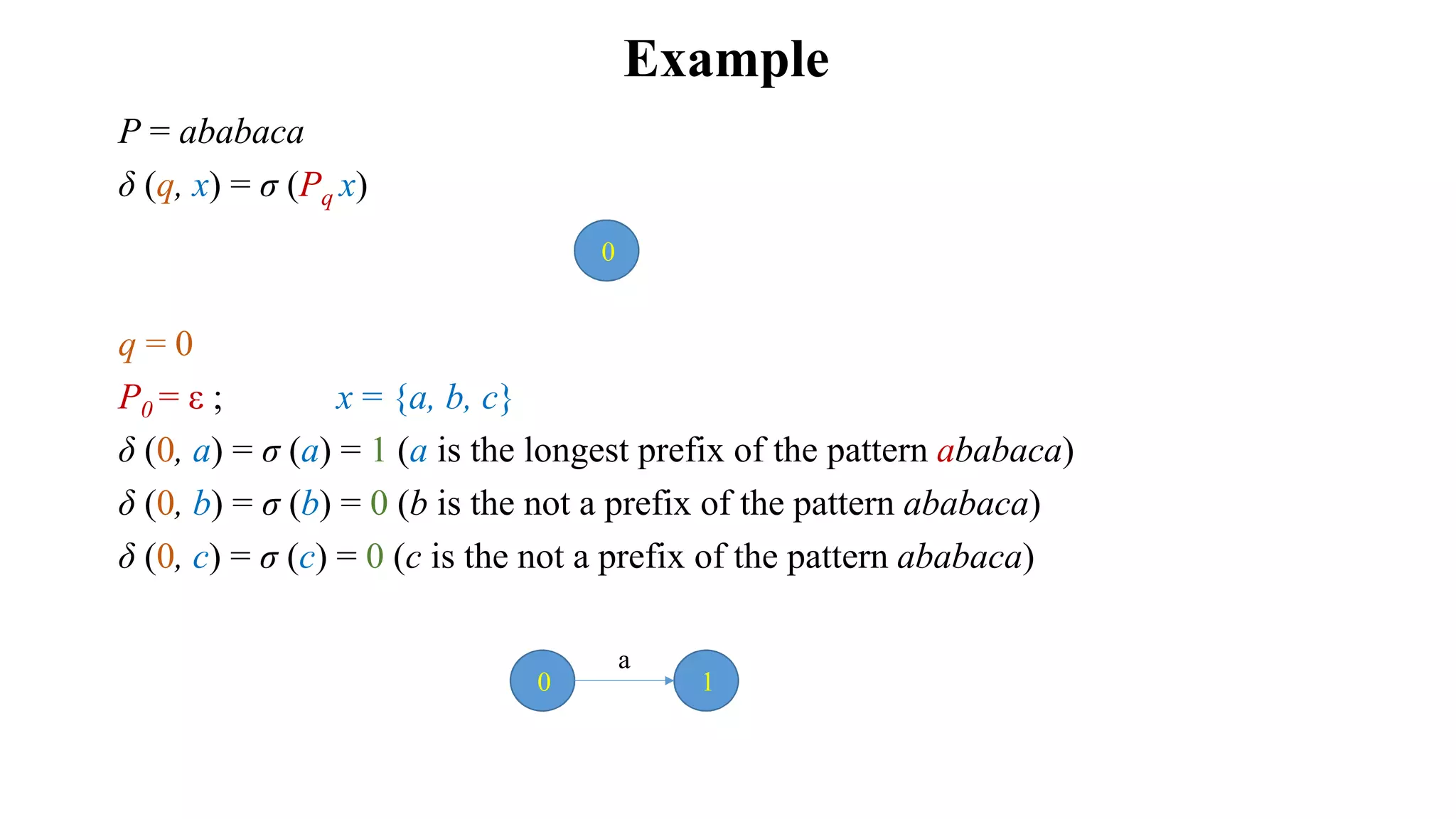

q = 0
P0 = ε ; x = {a, b, c}
δ (0, a) = σ (a) = 1 (a is the longest prefix of the pattern ababaca)
δ (0, b) = σ (b) = 0 (b is the not a prefix of the pattern ababaca)
δ (0, c) = σ (c) = 0 (c is the not a prefix of the pattern ababaca)
0
0 1
a

Example…
P = ababaca
δ (q, x) = σ (Pq x)

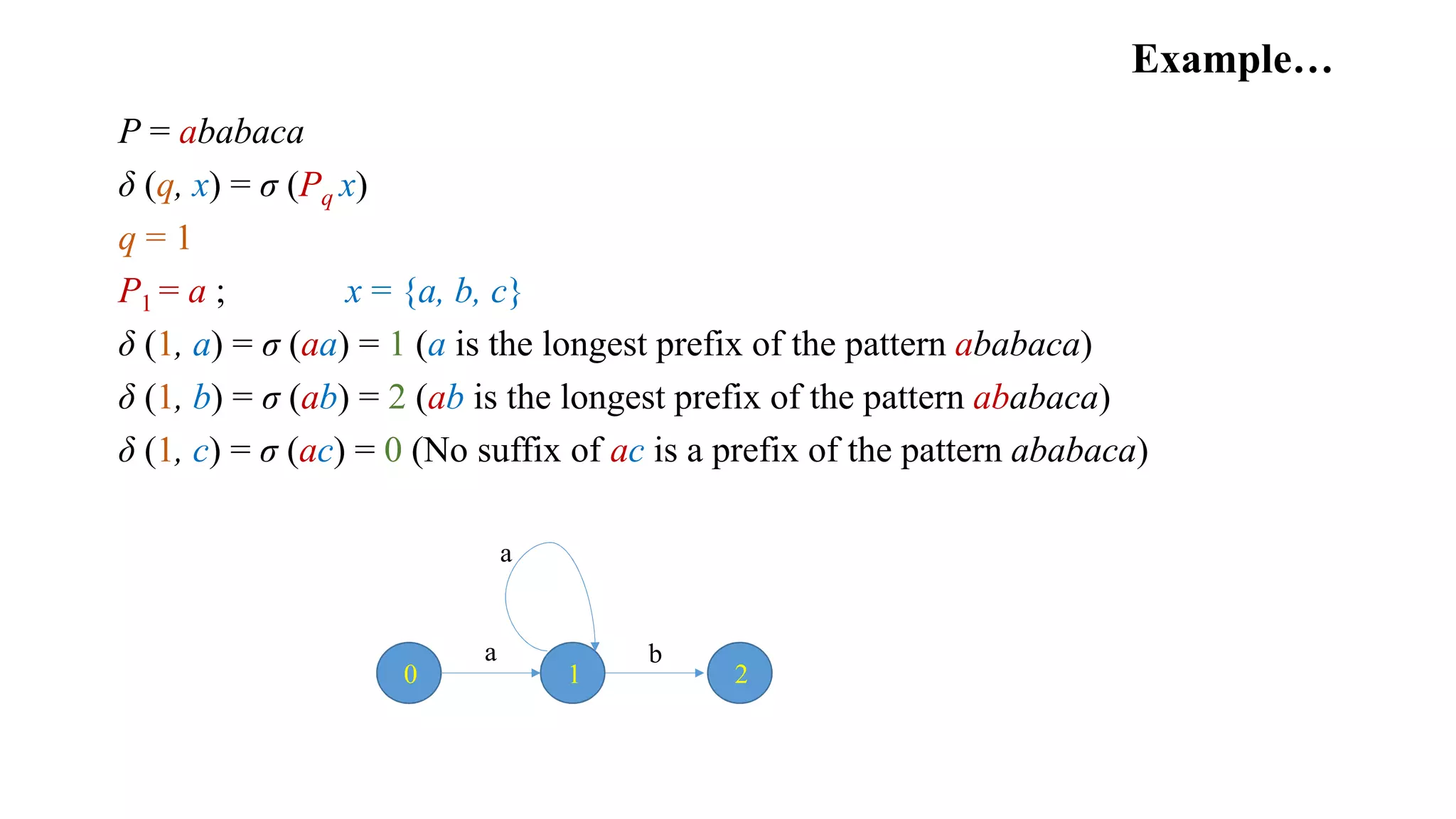

q = 1
P1 = a ; x = {a, b, c}
δ (1, a) = σ (aa) = 1 (a is the longest prefix of the pattern ababaca)
δ (1, b) = σ (ab) = 2 (ab is the longest prefix of the pattern ababaca)
δ (1, c) = σ (ac) = 0 (No suffix of ac is a prefix of the pattern ababaca)
20 1
a b
a

Example…
P = ababaca
δ (q, x) = σ (Pq x)

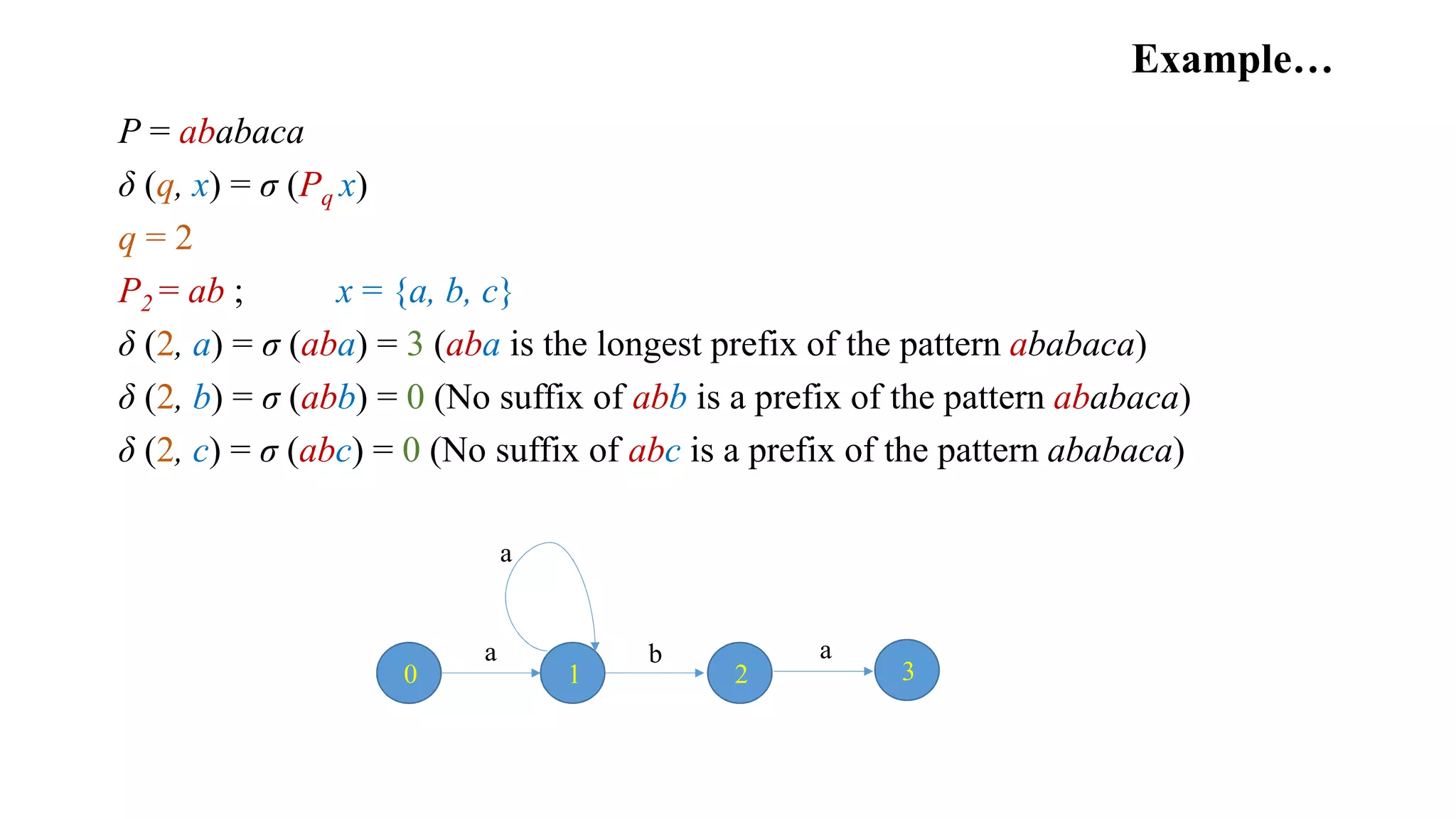

q = 2
P2 = ab ; x = {a, b, c}
δ (2, a) = σ (aba) = 3 (aba is the longest prefix of the pattern ababaca)
δ (2, b) = σ (abb) = 0 (No suffix of abb is a prefix of the pattern ababaca)
δ (2, c) = σ (abc) = 0 (No suffix of abc is a prefix of the pattern ababaca)
3
a
20 1
a b
a

Example…
P = ababaca
δ (q, x) = σ (Pq x)

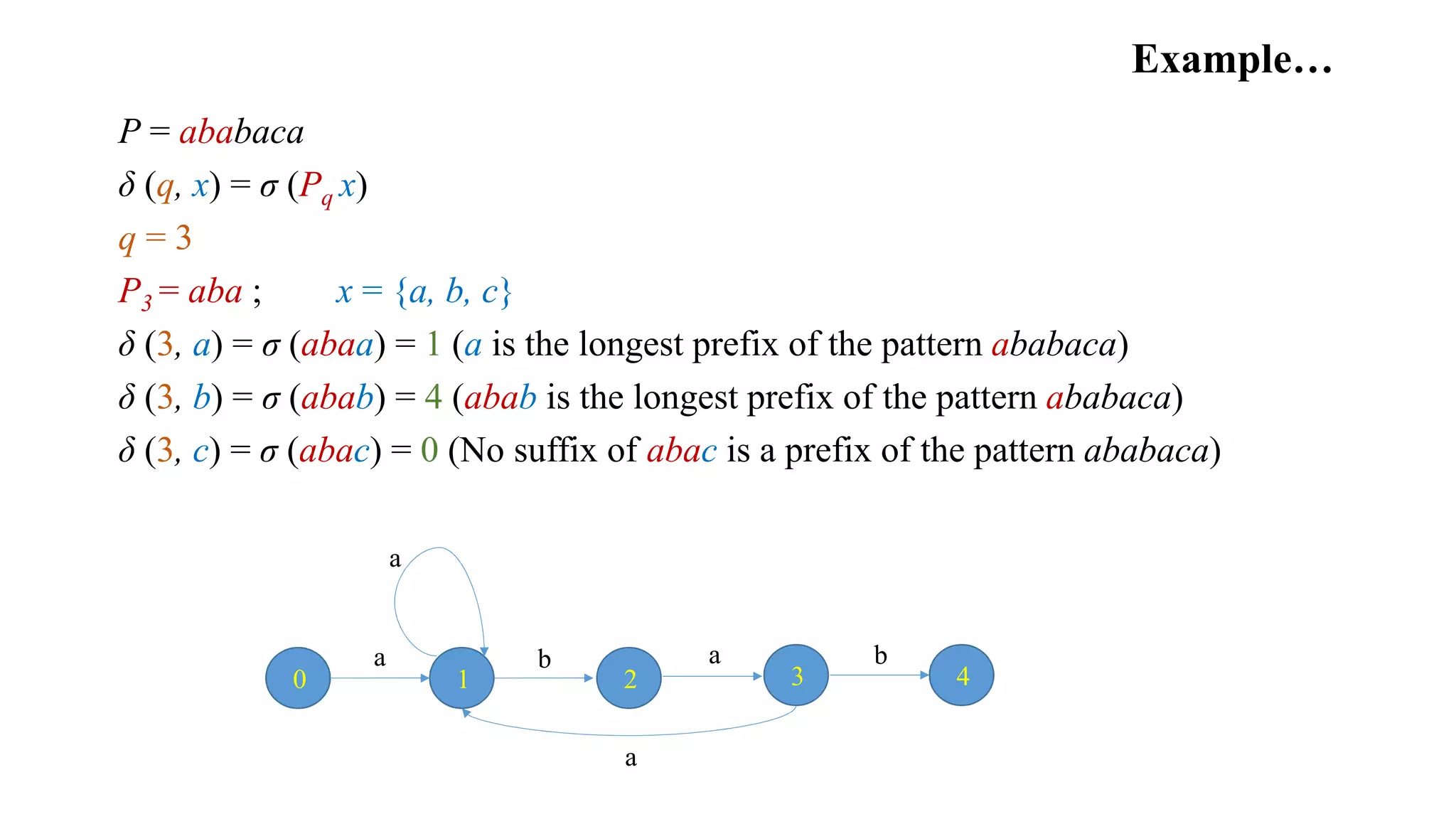

q = 3
P3 = aba ; x = {a, b, c}
δ (3, a) = σ (abaa) = 1 (a is the longest prefix of the pattern ababaca)
δ (3, b) = σ (abab) = 4 (abab is the longest prefix of the pattern ababaca)
δ (3, c) = σ (abac) = 0 (No suffix of abac is a prefix of the pattern ababaca)
3
a
20 1
a b
a
4
b
a

Example…
P = ababaca
δ (q, x) = σ (Pq x)

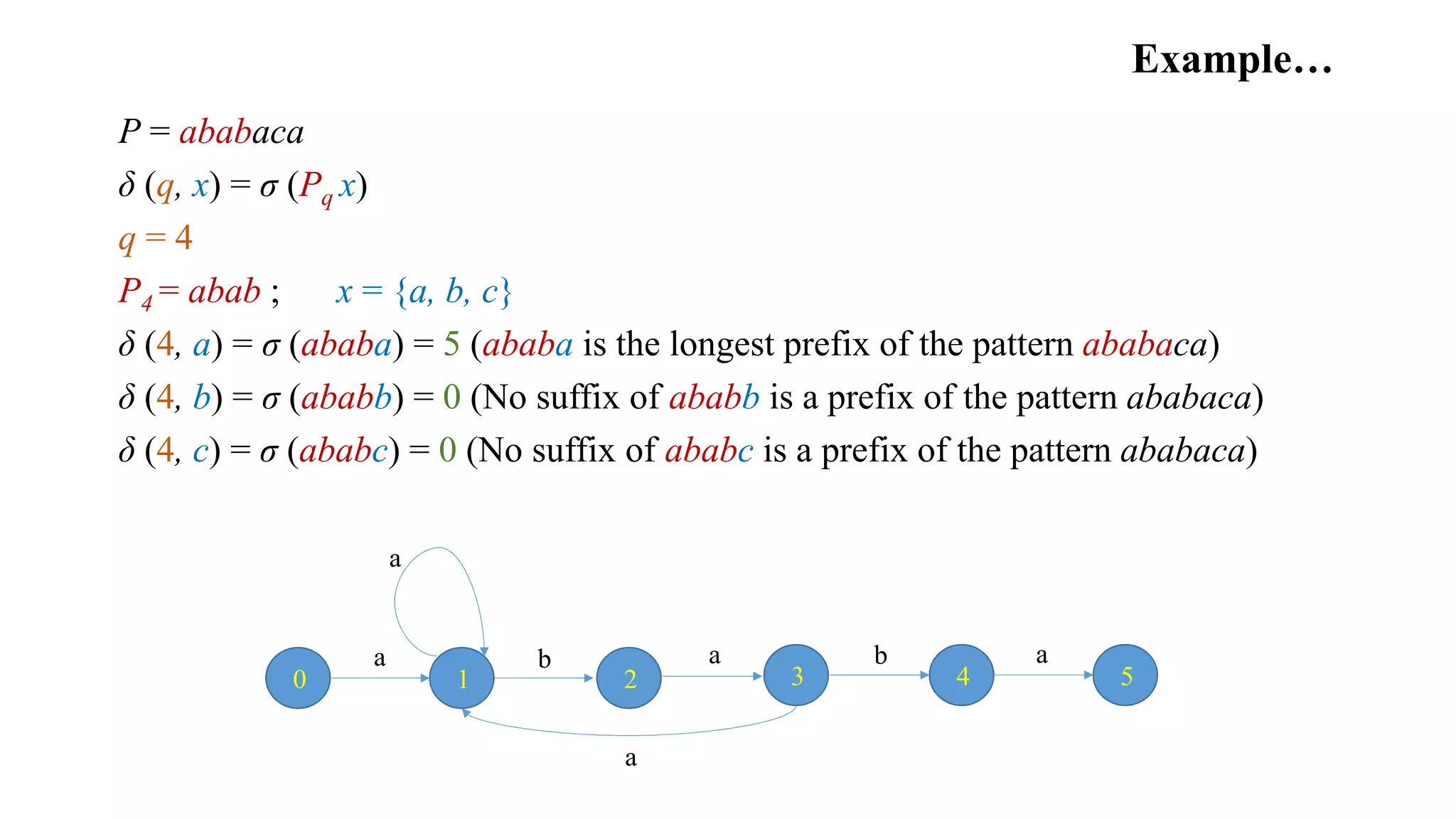

q = 4
P4 = abab ; x = {a, b, c}
δ (4, a) = σ (ababa) = 5 (ababa is the longest prefix of the pattern ababaca)
δ (4, b) = σ (ababb) = 0 (No suffix of ababb is a prefix of the pattern ababaca)
δ (4, c) = σ (ababc) = 0 (No suffix of ababc is a prefix of the pattern ababaca)
3
a
20 1
a b
a
4
b
a
5
a

Example…
P = ababaca
δ (q, x) = σ (Pq x)

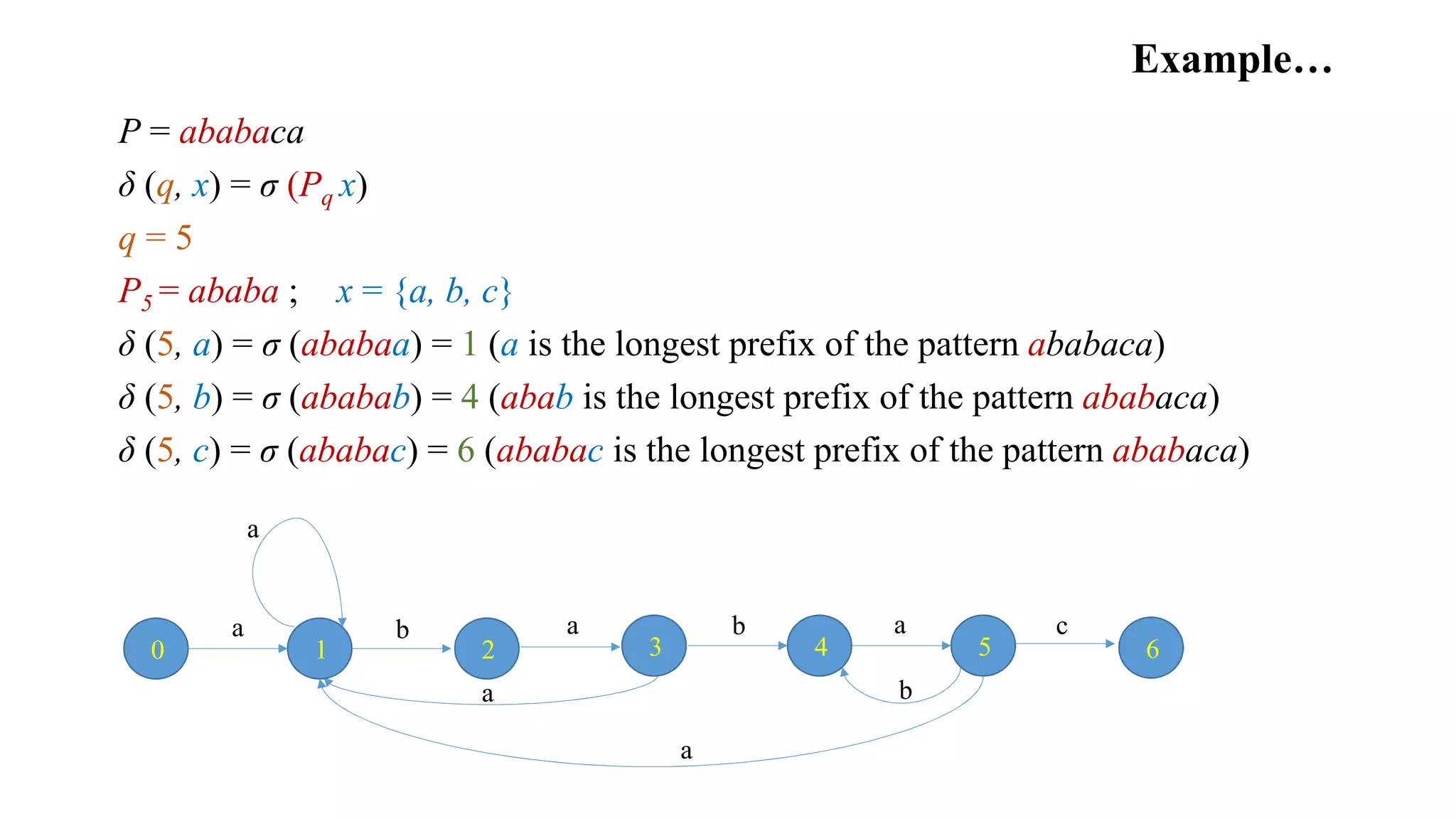

q = 5
P5 = ababa ; x = {a, b, c}
δ (5, a) = σ (ababaa) = 1 (a is the longest prefix of the pattern ababaca)
δ (5, b) = σ (ababab) = 4 (abab is the longest prefix of the pattern ababaca)
δ (5, c) = σ (ababac) = 6 (ababac is the longest prefix of the pattern ababaca)
a
3
a
20 1
a b
a
4
b
a
5 6
a
b
c

Example…
P = ababaca
δ (q, x) = σ (Pq x)

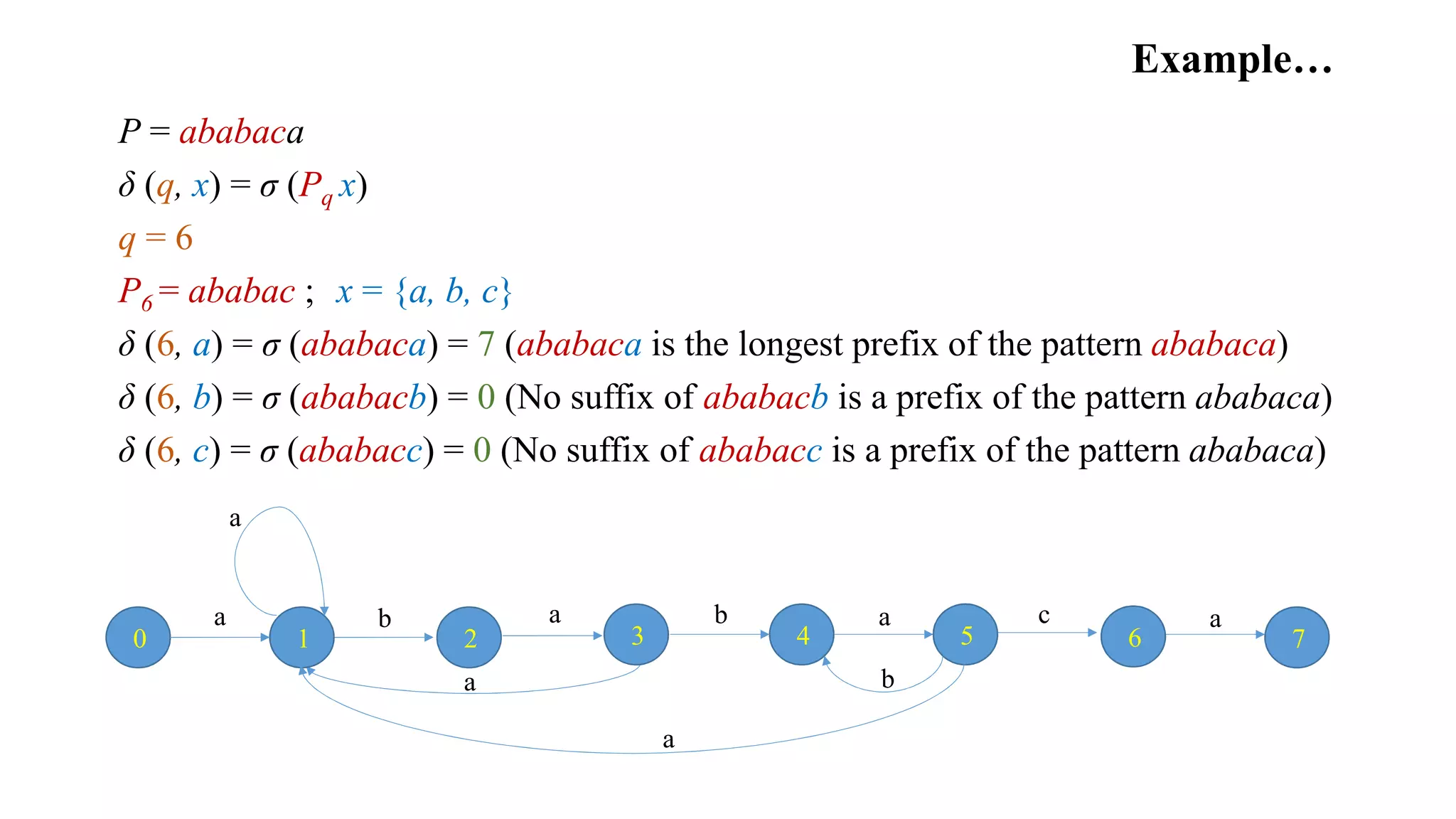

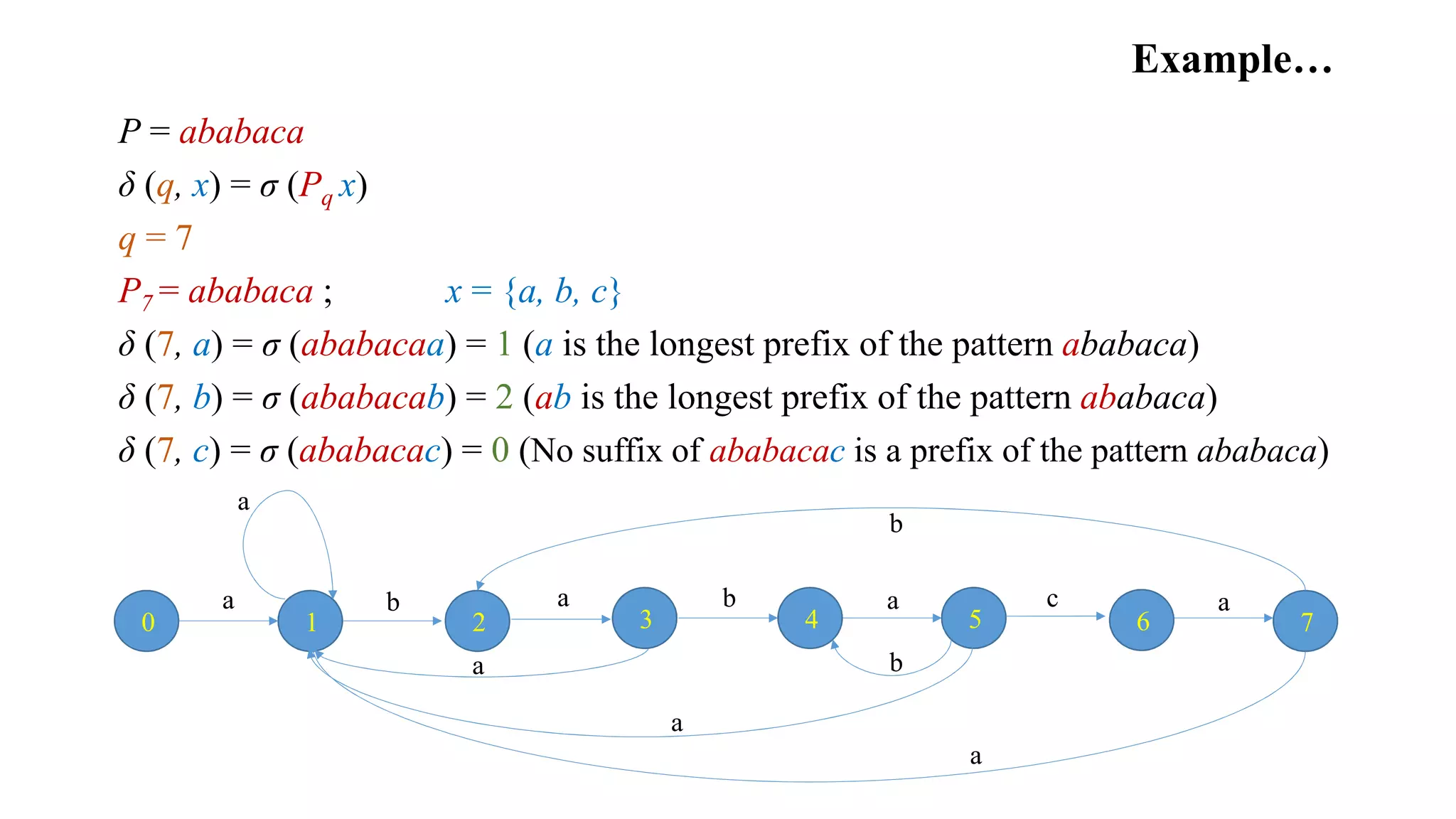

q = 6
P6 = ababac ; x = {a, b, c}
δ (6, a) = σ (ababaca) = 7 (ababaca is the longest prefix of the pattern ababaca)
δ (6, b) = σ (ababacb) = 0 (No suffix of ababacb is a prefix of the pattern ababaca)
δ (6, c) = σ (ababacc) = 0 (No suffix of ababacc is a prefix of the pattern ababaca)
a
73
a
20 1
a b
a
4
b
a
5 6
a
b
c a

Example…
P = ababaca
δ (q, x) = σ (Pq x)
q = 7
P7 = ababaca ; x = {a, b, c}
δ (7, a) = σ (ababacaa) = 1 (a is the longest prefix of the pattern ababaca)
δ (7, b) = σ (ababacab) = 2 (ab is the longest prefix of the pattern ababaca)
δ (7, c) = σ (ababacac) = 0 (No suffix of ababacac is a prefix of the pattern ababaca)
b
a
73
a
20 1
a b
a
4
b
a
5 6
a
b
c a
a

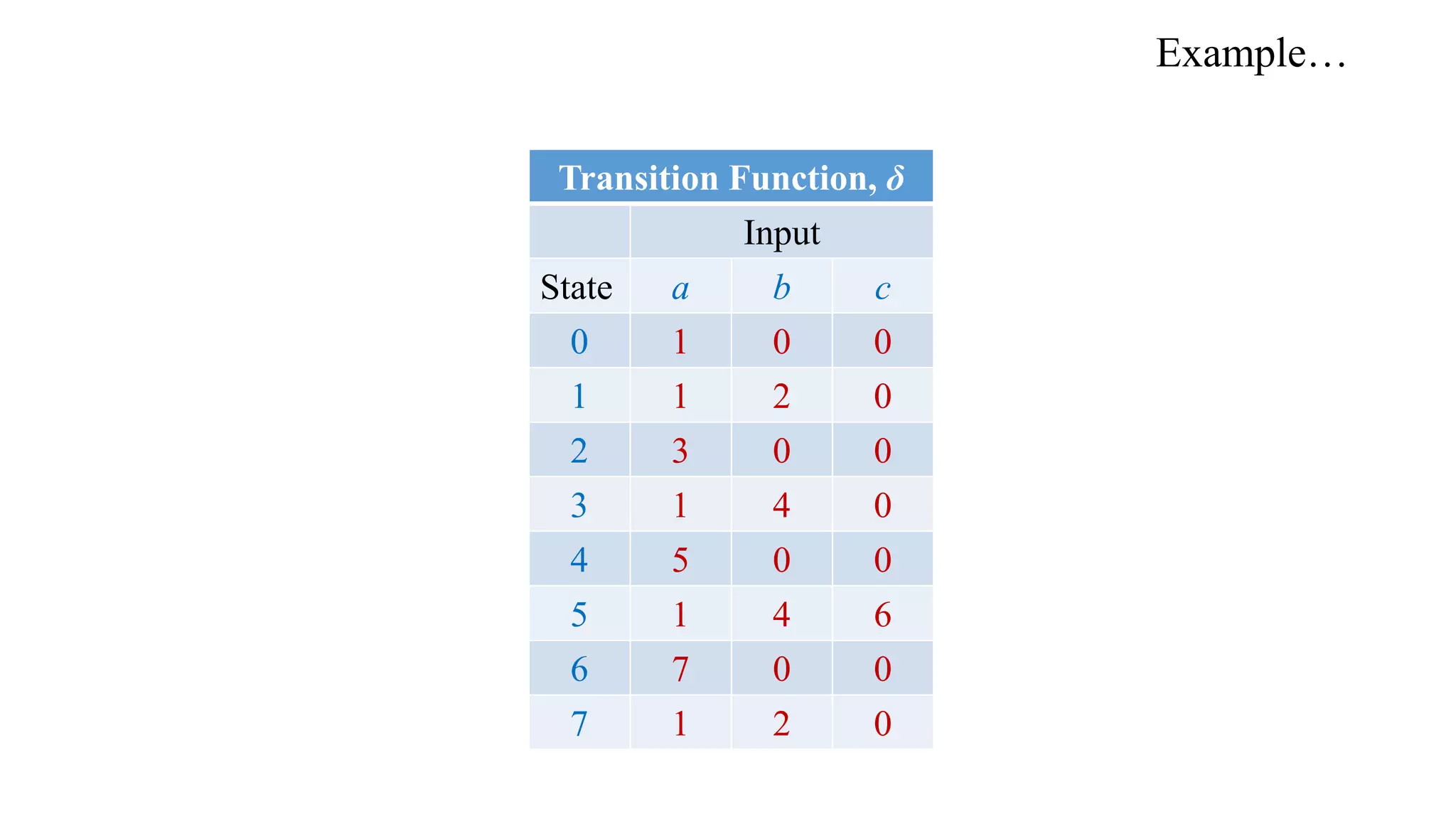

Example…
Input
State a b c
0 1 0 0
1 1 2 0
2 3 0 0
3 1 4 0
4 5 0 0
5 1 4 6
6 7 0 0
7 1 2 0
b
a
73
a
20 1
a b
a
4
b
a
5 6
a
b
c a
a

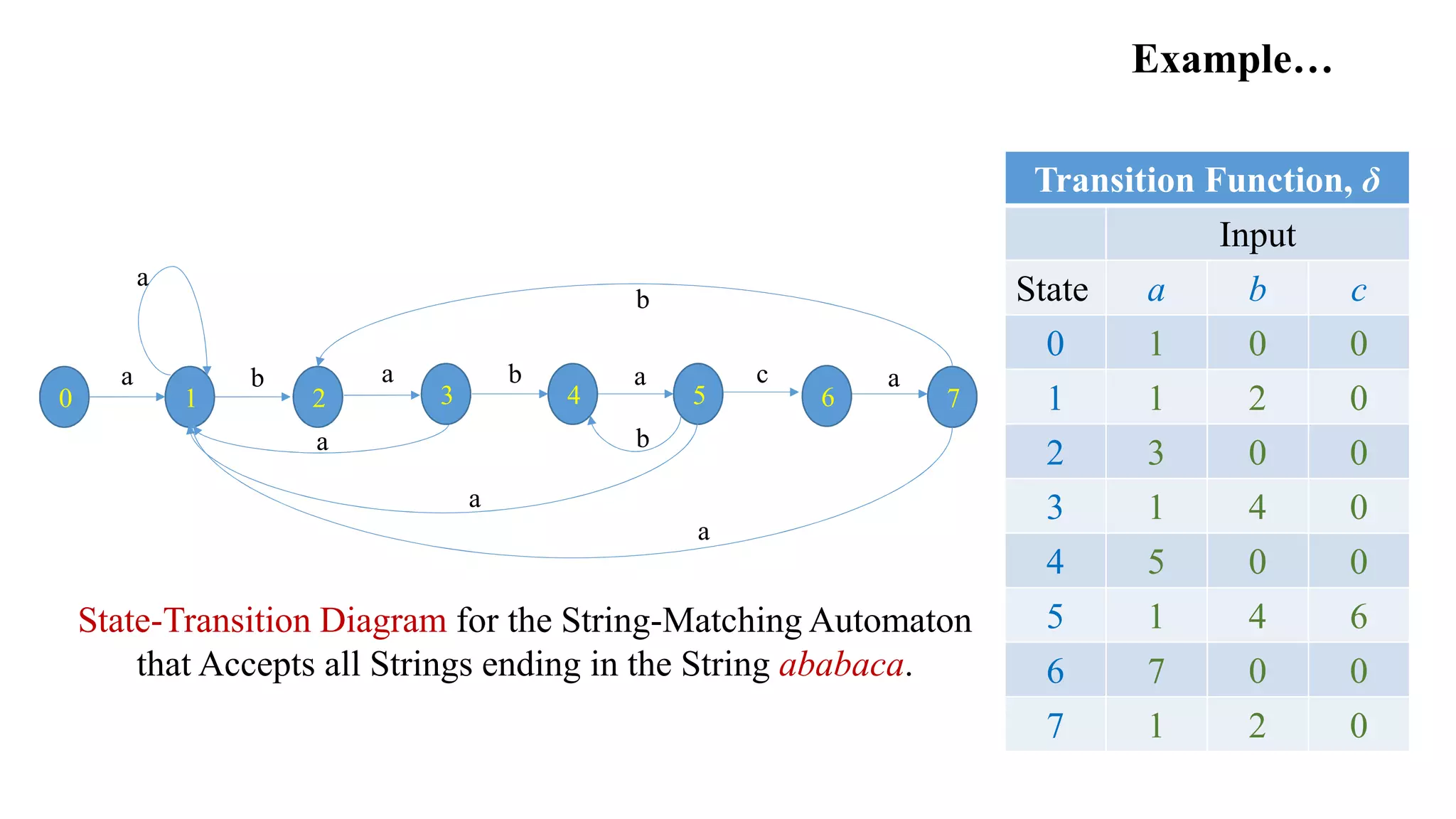

State-Transition Diagram for the String-Matching Automaton
that Accepts all Strings ending in the String ababaca.

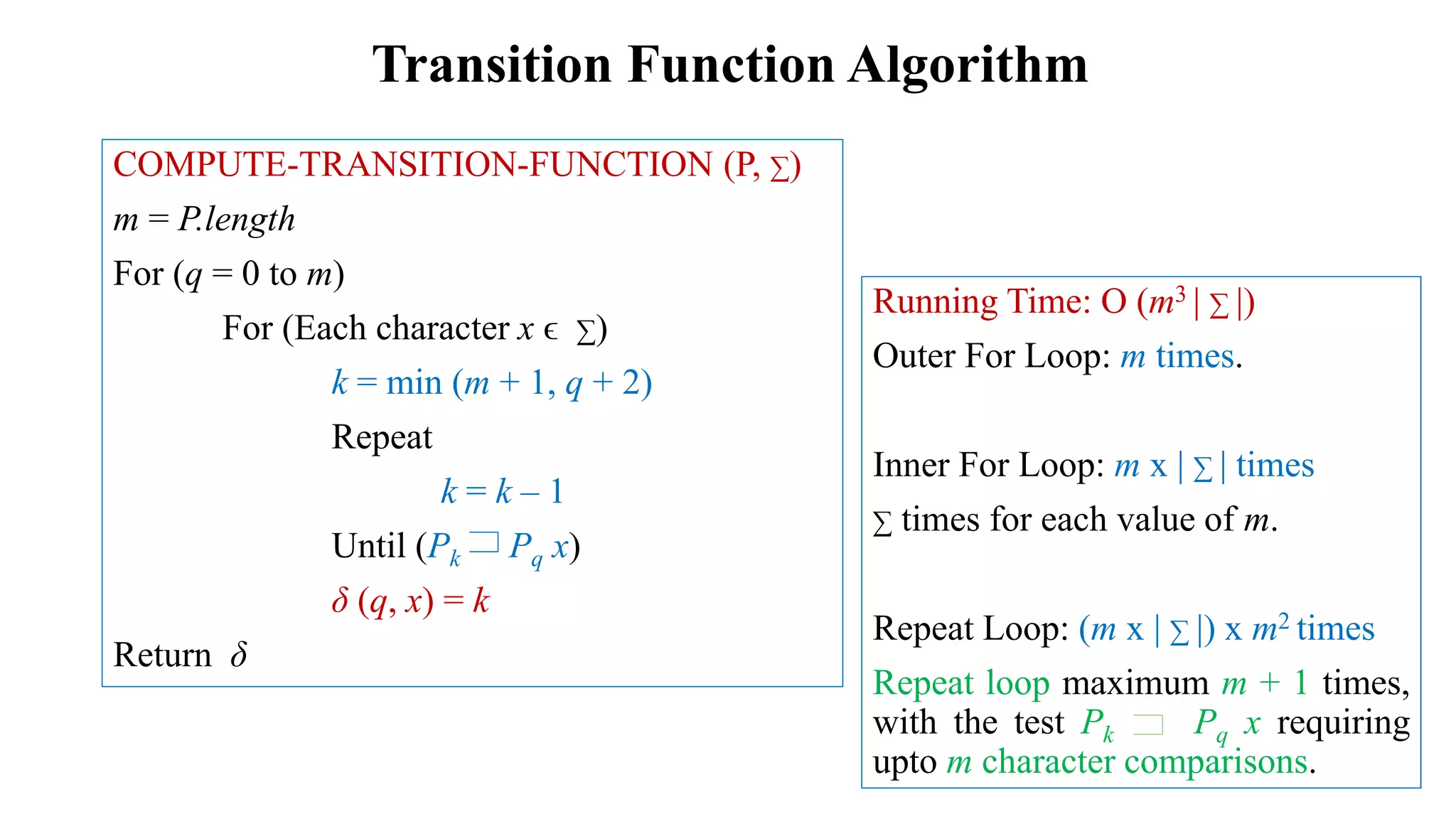

COMPUTE-TRANSITION-FUNCTION (P, ∑)
m = P.length
For (q = 0 to m)
For (Each character x ϵ ∑)
k = min (m + 1, q + 2)
Repeat
k = k – 1
Until (Pk Pq x)
δ (q, x) = k
Return δ
Transition Function Algorithm
Running Time: O (m3 | ∑ |)
Outer For Loop: m times.
Inner For Loop: m x | ∑ | times
∑ times for each value of m.
Repeat Loop: (m x | ∑ |) x m2 times
Repeat loop maximum m + 1 times,
with the test Pk Pq x requiring
upto m character comparisons.

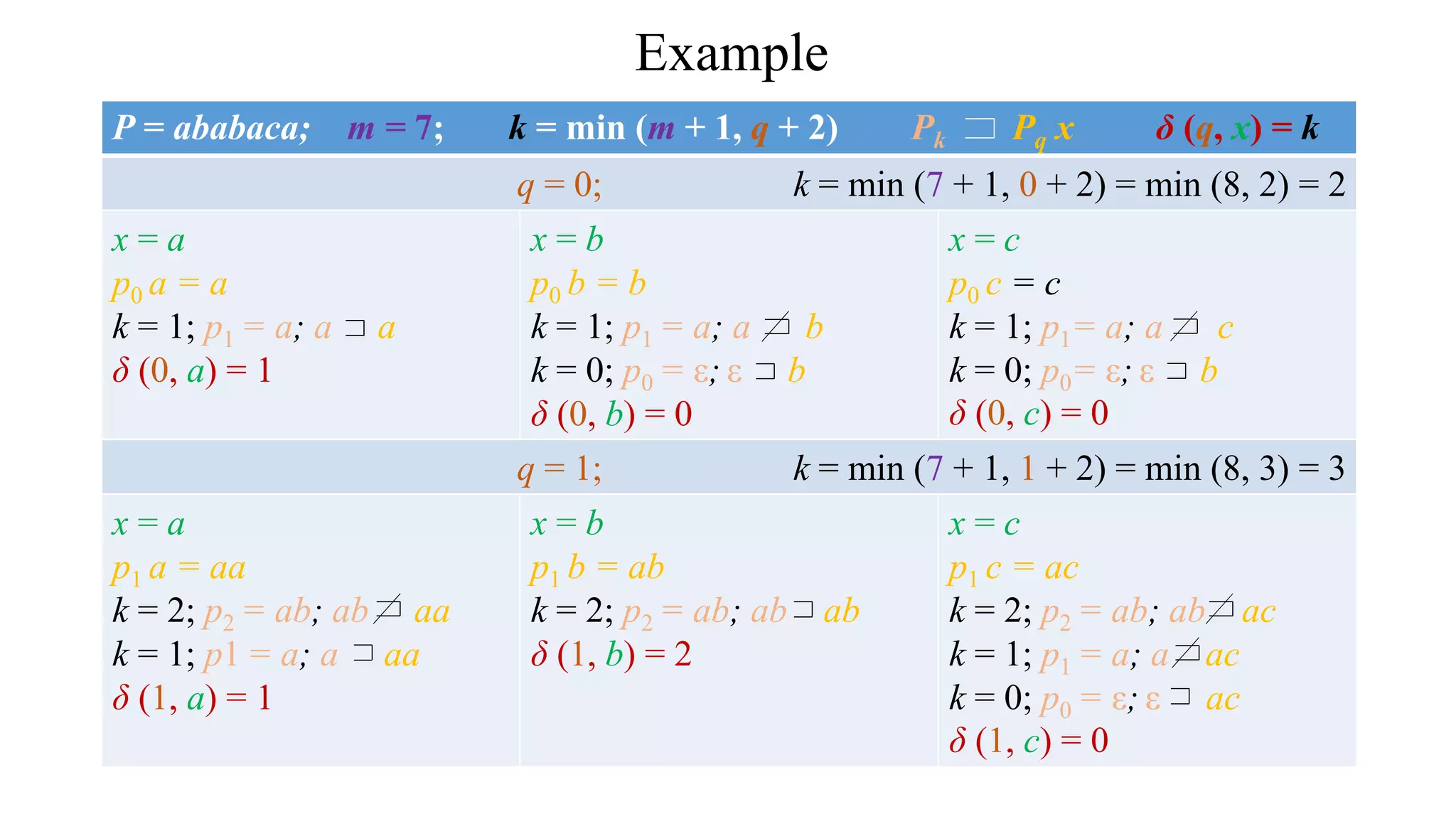

Example
P = ababaca; m = 7; k = min (m + 1, q + 2) Pk Pq x δ (q, x) = k
q = 0; k = min (7 + 1, 0 + 2) = min (8, 2) = 2
x = a
p0 a = a
k = 1; p1 = a; a a
δ (0, a) = 1
x = b
p0 b = b
k = 1; p1 = a; a b
k = 0; p0 = ε; ε b
δ (0, b) = 0
x = c
p0 c = c
k = 1; p1= a; a c
k = 0; p0= ε; ε b
δ (0, c) = 0
q = 1; k = min (7 + 1, 1 + 2) = min (8, 3) = 3
x = a
p1 a = aa
k = 2; p2 = ab; ab aa
k = 1; p1 = a; a aa
δ (1, a) = 1
x = b
p1 b = ab
k = 2; p2 = ab; ab ab
δ (1, b) = 2
x = c
p1 c = ac
k = 2; p2 = ab; ab ac
k = 1; p1 = a; a ac
k = 0; p0 = ε; ε ac
δ (1, c) = 0

Example…

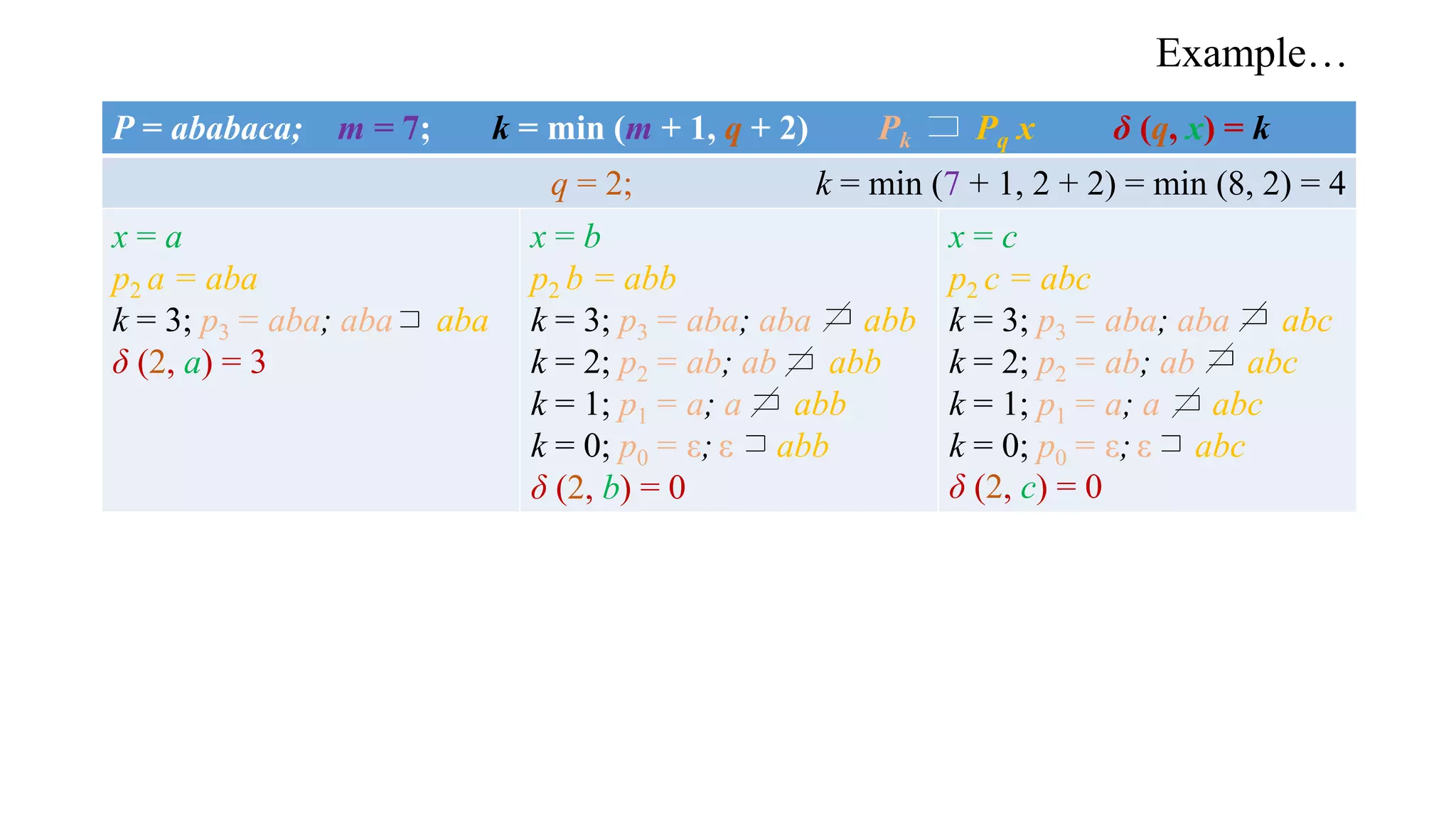

q = 2; k = min (7 + 1, 2 + 2) = min (8, 2) = 4
x = a
p2 a = aba
k = 3; p3 = aba; aba aba
δ (2, a) = 3
x = b
p2 b = abb
k = 3; p3 = aba; aba abb
k = 2; p2 = ab; ab abb
k = 1; p1 = a; a abb
k = 0; p0 = ε; ε abb
δ (2, b) = 0
x = c
p2 c = abc
k = 3; p3 = aba; aba abc
k = 2; p2 = ab; ab abc
k = 1; p1 = a; a abc
k = 0; p0 = ε; ε abc
δ (2, c) = 0

Example…

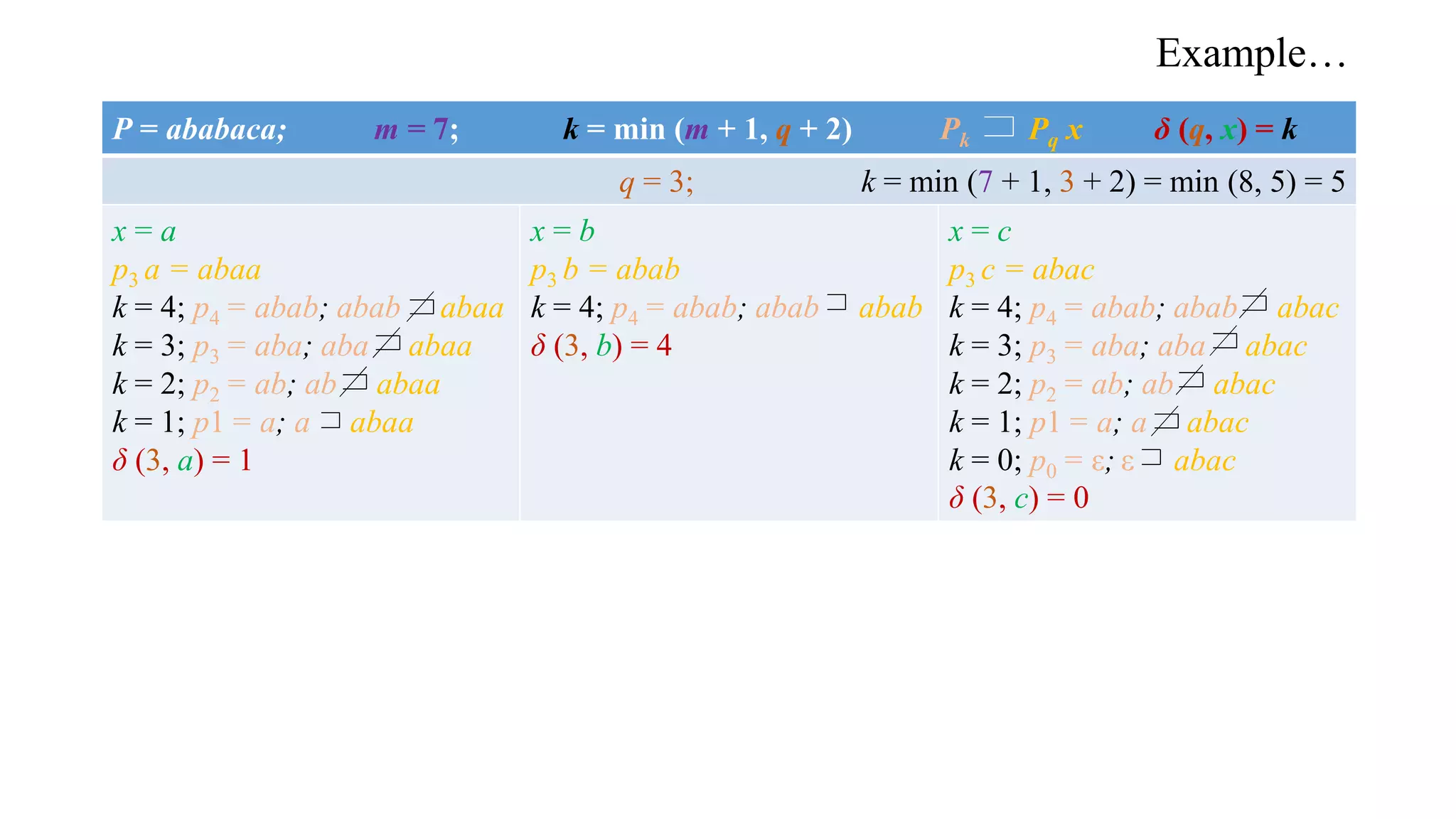

q = 3; k = min (7 + 1, 3 + 2) = min (8, 5) = 5
x = a
p3 a = abaa
k = 4; p4 = abab; abab abaa
k = 3; p3 = aba; aba abaa
k = 2; p2 = ab; ab abaa
k = 1; p1 = a; a abaa
δ (3, a) = 1
x = b
p3 b = abab
k = 4; p4 = abab; abab abab
δ (3, b) = 4
x = c
p3 c = abac
k = 4; p4 = abab; abab abac
k = 3; p3 = aba; aba abac
k = 2; p2 = ab; ab abac
k = 1; p1 = a; a abac
k = 0; p0 = ε; ε abac
δ (3, c) = 0

Example…

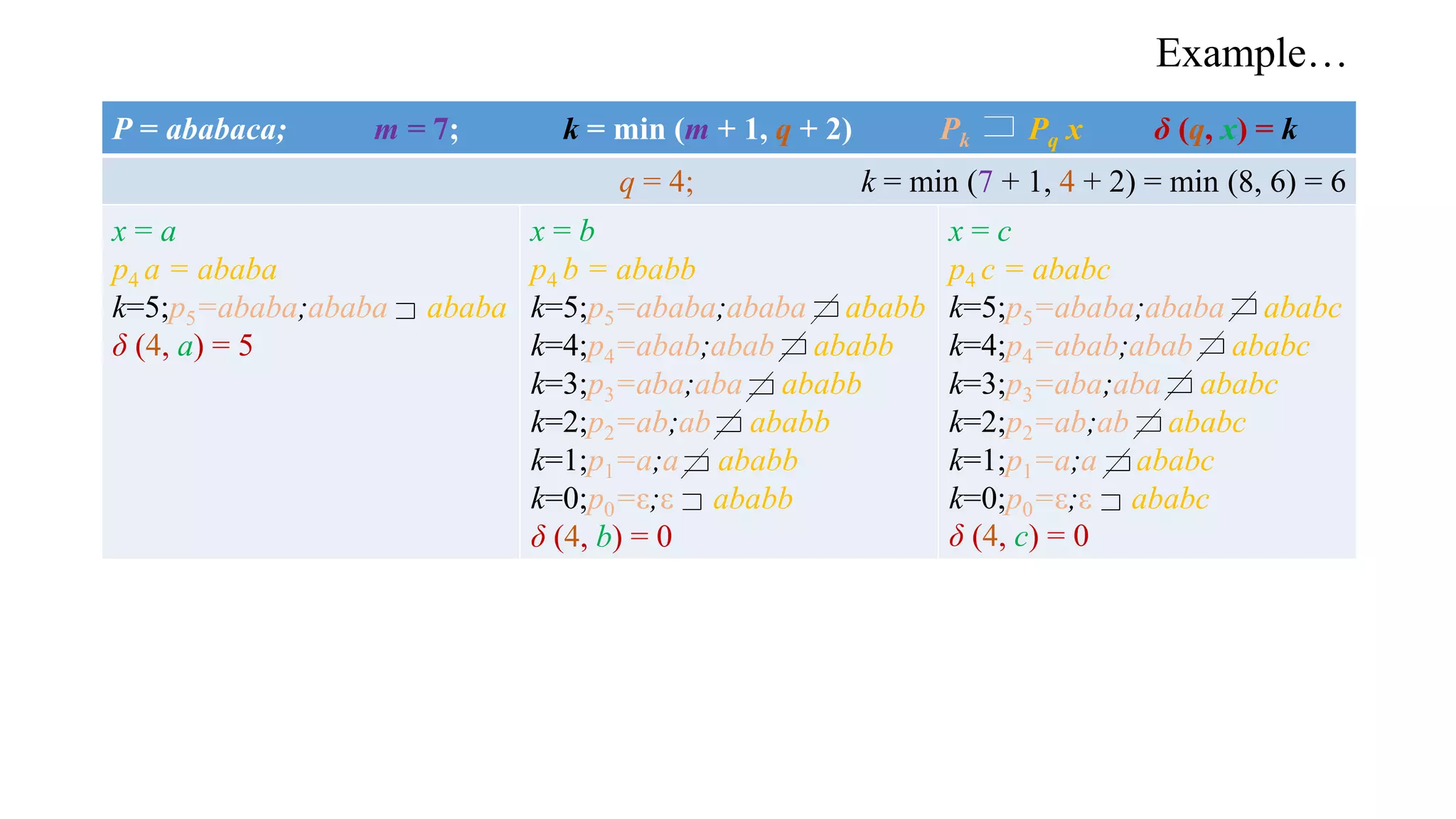

q = 4; k = min (7 + 1, 4 + 2) = min (8, 6) = 6
x = a
p4 a = ababa
k=5;p5=ababa;ababa ababa
δ (4, a) = 5
x = b
p4 b = ababb
k=5;p5=ababa;ababa ababb
k=4;p4=abab;abab ababb
k=3;p3=aba;aba ababb
k=2;p2=ab;ab ababb
k=1;p1=a;a ababb
k=0;p0=ε;ε ababb
δ (4, b) = 0
x = c
p4 c = ababc
k=5;p5=ababa;ababa ababc
k=4;p4=abab;abab ababc
k=3;p3=aba;aba ababc
k=2;p2=ab;ab ababc
k=1;p1=a;a ababc
k=0;p0=ε;ε ababc
δ (4, c) = 0

Example…

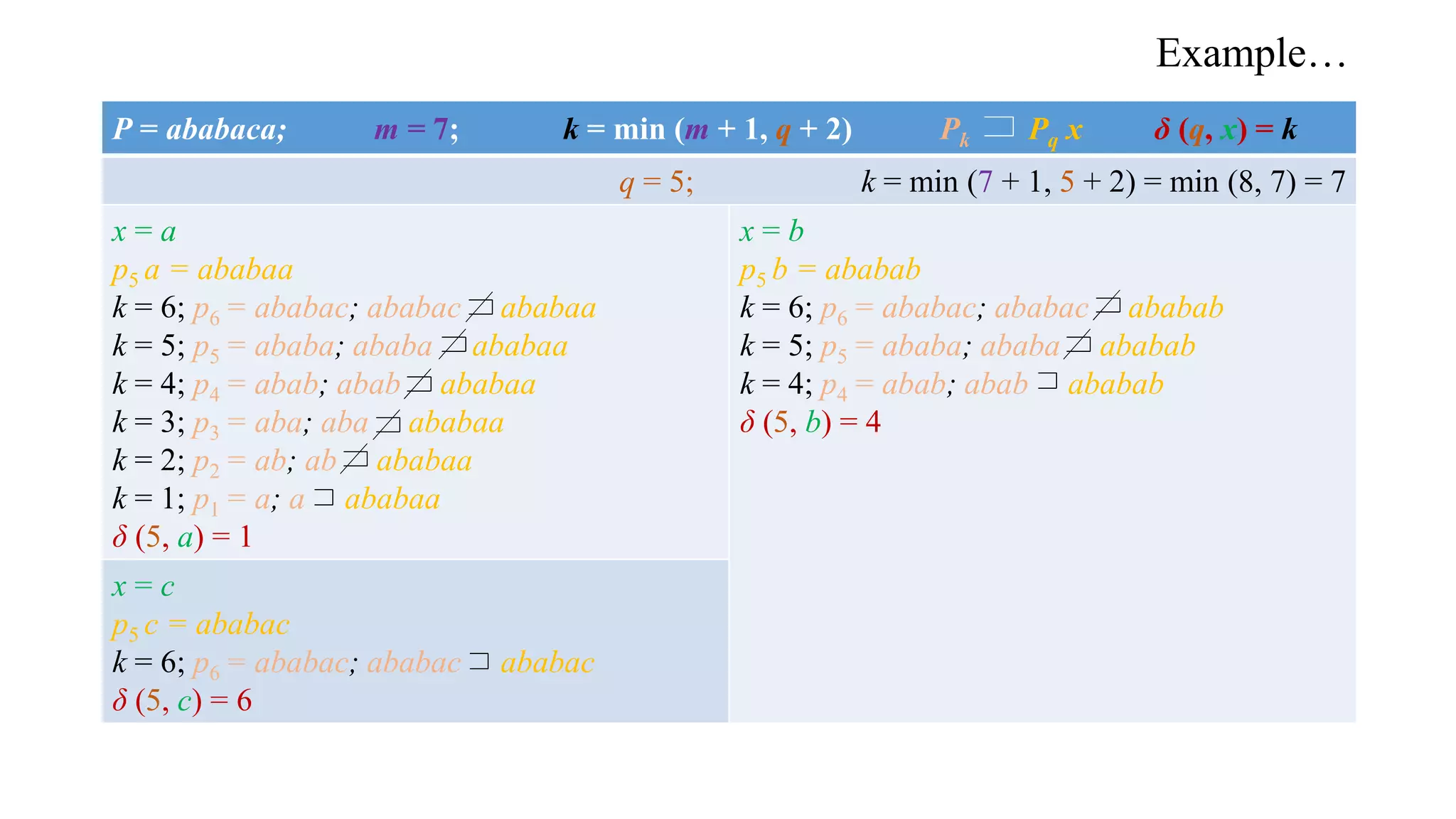

q = 5; k = min (7 + 1, 5 + 2) = min (8, 7) = 7
x = a
p5 a = ababaa
k = 6; p6 = ababac; ababac ababaa
k = 5; p5 = ababa; ababa ababaa
k = 4; p4 = abab; abab ababaa
k = 3; p3 = aba; aba ababaa
k = 2; p2 = ab; ab ababaa
k = 1; p1 = a; a ababaa
δ (5, a) = 1
x = b
p5 b = ababab
k = 6; p6 = ababac; ababac ababab
k = 5; p5 = ababa; ababa ababab
k = 4; p4 = abab; abab ababab
δ (5, b) = 4
x = c
p5 c = ababac
k = 6; p6 = ababac; ababac ababac
δ (5, c) = 6

Example…

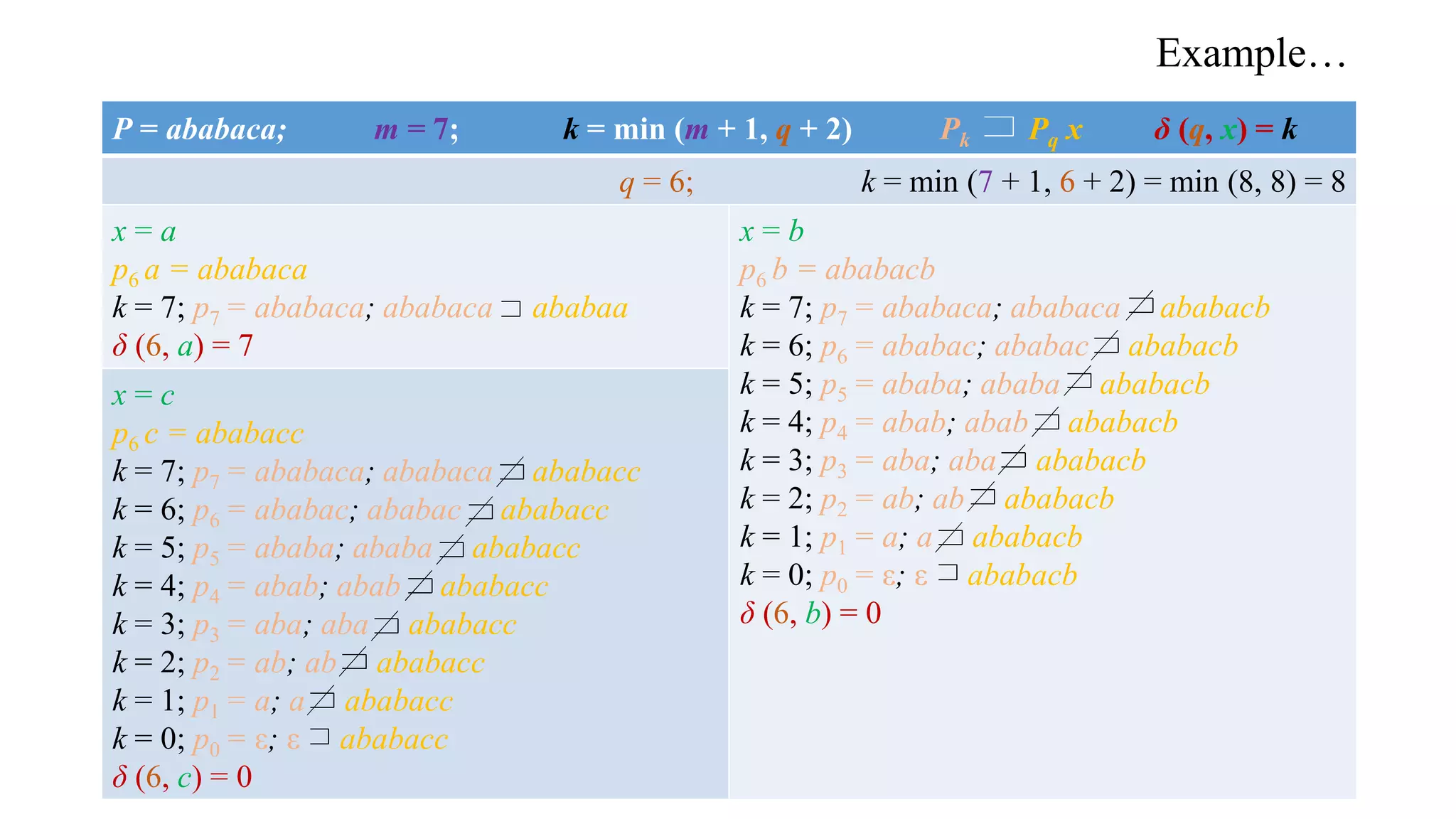

q = 6; k = min (7 + 1, 6 + 2) = min (8, 8) = 8
x = a
p6 a = ababaca
k = 7; p7 = ababaca; ababaca ababaa
δ (6, a) = 7
x = b
p6 b = ababacb
k = 7; p7 = ababaca; ababaca ababacb
k = 6; p6 = ababac; ababac ababacb
k = 5; p5 = ababa; ababa ababacb
k = 4; p4 = abab; abab ababacb
k = 3; p3 = aba; aba ababacb
k = 2; p2 = ab; ab ababacb
k = 1; p1 = a; a ababacb
k = 0; p0 = ε; ε ababacb
δ (6, b) = 0
x = c
p6 c = ababacc
k = 7; p7 = ababaca; ababaca ababacc
k = 6; p6 = ababac; ababac ababacc
k = 5; p5 = ababa; ababa ababacc
k = 4; p4 = abab; abab ababacc
k = 3; p3 = aba; aba ababacc
k = 2; p2 = ab; ab ababacc
k = 1; p1 = a; a ababacc
k = 0; p0 = ε; ε ababacc
δ (6, c) = 0

Example…

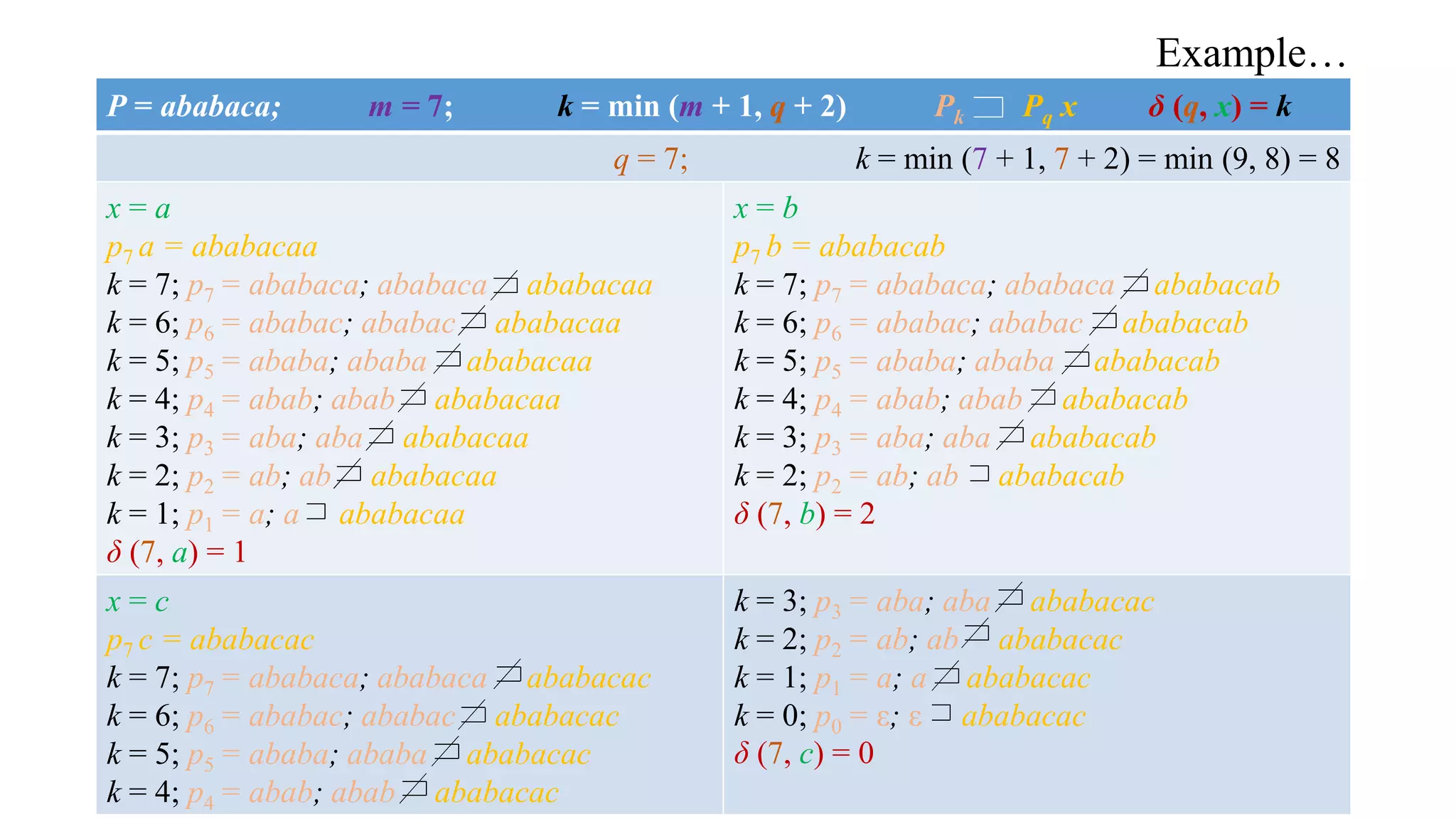

q = 7; k = min (7 + 1, 7 + 2) = min (9, 8) = 8
x = a
p7 a = ababacaa
k = 7; p7 = ababaca; ababaca ababacaa
k = 6; p6 = ababac; ababac ababacaa
k = 5; p5 = ababa; ababa ababacaa
k = 4; p4 = abab; abab ababacaa
k = 3; p3 = aba; aba ababacaa
k = 2; p2 = ab; ab ababacaa
k = 1; p1 = a; a ababacaa
δ (7, a) = 1
x = b
p7 b = ababacab
k = 7; p7 = ababaca; ababaca ababacab
k = 6; p6 = ababac; ababac ababacab
k = 5; p5 = ababa; ababa ababacab
k = 4; p4 = abab; abab ababacab
k = 3; p3 = aba; aba ababacab
k = 2; p2 = ab; ab ababacab
δ (7, b) = 2
x = c
p7 c = ababacac
k = 7; p7 = ababaca; ababaca ababacac
k = 6; p6 = ababac; ababac ababacac
k = 5; p5 = ababa; ababa ababacac
k = 4; p4 = abab; abab ababacac
k = 3; p3 = aba; aba ababacac
k = 2; p2 = ab; ab ababacac
k = 1; p1 = a; a ababacac
k = 0; p0 = ε; ε ababacac
δ (7, c) = 0

Example…
Input
State a b c
0 1 0 0
1 1 2 0
2 3 0 0
3 1 4 0
4 5 0 0
5 1 4 6
6 7 0 0
7 1 2 0

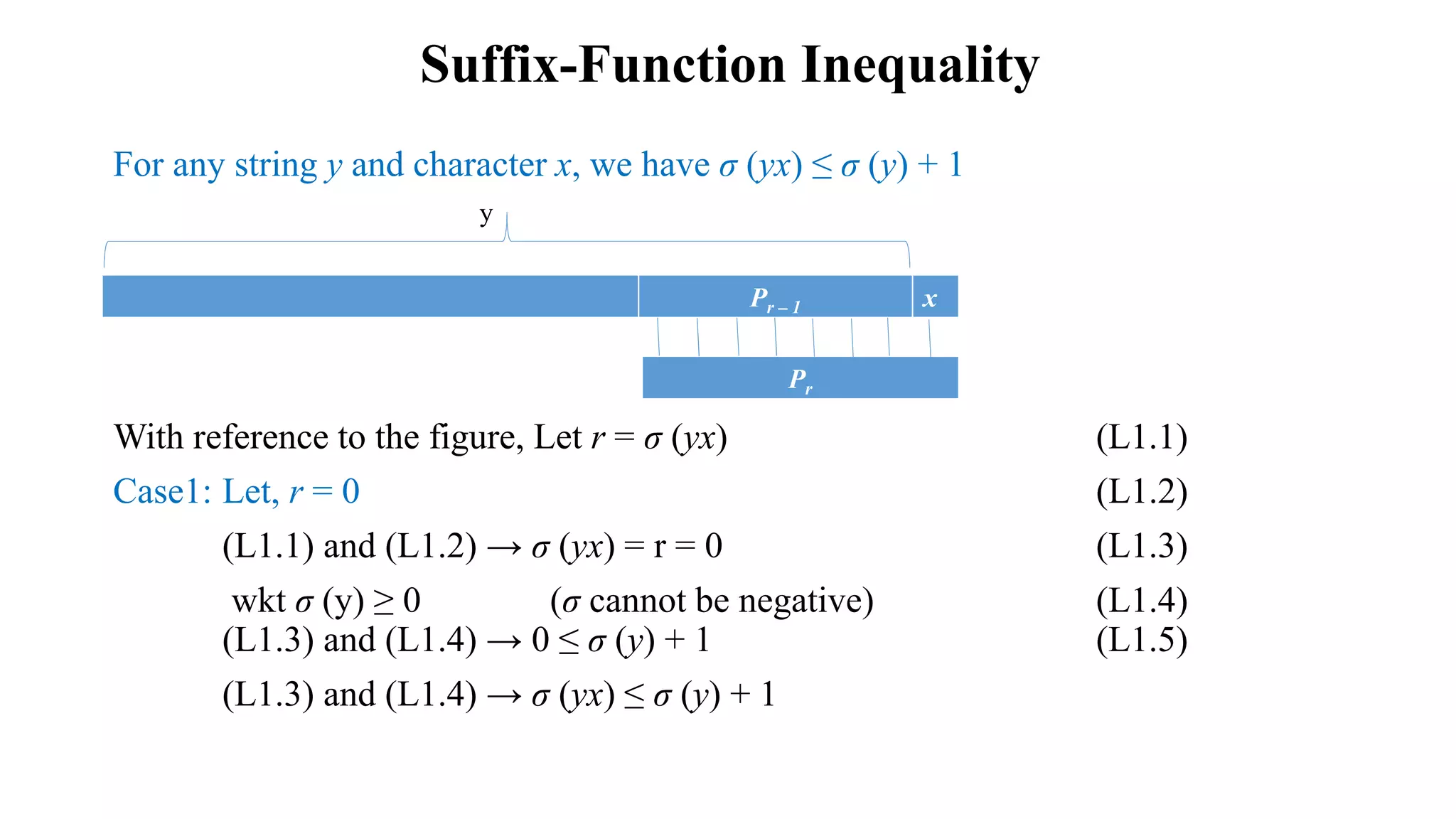

For any string y and character x, we have σ (yx) ≤ σ (y) + 1
With reference to the figure, Let r = σ (yx) (L1.1)
Case1: Let, r = 0 (L1.2)
(L1.1) and (L1.2) → σ (yx) = r = 0 (L1.3)
wkt σ (y) ≥ 0 (σ cannot be negative) (L1.4)
(L1.3) and (L1.4) → 0 ≤ σ (y) + 1 (L1.5)
(L1.3) and (L1.4) → σ (yx) ≤ σ (y) + 1
Suffix-Function Inequality
Pr – 1 x
Pr
y

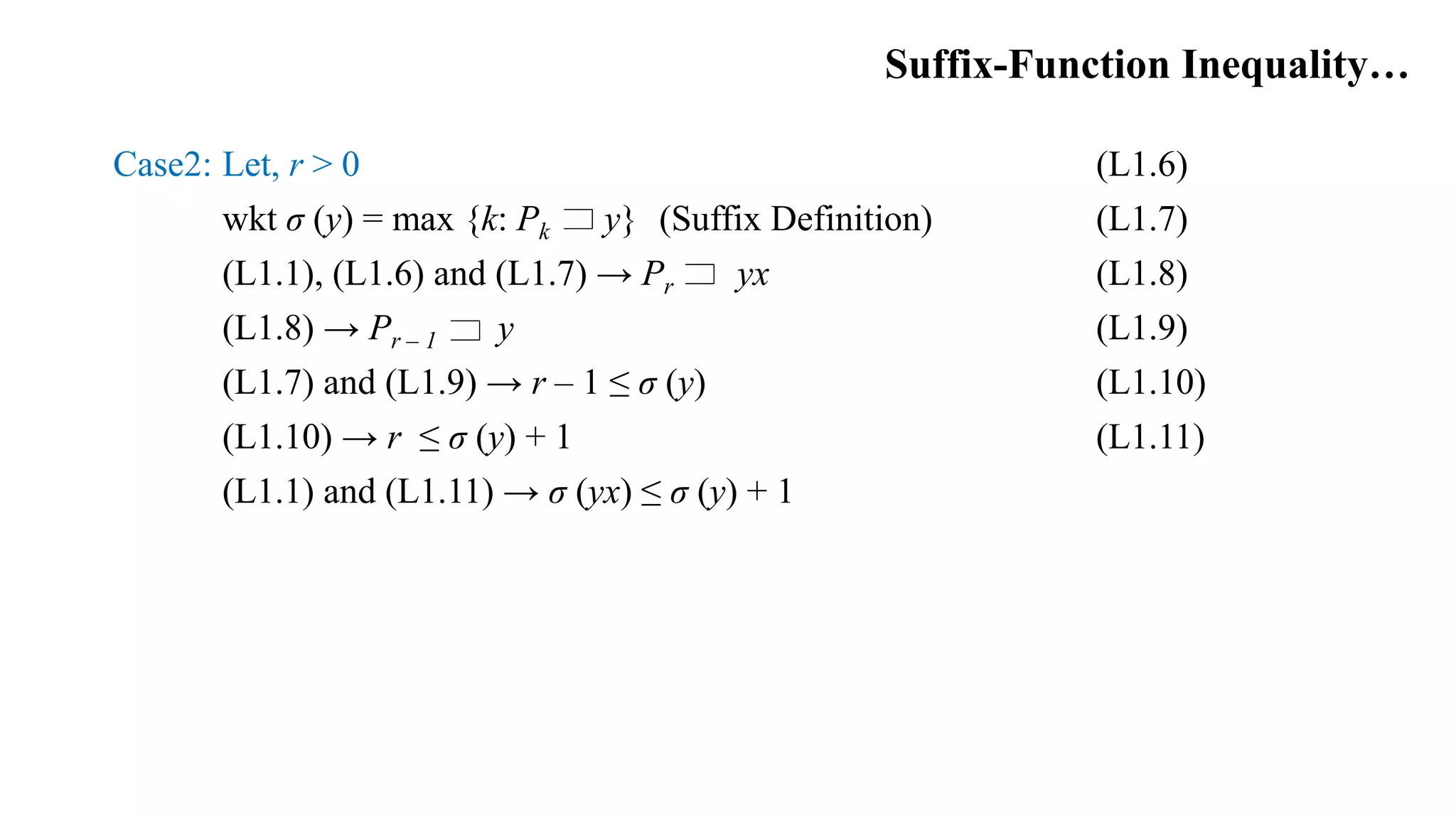

Case2: Let, r > 0 (L1.6)
wkt σ (y) = max {k: Pk y} (Suffix Definition) (L1.7)
(L1.1), (L1.6) and (L1.7) → Pr yx (L1.8)
(L1.8) → Pr – 1 y (L1.9)
(L1.7) and (L1.9) → r – 1 ≤ σ (y) (L1.10)
(L1.10) → r ≤ σ (y) + 1 (L1.11)
(L1.1) and (L1.11) → σ (yx) ≤ σ (y) + 1
Suffix-Function Inequality…

For any string y and character x, if q = σ (y), then σ (yx) = σ (Pqx)
Wkt, σ (y) = max {k: Pk y}(Suffix Definition) (L2.1)
Also, Pq x yx (From the Figure) (L2.2)
Let, r = σ (yx) (L2.3)
(L2.3) → Pr yx (L2.4)
Wkt, σ (yx) ≤ σ (y) + 1 (Suffix-Function inequality Lemma) (L2.5)
Also, q = σ (y) (Given) (L2.6)
(L2.3), (L2.5) and (L2.6) → r ≤ q + 1 (L2.7)
Suffix-Function Recursion Lemma
x
Pq x
Pr
y

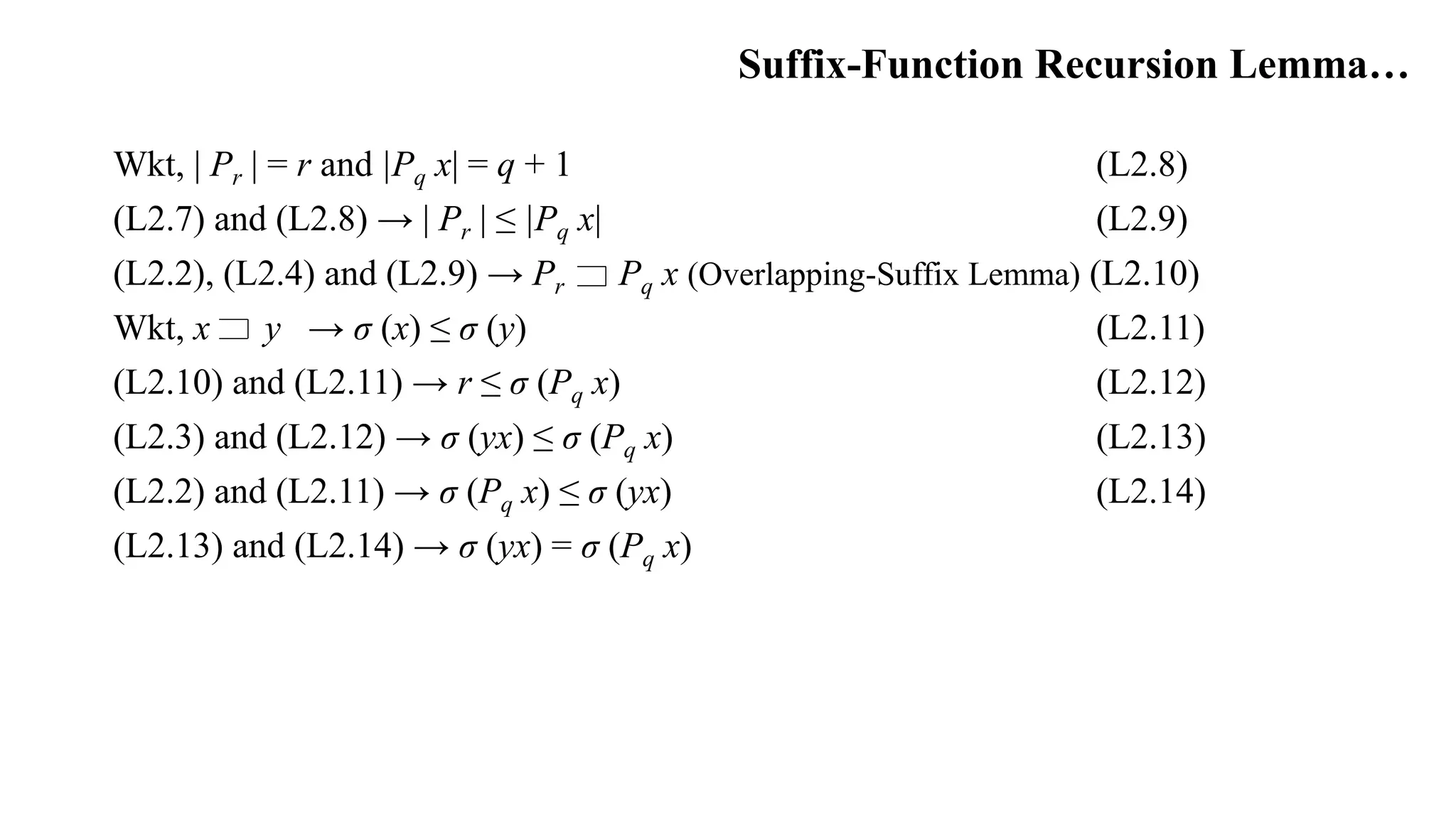

Wkt, | Pr | = r and |Pq x| = q + 1 (L2.8)
(L2.7) and (L2.8) → | Pr | ≤ |Pq x| (L2.9)
(L2.2), (L2.4) and (L2.9) → Pr Pq x (Overlapping-Suffix Lemma) (L2.10)
Wkt, x y → σ (x) ≤ σ (y) (L2.11)
(L2.10) and (L2.11) → r ≤ σ (Pq x) (L2.12)
(L2.3) and (L2.12) → σ (yx) ≤ σ (Pq x) (L2.13)
(L2.2) and (L2.11) → σ (Pq x) ≤ σ (yx) (L2.14)
(L2.13) and (L2.14) → σ (yx) = σ (Pq x)
Suffix-Function Recursion Lemma…

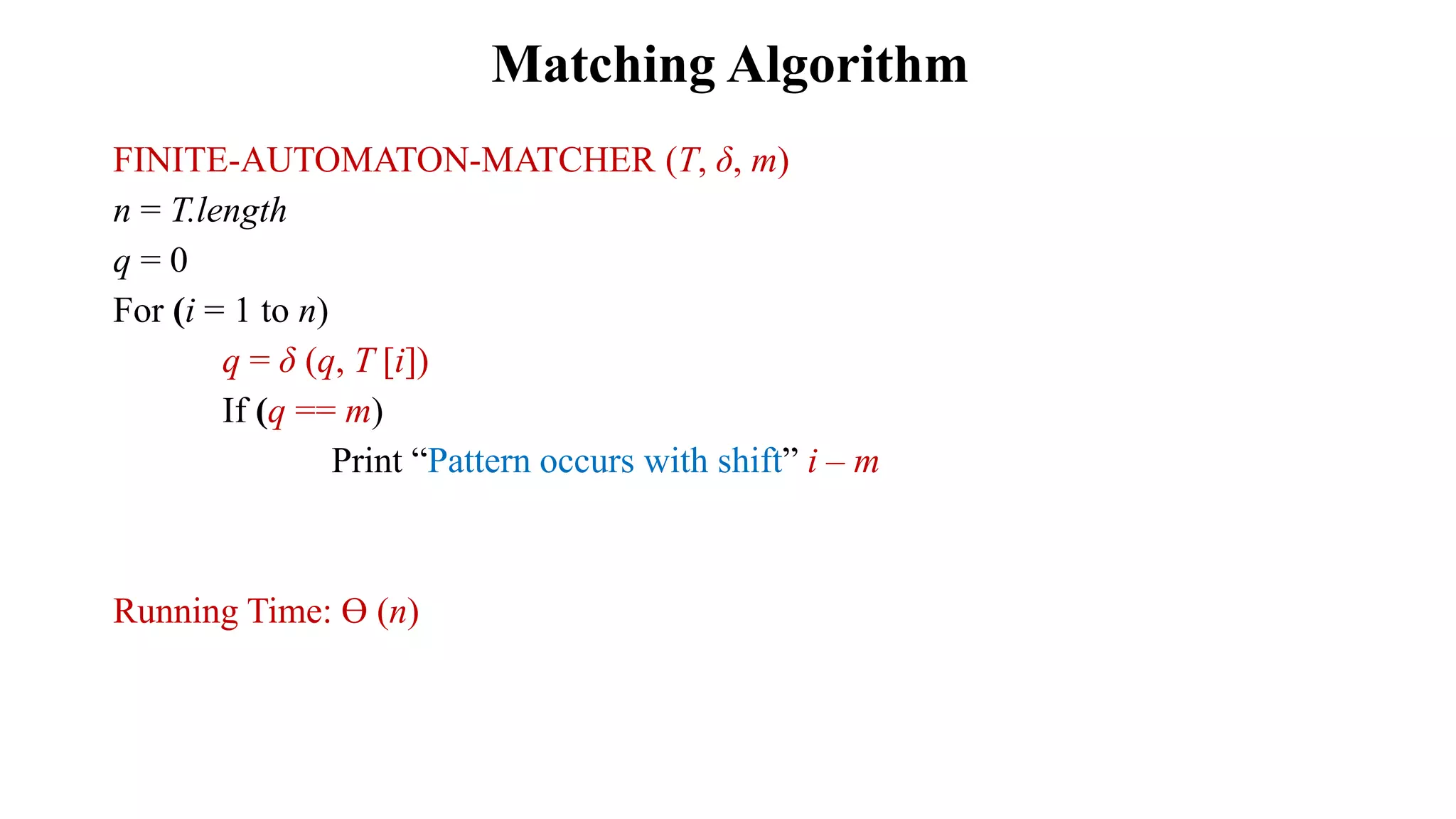

FINITE-AUTOMATON-MATCHER (T, δ, m)
n = T.length
q = 0
For (i = 1 to n)
q = δ (q, T [i])
If (q == m)
Print “Pattern occurs with shift” i – m
Running Time: Ө (n)

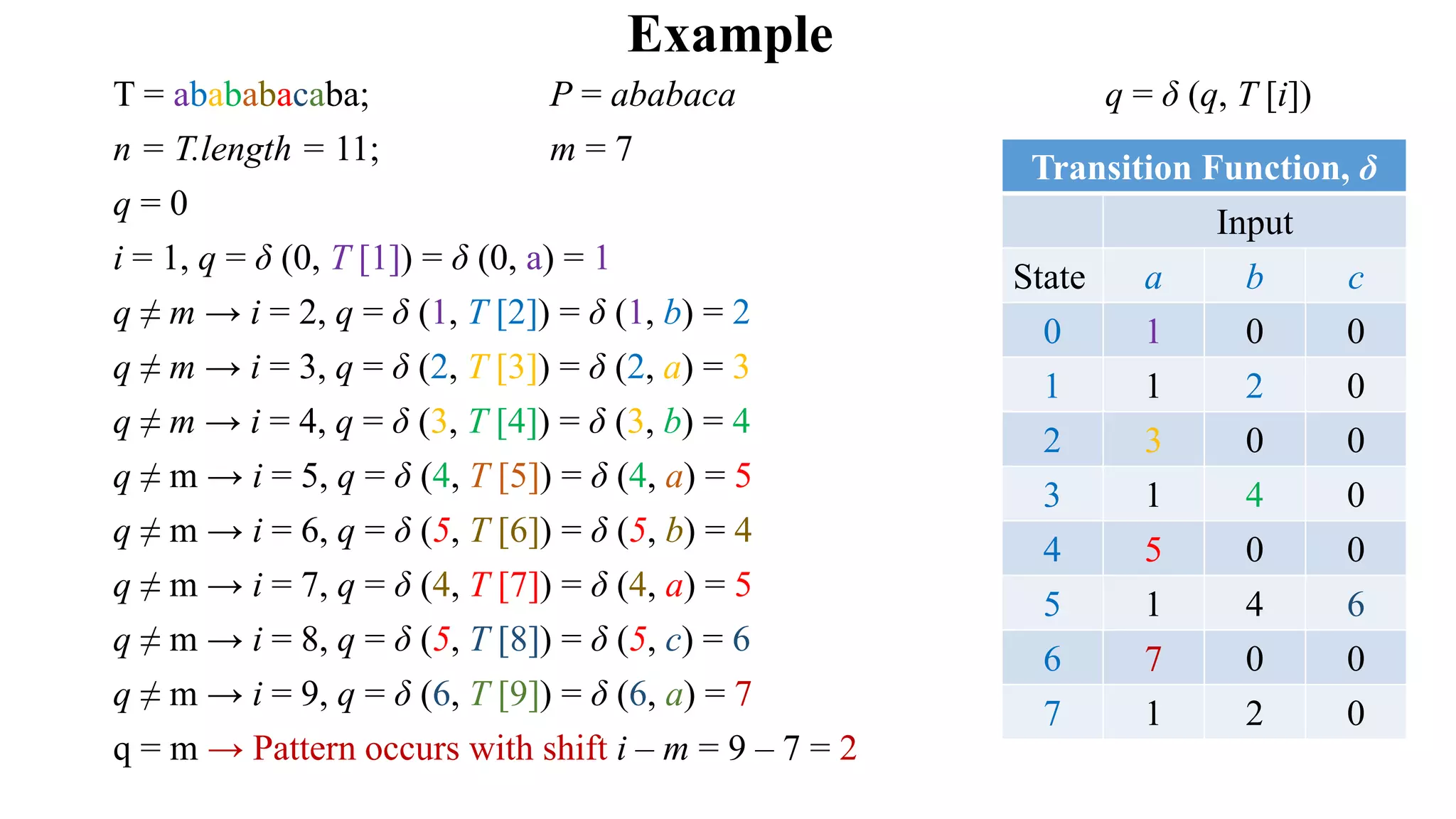

Matching Algorithm

T = abababacaba; P = ababaca q = δ (q, T [i])
n = T.length = 11; m = 7
q = 0
i = 1, q = δ (0, T [1]) = δ (0, a) = 1
q ≠ m → i = 2, q = δ (1, T [2]) = δ (1, b) = 2
q ≠ m → i = 3, q = δ (2, T [3]) = δ (2, a) = 3
q ≠ m → i = 4, q = δ (3, T [4]) = δ (3, b) = 4
q ≠ m → i = 5, q = δ (4, T [5]) = δ (4, a) = 5
q ≠ m → i = 6, q = δ (5, T [6]) = δ (5, b) = 4
q ≠ m → i = 7, q = δ (4, T [7]) = δ (4, a) = 5
q ≠ m → i = 8, q = δ (5, T [8]) = δ (5, c) = 6
q ≠ m → i = 9, q = δ (6, T [9]) = δ (6, a) = 7
q = m → Pattern occurs with shift i – m = 9 – 7 = 2
Example
Input
State a b c
0 1 0 0
1 1 2 0
2 3 0 0
3 1 4 0
4 5 0 0
5 1 4 6
6 7 0 0
7 1 2 0

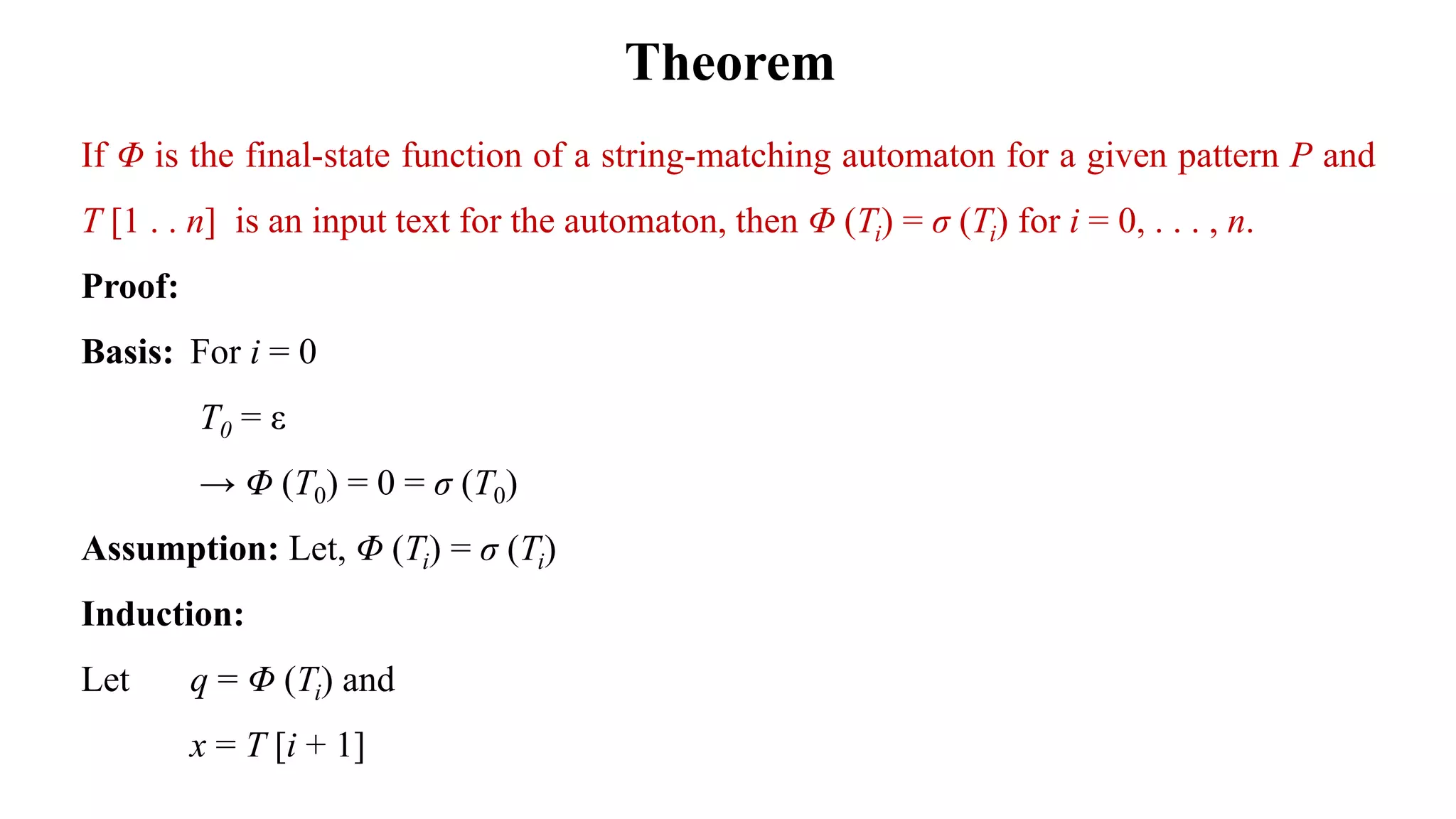

Theorem
If Φ is the final-state function of a string-matching automaton for a given pattern P and
T [1 . . n] is an input text for the automaton, then Φ (Ti) = σ (Ti) for i = 0, . . . , n.
Proof:
Basis: For i = 0
T0 = ε
→ Φ (T0) = 0 = σ (T0)
Assumption: Let, Φ (Ti) = σ (Ti)
Induction:
Let q = Φ (Ti) and
x = T [i + 1]

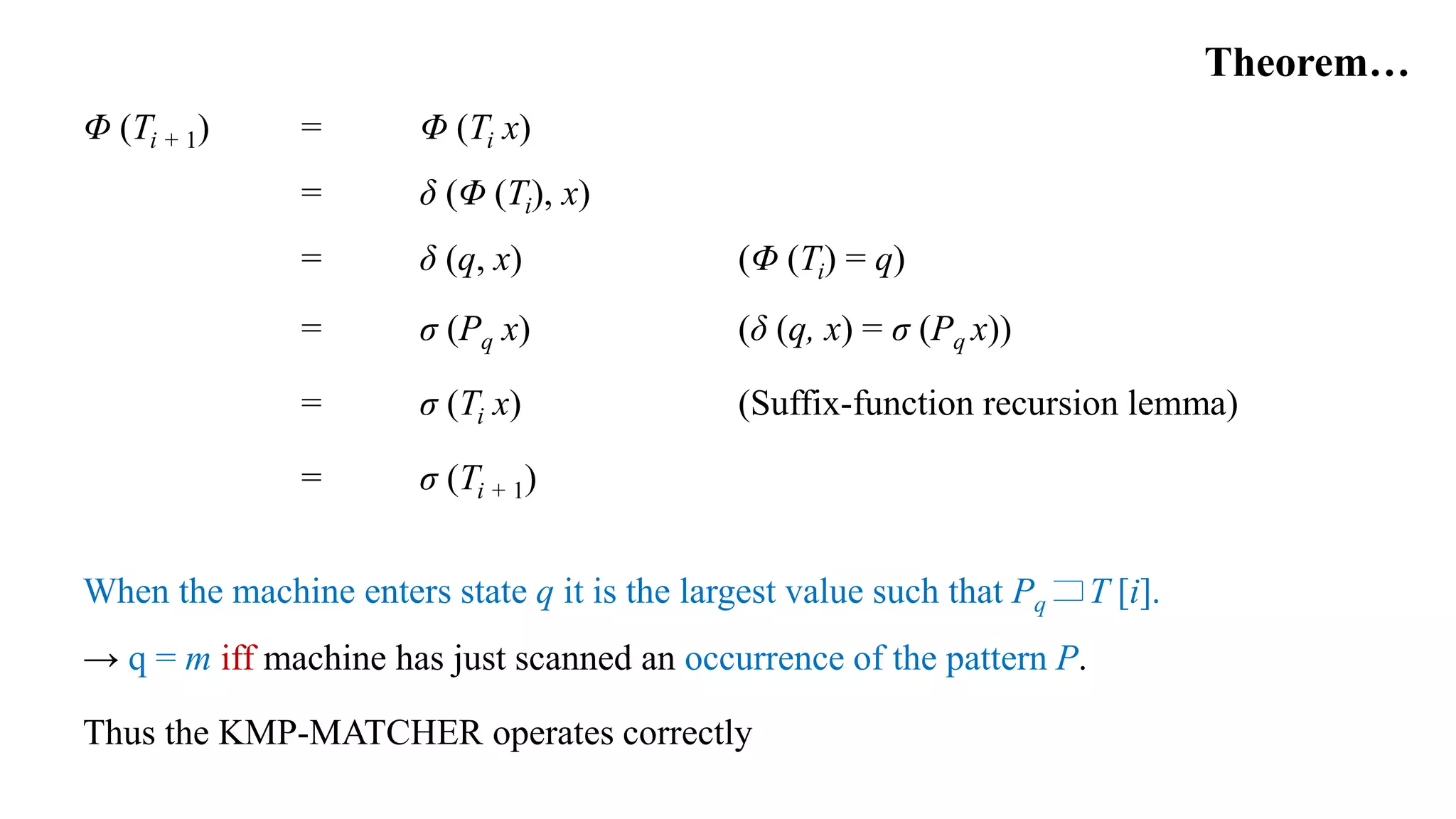

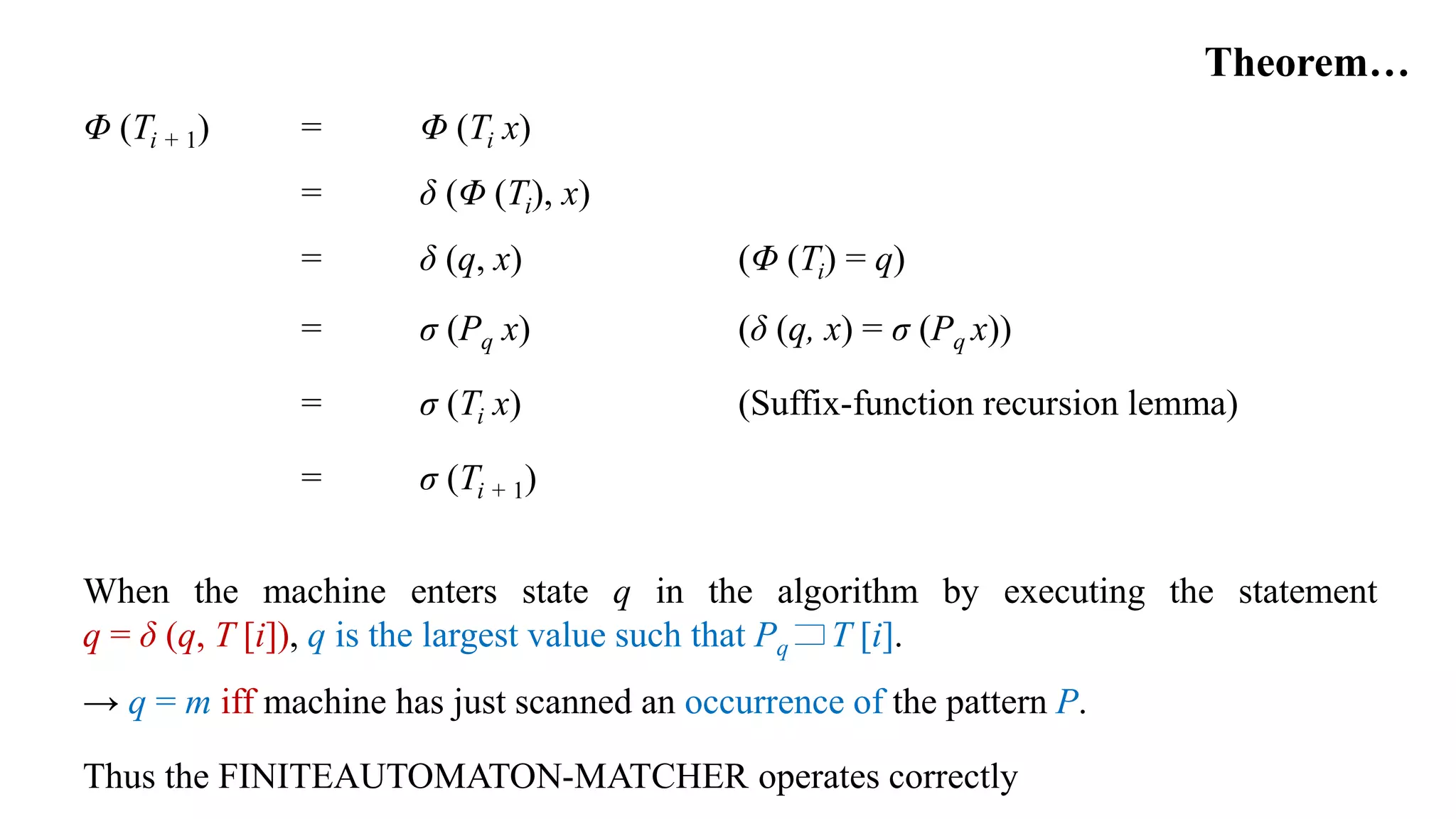

Theorem…
Φ (Ti + 1) = Φ (Ti x)
= δ (Φ (Ti), x)
= δ (q, x) (Φ (Ti) = q)
= σ (Pq x) (δ (q, x) = σ (Pq x))
= σ (Ti x) (Suffix-function recursion lemma)
= σ (Ti + 1)

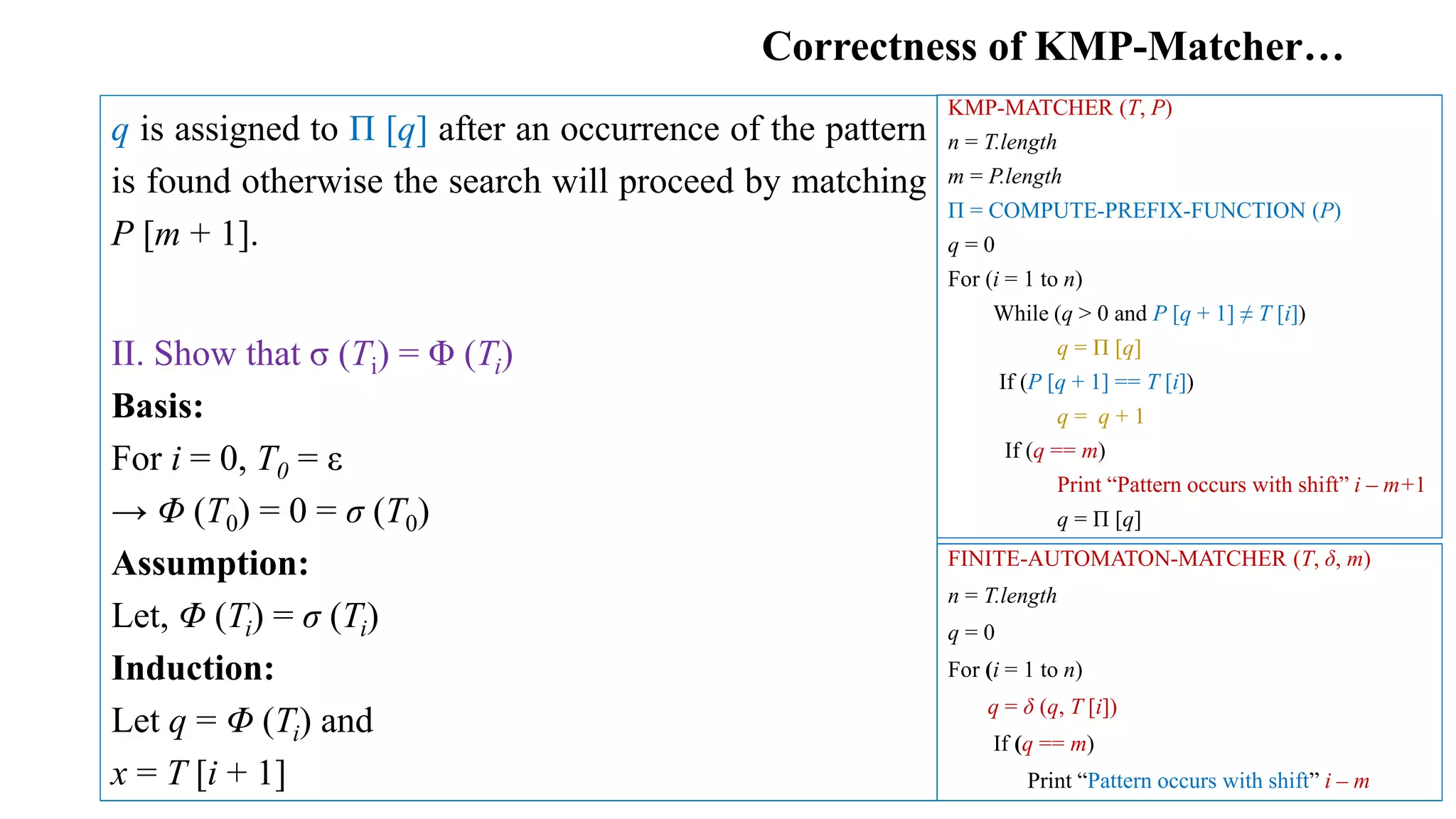

When the machine enters state q in the algorithm by executing the statement
q = δ (q, T [i]), q is the largest value such that Pq T [i].
→ q = m iff machine has just scanned an occurrence of the pattern P.
Thus the FINITEAUTOMATON-MATCHER operates correctly

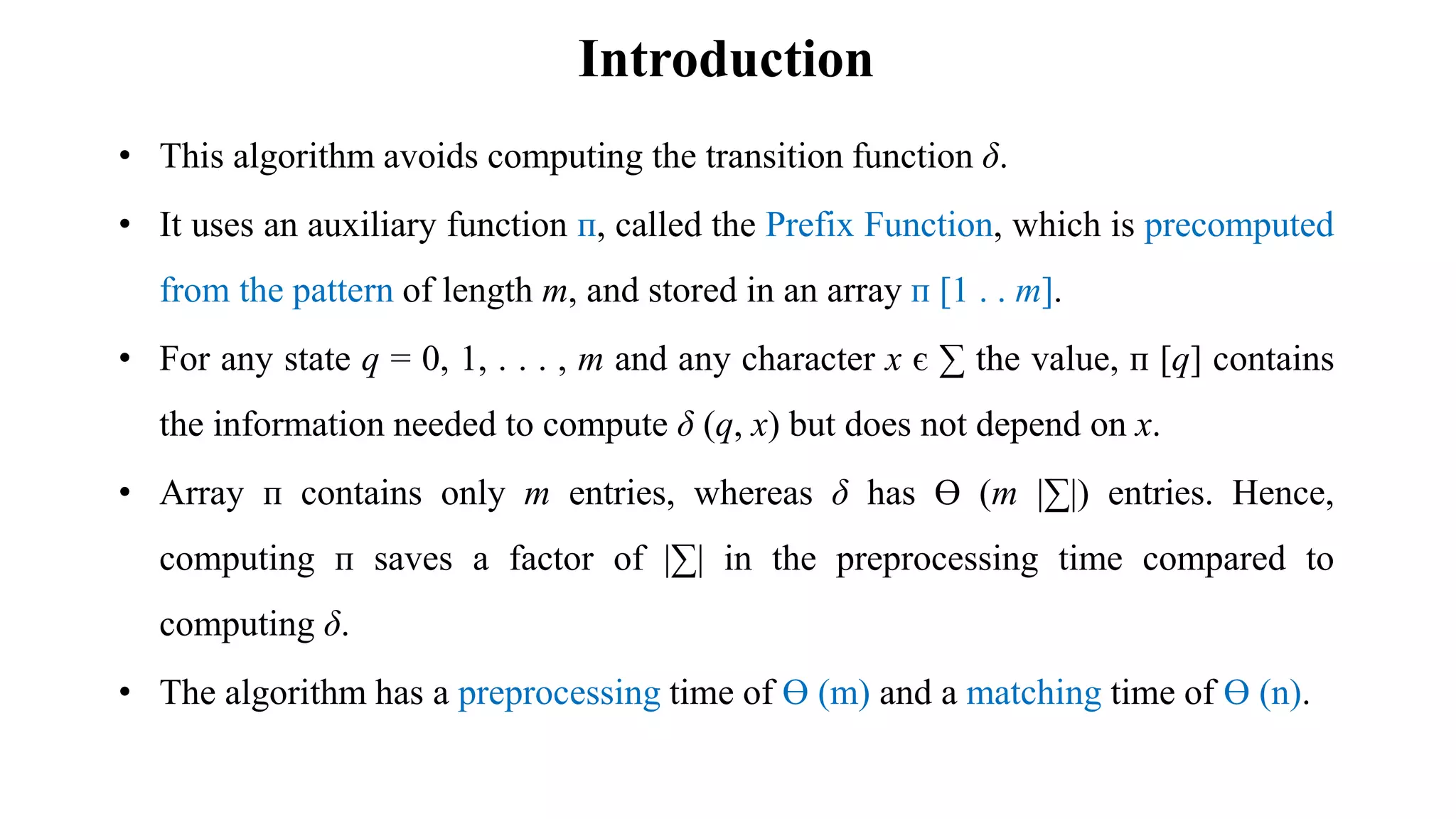

Introduction
• This algorithm avoids computing the transition function δ.
• It uses an auxiliary function ᴨ, called the Prefix Function, which is precomputed
from the pattern of length m, and stored in an array ᴨ [1 . . m].
• For any state q = 0, 1, . . . , m and any character x є ∑ the value, ᴨ [q] contains
the information needed to compute δ (q, x) but does not depend on x.
• Array ᴨ contains only m entries, whereas δ has Ө (m |∑|) entries. Hence,
computing ᴨ saves a factor of |∑| in the preprocessing time compared to
computing δ.
• The algorithm has a preprocessing time of Ө (m) and a matching time of Ө (n).

Prefix Function
The prefix function ᴨ for a pattern encapsulates knowledge about how the pattern
matches against shifts of itself. This information helps to avoid testing useless
shifts in the naive pattern-matching algorithm and to avoid precomputing the full
transition function δ for a string-matching automaton.
Eg.: T = bacbababaabcbab P = ababaca
• Consider the shift s as shown in the figure using a Naïve string Matcher.
• q = 5 characters have matched successfully, but the 6th character fails to match.

Prefix Function…
• The information that q characters have matched successfully determines the
corresponding text characters.
• Knowing these q text characters allows to determine immediately that certain
shifts are invalid. Eg.: s + 1 is invalid as it aligns the first character of the pattern
‘a’ with character ‘b’ of text.
• The shift s ʹ = s + 2 aligns the first 3 characters of the pattern with the text that
match.
• s ʹ can be computed as follows:
 If pattern characters P [1 . . q] match text characters T [s + 1 . . s + q], the
least shift s ʹ > s such that for some k < q , P [1 . . k] = T [s ʹ + 1 . . s ʹ + k]
where s ʹ + k = s + q. i.e.,

Prefix Function…

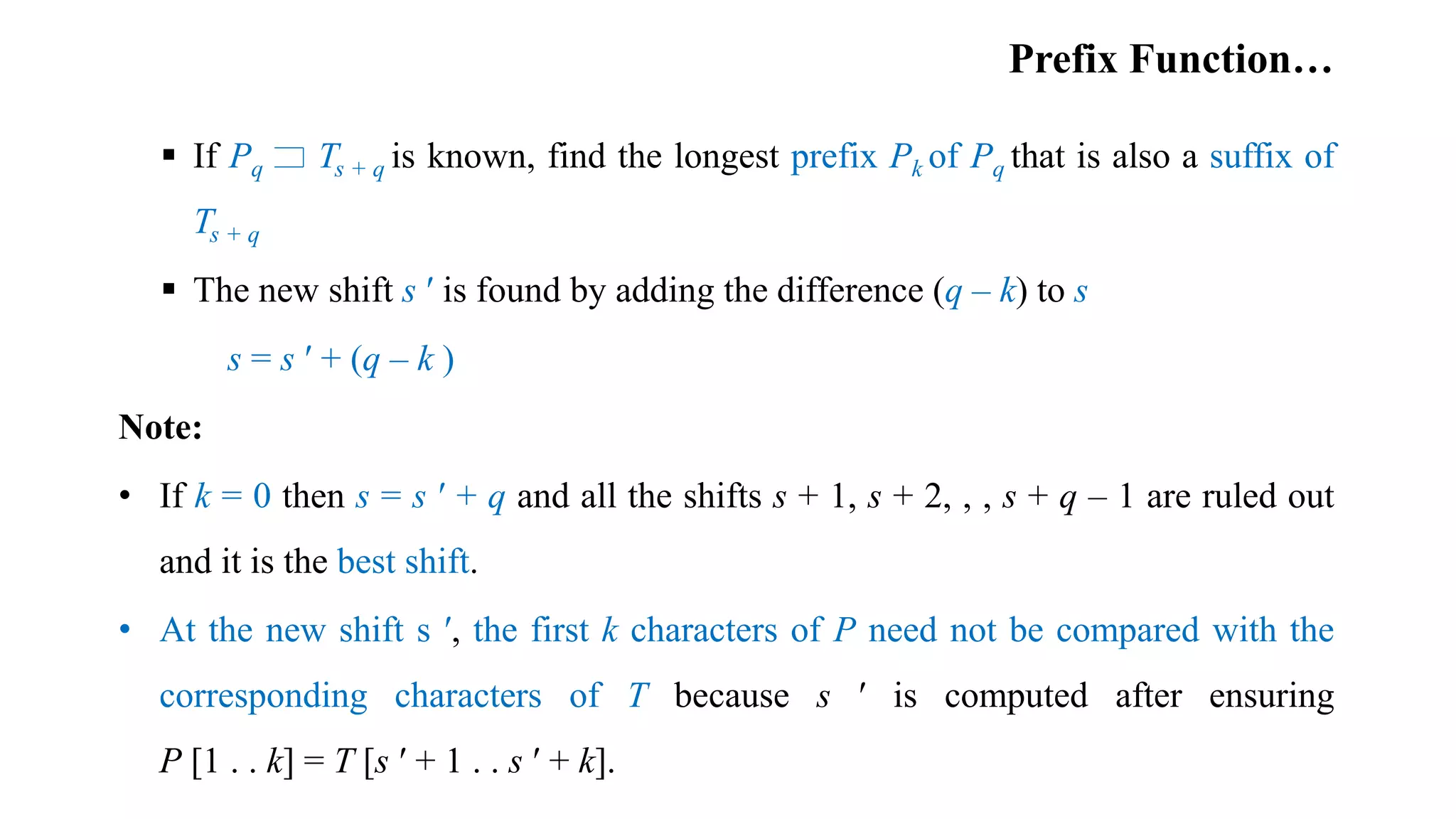

 If Pq Ts + q is known, find the longest prefix Pk of Pq that is also a suffix of
Ts + q
 The new shift s ʹ is found by adding the difference (q – k) to s
s = s ʹ + (q – k )
Note:
• If k = 0 then s = s ʹ + q and all the shifts s + 1, s + 2, , , s + q – 1 are ruled out
and it is the best shift.
• At the new shift s ʹ, the first k characters of P need not be compared with the
corresponding characters of T because s ʹ is computed after ensuring
P [1 . . k] = T [s ʹ + 1 . . s ʹ + k].

Prefix Function…

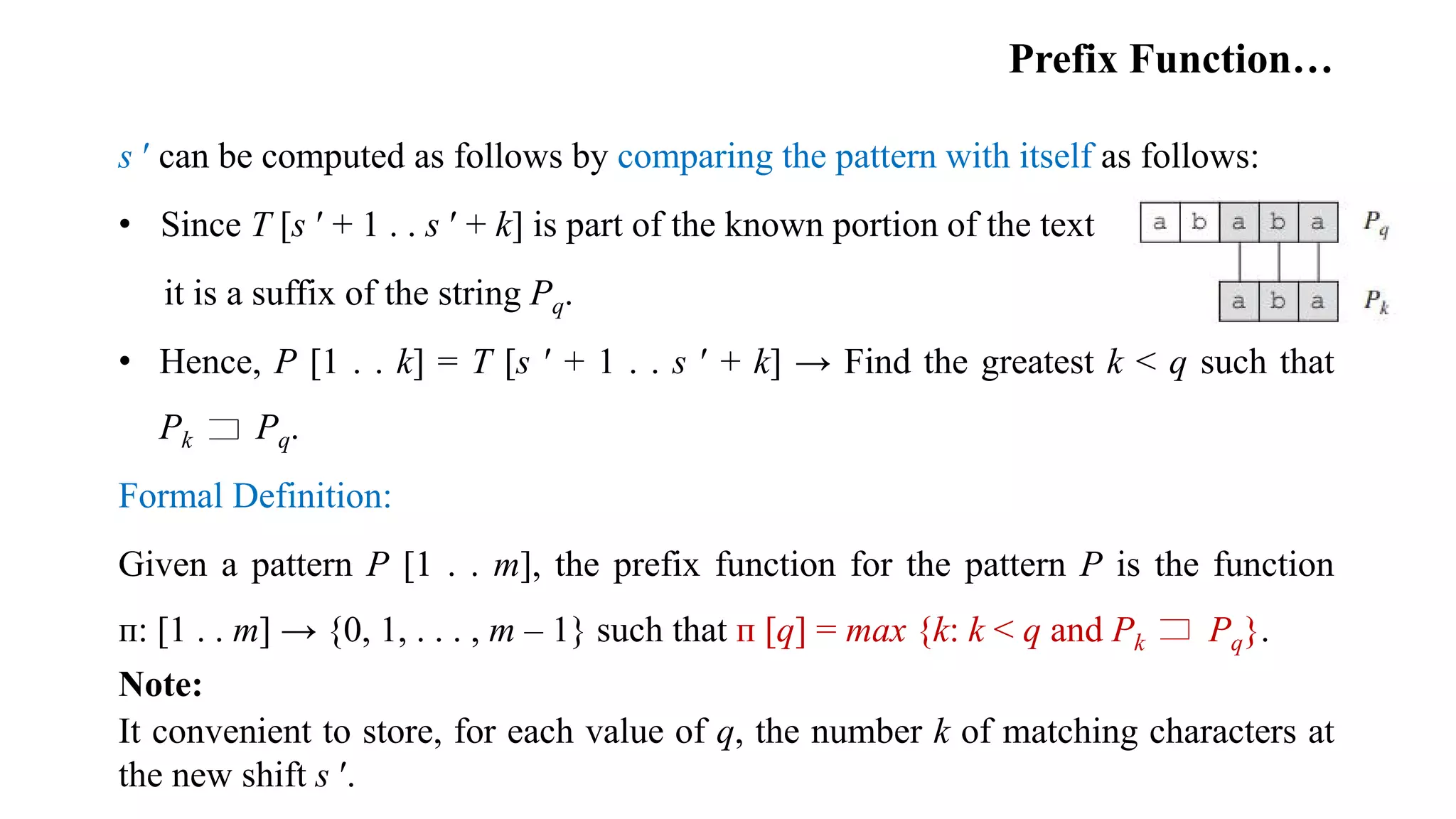

s ʹ can be computed as follows by comparing the pattern with itself as follows:
• Since T [s ʹ + 1 . . s ʹ + k] is part of the known portion of the text
it is a suffix of the string Pq.
• Hence, P [1 . . k] = T [s ʹ + 1 . . s ʹ + k] → Find the greatest k < q such that
Pk Pq.
Formal Definition:
Given a pattern P [1 . . m], the prefix function for the pattern P is the function
ᴨ: [1 . . m] → {0, 1, . . . , m – 1} such that ᴨ [q] = max {k: k < q and Pk Pq}.
Note:
It convenient to store, for each value of q, the number k of matching characters at
the new shift s ʹ.

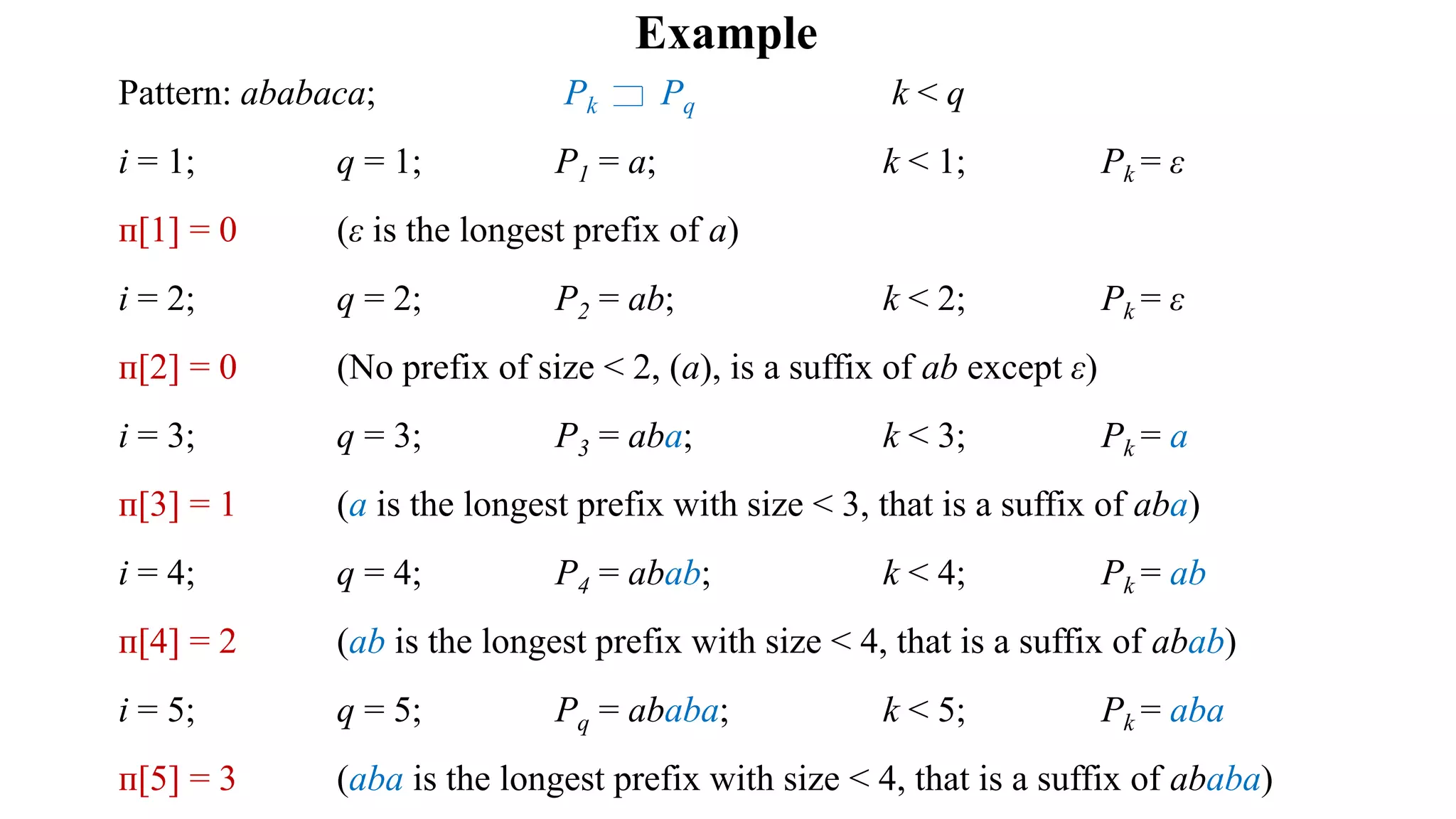

Example
Pattern: ababaca; Pk Pq k < q
i = 1; q = 1; P1 = a; k < 1; Pk = ε
ᴨ[1] = 0 (ε is the longest prefix of a)
i = 2; q = 2; P2 = ab; k < 2; Pk = ε
ᴨ[2] = 0 (No prefix of size < 2, (a), is a suffix of ab except ε)
i = 3; q = 3; P3 = aba; k < 3; Pk = a
ᴨ[3] = 1 (a is the longest prefix with size < 3, that is a suffix of aba)
i = 4; q = 4; P4 = abab; k < 4; Pk = ab
ᴨ[4] = 2 (ab is the longest prefix with size < 4, that is a suffix of abab)
i = 5; q = 5; Pq = ababa; k < 5; Pk = aba
ᴨ[5] = 3 (aba is the longest prefix with size < 4, that is a suffix of ababa)

Example…

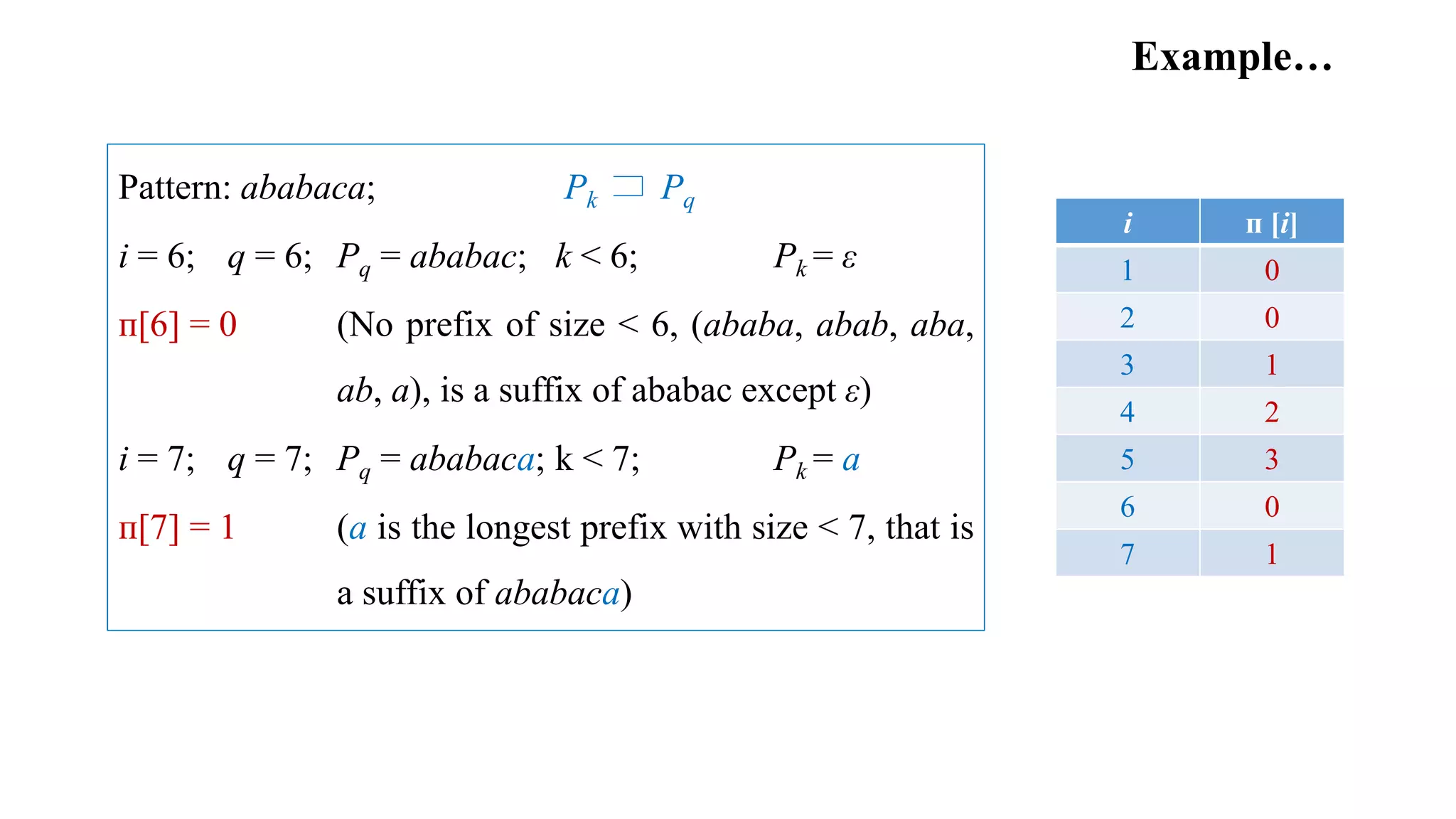

Pattern: ababaca; Pk Pq
i = 6; q = 6; Pq = ababac; k < 6; Pk = ε
ᴨ[6] = 0 (No prefix of size < 6, (ababa, abab, aba,
ab, a), is a suffix of ababac except ε)
i = 7; q = 7; Pq = ababaca; k < 7; Pk = a
ᴨ[7] = 1 (a is the longest prefix with size < 7, that is
a suffix of ababaca)
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1

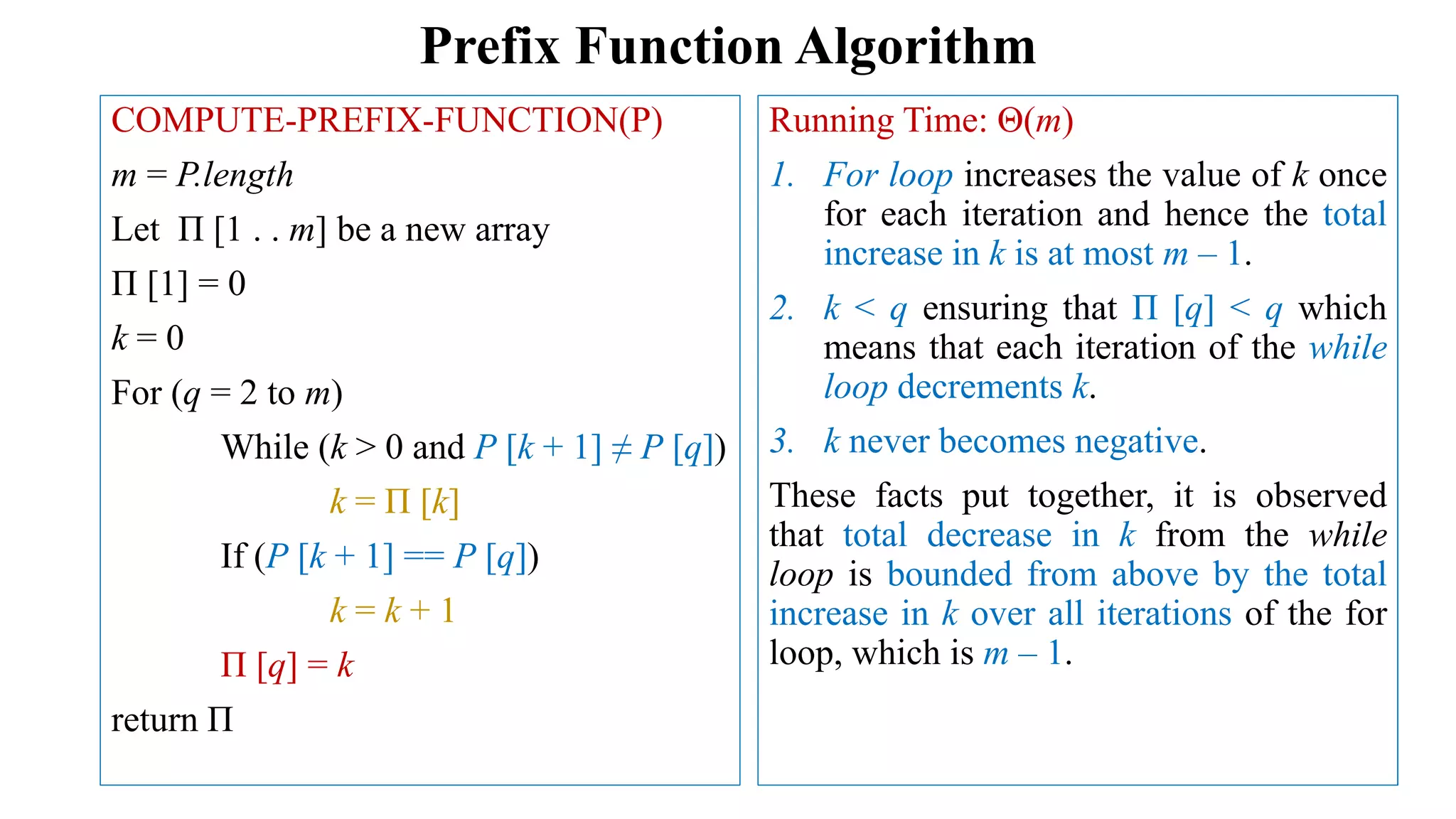

Prefix Function Algorithm
COMPUTE-PREFIX-FUNCTION(P)
m = P.length
Let Π [1 . . m] be a new array
Π [1] = 0
k = 0
For (q = 2 to m)
While (k > 0 and P [k + 1] ≠ P [q])
k = Π [k]
If (P [k + 1] == P [q])
k = k + 1
Π [q] = k
return Π
Running Time: Θ(m)
1. For loop increases the value of k once
for each iteration and hence the total
increase in k is at most m – 1.
2. k < q ensuring that Π [q] < q which
means that each iteration of the while
loop decrements k.
3. k never becomes negative.
These facts put together, it is observed
that total decrease in k from the while
loop is bounded from above by the total
increase in k over all iterations of the for
loop, which is m – 1.

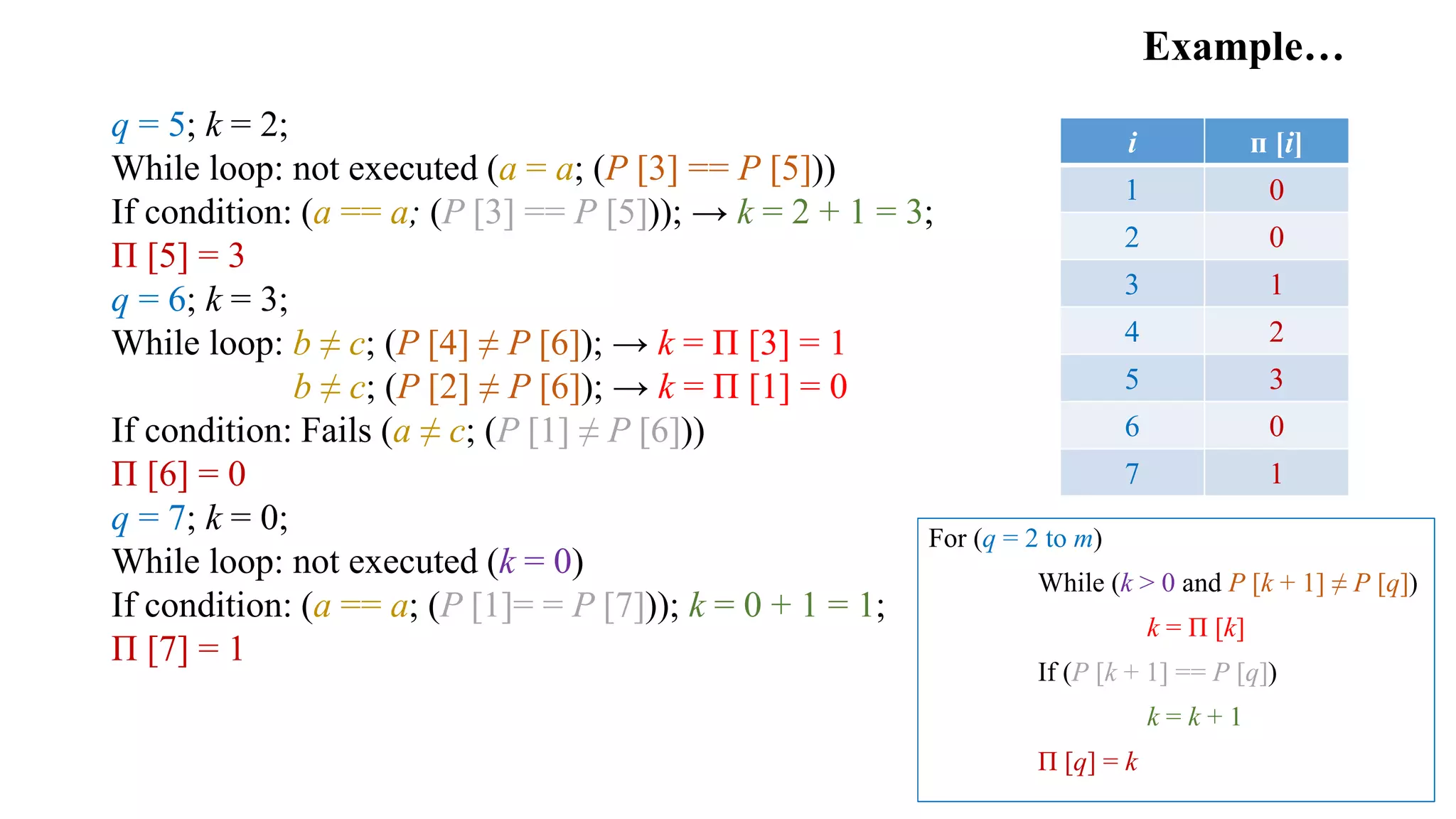

Example
For (q = 2 to m)
While (k > 0 and P [k + 1] ≠ P [q])
k = Π [k]
If (P [k + 1] == P [q])
k = k + 1
Π [q] = k

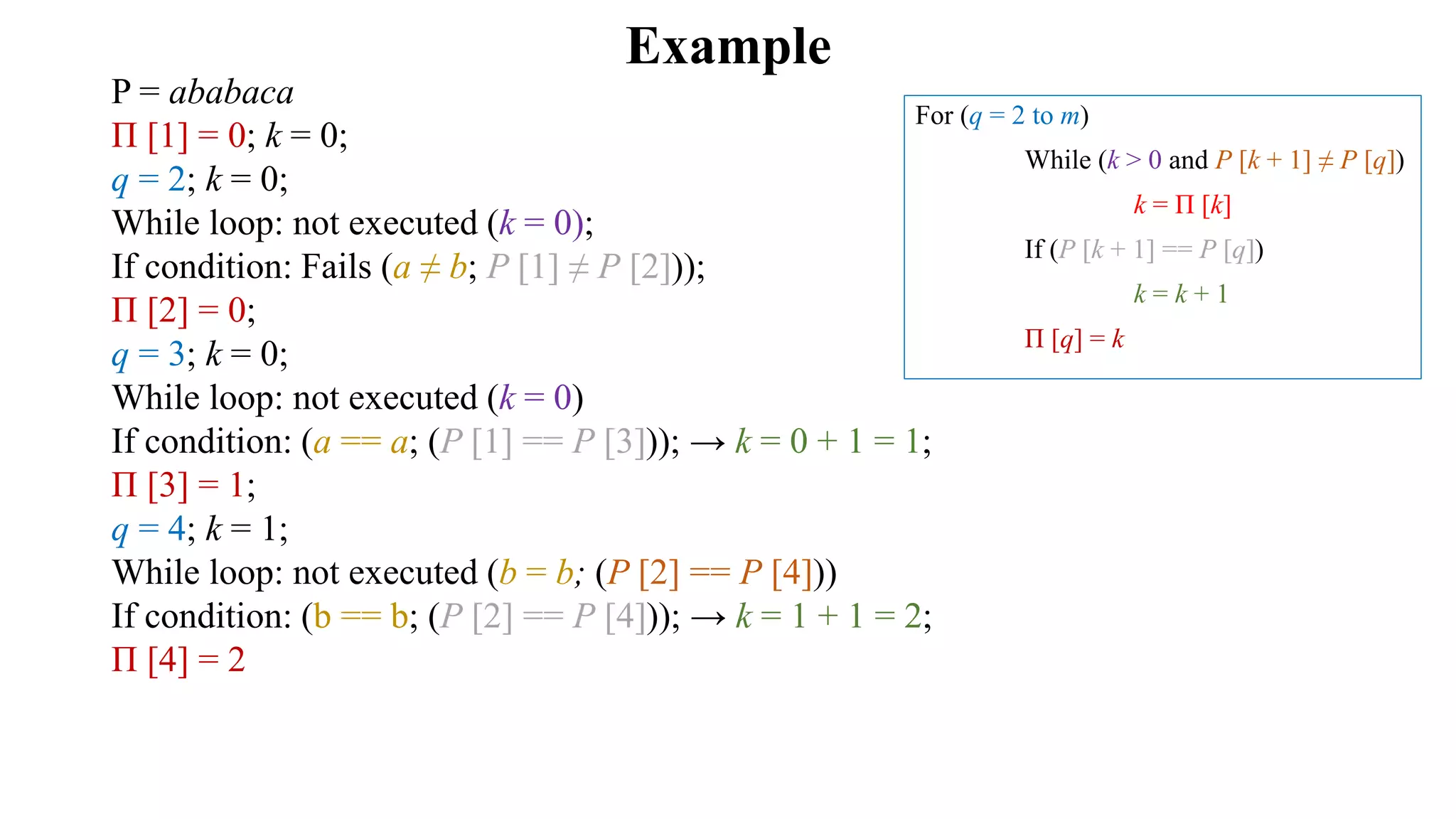

P = ababaca
Π [1] = 0; k = 0;
q = 2; k = 0;
While loop: not executed (k = 0);
If condition: Fails (a ≠ b; P [1] ≠ P [2]));
Π [2] = 0;
q = 3; k = 0;
While loop: not executed (k = 0)
If condition: (a == a; (P [1] == P [3])); → k = 0 + 1 = 1;
Π [3] = 1;
q = 4; k = 1;
While loop: not executed (b = b; (P [2] == P [4]))
If condition: (b == b; (P [2] == P [4])); → k = 1 + 1 = 2;
Π [4] = 2

Example…
q = 5; k = 2;
While loop: not executed (a = a; (P [3] == P [5]))
If condition: (a == a; (P [3] == P [5])); → k = 2 + 1 = 3;
Π [5] = 3
q = 6; k = 3;
While loop: b ≠ c; (P [4] ≠ P [6]); → k = Π [3] = 1
b ≠ c; (P [2] ≠ P [6]); → k = Π [1] = 0
If condition: Fails (a ≠ c; (P [1] ≠ P [6]))
Π [6] = 0
q = 7; k = 0;
While loop: not executed (k = 0)
If condition: (a == a; (P [1]= = P [7])); k = 0 + 1 = 1;
Π [7] = 1
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1
For (q = 2 to m)
While (k > 0 and P [k + 1] ≠ P [q])
k = Π [k]
If (P [k + 1] == P [q])
k = k + 1
Π [q] = k

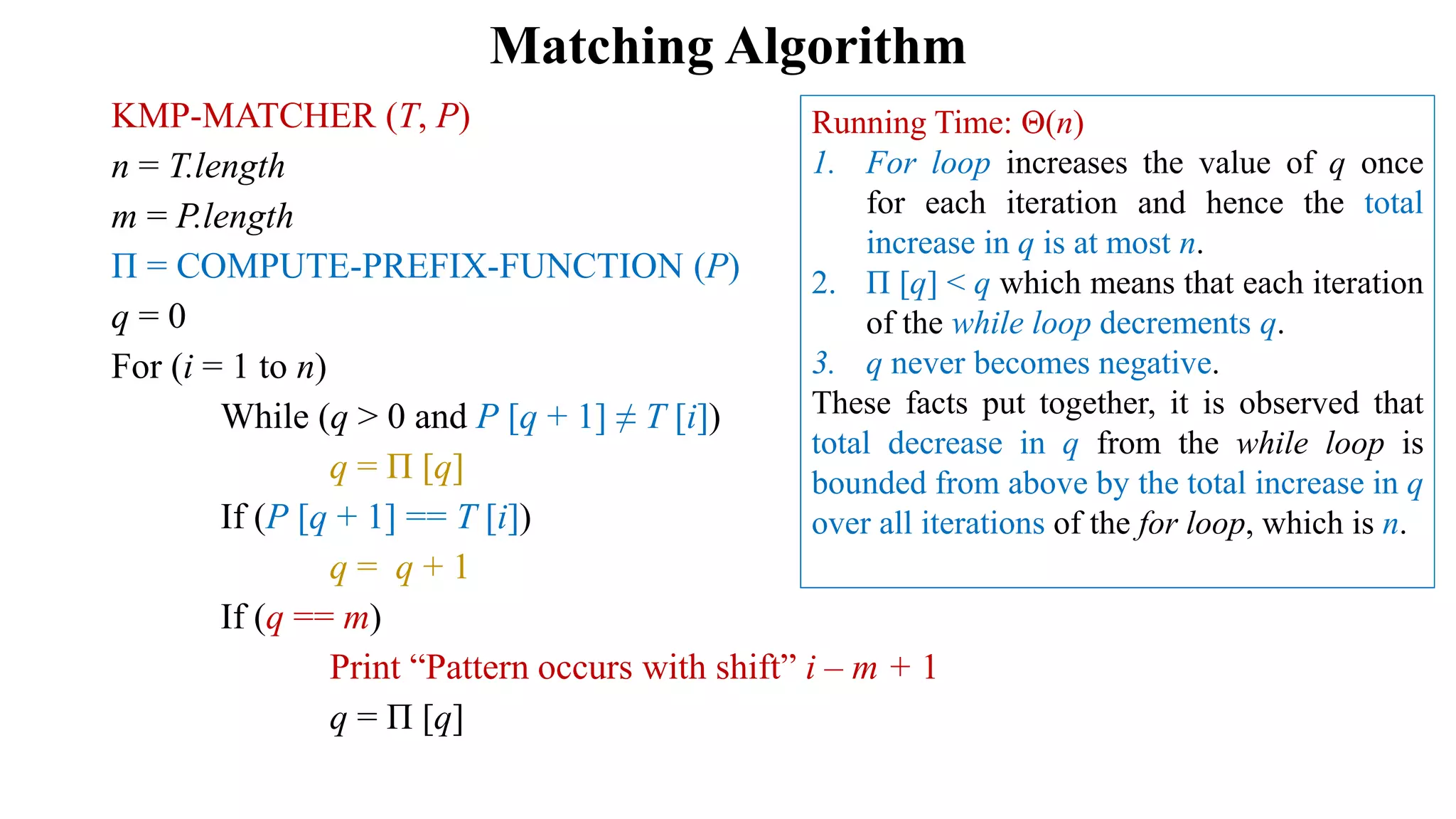

Matching Algorithm
KMP-MATCHER (T, P)
n = T.length
m = P.length
Π = COMPUTE-PREFIX-FUNCTION (P)
q = 0
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
Print “Pattern occurs with shift” i – m + 1
q = Π [q]
Running Time: Θ(n)
1. For loop increases the value of q once
for each iteration and hence the total
increase in q is at most n.
2. Π [q] < q which means that each iteration
of the while loop decrements q.
3. q never becomes negative.
These facts put together, it is observed that
total decrease in q from the while loop is
bounded from above by the total increase in q
over all iterations of the for loop, which is n.

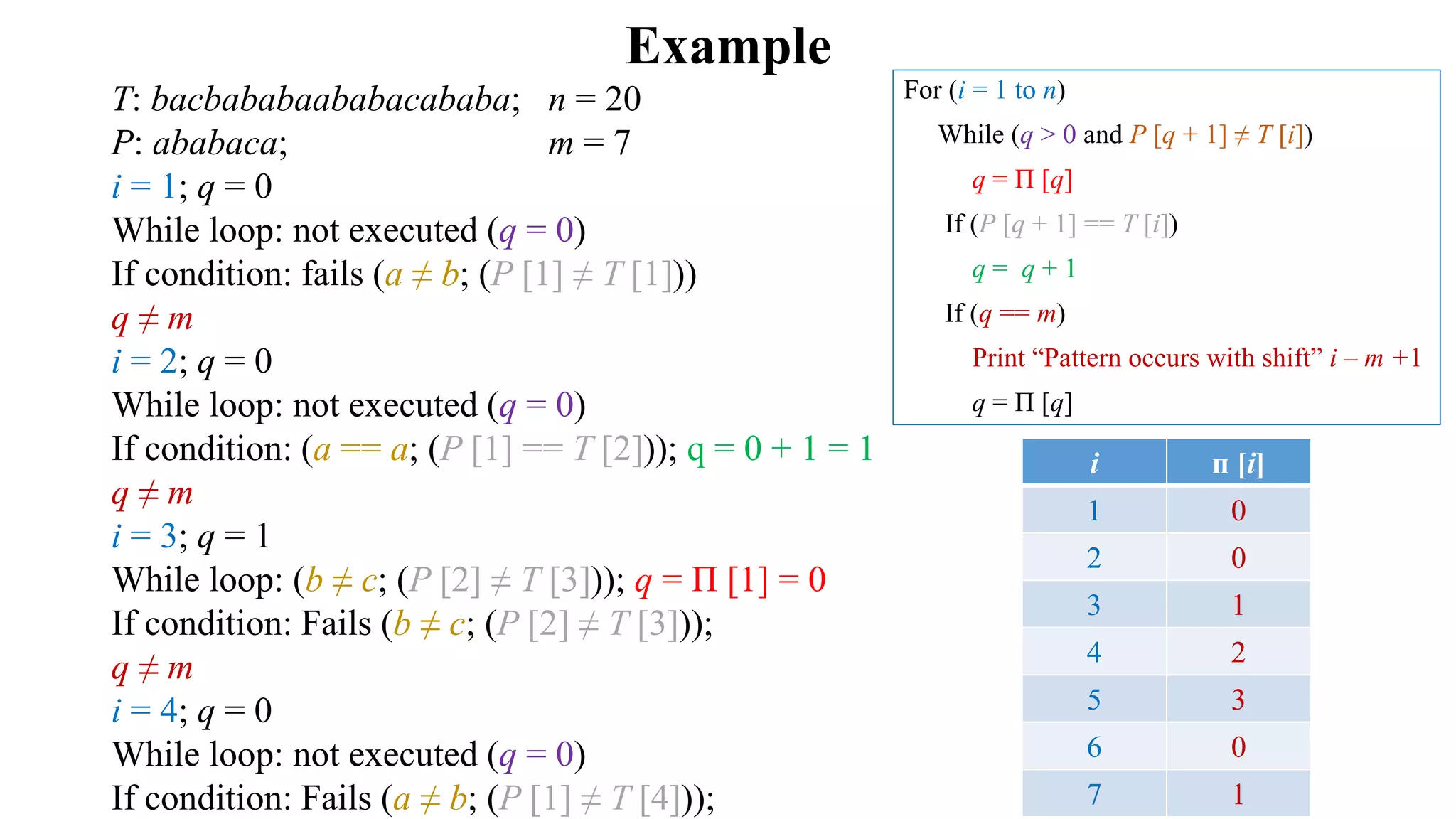

Example
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
Print “Pattern occurs with shift” i – m +1
q = Π [q]
T: bacbababaababacababa; n = 20
P: ababaca; m = 7
i = 1; q = 0
While loop: not executed (q = 0)
If condition: fails (a ≠ b; (P [1] ≠ T [1]))
q ≠ m
i = 2; q = 0
If condition: (a == a; (P [1] == T [2])); q = 0 + 1 = 1
q ≠ m
i = 3; q = 1
While loop: (b ≠ c; (P [2] ≠ T [3])); q = Π [1] = 0
If condition: Fails (b ≠ c; (P [2] ≠ T [3]));
q ≠ m
i = 4; q = 0
If condition: Fails (a ≠ b; (P [1] ≠ T [4]));
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1

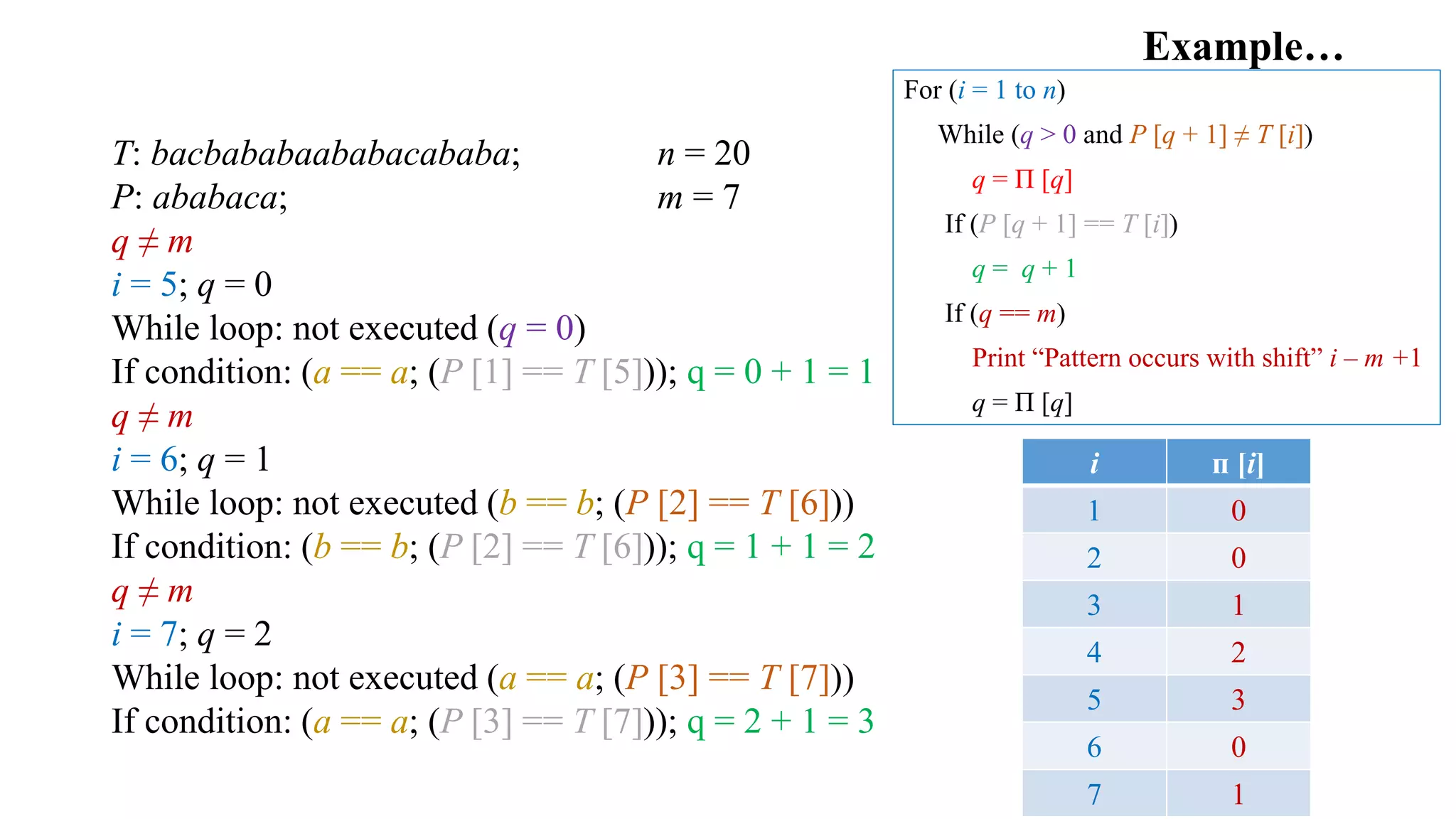

Example…
P: ababaca; m = 7
q ≠ m
i = 5; q = 0
q ≠ m
i = 6; q = 1
While loop: not executed (b == b; (P [2] == T [6]))
If condition: (b == b; (P [2] == T [6])); q = 1 + 1 = 2
q ≠ m
i = 7; q = 2
While loop: not executed (a == a; (P [3] == T [7]))
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]

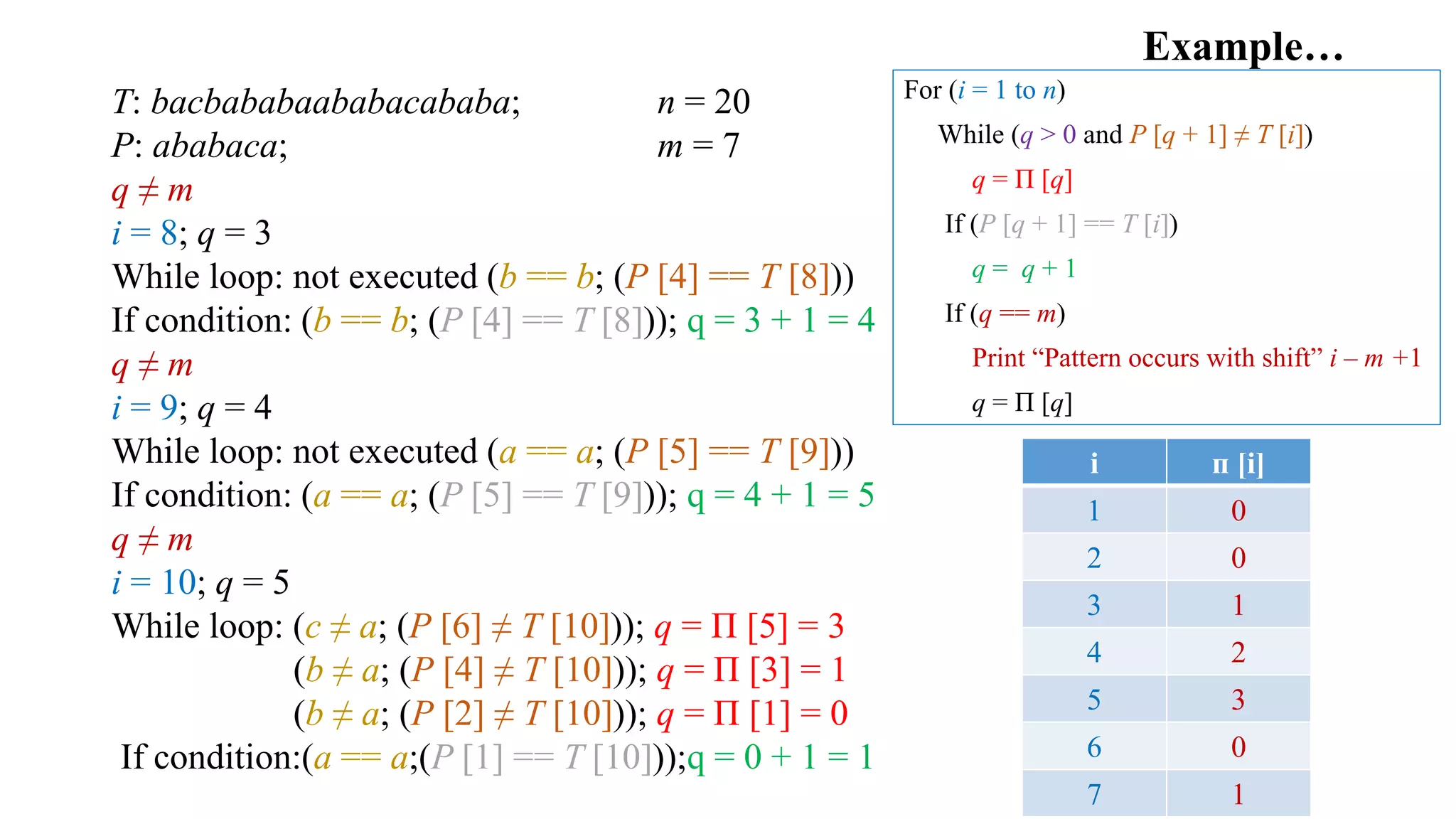

Example…
P: ababaca; m = 7
q ≠ m
i = 8; q = 3
While loop: not executed (b == b; (P [4] == T [8]))
If condition: (b == b; (P [4] == T [8])); q = 3 + 1 = 4
q ≠ m
i = 9; q = 4
While loop: not executed (a == a; (P [5] == T [9]))
q ≠ m
i = 10; q = 5
While loop: (c ≠ a; (P [6] ≠ T [10])); q = Π [5] = 3
(b ≠ a; (P [4] ≠ T [10])); q = Π [3] = 1
(b ≠ a; (P [2] ≠ T [10])); q = Π [1] = 0
If condition:(a == a;(P [1] == T [10]));q = 0 + 1 = 1
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]

Example…
P: ababaca; m = 7
q ≠ m

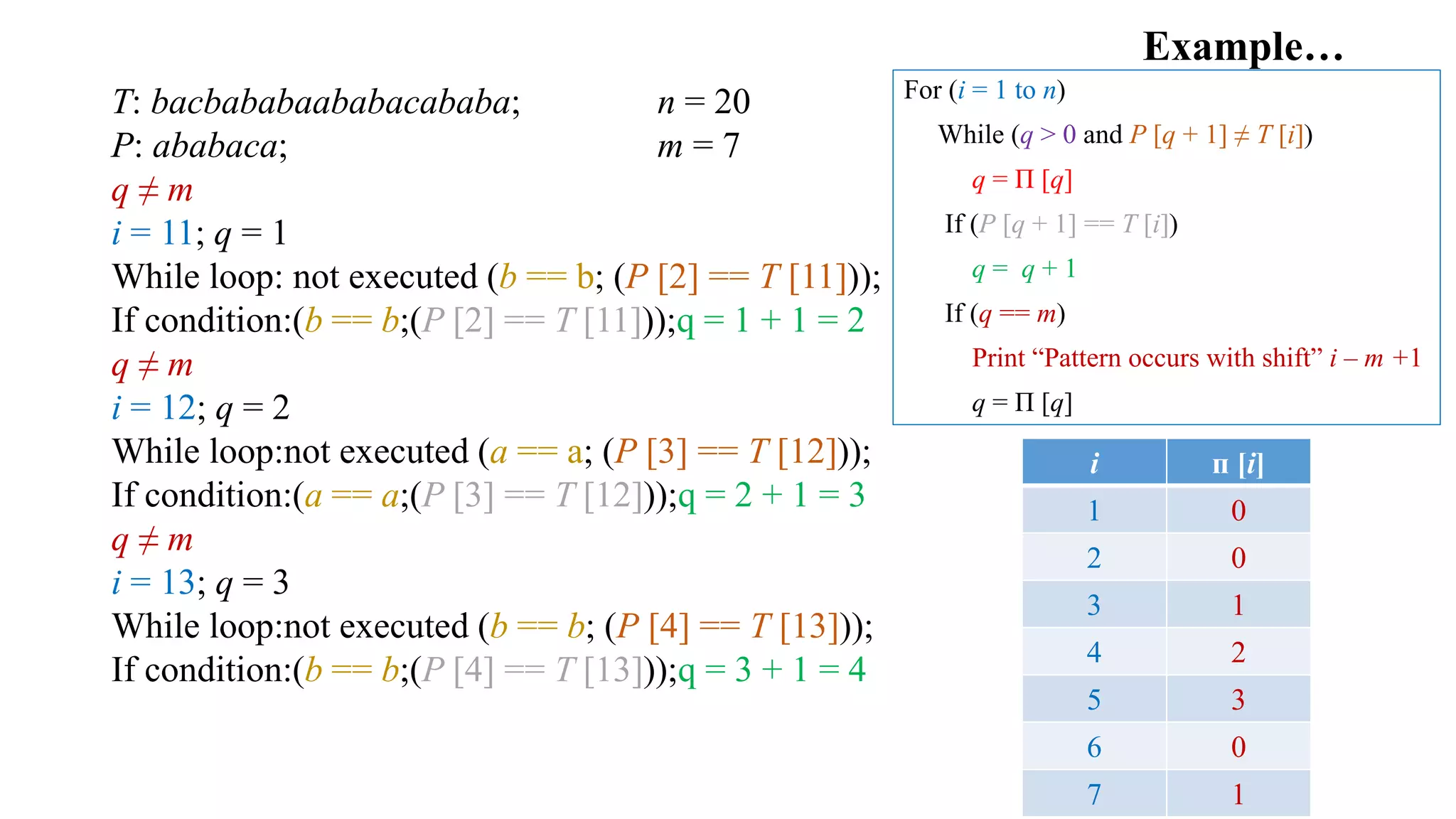

i = 11; q = 1
While loop: not executed (b == b; (P [2] == T [11]));
If condition:(b == b;(P [2] == T [11]));q = 1 + 1 = 2
q ≠ m
i = 12; q = 2
While loop:not executed (a == a; (P [3] == T [12]));
q ≠ m
i = 13; q = 3
While loop:not executed (b == b; (P [4] == T [13]));
If condition:(b == b;(P [4] == T [13]));q = 3 + 1 = 4
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]

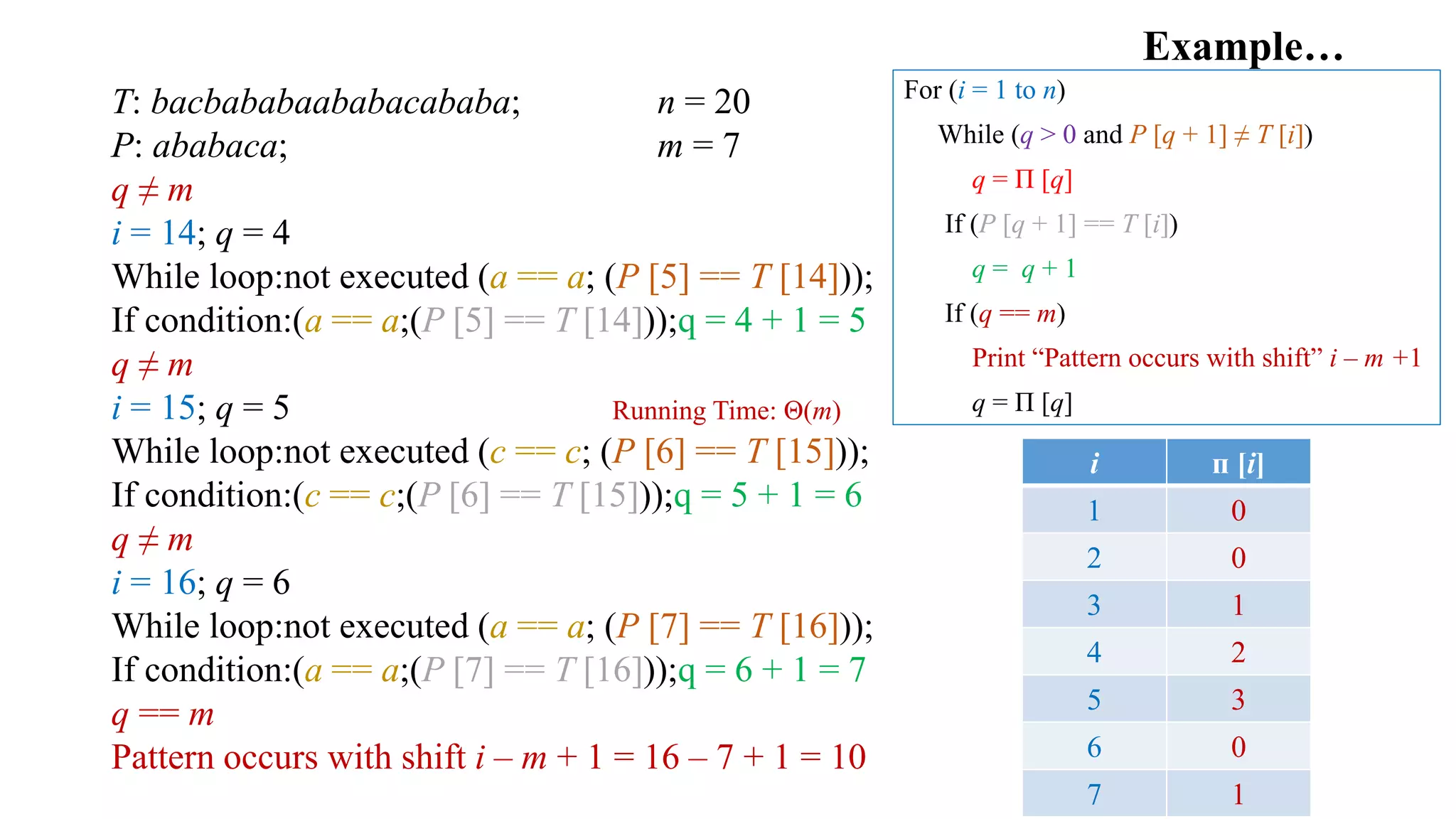

Example…
P: ababaca; m = 7
q ≠ m
i = 14; q = 4
q ≠ m
i = 15; q = 5
While loop:not executed (c == c; (P [6] == T [15]));
If condition:(c == c;(P [6] == T [15]));q = 5 + 1 = 6
q ≠ m
i = 16; q = 6
q == m
Pattern occurs with shift i – m + 1 = 16 – 7 + 1 = 10
i ᴨ [i]
1 0
2 0
3 1
4 2
5 3
6 0
7 1
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]Running Time: Θ(m)

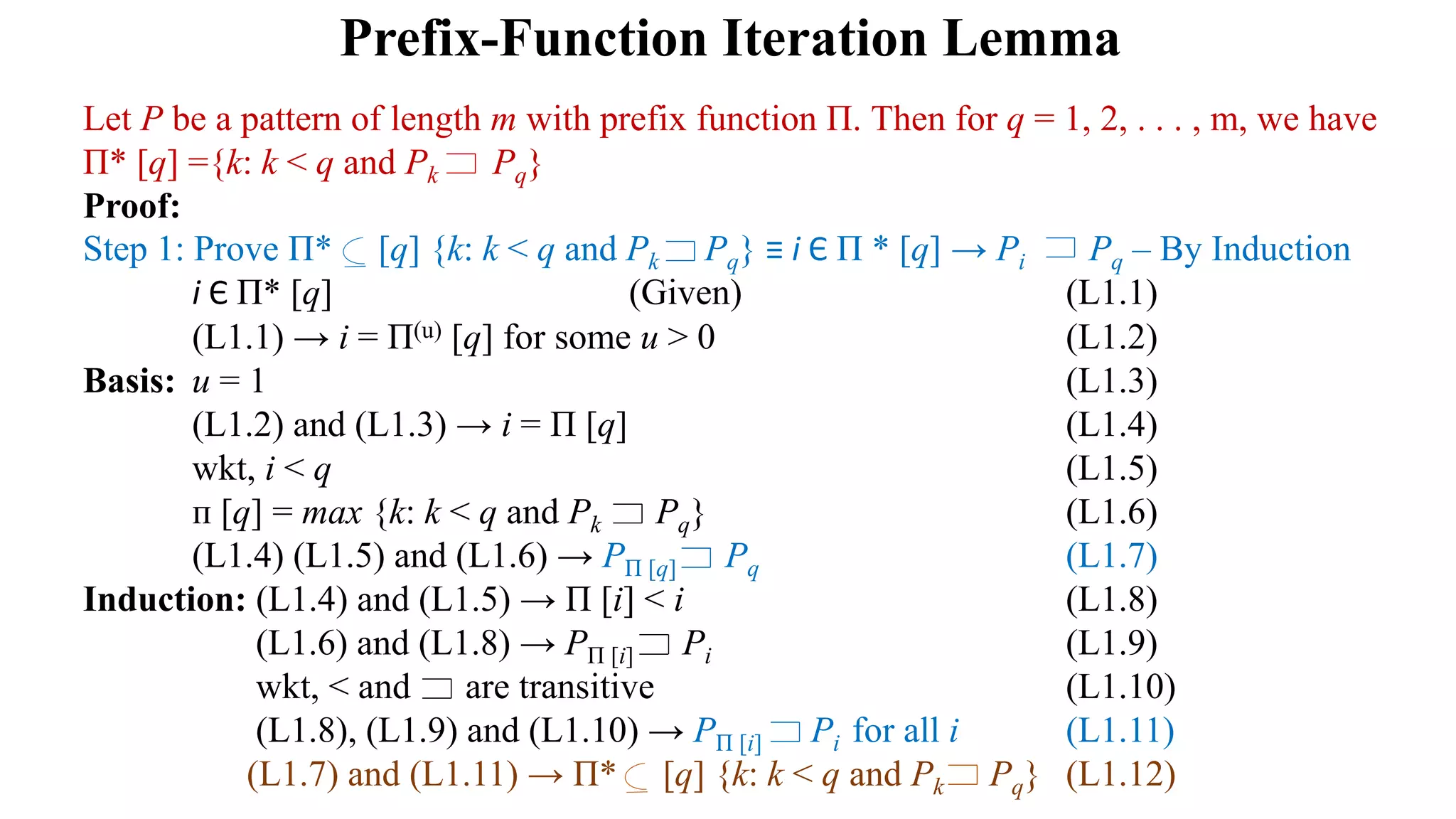

Prefix-Function Iteration Lemma
Let P be a pattern of length m with prefix function Π. Then for q = 1, 2, . . . , m, we have
Π* [q] ={k: k < q and Pk Pq}
Proof:
Step 1: Prove Π* [q] {k: k < q and Pk Pq} ≡ i Є Π * [q] → Pi Pq – By Induction
i Є Π* [q] (Given) (L1.1)
(L1.1) → i = Π(u) [q] for some u > 0 (L1.2)
Basis: u = 1 (L1.3)
(L1.2) and (L1.3) → i = Π [q] (L1.4)
wkt, i < q (L1.5)
ᴨ [q] = max {k: k < q and Pk Pq} (L1.6)
(L1.4) (L1.5) and (L1.6) → PΠ [q] Pq (L1.7)
Induction: (L1.4) and (L1.5) → Π [i] < i (L1.8)
(L1.6) and (L1.8) → PΠ [i] Pi (L1.9)
wkt, < and are transitive (L1.10)
(L1.8), (L1.9) and (L1.10) → PΠ [i] Pi for all i (L1.11)
(L1.7) and (L1.11) → Π* [q] {k: k < q and Pk Pq} (L1.12)

Prefix-Function Iteration Lemma…

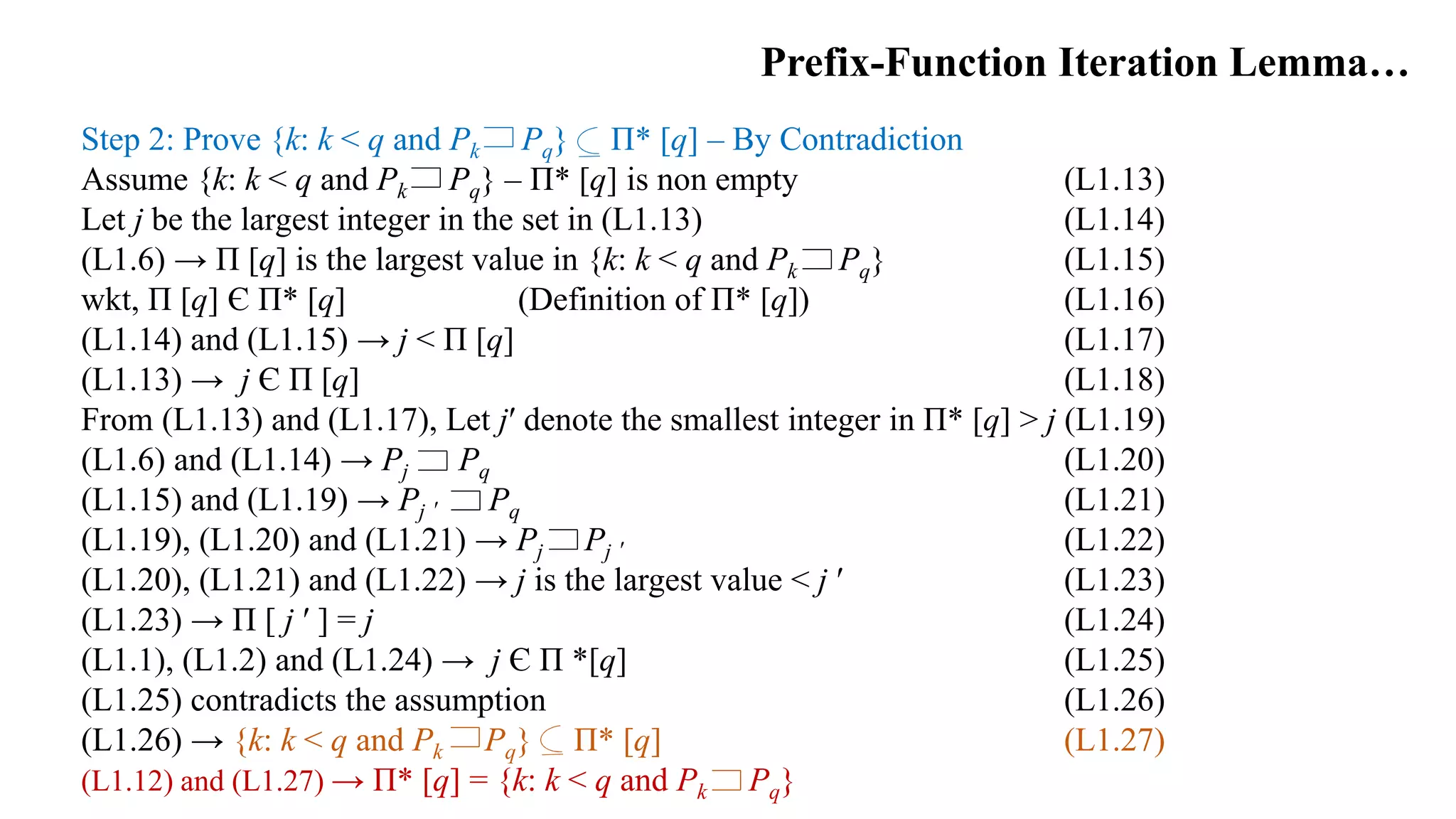

Step 2: Prove {k: k < q and Pk Pq} Π* [q] – By Contradiction
Assume {k: k < q and Pk Pq} – Π* [q] is non empty (L1.13)
Let j be the largest integer in the set in (L1.13) (L1.14)
(L1.6) → Π [q] is the largest value in {k: k < q and Pk Pq} (L1.15)
wkt, Π [q] Є Π* [q] (Definition of Π* [q]) (L1.16)
(L1.14) and (L1.15) → j < Π [q] (L1.17)
(L1.13) → j Є Π [q] (L1.18)
From (L1.13) and (L1.17), Let jʹ denote the smallest integer in Π* [q] > j (L1.19)
(L1.6) and (L1.14) → Pj Pq (L1.20)
(L1.15) and (L1.19) → Pj ʹ Pq (L1.21)
(L1.19), (L1.20) and (L1.21) → Pj Pj ʹ (L1.22)
(L1.20), (L1.21) and (L1.22) → j is the largest value < j ʹ (L1.23)
(L1.23) → Π [ j ʹ ] = j (L1.24)
(L1.1), (L1.2) and (L1.24) → j Є Π *[q] (L1.25)
(L1.25) contradicts the assumption (L1.26)
(L1.26) → {k: k < q and Pk Pq} Π* [q] (L1.27)
(L1.12) and (L1.27) → Π* [q] = {k: k < q and Pk Pq}

Lemma

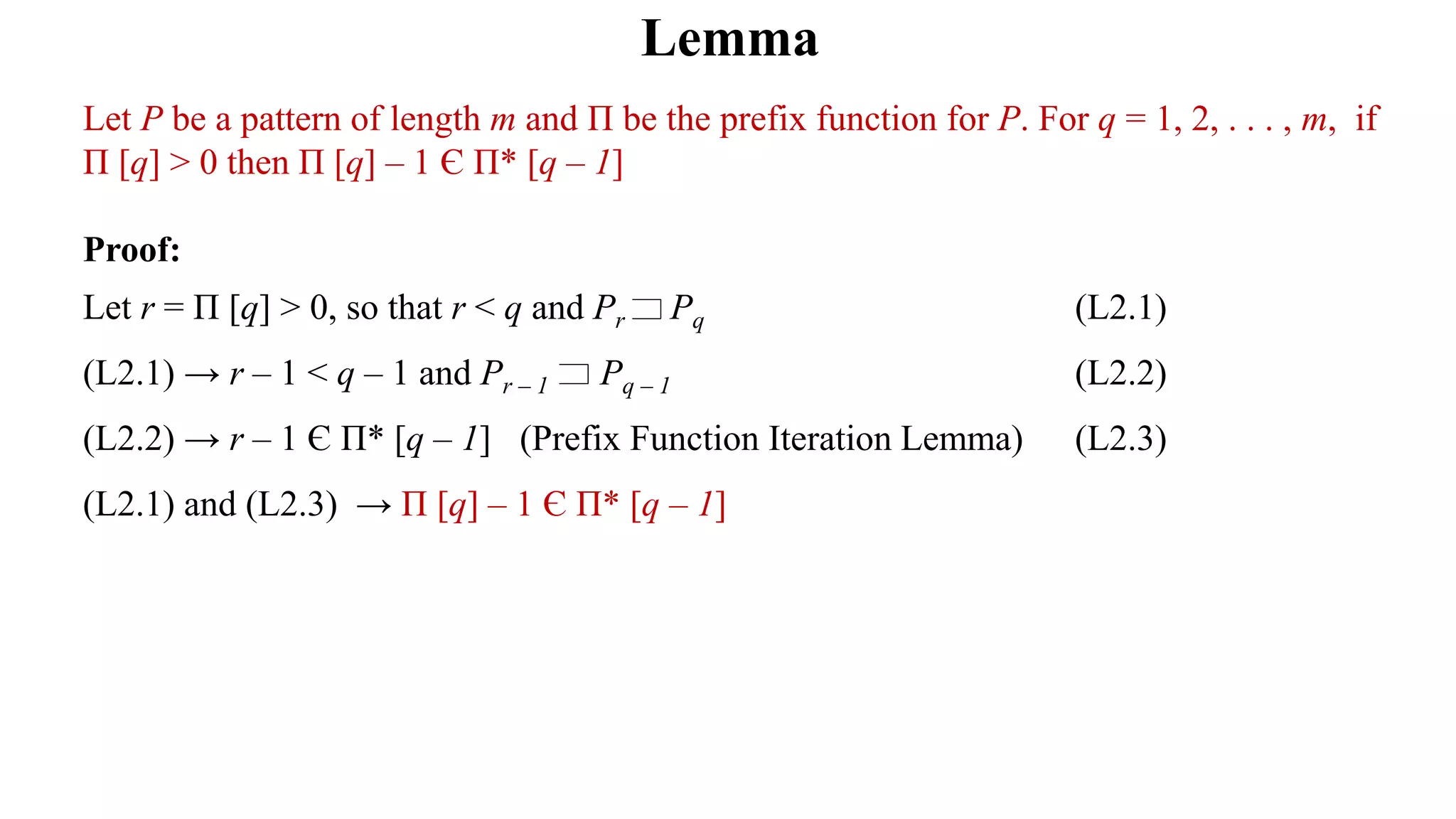

Let P be a pattern of length m and Π be the prefix function for P. For q = 1, 2, . . . , m, if
Π [q] > 0 then Π [q] – 1 Є Π* [q – 1]
Proof:
Let r = Π [q] > 0, so that r < q and Pr Pq (L2.1)
(L2.1) → r – 1 < q – 1 and Pr – 1 Pq – 1 (L2.2)
(L2.2) → r – 1 Є Π* [q – 1] (Prefix Function Iteration Lemma) (L2.3)
(L2.1) and (L2.3) → Π [q] – 1 Є Π* [q – 1]

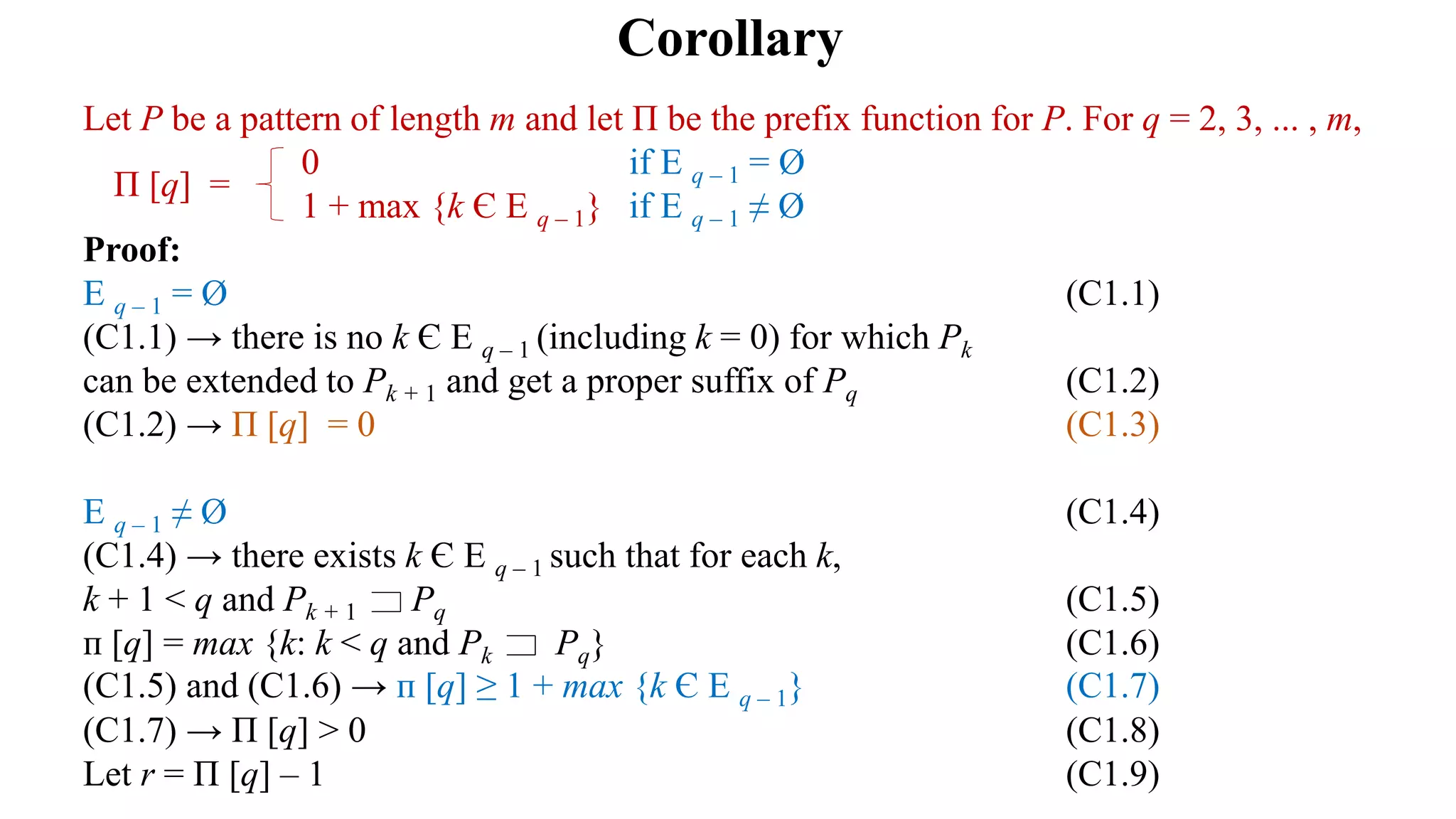

Corollary
Let P be a pattern of length m and let Π be the prefix function for P. For q = 2, 3, ... , m,
0 if E q – 1 = Ø
1 + max {k Є E q – 1} if E q – 1 ≠ Ø
Proof:
E q – 1 = Ø (C1.1)
(C1.1) → there is no k Є E q – 1 (including k = 0) for which Pk
can be extended to Pk + 1 and get a proper suffix of Pq (C1.2)
(C1.2) → Π [q] = 0 (C1.3)
E q – 1 ≠ Ø (C1.4)
(C1.4) → there exists k Є E q – 1 such that for each k,
k + 1 < q and Pk + 1 Pq (C1.5)
ᴨ [q] = max {k: k < q and Pk Pq} (C1.6)
(C1.5) and (C1.6) → ᴨ [q] ≥ 1 + max {k Є E q – 1} (C1.7)
(C1.7) → Π [q] > 0 (C1.8)
Let r = Π [q] – 1 (C1.9)
Π [q] =

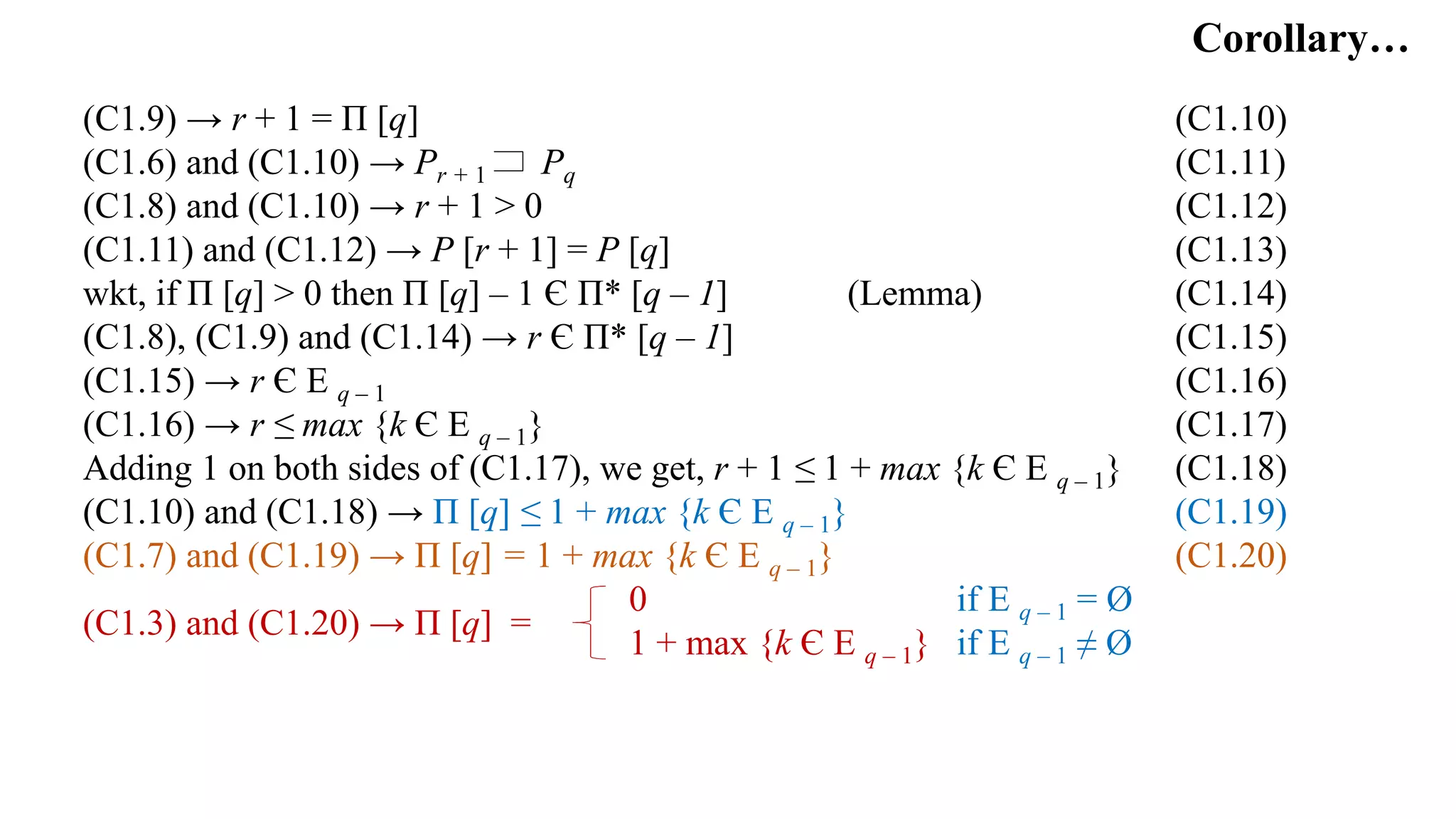

Corollary…
(C1.9) → r + 1 = Π [q] (C1.10)
(C1.6) and (C1.10) → Pr + 1 Pq (C1.11)
(C1.8) and (C1.10) → r + 1 > 0 (C1.12)
(C1.11) and (C1.12) → P [r + 1] = P [q] (C1.13)
wkt, if Π [q] > 0 then Π [q] – 1 Є Π* [q – 1] (Lemma) (C1.14)
(C1.8), (C1.9) and (C1.14) → r Є Π* [q – 1] (C1.15)
(C1.15) → r Є E q – 1 (C1.16)
(C1.16) → r ≤ max {k Є E q – 1} (C1.17)
Adding 1 on both sides of (C1.17), we get, r + 1 ≤ 1 + max {k Є E q – 1} (C1.18)
(C1.10) and (C1.18) → Π [q] ≤ 1 + max {k Є E q – 1} (C1.19)
(C1.7) and (C1.19) → Π [q] = 1 + max {k Є E q – 1} (C1.20)
0 if E q – 1 = Ø
1 + max {k Є E q – 1} if E q – 1 ≠ Ø
(C1.3) and (C1.20) → Π [q] =

Correctness of Compute Prefix Function
COMPUTE-PREFIX-FUNCTION(P)
m = P.length
Let Π [1 . . m] be a new array
Π [1] = 0
k = 0
For (q = 2 to m)
While (k > 0 and P [k + 1] ≠ P [q])
k = Π [k]
If (P [k + 1] == P [q])
k = k + 1
Π [q] = k
return Π

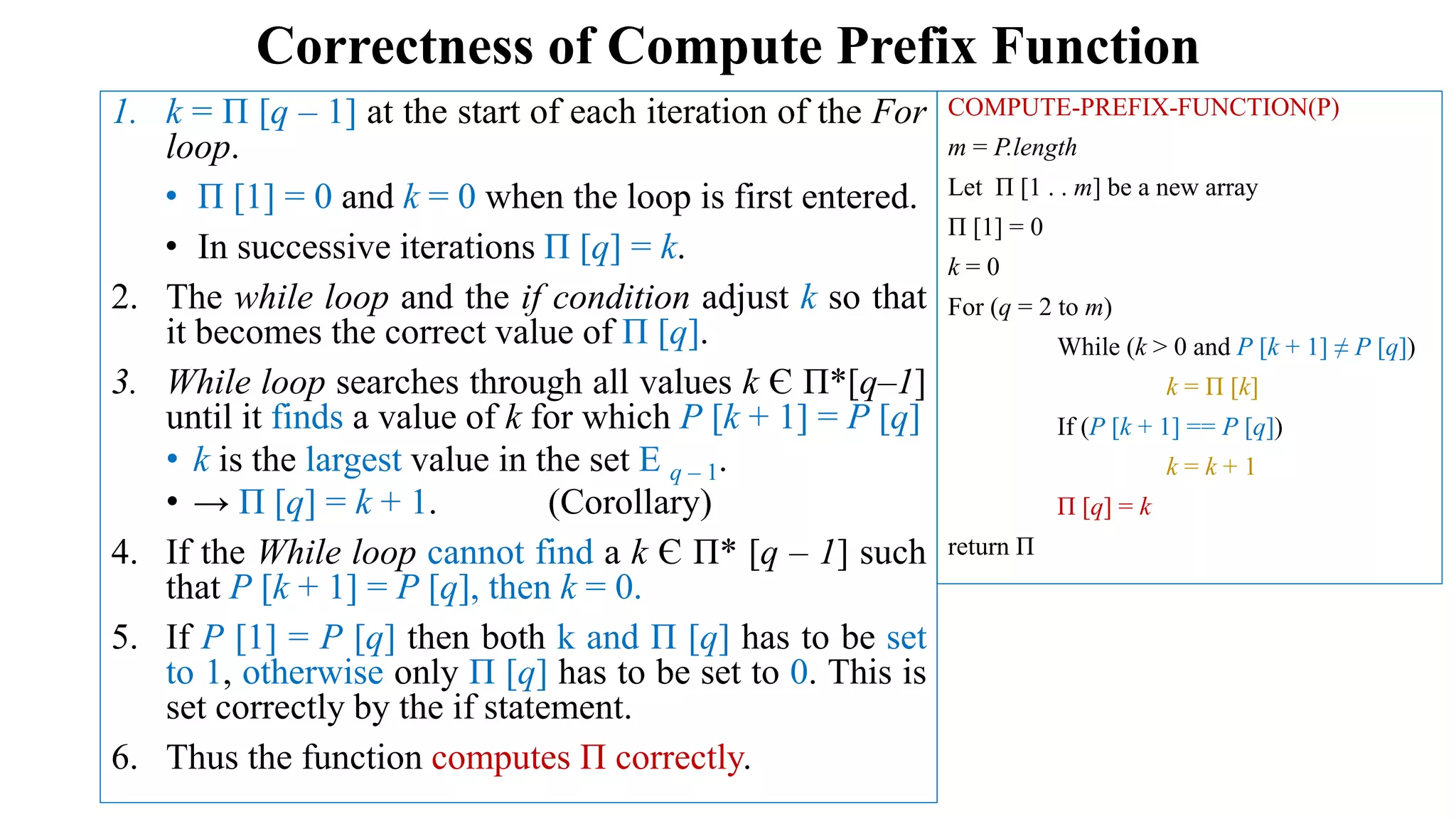

1. k = Π [q – 1] at the start of each iteration of the For
loop.
• Π [1] = 0 and k = 0 when the loop is first entered.
• In successive iterations Π [q] = k.
2. The while loop and the if condition adjust k so that
it becomes the correct value of Π [q].
3. While loop searches through all values k Є Π*[q–1]
until it finds a value of k for which P [k + 1] = P [q]
• k is the largest value in the set E q – 1.
• → Π [q] = k + 1. (Corollary)
4. If the While loop cannot find a k Є Π* [q – 1] such
that P [k + 1] = P [q], then k = 0.
5. If P [1] = P [q] then both k and Π [q] has to be set
to 1, otherwise only Π [q] has to be set to 0. This is
set correctly by the if statement.
6. Thus the function computes Π correctly.

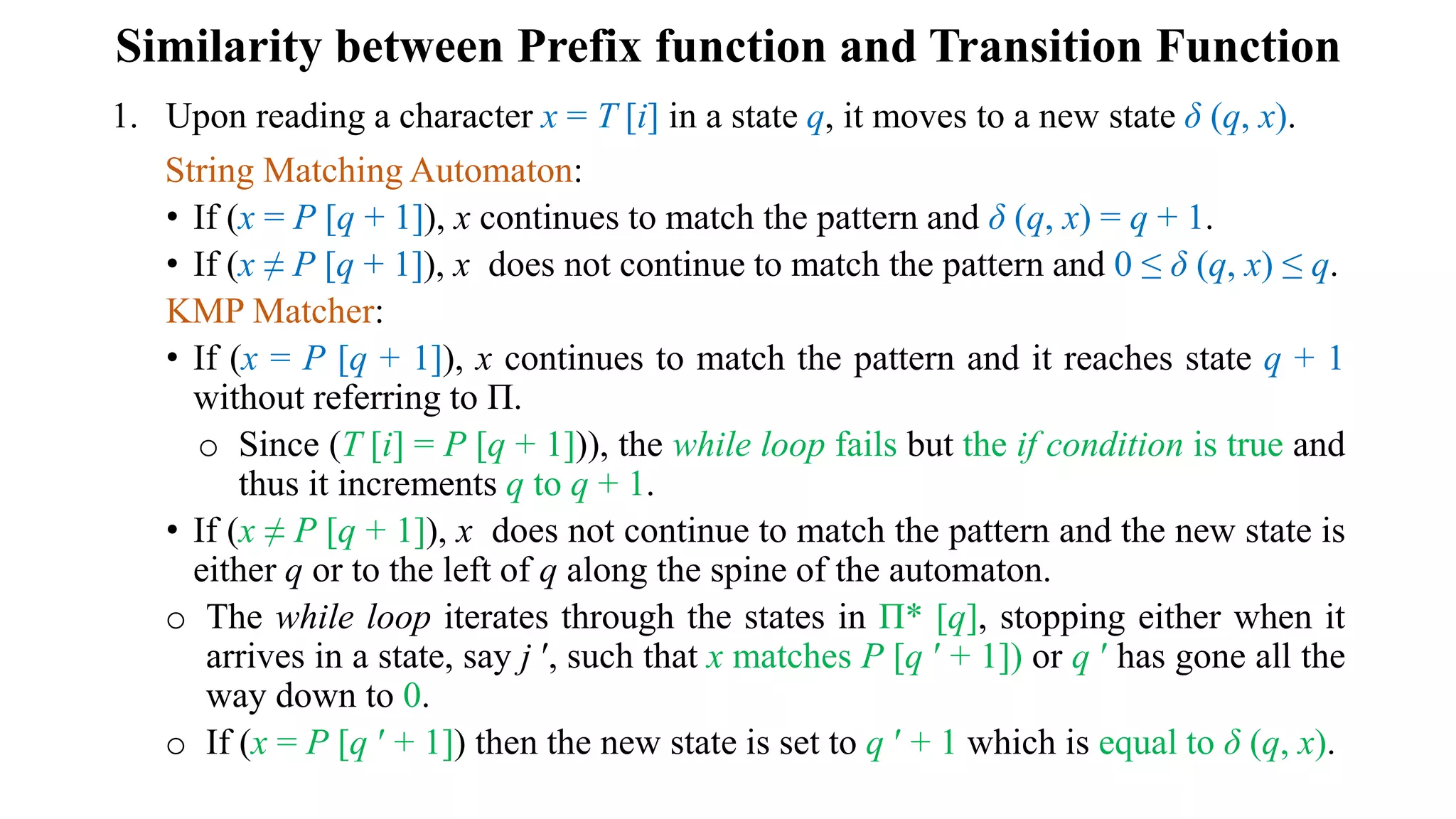

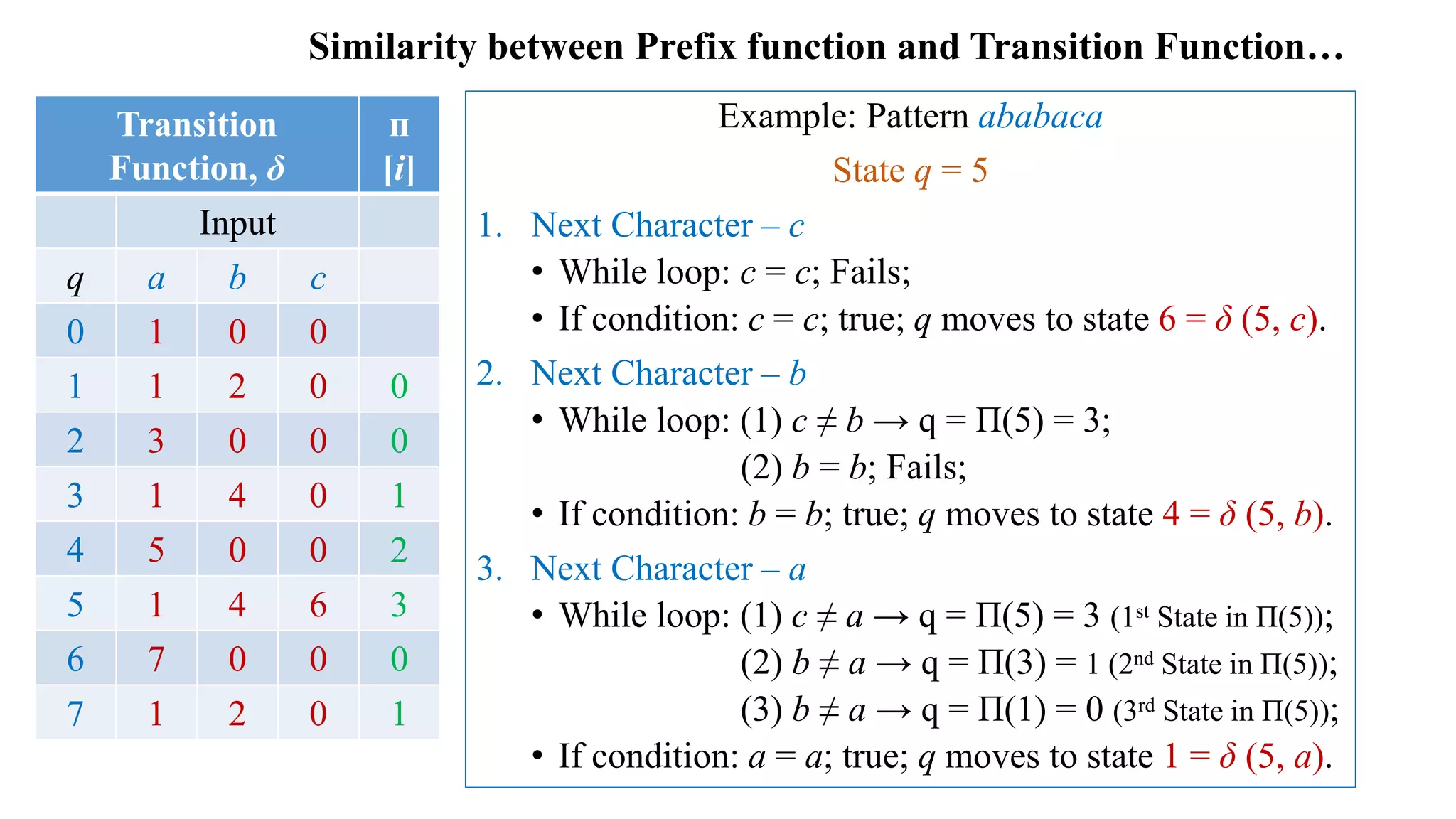

Similarity between Prefix function and Transition Function
1. Upon reading a character x = T [i] in a state q, it moves to a new state δ (q, x).
String Matching Automaton:
• If (x = P [q + 1]), x continues to match the pattern and δ (q, x) = q + 1.
• If (x ≠ P [q + 1]), x does not continue to match the pattern and 0 ≤ δ (q, x) ≤ q.
KMP Matcher:
• If (x = P [q + 1]), x continues to match the pattern and it reaches state q + 1
without referring to Π.
o Since (T [i] = P [q + 1])), the while loop fails but the if condition is true and
thus it increments q to q + 1.
• If (x ≠ P [q + 1]), x does not continue to match the pattern and the new state is
either q or to the left of q along the spine of the automaton.
o The while loop iterates through the states in Π* [q], stopping either when it
arrives in a state, say j ʹ, such that x matches P [q ʹ + 1]) or q ʹ has gone all the
way down to 0.
o If (x = P [q ʹ + 1]) then the new state is set to q ʹ + 1 which is equal to δ (q, x).

Similarity between Prefix function and Transition Function…
Example: Pattern ababaca
State q = 5
1. Next Character – c
• While loop: c = c; Fails;
• If condition: c = c; true; q moves to state 6 = δ (5, c).
2. Next Character – b
• While loop: (1) c ≠ b → q = Π(5) = 3;
(2) b = b; Fails;
• If condition: b = b; true; q moves to state 4 = δ (5, b).
3. Next Character – a
• While loop: (1) c ≠ a → q = Π(5) = 3 (1st State in Π(5));
(2) b ≠ a → q = Π(3) = 1 (2nd State in Π(5));
(3) b ≠ a → q = Π(1) = 0 (3rd State in Π(5));
• If condition: a = a; true; q moves to state 1 = δ (5, a).
Transition
Function, δ
ᴨ
[i]
Input
q a b c
0 1 0 0
1 1 2 0 0
2 3 0 0 0
3 1 4 0 1
4 5 0 0 2
5 1 4 6 3
6 7 0 0 0
7 1 2 0 1

Correctness of KMP-Matcher
KMP-MATCHER (T, P)
n = T.length
m = P.length
q = 0
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]

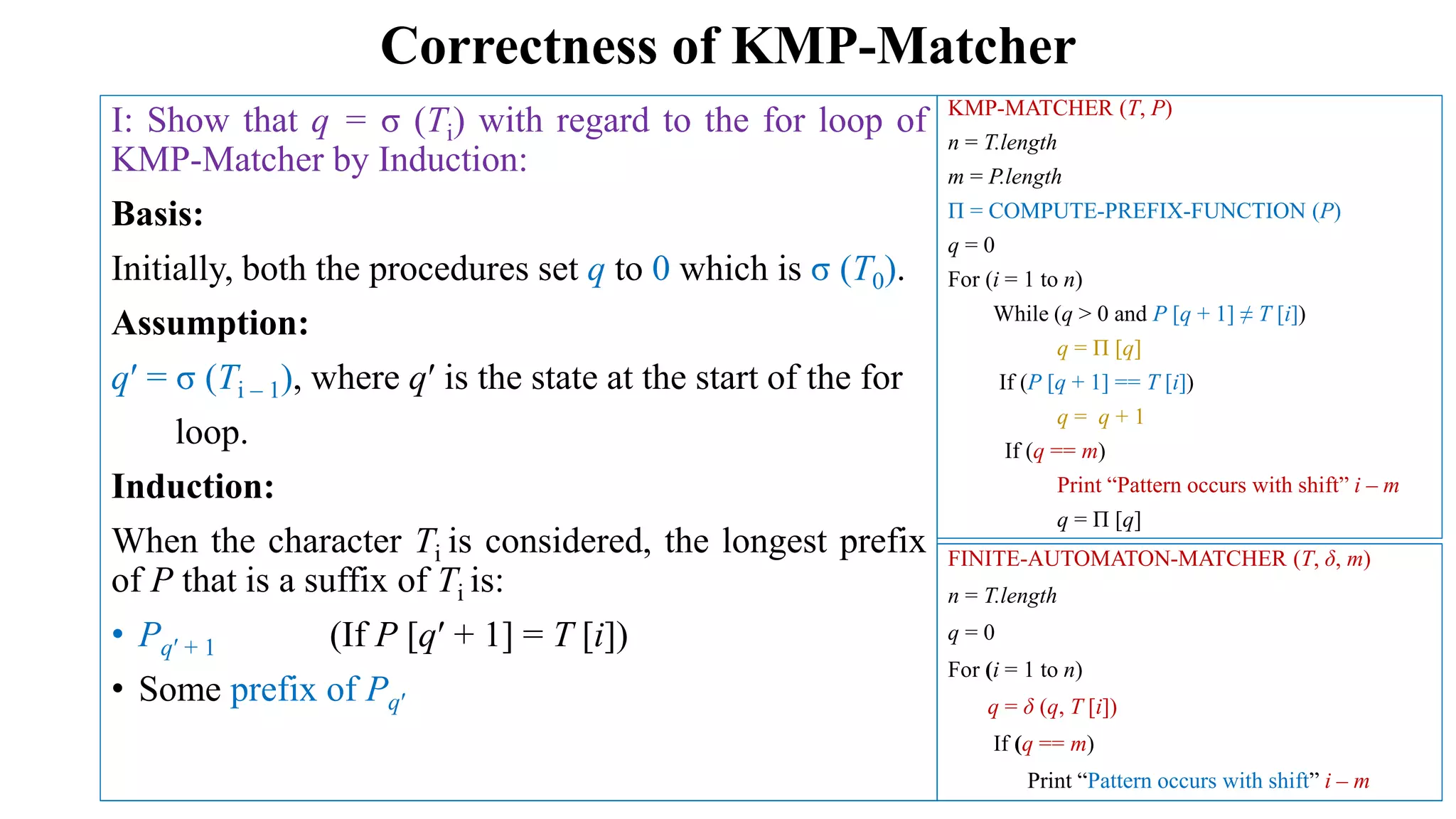

I: Show that q = σ (Ti) with regard to the for loop of
KMP-Matcher by Induction:
Basis:
Initially, both the procedures set q to 0 which is σ (T0).
Assumption:
qʹ = σ (Ti – 1), where qʹ is the state at the start of the for
loop.
Induction:
When the character Ti is considered, the longest prefix
of P that is a suffix of Ti is:
• Pqʹ + 1 (If P [qʹ + 1] = T [i])
• Some prefix of Pqʹ
n = T.length
q = 0
For (i = 1 to n)
q = δ (q, T [i])
If (q == m)

Correctness of KMP-Matcher…
KMP-MATCHER (T, P)
n = T.length
m = P.length
q = 0
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
Print “Pattern occurs with shift” i – m+1
q = Π [q]

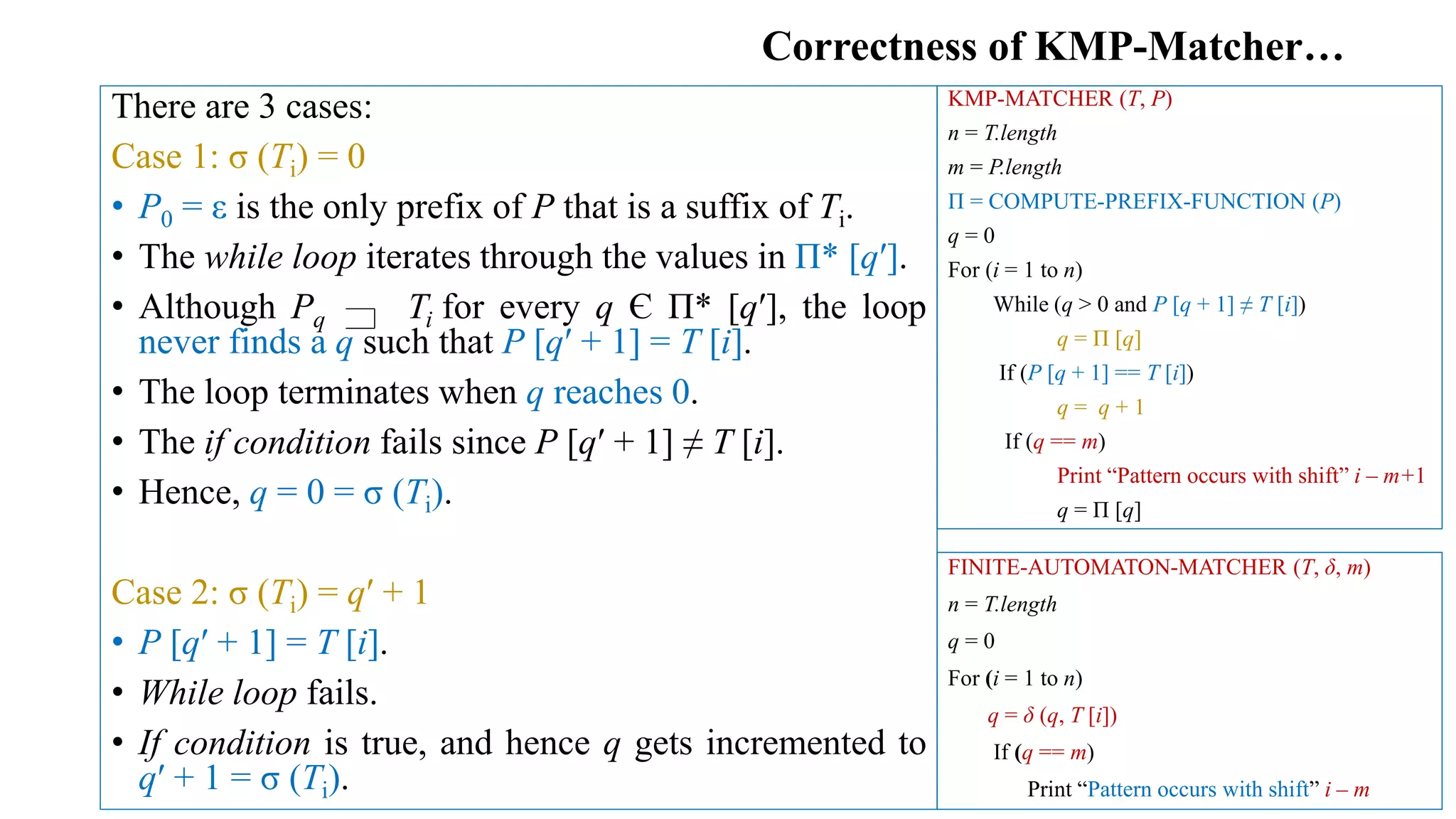

There are 3 cases:
Case 1: σ (Ti) = 0
• P0 = ε is the only prefix of P that is a suffix of Ti.
• The while loop iterates through the values in Π* [qʹ].
• Although Pq Ti for every q Є Π* [qʹ], the loop
never finds a q such that P [qʹ + 1] = T [i].
• The loop terminates when q reaches 0.
• The if condition fails since P [qʹ + 1] ≠ T [i].
• Hence, q = 0 = σ (Ti).
Case 2: σ (Ti) = qʹ + 1
• P [qʹ + 1] = T [i].
• While loop fails.
• If condition is true, and hence q gets incremented to
qʹ + 1 = σ (Ti).
n = T.length
q = 0
For (i = 1 to n)
q = δ (q, T [i])
If (q == m)

KMP-MATCHER (T, P)
n = T.length
m = P.length
q = 0
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]
Case 3: 0 < σ (Ti) ≤ qʹ (3.1)
• The while loop iterates at least once, checking in
decreasing order each value q Є Π* [qʹ] until it stops
at some q < qʹ.
• → Pq is the longest prefix of Pqʹ for which
P [qʹ + 1] = T [i].
• When the while loop terminates q + 1 = σ (Pqʹ T [i]).
(Transition of state q to the next state which is to the
left of q along the spine). (3.2)
• (3.1) → qʹ = σ (Ti – 1) (3.3)
• (3.3) → σ (Ti – 1 T [i]) = σ (Pqʹ T [i]) (3.4)
• (3.2) and (3.3) → q + 1 = σ (Ti – 1 T [i])
= σ (Ti) (3.5)
• (3.5) → q = σ (T [i]) – 1 when while loop terminates.
• The if condition increments q so tat q + 1 = σ (Ti).
n = T.length
q = 0
For (i = 1 to n)
q = δ (q, T [i])
If (q == m)

KMP-MATCHER (T, P)
n = T.length
m = P.length
q = 0
For (i = 1 to n)
While (q > 0 and P [q + 1] ≠ T [i])
q = Π [q]
If (P [q + 1] == T [i])
q = q + 1
If (q == m)
q = Π [q]
q is assigned to Π [q] after an occurrence of the pattern
is found otherwise the search will proceed by matching
P [m + 1].
II. Show that σ (Ti) = Φ (Ti)
Basis:
For i = 0, T0 = ε
→ Φ (T0) = 0 = σ (T0)
Assumption:
Let, Φ (Ti) = σ (Ti)
Induction:
Let q = Φ (Ti) and
x = T [i + 1]
n = T.length
q = 0
For (i = 1 to n)
q = δ (q, T [i])
If (q == m)

Theorem…
Φ (Ti + 1) = Φ (Ti x)
= δ (Φ (Ti), x)
= δ (q, x) (Φ (Ti) = q)
= σ (Pq x) (δ (q, x) = σ (Pq x))
= σ (Ti x) (Suffix-function recursion lemma)
= σ (Ti + 1)
When the machine enters state q it is the largest value such that Pq T [i].
→ q = m iff machine has just scanned an occurrence of the pattern P.
Thus the KMP-MATCHER operates correctly

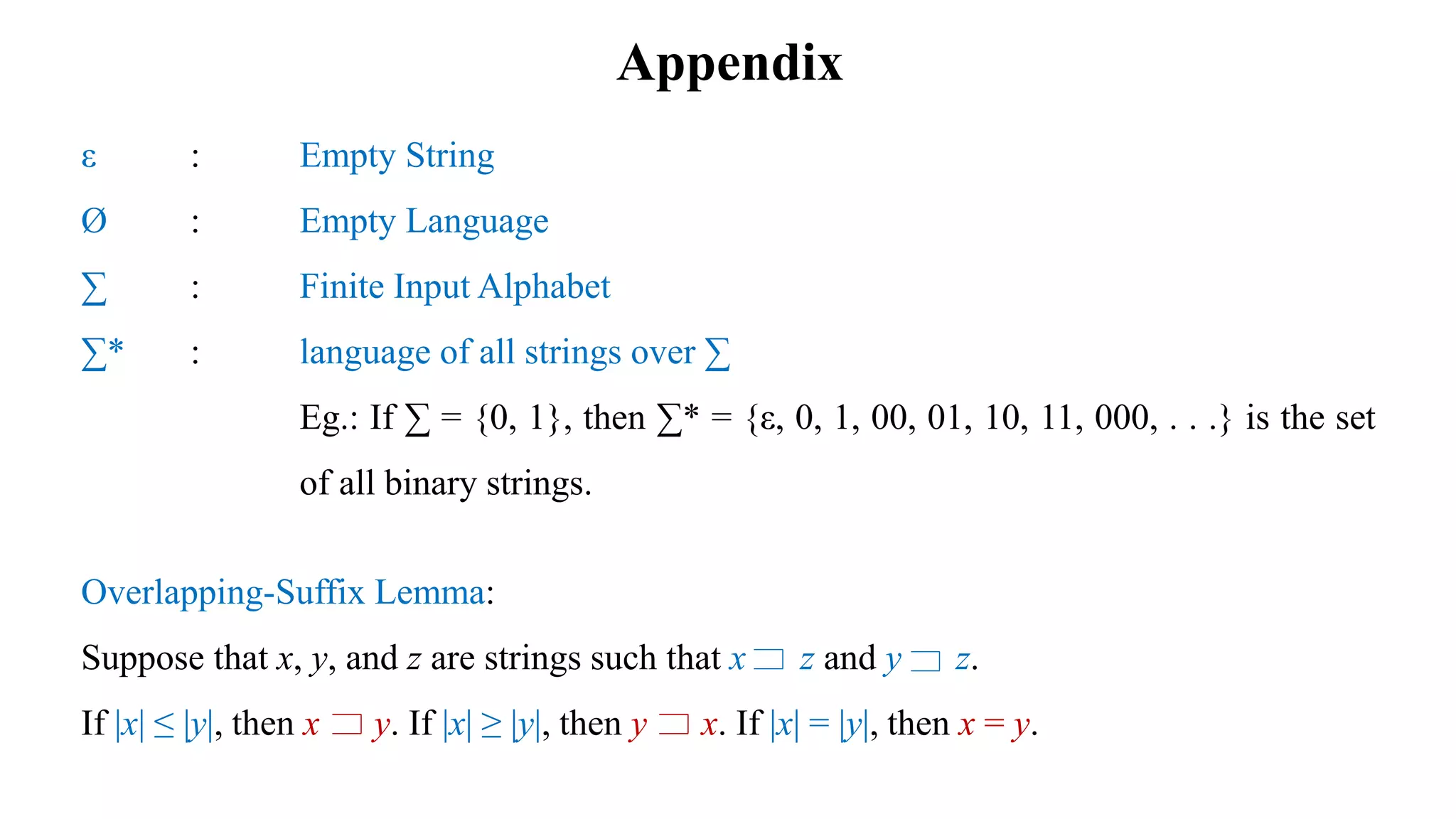

Appendix
ε : Empty String
Ø : Empty Language
∑ : Finite Input Alphabet
∑* : language of all strings over ∑
Eg.: If ∑ = {0, 1}, then ∑* = {ε, 0, 1, 00, 01, 10, 11, 000, . . .} is the set
of all binary strings.
Overlapping-Suffix Lemma:
Suppose that x, y, and z are strings such that x z and y z.
If |x| ≤ |y|, then x y. If |x| ≥ |y|, then y x. If |x| = |y|, then x = y.

Appendix…

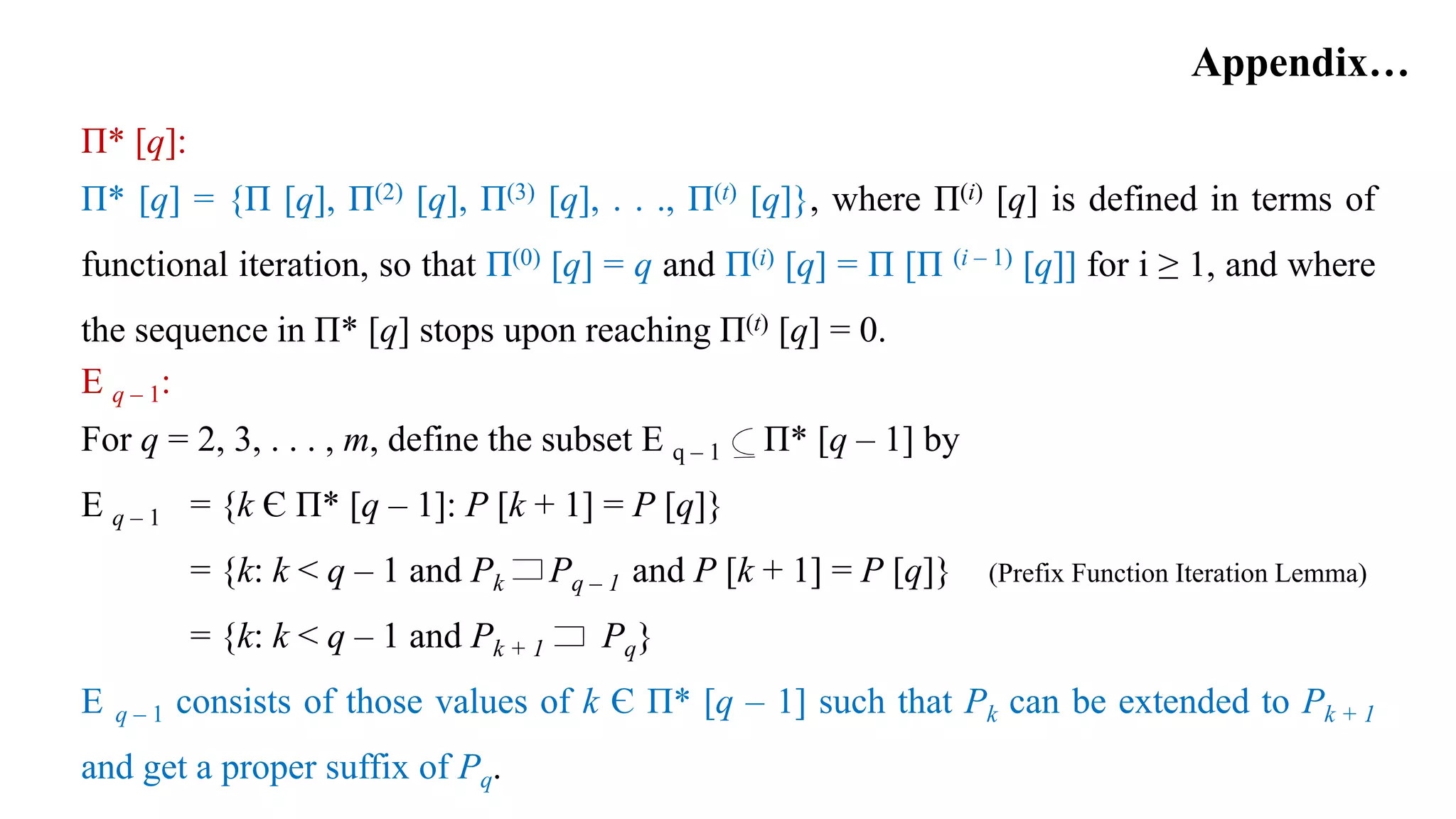

Π* [q]:
Π* [q] = {Π [q], Π(2) [q], Π(3) [q], . . ., Π(t) [q]}, where Π(i) [q] is defined in terms of
functional iteration, so that Π(0) [q] = q and Π(i) [q] = Π [Π (i – 1) [q]] for i ≥ 1, and where
the sequence in Π* [q] stops upon reaching Π(t) [q] = 0.
E q – 1:
For q = 2, 3, . . . , m, define the subset E q – 1 Π* [q – 1] by
E q – 1 = {k Є Π* [q – 1]: P [k + 1] = P [q]}
= {k: k < q – 1 and Pk Pq – 1 and P [k + 1] = P [q]} (Prefix Function Iteration Lemma)
= {k: k < q – 1 and Pk + 1 Pq}
E q – 1 consists of those values of k Є Π* [q – 1] such that Pk can be extended to Pk + 1
and get a proper suffix of Pq.

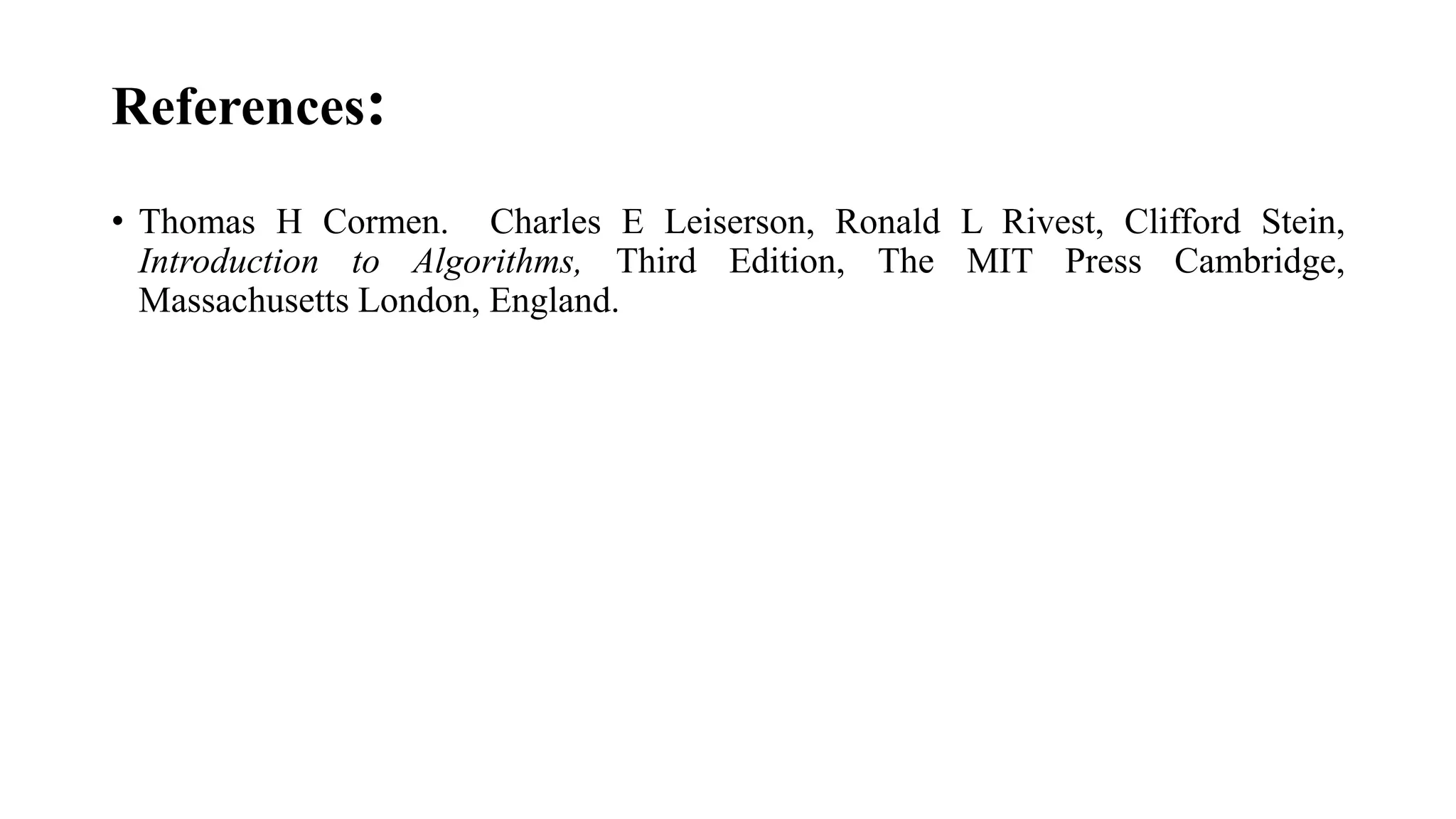

References:
• Thomas H Cormen. Charles E Leiserson, Ronald L Rivest, Clifford Stein,
Introduction to Algorithms, Third Edition, The MIT Press Cambridge,
Massachusetts London, England.

String Matching with Finite Automata and Knuth Morris Pratt Algorithm

More Related Content

What's hot

Similar to String Matching with Finite Automata and Knuth Morris Pratt Algorithm

More from Kiran K

Recently uploaded

String Matching with Finite Automata and Knuth Morris Pratt Algorithm
