Software architecture for high traffic website
- 1. Software architecture forhigh traffic website Case study - Stack Overflow Presenter: Ngô Xuân Hòa (Novaon Adnetwork - Novanet) Hanoi .Net Meetup

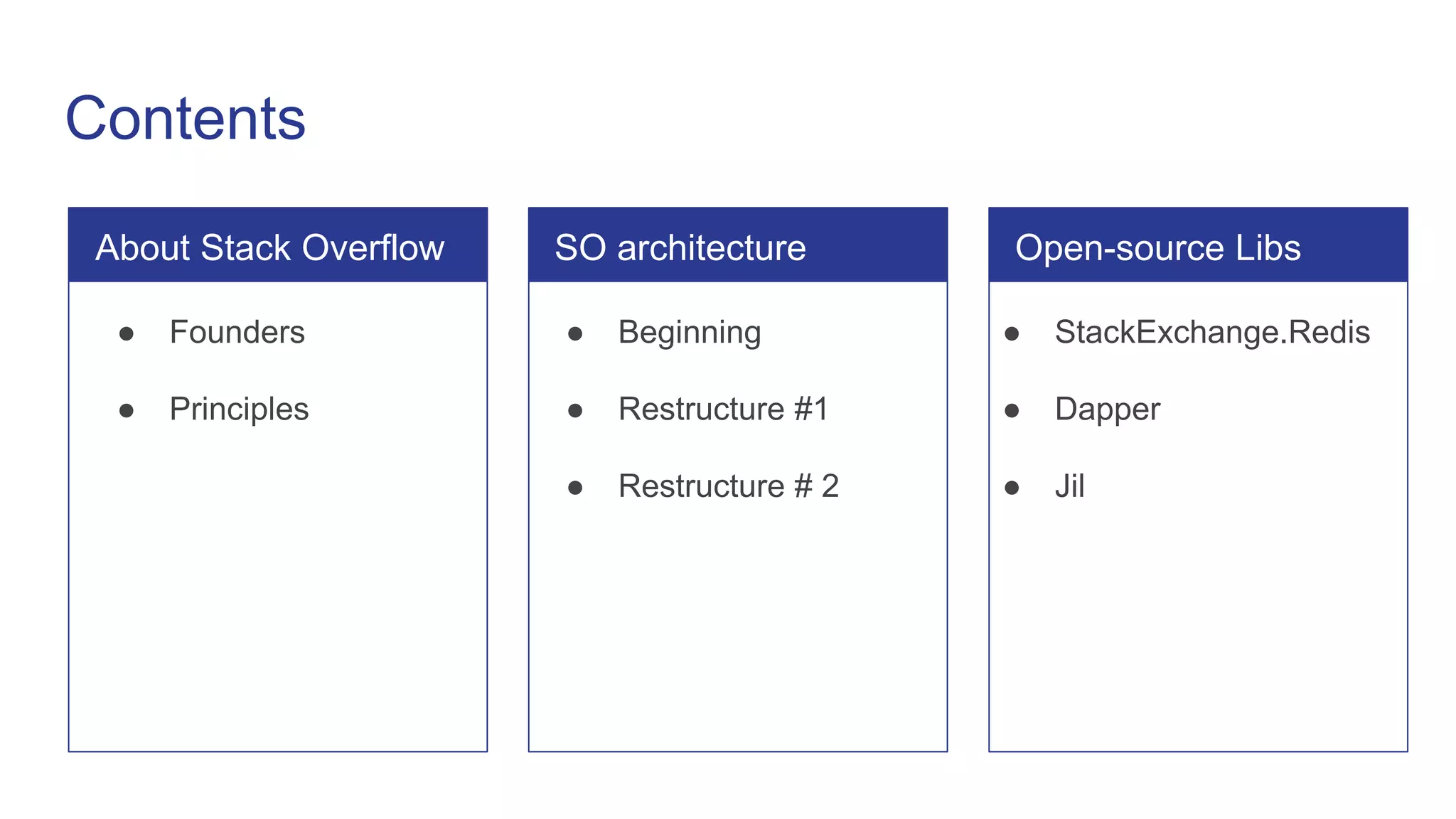

- 2. Contents About Stack Overflow ●Beginning ● Restructure #1 ● Restructure # 2 ● Founders ● Principles SO architecture ● StackExchange.Redis ● Dapper ● Jil Open-source Libs
- 3.
- 4.

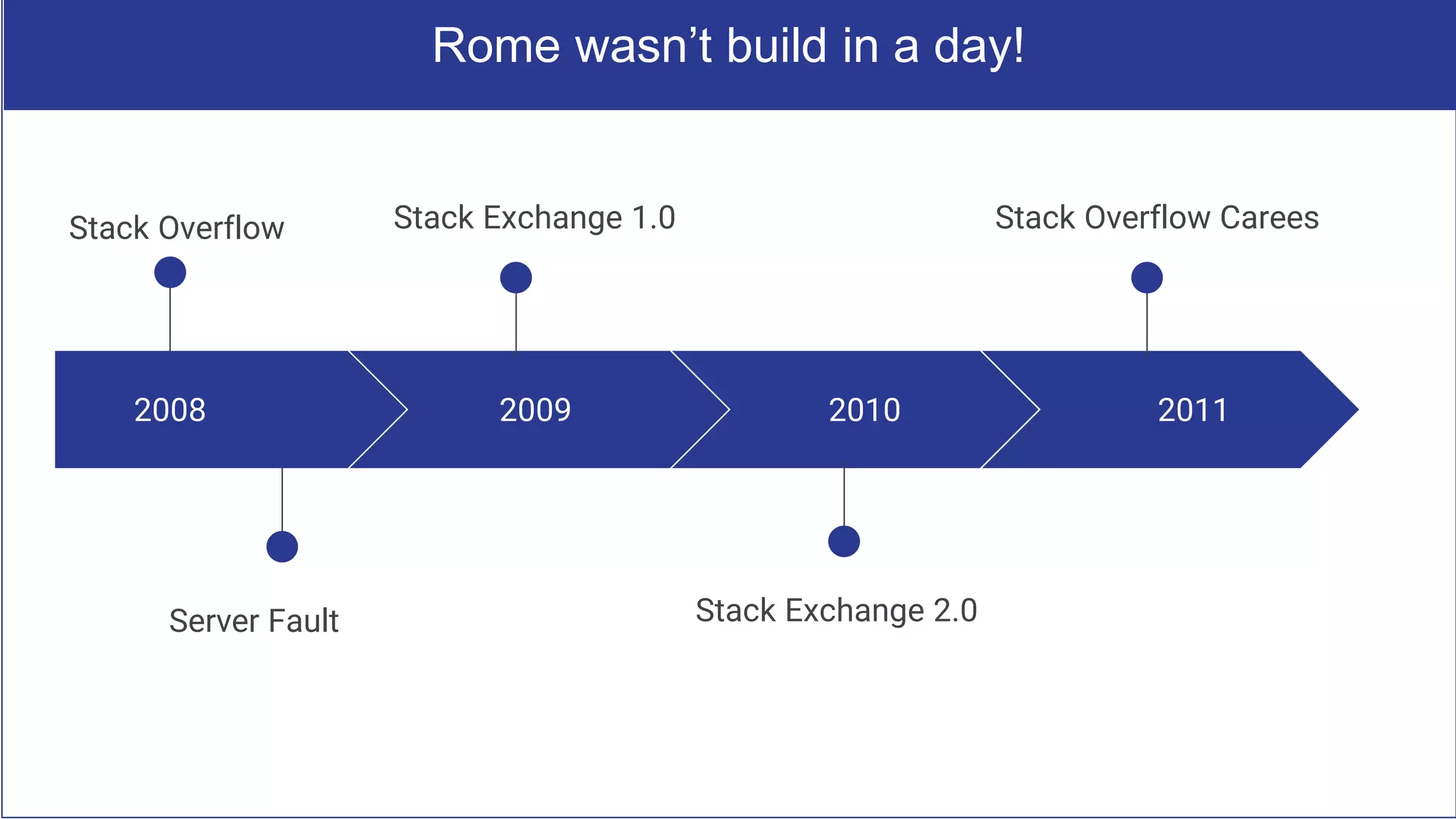

- 5. 2008 Stack Overflow 2009 20102011 Server Fault Stack Exchange 1.0 Stack Exchange 2.0 Stack Overflow Carees Rome wasn’t build in a day!

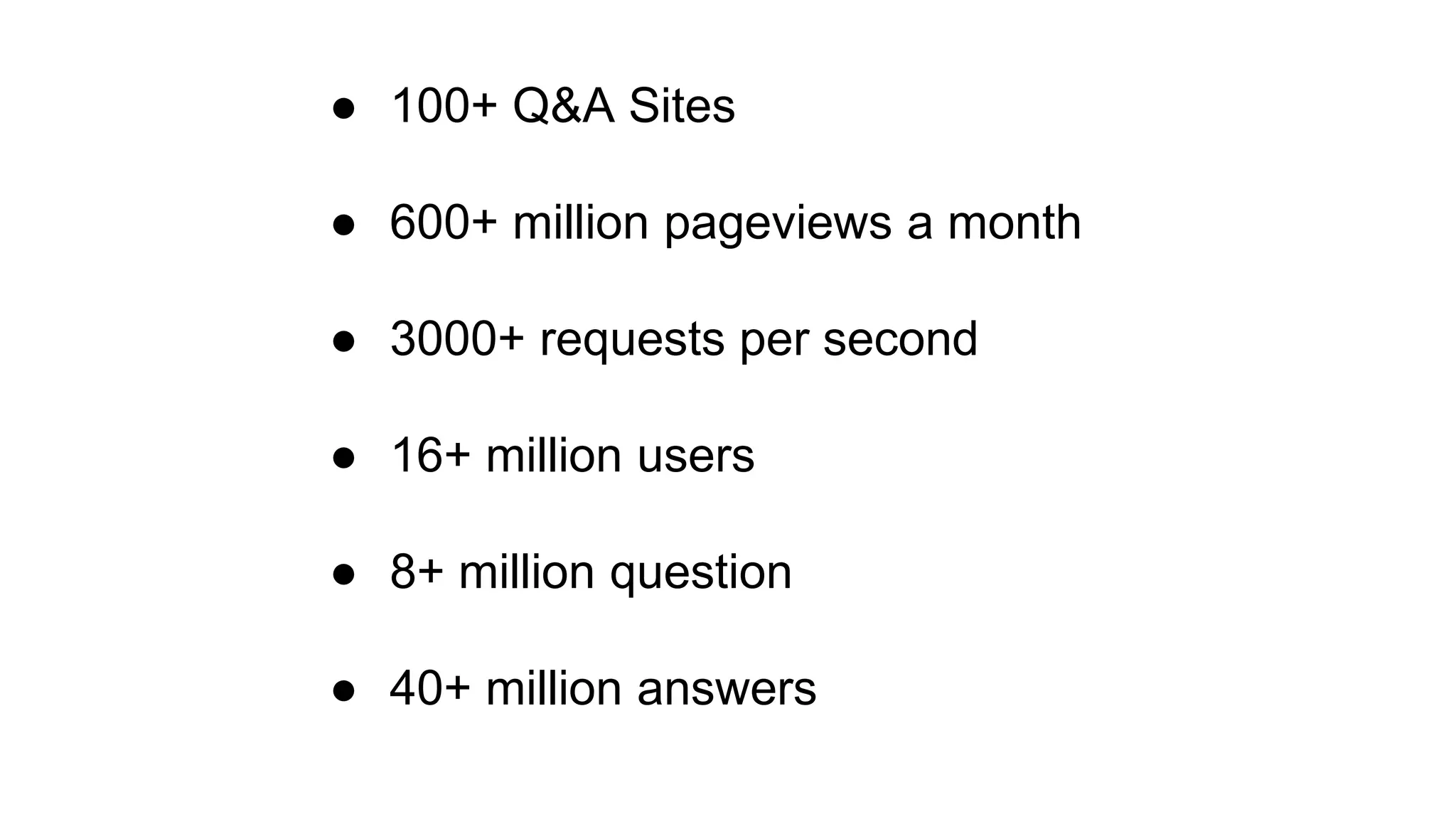

- 6. ● 100+ Q&ASites ● 600+ million pageviews a month ● 3000+ requests per second ● 16+ million users ● 8+ million question ● 40+ million answers

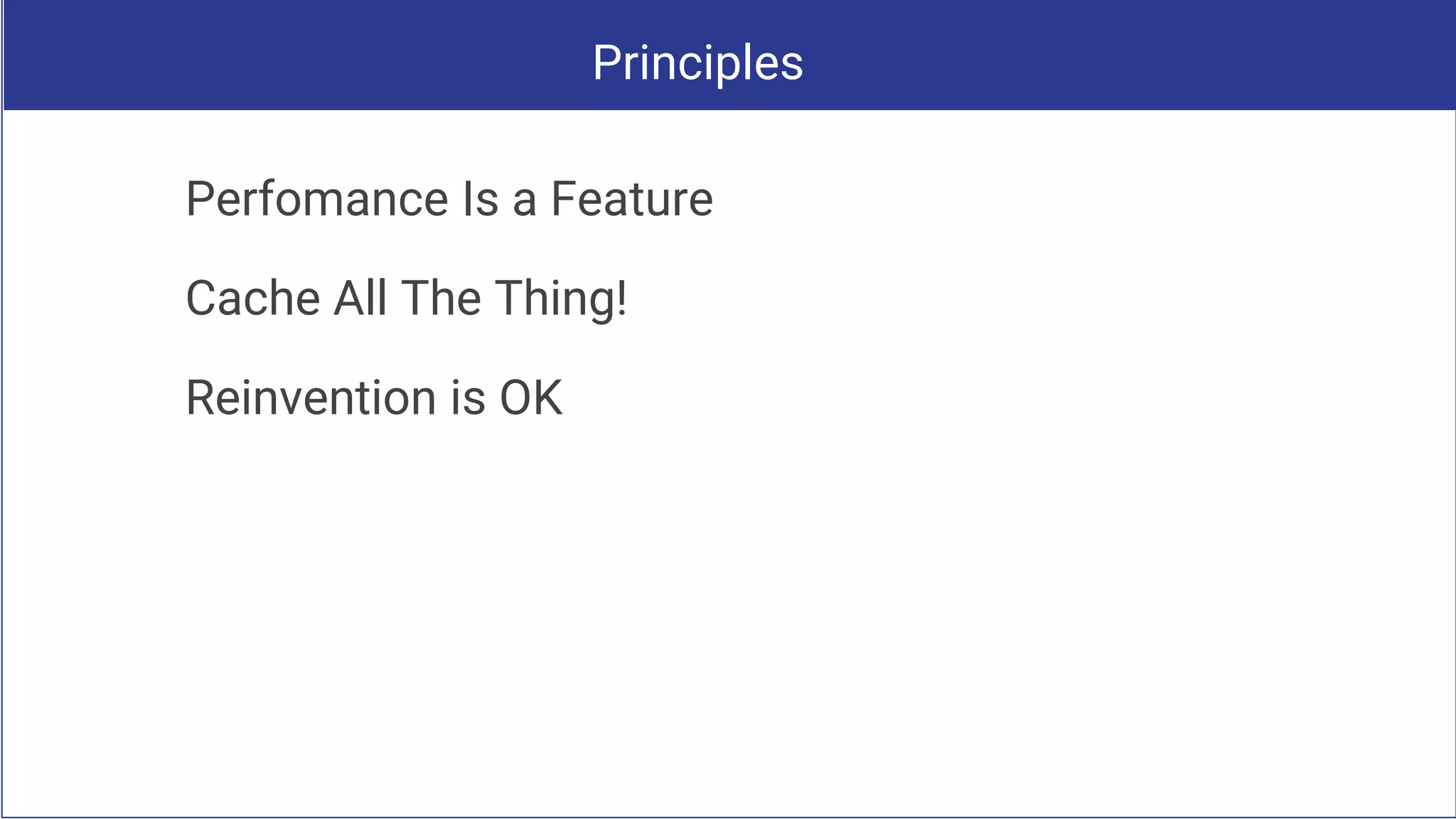

- 7. Principles Perfomance Is aFeature Cache All The Thing! Reinvention is OK
- 8.

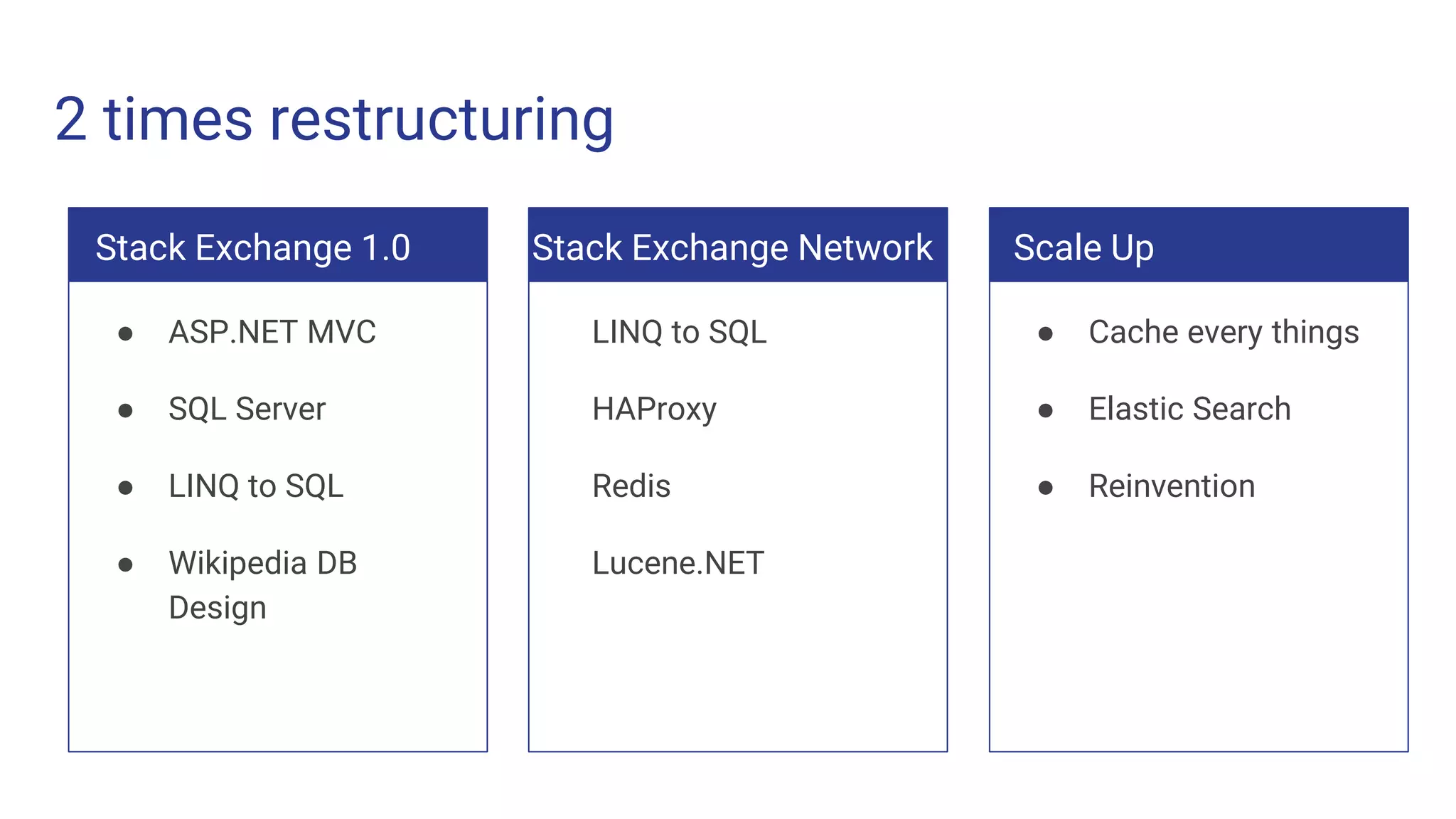

- 9. 2 times restructuring StackExchange 1.0 ● ASP.NET MVC ● SQL Server ● LINQ to SQL ● Wikipedia DB Design Stack Exchange Network LINQ to SQL HAProxy Redis Lucene.NET Scale Up ● Cache every things ● Elastic Search ● Reinvention

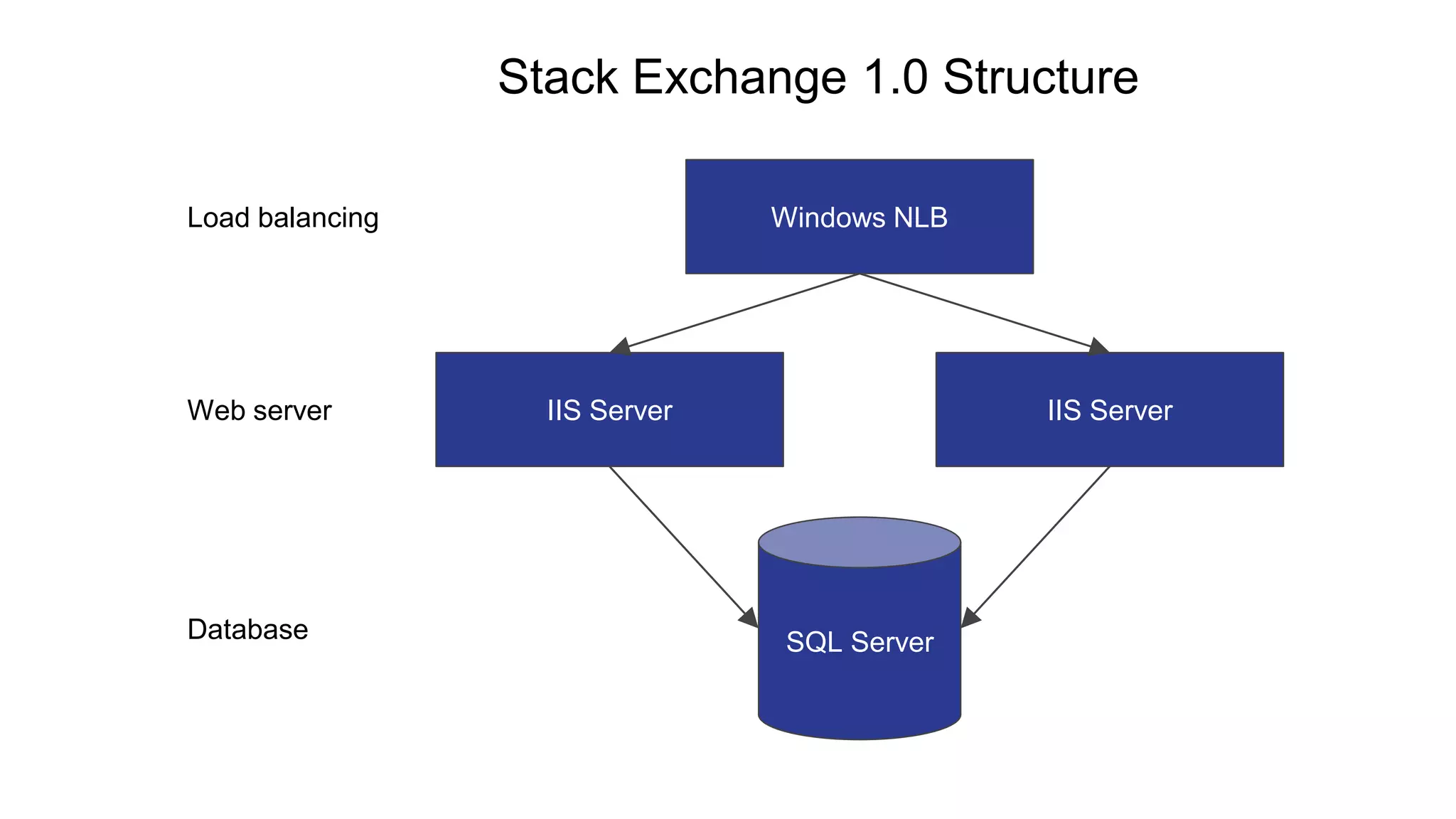

- 10. Stack Exchange 1.0Structure Windows NLBLoad balancing IIS Server IIS ServerWeb server SQL ServerDatabase
- 11. Window NLB ● Cons: ○Limit to 8 Nodes ○ Cannot detect service failed Web-tier ASP.NET MVC LINQ to SQL SQL Server ● All-in-memory ● Full text search

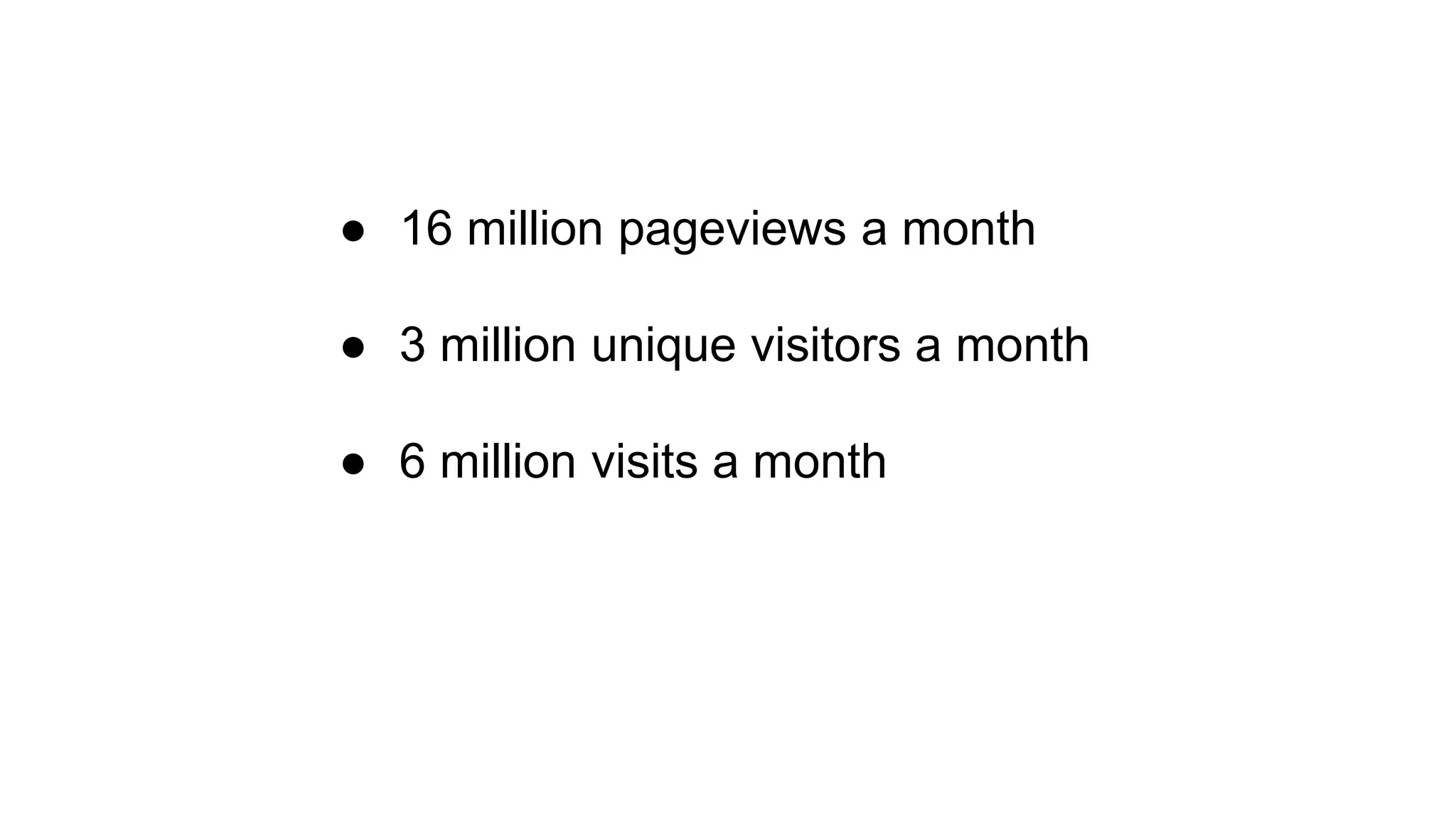

- 12. ● 16 millionpageviews a month ● 3 million unique visitors a month ● 6 million visits a month
- 13. Follow none butlearn from everyone!
- 14. Pros ● Bottleneck: DatabaseSQL Server ● High cost to scale up ● Simple Cons

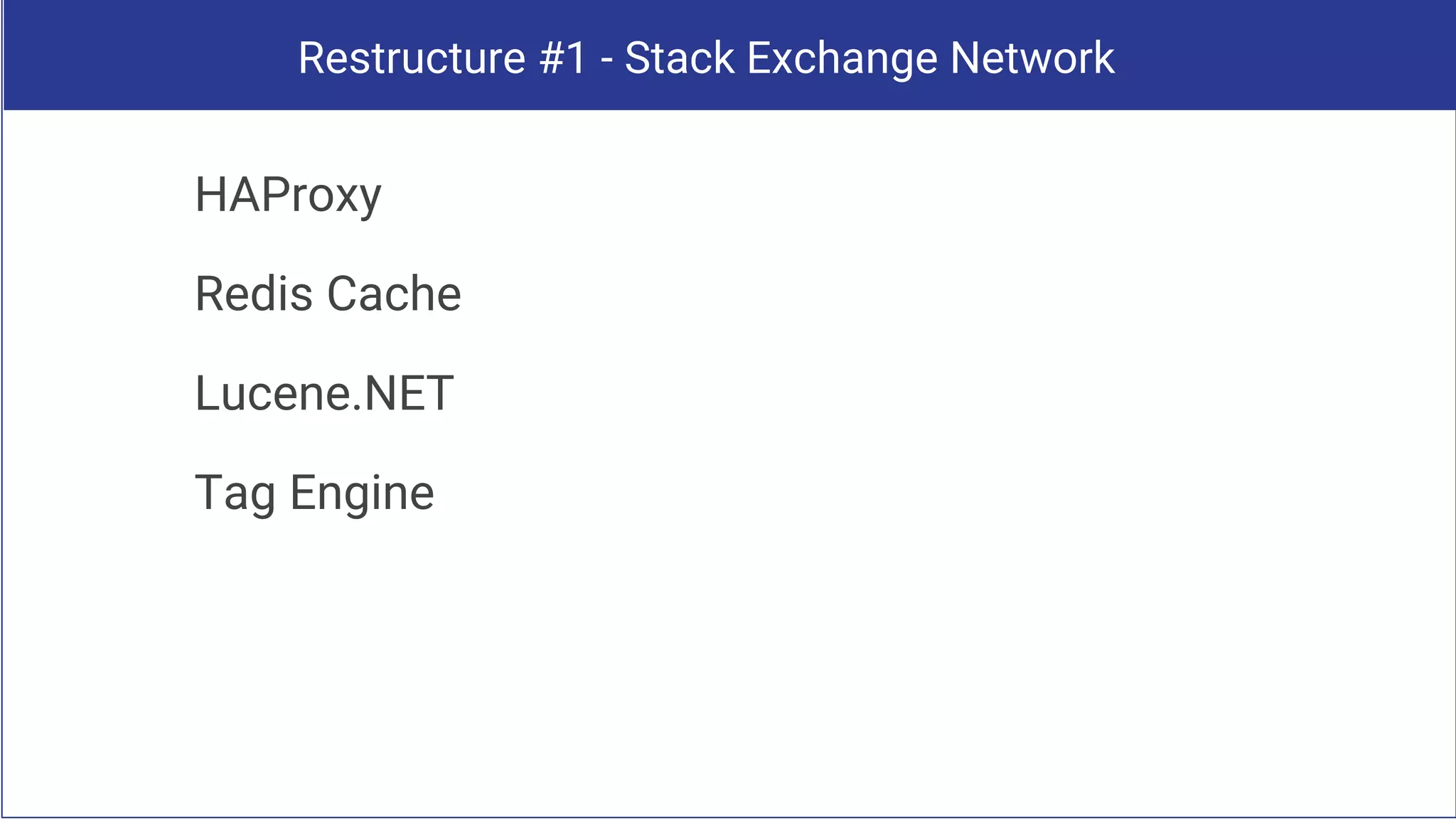

- 15. Restructure #1 -Stack Exchange Network HAProxy Redis Cache Lucene.NET Tag Engine

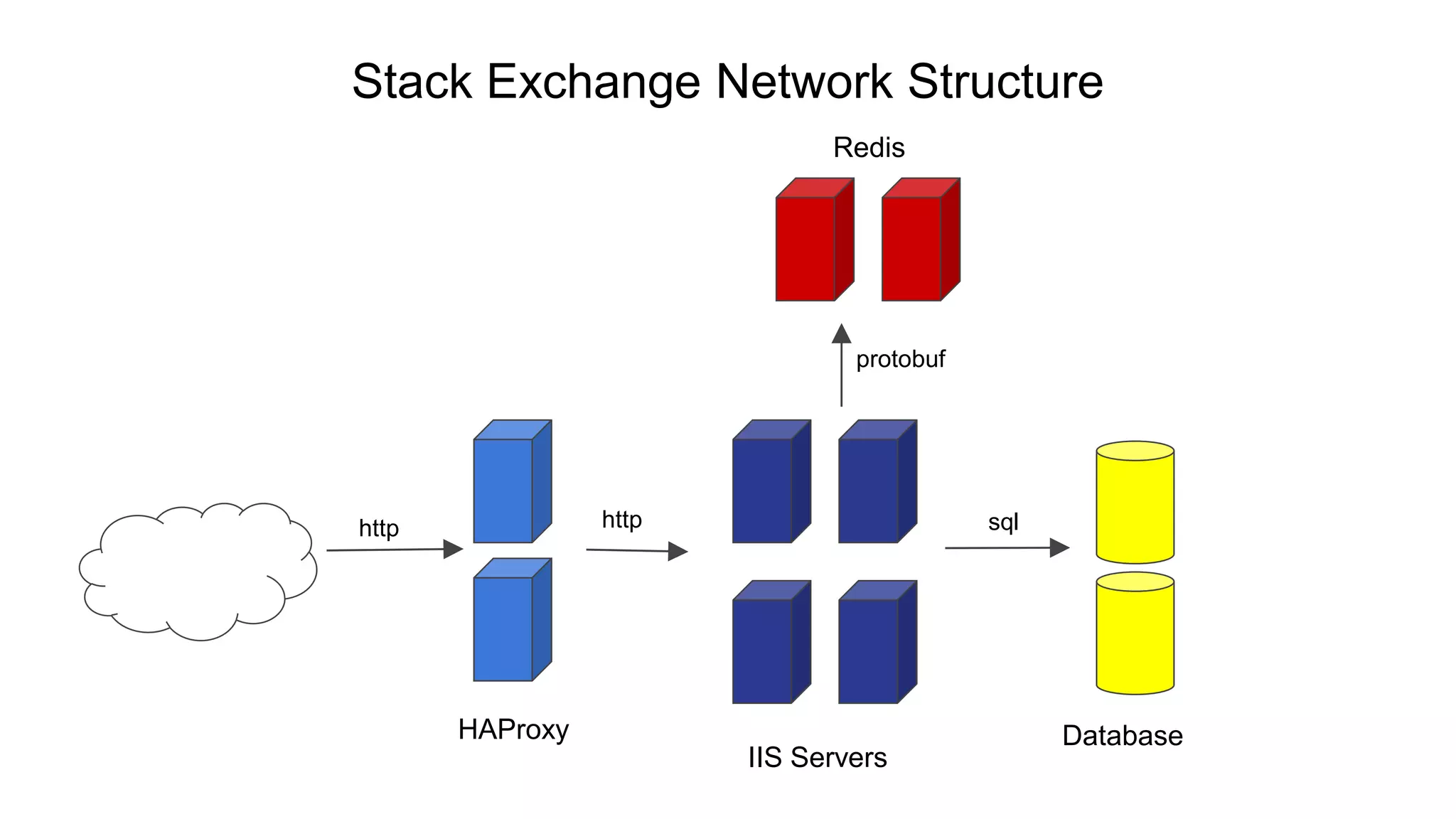

- 16. Stack Exchange NetworkStructure HAProxy Redis IIS Servers Database protobuf sqlhttp http

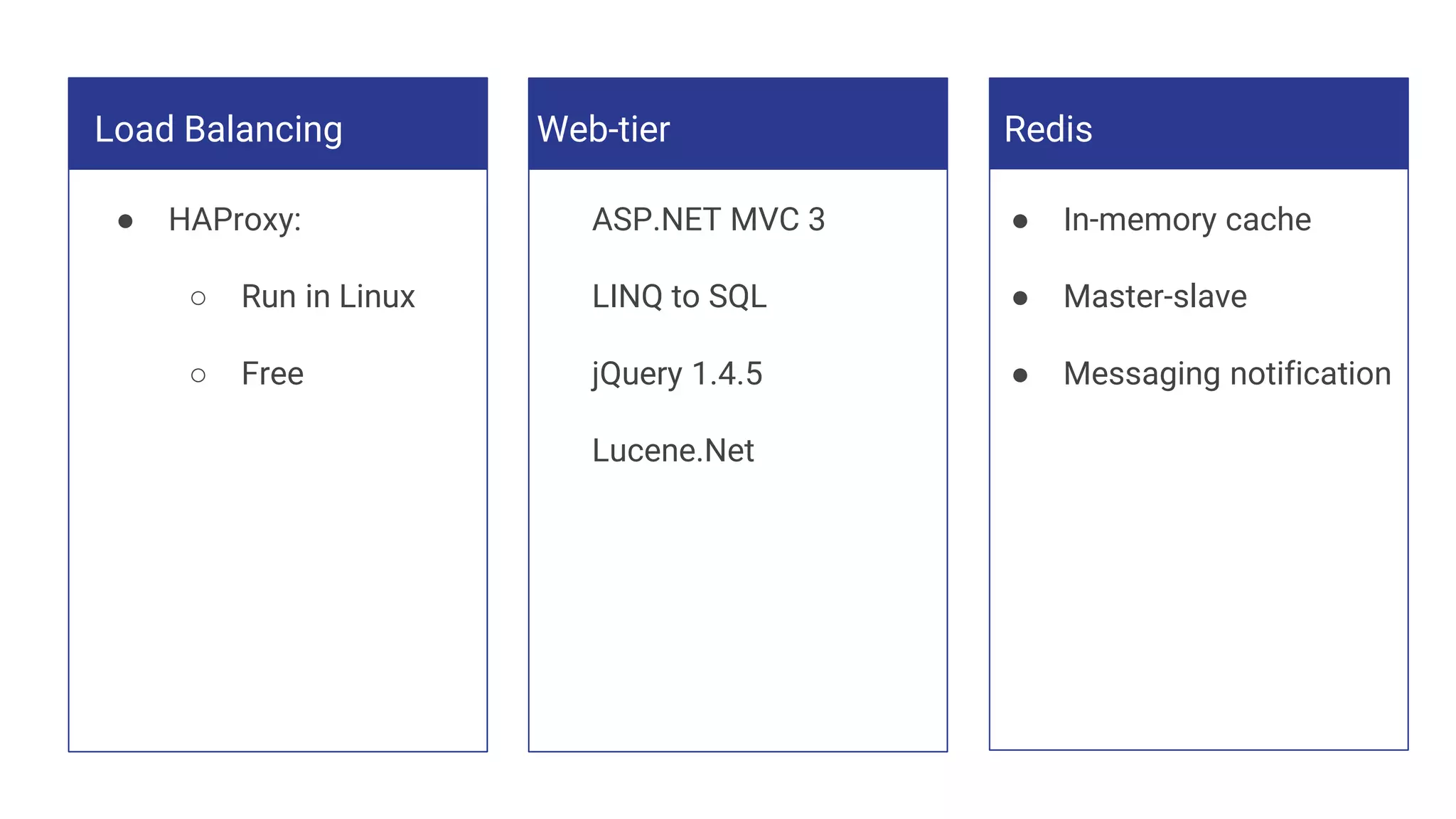

- 17. Load Balancing ● HAProxy: ○Run in Linux ○ Free Web-tier ASP.NET MVC 3 LINQ to SQL jQuery 1.4.5 Lucene.Net Redis ● In-memory cache ● Master-slave ● Messaging notification

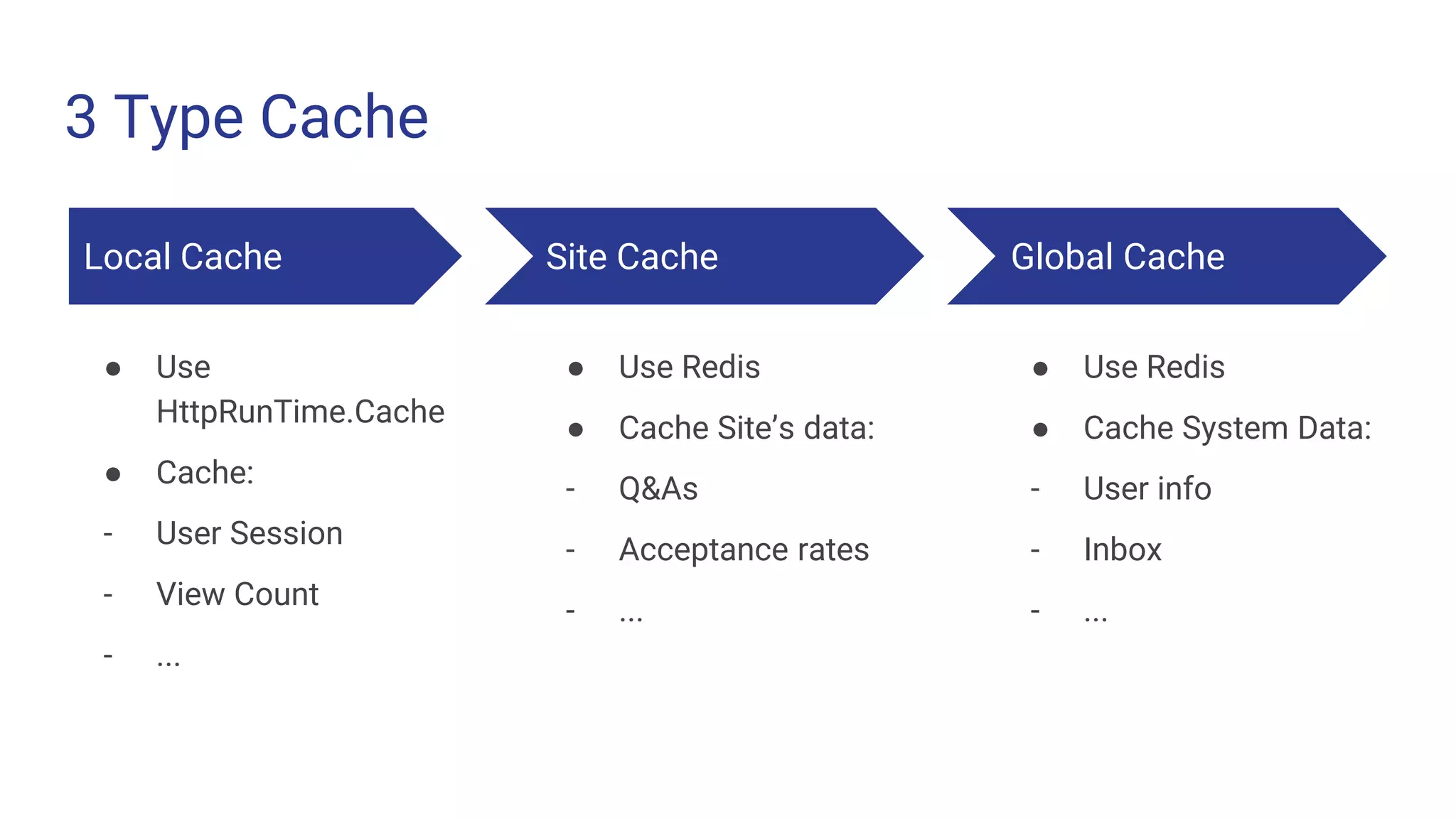

- 18. 3 Type Cache LocalCache Site Cache ● Use Redis ● Cache Site’s data: - Q&As - Acceptance rates - ... Global Cache ● Use Redis ● Cache System Data: - User info - Inbox - ... ● Use HttpRunTime.Cache ● Cache: - User Session - View Count - ...

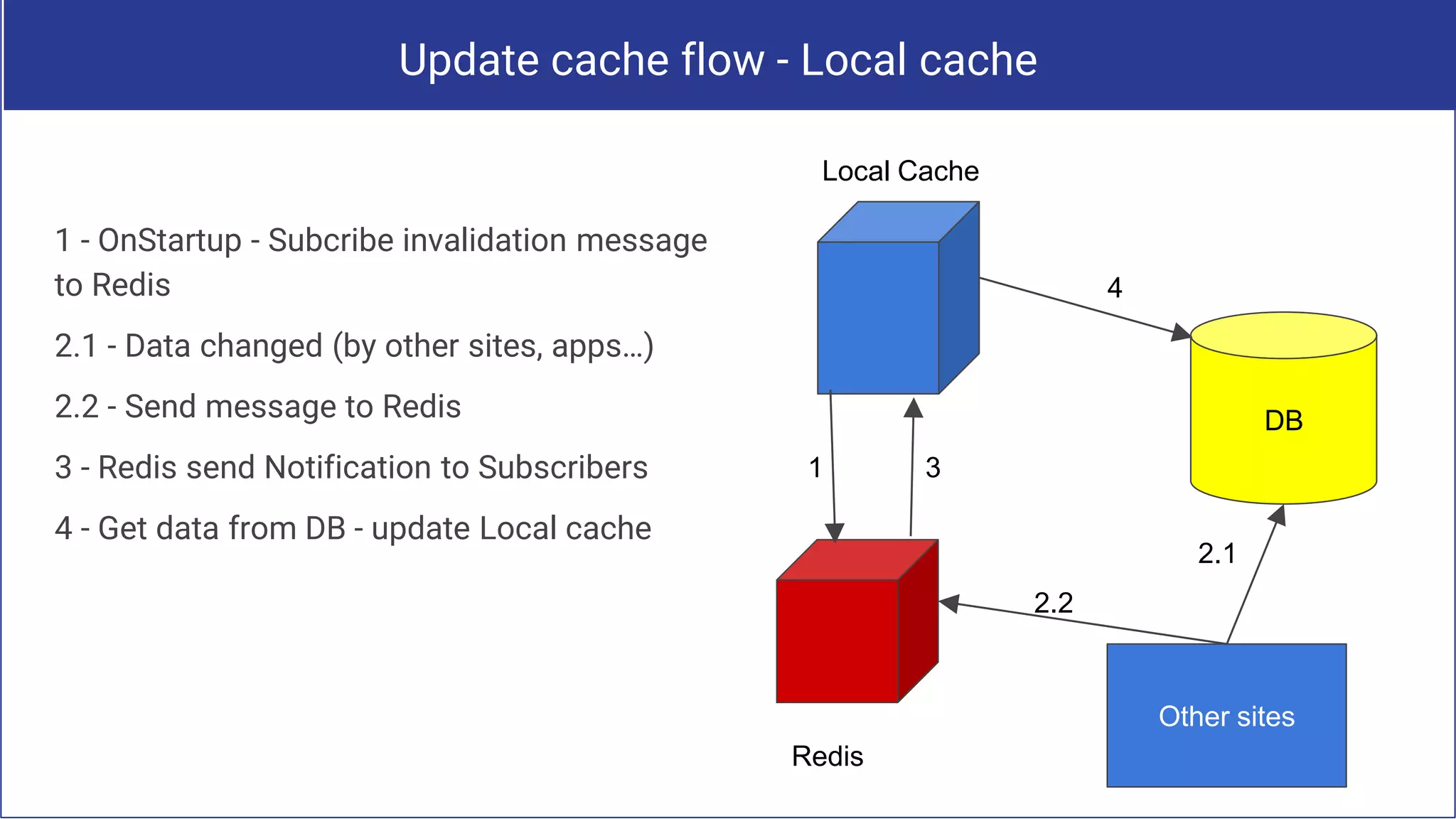

- 19. Update cache flow- Local cache Local Cache Redis DB Other sites 1 3 2.1 2.2 4 1 - OnStartup - Subcribe invalidation message to Redis 2.1 - Data changed (by other sites, apps…) 2.2 - Send message to Redis 3 - Redis send Notification to Subscribers 4 - Get data from DB - update Local cache

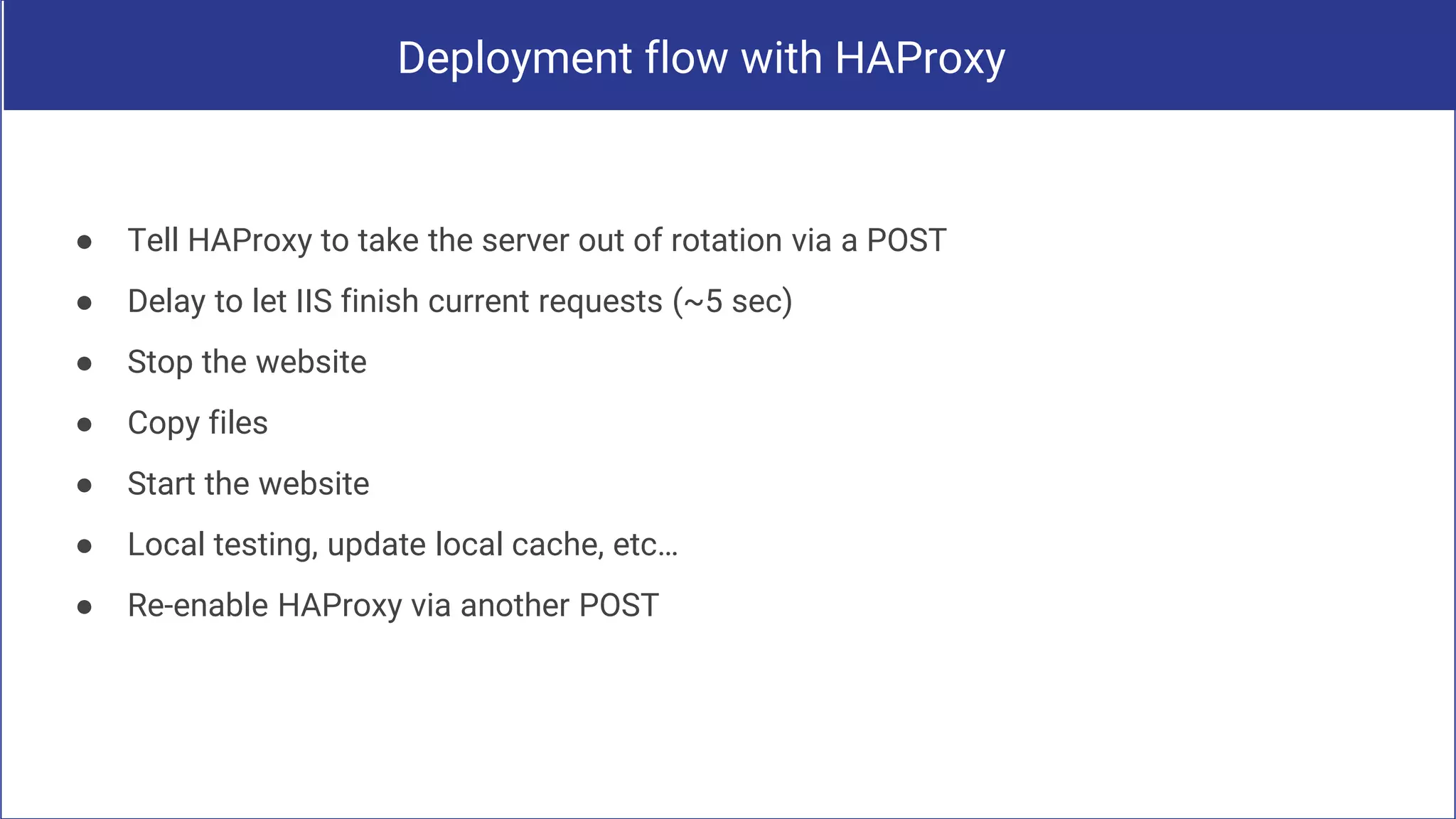

- 20. Deployment flow withHAProxy ● Tell HAProxy to take the server out of rotation via a POST ● Delay to let IIS finish current requests (~5 sec) ● Stop the website ● Copy files ● Start the website ● Local testing, update local cache, etc… ● Re-enable HAProxy via another POST

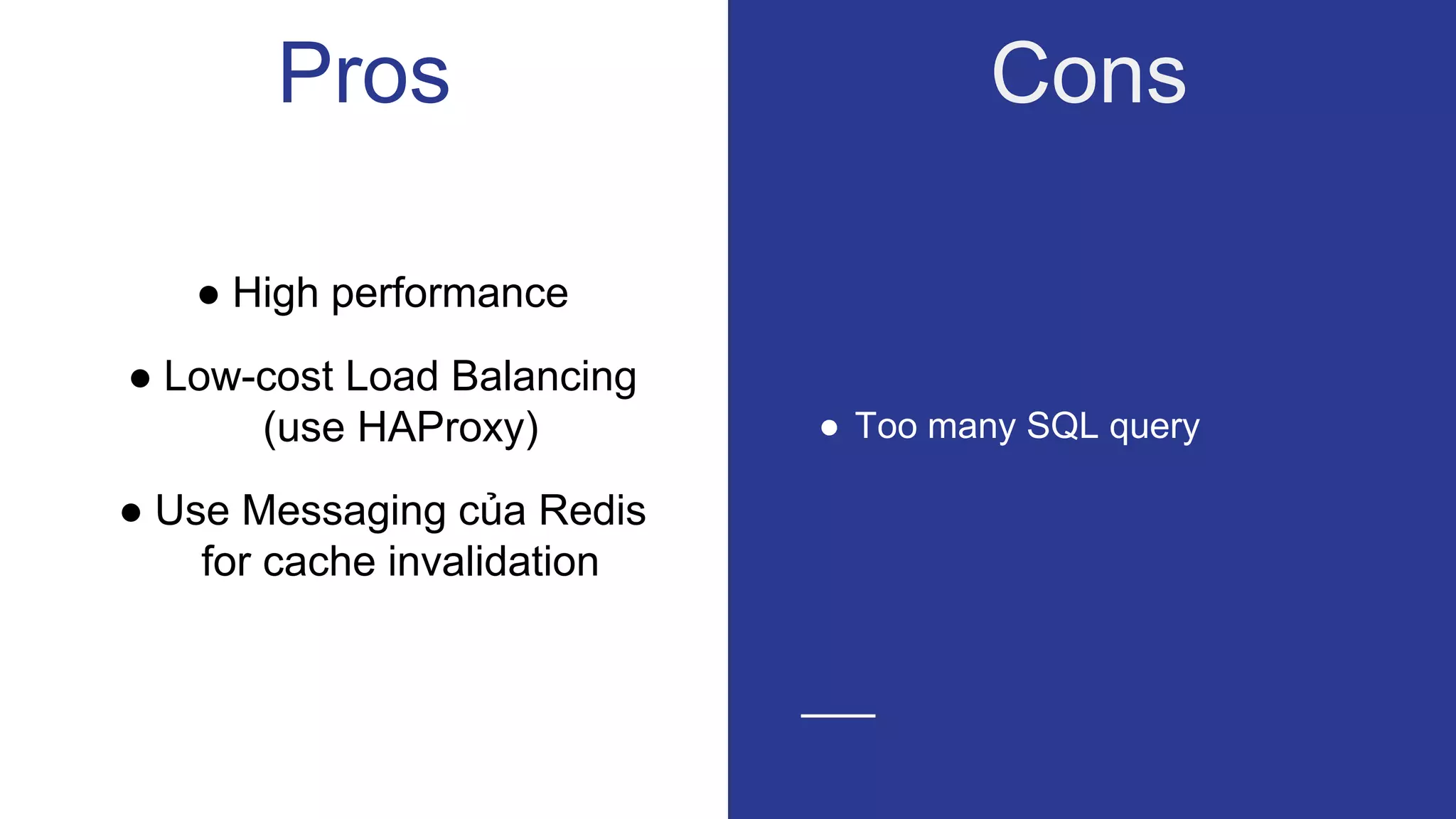

- 21. ● High performance ●Low-cost Load Balancing (use HAProxy) ● Use Messaging của Redis for cache invalidation Pros ● Too many SQL query Cons
- 22. ● 95 millionpageviews a month ● 800 requests per second ● 16 million users
- 23. Restructure #2 -Scale Up Cache All the Thing Elastic Search Reinvention

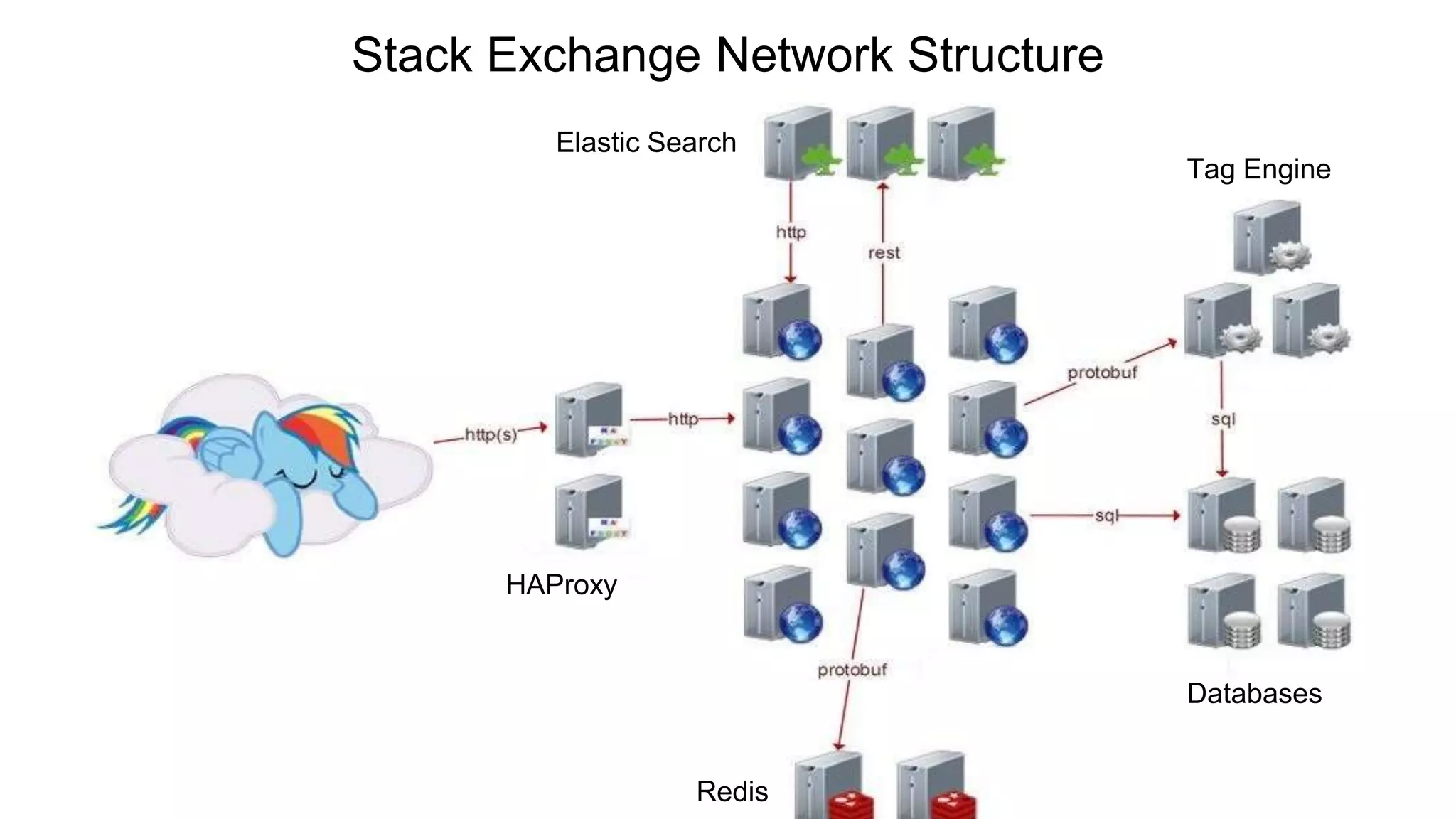

- 24. Stack Exchange NetworkStructure Elastic Search Tag Engine Databases Redis HAProxy

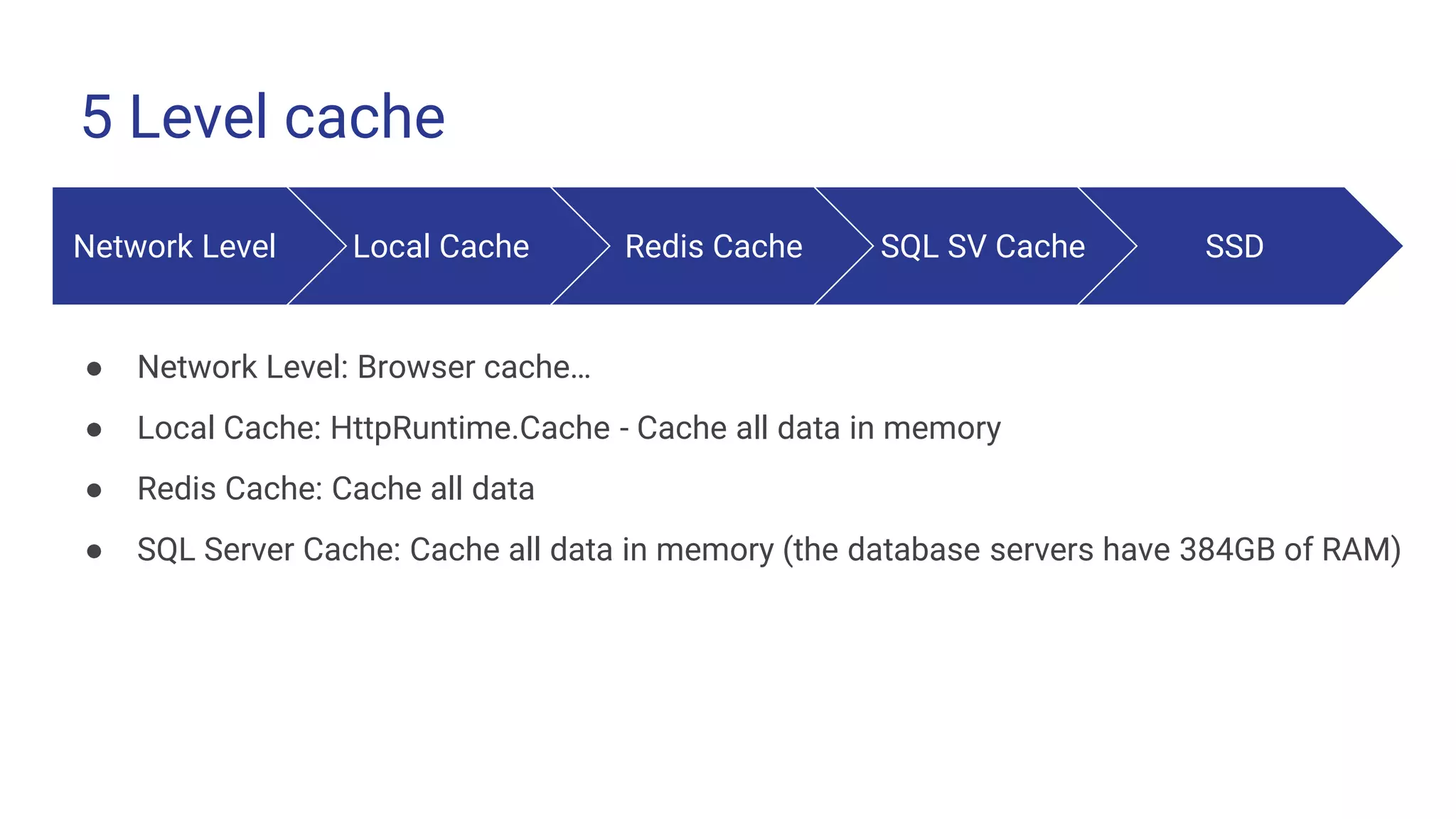

- 25. 5 Level cache NetworkLevel Local Cache Redis Cache SQL SV Cache SSD ● Network Level: Browser cache… ● Local Cache: HttpRuntime.Cache - Cache all data in memory ● Redis Cache: Cache all data ● SQL Server Cache: Cache all data in memory (the database servers have 384GB of RAM)
- 26. Cache Flow ● CheckLocal Cache ● Else, check Redis Cache and update Local Cache ● If Cache Redis doesn’t have data, fetch from databases, then update Redis Cache and Local Cache
- 27. Cache All theThings!

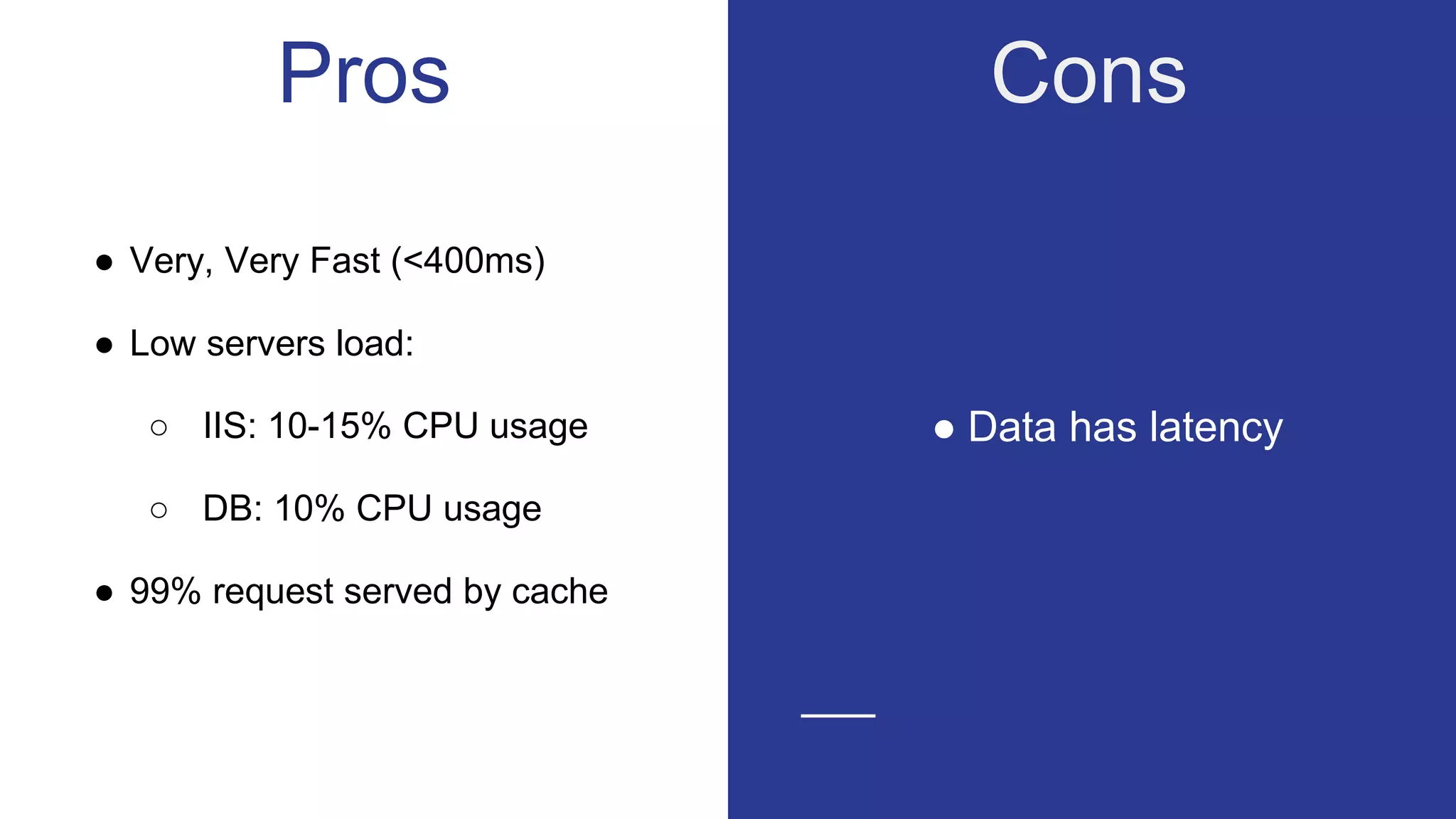

- 28. Pros ● Data haslatency ● Very, Very Fast (<400ms) ● Low servers load: ○ IIS: 10-15% CPU usage ○ DB: 10% CPU usage ● 99% request served by cache Cons

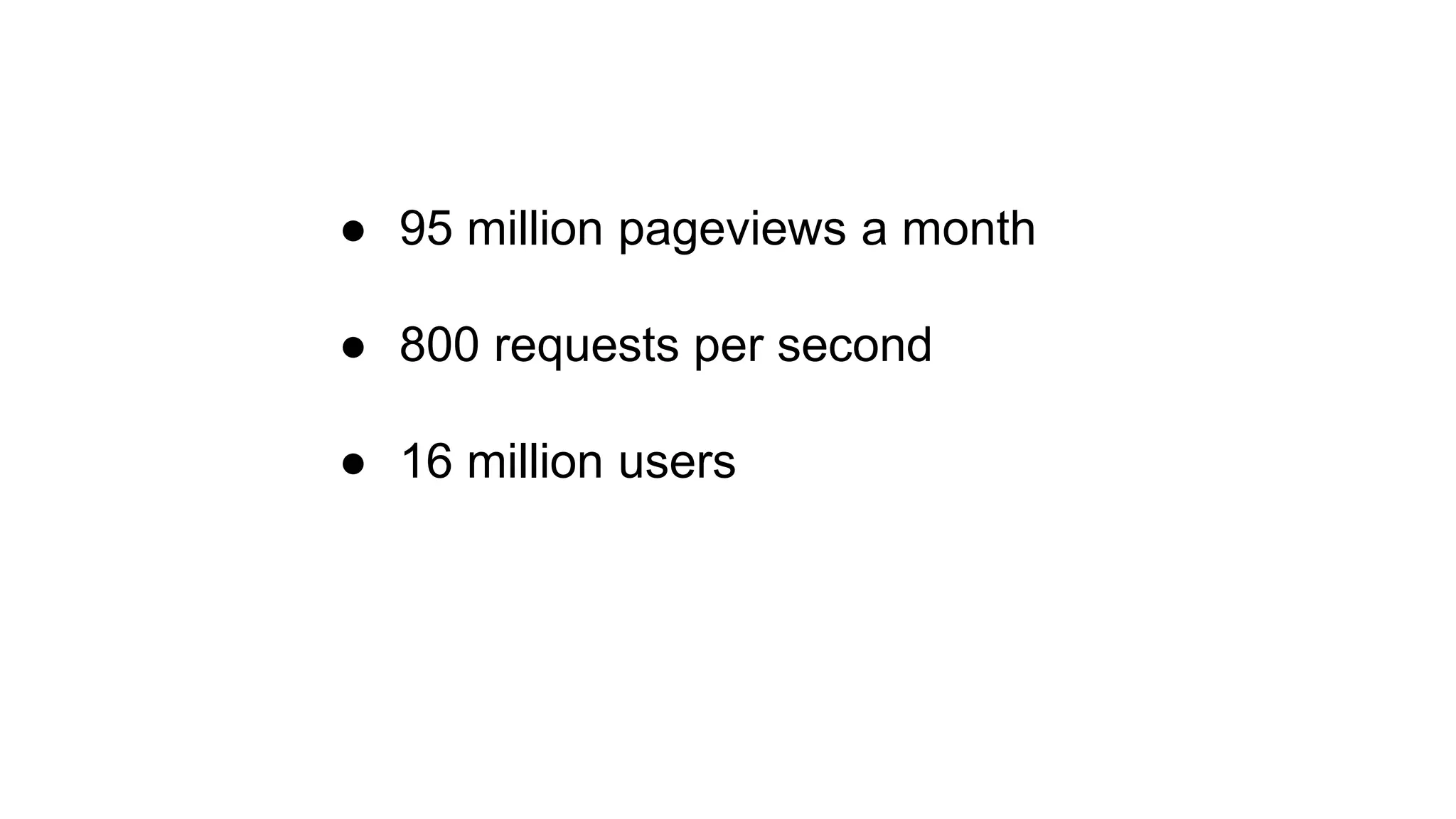

- 29. ● 95 millionpageviews a month ● 800 requests per second ● 16 million users
- 30. Open-source Libs • StackExchange.Redis- high perfomance Redis client • Dapper - a micro ORM - very fast • Jil - fast JSON Serializer Reinvention is OK!

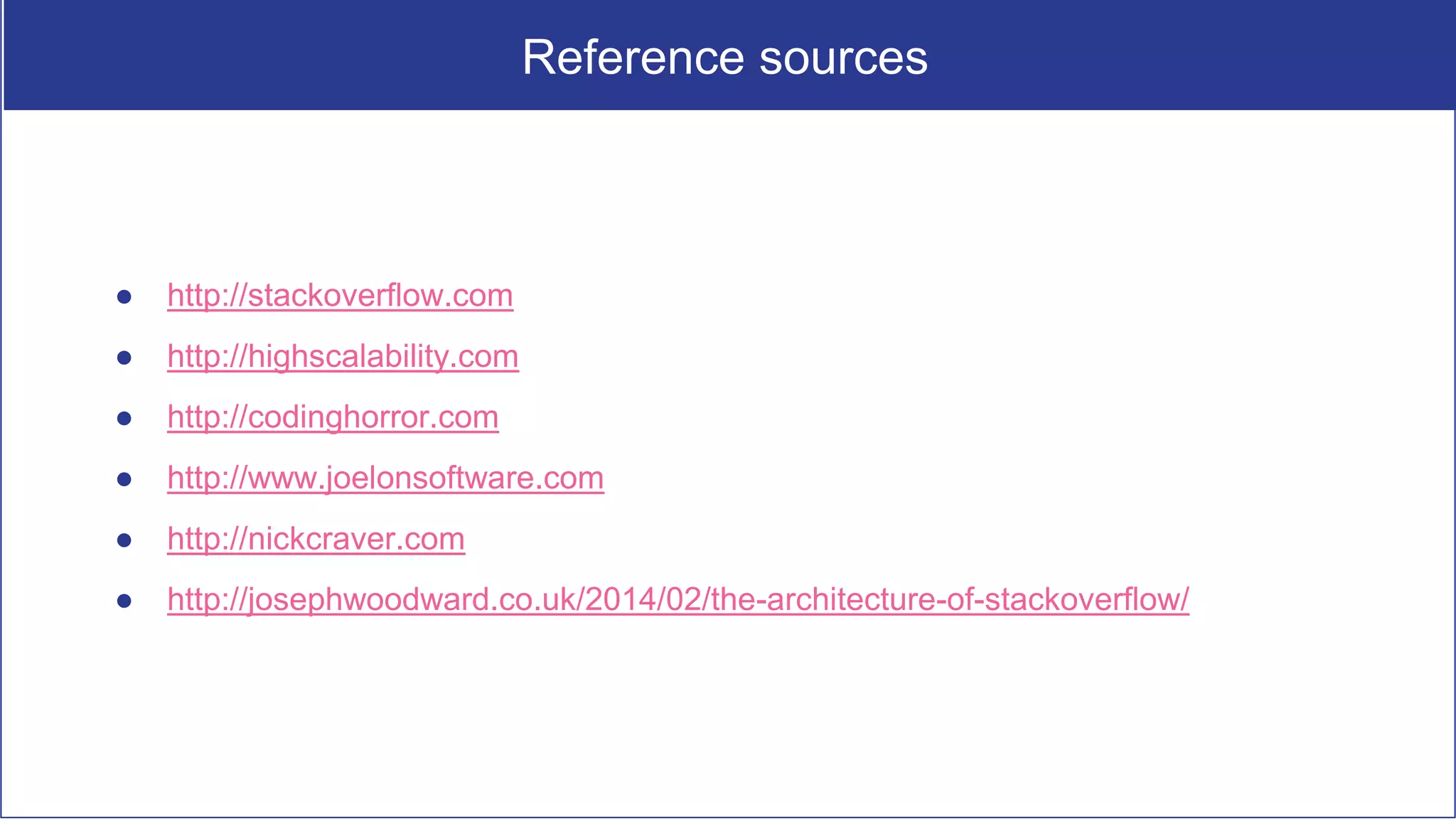

- 31. Reference sources ● http://stackoverflow.com ●http://highscalability.com ● http://codinghorror.com ● http://www.joelonsoftware.com ● http://nickcraver.com ● http://josephwoodward.co.uk/2014/02/the-architecture-of-stackoverflow/
