Service Function Chaining in Openstack Neutron
- 1. Security Level: Service FunctionChaining in Openstack Neutron Farhad Sunavala Principal Engineer, Huawei

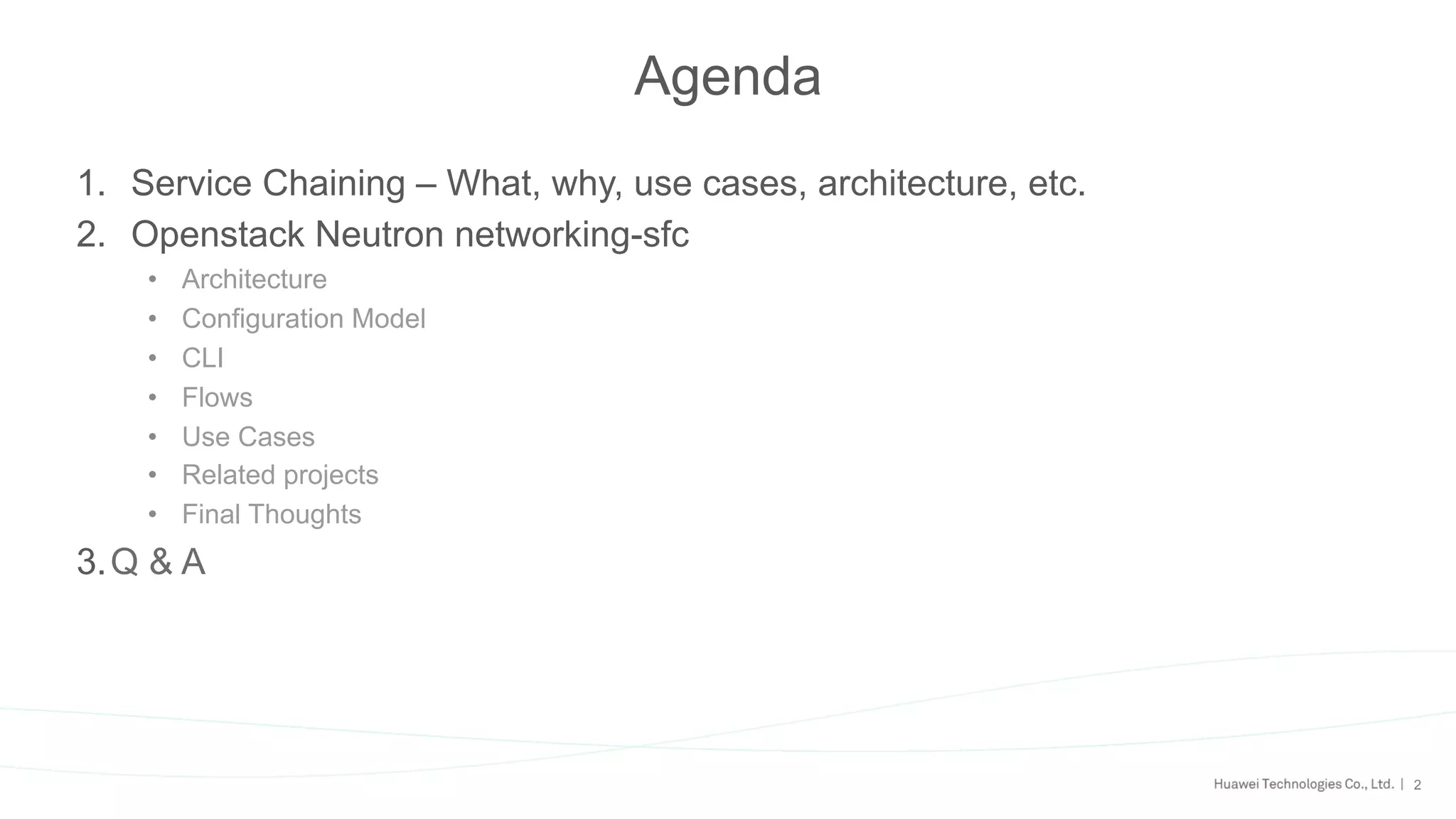

- 2. 2 Agenda 1. Service Chaining– What, why, use cases, architecture, etc. 2. Openstack Neutron networking-sfc • Architecture • Configuration Model • CLI • Flows • Use Cases • Related projects • Final Thoughts 3. Q & A

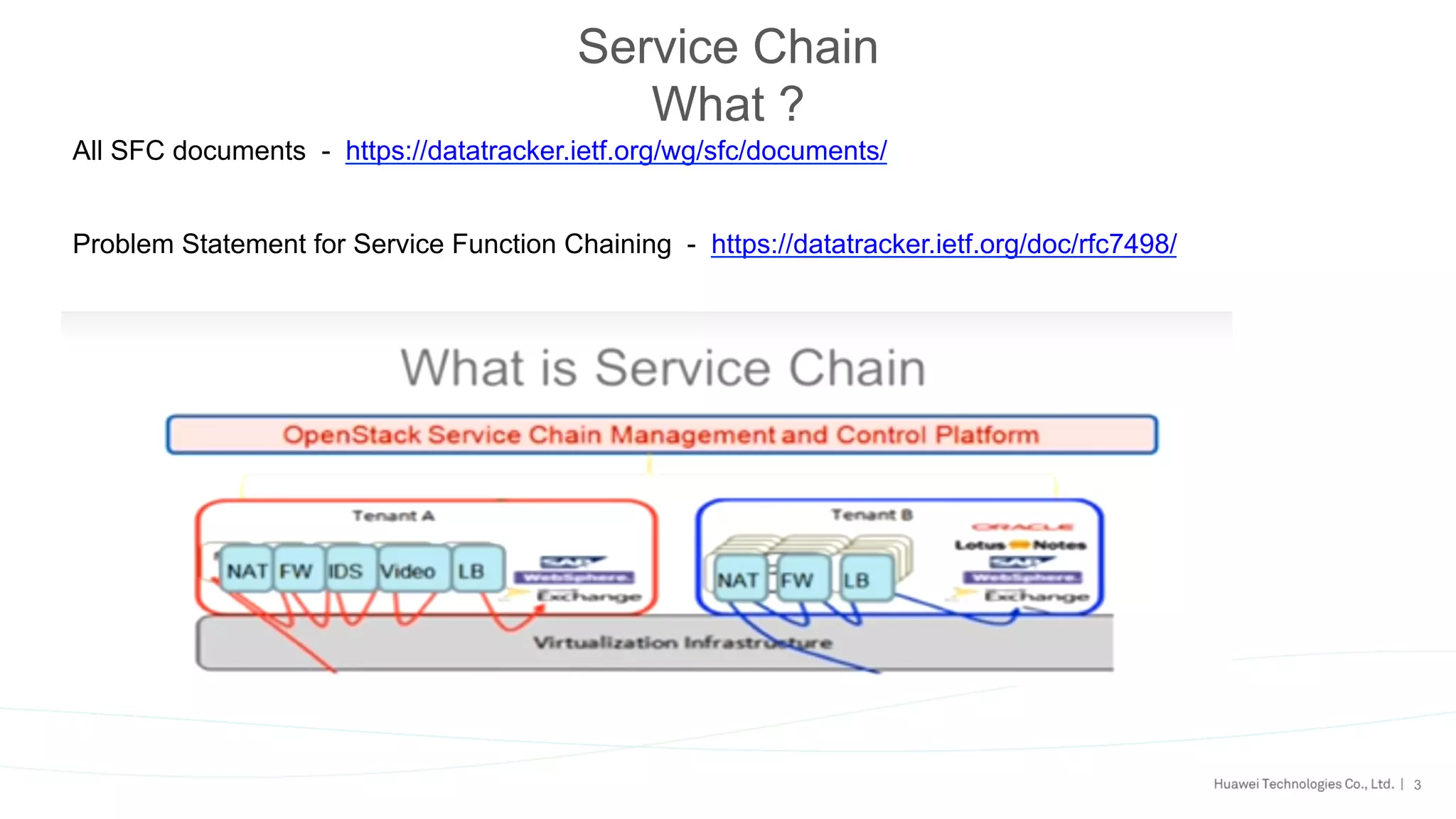

- 3. 3 Service Chain What ? AllSFC documents - https://datatracker.ietf.org/wg/sfc/documents/ Problem Statement for Service Function Chaining - https://datatracker.ietf.org/doc/rfc7498/

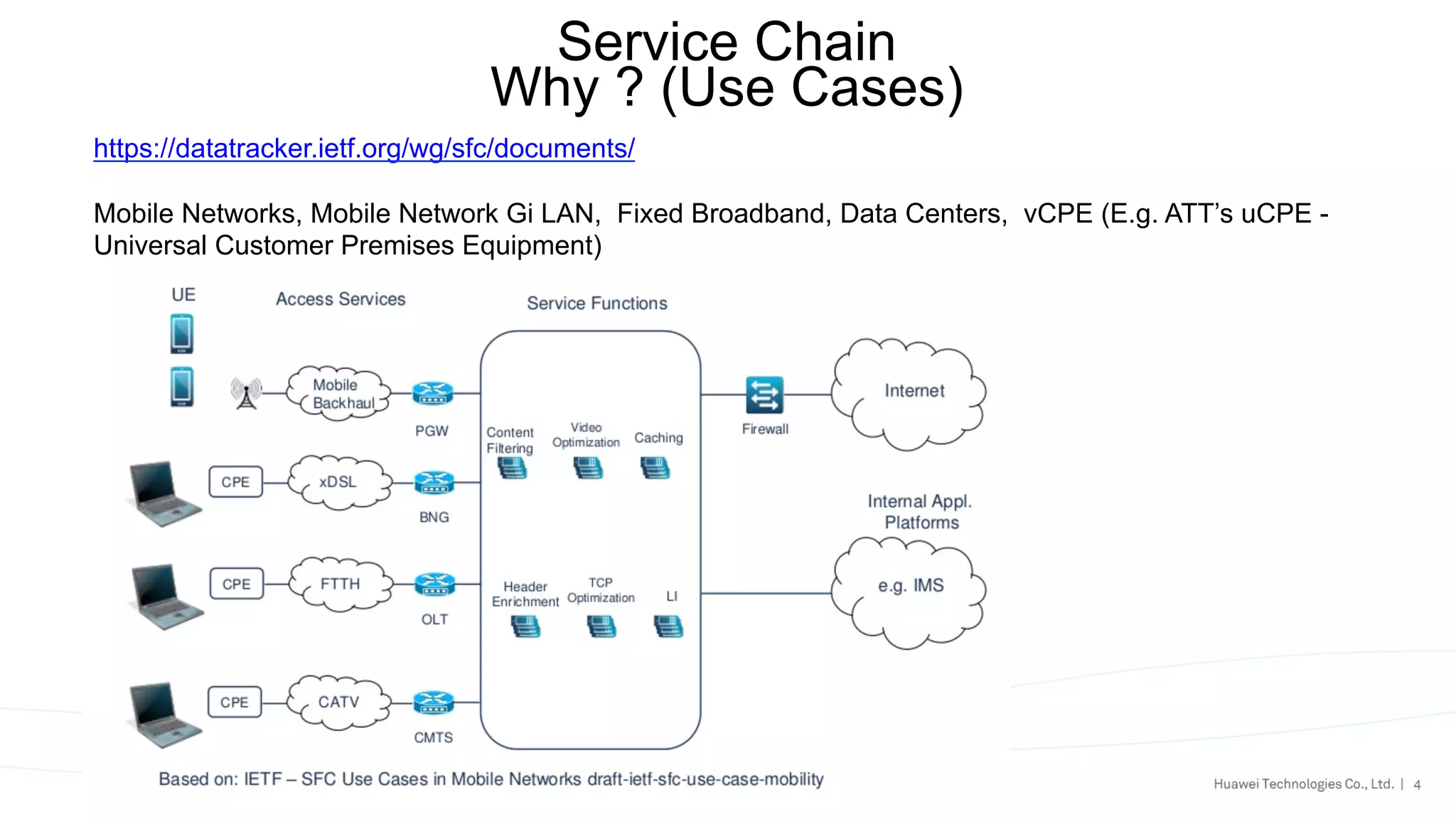

- 4. 4 Service Chain Why ?(Use Cases) https://datatracker.ietf.org/wg/sfc/documents/ Mobile Networks, Mobile Network Gi LAN, Fixed Broadband, Data Centers, vCPE (E.g. ATT’s uCPE - Universal Customer Premises Equipment)

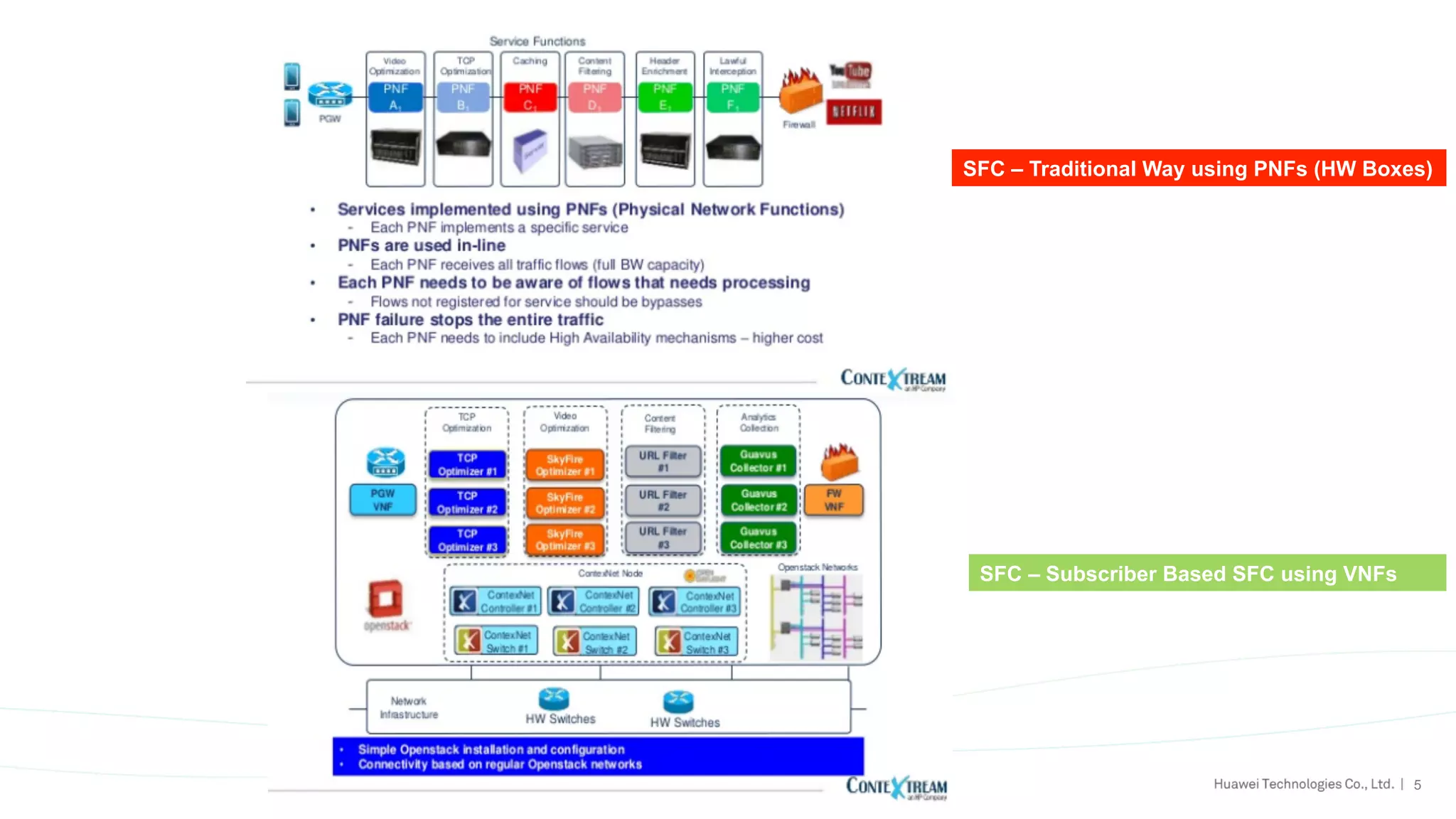

- 5. 5 SFC – TraditionalWay using PNFs (HW Boxes) SFC – Subscriber Based SFC using VNFs

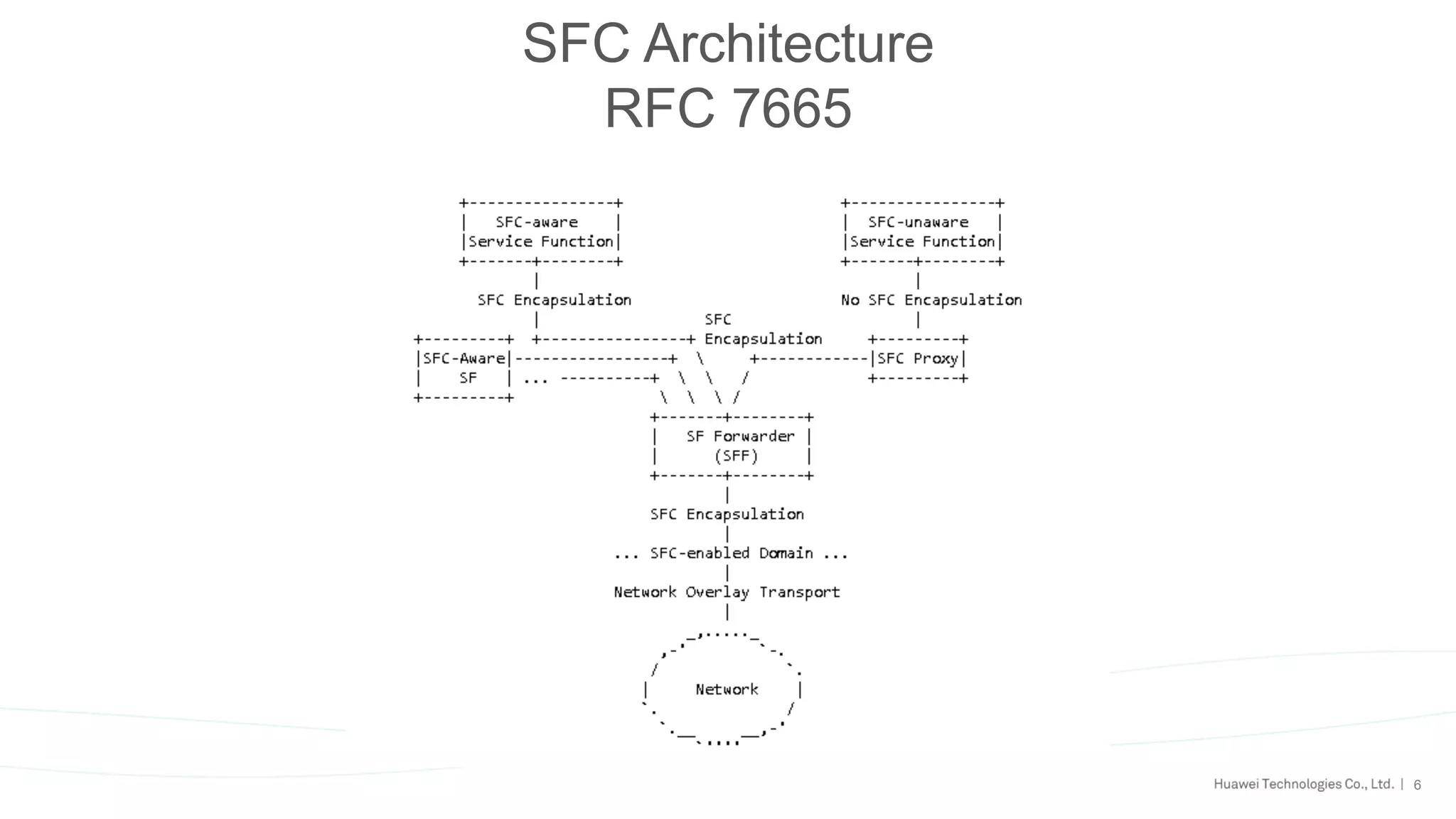

- 6.

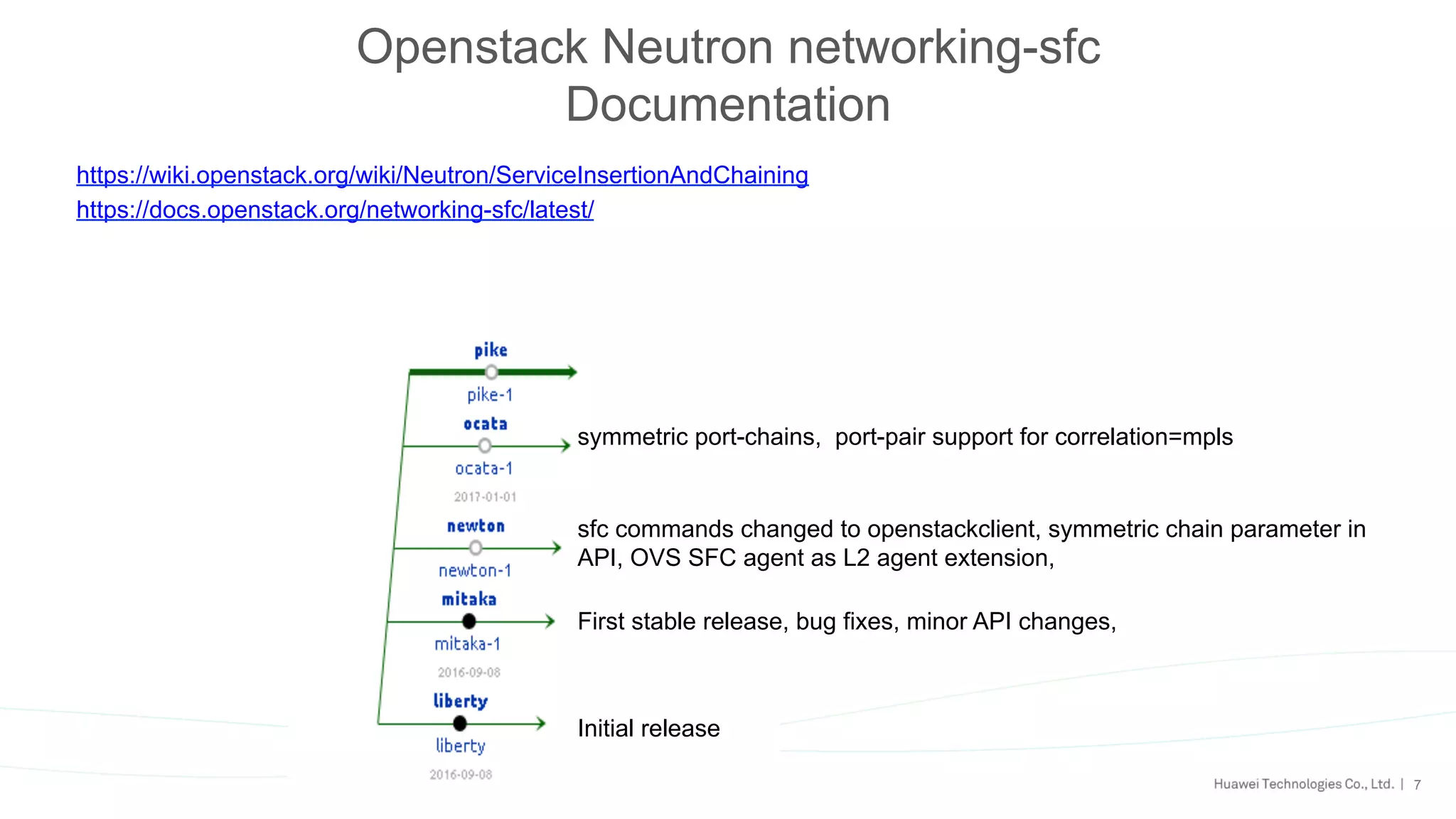

- 7. 7 Openstack Neutron networking-sfc Documentation https://wiki.openstack.org/wiki/Neutron/ServiceInsertionAndChaining https://docs.openstack.org/networking-sfc/latest/ Initialrelease First stable release, bug fixes, minor API changes, sfc commands changed to openstackclient, symmetric chain parameter in API, OVS SFC agent as L2 agent extension, symmetric port-chains, port-pair support for correlation=mpls

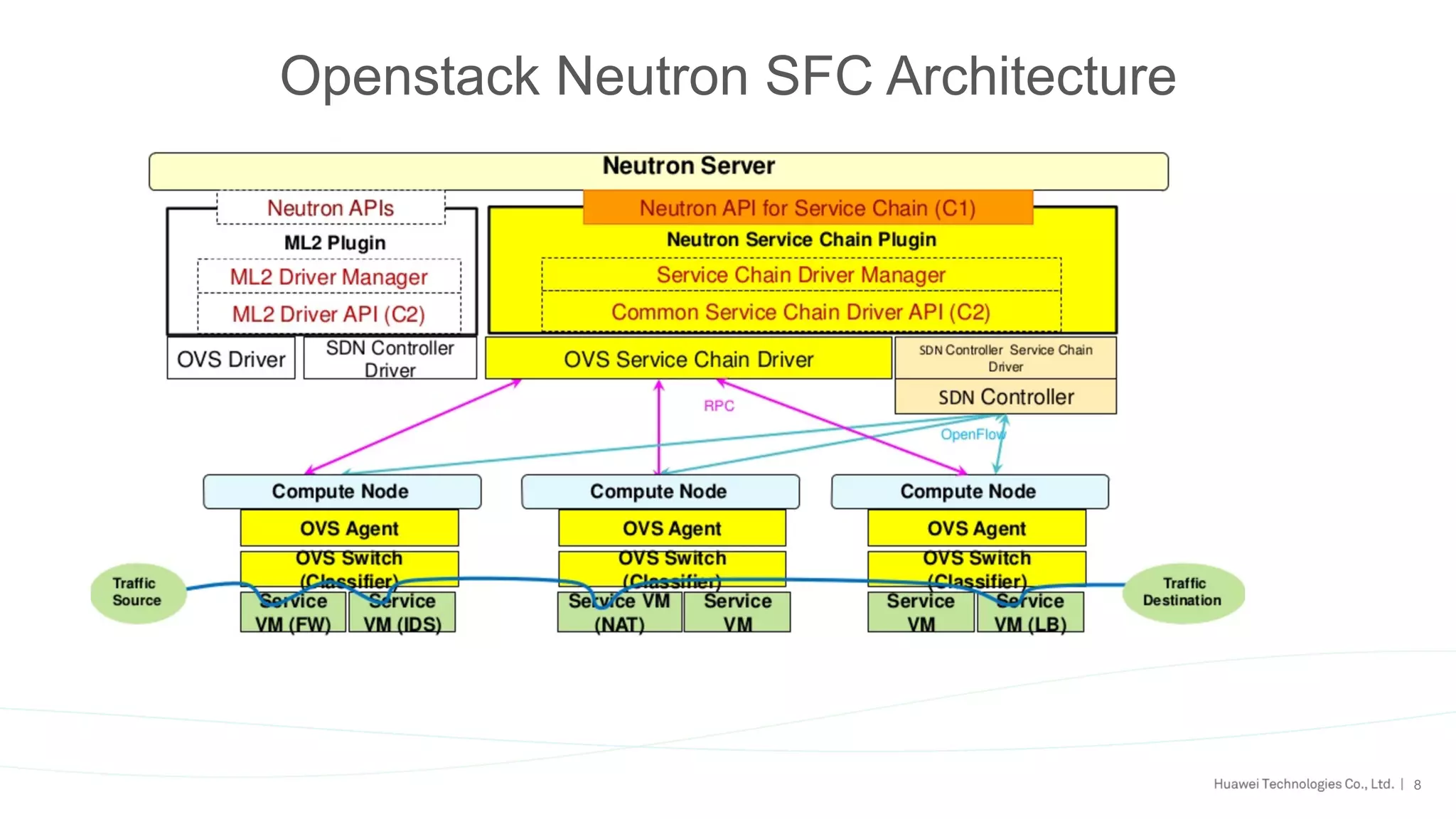

- 8. 8 Openstack Neutron SFCArchitecture

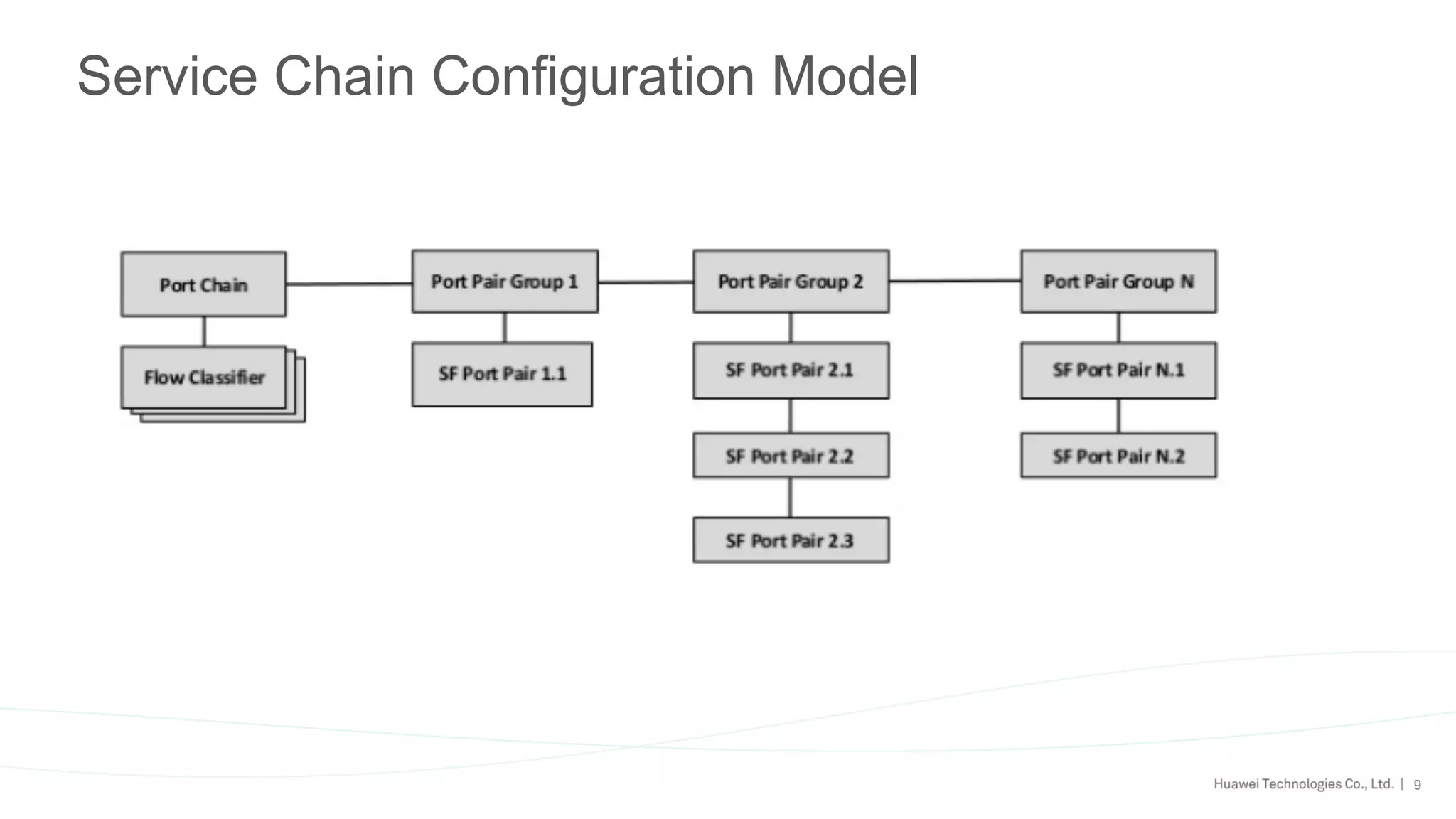

- 9.

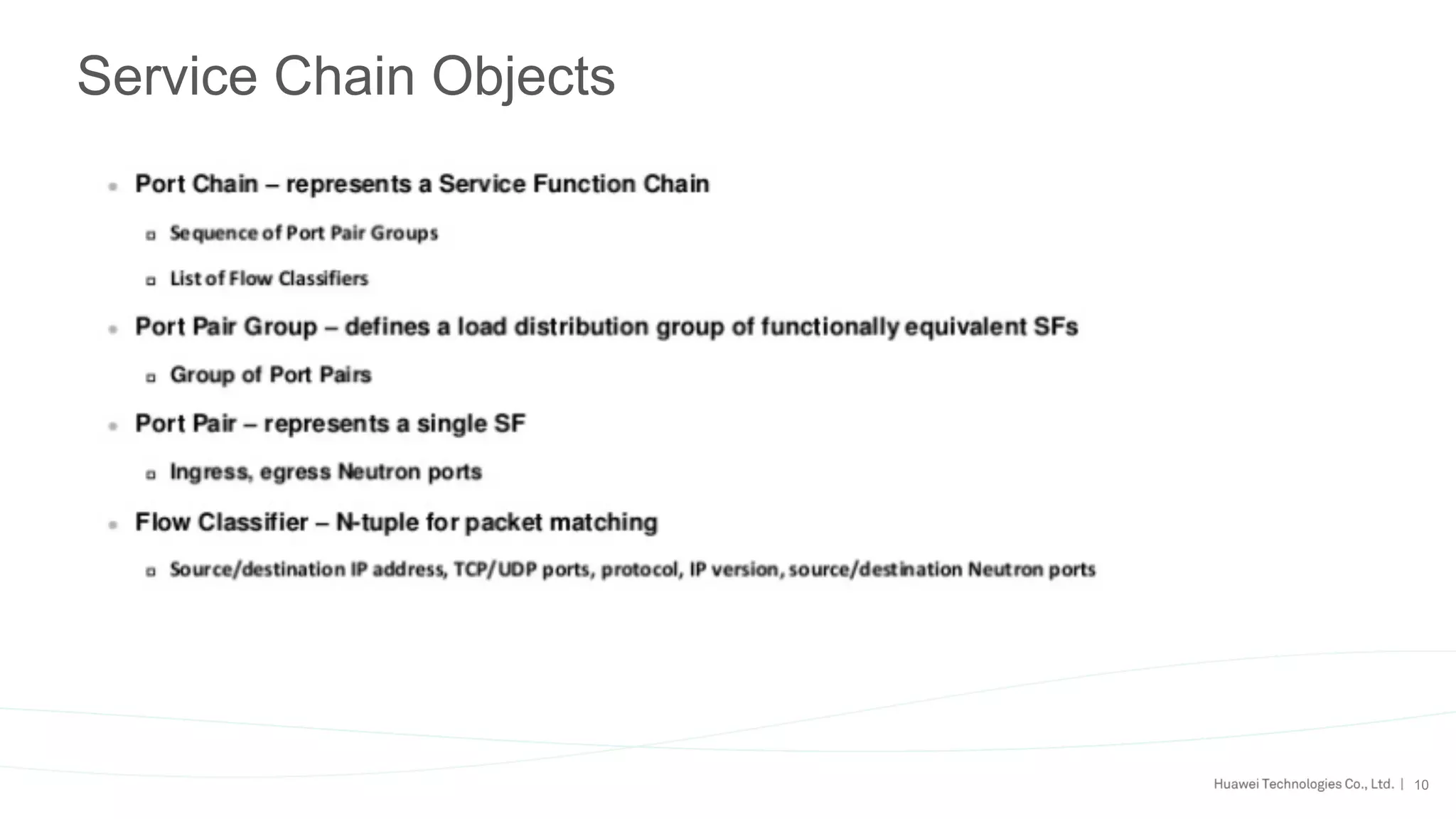

- 10.

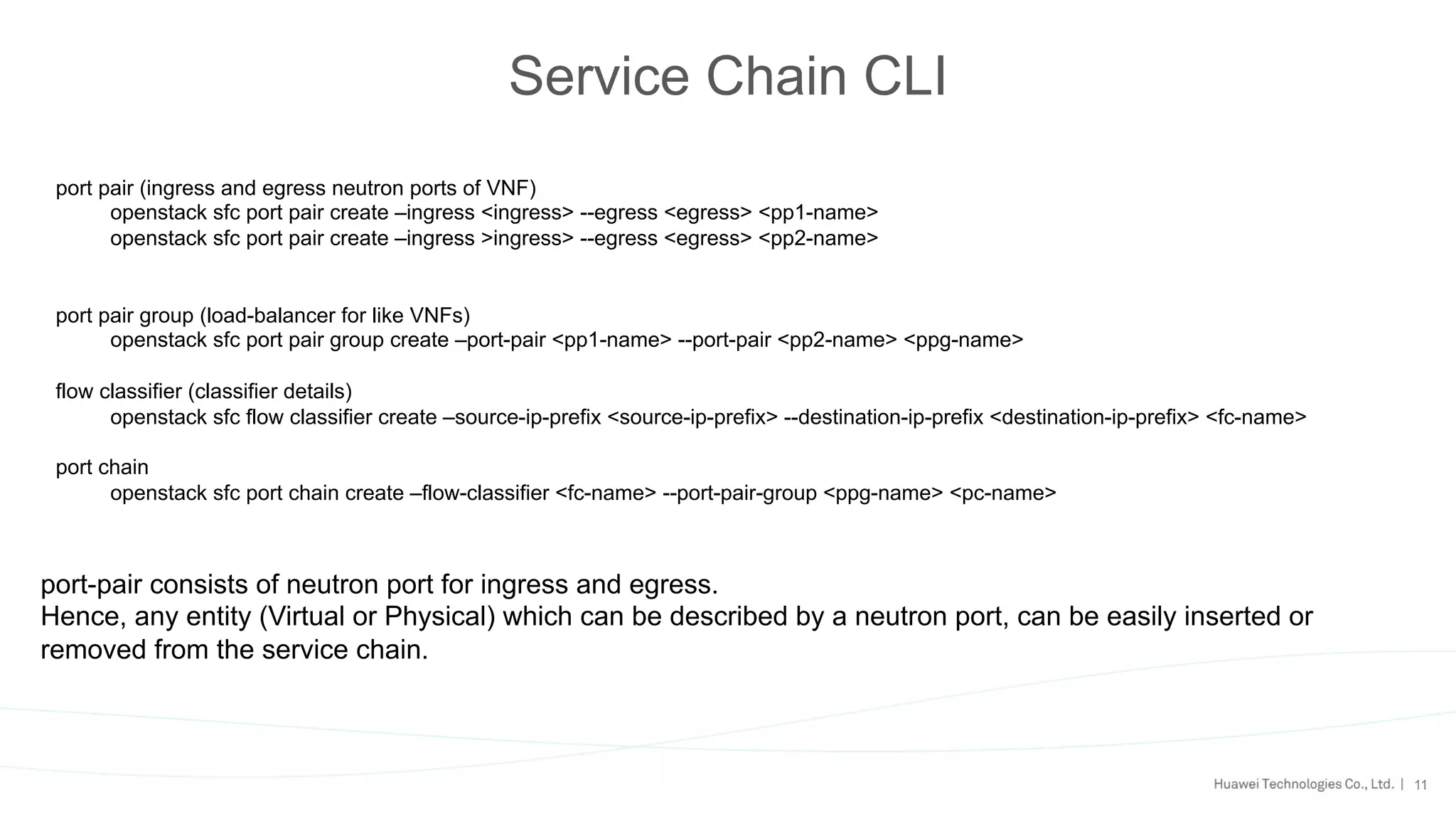

- 11. 11 Service Chain CLI portpair (ingress and egress neutron ports of VNF) openstack sfc port pair create –ingress <ingress> --egress <egress> <pp1-name> openstack sfc port pair create –ingress >ingress> --egress <egress> <pp2-name> port pair group (load-balancer for like VNFs) openstack sfc port pair group create –port-pair <pp1-name> --port-pair <pp2-name> <ppg-name> flow classifier (classifier details) openstack sfc flow classifier create –source-ip-prefix <source-ip-prefix> --destination-ip-prefix <destination-ip-prefix> <fc-name> port chain openstack sfc port chain create –flow-classifier <fc-name> --port-pair-group <ppg-name> <pc-name> port-pair consists of neutron port for ingress and egress. Hence, any entity (Virtual or Physical) which can be described by a neutron port, can be easily inserted or removed from the service chain.

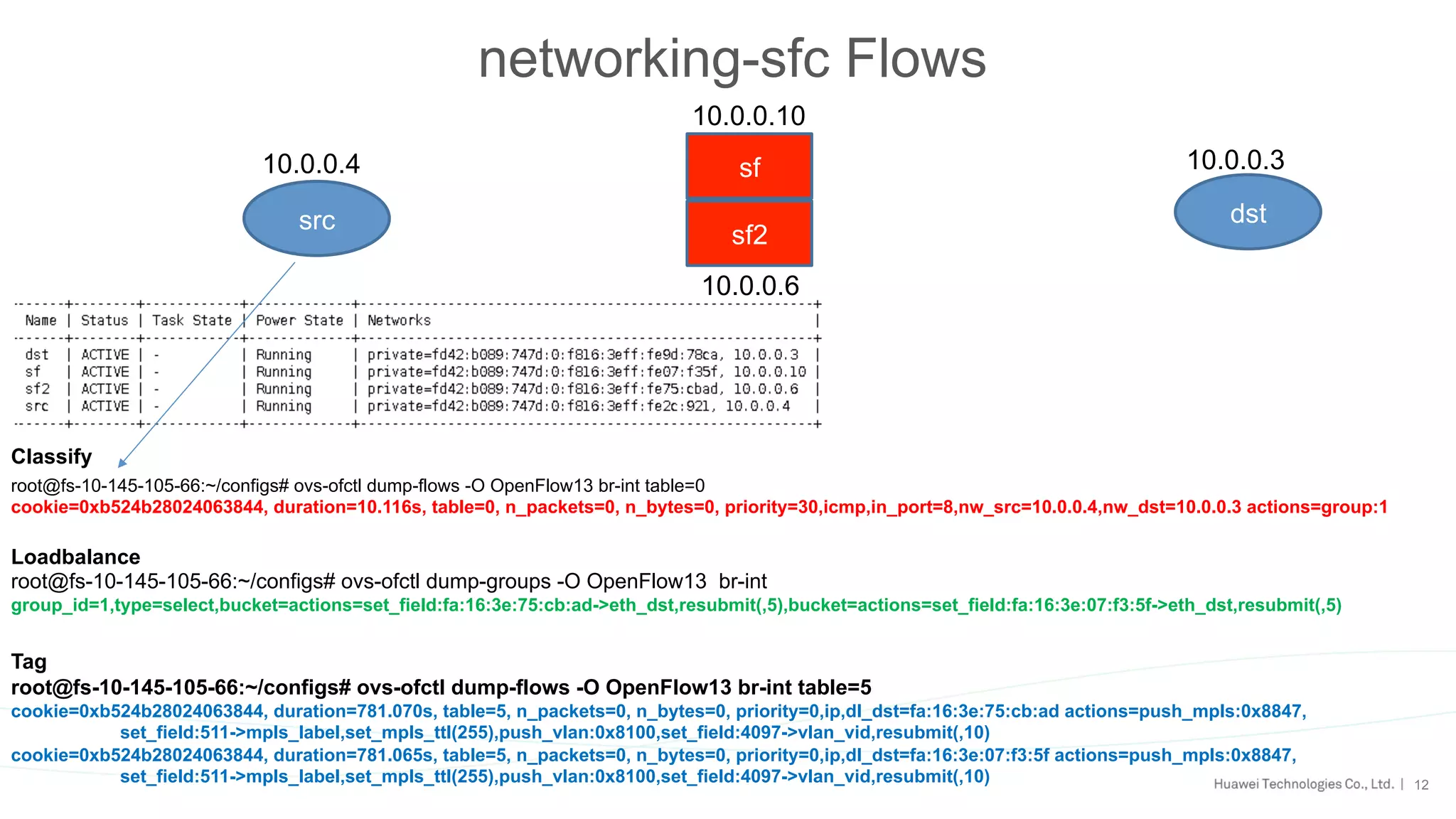

- 12. 12 networking-sfc Flows src sf sf2 dst 10.0.0.310.0.0.4 10.0.0.10 10.0.0.6 root@fs-10-145-105-66:~/configs# ovs-ofctldump-flows -O OpenFlow13 br-int table=0 cookie=0xb524b28024063844, duration=10.116s, table=0, n_packets=0, n_bytes=0, priority=30,icmp,in_port=8,nw_src=10.0.0.4,nw_dst=10.0.0.3 actions=group:1 Classify Loadbalance root@fs-10-145-105-66:~/configs# ovs-ofctl dump-groups -O OpenFlow13 br-int group_id=1,type=select,bucket=actions=set_field:fa:16:3e:75:cb:ad->eth_dst,resubmit(,5),bucket=actions=set_field:fa:16:3e:07:f3:5f->eth_dst,resubmit(,5) Tag root@fs-10-145-105-66:~/configs# ovs-ofctl dump-flows -O OpenFlow13 br-int table=5 cookie=0xb524b28024063844, duration=781.070s, table=5, n_packets=0, n_bytes=0, priority=0,ip,dl_dst=fa:16:3e:75:cb:ad actions=push_mpls:0x8847, set_field:511->mpls_label,set_mpls_ttl(255),push_vlan:0x8100,set_field:4097->vlan_vid,resubmit(,10) cookie=0xb524b28024063844, duration=781.065s, table=5, n_packets=0, n_bytes=0, priority=0,ip,dl_dst=fa:16:3e:07:f3:5f actions=push_mpls:0x8847, set_field:511->mpls_label,set_mpls_ttl(255),push_vlan:0x8100,set_field:4097->vlan_vid,resubmit(,10)

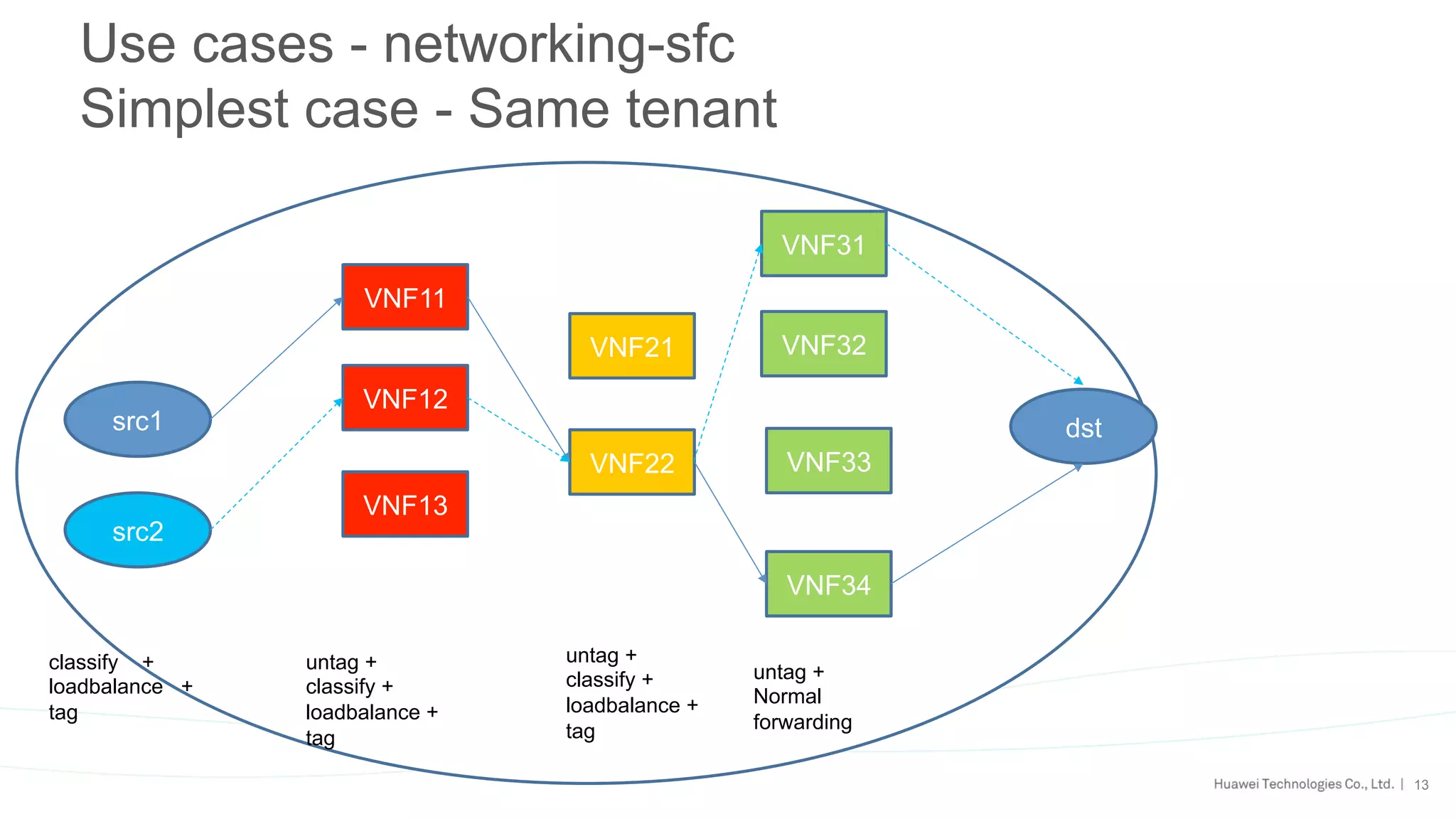

- 13. 13 Use cases -networking-sfc Simplest case - Same tenant src1 VNF11 VNF13 VNF12 VNF21 VNF22 VNF31 VNF32 VNF34 VNF33 dst classify + loadbalance + tag untag + classify + loadbalance + tag untag + Normal forwarding src2 untag + classify + loadbalance + tag

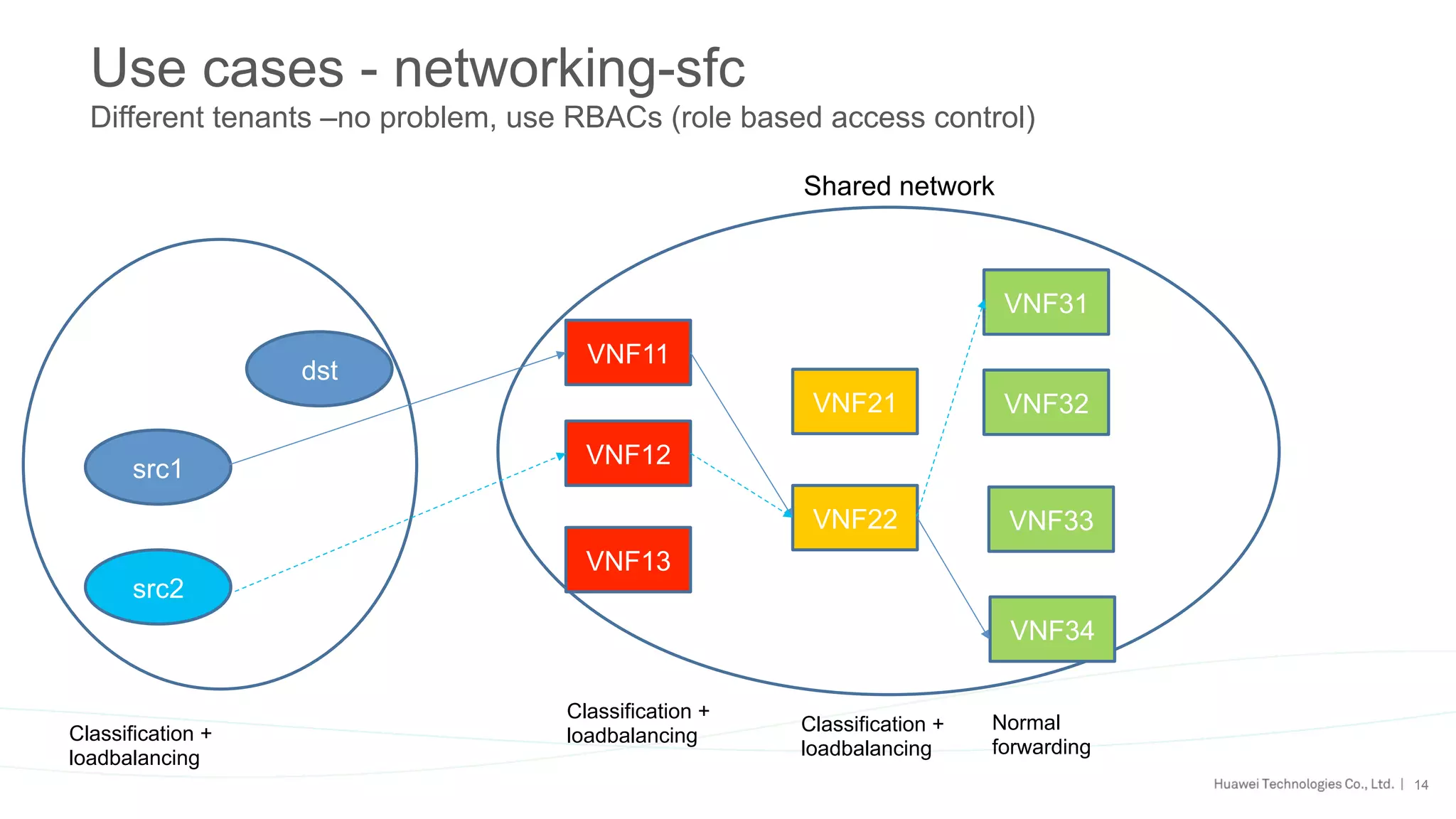

- 14. 14 Use cases -networking-sfc Different tenants –no problem, use RBACs (role based access control) src1 VNF11 VNF13 VNF12 VNF21 VNF22 VNF31 VNF32 VNF34 VNF33 dst Classification + loadbalancing Classification + loadbalancing Classification + loadbalancing Normal forwarding src2 Shared network

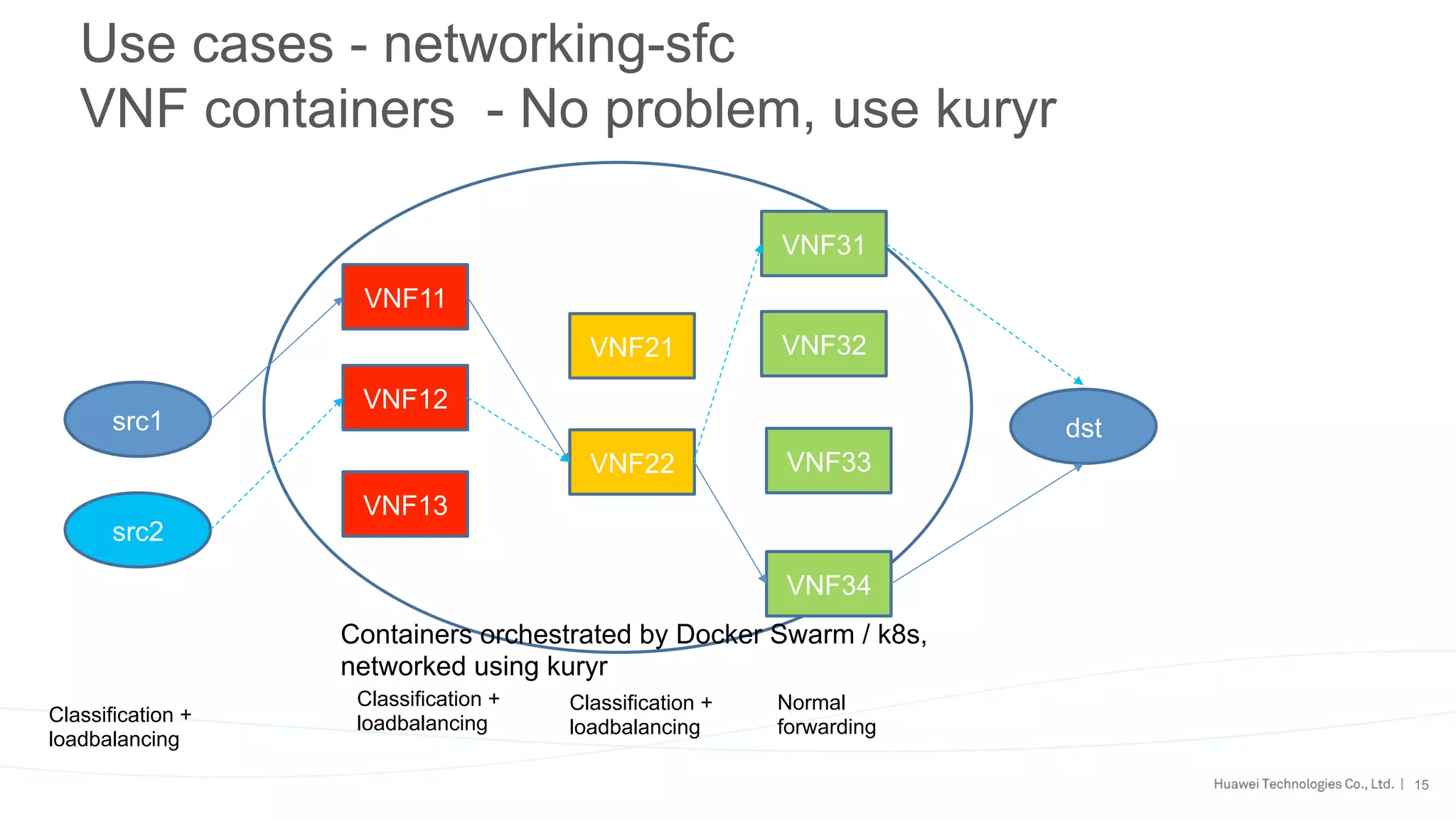

- 15. 15 Use cases -networking-sfc VNF containers - No problem, use kuryr src1 VNF11 VNF13 VNF12 VNF21 VNF22 VNF31 VNF32 VNF34 VNF33 dst Classification + loadbalancing Classification + loadbalancing Classification + loadbalancing Normal forwarding src2 Containers orchestrated by Docker Swarm / k8s, networked using kuryr

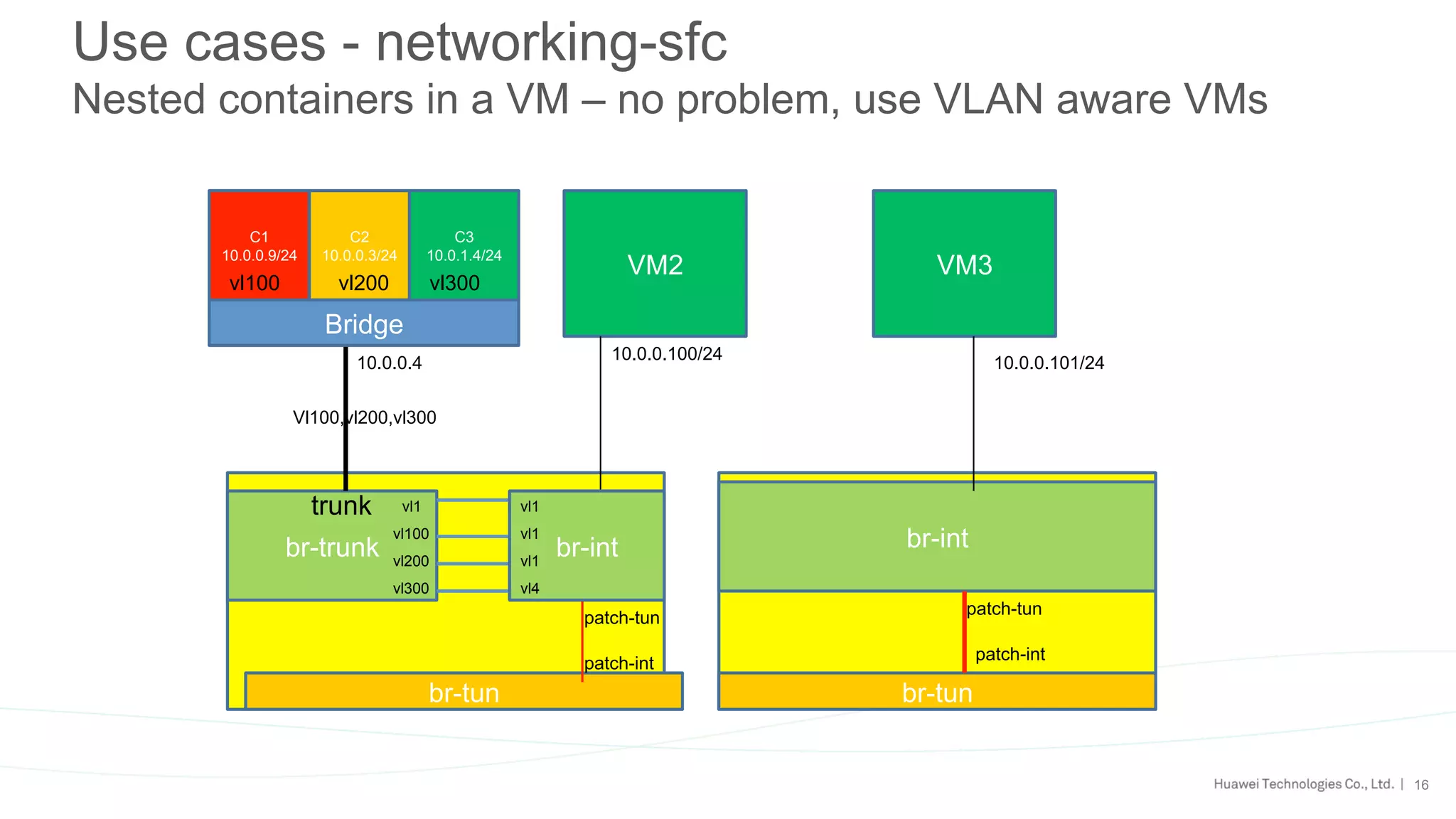

- 16. 16 Use cases -networking-sfc Nested containers in a VM – no problem, use VLAN aware VMs br-tun br-tun VM2 patch-int patch-tun br-trunk Bridge C1 10.0.0.9/24 C2 10.0.0.3/24 C3 10.0.1.4/24 vl100 vl200 vl300 trunk Vl100,vl200,vl300 vl1 10.0.0.100/2410.0.0.4 vl1 vl100 vl200 vl300 vl1 vl1 vl1 vl4 br-int br-int patch-tun patch-int VM3 10.0.0.101/24 vl1 vl1 vl1 vl4

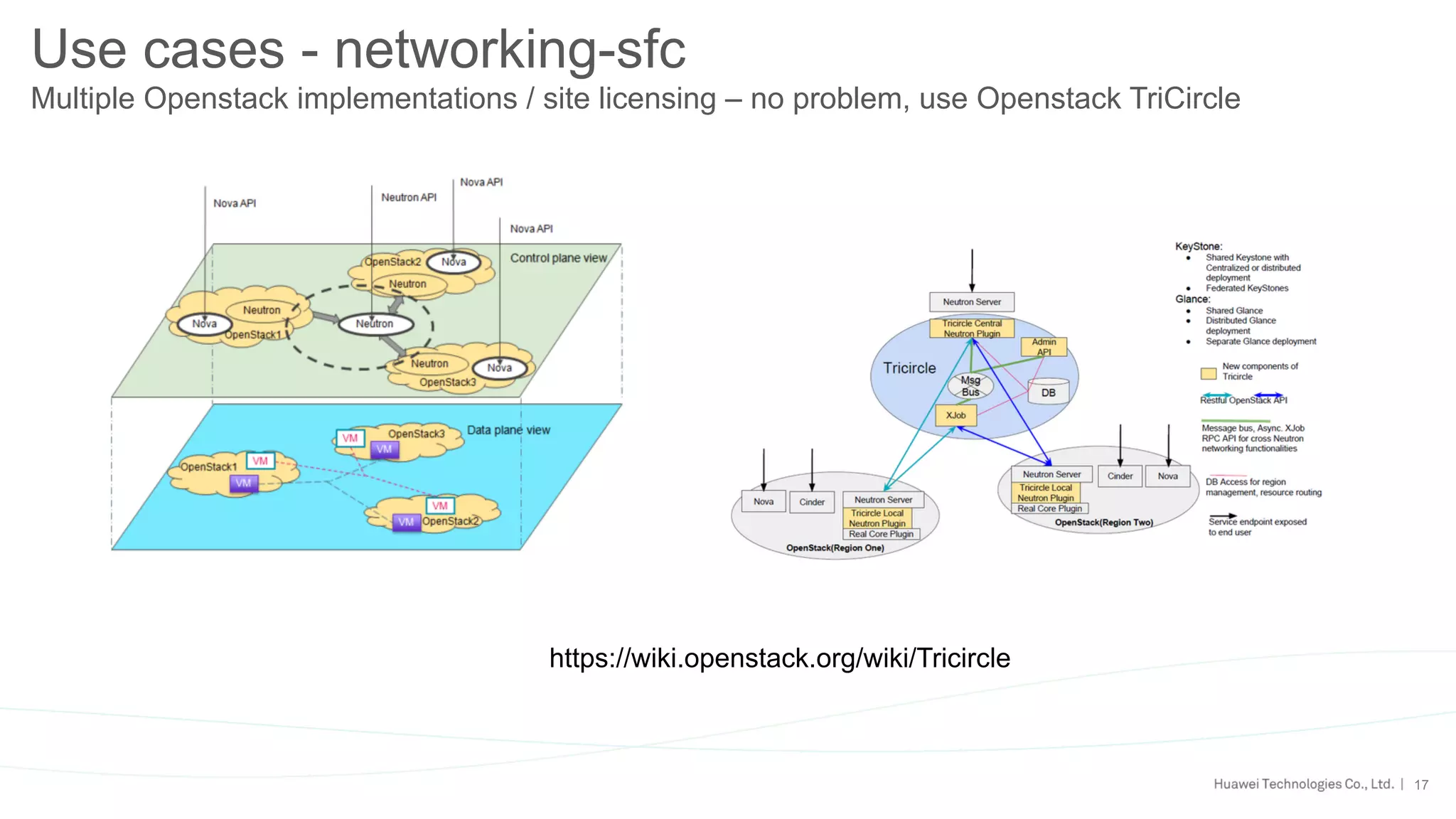

- 17. 17 Use cases -networking-sfc Multiple Openstack implementations / site licensing – no problem, use Openstack TriCircle https://wiki.openstack.org/wiki/Tricircle

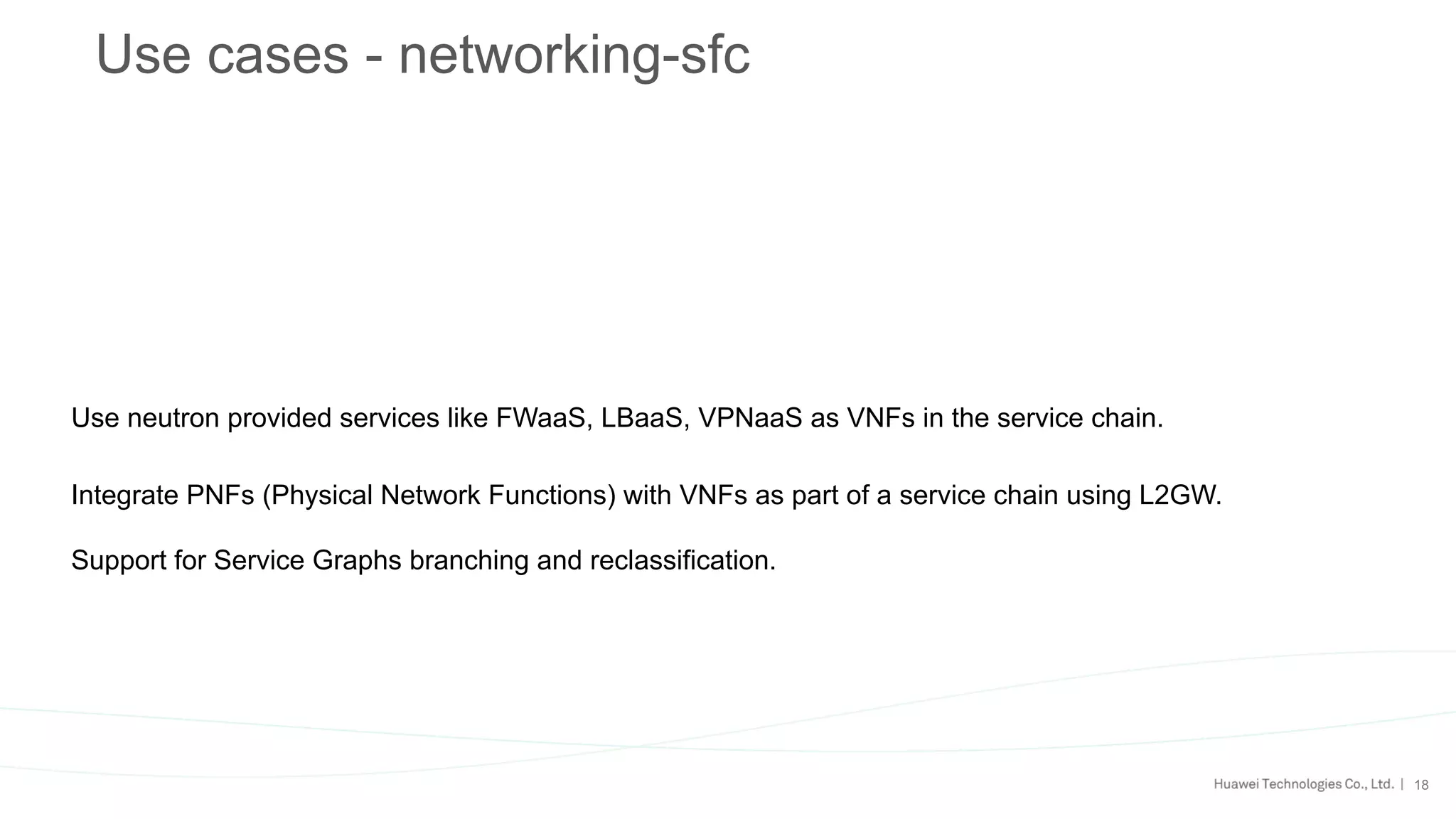

- 18. 18 Use cases -networking-sfc Use neutron provided services like FWaaS, LBaaS, VPNaaS as VNFs in the service chain. Integrate PNFs (Physical Network Functions) with VNFs as part of a service chain using L2GW. Support for Service Graphs branching and reclassification.

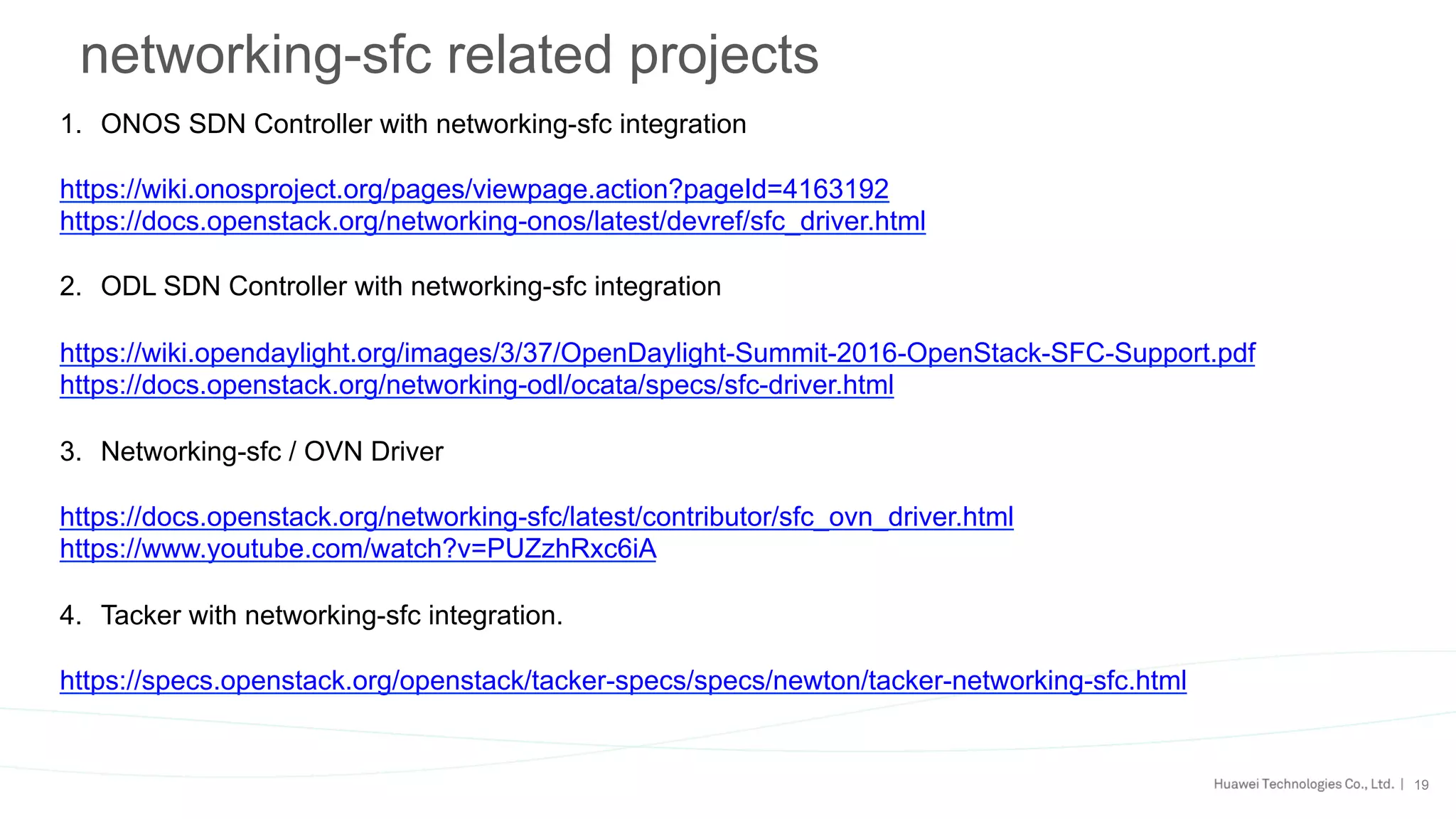

- 19. 19 networking-sfc related projects 1. ONOS SDN Controller with networking-sfc integration https://wiki.onosproject.org/pages/viewpage.action?pageId=4163192 https://docs.openstack.org/networking-onos/latest/devref/sfc_driver.html 2. ODL SDN Controller with networking-sfc integration https://wiki.opendaylight.org/images/3/37/OpenDaylight-Summit-2016-OpenStack-SFC-Support.pdf https://docs.openstack.org/networking-odl/ocata/specs/sfc-driver.html 3. Networking-sfc / OVN Driver https://docs.openstack.org/networking-sfc/latest/contributor/sfc_ovn_driver.html https://www.youtube.com/watch?v=PUZzhRxc6iA 4. Tacker with networking-sfc integration. https://specs.openstack.org/openstack/tacker-specs/specs/newton/tacker-networking-sfc.html

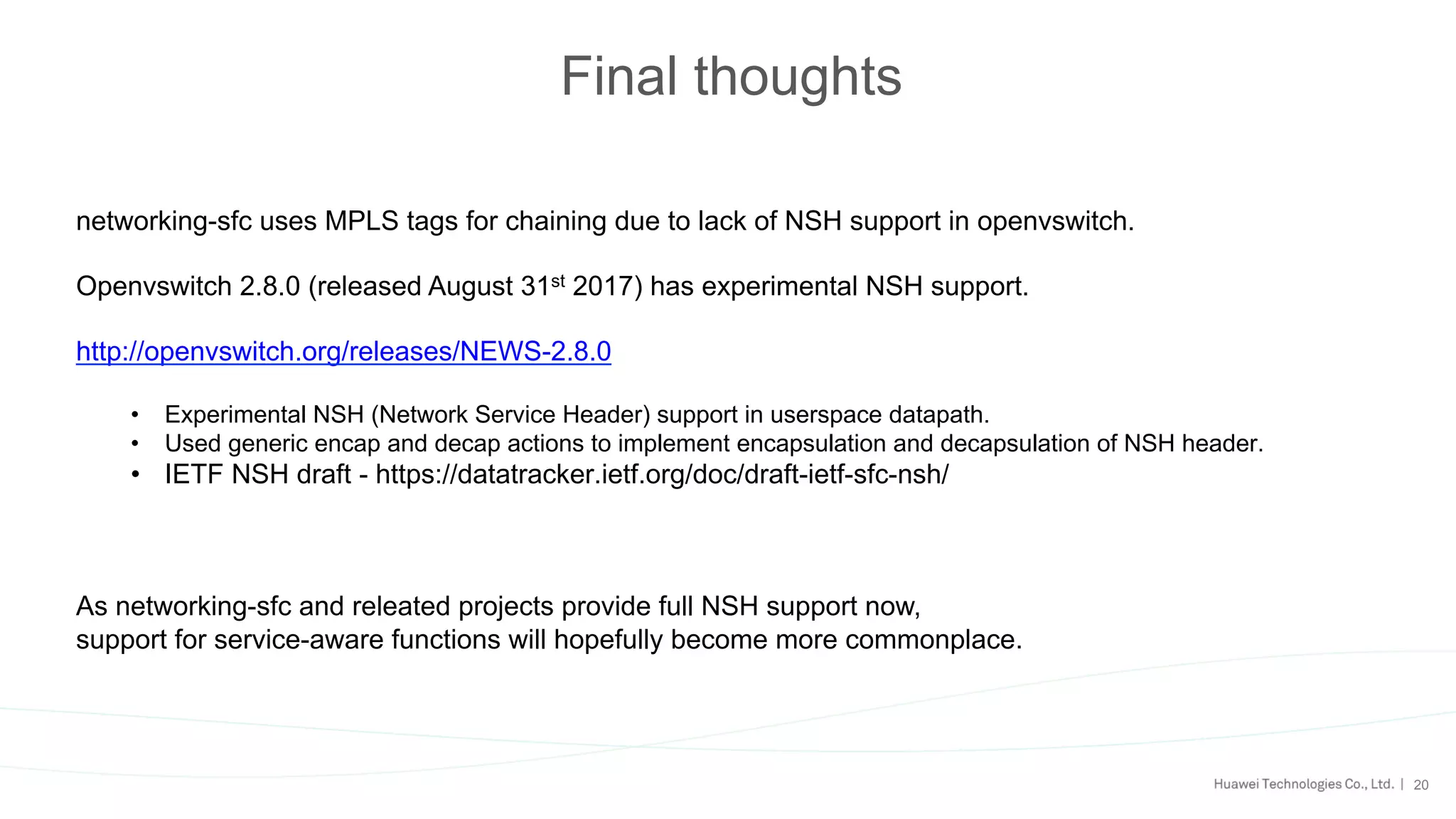

- 20. 20 Final thoughts networking-sfc usesMPLS tags for chaining due to lack of NSH support in openvswitch. Openvswitch 2.8.0 (released August 31st 2017) has experimental NSH support. http://openvswitch.org/releases/NEWS-2.8.0 • Experimental NSH (Network Service Header) support in userspace datapath. • Used generic encap and decap actions to implement encapsulation and decapsulation of NSH header. • IETF NSH draft - https://datatracker.ietf.org/doc/draft-ietf-sfc-nsh/ As networking-sfc and releated projects provide full NSH support now, support for service-aware functions will hopefully become more commonplace.
- 21.

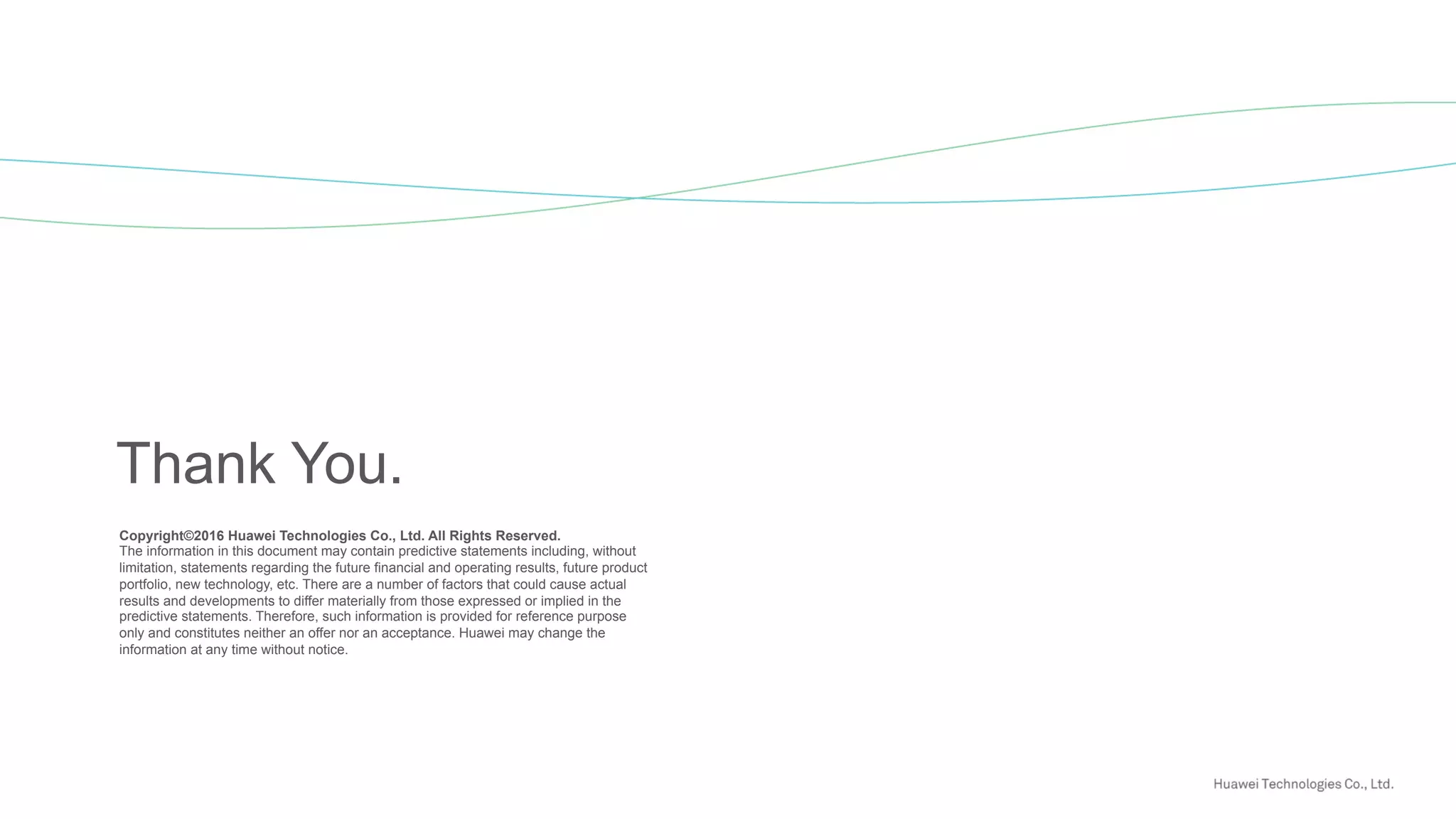

- 22. Copyright©2016 Huawei TechnologiesCo., Ltd. All Rights Reserved. The information in this document may contain predictive statements including, without limitation, statements regarding the future financial and operating results, future product portfolio, new technology, etc. There are a number of factors that could cause actual results and developments to differ materially from those expressed or implied in the predictive statements. Therefore, such information is provided for reference purpose only and constitutes neither an offer nor an acceptance. Huawei may change the information at any time without notice. Thank You.
