Securing Your Network

Securing Your Network

• 1.
  SECURING YOUR NETWORK
• 2.
  “There are onlytwo types of companies: those that have been hacked, and those that will be.” - Robert Mueller, former FBI Director
• 3.
  Breaches occur indata centers even with a secure perimeter. Why? Little or no lateral controls inside the perimeter allow for unconstrained propagation of malware. Low priority systems are targeted first. Attackers can move freely around the data center. 10110100110 101001010000010 1001110010100 Attackers then gather and exfiltrate data over weeks or even months. Internet Data Center Perimeter © 2016 ePlus inc. Confidential and Proprietary.
• 4.

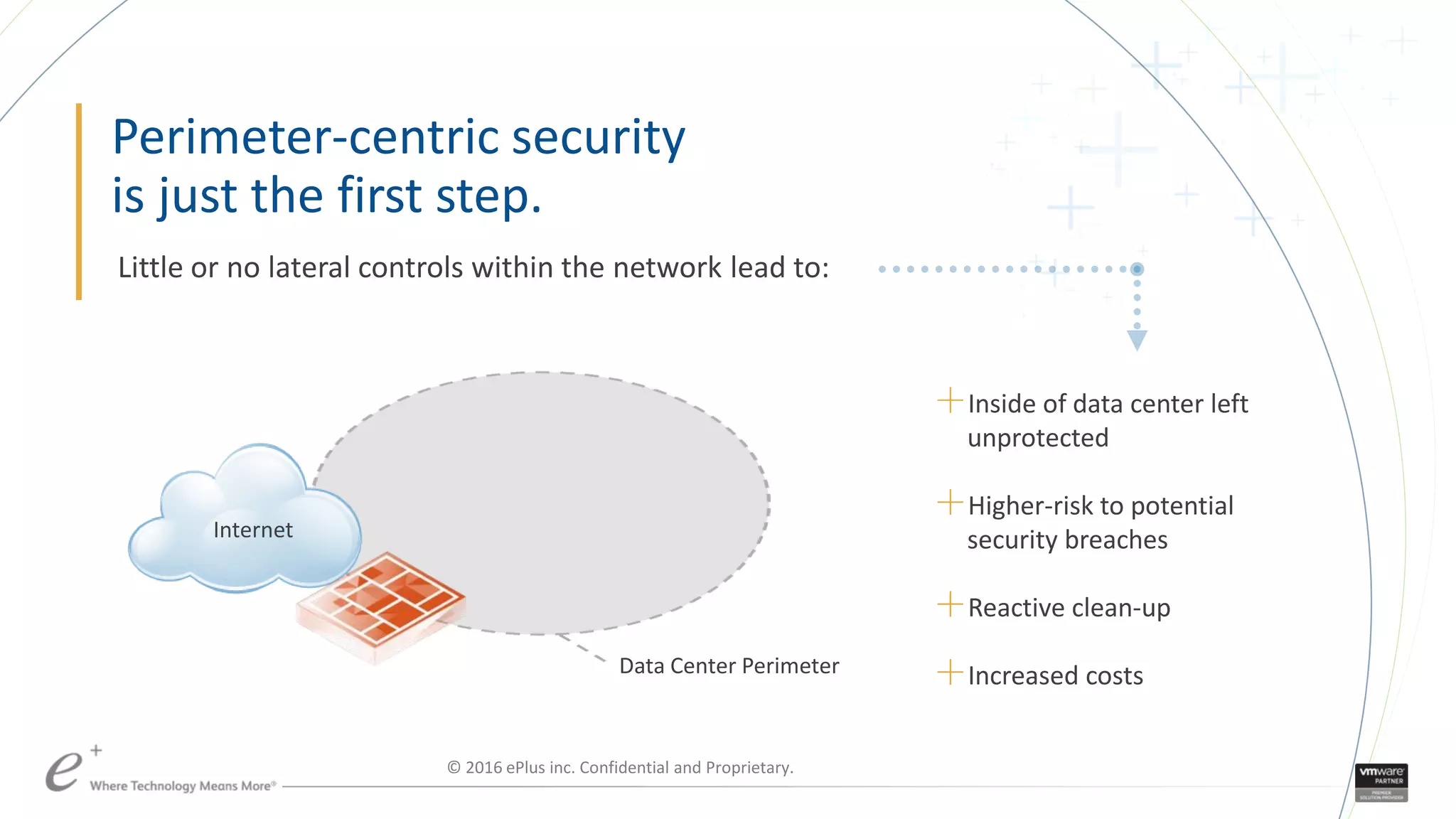

  Perimeter-centric security is justthe first step. Little or no lateral controls within the network lead to: Internet Data Center Perimeter ＋Inside of data center left unprotected ＋Higher-risk to potential security breaches ＋Reactive clean-up ＋Increased costs © 2016 ePlus inc. Confidential and Proprietary.
• 5.
  Once malware getsbehind the perimeter security, other alternatives have been tried to contain the breaches. Each has their own challenges. ＋ Cost prohibitive ＋ Complex configuration: security policies restricted by network topology ＋ Inefficient “choke point” firewalling ADDING MORE INTERNAL SECURITY… PHYSICAL FIREWALLS: Internet Data Center Perimeter ＋ Requires placing more firewalls across workloads VIRTUAL FIREWALLS: ＋ Similar to physical firewalls, only slower performance ＋ Limited, cumbersome micro-segmentation capabilities ＋ Limited central management ＋ Costly and complicated © 2016 ePlus inc. Confidential and Proprietary.
• 6.

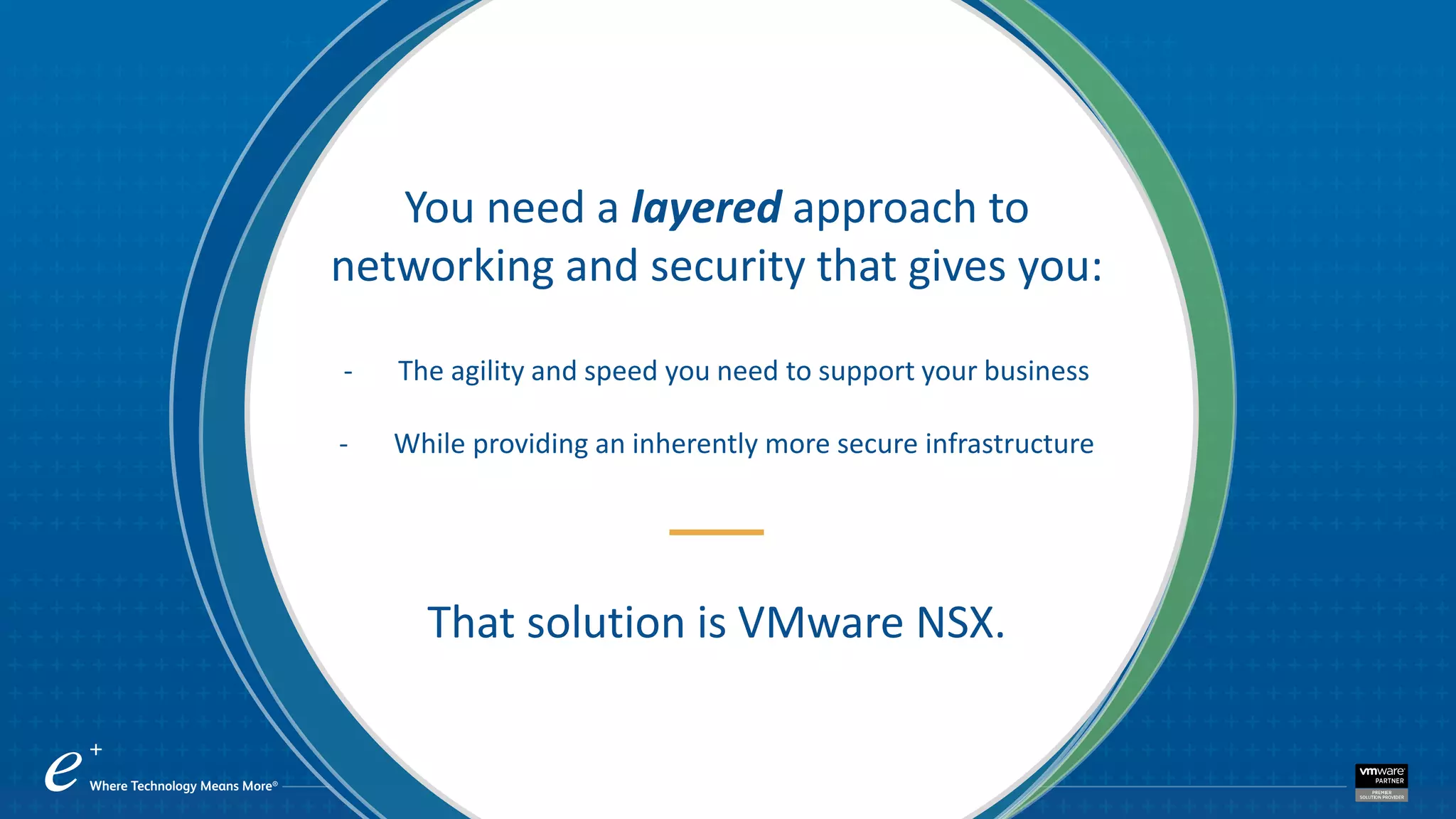

  You need alayered approach to networking and security that gives you: - The agility and speed you need to support your business - While providing an inherently more secure infrastructure That solution is VMware NSX.
• 7.

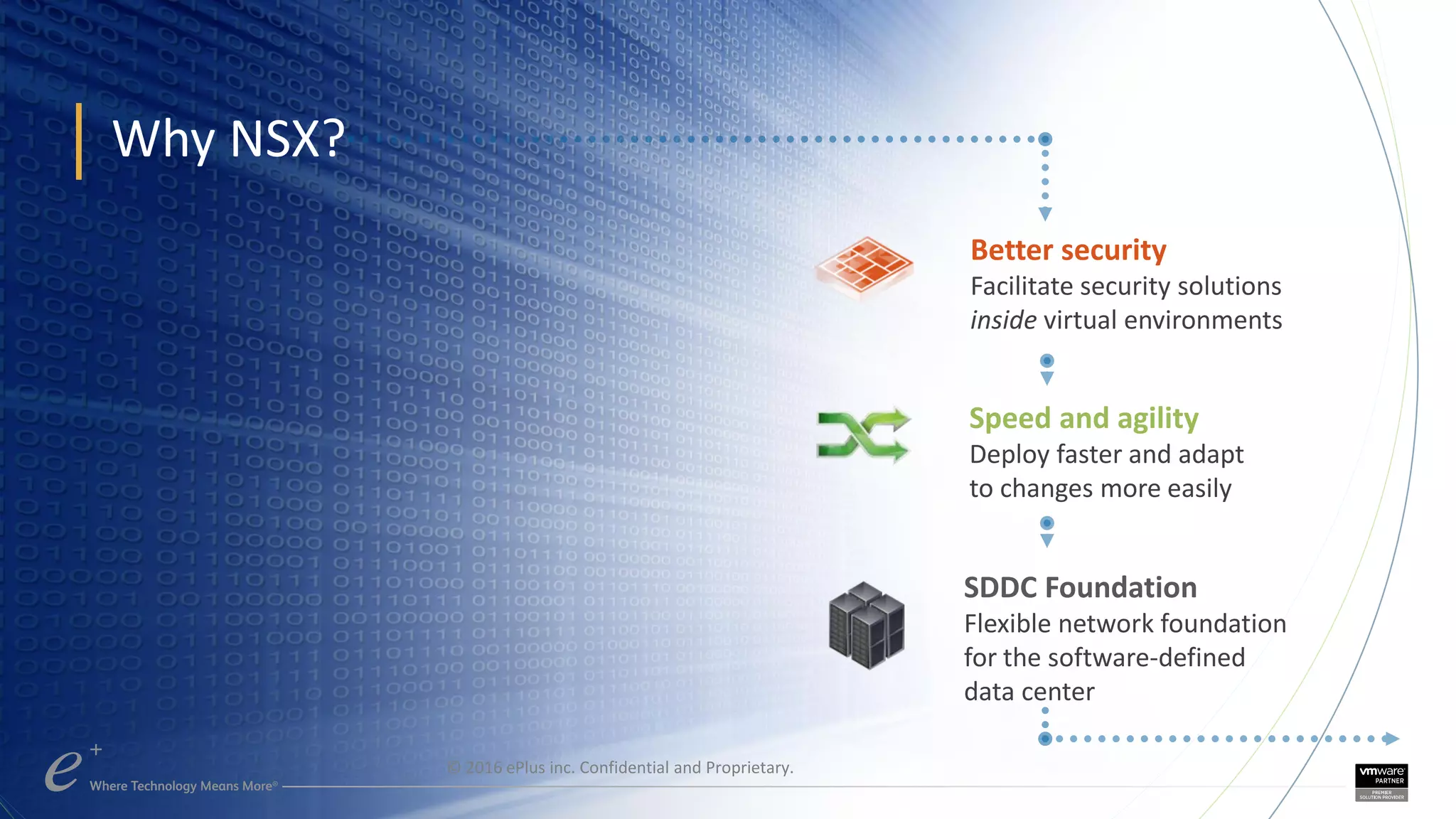

  Why NSX? Better security Facilitatesecurity solutions inside virtual environments Speed and agility Deploy faster and adapt to changes more easily SDDC Foundation Flexible network foundation for the software-defined data center © 2016 ePlus inc. Confidential and Proprietary.
• 8.
  NSX enables thenext-gen networking model. Handles many of your current network and security services. L2 Switching Firewalling/ACLs L3 RoutingLoad Balancing © 2016 ePlus inc. Confidential and Proprietary.
• 9.
  …and incorporates micro-segmentation. Micro-segmentationenables security that follows the VM. Ubiquity and centralized control Unit-level trust / least privilege Isolation and segmentation 1 2 3 © 2016 ePlus inc. Confidential and Proprietary.
• 10.
  That means bettersecurity and operational feasibility. Hypervisor-based, in kernel distributed firewalling • High throughput rates on a per hypervisor basis • Every hypervisor adds additional east-west firewalling capacity Platform-based automation • Automated provisioning and workload adds/moves/changes • Accurate firewall policies follow workloads as they move © 2016 ePlus inc. Confidential and Proprietary.
• 11.
  And flexibility—you choosethe level of micro- segmentation that works best for your networks. Controlled communication path within a single network • Fine-grained enforcement of security • Security policies based on logical groupings of VMs Advanced services: addition of third- party security, as needed by policy • Platform for including leading security solutions • Dynamic addition of advanced security to adapt to changing security conditions No communication path between unrelated networks • No cross-talk between networks • Overlay technology assures networks are separated by default © 2016 ePlus inc. Confidential and Proprietary.
• 12.
  With NSX, there arefewer hops… Which leads to more efficient and precise VM networking. NSX vSwitch Nexus 7000 UCS Fabric A UCS Fabric B UCS Blade 1 vswitch 6 wire hops Nexus 7000 UCS Fabric A UCS Fabric B 0 wire hops With NSX Distributed Virtual Firewall Before NSX East-West Firewalling / Same host UCS Blade 1 © 2016 ePlus inc. Confidential and Proprietary.
• 13.
  More secure anda third of the cost of a less secure infrastructure Security policy management simplified Logical groups enabled Threats contained Micro-segmentation delivers an enhanced secure infrastructure. Data Center Perimeter DMZ Secure User Environments © 2016 ePlus inc. Confidential and Proprietary.
• 14.

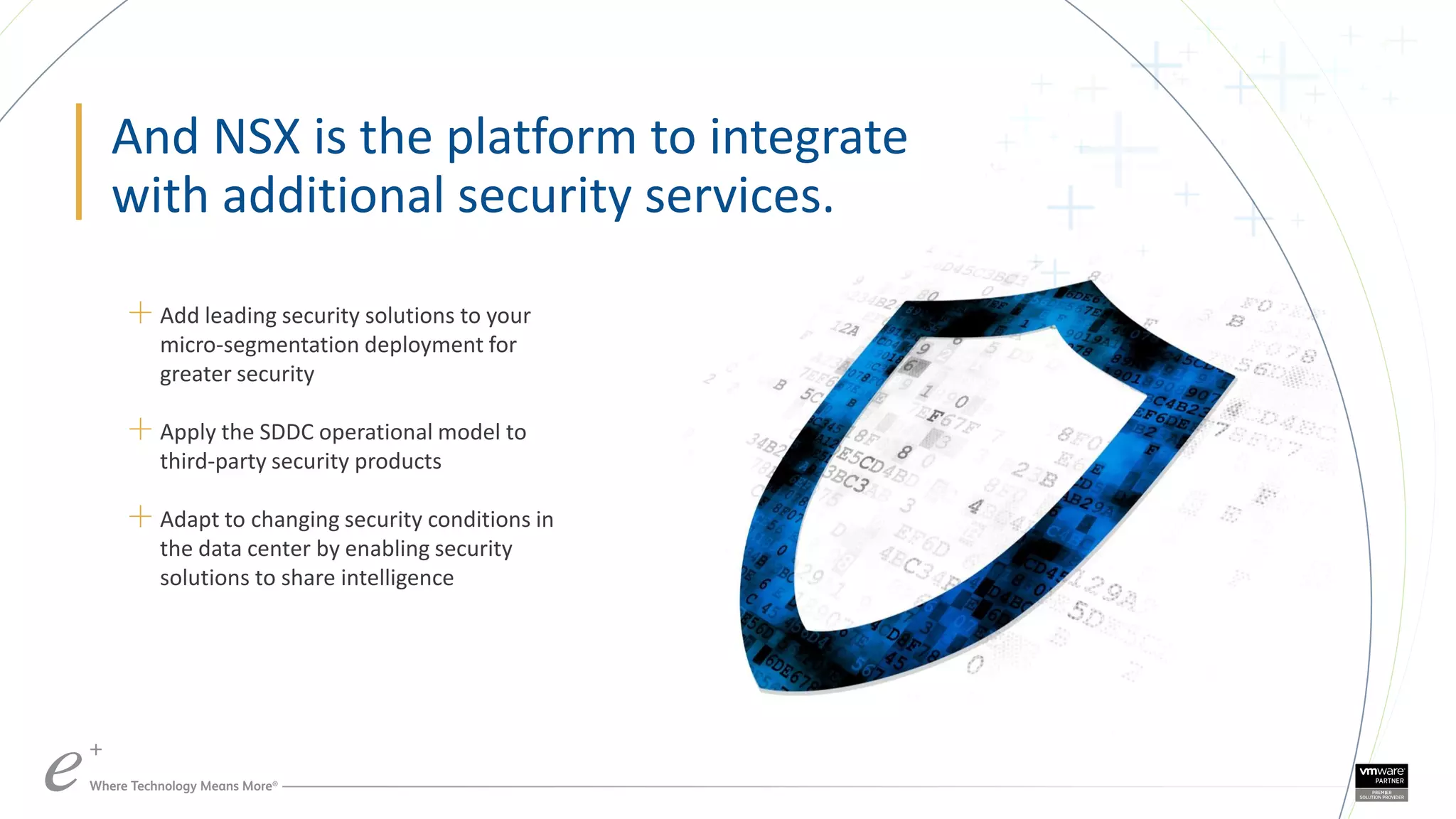

  And NSX isthe platform to integrate with additional security services. ＋ Add leading security solutions to your micro-segmentation deployment for greater security ＋ Apply the SDDC operational model to third-party security products ＋ Adapt to changing security conditions in the data center by enabling security solutions to share intelligence
• 15.
  The NSX datacenter utilizes a dynamic service chain for a more efficient and flexible approach. NSX Data Center Dynamic service chain: Third -party security solutions use NSX security tags to share intelligence and adapt to changing security conditions. NSX automatically applies the correct security function as needed. Traditional Data Center Static service chain: Security services must be configured when the network is architected, meaning the “chain” of services is locked in once deployed. This is an inefficient use of resources and cannot defend against changing threat conditions. 1 2 3
• 16.

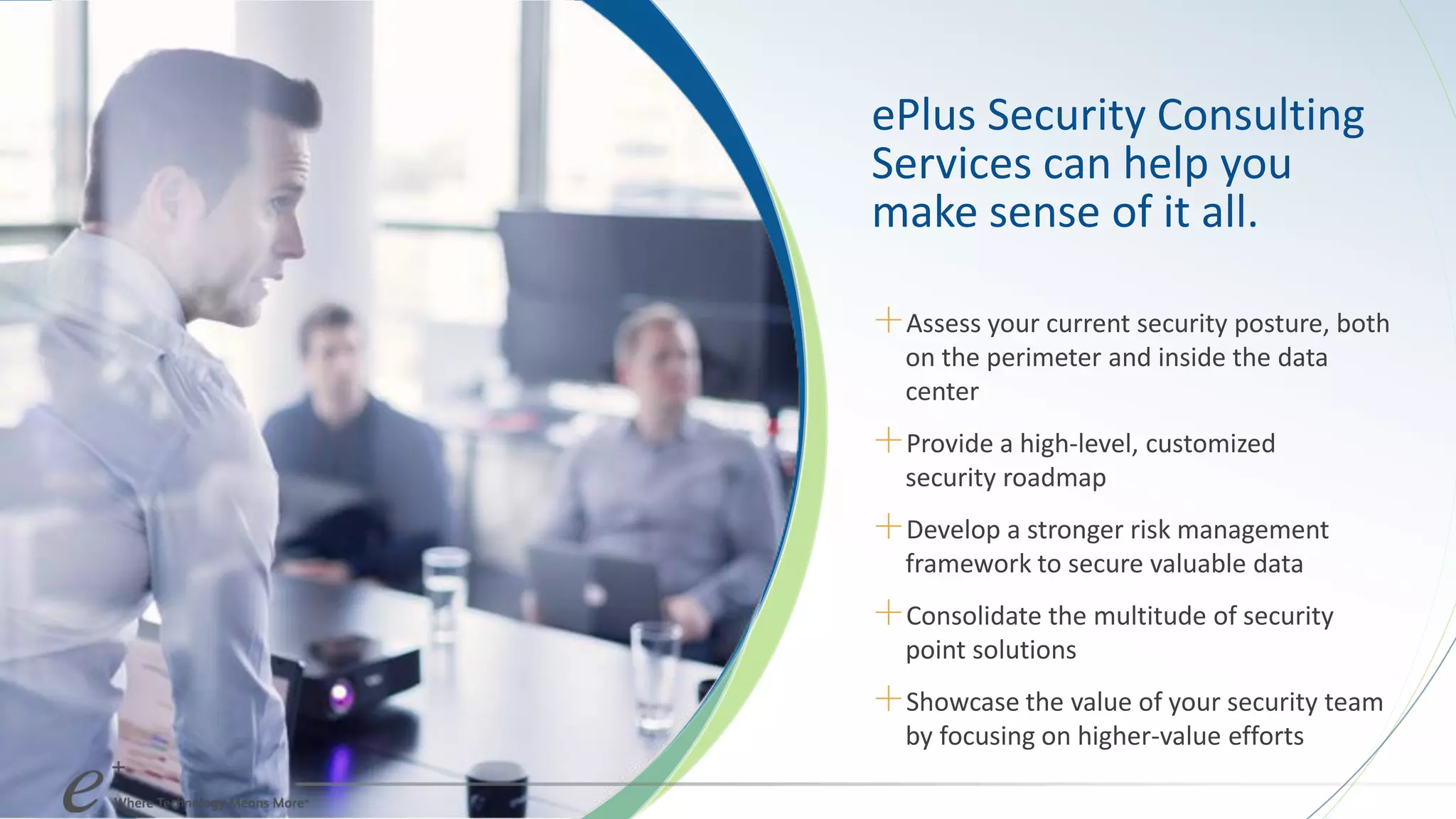

  ePlus Security Consulting Servicescan help you make sense of it all. ＋Assess your current security posture, both on the perimeter and inside the data center ＋Provide a high-level, customized security roadmap ＋Develop a stronger risk management framework to secure valuable data ＋Consolidate the multitude of security point solutions ＋Showcase the value of your security team by focusing on higher-value efforts
• 17.
  ePlus. Where TechnologyMeans More.™
• 18.
  ePlus. Where TechnologyMeans More. ® Contact ePlus to learn more about securing your network with VMware NSX. ©2016 ePlus inc. All rights reserved. ePlus, the ePlus logo, and all referenced product names are trademarks or registered trademarks of ePlus inc. All other company names, product images and products mentioned herein are trademarks or registered trademarks of their respective companies. www.eplus.com/vmware I 888.482.1122 I Team-VMware@eplus.com
