Scheme on WebAssembly: It is happening!

Scheme on
WebAssembly
It is happening!
7 September 2024 – Scheme ’24
Andy Wingo
Igalia, S.L.

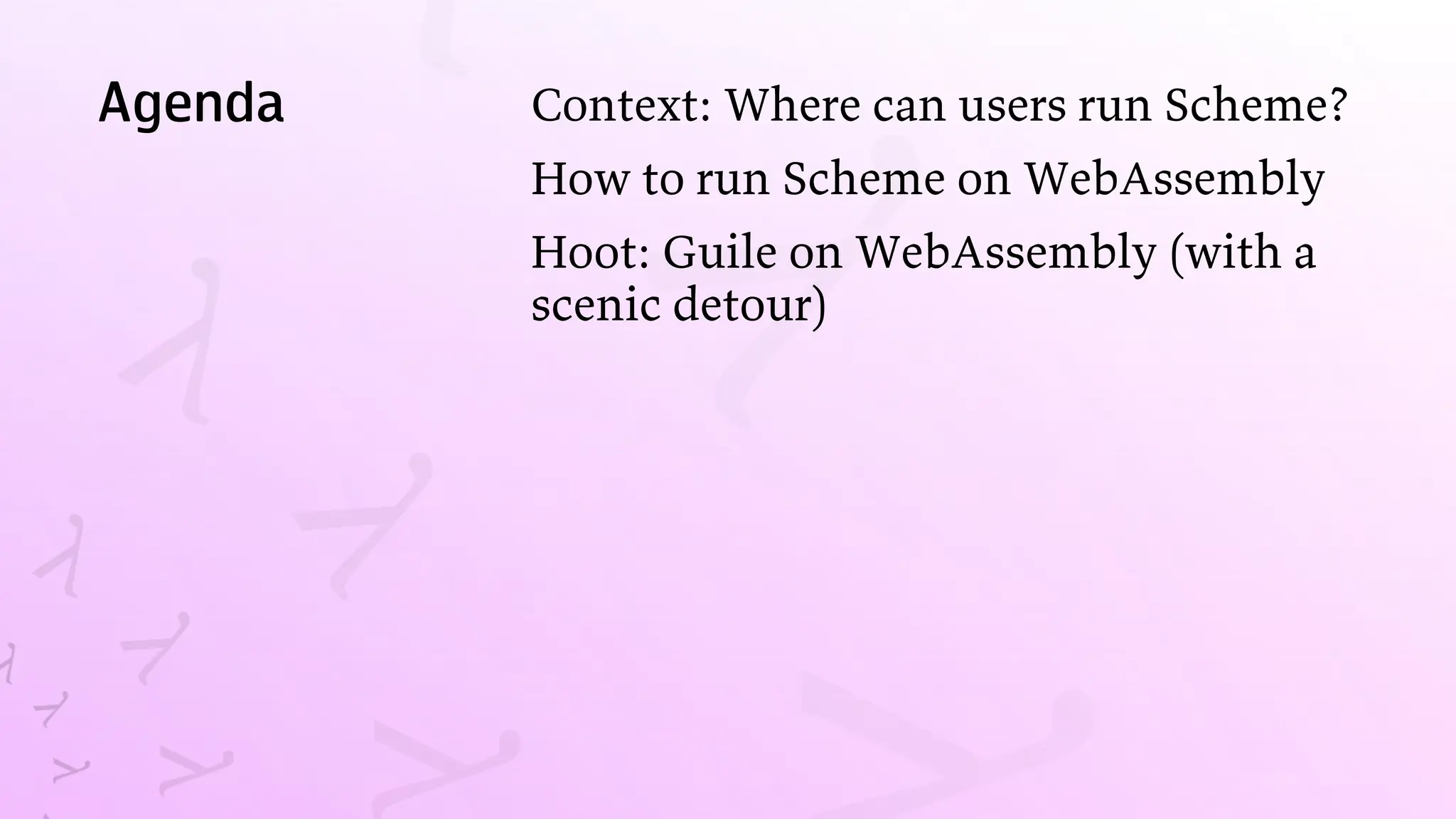

Agenda Context: Where can users run Scheme?
How to run Scheme on WebAssembly
Hoot: Guile on WebAssembly (with a
scenic detour)

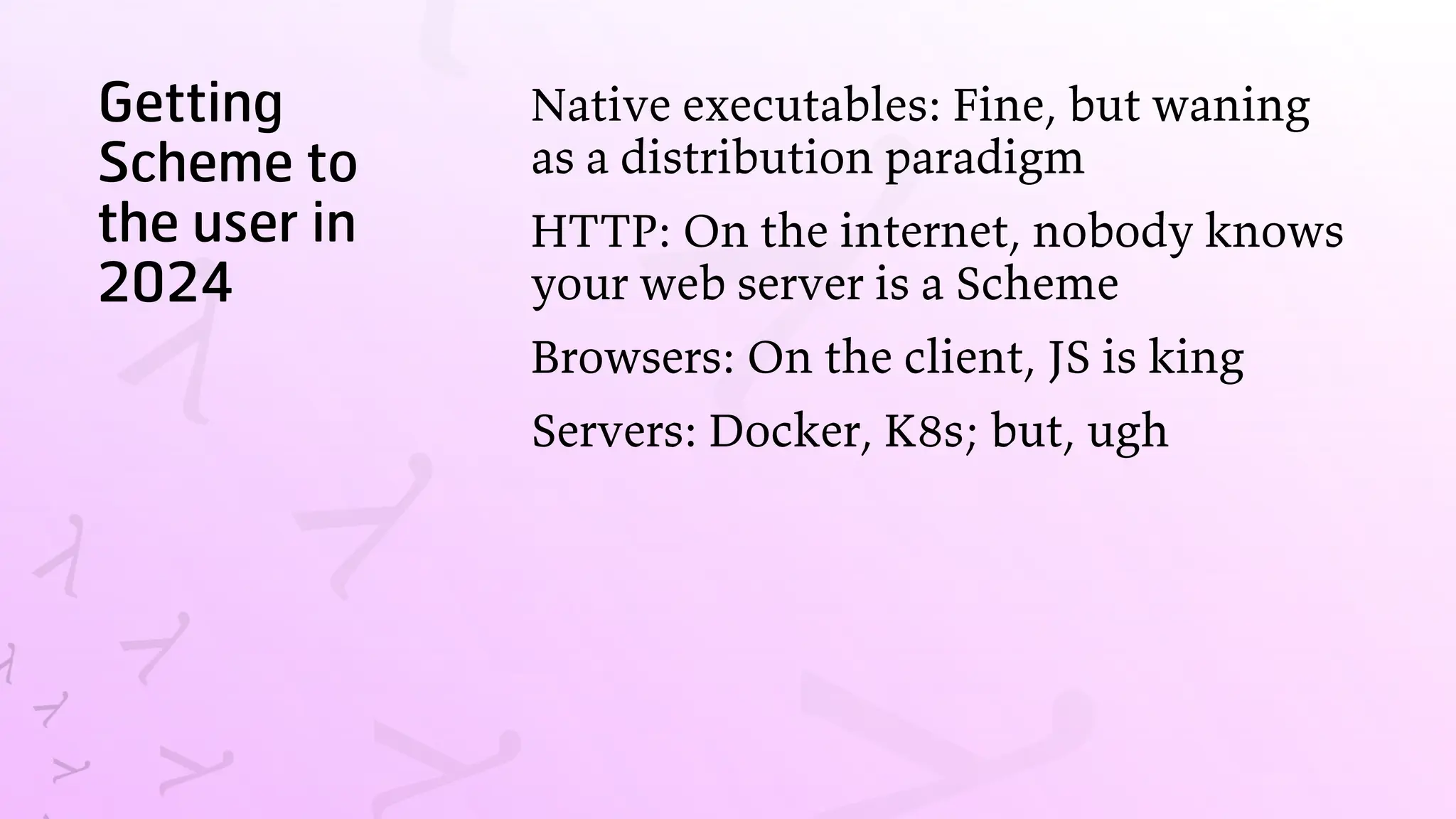

Getting
Scheme to
the user in
2024
Native executables: Fine, but waning
as a distribution paradigm
HTTP: On the internet, nobody knows
your web server is a Scheme
Browsers: On the client, JS is king
Servers: Docker, K8s; but, ugh

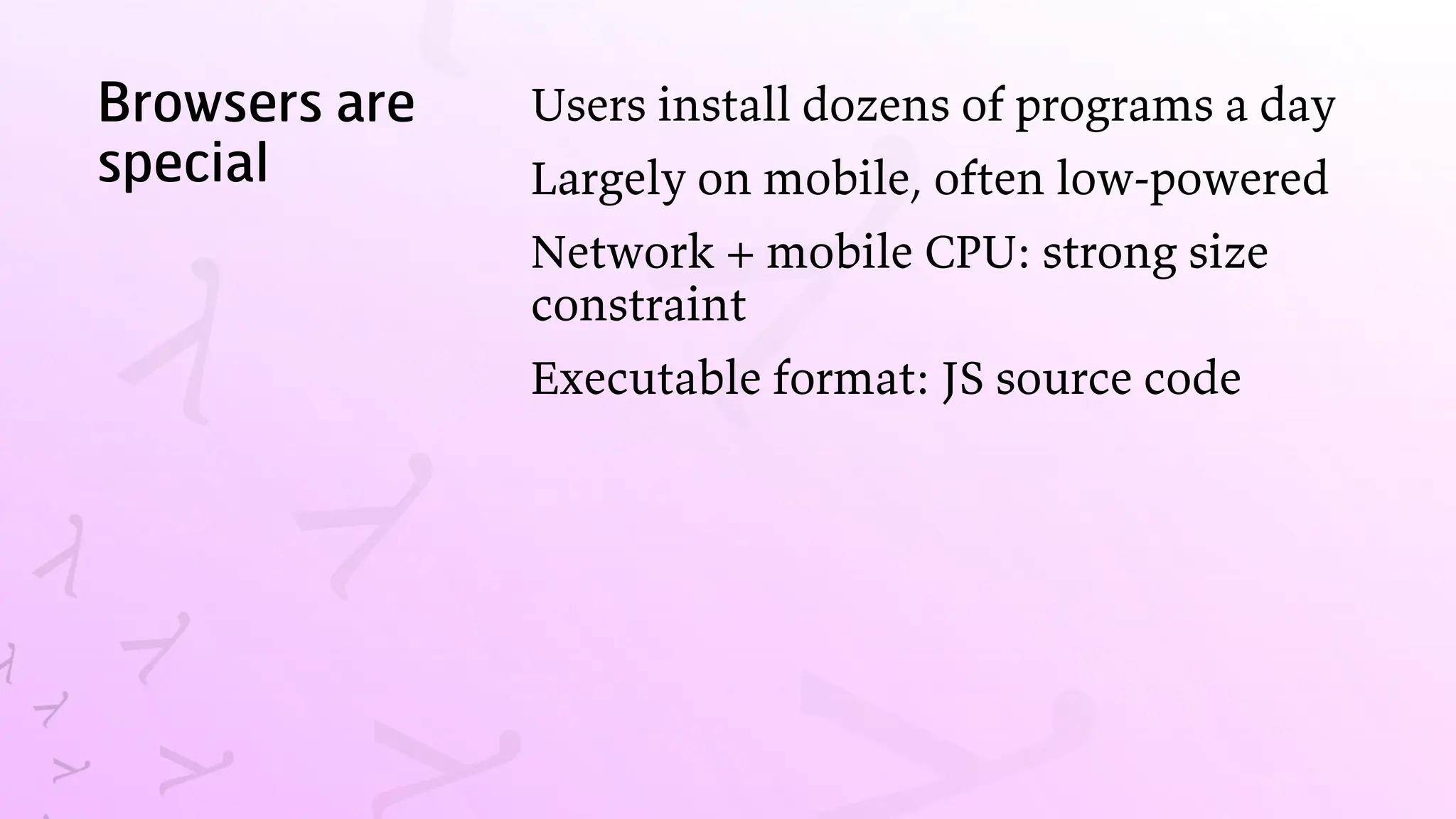

Browsers are
special
Users install dozens of programs a day
Largely on mobile, often low-powered
Network + mobile CPU: strong size
constraint
Executable format: JS source code

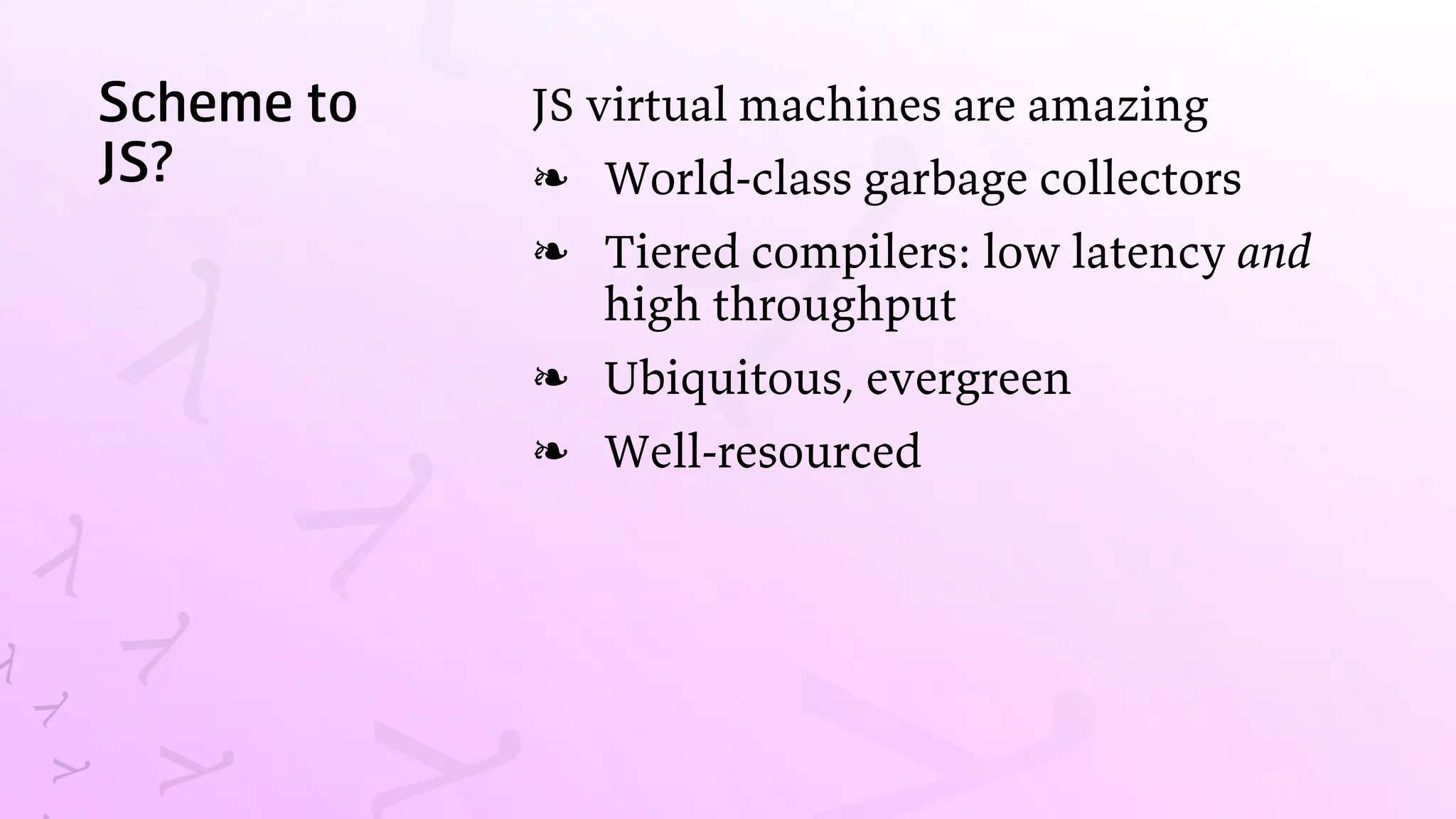

Scheme to
JS?
JS virtual machines are amazing
World-class garbage collectors
❧
Tiered compilers: low latency and
high throughput
❧
Ubiquitous, evergreen
❧
Well-resourced
❧

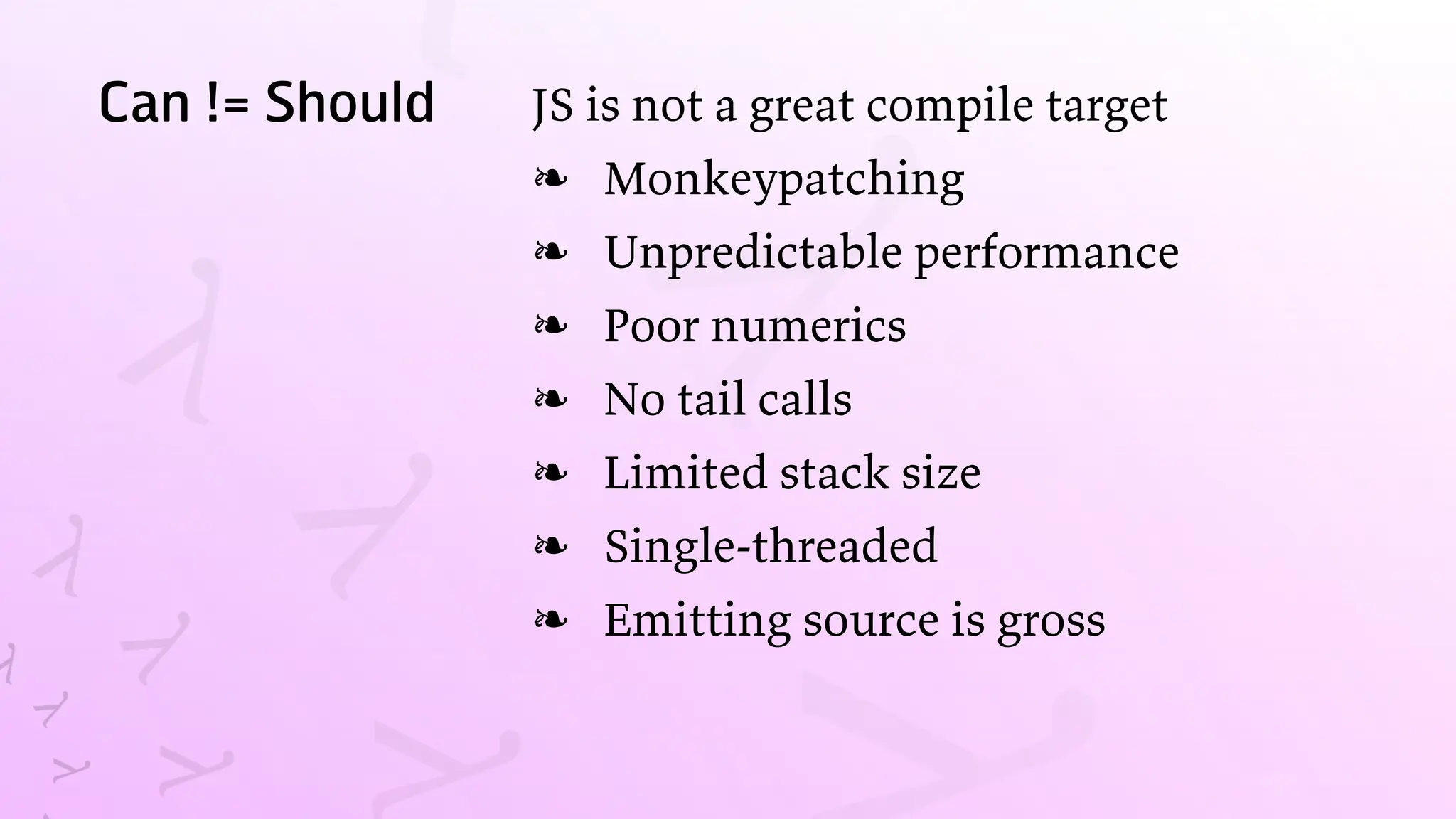

Can != Should JS is not a great compile target
Monkeypatching
❧
Unpredictable performance
❧
Poor numerics
❧
No tail calls
❧
Limited stack size
❧
Single-threaded
❧
Emitting source is gross
❧

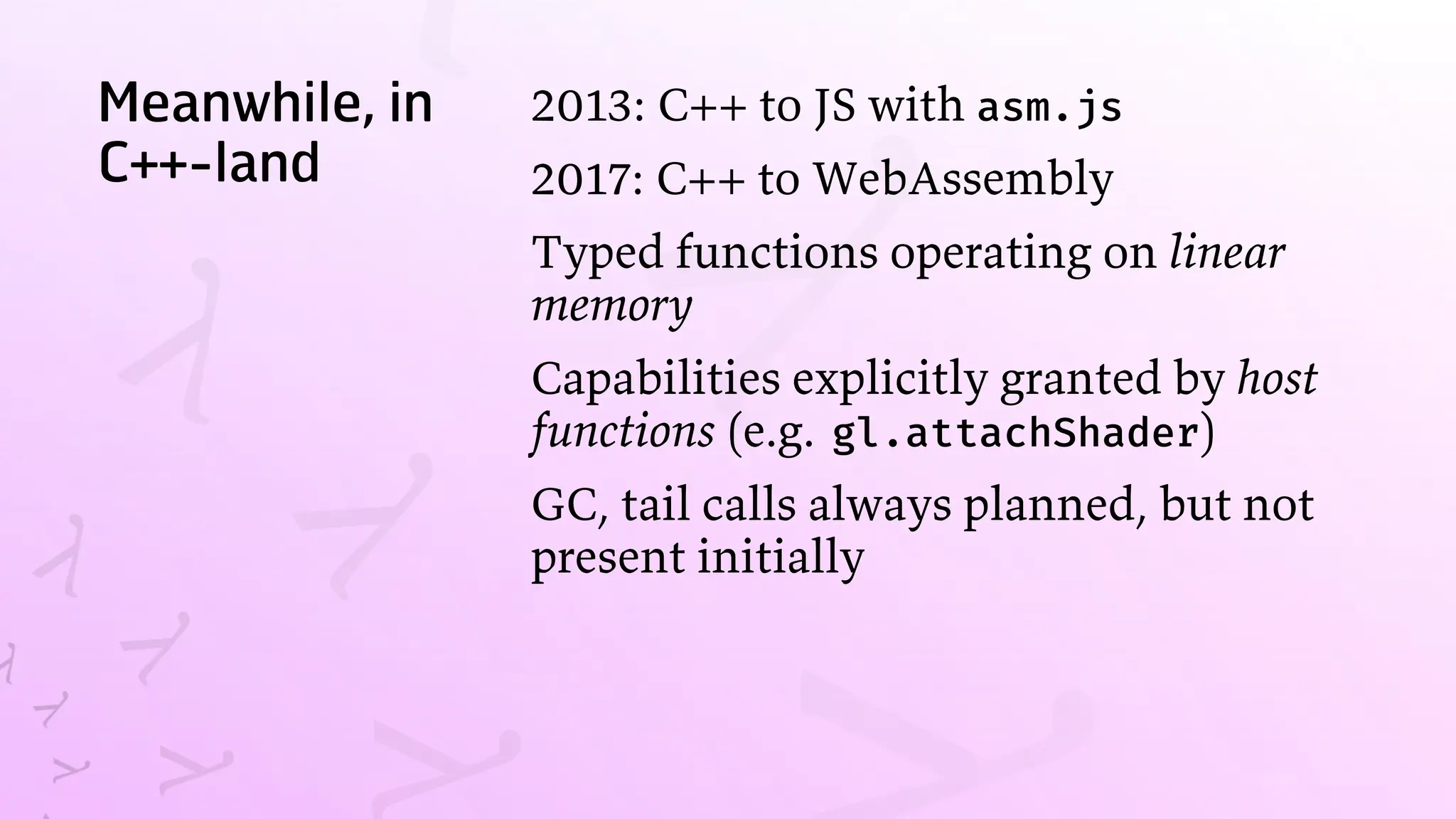

Meanwhile, in
C++-land
2013: C++ to JS with asm.js
2017: C++ to WebAssembly
Typed functions operating on linear
memory
Capabilities explicitly granted by host
functions (e.g. gl.attachShader)
GC, tail calls always planned, but not
present initially

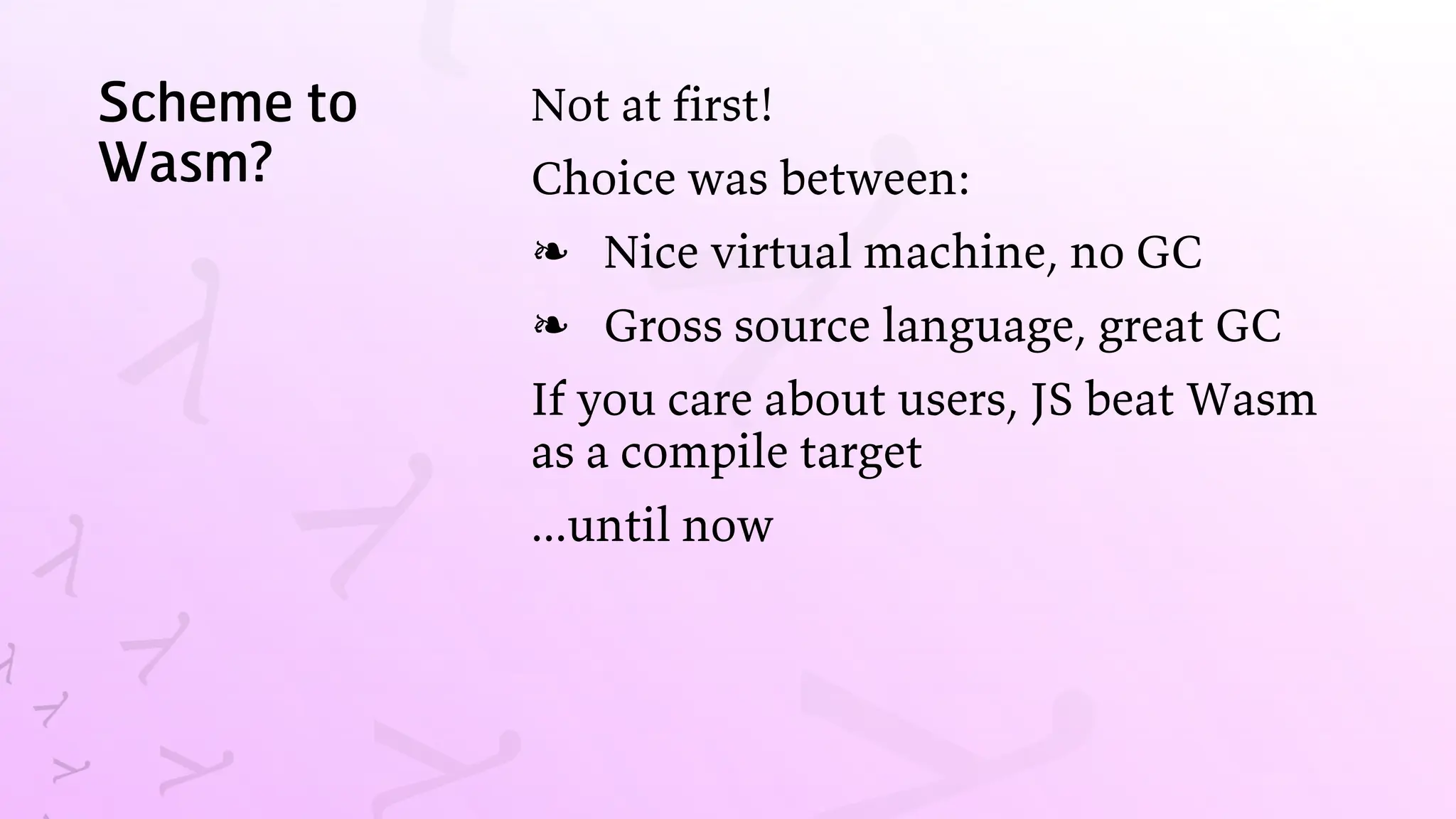

Scheme to
Wasm?
Not at first!
Choice was between:
Nice virtual machine, no GC
❧
Gross source language, great GC
❧
If you care about users, JS beat Wasm
as a compile target
...until now

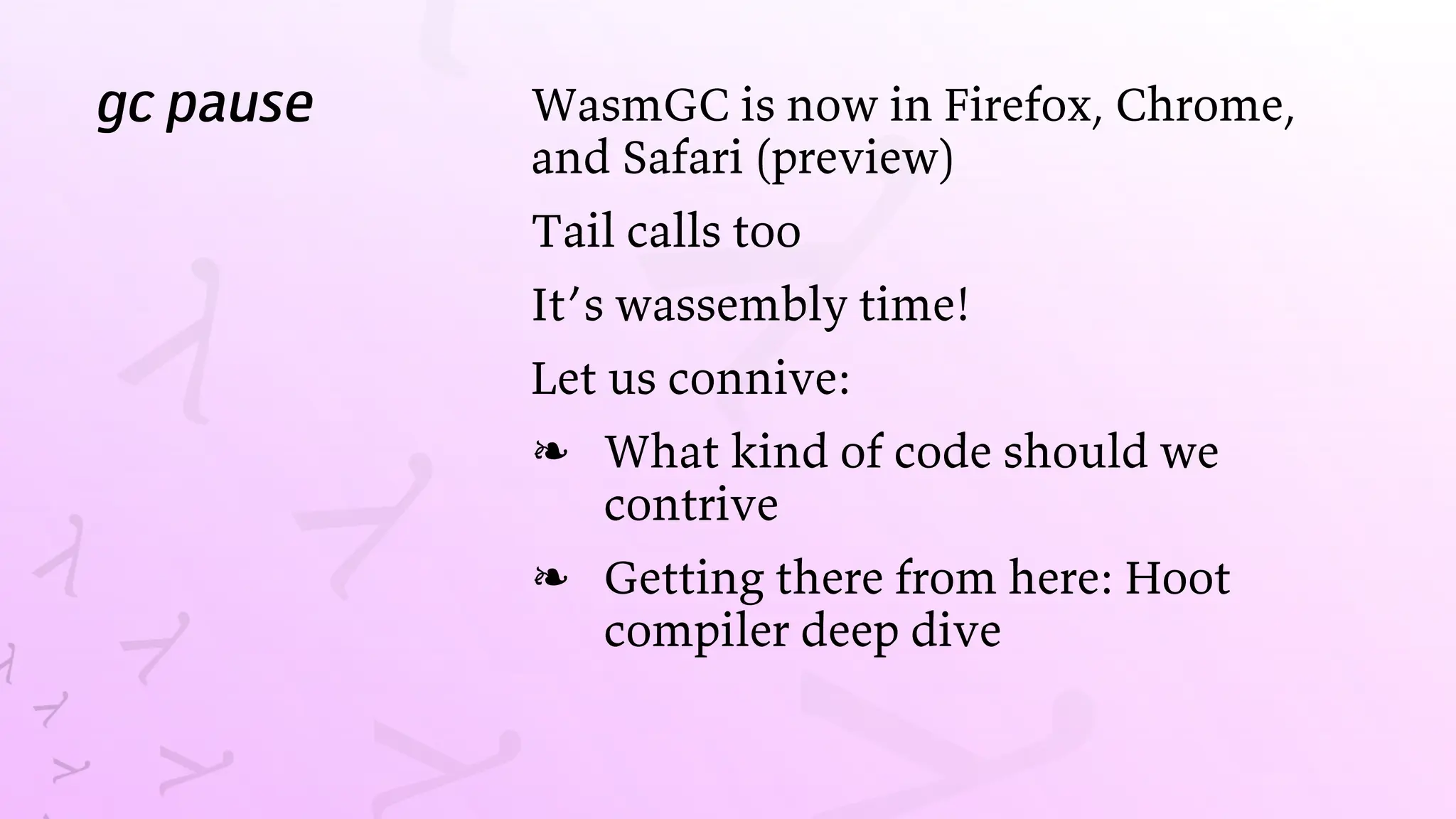

gc pause WasmGC is now in Firefox, Chrome,
and Safari (preview)
Tail calls too
It’s wassembly time!
Let us connive:
What kind of code should we
contrive
❧
Getting there from here: Hoot
compiler deep dive
❧

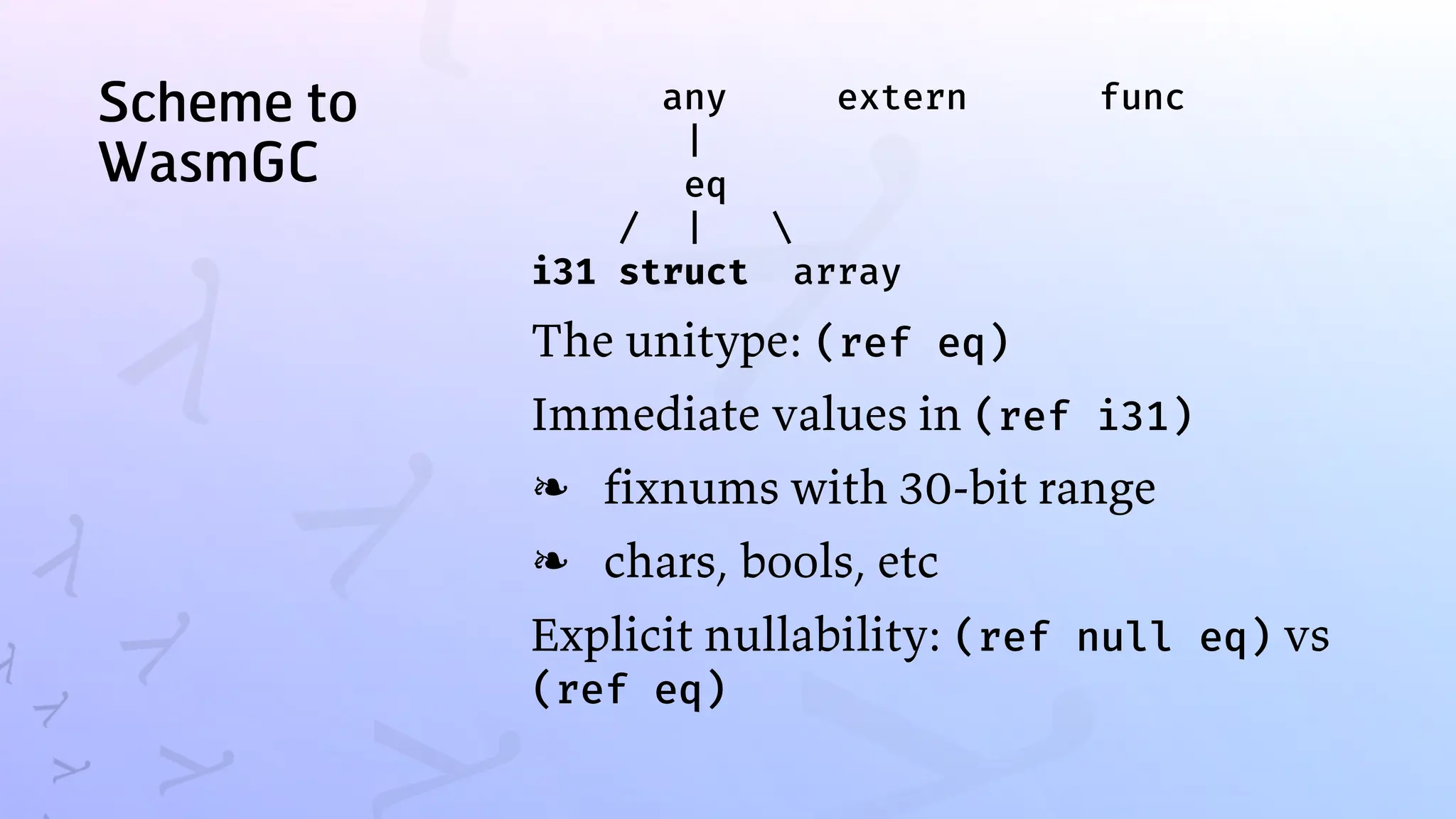

Scheme to
WasmGC
any extern func
|
eq
/ |
i31 struct array
The unitype: (ref eq)
Immediate values in (ref i31)
fixnums with 30-bit range
❧
chars, bools, etc
❧
Explicit nullability: (ref null eq) vs
(ref eq)

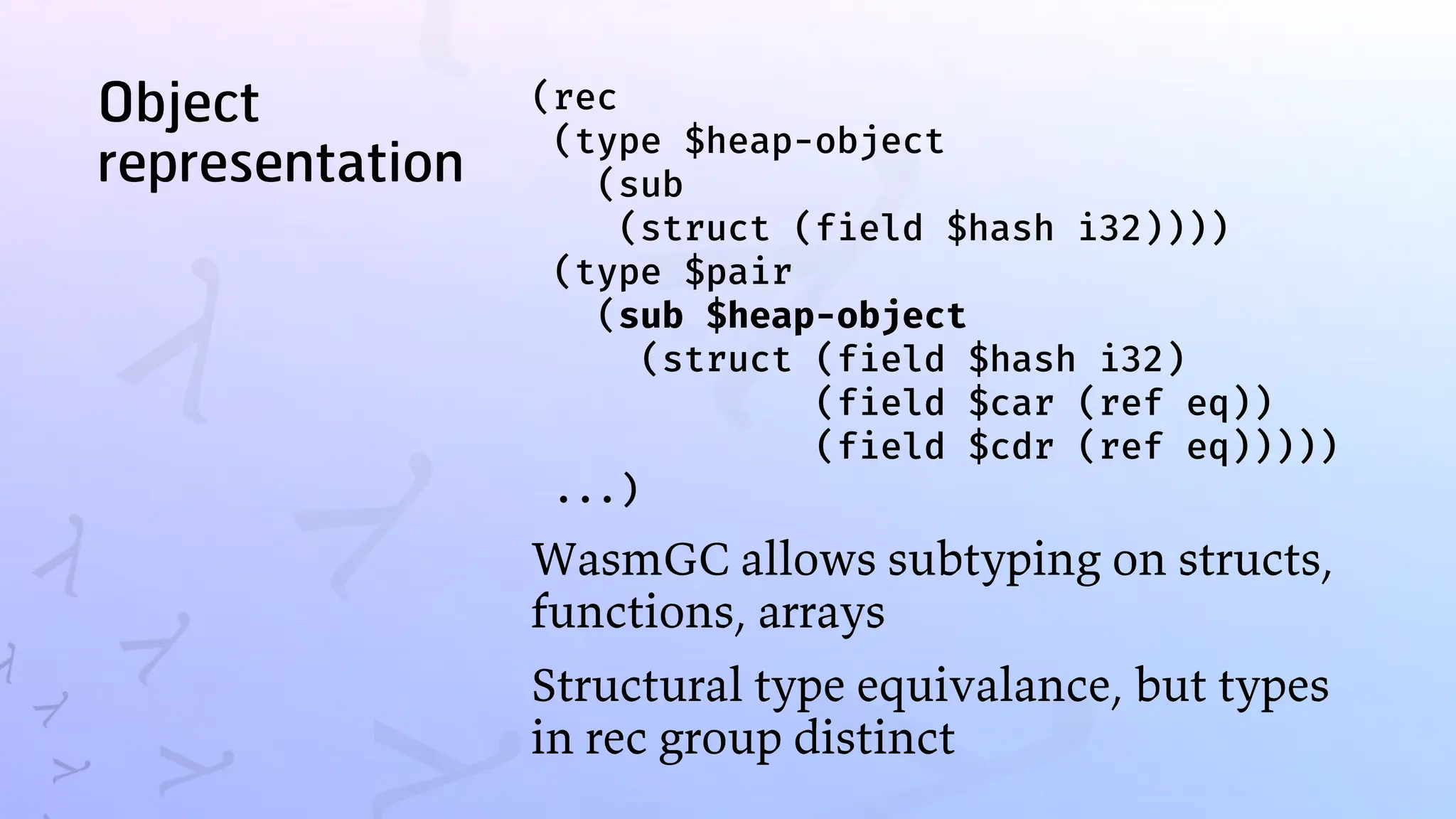

Object
representation
(rec
(type $heap-object
(sub
(struct (field $hash i32))))
(type $pair
(sub $heap-object
(struct (field $hash i32)
(field $car (ref eq))
(field $cdr (ref eq)))))
...)
WasmGC allows subtyping on structs,
functions, arrays
Structural type equivalance, but types
in rec group distinct

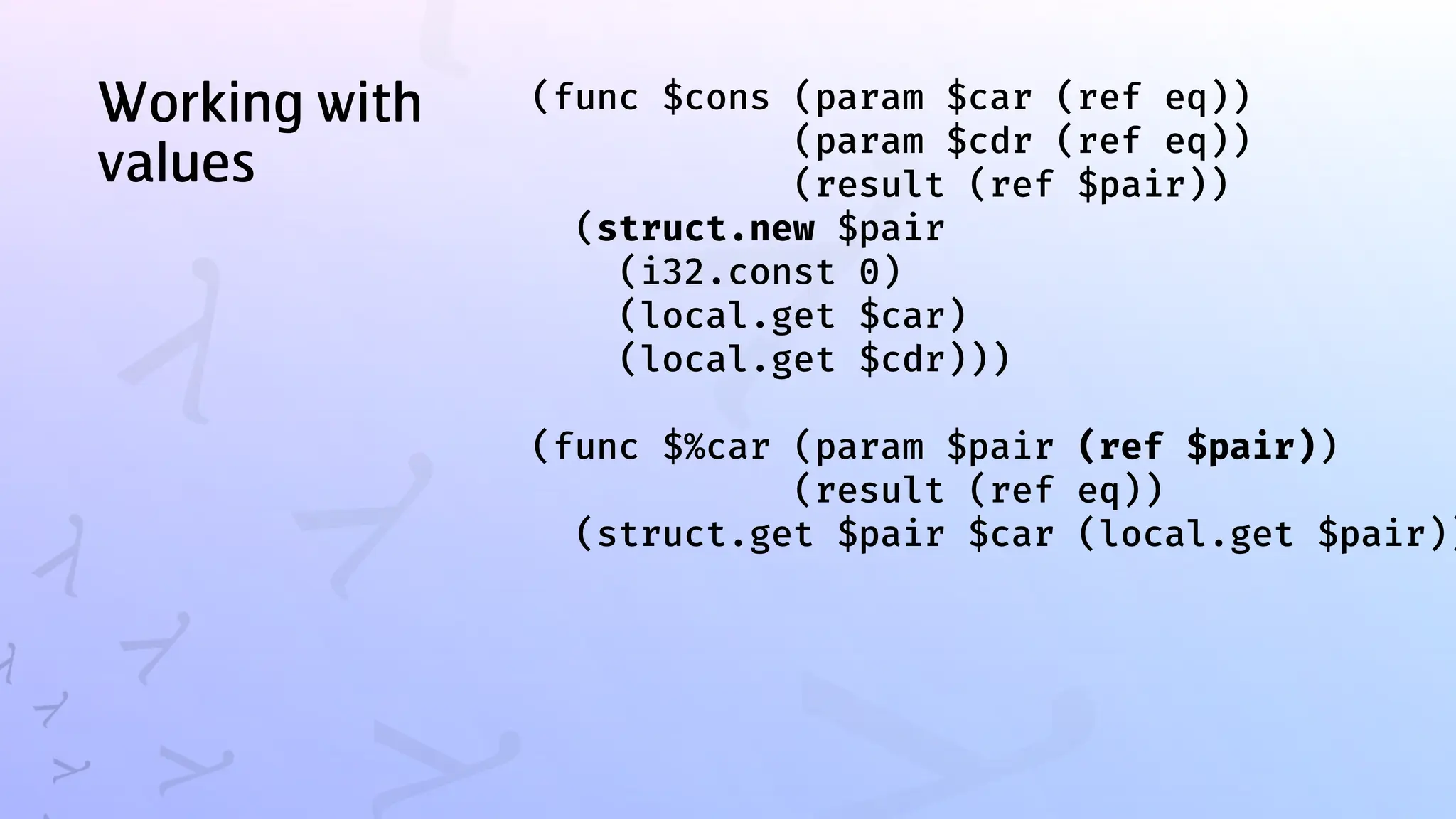

Working with
values
(func $cons (param $car (ref eq))
(param $cdr (ref eq))
(result (ref $pair))
(struct.new $pair
(i32.const 0)
(local.get $car)
(local.get $cdr)))
(func $%car (param $pair (ref $pair))
(result (ref eq))
(struct.get $pair $car (local.get $pair))

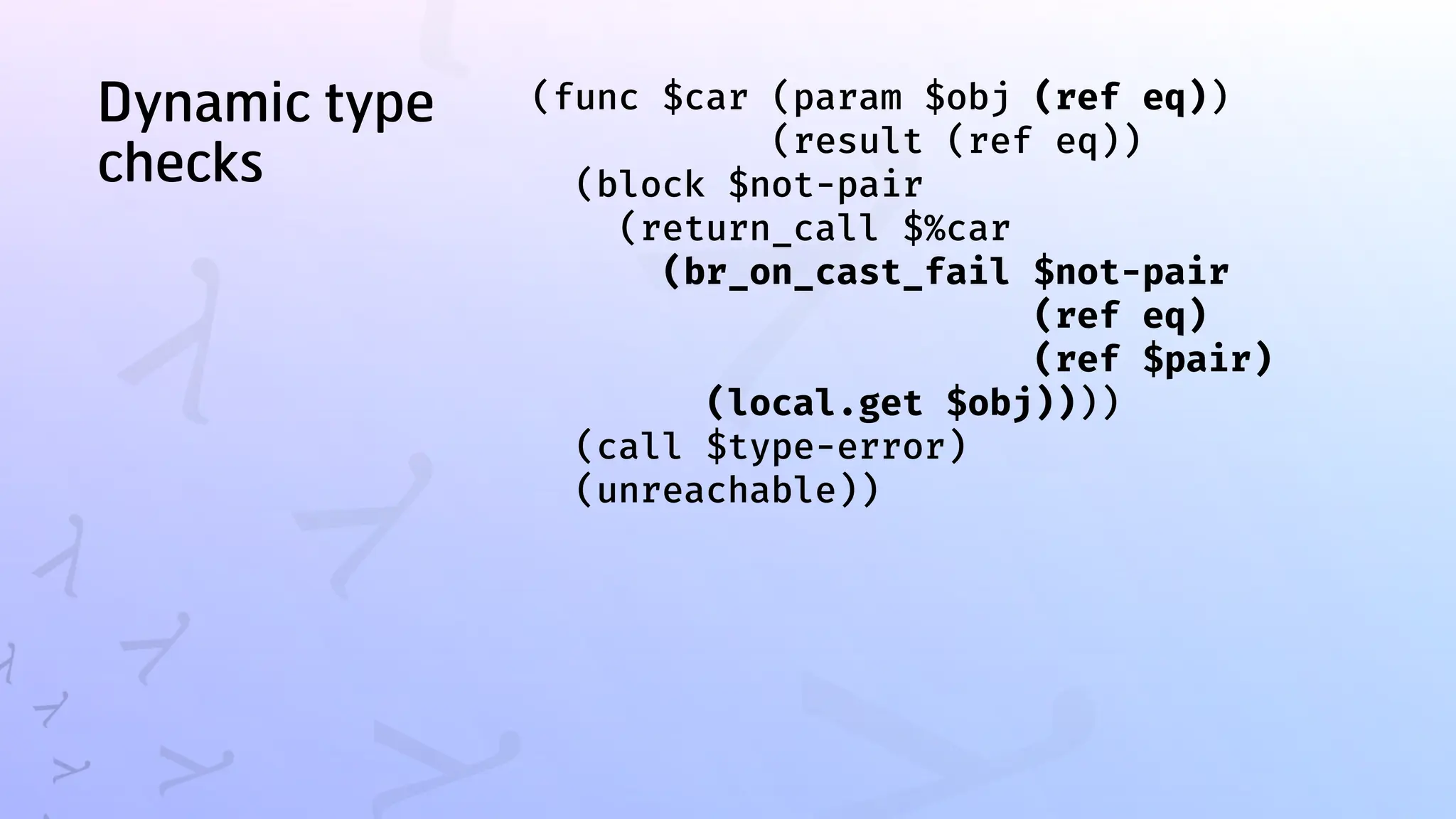

Dynamic type
checks
(func $car (param $obj (ref eq))
(result (ref eq))
(block $not-pair
(return_call $%car
(br_on_cast_fail $not-pair
(ref eq)
(ref $pair)
(local.get $obj))))
(call $type-error)
(unreachable))

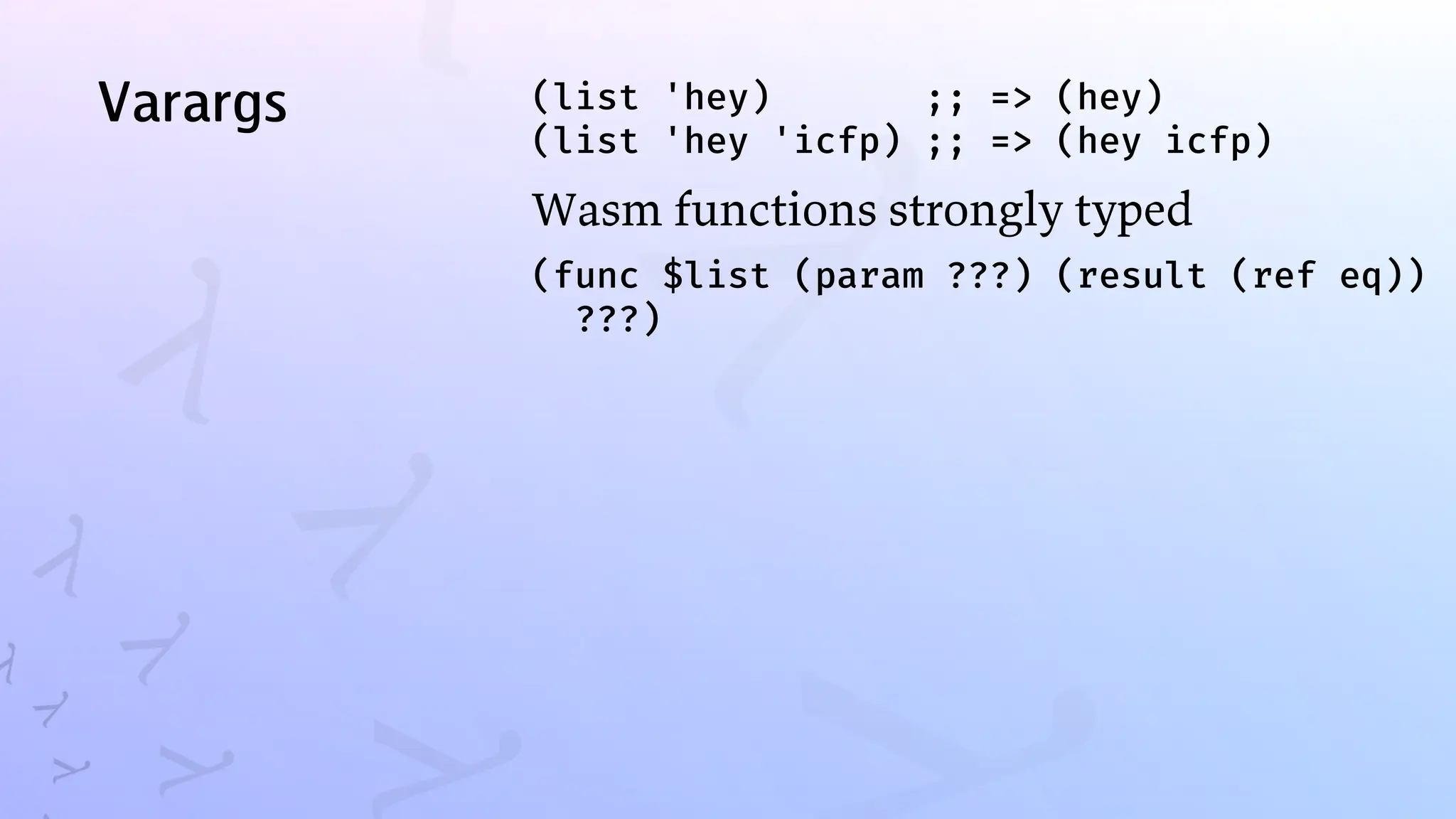

Varargs (list 'hey) ;; => (hey)
(list 'hey 'icfp) ;; => (hey icfp)
Wasm functions strongly typed
(func $list (param ???) (result (ref eq))
???)

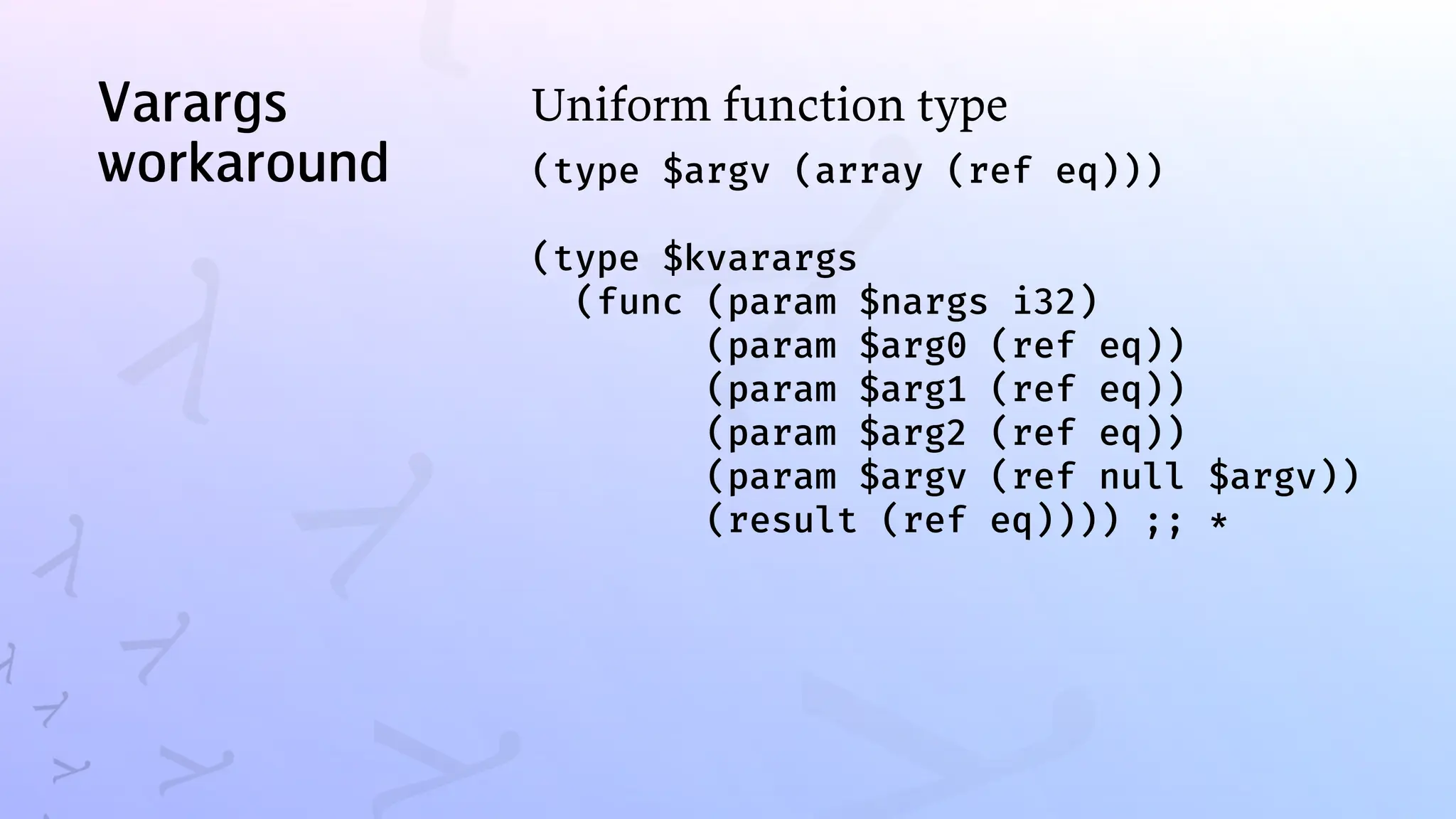

Varargs
workaround
Uniform function type
(type $argv (array (ref eq)))
(type $kvarargs
(func (param $nargs i32)
(param $arg0 (ref eq))
(param $argv (ref null $argv))
(result (ref eq)))) ;; *

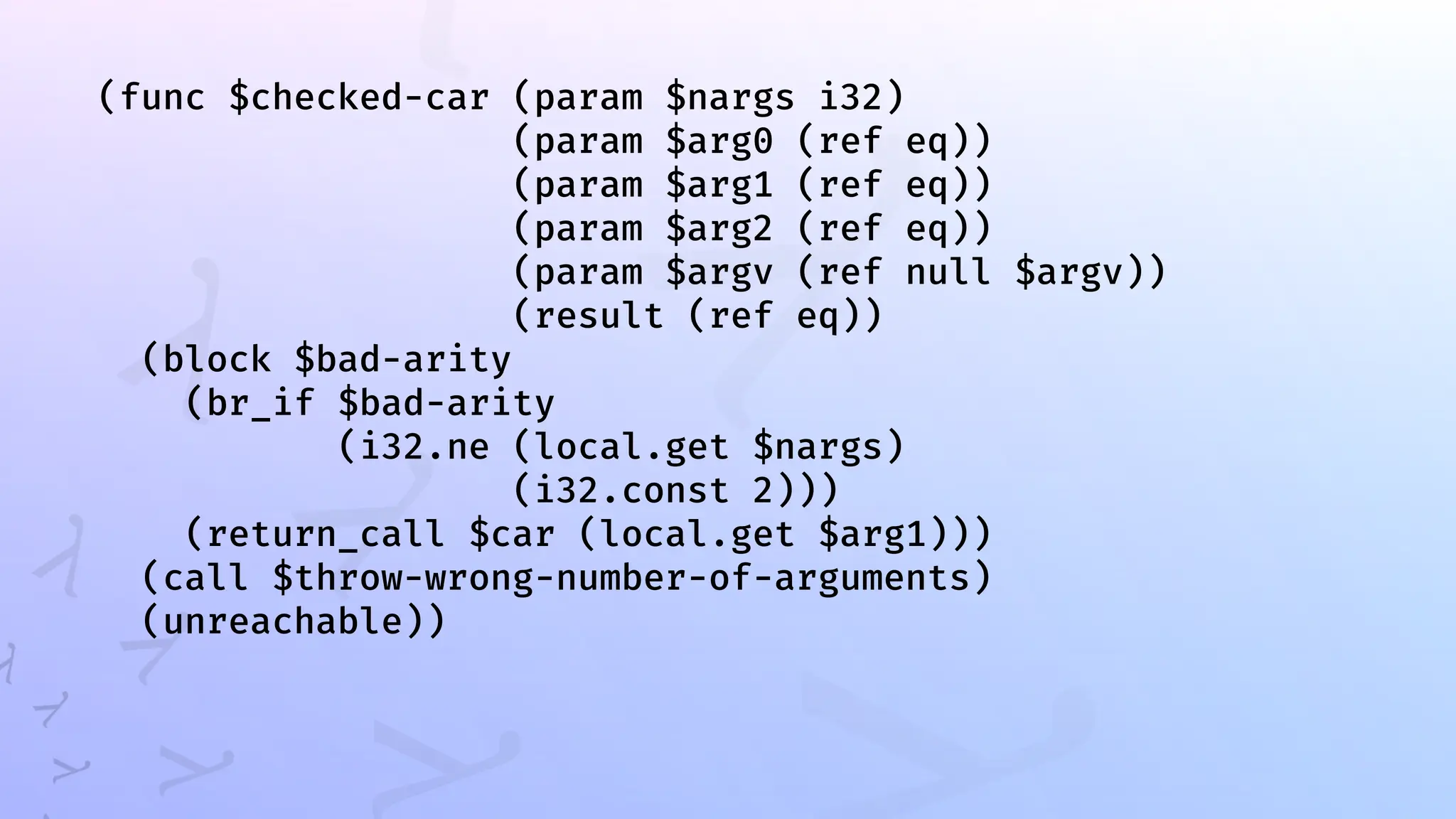

(func $checked-car (param $nargs i32)
(param $argv (ref null $argv))
(result (ref eq))
(block $bad-arity
(br_if $bad-arity
(i32.ne (local.get $nargs)
(i32.const 2)))
(return_call $car (local.get $arg1)))
(call $throw-wrong-number-of-arguments)
(unreachable))

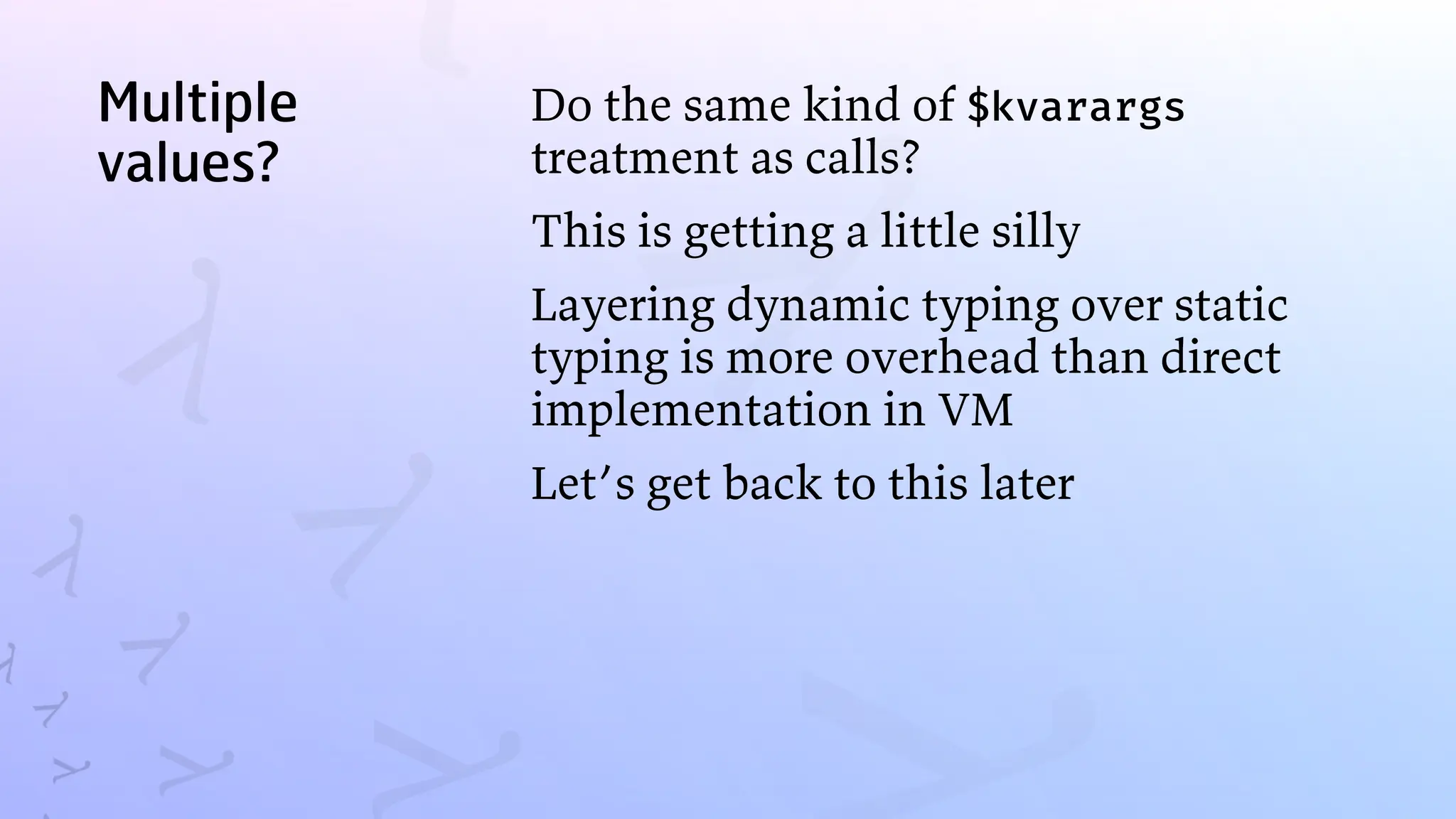

Multiple
values?
Do the same kind of $kvarargs
treatment as calls?
This is getting a little silly
Layering dynamic typing over static
typing is more overhead than direct
implementation in VM
Let’s get back to this later

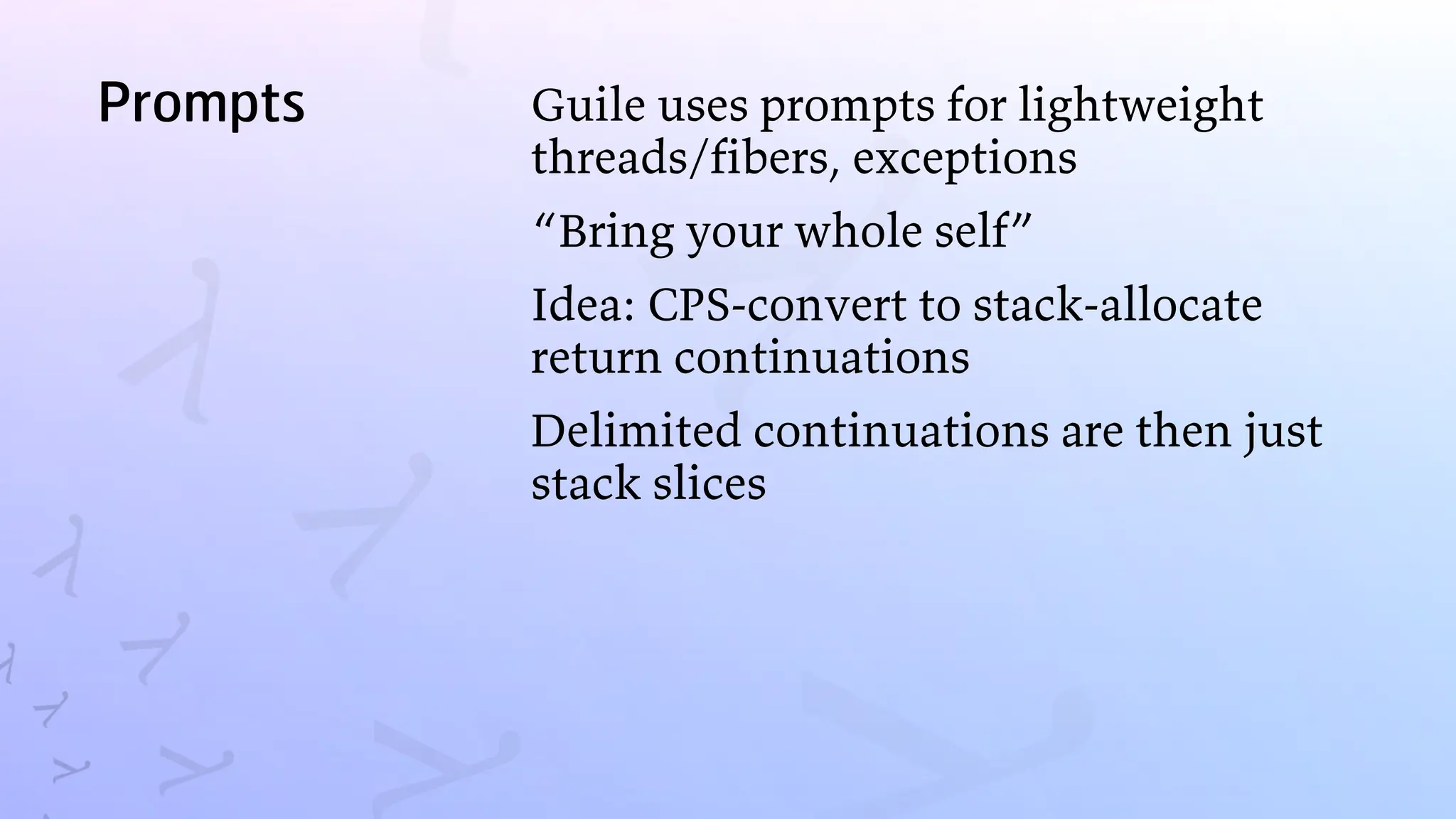

Prompts Guile uses prompts for lightweight
threads/fibers, exceptions
“Bring your whole self”
Idea: CPS-convert to stack-allocate
return continuations
Delimited continuations are then just
stack slices

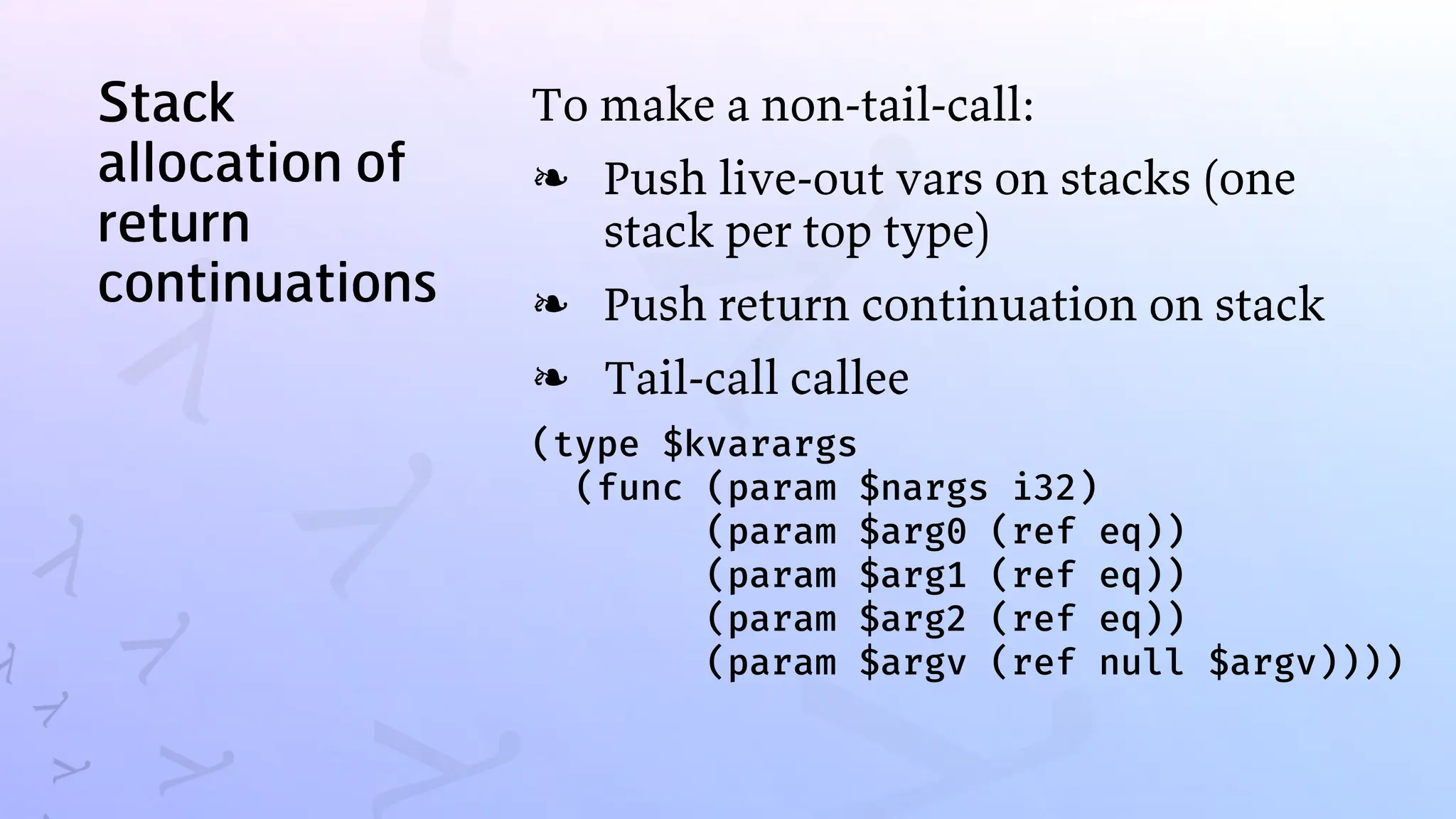

Stack
allocation of
return
continuations
To make a non-tail-call:
Push live-out vars on stacks (one
stack per top type)
❧
Push return continuation on stack
❧
Tail-call callee
❧
(type $kvarargs
(func (param $nargs i32)
(param $argv (ref null $argv))))

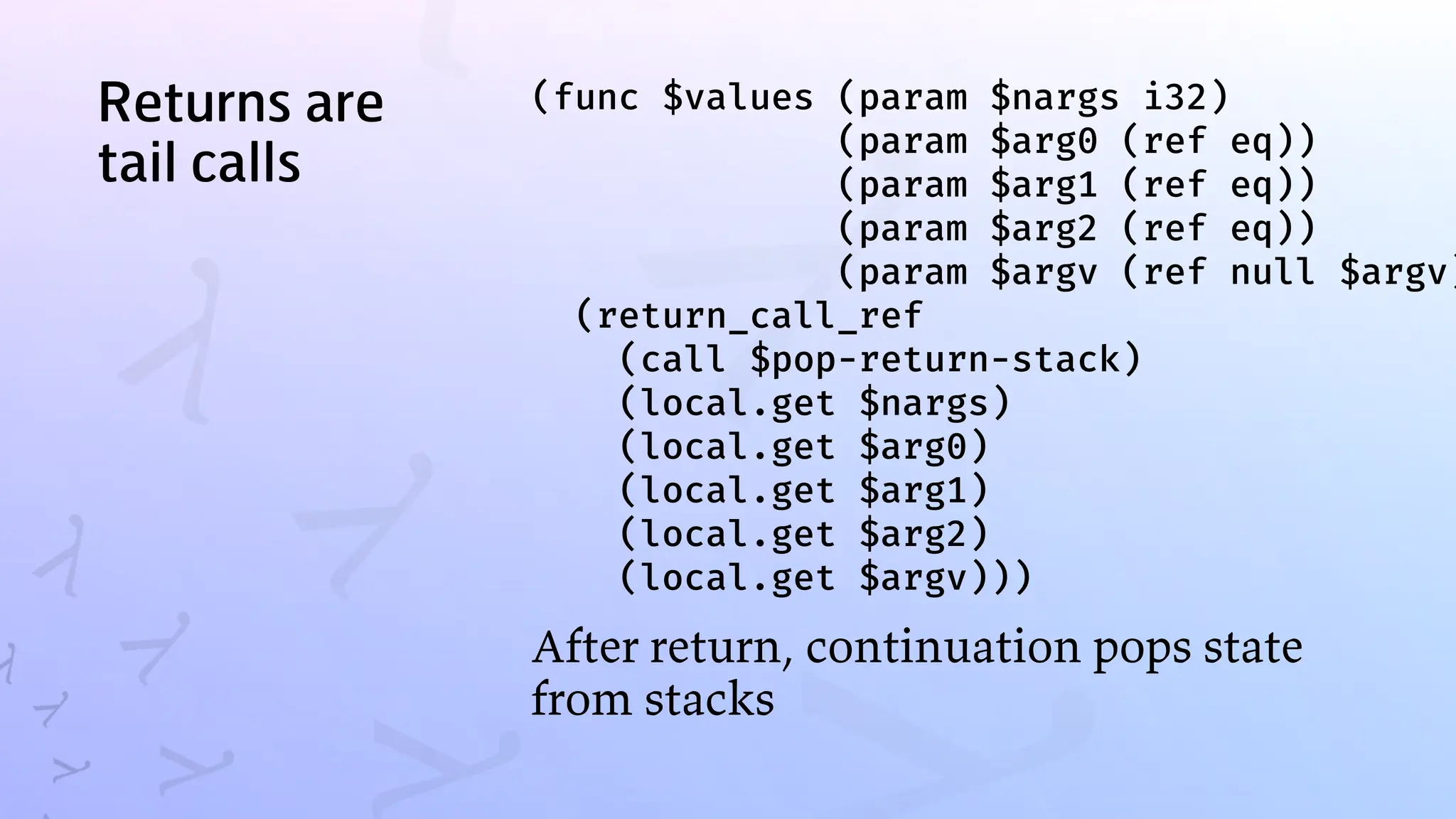

Returns are
tail calls
(func $values (param $nargs i32)
(param $argv (ref null $argv)
(return_call_ref
(call $pop-return-stack)
(local.get $nargs)
(local.get $arg0)
(local.get $arg1)
(local.get $arg2)
(local.get $argv)))
After return, continuation pops state
from stacks

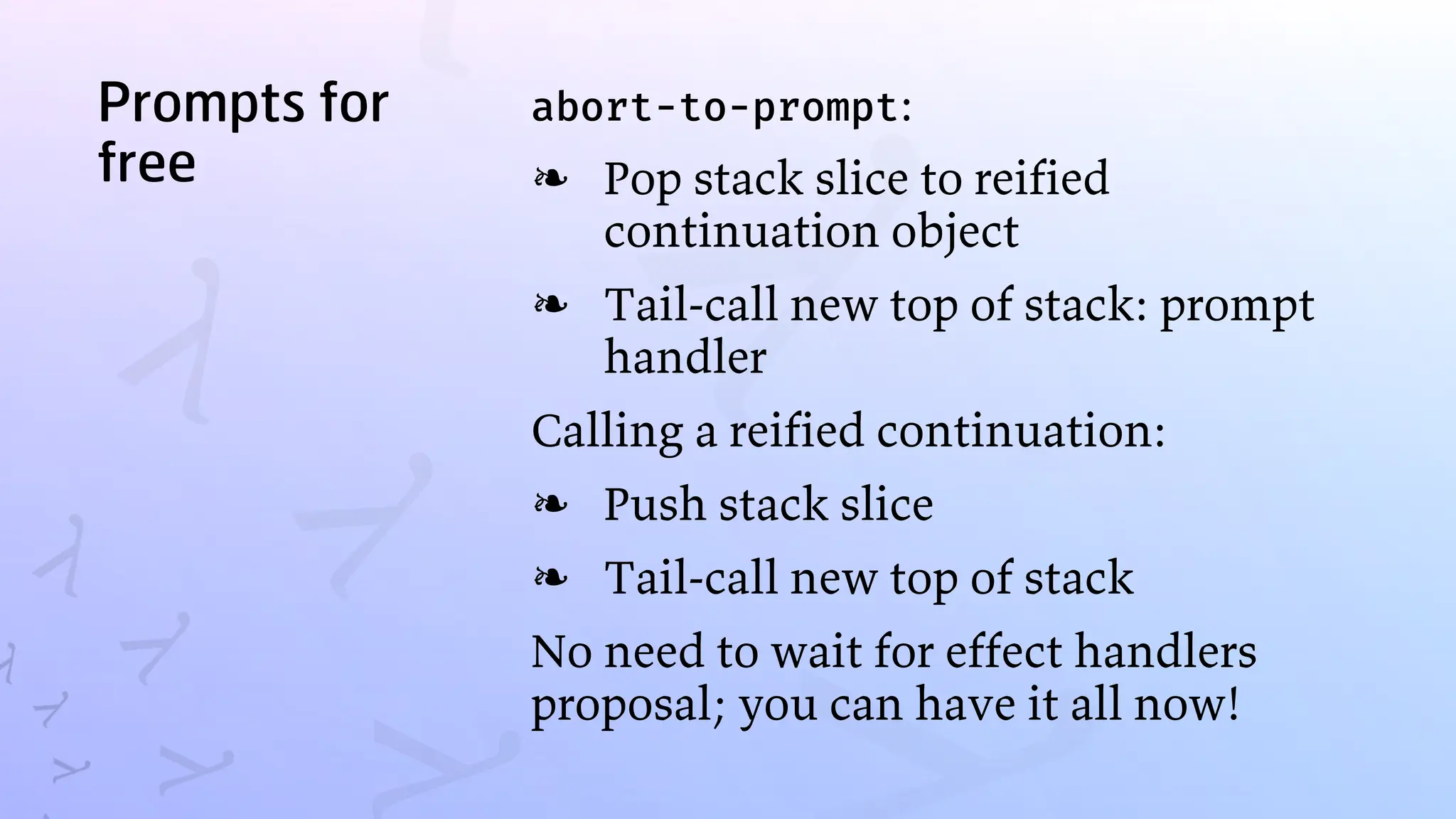

Prompts for
free
abort-to-prompt:
Pop stack slice to reified
continuation object
❧
Tail-call new top of stack: prompt
handler
❧
Calling a reified continuation:
Push stack slice
❧
Tail-call new top of stack
❧
No need to wait for effect handlers
proposal; you can have it all now!

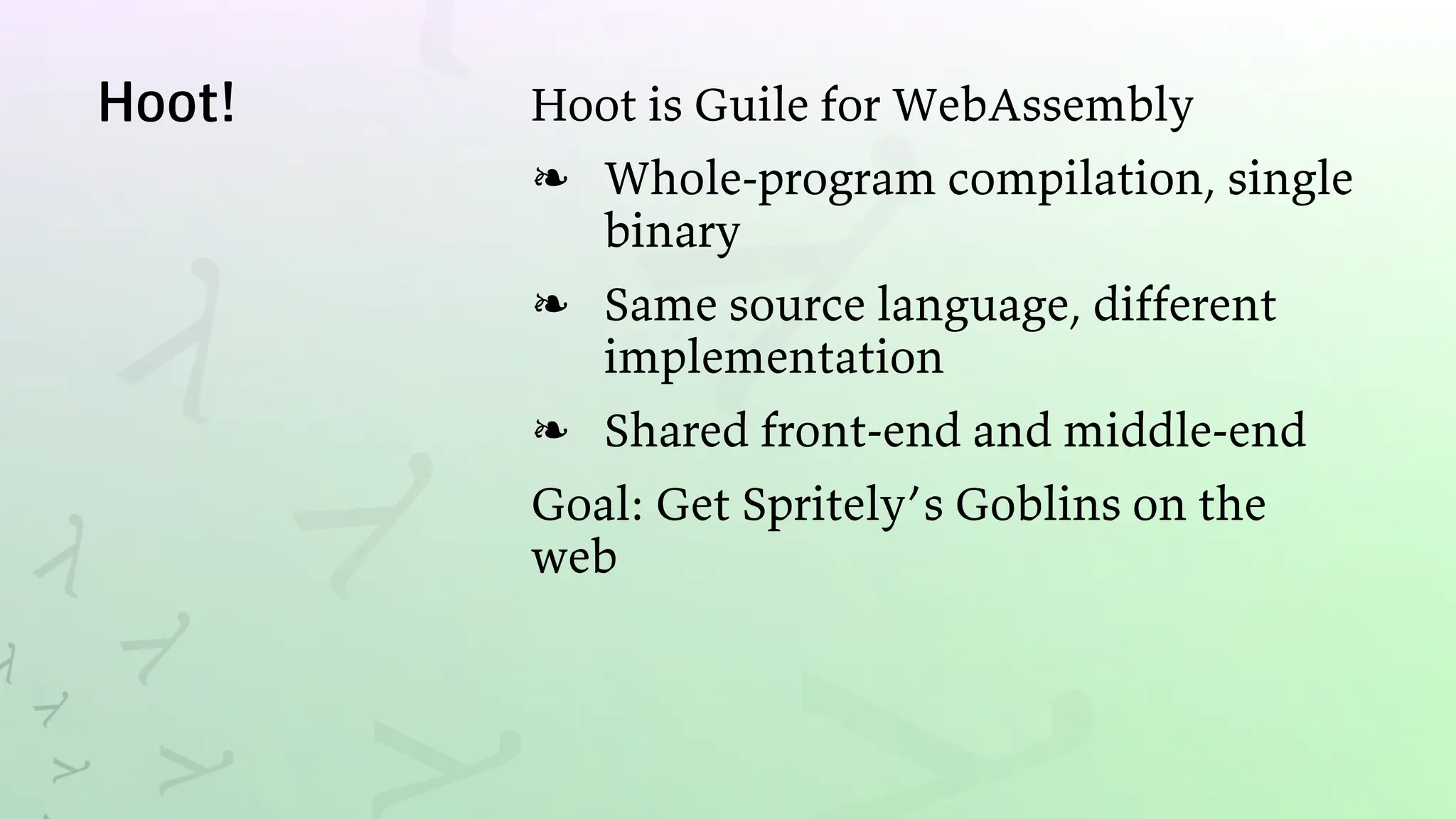

Hoot! Hoot is Guile for WebAssembly
Whole-program compilation, single
binary
❧
Same source language, different
implementation
❧
Shared front-end and middle-end
❧
Goal: Get Spritely’s Goblins on the
web

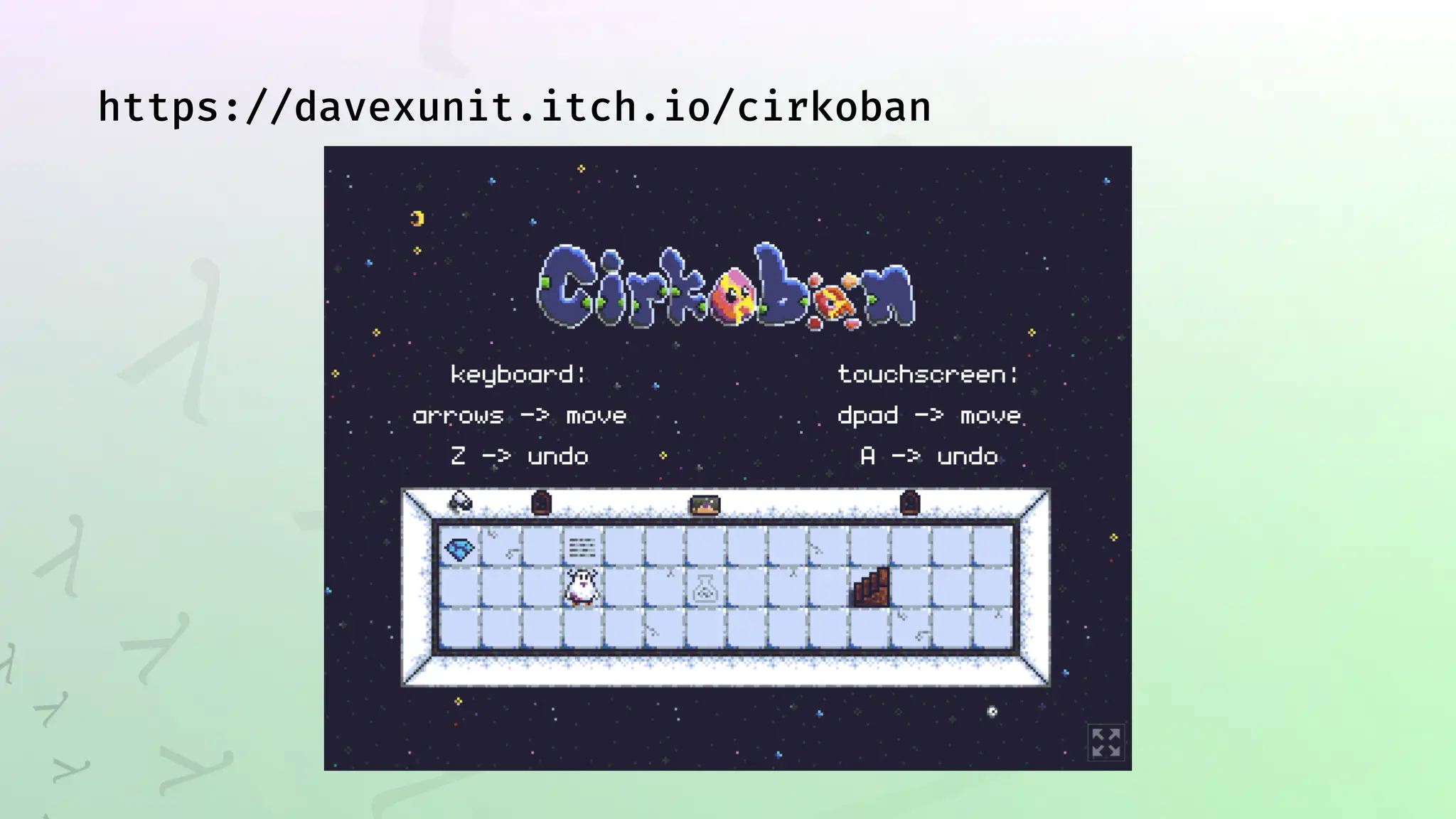

https://davexunit.itch.io/cirkoban

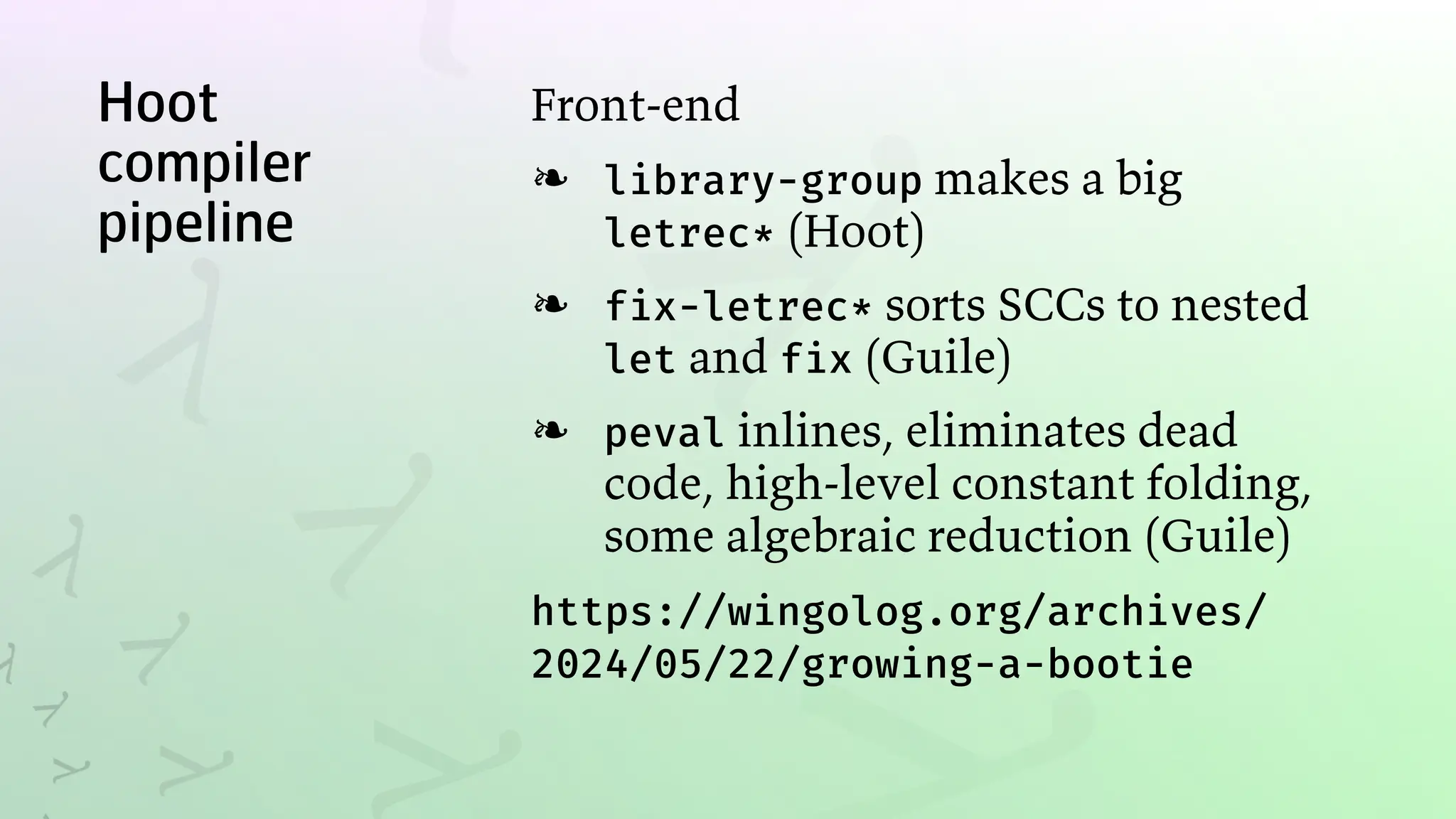

Hoot
compiler
pipeline
Front-end
library-group makes a big
letrec* (Hoot)
❧
fix-letrec* sorts SCCs to nested
let and fix (Guile)
❧
peval inlines, eliminates dead
code, high-level constant folding,
some algebraic reduction (Guile)
❧
https://wingolog.org/archives/
2024/05/22/growing-a-bootie

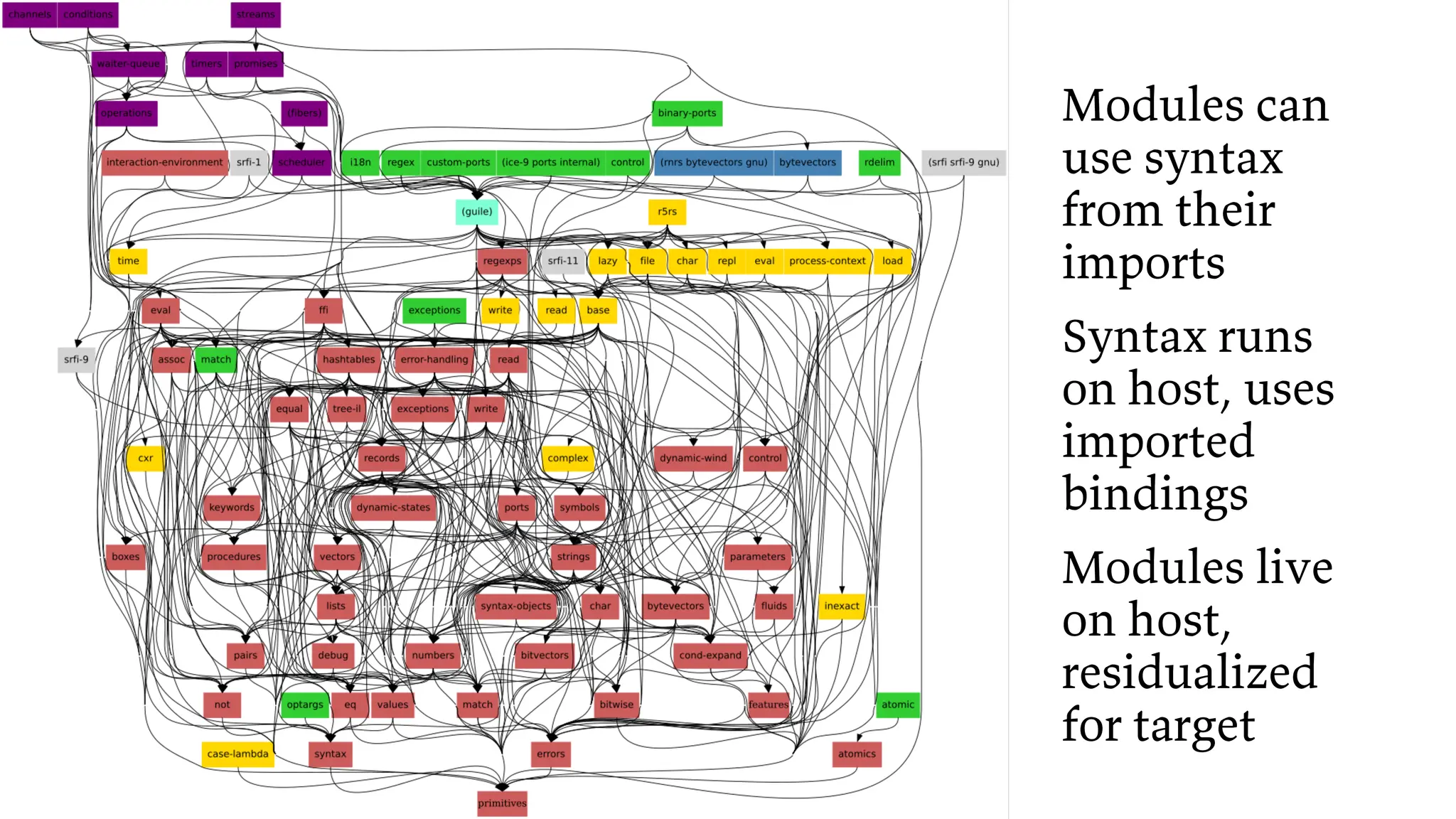

Modules can
use syntax
from their
imports
Syntax runs
on host, uses
imported
bindings
Modules live
on host,
residualized
for target

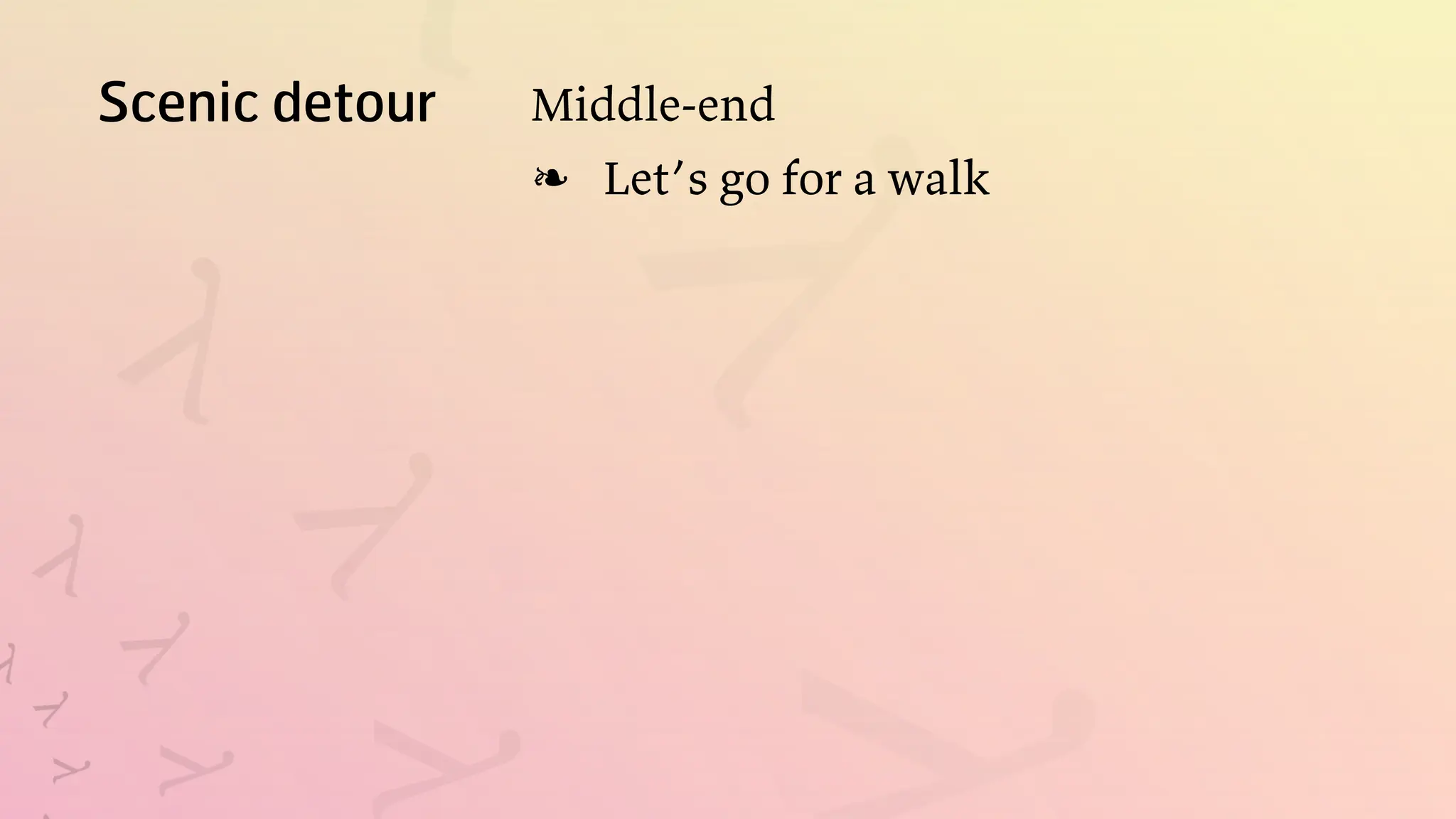

Scenic detour Middle-end
Let’s go for a walk
❧

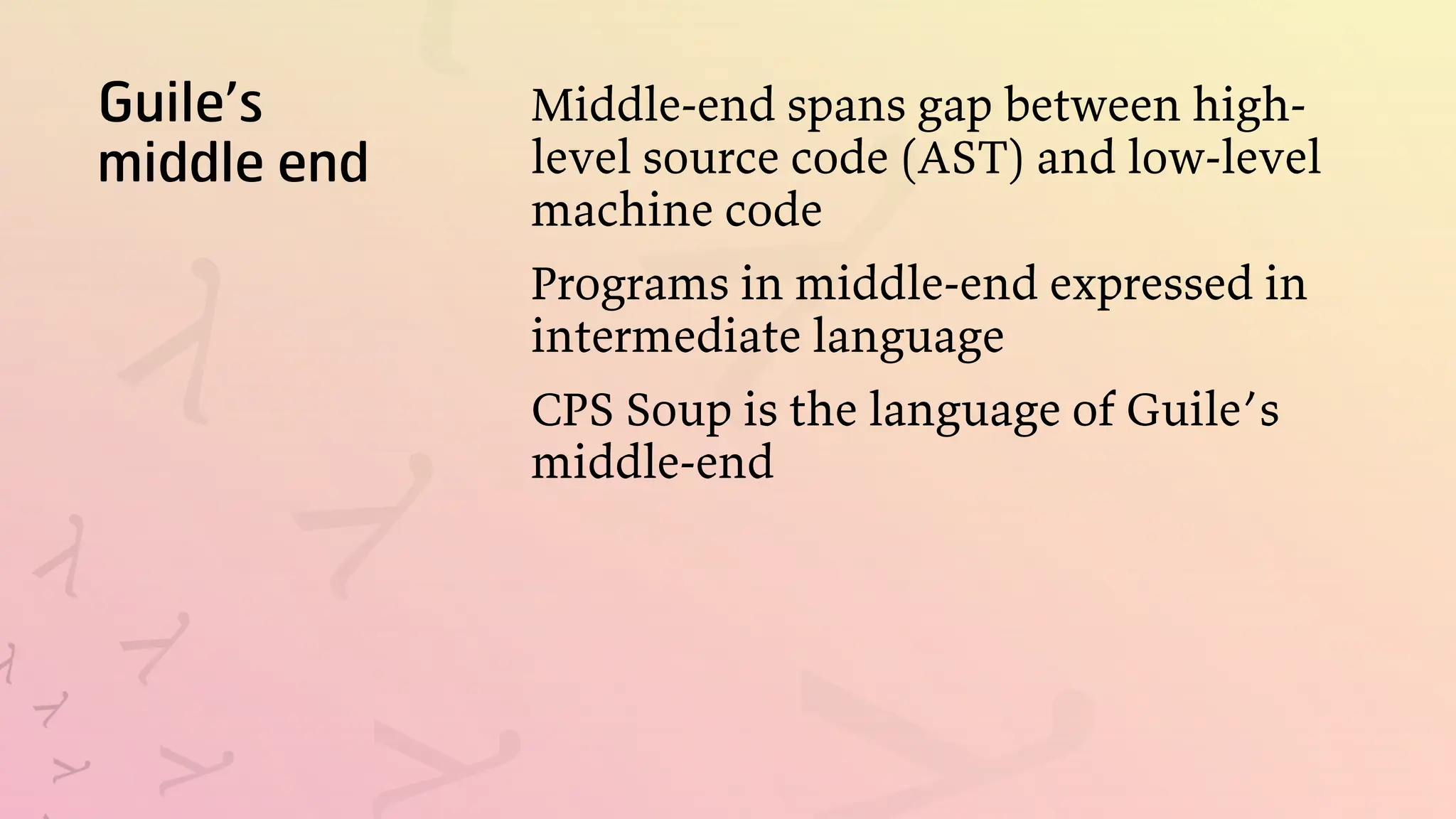

Guile’s
middle end
Middle-end spans gap between high-
level source code (AST) and low-level
machine code
Programs in middle-end expressed in
intermediate language
CPS Soup is the language of Guile’s
middle-end

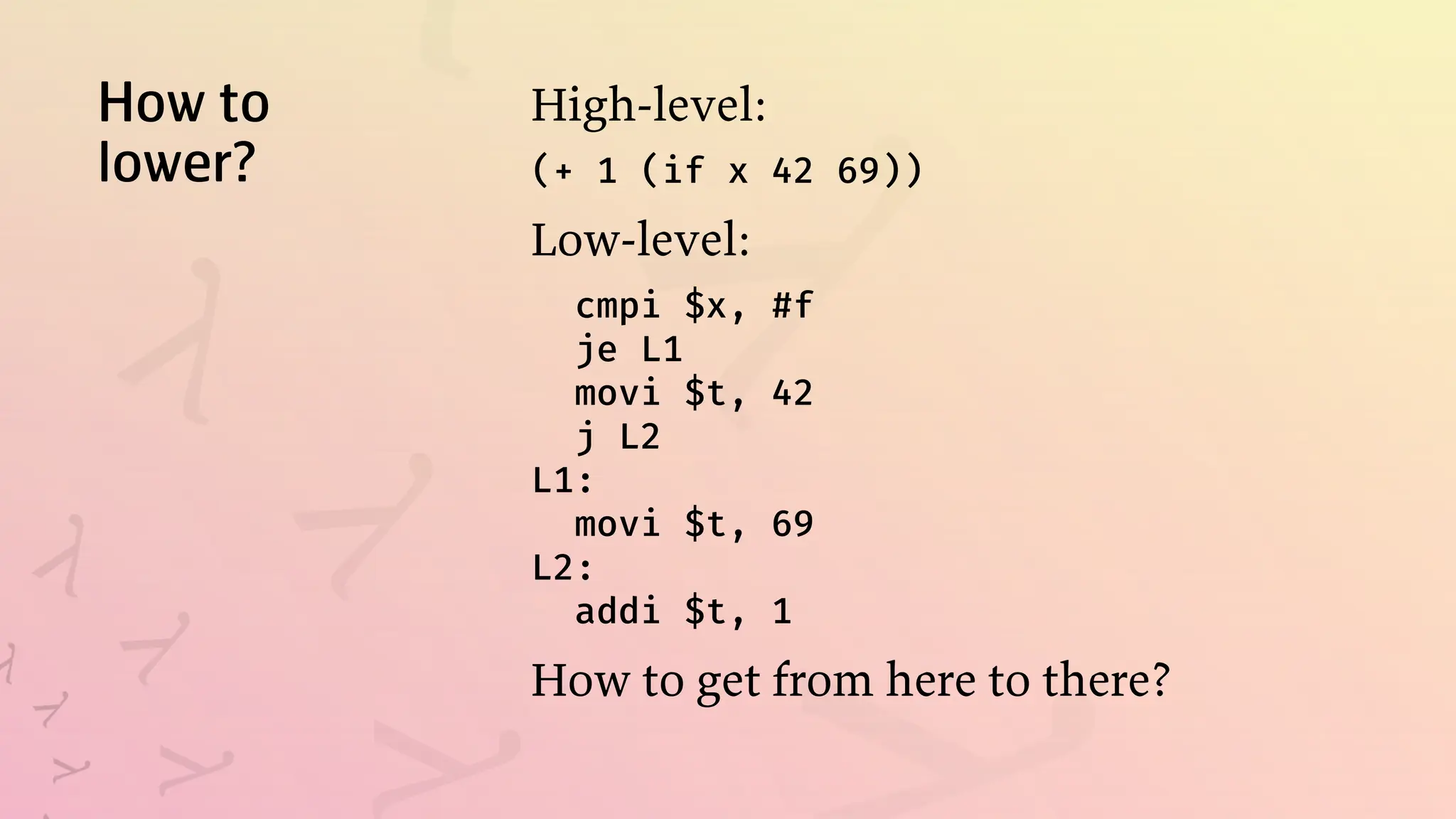

How to
lower?
High-level:
(+ 1 (if x 42 69))
Low-level:
cmpi $x, #f
je L1
movi $t, 42
j L2
L1:
movi $t, 69
L2:
addi $t, 1
How to get from here to there?

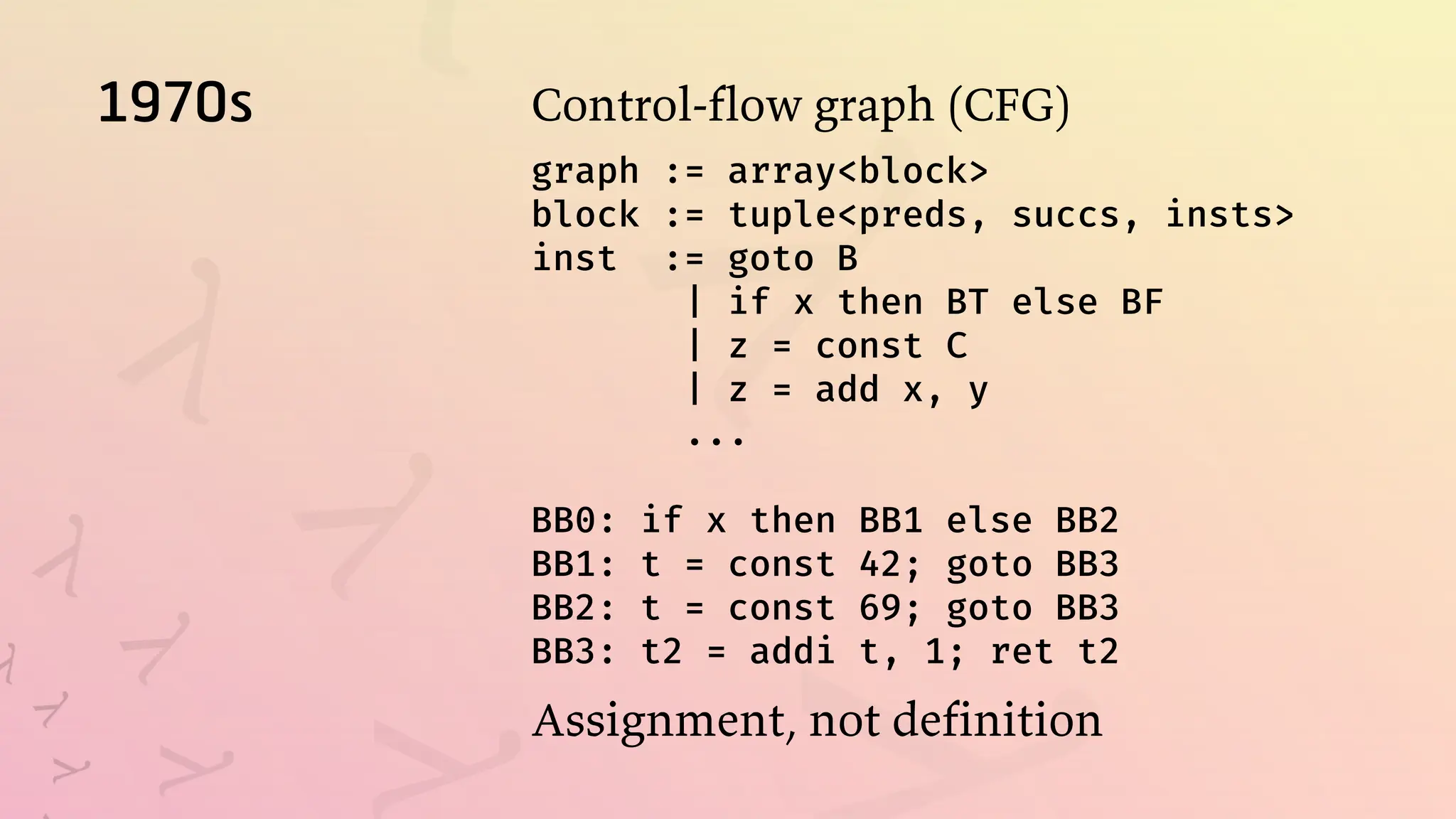

1970s Control-flow graph (CFG)
graph := array<block>
block := tuple<preds, succs, insts>
inst := goto B
| if x then BT else BF
| z = const C
| z = add x, y
...
BB0: if x then BB1 else BB2
BB1: t = const 42; goto BB3
BB2: t = const 69; goto BB3
BB3: t2 = addi t, 1; ret t2
Assignment, not definition

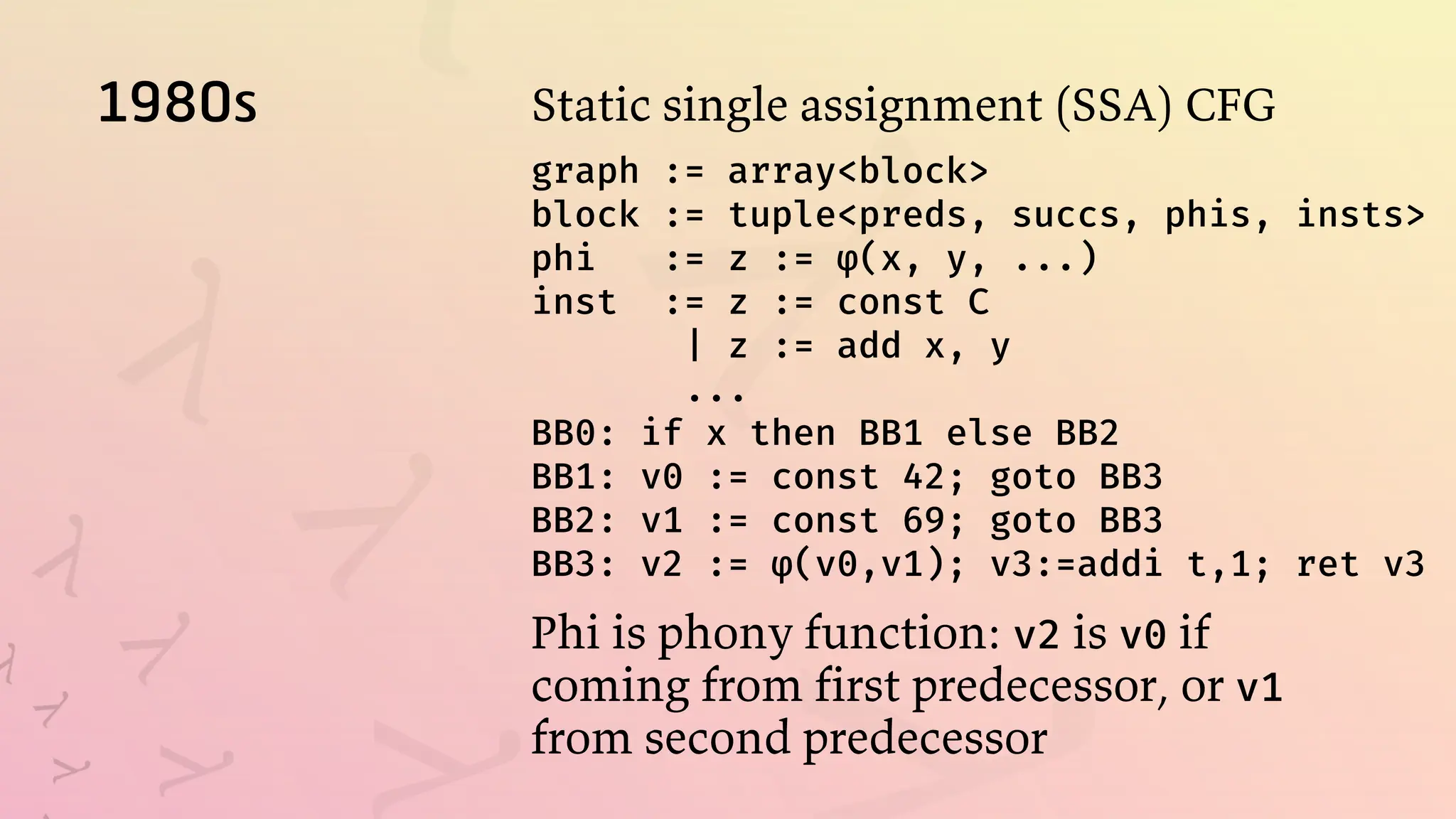

1980s Static single assignment (SSA) CFG
block := tuple<preds, succs, phis, insts>
phi := z := φ(x, y, ...)
inst := z := const C
| z := add x, y
...
BB0: if x then BB1 else BB2
BB1: v0 := const 42; goto BB3
BB2: v1 := const 69; goto BB3
BB3: v2 := φ(v0,v1); v3:=addi t,1; ret v3
Phi is phony function: v2 is v0 if
coming from first predecessor, or v1
from second predecessor

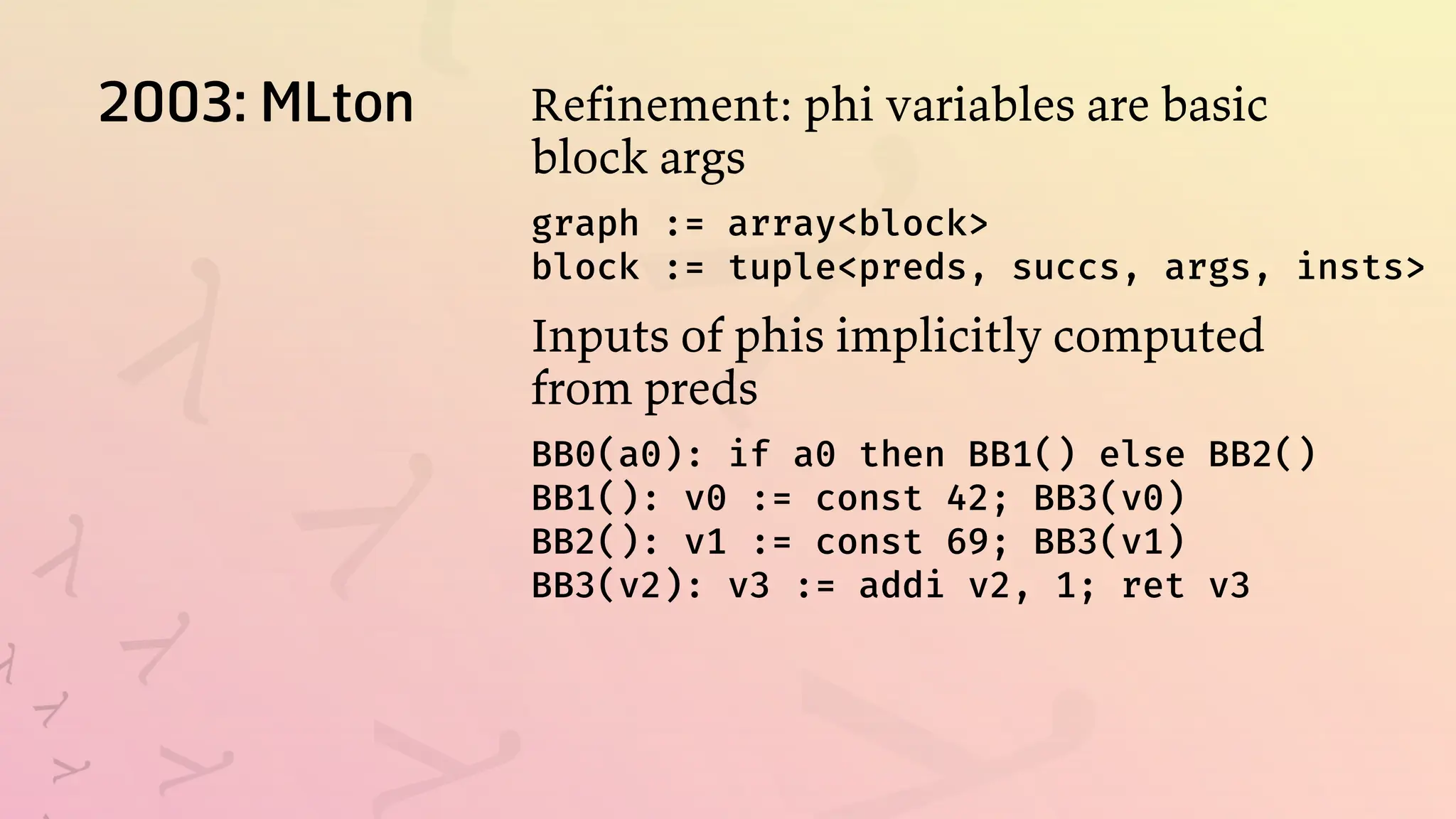

2003: MLton Refinement: phi variables are basic
block args
block := tuple<preds, succs, args, insts>
Inputs of phis implicitly computed
from preds
BB0(a0): if a0 then BB1() else BB2()
BB1(): v0 := const 42; BB3(v0)
BB2(): v1 := const 69; BB3(v1)
BB3(v2): v3 := addi v2, 1; ret v3

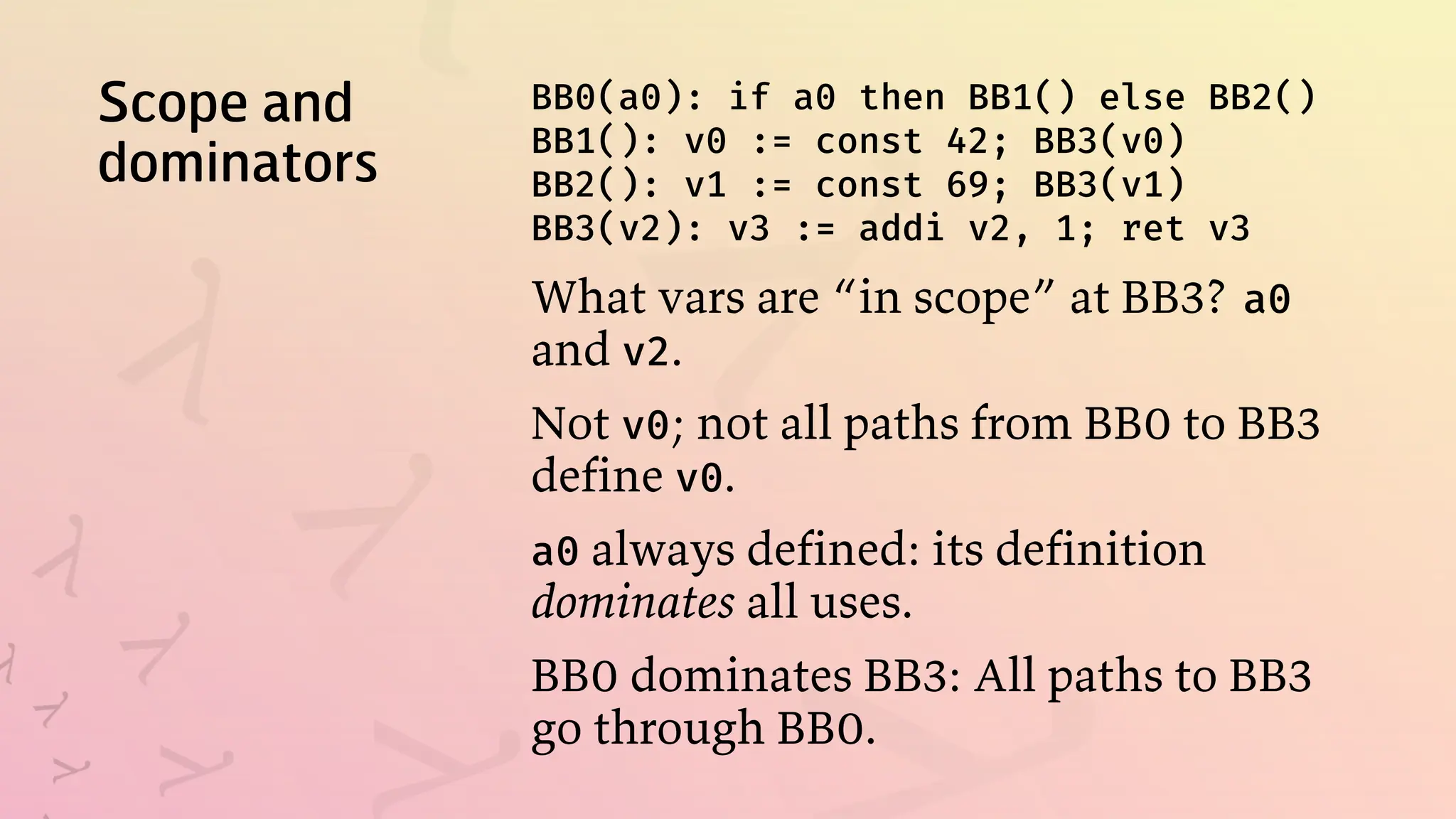

Scope and
dominators
BB0(a0): if a0 then BB1() else BB2()
BB1(): v0 := const 42; BB3(v0)
BB2(): v1 := const 69; BB3(v1)
BB3(v2): v3 := addi v2, 1; ret v3
What vars are “in scope” at BB3? a0
and v2.
Not v0; not all paths from BB0 to BB3
define v0.
a0 always defined: its definition
dominates all uses.
BB0 dominates BB3: All paths to BB3
go through BB0.

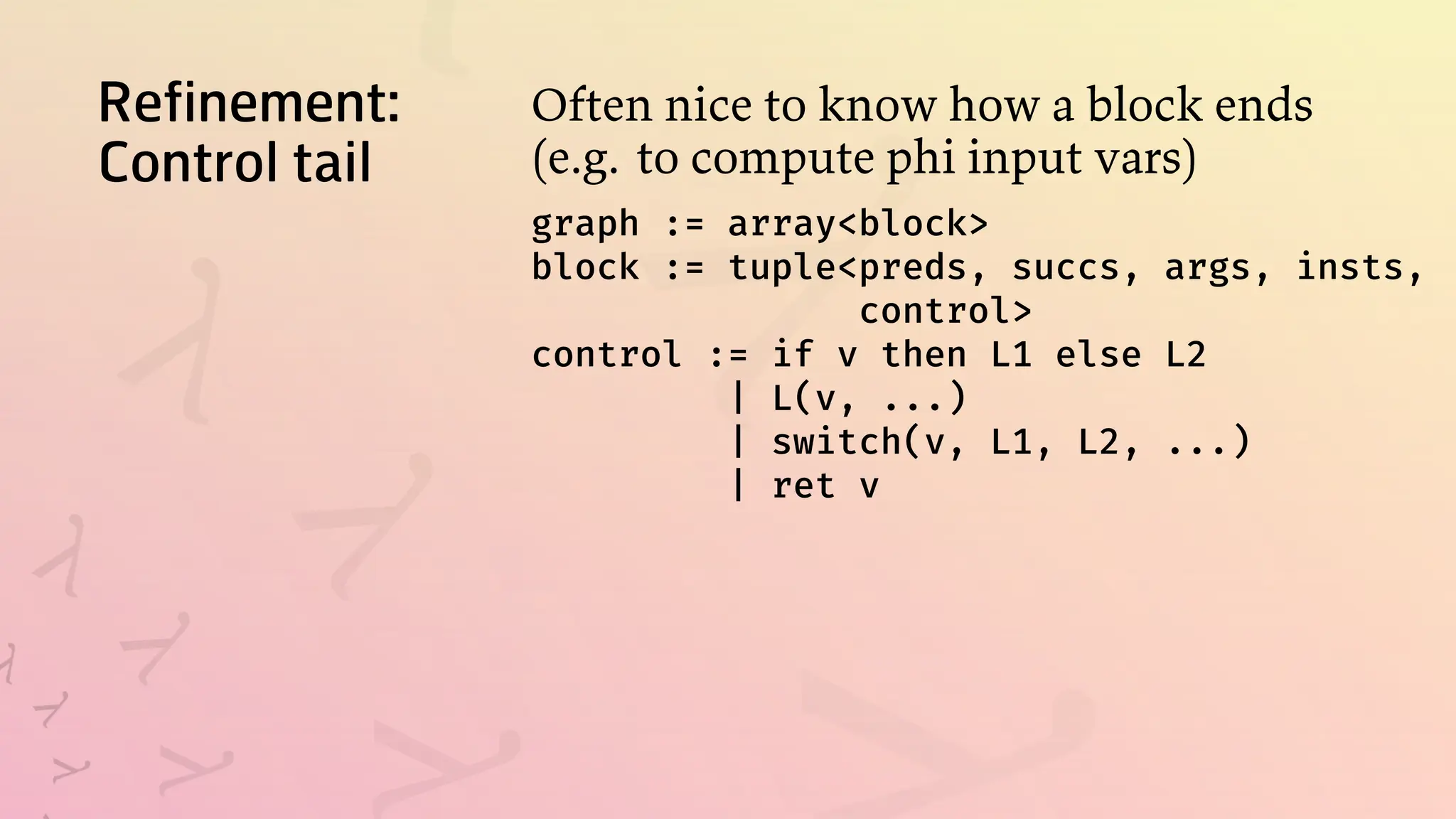

Refinement:
Control tail
Often nice to know how a block ends
(e.g. to compute phi input vars)
block := tuple<preds, succs, args, insts,
control>
control := if v then L1 else L2
| L(v, ...)
| switch(v, L1, L2, ...)
| ret v

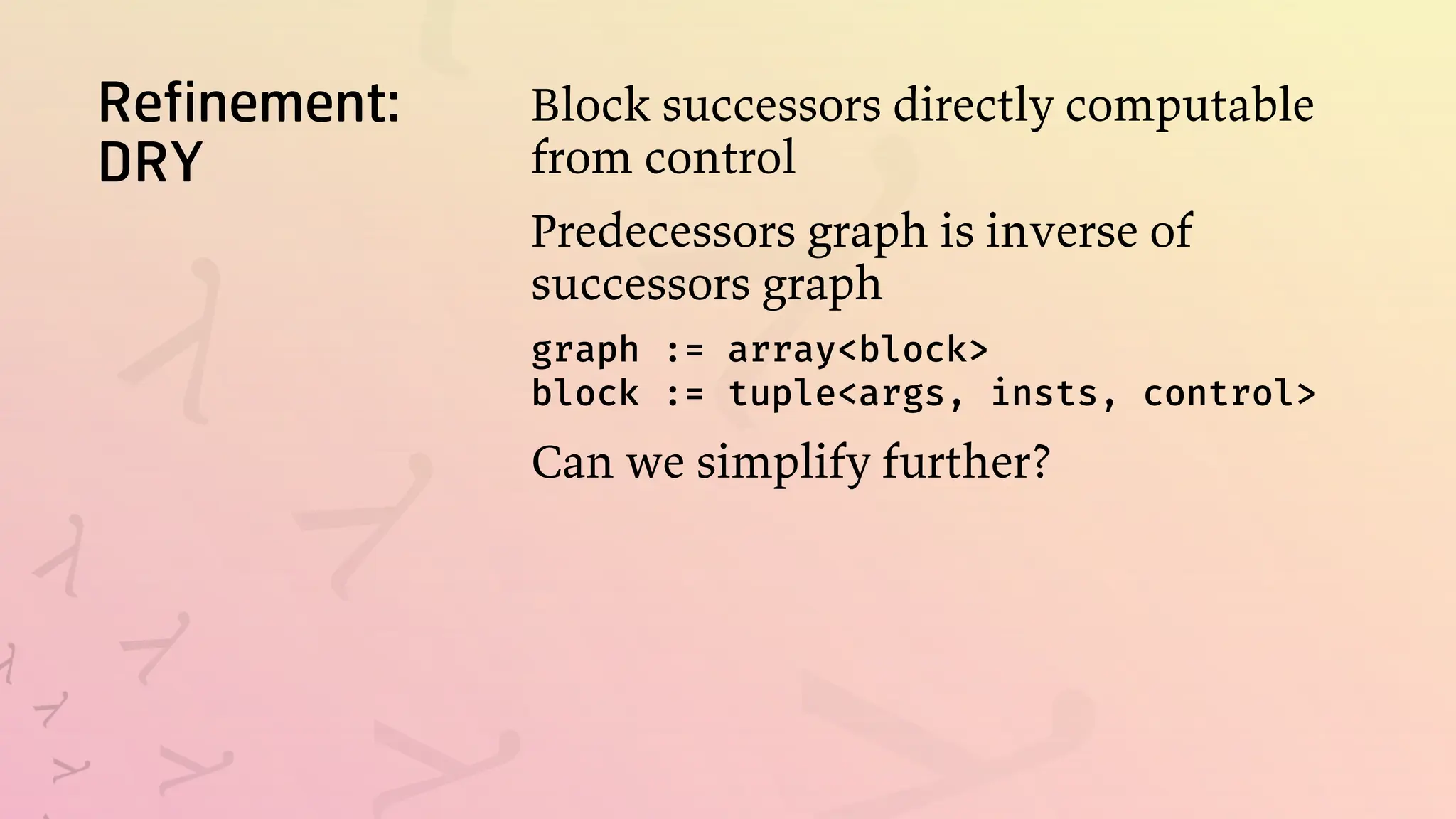

Refinement:
DRY
Block successors directly computable
from control
Predecessors graph is inverse of
successors graph
block := tuple<args, insts, control>
Can we simplify further?

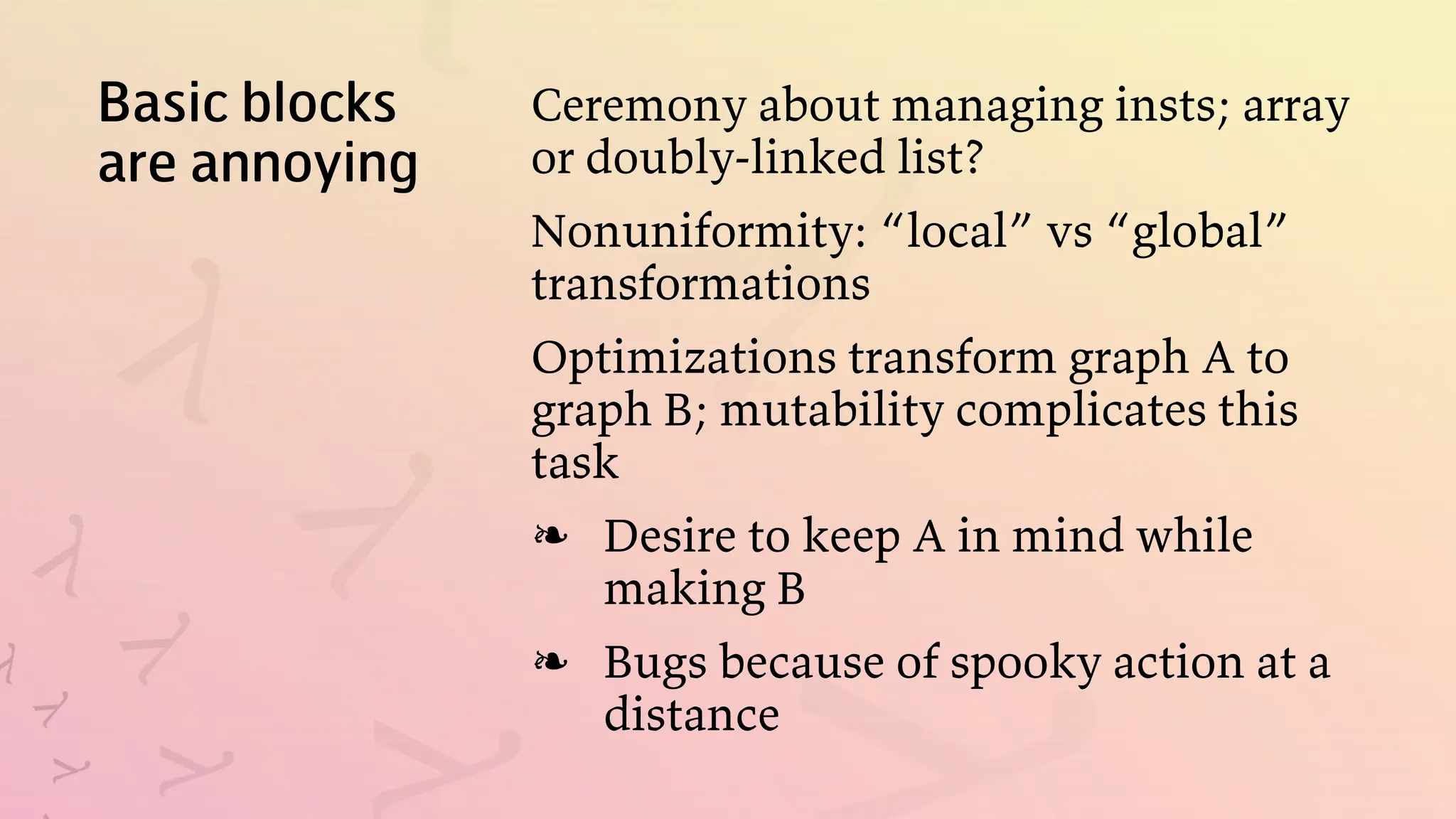

Basic blocks
are annoying
Ceremony about managing insts; array
or doubly-linked list?
Nonuniformity: “local” vs “global”
transformations
Optimizations transform graph A to
graph B; mutability complicates this
task
Desire to keep A in mind while
making B
❧
Bugs because of spooky action at a
distance
❧

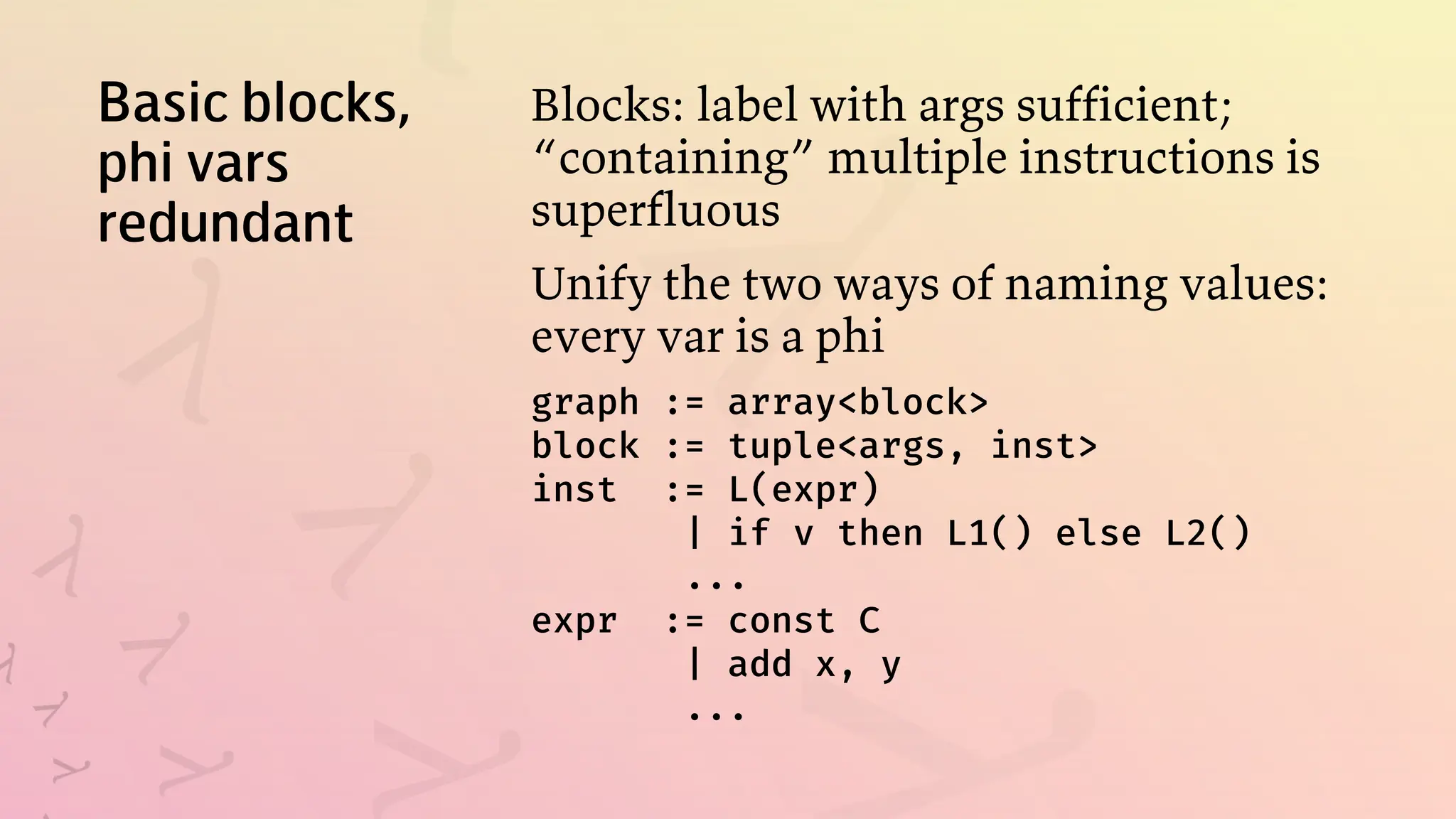

Basic blocks,
phi vars
redundant
Blocks: label with args sufficient;
“containing” multiple instructions is
superfluous
Unify the two ways of naming values:
every var is a phi
block := tuple<args, inst>
inst := L(expr)
| if v then L1() else L2()
...
expr := const C
| add x, y
...

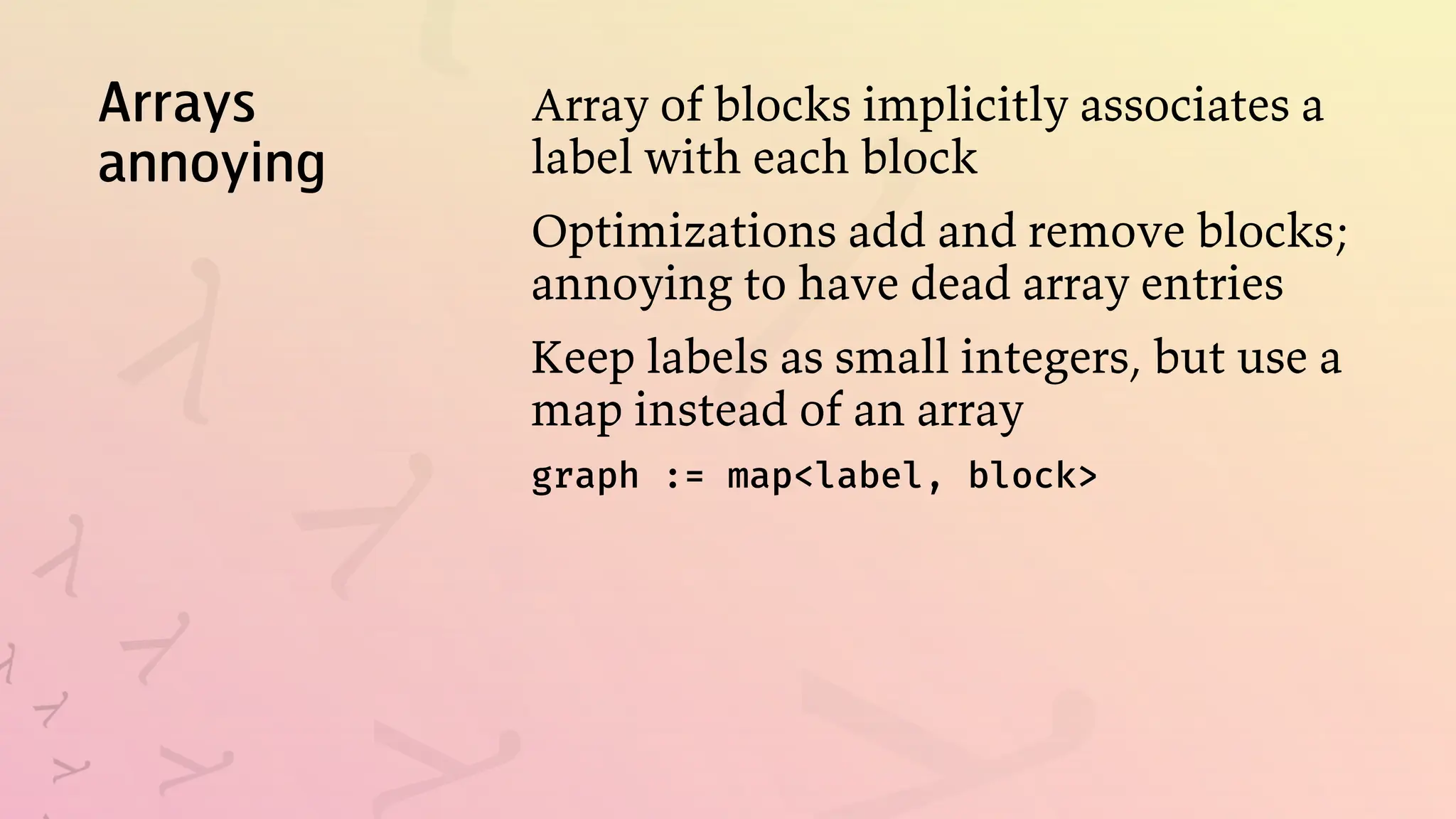

Arrays
annoying
Array of blocks implicitly associates a
label with each block
Optimizations add and remove blocks;
annoying to have dead array entries
Keep labels as small integers, but use a
map instead of an array
graph := map<label, block>

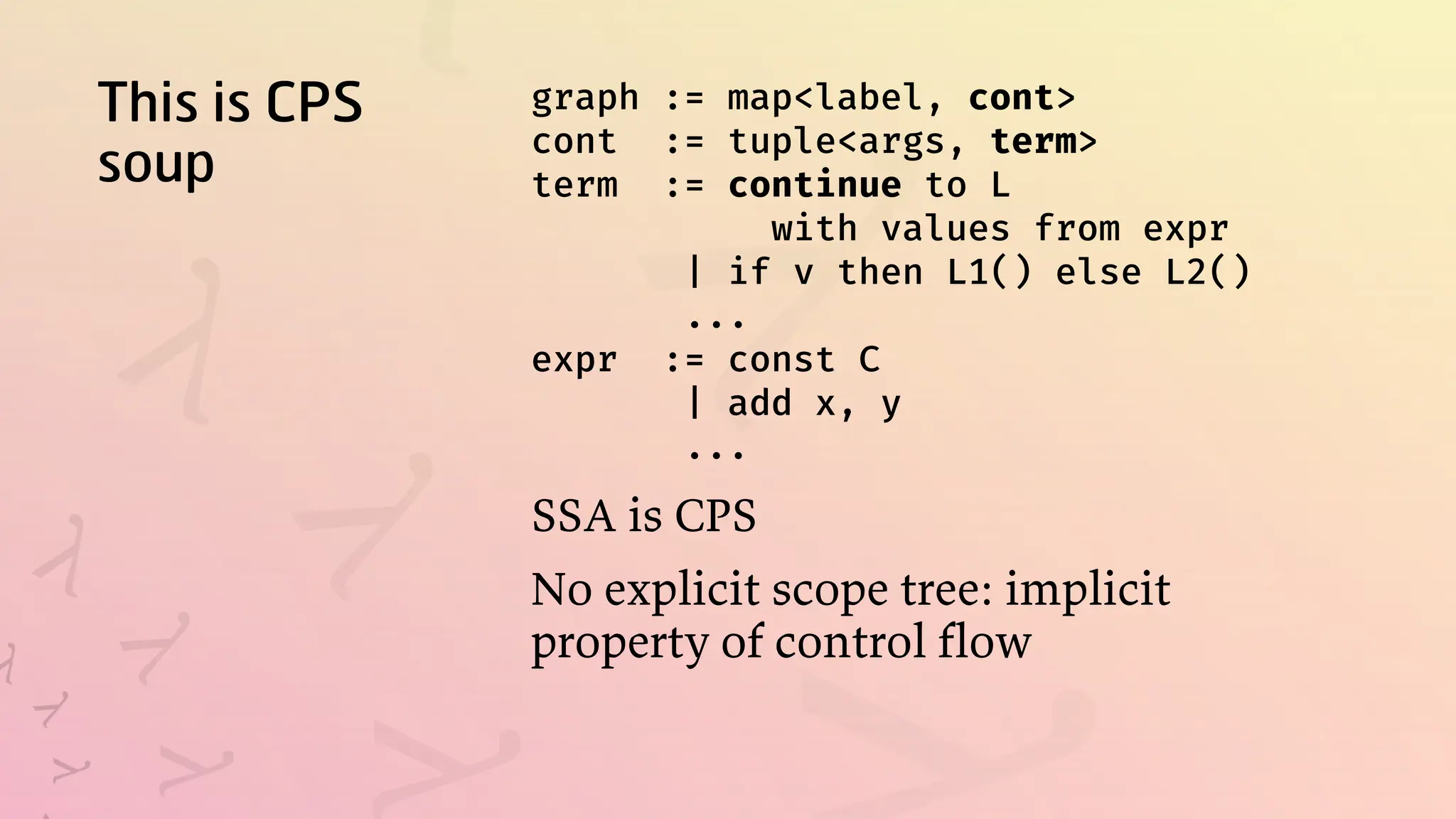

This is CPS
soup
graph := map<label, cont>
cont := tuple<args, term>
term := continue to L
with values from expr
| if v then L1() else L2()
...
expr := const C
| add x, y
...
SSA is CPS
No explicit scope tree: implicit
property of control flow

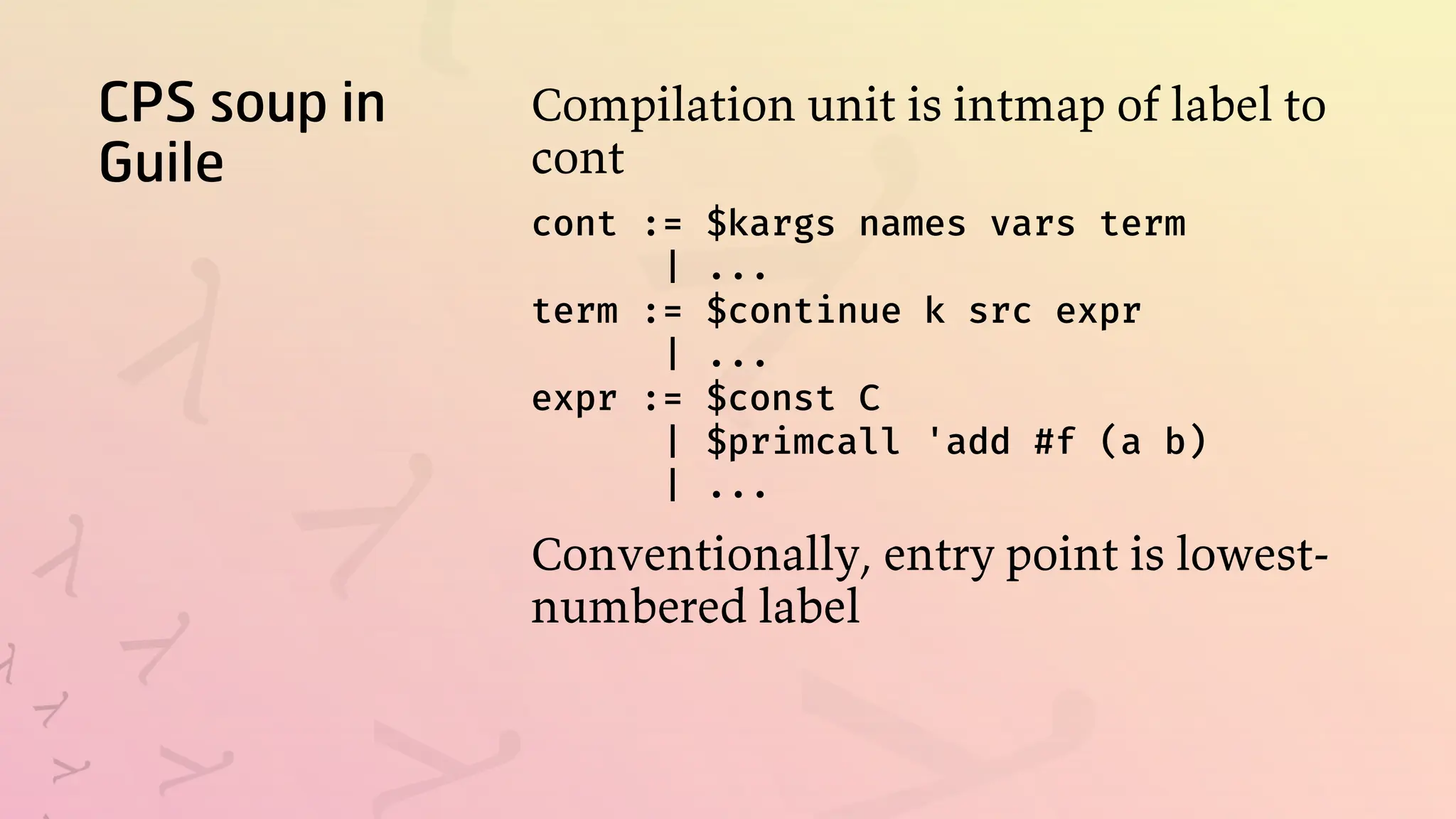

CPS soup in
Guile
Compilation unit is intmap of label to
cont
cont := $kargs names vars term
| ...
term := $continue k src expr
| ...
expr := $const C
| $primcall 'add #f (a b)
| ...
Conventionally, entry point is lowest-
numbered label

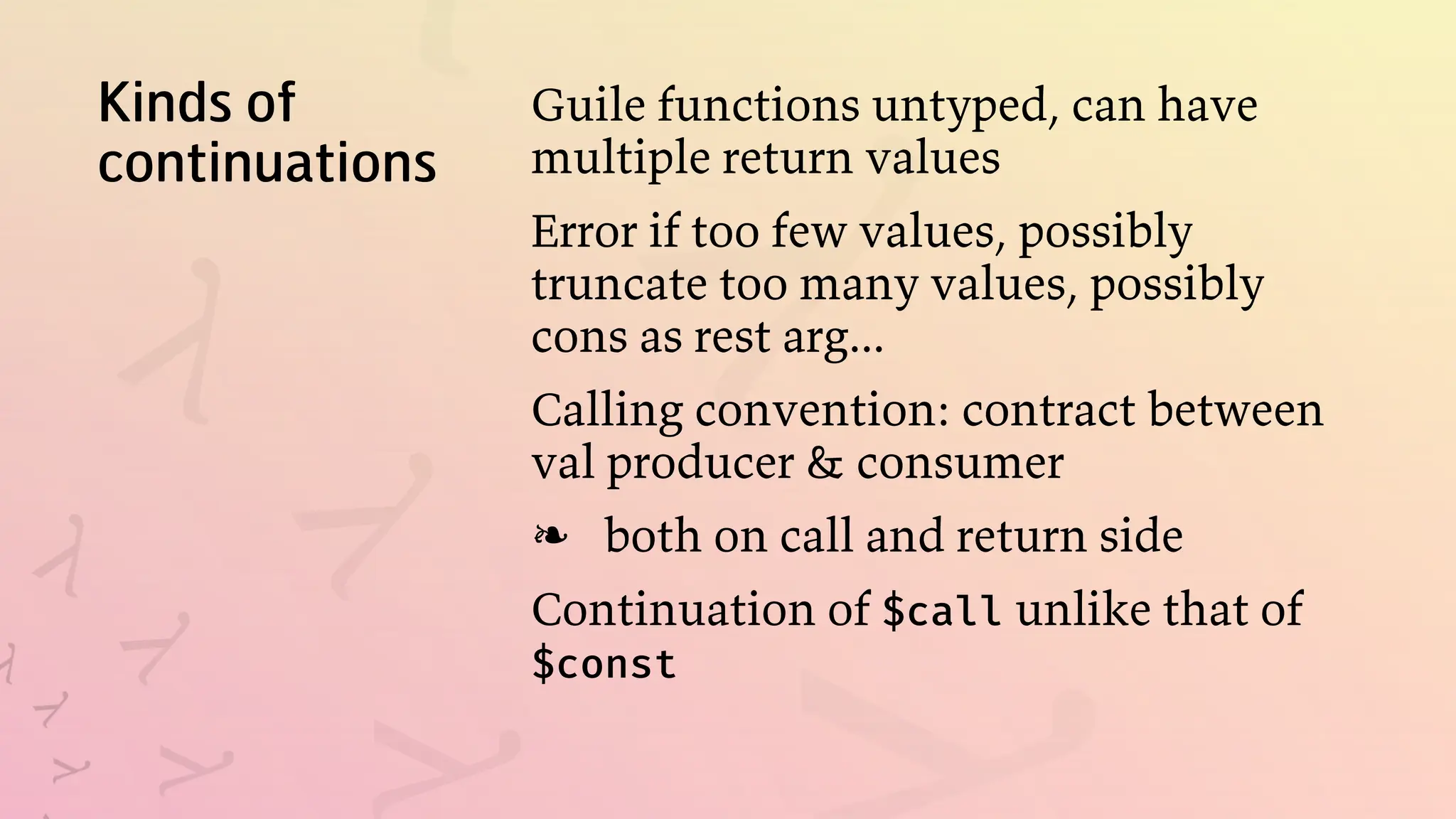

Kinds of
continuations
Guile functions untyped, can have
multiple return values
Error if too few values, possibly
truncate too many values, possibly
cons as rest arg...
Calling convention: contract between
val producer & consumer
both on call and return side
❧
Continuation of $call unlike that of
$const

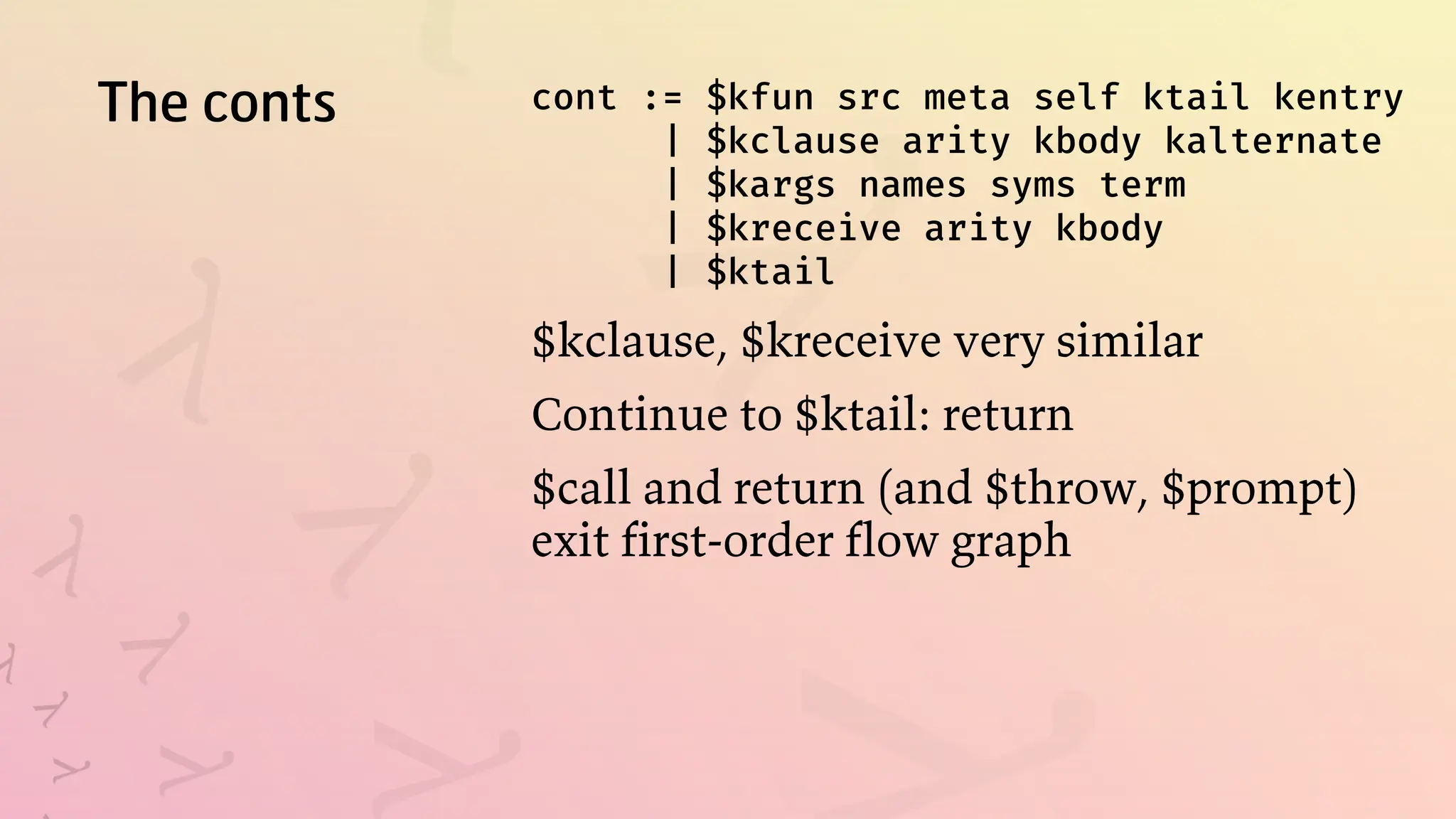

The conts cont := $kfun src meta self ktail kentry
| $kclause arity kbody kalternate
| $kargs names syms term
| $kreceive arity kbody
| $ktail
$kclause, $kreceive very similar
Continue to $ktail: return
$call and return (and $throw, $prompt)
exit first-order flow graph

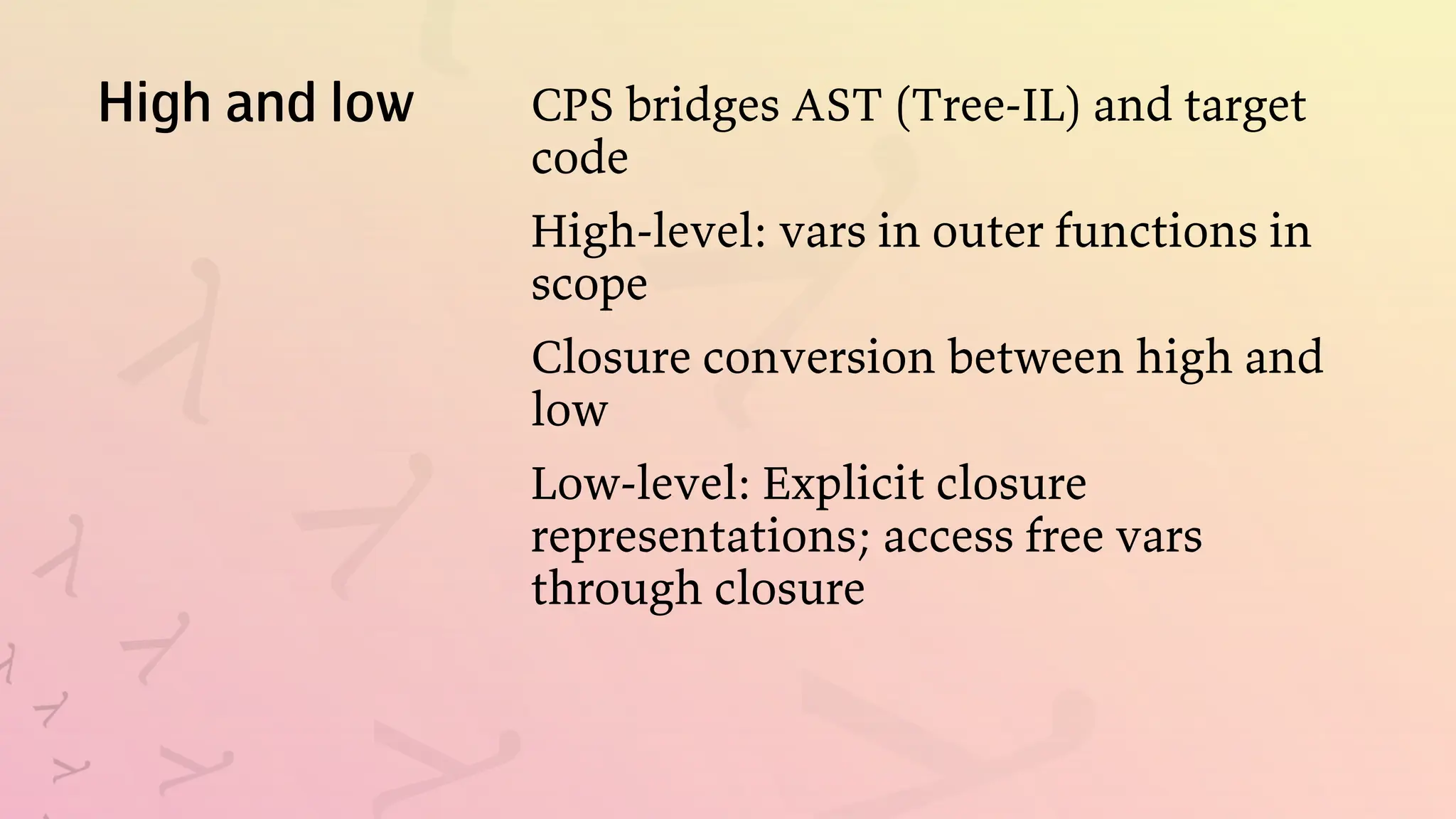

High and low CPS bridges AST (Tree-IL) and target
code
High-level: vars in outer functions in
scope
Closure conversion between high and
low
Low-level: Explicit closure
representations; access free vars
through closure

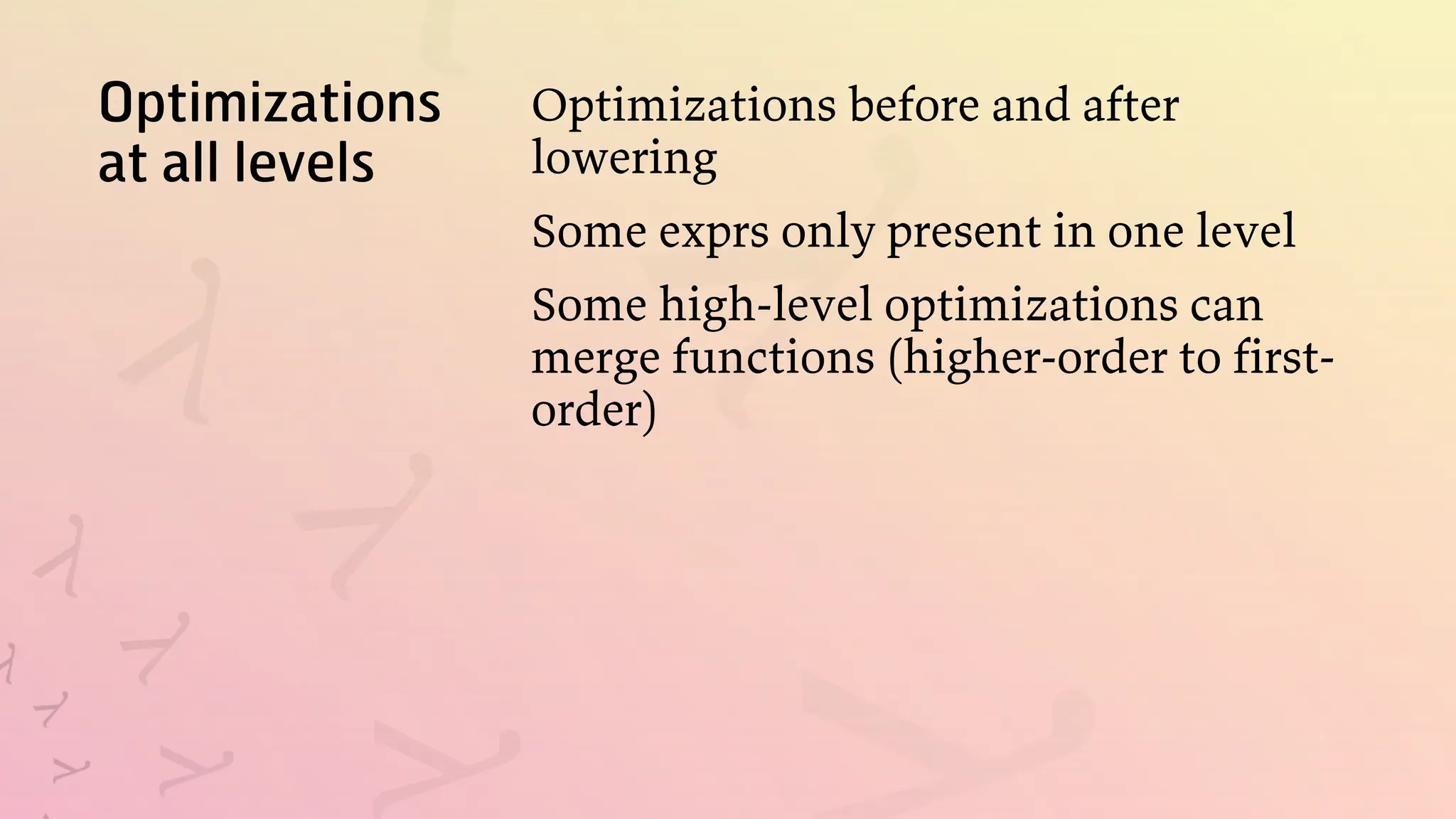

Optimizations
at all levels
Optimizations before and after
lowering
Some exprs only present in one level
Some high-level optimizations can
merge functions (higher-order to first-
order)

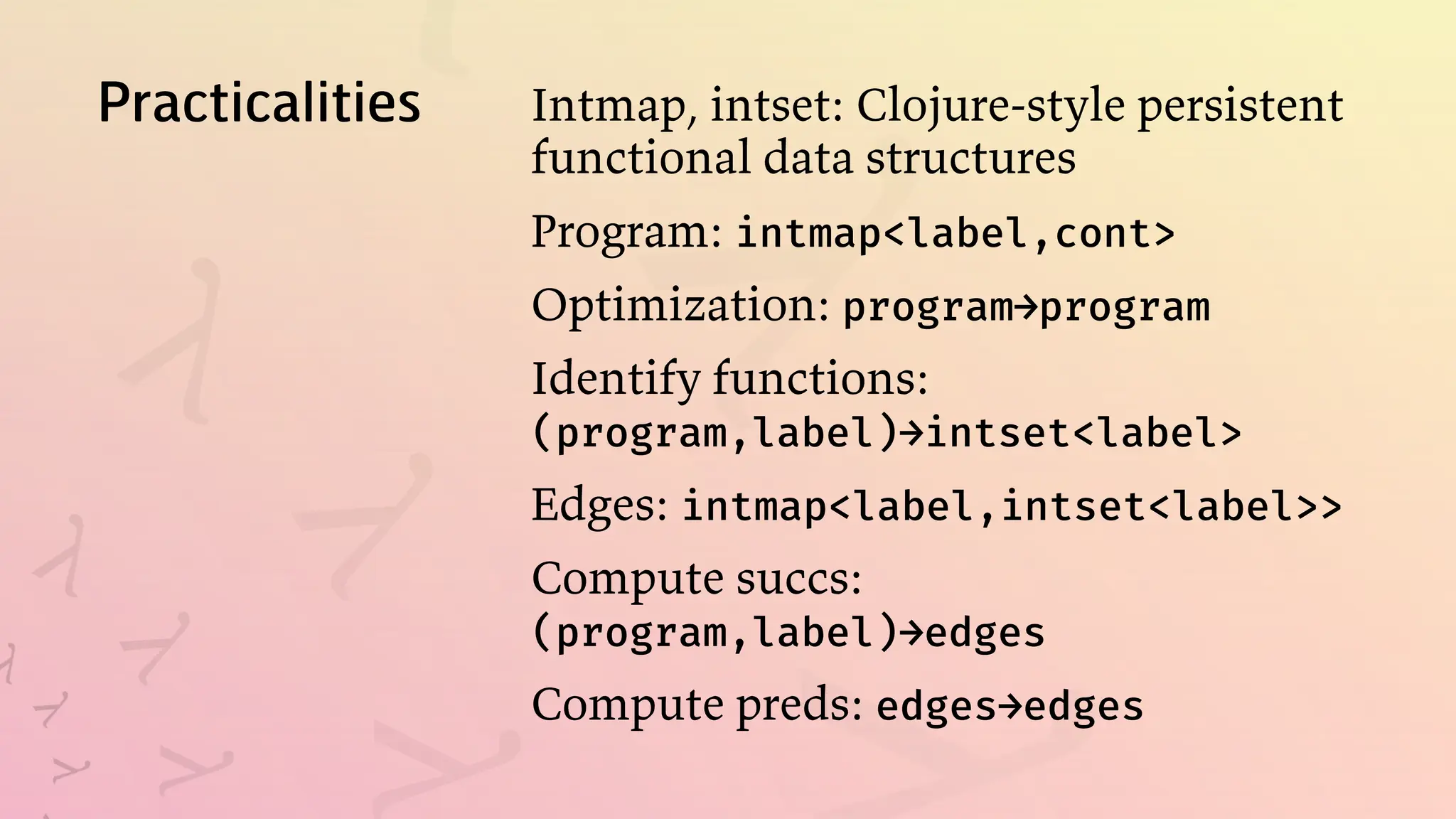

Practicalities Intmap, intset: Clojure-style persistent
functional data structures
Program: intmap<label,cont>
Optimization: program→program
Identify functions:
(program,label)→intset<label>
Edges: intmap<label,intset<label>>
Compute succs:
(program,label)→edges
Compute preds: edges→edges

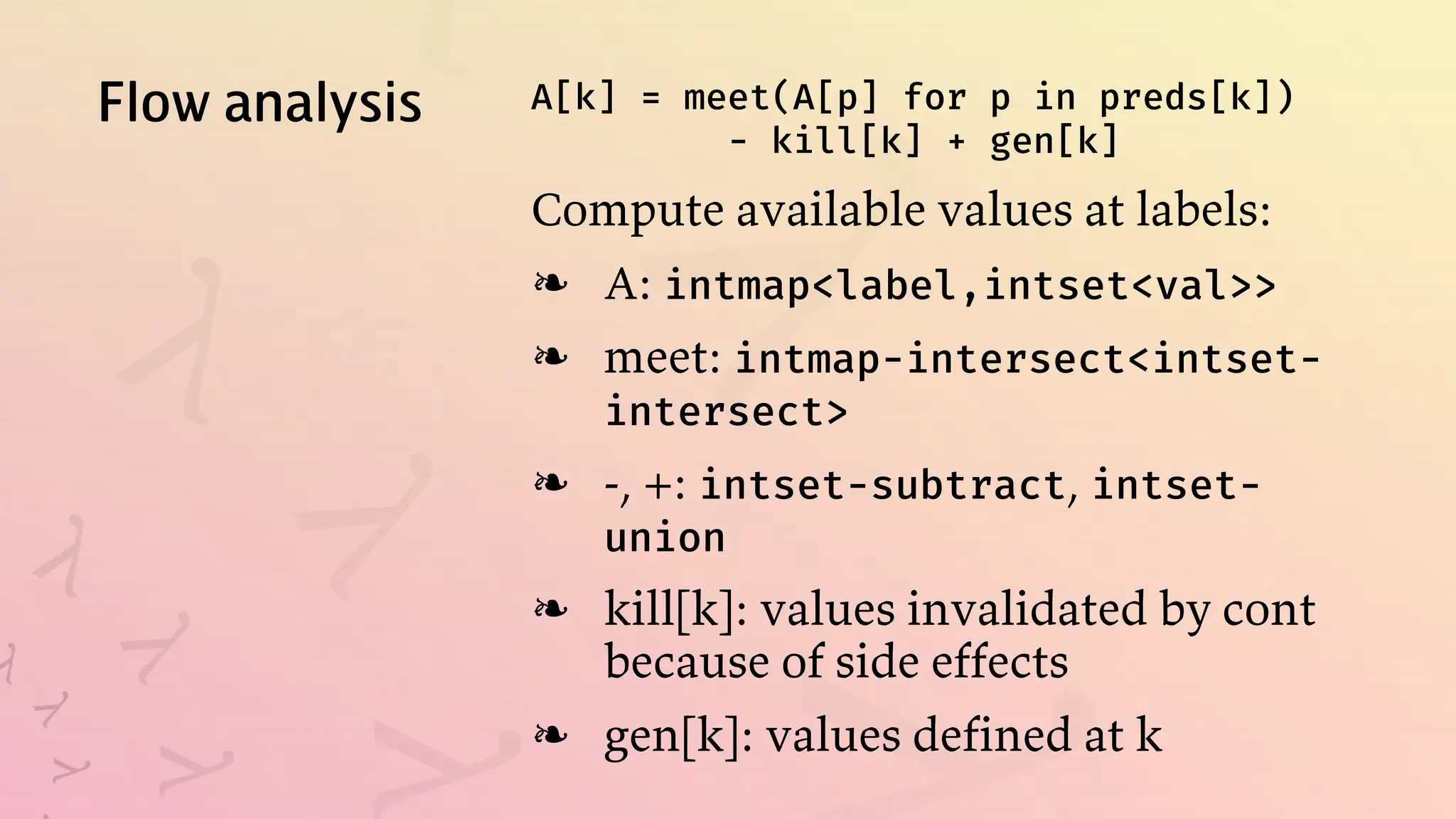

Flow analysis A[k] = meet(A[p] for p in preds[k])
- kill[k] + gen[k]
Compute available values at labels:
A: intmap<label,intset<val>>
❧
meet: intmap-intersect<intset-
intersect>
❧
-, +: intset-subtract, intset-
union
❧
kill[k]: values invalidated by cont
because of side effects
❧
gen[k]: values defined at k
❧

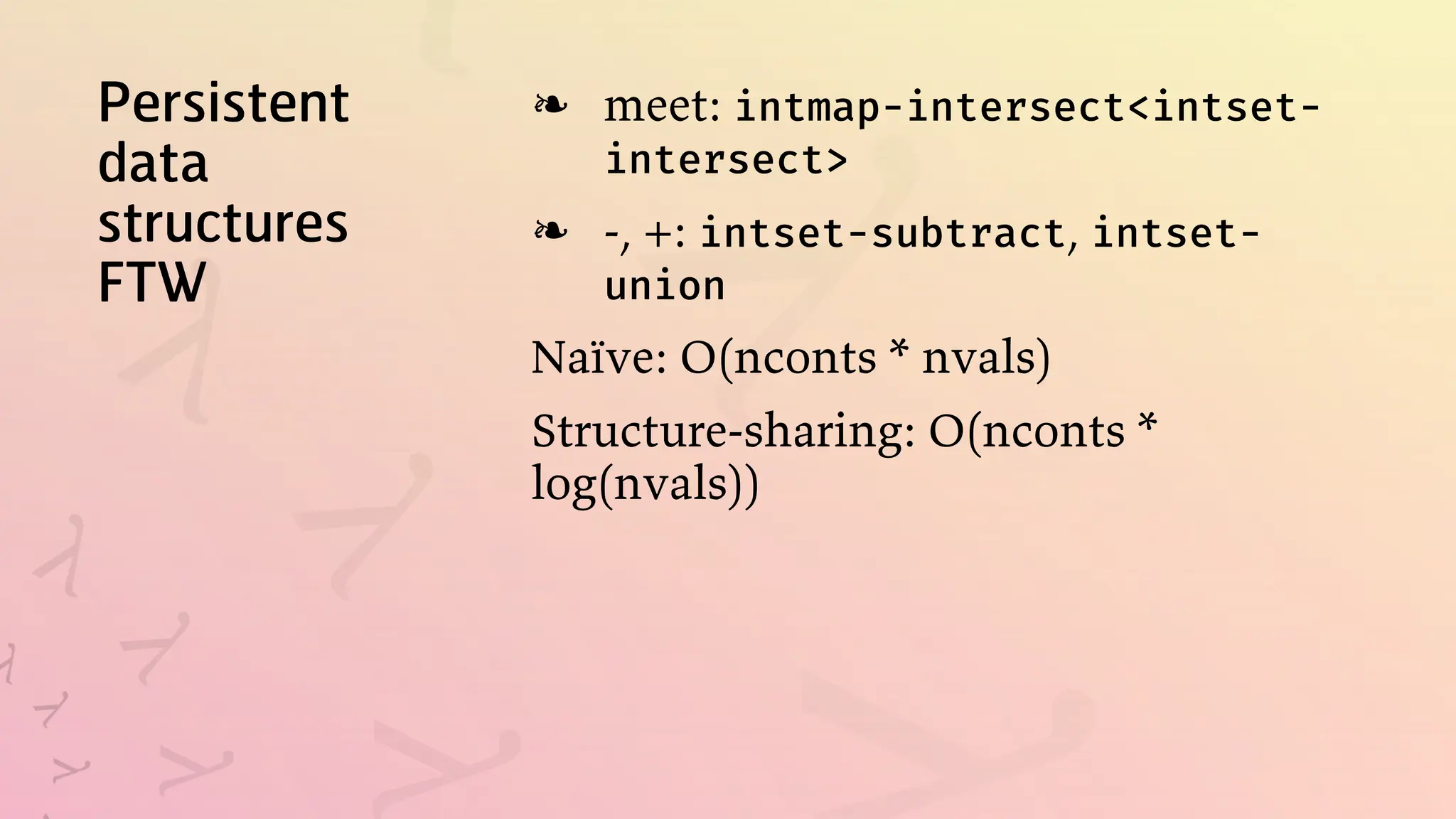

Persistent
data
structures
FTW
meet: intmap-intersect<intset-
intersect>
❧
-, +: intset-subtract, intset-
union
❧
Naïve: O(nconts * nvals)
Structure-sharing: O(nconts *
log(nvals))

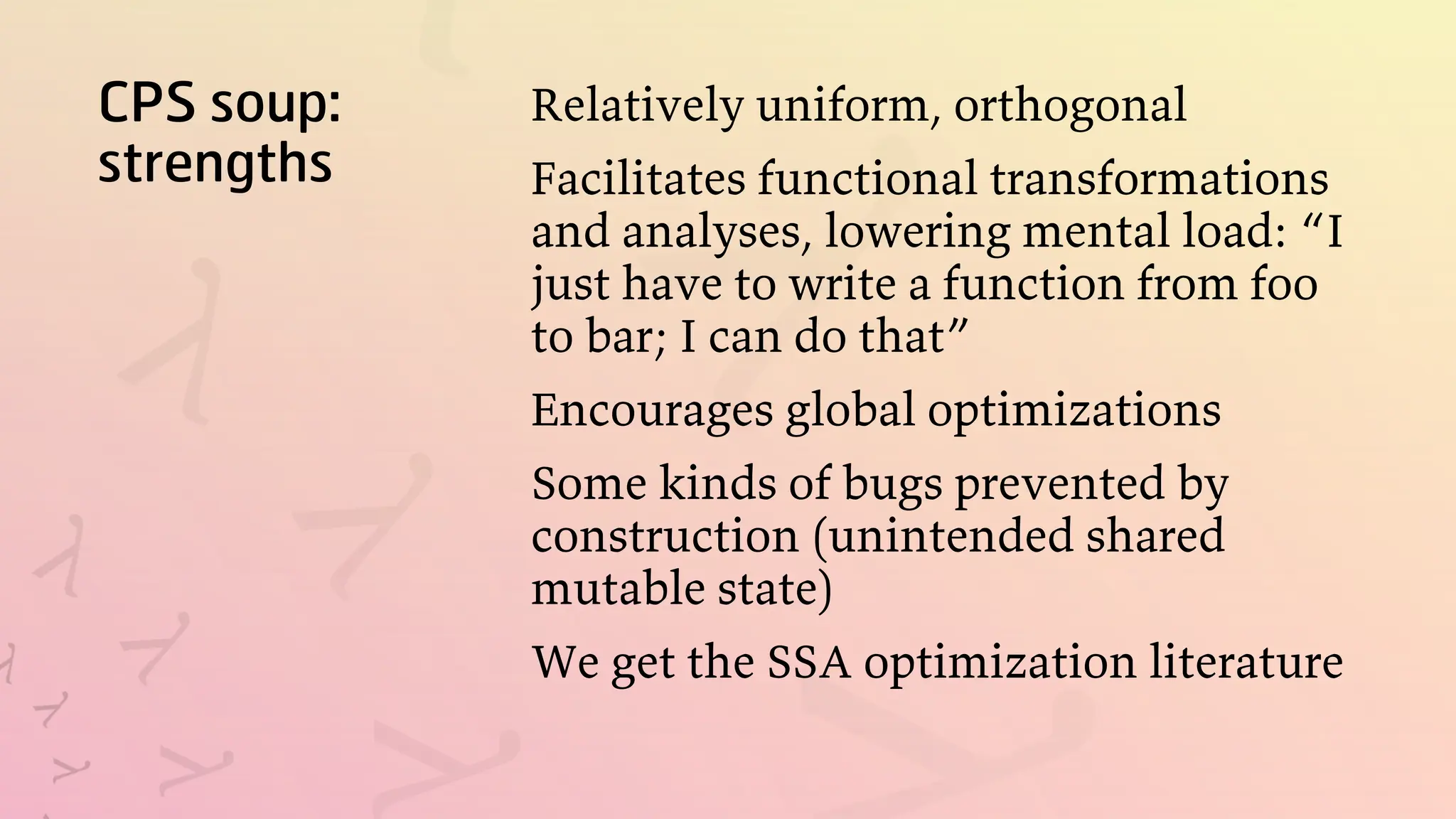

CPS soup:
strengths
Relatively uniform, orthogonal
Facilitates functional transformations
and analyses, lowering mental load: “I
just have to write a function from foo
to bar; I can do that”
Encourages global optimizations
Some kinds of bugs prevented by
construction (unintended shared
mutable state)
We get the SSA optimization literature

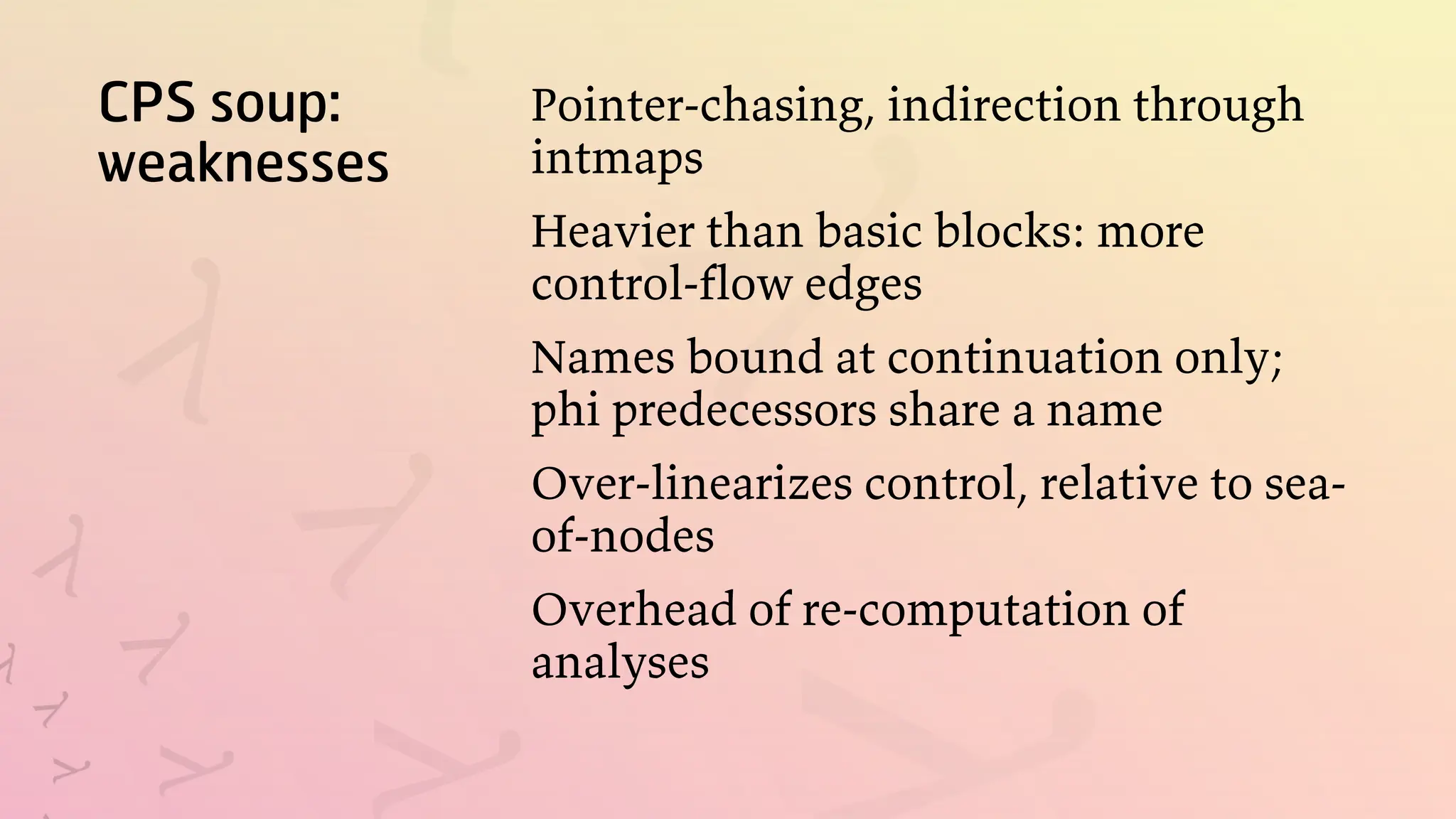

CPS soup:
weaknesses
Pointer-chasing, indirection through
intmaps
Heavier than basic blocks: more
control-flow edges
Names bound at continuation only;
phi predecessors share a name
Over-linearizes control, relative to sea-
of-nodes
Overhead of re-computation of
analyses

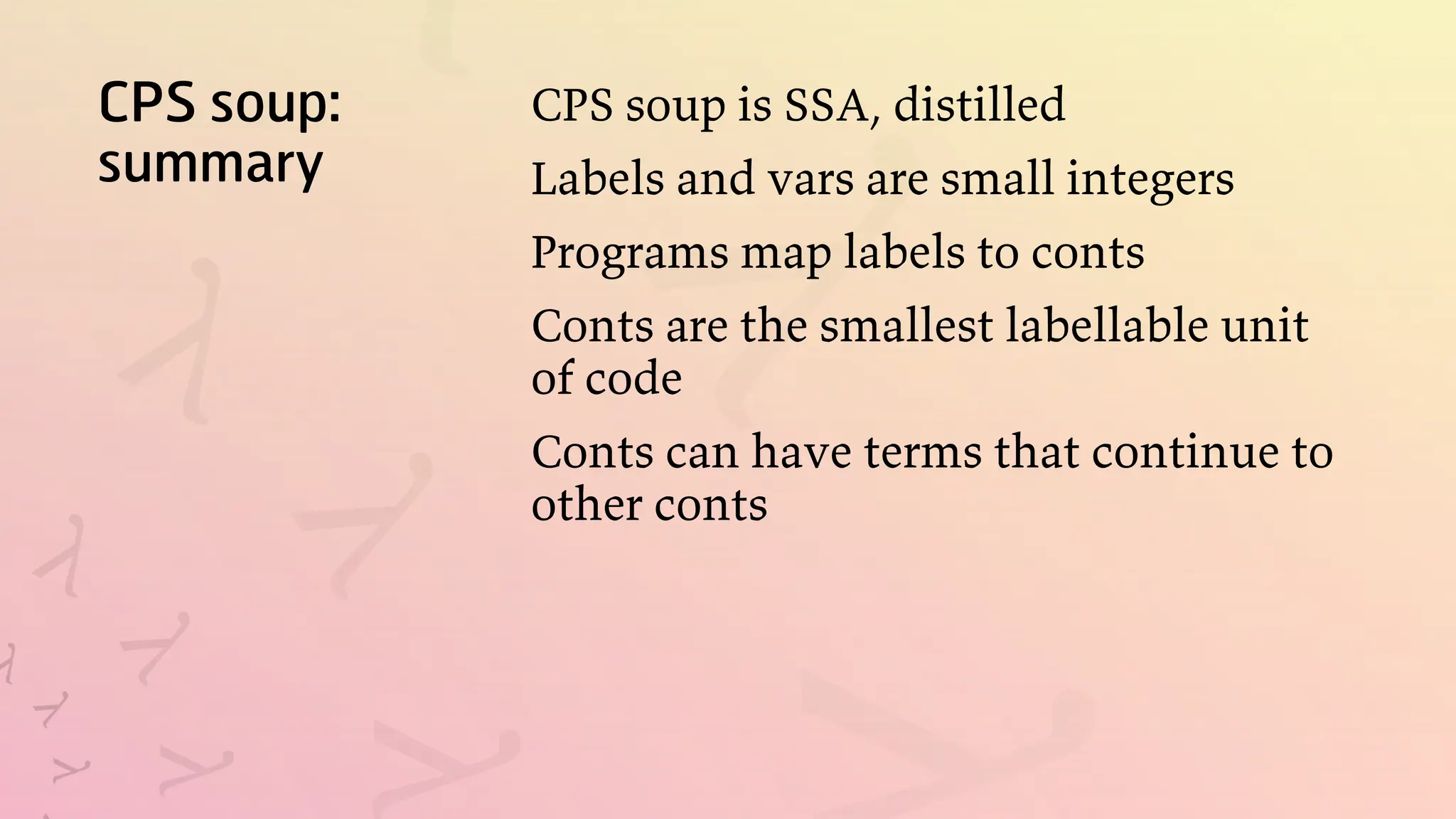

CPS soup:
summary
CPS soup is SSA, distilled
Labels and vars are small integers
Programs map labels to conts
Conts are the smallest labellable unit
of code
Conts can have terms that continue to
other conts

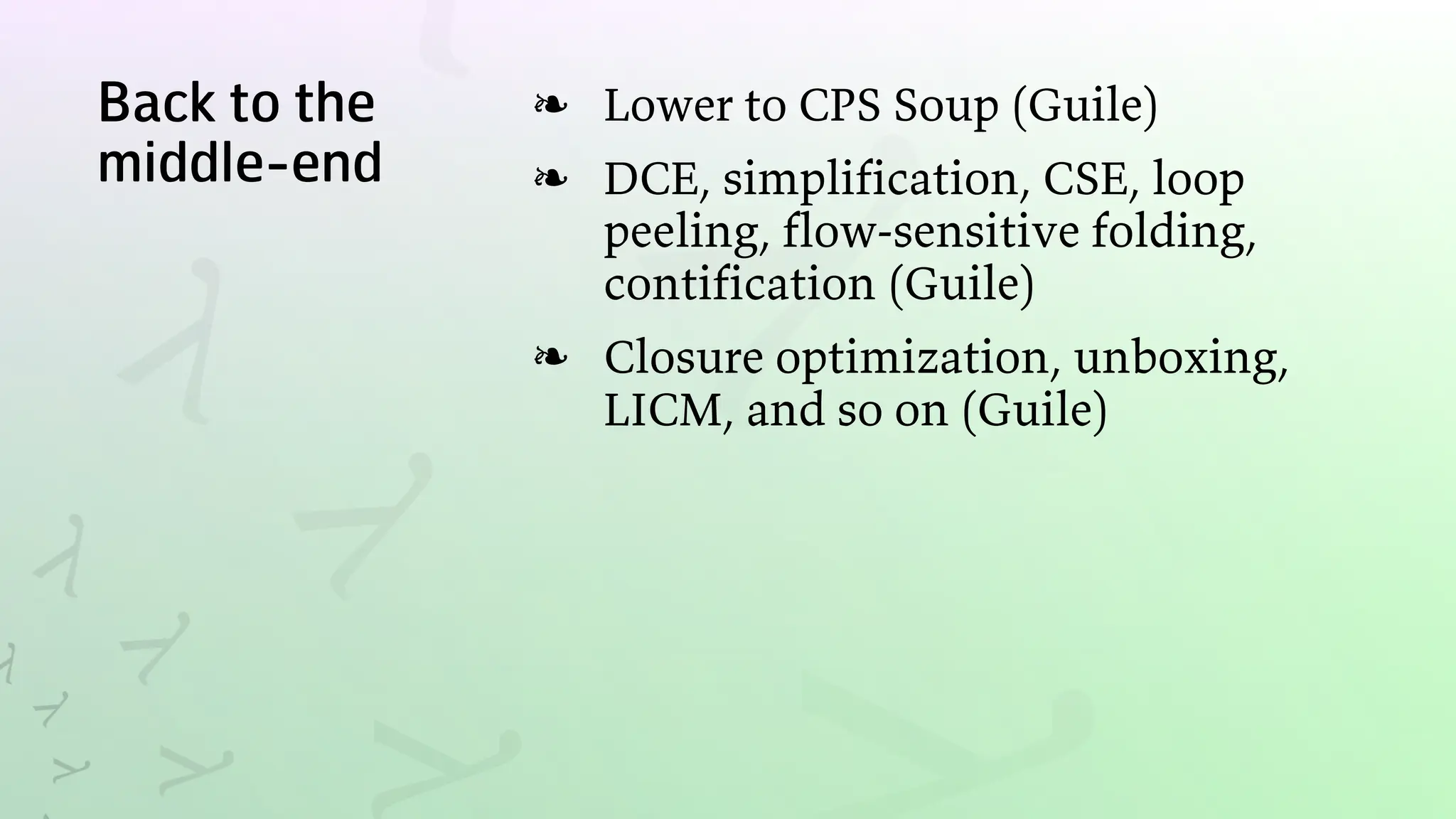

Back to the
middle-end
Lower to CPS Soup (Guile)
❧
DCE, simplification, CSE, loop
peeling, flow-sensitive folding,
contification (Guile)
❧
Closure optimization, unboxing,
LICM, and so on (Guile)
❧

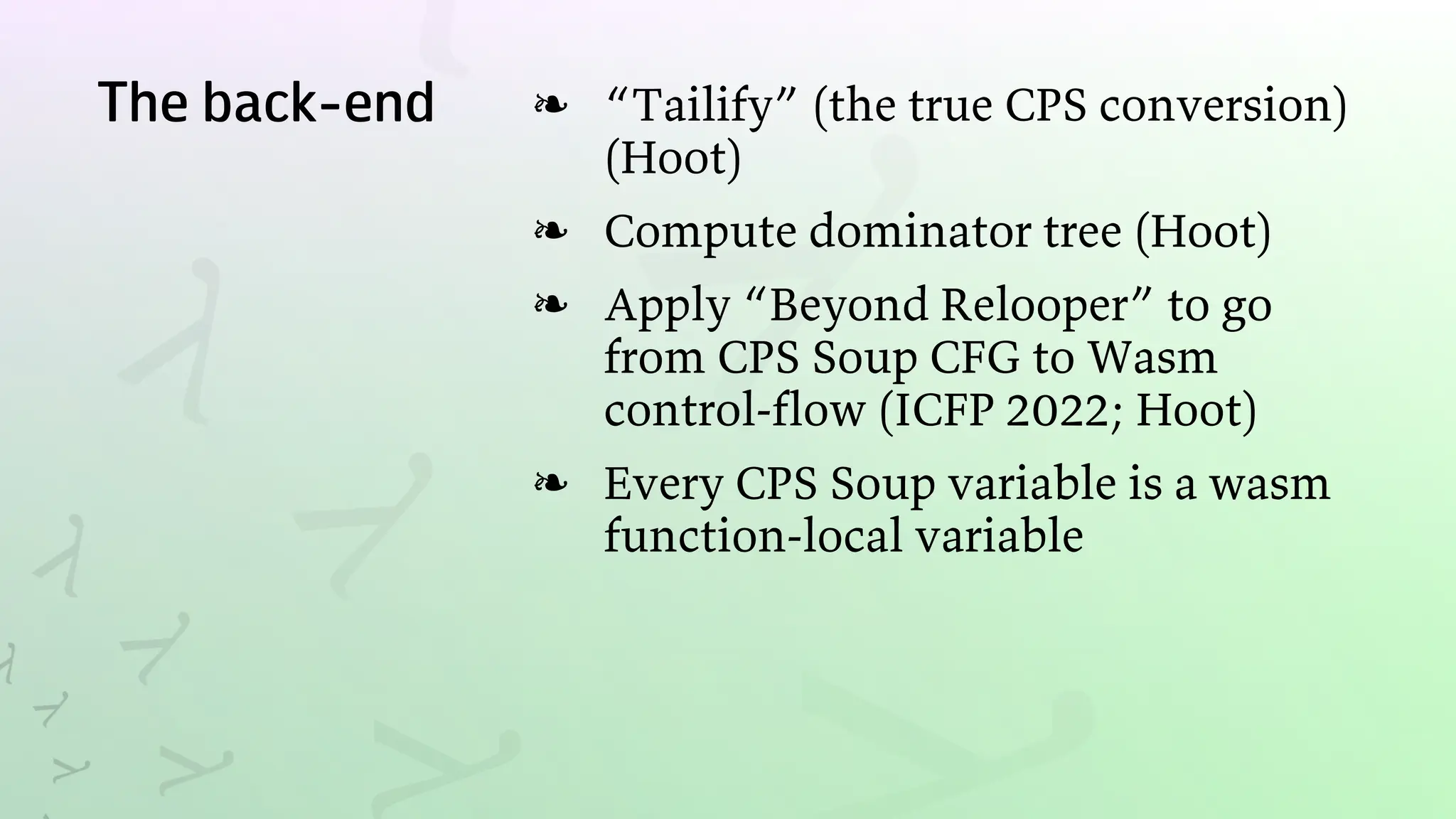

The back-end “Tailify” (the true CPS conversion)
(Hoot)
❧
Compute dominator tree (Hoot)
❧
Apply “Beyond Relooper” to go
from CPS Soup CFG to Wasm
control-flow (ICFP 2022; Hoot)
❧
Every CPS Soup variable is a wasm
function-local variable
❧

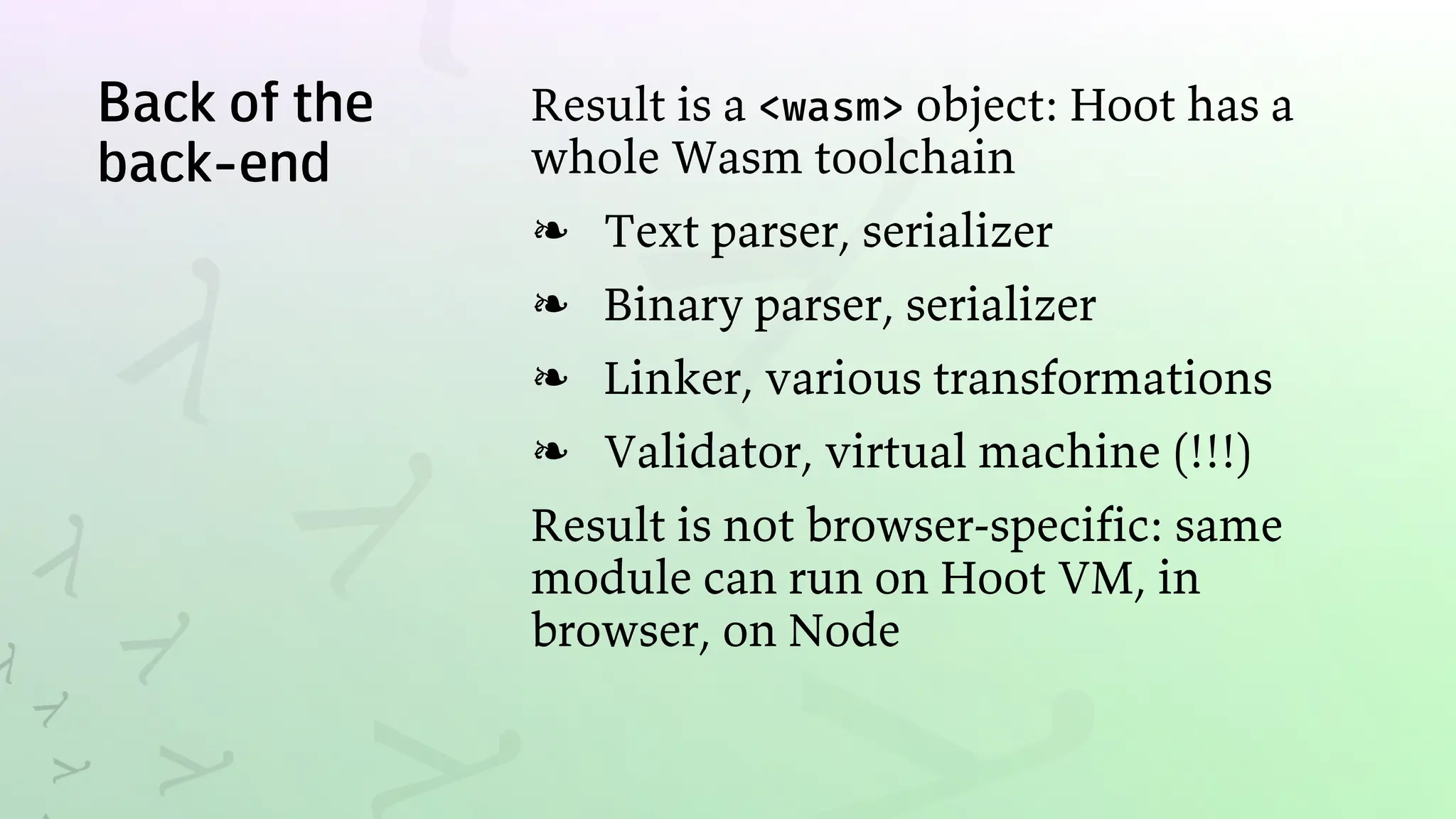

Back of the
back-end
Result is a <wasm> object: Hoot has a
whole Wasm toolchain
Text parser, serializer
❧
Binary parser, serializer
❧
Linker, various transformations
❧
Validator, virtual machine (!!!)
❧
Result is not browser-specific: same
module can run on Hoot VM, in
browser, on Node

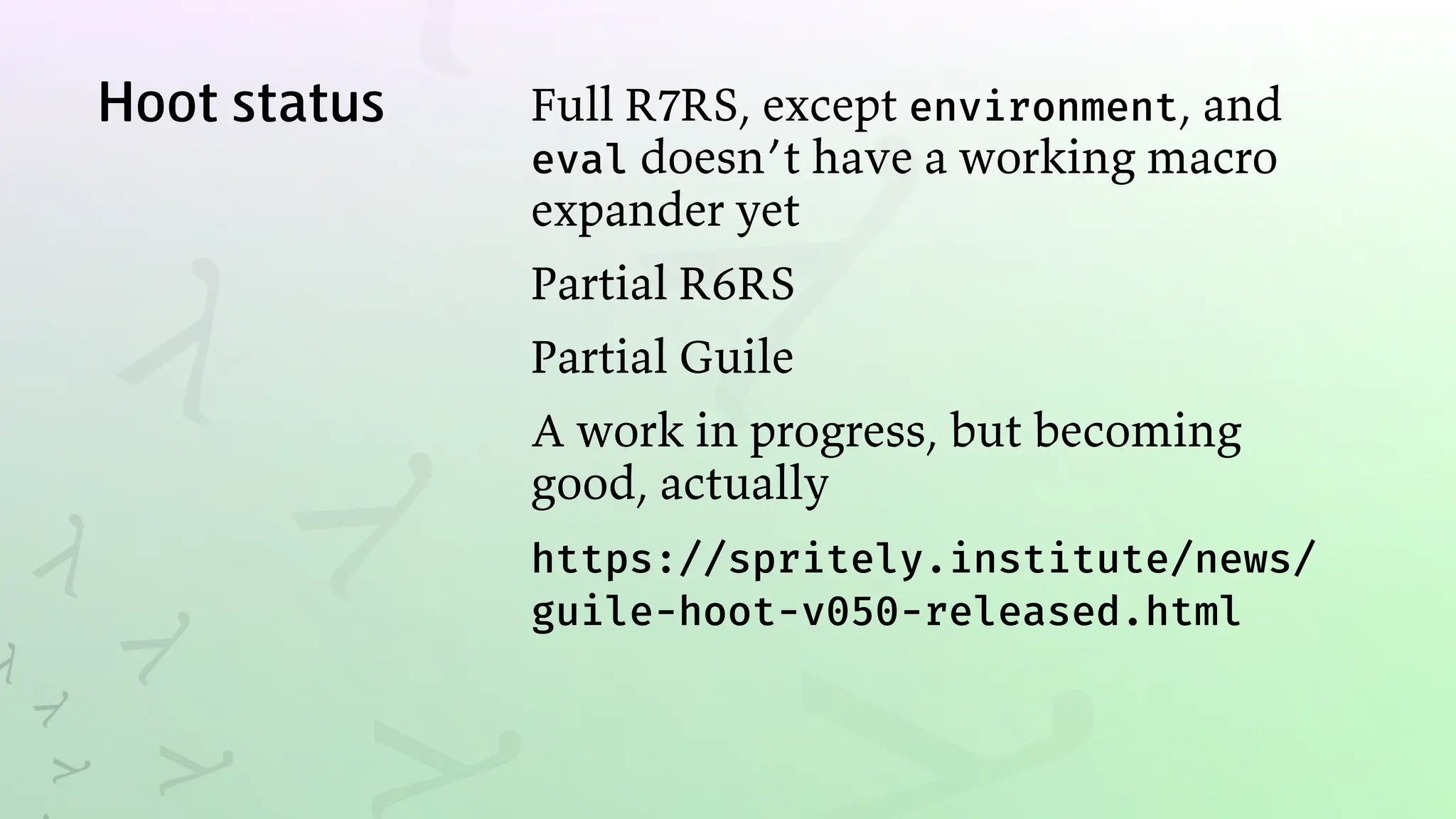

Hoot status Full R7RS, except environment, and
eval doesn’t have a working macro
expander yet
Partial R6RS
Partial Guile
A work in progress, but becoming
good, actually
https://spritely.institute/news/
guile-hoot-v050-released.html

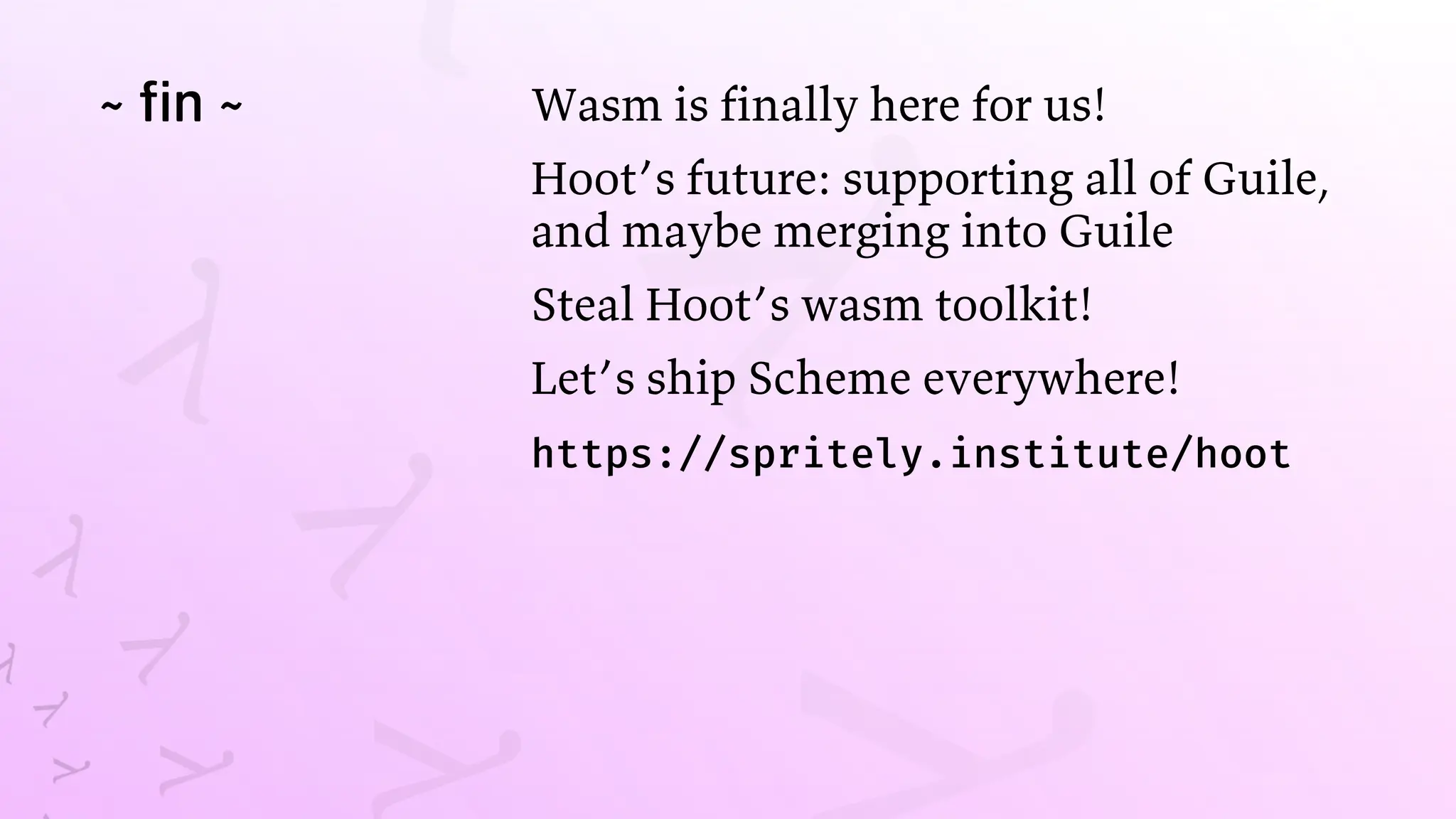

~ fin ~ Wasm is finally here for us!
Hoot’s future: supporting all of Guile,
and maybe merging into Guile
Steal Hoot’s wasm toolkit!
Let’s ship Scheme everywhere!
https://spritely.institute/hoot

Scheme on WebAssembly: It is happening!

More Related Content

Similar to Scheme on WebAssembly: It is happening!

More from Igalia

Recently uploaded

Scheme on WebAssembly: It is happening!
