Uploaded byMurat Çakal
Scaling web applications with cassandra presentation
This document provides an introduction and overview of Cassandra, including: - Cassandra is a distributed database modeled after Amazon Dynamo and Google Bigtable that is highly scalable and fault tolerant. - It is used by many large companies for applications that require fast writes, high availability, and elastic scalability. - Cassandra's data model uses a column-oriented design organized into keyspaces, column families, rows, and columns. It also supports super columns. - The document discusses Cassandra's features like tunable consistency levels, replication, and its data distribution using consistent hashing. - An overview of Cassandra's Thrift API and basic operations like get, batch mutate, and
More Related Content
Similar to Scaling web applications with cassandra presentation
Scaling web applications with cassandra presentation
- 1. introduction to cassandra eben hewitt september 29. 2010 web 2.0 expo new york city
- 2. @ebenhewitt • director, applicationarchitecture at a global corp • focus on SOA, SaaS, Events • i wrote this

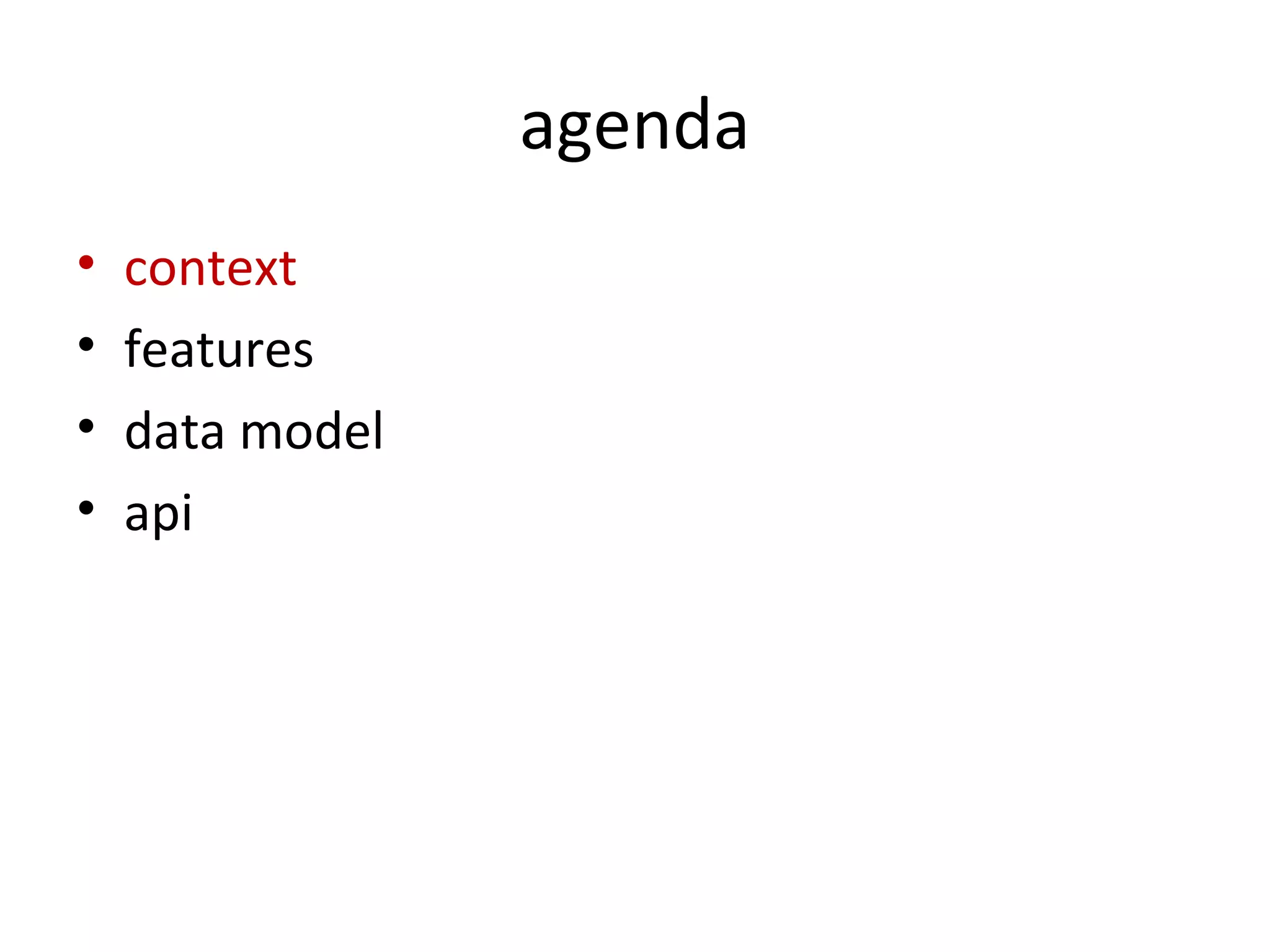

- 3. agenda • context • features • data model • api

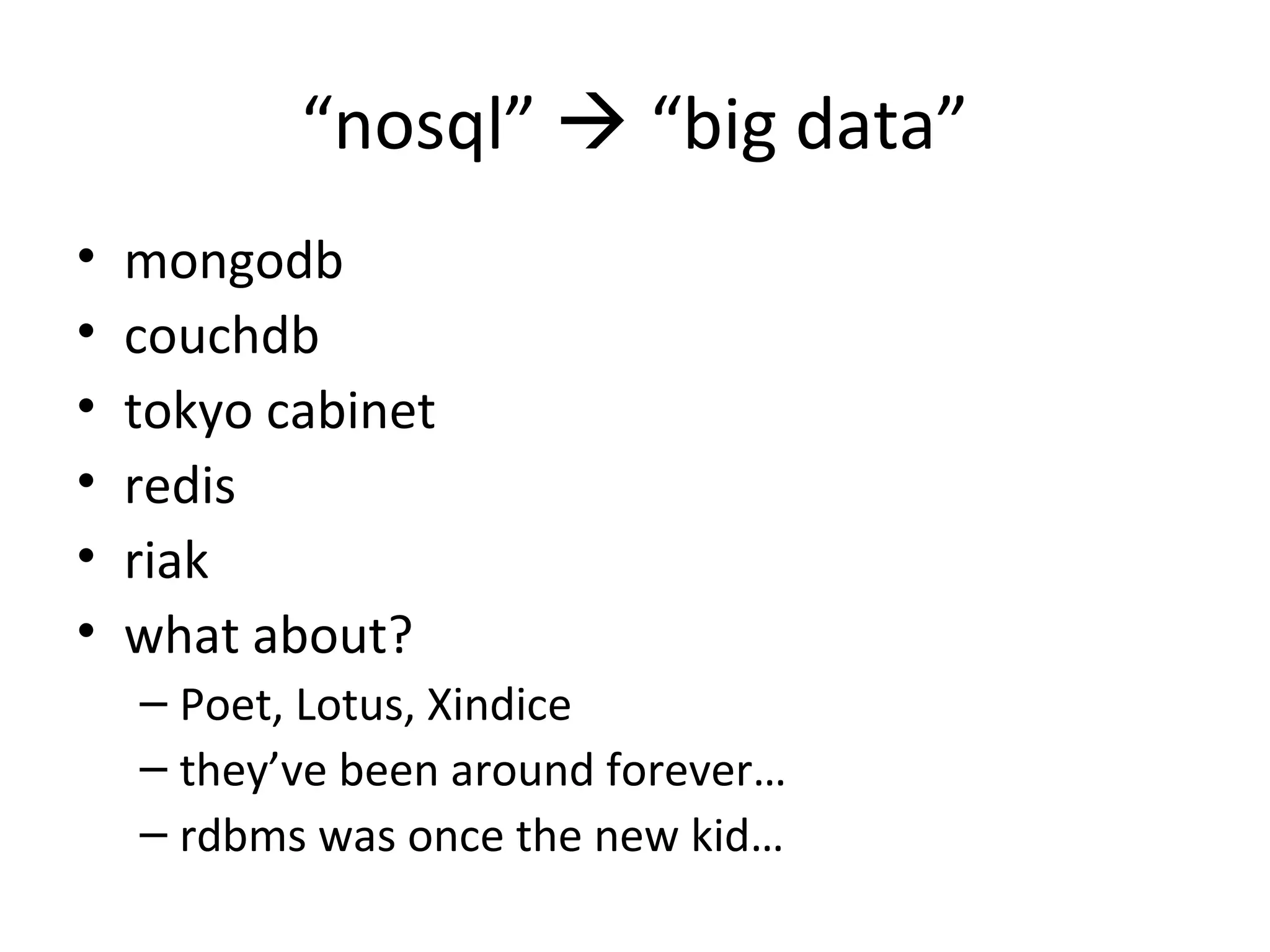

- 4. “nosql” “bigdata” • mongodb • couchdb • tokyo cabinet • redis • riak • what about? – Poet, Lotus, Xindice – they’ve been around forever… – rdbms was once the new kid…

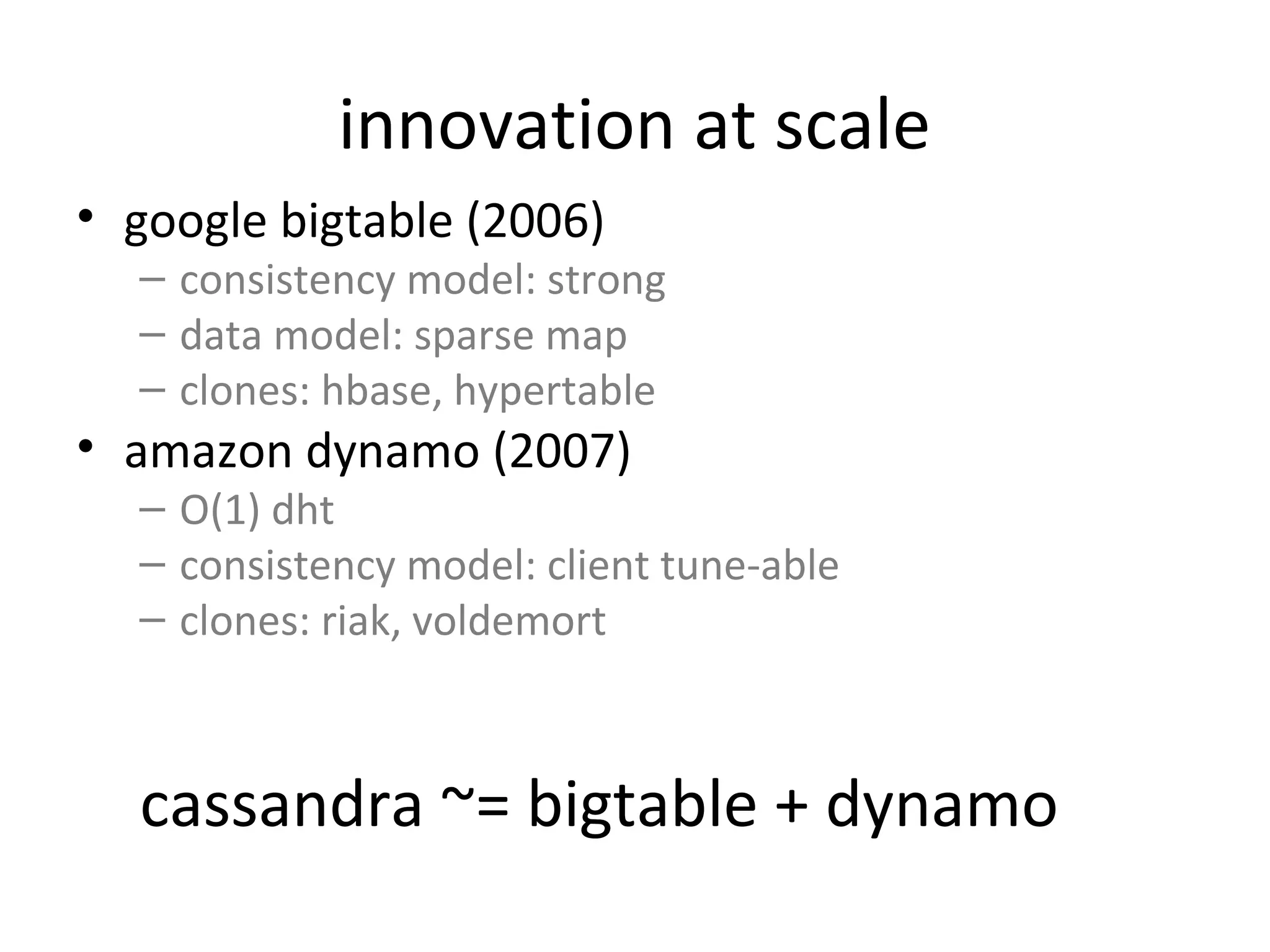

- 5. innovation at scale •google bigtable (2006) – consistency model: strong – data model: sparse map – clones: hbase, hypertable • amazon dynamo (2007) – O(1) dht – consistency model: client tune-able – clones: riak, voldemort cassandra ~= bigtable + dynamo

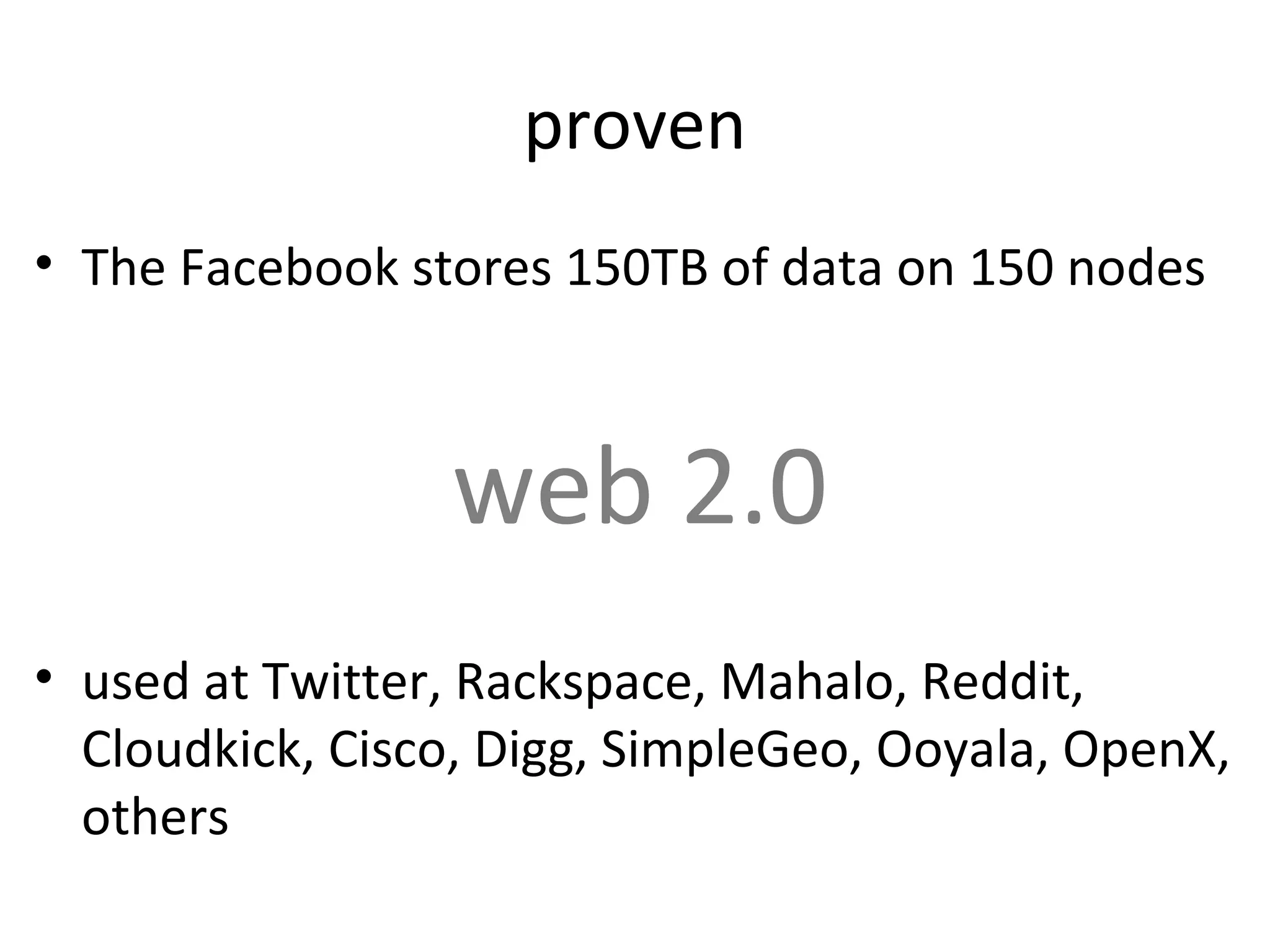

- 6. proven • The Facebookstores 150TB of data on 150 nodes web 2.0 • used at Twitter, Rackspace, Mahalo, Reddit, Cloudkick, Cisco, Digg, SimpleGeo, Ooyala, OpenX, others

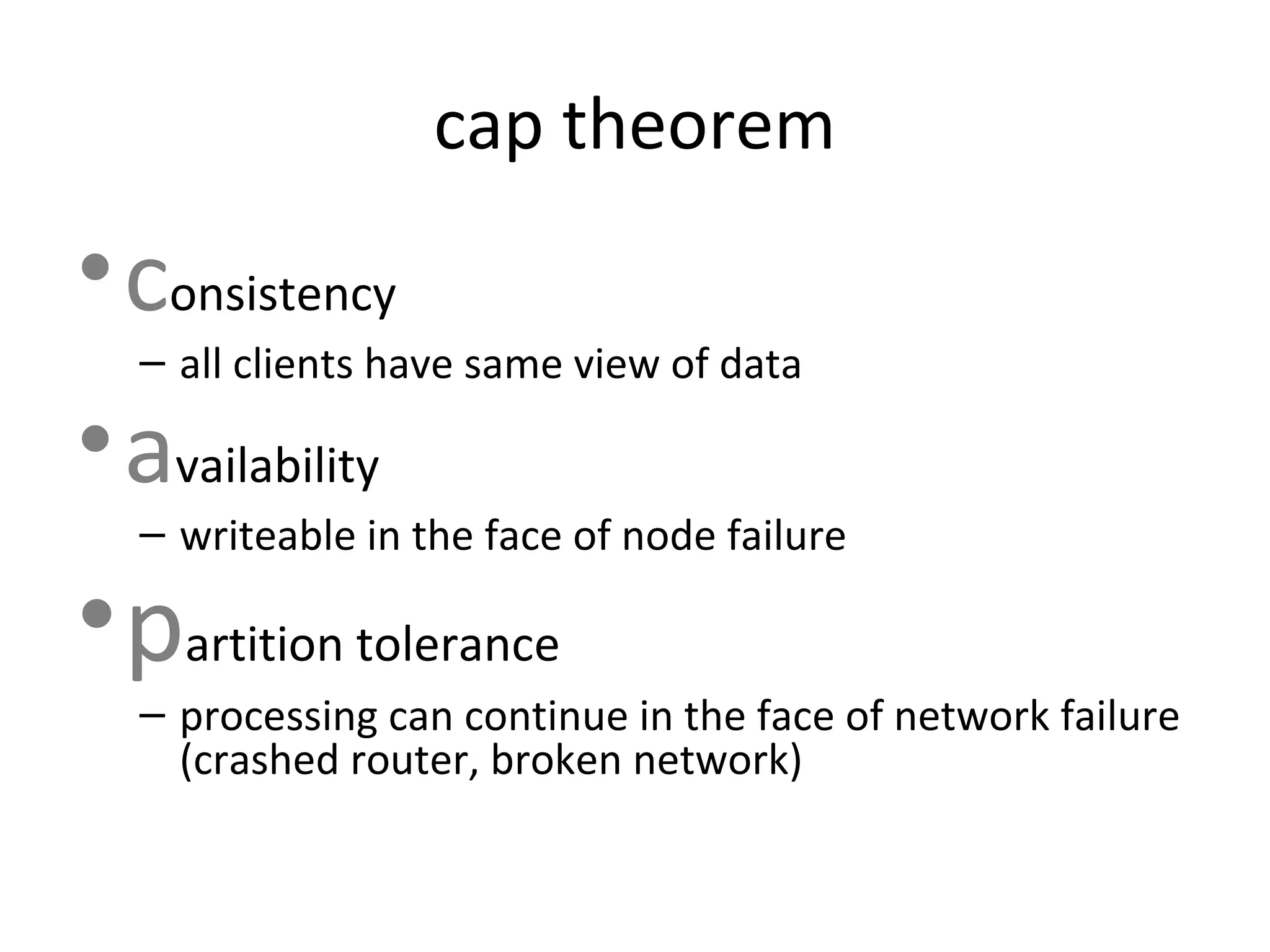

- 7. cap theorem • consistency – all clients have same view of data • availability – writeable in the face of node failure • partition tolerance – processing can continue in the face of network failure (crashed router, broken network)
- 8.

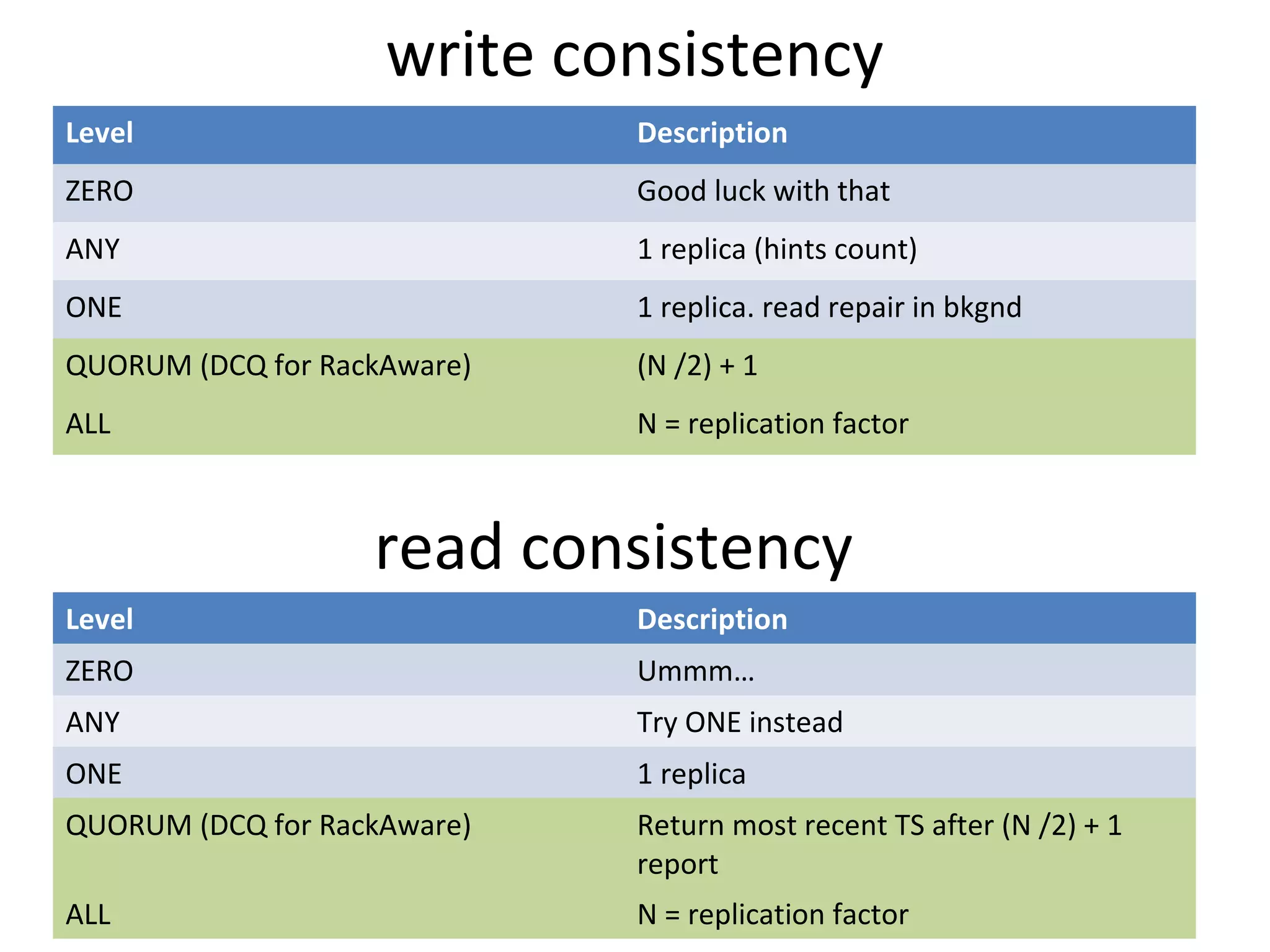

- 9. write consistency Level Description ZERO Good luck with that ANY 1 replica (hints count) ONE 1 replica. read repair in bkgnd QUORUM (DCQ for RackAware) (N /2) + 1 ALL N = replication factor read consistency Level Description ZERO Ummm… ANY Try ONE instead ONE 1 replica QUORUM (DCQ for RackAware) Return most recent TS after (N /2) + 1 report ALL N = replication factor

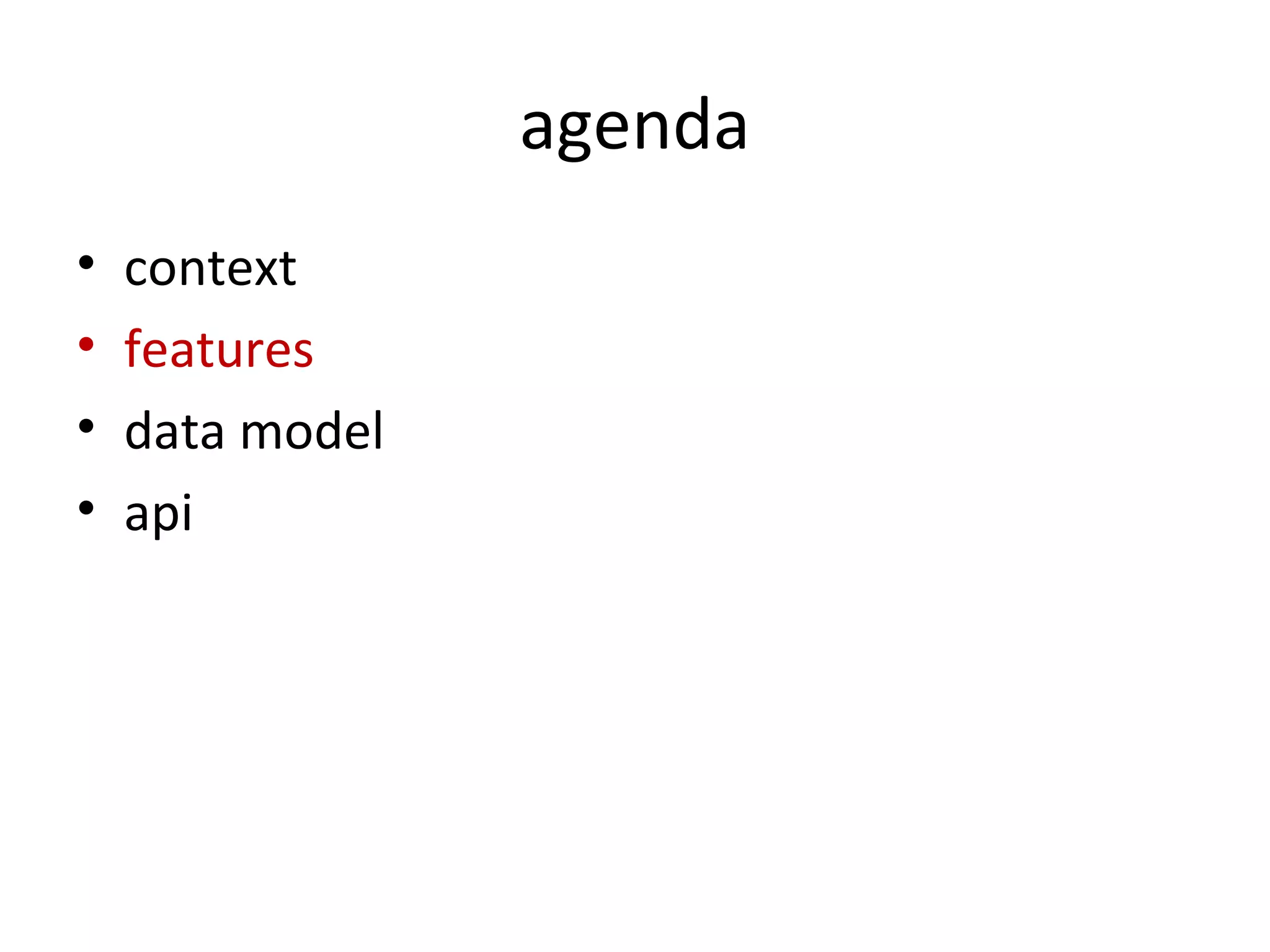

- 10. agenda • context • features • data model • api

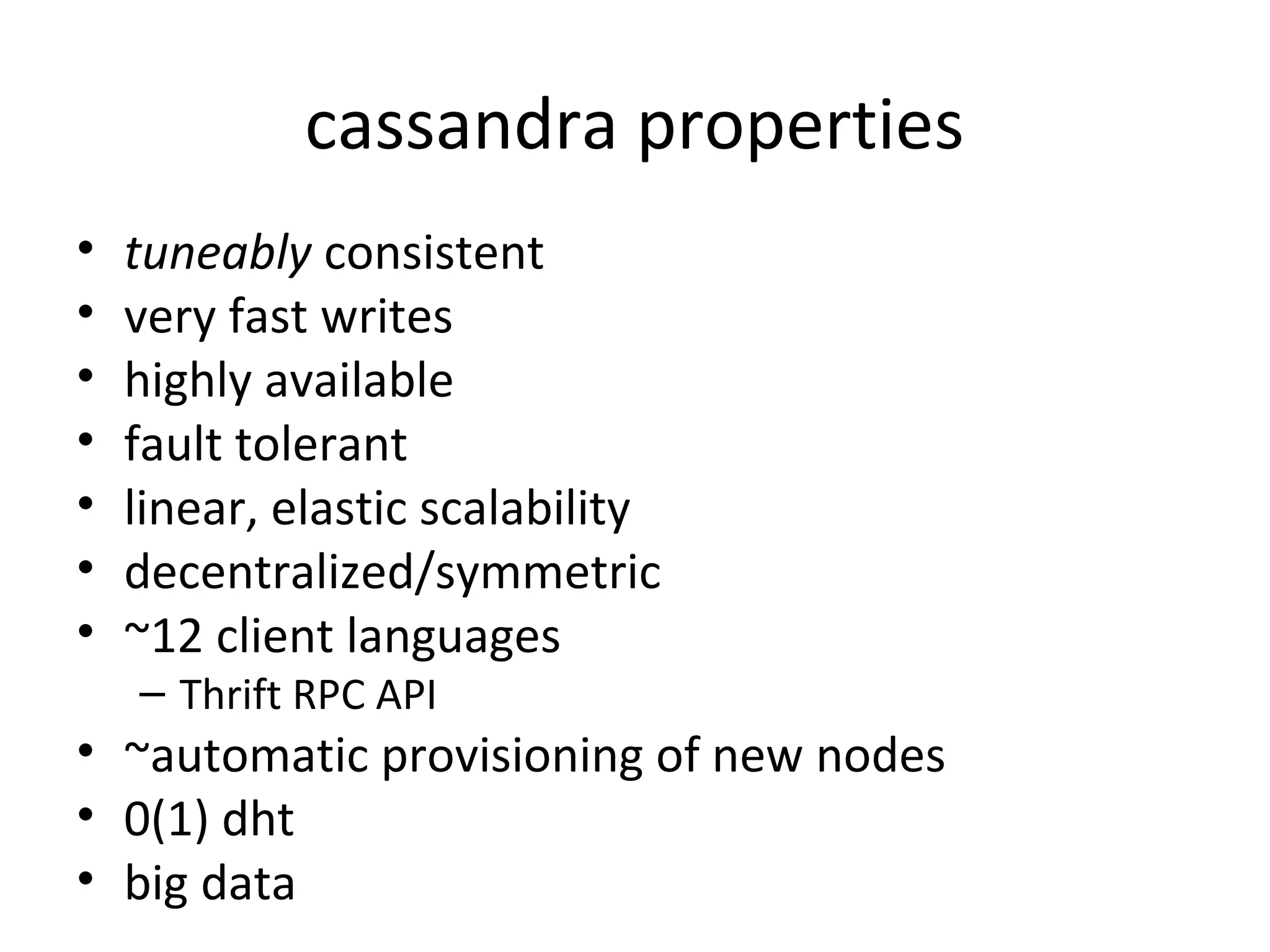

- 11. cassandra properties • tuneably consistent • very fast writes • highly available • fault tolerant • linear, elastic scalability • decentralized/symmetric • ~12 client languages – Thrift RPC API • ~automatic provisioning of new nodes • 0(1) dht • big data
- 12.

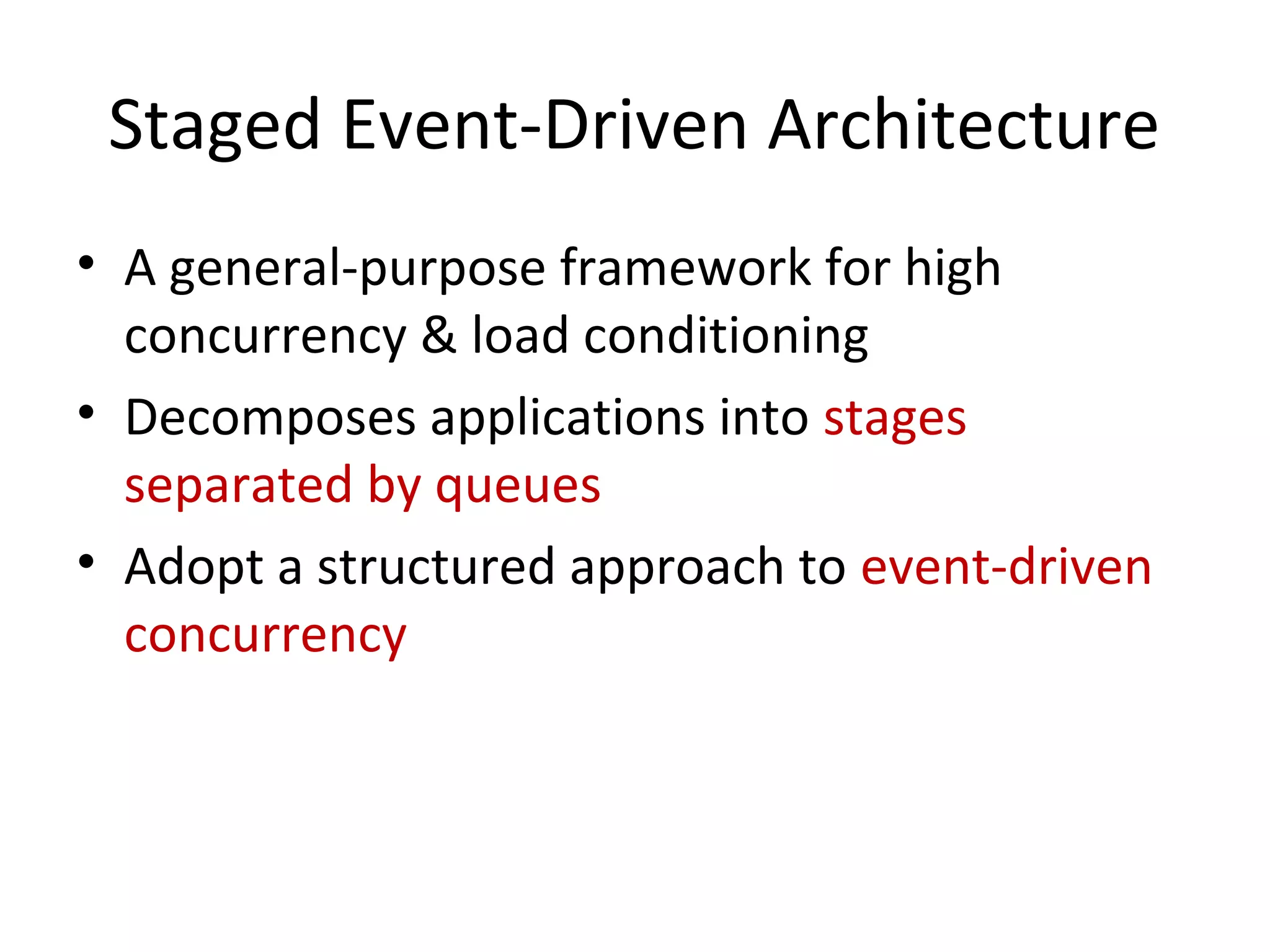

- 13. Staged Event-Driven Architecture •A general-purpose framework for high concurrency & load conditioning • Decomposes applications into stages separated by queues • Adopt a structured approach to event-driven concurrency
- 14.
- 15.

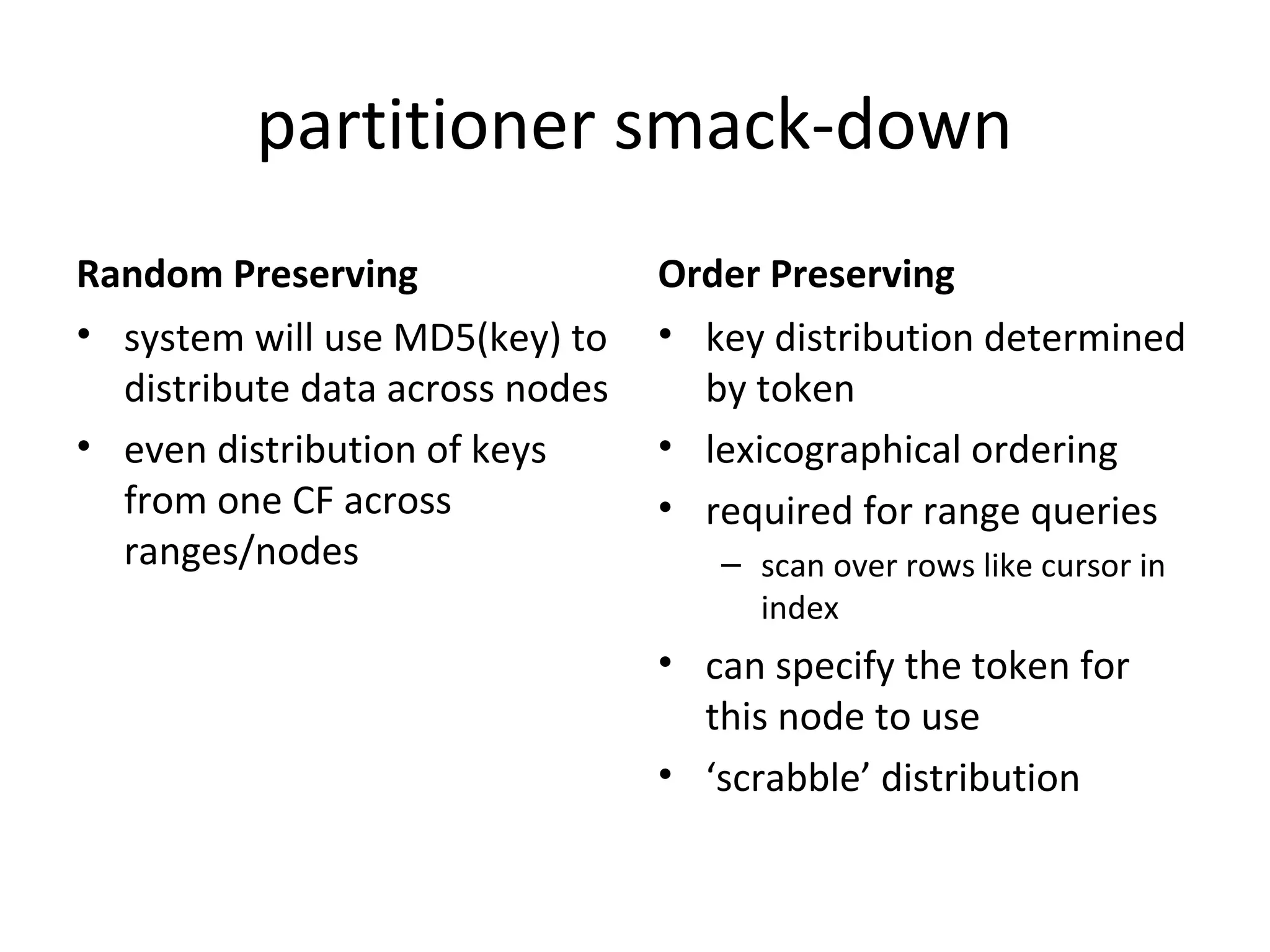

- 16. partitioner smack-down Random Preserving Order Preserving • system will use MD5(key) to • key distribution determined distribute data across nodes by token • even distribution of keys • lexicographical ordering from one CF across • required for range queries ranges/nodes – scan over rows like cursor in index • can specify the token for this node to use • ‘scrabble’ distribution

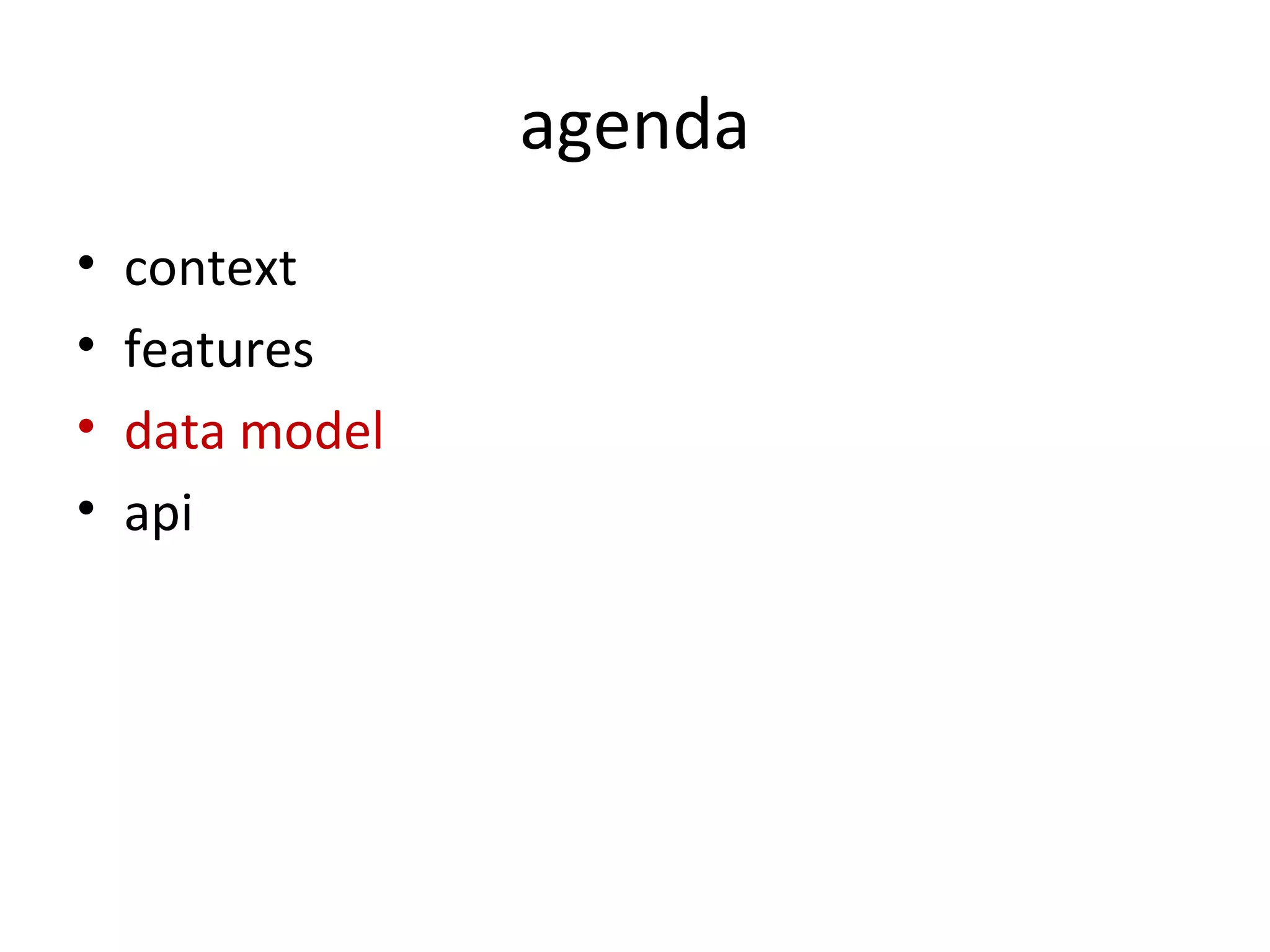

- 17. agenda • context • features • data model • api

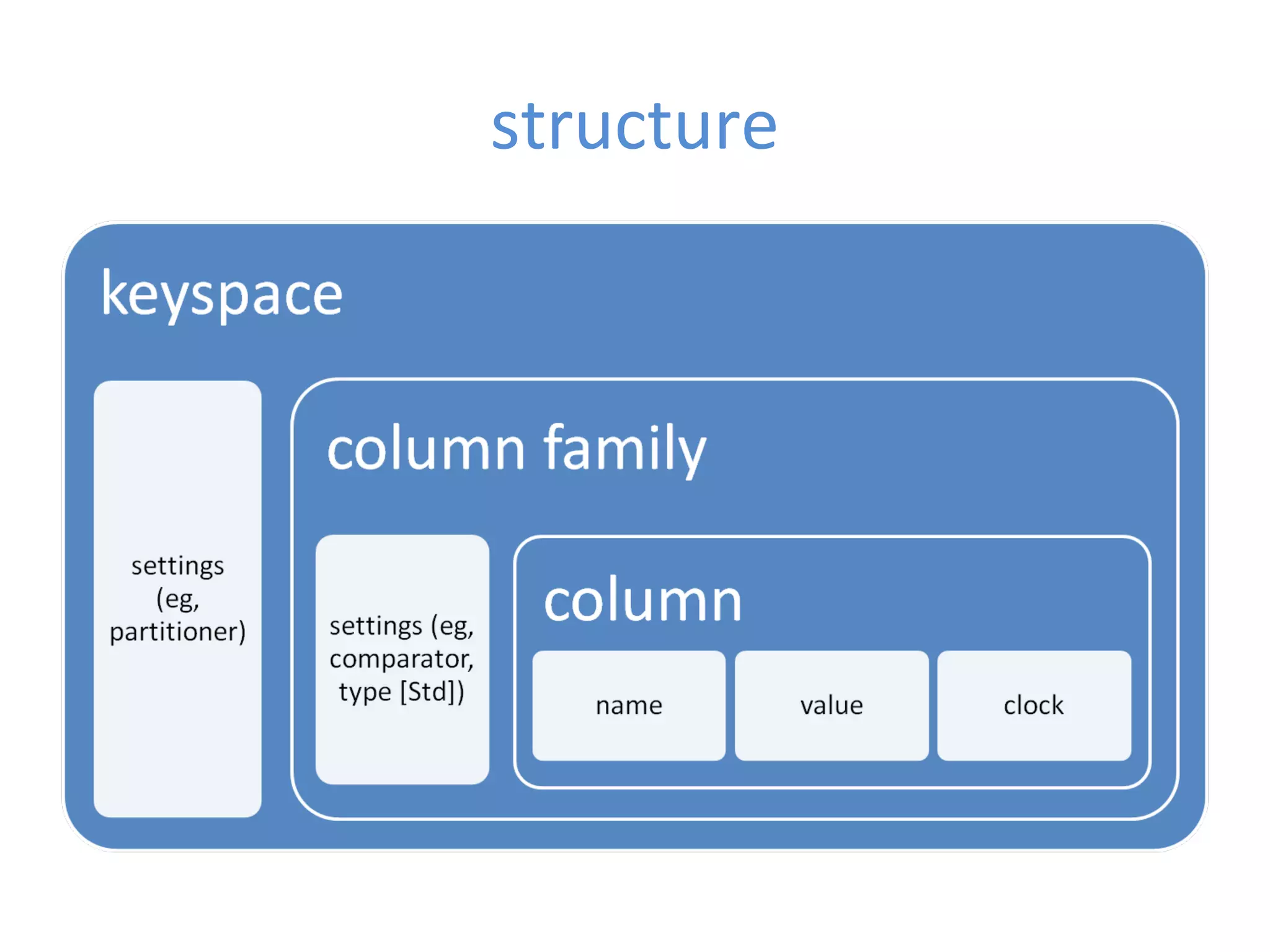

- 18.

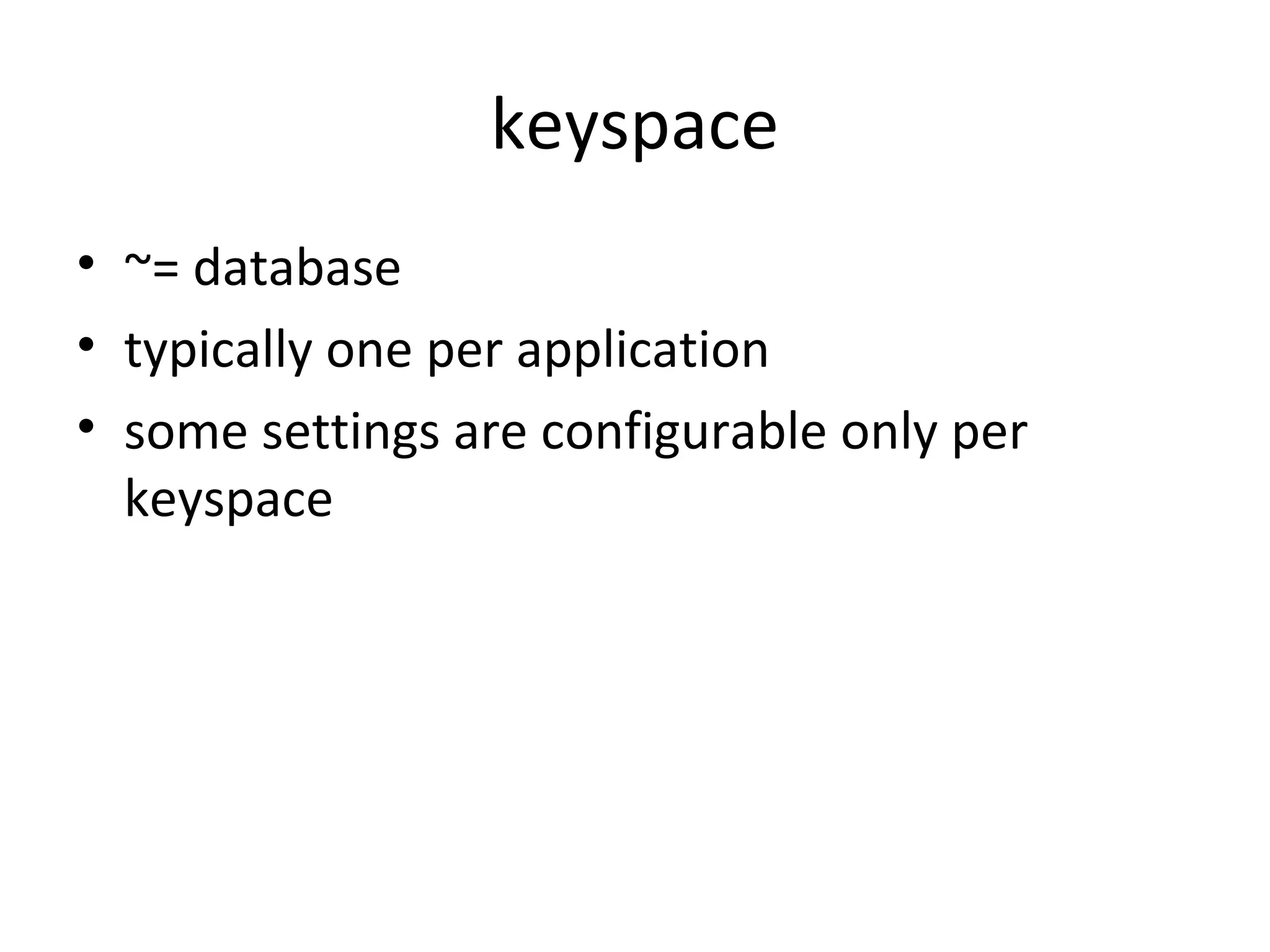

- 19. keyspace • ~= database •typically one per application • some settings are configurable only per keyspace

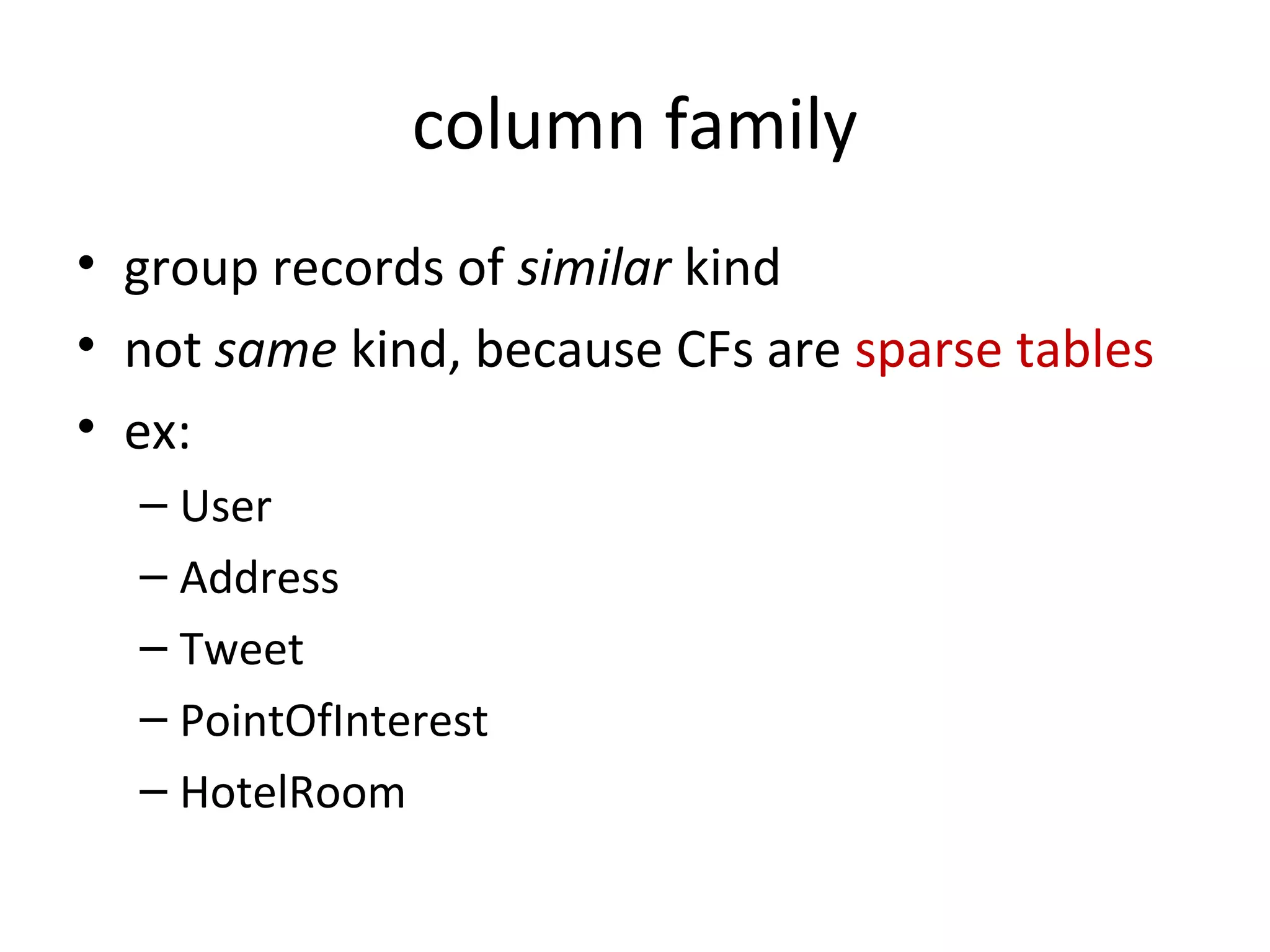

- 20. column family • grouprecords of similar kind • not same kind, because CFs are sparse tables • ex: – User – Address – Tweet – PointOfInterest – HotelRoom

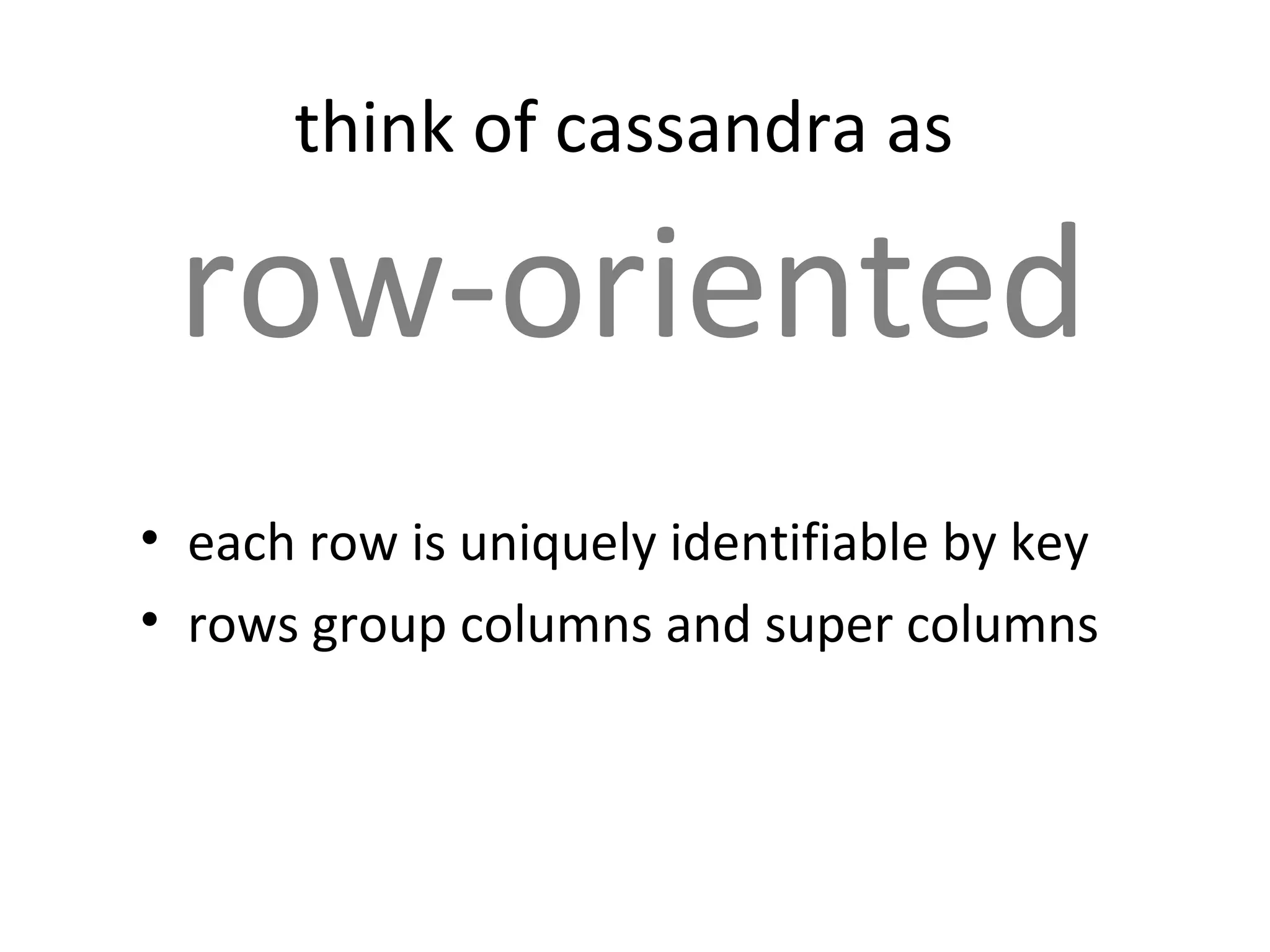

- 21. think of cassandraas row-oriented • each row is uniquely identifiable by key • rows group columns and super columns

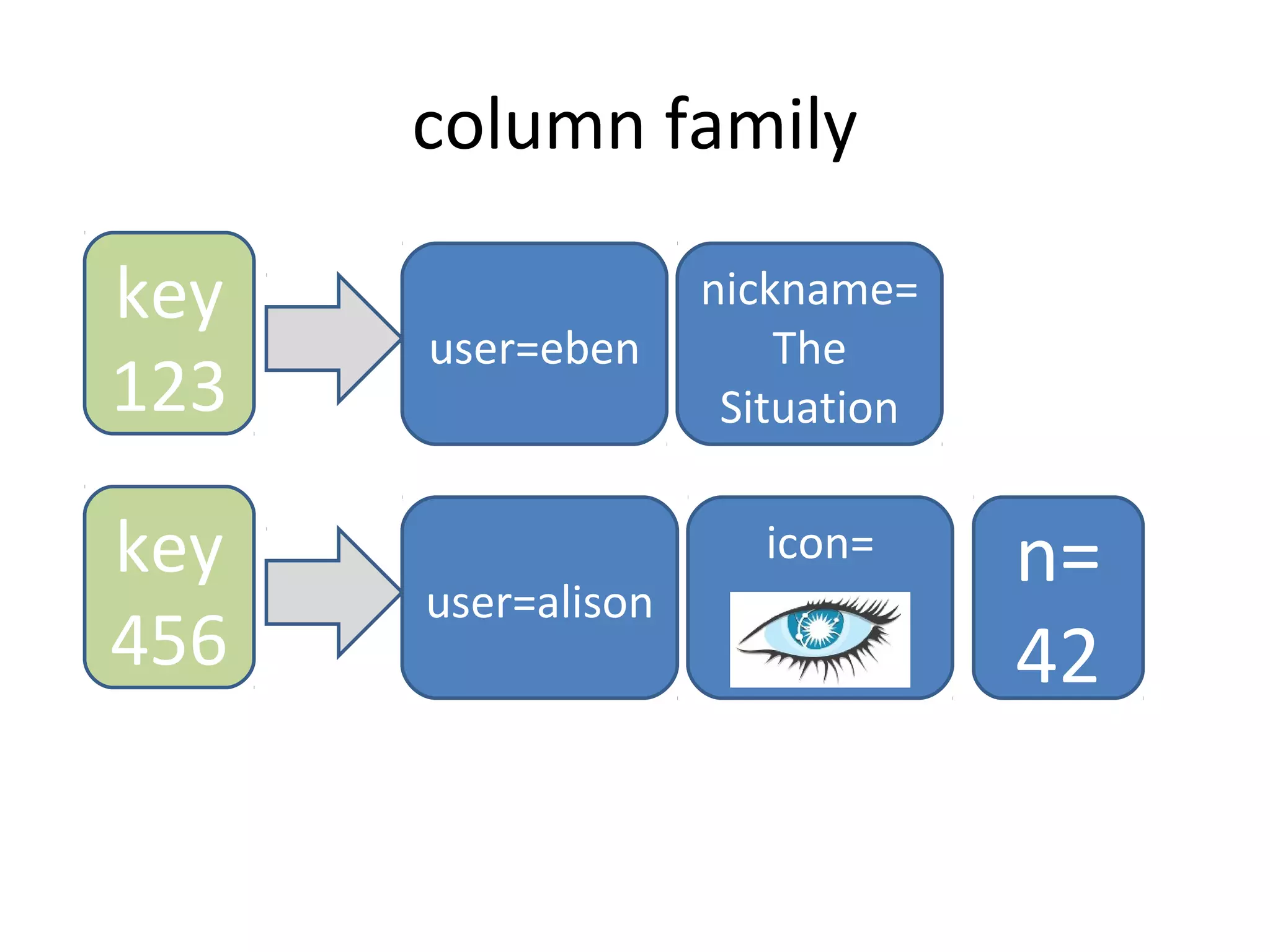

- 22. column family key nickname= user=eben The 123 Situation key icon= n= user=alison 456 42

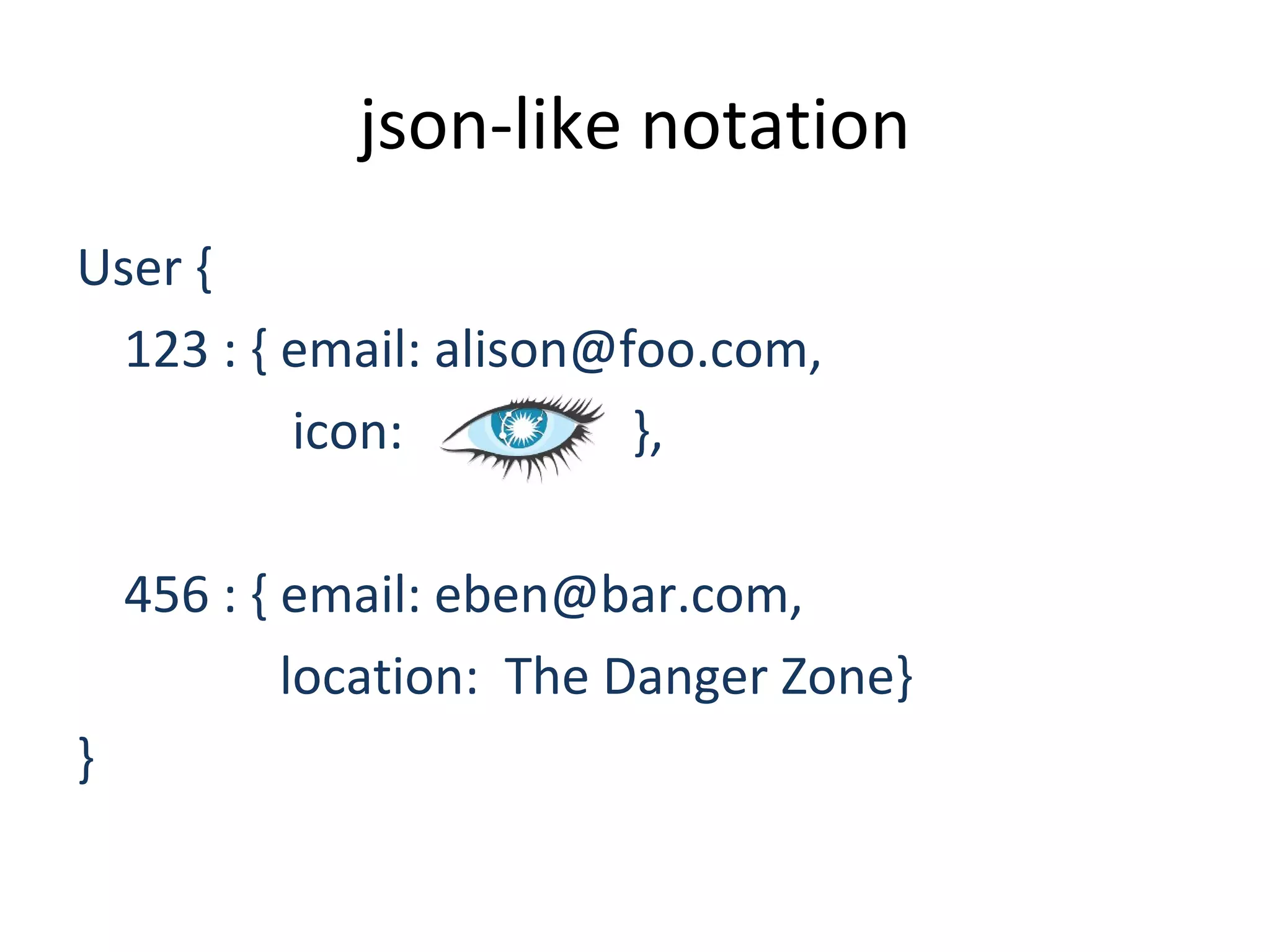

- 23. json-like notation User { 123 : { email: alison@foo.com, icon: }, 456 : { email: eben@bar.com, location: The Danger Zone} }

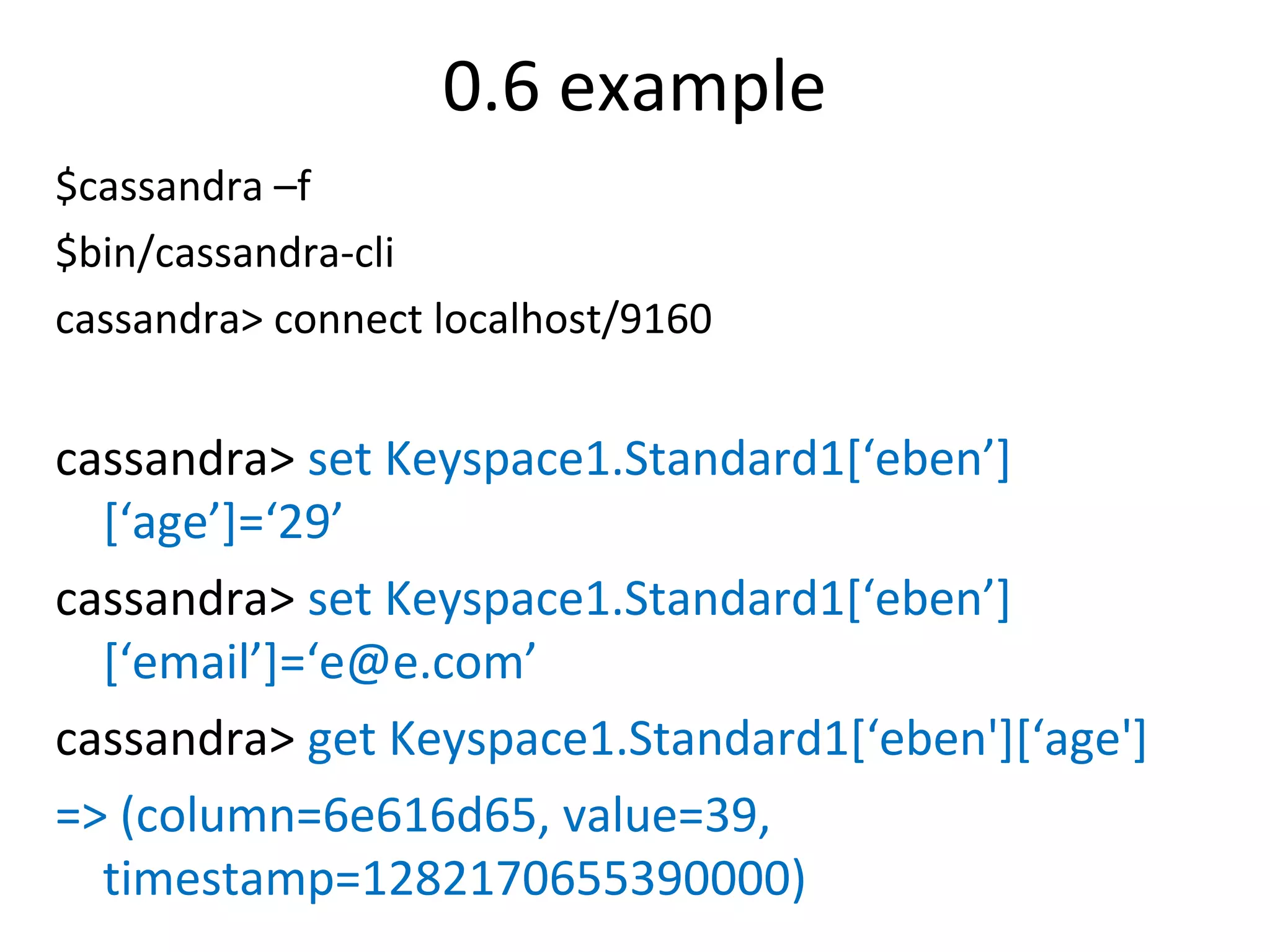

- 24. 0.6 example $cassandra –f $bin/cassandra-cli cassandra>connect localhost/9160 cassandra> set Keyspace1.Standard1[‘eben’] [‘age’]=‘29’ cassandra> set Keyspace1.Standard1[‘eben’] [‘email’]=‘e@e.com’ cassandra> get Keyspace1.Standard1[‘eben'][‘age'] => (column=6e616d65, value=39, timestamp=1282170655390000)

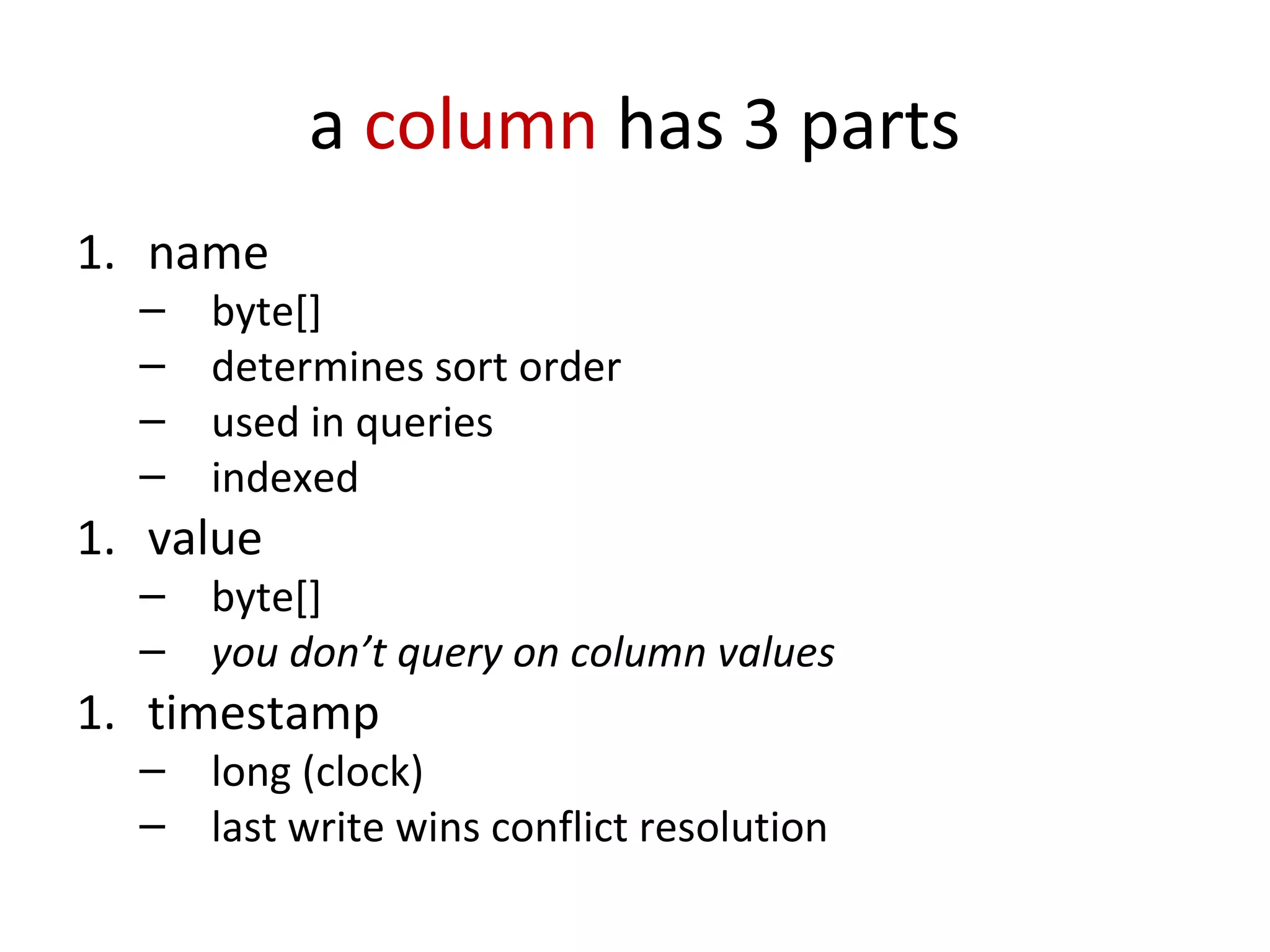

- 25. a column has3 parts 1. name – byte[] – determines sort order – used in queries – indexed 1. value – byte[] – you don’t query on column values 1. timestamp – long (clock) – last write wins conflict resolution

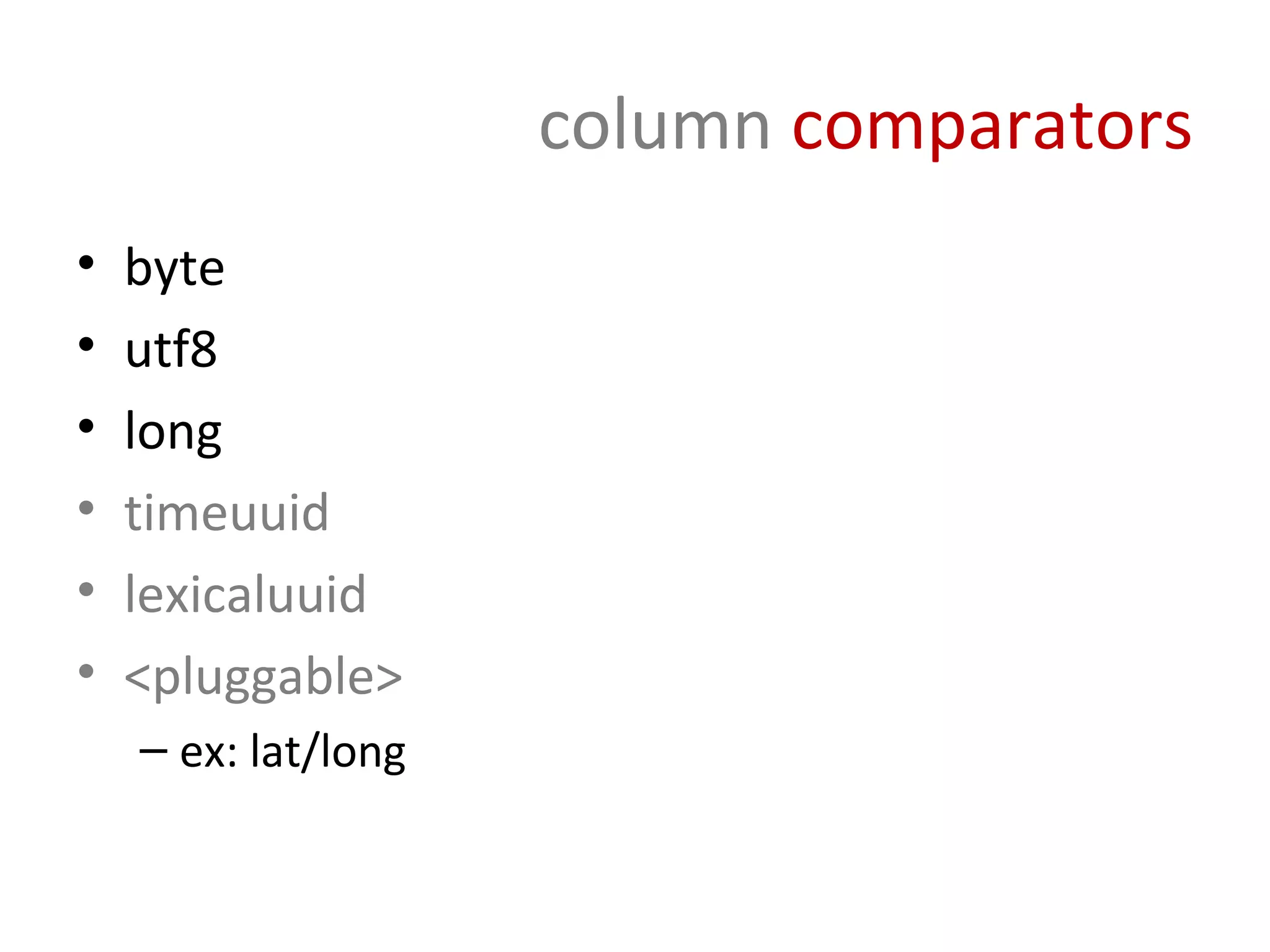

- 26. column comparators • byte • utf8 • long • timeuuid • lexicaluuid • <pluggable> – ex: lat/long

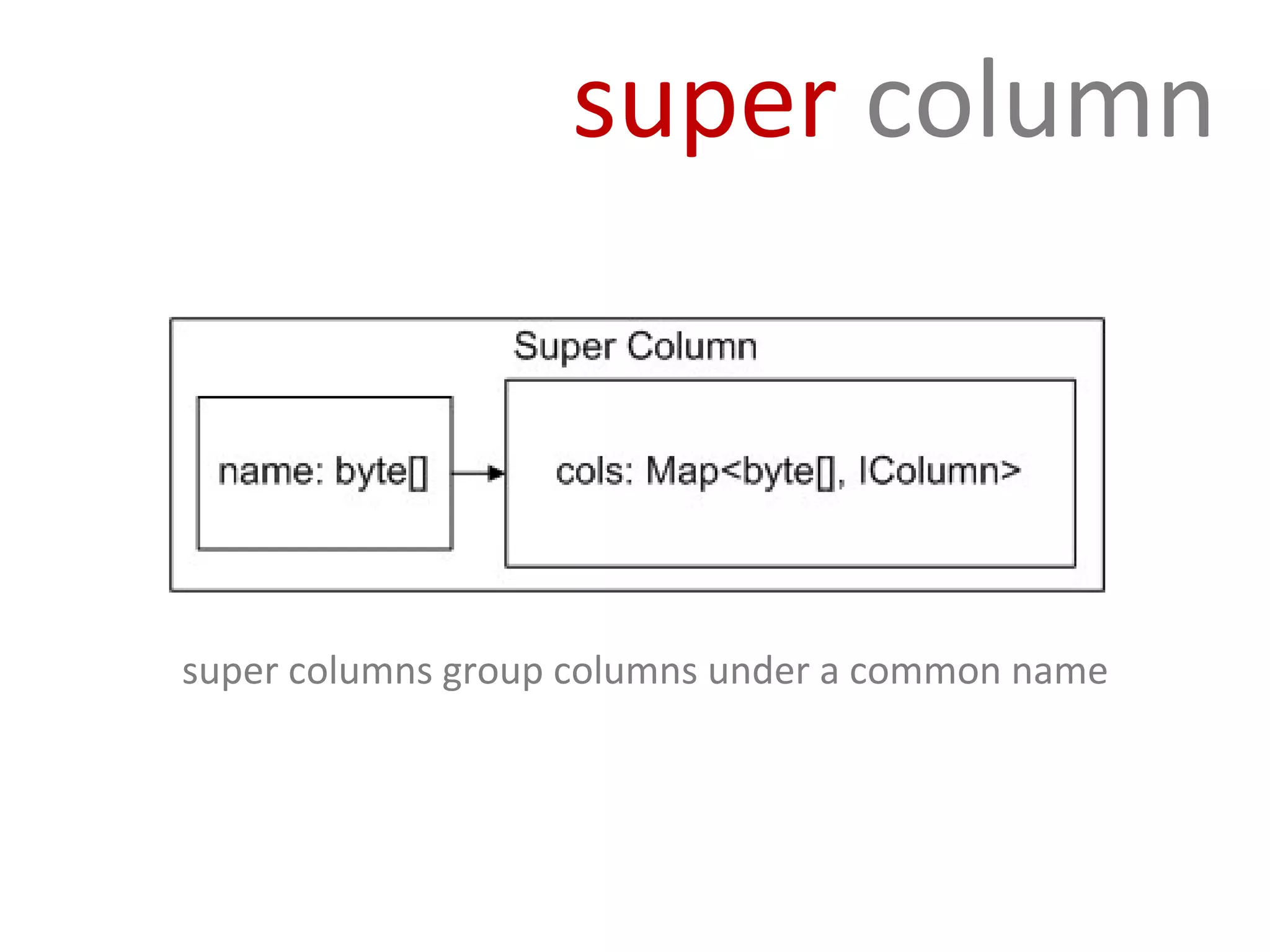

- 27. super column super columnsgroup columns under a common name

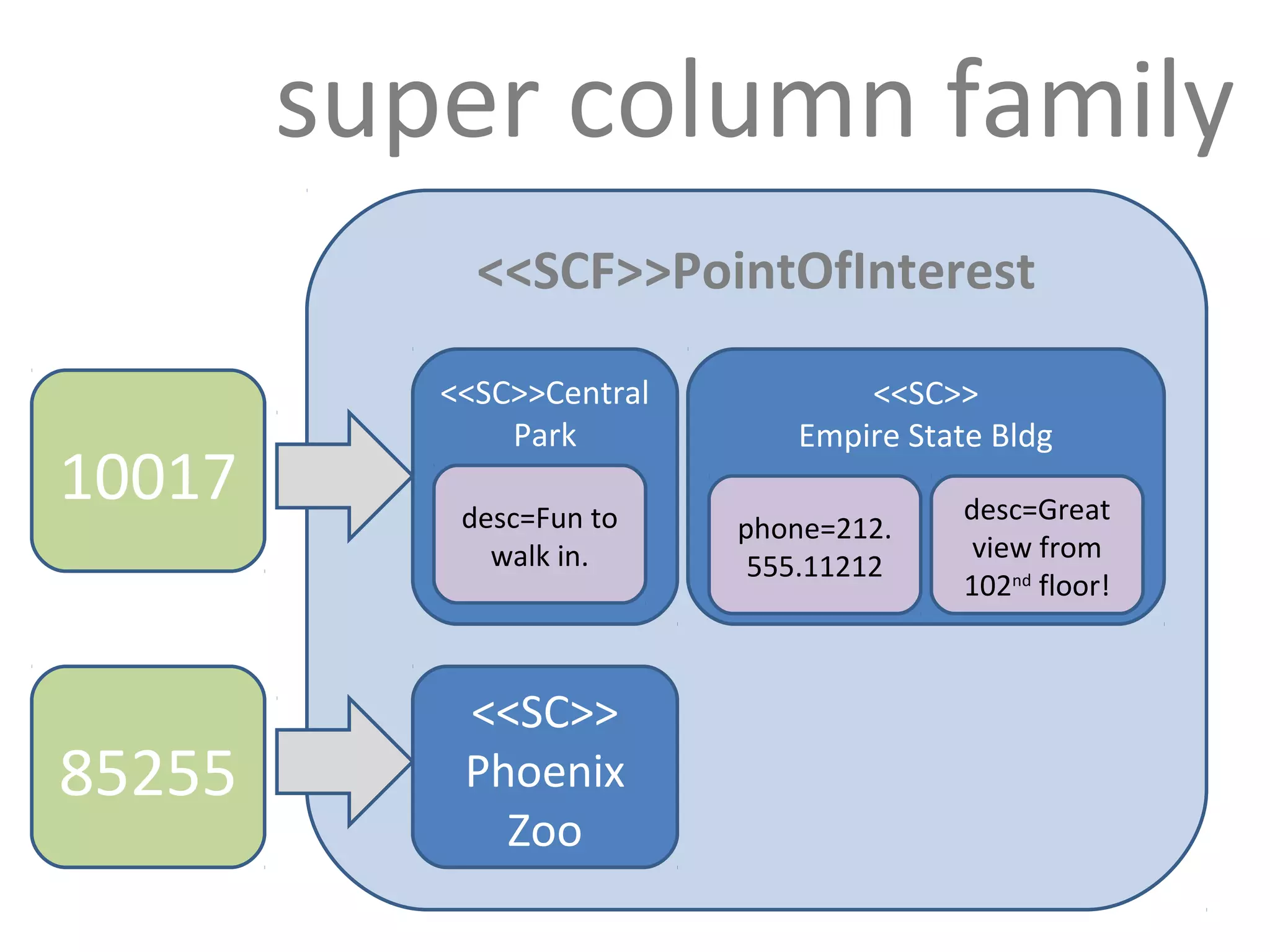

- 28. super column family <<SCF>>PointOfInterest <<SC>>Central <<SC>> Park Empire State Bldg 10017 desc=Fun to desc=Great phone=212. walk in. view from 555.11212 102nd floor! <<SC>> 85255 Phoenix Zoo

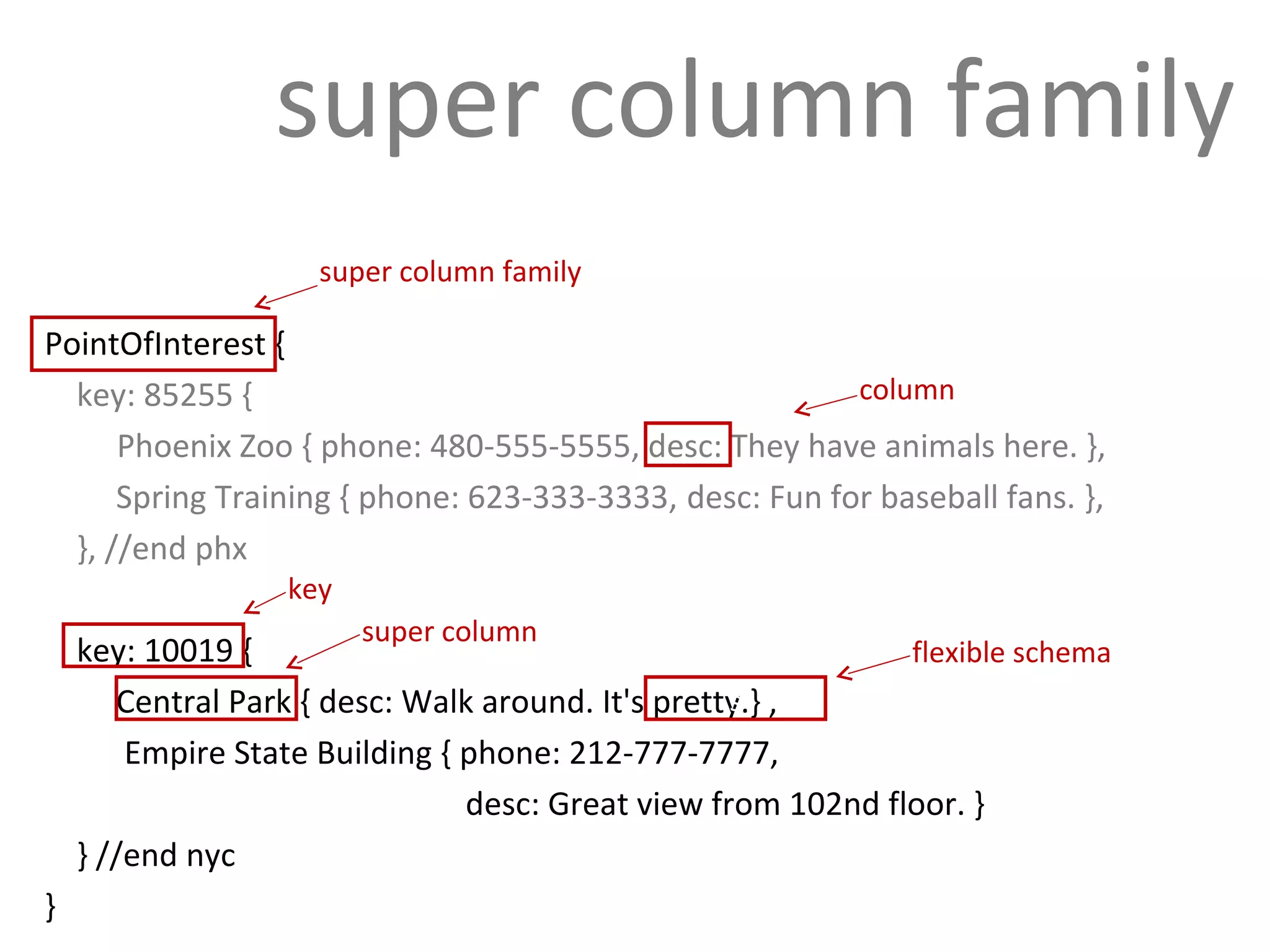

- 29. super column family super column family PointOfInterest { key: 85255 { column Phoenix Zoo { phone: 480-555-5555, desc: They have animals here. }, Spring Training { phone: 623-333-3333, desc: Fun for baseball fans. }, }, //end phx key super column key: 10019 { flexible schema Central Park { desc: Walk around. It's pretty.} , s Empire State Building { phone: 212-777-7777, desc: Great view from 102nd floor. } } //end nyc }

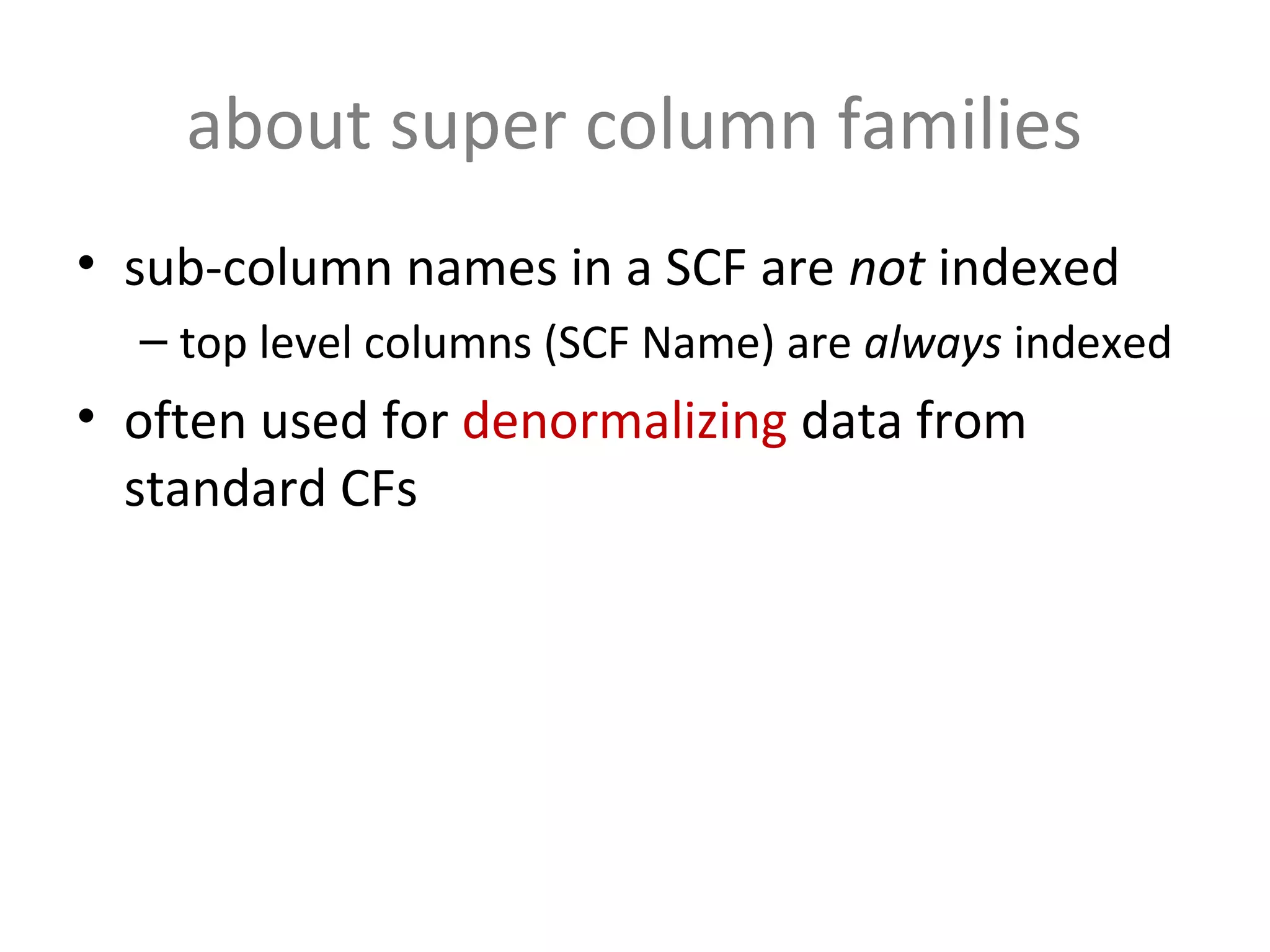

- 30. about super columnfamilies • sub-column names in a SCF are not indexed – top level columns (SCF Name) are always indexed • often used for denormalizing data from standard CFs

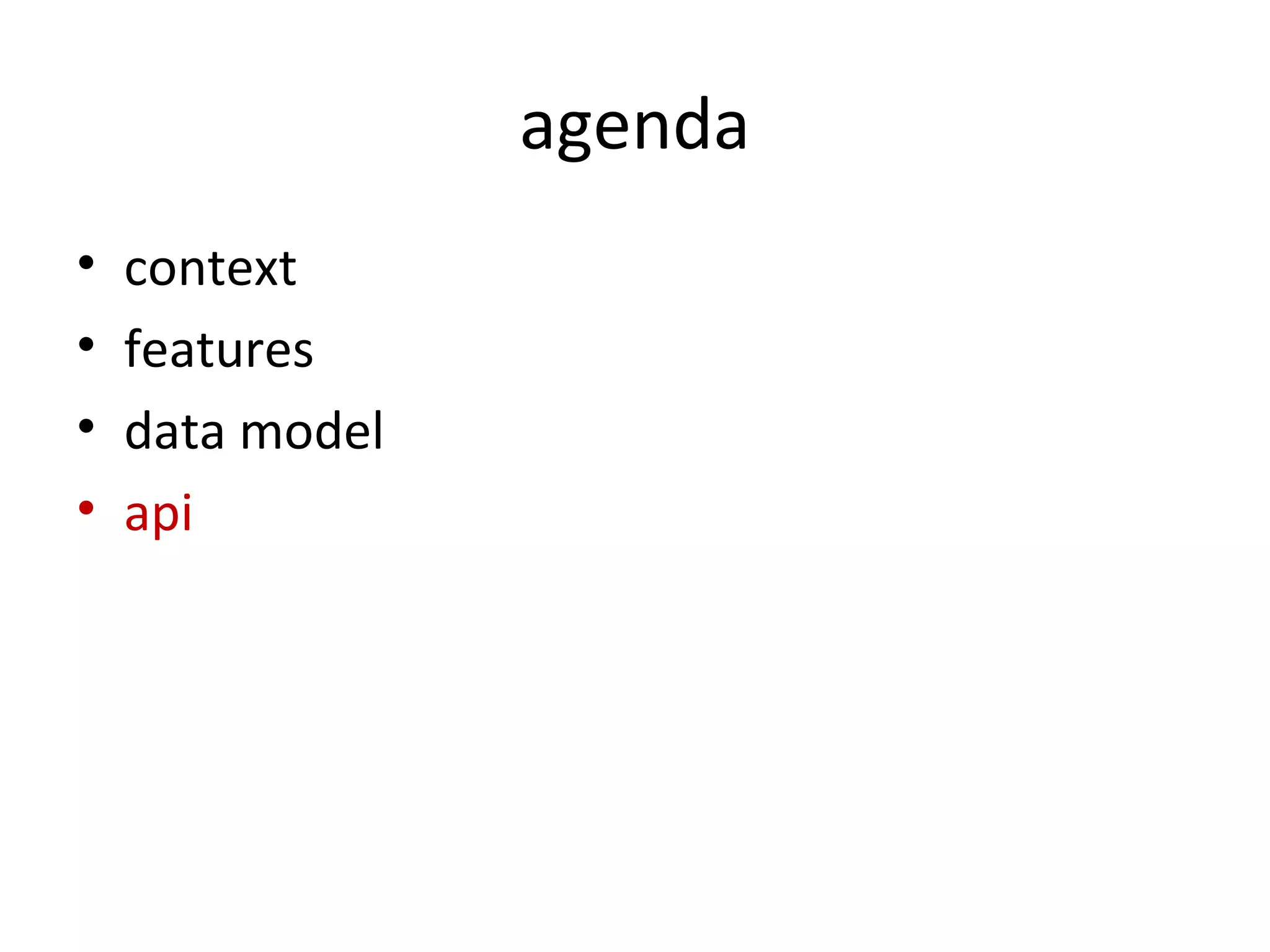

- 31. agenda • context • features • data model • api

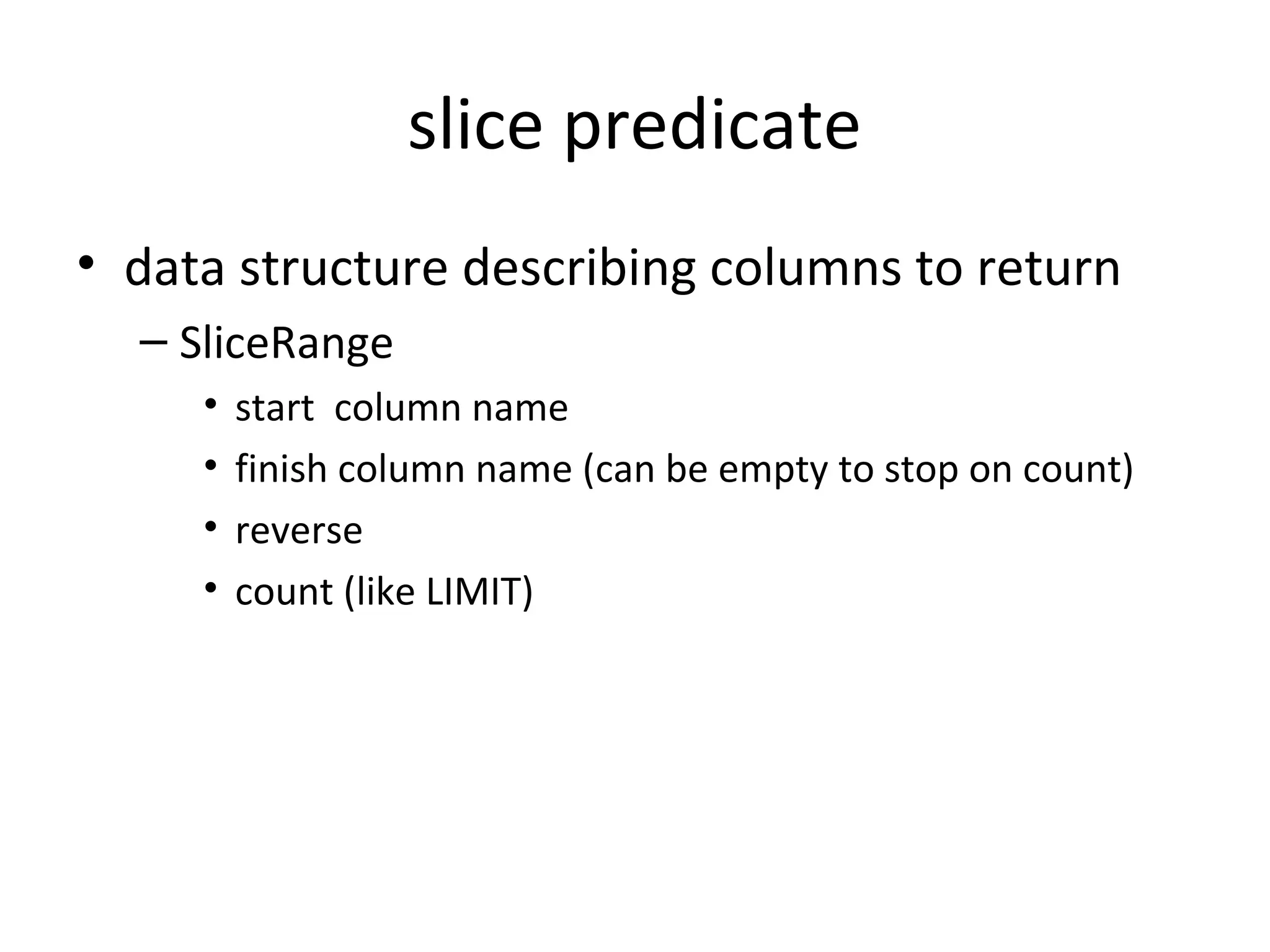

- 32. slice predicate • datastructure describing columns to return – SliceRange • start column name • finish column name (can be empty to stop on count) • reverse • count (like LIMIT)

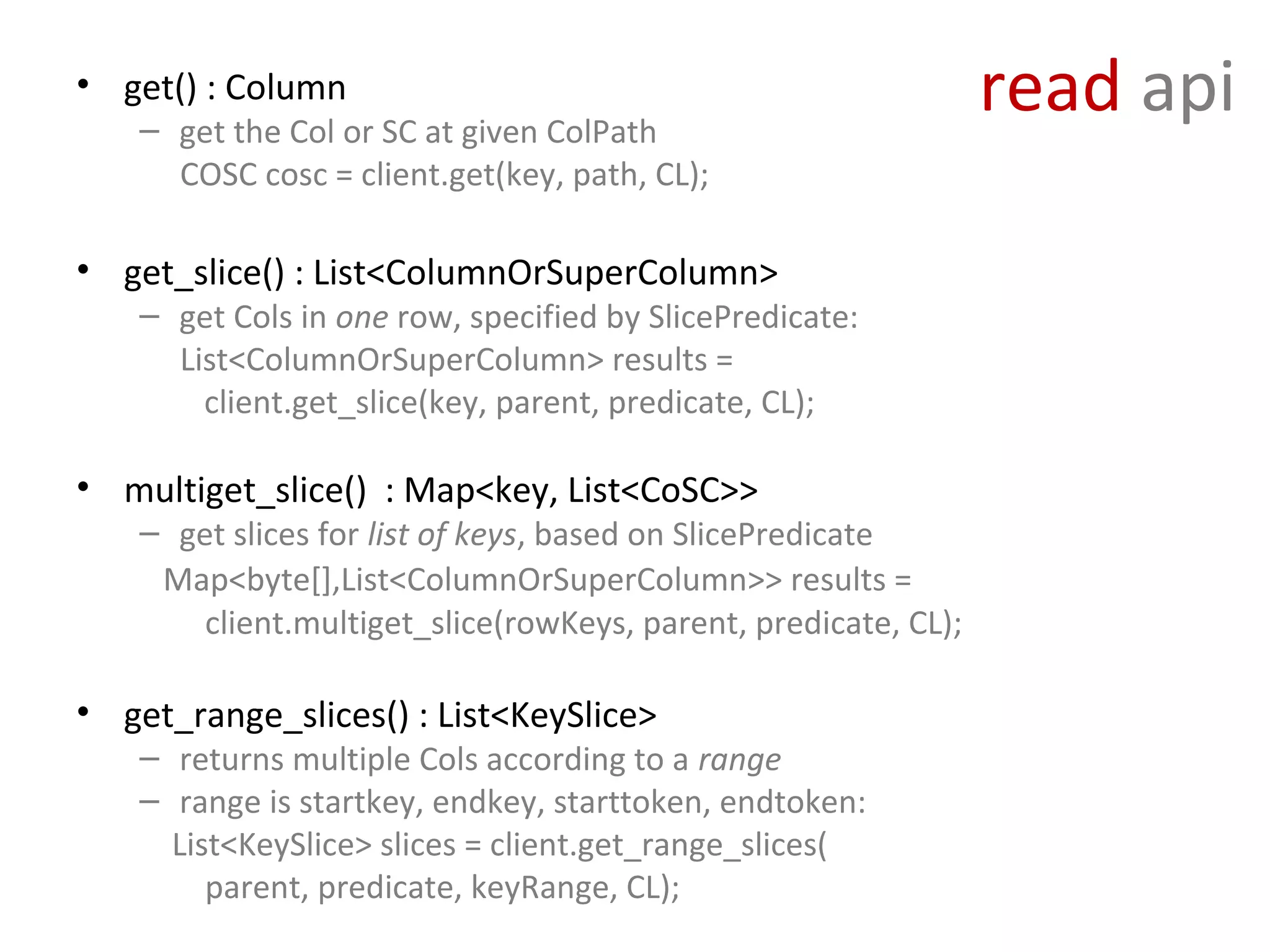

- 33. • get() :Column – get the Col or SC at given ColPath read api COSC cosc = client.get(key, path, CL); • get_slice() : List<ColumnOrSuperColumn> – get Cols in one row, specified by SlicePredicate: List<ColumnOrSuperColumn> results = client.get_slice(key, parent, predicate, CL); • multiget_slice() : Map<key, List<CoSC>> – get slices for list of keys, based on SlicePredicate Map<byte[],List<ColumnOrSuperColumn>> results = client.multiget_slice(rowKeys, parent, predicate, CL); • get_range_slices() : List<KeySlice> – returns multiple Cols according to a range – range is startkey, endkey, starttoken, endtoken: List<KeySlice> slices = client.get_range_slices( parent, predicate, keyRange, CL);

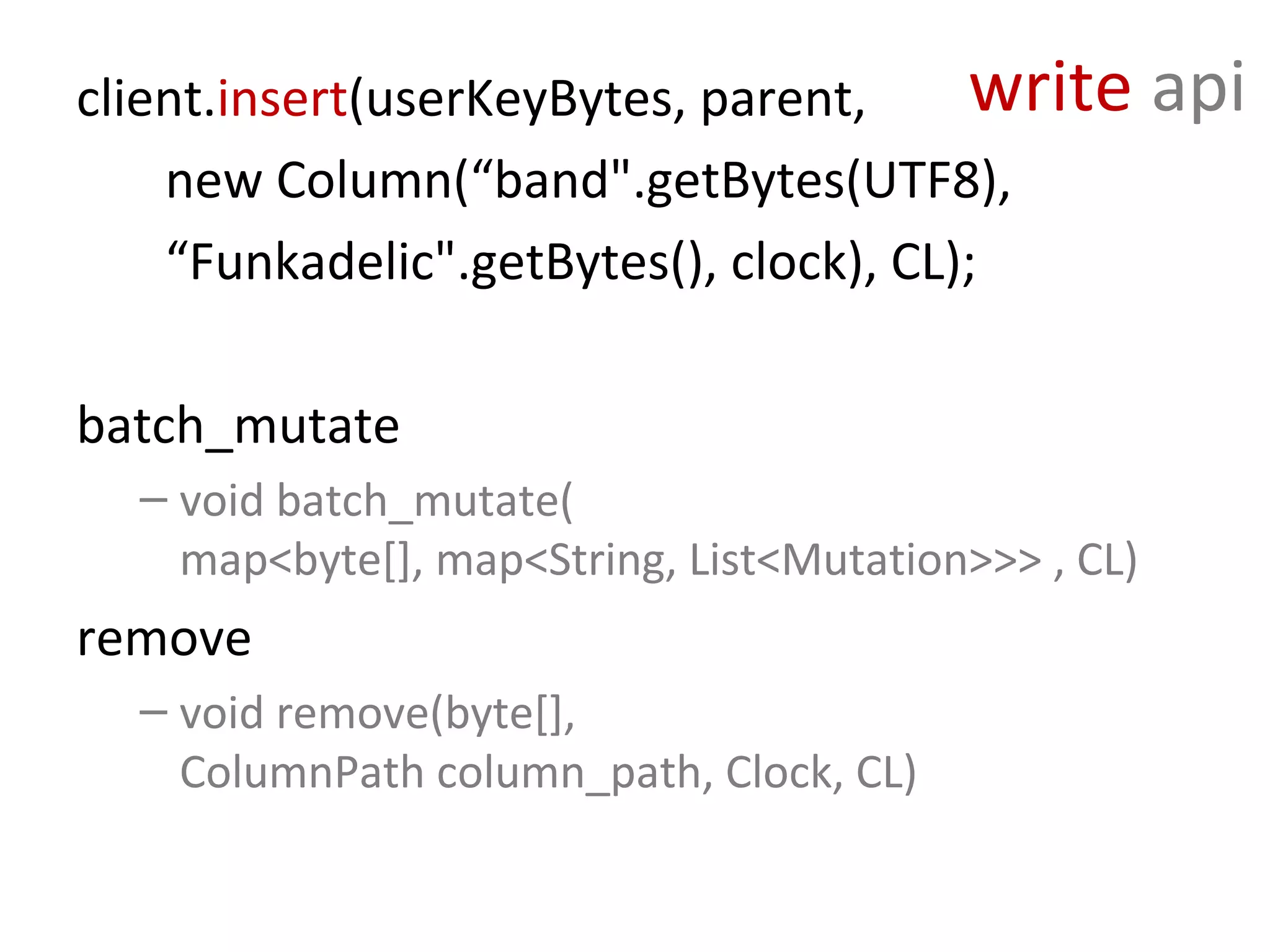

- 34. client.insert(userKeyBytes, parent, write api new Column(“band".getBytes(UTF8), “Funkadelic".getBytes(), clock), CL); batch_mutate – void batch_mutate( map<byte[], map<String, List<Mutation>>> , CL) remove – void remove(byte[], ColumnPath column_path, Clock, CL)

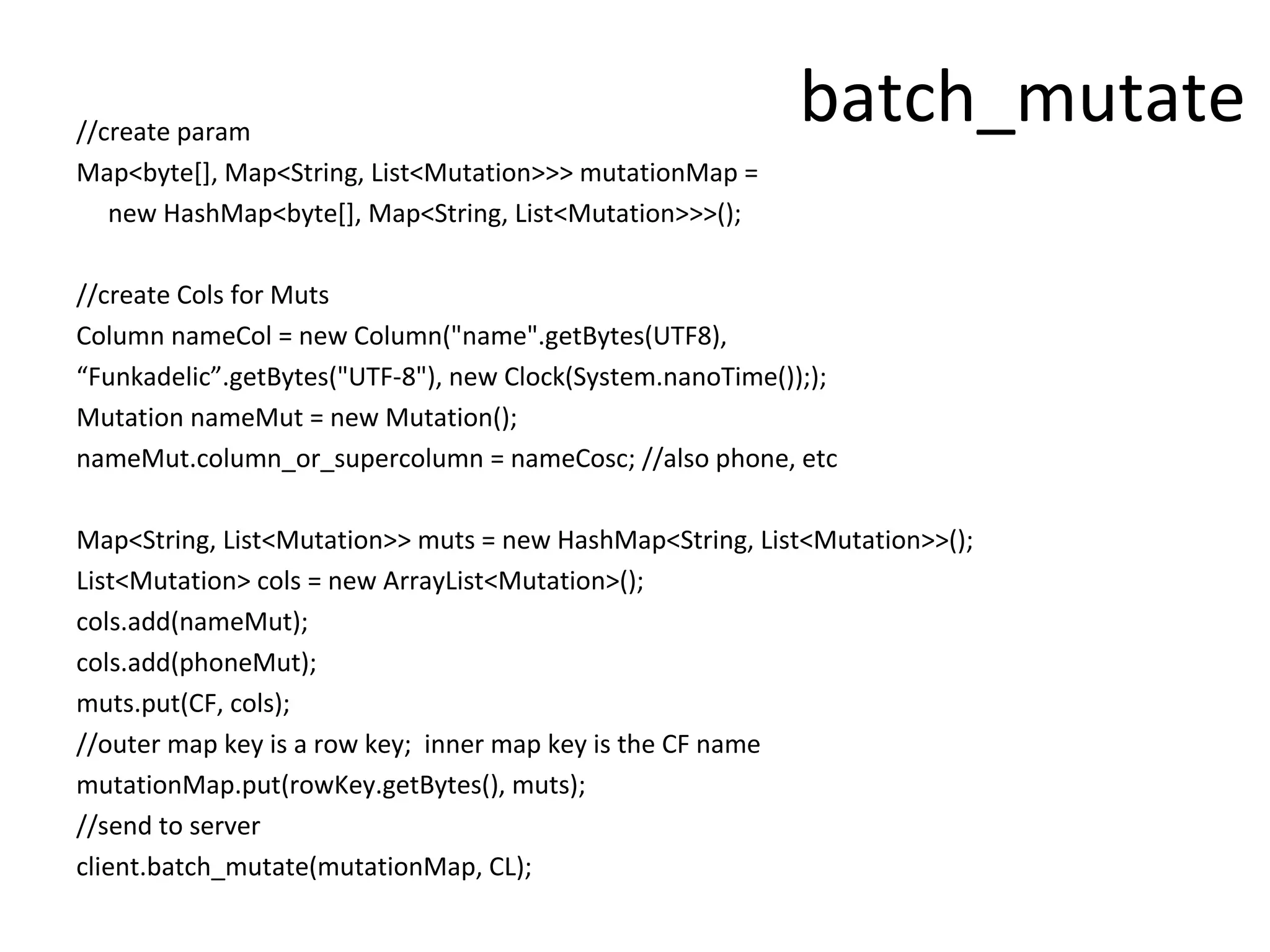

- 35. //create param batch_mutate Map<byte[], Map<String, List<Mutation>>> mutationMap = new HashMap<byte[], Map<String, List<Mutation>>>(); //create Cols for Muts Column nameCol = new Column("name".getBytes(UTF8), “Funkadelic”.getBytes("UTF-8"), new Clock(System.nanoTime());); Mutation nameMut = new Mutation(); nameMut.column_or_supercolumn = nameCosc; //also phone, etc Map<String, List<Mutation>> muts = new HashMap<String, List<Mutation>>(); List<Mutation> cols = new ArrayList<Mutation>(); cols.add(nameMut); cols.add(phoneMut); muts.put(CF, cols); //outer map key is a row key; inner map key is the CF name mutationMap.put(rowKey.getBytes(), muts); //send to server client.batch_mutate(mutationMap, CL);

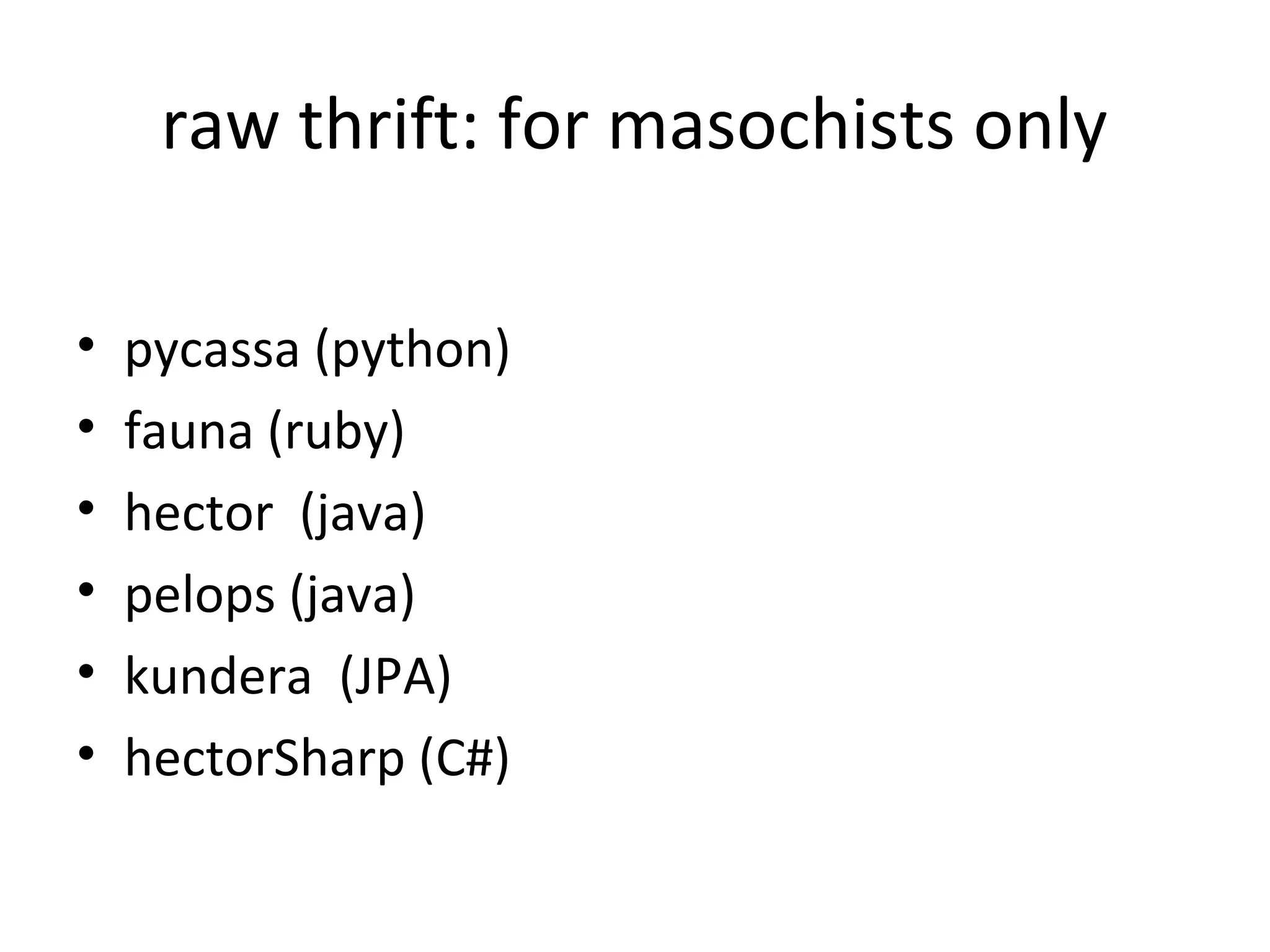

- 36. raw thrift: formasochists only • pycassa (python) • fauna (ruby) • hector (java) • pelops (java) • kundera (JPA) • hectorSharp (C#)

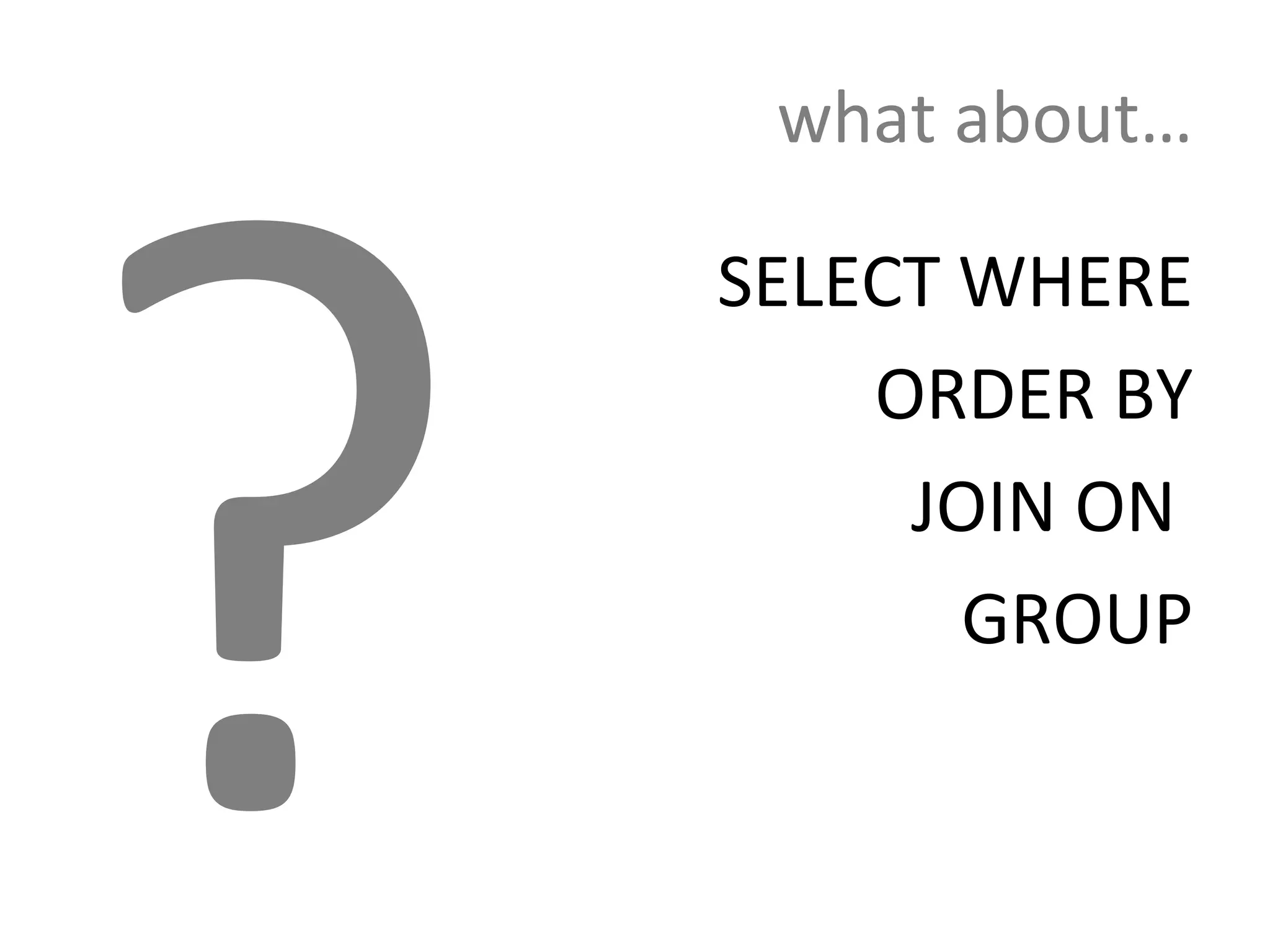

- 37. ? what about… SELECT WHERE ORDER BY JOIN ON GROUP

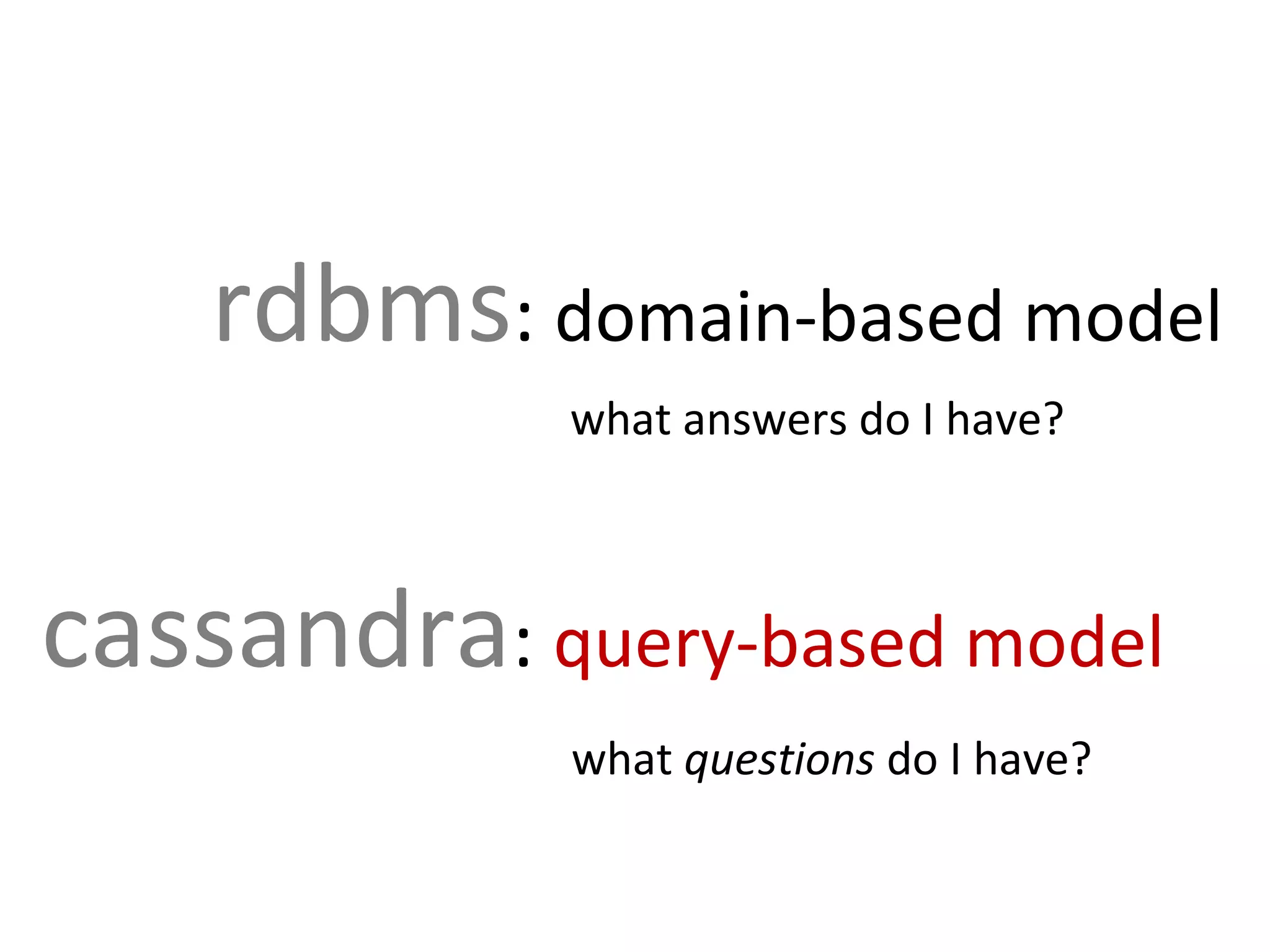

- 38. rdbms: domain-based model what answers do I have? cassandra: query-based model what questions do I have?

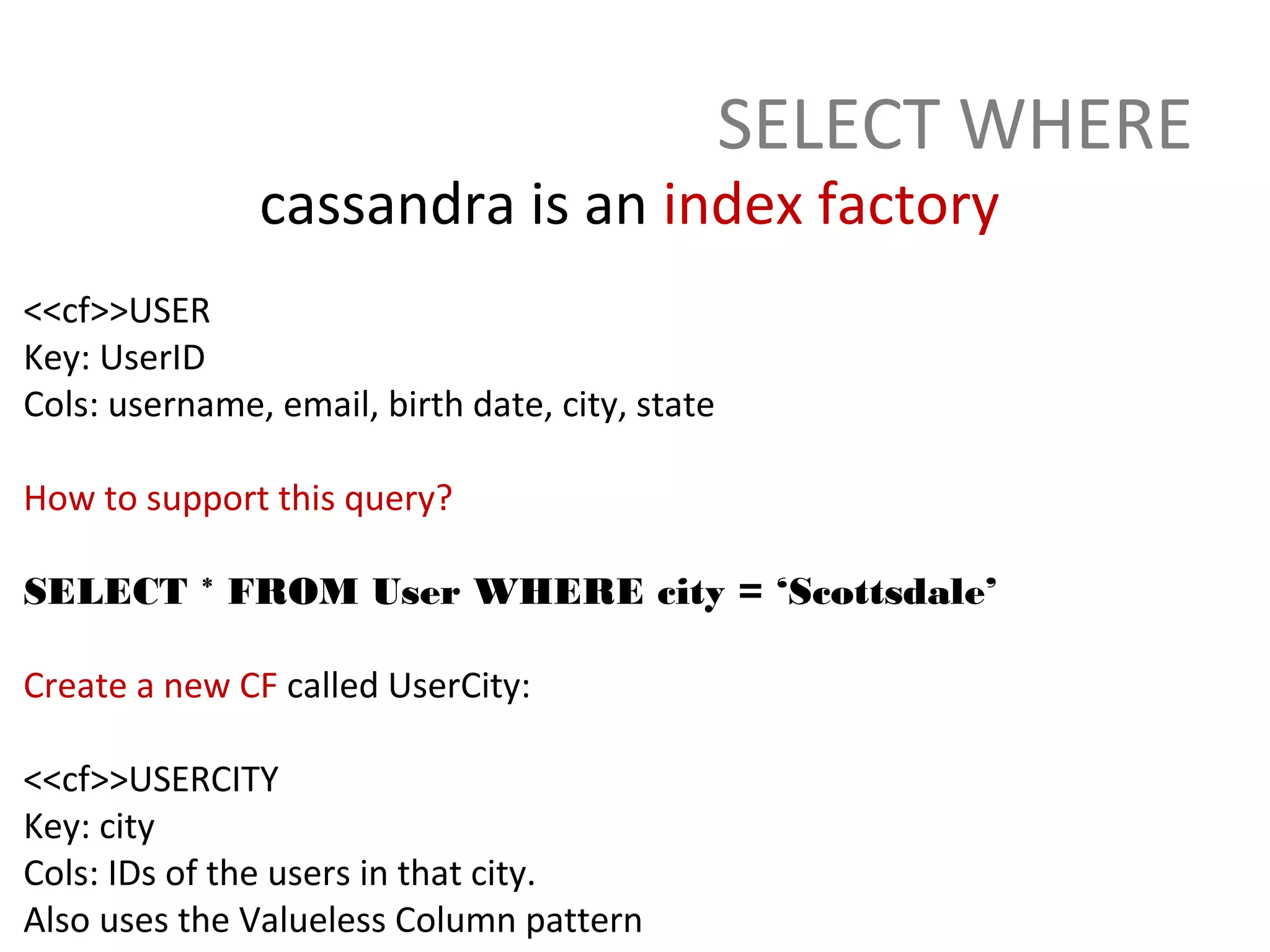

- 39. SELECT WHERE cassandra is an index factory <<cf>>USER Key: UserID Cols: username, email, birth date, city, state How to support this query? SELECT * FROM User WHERE city = ‘Scottsdale’ Create a new CF called UserCity: <<cf>>USERCITY Key: city Cols: IDs of the users in that city. Also uses the Valueless Column pattern

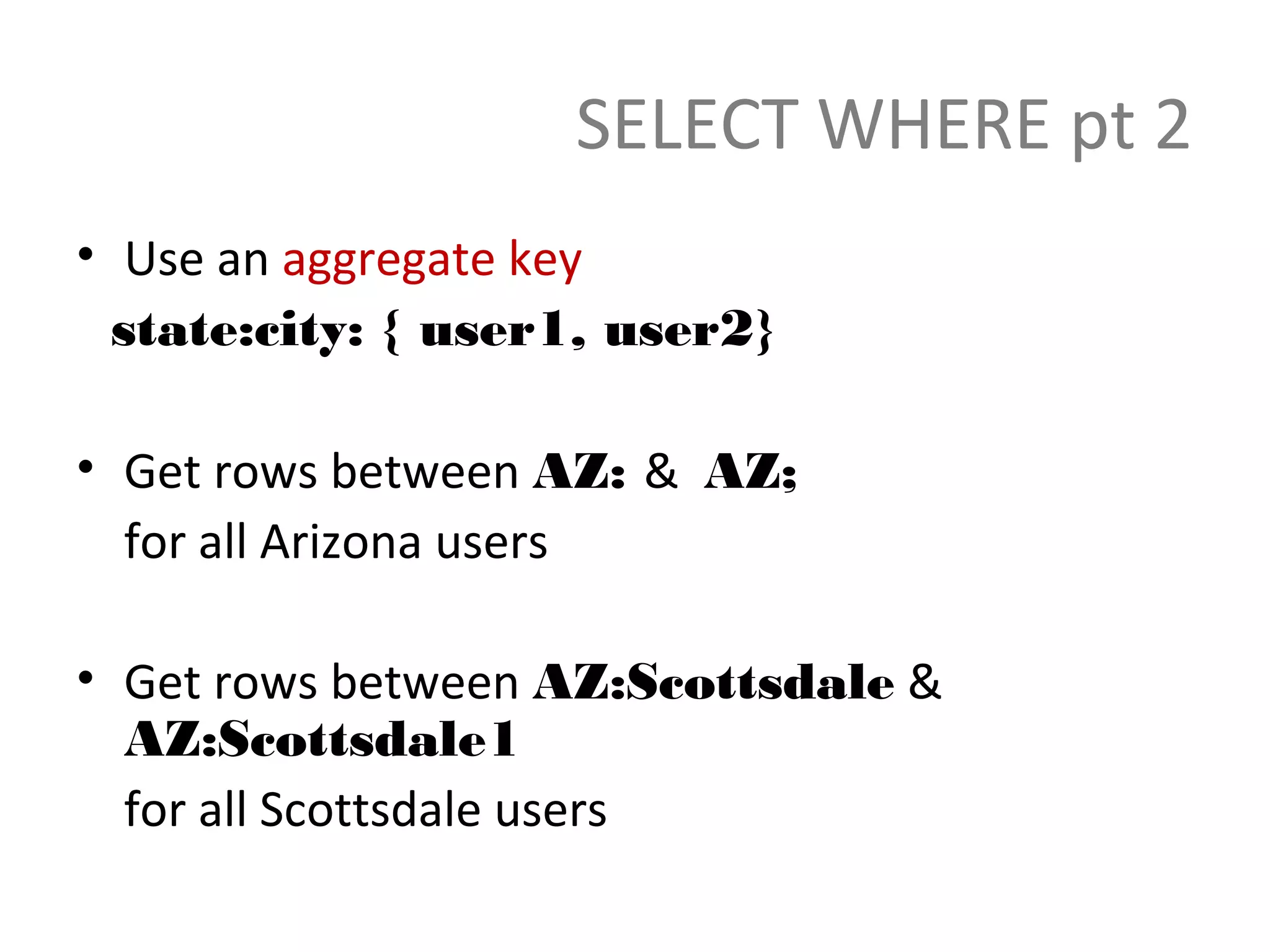

- 40. SELECT WHERE pt2 • Use an aggregate key state:city: { user1, user2} • Get rows between AZ: & AZ; for all Arizona users • Get rows between AZ:Scottsdale & AZ:Scottsdale1 for all Scottsdale users

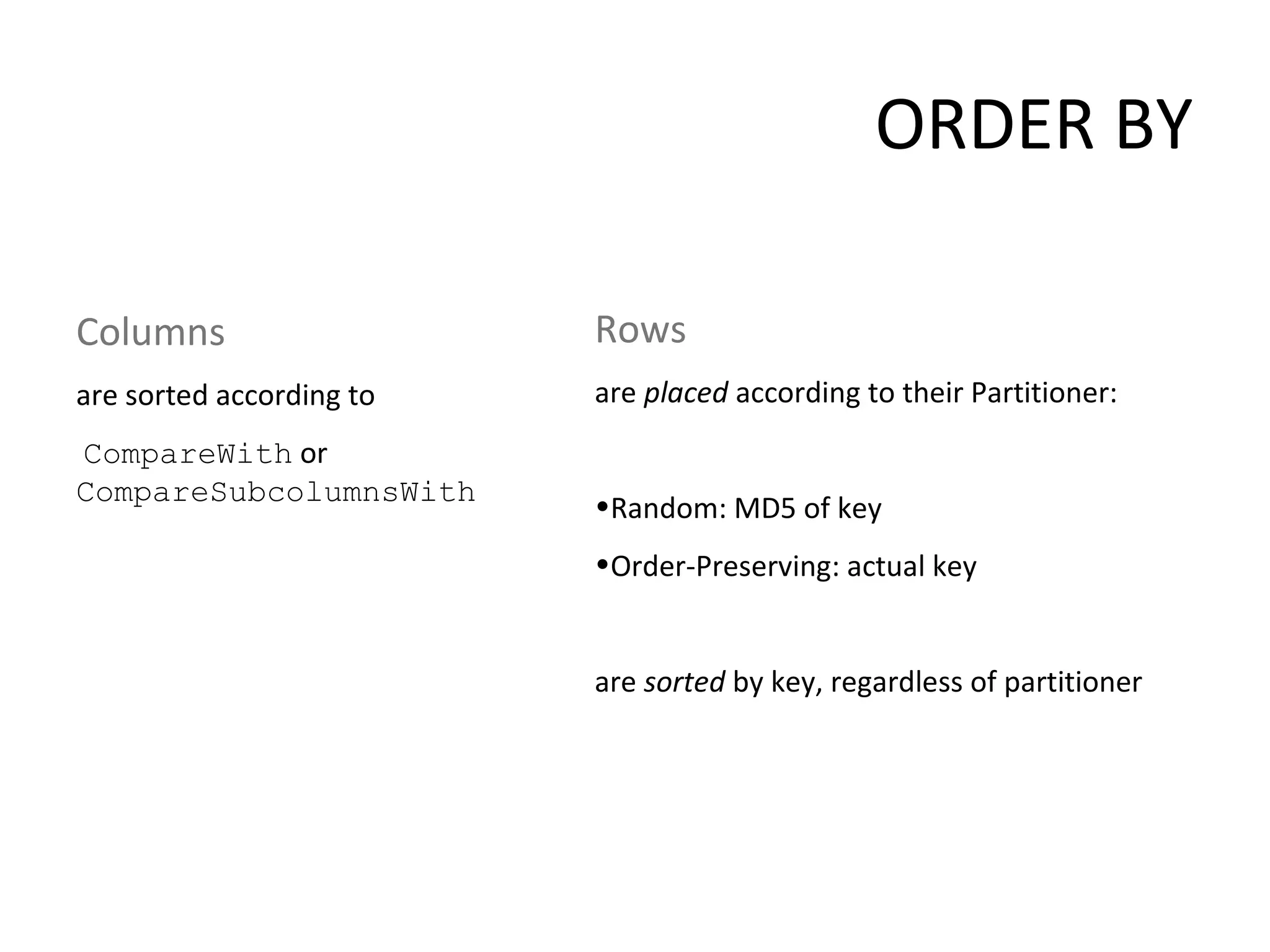

- 41. ORDER BY Columns Rows are sorted according to are placed according to their Partitioner: CompareWith or CompareSubcolumnsWith •Random: MD5 of key •Order-Preserving: actual key are sorted by key, regardless of partitioner

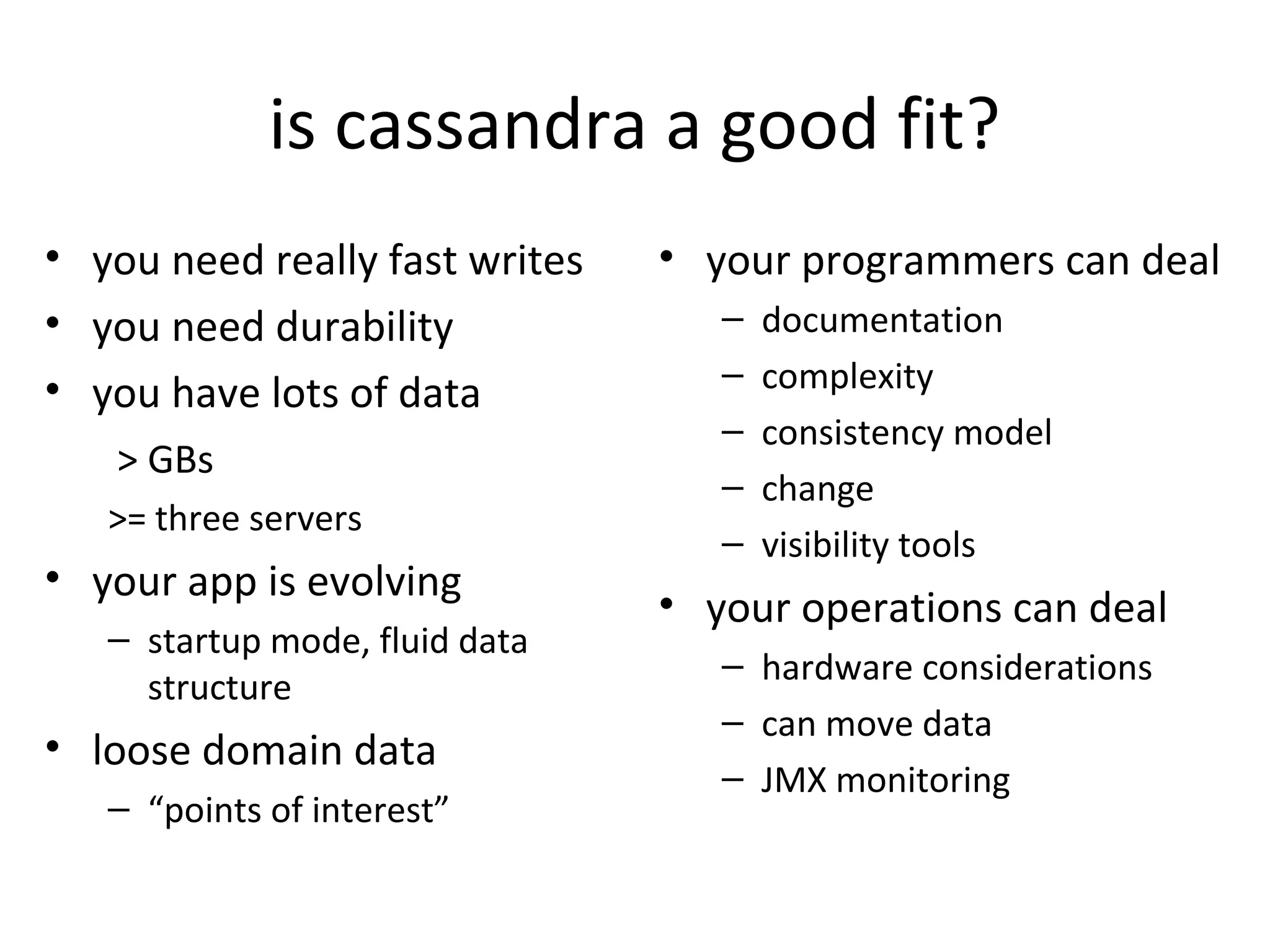

- 44. is cassandra agood fit? • you need really fast writes • your programmers can deal • you need durability – documentation • you have lots of data – complexity – consistency model > GBs – change >= three servers – visibility tools • your app is evolving • your operations can deal – startup mode, fluid data – hardware considerations structure – can move data • loose domain data – JMX monitoring – “points of interest”
- 45.
